联想 ThinkPad X1 Tablet Gen 2 (i5-7Y54) 平板电脑简短评测

进步而非革新。 联想的ThinkPad X1 Tablet第一代表现十分不错,但也存在不少问题。一年之后的这个最新版本得到了芯片组和其他一部分硬件的升级。不过这足够让它保持竞争力吗?
Steve Schardein (translated by Yuchen Wang),
Tablet Convertible / 2-in-1 Windows Touchscreen
Lenovo ThinkPad X1 Tablet Gen 2 (ThinkPad X1 Series)
Processor
Intel Core i5-7Y54 2 x 1.2 - 3.2 GHz, Kaby Lake
Graphics adapter
Intel HD Graphics 615, Core: 300 - 950 MHz, 21.20.16.4590
Memory
8192 MB
, DDR3
Display
12 inch 3:2, 2160 x 1440 pixel 216 PPI, 10点触控, LSN120QL01L01, IPS, glossy: yes
Mainboard
Intel Kaby Lake-Y Premium PCH
Storage
Samsung PM961 MZVLW256HEHP, 256 GB
Soundcard
Realtek High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米整合音频接口, Card Reader: MicroSD
Networking
Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5)
Size
height x width x depth (in mm): 9 x 293 x 210
Battery
37 Wh, 4690 mAh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit

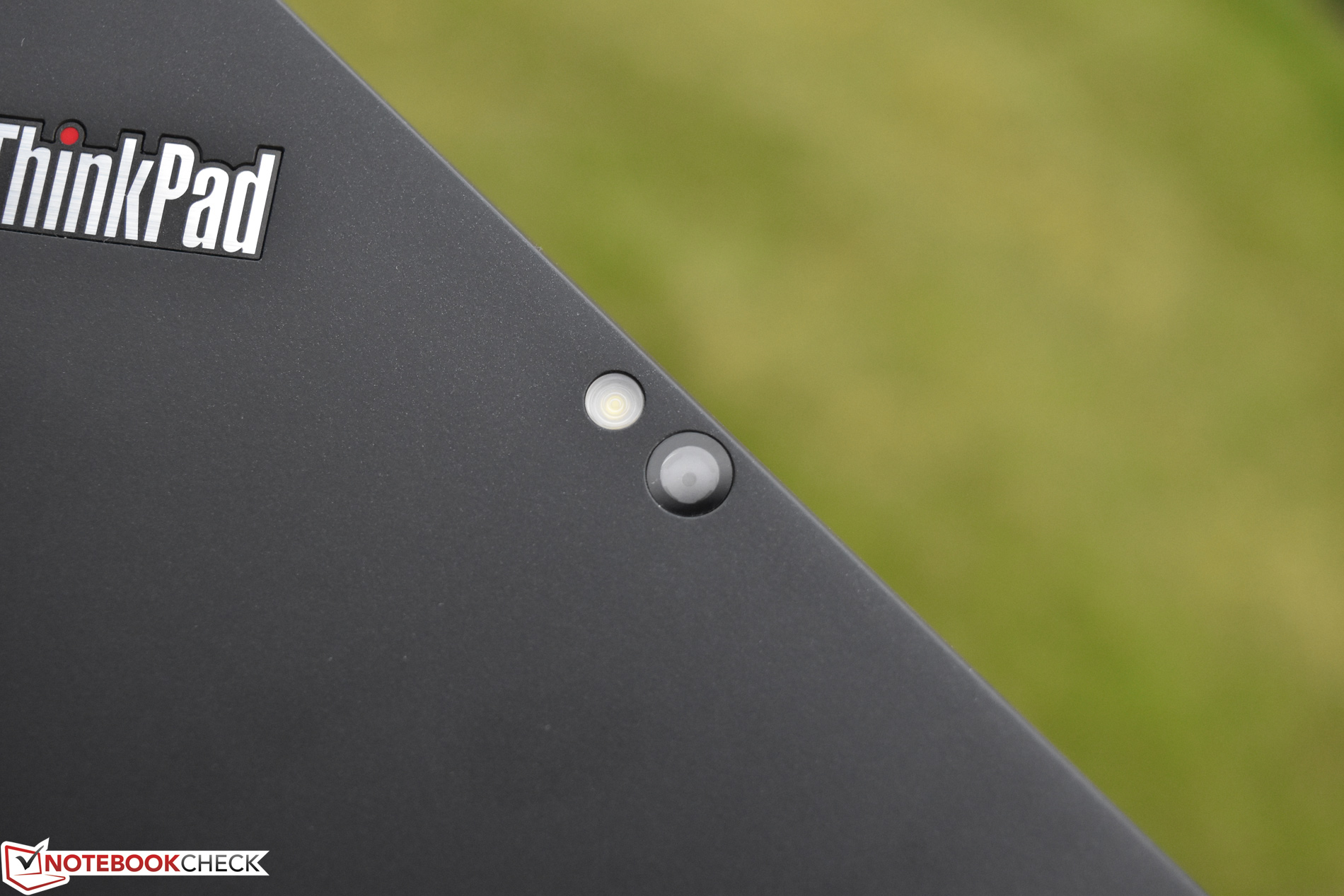

Camera
Webcam: 前置:200万像素;后置:800万像素
Primary Camera: 8 MPix
Secondary Camera: 2 MPix
Additional features
Speakers: 2.0, 位于两侧, Keyboard: 孤岛式, Keyboard Light: yes, 12 Months Warranty, fanless
Weight
1.08 kg
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



333 mm 229 mm 17.4 mm 1.4 kg316.9 mm 218.5 mm 14.9 mm 1.3 kg293 mm 210 mm 9 mm 1.1 kg289 mm 216 mm 13 mm 1 kg292 mm 208.8 mm 9.76 mm 1.2 kg292 mm 202 mm 8.5 mm 1.1 kg

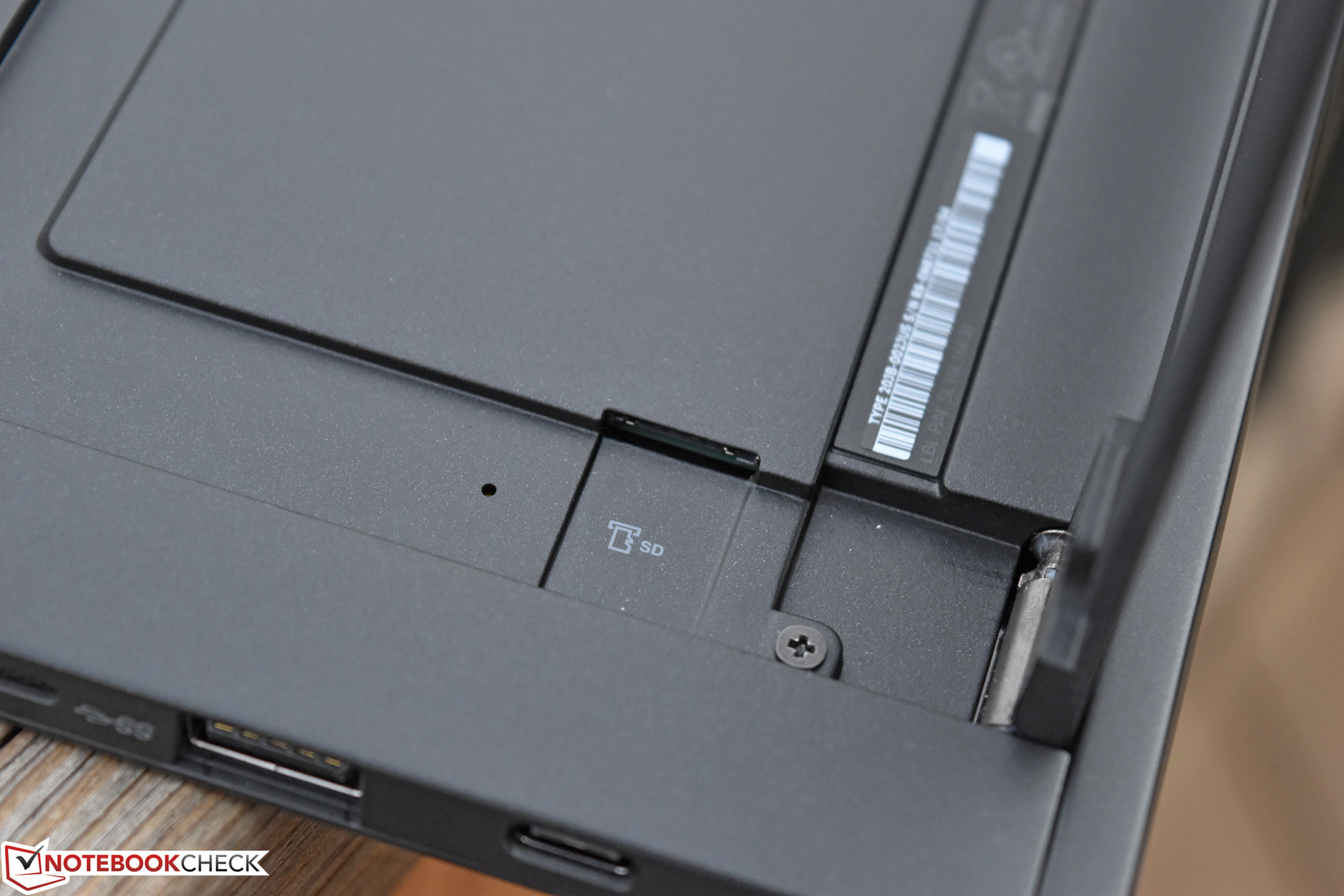

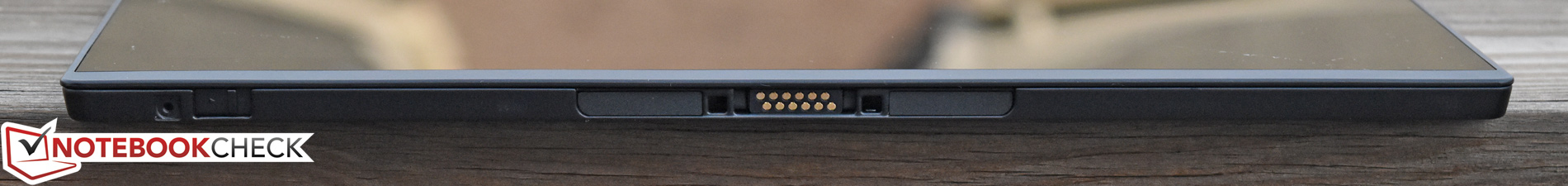

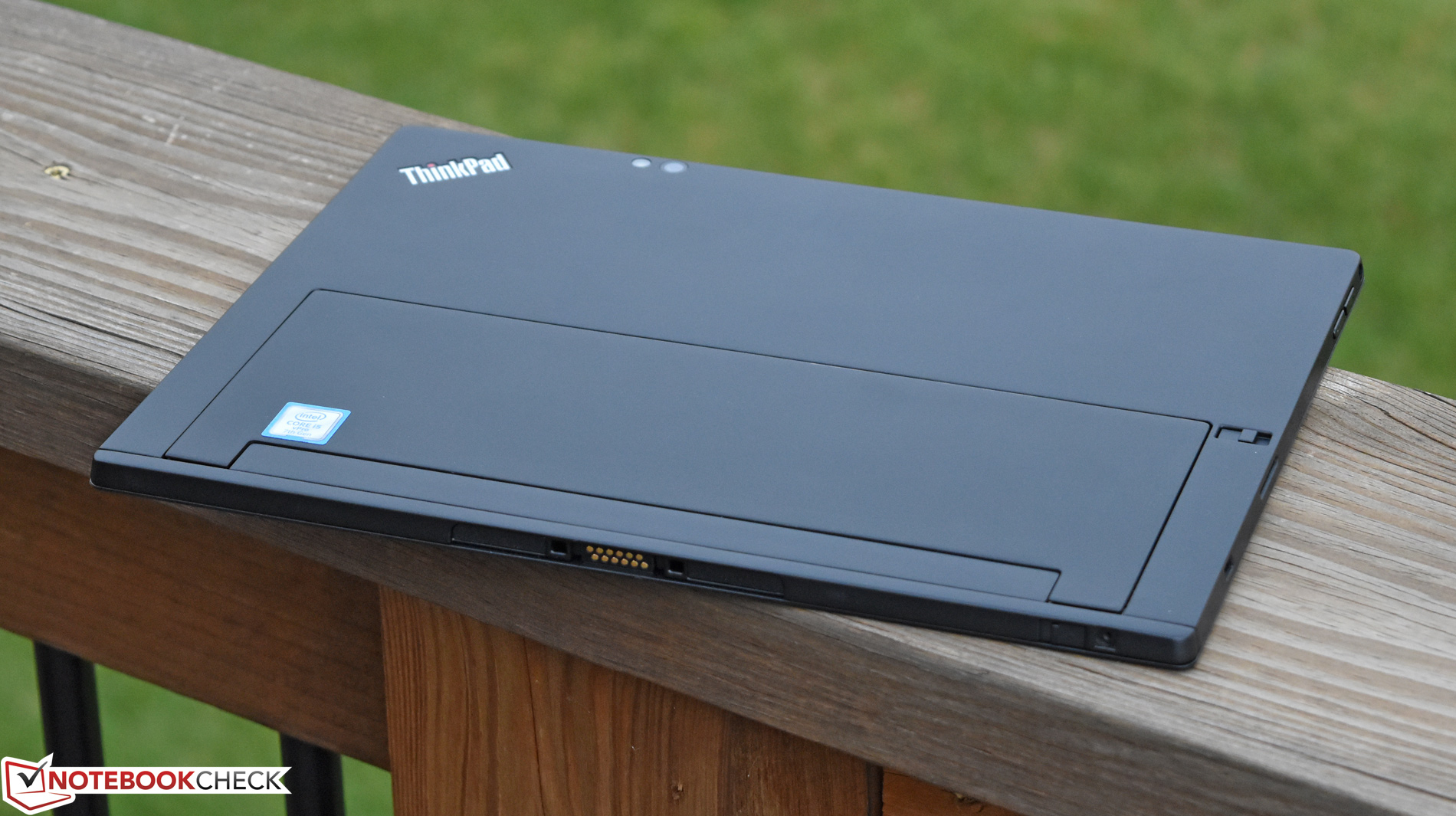

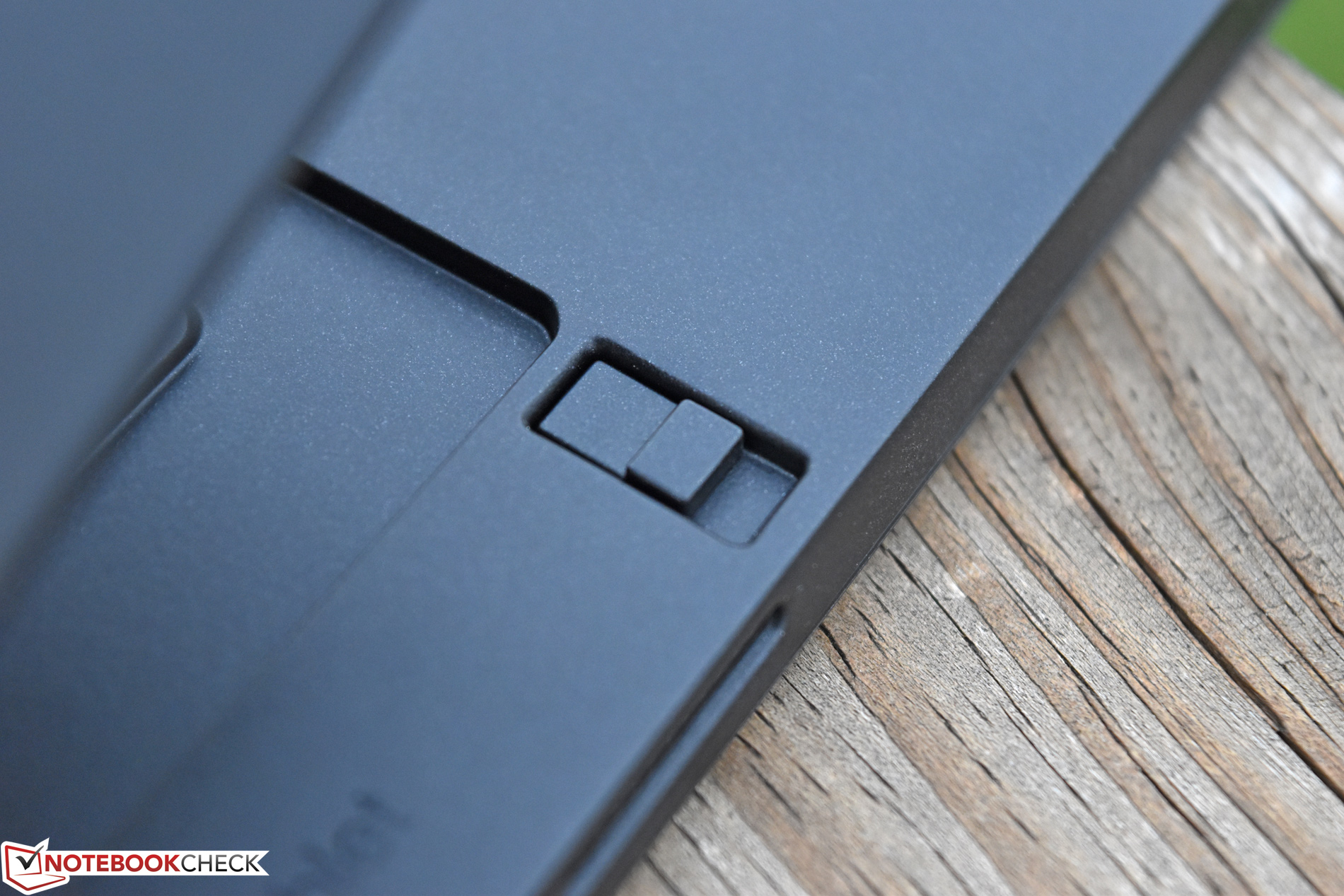

Bottom: Bottom cover release hatch, docking/keyboard cover port
Bottom: Bottom cover release hatch, docking/keyboard cover port

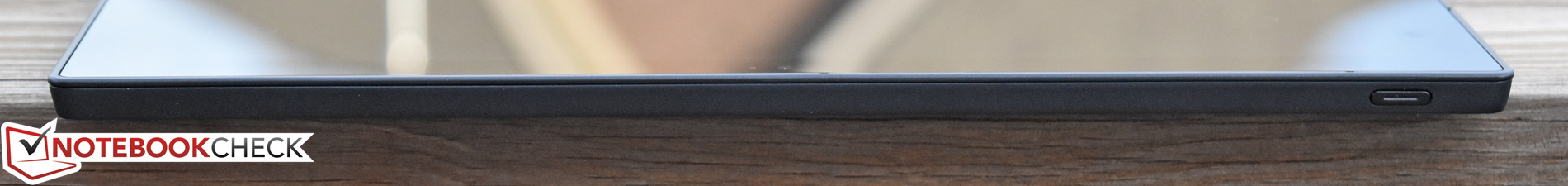

Top: Power button
Top: Power button

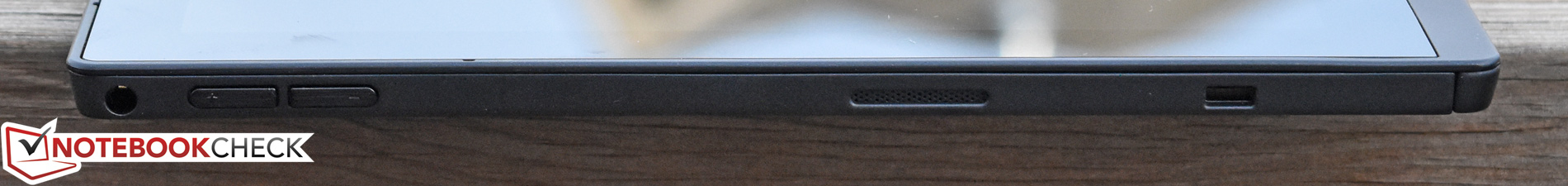

Left: Combo audio jack, volume rocker, speaker, Kensington Lock
Left: Combo audio jack, volume rocker, speaker, Kensington Lock

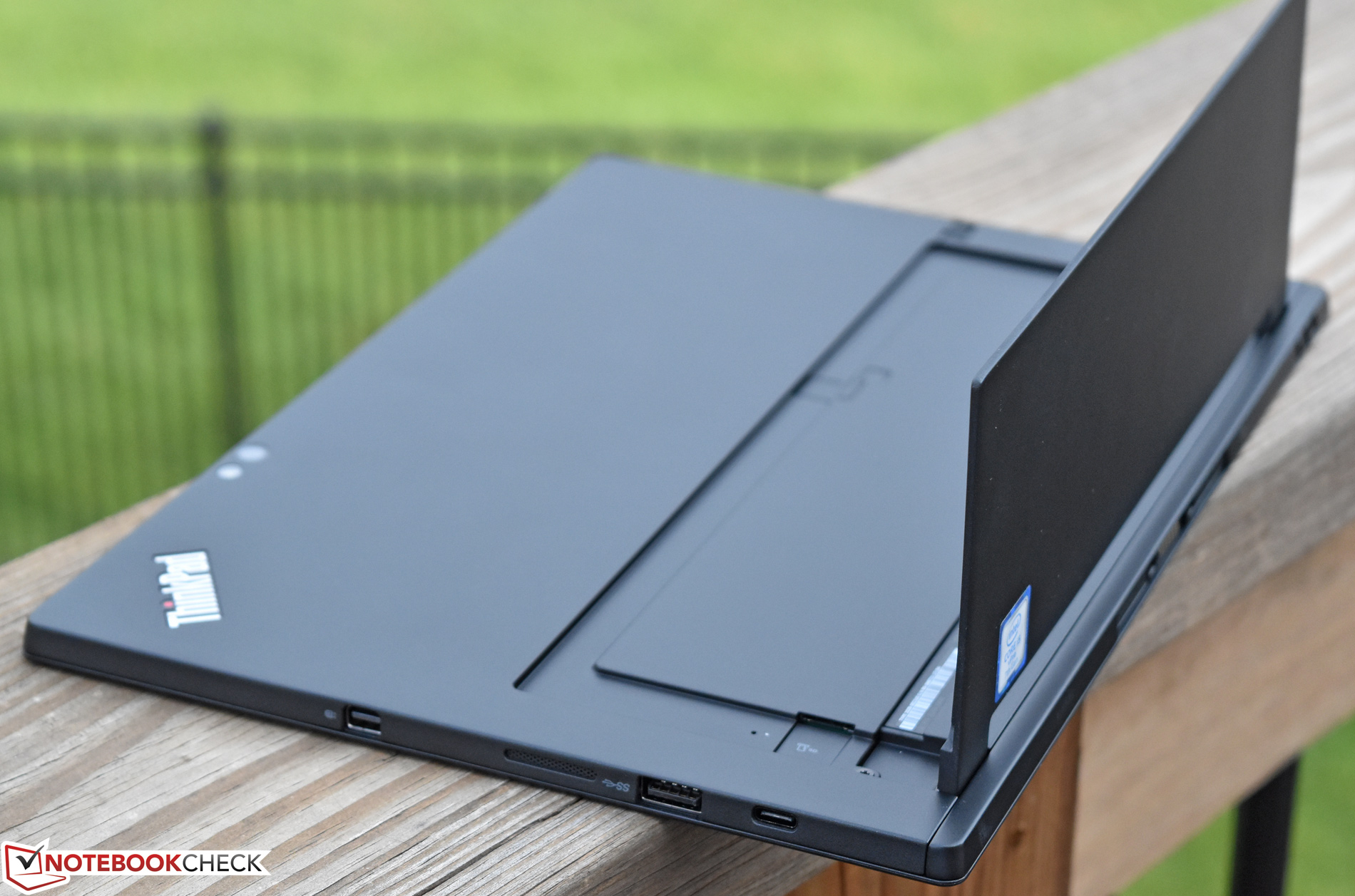

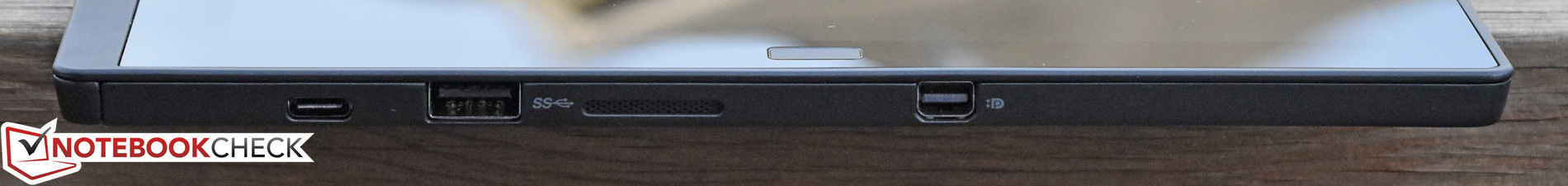

Right: USB Type-C 3.1 Gen 1, USB 3.0, speaker, mini-DisplayPort (Not shown: MicroSD card reader, beneath kickstand)
Right: USB Type-C 3.1 Gen 1, USB 3.0, speaker, mini-DisplayPort (Not shown: MicroSD card reader, beneath kickstand)
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad X1 Yoga 2017 20JES03T00

76.3 MB/s ∼100% +5%
Lenovo ThinkPad X1 Tablet Gen 2

72.62 MB/s ∼95%
Dell Latitude 12 5285 2-in-1

64 MB/s ∼84% -12%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad X1 Tablet Gen 2

93.77 MB/s ∼100%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00

87.5 MB/s ∼93% -7%
Dell Latitude 12 5285 2-in-1

86.9 MB/s ∼93% -7%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Dual Band Wireless-AC 8265
678 MBit/s ∼100% +16%
HP EliteBook x360 1030 G2
Intel Dual Band Wireless-AC 8265
613 MBit/s ∼90% +5%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Dual Band Wireless-AC 8265
586 MBit/s ∼86%
Dell Latitude 12 5285 2-in-1
Intel Dual Band Wireless-AC 8265
312 MBit/s ∼46% -47%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Dual Band Wireless-AC 8265
514 MBit/s ∼100% +17%
HP EliteBook x360 1030 G2
Intel Dual Band Wireless-AC 8265
455 MBit/s ∼89% +3%
Dell Latitude 12 5285 2-in-1
Intel Dual Band Wireless-AC 8265
446 MBit/s ∼87% +1%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Dual Band Wireless-AC 8265
440 MBit/s ∼86%
339.9
cd/m²
362.8
cd/m²
332.9
cd/m²
322.2
cd/m²
388.1
cd/m²
331.8
cd/m²
304.4
cd/m²
381.5
cd/m²
333.8
cd/m²
Distribution of brightness
LSN120QL01L01
X-Rite i1Pro Basic 2
Maximum: 388.1 cd/m² Average: 344.2 cd/m² Minimum: 5.07 cd/m²
Brightness Distribution: 78 %
Center on Battery: 388.1 cd/m²
Contrast: 995:1 (Black: 0.39 cd/m²)
ΔE Color 4.6 | 0.6-29.43 Ø5.9
ΔE Greyscale 6.1 | 0.64-98 Ø6.1
91% sRGB (Argyll 3D) 59% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.07
Lenovo ThinkPad X1 Tablet Gen 2
LSN120QL01L01, IPS, 12, 2160x1440
Lenovo ThinkPad X1 Tablet
INT3470, IPS, 12, 2160x1440
Dell Latitude 12 5285 2-in-1
BOE06DC, IPS, 12.3, 1920x1280
HP EliteBook x360 1030 G2
CMN1374, IPS, 13.3, 1920x1080
Microsoft Surface Pro 4, Core m3
Samsung SDC3853, IPS, 12.3, 2736x1824
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
LEN4140, OLED, 14, 2560x1440
Response Times
8%
-30%
-57%
-58%
61%
Response Time Grey 50% / Grey 80% *
28.4 (15.2, 13.2)
28.4 (11.2, 17.2)
-0%
42.4 (20.4, 22)
-49%
55.2 (21.2, 34)
-94%
46 (17.2, 28.8)
-62%
3.6 (1.6, 2)
87%
Response Time Black / White *
22.8 (13.6, 9.2)
17.6 (3.6, 14)
23%
30.8 (18, 12.8)
-35%
27.2 (7.6, 19.6)
-19%
31 (6, 25.2)
-36%
3.2 (2, 1.2)
86%
PWM Frequency
221.2 (49)
222.2 (49)
0%
210.1 (99)
-5%
50 (50)
-77%
240.4 (80)
9%
Screen
-16%
16%
-3%
20%
4%
Brightness middle
388.1
342.4
-12%
523.2
35%
262
-32%
389.2
0%
243
-37%
Brightness
344
315
-8%
522
52%
256
-26%
392
14%
240
-30%
Brightness Distribution
78
85
9%
88
13%
83
6%
92
18%
95
22%
Black Level *
0.39
0.744
-91%
0.42
-8%
0.25
36%
0.27
31%
Contrast
995
460
-54%
1246
25%
1048
5%
1441
45%
Colorchecker DeltaE2000 *
4.6
5.33
-16%
4
13%
5.13
-12%
3.61
22%
5.3
-15%
Colorchecker DeltaE2000 max. *
9.1
9.25
-2%
8.6
5%
9.46
-4%
8.9
2%
Greyscale DeltaE2000 *
6.1
5.36
12%
5.5
10%
6.23
-2%
3.8
38%
3.7
39%
Gamma
2.07 106%
2.12 104%
2.16 102%
2.45 90%
2.16 102%
1.78 124%
CCT
7104 91%
7671 85%
7546 86%
6413 101%
5969 109%
6202 105%
Color Space (Percent of AdobeRGB 1998)
59
57
-3%
64.86
10%
57.84
-2%
63
7%
84.8
44%
Color Space (Percent of sRGB)
91
93
2%
93.97
3%
88.57
-3%
97
7%
100
10%
Total Average (Program / Settings)
-4% / -11%
-7% / 5%
-30% / -12%
-19% / 1%
33% / 20%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

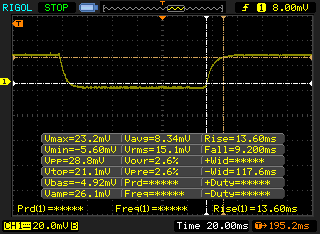

       Response Time Black to White
22.8 ms ... rise ↗ and fall ↘ combined↗ 13.6 ms rise
↘ 9.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 31 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24.7 ms).

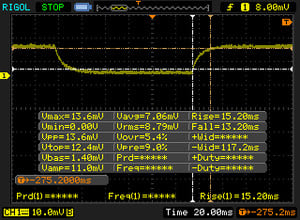

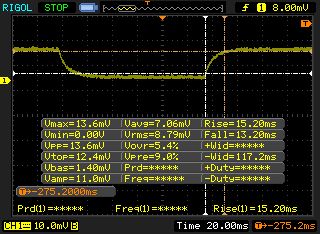

       Response Time 50% Grey to 80% Grey
28.4 ms ... rise ↗ and fall ↘ combined↗ 15.2 ms rise
↘ 13.2 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 18 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (39.2 ms).

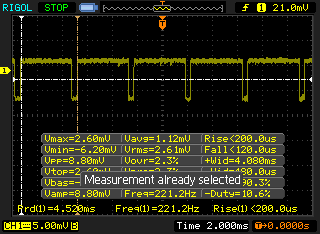

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 221.2 Hz ≤ 49 % brightness setting

The display backlight flickers at 221.2 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 49 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 221.2 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18084 (minimum: 5 - maximum: 2500000) Hz was measured.

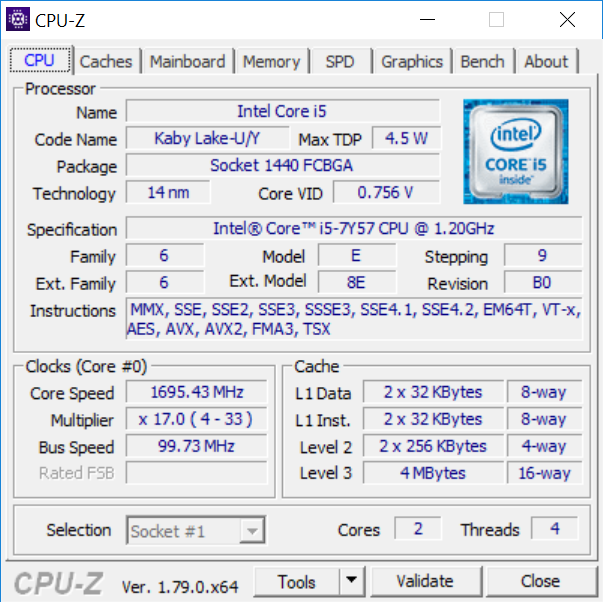

CPU-Z CPU
CPU-Z CPU

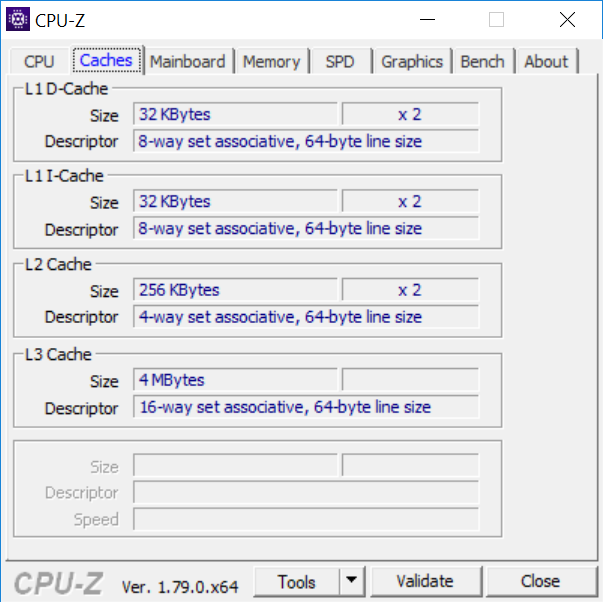

CPU-Z Caches
CPU-Z Caches

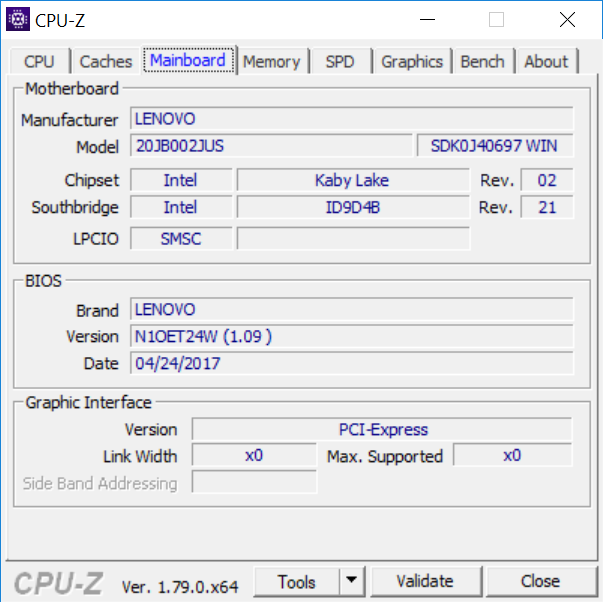

CPU-Z Mainboard
CPU-Z Mainboard

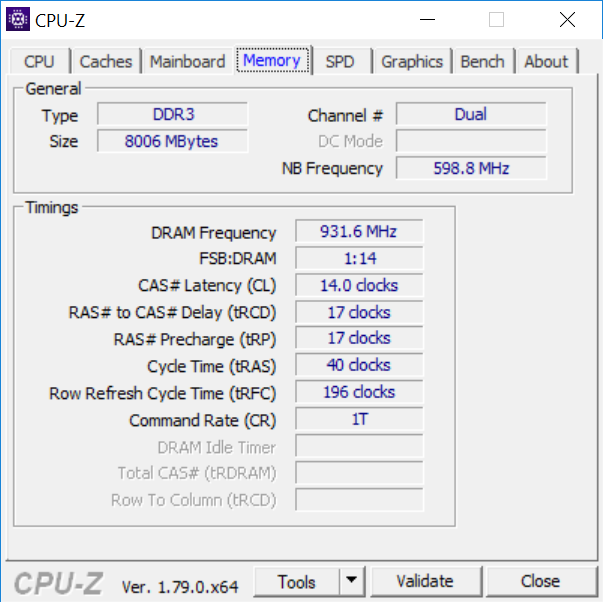

CPU-Z Memory
CPU-Z Memory

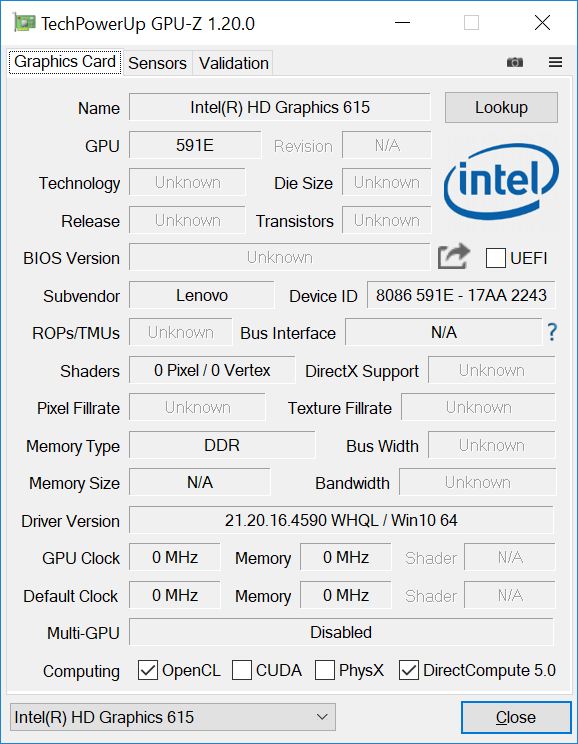

GPU-Z
GPU-Z

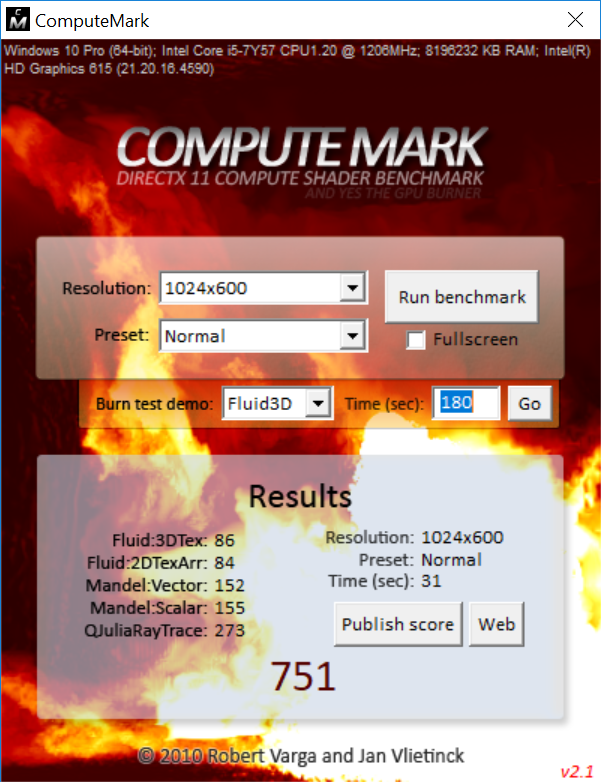

ComputeMark
ComputeMark

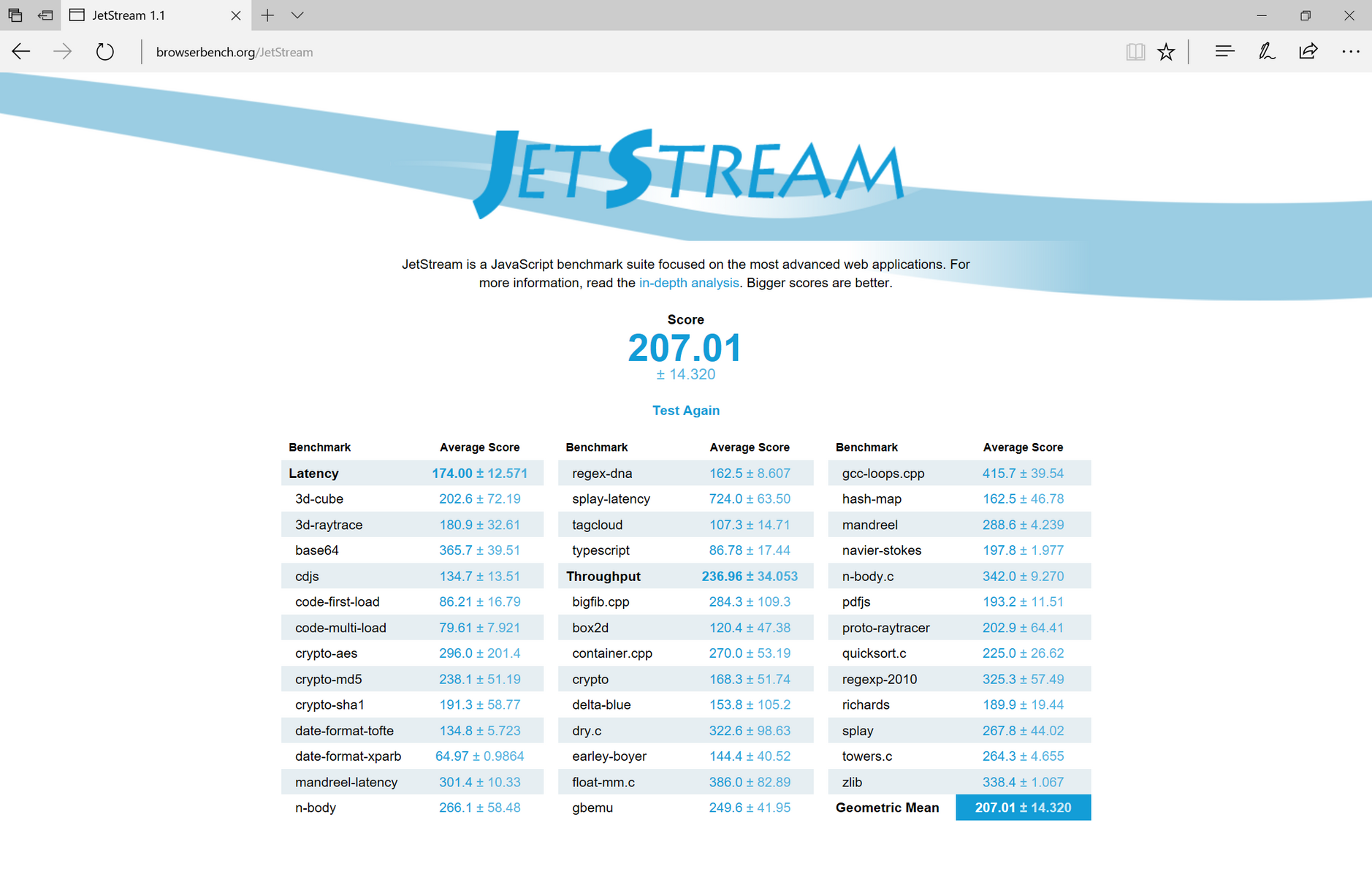

JetStream
JetStream

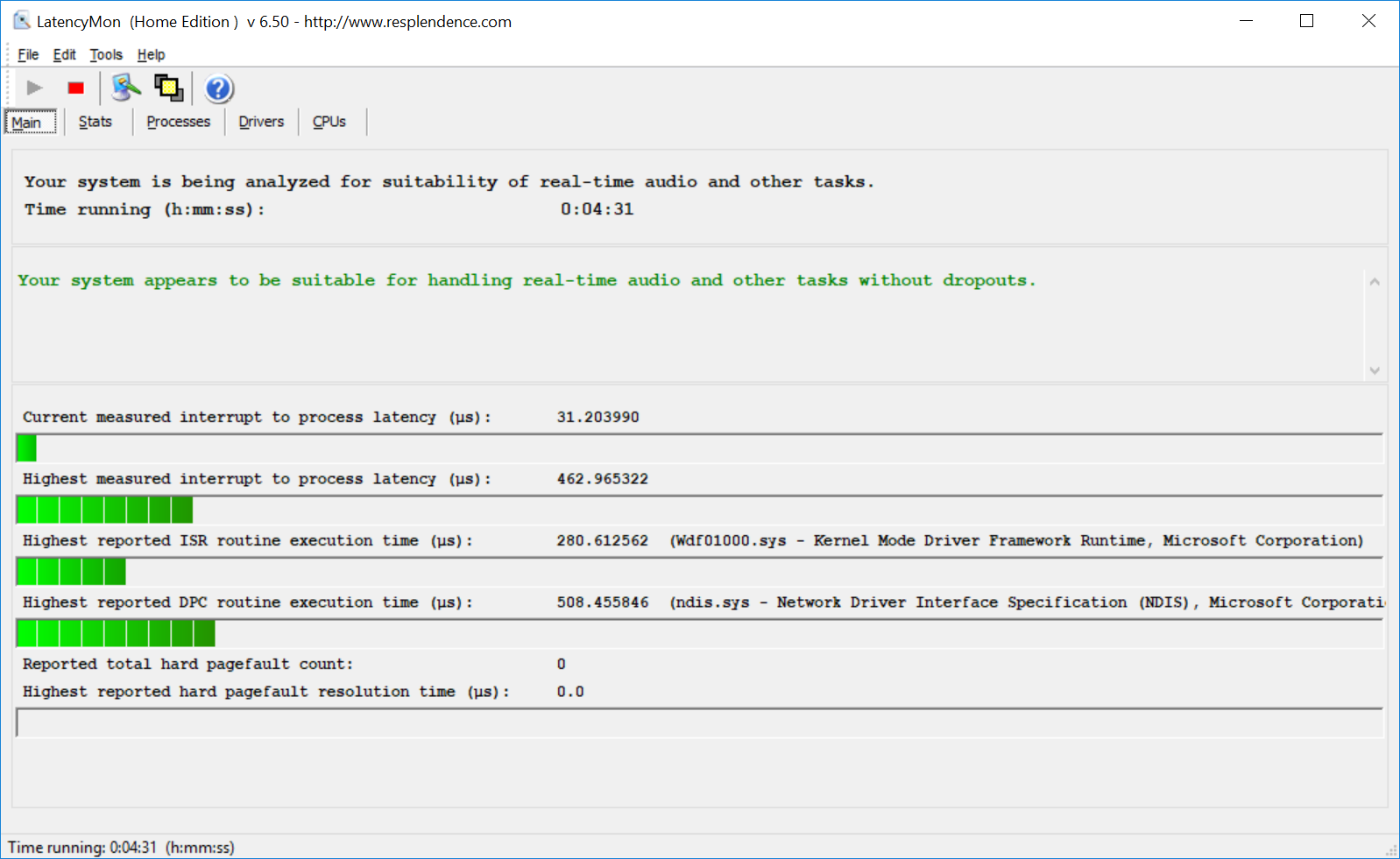

LatencyMon
LatencyMon
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Core i7-7600U
160 Points ∼71% +39%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
152 Points ∼68% +32%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
144 Points ∼64% +25%
Lenovo ThinkPad X1 Tablet
Intel Core m7-6Y75
119 Points ∼53% +3%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
115 Points ∼51%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
88 Points ∼39% -23%
CPU Multi 64Bit
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Core i7-7600U
373 Points ∼9% +59%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
346 Points ∼8% +48%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
329 Points ∼8% +41%
Lenovo ThinkPad X1 Tablet
Intel Core m7-6Y75
234 Points ∼5% 0%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
234 Points ∼5%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
206 Points ∼5% -12%
Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Core i7-7600U
1.85 Points ∼72% +40%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
1.76 Points ∼69% +33%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
1.64 Points ∼64% +24%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
1.32 Points ∼52%
Lenovo ThinkPad X1 Tablet
Intel Core m7-6Y75
1.08 Points ∼42% -18%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
0.98 Points ∼38% -26%
CPU Multi 64Bit
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Core i7-7600U
4.08 Points ∼9% +59%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
3.62 Points ∼8% +41%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
3.57 Points ∼8% +39%
Lenovo ThinkPad X1 Tablet
Intel Core m7-6Y75
2.62 Points ∼6% +2%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
2.57 Points ∼6%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
2.27 Points ∼5% -12%
wPrime 2.10 - 1024m
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
787.585 s * ∼9% -3%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
761.49 s * ∼9%
Lenovo ThinkPad X1 Tablet
Intel Core m7-6Y75
698 s * ∼8% +8%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
545.624 s * ∼6% +28%

* ... smaller is better

Cinebench R11.5 CPU Single 64Bit
1.32 Points
Cinebench R11.5 CPU Multi 64Bit
2.57 Points
Cinebench R11.5 OpenGL 64Bit
27.76 fps
Cinebench R15 CPU Single 64Bit
115 Points
Cinebench R15 CPU Multi 64Bit
234 Points
Cinebench R15 OpenGL 64Bit
36.14 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Help
0102030405060708090100110120130140150160170180190200210220230240Tooltip
Cinebench R15 CPU Multi 64 Bit
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
4852 Points ∼74% +13%
HP EliteBook x360 1030 G2
HD Graphics 620, i5-7300U, Sandisk SD8TN8U-256G-1006
4803 Points ∼73% +12%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
4288 Points ∼65%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
4058 Points ∼62% -5%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
3510 Points ∼53% -18%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3186 Points ∼48% -26%
Creative Score Accelerated v2
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
5051 Points ∼46% +29%
HP EliteBook x360 1030 G2
HD Graphics 620, i5-7300U, Sandisk SD8TN8U-256G-1006
4781 Points ∼44% +22%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
4602 Points ∼42% +17%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
3924 Points ∼36%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
3583 Points ∼33% -9%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2968 Points ∼27% -24%
Home Score Accelerated v2
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
4741 Points ∼78% +53%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3860 Points ∼63% +25%
HP EliteBook x360 1030 G2
HD Graphics 620, i5-7300U, Sandisk SD8TN8U-256G-1006
3774 Points ∼62% +22%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
3092 Points ∼51%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
2976 Points ∼49% -4%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points ∼40% -22%
PCMark 8 Home Score Accelerated v2
3092 points
PCMark 8 Creative Score Accelerated v2
3924 points
PCMark 8 Work Score Accelerated v2
4288 points
Help
Lenovo ThinkPad X1 Tablet Gen 2
Samsung PM961 MZVLW256HEHP
Lenovo ThinkPad X1 Tablet
Samsung PM871 MZYLN256HCHP
Dell Latitude 12 5285 2-in-1
Samsung PM961 MZVLW256HEHP
HP EliteBook x360 1030 G2
Sandisk SD8TN8U-256G-1006
Microsoft Surface Pro 4, Core m3
Samsung MZFLV128 NVMe
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
CrystalDiskMark 3.0
-42%
-5%
-42%
-52%
58%
Write 4k QD32
259
215.5
-17%
434.5
68%
225.2
-13%
149.2
-42%
506.6
96%
Read 4k QD32
247.9
325.6
31%
493.3
99%
311.3
26%
243.7
-2%
631.7
155%
Write 4k
120
73.58
-39%
72.22
-40%
56.48
-53%
68.02
-43%
182.2
52%
Read 4k
52.34
32.36
-38%
31.75
-39%
29.43
-44%
30.14
-42%
58.23
11%
Write 512
869
297.8
-66%
589.3
-32%
372.5
-57%
158.2
-82%
1292
49%
Read 512
697.5
324.6
-53%
406
-42%
312.3
-55%
313.1
-55%
1040
49%
Write Seq
1259
305.6
-76%
865.2
-31%
443.6
-65%
158.2
-87%
1693
34%
Read Seq
1739
420.3
-76%
1294
-26%
467.1
-73%
662.5
-62%
2004
15%
Samsung PM961 MZVLW256HEHP
Transfer Rate Minimum: 1219.1 MB/s
Transfer Rate Maximum: 1371 MB/s
Transfer Rate Average: 1332 MB/s
Access Time: 0.1 ms
Burst Rate: 174.8 MB/s
CPU Usage: 7.8 %
3DMark 11
1280x720 Performance Combined
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
1566 Points ∼7% +40%
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
1490 Points ∼7% +33%
Microsoft Surface Pro 4, Core m3
Intel HD Graphics 515, 6Y30
1370 Points ∼6% +22%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, i5-7300U
1347 Points ∼6% +20%
Lenovo ThinkPad X1 Tablet
Intel HD Graphics 515, 6Y75
1179 Points ∼5% +5%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
1121 Points ∼5%
1280x720 Performance GPU
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
1633 Points ∼3% +41%
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
1589 Points ∼3% +37%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, i5-7300U
1476 Points ∼3% +27%
Microsoft Surface Pro 4, Core m3
Intel HD Graphics 515, 6Y30
1206 Points ∼2% +4%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
1161 Points ∼2%
Lenovo ThinkPad X1 Tablet
Intel HD Graphics 515, 6Y75
1154 Points ∼2% -1%
3DMark
1920x1080 Fire Strike Graphics
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
1084 Points ∼3% +49%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
1000 Points ∼2% +37%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, i5-7300U
972 Points ∼2% +34%
Microsoft Surface Pro 4, Core m3
Intel HD Graphics 515, 6Y30
810 Points ∼2% +11%
Lenovo ThinkPad X1 Tablet
Intel HD Graphics 515, 6Y75
762 Points ∼2% +5%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
728 Points ∼2%
1280x720 Cloud Gate Standard Graphics
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
8850 Points ∼5% +44%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, i5-7300U
8220 Points ∼4% +33%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, i7-7600U
8075 Points ∼4% +31%
Microsoft Surface Pro 4, Core m3
Intel HD Graphics 515, 6Y30
6597 Points ∼3% +7%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
6164 Points ∼3%
Lenovo ThinkPad X1 Tablet
Intel HD Graphics 515, 6Y75
5769 Points ∼3% -6%
1920x1080 Ice Storm Extreme Graphics
HP EliteBook x360 1030 G2
Intel HD Graphics 620, i5-7300U
44238 Points ∼6%
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
41229 Points ∼6%
3DMark 06 Standard
6873 points
3DMark 11 Performance
1274 points
3DMark Ice Storm Standard Score
44515 points
3DMark Cloud Gate Standard Score
4509 points
3DMark Fire Strike Score
678 points
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
6 fps ∼2%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
6 fps ∼2% 0%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
9 fps ∼3% +50%
HP EliteBook x360 1030 G2
HD Graphics 620, i5-7300U, Sandisk SD8TN8U-256G-1006
7.8 fps ∼3% +30%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
8.2 fps ∼3% +37%
1366x768 High Preset (sort by value)
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
19 fps ∼5%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
20 fps ∼5% +5%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
28.6 fps ∼7% +51%
HP EliteBook x360 1030 G2
HD Graphics 620, i5-7300U, Sandisk SD8TN8U-256G-1006
24.9 fps ∼6% +31%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
22.66 fps ∼6% +19%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
26.3 fps ∼6% +38%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
21 fps ∼5%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
25 fps ∼6% +19%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
32.8 fps ∼7% +56%
HP EliteBook x360 1030 G2
HD Graphics 620, i5-7300U, Sandisk SD8TN8U-256G-1006
30.7 fps ∼7% +46%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
26.93 fps ∼6% +28%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
31 fps ∼7% +48%
1280x720 Very Low Preset (sort by value)
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
42 fps ∼8%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
44 fps ∼8% +5%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
56.5 fps ∼11% +35%
HP EliteBook x360 1030 G2
HD Graphics 620, i5-7300U, Sandisk SD8TN8U-256G-1006
54.4 fps ∼10% +30%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
52.42 fps ∼10% +25%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
54.7 fps ∼10% +30%
low med. high ultra
BioShock Infinite (2013) 42 21 19 6 fps
Max. Load
 30 °C32.8 °C34.8 °C
 31.8 °C37 °C39.6 °C
 34.8 °C47.2 °C45.6 °C
Maximum: 47.2 °C
Average: 37.1 °C
37 °C35.2 °C33 °C
40.4 °C38.8 °C34.2 °C
49.8 °C45 °C36.6 °C
Maximum: 49.8 °C
Average: 38.9 °C
Power Supply (max.)  35 °C | Room Temperature 22 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 37.1 °C / 99 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 47.2 °C / 117 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 49.8 °C / 122 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.3 °C / 83 F, compared to the device average of 30.3 °C / 87 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 47.2 °C / 117 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-18.3 °C / -33 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203839.438253836.9383136.535.736.5403435.1345035.333.935.3633333.1338030.530.530.510030.931.330.912530.529.430.516029.429.729.420033.52833.525040.127.440.131542.926.942.940046.226.346.250050.625.850.663056.725.156.780061.524.961.5100061.524.461.5125063.224.263.2160066.524.166.5200066.423.766.4250064.823.664.8315057.323.557.3400060.923.460.9500061.423.461.4630052.123.452.1800046.823.346.81000048.923.448.91250047.923.347.91600039.323.439.3SPL7436.274N28.92.728.9median 50.6median 24.2median 50.6Delta10.91.610.93641.837.137.74535.835.347.750.746.655.659.5596056.562.668.973.870.277.375.873.478.27774.672.169.767.8626086.363.8median 67.88.4hearing rangehide median Pink NoiseLenovo ThinkPad X1 Tablet Gen 2HP EliteBook x360 1030 G2
Lenovo ThinkPad X1 Tablet Gen 2 audio analysis

(±) | speaker loudness is average but good (74.02 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.1% lower than median
(±) | linearity of bass is average (9.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.6% higher than median
(±) | linearity of mids is average (11.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7% higher than median
(-) | highs are not linear (16.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (38.8% difference to median)
Compared to same class
» 96% of all tested devices in this class were better, 1% similar, 3% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 98% of all tested devices were better, 1% similar, 1% worse
» The best had a delta of 3%, average was 21%, worst was 65%

<
Power Consumption
Off / Standbydarklight 0.3 / 2.6 Watt
Idledarkmidlight 5 / 6.3 / 7.8 Watt
Load midlight 19.5 / 19.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X1 Tablet Gen 2
i5-7Y54, HD Graphics 615, Samsung PM961 MZVLW256HEHP, IPS, 2160x1440, 12
Lenovo ThinkPad X1 Tablet
6Y75, HD Graphics 515, Samsung PM871 MZYLN256HCHP, IPS, 2160x1440, 12
Dell Latitude 12 5285 2-in-1
i7-7600U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1280, 12.3
HP EliteBook x360 1030 G2
i5-7300U, HD Graphics 620, Sandisk SD8TN8U-256G-1006, IPS, 1920x1080, 13.3
Microsoft Surface Pro 4, Core m3
6Y30, HD Graphics 515, Samsung MZFLV128 NVMe, IPS, 2736x1824, 12.3
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
i7-7600U, HD Graphics 620, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), OLED, 2560x1440, 14
Power Consumption
-4%
-23%
-19%
-61%
Idle Minimum *
5
5.87
-17%
2.85
43%
3.2
36%
4.9
2%
Idle Average *
6.3
6.05
4%
6.76
-7%
5.5
13%
7.6
-21%
Idle Maximum *
7.8
6.13
21%
6.91
11%
6.5
17%
13.8
-77%
Load Average *
19.5
21.27
-9%
32.88
-69%
29.7
-52%
33.4
-71%
Load Maximum *
19.6
23.03
-18%
37.41
-91%
41.3
-111%
46.5
-137%

* ... smaller is better

Battery Runtime
Idle (without WLAN, min brightness)
11h 02min
NBC WiFi Websurfing Battery Test 1.3
7h 21min
Load (maximum brightness)
2h 14min
Lenovo ThinkPad X1 Tablet Gen 2
i5-7Y54, HD Graphics 615, 37 Wh
Lenovo ThinkPad X1 Tablet
6Y75, HD Graphics 515, 37 Wh
Dell Latitude 12 5285 2-in-1
i7-7600U, HD Graphics 620, 42 Wh
HP EliteBook x360 1030 G2
i5-7300U, HD Graphics 620, 57 Wh
Microsoft Surface Pro 4, Core m3
6Y30, HD Graphics 515, 38 Wh
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
i7-7600U, HD Graphics 620, 56 Wh
Battery Runtime
-16%
17%
78%
11%
-3%
Reader / Idle
662
628
-5%
1075
62%
1387
110%
791
19%
784
18%
WiFi v1.3
441
300
-32%
486
10%
630
43%
488
11%
368
-17%
Load
134
118
-12%
105
-22%
244
82%
138
3%
120
-10%

Pros

+ 作为平板电脑/变形本相对易于维护
+ 非常优秀的输入设备
+ 高速系统性能
+ 合理的运行发热量
+ 可以接受的电池续航
+ 大幅改进的屏幕亮度和对比度

Cons

- 由于采用被动散热持续负载下的性能有所降低
- 屏幕的低频率闪烁可能会让一些用户无法接受
- 不支持Thunderbolt
- 扬声器品质较低
- 仅一年质保
In review: ThinkPad X1 Tablet Gen 2. Test model provided by Lenovo US
In review: ThinkPad X1 Tablet Gen 2. Test model provided by Lenovo US

今年的ThinkPad X1 Tablet(第二代)更新确实仅限于内部芯片组,而它的改变对整体性能的影响在我们的测试中缺并不小。例如,我们对它2015年m7处理器机型的三个不满意之处——持续运行处理器/显卡性能,表面温度和电池续航——都在这台新机型里至少在一定程度上得到了改进。它的处理器在持续运行时的性能仍然低于短时间的峰值性能,不过下降的幅度并不大,我们在Cinebench测试中得到的结果是它在持续运行时相比单次测试性能仅下降了12%(详见评测中的处理器部分),考虑到没有主动式散热系统,这并不是个太差的结果。同时,它的表面温度和电池续航时间都相对有所改善,对一些用途来说甚至可以说是十分出色。另外,它的屏幕效果也得到了一定的改进,主要是亮度和对比度(这也是我们去年最不满的部分之一)。

不过,我们也可以理解为什么很多用户会对它没有得到机身设计、接口选择和扬声器等方面的改进而有所不满。同类竞争机型也越来越多——包括一些新设备如戴尔 Latitude 12 5285 二合一设备,X1的自满可能会让它反而有所退步。除此之外,其他常见变形本也越来越便携,正在缩短与可分离键盘底座结合平板电脑设计的机型在重量和尺寸之间的差距。

时隔一年, ThinkPad X1 Tablet第二代仅仅在前代机型的基础上带来了略微的改进。不过它依然是为数不多的很好地结合了灵便与多用途的高端商务设备之一。

随着时间的流动,价位的差距和同类设备的稀少依然让X1保持着奢侈和独特的位置。对于移动商务用户来说,它是市场上为数不多的结合了可维护性,坚固性,易于管理等优势和平板电脑加可分离键盘设计的高端商务设备。对于适合的用户与适合的用途,尽管它缺少革新性的改进,也依然是个合理的选择。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Lenovo ThinkPad X1 Tablet Gen 2 - 06/15/2017 v6(old)
Steve Schardein

Chassis
80 / 98 → 82%
Keyboard
85%
Pointing Device
86%
Connectivity
51 / 80 → 64%
Weight
74 / 35-78 → 91%
Battery
90%
Display
83%
Games Performance
57 / 68 → 84%
Application Performance
79 / 87 → 91%
Temperature
86%
Noise
100%
Audio
50 / 91 → 55%
Camera
67 / 85 → 79%
Average
76%
86%
Convertible - Weighted Average
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 联想 ThinkPad X1 Tablet Gen 2 (i5-7Y54) 平板电脑简短评测
Steve Schardein, 2017-06-17 (Update: 2017-06-17)
Steve Schardein
Editor of the original article: Steve Schardein - Review Editor - @othersteve
