英特尔NUC11基本套件别名Atlas Canyon，配备英特尔奔腾银N6005和英特尔赛扬N4505评测

Name: Intel NUC11ATKPE, N6005
Brand: Intel

迅速过载？

英特尔的NUC11基本套件基于英特尔Jasper Lake SoC，非常适合办公室工作。我们仔细观察了这款迷你PC，它采用了英特尔奔腾银N6005和英特尔赛扬N4505。在这篇评论中，你可以了解到这两个系统的特点。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 03/19/2023 🇺🇸 🇩🇪 ...

Desktop Intel Jasper Lake Mini PC

英特尔以Atlas Canyon的笔名发布了他们的NUC 11 Essential Kit系列，该系列使用Jasper Lake处理器。裸机版本的PC相当实惠。在测试时，系统采用了 Intel Celeron N4505价格约为129美元，而英特尔NUC11基本套件的版本--Atlas Canyon配备了一个英特尔奔腾银N6005价格约为229美元。裸机系统在销售时通常没有内存和固态硬盘，在计算成本时应注意这一点。价格中也不包括操作系统的许可证。在我们的测试中，我们在两个测试设备中都安装了16GB DDR4内存和512GB SSD。

下表列出了具有类似规格的对比设备。

Intel NUC11ATKPE, N6005

Processor

Intel Pentium Silver N6005 4 x 2 - 3.3 GHz, 25 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Graphics adapter

Intel UHD Graphics (Jasper Lake 32 EU)

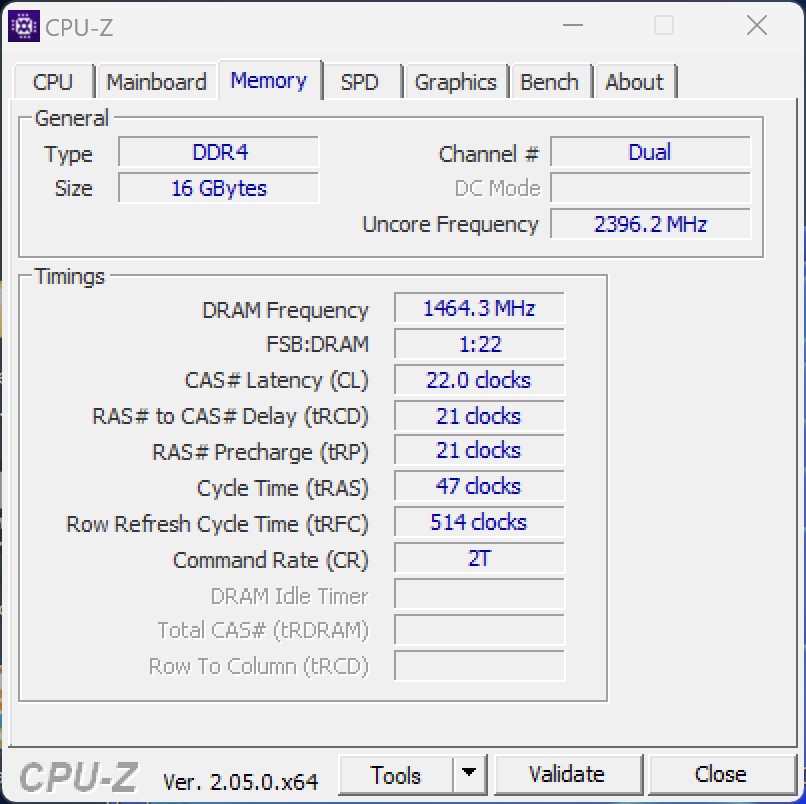

Memory

16 GB

, DDR4-2933, dual channel, 2 of 2 installed

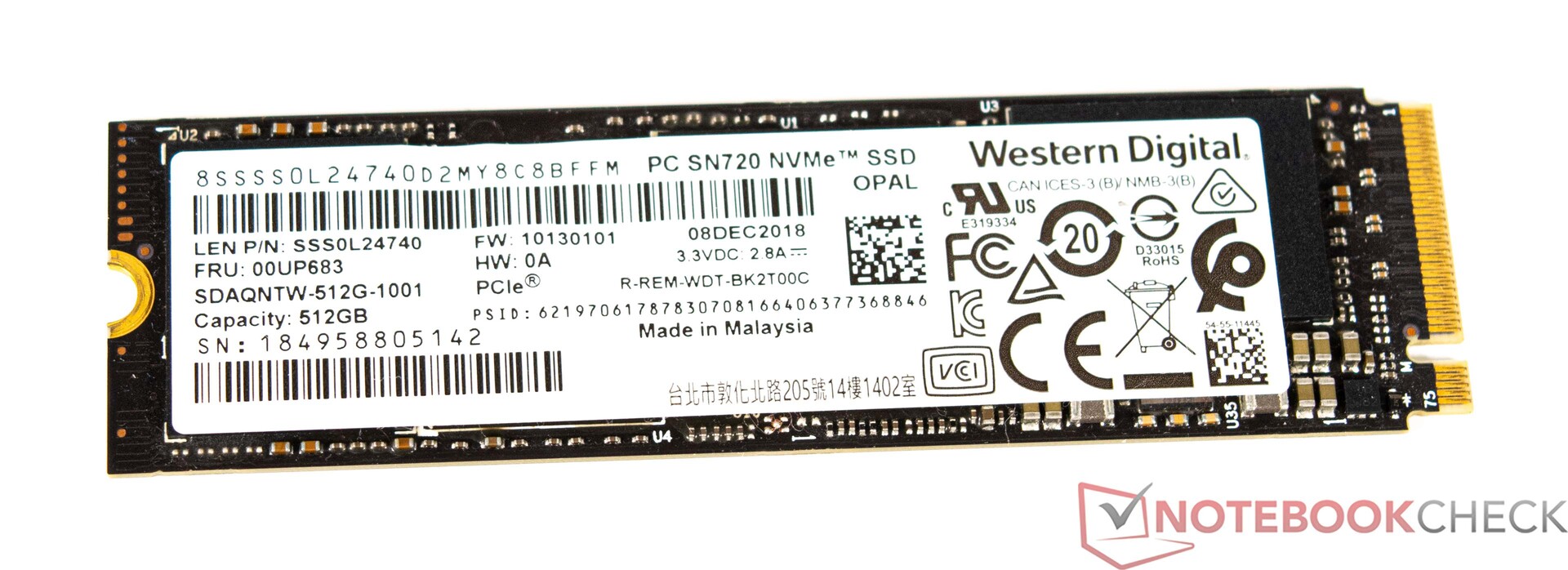

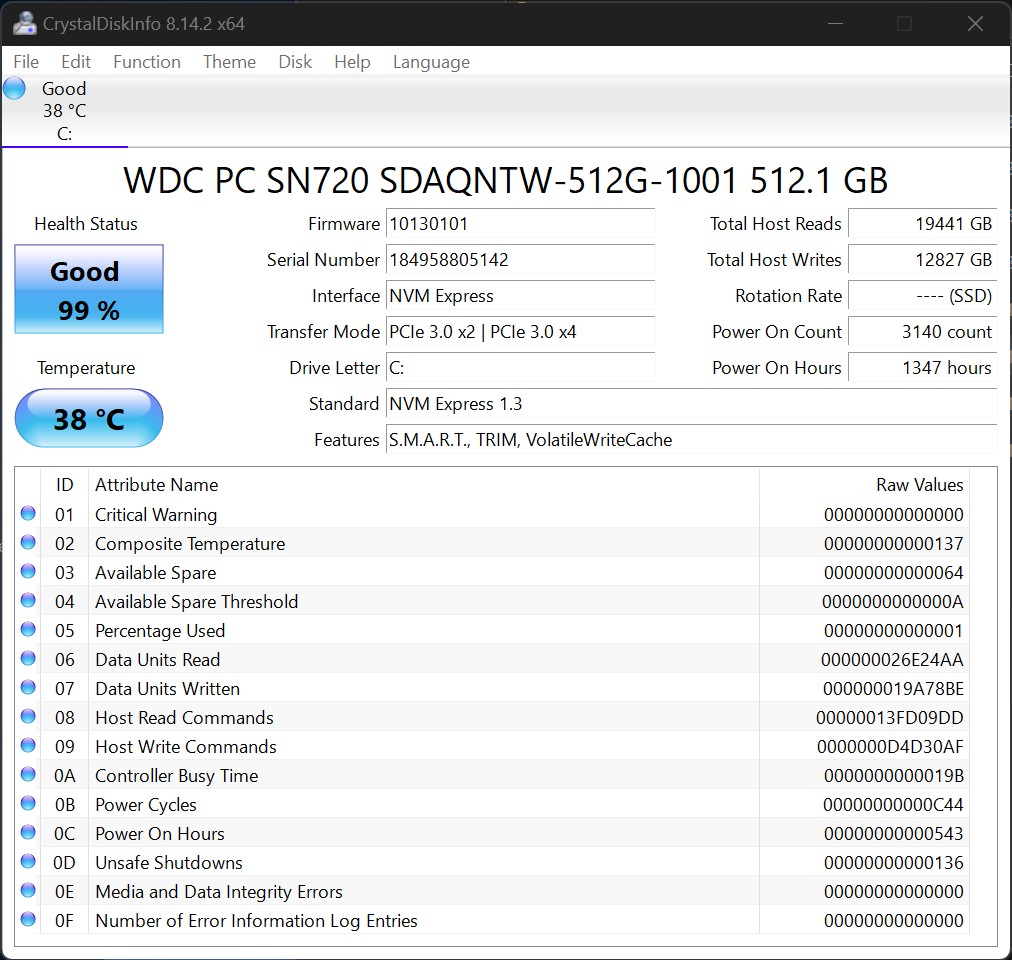

Storage

WDC PC SN720 SDAPNTW-512G, 512 GB

, M.2 2280, NVMe

Soundcard

Intel Jasper Lake PCH - cAVS Controller

Connections

2 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 2x 3.5 mm jack

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Size

height x width x depth (in mm): 36 x 135 x 115

Additional features

36 Months Warranty

Weight

530 g, Power Supply: 193 g

Price

250 EUR

Links

Intel homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Intel NUC11ATKC2, N4505

Processor

Intel Celeron N4505 2 x 2 - 2.9 GHz, 15 W PL2 / Short Burst, 10 W PL1 / Sustained, Jasper Lake

Graphics adapter

Intel UHD Graphics (Jasper Lake 16 EU)

Memory

16 GB

, DDR4-2933, Dual Channel, 2 von 2 installiert

Storage

WDC PC SN720 SDAPNTW-512G, 512 GB

, M.2 2280, NVMe

Soundcard

Intel Jasper Lake PCH - cAVS Controller

Connections

2 USB 2.0, 4 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 2x 3,5mm Klinke

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Size

height x width x depth (in mm): 36 x 135 x 115

Additional features

36 Months Warranty

Weight

535 g, Power Supply: 197 g

Price

150 EUR

Links

Intel homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
70.9 % v7 ^(old)	03 / 2023	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	530 g	36 mm
63.2 % v7 ^(old)	03 / 2023	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	535 g	36 mm
65.9 % v7 ^(old)	01 / 2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	43.5 mm
66.5 % v7 ^(old)		Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	496 g	34.2 mm
v ^(old)	02 / 2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 g	48 mm
v ^(old)	08 / 2021	AC6-M Mini-PC Celeron J4125, UHD Graphics 600		58 mm
68.2 % v7 ^(old)	03 / 2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	47 mm

英特尔NUC11基本套件 - Atlas Canyon详细介绍

案例

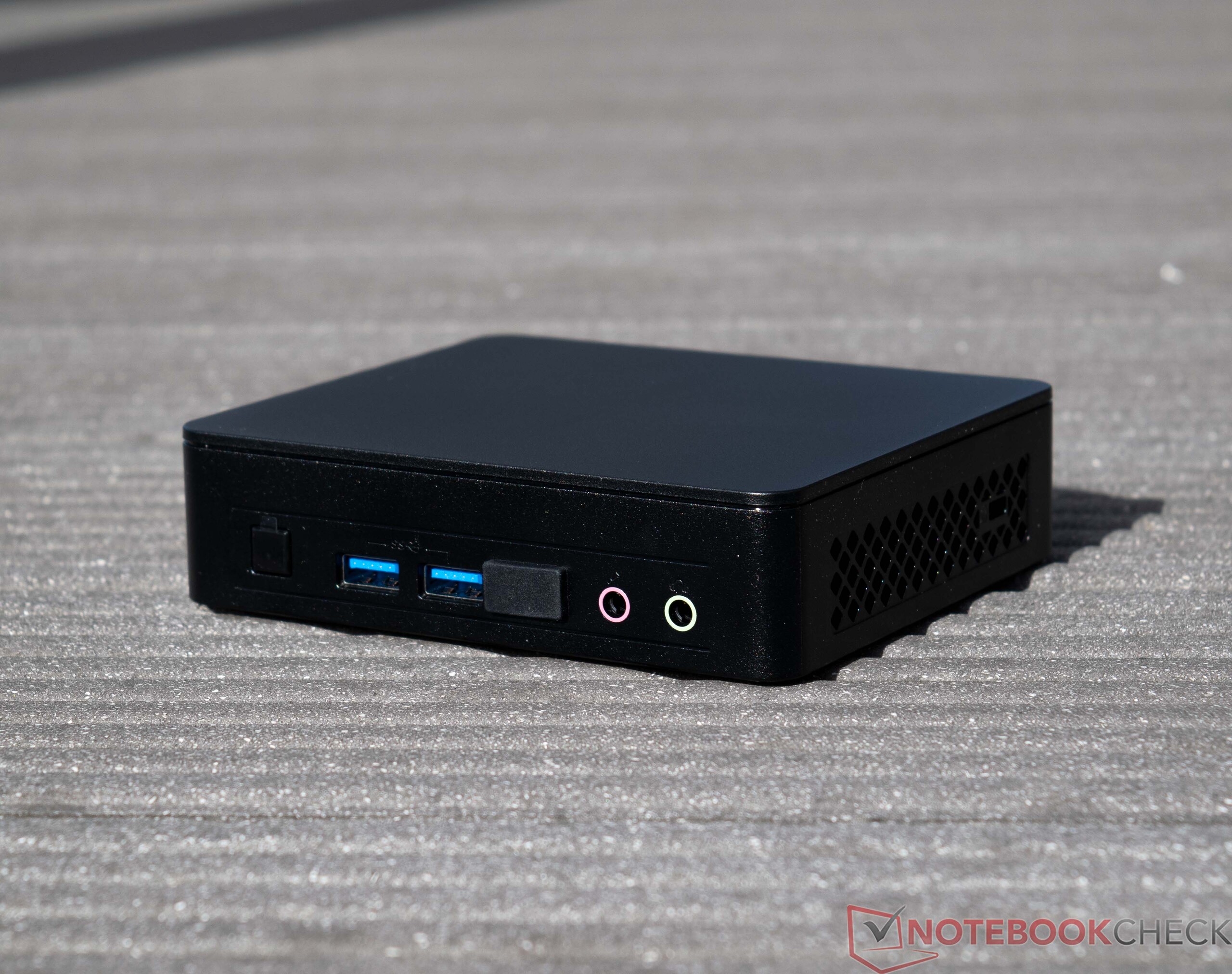

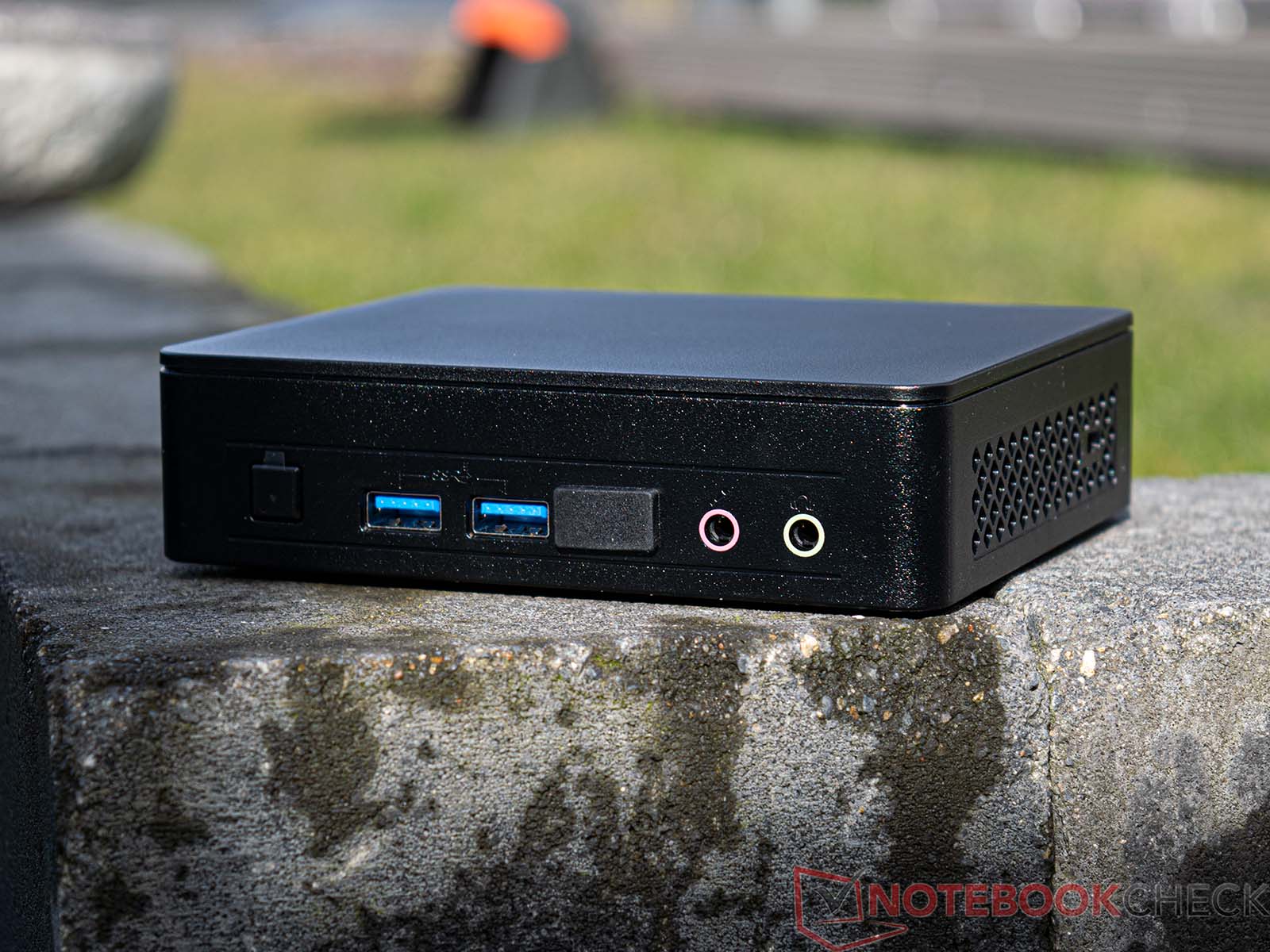

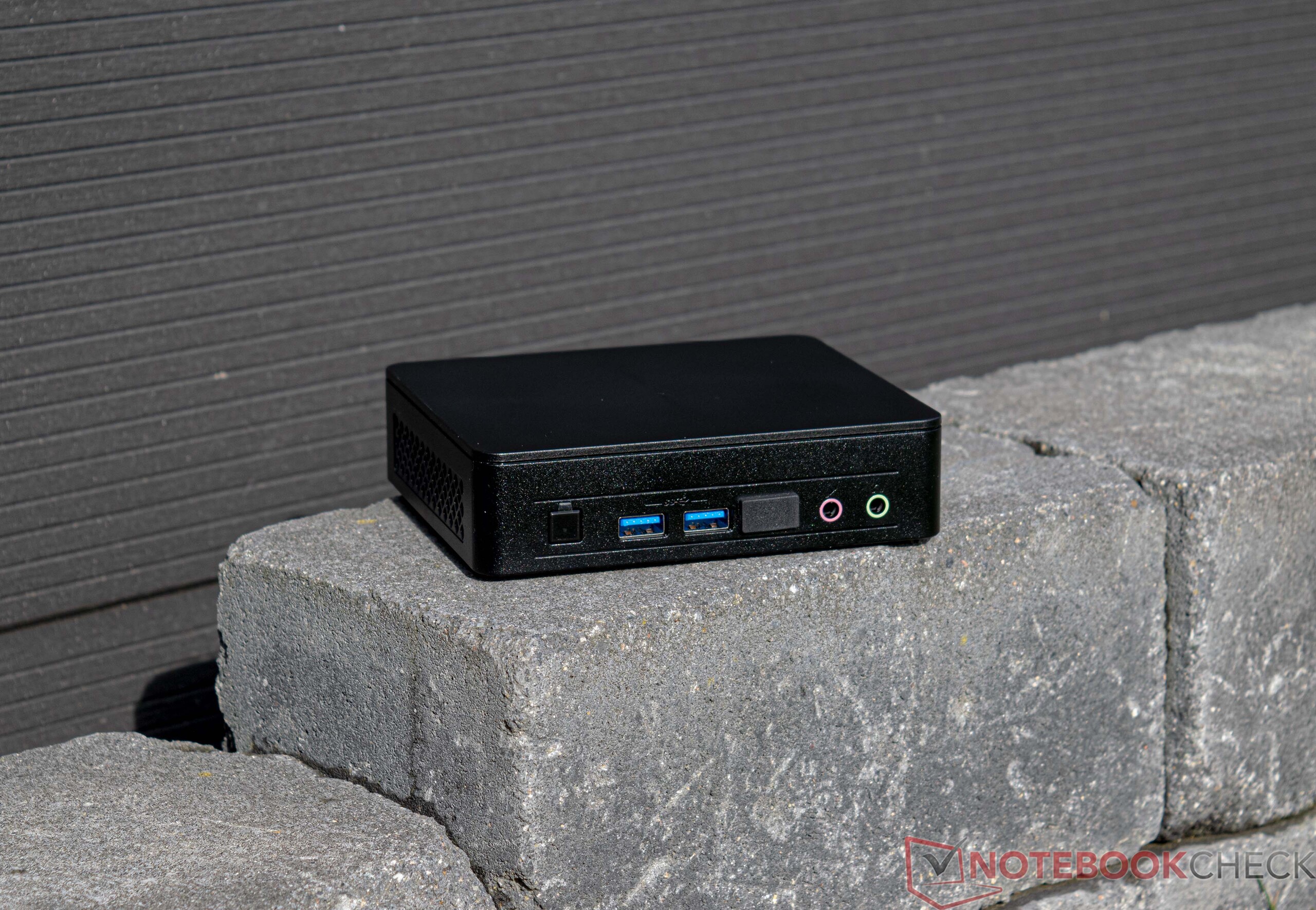

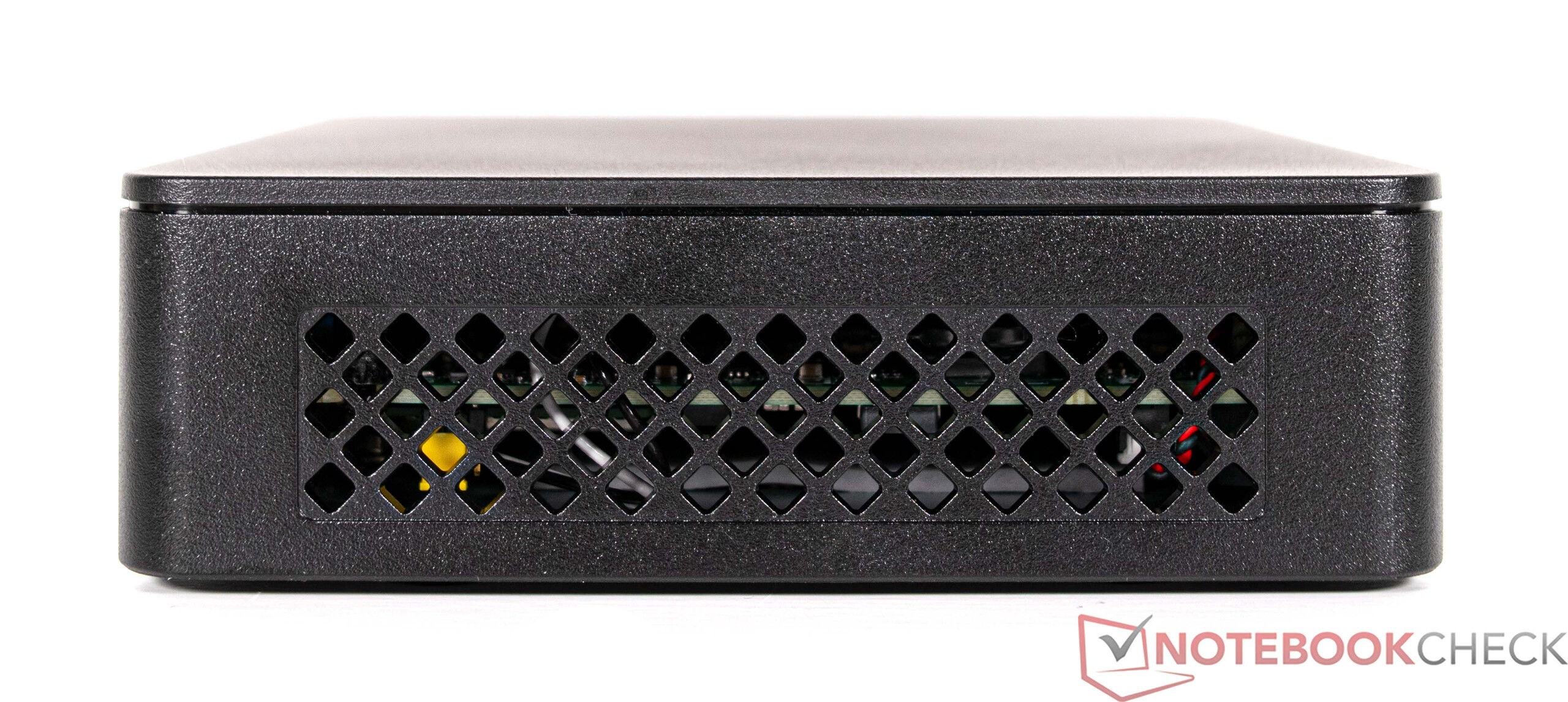

英特尔NUC11基本套件--阿特拉斯峡谷是全黑的，没有任何高亮度的表面。乍一看，这个塑料外壳看起来有点廉价。然而，外壳的实际触感要好得多--由于其内部的金属支撑，该设备非常坚固。这与NUC系列的其他设备非常相似，制造商没有为英特尔NUC11基本套件-阿特拉斯峡谷做出任何例外。说到尺寸，我们可以看到与该系列的其他型号相比有一点不同。这款迷你PC的占地面积为13.5 x 11.5厘米--从视觉上看，这个相对较小的设备让人想起了英特尔NUC专业机箱元件。从技术上讲，它们的构造彼此之间有很大不同。英特尔NUC11 Essential Kit - Atlas Canyon可以使用附带的VESA支架连接到显示器上。

尺寸比较

Minipc Union NiPoGi GK3PLUS - N95 Newsmay AC8 N6005 Intel NUC11ATKPE, N6005 Intel NUC11ATKC2, N4505 Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A5 ❌

连接性

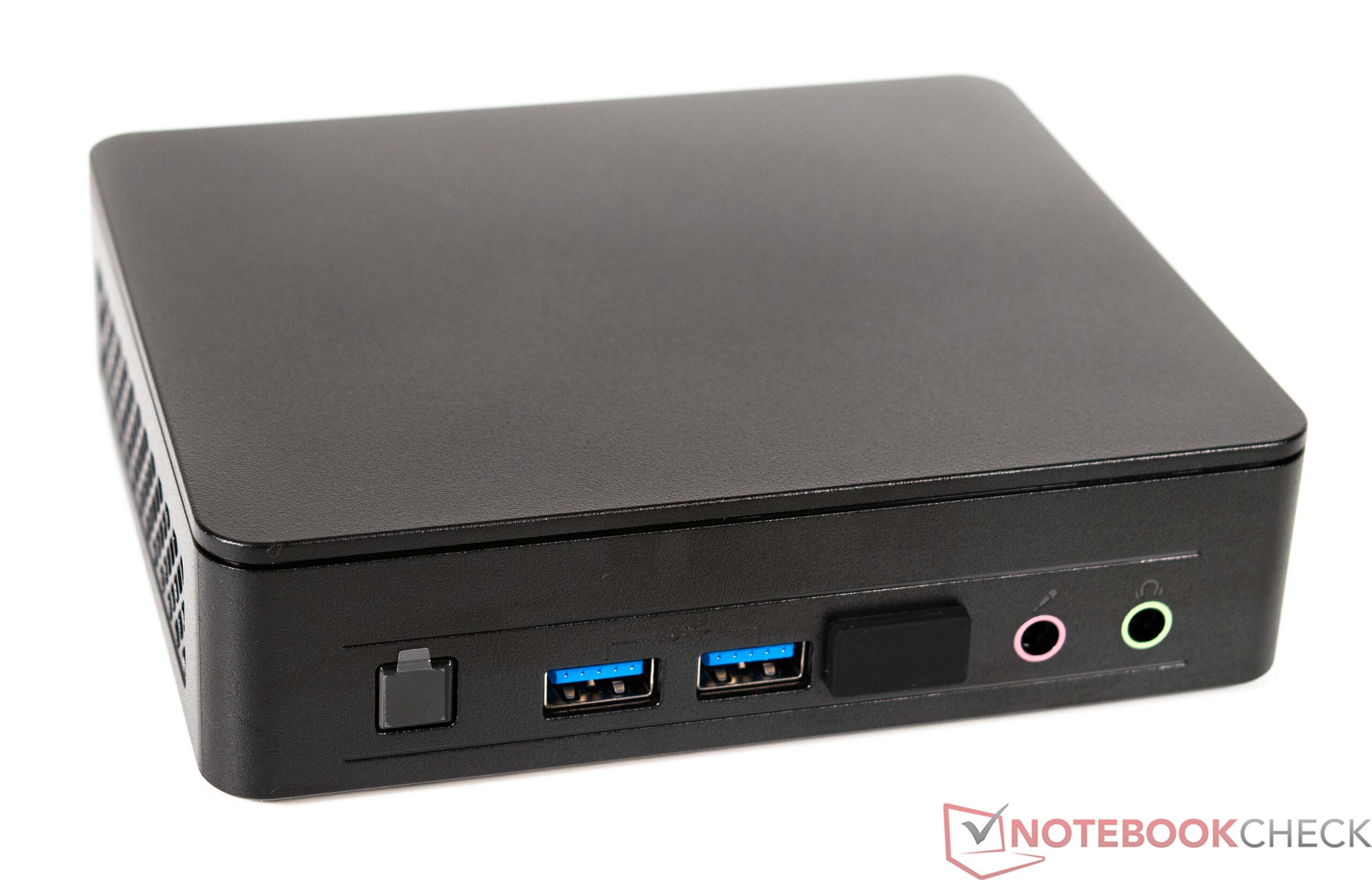

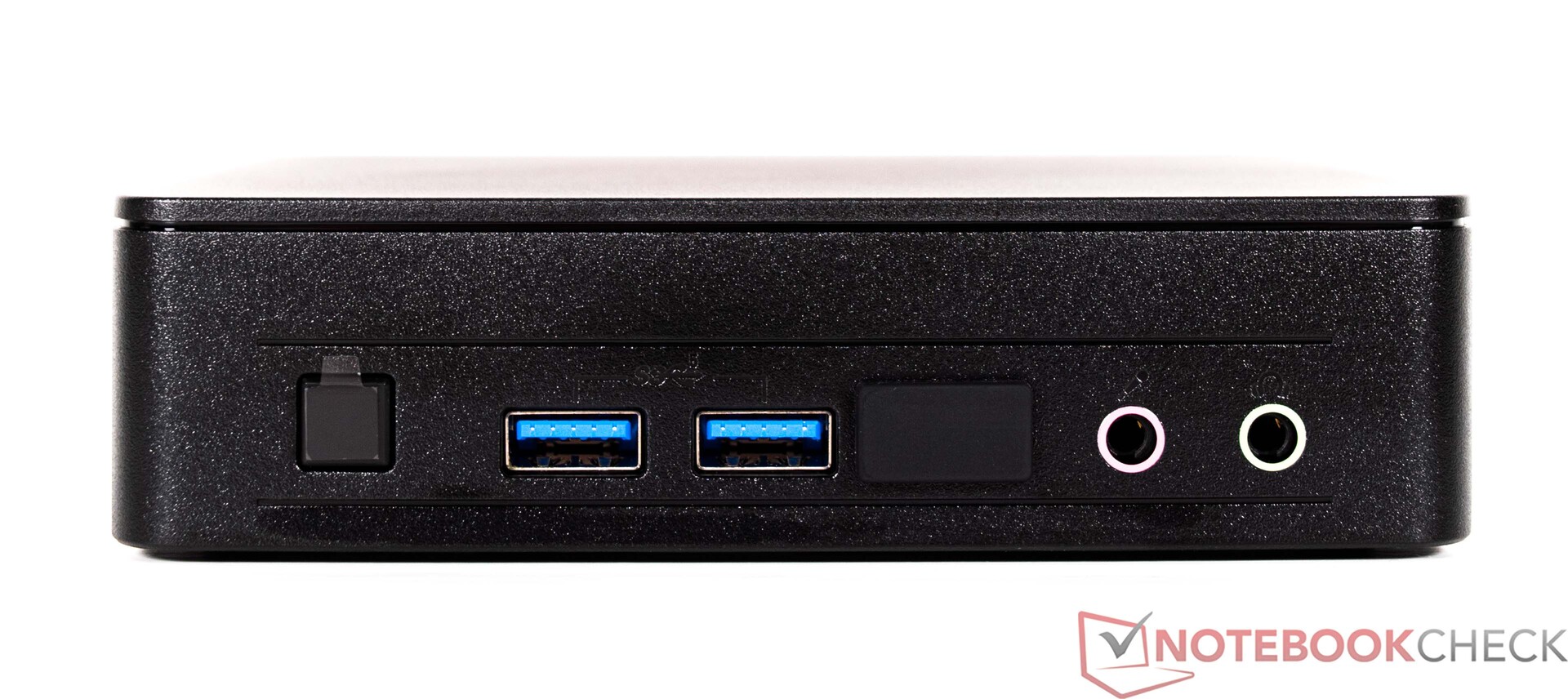

英特尔NUC 11 Essential Kit - Atlas Canyon对于这个设备级别的迷你PC来说，具有相当标准的连接性。六个USB Type-A端口对于日常使用来说已经足够了。你可以通过DisplayPort或HDMI连接显示器。这两款设备的安装方式完全相同，所以我们不对它们进行单独介绍。

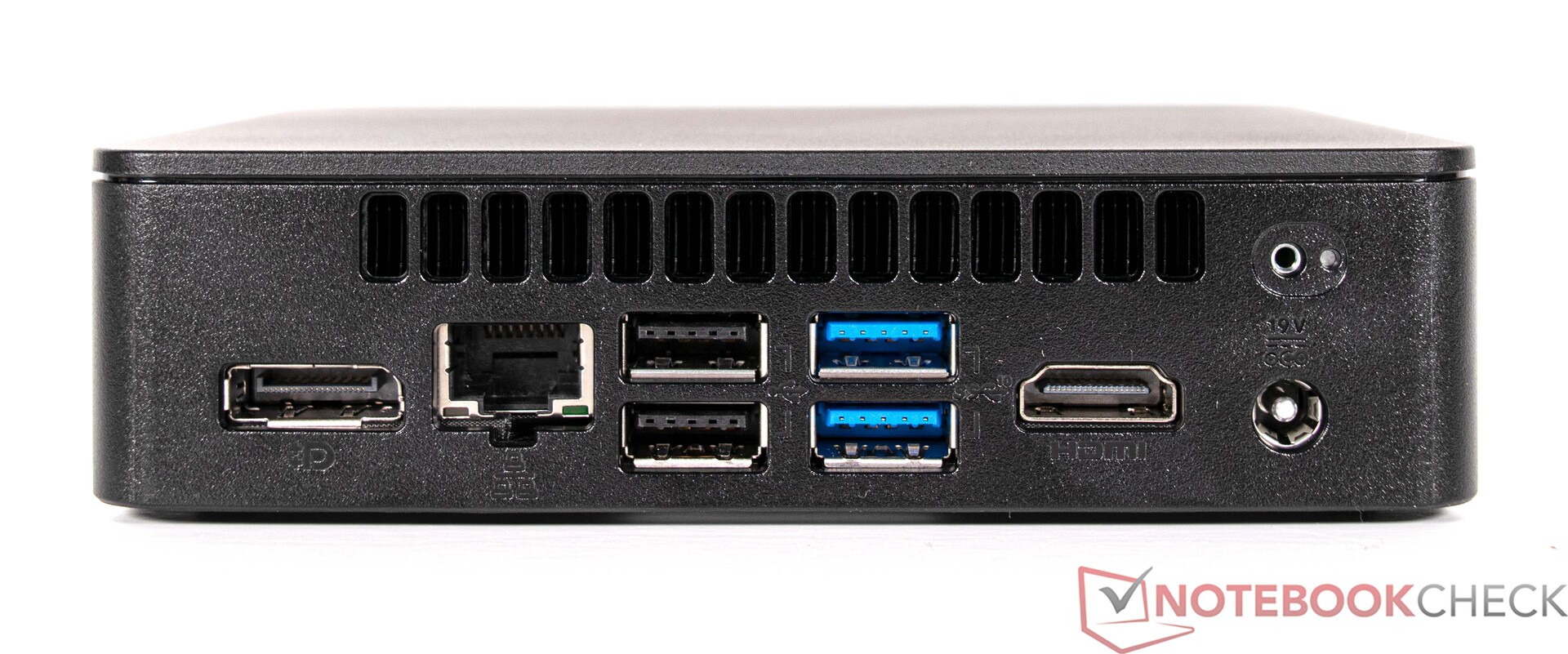

背面。DisplayPort, GBit LAN, 2x USB 2.0, 2x USB 3.2, HDMI, 电源

沟通

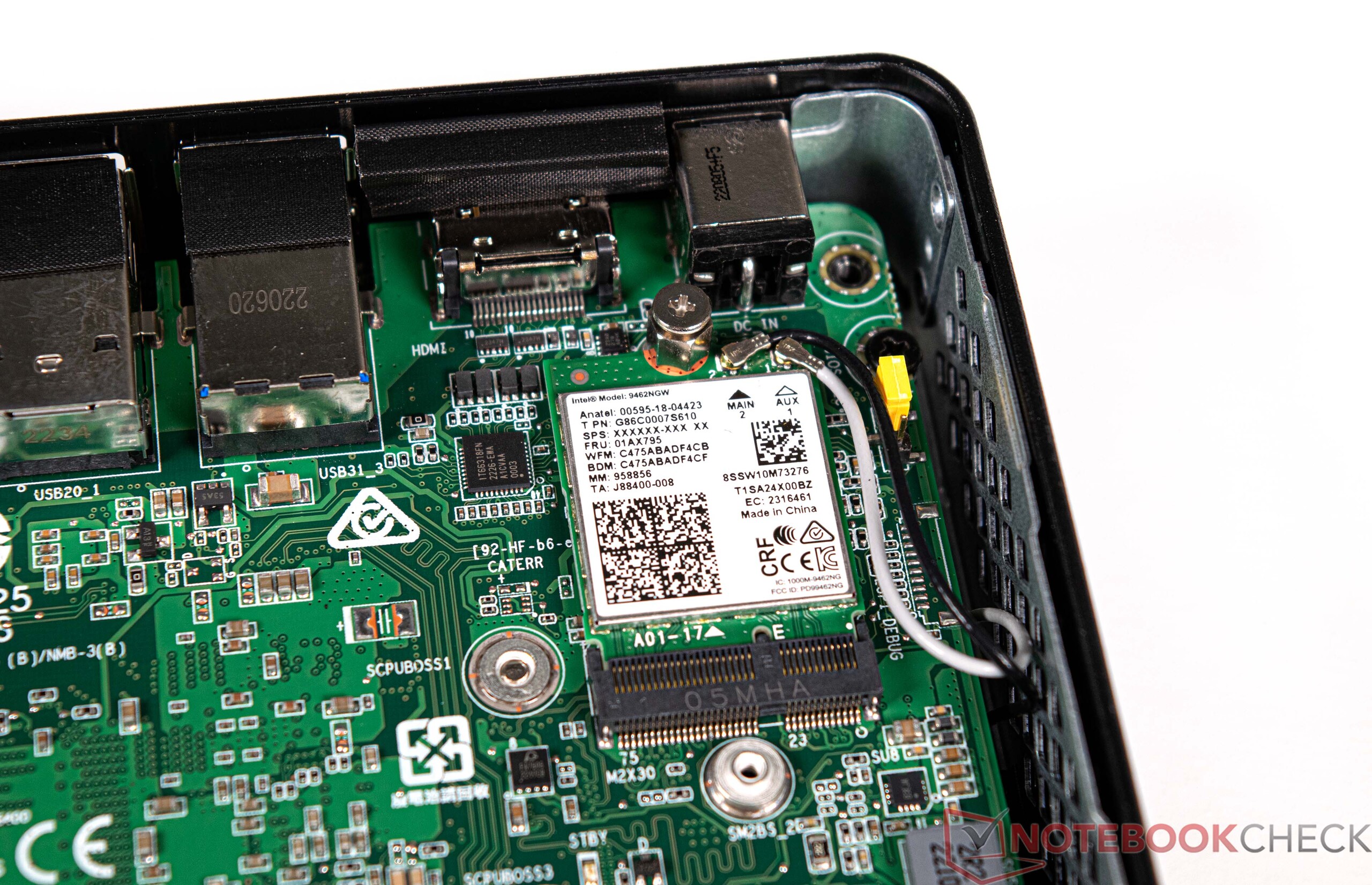

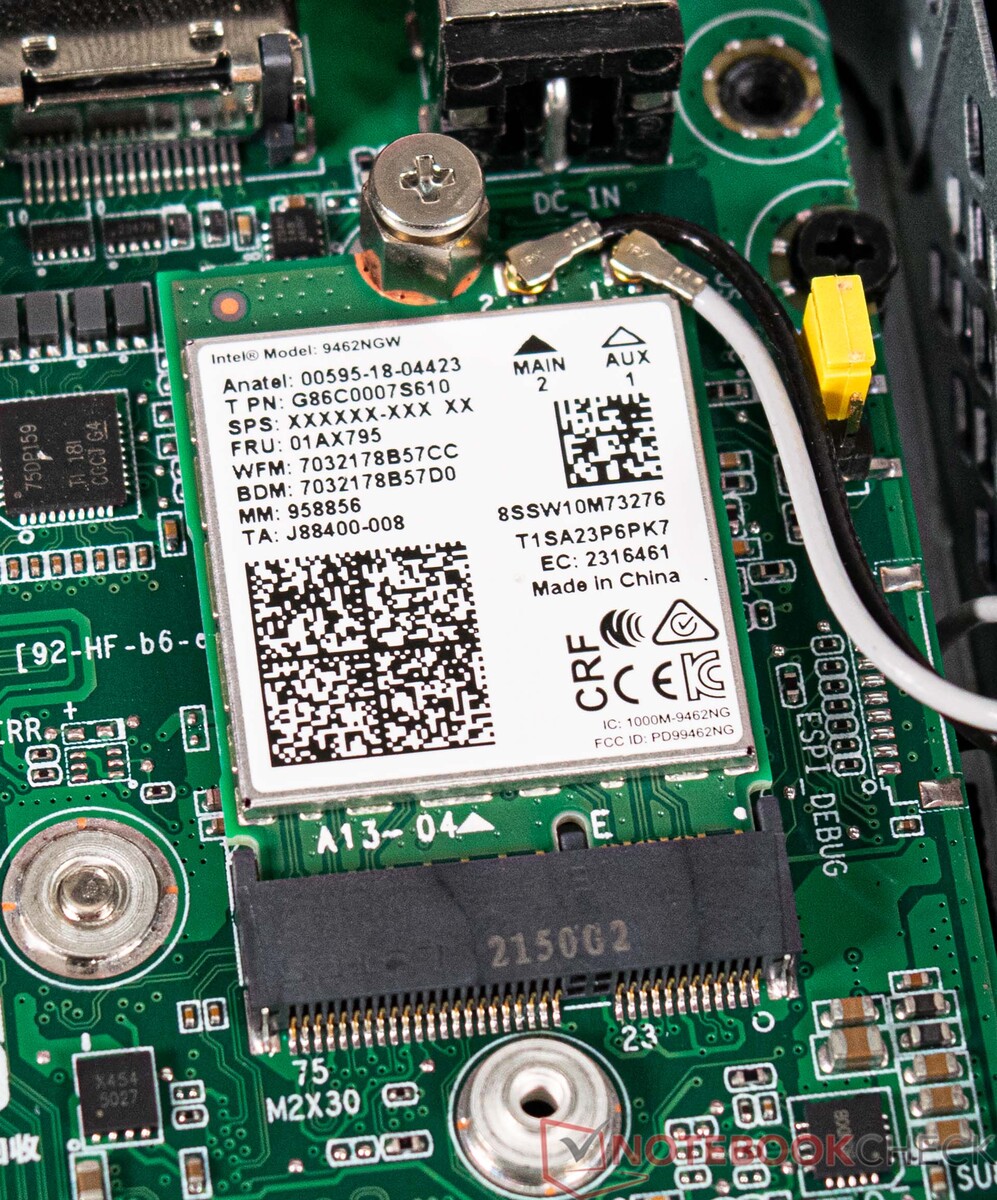

英特尔NUC11基本套件采用了英特尔自己制造的WLAN模块，即无线AC 9462。与其竞争对手相比，它的性能很好--甚至有时会更好。不幸的是，我们测得的传输速率仍然明显慢于我们测试的迷你PC的平均值。英特尔NUC 11基本套件的两个模型都依赖于相同的WLAN模块，这就是为什么我们在每一个模型上得到了几乎相同的结果。在这项测试中，我们使用华硕ROG Rapture GT-AXE11000作为我们的测试路由器。

Networking
iperf3 receive AXE11000
Average of class Mini PC (267 - 1796, n=106, last 2 years)	952 MBit/s +157%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	371 (186^min - 374^max) MBit/s
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (333^min - 376^max) MBit/s -1%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s -2%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s -4%
Average Intel Wireless AC 9462 (245 - 371, n=5)	335 MBit/s -10%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s -22%
iperf3 transmit AXE11000
Average of class Mini PC (251 - 1776, n=106, last 2 years)	886 MBit/s +147%
Intel NUC11ATKC2, N4505 Intel Wireless AC 9462	366 (332^min - 393^max) MBit/s +2%
Average Intel Wireless AC 9462 (359 - 370, n=5)	366 MBit/s +2%
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	359 (322^min - 389^max) MBit/s
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -25%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s -37%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s -49%

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø364 (186-374)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø366 (333-376)

Intel NUC11ATKPE, N6005 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø359 (322-389)

Intel NUC11ATKC2, N4505 Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø366 (332-393)

辅料

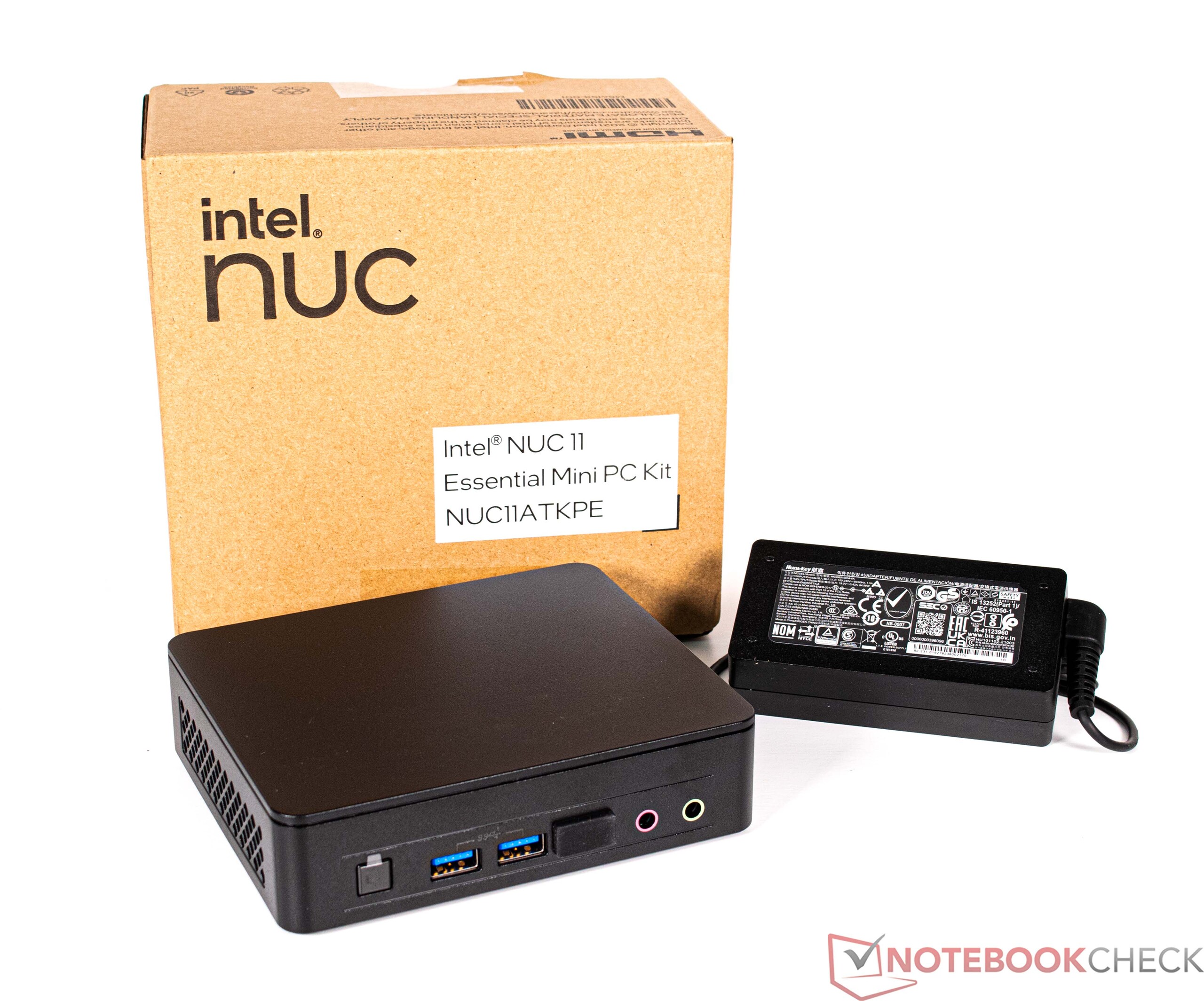

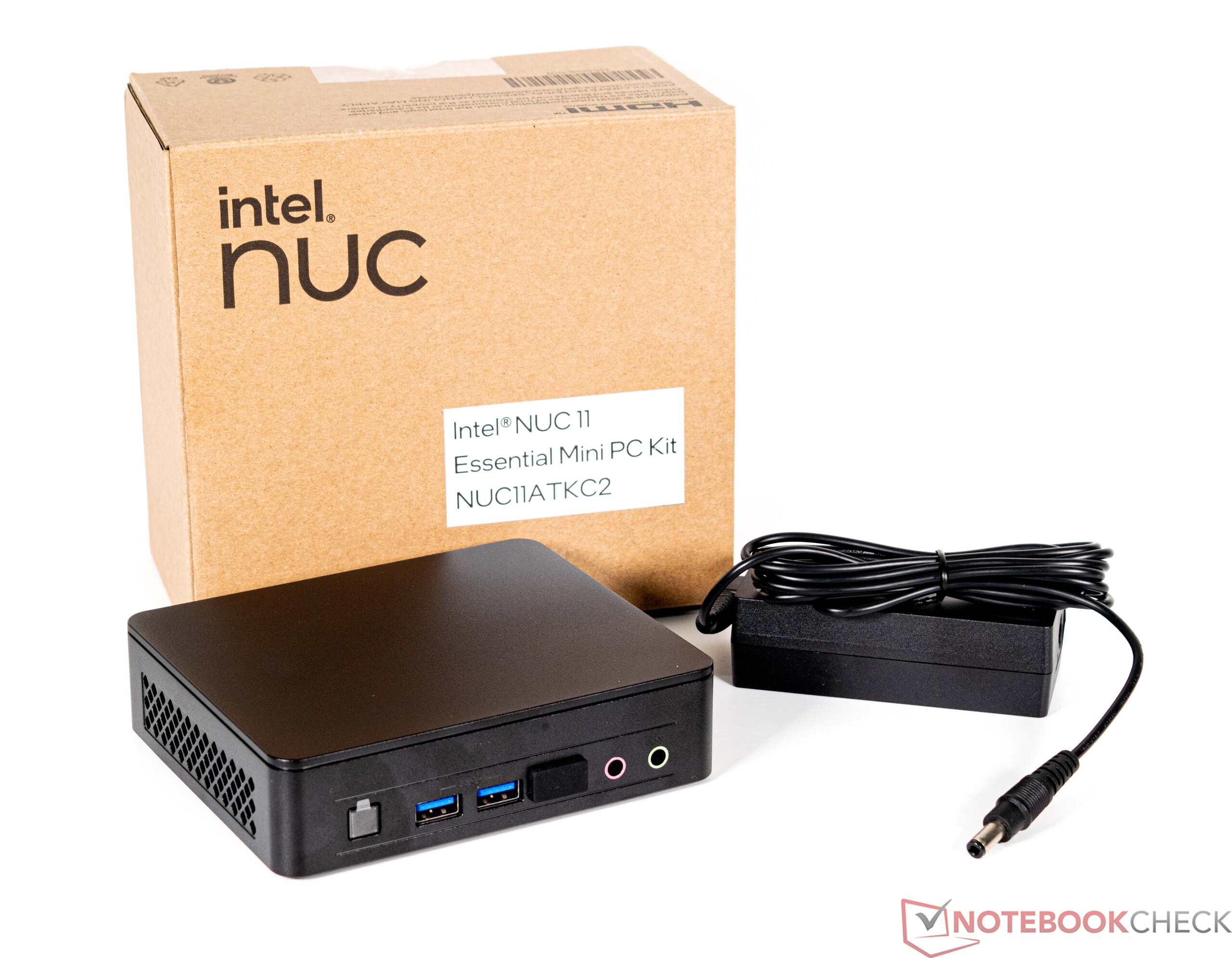

这台迷你电脑配备了一个65瓦的电源适配器和一个用于VESA安装的安装板。

维护

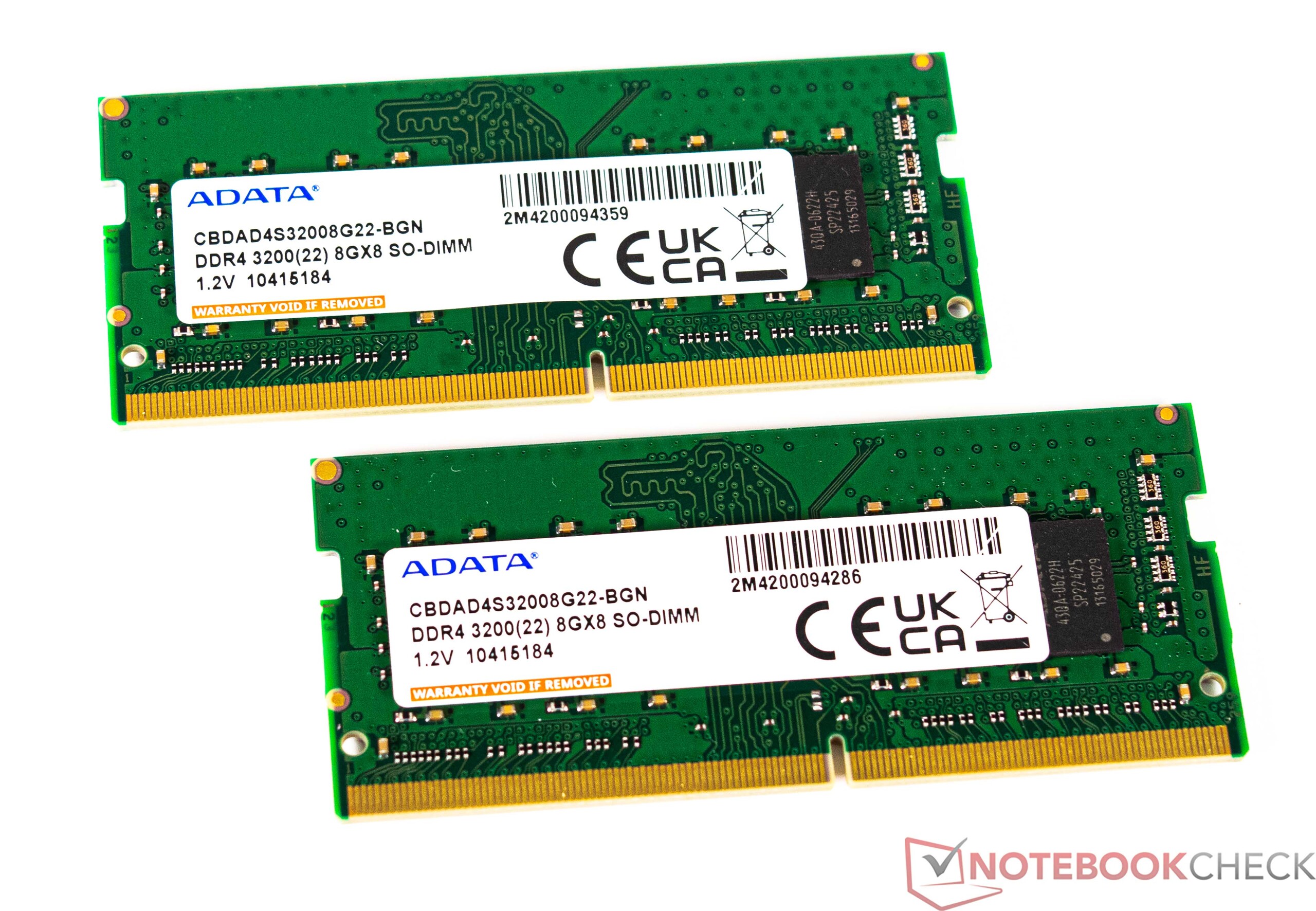

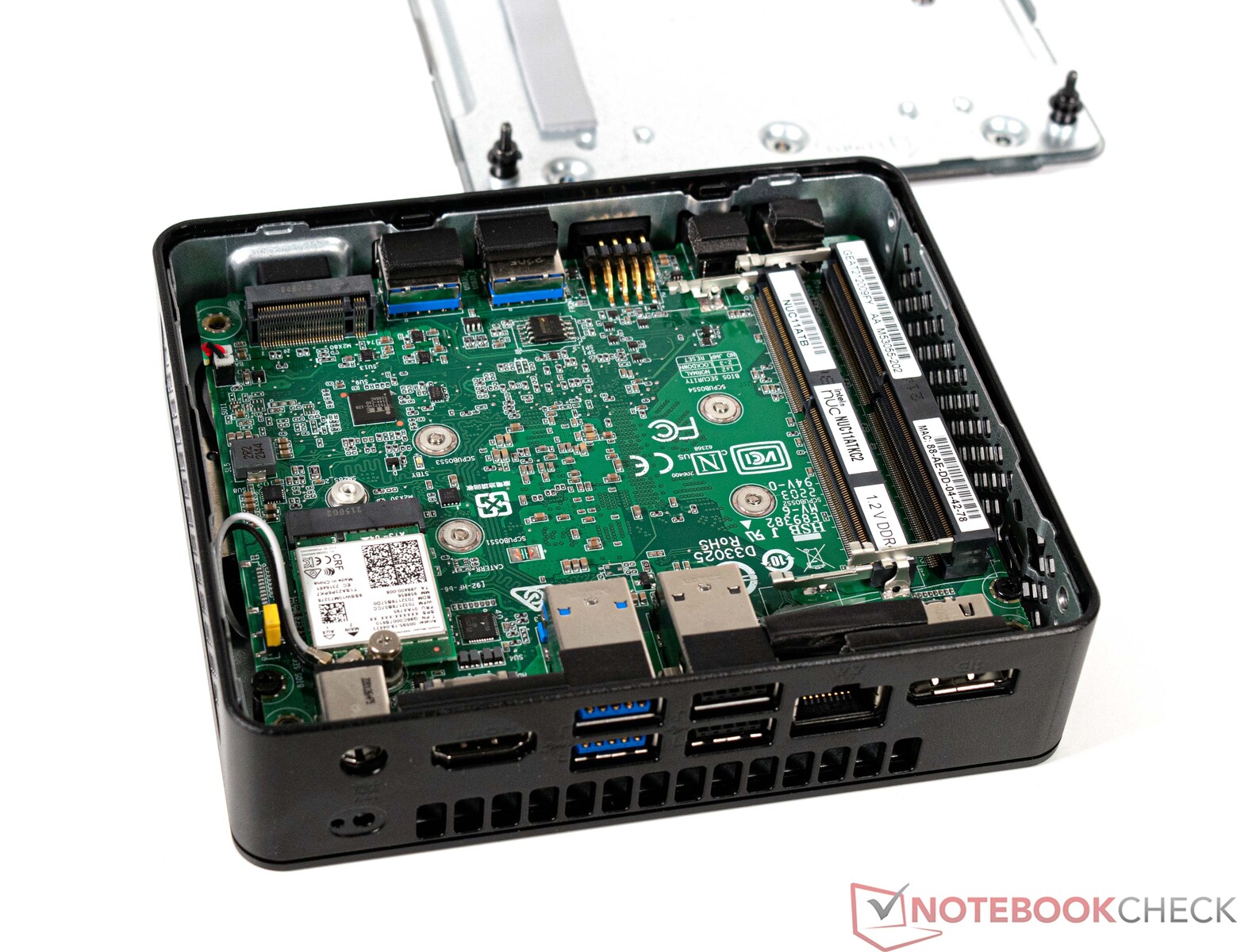

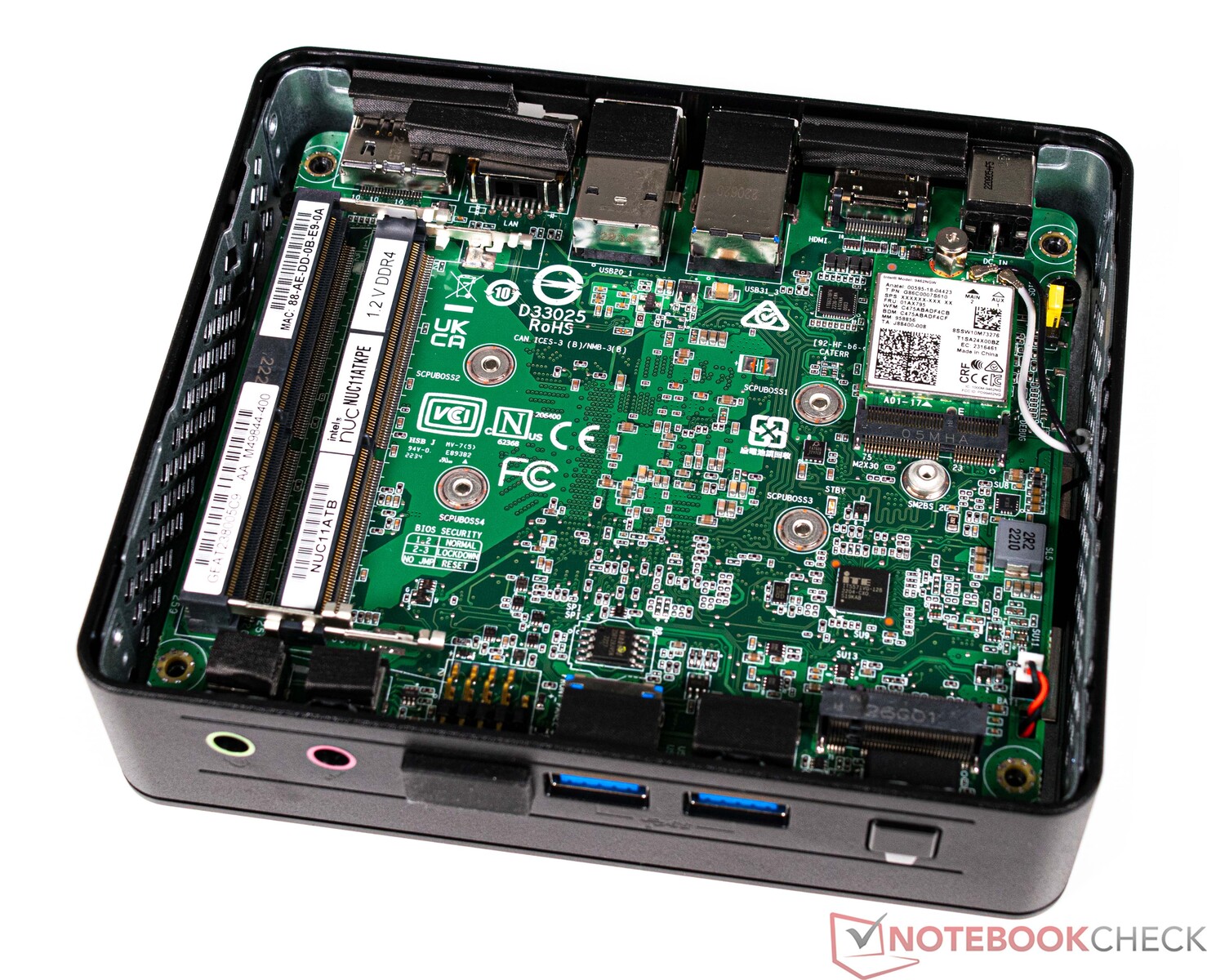

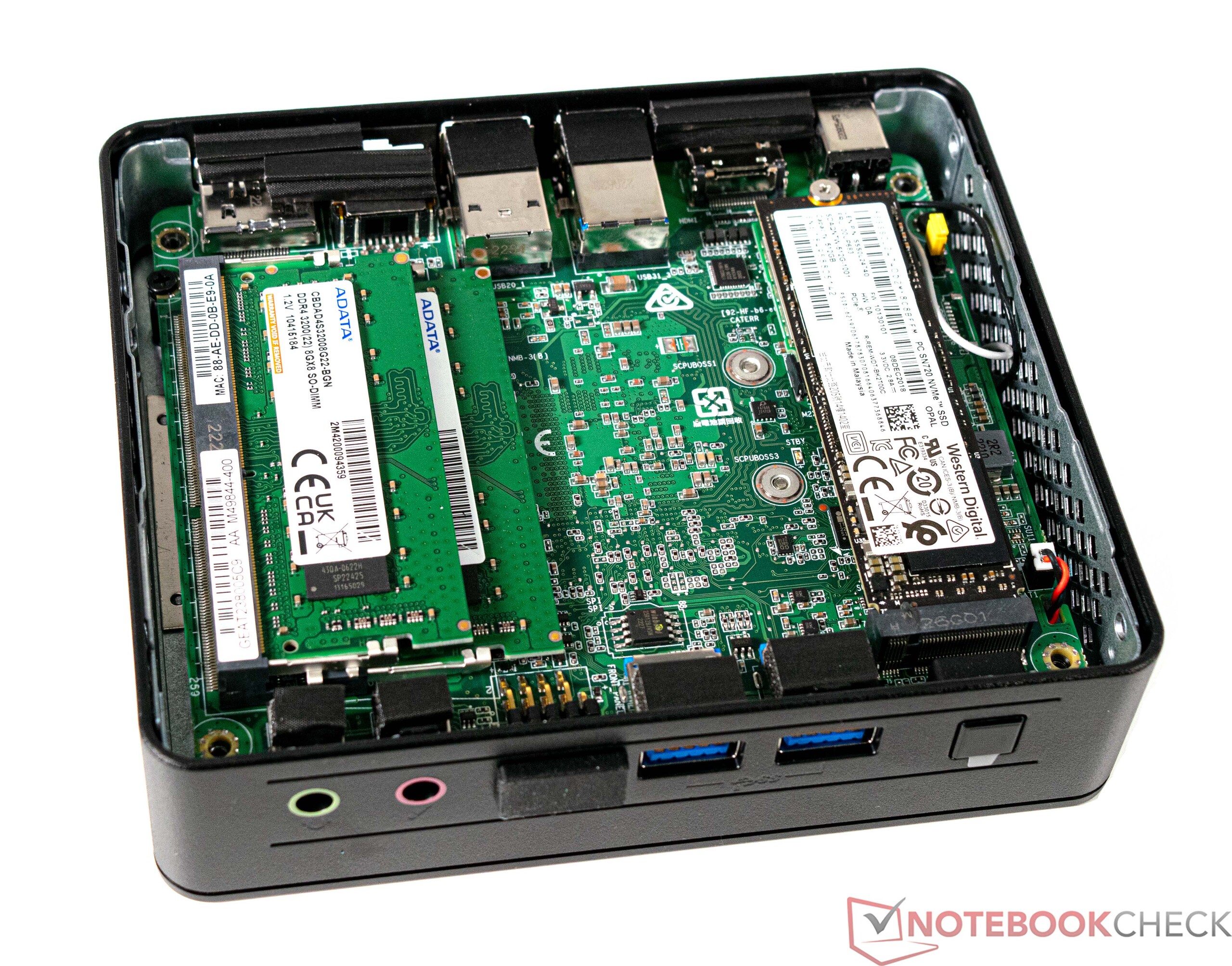

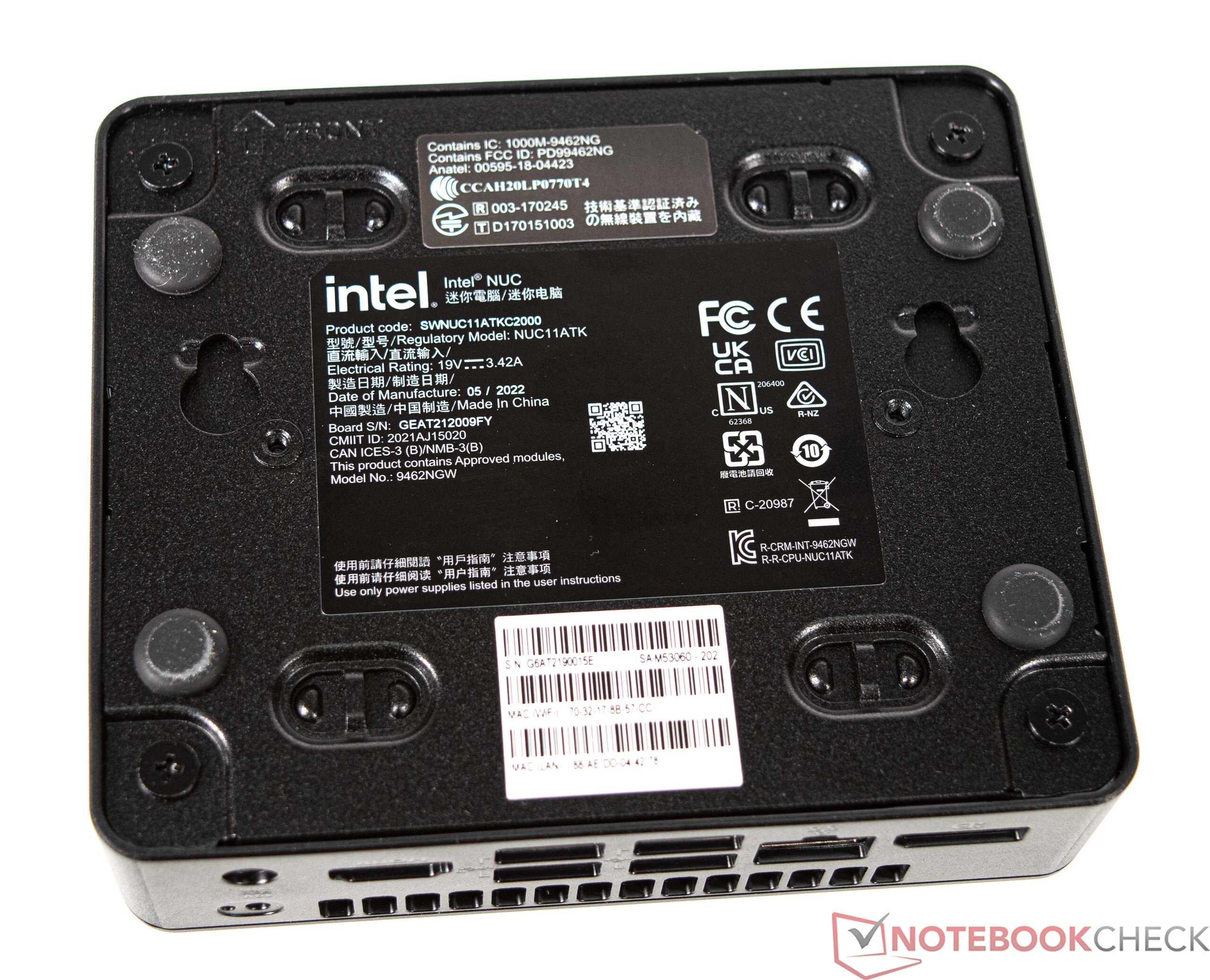

英特尔NUC11 Essential Kit - Atlas Canyon的底部可以很容易地打开，因为底板只由四个螺丝连接。在里面，内存插槽和M.2端口很容易进入。如果你想清洁CPU风扇，你将不得不进一步拆开设备。

性能--4个核心使日常使用变得相当顺畅

英特尔NUC11基本套件--Atlas Canyon有几个Jasper Lake选项--在我们的测试中，我们将仔细研究一下英特尔赛扬N4505和英特尔奔腾银N6005.由于英特尔赛扬N4505只有2个内核，这个型号很快就达到了它的极限。对于日常使用，英特尔奔腾银色N6005无疑是更明智的选择--其4个核心的性能有明显的提高。然而，对于使用小型操作系统的特定用途，配备英特尔赛扬N4505的英特尔NUC11基本套件--阿特拉斯峡谷绝对仍有其用武之地。根据其规格，这个模型也支持Linux。

英特尔奔腾银N6005

英特尔赛扬N4505

测试条件

我们使用能源配置文件 "平衡 "运行所有性能测试。我们没有改变CPU的性能--相反，我们让它按照BIOS设置处于自动模式。

处理器

碧玉湖系列的处理器具有2个核心，在英特尔赛扬N4505和4个内核的英特尔奔腾银N6005.在我们的测试中，双核SoC的表现相当挣扎，而4核的型号则表现得相当好。甚至英特尔奔腾银色N6005的单核性能也更好，尽管同样的SoC在测试中表现更好。 Newsmay AC8.

即便如此，你还是要考虑设备的使用范围。对于使用Linux作为操作系统的责任有限的小型嵌入式系统来说，配备英特尔赛扬N4505的英特尔NUC11 Essential Kit - Atlas Canyon绝对是一个有效的、具有成本效益的选择。如果系统需要运行Windows，那么我们建议购买配备英特尔奔腾N6005的英特尔NUC11 Essential Kit - Atlas Canyon。

关于进一步的比较和基准测试，请看我们的CPU比较表.

英特尔NUC11ATKPE，N6005

英特尔NUC11ATKC2，N4505

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	88.9 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	85.7 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	74.9 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	74 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	71.9 pt
AC6-M Mini-PC ^-2! Intel Celeron J4125, 2000 MHz	51.2 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	50.6 pt

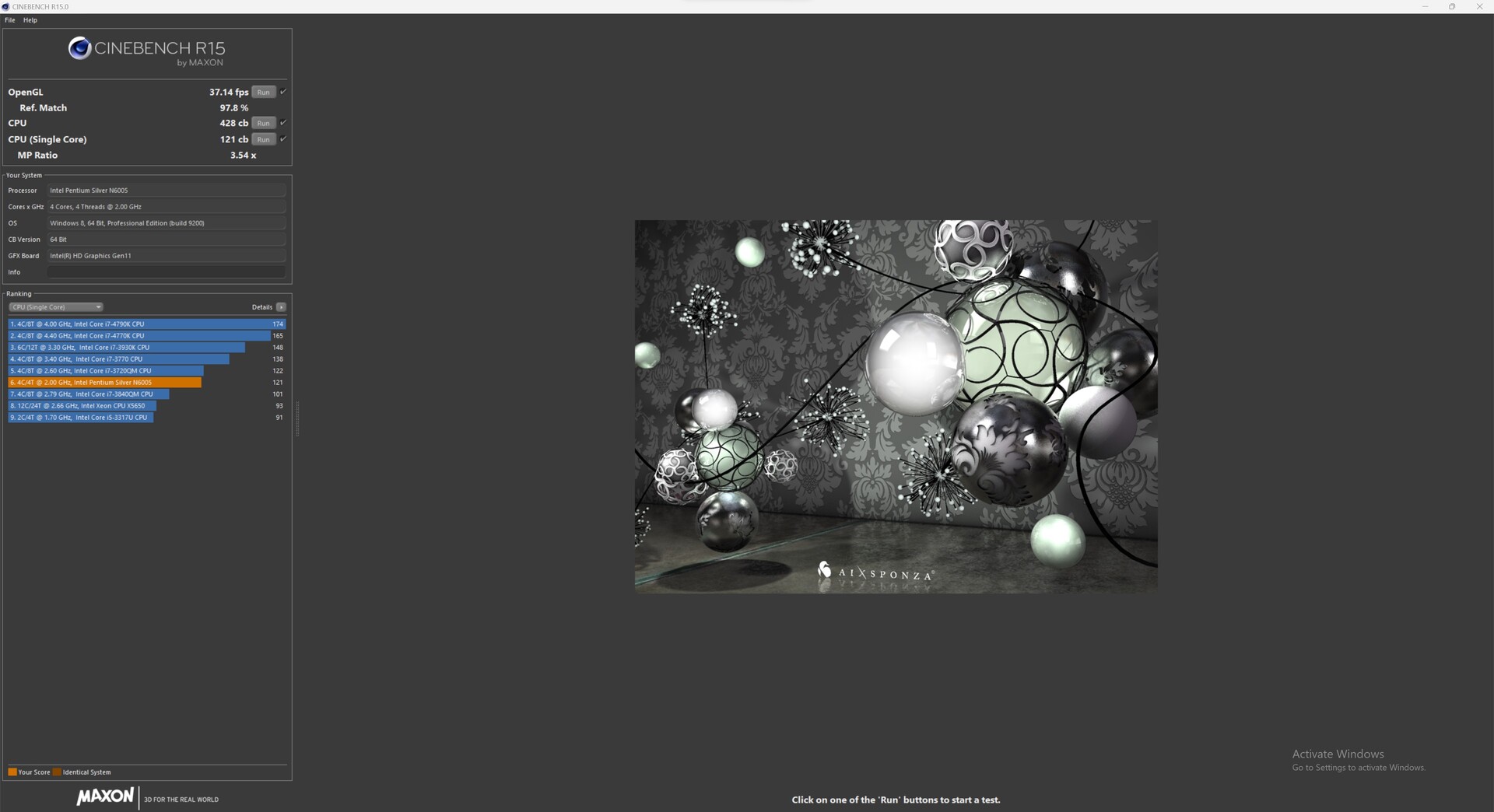

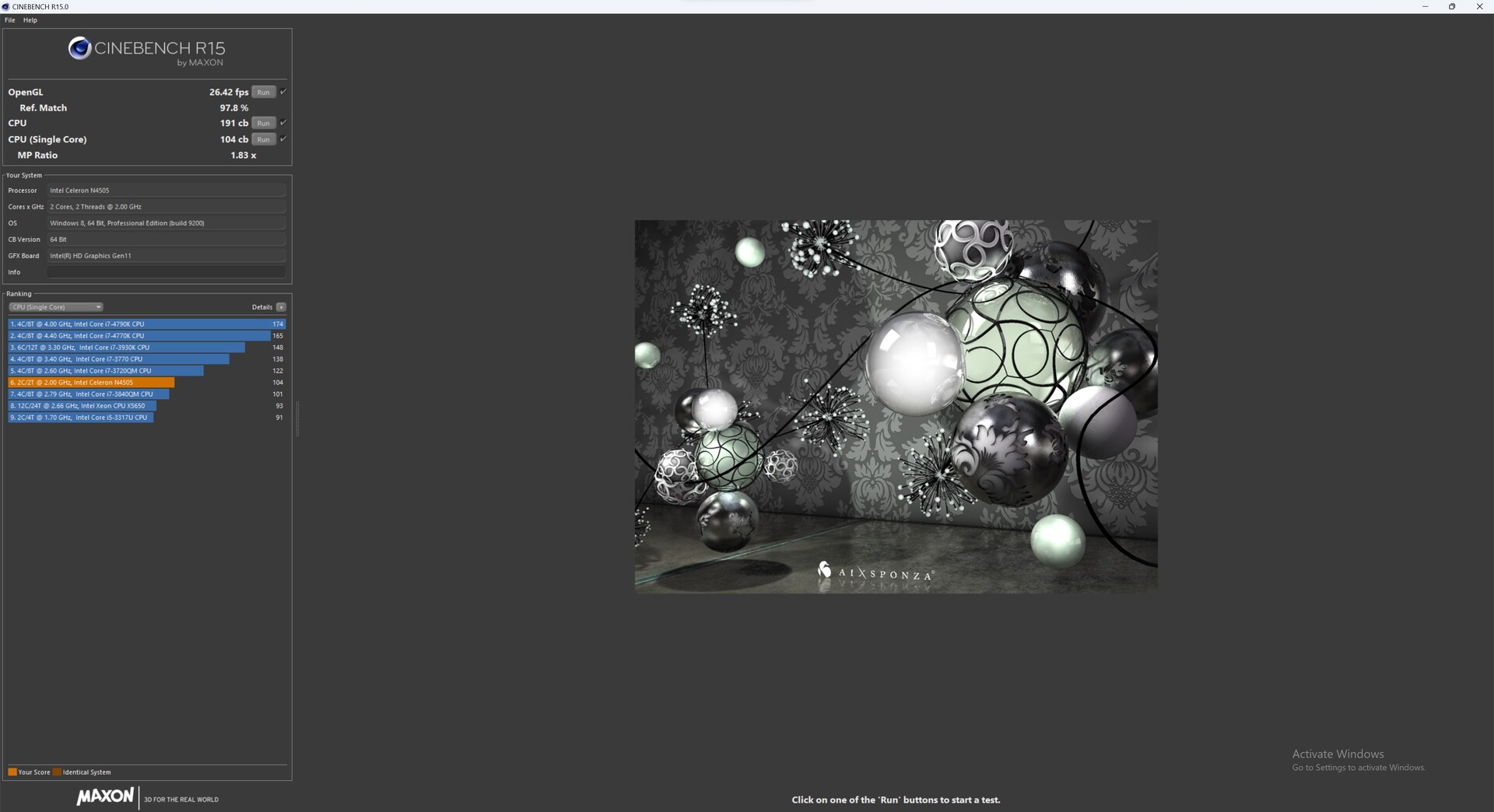

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points +2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	121 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	104 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points -36%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	428 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	191 Points -55%

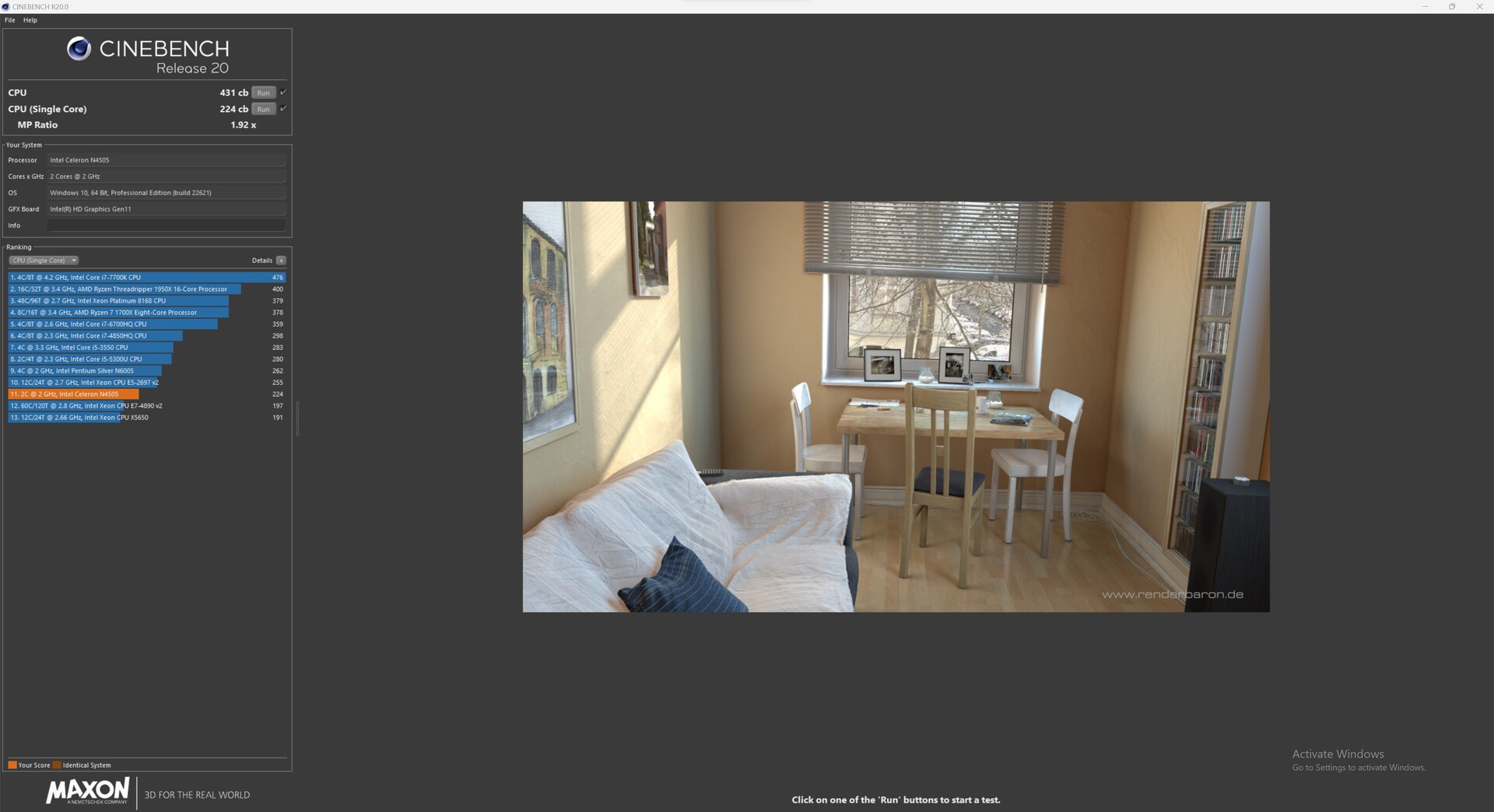

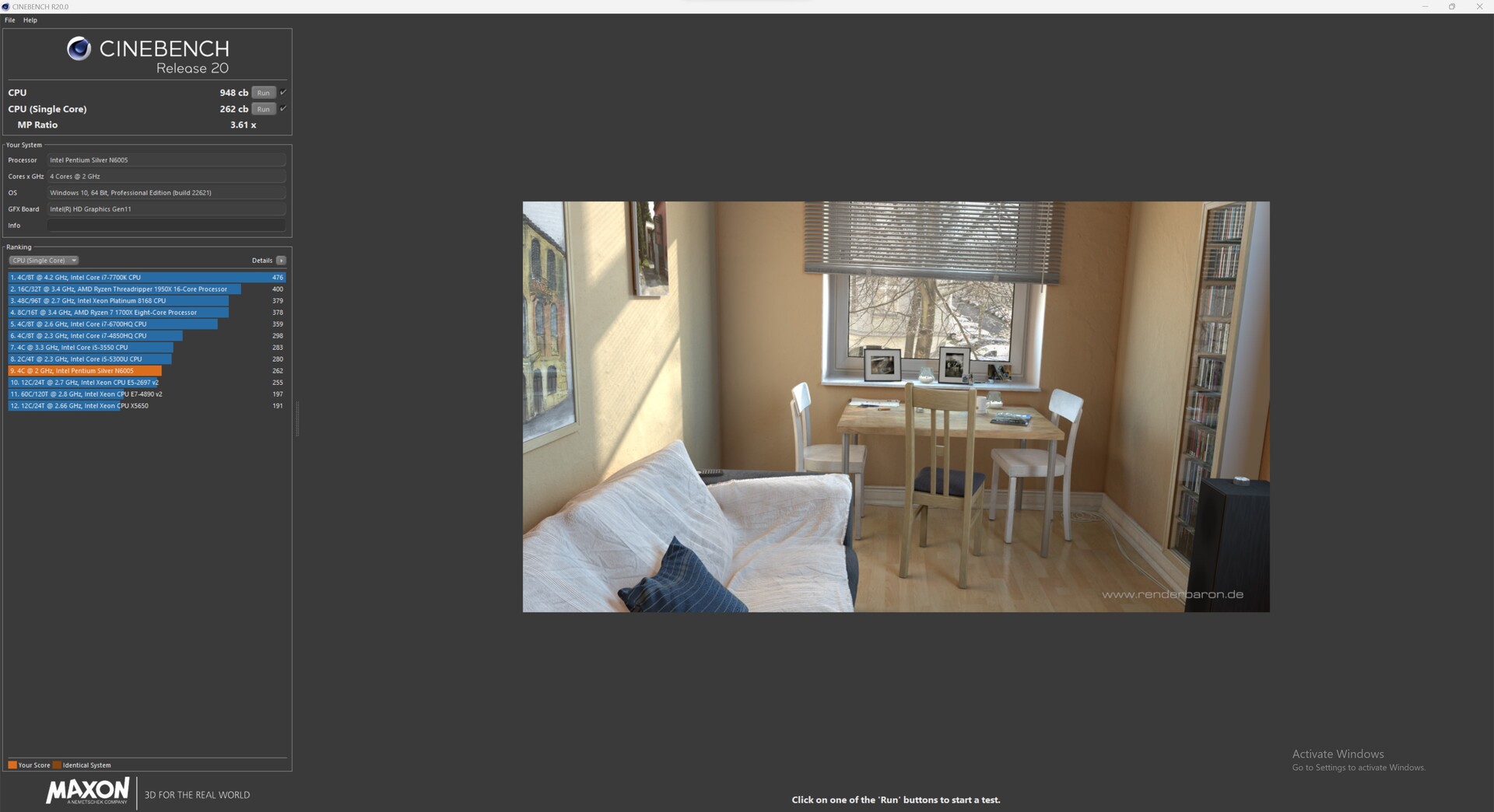

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	262 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -8%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	224 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points -35%
CPU (Multi Core)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	948 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points -24%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	431 Points -55%

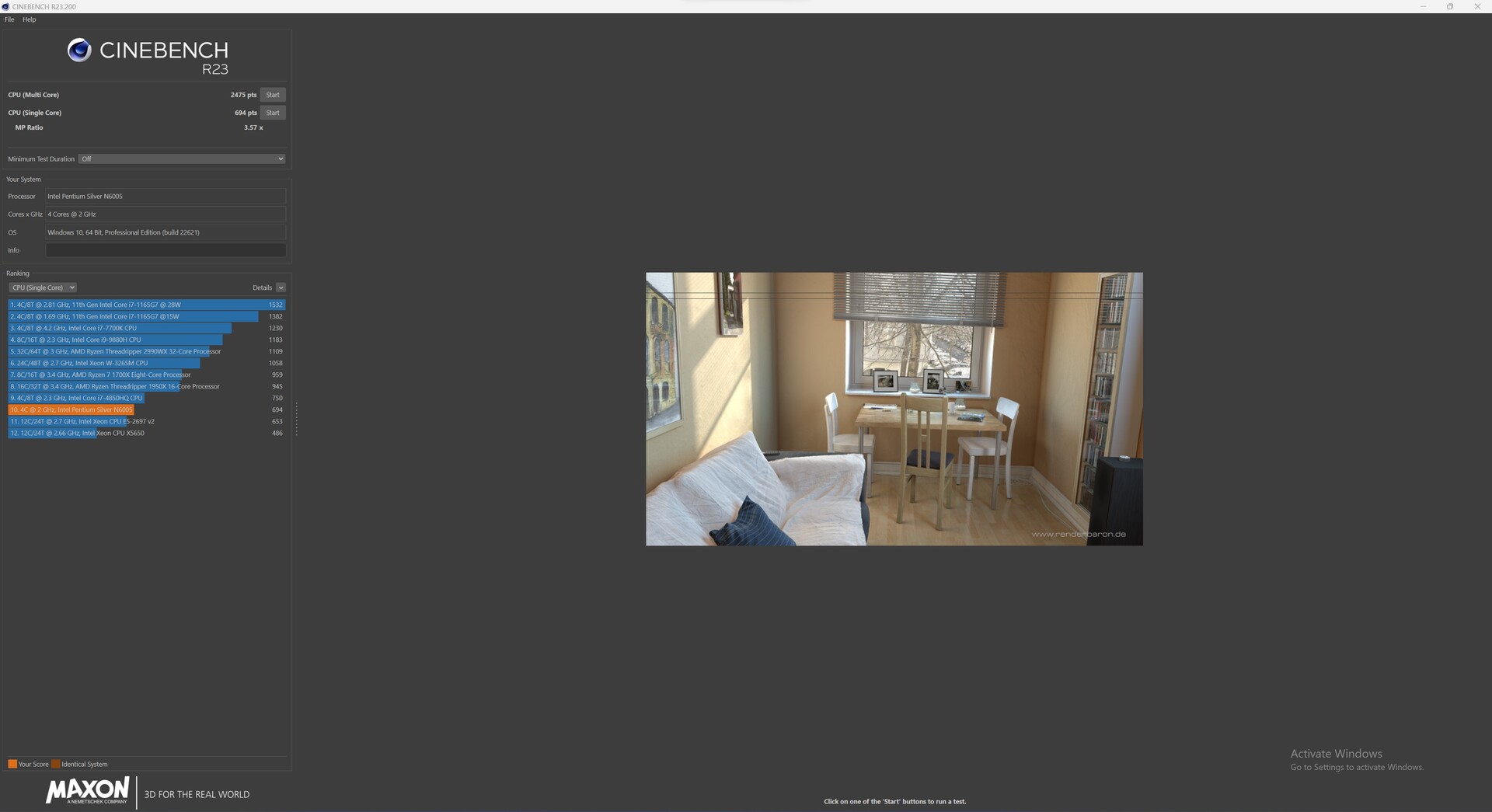

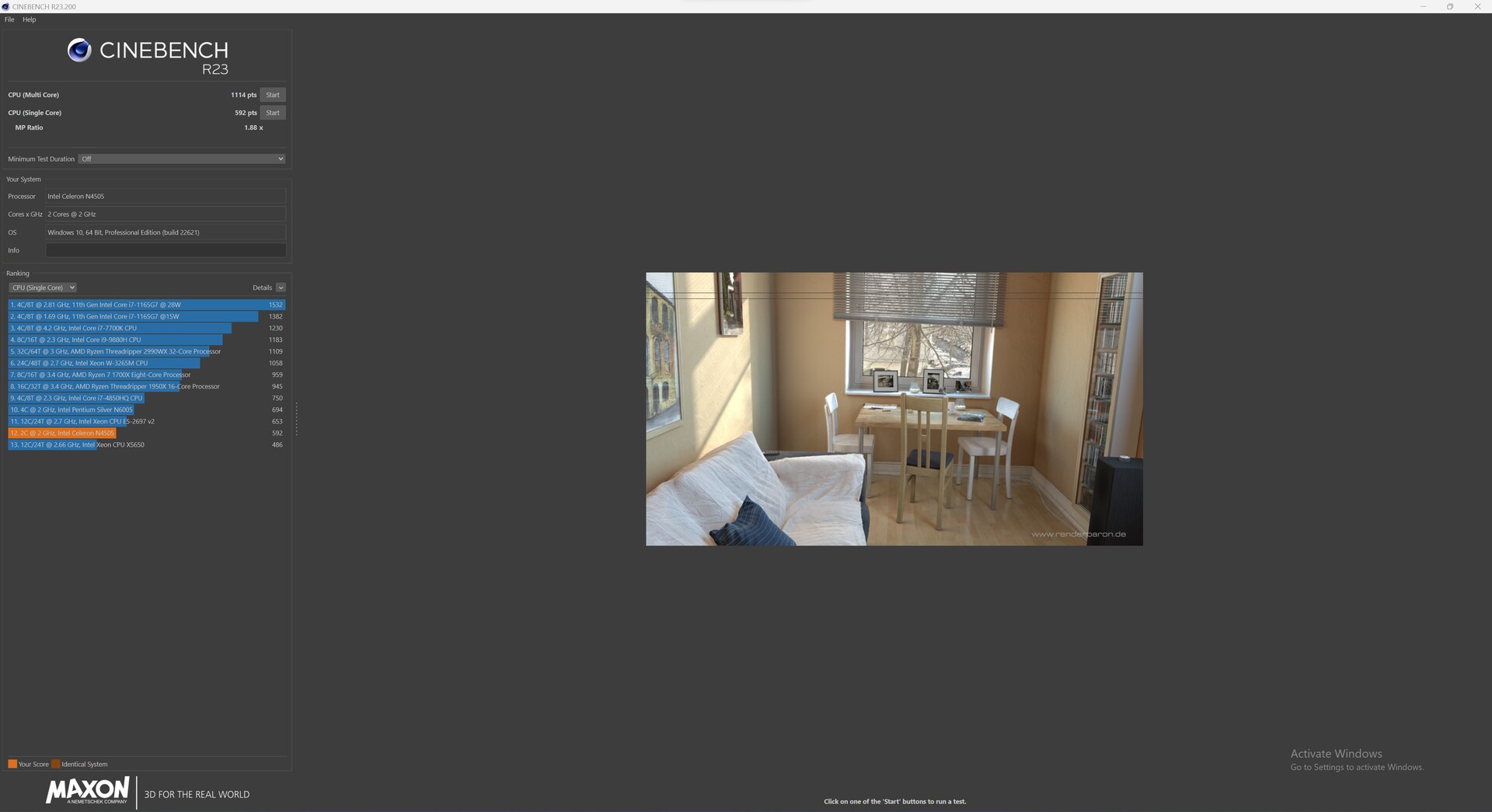

Cinebench R23
Single Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	700 Points +1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	592 Points -15%
Multi Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2528 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2475 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points -26%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1114 Points -55%

Cinebench R11.5
CPU Single 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.48 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points -13%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.27 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points -38%
CPU Multi 64Bit
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5.56 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points -26%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2.46 Points -56%

Cinebench R10
Rendering Single CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points +6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6172 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points 0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points -12%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5294 Points -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points -40%
Rendering Multiple CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	20238 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points -19%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	10063 Points -50%

Blender - v2.79 BMW27 CPU
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2953 Seconds * -118%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * -14%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1354 Seconds *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * +15%

wPrime 2.10
32m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	35.481 s * -122%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * -24%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * -7%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * -3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	16.004 s *
1024m
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1120.441 s * -127%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * -25%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	493.256 s *

X264 HD Benchmark 4.0
Pass 1
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps +7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	135.5 (134.3^min - 136.3^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps -11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	72.3 (71.9^min - 72.4^max) fps -47%
Pass 2
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	28.75 (28.3^min - 29.5^max) fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	13.8 (13.8^min - 13.8^max) fps -52%

WinRAR - Result
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s +20%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1824 KB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s -11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s -16%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1000 KB/s -45%

TrueCrypt
AES Mean 100MB
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.9 GB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s -10%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.3 GB/s -55%
Twofish Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s +23%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s -8%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s -34%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.192 GB/s -52%
Serpent Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s +11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s +5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	0.219 GB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s -17%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	0.101 GB/s -54%

Geekbench 5.5
Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2402 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points -38%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1225 Points -49%
Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	738 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points -11%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	647 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points -38%

Geekbench 5.0
5.0 Multi-Core
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2455 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points -19%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points -40%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1205 Points -51%
5.0 Single-Core
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points +16%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	694 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points -6%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	645 Points -7%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points -35%

Geekbench 4.4
64 Bit Single-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points +8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3314 Points
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2942 Points -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points -12%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points -23%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points -42%
64 Bit Multi-Core Score
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	9426 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points -17%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points -42%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points -43%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5078 Points -46%

3DMark 11 - 1280x720 Performance Physics
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points +1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	5024 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points -27%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points -44%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2700 Points -46%

7-Zip 18.03
7z b 4
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	12851 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	5871 MIPS -54%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	3425 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2971 MIPS -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS -14%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS -31%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps +29%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	2.34 fps
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps -14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps -29%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps -37%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.16 fps -50%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1.224 sec * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * -12%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * -9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * -6%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1.073 sec *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * +4%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * -28%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	111.7 s *
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	105.1 s * +6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * +7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * +8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * +17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * +28%

WebXPRT 3 - Overall
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points +9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points +3%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	142.3 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points -11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	113.3 Points -20%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points -39%

Mozilla Kraken 1.1 - Total
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	1798 ms * -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * -7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	1516 ms *
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * +18%

3DMark - 1920x1080 Fire Strike Physics
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, 2000 MHz	6403 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points -33%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, 2000 MHz	2979 Points -53%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19.1 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	17.2 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16.4 pt
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	13.3 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	9.3 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7.8 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	5.5 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (764 - 51004, n=113, last 2 years)	14398 KRay/s +892%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1451 KRay/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1241 KRay/s -14%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s -31%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	646 KRay/s -55%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -71%

AIDA64 / FPU Julia
Average of class Mini PC (4140 - 214250, n=113, last 2 years)	69803 Points +694%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8792 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7446 Points -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points -29%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -55%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	3857 Points -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -73%

AIDA64 / CPU SHA3
Average of class Mini PC (290 - 9399, n=113, last 2 years)	3090 MB/s +421%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	593 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s -13%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	513 MB/s -13%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -54%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	260 MB/s -56%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -72%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 184747, n=113, last 2 years)	81948 Points +212%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26238 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 Points -16%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points -24%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	11639 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -69%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -70%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 29064, n=113, last 2 years)	9409 Points +696%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points +2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1182 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1000 Points -15%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	519 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -65%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -66%

AIDA64 / FPU Mandel
Average of class Mini PC (2088 - 113499, n=113, last 2 years)	36431 Points +680%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	4670 Points
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3954 Points -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	2049 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -73%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 325960, n=113, last 2 years)	89829 MB/s +621%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19354 MB/s +55%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s +55%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	12455 MB/s
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	5504 MB/s -56%

AIDA64 / CPU ZLib
Average of class Mini PC (76.7 - 2039, n=113, last 2 years)	794 MB/s +258%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	222 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188 MB/s -15%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	98.7 MB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -66%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -73%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (432 - 26952, n=113, last 2 years)	7708 KRay/s +847%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	814 KRay/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s -17%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s -32%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -49%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	350 KRay/s -57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -74%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (5296 - 51727, n=113, last 2 years)	30055 MPixel/s +156%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	11739 MPixel/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s -16%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	7994 MPixel/s -32%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7654 MPixel/s -35%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s -42%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -62%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -79%

英特尔NUC11基本套件--Atlas Canyon与Cinebench R15多循环的比较

在Cinebench R15连续循环测试中，我们第一次看到了设备的冷却能力。在50个循环中，两个测试系统的性能都保持稳定。相比之下Newsmay AC8相比，我们的测试样品采用相同的SoC，由于其主动冷却系统，产生了更好的结果。由于 Intel Celeron N4505的核心数量，该系统根本无法跟上其竞争对手，最终以193.9分排在最后。

Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø414 (407.59-416.69)

Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel Celeron N4505: Ø193.9 (178.74-195.53)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

系统性能

我们在合成系统性能基准测试中看到了类似的结果。英特尔NUC11基本套件配备了一个英特尔奔腾银N6005能够与 NiPoGi GK3Plus竞争，后者也有一个四核SoC--即英特尔N95.然而，英特尔N95是一个更新的SoC，这导致了10-25%的性能提高。测试样本采用的是 Intel Celeron N4505甚至超过了 Newsmay AC6-M，后者有4个内核。在内存测试中，与竞争对手相比，我们的两个测试样品都能表现良好。

Performance Rating | PCMark 10

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	100 pt
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	88.7 pt
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	84.2 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	83.4 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	80.9 pt
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	72.6 pt
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	65.3 pt

PCMark 10
Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	2746 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points -7%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	2067 Points -25%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points -34%
Essentials
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points +9%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	6113 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points -4%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points -7%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points -11%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	4876 Points -20%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points -23%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points +22%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points +4%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	3719 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points -5%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	3396 Points -9%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points -21%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	100 pt
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	79.7 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	74.5 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	69.4 pt
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	66 pt

CrossMark
Responsiveness
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points +37%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points +3%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	482 Points
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	419 Points -13%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points -16%
Creativity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points +21%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	510 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points -14%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points -14%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	388 Points -24%
Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points +22%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	591 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points -9%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	513 Points -13%
Overall
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points +24%
Intel NUC11ATKPE, N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G	539 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points -8%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points -12%
Intel NUC11ATKC2, N4505, Intel Celeron N4505 Intel UHD Graphics (Jasper Lake 16 EU), WDC PC SN720 SDAPNTW-512G	442 Points -18%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (8377 - 89287, n=113, last 2 years)	50715 MB/s +91%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26521 MB/s
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	25028 MB/s -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16422 MB/s -38%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	13833 MB/s -48%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -76%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6308 MB/s -76%

AIDA64 / Memory Read
Average of class Mini PC (8974 - 100086, n=113, last 2 years)	51678 MB/s +168%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19297 MB/s
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16615 MB/s -14%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	15613 MB/s -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s -20%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10204 MB/s -47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -64%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6576 MB/s -66%

AIDA64 / Memory Write
Average of class Mini PC (8762 - 100538, n=113, last 2 years)	55876 MB/s +62%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	34452 MB/s
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s -10%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	29332 MB/s -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18612 MB/s -46%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10449 MB/s -70%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6866 MB/s -80%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -80%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -164%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	144 ns * -160%
Average of class Mini PC (44.9 - 184.8, n=113, last 2 years)	92 ns * -66%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	89.5 ns * -62%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	59.3 ns * -7%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	59.1 ns * -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	55.3 ns *

* ... smaller is better

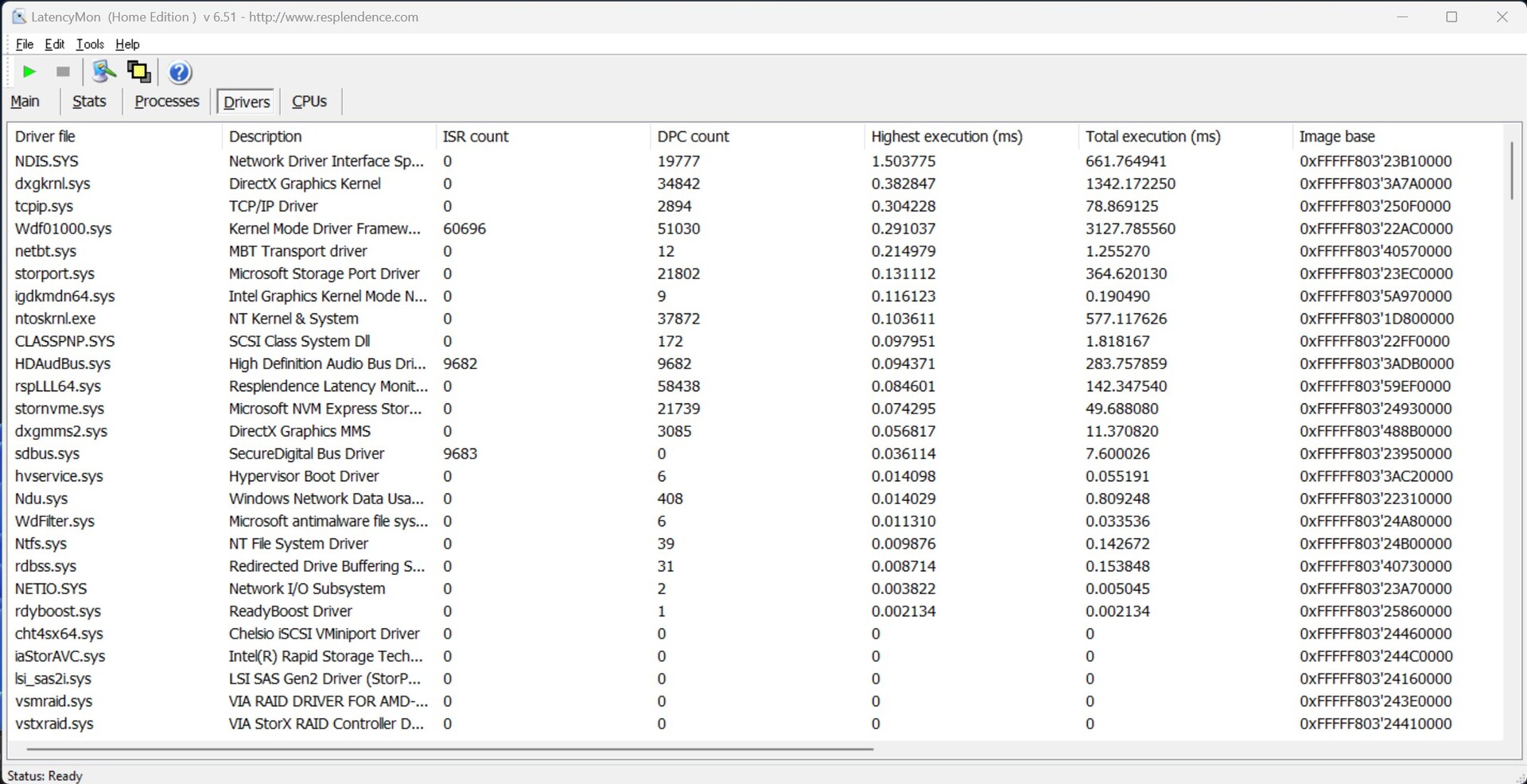

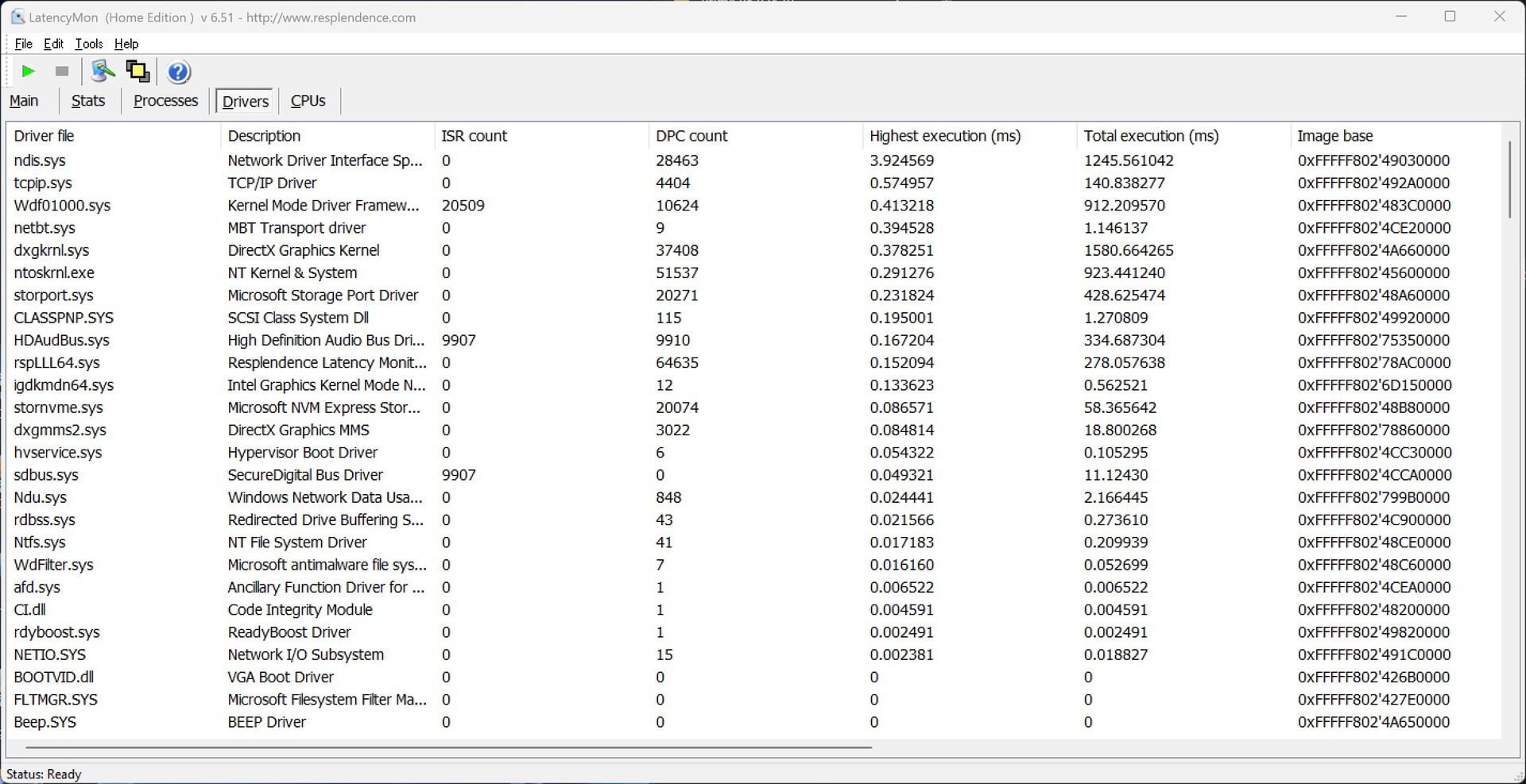

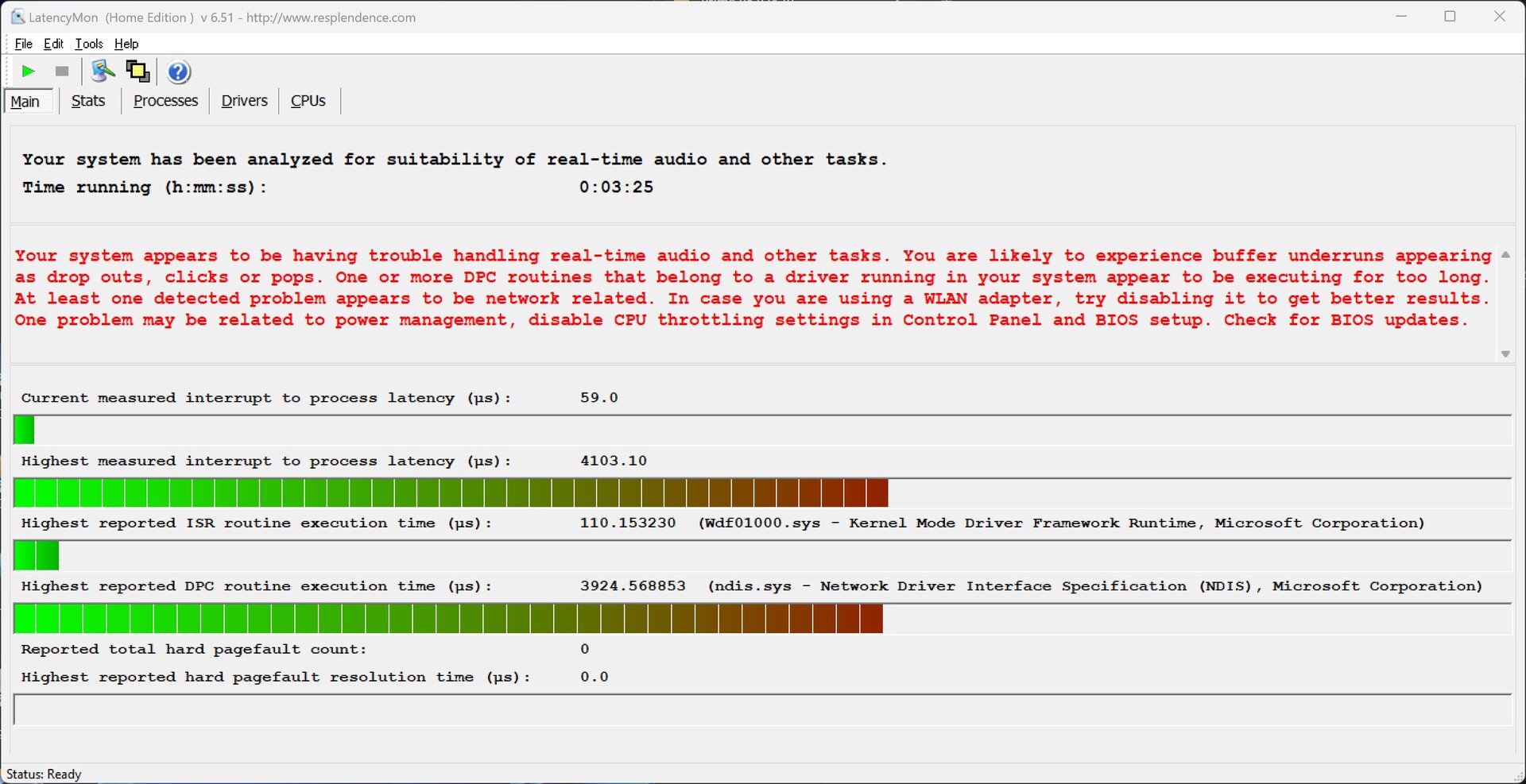

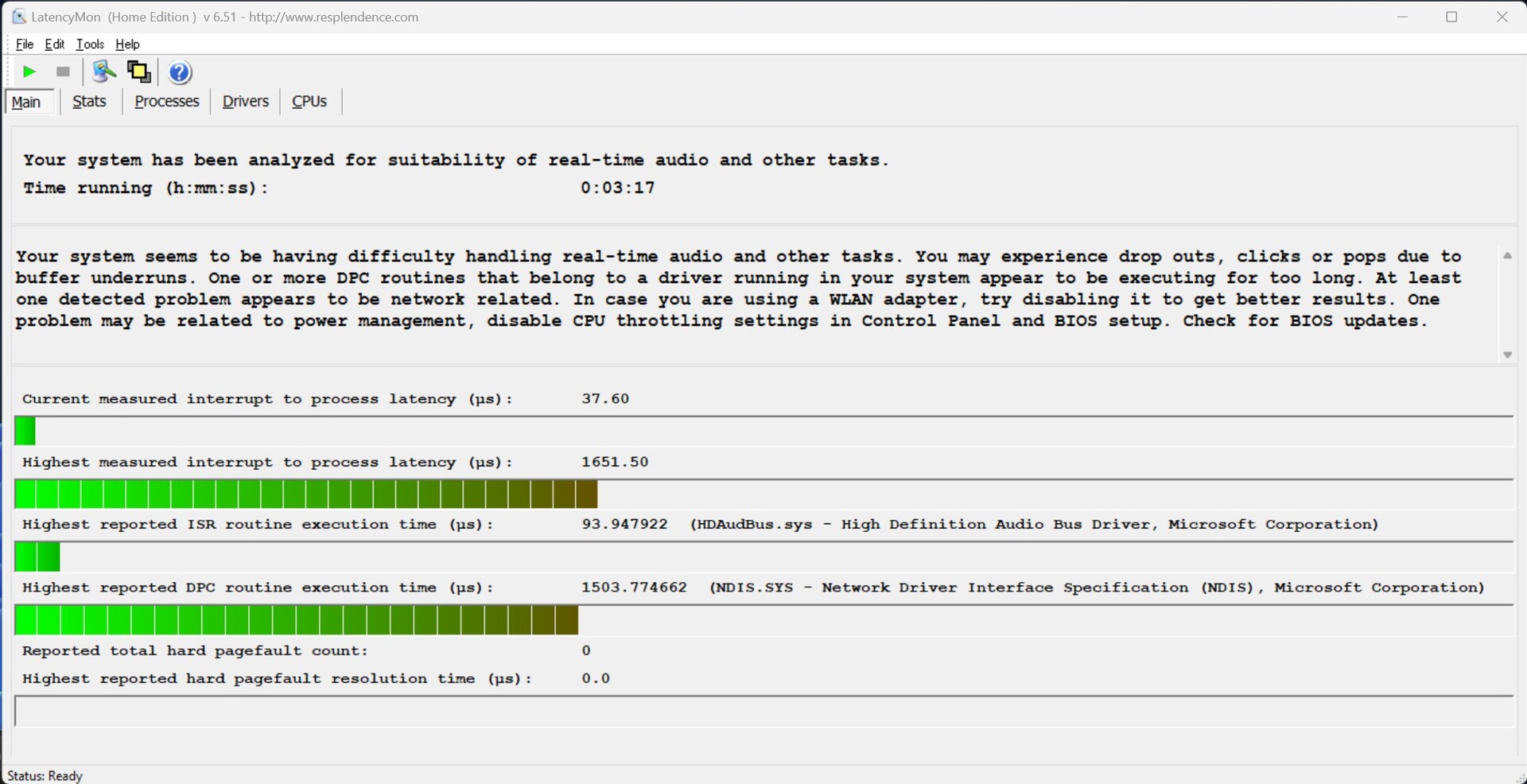

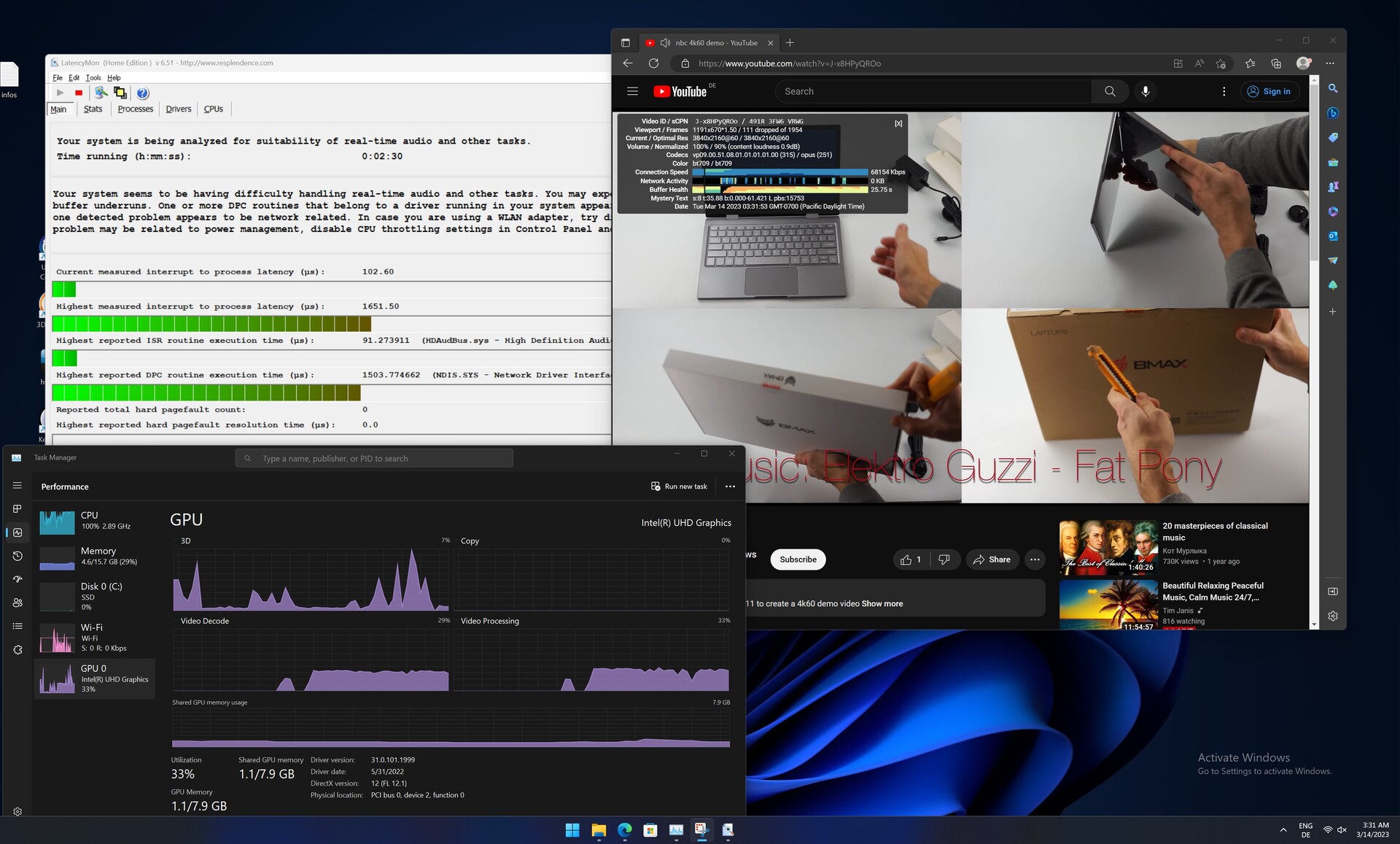

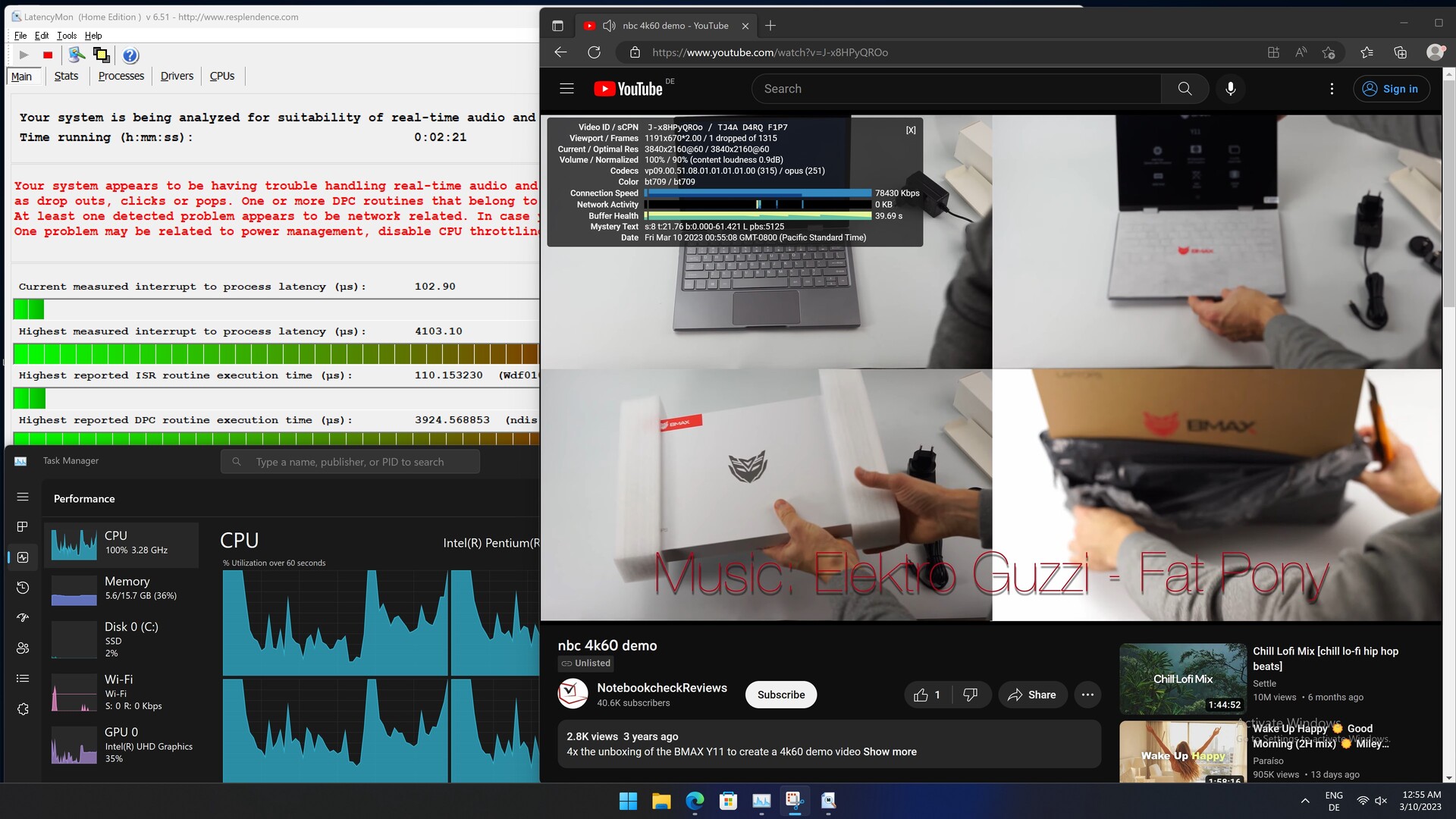

DPC延时

两个测试系统都在为高延迟而挣扎。令人惊讶的是，我们看到所谓更快的设备的结果更糟。另一方面，两台设备在播放4K的高分辨率视频时都很吃力。

英特尔NUC11ATKPE，N6005

英特尔NUC11ATKC2，N4505

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro UHD Graphics (Jasper Lake 16 EU), Celeron N5095, FPT310M4SSD256G	4075 μs * -4%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	3924 μs *
AC6-M Mini-PC UHD Graphics 600, Celeron J4125	3767 μs * +4%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	3463 μs * +12%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2635 μs * +33%
Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G	1503.7 μs * +62%
Geekom MiniAir 11 Special Edition UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	687.3 μs * +82%

* ... smaller is better

存储设备

正如我们在介绍中提到的，英特尔NUC11基本套件--Atlas Canyon是一个裸机系统。在我们的测试中，我们安装了一块来自西部数据的512GB SSD。这套装备的模型提供了快速和稳定的传输速率。英特尔使用底板来冷却设备--它已经配备了一个热传导垫。英特尔NUC11基本套件--Atlas Canyon只能安装一块固态硬盘。

关于更多的比较和基准，请看我们的比较表.

英特尔NUC11ATKPE，N6005

英特尔NUC11ATKC2，N4505

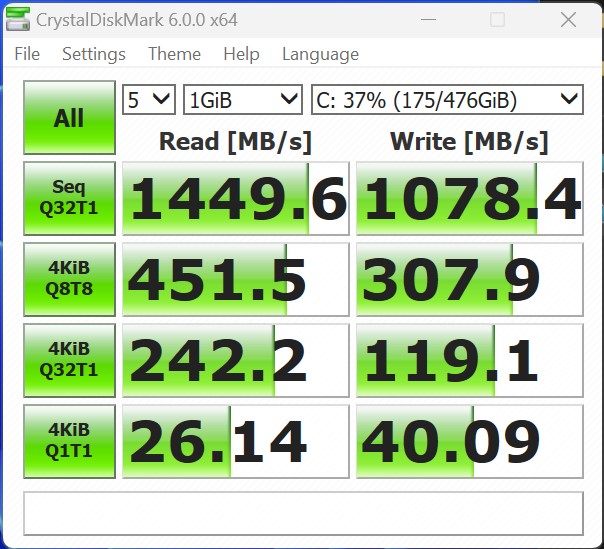

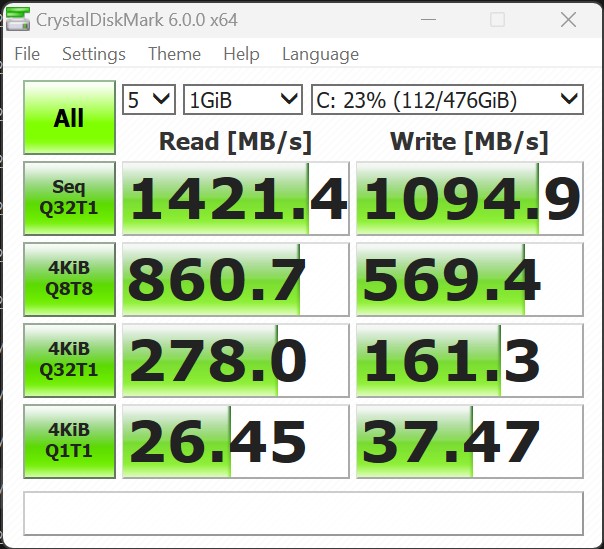

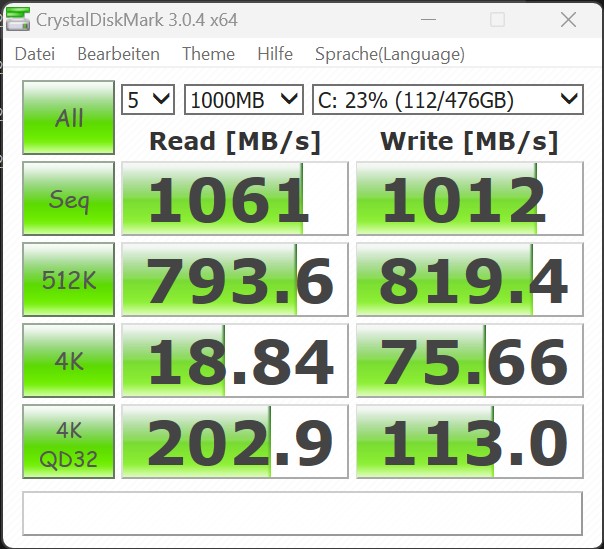

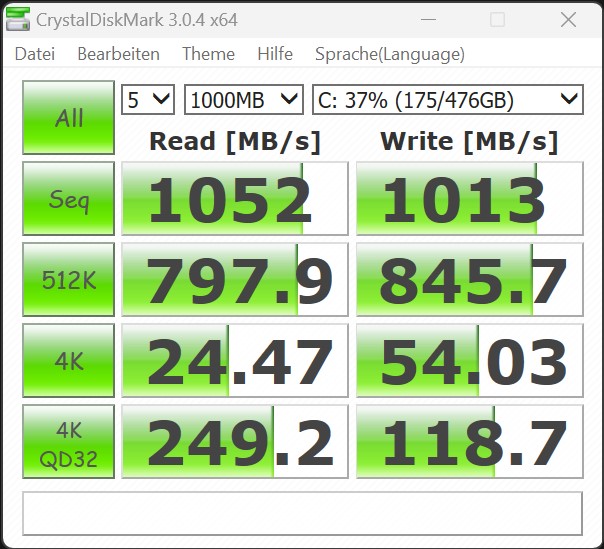

CrystalDiskMark 3.0

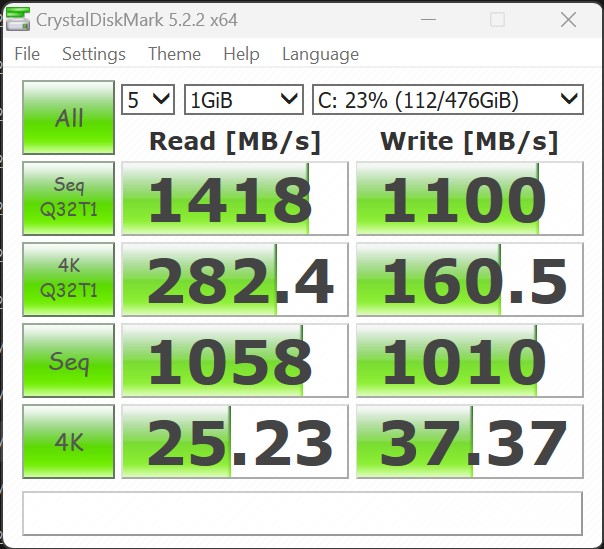

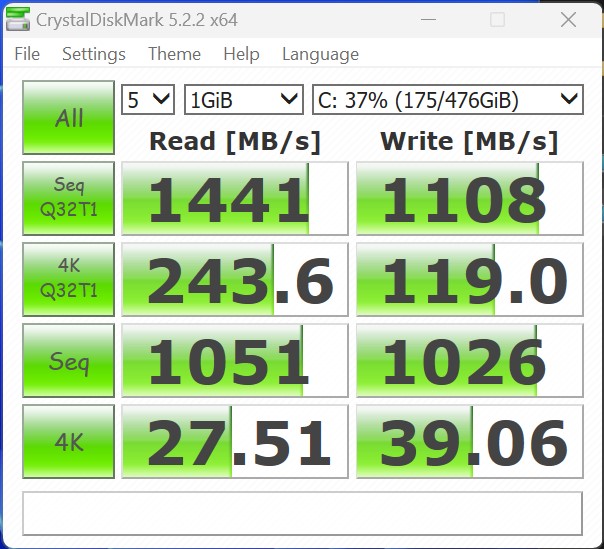

CrystalDiskMark 5.2 / 6

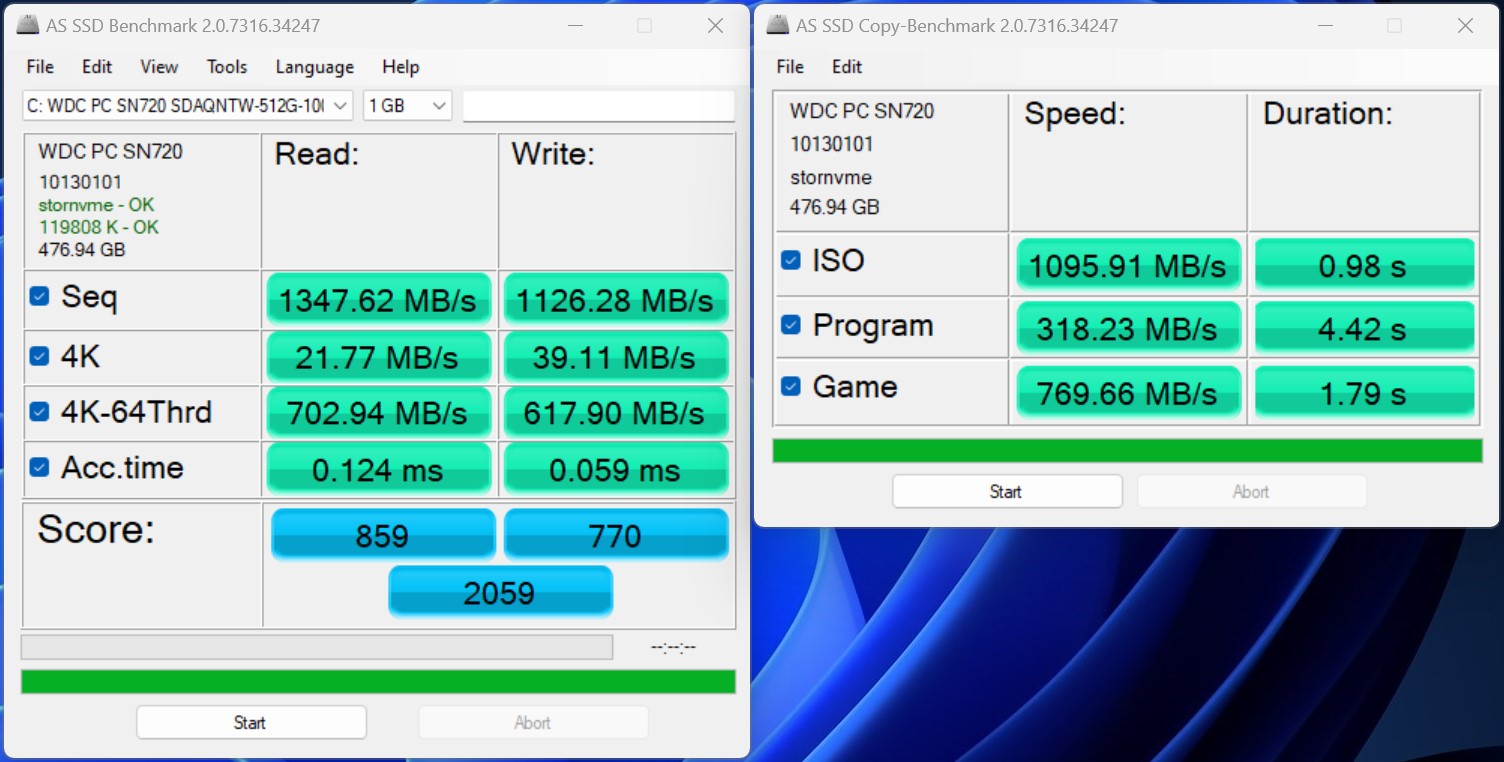

AS SSD

DiskSpd

WDC PC SN720 SDAPNTW-512G

Sequential Read: 1061 MB/s

Sequential Write: 1012 MB/s

512K Read: 793.6 MB/s

512K Write: 819.4 MB/s

4K Read: 18.84 MB/s

4K Write: 75.66 MB/s

4K QD32 Read: 202.9 MB/s

4K QD32 Write: 113 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	94.7 pt
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	42.9 pt
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	36.7 pt
AC6-M Mini-PC	27.2 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	26.9 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	24.1 pt
Newsmay AC8 N6005 Lexar 128GB SSD	23.7 pt
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	13.4 pt

DiskSpd
seq read
Average of class Mini PC (413 - 4357, n=113, last 2 years)	2376 MB/s +125%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1057 (1032.22^min - 1057.37^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1026 (988.51^min - 1025.76^max) MB/s -3%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s -52%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s -55%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s -55%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -57%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s -59%
seq write
Average of class Mini PC (259 - 5595, n=113, last 2 years)	2621 MB/s +169%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1022 (961.96^min - 1021.79^max) MB/s +5%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	976 (968.83^min - 975.8^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s -49%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s -50%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s -53%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s -56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s -58%
seq q8 t1 read
Average of class Mini PC (397 - 8430, n=113, last 2 years)	3921 MB/s +168%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1461 (1238.96^min - 1460.88^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1426 (1221.66^min - 1425.85^max) MB/s -2%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s -61%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s -62%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s -66%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s -69%
seq q8 t1 write
Average of class Mini PC (271 - 6669, n=113, last 2 years)	2952 MB/s +124%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1316 (1303.71^min - 1316.48^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1283 (1273.81^min - 1283.04^max) MB/s -3%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s -61%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s -61%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s -74%
4k q1 t1 read
Average of class Mini PC (6.85 - 87.3, n=113, last 2 years)	55.8 MB/s +130%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s +40%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s +9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s +7%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	24.4 (23.94^min - 24.41^max) MB/s 0%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	24.3 (23.99^min - 24.31^max) MB/s
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s -43%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s -47%
4k q1 t1 write
Average of class Mini PC (40.4 - 435, n=113, last 2 years)	195 MB/s +369%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s +140%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +131%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s +78%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s +49%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	41.6 (39.05^min - 41.6^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	40 (39.1^min - 40.03^max) MB/s -4%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s -47%
4k q32 t16 read
Average of class Mini PC (102.3 - 4158, n=113, last 2 years)	1452 MB/s +102%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	719 (712.63^min - 718.86^max) MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	460 (454.97^min - 459.58^max) MB/s -36%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s -58%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -64%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s -74%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s -76%
4k q32 t16 write
Average of class Mini PC (70.3 - 4288, n=113, last 2 years)	1351 MB/s +167%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	506 (502.96^min - 505.69^max) MB/s
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s -31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s -37%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	316 (312.68^min - 316.32^max) MB/s -38%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s -43%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s -49%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s -67%

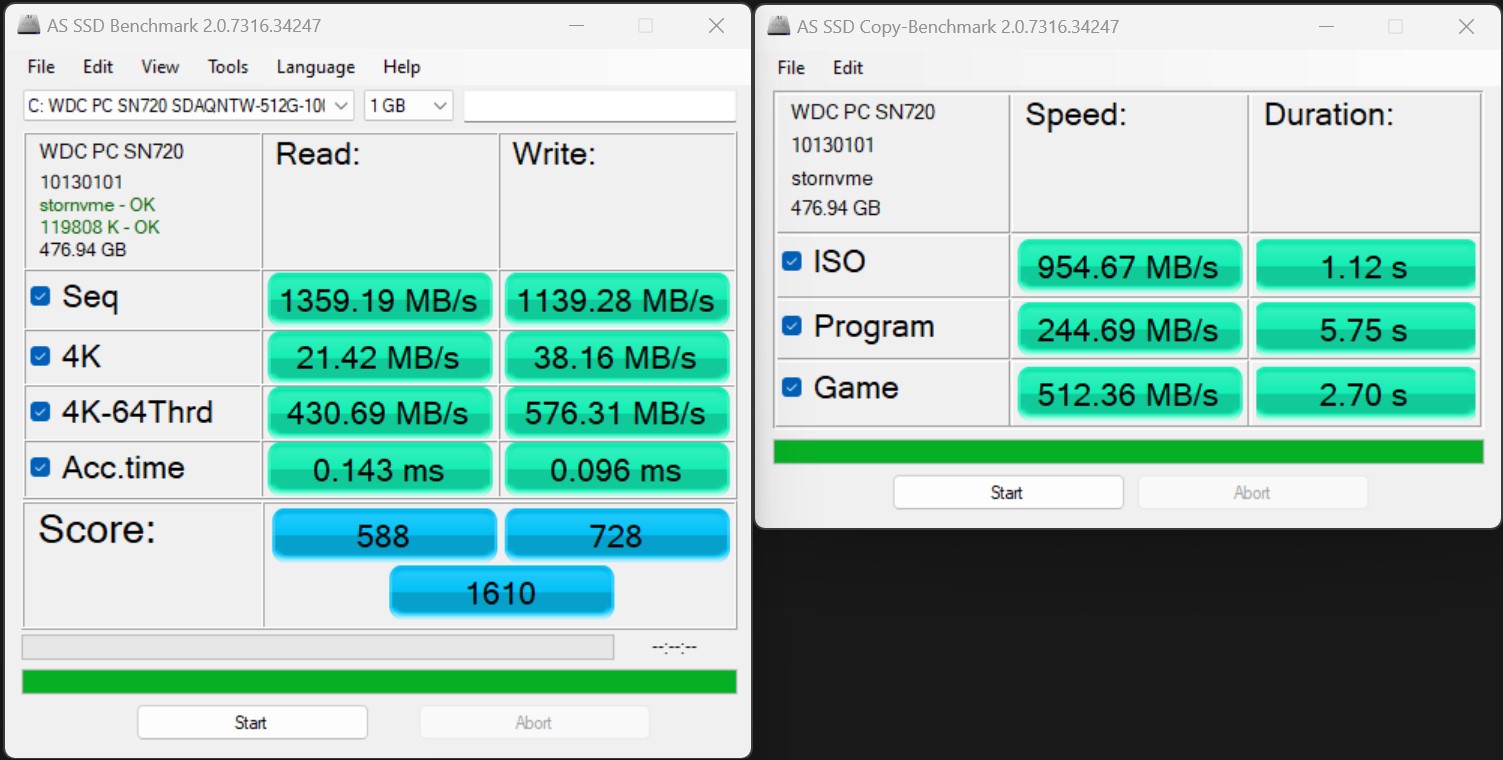

AS SSD
Score Total
Average of class Mini PC (507 - 10021, n=110, last 2 years)	4286 Points +108%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	2059 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1610 Points -22%
AC6-M Mini-PC	1091 Points -47%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points -66%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points -71%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points -93%
Score Read
Average of class Mini PC (172 - 3741, n=110, last 2 years)	1569 Points +83%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	859 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	588 Points -32%
AC6-M Mini-PC	473 Points -45%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points -63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -73%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points -75%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points -84%
Score Write
Average of class Mini PC (210 - 4371, n=110, last 2 years)	1955 Points +154%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	770 Points
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	728 Points -5%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points -49%
AC6-M Mini-PC	374 Points -51%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -52%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points -59%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points -73%
Seq Read
Average of class Mini PC (483 - 6620, n=110, last 2 years)	3271 MB/s +143%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1359 MB/s +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1348 MB/s
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s -62%
AC6-M Mini-PC	492 MB/s -64%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s -68%
Seq Write
Average of class Mini PC (277 - 5783, n=110, last 2 years)	2392 MB/s +112%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	1139 MB/s +1%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1126 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s -57%
AC6-M Mini-PC	450 MB/s -60%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s -63%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s -66%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s -69%
4K Read
Average of class Mini PC (18.2 - 104.3, n=110, last 2 years)	59 MB/s +171%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s +63%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s +26%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s +7%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	21.8 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	21.4 MB/s -2%
AC6-M Mini-PC	19.43 MB/s -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s -26%
4K Write
Average of class Mini PC (40.8 - 366, n=110, last 2 years)	176.5 MB/s +351%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s +119%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s +112%
AC6-M Mini-PC	51.4 MB/s +31%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	39.1 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	38.2 MB/s -2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s -3%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s -6%
4K-64 Read
Average of class Mini PC (94.3 - 3220, n=110, last 2 years)	1183 MB/s +68%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	703 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	431 MB/s -39%
AC6-M Mini-PC	404.1 MB/s -43%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s -66%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -78%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s -78%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s -92%
4K-64 Write
Average of class Mini PC (96.3 - 3731, n=110, last 2 years)	1539 MB/s +149%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	618 MB/s
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	576 MB/s -7%
AC6-M Mini-PC	277.8 MB/s -55%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s -56%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -61%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s -62%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s -78%
Access Time Read
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * -65%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * -19%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	0.143 ms * -15%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * -12%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.124 ms *
Average of class Mini PC (0.025 - 0.288, n=110, last 2 years)	0.09555 ms * +23%
AC6-M Mini-PC	0.088 ms * +29%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +39%
Access Time Write
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * -244%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * -146%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * -124%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -115%
Average of class Mini PC (0.014 - 0.706, n=110, last 2 years)	0.1101 ms * -87%
Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G	0.096 ms * -63%
AC6-M Mini-PC	0.071 ms * -20%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.059 ms *

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G: Ø1445 (1295.28-1490.45)

Intel NUC11ATKC2, N4505 WDC PC SN720 SDAPNTW-512G: Ø1402 (1294.85-1449.38)

显卡和游戏性能

英特尔NUC11 Essential Kit - Atlas Canyon有一块来自Jasper Lake系列的英特尔UHD集成显卡。的英特尔奔腾银N6005的iGPU有32个EU，而 Intel Celeron N4505只有16个EUs。看一下这两个系统的合成3D性能，性能上的差异就非常明显了。

在这两种情况下，内置的iGPU对游戏来说是不够的。看一下我们测试的游戏列表，你会发现它们几乎没有产生任何可玩的帧率。

进一步的英特尔UHD基准测试（Jasper Lake）可以发现这里.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	100 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	81.2 pt
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	70.9 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	50.1 pt
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	48.2 pt
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	47.7 pt
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	34.1 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1872 Points
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points -15%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -22%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points -54%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	854 Points -54%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -55%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	602 Points -68%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	9405 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -15%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points -37%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points -45%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -47%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	4625 Points -51%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	3503 Points -63%
1920x1080 Fire Strike Graphics
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1351 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -20%
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points -35%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points -51%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	653 Points -52%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -53%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	446 Points -67%

Intel NUC11ATKPE, N6005

3DMark 05 Standard		14499 points
3DMark 06 Standard Score		10473 points
3DMark Vantage P Result		7448 points
3DMark 11 Performance		2086 points
3DMark Ice Storm Standard Score		40203 points
3DMark Cloud Gate Standard Score		7589 points
3DMark Fire Strike Score		1260 points
3DMark Fire Strike Extreme Score		620 points
3DMark Time Spy Score		456 points
Help

... in comparison

Intel NUC11ATKC2, N4505

3DMark 05 Standard		12573 points
3DMark 06 Standard Score		6419 points
3DMark Vantage P Result		3411 points
3DMark 11 Performance		971 points
3DMark Ice Storm Standard Score		23869 points
3DMark Cloud Gate Standard Score		3669 points
3DMark Fire Strike Score		635 points
3DMark Fire Strike Extreme Score		309 points
3DMark Time Spy Score		203 points
Help

... in comparison

Performance Rating | X-Plane 11.11 | Dota 2 Reborn | Final Fantasy XV Benchmark

Performance Rating - Percent
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	93.7 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	90.6 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	67.2 pt
Minipc Union Ace Magician T8Pro ^-1! Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.1 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	52.6 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	52.6 pt
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	36 pt

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.4 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	22.5 fps -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.2 fps -35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	15.1 fps -35%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	13.2 fps -44%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	10.1 fps -57%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	6.36 fps -73%
1920x1080 med (fps_test=2)
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.9 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	14.7 fps -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	11.4 fps -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	9.18 fps -42%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	8.41 fps -47%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	4.84 fps -70%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	79.8 (67.5^min) fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	69.7 (57.1^min) fps -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	61.2 (50.1^min) fps -23%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.6 (47.7^min) fps -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	54 (46.5^min) fps -32%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	41.5 (35.8^min) fps -48%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	36.2 (29.6^min) fps -55%
1366x768 med (1/3)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	44.9 (33.7^min) fps +62%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	27.8 (20.4^min) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	26.9 (19.4^min) fps -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	22.8 (14.3^min) fps -18%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	22.4 (18^min) fps -19%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	22 (11.8^min) fps -21%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	17.2 (12.6^min) fps -38%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.3 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	12 fps -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	10.7 fps -25%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.13 fps -50%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.94 fps -51%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	6.92 fps -52%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	5.17 fps -64%
1920x1080 Standard Quality
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	6.71 fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	5.63 fps -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	4.96 fps -26%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	3.28 fps -51%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	3.27 fps -51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	3.19 fps -52%
AC6-M Mini-PC Intel Celeron J4125, Intel UHD Graphics 600	2.14 fps -68%

Intel NUC11ATKPE, N6005

	low	med.	high	ultra
GTA V (2015)	26.8	26.1	10.8
Dota 2 Reborn (2015)	79.8	27.8	19.5	18.3
Final Fantasy XV Benchmark (2018)	14.3	6.71	4.61
X-Plane 11.11 (2018)	23.4	15.9	14.6
Strange Brigade (2018)	32	12.1	10.2	13.3
Borderlands 3 (2019)	19.2	7.96	4.68
F1 2020 (2020)	30.8	14.7	10.5	6.41
F1 2021 (2021)	37.6	15.8	12.7
Tiny Tina's Wonderlands (2022)	5.43	6.63	4.25

Intel NUC11ATKC2, N4505

	low	med.	high	ultra
GTA V (2015)	25.1	25	5.59
Dota 2 Reborn (2015)	36.2	26.9	11.8	10.9
Final Fantasy XV Benchmark (2018)	6.94	3.19	2.25
X-Plane 11.11 (2018)	13.2	9.18	8.58
Strange Brigade (2018)	16.2	6.5	6.5

排放

噪声排放

两台设备的噪音排放结果相似。在没有负载的情况下，我们的两个测试设备都保持相当安静。虽然，风扇总是在使用中，所以可以在背景中安静地听到它。在负载情况下，我们分别测得36.7和36.8 dB(A)，与它们的竞争对手相比，这是相当嘈杂的--如果你不包括NiPoGi GK3Plus。

Intel NUC11ATKPE, N6005

Noise Level

Idle		31.8 / 31.9 / 32 dB(A)
Load		32.5 / 36.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.3 dB(A)

Intel NUC11ATKC2, N4505

Noise Level

Idle		32.6 / 32.8 / 32.9 dB(A)
Load		33.3 / 36.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.4 dB(A)

	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)
Noise		-2%	6%	7%	-2%
off / environment *	30.3	30.4 -0%	30.2 -0%	29.6 2%	30.4 -0%
Idle Minimum *	31.8	32.6 -3%	30.2 5%	29.6 7%	31 3%
Idle Average *	31.9	32.8 -3%	30.2 5%	29.6 7%	31.1 3%
Idle Maximum *	32	32.9 -3%	30.2 6%	29.6 7%	31.8 1%
Load Average *	32.5	33.3 -2%	30.5 6%	30 8%	33.3 -2%
Load Maximum *	36.8	36.7 -0%	30.9 16%	32.9 11%	42.5 -15%

* ... smaller is better

温度

关于机箱的温度，英特尔NUC11 Essential Kit - Atlas Canyon没有任何异常。温暖的空气被有效地引导出机箱，而不会造成任何热量的积聚。

在内部，我们测量了更高的温度--但在77℃时，Intel Pentium Silver N6005仍然在绿色区域内。与 Intel Celeron N4505，我们只测得负载下的71℃。

英特尔NUC11ATKPE，N6005

英特尔NUC11ATKC2，N4505

消耗功率

当涉及到功耗时，两个设备都表现良好。虽然，在不同的TPD限制方面，功耗存在差异。在最大负载下，消耗37.6瓦，英特尔NUC基本套件与一个英特尔奔腾银N6005脱颖而出。我们在中等负荷下测得23.5瓦和18.2瓦，这与他们的竞争对手的结果相似。在空载时（约4.4-8瓦），两个测试设备的表现相似，并证明是相当节能的。

Intel NUC11ATKPE, N6005

Power Consumption

Off / Standby	0.53 / 0.93 Watt
Idle	4.4 / 7.3 / 7.3 Watt
Load	23.5 / 37.6 Watt


Key: min: , med: , max: Metrahit Energy

Intel NUC11ATKC2, N4505

Power Consumption

Off / Standby	0.5 / 0.9 Watt
Idle	5.2 / 8 / 8 Watt
Load	18.2 / 26.5 Watt


Key: min: , med: , max: Metrahit Energy

	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU)	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Average Intel UHD Graphics (Jasper Lake 16 EU)	Average Intel UHD Graphics (Jasper Lake 32 EU)	Average of class Mini PC
Power Consumption		3%	-20%	18%	1%	10%	9%	-120%
Idle Minimum *	4.4	5.2 -18%	8.4 -91%	4.8 -9%	6.1 -39%	5.65 ?(2.5 - 8.4, n=8) -28%	4.83 ?(2.4 - 8.3, n=4) -10%	9.52 ?(2.2 - 45.7, n=116, last 2 years) -116%
Idle Average *	7.3	8 -10%	8.4 -15%	4.8 34%	6.9 5%	6.61 ?(4.6 - 8.4, n=7) 9%	7.13 ?(4.1 - 11, n=4) 2%	11.7 ?(2.59 - 47.5, n=114, last 2 years) -60%
Idle Maximum *	7.3	8 -10%	11.1 -52%	6.7 8%	8.9 -22%	7.54 ?(5.3 - 11.1, n=7) -3%	7.88 ?(4.7 - 11.3, n=4) -8%	15 ?(2.6 - 49, n=116, last 2 years) -105%
Load Average *	23.5	18.2 23%	16.5 30%	15.9 32%	20 15%	16.2 ?(12.3 - 18.3, n=6) 31%	17.5 ?(13.6 - 23.5, n=4) 26%	59 ?(12.9 - 170.6, n=116, last 2 years) -151%
Load Maximum *	37.6	26.5 30%	26.3 30%	28.4 24%	21.1 44%	23.1 ?(13.4 - 28.4, n=7) 39%	24.9 ?(12.1 - 37.6, n=4) 34%	100.2 ?(25 - 423, n=116, last 2 years) -166%

* ... smaller is better

Power consumption with external monitor

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Prime95 V2810 Stress (external Monitor): Ø27 (24.4-35.2)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Prime95 V2810 Stress (external Monitor): Ø19.7 (17.1-20.5)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Cinebench R15 Multi (external Monitor): Ø25.5 (22.8-28.5)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Cinebench R15 Multi (external Monitor): Ø17.6 (16.8-18)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø25 (22.5-28.8)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (15.3-19)

Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G; Idle 1min (external Monitor): Ø7.34 (7.09-7.67)

Intel NUC11ATKC2, N4505 UHD Graphics (Jasper Lake 16 EU), Celeron N4505, WDC PC SN720 SDAPNTW-512G; Idle 1min (external Monitor): Ø8.03 (7.87-8.35)

Intel NUC11ATKPE, N6005

Pros

+ 稳定、紧凑的箱子

+ 易于打开

+ 许多USB端口

+ 低能量消耗

Cons

- 高 DPC 延迟

结论--非常适合简单的办公室工作

我们看了一下英特尔NUC11基本套件--Atlas Canyon，这款迷你PC有两个不同的系统--在性能上有相当大的差异。两个测试设备都有相同的外壳和主板。英特尔赛扬N4505 是一个双核SoC，如今它在日常生活中的用途其实很有限。我们看到了在非常特殊的情况下使用的明显机会，并且有适应的软件。英特尔NUC11基本套件--Atlas配备了英特尔奔腾银N6005 ，在日常办公中绝对有其用武之地。该SoC具有4个内核，因此能提供更好的性能。

英特尔NUC11 Essential Kit - Atlas Canyon非常适合在专门场景中使用。对于使用Windows作为操作系统的日常使用，你肯定应该选择具有4个核心的处理器。

关于连接性，在遗漏现代端口（如USB4或Thunderbolt）方面做出了妥协。即便如此，这些端口的数量对于系统的预期用途来说还是绰绰有余。他们的WLAN表现有些令人失望，但在更大的计划中，他们仍然比他们的竞争对手做得更好。无论如何，这些小型系统很可能不需要处理大量的数据。更重要的是稳定的性能--这两个系统都有能力做到这一点。WLAN和CPU的性能在任何时候都保持稳定--即使是在较长的时间内。同样的事情也可以在固态硬盘上看到，它在持续负载时提供了稳定的性能。

纯粹从光学角度来看，英特尔NUC11基本套件--阿特拉斯峡谷是一个相当不起眼的迷你PC。即便如此，它也有高质量的外观，绝不是廉价生产的。它制作精良，没有任何缺陷，即使塑料外壳乍一看有点廉价。如今，在迷你电脑领域有很多竞争者--但在150-250美元的价格范围内，没有那么多。然而，你不能忘记将内存和固态硬盘的价格计算到你的预算中，因为这是一个裸机系统。这使我们确定 NiPoGiGK3Plus 和 GeekomMiniAir 11 为该迷你电脑的最大竞争对手。

价格和可用性

配备英特尔赛扬N4505的英特尔NUC11基本套件--Atlas Canyon可以在亚马逊上以129美元的价格购买。

带有更快的英特尔奔腾银N6005的版本可以从Intel购买，价格为229美元。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Intel NUC11ATKPE, N6005 - 03/16/2023 v7 ^(old)
Sebastian Bade

Chassis

84 / 98 → 86%

Connectivity

55 / 81 → 68%

Weight

83%

Games Performance

51%

Application Performance

74%

Noise
