戴尔 Inspiron 17-5748 笔记本电脑简短评测

十七，玩得尽兴。 新的Inspiron 17-5748是戴尔的中低端多媒体笔记本产品线中的一员：不像XPS系列那么高贵，但同样采用了铝合金的机身材质。我们会在测试中说明它为何更适合多媒体爱好者而非游戏玩家。
Touchscreen Windows Haswell
271
cd/m²		272
cd/m²		265
cd/m²
277
cd/m²		282
cd/m²		262
cd/m²
265
cd/m²		282
cd/m²		257
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 282 cd/m² (Nits) Average: 270.3 cd/m²
Brightness Distribution: 91 %
Center on Battery: 227 cd/m²
Contrast: 783:1 (Black: 0.36 cd/m²)
ΔE Color 7.76 | 0.5-29.43 Ø5
ΔE Greyscale 8.35 | 0.57-98 Ø5.3
60.35% AdobeRGB 1998 (Argyll 1.6.3 3D)
67.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.3% sRGB (Argyll 2.2.0 3D)
70.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.48
Cinebench R10 Shading 64Bit
4663 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
5474 Points
Cinebench R10 Rendering Single CPUs 64Bit
3611 Points
Cinebench R11.5 OpenGL 64Bit
13.35 fps
Cinebench R11.5 CPU Multi 64Bit
2.59 Points
Cinebench R11.5 CPU Single 64Bit
0.96 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
20.63 fps
Cinebench R15 CPU Multi 64Bit
233 Points
Cinebench R15 CPU Single 64Bit
101 Points
Help
Cinebench R11.5
CPU Single 64Bit (sort by value)
Dell Inspiron 17-5748
0.96 Points
Dell Inspiron 7737 CN77304
0.79 Points -18%
Dell Inspiron 15-5547
1.03 Points +7%
Acer Aspire E1-772G 54208G1TMnsk
1.36 Points +42%
Medion Akoya P7631T
1 Points +4%
Asus X750LN-TY012H
1.32 Points +38%
HP Pavilion 17-e126sg
1.38 Points +44%
Toshiba Satellite C75-A-13W
1.36 Points +42%
Lenovo IdeaPad Z710 59393211
1.37 Points +43%
Lenovo G710 59397112
1.44 Points +50%
CPU Multi 64Bit (sort by value)
Dell Inspiron 17-5748
2.59 Points
Dell Inspiron 7737 CN77304
1.99 Points -23%
Dell Inspiron 15-5547
2.11 Points -19%
Acer Aspire E1-772G 54208G1TMnsk
3.25 Points +25%
Medion Akoya P7631T
2.58 Points 0%
Asus X750LN-TY012H
2.85 Points +10%
HP Pavilion 17-e126sg
3.23 Points +25%
Toshiba Satellite C75-A-13W
3.23 Points +25%
Lenovo IdeaPad Z710 59393211
3.24 Points +25%
Lenovo G710 59397112
6.35 Points +145%
Cinebench R15
CPU Single 64Bit (sort by value)
Dell Inspiron 17-5748
101 Points
Dell Inspiron 7737 CN77304
72 Points -29%
Dell Inspiron 15-5547
103 Points +2%
Acer Aspire E1-772G 54208G1TMnsk
120 Points +19%
Medion Akoya P7631T
91 Points -10%
Asus X750LN-TY012H
117 Points +16%
Toshiba Satellite C75-A-13W
119 Points +18%
Lenovo IdeaPad Z710 59393211
122 Points +21%
Lenovo G710 59397112
128 Points +27%
CPU Multi 64Bit (sort by value)
Dell Inspiron 17-5748
233 Points
Dell Inspiron 7737 CN77304
166 Points -29%
Dell Inspiron 15-5547
235 Points +1%
Acer Aspire E1-772G 54208G1TMnsk
298 Points +28%
Medion Akoya P7631T
239 Points +3%
Asus X750LN-TY012H
265 Points +14%
Toshiba Satellite C75-A-13W
299 Points +28%
Lenovo IdeaPad Z710 59393211
301 Points +29%
Lenovo G710 59397112
588 Points +152%

Legend


Dell Inspiron 17-5748 Intel Core i7-4510U, Intel HD Graphics 4400, Samsung SpinPoint M8 HN-M101MBB

Dell Inspiron 7737 CN77304 Intel Core i7-4500U, NVIDIA GeForce GT 750M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

Dell Inspiron 15-5547 Intel Core i5-4210U, AMD Radeon R7 M265, WDC Scorpio Blue WD10JPVX-75JC3T0

Acer Aspire E1-772G 54208G1TMnsk Intel Core i5-4200M, NVIDIA GeForce 820M, WDC Scorpio Blue WD10JPVX-22JC3T0

Medion Akoya P7631T Intel Core i3-4000M, NVIDIA GeForce 825M, Seagate ST1000LM014 Solid State Hybrid Drive

Asus X750LN-TY012H Intel Core i7-4500U, NVIDIA GeForce 840M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

HP Pavilion 17-e126sg Intel Core i5-4200M, AMD Radeon HD 8670M, TOSHIBA MQ01ABD075

Toshiba Satellite C75-A-13W Intel Core i5-4200M, NVIDIA GeForce 710M, Toshiba MQ01ABD100

Lenovo IdeaPad Z710 59393211 Intel Core i5-4200M, NVIDIA GeForce GT 740M, Seagate ST500LM000 Solid State Hybrid Drive

Lenovo G710 59397112 Intel Core i7-4702MQ, NVIDIA GeForce GT 720M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
PCMark 7 Score
2477 points
PCMark 8 Home Score Accelerated v2
2361 points
PCMark 8 Creative Score Accelerated v2
2455 points
PCMark 8 Work Score Accelerated v2
3306 points
Help
PCMark 7 - Score (sort by value)
Dell Inspiron 17-5748
2477 Points
Dell Inspiron 7737 CN77304
2715 Points +10%
Dell Inspiron 15-5547
3022 Points +22%
Acer Aspire E1-772G 54208G1TMnsk
2630 Points +6%
Medion Akoya P7631T
3517 Points +42%
Asus X750LN-TY012H
2913 Points +18%
HP Pavilion 17-e126sg
2953 Points +19%
Toshiba Satellite C75-A-13W
3001 Points +21%
Lenovo IdeaPad Z710 59393211
3910 Points +58%
Lenovo G710 59397112
3310 Points +34%
PCMark 8
Work Score Accelerated v2 (sort by value)
Dell Inspiron 17-5748
3306 Points
Dell Inspiron 15-5547
4411 Points +33%
Acer Aspire E1-772G 54208G1TMnsk
4212 Points +27%
Medion Akoya P7631T
3276 Points -1%
Asus X750LN-TY012H
3664 Points +11%
Toshiba Satellite C75-A-13W
3237 Points -2%
Lenovo IdeaPad Z710 59393211
3185 Points -4%
Creative Score Accelerated v2 (sort by value)
Dell Inspiron 17-5748
2455 Points
Dell Inspiron 15-5547
3499 Points +43%
Medion Akoya P7631T
2750 Points +12%
Asus X750LN-TY012H
3429 Points +40%
Toshiba Satellite C75-A-13W
2631 Points +7%
Lenovo IdeaPad Z710 59393211
3191 Points +30%
Home Score Accelerated v2 (sort by value)
Dell Inspiron 17-5748
2361 Points
Dell Inspiron 15-5547
3340 Points +41%
Medion Akoya P7631T
2349 Points -1%
Asus X750LN-TY012H
2948 Points +25%
Toshiba Satellite C75-A-13W
2686 Points +14%
Lenovo IdeaPad Z710 59393211
2749 Points +16%
AS SSD
hddimg
Samsung SpinPoint M8 HN-M101MBB
Sequential Read: 80.8MB/s
Sequential Write: 64.3MB/s
4K Read: 0.23MB/s
4K Write: 0.39MB/s
4K-64 Read: 0.58MB/s
4K-64 Write: 0.49MB/s
Access Time Read: 33ms
Access Time Write: 12.5ms
Score Read: 9Points
Score Write: 7Points
Score Total: 20Points
AS SSD
Seq Read (sort by value)
Dell Inspiron 17-5748
80.8 MB/s
Dell Inspiron 15-5547
90.7 MB/s +12%
Seq Write (sort by value)
Dell Inspiron 17-5748
64.3 MB/s
Dell Inspiron 15-5547
89.9 MB/s +40%
4K Read (sort by value)
Dell Inspiron 17-5748
0.23 MB/s
Dell Inspiron 15-5547
0.51 MB/s +122%
4K Write (sort by value)
Dell Inspiron 17-5748
0.39 MB/s
Dell Inspiron 15-5547
0.98 MB/s +151%
4K-64 Read (sort by value)
Dell Inspiron 17-5748
0.58 MB/s
Dell Inspiron 15-5547
0.82 MB/s +41%
4K-64 Write (sort by value)
Dell Inspiron 17-5748
0.49 MB/s
Dell Inspiron 15-5547
0.83 MB/s +69%
Access Time Read (sort by value)
Dell Inspiron 17-5748
33 ms *
Dell Inspiron 15-5547
16.6 ms * +50%
Access Time Write (sort by value)
Dell Inspiron 17-5748
12.5 ms *
Dell Inspiron 15-5547
14.5 ms * -16%
Score Read (sort by value)
Dell Inspiron 17-5748
9 Points
Dell Inspiron 15-5547
10 Points +11%
Score Write (sort by value)
Dell Inspiron 17-5748
7 Points
Dell Inspiron 15-5547
11 Points +57%
Score Total (sort by value)
Dell Inspiron 17-5748
20 Points
Dell Inspiron 15-5547
27 Points +35%

* ... smaller is better

3DMark 11 Performance
758 points
3DMark Ice Storm Standard Score
26803 points
3DMark Cloud Gate Standard Score
3534 points
3DMark Fire Strike Score
466 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Dell Inspiron 17-5748
758 Points
Dell Inspiron 7737 CN77304
2562 Points +238%
Dell Inspiron 15-5547
1934 Points +155%
Acer Aspire E1-772G 54208G1TMnsk
1389 Points +83%
Medion Akoya P7631T
1831 Points +142%
Asus X750LN-TY012H
2459 Points +224%
HP Pavilion 17-e126sg
1542 Points +103%
Toshiba Satellite C75-A-13W
1218 Points +61%
Lenovo IdeaPad Z710 59393211
1929 Points +154%
Lenovo G710 59397112
1358 Points +79%
3DMark
1280x720 Ice Storm Standard Score (sort by value)
Dell Inspiron 17-5748
26803 Points
Dell Inspiron 15-5547
30674 Points +14%
Acer Aspire E1-772G 54208G1TMnsk
43697 Points +63%
Medion Akoya P7631T
55345 Points +106%
Asus X750LN-TY012H
53742 Points +101%
HP Pavilion 17-e126sg
51825 Points +93%
Toshiba Satellite C75-A-13W
55422 Points +107%
Lenovo IdeaPad Z710 59393211
65458 Points +144%
Lenovo G710 59397112
50811 Points +90%
1280x720 Cloud Gate Standard Score (sort by value)
Dell Inspiron 17-5748
3534 Points
Dell Inspiron 15-5547
4013 Points +14%
Acer Aspire E1-772G 54208G1TMnsk
4955 Points +40%
Medion Akoya P7631T
5142 Points +46%
Asus X750LN-TY012H
6087 Points +72%
HP Pavilion 17-e126sg
4414 Points +25%
Toshiba Satellite C75-A-13W
4537 Points +28%
Lenovo IdeaPad Z710 59393211
5651 Points +60%
Lenovo G710 59397112
5443 Points +54%
1920x1080 Fire Strike Score (sort by value)
Dell Inspiron 17-5748
466 Points
Dell Inspiron 15-5547
908 Points +95%
Acer Aspire E1-772G 54208G1TMnsk
819 Points +76%
Medion Akoya P7631T
1043 Points +124%
Asus X750LN-TY012H
1387 Points +198%
HP Pavilion 17-e126sg
811 Points +74%
Toshiba Satellite C75-A-13W
725 Points +56%
Lenovo IdeaPad Z710 59393211
1062 Points +128%
Lenovo G710 59397112
779 Points +67%
low med. high ultra
Diablo III (2012) 46.8 36.2 24.3 14.2
Tomb Raider (2013) 40.8 24.2 13.1 5.9
Thief (2014) 10.3 7.6 4.8 3.8

Noise Level

Idle
29.7 / 29.7 / 29.7 dB(A)
HDD
31.2 dB(A)
Load
31.4 / 34.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-300 (15 cm distance)
Max. Load
 36.5 °C30.7 °C25.5 °C
 38.1 °C31.8 °C25.5 °C
 31.8 °C31.7 °C27.2 °C
Maximum: 38.1 °C
Average: 31 °C
24.3 °C26.8 °C32.2 °C
25.3 °C29.7 °C40.7 °C
28.3 °C28.7 °C38.3 °C
Maximum: 40.7 °C
Average: 30.5 °C
Power Supply (max.)  42.7 °C | Room Temperature 23.2 °C | Raytek Raynger ST
(+) The average temperature for the upper side under maximal load is 31 °C / 88 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(+) The maximum temperature on the upper side is 38.1 °C / 101 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 40.7 °C / 105 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 25.5 °C / 78 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.8 °C / 89.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-3 °C / -5.4 F).
Power Consumption
Off / Standbydarklight 0 / 0.1 Watt
Idledarkmidlight 3.8 / 8.6 / 9.8 Watt
Load midlight 28.2 / 44.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
7h 41min
WiFi Surfing
5h 02min
DVD
4h 06min
Load (maximum brightness)
1h 41min
In review: Dell Inspiron 17-5748. Review sample courtesy of Dell Germany
In review: Dell Inspiron 17-5748. Review sample courtesy of Dell Germany

戴尔在新的Inspiron5000系列中坚持着“更轻，更薄，更低能耗”的理念。但是这样就够了吗？它的机身设计雅致，而铝合金上盖更给人一种高端产品的感觉；相比 Inspiron 15-5547它的做工也给人更好的印象。比起它的小兄弟，它的屏幕也好很多，尽管触摸屏的镜面材质在户外使用中有些不便。

不过，它的连接性有些不足：很少的USB接口，没有802.11ac标准的高速WiFi连接，没有千兆以太网接口。它也没有配备对比中其他同类产品的独立显卡。需要承认的是，那些显卡也无法提供高质量的游戏体验，但它们保证了Inspiron 17-5748完全没有提供的基本游戏功能。另外，它缓慢的机械硬盘降低了系统响应速度，不过这可以简单地通过升级一块固态硬盘来改善。

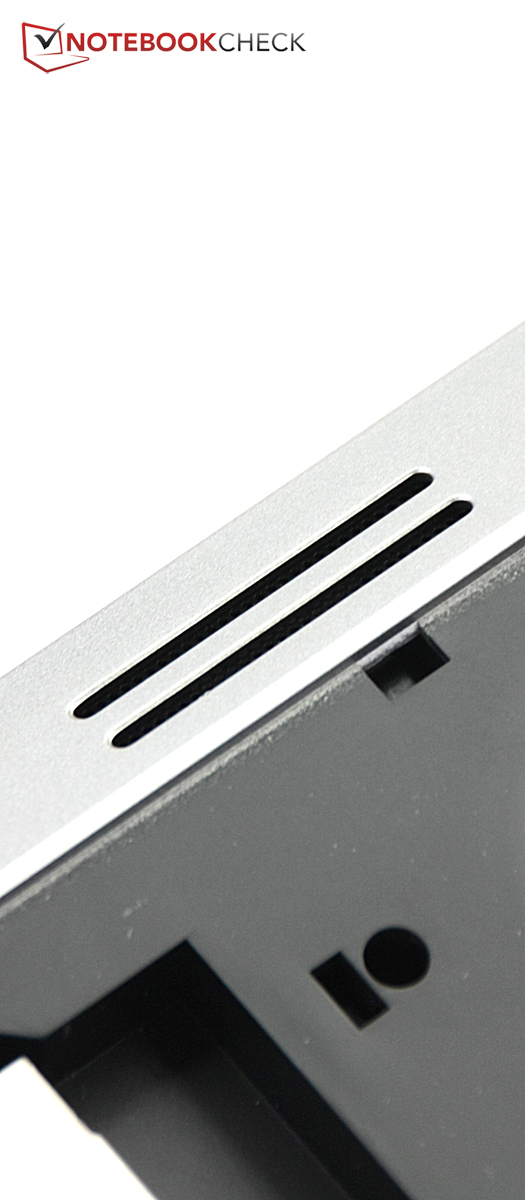

它的系统噪音和散热控制得很好，扬声器的效果也不差。在我们的测试中，特别是接近实际使用情况的情况下，它的能耗和电池续航表现都很好。

对游戏玩家和喜欢高配置的用户参考戴尔的Inspiron 17-7377。它提供了高质量的金属机身，更长的电池续航，特别是一块中端独立显卡，这让玩游戏成为了可能。不过用户需要付出额外的400欧元(约537美元)。需要轻薄的17寸笔记本的用户，可能需要避免选择触控屏幕；而且，17寸笔记本电脑本身就很难提供很高的便携性。

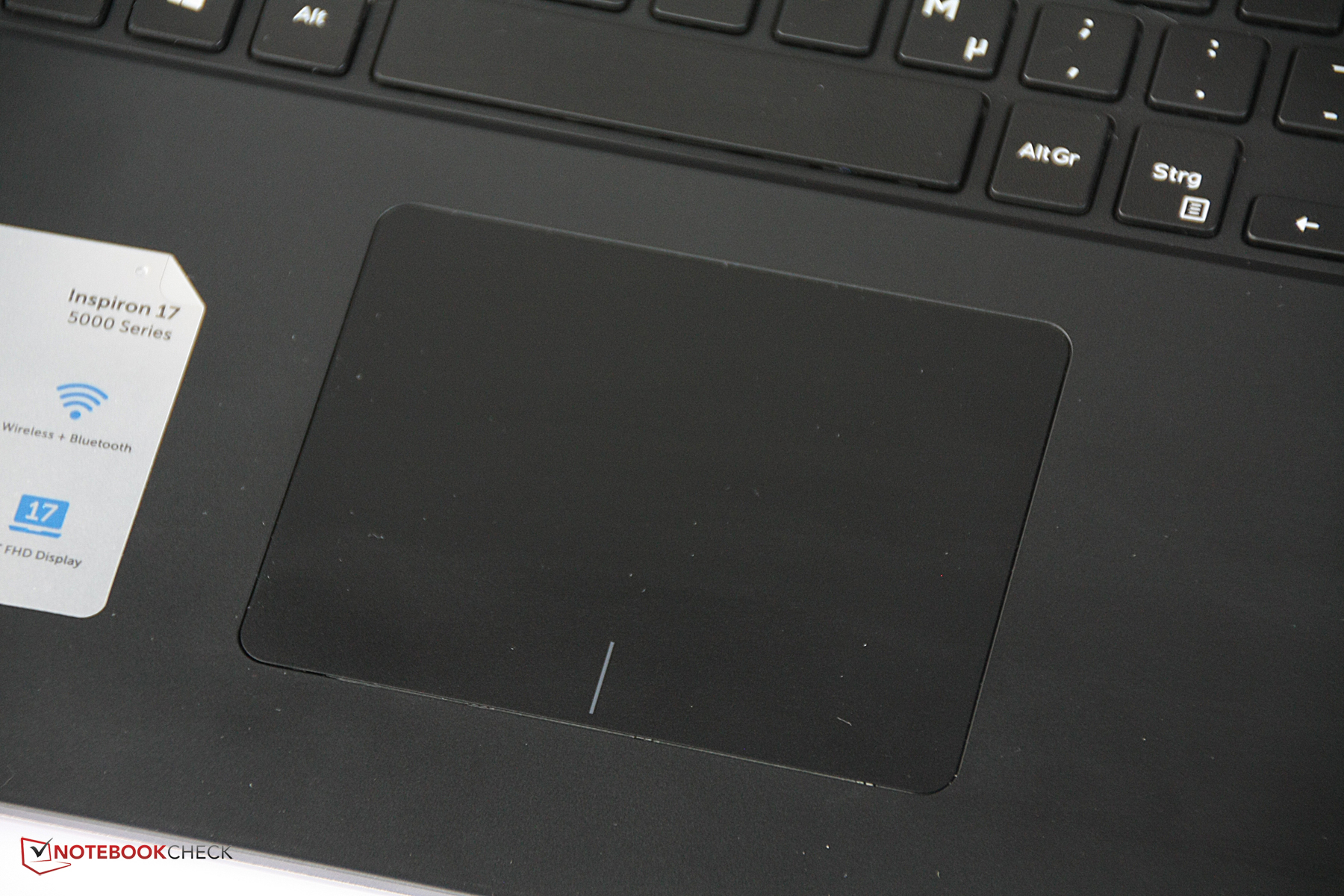

如果较弱的图形性能对你不是个问题，那么考虑到它出色的输入设备和整体分数，戴尔的Inspiron 17-5748会是一款非常值得考虑的笔记本电脑。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

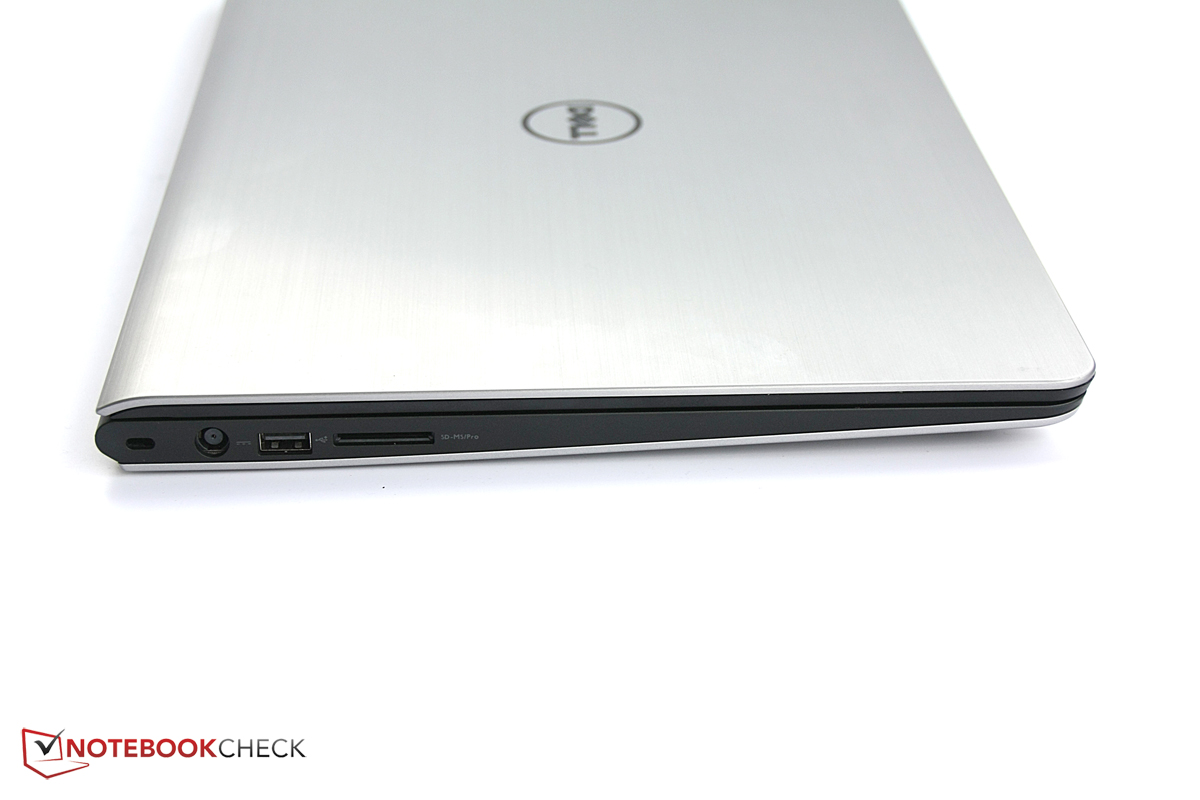

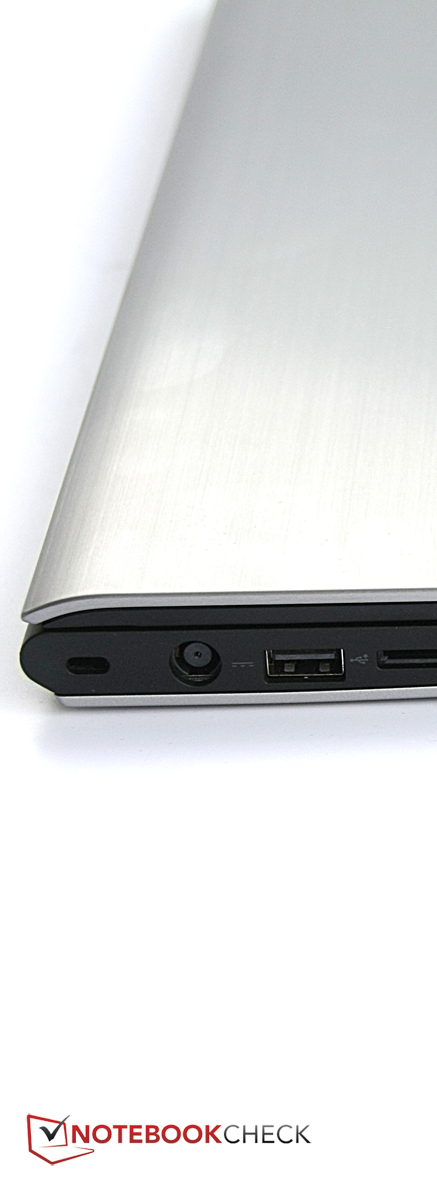

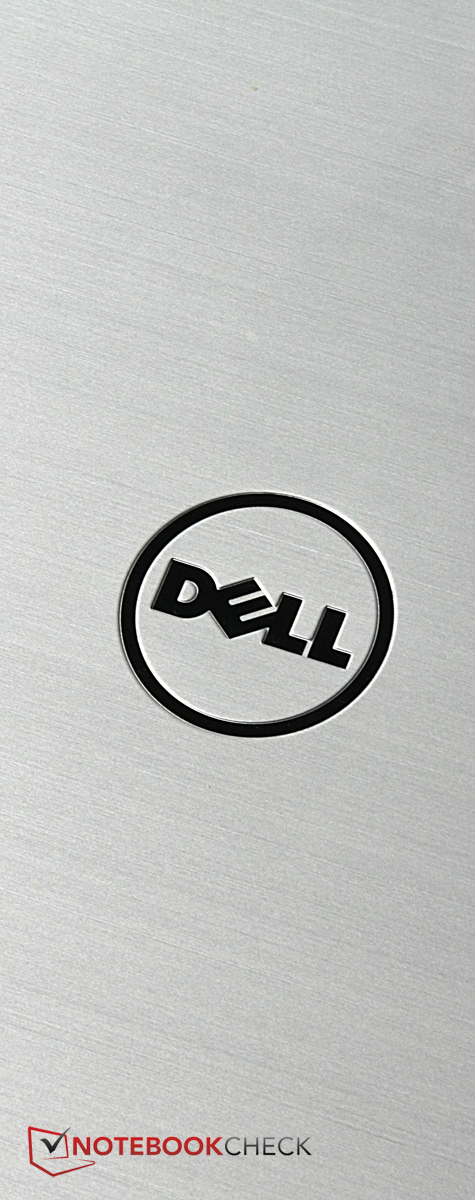

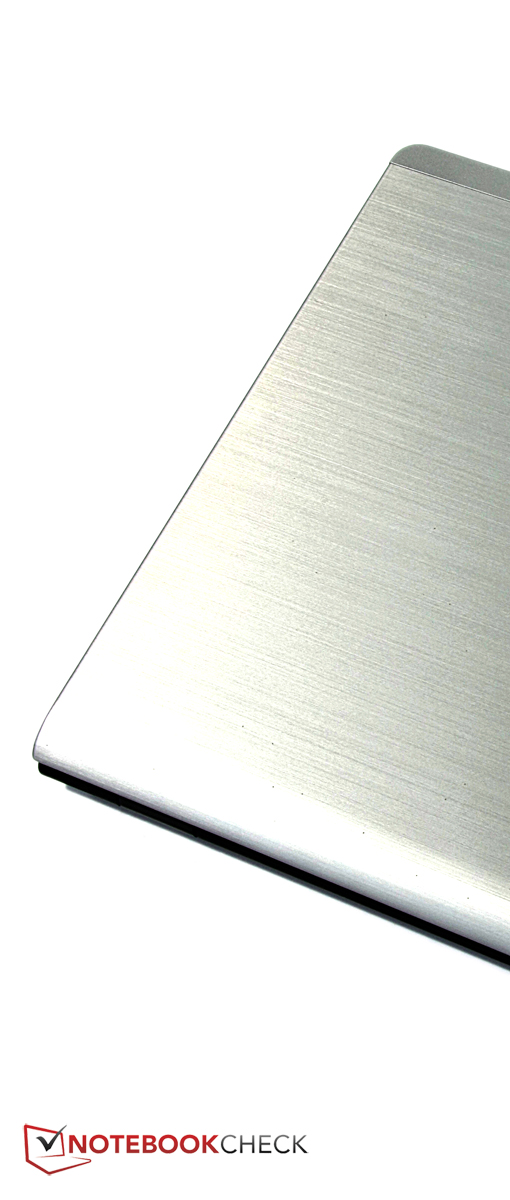

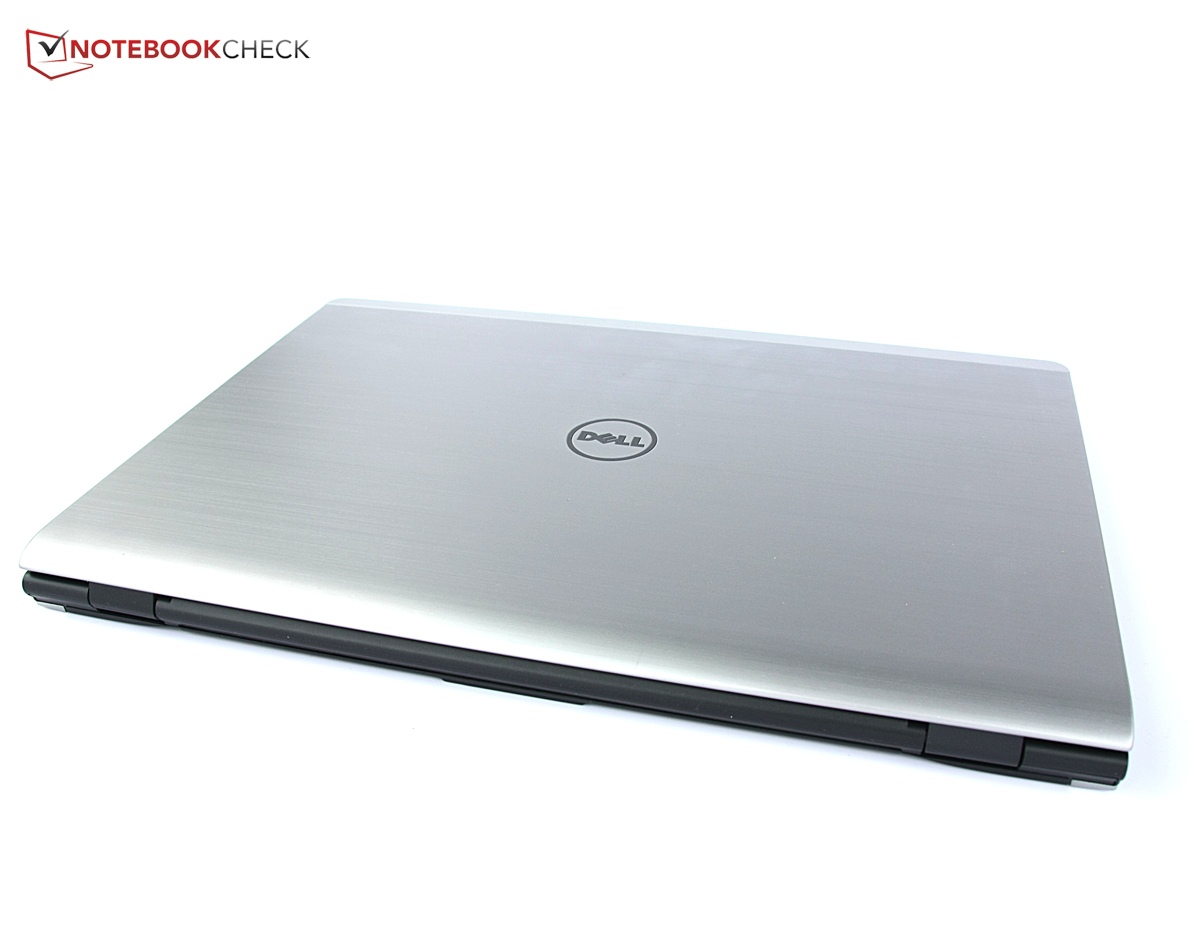

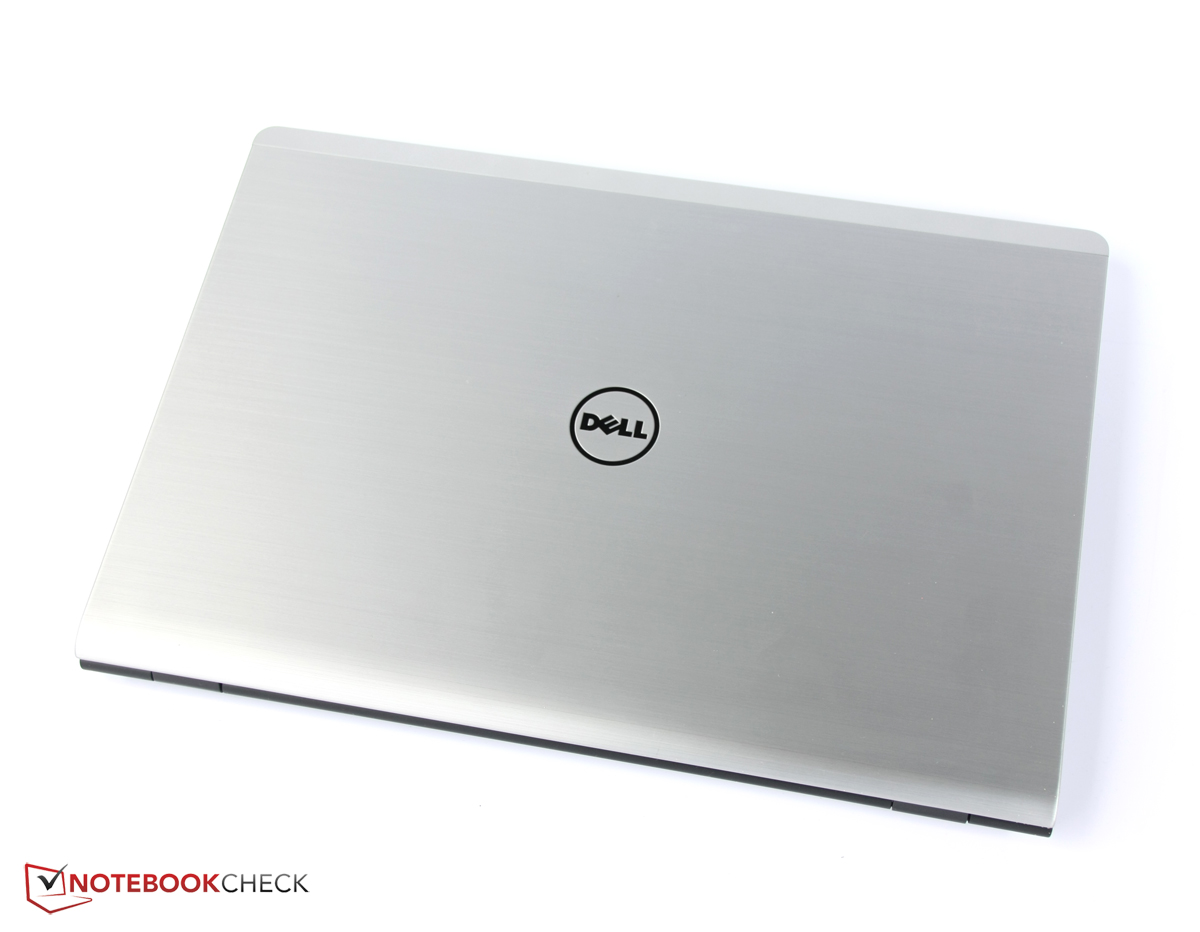

机身的金属上盖很引人注目。
机身的金属上盖很引人注目。

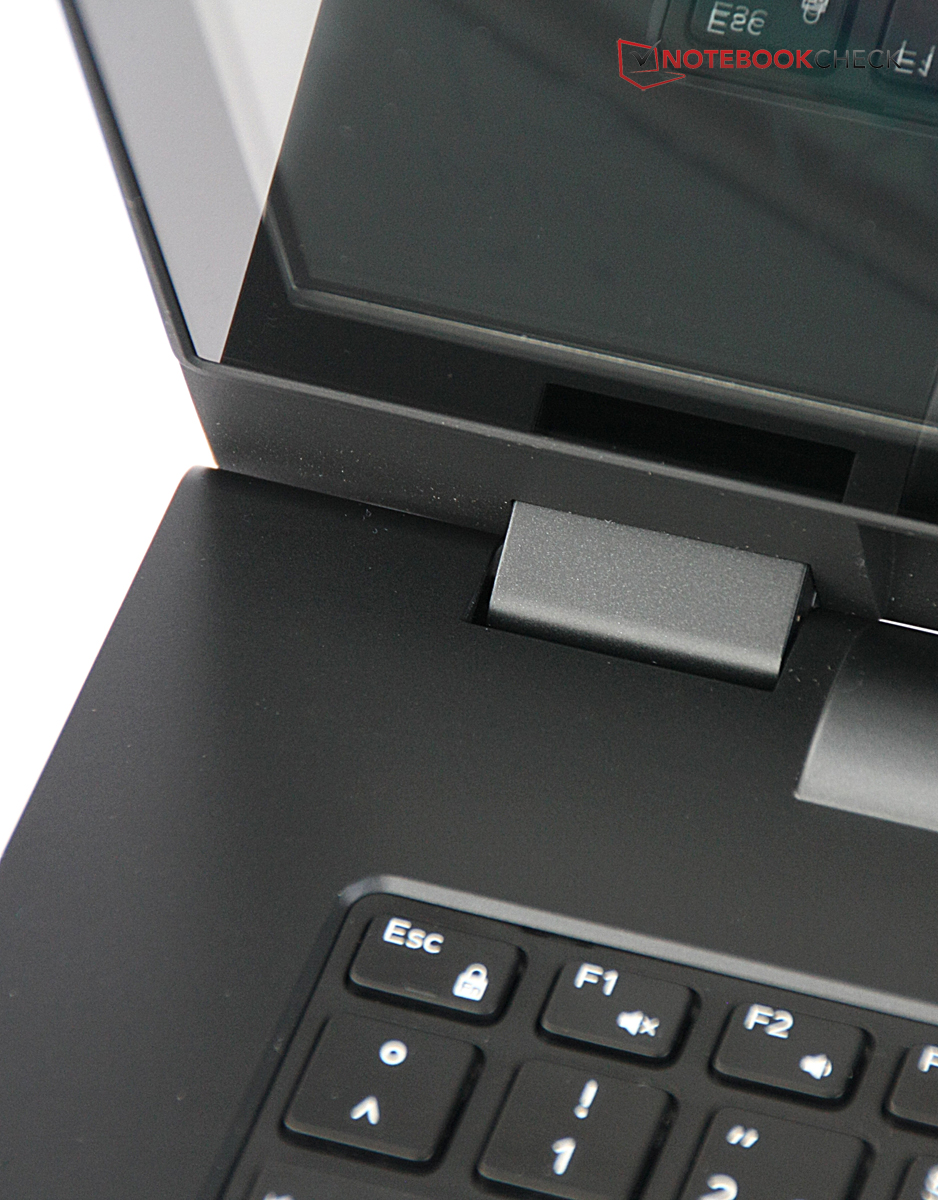

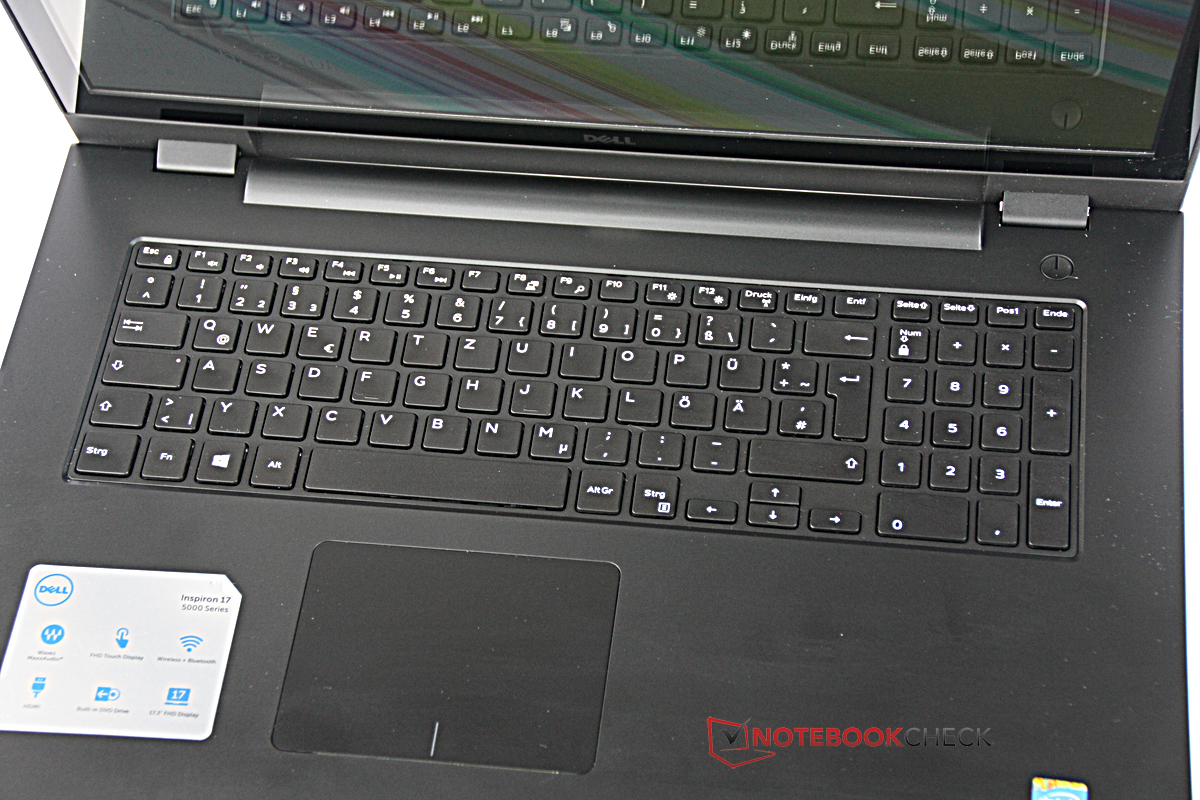

内部的黑色的塑料材质也有不错的质感。
内部的黑色的塑料材质也有不错的质感。

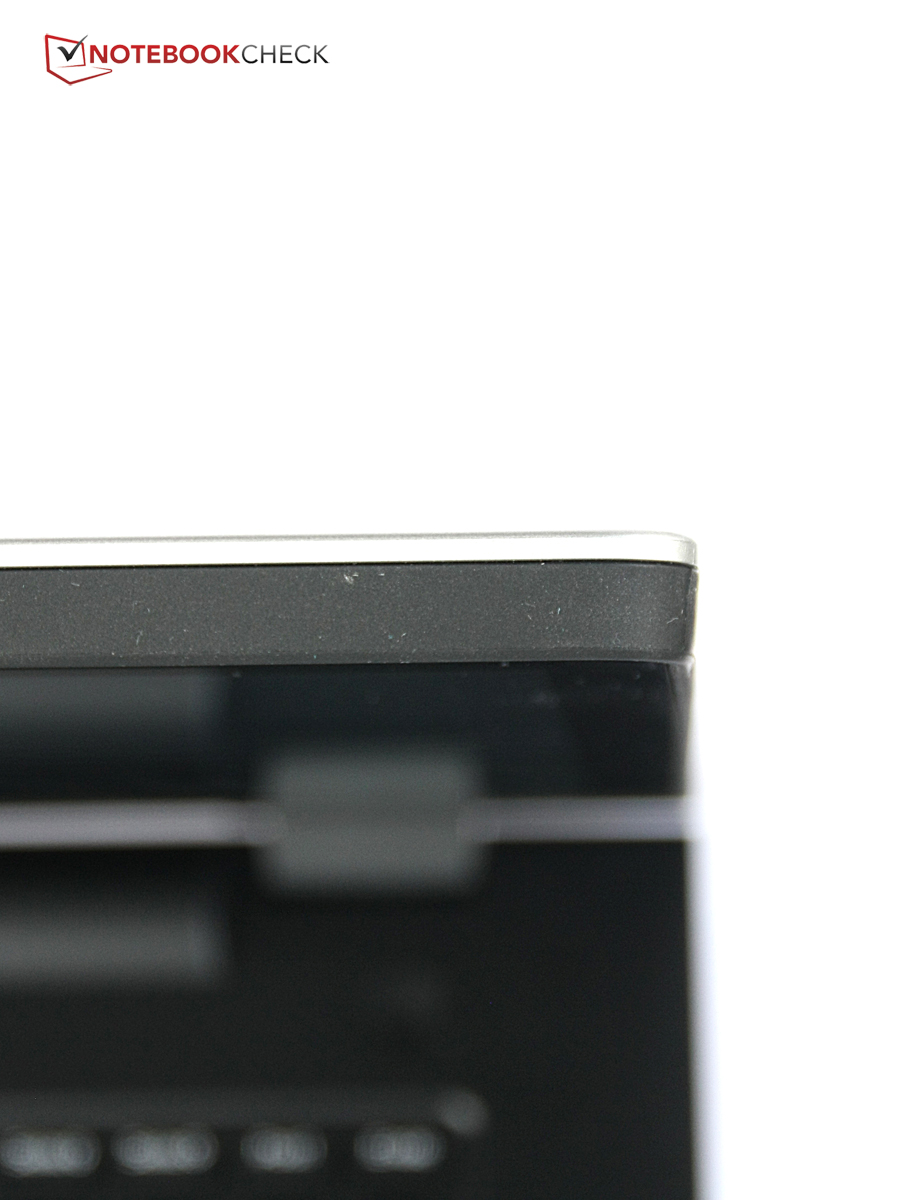

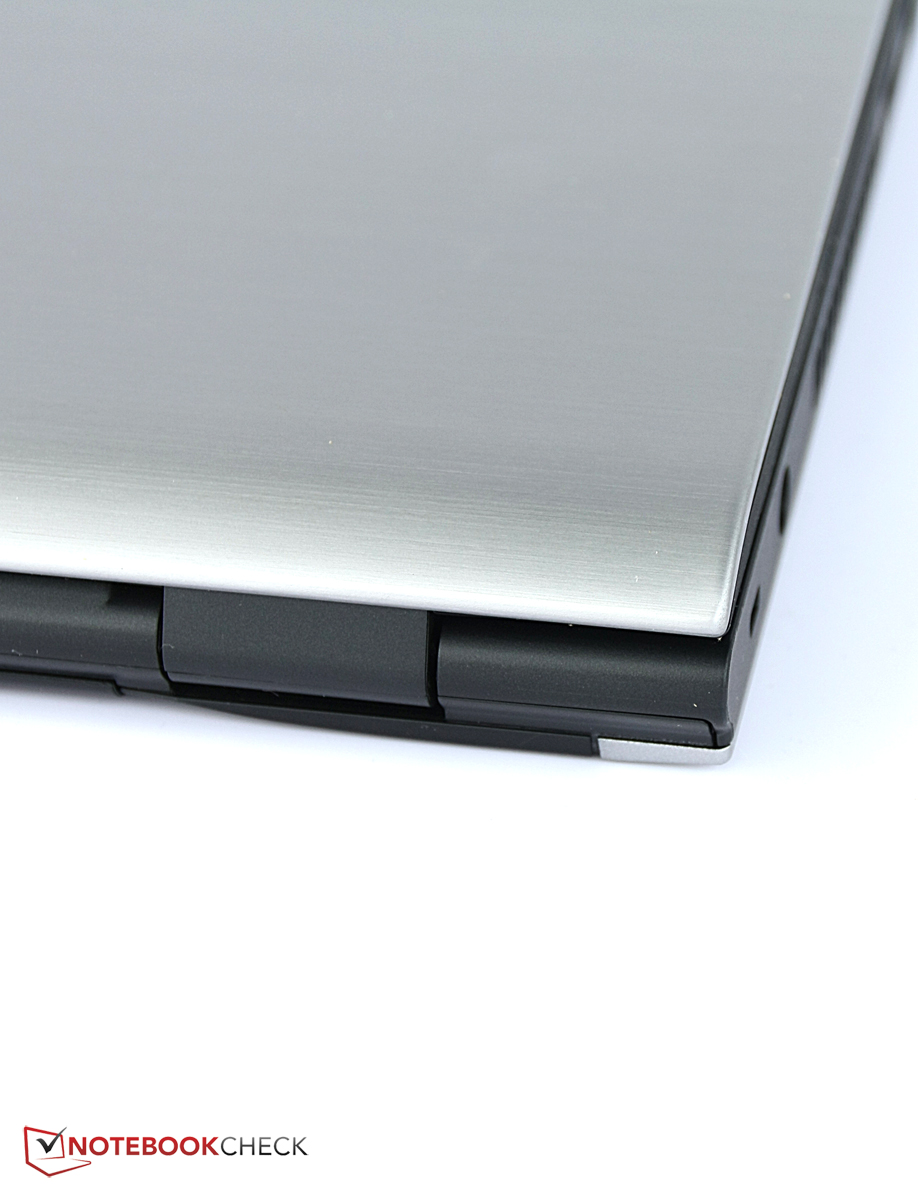

另外，它的做工很好。
另外，它的做工很好。

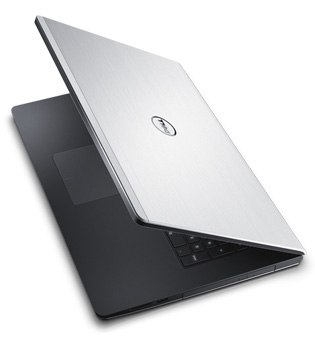

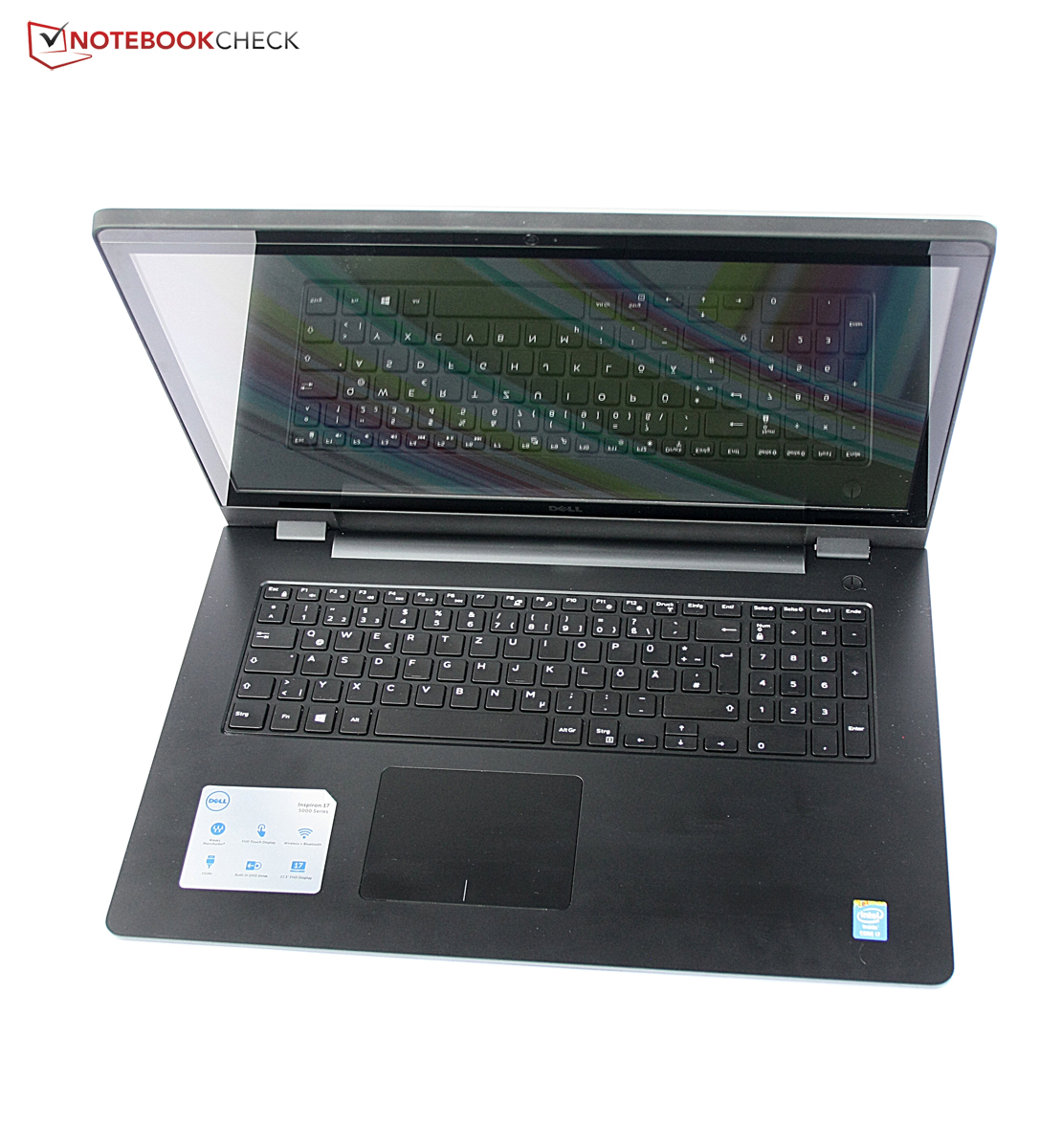

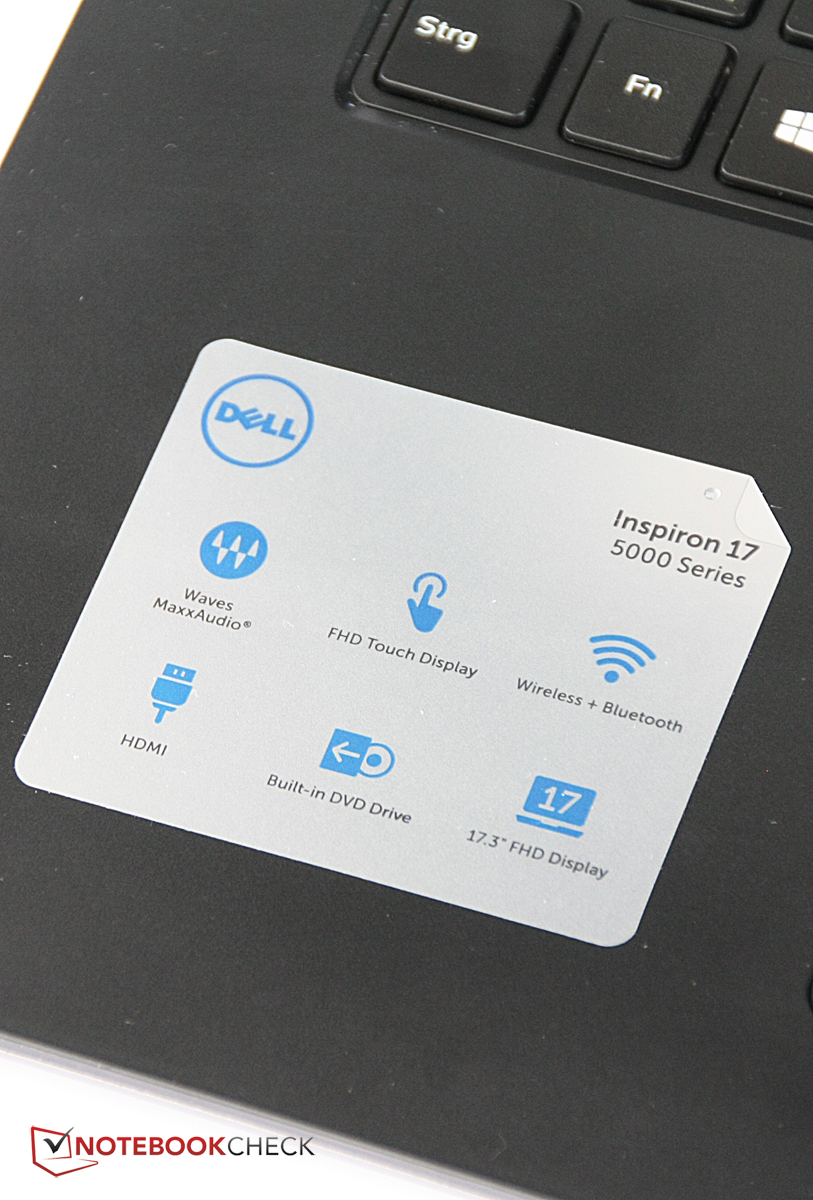

戴尔将Inspiron 17-7548归类为中端多媒体笔记本电脑。
戴尔将Inspiron 17-7548归类为中端多媒体笔记本电脑。
不过，它缺少一块独立显卡。
不过，它缺少一块独立显卡。

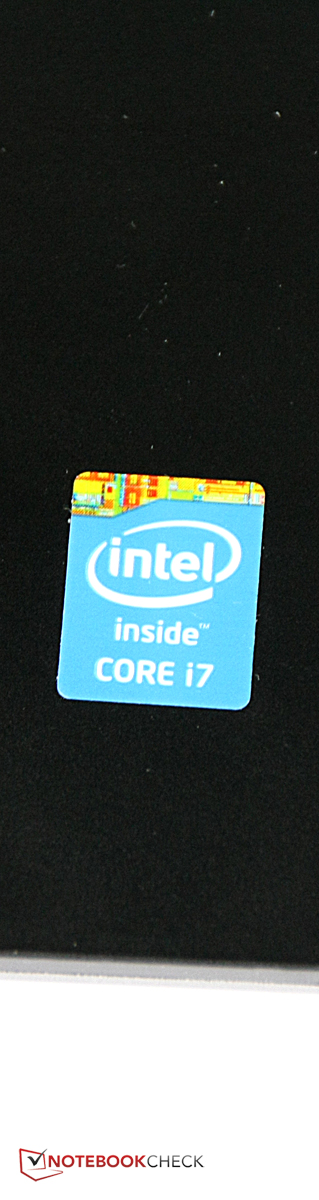

Intel的Core i7-4510U性能很高且很节能。
Intel的Core i7-4510U性能很高且很节能。
这款笔记本的厚度由于触摸屏的关系明显增加了。
这款笔记本的厚度由于触摸屏的关系明显增加了。
它的上盖看上去很笨重。
它的上盖看上去很笨重。
不过, Dell的Inspiron 17-5748配备了触摸屏后依然比很多竞争者更薄。
不过, Dell的Inspiron 17-5748配备了触摸屏后依然比很多竞争者更薄。

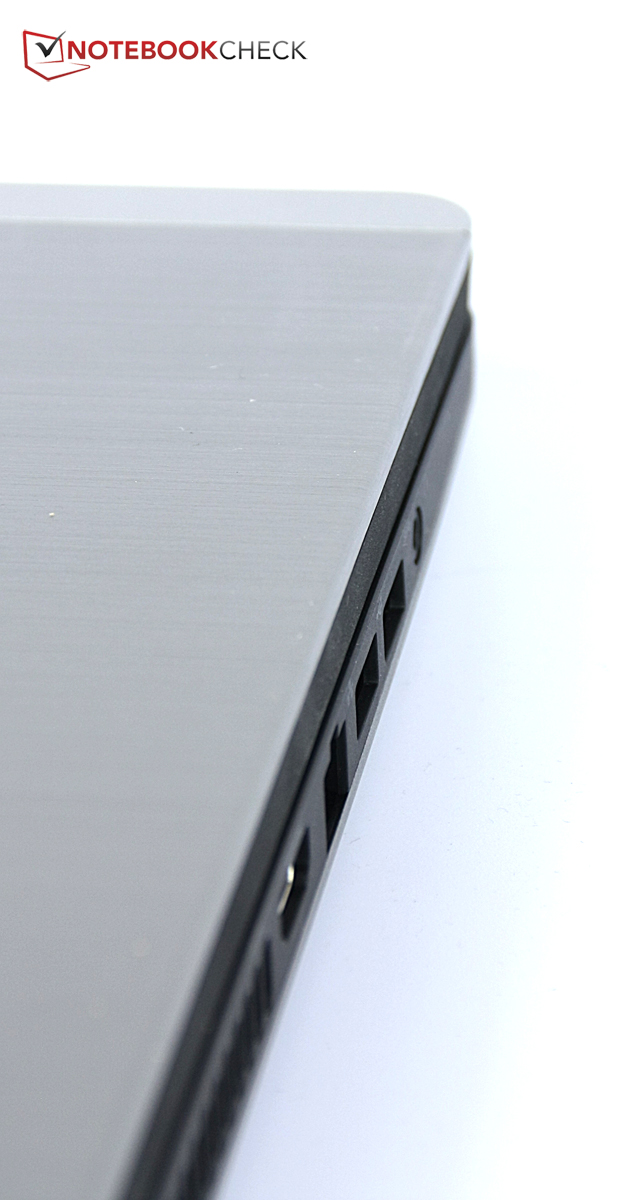

接口的配备不太让人满意。
接口的配备不太让人满意。
如果能再多几个USB接口就更好了。
如果能再多几个USB接口就更好了。
不过，它的可扩展性可以称作典范。
不过，它的可扩展性可以称作典范。

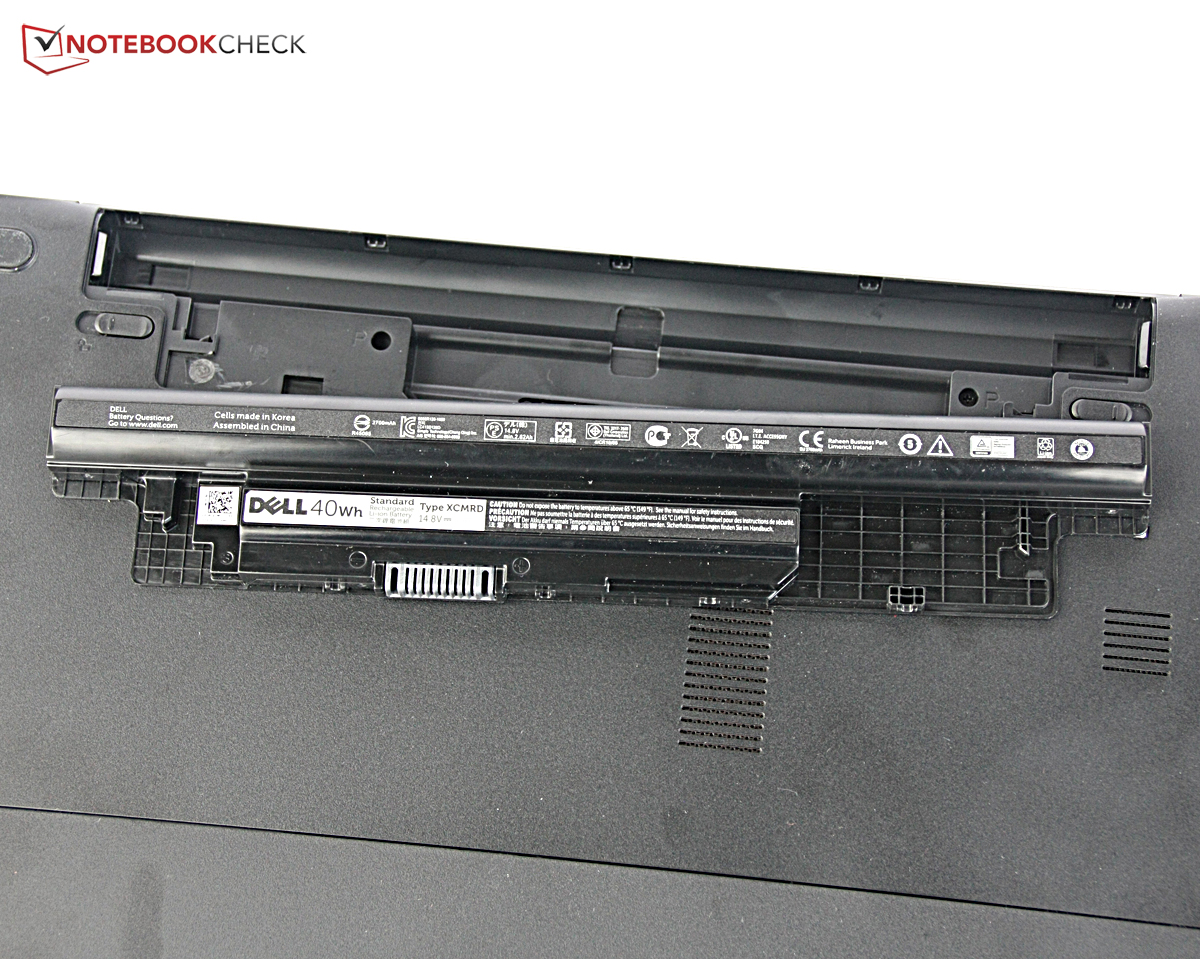

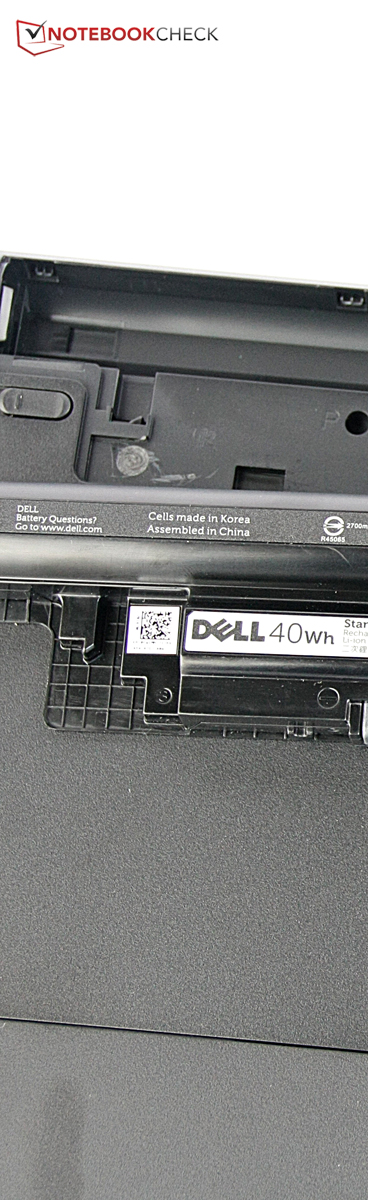

电池可以从外部卸下。
电池可以从外部卸下。

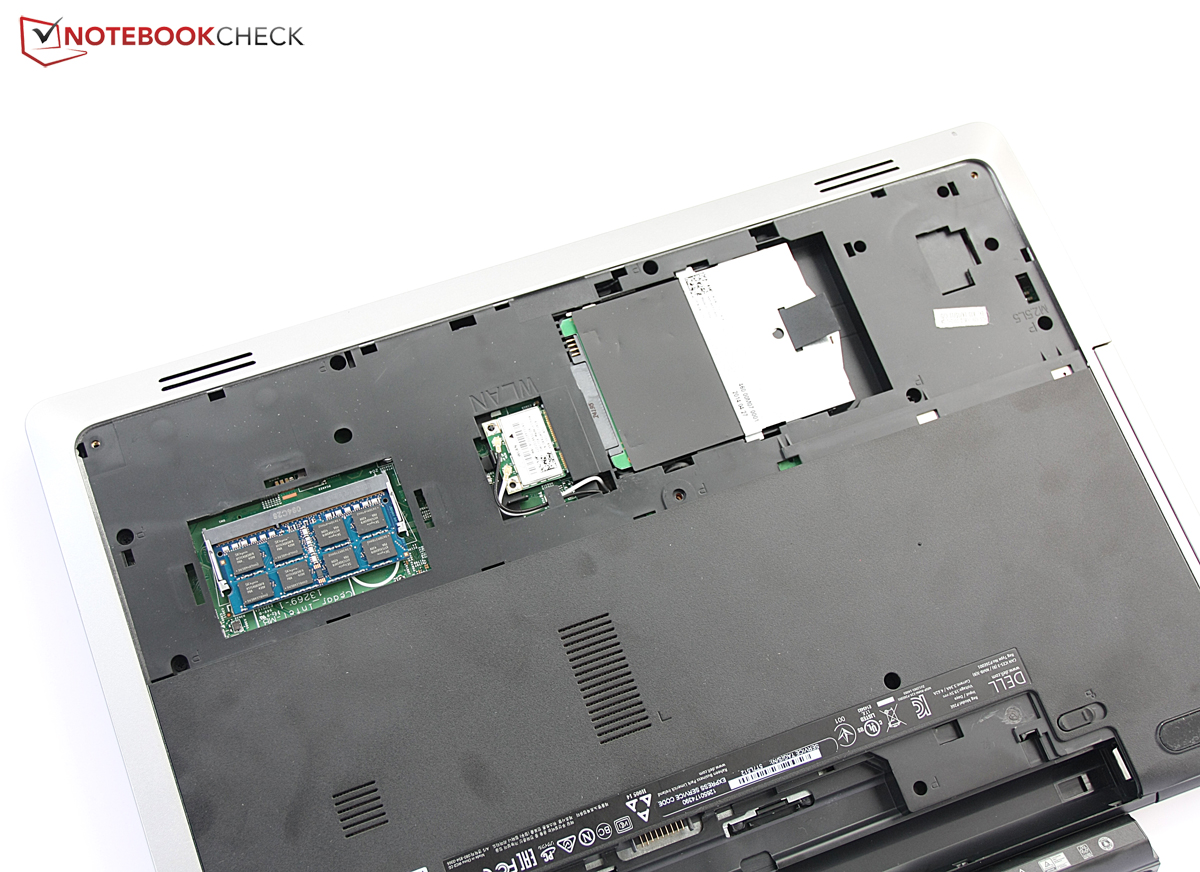

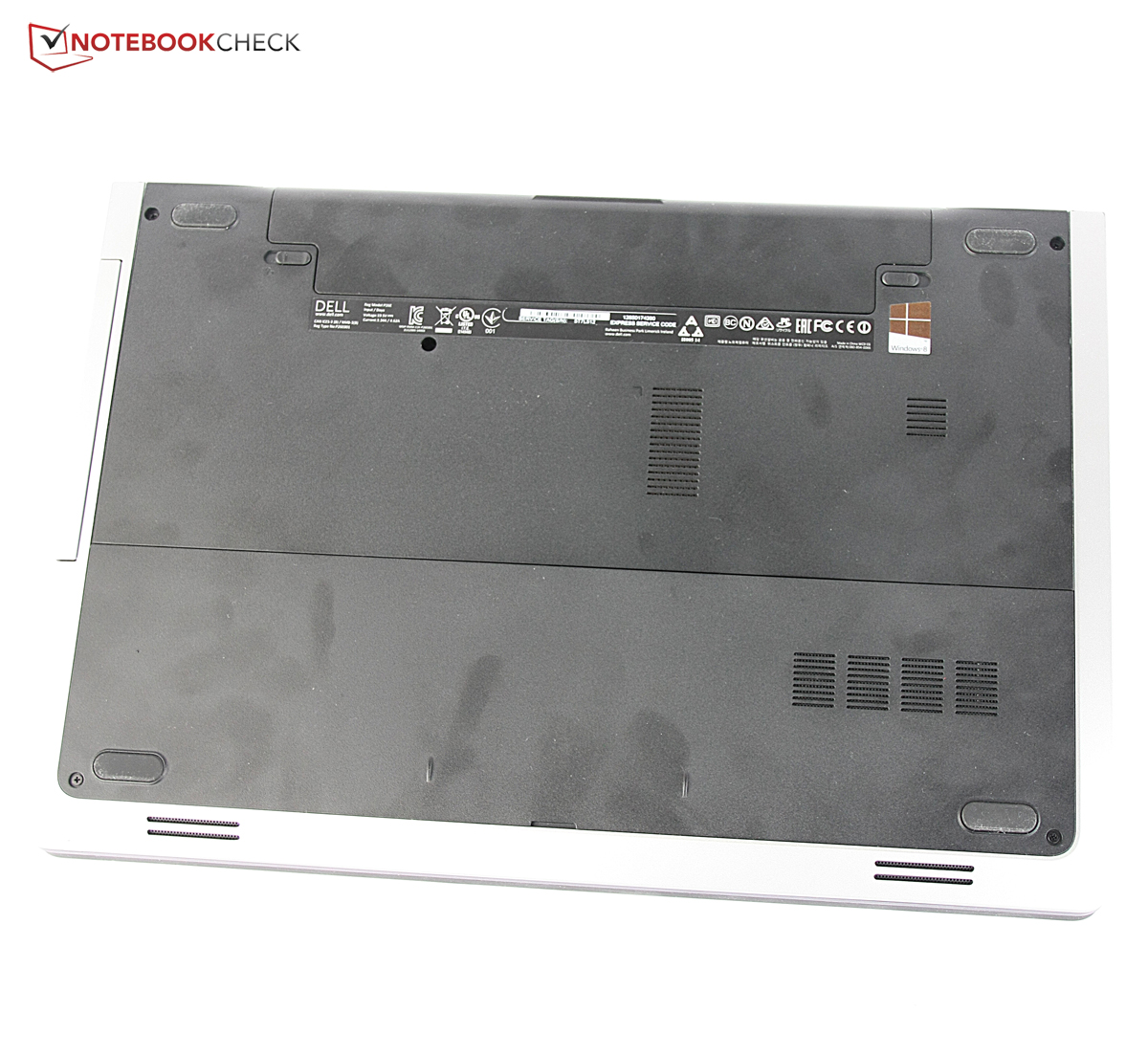

只需要取下两个螺钉就可以接触到大部分内部组件。
只需要取下两个螺钉就可以接触到大部分内部组件。

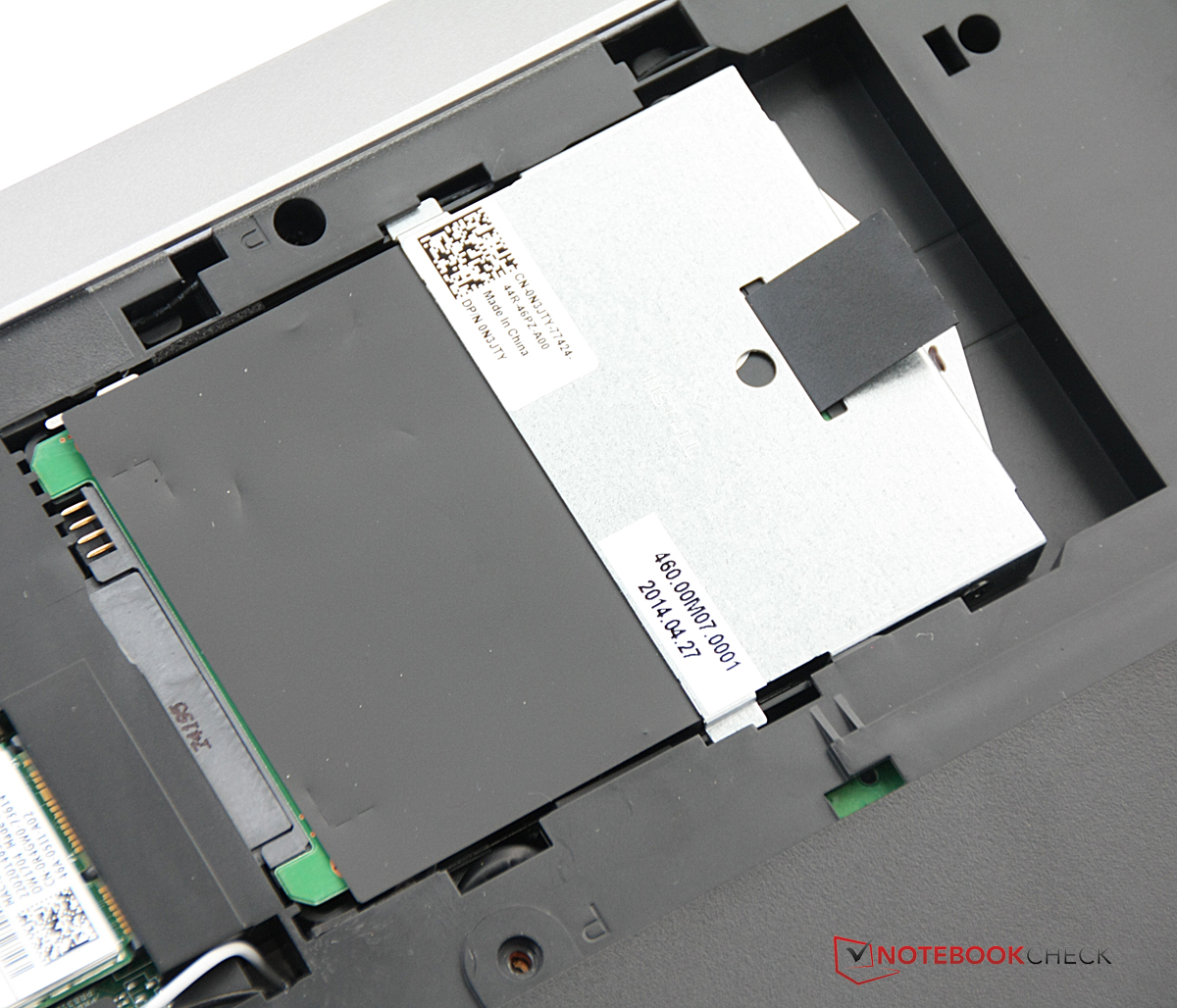

可惜的是它只提供了一个硬盘槽; 一些17寸笔记本提供了两个。
可惜的是它只提供了一个硬盘槽; 一些17寸笔记本提供了两个。

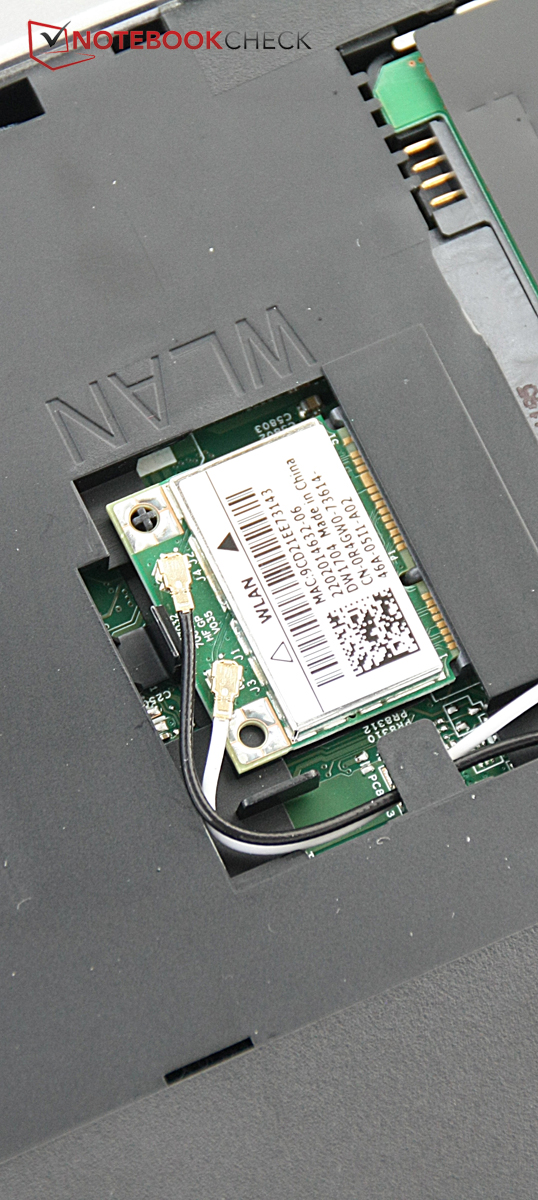

如果需要的话，Wi-Fi也可以更换。
如果需要的话，Wi-Fi也可以更换。

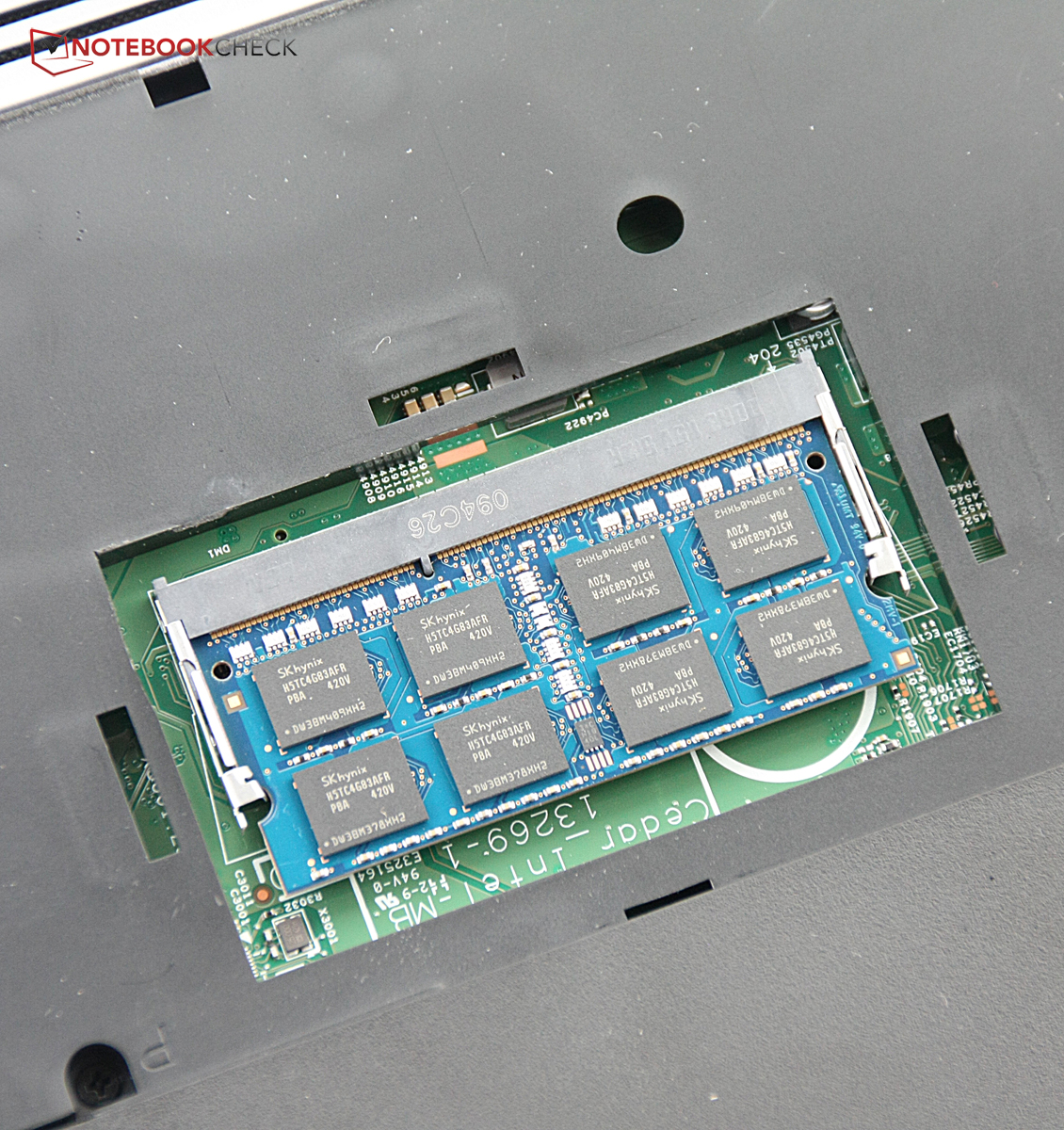

不过只有一个内存槽可以看到。
不过只有一个内存槽可以看到。
Waves MaxxAudio提供了音效的技术。
Waves MaxxAudio提供了音效的技术。
整体来说扬声器的音效十分不错。
整体来说扬声器的音效十分不错。

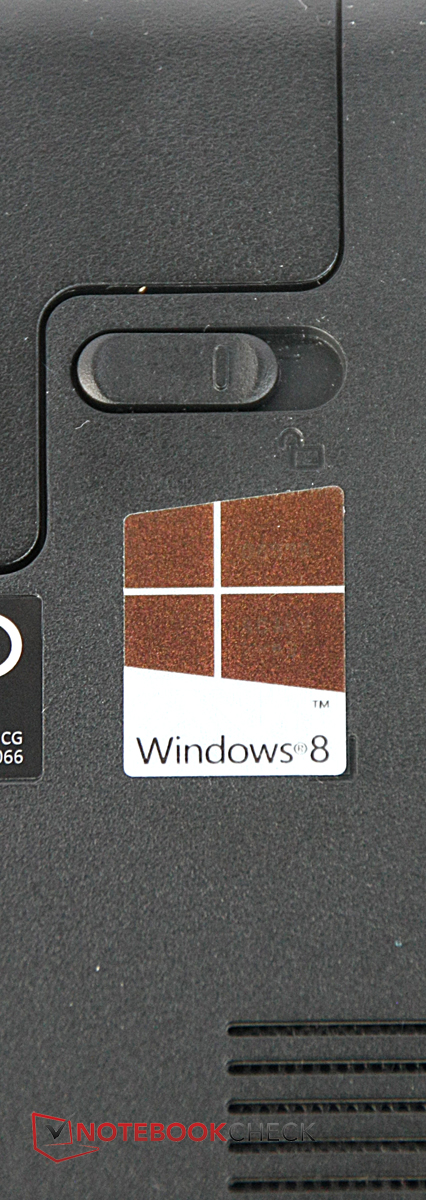

它预装了Windows 8.1 64位操作系统。
它预装了Windows 8.1 64位操作系统。
点击触控板的响应并不如传统带按键的触控板准确; 不过整体上还算好用。
点击触控板的响应并不如传统带按键的触控板准确; 不过整体上还算好用。
如果用户喜欢较软的按键的话，键盘的整体表现可以说十分出色。
如果用户喜欢较软的按键的话，键盘的整体表现可以说十分出色。
戴尔提供了一款纤薄的17寸笔记本电脑，它结合了高性能和高能效。
戴尔提供了一款纤薄的17寸笔记本电脑，它结合了高性能和高能效。
较小的40Wh电池由于系统的高能效仍然提供了不错的续航时间。
较小的40Wh电池由于系统的高能效仍然提供了不错的续航时间。
Please share our article, every link counts!

Specifications

Dell Inspiron 17-5748 (Inspiron 17 7000 Series)
Processor
Intel Core i7-4510U 2 x 2 - 3.1 GHz, Haswell
Graphics adapter
Intel HD Graphics 4400, Core: 1100 MHz
Memory
8 GB
Display
17.30 inch 16:9, 1920 x 1080 pixel, 电容型触控屏幕, TN LED, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
Samsung SpinPoint M8 HN-M101MBB, 1000 GB
, 5400 rpm, 918 GB free
Soundcard
Intel Lynx Point-LP - High Definition Audio Controller
Connections
2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD读卡器
Networking
10/100 MBit Lan Adapter (10/100MBit/s), Dell Wireless 1704 802.11b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Optical drive
Matshita DVD-RAM UJ8E2
Size
height x width x depth (in mm): 30 x 414 x 286
Battery
40 Wh Lithium-Ion
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 720p 相机
Additional features
Speakers: 立体声扬声器, Keyboard: 孤岛式，带数字键盘, Keyboard Light: no
Weight
3.19 kg, Power Supply: 320 g
Price
779 Euro
Links
Dell homepage
Dell notebook section



Devices with the same GPU

联想 Edge 15-80H10004US 笔记本电脑简短评测
HD Graphics 4400, Core i5 4210U, 15.60", 2.418 kg

Devices with Same Screen Size and/or Weight

戴尔 XPS 16 9640 评测--配备 4K OLED 和恼人触控条的多媒体笔记本电脑
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Meteor Lake-H Ultra 7 155H, 16.30", 2.313 kg
戴尔 XPS 14 2024 评测--配备全球最慢 RTX 4050 的多媒体笔记本电脑
NVIDIA GeForce RTX 4050 Laptop GPU, Intel Meteor Lake-H Ultra 7 155H, 14.50", 1.795 kg
戴尔 Inspiron 16 Plus 7630 笔记本电脑评测：60 WGeForce RTX 4060 并不差
NVIDIA GeForce RTX 4060 Laptop GPU, Raptor Lake-H i7-13700H, 16.00", 2.179 kg
戴尔XPS 17 9730笔记本电脑回顾： GeForce RTX 4070多媒体怪物
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i7-13700H, 17.00", 2.475 kg
戴尔XPS 15 9530 RTX 4070笔记本电脑评论：既令人印象深刻又令人失望
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i7-13700H, 15.60", 1.942 kg
戴尔Inspiron 14 Plus 7420笔记本电脑评论。适用于预算有限的电力用户
GeForce RTX 3050 4GB Laptop GPU, Alder Lake-S i7-12700H, 14.00", 1.669 kg

Pros

+雅致纤薄的机身
+铝合金上盖
+做工质量好
+触屏
+易于维护升级
+优质的输入设备
+屏幕对比度高
+快速且节能的处理器
+在电池模式下也可以全速运行
+运行中很安静
+低发热量
+不错的扬声器
+长电池续航


Cons

-由于采用了触屏上盖较厚
-无独立显卡
-USB接口很少
-缓慢的硬盘
-低游戏性能
-镜面屏幕的颜色偏蓝
-接口均在前部

Dell Inspiron 17-5748 - 07/23/2014 v4(old)
Florian Wimmer

Chassis
78 / 98 → 80%
Keyboard
83%
Pointing Device
78%
Connectivity
59 / 81 → 73%
Weight
55 / 20-67 → 74%
Battery
84%
Display
80%
Games Performance
52 / 85 → 61%
Application Performance
67 / 92 → 73%
Temperature
91%
Noise
95 / 95 → 100%
Audio
57%
Camera
58 / 85 → 68%
Average
72%
76%
Multimedia - Weighted Average
> Notebookcheck中文版（NBC中国） > 评测 > 戴尔 Inspiron 17-5748 笔记本电脑简短评测
Florian Wimmer, 2014-08- 6 (Update: 2014-09-19)
