华硕Zenbook Flip 14 OLED回顾。归功于AMD和OLED的绝对感觉

一个强大的包装,有一个14英寸的平衡装置。 华硕以Zenbook Flip 14 OLED的形式在市场上推出了一款强劲的可折叠机。这款产品拥有出色的14英寸OLED显示屏,刷新率为90赫兹,采用流行的16:10格式的3K分辨率。但这并不是唯一闪亮的功能。在下面的评论中,我们将了解其他的优势和劣势。
AMD Business Cezanne (Zen 3) Convertible / 2-in-1 Radeon Touchscreen Tablet Windows Laptop / Notebook

正如在以前的评论中所显示的那样,比如说对 华硕Zenbook 14x华硕开始对OLED面板进行标准化,这样不仅高价设备可以享受其优势,而且中端设备也可以。随着华硕Flip 14 OLED的推出,市场上出现了另一款有趣的可折叠机,配备了强大的AMD 5800H以及集成的RX Vega 8 iGPU。OLED面板的刷新率为90赫兹,分辨率为2880x1800,格式为16:10,包括HDR和Pantone认证。最后但并非最不重要的是,该机箱不仅非常坚固和时尚,而且还在点击板上配备了一个集成的数字计算器。

竞争者也提供了良好的设备,如 戴尔Latitude 9420 2合1联想Yoga 9i,这两款产品都提供强大的英特尔硬件和同样好的显示屏。OLED显示屏是否足以作为购买的理由?还有什么其他区别?我们在接下来的评论中澄清这些问题。

Asus ZenBook Flip 14 UN5401QA-KN085W (ZenBook Flip 14 Series)
Processor
AMD Ryzen 7 5800H 8 x 3.2 GHz @ 4.45 GHz, 54 W PL2 / Short Burst, 45 W PL1 / Sustained, Cezanne-H (Zen 3)
Graphics adapter
AMD Radeon RX Vega 8 (Ryzen 4000/5000) - 512 MB VRAM, Core: 2000 MHz, Memory: 2100 MHz

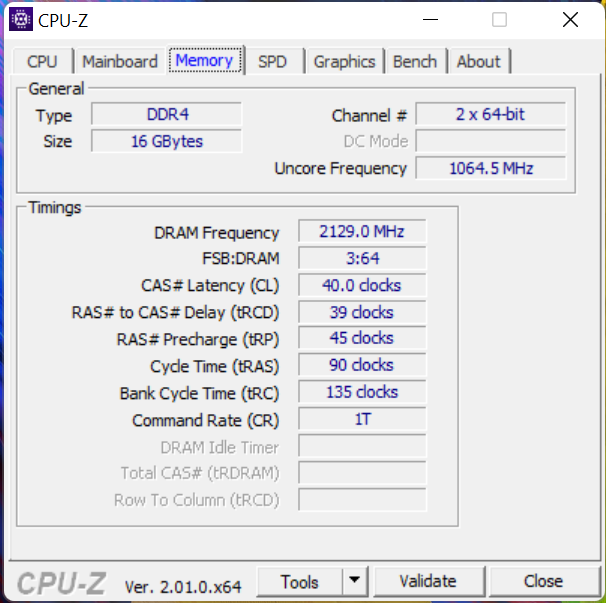

Memory
16 GB
, LPDDR4-3200, Dual-Channel, Onboard
Display
14.00 inch 16:10, 2880 x 1800 pixel 243 PPI, 10-point capacitive, native pen support, SDC4154, OLED, glossy: yes, detachable screen, HDR, 90 Hz
Mainboard
AMD CZ FCH
Storage
Intel SSD 600p SSDPEKKW512G7, 512 GB
, 430 GB free
Soundcard
AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller
Connections
3 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Connections: 3,5 mm, Card Reader: MicroSD, 1 Fingerprint Reader, Brightness Sensor
Networking
Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0
Size
height x width x depth (in mm): 15.9 x 311.2 x 222.5
Battery
63 Wh Lithium-Ion, Battery runtime (according to manufacturer): 10 h
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 11 Home
Camera
Webcam: 720p
Primary Camera: 0.9 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, MyAsus, 24 Months Warranty
Weight
1.4 kg, Power Supply: 404 g
Price
1299 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
86.5 %
05/2022
Asus ZenBook Flip 14 UN5401QA-KN085W
R7 5800H, Vega 8
1.4 kg15.9 mm14.00"2880x1800
82.9 %
09/2021
Dell Inspiron 14 7400 7415 2-in-1
R7 5700U, Vega 8
1.5 kg17.95 mm14.00"1920x1080
89 %
09/2021
Dell Latitude 9420 2-in-1
i7-1185G7, Iris Xe G7 96EUs
1.5 kg13.94 mm14.00"2560x1600
81.8 %
09/2021
HP Pavilion x360 14-dy0157ng
i5-1135G7, Iris Xe G7 80EUs
1.5 kg19.9 mm14.00"1920x1080
86.9 %
02/2021
Lenovo Yoga 9 14 ITL 4K
i7-1185G7, Iris Xe G7 96EUs
1.5 kg16.5 mm14.00"3840x2160

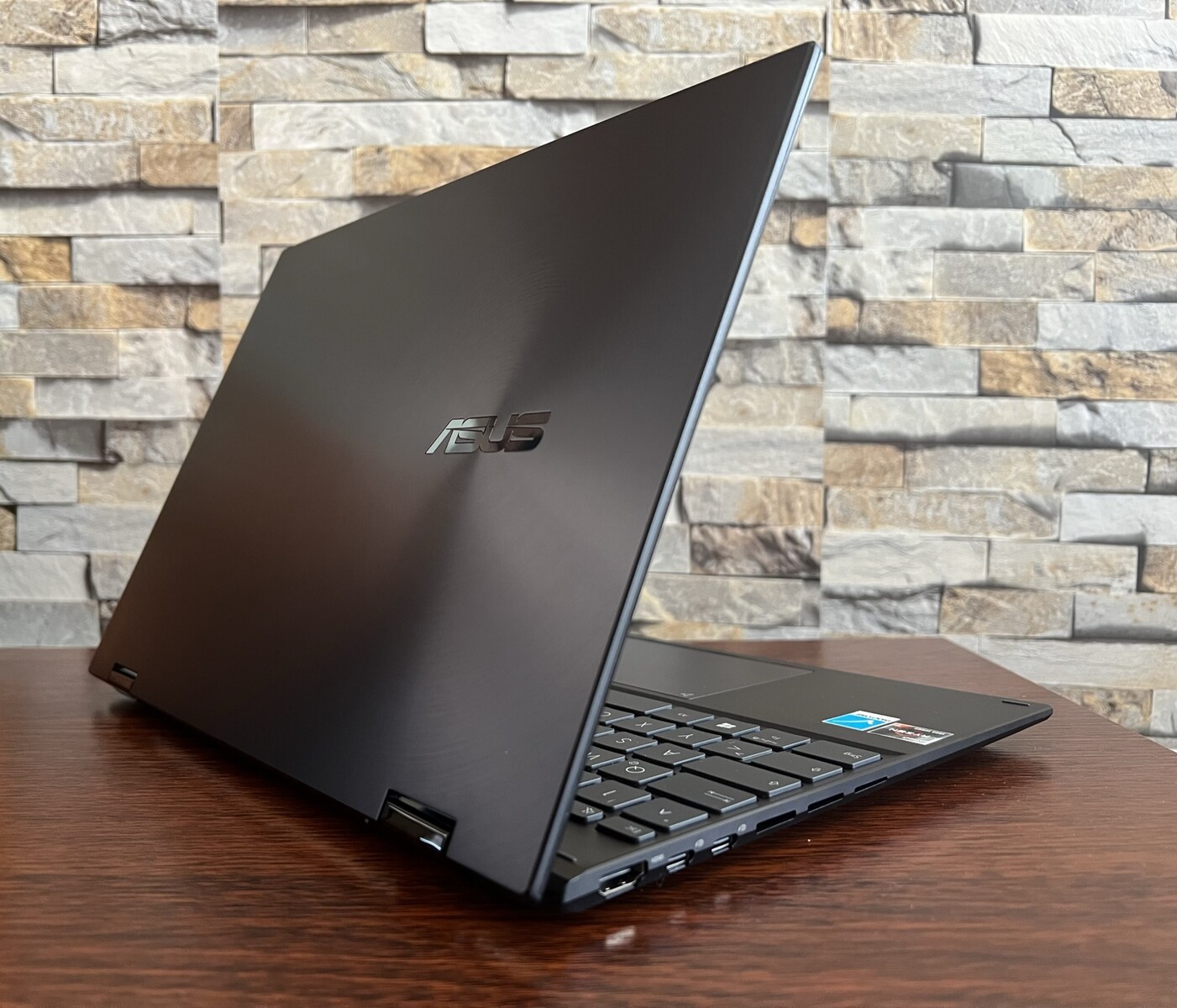

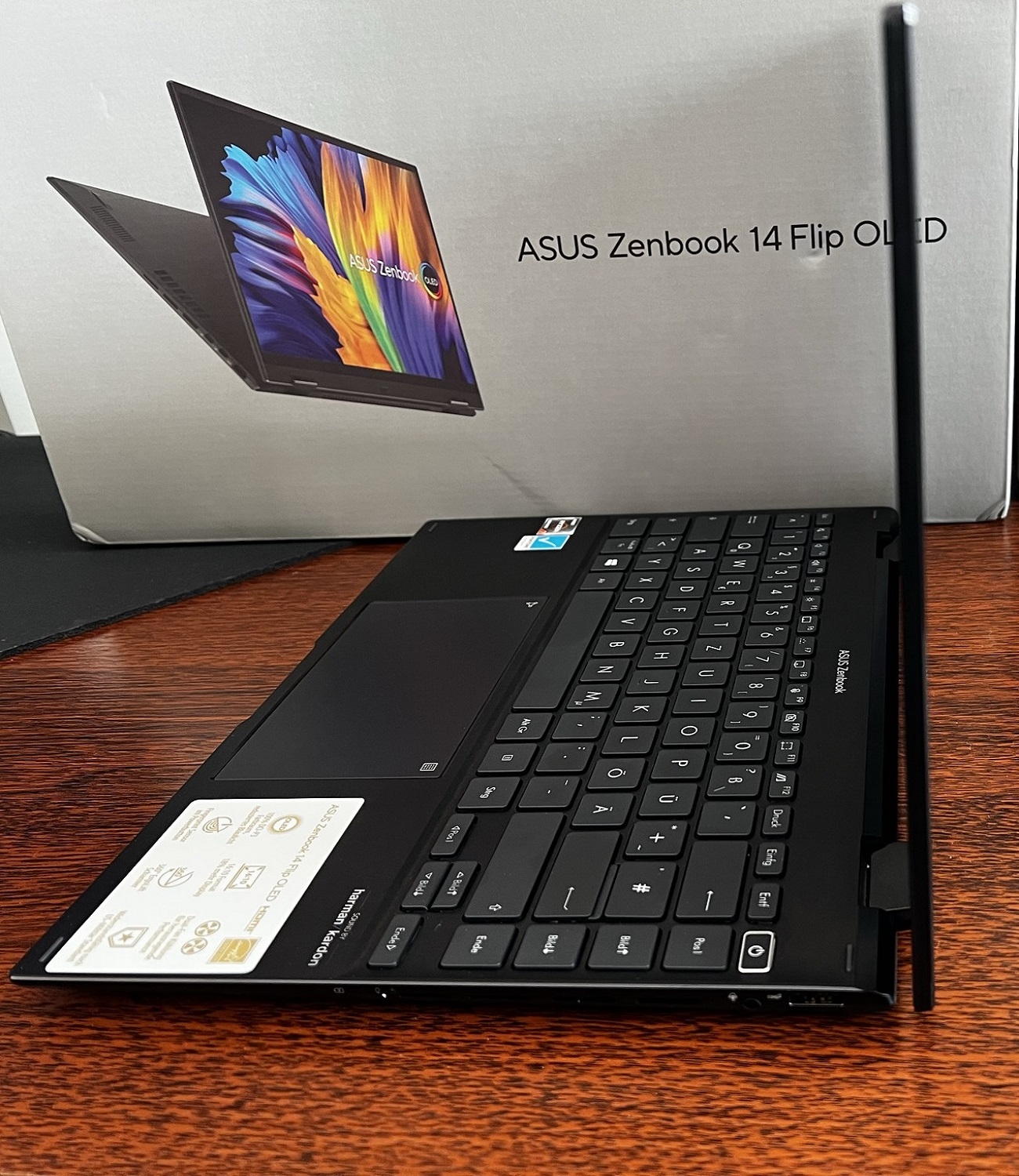

外壳:高质量和稳定

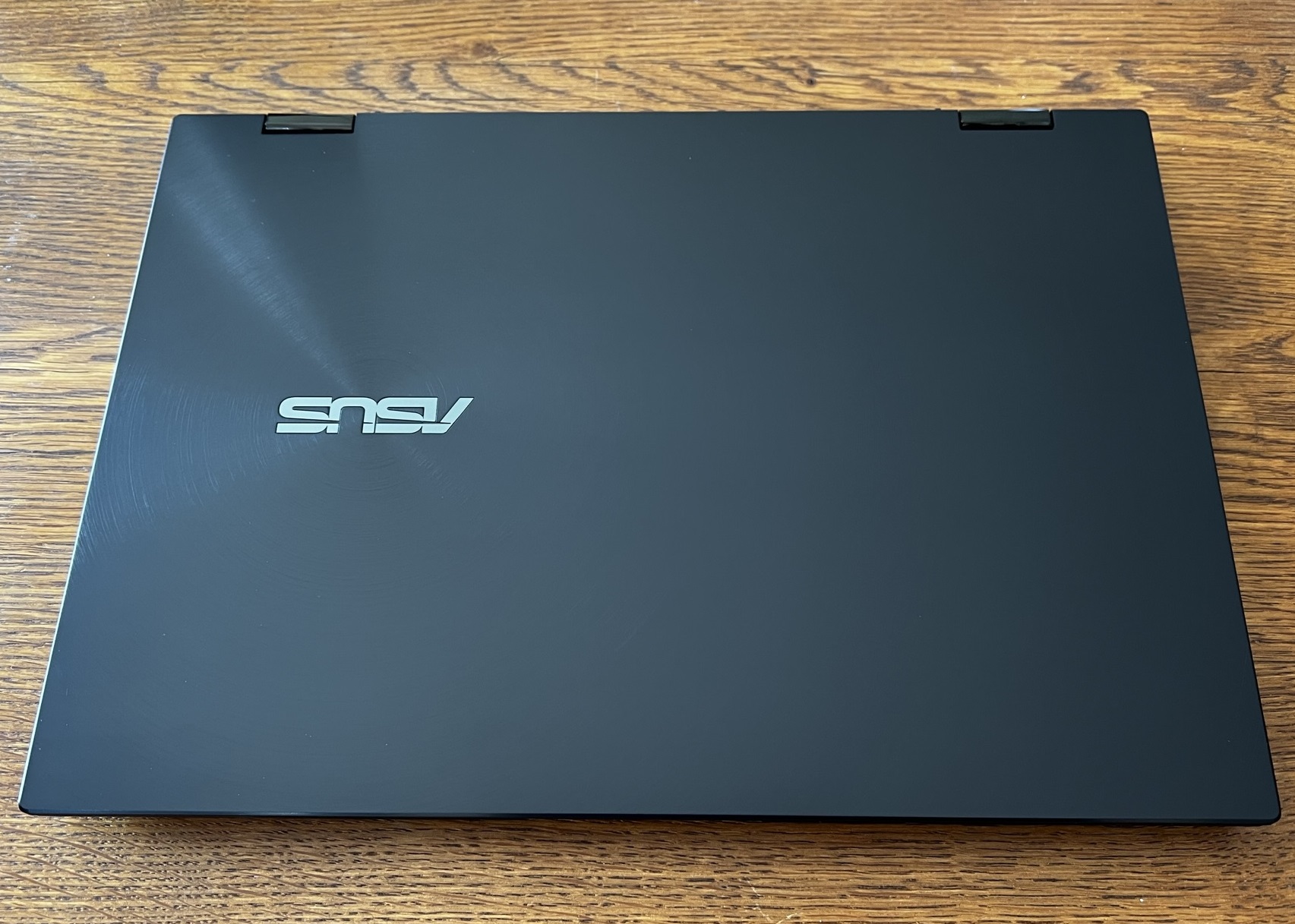

华硕Zenbook Flip 14的外壳很有学问,制造质量也很牢固。它由一个铝制底盘组成,不幸的是,它很容易受到指纹的影响。使用该设备时,掌托会略微发热。这款敞篷车几乎可以用一只手打开而不滑落,还提供磁力关闭。 360度铰链在操作过程中保持稳定,但在打字时有点晃动。指纹传感器被集成到电源按钮中。

华硕Zenbook Flip 14是我们比较领域中最轻的设备。它与 戴尔Latitude 9420 2-in-1在尺寸上不相上下。

尺寸比较

322 mm 209 mm 19.9 mm 1.5 kg321.5 mm 211.35 mm 17.95 mm 1.5 kg320.3 mm 215.6 mm 16.5 mm 1.5 kg311.2 mm 222.5 mm 15.9 mm 1.4 kg310.59 mm 215.18 mm 13.94 mm 1.5 kg297 mm 210 mm 1 mm 5.7 g

硬件。华硕Flip 14不含Thunderbolt

端口的范围受到这里的冷却系统的限制。三个细长的冷却口被集中安置在设备的每一侧。总共有六个端口。华硕Zenbook Flip 14没有雷电4,而是有两个USB 3.2 Gen2端口,支持Power Delivery和Displayport。这些端口的位置相互之间有足够的距离,因此在使用上没有任何限制。该设备没有Kensington锁。局域网连接和额外的USB端口在这里需要一个底座

在可用的端口方面。 戴尔的9420二合一有雷电4,而 惠普x360有一个Thunderbolt 4和两个USB-A端口,都比较好。相比之下 戴尔9420,但是,惠普没有Power Delivery或Displayport支持。稍微老一点的 戴尔Inspiron 14 7400在我们的敞篷车旁边表现得更差,因为它的端口更老。瑜伽 瑜伽9i 14有较少的端口,但配备了手写笔和底座。

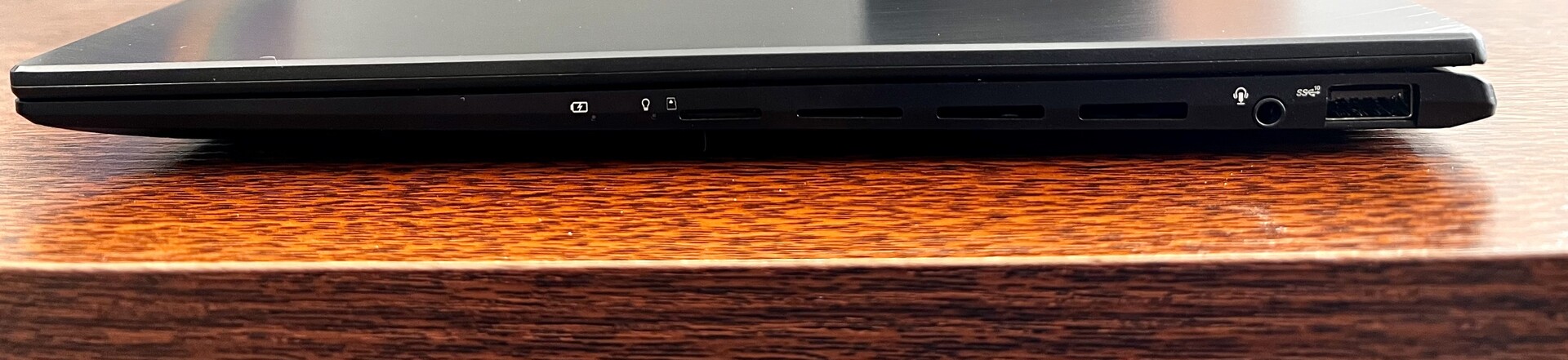

左边:MicroSD读卡器,3.5毫米插孔,1个USB-A 3.2 Gen2
左边:MicroSD读卡器,3.5毫米插孔,1个USB-A 3.2 Gen2

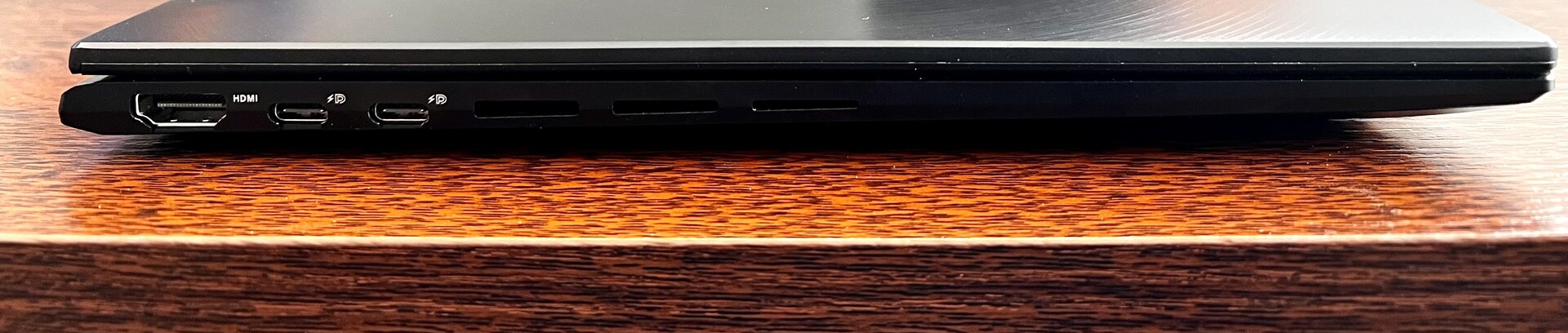

右:1个HDMI 2.0b,2个USB 3.2 Gen 2 Type-C,带DP和PD
右:1个HDMI 2.0b,2个USB 3.2 Gen 2 Type-C,带DP和PD

SD卡阅读器

用我们的AV PRO microSD V60测试的SD卡读卡器的性能,只是刚刚超过平均水平。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7 (AV PRO microSD 128 GB V60)
151.7 MB/s +85%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)
81.8 MB/s
Average of class Convertible
  (17.7 - 209, n=36, last 2 years)
78.4 MB/s -4%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7 (Toshiba Exceria Pro M501 microSDXC 64GB)
75.3 MB/s -8%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U (AV Pro V60)
27.2 MB/s -67%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7 (AV PRO microSD 128 GB V60)
172.8 MB/s +99%
Average of class Convertible
  (22.6 - 263, n=35, last 2 years)
98.7 MB/s +13%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H (AV Pro SD microSD 128 GB V60)
87 MB/s
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7 (Toshiba Exceria Pro M501 microSDXC 64GB)
85.4 MB/s -2%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U (AV Pro V60)
36.78 MB/s -58%

沟通

内置的英特尔Wi-Fi 6 AX200实现了非常强大的性能值,并与其他品牌分享了第一名。 联想Yoga 9i.

Networking
iperf3 transmit AX12
Lenovo Yoga 9 14 ITL 4K
Intel Wi-Fi 6 AX201
1413 (1288min - 1503max) MBit/s +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel Wi-Fi 6 AX200
1395 (727min - 1572max) MBit/s
Average Intel Wi-Fi 6 AX200
  (447 - 1645, n=127)
1104 MBit/s -21%
Average of class Convertible
  (last 2 years)
1003 MBit/s -28%
Dell Inspiron 14 7400 7415 2-in-1
Intel Wi-Fi 6 AX200
932 (766min - 1008max) MBit/s -33%
Dell Latitude 9420 2-in-1
Intel Wi-Fi 6E AX210
925 (741min - 986max) MBit/s -34%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
360 (181min - 385max) MBit/s -74%
iperf3 receive AX12
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel Wi-Fi 6 AX200
1578 (812min - 1670max) MBit/s
Lenovo Yoga 9 14 ITL 4K
Intel Wi-Fi 6 AX201
1325 (1191min - 1399max) MBit/s -16%
Dell Inspiron 14 7400 7415 2-in-1
Intel Wi-Fi 6 AX200
1229 (1187min - 1283max) MBit/s -22%
Average Intel Wi-Fi 6 AX200
  (523 - 1684, n=128)
1191 MBit/s -25%
Average of class Convertible
  (last 2 years)
1178 MBit/s -25%
Dell Latitude 9420 2-in-1
Intel Wi-Fi 6E AX210
1164 (965min - 1251max) MBit/s -26%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
335 (325min - 338max) MBit/s -79%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650Tooltip
Asus ZenBook Flip 14 UN5401QA-KN085W Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1550 (812-1670)
Dell Latitude 9420 2-in-1 Intel Wi-Fi 6E AX210; iperf3 receive AX12; iperf 3.1.3: Ø1163 (965-1251)
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 receive AX12; iperf 3.1.3: Ø335 (325-338)
Lenovo Yoga 9 14 ITL 4K Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1325 (1191-1399)
Asus ZenBook Flip 14 UN5401QA-KN085W Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1370 (727-1572)
Dell Latitude 9420 2-in-1 Intel Wi-Fi 6E AX210; iperf3 transmit AX12; iperf 3.1.3: Ø926 (741-986)
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 transmit AX12; iperf 3.1.3: Ø354 (181-385)
Lenovo Yoga 9 14 ITL 4K Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1413 (1288-1503)

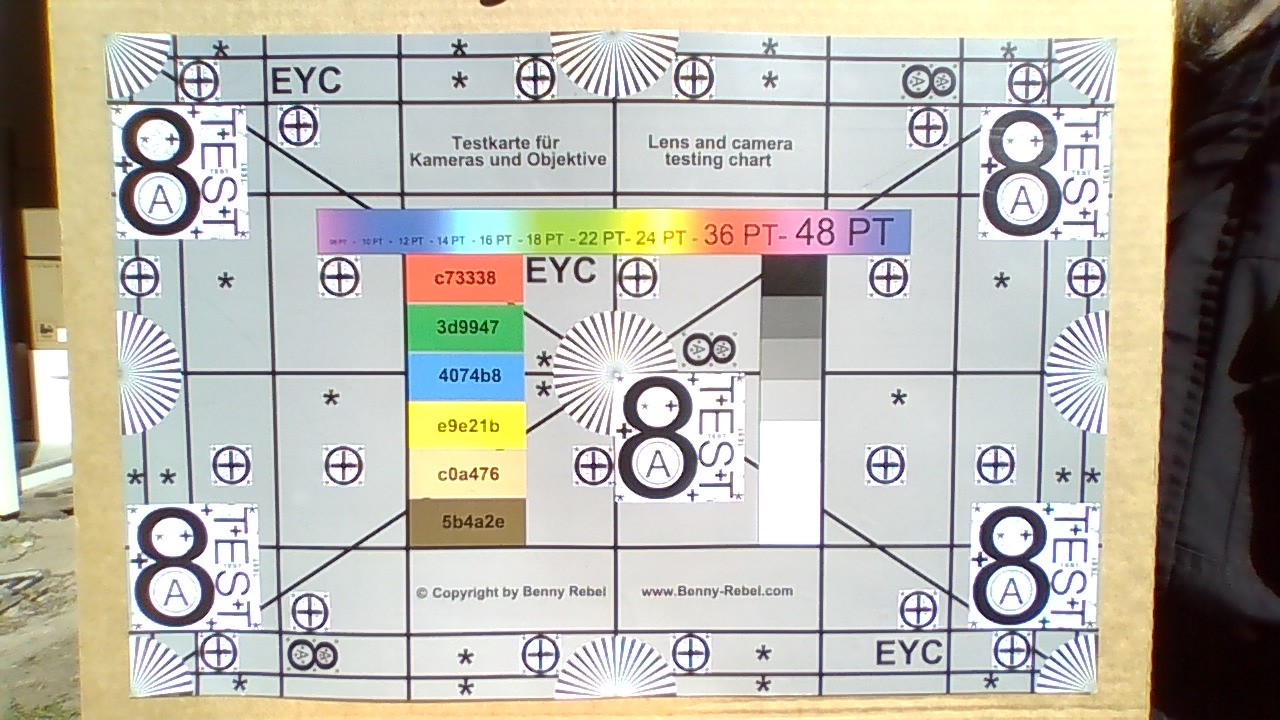

网络摄像头

笔记本的一个众所周知的问题是网络摄像头的质量。在720p的分辨率下,这里的网络摄像头几乎不能满足日常应用的需要。拍摄文件是不可能的,因为后面缺少第二个网络摄像头,前面的网络摄像头的图像质量相当模糊和嘈杂。此外,你应该寻找一个好的光源,因为图像质量不足以在弱光下进行视频通话。

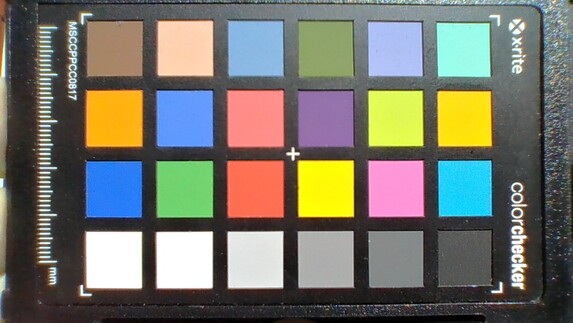

ColorChecker
20.8 ∆E
15.8 ∆E
19.6 ∆E
21.5 ∆E
19.2 ∆E
15 ∆E
17.7 ∆E
24.7 ∆E
17.8 ∆E
20 ∆E
15.5 ∆E
18.7 ∆E
25 ∆E
18.2 ∆E
24.1 ∆E
12.2 ∆E
20.3 ∆E
22.8 ∆E
2.3 ∆E
11.8 ∆E
17.1 ∆E
17.3 ∆E
20.4 ∆E
11.6 ∆E
ColorChecker Asus ZenBook Flip 14 UN5401QA-KN085W: 17.9 ∆E min: 2.33 - max: 24.98 ∆E

安全问题

与其他笔记本一样,华硕Zenbook Flip 14的标准配置是TPM。指纹传感器被集成到电源按钮中。

辅料

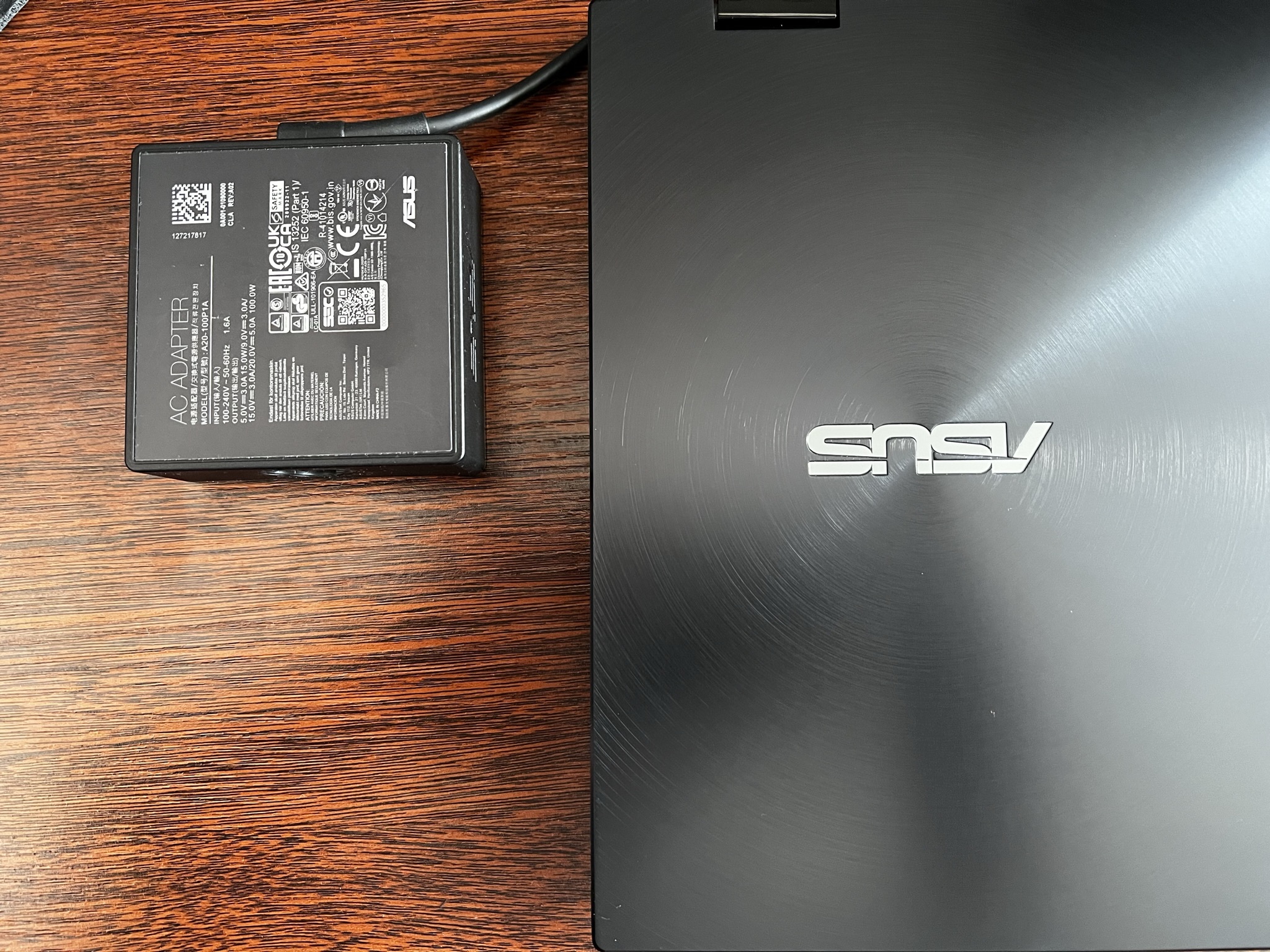

除了笔记本之外,交货时还包括一个电源装置和通常的文件。这里不包括一支手写笔。

维护

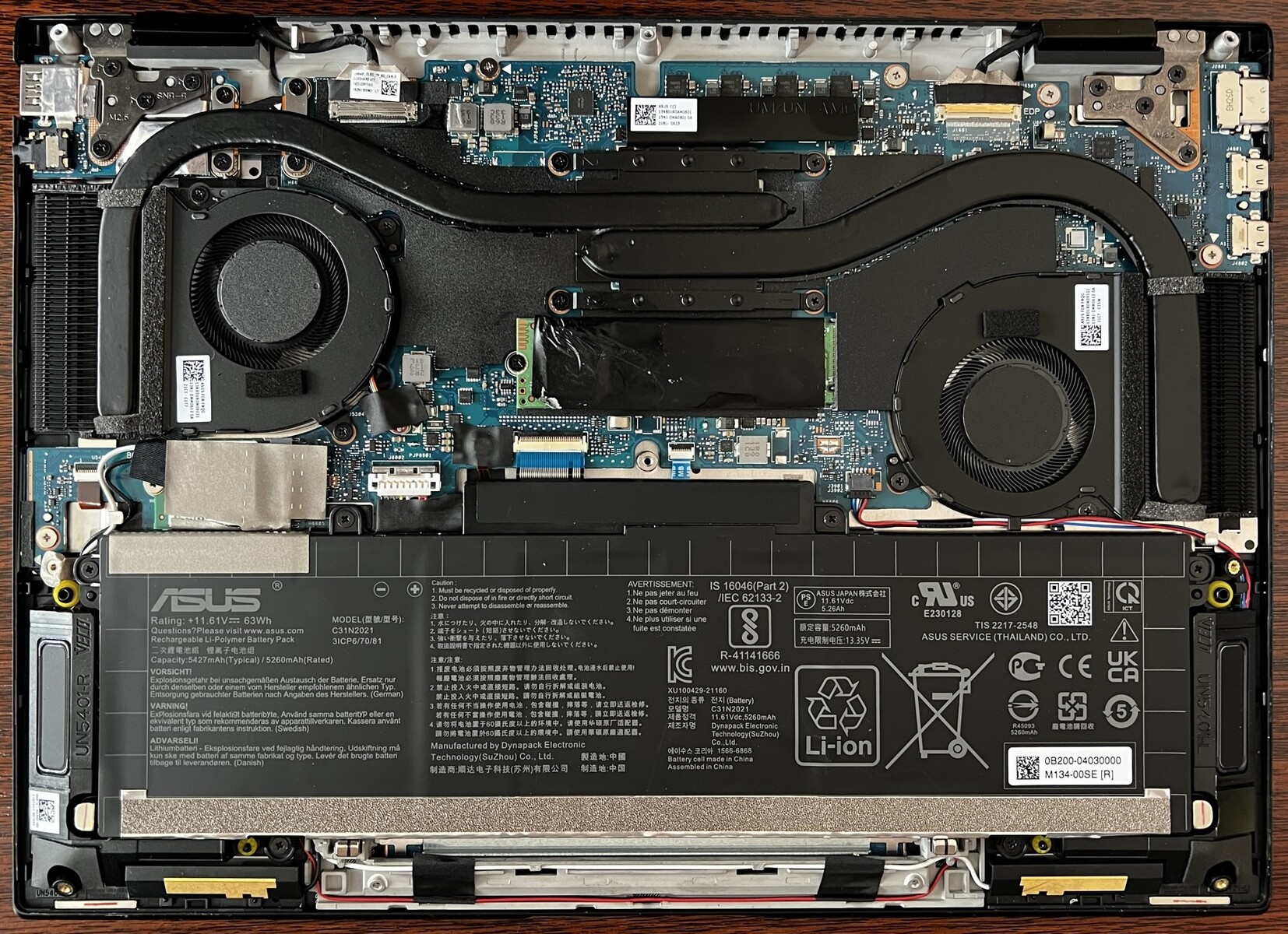

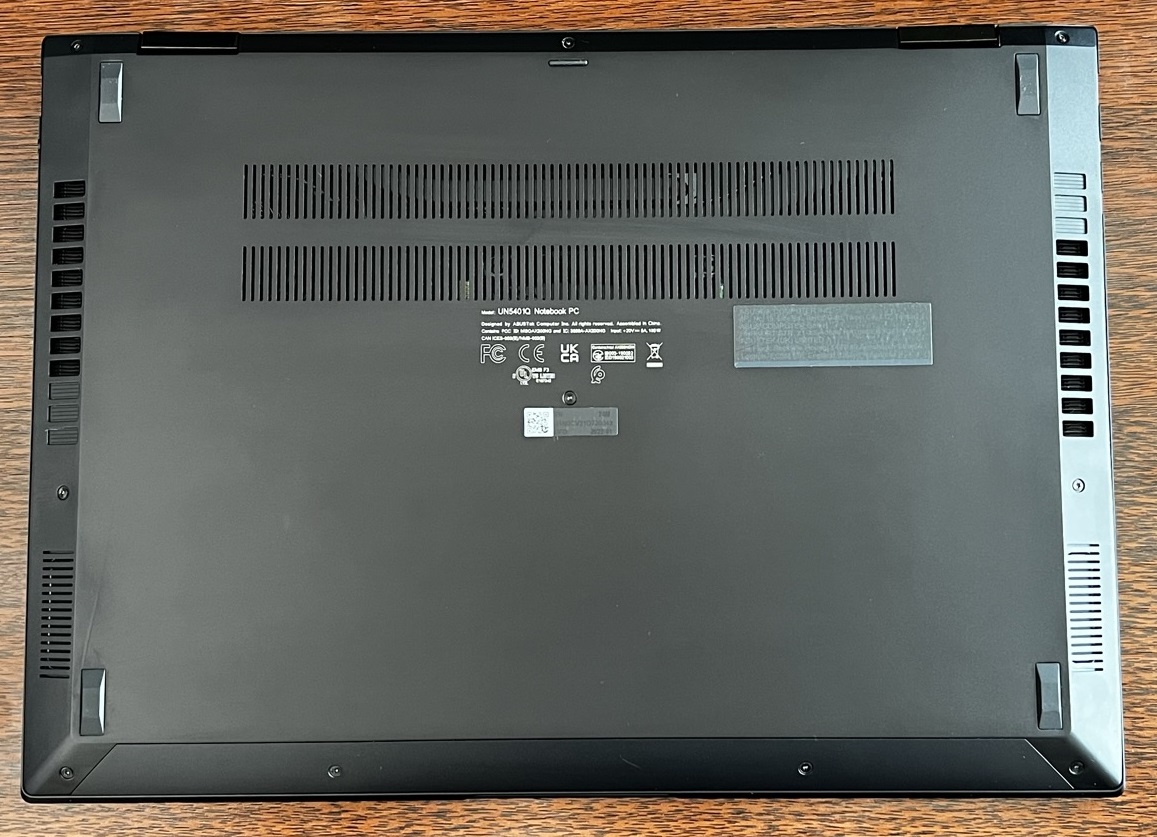

Zenbook Flip 14的外壳可以通过卸下十颗相同长度的Torx螺丝来打开。必须使用T6螺丝刀,并以正确的角度卸下螺丝,因为有些螺丝是略微弯曲的。底盖被紧紧地固定住,必须小心地取出。打开后,可以更换固态硬盘和Wi-Fi卡,并对风扇进行清洁。

内部工作原理
内部工作原理

担保

华硕Zenbook Flip 14在德国的保修期为24个月。其他国家的条款和条件可能有所不同。

输入设备。经过深思熟虑,非常有用

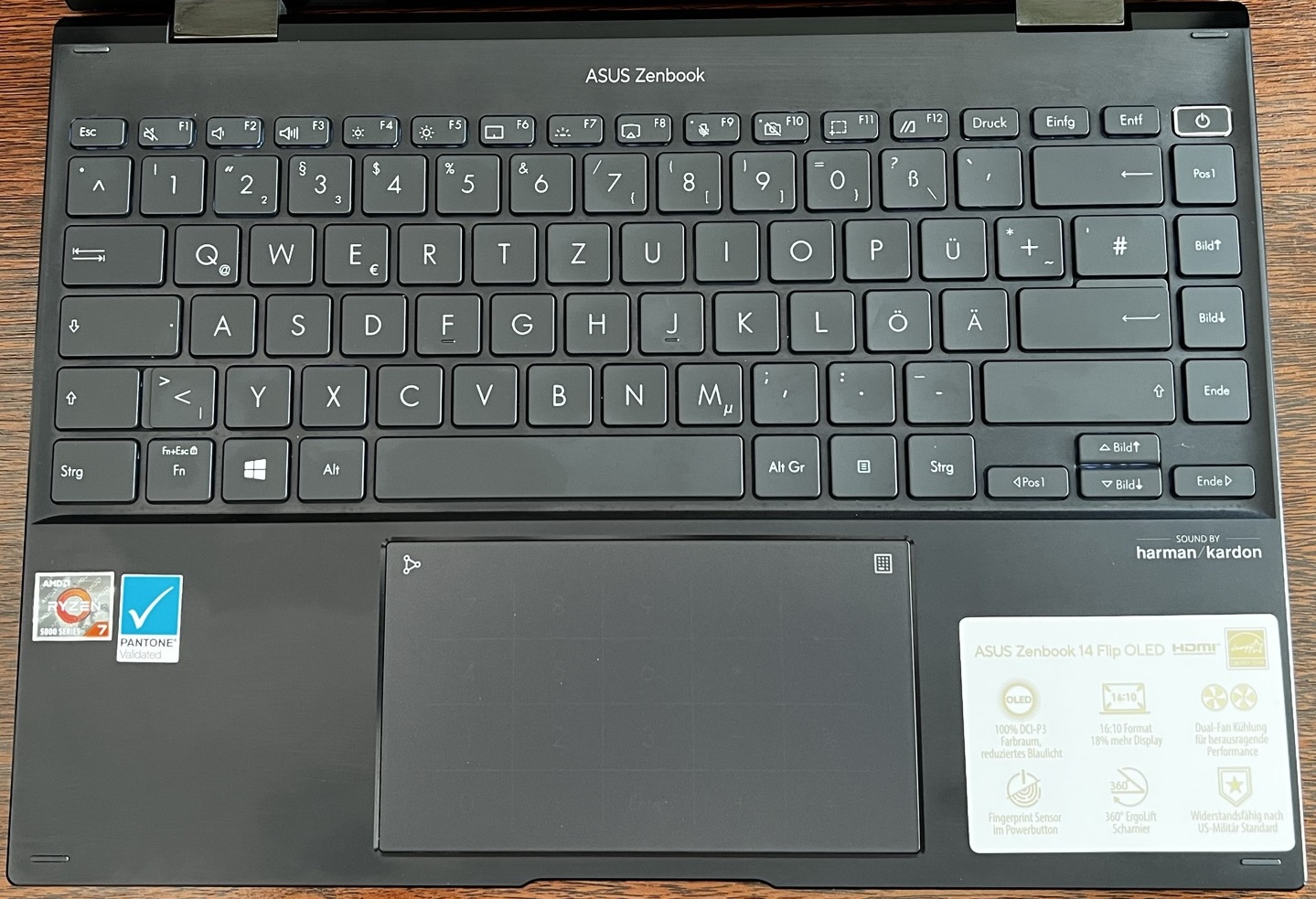

键盘

键盘的打字感觉是可以接受的,而布局也很清晰,考虑周到。键盘本身有点摇晃,键程较短。另一方面,按键间距足够大,使用过程中的按键噪音也不会让人感觉到烦躁。表面感觉很扎实,键盘有三个级别的背光,包括特殊字符的照明。

键盘
键盘

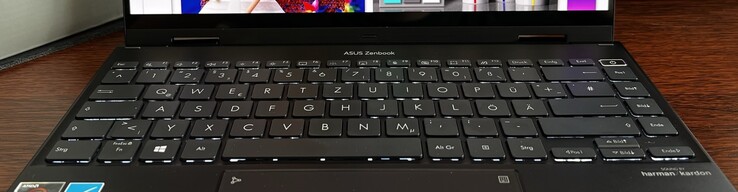

即使在白天也能清楚地看到键盘背面的灯光
即使在白天也能清楚地看到键盘背面的灯光

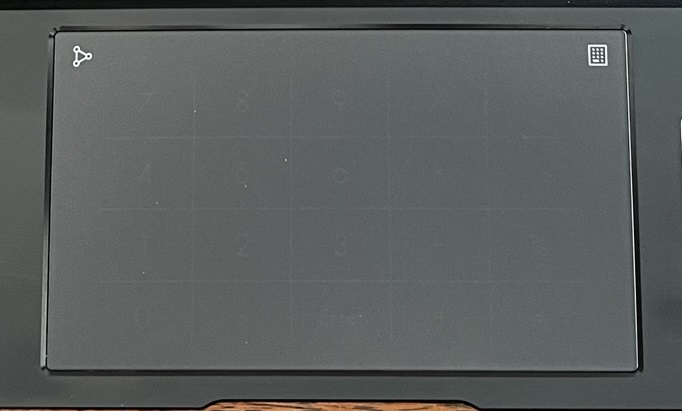

触摸板

华硕Zenbook Flip 14的触摸板的滑行性能很好,其尺寸也很合适。响应时间和精确度都很好。此外,触摸板上有一个背光数字板,可以通过触摸触摸板右上角的符号快速激活和停用。此外,通过在触摸板的左侧区域向下移动手指,可以毫不迟疑地激活常用的计算器。启动笔记本电脑时,数字键盘也会自动激活。触摸屏非常精确,对输入的反应非常快。

点击板
点击板

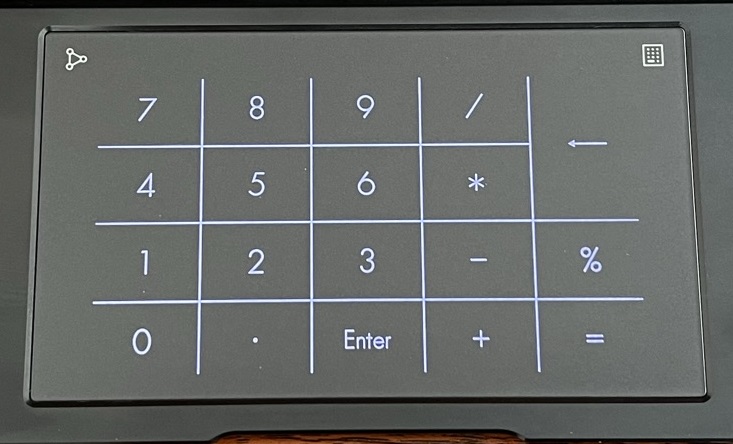

带数字计算器的点击板
带数字计算器的点击板

显示。优秀的触摸屏

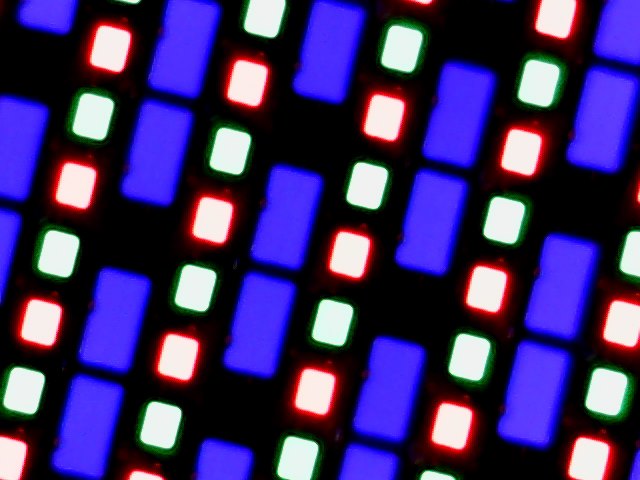

子像素网格
子像素网格

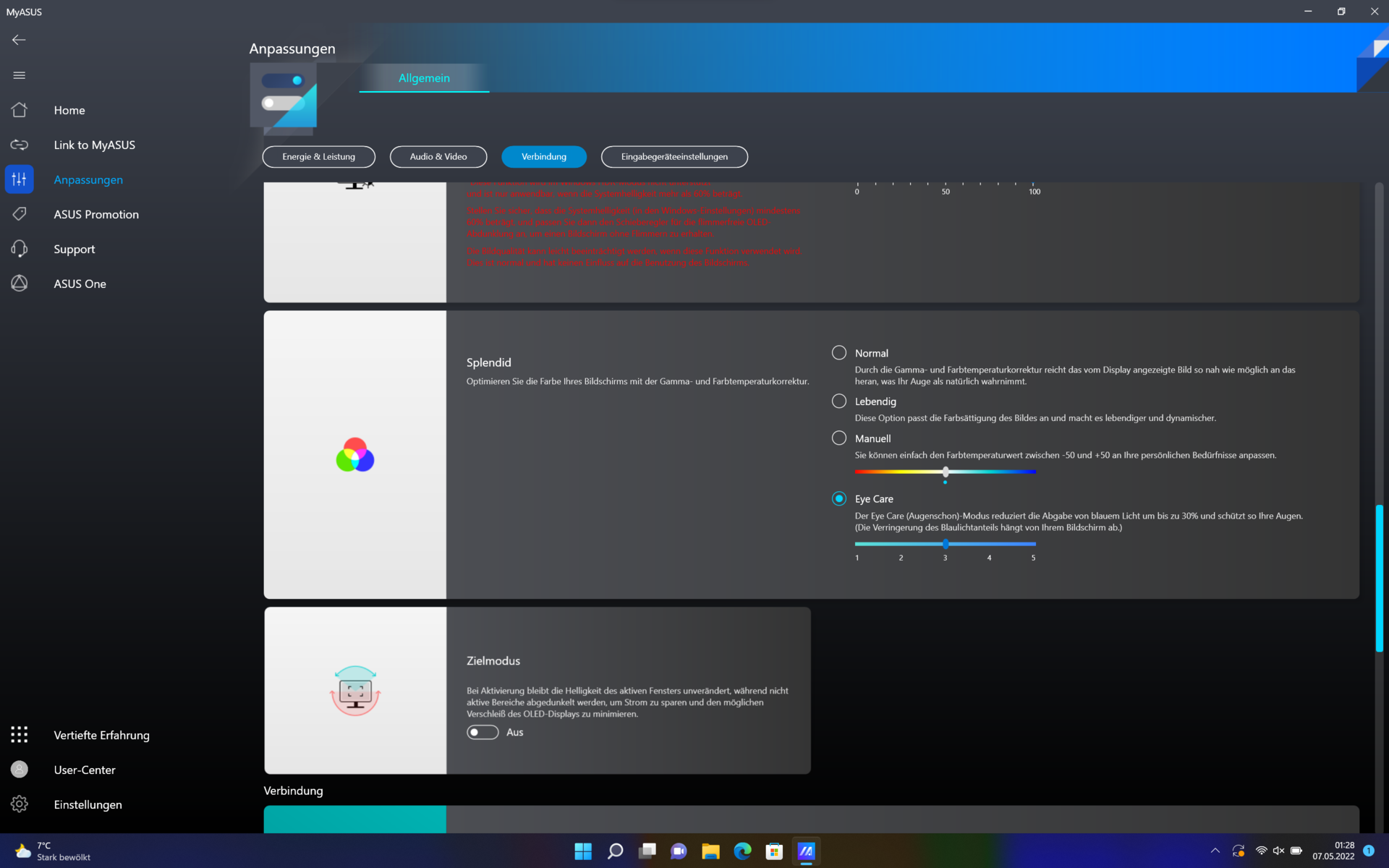

MyAsus - 显示屏颜色设置
MyAsus - 显示屏颜色设置

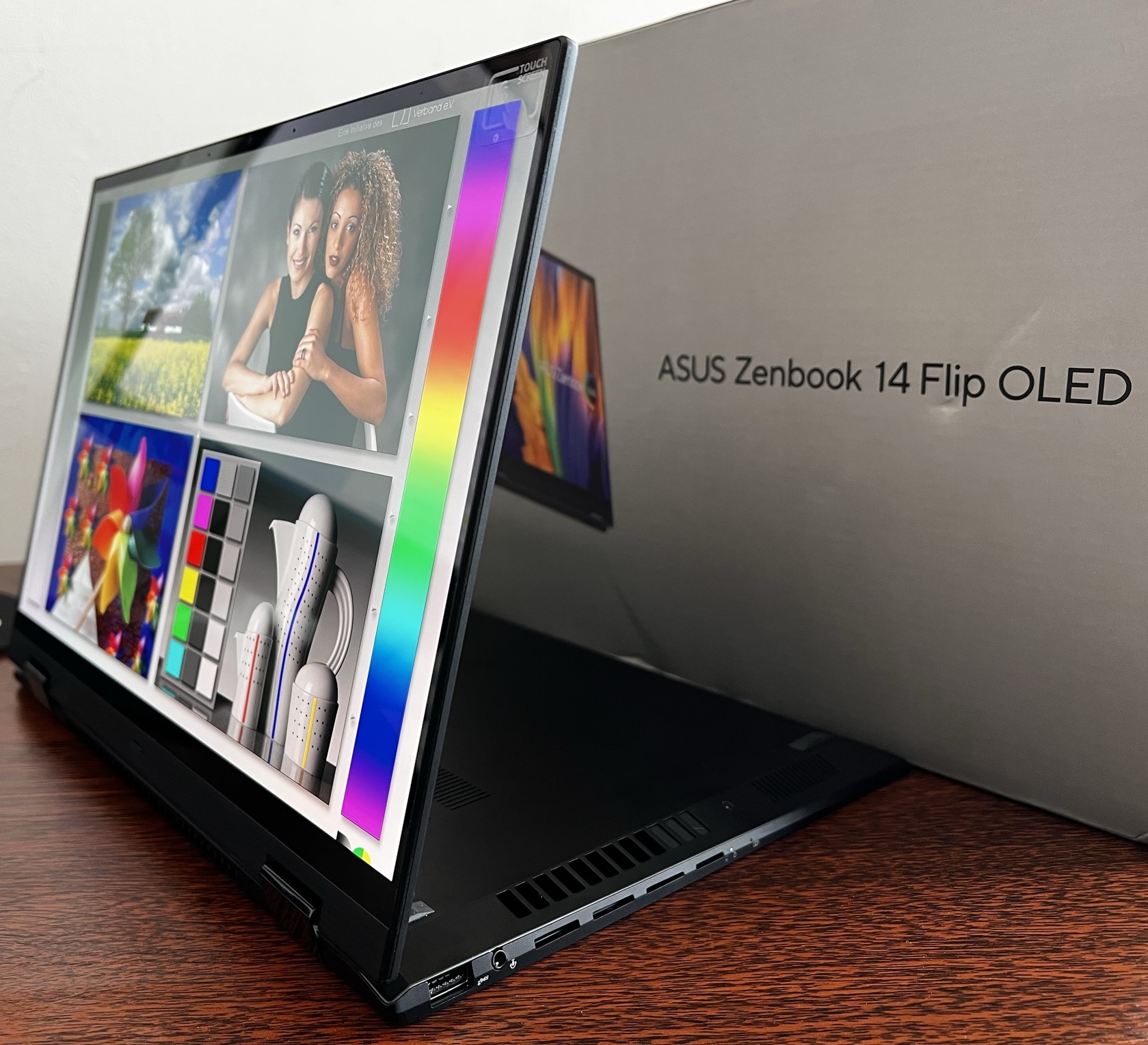

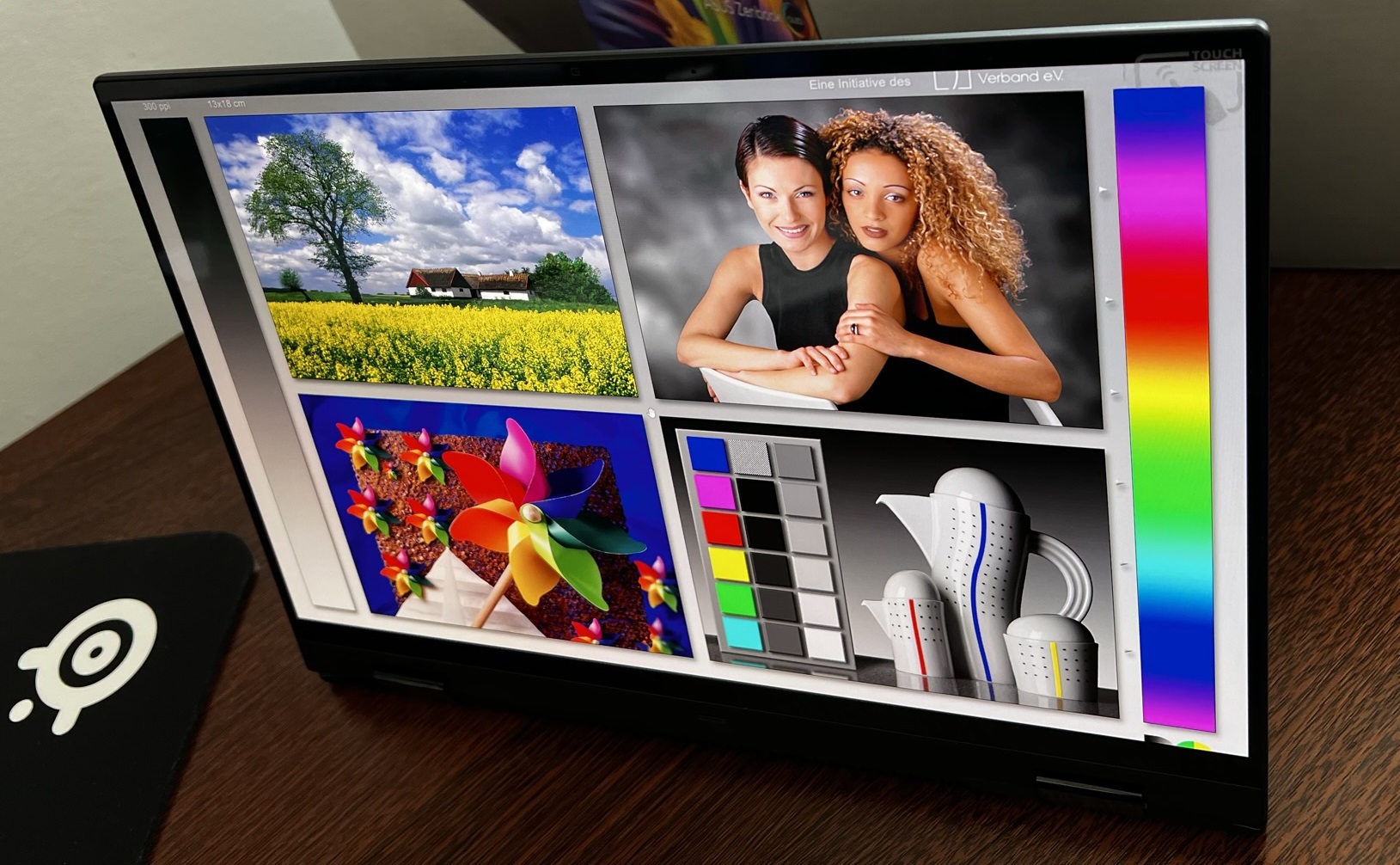

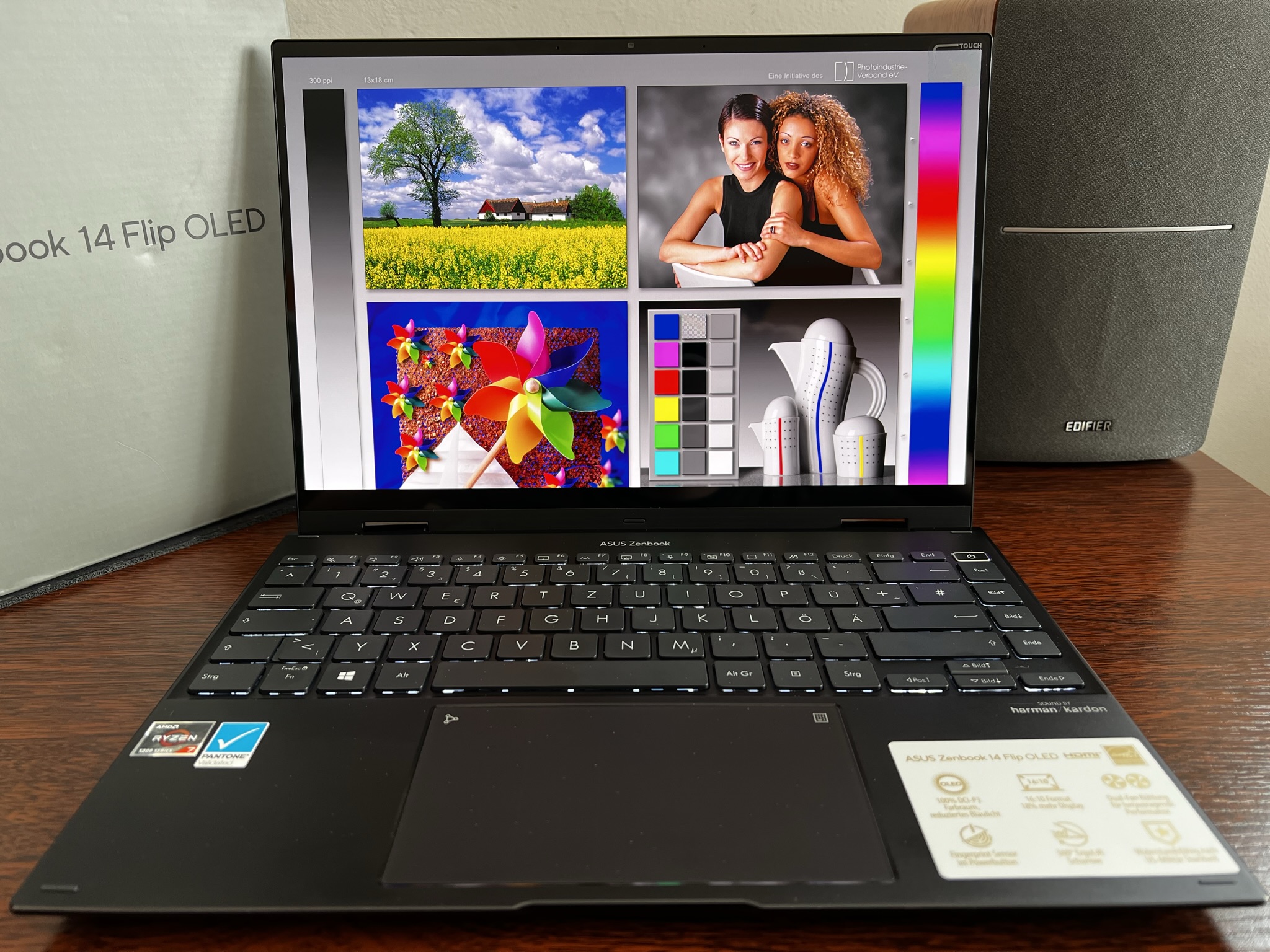

这款敞篷车的亮点是显示屏。华硕在所有方面都令人信服:14英寸的16:10格式,分辨率为2800x1800,确保了图像的锐利。此外,这是一个OLED面板,刷新率为90赫兹。除了我们的评测设备,还有另一个带有4K OLED面板的变体,它应该更加明亮,并配有HDR-500认证,而不是我们评测设备中的HDR-400认证。


除了OLED的典型品质--非常快的响应时间、出色的对比度和黑色水平之外,该面板还提供了366烛光的坚实亮度值。我们测试的几乎所有色彩空间都被完全覆盖,工厂校准对于依赖色彩保真度的专业用户来说也是足够的。HDR-400和Pantone认证也是可用的。在测试中,我们无法确定任何PWM闪烁的情况。


如果我们将我们的面板与竞争对手进行比较,它们在几乎所有类别中的表现都更差,除了亮度,华硕Zenbook在这方面属于中游。可以通过MyAsus软件对显示器进行进一步调整。例如,你可以通过 "护眼 "设置使颜色显得更加鲜艳,甚至加强蓝光过滤器。

372
cd/m²
372
cd/m²
376
cd/m²
368
cd/m²
366
cd/m²
372
cd/m²
363
cd/m²
360
cd/m²
371
cd/m²
Distribution of brightness
SDC4154 tested with X-Rite i1Pro 2
Maximum: 376 cd/m² (Nits) Average: 368.9 cd/m² Minimum: 4.5 cd/m²
Brightness Distribution: 96 %
Center on Battery: 366 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 2.84 | 0.5-29.43 Ø5, calibrated: 2.81
ΔE Greyscale 2.32 | 0.57-98 Ø5.3
98.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44
Asus ZenBook Flip 14 UN5401QA-KN085W
SDC4154, OLED, 2880x1800, 14.00
Dell Inspiron 14 7400 7415 2-in-1
Chi Mei 140HCA, IPS, 1920x1080, 14.00
Dell Latitude 9420 2-in-1
AU Optronics B140QAN, IPS, 2560x1600, 14.00
HP Pavilion x360 14-dy0157ng
Chi Mei N140HCA-E5B, IPS, 1920x1080, 14.00
Lenovo Yoga 9 14 ITL 4K
Lenovo CSOT3 MNE001EA1-2, IPS, 3840x2160, 14.00
Display
-50%
-13%
-49%
-7%
Display P3 Coverage
99.7
42.5
-57%
80.7
-19%
42.7
-57%
94.4
-5%
sRGB Coverage
100
63.1
-37%
100
0%
63.7
-36%
99.3
-1%
AdobeRGB 1998 Coverage
98.6
44
-55%
79.7
-19%
44.2
-55%
84
-15%
Response Times
-1310%
-2070%
-1250%
-1500%
Response Time Grey 50% / Grey 80% *
2 ?(1, 1)
28.8 ?(16.4, 12.4)
-1340%
54 ?(24, 30)
-2600%
32 ?(15, 17)
-1500%
45.6 ?(21.2, 24.4)
-2180%
Response Time Black / White *
2 ?(1, 1)
27.6 ?(16, 11.6)
-1280%
32.8 ?(16.4, 16.4)
-1540%
22 ?(12, 10)
-1000%
18.4 ?(5.2, 13.2)
-820%
PWM Frequency
Screen
-99%
-2%
-62%
9%
Brightness middle
366
262.7
-28%
483.6
32%
269
-27%
493
35%
Brightness
369
245
-34%
465
26%
241
-35%
453
23%
Brightness Distribution
96
84
-12%
92
-4%
82
-15%
85
-11%
Black Level *
0.37
0.32
0.11
0.3
Colorchecker dE 2000 *
2.84
6.23
-119%
3.69
-30%
5.68
-100%
2.2
23%
Colorchecker dE 2000 max. *
5.29
22.62
-328%
5.97
-13%
9.61
-82%
5.6
-6%
Colorchecker dE 2000 calibrated *
2.81
1.8
36%
2.05
27%
1.2
57%
Greyscale dE 2000 *
2.32
7.1
-206%
3.5
-51%
4.95
-113%
3.6
-55%
Gamma
2.44 90%
2.22 99%
2.04 108%
2.17 101%
2.17 101%
CCT
6170 105%
6241 104%
6158 106%
6628 98%
6754 96%
Contrast
710
1511
2445
1643
Color Space (Percent of AdobeRGB 1998)
44.2
75.2
Color Space (Percent of sRGB)
63.7
99.3
Total Average (Program / Settings)
-486% / -288%
-695% / -349%
-454% / -275%
-499% / -246%

* ... smaller is better

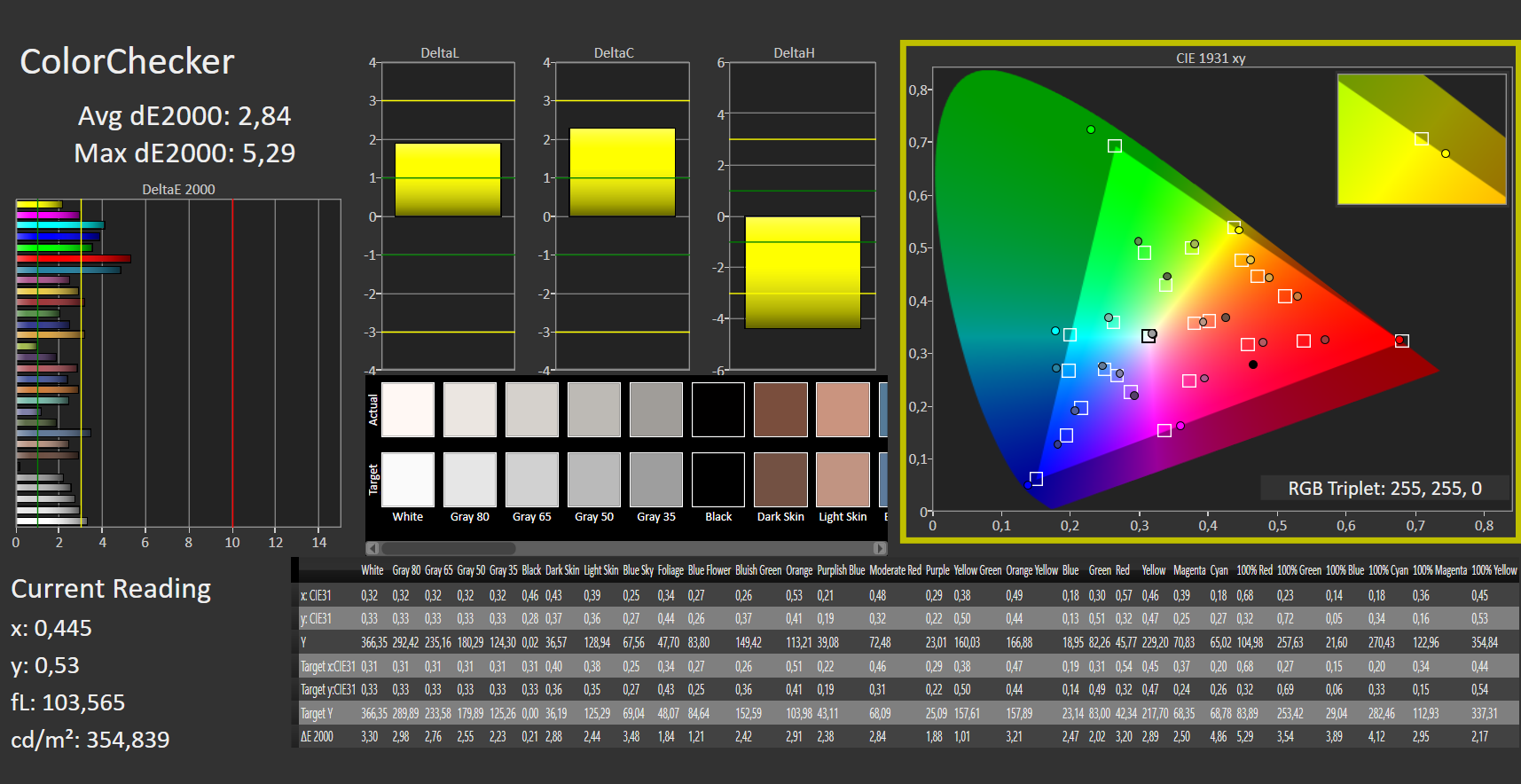

卡尔曼色
卡尔曼色

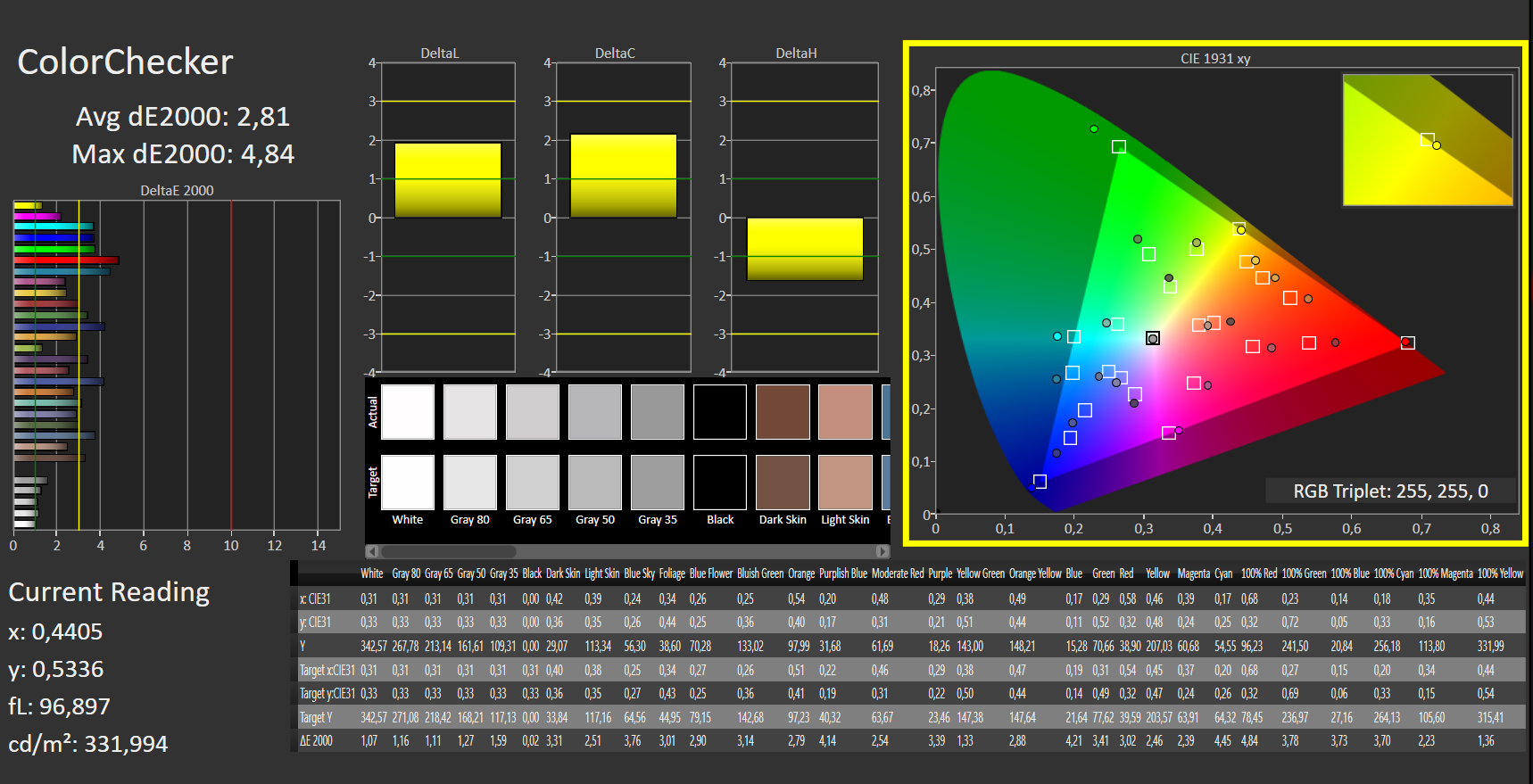

卡尔曼彩色校准的
卡尔曼彩色校准的

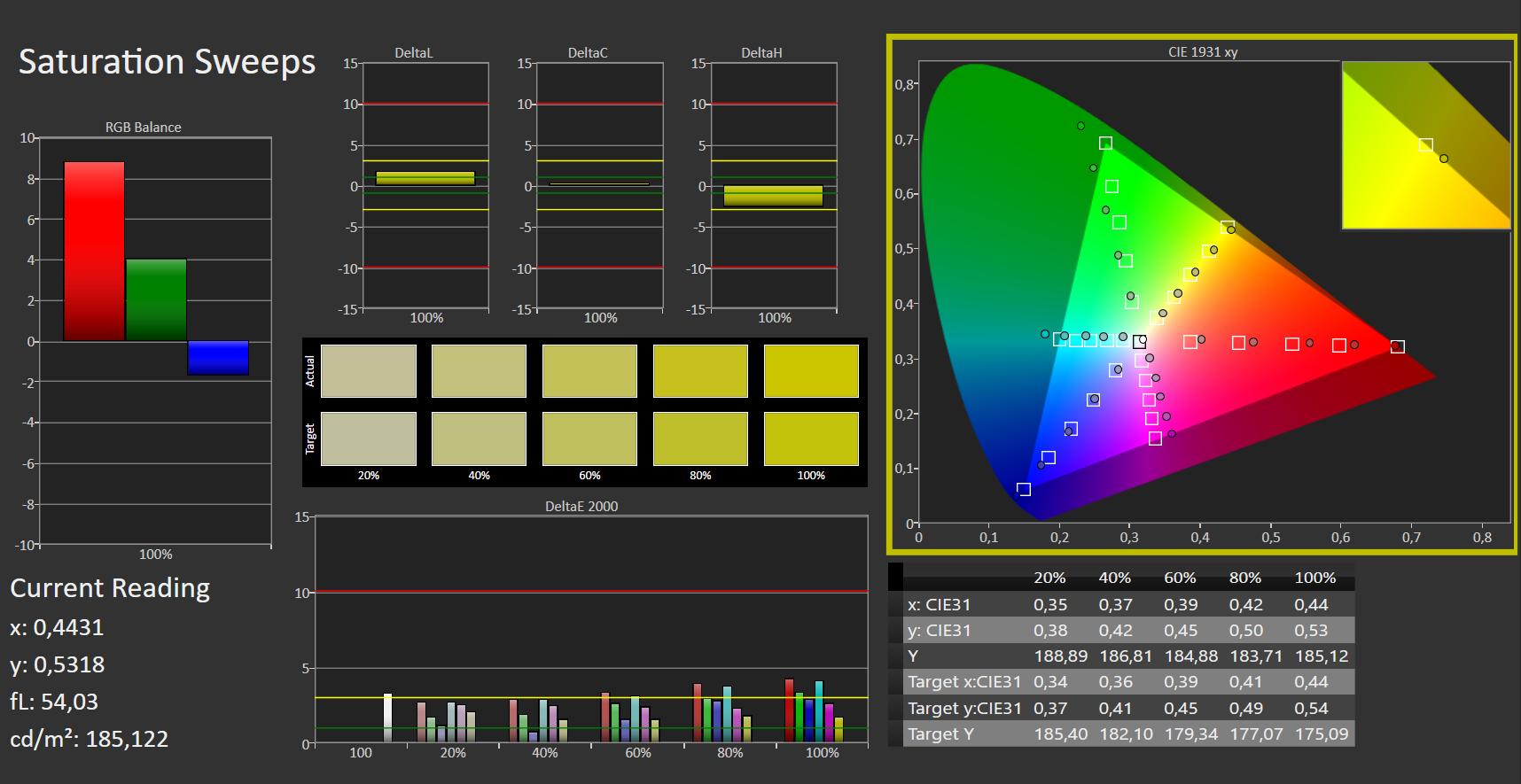

卡尔曼饱和度
卡尔曼饱和度
卡尔曼饱和度校准
卡尔曼饱和度校准

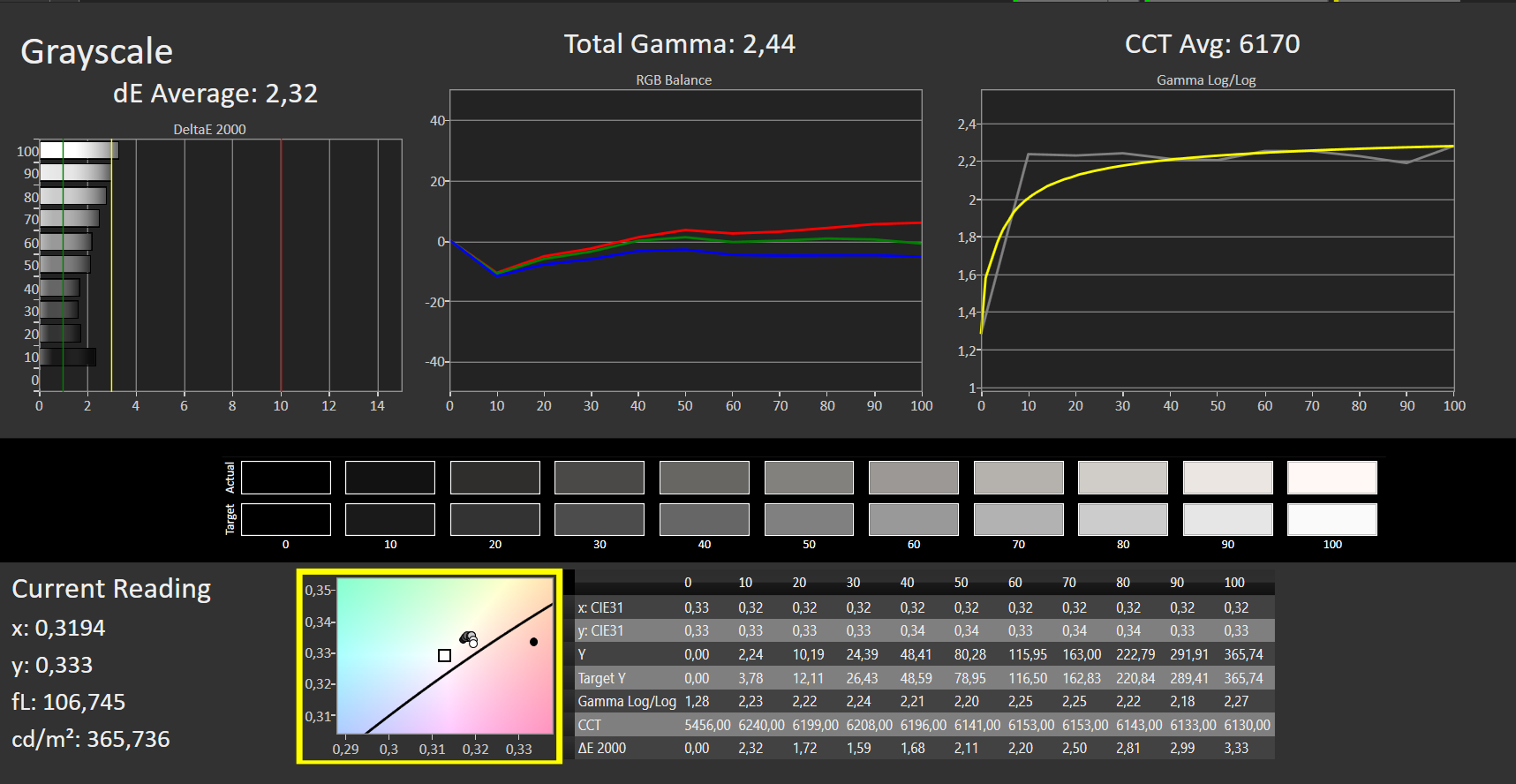

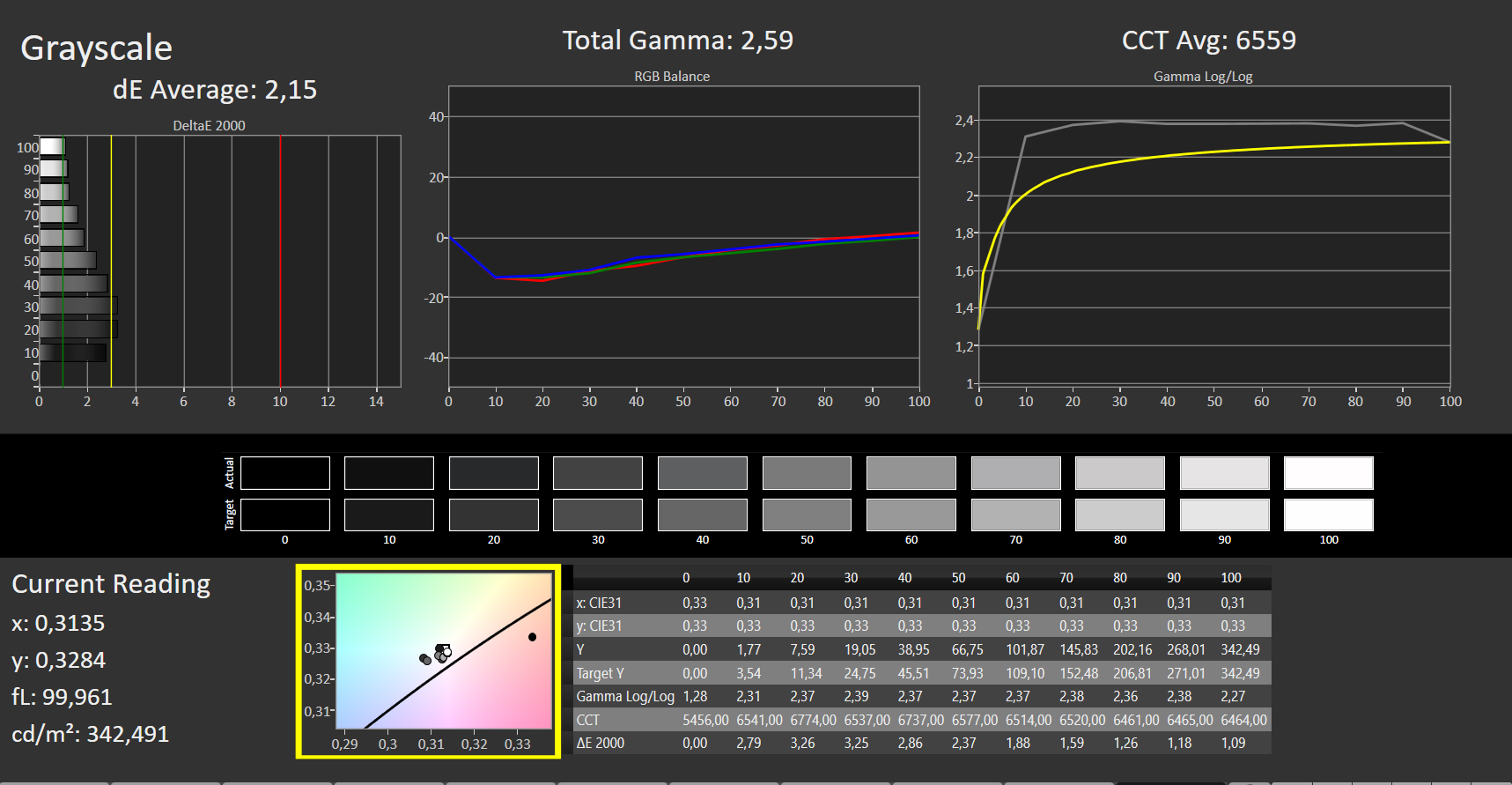

卡尔曼灰度
卡尔曼灰度
卡尔曼灰度标定
卡尔曼灰度标定

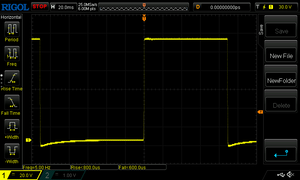

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

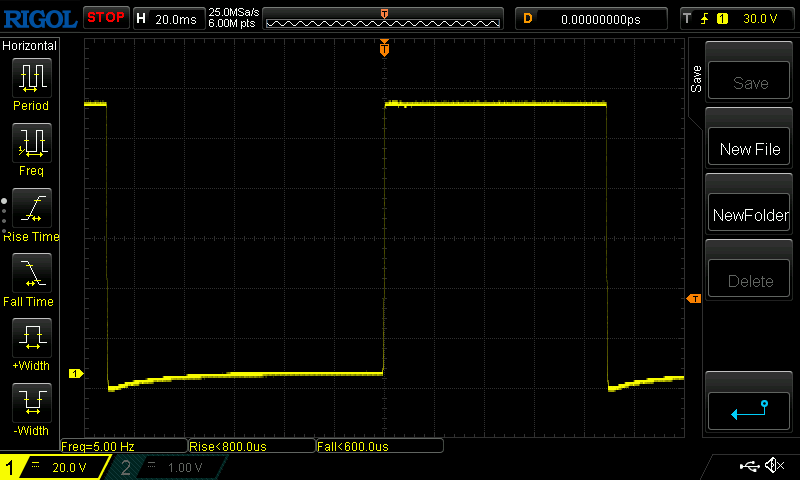

       Response Time Black to White
2 ms ... rise ↗ and fall ↘ combined↗ 1 ms rise
↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 6 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21.5 ms).

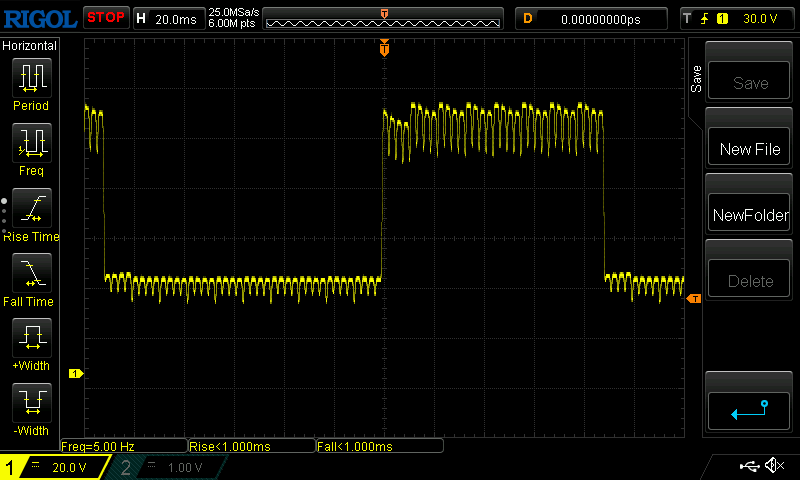

       Response Time 50% Grey to 80% Grey
2 ms ... rise ↗ and fall ↘ combined↗ 1 ms rise
↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 5 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (33.7 ms).

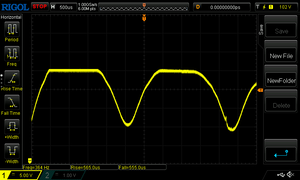

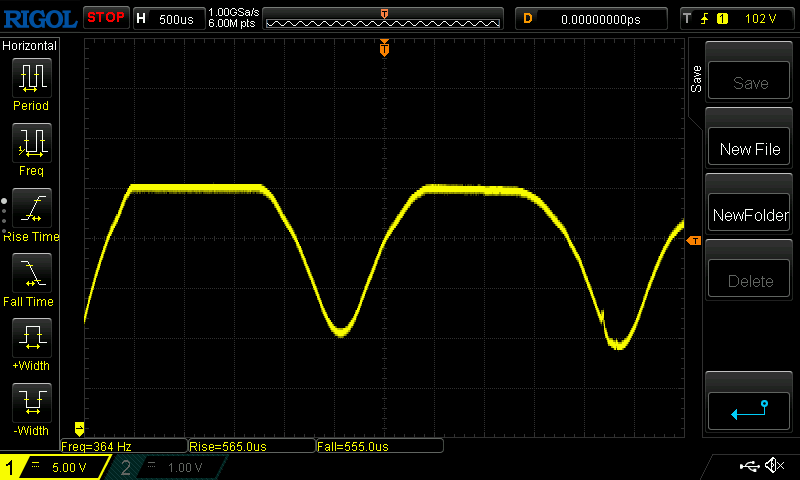

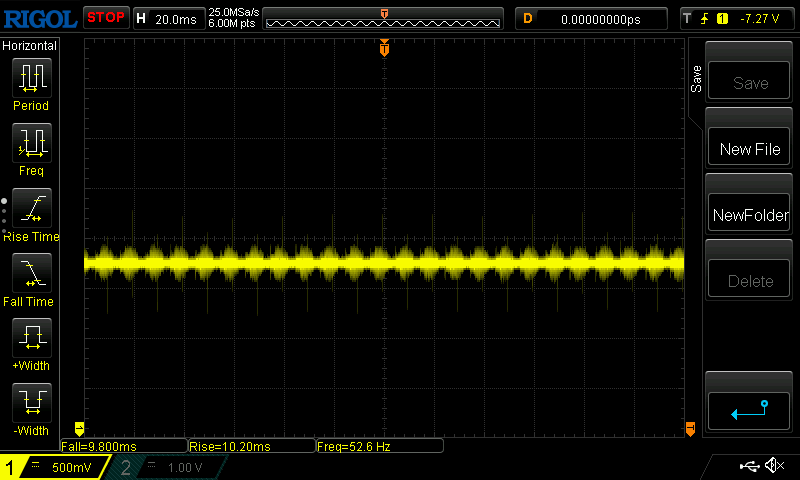

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

在测试中没有检测到用于降低亮度的PWM。这里只使用了直流调光,就像OLED面板通常使用的那样,从50%的亮度开始。敏感的用户应该不会对显示屏有任何问题。

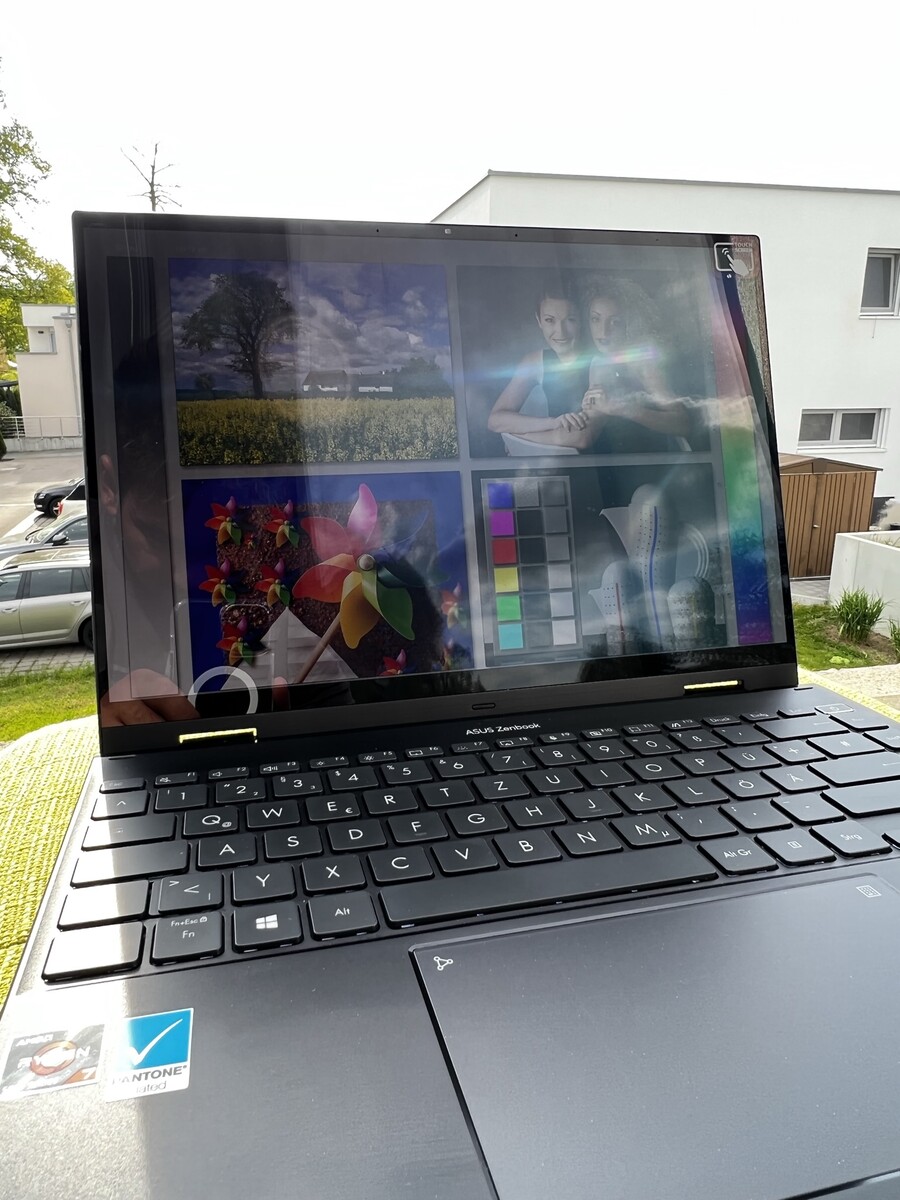

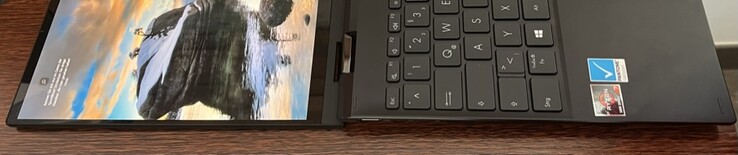

对于户外使用,亮度不足以补偿反射性显示。从照片中可以看出,即使在间接的阳光下,你也会有一段艰难的时间。反射式显示屏和亮度不足的组合使得户外观看不适合。

华硕Flip 14 - 即使在间接的阳光下,你也很难读懂显示屏
华硕Flip 14 - 即使在间接的阳光下,你也很难读懂显示屏

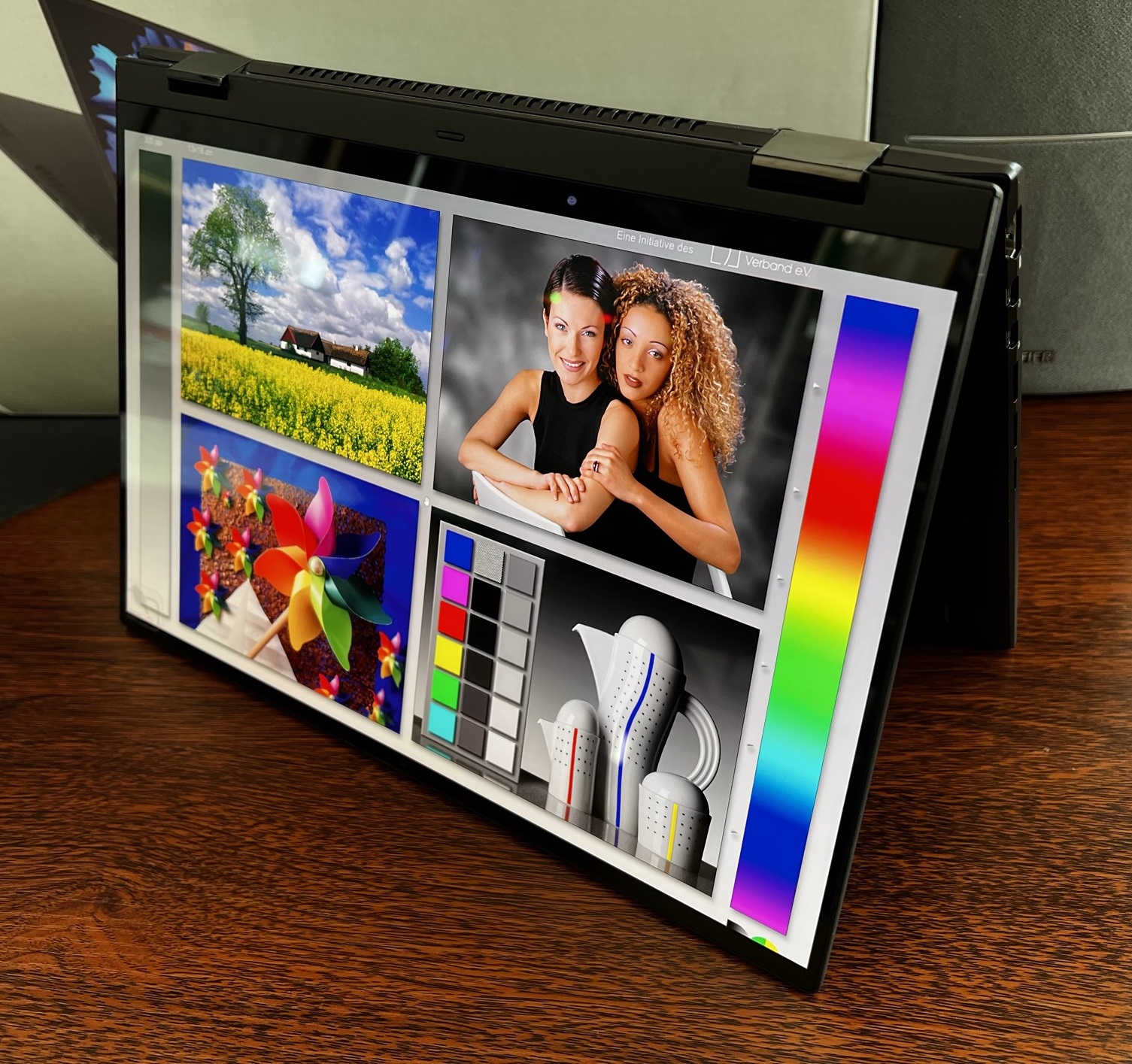

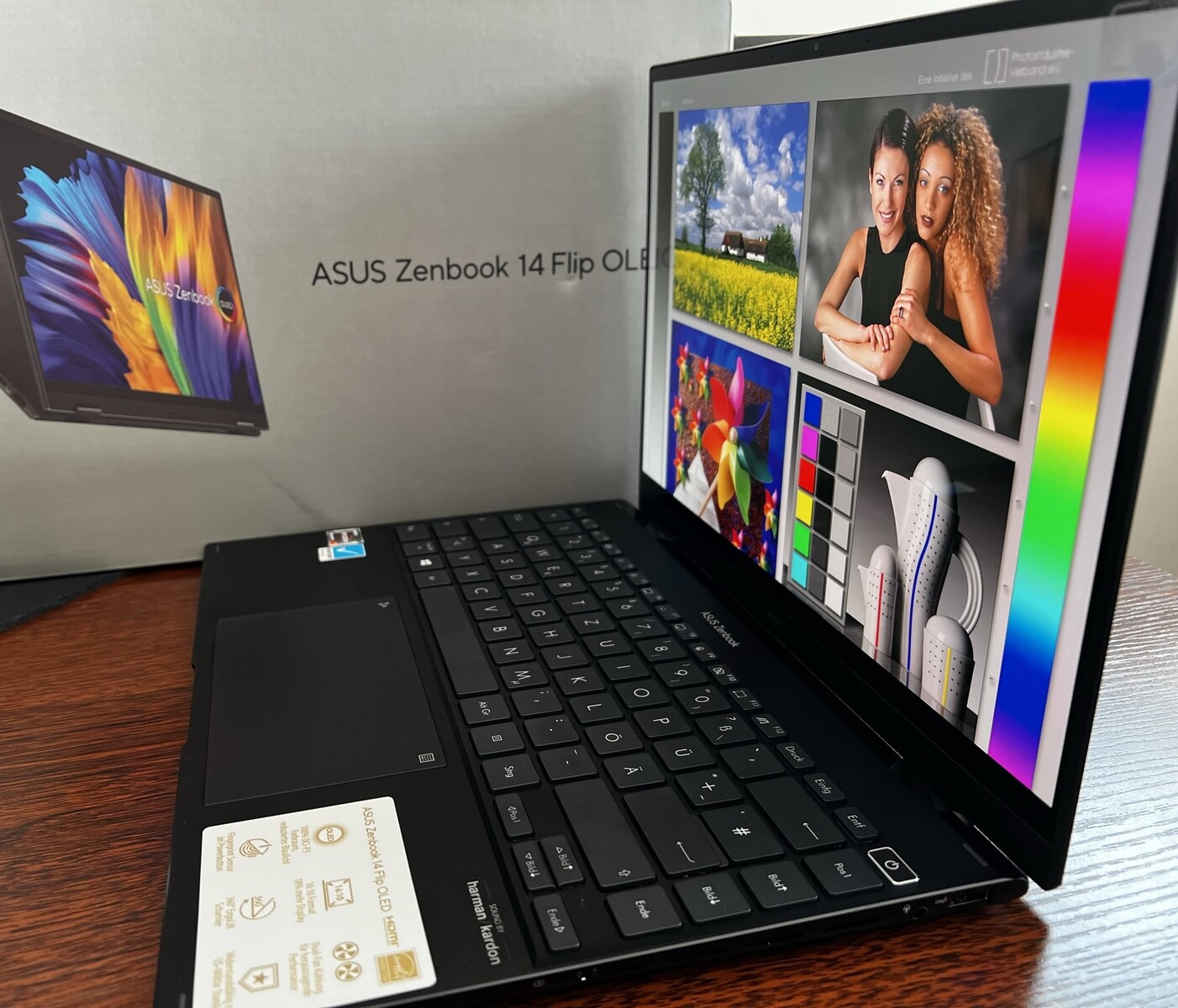

由于采用了OLED面板,即使在非常宽的视角下也不会出现失真,而且也不会出现显示出血,因为当显示内容为黑色时,像素会关闭。

视角
视角

性能。快速的AMD 5800H处理器

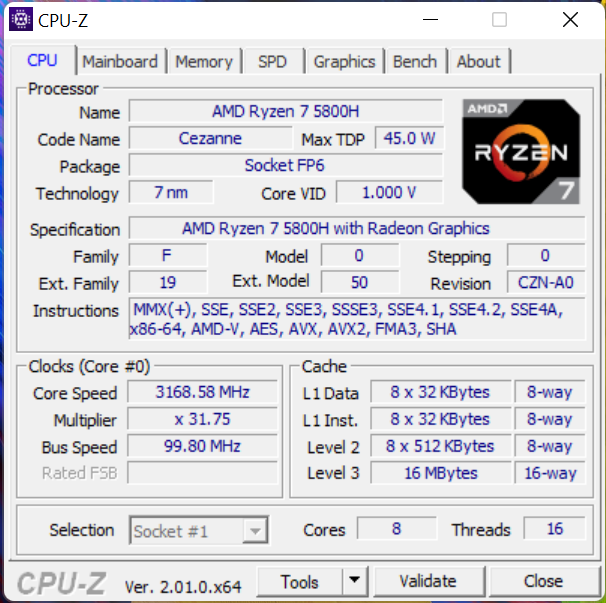

我们的评测设备配备了强大的AMD Ryzen 7 5800H。但那些想要更多性能的人还可以选择购买配备AMD Ryzen 9 5900HX的设备。

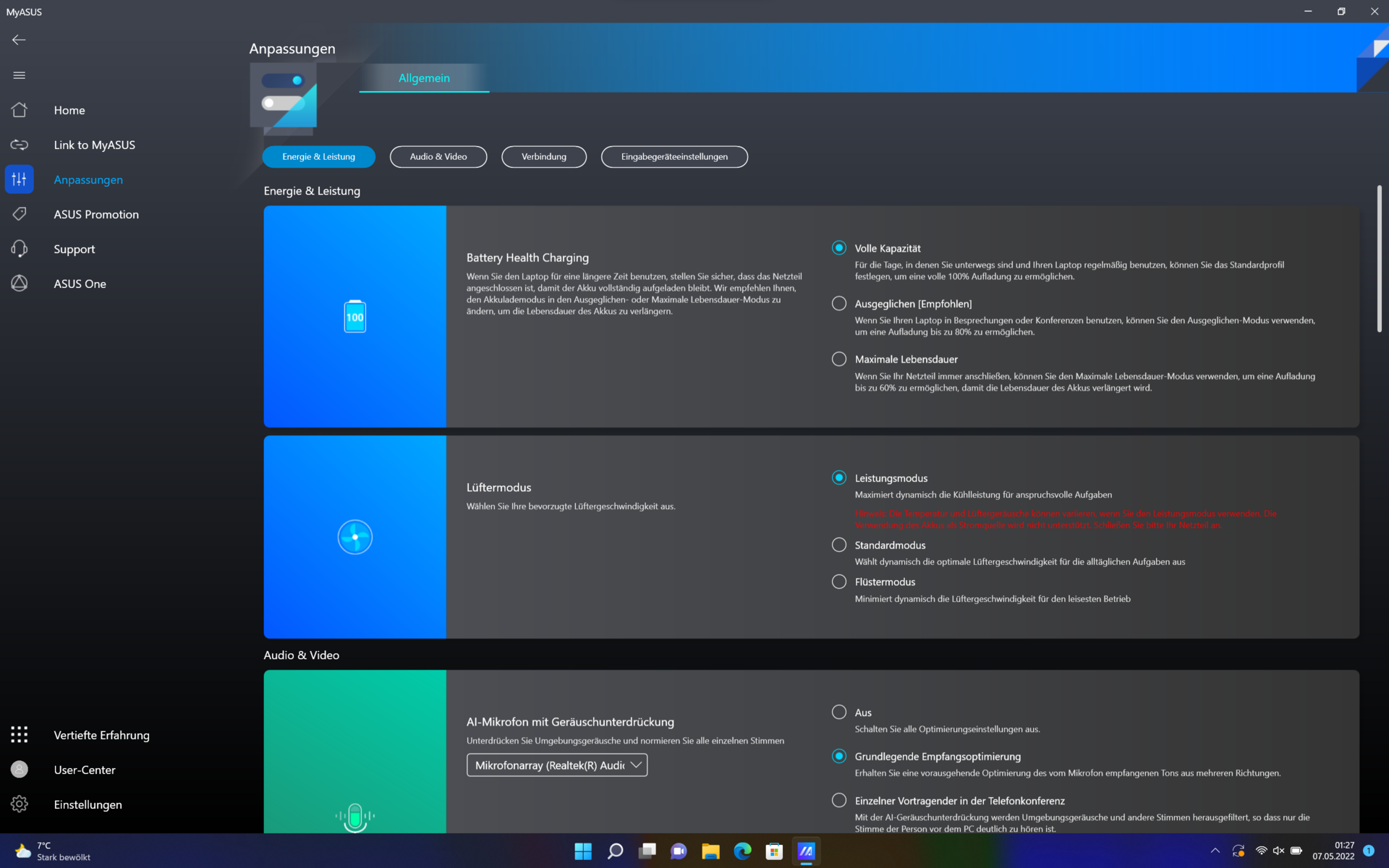

AMD 5800H的TDP设定为45W,通过MyAsus软件在性能 模式下也能达到这个数值。在平板电脑模式下,性能 模式被自动禁用,功耗被限制在15W。我们选择性能 模式进行审查。




处理器

凭借内置的AMD 5800H,引擎盖下有足够的动力来击败竞争对手。在Cinebench R15多重持续负载测试中,你可以看到华硕Zenbook Flip 14的性能在整个测试期间平均为1823分。戴尔Inspiron 14以平均1282分的成绩紧随其后,位居中游。惠普Pavilion ,联想Yoga 9和戴尔Latitude 9420二合一的平均分在584至866分之间,在这里排在后面。

Cinebench R15 Multi Sustained Load

095190285380475570665760855950104511401235133014251520161517101805Tooltip
Asus ZenBook Flip 14 UN5401QA-KN085W AMD Ryzen 7 5800H: Ø1823 (1806.36-1838.74)
Dell Inspiron 14 7400 7415 2-in-1 AMD Ryzen 7 5700U: Ø1282 (1274.74-1288.99)
Dell Latitude 9420 2-in-1 Intel Core i7-1185G7: Ø866 (787.54-921.96)
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7: Ø584 (529.91-688.22)
Lenovo Yoga 9 14 ITL 4K Intel Core i7-1185G7: Ø725 (694.34-866.49)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average AMD Ryzen 7 5800H

81.6 pt
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
78.8 pt
Average of class Convertible

75.1 pt
Dell Inspiron 14 7400 7415 2-in-1 -2!
AMD Ryzen 7 5700U
61.5 pt
Dell Latitude 9420 2-in-1 -2!
Intel Core i7-1185G7
58.1 pt
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
55.5 pt
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
47.3 pt
Cinebench R23 / Multi Core
Average AMD Ryzen 7 5800H
  (8812 - 13214, n=29)
11794 Points +7%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
11022 (10915min - 11021.7max) Points
Average of class Convertible
  (616 - 18070, n=67, last 2 years)
9451 Points -14%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
8628 (7585.05min - 8627.61max) Points -22%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
5990 (5531.07min - 5990.39max) Points -46%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5262 Points -52%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4029 Points -63%
Cinebench R23 / Single Core
Average of class Convertible
  (307 - 1970, n=67, last 2 years)
1589 Points +13%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
1486 Points +5%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1444 Points +2%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
1411 Points
Average AMD Ryzen 7 5800H
  (1294 - 1441, n=29)
1410 Points 0%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1359 Points -4%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
1248 Points -12%
Cinebench R20 / CPU (Multi Core)
Average AMD Ryzen 7 5800H
  (3430 - 5020, n=31)
4568 Points +7%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
4282 Points
Average of class Convertible
  (242 - 6954, n=67, last 2 years)
3564 Points -17%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
3100 Points -28%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
2317 Points -46%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1830 Points -57%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
979 Points -77%
Cinebench R20 / CPU (Single Core)
Average of class Convertible
  (116.8 - 755, n=66, last 2 years)
610 Points +11%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
573 Points +4%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
551 Points 0%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
551 Points
Average AMD Ryzen 7 5800H
  (502 - 560, n=30)
550 Points 0%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
485 Points -12%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
467 Points -15%
Cinebench R15 / CPU Multi 64Bit
Average AMD Ryzen 7 5800H
  (1487 - 2119, n=28)
1963 Points +7%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
1839 (1806.36min - 1838.74max) Points
Average of class Convertible
  (110.1 - 2889, n=68, last 2 years)
1584 Points -14%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
1289 (1274.74min - 1288.99max) Points -30%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
922 (787.54min - 921.96max) Points -50%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
866 (694.34min - 866.49max) Points -53%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
688 Points -63%
Cinebench R15 / CPU Single 64Bit
Average of class Convertible
  (68.6 - 287, n=66, last 2 years)
232 Points +3%
Average AMD Ryzen 7 5800H
  (209 - 234, n=29)
228 Points +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
225 Points
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
224 Points 0%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
214 Points -5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
197 Points -12%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
187 Points -17%
Blender / v2.79 BMW27 CPU
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
766 Seconds * -176%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
638 Seconds * -129%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
524 Seconds * -88%
Average of class Convertible
  (193 - 3620, n=62, last 2 years)
440 Seconds * -58%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
338 Seconds * -22%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
278 Seconds *
Average AMD Ryzen 7 5800H
  (237 - 340, n=29)
260 Seconds * +6%
7-Zip 18.03 / 7z b 4
Average AMD Ryzen 7 5800H
  (45773 - 59986, n=28)
54117 MIPS +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
51114 MIPS
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
42034 MIPS -18%
Average of class Convertible
  (7703 - 72400, n=64, last 2 years)
39843 MIPS -22%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
26910 MIPS -47%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
21828 MIPS -57%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
18948 MIPS -63%
7-Zip 18.03 / 7z b 4 -mmt1
Average AMD Ryzen 7 5800H
  (5038 - 5632, n=29)
5472 MIPS +3%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
5296 MIPS
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
5295 MIPS 0%
Average of class Convertible
  (2046 - 6417, n=64, last 2 years)
5166 MIPS -2%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5091 MIPS -4%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4842 MIPS -9%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
4530 MIPS -14%
Geekbench 5.5 / Multi-Core
Average of class Convertible
  (663 - 14016, n=68, last 2 years)
8265 Points +9%
Average AMD Ryzen 7 5800H
  (6551 - 9062, n=28)
7793 Points +3%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
7557 Points
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5543 Points -27%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4873 Points -36%
Geekbench 5.5 / Single-Core
Average of class Convertible
  (319 - 1981, n=68, last 2 years)
1617 Points +17%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1517 Points +10%
Average AMD Ryzen 7 5800H
  (1336 - 1505, n=28)
1450 Points +5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1422 Points +3%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
1382 Points
HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 5800H
  (11.6 - 16.1, n=29)
14.5 fps +11%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
13.1 fps
Average of class Convertible
  (0.61 - 20.1, n=66, last 2 years)
10.5 fps -20%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
10.1 fps -23%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
7.54 fps -42%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5.77 fps -56%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
5.04 fps -62%
LibreOffice / 20 Documents To PDF
Average AMD Ryzen 7 5800H
  (47.4 - 113, n=29)
64.3 s * -16%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
61.9 s * -12%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
55.4 s *
Average of class Convertible
  (42 - 223, n=64, last 2 years)
53.8 s * +3%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
52.6 s * +5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
52.2 s * +6%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
47.4 s * +14%
R Benchmark 2.5 / Overall mean
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
0.619 sec * -11%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
0.603 sec * -8%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
0.587 sec * -5%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7
0.564 sec * -1%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H
0.558 sec *
Average of class Convertible
  (0.4102 - 1.967, n=64, last 2 years)
0.538 sec * +4%
Average AMD Ryzen 7 5800H
  (0.511 - 0.559, n=28)
0.525 sec * +6%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1839 Points
Cinebench R15 OpenGL 64Bit
88 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
225 Points
Help
Performance Rating
Average AMD Ryzen 7 5800H

93.1 pt
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
88.9 pt
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
73.7 pt
Average of class Convertible

61.1 pt
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
54.6 pt
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
53.9 pt
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
39.8 pt
AIDA64 / FP32 Ray-Trace
Average AMD Ryzen 7 5800H
  (10349 - 15169, n=29)
13933 KRay/s +8%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
12960 KRay/s
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
10887 KRay/s -16%
Average of class Convertible
  (109 - 25226, n=67, last 2 years)
8396 KRay/s -35%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
7313 KRay/s -44%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
6875 KRay/s -47%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
5329 KRay/s -59%
AIDA64 / FPU Julia
Average AMD Ryzen 7 5800H
  (63663 - 95954, n=29)
87478 Points +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
82235 Points
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
61395 Points -25%
Average of class Convertible
  (2644 - 106512, n=66, last 2 years)
43831 Points -47%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
30366 Points -63%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
30125 Points -63%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
22393 Points -73%
AIDA64 / CPU SHA3
Average AMD Ryzen 7 5800H
  (2096 - 3287, n=29)
2979 MB/s +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
2823 MB/s
Average of class Convertible
  (121 - 4764, n=66, last 2 years)
2091 MB/s -26%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
2031 MB/s -28%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
2014 MB/s -29%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
2010 MB/s -29%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
1519 MB/s -46%
AIDA64 / CPU Queen
Average AMD Ryzen 7 5800H
  (91846 - 99215, n=29)
95793 Points +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
95067 Points
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
92223 Points -3%
Average of class Convertible
  (3256 - 120368, n=66, last 2 years)
69309 Points -27%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
52690 Points -45%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
52643 Points -45%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
44661 Points -53%
AIDA64 / FPU SinJulia
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
12718 Points +11%
Average AMD Ryzen 7 5800H
  (9962 - 11871, n=29)
11517 Points +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
11439 Points
Average of class Convertible
  (549 - 14835, n=66, last 2 years)
6338 Points -45%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
5027 Points -56%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
4778 Points -58%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
3736 Points -67%
AIDA64 / FPU Mandel
Average AMD Ryzen 7 5800H
  (36083 - 52732, n=29)
48035 Points +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
45296 Points
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
32080 Points -29%
Average of class Convertible
  (1420 - 56839, n=66, last 2 years)
22539 Points -50%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
18296 Points -60%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
18130 Points -60%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
14130 Points -69%
AIDA64 / CPU AES
Average AMD Ryzen 7 5800H
  (50226 - 127832, n=29)
114346 MB/s +2%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
111921 MB/s
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
70450 MB/s -37%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
69557 MB/s -38%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
60879 MB/s -46%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
54358 MB/s -51%
Average of class Convertible
  (191 - 169089, n=66, last 2 years)
47011 MB/s -58%
AIDA64 / CPU ZLib
Average AMD Ryzen 7 5800H
  (591 - 828, n=29)
768 MB/s +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
727 MB/s
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
676 MB/s -7%
Average of class Convertible
  (61.4 - 1088, n=66, last 2 years)
616 MB/s -15%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
380 MB/s -48%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
353 MB/s -51%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
268 MB/s -63%
AIDA64 / FP64 Ray-Trace
Average AMD Ryzen 7 5800H
  (5457 - 7884, n=29)
7343 KRay/s +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
6932 KRay/s
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
5898 KRay/s -15%
Average of class Convertible
  (59 - 13175, n=66, last 2 years)
4448 KRay/s -36%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
3970 KRay/s -43%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
3692 KRay/s -47%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
2901 KRay/s -58%
AIDA64 / CPU PhotoWorxx
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
43701 MPixel/s +170%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
40948 MPixel/s +153%
Average of class Convertible
  (2185 - 52599, n=66, last 2 years)
34567 MPixel/s +113%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
24181 MPixel/s +49%
Average AMD Ryzen 7 5800H
  (14445 - 25421, n=29)
17883 MPixel/s +10%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
16198 MPixel/s
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
16108 MPixel/s -1%

系统性能

除了PC Mark 10之外,华硕Zenbook Flip 14在系统性能上占优势:在基本要素 类别中,华硕Zenbook Flip 14的系统性能是很好的。 戴尔9420 2-in-1略高于华硕。

PCMark 10 / Score
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (5989 - 6365, n=5)
6117 Points +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
Vega 8, R7 5800H, Intel SSD 600p SSDPEKKW512G7
6053 Points
Average of class Convertible
  (1486 - 7963, n=60, last 2 years)
5726 Points -5%
Dell Inspiron 14 7400 7415 2-in-1
Vega 8, R7 5700U, WDC PC SN530 SDBPTPZ-512G
5350 Points -12%
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
5272 Points -13%
Lenovo Yoga 9 14 ITL 4K
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN730 SDBPNTY-1T00
4765 Points -21%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4646 Points -23%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
3995 Points -34%
PCMark 10 / Essentials
Average of class Convertible
  (3975 - 12059, n=60, last 2 years)
10591 Points +3%
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
10386 Points +1%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (10112 - 10690, n=5)
10320 Points +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
Vega 8, R7 5800H, Intel SSD 600p SSDPEKKW512G7
10248 Points
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
9753 Points -5%
Lenovo Yoga 9 14 ITL 4K
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN730 SDBPNTY-1T00
9574 Points -7%
Dell Inspiron 14 7400 7415 2-in-1
Vega 8, R7 5700U, WDC PC SN530 SDBPTPZ-512G
9343 Points -9%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
8011 Points -22%
PCMark 10 / Productivity
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (9198 - 9729, n=5)
9342 Points +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
Vega 8, R7 5800H, Intel SSD 600p SSDPEKKW512G7
9226 Points
Dell Inspiron 14 7400 7415 2-in-1
Vega 8, R7 5700U, WDC PC SN530 SDBPTPZ-512G
7887 Points -15%
Average of class Convertible
  (2764 - 10800, n=60, last 2 years)
7522 Points -18%
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
6909 Points -25%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
6634 Points -28%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
6371 Points -31%
Lenovo Yoga 9 14 ITL 4K
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN730 SDBPNTY-1T00
6340 Points -31%
PCMark 10 / Digital Content Creation
Average of class Convertible
  (811 - 12360, n=60, last 2 years)
6534 Points +3%
Average AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (6236 - 6730, n=5)
6444 Points +1%
Asus ZenBook Flip 14 UN5401QA-KN085W
Vega 8, R7 5800H, Intel SSD 600p SSDPEKKW512G7
6367 Points
Dell Inspiron 14 7400 7415 2-in-1
Vega 8, R7 5700U, WDC PC SN530 SDBPTPZ-512G
5640 Points -11%
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
5542 Points -13%
Lenovo Yoga 9 14 ITL 4K
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN730 SDBPNTY-1T00
4840 Points -24%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4382 Points -31%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
3257 Points -49%
PCMark 10 Score
6053 points
Help
AIDA64 / Memory Copy
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
64896 MB/s +86%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
60273 MB/s +72%
Average of class Convertible
  (14439 - 95631, n=66, last 2 years)
59743 MB/s +71%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
40141 MB/s +15%
Average AMD Ryzen 7 5800H
  (34964 - 44180, n=29)
39512 MB/s +13%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
34964 MB/s
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
34603 MB/s -1%
AIDA64 / Memory Read
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
64291 MB/s +61%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
63490 MB/s +59%
Average of class Convertible
  (12706 - 87812, n=66, last 2 years)
55785 MB/s +39%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
46871 MB/s +17%
Average AMD Ryzen 7 5800H
  (39548 - 47260, n=29)
44498 MB/s +11%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
43068 MB/s +8%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
39990 MB/s
AIDA64 / Memory Write
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
66777 MB/s +89%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
64886 MB/s +84%
Average of class Convertible
  (10177 - 93451, n=66, last 2 years)
61613 MB/s +75%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
46521 MB/s +32%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
38649 MB/s +10%
Average AMD Ryzen 7 5800H
  (28456 - 47022, n=29)
37769 MB/s +7%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
35241 MB/s
AIDA64 / Memory Latency
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, Vega 8
105.1 ns *
Average of class Convertible
  (10.2 - 260, n=63, last 2 years)
100.7 ns * +4%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, Vega 8
97.8 ns * +7%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Iris Xe G7 96EUs
97 ns * +8%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Iris Xe G7 96EUs
92.1 ns * +12%
Average AMD Ryzen 7 5800H
  (76.3 - 105.1, n=29)
83.3 ns * +21%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
73.1 ns * +30%

* ... smaller is better

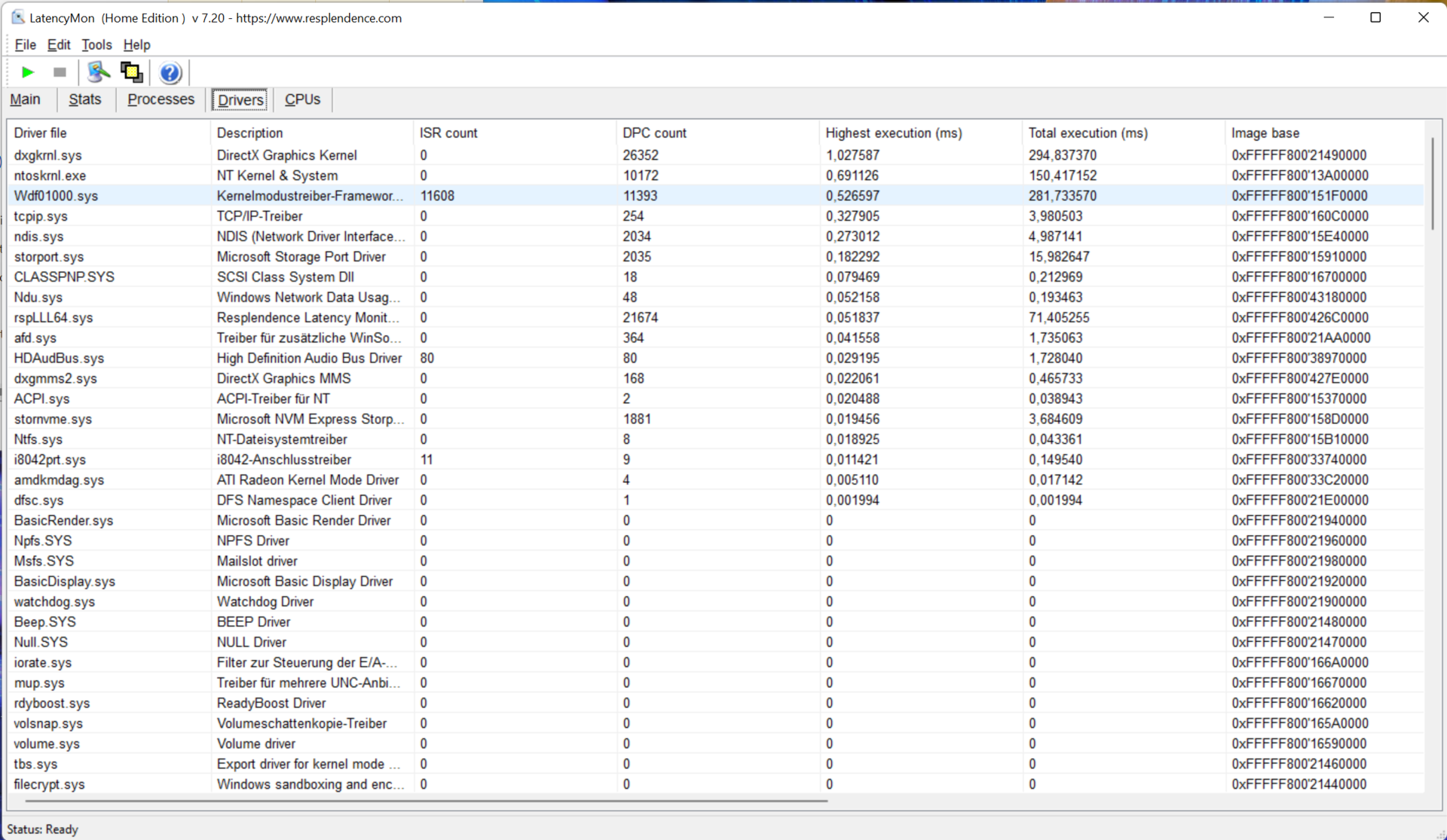

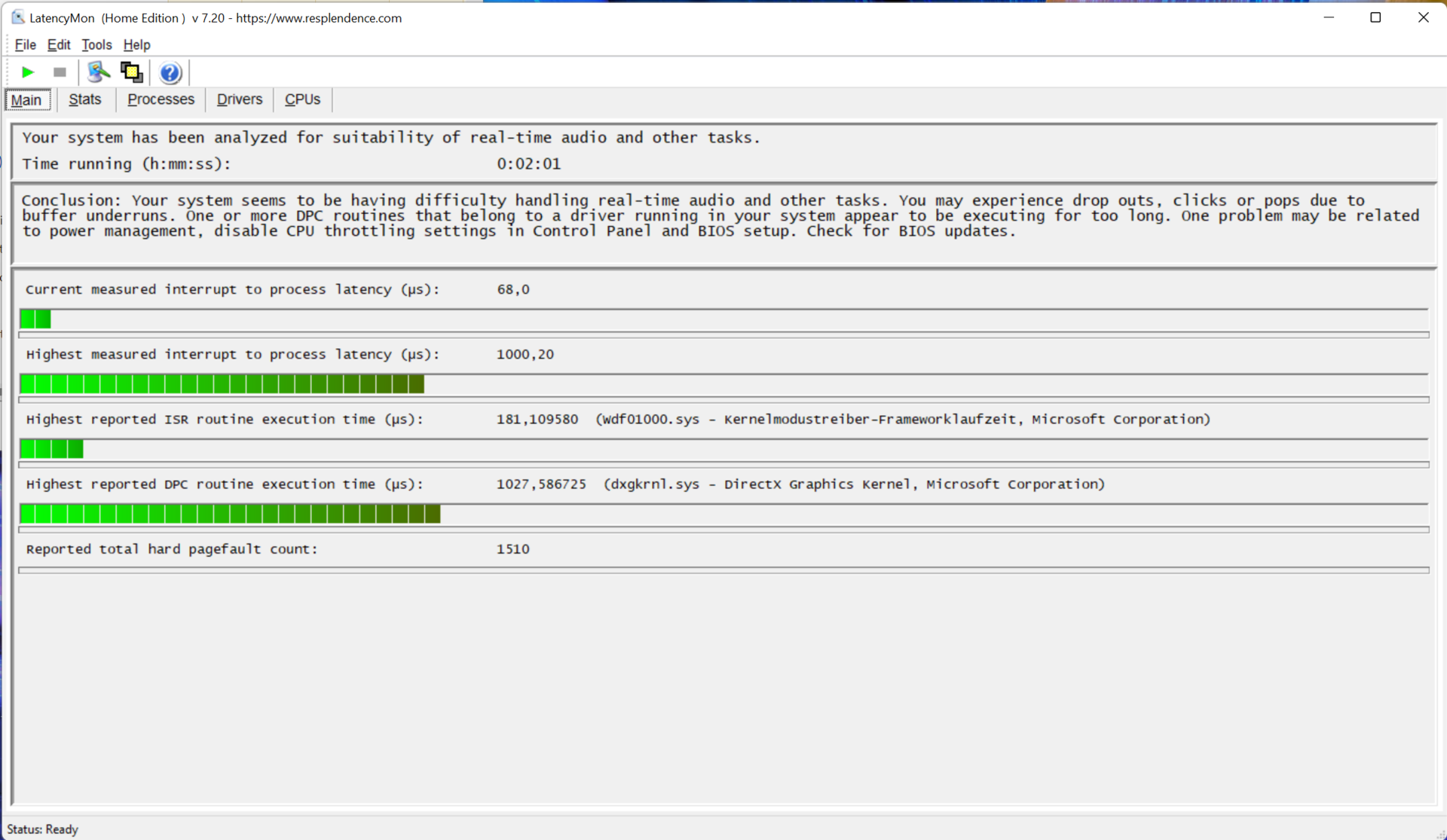

DPC延迟

延迟测试(网页浏览、YouTube 4K、CPU负载)证实了敞篷车适用于实时视频编辑。没有检测到掉帧现象。这适用于我们使用当前驱动程序的测试配置,但这可能会根据驱动程序和硬件更新而发生变化。

DPC延迟 - 测试
DPC延迟 - 测试
DPC延迟 - 测试
DPC延迟 - 测试
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell Inspiron 14 7400 7415 2-in-1
Vega 8, R7 5700U, WDC PC SN530 SDBPTPZ-512G
1197 μs * -20%
Lenovo Yoga 9 14 ITL 4K
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN730 SDBPNTY-1T00
1090 μs * -9%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
1004 μs * -0%
Asus ZenBook Flip 14 UN5401QA-KN085W
Vega 8, R7 5800H, Intel SSD 600p SSDPEKKW512G7
1000 μs *
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
502 μs * +50%

* ... smaller is better

存储设备

与竞争设备相比,华硕Zenbook的SSD性能属于中等水平。引人注目的是,固态硬盘在测试中并没有提供一致的性能,而是在某些方面减弱,而在另一些方面闪亮。更多细节,请参考个别基准测试。

Intel SSD 600p SSDPEKKW512G7
Sequential Read: 2595.88 MB/s
Sequential Write: 1613.8 MB/s
512K Read: 2154.12 MB/s
512K Write: 1660 MB/s
4K Read: 436.28 MB/s
4K Write: 494.79 MB/s
4K QD32 Read: 59.51 MB/s
4K QD32 Write: 122.43 MB/s
Drive Performance Rating - Percent
Average of class Convertible

85.5 pt
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
81.9 pt
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
70.3 pt
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
63.6 pt
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
61.3 pt
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
54.1 pt
Average Intel SSD 600p SSDPEKKW512G7

45 pt
DiskSpd
seq read
Average of class Convertible
  (251 - 4494, n=63, last 2 years)
2567 MB/s +13%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
2273 (2210.4min - 2273.46max) MB/s
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1896 (1874.22min - 1895.81max) MB/s -17%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
1750 (1731.41min - 1750.07max) MB/s -23%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1729 (1670.8min - 1728.79max) MB/s -24%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
1727 (1701min - 1726.59max) MB/s -24%
Average Intel SSD 600p SSDPEKKW512G7
  (1028 - 2273, n=5)
1338 MB/s -41%
seq write
Average of class Convertible
  (195.5 - 4440, n=63, last 2 years)
2308 MB/s +38%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1836 (1750.77min - 1835.53max) MB/s +10%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
1675 (1658.64min - 1674.58max) MB/s
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
1655 (1622.47min - 1655.28max) MB/s -1%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
1646 (1572.65min - 1646.26max) MB/s -2%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1481 (1382.02min - 1480.8max) MB/s -12%
Average Intel SSD 600p SSDPEKKW512G7
  (460 - 1675, n=5)
776 MB/s -54%
seq q8 t1 read
Average of class Convertible
  (272 - 7152, n=63, last 2 years)
4203 MB/s +45%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
3394 (3185.02min - 3393.95max) MB/s +17%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
2901 (2640.31min - 2900.99max) MB/s
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
2486 (1688.21min - 2486.38max) MB/s -14%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
2455 (2238.01min - 2454.51max) MB/s -15%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
2406 (2140.14min - 2406.49max) MB/s -17%
Average Intel SSD 600p SSDPEKKW512G7
  (1370 - 2901, n=5)
1939 MB/s -33%
seq q8 t1 write
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
3081 (2969.15min - 3081.26max) MB/s +85%
Average of class Convertible
  (215 - 5667, n=63, last 2 years)
3003 MB/s +81%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
1821 (1799.15min - 1820.88max) MB/s +10%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
1792 (1775.45min - 1791.79max) MB/s +8%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
1662 (86.19min - 1661.54max) MB/s
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1470 (1437.6min - 1469.68max) MB/s -12%
Average Intel SSD 600p SSDPEKKW512G7
  (566 - 1662, n=5)
793 MB/s -52%
4k q1 t1 read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
60.6 (59.66min - 60.6max) MB/s +9%
Average of class Convertible
  (9.13 - 90.3, n=63, last 2 years)
58.6 MB/s +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
55.4 (54.97min - 55.4max) MB/s
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
49.9 (43.93min - 49.87max) MB/s -10%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
42.6 (40.21min - 42.6max) MB/s -23%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
37.8 (37.09min - 37.84max) MB/s -32%
Average Intel SSD 600p SSDPEKKW512G7
  (23.9 - 55.4, n=5)
35.7 MB/s -36%
4k q1 t1 write
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
208 (204.31min - 207.5max) MB/s +57%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
192 (169.17min - 192.04max) MB/s +45%
Average of class Convertible
  (18.7 - 398, n=63, last 2 years)
150.1 MB/s +13%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
137 (130.51min - 137.04max) MB/s +3%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
132.8 (128.59min - 132.83max) MB/s
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
116 (115.17min - 115.98max) MB/s -13%
Average Intel SSD 600p SSDPEKKW512G7
  (102.7 - 132.8, n=5)
112.5 MB/s -15%
4k q32 t16 read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1371 (1202.08min - 1370.81max) MB/s +189%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1078 (1019.52min - 1077.81max) MB/s +127%
Average of class Convertible
  (48.8 - 3881, n=63, last 2 years)
1046 MB/s +120%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
889 (861.38min - 888.9max) MB/s +87%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
767 (753.37min - 766.95max) MB/s +61%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
475 (472.86min - 474.66max) MB/s
Average Intel SSD 600p SSDPEKKW512G7
  (417 - 535, n=5)
475 MB/s 0%
4k q32 t16 write
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
765 (718.87min - 764.99max) MB/s +48%
Average of class Convertible
  (17.4 - 3537, n=63, last 2 years)
757 MB/s +47%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
516 (117.77min - 516.33max) MB/s
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
508 (501.6min - 507.75max) MB/s -2%
Average Intel SSD 600p SSDPEKKW512G7
  (407 - 558, n=5)
479 MB/s -7%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
467 (444.86min - 467.07max) MB/s -9%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
380 (346.13min - 379.76max) MB/s -26%
AS SSD
Score Total
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
4037 Points +61%
Average of class Convertible
  (125 - 7840, n=61, last 2 years)
3725 Points +48%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
3221 Points +28%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
2514 Points
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
2238 Points -11%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
2102 Points -16%
Average Intel SSD 600p SSDPEKKW512G7
  (1320 - 2514, n=14)
1646 Points -35%
Score Read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1512 Points +109%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1444 Points +100%
Average of class Convertible
  (54 - 2943, n=61, last 2 years)
1304 Points +80%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
1008 Points +39%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
983 Points +36%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
723 Points
Average Intel SSD 600p SSDPEKKW512G7
  (638 - 723, n=14)
677 Points -6%
Score Write
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1923 Points +22%
Average of class Convertible
  (45 - 3586, n=61, last 2 years)
1809 Points +15%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
1572 Points
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
975 Points -38%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
751 Points -52%
Average Intel SSD 600p SSDPEKKW512G7
  (377 - 1572, n=14)
667 Points -58%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
656 Points -58%
Seq Read
Average of class Convertible
  (226 - 5478, n=61, last 2 years)
3323 MB/s +28%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
2793 MB/s +7%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
2606 MB/s
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
2102 MB/s -19%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
2027 MB/s -22%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
2018 MB/s -23%
Average Intel SSD 600p SSDPEKKW512G7
  (1124 - 2606, n=14)
1496 MB/s -43%
Seq Write
Average of class Convertible
  (162.8 - 4335, n=61, last 2 years)
1977 MB/s +63%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1292 MB/s +7%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
1210 MB/s
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
1155 MB/s -5%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
1121 MB/s -7%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1057 MB/s -13%
Average Intel SSD 600p SSDPEKKW512G7
  (531 - 1210, n=14)
598 MB/s -51%
4K Read
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
56.49 MB/s
Average of class Convertible
  (7.89 - 82.4, n=61, last 2 years)
55.7 MB/s -1%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
52.7 MB/s -7%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
46.5 MB/s -18%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
45.63 MB/s -19%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
32.45 MB/s -43%
Average Intel SSD 600p SSDPEKKW512G7
  (20.4 - 56.5, n=14)
32.2 MB/s -43%
4K Write
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
238.9 MB/s +73%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
220.8 MB/s +60%
Average of class Convertible
  (14 - 347, n=61, last 2 years)
163.2 MB/s +18%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
138.03 MB/s
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
133.5 MB/s -3%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
125.5 MB/s -9%
Average Intel SSD 600p SSDPEKKW512G7
  (54 - 138, n=14)
108.3 MB/s -22%
4K-64 Read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1257 MB/s +210%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1118 MB/s +176%
Average of class Convertible
  (19.6 - 2371, n=61, last 2 years)
916 MB/s +126%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
752 MB/s +85%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
749 MB/s +85%
Average Intel SSD 600p SSDPEKKW512G7
  (406 - 510, n=14)
495 MB/s +22%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
405.55 MB/s
4K-64 Write
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
1573 MB/s +30%
Average of class Convertible
  (15 - 3015, n=61, last 2 years)
1448 MB/s +19%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
1212.68 MB/s
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
736 MB/s -39%
Average Intel SSD 600p SSDPEKKW512G7
  (218 - 1213, n=14)
492 MB/s -59%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
418.5 MB/s -65%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
396.1 MB/s -67%
Access Time Read
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
0.141 ms *
Average of class Convertible
  (0.021 - 0.244, n=60, last 2 years)
0.08413 ms * +40%
Average Intel SSD 600p SSDPEKKW512G7
  (0.055 - 0.141, n=14)
0.08393 ms * +40%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
0.078 ms * +45%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
0.068 ms * +52%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
0.062 ms * +56%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
0.041 ms * +71%
Access Time Write
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
0.182 ms * -219%
Dell Latitude 9420 2-in-1
WDC PC SN530 SDBPNPZ-512G
0.167 ms * -193%
Dell Inspiron 14 7400 7415 2-in-1
WDC PC SN530 SDBPTPZ-512G
0.164 ms * -188%
Average of class Convertible
  (0.017 - 0.865, n=61, last 2 years)
0.113 ms * -98%
Asus ZenBook Flip 14 UN5401QA-KN085W
Intel SSD 600p SSDPEKKW512G7
0.057 ms *
Average Intel SSD 600p SSDPEKKW512G7
  (0.028 - 0.078, n=14)
0.03821 ms * +33%
Lenovo Yoga 9 14 ITL 4K
WDC PC SN730 SDBPNTY-1T00
0.017 ms * +70%

* ... smaller is better

Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8

01503004506007509001050120013501500165018001950210022502400255027002850Tooltip
Asus ZenBook Flip 14 UN5401QA-KN085W Intel SSD 600p SSDPEKKW512G7: Ø2862 (2204.95-2915.63)

GPU

内置的AMD Radeon Vega 8 4000的3DMark性能能够跟得上 惠普x360的Iris XE图形的80 EUs(执行单元)。竞争的设备,如 戴尔Latitude 9420 2合1联想Yoga 9i这些设备配备了英特尔Iris XE图形,有96个EUs,比我们的iGPU高出17%至27%。

3DMark Performance Rating - Percent
Average of class Convertible

100 pt
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
90.6 pt
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
83.3 pt
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
70.8 pt
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
70.5 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)

69.3 pt
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
62.6 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Convertible
  (471 - 40768, n=65, last 2 years)
7870 Points +39%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6987 Points +23%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6779 Points +19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (3459 - 7591, n=54)
5910 Points +4%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5808 Points +2%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
5679 Points
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
5579 Points -2%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Convertible
  (2965 - 154219, n=50, last 2 years)
32507 Points +16%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
30388 Points +9%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
27980 Points
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
27438 Points -2%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (13941 - 36134, n=46)
26903 Points -4%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
24558 Points -12%
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
24267 Points -13%
1920x1080 Fire Strike Graphics
Average of class Convertible
  (365 - 29684, n=65, last 2 years)
5902 Points +57%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5740 Points +52%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5196 Points +38%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4143 Points +10%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
3769 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1694 - 5041, n=54)
3676 Points -2%
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
3381 Points -10%
2560x1440 Time Spy Graphics
Average of class Convertible
  (94 - 11749, n=64, last 2 years)
2028 Points +67%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1682 Points +39%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1512 Points +25%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1289 Points +6%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
1212 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (540 - 1557, n=54)
1156 Points -5%
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
966 Points -20%
3DMark 11 Performance
5632 points
3DMark Cloud Gate Standard Score
18460 points
3DMark Fire Strike Score
3447 points
3DMark Time Spy Score
1383 points
Help

游戏性能

这也反映在游戏性能上:在这里,Iris XE以96 EUs领先8-53%。然而,唯一的例外是《GTA 5》和《Far Cry 5》,其中RX Vega 8以96 EUs略微领先于Iris XE。因此,Zenbook Flip 14只适合在中低端细节上进行要求不高的游戏。

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Convertible
  (35 - 354, n=59, last 2 years)
99.9 fps +56%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
98 fps +53%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
79.8 (60min) fps +25%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (27.2 - 89, n=47)
65.9 fps +3%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64 fps
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
63.1 (3.62min, 9.3P0.1, 25.9P1) fps -1%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
62.1 (54min) fps -3%
Far Cry 5 - 1280x720 Low Preset AA:T
Average of class Convertible
  (27 - 135, n=23, last 2 years)
57.3 fps +33%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (22 - 71, n=31)
46 fps +7%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43 fps
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
40 (31min) fps -7%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
36 (29min) fps -16%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
54.3 fps +12%
Average of class Convertible
  (20.7 - 143.4, n=66, last 2 years)
49.7 fps +3%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48.4 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (26.9 - 64.9, n=57)
44.3 fps -8%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.7 fps -20%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.3 fps -23%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
29.7 fps -39%
GTA V - 1024x768 Lowest Settings possible
Average of class Convertible
  (60.9 - 179.7, n=56, last 2 years)
111.8 fps +25%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (53.6 - 160, n=47)
100.4 fps +13%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
89.1 fps
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
87.2 (11.7min, 55.6P1) fps -2%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
83.4 (6.68min, 47.6P1) fps -6%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
69.3 (10.2min, 43.5P1) fps -22%
Strange Brigade - 1280x720 lowest AF:1
Average of class Convertible
  (62.2 - 407, n=58, last 2 years)
110.1 fps +25%
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
95.5 (20min, 34P1) fps +8%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
88.2 (69.6min, 78.2P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (43 - 117, n=50)
78.6 fps -11%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
75.6 (49.4min, 59.8P1) fps -14%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
71 (13.3min, 22.4P1) fps -20%
F1 2021 - 1280x720 Ultra Low Preset
Average of class Convertible
  (71.3 - 192, n=12, last 2 years)
124.2 fps +36%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (51.8 - 134, n=22)
94.5 fps +4%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
91 fps
F1 2020 - 1280x720 Ultra Low Preset
Average of class Convertible
  (last 2 years)
177.5 fps +87%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (60.1 - 127, n=13)
96.3 fps +2%
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
94.8 (80min) fps
low med. high ultra
GTA V (2015) 89.1 78 25.4 10.45
The Witcher 3 (2015) 64 43 21.6 15.2
Dota 2 Reborn (2015) 105.8 87.1 50.2 47.9
Final Fantasy XV Benchmark (2018) 36.1 18.7 13.3
X-Plane 11.11 (2018) 48.4 38.1 34
Far Cry 5 (2018) 43 19 17.8 16.2
Strange Brigade (2018) 88.2 33.8 28.3 24.1
F1 2020 (2020) 94.8 43.9 33.6 23.9
F1 2021 (2021) 91 43.2 32.7 19.8

排放。以牺牲噪音为代价的高性能

噪声

闲置时,风扇是无声的。这基本上对应的是Whisper 模式,这是三种可能的可调节的风扇配置文件之一。在标准 模式下,风扇动态运行,根据负载加速或减速,这在日常使用中几乎不会造成困扰。整个审查是在性能 模式下进行的--在这里,风扇的特性是相似的,但不同的是,在要求不高的任务中,如冲浪或使用微软办公室工作时,风扇以非常低的速度持续运行。一旦你同时运行几个任务并播放视频或音乐,风扇就会随着负载的增加而变得更加响亮。当游戏或运行要求更高的程序(如Photoshop)时,风扇很快达到最大,但仍然表现得很动态。在这样的情况下,这两个风扇是可以明显感觉到的,因为我们发现动态行为比风扇以稳定的速度运行时更令人讨厌。

Noise Level

Idle
26 / 26 / 27.3 dB(A)
Load
39.8 / 42.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 26 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.82730.631.734.82542.233.533.935.942.2315043.635.835.1504041.93429.431.741.95031.526.725.131.731.56328.724.525.12728.78024.524.224.824.524.510020.921.418.218.220.91252022.421.2192016018.519.118.716.618.520019.317.717.91619.325014.119.318.715.214.131513.92320.314.913.940014.523.320.913.614.550014.222.821.411.914.263013.923.822.811.813.980014.827.125.912.214.8100015.230.227.912.415.2125015.830.928.612.215.8160015.432.129.612.815.4200015.53330.613.115.5250015.132.530.213.515.1315015.133.330.413.915.1400015.131.328.214.115.1500014.929.226.414.214.963001528.225.414.415800015.124.920.914.415.11000014.720.317.214.414.71250014.916.315.414.314.91600014.314.614.813.514.3SPL27.442.439.825.727.4N0.93.730.70.9median 15.1median 23.8median 21.4median 14.1median 15.1Delta1.45.74.91.21.4hearing rangehide median Fan NoiseAsus ZenBook Flip 14 UN5401QA-KN085W
Asus ZenBook Flip 14 UN5401QA-KN085W
Vega 8, R7 5800H, Intel SSD 600p SSDPEKKW512G7
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
Lenovo Yoga 9 14 ITL 4K
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN730 SDBPNTY-1T00
Dell Inspiron 14 7400 7415 2-in-1
Vega 8, R7 5700U, WDC PC SN530 SDBPTPZ-512G
Noise
9%
3%
-1%
9%
off / environment *
26
25.4
2%
27
-4%
24.9
4%
24.3
7%
Idle Minimum *
26
25.4
2%
27
-4%
24.9
4%
24.3
7%
Idle Average *
26
25.4
2%
27
-4%
28.3
-9%
24.3
7%
Idle Maximum *
27.3
25.4
7%
27
1%
29.5
-8%
24.3
11%
Load Average *
39.8
25.4
36%
38.3
4%
39.7
-0%
35.7
10%
Load Maximum *
42.4
41.3
3%
33.2
22%
39.7
6%
37.3
12%
Witcher 3 ultra *
41.3
39.7
37.5

* ... smaller is better

温度

MyAsus - 平板电脑模式下的性能限制
MyAsus - 平板电脑模式下的性能限制

在笔记本电脑模式下进行游戏时,Zenbook Flip 14的掌托和底部明显变热。因此,在这种情况下,不建议在膝上操作。键盘和触摸板不受影响,在平板电脑模式的游戏中没有明显的发热现象。然而,在出厂设置下,平板电脑模式下的设备性能会自动节流50%以上,对性能配置文件的访问被阻止。另一方面,对于日常工作,在膝上操作是可能的,没有任何问题,无论是在笔记本电脑还是平板电脑模式下。

Max. Load
 36.1 °C42.7 °C32.9 °C
 34.3 °C37.9 °C34.3 °C
 31.9 °C30.3 °C31.8 °C
Maximum: 42.7 °C
Average: 34.7 °C
40 °C53.1 °C41.7 °C
40.7 °C38.7 °C36.6 °C
34.7 °C34.6 °C34 °C
Maximum: 53.1 °C
Average: 39.3 °C
Power Supply (max.)  53.3 °C | Room Temperature 24.1 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.7 °C / 94 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.7 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 53.1 °C / 128 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.1 °C / 86 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.9 °C / 89.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.8 °C / -6.8 F).
废热闲置--键盘和掌托
废热闲置--键盘和掌托
废热负荷--键盘
废热负荷--键盘
废热负荷-底部
废热负荷-底部
Asus ZenBook Flip 14 UN5401QA-KN085W
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Dell Latitude 9420 2-in-1
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Heat
10%
9%
15%
15%
Maximum Upper Side *
42.7
39.4
8%
43.4
-2%
38.9
9%
42
2%
Maximum Bottom *
53.1
51
4%
48
10%
40.3
24%
48.6
8%
Idle Upper Side *
32.9
26.2
20%
29.8
9%
31.8
3%
25.3
23%
Idle Bottom *
35.2
32.4
8%
28
20%
27.4
22%
25.5
28%

* ... smaller is better

压力测试

在压力测试中,CPU达到了4.4GHz的最大可能值,峰值温度为93摄氏度。然后时钟速度下降到略低于3.7GHz,评测设备可以保持这个速度。CPU风扇以最大速度运行,设备保持在所安装的Ryzen 7 5800H的80摄氏度的水平。因此,即使在极端情况下也能保持指定的TDP为45瓦。如果通过Prime 95充分使用CPU,所安装的iGPU AMD Radeon RX Vega 8的GPU时钟就会从2000MHz下降到1550MHz。

TheWitcher 3,安装的RX Vega 8可以保持2000兆赫的最大时钟速度,并稳定在62摄氏度。AMD 5800H在这里的负载相当轻,显示的时钟频率为3.2至4.2 GHz,取决于核心的负载。这里还值得注意的是,耗电量只有34瓦,而不是45瓦。有一点很清楚:安装在这里的iGPU正在以其极限运行,但处理器却没有。简而言之:CPU和GPU都被节流了。不过,这种极端情况在日常使用中几乎不可能发生,因此,从已完成的基准测试中可以看出,这里没有什么缺点可言。

压力测试Furmark
压力测试Furmark
压力测试Furmark + Prime95
压力测试Furmark + Prime95
压力测试Witcher 3
压力测试Witcher 3


发言人

华硕Zenbook Flip 14的扬声器发出的声音可以接受,但它们可以使用更多的音量和低音。中音和高音是平衡的。扬声器对于视频和流媒体服务也是足够的。然而,如果你喜欢听大音量的音乐,并且是一个低音爱好者,你应该选择戴尔9420二合一产品。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.531.727.52531.635.931.63130.135.130.14027.331.727.35025.831.725.86322.82722.88018.524.518.510024.618.224.612532.71932.716038.616.638.620034.61634.625046.815.246.831554.514.954.540061.313.661.350063.311.963.363063.311.863.380068.712.268.710006912.469125065.412.265.4160064.412.864.4200065.713.165.7250061.513.561.5315062.713.962.7400062.514.162.5500060.214.260.2630062.714.462.7800062.614.462.61000055.214.455.21250054.414.354.4160005513.555SPL76.225.776.2N380.738median 61.5median 14.1median 61.5Delta7.31.27.329.734.229.731.13031.123.524.323.525.322.725.334.720.134.744.924.844.951.131.551.156.72556.761.927.461.968.118.268.168.417.468.470.517.870.567.61767.670.415.970.474.114.274.173.713.273.772.913.372.971.51371.570.212.770.272.512.772.571.512.971.574.41374.47412.67478.912.178.979.312.279.378.512.178.576.111.976.171.411.871.474.211.874.273.111.173.187.325.387.376.70.776.7median 72.9median 13median 72.92.62.82.6hearing rangehide median Pink NoiseAsus ZenBook Flip 14 UN5401QA-KN085WDell Latitude 9420 2-in-1
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ZenBook Flip 14 UN5401QA-KN085W audio analysis

(-) | not very loud speakers (69.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(-) | bass is not linear (15.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.5% difference to median)
Compared to same class
» 42% of all tested devices in this class were better, 7% similar, 51% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 43% of all tested devices were better, 7% similar, 50% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Dell Latitude 9420 2-in-1 audio analysis

(+) | speakers can play relatively loud (87.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.4% lower than median
(+) | bass is linear (6.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (6.7% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 99% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 99% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理。平衡的运行时间

消耗功率

虽然华硕Zenbook Flip 14的电池容量最大,为63Wh,但它的能耗也最大。OLED显示屏是导致华硕Zenbook Flip 14能耗普遍较高的原因,尤其是在空转时。戴尔 戴尔Latitude 9420 2合1闲置时的能耗要低30%以上,这在电池寿命方面也很明显。在负载情况下,戴尔的设备仍有超过20%的差距。惠普 惠普Pavilion x360的表现甚至更好,由于内置的i5,其平均消耗量减少了40%,除其他外。

Power Consumption
Off / Standbydarklight 0.5 / 0.5 Watt
Idledarkmidlight 6.4 / 9.4 / 10.7 Watt
Load midlight 52.2 / 69 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Asus ZenBook Flip 14 UN5401QA-KN085W
R7 5800H, Vega 8, Intel SSD 600p SSDPEKKW512G7, OLED, 2880x1800, 14.00
Dell Inspiron 14 7400 7415 2-in-1
R7 5700U, Vega 8, WDC PC SN530 SDBPTPZ-512G, IPS, 1920x1080, 14.00
Dell Latitude 9420 2-in-1
i7-1185G7, Iris Xe G7 96EUs, WDC PC SN530 SDBPNPZ-512G, IPS, 2560x1600, 14.00
HP Pavilion x360 14-dy0157ng
i5-1135G7, Iris Xe G7 80EUs, Toshiba KBG40ZNV512G, IPS, 1920x1080, 14.00
Lenovo Yoga 9 14 ITL 4K
i7-1185G7, Iris Xe G7 96EUs, WDC PC SN730 SDBPNTY-1T00, IPS, 3840x2160, 14.00
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)

Average of class Convertible

Power Consumption
30%
13%
40%
9%
15%
8%
Idle Minimum *
6.4
4.5
30%
4.6
28%
4
37%
4.2
34%
5.25 ?(3 - 12.5, n=45)
18%
Idle Average *
9.4
6.5
31%
7.8
17%
6.7
29%
10
-6%
Idle Maximum *
10.7
7.1
34%
8.2
23%
8.2
23%
13.2
-23%
Load Average *
52.2
40.4
23%
47.9
8%
29.6
43%
42.4
19%
Witcher 3 ultra *
53
31.7
40%
38.8
27%
29.6
44%
43
19%
Load Maximum *
69
54.3
21%
87.1
-26%
26.7
61%
60.5
12%

* ... smaller is better

Power Consumption Witcher 3 / Stress Test

0510152025303540455055606570758085Tooltip
Asus ZenBook Flip 14 UN5401QA-KN085W; Witcher 3 ultra: Ø53 (50.8-68.4)
Asus ZenBook Flip 14 UN5401QA-KN085W; 1280x720 Prime95 28.10 and Furmark 1.25: Ø72.4 (67.8-85.1)

Power Consumption with external monitor

05101520253035404550556065707580Tooltip
Asus ZenBook Flip 14 UN5401QA-KN085W; Prime95 V2810 Stress (external Monitor): Ø66 (61.8-80.1)
Asus ZenBook Flip 14 UN5401QA-KN085W; Cinebench R15 Multi (external Monitor): Ø65.9 (56.6-80.1)
Asus ZenBook Flip 14 UN5401QA-KN085W; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø51.4 (47.7-71.9)

电池寿命

在我们的WiFi测试中,Zenbook的测试时间为522分钟,成绩不错。利用快速充电功能,Flip 14可以在不到两小时内完全充电。尽管如此,戴尔在这两款测试设备上都占据了优势。这款 Latitude 9420二合一在Wi-Fi测试中提供了699分钟的高峰值。

Battery Runtime
WiFi Websurfing
8h 42min
WiFi Websurfing max. Brightness
6h 41min
Big Buck Bunny H.264 1080p
9h 02min
Load (maximum brightness)
2h 04min
Asus ZenBook Flip 14 UN5401QA-KN085W
R7 5800H, Vega 8, 63 Wh
Lenovo Yoga 9 14 ITL 4K
i7-1185G7, Iris Xe G7 96EUs, 60 Wh
HP Pavilion x360 14-dy0157ng
i5-1135G7, Iris Xe G7 80EUs, 43 Wh
Dell Latitude 9420 2-in-1
i7-1185G7, Iris Xe G7 96EUs, 60 Wh
Dell Inspiron 14 7400 7415 2-in-1
R7 5700U, Vega 8, 54 Wh
Average of class Convertible

Battery Runtime
-2%
-14%
26%
17%
16%
H.264
542
593
9%
535
-1%
WiFi v1.3
522
531
2%
427
-18%
699
34%
647
24%
Load
124
103
-17%
97
-22%
146
18%
137
10%
Reader / Idle
1059
1721
1115

Pros

+ 卓越的图像质量
+ 16:10格式和90赫兹的OLED面板
+ 高系统性能和快速处理器
+ 高质量的外壳
+ 良好的电池寿命,适合日常工作和媒体消费
+ 点击板上的数字计算器

Cons

- 在平板电脑模式下性能有限
- 以高噪音和废热为代价的性能
- 亮度太低,不适合户外使用
- 指纹磁铁
- 连接种类少
- 扬声器不好

评语:华硕敞篷车中的顶级OLED面板

华硕Zenbook Flip 14 OLED。评测设备由德国华硕提供。
华硕Zenbook Flip 14 OLED。评测设备由德国华硕提供。

华硕以其Zenbook Flip 14 OLED为市场带来了一款可靠的可转换产品,它以16:10格式的优秀OLED面板和90赫兹的刷新率而得分。此外,所有测试的色彩空间都给出了出色的结果,因此这款14英寸的设备适用于依赖真实色彩的专业用户。高品质和优雅的外壳可以在笔记本电脑和平板电脑模式之间进行360度的平衡,没有任何复杂的问题。触摸屏对所有输入的反应非常迅速,而点击板上有一个内置的数字计算器。精心设计的键盘布局与敞篷车的尺寸非常匹配,提供了坚实的输入体验。AMD 5800H提供了很高的系统性能,因此在竞争设备中占主导地位。然而,Zenbook Flip 14不适合游戏迷,因为内置的Radeon RX Vega 8对游戏的适用性非常有限。

不幸的是,高性能是有代价的,这一点从噪音和废热中可以明显感觉到。此外,我们还希望有更多种类的端口。因此,那些需要大量端口的人可能不得不求助于一个对接站。此外,这款机箱极易沾染指纹,在高负荷情况下发热非常厉害。我们还希望扬声器的音量和低音更大。那些希望在户外使用这台可折叠机的人将不得不找一个阴凉的地方,因为已经高度反射的显示屏没有足够的亮度。

华硕在Zenbook Flip 14 OLED上做对了很多事情,特别是在优秀的显示屏与高系统性能和便携性的结合方面。然而,这款敞篷车也有一些弱点,这对一些用户来说应该不会构成问题。

这款 戴尔Latitude 9420 2合1对于那些寻求更长的电池寿命和希望偶尔以可接受的细节和FPS玩游戏的人来说,只要你能不使用优秀的OLED屏幕,那么戴尔9420二合一绝对是更好的选择。如果你喜欢4K面板,而且还想在户外使用,那么 联想瑜伽9i 14 4K会更适合,尤其是联想提供了双雷电4端口,还在上面装了手写笔和USB集线器。

价格和可用性

截至发稿时,华硕Zenbook Flip 14 OLED已通过美国亚马逊上市。售价为1,099.99美元。

Asus ZenBook Flip 14 UN5401QA-KN085W - 08/30/2022 v7
Patrick Schüdzig

Chassis
81 / 98 → 83%
Keyboard
85%
Pointing Device
89%
Connectivity
72 / 75 → 95%
Weight
70 / 20-75 → 91%
Battery
84%
Display
90%
Games Performance
63 / 78 → 81%
Application Performance
94 / 85 → 100%
Temperature
83%
Noise
87%
Audio
60 / 91 → 65%
Camera
24 / 85 → 28%
Average
70%
87%
Convertible - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 华硕Zenbook Flip 14 OLED回顾。归功于AMD和OLED的绝对感觉
Patrick Schüdzig, 2022-05-18 (Update: 2022-05-18)
