华硕ZenBook Flip 14 UX463FA笔记本电脑评测:低价高端翻转本

镜面屏…… 在我们对华硕ZenBook Flip 15 UX563FD有了一定的印象之后,我们现在来看一下其较小的型号。 在我们的测试配置中,它只能选配Full HD显示屏而没有4K显示屏,但它以高品质的做工令人信服。 除了设计之外,这款14英寸翻转本还提供了什么?
Mike Wobker, 👁 Sebastian Jentsch, Andrea Grüblinger (translated by Zewei Shen),
Touchscreen Windows Convertible / 2-in-1 Comet Lake

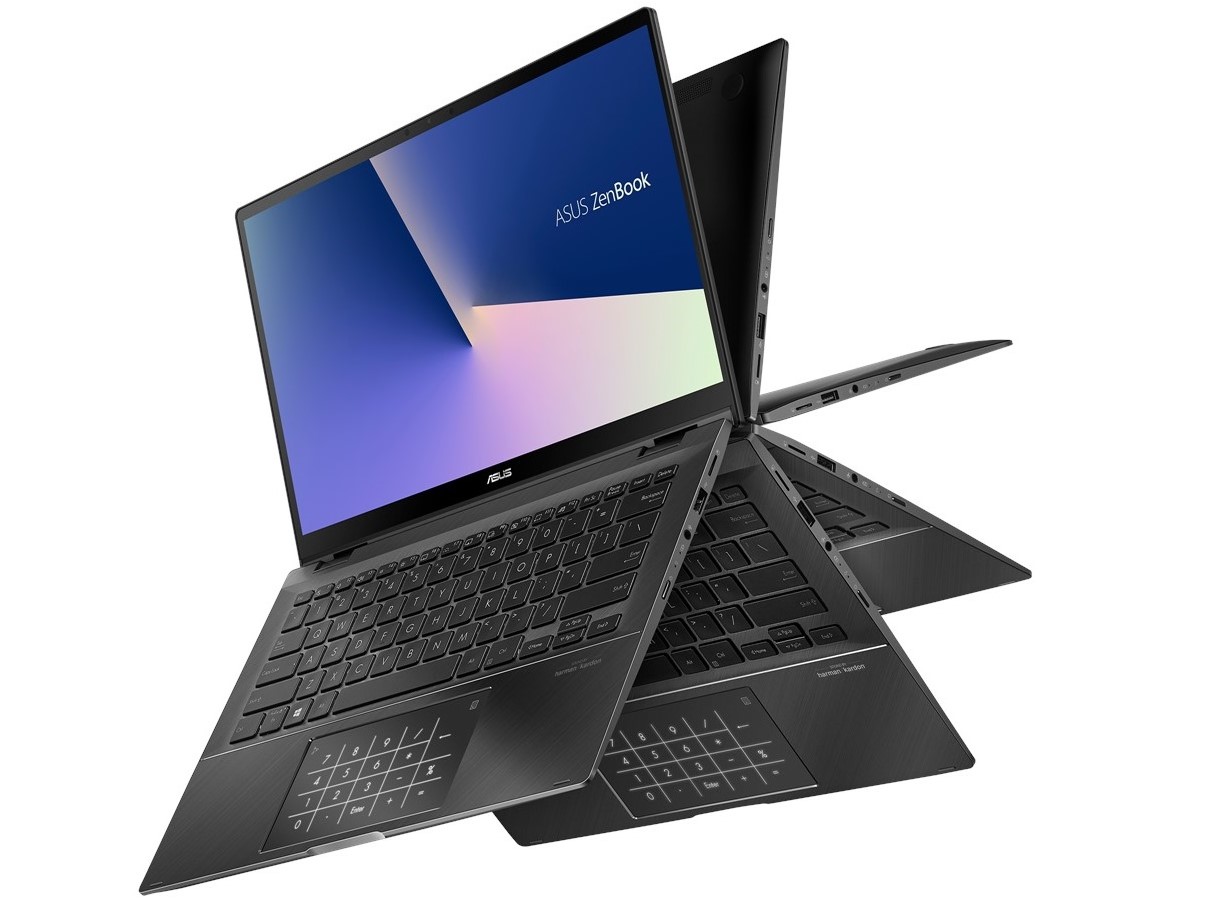

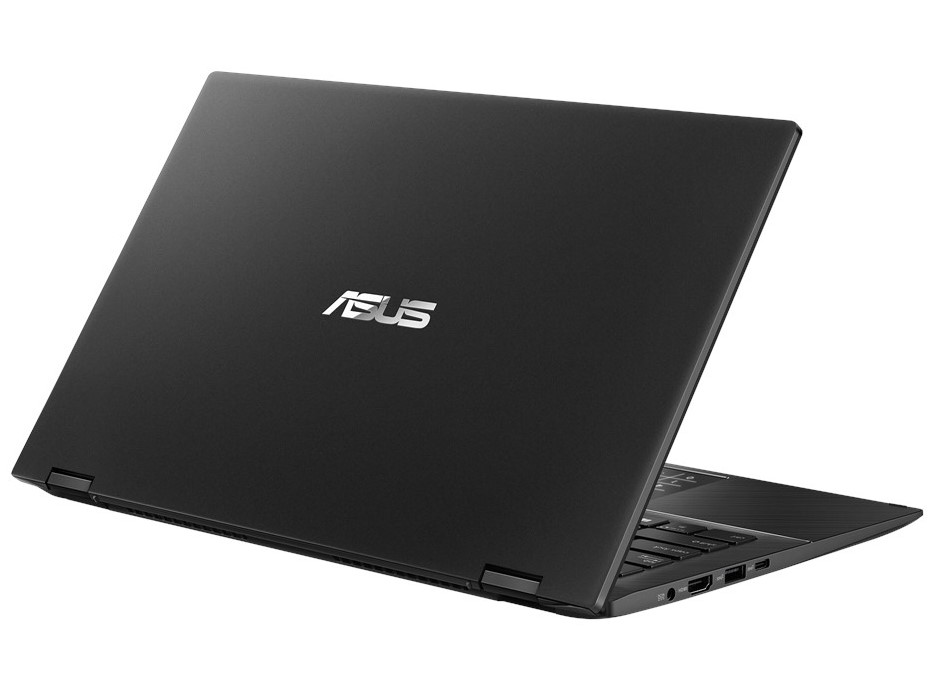

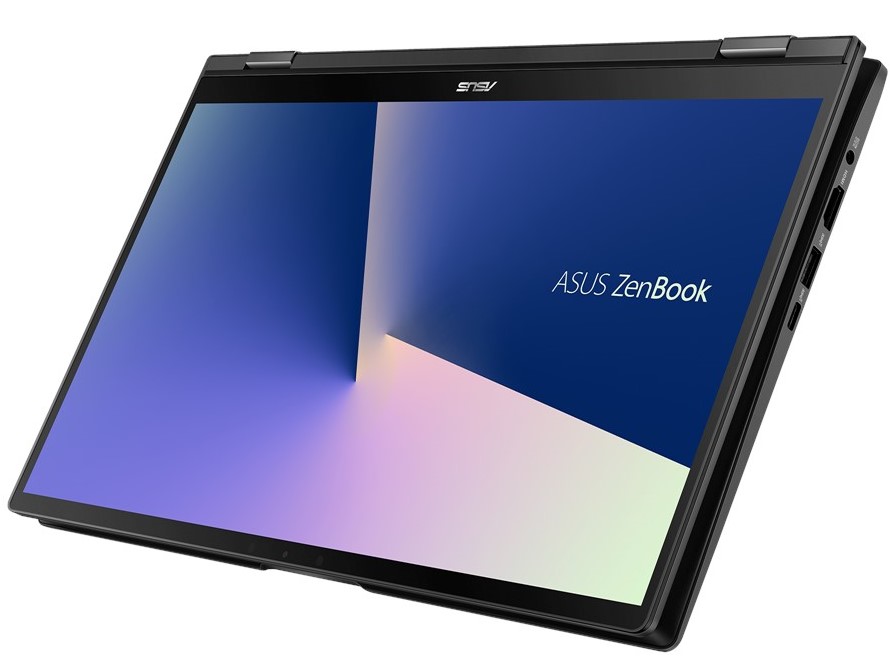

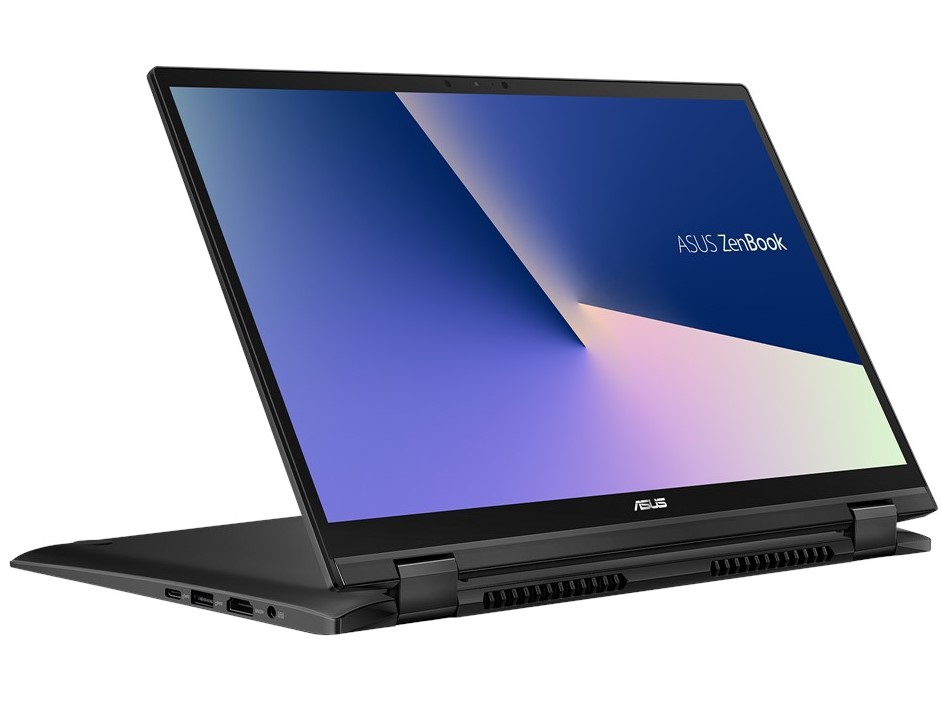

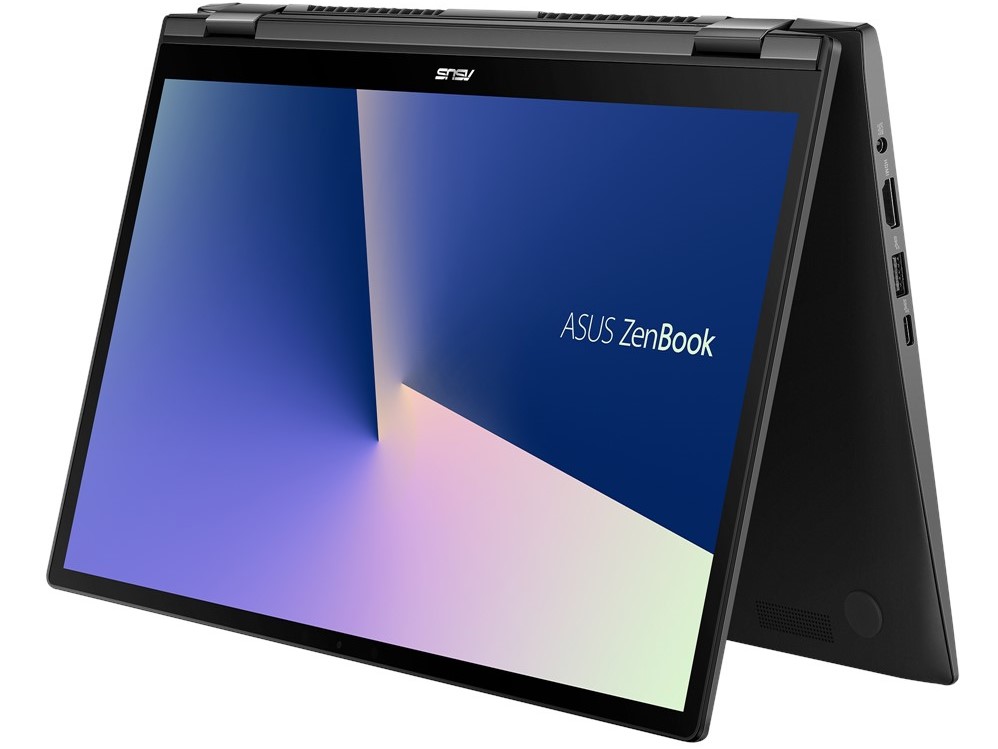

Asus ZenBook Flip 14 UX463FA-AI039T (ZenBook Flip 14 Series)
Processor
Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U
Graphics adapter
Memory
8192 MB
, 双通道内存
Display
14 inch 16:9, 1920 x 1080 pixel 157 PPI, capacitive, AU AUO323D, IPS, glossy: yes
Mainboard
Intel Comet Lake-U PCH-LP Premium
Storage
Kingston RBUSNS8154P3512GJ1, 512 GB
, 426 GB free
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 组合的3.5毫米音频插孔, Card Reader: microSD
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Size
height x width x depth (in mm): 18 x 320 x 206
Battery
50 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p网络摄像头
Additional features
Speakers: 立体声扬声器, Keyboard: 巧克力背光键盘, Keyboard Light: yes, Protective cover, USB-to-LAN adapter, McAfee, 24 Months Warranty
Weight
1.4 kg, Power Supply: 204 g
Price
950 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
85 %
06/2020
Asus ZenBook Flip 14 UX463FA-AI039T
i5-10210U, UHD Graphics 620
1.4 kg18 mm14"1920x1080
87 %
03/2020
Asus ZenBook Flip 15 UX563FD-A1027T
i7-10510U, GeForce GTX 1050 Max-Q
1.9 kg19.9 mm15.6"3840x2160
81 %
07/2020
HP Pavilion x360 14-dh1153ng
i5-10210U, UHD Graphics 620
1.6 kg20.5 mm14"1920x1080
88 %
06/2020
Lenovo ThinkPad L13 Yoga 20R6S00800
i5-10210U, UHD Graphics 620
1.4 kg17.6 mm13.3"1920x1080
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T

Port configuration

Left side: DC in, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Left side: DC in, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Right side: power button, combined 3.5 mm audio jack, 1x USB 2.0 Type-A, microSD card reader
Right side: power button, combined 3.5 mm audio jack, 1x USB 2.0 Type-A, microSD card reader
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP Pavilion x360 14-dh1153ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.3 MB/s ∼100% +190%
Asus ZenBook Flip 15 UX563FD-A1027T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.6 MB/s ∼99% +187%
Lenovo ThinkPad L13 Yoga 20R6S00800

74.4 MB/s ∼96% +179%
Average of class Convertible
  (7.5 - 197, n=150)
64 MB/s ∼83% +140%
Asus ZenBook Flip 14 UX463FA-AI039T
  (Toshiba Exceria Pro M501 microSDXC 64GB)
26.7 MB/s ∼35%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad L13 Yoga 20R6S00800
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.1 MB/s ∼100% +209%
HP Pavilion x360 14-dh1153ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.2 MB/s ∼98% +203%
Average of class Convertible
  (19.2 - 246, n=145)
79.6 MB/s ∼94% +189%
Asus ZenBook Flip 14 UX463FA-AI039T
  (Toshiba Exceria Pro M501 microSDXC 64GB)
27.5 MB/s ∼32%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Wi-Fi 6 AX201
1417 (min: 1353, max: 1440) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (289 - 1722, n=46)
1115 MBit/s ∼79% -21%
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Wi-Fi 6 AX201
888 (min: 626, max: 939) MBit/s ∼63% -37%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Wireless-AC 9560
682 (min: 614, max: 703) MBit/s ∼48% -52%
HP Pavilion x360 14-dh1153ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
262 (min: 248, max: 281) MBit/s ∼18% -82%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Wi-Fi 6 AX201
1383 (min: 1321, max: 1649) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1666, n=46)
989 MBit/s ∼72% -28%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Wireless-AC 9560
688 (min: 362, max: 697) MBit/s ∼50% -50%
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Wi-Fi 6 AX201
650 (min: 378, max: 680) MBit/s ∼47% -53%
HP Pavilion x360 14-dh1153ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
291 (min: 276, max: 329) MBit/s ∼21% -79%
01002003004005006007008009001000110012001300140015001600Tooltip
Asus ZenBook Flip 14 UX463FA-AI039T Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1417 (1353-1440)
Asus ZenBook Flip 15 UX563FD-A1027T Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø888 (626-939)
HP Pavilion x360 14-dh1153ng Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø261 (248-281)
Lenovo ThinkPad L13 Yoga 20R6S00800 Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø681 (614-703)
Asus ZenBook Flip 14 UX463FA-AI039T Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1383 (1321-1649)
Asus ZenBook Flip 15 UX563FD-A1027T Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø650 (378-680)
HP Pavilion x360 14-dh1153ng Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø291 (276-329)
Lenovo ThinkPad L13 Yoga 20R6S00800 Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø676 (362-697)

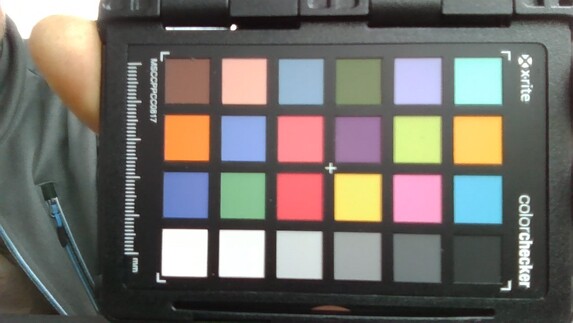

ColorChecker
11.4 ∆E
13.9 ∆E
21 ∆E
17.2 ∆E
22.5 ∆E
18.3 ∆E
10.4 ∆E
29.1 ∆E
18.8 ∆E
25.7 ∆E
15.1 ∆E
14.4 ∆E
27 ∆E
17.2 ∆E
24.3 ∆E
11.6 ∆E
24.2 ∆E
24.4 ∆E
2.3 ∆E
12 ∆E
16.8 ∆E
16.9 ∆E
16.8 ∆E
8 ∆E
ColorChecker Asus ZenBook Flip 14 UX463FA-AI039T: 17.48 ∆E min: 2.33 - max: 29.14 ∆E
294
cd/m²
320
cd/m²
290
cd/m²
272
cd/m²
280
cd/m²
251
cd/m²
305
cd/m²
279
cd/m²
282
cd/m²
Distribution of brightness
AU AUO323D
X-Rite i1Pro 2
Maximum: 320 cd/m² Average: 285.9 cd/m² Minimum: 16 cd/m²
Brightness Distribution: 78 %
Center on Battery: 280 cd/m²
Contrast: 1346:1 (Black: 0.208 cd/m²)
ΔE Color 3.97 | 0.6-29.43 Ø5.9, calibrated: 3.42
ΔE Greyscale 2.83 | 0.64-98 Ø6.1
85% sRGB (Argyll 3D) 56% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.34
Asus ZenBook Flip 14 UX463FA-AI039T
AU AUO323D, IPS, 1920x1080, 14
Asus ZenBook Flip 15 UX563FD-A1027T
BOE HF NE156QUM-N64, IPS, 3840x2160, 15.6
HP Pavilion x360 14-dh1153ng
BOE NV140FHM-N4K, IPS, 1920x1080, 14
Lenovo ThinkPad L13 Yoga 20R6S00800
N133HCE-EP2, IPS, 1920x1080, 13.3
Response Times
-46%
-20%
-6%
Response Time Grey 50% / Grey 80% *
36 (18, 18)
60 (29, 31)
-67%
44 (24, 20)
-22%
40 (21.6, 18.4)
-11%
Response Time Black / White *
28 (16, 12)
35 (21, 14)
-25%
33 (19, 14)
-18%
28 (15.6, 12.4)
-0%
PWM Frequency
192 (90)
25000 (50)
Screen
16%
-33%
35%
Brightness middle
280
351
25%
248
-11%
340
21%
Brightness
286
335
17%
238
-17%
336
17%
Brightness Distribution
78
87
12%
74
-5%
90
15%
Black Level *
0.208
0.31
-49%
0.235
-13%
0.18
13%
Contrast
1346
1132
-16%
1055
-22%
1889
40%
Colorchecker DeltaE2000 *
3.97
1.74
56%
5.43
-37%
1.3
67%
Colorchecker DeltaE2000 max. *
8.29
2.76
67%
17.96
-117%
2.8
66%
Colorchecker DeltaE2000 calibrated *
3.42
5.7
-67%
0.7
80%
Greyscale DeltaE2000 *
2.83
2.22
22%
3.18
-12%
1.9
33%
Gamma
2.34 94%
2.35 94%
2.56 86%
2.15 102%
CCT
6556 99%
6667 97%
6642 98%
6735 97%
Color Space (Percent of AdobeRGB 1998)
56
62
11%
37.3
-33%
64.1
14%
Color Space (Percent of sRGB)
85
97
14%
58.4
-31%
99.6
17%
Total Average (Program / Settings)
-15% / 6%
-27% / -31%
15% / 29%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

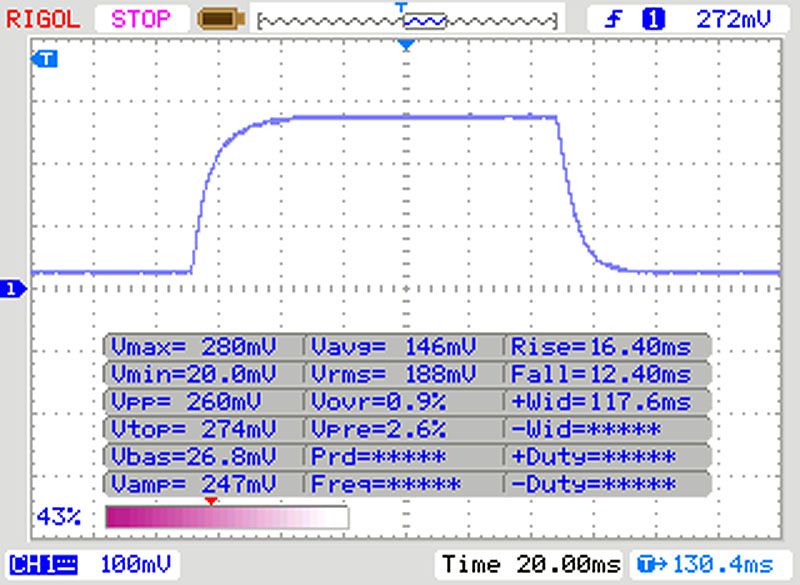

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 60 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.6 ms).

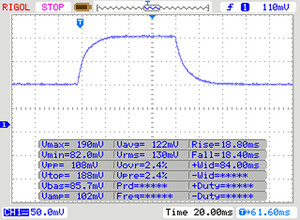

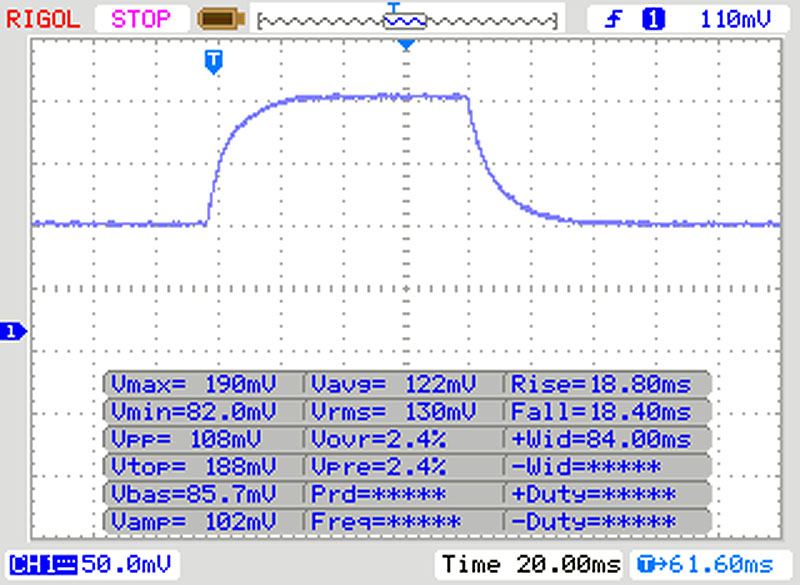

       Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 30 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (39.2 ms).

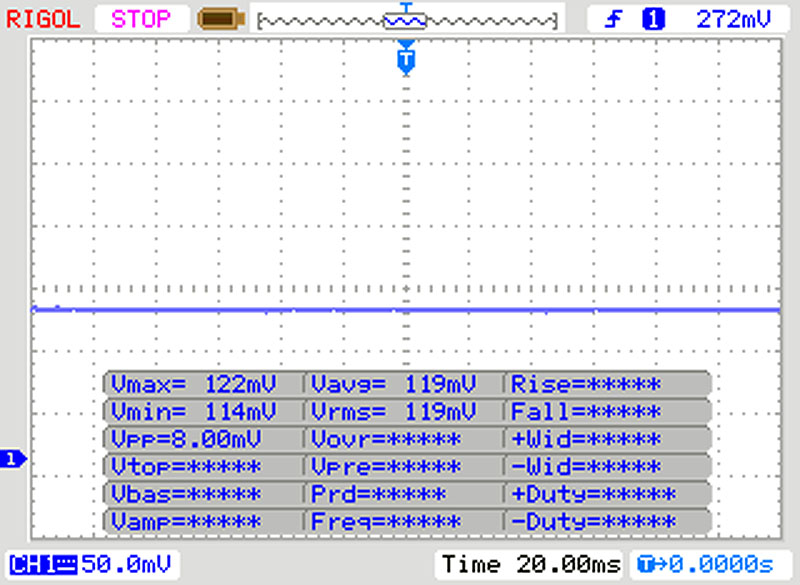

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18037 (minimum: 5 - maximum: 2500000) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840Tooltip
Asus ZenBook Flip 14 UX463FA-AI039T Intel Core i5-10210U, Intel Core i5-10210U: Ø694 (572.34-716.85)
Asus ZenBook Flip 15 UX563FD-A1027T Intel Core i7-10510U, Intel Core i7-10510U: Ø755 (699.58-835.95)
HP Pavilion x360 14-dh1153ng Intel Core i5-10210U, Intel Core i5-10210U: Ø501 (494.9-546.17)
Lenovo ThinkPad L13 Yoga 20R6S00800 Intel Core i5-10210U, Intel Core i5-10210U: Ø506 (500.98-533.71)
Cinebench R15 / CPU Single 64Bit - CPU Single 64Bit
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Core i7-10510U
197 Points ∼100% +21%
Average Intel Core i5-10210U
  (154 - 174, n=22)
167 Points ∼85% +2%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
166 Points ∼84% +2%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
164 Points ∼83% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U
163 Points ∼83%
Average of class Convertible
  (19 - 197, n=330)
109 Points ∼55% -33%
Cinebench R15 / CPU Multi 64Bit - CPU Multi 64Bit
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Core i7-10510U
836 Points ∼100% +17%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U
715 Points ∼86%
Average Intel Core i5-10210U
  (479 - 790, n=22)
623 Points ∼75% -13%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
546 Points ∼65% -24%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
515 Points ∼62% -28%
Average of class Convertible
  (33 - 938, n=339)
326 Points ∼39% -54%
Cinebench R15 CPU Single 64Bit
163 Points
Cinebench R15 CPU Multi 64Bit
715 Points
Cinebench R15 OpenGL 64Bit
55.04 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 10
Digital Content Creation
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
3441 Points ∼27% +6%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
3257 Points ∼25%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
3242 Points ∼25% 0%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (2487 - 4463, n=16)
3127 Points ∼24% -4%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2692 Points ∼21% -17%
Average of class Convertible
  (605 - 4472, n=126)
2568 Points ∼20% -21%
Productivity
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
7151 Points ∼69% +8%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
6972 Points ∼67% +5%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
6762 Points ∼65% +2%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (6099 - 7317, n=16)
6710 Points ∼64% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
6634 Points ∼64%
Average of class Convertible
  (1121 - 7752, n=128)
5408 Points ∼52% -18%
Essentials
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
9907 Points ∼86% +24%
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
8848 Points ∼77% +10%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (7172 - 10000, n=16)
8581 Points ∼75% +7%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
8131 Points ∼71% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
8011 Points ∼70%
Average of class Convertible
  (2489 - 10546, n=128)
7189 Points ∼63% -10%
Score
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
4353 Points ∼54% +9%
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
4312 Points ∼53% +8%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (3752 - 4353, n=16)
4037 Points ∼50% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
3995 Points ∼49%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
3792 Points ∼47% -5%
Average of class Convertible
  (872 - 4884, n=129)
3282 Points ∼40% -18%

» No benchmarks for this notebook found!

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
466 μs * ∼100%

* ... smaller is better

Asus ZenBook Flip 14 UX463FA-AI039T
Kingston RBUSNS8154P3512GJ1
Asus ZenBook Flip 15 UX563FD-A1027T
Samsung SSD PM981 MZVLB1T0HALR
HP Pavilion x360 14-dh1153ng
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
Lenovo ThinkPad L13 Yoga 20R6S00800
Toshiba XG6 KXG6AZNV512G
Average Kingston RBUSNS8154P3512GJ1

Average of class Convertible

CrystalDiskMark 5.2 / 6
98%
107%
101%
23%
16%
Write 4K
54.61
137.8
152%
162.7
198%
172.3
216%
87.6 (54.6 - 108, n=3)
60%
99.2 (1.168 - 194, n=121)
82%
Read 4K
28.19
44.15
57%
190.5
576%
44.37
57%
40.3 (28.2 - 47.2, n=3)
43%
39.1 (0.536 - 191, n=120)
39%
Write Seq
839.9
2073
147%
450.1
-46%
1492
78%
941 (840 - 993, n=3)
12%
824 (27.9 - 2372, n=117)
-2%
Read Seq
905
2165
139%
1624
79%
1471
63%
1070 (905 - 1176, n=3)
18%
1132 (74.7 - 2677, n=116)
25%
Write 4K Q32T1
409.5
431.9
5%
353.5
-14%
483.1
18%
418 (355 - 491, n=3)
2%
286 (1.212 - 747, n=121)
-30%
Read 4K Q32T1
292.4
427.7
46%
397.7
36%
550.6
88%
428 (292 - 518, n=3)
46%
293 (1.189 - 570, n=121)
0%
Write Seq Q32T1
1038
2253
117%
936.9
-10%
2950.5
184%
1035 (1033 - 1038, n=3)
0%
1036 (18.4 - 3019, n=121)
0%
Read Seq Q32T1
1607
3480
117%
2145
33%
3289.4
105%
1629 (1607 - 1644, n=3)
1%
1836 (68.9 - 3565, n=121)
14%
Write 4K Q8T8
1498.1
636 (122 - 1498, n=19)
Read 4K Q8T8
1530.6
754 (134 - 1531, n=19)
AS SSD
95%
15%
134%
36%
-471%
Score Total
1786
3582
101%
1567
-12%
4310
141%
2372 (1786 - 2695, n=3)
33%
1333 (25 - 5215, n=282)
-25%
Score Write
601
1628
171%
668
11%
1674
179%
821 (601 - 961, n=3)
37%
433 (4 - 1935, n=282)
-28%
Score Read
804
1335
66%
606
-25%
1749
118%
1037 (804 - 1154, n=3)
29%
605 (10 - 2545, n=282)
-25%
Access Time Write *
0.072
0.029
60%
0.045
37%
0.029
60%
0.0533 (0.044 - 0.072, n=3)
26%
1.819 (0.021 - 291, n=287)
-2426%
Access Time Read *
0.074
0.082
-11%
0.097
-31%
0.041
45%
0.0417 (0.051 - 0.074, n=3)
44%
2 (0.029 - 433, n=283)
-2603%
4K-64 Write
482.91
1370.88
184%
515.82
7%
1286.69
166%
654 (483 - 772, n=3)
35%
308 (0.044 - 1651, n=287)
-36%
4K-64 Read
643.83
1013.4
57%
416.86
-35%
1425.92
121%
852 (644 - 959, n=3)
32%
478 (0.096 - 2280, n=287)
-26%
4K Write
52.67
125.99
139%
114.83
118%
142.79
171%
82.2 (52.7 - 101, n=3)
56%
71.3 (0.2 - 175, n=287)
35%
4K Read
26.65
47.43
78%
65.41
145%
51.51
93%
45.1 (26.7 - 54.6, n=3)
69%
30 (0.39 - 76, n=287)
13%
Seq Write
652.81
1307.15
100%
372.52
-43%
2441
274%
848 (653 - 953, n=3)
30%
470 (18.5 - 2441, n=291)
-28%
Seq Read
1336.41
2739.08
105%
1240.77
-7%
2719
103%
1398 (1336 - 1454, n=3)
5%
919 (74.2 - 2888, n=290)
-31%
Total Average (Program / Settings)
97% / 96%
61% / 54%
118% / 120%
30% / 30%
-228% / -266%

* ... smaller is better

Kingston RBUSNS8154P3512GJ1
CDM 5/6 Read Seq Q32T1: 1607 MB/s
CDM 5/6 Write Seq Q32T1: 1038 MB/s
CDM 5/6 Read 4K Q32T1: 292.4 MB/s
CDM 5/6 Write 4K Q32T1: 409.5 MB/s
CDM 5 Read Seq: 905 MB/s
CDM 5 Write Seq: 839.9 MB/s
CDM 5/6 Read 4K: 28.19 MB/s
CDM 5/6 Write 4K: 54.61 MB/s
3DMark 11 - 1280x720 Performance GPU
Asus ZenBook Flip 15 UX563FD-A1027T
NVIDIA GeForce GTX 1050 Max-Q, Intel Core i7-10510U
7291 Points ∼100% +293%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel UHD Graphics 620, Intel Core i5-10210U
1855 Points ∼25%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
1849 Points ∼25% 0%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
1744 Points ∼24% -6%
Average Intel UHD Graphics 620
  (1235 - 2006, n=208)
1733 Points ∼24% -7%
Average of class Convertible
  (173 - 17421, n=356)
1450 Points ∼20% -22%
3DMark - 1920x1080 Fire Strike Graphics
Asus ZenBook Flip 15 UX563FD-A1027T
NVIDIA GeForce GTX 1050 Max-Q, Intel Core i7-10510U
5616 Points ∼100% +337%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
1333 Points ∼24% +4%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel UHD Graphics 620, Intel Core i5-10210U
1285 Points ∼23%
Average of class Convertible
  (132 - 13158, n=264)
1164 Points ∼21% -9%
Average Intel UHD Graphics 620
  (557 - 1418, n=177)
1143 Points ∼20% -11%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
1083 Points ∼19% -16%
3DMark 11 Performance
2079 points
3DMark Fire Strike Score
1151 points
Help
Dota 2 Reborn
1920x1080 high (2/3)
Average of class Convertible
  (5.6 - 93.8, n=37)
22.6 fps ∼100% +7%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U, Intel UHD Graphics 620
21.2 (min: 19.6) fps ∼94%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U, Intel UHD Graphics 620
20.4 (min: 19) fps ∼90% -4%
Average Intel UHD Graphics 620
  (16.1 - 23.4, n=57)
19.8 fps ∼88% -7%
1366x768 med (1/3)
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U, Intel UHD Graphics 620
52.5 (min: 45) fps ∼100% +2%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U, Intel UHD Graphics 620
51.6 (min: 44.1) fps ∼98%
Average Intel UHD Graphics 620
  (33.7 - 57.1, n=57)
44.3 fps ∼84% -14%
Average of class Convertible
  (11.9 - 102, n=41)
40.4 fps ∼77% -22%
1280x720 min (0/3) fastest
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U, Intel UHD Graphics 620
83.2 (min: 69.6) fps ∼100%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U, Intel UHD Graphics 620
82 (min: 71.2) fps ∼99% -1%
Average Intel UHD Graphics 620
  (45.1 - 90, n=57)
71.9 fps ∼86% -14%
Average of class Convertible
  (18.3 - 113, n=41)
63.1 fps ∼76% -24%
low med. high ultra
Dota 2 Reborn (2015) 83.2 51.6 21.2 18.7 fps

Noise Level

Idle
30.1 / 30.1 / 30.1 dB(A)
Load
30.1 / 32.02 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.1 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203330.531.832332530.938.532.933.430.93130.631.130.53130.64029.330.829.22929.35032.831.63231.532.86327.726.528.229.627.78026.826.526.725.126.810028.426.325.525.428.412524.524.823.825.124.516023.323.422.923.523.32002321.922.322.22325021.921.722.422.621.931521.220.120.821.421.240020.720.220.320.420.750020.320.220.520.220.363019.418.618.818.619.480019.217.917.617.919.2100019.81717.417.519.8125020.117.117.416.820.1160020.317.117.21720.3200021.917.217.116.921.9250020.817.217.31720.8315019.417.617.817.419.4400019.517.717.817.419.5500018.51818.11818.5630018.518.318.218.218.5800018.618.518.518.518.61000018.818.718.618.618.812500191918.918.8191600019.219.319.319.119.2SPL3230.230.330.232N1.71.41.41.41.7median 20.1median 18.6median 18.6median 18.6median 20.1Delta1.61.31.51.61.6hearing rangehide median Fan NoiseAsus ZenBook Flip 14 UX463FA-AI039T
Max. Load
 41 °C39.1 °C33.9 °C
 38.5 °C36.1 °C28.1 °C
 32.9 °C29.7 °C28.8 °C
Maximum: 41 °C
Average: 34.2 °C
36 °C39.3 °C40.3 °C
31.7 °C36.4 °C37.2 °C
29.4 °C33.4 °C33.6 °C
Maximum: 40.3 °C
Average: 35.3 °C
Power Supply (max.)  42.1 °C | Room Temperature 24 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.2 °C / 94 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 41 °C / 106 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.6 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.9 °C / 91.2 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-4 °C / -7.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.13233.12532.133.432.13129.93129.94028.92928.95032.131.532.1632629.6268026.925.126.910029.625.429.612534.525.134.516034.823.534.820034.422.234.42504922.64931554.221.454.240061.920.461.95006720.26763061.518.661.580068.817.968.8100061.217.561.2125063.416.863.4160063176320006616.966250065.11765.131506217.462400067.417.467.4500065.71865.7630070.918.270.9800064.818.564.81000066.618.666.6125007118.8711600063.119.163.1SPL78.130.278.1N43.31.443.3median 63.1median 18.6median 63.1Delta71.6735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAsus ZenBook Flip 14 UX463FA-AI039TApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ZenBook Flip 14 UX463FA-AI039T audio analysis

(-) | not very loud speakers (70.97 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.7% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(±) | linearity of mids is average (10.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (7.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.6% difference to median)
Compared to same class
» 34% of all tested devices in this class were better, 9% similar, 57% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 33% of all tested devices were better, 7% similar, 60% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Power Consumption
Off / Standbydarklight 0.35 / 0.52 Watt
Idledarkmidlight 3.6 / 7.5 / 9.4 Watt
Load midlight 42 / 51 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Asus ZenBook Flip 15 UX563FD-A1027T
i7-10510U, GeForce GTX 1050 Max-Q, 71 Wh
566 min ∼21% +23%
Asus ZenBook Flip 14 UX463FA-AI039T
i5-10210U, UHD Graphics 620, 50 Wh
461 min ∼17%
Average of class Convertible
  (153 - 1010, n=280)
461 min ∼17% 0%
Lenovo ThinkPad L13 Yoga 20R6S00800
i5-10210U, UHD Graphics 620, 46 Wh
459 min ∼17% 0%
HP Pavilion x360 14-dh1153ng
i5-10210U, UHD Graphics 620, 41 Wh
377 min ∼14% -18%
Battery Runtime
NBC WiFi Websurfing Battery Test 1.3
7h 41min

Pros

+ 高品质的设计
+ WLAN性能非常好
+ 良好的多核性能

Cons

- 几乎没有维护选项
- 风扇控制有点过分保守
- 一般般的续航

Verdict - Adequate price for the Asus Windows convertible

In review: Asus ZenBook Flip 14 UX463FA. Test device provided by:
In review: Asus ZenBook Flip 14 UX463FA. Test device provided by:

华硕ZenBook Flip 14 UX463FA的机身非常高端。它做工精良,在视觉上很吸引人,但也很重,在平板电脑模式下尤其明显。 出色的键盘和无PWM的显示屏在笔记本电脑模式下令人信服,连接性也没有什么妥协。

华硕的ZenBook Flip 14笔记本电脑的样子要比平板电脑更多,并且以其良好的性价比而令人信服。

测试后,只有续航时间短和反光的显示屏仍然是批评的重点。普通用户在日常使用时风扇控制应该不会有任何问题,稍微受限的维护选项也是可以接受的。那些很少将翻转本用作平板电脑但又不想购买纯笔记本电脑的人很适合这款产品。

Asus ZenBook Flip 14 UX463FA-AI039T - 05/19/2020 v7
Mike Wobker

Chassis
86 / 98 → 88%
Keyboard
84%
Pointing Device
87%
Connectivity
52 / 75 → 69%
Weight
70 / 20-75 → 91%
Battery
78%
Display
80%
Games Performance
51 / 78 → 66%
Application Performance
84 / 85 → 98%
Temperature
92%
Noise
99%
Audio
60 / 91 → 66%
Camera
32 / 85 → 38%
Average
73%
85%
Convertible - Weighted Average
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 华硕ZenBook Flip 14 UX463FA笔记本电脑评测:低价高端翻转本
Mike Wobker, 2020-06-26 (Update: 2020-06-26)
