华硕 ZenPad 3s 10 (Z500M-1H006A) 平板电脑简短评测

悦人音效,平板精英。华硕ZenPad 3s想成为苹果的一个有力竞争对手,旨在吸引iPad用户。 它拥有高品质的外壳和高解析度音频,甚至是优秀的功能——假如在测试期间的一些奇怪事情没有发生……
Android ARM Tablet Touchscreen
Asus ZenPad 3s 10 Z500M (ZenPad Series)
Processor
Mediatek MT8176 6 x 2.1 GHz, Cortex-A72/-A53, 联发科 MT8176 六核, 高达 2.1 GHz, 64bit
Graphics adapter
PowerVR GX6250
Memory
4 GB
Display
9.70 inch 4:3, 2048 x 1536 pixel 264 PPI, 电容触控, native pen support, IPS, Asus Tru2Life, 抗指纹涂层, 10指触控, glossy: yes
Storage
64 GB eMMC Flash, 64 GB
, 52 GB free
Connections
1 USB 2.0, Audio Connections: 3.5-mm 音频插口, Card Reader: micro-SDXC 最高128 Gb, 1 Fingerprint Reader, Brightness Sensor, Sensors: 陀螺仪,加速度计,指南针
Networking
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2, GPS
Size
height x width x depth (in mm): 5.8 x 241 x 164
Battery
22 Wh, 5900 mAh Lithium-Ion, 快速充电, Battery runtime (according to manufacturer): 10 h
Operating System
Android 6.0 Marshmallow
Camera
Primary Camera: 8 MPix 1080p 视频录制
Secondary Camera: 5 MPix 1080p 视频录制
Additional features
Speakers: 下边缘立体声扬声器,DTS HD Premium sound,DTS耳机:X,声波大师,aptX,高解析音频, USB线, 充电器, SIM 工具, Mobile Manager, Photo Collage, MiniMovie, Do It Later, ZenCircle, SuperNote, Puffin, 24 Months Warranty, Miracast
Weight
430 g, Power Supply: 49 g
Price
380 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

254 mm 167 mm 6.1 mm 393 g247 mm 179 mm 4.68 mm 665 g242 mm 179 mm 7 mm 517 g241 mm 164 mm 5.8 mm 430 g240 mm 169.5 mm 6.1 mm 444 g237.3 mm 169 mm 5.6 mm 387 g210 mm 148 mm 1 mm 2.9 g
Networking
iperf3 transmit AX12
Dell XPS 13 9360 FHD i5
HD Graphics 620, i5-7200U, Toshiba NVMe THNSN5256GPUK
575 MBit/s +134%
OnePlus 3T
Adreno 530, SD 821, 64 GB UFS 2.0 Flash
313 MBit/s +27%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
246 MBit/s
iperf3 receive AX12
Dell XPS 13 9360 FHD i5
HD Graphics 620, i5-7200U, Toshiba NVMe THNSN5256GPUK
525 MBit/s +107%
OnePlus 3T
Adreno 530, SD 821, 64 GB UFS 2.0 Flash
257 MBit/s +1%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
254 MBit/s

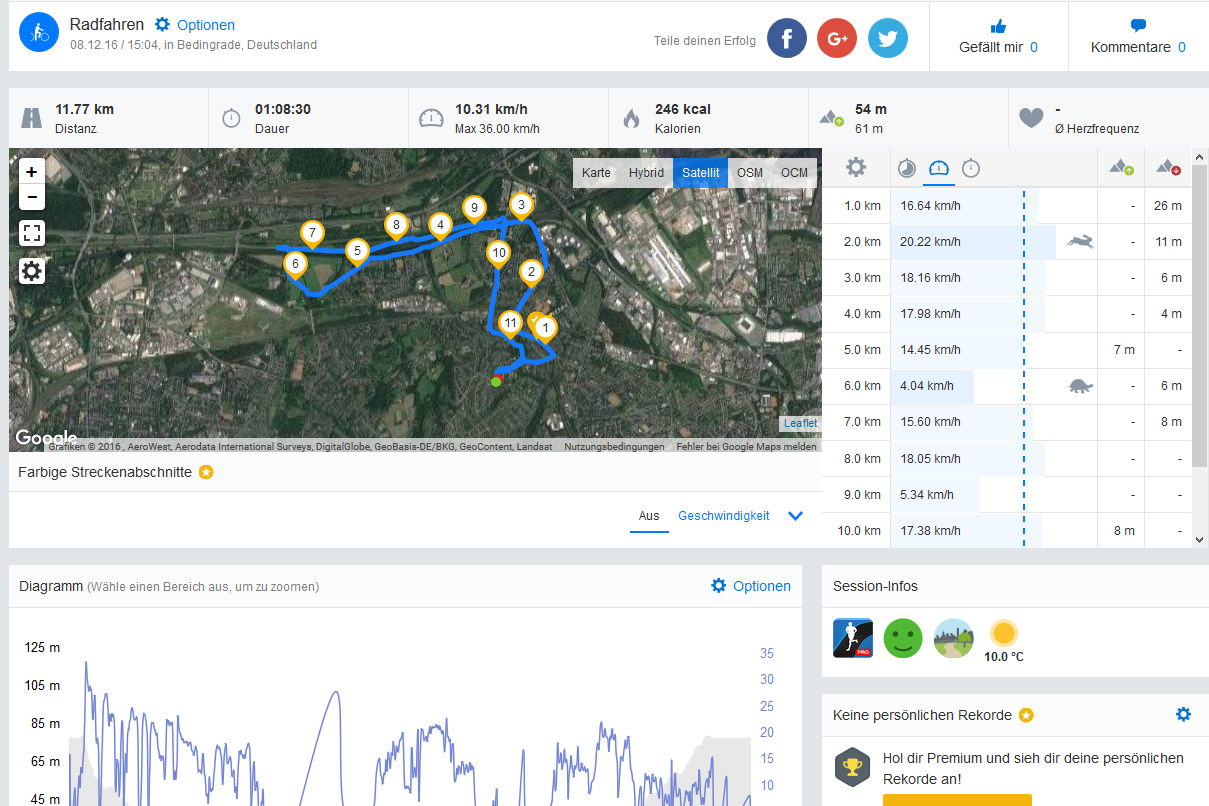

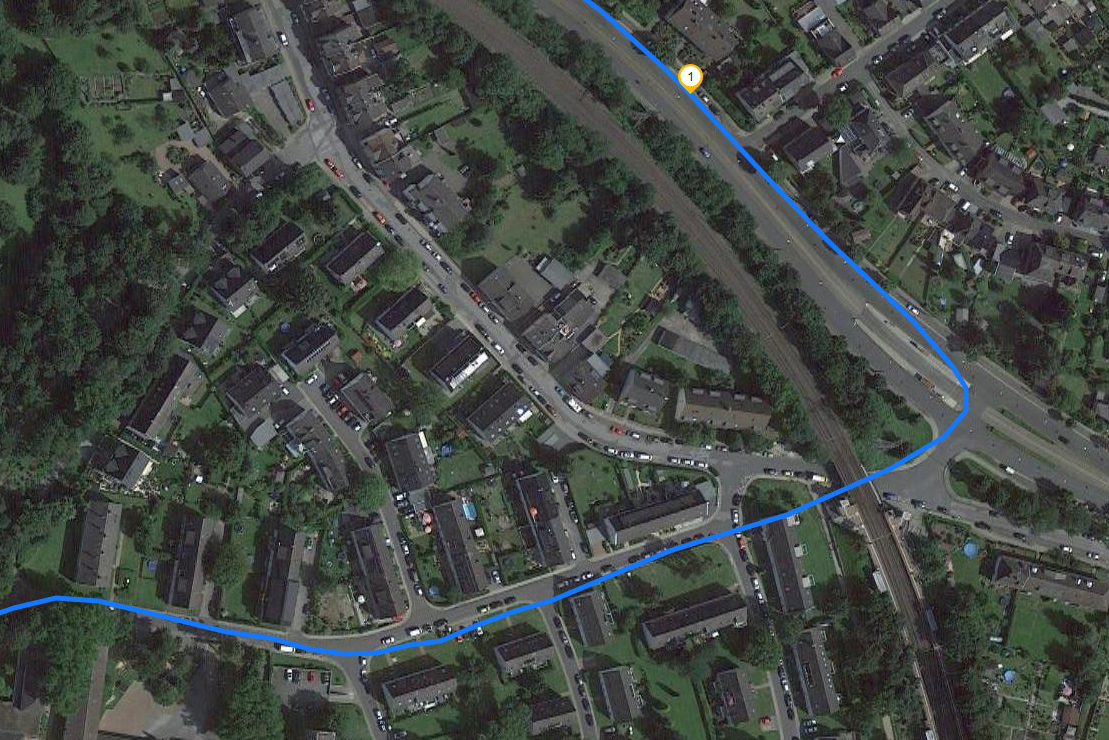

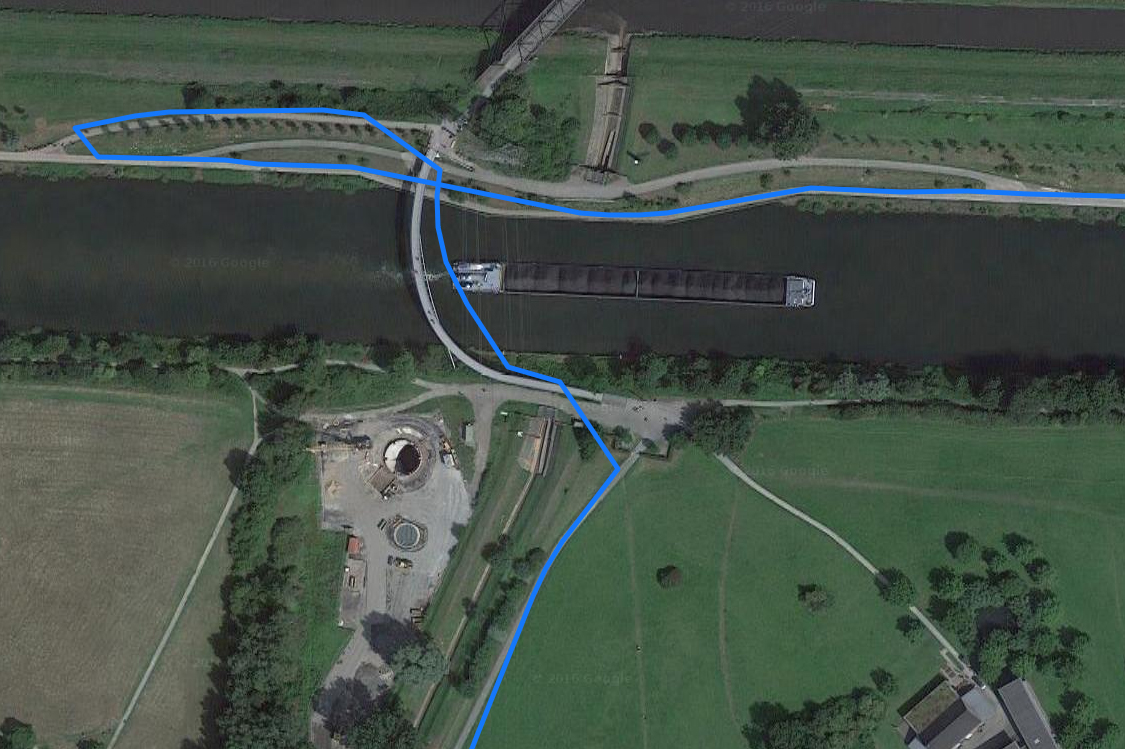

GPS Asus ZenPad 3s 10 – overview
GPS Asus ZenPad 3s 10 – overview
GPS Asus ZenPad 3s 10 – crossing
GPS Asus ZenPad 3s 10 – crossing
GPS Asus ZenPad 3s 10 – bridge
GPS Asus ZenPad 3s 10 – bridge
GPS Garmin Edge 500 – overview
GPS Garmin Edge 500 – overview

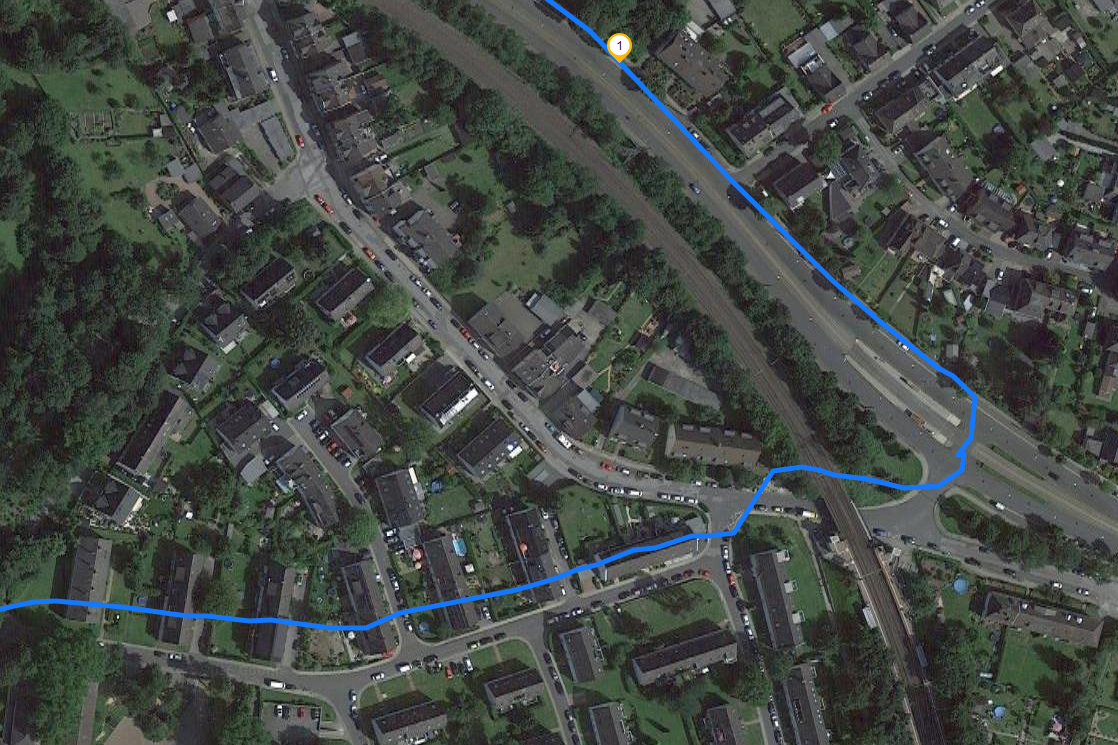

GPS Garmin Edge 500 – crossing
GPS Garmin Edge 500 – crossing

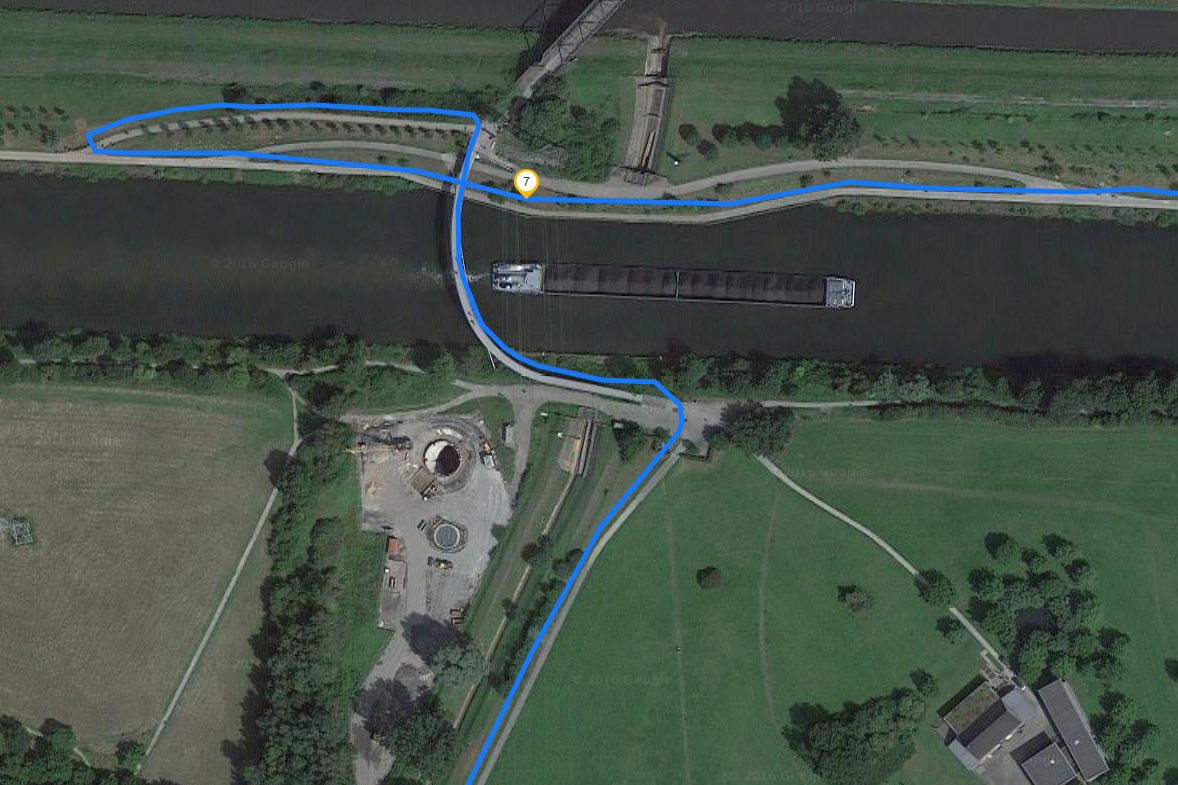

GPS Garmin Edge 500 – bridge
GPS Garmin Edge 500 – bridge

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
click to load images
433
cd/m²
438
cd/m²
419
cd/m²
458
cd/m²
489
cd/m²
422
cd/m²
437
cd/m²
456
cd/m²
431
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 489 cd/m² (Nits) Average: 442.6 cd/m² Minimum: 7.2 cd/m²
Brightness Distribution: 86 %
Center on Battery: 489 cd/m²
Contrast: 1137:1 (Black: 0.43 cd/m²)
ΔE Color 5.5 | 0.5-29.43 Ø5
ΔE Greyscale 6.7 | 0.57-98 Ø5.3
Gamma: 2.06
Asus ZenPad 3s 10 Z500M
IPS, 2048x1536, 9.70
Apple iPad Air 2 2014
IPS, 2048x1536, 9.70
Google Pixel C
LTPS, 2560x1800, 10.20
Sony Xperia Z4 Tablet
Triluminos display with X-Reality, 2560x1600, 10.10
Samsung Galaxy Tab S2 9.7 LTE
Super AMOLED, 2048x1536, 9.70
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
IPS, 2560x1600, 10.10
Screen
3%
4%
-20%
20%
6%
Brightness middle
489
423
-13%
487
0%
471
-4%
358
-27%
429
-12%
Brightness
443
427
-4%
510
15%
457
3%
357
-19%
434
-2%
Brightness Distribution
86
92
7%
91
6%
92
7%
86
0%
82
-5%
Black Level *
0.43
0.61
-42%
0.39
9%
0.46
-7%
0.35
19%
Contrast
1137
693
-39%
1249
10%
1024
-10%
1226
8%
Colorchecker dE 2000 *
5.5
2.86
48%
5.24
5%
8.69
-58%
1.78
68%
4.61
16%
Colorchecker dE 2000 max. *
11.6
9.28
20%
Greyscale dE 2000 *
6.7
2.37
65%
7.95
-19%
11.24
-68%
1.38
79%
6.64
1%
Gamma
2.06 107%
2.43 91%
2.16 102%
2.17 101%
2.24 98%
2.42 91%
CCT
7457 87%
6941 94%
6565 99%
9508 68%
6366 102%
6929 94%
Color Space (Percent of AdobeRGB 1998)
88
Color Space (Percent of sRGB)
99

* ... smaller is better

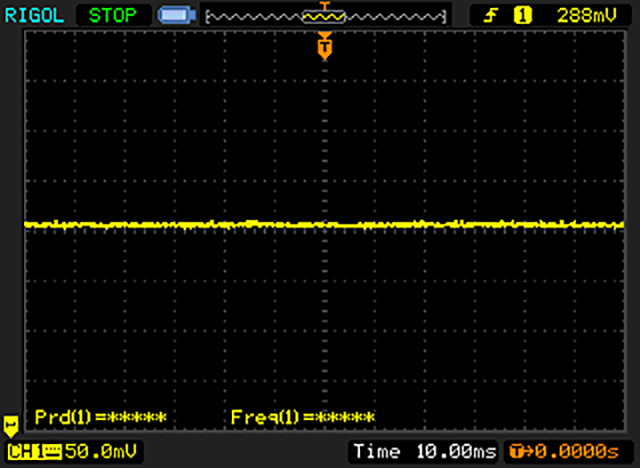

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18080 (minimum: 5 - maximum: 3846000) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

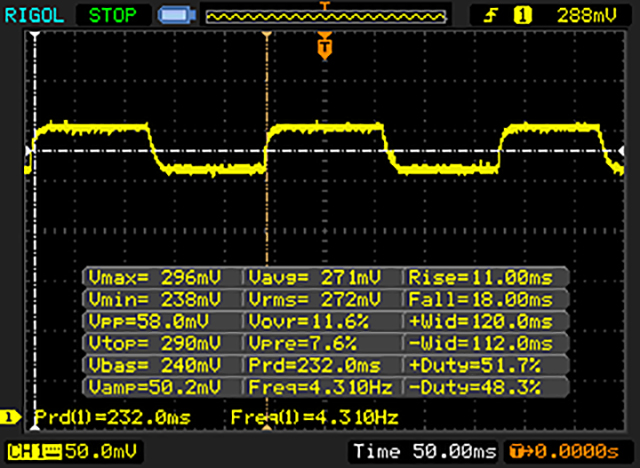

       Response Time Black to White
29 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 18 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

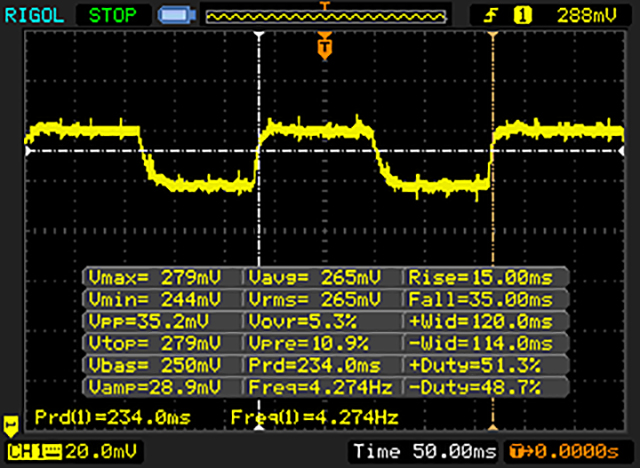

       Response Time 50% Grey to 80% Grey
50 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 35 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

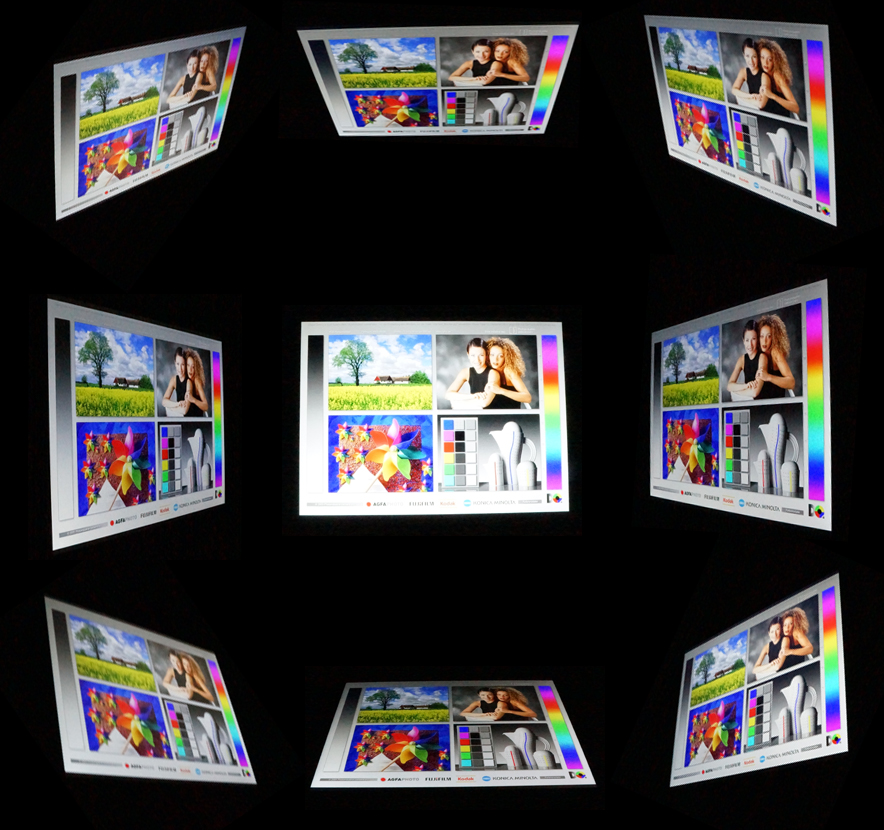

Viewing angles
Viewing angles
AnTuTu v6 - Total Score
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
101062 Points +36%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
90568 Points +22%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
74177 Points
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
70385 Points -5%
3DMark
1280x720 offscreen Ice Storm Unlimited Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
40665 Points +326%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
24566 Points +157%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
21707 Points +127%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
20081 Points +110%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
19867 Points +108%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
9548 Points
1280x720 offscreen Ice Storm Unlimited Graphics Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
52816 Points +274%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
37312 Points +164%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
31542 Points +123%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
21327 Points +51%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
20482 Points +45%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
14121 Points
1280x720 offscreen Ice Storm Unlimited Physics
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
22527 Points +37%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
17981 Points +9%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
16673 Points +1%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
16449 Points
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
11189 Points -32%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
10379 Points -37%
2560x1440 Sling Shot OpenGL ES 3.0
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
2735 Points +150%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
2676 Points +145%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
1926 Points +76%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
1384 Points +27%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
1092 Points
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
946 Points -13%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
4293 Points +343%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
3534 Points +264%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
1426 Points +47%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
970 Points
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
843 Points -13%
2560x1440 Sling Shot OpenGL ES 3.0 Physics
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
1955 Points
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
1641 Points -16%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
1445 Points -26%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
1254 Points -36%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
1205 Points -38%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
52.1 fps +127%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
39 fps +70%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
37 fps +61%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
29 fps +26%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
23 fps
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
20 fps -13%
1920x1080 T-Rex Offscreen
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
70.4 fps +143%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
69 fps +138%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
54 fps +86%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
38 fps +31%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
34 fps +17%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
29 fps
GFXBench 3.0
on screen Manhattan Onscreen OGL
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
27 fps +178%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
22 fps +127%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
16 fps +65%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
12 fps +24%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
9.7 fps
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
8.5 fps -12%
1920x1080 1080p Manhattan Offscreen
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
40 fps +186%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
37.6 fps +169%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
26 fps +86%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
18 fps +29%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
17 fps +21%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
14 fps
PCMark for Android - Work performance score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
6858 Points +76%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
5565 Points +43%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
5152 Points +32%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4441 Points +14%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
3898 Points
BaseMark OS II
Overall
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
1967 Points +19%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
1909 Points +16%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
1652 Points
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
1482 Points -10%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
1325 Points -20%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
1103 Points -33%
System
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
4104 Points +34%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
3071 Points
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
2867 Points -7%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
2724 Points -11%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
2488 Points -19%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
1643 Points -46%
Memory
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
1887 Points
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
1141 Points -40%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
954 Points -49%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
868 Points -54%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
832 Points -56%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
590 Points -69%
Graphics
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
6355 Points +436%
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
4920 Points +315%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
2683 Points +126%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
1886 Points +59%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
1385 Points +17%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
1185 Points
Web
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
1263 Points +16%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
1086 Points
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
884 Points -19%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
872 Points -20%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
758 Points -30%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
648 Points -40%
Geekbench 4.0
64 Bit Single-Core Score
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
1592 Points
64 Bit Multi-Core Score
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
3324 Points
Compute RenderScript Score
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
2166 Points
Octane V2 - Total Score
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
10512 Points +192%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
8197 Points +128%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
7790 Points +117%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
7563 Points +110%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
6885 Points +91%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
3596 Points
Mozilla Kraken 1.1 - Total
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
6483 ms * -116%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
5533 ms * -84%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
4472 ms * -49%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4064 ms * -35%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
3001 ms *
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
2396 ms * +20%
WebXPRT 2015 - Overall
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
158 Points +61%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
128 Points +31%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
111 Points +13%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
98 Points
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
93 Points -5%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
79 Points -19%
JetStream 1.1 - Total Score
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
57.4 Points
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
47.4 Points -17%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
41.12 Points -28%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
41 Points -29%

* ... smaller is better

AndroBench 3-5
Sequential Read 256KB
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
256 MB/s +22%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
248.2 MB/s +19%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
209.3 MB/s
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
154.3 MB/s -26%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
153.7 MB/s -27%
Sequential Write 256KB
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
136.5 MB/s
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
109.4 MB/s -20%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
81 MB/s -41%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
51 MB/s -63%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
49.37 MB/s -64%
Random Read 4KB
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
25.56 MB/s +3%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
24.85 MB/s
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
23.7 MB/s -5%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
20 MB/s -20%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
19.96 MB/s -20%
Random Write 4KB
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
13.6 MB/s +100%
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
10.57 MB/s +55%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
10.08 MB/s +48%
Samsung Galaxy Tab S2 9.7 LTE
Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash
9.82 MB/s +44%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
6.8 MB/s
Sequential Read 256KB SDCard
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
56.4 MB/s +25%
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
45.15 MB/s
Sequential Write 256KB SDCard
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
26.9 MB/s
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
HD Graphics (Cherry Trail), Z8500, 32 GB eMMC Flash
15.93 MB/s -41%
Asphalt 8: Airborne
 SettingsValue
 high26 fps
 very low30 fps
Dead Trigger 2
 SettingsValue
 high59 fps

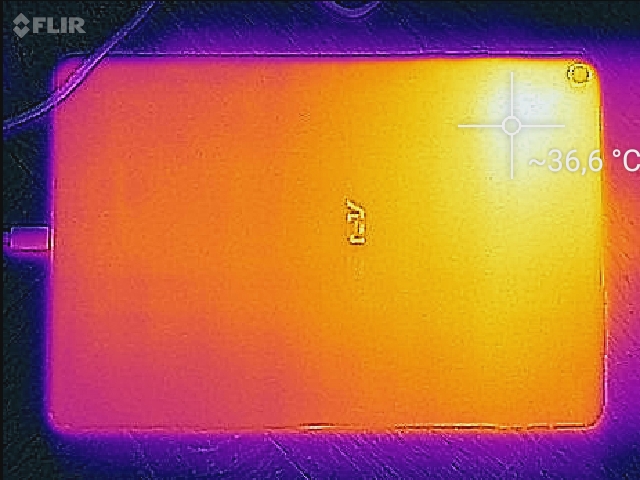

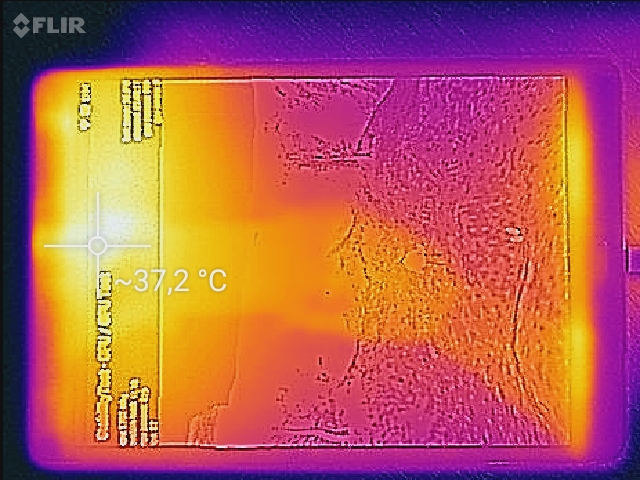

Max. Load
 38.6 °C34 °C33.1 °C
 37.6 °C34.4 °C32.9 °C
 34.6 °C32.8 °C33.1 °C
Maximum: 38.6 °C
Average: 34.6 °C
29.7 °C32.1 °C34.5 °C
29.9 °C32.2 °C34.1 °C
29.8 °C31.9 °C32.7 °C
Maximum: 34.5 °C
Average: 31.9 °C
Power Supply (max.)  33.8 °C | Room Temperature 21.4 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 33.8 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(+) The bottom heats up to a maximum of 34.5 °C / 94 F, compared to the average of 33.3 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 27.3 °C / 81 F, compared to the device average of 30 °C / 86 F.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.640.12525.444.23125.338.44032.9415033.644.96331.646.58028.446.81002748.312520.848.71602250.120021.353.125020.858.631521.264.940019.468.650019.570.263017.771.280017.969.3100017.873.6125017.378.5160017.480.7200016.781.3250017.277.9315018.278400017.984.5500017.686630017.789.8800017.886.61000017.982.71250018.181.81600018.280.8SPL3095N1.3103.7median 17.9median 78Delta1.47.73730.934.43725.629.328.925.628.931.523.728.929.331.830.929.33935.937.23933.535.130.533.52730.928.52722.432.722.322.423.534.522.923.530.438.92030.434.443.420.434.440.649.719.840.644.255.620.344.247.158.619.247.152.265.917.952.257.172.616.357.15770.417.65758.472.41858.46176.917.66163.779.21763.760.376.717.260.359.275.717.759.256.977.717.356.963.181.917.463.166.688.517.766.664.584.81864.553.975.617.753.947.569.518.247.542.164.217.942.133.357.317.833.373.392.829.873.329.588.31.329.5median 53.9median 72.4median 17.9median 53.910.310.70.710.3hearing rangehide median Pink NoiseAsus ZenPad 3s 10 Z500MGoogle Pixel C
Asus ZenPad 3s 10 Z500M audio analysis

(+) | speakers can play relatively loud (95 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24% lower than median
(+) | bass is linear (5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5.4% lower than median
(+) | mids are linear (4.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.7% higher than median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.4% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 7% similar, 54% worse
» The best had a delta of 7%, average was 23%, worst was 129%
Compared to all devices tested
» 35% of all tested devices were better, 8% similar, 57% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Google Pixel C audio analysis

(+) | speakers can play relatively loud (92.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.9% lower than median
(±) | linearity of bass is average (7.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.5% higher than median
(±) | linearity of highs is average (8.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.2% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 7% similar, 24% worse
» The best had a delta of 7%, average was 23%, worst was 129%
Compared to all devices tested
» 69% of all tested devices were better, 7% similar, 25% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Frequency diagram in comparison (checkboxes above can be turned on/off!)

Power Consumption
Off / Standbydarklight 0.05 / 0.3 Watt
Idledarkmidlight 1.59 / 4.14 / 4.23 Watt
Load midlight 10.89 / 11.58 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Asus ZenPad 3s 10 Z500M
5900 mAh
Apple iPad Air 2 2014
 mAh
Google Pixel C
 mAh
Samsung Galaxy Tab S2 9.7 LTE
5870 mAh
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
6200 mAh
Power Consumption
1%
-6%
-10%
-169%
Idle Minimum *
1.59
1.2
25%
1.82
-14%
2.3
-45%
8.6
-441%
Idle Average *
4.14
5.1
-23%
4.26
-3%
4.5
-9%
11.26
-172%
Idle Maximum *
4.23
5.4
-28%
4.33
-2%
5
-18%
11.3
-167%
Load Average *
10.89
7.9
27%
9.82
10%
9.4
14%
14.57
-34%
Load Maximum *
11.58
11.1
4%
13.99
-21%
10.4
10%
14.9
-29%

* ... smaller is better

Battery Runtime
Idle (without WLAN, min brightness)
24h 13min
WiFi Websurfing
8h 38min
Big Buck Bunny H.264 1080p
10h 00min
Load (maximum brightness)
3h 45min
Asus ZenPad 3s 10 Z500M
5900 mAh
Apple iPad Air 2 2014
 mAh
Google Pixel C
 mAh
Sony Xperia Z4 Tablet
 mAh
Samsung Galaxy Tab S2 9.7 LTE
5870 mAh
Lenovo Yoga Tab 3 Pro 10 YT3-X90L
6200 mAh
Battery Runtime
-6%
30%
10%
-6%
12%
Reader / Idle
1453
1364
-6%
2090
44%
2135
47%
918
-37%
1261
-13%
H.264
600
562
-6%
740
23%
705
18%
651
9%
644
7%
WiFi v1.3
518
638
23%
525
1%
393
-24%
558
8%
Load
225
212
-6%
294
31%
166
-26%
291
29%
323
44%
WiFi
630

Pros

+ 时尚金属外壳
+ 组装严密
+ 精确控制

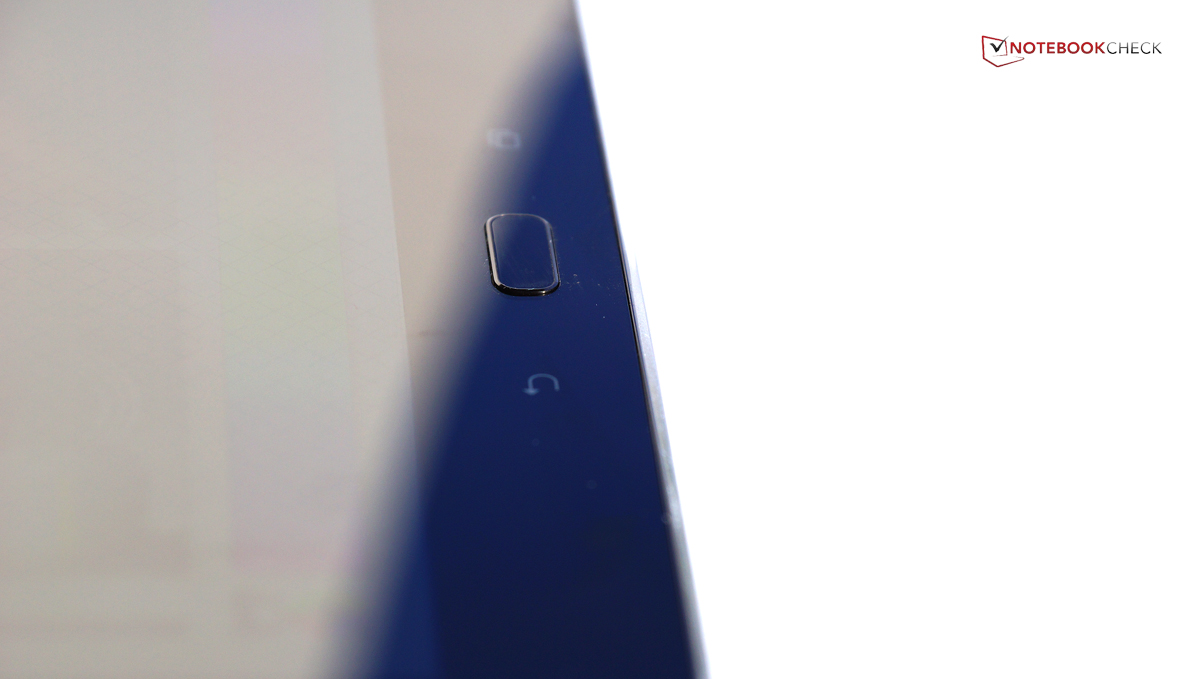

+ 指纹传感器
+ 不错的显示效果
+ 低温
+ 优越的续航时间
+ 摄像清晰
+ 非常响亮的扬声器

Cons

- 低动态摄像头
- 视频质量差
- GPS模块缓慢
- 仅12个月的保修
- 非常响的系统噪声
- 高音有时占主导地位,让人不舒服
- 系统性能不稳定

Verdict

In review: Asus ZenPad 3s 10. Review sample courtesy of Asus Germany.
In review: Asus ZenPad 3s 10. Review sample courtesy of Asus Germany.

稳定、高品质、良好的屏幕,优秀的扬声器,优越的续航时间——在我们的测试环节中,华硕的ZenPad 3s 10没有任何的重大缺点。 然而,它让我们无奈地怀疑,是否值得为之庆幸:在声音增强软件和高解析度的支持下,扬声器声音很响亮,可实际使用却没有字面上那么好。在明亮和黑暗的区域中,相机的低动态同样不会让任何人满意。

然而,最奇怪的是系统级芯片的表现,它有时提供最好的性能,然后又骤降到另一个极端——并不是所有东西都能在日常使用中顺利运行。 也许软件更新会改善这一问题。 非常响亮的系统声音,通常只能通过减低音量或在隐藏菜单中关闭,这也同样恼人。 甚至,有许多预装的应用程序。一些用户可能永远不会启动它们。

基本上,购买华硕ZenPad 3s 10 Z500M不算是一个错误的决定:用户可以获得一个具有竞争力屏幕和良好外壳的平板电脑。然而,许多恼人小细节妨碍着我们投入真正的热情。

我们应该建议购买华硕的ZenPad 3s 10吗?这得分情况:在这个价位,它提供了许多iPad Air 2 不能做到的、更好的功能。并且它在某些方面可以和价格昂贵的 Google Pixel C竞争。作为日常使用,如果用户不对扬声器抱有太多期望,或者不太依赖于性能的话,该平板电脑还算有用。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Asus ZenPad 3s 10 Z500M - 12/25/2016 v6(old)
Florian Wimmer

Chassis
88%
Keyboard
70 / 80 → 88%
Pointing Device
92%
Connectivity
40 / 65 → 62%
Weight
84 / 40-88 → 92%
Battery
91%
Display
83%
Games Performance
40 / 68 → 59%
Application Performance
49 / 76 → 64%
Temperature
92%
Noise
100%
Audio
69 / 91 → 76%
Camera
52 / 85 → 61%
Average
73%
86%
Tablet - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 华硕 ZenPad 3s 10 (Z500M-1H006A) 平板电脑简短评测
Florian Wimmer, 2017-01- 4 (Update: 2018-05-15)
