三星 Galaxy Tab S2 9.7 LTE 平板电脑简短评测

Name: Samsung Galaxy Tab S2 9.7 LTE
Brand: Samsung

超薄。 有更加紧凑的机身和略有不同的屏幕比例的新Galaxy Tab S2 9.7希望可以淘汰它的前代产品。我们的深入评测将会揭示尺寸缩小的它是否成功。

Andreas Kilian, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 10/21/2015 🇺🇸 🇩🇪 ...

Android ARM Tablet Touchscreen

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Samsung Galaxy Tab S2 9.7 LTE (Galaxy Tab S9 Series)

Processor

Samsung Exynos 5433 Octa 8 x 1.9 GHz, Cortex-A57/-A53

Graphics adapter

ARM Mali-T760 MP6, Core: 600 MHz

Memory

3 GB

Display

9.70 inch 4:3, 2048 x 1536 pixel, 电容式触控屏幕, Super AMOLED, glossy: yes

Storage

32 GB eMMC Flash, 32 GB

, 25.2 GB free

Connections

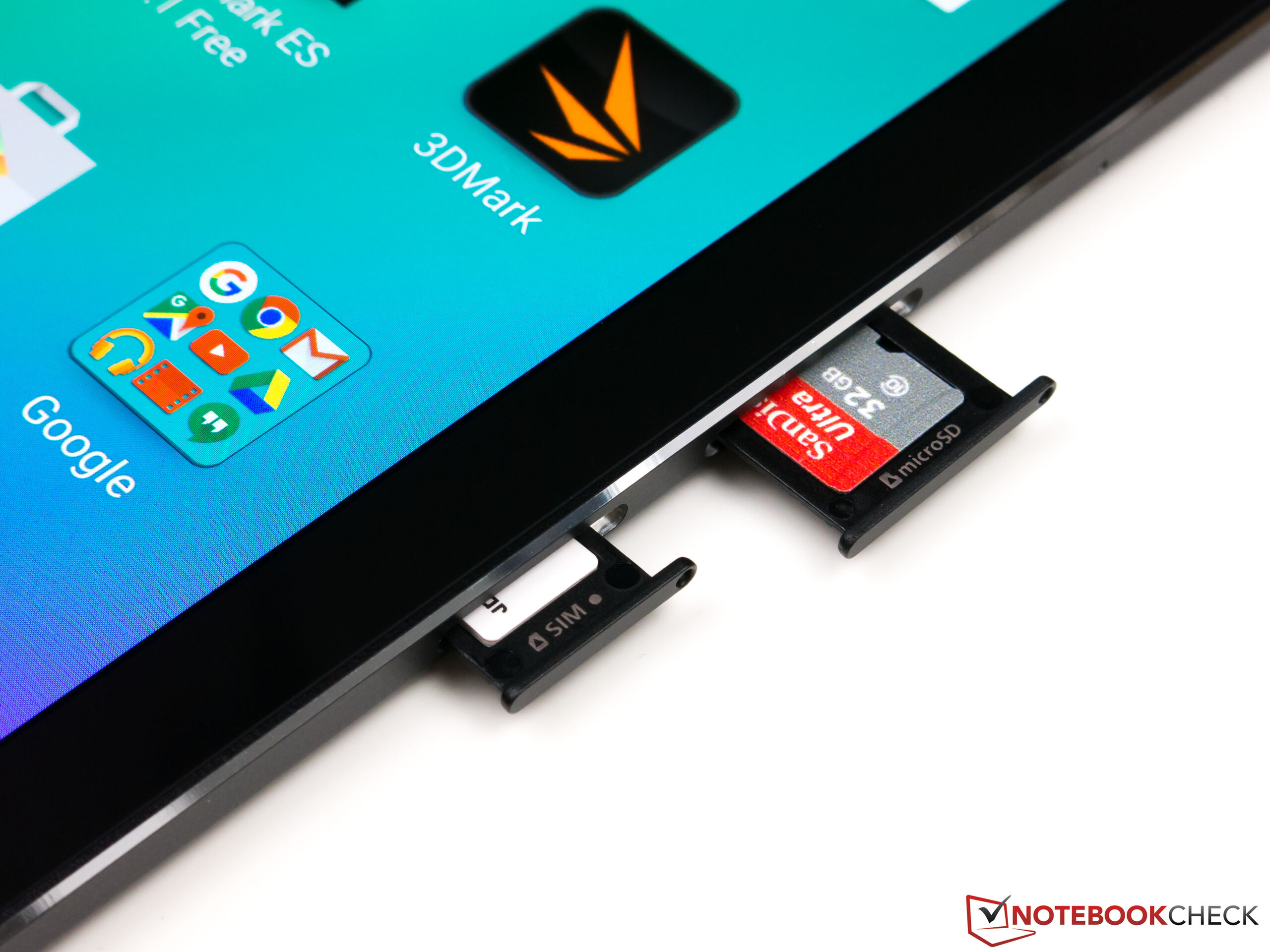

1 USB 2.0, Audio Connections: 3.5毫米整合耳机插口, Card Reader: microSD 最大支持 128 GB, 1 Fingerprint Reader, Sensors: 加速传感器，近距传感器，陀螺仪，环境光传感器，指南针，GPS，GLONASS, Wifi Direct, ANT+, OTG, MHL, Nano-SIM

Networking

802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1, 2G-四频 (850/900/1800/1900 MHz), 3G-四频 (850/900/1900/2100 MHz), 4G-八频 (700/800/850/900/1800/1900/2100/2600), 身体辐射值: 0.885 W/Kg

Size

height x width x depth (in mm): 5.6 x 237.3 x 169

Battery

22 Wh, 5870 mAh Lithium-Ion, 5870 mAh, Talk time 3G (according to manufacturer): 30 h

Operating System

Android 5.0 Lollipop

Camera

Webcam: 210万像素（固定焦距，f/2.2，1080p视频录制@30fps），主相机：800万像素（自动对焦，f/1.9，2560p视频录制@30fps）

Additional features

Speakers: 立体声扬声器，位于底部, Keyboard: 触控, 电源适配器，USB数据线，卡槽工具, Galaxy Apps, SideSync, WPS Office, Microsoft Office, Todoist, Smart Manager, Samsung TouchWiz UI, 24 Months Warranty

Weight

387 g, Power Supply: 55 g

Price

599 Euro

Links

Samsung notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

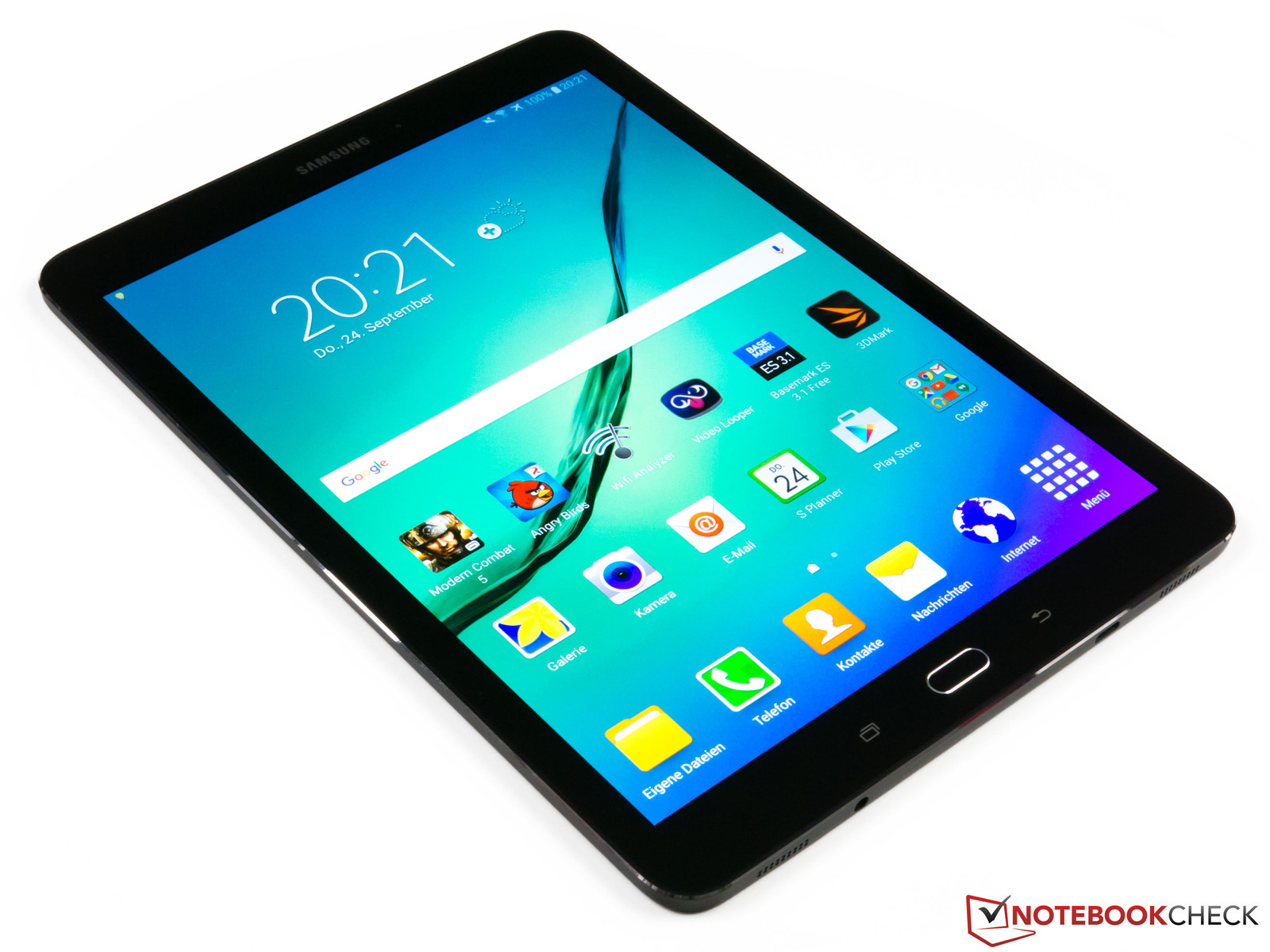

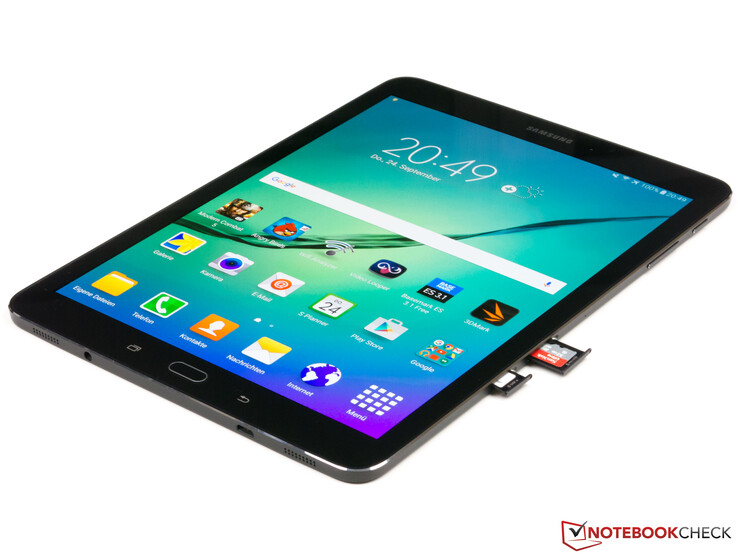

Galaxy Tab S2 9.7: Front (portrait mode)

Galaxy Tab S2 9.7: Front (landscape mode)

Galaxy Tab S2 9.7: Attachment point for the Book Cover

Lenovo Yoga 2-1051F Microsoft Surface 3 Sony Xperia Z4 Tablet Samsung Galaxy Tab S 10.5 Apple iPad Air 2 2014 Samsung Galaxy Tab S2 9.7 LTE Google Nexus 9 DIN A4 ❌

Samsung Galaxy Tab S2 9.7 - Turning point

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

Samsung Galaxy Tab S2 9.7

OnePlus 2

Huawei Mate S

Canon EOS 70D (Referenz)

click to load images

Samsung Galaxy Tab S2 9.7

OnePlus 2

Huawei Mate S

Canon EOS 70D (Referenz)

click to load images

Samsung Galaxy Tab S2 9.7

OnePlus 2

Huawei Mate S

Canon EOS 70D (Referenz)


336 cd/m²	345 cd/m²	352 cd/m²
341 cd/m²	358 cd/m²	370 cd/m²
352 cd/m²	367 cd/m²	389 cd/m²

Distribution of brightness

tested with X-Rite i1Pro 2

Maximum: 389 cd/m² (Nits) Average: 356.7 cd/m²
Brightness Distribution: 86 %
Center on Battery: 358 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1.78 | 0.5-29.43 Ø5
ΔE Greyscale 1.38 | 0.57-98 Ø5.3
Gamma: 2.24

	Samsung Galaxy Tab S2 9.7 LTE 2048x1536 px 9.7'' (Super AMOLED)	Samsung Galaxy Tab S 10.5 2560x1600 px 10.5'' (Super AMOLED)	Apple iPad Air 2 2014 2048x1536 px 9.7'' (Retina)	Sony Xperia Z4 Tablet 2560x1600 px 10.1'' (Triluminos)	Google Nexus 9 2048x1536 px 8.9'' (IPS)	Lenovo Yoga 2-1051F 1920x1200 px 10.1'' (IPS)	Microsoft Surface 3 1920x1280 px 10.8'' (IPS)
Screen
Brightness middle	358	290 -19%	423 18%	471 32%	430 20%	414 16%	399 11%
Brightness	357	291 -18%	427 20%	457 28%	411 15%	388 9%	380 6%
Brightness Distribution	86	87 1%	92 7%	92 7%	92 7%	90 5%	90 5%
Black Level *			0.61	0.46	0.77	0.55	0.49
Colorchecker dE 2000 *	1.78	2.37 -33%	2.86 -61%	8.69 -388%	3.17 -78%	5.05 -184%	1.66 7%
Greyscale dE 2000 *	1.38	2.03 -47%	2.37 -72%	11.24 -714%	3.29 -138%	5.14 -272%	2.75 -99%
Gamma	2.24 ^98%	2.45 ^90%	2.43 ^91%	2.17 ^101%	2.39 ^92%	2.37 ^93%	2.22 ^99%
CCT	6366 ^102%	6521 ^100%	6941 ^94%	9508 ^68%	6746 ^96%	7386 ^88%	6358 ^102%
Color Space (Percent of AdobeRGB 1998)		100	88		62		64.4
Contrast			693	1024	558	753	814
Color Space (Percent of sRGB)				99			98.8
Colorchecker dE 2000 max. *							3.24

* ... smaller is better

AnTuTu v5 - Total Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	52308 Points
Apple iPad Air 2 2014	63292 Points +21%
Sony Xperia Z4 Tablet	56412 Points +8%
Google Nexus 9	56577 Points +8%

Geekbench 3
64 Bit Multi-Core Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	4221 Points
Apple iPad Air 2 2014	4530 Points +7%
Sony Xperia Z4 Tablet	3949 Points -6%
Google Nexus 9	3154 Points -25%
Microsoft Surface 3	3350 Points -21%
64 Bit Single-Core Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	1247 Points
Apple iPad Air 2 2014	1816 Points +46%
Sony Xperia Z4 Tablet	1298 Points +4%
Google Nexus 9	1879 Points +51%
Microsoft Surface 3	990 Points -21%

Linpack Android / IOS
Multi Thread (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	588 MFLOPS
Samsung Galaxy Tab S 10.5	770 MFLOPS +31%
Apple iPad Air 2 2014	2429 MFLOPS +313%
Google Nexus 9	892 MFLOPS +52%
Single Thread (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	334 MFLOPS
Samsung Galaxy Tab S 10.5	382.8 MFLOPS +15%
Apple iPad Air 2 2014	1021 MFLOPS +206%
Sony Xperia Z4 Tablet	0 MFLOPS -100%
Google Nexus 9	671 MFLOPS +101%

BaseMark OS II
Web (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	648 Points
Samsung Galaxy Tab S 10.5	820 Points +27%
Apple iPad Air 2 2014	1263 Points +95%
Sony Xperia Z4 Tablet	758 Points +17%
Google Nexus 9	516 Points -20%
Graphics (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	1385 Points
Samsung Galaxy Tab S 10.5	1032 Points -25%
Apple iPad Air 2 2014	4920 Points +255%
Sony Xperia Z4 Tablet	2683 Points +94%
Google Nexus 9	8602 Points +521%
Memory (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	590 Points
Samsung Galaxy Tab S 10.5	468 Points -21%
Apple iPad Air 2 2014	832 Points +41%
Sony Xperia Z4 Tablet	954 Points +62%
Google Nexus 9	1509 Points +156%
System (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	2867 Points
Samsung Galaxy Tab S 10.5	1555 Points -46%
Apple iPad Air 2 2014	4104 Points +43%
Sony Xperia Z4 Tablet	2488 Points -13%
Google Nexus 9	1729 Points -40%
Overall (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	1103 Points
Samsung Galaxy Tab S 10.5	886 Points -20%
Apple iPad Air 2 2014	1967 Points +78%
Sony Xperia Z4 Tablet	1482 Points +34%
Google Nexus 9	1845 Points +67%

Smartbench 2012
Gaming Index (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	4489 points
Samsung Galaxy Tab S 10.5	3435 points -23%
Sony Xperia Z4 Tablet	4138 points -8%
Google Nexus 9	4435 points -1%
Productivity Index (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	12400 points
Samsung Galaxy Tab S 10.5	6946 points -44%
Sony Xperia Z4 Tablet	7118 points -43%
Google Nexus 9	3910 points -68%

PCMark for Android - Work performance score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	5565 Points
Sony Xperia Z4 Tablet	4441 Points -20%
Google Nexus 9	5841 Points +5%

3DMark
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	19867 Points
Samsung Galaxy Tab S 10.5	13908 Points -30%
Apple iPad Air 2 2014	21707 Points +9%
Sony Xperia Z4 Tablet	24566 Points +24%
Google Nexus 9	26455 Points +33%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	20482 Points
Samsung Galaxy Tab S 10.5	13791 Points -33%
Apple iPad Air 2 2014	31542 Points +54%
Sony Xperia Z4 Tablet	37312 Points +82%
Google Nexus 9	39070 Points +91%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	17981 Points
Samsung Galaxy Tab S 10.5	14333 Points -20%
Apple iPad Air 2 2014	10379 Points -42%
Sony Xperia Z4 Tablet	11189 Points -38%
Google Nexus 9	12420 Points -31%

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	29 fps
Samsung Galaxy Tab S 10.5	14 fps -52%
Apple iPad Air 2 2014	52.1 fps +80%
Sony Xperia Z4 Tablet	37 fps +28%
Google Nexus 9	43.4 fps +50%
1920x1080 T-Rex Offscreen (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	38 fps
Samsung Galaxy Tab S 10.5	22.8 fps -40%
Apple iPad Air 2 2014	70.4 fps +85%
Sony Xperia Z4 Tablet	54 fps +42%
Google Nexus 9	57.8 fps +52%

GFXBench 3.0
1920x1080 1080p Manhattan Offscreen (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	17 fps
Samsung Galaxy Tab S 10.5	5.5 fps -68%
Apple iPad Air 2 2014	37.6 fps +121%
Sony Xperia Z4 Tablet	26 fps +53%
Google Nexus 9	31 fps +82%
on screen Manhattan Onscreen OGL (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	12 fps
Samsung Galaxy Tab S 10.5	2.8 fps -77%
Apple iPad Air 2 2014	27 fps +125%
Sony Xperia Z4 Tablet	16 fps +33%
Google Nexus 9	22.5 fps +88%

Legend

Samsung Galaxy Tab S2 9.7 LTE Samsung Exynos 5433 Octa, ARM Mali-T760 MP6, 32 GB eMMC Flash

Samsung Galaxy Tab S 10.5 Samsung Exynos 5420 Octa, ARM Mali-T628 MP6, 16 GB eMMC Flash

Apple iPad Air 2 2014 Apple A8X, PowerVR GXA6850, 128 GB eMMC Flash

Sony Xperia Z4 Tablet Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Google Nexus 9 Nvidia Tegra K1 (Denver), NVIDIA Tegra K1 Kepler GPU, 32 GB eMMC Flash

Lenovo Yoga 2-1051F Intel Atom Z3745, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Octane V2 - Total Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	6885 Points
Samsung Galaxy Tab S 10.5	4588 Points
Apple iPad Air 2 2014	10512 Points
Sony Xperia Z4 Tablet	7790 Points
Google Nexus 9	8210 Points
Lenovo Yoga 2-1051F	3531 Points

Sunspider - 1.0 Total Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	1016 ms *
Samsung Galaxy Tab S 10.5	1112 ms *
Apple iPad Air 2 2014	291.1 ms *
Sony Xperia Z4 Tablet	553 ms *
Google Nexus 9	919 ms *
Lenovo Yoga 2-1051F	446 ms *

Mozilla Kraken 1.1 - Total (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	6483 ms *
Samsung Galaxy Tab S 10.5	7847 ms *
Apple iPad Air 2 2014	2396 ms *
Sony Xperia Z4 Tablet	4064 ms *
Google Nexus 9	4031 ms *

WebXPRT 2015 - Overall (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	79 Points
Apple iPad Air 2 2014	158 Points
Sony Xperia Z4 Tablet	93 Points

Google V8 Ver. 7 - Google V8 Ver. 7 Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	7197 Points
Samsung Galaxy Tab S 10.5	5335 Points
Apple iPad Air 2 2014	9355 Points
Sony Xperia Z4 Tablet	7177 Points
Google Nexus 9	10142 Points
Lenovo Yoga 2-1051F	3253 Points

JetStream 1.1 - Total Score (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	41.12 Points

* ... smaller is better

AndroBench 3-5 | BaseMark OS II

AndroBench 3-5
Random Write 4KB (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	9.82 MB/s
Samsung Galaxy Tab S 10.5	1.56 MB/s
Sony Xperia Z4 Tablet	13.6 MB/s
Google Nexus 9	14.49 MB/s
Random Read 4KB (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	25.56 MB/s
Samsung Galaxy Tab S 10.5	12.1 MB/s
Sony Xperia Z4 Tablet	20 MB/s
Google Nexus 9	36.22 MB/s
Sequential Write 256KB (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	49.37 MB/s
Samsung Galaxy Tab S 10.5	15.72 MB/s
Sony Xperia Z4 Tablet	81 MB/s
Google Nexus 9	75.5 MB/s
Sequential Read 256KB (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	248.2 MB/s
Samsung Galaxy Tab S 10.5	89.8 MB/s
Sony Xperia Z4 Tablet	256 MB/s
Google Nexus 9	279.2 MB/s

BaseMark OS II - Memory (sort by value)
Samsung Galaxy Tab S2 9.7 LTE	590 Points
Samsung Galaxy Tab S 10.5	468 Points
Apple iPad Air 2 2014	832 Points
Sony Xperia Z4 Tablet	954 Points
Google Nexus 9	1509 Points

Max. Load

Idle


40.8 °C	40.8 °C	33.1 °C
32.8 °C	32 °C	30.6 °C
31 °C	32 °C	30.4 °C

Maximum: 40.8 °C
Average: 33.7 °C


32.9 °C	35.3 °C	35.7 °C
29.4 °C	31.3 °C	31.2 °C
28.9 °C	29.4 °C	29.9 °C

Maximum: 35.7 °C
Average: 31.6 °C

Power Supply (max.) 39.2 °C | Room Temperature 23.2 °C | Voltcraft IR-260

(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 33.8 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(+) The bottom heats up to a maximum of 35.7 °C / 96 F, compared to the average of 33.3 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 30.2 °C / 86 F, compared to the device average of 30 °C / 86 F.

Power Consumption

Off / Standby	0 / 0.4 Watt
Idle	2.3 / 4.5 / 5 Watt
Load	9.4 / 10.4 Watt


Key: min: , med: , max: Voltcraft VC 870 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Samsung Galaxy Tab S2 9.7 LTE Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash	Samsung Galaxy Tab S 10.5 Mali-T628 MP6, 5420 Octa, 16 GB eMMC Flash	Apple iPad Air 2 2014 PowerVR GXA6850, A8X, 128 GB eMMC Flash	Google Nexus 9 GeForce ULP K1 (Tegra K1 Kepler GPU), K1 (Denver), 32 GB eMMC Flash	Lenovo Yoga 2-1051F HD Graphics (Bay Trail), Z3745, 32 GB eMMC Flash	Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Power Consumption
Idle Minimum *	2.3	2.1 9%	1.2 48%	2.6 -13%	1.3 43%	2.5 -9%
Idle Average *	4.5	3.4 24%	5.1 -13%	4.9 -9%	4.6 -2%	7 -56%
Idle Maximum *	5	3.9 22%	5.4 -8%	5.2 -4%	5 -0%	8.4 -68%
Load Average *	9.4	7.4 21%	7.9 16%	7.5 20%	9 4%	11.2 -19%
Load Maximum *	10.4	10.4 -0%	11.1 -7%	9.2 12%	11.2 -8%	12.4 -19%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		15h 18min
WiFi Websurfing (Chrome 45)		6h 33min
Big Buck Bunny H.264 1080p		10h 51min
Load (maximum brightness)		4h 51min

	Samsung Galaxy Tab S2 9.7 LTE Mali-T760 MP6, Exynos 5433, 32 GB eMMC Flash	Samsung Galaxy Tab S 10.5 Mali-T628 MP6, 5420 Octa, 16 GB eMMC Flash	Apple iPad Air 2 2014 PowerVR GXA6850, A8X, 128 GB eMMC Flash	Sony Xperia Z4 Tablet Adreno 430, 810 MSM8994, 32 GB eMMC Flash	Google Nexus 9 GeForce ULP K1 (Tegra K1 Kepler GPU), K1 (Denver), 32 GB eMMC Flash	Lenovo Yoga 2-1051F HD Graphics (Bay Trail), Z3745, 32 GB eMMC Flash	Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Battery Runtime
Reader / Idle	918	1094 19%	1364 49%	2135 133%	1422 55%	1420 55%	828 -10%
H.264	651	395 -39%	562 -14%	705 8%	597 -8%
WiFi v1.3	393			525 34%			437 11%
Load	291	333 14%	212 -27%	166 -43%	224 -23%	226 -22%	173 -41%
WiFi		600	630		574	923	425

Pros

+ 非常轻薄

+ 考究的工艺品质

+ microSD卡槽

+ ac无线网络和蓝牙4.1

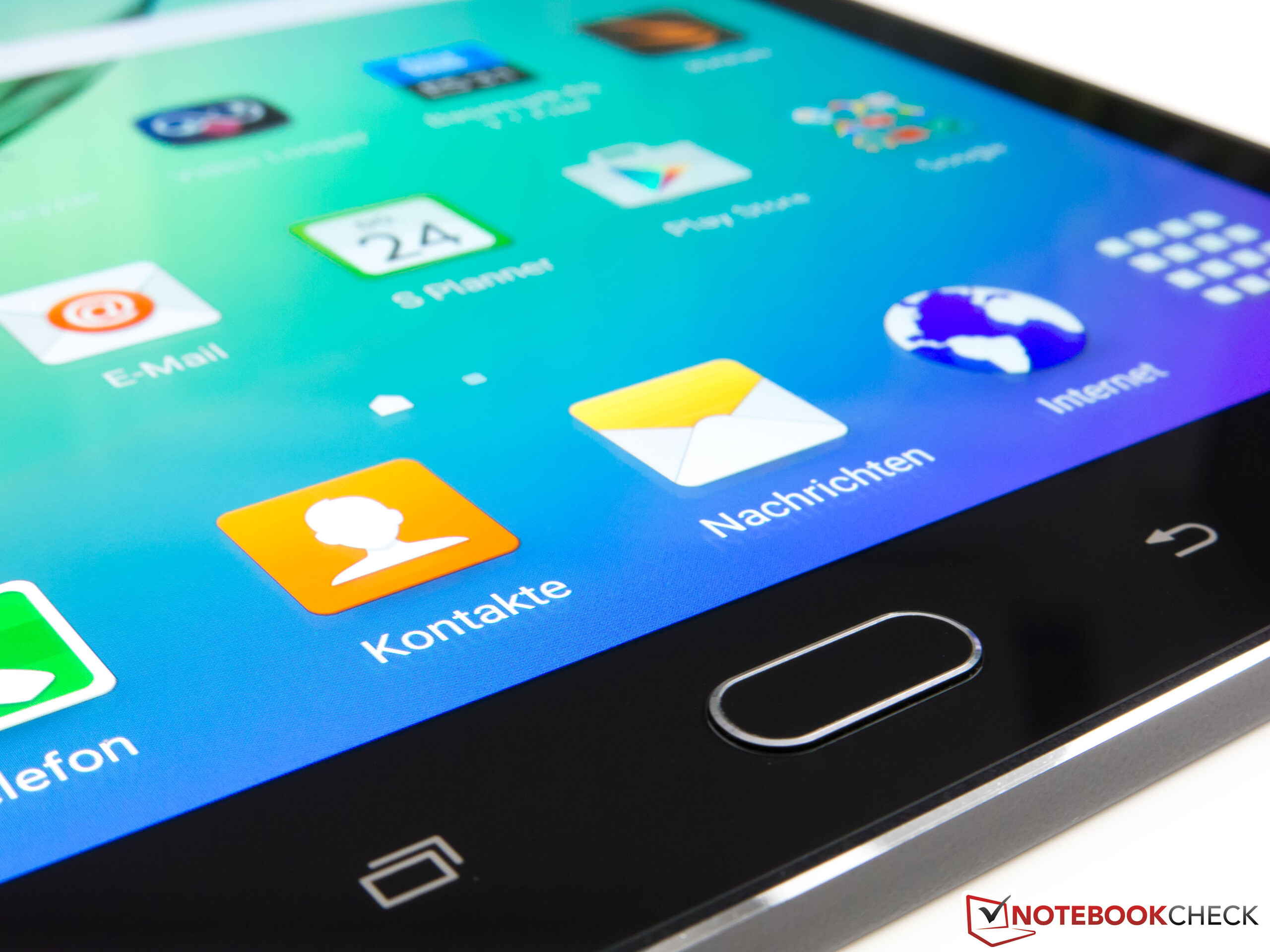

+ 指纹识别器

+ 准确的触控屏幕

+ 出色的屏幕，对比度和色彩上佳

+ QHD视频录制

+ 电话功能

+ 操作流畅

Cons

- 性能一般

- 过热降频

- 色彩在较窄可视角度有变化

- 仅支持micro-USB 2.0

- 不支持NFC

- 前代产品中的红外接口不复存在

In Review: Samsung Galaxy Tab S2 9.7. Review unit courtesy of Notebooksbilliger.

来自三星的心平板电脑设计内敛而考究，机身纤薄且搭配了最新的4:3 Super-AMOLED屏幕。它可以凭借出色的对比度，户外实用性，绚丽准确的色彩轻松击败前代产品。搭配无线ac标准，蓝牙4.1，LTE Cat.6以及指纹识别器的完整功能性也无所畏惧。遗憾的是它并不支持NFC。另外一个优势是它支持电话功能，你可以使用内置的免提通话或耳机。它的内部存储空间是32GB，不够的话还可以通过microSD卡拓展（最大支持128GB）。

这一次它仍然采用了800万像素的主相机，不过它现在可以拍摄图像非常锐利的QHD视频。不过它的照片拍摄质量相比前代产品变化不大，对平板来说十分不错，但很难与优秀的智能手机相媲美。遗憾的是这一代产品不再搭配前代中的LED闪光灯。

它的电池续航时间也有所缩短，根据情况的不同，我们测试机的表现最多只能算是平均水平。另外一个三星有问题的决定是在持续负载下降低处理器的频率。它的性能会受到40%的影响，这对于不高的机身温度来说并不正常。这款设备在这个方面让人无法满意。

三星的Galaxy Tab S2 9.7是一款外观优雅工艺精致的平板电脑，在实际使用中应该可以凭紧凑的机身，轻盈的重量和绚丽的屏幕吸引很多用户。不过，你需要接受它一半的电池续航和持续负载下的降频问题。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Samsung Galaxy Tab S2 9.7 LTE - 2016-04-13 04/13/2016 v5^(old)
Andreas Kilian

Chassis

86%

Keyboard

79 / 80 → 99%

Pointing Device

92%

Connectivity

44 / 65 → 68%

Weight

85 / 40-88 → 94%

Battery

90%

Display

89%

Games Performance

46 / 68 → 67%

Application Performance

50 / 76 → 66%

Temperature

82%

Noise

100%

Audio

63 / 91 → 69%

Camera

72 / 85 → 85%

Average

75%

88%

Tablet - Weighted Average

Read about the changes in the new rating version 5

Pricecompare

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1619 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 三星 Galaxy Tab S2 9.7 LTE 平板电脑简短评测

Andreas Kilian, 2015-10-21 (Update: 2015-10-22)
