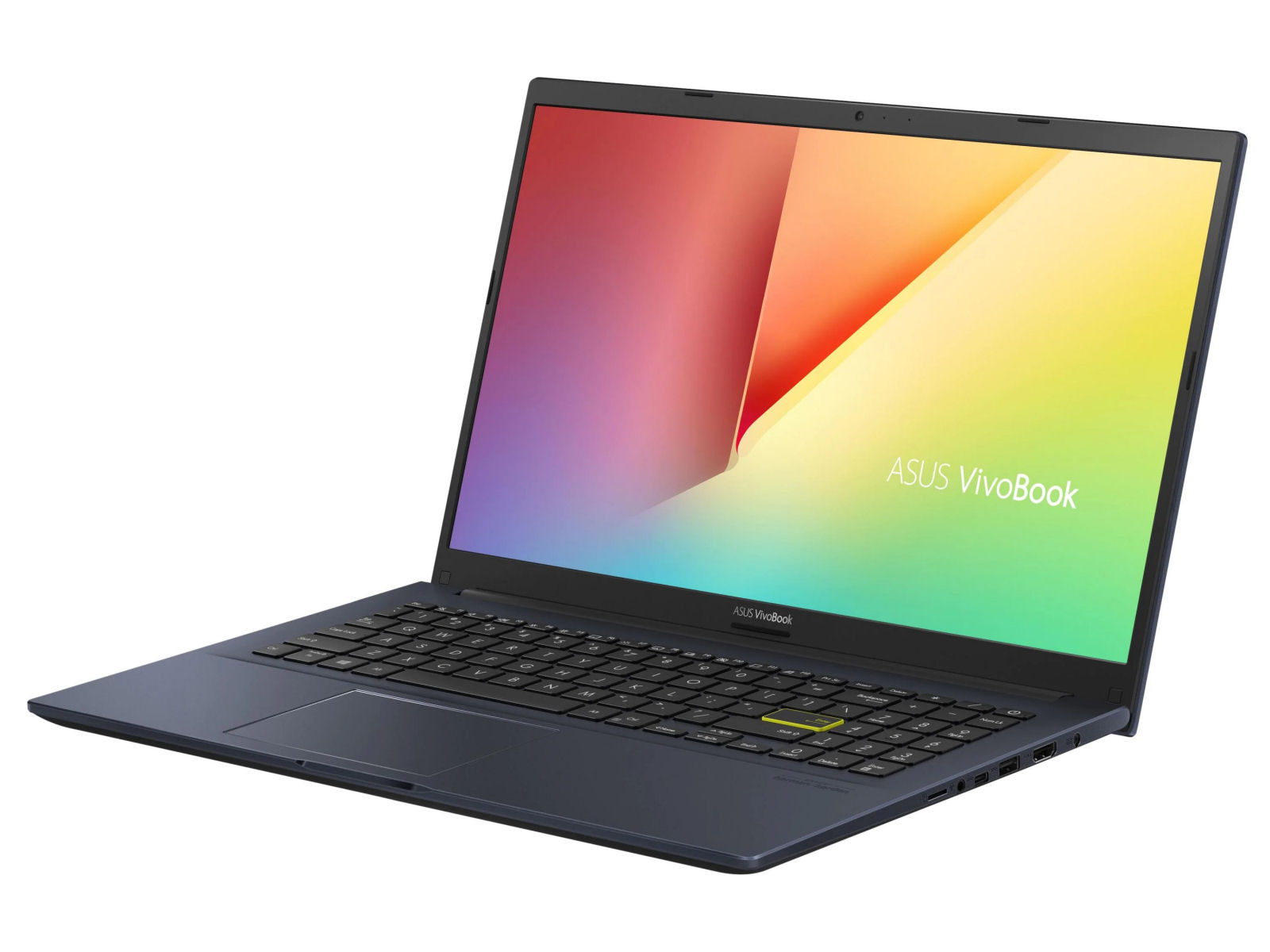

华硕VivoBook 15 OLED回顾。安静的办公笔记本，强大的屏幕

Name: Asus VivoBook 15 OLED M513UA-L1282W
Brand: Asus

忠实于它的颜色。 VivoBook凭借Ryzen 7 5700U APU、16GB内存（双通道模式）和OLED屏幕（FHD，15.6英寸）脱颖而出。后者提供了一个优秀的黑色水平和良好的色彩空间覆盖率（DCI-P3：100%）。这与平均的电池运行时间是相辅相成的。

Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), Published 04/30/2022 🇺🇸 🇩🇪 ...

AMD Laptop / Notebook Lucienne (Zen 2) Ryzen (Zen) Windows Zen

华硕的全能型办公笔记本凭借两个亮点脱颖而出。一个强大的Ryzen 7 5700U APU和一个真彩色OLED屏幕。我们已经从相同的姐妹机型VivoBook 15 K513（Core i7-1165G7，GeForce MX350）熟悉了这块屏幕。竞争设备包括联想IdeaPad 5 15ALC05、宏碁Aspire 5 A515-45和戴尔Inspiron 15 3511。

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Asus VivoBook 15 OLED M513UA-L1282W

Processor

AMD Ryzen 7 5700U 8 x 1.8 - 4.3 GHz, 36 W PL2 / Short Burst, 25 W PL1 / Sustained, Lucienne-U (Zen 2)

Graphics adapter

AMD Radeon RX Vega 8 (Ryzen 4000/5000) - 512 MB VRAM, Core: 1900 MHz, Memory: 1600 MHz, Dual-Channel, 30.0.15002.1004

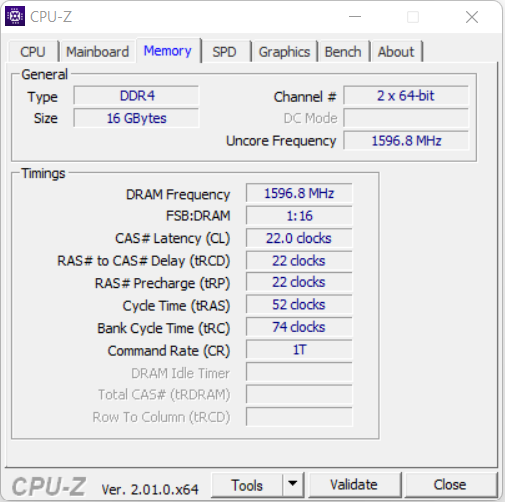

Memory

16 GB

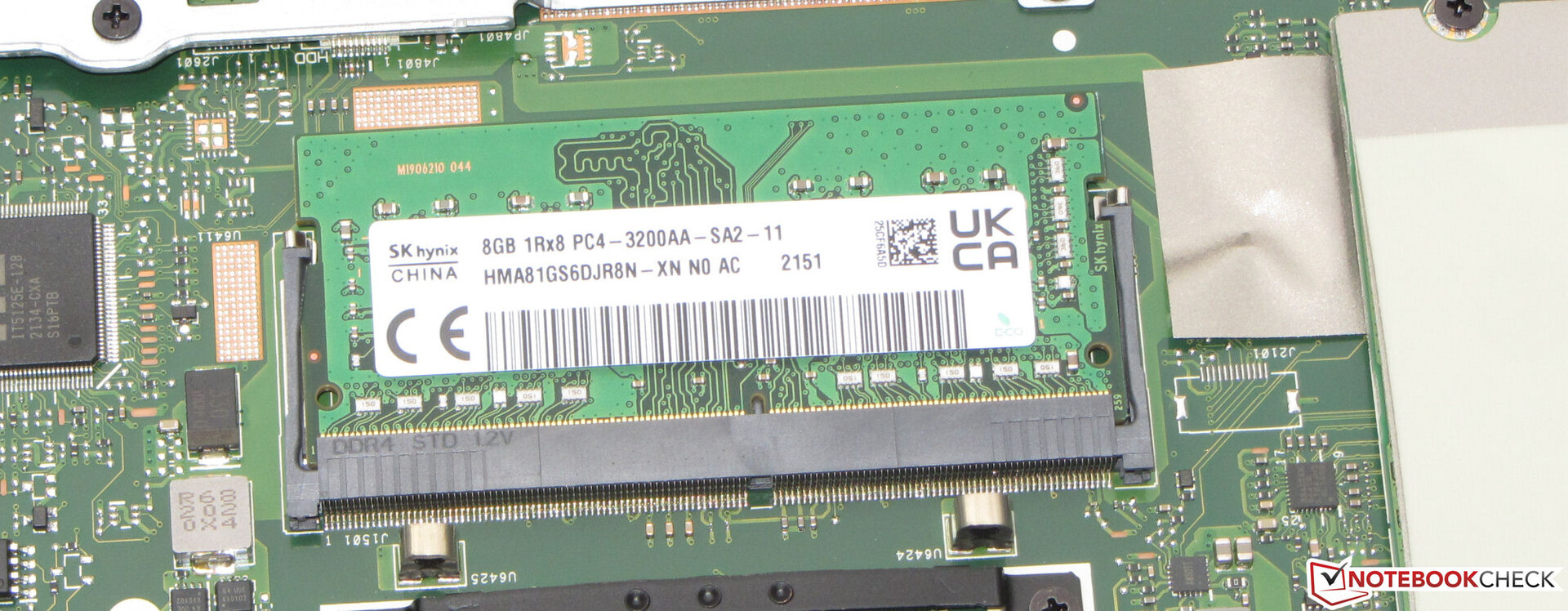

, DDR4-3200, Dual-Channel-Mode, one memory slot (in use), 8 GB onboard

Display

15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, Samsung ATNA56YX03-0, OLED, glossy: yes, 60 Hz

Mainboard

AMD Promontory/Bixby FCH

Storage

Intel SSD 670p SSDPEKNU512GZ, 512 GB

, 435 GB free

Soundcard

Realtek ALC897

Connections

2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: Headset combined port, Card Reader: MicroSD, TPM 2.0

Networking

MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5

Size

height x width x depth (in mm): 18.6 x 359.8 x 235.3

Battery

42 Wh, 3640 mAh Lithium-Ion

Operating System

Microsoft Windows 11 Home

Camera

Webcam: HD
Primary Camera: 0.9 MPix

Additional features

Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: no, Stickers, McAfee LiveSafe (Trial), Microsoft 365 (Trial), 24 Months Warranty

Weight

1.8 kg, Power Supply: 166 g

Price

799 Euro

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
80.7 %	04/2022	Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8	1.8 kg	18.6 mm	15.60"	1920x1080
81 %	02/2022	Acer Aspire 5 A515-45-R4R1 R7 5700U, Vega 8	1.7 kg	18 mm	15.60"	1920x1080
79.9 %	01/2022	Dell Inspiron 15 3000 3511 i5-1135G7, Iris Xe G7 80EUs	1.7 kg	18.99 mm	15.60"	1920x1080
83.5 %	08/2021	Lenovo IdeaPad 5 15ALC05 R5 5500U, Vega 7	1.7 kg	19.1 mm	15.60"	1920x1080

机箱和硬件 - 没有Thunderbolt的VivoBook

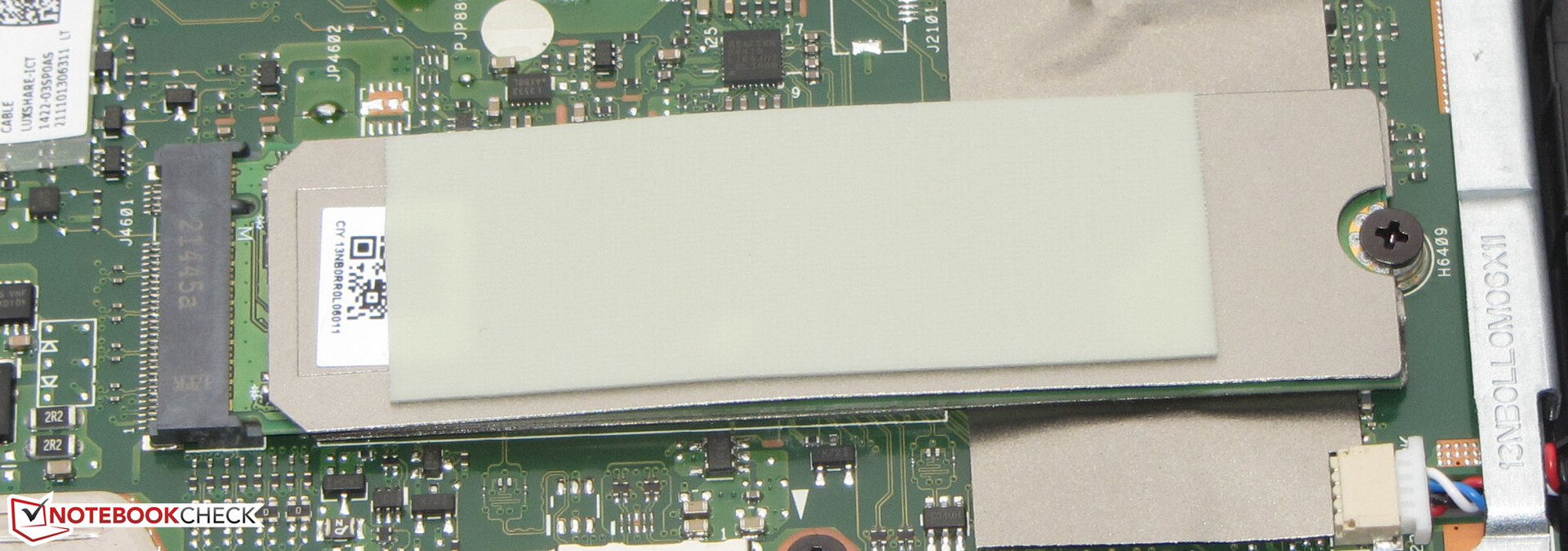

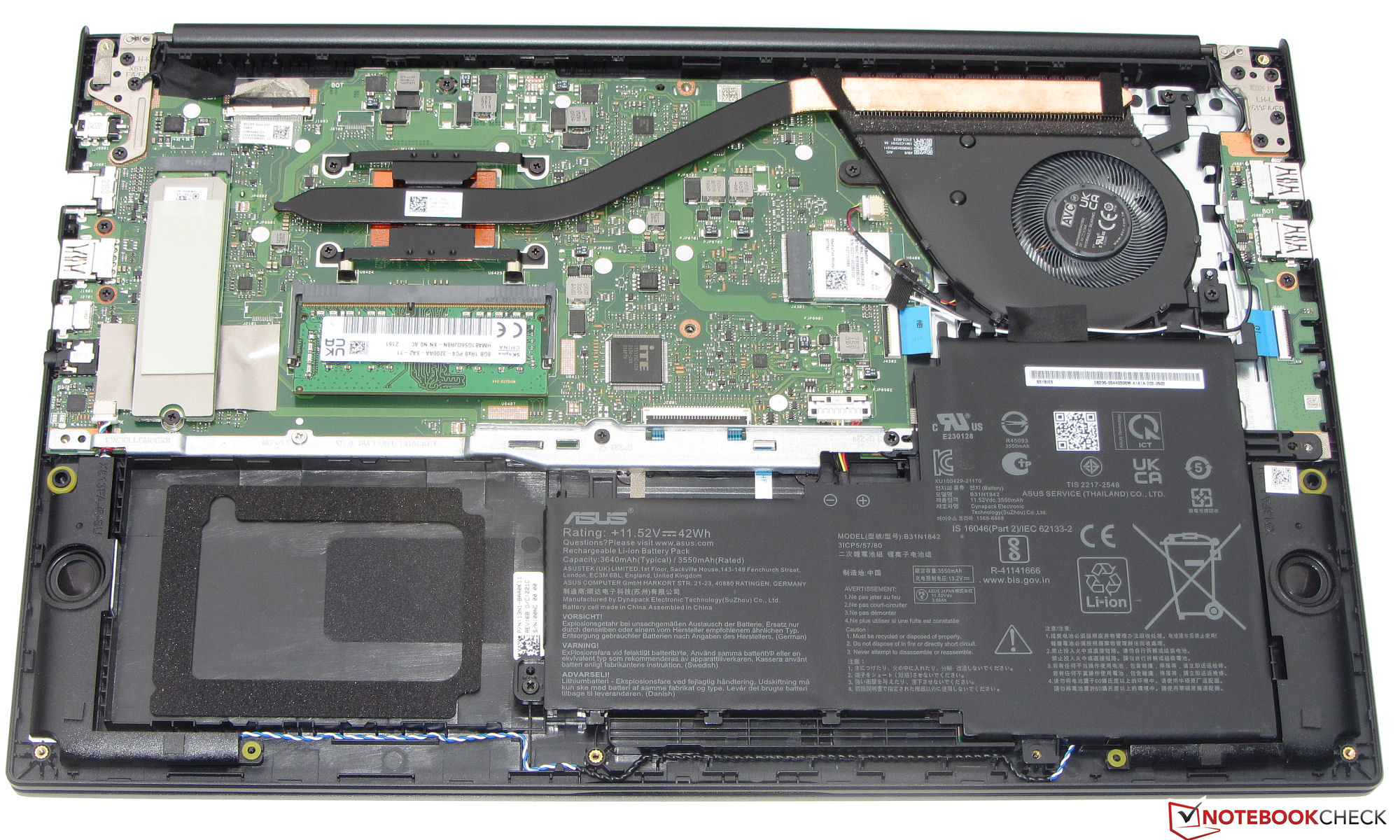

表面光滑的黑色哑光外壳由金属（盖子背面）和塑料（基本单元）制成。该设备没有任何制造方面的缺陷。底部装置和盖子在扭动下扭曲得有点厉害。拆除底壳后可以进入内部。电池不是用胶水粘的，而是用螺丝固定的。

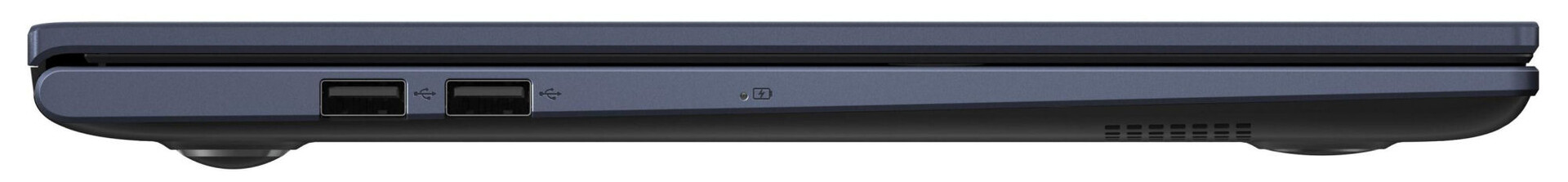

该电脑有三个USB-A端口（2个USB 2.0，1个USB 3.2 Gen 1）和一个USB-C端口（USB 3.2 Gen 1）。后者既不支持Power Delivery，也不支持通过USB-C的DisplayPort。这意味着，只有一个视频输出的HDMI端口可用。microSD存储卡读卡器（参考卡：128GB AV PRO V60）是同类产品中最慢的一个。

在最佳条件下确定的WLAN传输速率（附近没有其他WLAN设备，笔记本和服务器PC之间的距离很短）是可以接受的，但没有达到内置WiFi芯片（联发科MT7921；802.11 ax）的能力。

尺寸比较

Acer Aspire 5 A515-45-R4R1 Asus VivoBook 15 OLED M513UA-L1282W Dell Inspiron 15 3000 3511 Lenovo IdeaPad 5 15ALC05 DIN A4 ❌

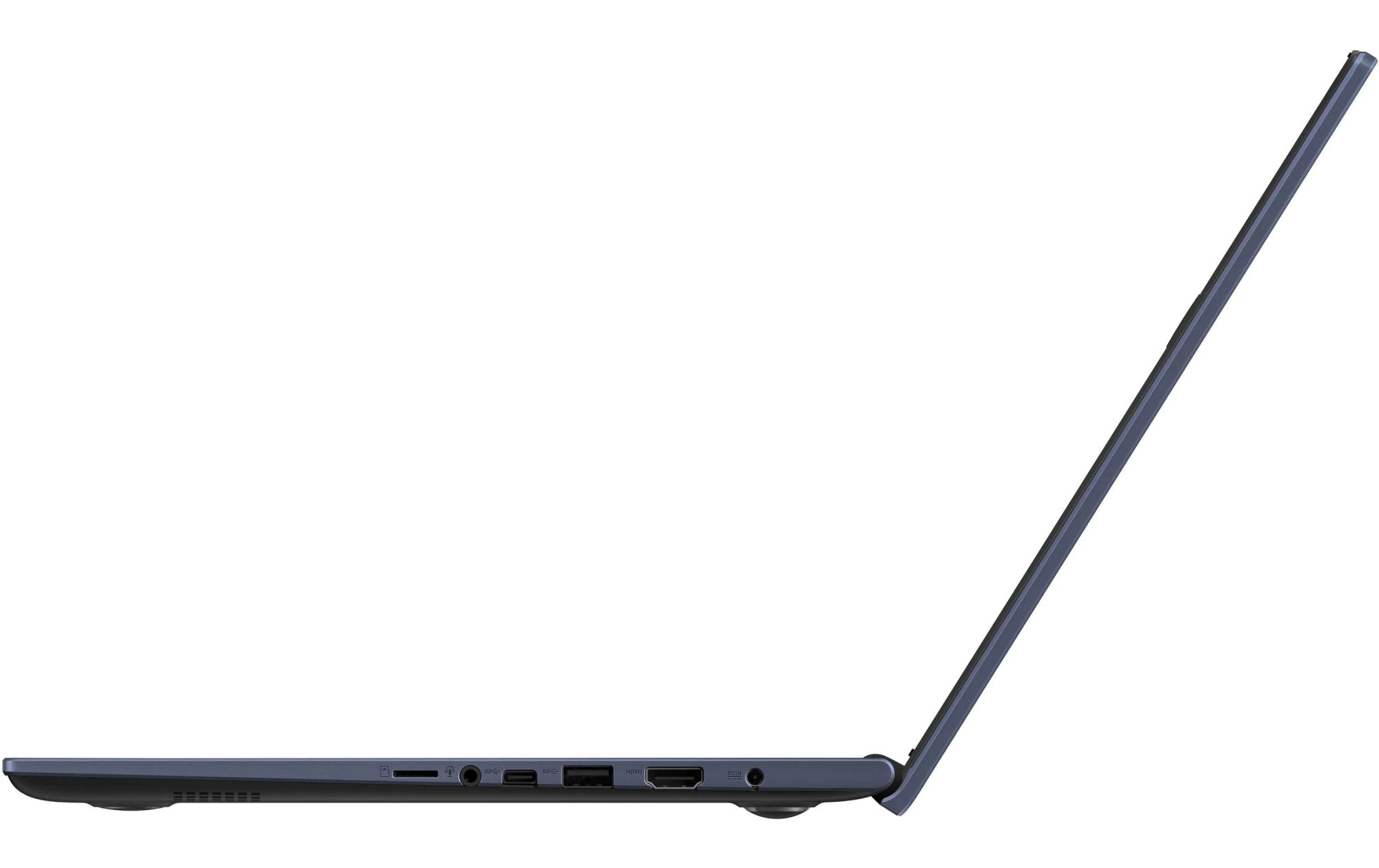

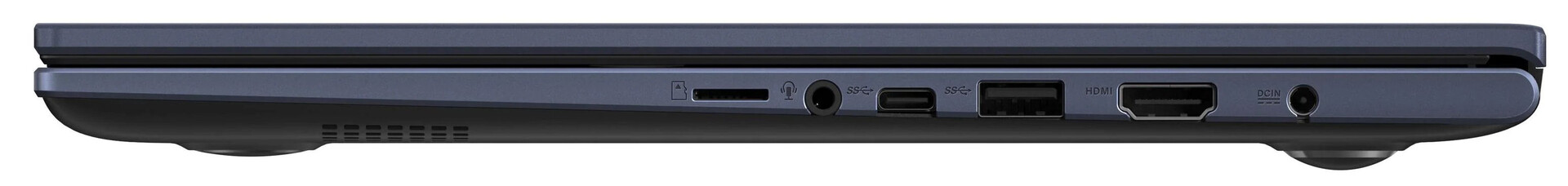

右侧。存储卡读卡器（MicroSD）、音频组合、USB 3.2 Gen 1（USB-C）、USB 3.2 Gen 1（USB-A）、HDMI、电源接口

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Office (8 - 82.7, n=49, last 2 years)	53 MB/s +37%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (AV Pro SD microSD 128 GB V60)	38.8 MB/s
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	28.2 MB/s -27%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7 (AV Pro V60)	19.4 MB/s -50%
maximum AS SSD Seq Read Test (1GB)
Average of class Office (25 - 90.5, n=43, last 2 years)	64.7 MB/s +77%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (AV Pro SD microSD 128 GB V60)	36.6 MB/s
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	36.5 MB/s 0%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7 (AV Pro V60)	27.4 MB/s -25%

Networking
iperf3 transmit AX12
Acer Aspire 5 A515-45-R4R1 Intel Wi-Fi 6 AX200	1278 (677^min - 1303^max) MBit/s +32%
Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921	967 (953^min - 976^max) MBit/s
Lenovo IdeaPad 5 15ALC05 RealTek Semiconductor RTL8852AE	890 (431^min - 988^max) MBit/s -8%
Average of class Office (819 - 842, n=2, last 2 years)	831 MBit/s -14%
Average MediaTek MT7921 (548 - 985, n=16)	797 MBit/s -18%
Dell Inspiron 15 3000 3511 Qualcomm Atheros QCA9377 Wireless Network Adapter	307 (226^min - 327^max) MBit/s -68%
iperf3 receive AX12
Acer Aspire 5 A515-45-R4R1 Intel Wi-Fi 6 AX200	1684 (1604^min - 1725^max) MBit/s +134%
Average of class Office (883 - 972, n=2, last 2 years)	928 MBit/s +29%
Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921	721 (561^min - 788^max) MBit/s
Average MediaTek MT7921 (90 - 972, n=16)	628 MBit/s -13%
Lenovo IdeaPad 5 15ALC05 RealTek Semiconductor RTL8852AE	621 (506^min - 708^max) MBit/s -14%
Dell Inspiron 15 3000 3511 Qualcomm Atheros QCA9377 Wireless Network Adapter	333 (310^min - 348^max) MBit/s -54%
iperf3 transmit AXE11000 6GHz
Average of class Office (685 - 1961, n=50, last 2 years)	1377 MBit/s +66%
Average MediaTek MT7921 (829 - 1116, n=5)	938 MBit/s +13%
Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921	829 (733^min - 892^max) MBit/s
iperf3 receive AXE11000 6GHz
Average of class Office (720 - 1782, n=51, last 2 years)	1496 MBit/s +146%
Average MediaTek MT7921 (609 - 1245, n=5)	894 MBit/s +47%
Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921	609 (521^min - 739^max) MBit/s

Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø829 (733-892)

Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø608 (521-739)

Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921; iperf3 receive AX12; iperf 3.1.3: Ø720 (561-788)

Acer Aspire 5 A515-45-R4R1 Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1684 (1604-1725)

Dell Inspiron 15 3000 3511 Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 receive AX12; iperf 3.1.3: Ø333 (310-348)

Lenovo IdeaPad 5 15ALC05 RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø621 (506-708)

Asus VivoBook 15 OLED M513UA-L1282W MediaTek MT7921; iperf3 transmit AX12; iperf 3.1.3: Ø968 (953-979)

Acer Aspire 5 A515-45-R4R1 Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1256 (677-1303)

Dell Inspiron 15 3000 3511 Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 transmit AX12; iperf 3.1.3: Ø307 (226-327)

Lenovo IdeaPad 5 15ALC05 RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø876 (431-988)

ColorChecker Asus VivoBook 15 OLED M513UA-L1282W: 17.26 ∆E min: 1.71 - max: 24.3 ∆E

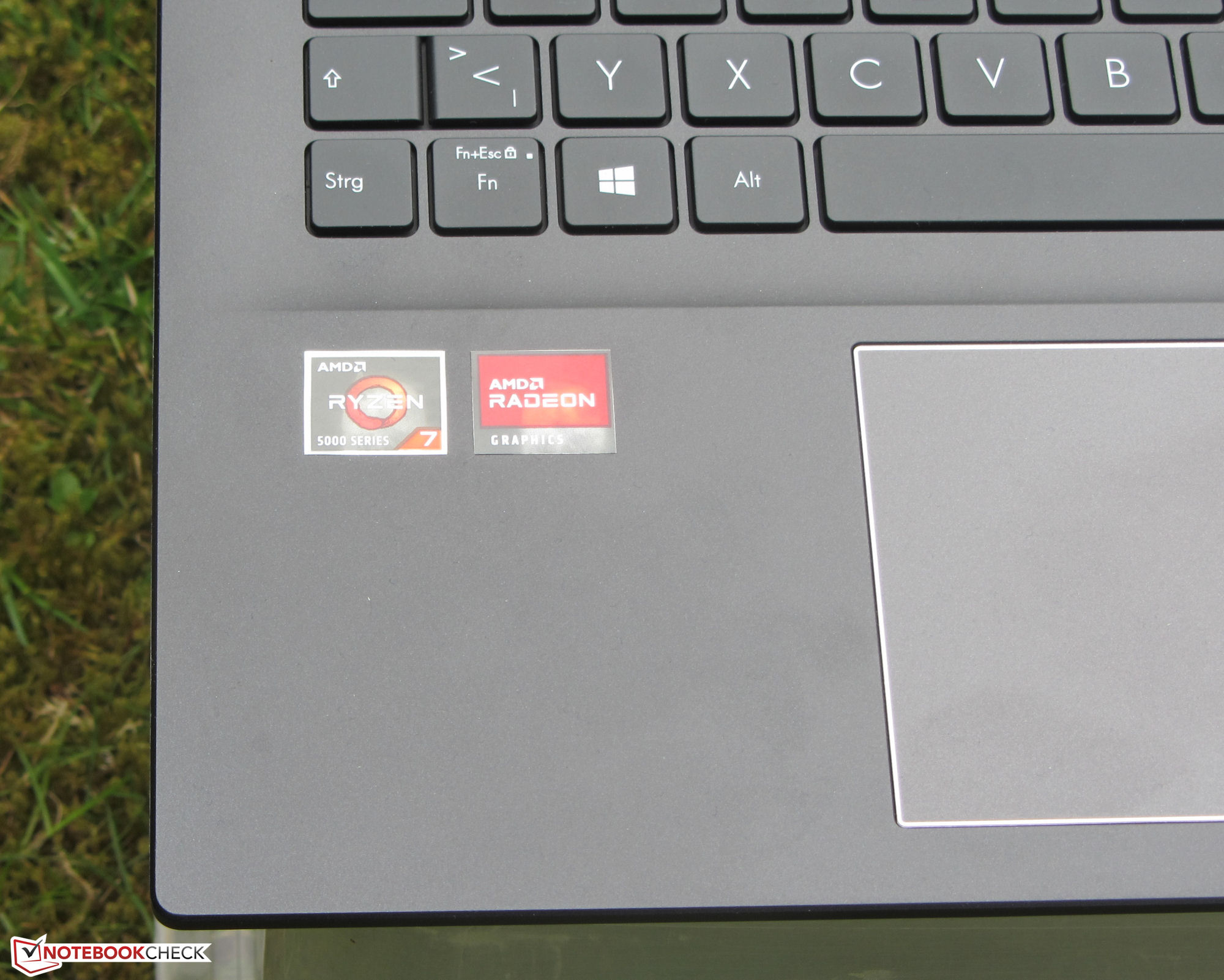

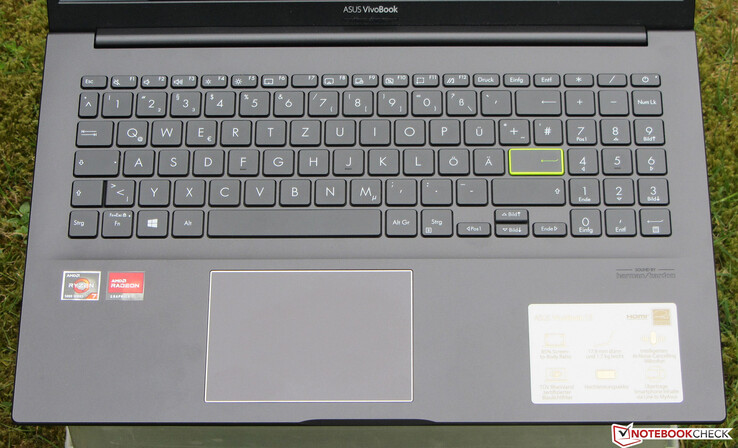

输入设备 - M513没有背光键盘

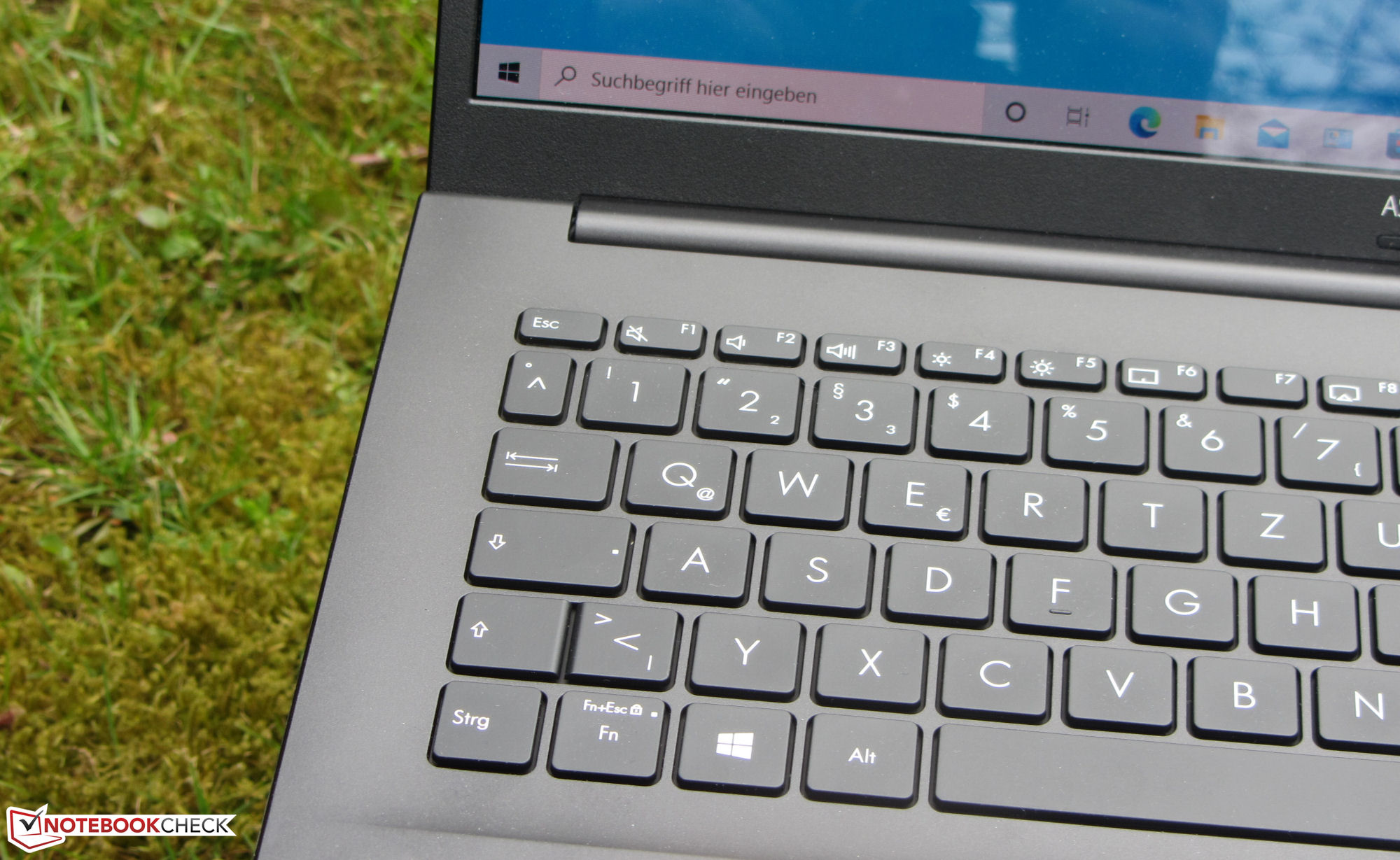

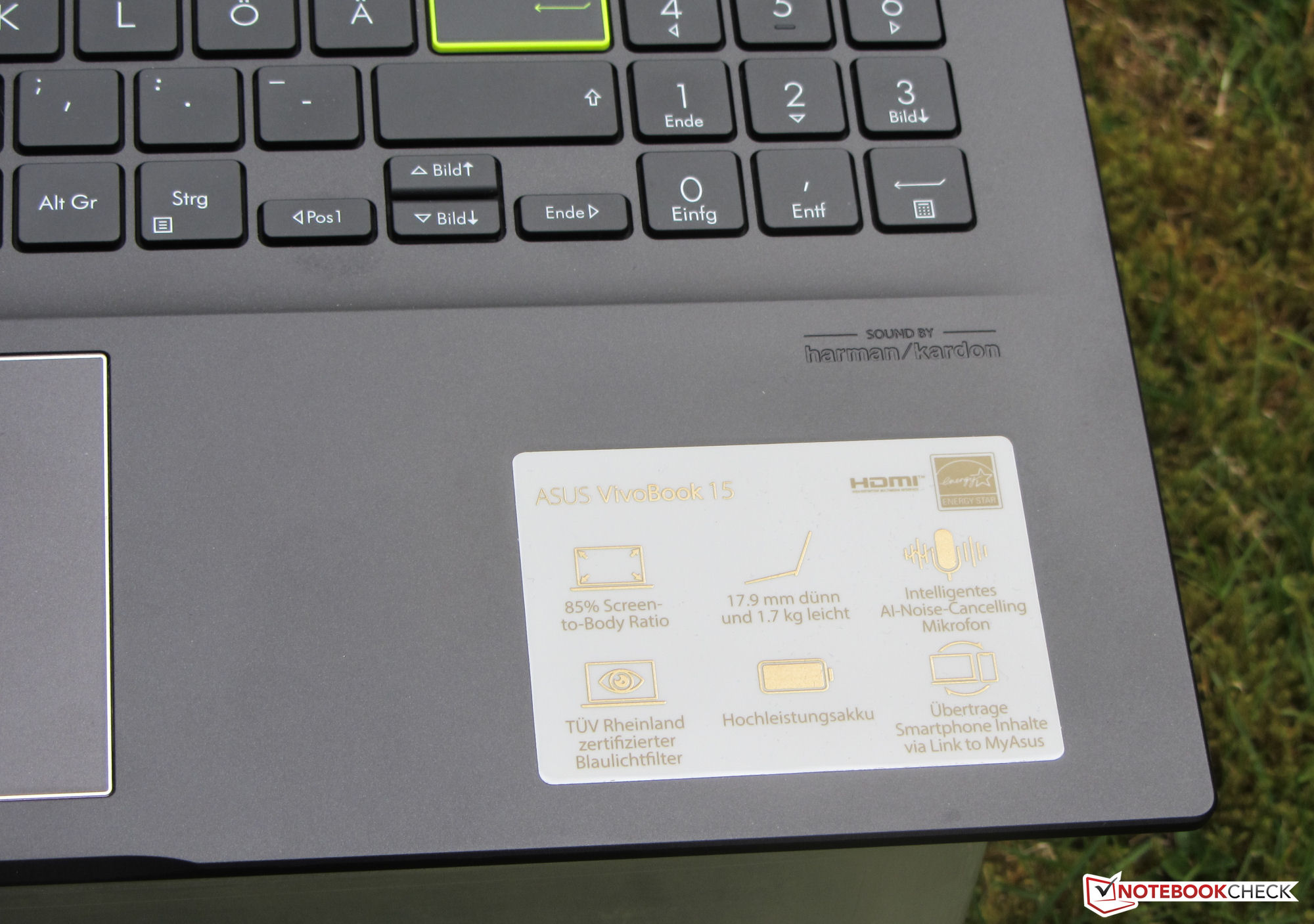

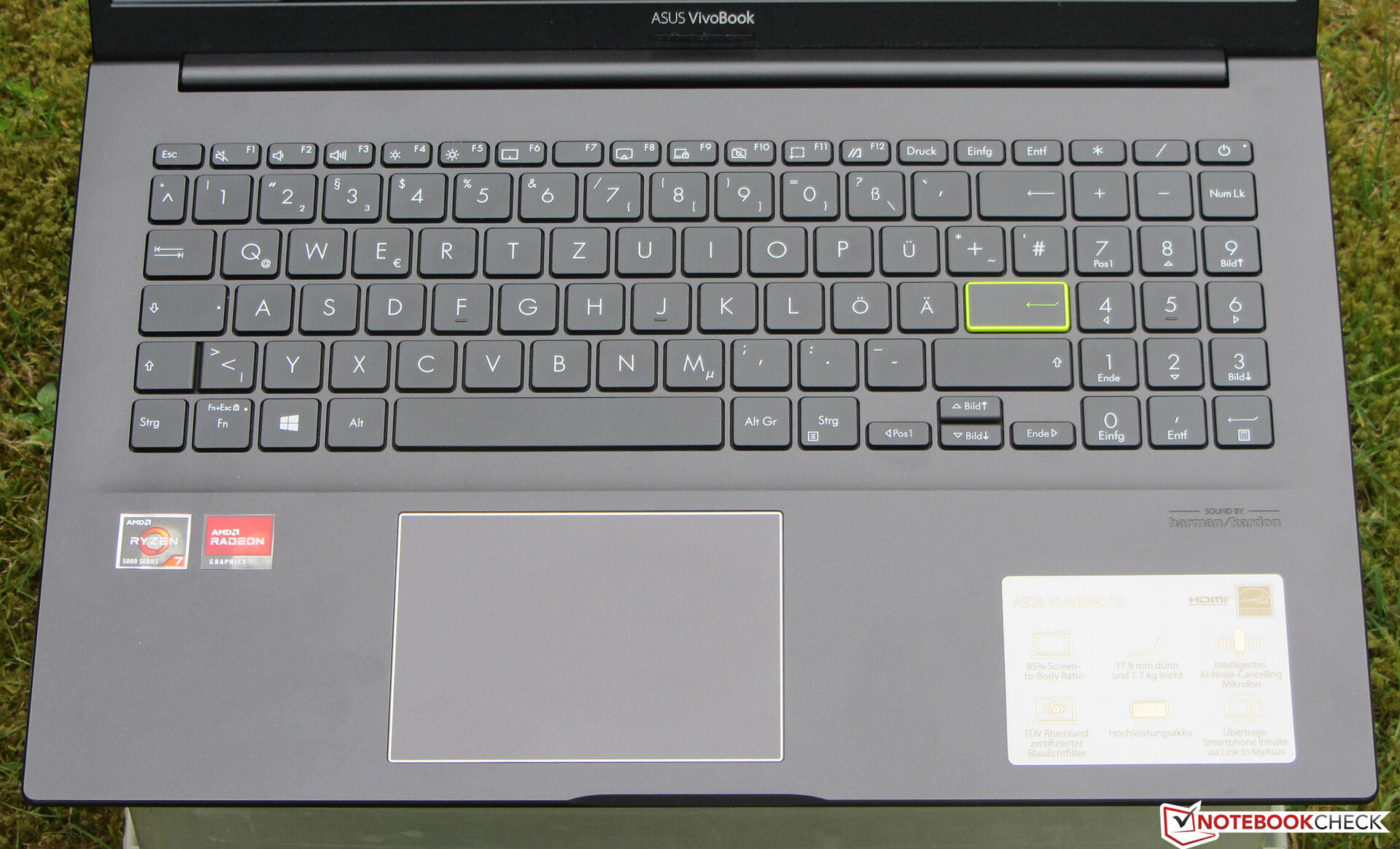

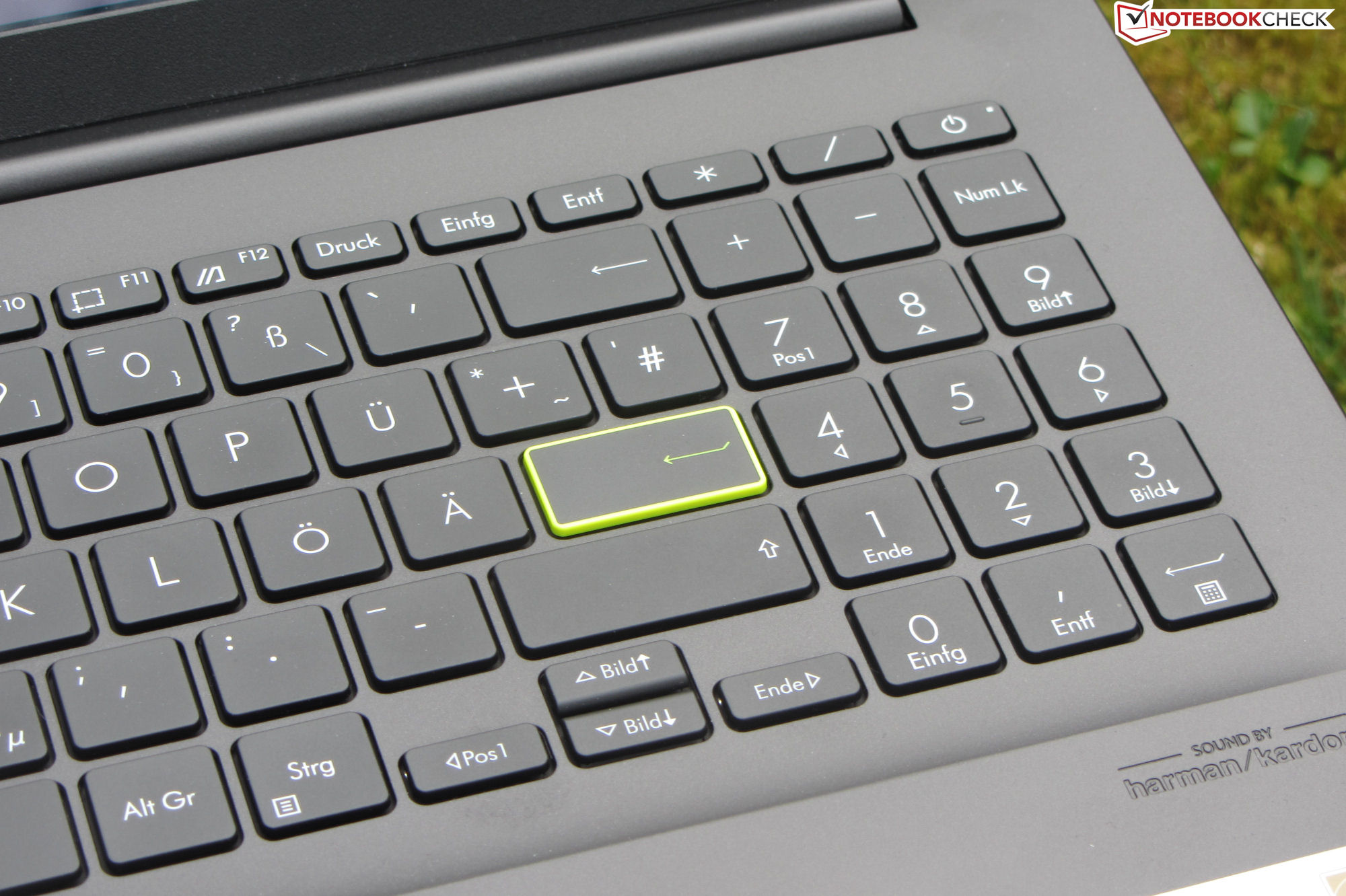

不发光的木制键盘的按键提供了一个短的下划线和一个清晰的压力点。键盘的阻力可以更坚实。键盘在打字时有轻微的晃动，这并没有被证明是过于恼人的。总体而言，华硕提供了一个适合日常使用的键盘。

多点触控板（约10.5 x 7.3厘米）的光滑表面允许手指轻松滑行，甚至对角落里的输入做出反应。触摸板的行程较短，压力点清晰。

显示屏 - 由于采用了OLED，黑度极佳

光面OLED屏幕（15.6英寸，1,920 x 1,080像素）具有出色的对比度（尤其是黑色水平）和较短的响应时间。亮度值（370.6 cd/m²）很好。无法检测到PWM闪烁。


378 cd/m²	373 cd/m²	375 cd/m²
374 cd/m²	366 cd/m²	371 cd/m²
371 cd/m²	361 cd/m²	366 cd/m²

Distribution of brightness

Samsung ATNA56YX03-0 tested with X-Rite i1Pro 2

Maximum: 378 cd/m² (Nits) Average: 370.6 cd/m² Minimum: 4.3 cd/m²
Brightness Distribution: 96 %
Center on Battery: 366 cd/m²
Contrast: 36600:1 (Black: 0.01 cd/m²)
ΔE Color 1.9 | 0.5-29.43 Ø5, calibrated: 2.3

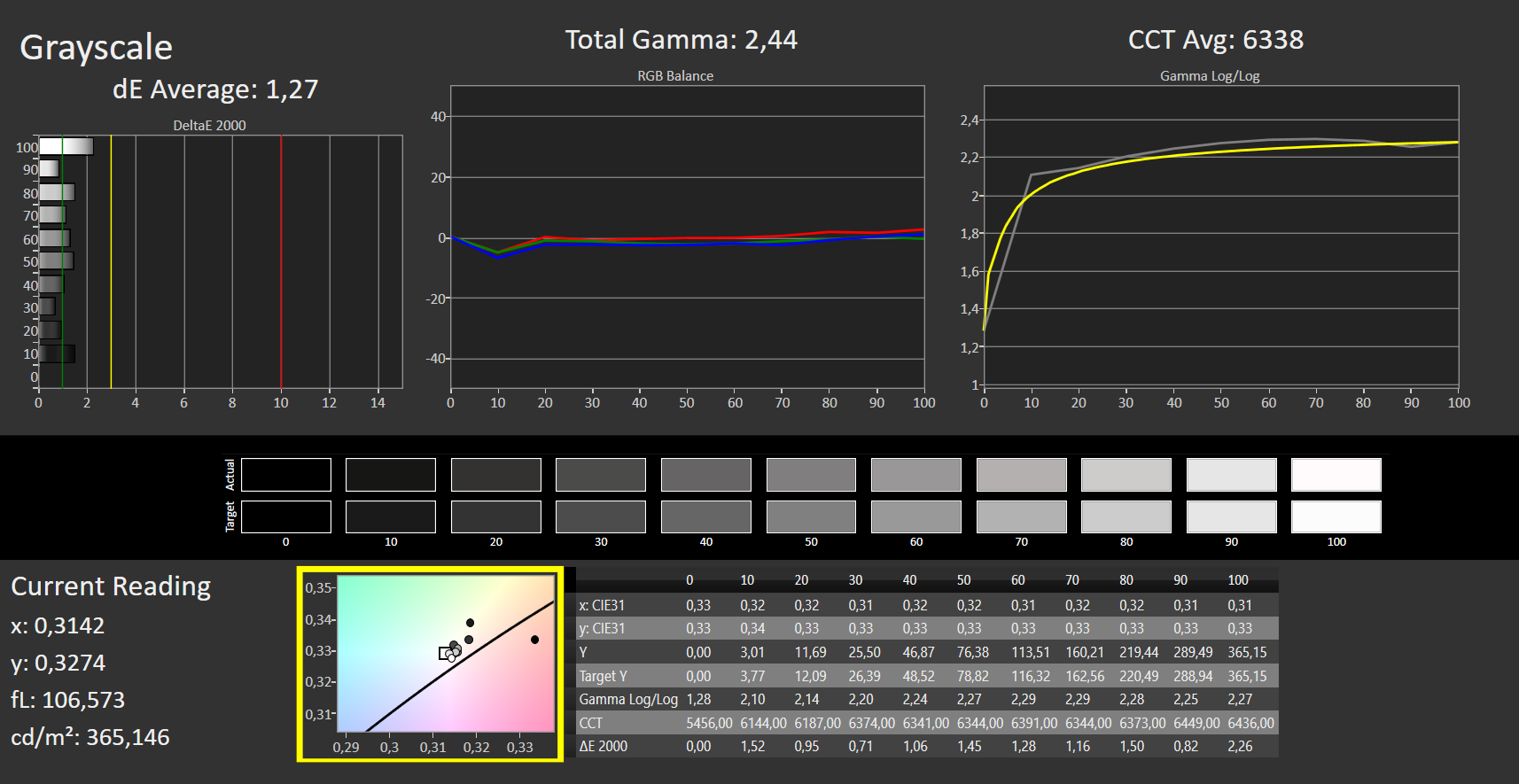

ΔE Greyscale 1.27 | 0.57-98 Ø5.3
97.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44

Download ICC File (X-Rite i1Pro 2)

	Asus VivoBook 15 OLED M513UA-L1282W Samsung ATNA56YX03-0, OLED, 1920x1080, 15.60	Acer Aspire 5 A515-45-R4R1 CEC PANDA LM156LF-CL13, IPS, 1920x1080, 15.60	Dell Inspiron 15 3000 3511 BOE NV15T06, IPS, 1920x1080, 15.60	Lenovo IdeaPad 5 15ALC05 Lenovo LEN156FHD, IPS, 1920x1080, 15.60
Display		-55%	-53%	-51%
Display P3 Coverage	99.9	38.09 -62%	40.1 -60%
sRGB Coverage	100	57.3 -43%	58.8 -41%	59 -41%
AdobeRGB 1998 Coverage	97.6	39.35 -60%	41.5 -57%	38 -61%
Response Times		-1525%	-1290%	-1075%
Response Time Grey 50% / Grey 80% *	2 ?(1, 1)	38 ?(18, 20) -1800%	31.6 ?(17.2, 14.4) -1480%	29 ?(13, 16) -1350%
Response Time Black / White *	2 ?(1, 1)	27 ?(14, 13) -1250%	24 ?(14, 10) -1100%	18 ?(9, 9) -800%
PWM Frequency
Screen		-185%	-344%	-938%
Brightness middle	366	229 -37%	239.9 -34%	376 3%
Brightness	371	224 -40%	230 -38%	341 -8%
Brightness Distribution	96	73 -24%	87 -9%	78 -19%
Black Level *	0.01	0.12 -1100%	0.21 -2000%	0.66 -6500%
Contrast	36600	1908 -95%	1142 -97%	570 -98%
Colorchecker dE 2000 *	1.9	3.76 -98%	6.34 -234%	6.4 -237%
Colorchecker dE 2000 max. *	4.26	5.97 -40%	21.03 -394%	20.45 -380%
Colorchecker dE 2000 calibrated *	2.3	4.44 -93%	2.08 10%
Greyscale dE 2000 *	1.27	3.01 -137%	5.1 -302%	4.59 -261%
Gamma	2.44 ^90%	2.41 ^91%	2.41 ^91%	2.26 ^97%
CCT	6338 ^103%	6484 ^100%	6169 ^105%	6819 ^95%
Color Space (Percent of AdobeRGB 1998)				38
Color Space (Percent of sRGB)				59
Total Average (Program / Settings)		-588% / -349%	-562% / -417%	-688% / -813%

* ... smaller is better

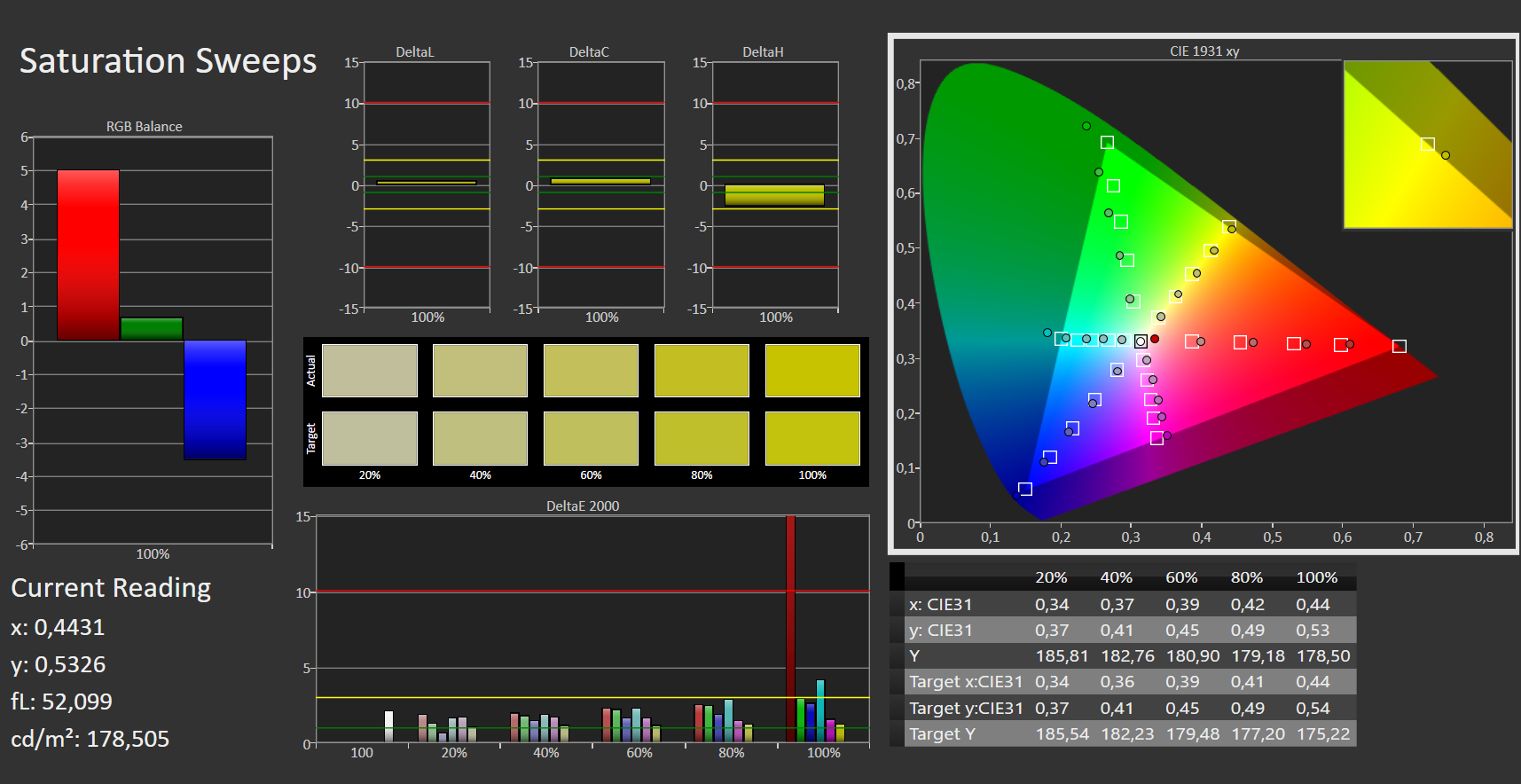

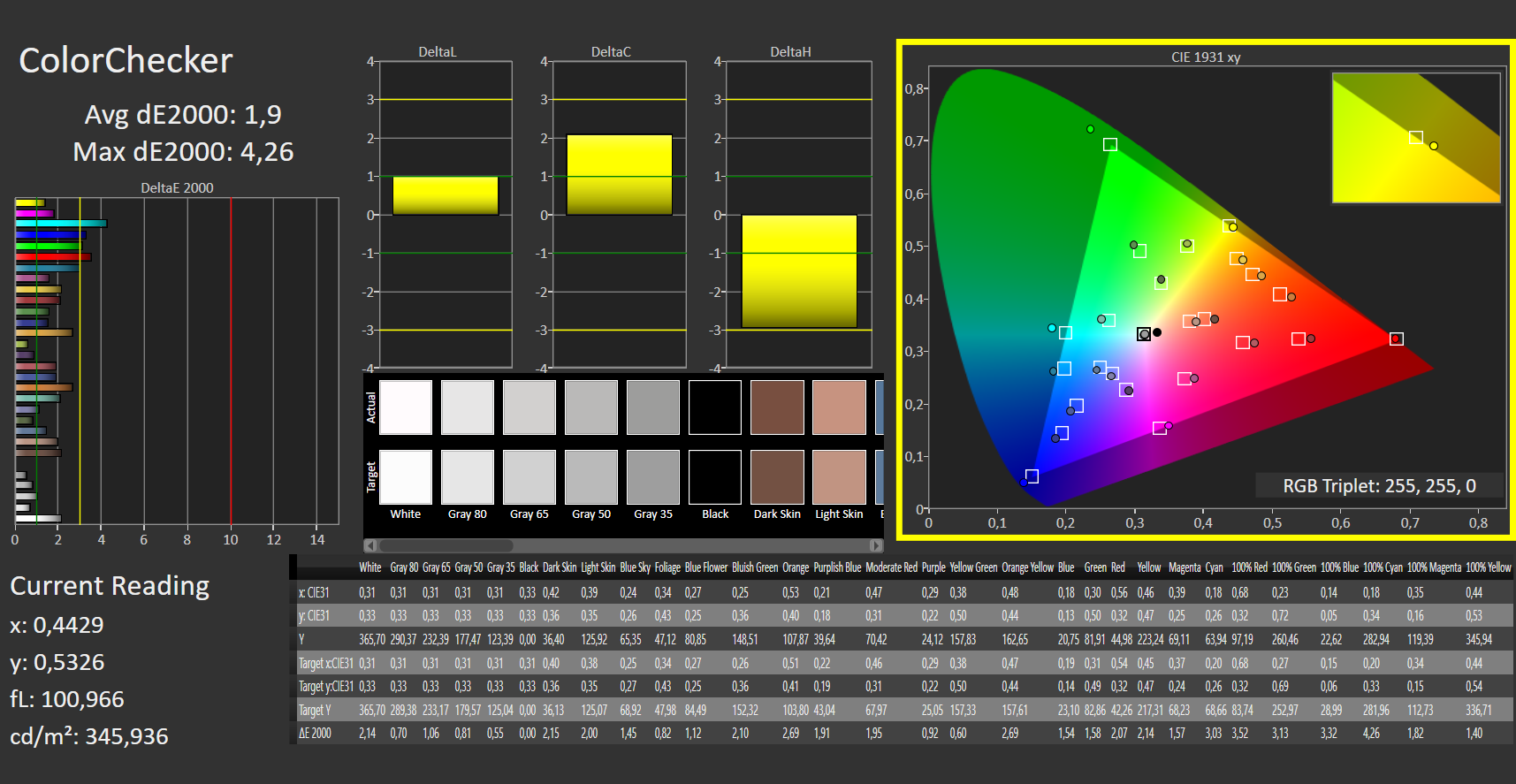

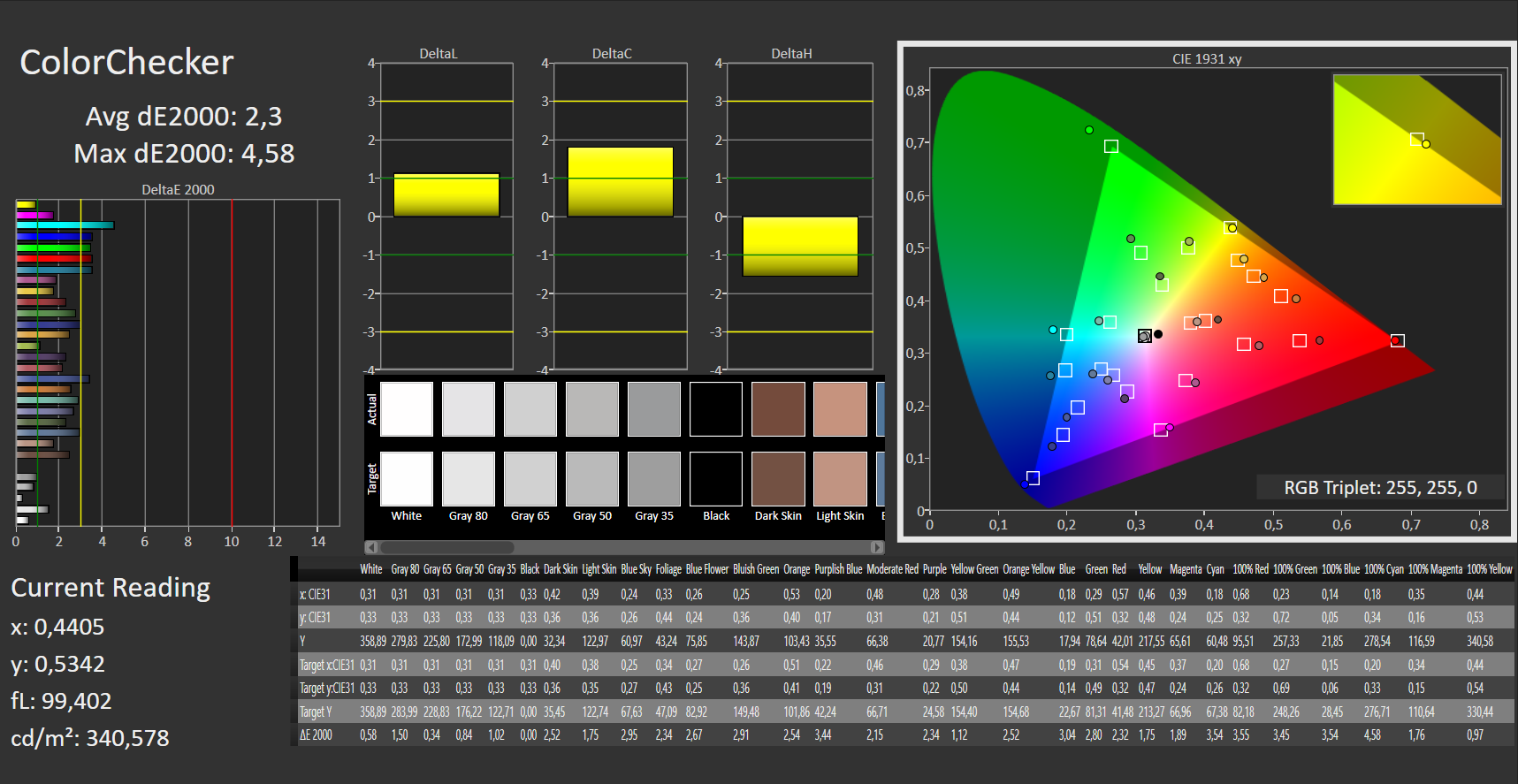

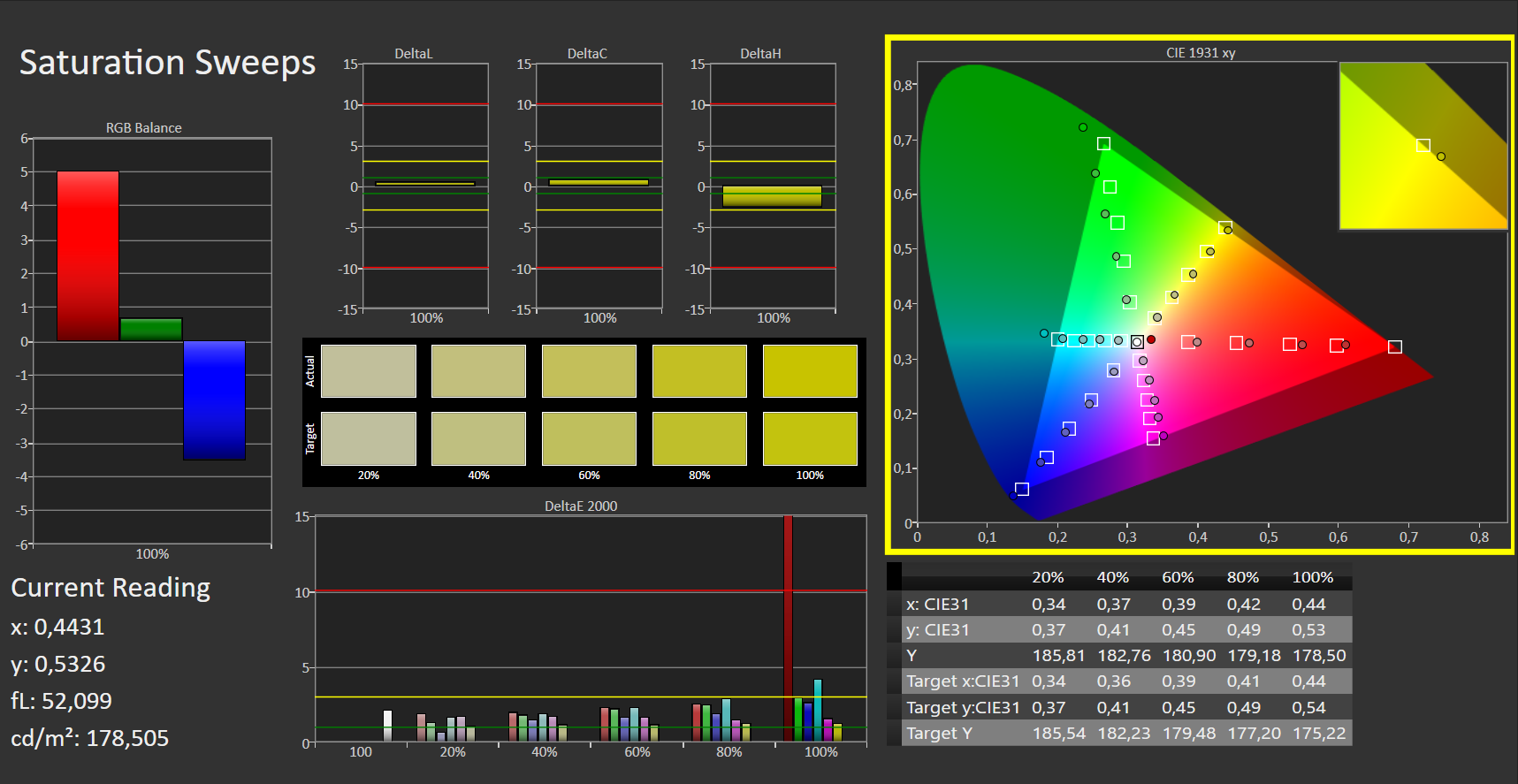

交付时，屏幕提供了非常好的色彩表现 - 色彩偏差在目标范围内。校准并没有带来任何改进。显示器没有出现蓝色的色调。色彩空间的覆盖率是令人满意的。sRGB和DCI-P3色彩空间的再现率是100%，而Adobe RGB色彩空间的再现率至少是98%。

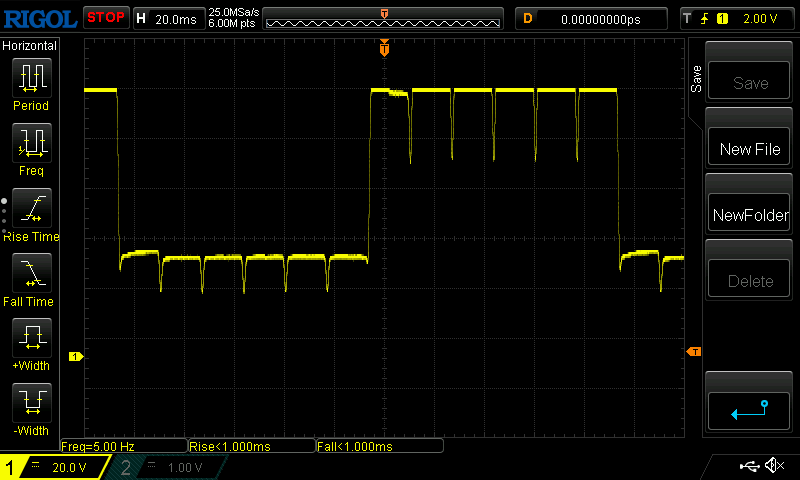

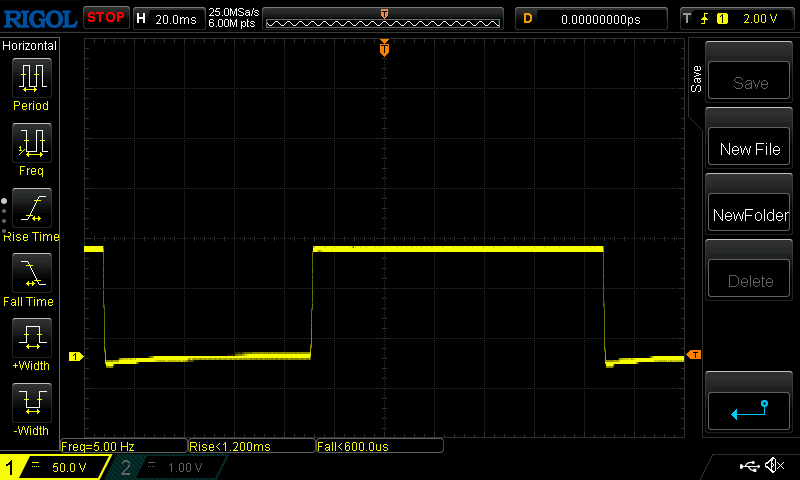

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

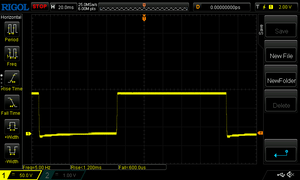

↔ Response Time Black to White
2 ms ... rise ↗ and fall ↘ combined	↗ 1 ms rise
2 ms ... rise ↗ and fall ↘ combined	↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 6 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms).

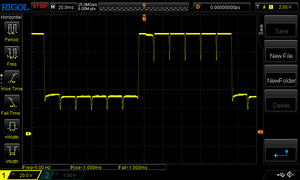

↔ Response Time 50% Grey to 80% Grey
2 ms ... rise ↗ and fall ↘ combined	↗ 1 ms rise
2 ms ... rise ↗ and fall ↘ combined	↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 5 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms).

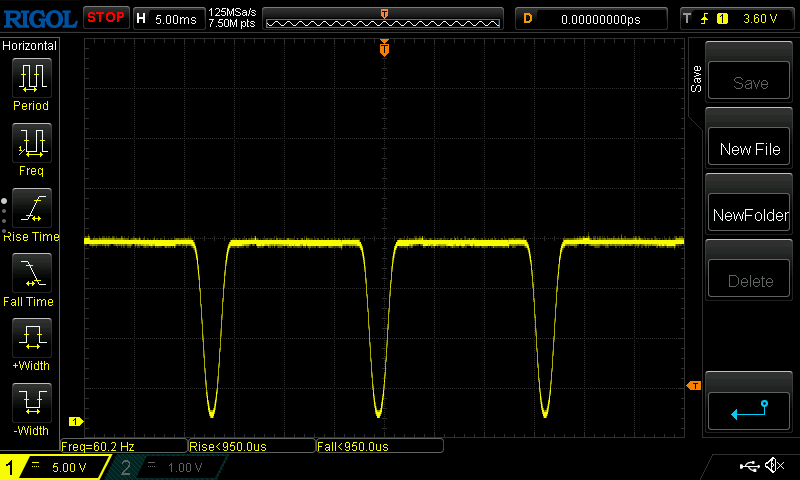

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17915 (minimum: 5 - maximum: 3846000) Hz was measured.

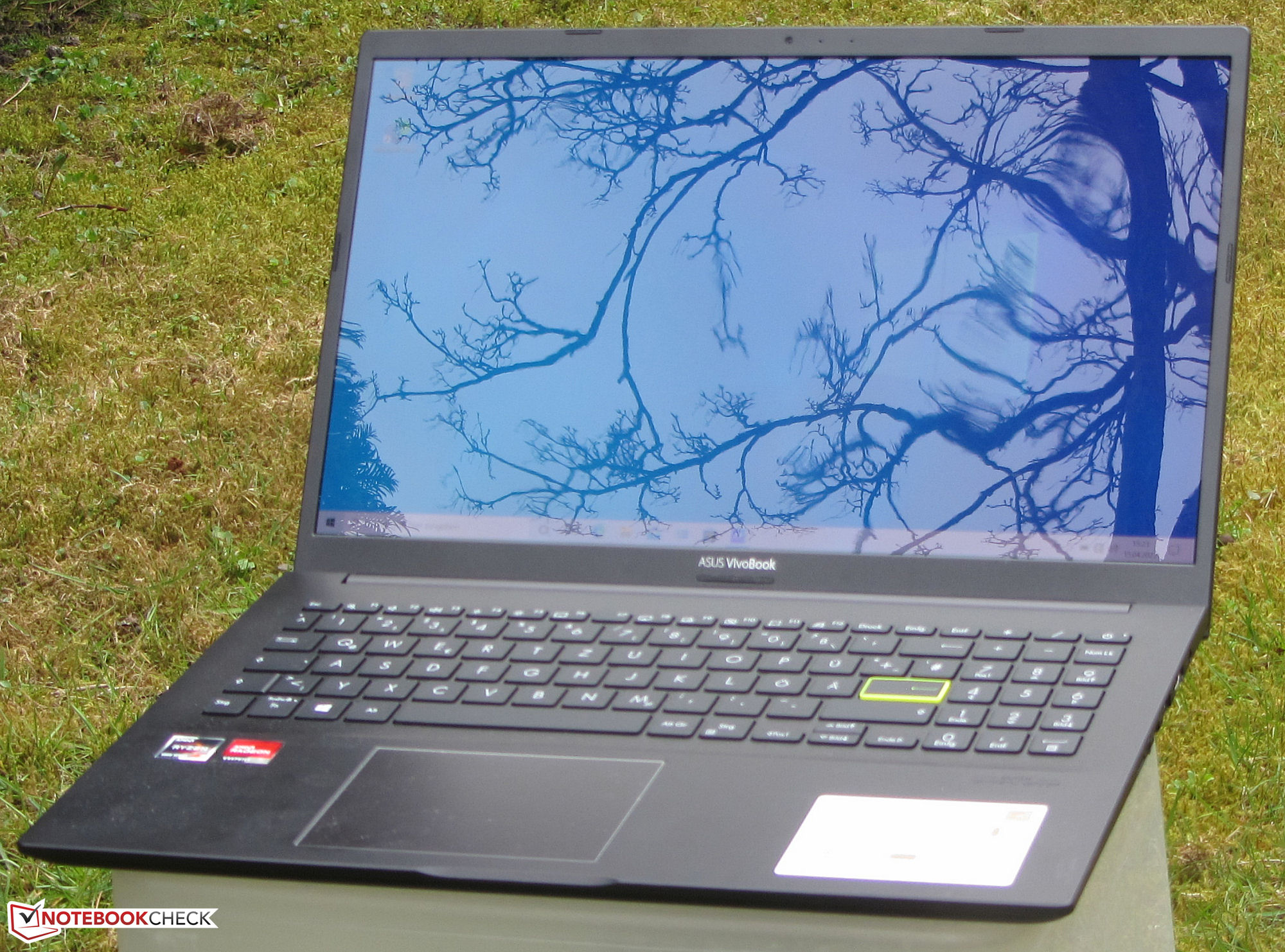

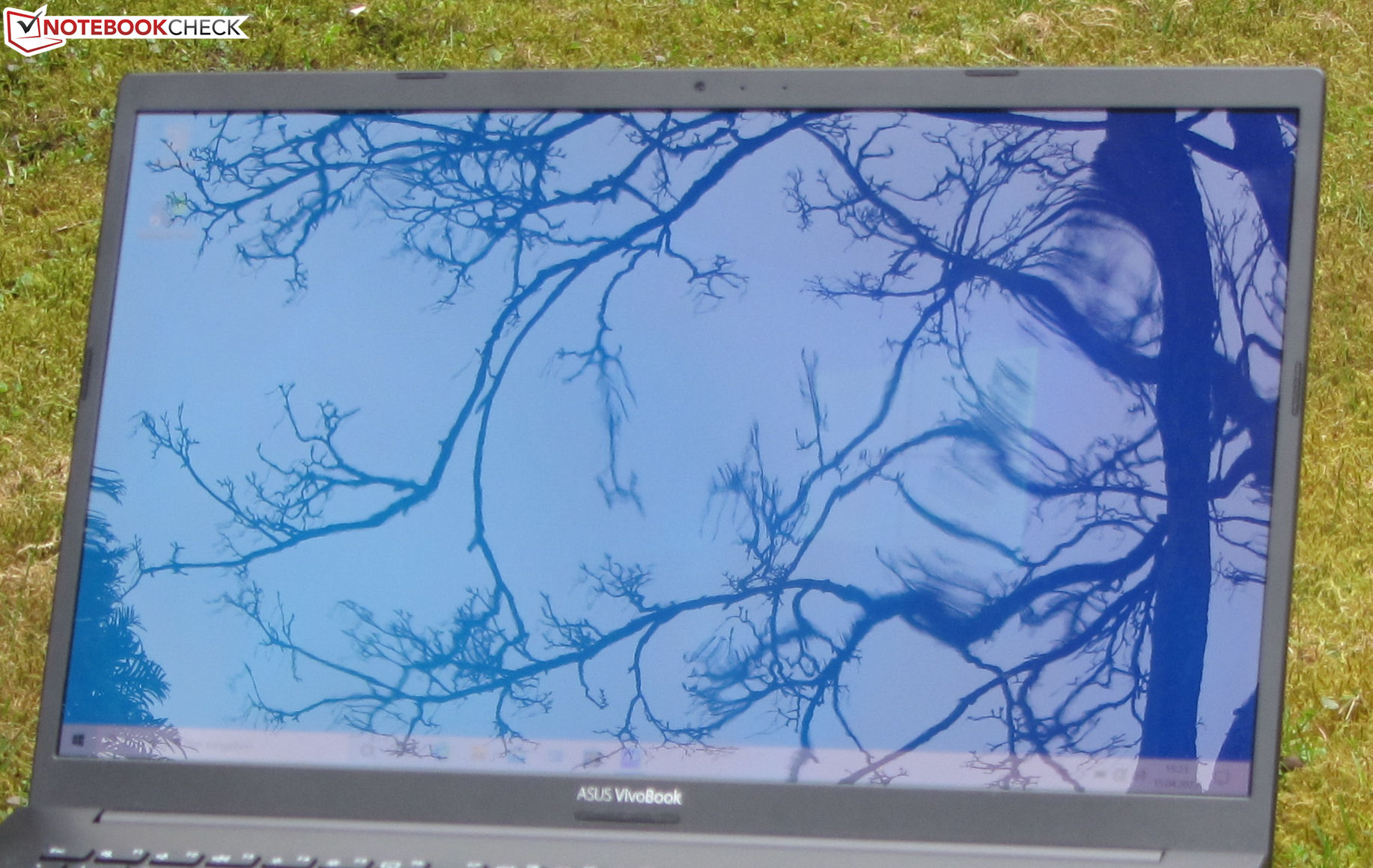

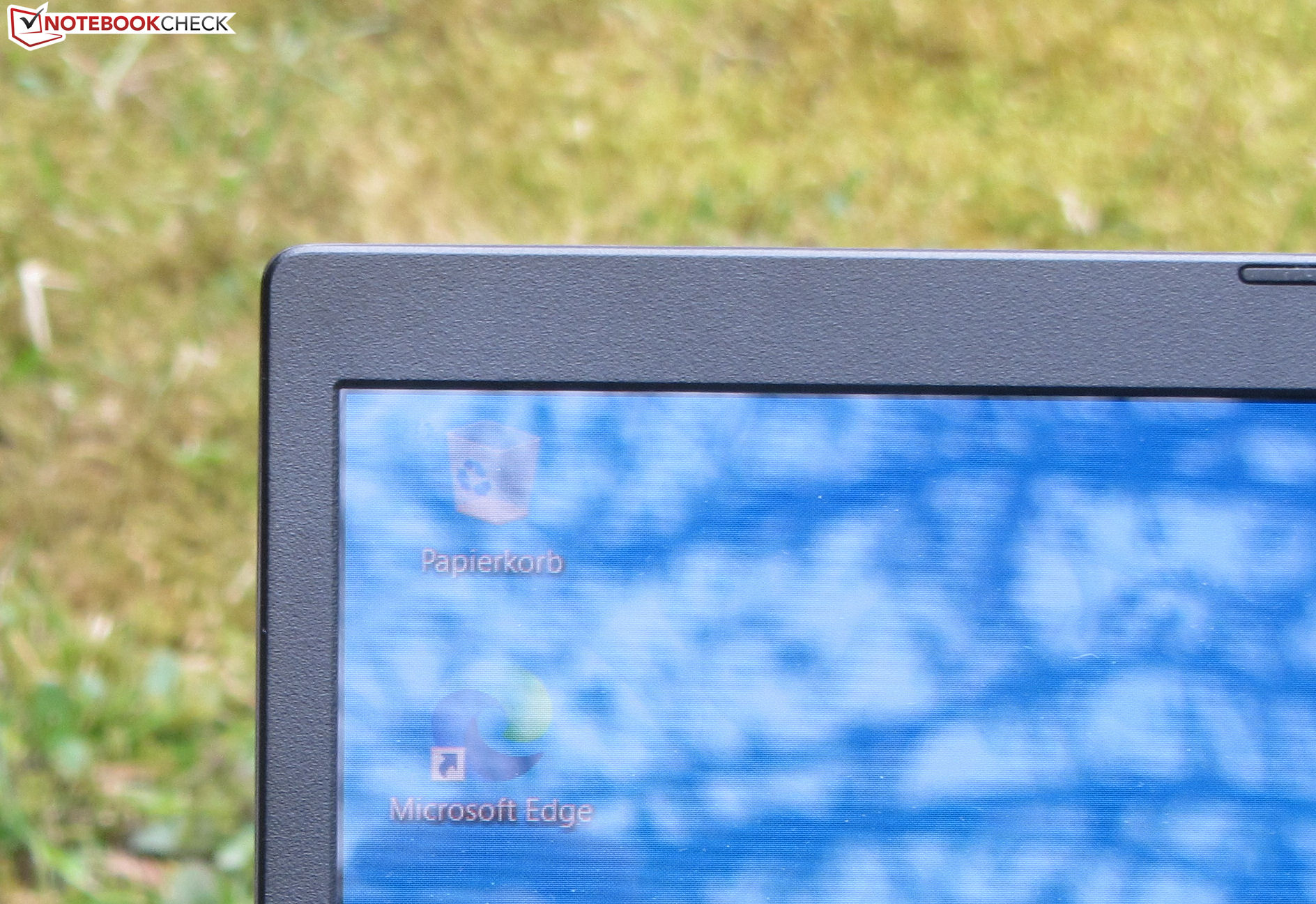

视角稳定的面板可以从任何位置阅读。由于反射（光亮）的显示表面，户外阅读很难或不可能。

性能--Ryzen带来了巨大的冲击

通过VivoBook 15 M513UA，华硕在其系列中拥有了一款办公笔记本，为办公和互联网应用以及简单的电脑游戏提供足够的性能。

测试条件

笔记本有三个制造商特定的性能配置文件（"性能模式"、"平衡模式"、"安静模式"），用户可以使用组合键 "Fn "+"F "在它们之间交替使用。这次审查是在默认的 "平衡 "模式下进行的。一些基准测试也是在其他配置下进行的。结果可以在对比图中找到。

	平衡	性能	静音
功率限制1	25瓦特	35瓦特	25瓦特
功率限制2	36瓦特	36瓦特	36瓦特

处理器

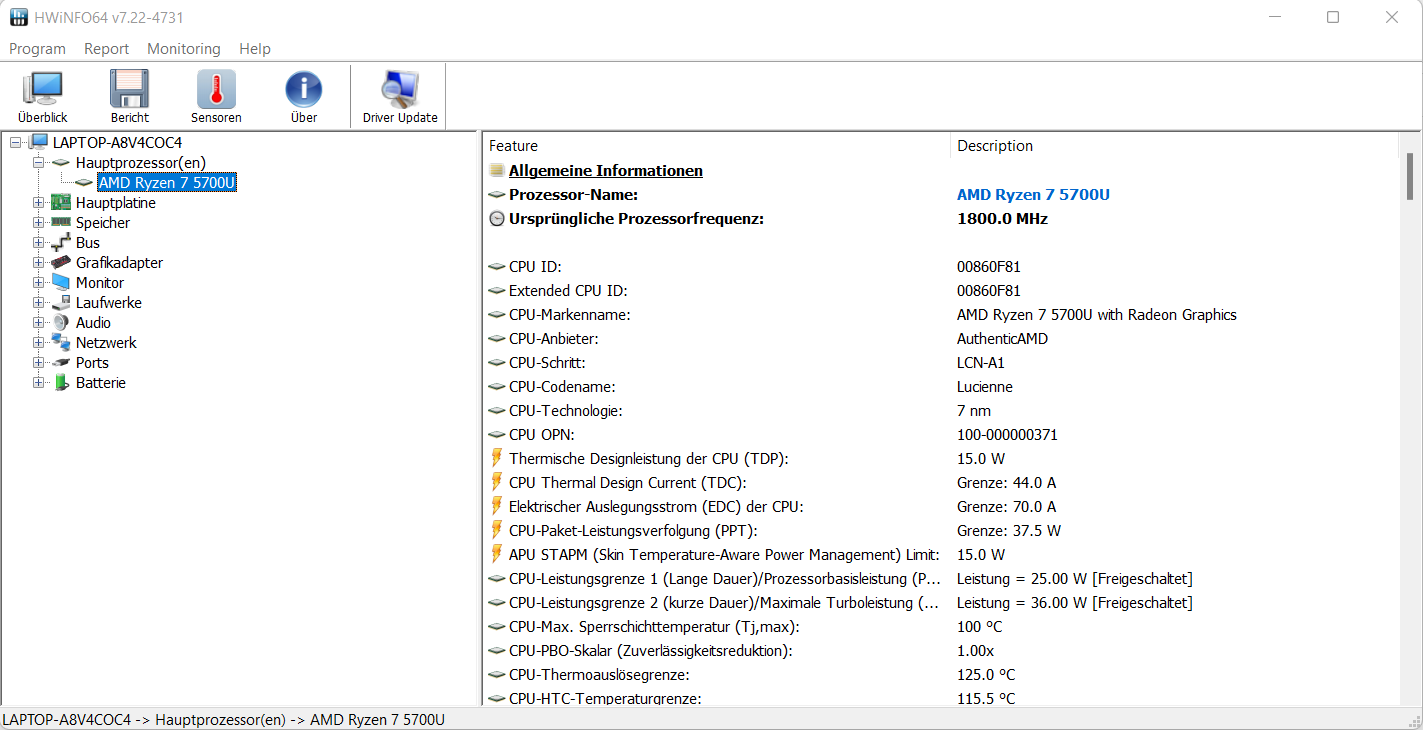

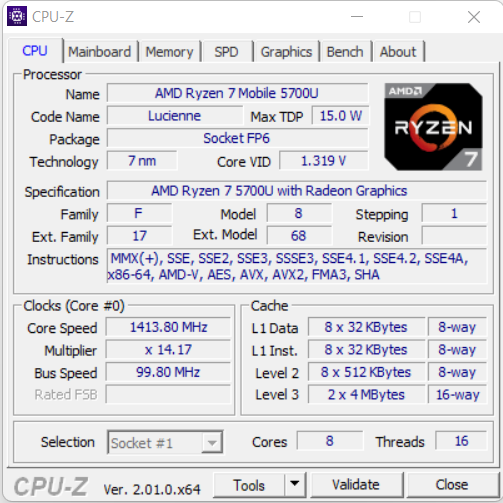

Ryzen 7 5700U APU（Lucienne）的CPU部分由一个八核处理器组成，运行的基本时钟为1.8 GHz。使用Turbo，可以提高到4.35GHz。支持同步多线程（每个核心两个线程）。

Cinebench R15基准测试的多线程测试短暂地运行在3.4 GHz，然后下降到2.9 - 3 GHz。单线程测试在1.4至4.35GHz下运行。在电池模式下，CPU运行在1.85 GHz（多线程）或1.4 - 1.85 GHz（单线程）。

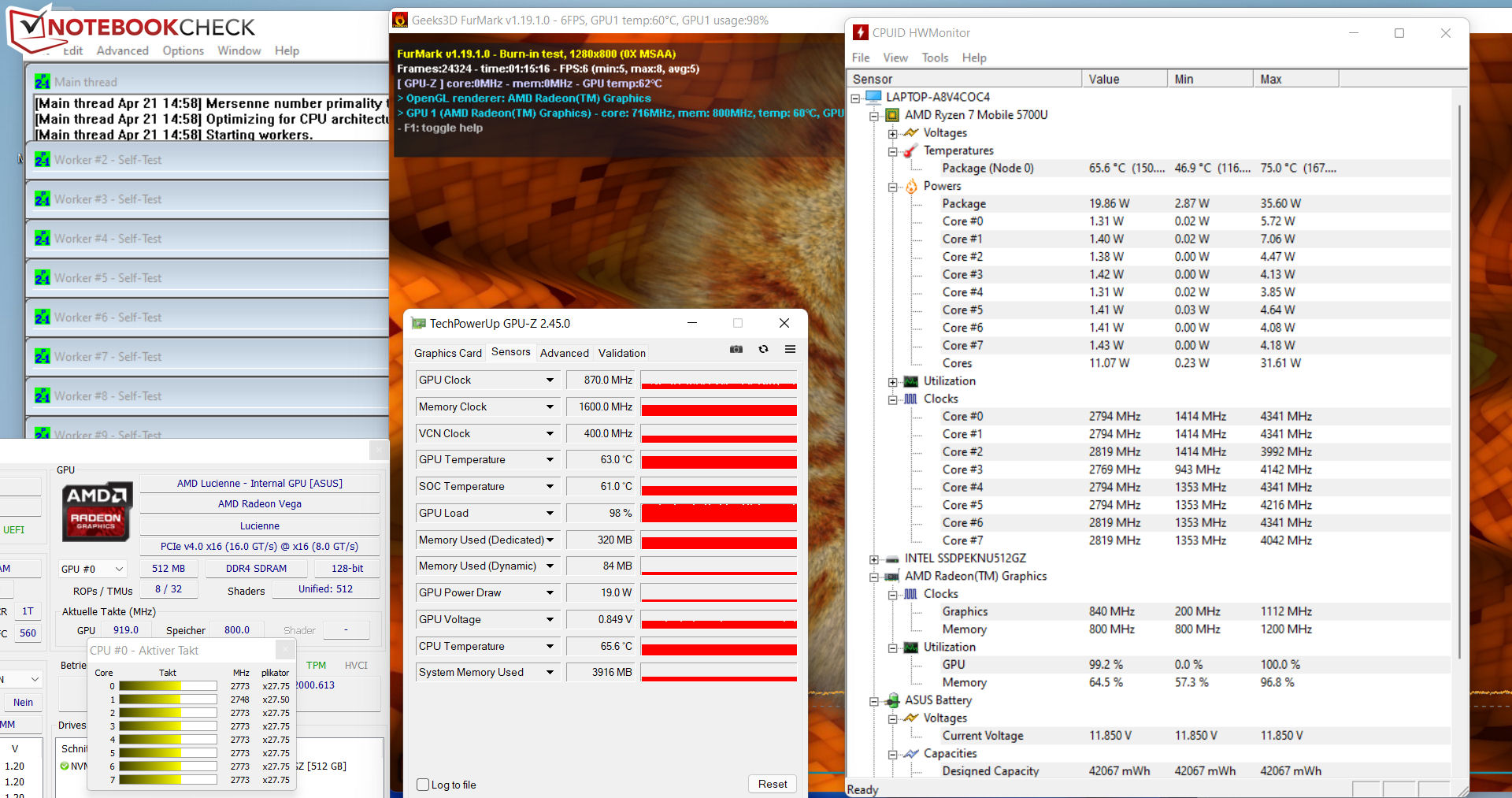

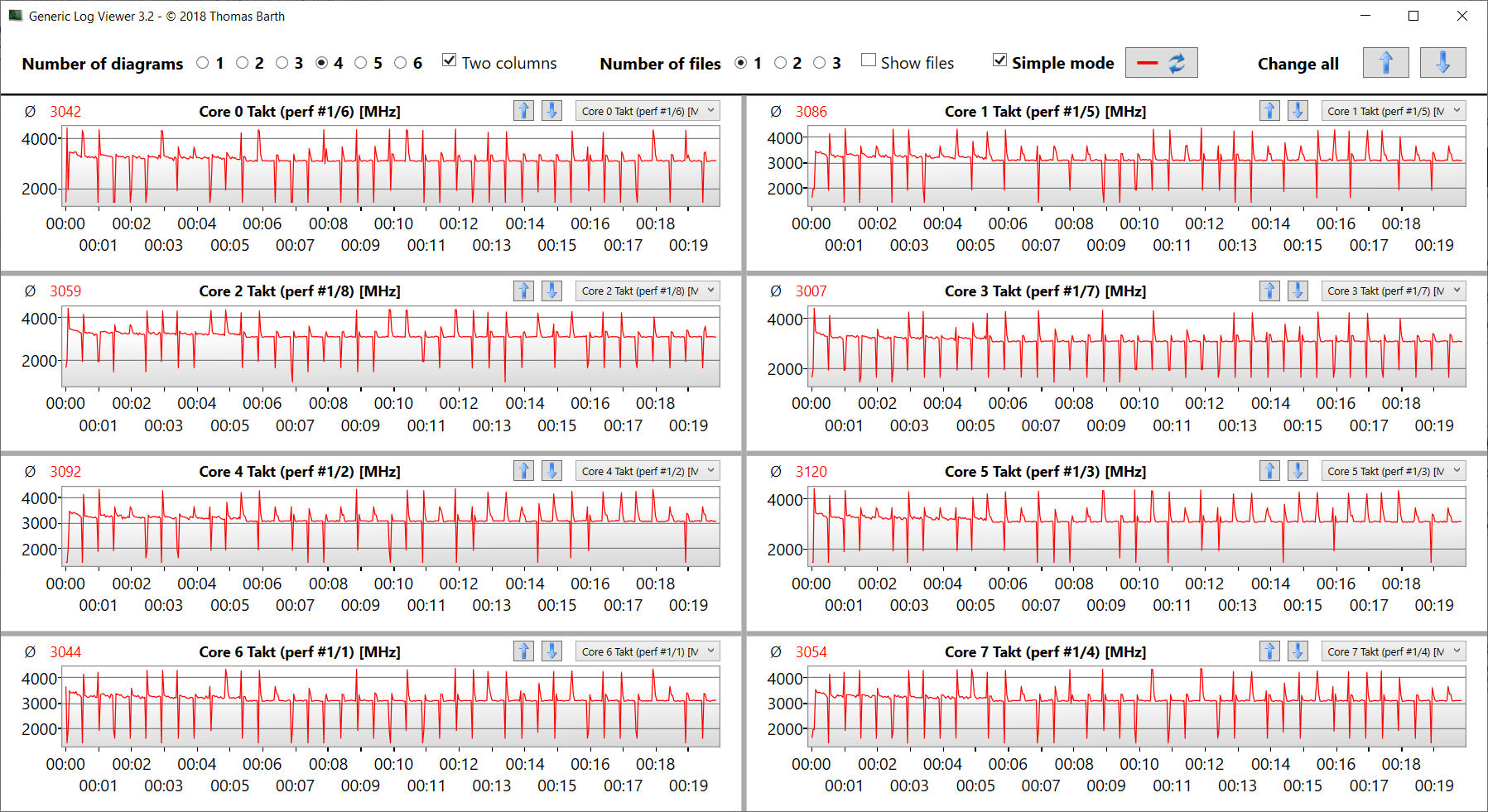

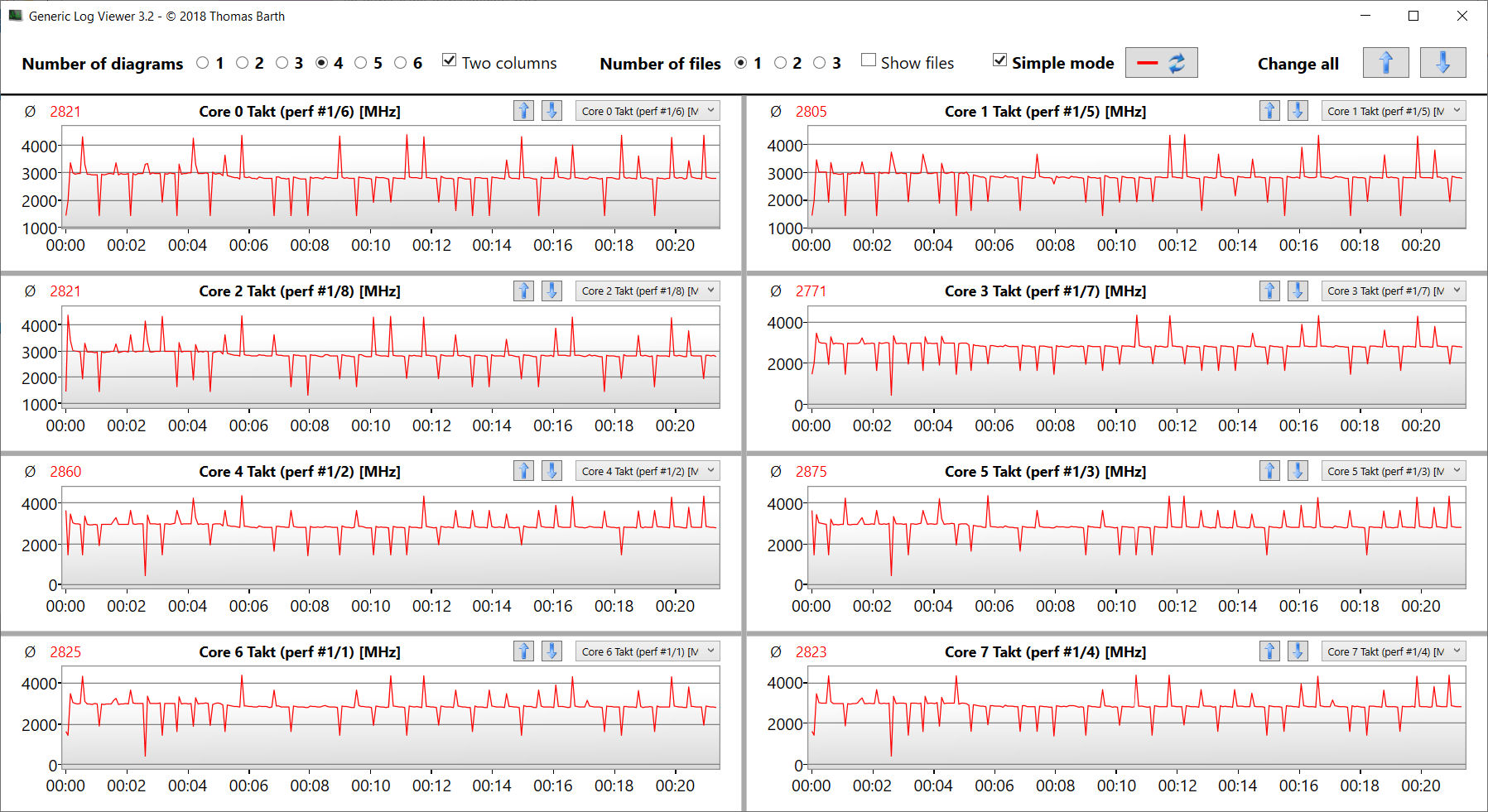

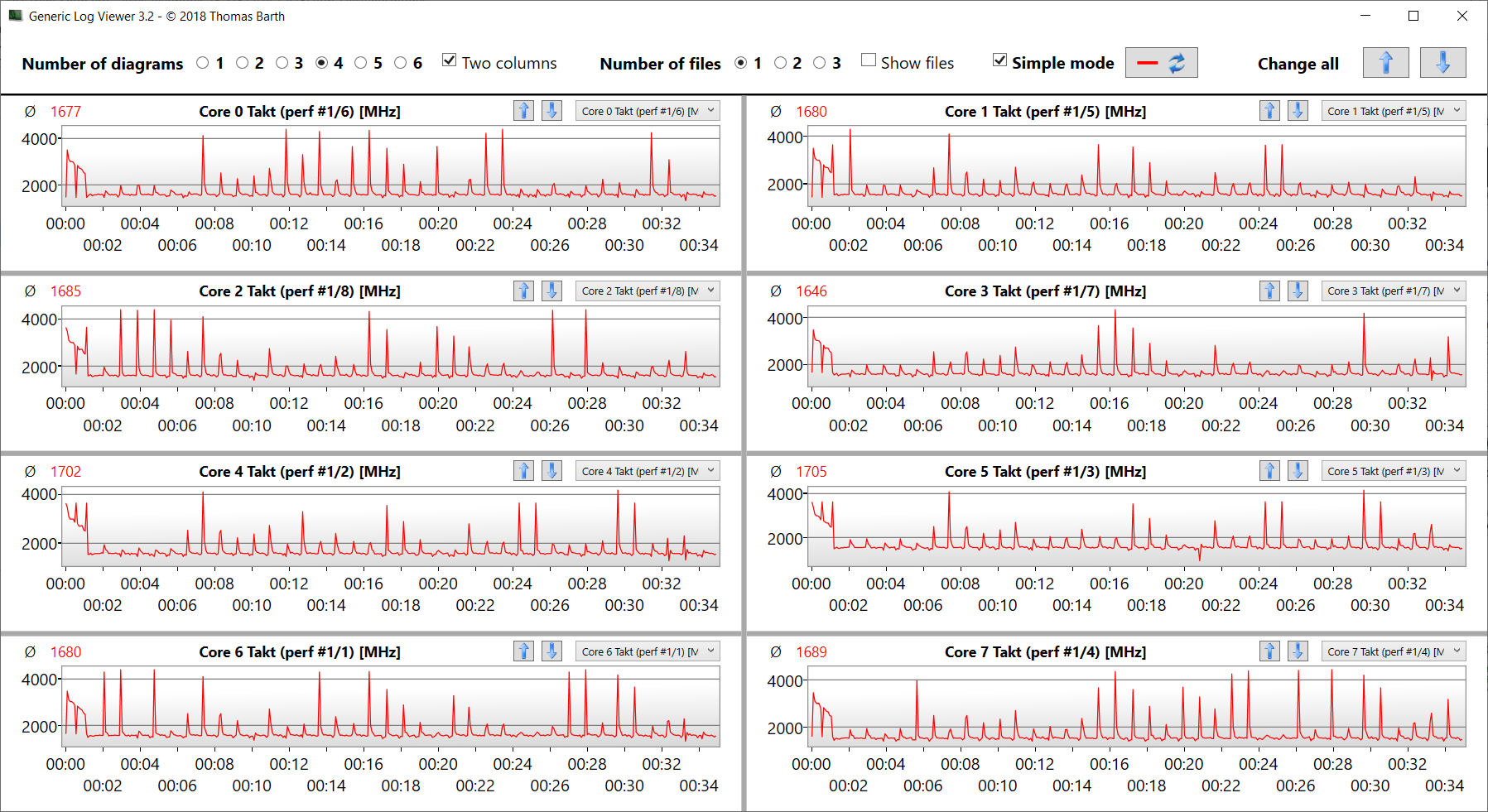

我们通过循环运行Cinebench R15基准的多线程测试至少30分钟来检查CPU Turbo在主电源运行时是否持续运行。Turbo在一个中等水平上启动。"性能 "配置文件导致时钟速度略有增加。

CineBench R15 Multi Sustained Load

Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U: Ø1391 (1343.59-1481.76)

Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U: Ø1338 (1241.5-1374.76)

Dell Inspiron 15 3000 3511 Intel Core i5-1135G7: Ø665 (655.8-671.77)

Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U: Ø1208 (1173.12-1266.74)

Asus Vivobook 15 K513EQ Intel Core i7-1165G7: Ø851 (831.5-866.44)

Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U; Leistungsmodus: Ø1514 (1484.67-1608.36)

Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U; Flüstermodus: Ø830 (770.06-1471.83)

Cinebench R15 CPU Multi 64Bit

1482 Points

Cinebench R15 OpenGL 64Bit

69.7 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Single 64Bit

186.4 Points

Help

... in comparison

CPU Performance Rating - Percent
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	78.5 pt
Average of class Office	76.3 pt
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	75.5 pt
Average AMD Ryzen 7 5700U	74.5 pt
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	70.5 pt
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	68.7 pt
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	64.7 pt
Asus Vivobook 15 K513EQ ^-2! Intel Core i7-1165G7	63.8 pt
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	51.6 pt

Cinebench R23
Multi Core
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	8722 Points
Average AMD Ryzen 7 5700U (6649 - 10139, n=18)	8670 Points -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	8613 Points -1%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	8194 Points -6%
Average of class Office (1056 - 15743, n=122, last 2 years)	8116 Points -7%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	7438 Points -15%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	7221 Points -17%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	5609 (5443.41^min - 5609.45^max) Points -36%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	4425 (4243.83^min - 4425.31^max) Points -49%
Single Core
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	1480 Points +18%
Average of class Office (529 - 1995, n=121, last 2 years)	1462 Points +17%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	1331 Points +6%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	1267 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	1256 Points 0%
Average AMD Ryzen 7 5700U (1177 - 1268, n=18)	1254 Points 0%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	1253 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	1237 Points -1%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	1149 Points -8%

Cinebench R20
CPU (Multi Core)
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	3693 Points +10%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	3370 Points
Average AMD Ryzen 7 5700U (2309 - 3877, n=19)	3284 Points -3%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	3149 Points -7%
Average of class Office (356 - 5904, n=120, last 2 years)	3121 Points -7%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	2758 Points -18%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	2309 Points -31%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	2182 Points -35%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	1725 Points -49%
CPU (Single Core)
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	565 Points +16%
Average of class Office (181.3 - 764, n=120, last 2 years)	562 Points +15%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	514 Points +5%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	492 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	490 Points 0%
Average AMD Ryzen 7 5700U (478 - 495, n=19)	490 Points 0%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	488 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	478 Points -2%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	456 Points -7%

Cinebench R15
CPU Multi 64Bit
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	1608 Points +9%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	1482 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	1472 Points -1%
Average AMD Ryzen 7 5700U (1130 - 1691, n=18)	1469 Points -1%
Average of class Office (160.8 - 2642, n=120, last 2 years)	1405 Points -5%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	1375 (1241.5^min - 1374.76^max) Points -7%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	1267 (1173.12^min - 1266.74^max) Points -15%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	866 (831.5^min - 866.44^max) Points -42%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	672 (655.8^min - 671.77^max) Points -55%
CPU Single 64Bit
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	225 Points +21%
Average of class Office (82.6 - 284, n=118, last 2 years)	218 Points +17%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	190 Points +2%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	189.2 Points +2%
Average AMD Ryzen 7 5700U (184 - 190, n=17)	187.5 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	186.4 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	184.4 Points -1%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	184 Points -1%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	177 Points -5%

Blender - v2.79 BMW27 CPU
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	668 Seconds * -98%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	542 Seconds * -60%
Average of class Office (214 - 2844, n=121, last 2 years)	534 Seconds * -58%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	418 Seconds * -24%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	402 Seconds * -19%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	371 Seconds * -10%
Average AMD Ryzen 7 5700U (292 - 427, n=18)	349 Seconds * -3%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	338 Seconds *
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	308 Seconds * +9%

7-Zip 18.03
7z b 4
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	43498 MIPS +6%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	40898 MIPS
Average AMD Ryzen 7 5700U (32529 - 47501, n=18)	40346 MIPS -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	37320 MIPS -9%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	35448 MIPS -13%
Average of class Office (4226 - 62349, n=121, last 2 years)	34839 MIPS -15%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	33768 MIPS -17%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	25242 MIPS -38%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	20181 MIPS -51%
7z b 4 -mmt1
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	5308 MIPS +16%
Average of class Office (2233 - 6687, n=121, last 2 years)	5026 MIPS +10%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	4620 MIPS +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	4594 MIPS 0%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	4588 MIPS 0%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	4587 MIPS
Average AMD Ryzen 7 5700U (4476 - 4620, n=18)	4564 MIPS -1%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	4533 MIPS -1%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	4323 MIPS -6%

Geekbench 5.5
Multi-Core
Average of class Office (1018 - 11980, n=122, last 2 years)	6683 Points +6%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	6301 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	6282 Points 0%
Average AMD Ryzen 7 5700U (4254 - 7635, n=17)	6176 Points -2%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	5855 Points -7%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	5367 Points -15%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	5017 Points -20%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	3500 Points -44%
Single-Core
Average of class Office (510 - 1974, n=122, last 2 years)	1480 Points +24%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	1197 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	1190 Points -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	1185 Points -1%
Average AMD Ryzen 7 5700U (1105 - 1205, n=17)	1184 Points -1%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	1183 Points -1%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	1147 Points -4%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	1116 Points -7%

HWBOT x265 Benchmark v2.2 - 4k Preset
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	10.9 fps +8%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	10.1 fps
Average AMD Ryzen 7 5700U (6.97 - 12.1, n=18)	9.68 fps -4%
Average of class Office (1.55 - 17.4, n=120, last 2 years)	9.27 fps -8%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	8.55 fps -15%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	8.24 fps -18%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	7.47 fps -26%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	7.27 fps -28%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	5.51 fps -45%

LibreOffice - 20 Documents To PDF
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	67.3 s * -11%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	61.8 s * -1%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	61.4 s * -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	60.9 s *
Average AMD Ryzen 7 5700U (52.4 - 68.5, n=18)	60.5 s * +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	58.3 s * +4%
Average of class Office (31.3 - 117.5, n=120, last 2 years)	56.4 s * +7%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	55.3 s * +9%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	46.9 s * +23%

R Benchmark 2.5 - Overall mean
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7	0.662 sec * -14%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U	0.635 sec * -9%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U	0.599 sec * -3%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Flüstermodus)	0.595 sec * -2%
Average AMD Ryzen 7 5700U (0.567 - 0.641, n=18)	0.592 sec * -2%
Average of class Office (0.4244 - 1.397, n=119, last 2 years)	0.586 sec * -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U	0.582 sec *
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U (Leistungsmodus)	0.582 sec * -0%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	0.563 sec * +3%

* ... smaller is better

Performance Rating
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8	95.3 pt
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8	88.9 pt
Average AMD Ryzen 7 5700U	87.1 pt
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8	76.3 pt
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7	74.9 pt
Average of class Office	73.4 pt
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350	64.9 pt
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8	61.4 pt
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs	52.6 pt

AIDA64 / FP32 Ray-Trace
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	11592 KRay/s +9%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	10654 KRay/s
Average AMD Ryzen 7 5700U (5798 - 12346, n=18)	10262 KRay/s -4%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	8678 KRay/s -19%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	8612 KRay/s -19%
Average of class Office (763 - 24250, n=120, last 2 years)	8374 KRay/s -21%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	7197 KRay/s -32%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	6118 KRay/s -43%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	5798 KRay/s -46%

AIDA64 / FPU Julia
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	65170 Points +10%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	59335 Points
Average AMD Ryzen 7 5700U (45926 - 69580, n=18)	58967 Points -1%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	57094 Points -4%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	49306 Points -17%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	49225 Points -17%
Average of class Office (4027 - 102228, n=120, last 2 years)	44553 Points -25%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	30646 Points -48%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	24206 Points -59%

AIDA64 / CPU SHA3
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	2102 MB/s +8%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	2076 MB/s +7%
Average of class Office (279 - 4442, n=119, last 2 years)	1953 MB/s +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	1939 MB/s
Average AMD Ryzen 7 5700U (1103 - 2231, n=18)	1883 MB/s -3%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	1815 MB/s -6%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	1670 MB/s -14%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	1635 MB/s -16%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	1103 MB/s -43%

AIDA64 / CPU Queen
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	91456 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	91111 Points 0%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	90573 Points -1%
Average AMD Ryzen 7 5700U (57016 - 99178, n=18)	88954 Points -3%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	72332 Points -21%
Average of class Office (8031 - 113016, n=120, last 2 years)	67103 Points -27%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	57016 Points -38%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	50250 Points -45%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	46352 Points -49%

AIDA64 / FPU SinJulia
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	13355 Points +6%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	12551 Points
Average AMD Ryzen 7 5700U (6837 - 14169, n=18)	12106 Points -4%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	10500 Points -16%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	10108 Points -19%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	6837 Points -46%
Average of class Office (404 - 14288, n=120, last 2 years)	6626 Points -47%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	4790 Points -62%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	4163 Points -67%

AIDA64 / FPU Mandel
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	34093 Points +9%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	31167 Points
Average AMD Ryzen 7 5700U (24053 - 36523, n=18)	30768 Points -1%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	29498 Points -5%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	25889 Points -17%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	25846 Points -17%
Average of class Office (2054 - 54365, n=120, last 2 years)	23439 Points -25%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	18672 Points -40%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	15793 Points -49%

AIDA64 / CPU AES
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	73387 MB/s +25%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	63268 MB/s +8%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	60984 MB/s +4%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	58543 MB/s
Average AMD Ryzen 7 5700U (34176 - 64646, n=18)	55658 MB/s -5%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	50257 MB/s -14%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	49385 MB/s -16%
Average of class Office (5226 - 147611, n=120, last 2 years)	46963 MB/s -20%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	34176 MB/s -42%

AIDA64 / CPU ZLib
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	713 MB/s +11%
Average AMD Ryzen 7 5700U (513 - 776, n=18)	654 MB/s +2%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	644 MB/s
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	608 MB/s -6%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	565 MB/s -12%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	543 MB/s -16%
Average of class Office (67.6 - 1018, n=120, last 2 years)	535 MB/s -17%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	391 MB/s -39%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	342 MB/s -47%

AIDA64 / FP64 Ray-Trace
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	6396 KRay/s +10%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	5825 KRay/s
Average AMD Ryzen 7 5700U (3247 - 6784, n=18)	5571 KRay/s -4%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	4703 KRay/s -19%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	4562 KRay/s -22%
Average of class Office (432 - 12755, n=120, last 2 years)	4459 KRay/s -23%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	3902 KRay/s -33%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	3417 KRay/s -41%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	3247 KRay/s -44%

AIDA64 / CPU PhotoWorxx
Average of class Office (4814 - 48177, n=120, last 2 years)	24531 MPixel/s +49%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350 (v6.33.5700)	19463 MPixel/s +19%
Average AMD Ryzen 7 5700U (6903 - 25066, n=18)	17001 MPixel/s +4%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7 (v6.33.5700)	16576 MPixel/s +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	16422 MPixel/s
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Flüstermodus)	16394 MPixel/s 0%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8 (v6.50.5800, Leistungsmodus)	16377 MPixel/s 0%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8 (v6.50.5800)	10062 MPixel/s -39%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs (v6.50.5800)	9004 MPixel/s -45%

系统性能

迅速和平稳运行的系统为办公和互联网应用提供了足够的计算能力。在有限的范围内，游戏也是可能的。这一点由坚实的PCMark结果来补充。内存传输率（双通道模式）对于DDR4-3200内存来说处于正常水平。

PCMark 10 Score		5253 points
Help

PCMark 10 / Score
Average of class Office (2325 - 7157, n=105, last 2 years)	5348 Points +2%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	5253 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4775 - 5518, n=13)	5236 Points 0%
Lenovo IdeaPad 5 15ALC05 Vega 7, R5 5500U	5218 Points -1%
Asus Vivobook 15 K513EQ GeForce MX350, i7-1165G7, Intel SSD 660p SSDPEKNW512G8	5120 Points -3%
Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD	4861 Points -7%
Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N	4508 Points -14%

PCMark 10 / Essentials
Average of class Office (5095 - 20841, n=105, last 2 years)	9832 Points +5%
Asus Vivobook 15 K513EQ GeForce MX350, i7-1165G7, Intel SSD 660p SSDPEKNW512G8	9551 Points +2%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	9325 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8347 - 10091, n=13)	9173 Points -2%
Lenovo IdeaPad 5 15ALC05 Vega 7, R5 5500U	9125 Points -2%
Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD	8824 Points -5%
Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N	8685 Points -7%

PCMark 10 / Productivity
Asus Vivobook 15 K513EQ GeForce MX350, i7-1165G7, Intel SSD 660p SSDPEKNW512G8	8721 Points +11%
Lenovo IdeaPad 5 15ALC05 Vega 7, R5 5500U	7942 Points +2%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7001 - 8457, n=13)	7849 Points 0%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	7822 Points
Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD	7707 Points -1%
Average of class Office (3041 - 10198, n=105, last 2 years)	7449 Points -5%
Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N	6143 Points -21%

PCMark 10 / Digital Content Creation
Average of class Office (1912 - 9056, n=105, last 2 years)	5810 Points +8%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4583 - 5964, n=13)	5424 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	5394 Points
Lenovo IdeaPad 5 15ALC05 Vega 7, R5 5500U	5320 Points -1%
Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N	4662 Points -14%
Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD	4583 Points -15%
Asus Vivobook 15 K513EQ GeForce MX350, i7-1165G7, Intel SSD 660p SSDPEKNW512G8	4373 Points -19%

CrossMark / Overall
Average of class Office (348 - 1891, n=106, last 2 years)	1325 Points +17%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	1129 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (976 - 1183, n=6)	1081 Points -4%

CrossMark / Productivity
Average of class Office (393 - 1870, n=106, last 2 years)	1340 Points +13%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	1187 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1048 - 1191, n=6)	1125 Points -5%

CrossMark / Creativity
Average of class Office (340 - 1982, n=106, last 2 years)	1362 Points +28%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	1066 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (941 - 1197, n=6)	1057 Points -1%

CrossMark / Responsiveness
Average of class Office (258 - 2017, n=106, last 2 years)	1195 Points +3%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	1159 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (872 - 1159, n=6)	1029 Points -11%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Office (7158 - 88119, n=121, last 2 years)	42885 MB/s +19%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8	36105 MB/s
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350	35627 MB/s -1%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7	34196 MB/s -5%
Average AMD Ryzen 7 5700U (15867 - 39326, n=18)	33557 MB/s -7%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8	20983 MB/s -42%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs	17443 MB/s -52%

AIDA64 / Memory Read
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350	43983 MB/s +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8	43613 MB/s
Average of class Office (7325 - 87297, n=121, last 2 years)	43181 MB/s -1%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7	42872 MB/s -2%
Average AMD Ryzen 7 5700U (17632 - 47190, n=18)	40581 MB/s -7%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8	23920 MB/s -45%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs	19716 MB/s -55%

AIDA64 / Memory Write
Average of class Office (7579 - 94965, n=121, last 2 years)	46727 MB/s +18%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350	43873 MB/s +11%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8	39445 MB/s
Average AMD Ryzen 7 5700U (11554 - 47048, n=18)	36896 MB/s -6%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7	31943 MB/s -19%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8	23866 MB/s -39%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs	18722 MB/s -53%

AIDA64 / Memory Latency
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, Vega 7	99.4 ns * -4%
Average AMD Ryzen 7 5700U (84.9 - 113, n=18)	98.7 ns * -3%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Iris Xe G7 80EUs	97.9 ns * -2%
Average of class Office (44.3 - 188.3, n=122, last 2 years)	96.5 ns * -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, Vega 8	95.9 ns *
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, Vega 8	84.9 ns * +11%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, GeForce MX350	84.5 ns * +12%

* ... smaller is better

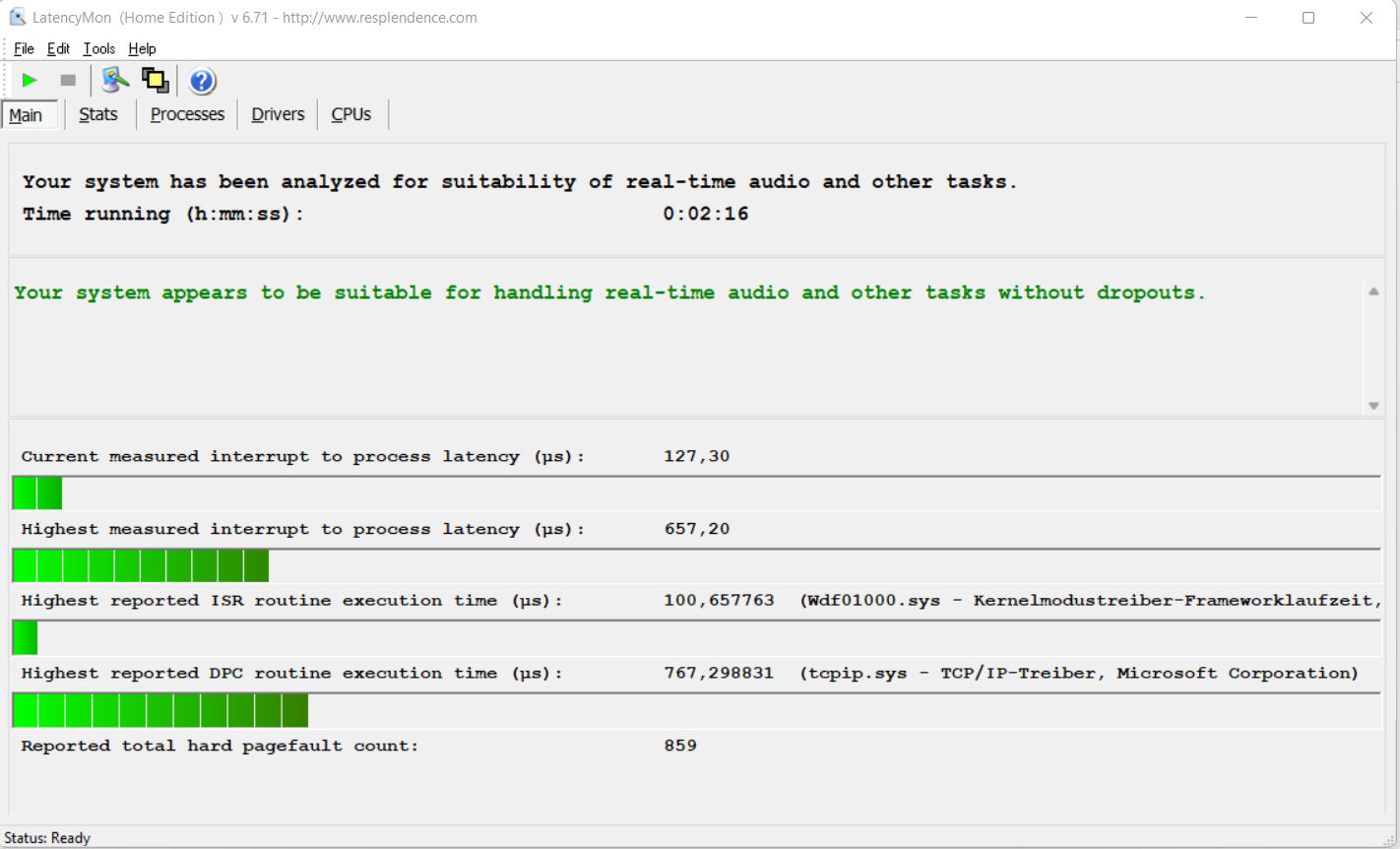

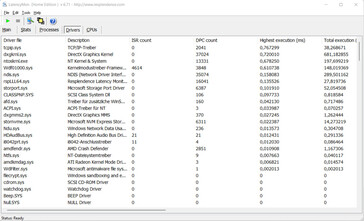

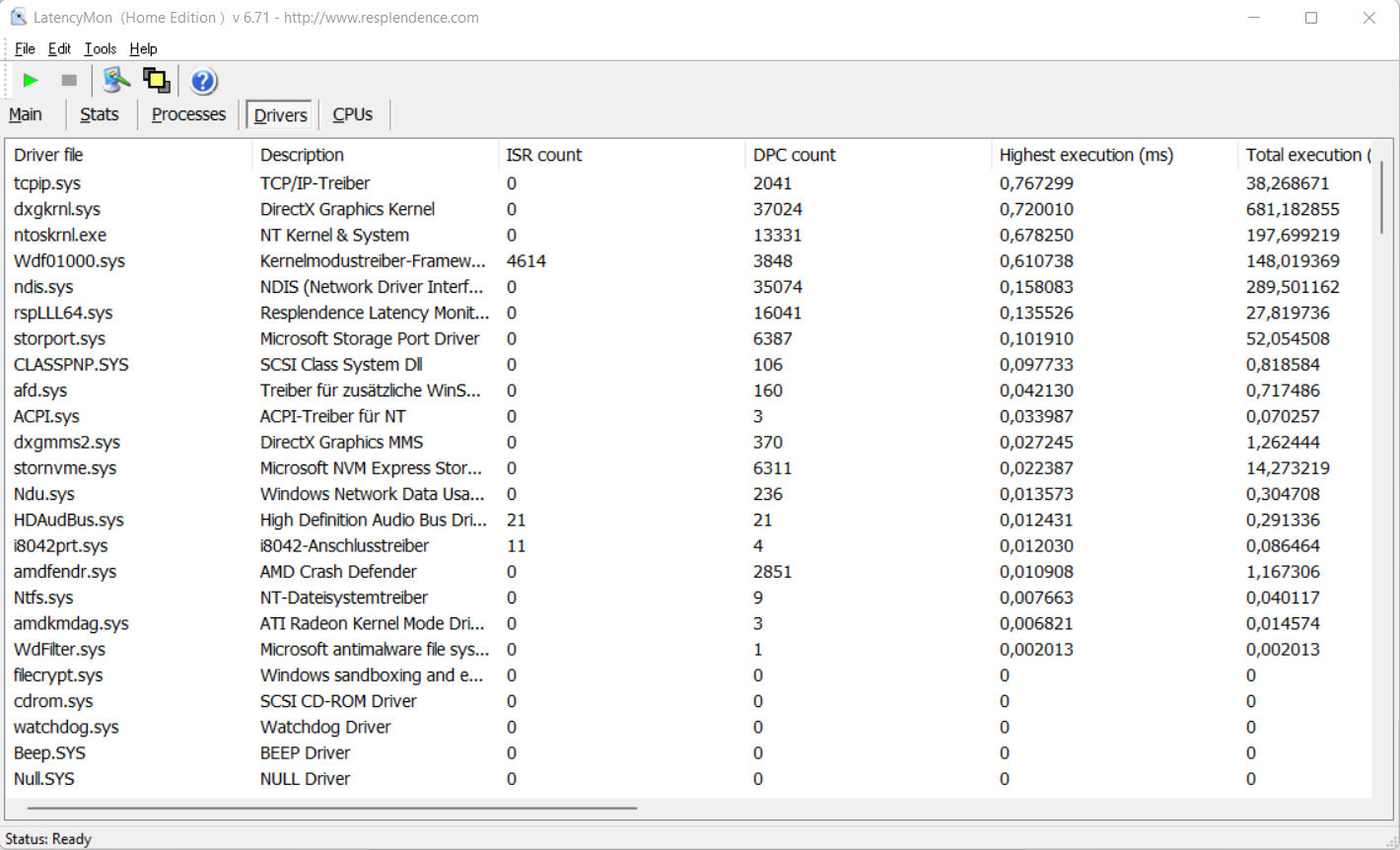

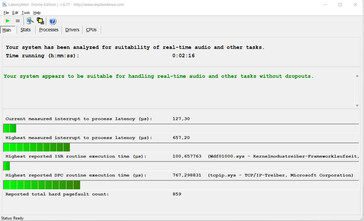

DPC延迟

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N	4965 μs * -655%
Asus Vivobook 15 K513EQ GeForce MX350, i7-1165G7, Intel SSD 660p SSDPEKNW512G8	4888 μs * -644%
Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD	1363 μs * -107%
Lenovo IdeaPad 5 15ALC05 Vega 7, R5 5500U	874 μs * -33%
Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	657.2 μs *

* ... smaller is better

存储设备

来自英特尔的512GB固态硬盘（PCIe 3，M.2 2280）提供了良好的传输速率，但不属于顶级固态硬盘型号。笔记本提供了一个2.5英寸存储介质的空间。由于既没有包括必要的SATA插槽，也没有包括安装框架，因此无法添加相应的驱动器。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Intel SSD 670p SSDPEKNU512GZ

CDM 5/6 Read Seq Q32T1: 2707 MB/s

CDM 5/6 Write Seq Q32T1: 1632 MB/s

CDM 5/6 Read 4K Q32T1: 457.1 MB/s

CDM 5/6 Write 4K Q32T1: 409.5 MB/s

CDM 5 Read Seq: 2291 MB/s

CDM 5 Write Seq: 1625 MB/s

CDM 5/6 Read 4K: 59.47 MB/s

CDM 5/6 Write 4K: 110.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Office	87.9 pt
Lenovo IdeaPad 5 15ALC05	70.3 pt
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	69.7 pt
Average Intel SSD 670p SSDPEKNU512GZ	65.2 pt
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	64.6 pt
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	59.6 pt

DiskSpd
seq read
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	2542 (2520.15^min - 2541.54^max) MB/s
Average of class Office (482 - 4554, n=107, last 2 years)	2476 MB/s -3%
Average Intel SSD 670p SSDPEKNU512GZ (1629 - 2549, n=10)	2206 MB/s -13%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	1989 (1975.76^min - 1988.73^max) MB/s -22%
Lenovo IdeaPad 5 15ALC05	1684 (1321.21^min - 1684.01^max) MB/s -34%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1295 (1286.45^min - 1294.85^max) MB/s -49%
seq write
Average of class Office (333 - 5842, n=107, last 2 years)	2382 MB/s +46%
Average Intel SSD 670p SSDPEKNU512GZ (1586 - 1675, n=10)	1636 MB/s 0%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	1633 MB/s
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	1606 (786.43^min - 1606.14^max) MB/s -2%
Lenovo IdeaPad 5 15ALC05	1498 (987.97^min - 1497.52^max) MB/s -8%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1110 (1098.59^min - 1109.52^max) MB/s -32%
seq q8 t1 read
Average of class Office (535 - 7120, n=107, last 2 years)	4026 MB/s +32%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	3424 (3108.82^min - 3423.67^max) MB/s +13%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	3041 (2839.98^min - 3041.29^max) MB/s
Average Intel SSD 670p SSDPEKNU512GZ (2132 - 3041, n=10)	2684 MB/s -12%
Lenovo IdeaPad 5 15ALC05	2659 (2544.63^min - 2659.19^max) MB/s -13%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1453 (1335.26^min - 1452.88^max) MB/s -52%
seq q8 t1 write
Average of class Office (276 - 6791, n=107, last 2 years)	3030 MB/s +84%
Average Intel SSD 670p SSDPEKNU512GZ (1621 - 1688, n=10)	1650 MB/s 0%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	1644 (91.02^min - 1643.75^max) MB/s
Lenovo IdeaPad 5 15ALC05	1603 (1311.14^min - 1603.48^max) MB/s -2%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1158 (1150.7^min - 1157.63^max) MB/s -30%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	863 (536.43^min - 862.72^max) MB/s -48%
4k q1 t1 read
Average Intel SSD 670p SSDPEKNU512GZ (55.2 - 86.1, n=10)	71.1 MB/s +6%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	67.1 (66.59^min - 67.05^max) MB/s
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	62.7 (62.4^min - 62.68^max) MB/s -7%
Average of class Office (17.7 - 89.9, n=107, last 2 years)	57.7 MB/s -14%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	54 (53.16^min - 54.01^max) MB/s -20%
Lenovo IdeaPad 5 15ALC05	46 (45.57^min - 46.04^max) MB/s -31%
4k q1 t1 write
Average Intel SSD 670p SSDPEKNU512GZ (82.2 - 260, n=10)	169 MB/s +7%
Average of class Office (32 - 429, n=107, last 2 years)	161.5 MB/s +2%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	157.7 (154.77^min - 157.66^max) MB/s
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	150 (149.25^min - 150.43^max) MB/s -5%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	141 (138.34^min - 140.89^max) MB/s -11%
Lenovo IdeaPad 5 15ALC05	128 (127.16^min - 128.1^max) MB/s -19%
4k q32 t16 read
Average of class Office (184.2 - 4425, n=107, last 2 years)	1274 MB/s +171%
Lenovo IdeaPad 5 15ALC05	1068 (1065.87^min - 1067.86^max) MB/s +127%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	667 (602.07^min - 666.59^max) MB/s +42%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	652 (649.9^min - 651.87^max) MB/s +39%
Average Intel SSD 670p SSDPEKNU512GZ (466 - 481, n=10)	475 MB/s +1%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	470 (468.8^min - 469.86^max) MB/s
4k q32 t16 write
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	1294 (447.45^min - 1294.17^max) MB/s
Lenovo IdeaPad 5 15ALC05	1174 (961.12^min - 1174.48^max) MB/s -9%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1025 (5.22^min - 1024.72^max) MB/s -21%
Average of class Office (192.2 - 3254, n=107, last 2 years)	937 MB/s -28%
Average Intel SSD 670p SSDPEKNU512GZ (221 - 1306, n=10)	828 MB/s -36%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	411 (345.06^min - 410.61^max) MB/s -68%

AS SSD
Score Total
Average of class Office (704 - 9204, n=103, last 2 years)	3986 Points +53%
Lenovo IdeaPad 5 15ALC05	3398 Points +31%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	2928 Points +13%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	2597 Points
Average Intel SSD 670p SSDPEKNU512GZ (1486 - 2597, n=9)	2415 Points -7%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	2399 Points -8%
Score Read
Average of class Office (252 - 3364, n=103, last 2 years)	1442 Points +92%
Lenovo IdeaPad 5 15ALC05	1383 Points +84%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	1279 Points +70%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	834 Points +11%
Average Intel SSD 670p SSDPEKNU512GZ (669 - 801, n=9)	758 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	752 Points
Score Write
Average of class Office (320 - 4111, n=103, last 2 years)	1850 Points +24%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	1492 Points
Lenovo IdeaPad 5 15ALC05	1351 Points -9%
Average Intel SSD 670p SSDPEKNU512GZ (384 - 1492, n=9)	1310 Points -12%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1164 Points -22%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	1044 Points -30%
Seq Read
Average of class Office (508 - 5796, n=103, last 2 years)	3168 MB/s +27%
Lenovo IdeaPad 5 15ALC05	2549 MB/s +2%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	2499.75 MB/s
Average Intel SSD 670p SSDPEKNU512GZ (1718 - 2736, n=9)	2496 MB/s 0%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	2023 MB/s -19%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1926 MB/s -23%
Seq Write
Average of class Office (304 - 5880, n=103, last 2 years)	2085 MB/s +46%
Lenovo IdeaPad 5 15ALC05	1571 MB/s +10%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	1431.59 MB/s
Average Intel SSD 670p SSDPEKNU512GZ (1021 - 1495, n=9)	1225 MB/s -14%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	1072 MB/s -25%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	845 MB/s -41%
4K Read
Average Intel SSD 670p SSDPEKNU512GZ (51.7 - 77.9, n=9)	64 MB/s +5%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	60.67 MB/s
Average of class Office (18.7 - 91.1, n=103, last 2 years)	56.3 MB/s -7%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	54.9 MB/s -10%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	49.68 MB/s -18%
Lenovo IdeaPad 5 15ALC05	41.92 MB/s -31%
4K Write
Average of class Office (35.4 - 350, n=103, last 2 years)	158.6 MB/s +9%
Average Intel SSD 670p SSDPEKNU512GZ (101.8 - 219, n=9)	151.4 MB/s +4%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	145.18 MB/s
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	129.2 MB/s -11%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	122.4 MB/s -16%
Lenovo IdeaPad 5 15ALC05	110.3 MB/s -24%
4K-64 Read
Lenovo IdeaPad 5 15ALC05	1086 MB/s +146%
Average of class Office (182.3 - 2713, n=103, last 2 years)	1069 MB/s +142%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	1027 MB/s +133%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	586 MB/s +33%
Average Intel SSD 670p SSDPEKNU512GZ (413 - 457, n=9)	444 MB/s +1%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	441.48 MB/s
4K-64 Write
Average of class Office (132.3 - 3394, n=103, last 2 years)	1482 MB/s +23%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	1203.69 MB/s
Lenovo IdeaPad 5 15ALC05	1083 MB/s -10%
Average Intel SSD 670p SSDPEKNU512GZ (169 - 1237, n=9)	1036 MB/s -14%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	928 MB/s -23%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	837 MB/s -30%
Access Time Read
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	0.129 ms *
Lenovo IdeaPad 5 15ALC05	0.119 ms * +8%
Average Intel SSD 670p SSDPEKNU512GZ (0.074 - 0.157, n=9)	0.1071 ms * +17%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	0.082 ms * +36%
Average of class Office (0.022 - 0.295, n=103, last 2 years)	0.08014 ms * +38%
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	0.071 ms * +45%
Access Time Write
Average of class Office (0.017 - 0.619, n=103, last 2 years)	0.06444 ms * -90%
Average Intel SSD 670p SSDPEKNU512GZ (0.033 - 0.102, n=9)	0.05422 ms * -59%
Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD	0.039 ms * -15%
Lenovo IdeaPad 5 15ALC05	0.034 ms * -0%
Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ	0.034 ms *
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N	0.032 ms * +6%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Asus VivoBook 15 OLED M513UA-L1282W Intel SSD 670p SSDPEKNU512GZ: Ø2846 (2563.44-2891.46)

Acer Aspire 5 A515-45-R4R1 Micron 2210 MTFDHBA512QFD: Ø1507 (1379.33-1517.39)

Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N: Ø3384 (3159.33-3407.14)

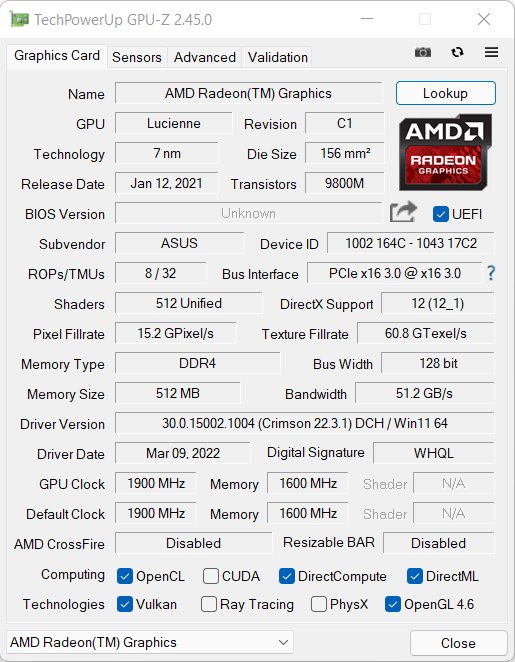

图形

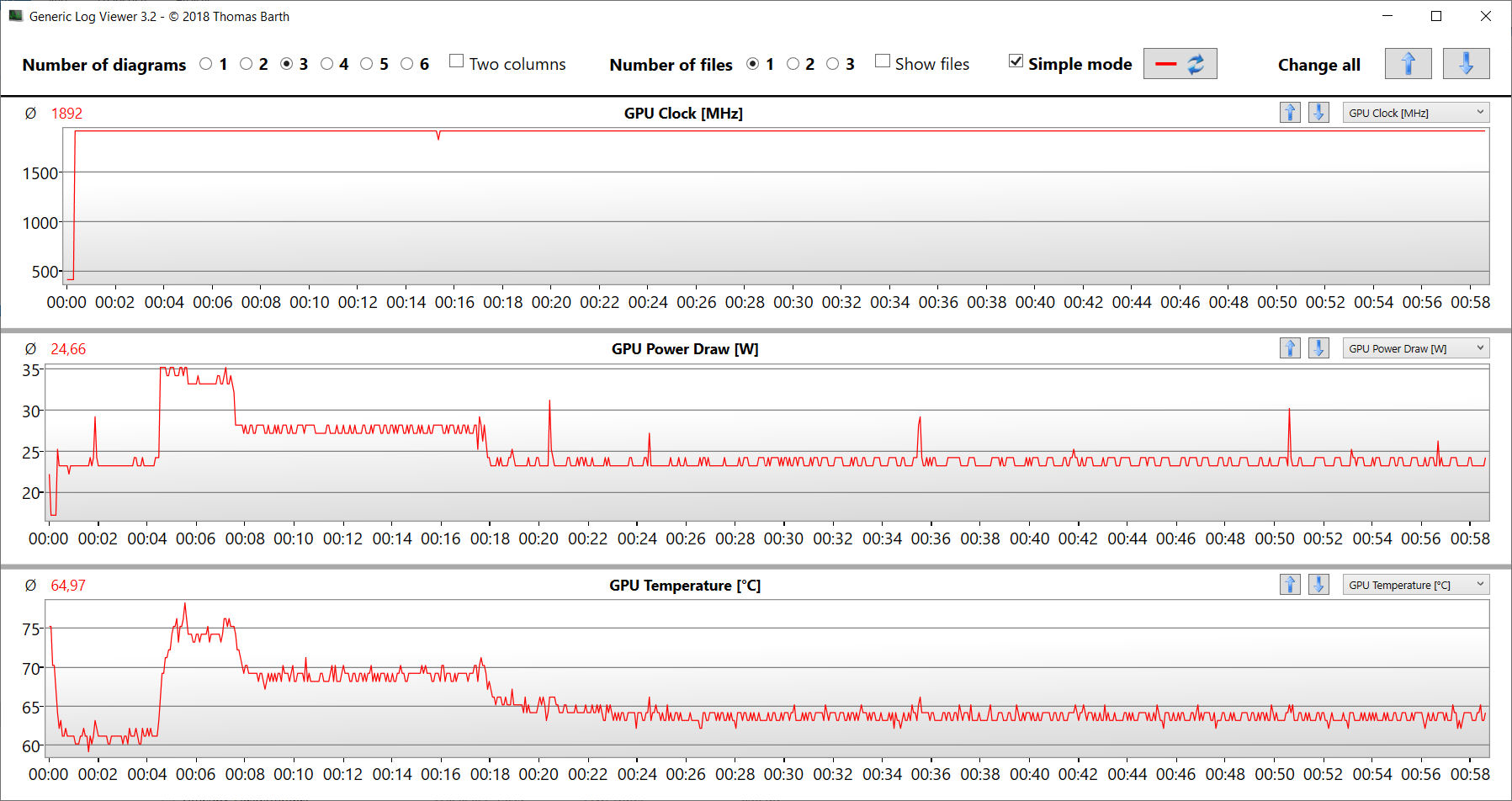

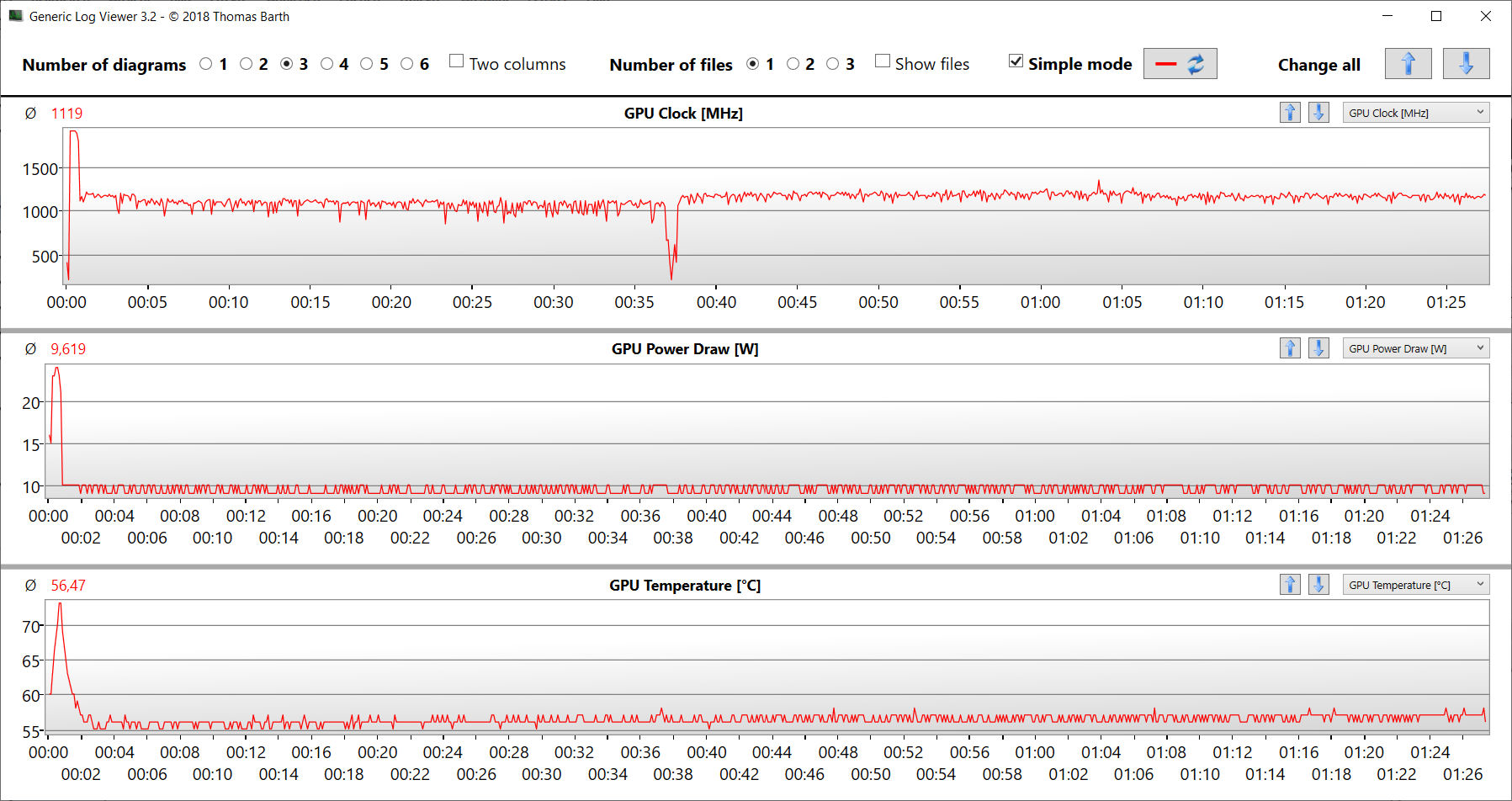

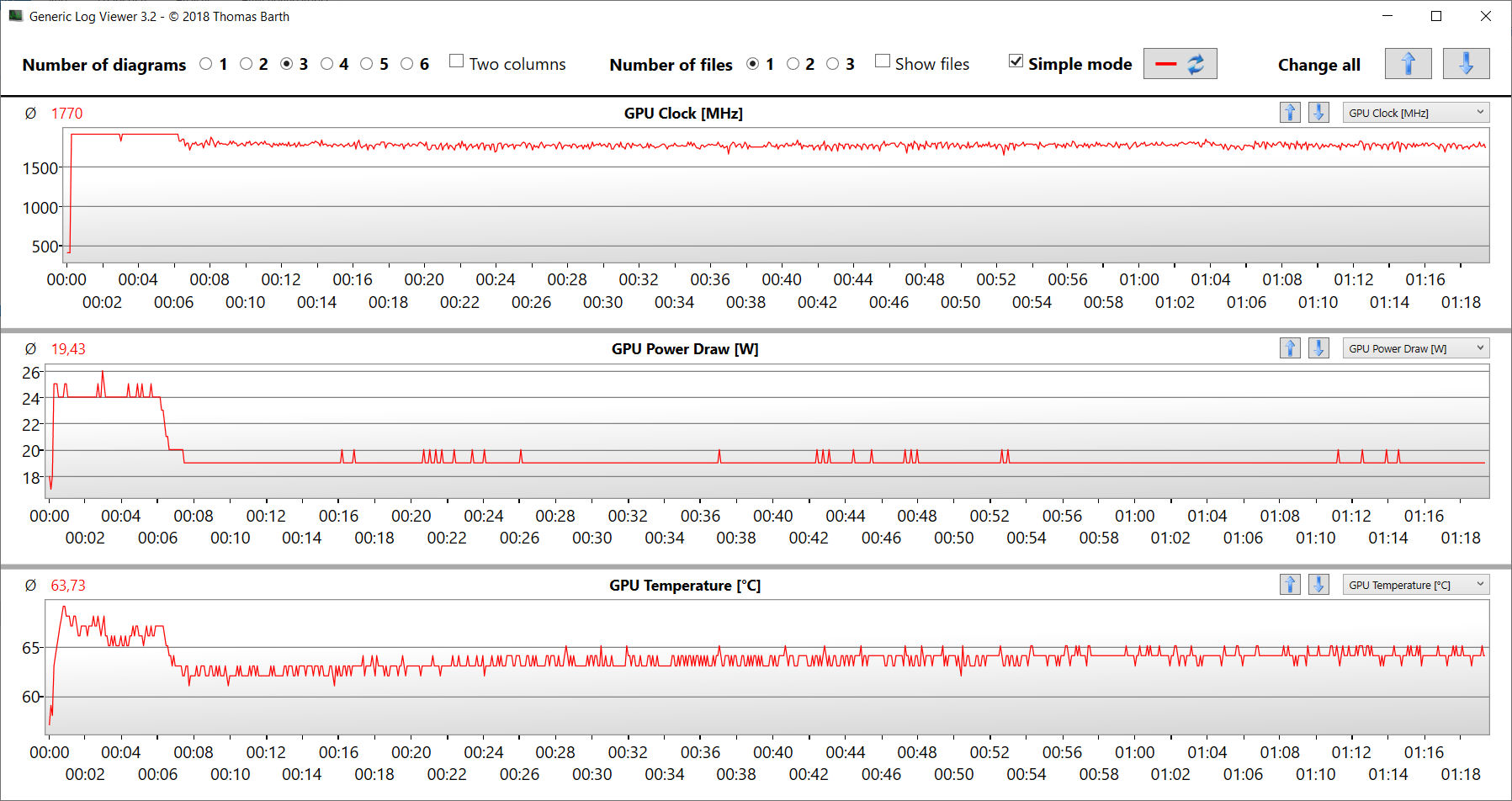

内置的Vega 8 iGPU是更强大的iGPU之一，可以在低分辨率或设置下流畅地运行许多游戏。在最大时钟速度（1,900 MHz）下连续运行是可能的--如图所示。 Witcher 3测试。然而，这只适用于激活 "性能 "配置文件的时候。平衡 "配置文件会导致GPU时钟在几分钟后轻微下降到1700-1800MHz。该基准测试结果与迄今为止确定的Vega 8 iGPU的平均性能水平相当接近。

3DMark 11 Performance		5815 points
3DMark Ice Storm Standard Score		102899 points
3DMark Cloud Gate Standard Score		21511 points

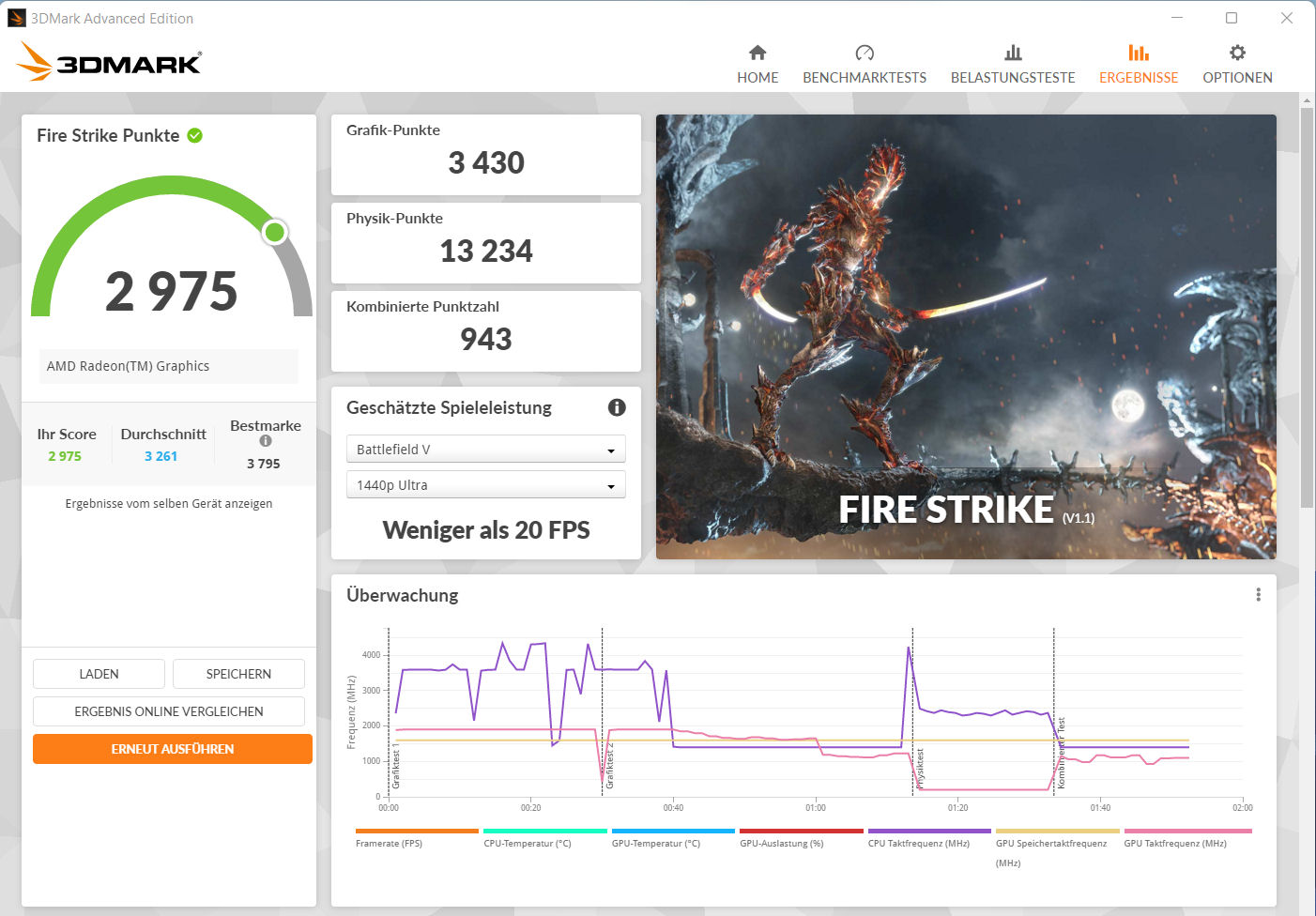

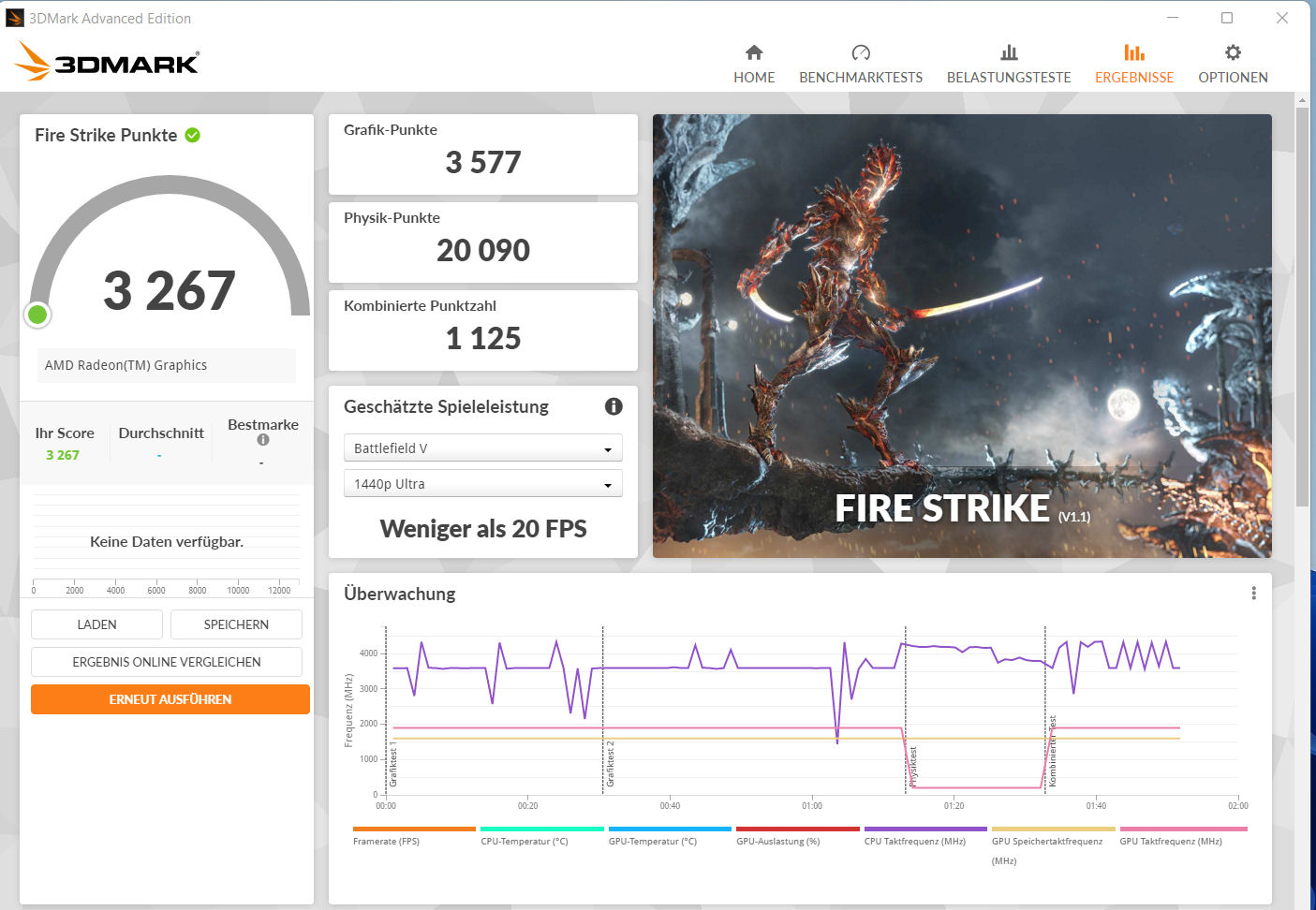

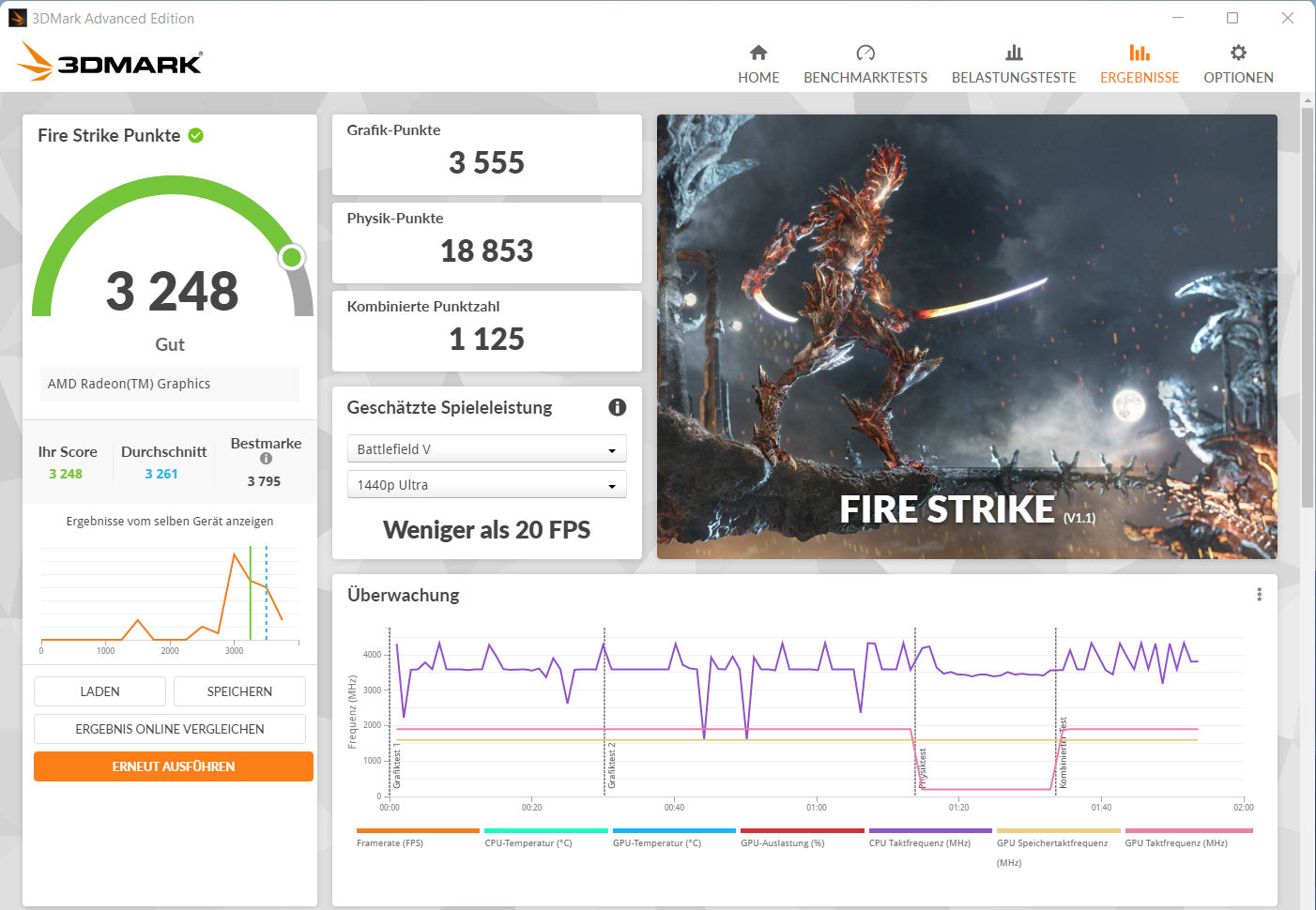

3DMark Fire Strike Score		3248 points
3DMark Time Spy Score		1306 points
Help

... in comparison

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	96.9 pt
Average of class Office	94.7 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	90 pt
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	87.8 pt
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	87.3 pt
Lenovo IdeaPad 5 15ALC05 AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	82.2 pt
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	82 pt
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	58.3 pt
Dell Inspiron 15 3000 3511 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	50.8 pt

3DMark 11 - 1280x720 Performance GPU
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	6293 Points +10%
Average of class Office (1474 - 13132, n=113, last 2 years)	6062 Points +6%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points +3%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Leistungsmodus)	5779 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5712 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Flüstermodus)	5462 Points -4%
Lenovo IdeaPad 5 15ALC05 AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	5257 Points -8%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	4277 Points -25%
Dell Inspiron 15 3000 3511 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3480 Points -39%

3DMark
1280x720 Cloud Gate Standard Graphics
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13941 - 36134, n=46)	26903 Points +4%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	25802 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Leistungsmodus)	25620 Points -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Flüstermodus)	25525 Points -1%
Lenovo IdeaPad 5 15ALC05 AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	24916 Points -3%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	24343 Points -6%
Average of class Office (5681 - 58068, n=93, last 2 years)	24010 Points -7%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	15477 Points -40%
Dell Inspiron 15 3000 3511 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	12824 Points -50%
1920x1080 Fire Strike Graphics
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	4496 Points +26%
Average of class Office (712 - 9228, n=114, last 2 years)	4191 Points +18%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points +3%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Leistungsmodus)	3577 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3555 Points
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Flüstermodus)	3430 Points -4%
Lenovo IdeaPad 5 15ALC05 AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	3395 Points -5%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	2363 Points -34%
Dell Inspiron 15 3000 3511 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1990 Points -44%
2560x1440 Time Spy Graphics
Average of class Office (242 - 3242, n=110, last 2 years)	1372 Points +20%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	1333 Points +16%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Leistungsmodus)	1162 Points +1%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (540 - 1557, n=54)	1156 Points +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1147 Points
Lenovo IdeaPad 5 15ALC05 AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	1057 Points -8%
Asus VivoBook 15 OLED M513UA-L1282W AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U (Flüstermodus)	961 Points -16%
Dell Inspiron 15 3000 3511 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	770 Points -33%
Acer Aspire 5 A515-45-R4R1 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	757 Points -34%

The Witcher 3 - 1366x768 Medium Graphics & Postprocessing
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	48.6 (46^min) fps +26%
Average of class Office (7.82 - 106.3, n=96, last 2 years)	46.3 fps +20%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	41.1 fps +7%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.6 - 55.2, n=35)	40.8 fps +6%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.5 (24.8^min, 26.3^P0.1, 29.2^P1) fps
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Leistungsmodus)	37.7 (21.1^min, 21.5^P0.1, 25.7^P1) fps -2%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Flüstermodus)	29.3 (9.91^min, 13.3^P0.1, 20.7^P1) fps -24%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.9 fps -33%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	22.6 (19^min) fps -41%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	73.4 (61.5^min) fps +63%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 72, n=57)	48.6 fps +8%
Average of class Office (7.8 - 121.2, n=123, last 2 years)	46.3 fps +3%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	45.5 (42^min) fps +1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Leistungsmodus)	45.1 (40.1^min) fps 0%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.9 fps
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Flüstermodus)	42.3 (37.3^min) fps -6%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31 (28.7^min) fps -31%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	22.2 (19.9^min) fps -51%

X-Plane 11.11 - 1280x720 low (fps_test=1)
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	66.7 fps +72%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (26.9 - 64.9, n=57)	44.3 fps +14%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Leistungsmodus)	42.8 fps +11%
Average of class Office (9.12 - 128.2, n=123, last 2 years)	41.1 fps +6%
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	40.8 fps +5%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.7 fps
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.4 fps -9%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Flüstermodus)	34.2 fps -12%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.4 fps -52%

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350 (1.3)	48.6 fps +46%
Average of class Office (5.42 - 103.1, n=115, last 2 years)	36.4 fps +9%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.9 - 50.1, n=52)	35.4 fps +6%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.3, Leistungsmodus)	33.8 fps +2%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.3)	33.3 fps
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.3, Flüstermodus)	28 fps -16%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.3)	21.9 fps -34%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1.3)	16.7 fps -50%

GTA V
1366x768 Normal/Off AF:4x
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	115 (5.06^min, 55.6^P1) fps +36%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 148, n=42)	87.7 fps +4%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.3 (42^min, 52.6^P1) fps
Average of class Office (7.47 - 171.4, n=102, last 2 years)	82.7 fps -2%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Leistungsmodus)	81.6 (27.3^min, 41.7^P1) fps -3%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Flüstermodus)	68.6 (11.6^min, 45.5^P1) fps -19%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48.5 fps -42%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	28.9 (8.41^min, 15.9^P1) fps -66%
1920x1080 Normal/Off AF:4x
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	69 (23.7^min, 33.3^P1) fps +22%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31.7 - 104, n=32)	65.5 fps +16%
Average of class Office (5.82 - 168.4, n=77, last 2 years)	61.8 fps +9%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (Leistungsmodus)	59.5 (9.17^min, 35.7^P1) fps +5%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56.5 (11^min, 38.5^P1) fps
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.8 (7.65^min, 11.8^P1) fps -67%

Strange Brigade - 1280x720 lowest AF:1
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350 (1.47.22.14 D3D12)	92.7 (72^min, 76.8^P1) fps +21%
Average of class Office (16.3 - 175.7, n=109, last 2 years)	81 fps +6%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 117, n=50)	78.6 fps +3%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.47.22.14 D3D12)	76.5 (51.4^min, 67.6^P1) fps
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.47.22.14 D3D12, Flüstermodus)	75.8 (55.4^min, 64.3^P1) fps -1%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.47.22.14 D3D12, Leistungsmodus)	72.9 (40.7^min, 49.1^P1) fps -5%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1.47.22.14 D3D12)	43 (29.7^min, 37.5^P1) fps -44%
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1.47.22.14 D3D12)	36.7 (8.2^min, 11.2^P1) fps -52%

F1 2021 - 1280x720 Ultra Low Preset
Average of class Office (18.2 - 197.8, n=27, last 2 years)	95.3 fps +13%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (51.8 - 134, n=22)	94.5 fps +12%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (868399)	84.1 (65^min, 67^P1) fps
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (868399, Leistungsmodus)	81.9 (64^min, 64^P1) fps -3%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (868399, Flüstermodus)	75.7 (60^min, 59^P1) fps -10%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (840701)	51.8 (37^min, 38^P1) fps -38%

Doom Eternal - 1280x720 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (56.9 - 84, n=2)	70.5 fps +24%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56.9 (22^min, 38.5^P0.1, 44.5^P1) fps
Average of class Office (20.4 - 39.5, n=3, last 2 years)	28.6 fps -50%

Monster Hunter Stories 2
1280x720 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 73.6, n=4)	57 fps +2%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	55.8 (21.6^min, 23.2^P0.1, 32^P1) fps
Average of class Office (22.2 - 62.3, n=6, last 2 years)	47.4 fps -15%
Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43 fps -23%
1920x1080 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43.3 - 50.4, n=2)	46.9 fps +8%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.3 (24.8^min, 26^P0.1, 30.5^P1) fps
Average of class Office (13.3 - 43.7, n=6, last 2 years)	32.2 fps -26%

Alan Wake Remastered - 1280x720 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (47.9 - 59.7, n=2)	53.8 fps +12%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.9 (6.6^min, 9.83^P0.1, 30.8^P1) fps
Average of class Office (11.1 - 41.3, n=4, last 2 years)	28 fps -42%

Far Cry 6 - 1280x720 Low Graphics Quality
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34.5 - 62.1, n=10)	48.1 fps +39%
Average of class Office (24.3 - 60.6, n=2, last 2 years)	42.5 fps +23%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34.5 (32^min) fps

Back 4 Blood
1280x720 Low Preset (DX12)
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (77.8 - 111, n=2)	94.4 fps +21%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	77.8 (36.2^min, 39.5^P0.1, 49^P1) fps
Average of class Office (30.8 - 72.9, n=5, last 2 years)	44.6 fps -43%
1920x1080 Low Preset (DX12)
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (41.9 - 60.5, n=3)	49.6 fps +7%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46.5 (17.2^min, 19.9^P0.1, 21.1^P1) fps
Average of class Office (17.1 - 41.5, n=5, last 2 years)	27.4 fps -41%

Riders Republic - 1280x720 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 41, n=5)	38 fps +6%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	36 (17^min) fps
Average of class Office (11 - 40, n=6, last 2 years)	28 fps -22%

Forza Horizon 5
1280x720 Lowest Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 99, n=7)	72.3 fps +13%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64 fps
Average of class Office (18 - 56, n=5, last 2 years)	35.8 fps -44%
1920x1080 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31 - 81, n=5)	49.4 fps +41%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35 fps
Average of class Office (12 - 31, n=5, last 2 years)	19.8 fps -43%

Halo Infinite - 1920x1080 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.1 - 20.7, n=3)	16 fps +22%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 (6.62^min, 6.8^P0.1, 8.47^P1) fps
Average of class Office (5.02 - 11.9, n=2, last 2 years)	8.46 fps -35%

God of War - 1280x720 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (20.8 - 35.3, n=4)	27.1 fps +6%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.6 (21.8^min, 22^P0.1, 22.7^P1) fps
Average of class Office (8.16 - 35.9, n=5, last 2 years)	16.3 fps -36%

Rainbow Six Extraction - 1280x720 Ultra Low Preset (with Fixed Resolution Quality)
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (33^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) ()	46 fps 0%
Average of class Office (20 - 44, n=5, last 2 years)	33.2 fps -28%

Dying Light 2 - 1280x720 Low Quality
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (26.6 - 32.2, n=3)	30.2 fps +14%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.6 (17.8^min, 18.8^P0.1, 21.8^P1) fps
Average of class Office (9.7 - 22.4, n=5, last 2 years)	13.8 fps -48%

GRID Legends
1280x720 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (64.2 - 98.8, n=4)	84.1 fps +8%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	77.8 (53.3^min) fps
Average of class Office (37.3 - 82.3, n=6, last 2 years)	55.9 fps -28%
1920x1080 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (38.5 - 94.8, n=7)	63.7 fps +29%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.5 (38.2^min) fps
Average of class Office (23.5 - 62.1, n=9, last 2 years)	39.5 fps -20%

Cyberpunk 2077 1.6 - 1280x720 Low Preset
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (18.8 - 44.4, n=6)	33.3 fps +16%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.8 (11.1^min) fps
Average of class Office (7.7 - 65.5, n=15, last 2 years)	28.6 fps -1%

Elex 2 - 1280x720 Low / Off
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.4 (13.4^min, 14.5^P0.1, 18.3^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.44 - 25.9, n=4)	17.9 fps -27%
Average of class Office (12.5 - 13.5, n=2, last 2 years)	13 fps -47%

Ghostwire Tokyo - 1280x720 Lowest Settings
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31 (11.7^min, 15.3^P0.1, 18^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 36.9, n=3)	30.4 fps -2%
Average of class Office (11.5 - 28.7, n=6, last 2 years)	19.7 fps -36%

Tiny Tina's Wonderlands - 1280x720 Lowest Preset (DX12)
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (54.5 - 82.2, n=7)	66.4 fps +19%
Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	55.7 fps
Average of class Office (8.2 - 111.8, n=15, last 2 years)	44.3 fps -20%

Witcher 3 FPS Chart

Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8: Ø14.1 (12-16)

Acer Aspire 5 A515-45-R4R1 R7 5700U, Vega 8: Ø9.64 (8-11)

Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8; Leistungsmodus: Ø13.6 (11-15)

Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8; Flüstermodus: Ø10.6 (4-14)

	low	med.	high	ultra
GTA V (2015)	94.7	84.3	24.5	10.8
The Witcher 3 (2015)	55.7	38.5	17.7	12.4
Dota 2 Reborn (2015)	94	75.9	47.8	44.9
Final Fantasy XV Benchmark (2018)	33.3	17.7	12.4
X-Plane 11.11 (2018)	38.7	31.6	28
Strange Brigade (2018)	76.5	30.2	25.5	21.9
Doom Eternal (2020)	56.9	26.5	22.1	21.6
Monster Hunter Stories 2 (2021)	55.8	40.4	34.9
F1 2021 (2021)	84.1	38.1	28.8	20.3
Alan Wake Remastered (2021)	47.9	19	15.1
Far Cry 6 (2021)	34.5	16.8	13.9	11.8
Back 4 Blood (2021)	77.8	29.5	24.6	21.5
Riders Republic (2021)	36	21	14	12
Forza Horizon 5 (2021)	64	27	23
Halo Infinite (2021)		11.4	9.69	9.2
God of War (2022)	15.9	12.6	9.85	6.94
Rainbow Six Extraction (2022)	24	21	20	14
Dying Light 2 (2022)	14.6	11.7	9.8
GRID Legends (2022)	49.5	34.9	29.4	20.2
Cyberpunk 2077 1.6 (2022)	16	12.1	8.9	9
Elex 2 (2022)	16.7	13.8	12.1	10.2
Ghostwire Tokyo (2022)	17.5	14.6	14.5	14.3
Tiny Tina's Wonderlands (2022)	31.8	20.8	13.44	9.5

排放与能源 - 华硕笔记本电脑的平均电池运行时间

噪声

在整个负载范围内，笔记本不会产生过多的噪音。在日常使用中（办公室、互联网），风扇经常不活动，安静的统治。负载下的噪音水平上升到41.9 dB(A)，这是一个完全可以接受的数值。一个积极的方面。风扇启动的时间相对较长。没有烦人的背景噪音发出。负载下产生的噪音可以通过 "静音 "配置文件来降低--以牺牲计算能力为代价。

Noise Level

Idle		26 / 26 / 26.2 dB(A)
Load		41.4 / 41.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A)

	Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ	Acer Aspire 5 A515-45-R4R1 Vega 8, R7 5700U, Micron 2210 MTFDHBA512QFD	Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N	Lenovo IdeaPad 5 15ALC05 Vega 7, R5 5500U	Asus Vivobook 15 K513EQ GeForce MX350, i7-1165G7, Intel SSD 660p SSDPEKNW512G8
Noise		2%	15%	1%	4%
off / environment *	26	25 4%	23.2 11%	26 -0%	23.4 10%
Idle Minimum *	26	25 4%	23.3 10%	26 -0%	23.6 9%
Idle Average *	26	25 4%	23.3 10%	26 -0%	23.6 9%
Idle Maximum *	26.2	29.5 -13%	23.3 11%	26 1%	23.6 10%
Load Average *	41.4	38.6 7%	23.3 44%	42.6 -3%	41 1%
Load Maximum *	41.4	38.6 7%	39.2 5%	37.4 10%	47 -14%
Witcher 3 ultra *			31.5		42.9

* ... smaller is better

温度

在日常使用中（办公室、互联网），温度落在绿色范围内。在压力测试期间，一些地区的温度上升，但平均来说只是适度的。

CPU和GPU开始进行压力测试（Prime95和FurMark至少运行一小时），频率分别为3.1至3.2 GHz和1,100至1,200 MHz。随着测试的进行，时钟速率下降到2.8 GHz（CPU）和800至900 MHz（GPU）。压力测试代表了一种极端情况。我们用这个测试来检查系统是否在全负荷下稳定运行。

Max. Load

Idle


31.1 °C	34.4 °C	37 °C
27.5 °C	39.6 °C	39.1 °C
23 °C	23.1 °C	29.5 °C

Maximum: 39.6 °C
Average: 31.6 °C


39 °C	43.5 °C	33.9 °C
48.4 °C	38 °C	27.3 °C
26.4 °C	24.8 °C	24.9 °C

Maximum: 48.4 °C
Average: 34 °C

Power Supply (max.) 39 °C | Room Temperature 24 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 31.6 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 39.6 °C / 103 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.4 °C / 119 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.5 °C / 85.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.8 °C / -3.2 F).

	Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Acer Aspire 5 A515-45-R4R1 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350
Heat		4%	2%	9%	-4%
Maximum Upper Side *	39.6	40 -1%	37.8 5%	40.5 -2%	48.8 -23%
Maximum Bottom *	48.4	42.8 12%	55.6 -15%	42 13%	42 13%
Idle Upper Side *	30.9	32.4 -5%	26.2 15%	26.5 14%	30 3%
Idle Bottom *	32.3	29.4 9%	32 1%	29 10%	35 -8%

* ... smaller is better

发言人

立体声扬声器产生的声音还不错，但缺乏低音。最大音量相对较低。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Asus VivoBook 15 OLED M513UA-L1282W audio analysis

(-) | not very loud speakers (66.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.6% lower than median
(±) | linearity of bass is average (13.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (3.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.6% difference to median)
Compared to same class
» 17% of all tested devices in this class were better, 6% similar, 77% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 24% of all tested devices were better, 5% similar, 71% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Acer Aspire 5 A515-45-R4R1 audio analysis

(-) | not very loud speakers (70.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.8% lower than median
(±) | linearity of bass is average (14.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21% difference to median)
Compared to same class
» 68% of all tested devices in this class were better, 8% similar, 24% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 52% of all tested devices were better, 8% similar, 40% worse
» The best had a delta of 4%, average was 25%, worst was 134%

消耗功率

笔记本电脑在耗电方面没有显示任何异常情况。对于安装在这里的硬件来说，这些数值处于正常水平。测试期间的功耗 Witcher 3几分钟后下降 - 这与测量结果相符。电源的标称输出功率为65瓦。

Power Consumption

Off / Standby	0.5 / 0.6 Watt
Idle	4.1 / 5 / 4.8 Watt
Load	38 / 52 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption Witcher 3 / Stress test

Asus VivoBook 15 OLED M513UA-L1282W; Witcher 3 ultra: Ø34.8 (32-40.6)

Asus VivoBook 15 OLED M513UA-L1282W; 1280x720 Prime95 28.10 and Furmark 1.25: Ø40.5 (36.6-52.6)

Power Consumption (external monitor)

Asus VivoBook 15 OLED M513UA-L1282W; Prime95 V2810 Stress (external Monitor): Ø30 (28.3-48.6)

Asus VivoBook 15 OLED M513UA-L1282W; Cinebench R15 Multi (external Monitor): Ø37.5 (34.9-49.3)

Asus VivoBook 15 OLED M513UA-L1282W; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø33.2 (31-39.2)

电池寿命

在我们的实际WLAN测试中，这台15.6英寸的机器实现了6:28小时的运行时间。访问网站时的负载是用一个脚本映射的。

Battery Runtime


WiFi Websurfing (Edge 100)		6h 28min

Battery Runtime - WiFi Websurfing
Lenovo IdeaPad 5 15ALC05 R5 5500U, Vega 7, 70 Wh	839 min +116%
Acer Aspire 5 A515-45-R4R1 R7 5700U, Vega 8, 48 Wh	652 min +68%
Average of class Office (300 - 1137, n=107, last 2 years)	594 min +53%
Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8, 42 Wh	388 min
Dell Inspiron 15 3000 3511 i5-1135G7, Iris Xe G7 80EUs, 40 Wh	381 min -2%
Asus Vivobook 15 K513EQ i7-1165G7, GeForce MX350, 42 Wh	361 min -7%

Pros

+ OLED屏幕

+ 良好的色彩空间覆盖率

+ 大量的计算能力

+ NVMe SSD

+ 存储器可部分扩展

+ 适度的噪音和热量排放

Cons

- 光滑的屏幕

- 永久焊接的8GB内存

- 缓慢的存储卡阅读器

- 没有键盘照明

- 没有电源传输

结论 - VivoBook 15仍有改进的余地

办公和互联网应用以及简单的游戏不会对VivoBook构成任何重大挑战--这一点由Ryzen 7 5700U APU和16GB内存的内置组合来保证。热量和噪音排放是可以接受的。

在1000欧元以下的笔记本领域，OLED屏幕并不常见。华硕正通过VivoBook 15扩大这一范围。

内置的OLED屏幕（FHD）提供了出色的黑色水平，完全覆盖了DCI-P3色彩空间。它还提供稳定的视角、良好的色彩再现、短的响应时间和足够高的亮度。然而，光亮的屏幕是一个值得批评的地方。

尽管购买价格在900欧元左右，但这台笔记本电脑有在这个水平上不应该存在的弱点：缺乏键盘照明，存储卡读卡器速度慢，没有安装2.5英寸存储设备的安装框架/SATA端口，没有快速的USB-C端口（USB 3.2 Gen 2或Thunderbolt 4）与Power Delivery和DisplayPort。电池运行时间只能说是一般，WLAN运行时间约为6.5小时。

没有OLED的更便宜

作为一个替代方案，有联想IdeaPad 5 15ALC05它在规格和价格方面与VivoBook相似，但由于有70瓦时的电池，它的运行时间值明显更好。它还配备了背光键盘和Power Delivery。IdeaPad的弱点是焊接的内存和普通的显示屏。

一个更便宜的替代品是 Acer Aspire 5 A515-45-R4R1 (约600欧元)。这款产品也配备了Ryzen 7 5700U APU，在电池寿命方面也能超过VivoBook。价格水平低的原因是内存只在单通道模式下运行，而且没有包含Windows操作系统。

价格和可用性

华硕VivoBook 15 OLED M513UA在发表这篇评论时，在欧洲以外的地区似乎没有目前的配置（Ryzen 7 5700U, 16 GB RAM, 512 GB SSD, OLED屏幕）。一个非常类似的配置可以从英国亚马逊买到(Ryzen 5 5500U, 8 GB RAM, 512 GB SSD, OLED屏幕），价格为499.99英镑。

Asus VivoBook 15 OLED M513UA-L1282W - 2022-05-06 05/06/2022 v7
Sascha Mölck

Chassis

72 / 98 → 74%

Keyboard

76%

Pointing Device

84%

Connectivity

44 / 80 → 54%

Weight

65 / 20-75 → 83%

Battery

71%

Display

88%

Games Performance

63 / 78 → 81%

Application Performance

90 / 95 → 95%

Temperature

91%

Noise

92%

Audio

57%

Camera

41 / 85 → 48%

Average

72%

81%

Office - Weighted Average

Pricecompare

Editor of the original article: Jacob Fisher - Translator - 888 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 388017 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 华硕VivoBook 15 OLED回顾。安静的办公笔记本，强大的屏幕

Sascha Mölck, 2022-04-30 (Update: 2022-04-30)
