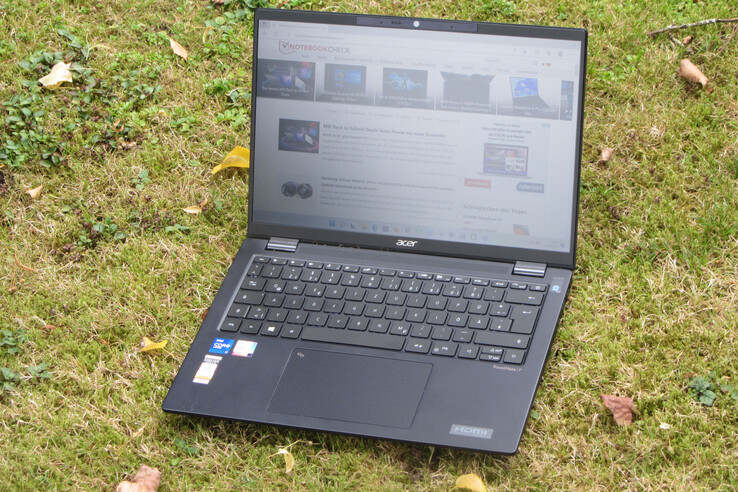

宏碁TravelMate P6 TMP614P-52回顾。轻量级的办公笔记本,电池续航能力强

长久性。 TravelMate提供了一个酷睿i7处理器(Tiger Lake),16GB内存和出色的电池寿命。宏碁做出了一个伟大的决定,即使用14英寸显示屏,其长宽比为16:10(1,920 x 1,200像素),并在德国为该设备提供三年保修期(美国为两年)。
Business Laptop / Notebook Thunderbolt Tiger Lake Windows

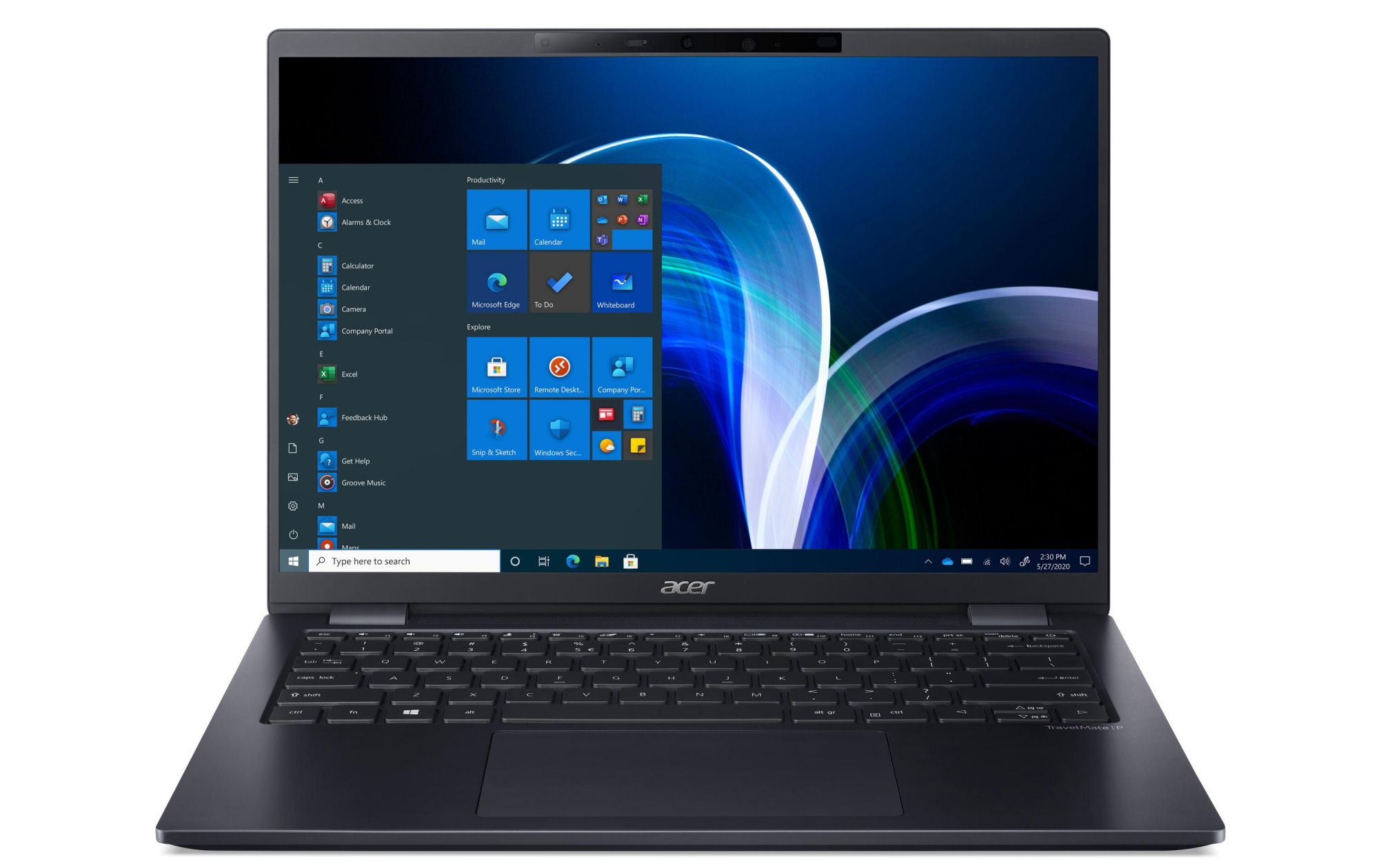

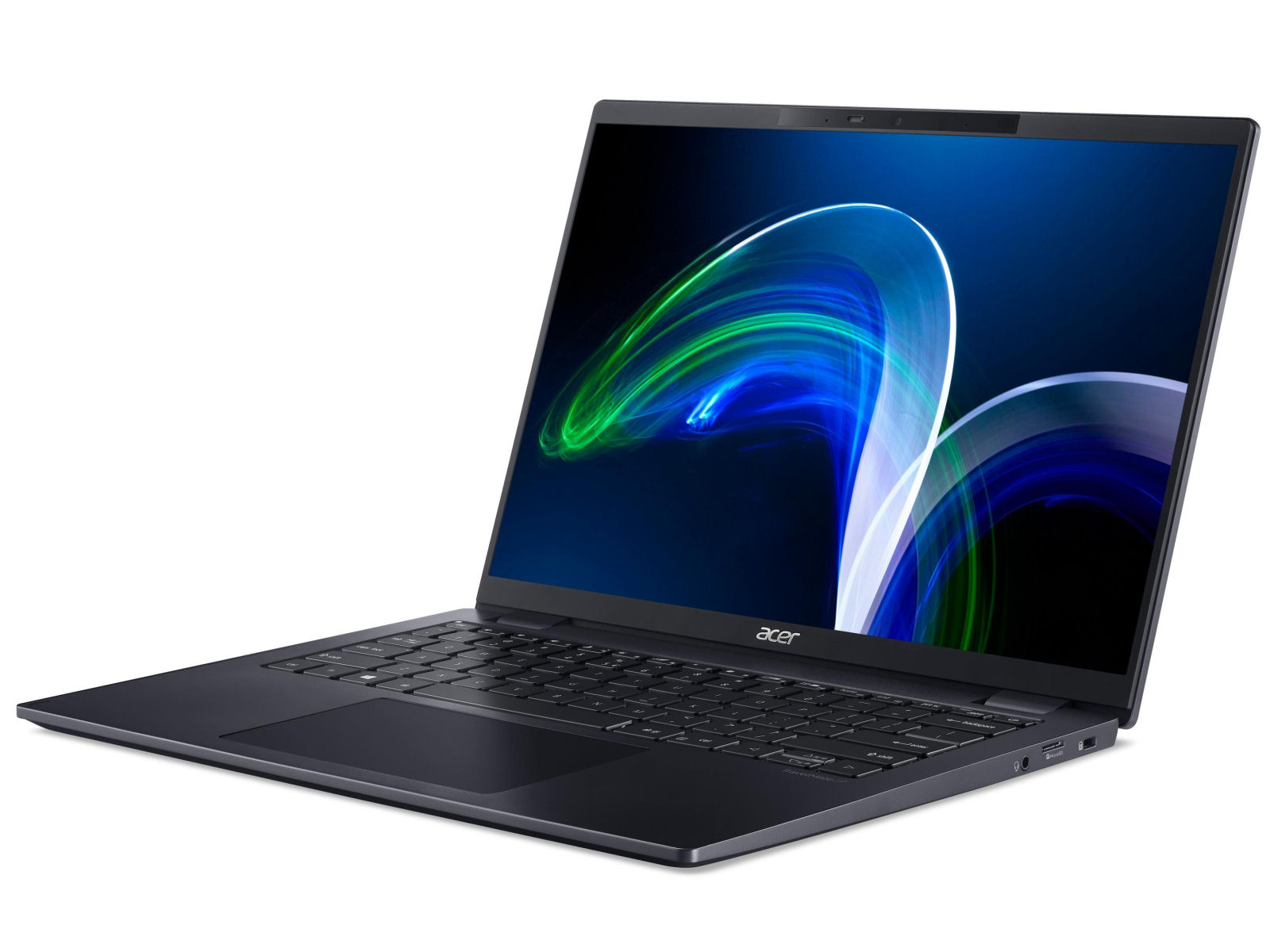

宏碁TravelMate P6 TMP614P-52是一款针对商务领域的高便携办公笔记本。它由酷睿i7-1185G7驱动,机上有一个16:10的显示屏。在2021年,我们审查了预生产模型P6的预生产模型,但没有给它一个评级。现在我们手中有一个最终生产单位,是时候重新审视P6并给它打分了。这款笔记本电脑的竞争对手是诸如 戴尔Latitude 7420,以及 惠普EliteBook 840 Aero G8联想ThinkPad T14s G2.

你可以参考我们对预生产型号的评论了解有关机箱、功能和输入设备的信息。

Acer TravelMate P6 TMP614P-52-724G (TravelMate P6 Series)
Processor
Intel Core i7-1185G7 4 x 3 - 4.8 GHz, 64 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1350 MHz, Dual channel, 31.0.101.3413
Memory
16 GB

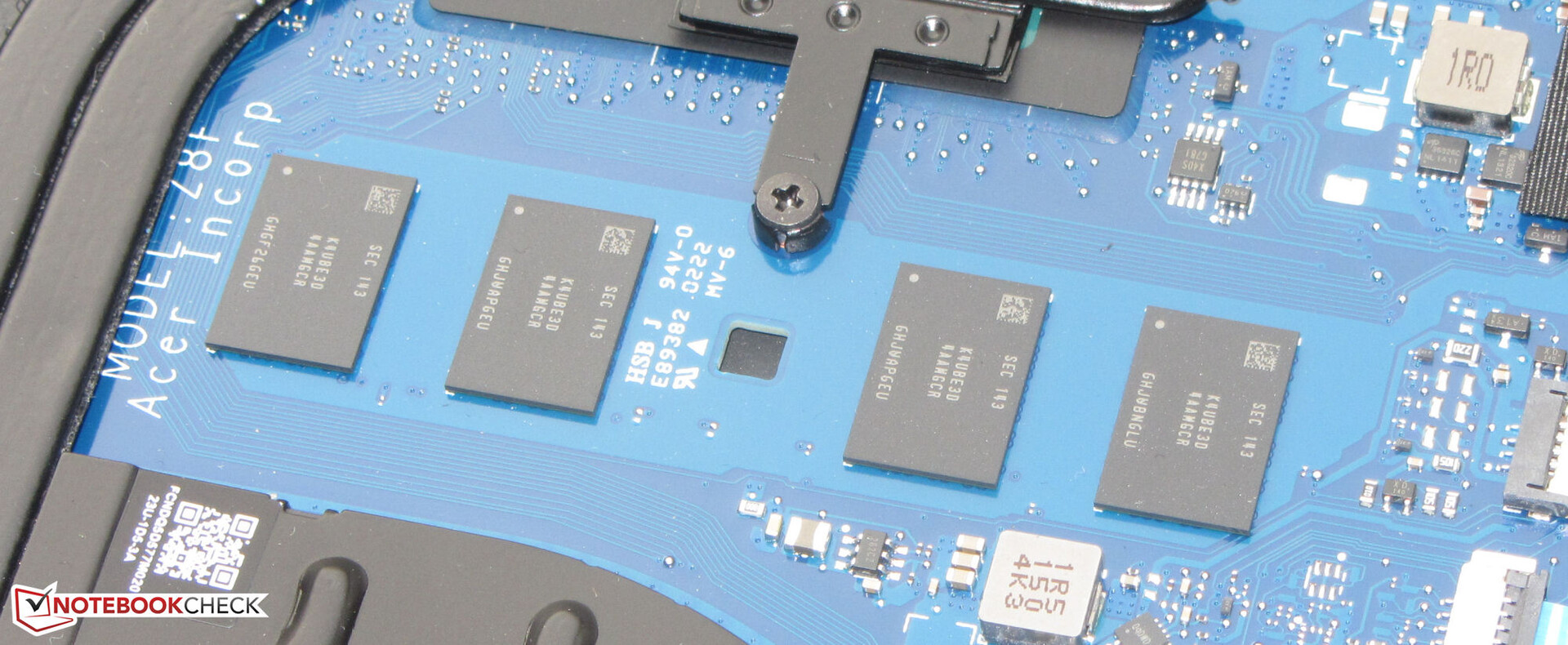

, LPDDR4-4267, Dual-channel mode, onboard, no memory slots
Display
14.00 inch 16:10, 1920 x 1200 pixel 162 PPI, BOE CQ NE140WUM-N66, IPS, Acer PrivacyPanel, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP

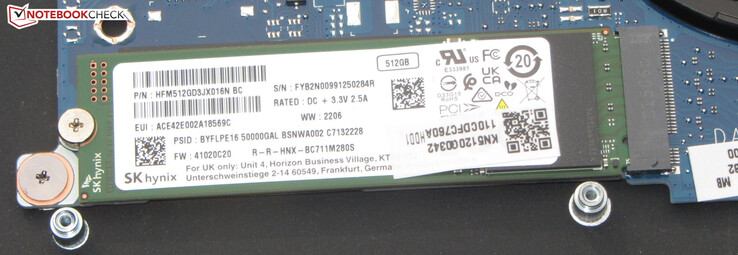

Storage
SK Hynix BC711 HFM512GD3JX016N, 512 GB
, 431 GB free
Soundcard
Realtek ALC287
Connections
3 USB 3.1 Gen2, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: Headset combined port, Card Reader: MicroSD, 1 Fingerprint Reader, NFC, Brightness Sensor, Sensors: Proximity sensor, TPM 2.0
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5
Size
height x width x depth (in mm): 16.8 x 312 x 226
Battery
56 Wh, 4821 mAh Lithium-Ion
Operating System
Microsoft Windows 11 Pro
Camera
Webcam: FHD
Primary Camera: 2.1 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, USB-C-to-Ethernet adapter, Microsoft Office 365 (Trial), Microsoft OneNote (Trial), Norton Security Ultra (Trial), 36 Months Warranty
Weight
1.165 kg, Power Supply: 320 g
Price
1699 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
87.5 %
09/2022
Acer TravelMate P6 TMP614P-52-724G
i7-1185G7, Iris Xe G7 96EUs
1.2 kg16.8 mm14.00"1920x1200
90.1 %
03/2022
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8
1.3 kg16.14 mm14.00"1920x1080
90.1 %
04/2022
Dell Latitude 7420 JW6MH
i5-1145G7, Iris Xe G7 80EUs
1.3 kg17.3 mm14.00"1920x1080
89.8 %
08/2021
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs
1.2 kg17.9 mm14.00"1920x1080
327.5 mm 224 mm 16.14 mm 1.3 kg323.6 mm 214.7 mm 17.9 mm 1.2 kg321 mm 209 mm 17.3 mm 1.3 kg312 mm 226 mm 16.8 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

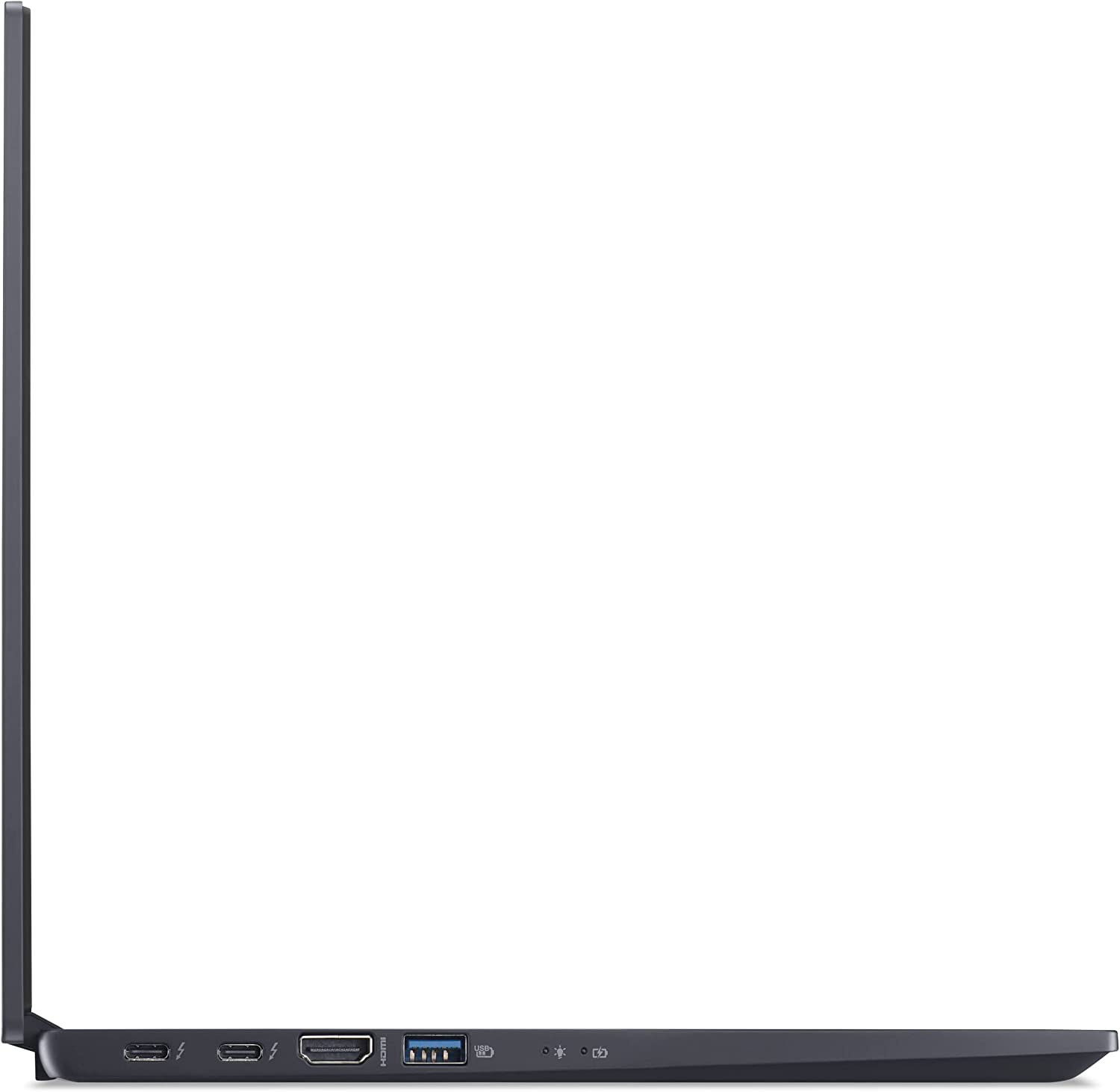

在左边:2个雷电4(USB-C;DisplayPort,Power Delivery),HDMI,USB 3.2 Gen 2(USB-A)。
在左边:2个雷电4(USB-C;DisplayPort,Power Delivery),HDMI,USB 3.2 Gen 2(USB-A)。

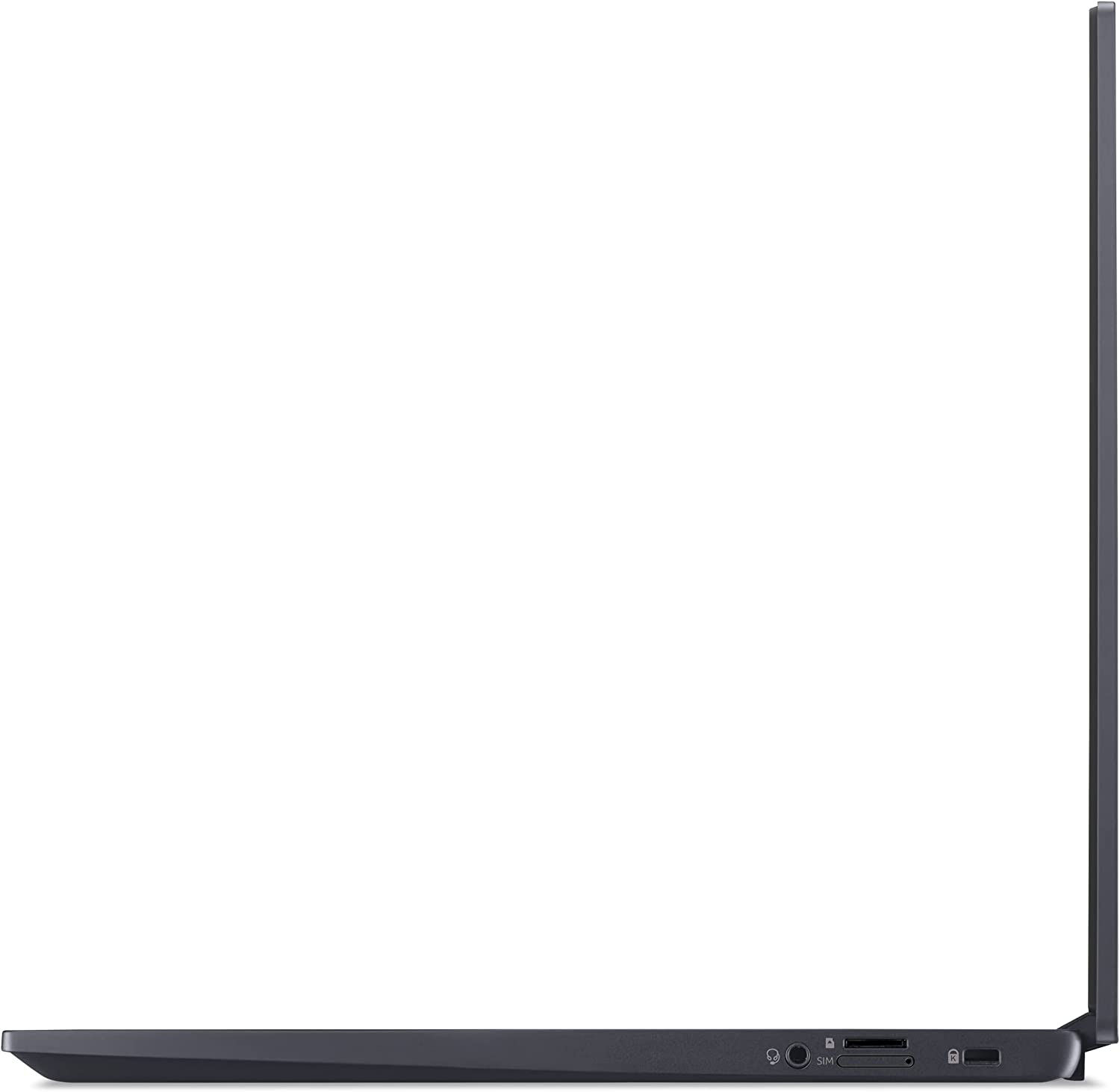

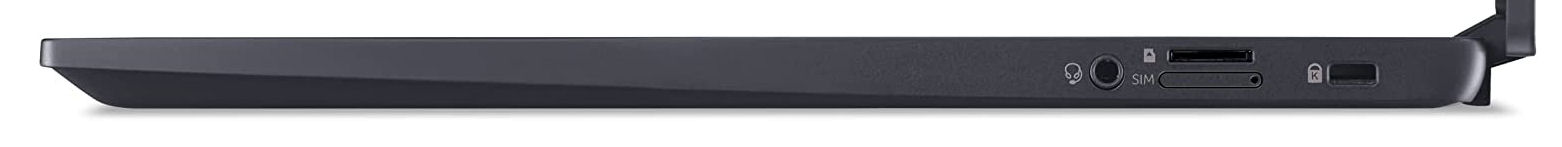

右边:组合音频插孔,microSD读卡器(顶部),SIM卡插槽(底部,可选),Kensington锁插槽
右边:组合音频插孔,microSD读卡器(顶部),SIM卡插槽(底部,可选),Kensington锁插槽
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7 (AV Pro V60)
196.8 MB/s +889%
Average of class Office
  (8 - 196.8, n=49, last 2 years)
55.8 MB/s +180%
Acer TravelMate P614P-52
Intel Core i7-1165G7 (AV PRO microSD 128 GB V60)
20.2 (20.15min - 20.74max) MB/s +2%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
19.9 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7 (AV Pro V60)
173.2 MB/s +537%
Average of class Office
  (25 - 173.2, n=43, last 2 years)
65.6 MB/s +141%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
27.2 MB/s
Acer TravelMate P614P-52
Intel Core i7-1165G7 (AV PRO microSD 128 GB V60)
23.61 MB/s -13%
Networking
iperf3 transmit AX12
Dell Latitude 7420 JW6MH
Intel Wi-Fi 6 AX201
1332 (756min - 1486max) MBit/s +63%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s +42%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Wi-Fi 6 AX201
1138 (909min - 1199max) MBit/s +39%
Average of class Office
  (819 - 1332, n=4, last 2 years)
990 MBit/s +21%
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
831 (711min - 899max) MBit/s +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Wi-Fi 6 AX201
819 (616min - 869max) MBit/s
Acer TravelMate P614P-52
Intel Wi-Fi 6 AX201
506 (427min - 674max) MBit/s -38%
iperf3 receive AX12
Dell Latitude 7420 JW6MH
Intel Wi-Fi 6 AX201
1690 (1668min - 1708max) MBit/s +91%
Acer TravelMate P614P-52
Intel Wi-Fi 6 AX201
1366 (755min - 1524max) MBit/s +55%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Wi-Fi 6 AX201
1297 (1214min - 1355max) MBit/s +47%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s +43%
Average of class Office
  (721 - 1690, n=4, last 2 years)
1067 MBit/s +21%
Acer TravelMate P6 TMP614P-52-724G
Intel Wi-Fi 6 AX201
883 (836min - 903max) MBit/s
Lenovo ThinkPad T14s G2 20XGS01100
RealTek Semiconductor RTL8852AE
877 (846min - 899max) MBit/s -1%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550160016501700Tooltip
Acer TravelMate P6 TMP614P-52-724G Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø882 (836-903)
Lenovo ThinkPad T14s G2 20XGS01100 RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø876 (846-899)
Dell Latitude 7420 JW6MH Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1690 (1668-1708)
HP EliteBook 840 Aero G8 3E4Q6AA Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1296 (1214-1355)
Acer TravelMate P614P-52 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1341 (755-1524)
Acer TravelMate P6 TMP614P-52-724G Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø819 (616-869)
Lenovo ThinkPad T14s G2 20XGS01100 RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø831 (711-899)
Dell Latitude 7420 JW6MH Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1307 (756-1486)
HP EliteBook 840 Aero G8 3E4Q6AA Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1138 (909-1199)
Acer TravelMate P614P-52 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø506 (427-674)
ColorChecker
21.9 ∆E
12.8 ∆E
18.9 ∆E
27.4 ∆E
17.9 ∆E
17.2 ∆E
17.9 ∆E
18.4 ∆E
13.9 ∆E
18.1 ∆E
18.3 ∆E
23.5 ∆E
20 ∆E
27.7 ∆E
16 ∆E
13.2 ∆E
16.3 ∆E
27.2 ∆E
3.3 ∆E
12.1 ∆E
19.4 ∆E
22 ∆E
18.6 ∆E
5.5 ∆E
ColorChecker Acer TravelMate P6 TMP614P-52-724G: 17.81 ∆E min: 3.32 - max: 27.71 ∆E

显示 - P6有一个内置的隐私过滤器

宏碁给P6提供了一个14英寸的显示屏(1,920 x 1,200像素),长宽比为16:10。我们没有发现任何PWM闪烁。屏幕的亮度(304.4cd/m²)和对比度(2,050:1)一般可以认为是良好到优秀。然而,预生产模型配备了一个明显更亮的面板,对比度更高。

PrivacyPanel功能可以被切换为开启和关闭。它旨在限制和阻止他人从侧面偷看屏幕。但该过滤器也使用户更难查看屏幕的内容--即使该功能被禁用。除非直接观看,否则图像会显得稍微暗一些。因此,在购买笔记本电脑之前,你应该仔细考虑你是否真的需要隐私面板。

274
cd/m²
284
cd/m²
272
cd/m²
323
cd/m²
328
cd/m²
319
cd/m²
315
cd/m²
317
cd/m²
308
cd/m²
Distribution of brightness
BOE CQ NE140WUM-N66 tested with X-Rite i1Pro 2
Maximum: 328 cd/m² (Nits) Average: 304.4 cd/m² Minimum: 19 cd/m²
Brightness Distribution: 83 %
Center on Battery: 328 cd/m²
Contrast: 2050:1 (Black: 0.16 cd/m²)
ΔE Color 2.19 | 0.5-29.43 Ø5, calibrated: 1.29
ΔE Greyscale 3.13 | 0.57-98 Ø5.3
68% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.8% sRGB (Argyll 2.2.0 3D)
67% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.51
Acer TravelMate P6 TMP614P-52-724G
BOE CQ NE140WUM-N66, IPS, 1920x1200, 14.00
Lenovo ThinkPad T14s G2 20XGS01100
NE140FHM-N61, IPS LED, 1920x1080, 14.00
Dell Latitude 7420 JW6MH
Chi Mei CMN1416 CHF07 140HCG, IPS, 1920x1080, 14.00
HP EliteBook 840 Aero G8 3E4Q6AA
AU Optronics AUO068B, IPS, 1920x1080, 14.00
Acer TravelMate P614P-52
AU Optronics B140UAV01.0, IPS, 1920x1200, 14.00
Display
-0%
2%
2%
9%
Display P3 Coverage
67
69.7
4%
68
1%
68
1%
76
13%
sRGB Coverage
95.8
91.8
-4%
99
3%
97.6
2%
99.4
4%
AdobeRGB 1998 Coverage
68
67.2
-1%
70
3%
69.3
2%
75.5
11%
Response Times
-114%
-18%
-16%
5%
Response Time Grey 50% / Grey 80% *
43 ?(19, 24)
84 ?(42, 42)
-95%
55 ?(24, 31)
-28%
48 ?(23.6, 24.4)
-12%
40.79 ?(17.72, 23.07)
5%
Response Time Black / White *
24 ?(13, 11)
56 ?(26, 30)
-133%
26 ?(11, 15)
-8%
28.8 ?(14, 14.8)
-20%
22.9 ?(10.96, 11.94)
5%
PWM Frequency
2451 ?(50)
1000 ?(99)
Screen
-69%
14%
-20%
10%
Brightness middle
328
397
21%
408
24%
466.4
42%
504.15
54%
Brightness
304
386
27%
378
24%
426
40%
482
59%
Brightness Distribution
83
88
6%
86
4%
84
1%
77
-7%
Black Level *
0.16
0.28
-75%
0.22
-38%
0.32
-100%
0.19
-19%
Contrast
2050
1418
-31%
1855
-10%
1458
-29%
2653
29%
Colorchecker dE 2000 *
2.19
5.8
-165%
1.54
30%
2.84
-30%
2.75
-26%
Colorchecker dE 2000 max. *
4.28
12.6
-194%
2.72
36%
4.73
-11%
4.66
-9%
Colorchecker dE 2000 calibrated *
1.29
1.9
-47%
1.08
16%
2.27
-76%
1.72
-33%
Greyscale dE 2000 *
3.13
8.3
-165%
1.95
38%
3.7
-18%
1.9
39%
Gamma
2.51 88%
2.07 106%
2.33 94%
2.13 103%
2.13 103%
CCT
6560 99%
6867 95%
6806 96%
6886 94%
6426 101%
Total Average (Program / Settings)
-61% / -61%
-1% / 7%
-11% / -15%
8% / 9%

* ... smaller is better

该显示器开箱后就有良好的色彩再现:色差(2.19)在可接受的范围内(Delta E < 3)。校准屏幕后,灰度更加平衡,色差减少到1.29。该显示器几乎能够覆盖整个sRGB色彩空间(95.8%),但不能覆盖AdobeRGB(68%)和DCI-P3(67%)色域。

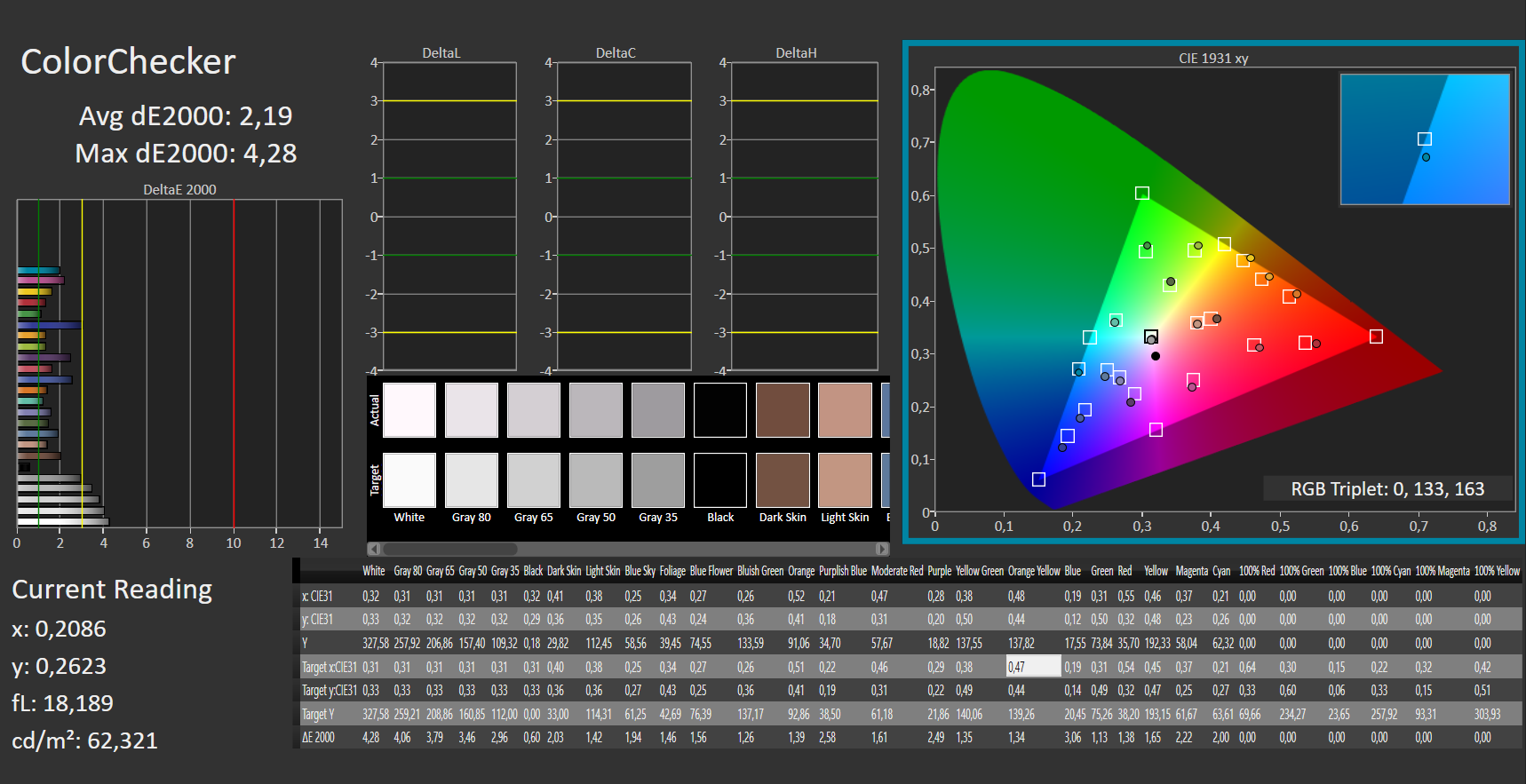

CalMAN - 颜色检查器
CalMAN - 颜色检查器

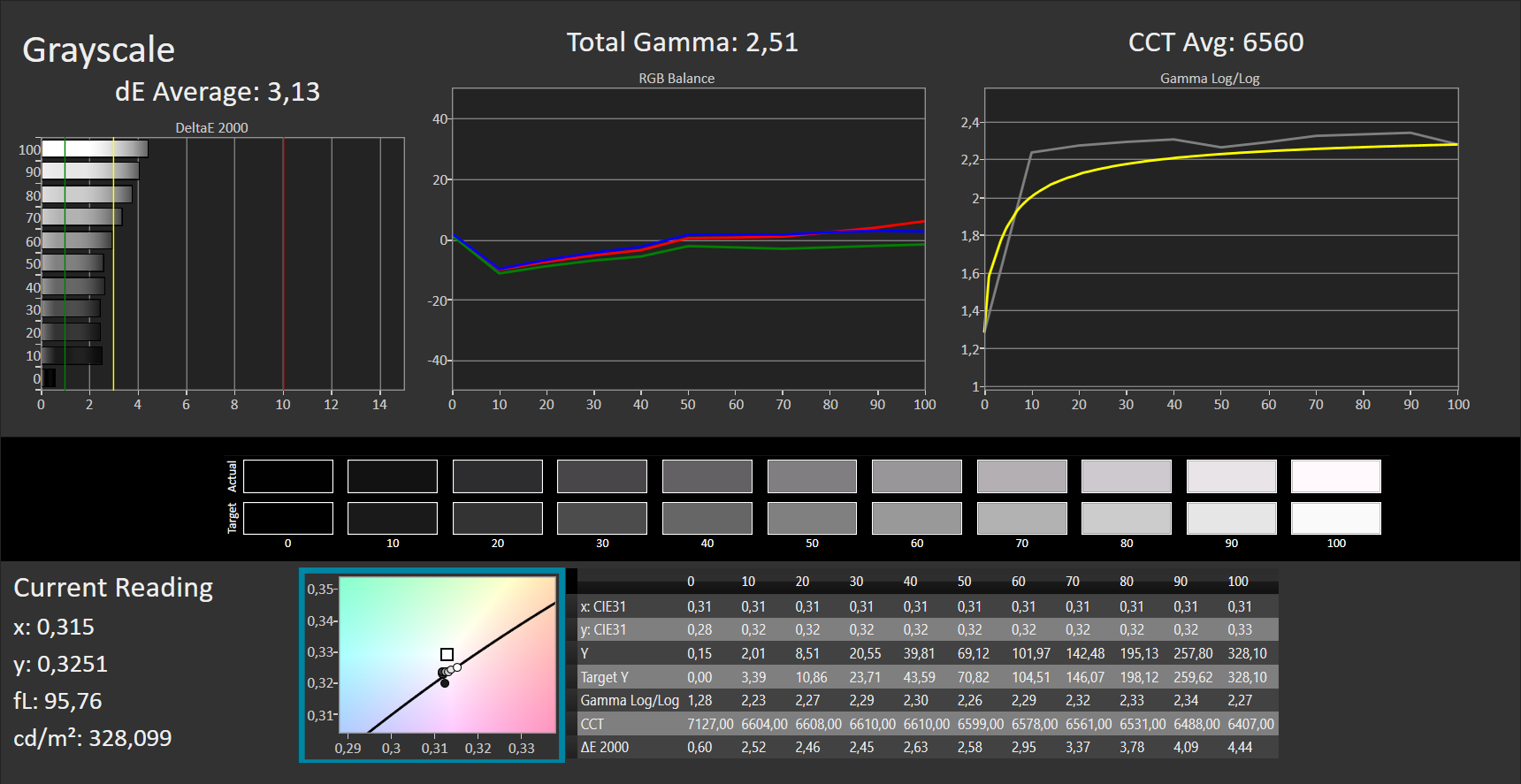

卡尔曼--灰度
卡尔曼--灰度

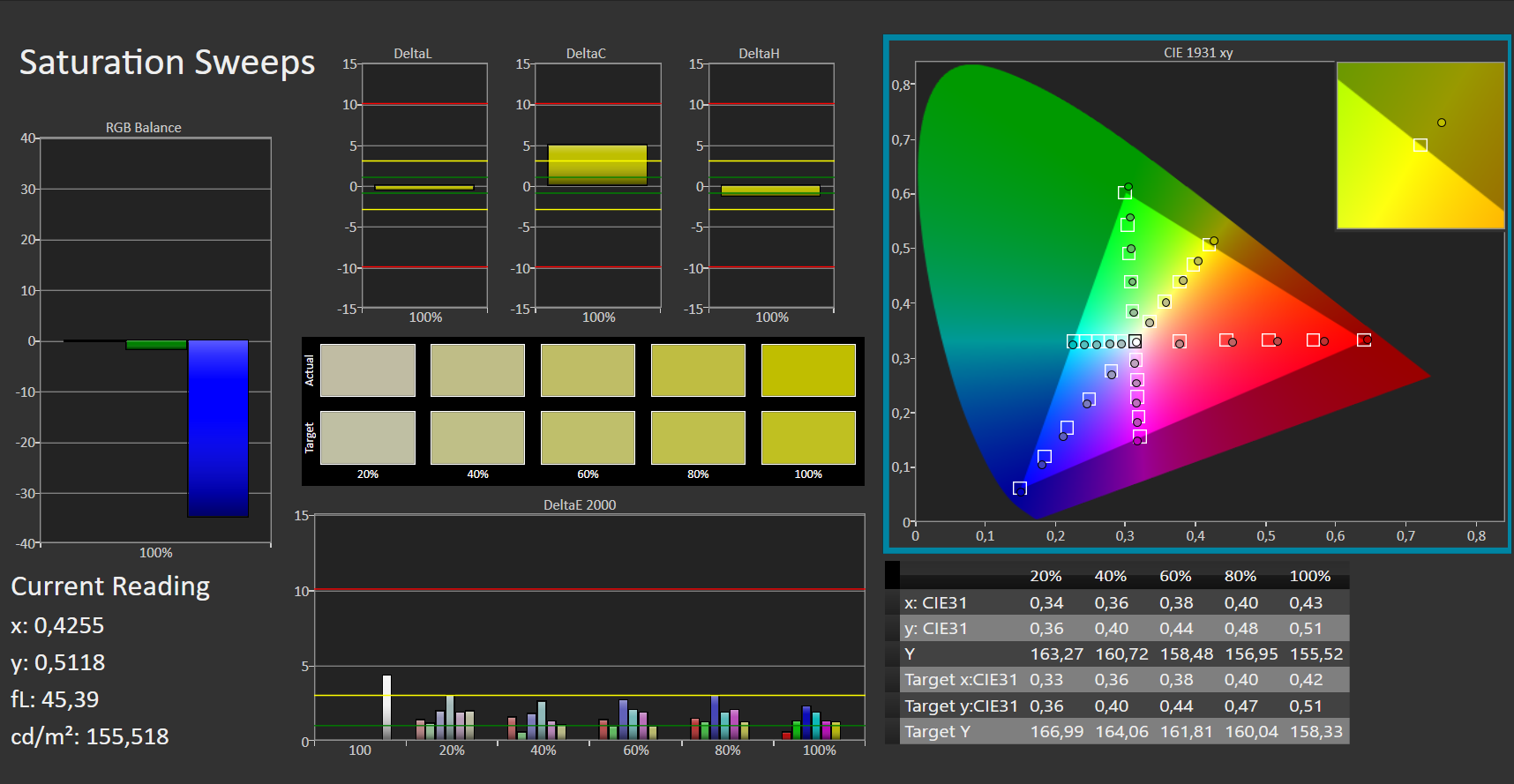

CalMAN - 色彩饱和度
CalMAN - 色彩饱和度

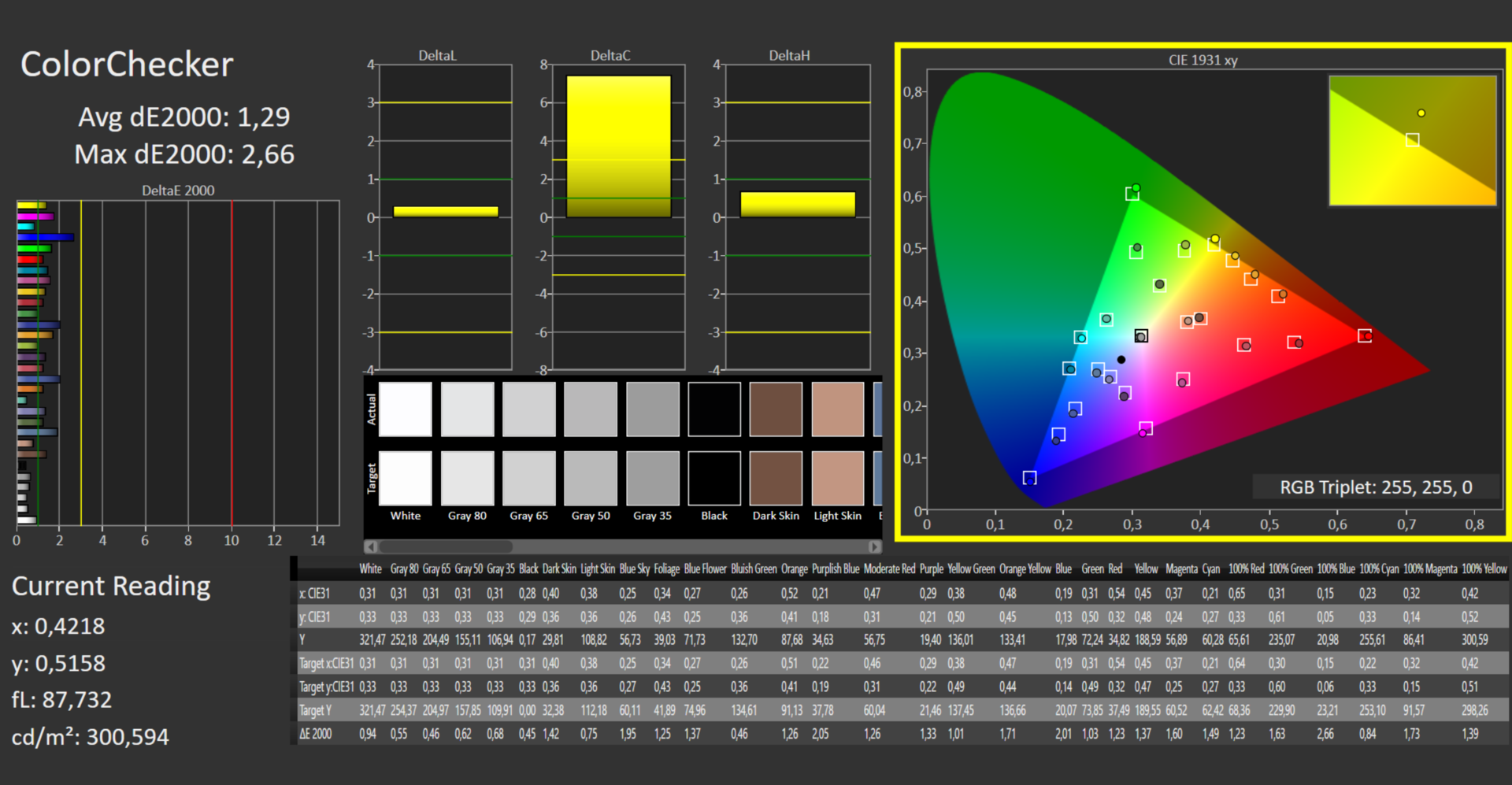

CalMAN - 颜色检查器(已校准)
CalMAN - 颜色检查器(已校准)

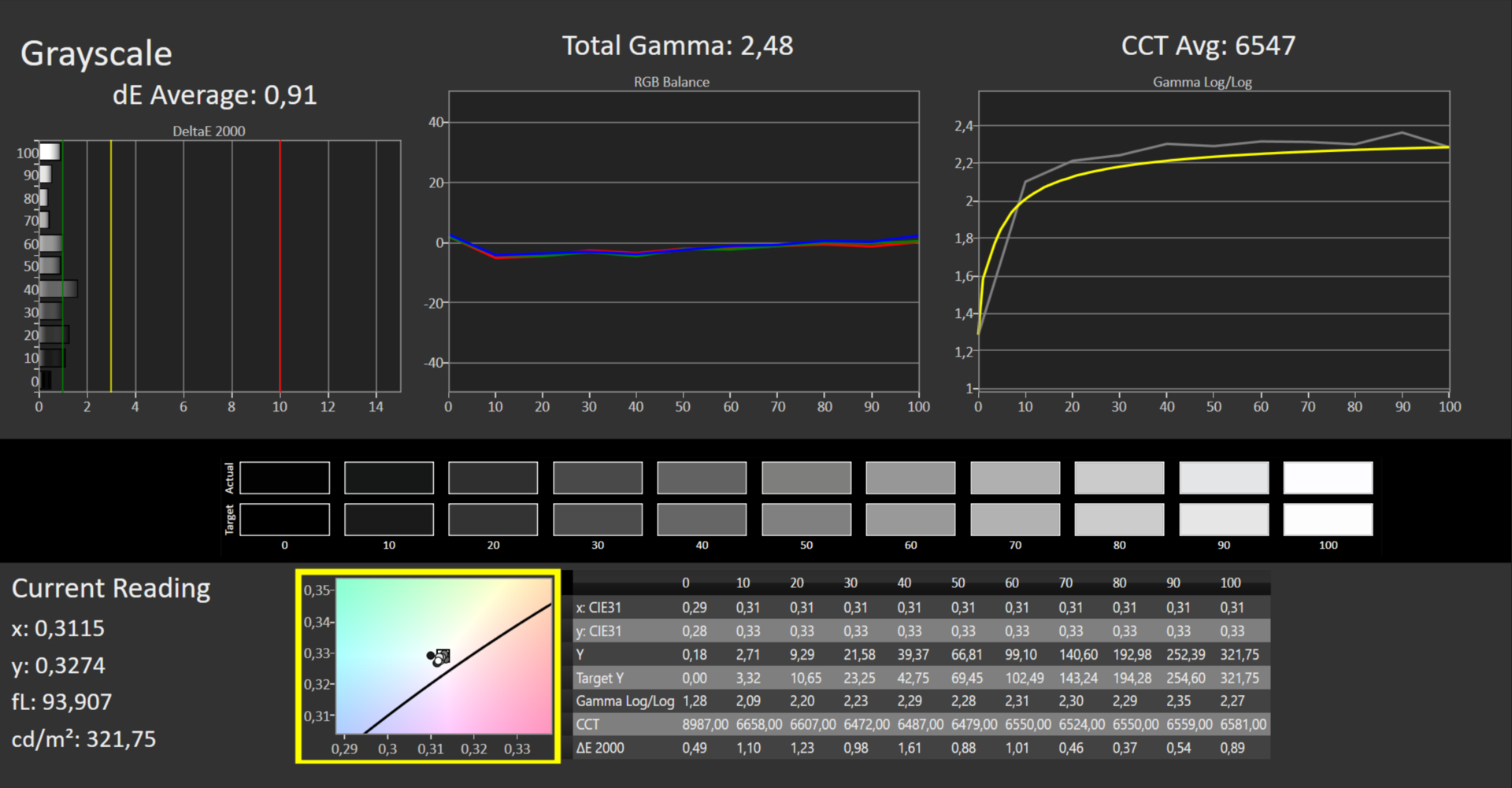

CalMAN - 灰度(校准的)。
CalMAN - 灰度(校准的)。
CalMAN - 色彩饱和度(已校准)
CalMAN - 色彩饱和度(已校准)

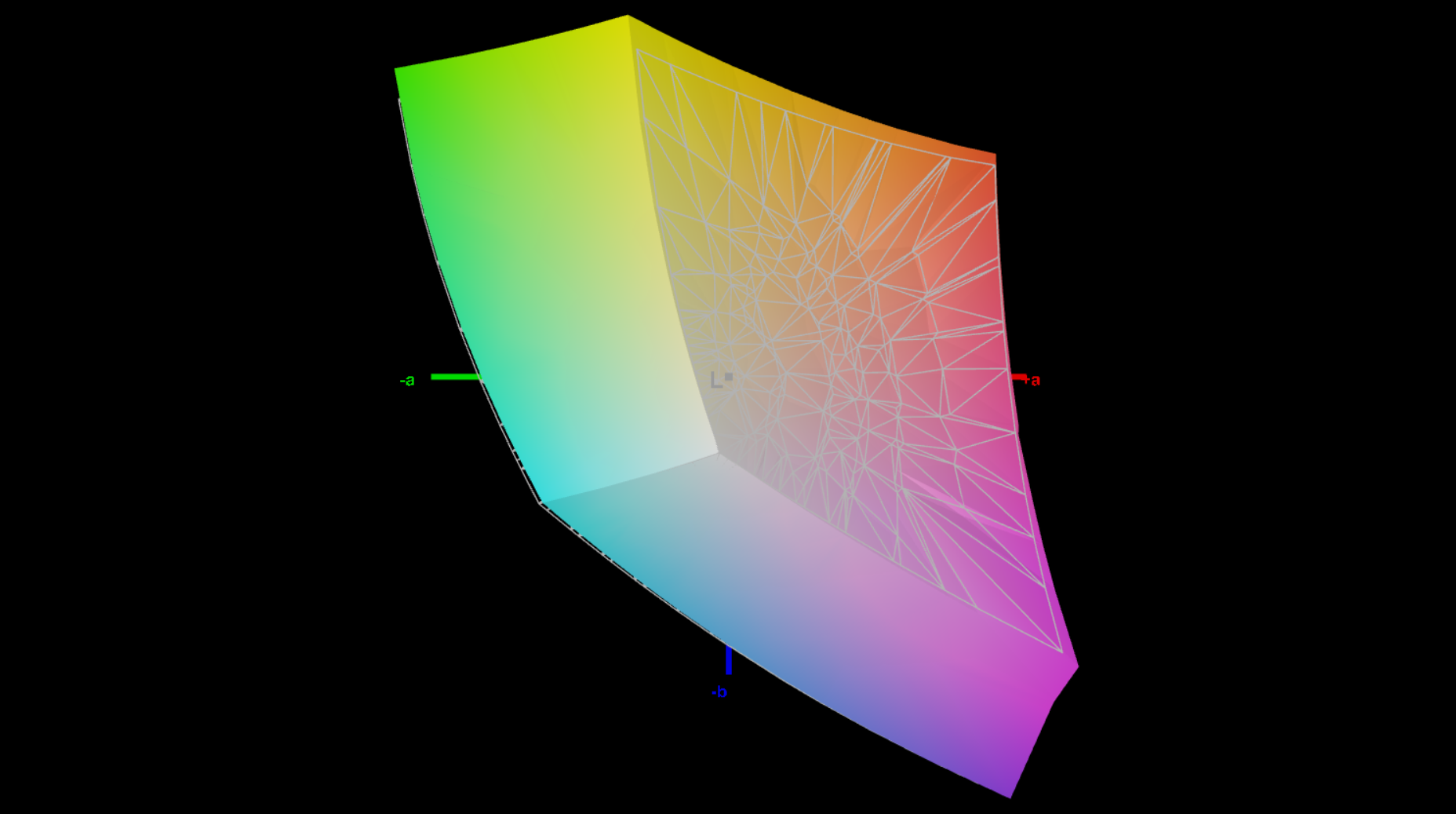

TravelMate P6与sRGB对比
TravelMate P6与sRGB对比

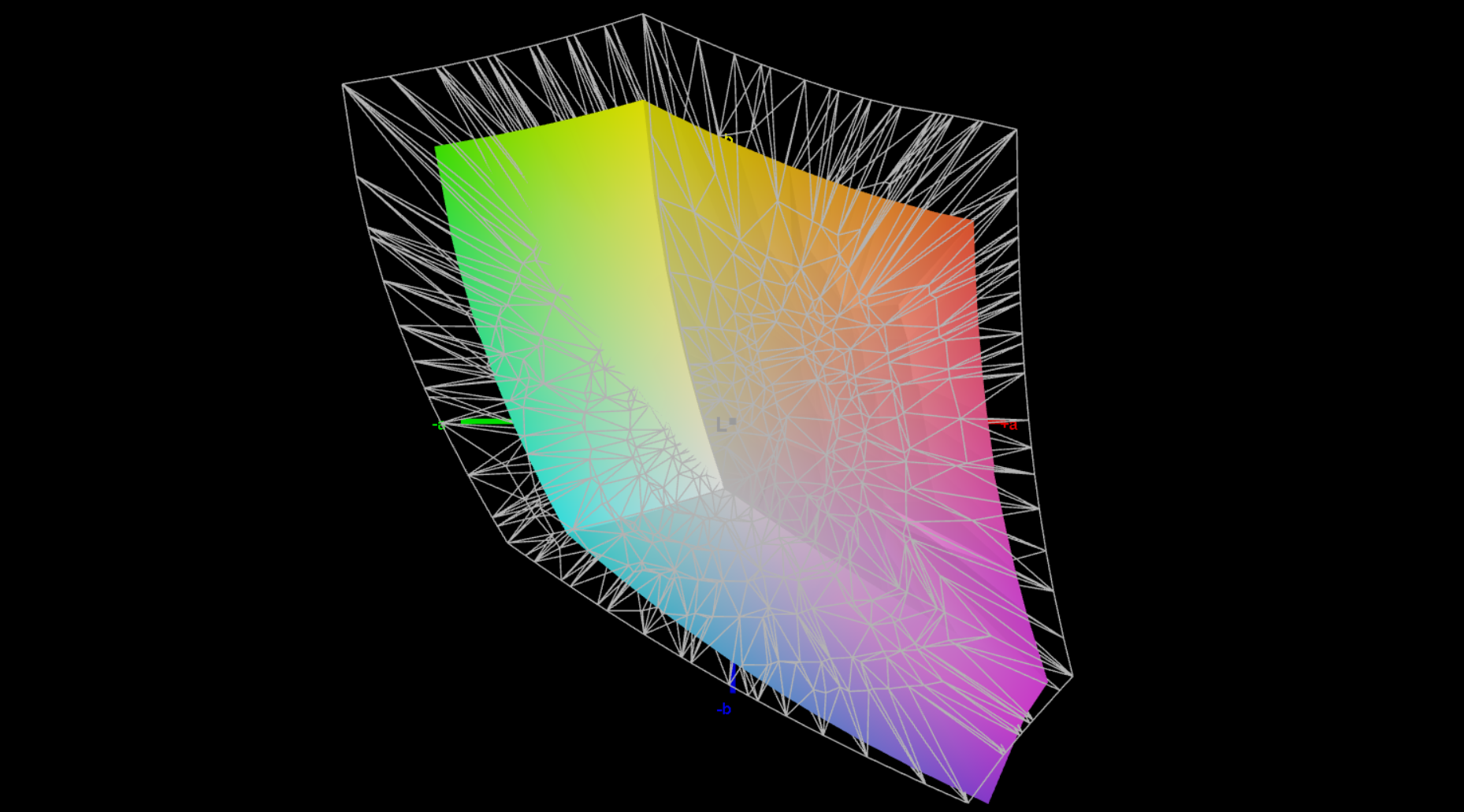

TravelMate P6 VS. DCI P3
TravelMate P6 VS. DCI P3

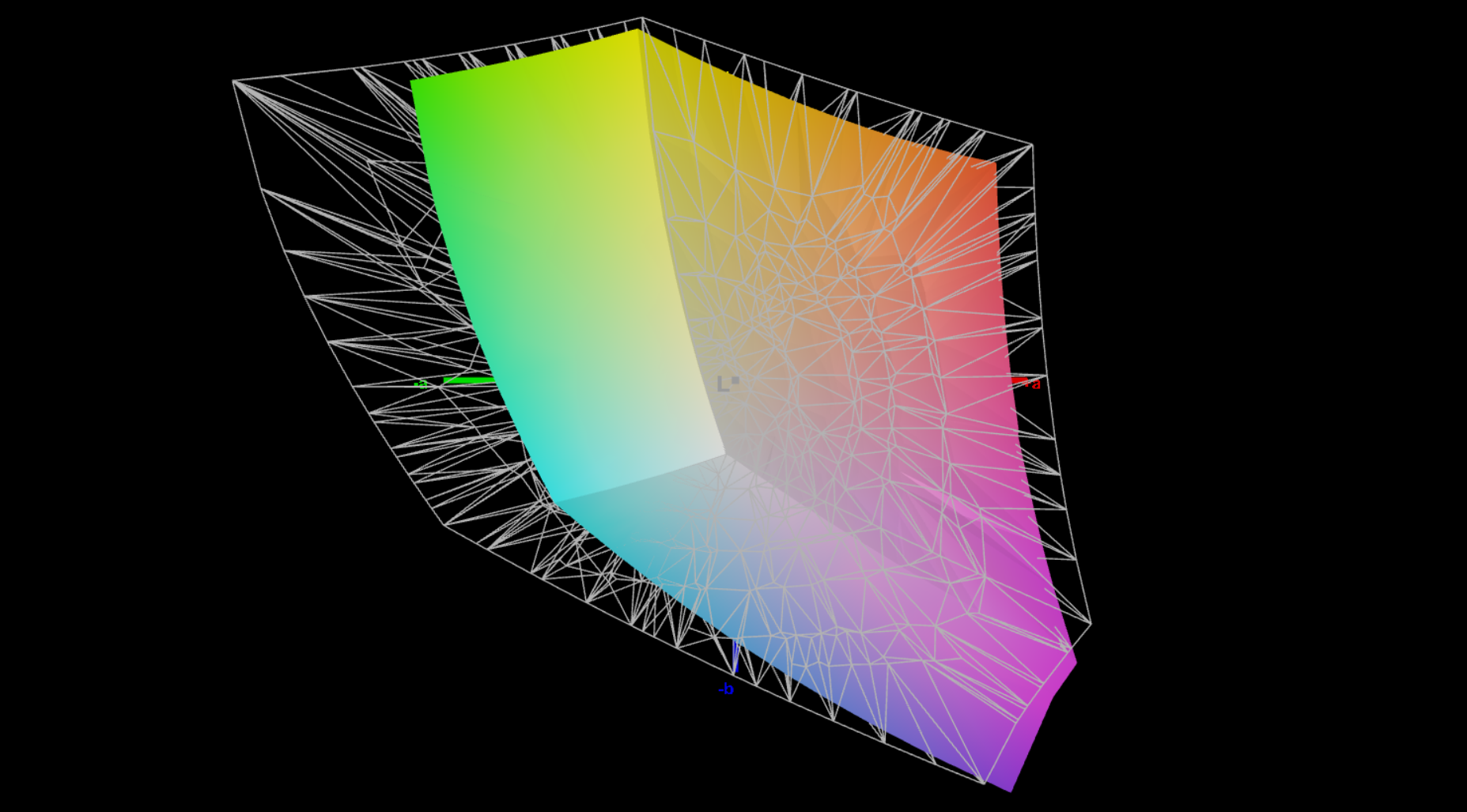

TravelMate P6与AdobeRGB的对比
TravelMate P6与AdobeRGB的对比

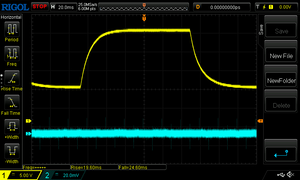

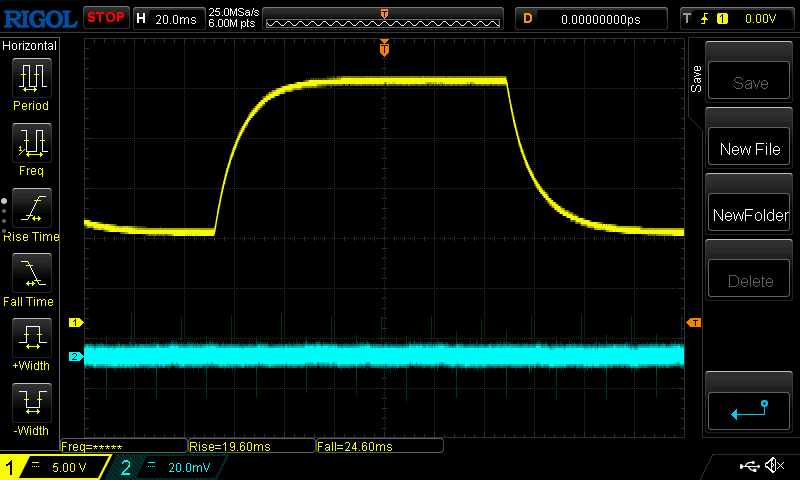

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

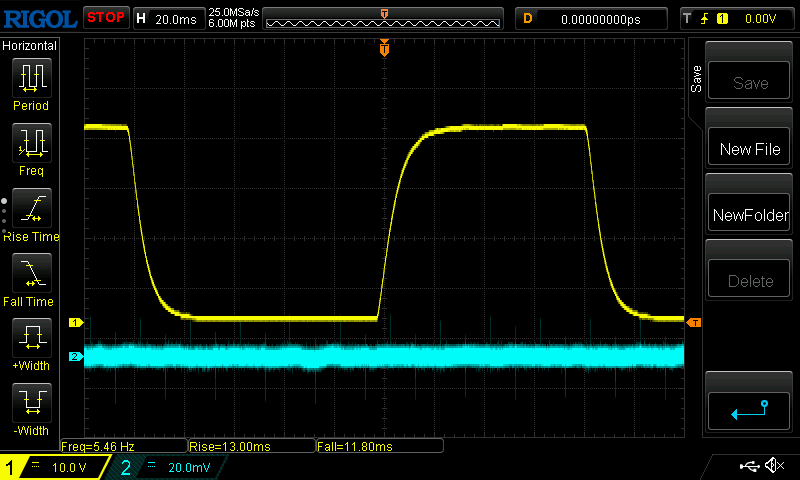

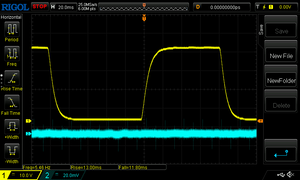

       Response Time Black to White
24 ms ... rise ↗ and fall ↘ combined↗ 13 ms rise
↘ 11 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 48 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
43 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 24 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 67 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

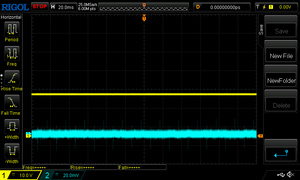

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

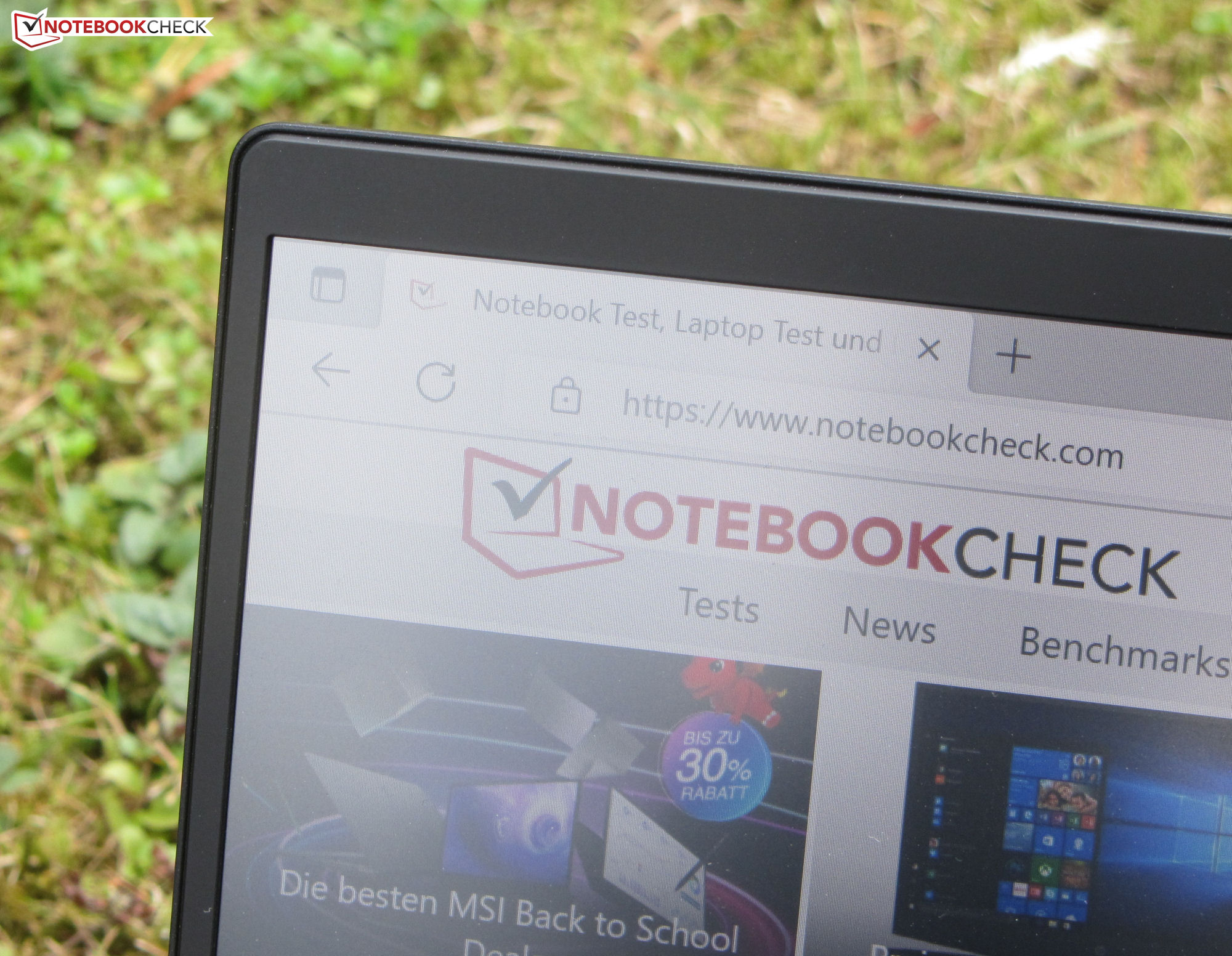

IPS面板有很宽的视角,可以从任何位置观看。只要阳光不是太亮,就可以在户外使用该显示器。

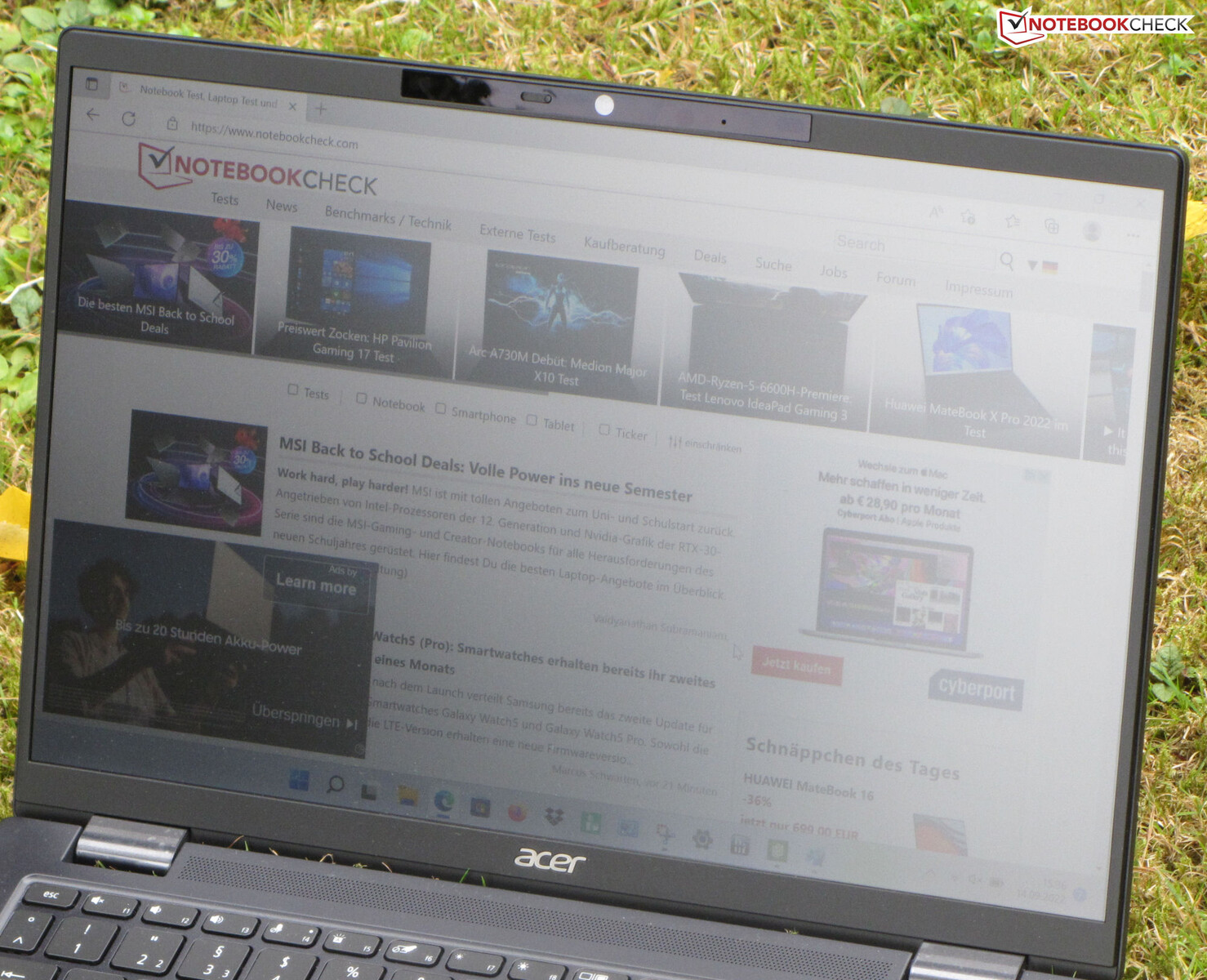

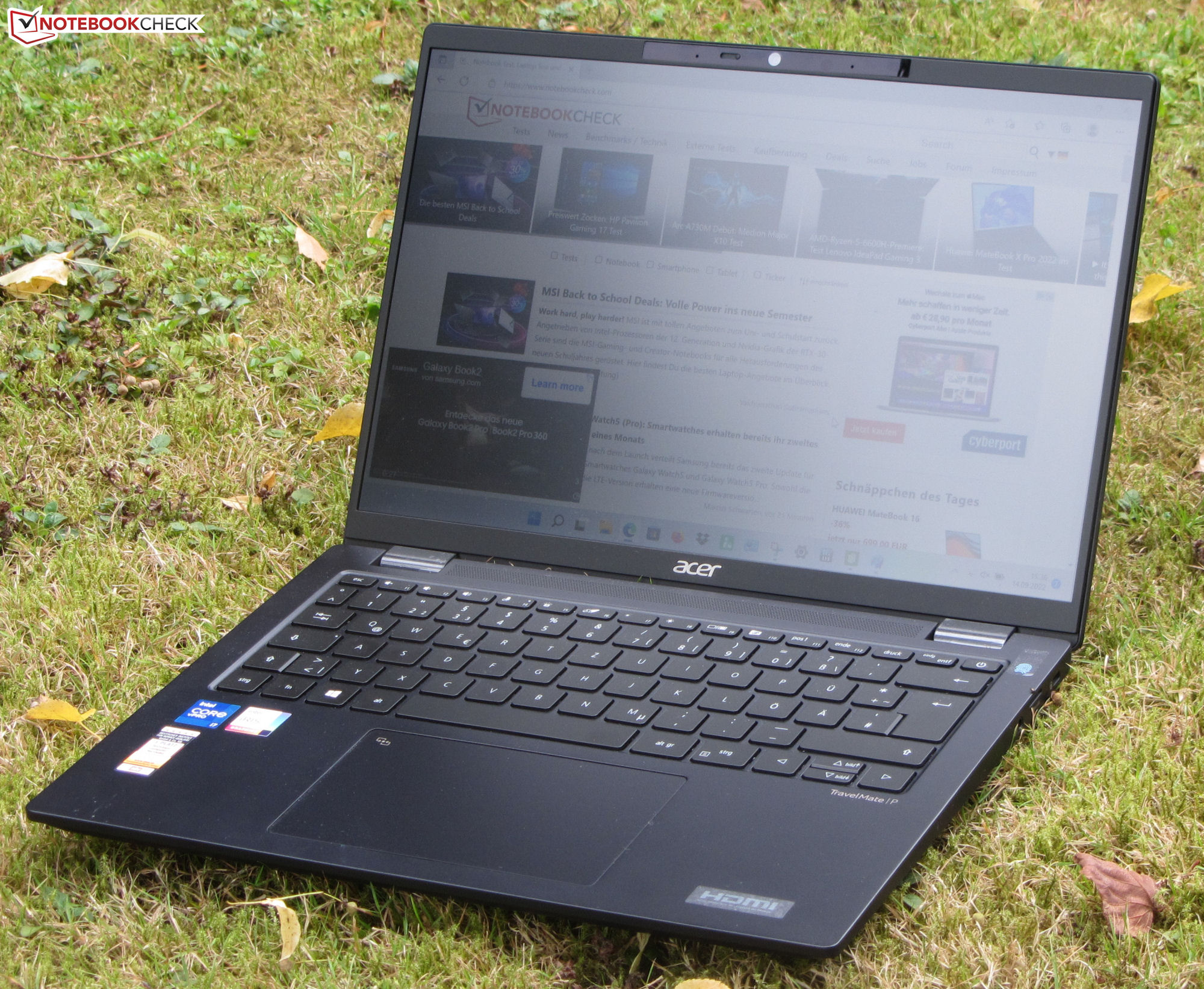

在户外使用TravelMate。
在户外使用TravelMate。

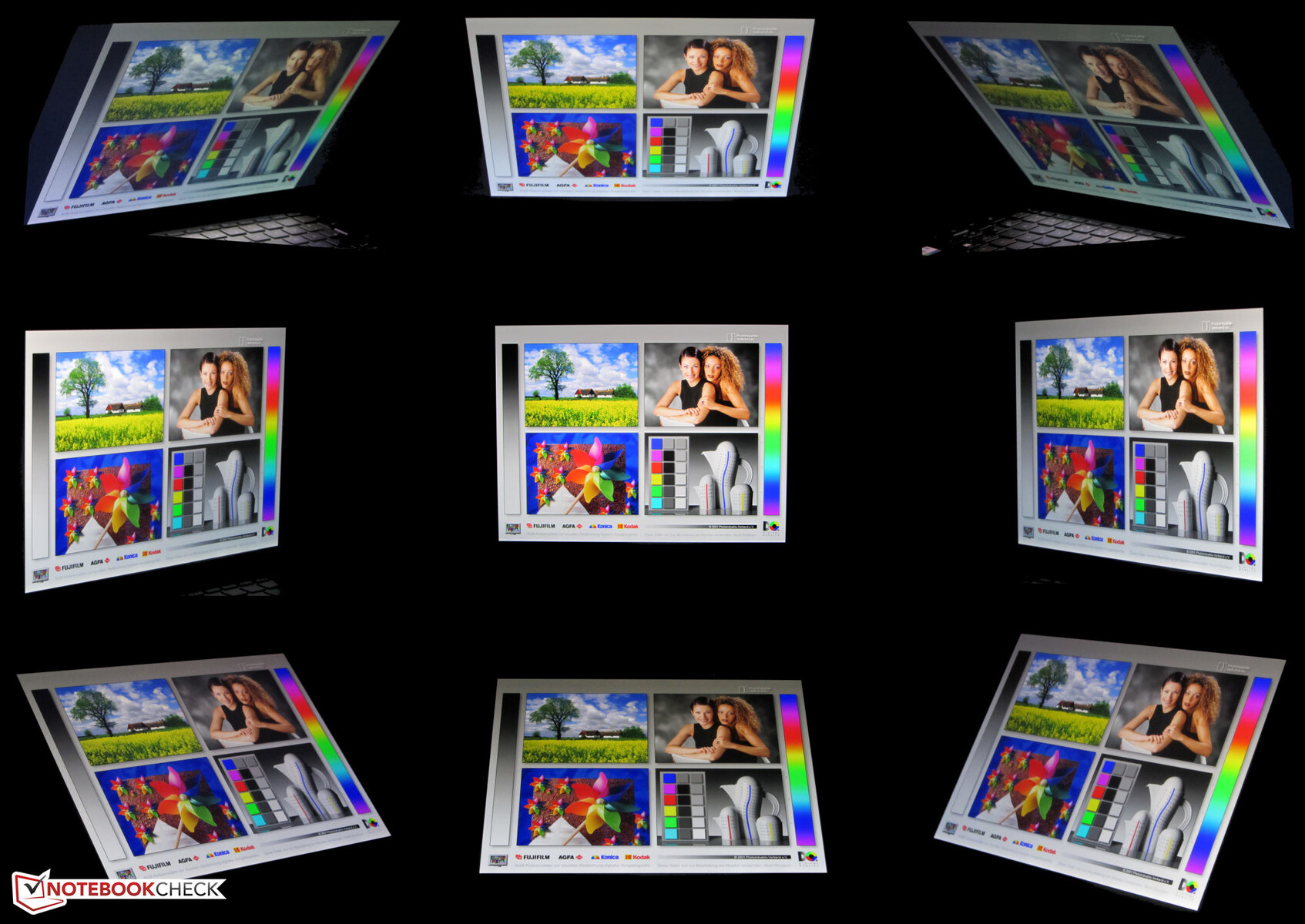

视角
视角

性能 - 宏碁为TravelMate选择了Tiger Lake 。

宏碁TravelMate P6是一款面向商业用户的便携式办公笔记本,提供足够的计算能力来处理办公和网络应用。

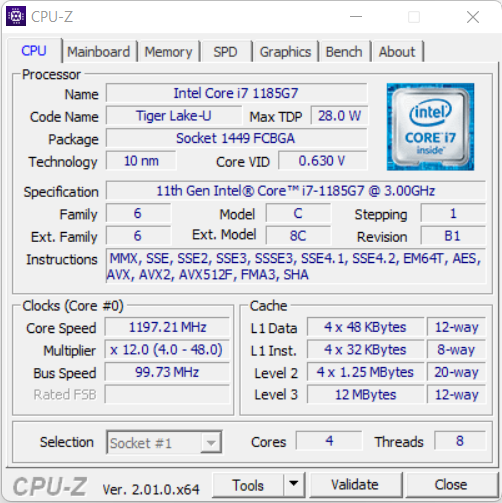

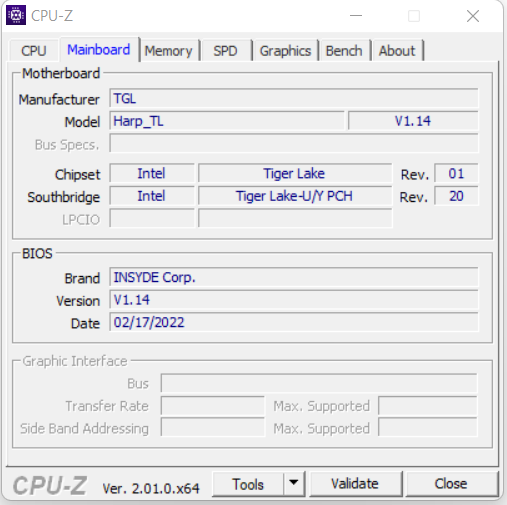

CPU-Z
CPU-Z
CPU-Z

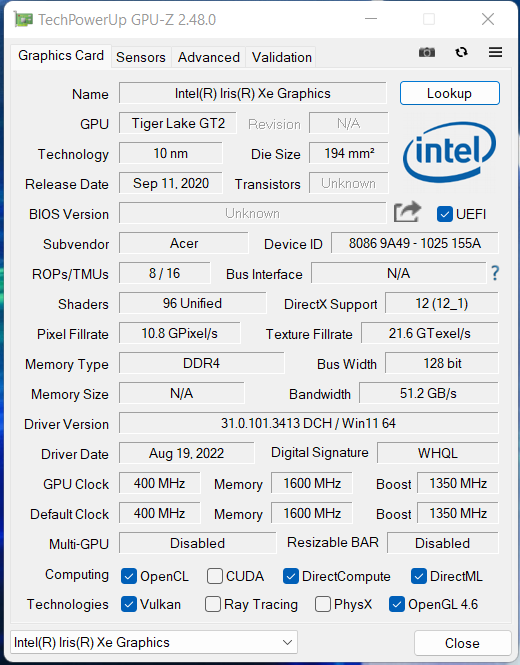

GPU-Z

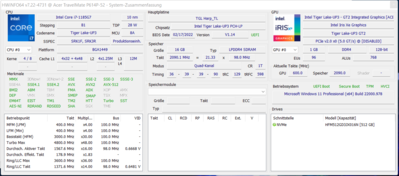

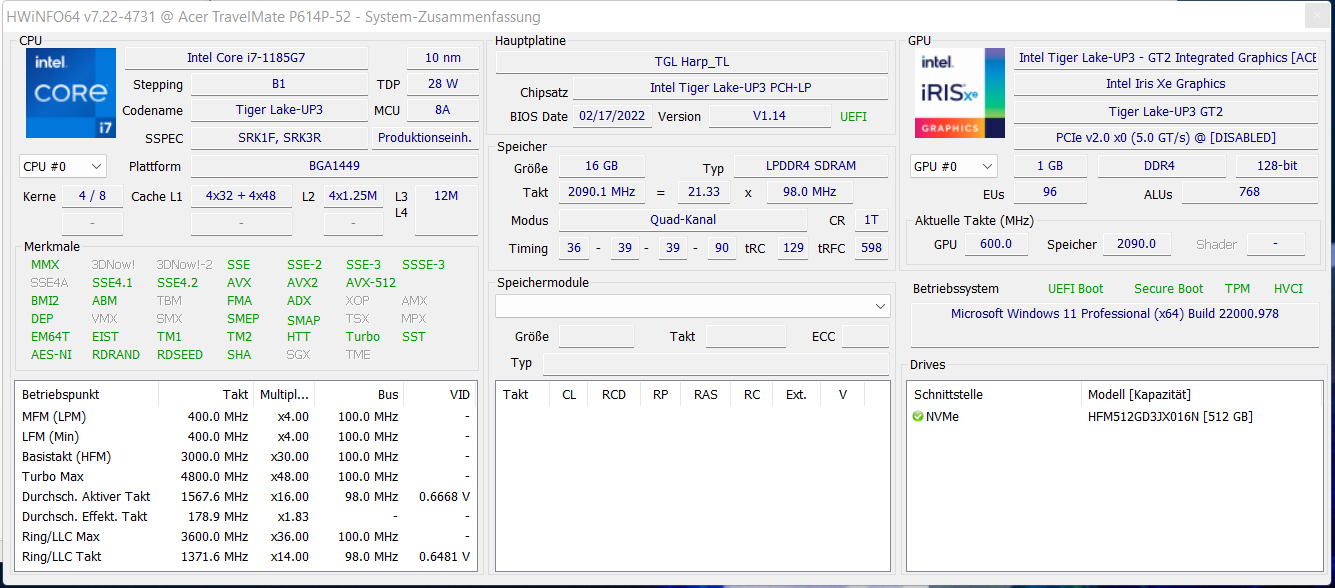

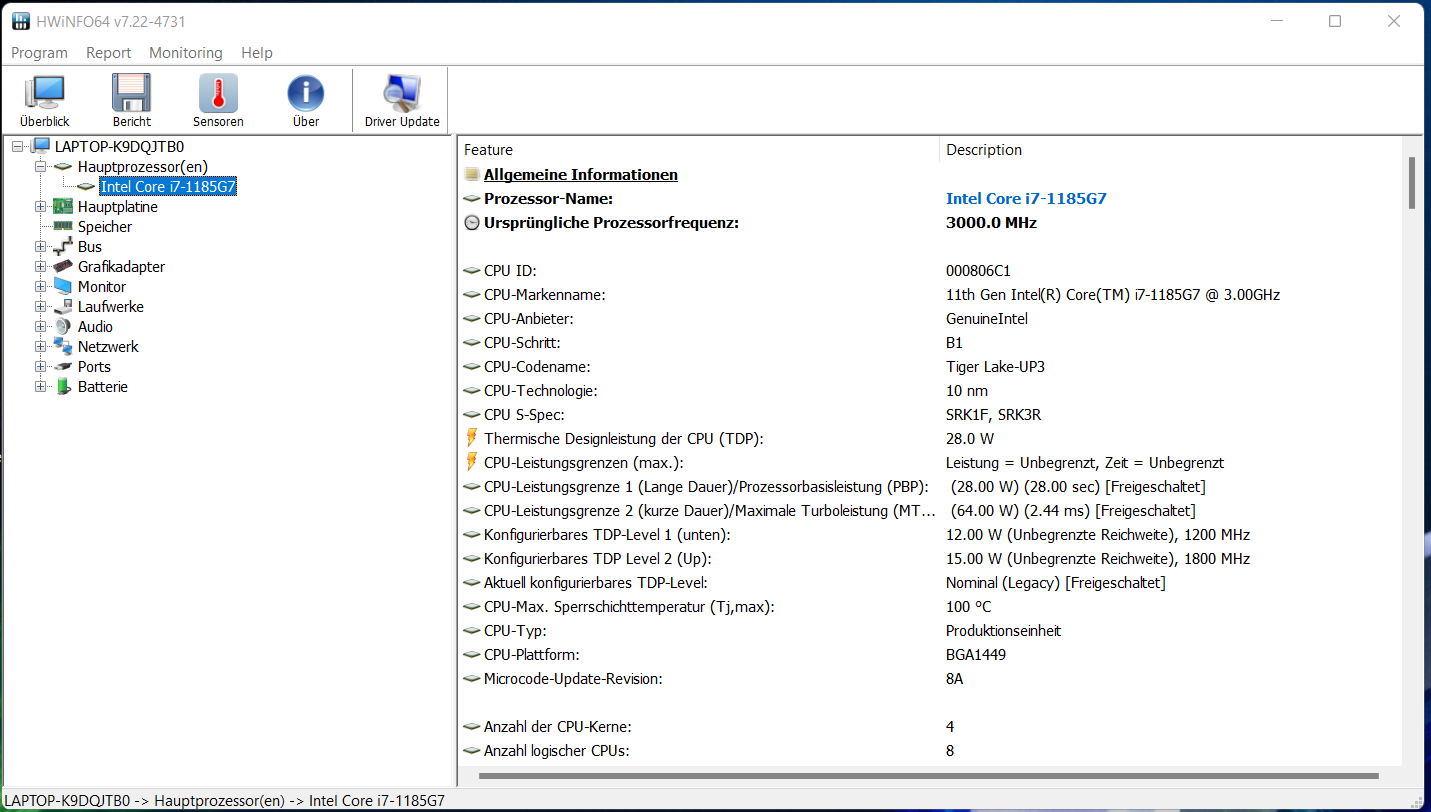

HWInfo
HWInfo



测试条件

你可以通过同时按下Fn和F键在制造商指定的三个性能配置文件(正常、性能和静音模式)之间切换。我们所有的测试都是在笔记本设置为正常模式下进行的。我们没有发现配置文件之间有任何性能上的差异。

最终生产模型与预生产模型

尽管名义上拥有更强大的GPU,但P6的最终生产型号提供的GPU性能不如其预生产型号。然而,它的电池寿命更长,噪音更小。原因是预生产型号没有在最终的BIOS版本上运行。当时也没有性能配置文件。

处理器

Core i7-1185G7 是一个四核Tiger Lake 处理器,基本时钟为3GHz。使用Turbo Boost技术,CPU频率可以提高到4.3GHz(四核)和4.8GHz(单核)。还支持超线程(每个核心两个线程)。

在Cinbench R15多线程测试中,CPU以3.2至4.2 GHz的速度运行,在单线程测试中以0.8至4.8 GHz运行。当笔记本电脑使用电池供电时,时钟速度保持在同一范围。

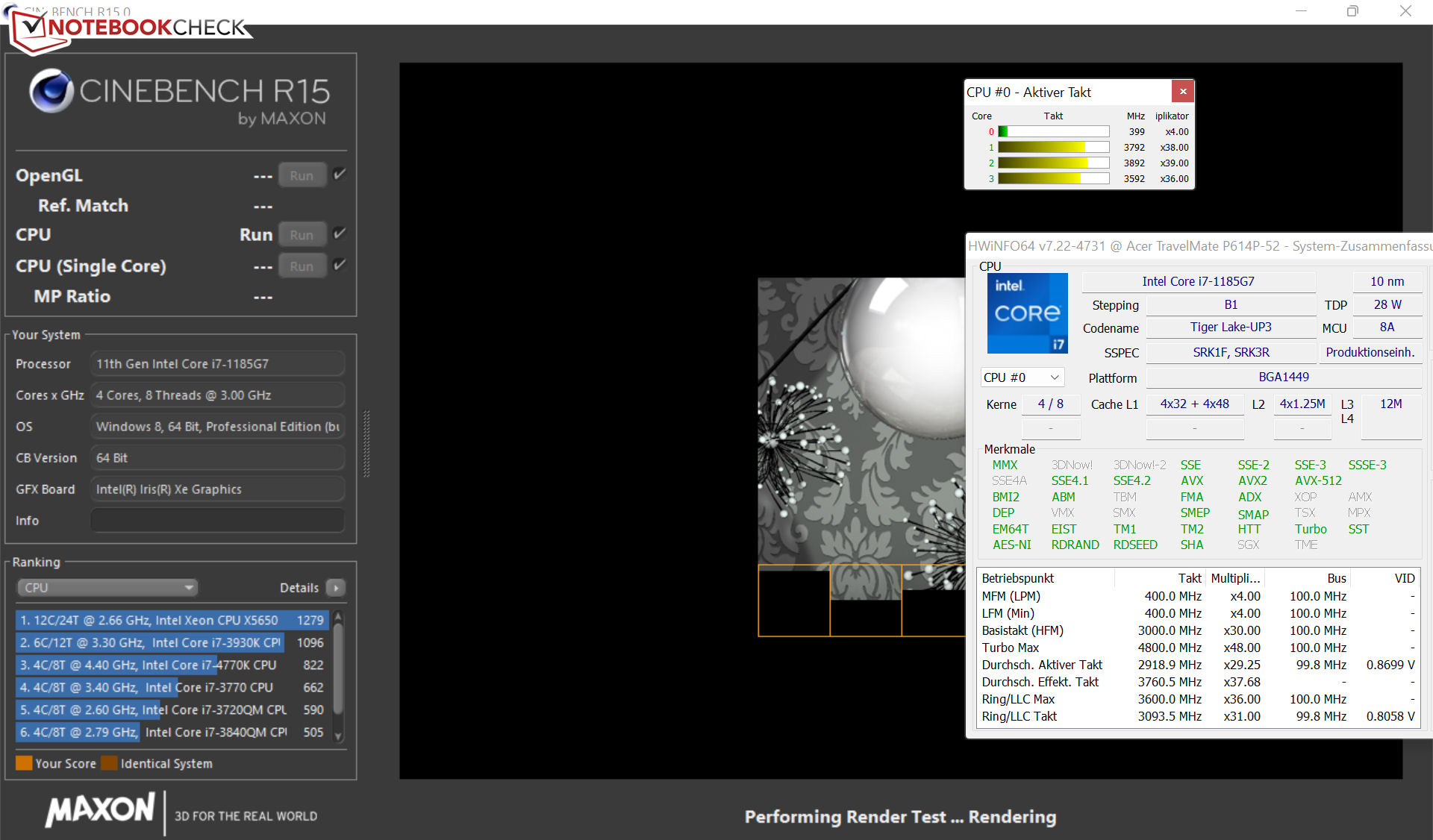

多线程(插入式)
多线程(插入式)

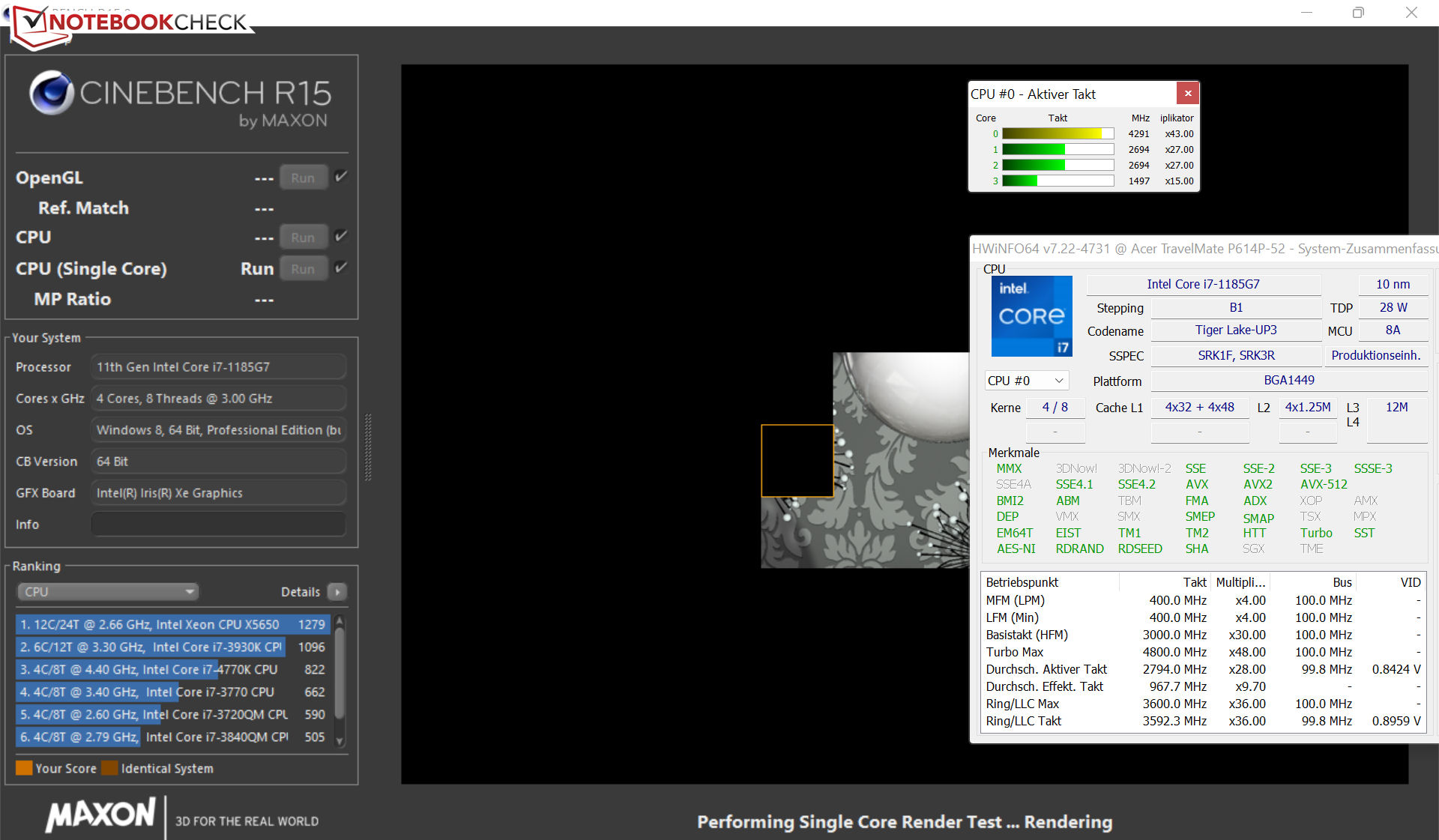

单线程(插入式)
单线程(插入式)

我们让Cinebench R15多线程测试至少循环30分钟,以检查CPU是否能够在笔记本插电的情况下长时间保持其提升时钟。CPU的时钟速度只得到了轻微的提升。

Cinebench R15 Multi Sustained Load

075150225300375450525600675750825900975105011251200127513501425Tooltip
Acer TravelMate P6 TMP614P-52-724G Intel Core i7-1185G7: Ø752 (722.1-841.18)
Lenovo ThinkPad T14s G2 20XGS01100 AMD Ryzen 7 PRO 5850U: Ø1458 (1453.17-1466.65)
Dell Latitude 7420 JW6MH Intel Core i5-1145G7: Ø663 (583.12-791.56)
HP EliteBook 840 Aero G8 3E4Q6AA Intel Core i7-1185G7: Ø718 (665.15-755.62)
Acer TravelMate P614P-52 Intel Core i7-1165G7: Ø841 (834.71-880.07)

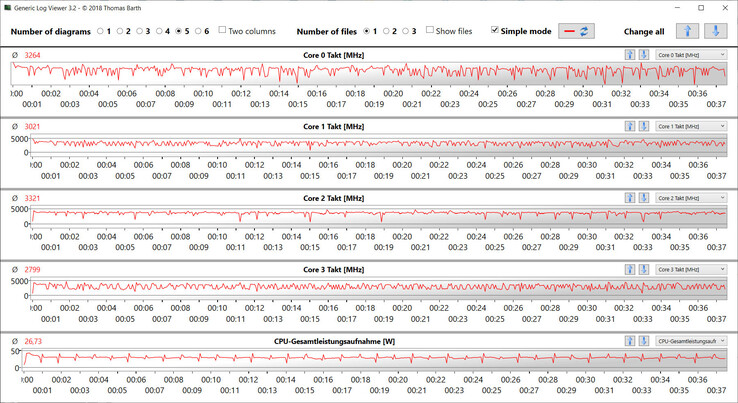

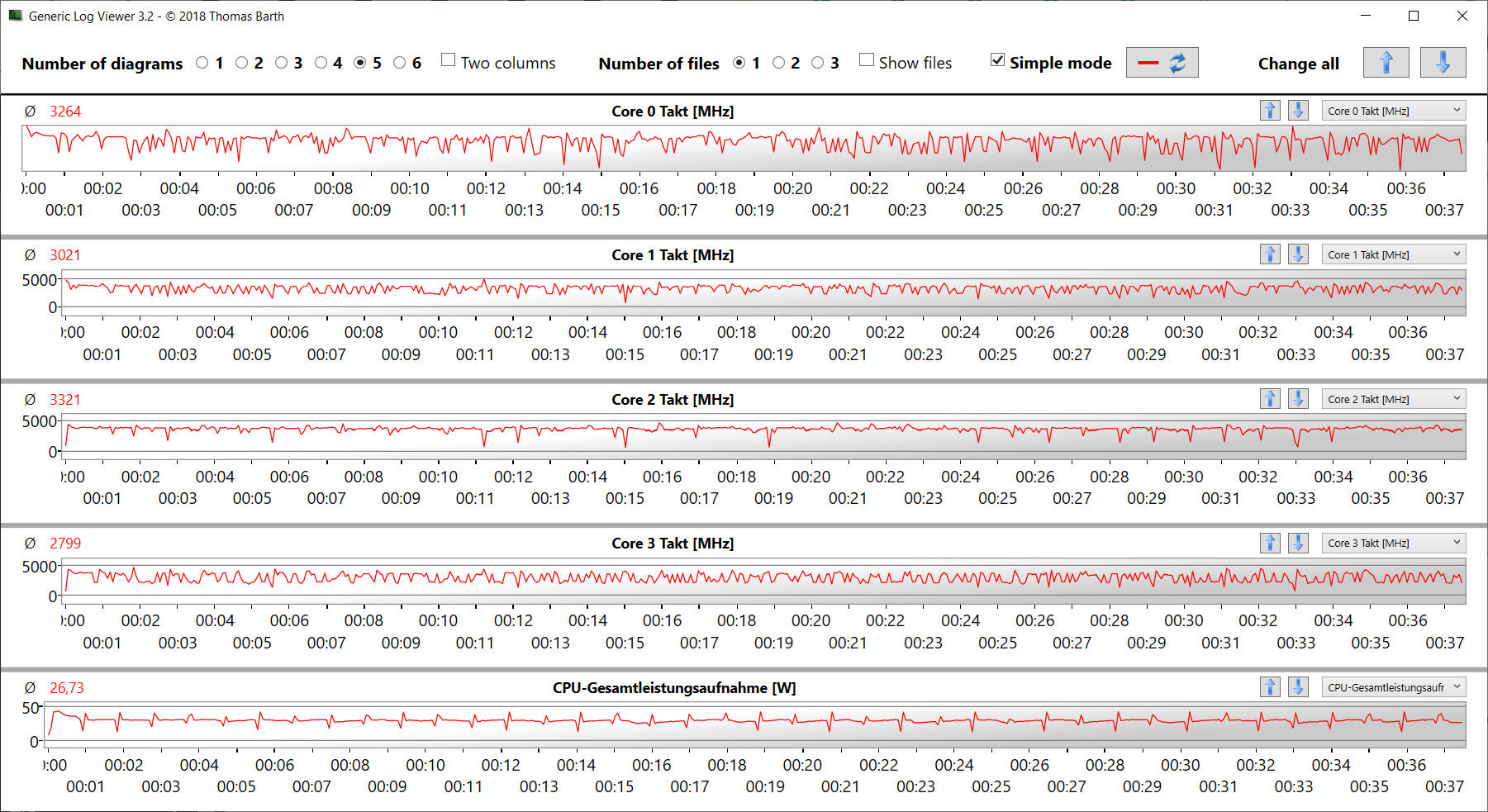

CB15循环测试期间的CPU时钟速度
CB15循环测试期间的CPU时钟速度
CPU Performance Rating - Percent
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
83.3 pt
Average of class Office

74.5 pt
Acer TravelMate P614P-52
Intel Core i7-1165G7
65.7 pt
Average Intel Core i7-1185G7

63.3 pt
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
63 pt
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
56.6 pt
HP EliteBook 840 Aero G8 3E4Q6AA -2!
Intel Core i7-1185G7
55.1 pt
Cinebench R23
Multi Core
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
8716 (8655.84min - 8715.53max) Points +59%
Average of class Office
  (1056 - 15743, n=121, last 2 years)
8030 Points +47%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
5476 Points
Acer TravelMate P614P-52
Intel Core i7-1165G7
5396 Points -1%
Average Intel Core i7-1185G7
  (3610 - 6383, n=24)
5324 Points -3%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
4769 Points -13%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
4744 (3563.96min - 4744max) Points -13%
Single Core
Acer TravelMate P614P-52
Intel Core i7-1165G7
1473 Points +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
1454 Points
Average of class Office
  (529 - 1995, n=120, last 2 years)
1451 Points 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1449 Points 0%
Average Intel Core i7-1185G7
  (1251 - 1532, n=24)
1449 Points 0%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1431 Points -2%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1388 Points -5%
Cinebench R20
CPU (Multi Core)
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
3417 Points +60%
Average of class Office
  (356 - 5904, n=119, last 2 years)
3085 Points +44%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
2141 Points
Acer TravelMate P614P-52
Intel Core i7-1165G7
2085 Points -3%
Average Intel Core i7-1185G7
  (1425 - 2493, n=28)
2039 Points -5%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1823 Points -15%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1693 Points -21%
CPU (Single Core)
Acer TravelMate P614P-52
Intel Core i7-1165G7
565 Points +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
559 Points
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
558 Points 0%
Average of class Office
  (181.3 - 764, n=119, last 2 years)
558 Points 0%
Average Intel Core i7-1185G7
  (489 - 593, n=28)
557 Points 0%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
531 Points -5%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
506 Points -9%
Cinebench R15
CPU Multi 64Bit
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1467 (1453.17min - 1466.65max) Points +70%
Average of class Office
  (160.8 - 2642, n=119, last 2 years)
1392 Points +62%
Acer TravelMate P614P-52
Intel Core i7-1165G7
880 (834.71min - 880.07max) Points +2%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
861 Points
Average Intel Core i7-1185G7
  (617 - 1066, n=32)
859 Points 0%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
792 (583.12min - 791.56max) Points -8%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
756 (665.15min - 755.62max) Points -12%
CPU Single 64Bit
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
227 Points +7%
Acer TravelMate P614P-52
Intel Core i7-1165G7
220 Points +3%
Average of class Office
  (82.6 - 284, n=117, last 2 years)
216 Points +1%
Average Intel Core i7-1185G7
  (168 - 230, n=27)
215 Points +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
213 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
209 Points -2%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
203 Points -5%
Blender - v2.79 BMW27 CPU
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
681 Seconds * -16%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
641 Seconds * -9%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
588 Seconds *
Average Intel Core i7-1185G7
  (478 - 745, n=28)
588 Seconds * -0%
Acer TravelMate P614P-52
Intel Core i7-1165G7
569 Seconds * +3%
Average of class Office
  (214 - 2844, n=119, last 2 years)
535 Seconds * +9%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
345 Seconds * +41%
7-Zip 18.03
7z b 4
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
44266 MIPS +93%
Average of class Office
  (4226 - 62349, n=120, last 2 years)
34626 MIPS +51%
Acer TravelMate P614P-52
Intel Core i7-1165G7
24418 MIPS +7%
Average Intel Core i7-1185G7
  (18812 - 27693, n=27)
23288 MIPS +2%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
22892 MIPS
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
21683 MIPS -5%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
20565 MIPS -10%
7z b 4 -mmt1
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
5237 MIPS +3%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
5231 MIPS +3%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5157 MIPS +2%
Average Intel Core i7-1185G7
  (3678 - 5507, n=27)
5112 MIPS +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
5063 MIPS
Average of class Office
  (2233 - 6687, n=120, last 2 years)
5007 MIPS -1%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
4751 MIPS -6%
Geekbench 5.5
Multi-Core
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
6889 Points +32%
Average of class Office
  (1018 - 11980, n=121, last 2 years)
6590 Points +27%
Acer TravelMate P614P-52
Intel Core i7-1165G7
5845 Points +12%
Average Intel Core i7-1185G7
  (4620 - 5944, n=21)
5460 Points +5%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
5203 Points
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
5055 Points -3%
Single-Core
Acer TravelMate P614P-52
Intel Core i7-1165G7
1551 Points +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
1529 Points
Average Intel Core i7-1185G7
  (1398 - 1626, n=21)
1520 Points -1%
Average of class Office
  (510 - 1974, n=121, last 2 years)
1468 Points -4%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
1436 Points -6%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
1430 Points -6%
HWBOT x265 Benchmark v2.2 - 4k Preset
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
11.3 fps +70%
Average of class Office
  (1.55 - 17.4, n=119, last 2 years)
9.18 fps +38%
Acer TravelMate P614P-52
Intel Core i7-1165G7
6.85 fps +3%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
6.65 fps
Average Intel Core i7-1185G7
  (5.02 - 8.13, n=27)
6.56 fps -1%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
6.21 fps -7%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
5.46 fps -18%
LibreOffice - 20 Documents To PDF
Average of class Office
  (31.3 - 117.5, n=119, last 2 years)
56.7 s * -7%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
53.8 s * -1%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
53.4 s * -1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
53.1 s *
Average Intel Core i7-1185G7
  (41.3 - 61.7, n=26)
51 s * +4%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
49.1 s * +8%
Acer TravelMate P614P-52
Intel Core i7-1165G7
45.6 s * +14%
R Benchmark 2.5 - Overall mean
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7
0.627 sec * -5%
Acer TravelMate P614P-52
Intel Core i7-1165G7
0.6 sec * -0%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7
0.6 sec *
Average of class Office
  (0.4244 - 1.397, n=118, last 2 years)
0.588 sec * +2%
Average Intel Core i7-1185G7
  (0.55 - 0.615, n=27)
0.586 sec * +2%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
0.583 sec * +3%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U
0.536 sec * +11%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
861 Points
Cinebench R15 OpenGL 64Bit
93.1 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
213 Points
Help
Performance Rating
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
94.7 pt
Average of class Office

73.7 pt
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
67.1 pt
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
65.5 pt
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
63.8 pt
Average Intel Core i7-1185G7

59.9 pt
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
57.6 pt
AIDA64 / FP32 Ray-Trace
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9963 KRay/s +43%
Average of class Office
  (763 - 24250, n=119, last 2 years)
8353 KRay/s +20%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
7012 KRay/s 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
6978 KRay/s
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
6854 KRay/s -2%
Average Intel Core i7-1185G7
  (5621 - 7453, n=20)
6602 KRay/s -5%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
6158 KRay/s -12%
AIDA64 / FPU Julia
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
64861 Points +121%
Average of class Office
  (4027 - 102228, n=119, last 2 years)
44699 Points +52%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
29875 Points +2%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
29316 Points
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
28393 Points -3%
Average Intel Core i7-1185G7
  (23248 - 32614, n=20)
27808 Points -5%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
25544 Points -13%
AIDA64 / CPU SHA3
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
2259 MB/s +17%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
1999 MB/s +3%
Average of class Office
  (279 - 4442, n=118, last 2 years)
1940 MB/s 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
1932 MB/s
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
1931 MB/s 0%
Average Intel Core i7-1185G7
  (1530 - 2209, n=20)
1843 MB/s -5%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
1724 MB/s -11%
AIDA64 / CPU Queen
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
83425 Points +68%
Average of class Office
  (8031 - 113016, n=119, last 2 years)
67458 Points +36%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
52445 Points +6%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
50505 Points +2%
Average Intel Core i7-1185G7
  (44677 - 52815, n=20)
49779 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
49675 Points
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
48647 Points -2%
AIDA64 / FPU SinJulia
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
9974 Points +115%
Average of class Office
  (404 - 14288, n=119, last 2 years)
6752 Points +45%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
4792 Points +3%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
4648 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
4648 Points
Average Intel Core i7-1185G7
  (3870 - 5027, n=20)
4504 Points -3%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
4255 Points -8%
AIDA64 / FPU Mandel
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
35619 Points +106%
Average of class Office
  (2054 - 54365, n=119, last 2 years)
23572 Points +36%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
18020 Points +4%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
17324 Points
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
17210 Points -1%
Average Intel Core i7-1185G7
  (14584 - 19594, n=20)
16878 Points -3%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
16249 Points -6%
AIDA64 / CPU AES
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
91726 MB/s +51%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
67883 MB/s +12%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
63071 MB/s +4%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
62377 MB/s +3%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
60773 MB/s
Average Intel Core i7-1185G7
  (33002 - 76826, n=20)
49981 MB/s -18%
Average of class Office
  (5226 - 147611, n=119, last 2 years)
47448 MB/s -22%
AIDA64 / CPU ZLib
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
580 MB/s +53%
Average of class Office
  (67.6 - 1018, n=119, last 2 years)
533 MB/s +41%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
379 MB/s
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
370 MB/s -2%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
366 MB/s -3%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
315 MB/s -17%
Average Intel Core i7-1185G7
  (258 - 412, n=22)
293 MB/s -23%
AIDA64 / FP64 Ray-Trace
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
5479 KRay/s +44%
Average of class Office
  (432 - 12755, n=119, last 2 years)
4455 KRay/s +17%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
3817 KRay/s
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
3779 KRay/s -1%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
3694 KRay/s -3%
Average Intel Core i7-1185G7
  (2821 - 4094, n=20)
3572 KRay/s -6%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
3339 KRay/s -13%
AIDA64 / CPU PhotoWorxx
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
40949 MPixel/s +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
40373 MPixel/s
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
35895 MPixel/s -11%
Average Intel Core i7-1185G7
  (22349 - 43701, n=20)
35213 MPixel/s -13%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
26159 MPixel/s -35%
Average of class Office
  (4814 - 48177, n=119, last 2 years)
24080 MPixel/s -40%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
19340 MPixel/s -52%

系统性能

该系统运行平稳,有足够的能力处理办公和网络应用。它在PCMark 10中也表现良好。内存的传输率对于LPDDR4X-4267内存来说是典型的。

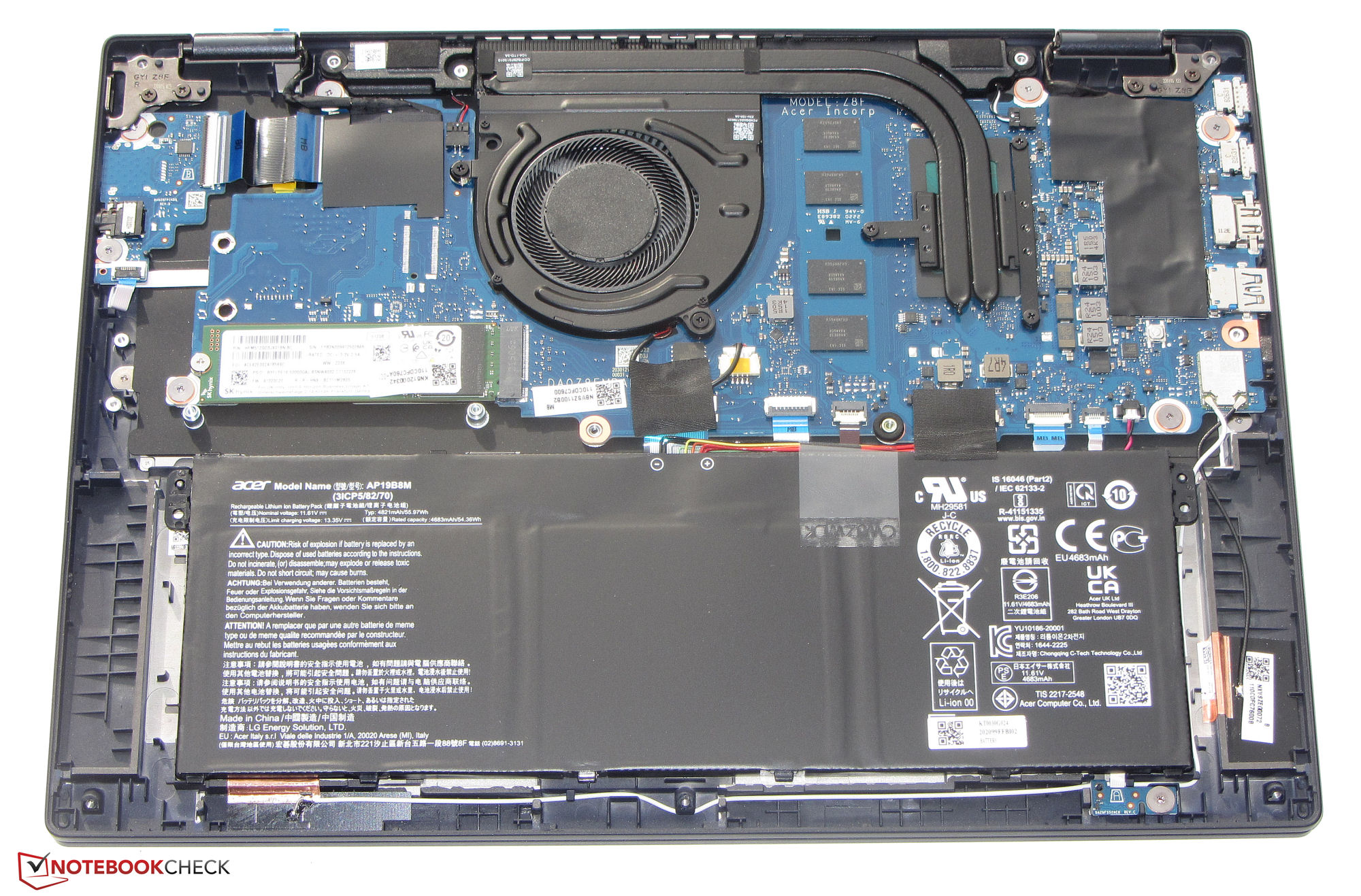

RAM被焊接在电路板上。
RAM被焊接在电路板上。
PCMark 10 / Score
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5933 Points +19%
Average of class Office
  (2325 - 7157, n=104, last 2 years)
5340 Points +7%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5317 Points +7%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (4746 - 5561, n=20)
5000 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
4977 Points
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
4959 Points 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
4879 Points -2%
PCMark 10 / Essentials
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
10608 Points +9%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
10331 Points +6%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (8279 - 10664, n=20)
9850 Points +1%
Average of class Office
  (5095 - 20841, n=104, last 2 years)
9828 Points +1%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
9789 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
9762 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
9397 Points -4%
PCMark 10 / Productivity
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
9237 Points +38%
Average of class Office
  (3041 - 10198, n=104, last 2 years)
7453 Points +11%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
6931 Points +4%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (5799 - 8770, n=20)
6747 Points +1%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
6694 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
6606 Points -1%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
6585 Points -2%
PCMark 10 / Digital Content Creation
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
5938 Points +16%
Average of class Office
  (1912 - 9056, n=104, last 2 years)
5782 Points +13%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5550 Points +8%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
5135 Points 0%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (4424 - 5684, n=20)
5123 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
5121 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
5077 Points -1%
CrossMark / Overall
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1345 Points +2%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (1233 - 1474, n=5)
1343 Points +1%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
1325 Points
Average of class Office
  (348 - 1891, n=104, last 2 years)
1313 Points -1%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1290 Points -3%
CrossMark / Productivity
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (1277 - 1506, n=5)
1372 Points +2%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1357 Points +1%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
1350 Points
Average of class Office
  (393 - 1870, n=104, last 2 years)
1330 Points -1%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1316 Points -3%
CrossMark / Creativity
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1423 Points +2%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (1291 - 1513, n=5)
1398 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
1395 Points
Average of class Office
  (340 - 1982, n=104, last 2 years)
1348 Points -3%
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1292 Points -7%
CrossMark / Responsiveness
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1209 Points +13%
Average of class Office
  (258 - 2017, n=104, last 2 years)
1184 Points +10%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (969 - 1411, n=5)
1125 Points +5%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1102 Points +3%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
1074 Points
PCMark 8 Home Score Accelerated v2
4154 points
PCMark 8 Creative Score Accelerated v2
4494 points
PCMark 8 Work Score Accelerated v2
2951 points
PCMark 10 Score
4977 points
Help
AIDA64 / Memory Copy
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
65274 MB/s +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
64489 MB/s
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
56359 MB/s -13%
Average Intel Core i7-1185G7
  (36515 - 68450, n=20)
54182 MB/s -16%
Average of class Office
  (7158 - 84290, n=120, last 2 years)
42295 MB/s -34%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
41286 MB/s -36%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
41057 MB/s -36%
AIDA64 / Memory Read
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
63676 MB/s +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
63101 MB/s
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
55797 MB/s -12%
Average Intel Core i7-1185G7
  (38394 - 64291, n=20)
54814 MB/s -13%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
46922 MB/s -26%
Average of class Office
  (7325 - 75550, n=120, last 2 years)
42852 MB/s -32%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
37791 MB/s -40%
AIDA64 / Memory Write
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
66791 MB/s +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
66301 MB/s
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
57438 MB/s -13%
Average Intel Core i7-1185G7
  (37684 - 66873, n=20)
57154 MB/s -14%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
46409 MB/s -30%
Average of class Office
  (7579 - 94965, n=120, last 2 years)
46139 MB/s -30%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
41204 MB/s -38%
AIDA64 / Memory Latency
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, Vega 8
110 ns * -21%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Iris Xe G7 80EUs
97.6 ns * -7%
Average of class Office
  (44.3 - 188.3, n=121, last 2 years)
96.5 ns * -6%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Iris Xe G7 96EUs
94.6 ns * -4%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Iris Xe G7 96EUs
91.1 ns *
Average Intel Core i7-1185G7
  (78.3 - 117, n=22)
86.6 ns * +5%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
82.6 ns * +9%

* ... smaller is better

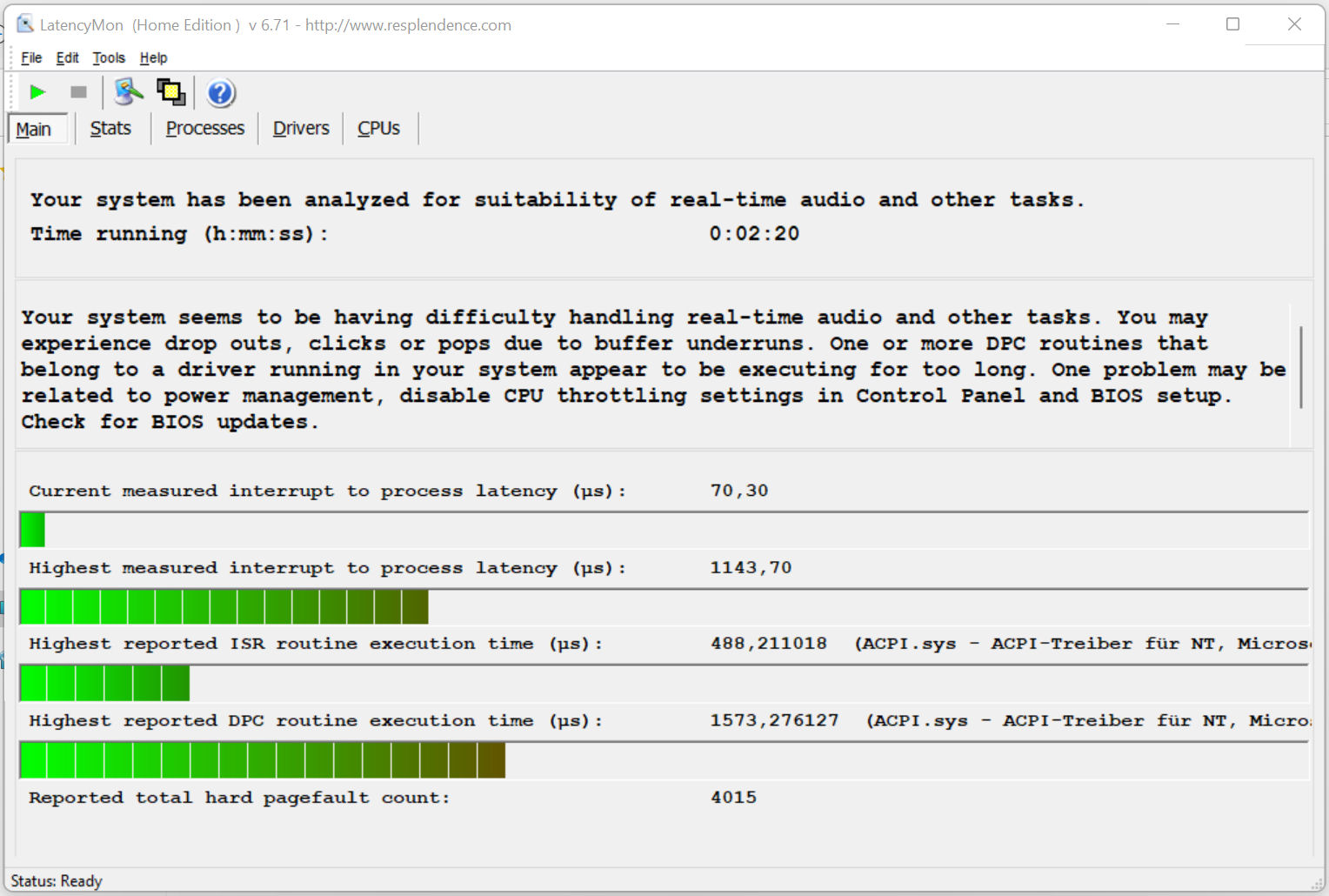

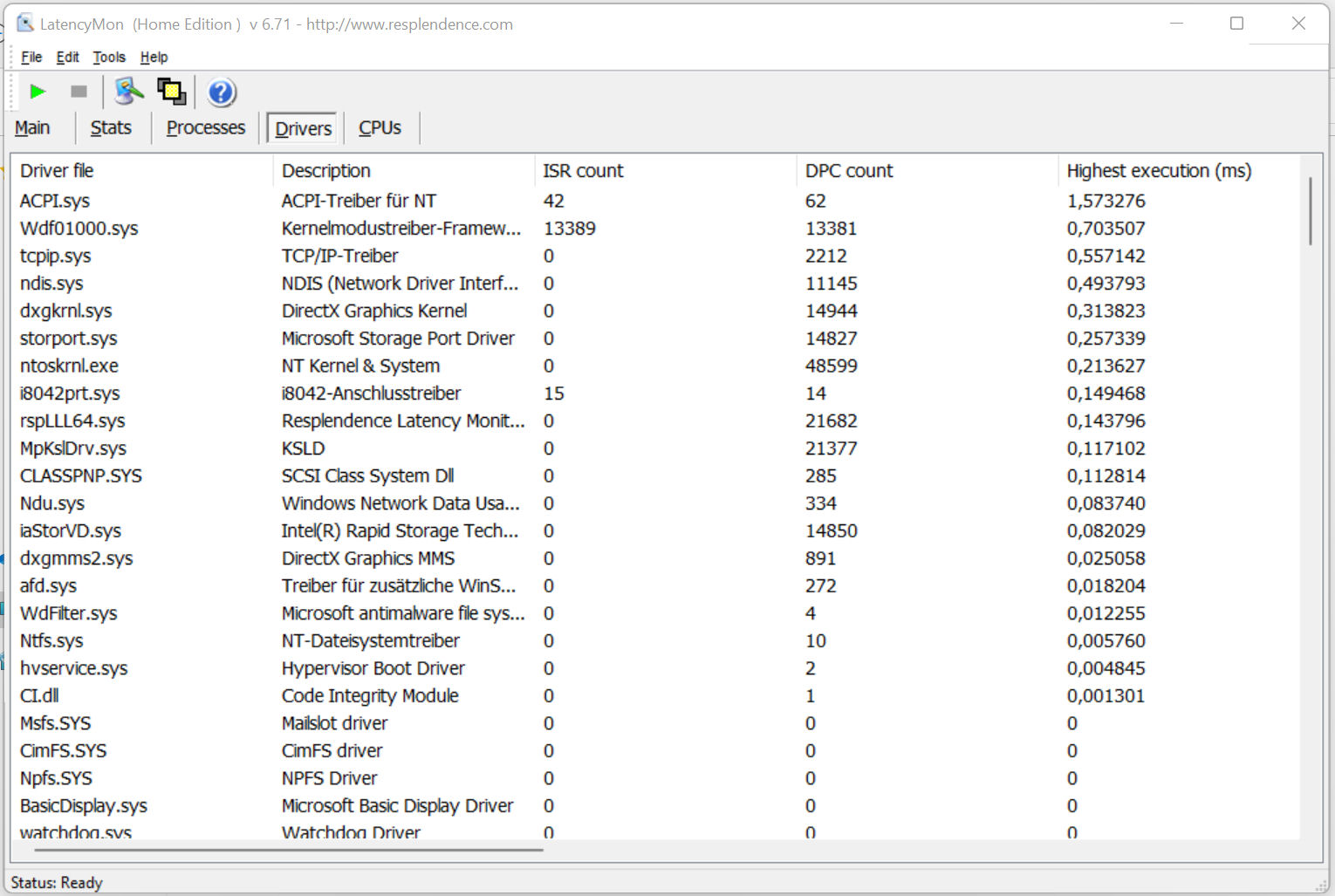

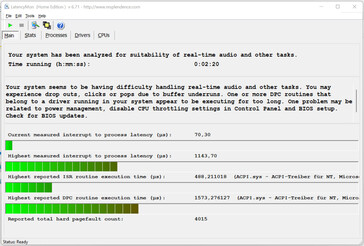

DPC延时

我们测量系统延迟的标准化测试(网页浏览、4K视频播放、高负荷下的Prime95)显示,这台笔记本电脑有DPC延迟的问题。该系统似乎并不适合实时视频和音频处理。未来的软件更新可能有助于改善这种情况。

延迟监测
延迟监测
延迟监测
延迟监测
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
3846 μs * -236%
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3558 μs * -211%
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
1914 μs * -67%
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
1143.7 μs *
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
1045 μs * +9%

* ... smaller is better

大容量存储

宏碁TravelMate P6采用SK海力士PCIe 3固态硬盘(M.2-2280),容量为512GB。该驱动器有很好的传输率。然而,在经过DiskSpd循环几次后,它的性能确实出现了大幅下降--可能是由于热节流。

操作系统在固态硬盘上运行。
操作系统在固态硬盘上运行。
SK Hynix BC711 HFM512GD3JX016N
CDM 5/6 Read Seq Q32T1: 3538 MB/s
CDM 5/6 Write Seq Q32T1: 3708 MB/s
CDM 5/6 Read 4K Q32T1: 548.9 MB/s
CDM 5/6 Write 4K Q32T1: 407.8 MB/s
CDM 5 Read Seq: 2136 MB/s
CDM 5 Write Seq: 2522 MB/s
CDM 5/6 Read 4K: 78.88 MB/s
CDM 5/6 Write 4K: 215.4 MB/s
Drive Performance Rating - Percent
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
82.3 pt
Average SK Hynix BC711 HFM512GD3JX016N

82.3 pt
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
76.9 pt
Average of class Office

74.2 pt
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
71 pt
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
66.7 pt
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
64.2 pt
DiskSpd
seq read
Average of class Office
  (482 - 4315, n=104, last 2 years)
2440 MB/s +18%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2376 (2353.33min - 2376.14max) MB/s +15%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2253 (2249.1min - 2253.29max) MB/s +9%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
2071 (2043.26min - 2071.15max) MB/s
Average SK Hynix BC711 HFM512GD3JX016N

2071 MB/s 0%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2026 (2004.88min - 2026.41max) MB/s -2%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1771 (1732.46min - 1771.25max) MB/s -14%
seq write
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
2503 (2454.84min - 2503.19max) MB/s
Average SK Hynix BC711 HFM512GD3JX016N

2503 MB/s 0%
Average of class Office
  (333 - 5842, n=104, last 2 years)
2344 MB/s -6%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2031 (1975.34min - 2031.43max) MB/s -19%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1892 (1745.95min - 1892.46max) MB/s -24%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1791 (1770.42min - 1790.56max) MB/s -28%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1346 (1336.46min - 1345.53max) MB/s -46%
seq q8 t1 read
Average of class Office
  (535 - 7120, n=104, last 2 years)
3971 MB/s +15%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3550 (3228.19min - 3550.3max) MB/s +2%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
3547 (3319.03min - 3546.53max) MB/s +2%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
3465 (3025.38min - 3465.33max) MB/s
Average SK Hynix BC711 HFM512GD3JX016N

3465 MB/s 0%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3159 (2470.03min - 3158.91max) MB/s -9%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1928 (1786.98min - 1927.7max) MB/s -44%
seq q8 t1 write
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3173 (3168.8min - 3172.99max) MB/s +16%
Average of class Office
  (276 - 6791, n=104, last 2 years)
2976 MB/s +9%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
2729 MB/s
Average SK Hynix BC711 HFM512GD3JX016N

2729 MB/s 0%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2519 (2396.21min - 2519.09max) MB/s -8%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2374 (2063.66min - 2374.32max) MB/s -13%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1348 (1315.85min - 1348.29max) MB/s -51%
4k q1 t1 read
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
67.3 (45.56min - 67.29max) MB/s
Average SK Hynix BC711 HFM512GD3JX016N

67.3 MB/s 0%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
64 (63.55min - 63.98max) MB/s -5%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
62.7 (61.88min - 62.68max) MB/s -7%
Average of class Office
  (17.7 - 89.9, n=104, last 2 years)
57.6 MB/s -14%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
48.4 (47.37min - 48.36max) MB/s -28%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
47.9 (47.31min - 47.93max) MB/s -29%
4k q1 t1 write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
262 (260.09min - 262.11max) MB/s +44%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
181.7 (180.15min - 181.66max) MB/s
Average SK Hynix BC711 HFM512GD3JX016N

181.7 MB/s 0%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
162 (155.31min - 161.61max) MB/s -11%
Average of class Office
  (32 - 429, n=104, last 2 years)
161 MB/s -11%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
145 (144.68min - 145.41max) MB/s -20%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
124 (120.61min - 123.62max) MB/s -32%
4k q32 t16 read
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
2099 (1967.46min - 2099max) MB/s
Average SK Hynix BC711 HFM512GD3JX016N

2099 MB/s 0%
Average of class Office
  (184.2 - 4425, n=104, last 2 years)
1243 MB/s -41%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1134 (809.9min - 1133.58max) MB/s -46%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1132 (1018.62min - 1131.5max) MB/s -46%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
994 (973.86min - 994.47max) MB/s -53%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
648 (644.66min - 648.41max) MB/s -69%
4k q32 t16 write
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
1536 (1441.58min - 1536.23max) MB/s
Average SK Hynix BC711 HFM512GD3JX016N

1536 MB/s 0%
Average of class Office
  (192.2 - 3254, n=104, last 2 years)
920 MB/s -40%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
880 (650.52min - 880.09max) MB/s -43%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
528 (438.7min - 528.12max) MB/s -66%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
425 (413.55min - 425.3max) MB/s -72%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
418 (407.41min - 417.91max) MB/s -73%
AS SSD
Score Total
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
4885 Points +22%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
4010 Points
Average SK Hynix BC711 HFM512GD3JX016N

4010 Points 0%
Average of class Office
  (704 - 9204, n=101, last 2 years)
3939 Points -2%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3934 Points -2%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
3662 Points -9%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2980 Points -26%
Score Read
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
2054 Points +4%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
1976 Points
Average SK Hynix BC711 HFM512GD3JX016N

1976 Points 0%
Average of class Office
  (252 - 3364, n=101, last 2 years)
1419 Points -28%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1418 Points -28%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1326 Points -33%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1260 Points -36%
Score Write
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1841 Points +79%
Average of class Office
  (320 - 4111, n=101, last 2 years)
1837 Points +78%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1797 Points +74%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1719 Points +67%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1124 Points +9%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
1030 Points
Average SK Hynix BC711 HFM512GD3JX016N

1030 Points 0%
Seq Read
Average of class Office
  (508 - 5796, n=101, last 2 years)
3148 MB/s +9%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
3034 MB/s +5%
Average SK Hynix BC711 HFM512GD3JX016N

2880 MB/s 0%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
2879.98 MB/s
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2857 MB/s -1%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
2806 MB/s -3%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
2674 MB/s -7%
Seq Write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
2650 MB/s +5%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
2521.24 MB/s
Average SK Hynix BC711 HFM512GD3JX016N

2521 MB/s 0%
Average of class Office
  (304 - 5880, n=101, last 2 years)
2054 MB/s -19%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1569 MB/s -38%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1391 MB/s -45%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
1311 MB/s -48%
4K Read
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
68.4 MB/s +3%
Average SK Hynix BC711 HFM512GD3JX016N

66.4 MB/s 0%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
66.37 MB/s
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
58.5 MB/s -12%
Average of class Office
  (18.7 - 91.1, n=101, last 2 years)
56.3 MB/s -15%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
54.6 MB/s -18%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
49 MB/s -26%
4K Write
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
239.8 MB/s +30%
Average SK Hynix BC711 HFM512GD3JX016N

183.8 MB/s 0%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
183.76 MB/s
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
183.7 MB/s 0%
Average of class Office
  (35.4 - 350, n=101, last 2 years)
158.3 MB/s -14%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
131 MB/s -29%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
125 MB/s -32%
4K-64 Read
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1696 MB/s +5%
Average SK Hynix BC711 HFM512GD3JX016N

1622 MB/s 0%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
1621.83 MB/s
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1074 MB/s -34%
Average of class Office
  (182.3 - 2713, n=101, last 2 years)
1047 MB/s -35%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
996 MB/s -39%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
924 MB/s -43%
4K-64 Write
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1554 MB/s +161%
Average of class Office
  (132.3 - 3394, n=101, last 2 years)
1474 MB/s +148%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
1455 MB/s +145%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
1292 MB/s +117%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
809 MB/s +36%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
594.27 MB/s
Average SK Hynix BC711 HFM512GD3JX016N

594 MB/s 0%
Access Time Read
Average of class Office
  (0.022 - 0.295, n=101, last 2 years)
0.08048 ms * -68%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
0.075 ms * -56%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
0.06 ms * -25%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
0.055 ms * -15%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
0.048 ms *
Average SK Hynix BC711 HFM512GD3JX016N

0.048 ms * -0%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
0.036 ms * +25%
Access Time Write
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
0.086 ms * -207%
Average of class Office
  (0.017 - 0.619, n=101, last 2 years)
0.0646 ms * -131%
Lenovo ThinkPad T14s G2 20XGS01100
Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
0.031 ms * -11%
Dell Latitude 7420 JW6MH
SK Hynix BC711 HFM512GD3HX015N
0.031 ms * -11%
Acer TravelMate P6 TMP614P-52-724G
SK Hynix BC711 HFM512GD3JX016N
0.028 ms *
Average SK Hynix BC711 HFM512GD3JX016N

0.028 ms * -0%
Acer TravelMate P614P-52
WDC PC SN730 SDBQNTY-1T00
0.018 ms * +36%

* ... smaller is better

Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8

018036054072090010801260144016201800198021602340252027002880306032403420Tooltip
Acer TravelMate P6 TMP614P-52-724G SK Hynix BC711 HFM512GD3JX016N: Ø2731 (1689.47-3547.96)
Lenovo ThinkPad T14s G2 20XGS01100 Lenovo UMIS AM630 RPETJ1T24MGE2QDQ: Ø3154 (2610.53-3175.15)
Dell Latitude 7420 JW6MH SK Hynix BC711 HFM512GD3HX015N: Ø3531 (3303.22-3545.69)

图形卡

板载的Intel Iris Xe Graphics G7,有96个EUs通常在1,000到1,200MHz之间运行。与预生产型号的GPU不同,它根本没有设法达到其最大的时钟速度(1350兆赫),正如我们的Witcher 3 测试结果所示。基准测试结果和视频游戏的帧率都符合我们从该GPU看到的平均性能。

Fire Strike (插上电源)
Fire Strike (插上电源)
Fire Strike (用电池运行)
Fire Strike (用电池运行)
Fire Strike (插上电源,性能模式)
Fire Strike (插上电源,性能模式)
Fire Strike (插上电源,无声模式)
Fire Strike (插上电源,无声模式)
3DMark Performance Rating - Percent
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
99.6 pt
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
93.6 pt
Average Intel Iris Xe Graphics G7 96EUs

91.5 pt
Acer TravelMate P6 TMP614P-52-724G
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
89.4 pt
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
85.4 pt
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
83.4 pt
Average of class Office

82.2 pt
3DMark 11 - 1280x720 Performance GPU
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6715 Points +14%
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6616 Points +12%
Average Intel Iris Xe Graphics G7 96EUs
  (2867 - 7471, n=193)
6342 Points +7%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
6084 Points +3%
Average of class Office
  (1474 - 12230, n=113, last 2 years)
5932 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5903 Points
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
5737 Points -3%
3DMark
1280x720 Cloud Gate Standard Graphics
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
29559 Points +15%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
28661 Points +11%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
26596 Points +3%
Average Intel Iris Xe Graphics G7 96EUs
  (13162 - 38040, n=171)
26309 Points +2%
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
25745 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
25705 Points
Average of class Office
  (5681 - 58068, n=96, last 2 years)
24181 Points -6%
1920x1080 Fire Strike Graphics
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5403 Points +10%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4995 Points +2%
Average Intel Iris Xe Graphics G7 96EUs
  (2286 - 6143, n=206)
4903 Points 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4899 Points
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
4584 Points -6%
Average of class Office
  (712 - 8815, n=115, last 2 years)
4125 Points -16%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
3967 Points -19%
2560x1440 Time Spy Graphics
Acer TravelMate P614P-52
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1626 Points +9%
Acer TravelMate P6 TMP614P-52-724G
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1497 Points
Average Intel Iris Xe Graphics G7 96EUs
  (707 - 1871, n=203)
1494 Points 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1493 Points 0%
Dell Latitude 7420 JW6MH
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7
1367 Points -9%
Average of class Office
  (242 - 3186, n=111, last 2 years)
1341 Points -10%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
1182 Points -21%
3DMark 11 Performance
6295 points
3DMark Cloud Gate Standard Score
17889 points
3DMark Fire Strike Score
4493 points
3DMark Time Spy Score
1669 points
Help

游戏性能

P6内部的硬件能够在低分辨率和设置下流畅地运行许多游戏。尽管如此,在玩对系统要求适中的游戏时,你能够选择更高的分辨率和设置。

The Witcher 3 - 1366x768 Medium Graphics & Postprocessing
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
62.7 (55min, 55.59P1) fps +19%
Average Intel Iris Xe Graphics G7 96EUs
  (21.4 - 74.1, n=179)
53.4 fps +1%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
52.9 (26.1min, 26.6P0.1, 30.6P1) fps
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
52.7 (50min) fps 0%
Average of class Office
  (7.82 - 89, n=96, last 2 years)
44.9 fps -15%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
44.4 (37min) fps -16%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
37.5 fps -29%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
57.1 (49.1min) fps +20%
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
52.5 (46.8min) fps +11%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
50.8 (44min) fps +7%
Average Intel Iris Xe Graphics G7 96EUs
  (20.6 - 78.5, n=206)
49 fps +3%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
47.4 (40.7min) fps
Average of class Office
  (7.8 - 104.2, n=122, last 2 years)
45.6 fps -4%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
44 (22.1min) fps -7%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
45.6 fps 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
45.5 fps
Average Intel Iris Xe Graphics G7 96EUs
  (13.4 - 88.4, n=206)
41.2 fps -9%
Average of class Office
  (9.12 - 109.9, n=122, last 2 years)
40.3 fps -11%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
28.5 fps -37%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
23.4 fps -49%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
22.8 fps -50%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
45.4 fps +11%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
40.8 fps
Average Intel Iris Xe Graphics G7 96EUs
  (14.9 - 56.5, n=174)
39.2 fps -4%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
37.1 fps -9%
Average of class Office
  (5.42 - 94, n=114, last 2 years)
35.4 fps -13%
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
30.5 fps -25%
GTA V - 1366x768 Normal/Off AF:4x
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
84 fps +3%
Average Intel Iris Xe Graphics G7 96EUs
  (24.1 - 137, n=158)
82.2 fps 0%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
81.9 (20.6min, 50P1) fps
Average of class Office
  (7.47 - 153.1, n=102, last 2 years)
81.8 fps 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
61.9 (10.4min, 35.7P1) fps -24%
Strange Brigade - 1280x720 lowest AF:1
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
89.7 (29.4min, 77P1) fps +16%
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
85 (19min, 27.5P1) fps +10%
Average Intel Iris Xe Graphics G7 96EUs
  (48.5 - 107.3, n=160)
84.6 fps +10%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
83.3 (18.5min, 26.8P1) fps +8%
Average of class Office
  (16.3 - 173.8, n=109, last 2 years)
79 fps +3%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
77 (17.3min, 29.1P1) fps
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
68.1 (14.6min, 21.1P1) fps -12%
F1 2021 - 1280x720 Ultra Low Preset
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
95.3 (66min, 63P1) fps
Average Intel Iris Xe Graphics G7 96EUs
  (59.4 - 119.4, n=42)
94.6 fps -1%
Average of class Office
  (18.2 - 197.8, n=30, last 2 years)
93.8 fps -2%
Far Cry 5 - 1280x720 Low Preset AA:T
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48 (43min) fps +7%
Average of class Office
  (19 - 95, n=48, last 2 years)
46.8 fps +4%
Average Intel Iris Xe Graphics G7 96EUs
  (24 - 67, n=85)
46.2 fps +3%
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
45 (39min) fps
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
35 (30min) fps -22%

Witcher 3 FPS graph

01234567891011121314151617Tooltip
Acer TravelMate P6 TMP614P-52-724G i7-1185G7, Iris Xe G7 96EUs: Ø12.9 (10-15)
Lenovo ThinkPad T14s G2 20XGS01100 R7 PRO 5850U, Vega 8: Ø14 (13-16)
Acer TravelMate P614P-52 i7-1165G7, Iris Xe G7 96EUs: Ø15.8 (14-18)
Witcher 3 测试期间的GPU读数
Witcher 3 测试期间的GPU读数
low med. high ultra
GTA V (2015) 92.9 81.9 27.5
The Witcher 3 (2015) 82.8 52.9 27.8 13.3
Dota 2 Reborn (2015) 98.9 87.5 52.3 47.4
Final Fantasy XV Benchmark (2018) 40.8 22 14.8
X-Plane 11.11 (2018) 45.5 33.7 30.6
Far Cry 5 (2018) 45 23 21 19
Strange Brigade (2018) 77 34.4 27.6 22.4
F1 2021 (2021) 95.3 44 34 24.8

排放--TravelMate P6仅有轻微发热

噪声排放

无论负载如何,TravelMate P6都相当安静。在空闲状态和日常使用中(办公应用、网络浏览),其风扇通常不会旋转,系统是安静的。在压力测试中,噪音水平只达到35.8 dB(A)。也就是说,这台笔记本电脑可以变得更响:在Witcher 3 测试期间,噪音水平增加到高达38 dB(A)。同样不幸的是,风扇会发出微弱的啸叫声。

启用静音模式并没有导致噪音水平的任何差异。

Noise Level

Idle
25.4 / 25.4 / 25.4 dB(A)
Load
38 / 35.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 25.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.127.727.231.12537.132.331.237.13142.140.735.942.14034.232.329.234.25036.431.626.836.46332.926.826.532.98023.120.120.323.110020.119.517.720.112521.319.417.721.316018.819.614.118.820021.219.712.921.225021.219.512.421.231524.922.713.824.940023.32112.223.350023.421.611.323.463022.420.511.322.480024.423.111.324.4100027.625.911.927.6125025.723.211.325.7160025.62311.625.6200025.923.112.125.9250025.322.112.225.3315025.522.912.825.5400027.324.213.127.350002622.313.326630028.525.11428.5800028.323.317.428.31000023.919.616.423.91250020.616.216.520.61600014.913.413.614.9SPL38.135.225.438.1N2.92.20.62.9median 24.4median 22.1median 12.9median 24.4Delta2.61.91.12.6hearing rangehide median Fan NoiseAcer TravelMate P6 TMP614P-52-724G
Acer TravelMate P6 TMP614P-52-724G
Iris Xe G7 96EUs, i7-1185G7, SK Hynix BC711 HFM512GD3JX016N
Lenovo ThinkPad T14s G2 20XGS01100
Vega 8, R7 PRO 5850U, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ
Dell Latitude 7420 JW6MH
Iris Xe G7 80EUs, i5-1145G7, SK Hynix BC711 HFM512GD3HX015N
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
Acer TravelMate P614P-52
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
Noise
0%
-8%
11%
-9%
off / environment *
25.4
26.81
-6%
25.3
-0%
24.1
5%
26.61
-5%
Idle Minimum *
25.4
26.81
-6%
25.3
-0%
24.2
5%
26.61
-5%
Idle Average *
25.4
26.81
-6%
25.3
-0%
24.2
5%
26.61
-5%
Idle Maximum *
25.4
26.81
-6%
25.3
-0%
24.2
5%
26.61
-5%
Load Average *
38
30.16
21%
44.9
-18%
26.9
29%
42.1
-11%
Load Maximum *
35.2
33.98
3%
44.9
-28%
29.9
15%
43.71
-24%
Witcher 3 ultra *
27.9
40.7

* ... smaller is better

温度

笔记本电脑并没有变得特别热。在压力测试期间,机箱上只有两个点的温度读数超过了40℃(104℉)。在日常使用中,如办公应用和互联网浏览,温度保持在安全范围内。

Max. Load
 39.7 °C36.1 °C27.8 °C
 40.8 °C30.7 °C24.9 °C
 29.6 °C26 °C24.4 °C
Maximum: 40.8 °C
Average: 31.1 °C
28.7 °C37.3 °C45.8 °C
25.8 °C31.4 °C36.4 °C
24.5 °C26.3 °C29.6 °C
Maximum: 45.8 °C
Average: 31.8 °C
Power Supply (max.)  37.3 °C | Room Temperature 22.5 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 45.8 °C / 114 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.1 °C / 81 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.6 °C / 85.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-1.9 °C / -3.4 F).
顶部的热量分布(在负载下)
顶部的热量分布(在负载下)
顶部的热量分布(空闲时)
顶部的热量分布(空闲时)
底部的热量分布(在负载下)
底部的热量分布(在负载下)
底部的热量分布(空闲时)
底部的热量分布(空闲时)
Acer TravelMate P6 TMP614P-52-724G
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Lenovo ThinkPad T14s G2 20XGS01100
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Dell Latitude 7420 JW6MH
Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Acer TravelMate P614P-52
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Heat
6%
11%
-7%
4%
Maximum Upper Side *
40.8
44.2
-8%
37.1
9%
39.2
4%
41
-0%
Maximum Bottom *
45.8
38.9
15%
38.7
16%
51.2
-12%
43
6%
Idle Upper Side *
30.9
27.7
10%
27.3
12%
33
-7%
29.4
5%
Idle Bottom *
30.7
28.3
8%
28.1
8%
34
-11%
29.6
4%

* ... smaller is better

压力测试

运行压力测试的TravelMate。
运行压力测试的TravelMate。

即使在压力测试开始时,包括运行Prime95和FurMark至少一个小时,CPU(1.7至2.3 GHz)和GPU(950至1,000 MHz)都是以相对较低的时钟速度运行。在测试过程中,它们甚至放慢了速度。然而,关键是要提到,压力测试模拟了一种极端情况,旨在让我们评估一个系统在最大负荷下是否稳定。

发言人

立体声扬声器听起来还不错,但几乎没有任何低音。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.527.237.52537.831.237.83143.135.943.14033.629.233.6503426.8346335.526.535.58026.920.326.910026.117.726.112531.917.731.916041.214.141.220043.512.943.525038.612.438.631547.113.847.140060.912.260.950063.111.363.163068.711.368.780066.411.366.4100068.811.968.8125071.211.371.2160067.311.667.3200066.112.166.1250067.812.267.8315068.412.868.4400068.713.168.7500070.713.370.7630073.41473.4800074.617.474.61000078.316.478.31250074.416.574.41600066.413.666.4SPL82.825.482.8N54.20.654.2median 67.3median 12.9median 67.3Delta8.71.18.725.430.322.527.91926.221.53020.825.518.92417.326.124.424.924.227.626.530.623.743.723.250.222.254.720.757.315.356.313.860.111.856.415.956.511.35810.258.710.156.411.151.41150.711.254.211.35111.652.511.656.211.551.311.443.610.944.426.867.60.823.4median 11.6median 52.546.4hearing rangehide median Pink NoiseAcer TravelMate P6 TMP614P-52-724GLenovo ThinkPad T14s G2 20XGS01100
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer TravelMate P6 TMP614P-52-724G audio analysis

(±) | speaker loudness is average but good (78.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.2% lower than median
(±) | linearity of bass is average (9.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(±) | linearity of mids is average (7.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(+) | highs are linear (3.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.3% difference to median)
Compared to same class
» 32% of all tested devices in this class were better, 7% similar, 61% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 41% of all tested devices were better, 8% similar, 51% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad T14s G2 20XGS01100 audio analysis

(-) | not very loud speakers (67.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(±) | linearity of highs is average (7.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.5% difference to median)
Compared to same class
» 34% of all tested devices in this class were better, 7% similar, 59% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 43% of all tested devices were better, 7% similar, 50% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理--宏碁笔记本电脑拥有出色的电池寿命

消耗功率

对于具有这种规格的笔记本电脑来说,其功耗是典型的。在满负荷运行时(压力测试),该设备的耗电量比类似的基于英特尔的设备略低。这是因为其CPU和GPU以相对较低的时钟速度运行。TravelMate P6完成了Witcher 3 测试,电力使用略有波动。附带的USB-C充电器(65瓦)为笔记本电脑输出足够的电量。

Power Consumption
Off / Standbydarklight 0.29 / 0.95 Watt
Idledarkmidlight 4.2 / 6.5 / 7.6 Watt
Load midlight 34 / 56 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Acer TravelMate P6 TMP614P-52-724G
i7-1185G7, Iris Xe G7 96EUs, SK Hynix BC711 HFM512GD3JX016N, IPS, 1920x1200, 14.00
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8, Lenovo UMIS AM630 RPETJ1T24MGE2QDQ, IPS LED, 1920x1080, 14.00
Dell Latitude 7420 JW6MH
i5-1145G7, Iris Xe G7 80EUs, SK Hynix BC711 HFM512GD3HX015N, IPS, 1920x1080, 14.00
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs, SK Hynix PC711 512GB HFS512GDE9X073N, IPS, 1920x1080, 14.00
Acer TravelMate P614P-52
i7-1165G7, Iris Xe G7 96EUs, WDC PC SN730 SDBQNTY-1T00, IPS, 1920x1200, 14.00
Average Intel Iris Xe Graphics G7 96EUs

Average of class Office

Power Consumption
10%
4%
1%
-25%
-29%
-12%
Idle Minimum *
4.2
3.16
25%
2.7
36%
3.2
24%
6.99
-66%
5.26 ?(2.2 - 46.5, n=184)
-25%
4.28 ?(2.2 - 9.6, n=106, last 2 years)
-2%
Idle Average *
6.5
5.6
14%
6
8%
5.4
17%
8.32
-28%
8.46 ?(3.8 - 63, n=184)
-30%
7.34 ?(3.8 - 20.6, n=106, last 2 years)
-13%
Idle Maximum *
7.6
7.13
6%
7.6
-0%
6.9
9%
12.18
-60%
10.6 ?(5.8 - 68.9, n=184)
-39%
9.11 ?(4.8 - 23.9, n=106, last 2 years)
-20%
Load Average *
34
30.86
9%
37
-9%
38.9
-14%
38.08
-12%
44.8 ?(12.5 - 77.5, n=184)
-32%
40.8 ?(8.7 - 75.2, n=105, last 2 years)
-20%
Witcher 3 ultra *
34
37
-9%
33.2
2%
37
-9%
35.7
-5%
Load Maximum *
56
46.55
17%
65
-16%
66.5
-19%
44.99
20%
66.6 ?(30.1 - 118, n=184)
-19%
57.8 ?(11.1 - 101.4, n=106, last 2 years)
-3%

* ... smaller is better

Power consumption Witcher 3 / Stress test

0510152025303540455055Tooltip
Acer TravelMate P6 TMP614P-52-724G; Witcher 3 ultra: Ø34 (31.1-37.3)
Acer TravelMate P6 TMP614P-52-724G; 1280x720 Prime95 28.10 and Furmark 1.25: Ø42.8 (36.6-56.6)

Power consumption with external monitor

0510152025303540455055Tooltip
Acer TravelMate P6 TMP614P-52-724G; Prime95 V2810 Stress (external Monitor): Ø36.3 (30.8-56.4)
Acer TravelMate P6 TMP614P-52-724G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.3 (30.3-43)
Acer TravelMate P6 TMP614P-52-724G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø19.6 (18.5-24.3)

电池寿命

这台14英寸的笔记本在我们的Wi-Fi测试中持续了10小时31分钟(使用脚本访问网站),在我们的视频测试中持续了14小时4分钟(以FHD、H.264编码循环播放短片《大龅牙兔》)。在这两项测试中,笔记本电脑上的节能功能被关闭,显示亮度被设置为150cd/m²左右。此外,在视频测试期间,无线模块也被禁用。

Battery Runtime
Idle (without WLAN, min brightness)
22h 57min
WiFi Websurfing (Edge 105)
10h 31min
WiFi Websurfing max. Brightness (Edge 105)
9h 05min
Big Buck Bunny H.264 1080p
14h 04min
Load (maximum brightness)
1h 18min
Acer TravelMate P6 TMP614P-52-724G
i7-1185G7, Iris Xe G7 96EUs, 56 Wh
Lenovo ThinkPad T14s G2 20XGS01100
R7 PRO 5850U, Vega 8, 57 Wh
Dell Latitude 7420 JW6MH
i5-1145G7, Iris Xe G7 80EUs, 63 Wh
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs, 53 Wh
Acer TravelMate P614P-52
i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Average of class Office

Battery Runtime
25%
45%
37%
-9%
9%
Reader / Idle
1377
1411
2%
1487
8%
1260
-8%
1435 ?(527 - 2359, n=22, last 2 years)
4%
H.264
844
891
6%
716
-15%
699 ?(348 - 1112, n=39, last 2 years)
-17%
WiFi v1.3
631
877
39%
848
34%
685
9%
534
-15%
594 ?(300 - 1137, n=106, last 2 years)
-6%
Load
78
101
29%
155
99%
151
94%
80
3%
119.4 ?(56 - 218, n=65, last 2 years)
53%
Witcher 3 ultra
120
152 ?(142 - 162, n=2, last 2 years)

Pros

+ 具有16:10比例的IPS显示屏
+ PCIe 3固态硬盘
+ 几乎不发热
+ 卓越的电池寿命
+ 背光键盘
+ 雷电4
+ 通过USB C的显示端口
+ 支持电力传输
+ 三年保修

Cons

- 焊接的内存(没有内存插槽)
- 缓慢的存储卡读卡器
- 低于平均水平的Wi-Fi传输速率
- 没有WWAN
- 价格昂贵

结论--拥有16:10显示屏的坚实商务笔记本

宏碁TravelMate P6 TMP614P-52-724G是由德国宏碁公司慷慨提供的。
宏碁TravelMate P6 TMP614P-52-724G是由德国宏碁公司慷慨提供的。

TravelMate P6是一款结构紧凑、重量轻(约1.2公斤,或2.6磅)、便于携带的14英寸商务笔记本电脑,单次充电可持续10至14小时--对于其预期用途来说非常方便。另一个积极的方面是,它使用USB-C电源适配器充电。

宏碁TravelMate P6 TMP614P-52是一款坚实的便携式工作笔记本电脑。

它的组合是 酷睿i7-1185G7和16GB内存的组合使TravelMate P6能够毫不费力地处理办公和网络应用。然而,该设备并不是为持续的高性能而设计的。虽然它产生的热量和噪音是相当合理的,但风扇在运行时产生微弱的啸叫声。

14英寸哑光IPS显示屏(1,920 x 1,200)有一个适合工作的16:10长宽比,具有出色的对比度、亮度和色彩再现。它的色彩覆盖率与竞争对手持平。此外,PrivacyPanel功能可以被打开和关闭,以限制其他人从侧面偷看显示屏的程度。

我们的评测单位是目前TravelMate P6阵容中最昂贵的型号,价格为1,600至1,700欧元(约1,500美元)。除了处理器规格外,它并没有提供任何额外的好处,与便宜的机型相比,它采用的是 酷睿i7-1165G7酷睿i5-1135G7.因此,我们认为低价机型比评测配置要好。其中一些机型尽管价格较低,但甚至搭载了LTE调制解调器。

P6的一个替代品是 联想ThinkPad T14s G2,它提供更多的计算能力和更长的电池寿命。然而,你将不得不使用16:9的显示屏,因为16:10的面板只在最近推出的T14s G3上才有。那些希望自己的笔记本电脑尽可能安静的人也可以考虑 HP EliteBook 840 Aero G8.它在负载下几乎没有任何噪音,但你也同样只得到一个16:9的显示屏。

价格和可用性

与评论单元类似的型号(Core i7-1185G7, 16 GB RAM, 1TB SSD, Windows 11 Pro)可从Acer售价1,599美元。你还可以在Amazon.com上找到一个配备i7-1165G7的低规格型号,价格约为1450美元。.

Acer TravelMate P6 TMP614P-52-724G - 09/22/2022 v7
Sascha Mölck

Chassis
82 / 98 → 84%
Keyboard
83%
Pointing Device
86%
Connectivity
70 / 80 → 87%
Weight
73 / 20-75 → 96%
Battery
89%
Display
88%
Games Performance
65 / 78 → 84%
Application Performance
90 / 95 → 94%
Temperature
91%
Noise
94%
Audio
75%
Camera
41 / 85 → 48%
Average
79%
88%
Office - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 宏碁TravelMate P6 TMP614P-52回顾。轻量级的办公笔记本,电池续航能力强
Sascha Mölck, 2022-09-30 (Update: 2022-09-30)
