Sparkle 英特尔 Arc A380 Elf 台式机显卡评测--英特尔 129 欧元的经济型 GPU 能带给您什么？
英特尔 Arc A380 目前的售价为 129 欧元（约合 141 美元）。但入门级 GPU 仍提供 6 GB 的 VRAM，不过它们仅通过一个小的 96 位存储接口连接。与功能更强大的英特尔 Arc 显卡相比，DB2-128 的 GPU 芯片要小得多。

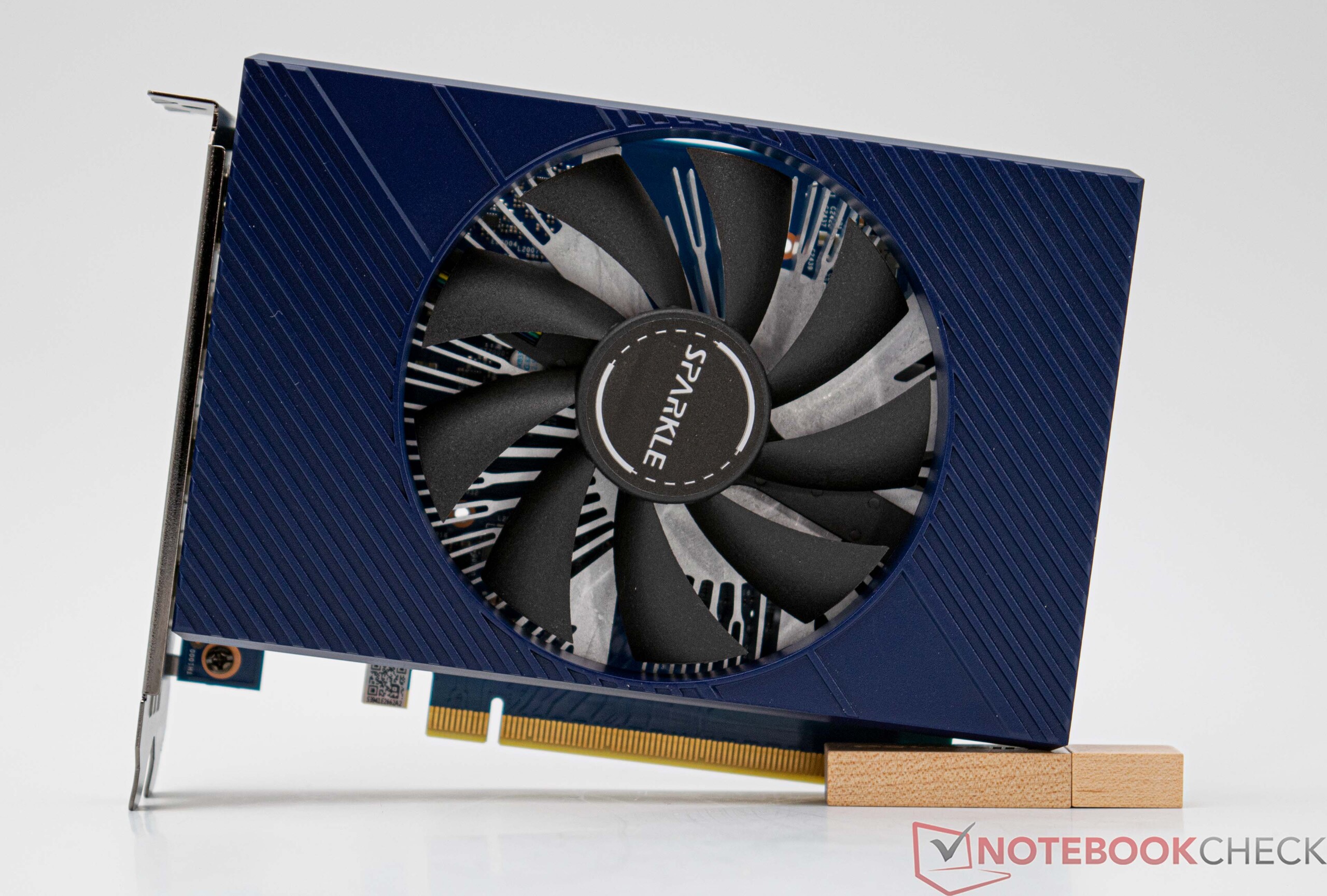

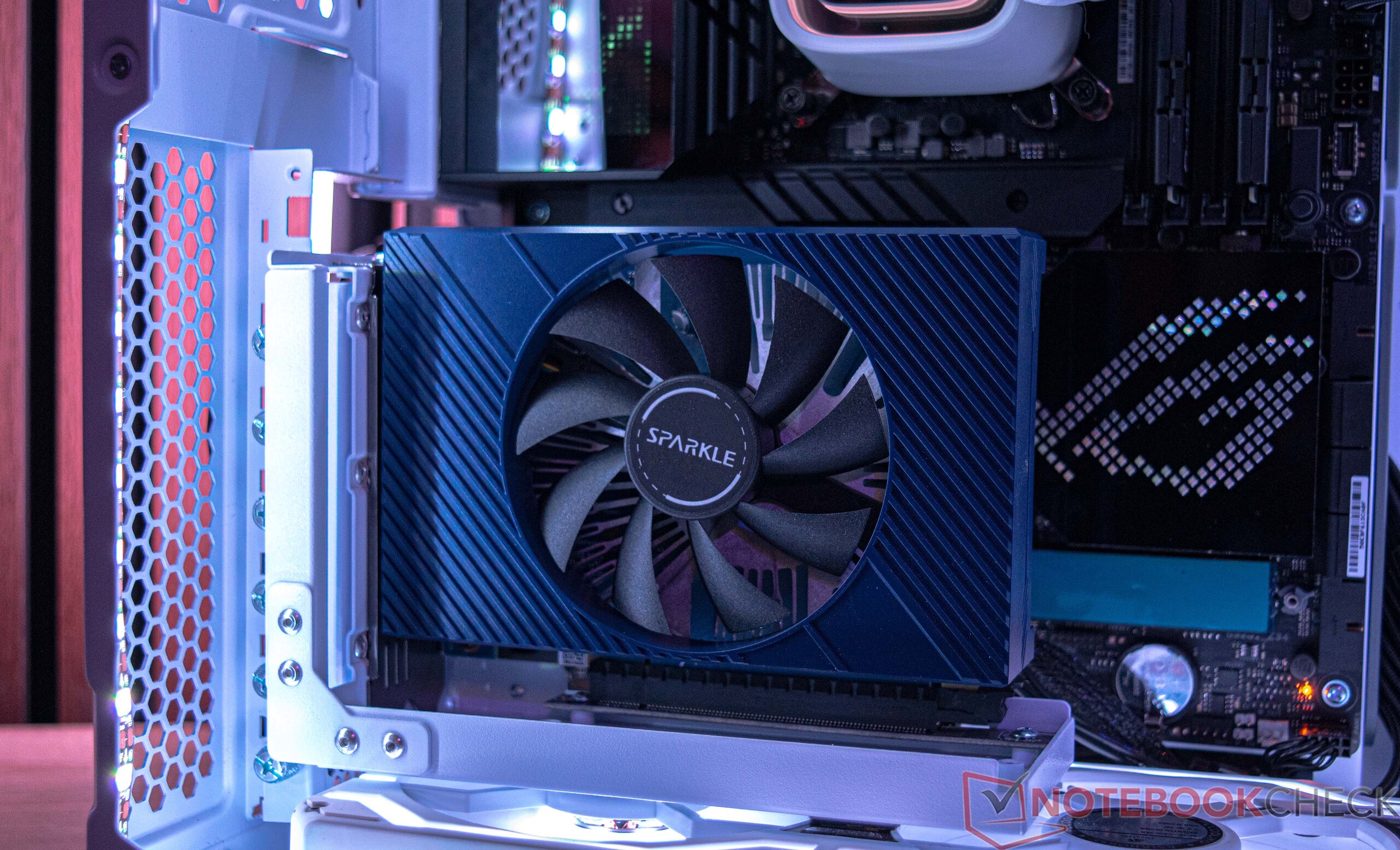

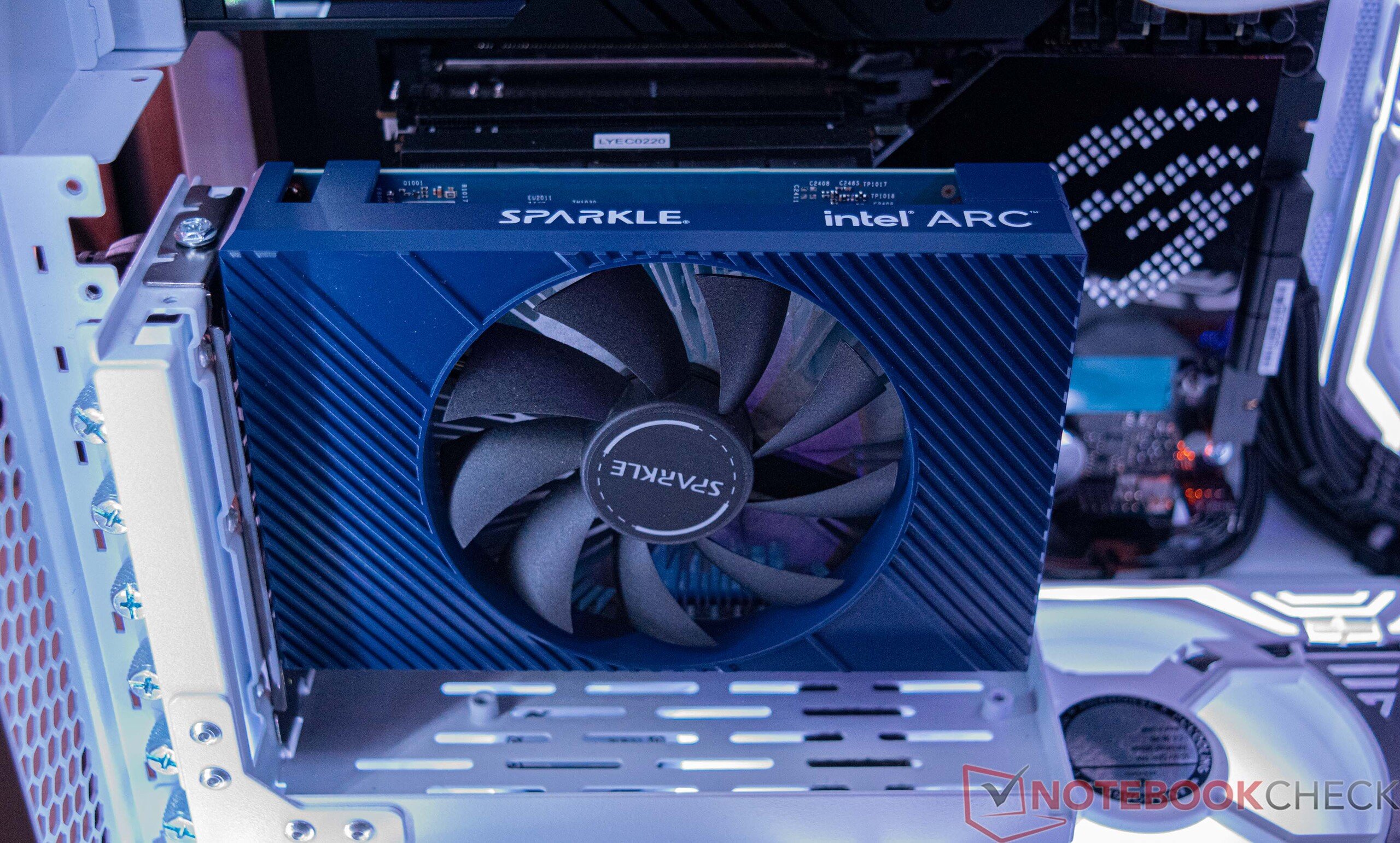

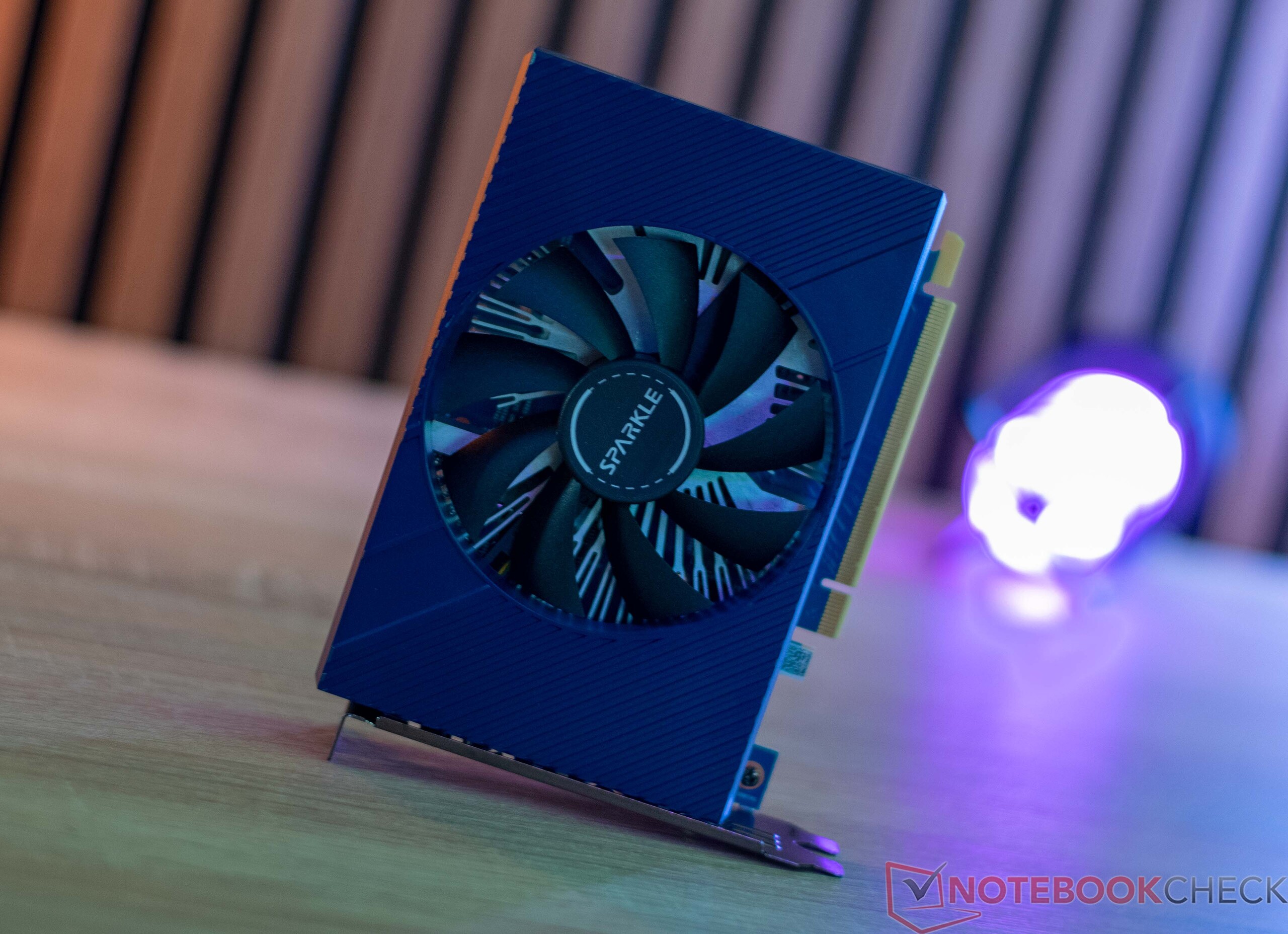

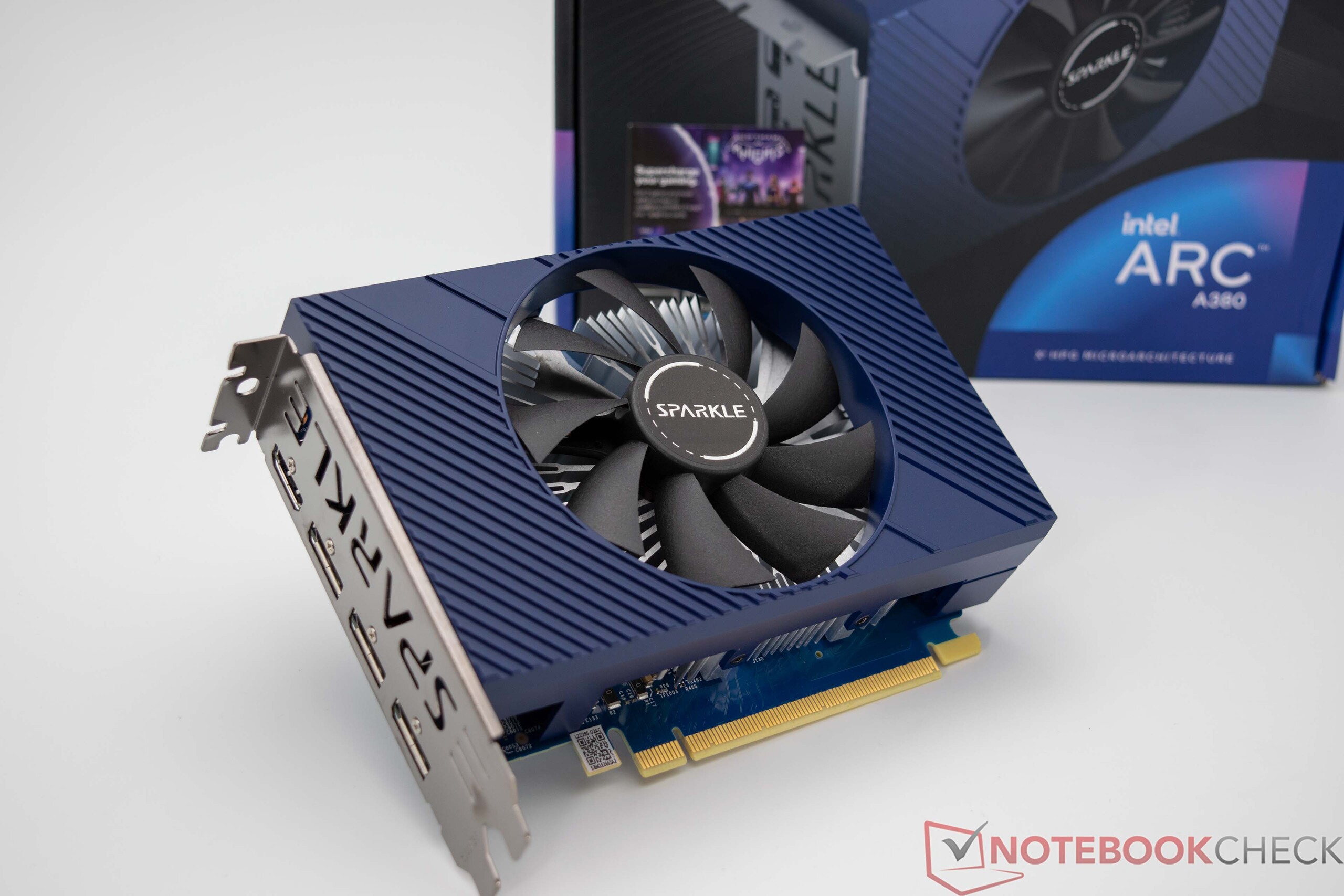

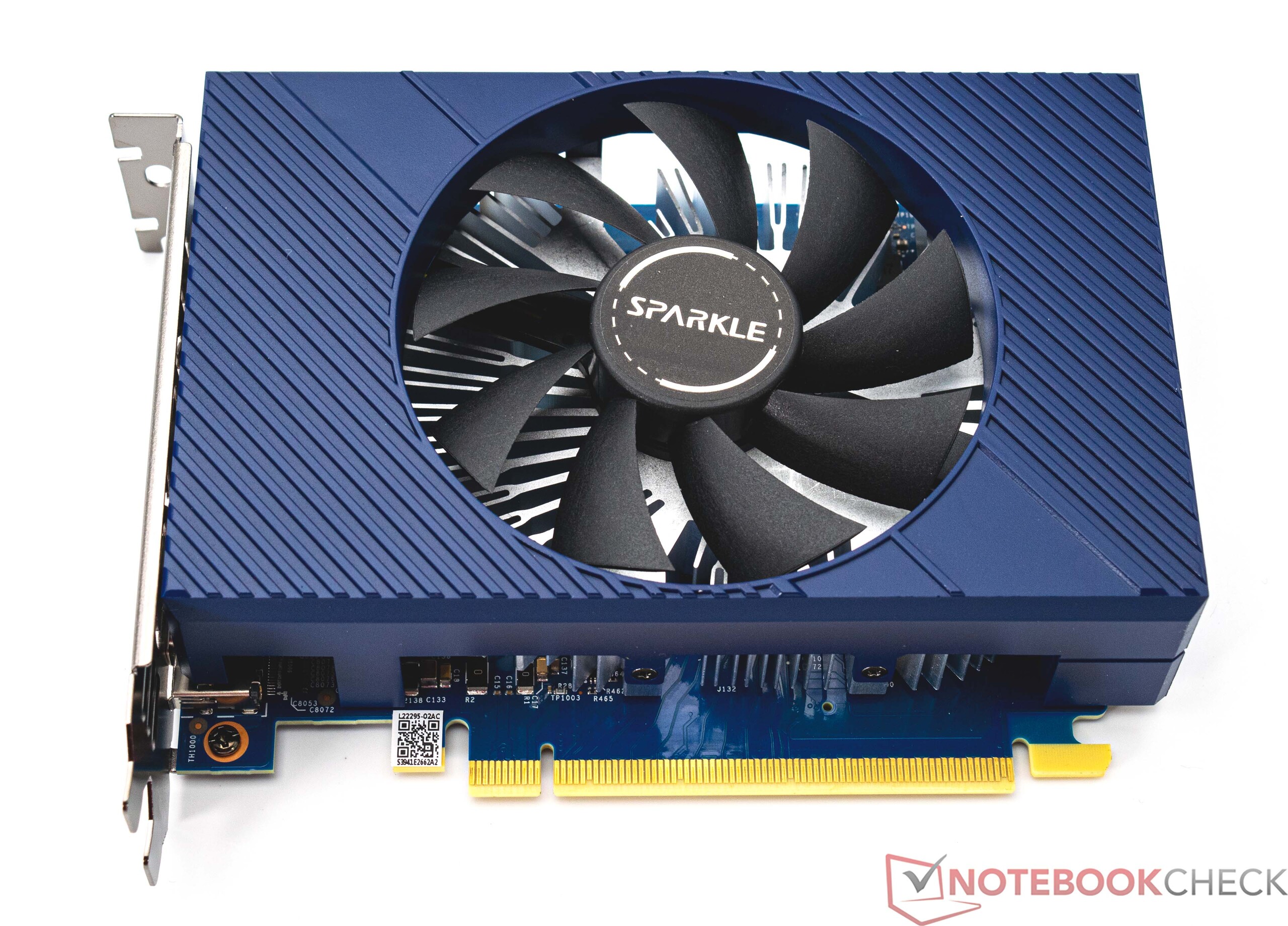

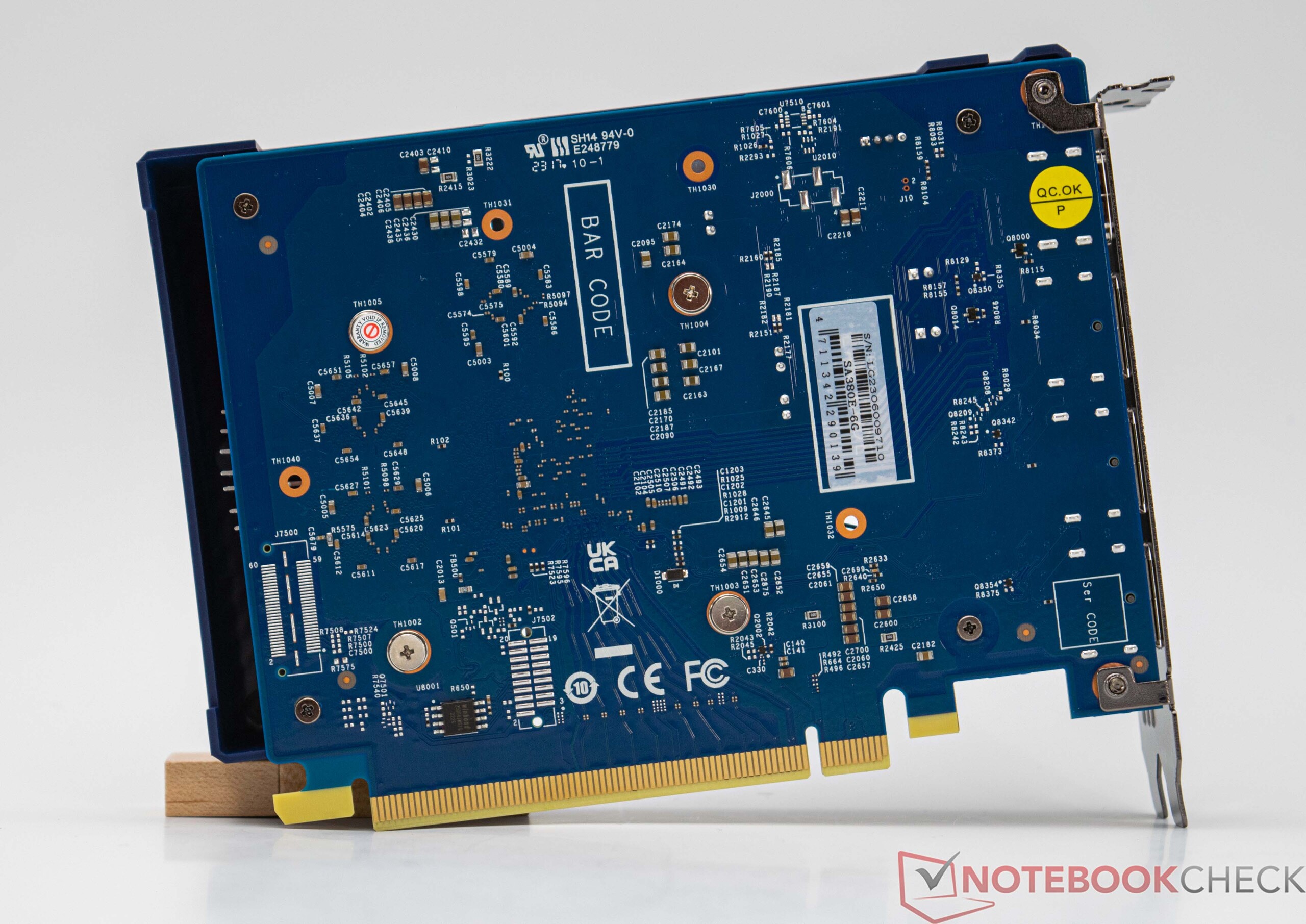

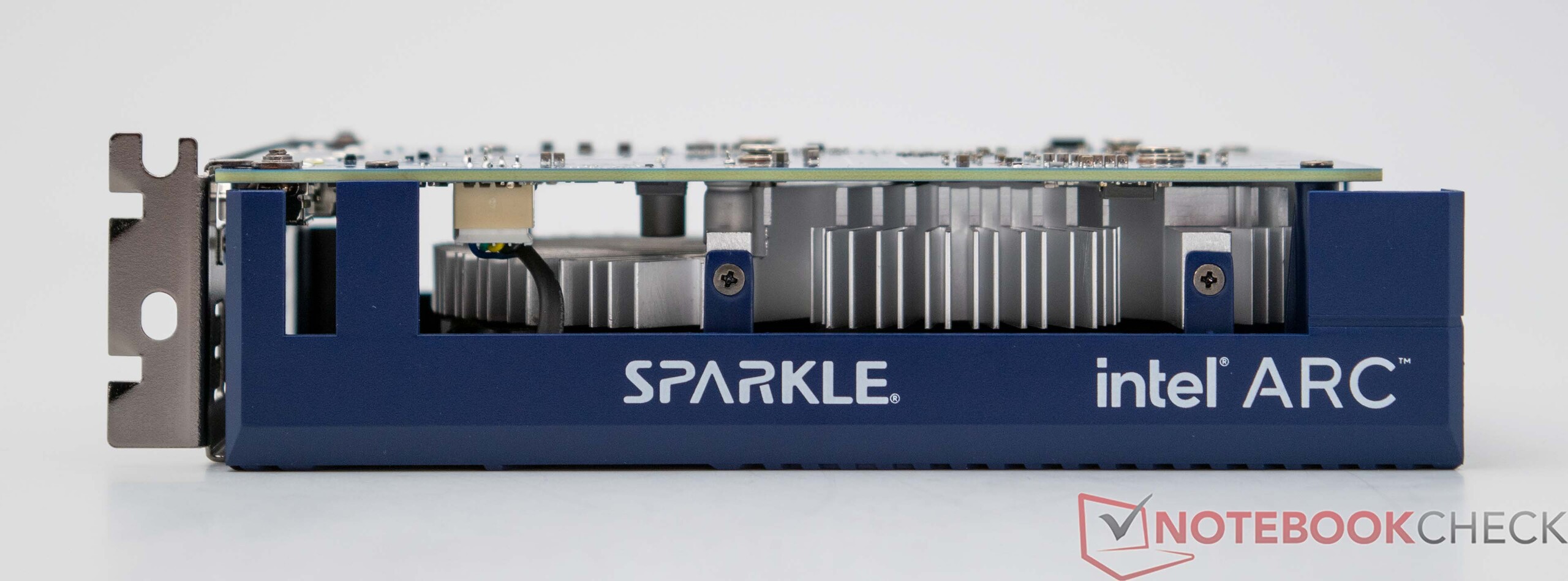

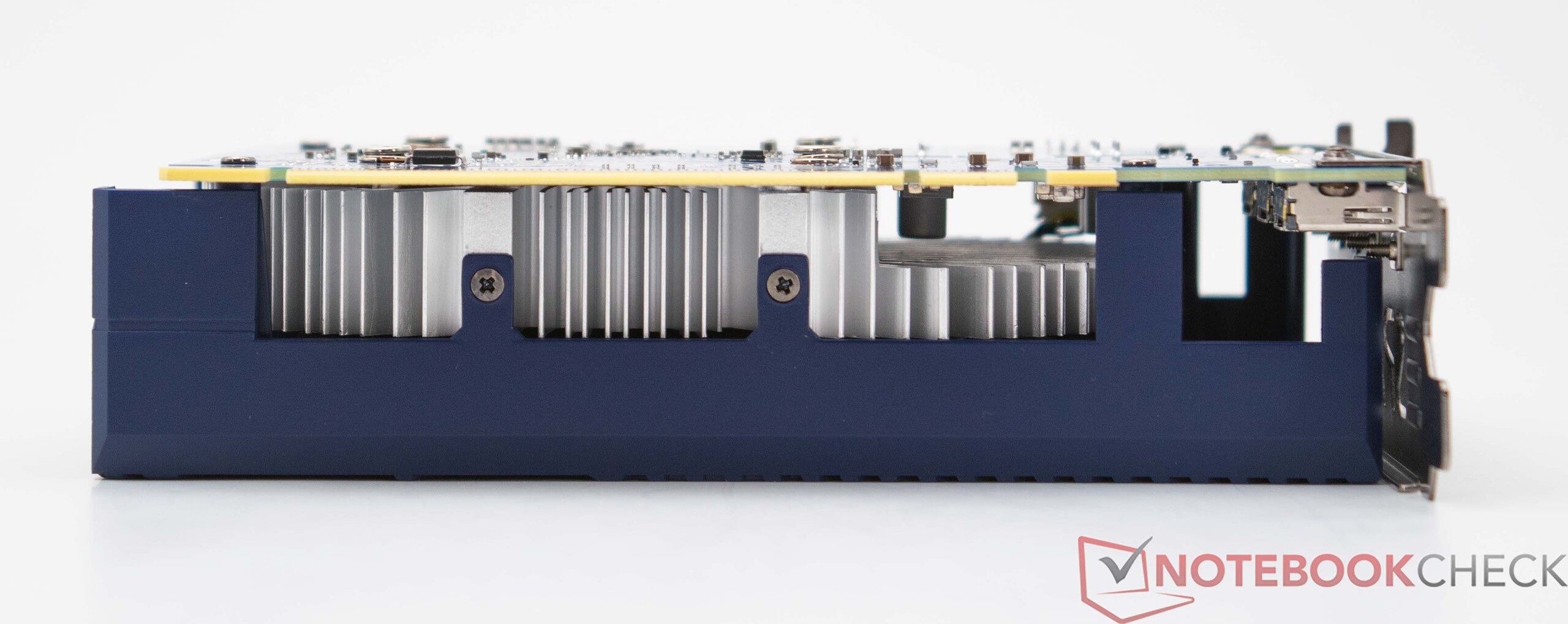

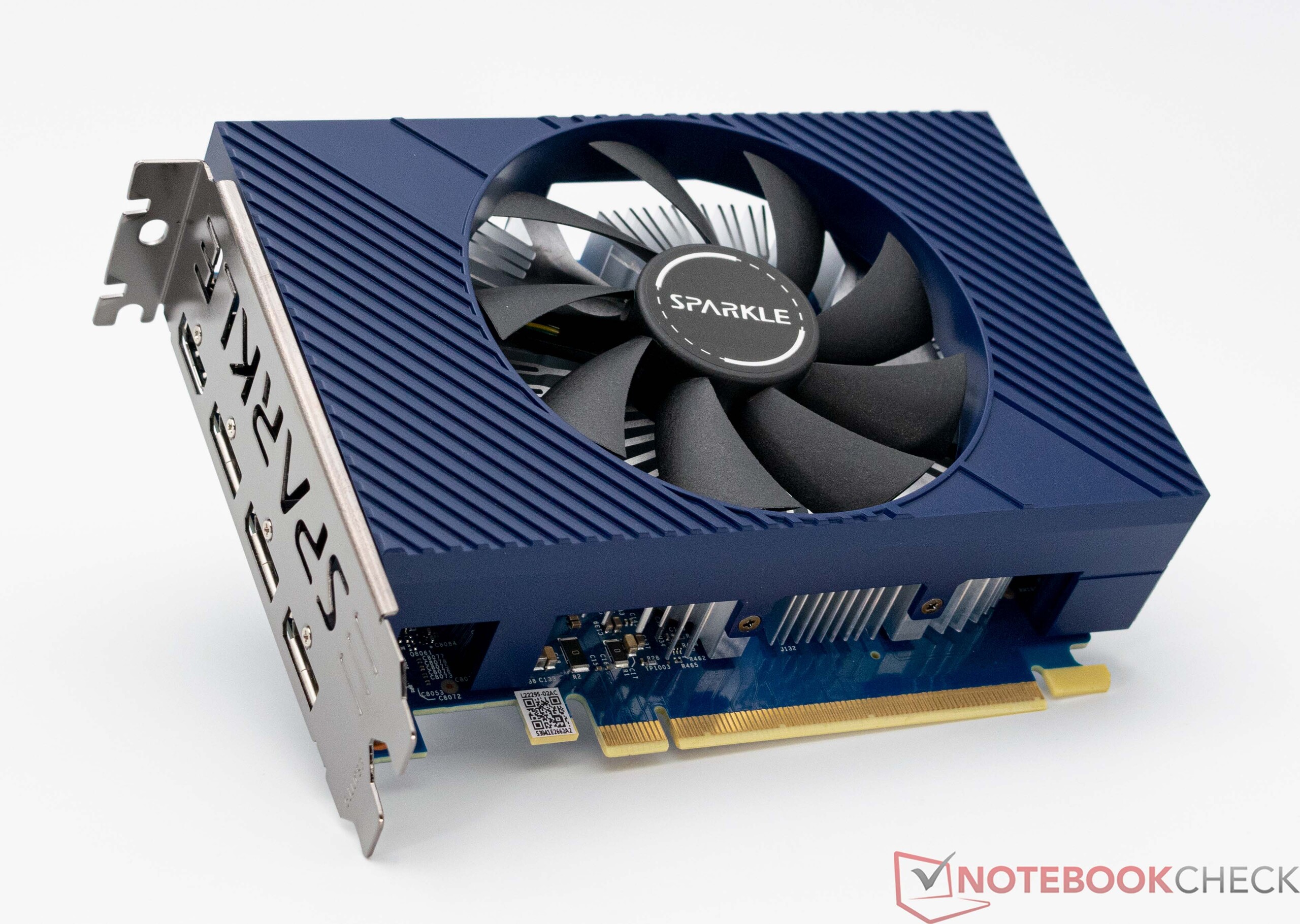

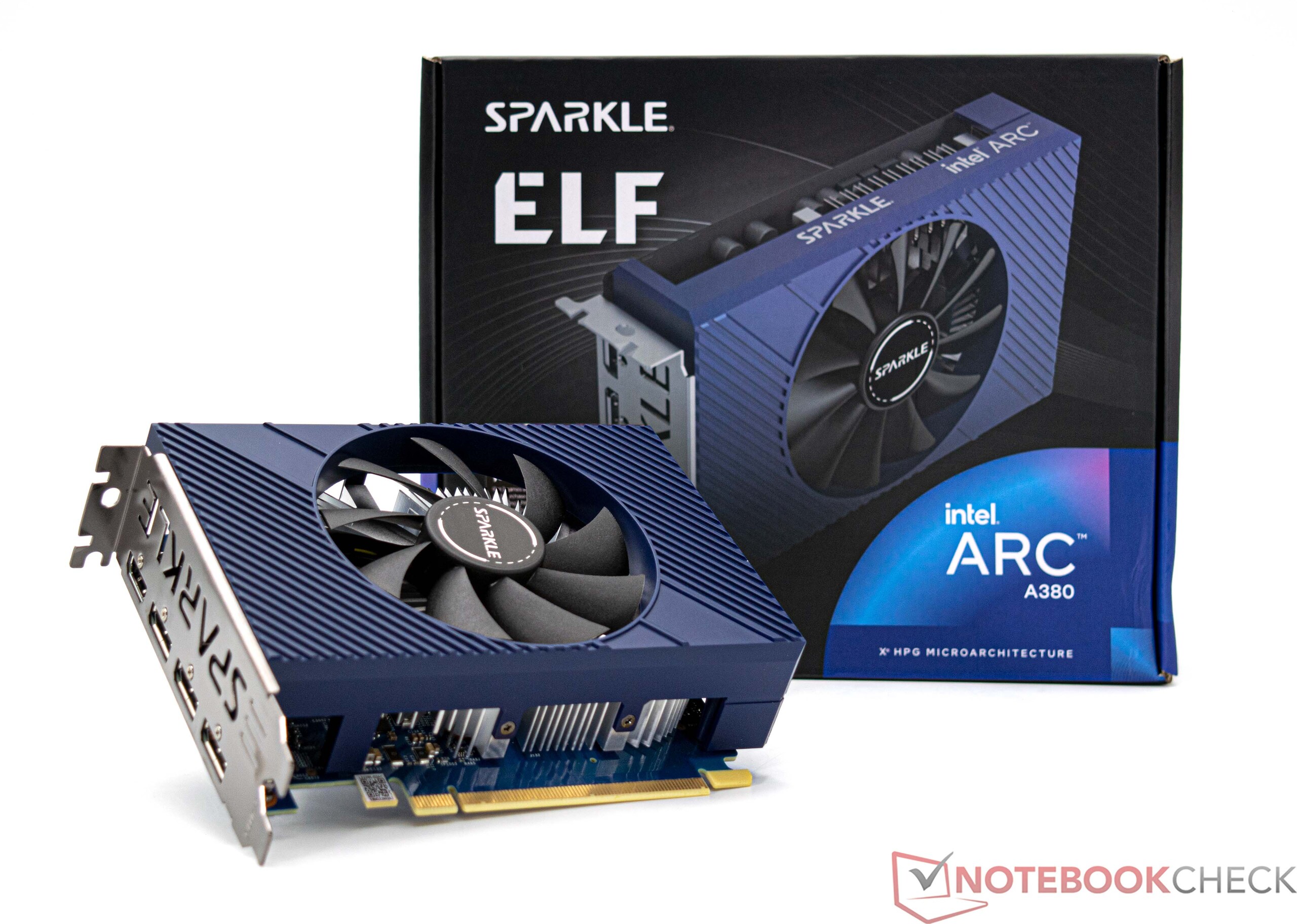

在本次评测中，我们将对 Sparkle Arc A380 Elf 的性能进行更深入的了解。我们的测试装置很短，仅比PCIe插槽长一点点，这使得显卡非常适合小型Mini-ITX系统。该型号配备了一个轴流风扇，为短小的双插槽显卡提供冷空气。从外观上看，该显卡采用蓝色设计，这也是斯博科英特尔显卡整个型号的共同色调。不过，你仍然可以看到和感受到 Sparkle Arc A380 Elf 的低价购买，因为正面完全由塑料制成，没有背板。

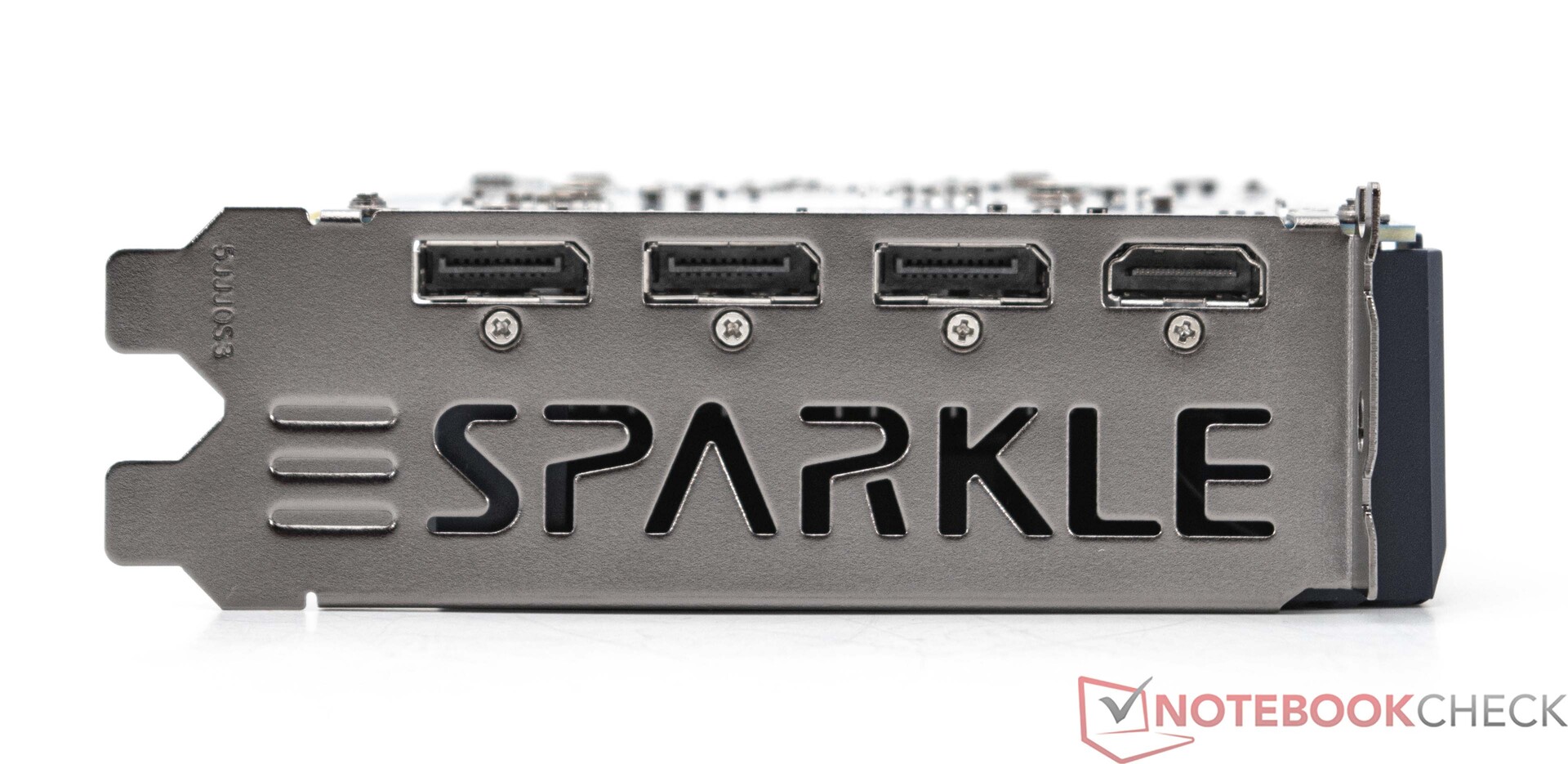

高效的 Sparkle Arc A380 Elf 不需要额外的电源接口，所有电源完全由 PCIe 插槽提供。在外部连接方面，除了 HDMI 2.0 端口外，我们还在测试机上看到了三个 DisplayPort 2.0 接口。由此可见，即使是价格低廉的英特尔机型，其外部连接设备也比 Nvidia 略胜一筹。在这一点上，AMD 的 RX 7000 型号已经提供了 DisplayPort 2.1 接口。

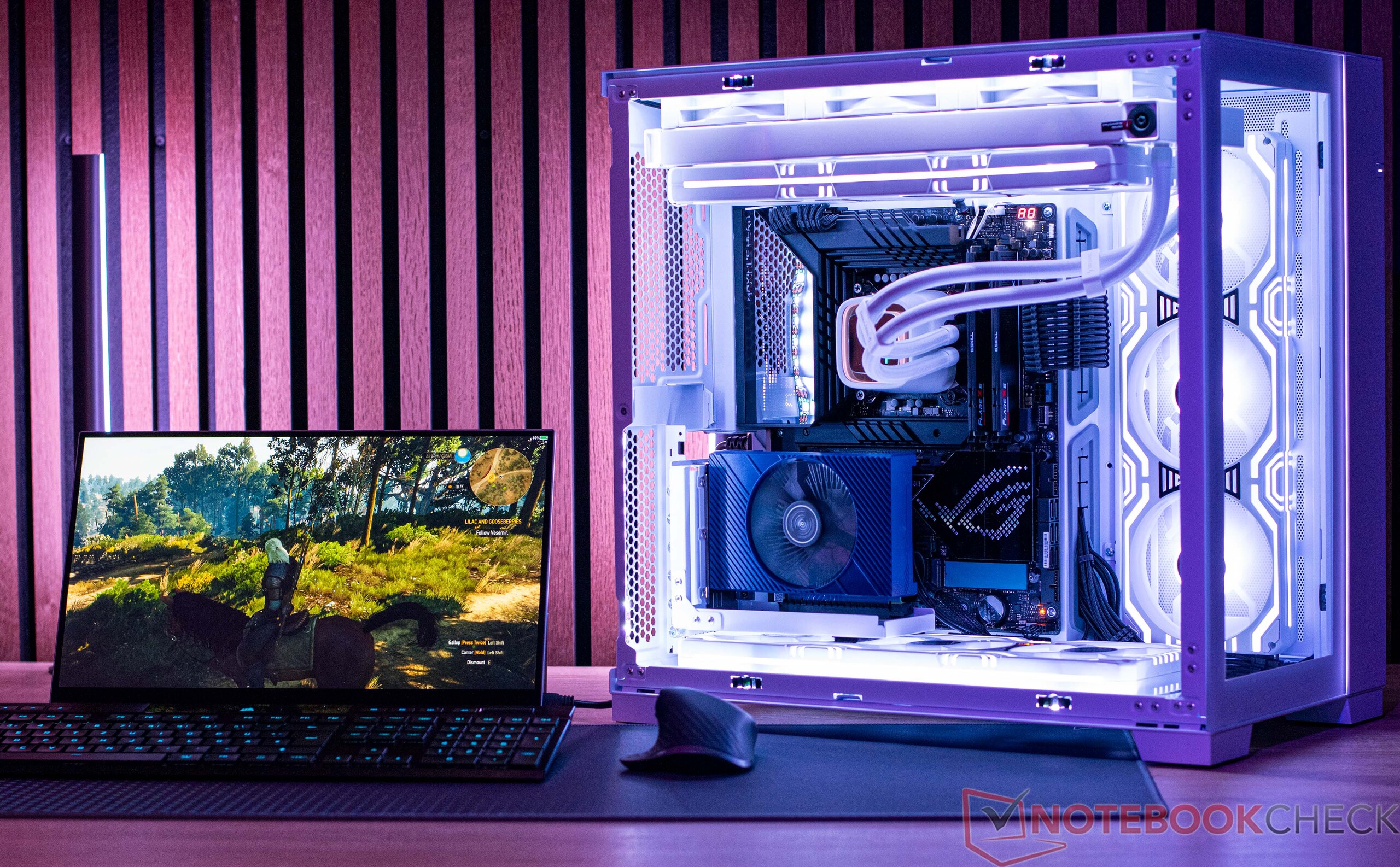

测试系统信息
Sparkle Intel Arc A380 Elf
Processor
Intel Core i9-14900K 24 x 3.2 - 6 GHz, 253 W PL2 / Short Burst, 253 W PL1 / Sustained, Raptor Lake
Graphics adapter
Intel Arc A380 - 6 GB VRAM, Core: 2050 MHz, RAM: 1937 MHz, 75 W TDP, 31.0.101.5333 DCH
Memory
32 GB
, DDR5-6000, CL30
Mainboard
Intel Z690 (Alder Lake-S PCH)
Storage
Kingston KC3000 2048G SKC3000D2048G, 2048 GB
, 2nd SSD for Games - Intel SSD DC P4510 8 TB U.2 NVMe
Weight
415 g, Power Supply: 0 g
Price
129 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
闪亮弧线 A380 精灵详解
技术数据对比
| 规格 | Intel Arc A770 | Intel Arc A750 | Intel Arc A580 | Intel Arc A380 | Radeon RX 7700 XT | Radeon RX 7600 | RTX 4060 Ti | RTX 4060 |
| GPU | DG2-512 | DG2-512 | DG2-512 | DG2-128 | Navi 32 XL | Navi 33 XL | AD106 | AD107 |
| 制造工艺 | 6 纳米 | 6 纳米 | 6 纳米 | 6 纳米 | 5/6 纳米 | 6 纳米 | TSMC 4N | TSMC 4N |
| 着色单元 | 4,096 | 3,584 | 3,072 | 1,024 | 3,456 | 2,048 | 4,352 | 3,072 |
| 纹理映射单元 | 256 | 224 | 192 | 64 | 216 | 128 | 136 | 96 |
| 光线加速器 | 32 | 28 | 24 | 8 | 54 | 32 | 34 | 24 |
| GPU 提升时钟 | 2,400 MHz | 2,400 MHz | 2,000 MHz | 2,050MHz | 2,544 MHz | 2,655 MHz | 2,460 MHz | 2,105 MHz |
| 高速缓存 | 16 MB | 16 MB | 8 MB | 4 MB | 48 MB | 32 MB | 32 MB | 24 MB |
| 内存总线宽度 | 256 位 | 256 位 | 256 位 | 96位 | 256 位 | 128 位 | 128 位 | 128 位 |
| 内存带宽 | 560 GB/s | 512 GB/s | 512 GB/s | 186GB/s | 432 GB/s | 288 GB/s | 288 GB/s | 272 GB/s |
| 内存大小 | 16 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 6 GB GDDR6 | 12 GB | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
| TBP | 225 W | 225 W | 175 W | 75W | 245 W | 165 W | 160 W | 115 W |

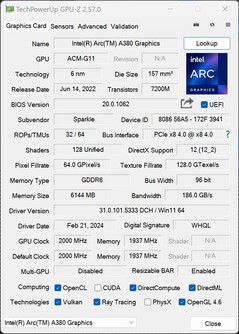

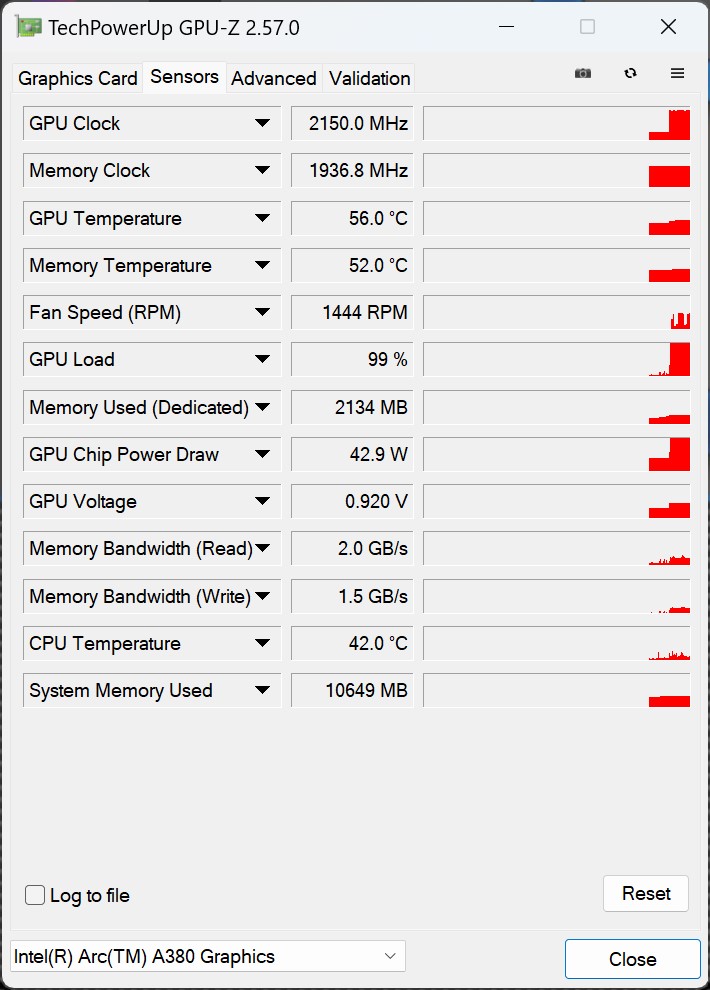

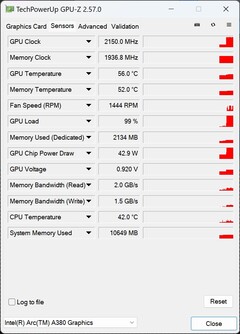

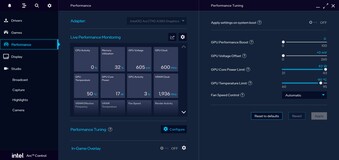

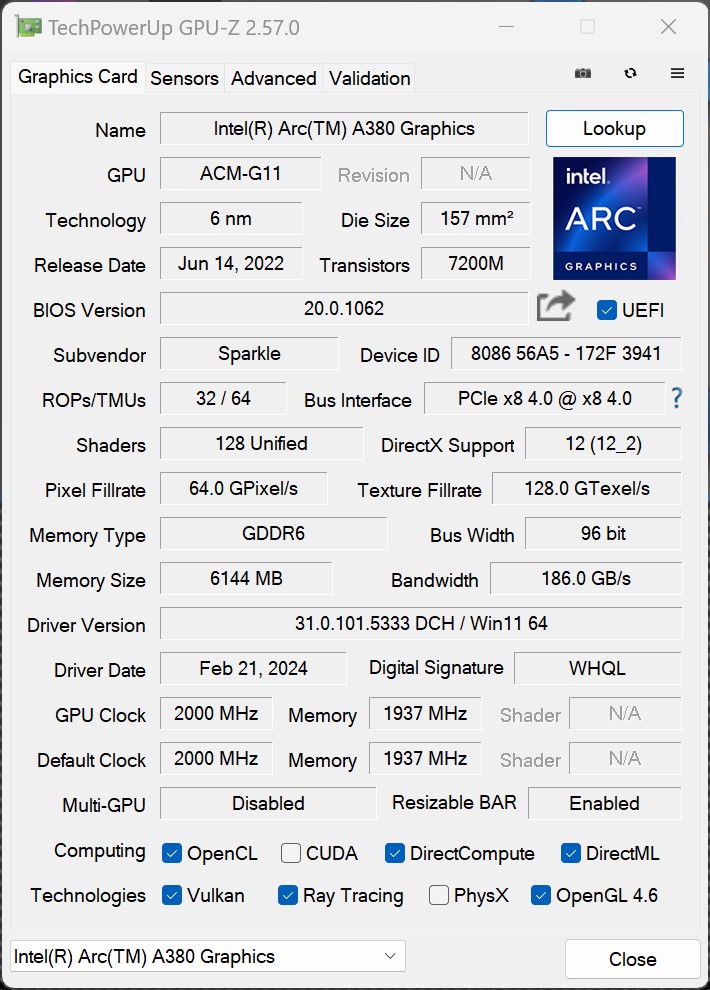

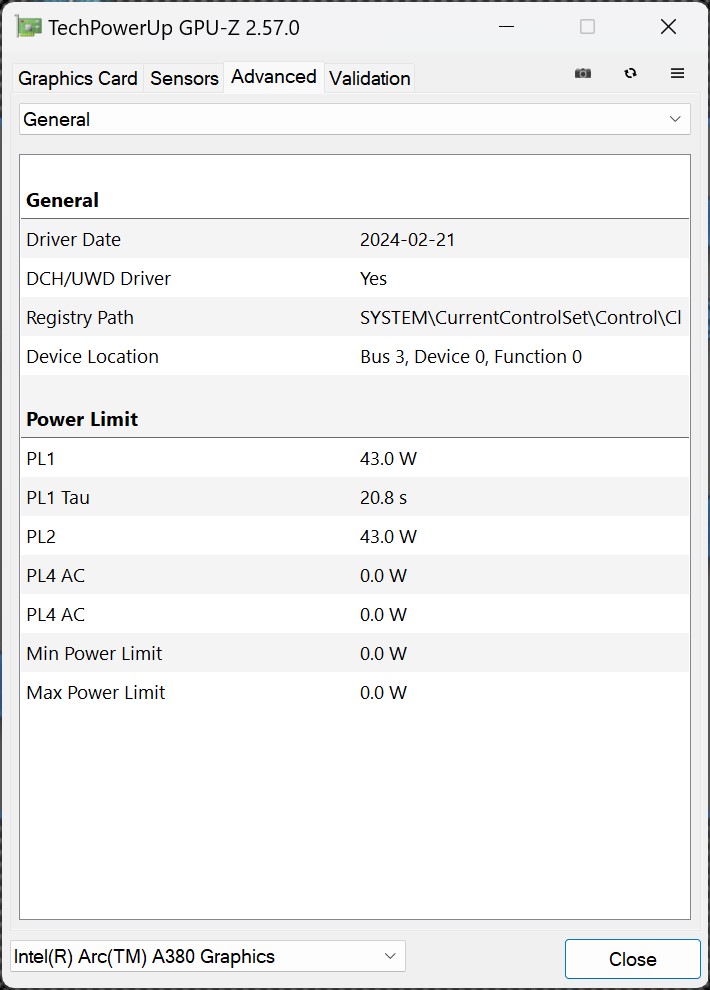

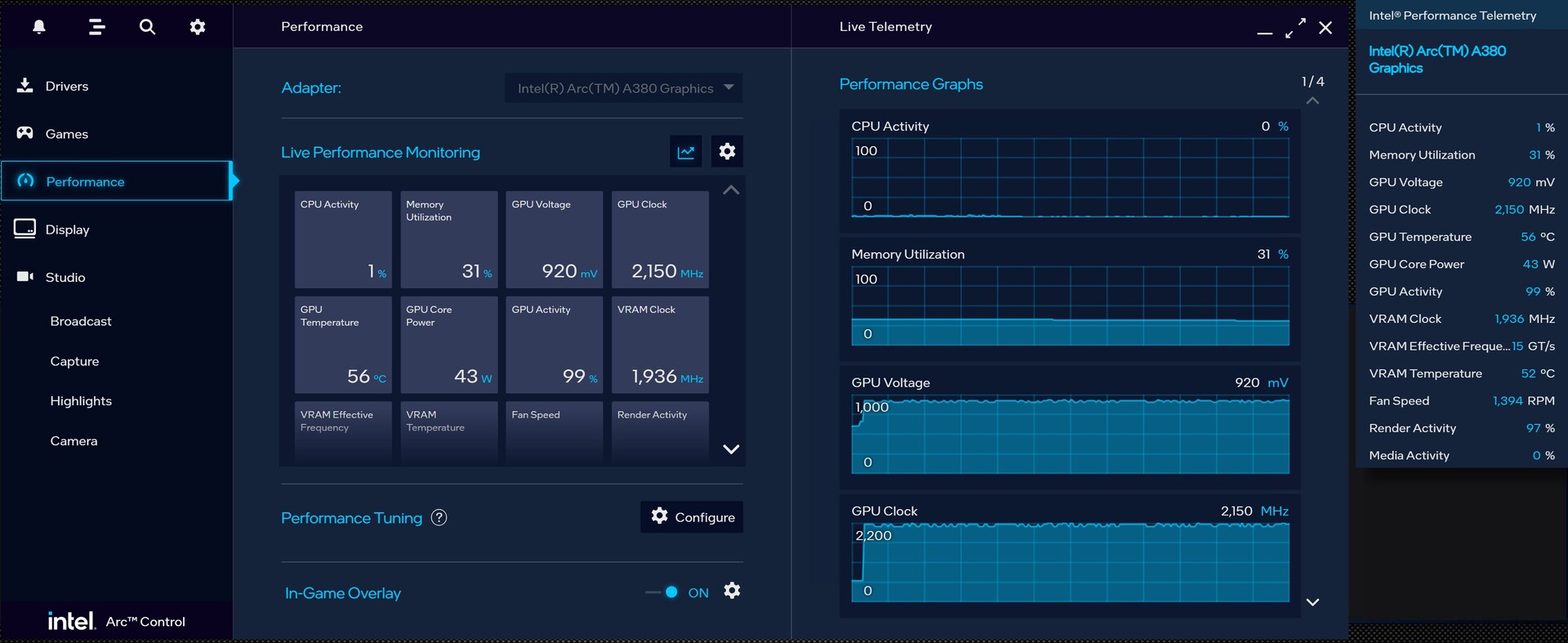

闪弧 A380 精灵的时钟速度

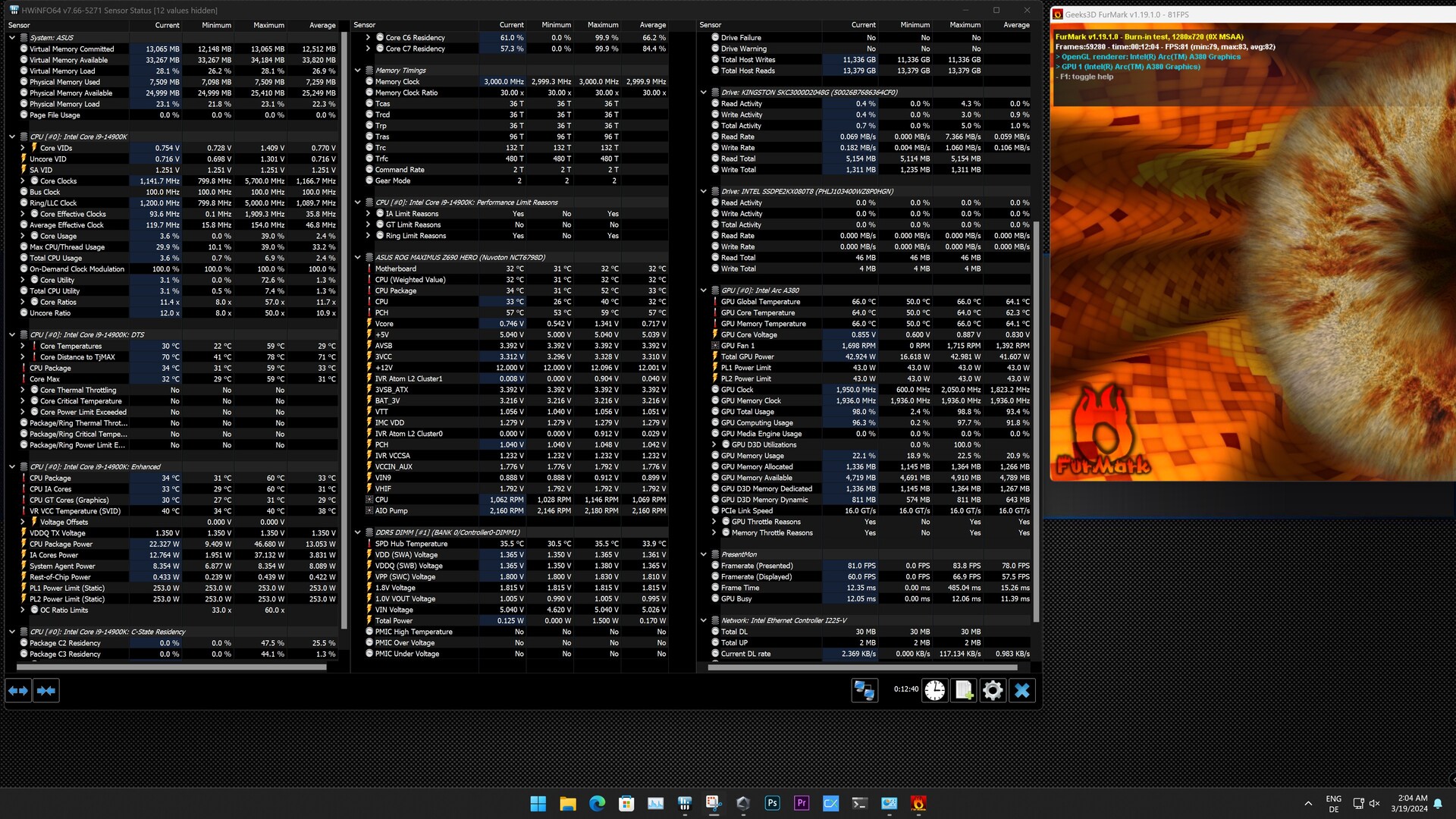

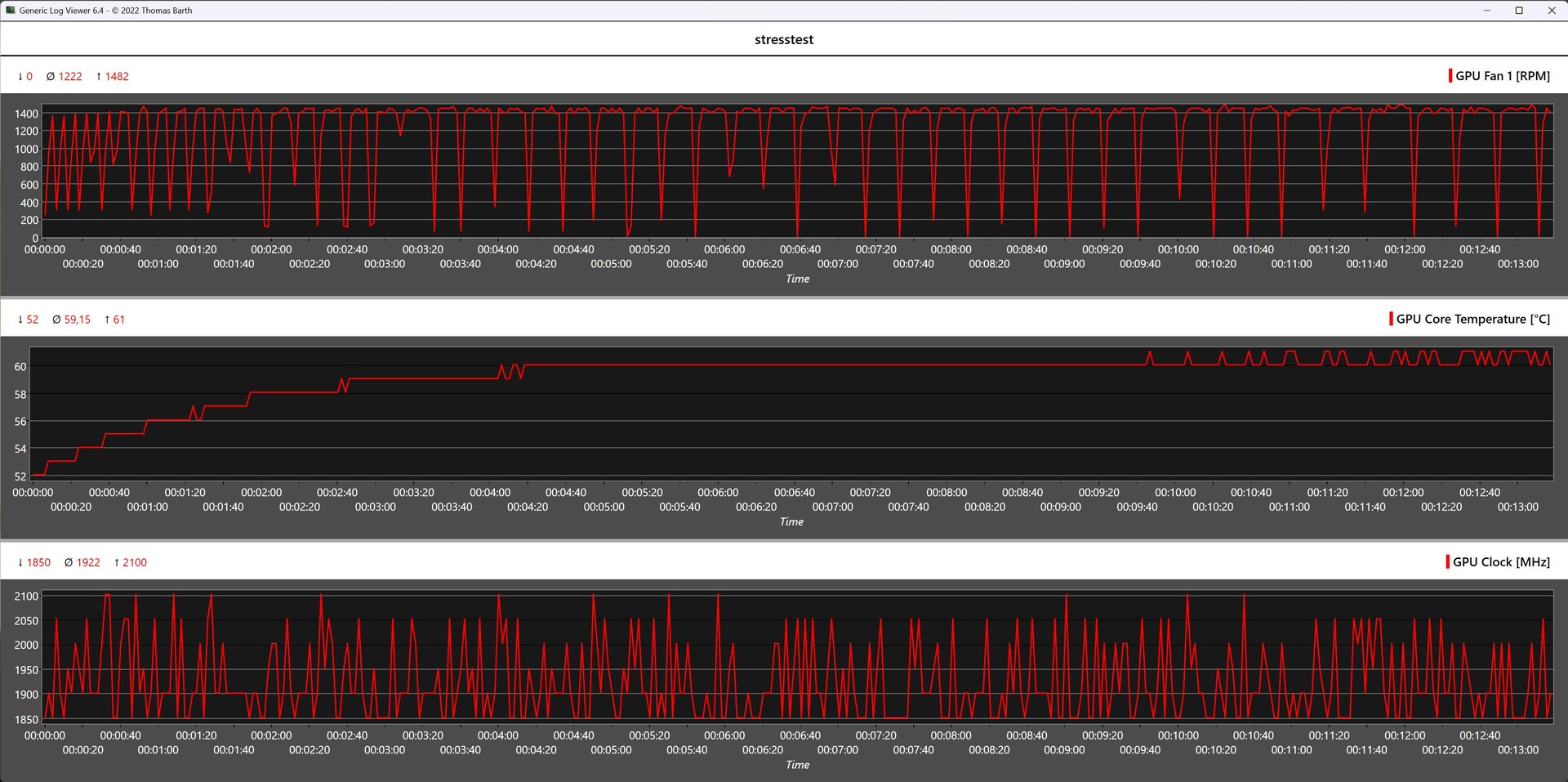

就图形芯片和显存的时钟速度而言，Sparkle 符合英特尔的规格。在负载情况下，我们的 GPU 提升频率高达 2,400 MHz，不过在负载时间较长的情况下，频率会有所下降，约为 2,150 MHz。Sparkle Arc A380 Elf 的功率目标是 43 瓦，不能进一步提高。
合成基准
从技术规格中可以看出，Sparkle Arc A380 Elf 是一款适用于低预算系统的简单显卡。相应地，该显卡也无法提供较高的 3D 性能。即使与 蓝宝石 Nitro+ Radeon RX 5500 XT 8G SE相比，我们的测试样本仍然明显落后。另一方面，英特尔显卡在 Affinity Photo 2 基准测试中表现较好。不过，与 英特尔 Arc A580目前只有一些较老的 GPU 型号可以填补这一空白。
Performance rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | 3DMark 11
| Performance rating - Percent | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Acer Predator BiFrost Arc A750 OC | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Sala GPUs-only | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Sparkle Intel Arc A380 Elf | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| ASRock Arc A580 Challenger OC | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| Sparkle Intel Arc A380 Elf | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| AMD Radeon RX 6700 XT | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sapphire Pulse Radeon RX 6600 | |
| 3DMark 05 Standard | 69490 points | |
| 3DMark 06 Standard Score | 58638 points | |
| 3DMark Vantage P Result | 53979 points | |
| 3DMark 11 Performance | 15095 points | |
| 3DMark Ice Storm Standard Score | 201497 points | |
| 3DMark Cloud Gate Standard Score | 48677 points | |
| 3DMark Fire Strike Score | 9728 points | |
| 3DMark Fire Strike Extreme Score | 4735 points | |
| 3DMark Time Spy Score | 4457 points | |
Help | ||
专业应用
我们在对三款速度更快的英特尔机型的测试中已经看到，英特尔很难跟上当前竞争对手的步伐。由于 Sparkle Arc A380 Elf 采用了大幅瘦身的图形芯片，英特尔显卡之间的性能差距也很大。由于 Arc A380 的 GPU 性能较低，在专业领域最好还是换成其他型号。即使是在半专业领域，这款显卡也不值得推荐。
| ASRock Arc A580 Challenger OC i9-14900K | Intel Arc A580 i9-14900K | Intel Arc A750 R9 7950X | Intel Arc A770 R9 7950X | AMD Radeon RX 5500 XT (Desktop) R9 7950X | AMD Radeon RX 6600 R9 7950X | AMD Radeon RX 7600 R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 16G R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | Average of class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | 74% | 83% | 94% | 335% | 542% | 491% | 201% | 235% | 279% | 281% | 396% | 559% | 248% | |
| 1900x1060 3ds Max (3dsmax-05) (fps) | 81.4 | 154 89% | 166 104% | 179 120% | 141 73% | 258 217% | 279 243% | 220 170% | 247 203% | 297 265% | 251 208% | 290 256% | 382 369% | 202 ? 148% |
| 1900x1060 Catia (catia-04) (fps) | 84.2 | 162 92% | 166 97% | 174 107% | 108 28% | 256 204% | 273 224% | 84.5 0% | 114 35% | 114 35% | 113 34% | 128 52% | 161 91% | 111.2 ? 32% |
| 1900x1060 Creo (creo-01) (fps) | 39.7 | 45.5 15% | 45.7 15% | 45.3 14% | 72.7 83% | 133 235% | 115 190% | 58.8 48% | 65.7 65% | 65.2 64% | 60.6 53% | 73.4 85% | 89.1 124% | 66 ? 66% |
| 1900x1060 Energy (energy-01) (fps) | 1.09 | 2.02 85% | 2.25 106% | 2.44 124% | 23.1 2019% | 31.3 2772% | 25.5 2239% | 11.6 964% | 12.4 1038% | 14.4 1221% | 15.9 1359% | 22.6 1973% | 31.7 2808% | 16.4 ? 1405% |
| 1900x1060 Maya (maya-04) (fps) | 90.3 | 165 83% | 177 96% | 183 103% | 140 55% | 218 141% | 236 161% | 200 121% | 225 149% | 251 178% | 233 158% | 257 185% | 284 215% | 114.9 ? 27% |
| 1900x1060 Medical (medical-01) (fps) | 23.2 | 40.9 76% | 42.4 83% | 46.7 101% | 70.6 204% | 102 340% | 128 452% | 49.5 113% | 55.9 141% | 65.6 183% | 82.4 255% | 110 374% | 132 469% | 57.4 ? 147% |
| 1900x1060 Showcase (showcase-01) (fps) | 43.4 | 108 149% | 110 153% | 119 174% | 83.2 92% | 125 188% | 127 193% | 121 179% | 135 211% | 150 246% | 109 151% | 132 204% | 190 338% | 101.1 ? 133% |
| 1900x1060 Solidworks (sw-03) (fps) | 68.7 | 72.3 5% | 72.6 6% | 73.4 7% | 156 127% | 232 238% | 221 222% | 79.7 16% | 95.1 38% | 93.5 36% | 91.2 33% | 95.1 38% | 109 59% | 88.5 ? 29% |
| SPECviewperf 13 | 96% | 111% | 125% | 115% | 255% | 389% | 129% | 163% | 187% | 179% | 238% | 330% | 179% | |
| 3ds Max (3dsmax-06) (fps) | 81 | 151 86% | 163 101% | 179 121% | 141 74% | 258 219% | 280 246% | 218 169% | 247 205% | 297 267% | 252 211% | 289 257% | 381 370% | 193.1 ? 138% |
| Catia (catia-05) (fps) | 122 | 240 97% | 249 104% | 260 113% | 154 26% | 387 217% | 410 236% | 119 -2% | 163 34% | 167 37% | 163 34% | 189 55% | 241 98% | 206 ? 69% |
| Creo (creo-02) (fps) | 73.1 | 87.5 20% | 88.6 21% | 90 23% | 139 90% | 279 282% | 294 302% | 203 178% | 240 228% | 243 232% | 230 215% | 301 312% | 375 413% | 212 ? 190% |
| Energy (energy-02) (fps) | 6.44 | 15.7 144% | 19.3 200% | 22.5 249% | 29.4 357% | 44 583% | 82.9 1187% | 21.9 240% | 23.8 270% | 26.1 305% | 34.6 437% | 45.3 603% | 54.2 742% | 38.3 ? 495% |
| Maya (maya-05) (fps) | 125 | 285 128% | 301 141% | 319 155% | 208 66% | 348 178% | 333 166% | 291 133% | 344 175% | 372 198% | 343 174% | 403 222% | 510 308% | 273 ? 118% |
| Medical (medical-02) (fps) | 30.9 | 74.9 142% | 82.8 168% | 80.8 161% | 60.2 95% | 88.8 187% | 226 631% | 54.2 75% | 63.7 106% | 74.3 140% | 76.5 148% | 85.1 175% | 112 262% | 85.5 ? 177% |
| Showcase (showcase-02) (fps) | 43.3 | 109 152% | 110 154% | 119 175% | 83.2 92% | 125 189% | 127 193% | 122 182% | 135 212% | 150 246% | 108 149% | 133 207% | 191 341% | 123.1 ? 184% |
| Solidworks (sw-04) (fps) | 77.7 | 79.5 2% | 76.8 -1% | 77.5 0% | 168 116% | 220 183% | 195 151% | 119 53% | 136 75% | 135 74% | 127 63% | 135 74% | 157 102% | 123 ? 58% |
| SPECviewperf 2020 | 151% | 228% | 213% | 93% | 250% | 470% | 177% | 188% | 267% | 242% | 330% | 460% | 361% | |
| 3840x2160 Medical (medical-03) (fps) | 5 | 14.5 190% | 20 300% | 22.3 346% | 12.7 154% | 20.9 318% | 36.1 622% | 10.3 106% | 12 140% | 11.9 138% | 13.7 174% | 16.5 230% | 22.2 344% | 23.4 ? 368% |
| 3840x2160 Maya (maya-06) (fps) | 65.3 | 166 154% | 180 176% | 195 199% | 97.1 49% | 161 147% | 178 173% | 162 148% | 185 183% | 235 260% | 196 200% | 237 263% | 305 367% | 217 ? 232% |
| 3840x2160 Energy (energy-03) (fps) | 5.04 | 17.6 249% | 35 594% | 25 396% | 13.8 174% | 29.5 485% | 67 1229% | 22.9 354% | 17.8 253% | 31.2 519% | 33.2 559% | 44.9 791% | 57.6 1043% | 50.4 ? 900% |
| 3840x2160 Creo (creo-03) (fps) | 34.1 | 51.7 52% | 51.9 52% | 52.9 55% | 58.6 72% | 93.4 174% | 106 211% | 77.2 126% | 85.8 152% | 91.2 167% | 85.9 152% | 95.9 181% | 112 228% | 78.1 ? 129% |
| 3840x2160 CATIA (catia-06) (fps) | 18.3 | 36.7 101% | 38.9 113% | 38.9 113% | 30.3 66% | 60.8 232% | 68 272% | 30.5 67% | 36.7 101% | 40.5 121% | 34 86% | 38.5 110% | 51.6 182% | 48.6 ? 166% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 17.6 | 45.2 157% | 40.7 131% | 47.4 169% | 25.2 43% | 42.4 141% | 72.9 314% | 63.1 259% | 69.7 296% | 87 394% | 67.4 283% | 88.8 405% | 122 593% | 83.2 ? 373% |
| Total Average (Program / Settings) | 107% /
103% | 141% /
132% | 144% /
138% | 181% /
189% | 349% /
358% | 450% /
448% | 169% /
168% | 195% /
196% | 244% /
242% | 234% /
233% | 321% /
321% | 450% /
448% | 263% /
254% |
游戏性能
我们使用多款游戏来看看 Sparkle Arc A380 Elf 在当前游戏和旧版游戏中的 3D 性能。我们看到的情况与之前的合成3DMark基准测试类似。为了将我们测试装置的性能与 AMD 强大的 iGPU 进行比较，我们还将 AMD Radeon 780M 纳入测试。在大多数情况下，Sparkle Arc A380 Elf 在比较中胜出，不过也有一些游戏是英特尔 Arc 无法胜任的。打算购买 Arc A380 的用户首先要搞清楚自己想玩什么游戏。我们的测试游戏列表包括一些较老的游戏，但也有一些较新的游戏，你可以用这款经济实惠的显卡来玩。
您可以在我们的 GPU 游戏列表.
The Witcher 3 | Metro Exodus | Far Cry 5 | Far Cry 6 | F1 2021 | F1 22 | Cyberpunk 2077 1.6 | A Plague Tale Requiem | Spider-Man Miles Morales | Borderlands 3 | God of War | GTA V | The Quarry | Tiny Tina's Wonderlands | GRID Legends | F1 23 | Hogwarts Legacy | Returnal | Diablo 4
| The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| Nvidia GeForce RTX 2060 Super | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (47.7 - 103.8, n=29) | |
| Metro Exodus - 1920x1080 Medium Quality AF:4x | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| AMD Radeon RX 6700 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Acer Predator BiFrost Arc A750 OC | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (32.2 - 37.8, n=8) | |
| Far Cry 5 - 1920x1080 Medium Preset AA:T | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Radeon RX 7800 XT | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Nvidia GeForce RTX 2060 Super | |
| ASRock Arc A580 Challenger OC | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (22 - 54, n=48) | |
| Far Cry 6 - 1920x1080 Medium Graphics Quality AA:SM | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2060 Super | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (43 - 48, n=4) | |
| F1 2021 - 1920x1080 Medium Preset AA:T AF:16x | |
| AMD Radeon RX 7900 GRE (874931) | |
| AMD Radeon RX 7800 XT (874931) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
| KFA2 GeForce RTX 4070 EX Gamer (874931) | |
| Sapphire Pulse Radeon RX 7700 XT (874931) | |
| Sapphire Pulse Radeon RX 6750 XT (874931) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
| AMD Radeon RX 6700 XT (874931) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
| Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (874931) | |
| Nvidia GeForce RTX 2070 Super (874931) | |
| Acer Predator BiFrost Arc A750 OC (874931) | |
| Sapphire Pulse Radeon RX 6600 (874931) | |
| ASRock Arc A580 Challenger OC (874931) | |
| Nvidia GeForce RTX 2060 Super (874931) | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE (874931) | |
| Sparkle Intel Arc A380 Elf (874931) | |
| Average AMD Radeon 780M (53.9 - 115, n=16) | |
| F1 22 - 1920x1080 Medium Preset AA:T AF:16x | |
| AMD Radeon RX 7900 GRE (959964) | |
| AMD Radeon RX 7800 XT (959964) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| Sapphire Pulse Radeon RX 7700 XT (959964) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| AMD Radeon RX 6700 XT (939134) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
| Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (959964) | |
| Sapphire Pulse Radeon RX 6600 (946728) | |
| Acer Predator BiFrost Arc A750 OC (959964) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| ASRock Arc A580 Challenger OC (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE (959964) | |
| Sparkle Intel Arc A380 Elf (959964) | |
| Average AMD Radeon 780M (41.5 - 95, n=35) | |
| Cyberpunk 2077 1.6 - 1920x1080 Medium Preset | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE (1.6) | |
| AMD Radeon RX 7800 XT (1.6) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1.6) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.5) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT (1.61) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| Sapphire Pulse Radeon RX 6600 (1.5) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| Nvidia GeForce RTX 2060 Super (1.6) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.6) | |
| Acer Predator BiFrost Arc A750 OC (1.6) | |
| ASRock Arc A580 Challenger OC (1.6) | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf (1.6) | |
| Average AMD Radeon 780M (16 - 42, n=12) | |
| A Plague Tale Requiem - 1920x1080 Medium Preset | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (n=1) | |
| Spider-Man Miles Morales - 1920x1080 Medium Preset AA:SM | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 7700 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| AMD Radeon RX 6700 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A750 OC | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| ASRock Arc A580 Challenger OC | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (n=1) | |
| Borderlands 3 - 1920x1080 Medium Overall Quality (DX11) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Nvidia GeForce RTX 2060 Super | |
| ASRock Arc A580 Challenger OC | |
| Acer Predator BiFrost Arc A750 OC | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (38.6 - 51.4, n=8) | |
| God of War - 1920x1080 Original Preset | |
| AMD Radeon RX 7800 XT | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (19.5 - 34.3, n=8) | |
| GTA V - 1366x768 Normal/Off AF:4x | |
| AMD Radeon RX 6700 XT | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Pulse Radeon RX 6600 | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sparkle Intel Arc A380 Elf | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Acer Predator BiFrost Arc A750 OC | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Average AMD Radeon 780M (91.2 - 159, n=57) | |
| The Quarry - 1920x1080 Medium Preset | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6600 | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (n=1) | |
| Tiny Tina's Wonderlands - 1920x1080 Medium Preset (DX12) | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (28.4 - 55.9, n=25) | |
| GRID Legends - 1920x1080 Medium Preset | |
| AMD Radeon RX 6700 XT (643827) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| AMD Radeon RX 7800 XT (800660) | |
| Sapphire Pulse Radeon RX 7700 XT (800660) | |
| AMD Radeon RX 7900 GRE (800660) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (800660) | |
| Sapphire Pulse Radeon RX 6600 (683088) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (800660) | |
| ASRock Arc A580 Challenger OC (800660) | |
| Acer Predator BiFrost Arc A750 OC (800660) | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE (712825) | |
| Sparkle Intel Arc A380 Elf (800660) | |
| Average AMD Radeon 780M (73.4 - 92.5, n=8) | |
| F1 23 - 1920x1080 Medium Preset AA:T AF:16x | |
| AMD Radeon RX 7800 XT (1022189) | |
| AMD Radeon RX 7900 GRE (1016022) | |
| Sapphire Pulse Radeon RX 7700 XT (1026791) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT (1016022) | |
| AMD Radeon RX 6700 XT (1016022) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1022189) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
| Nvidia GeForce RTX 2070 Super (1021115) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
| Sapphire Pulse Radeon RX 6600 (1016022) | |
| Acer Predator BiFrost Arc A750 OC (1042581) | |
| Nvidia GeForce RTX 2060 Super (1021115) | |
| ASRock Arc A580 Challenger OC (1082038) | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE (1022189) | |
| Sparkle Intel Arc A380 Elf (1082038) | |
| Average AMD Radeon 780M (38.1 - 84.4, n=30) | |
| Hogwarts Legacy - 1920x1080 Medium Preset AA:High T | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| AMD Radeon RX 6700 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Average AMD Radeon 780M (21.9 - 37.6, n=5) | |
| Sparkle Intel Arc A380 Elf | |
| Returnal - 1920x1080 Medium Preset | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (20 - 29, n=2) | |
| Diablo 4 - 1920x1080 Medium Preset | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| AMD Radeon RX 7900 GRE | |
| Sapphire Pulse Radeon RX 7700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6600 | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| Sapphire Nitro+ Radeon RX 5500 XT 8G SE | |
| Sparkle Intel Arc A380 Elf | |
| Average AMD Radeon 780M (n=1) | |
Overview of the Games Tested with the Sparkle Arc A380 Elf
| low | med. | high | ultra | |
|---|---|---|---|---|
| Prince of Persia The Lost Crown (2024) | 308 | 200 | 185.5 | |
| Palworld (2024) | 46.3 | 37.4 | 27.4 | 24.4 |
| Enshrouded (2024) | 28.5 | 25.5 | 20.9 | 17.1 |
| Helldivers 2 (2024) | 46.6 | 36.5 | 32.4 | 33.1 |
| Skull & Bones (2024) | 41 | 36 | 30 | 23 |
| Last Epoch (2024) | 78.2 | 70.3 | 57.1 | 42.7 |
| Alone in the Dark (2024) | 84.6 | 71.6 | 59 | 29.5 |
| Dragon's Dogma 2 (2024) | 22 | 18.9 | ||
| Horizon Forbidden West (2024) | 34.5 | 31.2 | 20.2 | 14.9 |
| Ghost of Tsushima (2024) | 40 | 32.6 | 28 | 20 |
| Senua's Saga Hellblade 2 (2024) | 19.1 | 12.5 | 9.2 | |
| F1 24 (2024) | 108.8 | 91 | 63.5 | 16.3 |
排放 - 尽管性能较低，但声音相对较大
噪音排放
Sparkle Arc A380 Elf 配备了一个 90 毫米（约 3.5 英寸）的风扇。幸运的是，制造商没有放弃风扇停止模式，因此显卡可以在空闲时安静运行。在负载情况下，除了风扇噪音外，我们还能听到非常明显的线圈啸叫。在我们的测试中，平均负载下的噪音甚至略大于压力测试时的噪音。游戏时的平均噪音值为 38.3 dB(A)，也略高于压力测试时的噪音值（37.7 dB(A)）。

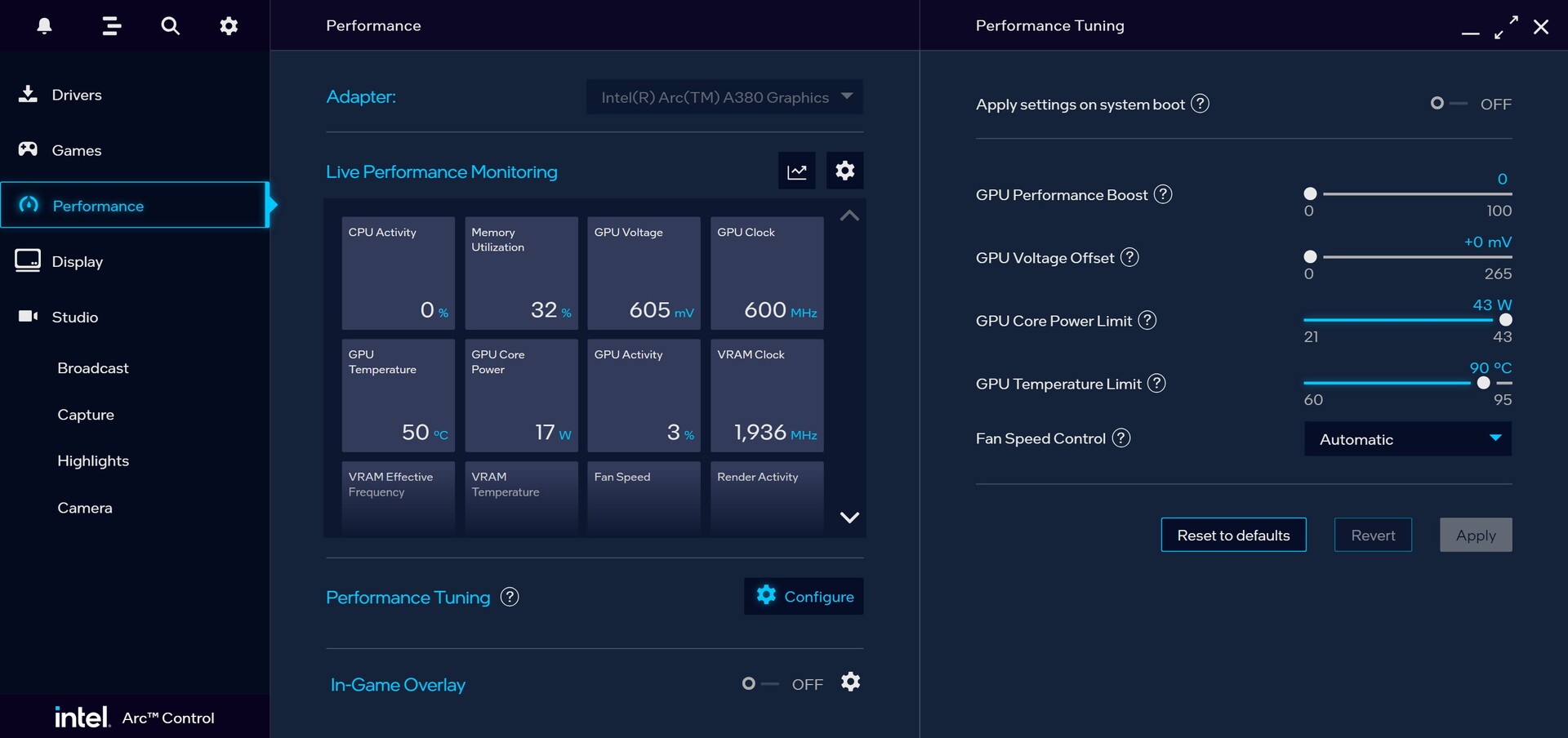

在风扇转速控制方面，制造商也有一些需要改进的地方：在负载情况下，风扇会在短暂的时间间隔内不必要地持续转速过高。从长远来看，这非常恼人，只能通过在英特尔驱动程序中手动调整风扇曲线来解决。另外，你也可以将风扇转速设置为固定值。
Noise level
| Idle |
| 26 / 26 / 26.5 dB(A) |
| Load |
| 39.5 / 37.7 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 25.3 dB(A) | ||
| Sparkle Intel Arc A380 Elf | ASRock Arc A580 Challenger OC | Acer Predator BiFrost Arc A750 OC | Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | AMD Radeon RX 7800 XT | KFA2 GeForce RTX 4070 Ti EX Gamer | KFA2 GeForce RTX 4070 EX Gamer | KFA2 GeForce RTX 4060 1-Click-OC 2X | ASUS Dual GeForce RTX 4060 Ti OC | XFX Speedster QICK 308 Radeon RX 7600 Black Edition | Sapphire Pulse Radeon RX 7700 XT | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Noise | 3% | -10% | -24% | -2% | -9% | -9% | -1% | -2% | 2% | -1% | |
| off / environment * (dB) | 25.3 | 25.3 -0% | 25.4 -0% | 25.4 -0% | 24.7 2% | 30 -19% | 30 -19% | 25.8 -2% | 25.4 -0% | 25.4 -0% | 25 1% |
| Idle Minimum * (dB) | 26 | 25.7 1% | 29 -12% | 39 -50% | 26.8 -3% | 30.1 -16% | 30.2 -16% | 25.9 -0% | 26.7 -3% | 26.3 -1% | 27.4 -5% |
| Idle Average * (dB) | 26 | 25.8 1% | 29.2 -12% | 39 -50% | 27.2 -5% | 30.1 -16% | 30.2 -16% | 25.9 -0% | 26.7 -3% | 26.3 -1% | 27.5 -6% |
| Idle Maximum * (dB) | 26.5 | 25.8 3% | 29.3 -11% | 39 -47% | 27.3 -3% | 30.1 -14% | 30.2 -14% | 25.9 2% | 26.7 -1% | 26.3 1% | 28 -6% |
| Load Average * (dB) | 39.5 | 34.3 13% | 35.1 11% | 39 1% | 30.7 22% | 30.2 24% | 31.8 19% | 30.3 23% | 29.3 26% | 29.6 25% | 32.6 17% |
| Witcher 3 ultra * (dB) | 38.3 | 37.1 3% | 44.2 -15% | 41.5 -8% | 42.6 -11% | 40.2 -5% | 45.2 -18% | 42.5 -11% | 39.6 -3% | 42.1 -10% | |
| Load Maximum * (dB) | 37.7 | 36.9 2% | 49.7 -32% | 42.1 -12% | 43 -14% | 44.7 -19% | 41.1 -9% | 43.5 -15% | 46 -22% | 39.4 -5% | 37.6 -0% |
* ... smaller is better
温度和功耗
Sparkle Arc A380 Elf仅通过PCI Express插槽供电，这一事实表明这是一款高效的显卡。在我们的比较中，基于 Sparkle Arc A380 Elf 的测试系统是迄今为止最高效的。我们的测量结果显示，压力测试期间的平均值仅为 145 瓦，即使在游戏期间也达到了约 143 瓦。在我们的效率比较中，这甚至足以超过 宏碁掠夺者 BiFrost Arc A750 OC和 华擎 Arc A580 挑战者 OC.
我们的测试设备从未出现过任何温度问题。在负载情况下，GPU 和 VRAM 的温度仅上升至 66 °C (151 °F)。因此，在交货状态下，顶部仍有足够的空间来优化有问题的风扇曲线。
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A750 OC | |
| ASRock Arc A580 Challenger OC | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sparkle Intel Arc A380 Elf | |
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| Acer Predator BiFrost Arc A750 OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 7800 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| ASRock Arc A580 Challenger OC | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sparkle Intel Arc A380 Elf | |
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
* ... smaller is better
Power Consumption With External Monitor

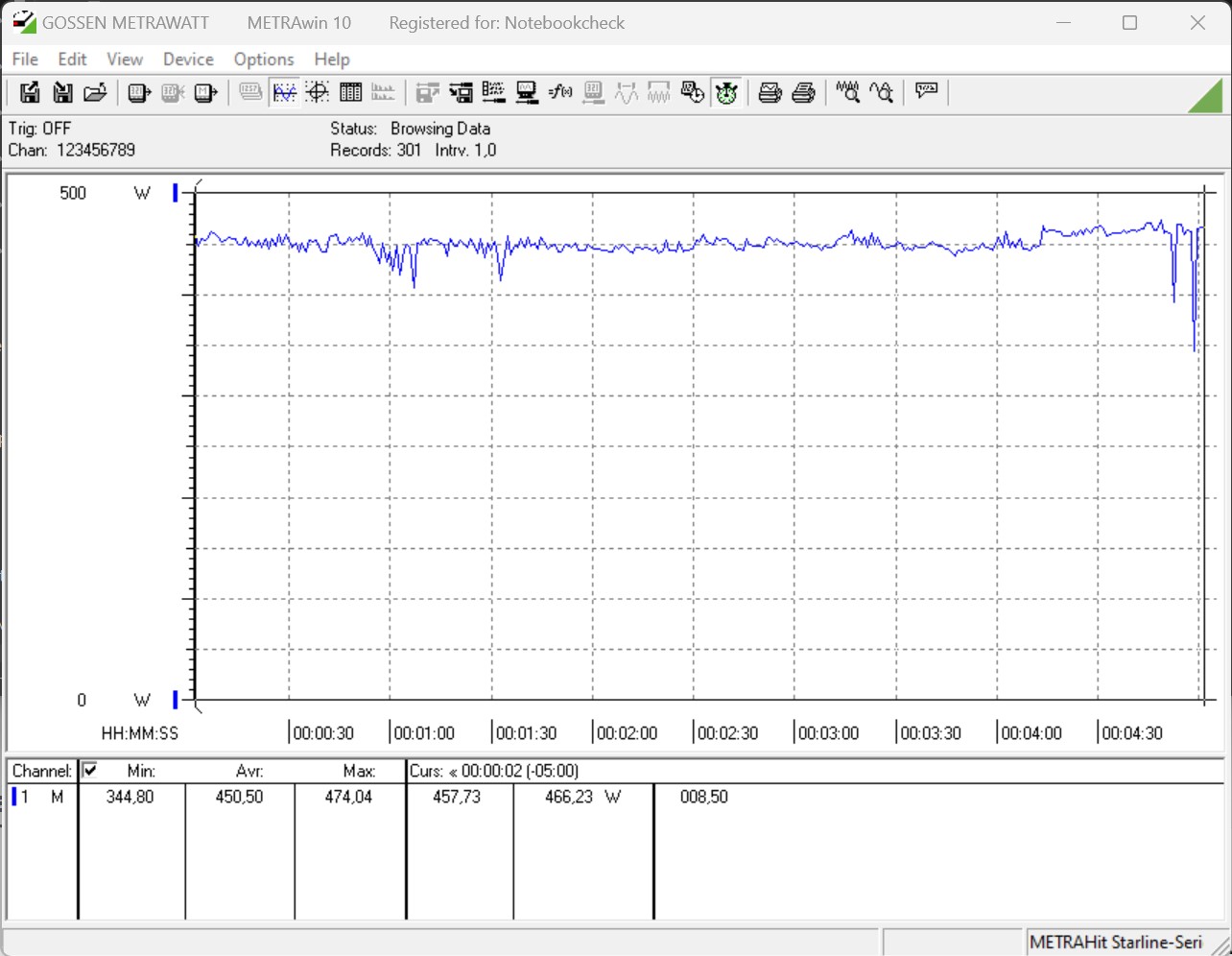

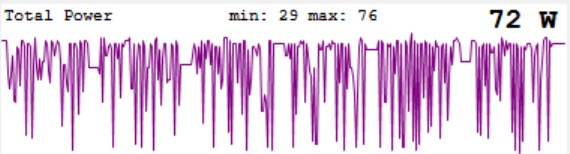

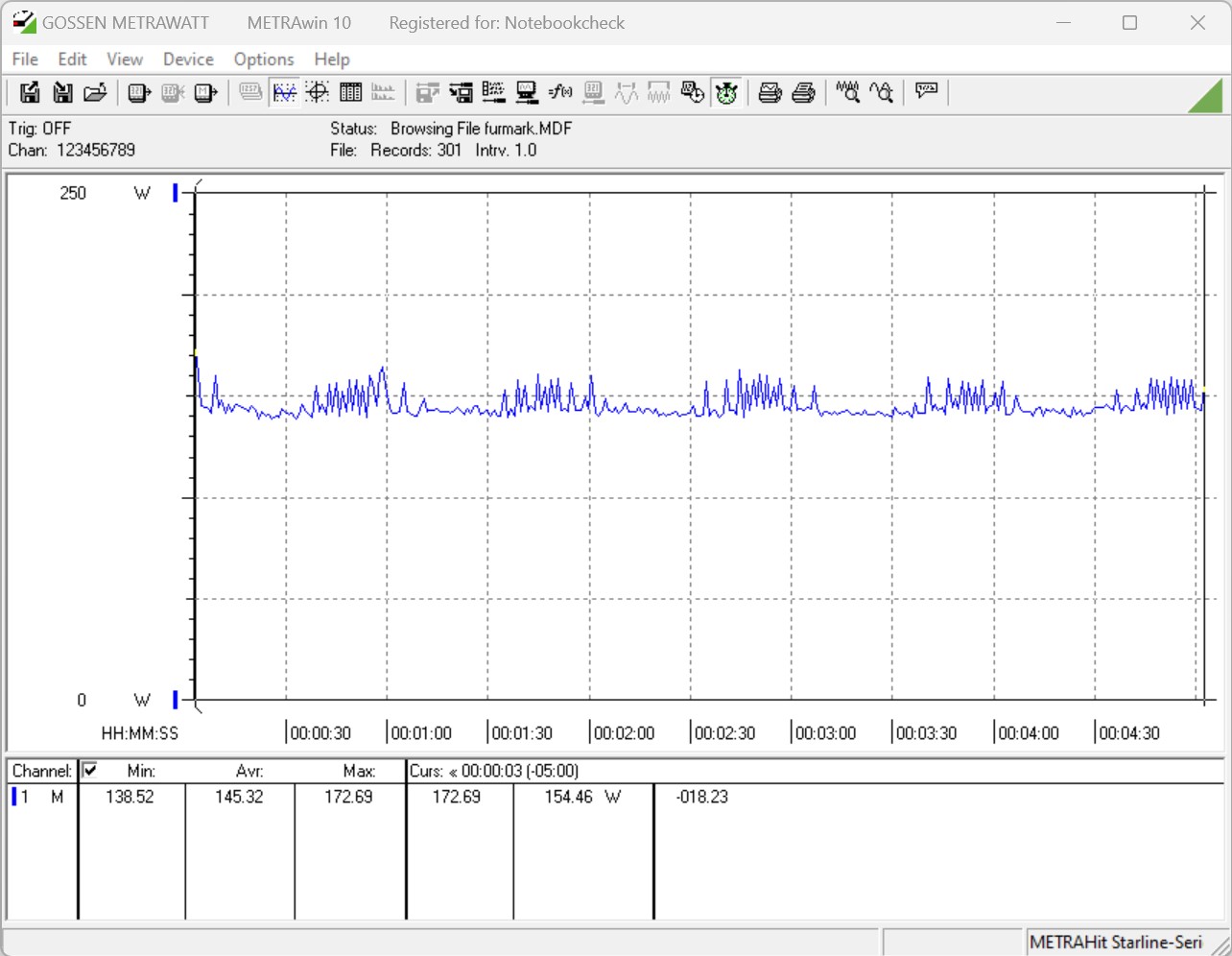

Sparkle Intel Arc A380 Elf Arc A380, i9-14900K, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø145.4 (138.5-172.7)
XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø333 (323-352)
ASRock Arc A580 Challenger OC Arc A580, i9-14900K, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø337 (330-351)

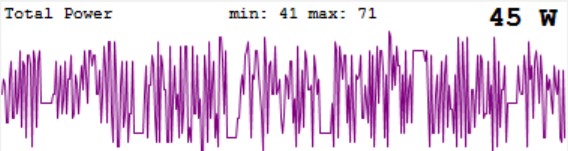

Sparkle Intel Arc A380 Elf Arc A380, i9-14900K, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø143.3 (141.6-153.1)
XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø346 (340-351)
ASRock Arc A580 Challenger OC Arc A580, i9-14900K, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø312 (302-321)

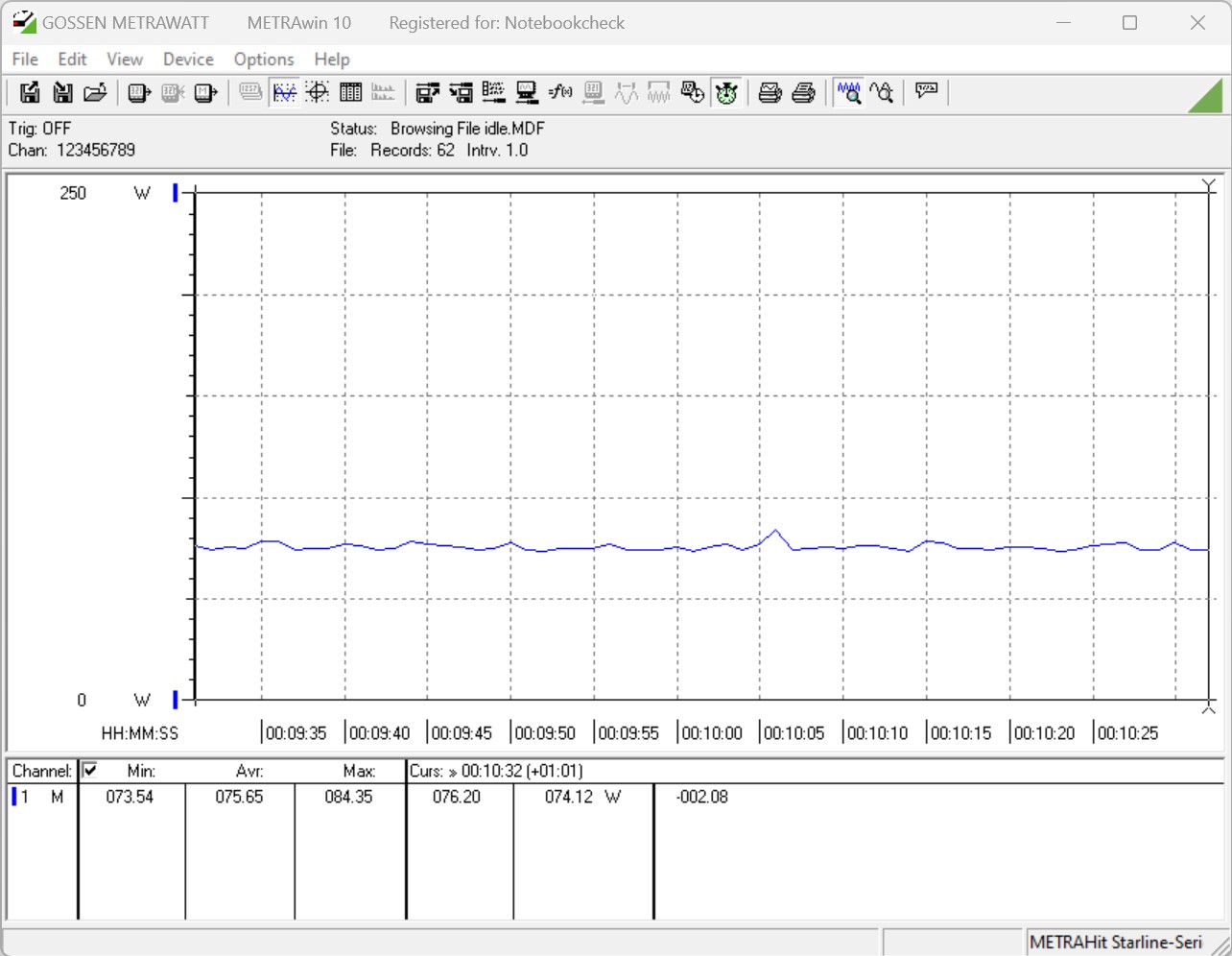

Sparkle Intel Arc A380 Elf Arc A380, i9-14900K, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø75.6 (73.5-84.4)
XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø91.1 (87.8-100.3)
ASRock Arc A580 Challenger OC Arc A580, i9-14900K, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø117.9 (110.7-136.3)
Pros
+ 体积小巧
+ 易于冷却
+ AV1 编码和解码
+ 6 GB VRAM
+ 风扇停止模式
Cons
- 效率不如 AMD 和 Nvidia 的竞争对手
- 可调整大小的栏绝对必要
- 线圈啸叫声大
- 风扇曲线有问题
结论 - 配备 6GB VRAM 的简易 Intel Arc 显卡
Sparkle Arc A380 Elf 是一款相当简单的台式电脑显卡。它拥有 6GB 的 VRAM，非常具有吸引力，而且购买价格仅为 129 欧元（约合 141 美元），不会对您的预算造成太大影响。同时，您也不应对 DG2-128 GPU 芯片抱有太高期望。由于只有 1,024 个着色单元，图形性能与速度更快的英特尔 Arc 显卡相比大幅缩水。考虑到其性能，这款显卡的价格应该不会超过 100 欧元（约合 109 美元）。这款小显卡很难在系统中充当纯游戏显卡。不过，也有许多游戏仍能以足够的帧速率运行。
Sparkle Arc A380 Elf 是目前 AMD 和 Nvidia 之外最实惠的选择，可以让你在 1080p 下玩很多游戏。但英特尔 Arc A380 最大的优势在于其 AV1 编解码功能。
由于价格实惠，虽然设计看起来和感觉上都很廉价，但仍能达到目的。制造商始终将温度控制在一定范围内，但这对于 75 瓦的显卡来说也不是什么难事。不那么吸引人的是，风扇在负载情况下会持续转动，因此有必要进行手动调节。此外，我们测试的 Sparkle Arc A380 Elf 显卡还存在相当大的线圈啸叫，甚至可以透过封闭的电脑机箱听到。总的来说，这款显卡优缺点并存，但由于上述缺点，我们无法直接推荐购买。那些仍然想给英特尔弧形显卡一个机会的用户应该仔细看看华擎弧形显卡 A580 Challenger OC。尽管它的价格略高，但性能却相对高于 Sparkle Arc A380 Elf。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was freely purchased by the author at his/her own expense. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
