富士通 LifeBook T734 变形本简短评测

Name: Fujitsu LifeBook T734
Brand: Fujitsu

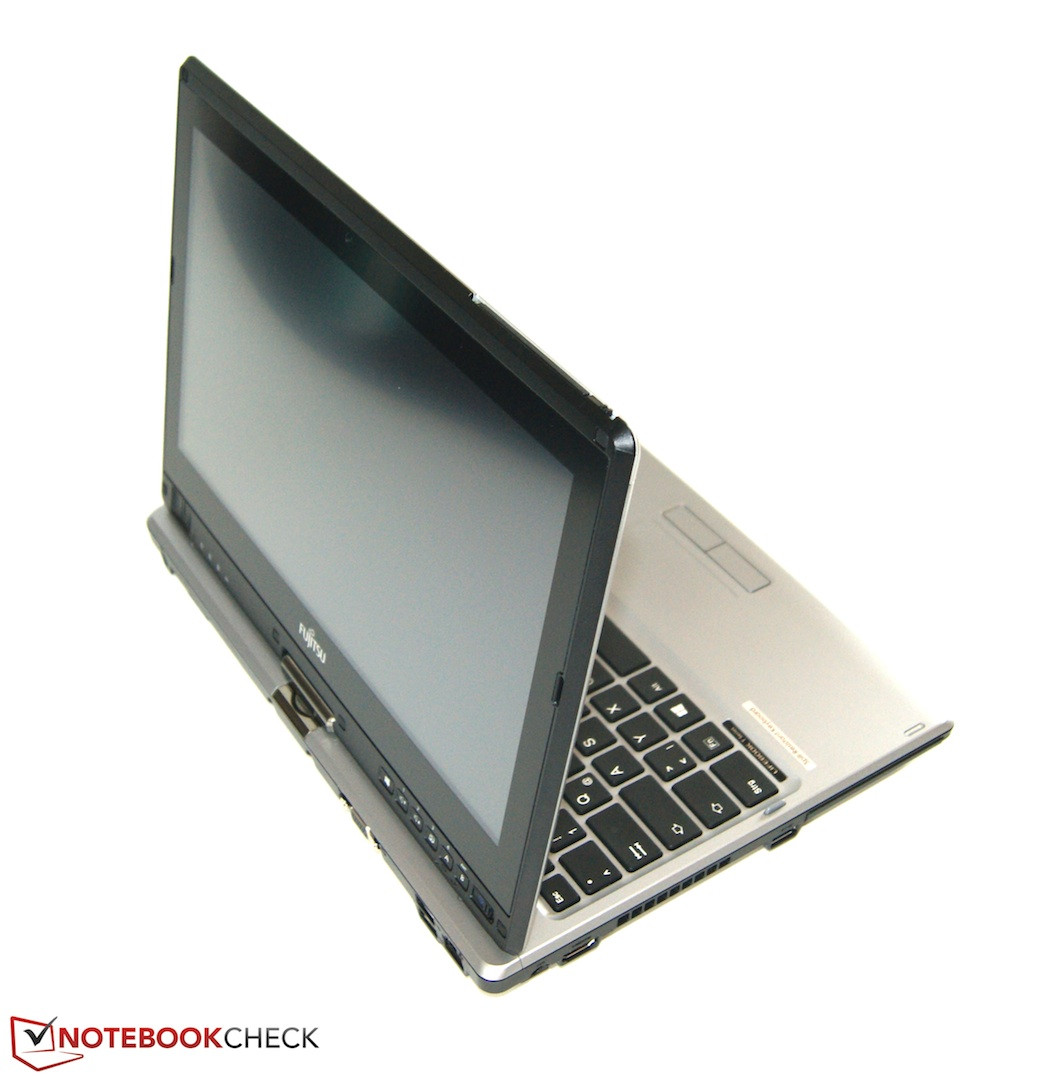

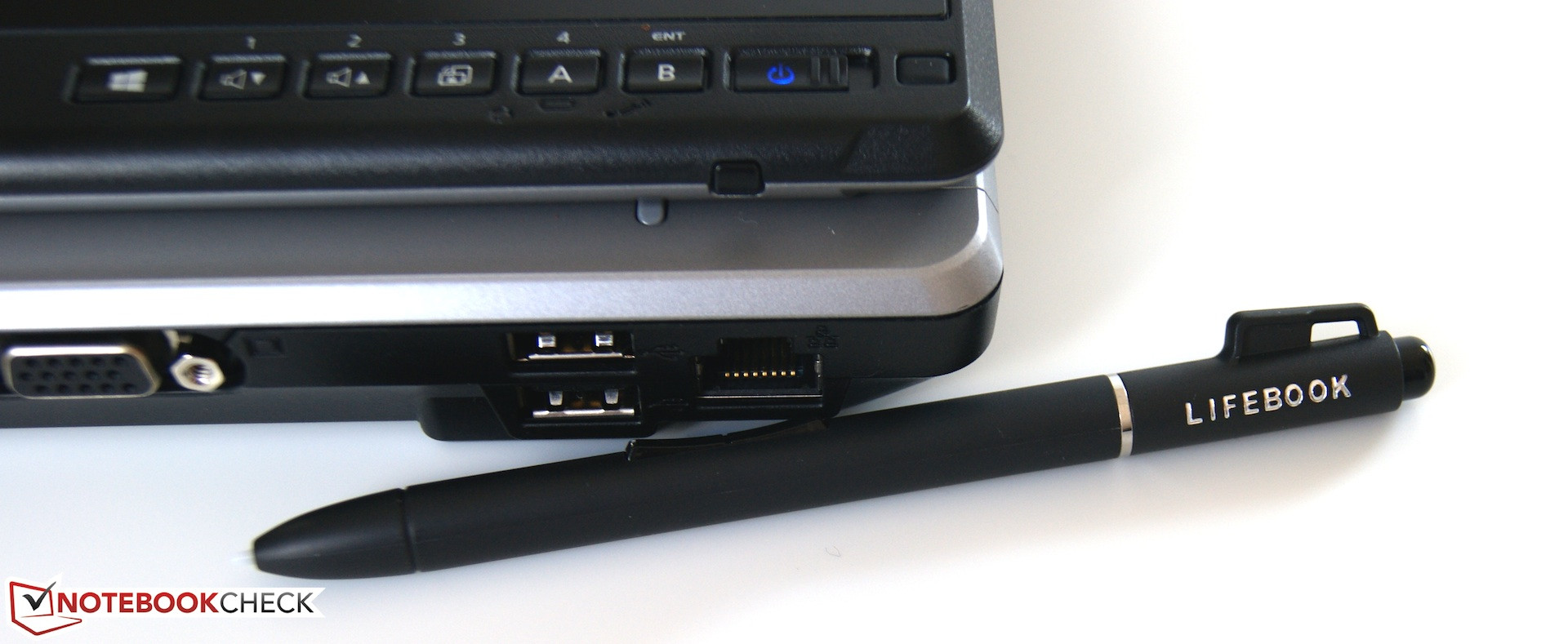

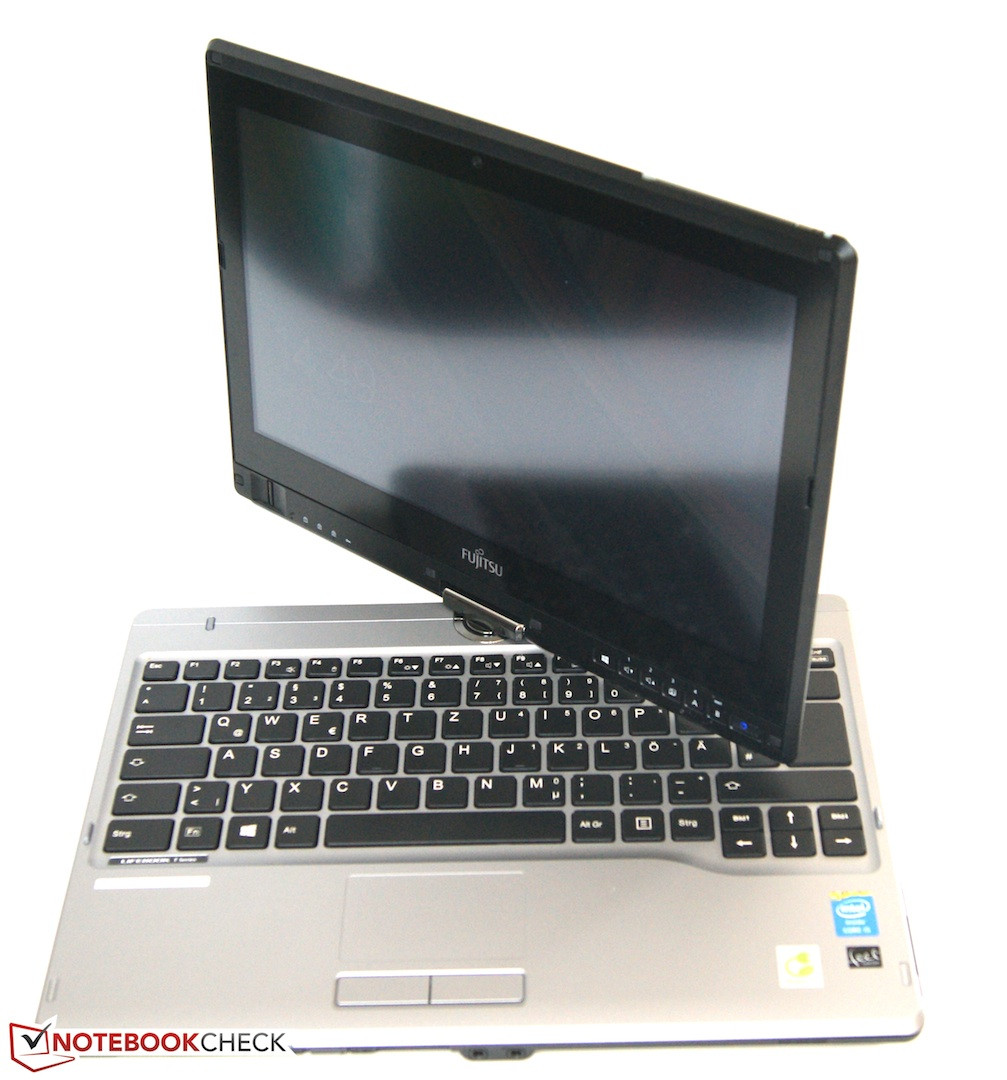

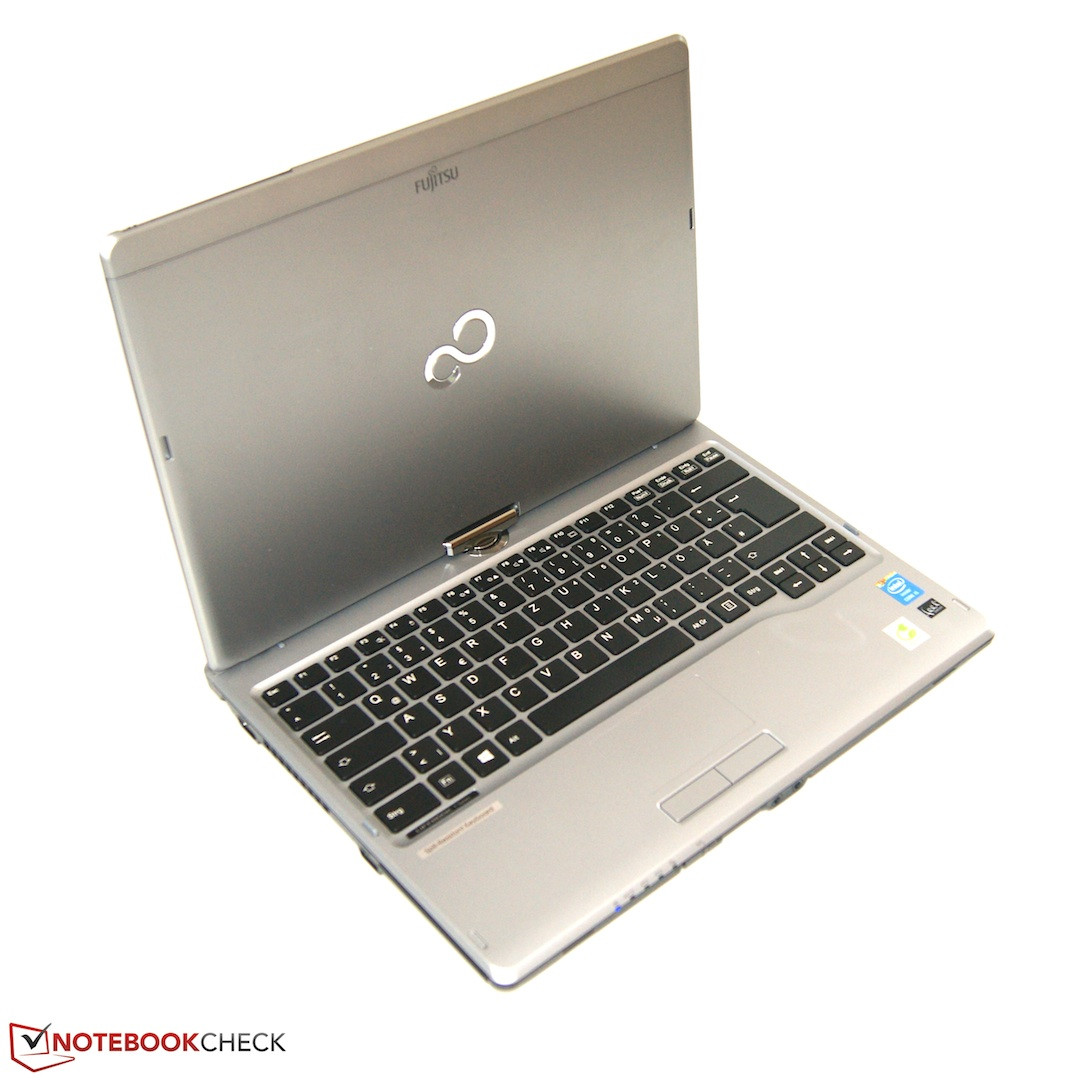

复古商务。 通用性和便携性是这款富士通最新笔记本的重要特点。手写笔和多点触控成为了新的输入方式，3G网络则提供了必要的便携性。不过这并不足以给它带来出色的成绩。

Nino Ricchizzi, ✓ Tanja Hinum (translated by Yuchen Wang), Published 10/04/2014 🇺🇸 🇩🇪 ...

Haswell Touchscreen Windows Convertible / 2-in-1

Dell Latitude XT3 Fujitsu LifeBook T734 Lenovo ThinkPad Yoga Fujitsu Stylistic Q704 HP EliteBook Revolve 810 DIN A4 ❌


266 cd/m²	260 cd/m²	248 cd/m²
268 cd/m²	273 cd/m²	268 cd/m²
262 cd/m²	261 cd/m²	259 cd/m²

Distribution of brightness

Fujitsu FUJ5612 tested with X-Rite i1Pro 2

Maximum: 273 cd/m² (Nits) Average: 262.8 cd/m²
Brightness Distribution: 91 %
Center on Battery: 273 cd/m²
Contrast: 1011:1 (Black: 0.27 cd/m²)
ΔE ColorChecker Calman: 4.03 | ∀{0.5-29.43 Ø4.79}
ΔE Greyscale Calman: 2.54 | ∀{0.09-98 Ø5}
Gamma: 2.5
CCT: 6631 K

	Fujitsu LifeBook T734 HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX	Fujitsu Stylistic Q704 HD Graphics 4400, 4300U, Samsung MZNTD128HAGM	Lenovo ThinkPad Yoga HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1	HP EliteBook Revolve 810 HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU
Display
Display P3 Coverage (%)		41.85	43.87	43.9
sRGB Coverage (%)		61.8	65	65.8
AdobeRGB 1998 Coverage (%)		43.32	45.55	45.37
Screen		-16%	-37%	-14%
Brightness middle (cd/m²)	273	410 50%	400.5 47%	434 59%
Brightness (cd/m²)	263	366 39%	370 41%	414 57%
Brightness Distribution (%)	91	82 -10%	85 -7%	91 0%
Black Level * (cd/m²)	0.27	0.545 -102%	0.641 -137%	0.6 -122%
Contrast (:1)	1011	752 -26%	625 -38%	723 -28%
Colorchecker dE 2000 *	4.03	4.57 -13%	6.19 -54%	4.84 -20%
Greyscale dE 2000 *	2.54	3.74 -47%	5.4 -113%	3.69 -45%
Gamma	2.5 ^88%	2.61 ^84%	2.71 ^81%	2.6 ^85%
CCT	6631 ^98%	7108 ^91%	5829 ^112%	6547 ^99%
Color Space (Percent of AdobeRGB 1998) (%)		39.19	42.96	42
Total Average (Program / Settings)		-16% / -16%	-37% / -37%	-14% / -14%

* ... smaller is better

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Fujitsu LifeBook T734 HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX	2.94 Points
Lenovo ThinkPad Yoga 20CD0038GE HD Graphics 4400, 4500U, Samsung SSD 840 250GB MZ7TD256HAFV	2.56 Points -13%
Fujitsu Stylistic Q704 HD Graphics 4400, 4300U, Samsung MZNTD128HAGM	1.05 Points -64%
HP EliteBook Revolve 810 HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU	2.67 Points -9%
Dell Latitude XT3 HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142	3.15 Points +7%
Fujitsu Lifebook E734 HD Graphics 4600, 4200M, Seagate ST500LM000 Solid State Hybrid Drive	3.25 Points +11%
CPU Single 64Bit (sort by value)
Fujitsu LifeBook T734 HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX	1.24 Points
Lenovo ThinkPad Yoga 20CD0038GE HD Graphics 4400, 4500U, Samsung SSD 840 250GB MZ7TD256HAFV	1.31 Points +6%
Fujitsu Stylistic Q704 HD Graphics 4400, 4300U, Samsung MZNTD128HAGM	0.66 Points -47%
HP EliteBook Revolve 810 HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU	1.19 Points -4%
Dell Latitude XT3 HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142	1.36 Points +10%
Fujitsu Lifebook E734 HD Graphics 4600, 4200M, Seagate ST500LM000 Solid State Hybrid Drive	1.36 Points +10%

Cinebench R11.5 CPU Single 64Bit

1.24 Points

Cinebench R11.5 CPU Multi 64Bit

2.94 Points

Cinebench R11.5 OpenGL 64Bit

13.31 fps

Cinebench R15 CPU Single 64Bit

112 Points

Cinebench R15 CPU Multi 64Bit

259 Points

Cinebench R15 Ref. Match 64Bit

63.3 %

Help

... in comparison

PCMark 7 - Score (sort by value)
Fujitsu LifeBook T734 HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX	2745 Points
Lenovo ThinkPad Yoga HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1	4749 Points +73%
Fujitsu Stylistic Q704 HD Graphics 4400, 4300U, Samsung MZNTD128HAGM	3248 Points +18%
HP EliteBook Revolve 810 HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU	4417 Points +61%
Dell Latitude XT3 HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142	2478 Points -10%

PCMark 7 Score		2745 points
PCMark 8 Home Score Accelerated v2		2386 points
PCMark 8 Creative Score Accelerated v2		2482 points
PCMark 8 Work Score Accelerated v2		3155 points
Help

... in comparison

HD Tune

CrystalDiskMark 3.0

Western Digital Scorpio Blue WD5000LPVX

Transfer Rate Minimum: 21.4 MB/s

Transfer Rate Maximum: 107.2 MB/s

Transfer Rate Average: 78.4 MB/s

Access Time: 18.3 ms

Burst Rate: 167.9 MB/s

CPU Usage: 2.5 %

3DMark 11 - 1280x720 Performance (sort by value)
Fujitsu LifeBook T734 HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX	655 Points
HP EliteBook Revolve 810 HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU	601 Points -8%
Lenovo ThinkPad Yoga HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1	815 Points +24%

3DMark Vantage P Result		3077 points
3DMark 11 Performance		655 points
3DMark Ice Storm Standard Score		38418 points
3DMark Cloud Gate Standard Score		3322 points
3DMark Fire Strike Score		432 points
Help

... in comparison

	low	med.	high
Tomb Raider (2013)	32.9	16.8	10.3
BioShock Infinite (2013)	23	12	10.5
Fifa 14 (2013)	112	64.5	41.9

	Fujitsu LifeBook T734 HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX	Fujitsu Stylistic Q704 HD Graphics 4400, 4300U, Samsung MZNTD128HAGM	HP EliteBook Revolve 810 HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU	Dell Latitude XT3 HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142
Noise		-15%	2%	-4%
Idle Minimum * (dB)	30.4	29.6 3%	28 8%	30.8 -1%
Idle Average * (dB)	30.4	33.5 -10%	28 8%	30.8 -1%
Idle Maximum * (dB)	30.4	33.5 -10%	28 8%	30.8 -1%
Load Average * (dB)	35.9	45.8 -28%	37.2 -4%	37.1 -3%
Load Maximum * (dB)	35.9	46.5 -30%	40.3 -12%	41.7 -16%

* ... smaller is better

Noise level

Idle		30.4 / 30.4 / 30.4 dB(A)
HDD		31.2 dB(A)
DVD		36.5 / dB(A)
Load		35.9 / 35.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


30.5 °C	29.5 °C	26.8 °C
32.1 °C	31 °C	28.5 °C
32.1 °C	34.3 °C	29.8 °C

Maximum: 34.3 °C
Average: 30.5 °C


26.6 °C	30.5 °C	29.6 °C
27.2 °C	33.3 °C	32.7 °C
28.2 °C	33.6 °C	33.2 °C

Maximum: 33.6 °C
Average: 30.5 °C

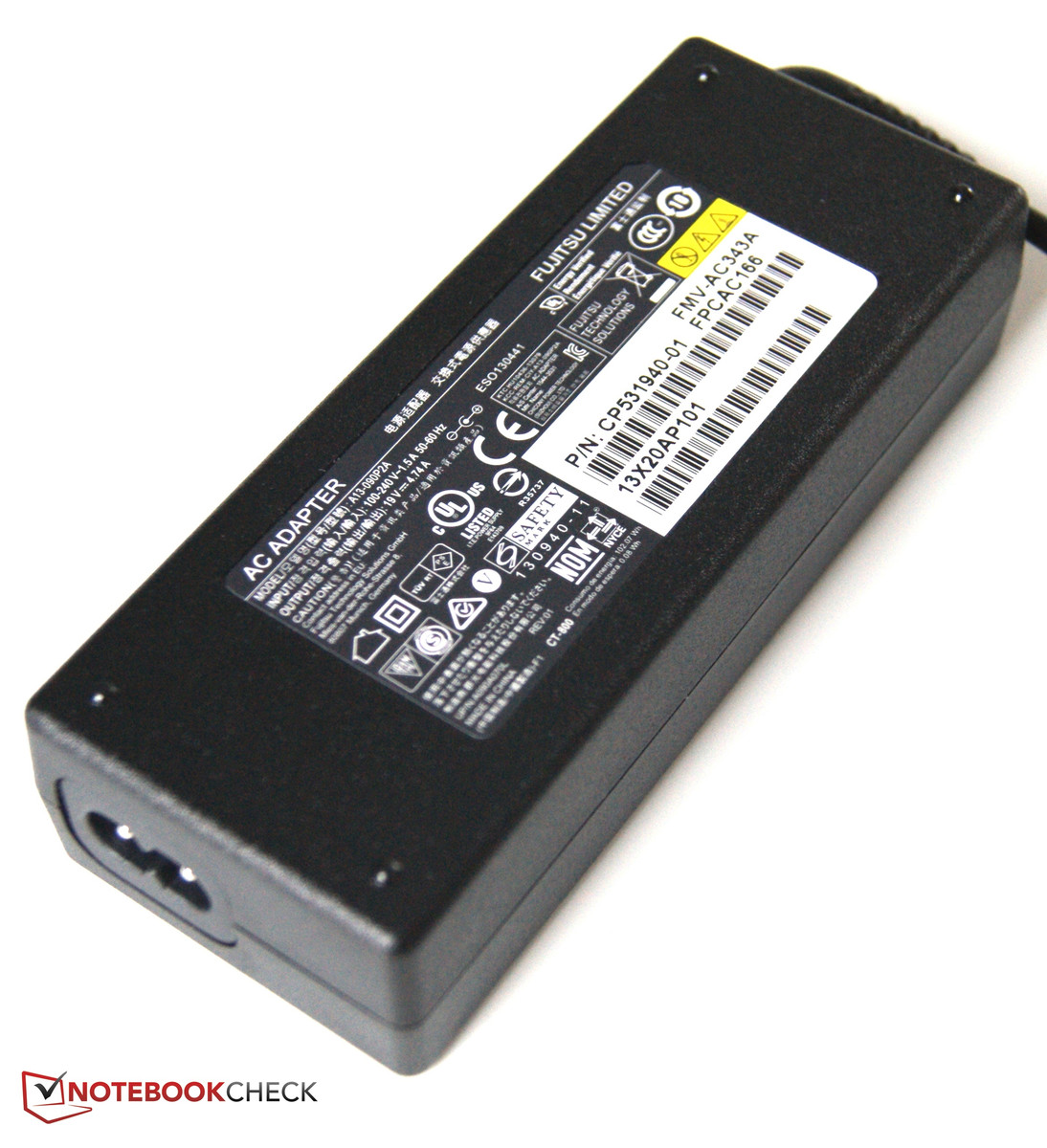

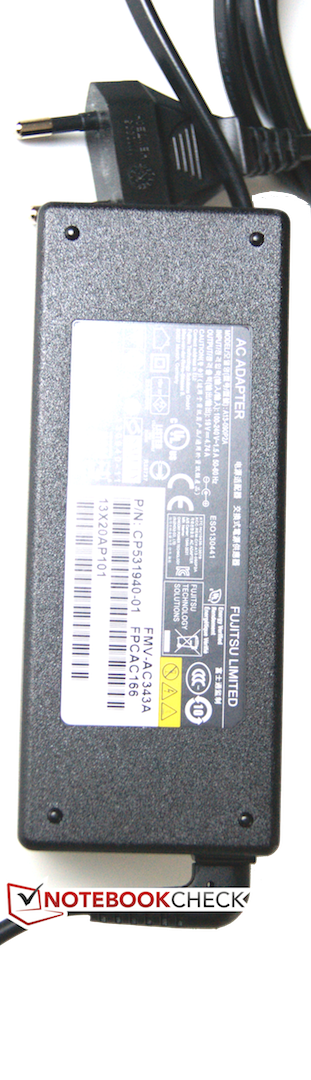

Power Supply (max.) 48.4 °C | Room Temperature 24.2 °C | Voltcraft IR-360

(+) The average temperature for the upper side under maximal load is 30.5 °C / 87 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.3 °C / 94 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 33.6 °C / 92 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.9 °C / 82 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.3 °C / 93.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-6.4 °C / -11.5 F).

Power Consumption

Off / Standby	0 / 0.2 Watt
Idle	5 / 8.4 / 8.4 Watt
Load	24.8 / 32.7 Watt


Key: min: , med: , max: Voltcraft VC 940

	Fujitsu LifeBook T734 HD Graphics 4600, 4200M, Western Digital Scorpio Blue WD5000LPVX	Fujitsu Stylistic Q704 HD Graphics 4400, 4300U, Samsung MZNTD128HAGM	Lenovo ThinkPad Yoga HD Graphics 4400, 4200U, Samsung PM841 Series MZ7TD128HAFV-000L1	HP EliteBook Revolve 810 HD Graphics 4000, 3437U, Samsung MZ7PC128HBFU	Dell Latitude XT3 HD Graphics 3000, 2640M, Seagate Momentus Thin ST320LT007-9ZV142
Battery runtime		28%	9%	-16%	-49%
Reader / Idle (h)	12.8	9.1 -29%	13.3 4%	7.6 -41%	5.8 -55%
WiFi (h)	6.4	6.9 8%	7.6 19%	5.3 -17%	3.5 -45%
Load (h)	1.9	3.9 105%	2 5%	2.1 11%	1 -47%

Battery Runtime

Idle (without WLAN, min brightness)		12h 46min
WiFi Surfing		6h 25min
Load (maximum brightness)		1h 55min

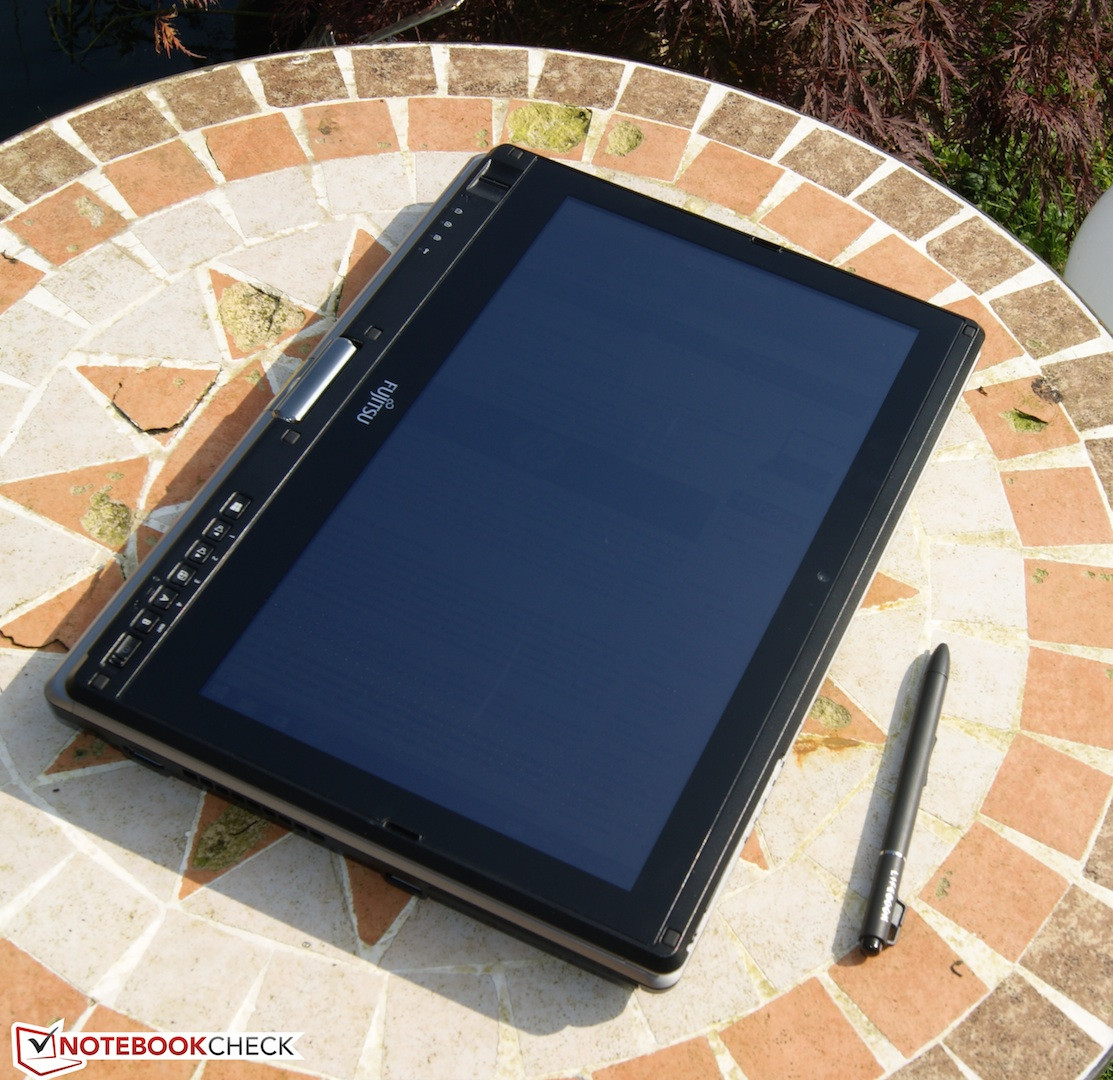

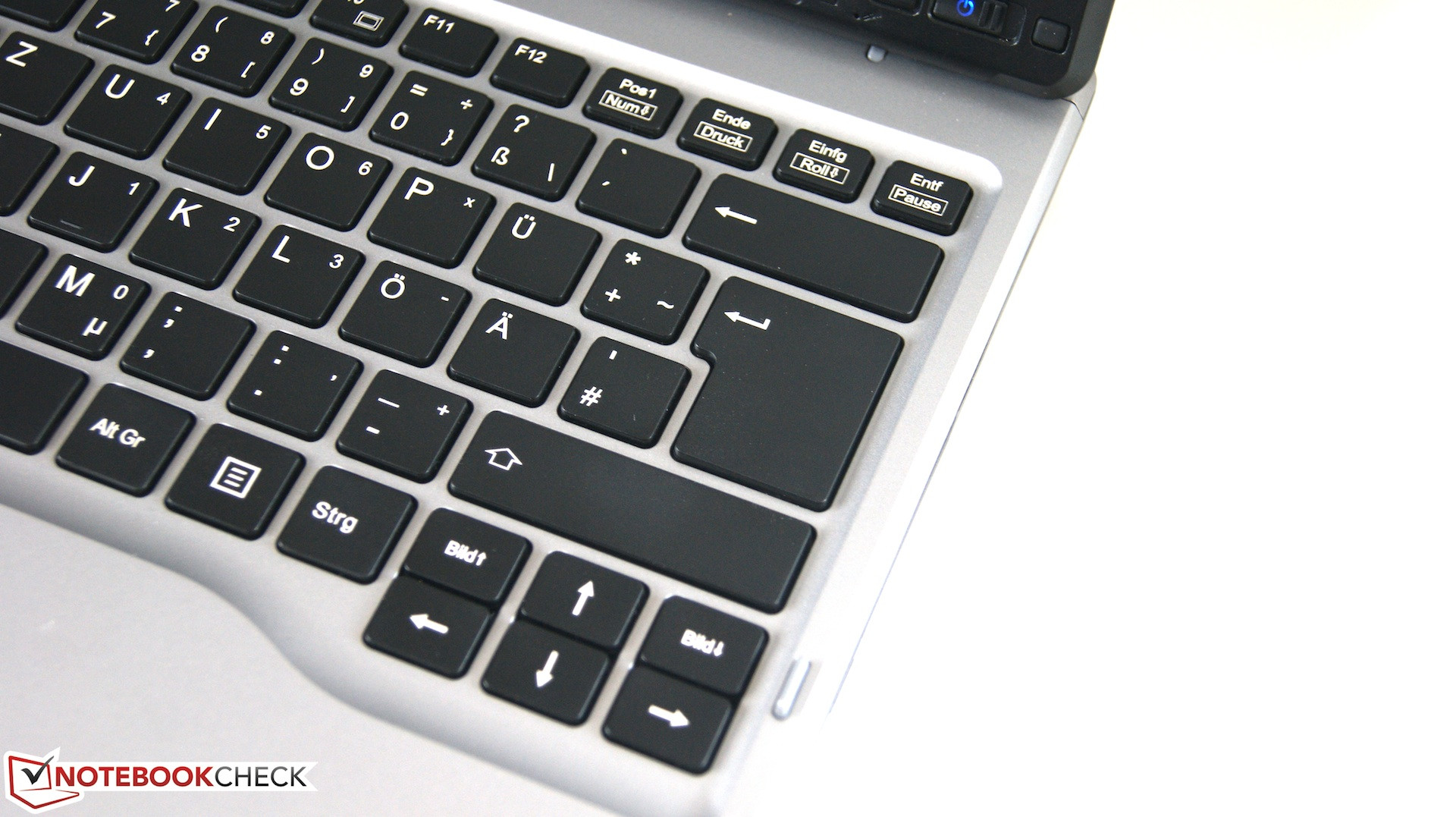

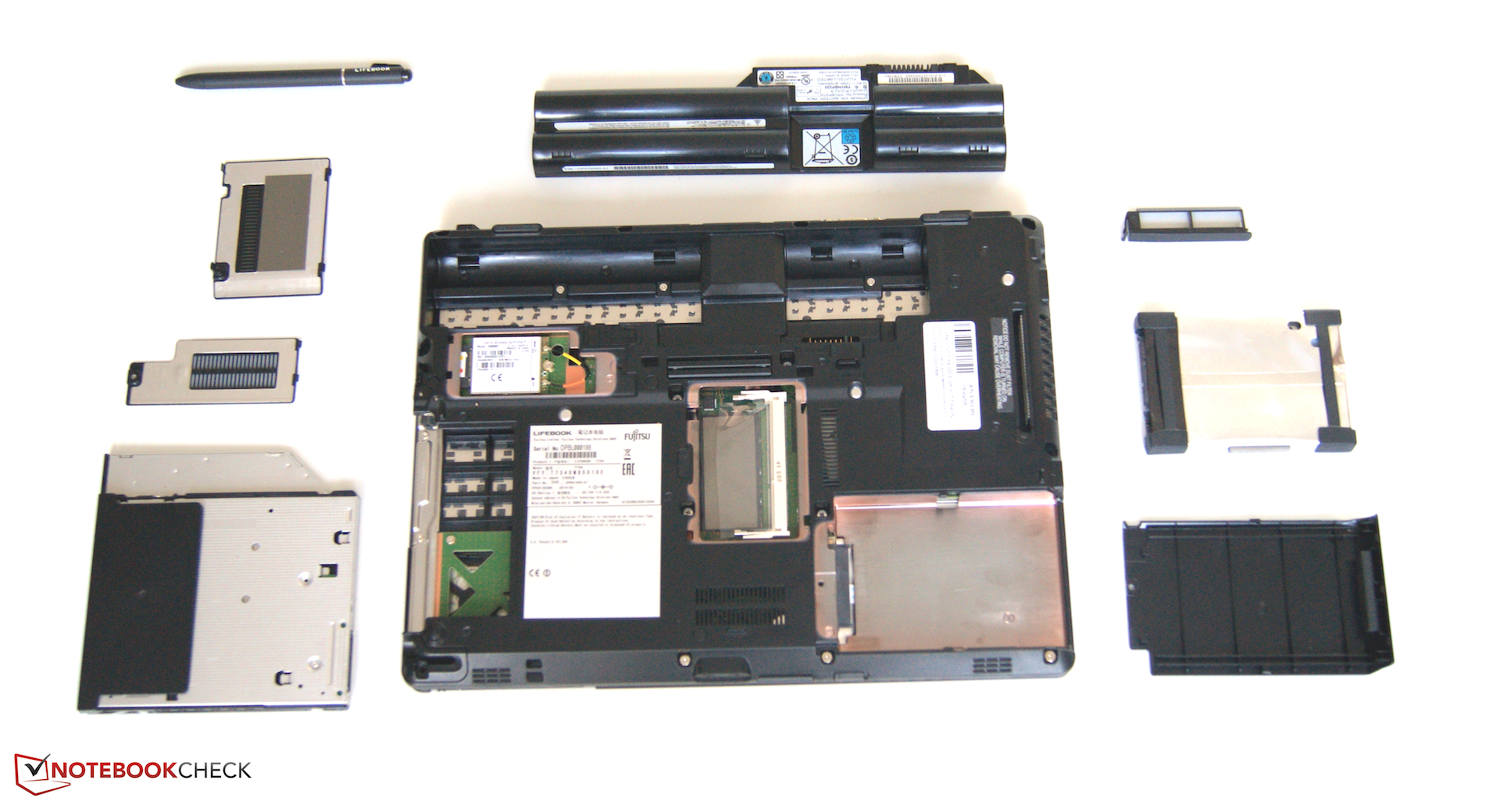

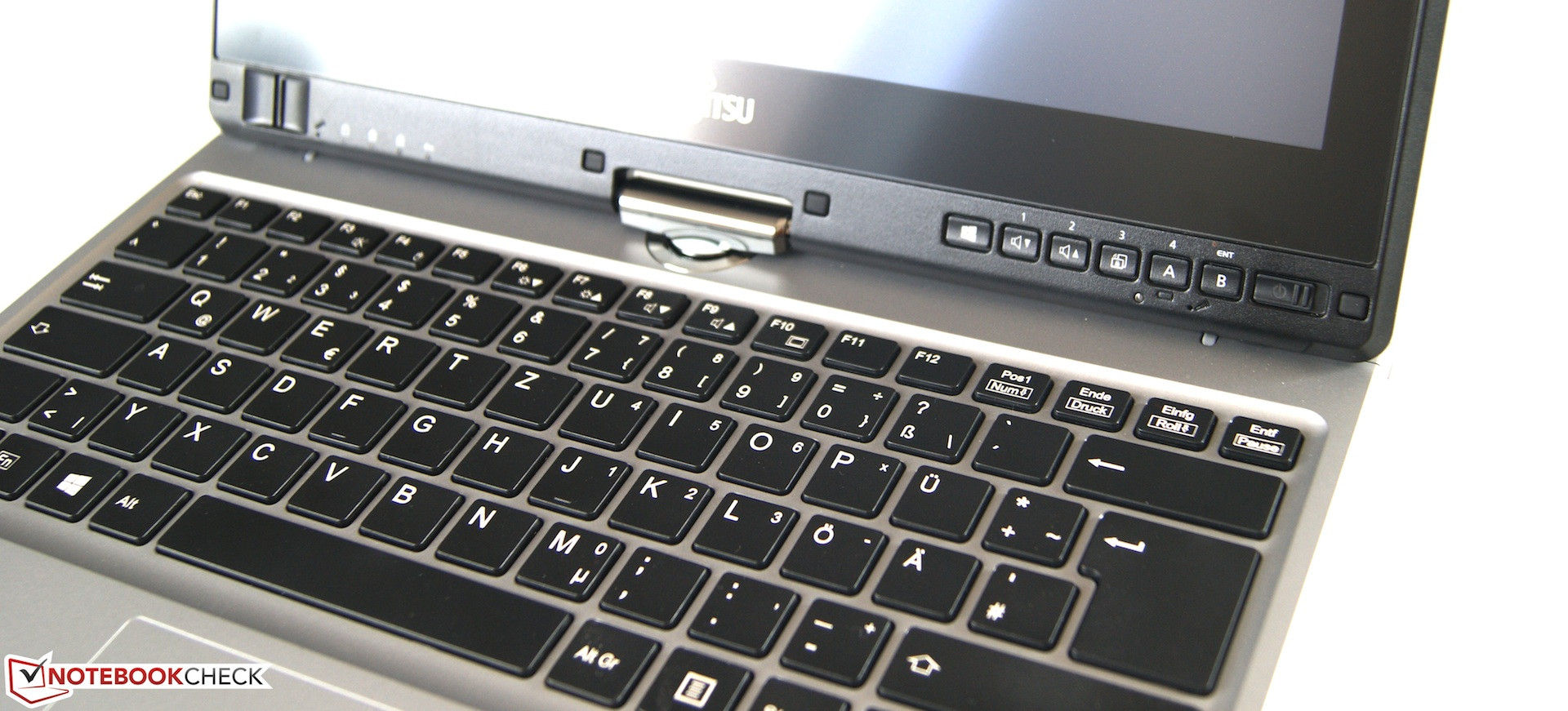

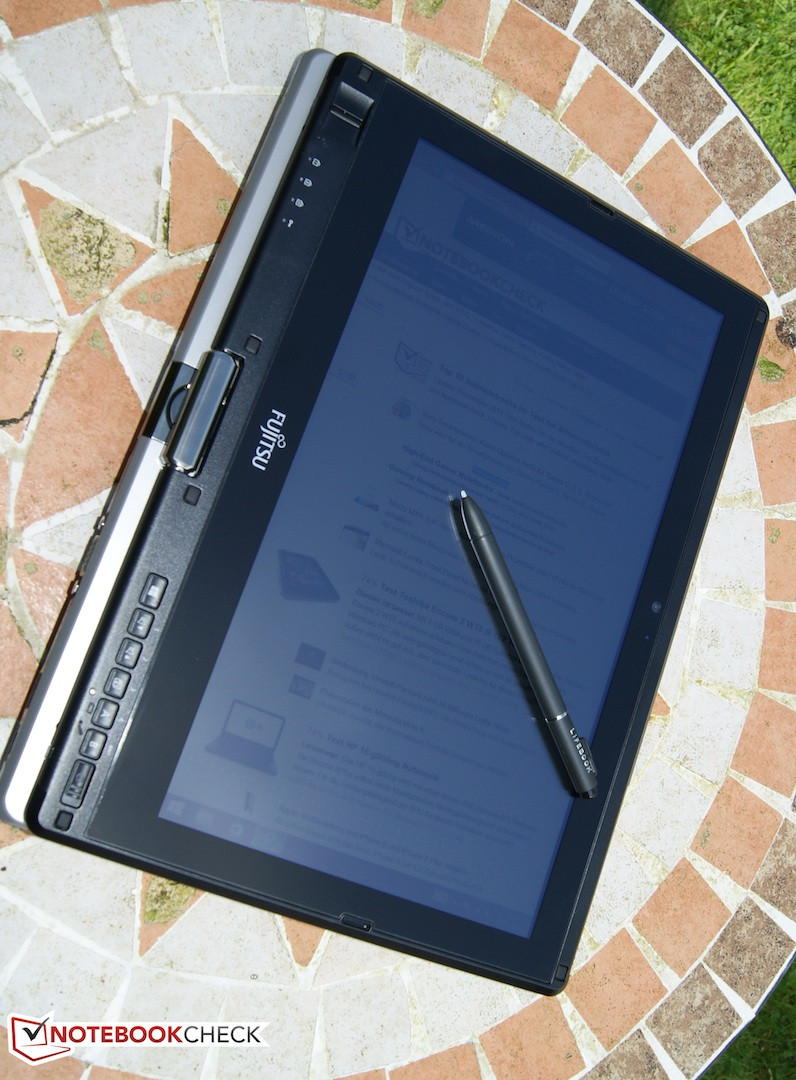

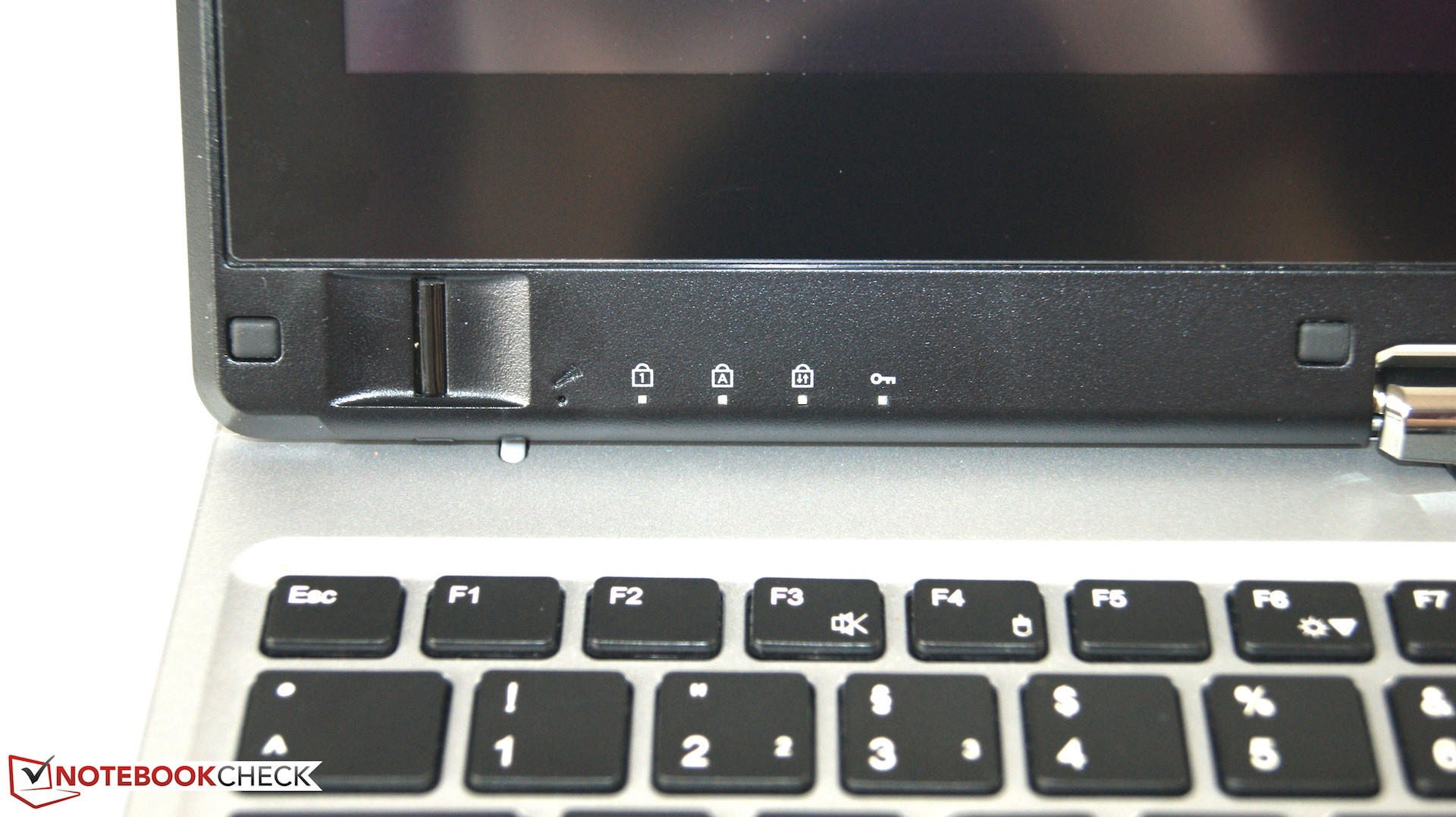

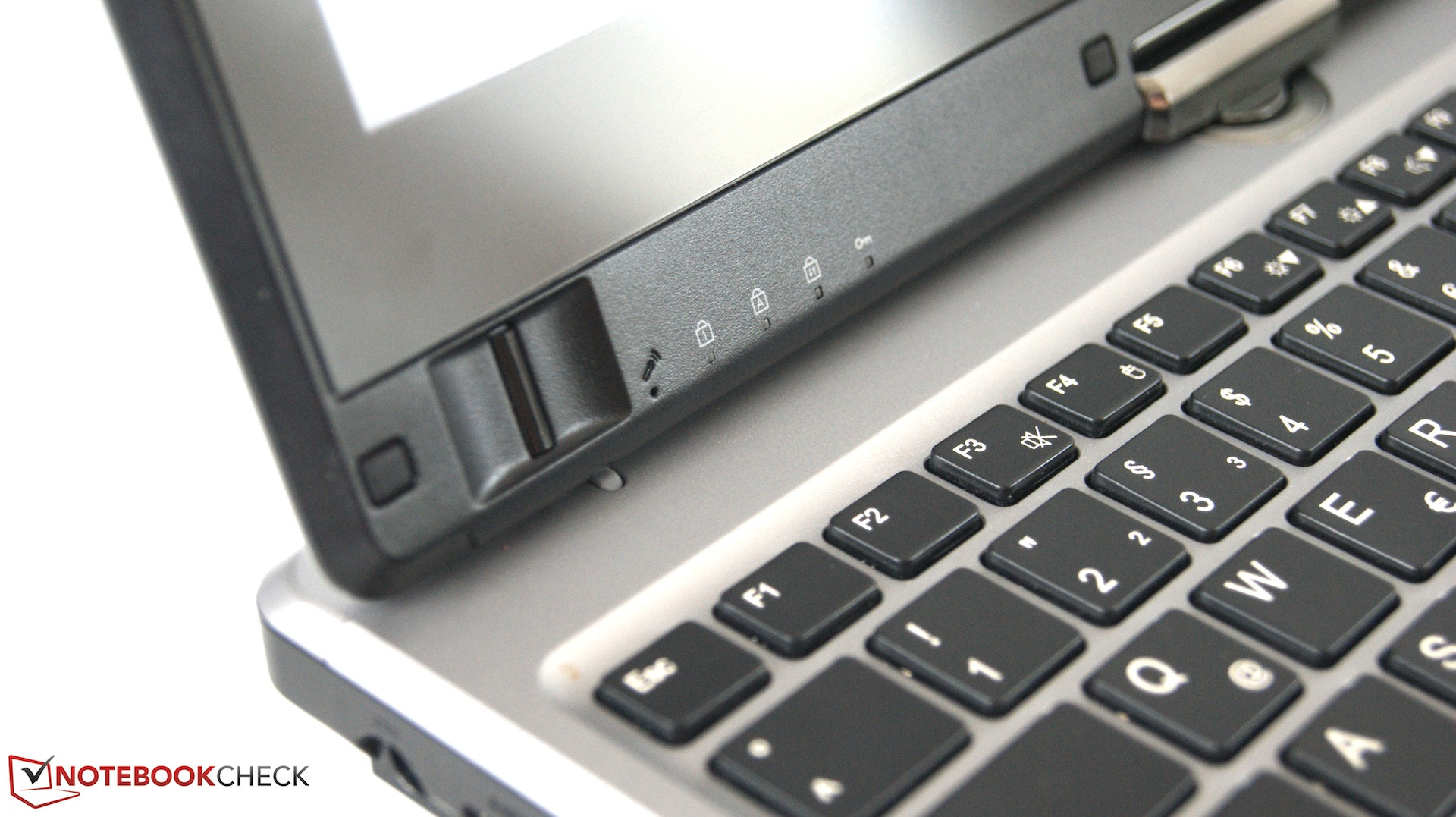

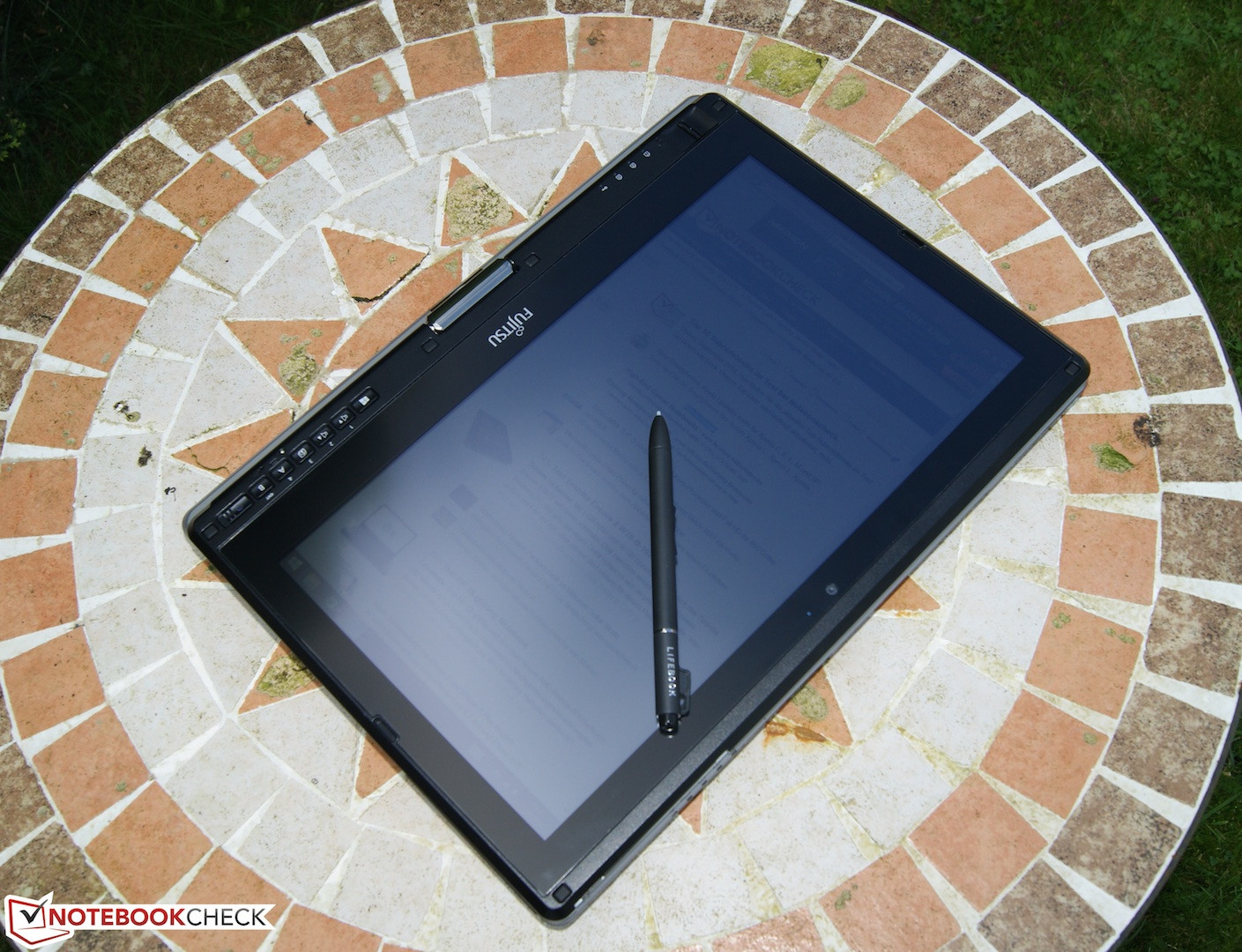

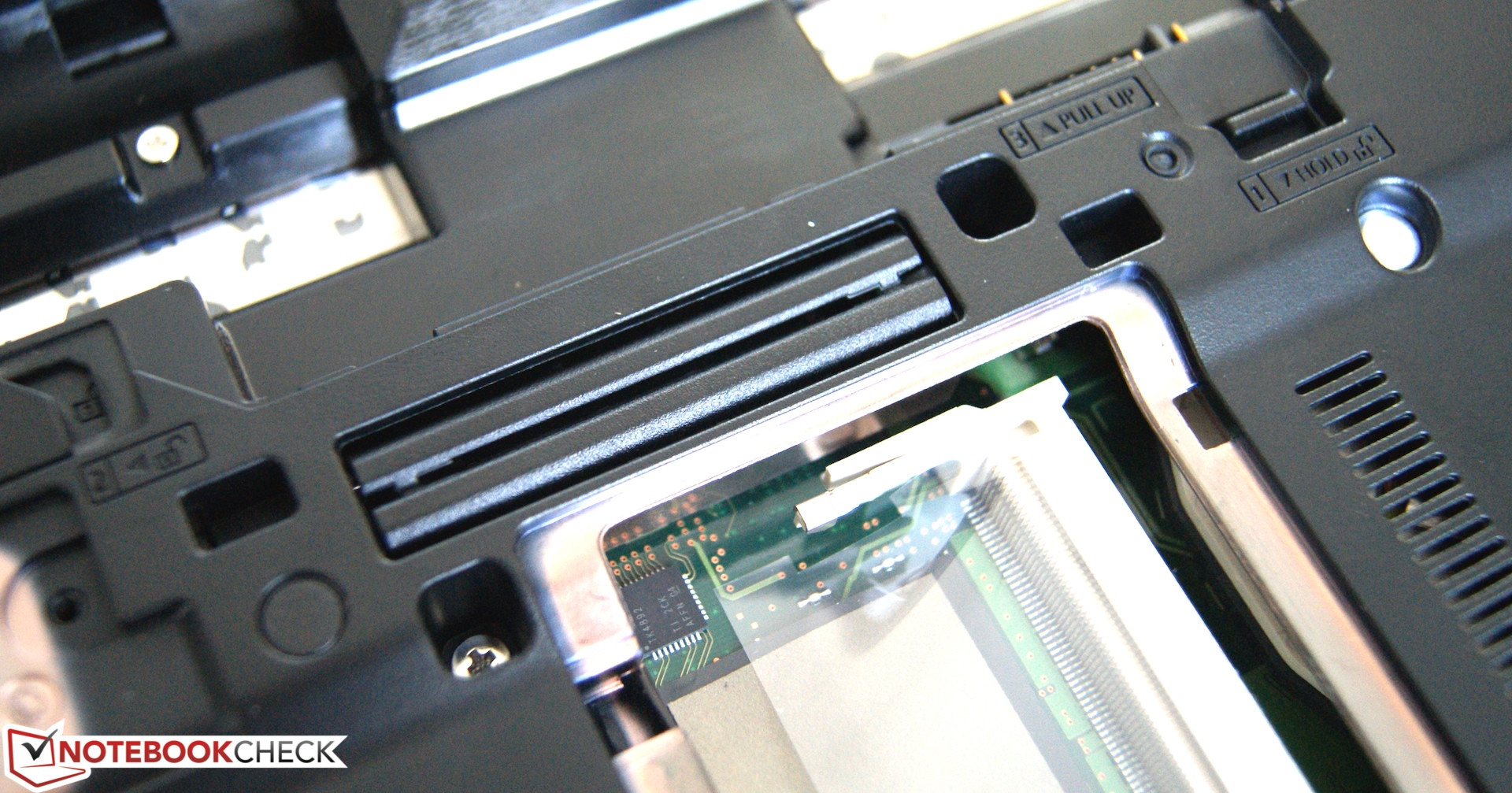

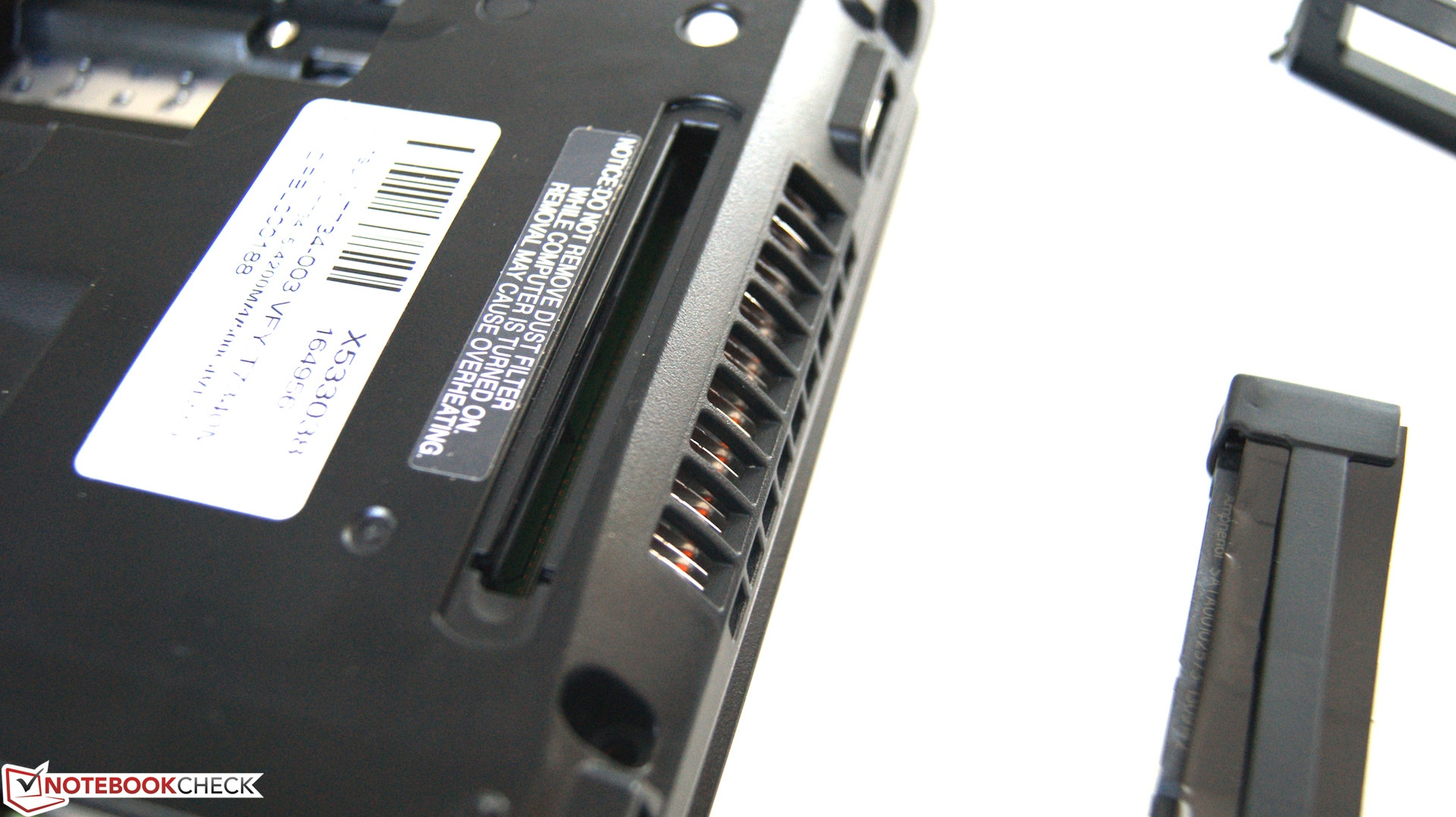

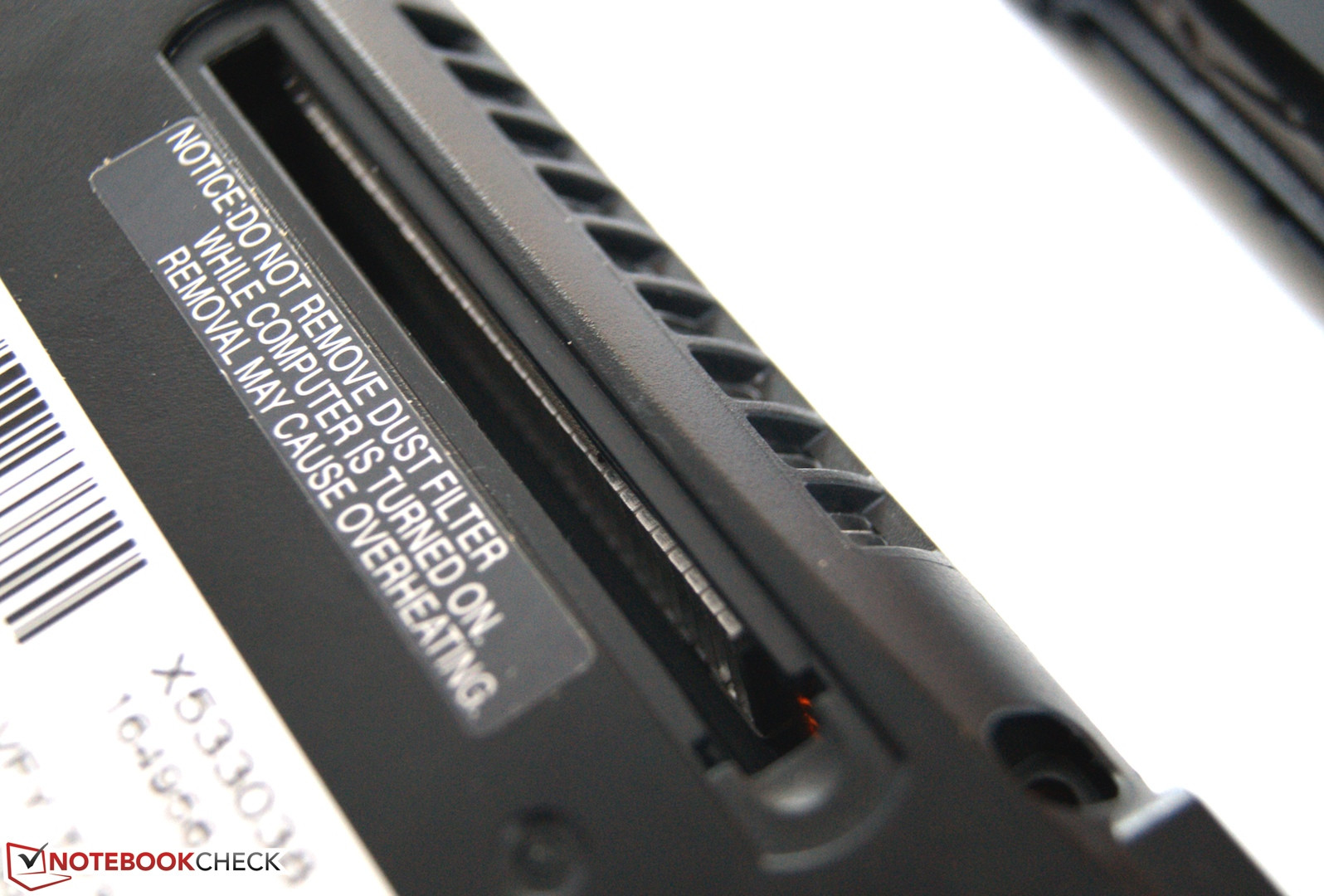

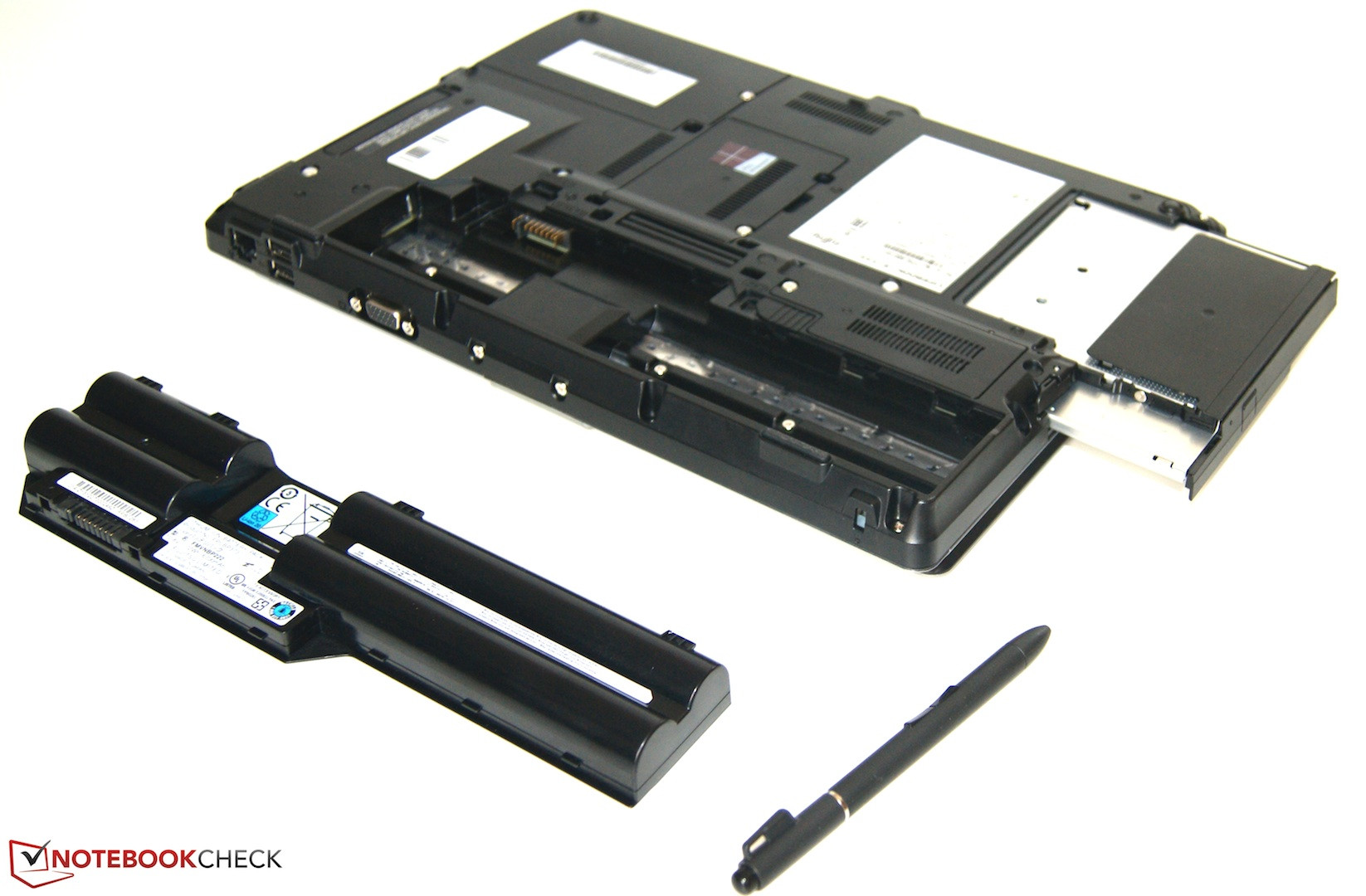

最后，我们总结一下它的表现。从一开始我们就被T734的维护升级空间所震撼了。另外，除了好用的触控屏幕你还可以得到一个不错的键盘。这个设备有几个安全功能，所以它很适合商务用途。接口的数量可以通过拓展坞或者ExpressCard接口扩充。它的IPS屏幕提供了足够的可视角度范围，甚至适合在一些户外情况下使用。我们对它的低系统噪音和运行中极少的升温十分惊讶。它的缺点包括机身材质的选择，它们既不抗磨损也不太坚固。同时我们对它的屏幕没有达到富士通宣称的300流明屏幕亮度十分失望。它的扬声器也非常糟糕。

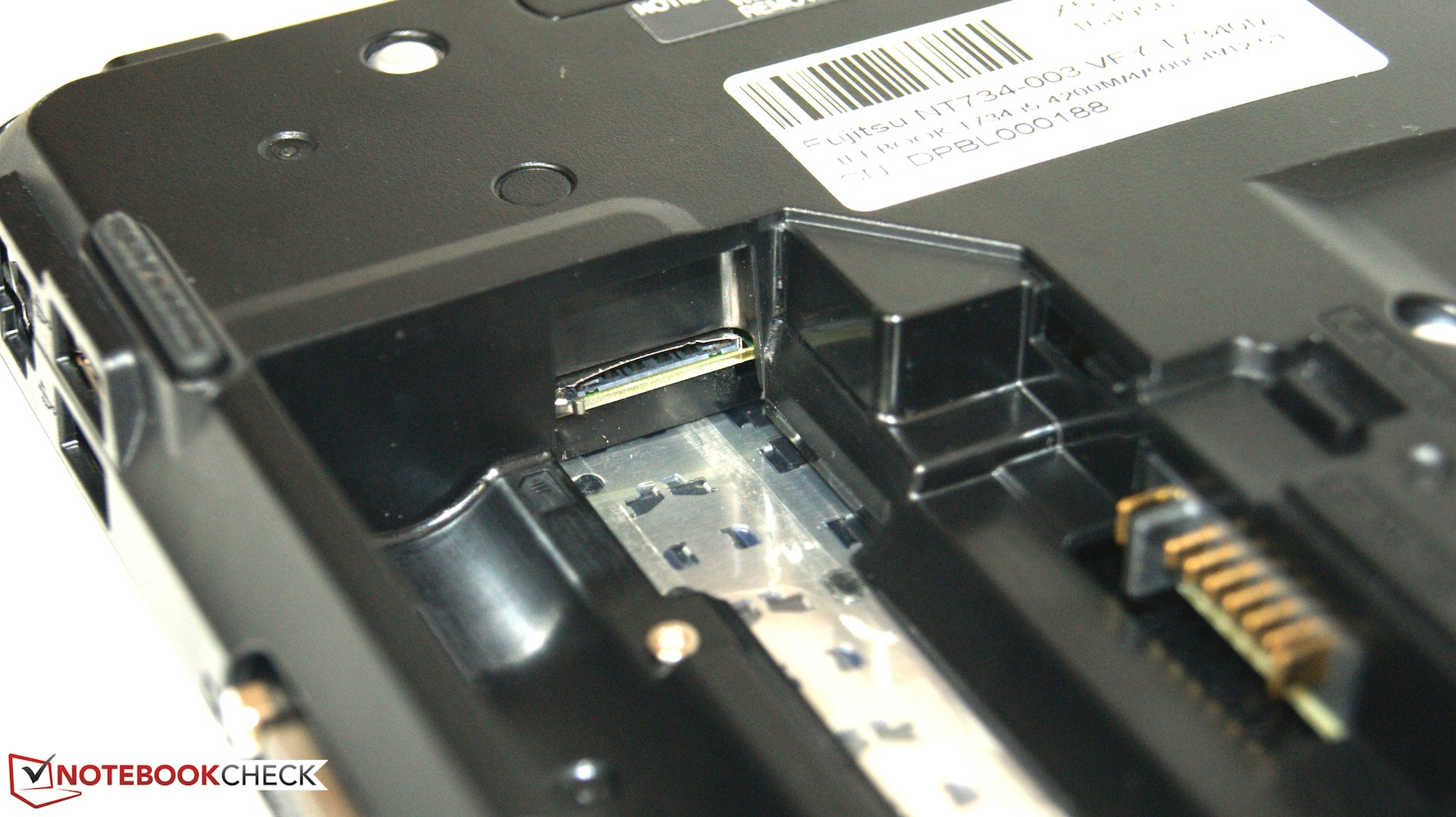

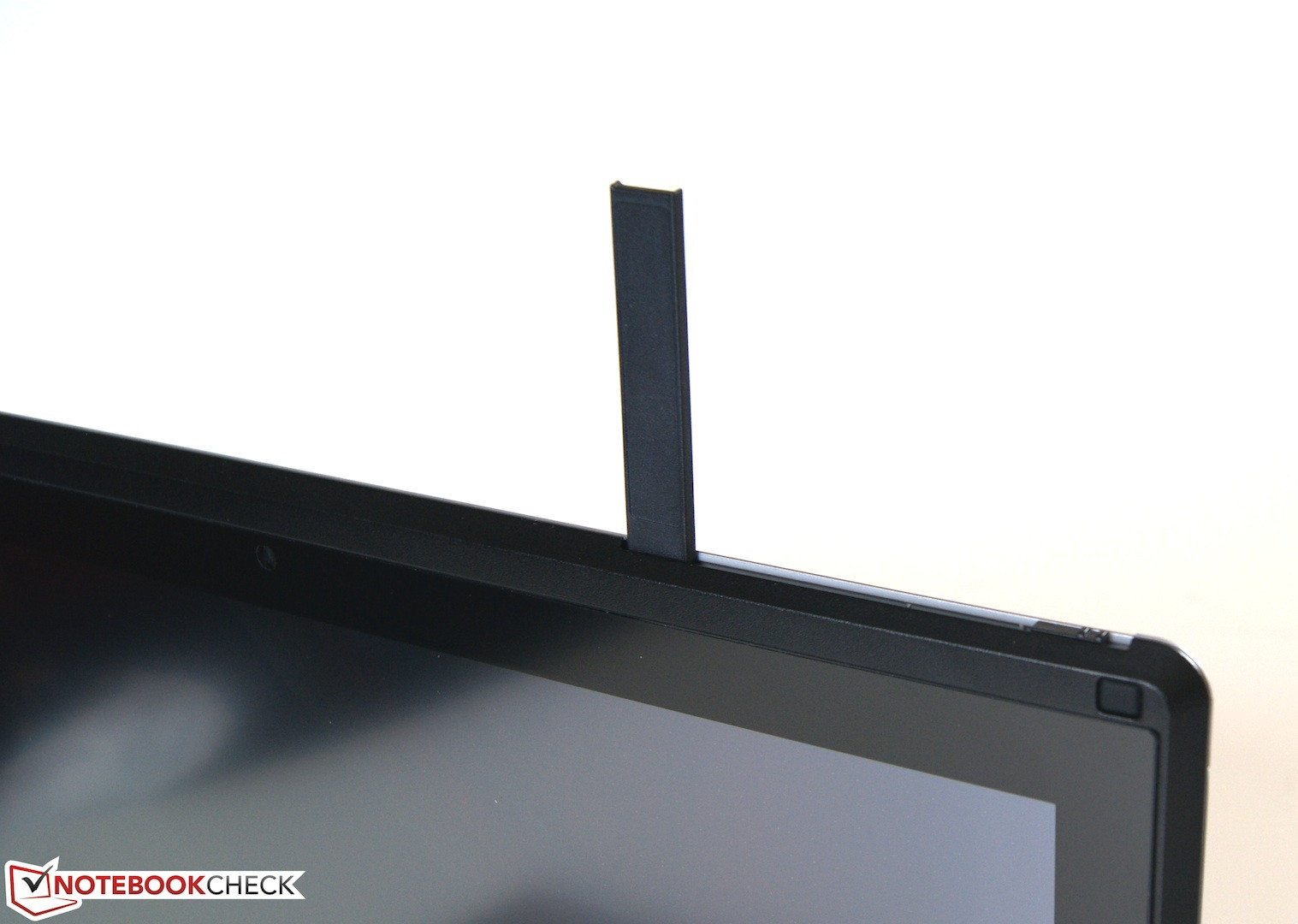

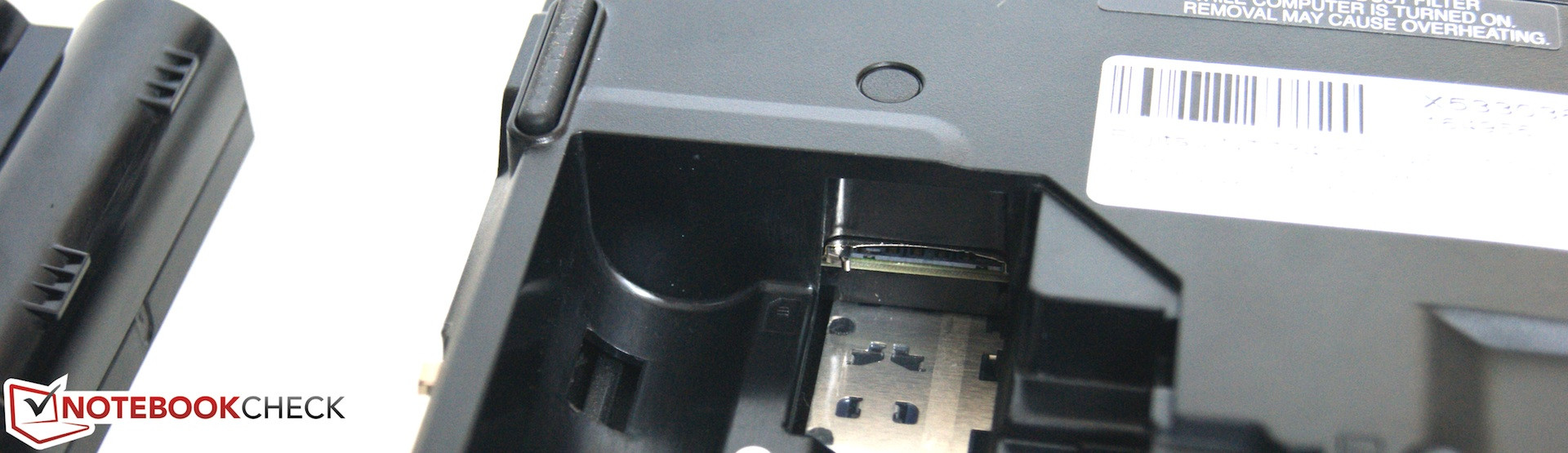

整体上，T734是一款不错的商务设备。得力于笨重但易于维护的机身设计，它的整体风格让我们想到系统维护工作人员的设备，像是一些计算机课里面用到的。它的3G模组、平板功能和可选的第二块电池都给它提供了不错的便携性。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1918 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Fujitsu LifeBook T734 (LifeBook T Series)

Processor

Intel Core i5-4200M 2 x 2.5 - 3.1 GHz, Haswell

Graphics adapter

Intel HD Graphics 4600, Core: 400 MHz, RAM: 800 MHz, 10.18.10.3316

Memory

4 GB

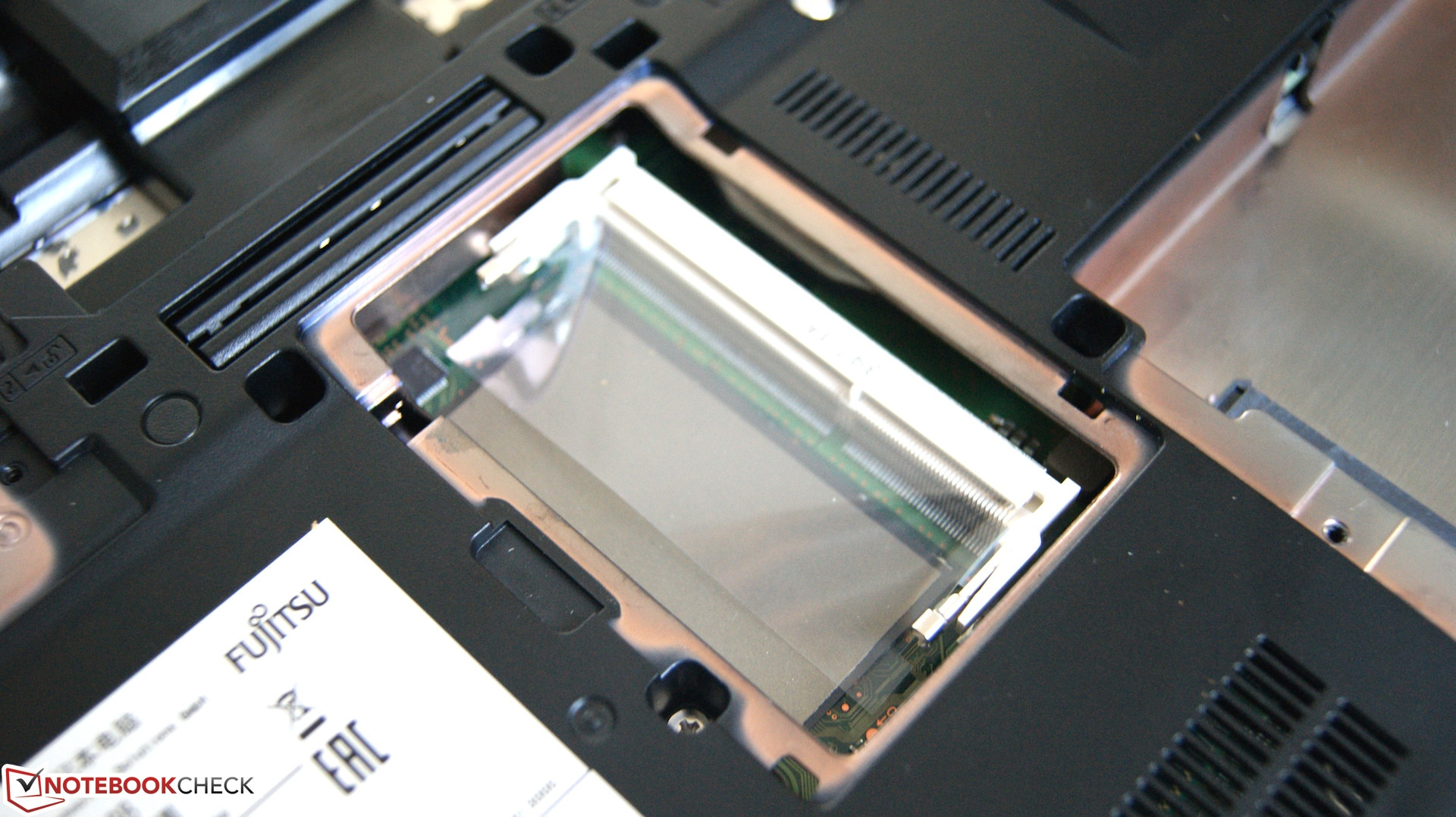

, DDR3 板载单通道, 两个空余内存槽

Display

12.50 inch 16:9, 1366 x 768 pixel, 支持 Wacom Feel 技术的多点触控屏幕, 双触控输入, 手写笔, Fujitsu FUJ5612, IPS, glossy: no

Mainboard

Intel HM86 (Lynx Point)

Storage

Western Digital Scorpio Blue WD5000LPVX, 500 GB

, 5400 rpm, 5400 RPM, 8MB 缓存

Soundcard

Intel Lynx Point PCH - High Definition Audio Controller

Connections

1 Express Card 34mm, 1 Express Card 54mm, 2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 1x 输入/麦克风, 1x 输出/耳机, 2x 麦克风以降低噪音, Card Reader: SD, 1 Fingerprint Reader, Sensors: 环境光传感器, 三向加速传感器, 指南针, 陀螺仪, 拓展坞接口, SIM 卡

Networking

Intel I217-V (ClarkvilleV) Network Adapter (10/100/1000MBit/s), Intel Dual Band Wireless-N 7260 (a/b/g/n = Wi-Fi 4/), Bluetooth Intel(R) Wireless Bluetooth(R) 4.0 + HS-Adapter, UMTS

Optical drive

Matshita DVD-RAM UJ8E2

Size

height x width x depth (in mm): 35 x 316 x 233

Battery

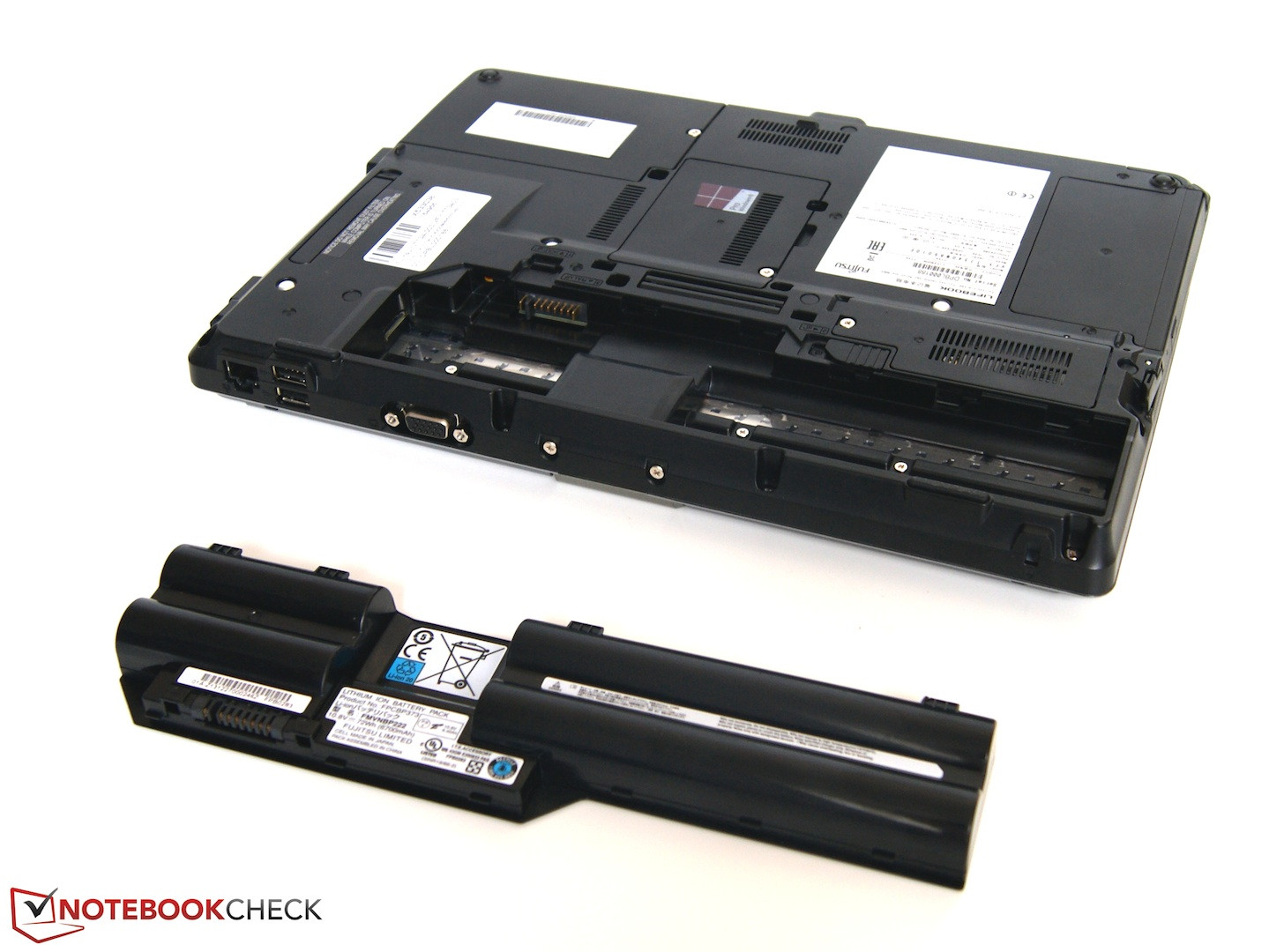

72 Wh Lithium-Ion, 6 芯, 可选: DVD光驱槽换为28Wh电池, Battery runtime (according to manufacturer): 10.6 h

Operating System

Microsoft Windows 8.1 Pro 64 Bit

Camera

Webcam: 2 MP

Additional features

Speakers: 2x 立体声扬声器, Keyboard: 孤岛式, Keyboard Light: no, DVD恢复盘, 屏幕布, 手写笔, 36 Months Warranty

Weight

1.965 kg, Power Supply: 402 g

Price

1100 Euro

Links

Fujitsu homepage
LifeBook T (Series)

Devices with Same Screen Size and/or Weight

富士通LifeBook U9311X评测--带LTE的1公斤商务敞篷车
Iris Xe G7 96EUs, Tiger Lake i7-1185G7, 13.30", 1.029 kg

富士通 Lifebook T937 (i7, 512 GB) 变形本简短评测
HD Graphics 620, Kaby Lake i7-7600U, 13.30", 1.387 kg

富士通 Lifebook P727 (i7, 16 GB, LTE) 变形本简短评测
HD Graphics 620, Kaby Lake i7-7600U, 12.50", 1.202 kg

Devices from the same Manufacturer

富士通LifeBook E5412A笔记本电脑评论：一台有两个内存插槽的经典商务笔记本
Vega 7, Cezanne (Zen 3, Ryzen 5000) R5 PRO 5675U, 14.00", 1.389 kg

富士通Lifebook A3510回顾。一台经济实惠的办公笔记本电脑，有一个维护的挡板
UHD Graphics G1 (Ice Lake 32 EU), Ice Lake i3-1005G1, 15.60", 1.8 kg

富士通 LifeBook E557 (i3-7100U, HD620) 笔记本电脑简短评测
HD Graphics 620, Kaby Lake i3-7100U, 15.60", 2.1 kg

富士通 Stylistic V535 (Z3795,128 GB, LTE) 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3795, 8.30", 0.55 kg

Pros

+ 便于维护升级

+ 许多不同的配置型号

+ 安全功能

+ 可扩充的接口配备

+ 输入体验

+ 尽管没有使用超低电压处理器电池续航依旧很长

Cons

- 机身材质

- 扬声器

- 屏幕边框宽度

- 仅一个USB3.0接口

Fujitsu LifeBook T734 - 09/19/2014 v4 ^(old)
Nino Ricchizzi

Chassis

63 / 98 → 64%

Keyboard

79%

Pointing Device

66%

Connectivity

89 / 80 → 100%

Weight

63 / 35-78 → 65%

Battery

88%

Display

86%

Games Performance

56 / 68 → 82%

Application Performance

69 / 87 → 79%

Temperature

92%

Noise

93%

Audio

31 / 91 → 34%

Camera

71 / 85 → 84%

Average

73%

76%
