富士通Lifebook A3510回顾。一台经济实惠的办公笔记本电脑，有一个维护的挡板

Name: Fujitsu Lifebook A3510 (FPC04905BP)
Brand: Fujitsu

复古。 Lifebook A3510的排放量相对较低，重量不大（1.8公斤，约4磅），还包括一个板载DVD驱动器。操作系统是Windows 10 Pro，可以升级到Windows 11。一个积极的特点是有一个维护挡板，可以接触到SSD、RAM和电池。

Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), Published 02/01/2022 🇺🇸 🇩🇪 ...

Business Ice Lake Laptop / Notebook Windows

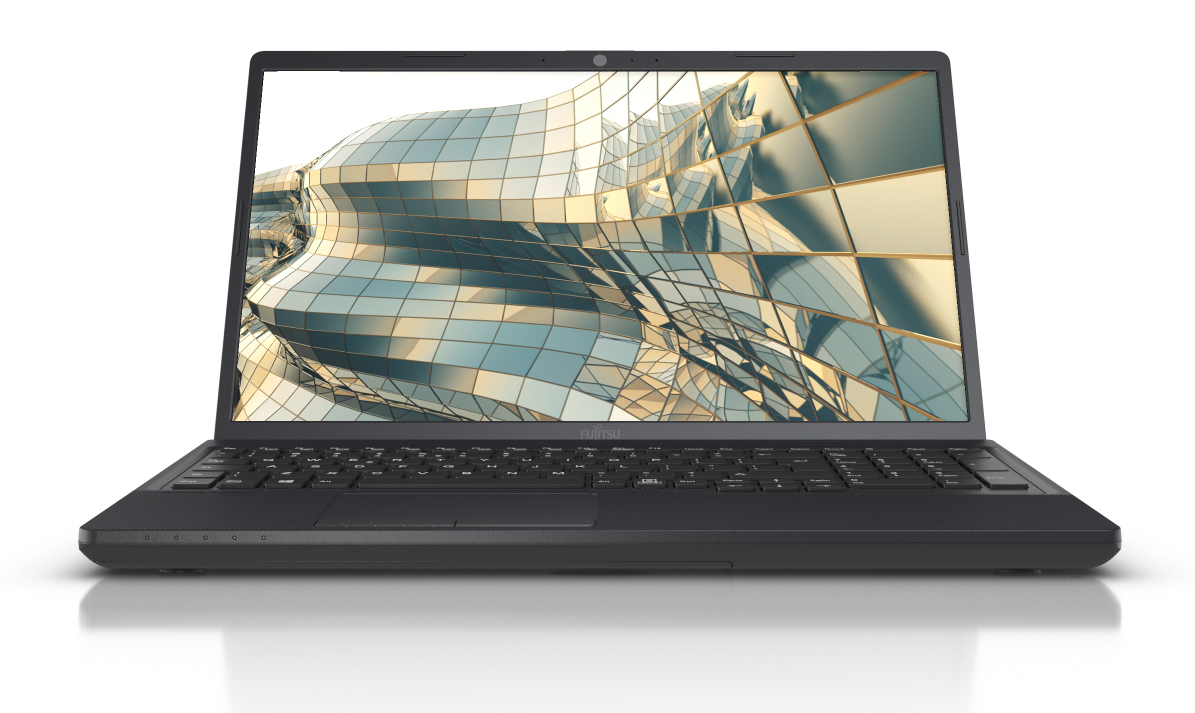

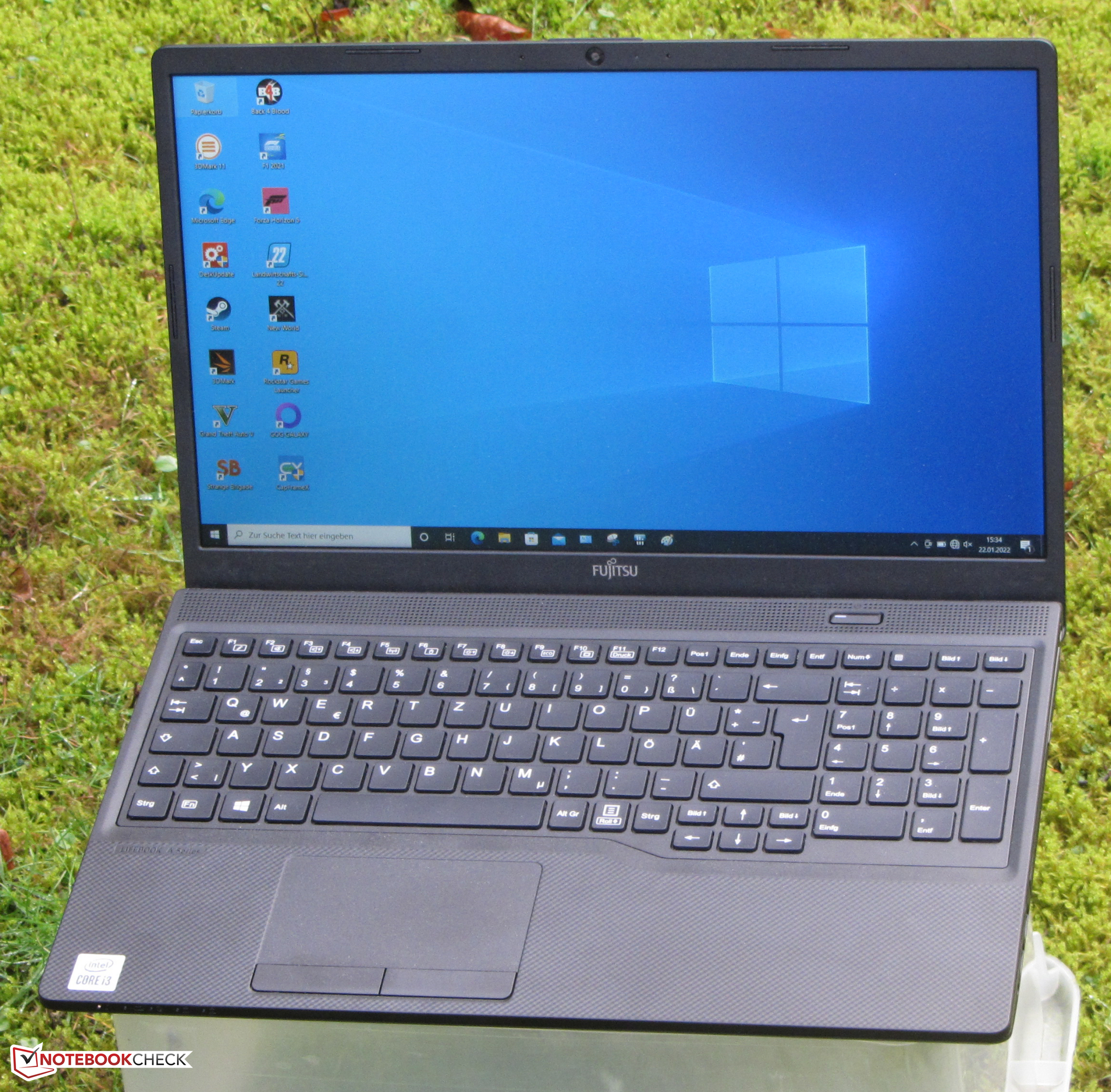

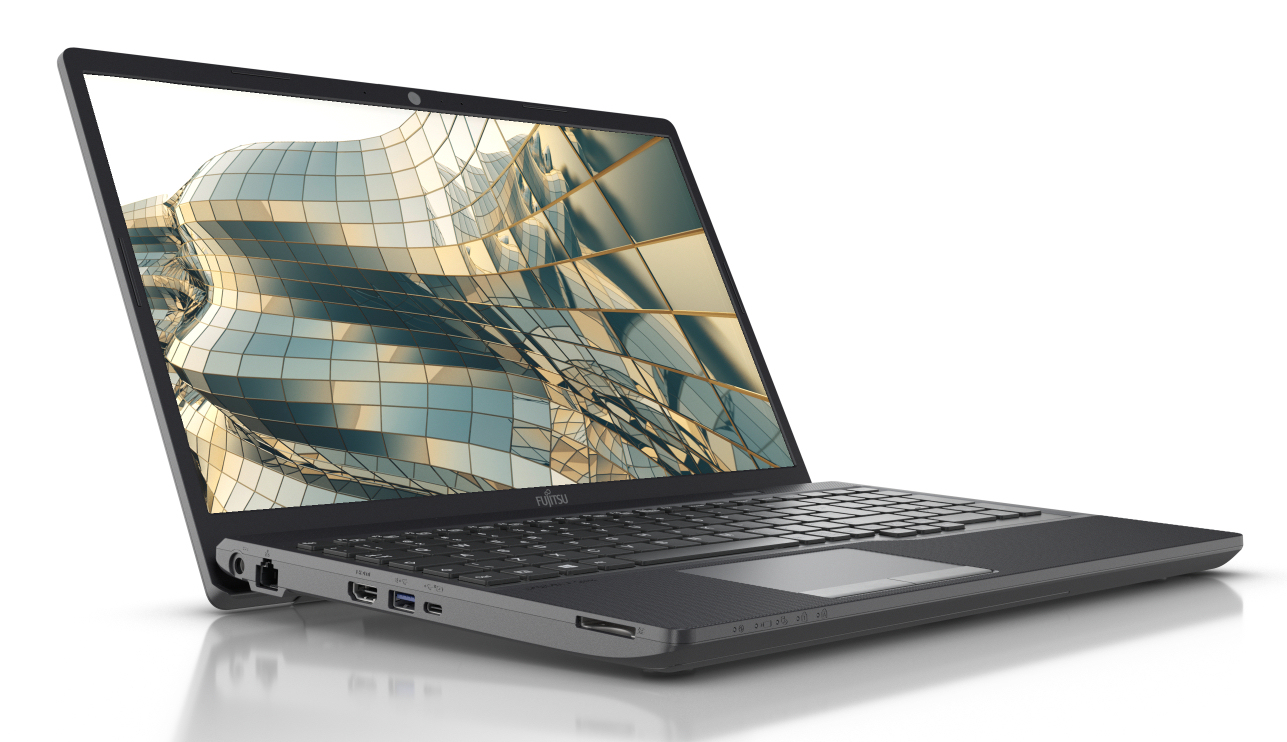

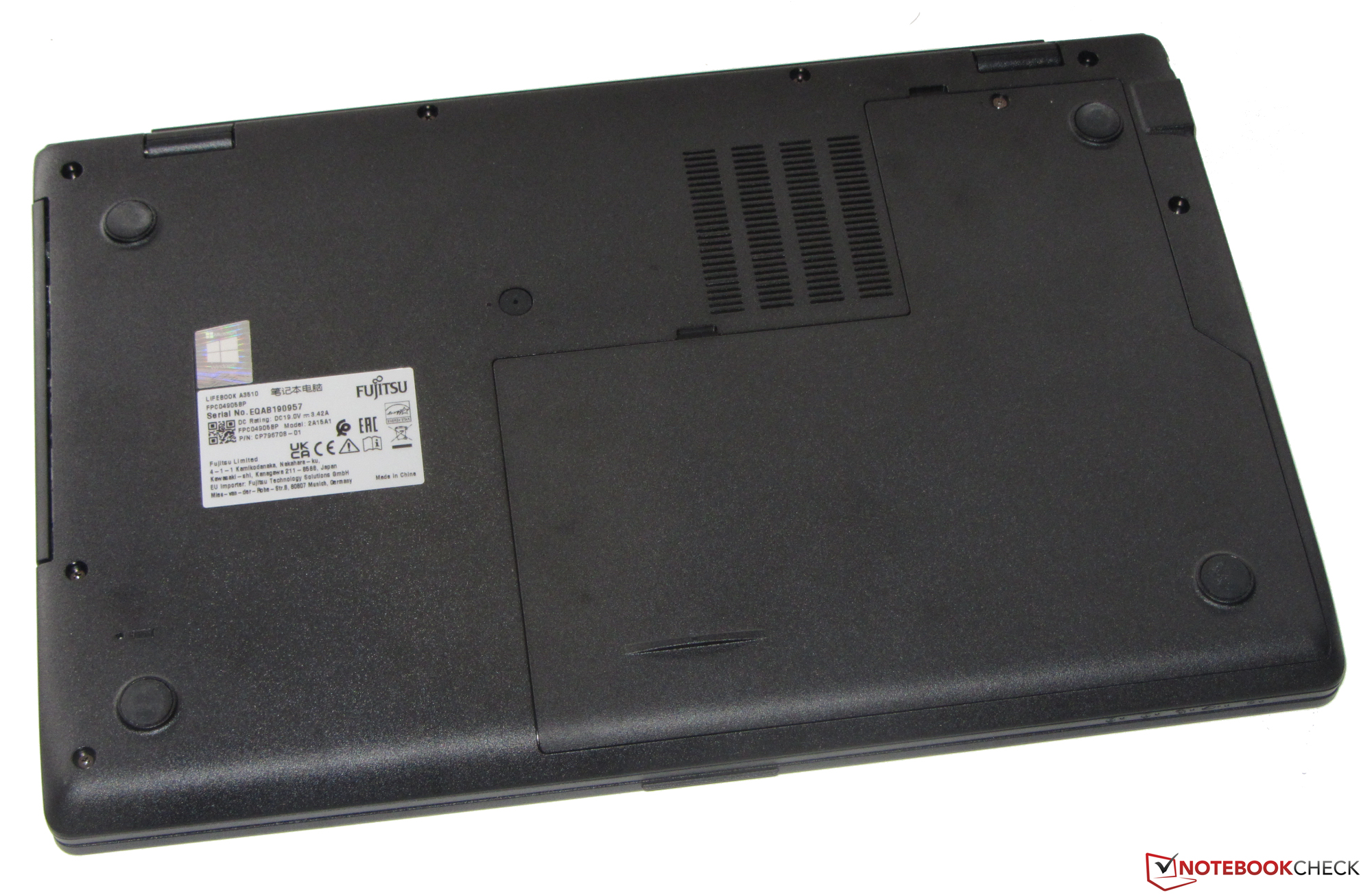

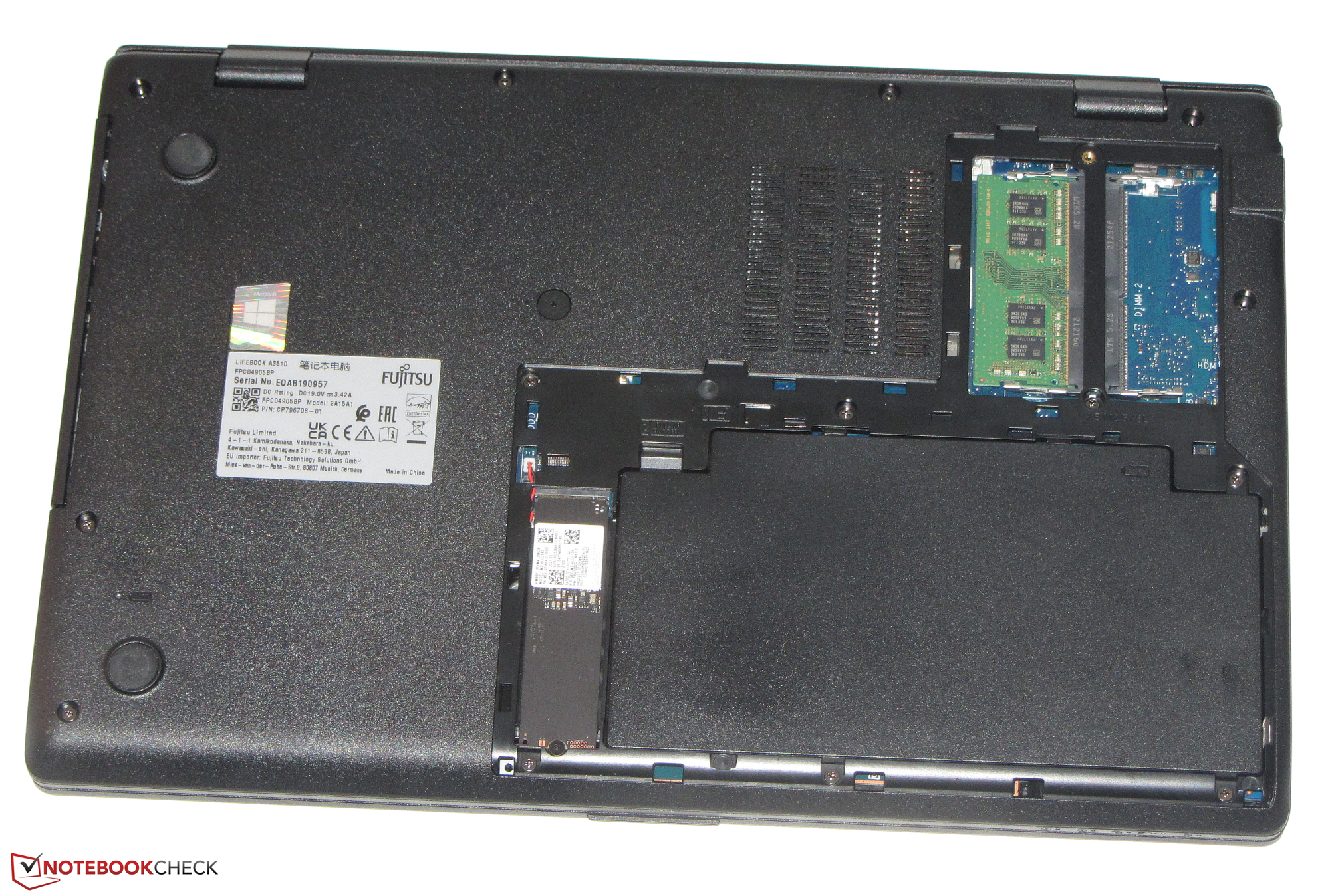

通过Lifebook A3510，富士通提供了一款入门级的15.6英寸商务笔记本电脑。它属于几乎已经绝迹的提供光驱和维修挡板的笔记本电脑类别。结合相当有吸引力的价格水平（450欧元，约合502美元，带Windows 10 Pro；350欧元，约合390美元，不带Windows操作系统），该设备也应该引起一些私人用户的兴趣。竞争对手包括以下设备戴尔Latitude 3510，以及联想V15-ADA，以及惠普255 G7.

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Fujitsu Lifebook A3510 (FPC04905BP) (LifeBook A Series)

Processor

Intel Core i3-1005G1 2 x 1.2 - 3.4 GHz, 50 W PL2 / Short Burst, 15 W PL1 / Sustained, Ice Lake-U

Graphics adapter

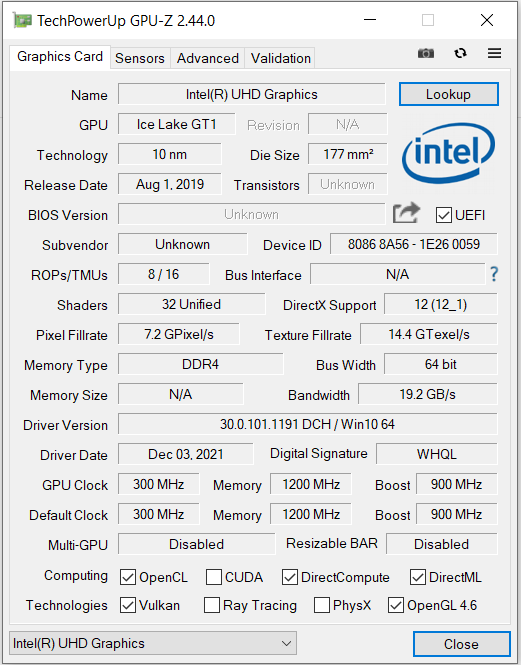

Intel UHD Graphics G1 (Ice Lake 32 EU), Core: 900 MHz, single-channel, 30.0.101.1191

Memory

8 GB

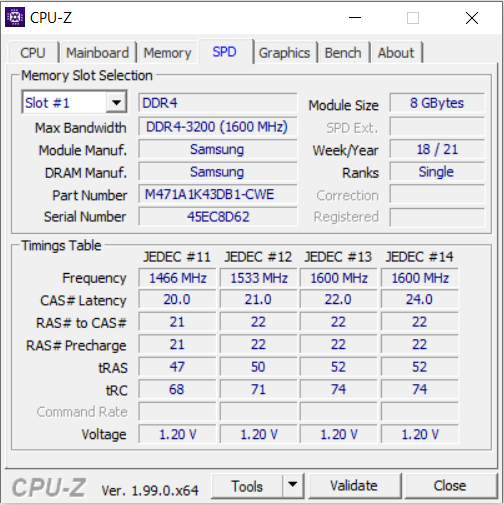

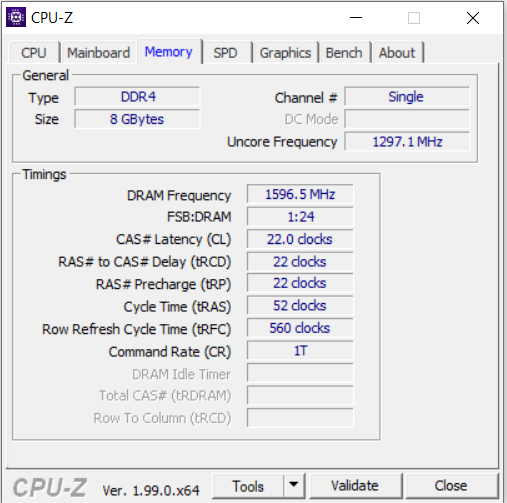

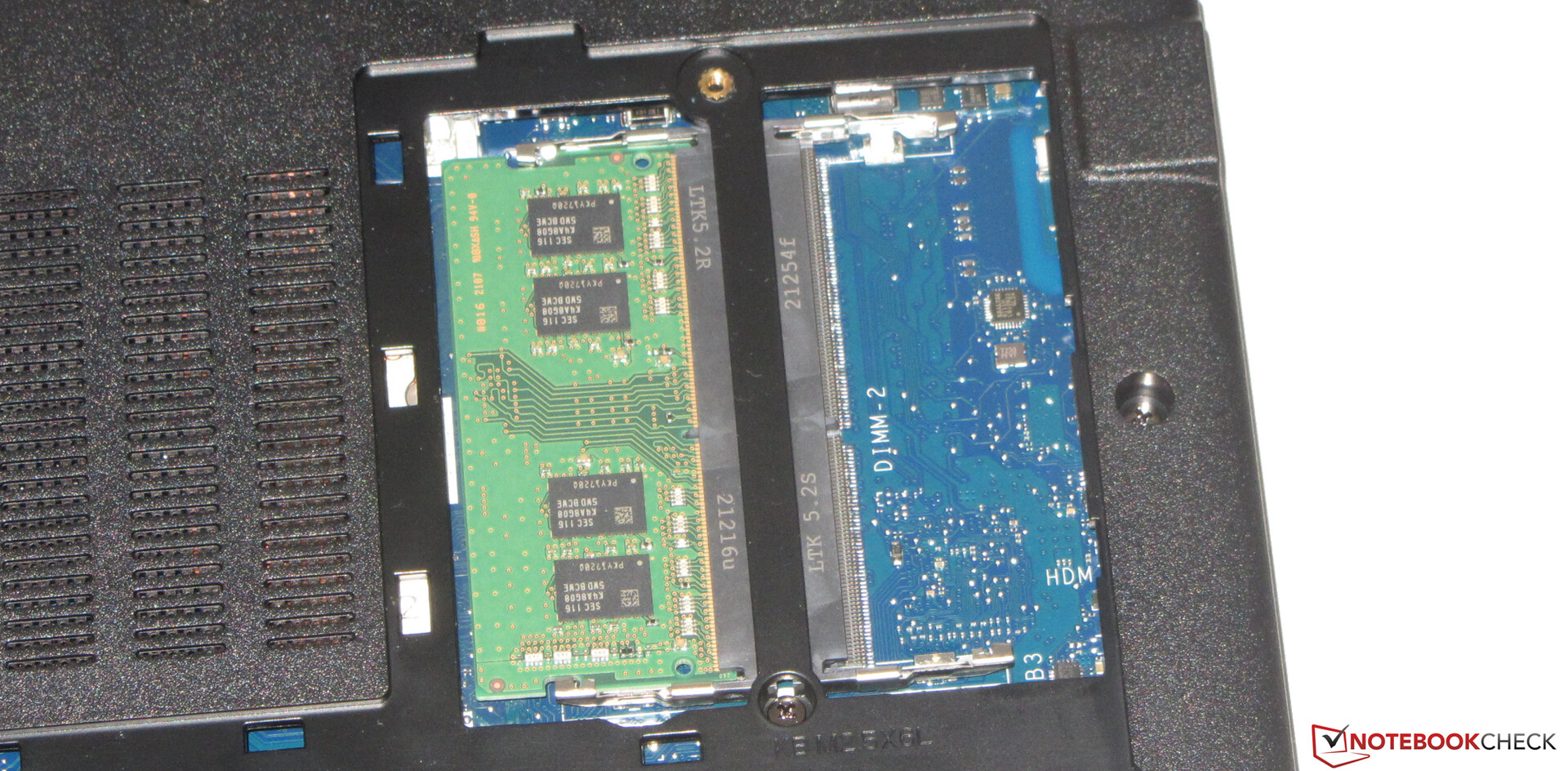

, DDR4-3200, single-channel mode, two memory slots (one in use)

Display

15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, BOE CQ NV156FHM-N48, IPS, glossy: no, 60 Hz

Mainboard

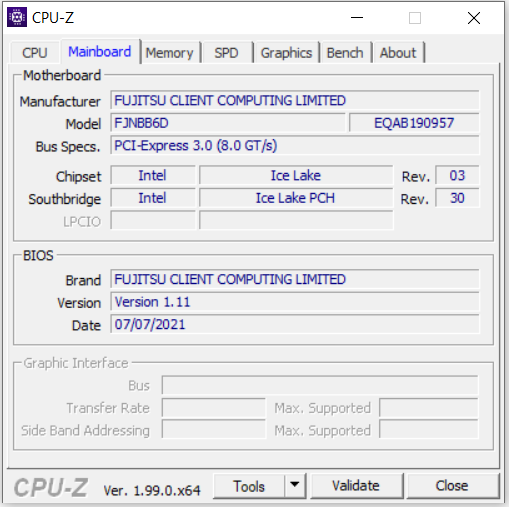

Intel 495 (Ice Lake-U PCH-LP Premium)

Storage

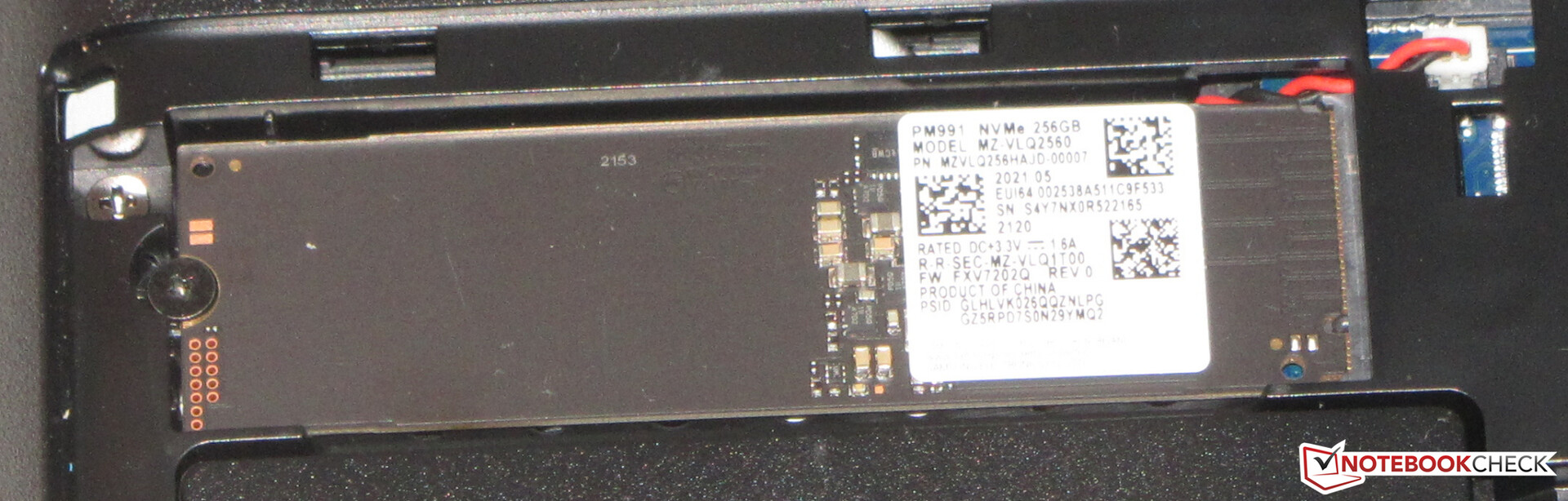

Samsung PM991 MZVLQ256HAJD, 256 GB

, M.2-2280, NVMe, 199 GB free

Soundcard

Realtek ALC255

Connections

3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: combined audio port, Card Reader: SD, SDHC, SDXC, TPM 2.0

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5

Optical drive

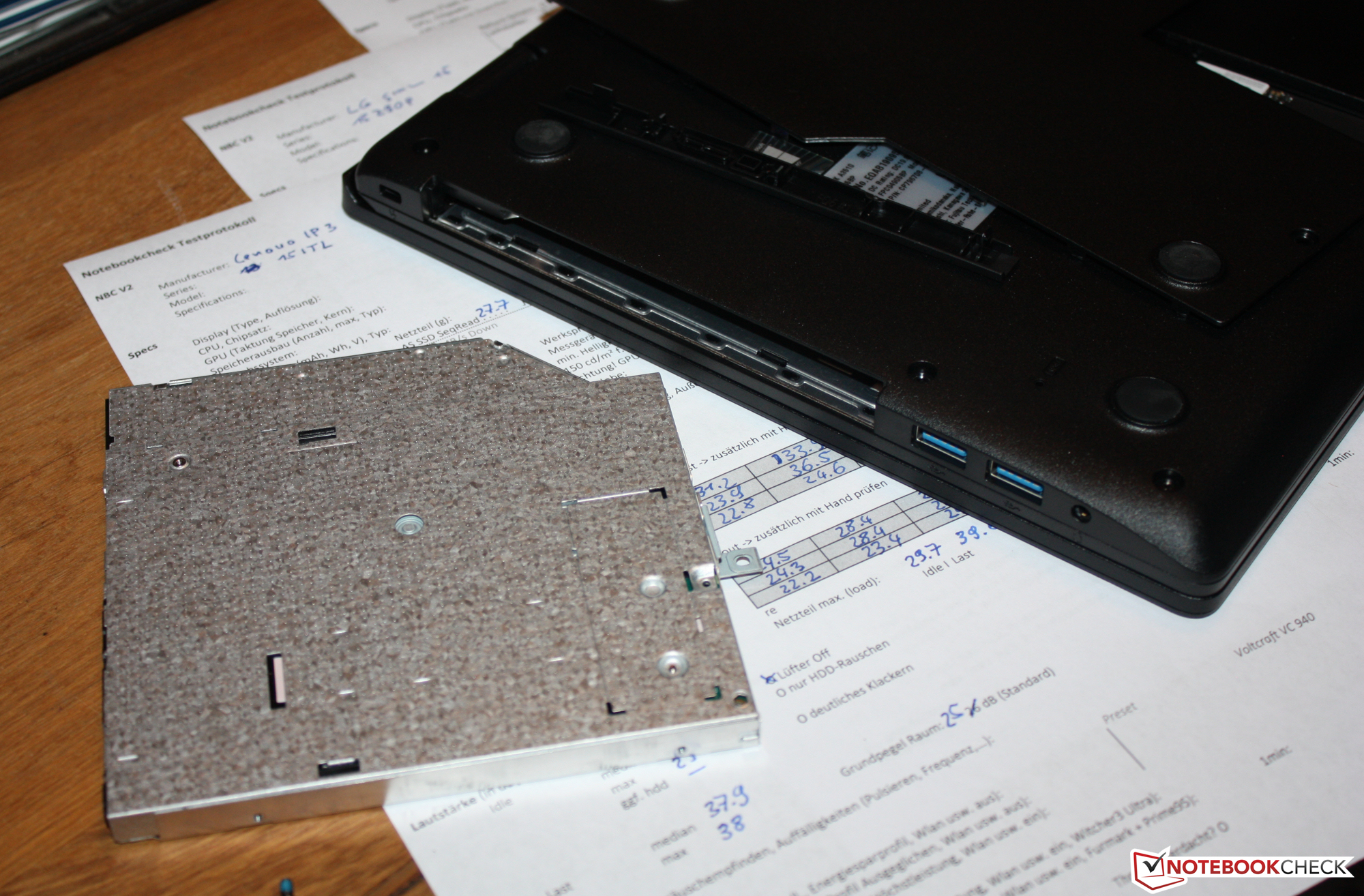

Asus Slimtype DVD A DU8AESH

Size

height x width x depth (in mm): 23.9 x 361 x 244

Battery

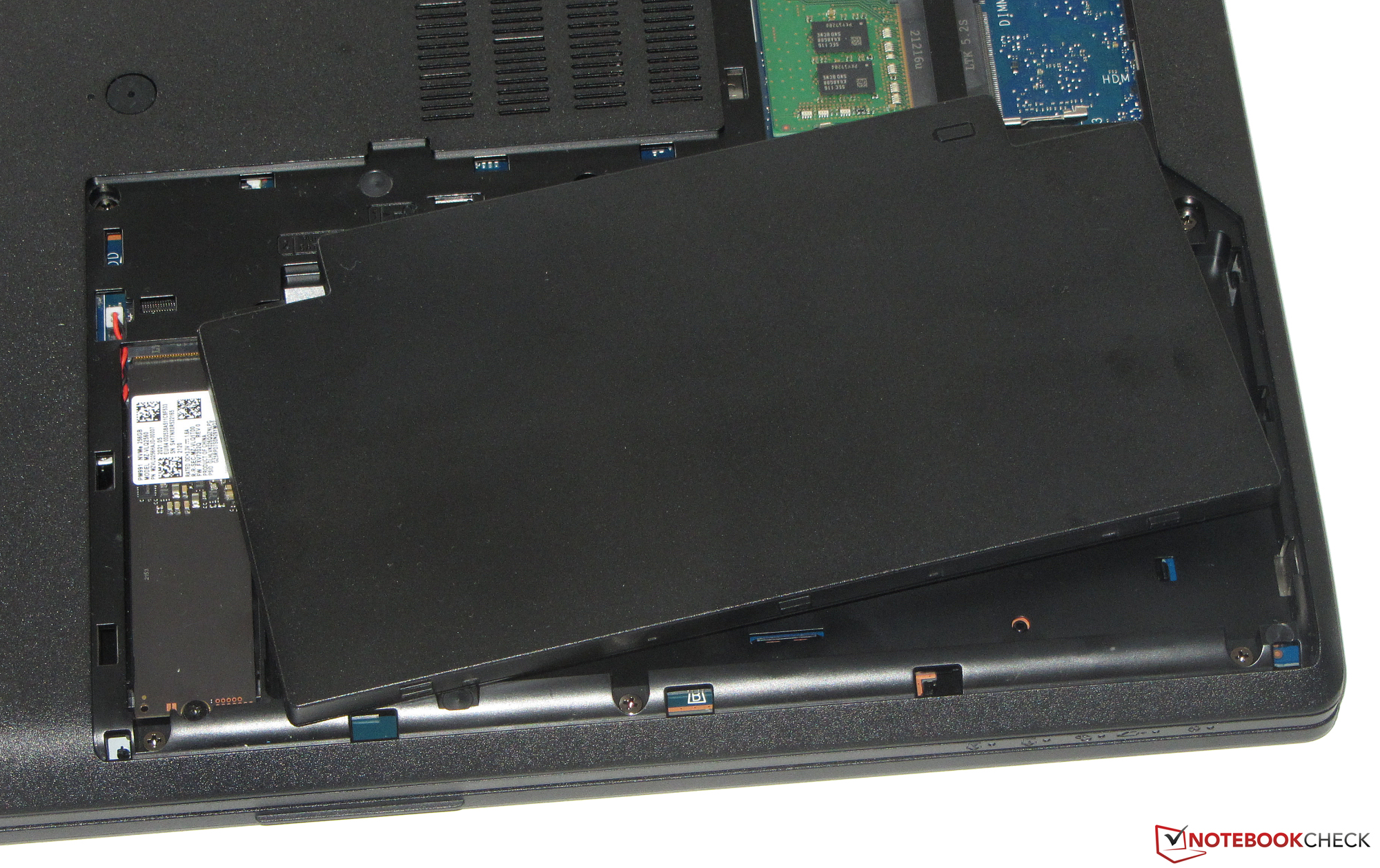

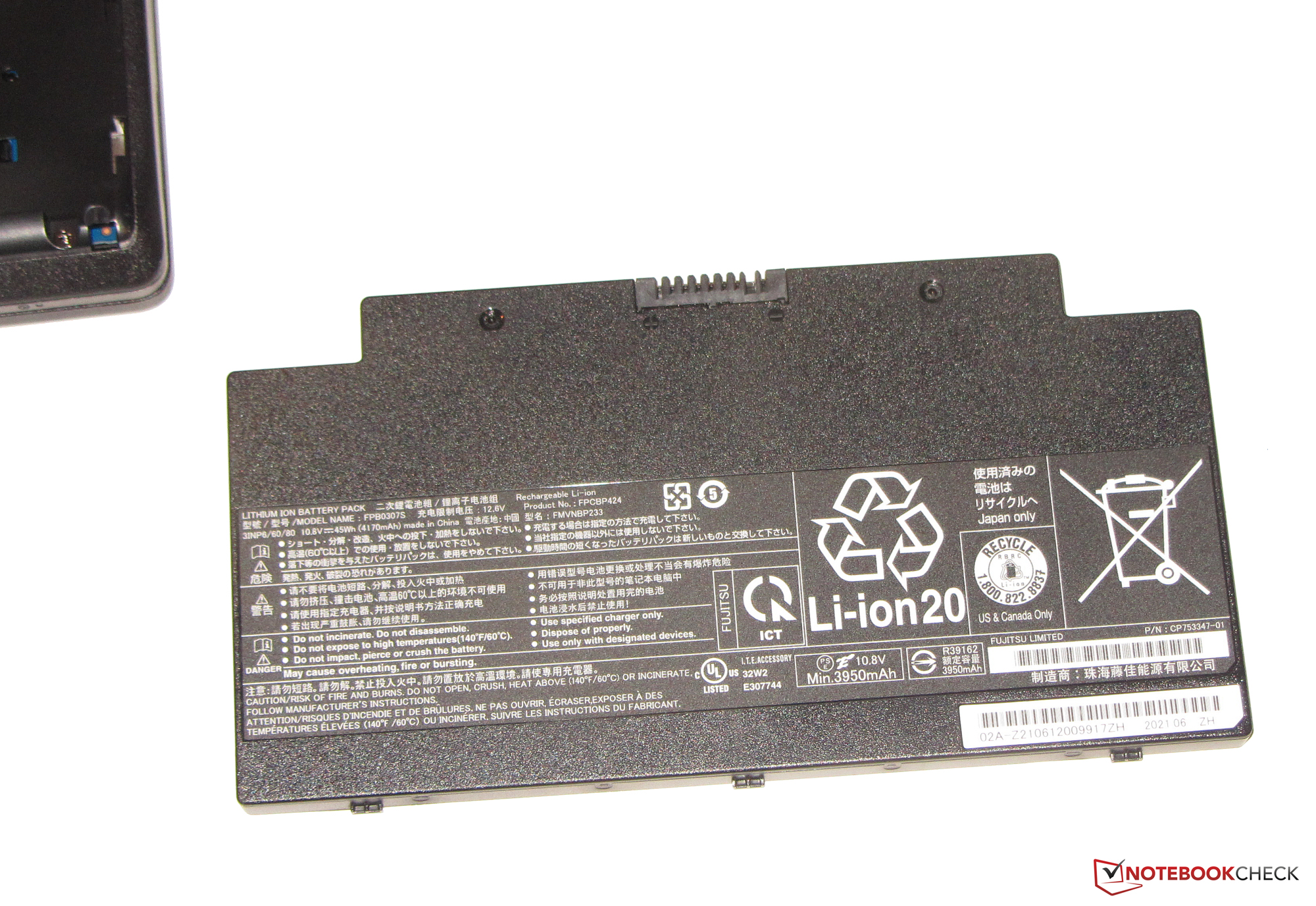

45 Wh, 3950 mAh Lithium-Ion, 3 cells

Operating System

Microsoft Windows 10 Pro 64 Bit

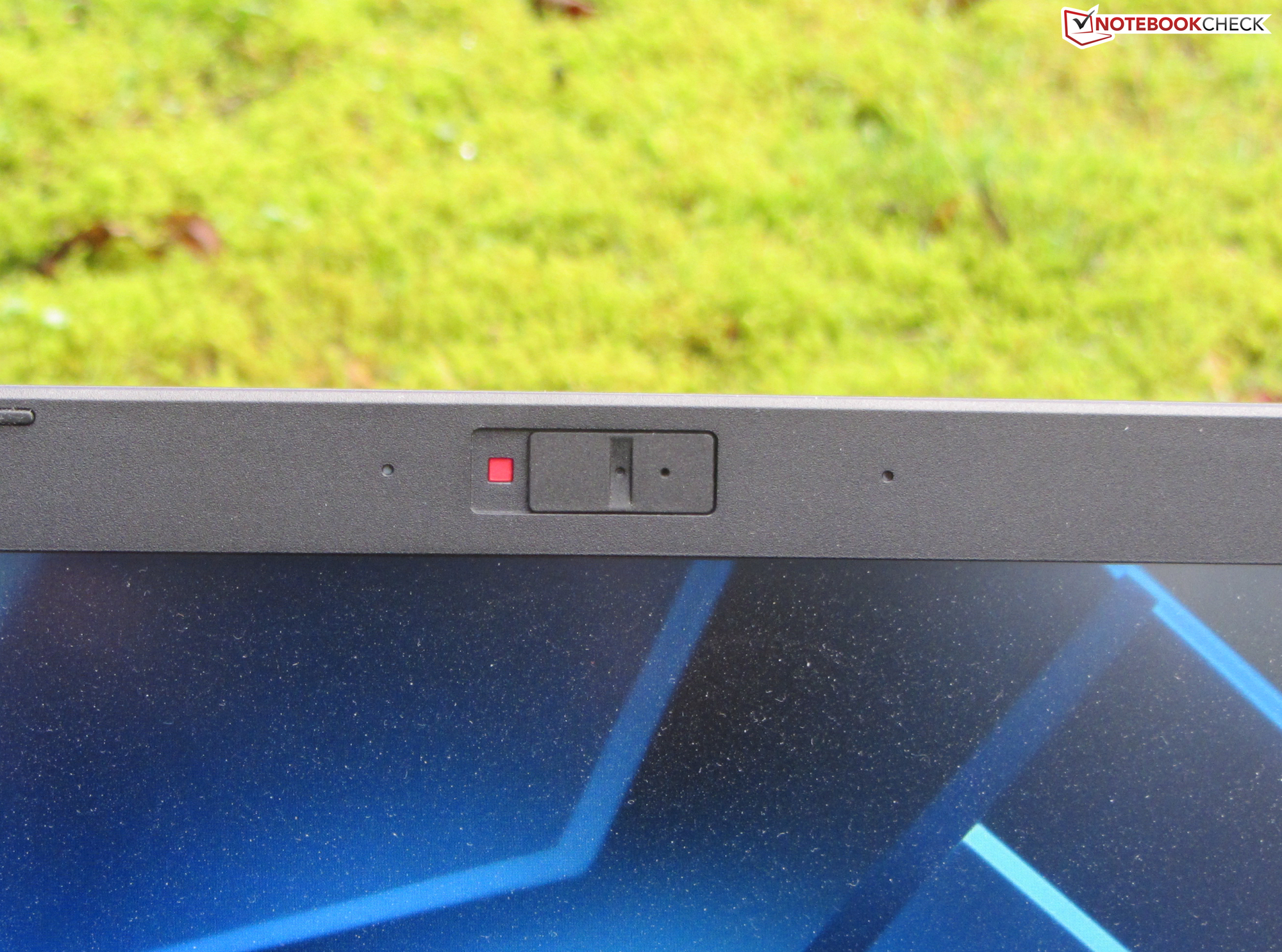

Camera

Webcam: HD
Primary Camera: 0.9 MPix

Additional features

Speakers: stereo, Keyboard: chiclet, Keyboard Light: no, recovery DVD, driver DVD, McAfee LiveSafe (trial), Microsoft 365 (trial), Winzip (trial), 12 Months Warranty

Weight

1.8 kg, Power Supply: 325 g

Price

499 Euro

Links

Fujitsu homepage
LifeBook A (Series)

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possible Competitors for Comparison

Rating	Date	Model	Weight	Height	Size	Resolution
81.2 %	02/2022	Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	1.8 kg	23.9 mm	15.60"	1920x1080
81 %		Dell Latitude 15 3510 NK2MC i3-10110U, UHD Graphics 620	1.9 kg	18 mm	15.60"	1920x1080
74.6 %		HP 255 G7 159P1EA R3 3200U, Vega 3	1.8 kg	22.5 mm	15.60"	1920x1080
76.5 %		Lenovo V15-ADA 82C7009SGE Athlon 3150U, Vega 3	1.9 kg	20 mm	15.60"	1920x1080

机箱和设备 - Lifebook A支持电源传输

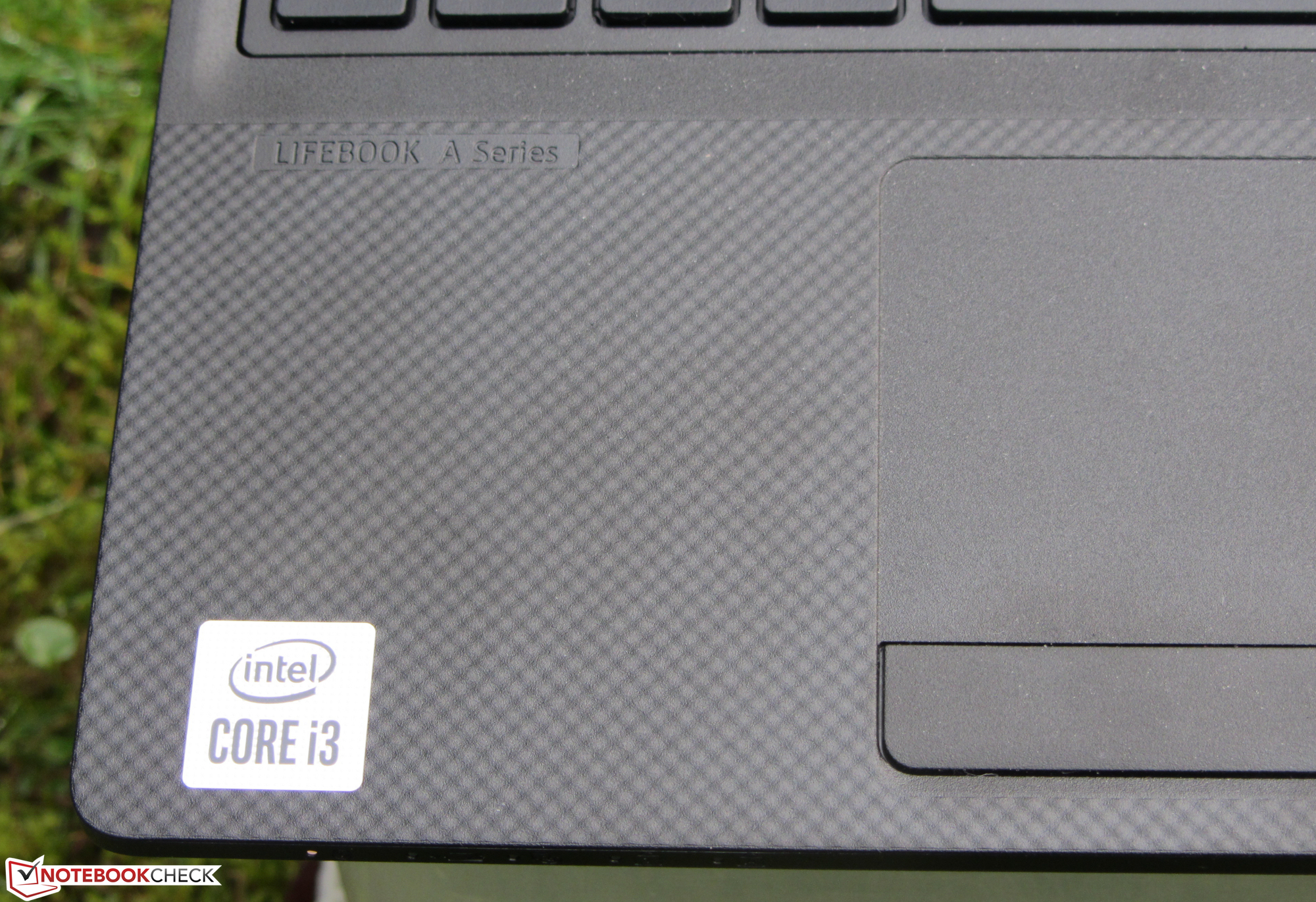

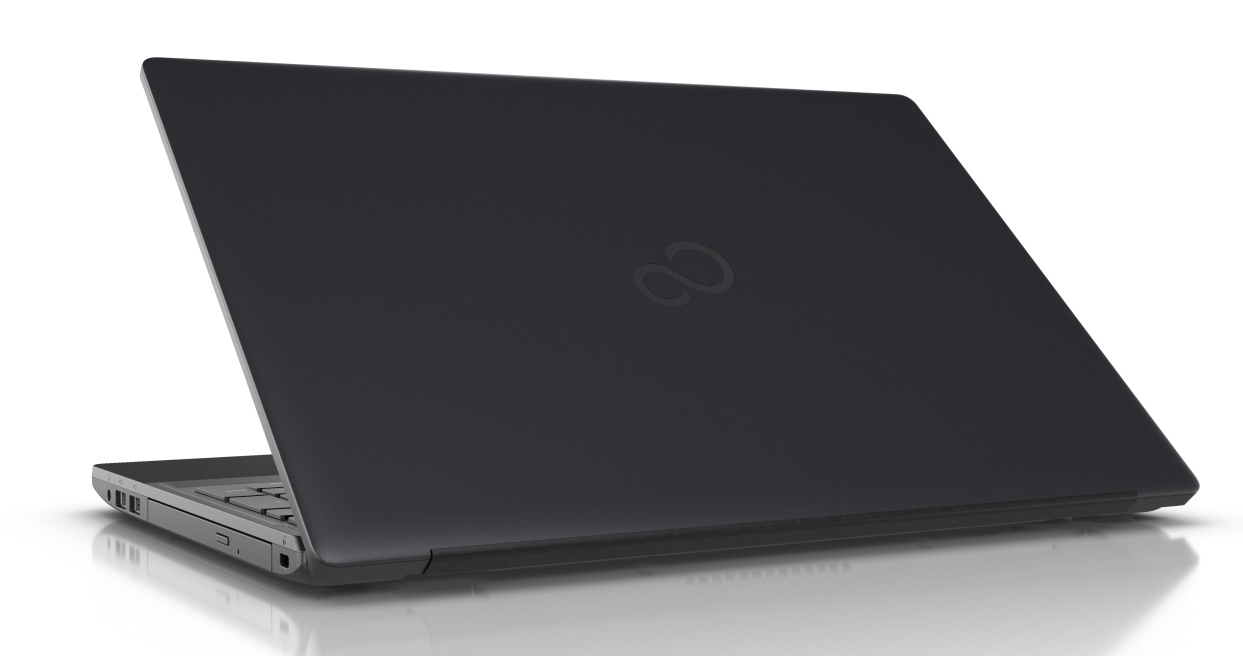

富士通使用的是黑色哑光塑料外壳。掌托有波纹状的纹理，盖子的背面和底部有粗糙的表面。总的来说，这个箱子不大容易留下指纹。缝隙很小，没有明显的尖锐边缘。然而，底座和盖子可以明显翘起。一个维护挡板让人很容易接触到电池、SSD和工作内存。

与富士通广告材料中的信息相反，Lifebook的重量并没有接近2公斤（约4.4磅），而是只有1.8公斤（约4磅；或1.67公斤，约3.7磅，不含DVD驱动器）--我们自己称了一下设备。

富士通笔记本电脑提供三个USB-A端口（USB 3.2 Gen 1）和一个USB-C端口（USB 3.2 Gen 2），通过USB-C支持Power Delivery和DisplayPort。因此，连同HDMI端口，A3510提供了两个视频端口。SD存储卡读卡器属于同类产品中较快的代表（参考卡：AV PRO SD 128 GB V60）。

WLAN模块包括一个英特尔芯片（Wireless-AC 9560），支持802.11a/b/g/n/ac标准。在最佳条件下测量的传输率（附近没有其他WLAN设备，笔记本电脑和服务器PC之间的距离很近）结果非常好。

注意：我们使用了富士通网站下载区提供的最新的英特尔WiFi驱动程序（版本22.70.0.6）。可从英特尔网站下载的最新驱动程序（22.100.1.1版）在我们的测试设备上并非完全没有问题，而且产生的传输速率明显更差（约1/10）。

Size Comparison

HP 255 G7 159P1EA Fujitsu Lifebook A3510 (FPC04905BP) Lenovo V15-ADA 82C7009SGE Dell Latitude 15 3510 NK2MC DIN A4 ❌

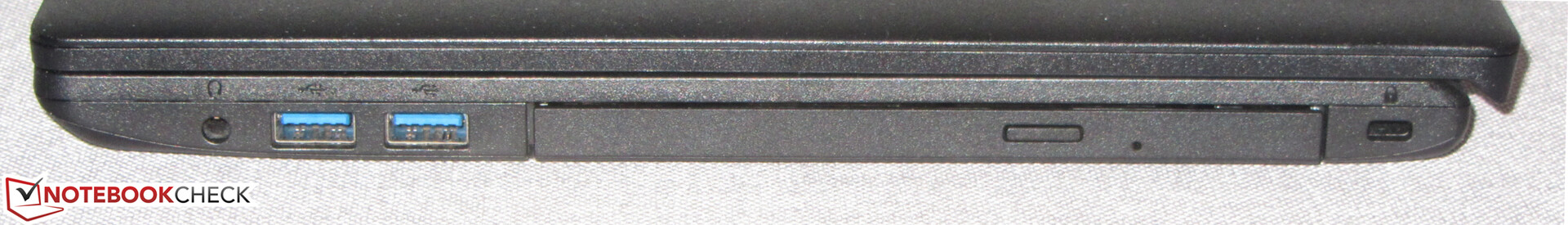

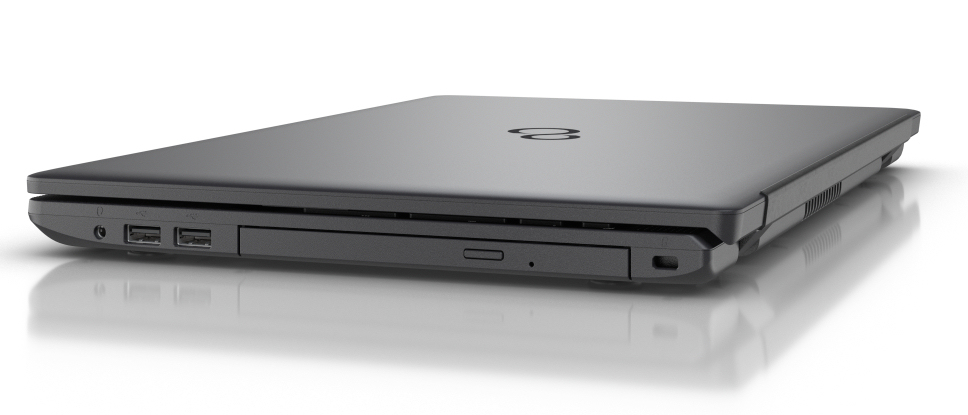

侧面：音频组合端口，2个USB 3.2 Gen 1（A型），DVD刻录机，电缆锁的插槽

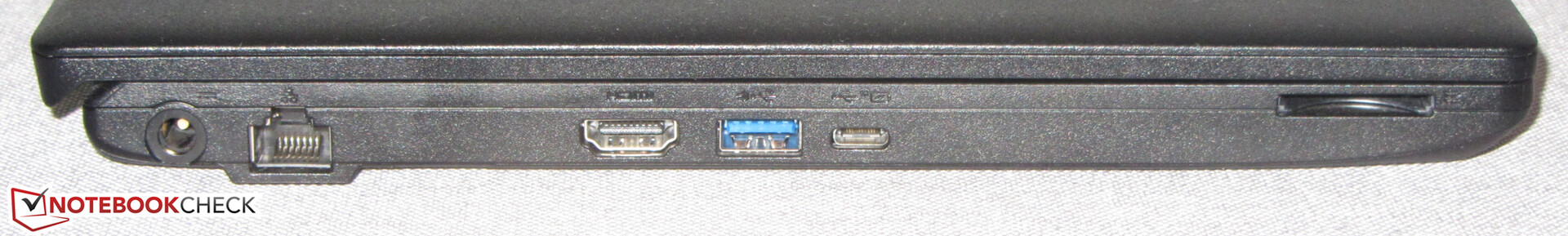

左侧：电源端口、千兆以太网、HDMI、USB 3.2 Gen 1（A型）、USB 3.2 Gen 2（C型；Power Delivery、DisplayPort）、存储卡阅读器（SD）。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (AV Pro SD microSD 128 GB V60)	78.2 MB/s
Average of class Office (8 - 82.7, n=48, last 2 years)	53.1 MB/s -32%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	35.8 MB/s -54%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	28 MB/s -64%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U (Toshiba Exceria Pro M501 microSDXC 64GB)	20.5 MB/s -74%
maximum AS SSD Seq Read Test (1GB)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (AV Pro SD microSD 128 GB V60)	89.9 MB/s
Average of class Office (25 - 90.5, n=42, last 2 years)	64.3 MB/s -28%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	37.7 MB/s -58%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	37.4 MB/s -58%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U (Toshiba Exceria Pro M501 microSDXC 64GB)	27.5 MB/s -69%

Networking
iperf3 transmit AX12
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560	922 (909^min - 935^max) MBit/s
Average of class Office (819 - 842, n=2, last 2 years)	831 MBit/s -10%
Average Intel Wireless-AC 9560 (309 - 1350, n=182)	686 MBit/s -26%
Dell Latitude 15 3510 NK2MC Intel Wi-Fi 6 AX201	676 MBit/s -27%
HP 255 G7 159P1EA Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter	670 (332^min - 711^max) MBit/s -27%
Lenovo V15-ADA 82C7009SGE Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	618 (579^min - 655^max) MBit/s -33%
iperf3 receive AX12
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560	949 (917^min - 950^max) MBit/s
Average of class Office (883 - 972, n=2, last 2 years)	928 MBit/s -2%
Dell Latitude 15 3510 NK2MC Intel Wi-Fi 6 AX201	920 MBit/s -3%
Average Intel Wireless-AC 9560 (288 - 1390, n=183)	698 MBit/s -26%
Lenovo V15-ADA 82C7009SGE Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	622 (585^min - 651^max) MBit/s -34%
HP 255 G7 159P1EA Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter	596 (445^min - 671^max) MBit/s -37%

Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560; iperf3 receive AX12; iperf 3.1.3, Speedport Pro Plus: Ø948 (917-950)

HP 255 G7 159P1EA Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter; iperf3 receive AX12; iperf 3.1.3: Ø595 (445-671)

Lenovo V15-ADA 82C7009SGE Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AX12; iperf 3.1.3: Ø621 (585-651)

Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560; iperf3 transmit AX12; iperf 3.1.3, Speedport Pro Plus: Ø922 (909-935)

HP 255 G7 159P1EA Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter; iperf3 transmit AX12; iperf 3.1.3: Ø659 (332-711)

Lenovo V15-ADA 82C7009SGE Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø618 (579-655)

ColorChecker Fujitsu Lifebook A3510 (FPC04905BP): 19.29 ∆E min: 2.33 - max: 29.06 ∆E

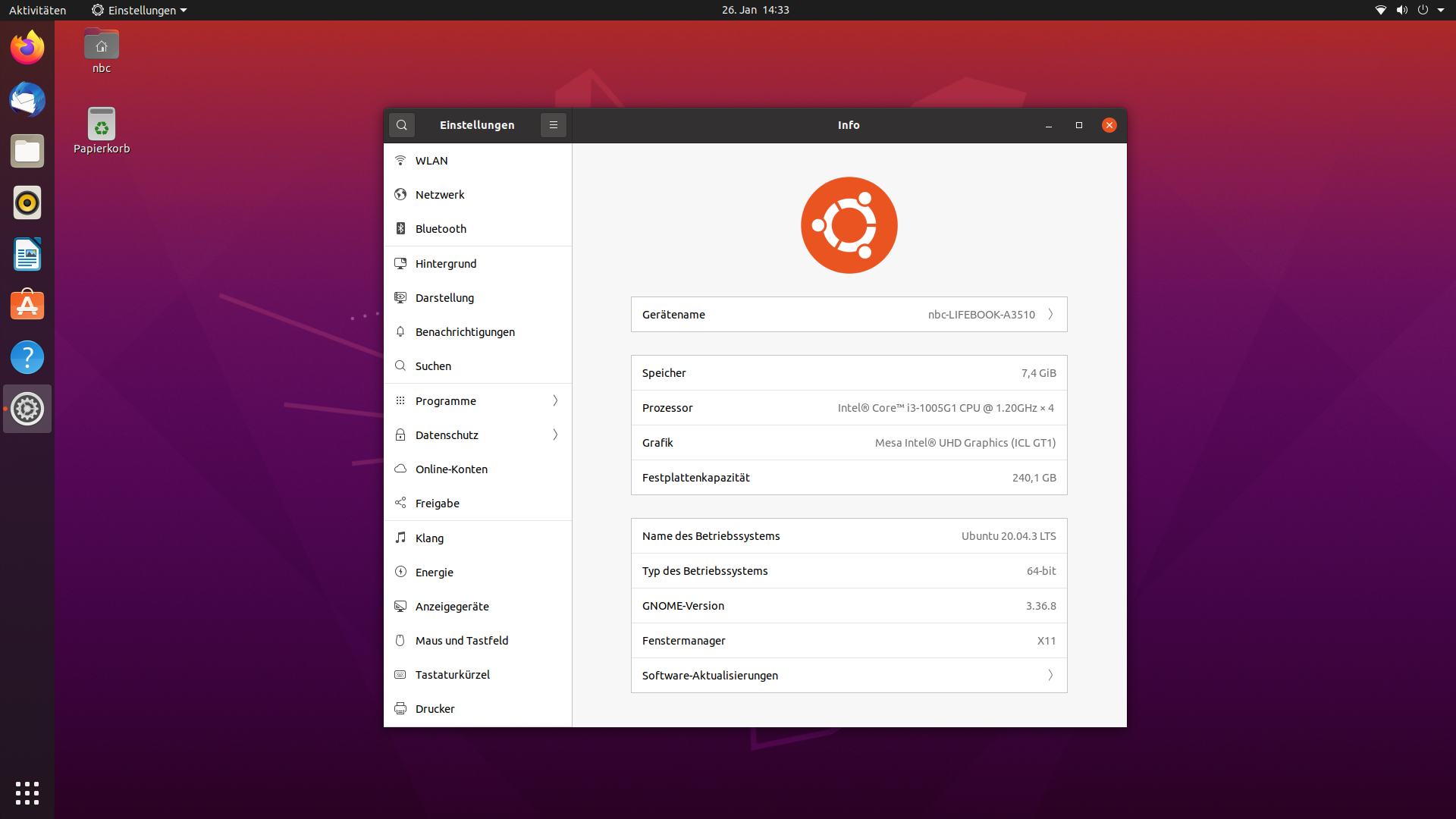

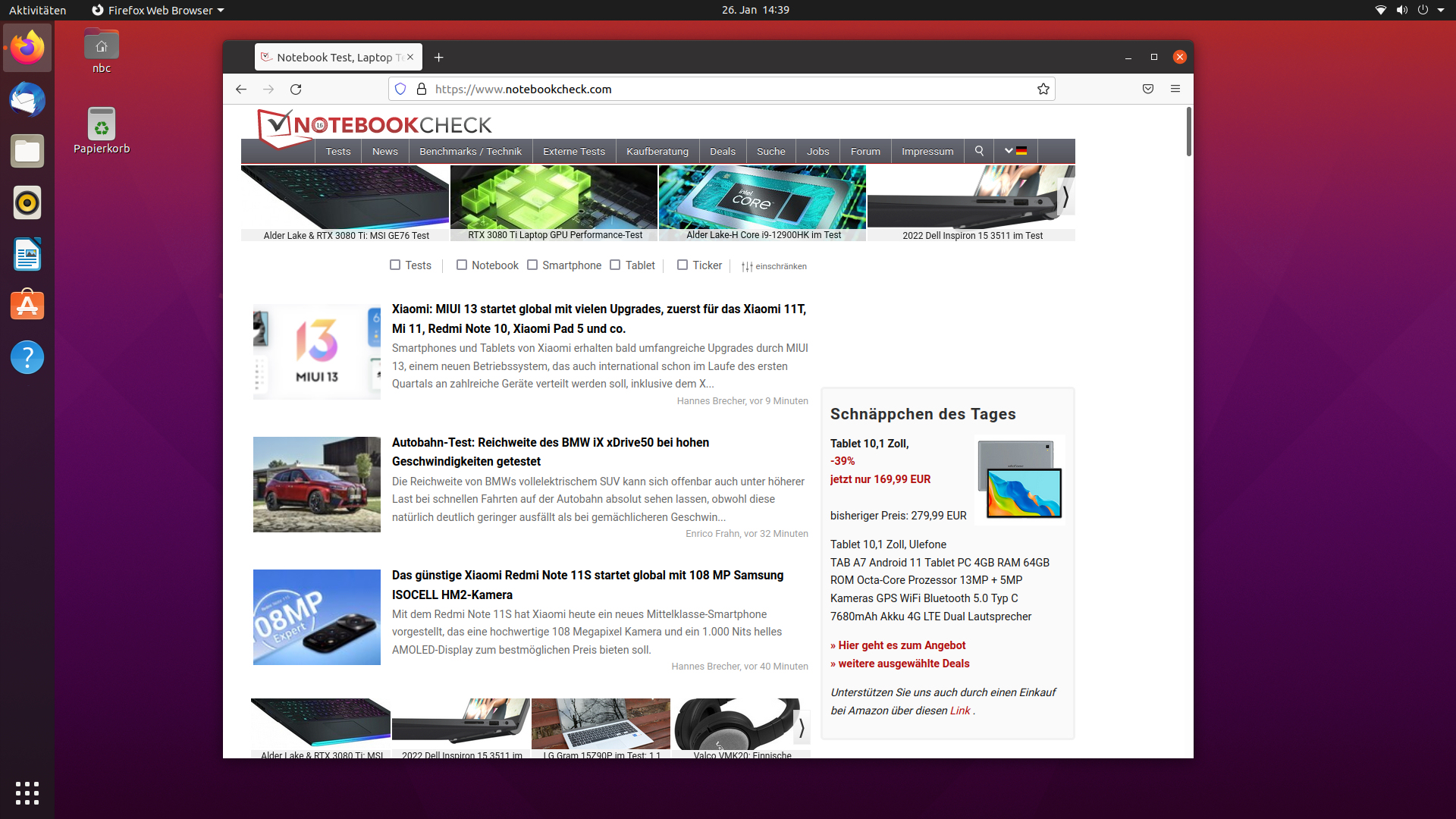

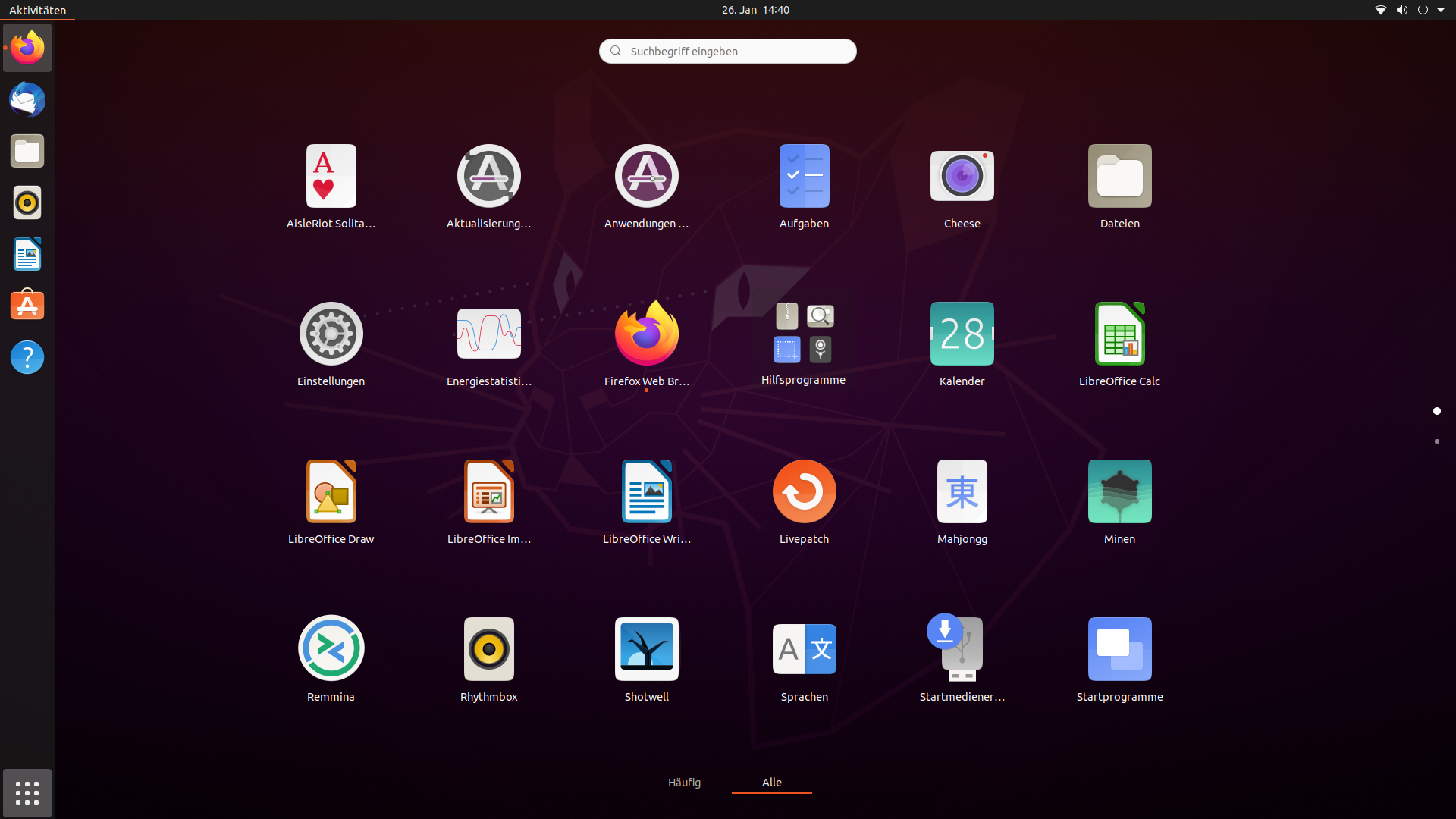

用Linux代替Windows

我们这里的A3510的设备配置也可以不使用Windows操作系统（FPC04902BP，约350欧元，~390美元）。在这种情况下，Linux会提供自己作为操作系统，Ubuntu 20.04.03 LTS（64位）可以顺利安装。除了几个功能键（如触摸板的开/关切换键）外，大部分硬件都是自动设置的。音量和亮度调节键可以工作，飞行模式键也是如此。

输入设备 - A3510没有键盘照明装置

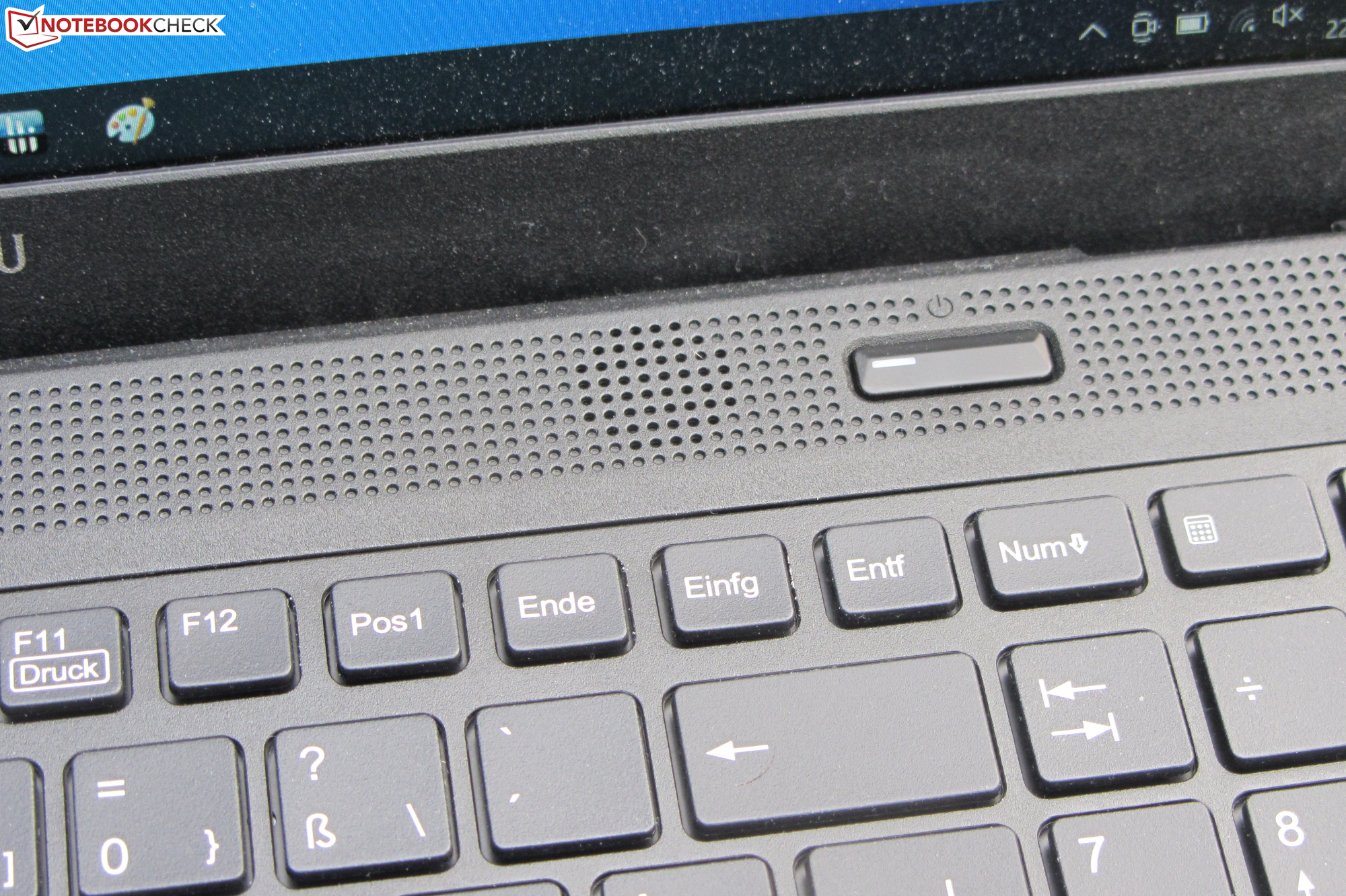

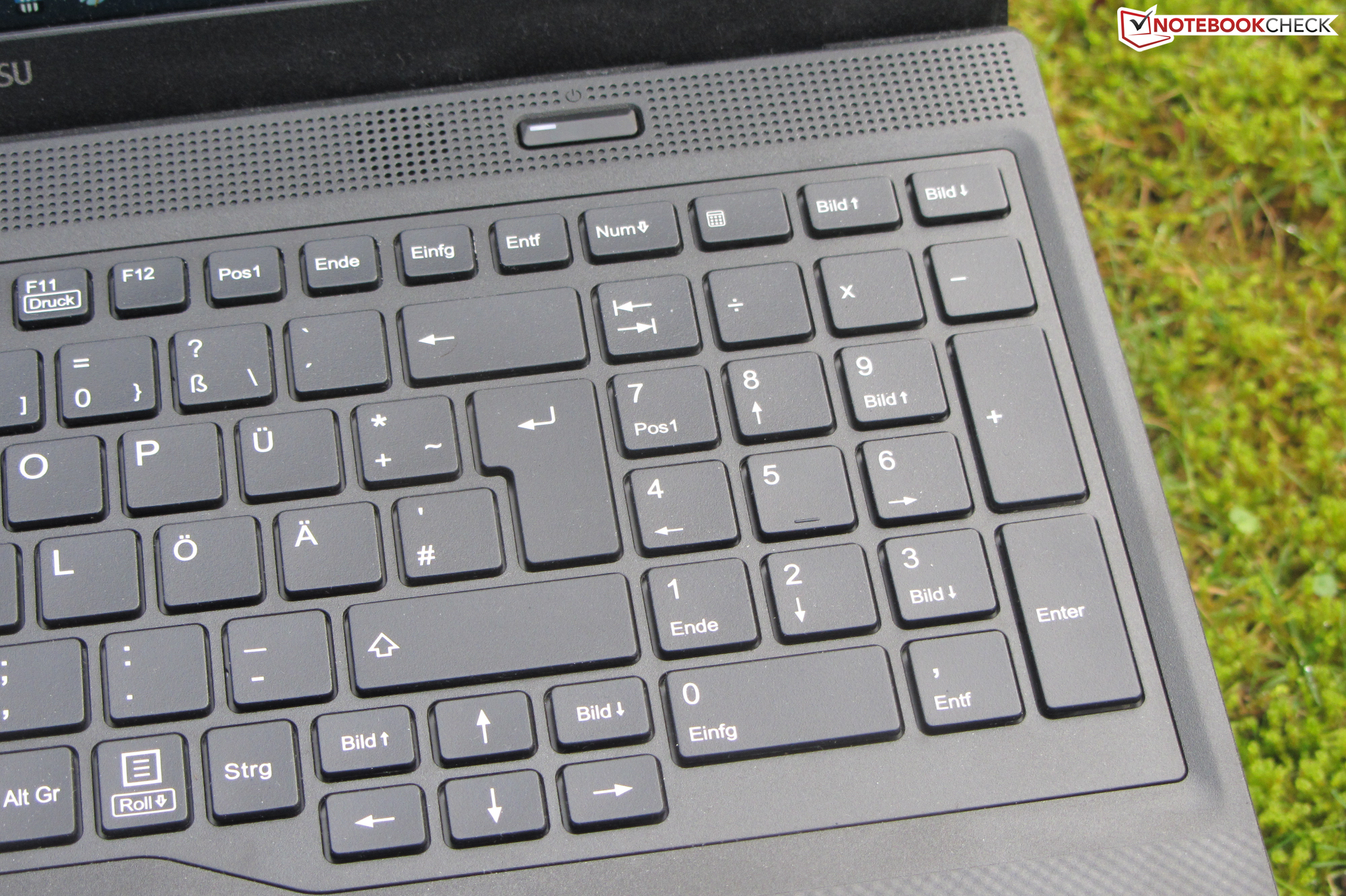

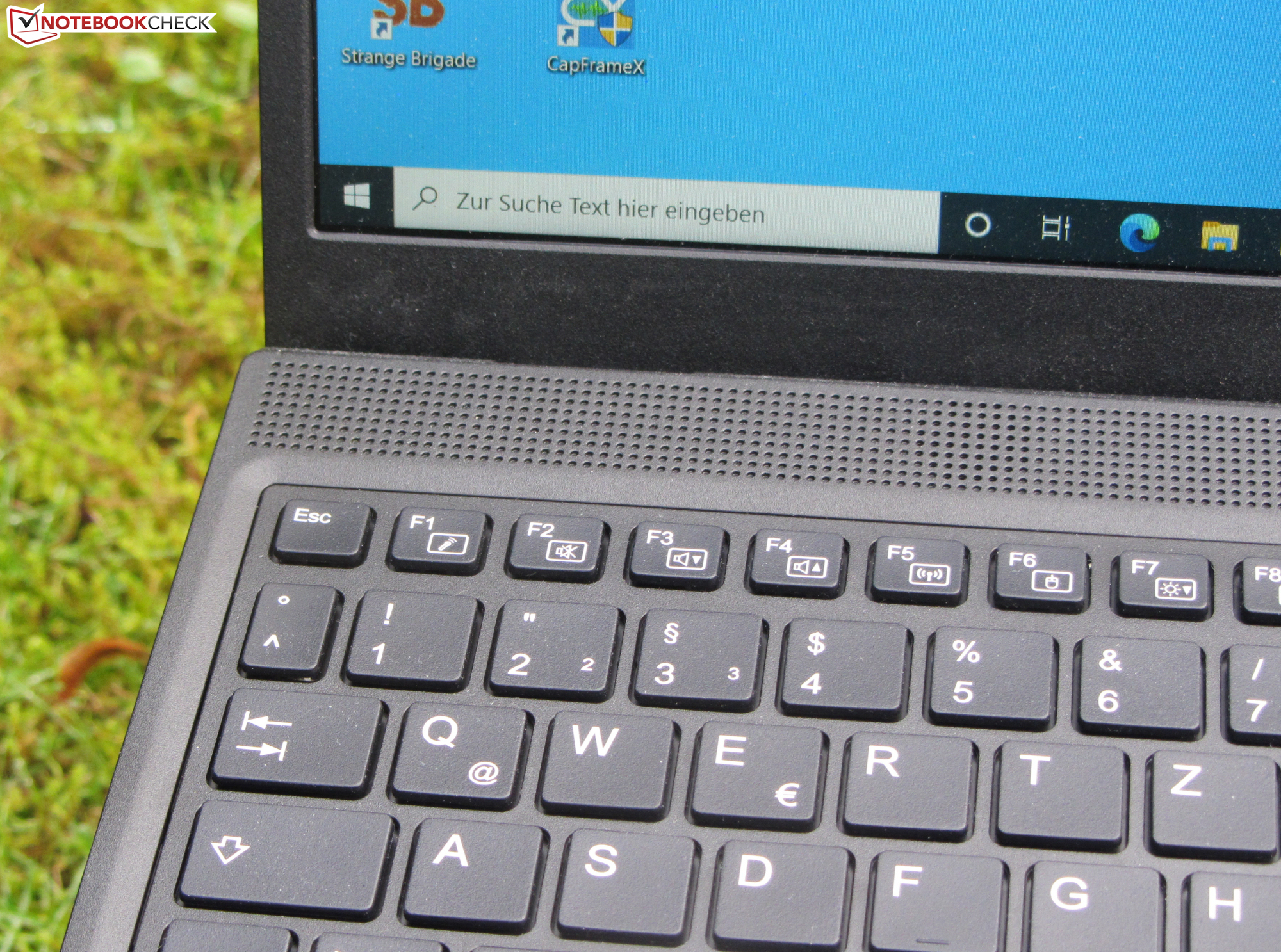

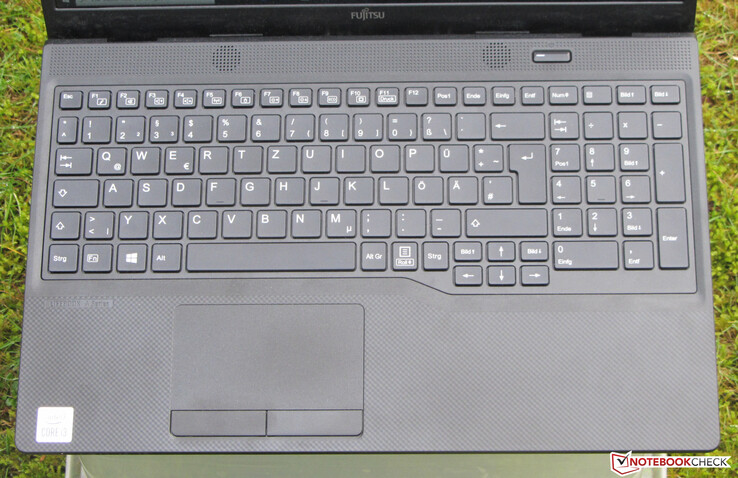

Chiclet键盘没有照明，其略微粗糙的按键行程较短，压力点清晰。在打字时，键盘有一些最小的摆动，但这并没有变成令人讨厌的东西。总的来说，富士通在这里提供了一个适合日常打字任务的键盘。

具有多点触摸功能的触摸板（约9.9 x 6.1厘米，约3.9 x 2.4英寸）的光滑表面有利于手指的滑动。触摸板对角落里的输入也有反应。两个独立的鼠标键行程短，压力点清晰。

显示屏 - 富士通A3510只带来了一个深色的IPS面板

虽然15.6英寸的哑光显示屏（1920 x 1080像素）提供了非常好的对比度（1982:1），但亮度却太低（209.1 cd/m²）。我们认为超过300cd/m²的数值是好的。一个积极的观点是，我们没有注意到任何PWM闪烁的事实。


248 cd/m²	245 cd/m²	224 cd/m²
198 cd/m²	218 cd/m²	212 cd/m²
158 cd/m²	190 cd/m²	189 cd/m²

Distribution of brightness

BOE CQ NV156FHM-N48 tested with X-Rite i1Pro 2

Maximum: 248 cd/m² (Nits) Average: 209.1 cd/m² Minimum: 4.4 cd/m²
Brightness Distribution: 64 %
Center on Battery: 218 cd/m²
Contrast: 1982:1 (Black: 0.11 cd/m²)
ΔE Color 4.89 | 0.5-29.43 Ø5, calibrated: 3.88
ΔE Greyscale 2.57 | 0.57-98 Ø5.3
41.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.9% sRGB (Argyll 2.2.0 3D)
39.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22

Download ICC File (X-Rite i1Pro 2)

	Fujitsu Lifebook A3510 (FPC04905BP) BOE CQ NV156FHM-N48, IPS, 1920x1080, 15.60	Dell Latitude 15 3510 NK2MC Dell 156CL05, IPS, 1920x1080, 15.60	HP 255 G7 159P1EA BOE0687, TN LED, 1920x1080, 15.60	Lenovo V15-ADA 82C7009SGE Chi Mei CMN15F5, TN, 1920x1080, 15.60
Display		3%	-5%	-6%
Display P3 Coverage	39.9	40.78 2%	37.4 -6%	37.13 -7%
sRGB Coverage	58.9	61.3 4%	56.3 -4%	55.8 -5%
AdobeRGB 1998 Coverage	41.3	42.15 2%	38.64 -6%	38.36 -7%
Response Times		14%	41%	49%
Response Time Grey 50% / Grey 80% *	45 ?(21, 24)	38 ?(19, 19) 16%	38 ?(19, 19) 16%	26 ?(8, 18) 42%
Response Time Black / White *	32 ?(17, 15)	28 ?(17, 11) 12%	11 ?(7, 4) 66%	14 ?(4, 3) 56%
PWM Frequency		250	2500 ?(90)
Screen		-35%	-135%	-88%
Brightness middle	218	262 20%	199 -9%	232 6%
Brightness	209	236 13%	193 -8%	211 1%
Brightness Distribution	64	86 34%	91 42%	82 28%
Black Level *	0.11	0.31 -182%	0.5 -355%	0.41 -273%
Contrast	1982	845 -57%	398 -80%	566 -71%
Colorchecker dE 2000 *	4.89	4.92 -1%	11.14 -128%	6.83 -40%
Colorchecker dE 2000 max. *	8.3	15.83 -91%	19.77 -138%	18.77 -126%
Colorchecker dE 2000 calibrated *	3.88	4.34 -12%
Greyscale dE 2000 *	2.57	3.47 -35%	12.93 -403%	8.52 -232%
Gamma	2.22 ^99%	2.4 ^92%	2.69 ^82%	2.45 ^90%
CCT	6272 ^104%	6680 ^97%	14674 ^44%	9753 ^67%
Color Space (Percent of AdobeRGB 1998)		39	36	35
Color Space (Percent of sRGB)		61	56	56
Total Average (Program / Settings)		-6% / -20%	-33% / -78%	-15% / -48%

* ... smaller is better

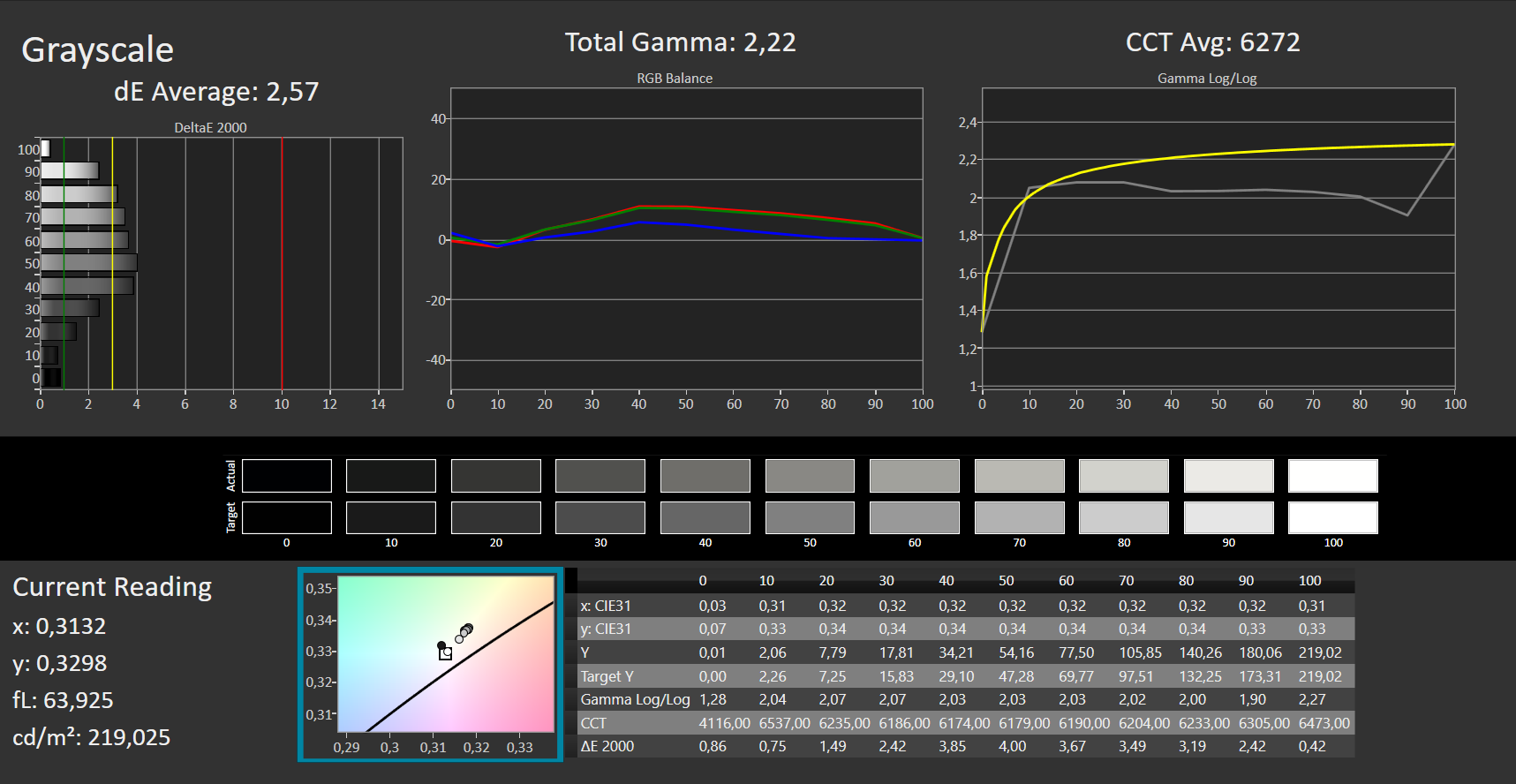

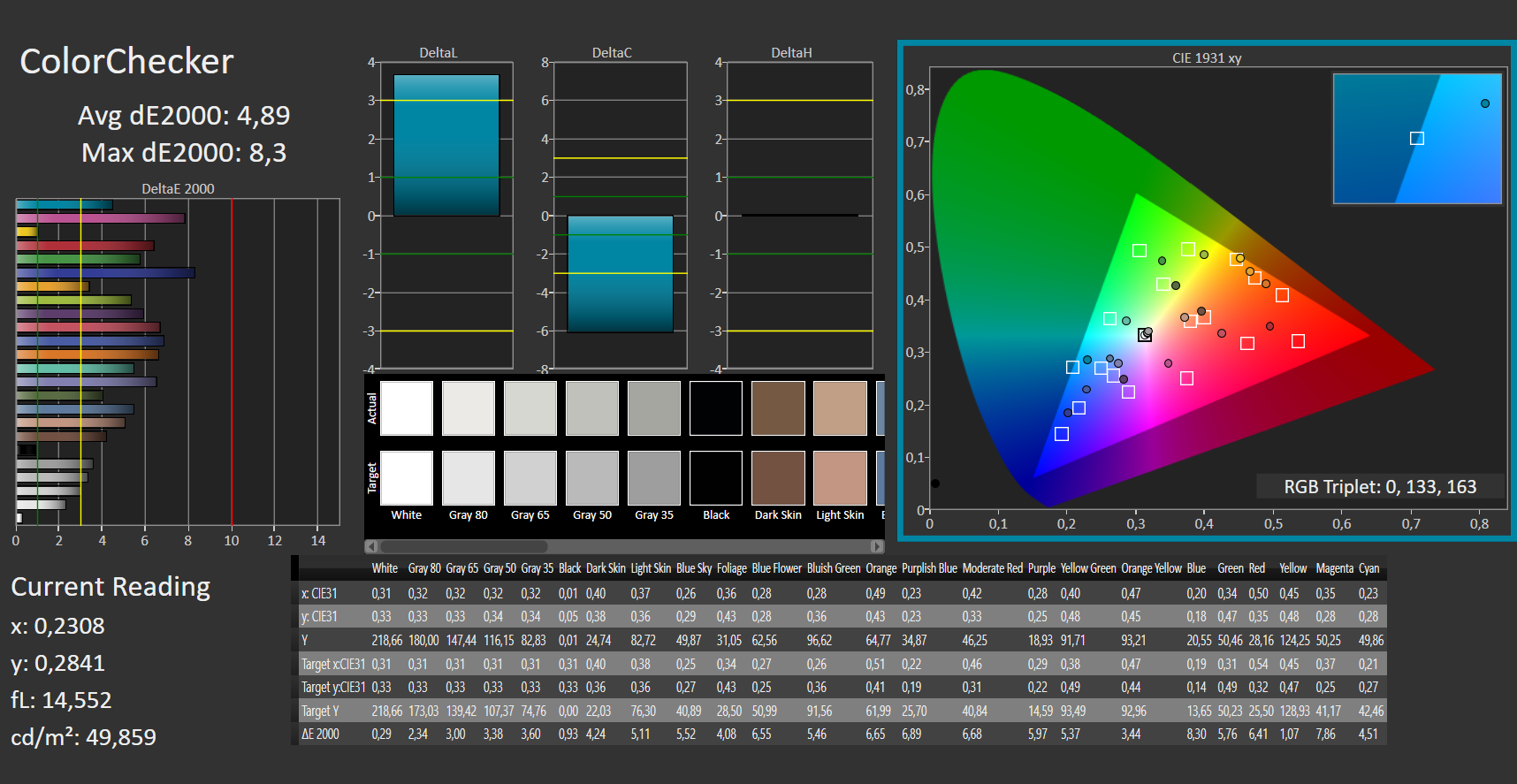

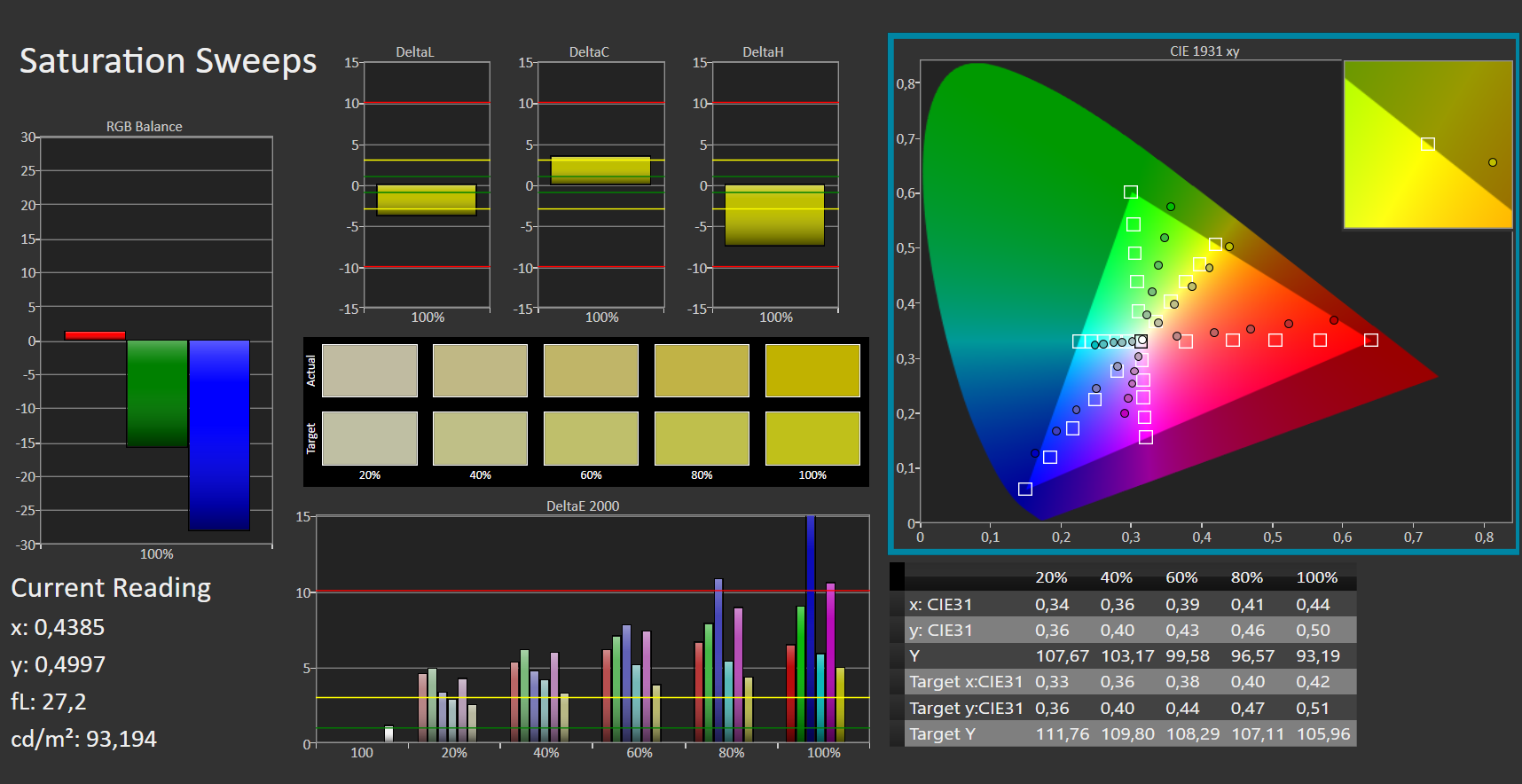

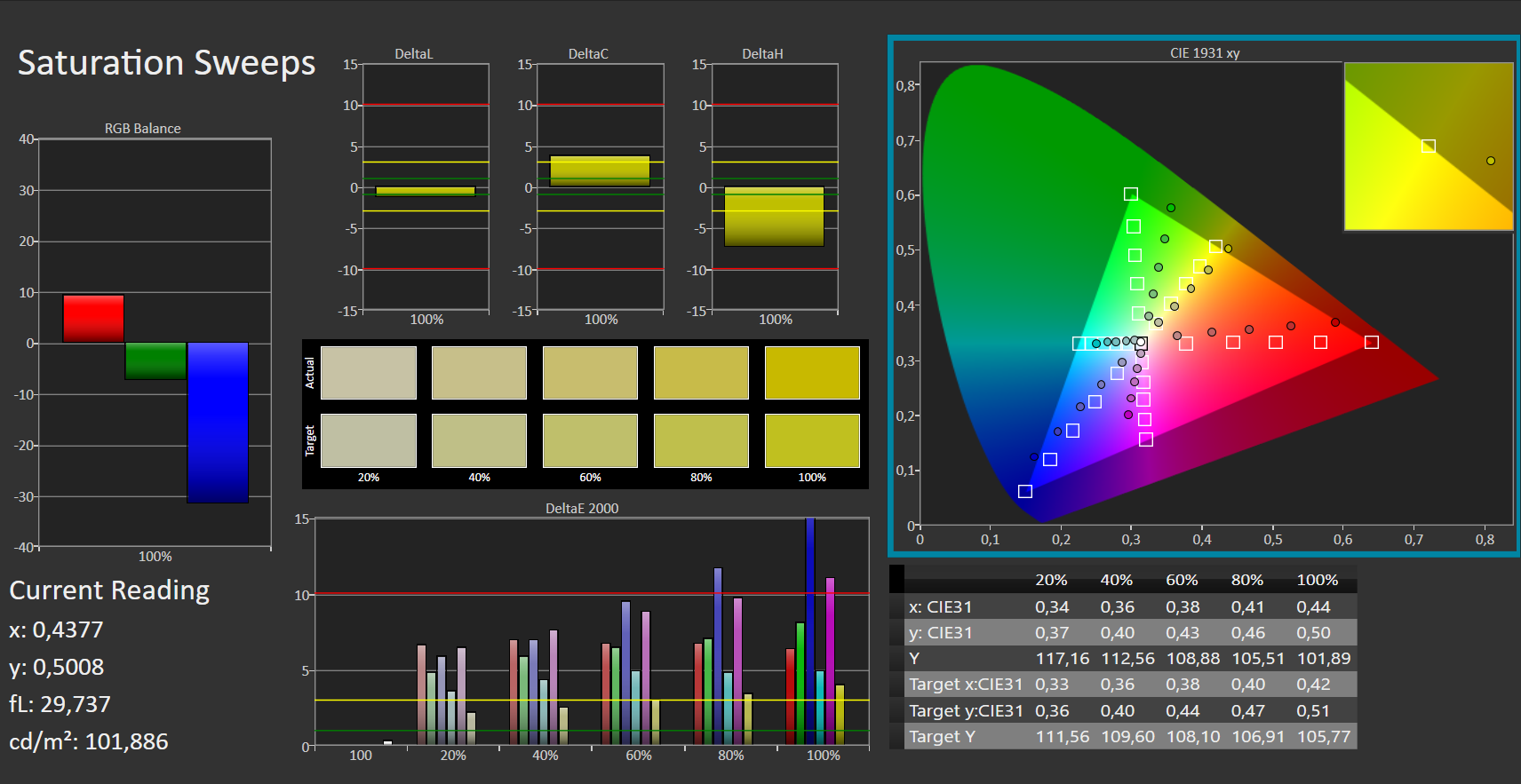

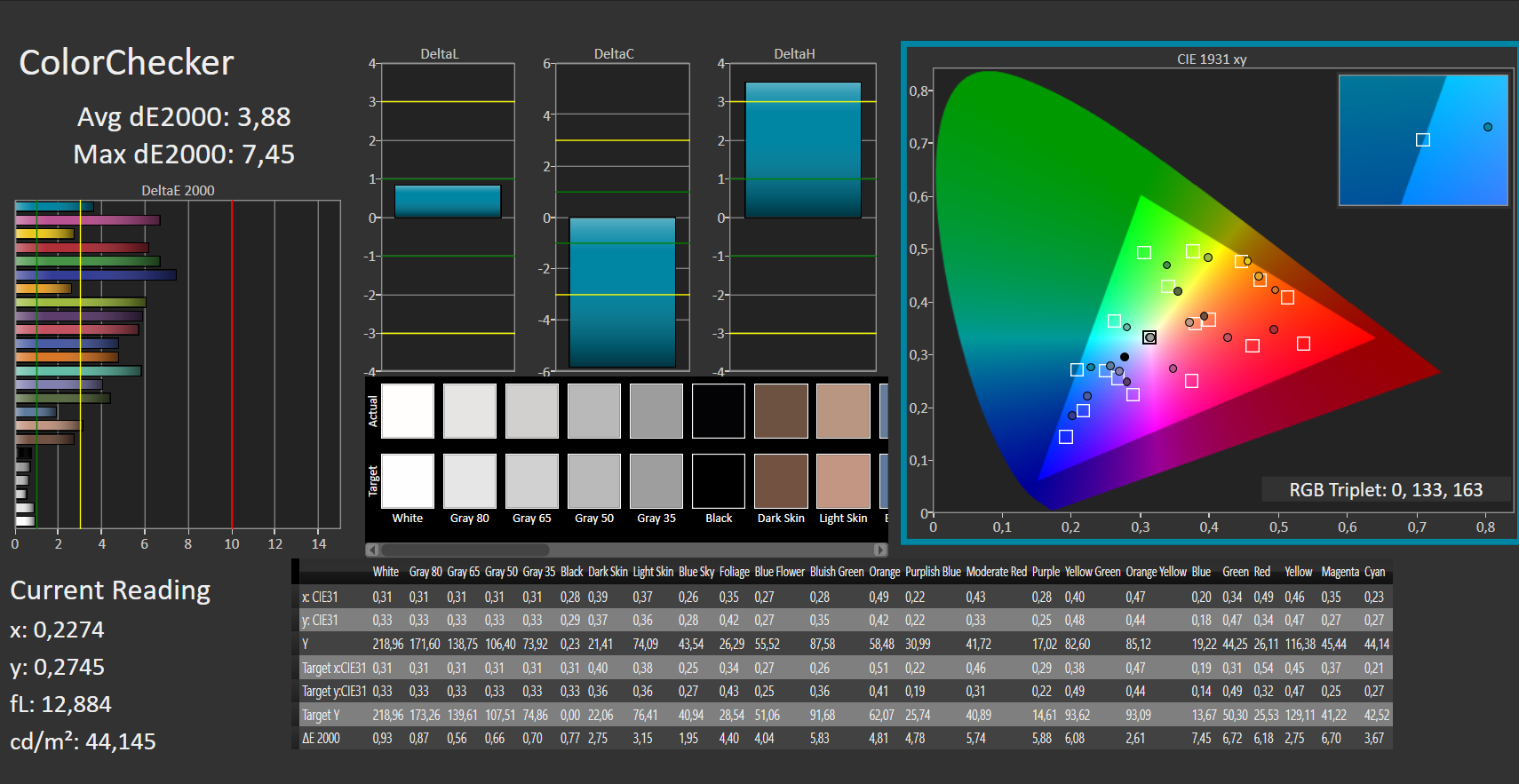

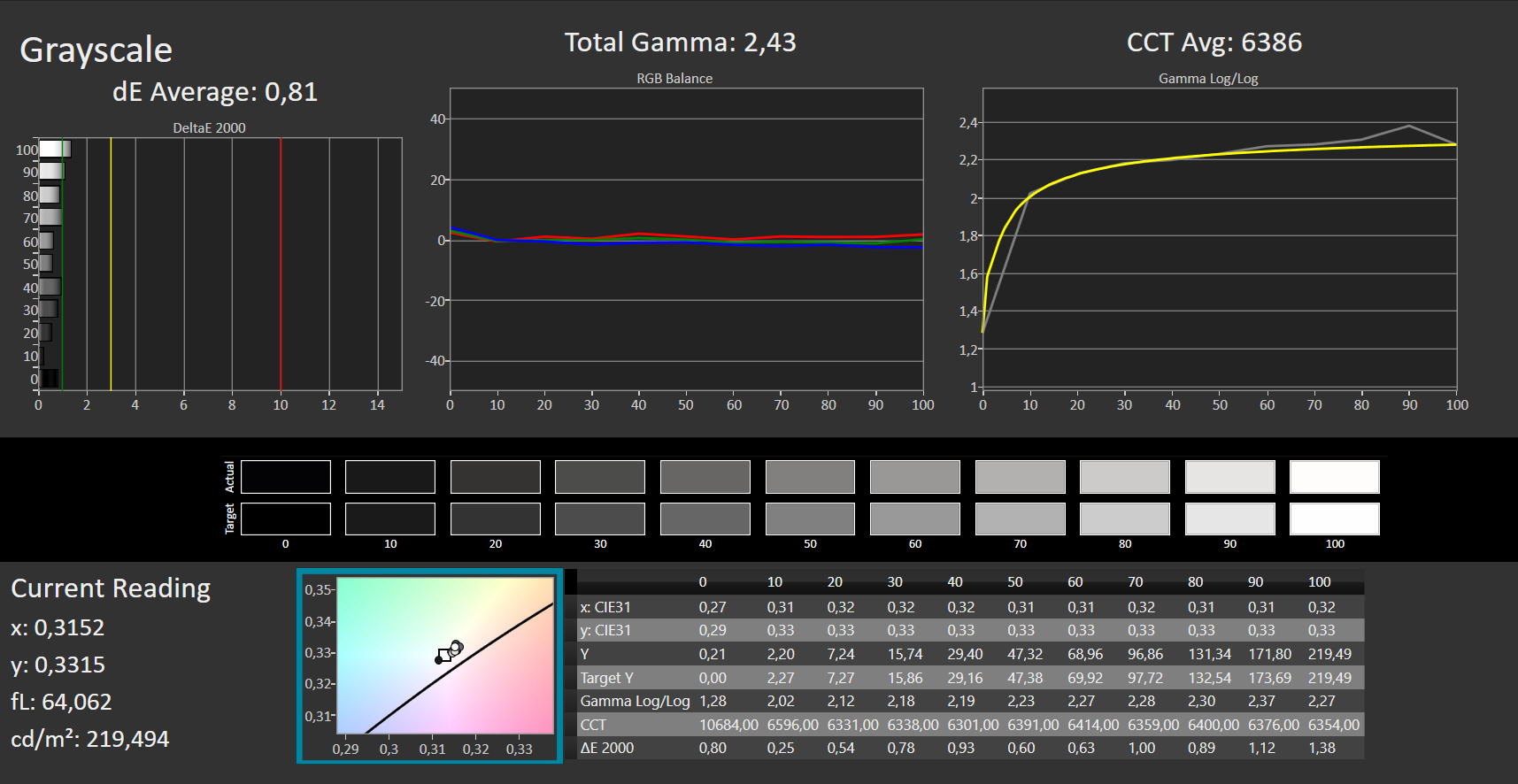

在交付状态下，该显示器提供了一个体面的色彩再现。颜色仍然与目标略有偏差，但这并不明显。校准只会带来一些小的改进。该显示器无法覆盖AdobeRGB（41%）、sRGB（59%）和DCI-P3（40%）色彩空间。

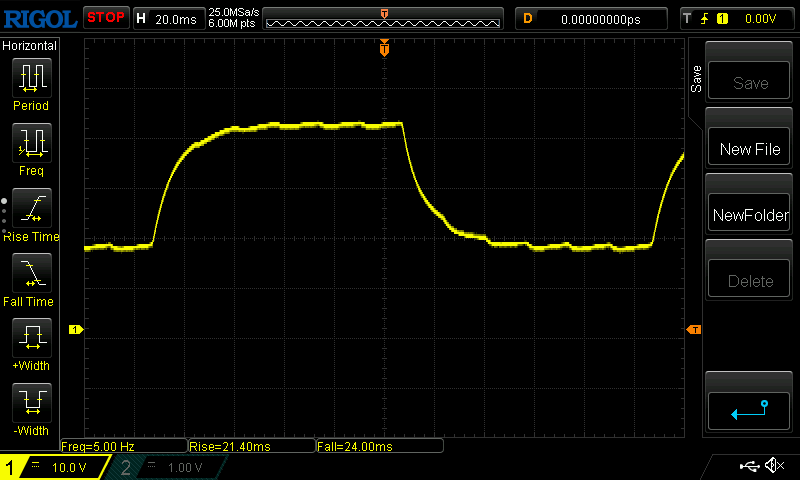

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

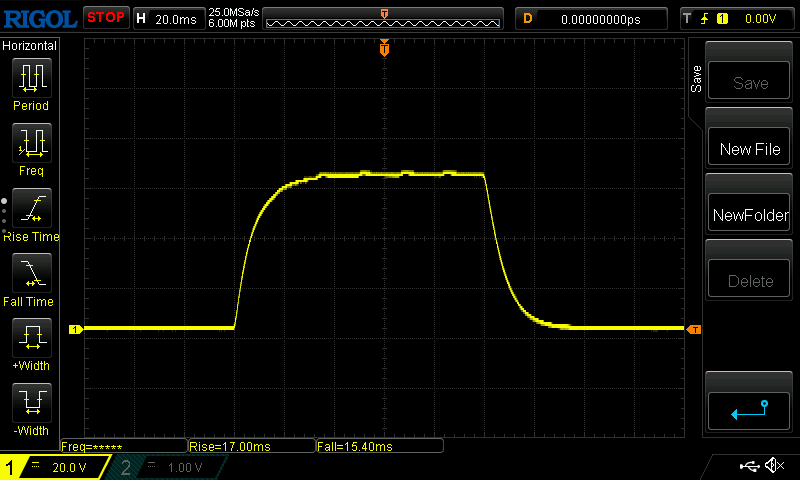

↔ Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined	↗ 17 ms rise
32 ms ... rise ↗ and fall ↘ combined	↘ 15 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).
↔ Response Time 50% Grey to 80% Grey
45 ms ... rise ↗ and fall ↘ combined	↗ 21 ms rise
45 ms ... rise ↗ and fall ↘ combined	↘ 24 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.8 ms).

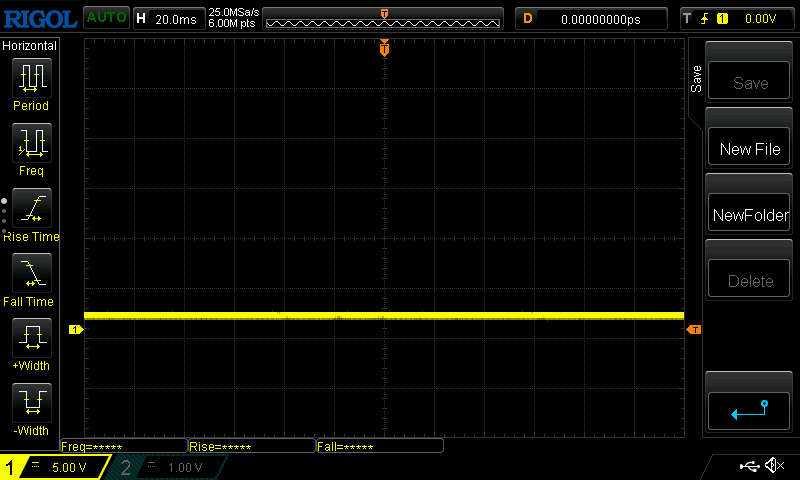

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17933 (minimum: 5 - maximum: 3846000) Hz was measured.

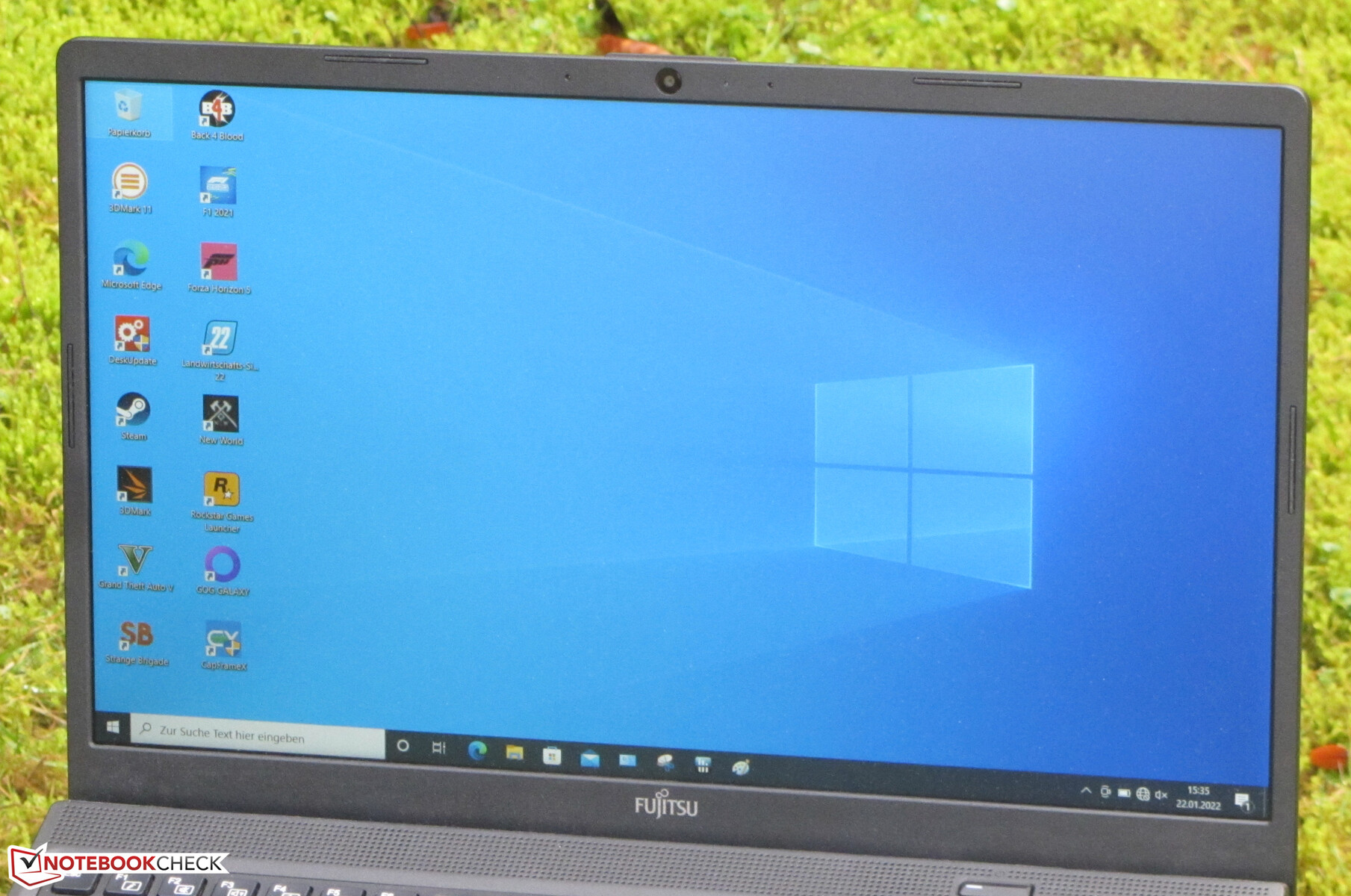

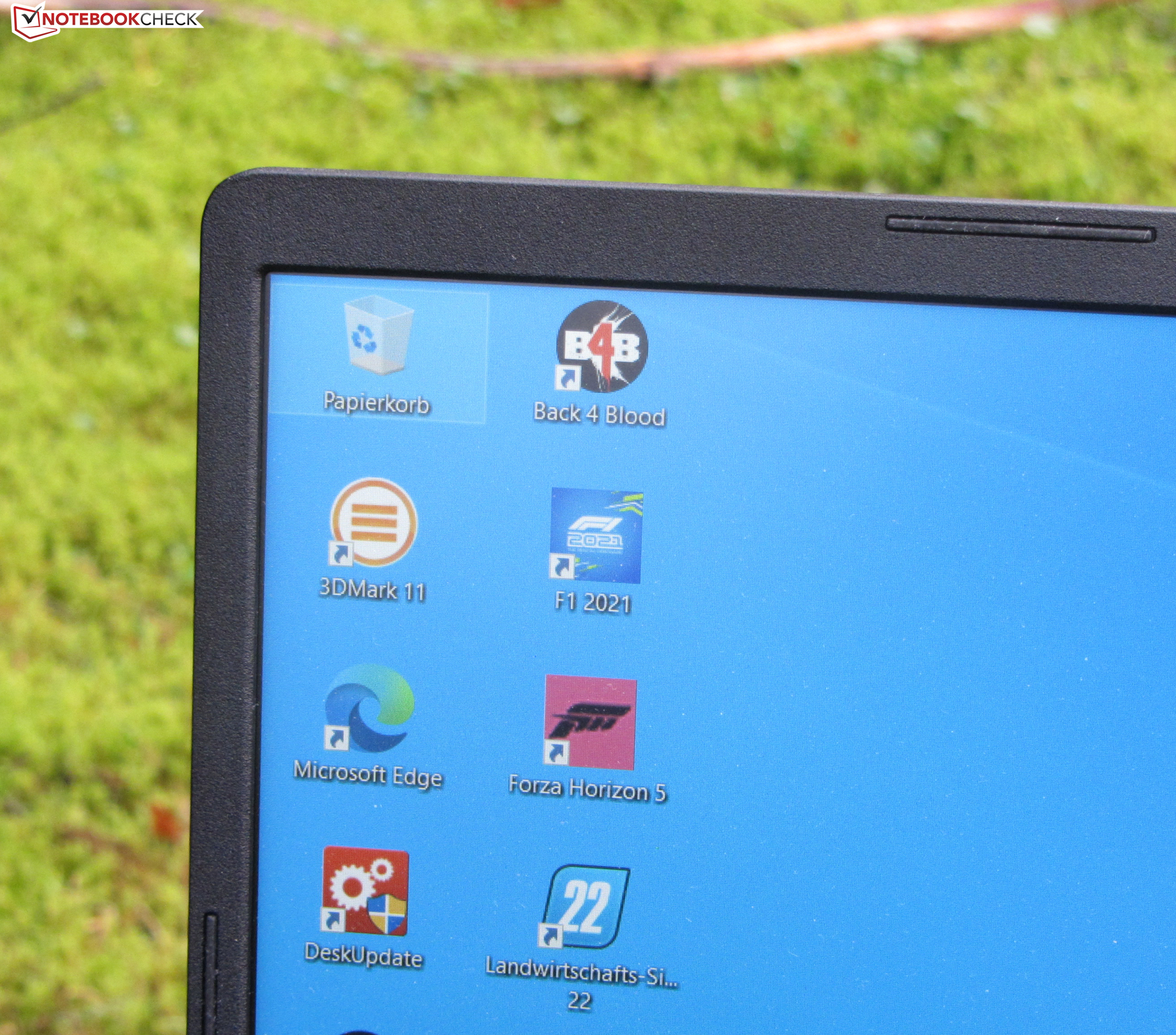

IPS面板提供稳定的视角，可以从任何位置读取。在户外，当太阳不太亮时，可以识别显示屏的内容。否则，显示屏的低亮度将使其无法识别。

性能 -Ice Lake onboard

通过Lifebook A3510，富士通提供了一台15.6英寸的商务笔记本电脑，专门用于运行办公和互联网应用。

测试条件

基准测试是使用 "最高性能 "的Windows电源配置文件运行的。CPU的功率限制是15瓦（PL1）和50瓦（PL2）。厂商专用的 "富士通生态设置 "Windows电源配置文件也是可用的，但这里没有使用。

处理器

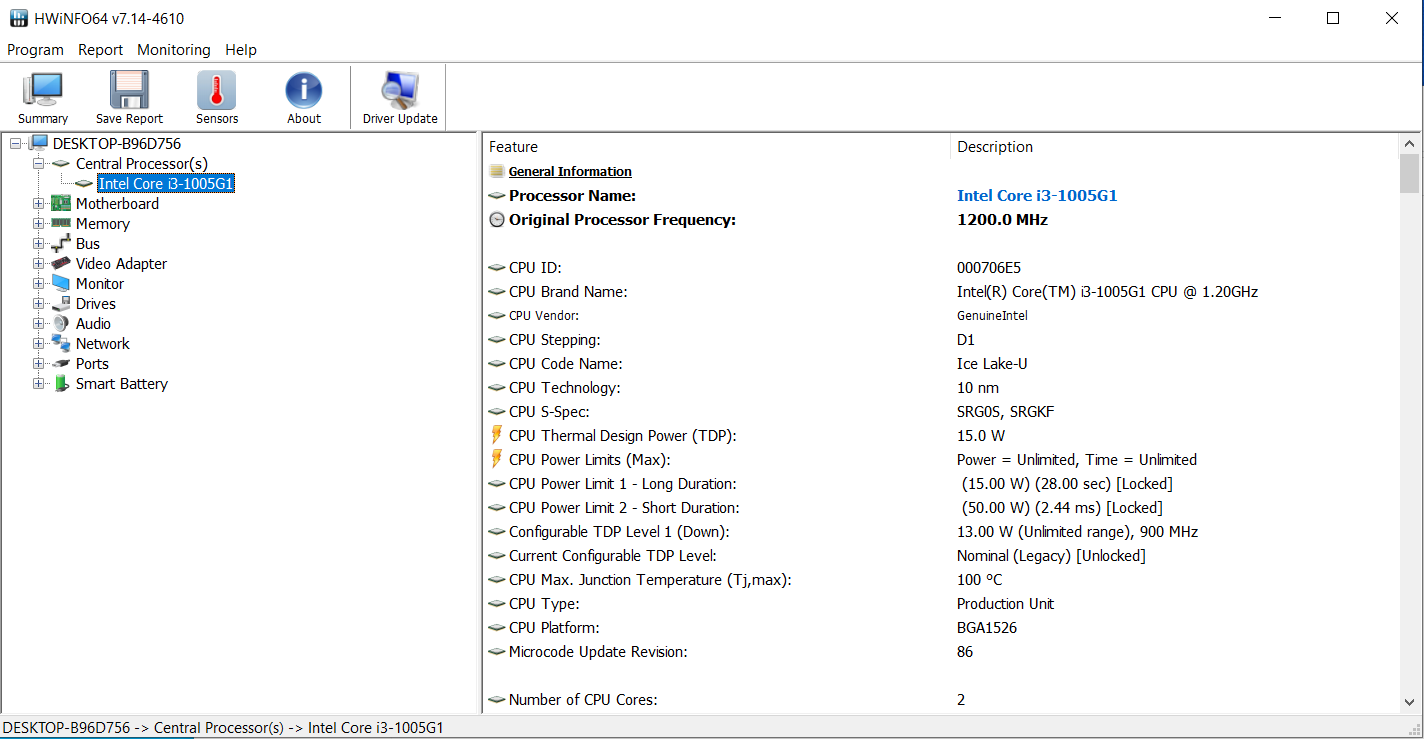

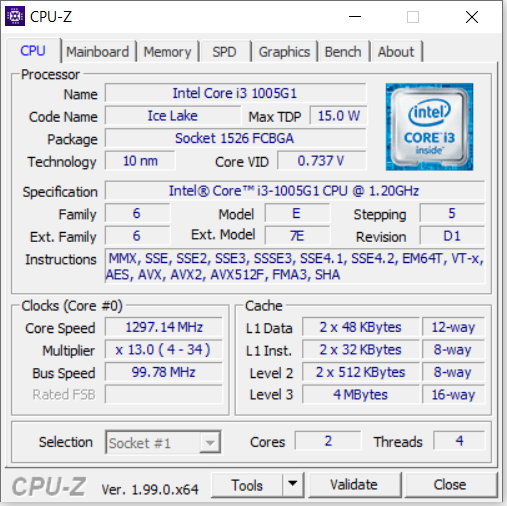

芯片酷睿i3-1005G1双核处理器（Ice Lake ）以1.2 GHz的基本时钟速度运行，可通过涡轮增压提高到3.4 GHz。支持超线程（每个核心有两个线程）。

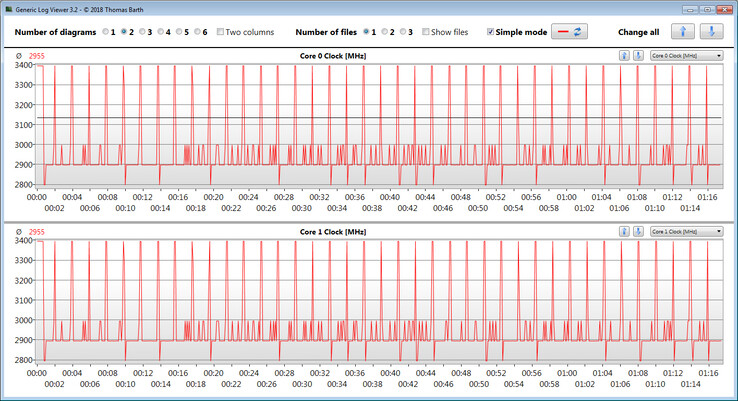

该处理器在Cinebench R15基准测试的多线程测试中开始短暂地以3.4GHz的速度运行，然后时钟速度下降到2.9和3GHz之间。它在1.5至3.4GHz的频率下完成单线程测试。

我们通过持续循环运行Cinebench R15基准测试的多线程测试至少30分钟来评估CPU Turbo在主电源运行期间是否被持续使用。Turbo不断地在高水平上运行。

Cinebench R15 Multi Constant Load Test

Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1: Ø355 (352.4-375.14)

Dell Latitude 15 3510 NK2MC Intel Core i3-10110U: Ø305 (302.1-307.61)

HP 255 G7 159P1EA AMD Ryzen 3 3200U: Ø323 (304.59-352.93)

Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U: Ø348 (332.02-352.17)

Cinebench R15 CPU Single 64Bit

160 Points

Cinebench R15 CPU Multi 64Bit

375 Points

Cinebench R15 OpenGL 64Bit

46.26 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Help

... in comparison

CPU Performance Rating - Percent
Average of class Office	88.2 pt
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	44.8 pt
Average Intel Core i3-1005G1	44.3 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	44.1 pt
Fujitsu Lifebook A3510 (FPC04905BP) ^-2! Intel Core i3-1005G1	43.8 pt
HP 255 G7 159P1EA AMD Ryzen 3 3200U	30 pt
Lenovo V15-ADA 82C7009SGE ^-2! AMD Athlon Gold 3150U	29.6 pt

Cinebench R23
Multi Core
Average of class Office (1056 - 15743, n=121, last 2 years)	8088 Points +266%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	2374 Points +7%
Average Intel Core i3-1005G1 (2135 - 2636, n=4)	2303 Points +4%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	2233 Points +1%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	2209 Points
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1786 Points -19%
Single Core
Average of class Office (529 - 1995, n=120, last 2 years)	1460 Points +39%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	1058 Points 0%
Average Intel Core i3-1005G1 (1046 - 1061, n=4)	1055 Points 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	1053 Points
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	1034 Points -2%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	780 Points -26%

Cinebench R20
CPU (Multi Core)
Average of class Office (356 - 5904, n=119, last 2 years)	3110 Points +265%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	928 Points +9%
Average Intel Core i3-1005G1 (820 - 1015, n=7)	892 Points +5%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	859 Points +1%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	851 Points
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	795 Points -7%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	453 Points -47%
CPU (Single Core)
Average of class Office (181.3 - 764, n=119, last 2 years)	561 Points +39%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	407 Points 0%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	405 Points 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	405 Points
Average Intel Core i3-1005G1 (338 - 407, n=7)	395 Points -2%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	303 Points -25%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	287 Points -29%

Cinebench R15
CPU Multi 64Bit
Average of class Office (160.8 - 2642, n=119, last 2 years)	1399 Points +273%
Average Intel Core i3-1005G1 (346 - 407, n=6)	391 Points +4%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	375 Points
HP 255 G7 159P1EA AMD Ryzen 3 3200U	353 Points -6%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	352 (332.02^min - 352.17^max) Points -6%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	314 Points -16%
CPU Single 64Bit
Average of class Office (82.6 - 284, n=117, last 2 years)	218 Points +36%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	160 Points
Average Intel Core i3-1005G1 (148 - 160, n=6)	155.8 Points -3%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	129 Points -19%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	129 Points -19%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	117 Points -27%

Blender - v2.79 BMW27 CPU
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1485 Seconds * -14%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	1348 Seconds * -3%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	1306 Seconds *
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	1303 Seconds * -0%
Average Intel Core i3-1005G1 (1123 - 1388, n=7)	1234 Seconds * +6%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	1174 Seconds * +10%
Average of class Office (214 - 2844, n=120, last 2 years)	536 Seconds * +59%

7-Zip 18.03
7z b 4
Average of class Office (4226 - 62349, n=120, last 2 years)	34724 MIPS +219%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	10986 MIPS +1%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	10893 MIPS
Average Intel Core i3-1005G1 (9731 - 11135, n=7)	10731 MIPS -1%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	10725 MIPS -2%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	9179 MIPS -16%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	8752 MIPS -20%
7z b 4 -mmt1
Average of class Office (2233 - 6687, n=120, last 2 years)	5025 MIPS +25%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	4038 MIPS 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	4022 MIPS
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	4004 MIPS 0%
Average Intel Core i3-1005G1 (3851 - 4057, n=7)	3975 MIPS -1%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	3381 MIPS -16%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	3065 MIPS -24%

Geekbench 5.5
Multi-Core
Average of class Office (1018 - 11980, n=121, last 2 years)	6648 Points +185%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	2595 Points +11%
Average Intel Core i3-1005G1 (2153 - 2595, n=6)	2420 Points +4%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	2332 Points
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	2034 Points -13%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	1847 Points -21%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1645 Points -29%
Single-Core
Average of class Office (510 - 1974, n=121, last 2 years)	1478 Points +27%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	1194 Points +3%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	1163 Points
Average Intel Core i3-1005G1 (1118 - 1194, n=6)	1156 Points -1%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	957 Points -18%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	770 Points -34%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	751 Points -35%

HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Office (1.55 - 17.4, n=119, last 2 years)	9.25 fps +203%
Average Intel Core i3-1005G1 (2.42 - 3.59, n=7)	3.18 fps +4%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	3.12 fps +2%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	3.09 fps +1%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	3.05 fps
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	2.03 fps -33%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1.95 fps -36%

LibreOffice - 20 Documents To PDF
HP 255 G7 159P1EA AMD Ryzen 3 3200U	91.6 s * -52%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	90.8 s * -51%
Average Intel Core i3-1005G1 (55.8 - 81.7, n=6)	63.1 s * -5%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	60.5 s * -0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	60.2 s *
Average of class Office (31.3 - 117.5, n=119, last 2 years)	56.5 s * +6%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	28.13 s * +53%

R Benchmark 2.5 - Overall mean
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	0.872 sec * -16%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	0.849 sec * -13%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	0.76 sec * -1%
Average Intel Core i3-1005G1 (0.746 - 0.763, n=6)	0.754 sec * -0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	0.751 sec *
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (Dual-Channel)	0.746 sec * +1%
Average of class Office (0.4244 - 1.397, n=118, last 2 years)	0.587 sec * +22%

* ... smaller is better

Performance Rating
Average of class Office	99.2 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	44.1 pt
Average Intel Core i3-1005G1	43.2 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	40 pt
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620	33.5 pt
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3	28.5 pt
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3	25.2 pt

AIDA64 / FP32 Ray-Trace
Average of class Office (763 - 24250, n=119, last 2 years)	8372 KRay/s +164%
Average Intel Core i3-1005G1 (3069 - 3447, n=5)	3261 KRay/s +3%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	3175 KRay/s 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	3169 KRay/s
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	3084 KRay/s -3%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	1717 KRay/s -46%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	1384 KRay/s -56%

AIDA64 / FPU Julia
Average of class Office (4027 - 102228, n=119, last 2 years)	44561 Points +241%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	14355 Points +10%
Average Intel Core i3-1005G1 (12228 - 13778, n=5)	13136 Points 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	13077 Points
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	12835 Points -2%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	8548 Points -35%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	6728 Points -49%

AIDA64 / CPU SHA3
Average of class Office (279 - 4442, n=118, last 2 years)	1954 MB/s +104%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	959 MB/s
Average Intel Core i3-1005G1 (862 - 959, n=5)	930 MB/s -3%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	917 MB/s -4%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	694 MB/s -28%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	463 MB/s -52%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	454 MB/s -53%

AIDA64 / CPU Queen
Average of class Office (8031 - 113016, n=119, last 2 years)	66992 Points +187%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	25842 Points +11%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	24765 Points +6%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	23927 Points +2%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	23386 Points 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	23360 Points
Average Intel Core i3-1005G1 (23177 - 23386, n=5)	23292 Points 0%

AIDA64 / FPU SinJulia
Average of class Office (404 - 14288, n=119, last 2 years)	6622 Points +234%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	2669 Points +34%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	2318 Points +17%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	2223 Points +12%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	1988 Points 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	1985 Points
Average Intel Core i3-1005G1 (1977 - 1988, n=5)	1981 Points 0%

AIDA64 / FPU Mandel
Average of class Office (2054 - 54365, n=119, last 2 years)	23458 Points +204%
Average Intel Core i3-1005G1 (7345 - 8517, n=5)	7968 Points +3%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	7780 Points +1%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	7705 Points
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	7358 Points -5%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	4483 Points -42%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	3778 Points -51%

AIDA64 / CPU AES
Average of class Office (5226 - 147611, n=119, last 2 years)	46973 MB/s +59%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	29702 MB/s 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	29600 MB/s
Average Intel Core i3-1005G1 (29481 - 29702, n=5)	29557 MB/s 0%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	14608 MB/s -51%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	11525 MB/s -61%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	8406 MB/s -72%

AIDA64 / CPU ZLib
Average of class Office (67.6 - 1018, n=119, last 2 years)	535 MB/s +217%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	169 MB/s
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	168 MB/s -1%
Average Intel Core i3-1005G1 (162 - 172, n=5)	167.2 MB/s -1%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	161 MB/s -5%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	159 MB/s -6%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	156 MB/s -8%

AIDA64 / FP64 Ray-Trace
Average of class Office (432 - 12755, n=119, last 2 years)	4459 KRay/s +185%
Average Intel Core i3-1005G1 (1549 - 1884, n=5)	1689 KRay/s +8%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	1644 KRay/s +5%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	1565 KRay/s 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	1562 KRay/s
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	899 KRay/s -42%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	747 KRay/s -52%

AIDA64 / CPU PhotoWorxx
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	26479 MPixel/s +78%
Average of class Office (4814 - 48177, n=119, last 2 years)	24369 MPixel/s +64%
Average Intel Core i3-1005G1 (14875 - 28440, n=5)	22477 MPixel/s +51%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	14875 MPixel/s
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	12408 MPixel/s -17%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	11766 MPixel/s -21%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	9434 MPixel/s -37%

系统性能

该系统运行平稳而迅速。我们没有遇到任何问题。所用的处理器为办公和互联网应用提供了足够的性能。在PC-Mark基准测试中的结果还算不错。

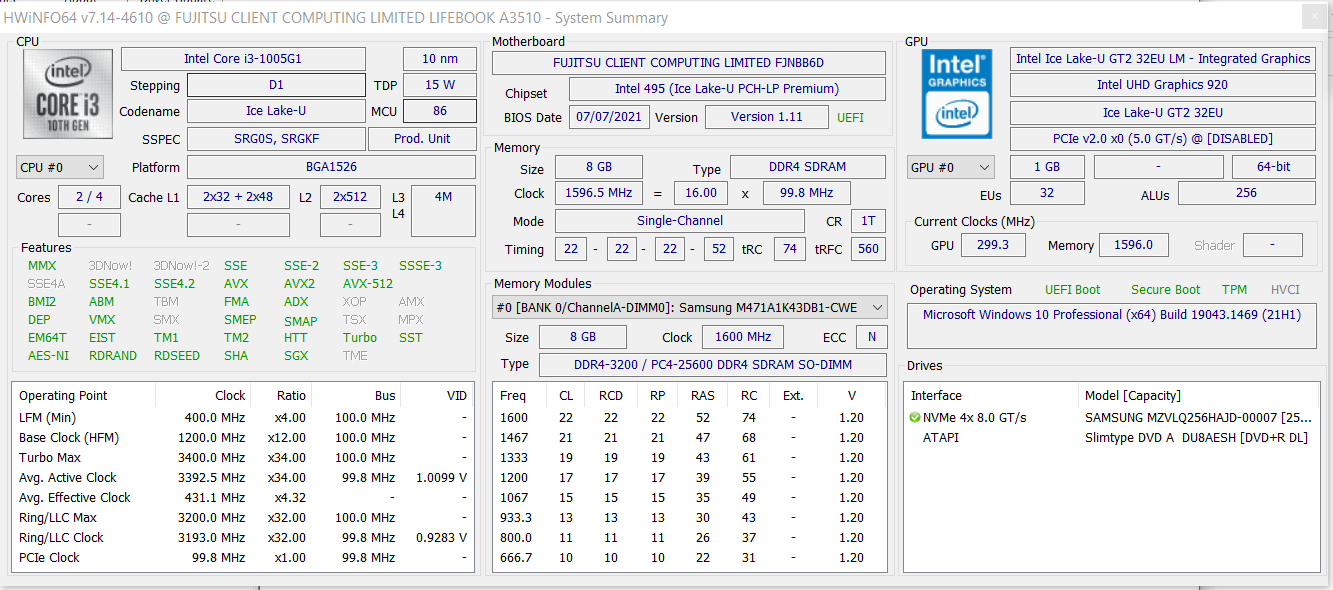

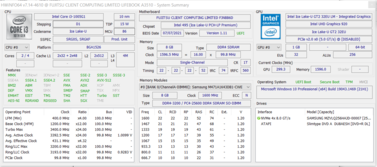

由于工作存储器只在单通道模式下运行，富士通留下了部分性能潜力没有利用。然而，你可以通过在笔记本上插入第二个工作内存模块来激活双通道模式。

PCMark 10 Score		3386 points
Help

PCMark 10 / Score
Average of class Office (2325 - 7157, n=104, last 2 years)	5339 Points +58%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (3386 - 3562, n=6)	3448 Points +2%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	3386 Points
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	3360 Points -1%
HP 255 G7 159P1EA Vega 3, R3 3200U, WDC PC SN530 SDBPNPZ-512G	3187 Points -6%
Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G	3107 Points -8%

PCMark 10 / Essentials
Average of class Office (5095 - 20841, n=104, last 2 years)	9824 Points +28%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (7666 - 8088, n=6)	7861 Points +2%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	7693 Points
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	7202 Points -6%
HP 255 G7 159P1EA Vega 3, R3 3200U, WDC PC SN530 SDBPNPZ-512G	6915 Points -10%
Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G	6599 Points -14%

PCMark 10 / Productivity
Average of class Office (3041 - 10198, n=104, last 2 years)	7443 Points +35%
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	5984 Points +9%
HP 255 G7 159P1EA Vega 3, R3 3200U, WDC PC SN530 SDBPNPZ-512G	5536 Points +1%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	5497 Points
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (5252 - 5822, n=6)	5432 Points -1%
Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G	5390 Points -2%

PCMark 10 / Digital Content Creation
Average of class Office (1912 - 9056, n=104, last 2 years)	5788 Points +132%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (2492 - 2692, n=6)	2607 Points +5%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	2492 Points
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	2390 Points -4%
HP 255 G7 159P1EA Vega 3, R3 3200U, WDC PC SN530 SDBPNPZ-512G	2297 Points -8%
Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G	2290 Points -8%

CrossMark / Overall
Average of class Office (348 - 1891, n=105, last 2 years)	1322 Points +51%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	876 Points
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) ()	876 Points 0%

CrossMark / Productivity
Average of class Office (393 - 1870, n=105, last 2 years)	1338 Points +37%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	979 Points
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) ()	979 Points 0%

CrossMark / Creativity
Average of class Office (340 - 1982, n=105, last 2 years)	1358 Points +75%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	774 Points
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) ()	774 Points 0%

CrossMark / Responsiveness
Average of class Office (258 - 2017, n=105, last 2 years)	1193 Points +32%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	907 Points
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) ()	907 Points 0%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Office (7158 - 84290, n=120, last 2 years)	42508 MB/s +113%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	37721 MB/s +89%
Average Intel Core i3-1005G1 (19990 - 41386, n=5)	31612 MB/s +58%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	27739 MB/s +39%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	19990 MB/s
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	17273 MB/s -14%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	16615 MB/s -17%

AIDA64 / Memory Read
Average of class Office (7325 - 75550, n=120, last 2 years)	42813 MB/s +81%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	41177 MB/s +74%
Average Intel Core i3-1005G1 (23614 - 41177, n=5)	33714 MB/s +43%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	31959 MB/s +35%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	23614 MB/s
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	19341 MB/s -18%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	18036 MB/s -24%

AIDA64 / Memory Write
Average of class Office (7579 - 94965, n=120, last 2 years)	46515 MB/s +100%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	46385 MB/s +100%
Average Intel Core i3-1005G1 (23244 - 47722, n=5)	38391 MB/s +65%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	30818 MB/s +33%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	23244 MB/s
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	19236 MB/s -17%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	17914 MB/s -23%

AIDA64 / Memory Latency
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, Vega 3 (v6.25.5400)	117 ns * -62%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, Vega 3 (v6.32.5600)	105 ns * -45%
Average of class Office (44.3 - 188.3, n=121, last 2 years)	96.2 ns * -33%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, UHD Graphics 620 (v6.30.5500)	81.9 ns * -13%
Average Intel Core i3-1005G1 (68.5 - 96, n=5)	76.6 ns * -6%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800, Dual-Channel)	76.5 ns * -6%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) (v6.50.5800)	72.4 ns *

* ... smaller is better

DPC延迟

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	5347 μs * -241%
Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G	2838 μs * -81%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	1568 μs *
HP 255 G7 159P1EA Vega 3, R3 3200U, WDC PC SN530 SDBPNPZ-512G	794 μs * +49%

* ... smaller is better

存储解决方案

来自三星的NVMe固态硬盘（M.2-2280），提供256GB的总存储容量，作为系统驱动器。传输速率变的很好。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Samsung PM991 MZVLQ256HAJD

CDM 5/6 Read Seq Q32T1: 2314 MB/s

CDM 5/6 Write Seq Q32T1: 989 MB/s

CDM 5/6 Read 4K Q32T1: 486.3 MB/s

CDM 5/6 Write 4K Q32T1: 409.2 MB/s

CDM 5 Read Seq: 1639 MB/s

CDM 5 Write Seq: 946 MB/s

CDM 5/6 Read 4K: 56.4 MB/s

CDM 5/6 Write 4K: 168.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Office	95.1 pt
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	58.4 pt
Average Samsung PM991 MZVLQ256HAJD	56.8 pt
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	53.5 pt
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	48.4 pt
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	45.4 pt

DiskSpd
seq read
Average of class Office (482 - 4554, n=106, last 2 years)	2474 MB/s +58%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	1642 (1640.32^min - 1641.65^max) MB/s +5%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	1592 (1135.22^min - 1591.95^max) MB/s +2%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	1561 (1546.02^min - 1561.33^max) MB/s
Average Samsung PM991 MZVLQ256HAJD (1116 - 1561, n=5)	1360 MB/s -13%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	1167 (1161.21^min - 1166.67^max) MB/s -25%
seq write
Average of class Office (333 - 5842, n=106, last 2 years)	2381 MB/s +142%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	1356 (1353.06^min - 1355.79^max) MB/s +38%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	984 (966.79^min - 983.77^max) MB/s
Average Samsung PM991 MZVLQ256HAJD (859 - 1166, n=5)	970 MB/s -1%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	942 (940.36^min - 942.46^max) MB/s -4%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	311 (163.67^min - 311.22^max) MB/s -68%
seq q8 t1 read
Average of class Office (535 - 7120, n=106, last 2 years)	4030 MB/s +75%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	2473 (2299.51^min - 2473.29^max) MB/s +7%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	2302 (1974.68^min - 2302.25^max) MB/s
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	2229 (1656.33^min - 2228.64^max) MB/s -3%
Average Samsung PM991 MZVLQ256HAJD (1687 - 2302, n=5)	1948 MB/s -15%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	1359 (1204.92^min - 1358.95^max) MB/s -41%
seq q8 t1 write
Average of class Office (276 - 6791, n=106, last 2 years)	3036 MB/s +212%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	1486 (1416.52^min - 1486.08^max) MB/s +53%
Average Samsung PM991 MZVLQ256HAJD (932 - 1111, n=5)	1011 MB/s +4%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	973 (965.11^min - 972.87^max) MB/s
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	964 (937.83^min - 964.06^max) MB/s -1%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	215 (136.04^min - 214.52^max) MB/s -78%
4k q1 t1 read
Average of class Office (17.7 - 89.9, n=106, last 2 years)	57.5 MB/s +3%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	55.6 (55.28^min - 55.57^max) MB/s
Average Samsung PM991 MZVLQ256HAJD (46.5 - 59.3, n=5)	53.7 MB/s -3%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	44.4 (36.7^min - 44.42^max) MB/s -20%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	37.1 (21.77^min - 37.06^max) MB/s -33%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	34.3 (33.83^min - 34.27^max) MB/s -38%
4k q1 t1 write
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	171 (169.58^min - 170.91^max) MB/s
Average of class Office (32 - 429, n=106, last 2 years)	161.6 MB/s -5%
Average Samsung PM991 MZVLQ256HAJD (114 - 175, n=5)	157.2 MB/s -8%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	124 (122.98^min - 124.05^max) MB/s -27%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	112 (110.78^min - 111.94^max) MB/s -35%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	31.3 (17^min - 31.26^max) MB/s -82%
4k q32 t16 read
Average of class Office (184.2 - 4425, n=106, last 2 years)	1269 MB/s +151%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	951 (767.59^min - 951.12^max) MB/s +88%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	872 (697.33^min - 872.34^max) MB/s +73%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	675 (669.86^min - 675.09^max) MB/s +34%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	505 (504.59^min - 505.22^max) MB/s
Average Samsung PM991 MZVLQ256HAJD (262 - 804, n=5)	471 MB/s -7%
4k q32 t16 write
Average of class Office (192.2 - 3254, n=106, last 2 years)	930 MB/s +22%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	762 (750.15^min - 761.77^max) MB/s
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	746 (598.89^min - 745.64^max) MB/s -2%
Average Samsung PM991 MZVLQ256HAJD (378 - 827, n=5)	709 MB/s -7%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	556 (211.63^min - 555.61^max) MB/s -27%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	173 (126.1^min - 173.43^max) MB/s -77%

AS SSD
Score Total
Average of class Office (704 - 9204, n=102, last 2 years)	3977 Points +108%
Average Samsung PM991 MZVLQ256HAJD (1910 - 2465, n=5)	2055 Points +7%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	1962 Points +2%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	1915 Points
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	1795 Points -6%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	1388 Points -28%
Score Read
Average of class Office (252 - 3364, n=102, last 2 years)	1437 Points +104%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	833 Points +18%
Average Samsung PM991 MZVLQ256HAJD (658 - 1031, n=5)	756 Points +7%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	705 Points
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	693 Points -2%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	656 Points -7%
Score Write
Average of class Office (320 - 4111, n=102, last 2 years)	1848 Points +105%
Average Samsung PM991 MZVLQ256HAJD (903 - 988, n=5)	952 Points +5%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	903 Points
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	780 Points -14%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	728 Points -19%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	392 Points -57%
Seq Read
Average of class Office (508 - 5796, n=102, last 2 years)	3167 MB/s +60%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	2114 MB/s +7%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	1976 MB/s
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	1971 MB/s 0%
Average Samsung PM991 MZVLQ256HAJD (1649 - 2278, n=5)	1892 MB/s -4%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	1119 MB/s -43%
Seq Write
Average of class Office (304 - 5880, n=102, last 2 years)	2083 MB/s +255%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	1378 MB/s +135%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	1130 MB/s +93%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	898 MB/s +53%
Average Samsung PM991 MZVLQ256HAJD (587 - 1069, n=5)	805 MB/s +37%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	587 MB/s
4K Read
Average of class Office (18.7 - 91.1, n=102, last 2 years)	56.3 MB/s +14%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	51.3 MB/s +4%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	49.35 MB/s
Average Samsung PM991 MZVLQ256HAJD (35.8 - 54.6, n=5)	47.2 MB/s -4%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	37.37 MB/s -24%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	34.95 MB/s -29%
4K Write
Average of class Office (35.4 - 350, n=102, last 2 years)	158.8 MB/s +11%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	142.9 MB/s
Average Samsung PM991 MZVLQ256HAJD (105.1 - 160.7, n=5)	135.4 MB/s -5%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	119.7 MB/s -16%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	107.7 MB/s -25%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	102.9 MB/s -28%
4K-64 Read
Average of class Office (182.3 - 2713, n=102, last 2 years)	1064 MB/s +132%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	585 MB/s +28%
Average Samsung PM991 MZVLQ256HAJD (450 - 748, n=5)	520 MB/s +14%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	506 MB/s +11%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	457.8 MB/s
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	446.8 MB/s -2%
4K-64 Write
Average of class Office (132.3 - 3394, n=102, last 2 years)	1481 MB/s +111%
Average Samsung PM991 MZVLQ256HAJD (685 - 780, n=5)	736 MB/s +5%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	701 MB/s
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	539 MB/s -23%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	495.5 MB/s -29%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	194.4 MB/s -72%
Access Time Read
Average Samsung PM991 MZVLQ256HAJD (0.107 - 0.156, n=5)	0.1368 ms * -6%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	0.129 ms *
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	0.125 ms * +3%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	0.117 ms * +9%
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	0.107 ms * +17%
Average of class Office (0.022 - 0.295, n=102, last 2 years)	0.08054 ms * +38%
Access Time Write
Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	0.22 ms * -686%
Average of class Office (0.017 - 0.619, n=102, last 2 years)	0.06475 ms * -131%
Lenovo V15-ADA 82C7009SGE WDC PC SN530 SDBPMPZ-265G	0.057 ms * -104%
HP 255 G7 159P1EA WDC PC SN530 SDBPNPZ-512G	0.057 ms * -104%
Average Samsung PM991 MZVLQ256HAJD (0.023 - 0.072, n=5)	0.0396 ms * -41%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	0.028 ms *

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD: Ø1496 (1218.03-2034.03)

图形卡

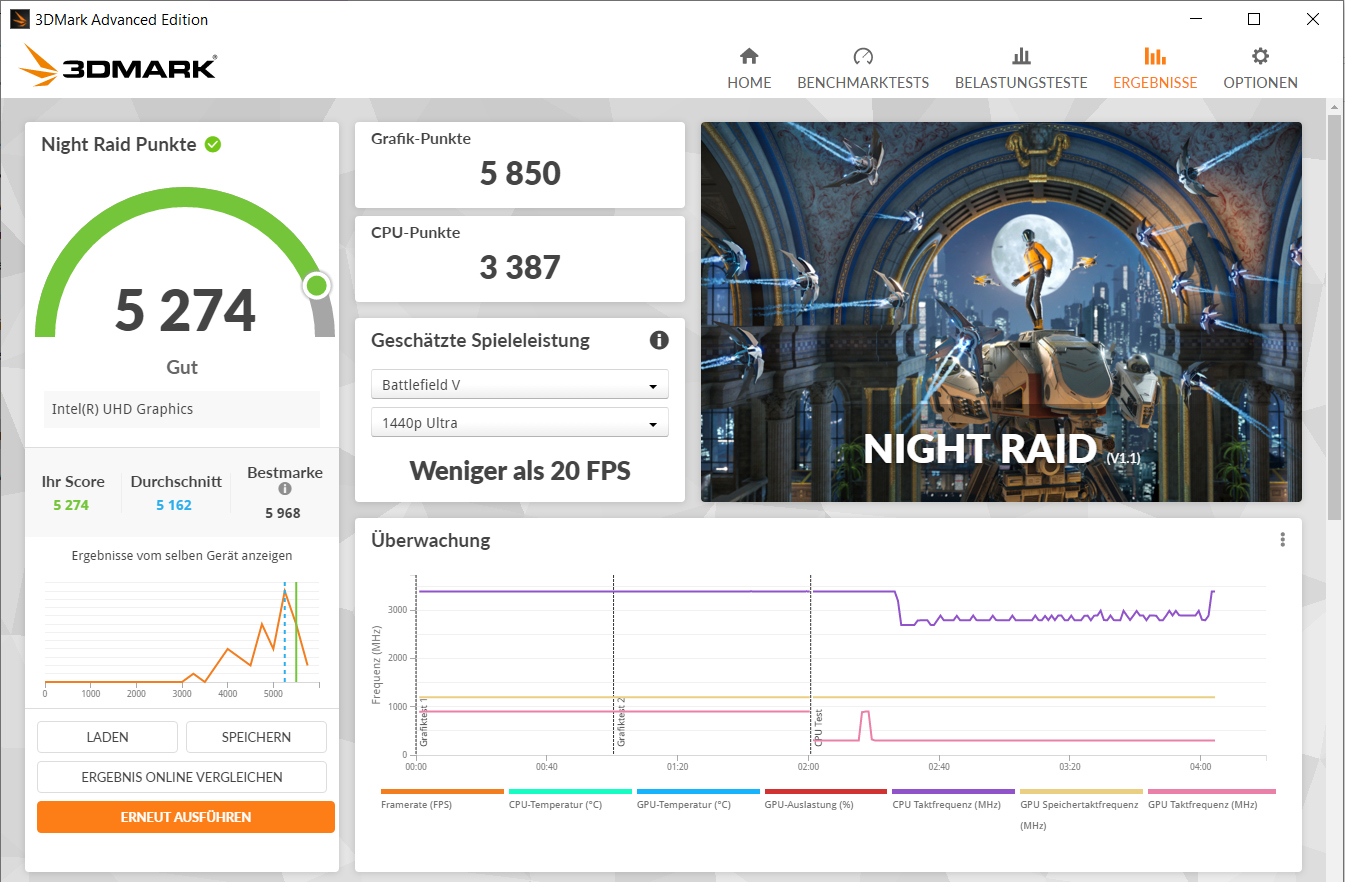

英特尔公司的 UHD Graphics G1图形核心在GPU性能图表中处于下三分之一的位置。GPU能够持续以900MHz的最高速度运行，这一点在我们的 "TheWitcher 3"测试中得到了证明。A3510不是一台游戏笔记本电脑，但内置的硬件仍然能够流畅地再现一些游戏--在低分辨率和低质量设置下。对硬件有适度要求的游戏允许更多。

基准测试结果仍然明显低于到目前为止为这里使用的GPU测得的平均水平。这方面的原因可以很快找到：工作存储器只在单通道模式下运行。激活双通道模式（通过插入第二个工作内存模块）将导致基准测试结果以及游戏时的帧率增加。

3DMark 11 Performance		2051 points
3DMark Ice Storm Standard Score		53282 points
3DMark Cloud Gate Standard Score		7548 points

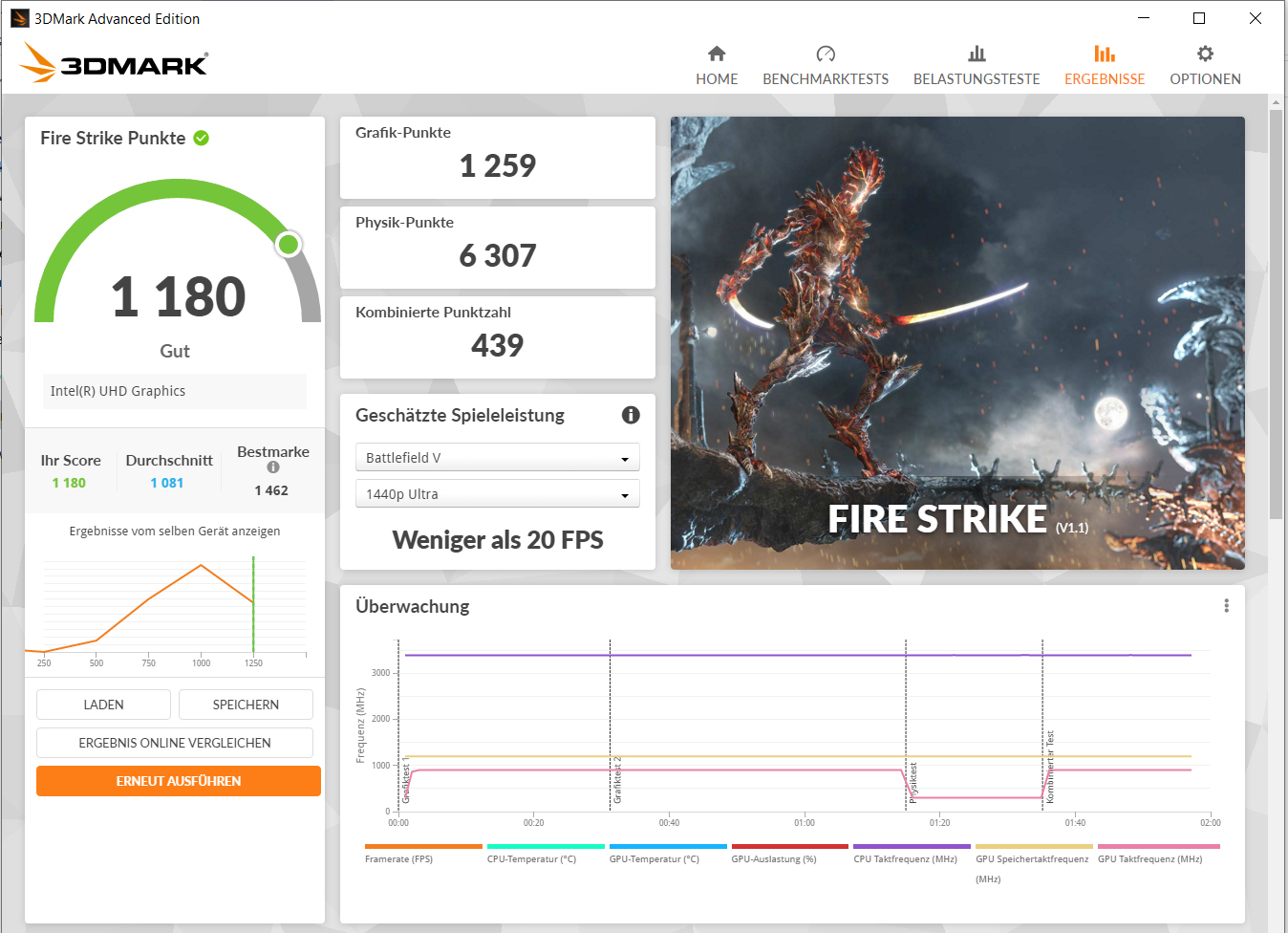

3DMark Fire Strike Score		1180 points
3DMark Time Spy Score		449 points
Help

... in comparison

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average of class Office	100 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	37.1 pt
Average Intel UHD Graphics G1 (Ice Lake 32 EU)	36.8 pt
HP 255 G7 159P1EA AMD Radeon RX Vega 3, AMD Ryzen 3 3200U	33.1 pt
Lenovo V15-ADA 82C7009SGE AMD Radeon RX Vega 3, AMD Athlon Gold 3150U	32.7 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	32.6 pt
Dell Latitude 15 3510 NK2MC ^-1! Intel UHD Graphics 620, Intel Core i3-10110U	26.2 pt

3DMark 11 - 1280x720 Performance GPU
Average of class Office (1474 - 13132, n=112, last 2 years)	6035 Points +223%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (1684 - 2578, n=15)	2171 Points +16%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1 (Dual-Channel)	2018 Points +8%
HP 255 G7 159P1EA AMD Radeon RX Vega 3, AMD Ryzen 3 3200U	1871 Points 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1870 Points
Lenovo V15-ADA 82C7009SGE AMD Radeon RX Vega 3, AMD Athlon Gold 3150U	1769 Points -5%
Dell Latitude 15 3510 NK2MC Intel UHD Graphics 620, Intel Core i3-10110U	1549 Points -17%

3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Office (5681 - 58068, n=93, last 2 years)	24010 Points +149%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1 (Dual-Channel)	11248 Points +17%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (7448 - 12698, n=14)	10795 Points +12%
HP 255 G7 159P1EA AMD Radeon RX Vega 3, AMD Ryzen 3 3200U	10096 Points +5%
Lenovo V15-ADA 82C7009SGE AMD Radeon RX Vega 3, AMD Athlon Gold 3150U	9950 Points +3%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	9653 Points
Dell Latitude 15 3510 NK2MC Intel UHD Graphics 620, Intel Core i3-10110U	7209 Points -25%
1920x1080 Fire Strike Graphics
Average of class Office (712 - 9228, n=113, last 2 years)	4164 Points +231%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1 (Dual-Channel)	1515 Points +20%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (960 - 1755, n=15)	1480 Points +18%
Lenovo V15-ADA 82C7009SGE AMD Radeon RX Vega 3, AMD Athlon Gold 3150U	1298 Points +3%
HP 255 G7 159P1EA AMD Radeon RX Vega 3, AMD Ryzen 3 3200U	1284 Points +2%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1259 Points
Dell Latitude 15 3510 NK2MC Intel UHD Graphics 620, Intel Core i3-10110U	952 Points -24%
2560x1440 Time Spy Graphics
Average of class Office (242 - 3242, n=109, last 2 years)	1359 Points +244%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1 (Dual-Channel)	430 Points +9%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (320 - 476, n=10)	420 Points +6%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	395 Points
Lenovo V15-ADA 82C7009SGE AMD Radeon RX Vega 3, AMD Athlon Gold 3150U	393 Points -1%
HP 255 G7 159P1EA AMD Radeon RX Vega 3, AMD Ryzen 3 3200U	389 Points -2%

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Office (8.4 - 177, n=103, last 2 years)	73.5 fps +174%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (Dual-Channel)	30.9 (11.6^min, 13^P0.1, 15.3^P1) fps +15%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (26.8 - 35, n=6)	29.9 fps +12%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	26.8 (13.1^min, 13.3^P0.1, 14.6^P1) fps
HP 255 G7 159P1EA AMD Ryzen 3 3200U, AMD Radeon RX Vega 3	21.1 (4.29^min, 4.9^P0.1, 9.77^P1) fps -21%

Dota 2 Reborn - 1280x720 min (0/3) fastest
Average of class Office (14.8 - 161.8, n=122, last 2 years)	101.6 fps +34%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (Dual-Channel)	84.3 (74^min) fps +11%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	75.8 (64.7^min) fps
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (57.7 - 84.3, n=12)	74.6 fps -2%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, AMD Radeon RX Vega 3	68.4 (56.8^min) fps -10%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, AMD Radeon RX Vega 3	64.2 (53.7^min) fps -15%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, Intel UHD Graphics 620	60 (53.4^min) fps -21%

X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Office (9.12 - 128.2, n=122, last 2 years)	41 fps +69%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (Dual-Channel)	26.4 fps +9%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (17.3 - 32.9, n=10)	25.6 fps +5%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	24.3 fps
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, AMD Radeon RX Vega 3	22.2 fps -9%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, AMD Radeon RX Vega 3	20.7 fps -15%

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Office (5.42 - 103.1, n=114, last 2 years)	36.2 fps +162%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (1.3, Dual-Channel)	15.7 fps +14%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (13 - 16.8, n=8)	14.6 fps +6%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (1.3)	13.8 fps
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, AMD Radeon RX Vega 3	12.9 fps -7%

GTA V - 1024x768 Lowest Settings possible
Average of class Office (6.57 - 176.4, n=105, last 2 years)	91.9 fps +177%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (Dual-Channel)	42.3 (17.3^min, 23.3^P1) fps +27%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (33.2 - 42.3, n=3)	38.4 fps +16%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	33.2 (11.1^min, 16.9^P1) fps

Strange Brigade - 1280x720 lowest AF:1
Average of class Office (16.3 - 175.7, n=108, last 2 years)	80.4 fps +181%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (1.47.22.14 D3D12, Dual-Channel)	37.3 (8.6^min, 9.99^P1) fps +30%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (28.6 - 37.3, n=3)	32.2 fps +13%
HP 255 G7 159P1EA AMD Ryzen 3 3200U, AMD Radeon RX Vega 3 (1.47.22.14 D3D12)	31.6 (17.8^min, 26^P1) fps +10%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (1.47.22.14 D3D12)	28.6 (6.9^min, 7.77^P1) fps

F1 2021 - 1280x720 Ultra Low Preset
Average of class Office (18.2 - 197.8, n=27, last 2 years)	95.3 fps +181%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (840701, Dual-Channel)	39.5 (26^min, 22^P1) fps +17%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (33.9 - 39.5, n=2)	36.7 fps +8%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (840701)	33.9 (27^min, 25^P1) fps

	low	med.	high	ultra
GTA V (2015)	33.2	28.6	7.62	3.03
The Witcher 3 (2015)	26.8	16.4	7.92	4.61
Dota 2 Reborn (2015)	75.8	25.2	19.3	18.2
Final Fantasy XV Benchmark (2018)	13.8	6.8
X-Plane 11.11 (2018)	24.3	12.6	12.1
Strange Brigade (2018)	28.6	10.9	9.8
F1 2021 (2021)	33.9

排放和电源管理 - 富士通笔记本电脑几乎不发热

噪声排放

在日常操作中（办公、上网），风扇经常保持关闭状态，一片寂静。在负载情况下，在压力测试以及中等负载范围内，噪音水平增加到约39 dB (A)，对于一台简单的办公笔记本电脑来说，这个数值太高了。这反映在风扇的持续呼啸声中。没有其他明显的恼人的噪音。

笔记本电脑的BIOS允许你调整风扇的行为。你可以选择 "正常 "和 "静音 "选项。默认情况下，"静音 "选项是激活的，所以在运行测试时使用了这个选项。

Noise Level

Idle		25 / 25 / 25 dB(A)
Load		39.2 / 39 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A)

	Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	HP 255 G7 159P1EA Vega 3, R3 3200U, WDC PC SN530 SDBPNPZ-512G	Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G
Noise		2%	-6%	3%
off / environment *	25	25 -0%	25.5 -2%	25 -0%
Idle Minimum *	25	25 -0%	28.2 -13%	25 -0%
Idle Average *	25	25 -0%	28.2 -13%	25 -0%
Idle Maximum *	25	27.8 -11%	28.2 -13%	26.3 -5%
Load Average *	39.2	35.1 10%	37 6%	31.5 20%
Load Maximum *	39	34.8 11%	40.3 -3%	38 3%

* ... smaller is better

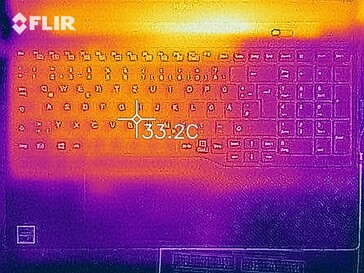

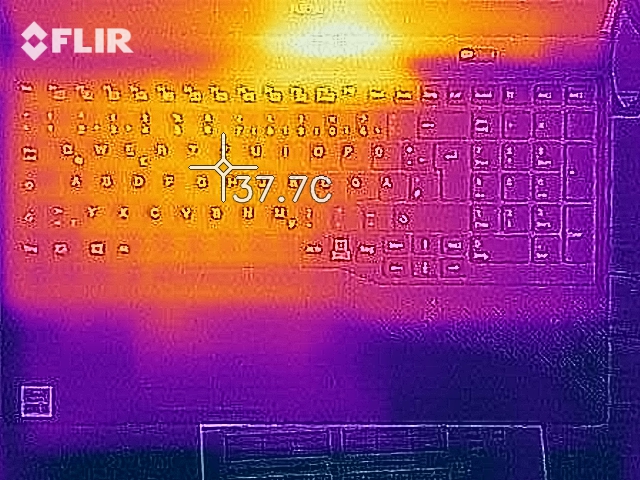

温度

我们无法真正谈及Lifebook的任何热量发展。即使在满负荷的情况下，机箱温度也保持在一个非常温和的水平。CPU的温度没有理由让人担心。

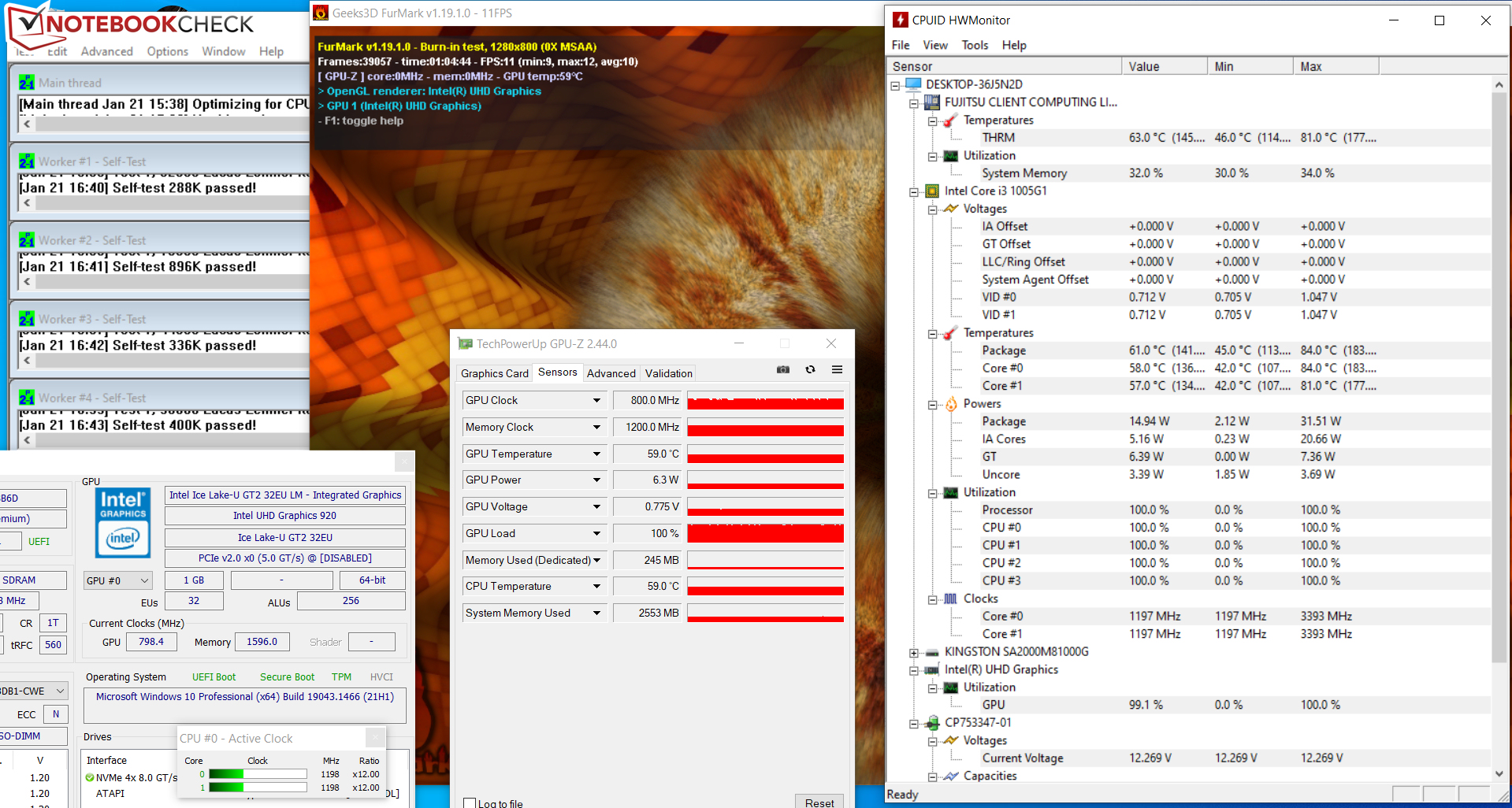

在压力测试的开始（Prime95和Furmark运行至少一个小时），CPU和GPU的时钟速度分别达到3.4 GHz和900 MHz。在这之后，时钟速度下降到1.2GHz和800MHz，在测试的剩余时间里保持在这个水平。

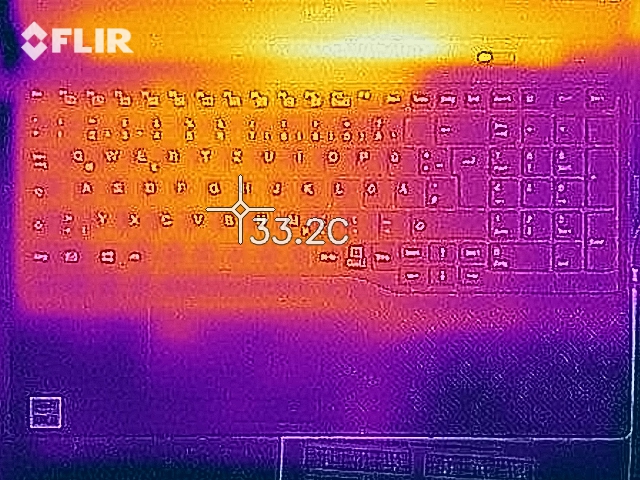

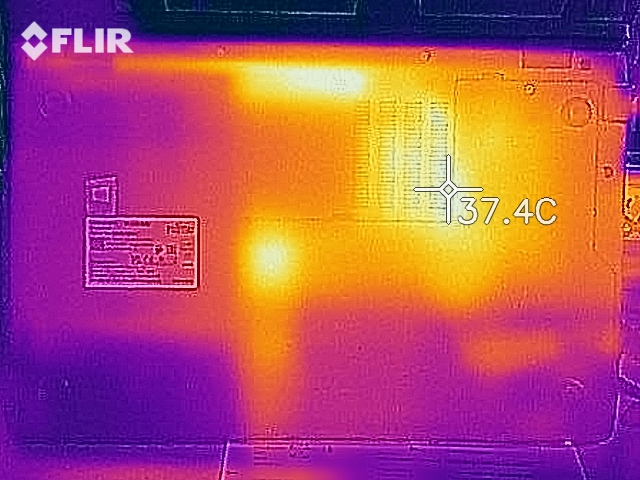

Max. Load

Idle


30.9 °C	34.4 °C	24.6 °C
31.5 °C	30.1 °C	24.6 °C
24.8 °C	24.8 °C	23.5 °C

Maximum: 34.4 °C
Average: 27.7 °C


23.8 °C	30.9 °C	30.6 °C
23.9 °C	26.4 °C	29.4 °C
23.2 °C	25.3 °C	24.5 °C

Maximum: 30.9 °C
Average: 26.4 °C

Power Supply (max.) 43.6 °C | Room Temperature 22.9 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 27.7 °C / 82 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 34.4 °C / 94 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 30.9 °C / 88 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.2 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.8 °C / 76.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+2.9 °C / 5.3 F).

	Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, Intel UHD Graphics 620	HP 255 G7 159P1EA AMD Ryzen 3 3200U, AMD Radeon RX Vega 3	Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, AMD Radeon RX Vega 3
Heat		-8%	1%	2%
Maximum Upper Side *	34.4	39 -13%	32.8 5%	32.1 7%
Maximum Bottom *	30.9	40.6 -31%	36.1 -17%	31 -0%
Idle Upper Side *	27.7	26 6%	26 6%	27.3 1%
Idle Bottom *	29.2	27.8 5%	27 8%	29 1%

* ... smaller is better

发言人

立体声扬声器产生了一个体面的声音，尽管它缺乏低音。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Fujitsu Lifebook A3510 (FPC04905BP) audio analysis

(±) | speaker loudness is average but good (75.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 38.4% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(±) | linearity of mids is average (13.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.7% higher than median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (30% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 4% similar, 7% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 86% of all tested devices were better, 3% similar, 11% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP 255 G7 159P1EA audio analysis

(±) | speaker loudness is average but good (73.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23% lower than median
(±) | linearity of bass is average (14.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.7% higher than median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.6% difference to median)
Compared to same class
» 49% of all tested devices in this class were better, 10% similar, 41% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 56% of all tested devices were better, 7% similar, 37% worse
» The best had a delta of 4%, average was 25%, worst was 134%

消耗功率

考虑到硬件设备，Lifebook不是非常耗电也就不奇怪了。在压力测试开始时，短暂地达到了近53瓦的最大耗电量。在测试的剩余时间里，这个数值急剧下降。这台笔记本电脑在我们的Witcher 3 测试中以恒定的功耗运行。该电源的额定功率为65瓦，足够大了。

Power Consumption

Off / Standby	0.2 / 0.45 Watt
Idle	4.2 / 7.5 / 8.5 Watt
Load	31.2 / 52.7 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption The Witcher 3 / Stress Test

Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); Witcher 3 ultra: Ø30.7 (28.5-33.1)

HP 255 G7 159P1EA R3 3200U, Vega 3; Witcher 3 ultra: Ø28.7 (27.1-35)

Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); 1280x720 Prime95 28.10 and Furmark 1.25: Ø26.9 (24.7-53.1)

HP 255 G7 159P1EA R3 3200U, Vega 3; 1280x720 Prime95 28.10 and Furmark 1.25: Ø35 (34.4-35.7)

Power Consumption With an External Monitor

Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); Prime95 V2810 Stress (external Monitor): Ø26 (23.9-40.6)

HP 255 G7 159P1EA R3 3200U, Vega 3; Prime95 V2810 Stress (external Monitor): Ø17.2 (16.9-18.9)

Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); Cinebench R15 Multi (external Monitor): Ø26.4 (24-31)

HP 255 G7 159P1EA R3 3200U, Vega 3; Cinebench R15 Multi (external Monitor): Ø19.4 (15.8-36.4)

Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø21.3 (19.8-33.7)

HP 255 G7 159P1EA R3 3200U, Vega 3; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø29.5 (23.8-36.7)

HP 255 G7 159P1EA R3 3200U, Vega 3; 1920x1080 The Witcher 3 ultra (external Monitor): Ø23.6 (23.1-24.9)

电池寿命

在我们的现实WLAN测试中，15.6英寸的笔记本电脑实现了6:30小时的电池寿命，我们通过脚本模拟了打开网站的负载。

Battery Runtime


WiFi Websurfing (Edge 97)		6h 30min

Battery Runtime - WiFi Websurfing
Average of class Office (300 - 1137, n=106, last 2 years)	595 min +53%
Dell Latitude 15 3510 NK2MC i3-10110U, UHD Graphics 620, 40 Wh	465 min +19%
Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), 45 Wh	390 min
HP 255 G7 159P1EA R3 3200U, Vega 3, 41 Wh	326 min -16%
Lenovo V15-ADA 82C7009SGE Athlon 3150U, Vega 3, 35 Wh	241 min -38%

Pros

+ 哑光IPS显示屏

+ 几乎不产生任何热量

+ 维修挡板

+ DVD刻录机

+ 操作系统DVD

+ 驱动器DVD

+ 快速存储卡读卡器

+ USB 3.2 Gen 2

+ 电源传输

Cons

- 显示器颜色较暗

- 外壳不容易变形

- 只有一年的保修期

结论 - 一台经济实惠的办公笔记本电脑

富士通Lifebook A3510 (FPC04905BP)，测试单元由cyberport提供。

富士通的办公笔记本电脑重量只有1.8公斤（约4磅；或1.67公斤，约3.7磅，不含DVD驱动器），是比较轻的15.6英寸笔记本电脑之一。然而，它不是一个特别机动的设备，因为电池充电只能维持勉强6.5小时的WLAN运行时间。虽然这不是很好，但在A3510的价格水平上，它是相当正常的价值。

在低价位领域不是老生常谈。Lifebook A3510能够将自己与竞争对手区分开来。

配备了酷睿i3-1005G1CPU，8GB工作内存（1x 8GB，单通道模式，可扩展），以及256GB NVMe SSD（M.2-2280），这款笔记本电脑配备了办公和互联网操作。事实上，CPU能够以高时钟速度持续运行是一个积极的特点。这台15.6英寸的笔记本电脑产生的噪音水平相对较低，几乎不发热。

虽然乍一看，Lifebook可能没有激发出多少热情，但它确实提供了一些好东西。你可以使用USB-C端口（USB 3.2 Gen 2；Power Delivery）为其充电，有一个DVD驱动器，Windows 10 Pro作为操作系统，维护盖板提供了对工作内存、SSD和电池的轻松访问。整套设备仅售450欧元（约502美元；或350欧元，约390美元，不含Windows操作系统）。

Lifebook的另一个替代品可能是戴尔Latitude 3510它的电池寿命稍好，而且还可以选择配备LTE调制解调器。

价格和可用性

Das Fujitsu Lifebook A3510的测试配置（Core i3-1005G1, 8 GB RAM, 256 GB SSD, Windows 10 Pro）可从各种欧洲供应商处获得，如Ergo在英国，价格为422.22英镑（不含增值税）。在美国，你可以从欧洲供应商那里进口。

Fujitsu Lifebook A3510 (FPC04905BP) - 2022-01-28 01/28/2022 v7
Sascha Mölck

Chassis

72 / 98 → 73%

Keyboard

76%

Pointing Device

86%

Connectivity

63 / 80 → 79%

Weight

65 / 20-75 → 83%

Battery

71%

Display

81%

Games Performance

52 / 78 → 67%

Application Performance

83 / 95 → 87%

Temperature

96%

Noise

94%

Audio

60%

Camera

40 / 85 → 47%

Average

72%

81%

Office - Weighted Average

Pricecompare

Editor of the original article: Mark Riege - Translator - 508 articles published on Notebookcheck since 2018

Translator: Ninh Ngoc Duy - Editorial Assistant - 387270 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 富士通Lifebook A3510回顾。一台经济实惠的办公笔记本电脑，有一个维护的挡板

Sascha Mölck, 2022-02- 1 (Update: 2022-02- 1)

富士通Lifebook A3510回顾。一台经济实惠的办公笔记本电脑，有一个维护的挡板

Possible Competitors for Comparison

机箱和设备 - Lifebook A支持电源传输

Size Comparison

用Linux代替Windows

输入设备 - A3510没有键盘照明装置

显示屏 - 富士通A3510只带来了一个深色的IPS面板

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能 -Ice Lake onboard

测试条件

处理器

Cinebench R15 Multi Constant Load Test

系统性能

DPC延迟

存储解决方案

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

图形卡

排放和电源管理 - 富士通笔记本电脑几乎不发热

噪声排放

温度

发言人

Fujitsu Lifebook A3510 (FPC04905BP) audio analysis

HP 255 G7 159P1EA audio analysis

消耗功率

Power Consumption The Witcher 3 / Stress Test

Power Consumption With an External Monitor

电池寿命

Pros

Cons

结论 - 一台经济实惠的办公笔记本电脑

价格和可用性

More articles related to this device

Pricecompare
