戴尔 Latitude 14 7414 Rugged Extreme (6200U, 高清) 笔记本电脑简短评测

坚如磐石。戴尔这台14英寸机器很坚固,可承受灰尘,液体,液滴和热量。这款笔记本电脑不仅具有强硬的外观,还配备强大的硬件,许多端口和令人称道的续航能力。
Sascha Mölck, Stefanie Voigt (translated by Kangfei Zheng), 🇺🇸 🇩🇪 ...
Laptop / Notebook Skylake Windows
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

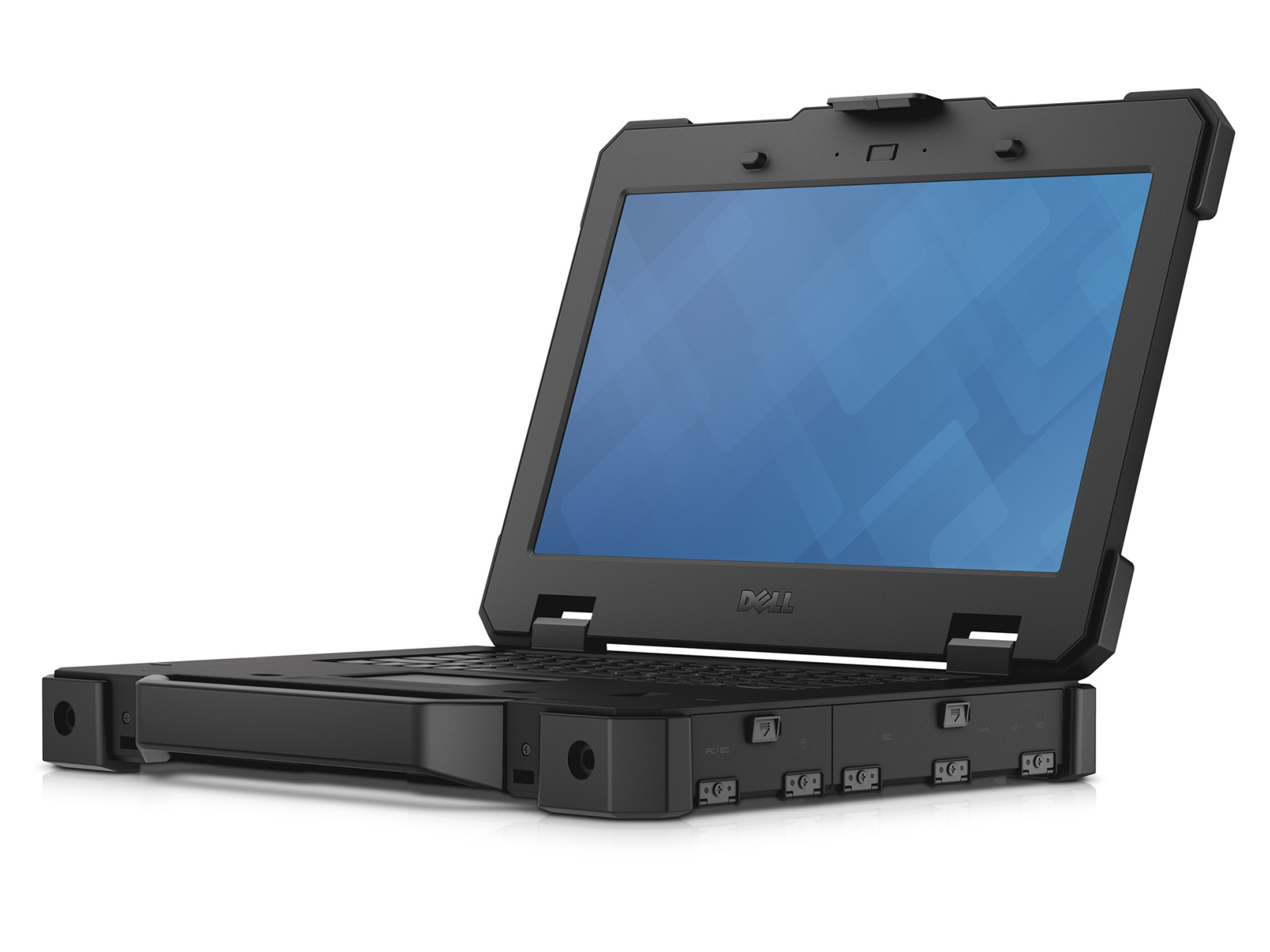

Dell Latitude 14 7414 Rugged Extreme (Latitude 14 Series)
Processor
Intel Core i5-6300U 2 x 2.4 - 3 GHz, Skylake
Graphics adapter
Intel HD Graphics 520, Core: 950 MHz, 单通道, 21.20.16.4590
Memory
8192 MB
, DDR4-2134, 单通道, 1/2 插槽已占用
Display
14.00 inch 16:9, 1366 x 768 pixel 112 PPI, 电阻式,可用笔和手指操作, Sharp LQ140K1, IPS, glossy: no
Mainboard
Intel Skylake-U Premium PCH
Storage
Liteonit CV3-8D128, 128 GB
, 80 GB free
Soundcard
Realtek ALC293 @ Intel Sunrise Point PCH - High Definition Audio Controller
Connections
1 Express Card 54mm, 2 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, 2 Serial Port, 1 Docking Station Port, Audio Connections: Audiokombo, Card Reader: SD, 1 SmartCard, 1 Fingerprint Reader, NFC, TPM 2.0
Networking
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2, Dell Wireless 5808E Gobi LTE, LTE, GPS
Size
height x width x depth (in mm): 52 x 356 x 247
Battery
97 Wh Lithium-Ion, removeable
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 高清
Additional features

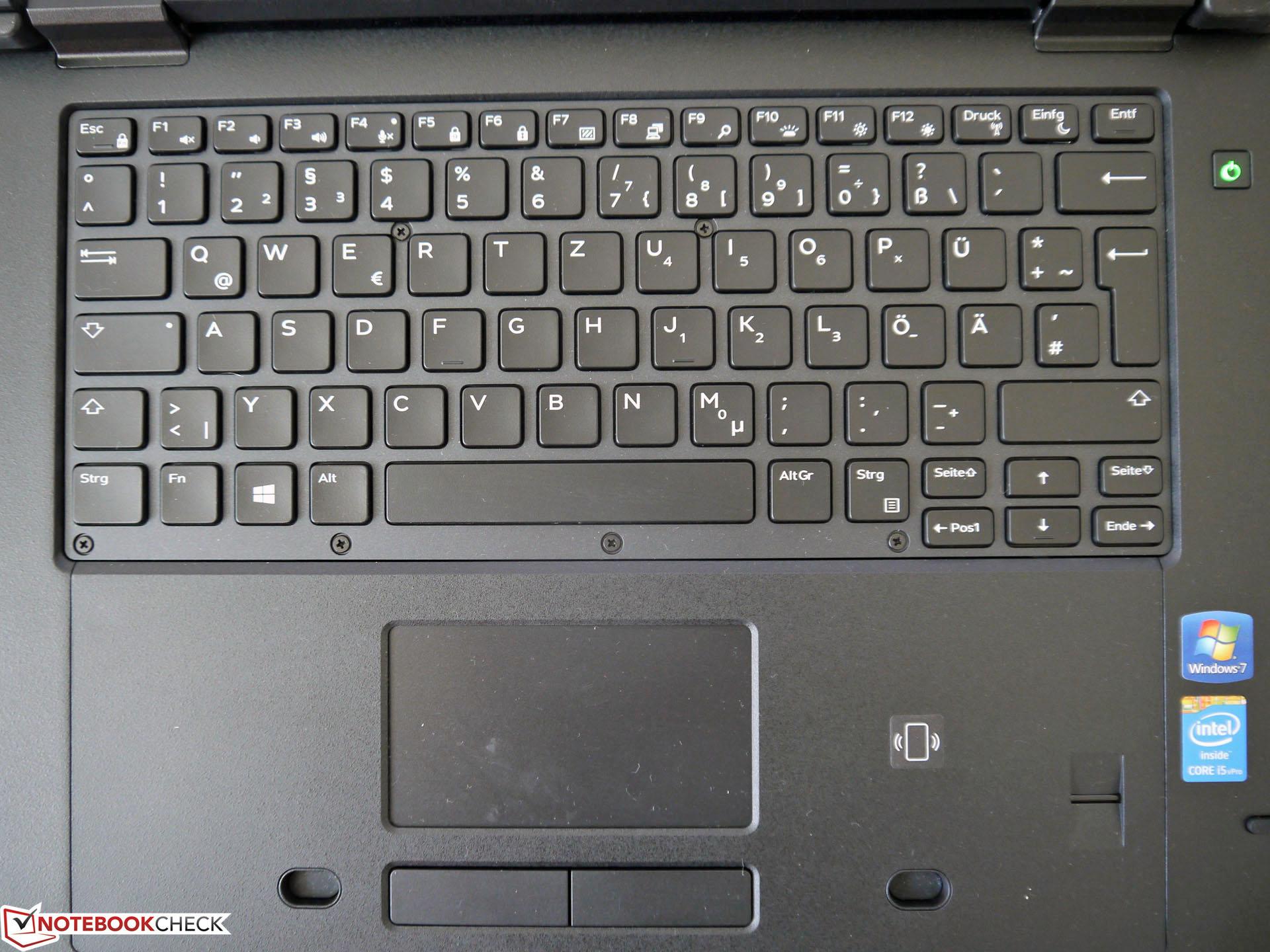

Speakers: 立体声扬声器, Keyboard: 巧克力键盘, Keyboard Light: yes, MS Office 365 (试用版), 12 Months Warranty, ruggedized
Weight
3.69 kg, Power Supply: 372 g
Price
4100 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad T470s-20HGS00V00
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼100% +30%
Acer TravelMate X349-G2
Intel Dual Band Wireless-AC 7265
542 MBit/s ∼85% +10%
Dell Latitude 14 7414 Rugged Extreme
Intel Dual Band Wireless-AC 8260
492 MBit/s ∼77%
iperf3 Client (transmit) TCP 1 m 4M x10
Acer TravelMate X349-G2
Intel Dual Band Wireless-AC 7265
672 MBit/s ∼100% +2%
Dell Latitude 14 7414 Rugged Extreme
Intel Dual Band Wireless-AC 8260
661 MBit/s ∼98%
Lenovo ThinkPad T470s-20HGS00V00
Intel Dual Band Wireless-AC 8265
297 MBit/s ∼44% -55%
458
cd/m²
485
cd/m²
426
cd/m²
475
cd/m²
493
cd/m²
417
cd/m²
488
cd/m²
462
cd/m²
397
cd/m²
Distribution of brightness
Sharp LQ140K1
X-Rite i1Pro 2
Maximum: 493 cd/m² Average: 455.7 cd/m² Minimum: 1.8 cd/m²
Brightness Distribution: 81 %
Center on Battery: 493 cd/m²
Contrast: 930:1 (Black: 0.53 cd/m²)
ΔE Color 11.08 | 0.59-29.43 Ø5.6
ΔE Greyscale 11.99 | 0.64-98 Ø5.8
56% sRGB (Argyll 3D) 36% AdobeRGB 1998 (Argyll 3D)
Gamma: 4.03
Dell Latitude 14 7414 Rugged Extreme
IPS, 1366x768, 14.00
Dell Latitude 14 Rugged 5414
IPS, 1920x1080, 14.00
Dell Latitude 14 7414 Rugged Extreme
LED, UWVA, 1366x768, 14.00
Response Times
-16%
Response Time Grey 50% / Grey 80% *
43 (20, 23)
49 (17, 32)
-14%
Response Time Black / White *
27 (17, 10)
36 (14, 22)
-33%
PWM Frequency
200 (20)
198 (90)
-1%
Screen
19%
-1%
Brightness middle
493
1152
134%
529
7%
Brightness
456
1067
134%
482
6%
Brightness Distribution
81
86
6%
83
2%
Black Level *
0.53
1.08
-104%
0.61
-15%
Contrast
930
1067
15%
867
-7%
Colorchecker DeltaE2000 *
11.08
10.04
9%
10.64
4%
Colorchecker DeltaE2000 max. *
15.11
19.43
-29%
Greyscale DeltaE2000 *
11.99
10.47
13%
11.79
2%
Gamma
4.03 55%
2.42 91%
2.73 81%
CCT
10872 60%
5576 117%
6893 94%
Color Space (Percent of AdobeRGB 1998)
36
35
-3%
34.85
-3%
Color Space (Percent of sRGB)
56
63
13%
Total Average (Program / Settings)
2% / 11%
-1% / -1%

* ... smaller is better

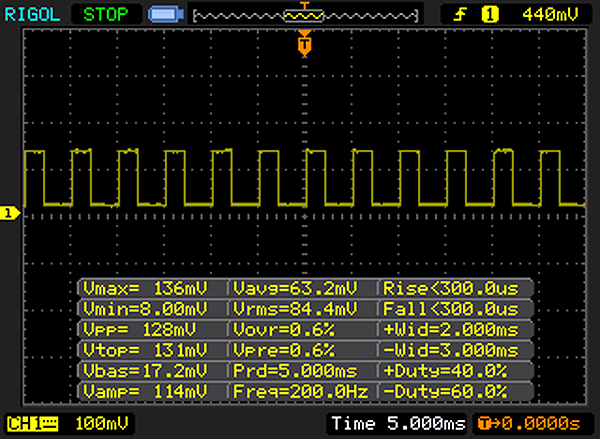

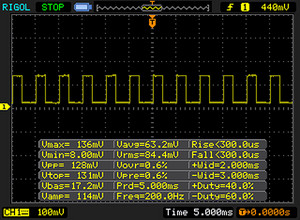

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 200 Hz ≤ 20 % brightness setting

The display backlight flickers at 200 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9665 (minimum: 5 - maximum: 151500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

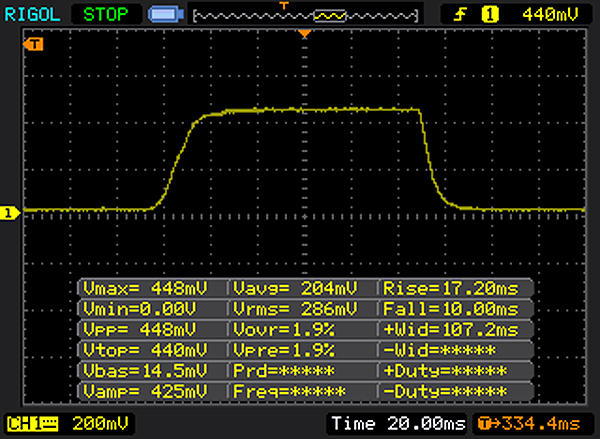

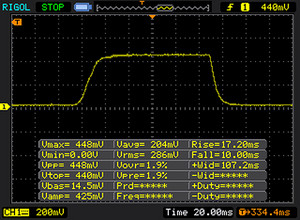

       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 10 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 55 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.2 ms).

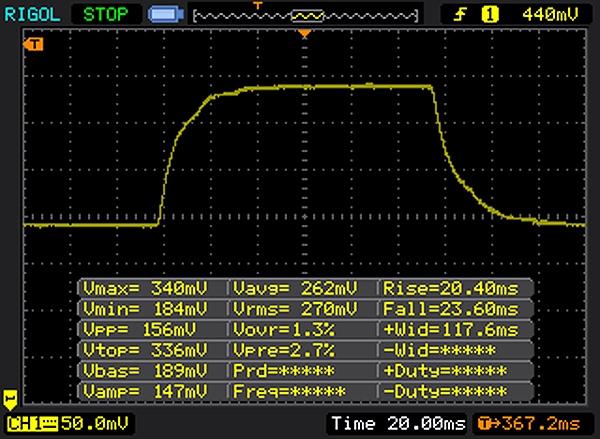

       Response Time 50% Grey to 80% Grey
43 ms ... rise ↗ and fall ↘ combined↗ 20 ms rise
↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 60 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (38.4 ms).
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Rendering Single 32Bit
4715
Cinebench R10 Rendering Multiple CPUs 32Bit
10575
Cinebench R10 Shading 32Bit
7696
Cinebench R15 CPU Single 64Bit
111 Points
Cinebench R15 CPU Multi 64Bit
310 Points
Cinebench R15 OpenGL 64Bit
39.69 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Help
Cinebench R15
CPU Single 64Bit
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
125 Points ∼46% +13%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
111 Points ∼41%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
108 Points ∼40% -3%
CPU Multi 64Bit
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
310 Points ∼7%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
308 Points ∼7% -1%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
252 Points ∼6% -19%
Cinebench R10
Rendering Multiple CPUs 32Bit
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
10575 Points ∼16%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
10571 Points ∼16% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
8601 Points ∼13% -19%
Rendering Single 32Bit
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
4728 Points ∼42% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
4715 Points ∼42%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
4083 Points ∼36% -13%
Geekbench 3
32 Bit Multi-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
6196 Points ∼8%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
6093 Points ∼8% -2%
32 Bit Single-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
2853 Points ∼59%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
2758 Points ∼57% -3%
Geekbench 4.0
64 Bit Multi-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
6756 Points ∼16%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
6614 Points ∼16% -2%
64 Bit Single-Core Score
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
3547 Points ∼55% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
3532 Points ∼55%
Geekbench 4.1 - 4.4
64 Bit Multi-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
7043 Points ∼11%
64 Bit Single-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
3652 Points ∼45%
JetStream 1.1 - Total Score
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
207.07 Points ∼51% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
206.94 Points ∼51%
PCMark 8 Home Score Accelerated v2
3655 points
Help
PCMark 8 - Home Score Accelerated v2
Dell Latitude 14 7414 Rugged Extreme
HD Graphics 520, 6300U, Liteonit CV3-8D128
3655 Points ∼58%
Dell Latitude 14 Rugged 5414
Radeon R7 M360, 6300U, Liteonit CV3-8D128
3507 Points ∼56% -4%
Dell Latitude 14 7414 Rugged Extreme
HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11
2688 Points ∼43% -26%
Liteonit CV3-8D128
Sequential Read: 474.3 MB/s
Sequential Write: 207.4 MB/s
512K Read: 265.2 MB/s
512K Write: 167.2 MB/s
4K Read: 26.98 MB/s
4K Write: 60.07 MB/s
4K QD32 Read: 304.5 MB/s
4K QD32 Write: 176.1 MB/s
Dell Latitude 14 7414 Rugged Extreme
Liteonit CV3-8D128
Dell Latitude 14 Rugged 5414
Liteonit CV3-8D128
Dell Latitude 14 7414 Rugged Extreme
Liteon IT LCS-256L9S-11
CrystalDiskMark 3.0
11%
62%
Write 4k QD32
176.1
158.2
-10%
328.9
87%
Read 4k QD32
304.5
267.8
-12%
329.5
8%
Write 4k
60.07
62.52
4%
95.04
58%
Read 4k
26.98
27.72
3%
35.85
33%
Write 512
167.2
185.8
11%
423.3
153%
Read 512
265.2
351
32%
385.1
45%
Write Seq
207.4
316.7
53%
419.9
102%
Read Seq
474.3
487.7
3%
504.4
6%
3DMark 11 Performance
1502 points
Help
3DMark 11 - 1280x720 Performance GPU
Dell Latitude 14 Rugged 5414
AMD Radeon R7 M360, Intel Core i5-6300U
2029 Points ∼3% +48%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
1481 Points ∼3% +8%
Acer TravelMate P449-M-7407
Intel HD Graphics 520, Intel Core i7-6500U
1410 Points ∼2% +3%
Dell Latitude 14 7414 Rugged Extreme
Intel HD Graphics 520, Intel Core i5-6300U
1369 Points ∼2%
low med. high ultra
BioShock Infinite (2013) 46.8 25.9 21.5 fps

Noise Level

Idle
30.2 / 30.2 / 30.2 dB(A)
Load
30.2 / 31.7 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.2 dB(A)
Max. Load
 30.2 °C28.1 °C25.2 °C
 26.5 °C27.6 °C25.3 °C
 25.2 °C25.5 °C24.1 °C
Maximum: 30.2 °C
Average: 26.4 °C
25.8 °C30 °C29.1 °C
25.4 °C28.7 °C28 °C
24.4 °C24.6 °C25.1 °C
Maximum: 30 °C
Average: 26.8 °C
Power Supply (max.)  45.5 °C | Room Temperature 20.2 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 26.4 °C / 80 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 30.2 °C / 86 F, compared to the average of 34 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 30 °C / 86 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.2 °C / 77 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.5 °C / 77.9 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (+2.4 °C / 4.3 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2042.736.742.72540.933.740.9313931.1394039.231.139.25041.629.941.66342.432.142.48043.129.843.110044.529.444.512546.925.246.916048.425.248.420049.924.949.925054.423.254.43155622.55640057.921.257.950060.820.760.863066.119.666.180069.719.269.7100070.918.470.9125069.517.969.5160069.917.669.920007116.971250068.116.968.1315067.817.167.8400066.416.966.4500065.916.765.9630068.916.868.9800063.516.663.51000059.716.659.71250064.516.464.51600062.616.462.6SPL80.130.280.1N47.71.447.7median 64.5median 17.9median 64.5Delta6.13.26.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseDell Latitude 14 7414 Rugged ExtremeApple MacBook 12 (Early 2016) 1.1 GHz
Dell Latitude 14 7414 Rugged Extreme audio analysis

(-) | not very loud speakers (71 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(+) | bass is linear (4.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14% difference to median)
Compared to same class
» 10% of all tested devices in this class were better, 3% similar, 88% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 84% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Power Consumption
Off / Standbydarklight 0.44 / 0.84 Watt
Idledarkmidlight 6.8 / 13.4 / 16.8 Watt
Load midlight 35.2 / 36.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
NBC WiFi Websurfing Battery Test 1.3 (Edge 40)
10h 28min
Battery Runtime - WiFi Websurfing 1.3
Dell Latitude 14 7414 Rugged Extreme
6300U, HD Graphics 520, 97 Wh
628 min ∼24%
Dell Latitude 14 Rugged 5414
6300U, Radeon R7 M360, 97 Wh
553 min ∼21% -12%

Pros

+ 坚固外壳
+ 认证
+ IPS屏
+ 个性化配置
+ 安静
+ 几乎不发热
+ 易于升级
+ 易于维护
+ 非常好的电池续航
+ 键盘优秀

Cons

- 重量
- 价格

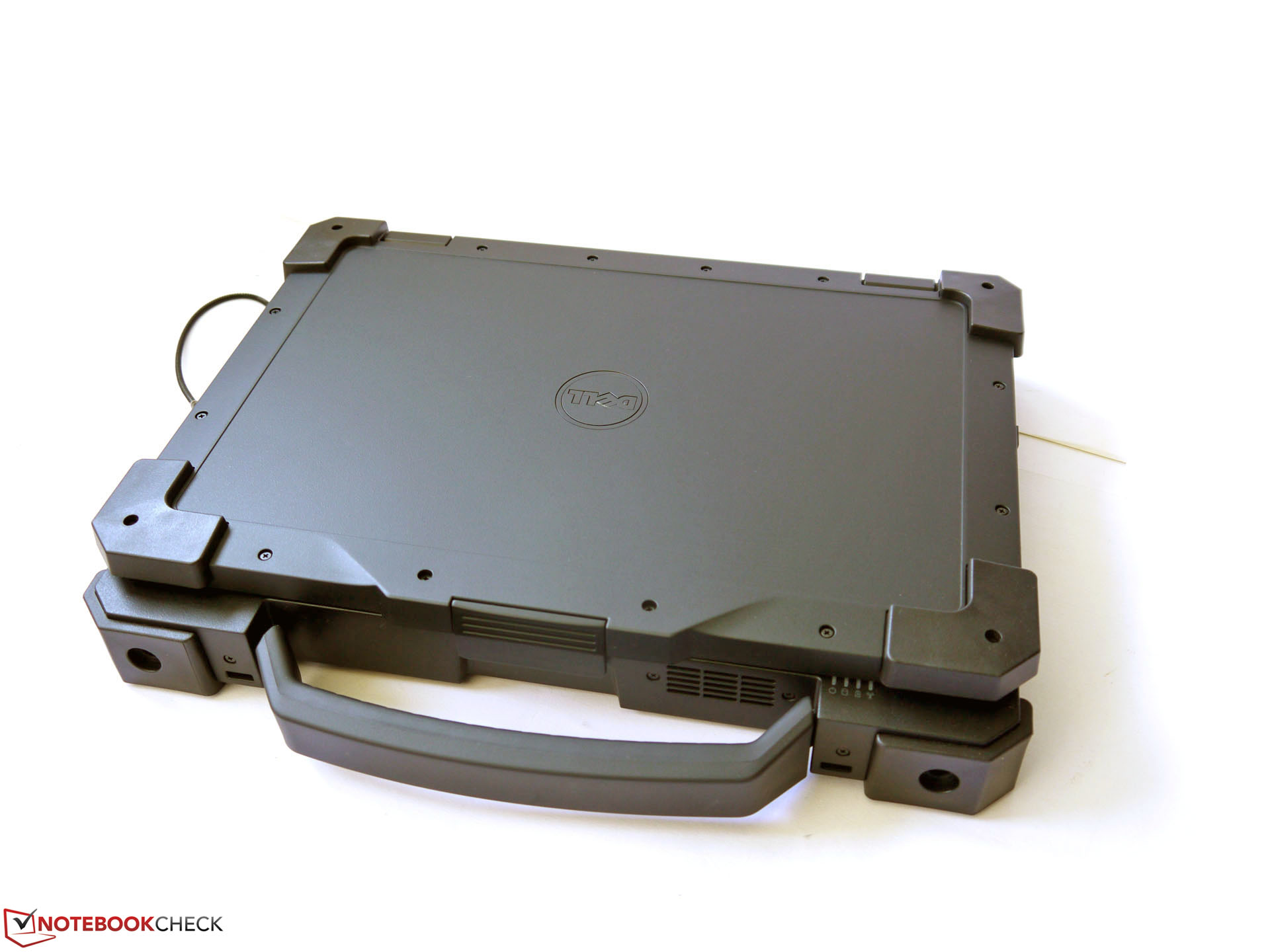

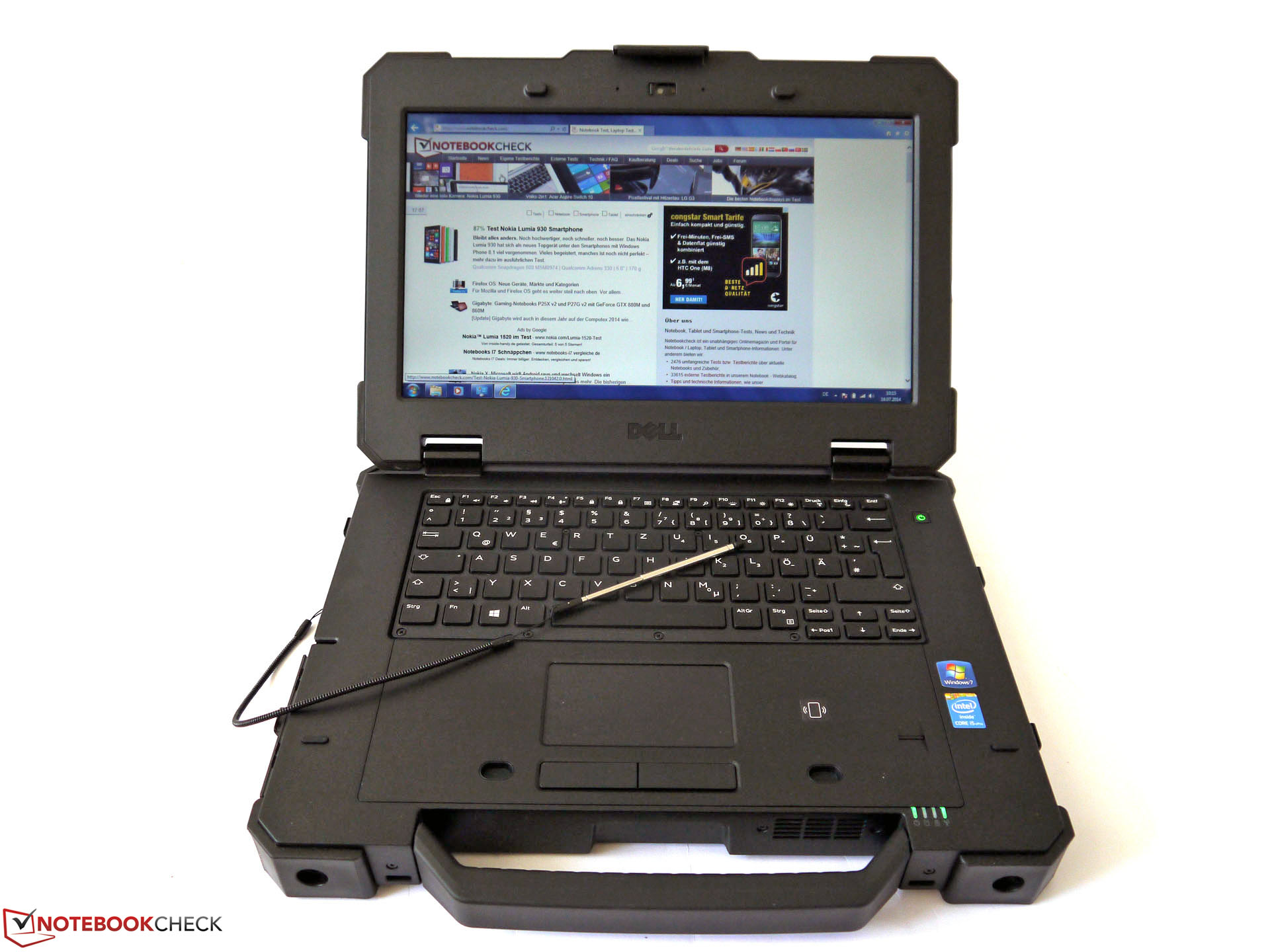

The Dell Latitude 14 7414 Rugged Extreme, supplied by Dell Germany.
The Dell Latitude 14 7414 Rugged Extreme, supplied by Dell Germany.

戴尔Latitude 14 7414 Rugged Extreme是一款为特殊作业情况而设计的14寸笔记本电脑。它可以保护内部免受灰尘,液体,液滴和热量的影响。与前代相比,它的外观没有变化。改变只能从内在观察到,Skylake升级为Haswell,从而提高了机器的处理能力。随着性能的提高,噪声水平和热量排放没有增加。该机始终保持运行时的安静。更重要的是,电池续航能力优秀。

Latitude 14 7414适用于恶劣环境。

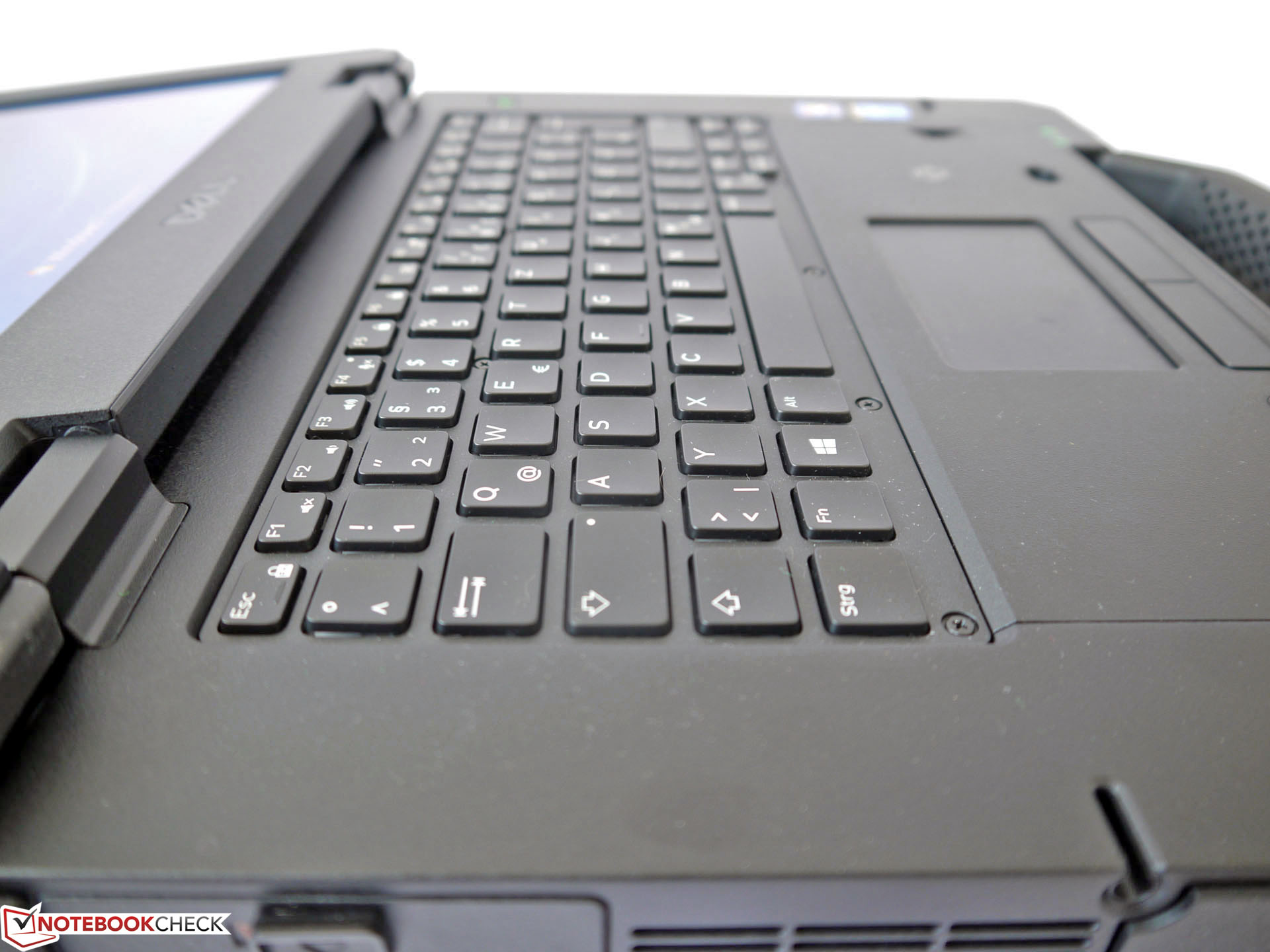

固态硬盘可以保证系统的高速运行。为该机更换固态硬盘,不需要花费太多力气。我们已经熟悉了该笔记本电脑前代的背光键盘。它提供了舒适的打字体验。显示器保持与配备Haswell的前代相同的亮度,高对比度,可视角度。戴尔拒绝从提供端口选择方面的升级,雷电3,DisplayPort或Type-C USB甚至都不能作为选项提供。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里





Dell Latitude 14 7414 Rugged Extreme - 04/20/2017 v6(old)
Sascha Mölck

Chassis
91 / 98 → 92%
Keyboard
91%
Pointing Device
76%
Connectivity
67 / 80 → 84%
Weight
52 / 20-67 → 68%
Battery
93%
Display
83%
Games Performance
55 / 68 → 81%
Application Performance
83 / 92 → 91%
Temperature
96%
Noise
95%
Audio
75%
Camera
42 / 85 → 50%
Average
77%
87%
Office - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 戴尔 Latitude 14 7414 Rugged Extreme (6200U, 高清) 笔记本电脑简短评测
Sascha Mölck, 2017-05- 2 (Update: 2017-05- 8)
