微星Katana GF76 12UGS回顾。最实惠的RTX 3070 Ti游戏笔记本之一值得购买吗？

Name: MSI Katana GF76 12UGS
Brand: MSI

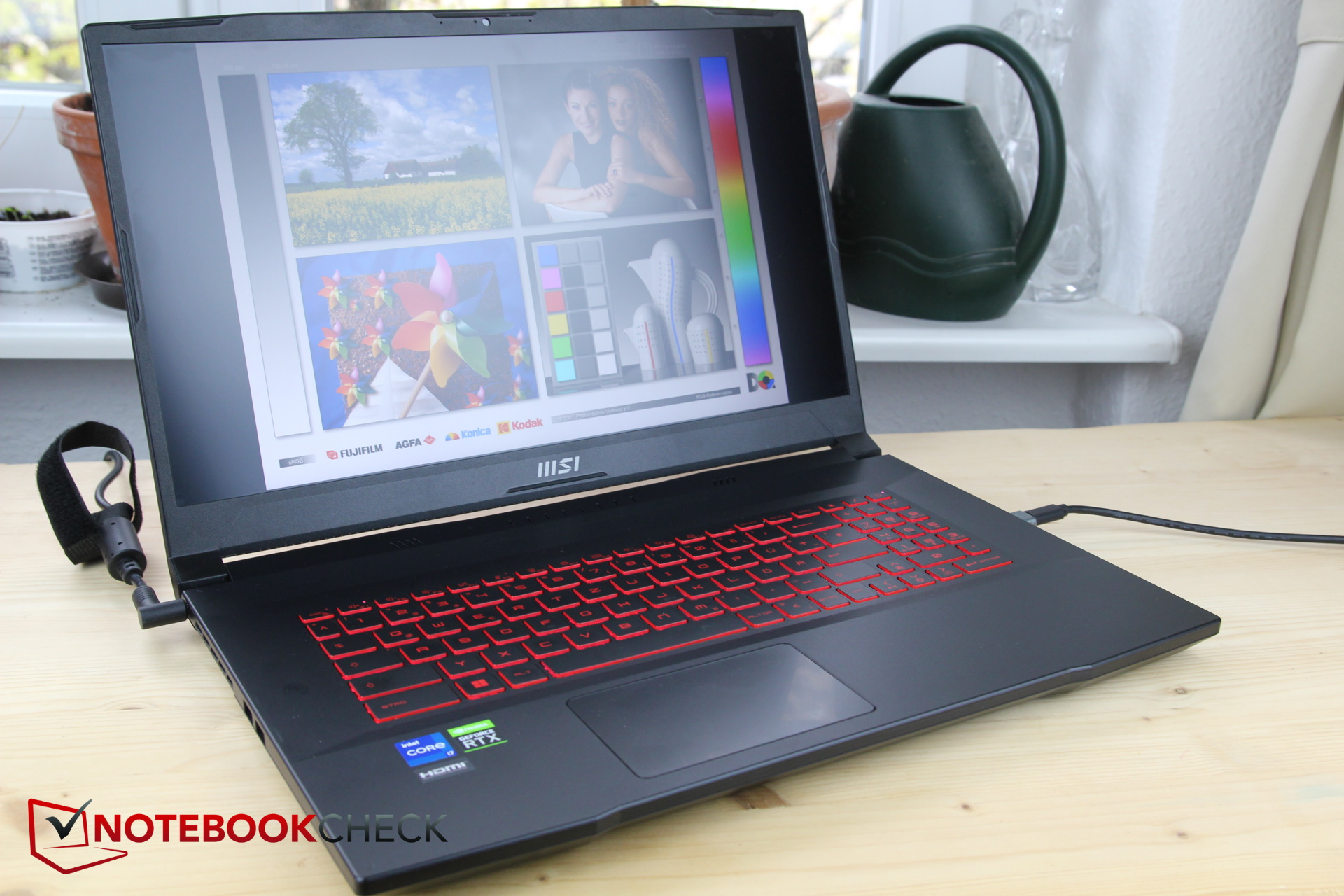

简陋的塑料剑。 Katana的15英寸和17英寸版本都是市场上最实惠的游戏笔记本电脑。我们的测试配置的强大硬件与Alder Lake和RTX 3070 Ti很难成为这个原因，那么制造商在哪里进行了削减？我们的测试将找出答案。

Christian Hintze, 👁 Christian Hintze (translated by DeepL / Ninh Duy), Published 05/17/2022 🇺🇸 🇩🇪 ...

Alder Lake Gaming Geforce Laptop / Notebook Windows

在比较门户网站上，微星Katana被列为最实惠的游戏笔记本电脑之一。首先是17英寸Alder Lake型号，配备RTX 3050 Ti的版本售价为1199欧元（约1249美元）。配备RTX 3060的型号从1349欧元（约合人民币1406元）起，而我们的测试配置配备RTX 3070 Ti将花费你1949欧元（约合人民币2031元）。在宏碁Nitro 5和较小的15英寸兄弟姐妹之后，我们的17英寸模型是最实惠的带有RTX 3070 Ti的笔记本电脑。

去年，我们测试了前身配备了Tiger Lake CPU和RTX 3060，现在跟着升级到Alder Lake和Ti GPU。

由于我们的数据库目前缺乏负担得起的17英寸笔记本电脑与RTX 3070 Ti GPU, 我们比较了新的卡塔纳除了其前身也与明显更昂贵的 Razer Blade 17的顶级产品，以及Aorus 17 XE4，以及15和16英寸的联想Legion 5 Pro 16 G7和 MSI Vector GP66 12UGS型号。

Test device courtesy of Cyberport

Download your licensed rating image as PNG / SVG

MSI Katana GF76 12UGS (Katana GF76 Series)

Processor

Intel Core i7-12700H 14 x 1.7 - 4.7 GHz, Alder Lake-H

Graphics adapter

NVIDIA GeForce RTX 3070 Ti Laptop GPU - 8 GB VRAM, 105 W TDP ( including 25 W Dynamic Boost), Geforce 511.65

Memory

16 GB

, 2x 8 GB Samsung DDR4-3200

Display

17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN04.9, IPS, glossy: no, 144 Hz

Mainboard

Intel Alder Lake-P PCH

Storage

Micron 2450 1TB MTFDKBK1T0TFK, 1024 GB

, 867 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5 mm combined audio port

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 25.2 x 398 x 273

Battery

53.5 Wh Lithium-Ion

Operating System

Microsoft Windows 11 Home

Camera

Webcam: HD type (30fps@720p)
Primary Camera: 0.9 MPix

Additional features

Speakers: 2x 2W speaker, Keyboard Light: yes, 24 Months Warranty

Weight

2.72 kg, Power Supply: 764 g

Price

2151 Euro

Links

MSI homepage
MSI notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
82.6 %	05/2022	MSI Katana GF76 12UGS i7-12700H, GeForce RTX 3070 Ti Laptop GPU	2.7 kg	25.2 mm	17.30"	1920x1080
80.4 %	09/2021	MSI Katana GF76 11UE i7-11800H, GeForce RTX 3060 Laptop GPU	2.7 kg	25.2 mm	17.30"	1920x1080
85.2 %	04/2022	Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU	2.6 kg	27 mm	17.30"	1920x1080
90.1 %	05/2022	Razer Blade 17 (i7-12800H, RTX 3070 Ti) i7-12800H, GeForce RTX 3070 Ti Laptop GPU	2.8 kg	19.9 mm	17.30"	2560x1440
88 %	03/2022	Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU	2.6 kg	26.6 mm	16.00"	2560x1600
86.9 %	03/2022	MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU	2.3 kg	23.4 mm	15.60"	1920x1080

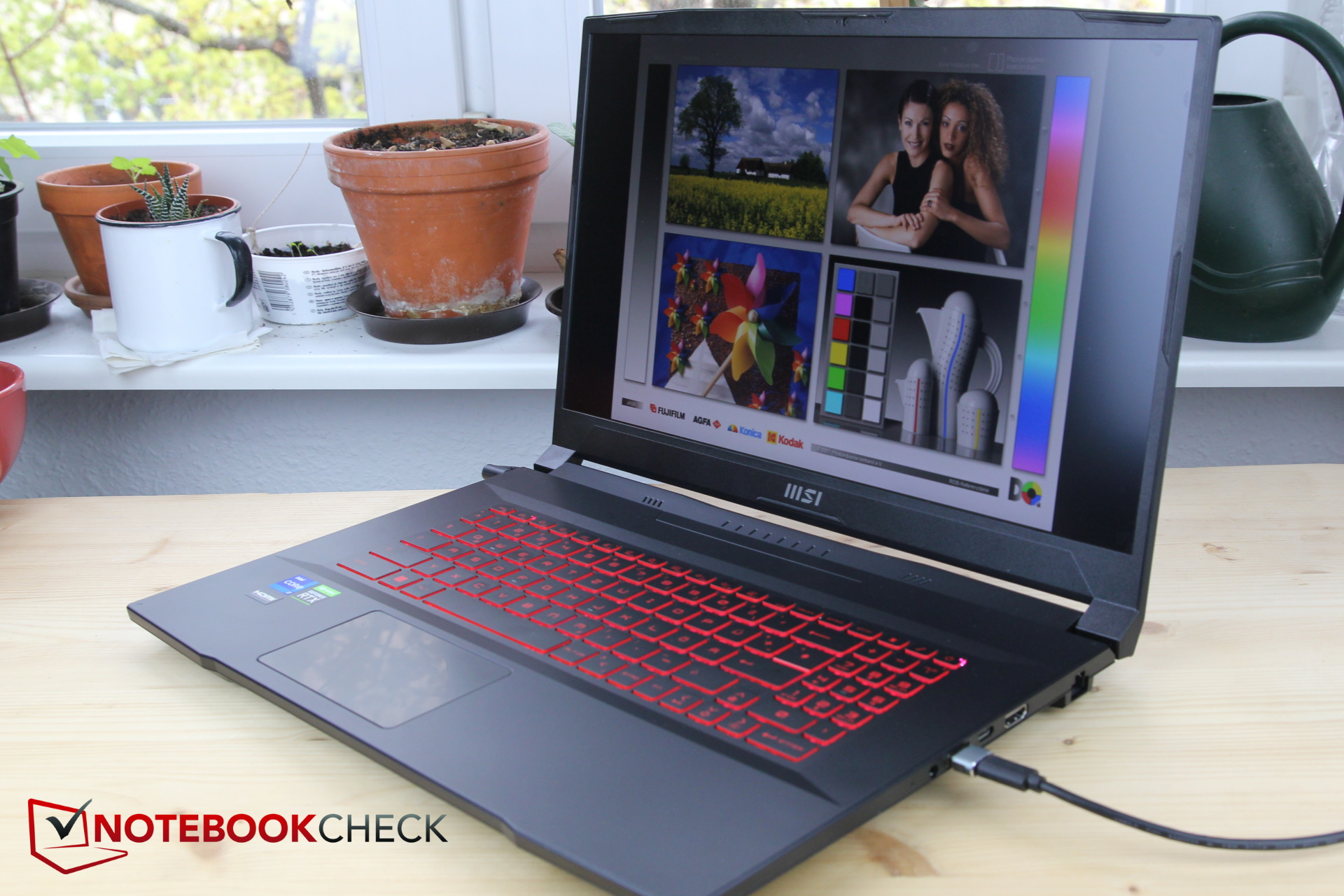

外壳 - 一把塑料剑

Katana的外壳使用的材料完全是塑料。显示屏和它的框架产生了一些强大的吱吱声，即使你只是稍微翘起它，特别是在顶角，我们立即开始担心面板。另一方面，底座则给人一种坚固的印象。除此之外，做工似乎很好，我们没有注意到任何明显的缝隙。

铰链能够将显示器打开到180度。它们只是在开放范围的最后三分之一处略显薄弱，但除此之外，它们能很好地将显示屏固定在原位。

除了五颜六色的键盘照明和按键上的风格化字体外，设计保持得相当简单。底座前面有一个大缺口，让你可以用一只手轻松打开笔记本电脑。

考虑到所包含的硬件，Katana相当紧凑，塑料外壳也使它看起来比Blade 17更轻，尽管差别只有约100克（约3.5盎司）。虽然 Aorus的厚度很小，但它的深度几乎是20毫米（约0.8英寸）。而刀片17更加纤细，整体上也更小。虽然Katana是相当大的游戏笔记本电脑之一，但它仍然没有变成太厚。

尺寸比较

Aorus 17 XE4 MSI Katana GF76 12UGS MSI Katana GF76 11UE Razer Blade 17 (i7-12800H, RTX 3070 Ti) Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti MSI Vector GP66 12UGS DIN A4 ❌

设备 - 请更新

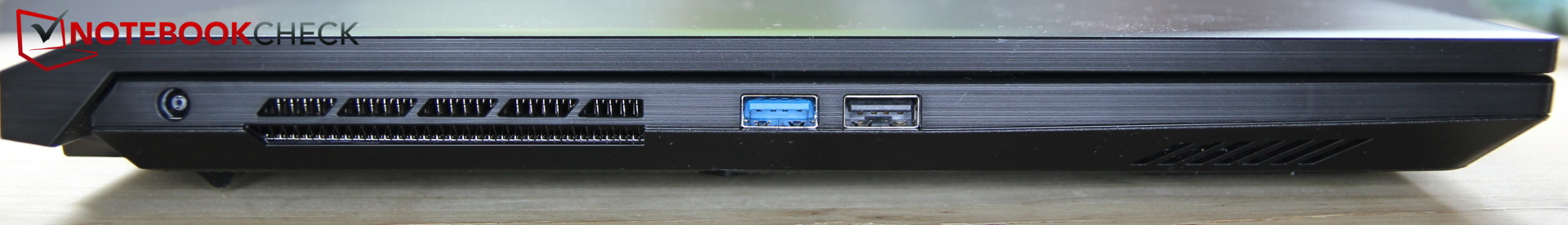

即使在2022年，微星继续为Katana配备一个USB-A 2.0端口，它也继续放弃了Thunderbolt和SD读卡器。USB-C端口只能以USB-3.0的速度运行，当然也不提供Power Delivery。

电源插头在我们的模型中不是很紧，在移动笔记本电脑时也会慢慢滑出。一些USB-C设备在相应的端口中的配合并不理想。

作者的外部、USB-C连接的M.2机箱在几台笔记本电脑上有一些问题，如微星Katana或还有微星Pulse GL66 ，但在其他笔记本电脑上运行良好。很明显，有些插头不能插入端口足够深，这导致SSD被提供电源，但不能被Windows可靠地识别，并不断断开连接。作者不得不使用一个USB-C-A适配器，并通过USB-A端口运行固态硬盘。

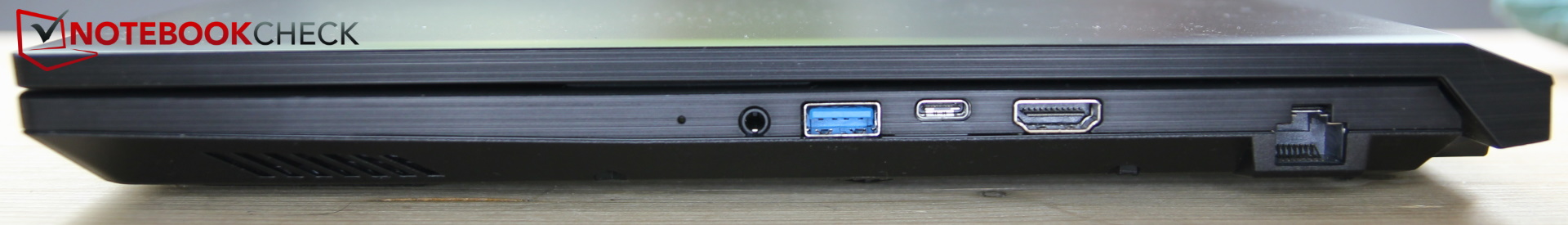

HDMI和LAN等可能又粗又硬的电缆的端口在右侧，也就是可能使用鼠标的地方，这也是不太理想的。

沟通

一个英特尔Wi-Fi 6 AX201模块被用于WLAN通信。与我们的华硕ROG GT-AXE11000测试路由器相结合，该模块实现了适当的良好传输速率，而且连接也相当稳定。

Networking
iperf3 transmit AX12
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Wi-Fi 6 AX201	1580 (738^min - 1775^max) MBit/s
MSI Vector GP66 12UGS Intel Wi-Fi 6E AX211	1501 (755^min - 1562^max) MBit/s
MSI Katana GF76 11UE Intel Wi-Fi 6 AX201	1394 (758^min - 1577^max) MBit/s
Average Intel Wi-Fi 6 AX201 (49.8 - 1775, n=324)	1161 MBit/s
Average of class Gaming (885 - 1412, n=4, last 2 years)	1139 MBit/s
iperf3 receive AX12
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Wi-Fi 6 AX201	1493 (1284^min - 1716^max) MBit/s
MSI Vector GP66 12UGS Intel Wi-Fi 6E AX211	1462 (1366^min - 1531^max) MBit/s
Average of class Gaming (881 - 1700, n=4, last 2 years)	1379 MBit/s
MSI Katana GF76 11UE Intel Wi-Fi 6 AX201	1302 (718^min - 1672^max) MBit/s
Average Intel Wi-Fi 6 AX201 (136 - 1743, n=324)	1261 MBit/s
iperf3 receive AXE11000
Aorus 17 XE4 Intel Wi-Fi 6E AX211	1679 (840^min - 1718^max) MBit/s +6%
MSI Katana GF76 12UGS Intel Wi-Fi 6 AX201	1591 (790^min - 1631^max) MBit/s
Average Intel Wi-Fi 6 AX201 (390 - 1734, n=72)	1440 MBit/s -9%
Average of class Gaming (685 - 1890, n=159, last 2 years)	1403 MBit/s -12%
iperf3 transmit AXE11000
MSI Katana GF76 12UGS Intel Wi-Fi 6 AX201	1569 (1338^min - 1632^max) MBit/s
Aorus 17 XE4 Intel Wi-Fi 6E AX211	1511 (777^min - 1637^max) MBit/s -4%
Average Intel Wi-Fi 6 AX201 (438 - 1715, n=67)	1300 MBit/s -17%
Average of class Gaming (469 - 1793, n=153, last 2 years)	1272 MBit/s -19%

MSI Katana GF76 12UGS Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1564 (790-1631)

Aorus 17 XE4 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1650 (840-1718)

MSI Katana GF76 12UGS Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1569 (1338-1632)

Aorus 17 XE4 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1485 (777-1637)

网络摄像头

作为网络摄像头，使用了一个标准的720p摄像头。虽然图像质量无助于将用户变成YouTube明星，但颜色偏差仍在限制范围内。

ColorChecker MSI Katana GF76 12UGS: 6.62 ∆E min: 2.7 - max: 12.52 ∆E

配件和保修

考虑到低廉的价格，缺乏任何附带的配件也不应该令人惊讶。与微星的惯例一样，保修期为两年。

维护

箱子的底部由13颗螺丝固定。由于最后一颗是放在贴纸封条下面，我们不想因为我们的测试设备是借来的而弄坏它。不幸的是，微星继续使用贴纸封条，因此保留了在不合格的用户不当打开设备后限制保修的选择。

然而，与前代产品相比，应该不会有太多的变化，你可以在前代产品的评论中找到打开后的Katana的图片上一代产品的评论.

输入设备--为什么尽管是17英寸，但一切都那么小？

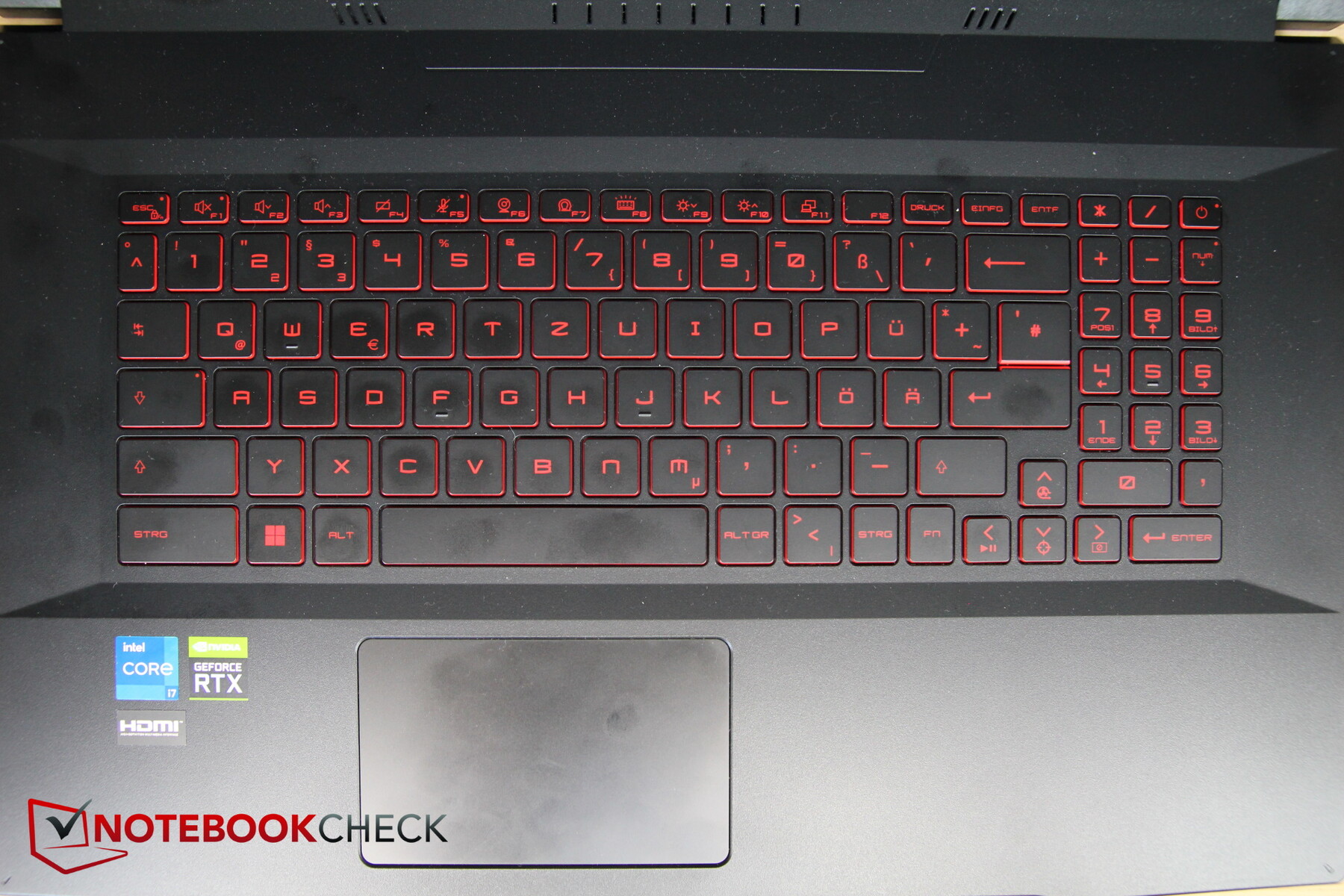

键盘

对于一个17英寸的笔记本电脑来说，按键变的相当小，挤在底座右侧的也是一个数字键盘，按键小的令人难以置信。尽管在键盘的左右两侧仍有足够的空间，但微星并没有利用这一点来增加按键的尺寸。在最上面一排的功能键中，按键只有一半的高度。电源键被作为一个普通的键放在了数字键盘的右上角。

按照微星的习惯，奇怪的是，Fn键被放在右边，但你可以用左边的Windows键来切换它的功能。

按键的行程相对较短，但反馈很明显。然而，按键仍有轻微的海绵感，用户得到的印象是，按键只真正固定在中间，可以很容易地向两侧倾斜。另一方面，打字任务仍然相当迅速和容易成功。打字的噪音是适中的。

键盘上的字母很容易看到，但它们的字体有点不寻常，这可能是为了吸引游戏玩家。在黑暗的环境中，键盘的照明效果很好。虽然只有一个区域，但灯光可以分三步调暗。它只有红色的照明。

触摸板

触摸板足够大，但对于一个17英寸的设备来说并不是很大（约10.5 x 6.5厘米，约4.1 x 2.6英寸）。表面有利于手指的滑动，只有在非常缓慢的移动或手指潮湿时才会被卡住。

集成键的工作也相当精确，但它们的行程极短，显得非常干脆。扳机的声音其实并不安静。

显示屏 - 144赫兹，但仍然没有游戏者

微星决定使用与前代产品相同的来自友达光电的全高清显示屏。即使这可以处理144赫兹，在平均264尼特的情况下，亮度也不是很高。对于一个游戏玩家来说，响应时间确实很弱，特别是灰色到灰色的40多毫秒。在88%的情况下，亮度分布还是比较均匀的。

至少，该显示器的黑值相当低，这导致了良好的对比度。


272 cd/m²	274 cd/m²	260 cd/m²
259 cd/m²	281 cd/m²	246 cd/m²
259 cd/m²	281 cd/m²	246 cd/m²

Distribution of brightness

AU Optronics B173HAN04.9 tested with X-Rite i1Pro 3

Maximum: 281 cd/m² (Nits) Average: 264.2 cd/m² Minimum: 5.8 cd/m²
Brightness Distribution: 88 %
Center on Battery: 283 cd/m²
Contrast: 1405:1 (Black: 0.2 cd/m²)
ΔE Color 3.69 | 0.5-29.43 Ø5, calibrated: 3.61
ΔE Greyscale 0.94 | 0.57-98 Ø5.3

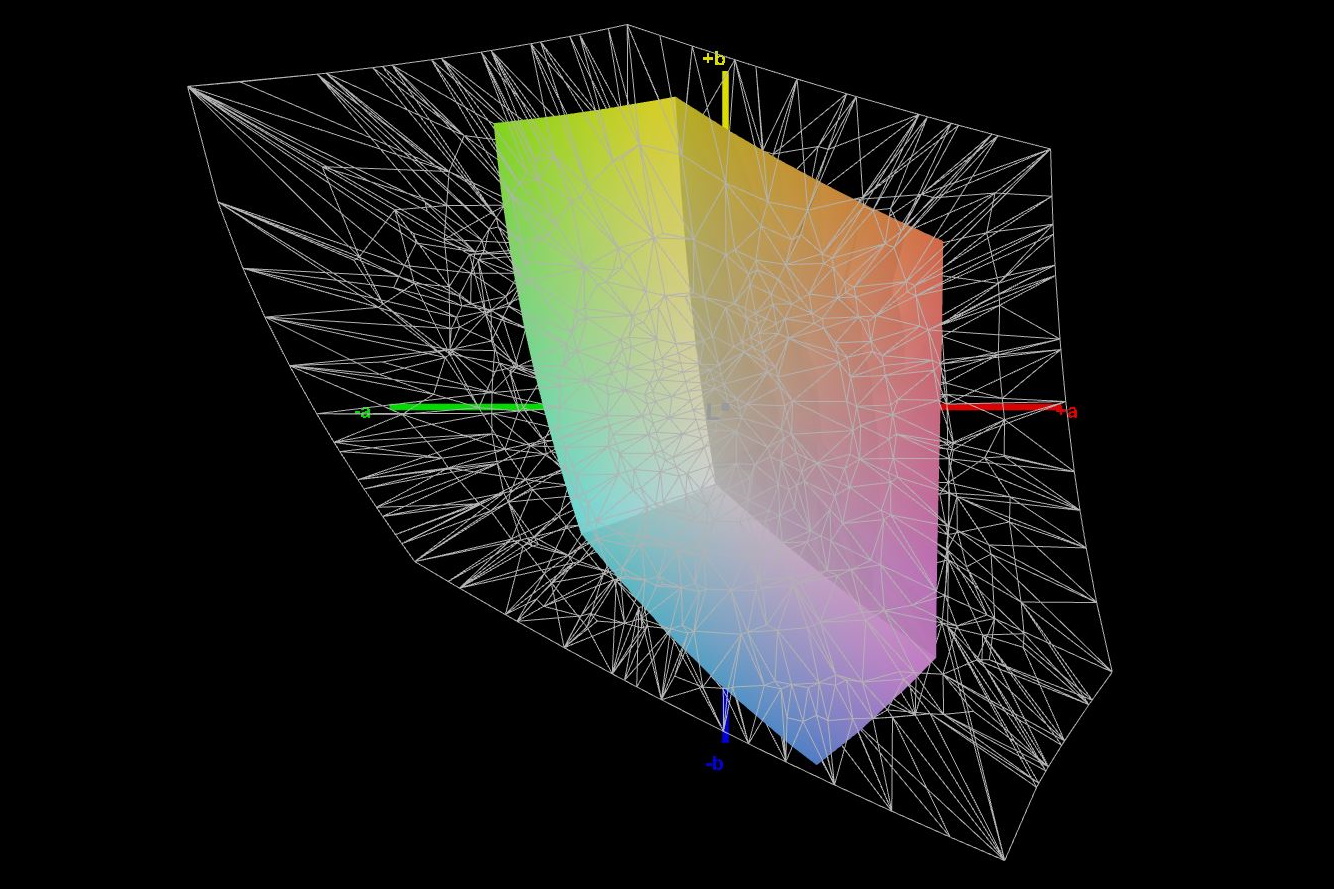

39.8% AdobeRGB 1998 (Argyll 2.2.0 3D)

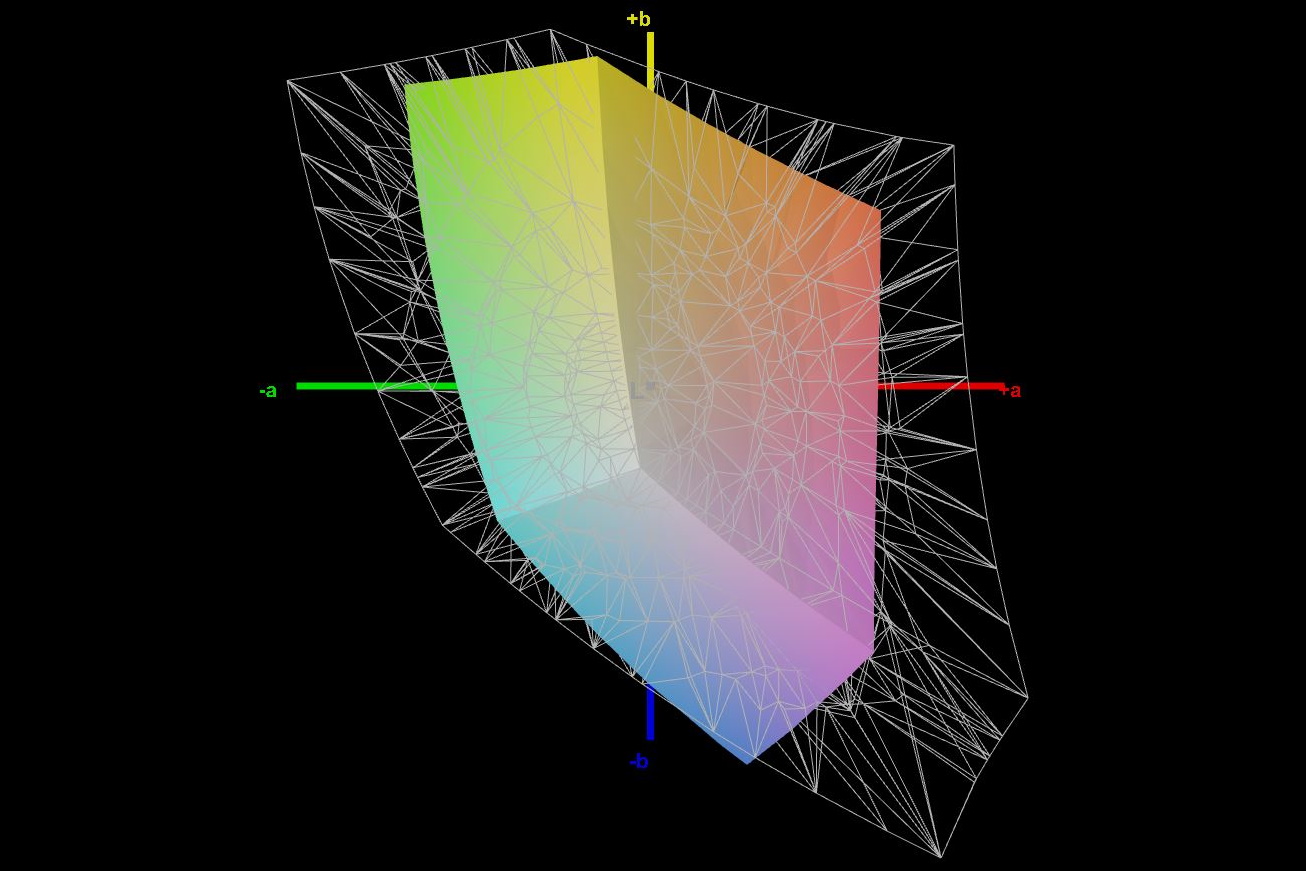

57.8% sRGB (Argyll 2.2.0 3D)
38.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.42

Download ICC File (X-Rite i1Pro 3)

	MSI Katana GF76 12UGS AU Optronics B173HAN04.9, IPS, 1920x1080, 17.30	MSI Katana GF76 11UE AU Optronics B173HAN04.9, IPS, 1920x1080, 17.30	Aorus 17 XE4 Sharp LQ173M1JW12, IPS, 1920x1080, 17.30	Razer Blade 17 (i7-12800H, RTX 3070 Ti) BOE CQ NE173QHM-NZ1 (BOE09F9), IPS, 2560x1440, 17.30	Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti NE160QDM-NY1, IPS, 2560x1600, 16.00	MSI Vector GP66 12UGS BOE NE156FHM-NZ3, IPS, 1920x1080, 15.60
Display		3%	77%	114%	75%	78%
Display P3 Coverage	38.5	39.8 3%	69 79%	97.9 154%	68.7 78%	70.1 82%
sRGB Coverage	57.8	59.5 3%	99.4 72%	99.9 73%	97.6 69%	99.5 72%
AdobeRGB 1998 Coverage	39.8	41.12 3%	71.2 79%	85.5 115%	70.9 78%	72.1 81%
Response Times		6%	61%	61%	64%	75%
Response Time Grey 50% / Grey 80% *	40.6 ?(18.8, 21.8)	36.8 ?(17.2, 19.6) 9%	15.2 ?(7.6, 7.6) 63%	15.2 ?(7.4, 7.8) 63%	17.6 ?(9.2, 8.4) 57%	5.8 ?(3.4, 2.4) 86%
Response Time Black / White *	26.4 ?(13.8, 12.6)	26 ?(13.6, 12.4) 2%	11.2 ?(6.8, 4.4) 58%	11.2 ?(5.8, 5.4) 58%	7.6 ?(2.4, 5.2) 71%	9.6 ?(5.2, 4.4) 64%
PWM Frequency
Screen		-33%	-12%	-64%	3%	-28%
Brightness middle	281	260 -7%	274 -2%	341 21%	502 79%	353.1 26%
Brightness	264	251 -5%	267 1%	308 17%	491 86%	325 23%
Brightness Distribution	88	85 -3%	82 -7%	82 -7%	91 3%	85 -3%
Black Level *	0.2	0.26 -30%	0.25 -25%	0.45 -125%	0.37 -85%	0.38 -90%
Contrast	1405	1000 -29%	1096 -22%	758 -46%	1357 -3%	929 -34%
Colorchecker dE 2000 *	3.69	3.9 -6%	2.07 44%	4.16 -13%	2.7 27%	2.24 39%
Colorchecker dE 2000 max. *	8.46	20.64 -144%	4.89 42%	8.14 4%	4.5 47%	5 41%
Colorchecker dE 2000 calibrated *	3.61	3.71 -3%	0.83 77%	3 17%	1.4 61%	1.02 72%
Greyscale dE 2000 *	0.94	1.6 -70%	3 -219%	5.09 -441%	2.7 -187%	4 -326%
Gamma	2.42 ^91%	2.068 ^106%	2.207 ^100%	2.48 ^89%	2.44 ^90%	2.24 ^98%
CCT	6443 ^101%	6511 ^100%	6999 ^93%	6884 ^94%	6326 ^103%	6864 ^95%
Total Average (Program / Settings)		-8% / -20%	42% / 17%	37% / -8%	47% / 27%	42% / 10%

* ... smaller is better

专业的图像和视频编辑应该使用外部显示器，因为显示的色彩空间相当狭窄。只有约40%的AdobeRGB被再现，而低于60%的sRGB。

在交付状态下，灰度偏差已经小于1。然而，颜色偏差较高，但不幸的是，通过使用我们的X-Rite颜色测量设备（Portrait Displays Calman Color Calibration）进行手动校准，它们并没有明显改善。

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

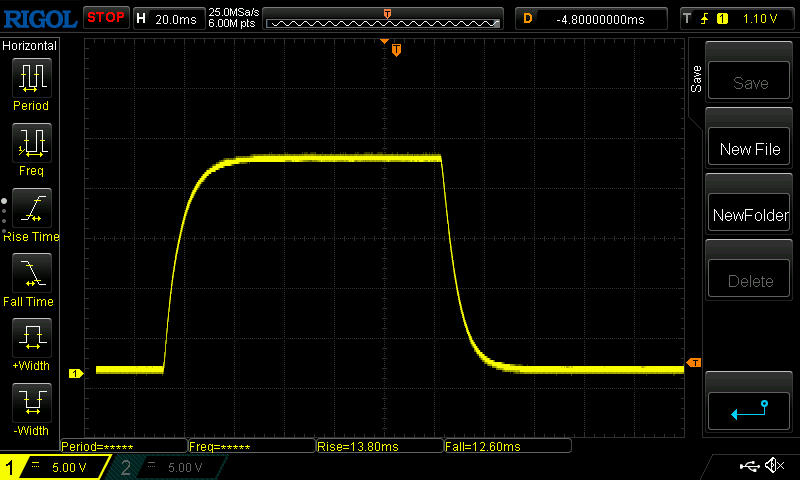

↔ Response Time Black to White
26.4 ms ... rise ↗ and fall ↘ combined	↗ 13.8 ms rise
26.4 ms ... rise ↗ and fall ↘ combined	↘ 12.6 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 61 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).
↔ Response Time 50% Grey to 80% Grey
40.6 ms ... rise ↗ and fall ↘ combined	↗ 18.8 ms rise
40.6 ms ... rise ↗ and fall ↘ combined	↘ 21.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 59 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

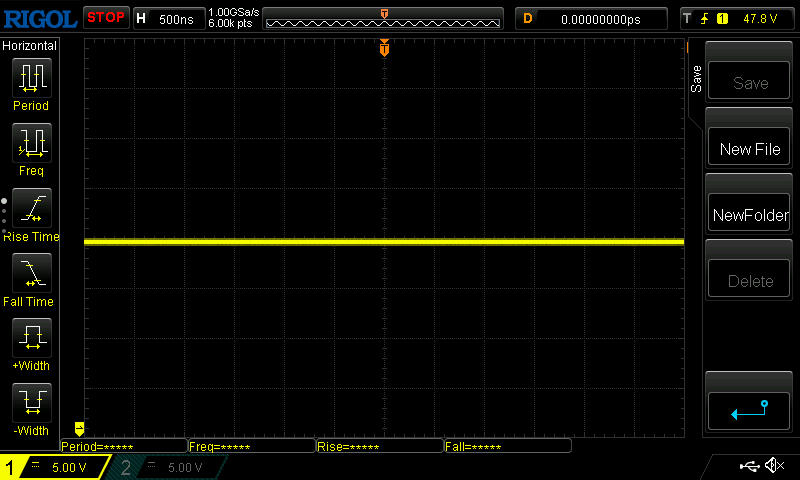

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured.

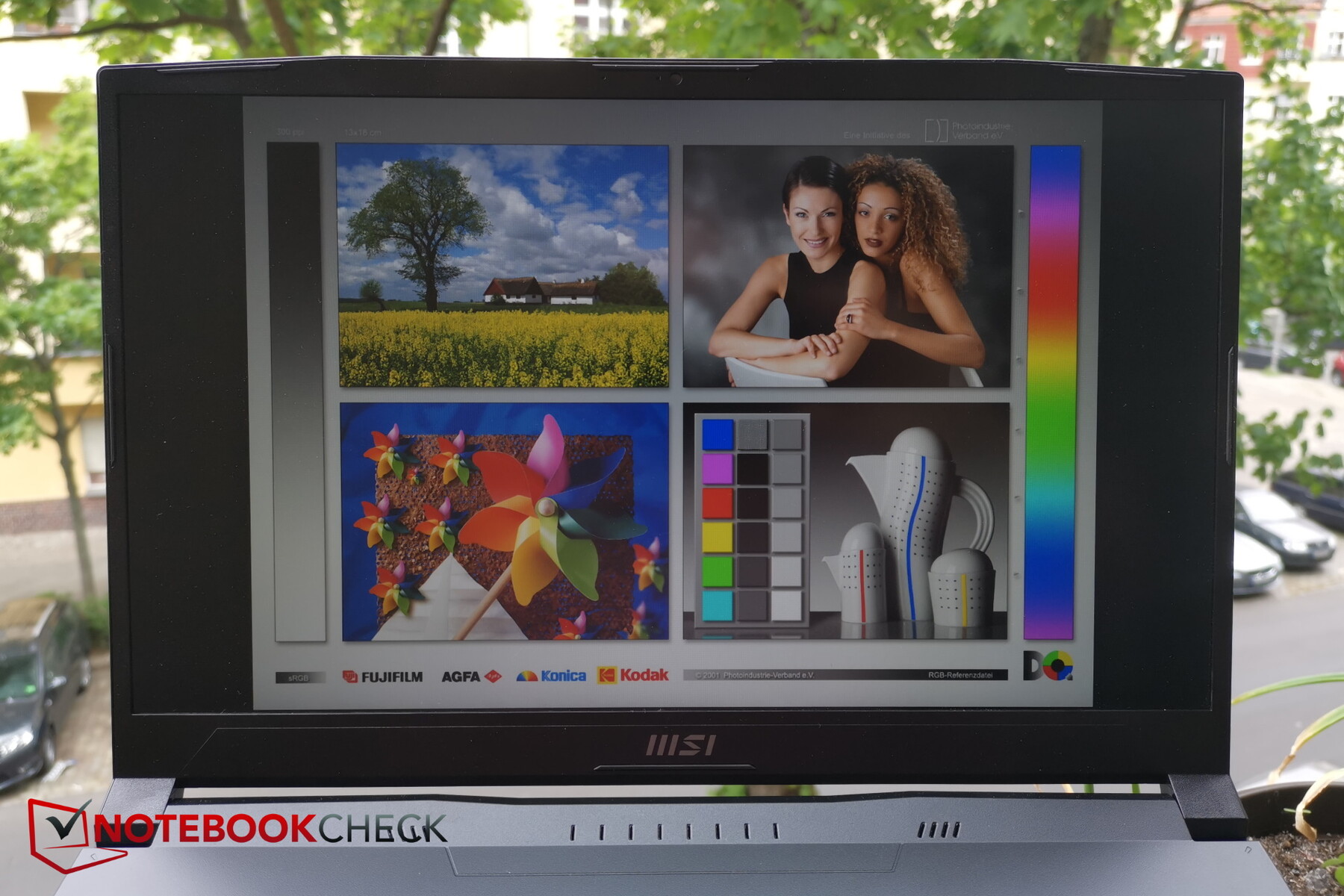

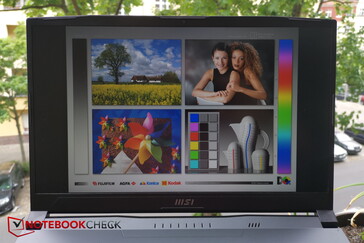

虽然亚光表面可以防止许多反射，但低亮度和相当弱的视角稳定性导致在户外的可用性有限。

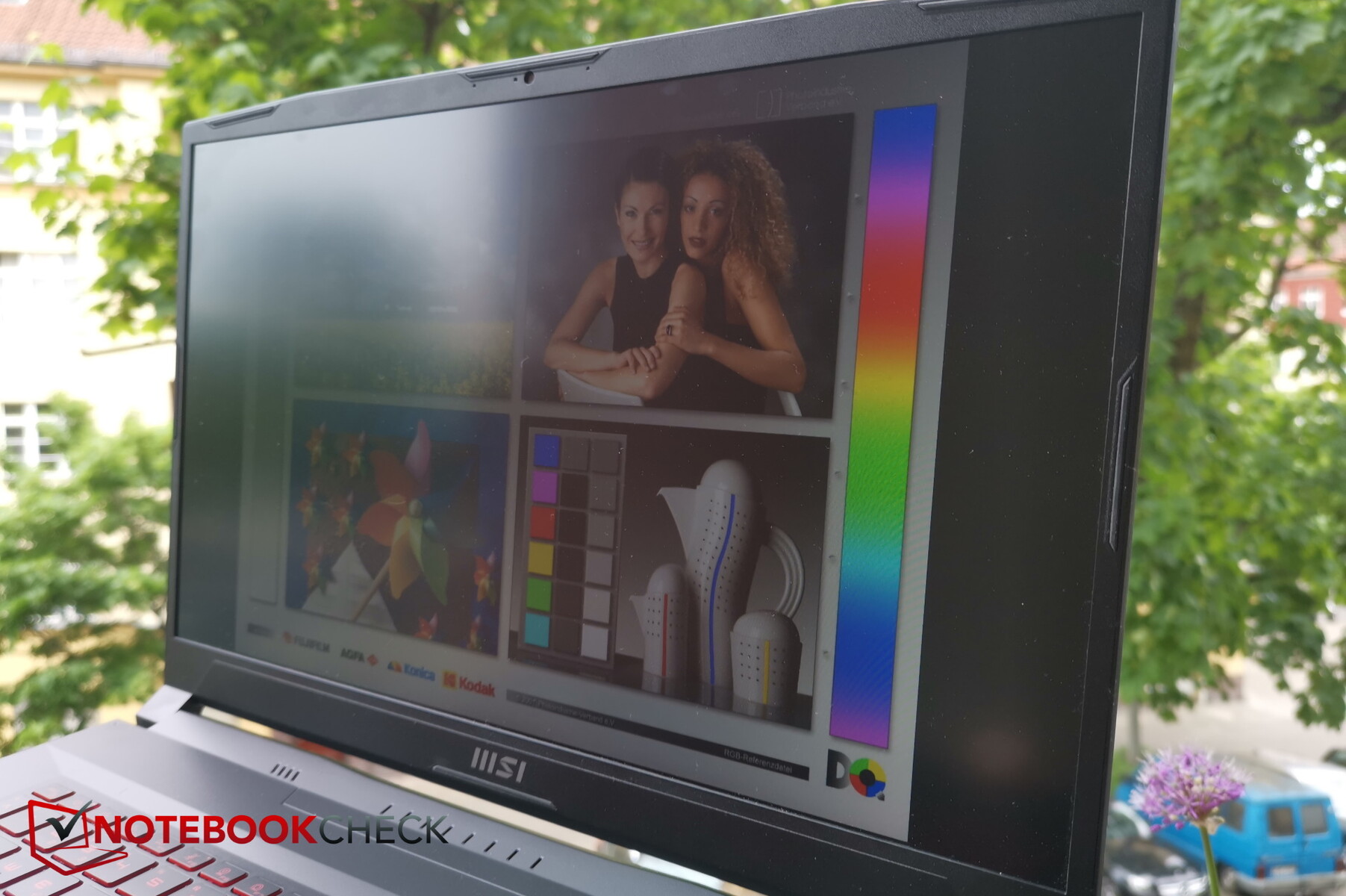

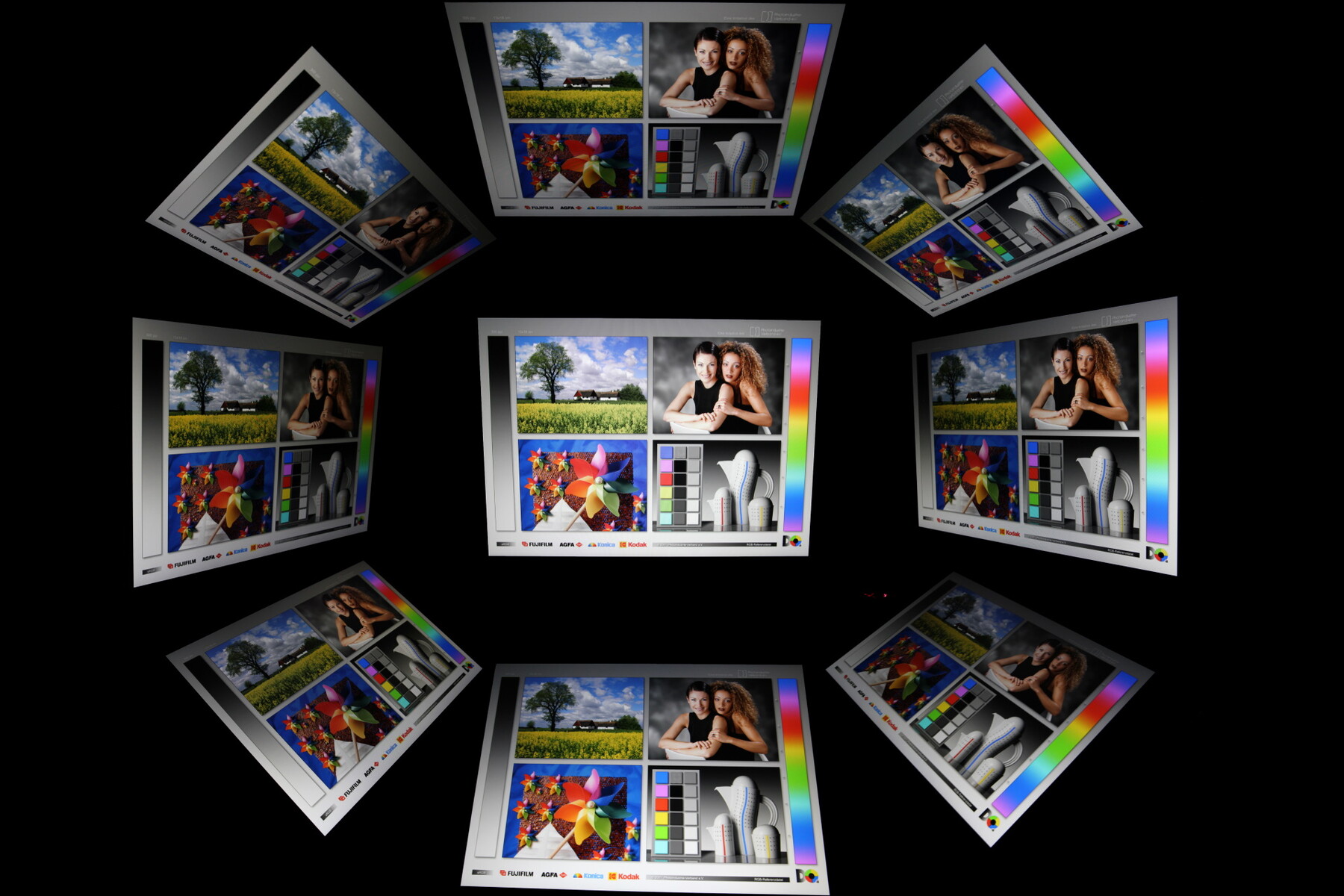

虽然通常情况下，IPS面板在其视角稳定性方面大放异彩，但Katana的显示屏就不是这样了。从极端的视角来看，亮度和色彩的强度明显下降。

性能 - RTX 3070 Ti有100瓦的限制

Katana GF76 12U总共有九种配置。其中八个使用酷睿i7-12700H作为CPU，只有一个型号配备了i5-12500H。GPU版本从RTX 3050到RTX 3070 Ti，包括Nvidia目前所有可用的RTX型号。所有型号的显示器和内存（2x 8 GB DDR4，也有16 GB）都是一样的。至于固态硬盘的大小，有1TB或512GB可供选择。

我们的配置代表了顶级的RTX 3070 Ti和1TB SSD。它应该能够在原生FHD分辨率下流畅地玩所有当前的游戏，甚至在最大的细节水平上。

测试条件

为了获得最佳的基准测试结果，我们使用微星中心的 "极限性能 "模式。虽然这个软件允许你调整各种重要的系统设置，但在其第一次启动时，你必须同意一份数据隐私声明，要求发送匿名的用户数据。调整设置包括用户配置文件、风扇控制模式，还有一般设置，如切换Fn和Windows键。它还允许你搜索驱动程序更新，但不幸的是，下载后它们不会自动安装。

对于我们的口味来说，微星中心的加载时间太长了，而且在软件重新启动后，风扇配置文件在没有任何可识别的原因下又切换到了 "平衡"，这种情况也屡屡发生。

处理器

微星使用了一个英特尔酷睿i7-12700H，除了唯一的最小的更好的 i7-12800H代表了当前游戏笔记本电脑的标准CPU之一，只要你在寻找英特尔而不是AMD。它总共拥有14个核心，能够同时在20个线程上运行。它的6个P核心在Turbo Boost中能够以高达4.7 GHz的速度运行，其基本时钟速度为1.7（E核心）和2.4 GHz（P核心）。

虽然45瓦的CPU确实应该能够在短时间内消耗115瓦，但我们的测试装置在第一次运行时只达到105瓦，时间非常短。在接下来的运行中，它仍然达到70至76瓦，在一次运行中能够相对较好地保持。

凭借这一点，Katane的表现与竞争对手处于同一水平，也很不错。之前的卡塔纳被超越了约30%。

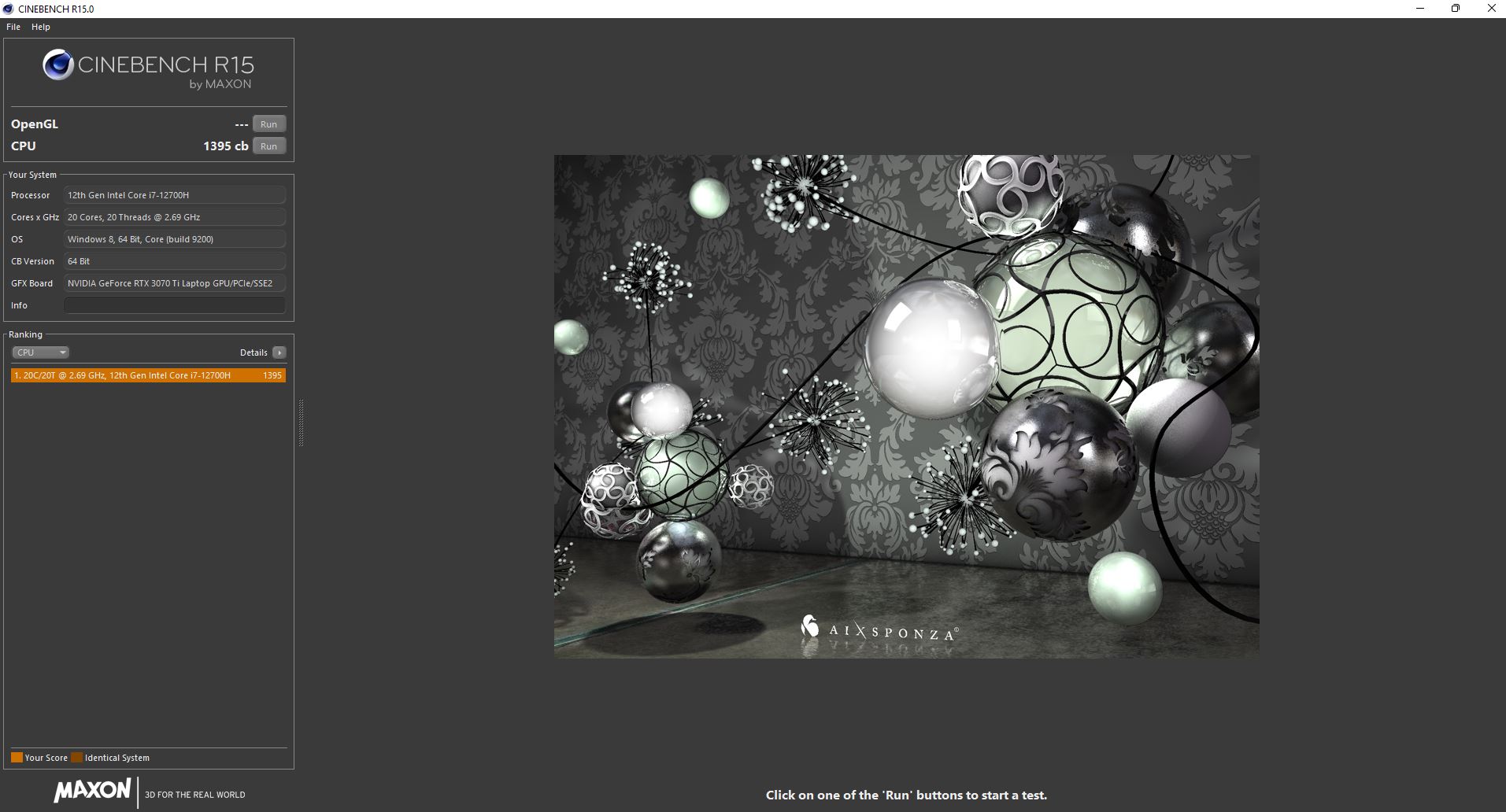

在Cinebench R15测试中，电池运行时的性能降低了约40%。

Cinebench R15 Multi Constant Load Test

MSI Katana GF76 12UGS Intel Core i7-12700H: Ø2347 (2251.62-2675.23)

MSI Katana GF76 11UE Intel Core i7-11800H: Ø1681 (1645.14-1822.57)

Aorus 17 XE4 Intel Core i7-12700H: Ø2279 (2184.6-2669.69)

Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H: Ø2179 (2132.31-2697.42)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Average of class Gaming	81 pt
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	80.4 pt
MSI Vector GP66 12UGS Intel Core i9-12900H	78.1 pt
Aorus 17 XE4 Intel Core i7-12700H	73.5 pt
MSI Katana GF76 12UGS Intel Core i7-12700H	73.4 pt
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	72.6 pt
Average Intel Core i7-12700H	70.5 pt
MSI Katana GF76 11UE Intel Core i7-11800H	54.9 pt

Cinebench R23 / Multi Core
Average of class Gaming (2435 - 34613, n=234, last 2 years)	19653 Points +15%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	19250 Points +13%
MSI Katana GF76 12UGS Intel Core i7-12700H	17063 Points
MSI Vector GP66 12UGS Intel Core i9-12900H	16812 (15129.6^min - 16812.1^max) Points -1%
Aorus 17 XE4 Intel Core i7-12700H	16034 Points -6%
Average Intel Core i7-12700H (4032 - 19330, n=63)	15636 Points -8%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	15386 Points -10%
MSI Katana GF76 11UE Intel Core i7-11800H	11080 Points -35%

Cinebench R23 / Single Core
MSI Vector GP66 12UGS Intel Core i9-12900H	1887 Points +4%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	1828 Points +1%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	1819 Points +1%
Average of class Gaming (527 - 2235, n=232, last 2 years)	1819 Points +1%
Aorus 17 XE4 Intel Core i7-12700H	1811 Points 0%
MSI Katana GF76 12UGS Intel Core i7-12700H	1808 Points
Average Intel Core i7-12700H (778 - 1826, n=62)	1758 Points -3%
MSI Katana GF76 11UE Intel Core i7-11800H	1497 Points -17%

Cinebench R20 / CPU (Multi Core)
Average of class Gaming (930 - 13769, n=232, last 2 years)	7470 Points +23%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	7382 Points +22%
MSI Vector GP66 12UGS Intel Core i9-12900H	6594 Points +9%
Aorus 17 XE4 Intel Core i7-12700H	6150 Points +2%
MSI Katana GF76 12UGS Intel Core i7-12700H	6051 Points
Average Intel Core i7-12700H (1576 - 7407, n=63)	5933 Points -2%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	5383 Points -11%
MSI Katana GF76 11UE Intel Core i7-11800H	4214 Points -30%

Cinebench R20 / CPU (Single Core)
MSI Vector GP66 12UGS Intel Core i9-12900H	730 Points +5%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	706 Points +1%
Average of class Gaming (169 - 855, n=232, last 2 years)	701 Points +1%
MSI Katana GF76 12UGS Intel Core i7-12700H	697 Points
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	696 Points 0%
Aorus 17 XE4 Intel Core i7-12700H	694 Points 0%
Average Intel Core i7-12700H (300 - 704, n=63)	679 Points -3%
MSI Katana GF76 11UE Intel Core i7-11800H	579 Points -17%

Cinebench R15 / CPU Multi 64Bit
Average of class Gaming (400 - 5663, n=237, last 2 years)	3111 Points +16%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	2903 (2783^min - 2902.76^max) Points +9%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	2697 (2132.31^min - 2697.42^max) Points +1%
MSI Katana GF76 12UGS Intel Core i7-12700H	2675 (1851.25^min - 2515.09^max) Points
Aorus 17 XE4 Intel Core i7-12700H	2670 Points 0%
Average Intel Core i7-12700H (1379 - 2916, n=69)	2517 Points -6%
MSI Vector GP66 12UGS Intel Core i9-12900H	2449 (2349.62^min - 2449.33^max) Points -8%
MSI Katana GF76 11UE Intel Core i7-11800H	1823 (1645.14^min - 1822.57^max) Points -32%

Cinebench R15 / CPU Single 64Bit
MSI Vector GP66 12UGS Intel Core i9-12900H	273 Points +5%
Average of class Gaming (79.2 - 318, n=236, last 2 years)	269 Points +3%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	266 Points +2%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	263 Points +1%
Aorus 17 XE4 Intel Core i7-12700H	263 Points +1%
MSI Katana GF76 12UGS Intel Core i7-12700H	261 Points
Average Intel Core i7-12700H (113 - 263, n=64)	253 Points -3%
MSI Katana GF76 11UE Intel Core i7-11800H	226 Points -13%

Blender / v2.79 BMW27 CPU
MSI Katana GF76 11UE Intel Core i7-11800H	284 Seconds * -46%
Aorus 17 XE4 Intel Core i7-12700H	234 Seconds * -20%
Average Intel Core i7-12700H (168 - 732, n=62)	225 Seconds * -16%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	220 Seconds * -13%
Average of class Gaming (87 - 1259, n=230, last 2 years)	198.4 Seconds * -2%
MSI Vector GP66 12UGS Intel Core i9-12900H	197 Seconds * -1%
MSI Katana GF76 12UGS Intel Core i7-12700H	194.7 Seconds *
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	171 Seconds * +12%

7-Zip 18.03 / 7z b 4
Average of class Gaming (11386 - 140932, n=231, last 2 years)	77566 MIPS +25%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	70903 MIPS +14%
MSI Vector GP66 12UGS Intel Core i9-12900H	66678 MIPS +7%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	62231 MIPS 0%
MSI Katana GF76 12UGS Intel Core i7-12700H	62149 MIPS
Average Intel Core i7-12700H (22844 - 73067, n=62)	60292 MIPS -3%
Aorus 17 XE4 Intel Core i7-12700H	57987 MIPS -7%
MSI Katana GF76 11UE Intel Core i7-11800H	45311 MIPS -27%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Gaming (2685 - 7581, n=231, last 2 years)	6142 MIPS +6%
MSI Vector GP66 12UGS Intel Core i9-12900H	6071 MIPS +5%
Aorus 17 XE4 Intel Core i7-12700H	5851 MIPS +1%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	5835 MIPS +1%
MSI Katana GF76 12UGS Intel Core i7-12700H	5798 MIPS
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	5761 MIPS -1%
Average Intel Core i7-12700H (2743 - 5972, n=62)	5648 MIPS -3%
MSI Katana GF76 11UE Intel Core i7-11800H	5511 MIPS -5%

Geekbench 5.5 / Multi-Core
Average of class Gaming (1946 - 22200, n=236, last 2 years)	13679 Points +22%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	12981 Points +16%
MSI Vector GP66 12UGS Intel Core i9-12900H	12382 Points +11%
Aorus 17 XE4 Intel Core i7-12700H	12096 Points +8%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	12008 Points +7%
Average Intel Core i7-12700H (5144 - 13745, n=63)	11729 Points +5%
MSI Katana GF76 12UGS Intel Core i7-12700H	11201 Points
MSI Katana GF76 11UE Intel Core i7-11800H	8470 Points -24%

Geekbench 5.5 / Single-Core
MSI Vector GP66 12UGS Intel Core i9-12900H	1883 Points +5%
Average of class Gaming (158 - 2210, n=236, last 2 years)	1814 Points +2%
MSI Katana GF76 12UGS Intel Core i7-12700H	1787 Points
Aorus 17 XE4 Intel Core i7-12700H	1781 Points 0%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	1771 Points -1%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	1746 Points -2%
Average Intel Core i7-12700H (803 - 1851, n=63)	1732 Points -3%
MSI Katana GF76 11UE Intel Core i7-11800H	1568 Points -12%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	21.4 fps +49%
Average of class Gaming (3 - 37.6, n=234, last 2 years)	21.3 fps +48%
MSI Vector GP66 12UGS Intel Core i9-12900H	19.8 fps +38%
Average Intel Core i7-12700H (4.67 - 21.8, n=63)	16.7 fps +16%
Aorus 17 XE4 Intel Core i7-12700H	16.3 fps +13%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	16.2 fps +13%
MSI Katana GF76 12UGS Intel Core i7-12700H	14.4 fps
MSI Katana GF76 11UE Intel Core i7-11800H	13.3 fps -8%

LibreOffice / 20 Documents To PDF
MSI Katana GF76 11UE Intel Core i7-11800H	49.2 s * -20%
Average of class Gaming (32.8 - 332, n=228, last 2 years)	49.1 s * -20%
Average Intel Core i7-12700H (34.2 - 95.3, n=62)	45.7 s * -11%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	42.1 s * -3%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	41.3 s * -1%
MSI Katana GF76 12UGS Intel Core i7-12700H	41 s *
MSI Vector GP66 12UGS Intel Core i9-12900H	40.3 s * +2%
Aorus 17 XE4 Intel Core i7-12700H	36.4 s * +11%

R Benchmark 2.5 / Overall mean
MSI Katana GF76 11UE Intel Core i7-11800H	0.559 sec * -24%
Average Intel Core i7-12700H (0.4441 - 1.052, n=62)	0.4723 sec * -5%
Average of class Gaming (0.3609 - 4.47, n=231, last 2 years)	0.4679 sec * -4%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H	0.455 sec * -1%
Aorus 17 XE4 Intel Core i7-12700H	0.4534 sec * -1%
MSI Katana GF76 12UGS Intel Core i7-12700H	0.4496 sec *
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H	0.4495 sec * -0%
MSI Vector GP66 12UGS Intel Core i9-12900H	0.4218 sec * +6%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2675 Points

Cinebench R15 OpenGL 64Bit

210 fps

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 CPU Single 64Bit

261 Points

Help

... in comparison

Performance Rating
Average of class Gaming	100 pt
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	74 pt
Average Intel Core i7-12700H	71.4 pt
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	68.1 pt
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	67.2 pt
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	61.3 pt
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	59.6 pt
MSI Katana GF76 11UE ^-9! Intel Core i7-11800H, GeForce RTX 3060 Laptop GPU	0 pt

AIDA64 / FP32 Ray-Trace
Average of class Gaming (3069 - 60169, n=227, last 2 years)	18693 KRay/s +116%
Average Intel Core i7-12700H (2585 - 17957, n=62)	10834 KRay/s +25%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	9576 KRay/s +11%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	8650 KRay/s
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	8506 KRay/s -2%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	7694 KRay/s -11%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	7233 KRay/s -16%

AIDA64 / FPU Julia
Average of class Gaming (18567 - 252486, n=227, last 2 years)	93857 Points +143%
Average Intel Core i7-12700H (12439 - 90760, n=62)	52825 Points +37%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	41712 Points +8%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	38603 Points 0%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	38584 Points
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	37471 Points -3%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	34372 Points -11%

AIDA64 / CPU SHA3
Average of class Gaming (629 - 10389, n=227, last 2 years)	4348 MB/s +41%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	3442 MB/s +11%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	3090 MB/s
Average Intel Core i7-12700H (833 - 4242, n=62)	3077 MB/s 0%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	3031 MB/s -2%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	2693 MB/s -13%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	2525 MB/s -18%

AIDA64 / CPU Queen
Average of class Gaming (15371 - 200651, n=227, last 2 years)	109886 Points +10%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	106194 Points +7%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	99702 Points 0%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	99671 Points 0%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	99515 Points
Average Intel Core i7-12700H (57923 - 103202, n=62)	97916 Points -2%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	94232 Points -5%

AIDA64 / FPU SinJulia
Average of class Gaming (2137 - 32988, n=227, last 2 years)	12226 Points +27%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	9928 Points +3%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	9756 Points +1%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	9648 Points
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	9271 Points -4%
Average Intel Core i7-12700H (3249 - 9939, n=62)	9055 Points -6%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	8783 Points -9%

AIDA64 / FPU Mandel
Average of class Gaming (10291 - 134044, n=227, last 2 years)	48017 Points +105%
Average Intel Core i7-12700H (7135 - 44760, n=62)	27939 Points +19%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	27081 Points +15%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	23449 Points
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	23055 Points -2%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	21600 Points -8%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	19904 Points -15%

AIDA64 / CPU AES
Average of class Gaming (19065 - 328679, n=227, last 2 years)	108279 MB/s +16%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	102398 MB/s +10%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	96687 MB/s +4%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	93402 MB/s
Average Intel Core i7-12700H (31839 - 144360, n=62)	85388 MB/s -9%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	81335 MB/s -13%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	56372 MB/s -40%

AIDA64 / CPU ZLib
Average of class Gaming (150.9 - 2409, n=227, last 2 years)	1218 MB/s +17%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	1158 MB/s +11%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	1081 MB/s +4%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	1044 MB/s
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	1034 MB/s -1%
Average Intel Core i7-12700H (305 - 1171, n=62)	970 MB/s -7%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	875 MB/s -16%
MSI Katana GF76 11UE Intel Core i7-11800H, GeForce RTX 3060 Laptop GPU	0 MB/s -100%

AIDA64 / FP64 Ray-Trace
Average of class Gaming (1518 - 31796, n=227, last 2 years)	10121 KRay/s +103%
Average Intel Core i7-12700H (1437 - 9692, n=62)	5986 KRay/s +20%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	5742 KRay/s +15%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	4977 KRay/s
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	4883 KRay/s -2%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	4246 KRay/s -15%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	4160 KRay/s -16%

AIDA64 / CPU PhotoWorxx
Average of class Gaming (10805 - 60161, n=228, last 2 years)	36915 MPixel/s +35%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	33458 MPixel/s +22%
Average Intel Core i7-12700H (12863 - 52207, n=62)	33149 MPixel/s +21%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	31329 MPixel/s +14%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	27416 MPixel/s 0%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	27366 MPixel/s
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	25893 MPixel/s -5%

系统性能

在PCMark 10中，Katana做得很好，大部分时间都排在第二位。只有在数字内容创作部分，性能略有下降。

PCMark 10 / Score
MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H	8004 Points +5%
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	7700 Points +1%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	7637 Points
Average of class Gaming (5235 - 9852, n=200, last 2 years)	7592 Points -1%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	7555 Points -1%
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (6941 - 7947, n=11)	7554 Points -1%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	7248 Points -5%
MSI Katana GF76 11UE GeForce RTX 3060 Laptop GPU, i7-11800H, Kingston OM8PCP3512F-AB	6505 Points -15%

PCMark 10 / Essentials
MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H	10943 Points 0%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	10935 Points
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	10765 Points -2%
Average of class Gaming (8300 - 12334, n=199, last 2 years)	10731 Points -2%
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (9892 - 10935, n=11)	10525 Points -4%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	10227 Points -6%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	10004 Points -9%
MSI Katana GF76 11UE GeForce RTX 3060 Laptop GPU, i7-11800H, Kingston OM8PCP3512F-AB	9695 Points -11%

PCMark 10 / Productivity
MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H	10141 Points +1%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	10080 Points
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	9875 Points -2%
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	9820 Points -3%
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (9024 - 10638, n=11)	9816 Points -3%
Average of class Gaming (6662 - 11833, n=199, last 2 years)	9725 Points -4%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	9136 Points -9%
MSI Katana GF76 11UE GeForce RTX 3060 Laptop GPU, i7-11800H, Kingston OM8PCP3512F-AB	8874 Points -12%

PCMark 10 / Digital Content Creation
MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H	12541 Points +14%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	11849 Points +8%
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	11721 Points +7%
Average of class Gaming (6462 - 18475, n=199, last 2 years)	11476 Points +5%
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (10165 - 12546, n=11)	11337 Points +3%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	11057 Points +1%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	10967 Points
MSI Katana GF76 11UE GeForce RTX 3060 Laptop GPU, i7-11800H, Kingston OM8PCP3512F-AB	8684 Points -21%

CrossMark / Overall
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	2000 Points +6%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	1955 Points +4%
Average of class Gaming (1247 - 2334, n=170, last 2 years)	1881 Points 0%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	1878 Points
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (974 - 2000, n=12)	1817 Points -3%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	1790 Points -5%

CrossMark / Productivity
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	1962 Points +4%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	1889 Points
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	1869 Points -1%
Average of class Gaming (1299 - 2204, n=170, last 2 years)	1791 Points -5%
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (907 - 1962, n=12)	1761 Points -7%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	1709 Points -10%

CrossMark / Creativity
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	2050 Points +13%
Average of class Gaming (1275 - 2514, n=170, last 2 years)	2046 Points +13%
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	1992 Points +10%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	1948 Points +8%
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (1027 - 2057, n=12)	1873 Points +4%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	1809 Points

CrossMark / Responsiveness
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	2142 Points +4%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	2060 Points
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	1940 Points -6%
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (1029 - 2142, n=12)	1833 Points -11%
Average of class Gaming (1030 - 2330, n=170, last 2 years)	1704 Points -17%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	1594 Points -23%

PCMark 10 Score		7637 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Gaming (21842 - 92565, n=227, last 2 years)	59613 MB/s +29%
Average Intel Core i7-12700H (25615 - 80511, n=62)	53891 MB/s +16%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	51726 MB/s +12%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	48643 MB/s +5%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	46297 MB/s
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	45395 MB/s -2%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	45062 MB/s -3%

AIDA64 / Memory Read
Average of class Gaming (24879 - 90647, n=227, last 2 years)	63575 MB/s +29%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	59324 MB/s +21%
Average Intel Core i7-12700H (25586 - 79442, n=62)	57340 MB/s +17%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	56629 MB/s +15%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	49101 MB/s
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	49035 MB/s 0%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	48780 MB/s -1%

AIDA64 / Memory Write
Average of class Gaming (21619 - 103259, n=227, last 2 years)	61792 MB/s +30%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	58630 MB/s +24%
Average Intel Core i7-12700H (23679 - 88660, n=62)	54793 MB/s +15%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	50923 MB/s +7%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	47450 MB/s
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	46932 MB/s -1%
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	44515 MB/s -6%

AIDA64 / Memory Latency
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	96.9 ns * -5%
MSI Katana GF76 12UGS Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	92.2 ns *
Aorus 17 XE4 Intel Core i7-12700H, GeForce RTX 3070 Ti Laptop GPU	91.7 ns * +1%
MSI Vector GP66 12UGS Intel Core i9-12900H, GeForce RTX 3070 Ti Laptop GPU	90.6 ns * +2%
Average of class Gaming (59.5 - 152.5, n=224, last 2 years)	87.2 ns * +5%
Average Intel Core i7-12700H (76.2 - 133.9, n=60)	77.8 ns * +16%
MSI Katana GF76 11UE Intel Core i7-11800H, GeForce RTX 3060 Laptop GPU	0 ns * +100%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, GeForce RTX 3070 Ti Laptop GPU	0 ns * +100%

* ... smaller is better

DPC延迟

无论是打开浏览器，还是在我们的主页上打开几个标签，都没有给Katana造成任何问题。然而，LatencyMon工具在播放我们的4K/60-fps YouTube测试视频时确实显示了一些延迟，但在再现过程中仍然没有丢帧。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Katana GF76 11UE GeForce RTX 3060 Laptop GPU, i7-11800H, Kingston OM8PCP3512F-AB	4527 μs * -292%
MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H	3882 μs * -237%
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	1681 μs * -46%
MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	1153.5 μs *
Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	866 μs * +25%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	748 μs * +35%

* ... smaller is better

存储解决方案

微星使用了美光公司的NVMe SSD，容量为1TB。虽然存储已经通过PCIe 4.0连接，但速度仍然更多的是在高PCIe 3.0水平，所以更昂贵的竞争对手中的模型往往更快。另一方面，持续的性能非常好，最终在我们的最佳存储设备列表中排名第12位。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Micron 2450 1TB MTFDKBK1T0TFK

CDM 5/6 Read Seq Q32T1: 3625 MB/s

CDM 5/6 Write Seq Q32T1: 3460.7 MB/s

CDM 5/6 Read 4K Q32T1: 850.41 MB/s

CDM 5/6 Write 4K Q32T1: 583.46 MB/s

CDM 5/6 Read 4K: 67.53 MB/s

CDM 5/6 Write 4K: 348.18 MB/s

CDM 6 Write 4K Q8T8: 2275.62 MB/s

CDM 6 Read 4K Q8T8: 1591.04 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	93.7 pt
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	89.9 pt
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	86.1 pt
Average of class Gaming	75.8 pt
Average Micron 2450 1TB MTFDKBK1T0TFK	70.3 pt
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	68.8 pt
MSI Vector GP66 12UGS	66.6 pt
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	25.2 pt

DiskSpd
seq read
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	4486 (4475.68^min - 4485.6^max) MB/s +86%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	4206 (4139.89^min - 4205.63^max) MB/s +74%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3631 (2734.69^min - 3631.22^max) MB/s +51%
Average of class Gaming (1319 - 7045, n=199, last 2 years)	3539 MB/s +47%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	2411 (2405.64^min - 2410.89^max) MB/s
Average Micron 2450 1TB MTFDKBK1T0TFK (2252 - 2411, n=3)	2308 MB/s -4%
MSI Vector GP66 12UGS	2119 (2058.22^min - 2119.13^max) MB/s -12%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	1061 (106.95^min - 1061.13^max) MB/s -56%
seq write
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	4368 (4353.59^min - 4368.3^max) MB/s +26%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	4001 (3961.52^min - 4001.33^max) MB/s +16%
Average of class Gaming (535 - 9307, n=199, last 2 years)	3829 MB/s +11%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	3460 (3448.81^min - 3460.09^max) MB/s
MSI Vector GP66 12UGS	3405 (3386.69^min - 3404.63^max) MB/s -2%
Average Micron 2450 1TB MTFDKBK1T0TFK (3217 - 3460, n=3)	3377 MB/s -2%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	2200 (2057.65^min - 2200.33^max) MB/s -36%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	978 (971.82^min - 978.46^max) MB/s -72%
seq q8 t1 read
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	7034 (6341.05^min - 7034.27^max) MB/s +95%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	6644 (5616.47^min - 6644.2^max) MB/s +84%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	6637 (6082.37^min - 6637.28^max) MB/s +84%
Average of class Gaming (2268 - 16089, n=199, last 2 years)	6390 MB/s +77%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	3603 (3173.36^min - 3602.62^max) MB/s
MSI Vector GP66 12UGS	3563 (3099.47^min - 3563.48^max) MB/s -1%
Average Micron 2450 1TB MTFDKBK1T0TFK (3345 - 3603, n=3)	3504 MB/s -3%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	1985 (1757.88^min - 1984.76^max) MB/s -45%
seq q8 t1 write
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	4999 (4982.41^min - 4998.56^max) MB/s +44%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	4940 (4909.85^min - 4939.63^max) MB/s +42%
Average of class Gaming (539 - 14571, n=199, last 2 years)	4818 MB/s +39%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3611 (3605.71^min - 3610.88^max) MB/s +4%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	3471 (3459.05^min - 3471.21^max) MB/s
MSI Vector GP66 12UGS	3448 (3378.51^min - 3448.14^max) MB/s -1%
Average Micron 2450 1TB MTFDKBK1T0TFK (3215 - 3471, n=3)	3380 MB/s -3%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	979 (974.28^min - 979.37^max) MB/s -72%
4k q1 t1 read
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	97.4 (97.34^min - 97.43^max) MB/s +30%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	88.8 (88.08^min - 88.8^max) MB/s +18%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	88.3 (87.29^min - 88.27^max) MB/s +18%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	75 (74.27^min - 75.04^max) MB/s
MSI Vector GP66 12UGS	69.5 (66.71^min - 69.49^max) MB/s -7%
Average Micron 2450 1TB MTFDKBK1T0TFK (62.4 - 75, n=3)	68.3 MB/s -9%
Average of class Gaming (30.6 - 95.9, n=199, last 2 years)	67.9 MB/s -9%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	32.4 (32.28^min - 32.44^max) MB/s -57%
4k q1 t1 write
MSI Vector GP66 12UGS	408 (406.25^min - 408.46^max) MB/s 0%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	407 (402.77^min - 406.81^max) MB/s
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	356 (354.39^min - 355.65^max) MB/s -13%
Average Micron 2450 1TB MTFDKBK1T0TFK (249 - 407, n=3)	349 MB/s -14%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	274 (272.01^min - 273.96^max) MB/s -33%
Average of class Gaming (66.6 - 421, n=199, last 2 years)	224 MB/s -45%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	222 (220.1^min - 221.87^max) MB/s -45%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	112 (108.3^min - 111.94^max) MB/s -72%
4k q32 t16 read
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	4158 (4151.05^min - 4157.8^max) MB/s +124%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	3638 (3612.61^min - 3638.32^max) MB/s +96%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3582 (3579.98^min - 3581.55^max) MB/s +93%
Average of class Gaming (417 - 6172, n=199, last 2 years)	2590 MB/s +39%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	1860 (1858.08^min - 1859.98^max) MB/s
Average Micron 2450 1TB MTFDKBK1T0TFK (1841 - 1860, n=3)	1849 MB/s -1%
MSI Vector GP66 12UGS	1844 (1840.41^min - 1844.18^max) MB/s -1%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	310 (293.77^min - 309.72^max) MB/s -83%
4k q32 t16 write
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3604 (3589.06^min - 3603.58^max) MB/s +37%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	3544 (3518.93^min - 3543.6^max) MB/s +35%
MSI Vector GP66 12UGS	3354 (3320.28^min - 3353.86^max) MB/s +28%
Average Micron 2450 1TB MTFDKBK1T0TFK (2629 - 3364, n=3)	2915 MB/s +11%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	2748 (2715.51^min - 2748.13^max) MB/s +5%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	2629 (1600.14^min - 2628.61^max) MB/s
Average of class Gaming (162.3 - 4869, n=199, last 2 years)	2152 MB/s -18%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	976 (973.27^min - 976.25^max) MB/s -63%

AS SSD
Score Total
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	9279 Points +57%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	9094 Points +54%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	8336 Points +41%
Average Micron 2450 1TB MTFDKBK1T0TFK (5894 - 7568, n=3)	6978 Points +18%
Average of class Gaming (2271 - 13854, n=186, last 2 years)	6843 Points +16%
MSI Vector GP66 12UGS	6130 Points +4%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	5894 Points
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	1816 Points -69%
Score Read
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3549 Points +33%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	3380 Points +26%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	3057 Points +14%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	2675 Points
Average Micron 2450 1TB MTFDKBK1T0TFK (2592 - 2722, n=3)	2663 Points 0%
Average of class Gaming (760 - 4721, n=186, last 2 years)	2508 Points -6%
MSI Vector GP66 12UGS	2008 Points -25%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	649 Points -76%
Score Write
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	4043 Points +120%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3996 Points +118%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	3753 Points +105%
Average of class Gaming (515 - 7208, n=186, last 2 years)	3120 Points +70%
MSI Vector GP66 12UGS	3087 Points +68%
Average Micron 2450 1TB MTFDKBK1T0TFK (1834 - 3541, n=3)	2942 Points +60%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	1834 Points
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	872 Points -52%
Seq Read
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	5036 MB/s +73%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	5031 MB/s +73%
Average of class Gaming (2260 - 12763, n=186, last 2 years)	4963 MB/s +71%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	4672 MB/s +61%
MSI Vector GP66 12UGS	3080 MB/s +6%
Average Micron 2450 1TB MTFDKBK1T0TFK (2903 - 3209, n=3)	3005 MB/s +3%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	2904 MB/s
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	1704 MB/s -41%
Seq Write
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	3826 MB/s +29%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	3784 MB/s +28%
Average of class Gaming (495 - 11316, n=186, last 2 years)	3673 MB/s +24%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3162 MB/s +7%
MSI Vector GP66 12UGS	2997 MB/s +1%
Average Micron 2450 1TB MTFDKBK1T0TFK (2886 - 3131, n=3)	2994 MB/s +1%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	2965 MB/s
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	716 MB/s -76%
4K Read
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	108 MB/s +23%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	88.1 MB/s 0%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	87.74 MB/s
Average Micron 2450 1TB MTFDKBK1T0TFK (77.7 - 88.7, n=3)	84.7 MB/s -3%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	79.26 MB/s -10%
MSI Vector GP66 12UGS	70 MB/s -20%
Average of class Gaming (30.4 - 112.1, n=186, last 2 years)	66.9 MB/s -24%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	37.77 MB/s -57%
4K Write
MSI Vector GP66 12UGS	352 MB/s 0%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	351.19 MB/s
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	308.6 MB/s -12%
Average Micron 2450 1TB MTFDKBK1T0TFK (218 - 351, n=3)	301 MB/s -14%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	240.4 MB/s -32%
Average of class Gaming (96.3 - 512, n=186, last 2 years)	211 MB/s -40%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	188.59 MB/s -46%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	66 MB/s -81%
4K-64 Read
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	2938 MB/s +28%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	2788 MB/s +21%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	2510.86 MB/s +9%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	2296.75 MB/s
Average Micron 2450 1TB MTFDKBK1T0TFK (2213 - 2323, n=3)	2278 MB/s -1%
Average of class Gaming (442 - 3475, n=186, last 2 years)	1939 MB/s -16%
MSI Vector GP66 12UGS	1630 MB/s -29%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	441.2 MB/s -81%
4K-64 Write
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	3424 MB/s +189%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	3371 MB/s +184%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	3181.34 MB/s +168%
Average of class Gaming (277 - 5909, n=186, last 2 years)	2544 MB/s +114%
MSI Vector GP66 12UGS	2435 MB/s +105%
Average Micron 2450 1TB MTFDKBK1T0TFK (1187 - 2920, n=3)	2341 MB/s +97%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	1186.56 MB/s
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	735 MB/s -38%
Access Time Read
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	0.191 ms * -730%
Average of class Gaming (0.016 - 0.379, n=184, last 2 years)	0.05343 ms * -132%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	0.048 ms * -109%
Average Micron 2450 1TB MTFDKBK1T0TFK (0.023 - 0.065, n=3)	0.03867 ms * -68%
MSI Vector GP66 12UGS	0.033 ms * -43%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	0.027 ms * -17%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	0.023 ms *
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	0.02 ms * +13%
Access Time Write
MSI Vector GP66 12UGS	0.425 ms * -139%
MSI Katana GF76 12UGS Micron 2450 1TB MTFDKBK1T0TFK	0.178 ms *
Average Micron 2450 1TB MTFDKBK1T0TFK (0.174 - 0.182, n=3)	0.178 ms * -0%
MSI Katana GF76 11UE Kingston OM8PCP3512F-AB	0.053 ms * +70%
Average of class Gaming (0.011 - 1.028, n=186, last 2 years)	0.04639 ms * +74%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Samsung PM9A1 MZVL21T0HCLR	0.022 ms * +88%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR	0.018 ms * +90%
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10	0.013 ms * +93%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

MSI Katana GF76 12UGS: Ø3622 (3251.63-3633.18)

图形卡

Nvidia Geforce RTX 3070 Ti是最强大的移动GPU之一，确实应该能够流畅地玩目前所有的游戏。然而，在Katana中，其TGP被限制在只有100瓦，而一些竞争对手在此达到150瓦。图形性能最终应该会相应地降低。

在合成3DMark测试中，Katana的成绩略低于平均水平，最终比平均RTX 3070 Ti落后约7-10%，这应该是由于TGP较低。

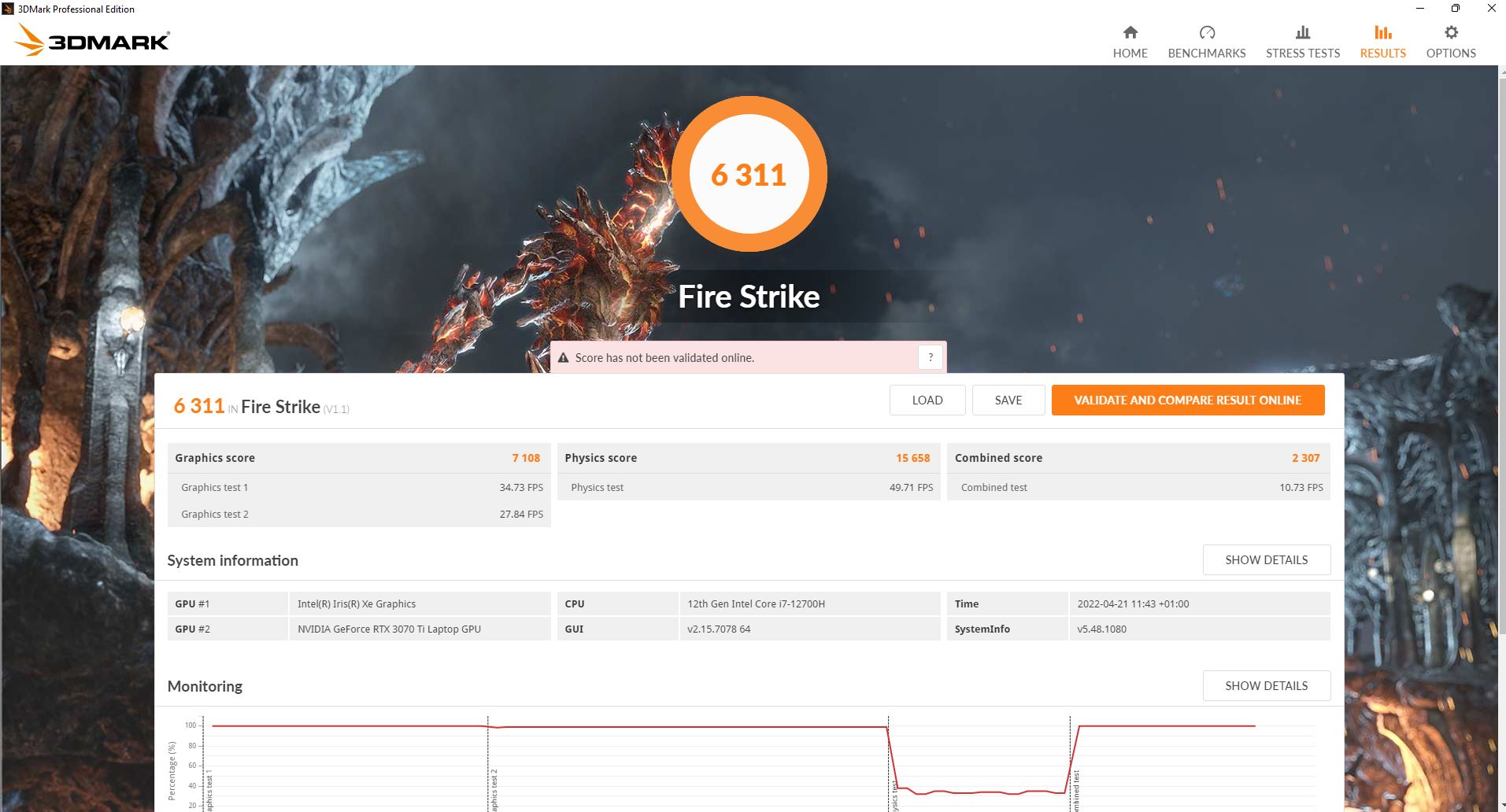

在电池运行中，3D性能降低了70%以上，正如另一个Fire Strike 。

3DMark Performance Rating | 3DMark

3DMark Performance Rating - Percent
Average of class Gaming	99.6 pt
MSI Vector GP66 12UGS NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i9-12900H	98.6 pt
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	97.8 pt
Razer Blade 17 (i7-12800H, RTX 3070 Ti) NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12800H	93.6 pt
Aorus 17 XE4 NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	90 pt
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU	89.7 pt
MSI Katana GF76 12UGS NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	81.6 pt
MSI Katana GF76 11UE NVIDIA GeForce RTX 3060 Laptop GPU, Intel Core i7-11800H	61.4 pt

3DMark
1920x1080 Fire Strike Graphics
MSI Vector GP66 12UGS NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i9-12900H	29729 Points +18%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	29630 Points +17%
Average of class Gaming (781 - 53059, n=237, last 2 years)	29469 Points +17%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12800H	28555 Points +13%
Aorus 17 XE4 NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	27776 Points +10%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (22612 - 32550, n=37)	27554 Points +9%
MSI Katana GF76 12UGS NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	25254 Points
MSI Katana GF76 11UE NVIDIA GeForce RTX 3060 Laptop GPU, Intel Core i7-11800H	18851 Points -25%
2560x1440 Time Spy Graphics
Average of class Gaming (224 - 22547, n=235, last 2 years)	12072 Points +28%
MSI Vector GP66 12UGS NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i9-12900H	11739 Points +24%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	11577 Points +22%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12800H	11012 Points +17%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (8142 - 12324, n=37)	10478 Points +11%
Aorus 17 XE4 NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	10462 Points +11%
MSI Katana GF76 12UGS NVIDIA GeForce RTX 3070 Ti Laptop GPU, Intel Core i7-12700H	9452 Points
MSI Katana GF76 11UE NVIDIA GeForce RTX 3060 Laptop GPU, Intel Core i7-11800H	7175 Points -24%

3DMark 11 Performance		14168 points
3DMark Cloud Gate Standard Score		28010 points
3DMark Fire Strike Score		22545 points
3DMark Time Spy Score		9712 points
Help

... in comparison

游戏性能

在原生FHD分辨率下，几乎所有的游戏在最大细节设置下也能顺利再现。然而，在《赛博朋克2077 1.5》中，情况有时已经会因为光线追踪效果而变得紧张，在激活光线追踪Ultra时，帧率从大约48.5帧下降到只有28.5帧。

总的来说，Katana中的RTX 3070 Ti的性能比我们数据库中所有配备相同GPU的笔记本电脑的平均性能低10%左右。考虑到RTX 3070 Ti的性能，大多数用户应该能够接受，但性能爱好者可能想看看那些不将GPU限制在100瓦的笔记本电脑。这样一来，直接竞争对手大多更快。配备RTX 3060的前辈 "只 "被击败了15％至20％。大多数时候，微星Vector在3D性能方面排名第一。

The Witcher 3
1366x768 Medium Graphics & Postprocessing
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	360 (324^min) fps +35%
Average of class Gaming (34.2 - 617, n=141, last 2 years)	329 fps +23%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	324 fps +21%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	296.4 fps +11%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (237 - 360, n=23)	294 fps +10%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	291 (44.5^min, 82.6^P0.1, 180^P1) fps +9%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	267 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	229.4 fps -14%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	223.9 (214^min) fps +36%
Average of class Gaming (17.5 - 449, n=167, last 2 years)	220 fps +33%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	219 fps +33%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (139.7 - 226, n=27)	188.8 fps +14%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	180 (32.6^min, 55^P0.1, 121^P1) fps +9%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	173.4 fps +5%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	165 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	134.4 fps -19%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Gaming (8.61 - 216, n=229, last 2 years)	117.3 fps +28%
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	114.6 (108^min) fps +25%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	111.6 fps +22%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	103 (89^min, 97^P1) fps +13%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (76.8 - 124.1, n=39)	102.4 fps +12%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	99.9 (29.7^min, 45.7^P0.1, 74.1^P1) fps +9%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	91.5 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	72.6 (61^min) fps -21%

Far Cry 5
1920x1080 Medium Preset AA:T
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	152 (122^min) fps +24%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	146 (121^min) fps +19%
Average of class Gaming (17 - 248, n=99, last 2 years)	140.9 fps +15%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	137 fps +11%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (105 - 155, n=18)	135.6 fps +10%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	128 fps +4%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	123 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	105 fps -15%
1920x1080 High Preset AA:T
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	145 (116^min) fps +23%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	138 (113^min) fps +17%
Average of class Gaming (16 - 232, n=116, last 2 years)	134.8 fps +14%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (99 - 147, n=23)	129.6 fps +10%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	129 fps +9%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	123 fps +4%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	118 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	97 fps -18%
1920x1080 Ultra Preset AA:T
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	136 (106^min) fps +21%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	130 (104^min) fps +16%
Average of class Gaming (14 - 218, n=126, last 2 years)	126.3 fps +13%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	122 fps +9%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (91 - 138, n=25)	120.4 fps +8%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	116 fps +4%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	112 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	91 fps -19%

Cyberpunk 2077 1.6
1920x1080 High Preset
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	105 fps +62%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	96 fps +48%
Average of class Gaming (11.3 - 205, n=90, last 2 years)	93.6 fps +44%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (65 - 132.3, n=12)	93.3 fps +44%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	84.2 (62.4^min) fps +30%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	65 fps
1920x1080 Ultra Preset
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	104 fps +114%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	94 fps +94%
Average of class Gaming (16.7 - 159.7, n=102, last 2 years)	86.7 fps +79%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (48.5 - 104, n=13)	79.2 fps +63%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	69.7 (46.2^min) fps +44%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	48.5 fps
1920x1080 Ray Tracing Ultra Preset (DLSS off)
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	63 fps +121%
Average of class Gaming (12.6 - 74, n=38, last 2 years)	43 fps +51%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (27.9 - 63, n=7)	36.8 fps +29%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	36 fps +26%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	31.9 (23.4^min) fps +12%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	28.5 fps

GTA V
1920x1080 Normal/Off AF:4x
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	183 (3.38^min, 143^P1) fps +7%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	180 (2.6^min, 143^P1) fps +5%
Average of class Gaming (53 - 187.7, n=158, last 2 years)	175.2 fps +2%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (97.2 - 186.2, n=21)	173.6 fps +1%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	173.1 (4.2^min, 125^P1) fps +1%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	171.5 (4.7^min, 111.1^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	179 (3.57^min, 125^P1) fps +15%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	175 (6^min, 111^P1) fps +12%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	171 (3.19^min, 62.5^P1) fps +10%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (80 - 181.9, n=28)	165.5 fps +6%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	164.2 (4.34^min, 100^P1) fps +5%
Average of class Gaming (15.3 - 187.1, n=182, last 2 years)	163.9 fps +5%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	156 (6.75^min, 111.1^P1) fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	146.9 fps -6%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	123 (4.38^min, 83.3^P1) fps +26%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	117 (5.59^min, 55.6^P1) fps +20%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	117 (24.8^min, 83.3^P1) fps +20%
Average of class Gaming (6.38 - 167.7, n=220, last 2 years)	107.7 fps +10%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (44 - 123.9, n=36)	106.7 fps +9%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	103.8 (9.16^min, 71.4^P1) fps +6%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	97.7 (6.21^min, 71.4^P1) fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	81.1 fps -17%

Final Fantasy XV Benchmark
1280x720 Lite Quality
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	207 fps +47%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	205 fps +45%
Average of class Gaming (24.6 - 234, n=141, last 2 years)	192.1 fps +36%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (141.1 - 211, n=20)	184.1 fps +30%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	180 fps +28%
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	161 fps +14%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	158.4 fps +12%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	141.1 fps
1920x1080 Standard Quality
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	152 fps +28%
Average of class Gaming (13 - 230, n=175, last 2 years)	144.6 fps +21%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	142 fps +19%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	134.3 fps +13%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (113.9 - 162.6, n=24)	133.6 fps +12%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	126 fps +6%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	119.2 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	98.5 fps -17%
1920x1080 High Quality
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	115 fps +28%
Average of class Gaming (9.13 - 194.9, n=230, last 2 years)	111.6 fps +24%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	107 fps +19%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	103.2 fps +15%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (49.5 - 122.4, n=35)	98.5 fps +10%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	96.5 fps +8%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	89.7 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	74.4 fps -17%

X-Plane 11.11
1280x720 low (fps_test=1)
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	161 fps +18%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	147 fps +8%
Average of class Gaming (15.3 - 221, n=233, last 2 years)	146.2 fps +8%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	144 fps +6%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	138.6 fps +2%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	135.9 fps
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (68.8 - 166.8, n=36)	134.9 fps -1%
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	121 fps -11%
1920x1080 med (fps_test=2)
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	143 fps +24%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	131 fps +14%
Average of class Gaming (13.7 - 193.1, n=236, last 2 years)	128.8 fps +12%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	123 fps +7%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (57.3 - 145.7, n=36)	118.4 fps +3%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	117.7 fps +2%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	115.2 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	104 fps -10%
1920x1080 high (fps_test=3)
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	112 fps +18%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	103 fps +8%
Average of class Gaming (12.4 - 166.2, n=245, last 2 years)	102.2 fps +8%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	100 fps +5%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	95.8 fps +1%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (51.6 - 116.9, n=37)	95.5 fps +1%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	95 fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	83.9 fps -12%

Dota 2 Reborn
1920x1080 high (2/3)
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	164 (143.6^min) fps +15%
Average of class Gaming (30.9 - 244, n=239, last 2 years)	152.9 fps +7%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	152 (134.5^min) fps +7%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	150 (131.4^min) fps +5%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	147 (130.6^min) fps +3%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (75.4 - 170.2, n=38)	142.8 fps 0%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	142.6 (126.5^min) fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	140 (120.2^min) fps -2%
1920x1080 ultra (3/3) best looking
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	155 (135.7^min) fps +14%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	145 (128.2^min) fps +7%
Average of class Gaming (26.9 - 220, n=240, last 2 years)	143.1 fps +5%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	141.6 (124^min) fps +4%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	139 (122.8^min) fps +2%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	135.8 (119.7^min) fps
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (68.7 - 160.5, n=38)	135.6 fps 0%
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	130 (113.2^min) fps -4%

Strange Brigade
1920x1080 medium AA:medium AF:4
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	298 (114^min, 246^P1) fps +33%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	270 fps +21%
Average of class Gaming (22.2 - 508, n=174, last 2 years)	270 fps +21%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	258 (154^min, 193.7^P1) fps +15%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (116 - 298, n=25)	245 fps +9%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	244 (107^min, 183^P1) fps +9%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	224 (135.6^min, 178.2^P1) fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	179 (129^min, 143^P1) fps -20%
1920x1080 high AA:high AF:8
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	244 (113^min, 182^P1) fps +33%
Average of class Gaming (17.5 - 465, n=190, last 2 years)	232 fps +27%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	224 fps +22%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	217 (77^min, 153.8^P1) fps +19%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (112 - 248, n=27)	203 fps +11%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	200 (42.1^min, 151^P1) fps +9%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	183.1 (44.6^min, 132.3^P1) fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	144 (95.6^min, 107^P1) fps -21%
1920x1080 ultra AA:ultra AF:16
MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	213 (67.3^min, 162^P1) fps +34%
Average of class Gaming (14.6 - 421, n=228, last 2 years)	207 fps +30%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	199 fps +25%
Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	191.7 (101.9^min, 136.5^P1) fps +20%
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (109 - 221, n=37)	179.9 fps +13%
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	178 (94.9^min, 133^P1) fps +12%
MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	159.5 (112.5^min, 117.2^P1) fps
MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	125 (40.7^min, 96.2^P1) fps -22%

在运行"TheWitcher 3"一小时时，帧率保持相当稳定。CPU核心平均达到3.8 GHz（76 °C，~169 °F）的时钟速度，而GPU则达到约1.3 GHz（~70 °C，~158 °F）。

The Witcher 3 FPS Chart

MSI Katana GF76 12UGS i7-12700H, GeForce RTX 3070 Ti Laptop GPU: Ø82.8 (77-88)

	low	med.	high	ultra
GTA V (2015)	184.6	174.4	156	97.7
The Witcher 3 (2015)	388	267	165	91.5
Dota 2 Reborn (2015)	172.1	153.6	142.6	135.8
Final Fantasy XV Benchmark (2018)	141.1	119.2	89.7
X-Plane 11.11 (2018)	135.9	115.2	95
Far Cry 5 (2018)	154	123	118	112
Strange Brigade (2018)	425	224	183.1	159.5
Cyberpunk 2077 1.6 (2022)	117.5	98.9	65	48.5

排放 - 怠速运行时，风扇也会运行。

噪声排放

冷却系统在噪音水平方面没有得到最佳调整。即使在没有任何负载的空闲操作中，以及在平衡或甚至静音模式下，风扇也会打开。它们几乎一直处于活动状态，而且速度也在不断变化。这似乎没有必要，而且很烦人。即使是更薄的刀锋17例如，即使在最高性能模式下，空闲运行时也基本保持沉默。

不太理想的冷却系统可能也是GPU被限制在100瓦的原因。在3DMark06中，Katana是我们比较中最嘈杂的型号，在游戏和最大音量方面，它只被同样来自微星的Vector超过了。

Noise Level

Idle		28.41 / 28.41 / 36.71 dB(A)
Load		53.04 / 54.38 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23 dB(A)

	MSI Katana GF76 12UGS GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Micron 2450 1TB MTFDKBK1T0TFK	MSI Katana GF76 11UE GeForce RTX 3060 Laptop GPU, i7-11800H, Kingston OM8PCP3512F-AB	Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10	Razer Blade 17 (i7-12800H, RTX 3070 Ti) GeForce RTX 3070 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR	Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR	MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H
Noise		-5%	3%	17%	4%	11%
off / environment *	23	25 -9%	24 -4%	23 -0%	24.6 -7%	22.9 -0%
Idle Minimum *	28.41	33 -16%	30 -6%	23 19%	28.4 -0%	23.4 18%
Idle Average *	28.41	34 -20%	31 -9%	23 19%	28.4 -0%	23.4 18%
Idle Maximum *	36.71	35 5%	34 7%	23 37%	28.4 23%	27.4 25%
Load Average *	53.04	53 -0%	44 17%	36.92 30%	49.4 7%	36 32%
Witcher 3 ultra *	54.22	49 10%	51 6%	50 8%	49.4 9%	58.2 -7%
Load Maximum *	54.38	57 -5%	49 10%	50 8%	54.7 -1%	58 -7%

* ... smaller is better

温度

尽管风扇零星开启，但在高达37°C（约99°F）的情况下，Katana在怠速运行时已经比竞争对手更热。在负载情况下，Blade 17和微星Vector仍然比Katana冷，尽管它们的性能更高。Aorus和Legion 的温度也差不多。

热点位于中心以及显示器方向，可以达到55℃（131°F）。

Max. Load

Idle


45 °C	51 °C	46 °C
33 °C	50 °C	41 °C
23 °C	26 °C	24 °C

Maximum: 51 °C
Average: 37.7 °C


49 °C	55 °C	46 °C
38 °C	41 °C	36 °C
23 °C	23 °C	23 °C

Maximum: 55 °C
Average: 37.1 °C

Power Supply (max.) 48 °C | Room Temperature 19 °C | Fluke t3000FC (calibrated), Fluke 62 Mini

(±) The average temperature for the upper side under maximal load is 37.7 °C / 100 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 51 °C / 124 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 55 °C / 131 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 30.7 °C / 87 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+2.9 °C / 5.2 F).

	MSI Katana GF76 12UGS Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU	Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	Razer Blade 17 (i7-12800H, RTX 3070 Ti) Intel Core i7-12800H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU	MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU
Heat		11%	8%	15%	10%	13%
Maximum Upper Side *	51	51 -0%	50 2%	43 16%	45.3 11%	40.2 21%
Maximum Bottom *	55	52 5%	58 -5%	44 20%	61.2 -11%	43.8 20%
Idle Upper Side *	37	32 14%	30 19%	32 14%	28.6 23%	34.8 6%
Idle Bottom *	38	29 24%	32 16%	34 11%	31.4 17%	37 3%

* ... smaller is better

压力测试

CPU核心在我们的压力测试中以大约4GHz的速度开始。然而，它们只是非常短暂地保持这一状态，因为几秒钟后，核心已经超过了90°C（194°F）的热极限，导致时钟速度随后下降，最后在2至2.4GHz之间趋于平稳。温度平均约为81℃（178°F）。

另一方面，在整个测试期间，GPU的时钟速度在800至1600MHz之间持续变化，存储速度仅在1.4至1.5GHz之间变化。核心温度在70℃（158°F）左右。显卡平均消耗约71瓦，最多只能零星地达到规定的100瓦。

	CPU时钟(GHz)	GPU时钟(MHz)	CPU平均温度(℃)	GPU平均温度(℃)
Prime95 + FurMark 压力	2.3	1.254	81	70
Witcher 3 应力	3,8	1.332	76	70

发言人

扬声器的声音不大，明显缺乏低音。但至少，中音是相当平衡的。我们建议连接外部音频设备。要做到这一点，可以使用一个3.5毫米的组合式耳机接口。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

MSI Katana GF76 12UGS audio analysis

(±) | speaker loudness is average but good (81.81 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.2% lower than median
(±) | linearity of bass is average (11% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.2% difference to median)
Compared to same class
» 30% of all tested devices in this class were better, 6% similar, 64% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 79% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Aorus 17 XE4 audio analysis

(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.3% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.5% difference to median)
Compared to same class
» 45% of all tested devices in this class were better, 12% similar, 43% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 28% of all tested devices were better, 8% similar, 63% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理 - 相对高效

消耗功率

在空闲运行期间，Katana的耗电量与Razer Blade 17差不多或很少。在游戏等负载下，由于其有限的GPU功耗，它便成为我们比较中最高效的设备之一。例如，在"TheWitcher 3，"它的功耗只比它的前辈RTX 3060多6%，而提供的性能却高达26%以上。

我们测量的短暂最大功耗为219瓦，240瓦的电源应该可以毫无问题地处理。

Power Consumption

Idle	14.2 / 18 / 22 Watt
Load	98 / 219 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	MSI Katana GF76 12UGS i7-12700H, GeForce RTX 3070 Ti Laptop GPU, Micron 2450 1TB MTFDKBK1T0TFK, IPS, 1920x1080, 17.30	MSI Katana GF76 11UE i7-11800H, GeForce RTX 3060 Laptop GPU, Kingston OM8PCP3512F-AB, IPS, 1920x1080, 17.30	Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU, Gigabyte AG470S1TB-SI B10, IPS, 1920x1080, 17.30	Razer Blade 17 (i7-12800H, RTX 3070 Ti) i7-12800H, GeForce RTX 3070 Ti Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1440, 17.30	Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 16.00	MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU, , IPS, 1920x1080, 15.60	Average NVIDIA GeForce RTX 3070 Ti Laptop GPU	Average of class Gaming
Power Consumption		15%	-26%	-14%	-6%	-38%	-14%	-11%
Idle Minimum *	14.2	9 37%	20 -41%	14.4 -1%	8.6 39%	17.5 -23%	14.2 ?(4 - 34.6, n=27) -0%	13.8 ?(2 - 64, n=179, last 2 years) 3%
Idle Average *	18	13 28%	23 -28%	20 -11%	17.6 2%	20.1 -12%	19.9 ?(8.9 - 43, n=27) -11%	19.2 ?(8 - 67, n=179, last 2 years) -7%
Idle Maximum *	22	20 9%	28 -27%	21.5 2%	18.5 16%	47.3 -115%	26.2 ?(14.3 - 47.3, n=27) -19%	27 ?(9 - 101.1, n=179, last 2 years) -23%
Load Average *	98	102 -4%	120 -22%	119 -21%	110 -12%	107.3 -9%	125.8 ?(87.2 - 202, n=27) -28%	111.3 ?(32.1 - 202, n=178, last 2 years) -14%
Witcher 3 ultra *	159	149 6%	196 -23%	218 -37%	227 -43%	225 -42%
Load Maximum *	219	187 15%	257 -17%	248 -13%	294.6 -35%	277.7 -27%	248 ?(160 - 319, n=27) -13%	251 ?(64.5 - 418, n=177, last 2 years) -15%

* ... smaller is better

Power Consumption The Witcher 3 / Stress Test

MSI Katana GF76 12UGS; Witcher 3 ultra: Ø159.4 (61.52-179.88)

MSI Katana GF76 12UGS; 1280x720 Prime95 28.10 and Furmark 1.25: Ø160.9 (124.9-219.25)

Power Consumption with External Monitor

MSI Katana GF76 12UGS; Prime95 V2810 Stress (external Monitor): Ø132.8 (125.65-152.03)

MSI Katana GF76 12UGS; Cinebench R15 Multi (external Monitor): Ø112.5 (107.26-118.31)

MSI Katana GF76 12UGS; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø151.2 (145.27-156.15)

MSI Katana GF76 12UGS; 1920x1080 The Witcher 3 ultra (external Monitor): Ø115.1 (112.72-119.98)

电池寿命

Katana有一个53.5瓦时的电池。虽然这与前代产品没有什么不同，但它也明显小于竞争对手，其中一些产品的容量几乎是其两倍（Aorus 17）。相应地，电池寿命并没有变得非常令人印象深刻，特别是在负载下。

在我们的视频测试中，这台笔记本电脑只持续了不到3小时。根据调整后的亮度，你可以在1:47小时和3:47小时之间离开插座上网。

Battery Runtime

WiFi Websurfing		3h 42min
WiFi Websurfing max. Brightness		1h 47min
Big Buck Bunny H.264 1080p		3h 15min
Load (maximum brightness)		1h 37min

	MSI Katana GF76 12UGS i7-12700H, GeForce RTX 3070 Ti Laptop GPU, 53.5 Wh	MSI Katana GF76 11UE i7-11800H, GeForce RTX 3060 Laptop GPU, 53 Wh	Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU, 99 Wh	Razer Blade 17 (i7-12800H, RTX 3070 Ti) i7-12800H, GeForce RTX 3070 Ti Laptop GPU, 82 Wh	Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU, 80 Wh	MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU, 65 Wh	Average of class Gaming
Battery Runtime		0%	41%	40%	26%	9%	53%
H.264	195	232 19%	366 88%	295 51%	377 93%		400 ?(56 - 747, n=94, last 2 years) 105%
WiFi v1.3	222	220 -1%	308 39%	353 59%	326 47%	342 54%	368 ?(57 - 745, n=183, last 2 years) 66%
Load	97	80 -18%	94 -3%	108 11%	37 -62%	61 -37%	84.7 ?(36 - 173, n=145, last 2 years) -13%
Reader / Idle		286	513			473	546 ?(57 - 1290, n=85, last 2 years)
Witcher 3 ultra		50					80.6 ?(47 - 155, n=23, last 2 years)

Pros

+ 负担得起的

+ 快速的WLAN

+ 显示屏可以打开到180度

+ 相对高效

Cons

- 没有Thunderbolt，没有SD读卡器，USB 2.0

- 相当弱的游戏显示屏

- RTX 3070 Ti有100瓦的限制

- 风扇在空闲时也会打开，整体非常响亮

- 电池小，电池寿命短

结论 - 一个负担得起的游戏者

微星Katana GF76 12U是最实惠的游戏笔记本电脑之一，这带来了所有的优点和缺点。积极的部分是，Katana能够流畅地再现几乎所有的现代游戏，即使在最大的细节设置下也是如此。对这些人来说，这就足够了，他们将通过Katana获得一台经济实惠的游戏笔记本电脑，其操作也相对高效。

当然，低价也带来一些缺点。显示屏形成了最低的IPS质量水平，电池很小，而且电池寿命短。连接不是很现代，冷却系统需要一些紧急优化，RTX 3070 Ti被限制在100瓦，这意味着它的性能甚至不能接近其潜力。

微星Katana GF76是最实惠的游戏笔记本电脑之一。虽然有兴趣的买家在有限的预算下应该能够顺利地玩所有目前的游戏，但许多较小的缺点要求有更高的预算。

在竞争对手中，技嘉Aorus 17也提供Thunderbolt和更高的性能，而价格只比Katana略高，值得一看。华硕TUF游戏机F17可能也值得你考虑，它的性能更高，但其最实惠的版本有一个显示器，其部分内容甚至更糟。由于显著的TGP限制，检查一下具有RTX 3060和更高TGP的模型可能也是值得的。

价格和可用性

例如，2022年的微星Katana GF76可从亚马逊起价为1499美元.

MSI Katana GF76 12UGS - 2022-05-13 05/13/2022 v7
Christian Hintze

Chassis

76 / 98 → 78%

Keyboard

84%

Pointing Device

84%

Connectivity

47 / 80 → 58%

Weight

58 / 10-66 → 86%

Battery

54 / 95 → 56%

Display

84%

Games Performance

98%

Application Performance

97%

Temperature

85 / 95 → 90%

Noise

62 / 90 → 69%

Audio

81%

Camera

36 / 85 → 42%

Average

73%

83%

Gaming - Weighted Average

Pricecompare

Editor of the original article: Mark Riege - Translator - 510 articles published on Notebookcheck since 2018

Translator: Ninh Ngoc Duy - Editorial Assistant - 390192 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 微星Katana GF76 12UGS回顾。最实惠的RTX 3070 Ti游戏笔记本之一值得购买吗？

Christian Hintze, 2022-05-17 (Update: 2022-05-17)

微星Katana GF76 12UGS回顾。最实惠的RTX 3070 Ti游戏笔记本之一值得购买吗？

潜在的竞争对手比较

外壳 - 一把塑料剑

尺寸比较

设备 - 请更新

沟通

网络摄像头

配件和保修

维护

输入设备--为什么尽管是17英寸，但一切都那么小？

键盘

触摸板

显示屏 - 144赫兹，但仍然没有游戏者

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能 - RTX 3070 Ti有100瓦的限制

测试条件

处理器

Cinebench R15 Multi Constant Load Test

系统性能

DPC延迟

存储解决方案

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

The Witcher 3 FPS Chart

排放 - 怠速运行时，风扇也会运行。

噪声排放

温度

压力测试

发言人

MSI Katana GF76 12UGS audio analysis

Aorus 17 XE4 audio analysis

电源管理 - 相对高效

消耗功率

Power Consumption The Witcher 3 / Stress Test

Power Consumption with External Monitor

电池寿命

Pros

Cons

结论 - 一个负担得起的游戏者

价格和可用性

More articles related to this device

Pricecompare
