戴尔Inspiron 15 3501笔记本电脑在审查。安静的办公笔记本电脑

入门级的办公笔记本电脑。 Inspiron 15 3501以低噪音水平和热开发以及两个存储设备的空间而得分。内置的酷睿i7-1165G7处理器由于其低TDP,仍然低于其能力。
Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
Laptop / Notebook Tiger Lake Windows

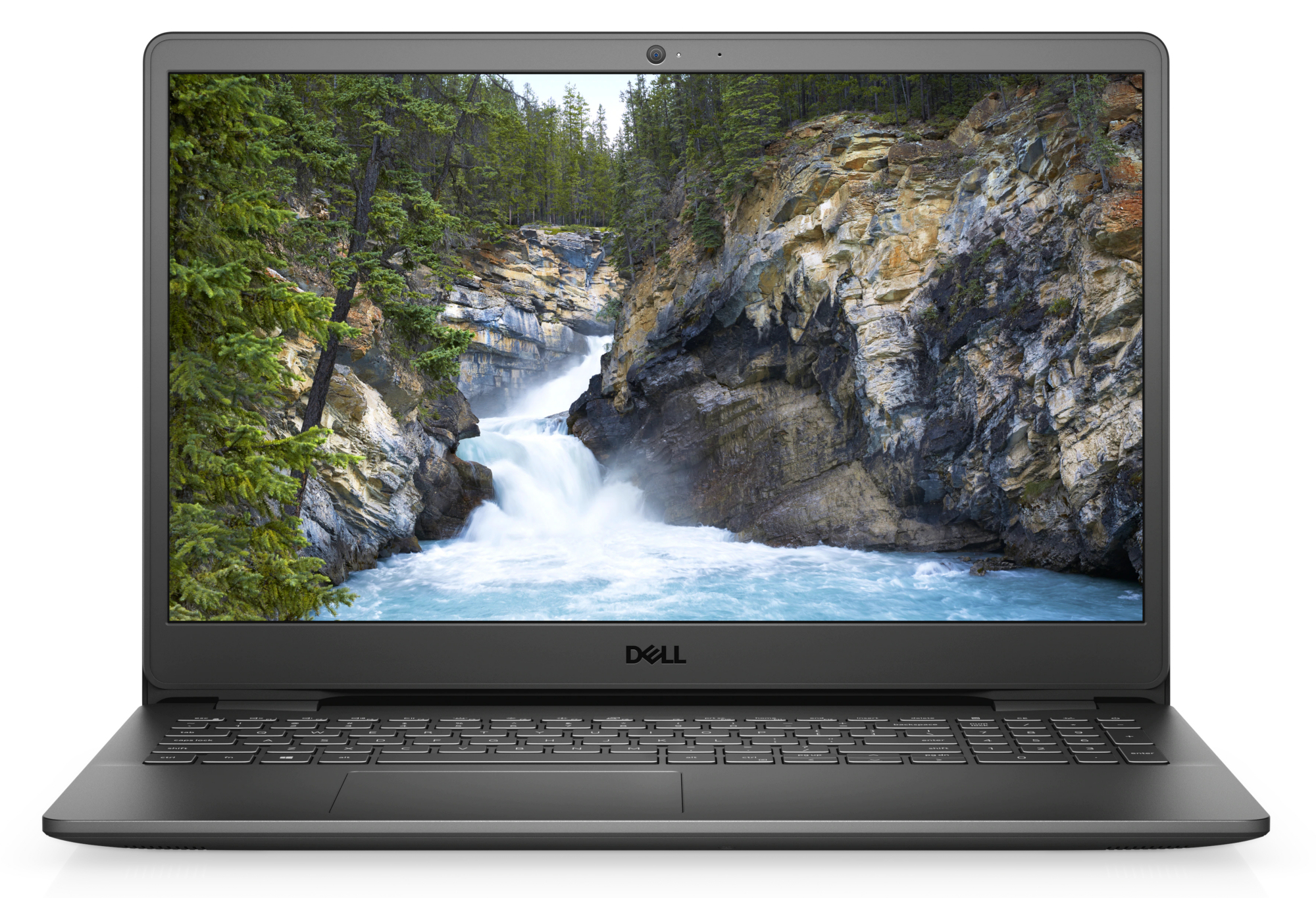

戴尔Inspiron 15 3501是一款15.6英寸格式的简单办公笔记本电脑。我们的配置版本的价格略低于800欧元(约合926美元),是该系列的顶级型号之一。更便宜的替代品起价约为450欧元(约521美元)。竞争对手包括三星Galaxy Book NP750XDAHonor MagicBook 15MSI Modern 15 A11M ,以及 联想IdeaPad 5 15ALC05

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Dell Inspiron 15 3501 (Inspiron 15 Series)
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, 51 W PL2 / Short Burst, 22 W PL1 / Sustained, Tiger Lake UP3
Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1300 MHz, Memory: 1000 MHz, dual-channel, 30.0.100.9864
Memory
16384 MB
, DDR4-3200, dual-channel mode, two memory slots (both in use)
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, BOE NV15N3D (Dell P/N: N39X1), IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP

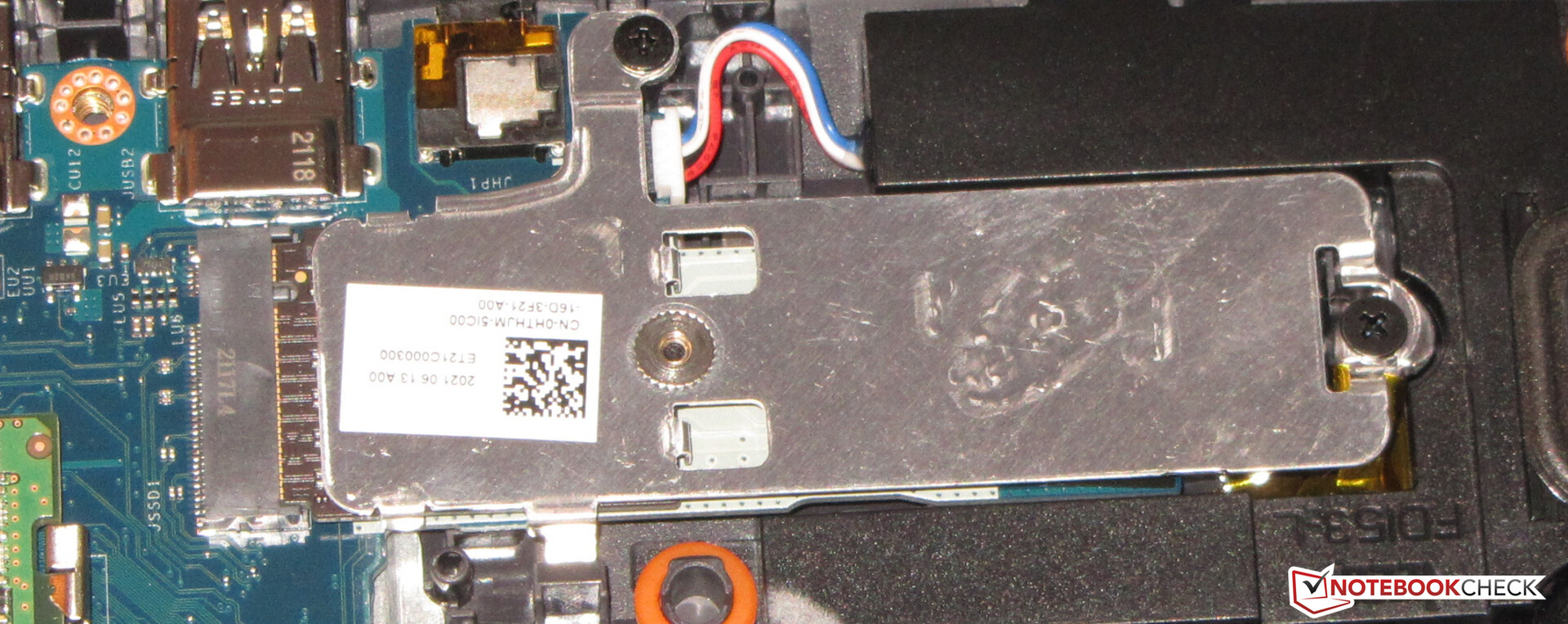

Storage
Samsung PM991a MZ9LQ512HBLU-00BD1, 512 GB

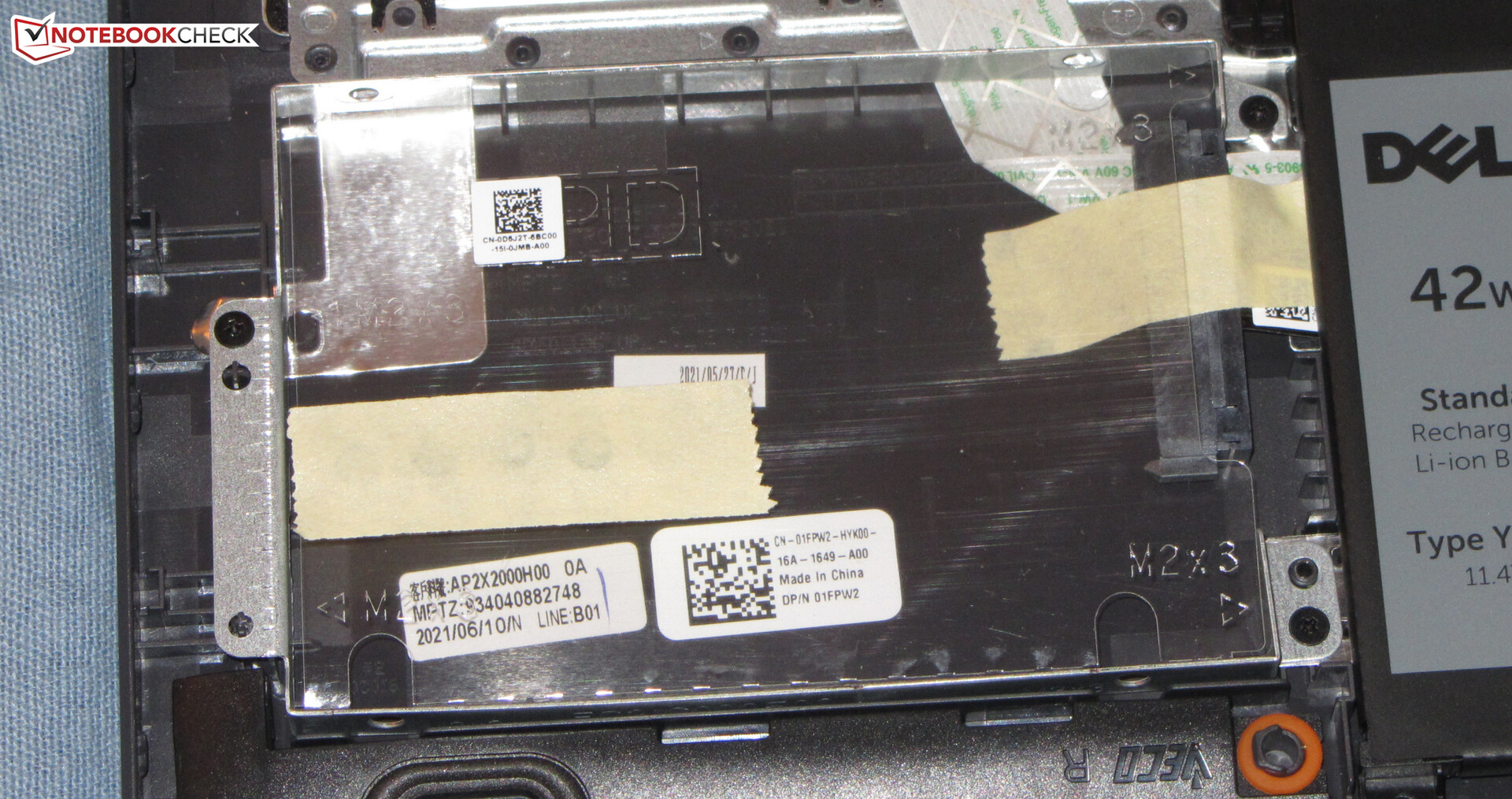

, 1x SATA slot for 2.5-inch drives, 407 GB free
Soundcard
Cirrus Logic CS8409
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: combined headset port, Card Reader: SD, TPM 2.0
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Size
height x width x depth (in mm): 19.9 x 363.96 x 249
Battery
42 Wh, 3500 mAh Lithium-Ion, 3-cell
Operating System
Microsoft Windows 10 Home 64 Bit

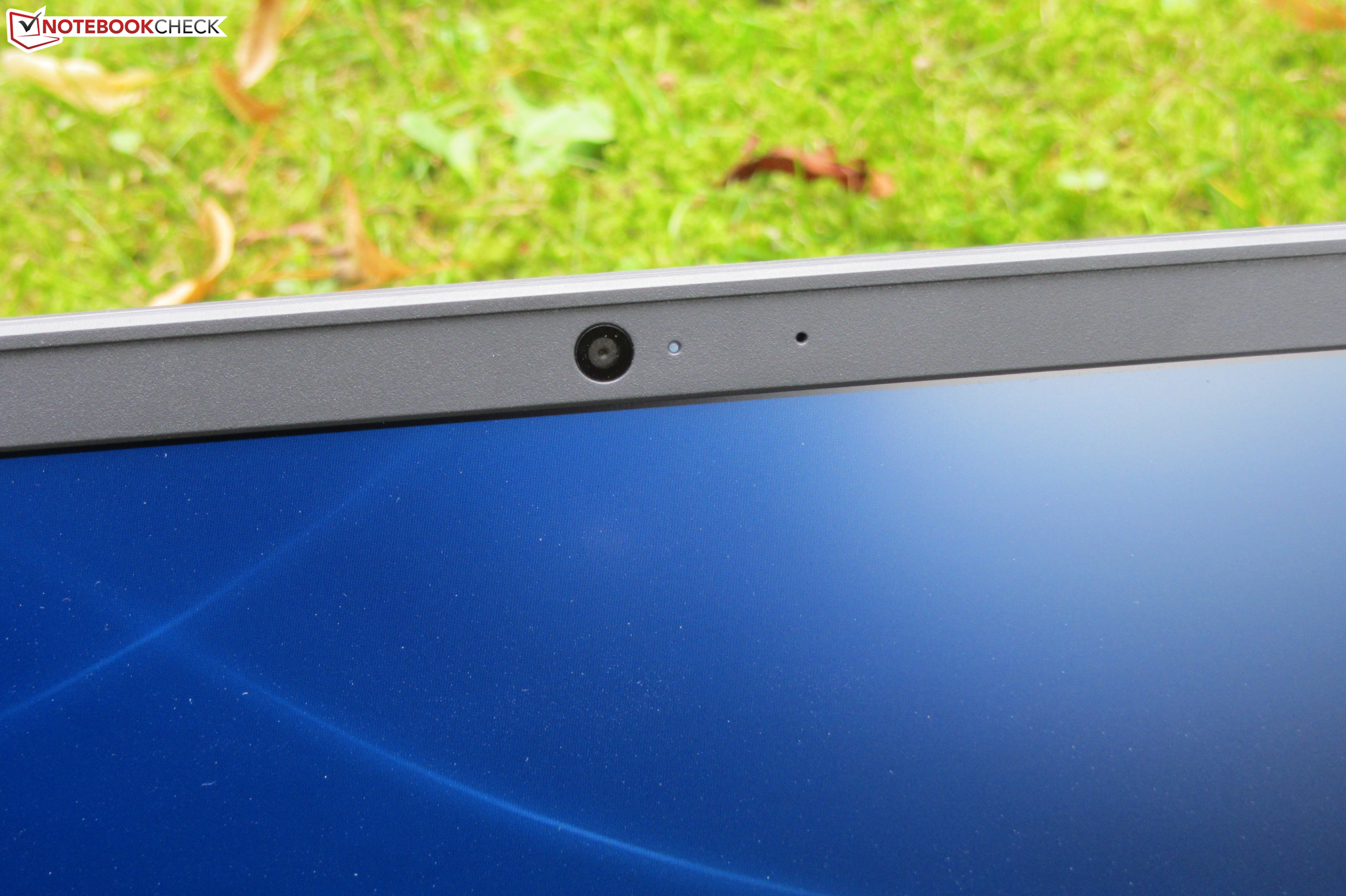

Camera
Webcam: HD
Primary Camera: 0.9 MPix
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: no, McAfee Security (trial), Microsoft 365 (trial), 12 Months Warranty
Weight
1.96 kg, Power Supply: 276 g
Price
799 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible contenders in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
80.5 %
10/2021
Dell Inspiron 15 3501
i7-1165G7, Iris Xe G7 96EUs
2 kg19.9 mm15.60"1920x1080
83.5 %
08/2021
Lenovo IdeaPad 5 15ALC05
R5 5500U, Vega 7
1.7 kg19.1 mm15.60"1920x1080
82 %
Samsung Galaxy Book NP750XDA
i5-1135G7, Iris Xe G7 80EUs
1.6 kg16 mm15.60"1920x1080
84.8 %
08/2021
Honor MagicBook 15 i5 1135G7
i5-1135G7, Iris Xe G7 80EUs
1.5 kg17 mm15.60"1920x1080
81.3 %
MSI Modern 15 A11M-062
i7-1165G7, Iris Xe G7 96EUs
1.6 kg17 mm15.60"1920x1080

外壳和连接性--USB-C仅作为选项提供

戴尔选择在Inspiron超薄的亚光黑塑料外壳上使用粗糙的表面。这台笔记本电脑没有显示出任何制造缺陷。但是,底座和盖子可以扭动得太厉害,底盘在压力下也会屈服。电池被牢固地内置在设备中。取下底座后,你可以进入内部。

Inspiron板上有三个USB-A端口(2个USB 3.2 Gen 1,1个USB 2.0)。根据硬件手册,还有一个USB-C端口可供选择。可以通过HDMI连接一个外部显示器。SD存储卡读卡器(参考卡:128GB AV PRO V60 SD)属于慢速类型。

在最佳条件下确定的Wi-Fi数据速率(附近没有其他Wi-Fi设备,笔记本电脑和服务器PC之间的距离很短)不符合当前标准。你可以很快知道原因。内置的WLAN芯片(英特尔无线AC 9462)允许最大传输速率为433 Mb/s。

Windows 10 Home作为操作系统。然而,Inspiron也支持Linux--准确地说,是Ubuntu 20.04 LTS(64位)。想放弃微软操作系统的用户可以通过Inspiron轻松做到这一点。我们能够在没有任何问题的情况下安装Ubuntu,所有的硬件在安装后立即工作。

Size comparison

363.96 mm 249 mm 19.9 mm 2 kg356.67 mm 233.13 mm 19.1 mm 1.7 kg358 mm 230 mm 17 mm 1.5 kg357 mm 234 mm 17 mm 1.6 kg357 mm 230 mm 16 mm 1.6 kg

端口配置

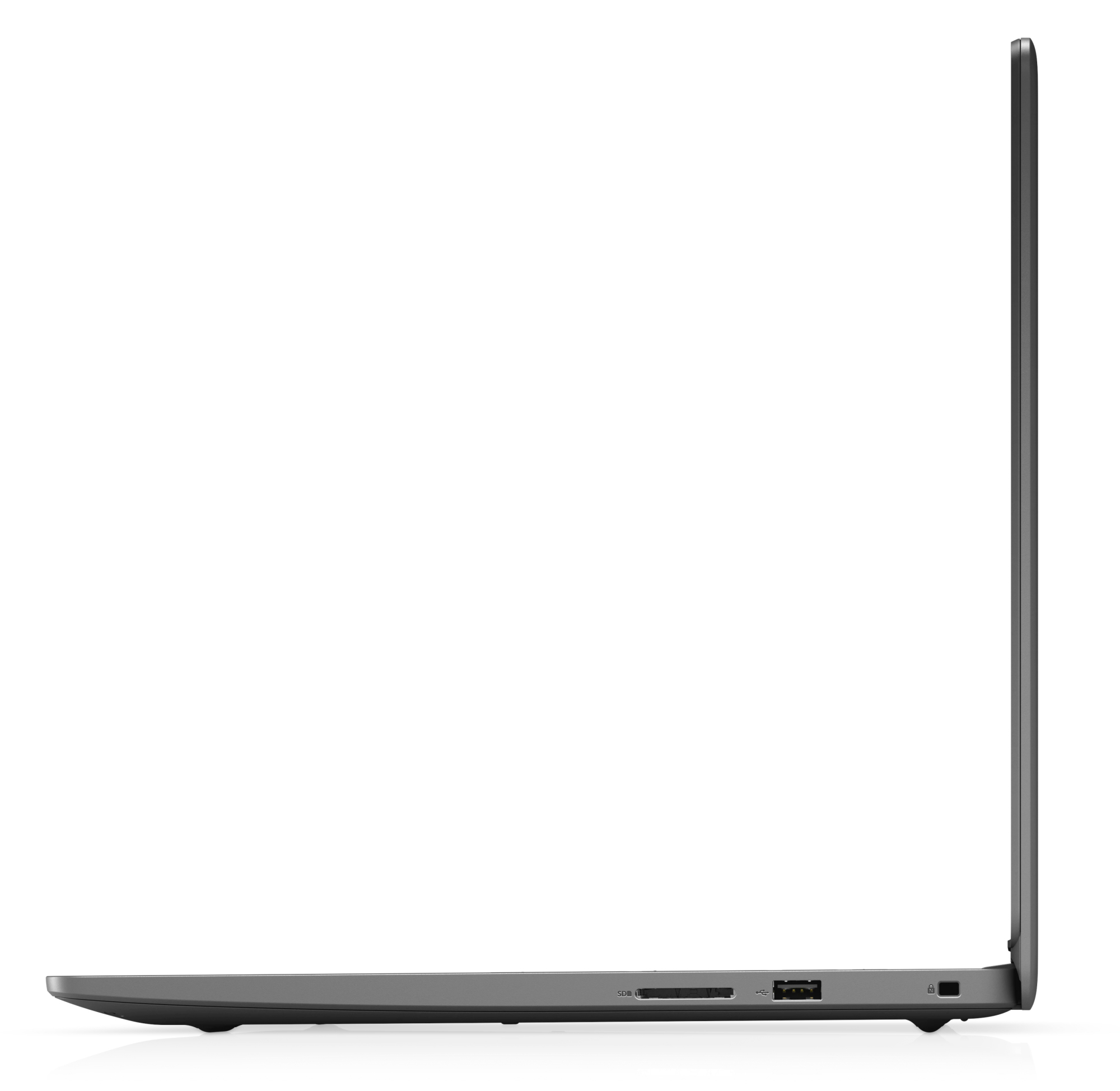

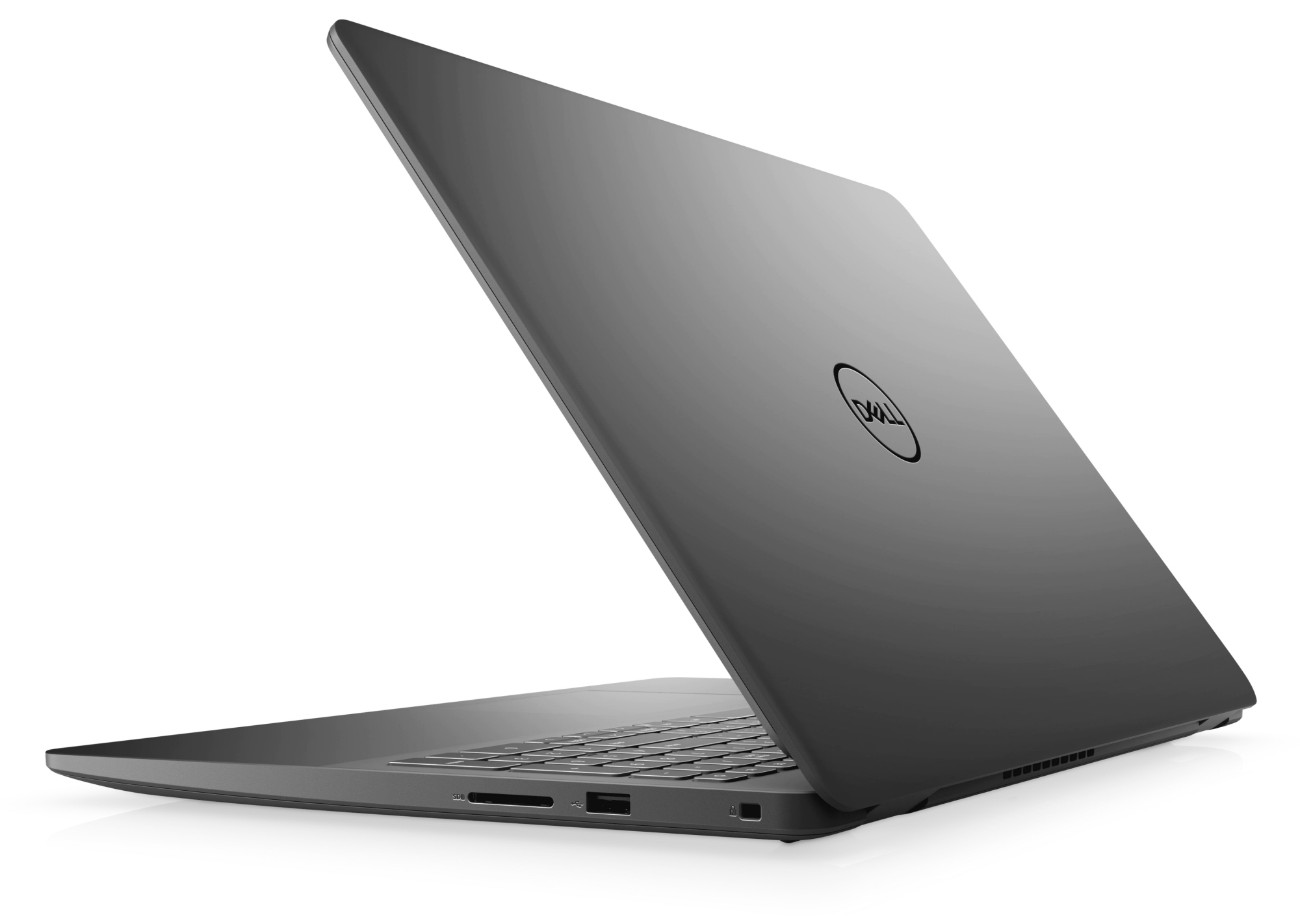

右侧。存储卡读卡器(SD)、USB 2.0(Type-A)、电缆锁插槽
右侧。存储卡读卡器(SD)、USB 2.0(Type-A)、电缆锁插槽

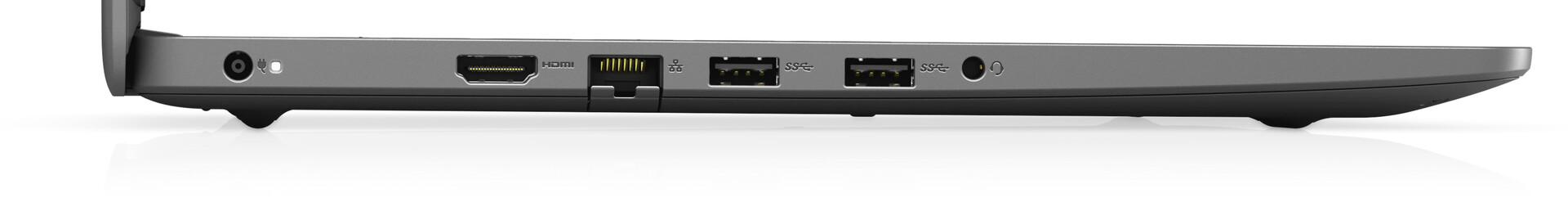

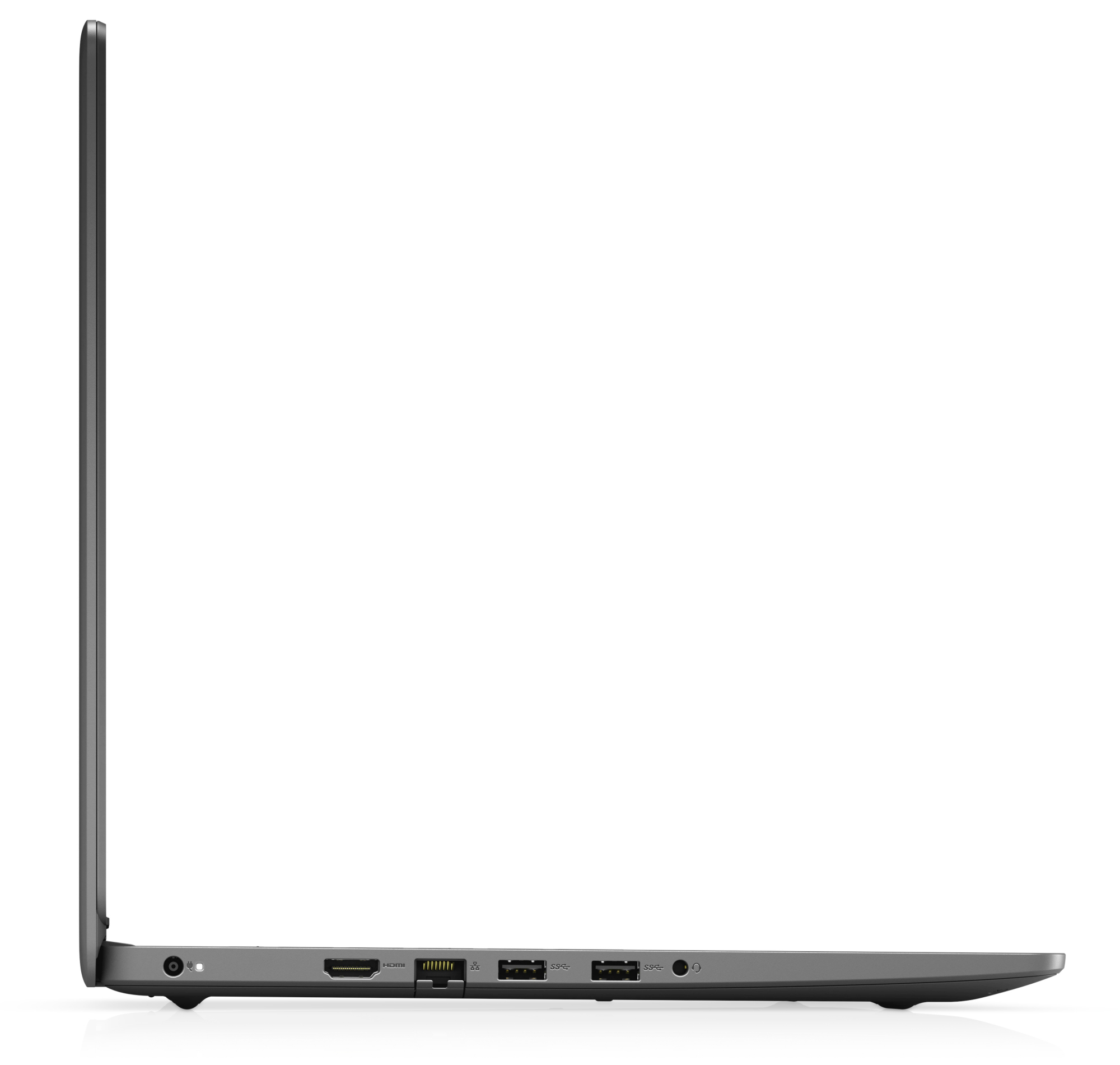

左侧。电源,HDMI,千兆以太网,2个USB 3.2 Gen 1(Type-A),组合音频
左侧。电源,HDMI,千兆以太网,2个USB 3.2 Gen 1(Type-A),组合音频
SD Card Reader
average JPG Copy Test (av. of 3 runs)
MSI Modern 15 A11M-062
  (AV PRO microSD 128 GB V60)
168.7 MB/s ∼100% +756%
Average of class Office
  (17.7 - 194, n=85, last 2 years)
68.8 MB/s ∼41% +249%
Samsung Galaxy Book NP750XDA
  (AV PRO microSD 128 GB V60)
35 MB/s ∼21% +78%
Lenovo IdeaPad 5 15ALC05
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
28.2 MB/s ∼17% +43%
Dell Inspiron 15 3501
  (AV Pro SD 128 GB V60)
19.7 MB/s ∼12%
maximum AS SSD Seq Read Test (1GB)
MSI Modern 15 A11M-062
  (AV PRO microSD 128 GB V60)
171.3 MB/s ∼100% +521%
Average of class Office
  (17.2 - 201, n=83, last 2 years)
79.1 MB/s ∼46% +187%
Samsung Galaxy Book NP750XDA
  (AV PRO microSD 128 GB V60)
36.5 MB/s ∼21% +32%
Lenovo IdeaPad 5 15ALC05
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.5 MB/s ∼21% +32%
Dell Inspiron 15 3501
  (AV Pro SD microSD 128 GB V60)
27.6 MB/s ∼16%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Samsung Galaxy Book NP750XDA
Intel Wi-Fi 6 AX201
1462 (533min - 1586max) MBit/s ∼100% +1439%
Honor MagicBook 15 i5 1135G7
Intel Wi-Fi 6 AX201
1400 (1264min - 1496max) MBit/s ∼96% +1374%
Lenovo IdeaPad 5 15ALC05
RealTek Semiconductor RTL8852AE
890 (431min - 988max) MBit/s ∼61% +837%
Average Intel Wireless AC 9462
  (95 - 644, n=13)
310 MBit/s ∼21% +226%
Dell Inspiron 15 3501
Intel Wireless AC 9462
95 MBit/s ∼6%
iperf3 Client (receive) TCP 1 m 4M x10
Samsung Galaxy Book NP750XDA
Intel Wi-Fi 6 AX201
1623 (1565min - 1675max) MBit/s ∼100% +387%
Honor MagicBook 15 i5 1135G7
Intel Wi-Fi 6 AX201
1385 (910min - 1612max) MBit/s ∼85% +316%
Lenovo IdeaPad 5 15ALC05
RealTek Semiconductor RTL8852AE
621 (506min - 708max) MBit/s ∼38% +86%
Dell Inspiron 15 3501
Intel Wireless AC 9462
333 (320min - 336max) MBit/s ∼21%
Average Intel Wireless AC 9462
  (119 - 651, n=13)
330 MBit/s ∼20% -1%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650320326332336330328336334334328334335334336335335336335335334326335333336335334336333336334693613630656506527674570630608619708612645581644612610644611661595594686582626636590612659163616021670162416031590161016041624162816751618165716391611160016081652161915651630163316431638161316221625161616111603135713301263123713811477151812841511139314061436139512709101064118911231537141714231510149915551516146416121522150814223203263323363303283363343343283343353343363353353363353353343263353333363353343363333363346936136306565065276745706306086197086126455816446126106446116615955946865826266365906126591636160216701624160315901610160416241628167516181657163916111600160816521619156516301633164316381613162216251616161116031357133012631237138114771518128415111393140614361395127091010641189112315371417142315101499155515161464161215221508142243191392888777298894791183991189094489884987791690293088194883896783888592470890089091185853315861505148914911518147714601456149214621518146515221497145614511504145215281321124514951498145914791489148115001492143913741416132614791420133814451356149614031427140414661441145913761470143314421392141614131264129013991305137612921436Tooltip
Dell Inspiron 15 3501 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø333 (320-336)
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, AMD Radeon RX Vega 7; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø621 (506-708)
Samsung Galaxy Book NP750XDA Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1622 (1565-1675)
Honor MagicBook 15 i5 1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1384 (910-1612)
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U, AMD Radeon RX Vega 7; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø876 (431-988)
Samsung Galaxy Book NP750XDA Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1444 (533-1586)
Honor MagicBook 15 i5 1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1400 (1264-1496)

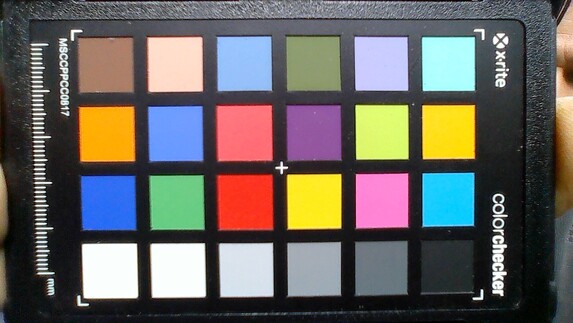

ColorChecker
18.8 ∆E
17.4 ∆E
22.2 ∆E
18.9 ∆E
21.1 ∆E
18 ∆E
16.7 ∆E
24.9 ∆E
13.5 ∆E
14.9 ∆E
14.9 ∆E
18.2 ∆E
20 ∆E
16.7 ∆E
19.3 ∆E
8.4 ∆E
18.3 ∆E
22.2 ∆E
2.3 ∆E
11.4 ∆E
17.8 ∆E
17.8 ∆E
14.4 ∆E
4.3 ∆E
ColorChecker Dell Inspiron 15 3501: 16.36 ∆E min: 2.28 - max: 24.86 ∆E

输入设备 - 3501无键盘背光

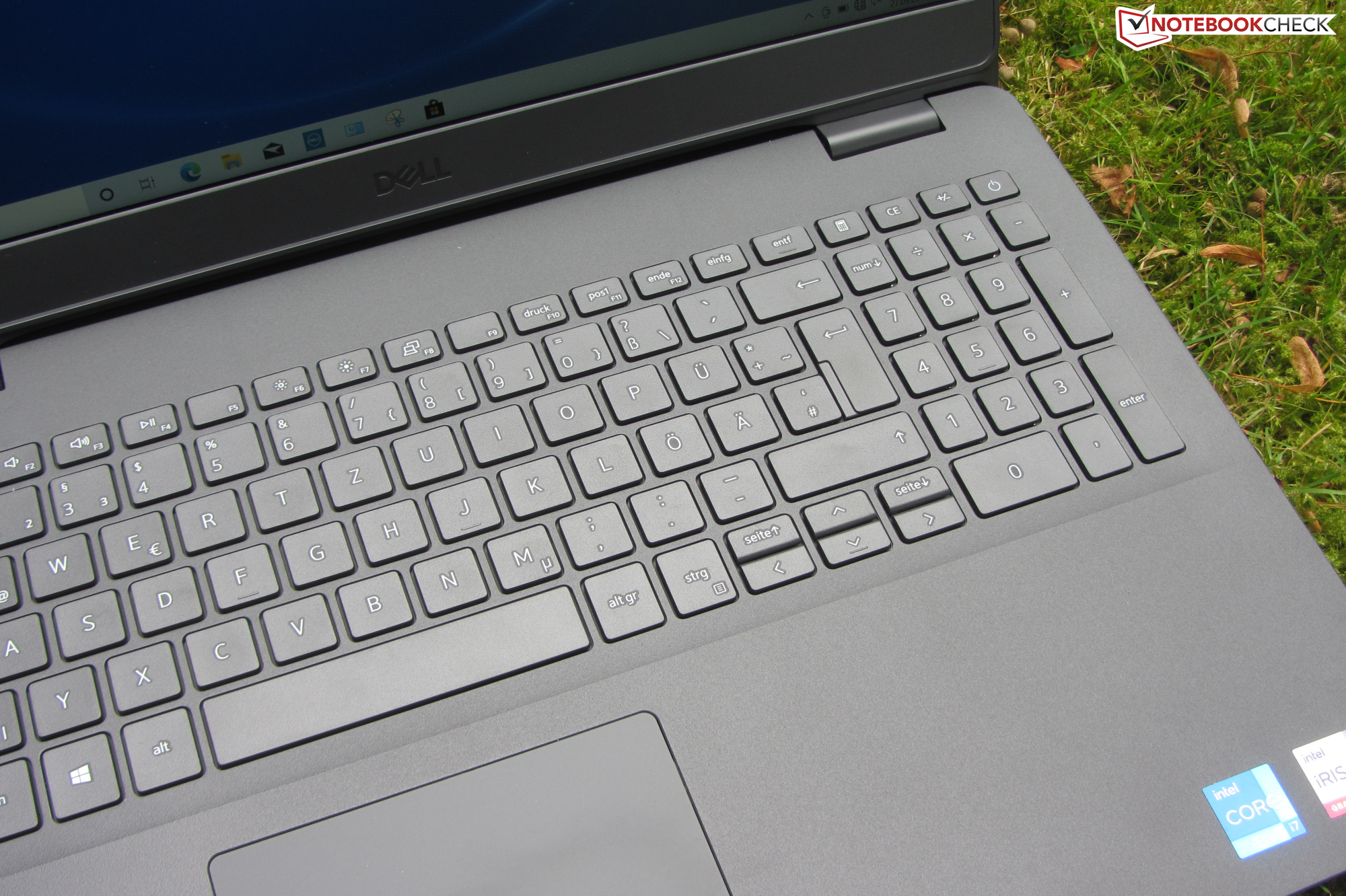

扁平、粗糙的木制键盘的键程较短,压力点明确。键的阻力是可以接受的。键盘在打字时有一点弹跳--中间的弹跳比两边的多。总的来说,戴尔在这里提供了一个适合日常使用的键盘。不过,我们希望它能有背光。这是Inspiron 3501系列中的一个可选功能。

具有多点触控功能的ClickPad(约10.5 x 8厘米)的光滑表面使手指很容易在上面滑行。它对角落里的输入也有反应。垫子的行程很短,压力点很清晰。

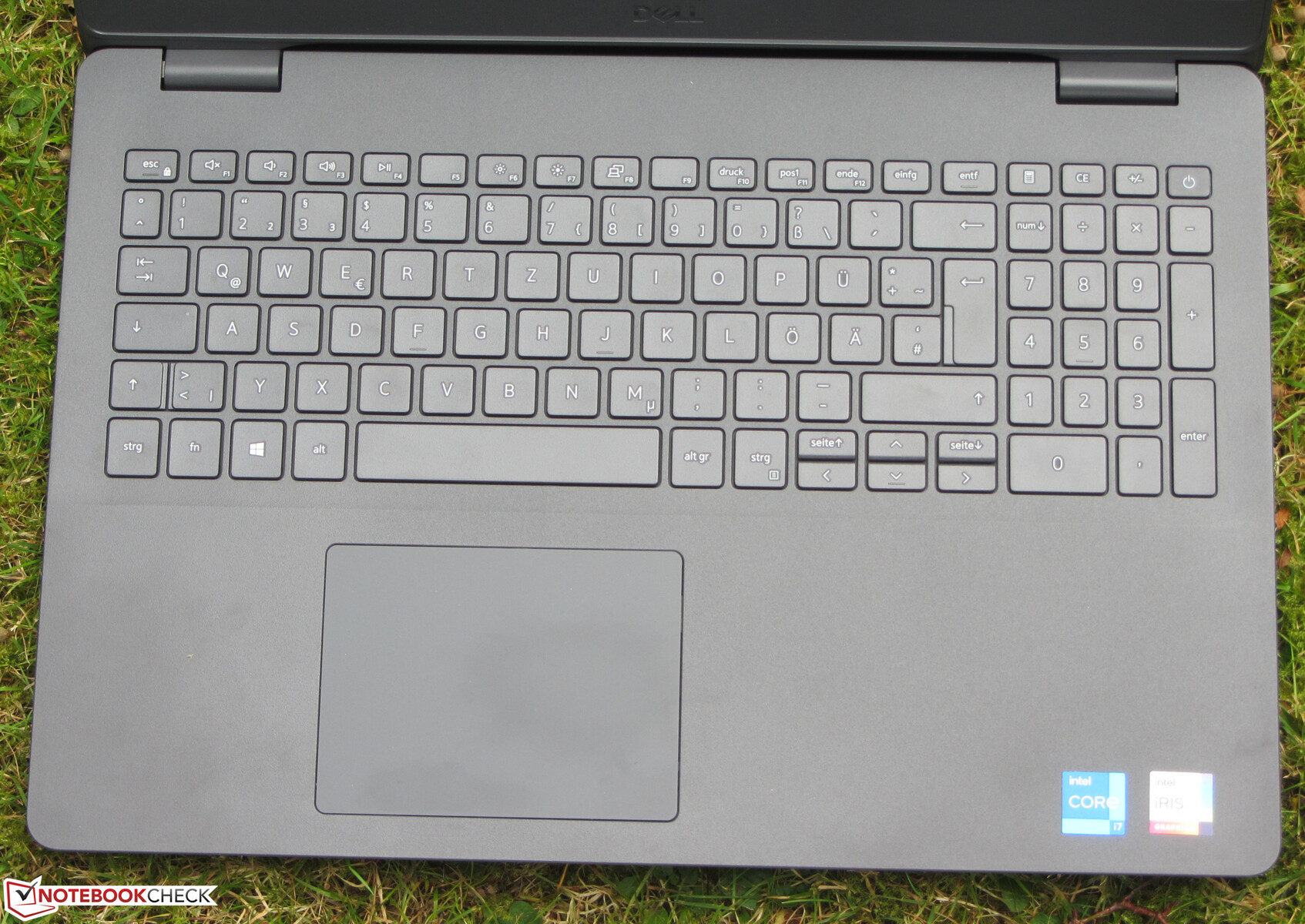

Inspiron 15输入设备
Inspiron 15输入设备

显示器 - 板载IPS

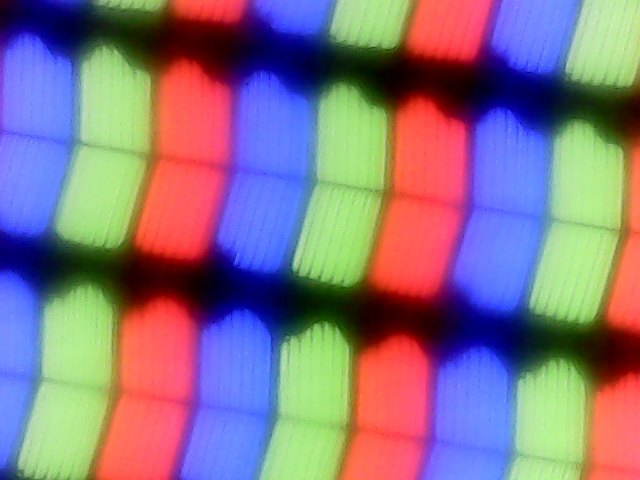

像素网格
像素网格

虽然哑光的15.6英寸显示屏(1920x1080像素)提供了良好的对比度(1,807:1),但其亮度(263.3 cd/m²)太低。这个值在电池电量上又下降了一些。我们认为超过300cd/m²的数值是好的。

在90%及以下的亮度水平上,显示屏的闪烁频率为1000赫兹。由于频率相当高,敏感的用户应该可以免于头痛和/或眼睛问题。

273
cd/m²
267
cd/m²
253
cd/m²
265
cd/m²
271
cd/m²
253
cd/m²
254
cd/m²
274
cd/m²
260
cd/m²
Distribution of brightness
BOE NV15N3D (Dell P/N: N39X1)
X-Rite i1Pro 2
Maximum: 274 cd/m² Average: 263.3 cd/m² Minimum: 20.4 cd/m²
Brightness Distribution: 92 %
Center on Battery: 246 cd/m²
Contrast: 1807:1 (Black: 0.15 cd/m²)
ΔE Color 4.83 | 0.59-29.43 Ø5.5
ΔE Greyscale 3.36 | 0.64-98 Ø5.7
40.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.7% sRGB (Argyll 2.2.0 3D)
39.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.56
Dell Inspiron 15 3501
BOE NV15N3D (Dell P/N: N39X1), IPS, 1920x1080, 15.60
Lenovo IdeaPad 5 15ALC05
Lenovo LEN156FHD, IPS, 1920x1080, 15.60
Samsung Galaxy Book NP750XDA
CEC PANDA LM156LF5L03, IPS, 1920x1080, 15.60
Honor MagicBook 15 i5 1135G7
BOE TV156FHM-NH2, IPS, 1920x1080, 15.60
MSI Modern 15 A11M-062
AU Optronics B156HW02, IPS, 1920x1080, 15.60
Display
-3%
65%
-9%
Display P3 Coverage
39.4
65.4
66%
sRGB Coverage
58.7
59
1%
96.3
64%
56
-5%
AdobeRGB 1998 Coverage
40.7
38
-7%
67.5
66%
36
-12%
Response Times
39%
32%
19%
13%
Response Time Grey 50% / Grey 80% *
43 ?(21, 22)
29 ?(13, 16)
33%
29 ?(13, 16)
33%
36 ?(18, 18)
16%
40 ?(18, 22)
7%
Response Time Black / White *
32 ?(17, 15)
18 ?(9, 9)
44%
22 ?(12, 10)
31%
24.8 ?(14, 10.8)
22%
26 ?(14, 12)
19%
PWM Frequency
1000 ?(90)
Screen
-77%
-34%
-13%
5%
Brightness middle
271
376
39%
325
20%
332
23%
269
-1%
Brightness
263
341
30%
297
13%
318
21%
251
-5%
Brightness Distribution
92
78
-15%
86
-7%
87
-5%
86
-7%
Black Level *
0.15
0.66
-340%
0.445
-197%
0.27
-80%
0.18
-20%
Contrast
1807
570
-68%
730
-60%
1230
-32%
1494
-17%
Colorchecker DeltaE2000 *
4.83
6.4
-33%
3.48
28%
3.3
32%
3.5
28%
Colorchecker DeltaE2000 max. *
7
20.45
-192%
8.07
-15%
7.8
-11%
5.49
22%
Greyscale DeltaE2000 *
3.36
4.59
-37%
5.27
-57%
5.2
-55%
2.01
40%
Gamma
2.56 86%
2.26 97%
2.41 91%
2.07 106%
2.38 92%
CCT
6764 96%
6819 95%
7769 84%
7370 88%
6806 96%
Color Space (Percent of AdobeRGB 1998)
38
44
Color Space (Percent of sRGB)
59
70
Colorchecker DeltaE2000 calibrated *
1
Total Average (Program / Settings)
-14% / -45%
-1% / -21%
24% / 10%
3% / 4%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

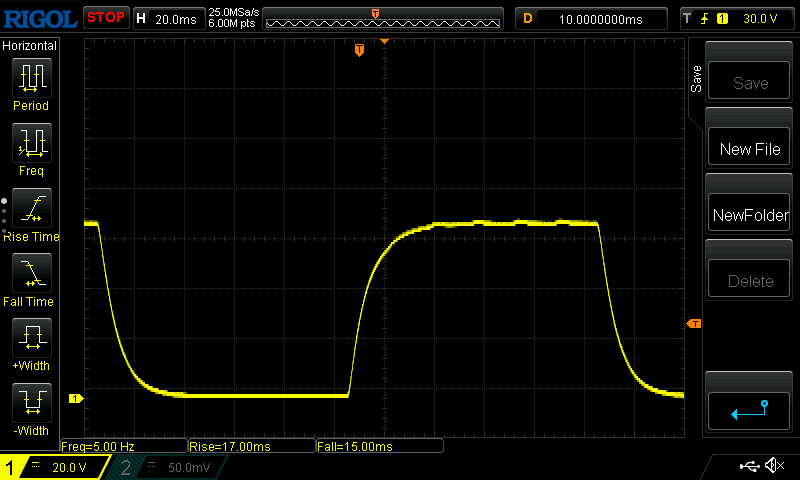

       Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 15 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 81 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.8 ms).

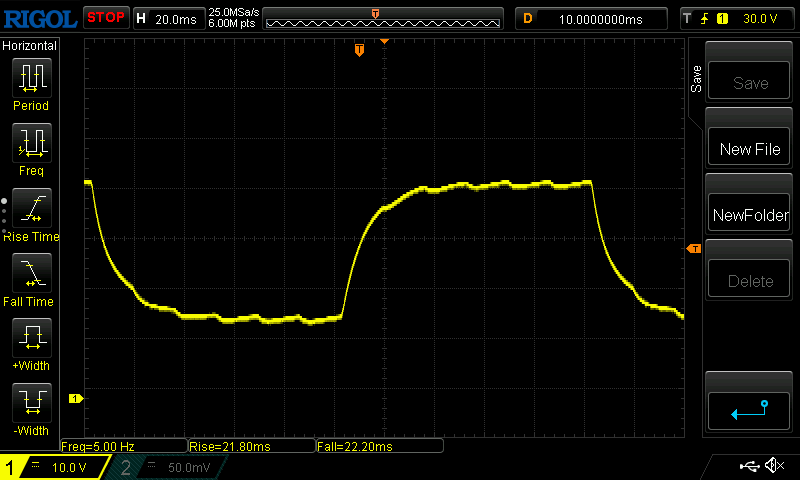

       Response Time 50% Grey to 80% Grey
43 ms ... rise ↗ and fall ↘ combined↗ 21 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 61 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (37.7 ms).

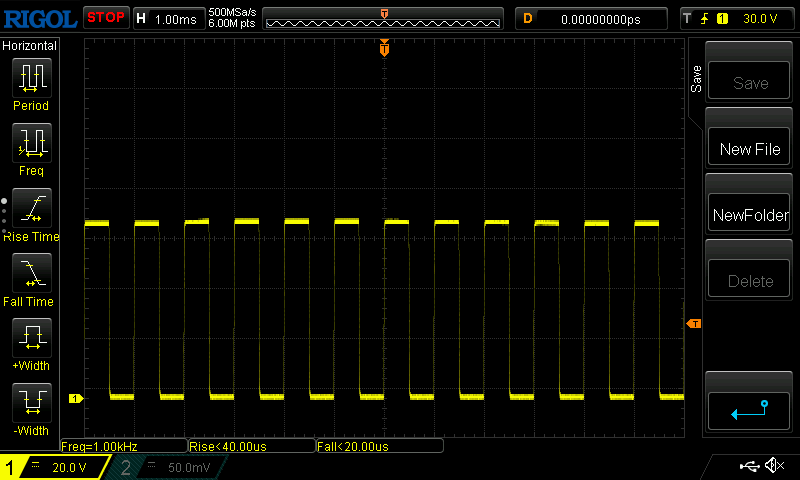

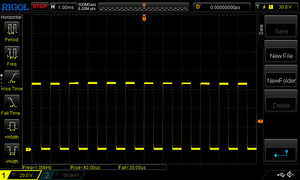

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1000 Hz ≤ 90 % brightness setting

The display backlight flickers at 1000 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17031 (minimum: 5 - maximum: 2500000) Hz was measured.

显示屏开箱后显示了一个体面的色彩再现,但色彩与目标有一些偏差--不过整个情况仍在可接受的范围内。该显示器并没有受到蓝色色调的影响。此外,它不能完全再现AdobeRGB(41%)、sRGB(59%)和DCI-P3(39%)色彩空间。

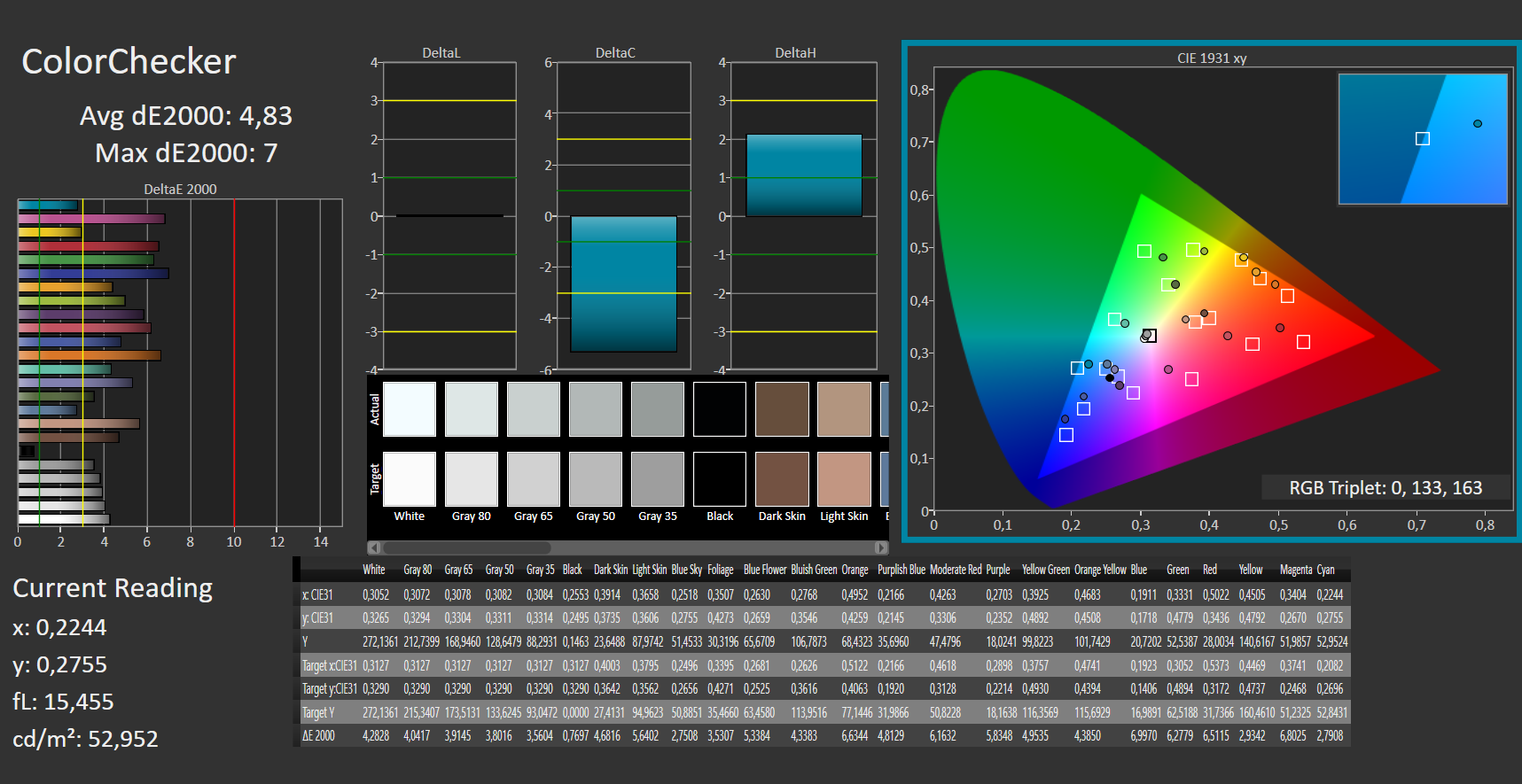

CalMAN - ColorChecker
CalMAN - ColorChecker

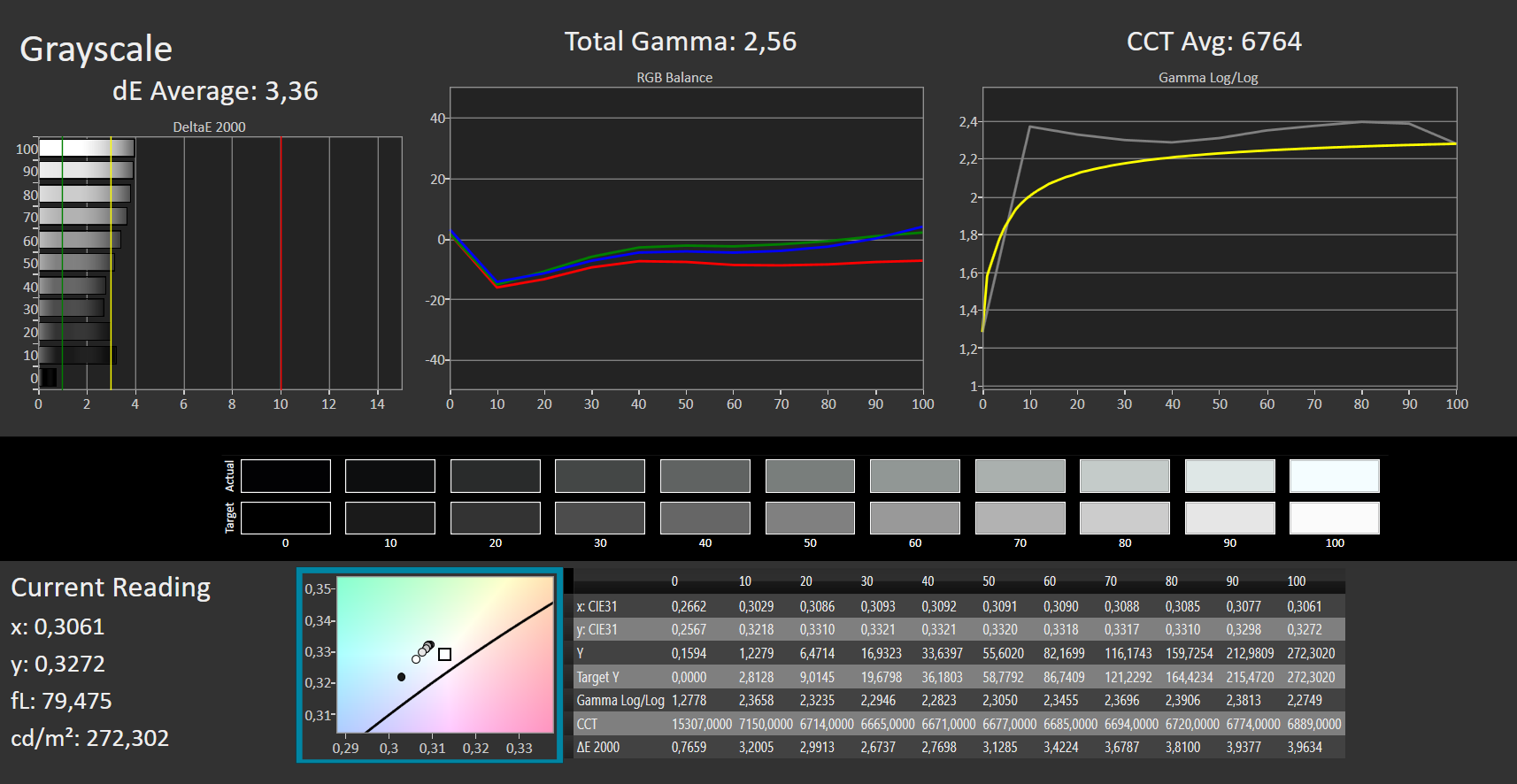

卡尔曼--灰鳞
卡尔曼--灰鳞

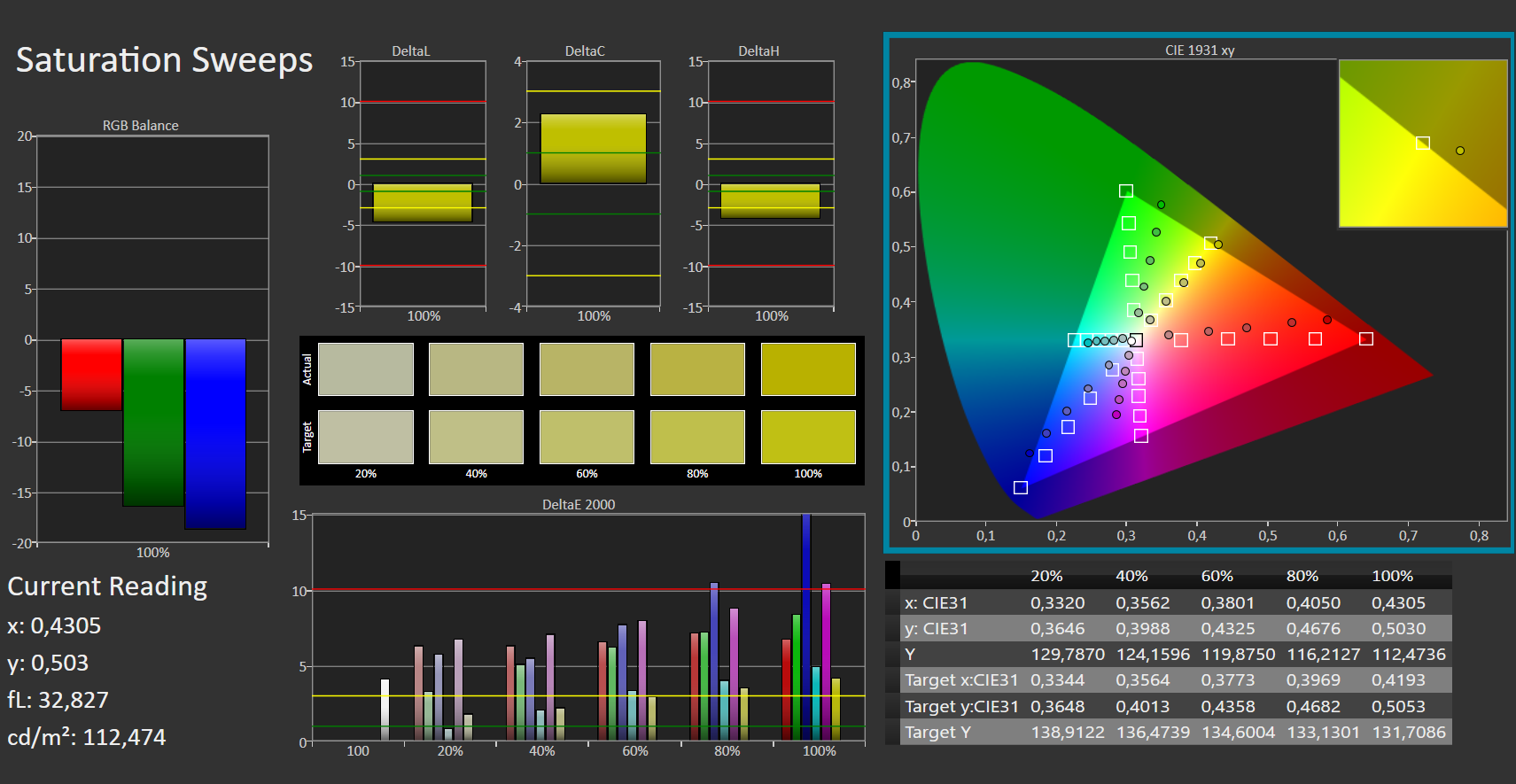

CalMAN - 色彩饱和度
CalMAN - 色彩饱和度

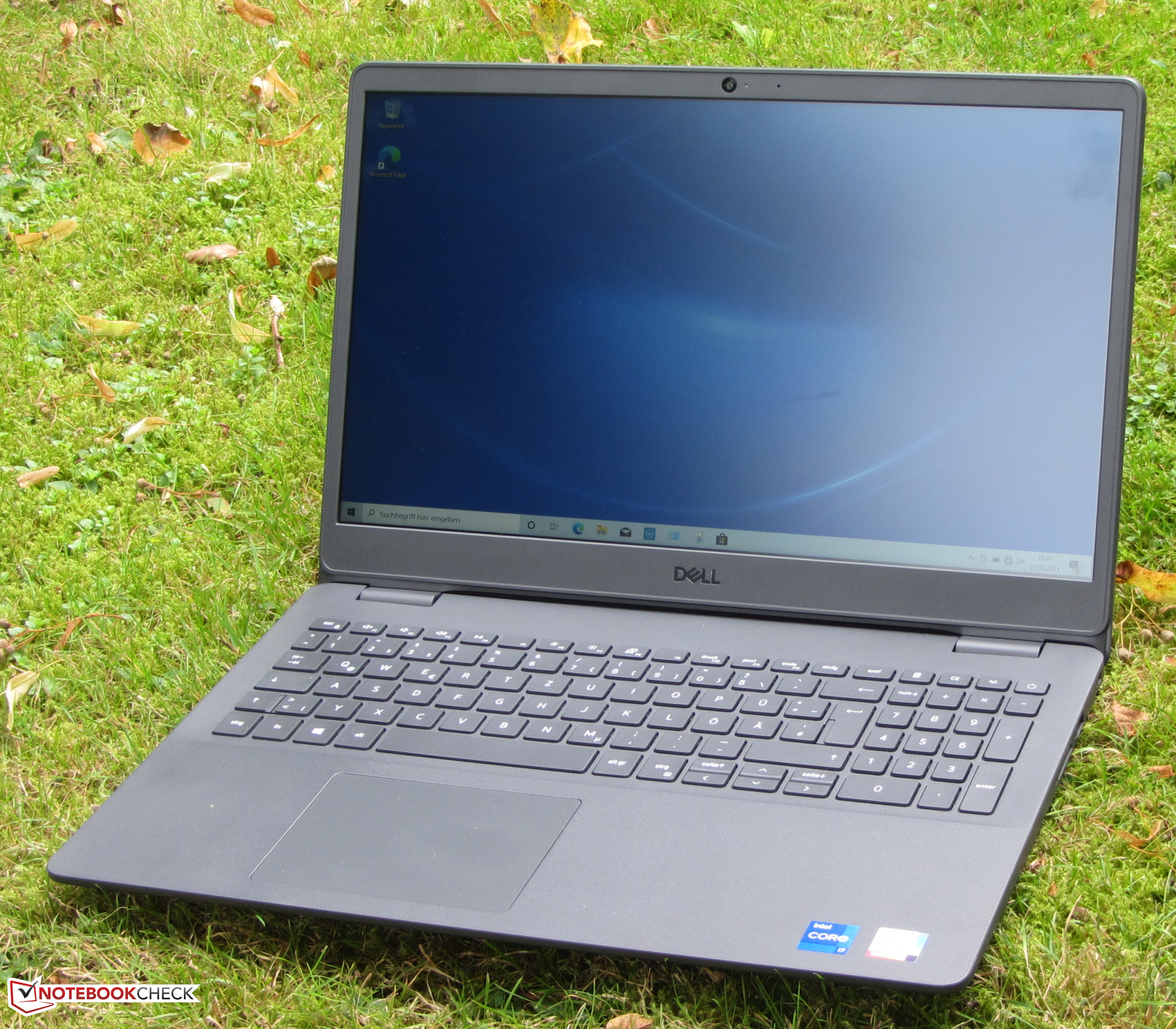

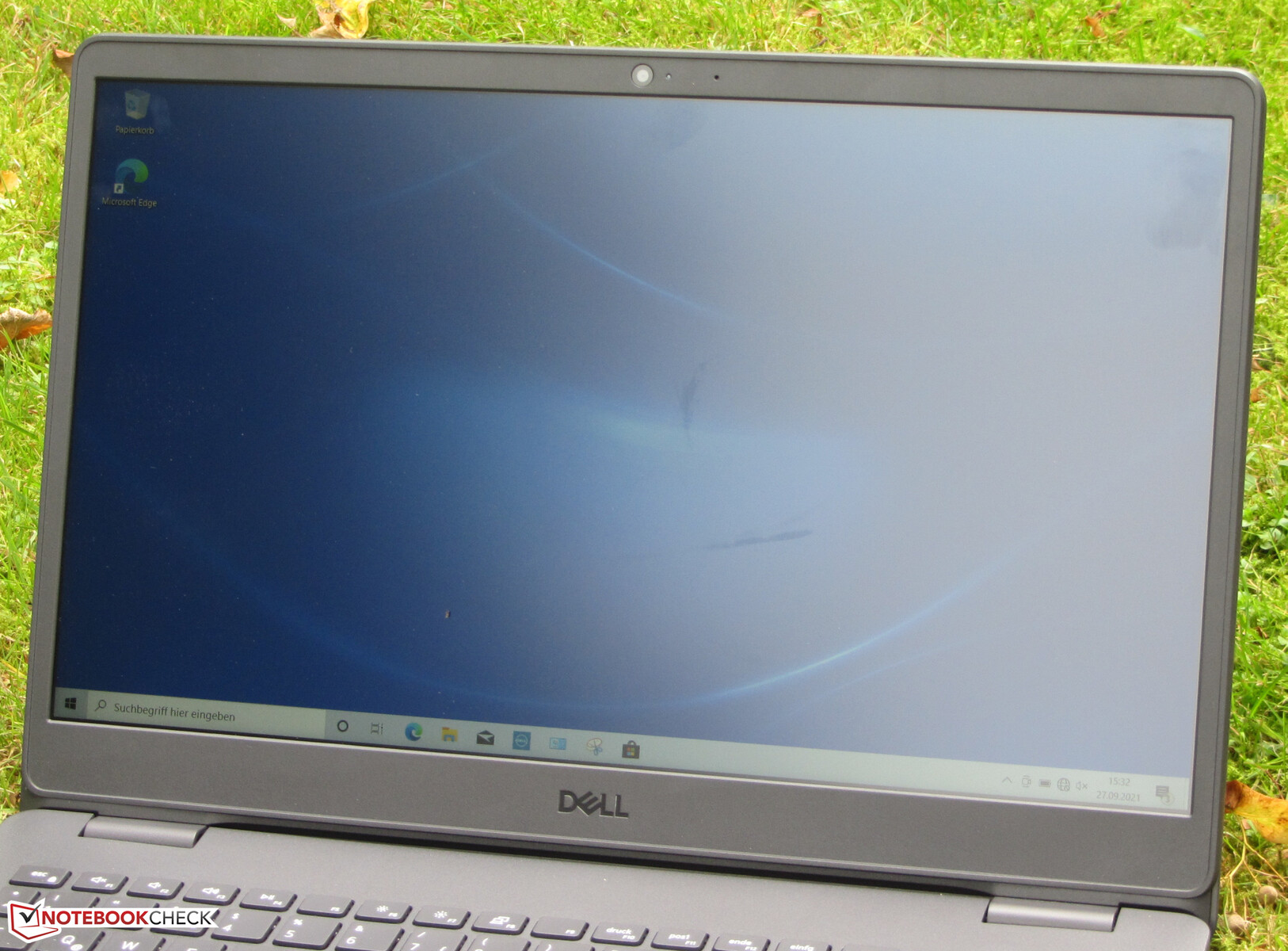

视角稳定的IPS面板可以从任何位置阅读。在阳光不太强烈的情况下,在户外阅读屏幕内容是可能的。

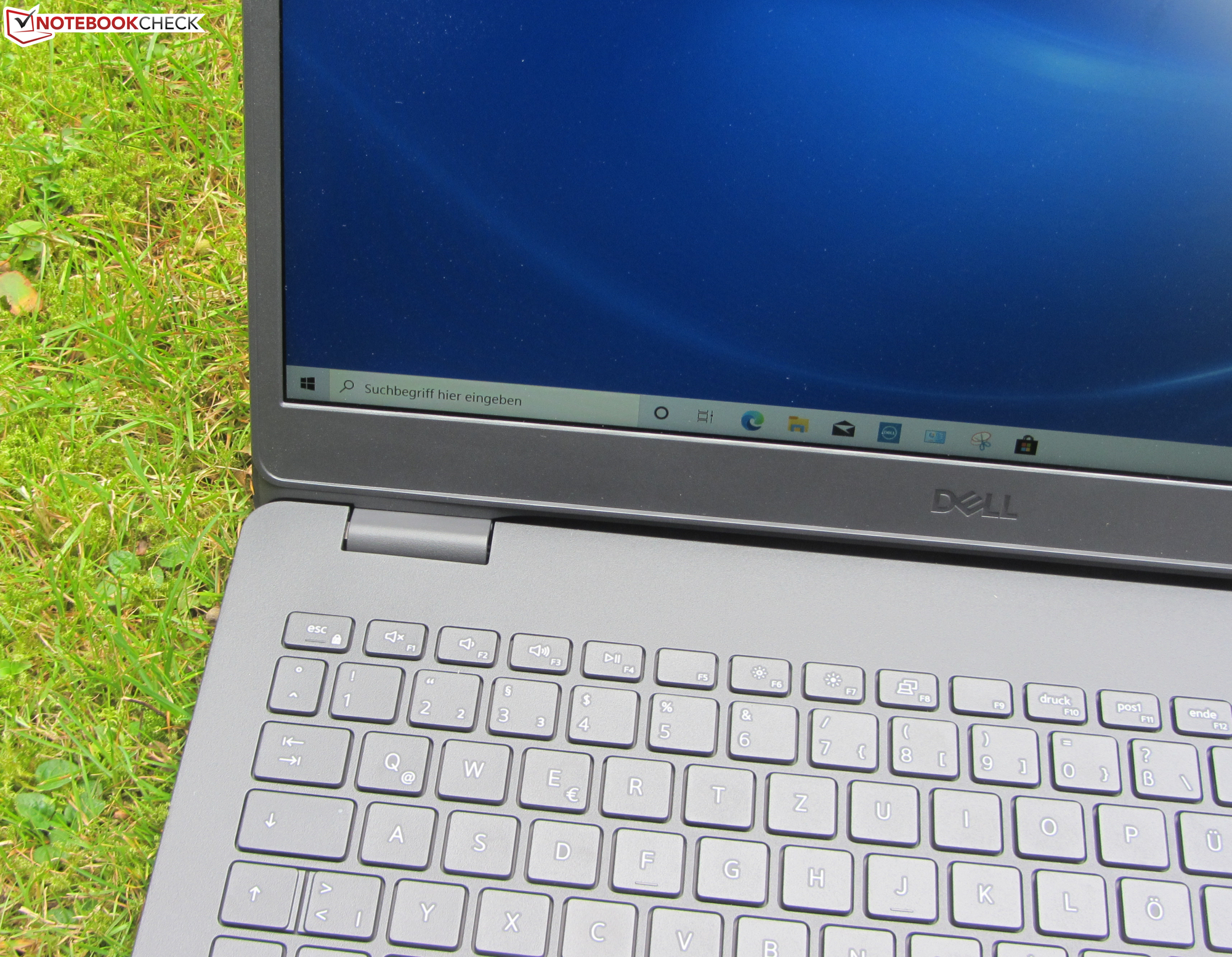

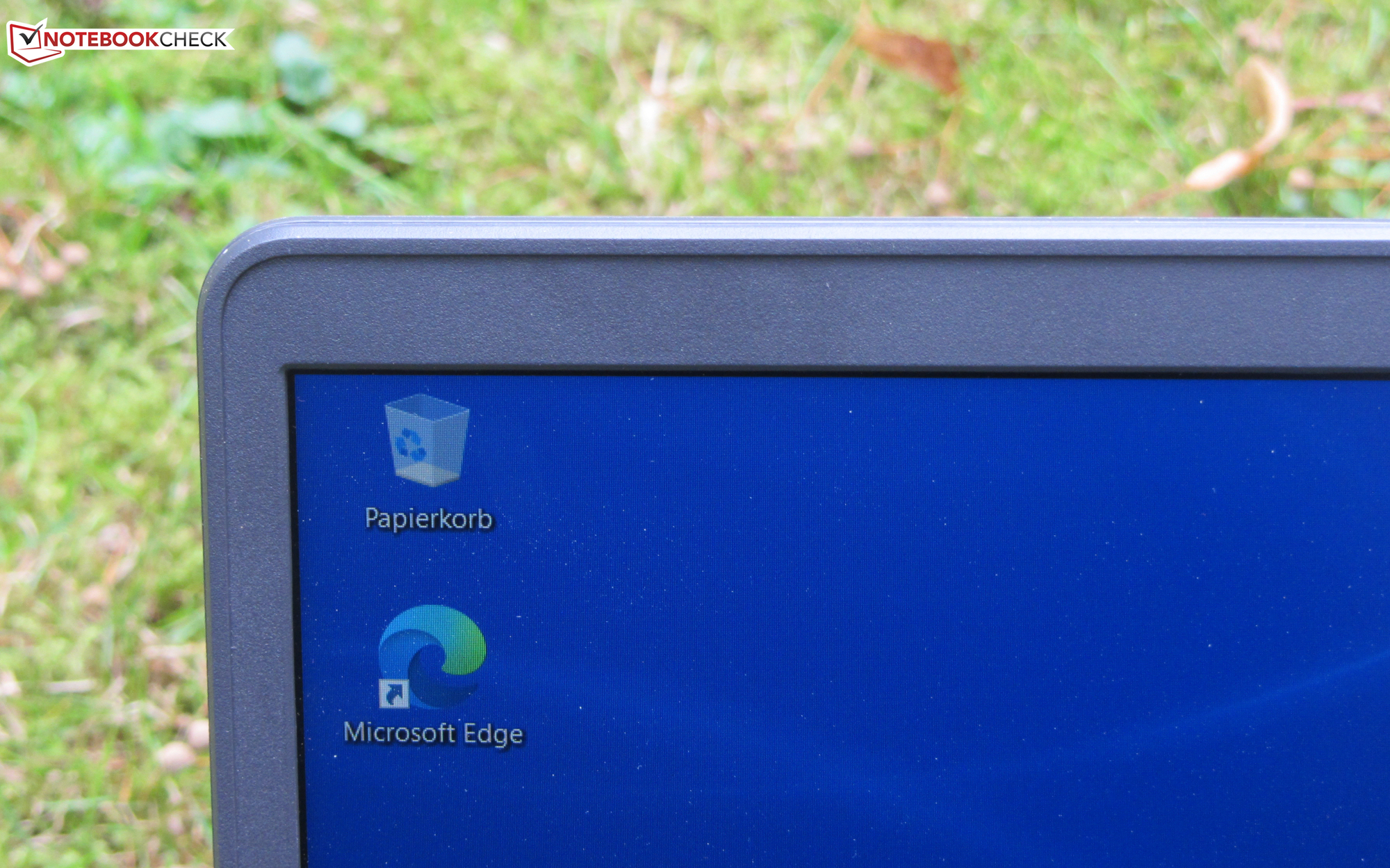

浪潮的户外活动
浪潮的户外活动

性能--酷睿i7处于酷睿i5水平

通过Inspiron 15 3501,戴尔在其产品系列中拥有了一款15.6英寸的办公笔记本电脑,为办公和互联网应用提供了足够的计算能力。

测试条件

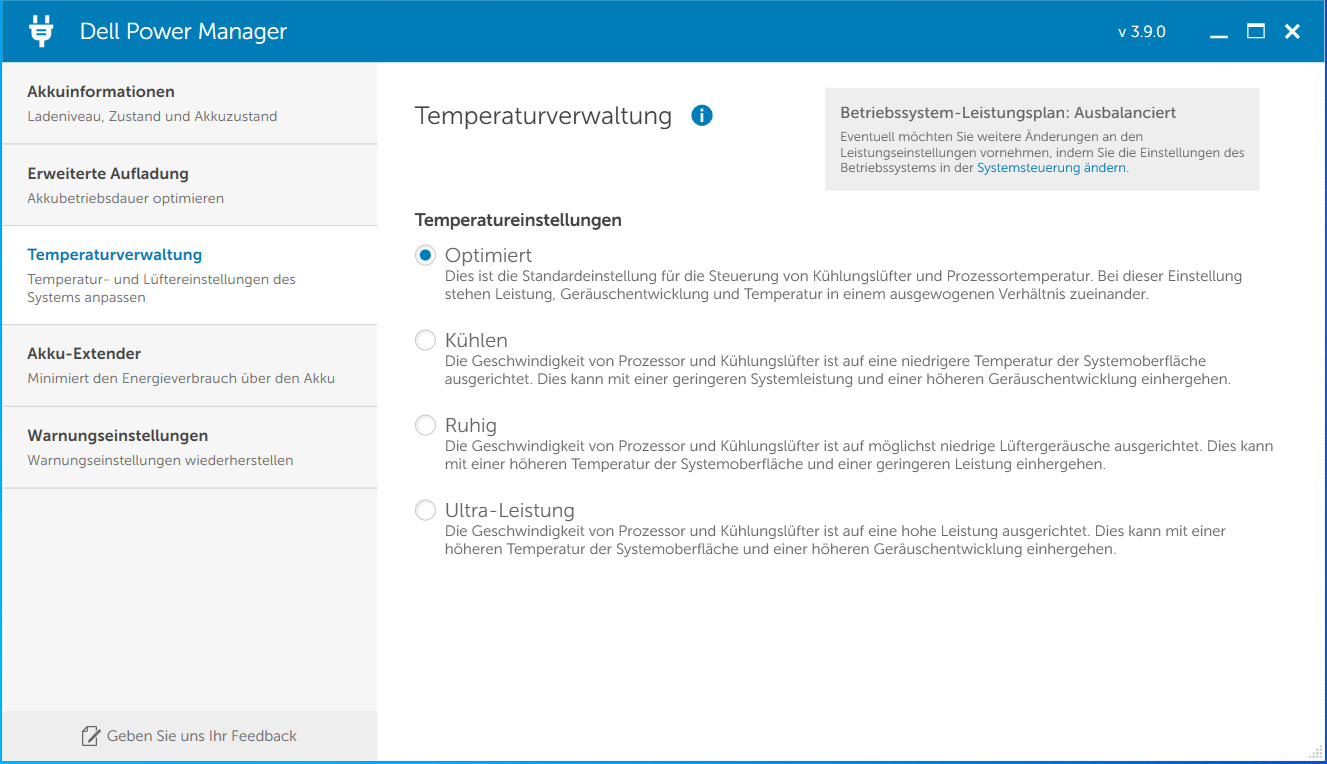

戴尔的电源管理器提供了影响笔记本温度和性能发展的配置文件。在3501的情况下,我们无法确定在性能方面的任何差异。所有四个配置文件都使用相同的功率限制(PL1:22瓦特,PL2:51瓦特)。

戴尔电源管理器
戴尔电源管理器

处理器

Core-i7 1165G7四核处理器(Tiger Lake)的基本时钟速度为2.8 GHz。通过Turbo可以提高到4.1GHz(四个核心)或4.7GHz(一个核心)。支持超线程(每个核心两个线程)。该CPU为办公和互联网使用提供了足够的计算能力,但由于13瓦的低TDP,它仍然低于1165G7的平均值。

Cinebench R15基准测试的多线程测试以3至3.3GHz的速度处理。单线程测试在1.7至4.7GHz下运行。这些时钟速率在电池电量上明显降低。

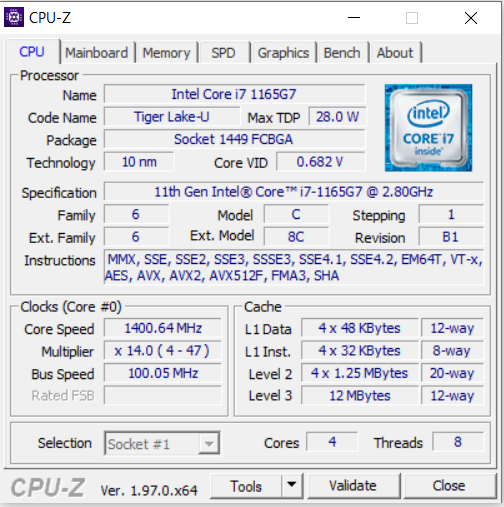

CPU-Z
CPU-Z

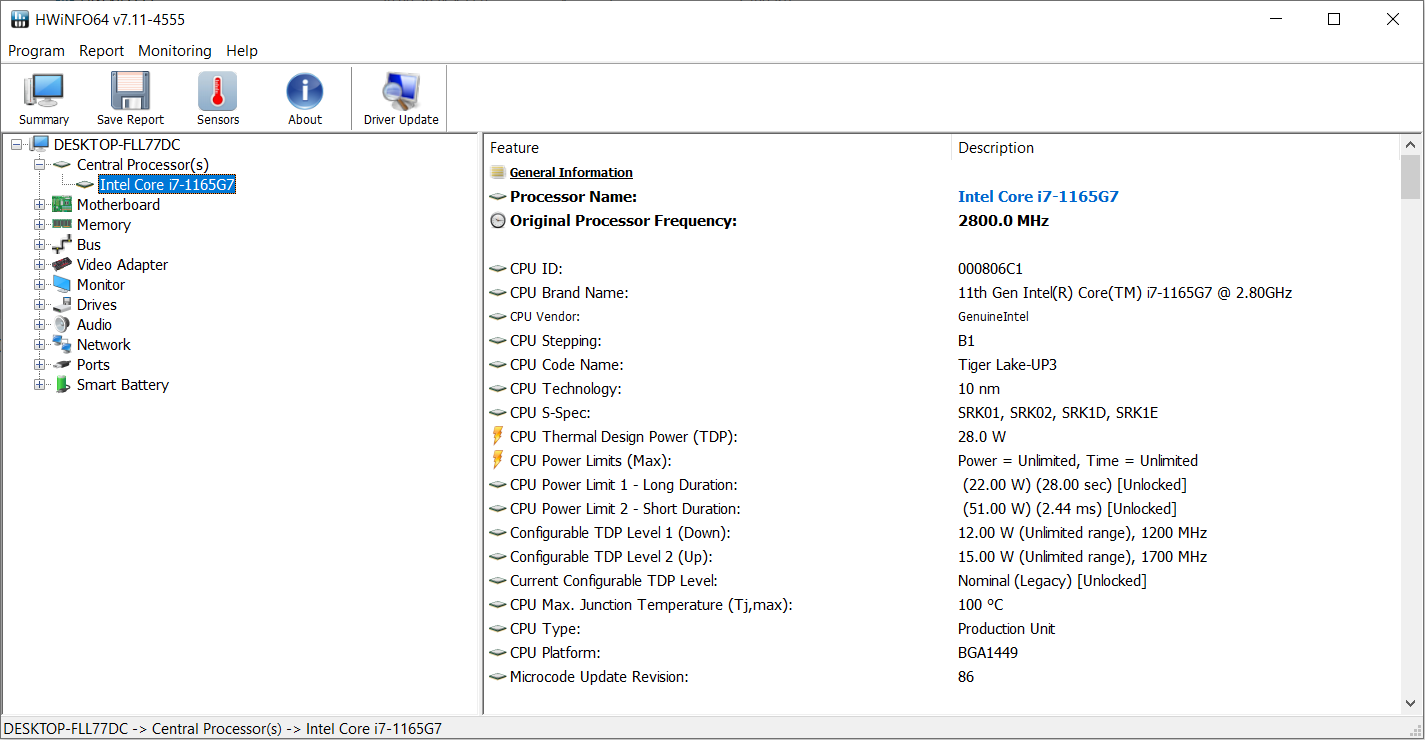

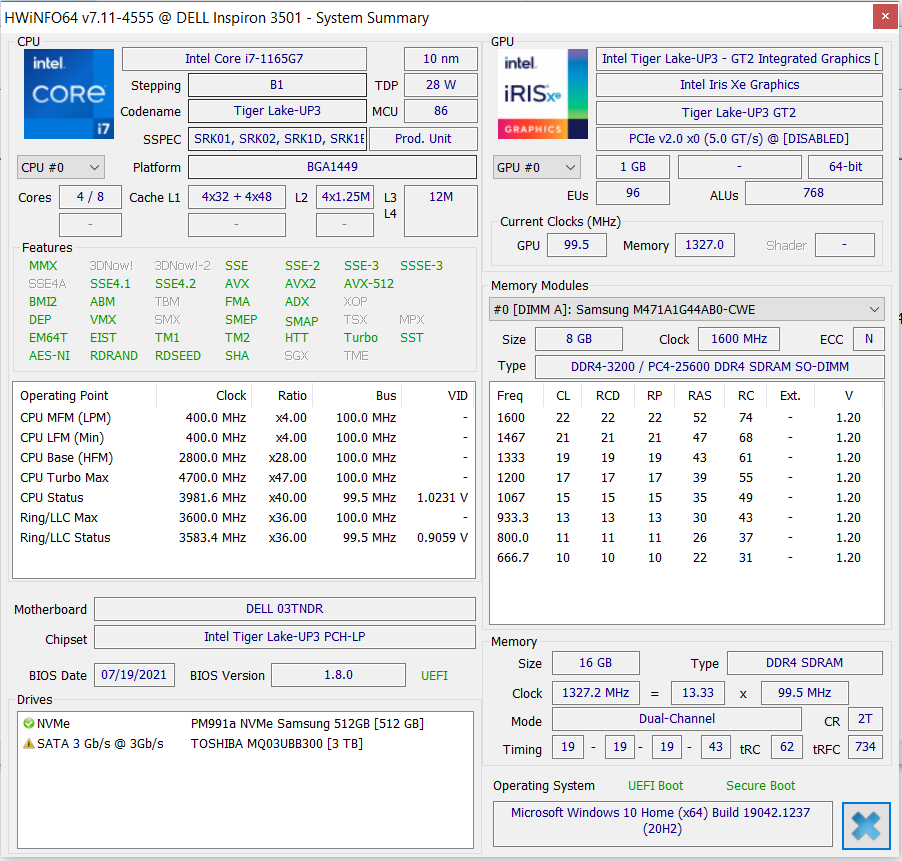

HWiNFO
HWiNFO
HWiNFO
HWiNFO

我们通过连续循环运行Cinebench R15基准的多线程测试至少30分钟来验证CPU Turbo在插电时是否被持续使用。Turbo的使用程度不高。四个CPU核心中的三个以低于基本速度的平均速度运行。

Cinebench R15 Multi endurance test

0651301952603253904555205856507157808459109751040110511701235798.11742.25725.82735.16725.37728.03728.42735.17729.93729.37733.31739.03725.22732.4737.68737.93736.32737.93733.85733.65737.37736.73738.84740.41739.75740.64738.8737.25739.3739.23733.8728.32737.22733.64741.52732.96741.34741.13740.37740.851266.741207.881206.161210.321206.711212.451190.051204.171206.781211.971208.51218.031212.971205.691207.731209.041198.791214.991187.541173.121211.941207.981208.751206.531206.27862.42831.07821.57832.31826.45829.12828.59822.2826.17827.92827.87826.92829.74821.34825.05825.07814.63808.51821.41817.54811.54817.24818.63816.43817.18922.04781.97703.48681.4686.74684.31687.4685.45685.37683.62682.84683.34684.7685.6683.35684.69683.9687.45681.19683.38684.19685.2684.44687.31683.64889.8850.21851.06873.72939.1938.77945.36945.22948.52946.39942.57934.64935.48934.45929.86932.6935.32947.8945.27943.95948.86940.82939.34936.13942.42Tooltip
Dell Inspiron 15 3501 Intel Core i7-1165G7: Ø737 (725.22-798.11)
Lenovo IdeaPad 5 15ALC05 AMD Ryzen 5 5500U: Ø1208 (1173.12-1266.74)
Samsung Galaxy Book NP750XDA Intel Core i5-1135G7: Ø824 (808.51-862.42)
Honor MagicBook 15 i5 1135G7 Intel Core i5-1135G7: Ø699 (681.19-922.04)
MSI Modern 15 A11M-062 Intel Core i7-1165G7: Ø929 (850.21-948.86)

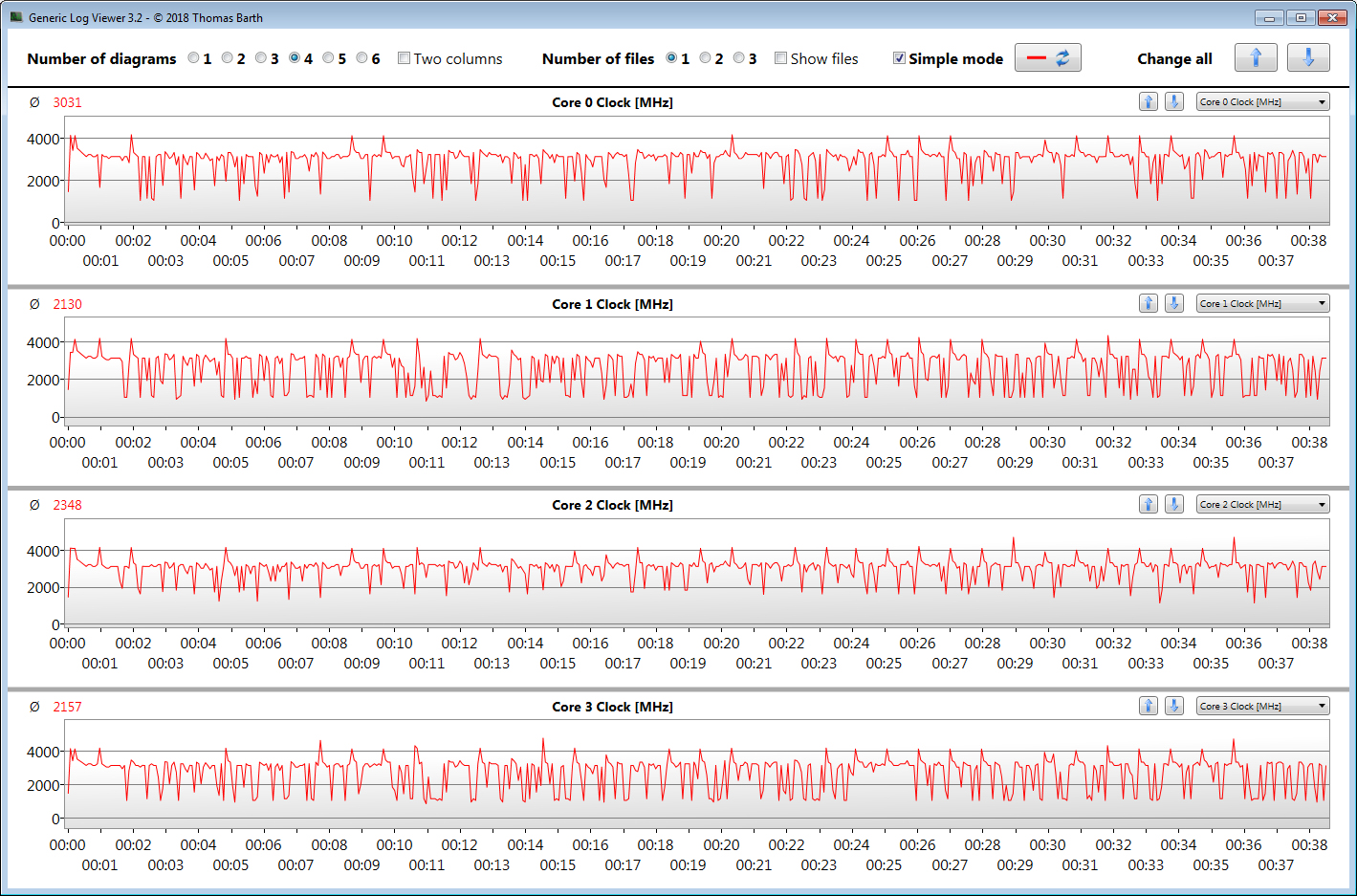

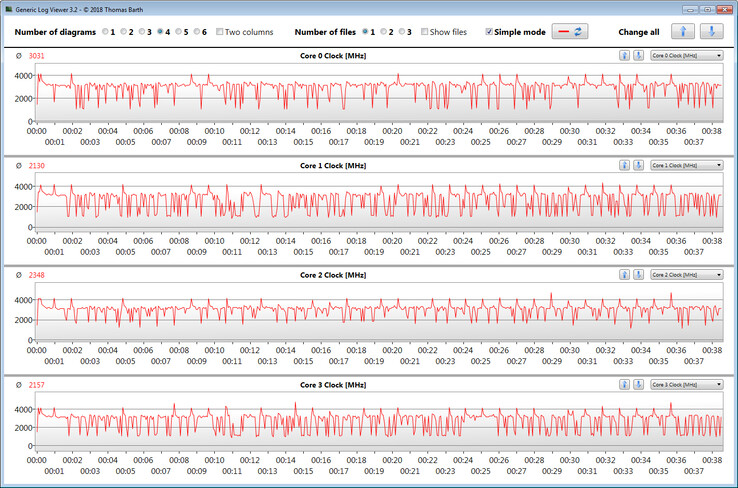

运行CB15循环时的CPU时钟速度
运行CB15循环时的CPU时钟速度
Cinebench R15 CPU Single 64Bit
158 Points
Cinebench R15 CPU Multi 64Bit
798 Points
Cinebench R15 OpenGL 64Bit
85.01 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
Cinebench R23
CPU (Multi Core)
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
7221 Points ∼100% +42%
Average Intel Core i7-1165G7
  (3773 - 6862, n=49)
5136 Points ∼71% +1%
Average of class Office
  (943 - 9653, n=41, last 2 years)
5121 Points ∼71% +1%
Dell Inspiron 15 3501
Intel Core i7-1165G7
5069 Points ∼70%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
3717 Points ∼51% -27%
CPU (Single Core)
Average Intel Core i7-1165G7
  (1263 - 1534, n=44)
1429 Points ∼100% +1%
Dell Inspiron 15 3501
Intel Core i7-1165G7
1412 Points ∼99%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
1350 Points ∼94% -4%
Average of class Office
  (208 - 1578, n=41, last 2 years)
1237 Points ∼87% -12%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
1149 Points ∼80% -19%
Cinebench R20
CPU (Multi Core)
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
2758 Points ∼100% +43%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
2472 Points ∼90% +29%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
2105 Points ∼76% +10%
Average Intel Core i7-1165G7
  (1285 - 2657, n=66)
1972 Points ∼72% +3%
Dell Inspiron 15 3501
Intel Core i7-1165G7
1922 Points ∼70%
Average of class Office
  (159 - 3672, n=120, last 2 years)
1721 Points ∼62% -10%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
1448 Points ∼53% -25%
CPU (Single Core)
MSI Modern 15 A11M-062
Intel Core i7-1165G7
557 Points ∼100% +3%
Average Intel Core i7-1165G7
  (471 - 588, n=66)
553 Points ∼99% +2%
Dell Inspiron 15 3501
Intel Core i7-1165G7
541 Points ∼97%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
514 Points ∼92% -5%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
456 Points ∼82% -16%
Average of class Office
  (191 - 606, n=119, last 2 years)
448 Points ∼80% -17%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
442 Points ∼79% -18%
Cinebench R15
CPU Multi 64Bit
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
1267 (1173.12min - 1266.74max) Points ∼100% +59%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
949 (850.21min - 948.86max) Points ∼75% +19%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
922 Points ∼73% +16%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
862 (808.51min - 862.42max) Points ∼68% +8%
Average Intel Core i7-1165G7
  (599 - 1027, n=68)
855 Points ∼67% +7%
Dell Inspiron 15 3501
Intel Core i7-1165G7
798 Points ∼63%
Average of class Office
  (134 - 1614, n=126, last 2 years)
739 Points ∼58% -7%
CPU Single 64Bit
MSI Modern 15 A11M-062
Intel Core i7-1165G7
224 Points ∼100% +42%
Average Intel Core i7-1165G7
  (158 - 230, n=60)
215 Points ∼96% +36%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
201 Points ∼90% +27%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
195 Points ∼87% +23%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
194 Points ∼87% +23%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
177 Points ∼79% +12%
Average of class Office
  (75 - 230, n=122, last 2 years)
175 Points ∼78% +11%
Dell Inspiron 15 3501
Intel Core i7-1165G7
158 Points ∼71%
Blender 2.79 - BMW27 CPU
Average of class Office
  (302 - 3319, n=111, last 2 years)
797 Seconds * ∼100% -32%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
711 Seconds * ∼89% -18%
Average Intel Core i7-1165G7
  (468 - 958, n=65)
612 Seconds * ∼77% -2%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
602 Seconds * ∼76% -0%
Dell Inspiron 15 3501
Intel Core i7-1165G7
602 Seconds * ∼76%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
489 Seconds * ∼61% +19%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
418 Seconds * ∼52% +31%
7-Zip 18.03
7z b 4
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
33768 MIPS ∼100% +50%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
25395 MIPS ∼75% +13%
Average Intel Core i7-1165G7
  (15556 - 27405, n=65)
22979 MIPS ∼68% +2%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
22772 MIPS ∼67% +1%
Dell Inspiron 15 3501
Intel Core i7-1165G7
22489 MIPS ∼67%
Average of class Office
  (4963 - 43914, n=111, last 2 years)
20770 MIPS ∼62% -8%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
17591 MIPS ∼52% -22%
7z b 4 -mmt1
MSI Modern 15 A11M-062
Intel Core i7-1165G7
5214 MIPS ∼100% +6%
Average Intel Core i7-1165G7
  (4625 - 5507, n=65)
5209 MIPS ∼100% +6%
Dell Inspiron 15 3501
Intel Core i7-1165G7
4929 MIPS ∼95%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
4728 MIPS ∼91% -4%
Average of class Office
  (2389 - 5565, n=111, last 2 years)
4442 MIPS ∼85% -10%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
4323 MIPS ∼83% -12%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
3924 MIPS ∼75% -20%
Geekbench 5.3
64 Bit Multi-Core Score
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
5367 Points ∼100% +16%
Average Intel Core i7-1165G7
  (1821 - 5926, n=64)
5145 Points ∼96% +11%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
4876 Points ∼91% +5%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
4742 Points ∼88% +2%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
4649 Points ∼87% 0%
Dell Inspiron 15 3501
Intel Core i7-1165G7
4630 Points ∼86%
Average of class Office
  (873 - 6502, n=107, last 2 years)
3979 Points ∼74% -14%
64 Bit Single-Core Score
Average Intel Core i7-1165G7
  (882 - 1595, n=64)
1514 Points ∼100% +4%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
1492 Points ∼99% +3%
Dell Inspiron 15 3501
Intel Core i7-1165G7
1455 Points ∼96%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
1405 Points ∼93% -3%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
1401 Points ∼93% -4%
Average of class Office
  (431 - 1648, n=107, last 2 years)
1172 Points ∼77% -19%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
1116 Points ∼74% -23%
HWBOT x265 Benchmark v2.2 - 4k Preset
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
8.24 fps ∼100% +41%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
7.61 fps ∼92% +30%
Average Intel Core i7-1165G7
  (1.39 - 8.47, n=65)
6.34 fps ∼77% +8%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
6.15 fps ∼75% +5%
Dell Inspiron 15 3501
Intel Core i7-1165G7
5.86 fps ∼71%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
5.66 fps ∼69% -3%
Average of class Office
  (1.15 - 11.1, n=110, last 2 years)
5.52 fps ∼67% -6%
LibreOffice - 20 Documents To PDF
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
67.3 s * ∼100% -39%
Average of class Office
  (21.5 - 180, n=101, last 2 years)
61.3 s * ∼91% -26%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
54.4 s * ∼81% -12%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
54.3 s * ∼81% -12%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
52.9 s * ∼79% -9%
Average Intel Core i7-1165G7
  (21.5 - 88.1, n=63)
48.6 s * ∼72% -0%
Dell Inspiron 15 3501
Intel Core i7-1165G7
48.5 s * ∼72%
R Benchmark 2.5 - Overall mean
Average of class Office
  (0.542 - 1.578, n=106, last 2 years)
0.692 sec * ∼100% -14%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
0.639 sec * ∼92% -5%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U
0.635 sec * ∼92% -4%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
0.622 sec * ∼90% -2%
Dell Inspiron 15 3501
Intel Core i7-1165G7
0.609 sec * ∼88%
Average Intel Core i7-1165G7
  (0.552 - 1.002, n=65)
0.591 sec * ∼85% +3%
MSI Modern 15 A11M-062
Intel Core i7-1165G7
0.583 sec * ∼84% +4%

* ... smaller is better

系统性能

快速而流畅的系统没有出现任何问题。CPU为办公和互联网应用提供了足够的性能。这一点得到了PCMark良好结果的补充。

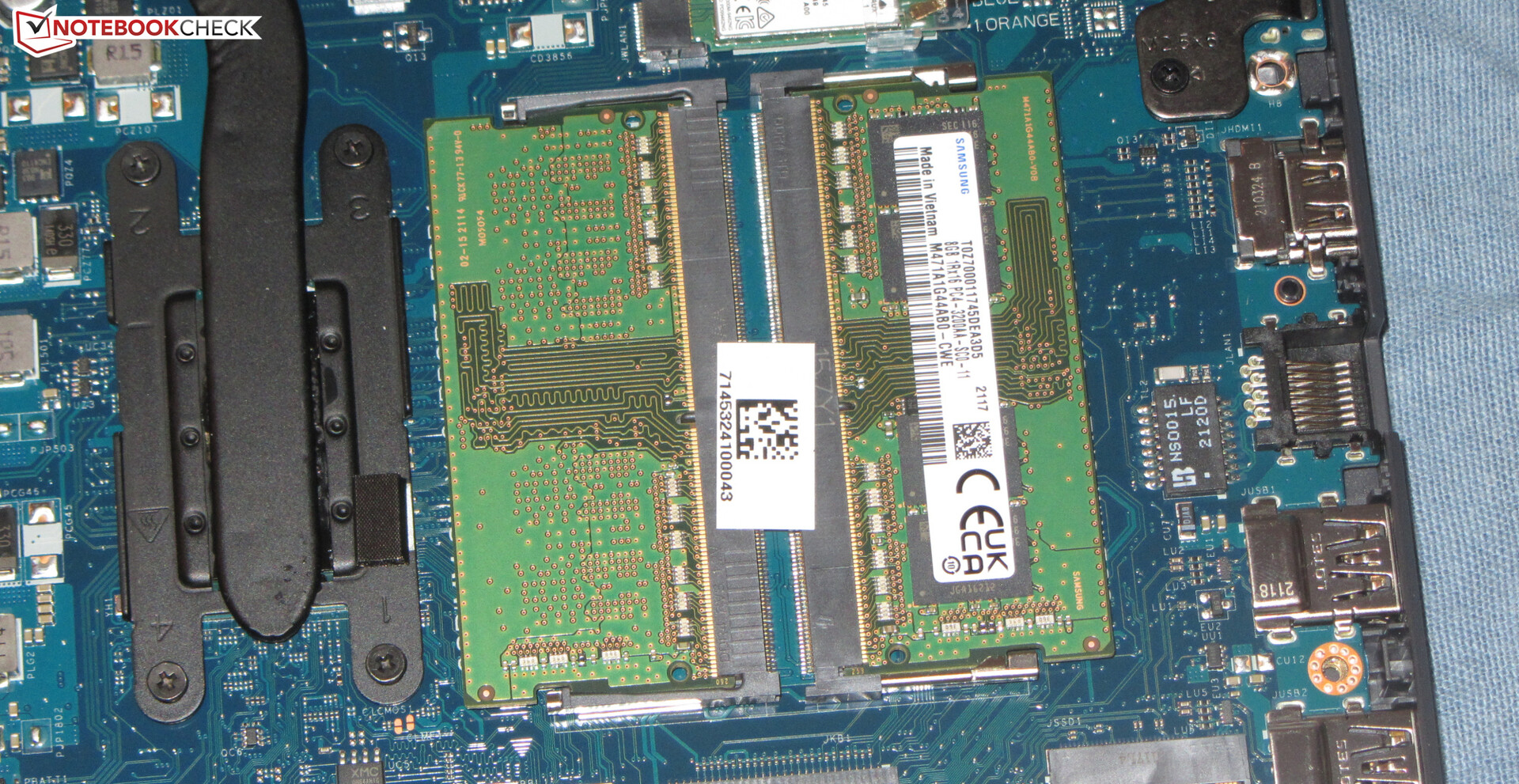

尽管戴尔为Inspiron配备了DDR4-3200内存,但它只在2,666MHz的内存时钟速率下工作。因此,RAM仍然低于其潜力。相比之下。 Honor MagicBook 15中的DDR4-3200内存实现了总体上更好的传输率和访问时间。

RAM在双通道模式下运行。
RAM在双通道模式下运行。
PCMark 10 Score
4891 points
Help
PCMark 10 / Score
Lenovo IdeaPad 5 15ALC05
Vega 7, R5 5500U
5218 Points ∼100% +7%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4531 - 5454, n=42)
4967 Points ∼95% +2%
Dell Inspiron 15 3501
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991a MZ9LQ512HBLU-00BD1
4891 Points ∼94%
MSI Modern 15 A11M-062
Iris Xe G7 96EUs, i7-1165G7, Kingston OM8PCP3512F-AB
4691 Points ∼90% -4%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
4690 Points ∼90% -4%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
4668 Points ∼89% -5%
Average of class Office
  (1900 - 5690, n=117, last 2 years)
4321 Points ∼83% -12%
PCMark 10 / Essentials
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (8997 - 11505, n=42)
10058 Points ∼100% +3%
Dell Inspiron 15 3501
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991a MZ9LQ512HBLU-00BD1
9795 Points ∼97%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
9666 Points ∼96% -1%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
9224 Points ∼92% -6%
Lenovo IdeaPad 5 15ALC05
Vega 7, R5 5500U
9125 Points ∼91% -7%
MSI Modern 15 A11M-062
Iris Xe G7 96EUs, i7-1165G7, Kingston OM8PCP3512F-AB
9087 Points ∼90% -7%
Average of class Office
  (4469 - 10608, n=117, last 2 years)
8678 Points ∼86% -11%
PCMark 10 / Productivity
Lenovo IdeaPad 5 15ALC05
Vega 7, R5 5500U
7942 Points ∼100% +20%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (5570 - 7136, n=42)
6733 Points ∼85% +2%
Average of class Office
  (2917 - 9512, n=117, last 2 years)
6687 Points ∼84% +1%
Dell Inspiron 15 3501
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991a MZ9LQ512HBLU-00BD1
6618 Points ∼83%
MSI Modern 15 A11M-062
Iris Xe G7 96EUs, i7-1165G7, Kingston OM8PCP3512F-AB
6339 Points ∼80% -4%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
6151 Points ∼77% -7%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
6140 Points ∼77% -7%
PCMark 10 / Digital Content Creation
Lenovo IdeaPad 5 15ALC05
Vega 7, R5 5500U
5320 Points ∼100% +9%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4083 - 5550, n=42)
4922 Points ∼93% 0%
Dell Inspiron 15 3501
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991a MZ9LQ512HBLU-00BD1
4899 Points ∼92%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
4866 Points ∼91% -1%
MSI Modern 15 A11M-062
Iris Xe G7 96EUs, i7-1165G7, Kingston OM8PCP3512F-AB
4864 Points ∼91% -1%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
4719 Points ∼89% -4%
Average of class Office
  (1270 - 5878, n=117, last 2 years)
3850 Points ∼72% -21%
Dell Inspiron 15 3501
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991a MZ9LQ512HBLU-00BD1
Lenovo IdeaPad 5 15ALC05
Vega 7, R5 5500U
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs

AIDA64
1%
13%
44%
Memory Write
35973
31943
-11%
40918
14%
54264 ?(23142 - 66791, n=30)
51%
Memory Read
37436
42872
15%
43385
16%
52506 ?(24309 - 64524, n=30)
40%
Memory Latency *
91.9
99.4
-8%
80
13%
72.7 ?(71.4 - 99.1, n=35)
21%
Memory Copy
31351
34196
9%
34501
10%
51258 ?(21717 - 65446, n=30)
63%

* ... smaller is better

DPC延迟

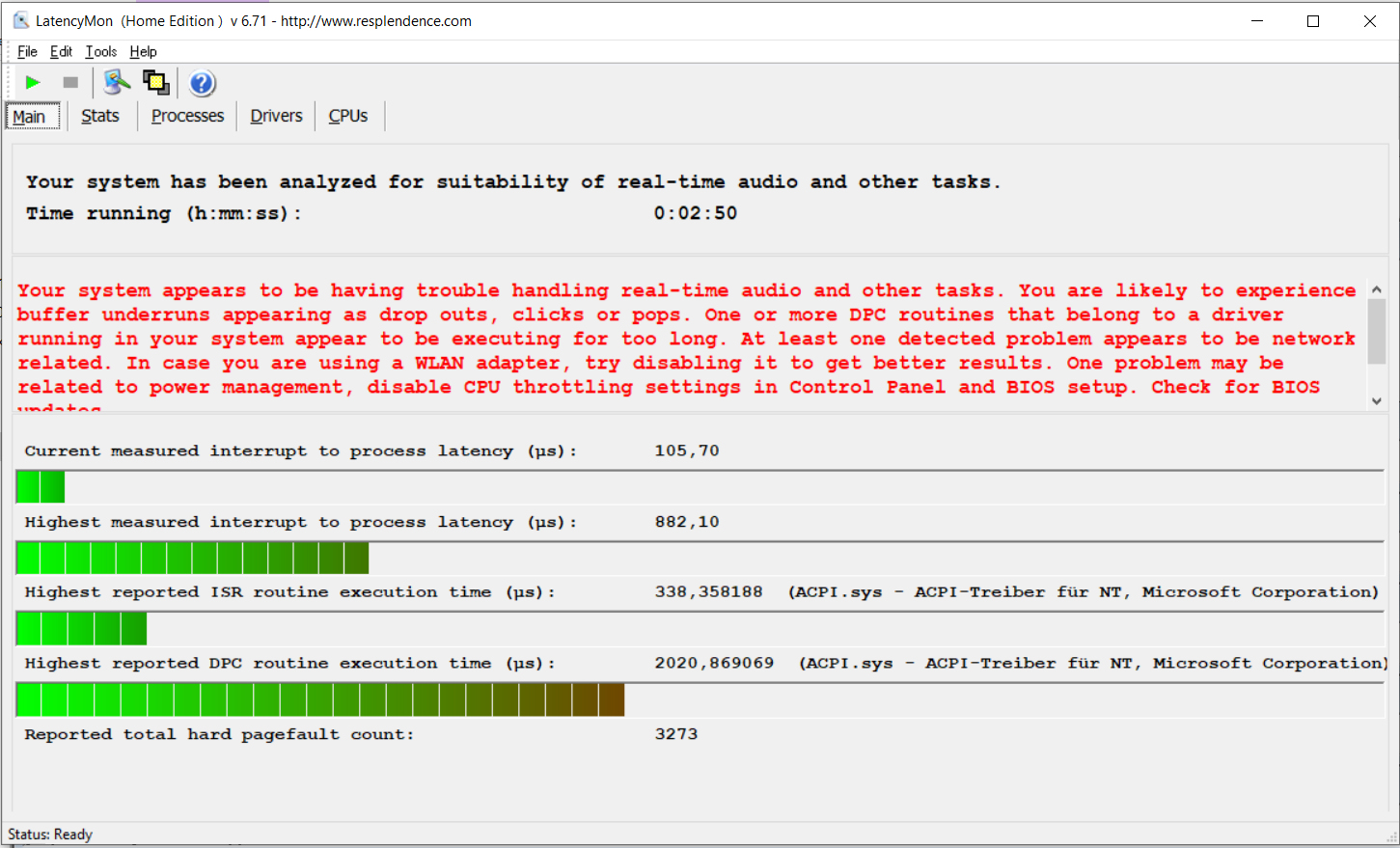

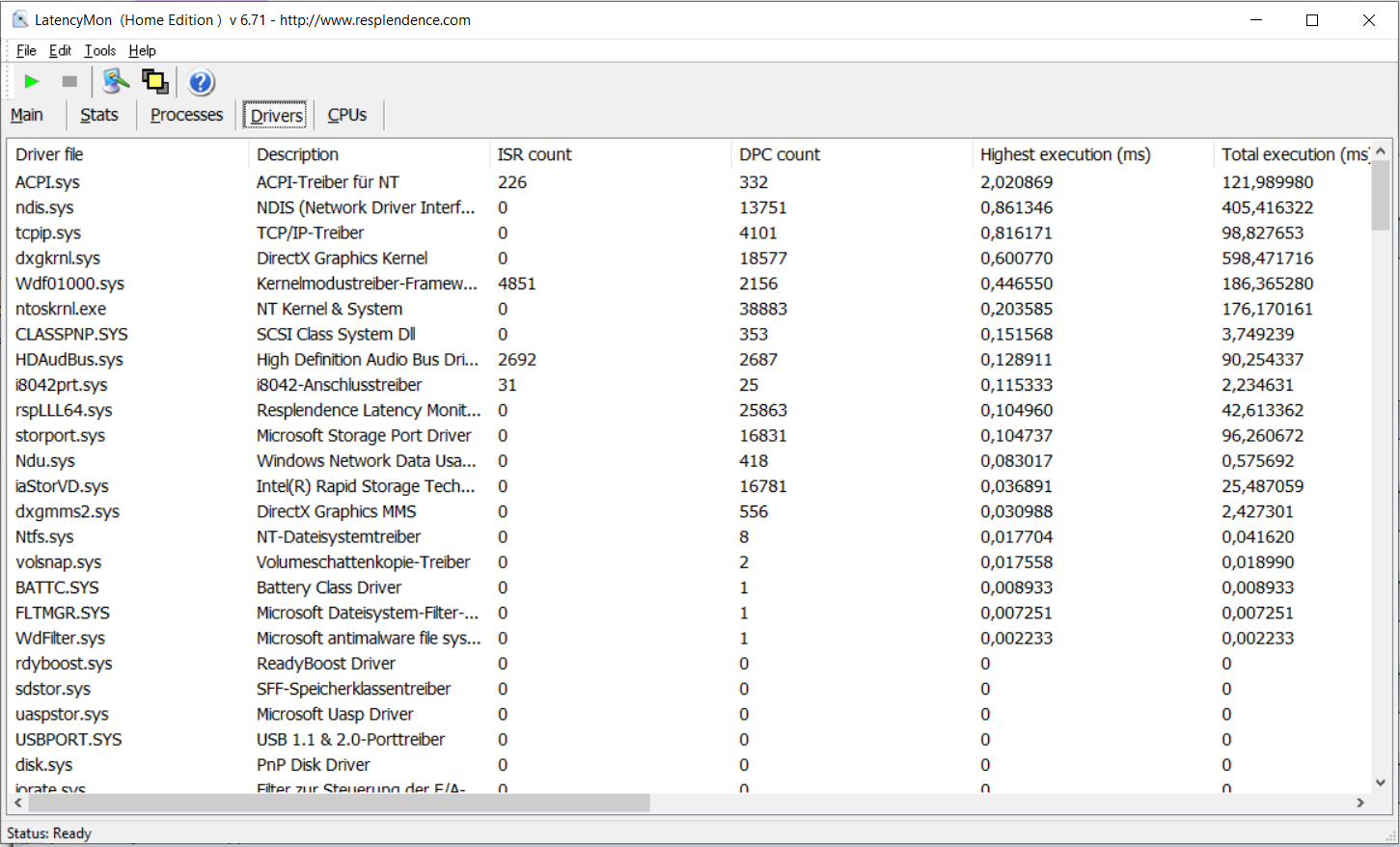

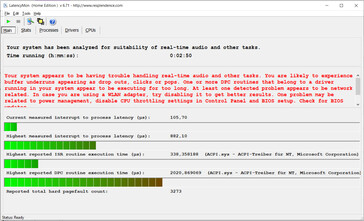

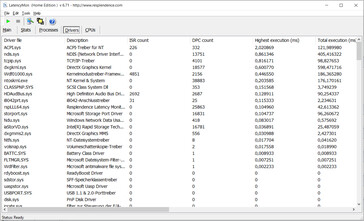

延迟监测
延迟监测
延迟监测
延迟监测
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Modern 15 A11M-062
Iris Xe G7 96EUs, i7-1165G7, Kingston OM8PCP3512F-AB
1310.7 μs * ∼100% -49%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
1266.6 μs * ∼97% -44%
Dell Inspiron 15 3501
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991a MZ9LQ512HBLU-00BD1
882.1 μs * ∼67%
Lenovo IdeaPad 5 15ALC05
Vega 7, R5 5500U
874 μs * ∼67% +1%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
648.8 μs * ∼50% +26%

* ... smaller is better

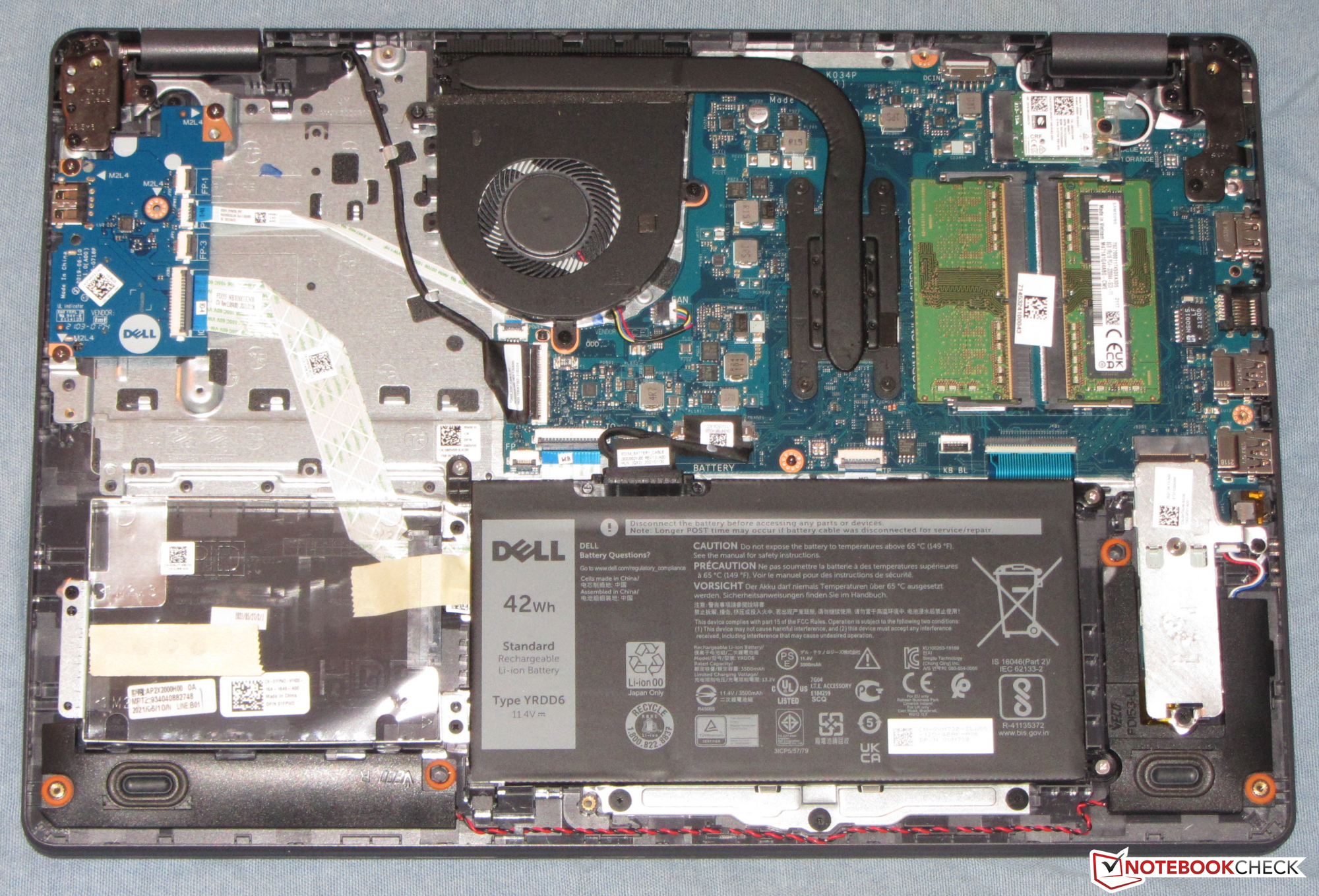

储存

来自三星的512GB NVMe SSD(M.230;2280型号也适用)作为系统驱动器,它总体上提供了良好的传输速率。笔记本电脑还提供了2.5英寸存储介质的空间。安装框架和SATA插槽都在外壳内找到。

一个NVMe SSD作为系统驱动器。
一个NVMe SSD作为系统驱动器。
可以安装一个额外的2.5英寸存储驱动器。
可以安装一个额外的2.5英寸存储驱动器。
Samsung PM991a MZ9LQ512HBLU-00BD1
CDM 5/6 Read Seq Q32T1: 3115 MB/s
CDM 5/6 Write Seq Q32T1: 1918 MB/s
CDM 5/6 Read 4K Q32T1: 670.7 MB/s
CDM 5/6 Write 4K Q32T1: 516.3 MB/s
CDM 5 Read Seq: 2009 MB/s
CDM 5 Write Seq: 1571 MB/s
CDM 5/6 Read 4K: 52.66 MB/s
CDM 5/6 Write 4K: 170.7 MB/s
Dell Inspiron 15 3501
Samsung PM991a MZ9LQ512HBLU-00BD1
Lenovo IdeaPad 5 15ALC05

Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
MSI Modern 15 A11M-062
Kingston OM8PCP3512F-AB
Average Samsung PM991a MZ9LQ512HBLU-00BD1

Average of class Office

CrystalDiskMark 5.2 / 6
-27%
-31%
22%
-30%
-9%
-16%
Write 4K
170.7
82.65
-52%
102.4
-40%
208.51
22%
215.1
26%
145 ?(120 - 171, n=2)
-15%
142 ?(19.7 - 314, n=113, last 2 years)
-17%
Read 4K
52.66
39.96
-24%
36.27
-31%
51.56
-2%
47.9
-9%
49 ?(45.3 - 52.7, n=2)
-7%
47.7 ?(10.5 - 87.6, n=113, last 2 years)
-9%
Write Seq
1571
1273
-19%
1134
-28%
2579.11
64%
965.3
-39%
1403 ?(1235 - 1571, n=2)
-11%
1481 ?(137 - 5205, n=109, last 2 years)
-6%
Read Seq
2009
1601
-20%
1841
-8%
2475.78
23%
1149
-43%
1887 ?(1765 - 2009, n=2)
-6%
1657 ?(303 - 4340, n=109, last 2 years)
-18%
Write 4K Q32T1
516.3
360.4
-30%
495.5
-4%
601.92
17%
335.3
-35%
445 ?(374 - 516, n=2)
-14%
410 ?(41.5 - 846, n=113, last 2 years)
-21%
Read 4K Q32T1
670.7
410.4
-39%
322.6
-52%
680.38
1%
303.4
-55%
587 ?(503 - 671, n=2)
-12%
435 ?(48.2 - 925, n=113, last 2 years)
-35%
Write Seq Q32T1
1918
1589
-17%
929.5
-52%
2705.7
41%
967.9
-50%
1736 ?(1553 - 1918, n=2)
-9%
1810 ?(138 - 5189, n=113, last 2 years)
-6%
Read Seq Q32T1
3115
2652
-15%
1988
-36%
3392.2
9%
1986
-36%
3114 ?(3113 - 3115, n=2)
0%
2605 ?(213 - 6921, n=113, last 2 years)
-16%
AS SSD
-5%
-72%
39%
-62%
-10%
-31%
Seq Read
2595.65
2549.29
-2%
1779.69
-31%
2960
14%
1747
-33%
2575 ?(2555 - 2596, n=2)
-1%
2018 ?(306 - 5613, n=114, last 2 years)
-22%
Seq Write
1846.94
1570.95
-15%
843.01
-54%
2371
28%
909.44
-51%
1819 ?(1791 - 1847, n=2)
-2%
1320 ?(185 - 4909, n=114, last 2 years)
-29%
4K Read
48.12
41.92
-13%
24.25
-50%
46.48
-3%
40.89
-15%
43 ?(37.8 - 48.1, n=2)
-11%
46.3 ?(10.2 - 80.6, n=114, last 2 years)
-4%
4K Write
147.84
110.32
-25%
102.15
-31%
143.56
-3%
75.62
-49%
117 ?(86.7 - 148, n=2)
-21%
127 ?(28.4 - 257, n=114, last 2 years)
-14%
4K-64 Read
1252.69
1086.45
-13%
368.96
-71%
1469.83
17%
163.55
-87%
1263 ?(1253 - 1273, n=2)
1%
874 ?(18.6 - 2222, n=114, last 2 years)
-30%
4K-64 Write
1012.12
1083.36
7%
717.26
-29%
1805.78
78%
262.6
-74%
969 ?(926 - 1012, n=2)
-4%
995 ?(31 - 2470, n=114, last 2 years)
-2%
Access Time Read *
0.079
0.119
-51%
0.076
4%
0.088
-11%
0.134
-70%
0.1215 ?(0.079 - 0.164, n=2)
-54%
0.0911 ?(0.032 - 0.453, n=108, last 2 years)
-15%
Access Time Write *
0.026
0.034
-31%
0.124
-377%
0.026
-0%
0.048
-85%
0.035 ?(0.026 - 0.044, n=2)
-35%
0.0962 ?(0.018 - 0.818, n=114, last 2 years)
-270%
Score Read
1560
1383
-11%
571
-63%
1812
16%
379
-76%
1563 ?(1560 - 1566, n=2)
0%
1122 ?(59 - 2864, n=114, last 2 years)
-28%
Score Write
1345
1351
0%
904
-33%
2186
63%
429
-68%
1269 ?(1192 - 1345, n=2)
-6%
1253 ?(84 - 2797, n=114, last 2 years)
-7%
Score Total
3672
3398
-7%
1726
-53%
4899
33%
976
-73%
3597 ?(3522 - 3672, n=2)
-2%
2925 ?(175 - 7098, n=114, last 2 years)
-20%
Copy ISO MB/s
1937.99
1286.42
-34%
2520.01
30%
1918 ?(1899 - 1938, n=2)
-1%
1327 ?(169 - 3024, n=75, last 2 years)
-32%
Copy Program MB/s
300.58
573.8
91%
789.88
163%
291 ?(282 - 301, n=2)
-3%
428 ?(70.2 - 1353, n=75, last 2 years)
42%
Copy Game MB/s
835.43
1132.69
36%
1879.43
125%
845 ?(835 - 854, n=2)
1%
852 ?(135 - 3007, n=75, last 2 years)
2%
Total Average (Program / Settings)
-16% / -13%
-52% / -55%
31% / 33%
-46% / -49%
-10% / -10%
-24% / -25%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

0175350525700875105012251400157517501925210022752450262528002975315033251617.531644.381648.151651.721653.811655.491655.71655.911656.331656.371656.581656.5816571657.421658.881659.021659.061659.91660.141660.561660.591660.771662.021662.21662.621662.861663.911664.751665.581665.771667.861668.31669.141673.321676.051677.931737.371769.61857.241866.511870.481880.531885.131909.832061.852079.542084.152507.792661.712675.341641.441642.281642.981643.331643.961644.171644.591644.591644.81645.281645.431645.431645.431645.431645.641645.71646.051646.541646.541646.681646.681647.11647.161647.311647.521647.941647.941649.21649.411649.831649.831649.831650.041650.251650.251651.661802.041841.511848.511848.851851.861928.962139.932395.42436.632642.622644.462649.332649.492660.031550.891972.161974.261985.391985.581986.221987.051987.461987.471987.481987.681987.891987.891988.311988.531988.951989.361989.781989.781989.991989.991989.991990.21990.21990.621990.621990.831990.831990.831991.461991.671992.921995.231996.281996.691997.331997.751997.961997.961998.171998.171998.381998.591999.011999.221999.221999.631999.842000.892001.311001.141095.061126.381148.191154.681220.21338.41971.163175.33252.693315.523429.323429.323430.793431.783433.33433.513433.933434.143434.143434.353434.353434.353434.353434.563434.563434.773434.773434.773434.773434.983434.983434.983434.983434.983434.983434.983435.193435.193435.193435.193435.393435.393435.393435.63435.813435.813436.023436.023436.231830.61980.321981.581982.211982.211982.421983.261983.471983.681983.681983.891983.891983.911984.311984.311984.521984.521984.521984.521984.731984.731984.731984.731984.941984.941984.941984.941985.151985.151985.151985.151985.361985.361985.361985.361985.361985.361985.361985.361985.361985.361985.361985.571985.571985.791986.631986.831986.831987.041987.26Tooltip
Dell Inspiron 15 3501 Samsung PM991a MZ9LQ512HBLU-00BD1: Ø1772 (1617.53-2675.34)
Lenovo IdeaPad 5 15ALC05  : Ø1812 (1641.44-2660.03)
Samsung Galaxy Book NP750XDA Lite-On CL1-8D512: Ø1983 (1550.89-2001.31)
Honor MagicBook 15 i5 1135G7 WDC PC SN730 SDBPNTY-512G: Ø3075 (1001.14-3436.23)
MSI Modern 15 A11M-062 Kingston OM8PCP3512F-AB: Ø1982 (1830.6-1987.26)

图形卡

Iris Xe Graphics G7 96EUsGPU支持DirectX 12,工作时钟频率高达1,300 MHz,也可以保持较长的时间(见我们的TheWitcher 3测试)。与我们迄今为止对该图形核心所做的测量相比,3DMark的结果显然低于平均水平。低TDP和相对较慢的内存连接在这里都有影响。

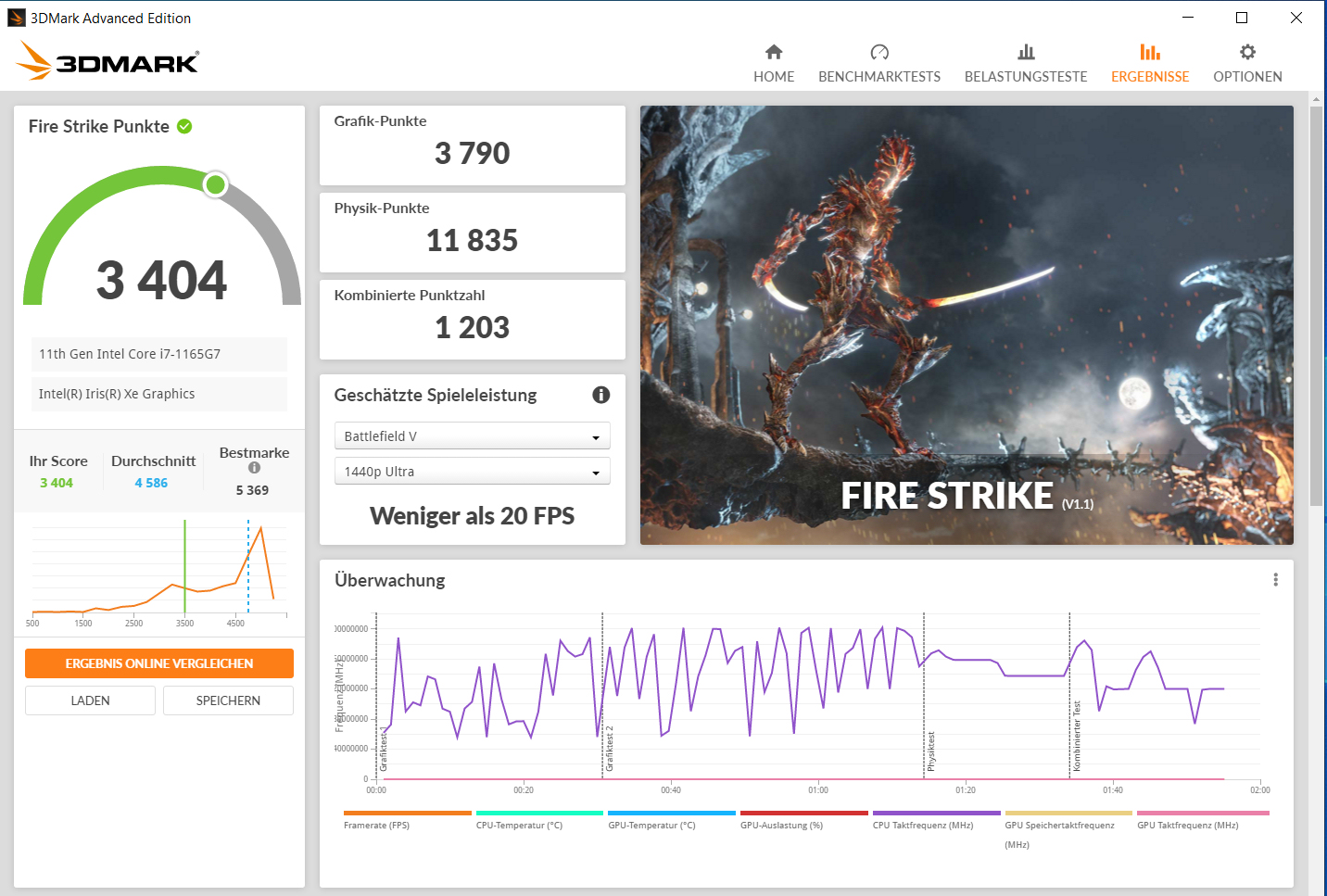

Fire Strike
Fire Strike

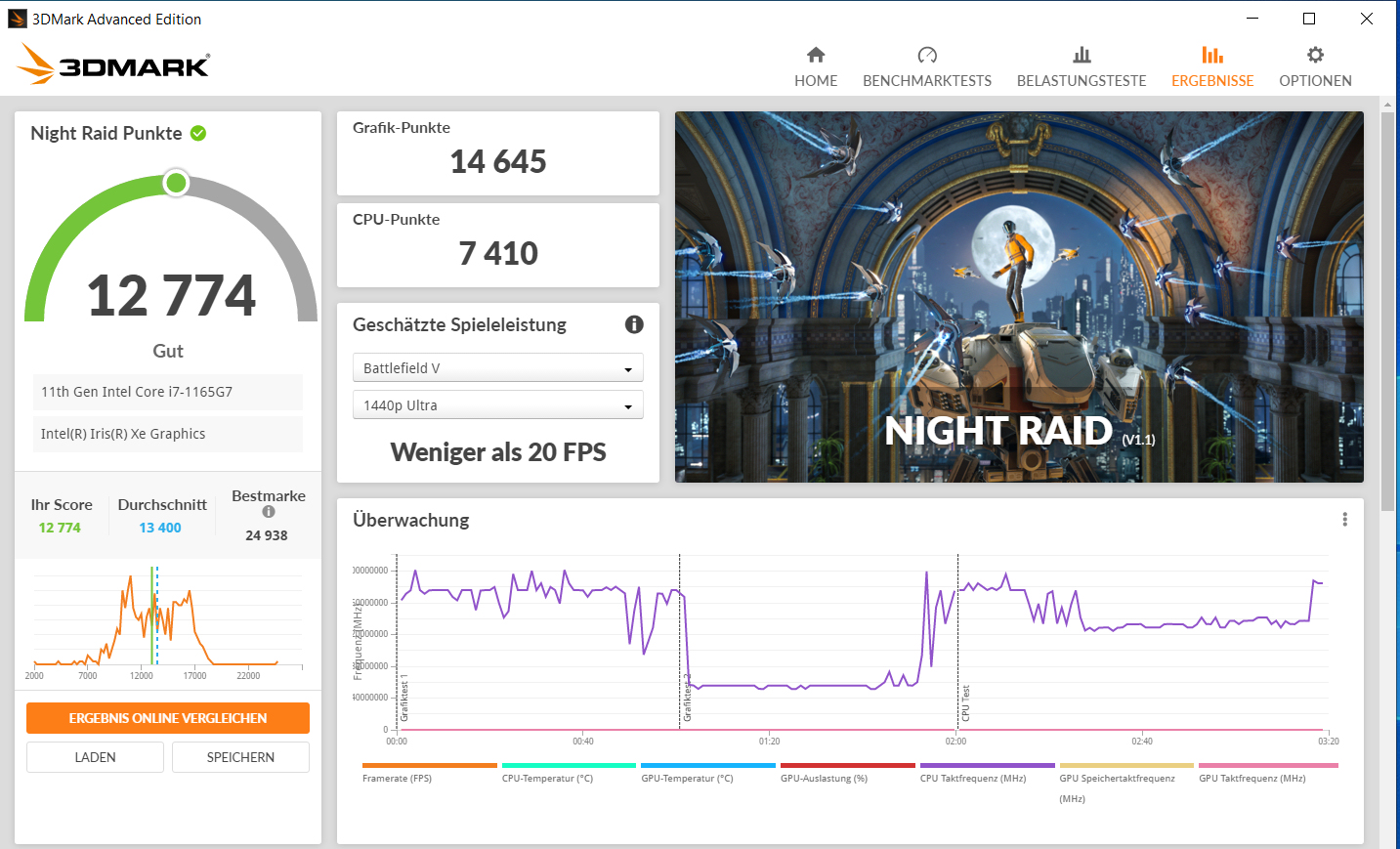

夜间突袭
夜间突袭

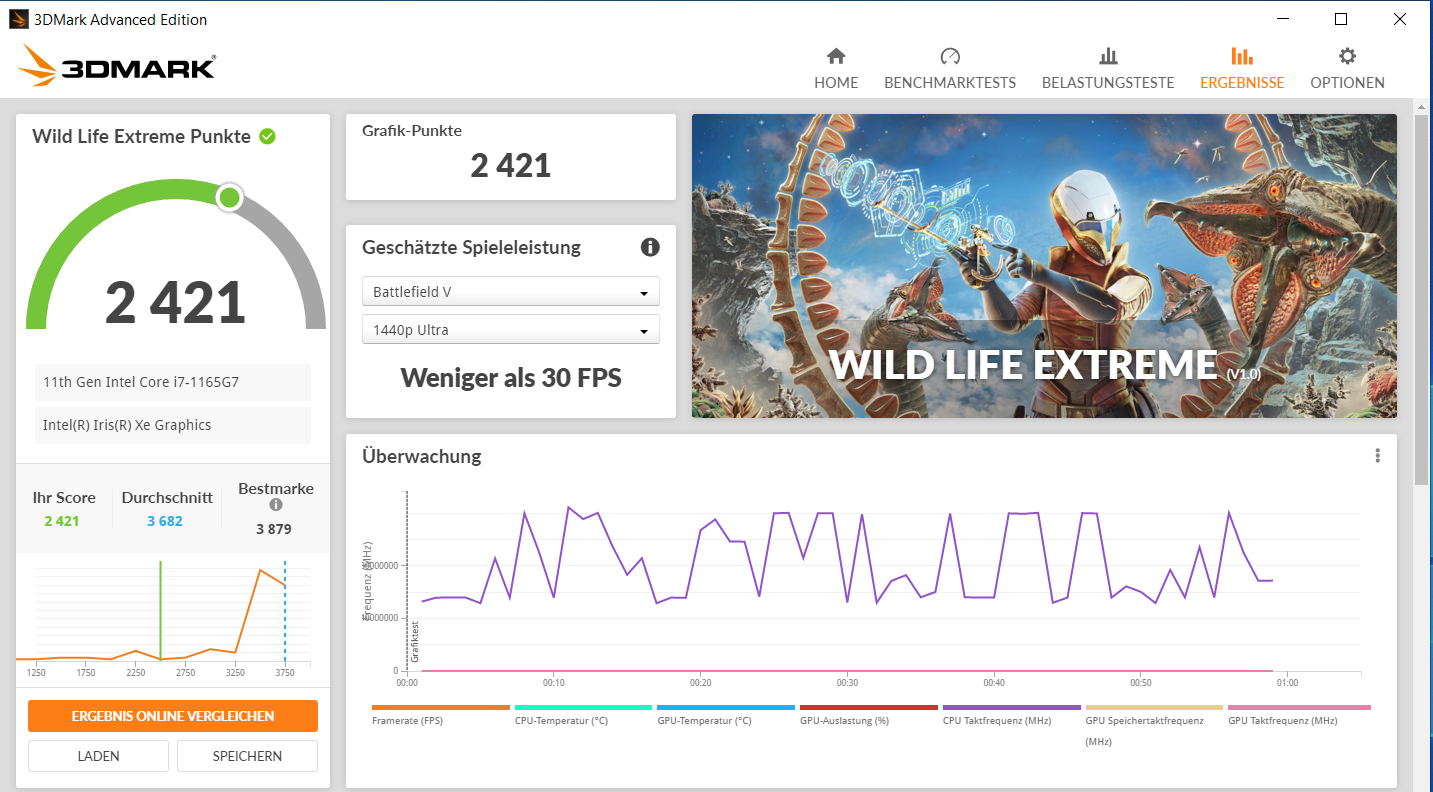

极端野生动物
极端野生动物

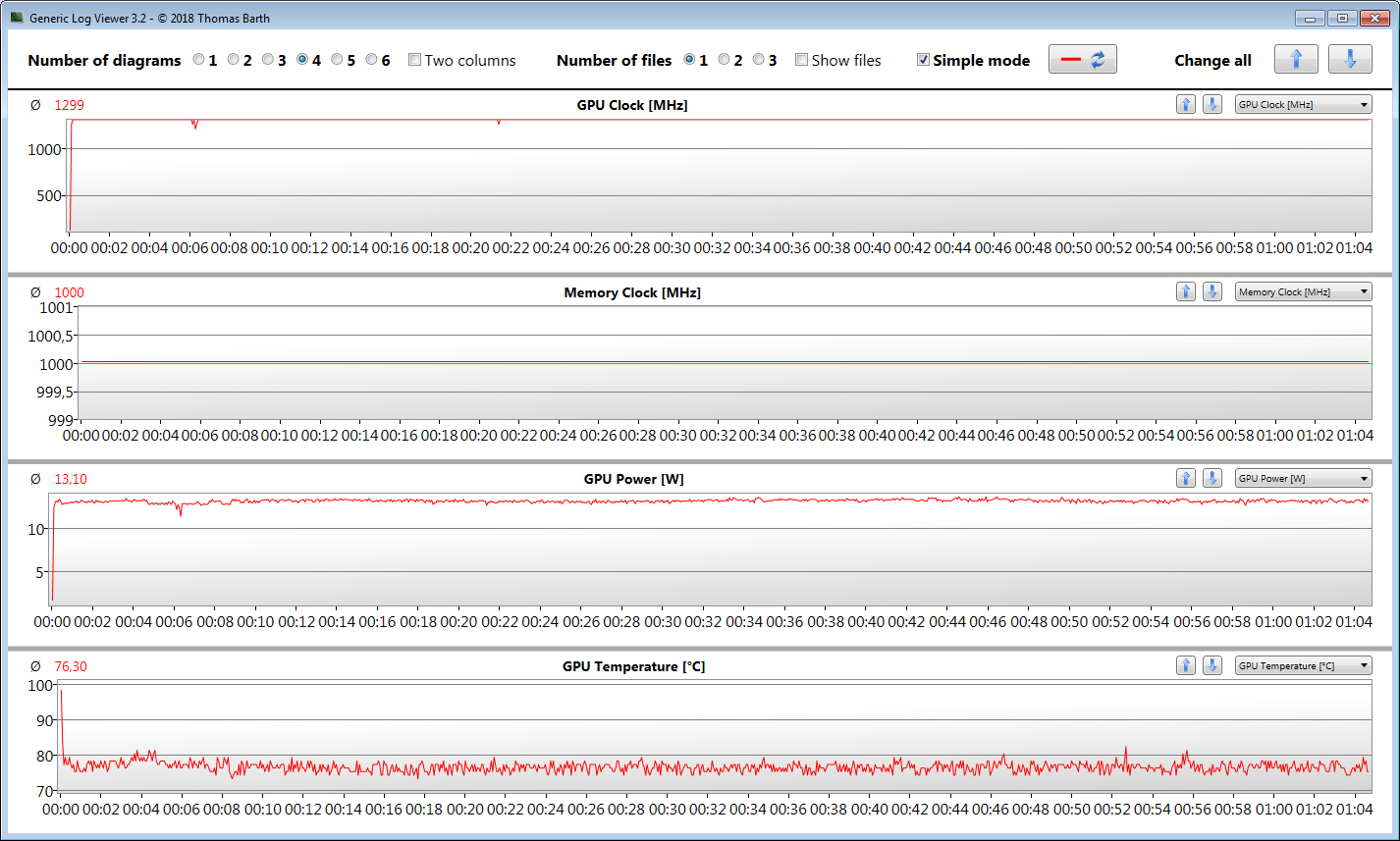

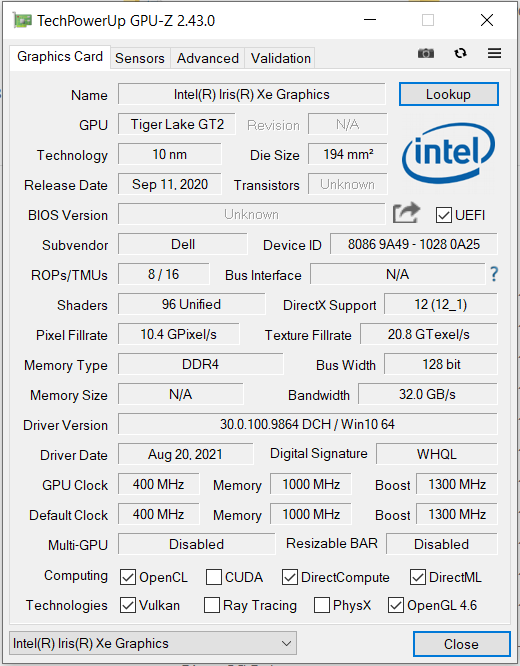

GPU-Z
GPU-Z
3DMark 11 Performance
6135 points
3DMark Ice Storm Standard Score
74626 points
3DMark Cloud Gate Standard Score
15932 points
3DMark Fire Strike Score
3404 points
3DMark Time Spy Score
1405 points
Help
3DMark 11 - 1280x720 Performance GPU
Average Intel Iris Xe Graphics G7 96EUs
  (4841 - 7090, n=64)
6432 Points ∼100% +6%
Dell Inspiron 15 3501
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6092 Points ∼95%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
6072 Points ∼94% 0%
Honor MagicBook 15 i5 1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5517 Points ∼86% -9%
MSI Modern 15 A11M-062
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5391 Points ∼84% -12%
Lenovo IdeaPad 5 15ALC05
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5257 Points ∼82% -14%
Average of class Office
  (599 - 11538, n=118, last 2 years)
3844 Points ∼60% -37%
3DMark
1920x1080 Fire Strike Graphics
Average Intel Iris Xe Graphics G7 96EUs
  (3113 - 5909, n=70)
4930 Points ∼100% +30%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4704 Points ∼95% +24%
Dell Inspiron 15 3501
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3790 Points ∼77%
Honor MagicBook 15 i5 1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3566 Points ∼72% -6%
Lenovo IdeaPad 5 15ALC05
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3395 Points ∼69% -10%
MSI Modern 15 A11M-062
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3113 Points ∼63% -18%
Average of class Office
  (449 - 8114, n=115, last 2 years)
2641 Points ∼54% -30%
1280x720 Cloud Gate Standard Graphics
Average Intel Iris Xe Graphics G7 96EUs
  (19487 - 38040, n=55)
27301 Points ∼100% +18%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
26468 Points ∼97% +14%
Lenovo IdeaPad 5 15ALC05
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
24916 Points ∼91% +8%
Dell Inspiron 15 3501
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
23118 Points ∼85%
Honor MagicBook 15 i5 1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
22903 Points ∼84% -1%
MSI Modern 15 A11M-062
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
20212 Points ∼74% -13%
Average of class Office
  (3280 - 30980, n=98, last 2 years)
16303 Points ∼60% -29%
2560x1440 Time Spy Graphics
Average Intel Iris Xe Graphics G7 96EUs
  (994 - 1819, n=70)
1461 Points ∼100% +15%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1408 Points ∼96% +11%
Dell Inspiron 15 3501
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1266 Points ∼87%
Honor MagicBook 15 i5 1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1159 Points ∼79% -8%
Lenovo IdeaPad 5 15ALC05
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
1057 Points ∼72% -17%
MSI Modern 15 A11M-062
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
994 Points ∼68% -21%
Average of class Office
  (194 - 2886, n=96, last 2 years)
906 Points ∼62% -28%

游戏性能

Inspiron当然不是一款游戏笔记本电脑。不过,内置硬件可以流畅地运行许多游戏--在低分辨率和低质量设置下。对硬件要求适中的标题允许你选择更好的设置。帧率低于Iris Xe Graphics G7 96EUs GPU的平均水平。

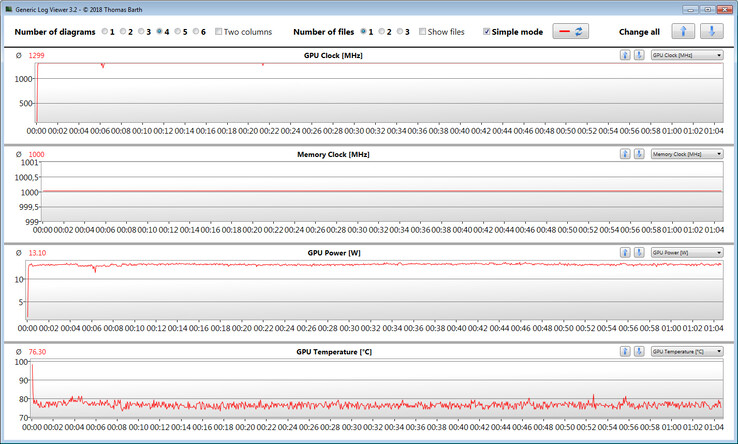

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average Intel Iris Xe Graphics G7 96EUs
  (32.5 - 107, n=61)
83.2 fps ∼100% +30%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
70 fps ∼84% +9%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
65 fps ∼78% +1%
Dell Inspiron 15 3501
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
64.2 (27.8min, 32.1P0.1, 43.6P1 - 127max) fps ∼77%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
59.4 fps ∼71% -7%
Average of class Office
  (9.2 - 144, n=69, last 2 years)
57.2 fps ∼69% -11%
MSI Modern 15 A11M-062
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
52.6 fps ∼63% -18%
Dota 2 Reborn - 1920x1080 high (2/3)
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
48.9 (44.8min) fps ∼100% +16%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
47.9 (23.2min) fps ∼98% +14%
Average Intel Iris Xe Graphics G7 96EUs
  (31.3 - 88.1, n=69)
46.9 fps ∼96% +11%
Dell Inspiron 15 3501
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
42.1 (25.7min) fps ∼86%
Average of class Office
  (5.7 - 113, n=113, last 2 years)
37.1 fps ∼76% -12%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
35.7 (26.2min) fps ∼73% -15%
MSI Modern 15 A11M-062
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
33.7 (24.2min) fps ∼69% -20%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
51.7 fps ∼100% +60%
MSI Modern 15 A11M-062
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
44.3 fps ∼86% +37%
Lenovo IdeaPad 5 15ALC05
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
40.8 fps ∼79% +26%
Average Intel Iris Xe Graphics G7 96EUs
  (15.8 - 88.4, n=72)
37.4 fps ∼72% +15%
Average of class Office
  (6.95 - 93.9, n=110, last 2 years)
32.6 fps ∼63% +1%
Dell Inspiron 15 3501
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.4 fps ∼63%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
25.2 fps ∼49% -22%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
39.7 fps ∼100% +22%
Average Intel Iris Xe Graphics G7 96EUs
  (23.8 - 56.5, n=46)
38.6 fps ∼97% +19%
Dell Inspiron 15 3501
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.5 fps ∼82%
Average of class Office
  (6.94 - 72, n=46, last 2 years)
32.3 fps ∼81% -1%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
30.8 fps ∼78% -5%
MSI Modern 15 A11M-062
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
24.7 fps ∼62% -24%
GTA V - 1366x768 Normal/Off AF:4x
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
84.3 (0.4206min, 47.6P1 - 157max) fps ∼100% +44%
Average Intel Iris Xe Graphics G7 96EUs
  (45.5 - 137, n=33)
75.2 fps ∼89% +28%
Average of class Office
  (16.7 - 157, n=29, last 2 years)
71.7 fps ∼85% +22%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.9 (12.4min, 37P1 - 97max) fps ∼71% +2%
Dell Inspiron 15 3501
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
58.7 (15.4min, 37P1 - 276max) fps ∼70%
MSI Modern 15 A11M-062
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
45.5 (5.89min, 28.6P1 - 80.9max) fps ∼54% -22%
Strange Brigade - 1280x720 lowest AF:1
Average Intel Iris Xe Graphics G7 96EUs
  (54.4 - 105, n=31)
87.1 fps ∼100% +29%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
78.7 (18.5min, 25.2P1 - 282max) fps ∼90% +16%
Average of class Office
  (30.6 - 167, n=27, last 2 years)
72 fps ∼83% +6%
Dell Inspiron 15 3501
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
67.7 (16.5min, 22.1P1 - 222max) fps ∼78%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
64.2 (13.1min, 21P1 - 266max) fps ∼74% -5%
MSI Modern 15 A11M-062
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
54.4 (13.1min, 17P1 - 281max) fps ∼62% -20%

为了验证帧率是否在很长一段时间内保持基本稳定,我们让游戏《Witcher 3》在全高清分辨率和最高质量设置下运行了约60分钟。角色没有被移动。没有发现帧率的下降。

The Witcher 3 FPS diagram

8910111213131212131212121212131212121212121312121212131212121312121212131212121213121212121312121213121212121213121212121212121213121212121213121212131212121213121212121312121212131212121213121212121212121312121212121312121212121213121212121213121212121312121212121312121212131212121212131212121212121312121212131212121212121212131212121213121212121213121212121212121312121212121312121212121213121212131212121212121212121312121212121312121212121312121213121212121213121212131212121312121212121212121312121212131212121212121212121312121212131212121213121212121212131212121212121312121212121213121212121213121212121212121212121213121212121213121212121212121212131212121212131212121212131212121312121213121212121311131212121212121212121112111212121212131212121312121213121212121212131212121312121213121212121312121212131212121212131212121312121212121312121213121212121312121212121312121213121212131212121213121212131212121312121212131212121212131212121312121212131212121213121212121312121212131212121213121212121312121212131212121212131212121212131212121212131212121212121213121212121312121212121213121212121212121212121312121212121212121212131212121212121212121212121213121212121212121212121212111212121212121312121212121212121212121212121212121212121212121212121212121212121212121212121212121212121212121112121212121212121212121112121212121212121212121212121212121212121212121212121212131112121212121312121212121212121212121212121212121213121212121212121212121213121212121212121312121212121312121212121312121212131212121212131212131212121312121312121212131212121312121312121312121213121213121212131212131213121212131213121213121312121312131212131212131212131213121213121213121312121312131213121213121312131212131212131213121312131213121312121312121312131213121312131213121312121312131212131213121312131213121213121312131213121213121312131213121213121312131213121312121312131213121312131213121312121312121312131213121312131212131212131212131213121312131213121312121312131213121213121312131213121312121312131213121213121312131213121213121312131213121312121312131213121213121312131213121312121312131212131213121312131213121312131212131213121312121312131213121312121312131213121213121312131212131212131213121312131213121213121312912121112121112121211121211121211121211121211121212111212111212111212111212111212121112121112121112121211121212111212121112121112121212111212121112121211121211111211121112111112111211121112111211121111121112111211121112111211121112111211121112111112111211121112111211121112111211121112111211121112111211121112111211111112111211121211121112111212111211121211121112111212111211121112121111121211121112111212111211121112111211121112121112111211121211121112111212111211121112111211121112121112111211121112121112111211121211121112111211121211121112111211121112111212111211121112111211121112121112111212111211121112111212111211121211121112111212111112111212111211121112111212111112111212111211121111121112121112111112121112111211121112111211121112111211111212111211121112111211111211121112111211121112111112111211121112111211121112111112111211121112111211111211121111121112111211111112111211121111121112111112111112111112111112111112111111121112111112111112111112111112111112111112111112111112111112111112111112111112111211111112111112111112111111121111121112111112111111121111121112111112111112111111121111121111121111121111121111111211111211111211
