摩托罗拉Edge 20 Pro评论。拥有144赫兹显示屏和12GB内存的经济型旗舰智能手机

有点不同的旗舰店。 Edge 20 Pro是摩托罗拉的旗舰产品,支持Ready For平台。由于后者的桌面模式,Moto手机也想作为PC的替代品。然而,相对较低的旗舰机价格也伴随着妥协。继续阅读,看看那些是什么,以及它是否值得购买。
5G Smartphone
摩托罗拉Edge 20 Pro评测

摩托罗拉在其2021年的旗舰系列中特别注重摄像头和显示质量。因此,Edge 20 Pro是该制造商的第一款配备潜望镜长焦镜头和刷新率为144赫兹的面板的智能手机就不足为奇了。6.7英寸的OLED显示屏还具有10位色彩还原和HDR10+支持。骁龙870,以及12GB的LPDDR5内存和UFS 3.1存储为这款运行Android 11的摩托罗拉手机提供动力。

然而,配备了5G和Wi-Fi 6的Edge 20 Pro,与高端竞争产品相比,不得不面对一些妥协,其建议零售价仅低于700欧元(约812美元)。在我们的综合评论中阅读更多关于这些内容。

Motorola Edge 20 Pro (Edge Series)
Processor
Qualcomm Snapdragon 870 5G 8 x 2.4 - 3.2 GHz, Cortex-A77 / A55 (Kryo 585)
Graphics adapter
Memory
12 GB
, 6GB / 8GB / 12GB
Display
6.70 inch 19.5:9, 2400 x 1080 pixel 393 PPI, capacitive touchscreen, OLED, glossy: yes, HDR, 144 Hz
Storage
256 GB UFS 3.1 Flash, 256 GB
, 223 GB free
Connections
1 USB 3.0 / 3.1 Gen1, USB-C Power Delivery (PD), 1 Fingerprint Reader, NFC, Brightness Sensor, Sensors: accelerometer, gyro, proximity, compass, OTG, Miracast
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1, 2G (850/​900/​1800/​1900), 3G (B1/​B2/​B4/​B5/​B8), 4G (B1/​B2/​B3/​B4/​B5/​B7/​B8/​B12/​B13/​B17/​B20/​B26/​B28/​B32/​B34/​B38/​B39/​B40/​B41/​B42/​B43/​B66), 5G (n1/​n3/​n5/​n7/​n8/​n28/​n38/​n41/​n66/​n77/​n78), Dual SIM, LTE, 5G, GPS
Size
height x width x depth (in mm): 8 x 163 x 76
Battery
4500 mAh Lithium-Polymer
Charging
fast charging / Quickcharge
Operating System
Android 11
Camera
Primary Camera: 108 MPix 108 MP (f/1.9, 0.7µm); 16 MP (f/2.2, 13mm, 1.0µm); 8 MP (5x optical zoom, f/3.4, 126mm, 1.0µm)
Secondary Camera: 32 MPix 32 MP (f/2.3)
Additional features
Speakers: mono, Keyboard: virtual, 30-watt charger, USB cable, Ready For cable, MyUX, 24 Months Warranty, Widevine L1, IP52, SAR: Head: 0.93 W/kg. Body: 1.25 W/kg., fanless
Weight
185 g, Power Supply: 93 g
Price
699 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible contenders in comparison

Rating
Date
Model
Weight
Drive
Size
Resolution
Best Price
86.9 %
10/2021
Motorola Edge 20 Pro
SD 870, Adreno 650
185 g256 GB UFS 3.1 Flash6.70"2400x1080
86.6 %
08/2021
Xiaomi Mi 11i
SD 888 5G, Adreno 660
196 g256 GB UFS 3.1 Flash6.67"2400x1080
87.2 %
04/2021
OnePlus 9
SD 888 5G, Adreno 660
192 g256 GB UFS 3.1 Flash6.55"2400x1080
83.6 %
10/2021
Nubia RedMagic 6S Pro
SD 888+ 5G, Adreno 660
220 g128 GB UFS 3.1 Flash6.80"2400x1080
89.6 %
02/2021
Samsung Galaxy S21+
Exynos 2100 5G, Mali-G78 MP14
200 g128 GB UFS 3.1 Flash6.70"2400x1080

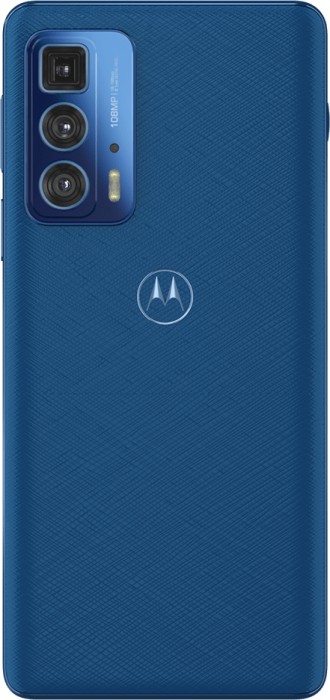

蓝色素色皮革Edge 20 Pro
蓝色素色皮革Edge 20 Pro

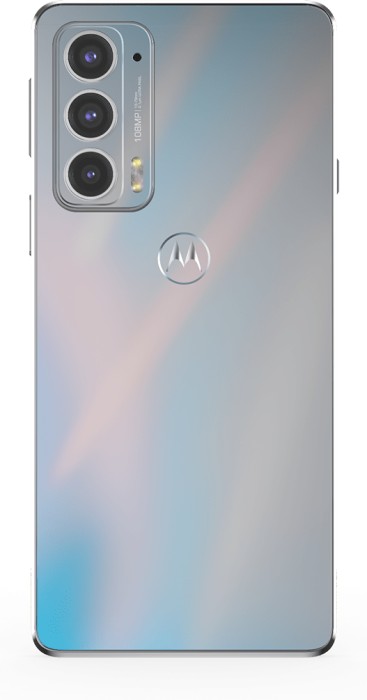

虹彩白的Edge 20 Pro
虹彩白的Edge 20 Pro

Edge 20 Pro的防溅和IP52认证的玻璃外壳有三种不同的颜色可供选择。尽管采用了塑料框架,但这款摩托罗拉手机给人留下了高质量的印象,而且制造质量也非常好。与这个价格范围内的其他智能手机相比,它看起来不那么笨重,特别是由于它的重量相对较低,远低于200克。

考虑到这是一款高端手机,平坦的OLED面板在四面都有相当宽的边框。因此,Edge 20 Pro的屏占比只有89%--相比之下,小米11i

,实现了超过91%的数值。6.7英寸显示屏 "只 "有第五代大猩猩玻璃保护。不过,以不到700欧元(约700美元)的价格,它本可以采用最新的保护标准 "Victus"。

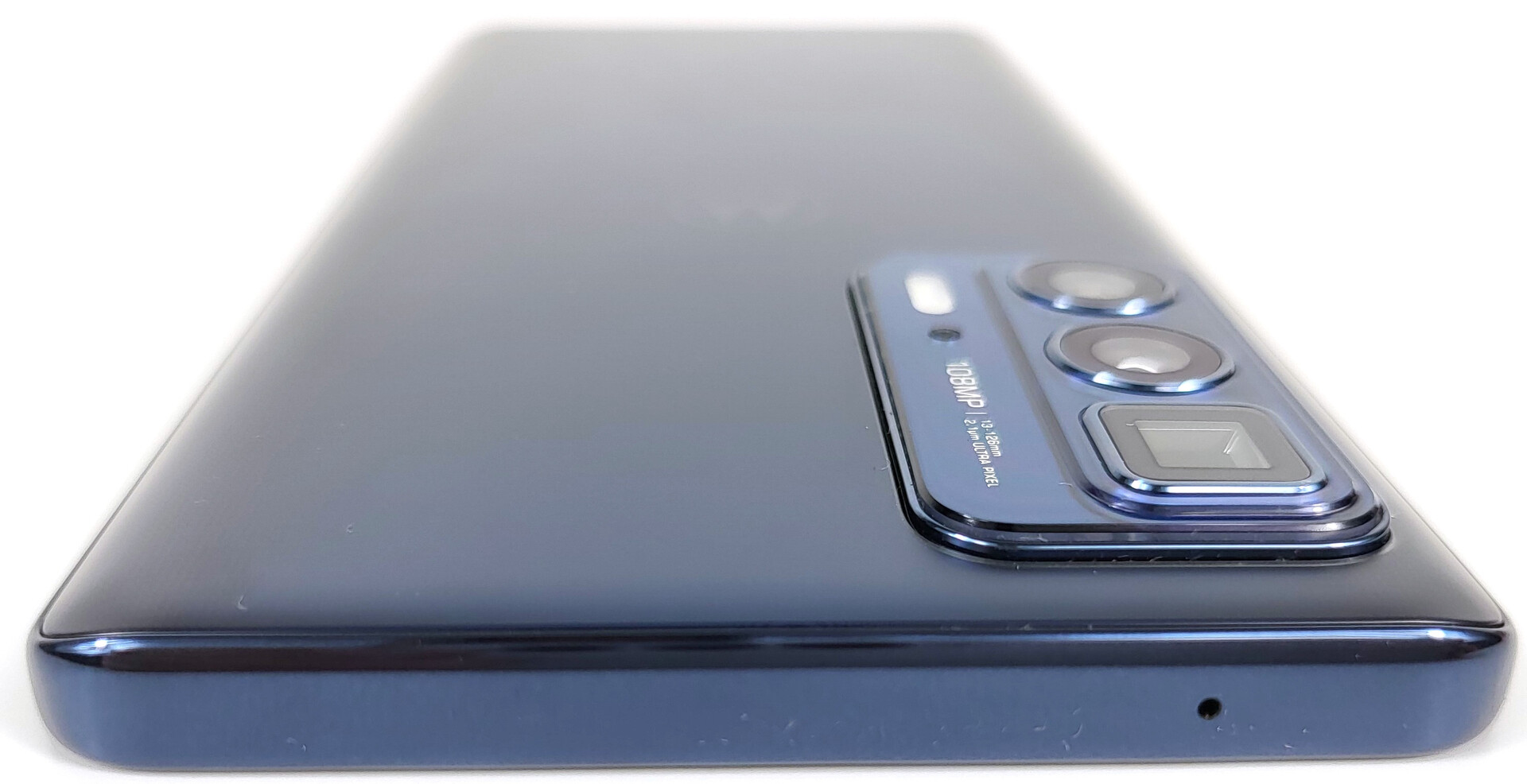

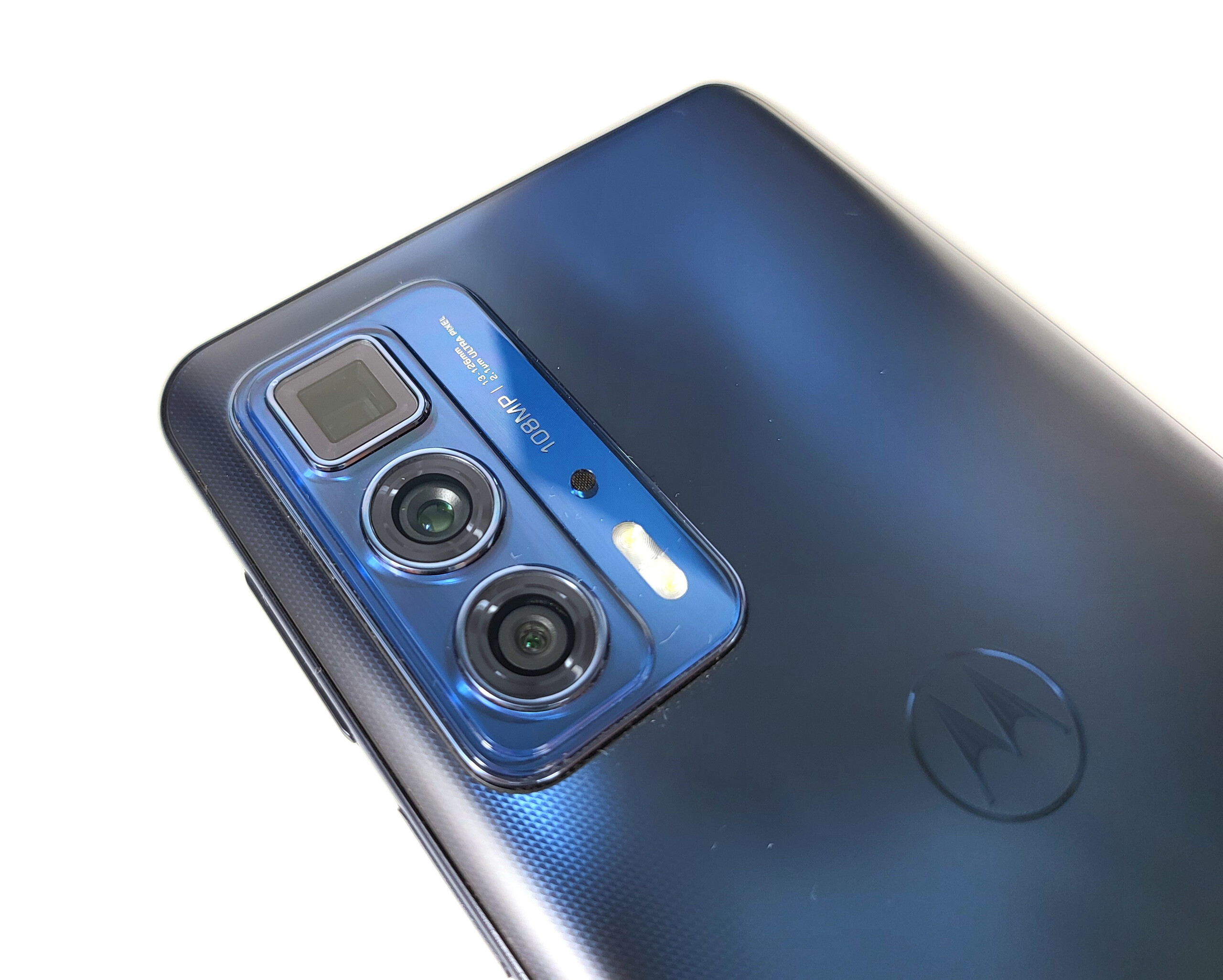

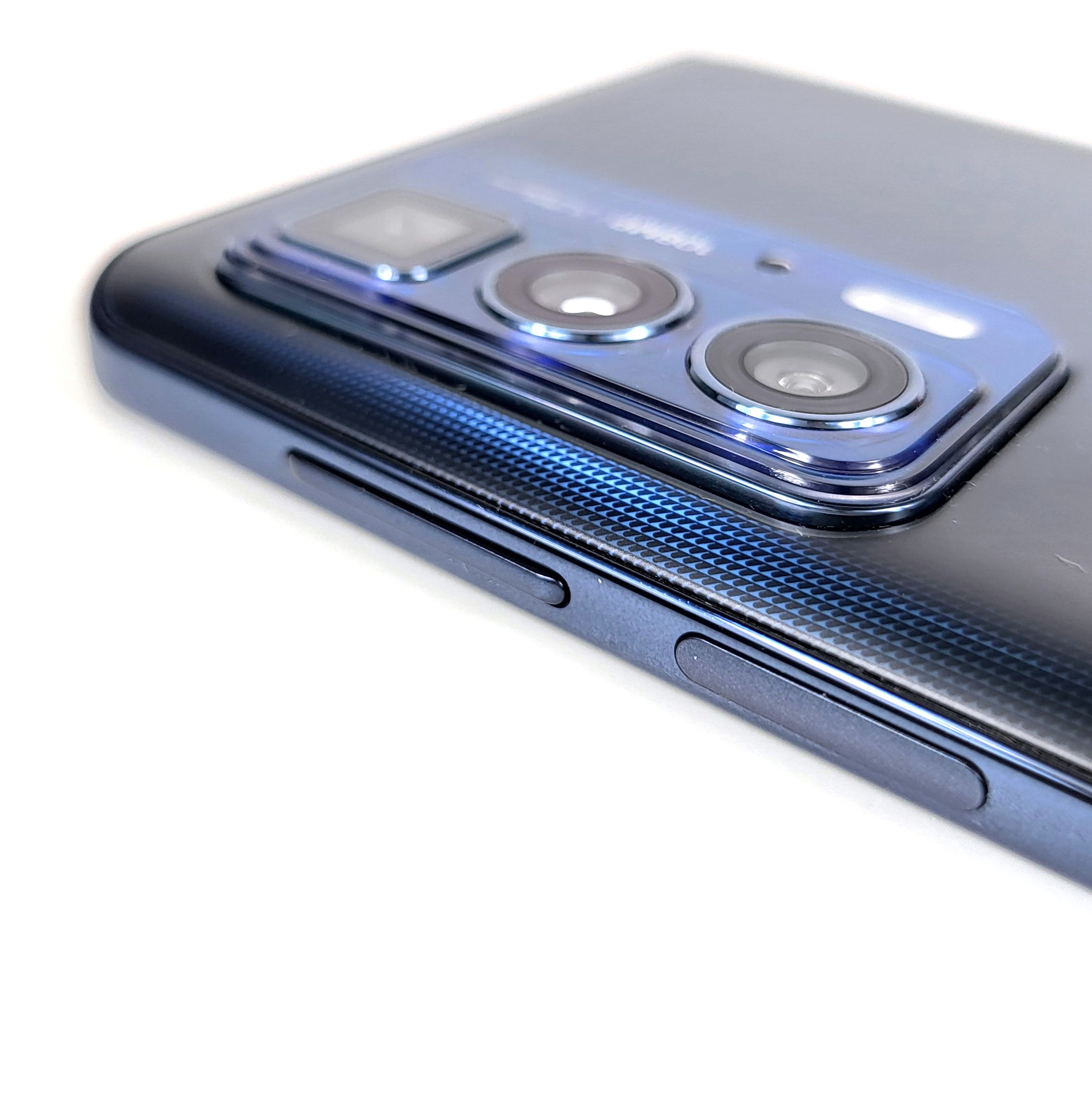

背面明显的摄像头驼峰明显突出于外壳,因此当你在桌子上使用该设备时,它摇晃得很厉害。与去年的Edge一代

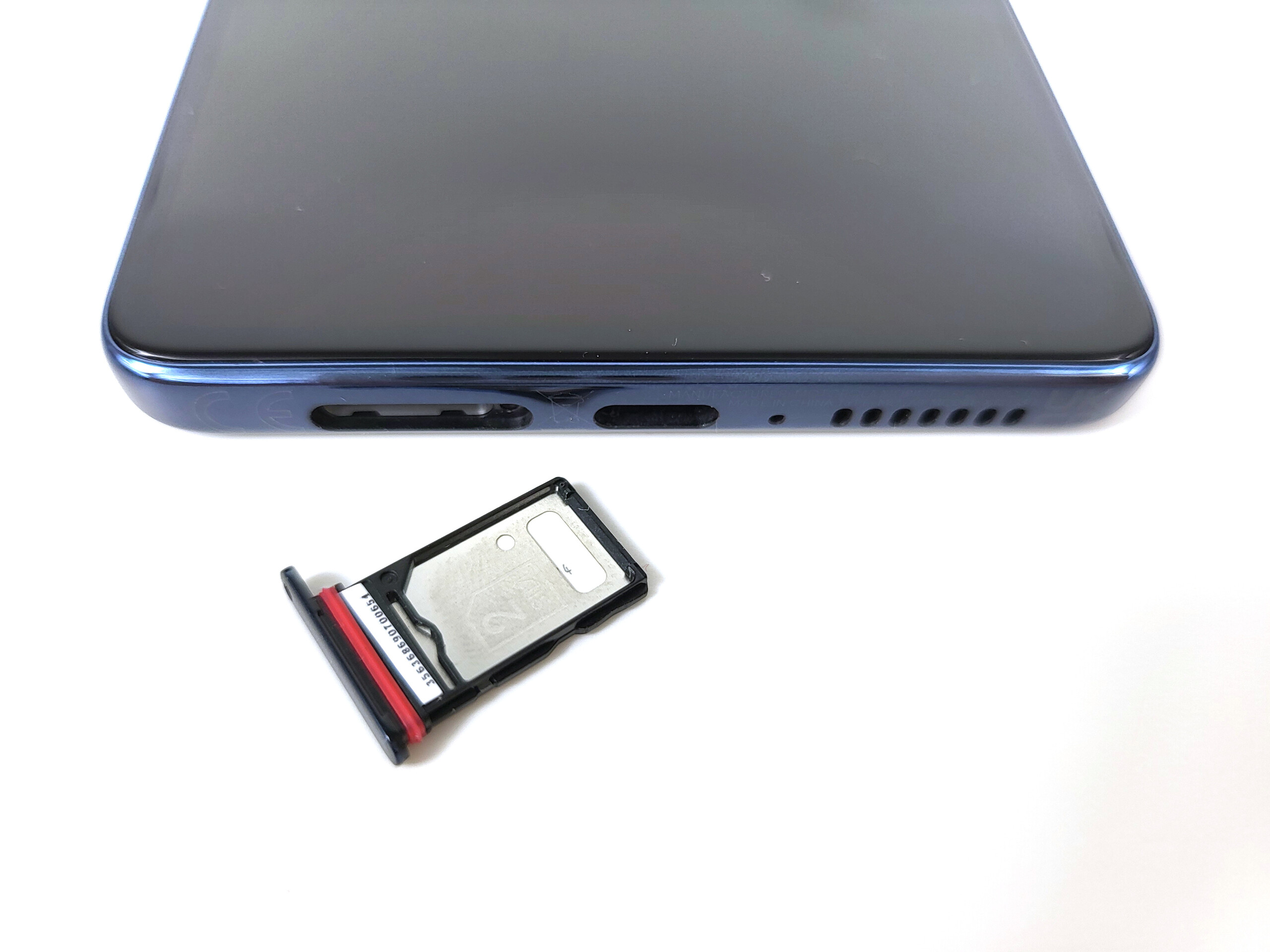

,摩托罗拉Edge 20 Pro的背面看起来并不空洞,其稳定性也令人满意。边框中的卡槽每侧可配备一张nano SIM卡,而且与边框平齐。

与制造商的Moto系列 ,你可以使用Edge 20 Pro左侧的专用按钮来启动谷歌助手进行语音控制。

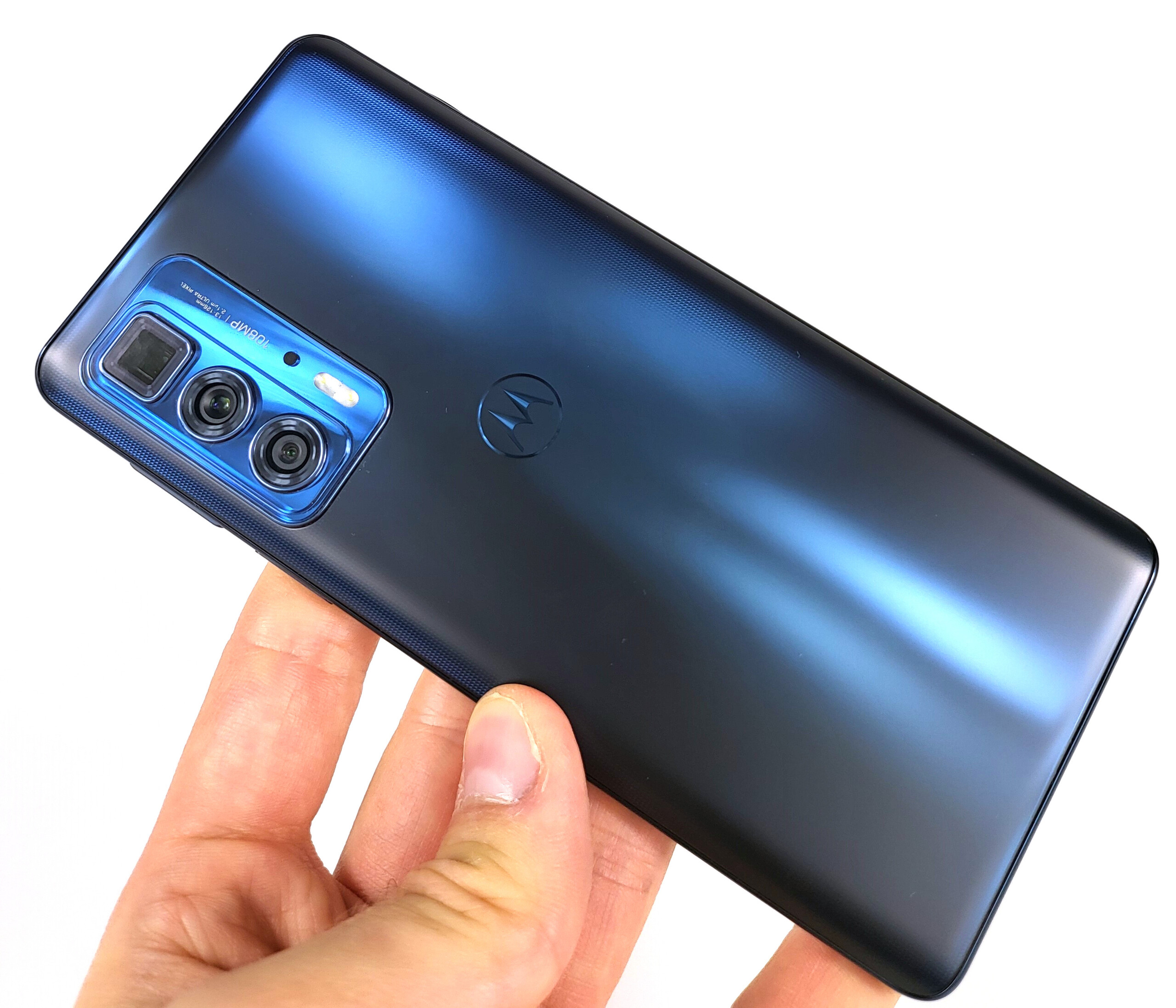

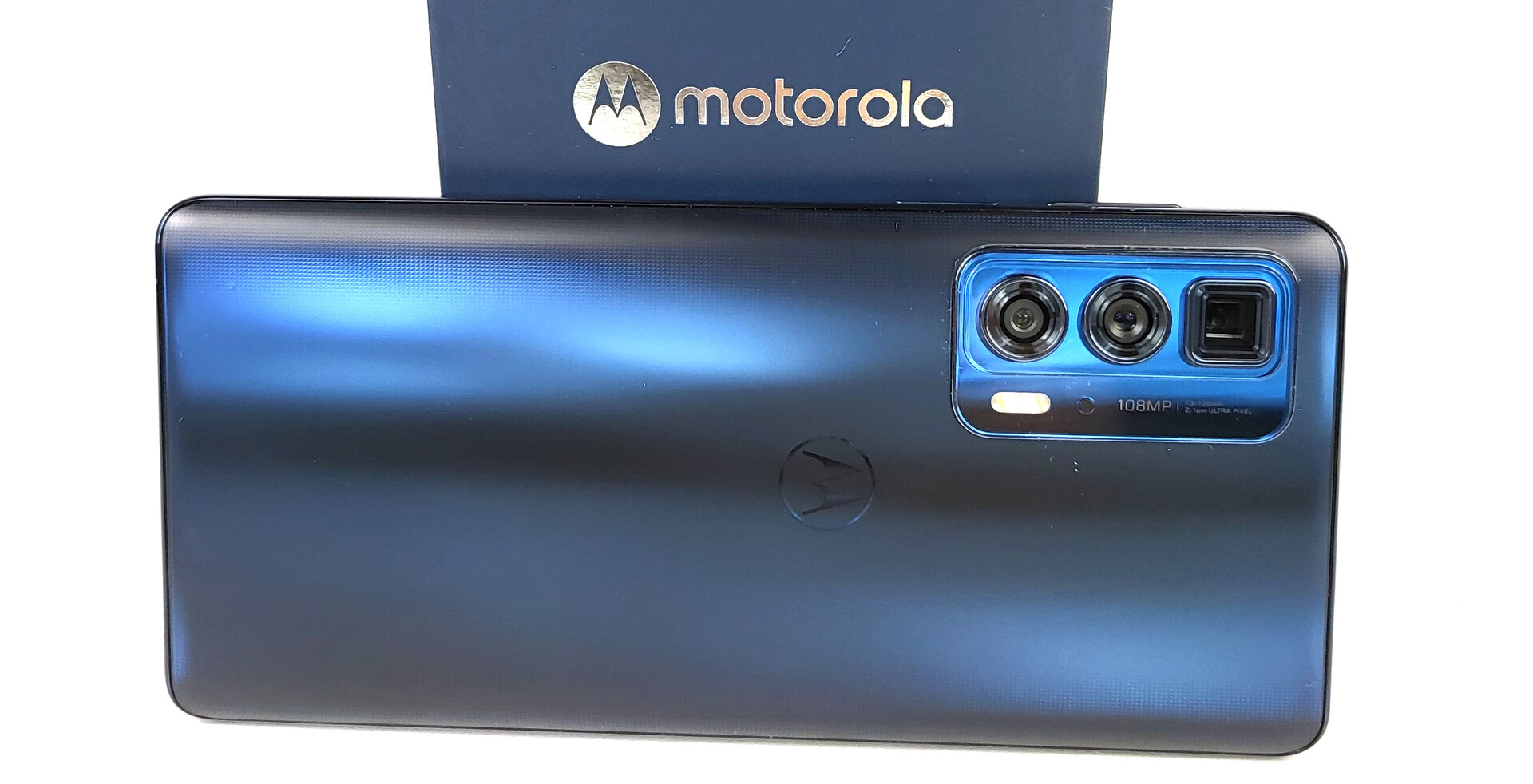

午夜蓝的Edge 20 Pro
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测

Size comparison

169.86 mm 77.19 mm 9.8 mm 220 g163.7 mm 76.4 mm 7.8 mm 196 g163 mm 76 mm 8 mm 185 g161.5 mm 75.6 mm 7.8 mm 200 g160 mm 74.2 mm 8.7 mm 192 g148 mm 105 mm 1 mm 1.5 g

连接性 - 带有UFS 3.1的摩托罗拉手机

摩托罗拉手机的连接功能包括USB OTG,用于快速连接外部配件,以及用于屏幕内容的无线图像传输。4,500毫安时的电池也可以通过外壳底部的USB-C端口使用30瓦的TurboPower技术充电。此外,该端口支持USB 3.1 Gen 1标准,以及用于有线数据传输的DisplayPort 1.4。幸运的是,制造商在其旗舰智能手机中包含了相应的具有DisplayPort功能的USB-C-HDMI电缆。

UFS 3.1存储空间的容量为256GB,但用户开箱后只能使用223GB。Edge 20 Pro的内部存储是不可扩展的。除了SD卡插槽,用户还将不得不放弃红外辐射器、无线电接收器和音频插孔。此外,既没有通知LED,也没有适当的永远在线的显示功能--摩托罗拉在Edge系列中也仍然坚持其预览显示功能。

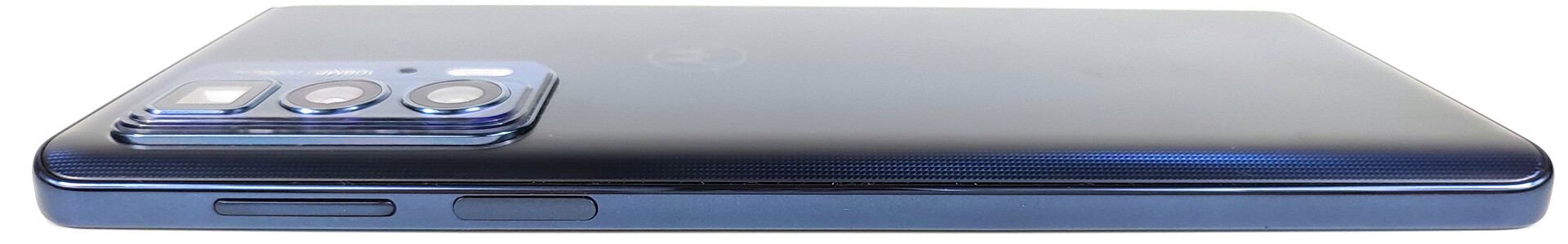

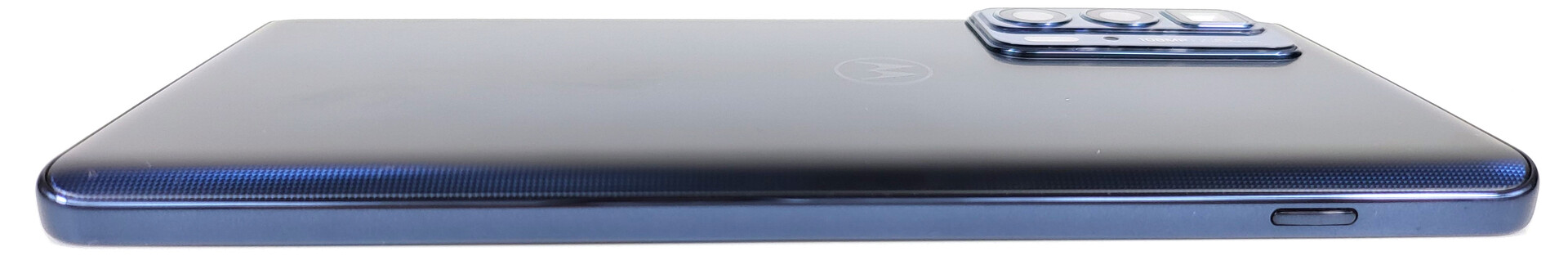

右侧(按钮
右侧(按钮

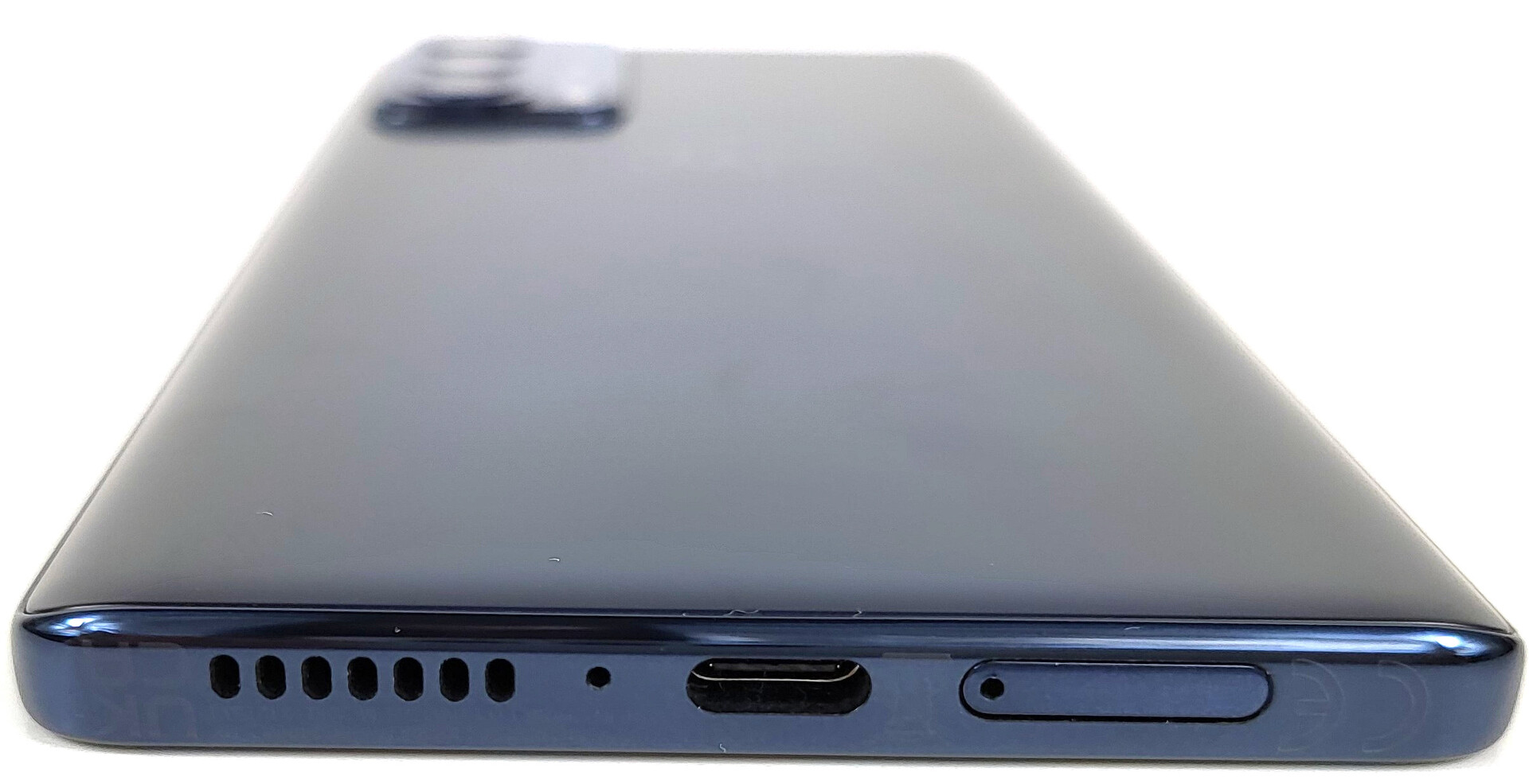

底部(扬声器、麦克风、USB接口、卡槽
底部(扬声器、麦克风、USB接口、卡槽
左侧(特殊按钮
左侧(特殊按钮
顶部(麦克风
顶部(麦克风

软件 - 摩托罗拉智能手机与Android 11

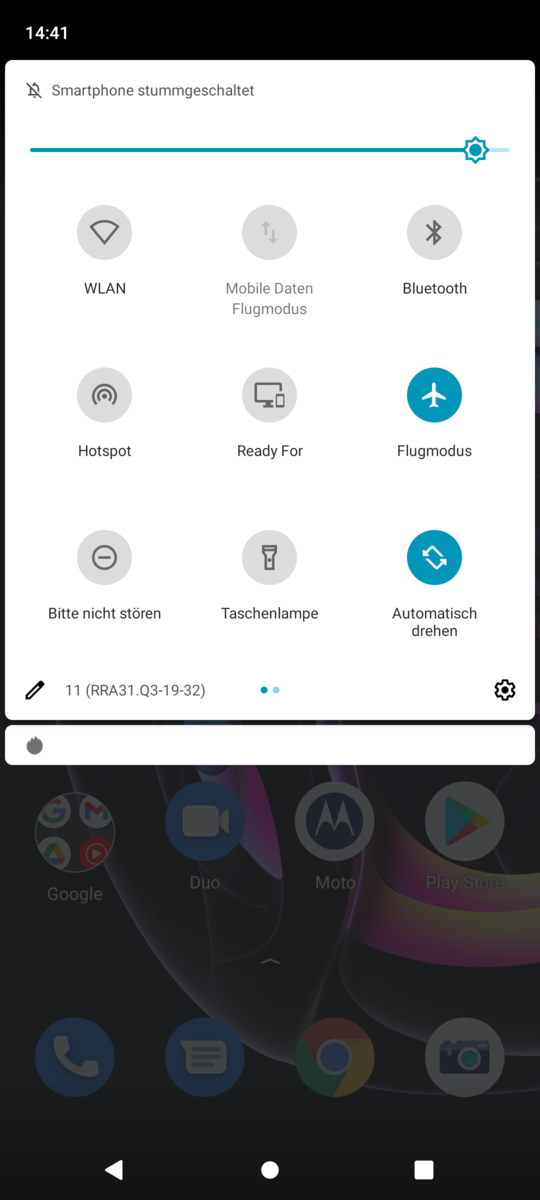

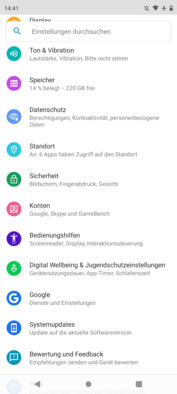

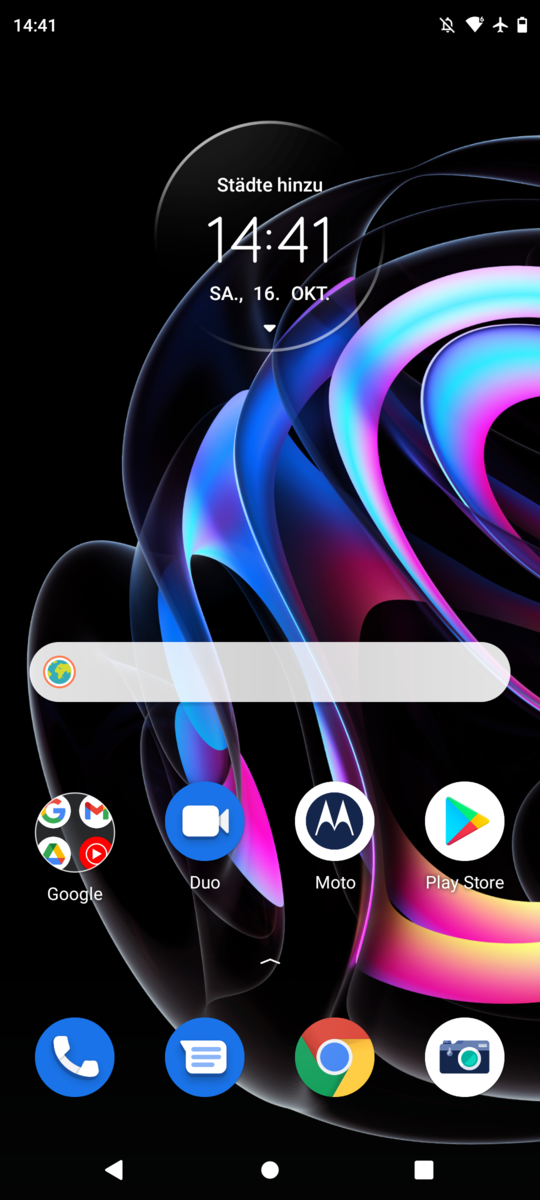

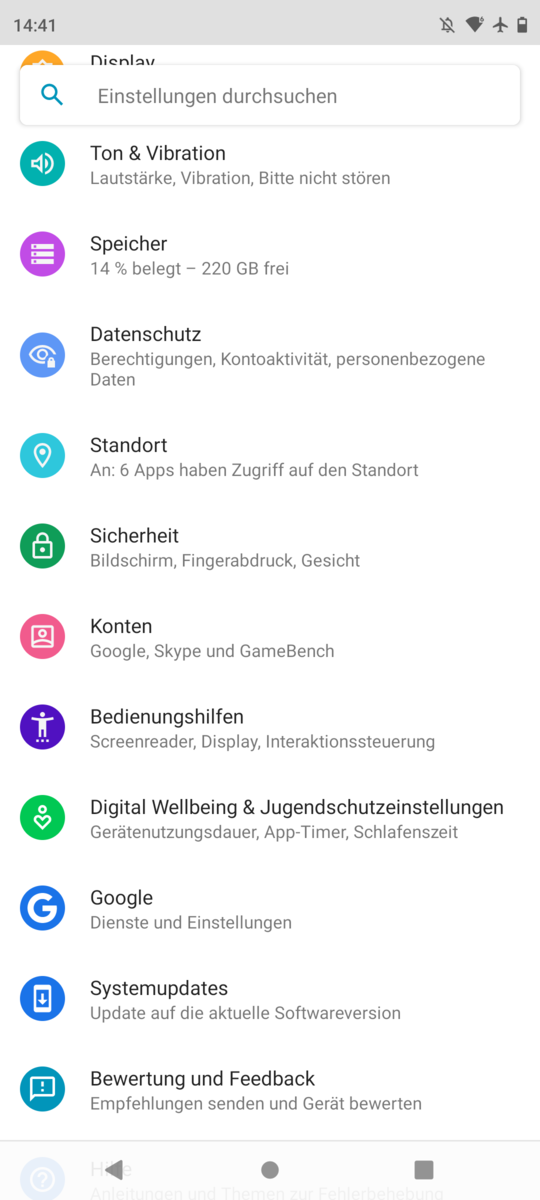

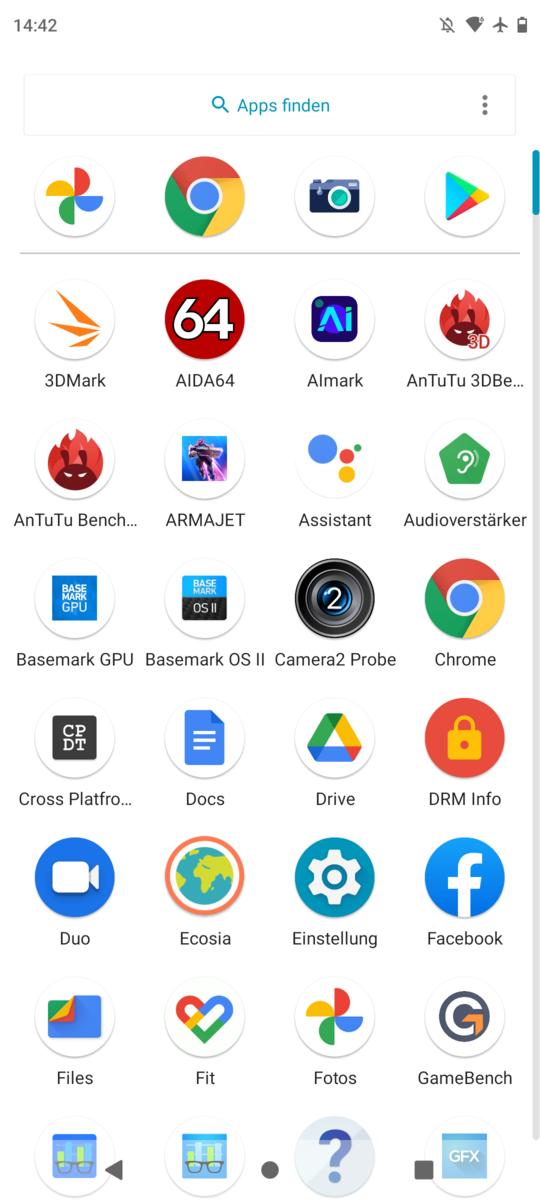

摩托罗拉在其旗舰智能手机上预装了一个基于Android 11的简约制造商界面,测试时的安全补丁为2021年9月的水平。摩托罗拉承诺为其Edge 20系列产品提供至少两次Android 操作系统更新和两年的双月安全更新。

和以前一样,MyUX用户界面具有熟悉的Moto体验,包括用手势激活手电筒或个人设计定制。除Facebook外,第三方应用程序没有出现--我们只在启动系统后发现谷歌应用程序和内部应用程序。Camera2 API可使用3级,由于DRM Widevine L1的存在,有可能以高清质量串流内容。

除了简约的用户界面,摩托罗拉为其Edge 20 Pro配备了名为ThinkShield for Mobile的硬件和软件安全功能。这是一个基于联想ThinkShield品牌的平台,意味着应该有针对恶意软件、网络钓鱼和网络攻击的特殊保护。

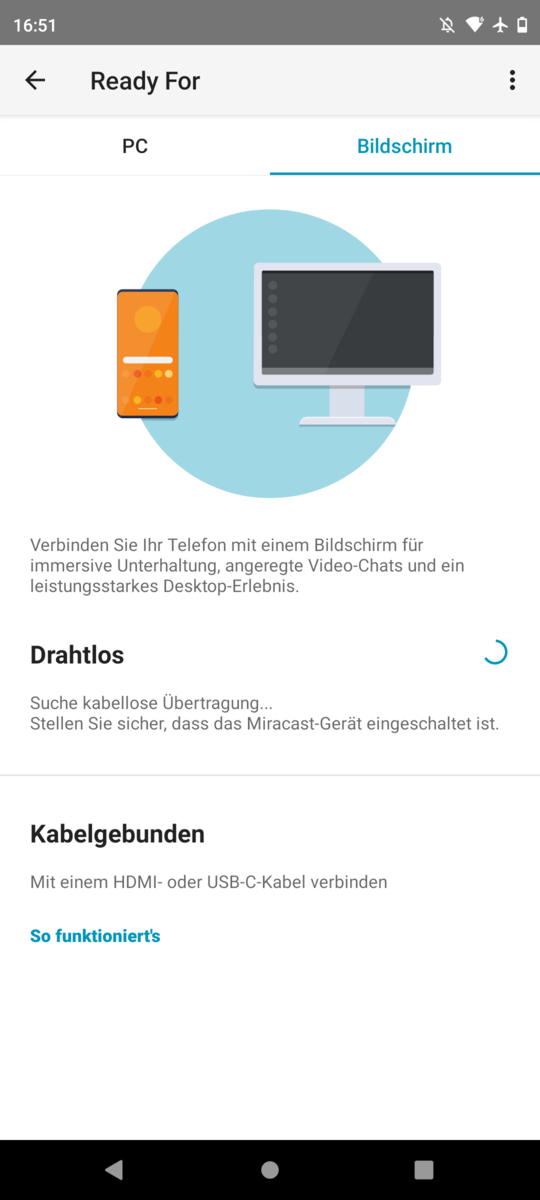

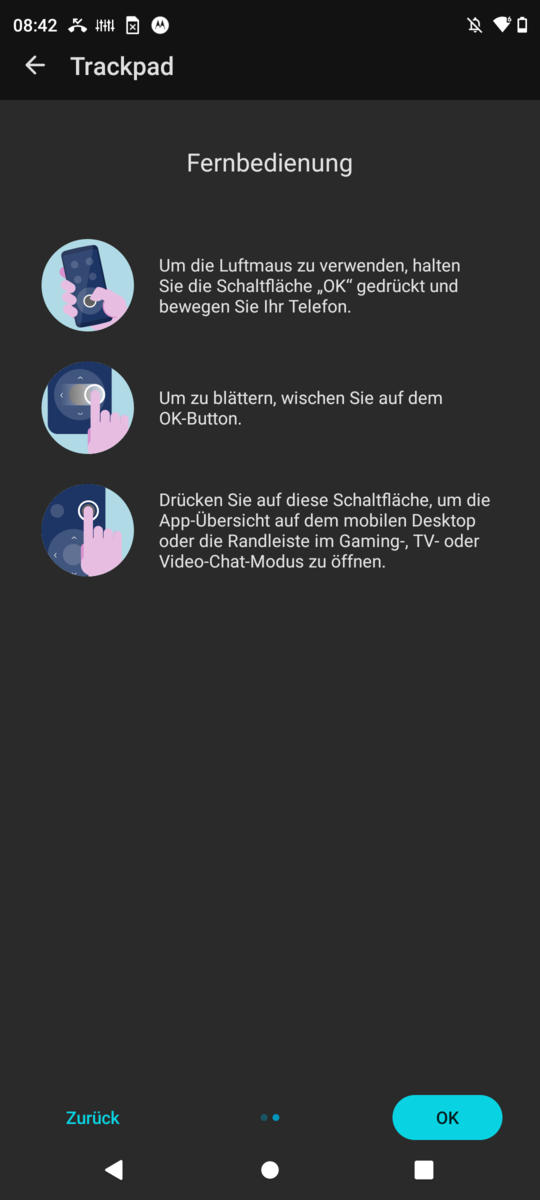

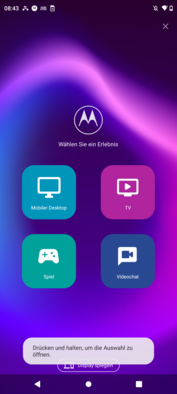

现在,"Ready For "的功能也可以在外部电视或电脑屏幕上无线使用。这使得在舒适的沙发上也能轻松使用这种特殊的桌面模式。此外,Edge 20 Pro还可以作为视频通话的遥控器或摄像头。

摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
测试摩托罗拉Edge 20 Pro
摩托罗拉Edge 20 Pro评测

通信和GNSS - Edge 20 Pro with Wi-Fi 6

在通信方面,这款摩托罗拉手机提供蓝牙5.1、双SIM卡功能和5G,但不支持毫米波,还有一个用于近场通信的NFC芯片。除了5G标准之外,这款高端智能手机还可以使用总共25个LTE频段--包括28频段在内的德语国家所有相关的LTE频率都被覆盖。Edge 20 Pro也为旅行提供了理想的装备,例如去美国。

在家庭Wi-Fi网络内,Edge 20 Pro支持Wi-Fi 6的快速轴标准,这在我们的测量中导致了高传输率。然而,小米11i,在发送数据时要快得多。结合我们的Netgear Nighthawk AX12参考路由器,摩托罗拉手机在接收数据时也可以更稳定一点。

Networking
iperf3 transmit AX12
Xiaomi Mi 11i
Adreno 660, SD 888 5G, 256 GB UFS 3.1 Flash
1165 (735min - 1229max) MBit/s +78%
Nubia RedMagic 6S Pro
Adreno 660, SD 888+ 5G, 128 GB UFS 3.1 Flash
1129 (1030min - 1155max) MBit/s +72%
Samsung Galaxy S21+
Mali-G78 MP14, Exynos 2100 5G, 128 GB UFS 3.1 Flash
747 (650min - 862max) MBit/s +14%
Samsung Galaxy S21+
Mali-G78 MP14, Exynos 2100 5G, 128 GB UFS 3.1 Flash
600 (305min - 657max) MBit/s -8%
OnePlus 9
Adreno 660, SD 888 5G, 256 GB UFS 3.1 Flash
685 (654min - 709max) MBit/s +5%
Motorola Edge 20 Pro
Adreno 650, SD 870, 256 GB UFS 3.1 Flash
655 (597min - 675max) MBit/s
iperf3 receive AX12
Nubia RedMagic 6S Pro
Adreno 660, SD 888+ 5G, 128 GB UFS 3.1 Flash
953 (717min - 1469max) MBit/s +30%
Samsung Galaxy S21+
Mali-G78 MP14, Exynos 2100 5G, 128 GB UFS 3.1 Flash
855 (827min - 886max) MBit/s +17%
Samsung Galaxy S21+
Mali-G78 MP14, Exynos 2100 5G, 128 GB UFS 3.1 Flash
854 (804min - 879max) MBit/s +17%
Xiaomi Mi 11i
Adreno 660, SD 888 5G, 256 GB UFS 3.1 Flash
792 (676min - 856max) MBit/s +8%
OnePlus 9
Adreno 660, SD 888 5G, 256 GB UFS 3.1 Flash
777 (623min - 829max) MBit/s +6%
Motorola Edge 20 Pro
Adreno 650, SD 870, 256 GB UFS 3.1 Flash
731 (565min - 819max) MBit/s
Average of class Smartphone
  (last 2 years)
376 MBit/s -49%
065130195260325390455520585650715780845910975104011051170Tooltip
Motorola Edge 20 Pro Qualcomm Snapdragon 870 5G, Qualcomm Adreno 650; iperf3 receive AX12; iperf 3.1.3: Ø730 (565-819)
Xiaomi Mi 11i Qualcomm Snapdragon 888 5G, Qualcomm Adreno 660; iperf3 receive AX12; iperf 3.1.3: Ø791 (676-856)
Motorola Edge 20 Pro Qualcomm Snapdragon 870 5G, Qualcomm Adreno 650; iperf3 transmit AX12; iperf 3.1.3: Ø655 (597-675)
Xiaomi Mi 11i Qualcomm Snapdragon 888 5G, Qualcomm Adreno 660; iperf3 transmit AX12; iperf 3.1.3: Ø1165 (735-1229)

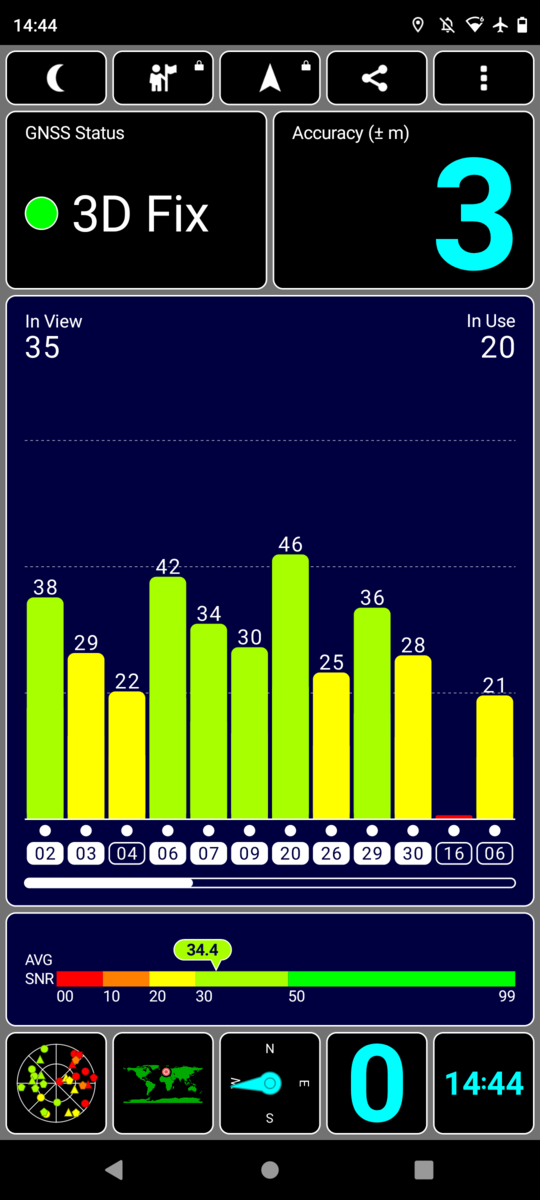

户外的GPS测试
户外的GPS测试

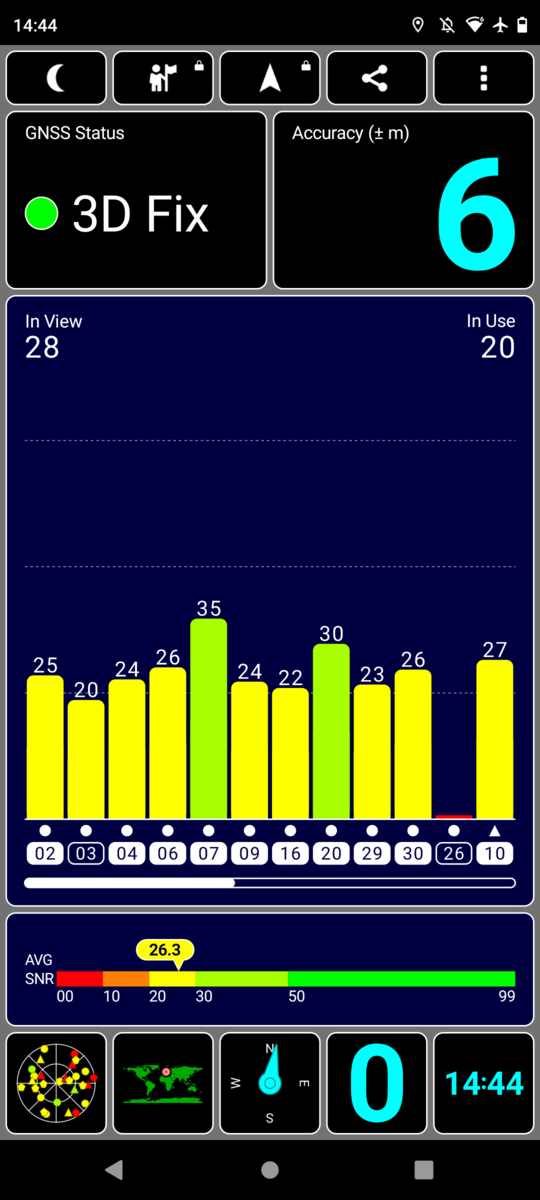

室内的GPS测试
室内的GPS测试

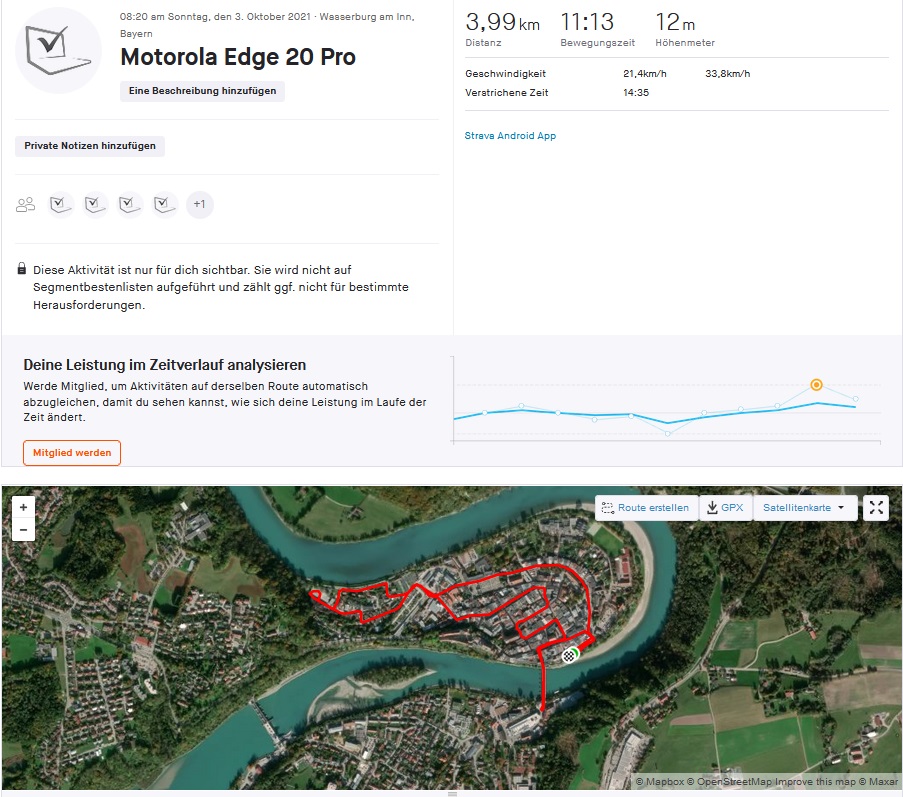

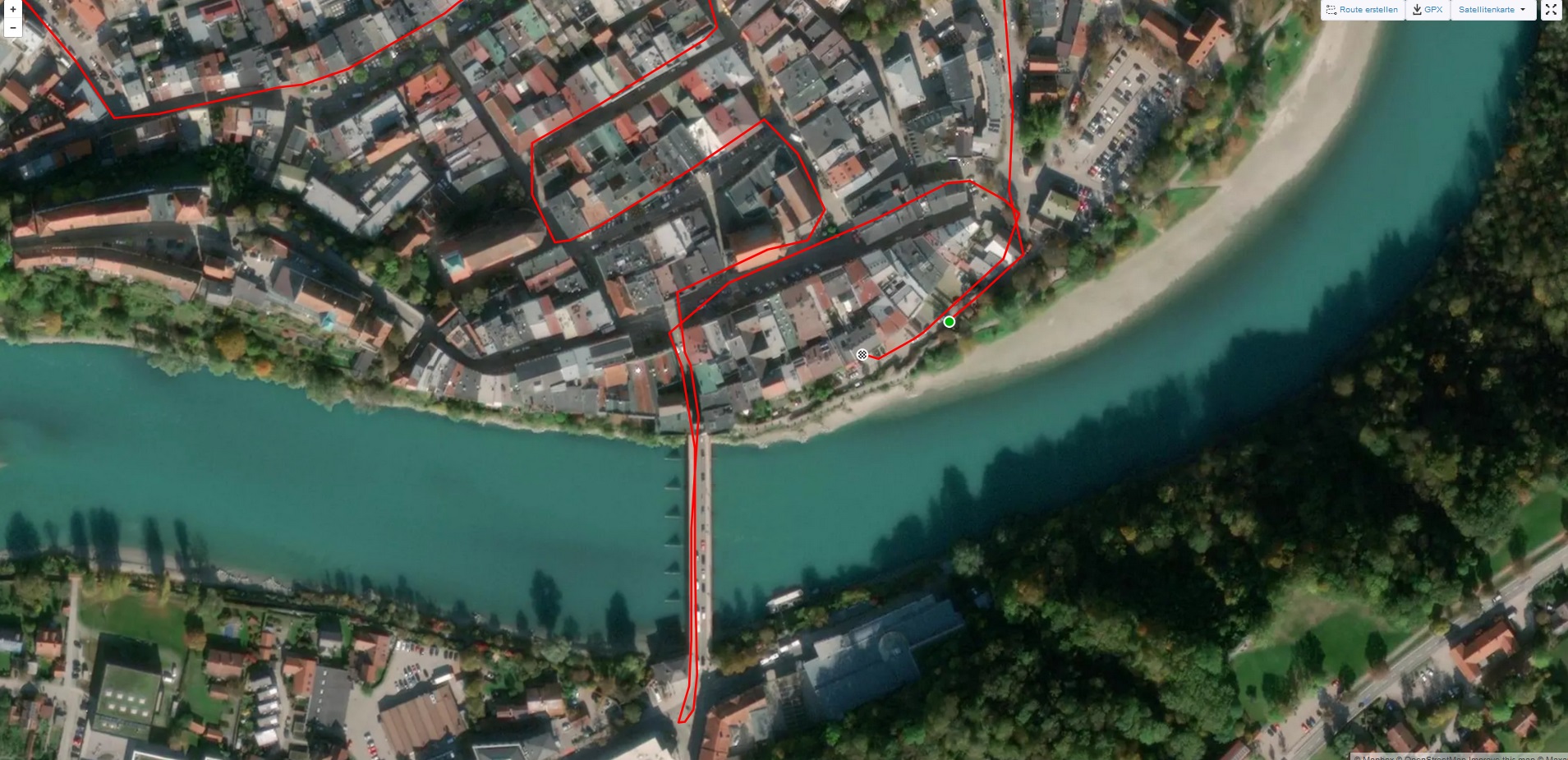

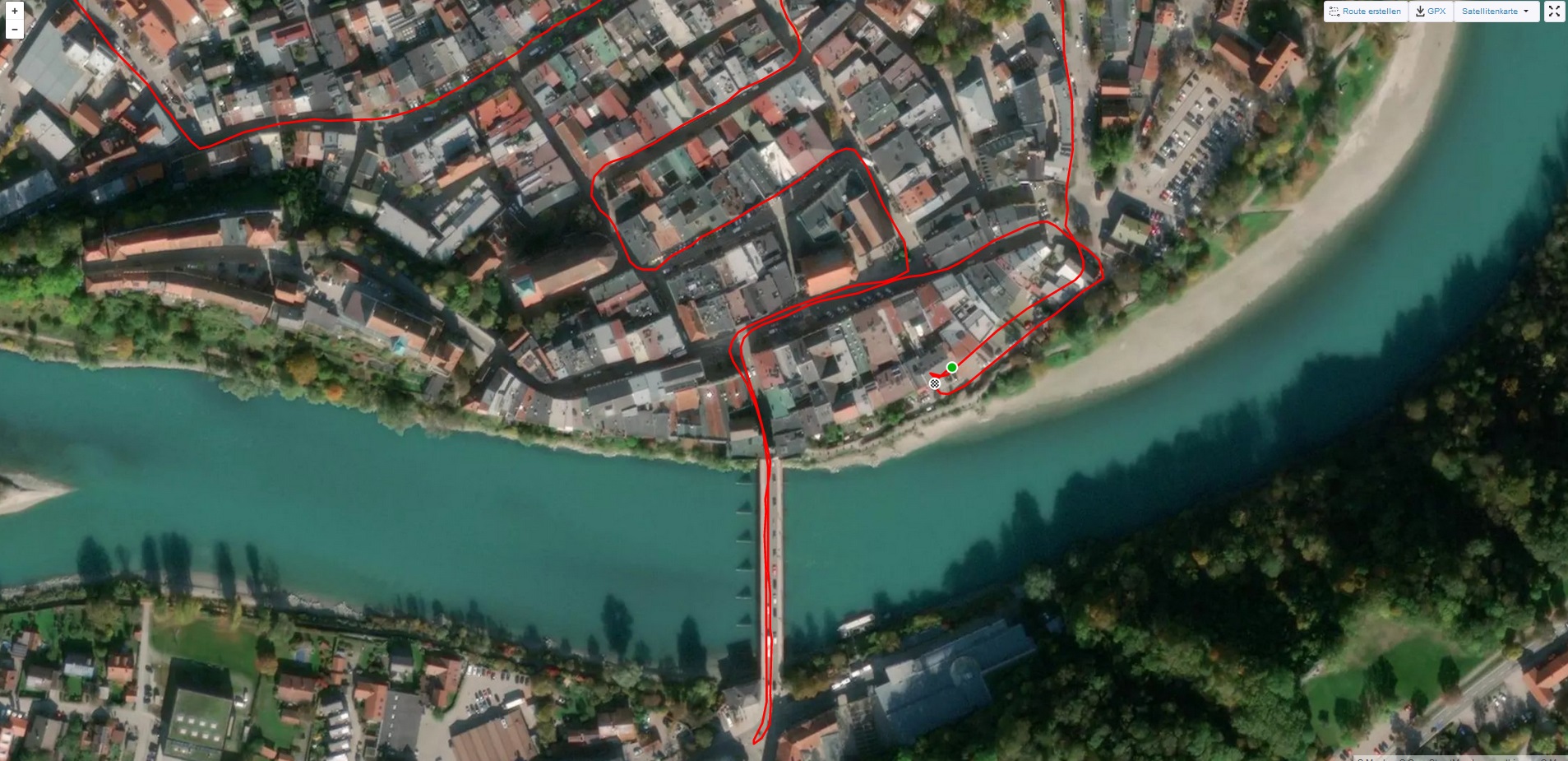

为了能够在实践中评估追踪的准确性,我们带着Edge 20 Pro进行了一次短途旅行,并同时用Garmin Edge 520记录路线,以便进行比较。在近四公里长的测试路线末端,智能手机的GPS模块和导航设备之间只有90米的距离。

摩托罗拉手机的定位能力并不总是完美的,但在GPS日志的详细视图中的偏差很小,因此Edge 20 Pro的路线几乎没有任何值得注意的不准确之处。为了确定位置,GPS模块使用GPS(L1+L5)、GLONASS、QZSS和Galileo主要卫星系统,以及基于SBAS卫星的补充系统。

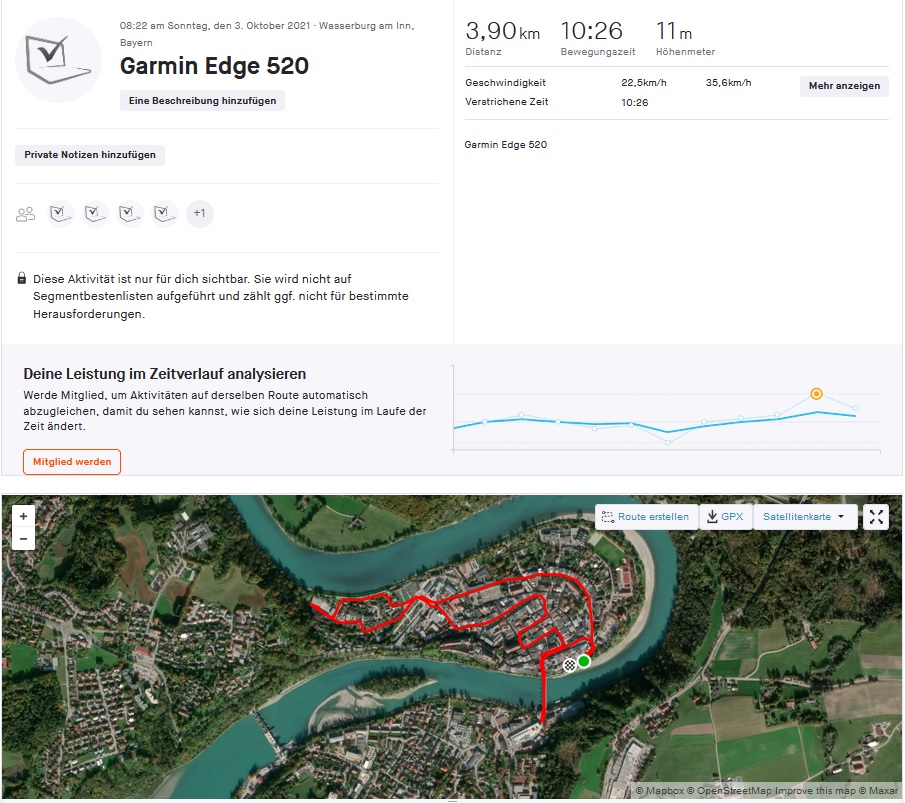

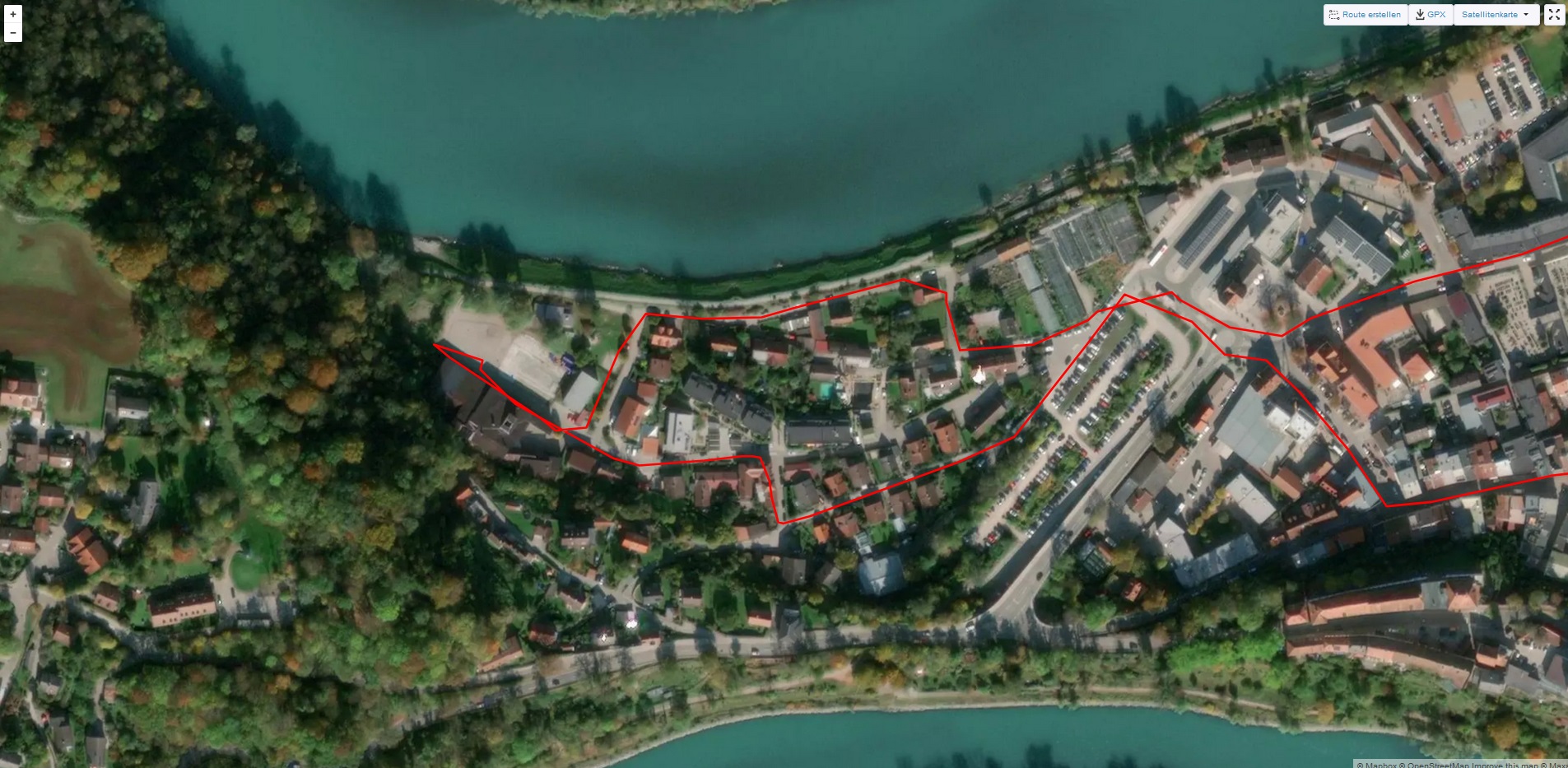

Garmin Edge 520定位
Garmin Edge 520定位
Garmin Edge 520定位
Garmin Edge 520定位
Garmin Edge 520定位
Garmin Edge 520定位

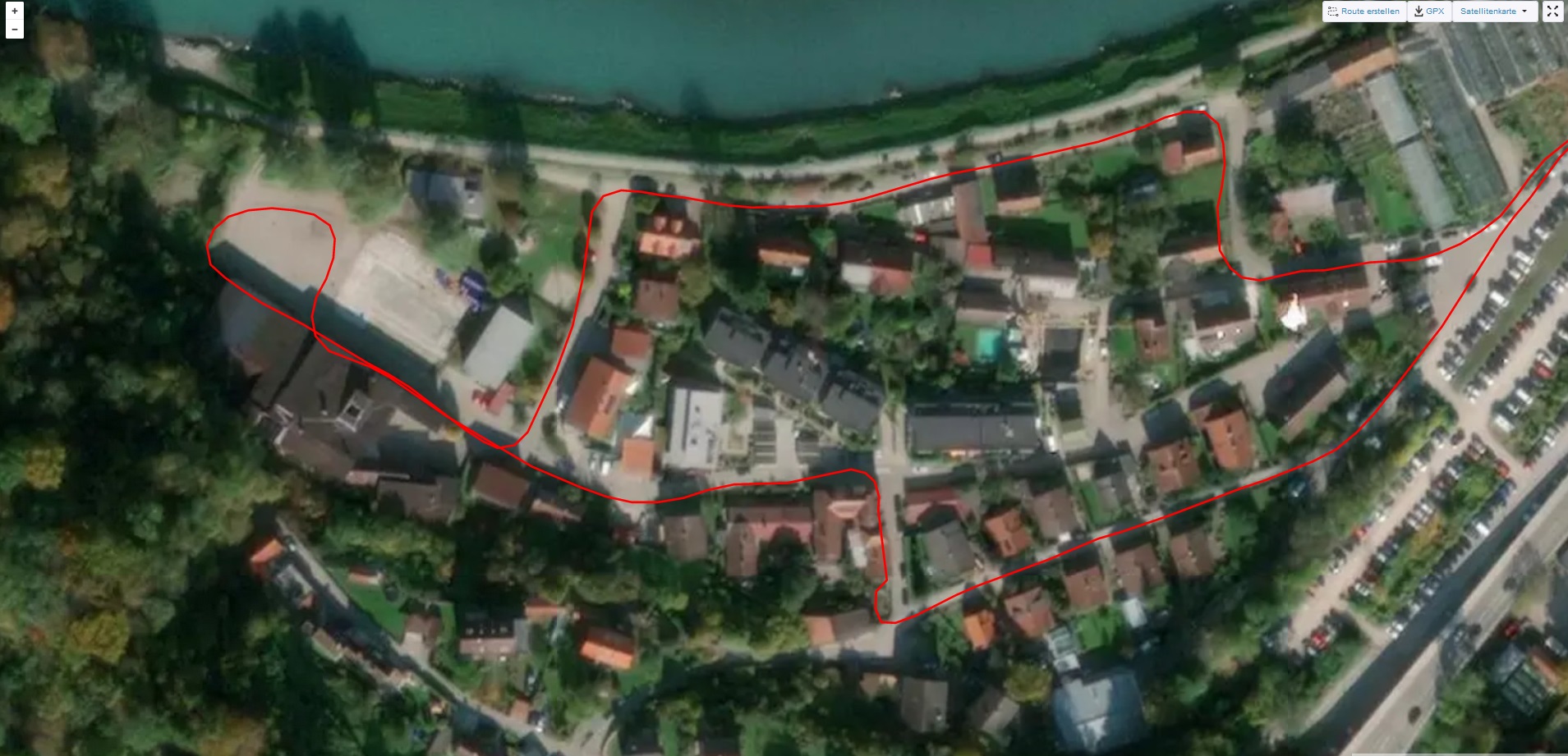

摩托罗拉Edge 20 Pro定位
摩托罗拉Edge 20 Pro定位
摩托罗拉Edge 20 Pro定位
摩托罗拉Edge 20 Pro定位
摩托罗拉Edge 20 Pro定位
摩托罗拉Edge 20 Pro定位

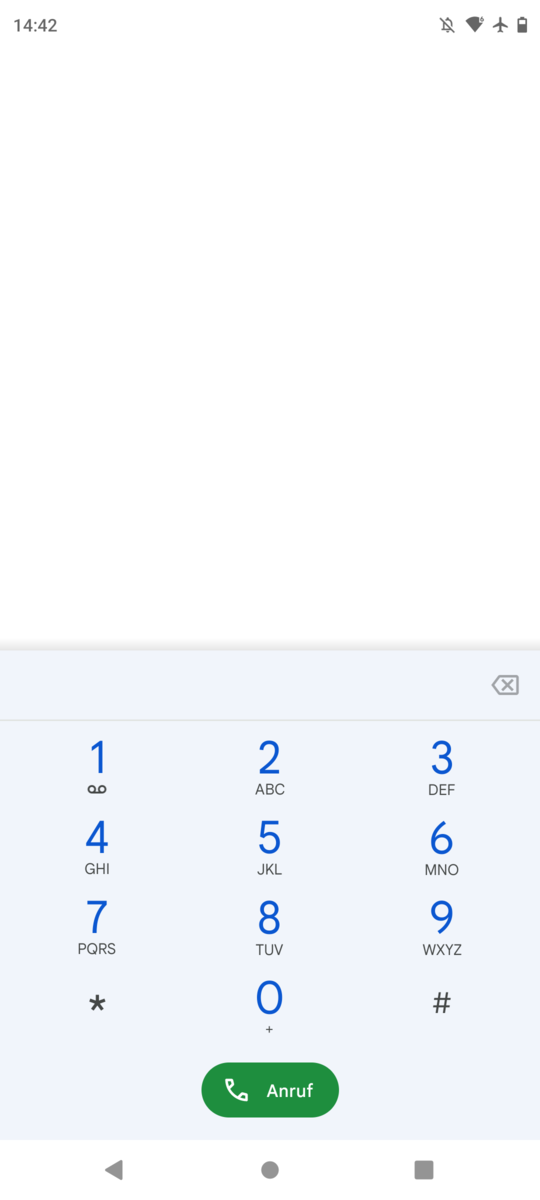

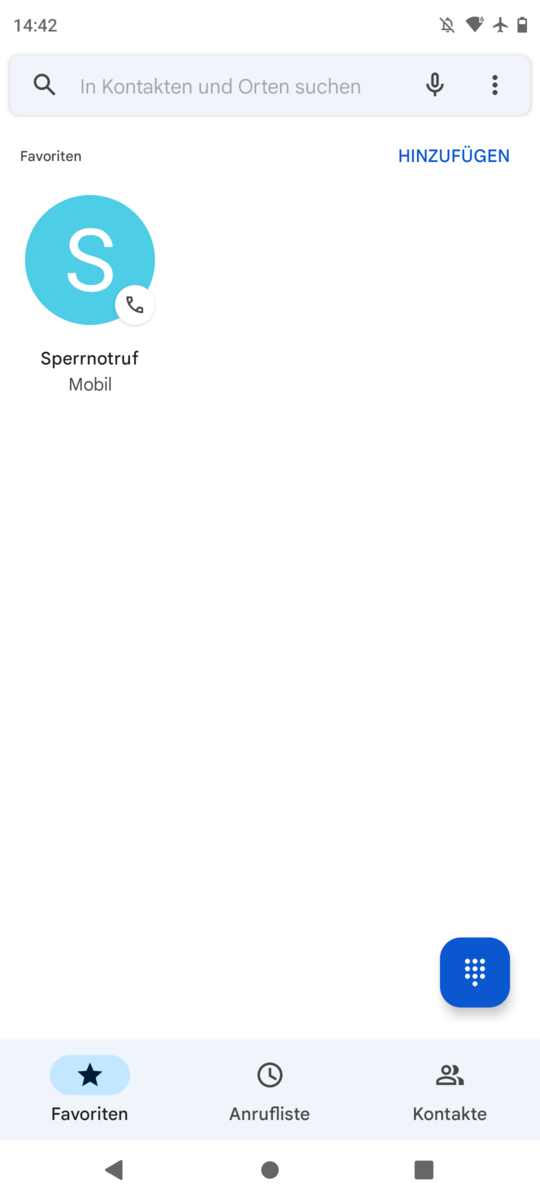

电话和通话质量 - 带有VoLTE的Moto智能手机

摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测

Edge 20 Pro最多可以同时管理两个SIM卡配置文件。摩托罗拉没有提供eSIM卡选项,但VoLTE和Wi-Fi通话是作为回报的。通话质量很好,即使是嘈杂的环境噪音也能得到很好的抑制。然而,听筒的最大音量相对较低。由于有三个内置的麦克风,使用Skype应用程序和扬声器的视频通话在这款高端手机上可以顺利和愉快地进行。

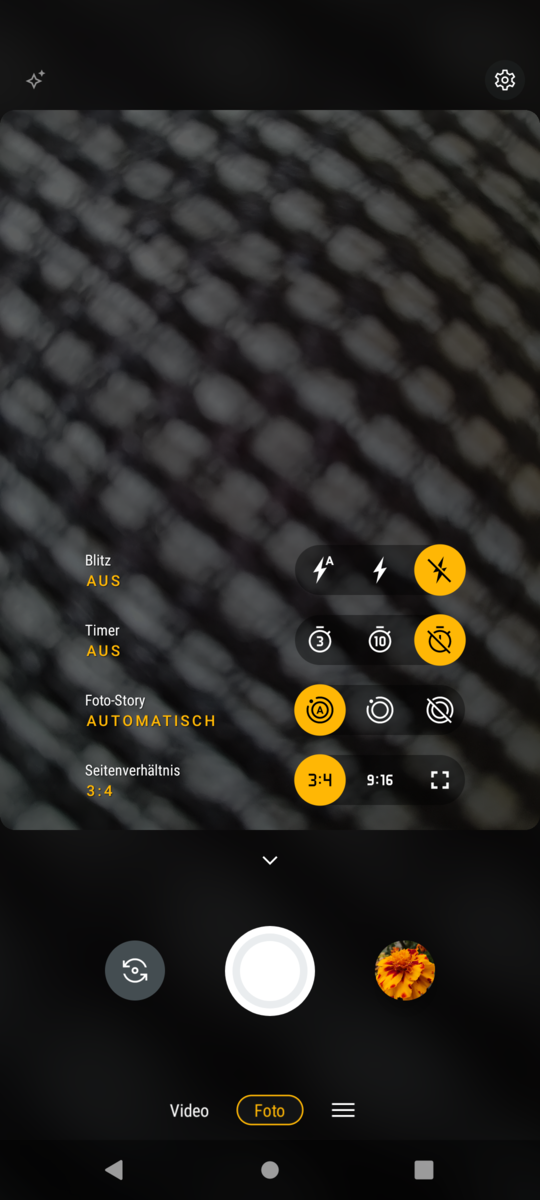

相机 - Edge 20 Pro,108MP

摩托罗拉Edge 20 Pro的人像模式
摩托罗拉Edge 20 Pro的人像模式
摩托罗拉Edge 20 Pro的人像模式
摩托罗拉Edge 20 Pro的人像模式

在我们的样本照片中,Edge 20 Pro的10800万像素主摄像头提供了良好的整体图像质量,在默认情况下,九个像素被组合成一个大的超像素。它的光学格式为1/1.52",是迄今为止摩托罗拉在智能手机上安装的最大的相机传感器。用三星ISOCELL HM2拍摄的照片仍然相对自然和柔和。摩托罗拉在后期处理中几乎没有过度锐化主体,不像一些竞争对手在后期处理中进行大量的人工锐化--例如我们照片对比中的Apple iPhone 13。尽管如此,Edge 20 Pro的整体锐度水平可以更好一些,尽管OnePlus 9 Pro,特别是在边缘处产生更模糊的结果。

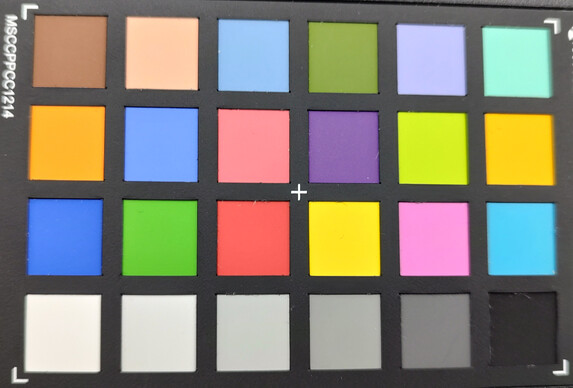

不过,摩托罗拉应该通过软件来提高色彩准确性。我们使用ColorChecker Passport来分析在受控照明条件下的颜色再现,并与实际参考颜色进行比较。测量是在完整的演播室灯光下和在1勒克斯的灯光强度下各进行一次。

用ColorChecker Passport进行的分析显示,与实际参考颜色相比,偏差很大,特别是考虑到Pro型号是Edge系列的旗舰设备。蓝色和绿色的色调被明显提亮,使用10800万像素的摄像头显示得过于花哨。白平衡也被校准得有点太暖。

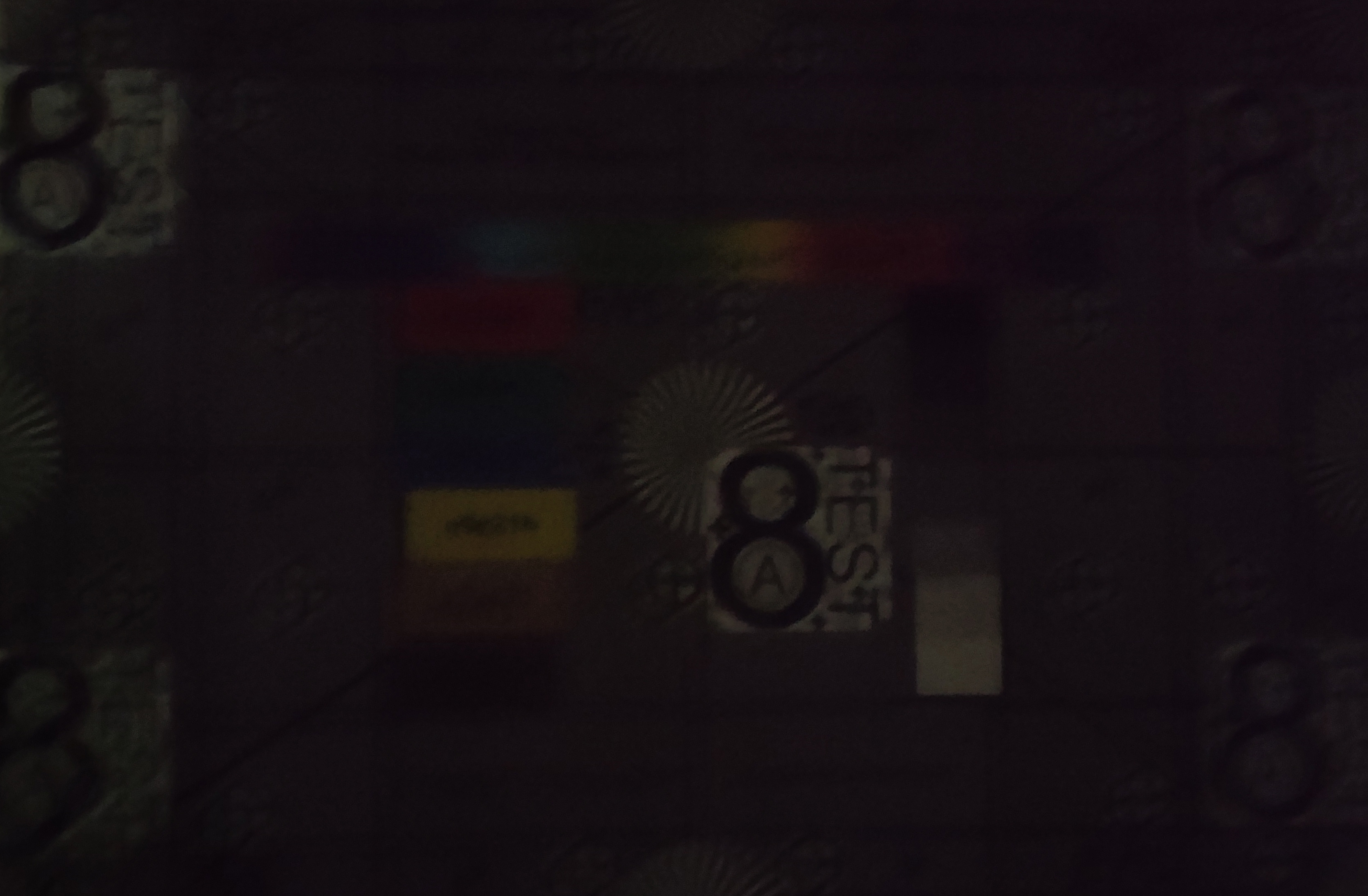

尽管缺乏OIS,Edge 20 Pro在低光下的表现还是不错的--至少在稳定的手感下。Ultra Pixel增加的感光性导致即使在低光照条件下也能获得体面的照明照片。锐度和动态范围对于这个价格范围来说是令人满意的。分辨率为16MP的超广角照片也是如此,但细节和锐度水平与OnePlus 9

Edge 20 Pro的变焦能力非常好。光学稳定的800万像素潜望镜相机,将捕捉到的光线以90度的角度重新定向,在5倍的时候就能达到一个不错的清晰度。即使是50倍的超级变焦也能很好地解决细节问题。

用前置摄像头拍摄的照片也令人印象深刻。摩托罗拉在过度锐化和软化之间找到了一个吸引人的平衡。在日光下,细节和图像动态都处于良好水平。不过,切换到人像模式,在明亮的背景下,会导致图片区域被炸毁和过度曝光。

在视频方面,摩托罗拉Edge 20 Pro能够以8K的速度录制;它还提供音频变焦,以更好地捕捉来自主体的声音,同时过滤掉周围的噪音和声音。在视频录制过程中切换镜头只有在全高清设置下才能实现--当以UHD质量(24、30、60帧)拍摄时,用户只能使用108MP的摄像头。自拍爱好者还可以通过前面的32MP镜头获得4K选项。

超广角
超广角
主摄像头
5倍变焦
10倍变焦
50倍变焦(最大
微距模式
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Main cameraMain cameraLow lightUltra-wide angle
click to load images
ColorChecker
25.7 ∆E
15.6 ∆E
23.5 ∆E
24.9 ∆E
20.6 ∆E
14.9 ∆E
18 ∆E
28.6 ∆E
17.4 ∆E
18.6 ∆E
14.1 ∆E
14.3 ∆E
26.8 ∆E
19.5 ∆E
21.1 ∆E
7.2 ∆E
20.4 ∆E
23.2 ∆E
5.6 ∆E
6.1 ∆E
8.6 ∆E
17.8 ∆E
18.2 ∆E
2 ∆E
ColorChecker Motorola Edge 20 Pro: 17.19 ∆E min: 2.02 - max: 28.56 ∆E
ColorChecker
28.1 ∆E
51.6 ∆E
37.8 ∆E
36.9 ∆E
42.3 ∆E
60.2 ∆E
51 ∆E
32.6 ∆E
38.7 ∆E
25.4 ∆E
61.7 ∆E
61.9 ∆E
29.3 ∆E
46.3 ∆E
33.8 ∆E
70.6 ∆E
39.7 ∆E
43.3 ∆E
74.9 ∆E
67.8 ∆E
50 ∆E
35.7 ∆E
23.1 ∆E
13 ∆E
ColorChecker Motorola Edge 20 Pro: 43.99 ∆E min: 12.97 - max: 74.93 ∆E

附件和保修 - Edge 20 Pro带30瓦的充电器

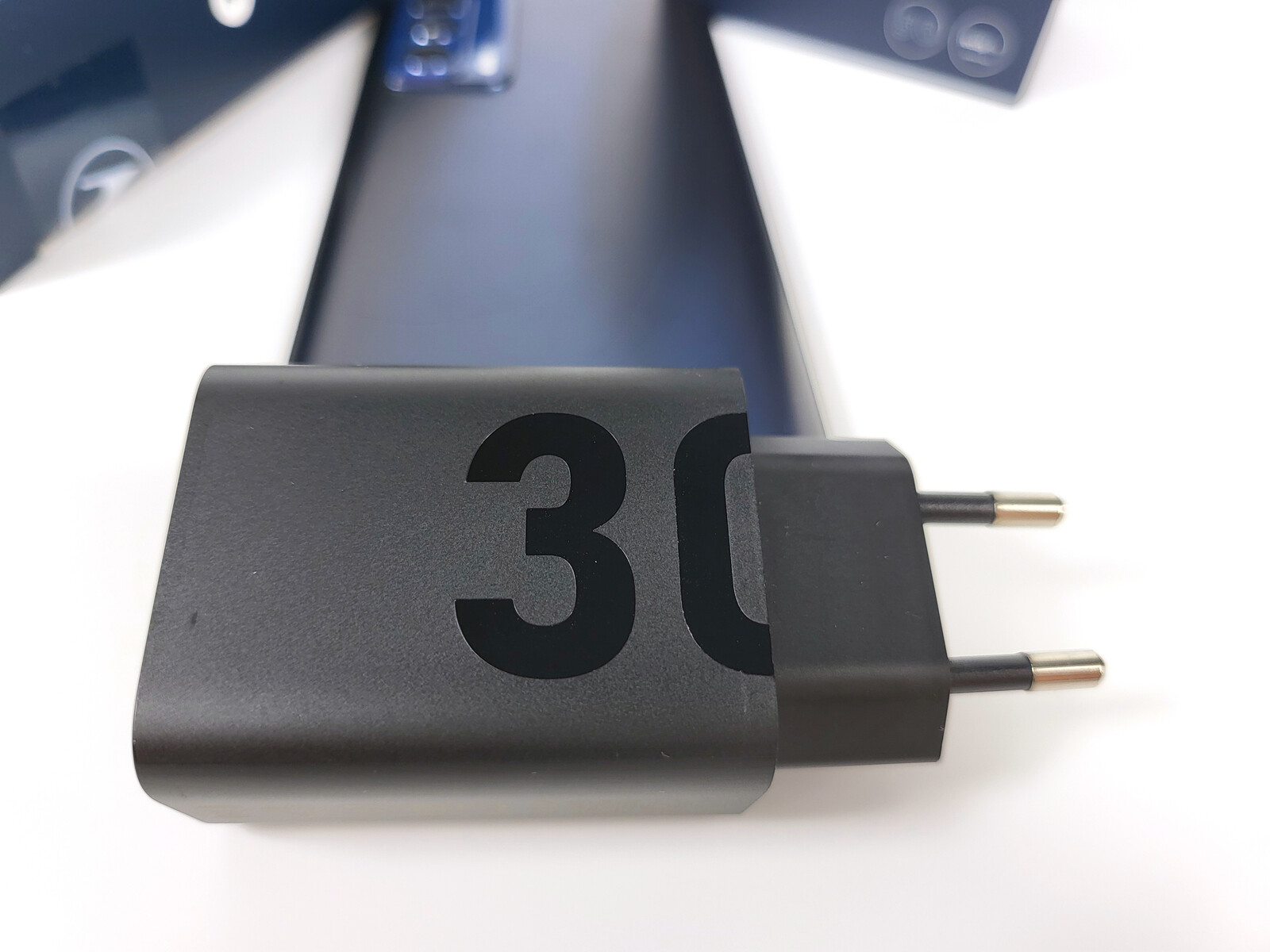

带30瓦充电器的Edge 20 Pro
带30瓦充电器的Edge 20 Pro

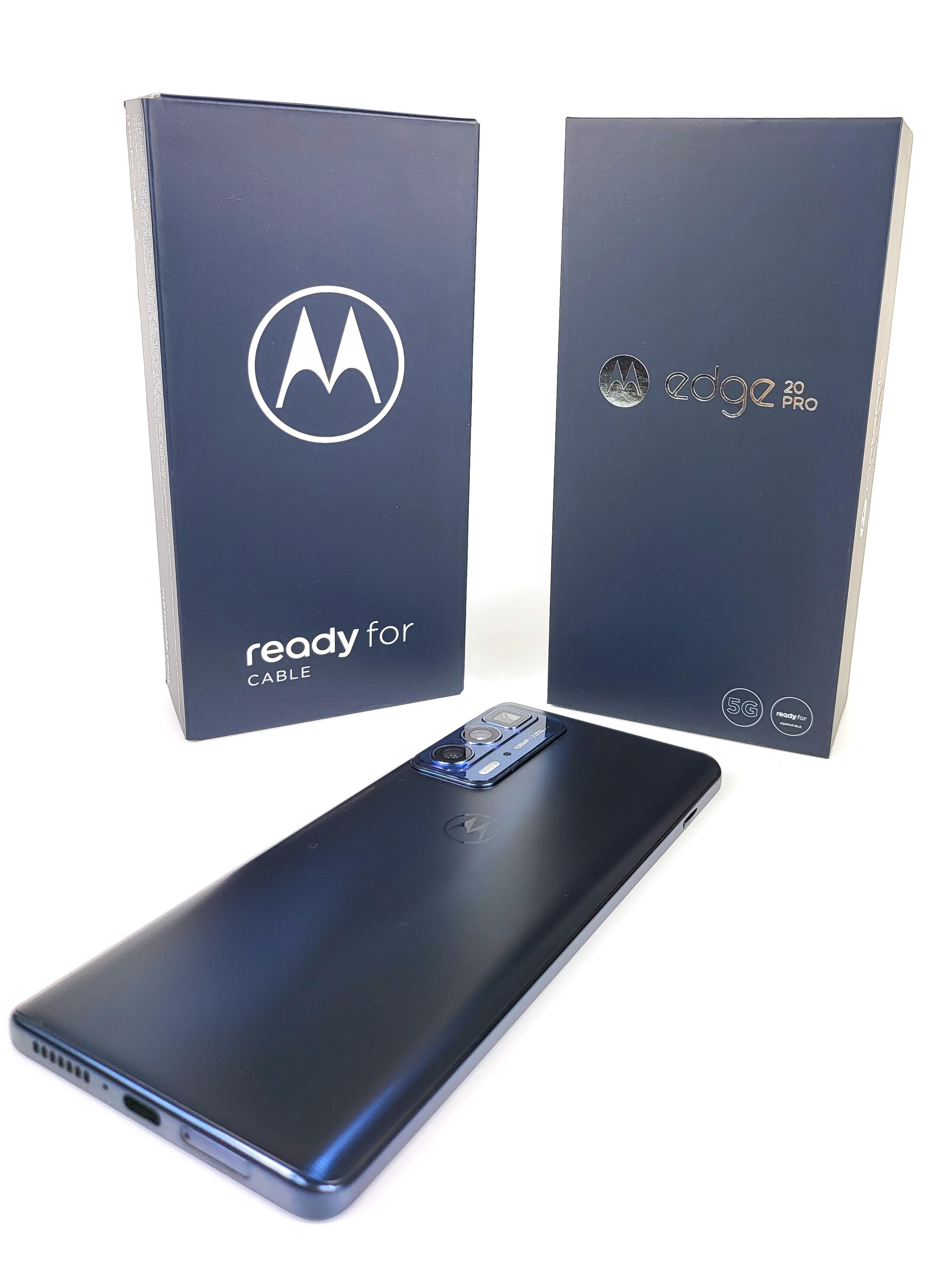

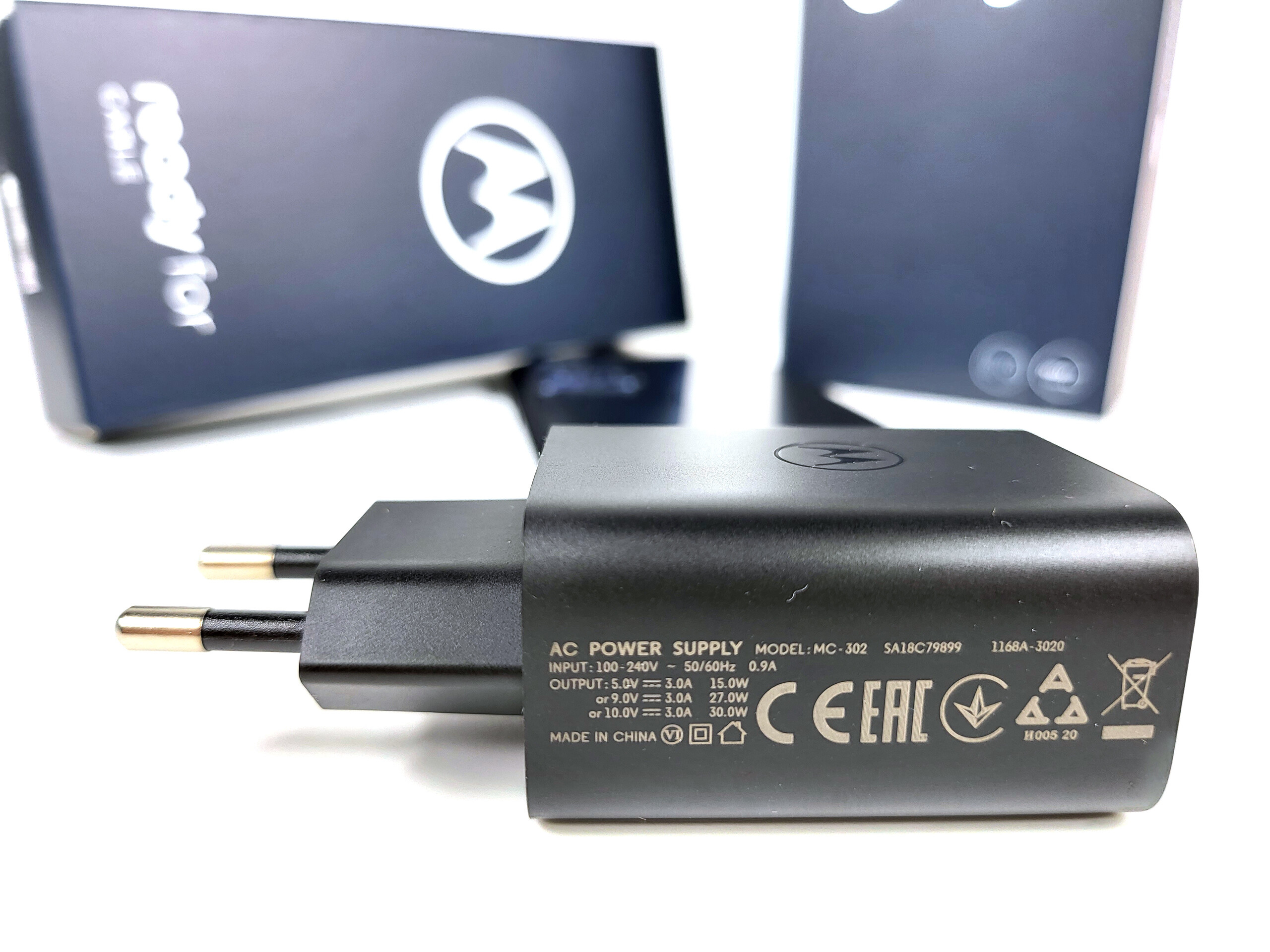

包装中包含一个额定输出功率为30瓦的模块化电源适配器,一条USB充电线,以及一条Ready-For HDMI线。我们的测试设备没有开箱即用的保护膜,而制造商宣传的保护套也没有随我们的样品一起提供。

每部摩托罗拉Edge智能手机都有两年的标准有限保修 。可选的延长保修可以为Edge 20 Pro的机械故障再投保12个月。可选的意外损坏保护合同(94.99欧元(约111美元),为期两年)为物理损坏或液体造成的损坏提供额外的保障。

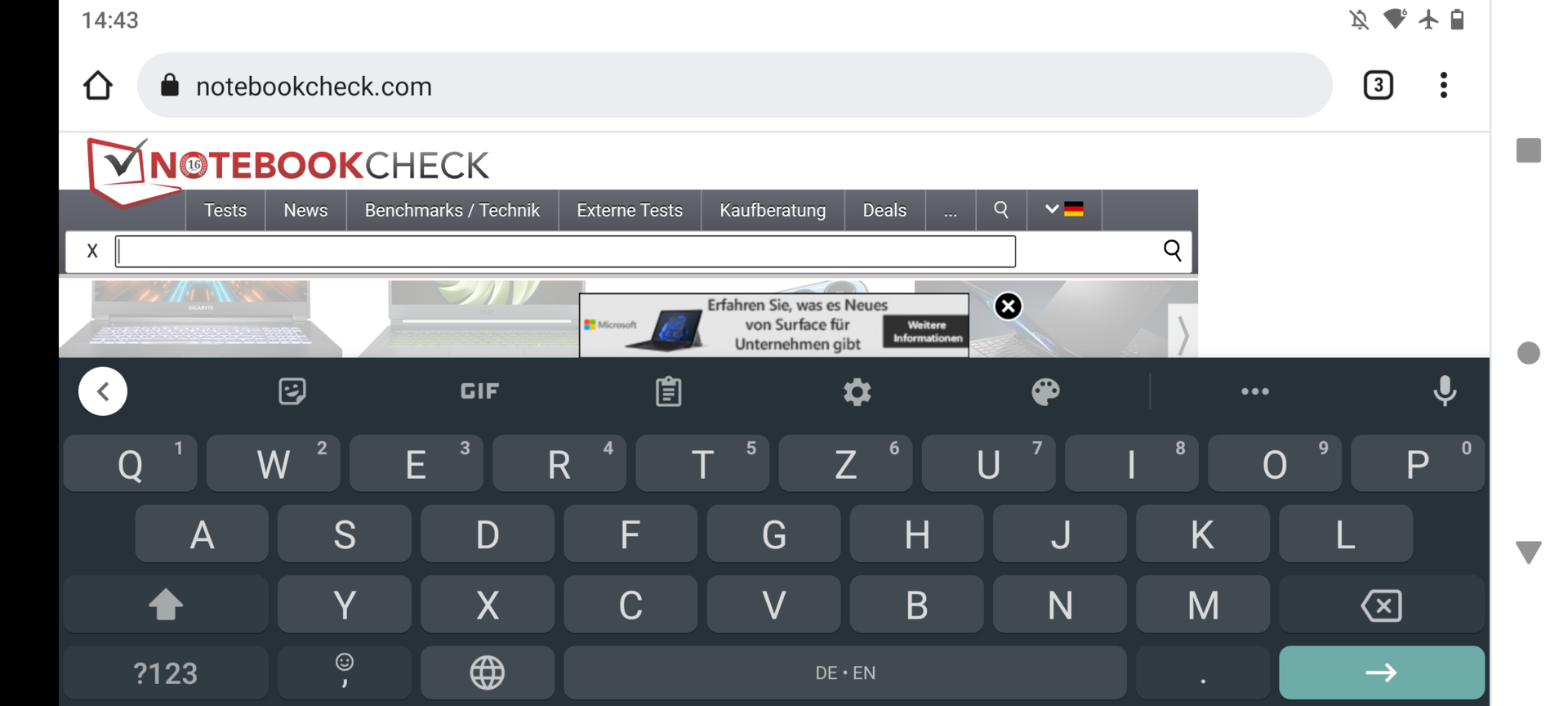

输入设备和处理方式 - 带有FaceUnlock的Edge 20 Pro

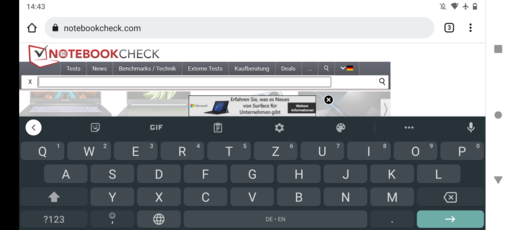

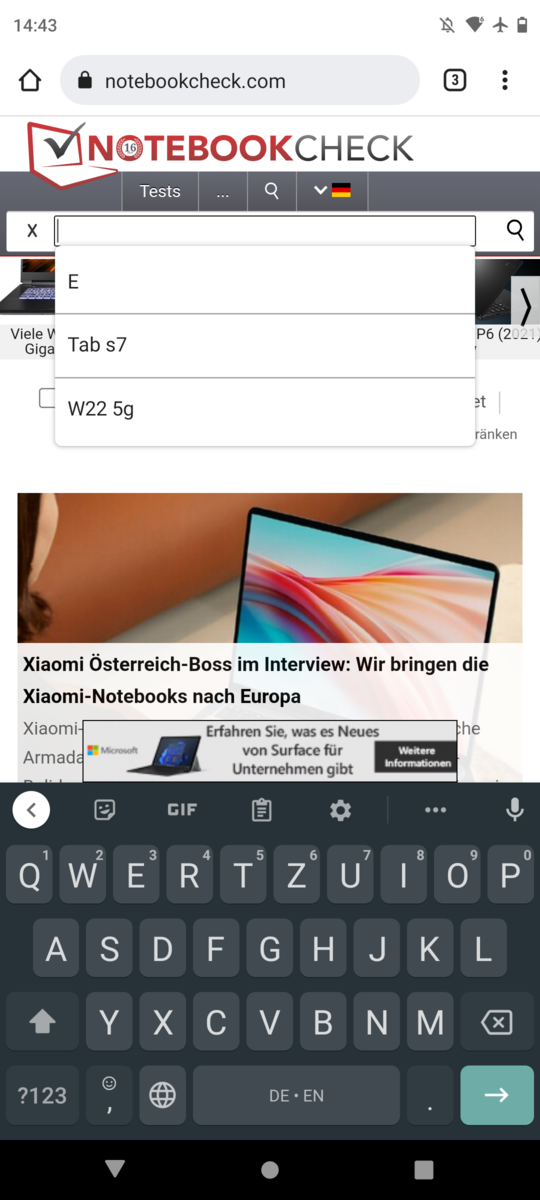

电容式触摸屏能够非常可靠地检测到输入,康宁大猩猩玻璃的滑动性能也非常出色。使用该设备还得益于显示屏144赫兹的高刷新率,这使得图像转换和滚动变得非常流畅。此外,电容式触摸屏具有非常低的触摸延迟。在某些应用(如游戏)中,Edge 20 Pro对可能的用户输入进行扫描,每秒可达576次。

指纹扫描仪已被集成到电源按钮中,用于生物识别安全,它的高识别率令人印象深刻。然而,它的位置需要很好的适应性。传感器的位置太高了,即使是手大的用户也不例外,因此,手指总是需要重新定位。

摩托罗拉手机也可以通过面部识别的面部数据来解锁,但这是使用2D方法进行的,并不是很安全。

Edge 20 Pro
Edge 20 Pro
Edge 20 Pro

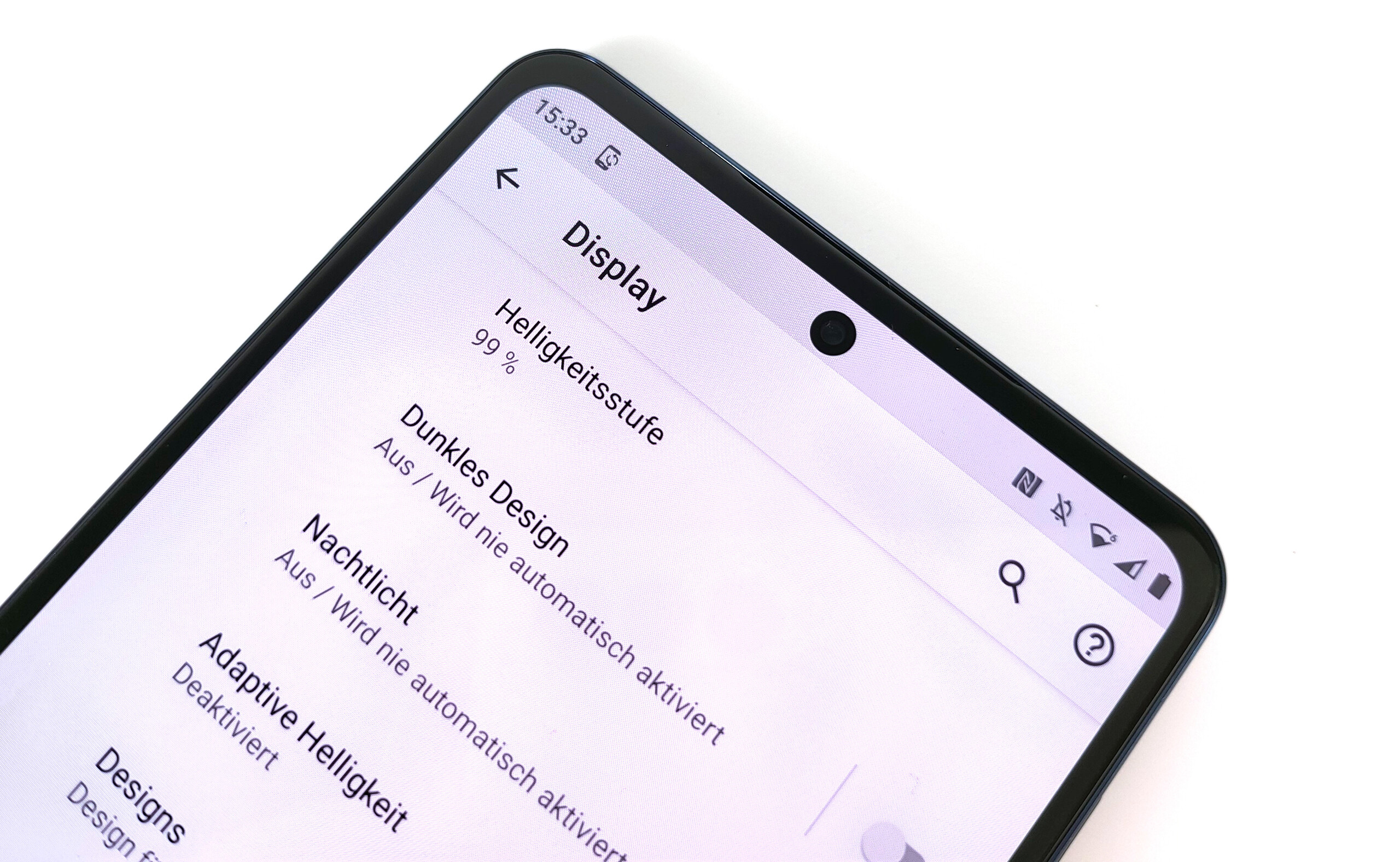

显示屏 - Moto手机采用OLED面板

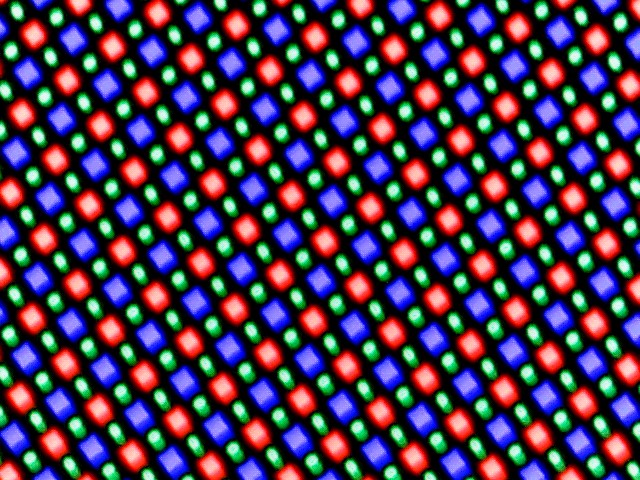

子像素网格
子像素网格

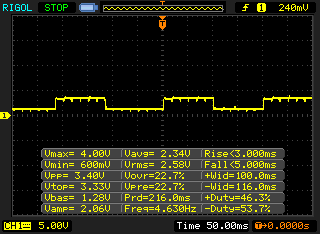

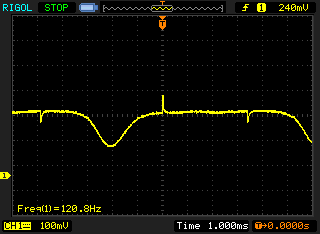

直流调光模式下的PWM
直流调光模式下的PWM

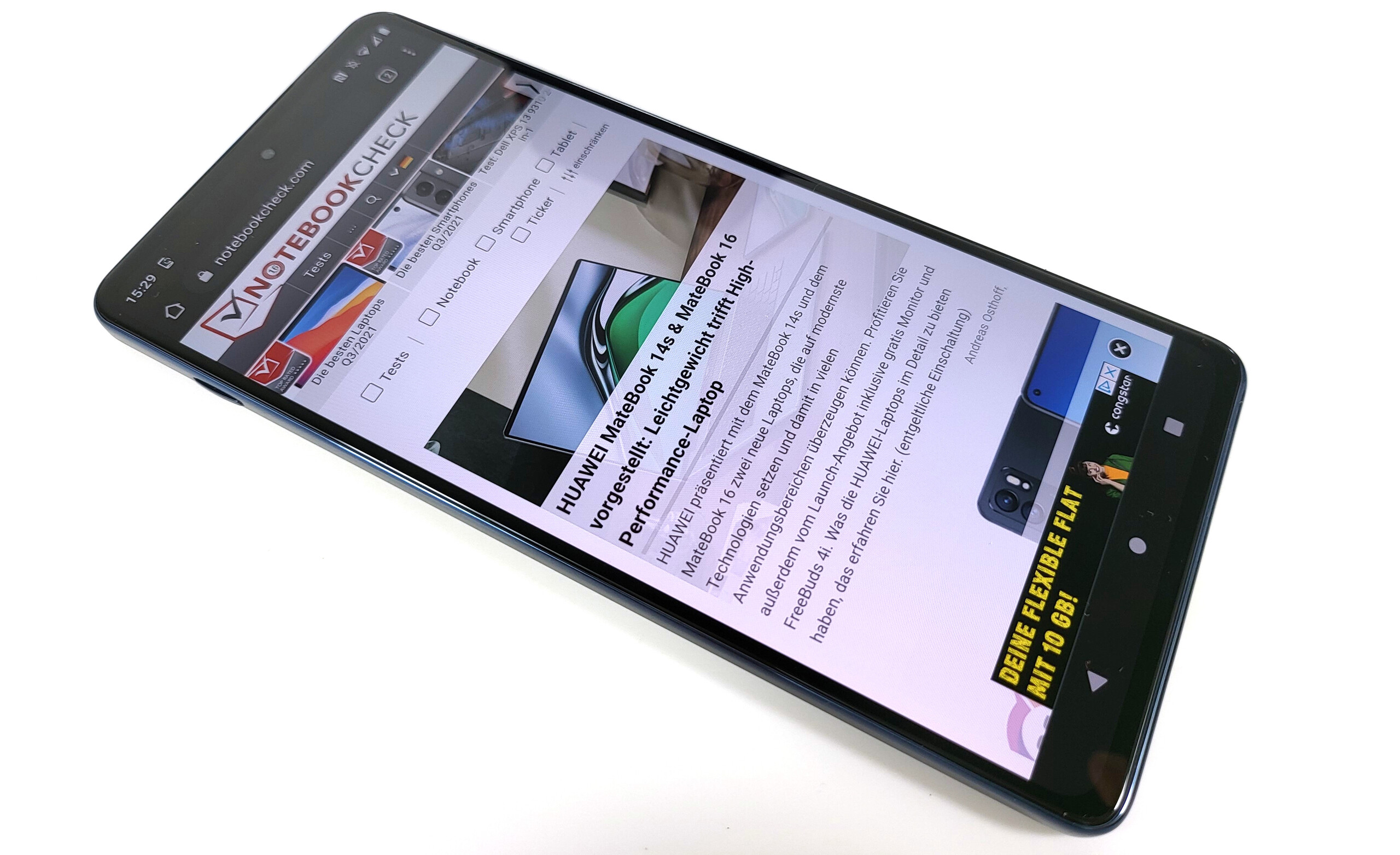

摩托罗拉Edge 20 Pro的6.7英寸Max Vision OLED显示屏提供10位色彩,同时符合HDR10+标准。20:9的面板具有1080p的分辨率,并具有自适应刷新率控制功能。这款旗舰智能手机可以自动将这一速率与显示的内容相匹配,并在48至144赫兹之间调整。其他智能手机,如三星Galaxy S21 Ultra ,例如,在这里的功耗方面有一个小优势,因为显示屏的刷新率可以降低到10赫兹。

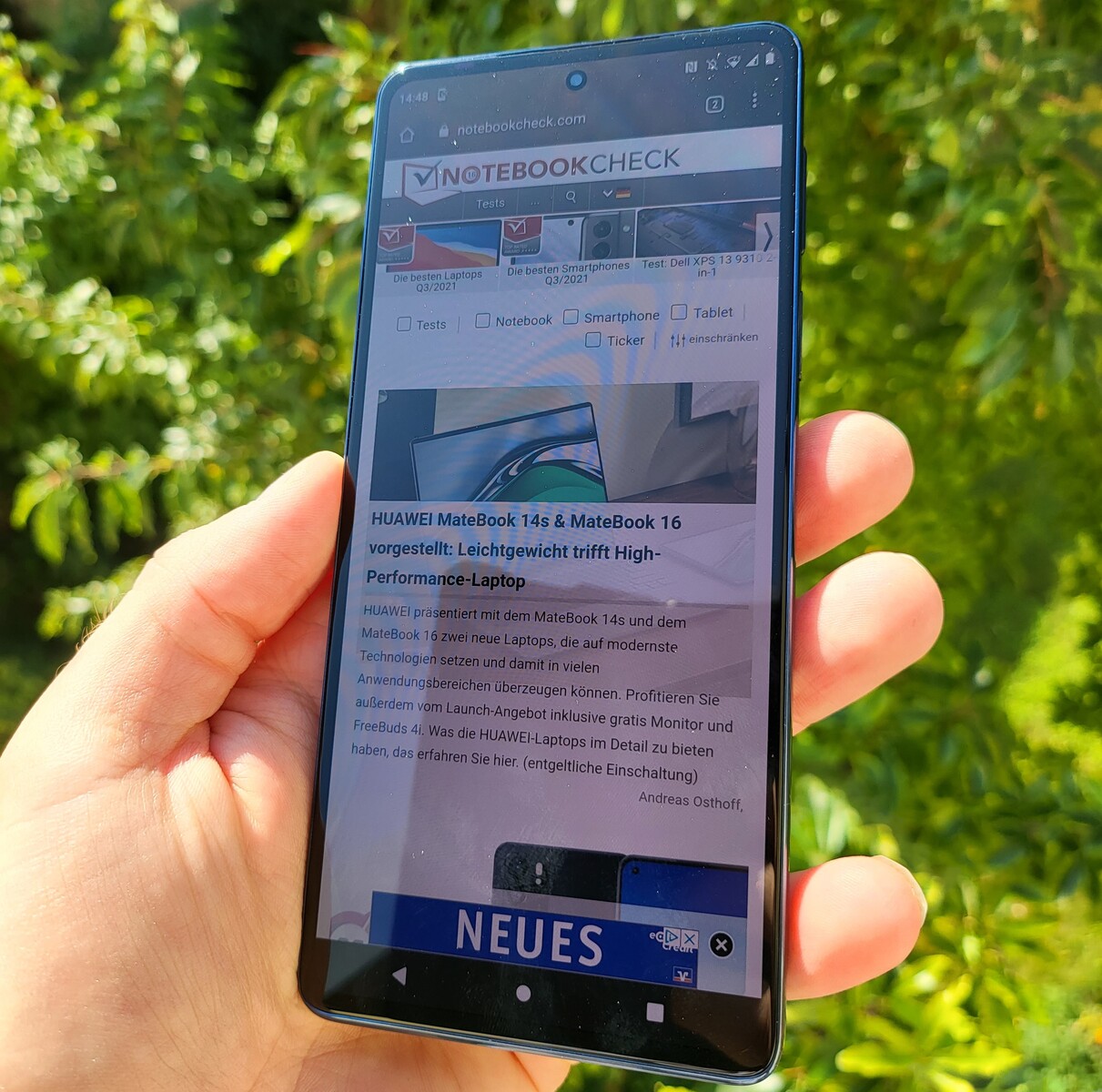

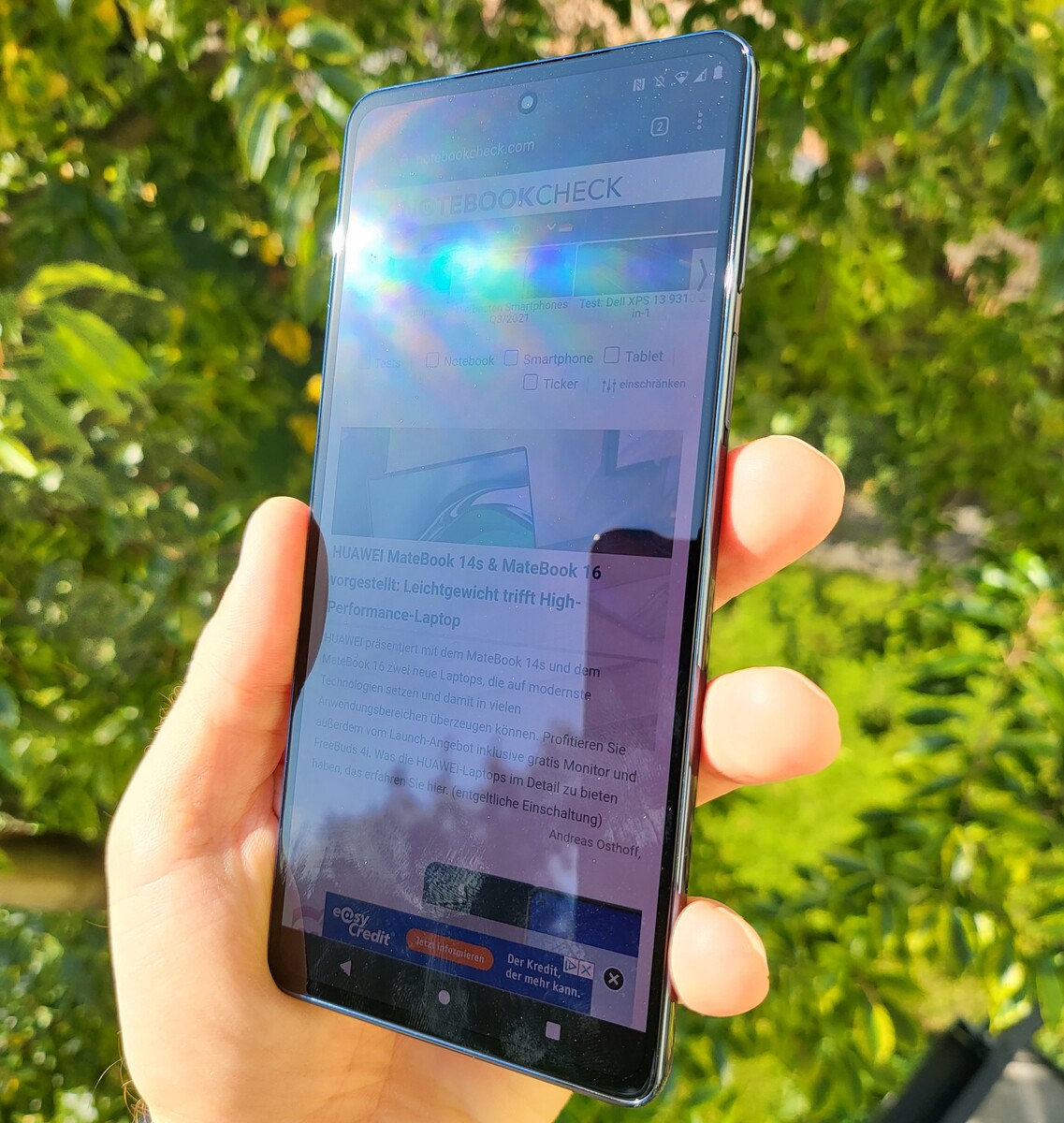

在我们的测量中,OLED面板在使用均匀照明的情况下达到了666cd/m²的高亮度。小米11i ,不过,它的亮度要高得多。我们还测试了暗区和亮区均匀分布比例的亮度(APL50)。在这种情况下,我们也测出了686cd/m²的良好亮度水平,但这被小米11i的1201cd/m²明显超越了。虽然APL10(理论上)留下了一些空间,但Edge 20 Pro的亮度仍然不是HDR内容的最佳选择。

摩托罗拉智能手机在472赫兹的高频率下使用脉冲宽度调制(PWM)进行亮度控制。我们在直流调光模式下测量的频率要低得多,为120赫兹,但这里的振幅波动也明显较低。

623
cd/m²
637
cd/m²
659
cd/m²
643
cd/m²
666
cd/m²
650
cd/m²
621
cd/m²
640
cd/m²
653
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 666 cd/m² (Nits) Average: 643.6 cd/m² Minimum: 4.86 cd/m²
Brightness Distribution: 93 %
Center on Battery: 666 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1.4 | 0.5-29.43 Ø5
ΔE Greyscale 1.9 | 0.57-98 Ø5.3
150.8% sRGB (Calman 2D)
Gamma: 2.209
Motorola Edge 20 Pro
OLED, 2400x1080, 6.70
Xiaomi Mi 11i
AMOLED, 2400x1080, 6.67
OnePlus 9
AMOLED, 2400x1080, 6.55
Nubia RedMagic 6S Pro
AMOLED, 2400x1080, 6.80
Samsung Galaxy S21+
Dynamic AMOLED 2X, 2400x1080, 6.70
Screen
-19%
32%
-131%
-0%
Brightness middle
666
875
31%
731
10%
714
7%
814
22%
Brightness
644
879
36%
739
15%
705
9%
814
26%
Brightness Distribution
93
96
3%
96
3%
96
3%
97
4%
Black Level *
Colorchecker dE 2000 *
1.4
1.8
-29%
0.59
58%
5.9
-321%
2
-43%
Colorchecker dE 2000 max. *
2.65
4.7
-77%
1.3
51%
8.7
-228%
3.6
-36%
Greyscale dE 2000 *
1.9
3.4
-79%
0.9
53%
6.8
-258%
1.4
26%
Gamma
2.209 100%
2.19 100%
2.243 98%
2.25 98%
2.12 104%
CCT
6646 98%
6220 105%
6573 99%
7774 84%
6568 99%

* ... smaller is better

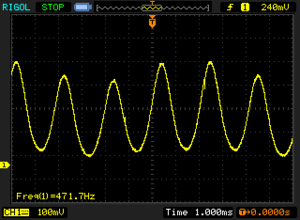

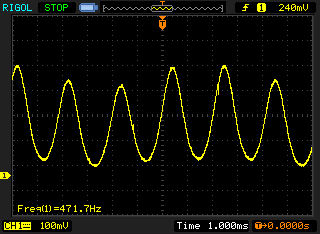

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 471.7 Hz

The display backlight flickers at 471.7 Hz (worst case, e.g., utilizing PWM) .

The frequency of 471.7 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17915 (minimum: 5 - maximum: 3846000) Hz was measured.

我们用分光光度计和CalMAN分析软件检查显示质量。默认配置文件 "自然 "中与sRGB色彩空间的平均DeltaE偏差比 "饱和 "配置文件略高。较大的DCI-P3以及sRGB色彩空间在后者中几乎完全覆盖。由于DeltaE值低于2,Edge 20 Pro处于理想的范围内,其中包括低于3的偏差值。

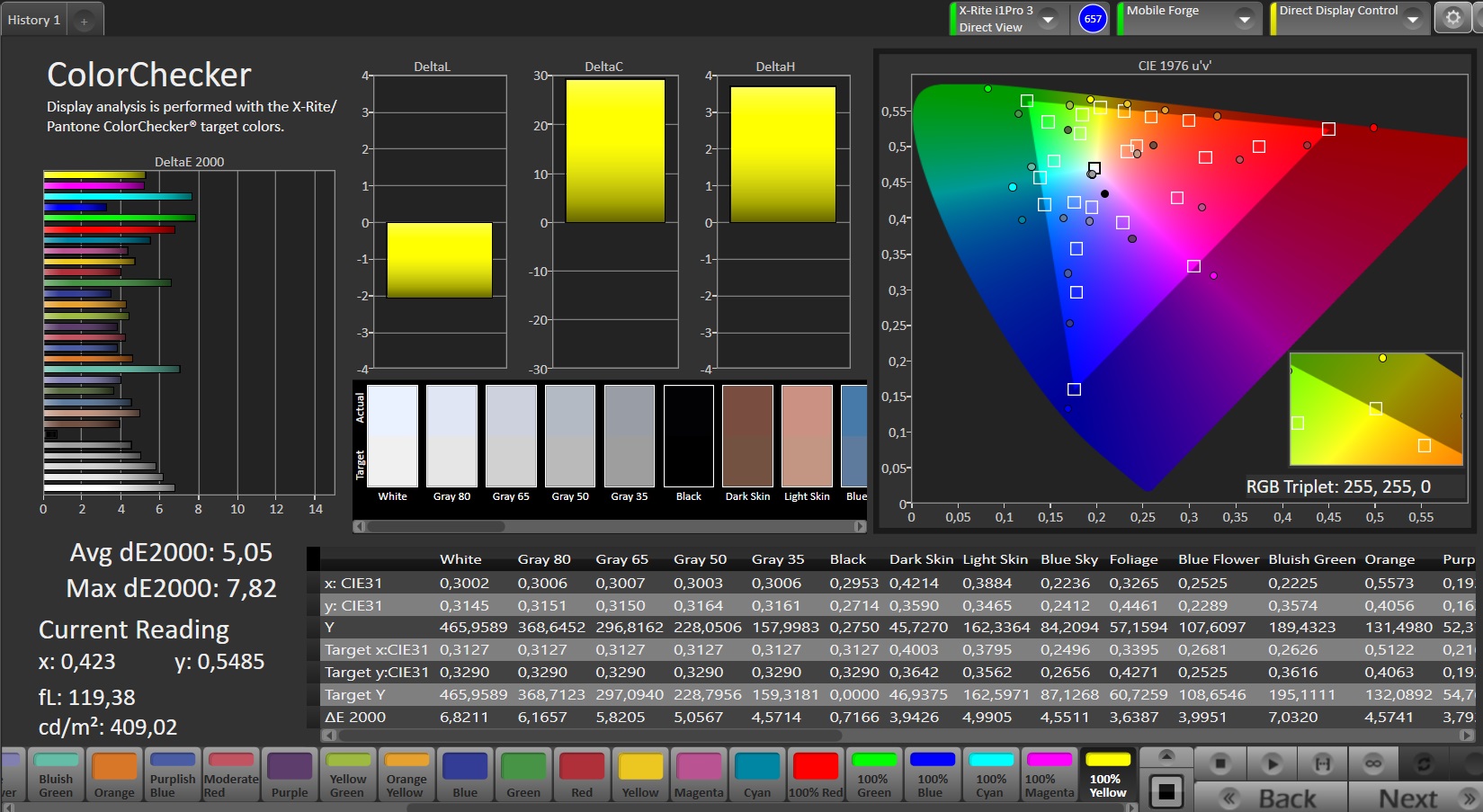

色彩准确性(目标色彩空间:sRGB,配置文件:饱和)。
色彩准确性(目标色彩空间:sRGB,配置文件:饱和)。

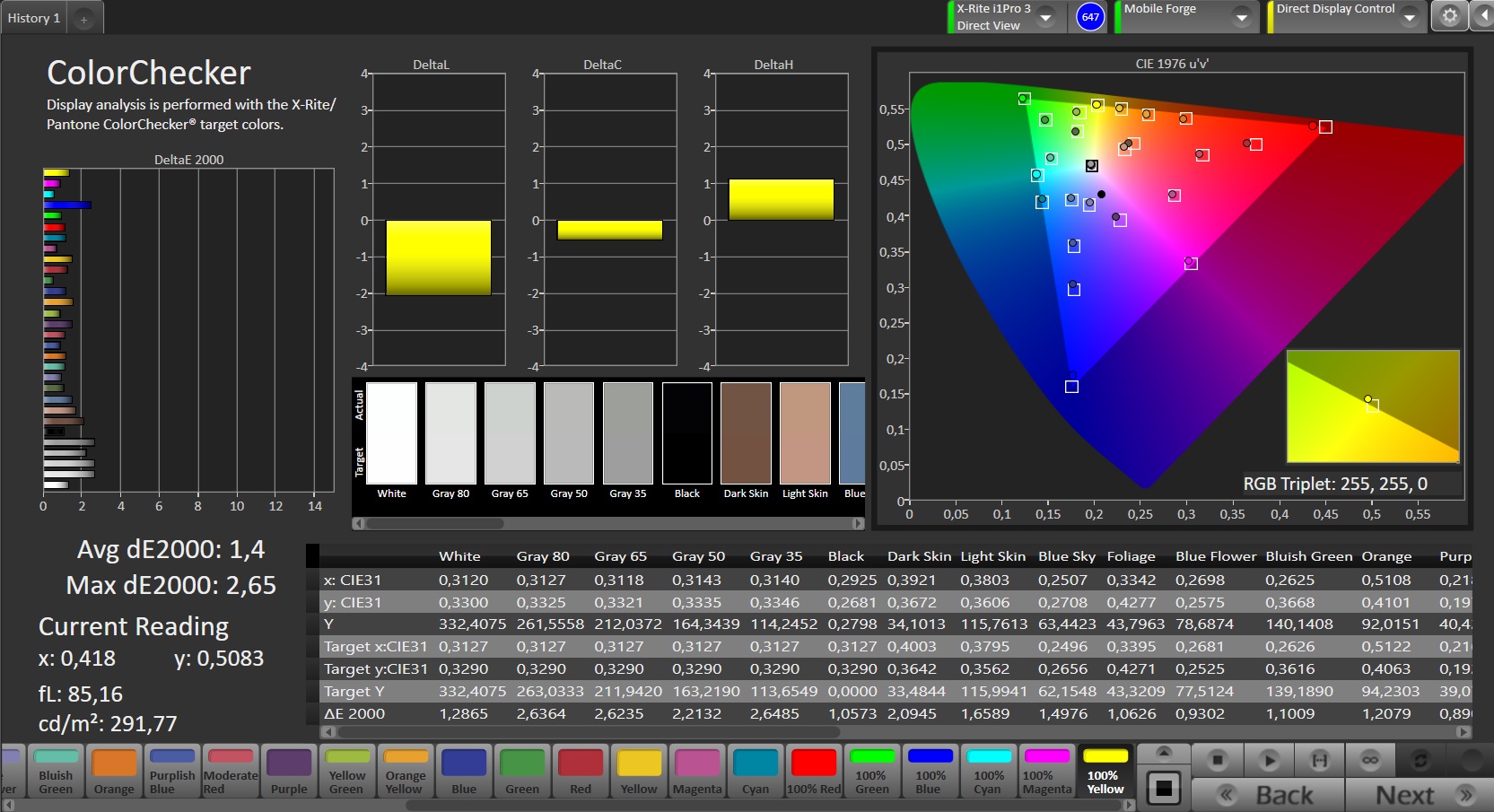

色彩准确性(目标色彩空间:sRGB,配置文件:自然)。
色彩准确性(目标色彩空间:sRGB,配置文件:自然)。
色彩空间(目标色彩空间:AdobeRGB,配置文件:饱和的)。
色彩空间(目标色彩空间:AdobeRGB,配置文件:饱和的)。

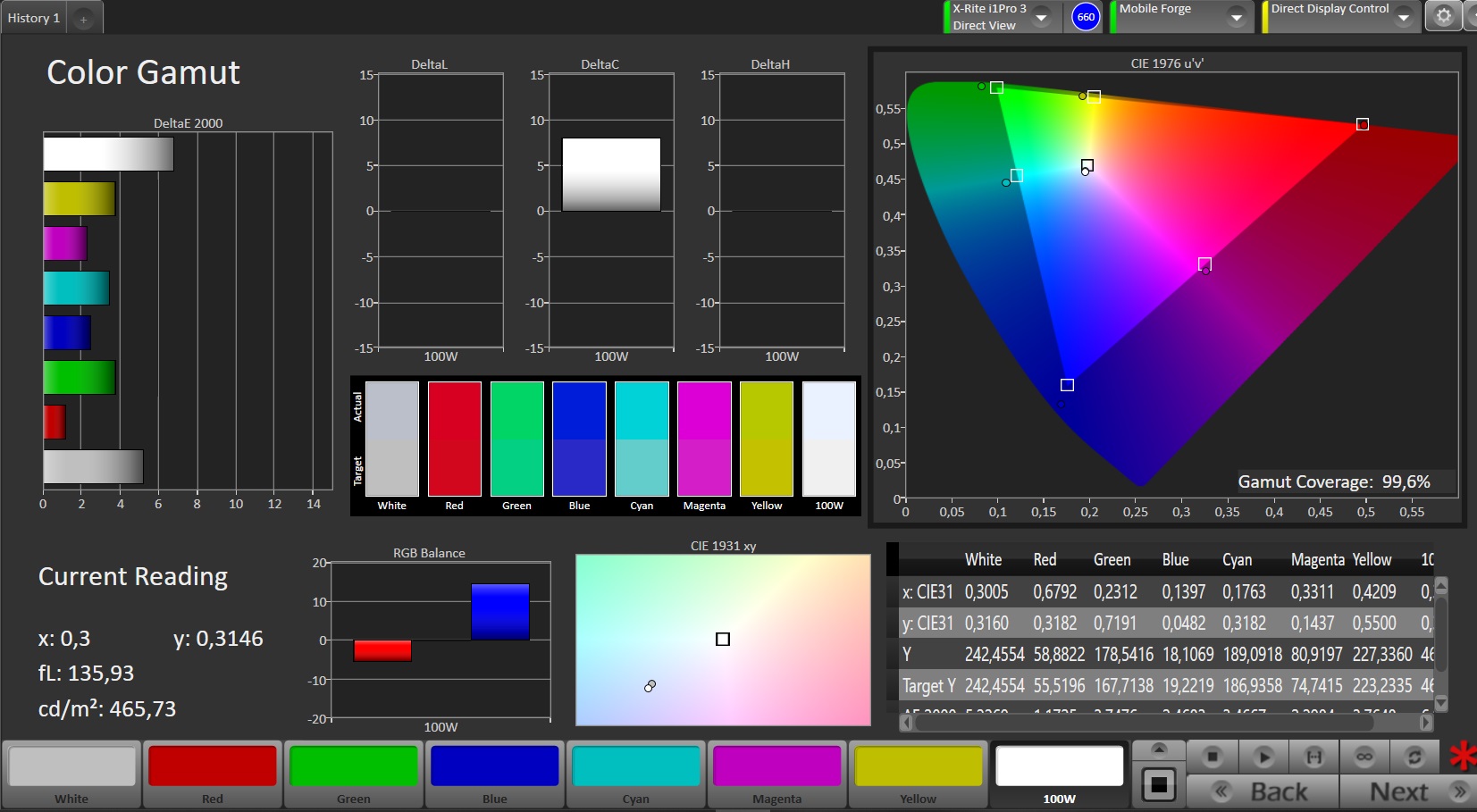

色彩空间(目标色彩空间:P3,配置文件:饱和)。
色彩空间(目标色彩空间:P3,配置文件:饱和)。

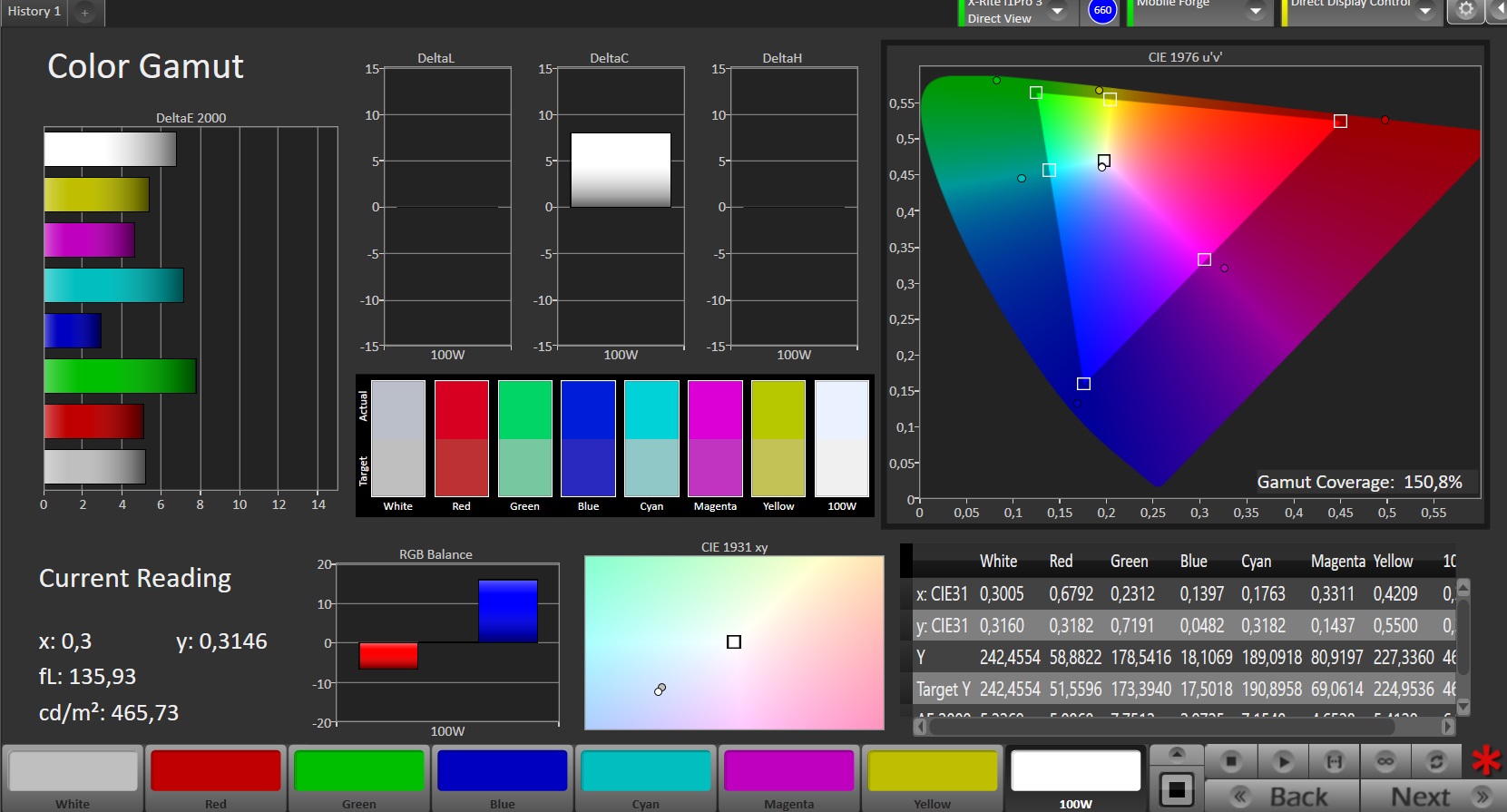

色彩空间(目标色彩空间:sRGB,配置文件:饱和)。
色彩空间(目标色彩空间:sRGB,配置文件:饱和)。

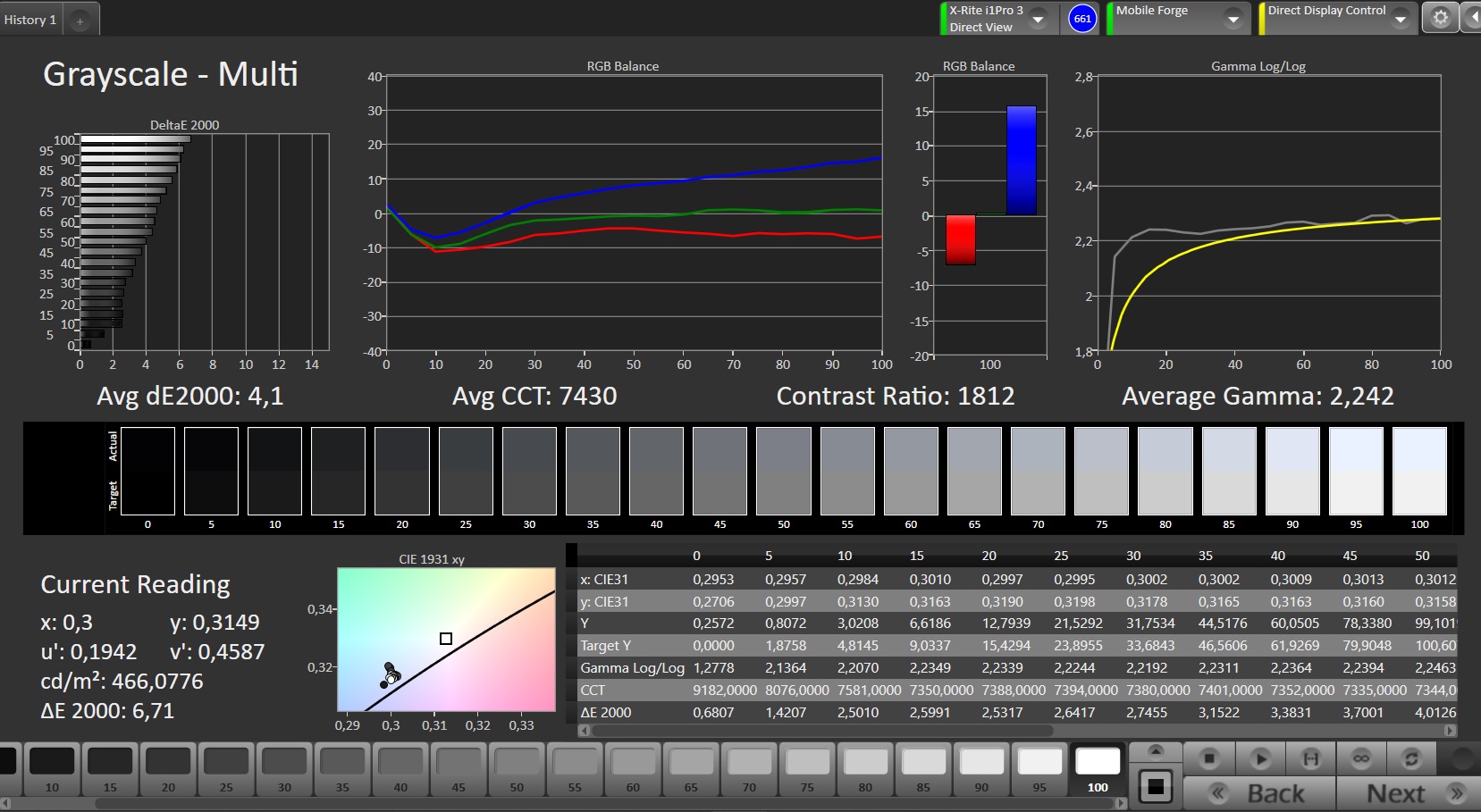

灰度(目标色彩空间:sRGB,配置文件:饱和)。
灰度(目标色彩空间:sRGB,配置文件:饱和)。

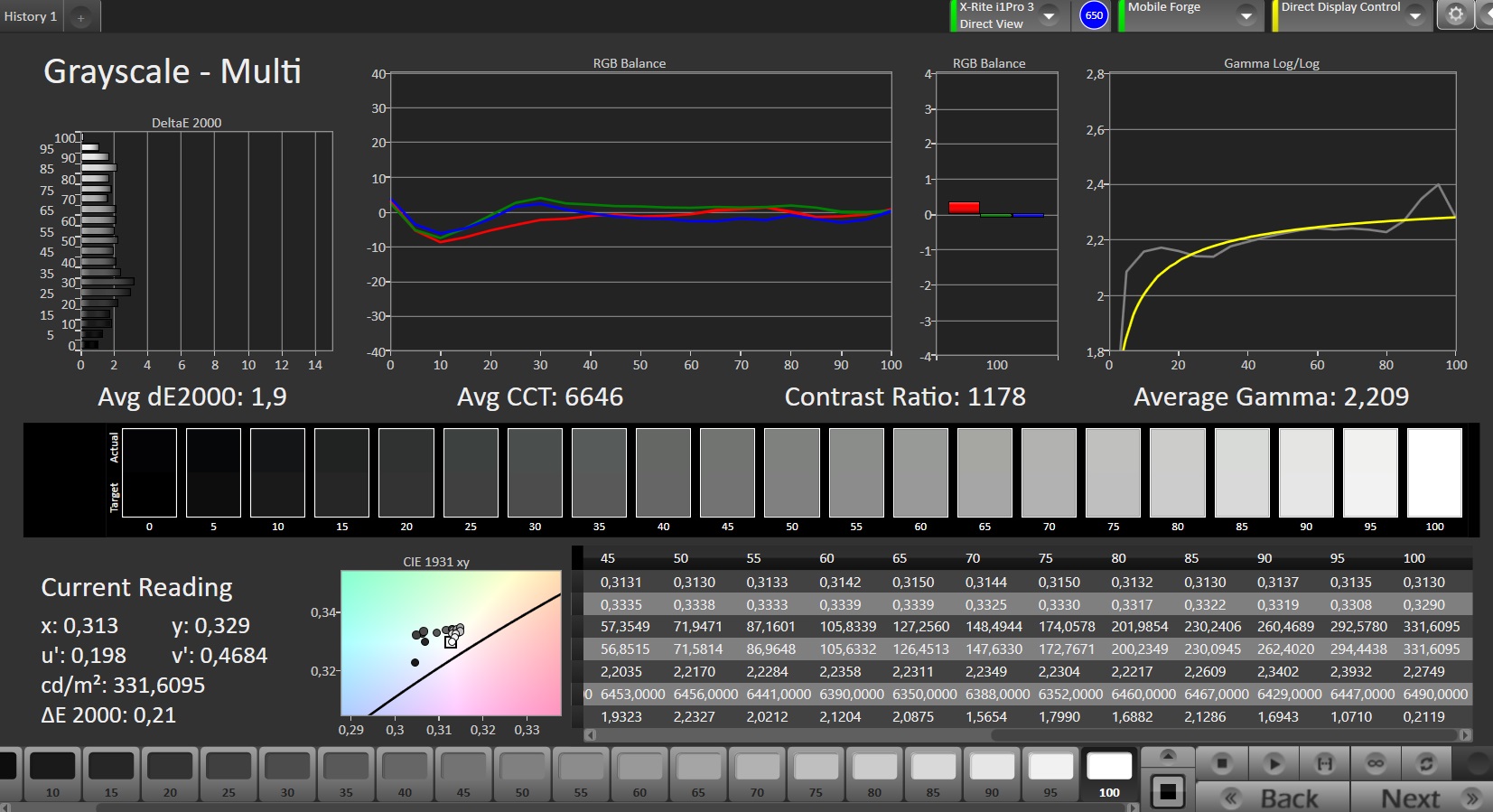

灰度(目标色彩空间:sRGB,配置文件:自然)。
灰度(目标色彩空间:sRGB,配置文件:自然)。

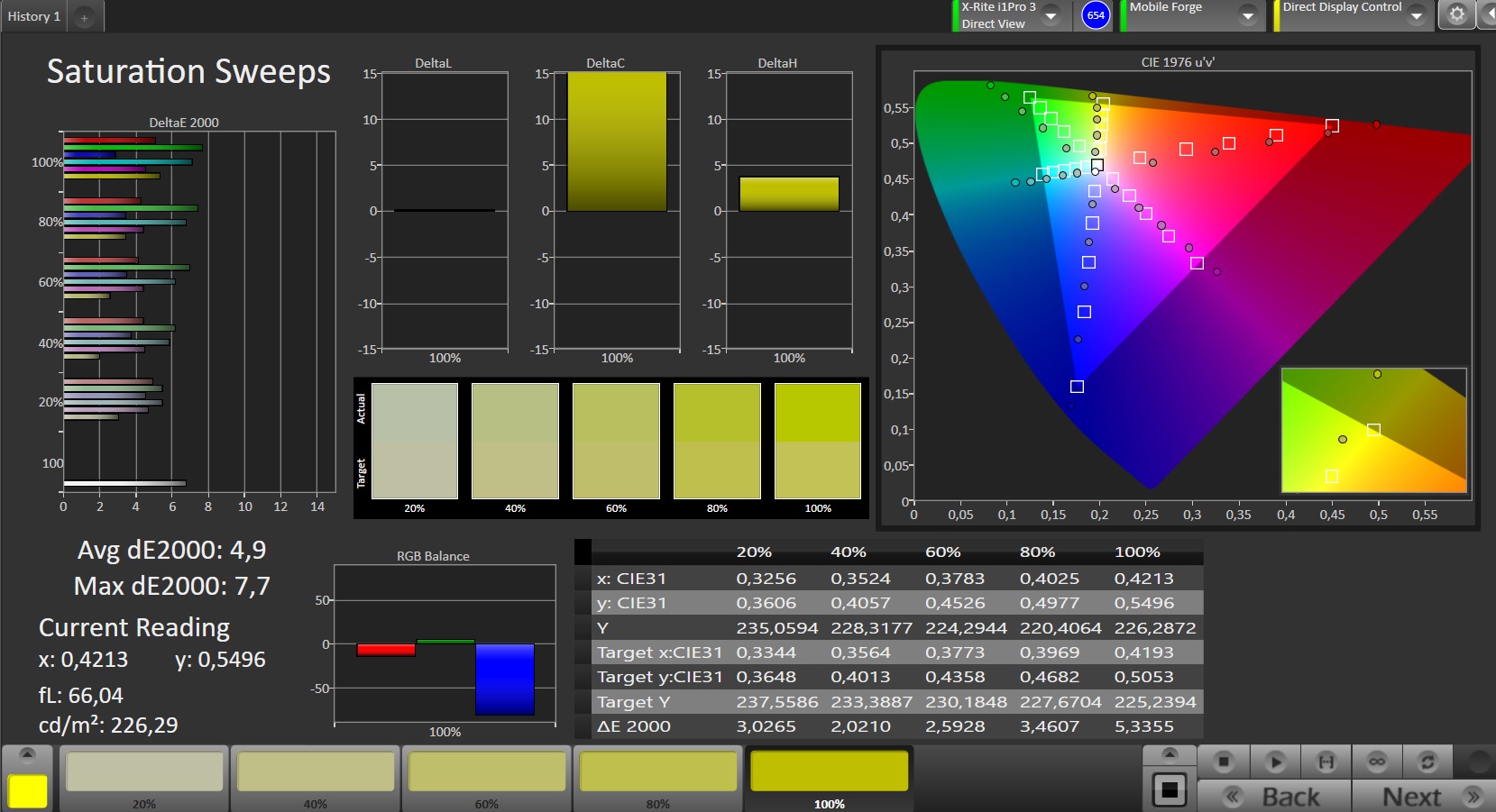

色彩饱和度(目标色彩空间:sRGB,配置文件:饱和)。
色彩饱和度(目标色彩空间:sRGB,配置文件:饱和)。

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

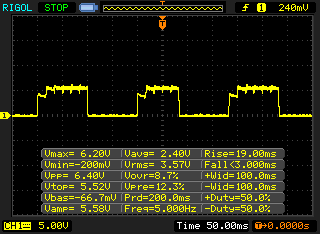

       Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 3 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21.5 ms).
       Response Time 50% Grey to 80% Grey
8 ms ... rise ↗ and fall ↘ combined↗ 3 ms rise
↘ 5 ms fall
The screen shows fast response rates in our tests and should be suited for gaming.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 15 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (33.7 ms).

这款摩托罗拉手机在户外留下了良好的印象。由于OLED面板的强烈对比,Edge 20 Pro即使在阳光直射下仍然清晰可辨,但在有反射的情况下,其显示亮度并不总是令人满意。

由于采用了OLED技术,可视角度的稳定性非常好。在平视角度下几乎没有任何图像偏移,但亮度有所下降。

摩托罗拉Edge 20 Pro评测
摩托罗拉Edge 20 Pro评测

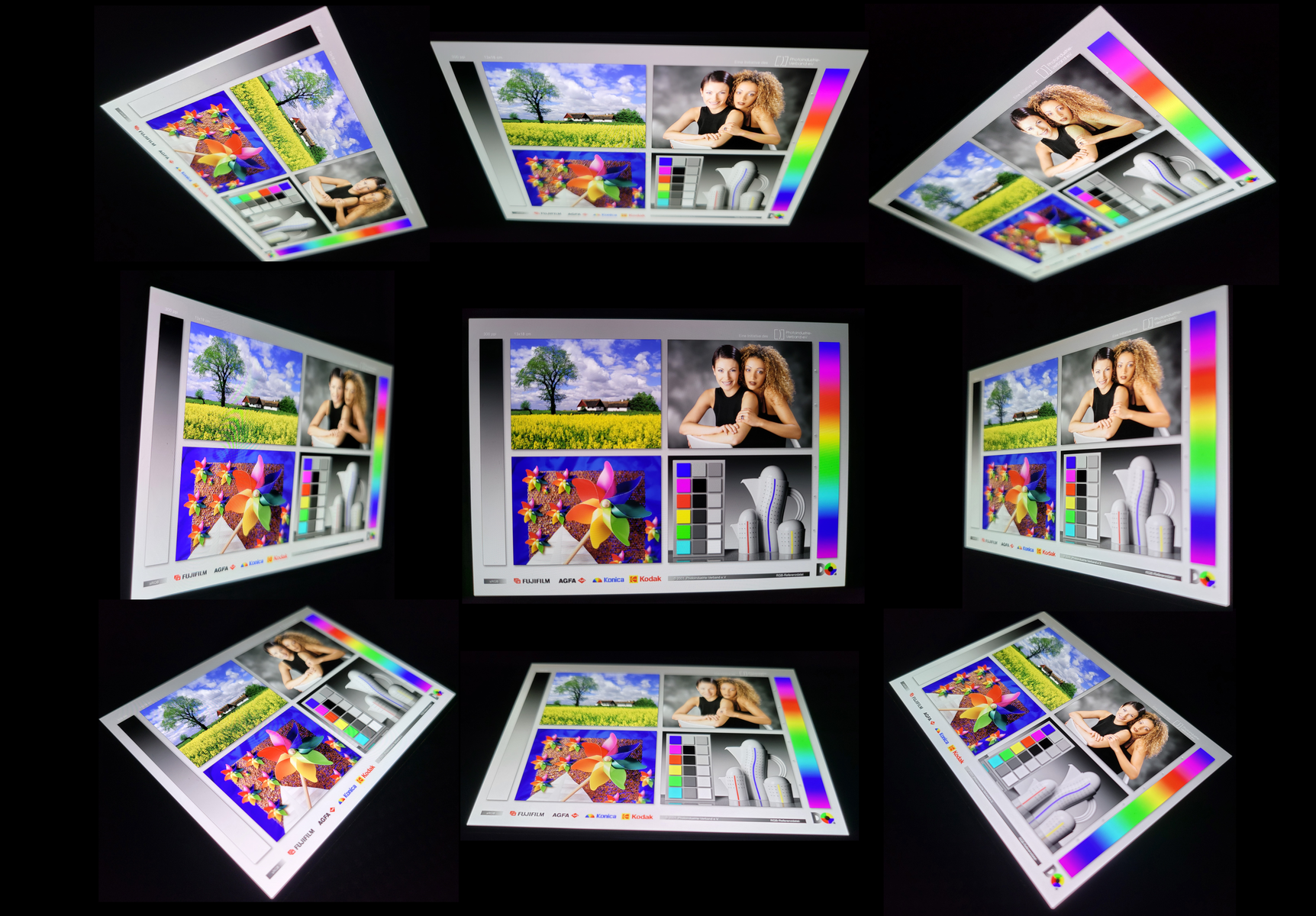

摩托罗拉Edge 20 Pro的可视角度
摩托罗拉Edge 20 Pro的可视角度

性能 - 配备骁龙系统芯片的Moto Edge 20 Pro

通过Snapdragon 870 ,摩托罗拉安装了一个强大的7纳米SoC,集成了一个运行速度高达3.2 GHz的快速 "Prime Core "和三个基于Cortex-A77架构的额外性能核心,时钟频率高达2.42 GHz。为了节省电力,还集成了四个额外的ARM Cortex-A55内核(1.8 GHz)。一个强大的Adreno 650图形单元,也被内置在高通SoC中。

在日常使用中,去年的高端处理器架构与内置的12GB LPDDR5内存相结合,提供了非常好的系统性能。由于非常快的144赫兹显示屏和UFS 3.1存储,动画和应用程序的加载时间都很令人满意。

不出所料,Edge 20 Pro中的Snapdragon 870的CPU基准测试比Snapdragon 888 的要弱,后者通常出现在这个价格范围。然而,由于其较低的发热和没有SoC节流,特别是在GFXBench等较长的GPU测试中,摩托罗拉手机非常有竞争力。

Geekbench 5.5
Single-Core (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
974 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
1134 Points +16%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
1124 Points +15%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
1170 Points +20%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
1100 Points +13%
Average Qualcomm Snapdragon 870 5G
  (943 - 1046, n=16)
989 Points +2%
Average of class Smartphone
  (119 - 2138, n=217, last 2 years)
918 Points -6%
Multi-Core (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
2986 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
3687 Points +23%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
3653 Points +22%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
3644 Points +22%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
3364 Points +13%
Average Qualcomm Snapdragon 870 5G
  (2725 - 4455, n=16)
3245 Points +9%
Average of class Smartphone
  (473 - 6681, n=217, last 2 years)
3009 Points +1%
Vulkan Score (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
3159 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
4273 Points +35%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
3894 Points +23%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
3646 Points +15%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
6259 Points +98%
Average Qualcomm Snapdragon 870 5G
  (3159 - 4324, n=13)
3603 Points +14%
Average of class Smartphone
  (79 - 9992, n=86, last 2 years)
4246 Points +34%
OpenCL Score (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
3482 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
4403 Points +26%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
4566 Points +31%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
4158 Points +19%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
7514 Points +116%
Average Qualcomm Snapdragon 870 5G
  (3413 - 3724, n=15)
3593 Points +3%
Average of class Smartphone
  (434 - 10711, n=78, last 2 years)
4051 Points +16%
PCMark for Android - Work 3.0 (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
11986 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
15024 Points +25%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
13127 Points +10%
Average Qualcomm Snapdragon 870 5G
  (9827 - 16054, n=15)
12937 Points +8%
Average of class Smartphone
  (4761 - 21385, n=213, last 2 years)
11798 Points -2%
3DMark
Wild Life Score (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
4274 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
5692 Points +33%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
5786 Points +35%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
5895 Points +38%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
5668 Points +33%
Average Qualcomm Snapdragon 870 5G
  (4166 - 4374, n=16)
4264 Points 0%
Average of class Smartphone
  (395 - 9839, n=134, last 2 years)
2569 Points -40%

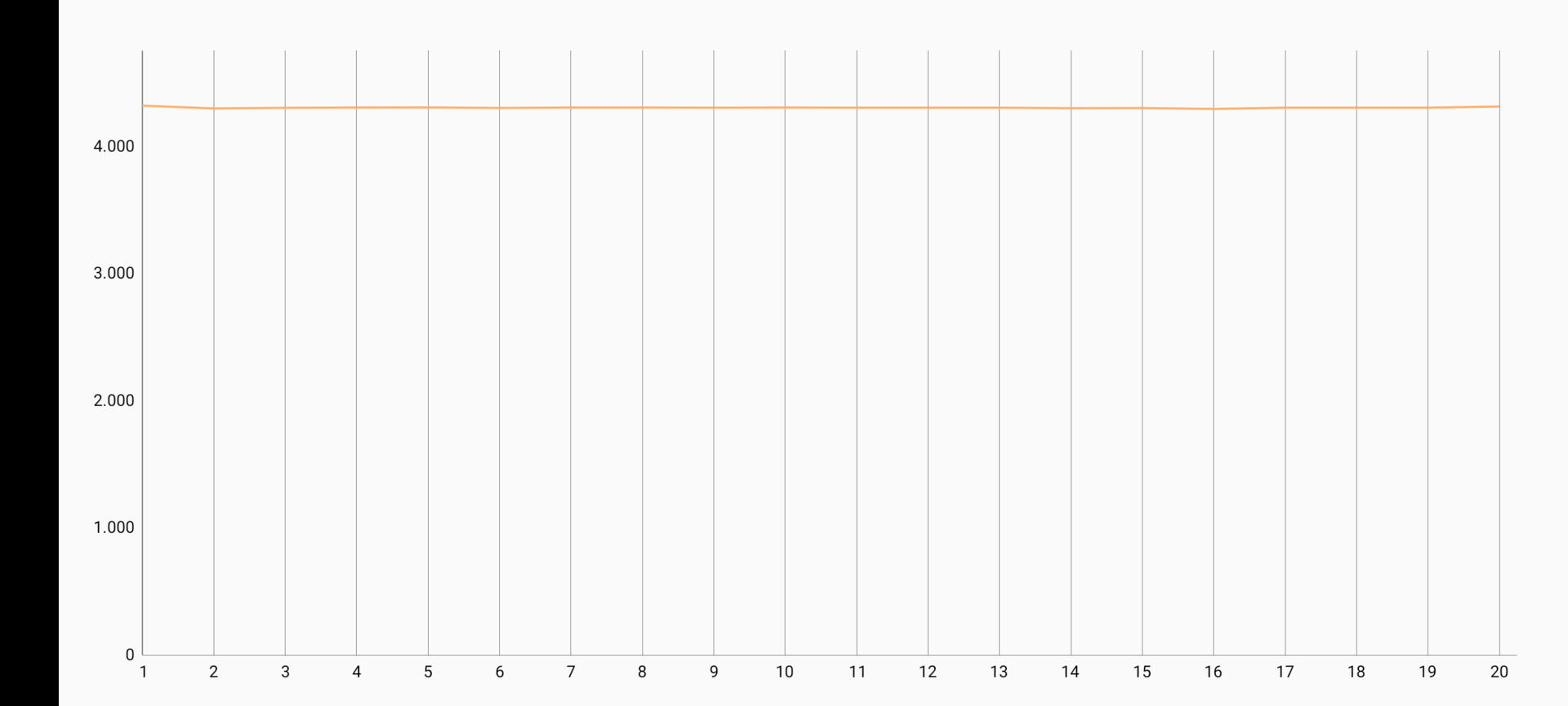

Wild Life Unlimited Score (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
4233 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
5712 Points +35%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
5751 Points +36%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
5875 Points +39%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
6010 Points +42%
Average Qualcomm Snapdragon 870 5G
  (4152 - 4352, n=16)
4247 Points 0%
Average of class Smartphone
  (394 - 20068, n=202, last 2 years)
6307 Points +49%
Wild Life Extreme (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
1243 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
1503 Points +21%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
1543 Points +24%
Average Qualcomm Snapdragon 870 5G
  (1203 - 1254, n=15)
1232 Points -1%
Average of class Smartphone
  (22 - 5226, n=206, last 2 years)
1697 Points +37%

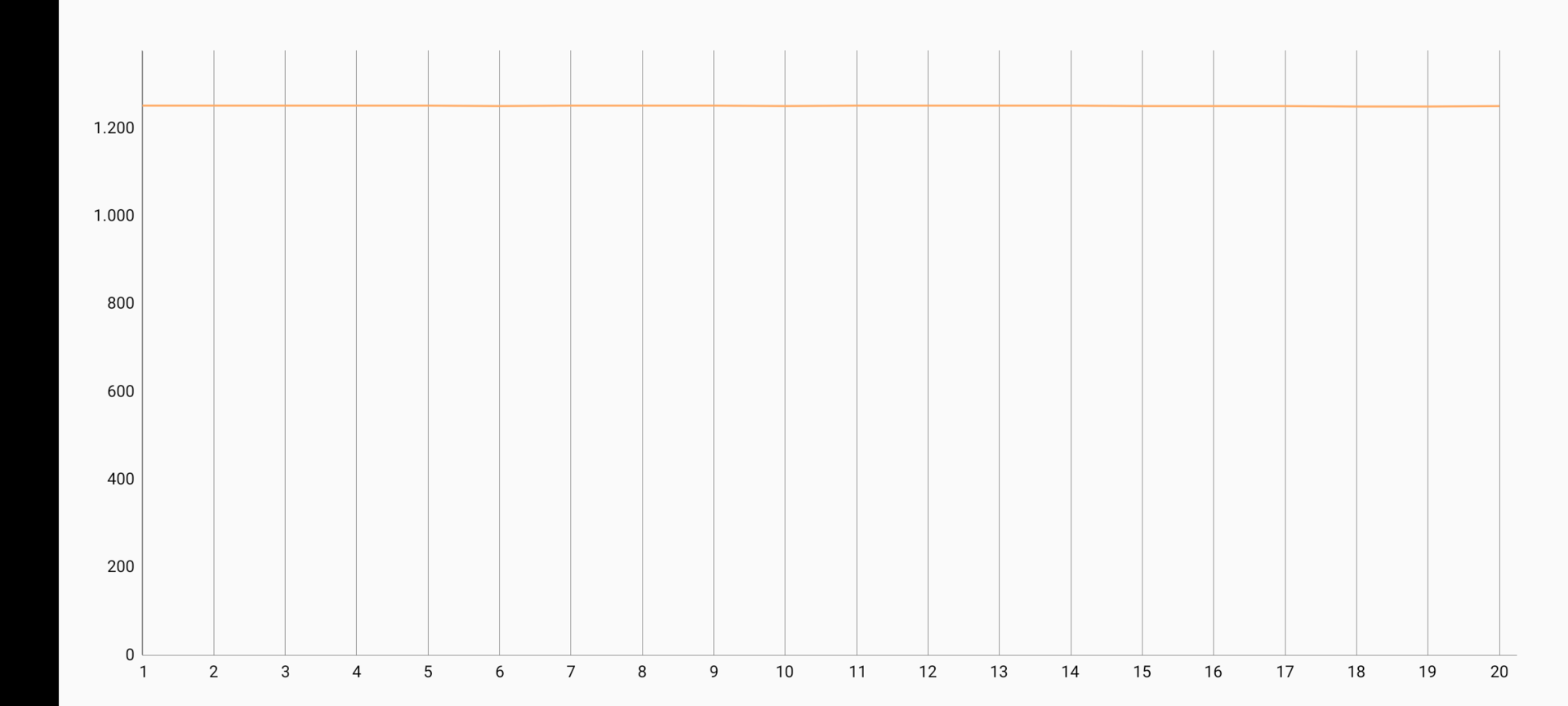

Wild Life Extreme Unlimited (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
1223 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
1427 Points +17%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
1509 Points +23%
Average Qualcomm Snapdragon 870 5G
  (1195 - 1246, n=15)
1226 Points 0%
Average of class Smartphone
  (110 - 5248, n=201, last 2 years)
1705 Points +39%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
142 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
121 fps -15%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
61 fps -57%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
91 fps -36%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
119 fps -16%
Average Qualcomm Snapdragon 870 5G
  (60 - 142, n=14)
100.8 fps -29%
Average of class Smartphone
  (22 - 165, n=183, last 2 years)
84.6 fps -40%
1920x1080 T-Rex Offscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
223 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
266 fps +19%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
275 fps +23%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
194 fps -13%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
242 fps +9%
Average Qualcomm Snapdragon 870 5G
  (171 - 233, n=14)
215 fps -4%
Average of class Smartphone
  (19 - 791, n=183, last 2 years)
247 fps +11%
GFXBench 3.0
on screen Manhattan Onscreen OGL (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
116 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
120 fps +3%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
60 fps -48%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
89 fps -23%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
119 fps +3%
Average Qualcomm Snapdragon 870 5G
  (59 - 116, n=14)
83.8 fps -28%
Average of class Smartphone
  (6.8 - 165, n=185, last 2 years)
72.2 fps -38%
1920x1080 1080p Manhattan Offscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
132 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
151 fps +14%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
101 fps -23%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
129 fps -2%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
161 fps +22%
Average Qualcomm Snapdragon 870 5G
  (96 - 142, n=14)
127.1 fps -4%
Average of class Smartphone
  (9.2 - 363, n=185, last 2 years)
140.6 fps +7%
GFXBench 3.1
on screen Manhattan ES 3.1 Onscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
80 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
96 fps +20%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
57 fps -29%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
75 fps -6%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
103 fps +29%
Average Qualcomm Snapdragon 870 5G
  (33 - 95, n=14)
65.2 fps -18%
Average of class Smartphone
  (3.7 - 158, n=185, last 2 years)
60.9 fps -24%
1920x1080 Manhattan ES 3.1 Offscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
91 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
110 fps +21%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
96 fps +5%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
88 fps -3%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
107 fps +18%
Average Qualcomm Snapdragon 870 5G
  (72 - 99, n=14)
88.9 fps -2%
Average of class Smartphone
  (6.2 - 279, n=185, last 2 years)
99 fps +9%
GFXBench
on screen Car Chase Onscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
50 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
60 fps +20%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
48 fps -4%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
42 fps -16%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
56 fps +12%
Average Qualcomm Snapdragon 870 5G
  (21 - 51, n=14)
41.5 fps -17%
Average of class Smartphone
  (5 - 117, n=185, last 2 years)
43.4 fps -13%
1920x1080 Car Chase Offscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
58 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
64 fps +10%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
42 fps -28%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
51 fps -12%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
62 fps +7%
Average Qualcomm Snapdragon 870 5G
  (43 - 59, n=14)
54.9 fps -5%
Average of class Smartphone
  (2.9 - 166, n=185, last 2 years)
59.9 fps +3%
on screen Aztec Ruins Normal Tier Onscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
49 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
60 fps +22%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
58 fps +18%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
51 fps +4%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
64 fps +31%
Average Qualcomm Snapdragon 870 5G
  (22 - 54, n=16)
45.2 fps -8%
Average of class Smartphone
  (3.6 - 123, n=225, last 2 years)
44 fps -10%
1920x1080 Aztec Ruins Normal Tier Offscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
57 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
68 fps +19%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
57 fps 0%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
61 fps +7%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
64 fps +12%
Average Qualcomm Snapdragon 870 5G
  (50 - 62, n=16)
58.2 fps +2%
Average of class Smartphone
  (2.3 - 229, n=225, last 2 years)
64.5 fps +13%
on screen Aztec Ruins High Tier Onscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
31 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
42 fps +35%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
41 fps +32%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
31 fps 0%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
44 fps +42%
Average Qualcomm Snapdragon 870 5G
  (17 - 34, n=16)
28.8 fps -7%
Average of class Smartphone
  (2.8 - 118, n=225, last 2 years)
32.9 fps +6%
2560x1440 Aztec Ruins High Tier Offscreen (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
22 fps
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
27 fps +23%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
28 fps +27%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
22 fps 0%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
27 fps +23%
Average Qualcomm Snapdragon 870 5G
  (18 - 23, n=16)
21.8 fps -1%
Average of class Smartphone
  (0.85 - 94, n=225, last 2 years)
25.7 fps +17%
Antutu v9 - Total Score (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
692521 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
791672 Points +14%
Average Qualcomm Snapdragon 870 5G
  (581322 - 716502, n=13)
682849 Points -1%
Average of class Smartphone
  (102602 - 1650926, n=153, last 2 years)
738503 Points +7%
BaseMark OS II
Overall (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
6031 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
6852 Points +14%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
6537 Points +8%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
7123 Points +18%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
6144 Points +2%
Average Qualcomm Snapdragon 870 5G
  (5289 - 6369, n=13)
5926 Points -2%
Average of class Smartphone
  (411 - 11438, n=165, last 2 years)
5745 Points -5%
System (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
8976 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
10610 Points +18%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
11627 Points +30%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
11096 Points +24%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
10492 Points +17%
Average Qualcomm Snapdragon 870 5G
  (8463 - 10489, n=13)
9469 Points +5%
Average of class Smartphone
  (2376 - 16475, n=165, last 2 years)
9678 Points +8%
Memory (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
7457 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
7677 Points +3%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
7526 Points +1%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
7941 Points +6%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
6246 Points -16%
Average Qualcomm Snapdragon 870 5G
  (5689 - 8167, n=13)
7166 Points -4%
Average of class Smartphone
  (670 - 12716, n=165, last 2 years)
6250 Points -16%
Graphics (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
12245 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
14427 Points +18%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
12938 Points +6%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
15524 Points +27%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
14636 Points +20%
Average Qualcomm Snapdragon 870 5G
  (10386 - 12801, n=13)
12016 Points -2%
Average of class Smartphone
  (697 - 58651, n=165, last 2 years)
14101 Points +15%
Web (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
1654 Points
Xiaomi Mi 11i
Qualcomm Snapdragon 888 5G, Adreno 660, 8192
1876 Points +13%
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
1627 Points -2%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
1882 Points +14%
Samsung Galaxy S21+
Samsung Exynos 2100 5G, Mali-G78 MP14, 8192
1486 Points -10%
Average Qualcomm Snapdragon 870 5G
  (1315 - 1791, n=13)
1517 Points -8%
Average of class Smartphone
  (10 - 2145, n=165, last 2 years)
1494 Points -10%
UL Procyon AI Inference for Android - Overall Score NNAPI (sort by value)
Motorola Edge 20 Pro
Qualcomm Snapdragon 870 5G, Adreno 650, 12288
17835 Points
OnePlus 9
Qualcomm Snapdragon 888 5G, Adreno 660, 12288
9372 Points -47%
Nubia RedMagic 6S Pro
Qualcomm Snapdragon 888 Plus 5G, Adreno 660, 12288
27949 Points +57%
Average Qualcomm Snapdragon 870 5G
  (12855 - 18000, n=8)
16424 Points -8%
Average of class Smartphone
  (207 - 84787, n=150, last 2 years)
21814 Points +22%
Jetstream 2 - Total Score
Xiaomi Mi 11i (Chrome 92.0.4515.115)
115.7 Points +23%
Average of class Smartphone (13.8 - 351, n=173, last 2 years)
106.1 Points +13%
Motorola Edge 20 Pro (Chrome 94)
93.7 Points
Nubia RedMagic 6S Pro (Chrome 92)
92 Points -2%
Average Qualcomm Snapdragon 870 5G (60.7 - 108.3, n=12)
87.7 Points -6%
Samsung Galaxy S21+ (Chrome 88.0.4324.152)
66.3 Points -29%
OnePlus 9 (MS Edge)
61.3 Points -35%
JetStream 1.1 - Total Score
Xiaomi Mi 11i (Chrome 92.0.4515.115)
209.1 Points +23%
Motorola Edge 20 Pro (Chrome 94)
170.6 Points
Nubia RedMagic 6S Pro (Chrome 92)
152.8 Points -10%
Average Qualcomm Snapdragon 870 5G (105.1 - 184.5, n=9)
147.7 Points -13%
OnePlus 9 (MS Edge)
119.2 Points -30%
Samsung Galaxy S21+ (Chrome 88.0.4324.152)
117.8 Points -31%
Average of class Smartphone (last 2 years)
104.3 Points -39%
Speedometer 2.0 - Result
Xiaomi Mi 11i (Chrome 92.0.4515.115)
113.1 runs/min +57%
Average of class Smartphone (14.9 - 445, n=157, last 2 years)
107.1 runs/min +49%
Samsung Galaxy S21+ (Chrome 88.0.4324.152)
85.8 runs/min +19%
Nubia RedMagic 6S Pro (Chrome 92)
80.6 runs/min +12%
Motorola Edge 20 Pro (Chrome 94)
71.9 runs/min
Average Qualcomm Snapdragon 870 5G (51.4 - 77, n=12)
67.2 runs/min -7%
OnePlus 9 (MS Edge)
54.7 runs/min -24%
WebXPRT 3 - Overall
Xiaomi Mi 11i (Chrome 92.0.4515.115)
166 Points +31%
Average of class Smartphone (39 - 304, n=122, last 2 years)
133.1 Points +5%
Average Qualcomm Snapdragon 870 5G (94 - 155, n=13)
127.5 Points 0%
Motorola Edge 20 Pro (Chrome 94)
127 Points
Nubia RedMagic 6S Pro (Chrome 92)
120 Points -6%
OnePlus 9 (MS Edge)
119 Points -6%
Samsung Galaxy S21+ (Chrome 88.0.4324.152)
102 Points -20%
Octane V2 - Total Score
Xiaomi Mi 11i (Chrome 92.0.4515.115)
45398 Points +14%
Motorola Edge 20 Pro (Chrome 94)
39985 Points
Nubia RedMagic 6S Pro (Chrome 92)
37762 Points -6%
Average of class Smartphone (4633 - 89112, n=211, last 2 years)
33640 Points -16%
Average Qualcomm Snapdragon 870 5G (20543 - 41256, n=13)
33246 Points -17%
Samsung Galaxy S21+ (Chrome 88.0.4324.152)
28247 Points -29%
OnePlus 9 (Chrome89)
23843 Points -40%
Mozilla Kraken 1.1 - Total
Samsung Galaxy S21+ (Chrome 88.0.4324.152)
1744 ms * -48%
OnePlus 9 (Chrome89)
1692 ms * -44%
Average of class Smartphone (388 - 9999, n=173, last 2 years)
1595 ms * -36%
Nubia RedMagic 6S Pro (Chrome 92)
1443 ms * -23%
Average Qualcomm Snapdragon 870 5G (1055 - 1792, n=13)
1401 ms * -19%
Motorola Edge 20 Pro (Chrome 94)
1176 ms *
Xiaomi Mi 11i (Chrome 92.0.4515.115)
924 ms * +21%

* ... smaller is better

Motorola Edge 20 ProXiaomi Mi 11iOnePlus 9Nubia RedMagic 6S ProSamsung Galaxy S21+Average 256 GB UFS 3.1 FlashAverage of class Smartphone
AndroBench 3-5
-10%
7%
15%
31%
37%
24%
Sequential Read 256KB
1699
1628
-4%
1872
10%
1607
-5%
1623
-4%
Sequential Write 256KB
723
552
-24%
739
2%
765
6%
1037
43%
Random Read 4KB
245.7
181
-26%
225.4
-8%
285.8
16%
309.6
26%
Random Write 4KB
179.6
205.9
15%
221.4
23%
254.9
42%
283.3
58%

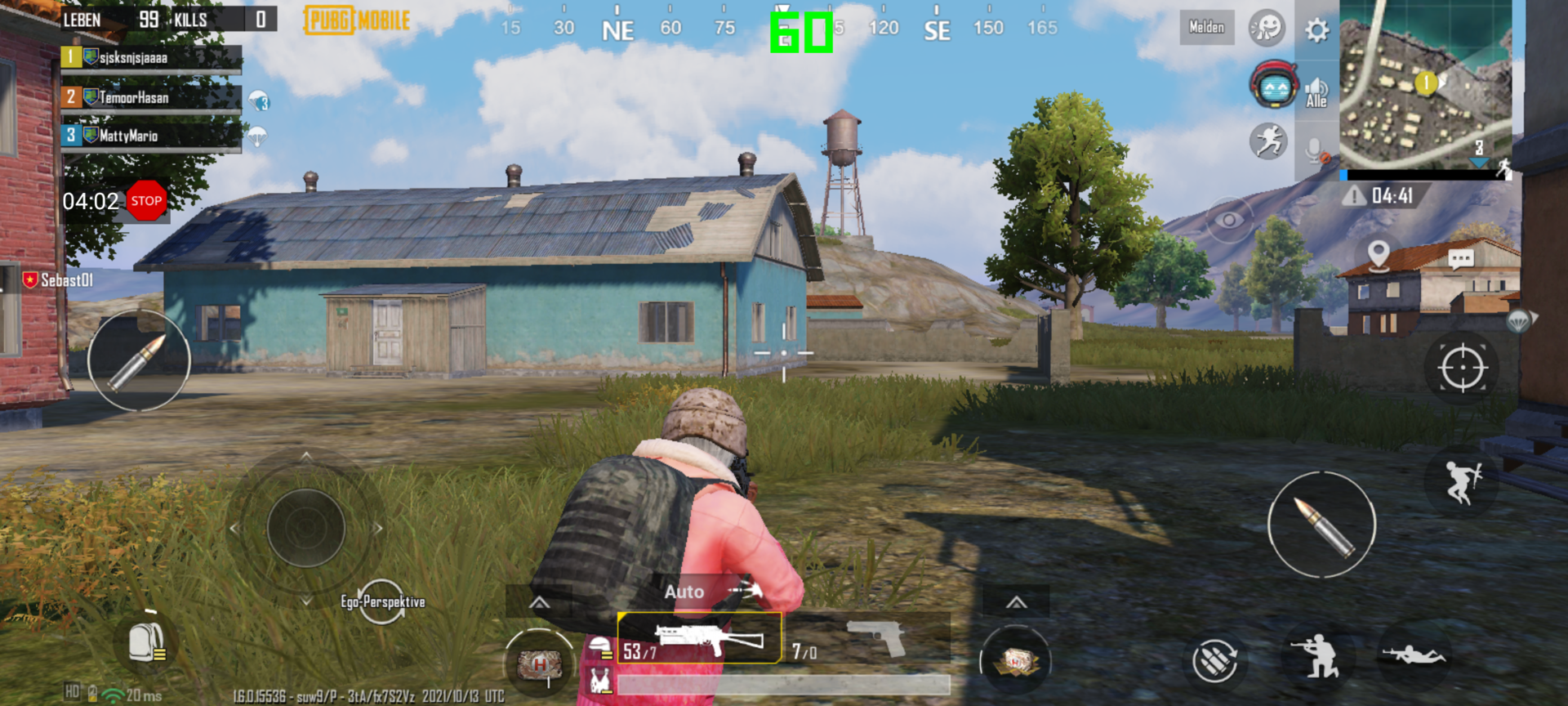

游戏--Moto智能手机只有60帧的画面

其技术规格使摩托罗拉旗舰机成为游戏的理想选择。快速的SoC,采样率为576赫兹的144赫兹大型OLED显示屏,以及良好的散热。尽管如此,我们对游戏性能并不完全满意,我们用GameBench

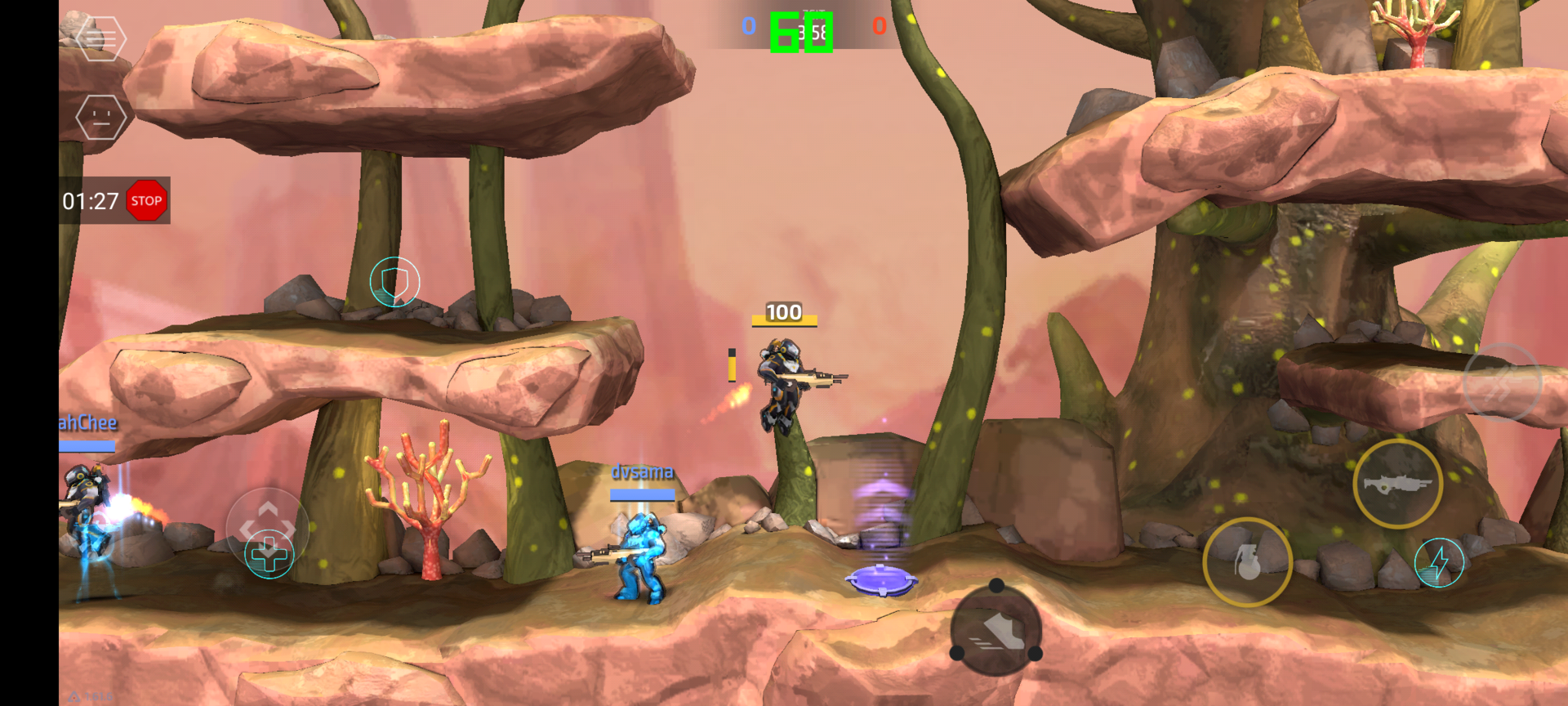

虽然Armajet竞技场射击游戏的渲染效果很稳定,但Edge 20 Pro却停在了60帧,尽管游戏支持144帧。我们希望在这里能看到至少120帧。在《PUBG Mobile》中,在高清设置下也可以实现恒定的60帧,即使在最高的细节水平(UHD)下,在摩托罗拉手机上也没有出现卡顿现象。

051015202530354045505560Tooltip
Motorola Edge 20 Pro; Armajet: Ø58.3 (28-61)
Motorola Edge 20 Pro; PUBG Mobile; Smooth: Ø59.8 (58-61)
Motorola Edge 20 Pro; PUBG Mobile; Balanced: Ø59.8 (58-61)
Motorola Edge 20 Pro; PUBG Mobile; HD: Ø59.6 (54-61)
Motorola Edge 20 Pro; PUBG Mobile; Ultra HD: Ø39.9 (37-41)

排放--Moto手机有适度的热量发展

温度

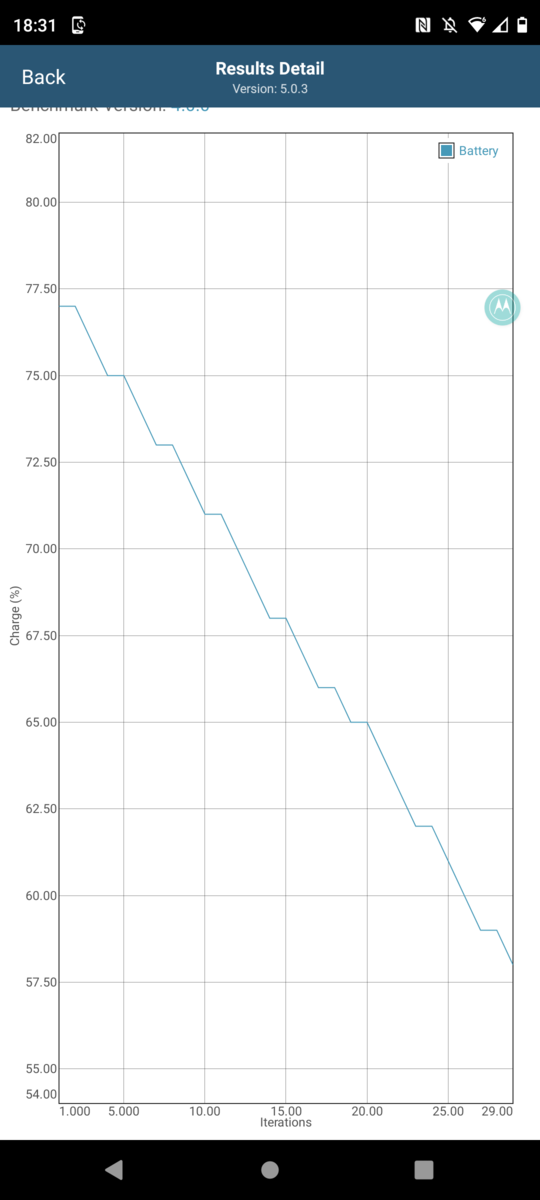

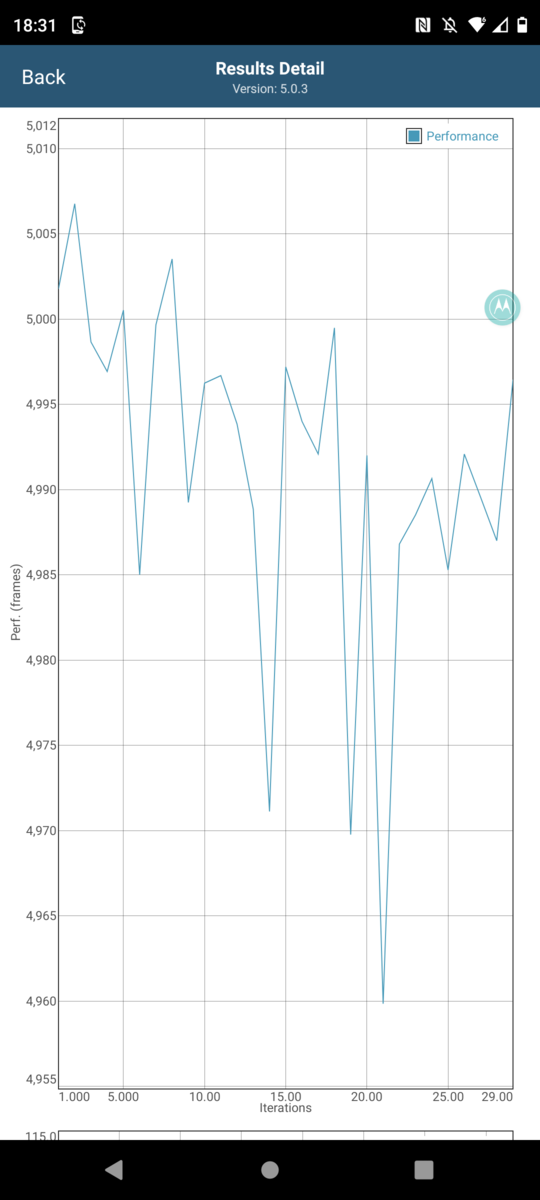

GFXBench电池测试(OpenGL ES 3.1)。
GFXBench电池测试(OpenGL ES 3.1)。

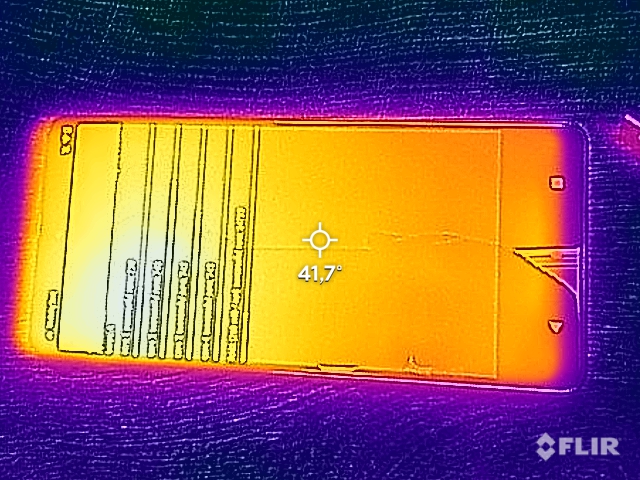

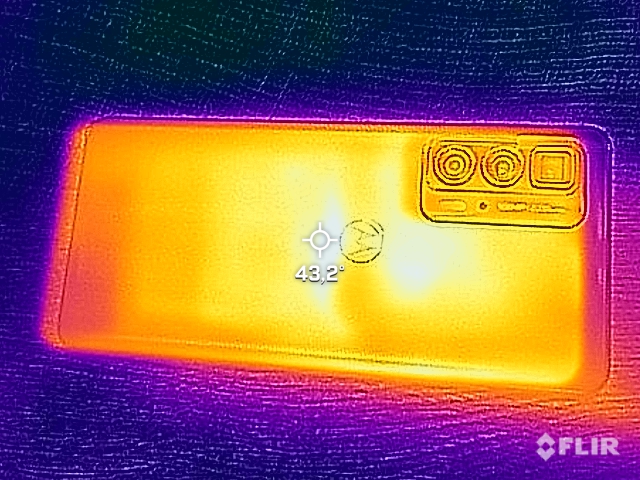

即使在负载下,Edge 20 Pro的表面也只达到无害的温度,最高为40 °C(约104 °F)。我们无法检测到任何因温度过低而导致的性能节流。GFXBench电池测试(OpenGL ES 3.1),以及较新的3DMark压力测试(Vulkan 1.0),都没有显示任何性能损失。

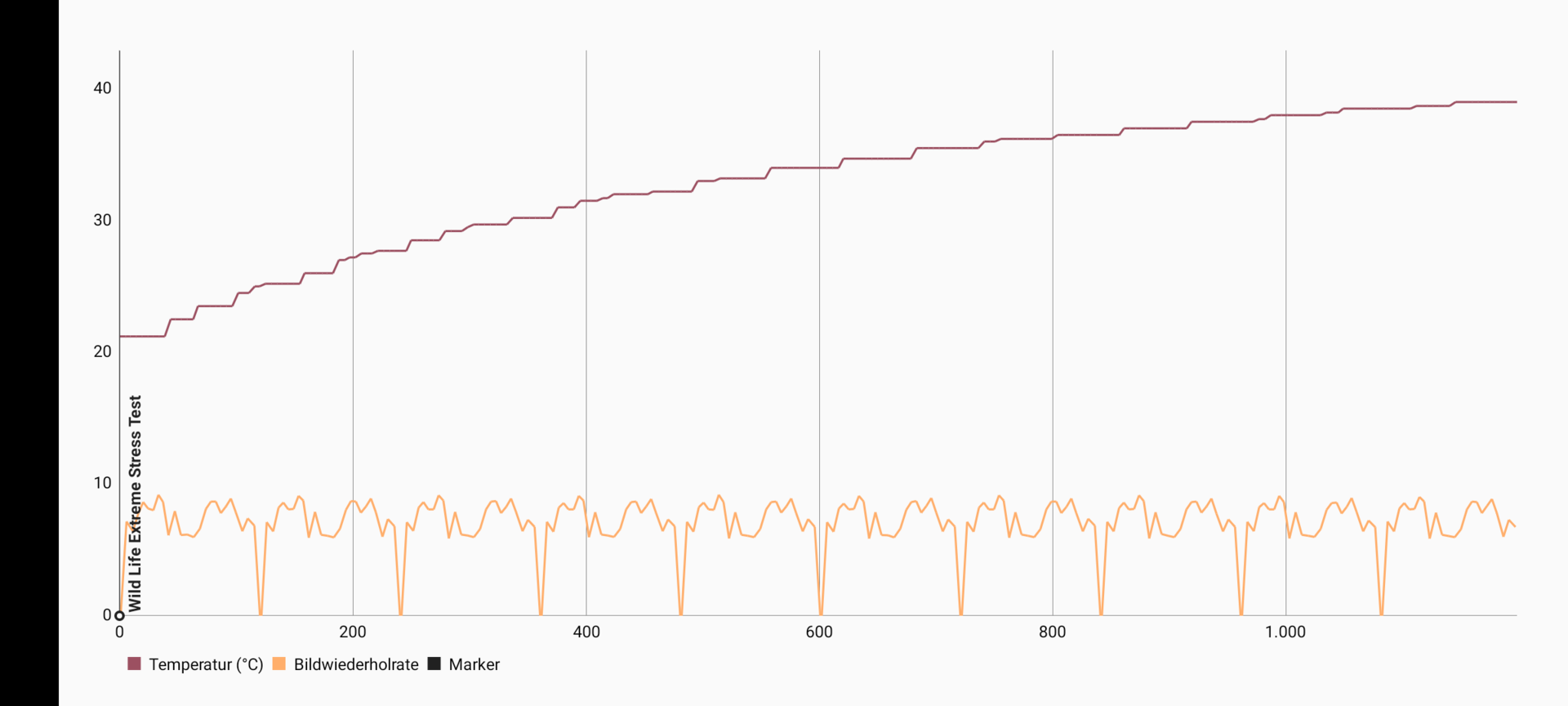

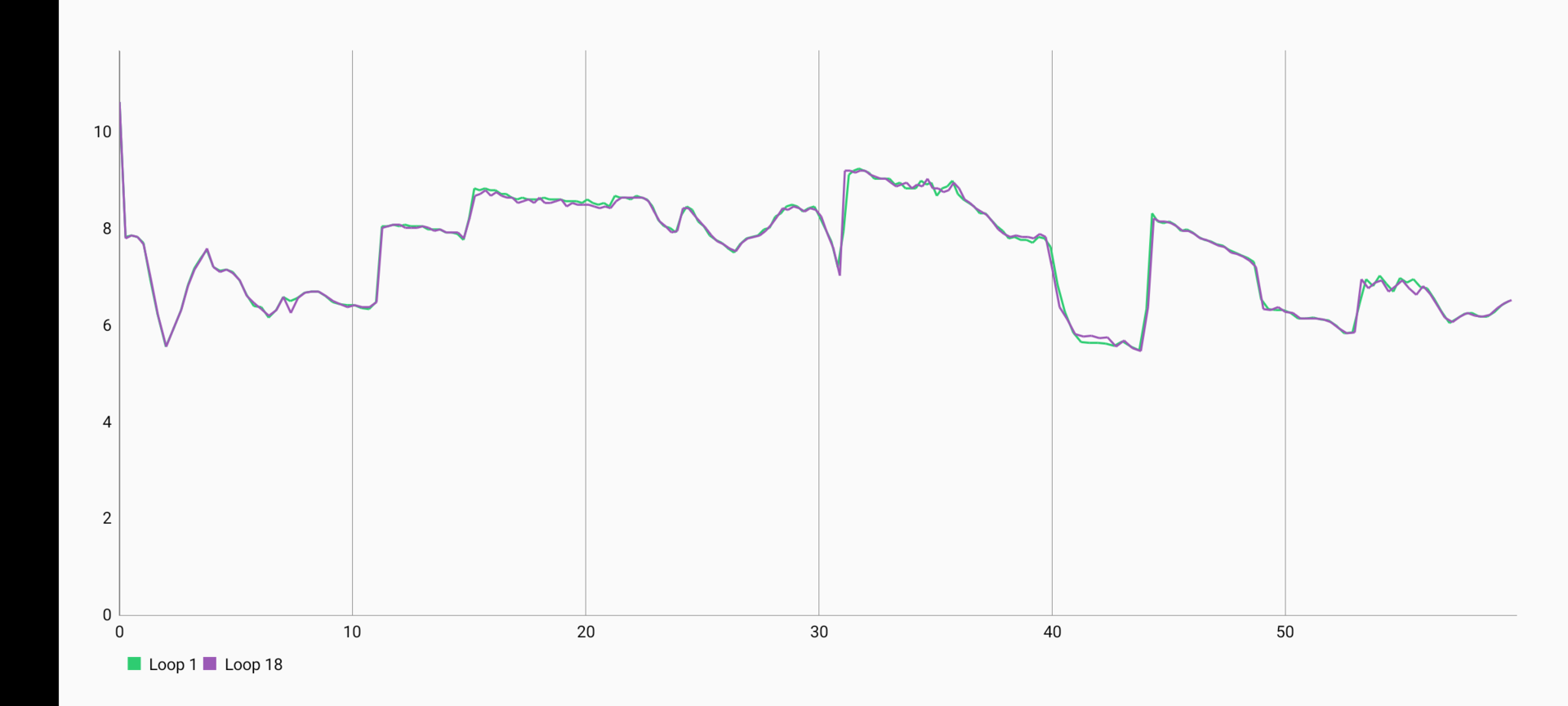

野生动物极端压力测试
野生动物极端压力测试
野生动物极端压力测试

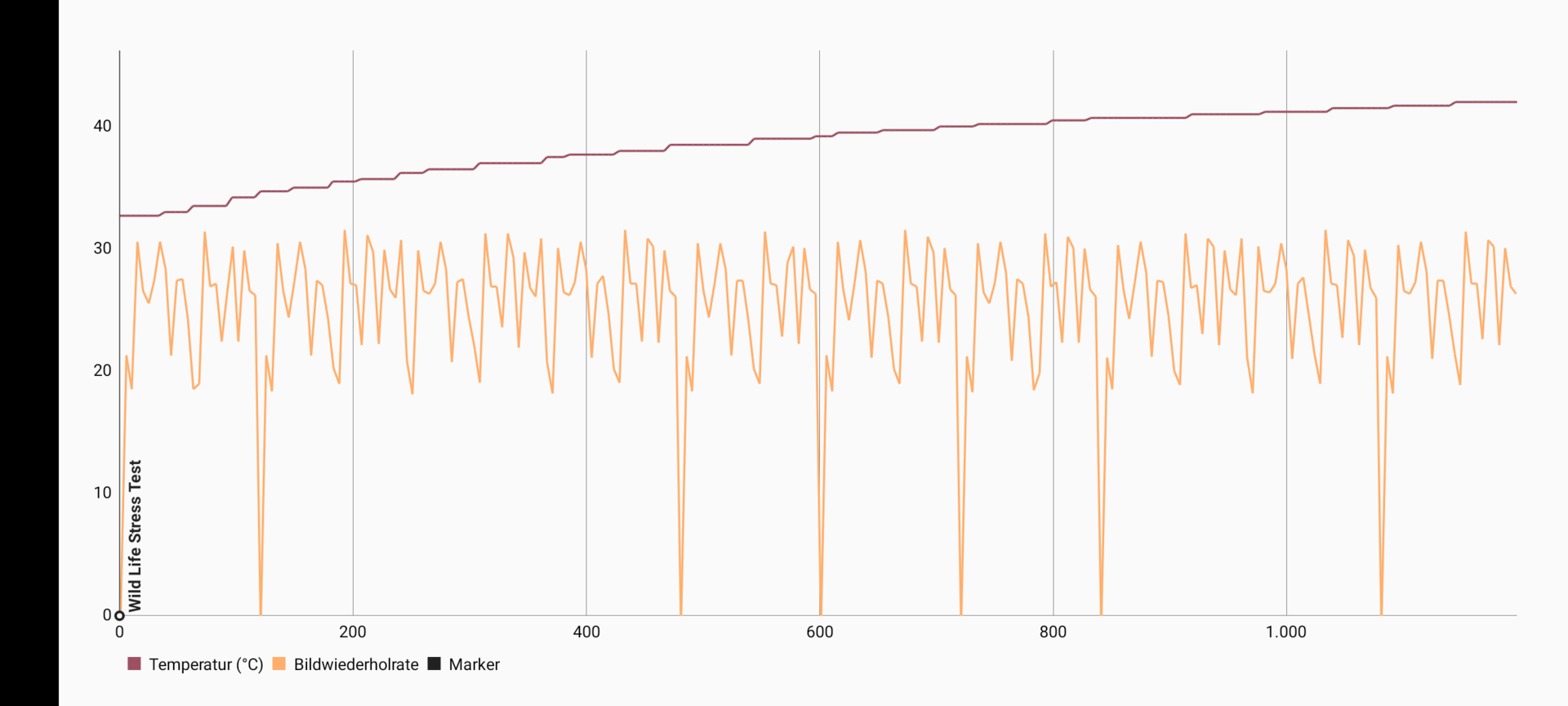

野生动物压力测试的稳定性
野生动物压力测试的稳定性
野生动物压力测试的稳定性
Max. Load
 38.9 °C38.4 °C36.1 °C
 40 °C38.6 °C36.5 °C
 40.4 °C38.8 °C36.3 °C
Maximum: 40.4 °C
Average: 38.2 °C
35.5 °C38.8 °C36.8 °C
36.3 °C39.7 °C38.1 °C
35.5 °C39.7 °C38.8 °C
Maximum: 39.7 °C
Average: 37.7 °C
Power Supply (max.)  39.6 °C | Room Temperature 21.4 °C | Fluke t3000FC (calibrated), Voltcraft IR-260
(-) The average temperature for the upper side under maximal load is 38.2 °C / 101 F, compared to the average of 32.7 °C / 91 F for the devices in the class Smartphone.
(±) The maximum temperature on the upper side is 40.4 °C / 105 F, compared to the average of 35 °C / 95 F, ranging from 21.9 to 56 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 39.7 °C / 103 F, compared to the average of 33.8 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 32.7 °C / 91 F.

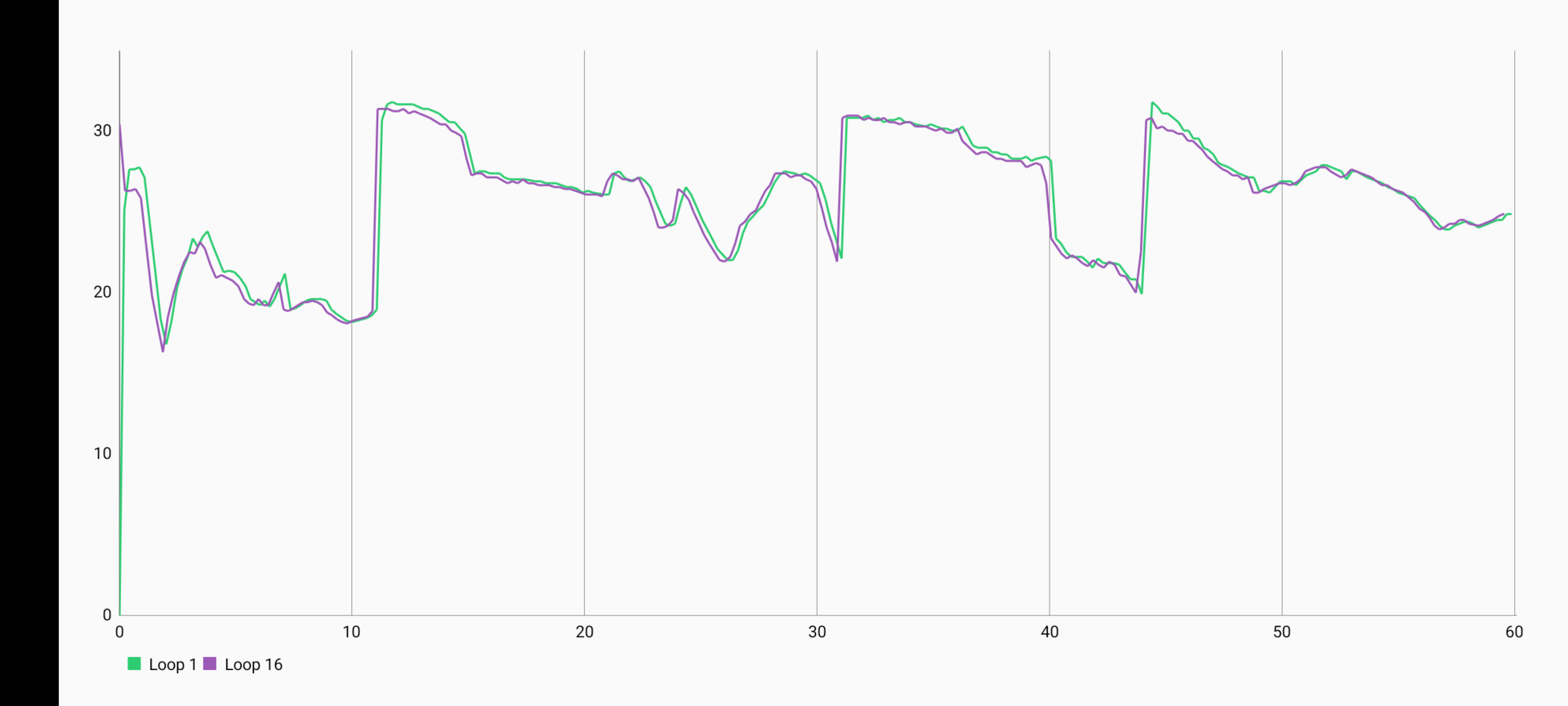

3DMark Wild Life Stress Test

3DMark
Wild Life Stress Test Stability
Motorola Edge 20 Pro
Adreno 650, SD 870, 256 GB UFS 3.1 Flash
99.4 (25.7min) %
Nubia RedMagic 6S Pro
Adreno 660, SD 888+ 5G, 128 GB UFS 3.1 Flash
86.8 (30.3min) % -13%
Samsung Galaxy S21+
Mali-G78 MP14, Exynos 2100 5G, 128 GB UFS 3.1 Flash
65.8 (3805min) % -34%
OnePlus 9
Adreno 660, SD 888 5G, 256 GB UFS 3.1 Flash
56.2 (3203min) % -43%
Wild Life Extreme Stress Test
Motorola Edge 20 Pro
Adreno 650, SD 870, 256 GB UFS 3.1 Flash
99.8 (7.49min) %
Nubia RedMagic 6S Pro
Adreno 660, SD 888+ 5G, 128 GB UFS 3.1 Flash
88.4 (8.24min) % -11%
051015202530Tooltip
Motorola Edge 20 Pro Adreno 650, SD 870, 256 GB UFS 3.1 Flash; Wild Life Extreme Stress Test; 1.0.5.1: Ø7.5 (7.49-7.5)
Nubia RedMagic 6S Pro Adreno 660, SD 888+ 5G, 128 GB UFS 3.1 Flash; Wild Life Extreme Stress Test: Ø8.74 (8.24-9.31)
Motorola Edge 20 Pro Adreno 650, SD 870, 256 GB UFS 3.1 Flash; Wild Life Stress Test Stability; 0.0.0.0: Ø25.8 (25.7-25.9)
Nubia RedMagic 6S Pro Adreno 660, SD 888+ 5G, 128 GB UFS 3.1 Flash; Wild Life Stress Test Stability: Ø32.2 (30.3-34.9)
Edge 20 Pro
Edge 20 Pro

演讲者

虽然Edge 20 Pro是一款高端设备,但它只配备了一个单声道扬声器。我们测得的最大音量为82分贝,足以满足日常使用,但不是特别大。底部的扬声器对中音和高音有一个线性频率响应。低音在声音模式中不存在。

有线耳机可以通过USB-C端口连接到智能手机。另外,这也可以通过蓝牙5.1进行无线连接。除了SBC、AAC和LDAC音频编解码器,还有aptX、aptX HD和aptX Adaptive。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.5362533.138.43127.4294031.331.65030.3306329.625.88024.121.510020.718.712517.629.516014.843.520012.348.925012.850.331510.455.1400958.450011.361.963014.465.180017.171.310001474.1125010.472.616009.471.4200010.663.4250011.466.2315013.668.4400013.766.7500015.371.1630015.473.4800016.675.81000017.669.11250017.368.91600017.661.1SPL26.382.8N0.755.1median 14median 66.2Delta3.19.14346.236.838.436.82830.630.23435.52931.725.523.129.322.423.927.114.237.411.344.511.752.29.755.49.357.511.860.413.760.717.364.716.271.411.172.410.373.210.470.611.672.812.674.713.973.515.265.115.663.716.369.716.571.116.460.717.15368.865.971.426.48322.219.226.50.853.5median 14.2median 63.7median 49median 13.6median 68.35.212.622.512.814.8hearing rangehide median Pink NoiseMotorola Edge 20 ProOnePlus 9
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Motorola Edge 20 Pro audio analysis

(+) | speakers can play relatively loud (82.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.2% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.5% difference to median)
Compared to same class
» 22% of all tested devices in this class were better, 8% similar, 70% worse
» The best had a delta of 12%, average was 38%, worst was 134%
Compared to all devices tested
» 43% of all tested devices were better, 7% similar, 50% worse
» The best had a delta of 4%, average was 25%, worst was 134%

OnePlus 9 audio analysis

(+) | speakers can play relatively loud (83 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 68.3% lower than median
(+) | bass is linear (0% delta to prev. frequency)
Mids 400 - 2000 Hz
(-) | nearly no mids - on average 68.3% lower than median
(+) | mids are linear (0% delta to prev. frequency)
Highs 2 - 16 kHz
(-) | nearly no highs - on average 68.3% lower than median
(+) | highs are linear (0% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (117.1% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 7% similar, 7% worse
» The best had a delta of 12%, average was 38%, worst was 134%
Compared to all devices tested
» 95% of all tested devices were better, 2% similar, 2% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电池寿命--Edge 20 Pro的低耗电量

能源消耗

Edge 20 Pro表现出的功耗始终低于骁龙888的竞争对手,尤其是在负载情况下。这在GFXBench的测量中可以非常清楚地看到,在调整了显示亮度(150cd/m²)的情况下。

电池容量为4500毫安时,支持高达30瓦的快速有线充电。不支持无线充电。使用30瓦的充电器,Edge 20 Pro可以在大约75分钟内完全充电。

Power Consumption
Off / Standbydarklight 0 / 0.1 Watt
Idledarkmidlight 0.7 / 0.9 / 1.2 Watt
Load midlight 4.6 / 5.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Motorola Edge 20 Pro
4500 mAh
Xiaomi Mi 11i
4520 mAh
OnePlus 9
4500 mAh
Nubia RedMagic 6S Pro
5050 mAh
Samsung Galaxy S21+
4800 mAh
Average Qualcomm Snapdragon 870 5G

Average of class Smartphone

Power Consumption
-46%
-72%
-39%
-34%
-89%
-39%
Idle Minimum *
0.7
0.98
-40%
0.9
-29%
1.05
-50%
0.74
-6%
1.23 ?(0.7 - 3, n=13)
-76%
Idle Average *
0.9
1.4
-56%
1.7
-89%
1.75
-94%
1.27
-41%
2.17 ?(0.9 - 4.91, n=13)
-141%
Idle Maximum *
1.2
1.46
-22%
2.7
-125%
1.78
-48%
1.33
-11%
2.49 ?(1.2 - 5.07, n=13)
-108%
Load Average *
4.6
6.21
-35%
5.4
-17%
3.31
28%
6.32
-37%
6.39 ?(3.78 - 11.8, n=13)
-39%
Load Maximum *
5.5
9.62
-75%
11.1
-102%
7.18
-31%
9.61
-75%
9.94 ?(5.5 - 15.9, n=13)
-81%

* ... smaller is better

Energy consumption: Geekbench (150 cd/m²)

0123456789Tooltip
Motorola Edge 20 Pro Qualcomm Snapdragon 870 5G: Ø4.07 (0.792-7.39)
Xiaomi Mi 11i Qualcomm Snapdragon 888 5G: Ø5.49 (1.196-9.84)

Energy consumption: GFXBench (150 cd/m²)

01234567Tooltip
Motorola Edge 20 Pro Qualcomm Snapdragon 870 5G; 1920x1080 Aztec Ruins Normal Offscreen: Ø5.55 (5.15-5.88)
Xiaomi Mi 11i Qualcomm Snapdragon 888 5G; 1920x1080 Aztec Ruins Normal Offscreen: Ø7.69 (6.13-7.93)
Motorola Edge 20 Pro Qualcomm Snapdragon 870 5G; Idle 150cd/m2: Ø0.875 (0.743-1.098)
Xiaomi Mi 11i Qualcomm Snapdragon 888 5G; Idle 150cd/m2: Ø1.065 (0.969-1.912)

电池寿命

这款摩托罗拉旗舰机的电池运行时间是在启用固定144赫兹刷新率的情况下确定的。在我们的实际Wi-Fi测试中,Edge 20 Pro实现了非常好的速率,连续播放视频13小时和21:30小时。唯一令人惊讶的是,考虑到低功耗,在满负荷情况下的续航能力相对较差。

Battery Runtime
Idle (without WLAN, min brightness)
28h 9min
WiFi Websurfing
12h 54min
Big Buck Bunny H.264 1080p
21h 29min
Load (maximum brightness)
3h 15min
Motorola Edge 20 Pro
4500 mAh
Xiaomi Mi 11i
4520 mAh
OnePlus 9
4500 mAh
Nubia RedMagic 6S Pro
5050 mAh
Samsung Galaxy S21+
4800 mAh
Battery Runtime
4%
-9%
7%
6%
Reader / Idle
1689
1658
-2%
1623
-4%
1780
5%
H.264
1289
1017
-21%
928
-28%
1174
-9%
WiFi v1.3
774
690
-11%
854
10%
829
7%
651
-16%
Load
195
290
49%
168
-14%
282
45%

Pros

+ 美丽的144赫兹OLED
+ Wi-Fi 6
+ 低功耗
+ USB 3.1/DisplayPort 1.4
+ 漂亮的潜望镜镜头

Cons

- 没有无线充电
- 只有单声道声音
- 没有OIS(主摄像头
- 塑料框架

对摩托罗拉Edge 20 Pro的评价

在审查中。摩托罗拉Edge 20 Pro。测试设备由摩托罗拉德国提供
在审查中。摩托罗拉Edge 20 Pro。测试设备由摩托罗拉德国提供

Edge 20 Pro是一款优雅且结构良好的高端智能手机,做了很多正确的事情,但它也有一些小缺点。例如,Edge 20系列的旗舰产品没有无线充电功能,108MP摄像头没有OIS,也没有防水的IP认证。单声道扬声器和选择骁龙870,也不太符合一部700欧元(约818美元)手机的整体情况。特别是由于骁龙888的竞争对手,如 小米11i在我们的亮度测量中取得了更好的成绩--我们希望Edge 20 Pro在户外使用时能有更大的空间。

凭借其旗舰产品,摩托罗拉找到了可用性能/功能和与相当低的定价相关的妥协的良好组合。

另一方面,摩托罗拉旗舰机也提供了很多积极的方面。包括Ready For功能在内的轻量级MyUX软件,刷新率为144赫兹的非常好的电池运行时间,以及吸引人的整体相机组合,都应该在这里提到。此外,Edge 20 Pro的性能水平在某些方面甚至优于 一加9努比亚RedMagic 6S Pro骁龙888由于其低热开发。

价格和可用性

在撰写本文时,摩托罗拉Edge 20 Pro还没有正式在美国上市。尽管如此,你已经可以在newegg上找到它,价格约为729美元

Motorola Edge 20 Pro - 08/30/2022 v7
Marcus Herbrich

Chassis
87%
Keyboard
69 / 75 → 92%
Pointing Device
96%
Connectivity
46 / 70 → 66%
Weight
89%
Battery
91%
Display
92%
Games Performance
62 / 64 → 96%
Application Performance
82 / 86 → 95%
Temperature
90%
Noise
100%
Audio
66 / 90 → 73%
Camera
72%
Average
80%
87%
Smartphone - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 摩托罗拉Edge 20 Pro评论。拥有144赫兹显示屏和12GB内存的经济型旗舰智能手机
Marcus Herbrich, 2021-10-30 (Update: 2021-10-30)
