王牌魔术师AM08 Pro游戏迷你电脑配备Radeon 680M和Ryzen 9 6900HX，在我们的广泛测试中!

Name: ACEMagician Ace Magician AM08 Pro
Brand: ACEMagician

视觉上有吸引力! Ace Magician AM08 Pro是为游戏玩家和所有在非常紧凑的情况下寻求最大性能的人提供的终极迷你PC。凭借其现代和强大的AMD Ryzen 9 6900HX处理器和AMD Radeon 680M，它提供了大量的游戏性能，同时仍然足够小，可以放入任何袋子。在这篇包含大量基准测试的广泛评论中，我们可以发现王牌魔术师AM08 Pro还能提供什么。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 06/03/2023 🇺🇸 🇩🇪 ...

AMD Ryzen (Zen) Radeon Mini PC Desktop Gaming

作为继任者的王牌魔术师AMR5中国制造商将Ace Magician AM08 Pro送上了 "小型游戏电脑 "类别的起点。它不仅在视觉上进行了重新设计，而且在技术上也进行了升级，并配备了AMD Ryzen 9 6900HX处理器，它现在已经达到了当前的技术水平。不过，没有替代设备。正如其侧面的标签所告诉你的，王牌魔术师AM08 Pro应该是作为一个紧凑的游戏PC，就像之前的王牌魔术师AMR5一样。最新的模型也放弃了专用的显卡，而依赖于iGPU的性能。根据我们之前的多次测试，我们已经可以说，AMD Radeon 680M的性能 AMD Radeon 680M的性能可以显著提高，与 AMD Radeon RX Vega 7.但这是否足以让我们进行游戏，我们将在后面的测试中找到答案。修改SoC性能的选项被证明是一个有用的功能。使用一个旋转旋钮，你可以在电源模式中选择 "静音"、"自动 "和 "性能"。我们将在相应的测试部分详细了解各个模式的效果。在价格方面，你必须预期MSRP为870美元（目前在美国的预售价为650美元）。).这包括32GB的DDR5-RAM和512GB的SSD存储。Ace Magician AM08 Pro的裸机版本也有，建议零售价约为700美元（~$560预售价在美国）。

其他非常紧凑的台式电脑在本评论中作为对比设备。下面的表格提供了一个概述。

Test device courtesy of Ace Magician

Download your licensed rating image as PNG / SVG

AM08 Pro, 6900HX (Performance)

Processor

AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 54 W PL2 / Short Burst, 40 W PL1 / Sustained, Rembrandt-H (Zen 3+)

Graphics adapter

AMD Radeon 680M, Adrenalin 23.4.1

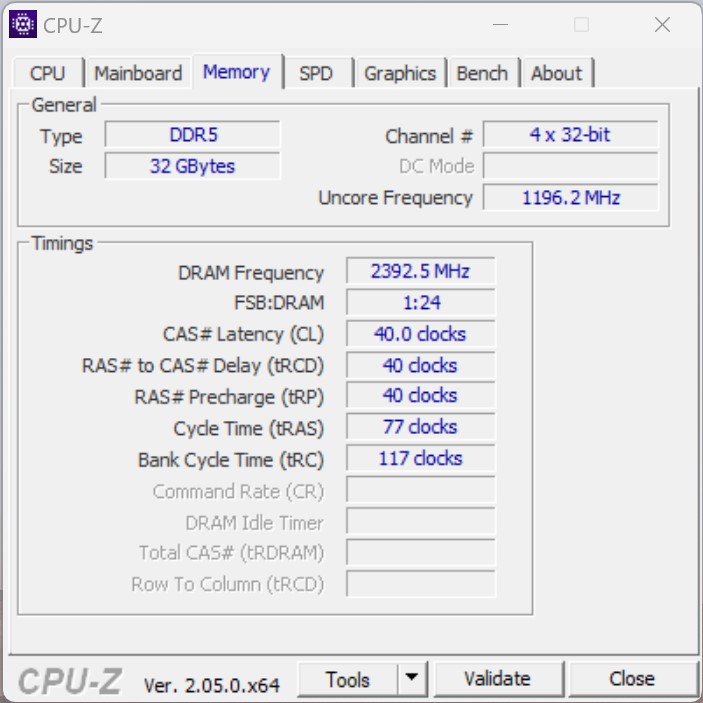

Memory

32 GB

, DDR5-4800, 2 of 2 used, max. 64 GB

Mainboard

AMD Promontory/Bixby FCH

Storage

BiWin CE480Y2D100-512G, 512 GB

, M.2 2280, NVMe, 430 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

4 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 1 DisplayPort, 1 Kensington Lock

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 188.5 x 77.8 x 146.9

Operating System

Microsoft Windows 11 Pro

Additional features

36 Months Warranty

Weight

874 g, Power Supply: 478 g

Price

869 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Memory
82 %	06/2023	ACEMagician Ace Magician AM08 Pro R9 6900HX, Radeon 680M	874 g	32768 MB
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	16384 MB
85.5 %	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	32768 MB
86.1 %	02/2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	16384 MB
85.1 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	16384 MB
82.3 %	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	16384 MB
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	32768 MB

王牌魔术师AM08专业版详细介绍

案例

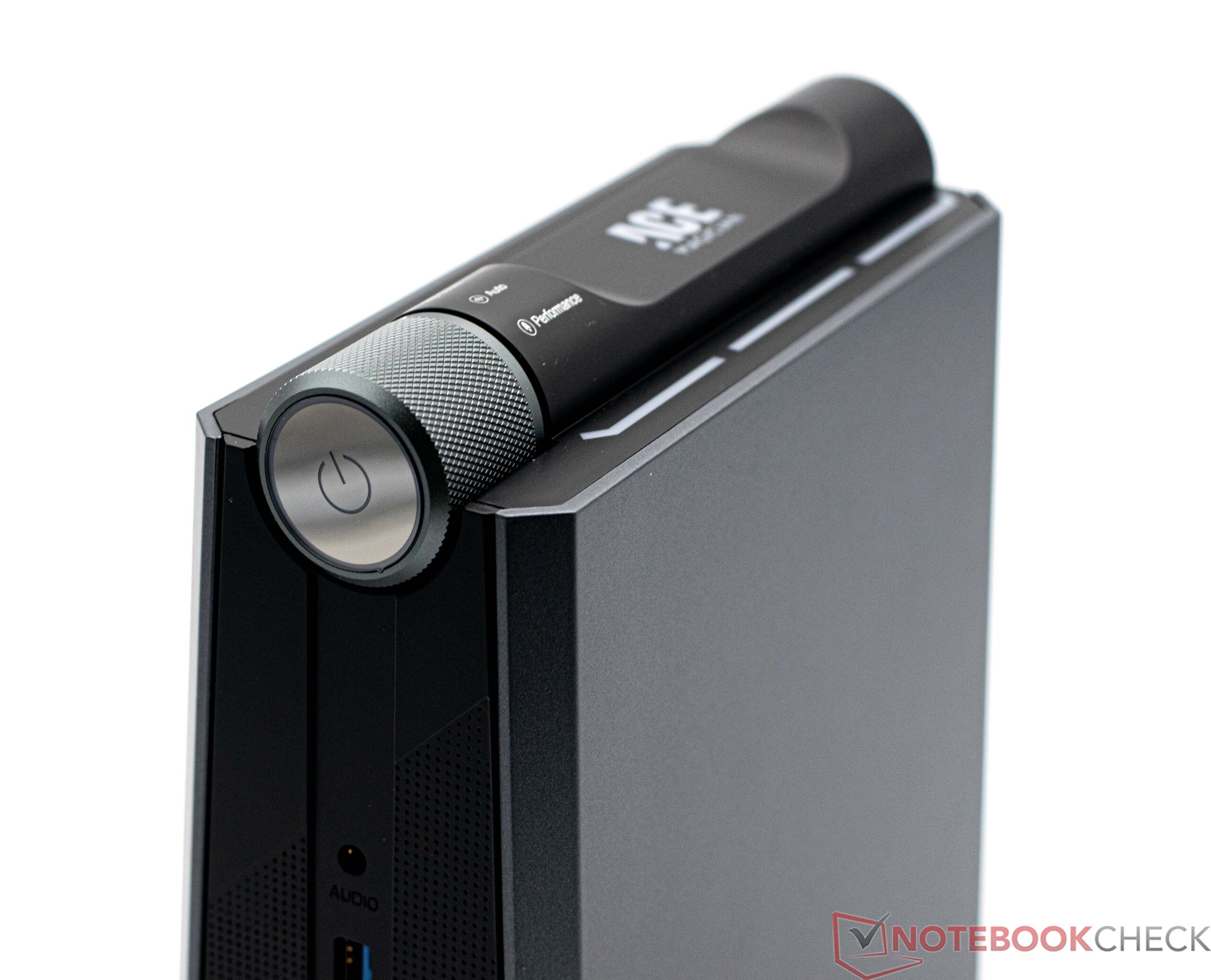

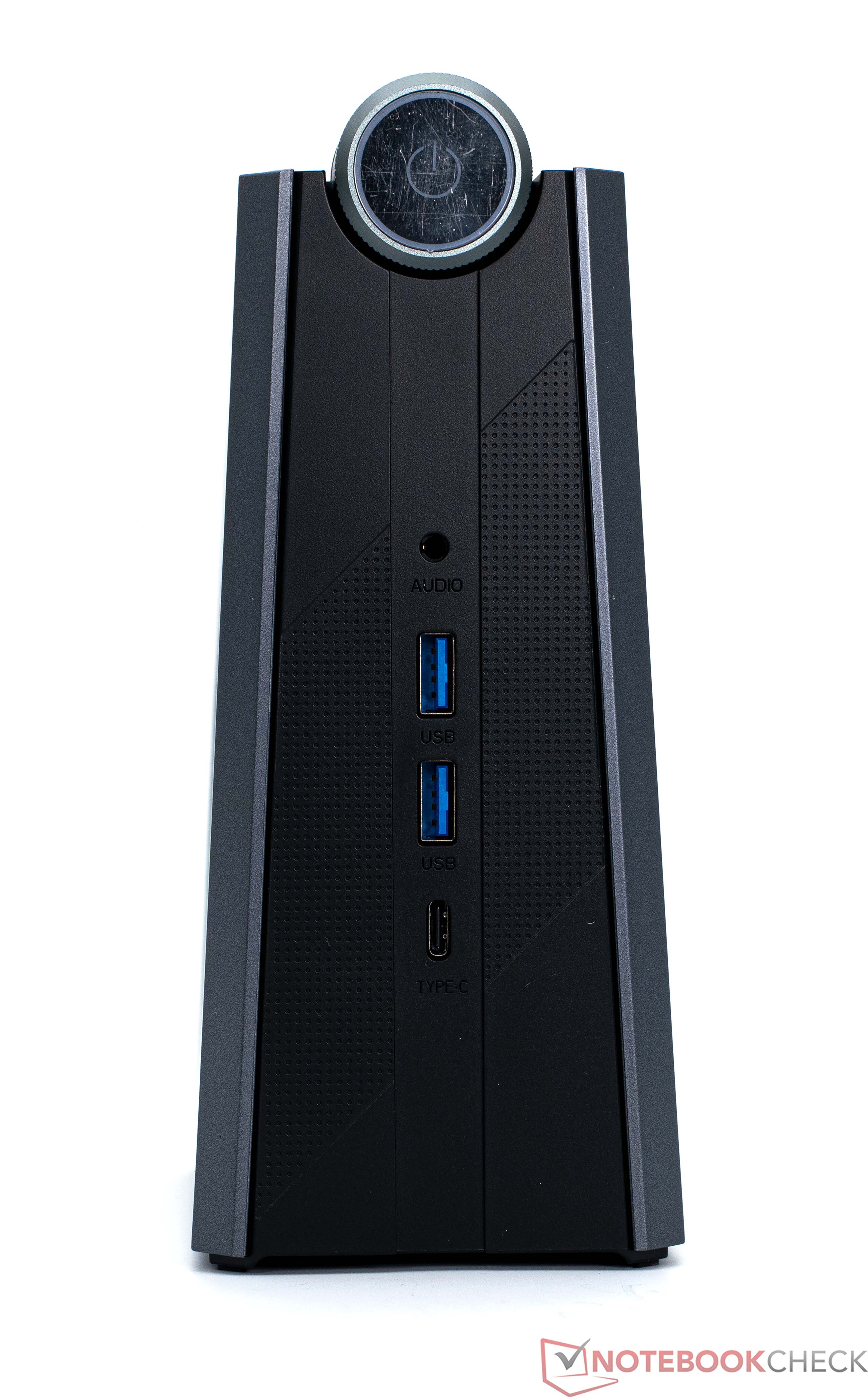

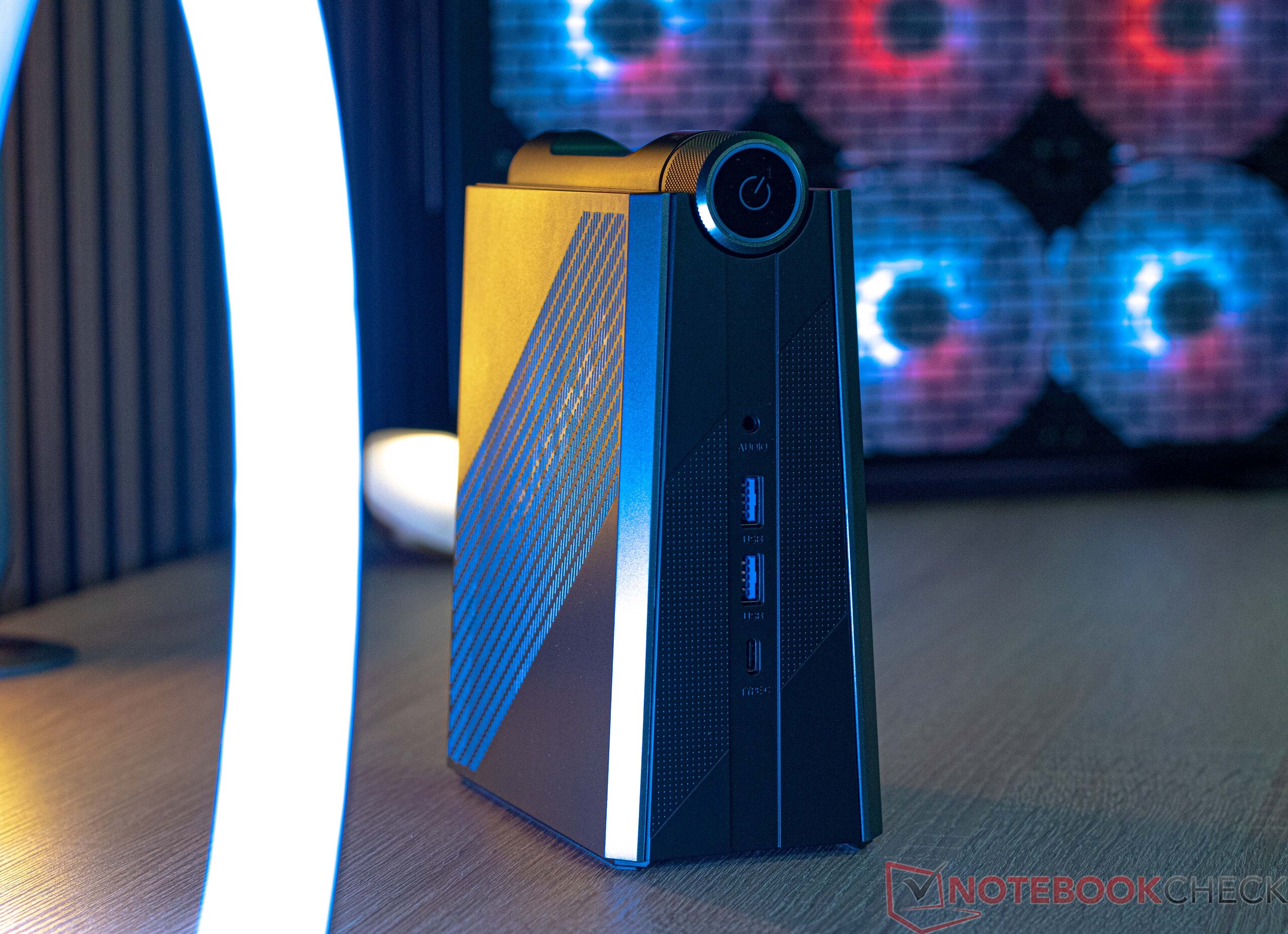

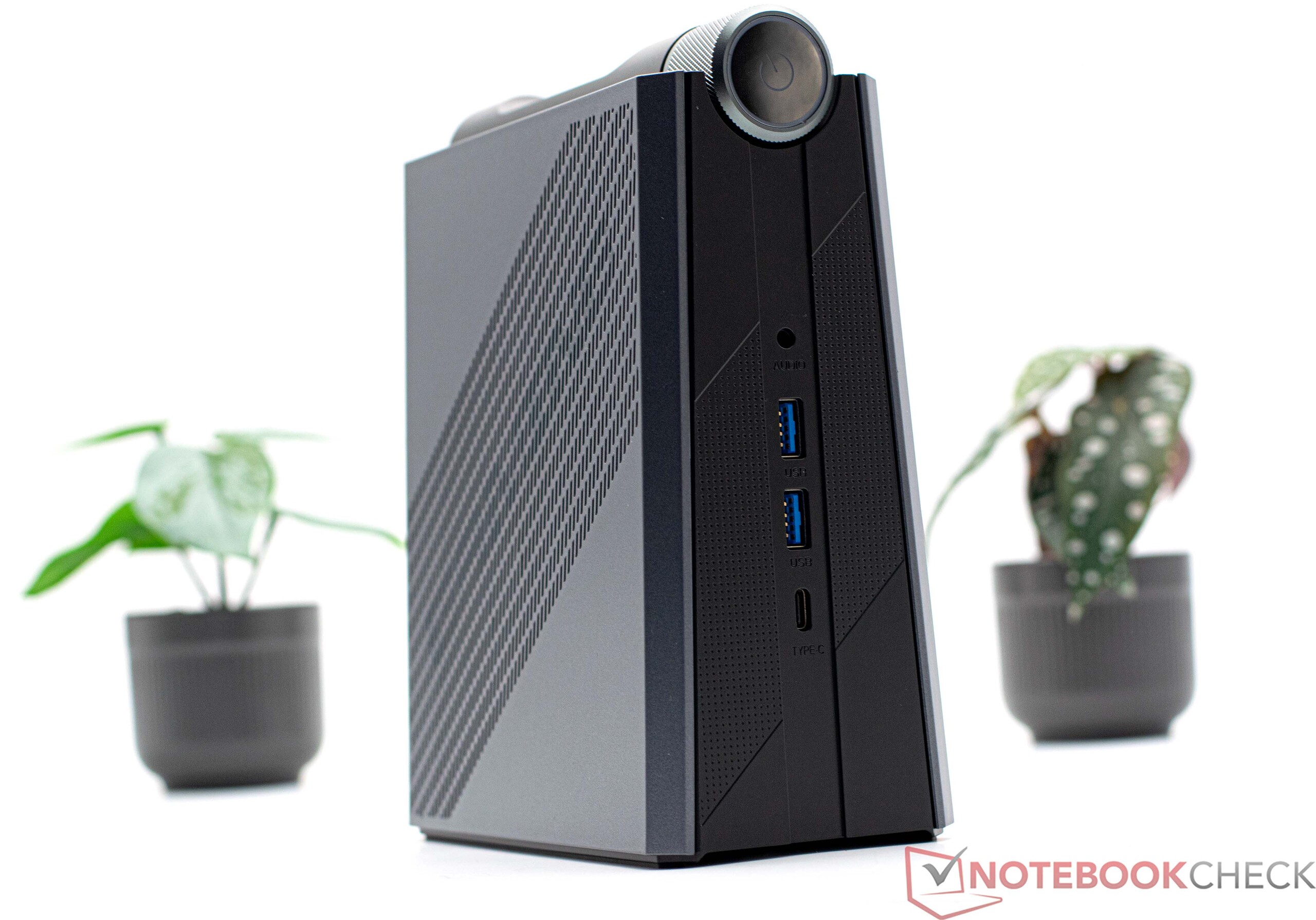

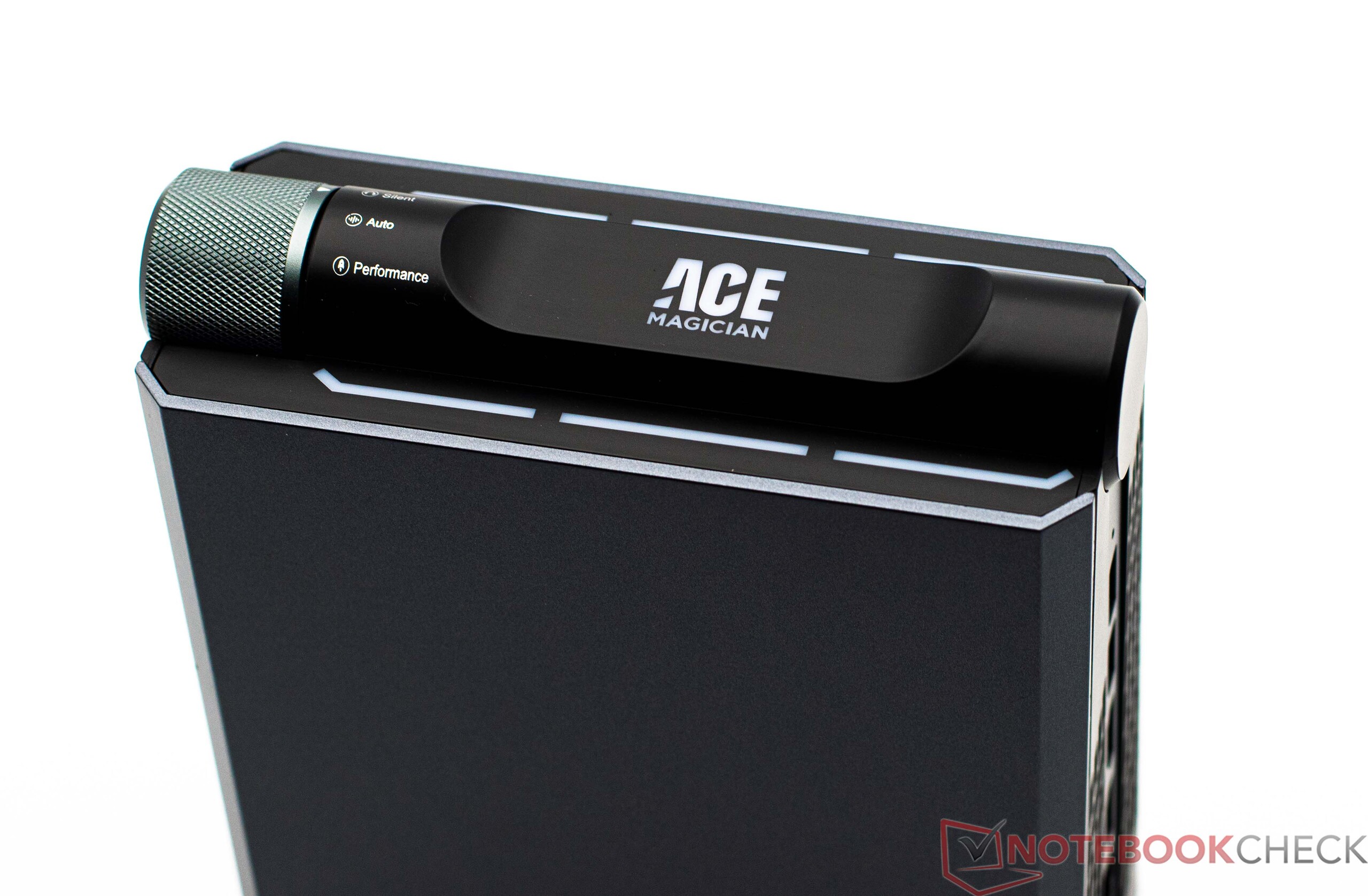

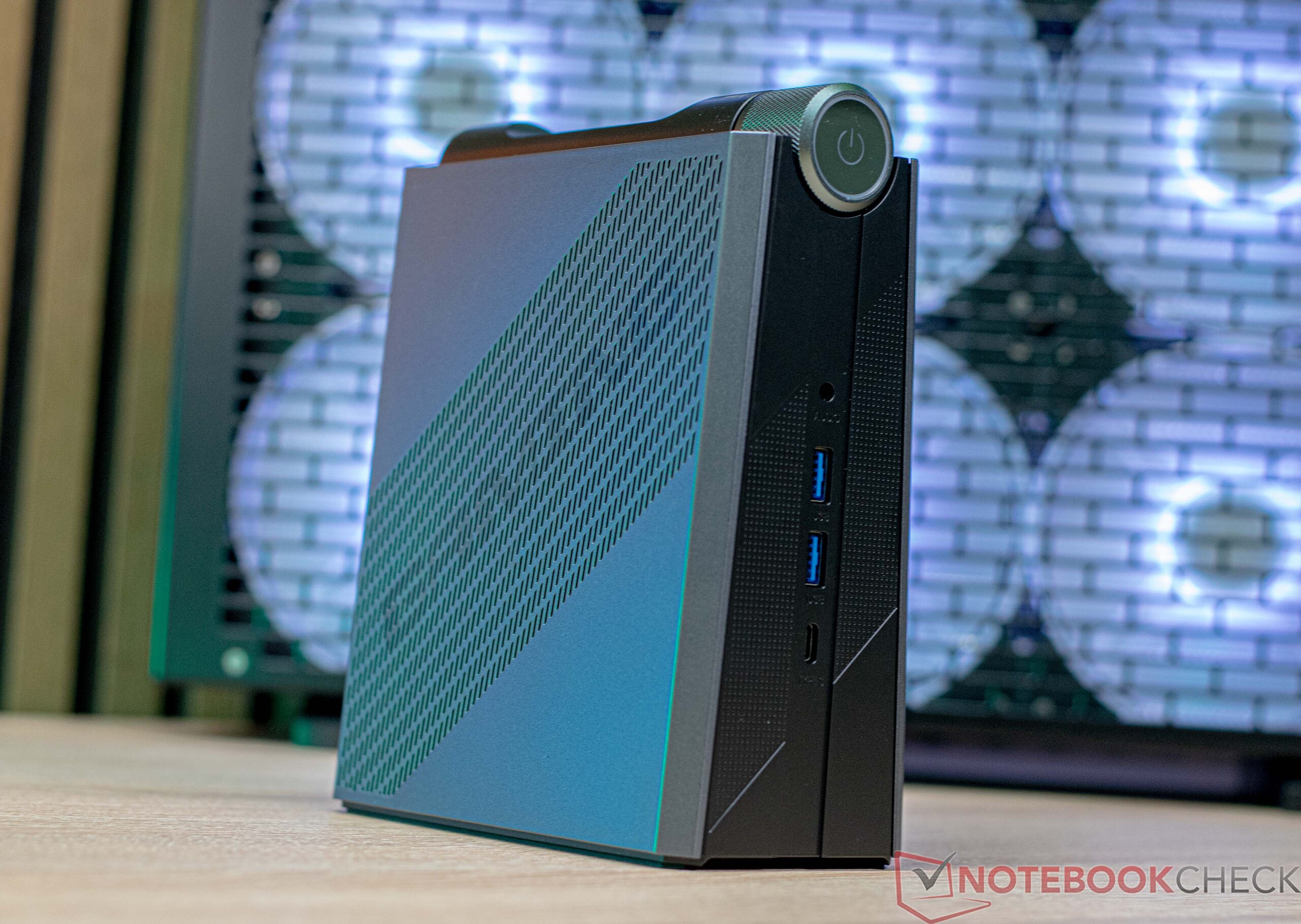

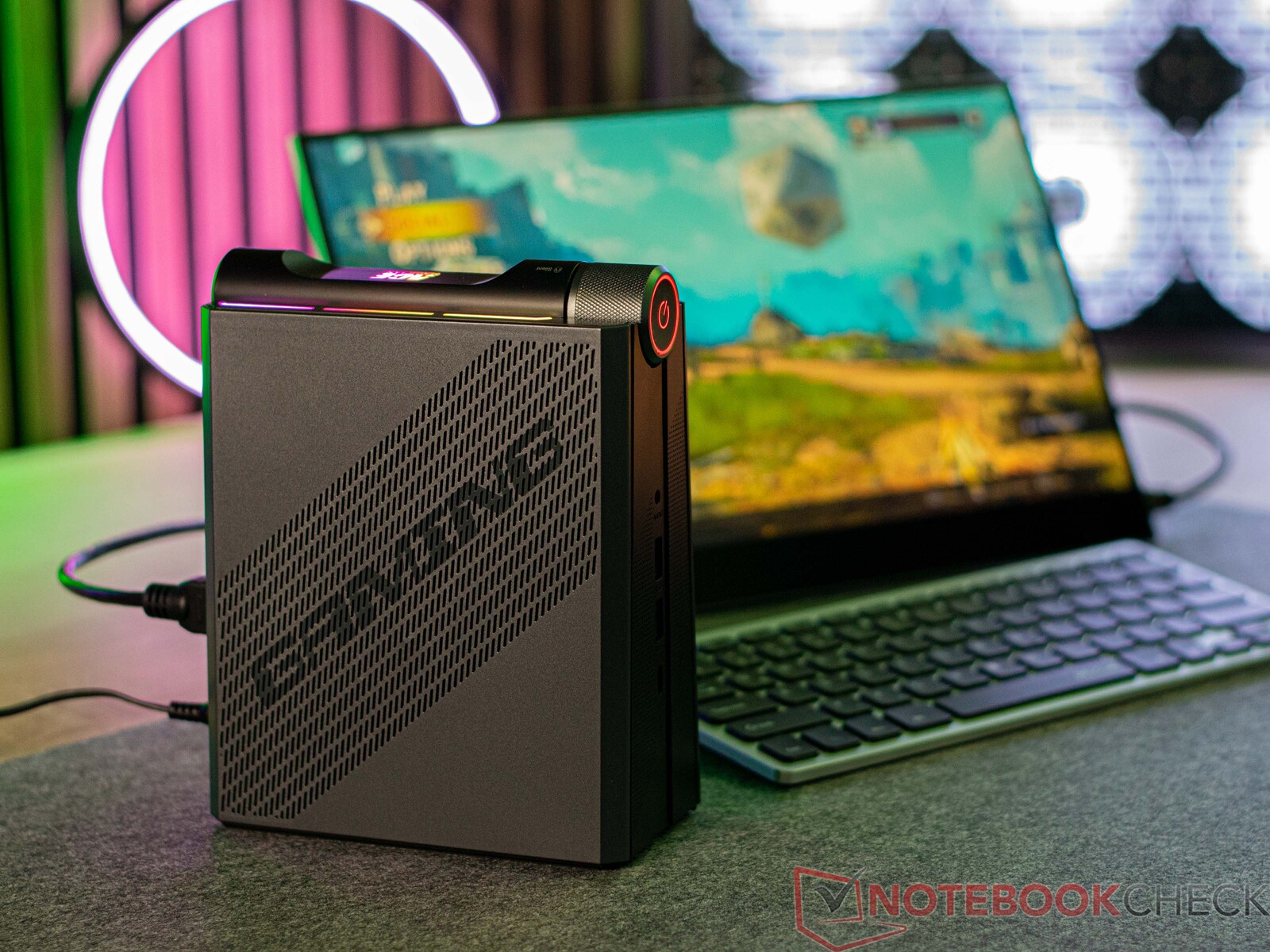

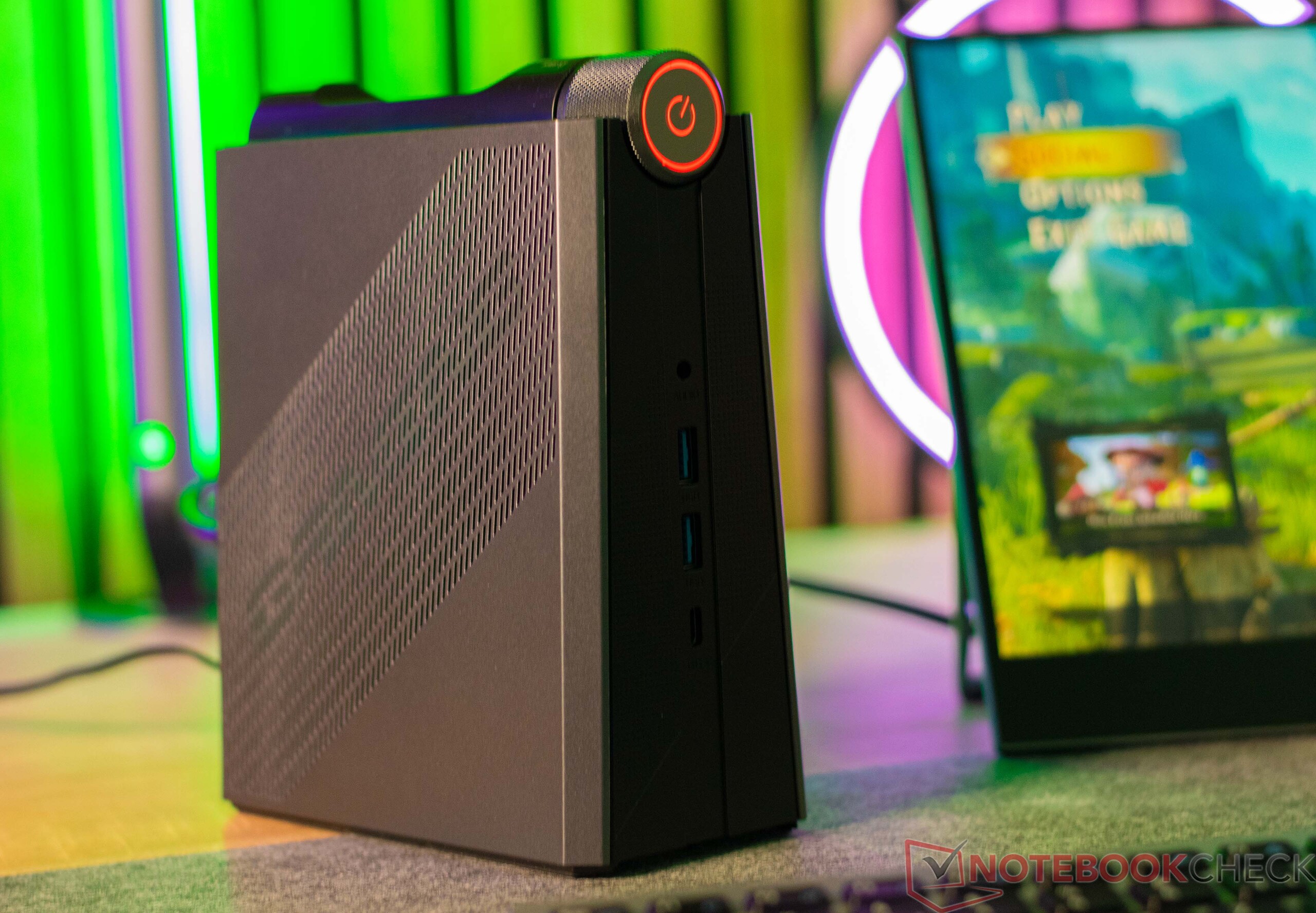

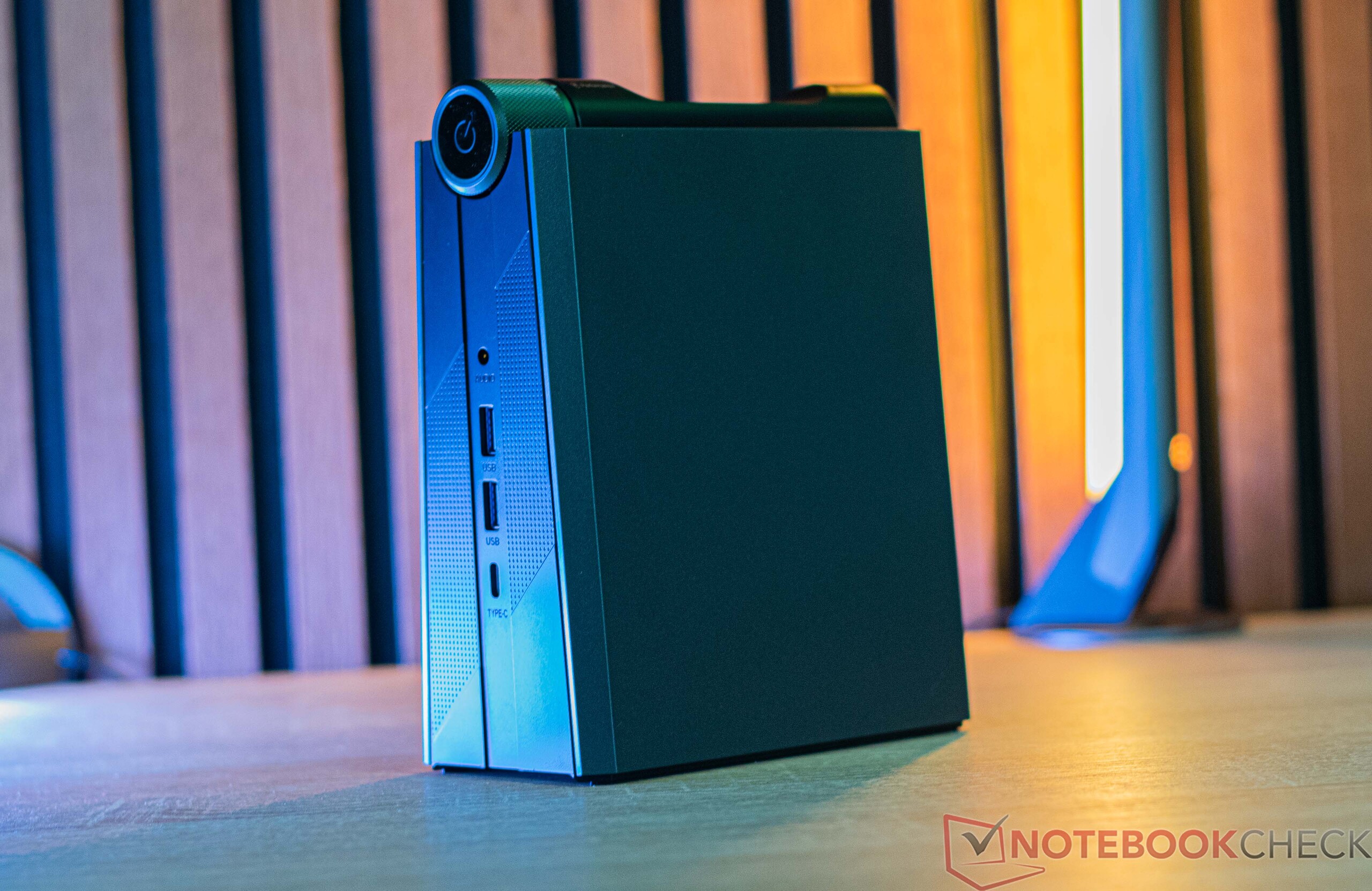

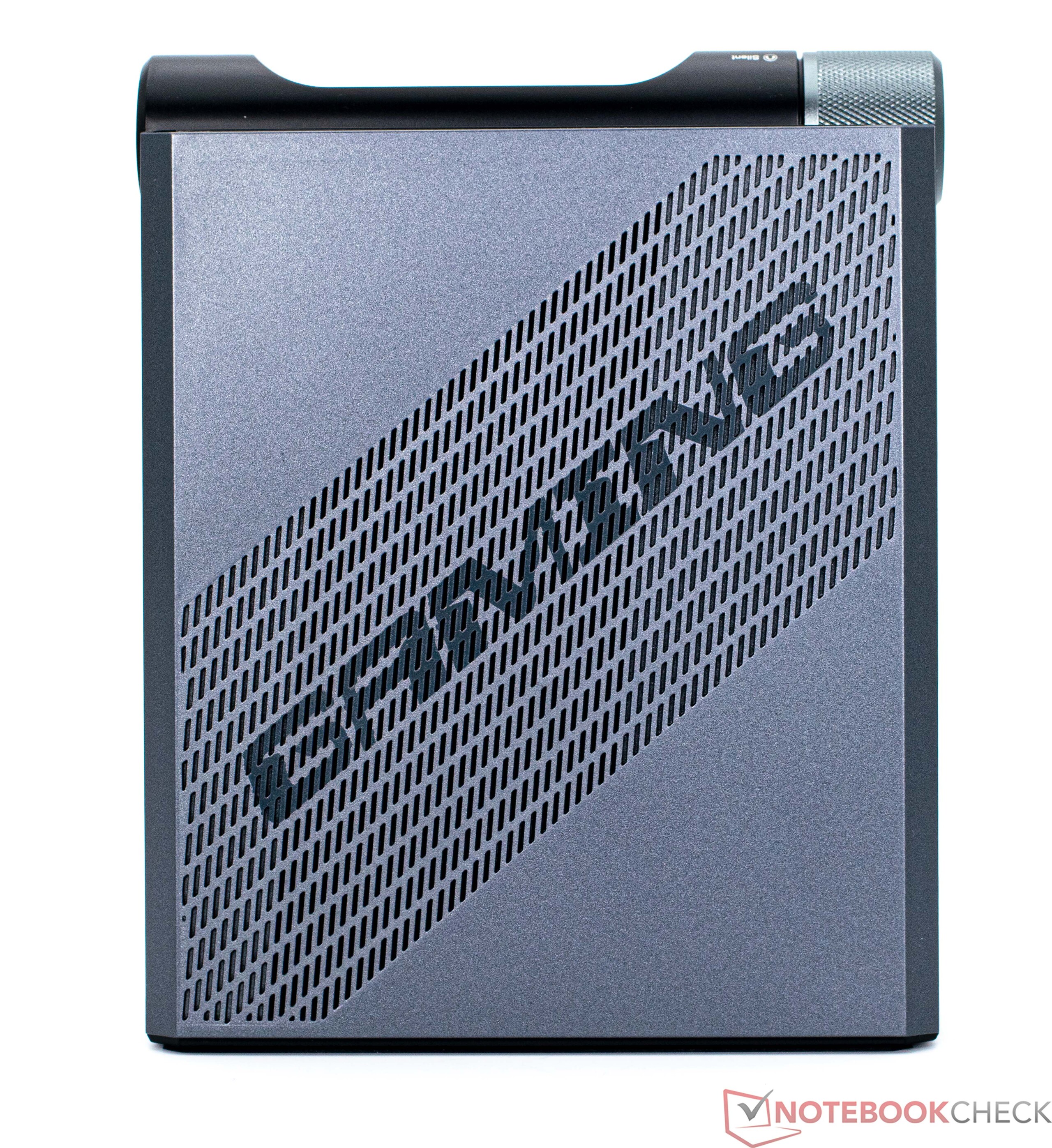

这个19厘米（约7.5英寸）高的迷你版塔式电脑让我们想起了王牌魔术师AMR5，它的构造与之类似。与前代产品相比，AM08 Pro略有增长，但这并没有对其紧凑性产生影响。分离式照明已经移到了机箱的顶部。

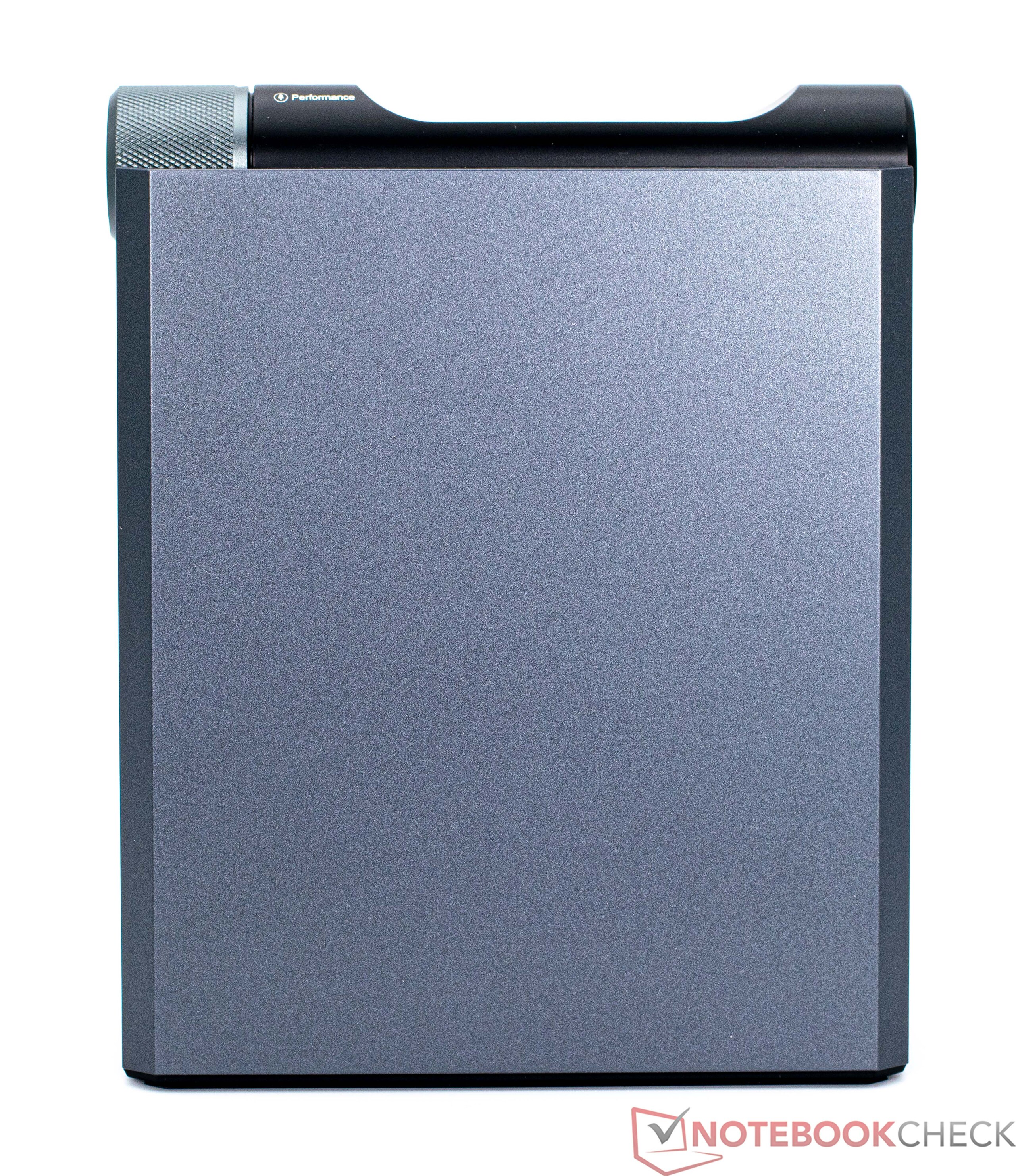

在材料选择方面，我们主要看到塑料。虽然铝制外壳肯定会提供更好的触觉，但我们对测试设备的做工没有任何抱怨。与前代产品一样，外壳的右侧被磁力固定，因此可以在不使用任何工具的情况下轻松取下，从而可以访问工作存储器和存储解决方案。

连接设备

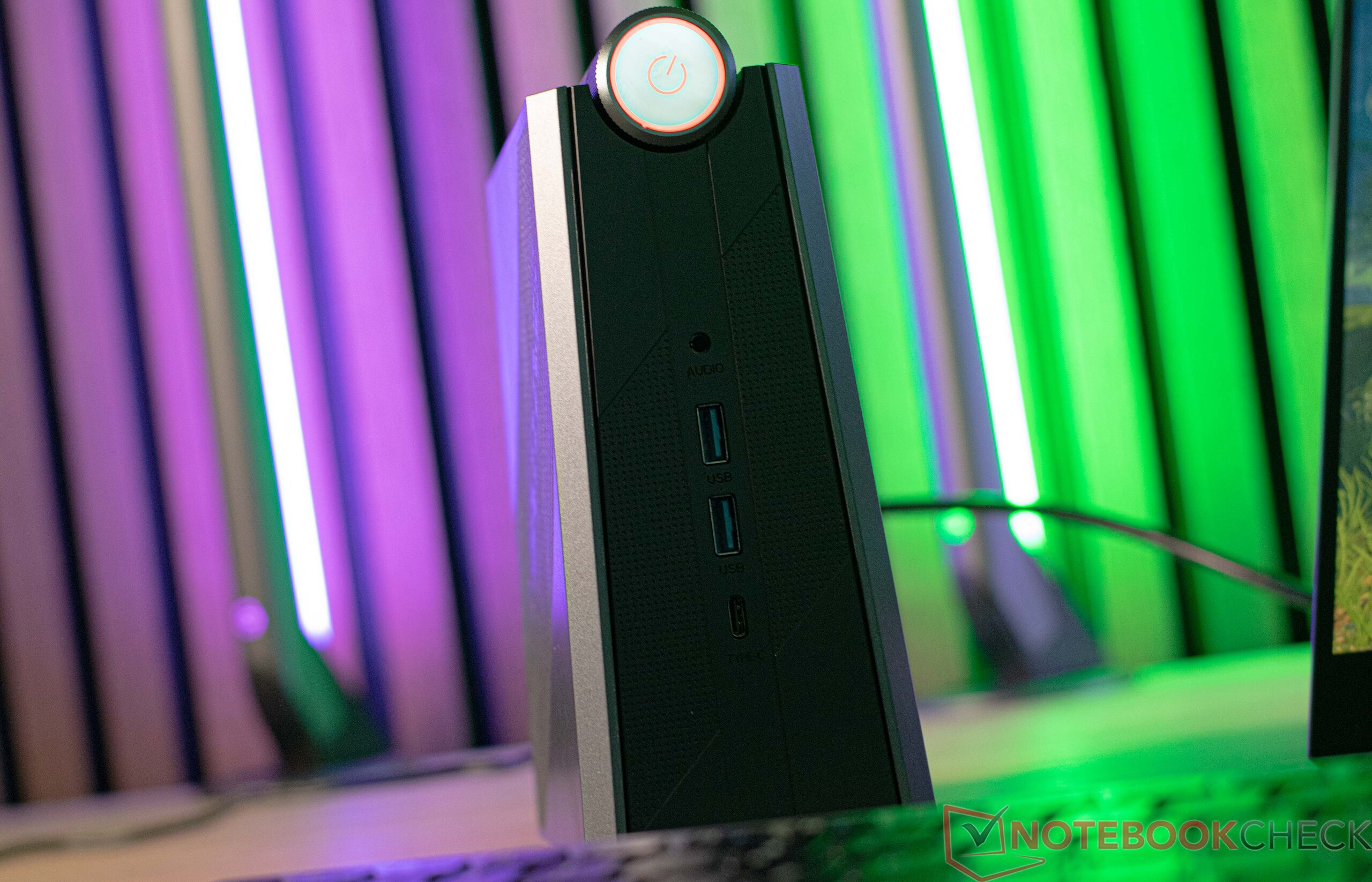

在我们的测试中，我们已经有了具有更多外部连接的迷你PC。然而，当你把它用作其设计目的的紧凑型游戏PC时，你应该能够利用现有的连接。至少，有四个USB Type-A端口分布在前面和后面。你可以使用两个可用的HDMI端口连接两个显示器，或者甚至三个，如果你还想使用前面的USB Type-C端口进行显示输出。Type-C端口还支持Thunderbolt，使你能够极大地扩展设备的使用选项。

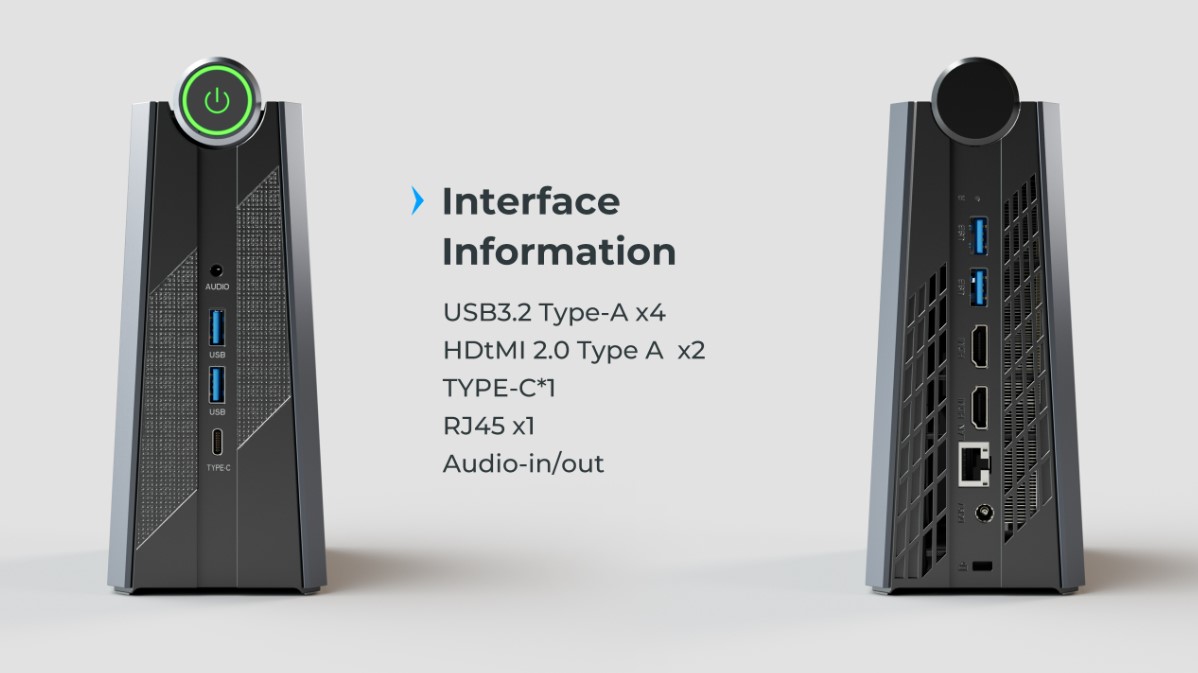

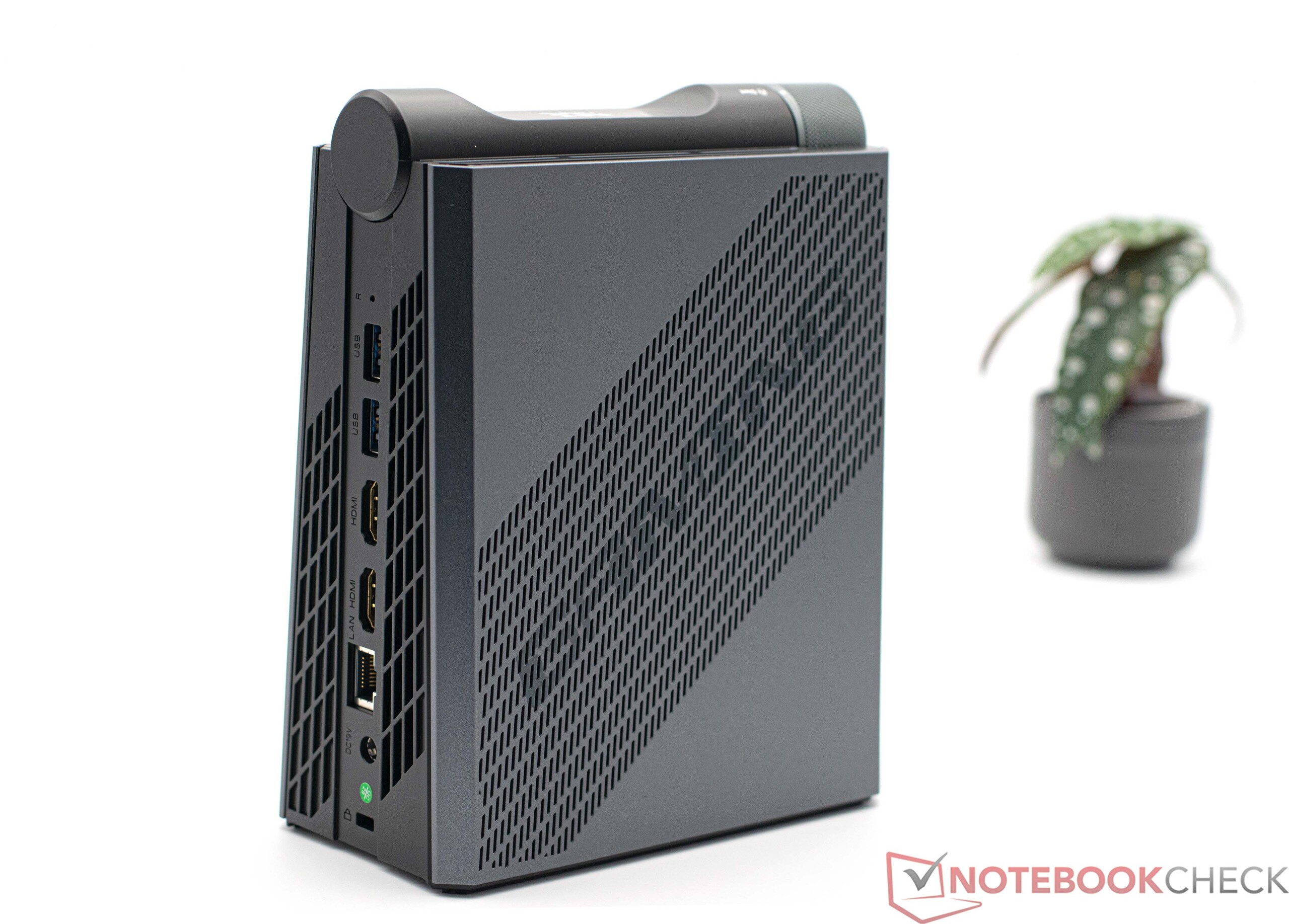

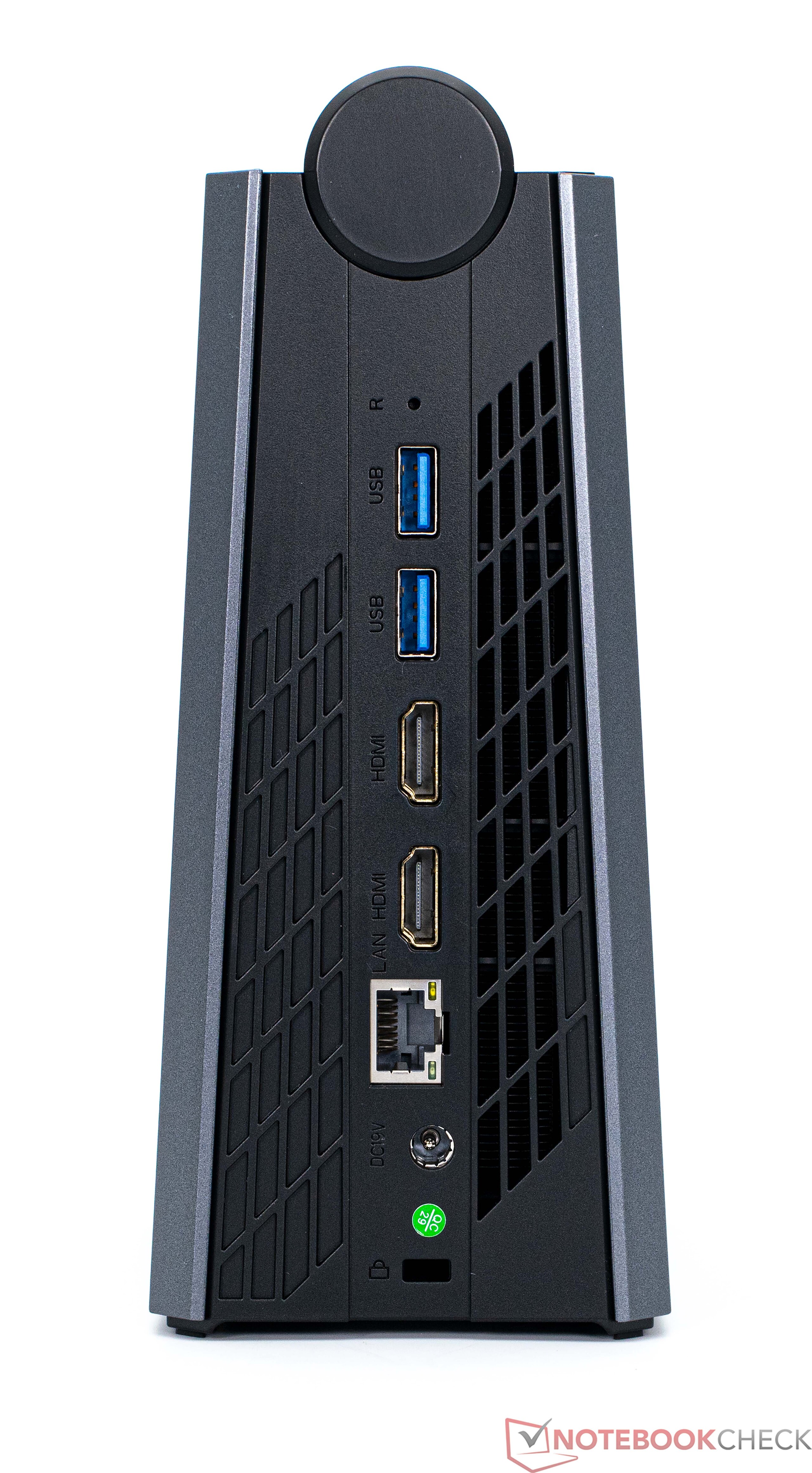

Ace Magician AM08 Pro的外部端口（来源：Ace Magician）。

沟通

Ace Magician在AM08 Pro中使用了Realtek的Wi-Fi 6E模块。在实际测试中，我们的测试装置中的WLAN模块显示出相当平均的性能。当接收数据时，我们测得的数值远远好于接收时，我们的测试装置不得不满足于最后的位置。然而，所取得的性能不应该被称为糟糕，因为它对于日常操作来说是绰绰有余的。我们使用华硕Rapture GT-AXE11000测试路由器进行这项测试。对于更快的数据连接，你也可以使用LAN端口作为替代，使数据传输最高可达2.5Gbit/s。

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +39%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s 0%
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	947 (787^min - 981^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s 0%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s -2%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s -5%
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s -5%
Average Realtek RTL8852BE (455 - 984, n=36)	833 MBit/s -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +79%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +31%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +31%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +28%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +25%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s +12%
Average Realtek RTL8852BE (536 - 925, n=35)	786 MBit/s +7%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s +6%
ACEMagician Ace Magician AM08 Pro Realtek RTL8852BE	737 (369^min - 758^max) MBit/s

ACEMagician Ace Magician AM08 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø946 (787-981)

ACEMagician Ace Magician AM08 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø725 (369-758)

维护

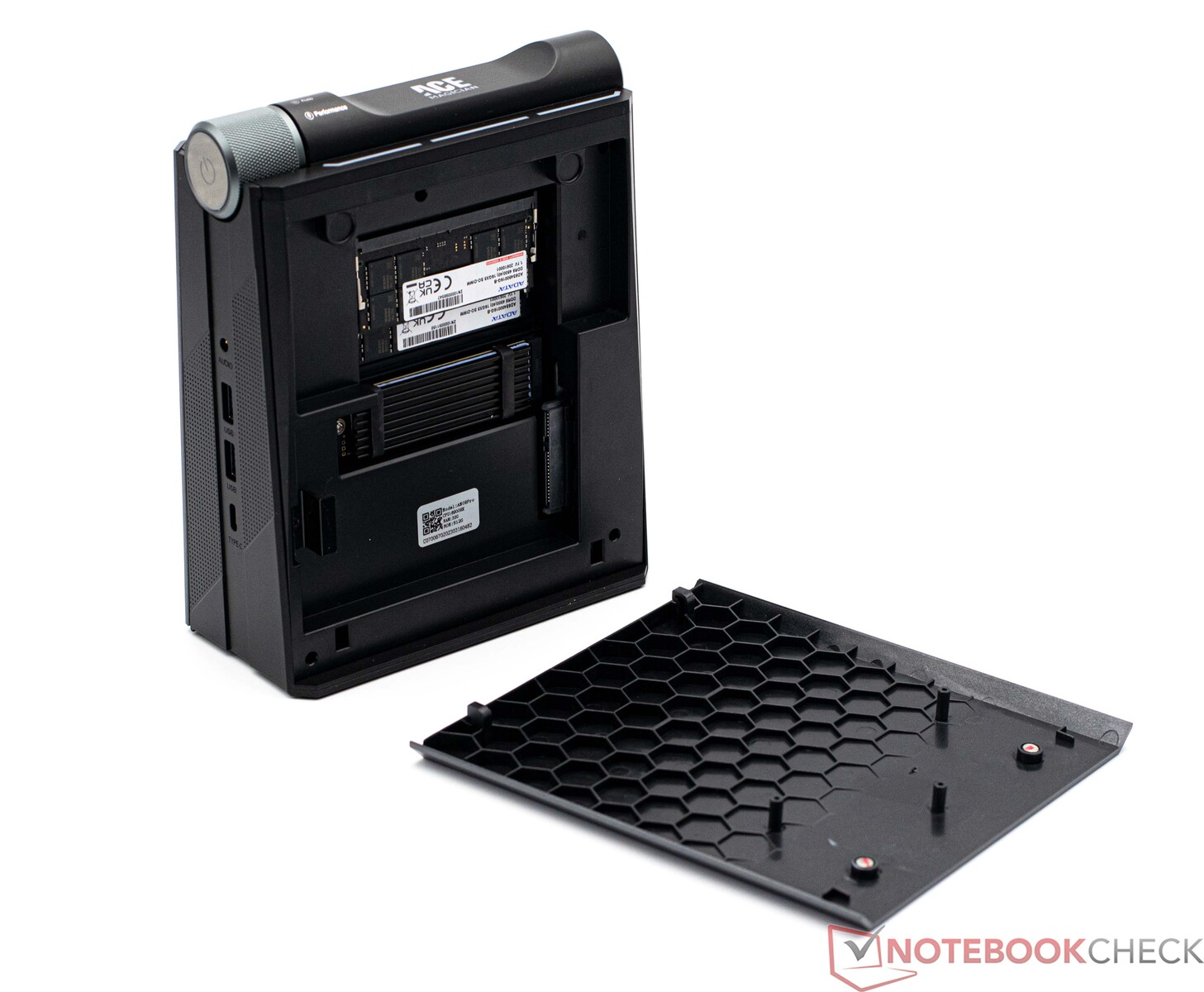

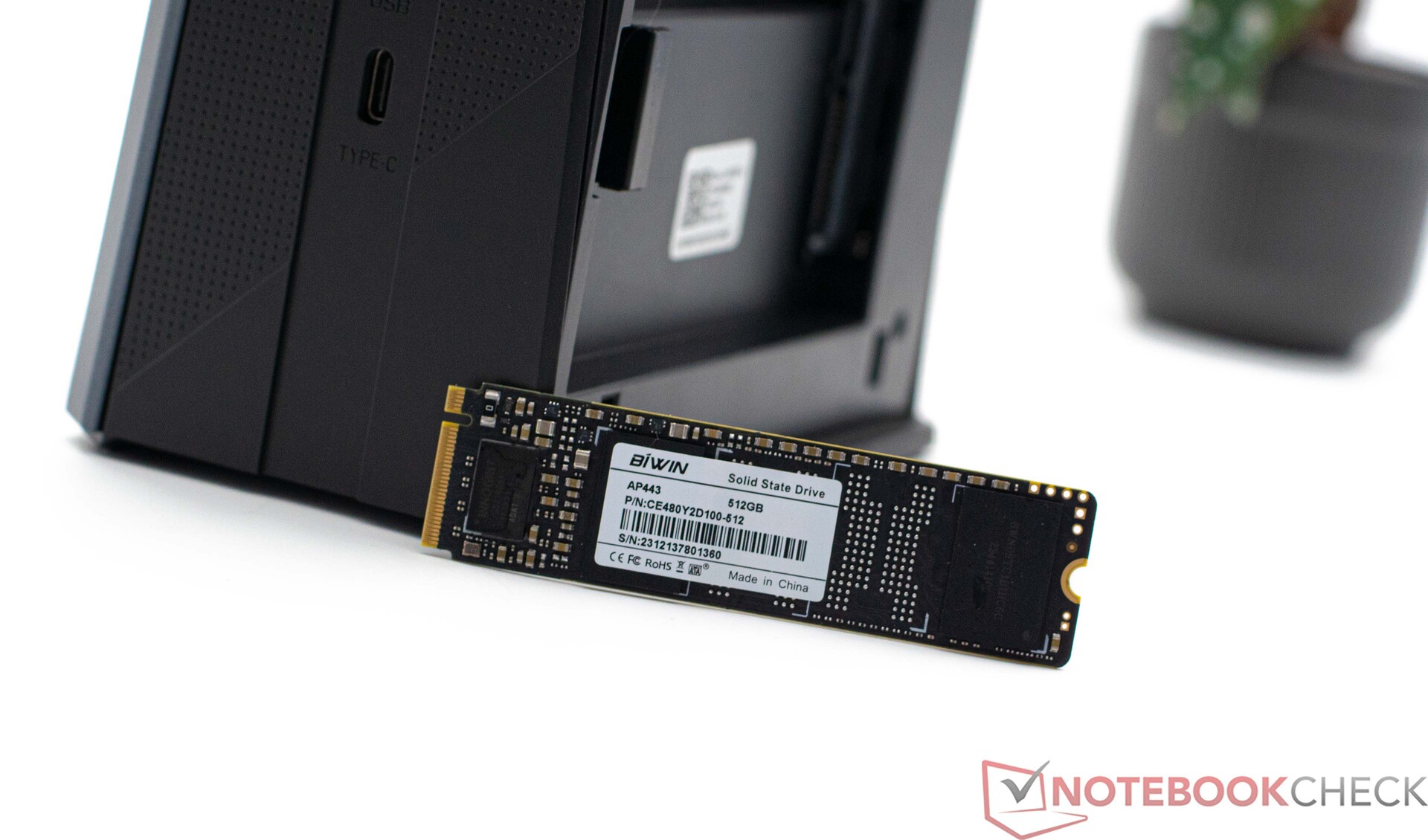

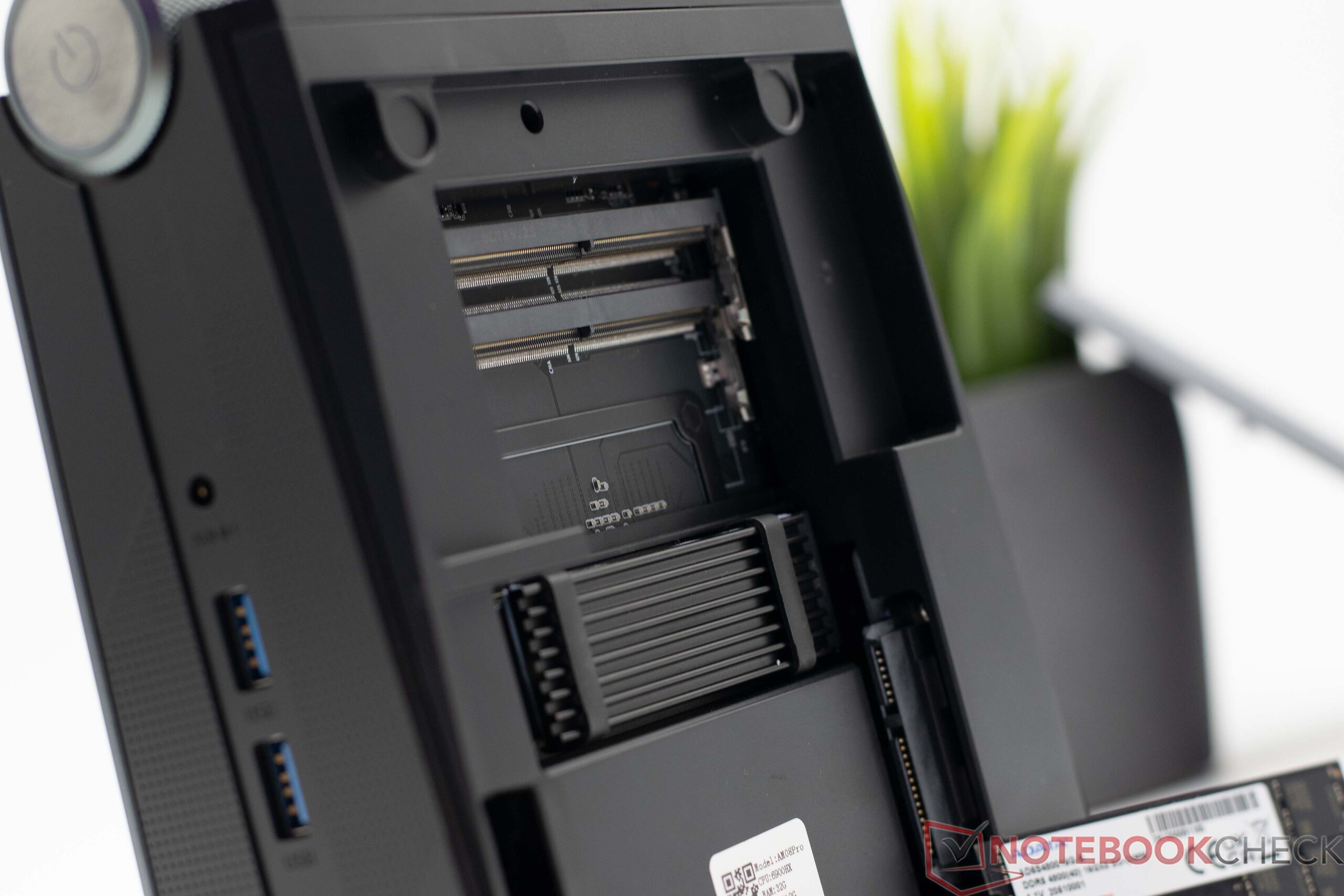

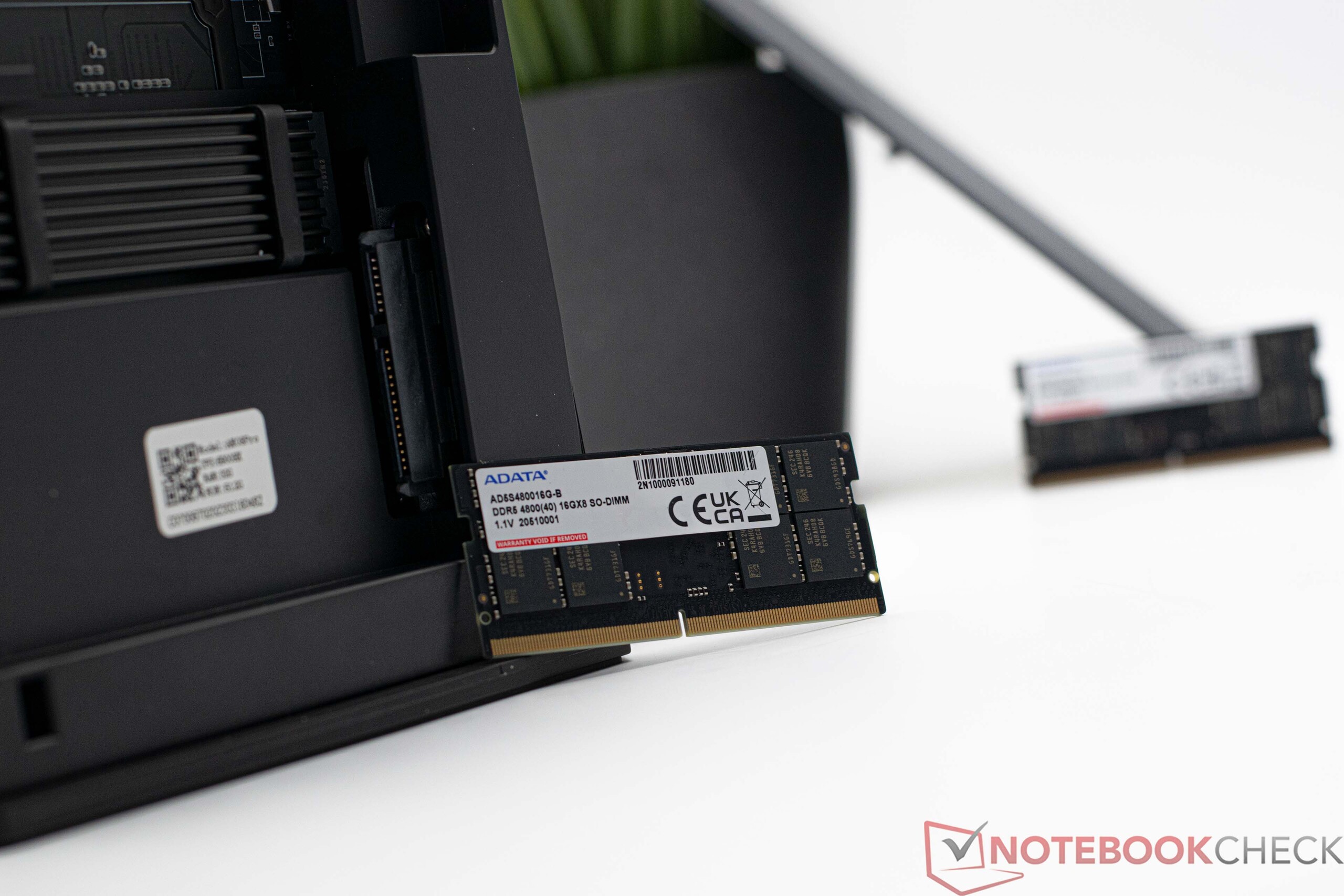

打开Ace Magician AM08 Pro的外壳非常容易，不需要使用任何工具就可以完成，让你不费吹灰之力就可以安装工作存储器和存储方案。不幸的是，你只能快速打开迷你电脑的一面。如果制造商能将机箱的两边都用磁力固定住，我们就不会介意了，这样就可以插入第二个M.2固态硬盘。在目前的模型中，Ace Magician AM08 Pro包括一个M.2-2280插槽和一个2.5英寸驱动器的SATA SSD连接。

性能 - 8个核心和16个线程提供了一个良好的性能

淘宝网淘宝网作为Ace Magician AM08 Pro的处理器。由于其目标使用场景，我们对这一决定表示赞赏，因为有了AMD Radeon 680M，该SoC还带来了一个快速的iGPU。

测试条件

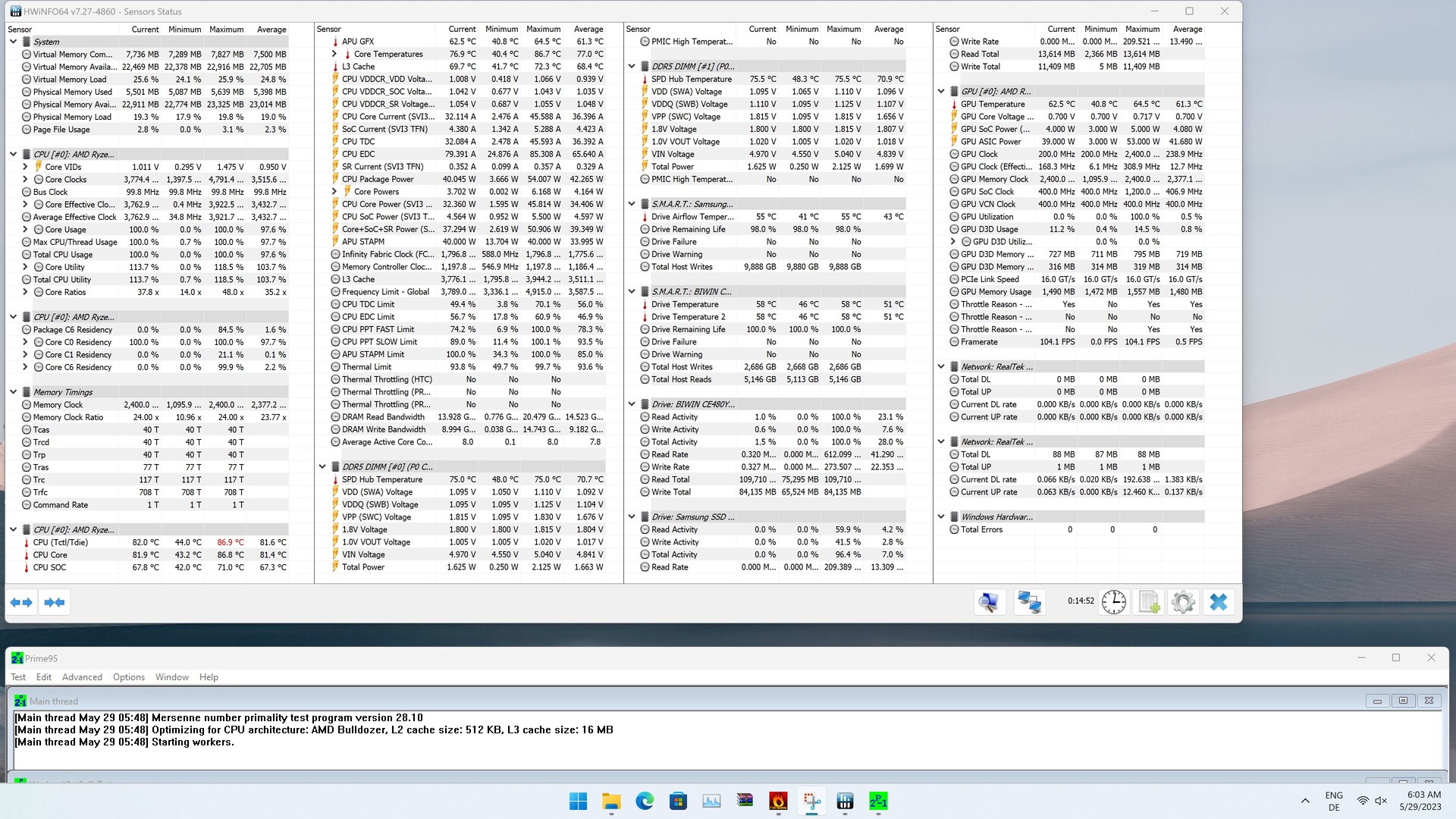

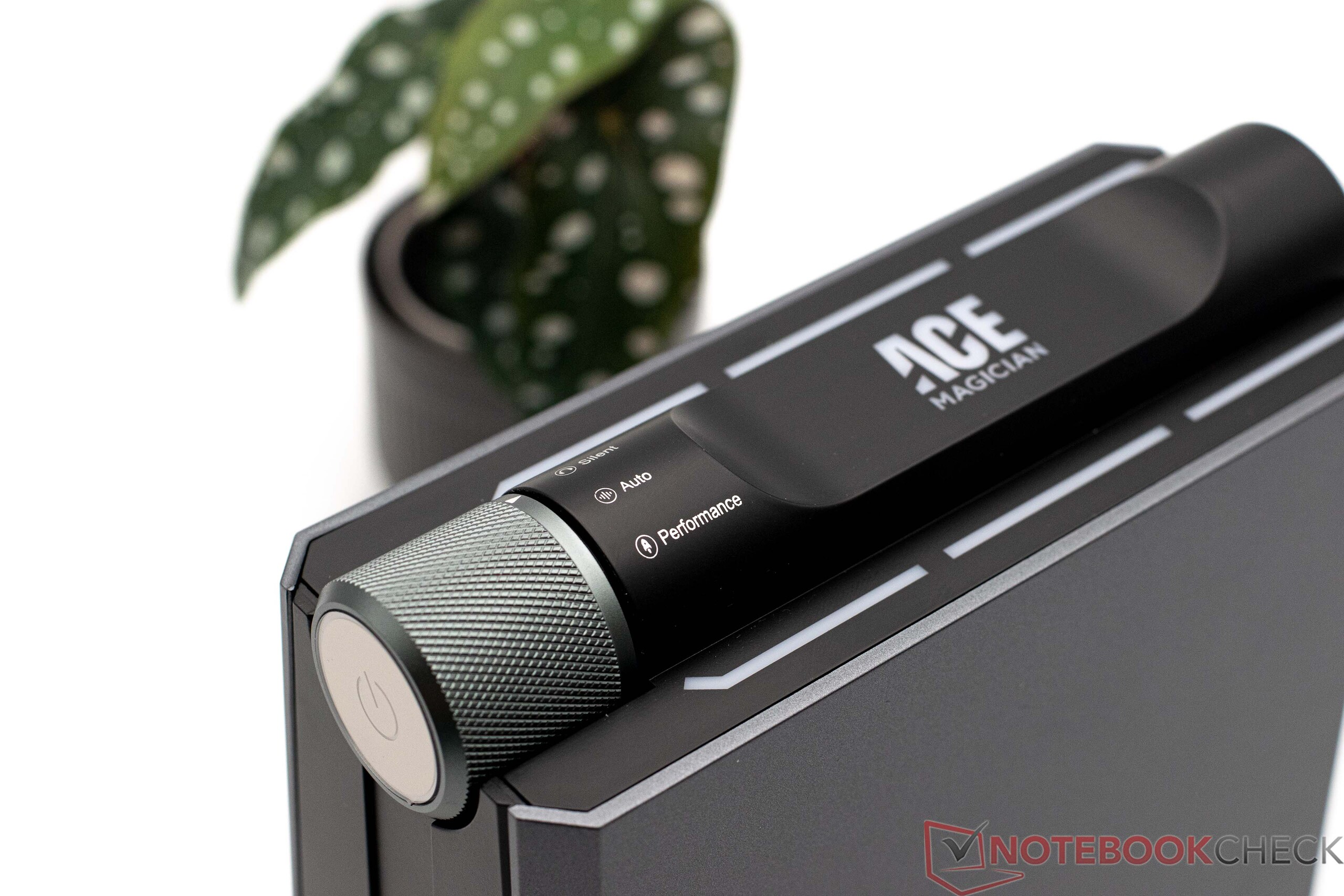

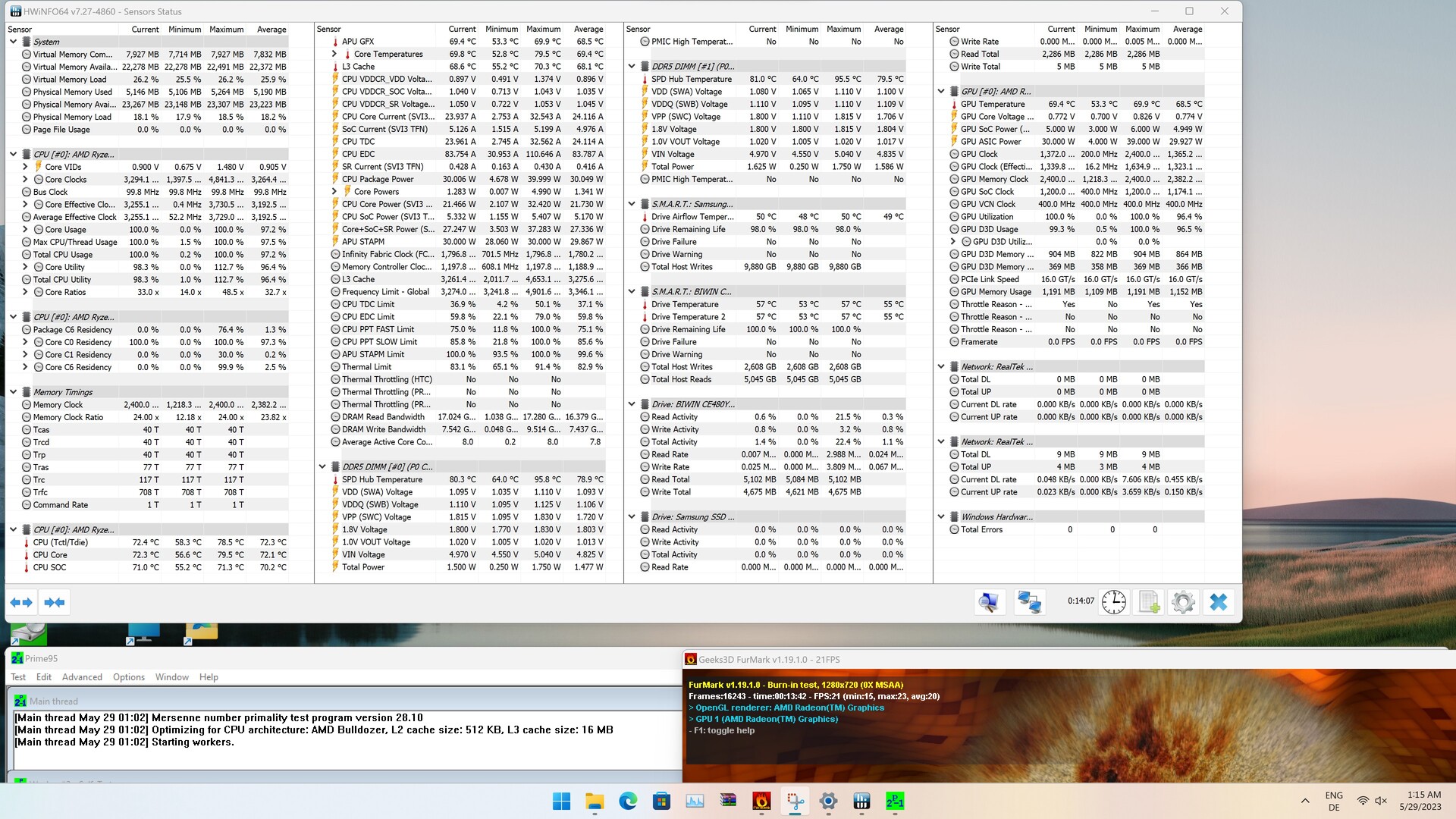

我们在该设备的所有性能测试中使用了 "平衡 "电源配置文件。我们只是根据我们的测试标准，在功耗和噪音测量中偏离了这一点。我们还在每个可用模式（静音、自动和性能）下进行了所有的性能测试，同时也使用了 "平衡 "电源配置文件。此外，我们在BIOS中激活了游戏模式，为iGPU提供了4GB的内存。

模式	功率	CPU温度	CPU最高温度。温度
静音	20 W	63 °C	68 °C
自动	30 W	75 °C	79 °C
性能	40 W	79 °C	85 °C

处理器

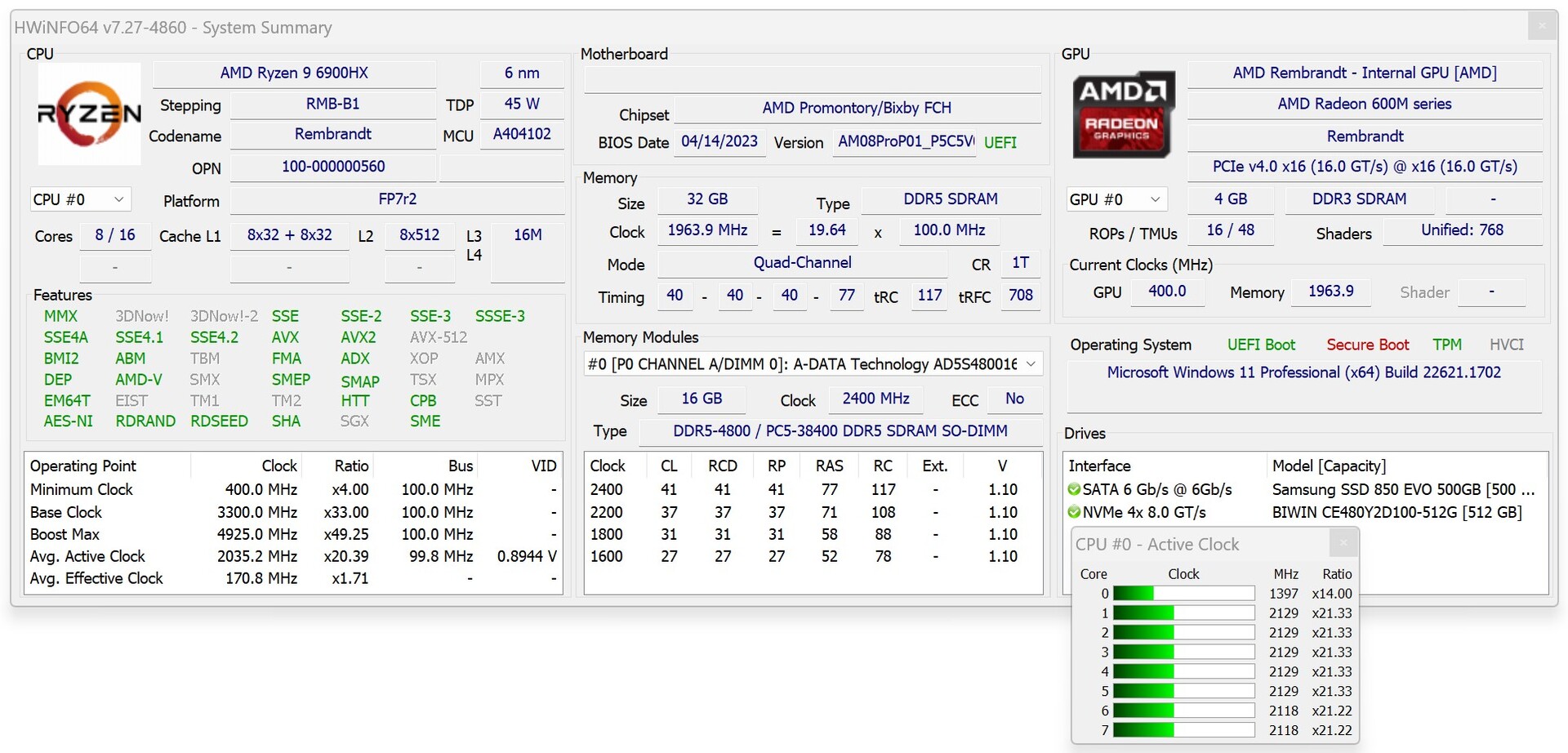

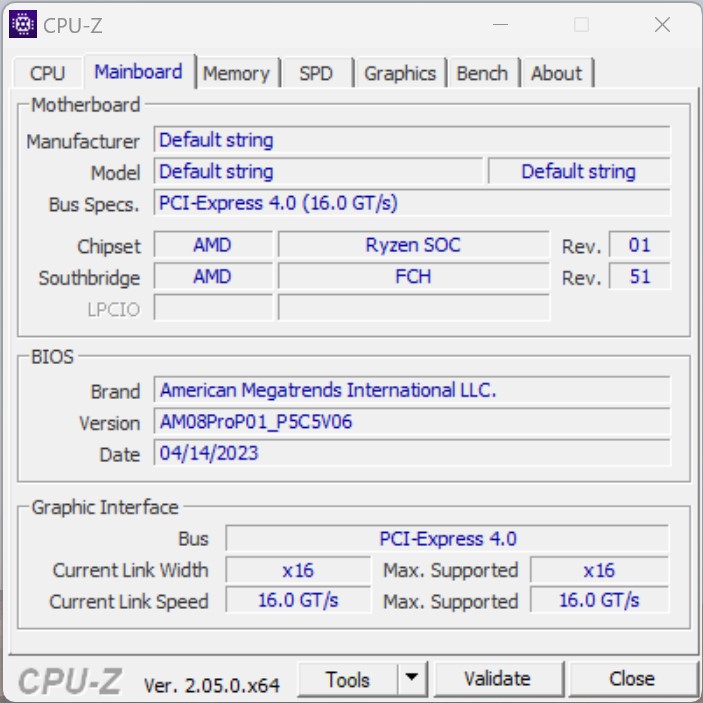

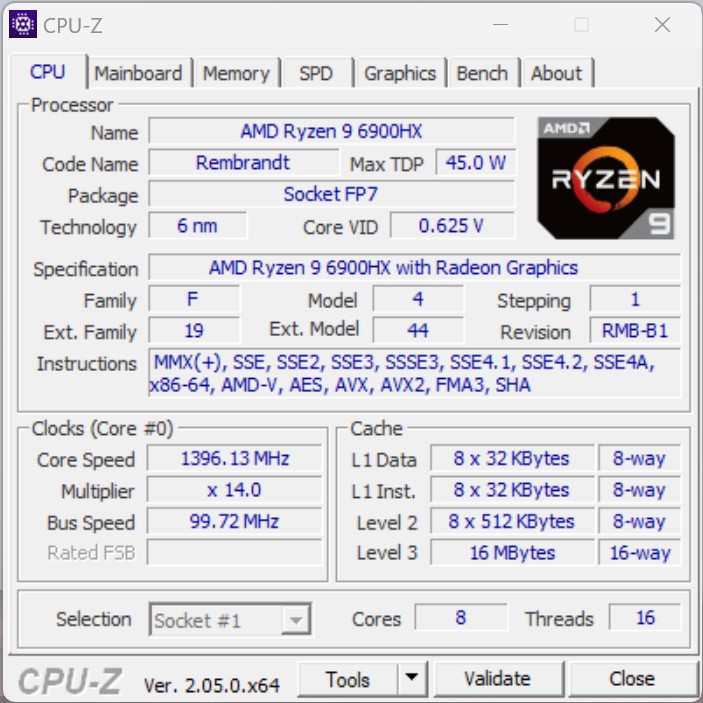

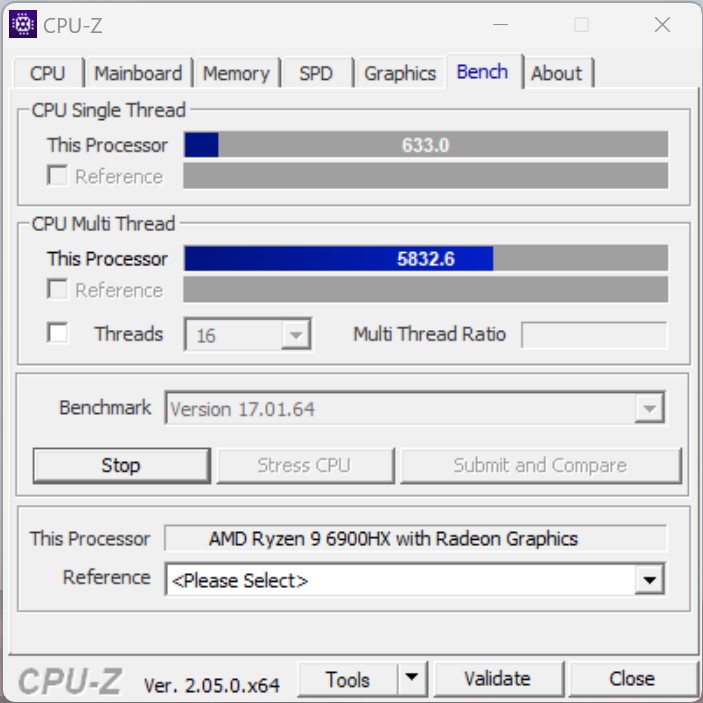

通过AMD Ryzen 9 6900HX ，Ace Magician AM08 Pro提供了一个具有8个核心和16个线程的非常现行的SoC。在我们的测试中，我们看到该SoC在很大程度上遵循了上表中的数值。同时，我们注意到在性能模式下有一个高达54瓦的短暂功耗。在其他两种模式下，没有超过TDP限制的设置。在直接性能比较中，我们专注于性能模式，我们看到的数值与竞争对手持平。然而，我们的测试设备无法接近Minisforum Venus Series UM690 ，它能够在性能评级中比Ace Magician AM08 Pro领先约6%。竞争对手在这里可能得益于更有效的冷却，因为我们知道MINISFORUM在该型号中使用液态金属进行更好的热传导，允许短时间内更高的功率消耗，最高可达65瓦。好的是我们的测试装置与Ace Magicain AMR5（其直接前身）相比，性能有所提高。平均而言，其优势几乎为15%，在个别比较中甚至高达70%。然而，这种比较中的数字优势在实际操作中并不相关。

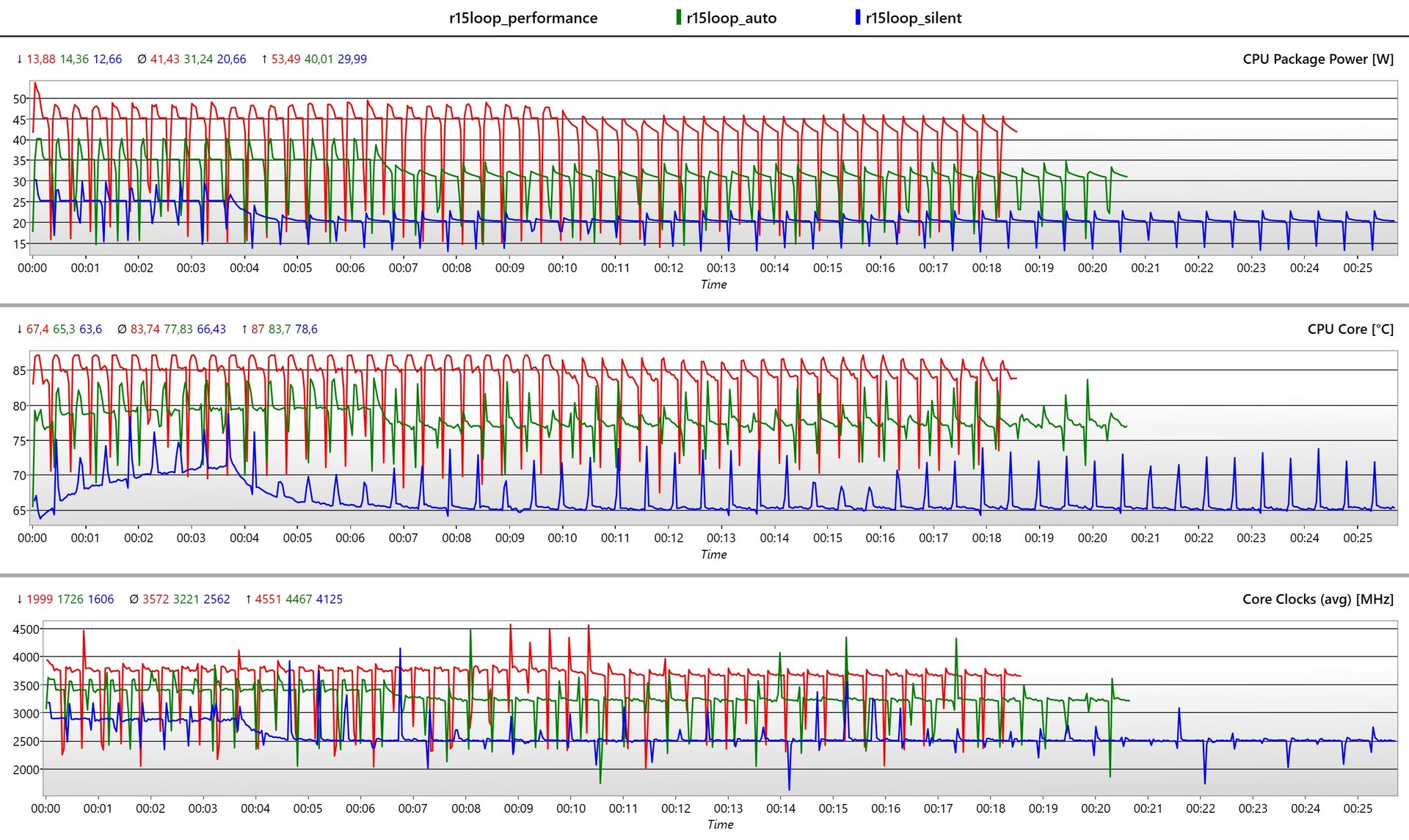

在自动和静音操作中也存在差异，CPU的性能被明显地扼杀了。同时，在这些模式下，流畅的操作和快速的工作也始终是可能的。

你可以找到更多关于处理器的基准测试这里.

Performance Rating - Percent
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	49.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H	49.4 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	48.6 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX	47.7 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	47.4 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	45.6 pt
Geekom Mini IT12 Intel Core i7-1260P	45.1 pt
Morefine M600, 6600U AMD Ryzen 5 6600U	43.5 pt
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	41.5 pt

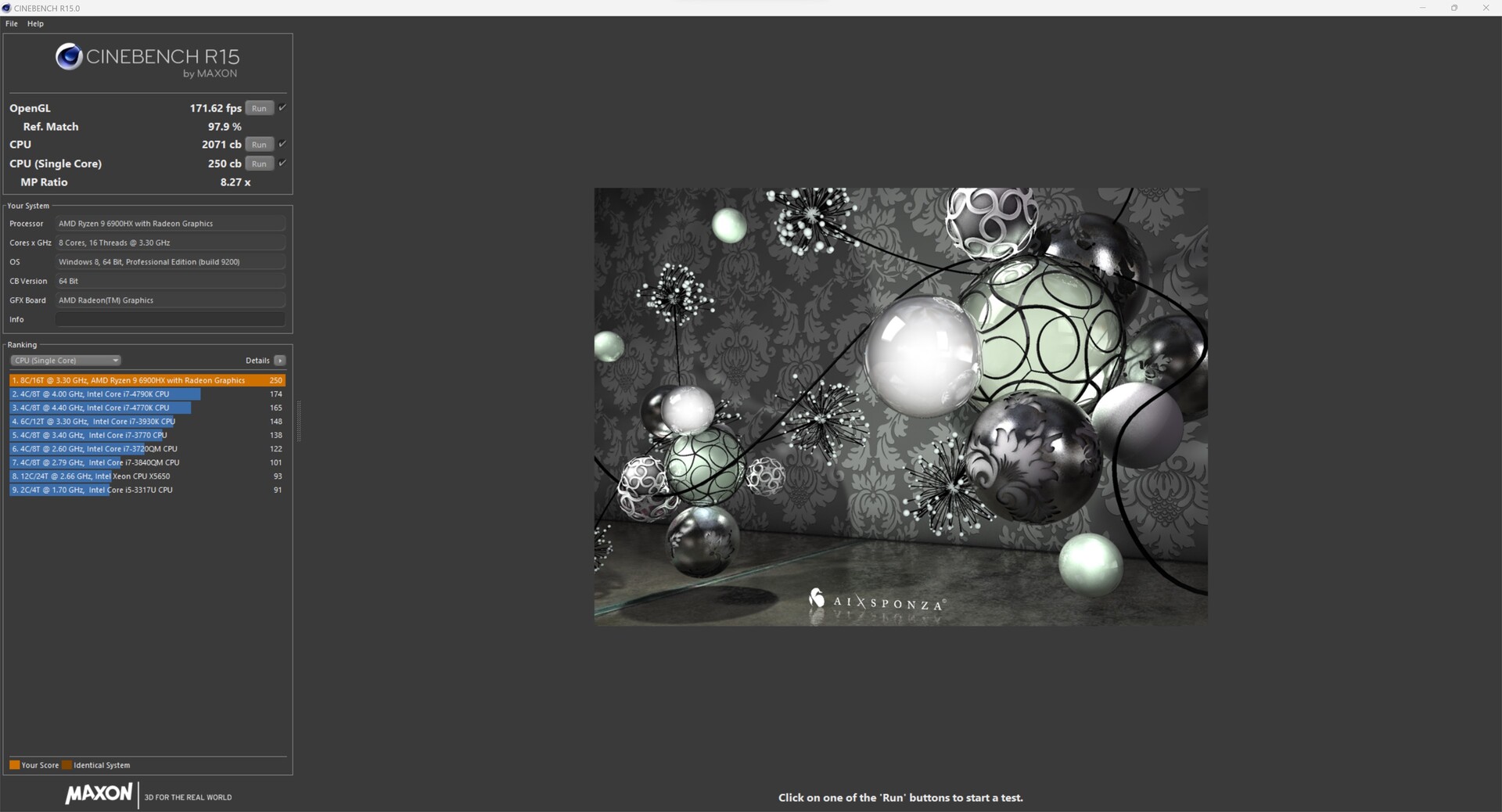

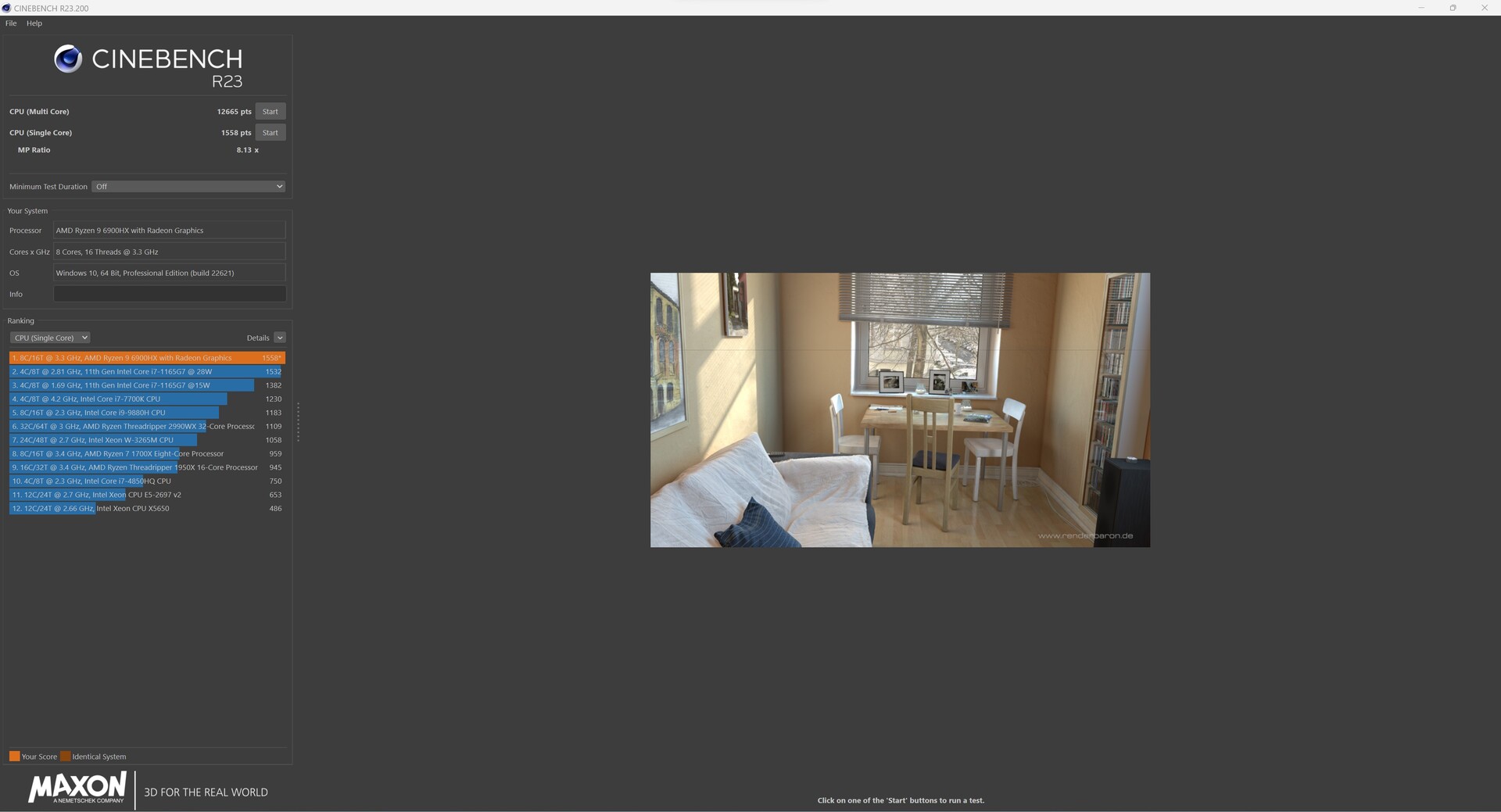

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	261 Points +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	250 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H	247 Points -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	244 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	244 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	244 Points -2%
Geekom Mini IT12 Intel Core i7-1260P	241 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U	227 Points -9%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	223 Points -11%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	2231 Points +8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	2071 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H	2067 Points 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	1920 Points -7%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	1886 Points -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	1588 Points -23%
Geekom Mini IT12 Intel Core i7-1260P	1565 Points -24%
Morefine M600, 6600U AMD Ryzen 5 6600U	1361 Points -34%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	1265 Points -39%

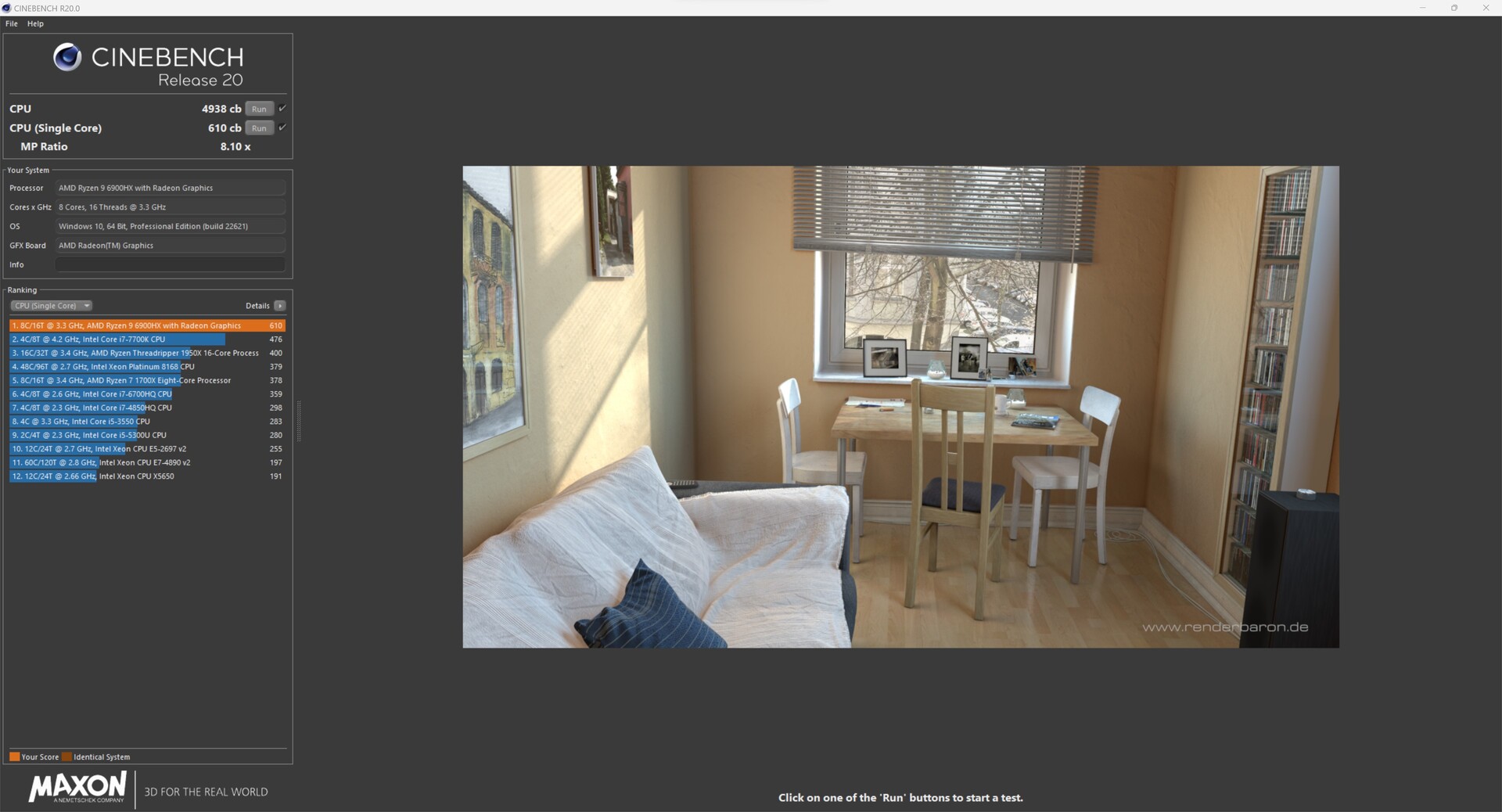

Cinebench R20
CPU (Single Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H	682 Points +12%
Geekom Mini IT12 Intel Core i7-1260P	652 Points +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	629 Points +3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	610 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	600 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	597 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	596 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	558 Points -9%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	534 Points -12%
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	5328 Points +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	4941 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	4938 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	4788 Points -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	4453 Points -10%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	3742 Points -24%
Geekom Mini IT12 Intel Core i7-1260P	3427 Points -31%
Morefine M600, 6600U AMD Ryzen 5 6600U	3419 Points -31%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	2975 Points -40%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	3.07 Points +5%
Geekom Mini IT12 Intel Core i7-1260P	2.93 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	2.92 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	2.89 Points -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	2.88 Points -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	2.86 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	2.86 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	2.73 Points -7%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	2.64 Points -10%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	26.35 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	25.96 Points +8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	24.09 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	23.66 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	22.12 Points -8%
Geekom Mini IT12 Intel Core i7-1260P	20.06 Points -17%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	19.01 Points -21%
Morefine M600, 6600U AMD Ryzen 5 6600U	17.15 Points -29%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	14.78 Points -39%

Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT12 Intel Core i7-1260P	13568 Points +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	12943 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	12846 Points +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	12320 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	12185 Points -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	12142 Points -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	11870 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U	11685 Points -5%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	11098 Points -10%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H	77409 Points +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	76758 Points +9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	70291 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	69797 Points -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	64484 Points -8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	55915 Points -20%
Morefine M600, 6600U AMD Ryzen 5 6600U	54792 Points -22%
Geekom Mini IT12 Intel Core i7-1260P	53950 Points -23%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	45363 Points -35%

Blender - v2.79 BMW27 CPU
Morefine M600, 6600U AMD Ryzen 5 6600U	415 Seconds * -69%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	399 Seconds * -63%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	357 Seconds * -46%
Geekom Mini IT12 Intel Core i7-1260P	279 Seconds * -14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	273 Seconds * -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	266 Seconds * -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	245 Seconds *
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	234 Seconds * +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	231 Seconds * +6%

wPrime 2.10
32m
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	5.377 s * -43%
Morefine M600, 6600U AMD Ryzen 5 6600U	4.688 s * -25%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	4.688 s * -25%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	4.623 s * -23%
Geekom Mini IT12 Intel Core i7-1260P	4.485 s * -19%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	3.762 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX	3.642 s * +3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	3.461 s * +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	3.421 s * +9%
1024m
Geekom Mini IT12 Intel Core i7-1260P	237.123 s * -140%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	189.07 s * -92%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	156.33 s * -58%
Morefine M600, 6600U AMD Ryzen 5 6600U	146.553 s * -48%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	146.553 s * -48%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	107.28 s * -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	103.226 s * -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	98.696 s *
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	93.19 s * +6%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	262.5 (262^min - 266^max) fps +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	258.5 (256^min - 268^max) fps +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	255.5 (254^min - 259^max) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	248.5 (246^min - 253^max) fps -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	245 (239^min - 261^max) fps -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	240.5 (237^min - 245^max) fps -6%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	234 (233^min - 235^max) fps -8%
Geekom Mini IT12 Intel Core i7-1260P	224 (222^min - 258^max) fps -12%
Morefine M600, 6600U AMD Ryzen 5 6600U	212 (206^min - 224^max) fps -17%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	127.8 (127.3^min - 129.1^max) fps +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	125.25 (105.2^min - 130^max) fps +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	120.2 (119.9^min - 121.3^max) fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX	114 (111.2^min - 119.4^max) fps -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	109.65 (109.6^min - 111.6^max) fps -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	93.25 (93.1^min - 94.3^max) fps -22%
Geekom Mini IT12 Intel Core i7-1260P	77.75 (77.6^min - 113.9^max) fps -35%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	76 (75.7^min - 76.3^max) fps -37%
Morefine M600, 6600U AMD Ryzen 5 6600U	71.45 (70.2^min - 76.6^max) fps -41%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H	7937 KB/s +16%
Morefine M600, 6600U AMD Ryzen 5 6600U	6937 KB/s +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	6937 KB/s +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	6882 KB/s 0%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	6877 KB/s 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	6875 KB/s 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	6860 KB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX	6795 KB/s -1%
Geekom Mini IT12 Intel Core i7-1260P	6559 KB/s -4%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	13.4 GB/s +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	12.1 GB/s +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	11.9 GB/s
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	10.5 GB/s -12%
Geekom Mini IT12 Intel Core i7-1260P	10.4 GB/s -13%
Morefine M600, 6600U AMD Ryzen 5 6600U	9.3 GB/s -22%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	9.3 GB/s -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	8.6 GB/s -28%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	7.7 GB/s -35%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H	2 GB/s +18%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	1.8 GB/s +6%
Geekom Mini IT12 Intel Core i7-1260P	1.8 GB/s +6%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	1.7 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX	1.6 GB/s -6%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	1.6 GB/s -6%
Morefine M600, 6600U AMD Ryzen 5 6600U	1.3 GB/s -24%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	1.3 GB/s -24%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	1.1 GB/s -35%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	1.2 GB/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	1.1 GB/s 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	1.1 GB/s
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	1.1 GB/s 0%
Geekom Mini IT12 Intel Core i7-1260P	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	0.974 GB/s -11%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.857 GB/s -22%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	0.857 GB/s -22%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	0.7 GB/s -36%

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	9706 Points +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	9695 Points +3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	9399 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	9151 Points -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	9078 Points -3%
Geekom Mini IT12 Intel Core i7-1260P	8918 Points -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	8313 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U	7658 Points -19%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	6175 Points -34%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H	1861 Points +18%
Geekom Mini IT12 Intel Core i7-1260P	1782 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	1634 Points +3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	1596 Points +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	1594 Points +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	1581 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	1547 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	1504 Points -5%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	1430 Points -10%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX	10249 Points 0%
Geekom Mini IT12 Intel Core i7-1260P	10249 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U	10249 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	10249 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	10249 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	10249 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	9663 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	9638 Points -6%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	6117 Points -40%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H	1838 Points +18%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	1593 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	1557 Points 0%
Geekom Mini IT12 Intel Core i7-1260P	1557 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U	1557 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	1557 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	1557 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	1557 Points 0%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	1383 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H	8015 Points +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	6804 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	6698 Points 0%
Geekom Mini IT12 Intel Core i7-1260P	6698 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U	6698 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	6698 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	6698 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	6698 Points 0%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	5854 Points -13%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX	39852 Points 0%
Geekom Mini IT12 Intel Core i7-1260P	39852 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U	39852 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	39852 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	39852 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	39852 Points 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	38566 Points -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	36692 Points -8%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	24495 Points -39%

3DMark 11 - 1280x720 Performance Physics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	18393 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H	18382 Points 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	18277 Points -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	17065 Points -7%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	15917 Points -13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	15855 Points -14%
Geekom Mini IT12 Intel Core i7-1260P	13067 Points -29%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	12608 Points -31%
Morefine M600, 6600U AMD Ryzen 5 6600U	11630 Points -37%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	61401 MIPS +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	58963 MIPS
Morefine M600, 6900HX AMD Ryzen 9 6900HX	56923 MIPS -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	55934 MIPS -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	51151 MIPS -13%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	49526 MIPS -16%
Morefine M600, 6600U AMD Ryzen 5 6600U	44320 MIPS -25%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	39207 MIPS -34%
Geekom Mini IT12 Intel Core i7-1260P	37570 MIPS -36%
7z b 4 -mmt1
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	6067 MIPS +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	6019 MIPS +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	5823 MIPS +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	5790 MIPS
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	5746 MIPS -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	5591 MIPS -3%
Geekom Mini IT12 Intel Core i7-1260P	5577 MIPS -4%
Morefine M600, 6600U AMD Ryzen 5 6600U	5486 MIPS -5%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	5249 MIPS -9%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	17.1 fps +8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	15.8 fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX	15.4 fps -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	14.9 fps -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	14.1 fps -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	12.6 fps -20%
Morefine M600, 6600U AMD Ryzen 5 6600U	11.7 fps -26%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	10.1 fps -36%
Geekom Mini IT12 Intel Core i7-1260P	10.1 fps -36%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	0.537 sec * -10%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.511 sec * -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	0.4944 sec * -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	0.4887 sec *
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	0.4887 sec * -0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	0.4881 sec * -0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	0.4757 sec * +3%
Geekom Mini IT12 Intel Core i7-1260P	0.4718 sec * +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	0.4641 sec * +5%

LibreOffice - 20 Documents To PDF
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	54.9 s * -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	53.4 s * -6%
Morefine M600, 6600U AMD Ryzen 5 6600U	53 s * -6%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	51.1 s * -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	50.2 s *
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	49 s * +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	48.8 s * +3%
Geekom Mini IT12 Intel Core i7-1260P	48.1 s * +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	38 s * +24%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H	311 Points +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	292 Points +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	287 Points 0%
Geekom Mini IT12 Intel Core i7-1260P	287 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	287 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	287 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	287 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U	274 Points -5%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	255 Points -11%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	646 ms * -8%
Morefine M600, 6600U AMD Ryzen 5 6600U	619 ms * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	605 ms * -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	600 ms *
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	600 ms * -0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	599 ms * -0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	577 ms * +4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	571 ms * +5%
Geekom Mini IT12 Intel Core i7-1260P	539 ms * +10%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	25456 Points +5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	24167 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX	22441 Points -7%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	22166 Points -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	21422 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U	18599 Points -23%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	17731 Points -27%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	17568 Points -27%
Geekom Mini IT12 Intel Core i7-1260P	15903 Points -34%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	25915 Points +7%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	24175 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	22789 Points -6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	22426 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H	22244 Points -8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	18389 Points -24%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	18076 Points -25%
Geekom Mini IT12 Intel Core i7-1260P	16568 Points -31%
Morefine M600, 6600U AMD Ryzen 5 6600U	15934 Points -34%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H	10539 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX	9354 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX	9324 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX	8691 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX	8622 Points -8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX	6621 Points -29%
Geekom Mini IT12 Intel Core i7-1260P	6487 Points -30%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U	5443 Points -42%
Morefine M600, 6600U AMD Ryzen 5 6600U	5114 Points -45%

* ... smaller is better

Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4 | Geekbench 6.0

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	9399 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	9078 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	8313 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points -19%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz	6175 Points -34%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points +3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	1596 Points +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	1594 Points +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	1581 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -5%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz	1430 Points -10%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	10249 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	10249 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points -6%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz	6117 Points -40%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +18%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	1557 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	1557 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	1557 Points 0%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz	1383 Points -11%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	6698 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	6698 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	6698 Points 0%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz	5854 Points -13%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	39852 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	39852 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	39852 Points 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -8%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz	24495 Points -39%

Geekbench 6.0
Single-Core
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2268 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2093 Points +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	2048 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	2044 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	2042 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1923 Points -6%
Multi-Core
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	9864 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	9472 Points -4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	9157 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9067 Points -8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	8784 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7790 Points -21%
GPU OpenCL
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	28763 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	28569 Points -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	26376 Points -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	15826 Points -45%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	14890 Points -48%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	14537 Points -49%
GPU Vulkan
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz	31401 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz	29614 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	20288 Points -35%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz	19768 Points -37%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	19247 Points -39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17295 Points -45%

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.2 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	92 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	88.1 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	77.7 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Average of class Mini PC	63.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.7 pt
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	60.1 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	57 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	14406 KRay/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	13100 KRay/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -24%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	10950 KRay/s -24%
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s -31%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -34%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -37%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -45%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	91475 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	84100 Points -8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	71414 Points -22%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -35%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	57375 Points -37%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -40%
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points -43%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -56%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	3117 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s -6%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	2888 MB/s -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -18%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	2471 MB/s -21%
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s -26%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -36%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	1971 MB/s -37%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	99180 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	91908 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -14%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	84185 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -24%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -26%
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points -30%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	67224 Points -32%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	12642 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	11995 Points -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	10970 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -31%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	8294 Points -34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -40%
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points -42%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -56%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	50025 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	46034 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	39164 Points -22%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -35%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	31389 Points -37%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -44%
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points -44%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -60%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +10%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	124515 MB/s
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	117815 MB/s -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	104582 MB/s -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -20%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	78211 MB/s -37%
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s -40%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -55%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -68%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +49%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +29%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	736 MB/s +27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +27%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	639 MB/s +11%
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	578 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -8%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	505 MB/s -13%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	7680 KRay/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	6998 KRay/s -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	5798 KRay/s -25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -25%
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s -31%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -34%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -40%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -46%

AIDA64 / CPU PhotoWorxx
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	30038 MPixel/s
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	29815 MPixel/s -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	29607 MPixel/s -1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s -8%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s -9%
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s -18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -19%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -35%

王牌魔术师AM08 Pro在Cinebench R15多重循环中的表现

Cinebench R15恒定循环已经让我们对所使用的冷却系统的效率有了一定的了解。我们没有注意到Ace Magician AM08 Pro在性能上有任何严重的损失。在直接比较中，我们的测试设备在运行50次后，最终排在第二位。

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2050 (2014.91-2082.68)

Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1465 (1384.47-1639.48)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1838 (1759.56-1916.44)

系统性能

整个系统运行非常流畅，得益于快速的SoC与DDR5工作内存的结合。该系统甚至可以在静音模式下用于日常工作。使用该模式，你不仅可以节省一些电力，而且Ace Magician AM08 Pro也会安静地运行。正如在CPU基准测试中一样，Minisforum Venus系列UM690在系统性能的基准测试中也是一个顽强的对手，我们的测试设备只在内存基准测试中领先。

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	98.9 pt
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G	95.1 pt
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	94.9 pt
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,	94 pt
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,	91 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	89.7 pt
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	88 pt
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	86.9 pt
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	81.5 pt

PCMark 10
Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +4%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G	6802 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points -2%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,	6643 Points -2%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,	6251 Points -8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -15%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -17%
Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points +3%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G	10496 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -1%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,	10323 Points -2%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -3%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,	10029 Points -4%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -6%
Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +3%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,	9611 Points 0%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G	9574 Points
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,	9552 Points 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -22%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +19%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +9%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points +9%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1595 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1560 Points -2%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1525 Points -4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points -5%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points -5%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -14%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +22%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points +10%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +9%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1580 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1552 Points -2%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1523 Points -4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -6%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -11%

CrossMark / Creativity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +5%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +2%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points +2%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1712 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1670 Points -2%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -4%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points -4%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1632 Points -5%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -19%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +59%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +30%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points +26%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1329 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1289 Points -3%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -5%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M,	1245 Points -6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points -7%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -7%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	50686 MB/s 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	50608 MB/s
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	50495 MB/s 0%
Average AMD Ryzen 9 6900HX (47938 - 53345, n=20)	50405 MB/s 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -9%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -12%
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s -15%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	35051 MB/s -31%

AIDA64 / Memory Read
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	51624 MB/s 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	51552 MB/s
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	51427 MB/s 0%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s -1%
Average AMD Ryzen 9 6900HX (43892 - 53321, n=20)	51062 MB/s -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s -8%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -11%
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s -15%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	38400 MB/s -26%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s 0%
Average AMD Ryzen 9 6900HX (51085 - 57202, n=20)	55188 MB/s 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	55144 MB/s
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	55115 MB/s 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	55096 MB/s 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -15%
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s -15%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	37475 MB/s -32%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -5%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7	91.3 ns * -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M	89.1 ns * -1%
Average AMD Ryzen 9 6900HX (80.7 - 120.6, n=20)	88.7 ns * -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M	87.8 ns *
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * -0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M	87.4 ns * -0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * +5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * +9%

* ... smaller is better

DPC延迟

LatencyMon显示，在Edge浏览器中打开几个标签时，延迟略有上升。当播放我们的4K测试视频时，延迟没有进一步增加，Prime95也没有导致我们最初测量的延迟的恶化。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * -9%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX AMD Radeon 680M, BiWin CE480Y2D100-512G	1371.2 μs *
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * +4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * +19%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * +26%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	985.8 μs * +28%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +44%

* ... smaller is better

存储解决方案

我们的测试单位Ace Magician AM08 Pro配备了BiWin公司的512GB SSD。这种固态硬盘支持PCIe 3.0速度，这也反映在基准测试中。在这次比较中，我们的测试设备遇到了困难，不得不满足于最后的排名。特别是BiWin固态硬盘的写入性能是这里的一个关键点。同时，你可以很容易地与SSD相处，没有任何问题。然而，我们也要抱怨一下此时只有512GB的容量。考虑到作为游戏电脑的用途，最低标准至少应该是具有1-TB容量的型号。另一方面，王牌魔术师AM08 Pro也可以很容易地配备一个2.5英寸格式的额外存储驱动器。

你还可以在我们的 "比较图表 "中找到更多的比较和基准。比较表.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

BiWin CE480Y2D100-512G

Sequential Read: 1269 MB/s

Sequential Write: 669.7 MB/s

512K Read: 791.7 MB/s

512K Write: 625.9 MB/s

4K Read: 49.46 MB/s

4K Write: 183.1 MB/s

4K QD32 Read: 517.4 MB/s

4K QD32 Write: 278.8 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	86.6 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	82.5 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	67.1 pt
Average of class Mini PC	47.5 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	42.6 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	39.1 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	37.8 pt
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	28.7 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +148%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +118%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +61%
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +57%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +33%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s +12%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	1290 (1269.59^min - 1290.1^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -9%
seq write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +424%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +403%
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +204%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +165%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s +126%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s +78%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s +59%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	676 (608.43^min - 676.24^max) MB/s
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +89%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +88%
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +24%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2557 (2087.92^min - 2556.98^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -4%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -22%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -34%
seq q8 t1 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +428%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +408%
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +233%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +164%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s +139%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s +81%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s +62%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	670 (614.49^min - 669.54^max) MB/s
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +68%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +45%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +14%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +5%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	48.9 (31.16^min - 48.85^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -1%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -18%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +132%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +57%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +51%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +25%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +20%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +15%
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s +1%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	183.3 (149.75^min - 183.3^max) MB/s
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +156%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +154%
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +44%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +30%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	760 (325.52^min - 759.71^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -45%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -53%
4k q32 t16 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +425%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +277%
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +71%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +48%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +41%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +4%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	635 (272.57^min - 635.12^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -14%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +335%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +244%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +221%
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points +72%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +35%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points +20%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2075 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -64%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +304%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +166%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +162%
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points +51%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +29%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	899 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -19%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -26%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +361%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +351%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +301%
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points +99%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +86%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +35%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	785 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -11%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +139%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +86%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +82%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +28%
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +25%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +1%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	2229 MB/s
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +545%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +441%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +397%
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +223%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +170%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s +102%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	609 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -14%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +130%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +91%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +48%
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s +23%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +17%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s +9%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	45 MB/s
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +133%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +74%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +53%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +33%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +18%
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s +7%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	157 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -8%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +381%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +197%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +195%
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s +61%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +40%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	631 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -37%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -49%
4K-64 Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +431%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +401%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +359%
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s +111%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +87%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +32%
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	567 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -19%
Access Time Read
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.15 ms *
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * +32%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +50%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +51%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +56%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * +57%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +60%
Access Time Write
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G	0.183 ms *
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * +29%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * +36%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +44%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +83%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * +83%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +87%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +90%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G: Ø2845 (145.88-3195.22)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

图形卡

AMD的Rembrandt SoC通过新的iGPU带来了明显的性能提升。这款AMD Radeon 680M能够在Ace Magician AM08 Pro中显示其出色的性能，而我们的测试装置也能够击败 Minisforum Venus Series UM690而我们的测试设备能够将配备相同iGPU的Minisforum Venus系列UM690排在第二位。这款莫里芬M600也无法对Ace Magician AM08 Pro构成威胁。然而，我们不应过分重视这种排名，因为所有基于AMD Radeon 680M的竞争对手的排名都非常接近。英特尔凭借其Iris Xe iGPU甚至无法接近AMD。芯片Minisforum Neptune系列NAD9和 Geekom Mini IT12不得不满足于在该领域的中间位置上大幅落后。

为了获得更高的3D性能，你可以使用Thunderbolt端口来连接外部显卡。基于Razer Core X与 NvidiaGeForce RTX 3060 Ti我们评估了可以预期的性能，并在我们的比较图中包括使用专用显卡取得的数值。

你可以找到关于AMD Radeon 680M的其他基准测试这里.

AMD Radeon 680M

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	99.3 pt
Minisforum Venus Series UM690 AMD Radeon 680M	95.3 pt
Morefine M600, 6900HX AMD Radeon 680M	94.2 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	69.5 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	60.4 pt
Morefine M600, 6600U AMD Radeon 660M	59.8 pt
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	49.4 pt

3DMark 11 - 1280x720 Performance GPU
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	11478 Points
Morefine M600, 6900HX AMD Radeon 680M	11055 Points -4%
Minisforum Venus Series UM690 AMD Radeon 680M	10845 Points -6%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	7057 Points -39%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	6599 Points -43%
Morefine M600, 6600U AMD Radeon 660M	5634 Points -51%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	5610 Points -51%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M	43275 Points +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	41726 Points
Morefine M600, 6900HX AMD Radeon 680M	41124 Points -1%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	30434 Points -27%
Morefine M600, 6600U AMD Radeon 660M	28159 Points -33%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	26247 Points -37%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	22570 Points -46%
1920x1080 Fire Strike Graphics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	7303 Points
Minisforum Venus Series UM690 AMD Radeon 680M	6679 Points -9%
Morefine M600, 6900HX AMD Radeon 680M	6644 Points -9%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	5526 Points -24%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	4860 Points -33%
Morefine M600, 6600U AMD Radeon 660M	4621 Points -37%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	3586 Points -51%
2560x1440 Time Spy Graphics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	2437 Points
Morefine M600, 6900HX AMD Radeon 680M	2408 Points -1%
Minisforum Venus Series UM690 AMD Radeon 680M	2351 Points -4%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	1658 Points -32%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	1528 Points -37%
Morefine M600, 6600U AMD Radeon 660M	1430 Points -41%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	1102 Points -55%
Fire Strike Extreme Graphics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	3408 Points
Minisforum Venus Series UM690 AMD Radeon 680M	3206 Points -6%
Morefine M600, 6900HX AMD Radeon 680M	3066 Points -10%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	2455 Points -28%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	2150 Points -37%
Morefine M600, 6600U AMD Radeon 660M	2149 Points -37%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	1472 Points -57%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M	97.7 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	91.9 pt
Morefine M600, 6900HX AMD Radeon 680M	90.9 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	58.8 pt
Morefine M600, 6600U AMD Radeon 660M	58.4 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	57 pt
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	48.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 AMD Radeon 680M	34.6 fps +20%
Morefine M600, 6900HX AMD Radeon 680M	33.6 fps +16%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	28.9 fps
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	23.3 fps -19%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	21 fps -27%
Morefine M600, 6600U AMD Radeon 660M	20.4 fps -29%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	17.7 fps -39%
Extreme Preset DX11
Minisforum Venus Series UM690 AMD Radeon 680M	33.4 fps +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	32.6 fps
Morefine M600, 6900HX AMD Radeon 680M	32.2 fps -1%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	24 fps -26%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	21.7 fps -33%
Morefine M600, 6600U AMD Radeon 660M	20.9 fps -36%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	17.1 fps -48%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX AMD Radeon 680M	21 fps +37%
Minisforum Venus Series UM690 AMD Radeon 680M	18.8 fps +23%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	15.3 fps
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	14.3 fps -7%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	13.2 fps -14%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	11.3 fps -26%
Morefine M600, 6600U AMD Radeon 660M	10.9 fps -29%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX AMD Radeon 680M	22.8 fps +34%
Minisforum Venus Series UM690 AMD Radeon 680M	21.3 fps +25%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	17 fps
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	16.1 fps -5%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	15.2 fps -11%
Morefine M600, 6600U AMD Radeon 660M	11.6 fps -32%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	11.5 fps -32%

Unigine Superposition
1280x720 720p Low
Minisforum Venus Series UM690 AMD Radeon 680M	10523 Points +16%
Morefine M600, 6900HX AMD Radeon 680M	9915 Points +9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	9085 Points
Morefine M600, 6600U AMD Radeon 660M	7862 Points -13%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	5361 Points -41%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	5141 Points -43%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	4088 Points -55%
1920x1080 1080p High
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	3251 Points
Minisforum Venus Series UM690 AMD Radeon 680M	3187 Points -2%
Morefine M600, 6900HX AMD Radeon 680M	2916 Points -10%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	2095 Points -36%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	1923 Points -41%
Morefine M600, 6600U AMD Radeon 660M	1800 Points -45%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	1459 Points -55%
1920x1080 1080p Extreme
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	1498 Points
Minisforum Venus Series UM690 AMD Radeon 680M	1481 Points -1%
Morefine M600, 6900HX AMD Radeon 680M	1358 Points -9%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	1076 Points -28%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	992 Points -34%
Morefine M600, 6600U AMD Radeon 660M	801 Points -47%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	687 Points -54%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 AMD Radeon 680M	7111 Points +4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	6834 Points
Morefine M600, 6900HX AMD Radeon 680M	5813 Points -15%
Morefine M600, 6600U AMD Radeon 660M	3439 Points -50%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	3390 Points -50%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	3308 Points -52%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	3225 Points -53%
1024x600 Normal, Fluid 3DTex
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	413 Points
Minisforum Venus Series UM690 AMD Radeon 680M	400 Points -3%
Morefine M600, 6900HX AMD Radeon 680M	371 Points -10%
Morefine M600, 6600U AMD Radeon 660M	318 Points -23%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	237 Points -43%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	234 Points -43%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	224 Points -46%
1024x600 Normal, Fluid 2DTexArr
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	424 Points
Minisforum Venus Series UM690 AMD Radeon 680M	404 Points -5%
Morefine M600, 6900HX AMD Radeon 680M	367 Points -13%
Morefine M600, 6600U AMD Radeon 660M	340 Points -20%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	249 Points -41%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	237 Points -44%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	212 Points -50%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 AMD Radeon 680M	2030 Points +6%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	1914 Points
Morefine M600, 6900HX AMD Radeon 680M	1677 Points -12%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	982 Points -49%
Morefine M600, 6600U AMD Radeon 660M	933 Points -51%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	851 Points -56%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	827 Points -57%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 AMD Radeon 680M	2332 Points +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	2279 Points
Morefine M600, 6900HX AMD Radeon 680M	1924 Points -16%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	1191 Points -48%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	1174 Points -48%
Morefine M600, 6600U AMD Radeon 660M	963 Points -58%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	900 Points -61%

Ace Magician AM08 Pro and its Three Performance Modes in Comparison

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	100 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	95 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	84.2 pt

3DMark 11 - 1280x720 Performance GPU
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	11478 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	10590 Points -8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	9452 Points -18%

3DMark
1280x720 Cloud Gate Standard Graphics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	41726 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	40076 Points -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	35759 Points -14%
1920x1080 Fire Strike Graphics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	7303 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	7037 Points -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	6297 Points -14%
2560x1440 Time Spy Graphics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	2437 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	2323 Points -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	1901 Points -22%
Fire Strike Extreme Graphics
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	3408 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	3237 Points -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	3028 Points -11%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	98.7 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	89.4 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	68.4 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	28.9 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	21.1 fps -27%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	20.7 fps -28%
Extreme Preset DX11
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	32.6 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	29.8 fps -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	27.1 fps -17%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	15.3 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	11.7 fps -24%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	11.6 fps -24%
1920x1080 Extreme HD Preset OpenGL AA:x8
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	17 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	13 fps -24%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	12.8 fps -25%

Unigine Superposition
1280x720 720p Low
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	10773 Points +19%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	9085 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	6473 Points -29%
1920x1080 1080p High
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	3251 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	3179 Points -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	2336 Points -28%
1920x1080 1080p Extreme
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	1498 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	1370 Points -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	1250 Points -17%

ComputeMark v2.1
1024x600 Normal, Score
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	6834 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	6108 Points -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	3439 Points -50%
1024x600 Normal, Fluid 3DTex
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	413 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	412 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	318 Points -23%
1024x600 Normal, Fluid 2DTexArr
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	424 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	424 Points 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	340 Points -20%
1024x600 Normal, Mandel Vector
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	1914 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	1696 Points -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	933 Points -51%
1024x600 Normal, QJuliaRayTrace
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	2279 Points
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	2022 Points -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	963 Points -58%

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.4 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96.5 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	96.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	96 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	33577 Points +193%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32915 Points +187%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32835 Points +186%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +185%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	32467 Points +183%
	11478 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	123559 Points +196%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	118686 Points +184%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116565 Points +179%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +179%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	115545 Points +177%
	41726 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	25669 Points +251%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24905 Points +241%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	24738 Points +239%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24657 Points +238%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +234%
	7303 Points
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	11031 Points +353%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10777 Points +342%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	10768 Points +342%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10743 Points +341%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +340%
	2437 Points
Fire Strike Extreme Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	13552 Points +298%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13299 Points +290%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	13186 Points +287%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13117 Points +285%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +282%
	3408 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	100 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	98 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	98 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	97.1 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	96.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	169.6 fps +487%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	167.3 fps +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	166.1 fps +475%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	163.2 fps +465%
	28.9 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	164.8 fps +406%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +374%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	154.3 fps +373%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	153.4 fps +371%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	152.4 fps +367%
	32.6 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	143.1 fps +835%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +777%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	131.7 fps +761%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	131.4 fps +759%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	127.9 fps +736%
	15.3 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	125.8 fps +640%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +622%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	122.2 fps +619%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	121.1 fps +612%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	120.1 fps +606%
	17 fps

Unigine Superposition
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15114 Points +365%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	14836 Points +356%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	14751 Points +354%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +352%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	14660 Points +351%
	3251 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7129 Points +376%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	7036 Points +370%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +370%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7012 Points +368%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	6971 Points +365%
	1498 Points

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	27847 Points +307%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	27811 Points +307%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +306%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	27566 Points +303%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	27460 Points +302%
	6834 Points
1024x600 Normal, Fluid 3DTex
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2691 Points +552%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2689 Points +551%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +549%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2675 Points +548%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	2667 Points +546%
	413 Points
1024x600 Normal, Fluid 2DTexArr
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2622 Points +518%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +518%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2619 Points +518%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	2606 Points +515%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	2598 Points +513%
	424 Points
1024x600 Normal, Mandel Vector
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5694 Points +197%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5689 Points +197%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +195%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	5606 Points +193%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	5603 Points +193%
	1914 Points
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) , i7-1360P, Samsung PM9A1 MZVL2512HCJQ	10555 Points +363%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	10539 Points +362%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +362%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) , R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10462 Points +359%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX, BiWin CE480Y2D100-512G	10388 Points +356%
	2279 Points

游戏性能

尽管 AMD Radeon 680M只是AMD Ryzen 9 6900HX的iGPU，该型号在Ace Magician AM08 Pro中提供了可用的性能。与Ace Magician AMR5相比，游戏性能可以明显提高。另一方面，你也不应该对Ace Magician AM08 Pro期望太高。 AMD Radeon 680M.有时，要求非常高的游戏，如《战神》，甚至不能在720p和最低的细节设置下顺利播放。

你可以在我们的 "iGPU游戏列表 "中找到与其他显卡相比的iGPU性能概况。 GPU游戏列表.

如上所述，我们还用Ace Magician AM08 Pro与Razer Core X和我们的NvidiaGeForce RTX 3060 Ti 显卡一起进行了额外的游戏测试。通过Thunderbolt端口的相应配件，3D性能可以得到明显的提高。基于AMD的系统之间没有严重的性能差异。Geekom Mini IT12以及基于英特尔酷睿i7-1260P的英特尔NUC 12能够通过外置显卡实现更高的性能。与我们的测试装置相比，我们测得的性能高出10%左右。

AMD Radeon 680M

F1 2021
1280x720 Ultra Low Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	191.6 (154^min, 143^P1) fps
Minisforum Venus Series UM690 AMD Radeon 680M	184.4 (146^min, 139^P1) fps -4%
Morefine M600, 6900HX AMD Radeon 680M	175.3 (131^min, 141^P1) fps -9%
Morefine M600, 6600U AMD Radeon 660M	109.5 (93^min, 91^P1) fps -43%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	97.2 (76^min, 74^P1) fps -49%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps -51%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	93 (72^min, 70^P1) fps -51%
1920x1080 Medium Preset AA:T AF:16x
Minisforum Venus Series UM690 AMD Radeon 680M	90.5 (66^min, 62^P1) fps +9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	82.9 (53^min, 49^P1) fps
Morefine M600, 6900HX AMD Radeon 680M	82.1 (69^min, 63^P1) fps -1%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	52.2 (42^min, 42^P1) fps -37%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	46 (36^min, 36^P1) fps -45%
Morefine M600, 6600U AMD Radeon 660M	44.4 (37^min, 36^P1) fps -46%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps -52%
1920x1080 High Preset AA:T AF:16x
Minisforum Venus Series UM690 AMD Radeon 680M	67.5 (56^min, 51^P1) fps 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	67.5 (41^min, 39^P1) fps
Morefine M600, 6900HX AMD Radeon 680M	63.5 (48^min, 48^P1) fps -6%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	40.4 (33^min, 33^P1) fps -40%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	35.8 (30^min, 29^P1) fps -47%
Morefine M600, 6600U AMD Radeon 660M	35.2 (29^min, 28^P1) fps -48%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	31.1 (25^min, 25^P1) fps -54%

F1 2020
1280x720 Ultra Low Preset
Minisforum Venus Series UM690 AMD Radeon 680M	177 (149^min) fps +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	174.3 (162^min) fps
Morefine M600, 6900HX AMD Radeon 680M	166.9 (146^min) fps -4%
Morefine M600, 6600U AMD Radeon 660M	102.1 (87^min) fps -41%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	95.2 (83^min) fps -45%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	90.4 (73^min) fps -48%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	82.1 (73^min) fps -53%
1920x1080 Medium Preset AF:16x
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	87.4 (72^min) fps
Minisforum Venus Series UM690 AMD Radeon 680M	86.3 (72^min) fps -1%
Morefine M600, 6900HX AMD Radeon 680M	80.9 (71^min) fps -7%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	48.2 (41^min) fps -45%
Morefine M600, 6600U AMD Radeon 660M	44.6 (37^min) fps -49%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	43.3 (38^min) fps -50%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	41.2 (34^min) fps -53%
1920x1080 High Preset AA:T AF:16x
Minisforum Venus Series UM690 AMD Radeon 680M	67.6 (53^min) fps +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	67.2 (54^min) fps
Morefine M600, 6900HX AMD Radeon 680M	63.7 (55^min) fps -5%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	37 (31^min) fps -45%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	33.5 (28^min) fps -50%
Morefine M600, 6600U AMD Radeon 660M	32.3 (27^min) fps -52%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	30.8 (26^min) fps -54%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX AMD Radeon 680M	90.7 fps +5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	86.6 fps
Minisforum Venus Series UM690 AMD Radeon 680M	82.1 fps -5%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	59.1 fps -32%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	53.4 fps -38%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	51.8 fps -40%
Morefine M600, 6600U AMD Radeon 660M	49 fps -43%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 AMD Radeon 680M	26.5 fps +50%
Morefine M600, 6900HX AMD Radeon 680M	24.1 fps +36%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	17.7 fps
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	16.2 fps -8%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	14.8 fps -16%
Morefine M600, 6600U AMD Radeon 660M	13.6 fps -23%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	13.3 fps -25%

GTA V
1024x768 Lowest Settings possible
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	155.4 (6.68^min, 111.1^P1) fps
Morefine M600, 6900HX AMD Radeon 680M	152.1 (2.73^min, 100^P1) fps -2%
Minisforum Venus Series UM690 AMD Radeon 680M	149.3 (5.43^min, 100^P1) fps -4%
Morefine M600, 6600U AMD Radeon 660M	142.9 (1.358^min, 71.4^P1) fps -8%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	135.3 (26.7^min, 90.9^P1) fps -13%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	119.3 (25.1^min, 76.9^P1) fps -23%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps -26%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX AMD Radeon 680M	53.5 (3.46^min, 38.5^P1) fps +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	52.2 (11.6^min, 26.3^P1) fps
Minisforum Venus Series UM690 AMD Radeon 680M	49.3 (7.78^min, 34.5^P1) fps -6%
Morefine M600, 6600U AMD Radeon 660M	33.9 (1.094^min, 20.4^P1) fps -35%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	27.2 (6.42^min, 20^P1) fps -48%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	21 (8.15^min, 16.1^P1) fps -60%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	18.6 (8^min, 14.3^P1) fps -64%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 AMD Radeon 680M	131.8 fps +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	130.7 fps
Morefine M600, 6900HX AMD Radeon 680M	113.9 fps -13%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	97.2 fps -26%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	86.9 fps -34%
Morefine M600, 6600U AMD Radeon 660M	76.8 fps -41%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -53%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	42.6 fps
Minisforum Venus Series UM690 AMD Radeon 680M	41.3 fps -3%
Morefine M600, 6900HX AMD Radeon 680M	39.4 fps -8%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	32 fps -25%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	28.9 fps -32%
Morefine M600, 6600U AMD Radeon 660M	22.6 fps -47%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -54%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX AMD Radeon 680M	75 (60^min) fps +3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	73 (65^min) fps
Minisforum Venus Series UM690 AMD Radeon 680M	71 (39^min) fps -3%
Morefine M600, 6600U AMD Radeon 660M	62 (49^min) fps -15%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	57 (49^min) fps -22%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	50 (41^min) fps -32%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	44 (38^min) fps -40%
1920x1080 High Preset AA:T
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	40 (35^min) fps
Minisforum Venus Series UM690 AMD Radeon 680M	39 (34^min) fps -2%
Morefine M600, 6900HX AMD Radeon 680M	34 (30^min) fps -15%
Morefine M600, 6600U AMD Radeon 660M	29 (25^min) fps -27%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	27 (24^min) fps -32%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	25 (22^min) fps -37%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	20 (17^min) fps -50%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX AMD Radeon 680M	66 (50^min) fps +3%
Minisforum Venus Series UM690 AMD Radeon 680M	65 (50^min) fps +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	64 (49^min) fps
Morefine M600, 6600U AMD Radeon 660M	58 (42^min) fps -9%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	52 (31^min) fps -19%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	46 (28^min) fps -28%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	40 (31^min) fps -37%
1920x1080 High Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	39 (31^min) fps
Minisforum Venus Series UM690 AMD Radeon 680M	37 (17^min) fps -5%
Morefine M600, 6900HX AMD Radeon 680M	37 (29^min) fps -5%
Morefine M600, 6600U AMD Radeon 660M	29 (23^min) fps -26%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	28 (21^min) fps -28%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps -36%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	19 (16^min) fps -51%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 AMD Radeon 680M	143 (124.5^min) fps +5%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	136.9 (106.8^min) fps 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	136.8 (122.1^min) fps
Morefine M600, 6600U AMD Radeon 660M	135.9 (121.4^min) fps -1%
Morefine M600, 6900HX AMD Radeon 680M	133.4 (119^min) fps -2%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	111 (97.1^min) fps -19%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	108.1 (86.6^min) fps -21%
1920x1080 high (2/3)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	85.3 (74.5^min) fps
Minisforum Venus Series UM690 AMD Radeon 680M	84.3 (74.6^min) fps -1%
Morefine M600, 6900HX AMD Radeon 680M	82.2 (71.4^min) fps -4%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	68 (62.7^min) fps -20%
Morefine M600, 6600U AMD Radeon 660M	64.9 (56.8^min) fps -24%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	60.9 (55.7^min) fps -29%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	50.5 (43.6^min) fps -41%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Minisforum Venus Series UM690 AMD Radeon 680M	66.7 fps +10%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	60.5 fps
Morefine M600, 6900HX AMD Radeon 680M	59.5 fps -2%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	45.7 fps -24%
Morefine M600, 6600U AMD Radeon 660M	40.9 fps -32%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	40.5 fps -33%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	34.6 fps -43%
1920x1080 Standard Quality
Minisforum Venus Series UM690 AMD Radeon 680M	32.3 fps +19%
Morefine M600, 6900HX AMD Radeon 680M	31 fps +14%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	27.2 fps
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	24.8 fps -9%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	21.8 fps -20%
Morefine M600, 6600U AMD Radeon 660M	19.8 fps -27%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	17.3 fps -36%
1920x1080 High Quality
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	24.8 fps +28%
Minisforum Venus Series UM690 AMD Radeon 680M	23.6 fps +22%
Morefine M600, 6900HX AMD Radeon 680M	23.4 fps +21%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	19.3 fps
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	15.7 fps -19%
Morefine M600, 6600U AMD Radeon 660M	14.5 fps -25%
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Radeon RX Vega 7	12.6 fps -35%

X-Plane 11.11
1280x720 low (fps_test=1)
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	66.1 fps +2%
Minisforum Venus Series UM690 AMD Radeon 680M	66.1 fps +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	65.1 fps
Morefine M600, 6900HX AMD Radeon 680M	63.5 fps -2%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	58.3 fps -10%
Morefine M600, 6600U AMD Radeon 660M	50.6 fps -22%
1920x1080 med (fps_test=2)
Minisforum Venus Series UM690 AMD Radeon 680M	53.1 fps +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	52.8 fps
Morefine M600, 6900HX AMD Radeon 680M	50.7 fps -4%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	47.3 fps -10%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	43.1 fps -18%
Morefine M600, 6600U AMD Radeon 660M	36.7 fps -30%
1920x1080 high (fps_test=3)
Minisforum Venus Series UM690 AMD Radeon 680M	43.1 fps +2%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs	42.3 fps 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	42.2 fps
Morefine M600, 6900HX AMD Radeon 680M	41.3 fps -2%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs	38.5 fps -9%
Morefine M600, 6600U AMD Radeon 660M	30.8 fps -27%

Ace Magician AM08 Pro in Silent, Auto, and Performance Mode

Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	99.9 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	90 pt
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	82.9 pt

F1 2021
1280x720 Ultra Low Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	191.6 (154^min, 143^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	184.5 (148^min, 141^P1) fps -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	163.8 (131^min, 129^P1) fps -15%
1920x1080 Medium Preset AA:T AF:16x
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	82.9 (53^min, 49^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	77.8 (62^min, 47^P1) fps -6%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	73.4 (50^min, 45^P1) fps -11%
1920x1080 High Preset AA:T AF:16x
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	67.5 (41^min, 39^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	59.8 (38^min, 37^P1) fps -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	58.9 (45^min, 41^P1) fps -13%

F1 2020
1280x720 Ultra Low Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	174.3 (162^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	165.3 (153^min) fps -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	154.1 (141^min) fps -12%
1920x1080 Medium Preset AF:16x
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	87.4 (72^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	79.2 (53^min) fps -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	73.8 (63^min) fps -16%
1920x1080 High Preset AA:T AF:16x
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	67.2 (54^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	60.1 (41^min) fps -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	57.8 (48^min) fps -14%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	86.6 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	85.5 fps -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	78.8 fps -9%
1920x1080 Medium Overall Quality (DX11)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	28.7 fps +3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	28 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	27.6 fps -1%
1920x1080 High Overall Quality (DX11)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	18 fps +2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	17.7 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	16.9 fps -5%

GTA V
1024x768 Lowest Settings possible
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	155.4 (6.68^min, 111.1^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	151.6 (5.47^min, 100^P1) fps -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	142.8 (1.614^min, 83.3^P1) fps -8%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	52.2 (11.6^min, 26.3^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	47.5 (12.1^min, 23.8^P1) fps -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	46.4 (1.402^min, 22.7^P1) fps -11%

The Witcher 3
1024x768 Low Graphics & Postprocessing
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	130.7 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	97.3 fps -26%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	94.2 fps -28%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	42.6 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	29.3 fps -31%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	24.2 fps -43%

Far Cry 5
1280x720 Low Preset AA:T
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	73 (65^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	72 (65^min) fps -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	53 (45^min) fps -27%
1920x1080 Medium Preset AA:T
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	43 (37^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	43 (36^min) fps 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	25 (17^min) fps -42%
1920x1080 High Preset AA:T
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	40 (35^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	37 (27^min) fps -7%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	26 (22^min) fps -35%

Far Cry New Dawn
1280x720 Low Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	64 (49^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	63 (50^min) fps -2%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	58 (45^min) fps -9%
1920x1080 Medium Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	41 (32^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	34 (28^min) fps -17%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	31 (19^min) fps -24%
1920x1080 High Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	39 (31^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	37 (22^min) fps -5%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	32 (19^min) fps -18%

Dota 2 Reborn
1280x720 min (0/3) fastest
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	137.9 (122.9^min) fps +1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	136.8 (122.1^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	132.9 (110^min) fps -3%
1366x768 med (1/3)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	114.6 (101.7^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	111.3 (96.8^min) fps -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	104.7 (88.3^min) fps -9%
1920x1080 high (2/3)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	85.3 (74.5^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	78.6 (69^min) fps -8%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	73.3 (63.4^min) fps -14%

Final Fantasy XV Benchmark
1280x720 Lite Quality
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	60.5 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	48.2 fps -20%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	47.9 fps -21%
1920x1080 Standard Quality
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	27.2 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	22.4 fps -18%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	22 fps -19%
1920x1080 High Quality
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	19.3 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	16.2 fps -16%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	15.6 fps -19%

X-Plane 11.11
1280x720 low (fps_test=1)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	65.1 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	64.3 fps -1%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	60 fps -8%
1920x1080 med (fps_test=2)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	52.8 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	51 fps -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	47 fps -11%
1920x1080 high (fps_test=3)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	42.2 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	41.1 fps -3%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	36.3 fps -14%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	121.7 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	90.6 fps -26%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	83.7 fps -31%
1920x1080 Medium Preset (DX12)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	34.8 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	32.7 fps -6%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	28.4 fps -18%
1920x1080 High Preset (DX12)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	24.4 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	23.4 fps -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	20.5 fps -16%

GRID Legends
1280x720 Low Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	129.9 (53.8^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	115.9 (44.3^min) fps -11%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	101.9 (30.7^min) fps -22%
1920x1080 Medium Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	66.7 (33.1^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	50 (4.32^min) fps -25%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	47.4 (3.63^min) fps -29%
1920x1080 High Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	51.9 (10^min) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	44.1 (19.4^min) fps -15%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	37.3 (18.3^min) fps -28%

Shadow of the Tomb Raider
1280x720 Lowest Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	92.9 fps 0%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	92.7 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	56.9 fps -39%
1920x1080 Medium Preset
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	26.4 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	23.9 fps -9%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	20.7 fps -22%
1920x1080 High Preset AA:SM
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	25.2 fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	20.6 fps -18%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	18.7 fps -26%

Strange Brigade
1280x720 lowest AF:1
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	149.9 (100.2^min, 129.1^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	140.9 (83.6^min, 113.1^P1) fps -6%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	135.7 (74.4^min, 113.8^P1) fps -9%
1920x1080 medium AA:medium AF:4
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	59 (48.9^min, 51.5^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	56.4 (27.7^min, 30^P1) fps -4%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	54.2 (43.1^min, 48.2^P1) fps -8%
1920x1080 high AA:high AF:8
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Radeon 680M	49.1 (36.2^min, 39^P1) fps
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Radeon 680M	43.2 (21^min, 23.2^P1) fps -12%
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Radeon 680M	41.8 (21.5^min, 22.2^P1) fps -15%

	low	med.	high	ultra
GTA V (2015)	155.4	143.9	52.2	22.7
The Witcher 3 (2015)	130.7	82.9	42.6	25.8
Dota 2 Reborn (2015)	136.8	114.6	85.3	75.2
Final Fantasy XV Benchmark (2018)	60.5	27.2	19.3
X-Plane 11.11 (2018)	65.1	52.8	42.2
Far Cry 5 (2018)	73	43	40	38
Strange Brigade (2018)	149.9	59	49.1	42.7
Shadow of the Tomb Raider (2018)	92.7	26.4	25.2	23.3
Far Cry New Dawn (2019)	64	41	39	36
Metro Exodus (2019)	57.8	31	23.4	19.8
Borderlands 3 (2019)	86.6	28	17.7	14.5
F1 2020 (2020)	174.3	87.4	67.2	46.4
F1 2021 (2021)	191.6	82.9	67.5	28.9
Far Cry 6 (2021)	77.9	45.2	38.4	32
God of War (2022)	20.4	16.5	12.2	8.98
GRID Legends (2022)	93.5	66.7	51.9	40.6
Tiny Tina's Wonderlands (2022)	51.9	34.8	24.4	20.5
F1 22 (2022)	85.4	74.6	55	14.1
F1 23 (2023)	66.6	56.3	40.9	10.7

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	96.7 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95.6 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.9 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84.1 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	79.1 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	73.4 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +326%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93.3 (11.5^min, 58.8^P1 - 195.1^max) fps +311%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +299%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +294%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +275%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	76.1 (11.9^min, 50^P1 - 151.7^max) fps +235%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +147%
	22.7 (6.64^min, 13.2^P1 - 73.1^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +192%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +186%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +136%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +124%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	56.6 fps +119%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.4 fps +119%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +118%
	25.8 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +79%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +68%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.8 (93.5^min) fps +51%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +51%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +49%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	105 (89.2^min) fps +40%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +23%
	75.2 (67^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps +406%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps +405%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps +378%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.8 fps +376%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps +374%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	91.2 fps +373%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps +309%
	19.3 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +248%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +244%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	135 (67.5^min, 82.2^P1 - 274^max) fps +216%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +207%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	128.7 (36^min, 76.1^P1 - 249^max) fps +201%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +198%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +169%
	42.7 (22.7^min, 32.2^P1 - 108.8^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +216%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +200%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111 (90^min - 149^max) fps +192%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +182%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +174%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	88 (68^min - 117^max) fps +132%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +58%
	38 (33^min - 45^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +181%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +164%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	93 (68^min - 140^max) fps +158%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +144%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +142%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	77 (54^min - 122^max) fps +114%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +50%
	36 (28^min - 47^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +121%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	100.5 (58^min - 143^max) fps +117%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +87%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (47^min - 121^max) fps +87%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	84.5 (42^min - 120^max) fps +82%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +78%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +76%
	46.4 (36^min - 59^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +126%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +79%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	51.5 (31^min, 27^P1 - 60^max) fps +78%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44.1 (9^min, 19^P1 - 52^max) fps +53%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +52%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +51%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	42.8 (11^min, 19^P1 - 50^max) fps +48%
	28.9 (21^min, 19^P1 - 33^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +477%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +474%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	77.9 fps +437%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +427%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +392%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +381%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 5 6600U	68.7 fps +374%
	14.5 fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	178.9	173	159.5	93.3	86.2	97.5
The Witcher 3 (2015)	214.9	144.3	109.3	56.4		61.7
Dota 2 Reborn (2015)	143.9	129.4	128.5	113.8		98
Final Fantasy XV Benchmark (2018)	192	133.2	91.8		73.7	46.8
X-Plane 11.11 (2018)	113.7	100.5	80			69.6
Far Cry 5 (2018)	142	124	118	111	92	56
Strange Brigade (2018)	177.7	140	138.2	135	120.2	80.5
Shadow of the Tomb Raider (2018)	122.7	95	93.3	90	78.8	52.1
Far Cry New Dawn (2019)	123	107	104	93	85	58
Metro Exodus (2019)	115.7	79.5	59.8	45.1	40.2	30.7
Borderlands 3 (2019)	127.3	110.5	92.7	77.9	61.5	37.1
F1 2020 (2020)	184.6	109.2	103.5	86.7	74.5	52.7
F1 2021 (2021)	117.9	89.2	56.8	44.1	39.7	34.5
Far Cry 6 (2021)	64	55.1	45.3	38.9	38.1
God of War (2022)	99.3	87.6	74.1	56.8	51	38
GRID Legends (2022)	106.4	83.2	66.8	58.2	52.5	42.6
Tiny Tina's Wonderlands (2022)	157.1	126.1	91.9	75.3	58.2	35.1
F1 22 (2022)	50.1	47.2	35.2	23.6	22	17.7

排放 - AM08 Pro不能不被注意到

噪声水平

Ace Magician AM08 Pro的冷却装置（来源：Ace Magician）。

在我们的噪音测量中，我们看到与Ace Magician AMR5相比有轻微的改善。但这都已经是了，因为所有其他的对比设备在所有的测试场景中都保持着明显的安静的部分。虽然我们的Ace Magician AM08 Pro在怠速运行时相当安静，最大为31.4 dB(A)，但在负载情况下，风扇转速明显上升。我们测得的最大噪音水平为47.8dB(A)，而且该设备的平均噪音也不明显，在负载下为47.6dB(A)。我们只看到自动或静音模式下的噪音水平有一些明显的改善。然而，在自动模式下，Ace Magician AM08 Pro的噪音水平略高于38 dB(A)，仍然比竞争对手的噪音大。只有在静音模式下，Ace Magician AM08 Pro才能够在噪音水平方面跟上竞争对手。

	ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), R9 6900HX, Radeon 680M	Minipc Union Ace Magician AMR5 Ace Magician AMR5, R5 5600U, Vega 7	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), R9 6900HX, Radeon 680M	ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), R9 6900HX, Radeon 680M
Noise		-4%	8%	9%	13%	13%	16%	12%	7%
off / environment *	30	30.5 -2%	30.4 -1%	30.5 -2%	30.2 -1%	29.8 1%	29.4 2%	30 -0%	30 -0%
Idle Minimum *	31.3	31.5 -1%	30.9 1%	31.6 -1%	30.5 3%	29.9 4%	29.4 6%	30.1 4%	30.3 3%
Idle Average *	31.3	32.6 -4%	31.5 -1%	31.6 -1%	30.5 3%	30.1 4%	29.4 6%	30.3 3%	30.8 2%
Idle Maximum *	31.4	33.8 -8%	31.5 -0%	31.6 -1%	30.5 3%	30.2 4%	29.5 6%	31 1%	31.4 -0%
Load Average *	47.6	49.3 -4%	37.5 21%	33.9 29%	30.5 36%	32.1 33%	29.6 38%	32.1 33%	38.4 19%
Load Maximum *	47.8	50.9 -6%	34.1 29%	34.4 28%	30.5 36%	32.5 32%	29.6 38%	32.4 32%	38.5 19%

* ... smaller is better

Ace Magician AM08 Pro - Performance mode

Noise Level

Idle		31.3 / 31.3 / 31.4 dB(A)
Load		47.6 / 47.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30 dB(A)

Ace Magician AM08 Pro - Auto mode

Noise Level

Idle		30.3 / 30.8 / 31.4 dB(A)
Load		38.4 / 38.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30 dB(A)

Ace Magician AM08 Pro - Silent mode

Noise Level

Idle		30.1 / 30.3 / 31 dB(A)
Load		32.1 / 32.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30 dB(A)

温度

由于材料的选择，王牌魔术师AM08 Pro的机箱并没有发热太多。我们看到风扇通风口区域的温度最高，这是可以预期的。正如我们在Cinebench R15多循环测试中已经看到的，两个风扇能够使SoC在性能模式下持续保持良好的性能水平。在压力测试中，我们观察到类似的温度值。在Prime95负载测试中，我们测量到最高温度为86.7℃（188°F）。SoC可以在这里处理更多的热量，因为AMD规定了95℃（203°F）的tJMax。 AMD Ryzen 9 6900HX.有了这个，该设备就能在性能模式下更安静地运行。由于节流的TDP，我们看到其他模式下的温度明显降低。

消耗功率

Ace Magician AM08 Pro的耗电量让我们有点吃惊。与基于相同SoC的竞争对手相比，我们的测试装置在负载下基本上更有效率。在空闲运行时，我们的测试装置有时比竞争对手的效率低。突出的是在静音和自动模式下的较高功耗。我们无法最终确定为什么会出现这种情况。为了排除测量误差，我们重复了测量，得到了类似的结果。

附带的充电器可提供最大120瓦的功率，因此它的尺寸足够大了。在我们的模型中，我们听到了明显的线圈啸叫，但只是在怠速运行时。

	ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), R9 6900HX, Radeon 680M	Minipc Union Ace Magician AMR5 Ace Magician AMR5, R5 5600U, Vega 7	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), R9 6900HX, Radeon 680M	ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), R9 6900HX, Radeon 680M	Average AMD Radeon 680M	Average of class Mini PC
Power Consumption		25%	-4%	7%	-26%	26%	18%	8%	-7%	22%	-2%
Idle Minimum *	9.6	8.4 12%	9.9 -3%	8.7 9%	12.1 -26%	5 48%	8 17%	10.7 -11%	10.8 -13%	6.75 ?(2.2 - 10.8, n=30) 30%	9.8 ?(1.9 - 46.5, n=91, last 2 years) -2%
Idle Average *	9.9	8.7 12%	11 -11%	9.6 3%	13 -31%	7 29%	8.7 12%	11 -11%	11 -11%	8.75 ?(4.4 - 12.8, n=30) 12%	11.7 ?(1.9 - 63, n=90, last 2 years) -18%
Idle Maximum *	11.8	9.3 21%	11.2 5%	10.5 11%	18.2 -54%	10.7 9%	8.8 25%	13.7 -16%	18.6 -58%	10.3 ?(5.1 - 18.6, n=30) 13%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -25%
Load Average *	77.5	46.4 40%	74.2 4%	65.8 15%	70.6 9%	50.3 35%	54.6 30%	45.8 41%	59.9 23%	52.8 ?(20 - 77.7, n=30) 32%	51.9 ?(11.3 - 158.7, n=91, last 2 years) 33%
Load Maximum *	89.8	52 42%	103.2 -15%	94.5 -5%	113 -26%	82 9%	83.2 7%	55.1 39%	69.8 22%	69.4 ?(48 - 103.2, n=30) 23%	86 ?(18.1 - 271, n=91, last 2 years) 4%

* ... smaller is better

Ace Magician AM08 Pro - Performance mode

Power Consumption

Off / Standby	1.7 / 9.1 Watt
Idle	9.6 / 9.9 / 11.8 Watt
Load	77.5 / 89.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Ace Magician AM08 Pro - Auto mode

Power Consumption

Off / Standby	1.7 / 9.1 Watt
Idle	10.8 / 11 / 18.6 Watt
Load	59.9 / 69.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption

Off / Standby	1.7 / 9.1 Watt
Idle	10.7 / 11 / 13.7 Watt
Load	45.8 / 55.1 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption with External Monitor

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); Prime95 V2810 Stress (external Monitor): Ø76.4 (74.1-86.6)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Prime95 V2810 Stress (external Monitor): Ø48.7 (48-55.1)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); Prime95 V2810 Stress (external Monitor): Ø59.6 (54.9-69.8)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); Cinebench R15 Multi (external Monitor): Ø75.4 (71.7-82.7)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Cinebench R15 Multi (external Monitor): Ø45.9 (43.1-51.3)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Cinebench R15 Multi (external Monitor): Ø44.6 (42.2-52)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); Cinebench R15 Multi (external Monitor): Ø60.5 (57-65.4)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø74.6 (64.4-86.4)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø46.5 (39.7-57.5)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.7 (60-70)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); 1920x1080 The Witcher 3 ultra (external Monitor): Ø76.8 (66.9-82.1)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); 1920x1080 The Witcher 3 ultra (external Monitor): Ø42.1 (38.1-47.3)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); 1920x1080 The Witcher 3 ultra (external Monitor): Ø55.9 (52.6-64.3)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); Idle 1min (external Monitor): Ø10.8 (10.4-11.8)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Idle 1min (external Monitor): Ø11 (9.99-13.7)

ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); Idle 1min (external Monitor): Ø13 (9.55-18.6)

Pros

+ 带有独立RGB的伟大设计

+ AMD Radeon 680M的卓越性能

+ 快速和现代的Ryzen 9 6900HX

+ 32GB DDR5-RAM

+ 卓越的系统性能

+ 适当的电力消耗

+ 3种不同的性能模式

+ 最多可以同时使用3台显示器

+ USB 4 + Thunderbolt

+ 快速开箱

+ 36个月保修

Cons

- 没有SD卡读卡器

- 显示器连接最大支持4K@60Hz

- 负载下声音大（性能模式）。

- 只有512GB的存储空间

结论 - 由于AMD Ryzen 9 6900HX，性能稳定。

测试Ace Magician AM08 Pro，测试装置由Ace Magician提供

Ace Magician AM08 Pro是一款高端迷你电脑，由于采用了以下技术，它的性能非常出色 AMD Ryzen 9 6900HX.我们的测试装置在所有的测试中都能产生良好的结果，基本上与基于相同处理器的竞争对手的性能相似。与直接的前辈Ace Magician AMR5相比，CPU和iGPU的性能都可以得到明显的提高。伦勃朗SoC提供了一个非常强大的iGPU，即 AMD Radeon 680M的iGPU，目前还没有竞争对手，只有专用图形适配器才能超越。有了这些设备，Ace Magician AM08 Pro作为一个紧凑的游戏PC提供了一个很好的基础。但与此同时，我们也要清楚，小功率包无法跟上 "大型 "游戏PC的步伐。然而，王牌魔术师AM08 Pro仍然在许多方面说服了我们。我们应该提到良好的连接设备，它还提供了许多与Thunderbolt有关的选择，但三种不同的电源模式也很好，在日常操作中可以节省大量的电力，因为你也可以在静音模式下完成许多任务。

王牌魔术师AM08 Pro在AMD Ryzen 9 6900HX的基础上提供了出色的CPU性能。此外，Rembrandt SoC还带来了强大的iGPU，可以说在有限的意义上适合游戏。

我们的主要抱怨是冷却装置：一方面，它能够很好地冷却系统，始终让它发挥全部性能，但另一方面，它简直太吵了。那些不总是想使用高效静音模式的人，会经常听到设备的声音。在过去，我们能够测试其他迷你电脑，它们提供了类似的性能，同时在整个过程中保持安静。我们应该提到MINISFORUM的设备(维纳斯系列UM690)和Morefine (M600)在这里。

价格和可用性

在我们的测试配置中，Ace Magician AM08 Pro可以直接从制造商那里购买，在美国的价格为 650美元。.目前有一个预售回扣，正常价格为870美元。在本次测试时，裸机型号在美国的价格为$560。正常价格为700美元。

我们的测试装置是 由制造商免费提供给作者用于测试的。制造商对测试结果没有影响，在发表前也没有收到本评论的副本。没有发表的要求。

ACEMagician Ace Magician AM08 Pro - 2023-06-02 06/02/2023 v7
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

60 / 81 → 74%

Weight

77%

Games Performance

78%

Application Performance

94%

Noise

72%

Average

78%

82%

Mini PC - Weighted Average

王牌魔术师AM08 Pro游戏迷你电脑配备Radeon 680M和Ryzen 9 6900HX，在我们的广泛测试中!

潜在的竞争对手比较

王牌魔术师AM08专业版详细介绍

案例

连接设备

沟通

维护

性能 - 8个核心和16个线程提供了一个良好的性能

测试条件

处理器

王牌魔术师AM08 Pro在Cinebench R15多重循环中的表现

系统性能

DPC延迟

存储解决方案

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

图形卡

AMD Radeon 680M

Ace Magician AM08 Pro and its Three Performance Modes in Comparison

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

游戏性能

AMD Radeon 680M

Ace Magician AM08 Pro in Silent, Auto, and Performance Mode

NvidiaGeForce RTX 3060 Ti，通过Thunderbolt 3。

排放 - AM08 Pro不能不被注意到

噪声水平

Ace Magician AM08 Pro - Performance mode

Ace Magician AM08 Pro - Auto mode

Ace Magician AM08 Pro - Silent mode

温度

消耗功率

Ace Magician AM08 Pro - Performance mode

Ace Magician AM08 Pro - Auto mode

Power Consumption with External Monitor

Pros

Cons

结论 - 由于AMD Ryzen 9 6900HX，性能稳定。

价格和可用性

More articles related to this device
