Zotac ZBOX Magnus EN980 迷你PC简短评测

Allen Ngo (translated by Yuchen Wang), 08/30/2016
Skylake Desktop

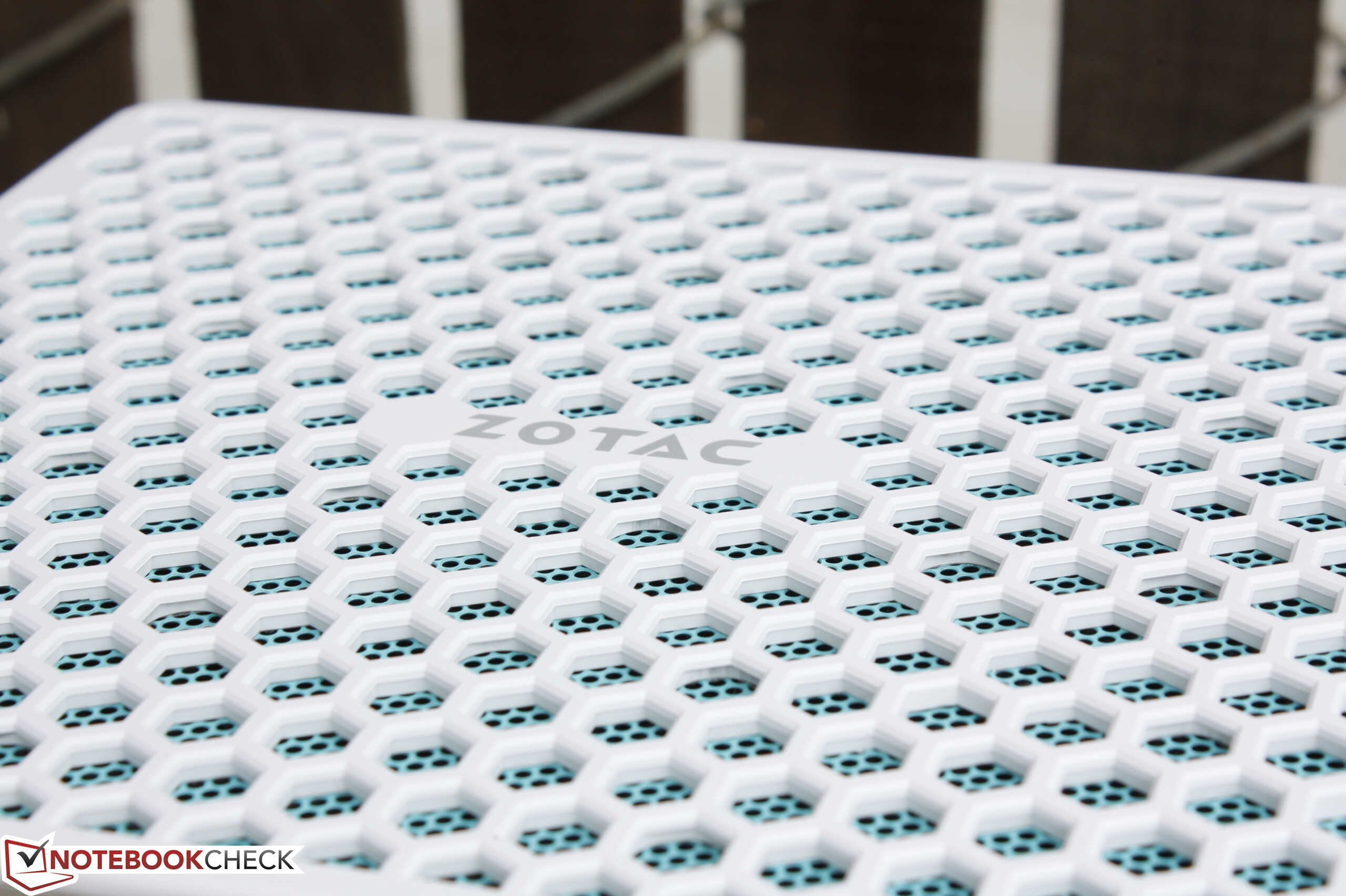

迷你PC中的GTX 980。ZBox EN980是最先对虚拟实境(VR)提供支持的迷你PC之一,归功于高效的散热系统,它在运行中清凉且安静。不过待机时的风扇噪音仍然有些过大,同时它缺少一些同价位(1600美元,约10684人民币)产品具备的关键功能。

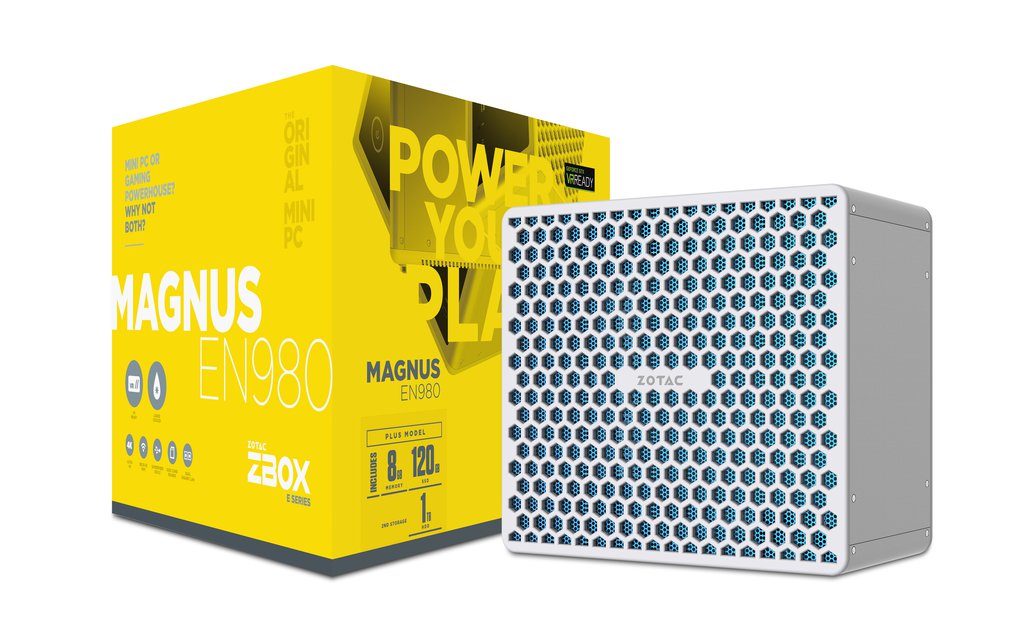

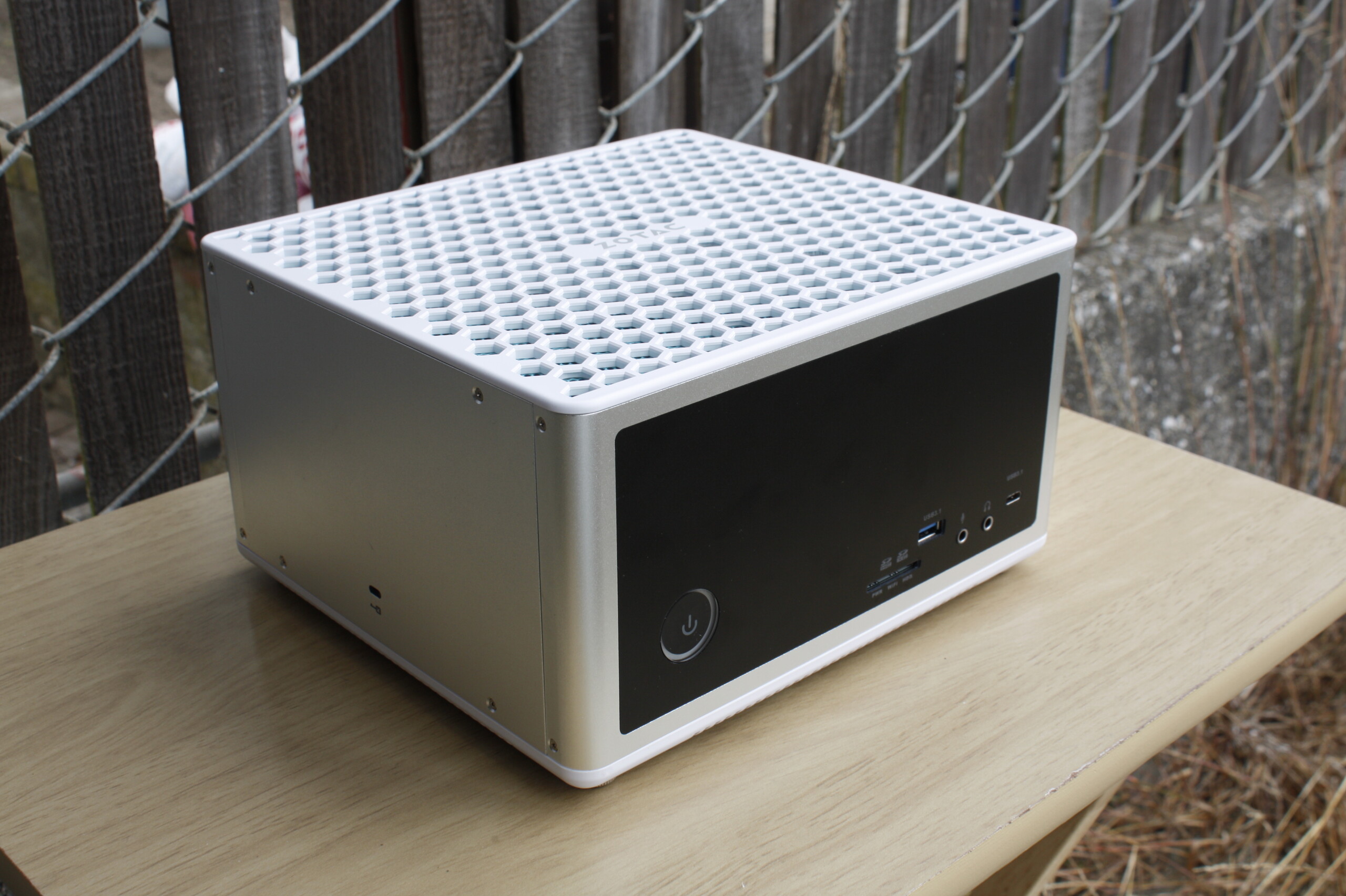

Zotac ZBOX Magnus EN980-U
Processor
Intel Core i5-6400, 英特尔酷睿i5-6400
Graphics adapter

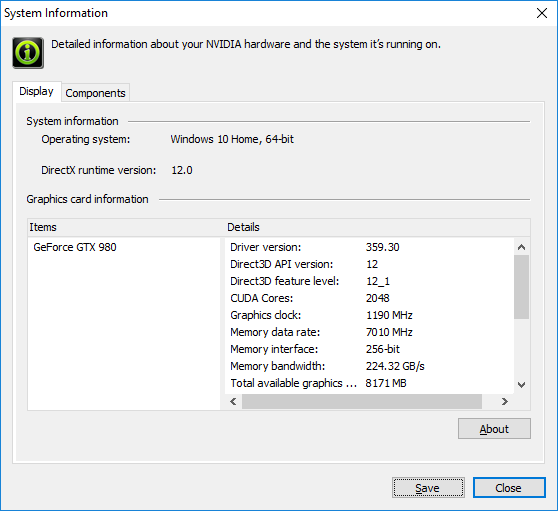

NVIDIA GeForce GTX 980 - 4096 MB, Core: 1190 MHz, Memory: 7010 MHz, GDDR5, 359.3
Mainboard
Intel HM170 (Skylake PCH-H)
Storage
HGST Travelstar 7K1000 HTS721010A9E630, 1000 GB
, 7200 rpm
Soundcard
Nvidia GM204 - High Definition Audio Controller
Connections
5 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米耳机接口和麦克风接口, Card Reader: SDXC UHS II 读卡器
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.0
Size
height x width x depth (in mm): 128 x 225 x 203
Additional features
快速开始说明,驱动盘/USB闪存盘, 12 Months Warranty
Weight
3.89 kg, Power Supply: 1.41 kg
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



428 mm 294 mm 48 mm 3.9 kg423 mm 322 mm 40 mm 4.1 kg386 mm 270 mm 34 mm 3.1 kg390 mm 266 mm 23.5 mm 2.6 kg225 mm 203 mm 128 mm 3.9 kg
Cinebench R15
CPU Single 64Bit
DogHouse Systems Mobius SS
Intel Core i7-6700K
166 Points ∼76% +24%
HP Pavilion 17 FHD V3A33AV
Intel Core i7-6700HQ
149 Points ∼68% +11%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
144 Points ∼66% +7%
Lenovo ThinkPad X1 Yoga-20FRS1VS00
Intel Core i7-6600U
135 Points ∼62% +1%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
134 Points ∼61%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
131 Points ∼60% -2%
CPU Multi 64Bit
DogHouse Systems Mobius SS
Intel Core i7-6700K
865 Points ∼20% +70%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
719 Points ∼16% +41%
HP Pavilion 17 FHD V3A33AV
Intel Core i7-6700HQ
679 Points ∼16% +33%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
566 Points ∼13% +11%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
510 Points ∼12%
Lenovo ThinkPad X1 Yoga-20FRS1VS00
Intel Core i7-6600U
305 Points ∼7% -40%
Cinebench R11.5
CPU Single 64Bit
DogHouse Systems Mobius SS
Intel Core i7-6700K
1.91 Points ∼78% +26%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
1.68 Points ∼69% +11%
HP Pavilion 17 FHD V3A33AV
Intel Core i7-6700HQ
1.61 Points ∼66% +7%
Lenovo ThinkPad X1 Yoga-20FRS1VS00
Intel Core i7-6600U
1.51 Points ∼62% 0%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
1.51 Points ∼62%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
1.49 Points ∼61% -1%
CPU Multi 64Bit
DogHouse Systems Mobius SS
Intel Core i7-6700K
9.56 Points ∼35% +61%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
7.96 Points ∼29% +34%
HP Pavilion 17 FHD V3A33AV
Intel Core i7-6700HQ
7.48 Points ∼28% +26%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
6.02 Points ∼22% +2%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
5.92 Points ∼22%
Lenovo ThinkPad X1 Yoga-20FRS1VS00
Intel Core i7-6600U
3.32 Points ∼12% -44%
Cinebench R10
Rendering Single 32Bit
DogHouse Systems Mobius SS
Intel Core i7-6700K
6487 Points ∼60% +27%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
5567 Points ∼51% +9%
HP Pavilion 17 FHD V3A33AV
Intel Core i7-6700HQ
5474 Points ∼51% +8%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
5088 Points ∼47%
Rendering Multiple CPUs 32Bit
DogHouse Systems Mobius SS
Intel Core i7-6700K
26150 Points ∼53% +43%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
21681 Points ∼44% +18%
HP Pavilion 17 FHD V3A33AV
Intel Core i7-6700HQ
20419 Points ∼41% +12%
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
18297 Points ∼37%
wPrime 2.0x - 1024m
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
327.064 s * ∼4%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
206.294 s * ∼2% +37%
DogHouse Systems Mobius SS
Intel Core i7-6700K
178.464 s * ∼2% +45%
Super Pi Mod 1.5 XS 32M - ---
Zotac ZBOX Magnus EN980-U
Intel Core i5-6400
660.102 Seconds * ∼3%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
573.691 Seconds * ∼3% +13%
HP Pavilion 17 FHD V3A33AV
Intel Core i7-6700HQ
563.053 Seconds * ∼3% +15%
DogHouse Systems Mobius SS
Intel Core i7-6700K
498.33 Seconds * ∼2% +25%

* ... smaller is better

Cinebench R10 Shading 32Bit
6831
Cinebench R10 Rendering Multiple CPUs 32Bit
18297
Cinebench R10 Rendering Single 32Bit
5088
Cinebench R11.5 OpenGL 64Bit
62.94 fps
Cinebench R11.5 CPU Multi 64Bit
5.92 Points
Cinebench R11.5 CPU Single 64Bit
1.51 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
109.6 fps
Cinebench R15 CPU Single 64Bit
134 Points
Cinebench R15 CPU Multi 64Bit
510 Points
Help
3DMark
3840x2160 Fire Strike Ultra Graphics
MSI GT72VR 6RE-015US
NVIDIA GeForce GTX 1070 (Laptop), 6700HQ
3984 Points ∼39% +29%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
3093 Points ∼31%
Asus G701VO-CS74K
NVIDIA GeForce GTX 980 (Laptop), 6820HK
3009 Points ∼30% -3%
EVGA SC17
NVIDIA GeForce GTX 980M, 6820HK
2326 Points ∼23% -25%
HP Pavilion 15 UHD T9Y85AV
NVIDIA GeForce GTX 960M, 6700HQ
942 Points ∼9% -70%
Fire Strike Extreme Graphics
MSI GT72VR 6RE-015US
NVIDIA GeForce GTX 1070 (Laptop), 6700HQ
8153 Points ∼41% +30%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
6261 Points ∼32%
Asus G701VO-CS74K
NVIDIA GeForce GTX 980 (Laptop), 6820HK
6123 Points ∼31% -2%
EVGA SC17
NVIDIA GeForce GTX 980M, 6820HK
4663 Points ∼23% -26%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
3517 Points ∼18% -44%
HP Pavilion 15 UHD T9Y85AV
NVIDIA GeForce GTX 960M, 6700HQ
2004 Points ∼10% -68%
1920x1080 Fire Strike Graphics
MSI GT72VR 6RE-015US
NVIDIA GeForce GTX 1070 (Laptop), 6700HQ
17354 Points ∼43% +28%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
13510 Points ∼33%
Asus G701VO-CS74K
NVIDIA GeForce GTX 980 (Laptop), 6820HK
13018 Points ∼32% -4%
EVGA SC17
NVIDIA GeForce GTX 980M, 6820HK
9820 Points ∼24% -27%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7321 Points ∼18% -46%
HP Pavilion 15 UHD T9Y85AV
NVIDIA GeForce GTX 960M, 6700HQ
4249 Points ∼10% -69%
1280x720 Cloud Gate Standard Graphics
MSI GT72VR 6RE-015US
NVIDIA GeForce GTX 1070 (Laptop), 6700HQ
103082 Points ∼56% +19%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
86619 Points ∼47%
Asus G701VO-CS74K
NVIDIA GeForce GTX 980 (Laptop), 6820HK
70557 Points ∼38% -19%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
50205 Points ∼27% -42%
EVGA SC17
NVIDIA GeForce GTX 980M, 6820HK
45568 Points ∼25% -47%
HP Pavilion 15 UHD T9Y85AV
NVIDIA GeForce GTX 960M, 6700HQ
27162 Points ∼15% -69%
3DMark 11
1280x720 Performance Combined
EVGA SC17
NVIDIA GeForce GTX 980M, 6820HK
9256 Points ∼41% +39%
Asus G701VO-CS74K
NVIDIA GeForce GTX 980 (Laptop), 6820HK
9017 Points ∼40% +35%
MSI GT72VR 6RE-015US
NVIDIA GeForce GTX 1070 (Laptop), 6700HQ
8452 Points ∼37% +27%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7952 Points ∼35% +19%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
6666 Points ∼29%
HP Pavilion 15 UHD T9Y85AV
NVIDIA GeForce GTX 960M, 6700HQ
5472 Points ∼24% -18%
1280x720 Performance Physics
EVGA SC17
NVIDIA GeForce GTX 980M, 6820HK
9574 Points ∼52% +52%
Asus G701VO-CS74K
NVIDIA GeForce GTX 980 (Laptop), 6820HK
9468 Points ∼51% +51%
HP Pavilion 15 UHD T9Y85AV
NVIDIA GeForce GTX 960M, 6700HQ
8671 Points ∼47% +38%
MSI GT72VR 6RE-015US
NVIDIA GeForce GTX 1070 (Laptop), 6700HQ
8521 Points ∼46% +36%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
8347 Points ∼45% +33%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
6283 Points ∼34%
1280x720 Performance GPU
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980, 6400
17811 Points ∼35%
Asus G701VO-CS74K
NVIDIA GeForce GTX 980 (Laptop), 6820HK
16946 Points ∼33% -5%
MSI GT72VR 6RE-015US
NVIDIA GeForce GTX 1070 (Laptop), 6700HQ
13760 Points ∼27% -23%
EVGA SC17
NVIDIA GeForce GTX 980M, 6820HK
12890 Points ∼25% -28%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
9824 Points ∼19% -45%
HP Pavilion 15 UHD T9Y85AV
NVIDIA GeForce GTX 960M, 6700HQ
5452 Points ∼11% -69%
3DMark 11 Performance
12348 points
3DMark Ice Storm Standard Score
134303 points
3DMark Cloud Gate Standard Score
18386 points
3DMark Fire Strike Score
10345 points
3DMark Fire Strike Extreme Score
5628 points
Help
Overwatch - 1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
151.7 fps ∼100% +31%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
118.2 fps ∼78% +2%
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
116 fps ∼76%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
87.3 fps ∼58% -25%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
40.2 fps ∼26% -65%
Fallout 4 - 1920x1080 Ultra Preset AA:T AF:16x
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
100.9 fps ∼100% +28%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
79.3 fps ∼79% +1%
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
78.8 fps ∼78%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
57.9 fps ∼57% -27%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
43.5 fps ∼43% -45%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
24.1 fps ∼24% -69%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
129.5 fps ∼100% +9%
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
119.2 fps ∼92%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
106.2 fps ∼82% -11%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
86.4 fps ∼67% -28%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
69.5 fps ∼54% -42%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
45.8 fps ∼35% -62%
Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
83.2 fps ∼100%
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
78 fps ∼94% -6%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
67.9 fps ∼82% -18%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
58.6 fps ∼70% -30%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
47.5 fps ∼57% -43%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
28.2 fps ∼34% -66%
Guild Wars 2 - 1920x1080 All Maximum / On AA:FX
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
60.1 fps ∼100%
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
54.7 fps ∼91% -9%
Batman: Arkham Knight - 1920x1080 High / On AA:SM AF:16x
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
79 fps ∼100% +25%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
63 fps ∼80% 0%
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
63 fps ∼80%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
36 fps ∼46% -43%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
22 fps ∼28% -65%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
88.3 fps ∼100% +2%
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
86.4 fps ∼98%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
50.5 fps ∼57% -42%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
31.4 fps ∼36% -64%
Metal Gear Solid V - 1920x1080 Extra High / On
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
60 fps ∼100% 0%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
60 fps ∼100% 0%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
60 fps ∼100% 0%
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
60 fps ∼100% 0%
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
60 fps ∼100%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
32.1 fps ∼54% -46%
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
92.3 fps ∼100% +25%
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
74.1 fps ∼80%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
60.4 fps ∼65% -18%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
55 fps ∼60% -26%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
42.8 fps ∼46% -42%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
23.5 fps ∼25% -68%
Sleeping Dogs - 1920x1080 Extreme Preset AA:Extreme
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
84.3 fps ∼100%
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
75.2 fps ∼89% -11%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
57.5 fps ∼68% -32%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
44.9 fps ∼53% -47%
HP Pavilion 15 UHD T9Y85AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
24.1 fps ∼29% -71%
low med. high ultra
Sleeping Dogs (2012) 84.3fps
Guild Wars 2 (2012) 60.1fps
BioShock Infinite (2013) 119.2fps
Metro: Last Light (2013) 86.4fps
Thief (2014) 83.2fps
Batman: Arkham Knight (2015) 63fps
Metal Gear Solid V (2015) 60fps
Fallout 4 (2015) 78.8fps
Rise of the Tomb Raider (2016) 74.1fps
Overwatch (2016) 116fps

Noise Level

Idle
36.2 / 36.2 / 36.5 dB(A)
Load
36.5 / 42.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)   environment noise: 29.5 dB(A)
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630
Asus G701VO-CS74K
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
MSI GT72VR 6RE-015US
GeForce GTX 1070 (Laptop), 6700HQ, SanDisk SD8SNAT256G1122
Aorus X7 Pro v5
GeForce GTX 970M SLI, 6820HK, Samsung SM951 MZVPV512 m.2 PCI-e
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Noise
2%
1%
-6%
4%
off / environment *
29.5
29.1
1%
28.9
2%
30
-2%
Idle Minimum *
36.2
29.1
20%
32.4
10%
34
6%
31.9
12%
Idle Average *
36.2
31.9
12%
32.4
10%
35
3%
32
12%
Idle Maximum *
36.5
31.9
13%
32.4
11%
39
-7%
34
7%
Load Average *
36.5
46
-26%
39.4
-8%
39
-7%
39
-7%
Load Maximum *
42.9
47.5
-11%
52
-21%
54
-26%
44.5
-4%

* ... smaller is better

Power Consumption
Off / Standbydarklight 1 / 1.74 Watt
Idledarkmidlight 34.9 / 35.9 / 40.4 Watt
Load midlight 190.4 / 260.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Zotac ZBOX Magnus EN980-U
6400, GeForce GTX 980, HGST Travelstar 7K1000 HTS721010A9E630, , x, 0
Asus G752VS-XB78K
6820HK, GeForce GTX 1070 (Laptop), Toshiba NVMe THNSN5512GPU7, IPS, 1920x1080, 17.3
MSI GT72S 6QE-071PL
6820HK, GeForce GTX 980M, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0), IPS, 1920x1080, 17.3
MSI GT80-2QES32SR311BW
4980HQ, GeForce GTX 980M SLI, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0), Wide View, Super PLS, 1920x1080, 18.4
Asus G701VO-CS74K
6820HK, GeForce GTX 980 (Laptop), 2x Samsung SM951 MZVPV512HDGL (RAID 0), IPS, 1920x1080, 17.3
Power Consumption
26%
20%
-7%
19%
Idle Minimum *
34.9
24
31%
14.5
58%
34.3
2%
28.2
19%
Idle Average *
35.9
31
14%
28.3
21%
41.9
-17%
32
11%
Idle Maximum *
40.4
36
11%
44
-9%
49.3
-22%
32.6
19%
Load Average *
190.4
94
51%
165.5
13%
140.2
26%
162.2
15%
Load Maximum *
260.8
204
22%
214.8
18%
328.6
-26%
173.5
33%

* ... smaller is better

Pros

+ 超高工艺水平和机身品质
+ 易于维护更新的内存和硬盘槽
+ 低发热量
+ 负载下相对安静的风扇
+ 无处理器和显卡降频现象
+ 板载处理器和显卡
+ G-Sync需使用mDP 1.2
+ USB C型接口第二代

Cons

- 不支持Thunderbolt 3,NVMe,RAID,或额外的无线网卡
- 接触主板无法避免破坏质保
- 不支持DDR4;最高16 GB内存
- 无8 GB显存选项
- 风扇在待机状态下稍吵
- 需要两个电源适配器
- SD读卡器缓慢
- 无酷睿i7选项
- 沉重
In review: Zotac ZBOX Magnus EN980-U. Test model courtesy of Zotac.
In review: Zotac ZBOX Magnus EN980-U. Test model courtesy of Zotac.

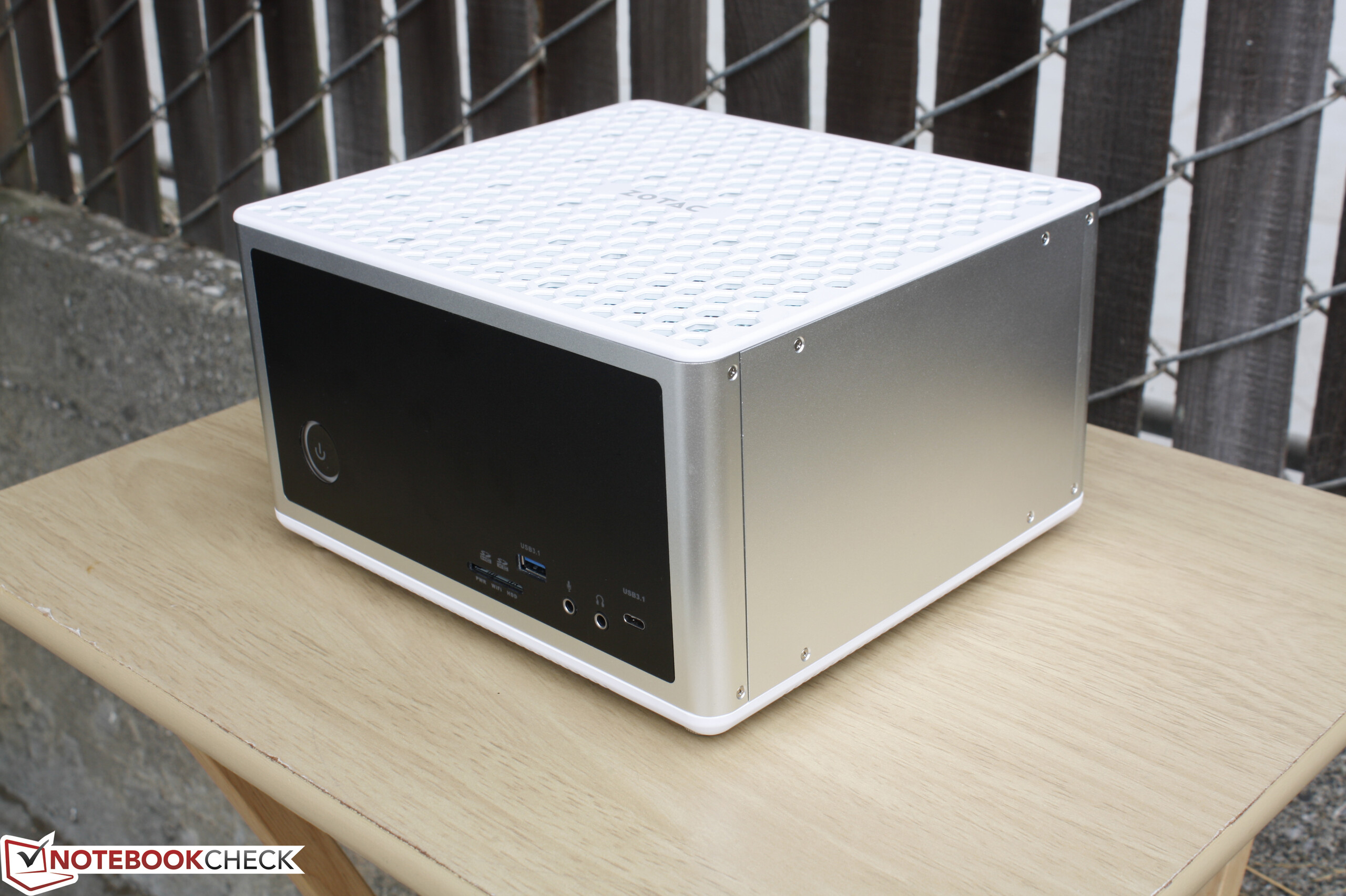

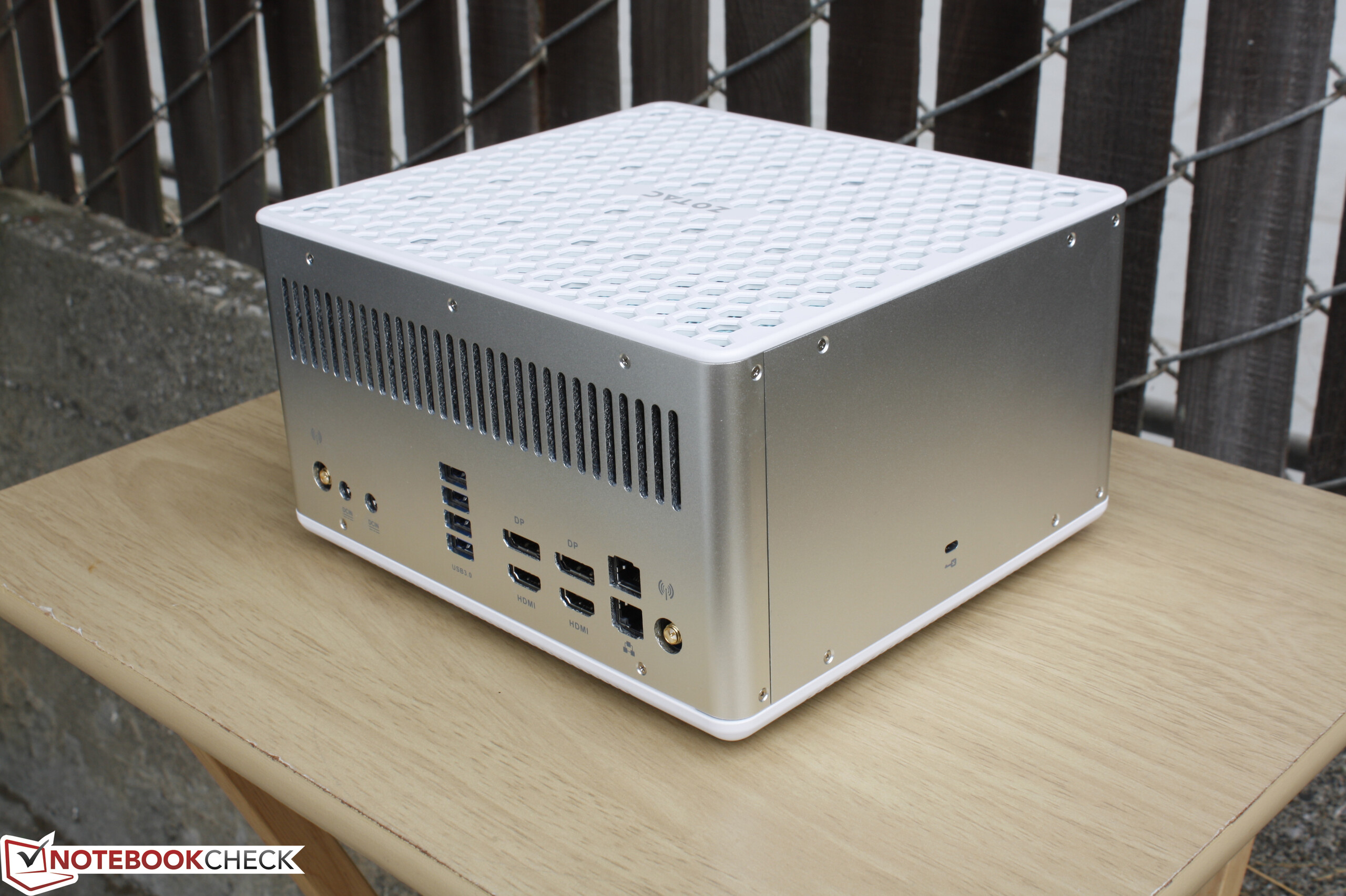

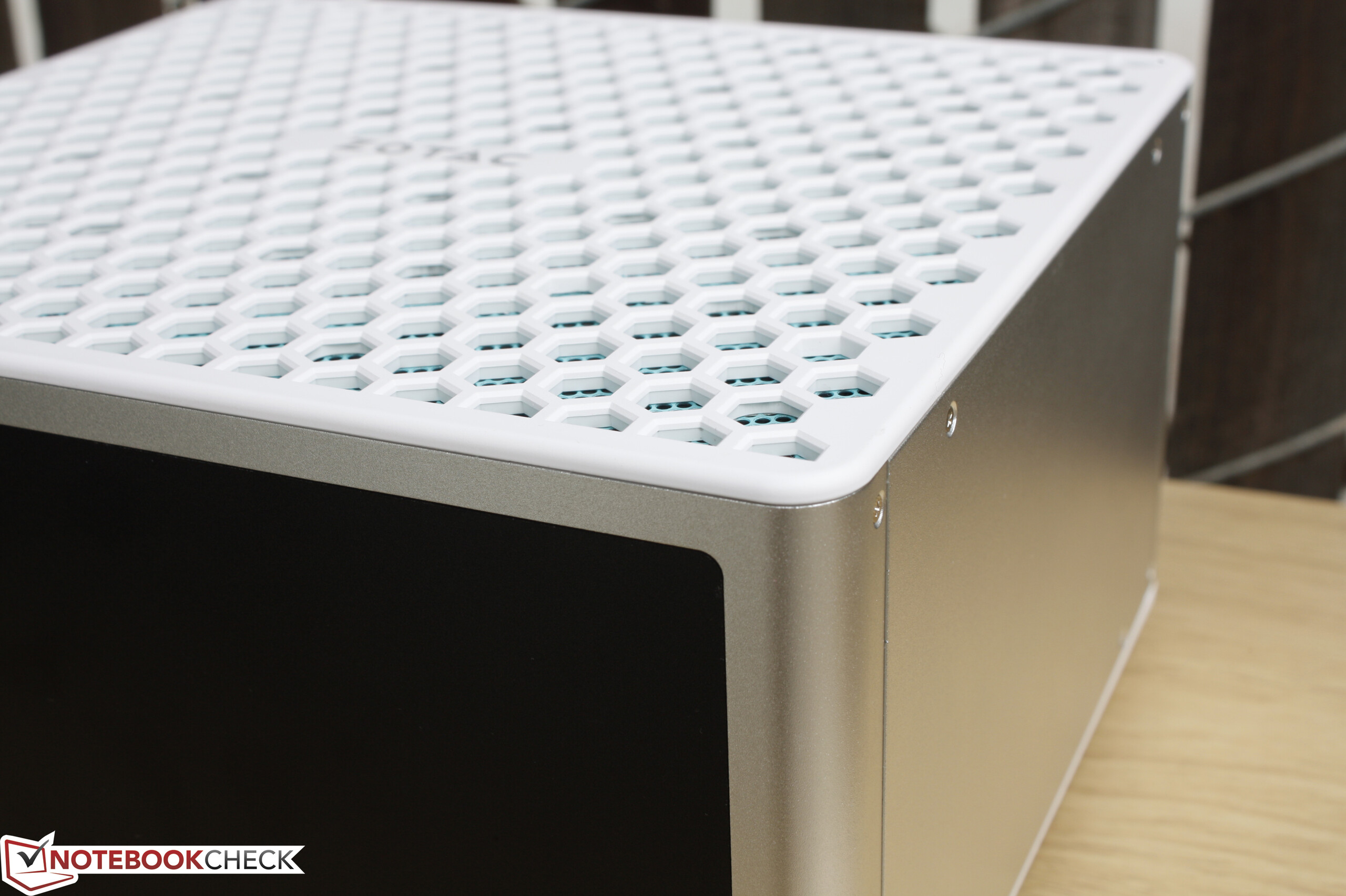

ZBox EN980并不是最小巧或最轻盈的迷你游戏PC,不过它充分利用了机身空间搭配了非常高效的散热系统,绝对不容小视。相比更笨重的游戏本如GT72S或华硕G752系列,它在风扇噪音和处理器核心温度方面都更低,在负载下也能够为显卡超频提供空间。它的设计十分扎实——不过外形略显笨拙——相比时尚外观它更注重实用性。

不过考虑到1600美元(约10687人民币)的售价,我们认为它还能做得更好。一些功能如NVMe, DDR4, RAID, Thunderbolt 3和手动风扇控制都已经在同价位的游戏笔记本中十分常见。待机风扇噪音控制和更强劲的酷睿i7处理器选项也会让它更具性价比,它所搭配的酷睿i5-6400在多进程处理上还是略显力不从心。相对较低的处理器温度证明它还可以搭载更快的处理器,Zotac应该更好地利用这个优势。

随着Pascal架构芯片笔记本的上市发售,我们希望EN980(以及其他搭配Maxwell架构显卡的系统)可以在接下来几个月内降价。如果用户不是特别在意它所缺失的一些部件和连接性功能的话,它的核心设计和显卡性能都十分出色。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Zotac ZBOX Magnus EN980 迷你PC简短评测
Allen Ngo, 2016-08-30 (Update: 2016-09- 3)
