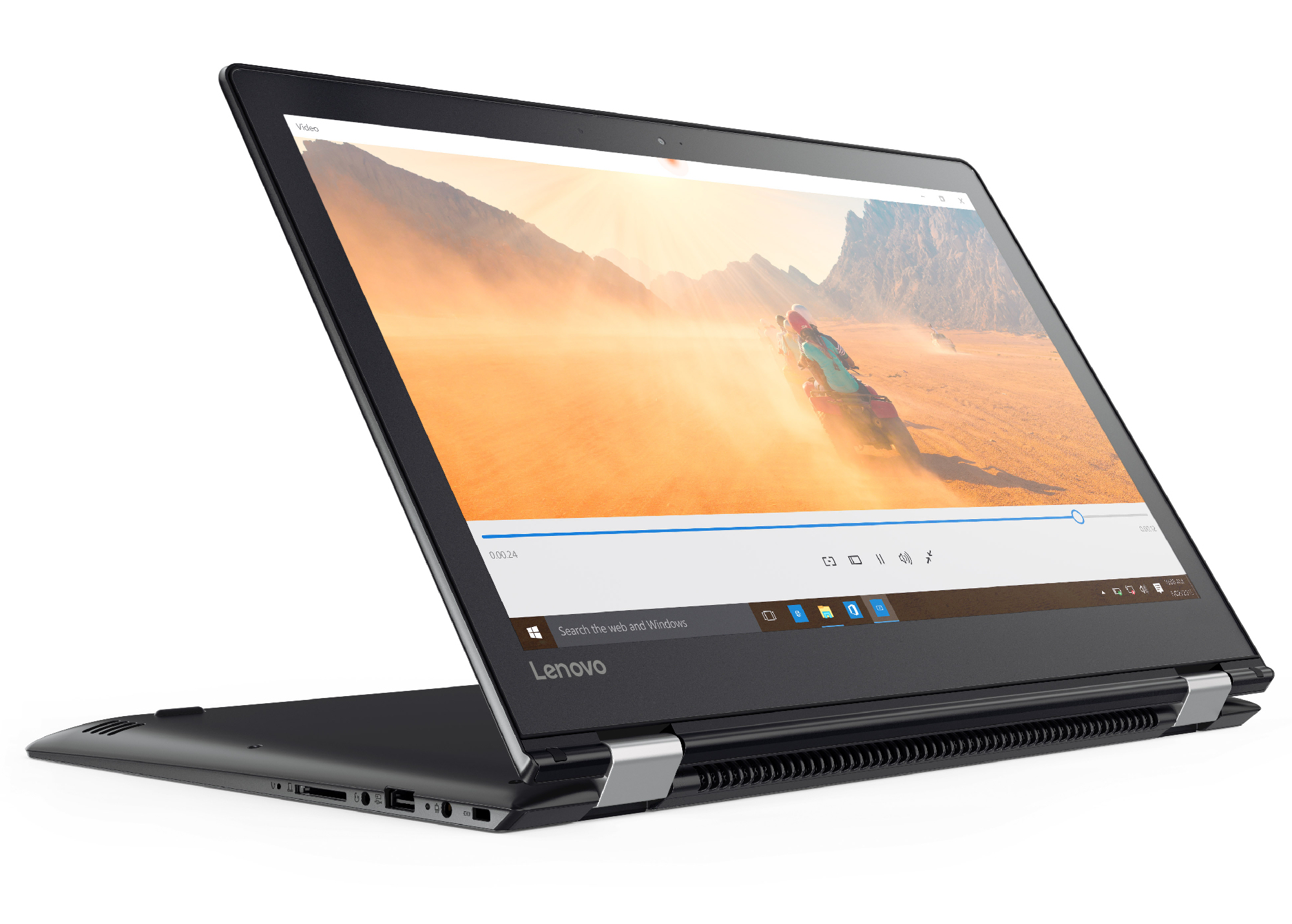

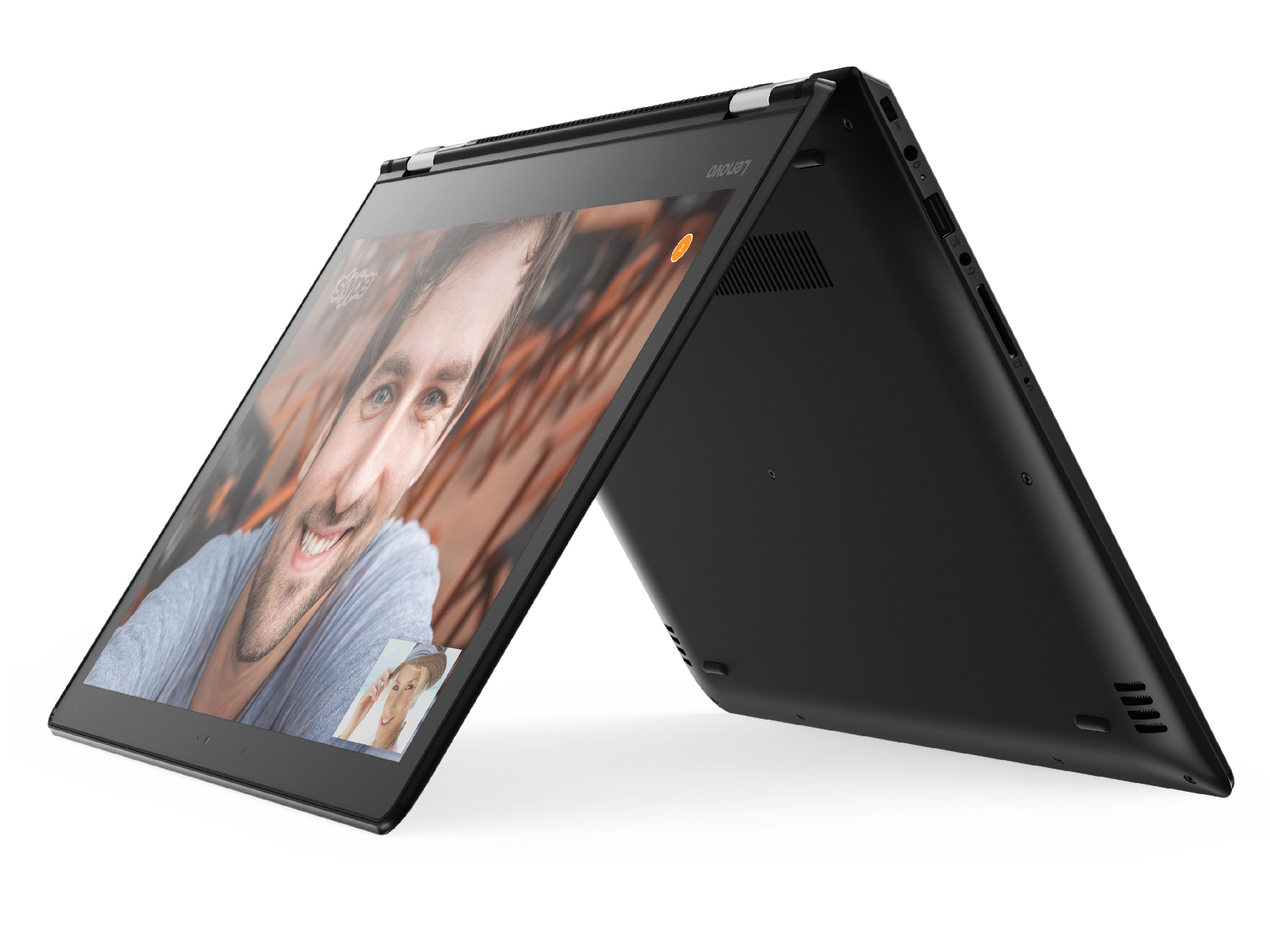

联想 Yoga 510-15ISK 变形本简短评测
Lenovo Yoga 510-15ISK (Yoga 510 Series)

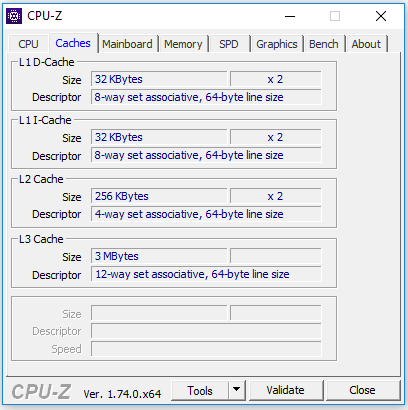

Processor

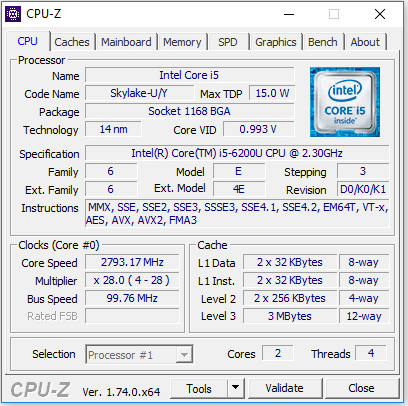

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Graphics adapter

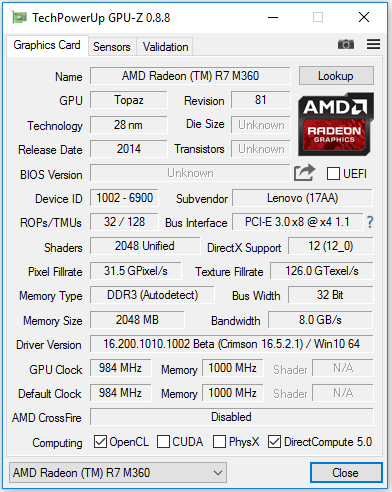

AMD Radeon R7 M460 - 2048 MB VRAM, Core: 984 MHz, RAM: 1000 MHz, DDR3, 16.200.1010.1002 (Crimson 16.5.2.1), Enduro
Memory
8 GB

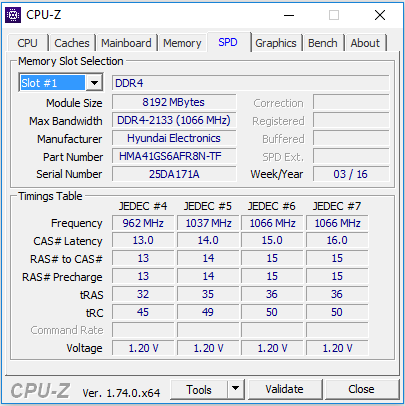

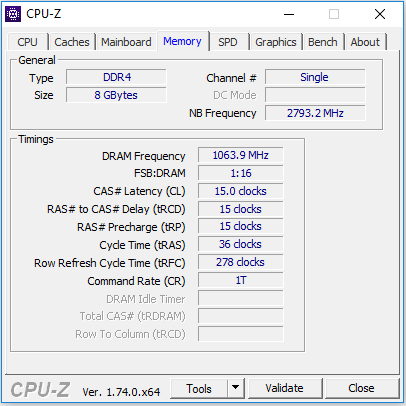

, DDR4-2133, 单通道, 一个插槽
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, 电容式, BOE HF NV156FHM-N42, IPS, glossy: yes

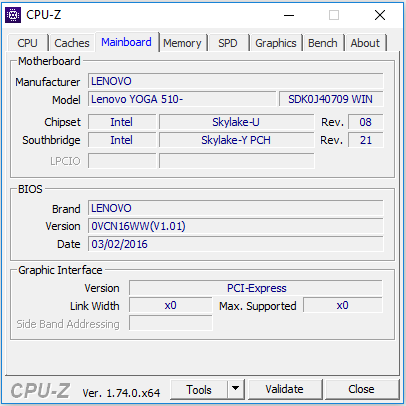

Mainboard
Intel Skylake-U Premium PCH
Storage
Liteonit CV3-DE256, 256 GB
, 180 GB free
Weight
2.08 kg, Power Supply: 231 g
Price
899 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
BOE HF NV156FHM-N42 tested with X-Rite i1Pro 2
Maximum: 254 cd/m² (Nits) Average: 230 cd/m² Minimum: 3 cd/m²Brightness Distribution: 86 %
Center on Battery: 256 cd/m²
Contrast: 977:1 (Black: 0.26 cd/m²)

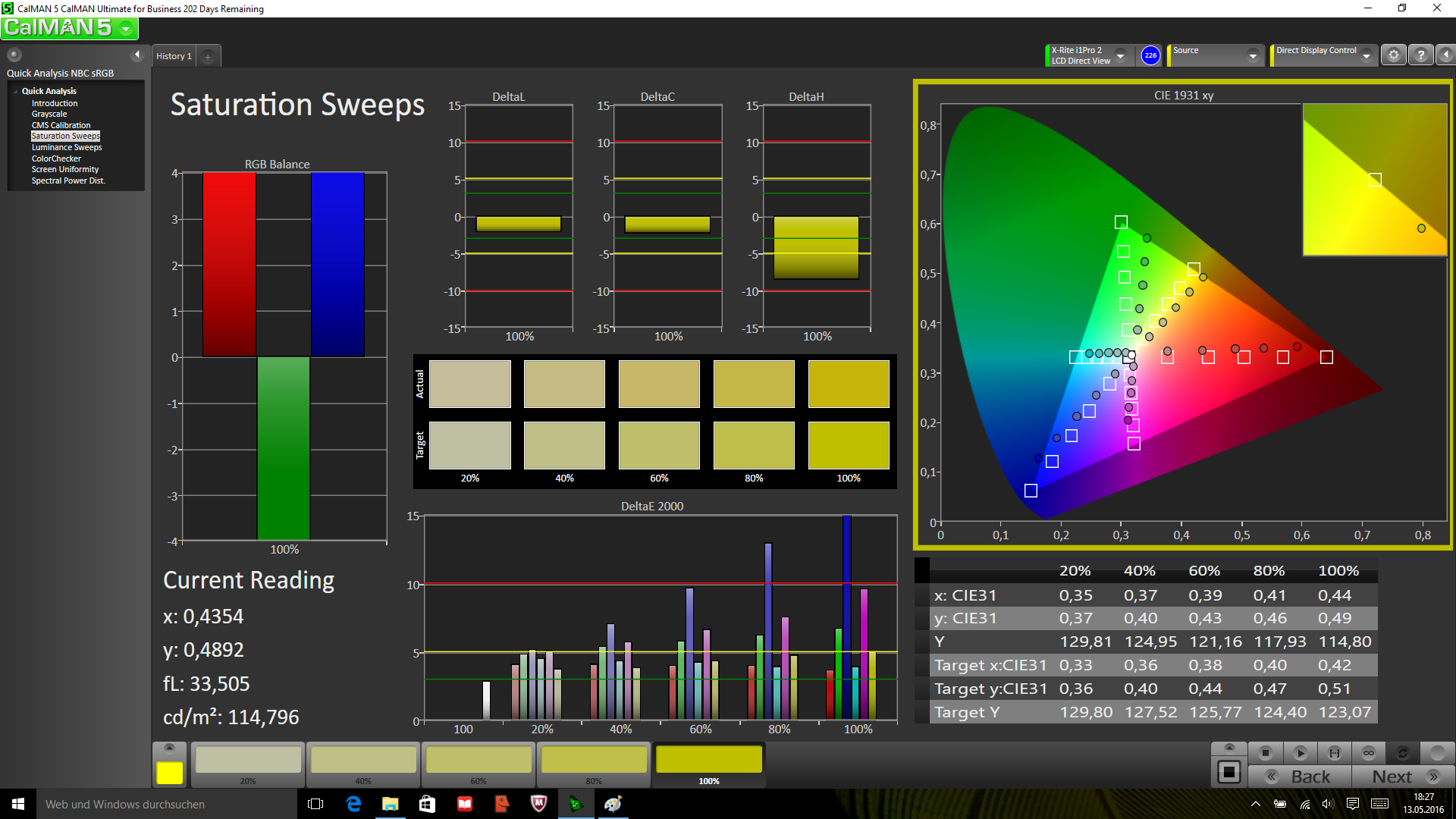

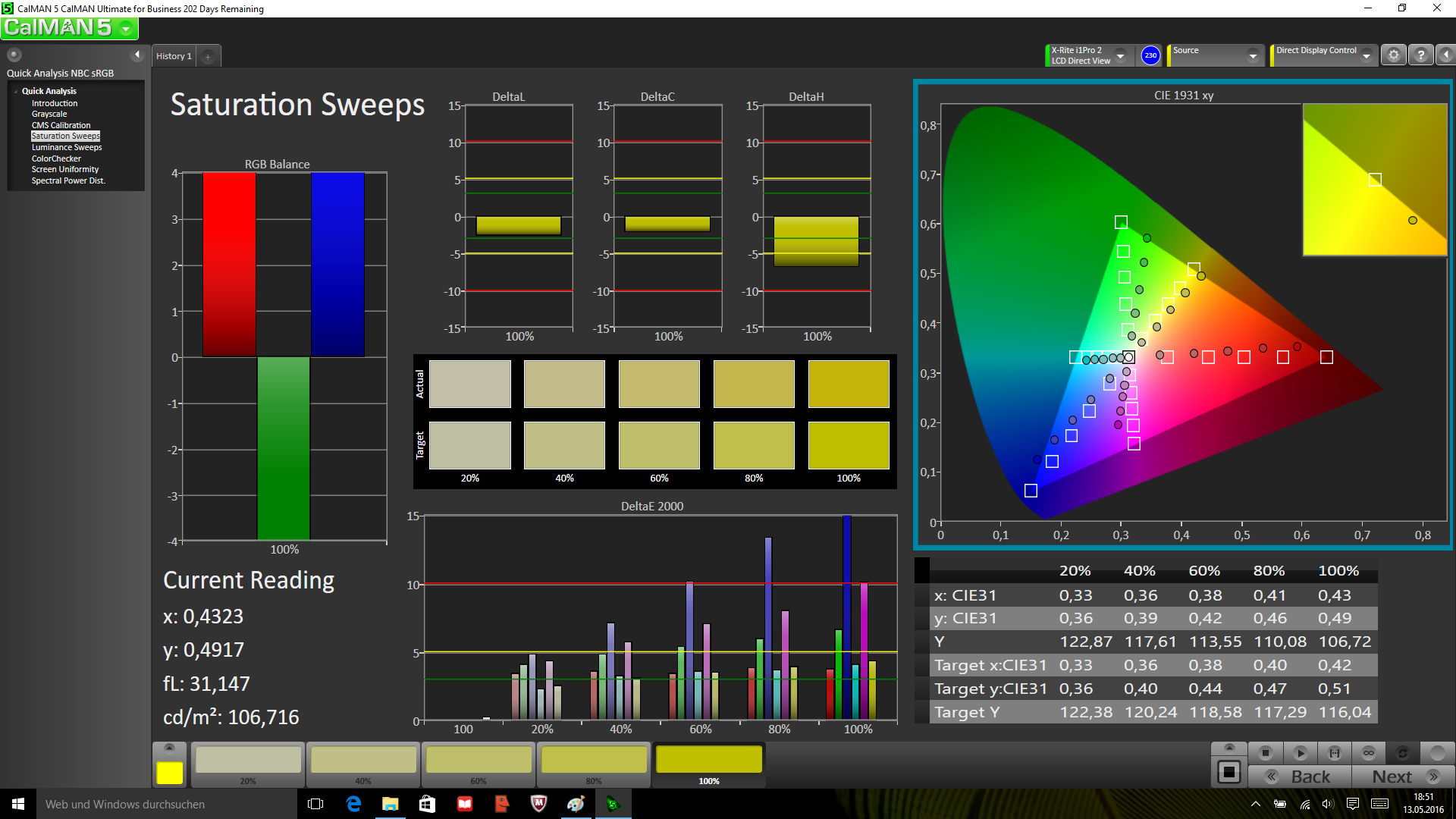

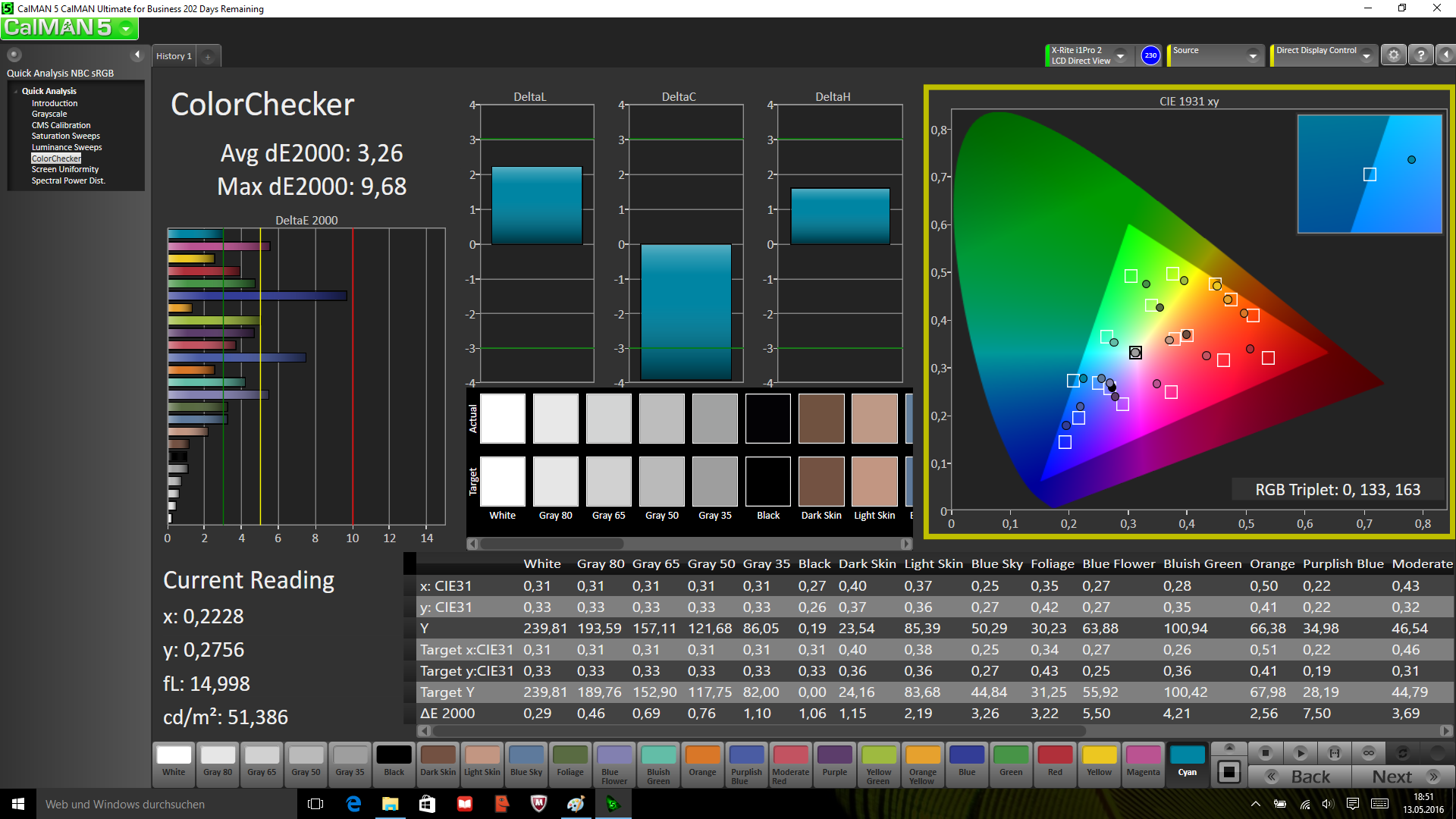

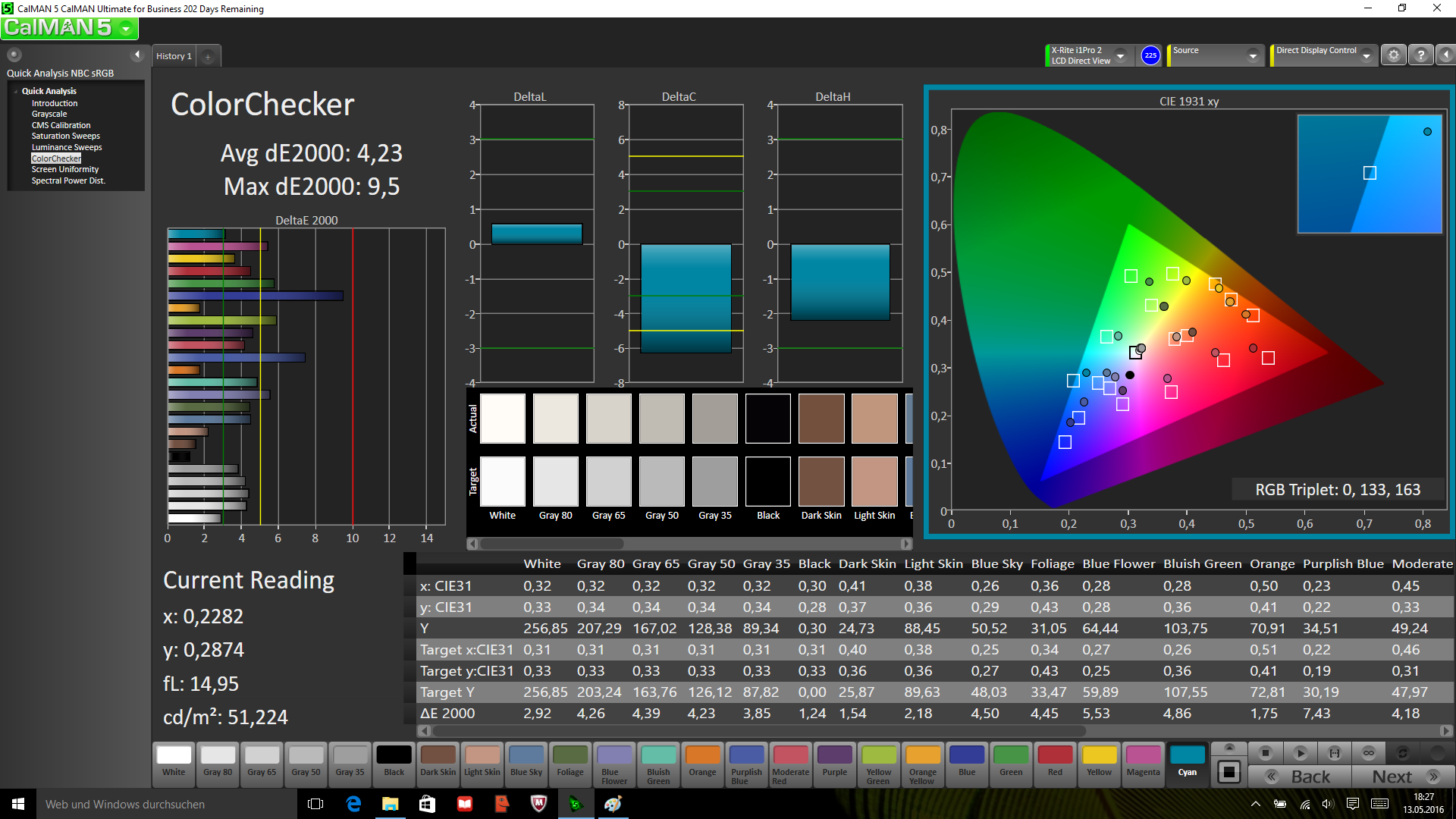

ΔE ColorChecker Calman: 4.23 | ∀{0.5-29.43 Ø4.79}

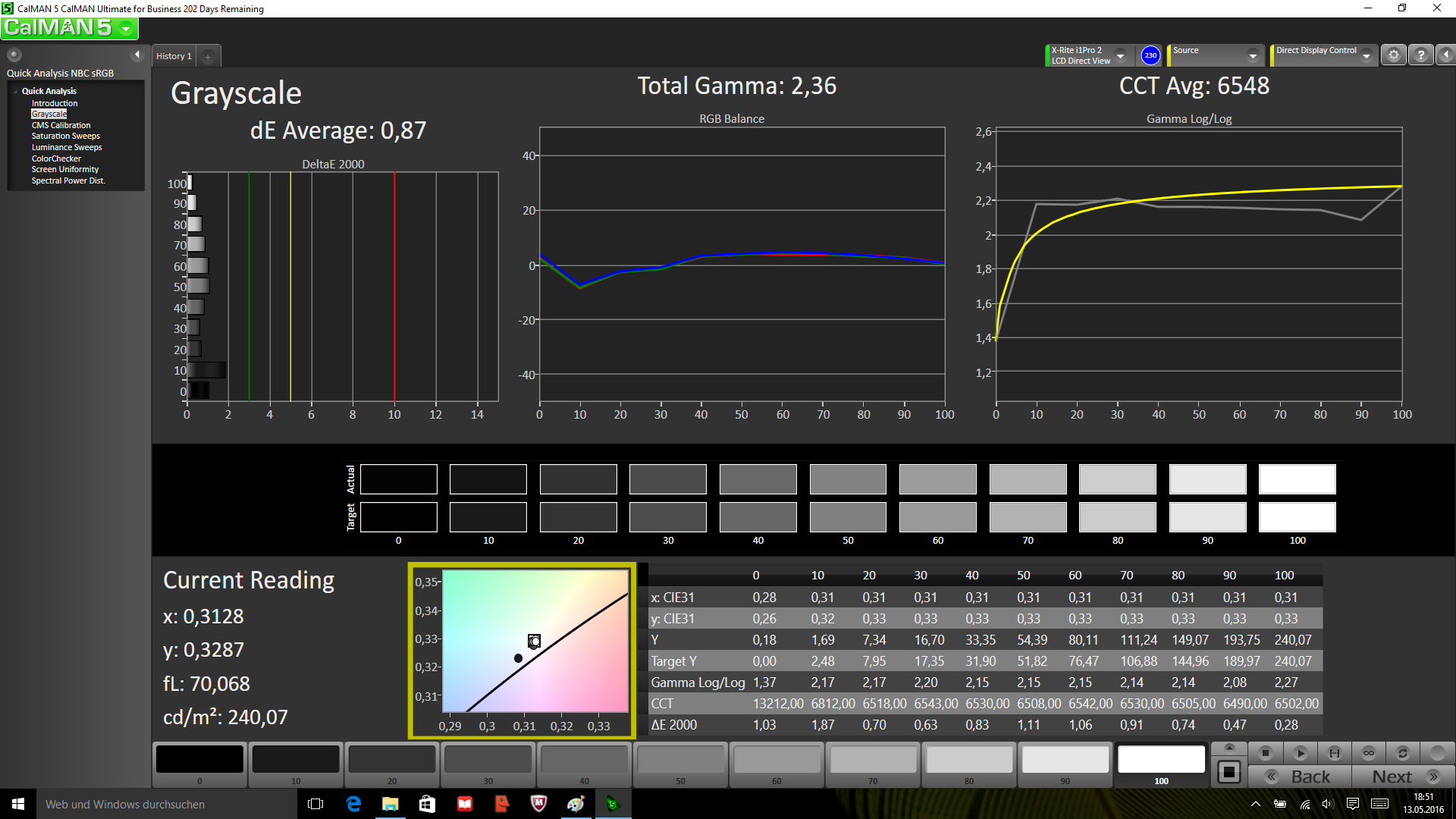

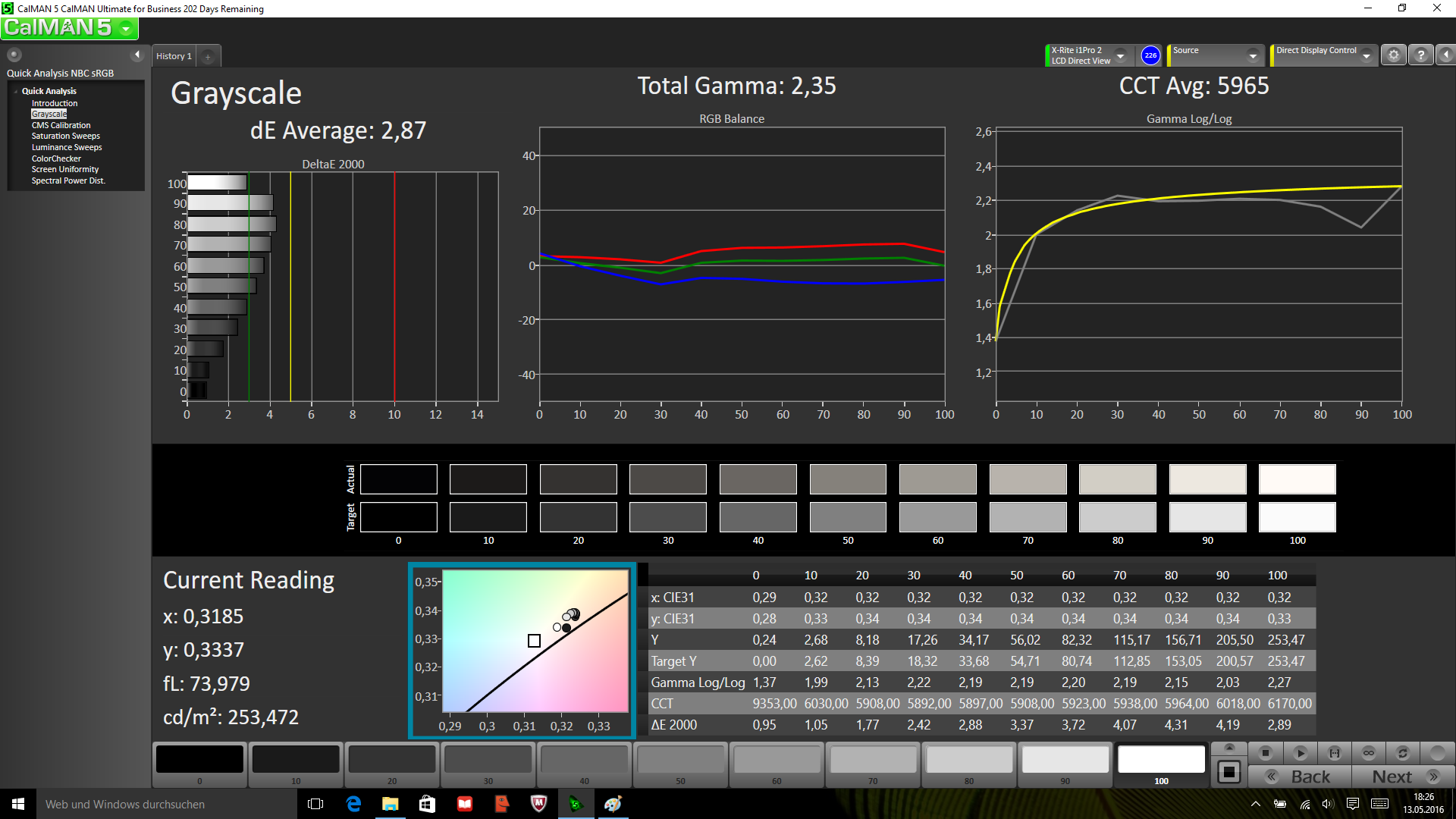

ΔE Greyscale Calman: 2.87 | ∀{0.09-98 Ø5}
63.48% sRGB (Argyll 1.6.3 3D)
40.35% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.99% AdobeRGB 1998 (Argyll 3D)
63.9% sRGB (Argyll 3D)
42.58% Display P3 (Argyll 3D)
Gamma: 2.35
CCT: 5965 K
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8167 (minimum: 5 - maximum: 343500) Hz was measured. | ||
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

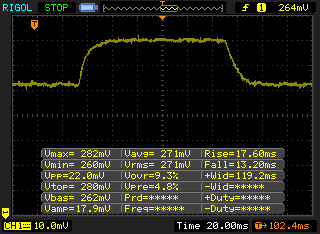

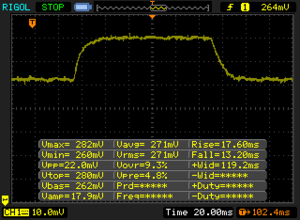

| 30.8 ms ... rise ↗ and fall ↘ combined | ↗ 17.6 ms rise |  |
| ↘ 13.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 82 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.3 ms). | ||

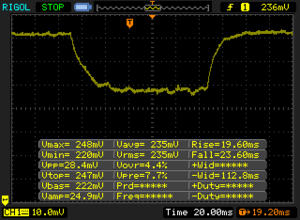

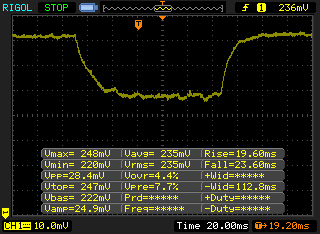

| ↔ Response Time 50% Grey to 80% Grey | ||
| 43.2 ms ... rise ↗ and fall ↘ combined | ↗ 19.6 ms rise |  |
| ↘ 23.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (31.7 ms). | ||
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Geekbench 3 | Sunspider | JetStream 1.1 | Mozilla Kraken 1.1 | Octane V2 | Peacekeeper
| Cinebench R15 | |
| CPU Multi 64Bit | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| Lenovo Yoga 500-15IBD | |
| CPU Single 64Bit | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| Lenovo Yoga 500-15IBD | |
| Cinebench R11.5 | |
| CPU Multi 64Bit | |
| Lenovo Yoga 510-15ISK | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 500-15IBD | |
| Dell Inspiron 15 7558 | |
| CPU Single 64Bit | |
| Lenovo Yoga 510-15ISK | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 500-15IBD | |
| Dell Inspiron 15 7558 | |
| Cinebench R10 | |
| Rendering Multiple CPUs 32Bit | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| Rendering Single 32Bit | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| Geekbench 3 | |
| 32 Bit Single-Core Score | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| 32 Bit Multi-Core Score | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Sunspider - 1.0 Total Score | |
| Lenovo Yoga 500-15IBD | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| HP Envy 15-w103ng x360 | |
| JetStream 1.1 - Total Score | |
| Lenovo Yoga 510-15ISK | |
| HP Envy 15-w103ng x360 | |
| Mozilla Kraken 1.1 - Total | |
| Lenovo Yoga 500-15IBD | |
| Dell Inspiron 15 7558 | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Octane V2 - Total Score | |
| Lenovo Yoga 510-15ISK | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 500-15IBD | |
| Peacekeeper - --- | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
* ... smaller is better
| PCMark 7 Score | 5028 points | |
| PCMark 8 Home Score Accelerated v2 | 3651 points | |
| PCMark 8 Creative Score Accelerated v2 | 4380 points | |
| PCMark 8 Work Score Accelerated v2 | 4555 points | |
Help | ||
| PCMark 8 - Home Score Accelerated v2 | |
| Lenovo Yoga 510-15ISK | |
| HP Envy 15-w103ng x360 | |
| Dell Inspiron 15 7558 | |
| Lenovo Yoga 500-15IBD | |
| PCMark 7 - Score | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| Lenovo Yoga 500-15IBD | |
Liteonit CV3-DE256
Sequential Read:
487 MB/s
Sequential Write:
450.7 MB/s
512K Read:
384.5 MB/s
512K Write:
356.3 MB/s
4K Read:
27.05 MB/s
4K Write:
63.7 MB/s
4K QD32 Read:
281.5 MB/s
4K QD32 Write:
232 MB/s
| 3DMark 06 Standard Score | 8587 points | |
| 3DMark Vantage P Result | 5304 points | |
| 3DMark 11 Performance | 2246 points | |
| 3DMark Ice Storm Standard Score | 42485 points | |
| 3DMark Cloud Gate Standard Score | 4755 points | |
| 3DMark Fire Strike Score | 1054 points | |
| 3DMark Fire Strike Extreme Score | 513 points | |
Help | ||
| 3DMark 11 - 1280x720 Performance | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| 3DMark | |
| 1280x720 Ice Storm Standard Score | |
| HP Envy 15-w103ng x360 | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| Dell Inspiron 15 7558 | |
| Lenovo Yoga 510-15ISK | |
| Lenovo Yoga 500-15IBD | |
| 1280x720 Cloud Gate Standard Score | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 500-15IBD | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| Lenovo Yoga 510-15ISK | |
| Dell Inspiron 15 7558 | |
| 1280x720 Sky Diver Score | |
| HP Envy 15-w103ng x360 | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| Lenovo Yoga 510-15ISK | |
| 1920x1080 Fire Strike Score | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| Dell Inspiron 15 7558 | |
| 3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x | |
| Lenovo Yoga 510-15ISK | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| Diablo III (2012) | 92.2 | 60.5 | 50.7 | 29.9 |
| Tomb Raider (2013) | 80 | 39.9 | 30 | 14.7 |
| BioShock Infinite (2013) | 73.1 | 38.9 | 31.7 | 11 |
| Metro: Last Light (2013) | 35.4 | 26.2 | 16 | 7.7 |
| Battlefield 4 (2013) | 59.4 | 38 | 23.9 | 7.8 |
| GRID: Autosport (2014) | 125.3 | 56.6 | 26 | 13.6 |
| Dirt Rally (2015) | 108.7 | 36.7 | 17.9 | 12.5 |
| Batman: Arkham Knight (2015) | 20 | 17 | 9 | |
| World of Warships (2015) | 79.6 | 49.9 | 21.2 | 15 |
| FIFA 16 (2015) | 88.1 | 51.8 | 24.5 | |
| Anno 2205 (2015) | 31.4 | 16.5 | 7 | 3.7 |
| Fallout 4 (2015) | 27 | 15.8 | 8.2 | 6.5 |
| Star Wars Battlefront (2015) | 35.5 | 23 | 10.9 | 9.1 |
| Rainbow Six Siege (2015) | 51.9 | 31.8 | 13.1 | 10.6 |
| Just Cause 3 (2015) | 32.1 | 25.2 | 11.9 | 10.1 |
| Rise of the Tomb Raider (2016) | 19.5 | 12.2 | 6.8 | |
| XCOM 2 (2016) | 22.5 | 7.8 | 5.2 | |
| Far Cry Primal (2016) | 22 | 10 | 8 | 7 |
| The Division (2016) | 29.9 | 16.3 | 7.2 |
| BioShock Infinite - 1280x720 Very Low Preset | |
| Lenovo Yoga 510-15ISK | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| Dell Inspiron 15 7558 | |
| World of Warships - 1366x768 Low Preset AF:Trilinear | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| Star Wars Battlefront - 1024x768 Low Preset | |
| HP Envy 15-w103ng x360 | |
| Lenovo Yoga 510-15ISK | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| FIFA 16 - 1366x768 High Preset AA:2x MS | |
| HP Envy 15-w103ng x360 | |
| Lenovo Ideapad 500-15ISK 80NT005WGE | |
| Lenovo Yoga 510-15ISK | |
Noise level
| Idle |
| 29 / 29 / 29 dB(A) |
| Load |
| 35.9 / 41 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  ECM8000 + Voltcraft SL-451 (15 cm distance) environment noise: 29 dB(A) | ||
(±) The average temperature for the upper side under maximal load is 32.8 °C / 91 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.9 °C / 109 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.4 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-3.1 °C / -5.6 F).
(±) The maximum temperature on the upper side is 42.9 °C / 109 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.4 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-3.1 °C / -5.6 F).
Power Consumption
| Off / Standby | 0.24 / 0.45 Watt |
| Idle | 4 / 7.5 / 8.1 Watt |
| Load |
40.8 / 57.3 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256 | Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP | Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012 | |
|---|---|---|---|---|
| Battery runtime | -28% | 18% | 9% | |
| Reader / Idle (h) | 12.2 | 7.8 -36% | 14.8 21% | |
| H.264 (h) | 5.6 | |||
| WiFi v1.3 (h) | 5.6 | 2.6 -54% | 6.6 18% | 4.9 -12% |
| Load (h) | 1.7 | 1.8 6% | 2 18% |
Pros
+ IPS屏幕
+ 全高清分辨率
+ 高速固态硬盘
+ 运行通常比较安静
Cons
- 屏幕暗
- 显卡性能不足
- 仅一个内存槽
- 一般的电池续航
- 无维护底盖
- 无键盘背光

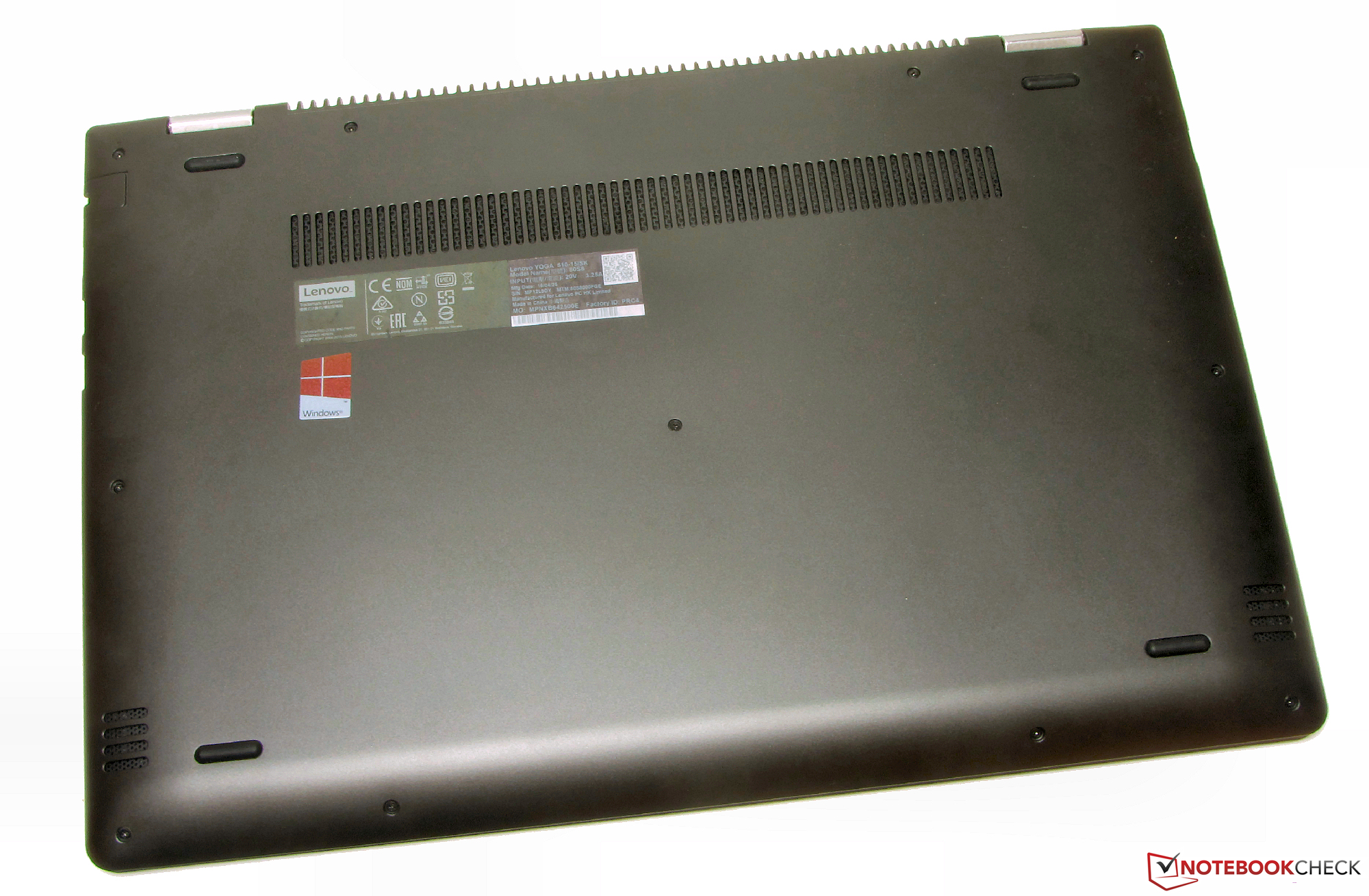

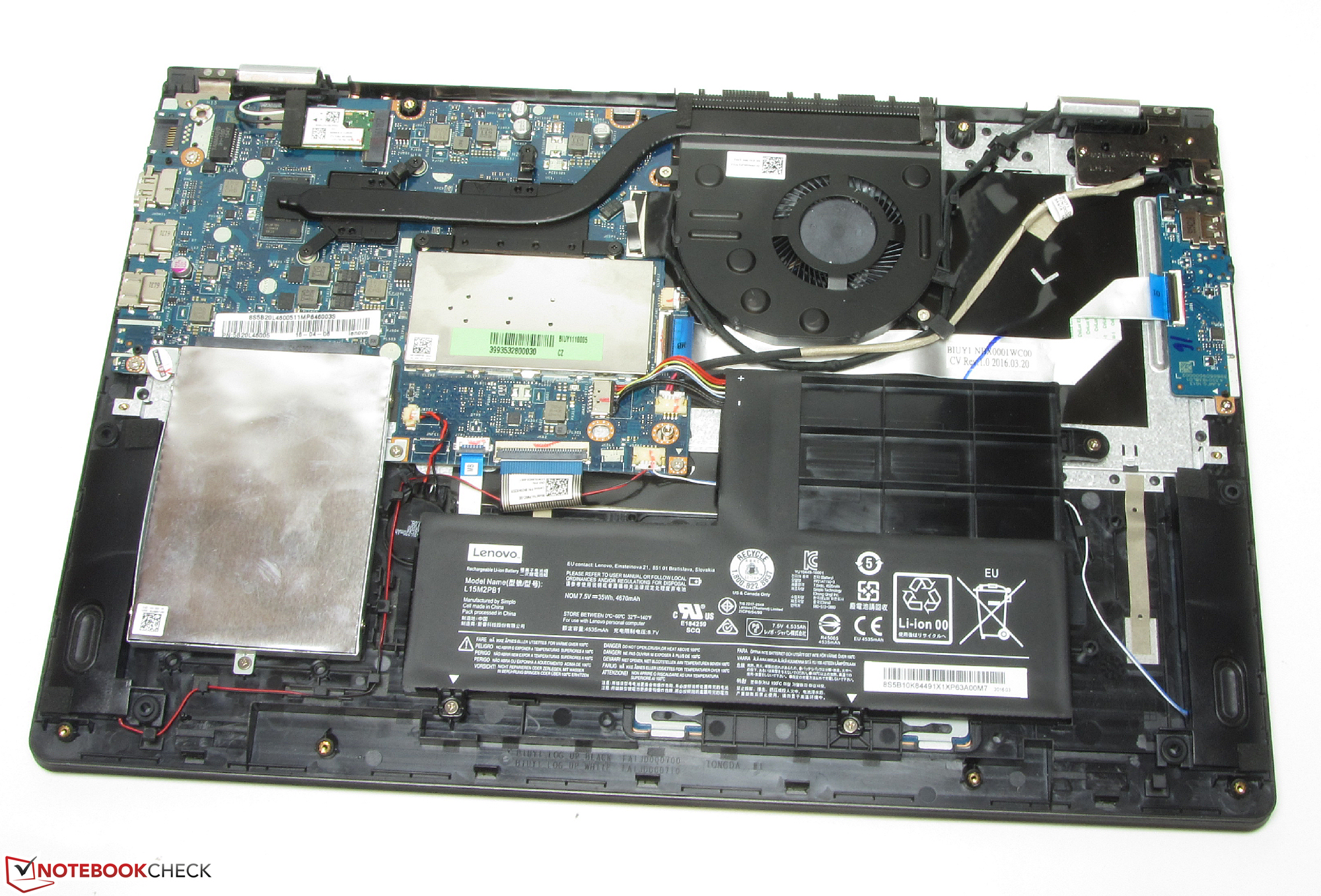

联想的Yoga 510-15ISK是一台15.6寸变形本。酷睿i5处理器应该可以满足大部分用户的需要。Radeon独立显卡可以应付一些游戏，不过与售价相称，它不是非常强大。同类产品通常搭配了更快的GeForce 940M显卡。它在使用中通常可以保持安静，很少会变热。用户可以自行升级固态硬盘。这台变形本没有维护底盖，所以用户需要打开整个底盖。整体来说，它的键盘十分优秀，但不支持背光让我们有些失望。它的电池续航表现也十分优秀。
联想为它的变形本搭配了错误的屏幕。
最值得质疑的一点是它的低亮度屏幕；对于这个价位的变形本我们期待至少能够看到300 cd/m²的最高亮度。除此之外，这块屏幕十分优秀：可视角度范围宽广，高对比度，同时没有闪烁。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Lenovo Yoga 510-15ISK
- 05/27/2016 v5.1 (old)
Sascha Mölck
