联想 Yoga 500-15IBD 变形本简短评测

通用工具? 二合一变形本像是笔记本电脑世界的瑞士军刀。联想这款产品的有趣配置应该可以满足办公用户,游戏玩家和多媒体用户,售价约800欧元(约5778人民币)。
Broadwell Windows Touchscreen Convertible / 2-in-1
80N6008AGE (Yoga 500 Series)
Processor
Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell
Graphics adapter
NVIDIA GeForce 940M - 2048 MB VRAM, Core: 1072 MHz, Memory: 900 MHz, DDR3, ForceWare 345.01, Optimus HD Graphics 5500
Memory
8 GB
, PC3-12800 Samsung
Display
15.60 inch 16:9, 1920 x 1080 pixel, 10点触控, LGDisplay LP156WF4_SPL1, WLED AH-IPS, 700:1, 220 cd/m², a-Si TFT, glossy: yes
Mainboard
Haswell-ULT
Storage
WDC Scorpio Blue WD10JPVX-22JC3T0, 1024 GB
, 5400 rpm, WDC Slim WD10SPCX-24HWST1, 865 GB free
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 整合耳机和麦克风插口, Card Reader: SD, SDHC, SDXC, MMC, Sensors: 环境光传感器
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 23 x 385 x 255
Battery
30 Wh Lithium-Ion, 型号: L14M2P21 4050 mAh, Battery runtime (according to manufacturer): 4 h
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 100万像素 720p
Additional features
Speakers: 立体声, Keyboard: AccuType, Keyboard Light: no, 65 瓦 / 3针电源适配器, 24 Months Warranty
Weight
2.148 kg, Power Supply: 335 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

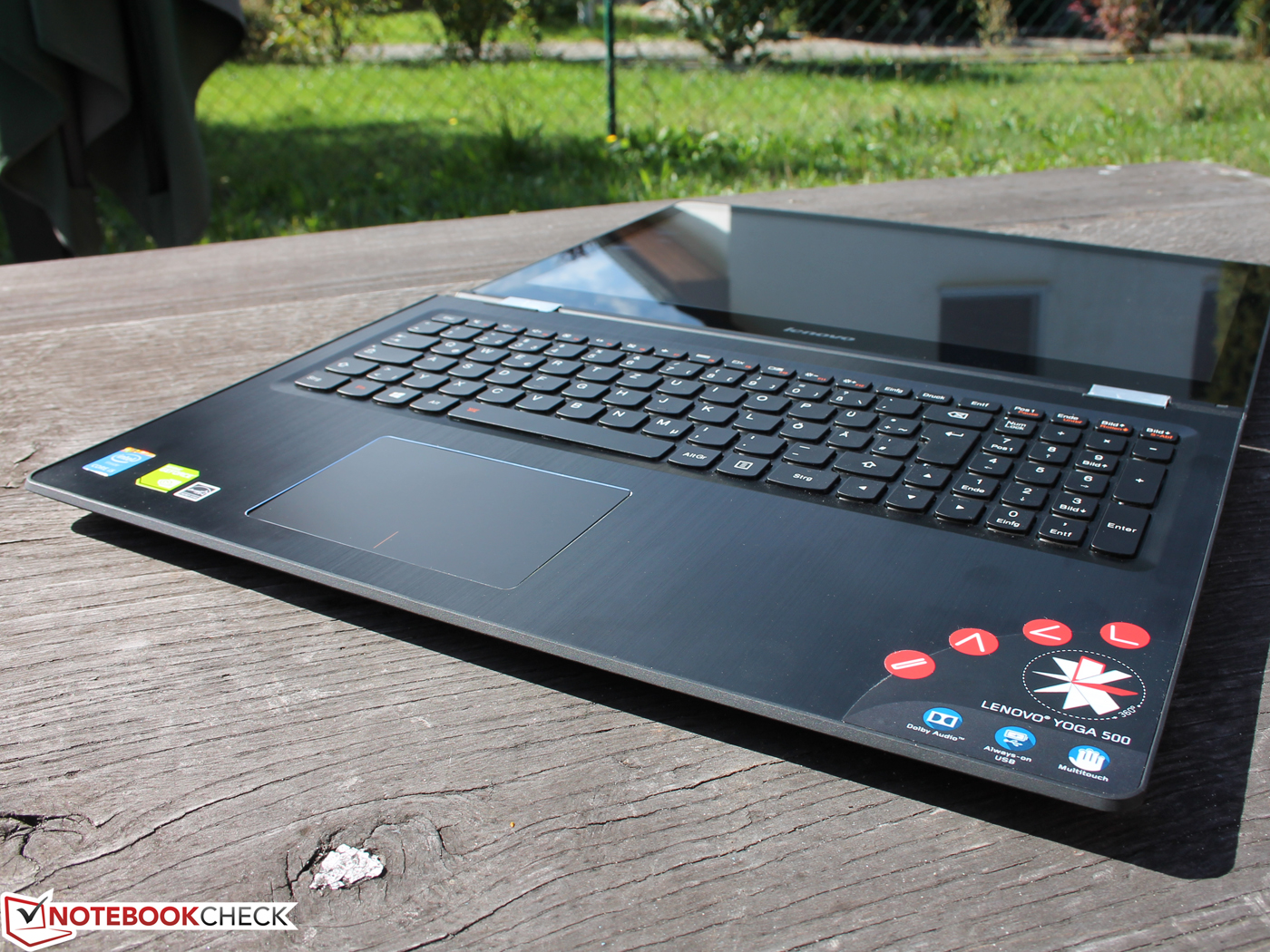

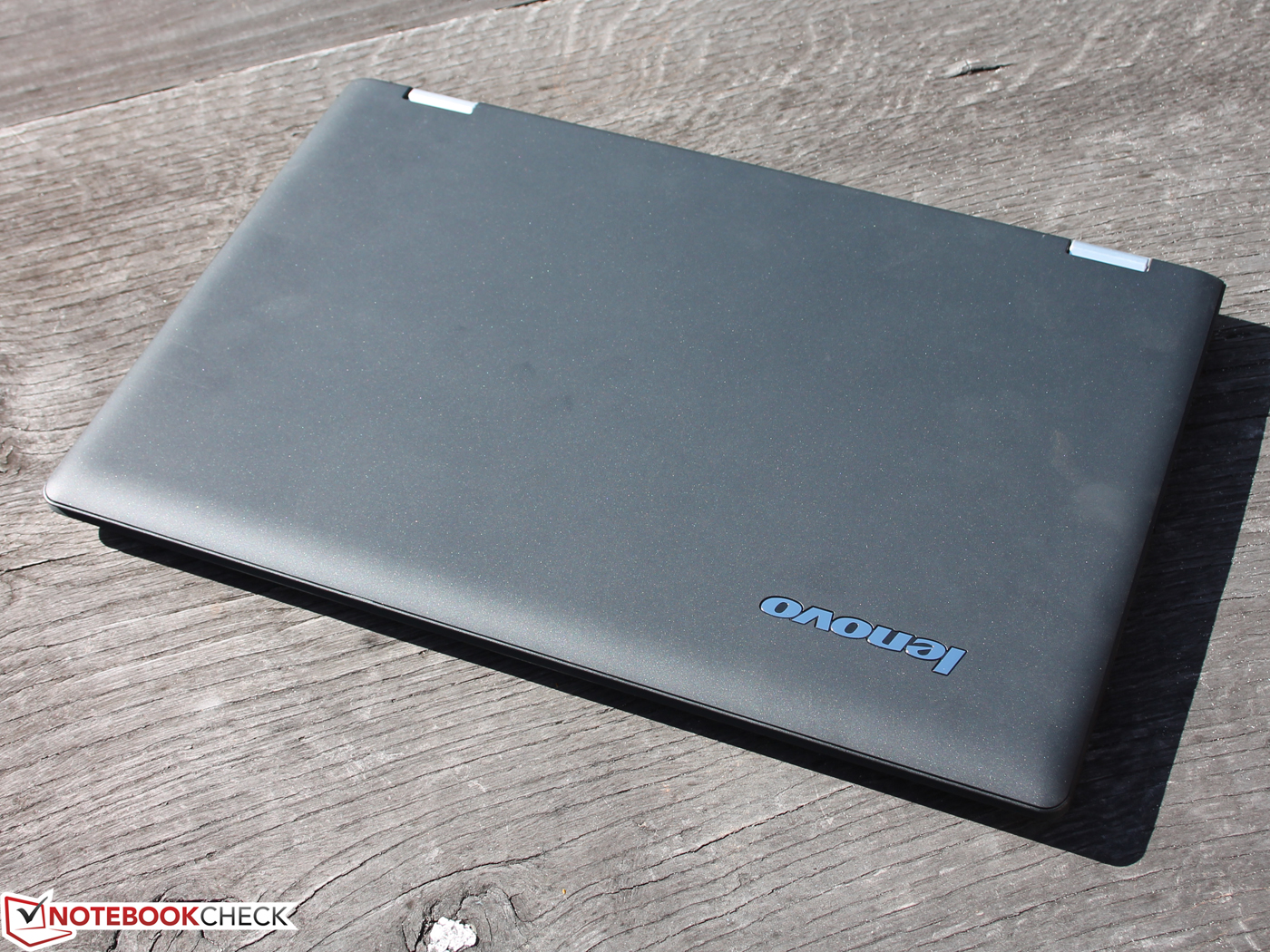

Lenovo Yoga 500-15

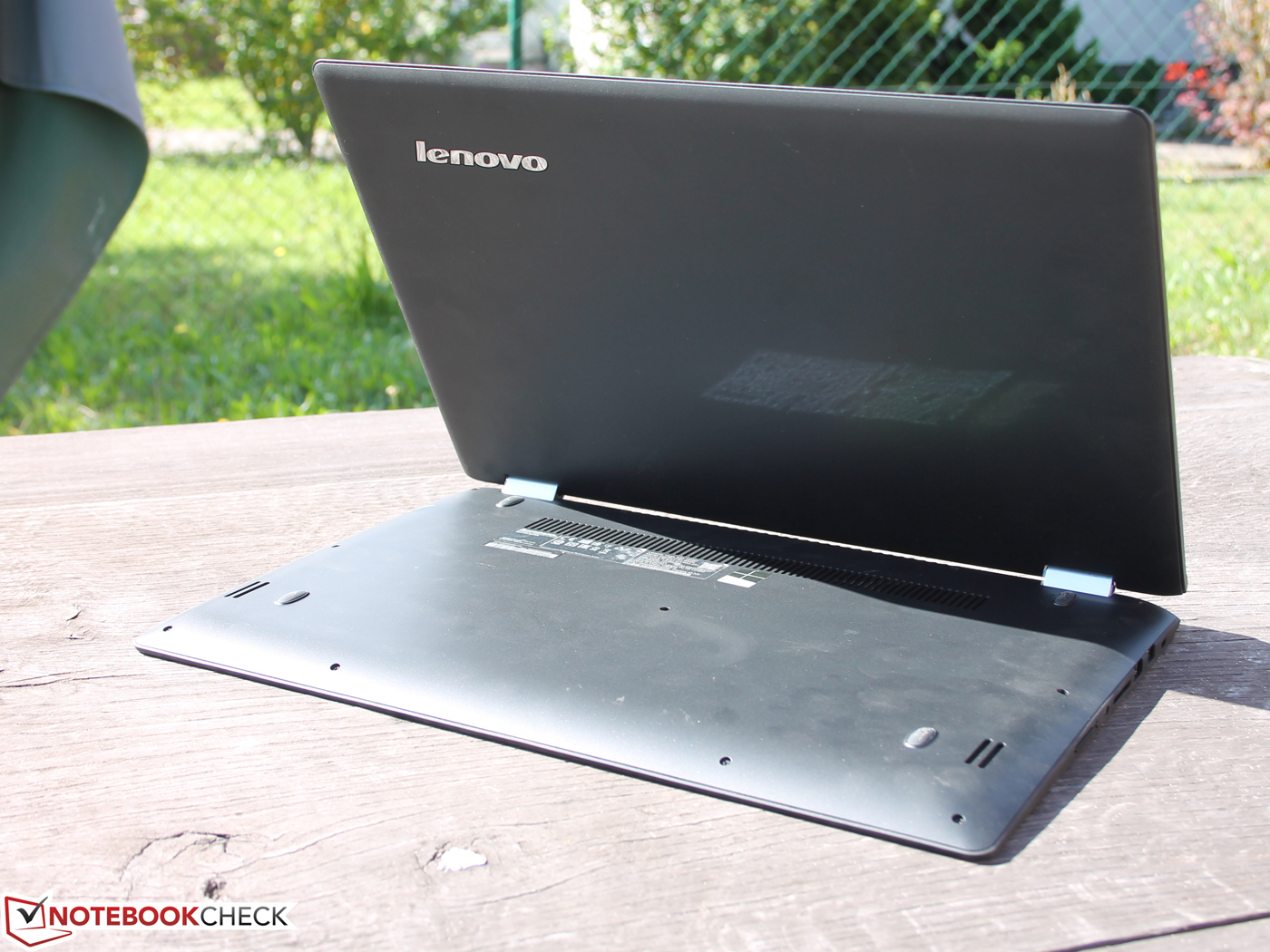

Now one among many 15-inch convertibles

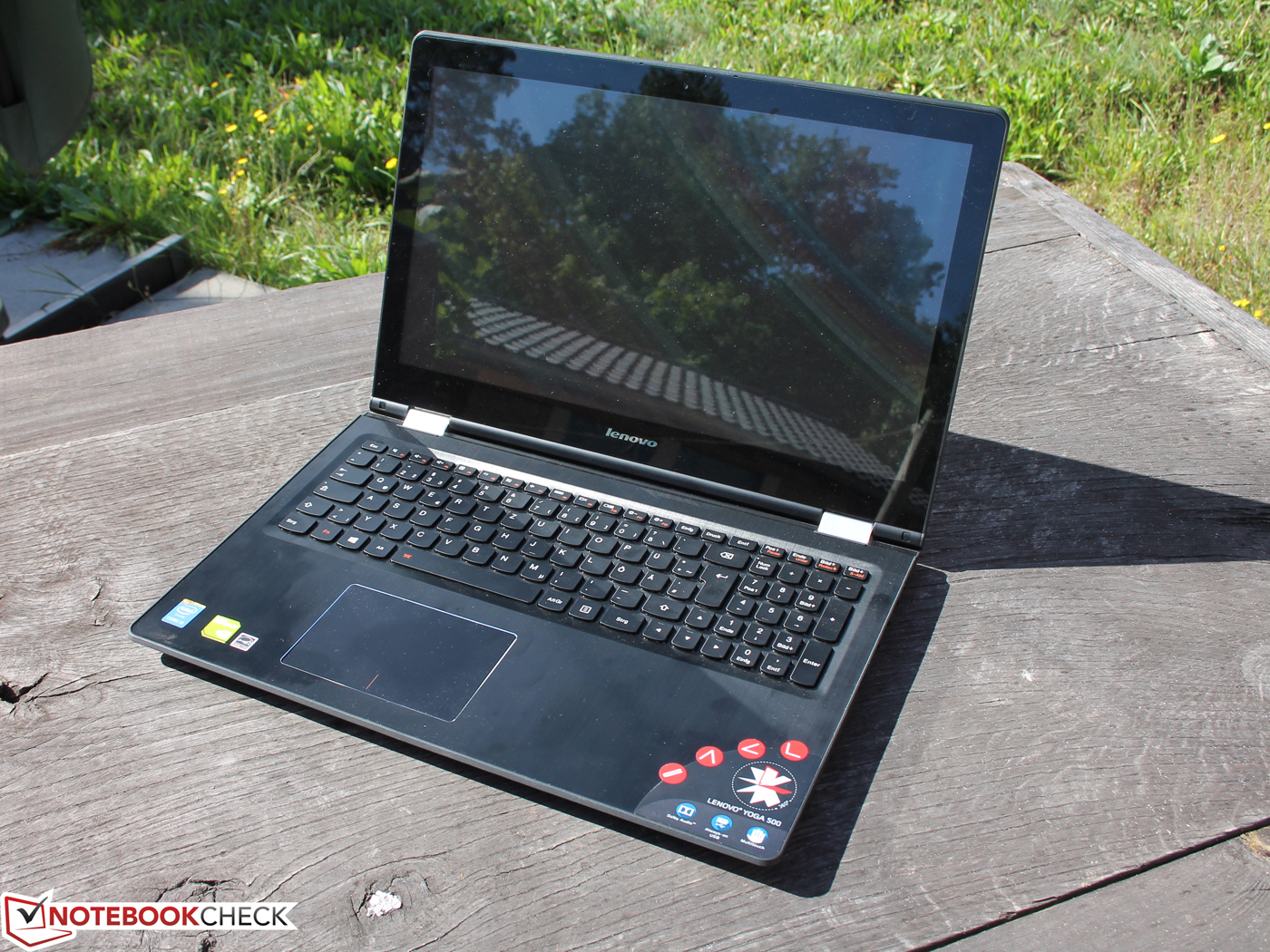

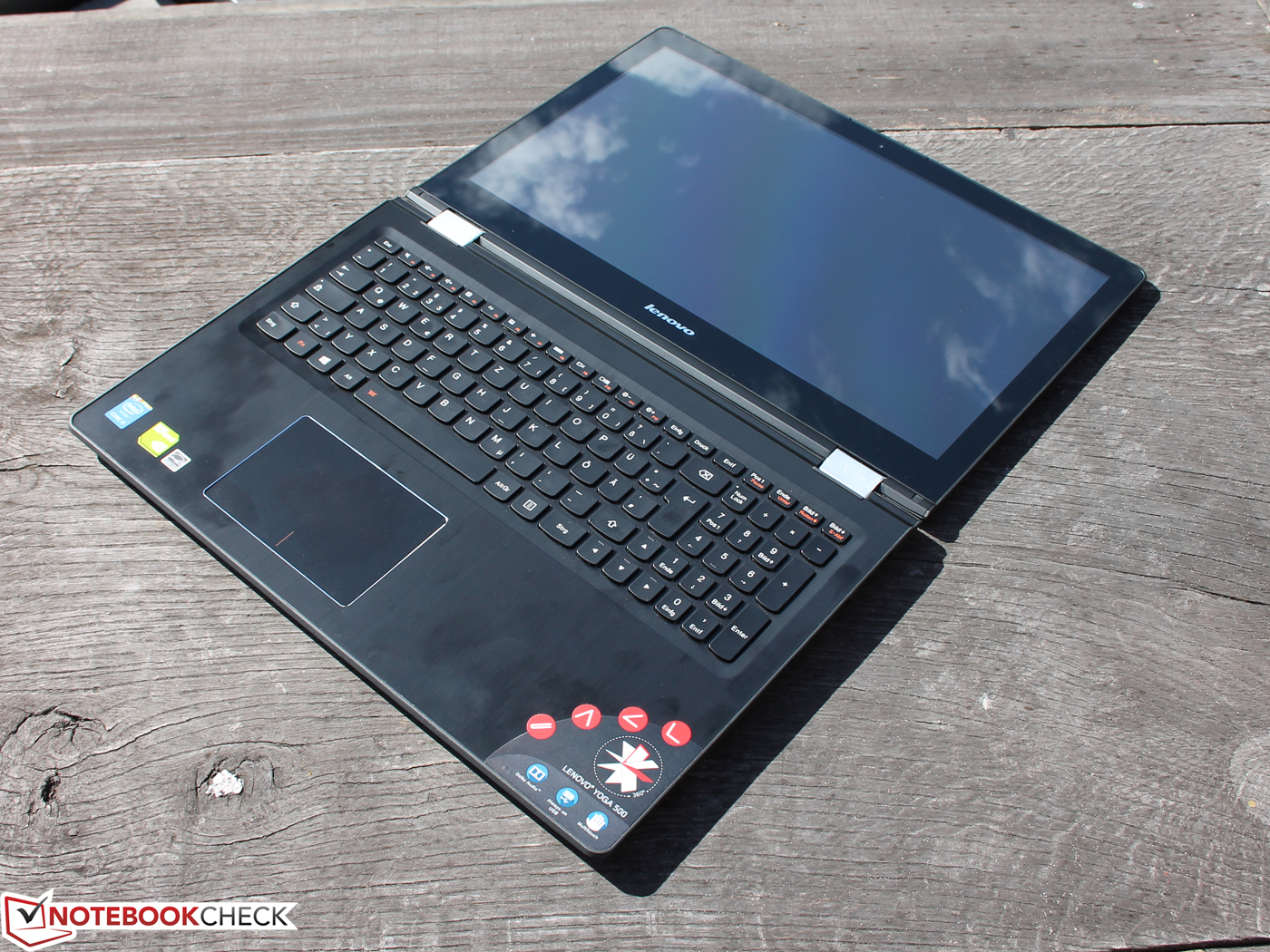

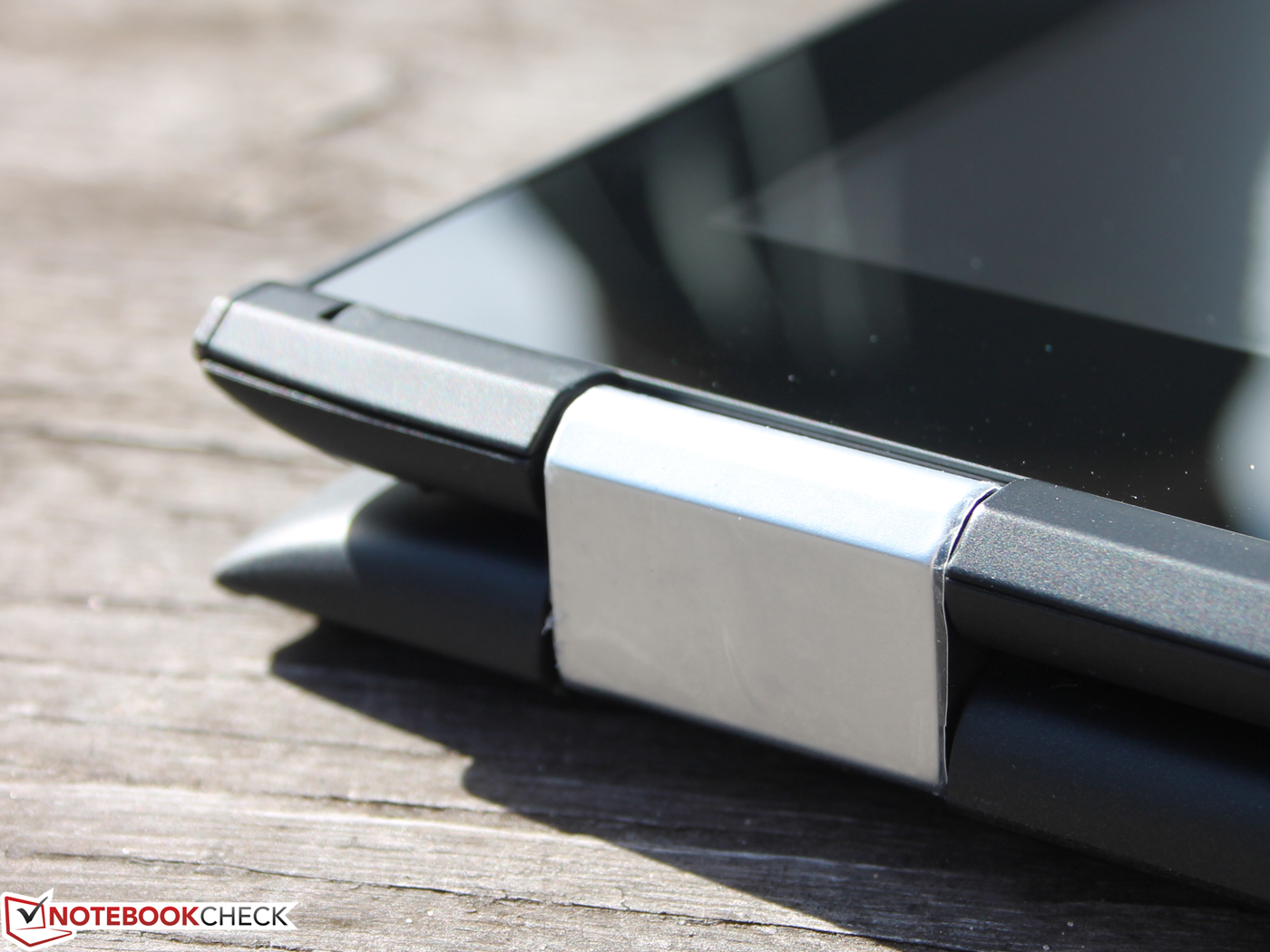

Lenovo Yoga 500-15 - 360 degree hinge
Keys on the underside of the

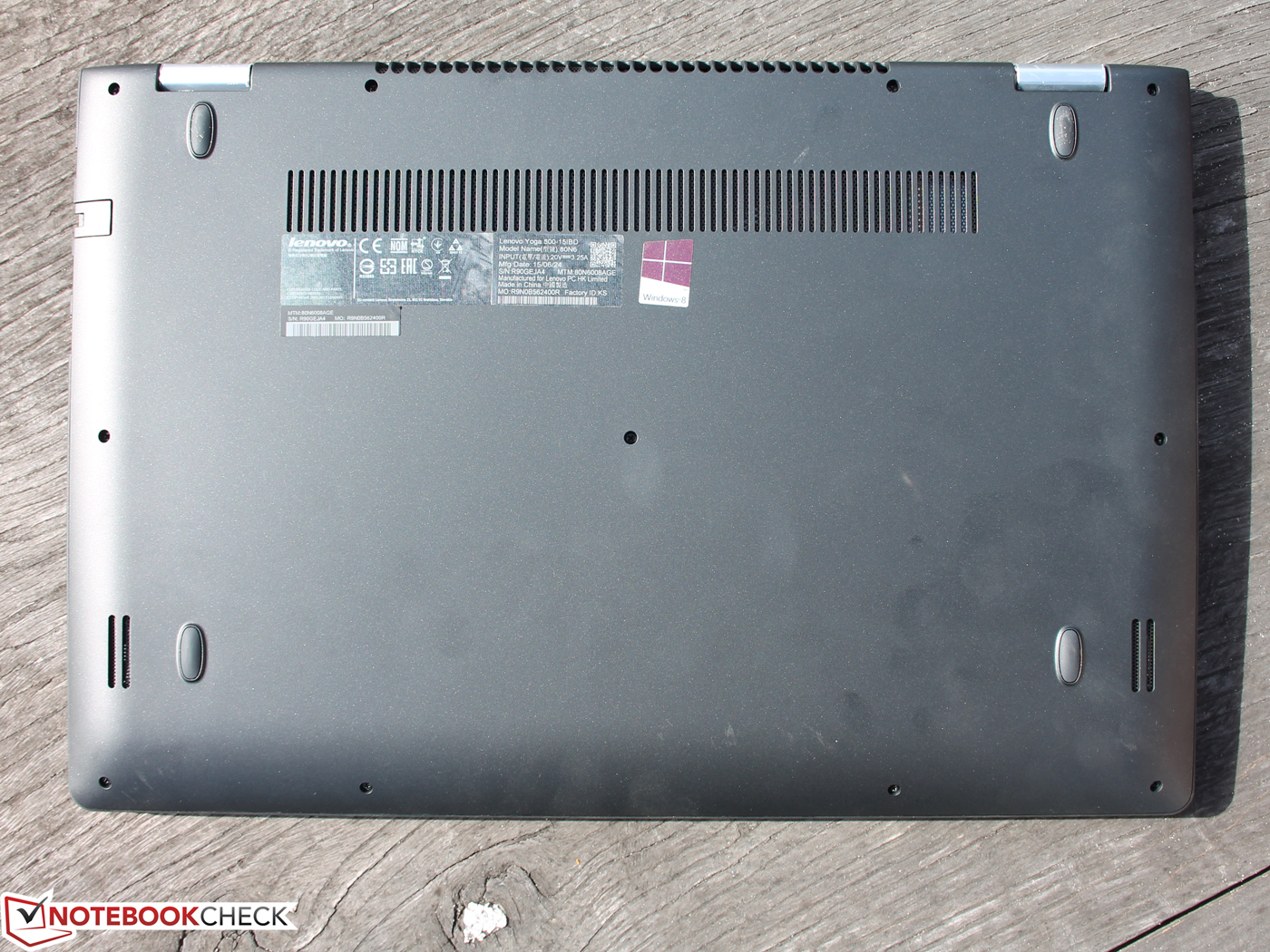

No maintenance hatch, non-removable battery

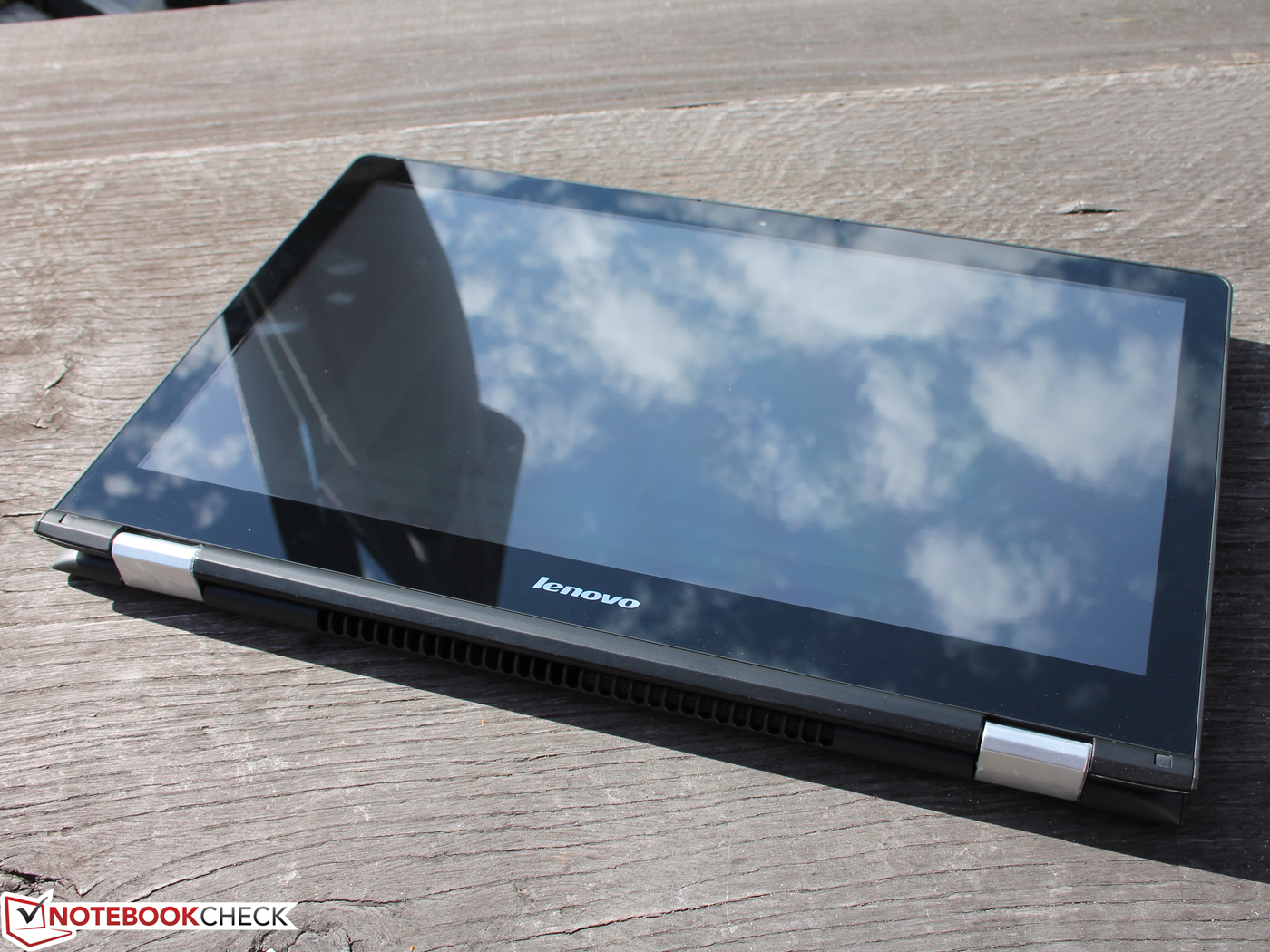

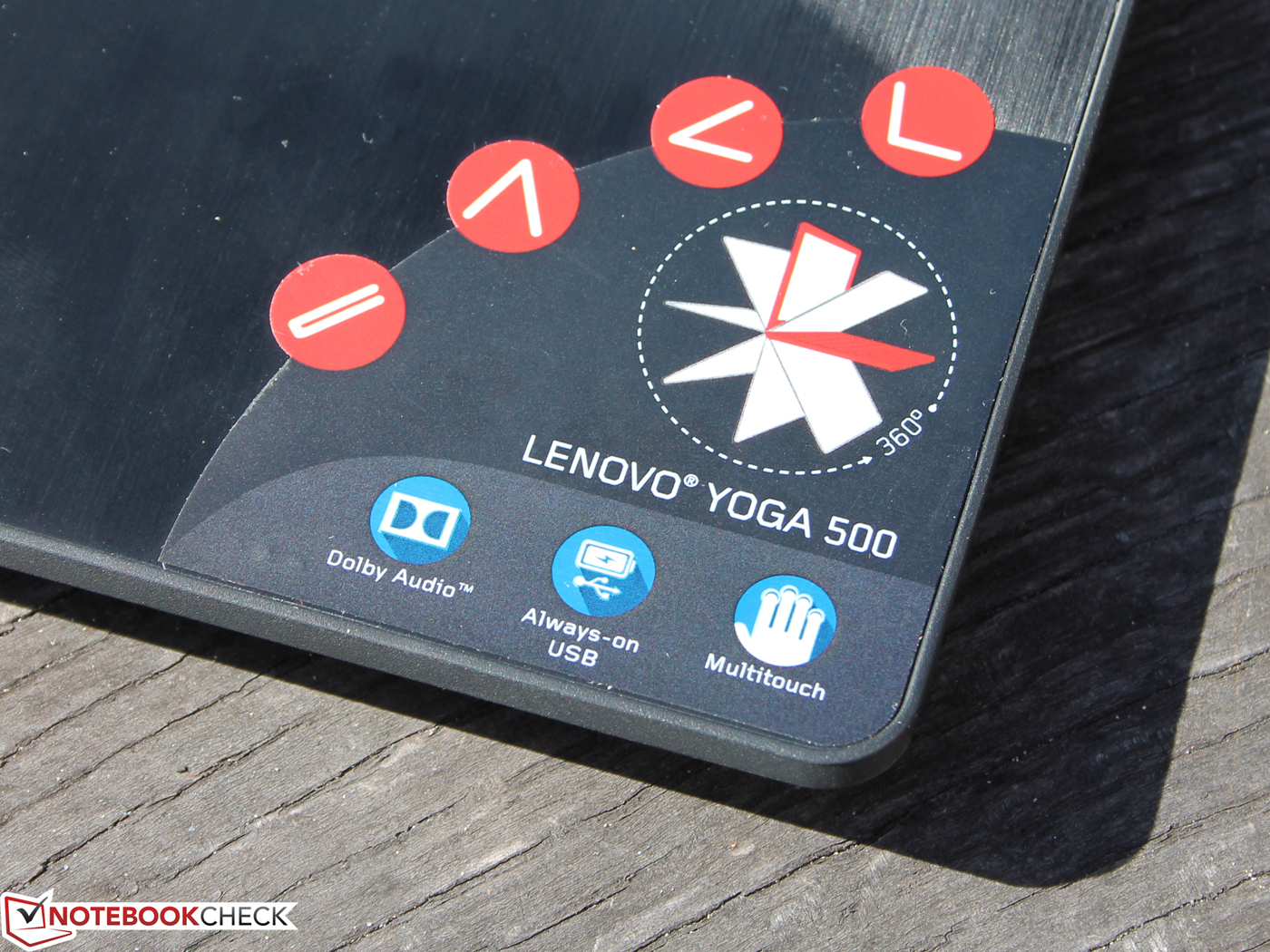

The Modes are praised

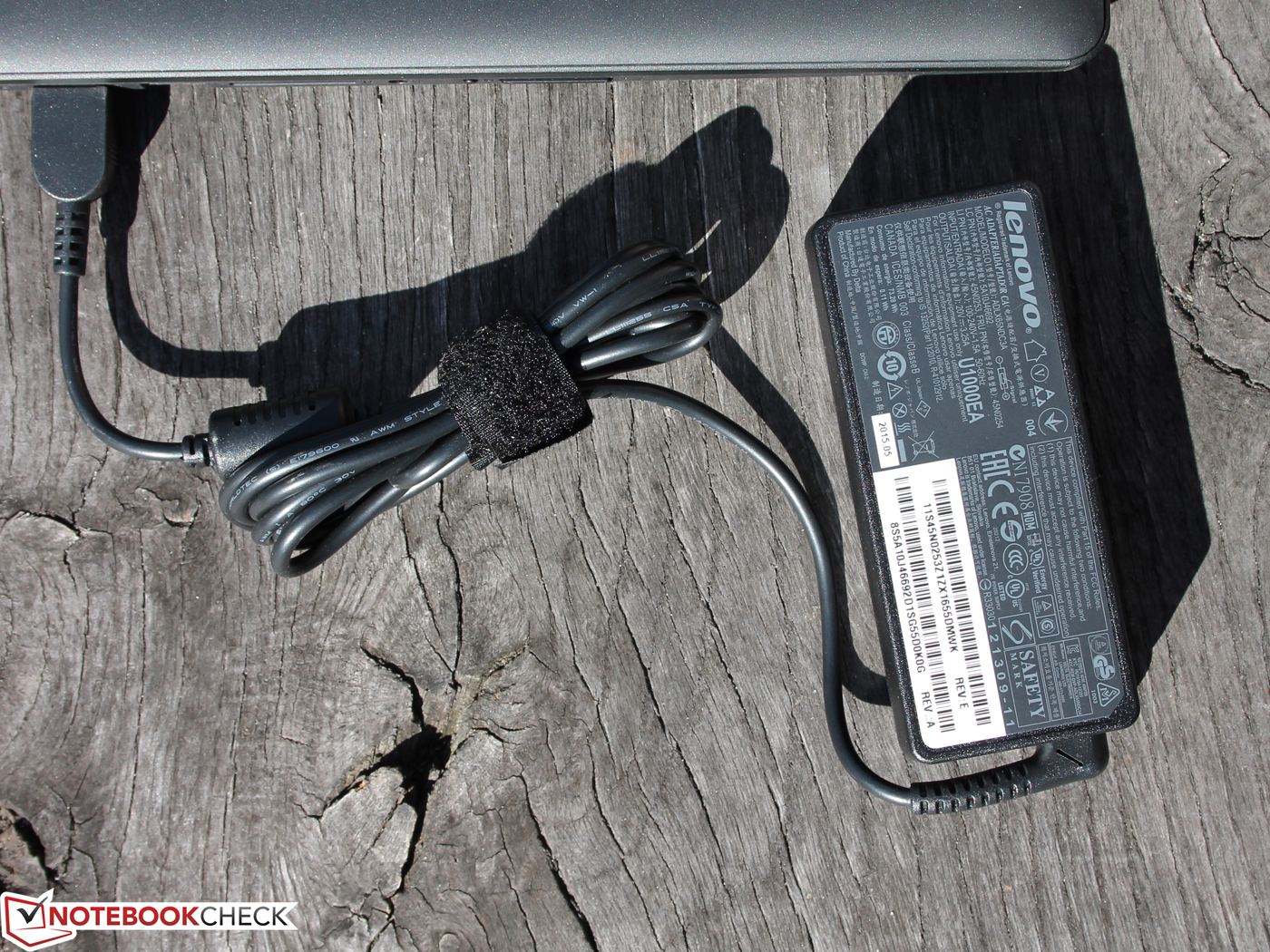

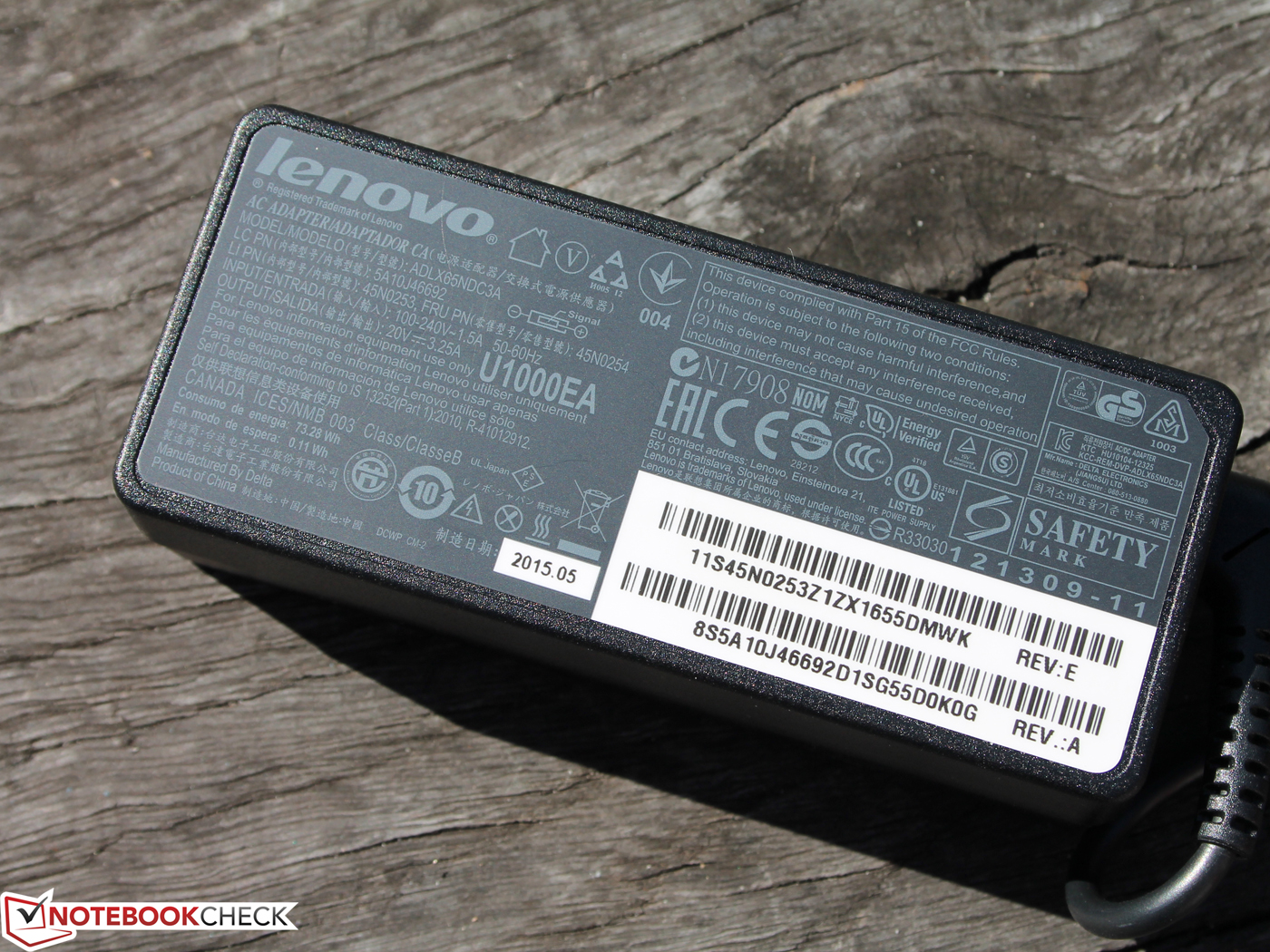

65 watt power supply
385 mm 255 mm 23 mm 2.1 kg383.7 mm 258.5 mm 23.6 mm 2.4 kg382 mm 265.9 mm 22.1 mm 2.6 kg380 mm 272 mm 22 mm 2.3 kg380 mm 258 mm 22 mm 2.3 kg379.5 mm 244.9 mm 20.1 mm 2.2 kg297 mm 210 mm 1 mm 5.7 g

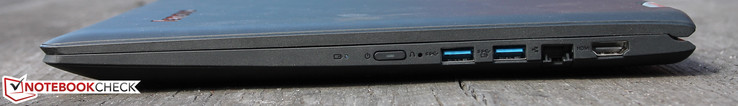

Right: Power on, 2x USB 3.0, RJ45 Ethernet, HDMI

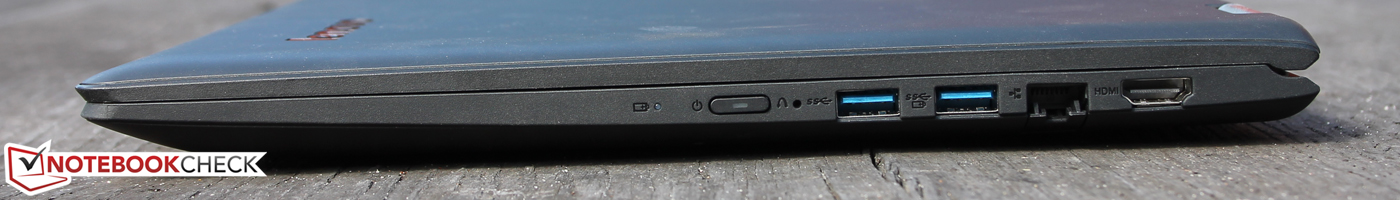

Right: Power on, 2x USB 3.0, RJ45 Ethernet, HDMI

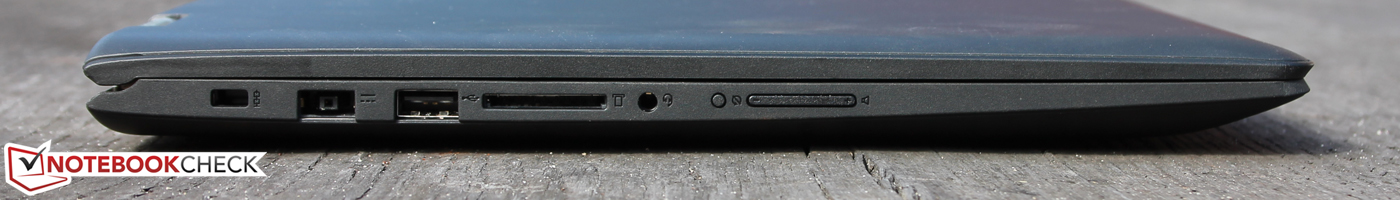

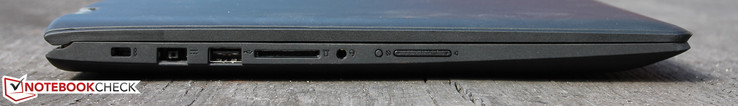

Left: Kensington, power in, USB 2.0, card reader, mic+line, rotation lock, volume rocker
Left: Kensington, power in, USB 2.0, card reader, mic+line, rotation lock, volume rocker
224
cd/m²
203
cd/m²
195
cd/m²
220
cd/m²
205
cd/m²
200
cd/m²
210
cd/m²
206
cd/m²
195
cd/m²
Distribution of brightness
LGDisplay LP156WF4_SPL1 tested with X-Rite i1Pro 2
Maximum: 224 cd/m² (Nits) Average: 206.4 cd/m²
Brightness Distribution: 87 %
Center on Battery: 167 cd/m²
Contrast: 732:1 (Black: 0.28 cd/m²)
ΔE Color 6.68 | 0.5-29.43 Ø5
ΔE Greyscale 6.3 | 0.57-98 Ø5.3
59% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.68% AdobeRGB 1998 (Argyll 2.2.0 3D)
59% sRGB (Argyll 2.2.0 3D)
39.36% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
Lenovo Yoga 500-15IBD
IPS FHD
Lenovo IdeaPad Flex 15
TN HD
Lenovo IdeaPad Flex 2 15
IPS FHD
Asus Transformer Book Flip TP500LN
TN FHD
HP Envy 15-u200ng x360
TN FHD
Toshiba Satellite Radius 15 P50W-C-102
IPS FHD
Display
-4%
-2%
26%
51%
Display P3 Coverage
39.36
37.89
-4%
38.52
-2%
49.85
27%
64.4
64%
sRGB Coverage
59
56.7
-4%
57.1
-3%
73.3
24%
83.2
41%
AdobeRGB 1998 Coverage
40.68
39.17
-4%
39.94
-2%
51.7
27%
60.8
49%
Screen
-16%
-19%
-1%
-45%
33%
Brightness middle
205
209
2%
224.2
9%
154
-25%
261
27%
293
43%
Brightness
206
203
-1%
215
4%
143
-31%
253
23%
287
39%
Brightness Distribution
87
81
-7%
84
-3%
84
-3%
79
-9%
91
5%
Black Level *
0.28
0.3
-7%
0.675
-141%
0.3
-7%
0.58
-107%
0.25
11%
Contrast
732
697
-5%
332
-55%
513
-30%
450
-39%
1172
60%
Colorchecker dE 2000 *
6.68
9.61
-44%
5.8
13%
4.84
28%
13.09
-96%
5.4
19%
Greyscale dE 2000 *
6.3
10.32
-64%
5.03
20%
4.53
28%
13.34
-112%
4.33
31%
Gamma
2.34 94%
2.84 77%
2.18 101%
2.22 99%
3.46 64%
2.39 92%
CCT
6996 93%
12804 51%
7277 89%
7307 89%
13202 49%
6670 97%
Color Space (Percent of AdobeRGB 1998)
37
35.8
-3%
36.19
-2%
48
30%
55
49%
Color Space (Percent of sRGB)
59
83
41%
Total Average (Program / Settings)
-10% / -13%
-11% / -15%
13% / 6%
-45% / -45%
42% / 38%

* ... smaller is better

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
1.24 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
0.75 Points -40%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
1.09 Points -12%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
1.25 Points +1%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
1.26 Points +2%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2.77 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
1.45 Points -48%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2.44 Points -12%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
2.82 Points +2%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2.82 Points +2%
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
108 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
67 Points -38%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
101 Points -6%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
86 Points -20%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
107 Points -1%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
109 Points +1%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
257 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
129 Points -50%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
228 Points -11%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
232 Points -10%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
259 Points +1%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
253 Points -2%
Cinebench R10 Rendering Single 32Bit
5449
Cinebench R11.5 CPU Single 64Bit
1.24 Points
Cinebench R11.5 CPU Multi 64Bit
2.77 Points
Cinebench R11.5 OpenGL 64Bit
35.56 fps
Cinebench R15 CPU Single 64Bit
108 Points
Cinebench R15 CPU Multi 64Bit
257 Points
Cinebench R15 OpenGL 64Bit
55.1 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
PCMark 7
Score (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2558 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
2156 Points -16%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
3725 Points +46%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3991 Points +56%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2652 Points +4%
Lightweight (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
1256 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
1141 Points -9%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2187 Points +74%
Productivity (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
818 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
660 Points -19%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
1615 Points +97%
Entertainment (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2471 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
2031 Points -18%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2966 Points +20%
Creativity (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
5182 Points
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
3223 Points -38%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
7069 Points +36%
PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2793 Points
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2355 Points -16%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2846 Points +2%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
2653 Points -5%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2841 Points +2%
Work Score Accelerated v2 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
3622 Points
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
3236 Points -11%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3541 Points -2%
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
3498 Points -3%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
3676 Points +1%
Display
Display P3 Coverage (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
39.36 %
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
37.89 % -4%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
38.52 % -2%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
49.85 % +27%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
64.4 % +64%
sRGB Coverage (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
59 %
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
56.7 % -4%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
57.1 % -3%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
73.3 % +24%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
83.2 % +41%
AdobeRGB 1998 Coverage (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
40.68 %
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
39.17 % -4%
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
39.94 % -2%
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
51.7 % +27%
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
60.8 % +49%
Screen
Brightness middle (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
205 cd/m²
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
209 cd/m²
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
224.2 cd/m²
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
154 cd/m²
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
261 cd/m²
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
293 cd/m²
Brightness (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
206 cd/m²
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
203 cd/m²
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
215 cd/m²
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
143 cd/m²
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
253 cd/m²
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
287 cd/m²
Brightness Distribution (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
87 %
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
81 %
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
84 %
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
84 %
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
79 %
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
91 %
Black Level (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
0.28 cd/m² *
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
0.3 cd/m² *
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
0.675 cd/m² *
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
0.3 cd/m² *
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
0.58 cd/m² *
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
0.25 cd/m² *
Contrast (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
732 :1
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
697 :1
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
332 :1
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
513 :1
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
450 :1
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
1172 :1
Colorchecker dE 2000 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
6.68 *
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
9.61 *
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
5.8 *
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
4.84 *
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
13.09 *
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
5.4 *
Greyscale dE 2000 (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
6.3 *
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
10.32 *
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
5.03 *
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
4.53 *
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
13.34 *
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
4.33 *
Gamma (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
2.34
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
2.84
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
2.18
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
2.22
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
3.46
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
2.39
CCT (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
6996
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
12804
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
7277
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
7307
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
13202
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
6670
Color Space (Percent of AdobeRGB 1998) (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
37 %
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
35.8 %
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
36.19 %
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
48 %
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
55 %
Color Space (Percent of sRGB) (sort by value)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
59 %
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
83 %

* ... smaller is better

PCMark 7 Score
2558 points
PCMark 8 Home Score Accelerated v2
2793 points
PCMark 8 Work Score Accelerated v2
3622 points
Help
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
CrystalDiskMark 3.0
-16%
-15%
-23%
-24%
-23%
Read 4k
0.542
0.427
-21%
0.494
-9%
0.4
-26%
0.406
-25%
0.432
-20%
Read Seq
114.4
102.8
-10%
99.5
-13%
109.2
-5%
106.5
-7%
95.4
-17%
Write Seq
113
102.1
-10%
101.7
-10%
106.9
-5%
90.8
-20%
97.5
-14%
Read 4k QD32
1.498
1.034
-31%
1.248
-17%
0.8
-47%
0.82
-45%
0.878
-41%
Write 4k QD32
1.281
1.208
-6%
0.933
-27%
0.9
-30%
0.984
-23%
0.986
-23%
WDC Scorpio Blue WD10JPVX-22JC3T0
Transfer Rate Minimum: 7.7 MB/s
Transfer Rate Maximum: 115 MB/s
Transfer Rate Average: 83.9 MB/s
Access Time: 18.7 ms
Burst Rate: 226.4 MB/s
CPU Usage: 100 %
3DMark
1280x720 Cloud Gate Standard Score (sort by value)
Lenovo Yoga 500-15IBD
5932 Points
Lenovo IdeaPad Flex 15
2305 Points -61%
Lenovo IdeaPad Flex 2 15
4109 Points -31%
Asus Transformer Book Flip TP500LN
5452 Points -8%
HP Envy 15-u200ng x360
4265 Points -28%
Toshiba Satellite Radius 15 P50W-C-102
4438 Points -25%
1280x720 Cloud Gate Standard Graphics (sort by value)
Lenovo Yoga 500-15IBD
8590 Points
Lenovo IdeaPad Flex 15
3111 Points -64%
Lenovo IdeaPad Flex 2 15
5163 Points -40%
Asus Transformer Book Flip TP500LN
8292 Points -3%
HP Envy 15-u200ng x360
4975 Points -42%
1280x720 Cloud Gate Standard Physics (sort by value)
Lenovo Yoga 500-15IBD
2848 Points
Lenovo IdeaPad Flex 15
1209 Points -58%
Lenovo IdeaPad Flex 2 15
2397 Points -16%
Asus Transformer Book Flip TP500LN
2480 Points -13%
HP Envy 15-u200ng x360
2845 Points 0%
Display
Display P3 Coverage (sort by value)
Lenovo Yoga 500-15IBD
39.36 %
Lenovo IdeaPad Flex 15
37.89 % -4%
Lenovo IdeaPad Flex 2 15
38.52 % -2%
Asus Transformer Book Flip TP500LN
49.85 % +27%
Toshiba Satellite Radius 15 P50W-C-102
64.4 % +64%
sRGB Coverage (sort by value)
Lenovo Yoga 500-15IBD
59 %
Lenovo IdeaPad Flex 15
56.7 % -4%
Lenovo IdeaPad Flex 2 15
57.1 % -3%
Asus Transformer Book Flip TP500LN
73.3 % +24%
Toshiba Satellite Radius 15 P50W-C-102
83.2 % +41%
AdobeRGB 1998 Coverage (sort by value)
Lenovo Yoga 500-15IBD
40.68 %
Lenovo IdeaPad Flex 15
39.17 % -4%
Lenovo IdeaPad Flex 2 15
39.94 % -2%
Asus Transformer Book Flip TP500LN
51.7 % +27%
Toshiba Satellite Radius 15 P50W-C-102
60.8 % +49%
Screen
Brightness middle (sort by value)
Lenovo Yoga 500-15IBD
205 cd/m²
Lenovo IdeaPad Flex 15
209 cd/m²
Lenovo IdeaPad Flex 2 15
224.2 cd/m²
Asus Transformer Book Flip TP500LN
154 cd/m²
HP Envy 15-u200ng x360
261 cd/m²
Toshiba Satellite Radius 15 P50W-C-102
293 cd/m²
Brightness (sort by value)
Lenovo Yoga 500-15IBD
206 cd/m²
Lenovo IdeaPad Flex 15
203 cd/m²
Lenovo IdeaPad Flex 2 15
215 cd/m²
Asus Transformer Book Flip TP500LN
143 cd/m²
HP Envy 15-u200ng x360
253 cd/m²
Toshiba Satellite Radius 15 P50W-C-102
287 cd/m²
Brightness Distribution (sort by value)
Lenovo Yoga 500-15IBD
87 %
Lenovo IdeaPad Flex 15
81 %
Lenovo IdeaPad Flex 2 15
84 %
Asus Transformer Book Flip TP500LN
84 %
HP Envy 15-u200ng x360
79 %
Toshiba Satellite Radius 15 P50W-C-102
91 %
Black Level (sort by value)
Lenovo Yoga 500-15IBD
0.28 cd/m² *
Lenovo IdeaPad Flex 15
0.3 cd/m² *
Lenovo IdeaPad Flex 2 15
0.675 cd/m² *
Asus Transformer Book Flip TP500LN
0.3 cd/m² *
HP Envy 15-u200ng x360
0.58 cd/m² *
Toshiba Satellite Radius 15 P50W-C-102
0.25 cd/m² *
Contrast (sort by value)
Lenovo Yoga 500-15IBD
732 :1
Lenovo IdeaPad Flex 15
697 :1
Lenovo IdeaPad Flex 2 15
332 :1
Asus Transformer Book Flip TP500LN
513 :1
HP Envy 15-u200ng x360
450 :1
Toshiba Satellite Radius 15 P50W-C-102
1172 :1
Colorchecker dE 2000 (sort by value)
Lenovo Yoga 500-15IBD
6.68 *
Lenovo IdeaPad Flex 15
9.61 *
Lenovo IdeaPad Flex 2 15
5.8 *
Asus Transformer Book Flip TP500LN
4.84 *
HP Envy 15-u200ng x360
13.09 *
Toshiba Satellite Radius 15 P50W-C-102
5.4 *
Greyscale dE 2000 (sort by value)
Lenovo Yoga 500-15IBD
6.3 *
Lenovo IdeaPad Flex 15
10.32 *
Lenovo IdeaPad Flex 2 15
5.03 *
Asus Transformer Book Flip TP500LN
4.53 *
HP Envy 15-u200ng x360
13.34 *
Toshiba Satellite Radius 15 P50W-C-102
4.33 *
Gamma (sort by value)
Lenovo Yoga 500-15IBD
2.34
Lenovo IdeaPad Flex 15
2.84
Lenovo IdeaPad Flex 2 15
2.18
Asus Transformer Book Flip TP500LN
2.22
HP Envy 15-u200ng x360
3.46
Toshiba Satellite Radius 15 P50W-C-102
2.39
CCT (sort by value)
Lenovo Yoga 500-15IBD
6996
Lenovo IdeaPad Flex 15
12804
Lenovo IdeaPad Flex 2 15
7277
Asus Transformer Book Flip TP500LN
7307
HP Envy 15-u200ng x360
13202
Toshiba Satellite Radius 15 P50W-C-102
6670
Color Space (Percent of AdobeRGB 1998) (sort by value)
Lenovo Yoga 500-15IBD
37 %
Lenovo IdeaPad Flex 15
35.8 %
Lenovo IdeaPad Flex 2 15
36.19 %
Asus Transformer Book Flip TP500LN
48 %
Toshiba Satellite Radius 15 P50W-C-102
55 %
Color Space (Percent of sRGB) (sort by value)
Lenovo Yoga 500-15IBD
59 %
Toshiba Satellite Radius 15 P50W-C-102
83 %

Legend


Lenovo Yoga 500-15IBD Intel Core i5-5200U, NVIDIA GeForce 940M, WDC Scorpio Blue WD10JPVX-22JC3T0

Lenovo IdeaPad Flex 15 Intel Pentium 3556U, Intel HD Graphics (Haswell), Western Digital Scorpio Blue WD5000LPCX-24C6HT0

Lenovo IdeaPad Flex 2 15 Intel Core i5-4210U, Intel HD Graphics 4400, Seagate ST500LM000 Solid State Hybrid Drive

Asus Transformer Book Flip TP500LN Intel Core i5-4210U, NVIDIA GeForce 840M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB

HP Envy 15-u200ng x360 Intel Core i5-5200U, Intel HD Graphics 5500, Toshiba MQ02ABF100

Toshiba Satellite Radius 15 P50W-C-102 Intel Core i5-5200U, Intel HD Graphics 5500, HGST Travelstar 5K1000 HTS541010A9E680

* ... smaller is better

3DMark Ice Storm Standard Score
37883 points
3DMark Cloud Gate Standard Score
5932 points
3DMark Fire Strike Score
1384 points
Help
low med. high ultra
Evolve (2015) 33.7 24.2 13 11.4
Battlefield Hardline (2015) 56 40 17.5
Batman: Arkham Knight (2015) 20 17 12 7
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
Noise
8%
-2%
5%
-5%
-1%
Idle Minimum *
31.9
30.7
4%
33.8
-6%
30.6
4%
34.7
-9%
32.9
-3%
Idle Average *
32.3
32.1
1%
33.9
-5%
30.6
5%
34.7
-7%
32.9
-2%
Idle Maximum *
32.7
32.1
2%
34
-4%
31.8
3%
34.7
-6%
32.9
-1%
Load Average *
40.3
33.2
18%
36.6
9%
37.4
7%
39.6
2%
37.1
8%
Load Maximum *
40.6
33.7
17%
42
-3%
39.1
4%
43.4
-7%
43.1
-6%

* ... smaller is better

Noise Level

Idle
31.9 / 32.3 / 32.7 dB(A)
HDD
32 dB(A)
Load
40.3 / 40.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Lenovo IdeaPad Flex 2 15
HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
Heat
3%
-10%
-3%
20%
-7%
Maximum Upper Side *
39.9
38.6
3%
38.2
4%
41.6
-4%
32.8
18%
41.6
-4%
Maximum Bottom *
41.5
40.5
2%
41.8
-1%
46
-11%
29.7
28%
45.8
-10%
Idle Upper Side *
28.6
26.4
8%
34
-19%
28.4
1%
23.6
17%
30.7
-7%
Idle Bottom *
30
30.5
-2%
36.6
-22%
28.7
4%
25.1
16%
32
-7%

* ... smaller is better

Max. Load
 30.5 °C39.9 °C37.1 °C
 27.2 °C38.6 °C34.9 °C
 25.1 °C25.7 °C30 °C
Maximum: 39.9 °C
Average: 32.1 °C
41.5 °C38 °C29.5 °C
32.9 °C39.5 °C25.1 °C
30.4 °C26.7 °C25 °C
Maximum: 41.5 °C
Average: 32.1 °C
Power Supply (max.)  49.8 °C | Room Temperature 23.9 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 32.1 °C / 90 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 39.9 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.9 °C / -3.4 F).
Lenovo Yoga 500-15IBD
GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo IdeaPad Flex 15
HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Asus Transformer Book Flip TP500LN
GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
HP Envy 15-u200ng x360
HD Graphics 5500, 5200U, Toshiba MQ02ABF100
Toshiba Satellite Radius 15 P50W-C-102
HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680
Power Consumption
17%
-63%
1%
2%
Idle Minimum *
4.2
4.2
-0%
9.8
-133%
4.7
-12%
4.4
-5%
Idle Average *
7.4
7.5
-1%
12.2
-65%
8.9
-20%
7.9
-7%
Idle Maximum *
8.6
7.5
13%
12.9
-50%
9.1
-6%
9.2
-7%
Load Average *
36.5
24.8
32%
49.2
-35%
30
18%
31.5
14%
Load Maximum *
42.7
25.3
41%
55.3
-30%
31.8
26%
36.1
15%

* ... smaller is better

Power Consumption
Off / Standbydarklight 0.1 / 0.1 Watt
Idledarkmidlight 4.2 / 7.4 / 8.6 Watt
Load midlight 36.5 / 42.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 960
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Reader / Idle (sort by value)
Lenovo Yoga 500-15IBD
30 Wh 5200U
467 min
Lenovo IdeaPad Flex 15
32 Wh Pentium 3556U
412 min
Lenovo IdeaPad Flex 2 15
48 Wh i5 4210U
603 min
Asus Transformer Book Flip TP500LN
48 Wh i5 4210U
452 min
Toshiba Satellite Radius 15 P50W-C-102
45 Wh 5200U
693 min
WiFi v1.3 (sort by value)
Lenovo Yoga 500-15IBD
30 Wh 5200U
153 min
HP Envy 15-u200ng x360
43 Wh 5200U
299 min
Toshiba Satellite Radius 15 P50W-C-102
45 Wh 5200U
358 min
Load (sort by value)
Lenovo Yoga 500-15IBD
30 Wh 5200U
107 min
Lenovo IdeaPad Flex 15
32 Wh Pentium 3556U
81 min
Lenovo IdeaPad Flex 2 15
48 Wh i5 4210U
73 min
Asus Transformer Book Flip TP500LN
48 Wh i5 4210U
49 min
Toshiba Satellite Radius 15 P50W-C-102
45 Wh 5200U
124 min
WiFi (sort by value)
Lenovo IdeaPad Flex 15
32 Wh Pentium 3556U
218 min
Lenovo IdeaPad Flex 2 15
48 Wh i5 4210U
234 min
Asus Transformer Book Flip TP500LN
48 Wh i5 4210U
276 min
Battery Runtime
Idle (without WLAN, min brightness)
7h 47min
WiFi Websurfing
2h 33min
Load (maximum brightness)
1h 47min

Pros

+ 对比度,可视角度范围
+ 入门级游戏性能
+ 低发热噪音
+ 不错的输入设备

Cons

- 电池续航短
- 重量高,平板电脑模式下实用性差
- 无维护底盖,不可拆卸电池
- 屏幕在日光下难以使用
In review: Lenovo Yoga 500-15IBD (80N6008AGE). Test model courtesy of Cyberport.de
In review: Lenovo Yoga 500-15IBD (80N6008AGE). Test model courtesy of Cyberport.de

在寻找360度转轴15寸笔记本电脑的用户对它的用途在心中应该已经早有打算。看视频而不需受到键盘的烦扰,坐在沙发上用平板电脑休闲,或将它设置为站立模式用于简报,Yoga 500可以做到所有的这些。而15寸设备的重量(2.15千克)是否影响实用性则要看用户的判断了。联想在很多方面都做得不错——高品质屏幕的高对比度丰富色彩和宽广可视角度给人优秀的第一印象。它的低亮度特别是在电池模式下会造成一些问题。加上镜面屏幕则让它在户外日光下几乎无法使用。

它的输入设备品质和稳定性都让人无法挑剔。它虽然尺寸较大,作为变形本却也十分实用。我们担心它的转轴会在较长时间的使用中很快老化。Yoga 500可能最适合作为桌面笔记本电脑使用,这是基于它全面的配置和强劲的性能。我们认为它可以适合偶尔的游戏需要,不过游戏玩家最好选择一款搭配GTX显卡的机型。不过变形本中还没有这样的设备,940M是我们所知目前在变形本中最强的显卡配置了。

Yoga 500的优势如非常优秀的双阵列麦克风,高速SD读卡器和高质量传统硬盘可以弥补一些小缺陷带来的遗憾,如较差的摄像头。

另外一方面,不足3小时的无线上网电池续航则有些让人难以接受。这要归罪于联想为它配备的低容量电池。

我们测试配置的Yoga 500搭配GeForce显卡和全高清IPS屏幕的800欧元(约5778人民币)售价十分诱人。78%的总分也高于售价更高的Satellite Radius 15 P50W1080欧元,约7800人民币),这款东芝笔记本电脑没有配备独立显卡。我们无法推荐惠普的Envy 15-u200ng x360则主要是由于它的TN屏幕。华硕的Transformer Book Flip TP500LA是最有力的竞争对手,不过我们还没有测试它的Broadwell架构机型,因此我们比较的是它的Haswell处理器搭配GeForce 840M显卡的TP500LN机型。不过,这款华硕笔记本的Broadwell机型没有搭配独立显卡。因此,只有联想的Flex 2 Pro会是最大的潜在对手。采用固态硬盘,840M处理器和IPS屏幕的这款机型的评测将会很快发布。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Lenovo Yoga 500-15IBD - 09/21/2015 v4(old)
Sebastian Jentsch

Chassis
81 / 98 → 83%
Keyboard
80%
Pointing Device
83%
Connectivity
62 / 80 → 78%
Weight
62 / 35-78 → 63%
Battery
81%
Display
80%
Games Performance
78 / 68 → 100%
Application Performance
76 / 87 → 87%
Temperature
90%
Noise
85%
Audio
73 / 91 → 80%
Camera
35 / 85 → 41%
Average
74%
78%
Convertible - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 联想 Yoga 500-15IBD 变形本简短评测
Sebastian Jentsch, 2015-10-11 (Update: 2015-10-13)
