宏碁TravelMate Spin B3评测。坚固的二合一笔记本电脑,带笔输入

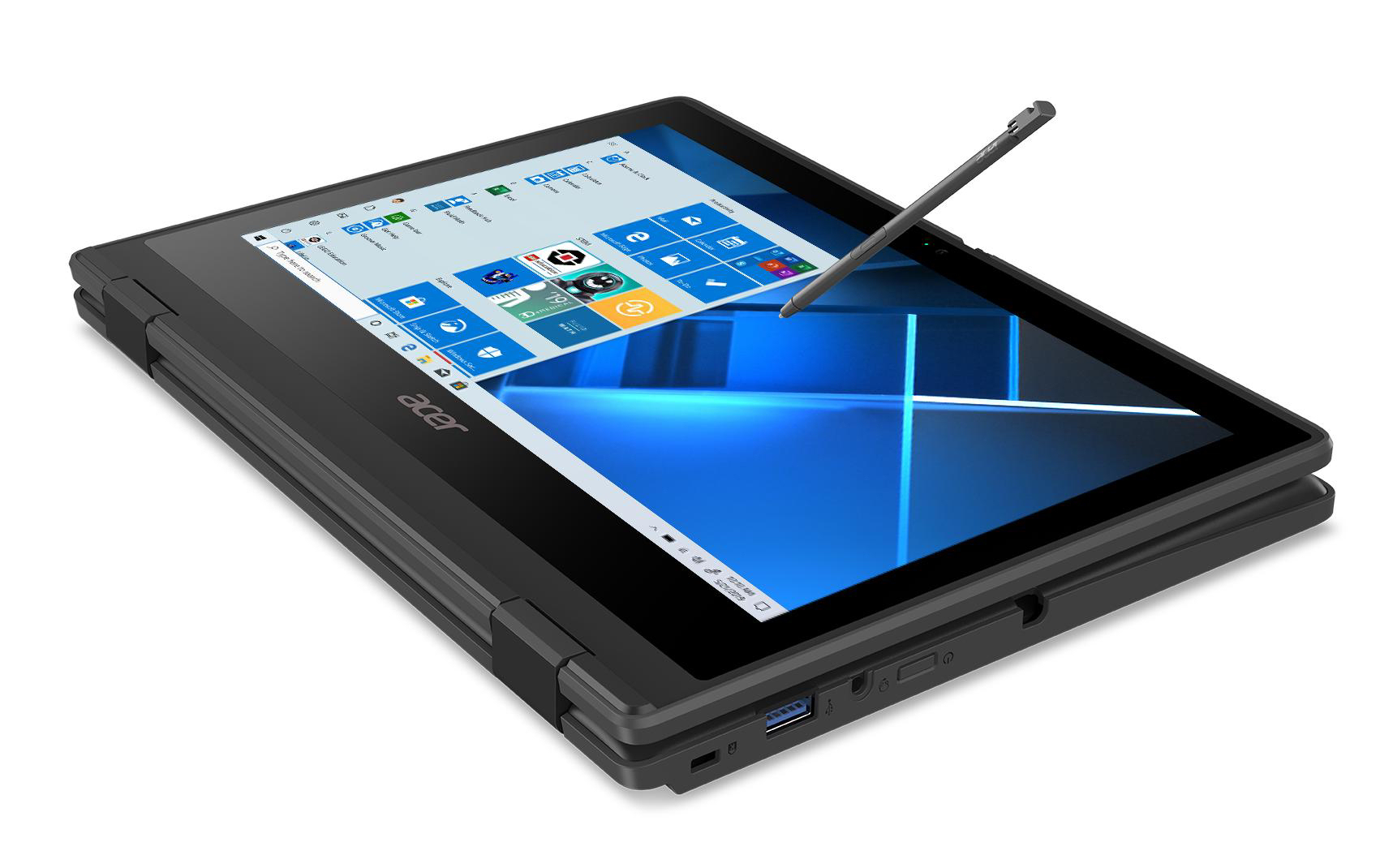

多才多艺。 宏碁的二合一设备提供安静的操作,良好的电池寿命,以及NVMe固态硬盘。触摸屏可以用手指或附带的输入笔操作。Windows 10 Pro作为操作系统,并可更新到Windows 11。价格约为330欧元(约合375美元)。
Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...
Convertible / 2-in-1 Touchscreen Windows

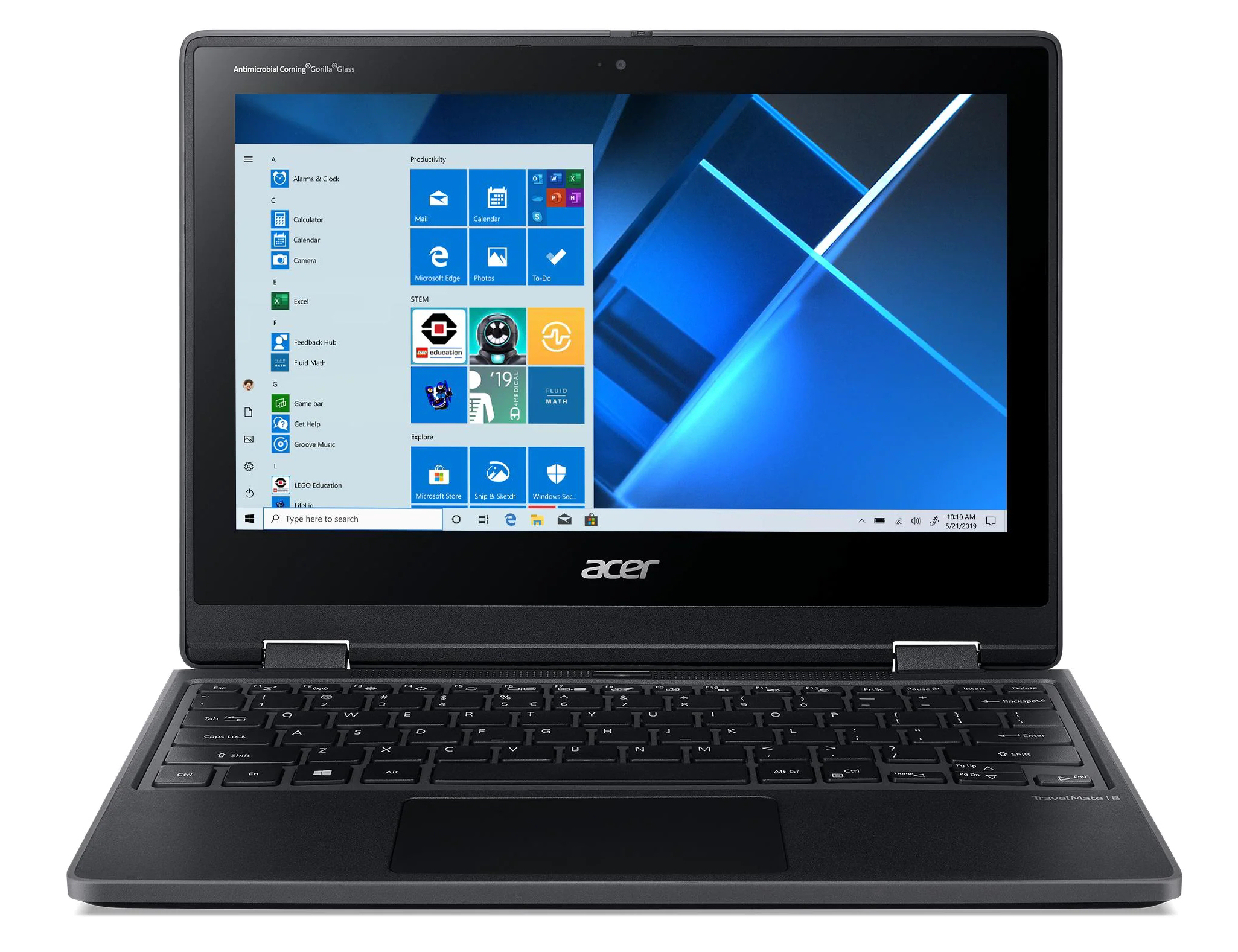

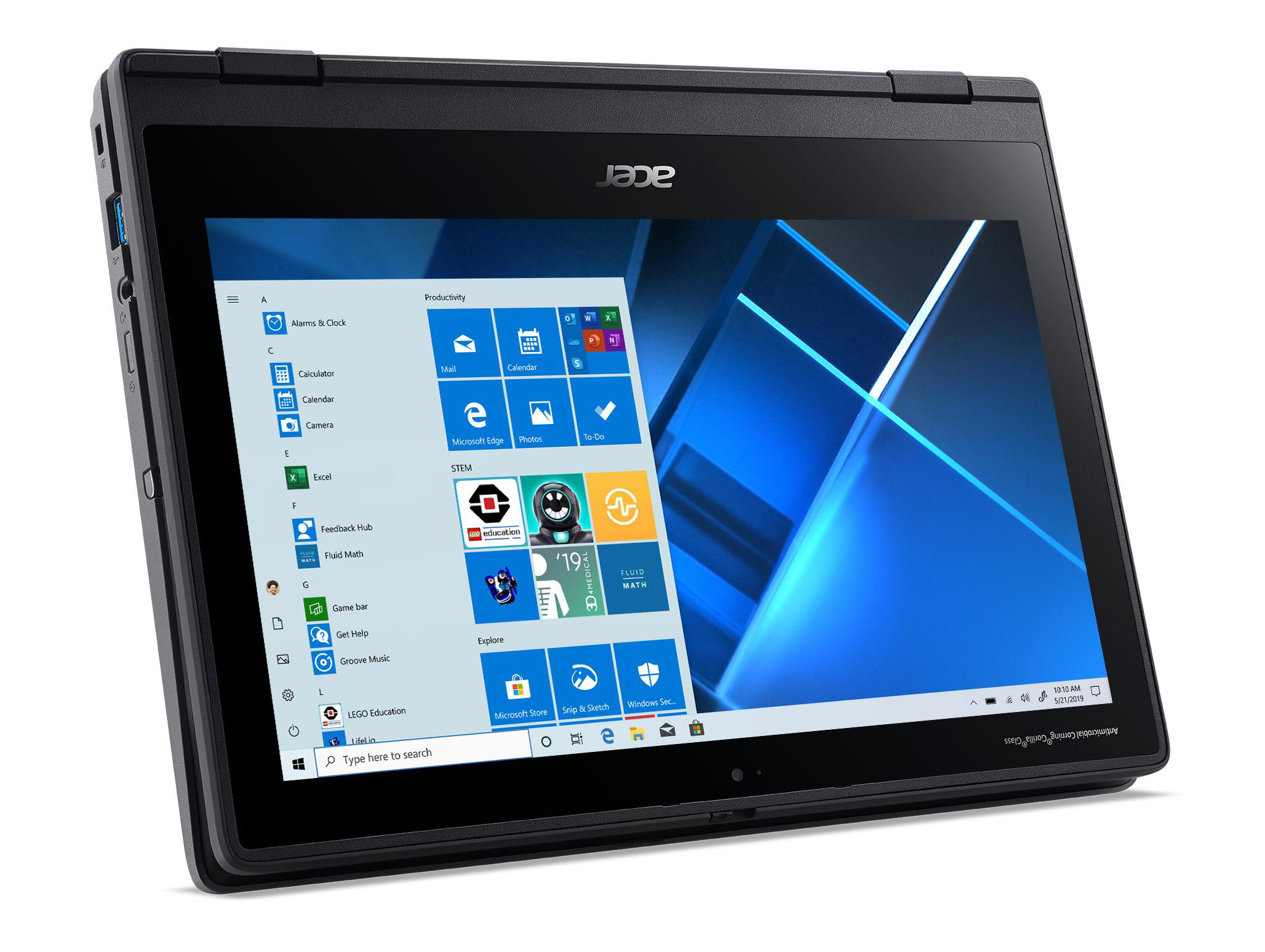

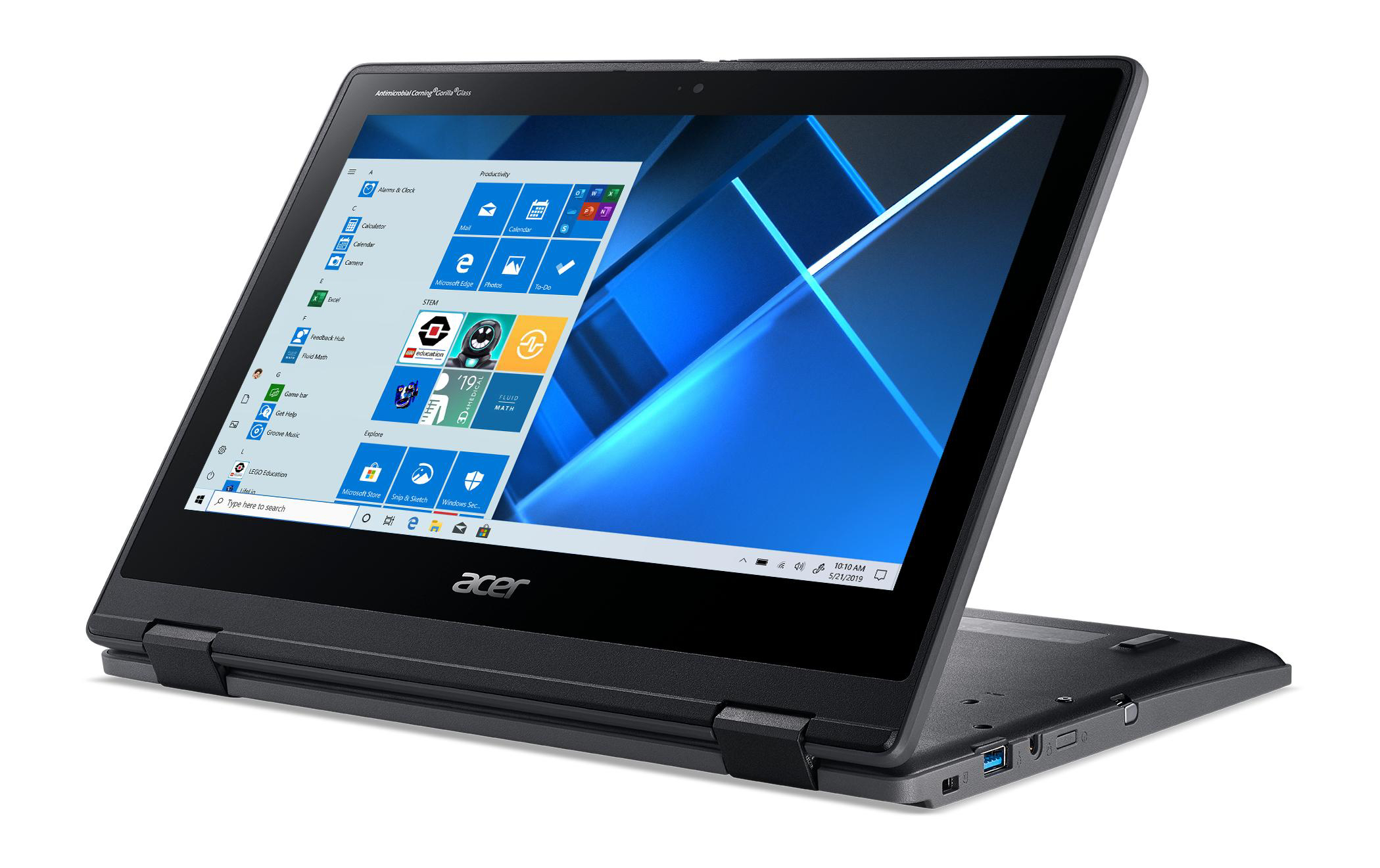

通过TravelMate Spin B3,宏碁提供了一个强大的二合一笔记本电脑,主要针对学校的使用。这款11.6英寸的设备是由一个 奔腾银N5030处理器。竞争对手包括以下设备 联想Flex 3 Chrome,以及AcerChromebook Spin 511 R752T,以及 华硕BR1100FKA.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Acer TravelMate Spin B3 TMB311RN-31-P5KK
Processor
Intel Pentium Silver N5030 4 x 2 - 3.1 GHz, 15 W PL2 / Short Burst, 7.5 W PL1 / Sustained, Gemini Lake Refresh
Graphics adapter
Intel UHD Graphics 605, Core: 750 MHz, single-channel, 30.0.101.1069
Memory
4096 MB
, DDR4-2400, single-channel mode, onboard, no memory slot
Display
11.60 inch 16:9, 1920 x 1080 pixel 190 PPI, capacitve, 10 touchpoints, native pen support, AU Optronics B116HAN05.2, IPS, glossy: yes, 60 Hz
Storage

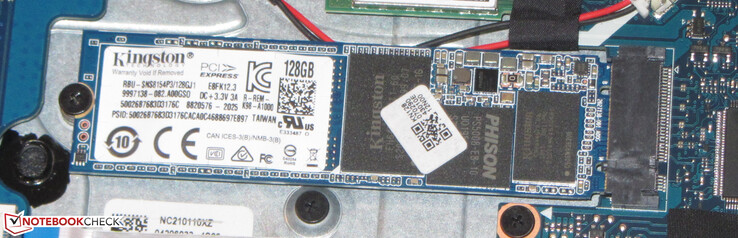

Kingston RBUSNS8154P3128GJ, 128 GB
, M.2-2280, NVMe, 93.2 GB free
Soundcard
Realtek ALC256 @ Intel Gemini Lake SoC - High Definition Audio Controller
Connections
3 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: combined audio port, Card Reader: microSD, Sensors: accelerometer, TPM 2.0
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Size
height x width x depth (in mm): 20.95 x 295 x 212
Battery
50.3 Wh, 4471 mAh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Secondary Camera: 5 MPix HDR
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: no, MS Office Professional 2019 (trial), 36 Months Warranty, fanless
Weight
1.49 kg, Power Supply: 210 g
Price
399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
81 %
01/2022
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Pentium N5030, UHD Graphics 605
1.5 kg20.95 mm11.60"1920x1080
12/2021
Lenovo Flex 3 Chrome 11M836
MT8183, Mali-G72 MP3
1.2 kg17.5 mm11.60"1366x768
80.3 %
11/2021
Acer Chromebook Spin 511 R752T-C26N
Celeron N4120, UHD Graphics 600
1.2 kg20 mm11.60"1366x768
74.9 %
06/2021
Asus BR1100FKA-BP0109RA
Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
1.4 kg19.9 mm11.60"1366x768

箱子和设备 - TravelMate B3支持电力传输

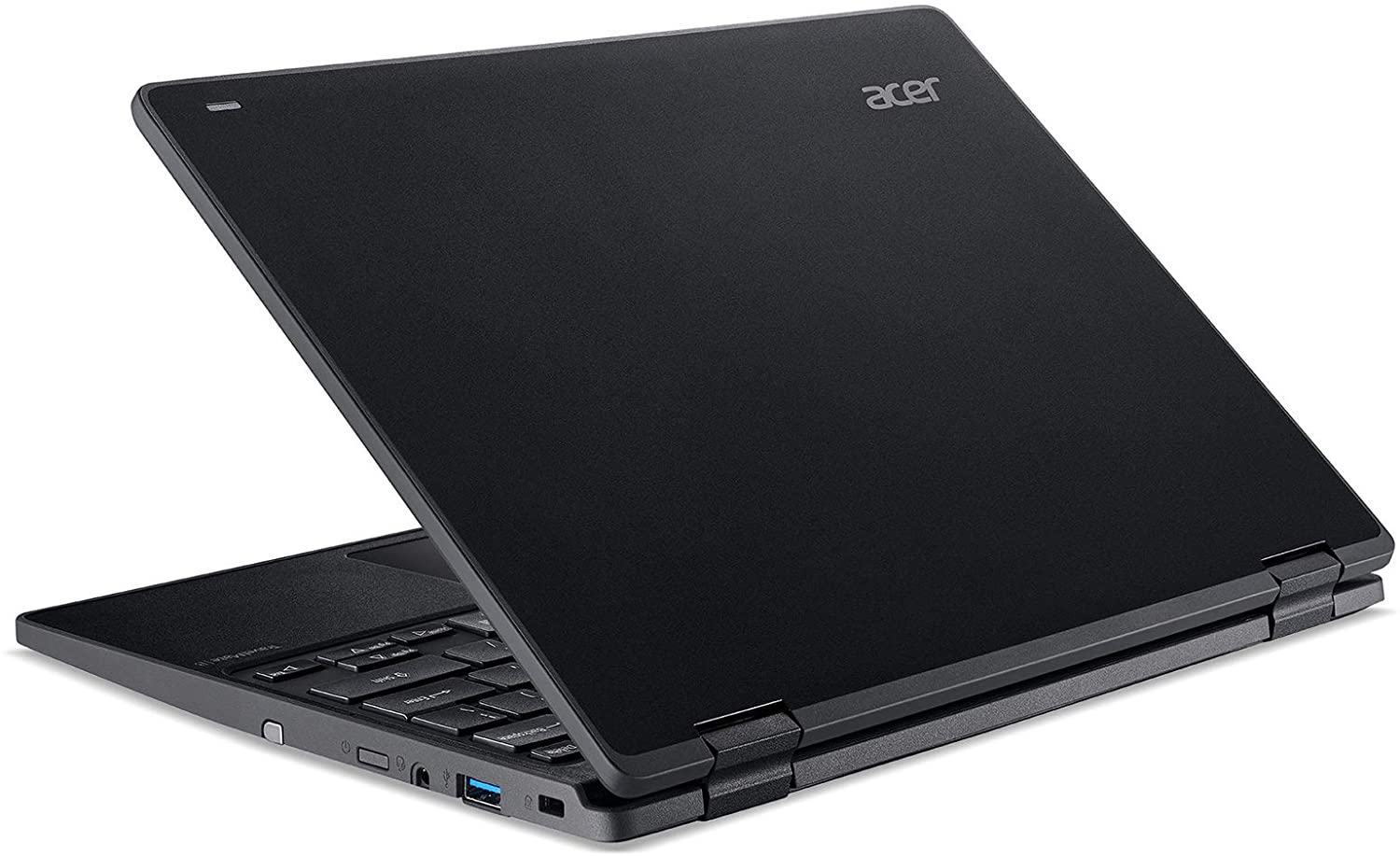

坚固的黑色塑料外壳有一个粗糙的表面,为手指提供了良好的抓地力,不容易留下指纹。B3的短边受到橡胶板条的保护,不会受到碰撞。这台电脑没有出现任何做工上的问题。即使底座和盖子会有轻微的翘曲,但这仍在限制范围内。电池是内置的。拆除底部后,可以很容易地接触到内部。

有三个USB连接(2个Type-A,1个Type-C),支持USB 3.2 Gen1标准。USB-C端口支持Power Delivery和通过USB-C的DisplayPort。因此,与HDMI连接一起,Spin B3有两个视频输出端口。在TravelMate等设备中很少见的东西是千兆位以太网端口。microSD存储卡读卡器是同类产品中较慢的代表(使用我们的AV PRO SD 128 GB V60参考存储卡测量)。

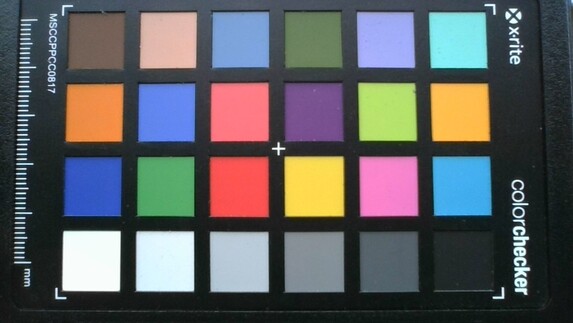

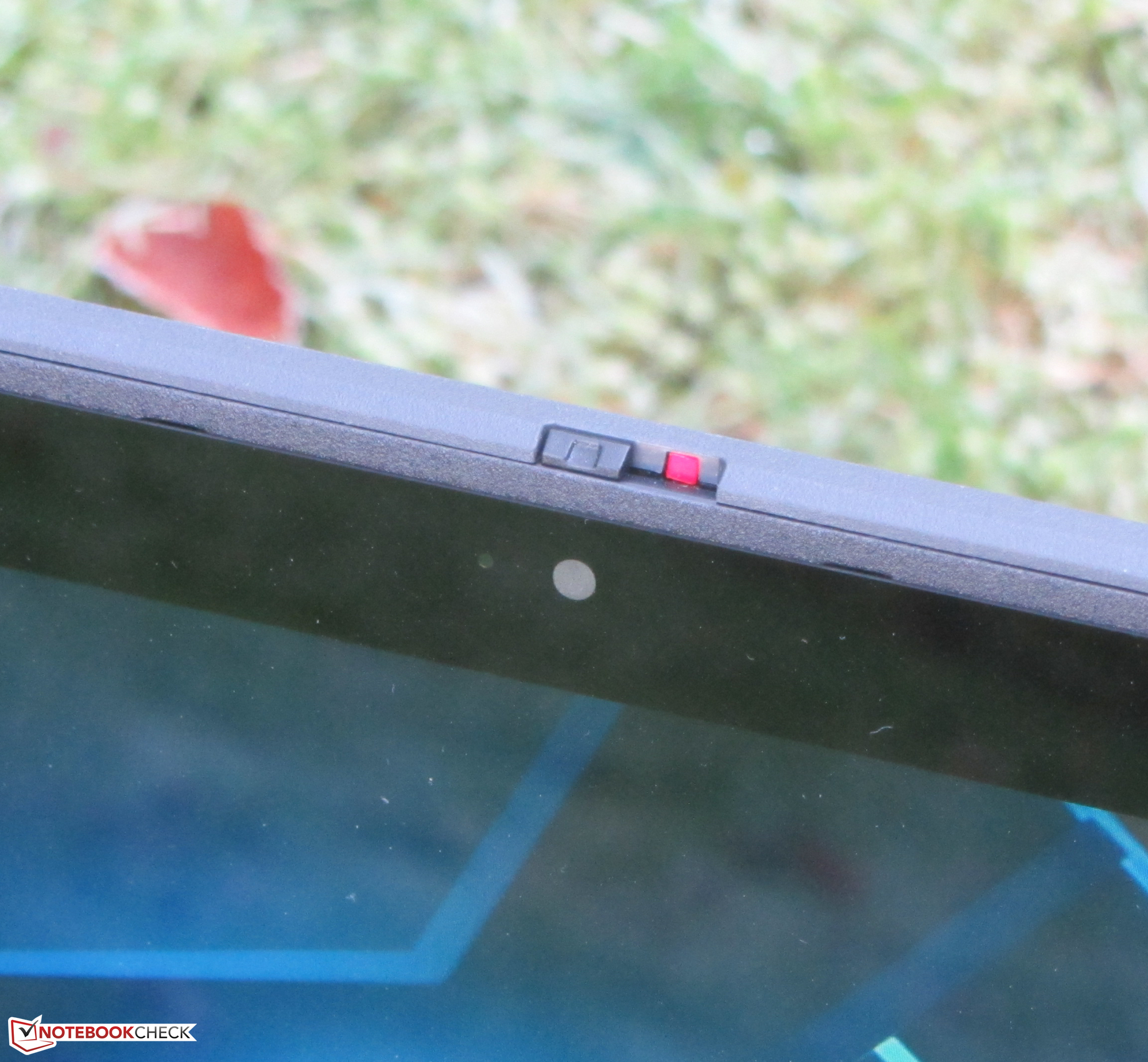

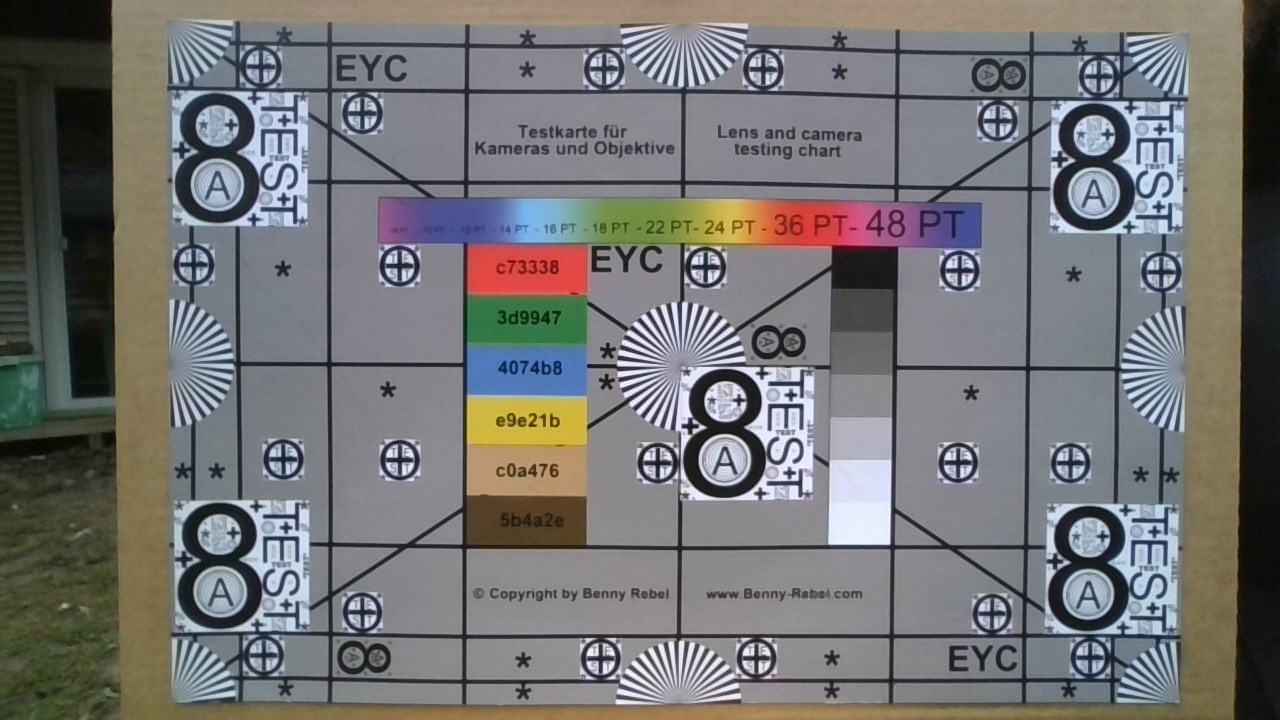

这款二合一设备有两个摄像头:一个网络摄像头(0.9MP)用于视频会议,一个摄像头(5MP,HDR,最大2560 x 1920像素)用于拍照。后者位于键盘上方,可以在平板电脑模式下使用。虽然网络摄像头只提供标准的功能,但500万像素的摄像头却能产生相当不错的效果。

我们在最佳条件下测量的WLAN传输率(附近没有其他WLAN设备,笔记本电脑和服务器PC之间的距离很短)基本上没有问题,但它们仍然落后于这里使用的WLAN芯片(Intel Wireless-AC 9560)的能力。

Size Comparison

296 mm 205 mm 20 mm 1.2 kg295 mm 212 mm 20.95 mm 1.5 kg295 mm 205 mm 19.9 mm 1.4 kg285 mm 202.7 mm 17.5 mm 1.2 kg

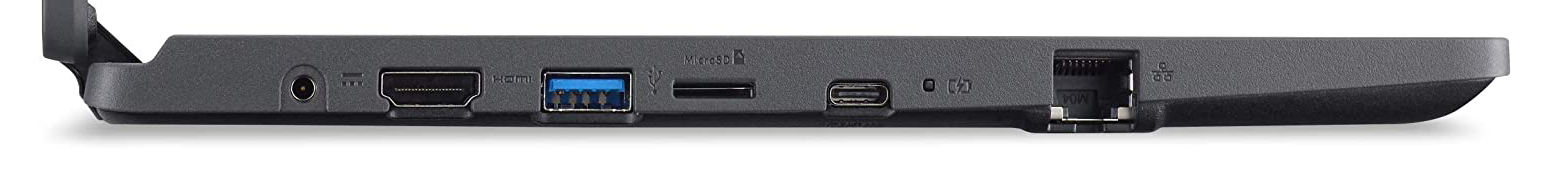

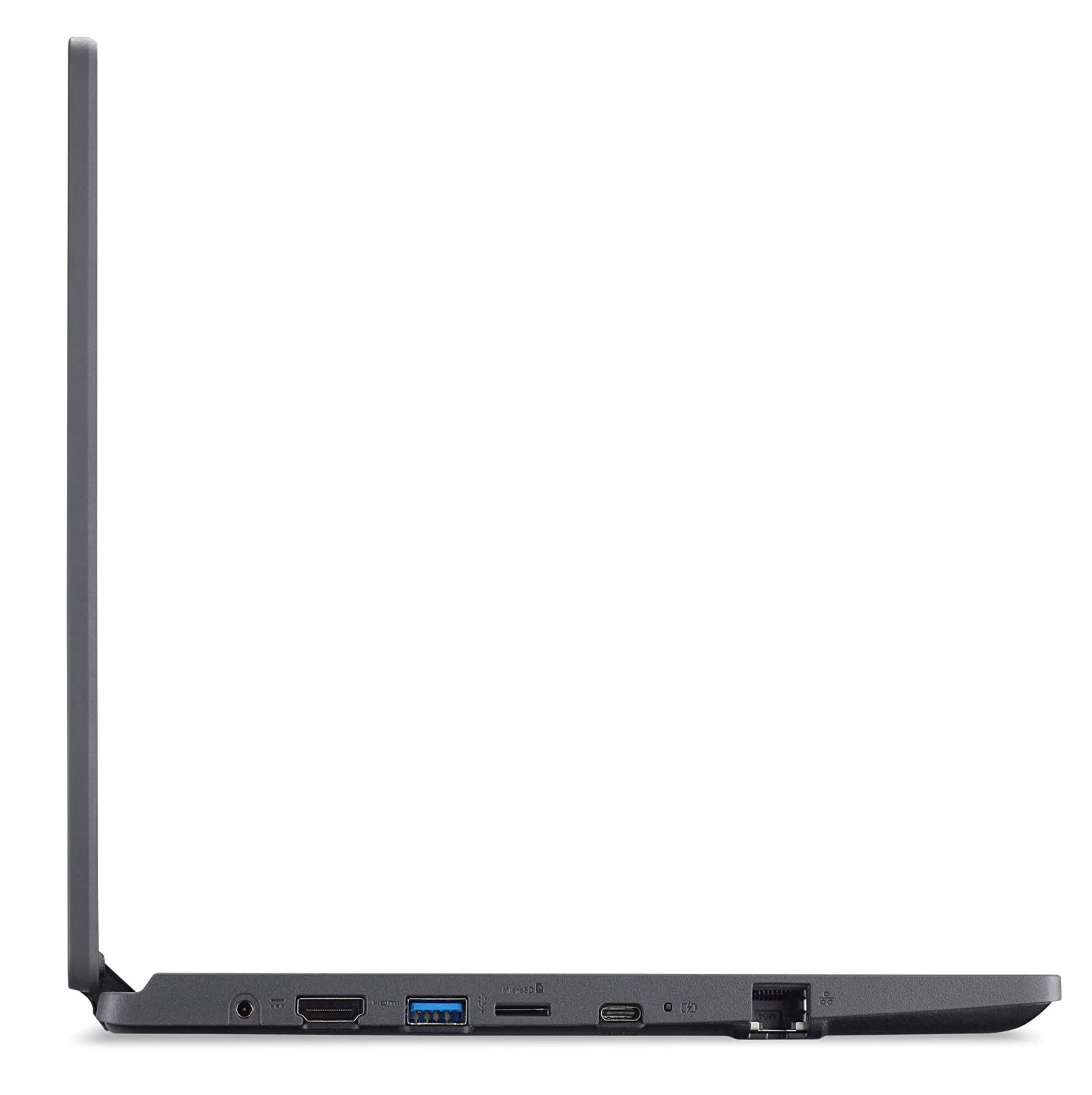

左侧:电源连接、HDMI、USB 3.2 Gen 1(A型)、存储卡阅读器(microSD)、USB 3.2 Gen 1(C型;DisplayPort、Power Delivery)、千兆以太网
左侧:电源连接、HDMI、USB 3.2 Gen 1(A型)、存储卡阅读器(microSD)、USB 3.2 Gen 1(C型;DisplayPort、Power Delivery)、千兆以太网

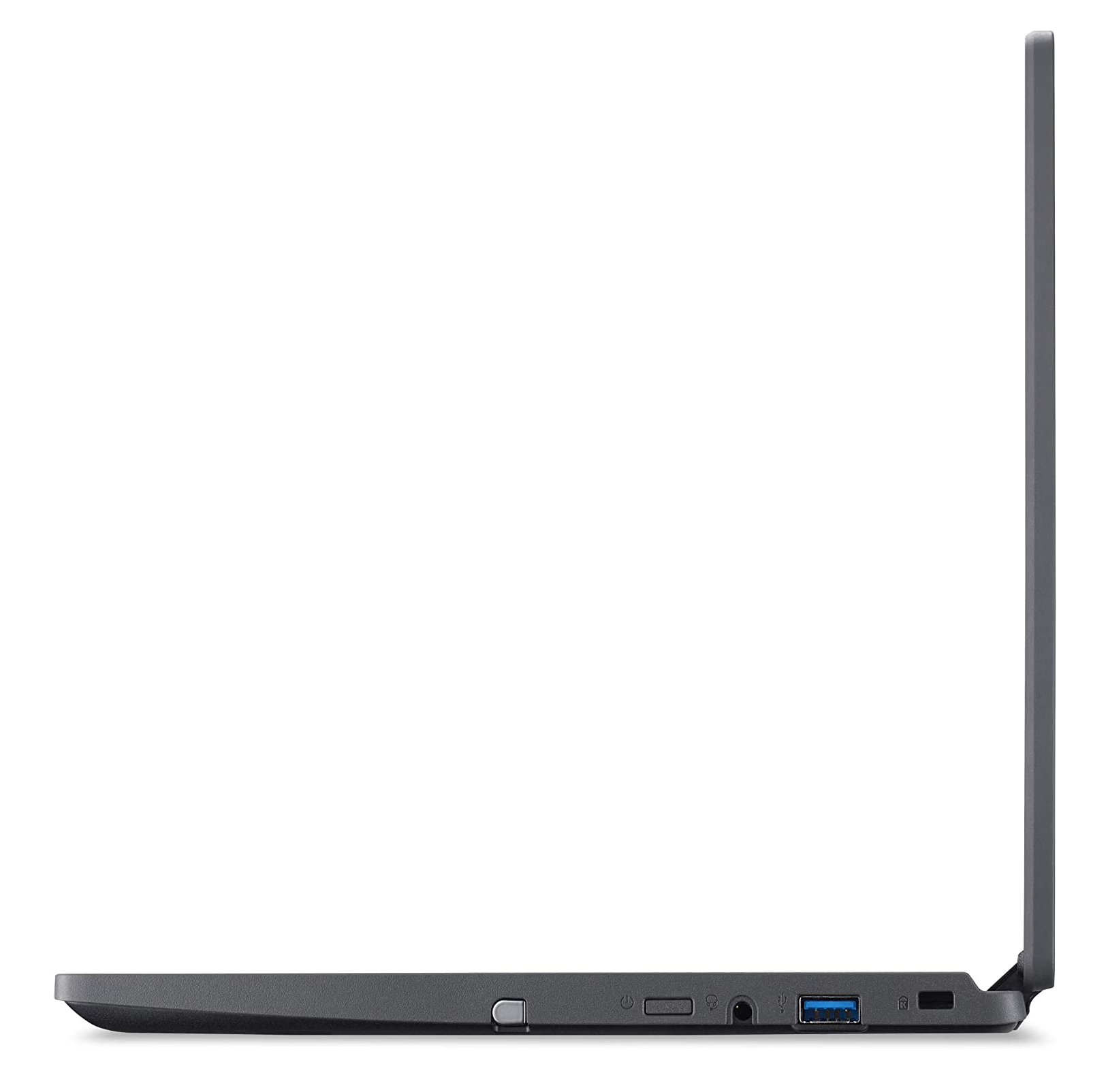

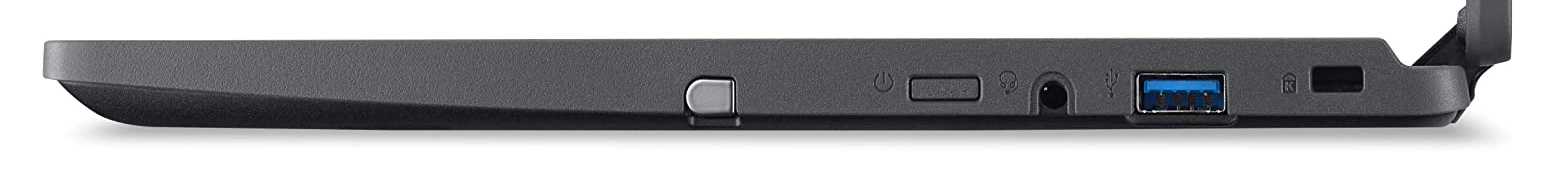

右侧:输入笔、电源按钮、音频组合端口、USB 3.2 Gen 1(A型)、电缆锁插槽
右侧:输入笔、电源按钮、音频组合端口、USB 3.2 Gen 1(A型)、电缆锁插槽
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Convertible
  (10 - 201, n=62, last 2 years)
76.4 MB/s ∼100% +200%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120 (AV Pro SD microSD 128 GB V60)
33 MB/s ∼43% +29%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030 (AV Pro SD microSD 128 GB V60)
25.5 MB/s ∼33%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183 (AV Pro SD microSD 128 GB V60)
18.5 MB/s ∼24% -27%
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (25 - 224, n=56, last 2 years)
91.2 MB/s ∼100% +230%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030 (AV Pro SD microSD 128 GB V60)
27.6 MB/s ∼30%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Average of class Convertible
  (216 - 1690, n=89, last 2 years)
952 MBit/s ∼100% +42%
Average Intel Wireless-AC 9560
  (309 - 1350, n=179)
685 MBit/s ∼72% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Wireless-AC 9560
670 (627min - 705max) MBit/s ∼70%
Asus BR1100FKA-BP0109RA
Intel Wi-Fi 6 AX201
216 (72min - 309max) MBit/s ∼23% -68%
Lenovo Flex 3 Chrome 11M836
802.11 a/b/g/n/ac
138 MBit/s ∼14% -79%
iperf3 Client (receive) TCP 1 m 4M x10
Average of class Convertible
  (136 - 1585, n=89, last 2 years)
1013 MBit/s ∼100% +59%
Average Intel Wireless-AC 9560
  (288 - 1390, n=180)
697 MBit/s ∼69% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Wireless-AC 9560
636 (611min - 645max) MBit/s ∼63%
Lenovo Flex 3 Chrome 11M836
802.11 a/b/g/n/ac
263 MBit/s ∼26% -59%
Asus BR1100FKA-BP0109RA
Intel Wi-Fi 6 AX201
136 (19min - 275max) MBit/s ∼13% -79%
050100150200250300350400450500550600650700Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø636 (611-645)
Asus BR1100FKA-BP0109RA Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø136 (19-275)
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø670 (627-705)
Asus BR1100FKA-BP0109RA Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø216 (72-309)
ColorChecker
7.4 ∆E
10.4 ∆E
15 ∆E
9 ∆E
16.4 ∆E
15.4 ∆E
6.8 ∆E
18.3 ∆E
14.6 ∆E
8.9 ∆E
9.7 ∆E
7.2 ∆E
10.6 ∆E
7.8 ∆E
19.7 ∆E
5 ∆E
16.7 ∆E
17.9 ∆E
3.3 ∆E
13.5 ∆E
13.3 ∆E
10.2 ∆E
8.2 ∆E
5.9 ∆E
ColorChecker Acer TravelMate Spin B3 TMB311RN-31-P5KK: 11.29 ∆E min: 3.31 - max: 19.68 ∆E

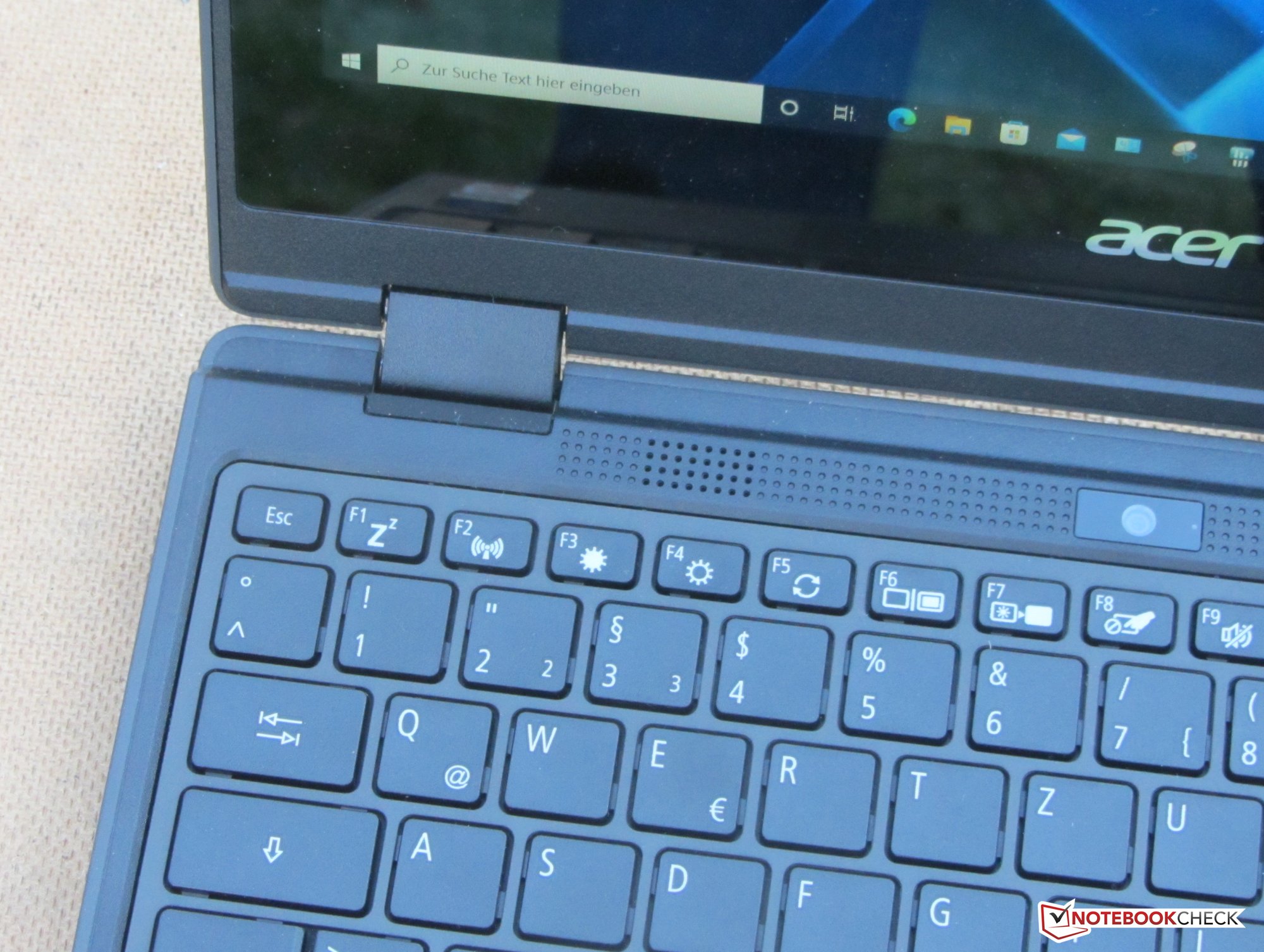

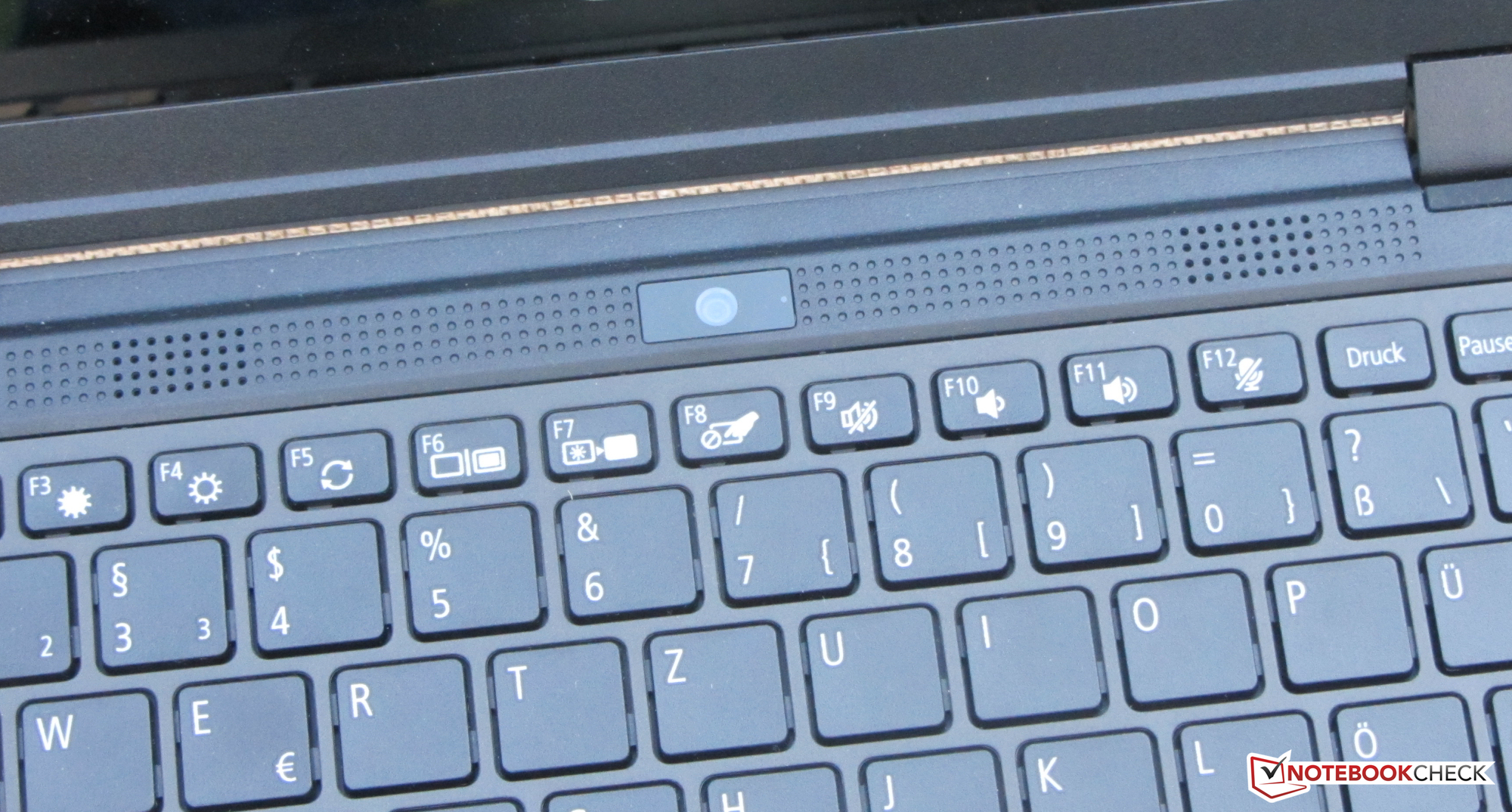

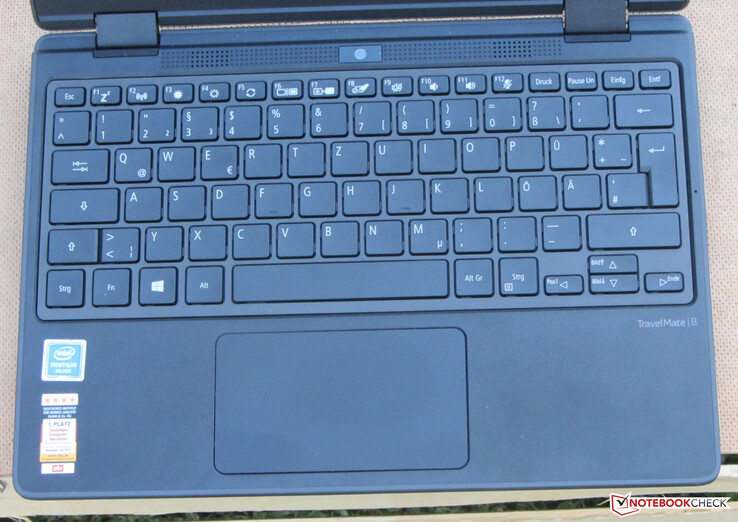

输入设备 - Acer Spin不提供键盘照明。

未点亮的小鸡键盘的略微凹陷和粗糙的按键提供了一个短的行程和清晰的压力点。在打字的时候,键盘有一个最小的反馈,但这并没有成为任何障碍。总的来说,宏碁在这里提供了一个适合日常工作的键盘。

具有多点触控功能的ClickPad(约10.5 x 6厘米;约4.1 x 2.4英寸)的光滑表面使你的手指可以轻松滑动。它对角落里的输入也有反应。这块垫子的行程很短,压力点也很清晰。

Spin B3输入设备
Spin B3输入设备

显示器 - 板载IPS

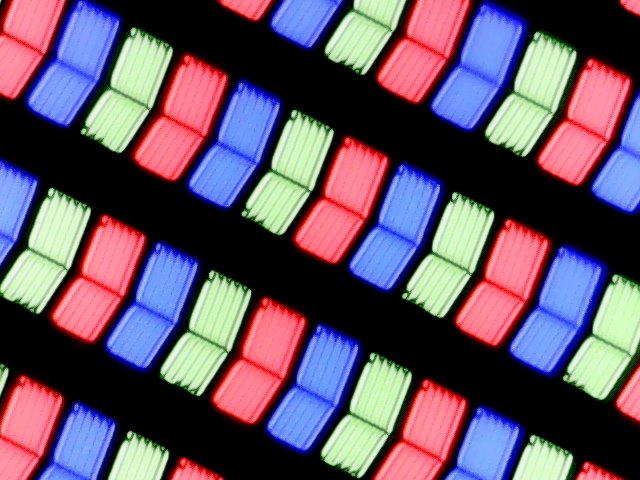

像素网格
像素网格

反射式11.6英寸触摸屏(1920 x 1080像素)的亮度(266.8 cd/m²)和对比度(907:1)原来太低。在电池运行时,最大亮度下降到238 cd/m²。我们认为大于300 cd/m²和1.000:1的数值是好的。我们没有注意到任何PWM的闪烁。

277
cd/m²
261
cd/m²
278
cd/m²
274
cd/m²
272
cd/m²
268
cd/m²
261
cd/m²
268
cd/m²
242
cd/m²
Distribution of brightness
AU Optronics B116HAN05.2
X-Rite i1Pro 2
Maximum: 278 cd/m² (Nits) Average: 266.8 cd/m² Minimum: 17 cd/m²
Brightness Distribution: 87 %
Center on Battery: 238 cd/m²
Contrast: 907:1 (Black: 0.3 cd/m²)
ΔE Color 4.1 | 0.59-29.43 Ø5.5
ΔE Greyscale 4.03 | 0.64-98 Ø5.7
51.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
72.9% sRGB (Argyll 2.2.0 3D)
49.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
Acer TravelMate Spin B3 TMB311RN-31-P5KK
AU Optronics B116HAN05.2, IPS, 1920x1080, 11.60
Lenovo Flex 3 Chrome 11M836
IPS, 1366x768, 11.60
Acer Chromebook Spin 511 R752T-C26N
IPS-Grade, 1366x768, 11.60
Asus BR1100FKA-BP0109RA
IPS, 1366x768, 11.60
Display
-7%
Display P3 Coverage
49.6
46
-7%
sRGB Coverage
72.9
68
-7%
AdobeRGB 1998 Coverage
51.3
47
-8%
Response Times
24%
-13%
-10%
Response Time Grey 50% / Grey 80% *
34 ?(16, 18)
26 ?(12.4, 13.6)
24%
33 ?(15, 18)
3%
34 ?(15, 19)
-0%
Response Time Black / White *
21 ?(11, 10)
16 ?(15.2, 10.8)
24%
27 ?(14, 13)
-29%
25 ?(14, 11)
-19%
PWM Frequency
1000 ?(90)
2500
Screen
-12%
-0%
0%
Brightness middle
272
302.1
11%
291
7%
242
-11%
Brightness
267
290
9%
271
1%
230
-14%
Brightness Distribution
87
86
-1%
85
-2%
87
0%
Black Level *
0.3
0.26
13%
0.11
63%
0.195
35%
Contrast
907
1162
28%
2645
192%
1241
37%
Colorchecker dE 2000 *
4.1
6.66
-62%
8.14
-99%
5.35
-30%
Colorchecker dE 2000 max. *
9.08
17.01
-87%
19.9
-119%
8.74
4%
Greyscale dE 2000 *
4.03
4.2
-4%
5.84
-45%
4.79
-19%
Gamma
2.23 99%
1.92 115%
2.5 88%
2.22 99%
CCT
6557 99%
6122 106%
6761 96%
6148 106%
Color Space (Percent of AdobeRGB 1998)
43
Color Space (Percent of sRGB)
68
Total Average (Program / Settings)
6% / -5%
-7% / -3%
-6% / -3%

* ... smaller is better

在交付状态下,该显示器提供了一个体面的色彩再现,但颜色与目标略有偏差。然而,这其实并不明显。该显示器无法再现AdobeRGB(51%)、sRGB(73%)和DCI-P3(50%)色彩空间。

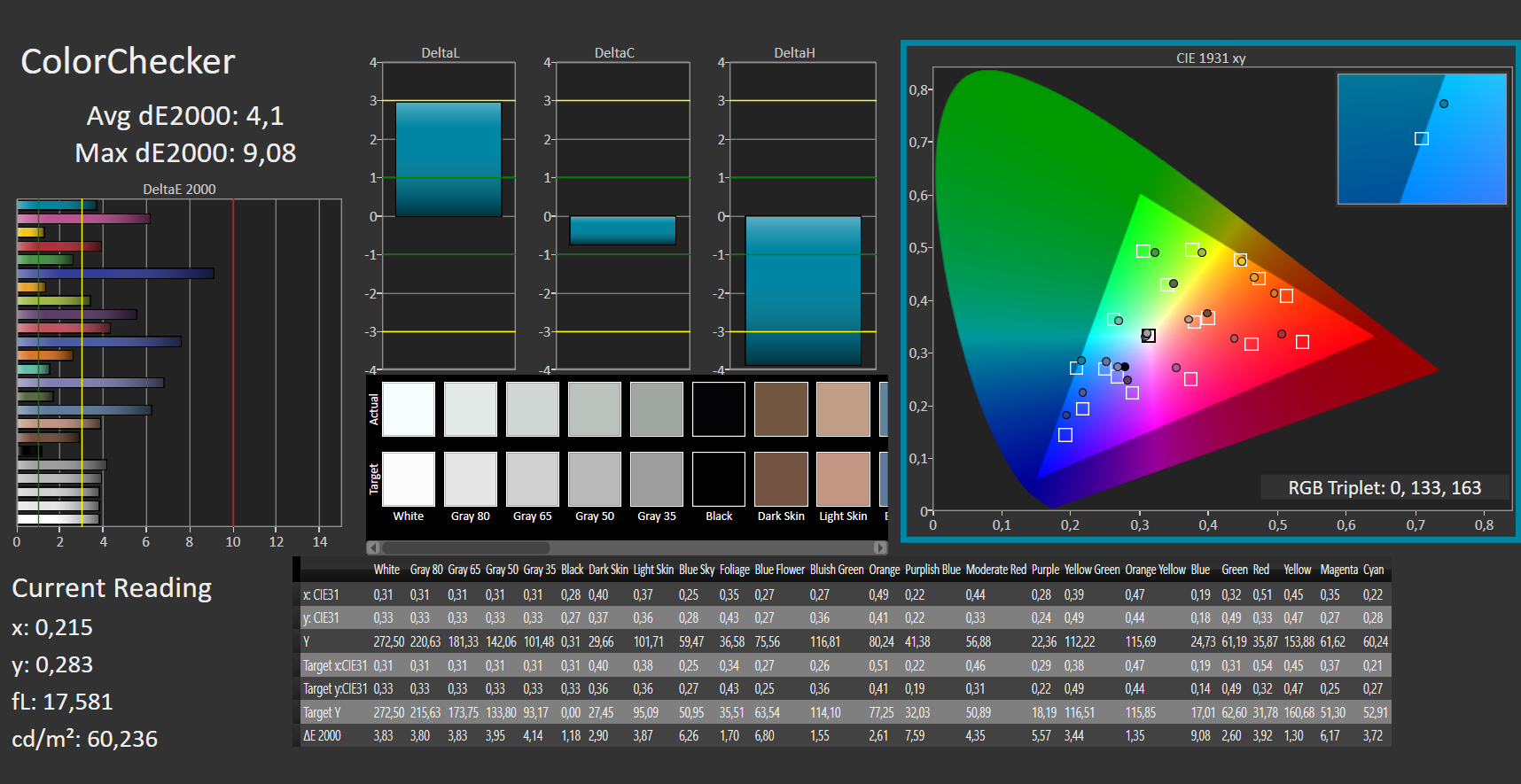

CalMAN - ColorChecker
CalMAN - ColorChecker

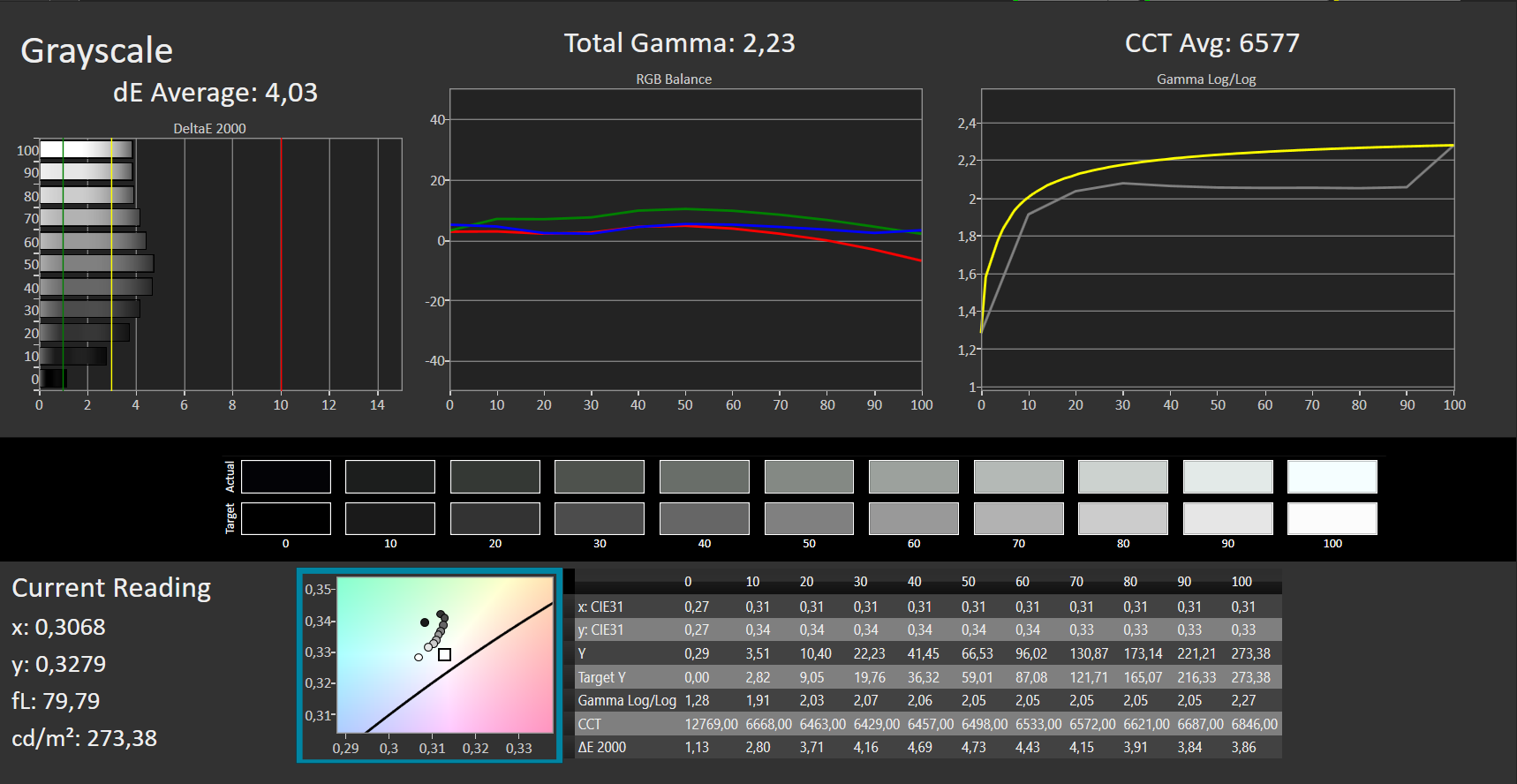

CalMAN - 灰度
CalMAN - 灰度

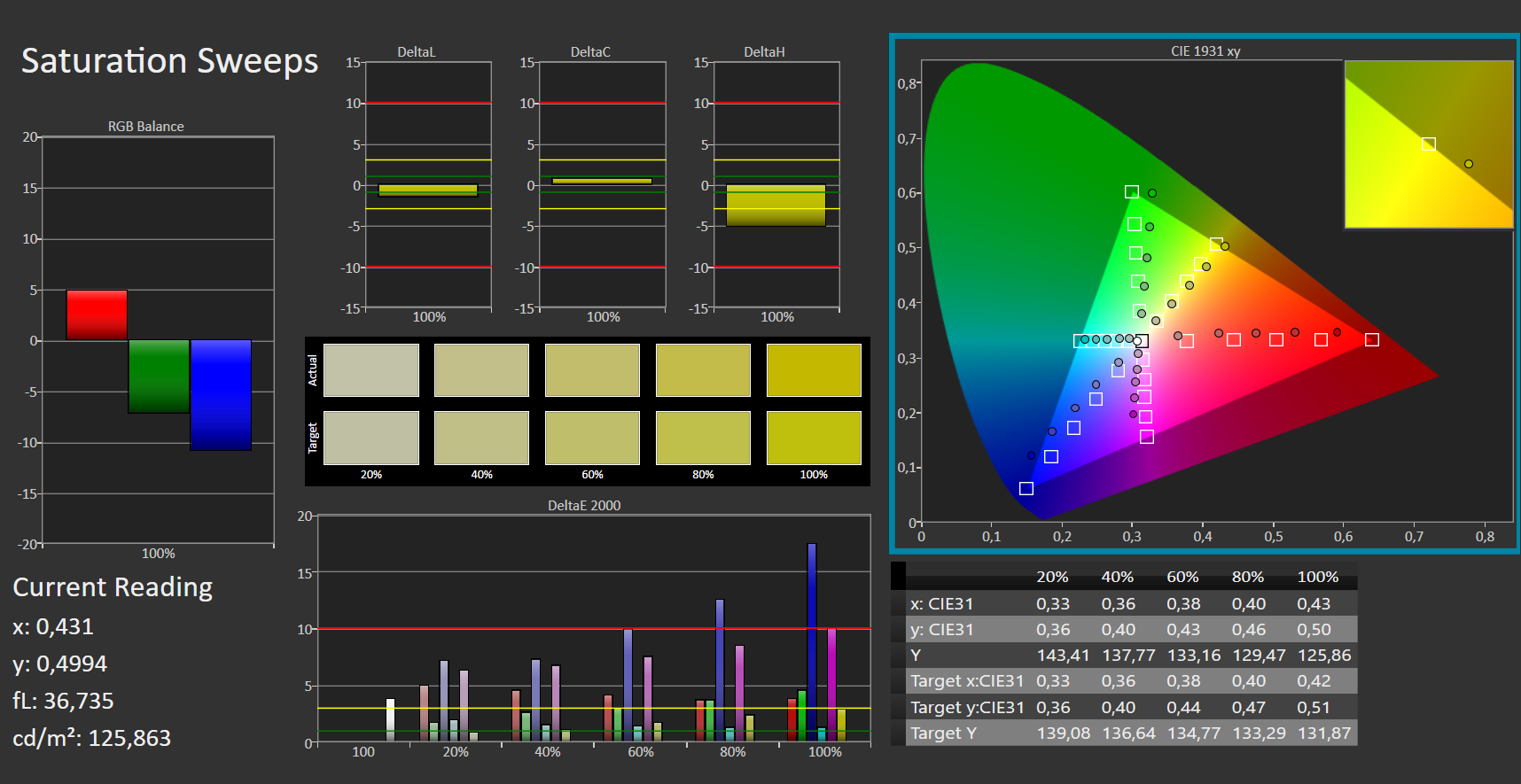

卡尔曼--饱和度
卡尔曼--饱和度

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

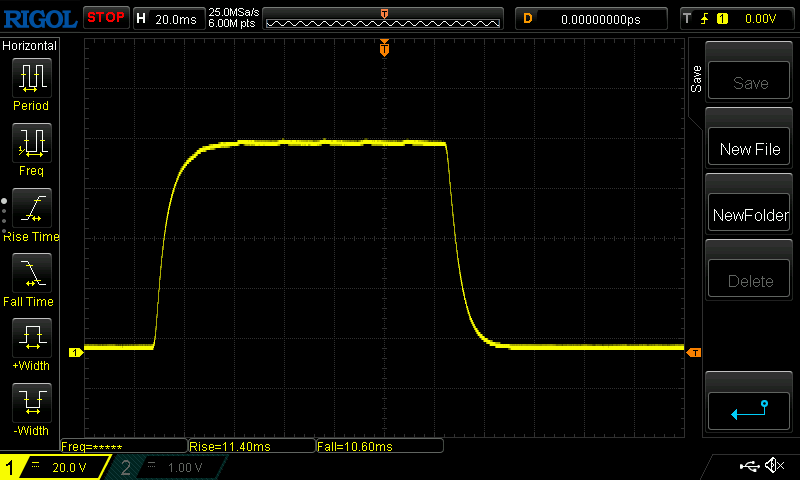

       Response Time Black to White
21 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 31 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (23.8 ms).

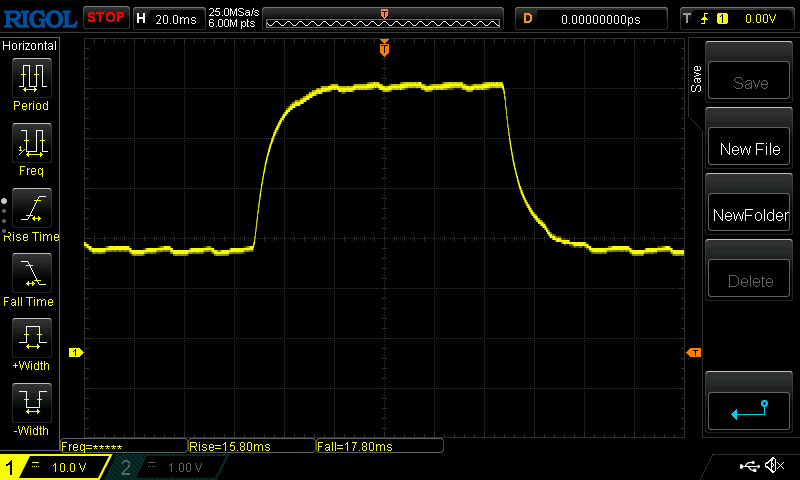

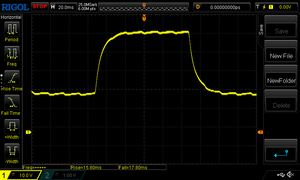

       Response Time 50% Grey to 80% Grey
34 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 30 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37.5 ms).

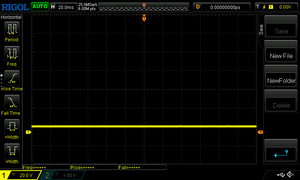

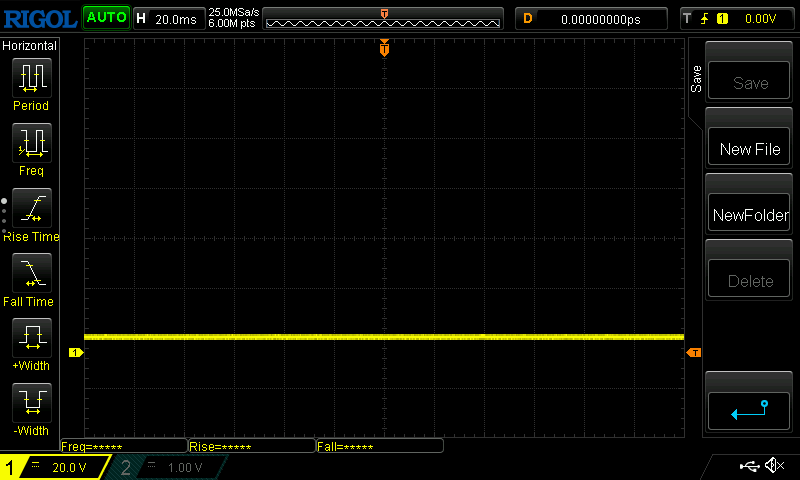

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 20917 (minimum: 5 - maximum: 3846000) Hz was measured.

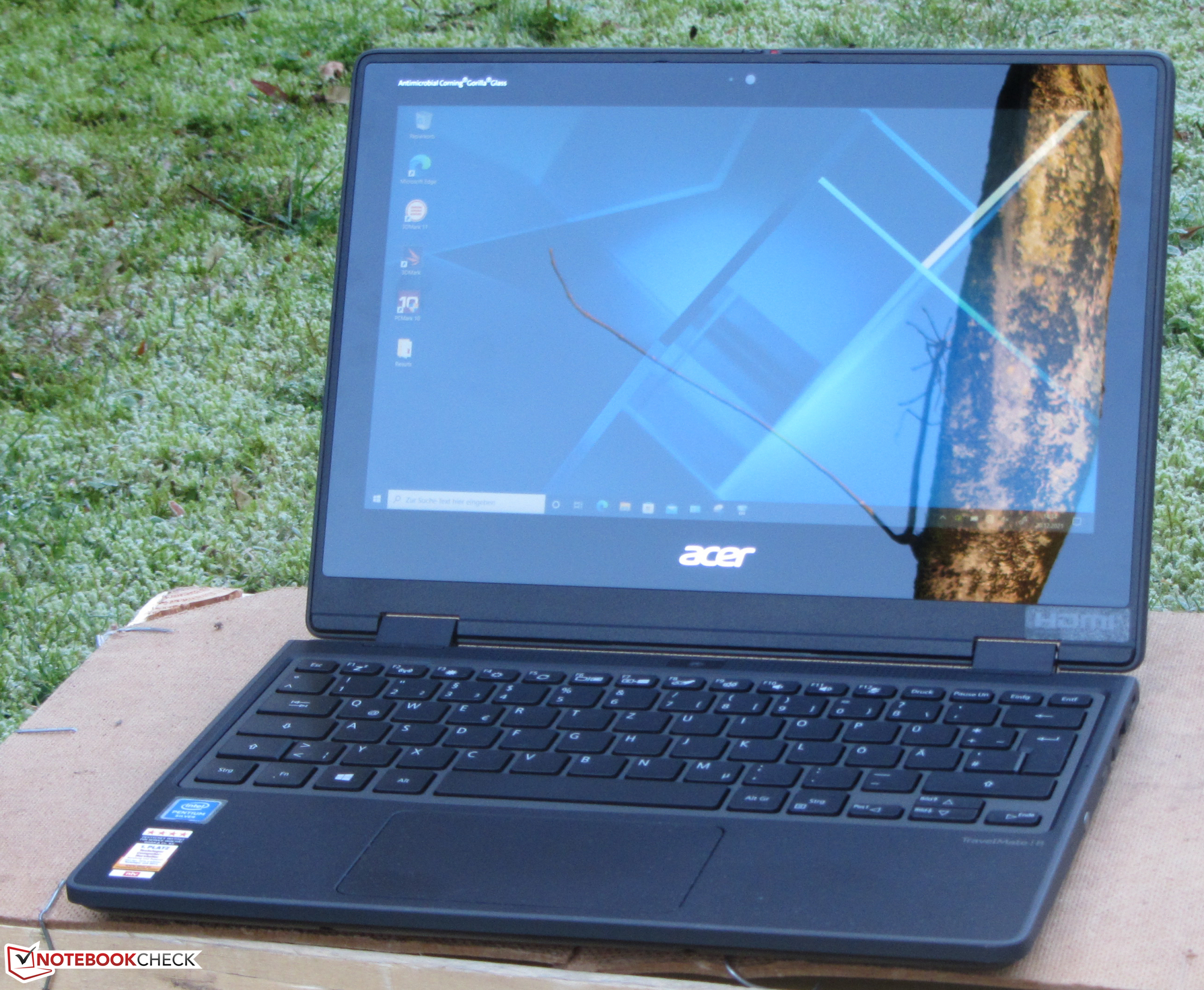

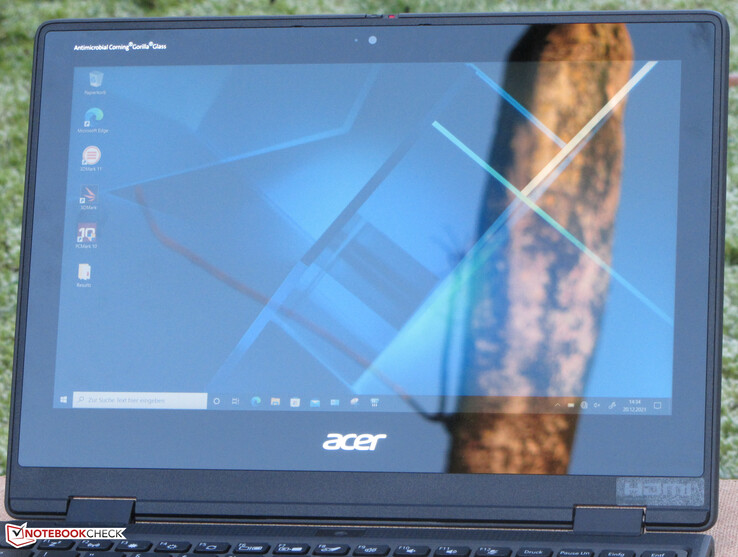

IPS面板提供稳定的可视角度,可以从任何位置阅读。然而,你在户外几乎无法--有时根本无法--阅读显示屏,因为低的显示亮度和反光的显示表面使之非常困难。

TravelMate的户外活动
TravelMate的户外活动

性能 - 宏碁在二合一笔记本电脑中使用双子湖

通过TravelMate Spin 3,宏碁提供了一个二合一设备,可以处理来自互联网和办公区域的简单应用。

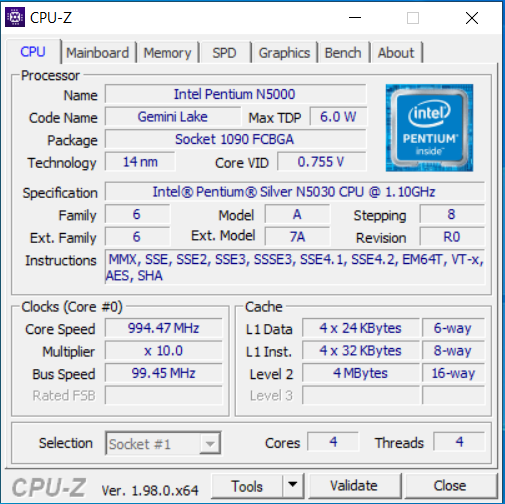

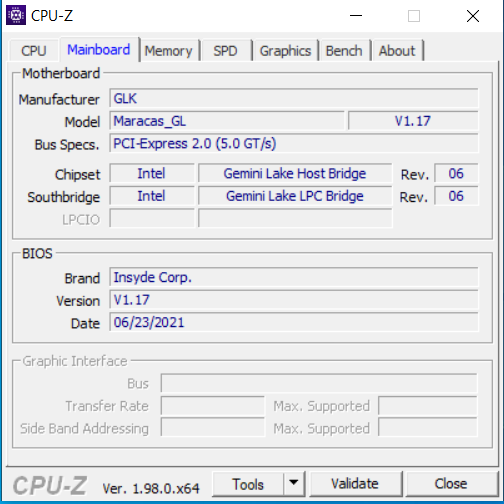

CPU-Z

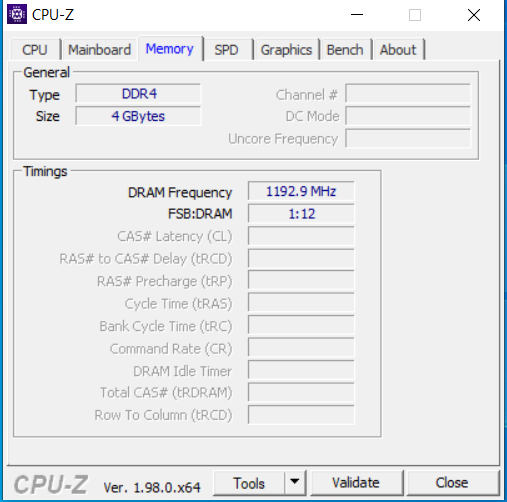

CPU-Z
CPU-Z

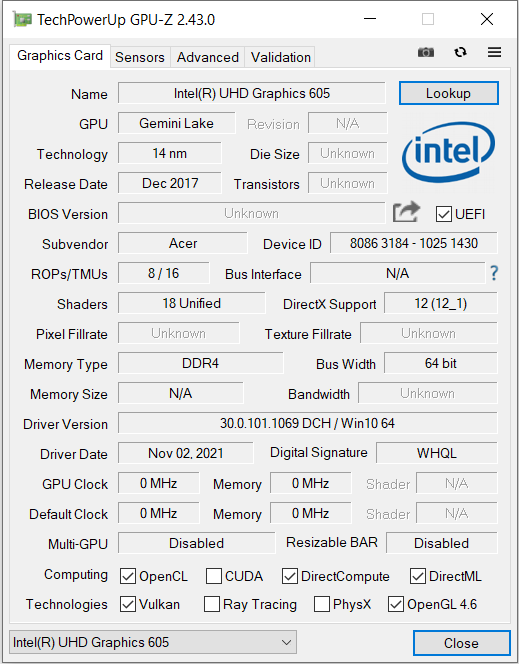

GPU-Z

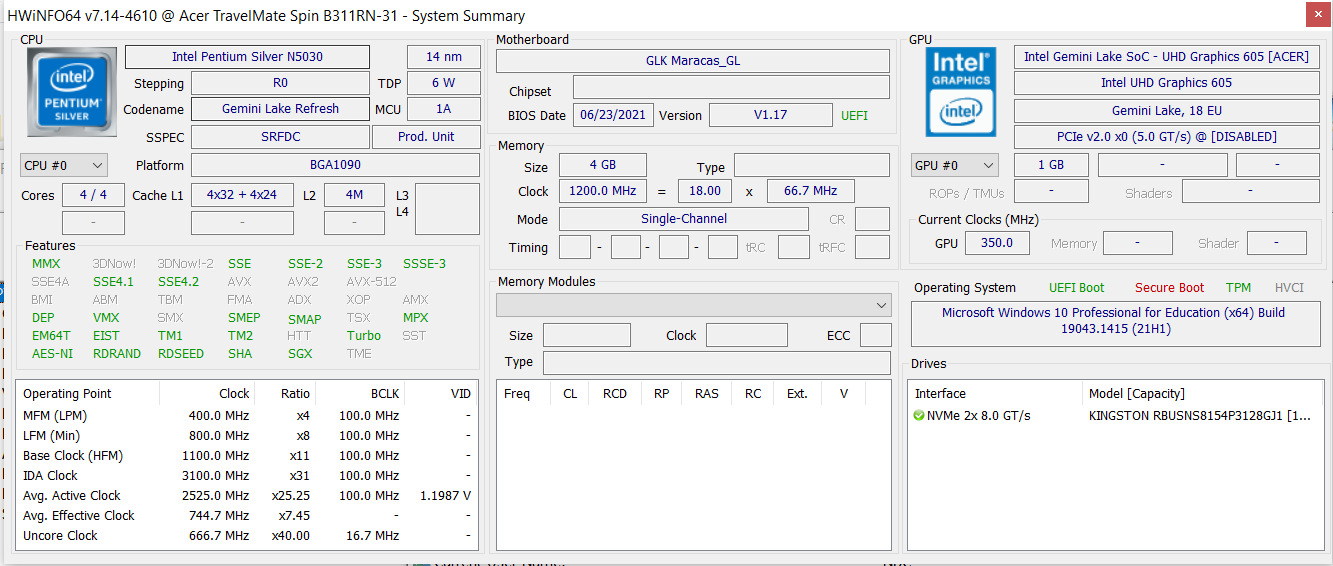

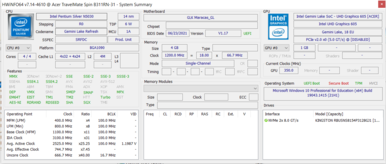

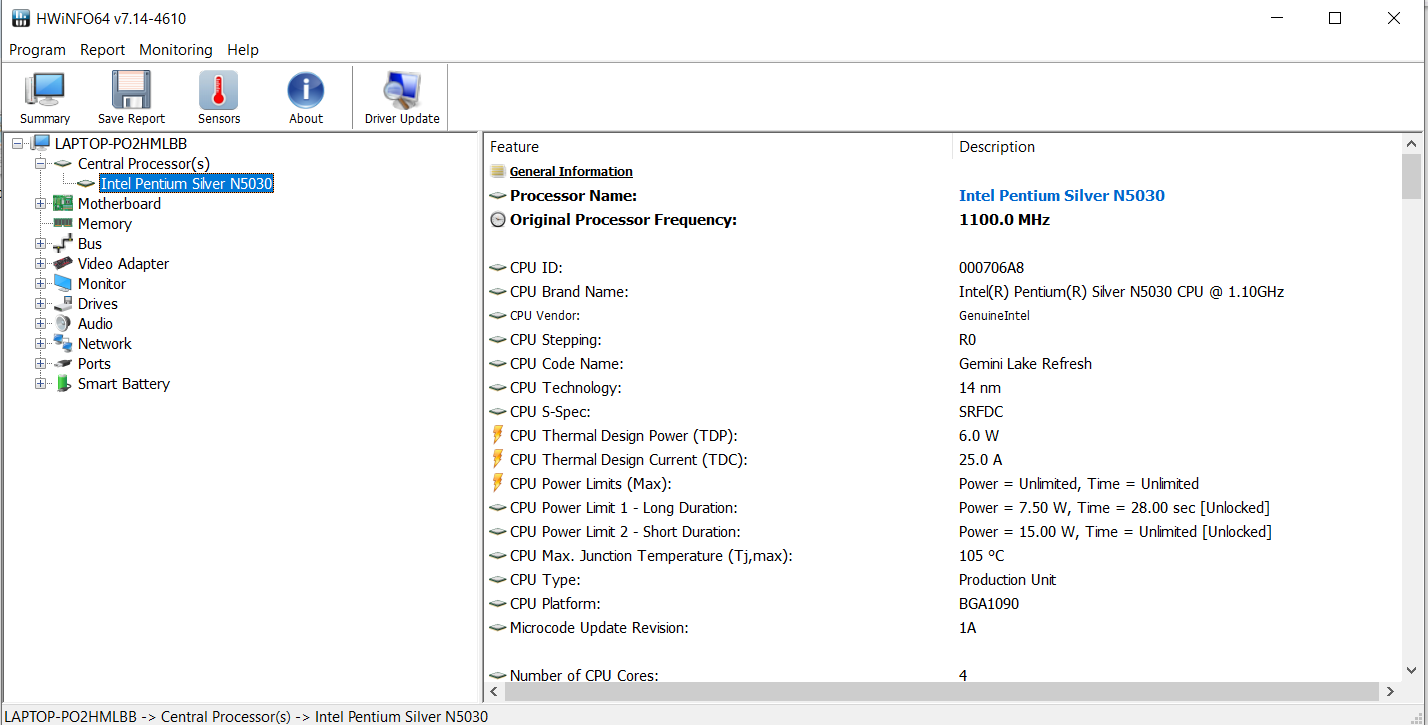

HWInfo
HWInfo



测试条件

TravelMate不提供任何制造商特定的电源配置文件。我们使用 "最高性能 "Windows配置文件进行基准测试,并使用 "平衡 "进行Akkutest电池测试。

处理器

6瓦的TDP允许被动冷却。 奔腾银N5030这里使用的CPU(双子湖),其基本时钟速度为1.1 GHz。通过涡轮增压,速度可以提高到2.6 GHz(4个核心)和3.2 GHz(单核心)。

虽然它在Cinebench R15基准的多线程测试中短暂地以2.6至2.7GHz运行,但时钟速度随后下降到1.8-1.9GHz。单线程测试以2.8GHz运行。主电源和电池运行时的速度是一样的。

我们通过在Cinebench R15的多线程测试中持续循环运行至少30分钟来评估CPU Turbo是否也被不断使用。Turbo速度只能在几秒钟内保持在一个较高的水平。之后,它就会下降到2GHz以下的数值。

总体而言,基准测试结果有点令人失望。N5030的性能仍然低于其能力,因为与 联想IdeaPad 1-14IGL05它也是被动冷却的,表明了这一点。

Cinebench R15 Multi Constant Load Test

0153045607590105120135150165180195210225240Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Pentium Silver N5030: Ø166 (117.01-202.8)
Asus BR1100FKA-BP0109RA Intel Celeron N4500: Ø125 (117.75-170.9)
Lenovo IdeaPad 1-14IGL05 Intel Pentium Silver N5030: Ø195 (155.55-248.94)
运行CB15循环时的CPU时钟速度
运行CB15循环时的CPU时钟速度
Cinebench R15 CPU Single 64Bit
86 Points
Cinebench R15 CPU Multi 64Bit
203 Points
Cinebench R15 OpenGL 64Bit
14.3 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
CPU Performance Rating - Percent
Average of class Convertible

89.5 pt ∼90%
Acer Chromebook Spin 511 R752T-C26N -13!
Intel Celeron N4120
43 pt ∼43%
Lenovo IdeaPad 1-14IGL05 -7!
Intel Pentium Silver N5030
37.1 pt ∼37%
Average Intel Pentium Silver N5030

35.6 pt ∼36%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
34.4 pt ∼34%
Asus BR1100FKA-BP0109RA -5!
Intel Celeron N4500
24 pt ∼24%
Lenovo Flex 3 Chrome 11M836 -13!
Mediatek MT8183
21 pt ∼21%
Cinebench R23
CPU (Multi Core)
Average of class Convertible
  (709 - 12629, n=52, last 2 years)
4750 Points ∼100% +421%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
911 Points ∼19%
Average Intel Pentium Silver N5030

911 Points ∼19% 0%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
709 Points ∼15% -22%
CPU (Single Core)
Average of class Convertible
  (382 - 1529, n=51, last 2 years)
1226 Points ∼100% +185%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
452 Points ∼37% +5%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
430 Points ∼35%
Average Intel Pentium Silver N5030

430 Points ∼35% 0%
Cinebench R20
CPU (Multi Core)
Average of class Convertible
  (316 - 4953, n=85, last 2 years)
1671 Points ∼100% +364%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
491 Points ∼29% +36%
Average Intel Pentium Silver N5030
  (360 - 491, n=2)
426 Points ∼25% +18%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
360 Points ∼22%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
332 Points ∼20% -8%
CPU (Single Core)
Average of class Convertible
  (152 - 604, n=85, last 2 years)
449 Points ∼100% +163%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
194 Points ∼43% +13%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
188 Points ∼42% +10%
Average Intel Pentium Silver N5030
  (171 - 194, n=2)
183 Points ∼41% +7%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
171 Points ∼38%
Cinebench R15
CPU Multi 64Bit
Average of class Convertible
  (144 - 2083, n=94, last 2 years)
729 Points ∼100% +259%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
248.94 (155.55min - 248.94max) Points ∼34% +23%
Average Intel Pentium Silver N5030
  (203 - 249, n=2)
226 Points ∼31% +11%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
203 Points ∼28%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
171 (60.18min - 170.9max) Points ∼23% -16%
CPU Single 64Bit
Average of class Convertible
  (66.3 - 243, n=90, last 2 years)
175 Points ∼100% +103%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
86 Points ∼49%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
82 Points ∼47% -5%
Average Intel Pentium Silver N5030
  (75.8 - 86, n=2)
80.9 Points ∼46% -6%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
75.76 Points ∼43% -12%
Blender 2.79 - BMW27 CPU
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
4249 Seconds * ∼100% -19%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
3580 Seconds * ∼84%
Average Intel Pentium Silver N5030
  (3319 - 3580, n=2)
3450 Seconds * ∼81% +4%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
3319 Seconds * ∼78% +7%
Average of class Convertible
  (246 - 4249, n=80, last 2 years)
972 Seconds * ∼23% +73%
7-Zip 18.03
7z b 4
Average of class Convertible
  (4498 - 57319, n=82, last 2 years)
20595 MIPS ∼100% +212%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
7878 MIPS ∼38% +19%
Average Intel Pentium Silver N5030
  (6598 - 7878, n=2)
7238 MIPS ∼35% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
6598 MIPS ∼32%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
5394 MIPS ∼26% -18%
7z b 4 -mmt1
Average of class Convertible
  (2125 - 5623, n=81, last 2 years)
4378 MIPS ∼100% +60%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2853 MIPS ∼65% +4%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
2735 MIPS ∼62%
Average Intel Pentium Silver N5030
  (2555 - 2735, n=2)
2645 MIPS ∼60% -3%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
2555 MIPS ∼58% -7%
Geekbench 5.3
64 Bit Multi-Core Score
Average of class Convertible
  (707 - 8620, n=83, last 2 years)
4205 Points ∼100% +244%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
1561 Points ∼37% +28%
Average Intel Pentium Silver N5030
  (1039 - 1529, n=3)
1263 Points ∼30% +3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
1221 Points ∼29%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
1039 Points ∼25% -15%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
909 Points ∼22% -26%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
707 Points ∼17% -42%
64 Bit Single-Core Score
Average of class Convertible
  (263 - 1566, n=83, last 2 years)
1188 Points ∼100% +132%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
512 Points ∼43%
Average Intel Pentium Silver N5030
  (431 - 532, n=3)
492 Points ∼41% -4%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
449 Points ∼38% -12%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
431 Points ∼36% -16%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
401 Points ∼34% -22%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
260 Points ∼22% -49%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Convertible
  (0.71 - 15.2, n=79, last 2 years)
5.3 fps ∼100% +646%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
0.74 fps ∼14% +4%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
0.71 fps ∼13%
Average Intel Pentium Silver N5030

0.71 fps ∼13% 0%
LibreOffice - 20 Documents To PDF
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
175 s * ∼100% -28%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
137 s * ∼78%
Average Intel Pentium Silver N5030
  (130 - 137, n=2)
134 s * ∼77% +2%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
130 s * ∼74% +5%
Average of class Convertible
  (40.7 - 175, n=77, last 2 years)
67.4 s * ∼39% +51%
R Benchmark 2.5 - Overall mean
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2.12 sec * ∼100% -51%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
1.473 sec * ∼69% -5%
Average Intel Pentium Silver N5030
  (1.402 - 1.473, n=2)
1.438 sec * ∼68% -3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
1.402 sec * ∼66%
Average of class Convertible
  (0.504 - 2.12, n=78, last 2 years)
0.744 sec * ∼35% +47%
Sunspider - 1.0 Total Score
Average Intel Pentium Silver N5030

356 ms * ∼100% -0%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
355.8 ms * ∼100%
Average of class Convertible
  (136 - 716, n=7, last 2 years)
346 ms * ∼97% +3%
Mozilla Kraken 1.1 - Total Score
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
3986 ms * ∼100% -27%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
3160 ms * ∼79% -0%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
3145 ms * ∼79%
Average Intel Pentium Silver N5030
  (1914 - 3145, n=3)
2410 ms * ∼60% +23%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
2170 ms * ∼54% +31%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
2125.2 ms * ∼53% +32%
Average of class Convertible
  (591 - 3957, n=92, last 2 years)
1041 ms * ∼26% +67%
Octane V2 - Total Score
Average of class Convertible
  (9656 - 66881, n=42, last 2 years)
43160 Points ∼100% +97%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
21904 Points ∼51%
Average Intel Pentium Silver N5030
  (21894 - 21904, n=2)
21899 Points ∼51% 0%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
18537 Points ∼43% -15%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
9822 Points ∼23% -55%
Speedometer 2.0 - Result
Average of class Convertible
  (27.7 - 193, n=22, last 2 years)
110 runs/min ∼100% +87%
Average Intel Pentium Silver N5030
  (58.7 - 59.9, n=2)
59.3 runs/min ∼54% +1%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
58.7 runs/min ∼53%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
49.1 runs/min ∼45% -16%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
24.8 runs/min ∼23% -58%
WebXPRT 3 - ---
Average of class Convertible
  (48.2 - 314, n=85, last 2 years)
200 Points ∼100% +110%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
106 Points ∼53% +11%
Average Intel Pentium Silver N5030
  (91.3 - 116, n=3)
101 Points ∼51% +6%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
95.4 Points ∼48%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
91.3 Points ∼46% -4%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
60 Points ∼30% -37%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
48.2 Points ∼24% -49%
JetStream 1.1 - Total Score
Average of class Convertible
  (53 - 315, n=32, last 2 years)
222 Points ∼100% +89%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
117.58 Points ∼53%
Average Intel Pentium Silver N5030
  (110 - 118, n=2)
114 Points ∼51% -3%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
84.721 Points ∼38% -28%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
51.895 Points ∼23% -56%
Jetstream 2 - Total Score
Average of class Convertible
  (32.2 - 185, n=38, last 2 years)
135 Points ∼100% +87%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
72.026 Points ∼53%
Average Intel Pentium Silver N5030
  (58.2 - 72, n=2)
65.1 Points ∼48% -10%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
58.844 Points ∼44% -18%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
58.211 Points ∼43% -19%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
34.531 Points ∼26% -52%

* ... smaller is better

Performance Rating
Average of class Convertible

100 pt ∼100%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
27.6 pt ∼28%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
27.2 pt ∼27%
Average Intel Pentium Silver N5030

23.2 pt ∼23%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
18.7 pt ∼19%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
3.2 pt ∼3%
AIDA64 / FP32 Ray-Trace
Average of class Convertible
  (152 - 12152, n=63, last 2 years)
5569 KRay/s ∼100% +814%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
1053 KRay/s ∼19% +73%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
1025 KRay/s ∼18% +68%
Average Intel Pentium Silver N5030
  (609 - 1025, n=2)
817 KRay/s ∼15% +34%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
609 KRay/s ∼11%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
152 KRay/s ∼3% -75%
AIDA64 / FPU Julia
Average of class Convertible
  (569 - 65780, n=63, last 2 years)
27102 Points ∼100% +592%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
6476 Points ∼24% +65%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
6069 Points ∼22% +55%
Average Intel Pentium Silver N5030
  (3917 - 6476, n=2)
5197 Points ∼19% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
3917 Points ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
569 Points ∼2% -85%
AIDA64 / CPU SHA3
Average of class Convertible
  (66 - 2531, n=62, last 2 years)
1463 MB/s ∼100% +497%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
418 MB/s ∼29% +71%
Average Intel Pentium Silver N5030
  (245 - 418, n=2)
332 MB/s ∼23% +36%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
326 MB/s ∼22% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
245 MB/s ∼17%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
66 MB/s ∼5% -73%
AIDA64 / CPU Queen
Average of class Convertible
  (2104 - 99178, n=63, last 2 years)
47810 Points ∼100% +129%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
21644 Points ∼45% +4%
Average Intel Pentium Silver N5030
  (20893 - 21644, n=2)
21269 Points ∼44% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
20893 Points ∼44%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
16935 Points ∼35% -19%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
2104 Points ∼4% -90%
AIDA64 / FPU SinJulia
Average of class Convertible
  (121 - 13847, n=63, last 2 years)
4695 Points ∼100% +533%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
2318 Points ∼49% +212%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
1251 Points ∼27% +69%
Average Intel Pentium Silver N5030
  (742 - 1251, n=2)
997 Points ∼21% +34%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
742 Points ∼16%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
121 Points ∼3% -84%
AIDA64 / FPU Mandel
Average of class Convertible
  (291 - 35831, n=63, last 2 years)
15304 Points ∼100% +609%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
3517 Points ∼23% +63%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
3047 Points ∼20% +41%
Average Intel Pentium Silver N5030
  (2158 - 3517, n=2)
2838 Points ∼19% +32%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
2158 Points ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
291 Points ∼2% -87%
AIDA64 / CPU AES
Average of class Convertible
  (104 - 88017, n=63, last 2 years)
43476 MB/s ∼100% +600%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
10902 MB/s ∼25% +75%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
10585 MB/s ∼24% +70%
Average Intel Pentium Silver N5030
  (6215 - 10585, n=2)
8400 MB/s ∼19% +35%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
6215 MB/s ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
104 MB/s ∼0% -98%
AIDA64 / CPU ZLib
Average of class Convertible
  (81.4 - 776, n=65, last 2 years)
316 MB/s ∼100% +288%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
135 MB/s ∼43% +66%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
111 MB/s ∼35% +36%
Average Intel Pentium Silver N5030
  (81.4 - 135, n=2)
108 MB/s ∼34% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
81.4 MB/s ∼26%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
25.5 MB/s ∼8% -69%
AIDA64 / FP64 Ray-Trace
Average of class Convertible
  (84 - 6533, n=63, last 2 years)
3019 KRay/s ∼100% +823%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
575 KRay/s ∼19% +76%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
567 KRay/s ∼19% +73%
Average Intel Pentium Silver N5030
  (327 - 567, n=2)
447 KRay/s ∼15% +37%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
327 KRay/s ∼11%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
84 KRay/s ∼3% -74%
AIDA64 / CPU PhotoWorxx
Average of class Convertible
  (680 - 52923, n=63, last 2 years)
25614 MPixel/s ∼100% +392%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
6268 MPixel/s ∼24% +20%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
6183 MPixel/s ∼24% +19%
Average Intel Pentium Silver N5030
  (5209 - 6268, n=2)
5739 MPixel/s ∼22% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
5209 MPixel/s ∼20%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
680 MPixel/s ∼3% -87%

系统性能

奔腾银和4GB工作内存的组合能够处理办公室和互联网领域的简单应用。虽然系统通常运行平稳,但你应该只期望同时运行几个应用程序和浏览器窗口,因为否则事情会变得更加迟缓。由于工作内存(DDR4-2400,板载)只在单通道模式下运行,一部分计算性能仍未使用。不可能在以后激活双通道模式。PCMark的结果范围在预期水平。

PCMark 10 Score
1838 points
Help
PCMark 10 / Score
Average of class Convertible
  (1429 - 5971, n=83, last 2 years)
4303 Points ∼100% +134%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (1838 - 1900, n=2)
1869 Points ∼43% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
1838 Points ∼43%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
1429 Points ∼33% -22%
PCMark 10 / Essentials
Average of class Convertible
  (3602 - 11505, n=83, last 2 years)
8826 Points ∼100% +91%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
4614 Points ∼52%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (4469 - 4614, n=2)
4542 Points ∼51% -2%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
3602 Points ∼41% -22%
PCMark 10 / Productivity
Average of class Convertible
  (2411 - 8653, n=83, last 2 years)
6371 Points ∼100% +110%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
3036 Points ∼48%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (2994 - 3036, n=2)
3015 Points ∼47% -1%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
2411 Points ∼38% -21%
PCMark 10 / Digital Content Creation
Average of class Convertible
  (886 - 6844, n=83, last 2 years)
3920 Points ∼100% +226%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (1204 - 1391, n=2)
1298 Points ∼33% +8%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
1204 Points ∼31%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
913 Points ∼23% -24%
AIDA64 / Memory Copy
Average of class Convertible
  (4939 - 98967, n=63, last 2 years)
41076 MB/s ∼100% +264%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
15107 MB/s ∼37% +34%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
12743 MB/s ∼31% +13%
Average Intel Pentium Silver N5030
  (11294 - 12743, n=2)
12019 MB/s ∼29% +6%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
11294 MB/s ∼27%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
4939 MB/s ∼12% -56%
AIDA64 / Memory Read
Average of class Convertible
  (4031 - 67976, n=63, last 2 years)
43035 MB/s ∼100% +330%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
18030 MB/s ∼42% +80%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
10011 MB/s ∼23%
Average Intel Pentium Silver N5030

10011 MB/s ∼23% 0%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
4031 MB/s ∼9% -60%
AIDA64 / Memory Write
Average of class Convertible
  (5782 - 117946, n=63, last 2 years)
44451 MB/s ∼100% +331%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
17322 MB/s ∼39% +68%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
10482 MB/s ∼24% +2%
Average Intel Pentium Silver N5030
  (10325 - 10482, n=2)
10404 MB/s ∼23% +1%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
10325 MB/s ∼23%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
5782 MB/s ∼13% -44%
AIDA64 / Memory Latency
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
169 ns * ∼100% -133%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
110 ns * ∼65% -52%
Average of class Convertible
  (71.4 - 169, n=65, last 2 years)
88.7 ns * ∼52% -22%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
72.5 ns * ∼43%
Average Intel Pentium Silver N5030
  (71.3 - 72.5, n=2)
71.9 ns * ∼43% +1%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
71.3 ns * ∼42% +2%

* ... smaller is better

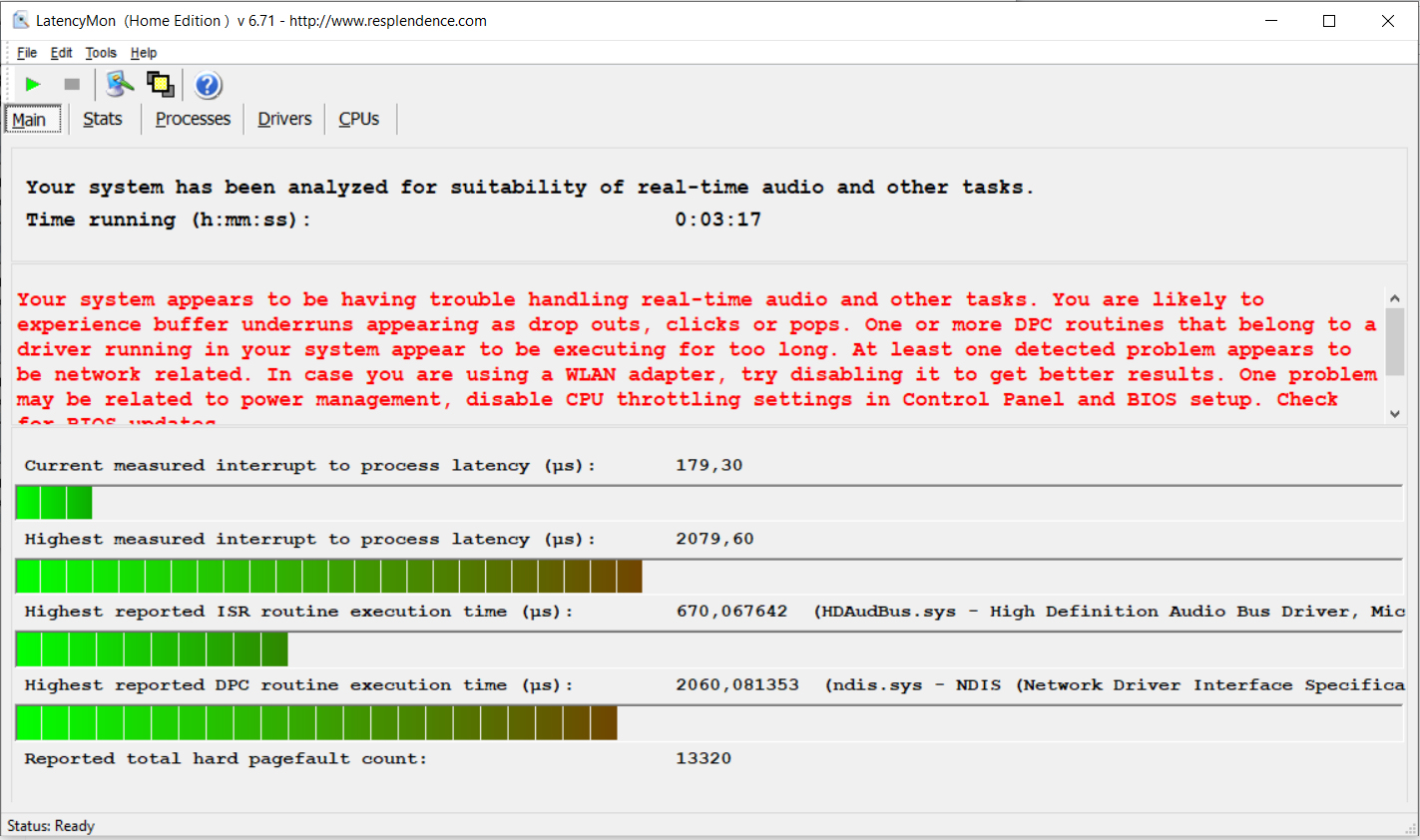

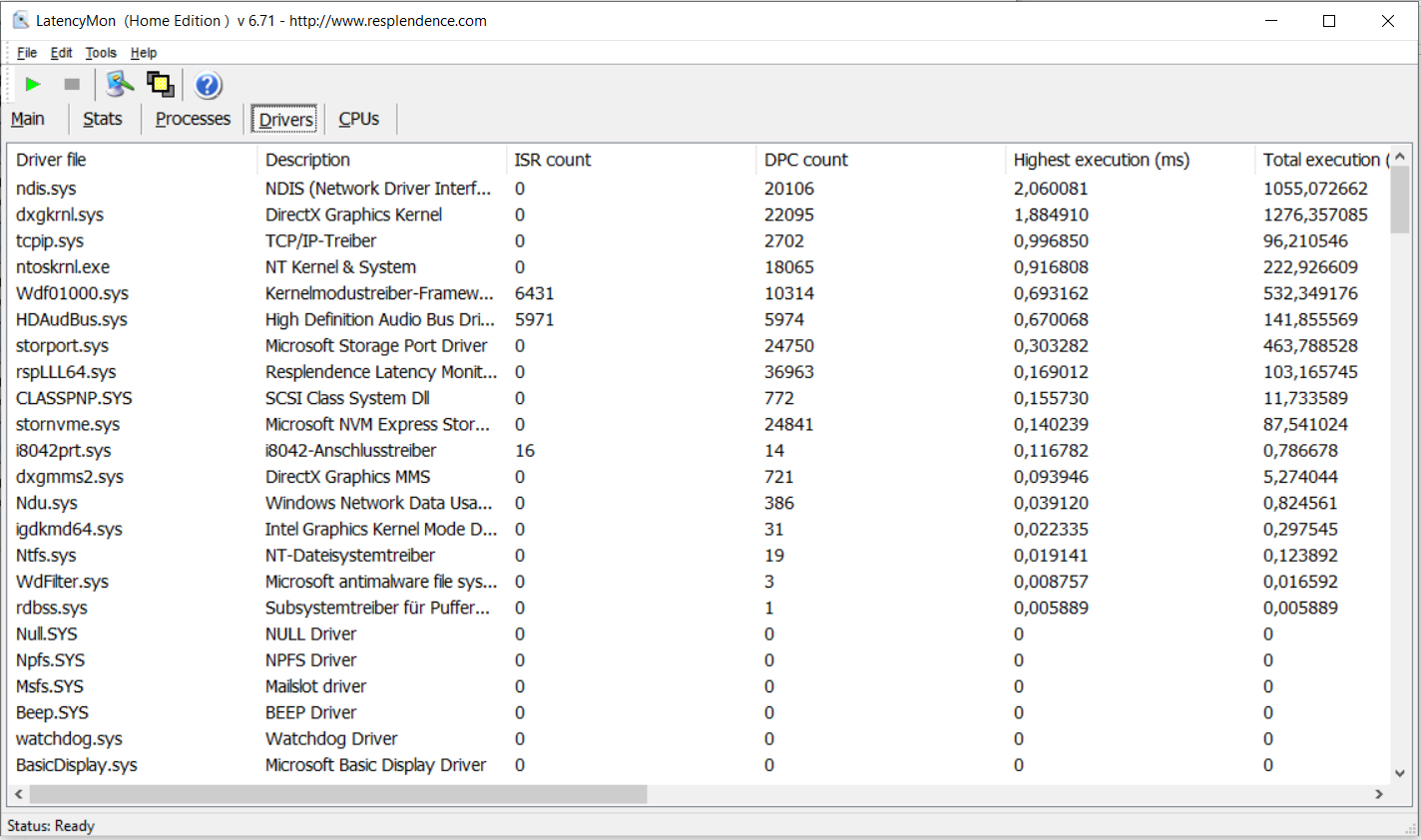

DPC延迟

延迟监测
延迟监测
延迟监测
延迟监测
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaPad 1 11ADA05
Vega 3, Athlon 3050e, 64 GB eMMC Flash
6182.9 μs * ∼100% -197%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
3040.8 μs * ∼49% -46%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
2079.6 μs * ∼34%
Lenovo IdeaPad 1-14IGL05
UHD Graphics 605, Pentium N5030, SanDisk DA4064
1872.5 μs * ∼30% +10%

* ... smaller is better

存储解决方案

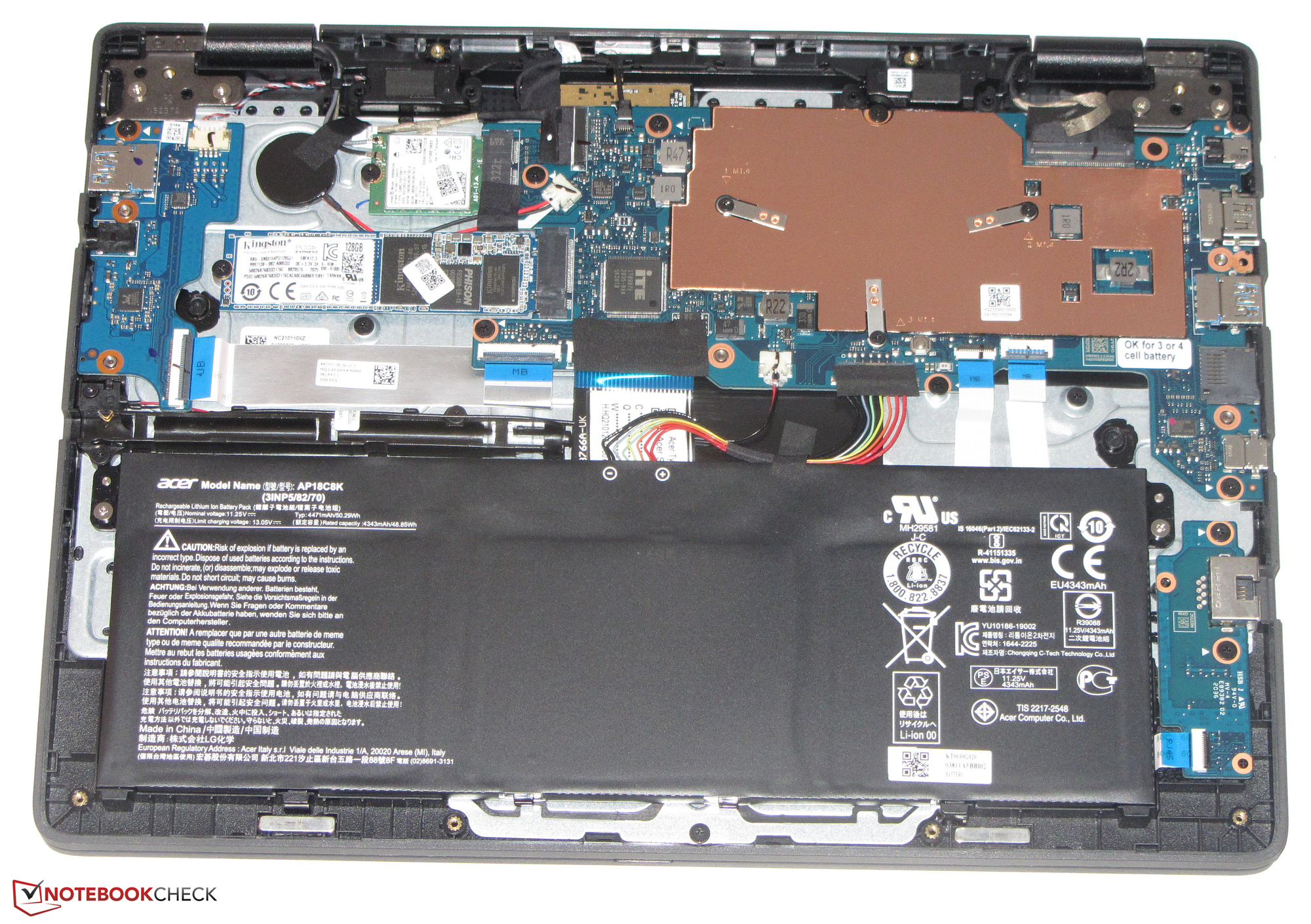

金士顿的NVMe SSD(M.2-2280)作为系统驱动器。它提供128GB的存储空间,并提供良好的传输速率。

B3提供一个NVMe SSD。
B3提供一个NVMe SSD。
Kingston RBUSNS8154P3128GJ
CDM 5/6 Read Seq Q32T1: 822.9 MB/s
CDM 5/6 Write Seq Q32T1: 404 MB/s
CDM 5/6 Read 4K Q32T1: 190.1 MB/s
CDM 5/6 Write 4K Q32T1: 111.6 MB/s
CDM 5 Read Seq: 488 MB/s
CDM 5 Write Seq: 432.1 MB/s
CDM 5/6 Read 4K: 27.82 MB/s
CDM 5/6 Write 4K: 70.79 MB/s
Drive Performance Rating - Percent
Average of class Convertible

96.2 pt ∼96%
Average Kingston RBUSNS8154P3128GJ

43.7 pt ∼44%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
38.7 pt ∼39%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
5.1 pt ∼5%
DiskSpd
seq read
Average of class Convertible
  (507 - 4457, n=80, last 2 years)
1473 MB/s ∼100% +191%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
507 (503.57min - 506.5max) MB/s ∼34%
Average Kingston RBUSNS8154P3128GJ

507 MB/s ∼34% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq write
Average of class Convertible
  (373 - 4237, n=80, last 2 years)
1286 MB/s ∼100% +245%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
373 (260.16min - 373.18max) MB/s ∼29%
Average Kingston RBUSNS8154P3128GJ

373 MB/s ∼29% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq q8 t1 read
Average of class Convertible
  (546 - 6688, n=79, last 2 years)
2393 MB/s ∼100% +190%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
825 (723.33min - 825.23max) MB/s ∼34%
Average Kingston RBUSNS8154P3128GJ

825 MB/s ∼34% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq q8 t1 write
Average of class Convertible
  (377 - 4928, n=80, last 2 years)
1577 MB/s ∼100% +224%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
486 (349.94min - 485.99max) MB/s ∼31%
Average Kingston RBUSNS8154P3128GJ

486 MB/s ∼31% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q1 t1 read
Average of class Convertible
  (22.2 - 135, n=80, last 2 years)
46.8 MB/s ∼100% +67%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
28 (20.74min - 27.95max) MB/s ∼60%
Average Kingston RBUSNS8154P3128GJ

28 MB/s ∼60% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q1 t1 write
Average of class Convertible
  (44.4 - 330, n=80, last 2 years)
129 MB/s ∼100% +118%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
59.2 (50.68min - 59.16max) MB/s ∼46%
Average Kingston RBUSNS8154P3128GJ

59.2 MB/s ∼46% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q32 t16 read
Average of class Convertible
  (224 - 2833, n=80, last 2 years)
754 MB/s ∼100% +99%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
378 (316.72min - 377.74max) MB/s ∼50%
Average Kingston RBUSNS8154P3128GJ

378 MB/s ∼50% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q32 t16 write
Average of class Convertible
  (217 - 2378, n=80, last 2 years)
600 MB/s ∼100% +94%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
310 (178.62min - 309.52max) MB/s ∼52%
Average Kingston RBUSNS8154P3128GJ

310 MB/s ∼52% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
AS SSD
Score Total
Average of class Convertible
  (117 - 8020, n=84, last 2 years)
2543 Points ∼100% +229%
Average Kingston RBUSNS8154P3128GJ
  (634 - 1386, n=7)
1014 Points ∼40% +31%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
774 Points ∼30%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
145 Points ∼6% -81%
Score Read
Average of class Convertible
  (51 - 3400, n=84, last 2 years)
1015 Points ∼100% +235%
Average Kingston RBUSNS8154P3128GJ
  (303 - 586, n=7)
443 Points ∼44% +46%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
303 Points ∼30%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
55 Points ∼5% -82%
Score Write
Average of class Convertible
  (35 - 2938, n=84, last 2 years)
1039 Points ∼100% +225%
Average Kingston RBUSNS8154P3128GJ
  (196 - 524, n=7)
365 Points ∼35% +14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
320 Points ∼31%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
60 Points ∼6% -81%
Seq Read
Average of class Convertible
  (258 - 4878, n=84, last 2 years)
1924 MB/s ∼100% +174%
Average Kingston RBUSNS8154P3128GJ
  (702 - 1201, n=7)
973 MB/s ∼51% +39%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
702.42 MB/s ∼37%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
274.72 MB/s ∼14% -61%
Seq Write
Average of class Convertible
  (121 - 3660, n=84, last 2 years)
1109 MB/s ∼100% +149%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
446.09 MB/s ∼40%
Average Kingston RBUSNS8154P3128GJ
  (213 - 460, n=7)
404 MB/s ∼36% -9%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
176.24 MB/s ∼16% -60%
4K Read
Average of class Convertible
  (5.47 - 85.1, n=84, last 2 years)
45.9 MB/s ∼100% +82%
Average Kingston RBUSNS8154P3128GJ
  (18.9 - 45.2, n=7)
28.2 MB/s ∼61% +12%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
25.23 MB/s ∼55%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
14.15 MB/s ∼31% -44%
4K Write
Average of class Convertible
  (12.4 - 239, n=84, last 2 years)
127 MB/s ∼100% +173%
Average Kingston RBUSNS8154P3128GJ
  (46.5 - 90, n=7)
65.5 MB/s ∼52% +41%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
46.51 MB/s ∼37%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
19.1 MB/s ∼15% -59%
4K-64 Read
Average of class Convertible
  (13.2 - 2827, n=84, last 2 years)
777 MB/s ∼100% +274%
Average Kingston RBUSNS8154P3128GJ
  (193 - 425, n=7)
317 MB/s ∼41% +53%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
207.65 MB/s ∼27%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
13.17 MB/s ∼2% -94%
4K-64 Write
Average of class Convertible
  (10.2 - 2349, n=84, last 2 years)
801 MB/s ∼100% +251%
Average Kingston RBUSNS8154P3128GJ
  (116 - 391, n=7)
259 MB/s ∼32% +13%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
228.46 MB/s ∼29%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
23.63 MB/s ∼3% -90%
Access Time Read
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0.287 ms * ∼100% -8%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
0.266 ms * ∼93%
Average Kingston RBUSNS8154P3128GJ
  (0.152 - 0.278, n=7)
0.2317 ms * ∼81% +13%
Average of class Convertible
  (0.023 - 0.794, n=84, last 2 years)
0.1085 ms * ∼38% +59%
Access Time Write
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0.39 ms * ∼100% -343%
Average of class Convertible
  (0.017 - 1.105, n=84, last 2 years)
0.1369 ms * ∼35% -56%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
0.088 ms * ∼23%
Average Kingston RBUSNS8154P3128GJ
  (0.048 - 0.09, n=7)
0.0683 ms * ∼18% +22%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

04590135180225270315360405450495540585630675720765810Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Kingston RBUSNS8154P3128GJ: Ø718 (355.8-825.26)
Acer Aspire 1 A114-61-S58J 64 GB eMMC Flash: Ø229 (141.07-248.51)
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash: Ø252 (128.77-269.18)

图形卡

英特尔公司的 UHD Graphics 605GPU代表了性能尺度的低端。图形核心的3DMark结果低于平均水平,是我们到目前为止使用该GPU测得的最差的一些结果。游戏不是所使用的硬件的品质之一,但简单的休闲游戏和浏览器游戏仍应运行。集成解码器在复制视频时能减轻处理器的一些负担,因此使用流媒体服务应该不会出现任何问题。

3DMark 11 Performance
655 points
3DMark Ice Storm Standard Score
21430 points
3DMark Cloud Gate Standard Score
2861 points
3DMark Fire Strike Score
376 points
3DMark Time Spy Score
129 points
Help
3DMark Performance Rating - Percent
Average of class Convertible

100 pt ∼100%
Average Intel UHD Graphics 605

14.6 pt ∼15%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
14.4 pt ∼14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
13.1 pt ∼13%
3DMark 11 - 1280x720 Performance GPU
Average of class Convertible
  (461 - 17421, n=87, last 2 years)
4475 Points ∼100% +661%
Average Intel UHD Graphics 605
  (588 - 902, n=13)
701 Points ∼16% +19%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
588 Points ∼13%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
554 Points ∼12% -6%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Convertible
  (2714 - 38419, n=72, last 2 years)
19780 Points ∼100% +526%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
4210 Points ∼21% +33%
Average Intel UHD Graphics 605
  (2874 - 4485, n=10)
3518 Points ∼18% +11%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
3158 Points ∼16%
1920x1080 Fire Strike Graphics
Average of class Convertible
  (348 - 13158, n=84, last 2 years)
3333 Points ∼100% +711%
Average Intel UHD Graphics 605
  (411 - 576, n=10)
473 Points ∼14% +15%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
411 Points ∼12%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
392 Points ∼12% -5%
2560x1440 Time Spy Graphics
Average of class Convertible
  (91 - 5126, n=70, last 2 years)
1046 Points ∼100% +826%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
129 Points ∼12% +14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
113 Points ∼11%
Average Intel UHD Graphics 605

113 Points ∼11% 0%
Dota 2 Reborn - 1280x720 min (0/3) fastest
Average of class Convertible
  (18.3 - 133, n=79, last 2 years)
76.4 fps ∼100% +118%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
35 (30.6min) fps ∼46%
Average Intel UHD Graphics 605
  (32.5 - 36.5, n=5)
34.7 fps ∼45% -1%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, Intel UHD Graphics (Jasper Lake 16 EU)
18.9 (13.1min) fps ∼25% -46%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Convertible
  (2.2 - 91.2, n=37, last 2 years)
32.3 fps ∼100% +678%
Average Intel UHD Graphics 605
  (3.4 - 5.15, n=4)
4.28 fps ∼13% +3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
4.15 fps ∼13%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, Intel UHD Graphics (Jasper Lake 16 EU)
2.2 fps ∼7% -47%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Convertible
  (3.94 - 88.1, n=72, last 2 years)
31.5 fps ∼100% +529%
Average Intel UHD Graphics 605
  (5.01 - 9.1, n=4)
6.92 fps ∼22% +38%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
5.01 fps ∼16%
GTA V - 1024x768 Lowest Settings possible
Average of class Convertible
  (11.6 - 154, n=31, last 2 years)
77.7 fps ∼100% +570%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
11.6 (0.2759min, 2.71P1) fps ∼15%
Average Intel UHD Graphics 605
  (9.5 - 11.7, n=3)
10.9 fps ∼14% -6%
Strange Brigade - 1280x720 lowest AF:1
Average of class Convertible
  (8 - 97.8, n=33, last 2 years)
68.2 fps ∼100% +702%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
8.5 (5min, 5P1) fps ∼12%
Average Intel UHD Graphics 605

8.5 fps ∼12% 0%
low med. high ultra
GTA V (2015) 11.6 fps
The Witcher 3 (2015) 1.2 fps
Dota 2 Reborn (2015) 35 11.5 5.9 5.9 fps
Final Fantasy XV Benchmark (2018) 4.15 fps
X-Plane 11.11 (2018) 5.01 3.46 3.09 fps
Strange Brigade (2018) 8.5 fps

排放和电源管理--宏碁敞篷车保持安静和凉爽

噪声排放

由于TravelMate既没有风扇,也没有机械传动装置,所以它运行起来很安静。

温度

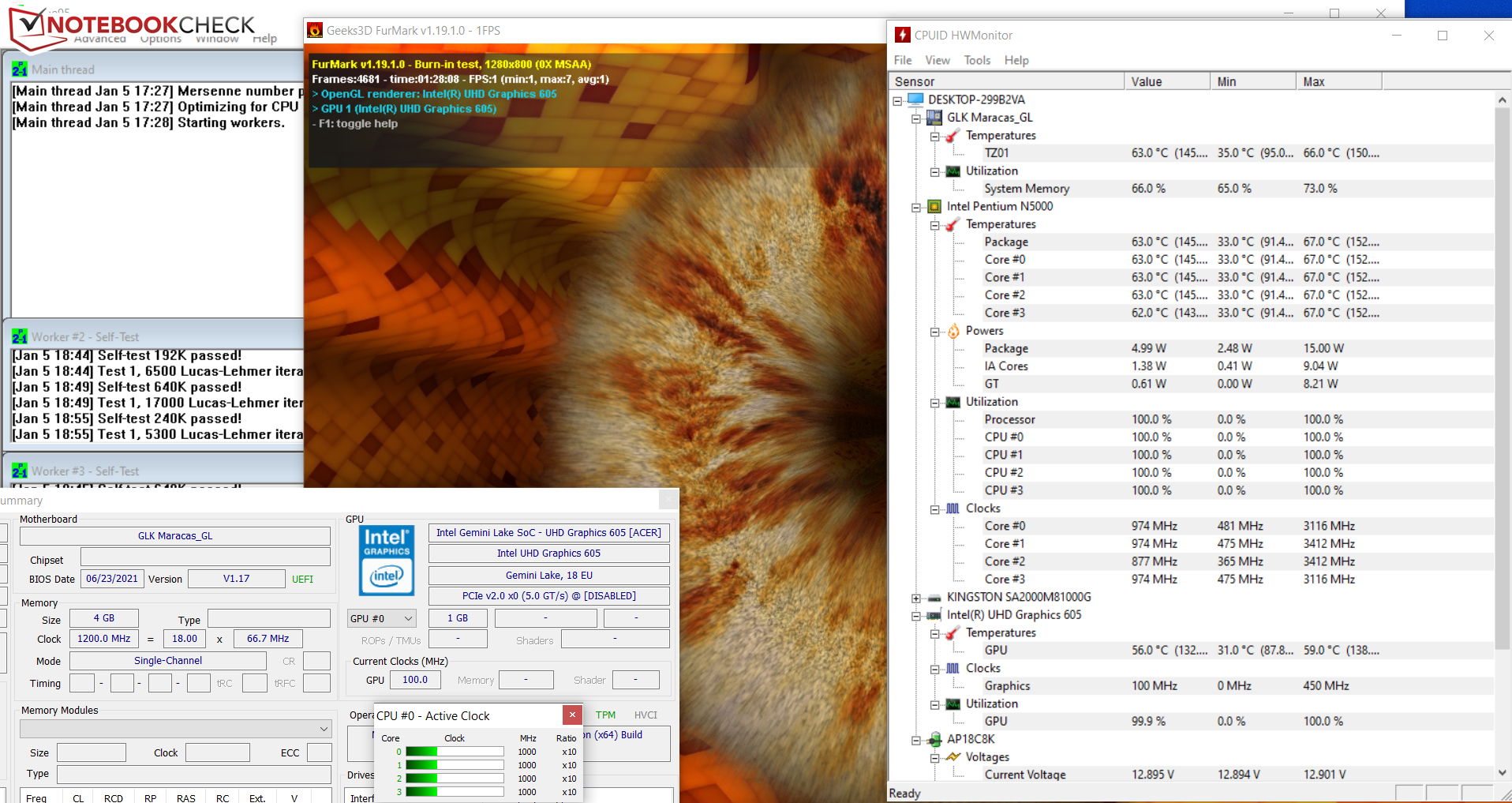

压力测试中的TravelMate
压力测试中的TravelMate

B3总体上只在有限范围内发热。在压力测试期间,在沉重的硬件负载下,我们在某些地方测量到较高的温度,但总的来说,该设备只变得手热。CPU的温度没有理由让人担心。

在压力测试的开始阶段(Prime95和Furmark至少运行了一个小时),CPU以较高的速度运行。继续进行测试,速度下降到1GHz。压力测试代表了一种极端情况。我们用这个测试来评估系统是否在全负荷下保持稳定。

Max. Load
 36.8 °C36 °C28.7 °C
 33.8 °C32.7 °C25.9 °C
 26.2 °C24.4 °C23.6 °C
Maximum: 36.8 °C
Average: 29.8 °C
26.2 °C39.2 °C46 °C
24.8 °C34.6 °C34 °C
22.5 °C24.7 °C25 °C
Maximum: 46 °C
Average: 30.8 °C
Power Supply (max.)  31.7 °C | Room Temperature 22.3 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 29.8 °C / 86 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 36.8 °C / 98 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.7 °C / 76 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.2 °C / 79.2 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (+2.3 °C / 4.1 F).
热量发展--顶部(负载)
热量发展--顶部(负载)

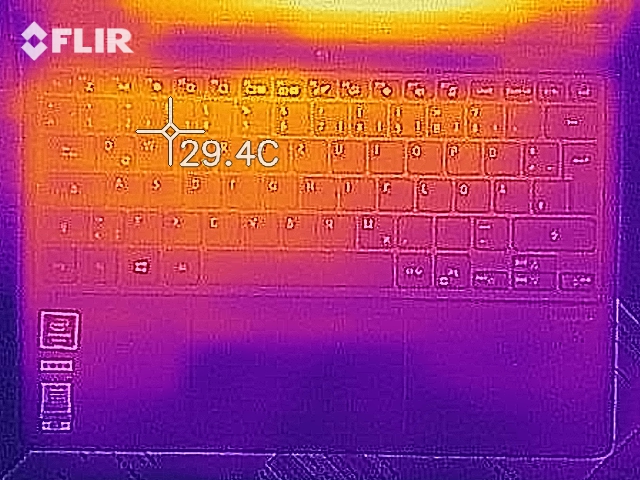

热量发展--顶部(空转)。
热量发展--顶部(空转)。

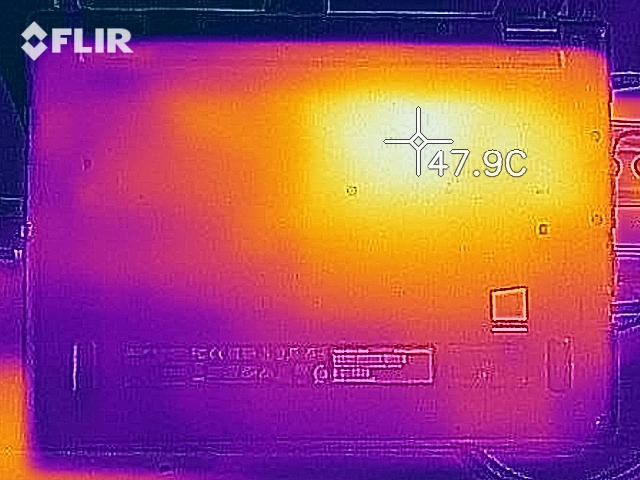

热量的发展--底部(负载)
热量的发展--底部(负载)

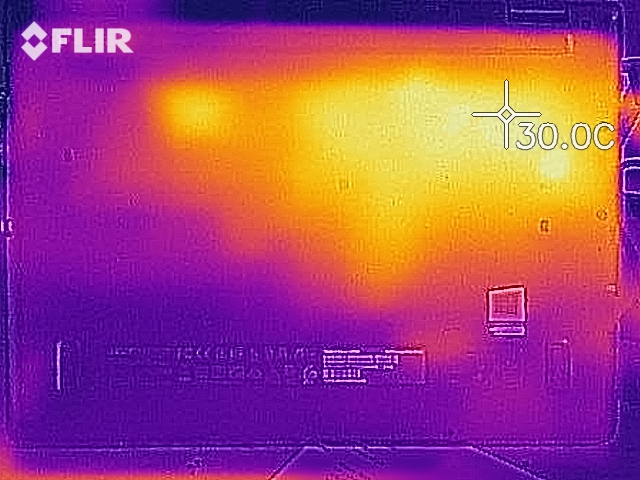

热量发展--底部(空闲)。
热量发展--底部(空闲)。
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183, ARM Mali-G72 MP3
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120, Intel UHD Graphics 600
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, Intel UHD Graphics (Jasper Lake 16 EU)
Heat
9%
6%
-2%
Maximum Upper Side *
36.8
41.4
-13%
42.6
-16%
39.3
-7%
Maximum Bottom *
46
41
11%
43.2
6%
42
9%
Idle Upper Side *
27.8
21
24%
23.3
16%
28.4
-2%
Idle Bottom *
28.8
25.4
12%
23.9
17%
30.4
-6%

* ... smaller is better

发言人

立体声扬声器产生了一个体面的声音,但几乎没有任何低音。最大音量相对较低。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.729.534.72541.433.941.43150.632.450.64034.330.534.35033.735.833.76330.328.330.38025.718.225.710028.619.928.612519.619.419.616017.314.717.320017.814.417.825025.314.425.331536.118.536.140049.812.849.850052.713.652.763051.911.851.980053.311.553.3100059.612.359.6125059.712.159.7160061.312.261.320006112.561250060.913.160.9315059.613.459.6400057.113.457.15000
