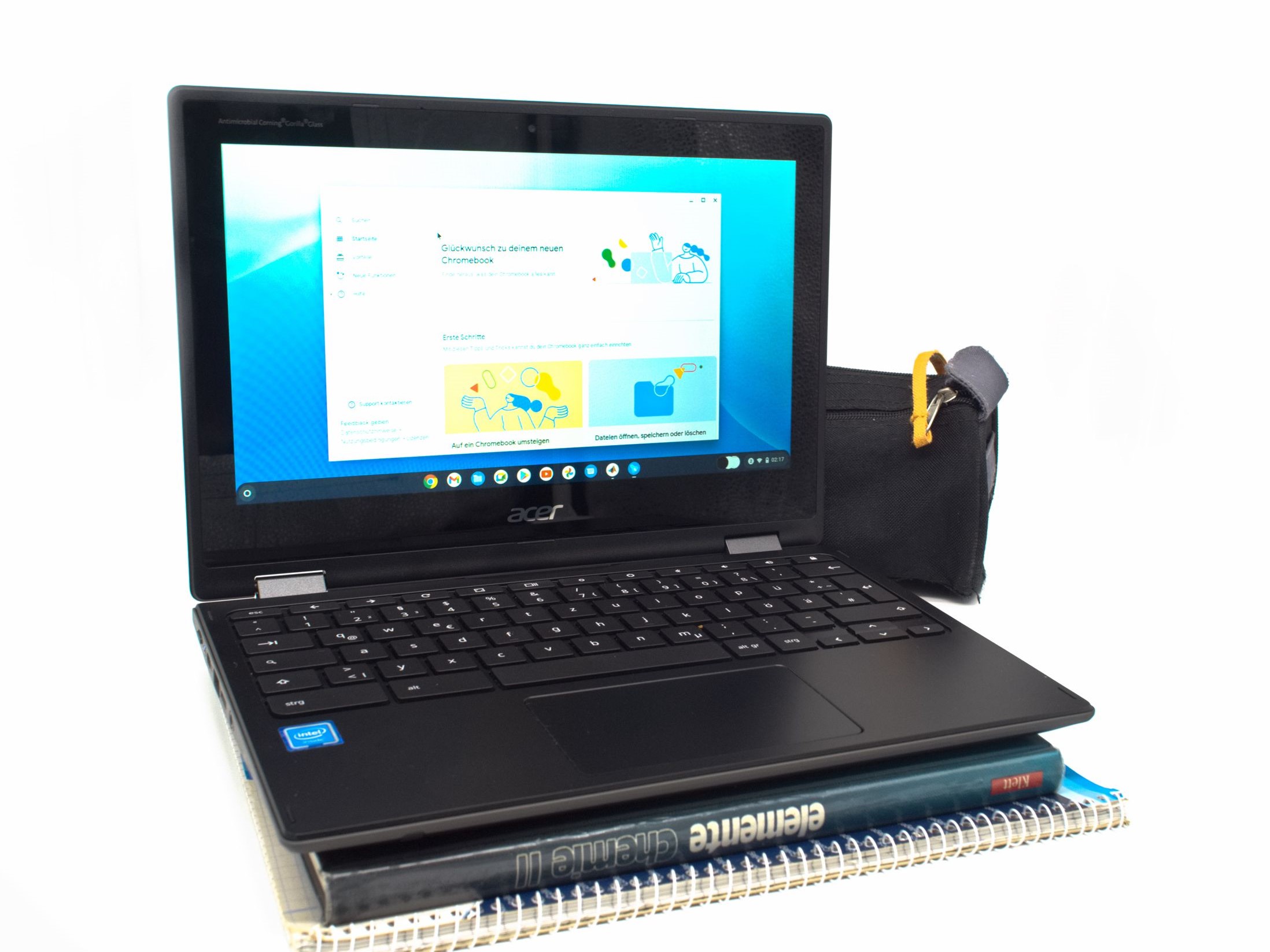

宏碁Chromebook Spin 511 R752T回顾--教室里的二合一笔记本电脑

宏碁Chromebook Spin是奥地利学龄儿童从2021年秋季开始获得的数字设备之一。这款笔记本电脑价格低廉,性能均衡。测试中出现的最紧迫的问题是。装有Chrome OS的笔记本电脑能否取代装有Windows的电脑?
Convertible / 2-in-1 Chromebook Education

2021年夏天,,为奥地利学校儿童的数字终端进行招标。.比赛的四个类别是:Android 平板电脑、Chromebook 笔记本电脑、iOS平板电脑和Windows笔记本电脑。在Chromebook 类别中,我们测试的宏碁Chromebook Spin 511 R752T-C26N能够获胜。这款轻薄的可折叠电脑以其低重量、安静的操作和良好的系统性能而令人信服。根据25%的规则,这款笔记本电脑的私人捐款只有84.27欧元(约95美元)。这使得宏基Chromebook ,成为奥地利学校学习者最实惠的选择。学校自己决定使用招标类别中的哪种设备类型。

在学校使用时,可以使用谷歌教育工作空间对Chromebook进行集中管理。教育和国际化机构提供了一个设备管理的指南.与用于学校的Windows笔记本电脑相比,我们已经有了联想ThinkBook14进行了测试,使用Chrome操作系统的笔记本电脑具有一些优势和劣势。适应该操作系统的硬件可以更有效地工作,谷歌的操作系统在安全方面也有优势。然而,在软件选择方面,Chromebook严重依赖Google Play商店,而且离线操作不像在微软的操作系统下那样不受限制。

我们的测试数据库还包括对以下产品的测试 iPad 10.2三星Galaxy Tab S6 Lite可以找到。这些都是iOS和Android 平板电脑类别中的投标赢家。

Acer Chromebook Spin 511 R752T-C26N (Chromebook Spin Series)
Processor
Intel Celeron N4120 4 x 1.1 GHz, Gemini Lake Refresh
Graphics adapter
Intel UHD Graphics 600
Memory
7.7 GB
Display
11.60 inch 16:9, 1366 x 768 pixel 135 PPI, yes, IPS-Grade, glossy: yes, 60 Hz
Connections
4 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm Headset, Card Reader: micro SD, Sensors: Accelerometer, Gyroscop, Gravity sensor
Networking
Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)
Size
height x width x depth (in mm): 20 x 296 x 205
Battery
41 Wh Lithium-Ion
Operating System
Google Chrome OS
Camera
Webcam: 0.9 MP
Additional features
Speakers: Stereo, Keyboard Light: no, 48 Months Warranty, fanless
Weight
1.18 kg, Power Supply: 330 g
Price
337.08 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
80.3 %
11/2021
Acer Chromebook Spin 511 R752T-C26N
Celeron N4120, UHD Graphics 600
1.2 kg20 mm11.60"1366x768
83.6 %
09/2021
Asus Chromebook Flip CX5 CX5500FEA
i7-1165G7, Iris Xe G7 96EUs
2 kg18.5 mm15.60"1920x1080
80.7 %
10/2021
Acer Chromebook 15 CB315-3HT-P297
Pentium N5030, UHD Graphics 605
1.9 kg20.3 mm15.60"1920x1080
86.2 %
08/2020
Acer Chromebook Spin 713 CP713-2W-560V
i5-10210U, UHD Graphics 620
1.4 kg16.8 mm13.50"2256x1504
81.5 %
HP Chromebook 14 G5
Celeron N3350, HD Graphics 500
1.5 kg18.3 mm14.00"1920x1080
83.6 %
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
i3-1115G4, UHD Graphics Xe G4 48EUs
1.5 kg17.9 mm14.00"1920x1080
83.1 %
05/2020
Samsung Galaxy Tab S6 Lite
Exynos 9611, Mali-G72 MP3
467 g7 mm10.40"2000x1200
88 %
10/2020
Apple iPad 10.2 2020
A12 Bionic, A12 Bionic GPU
495 g7.5 mm10.20"2160x1620

案例 - 塑料能否承受日常学校生活的压力?

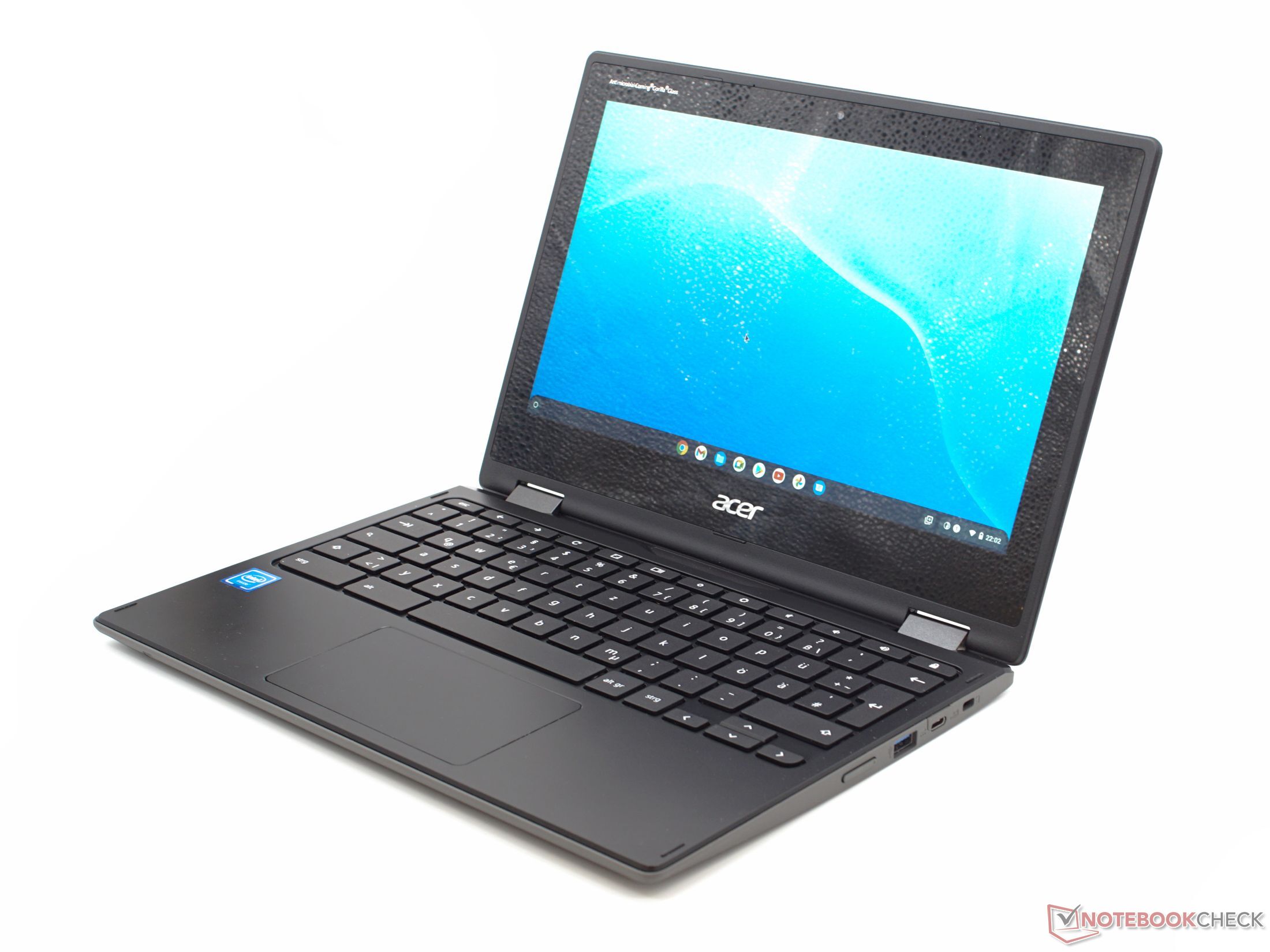

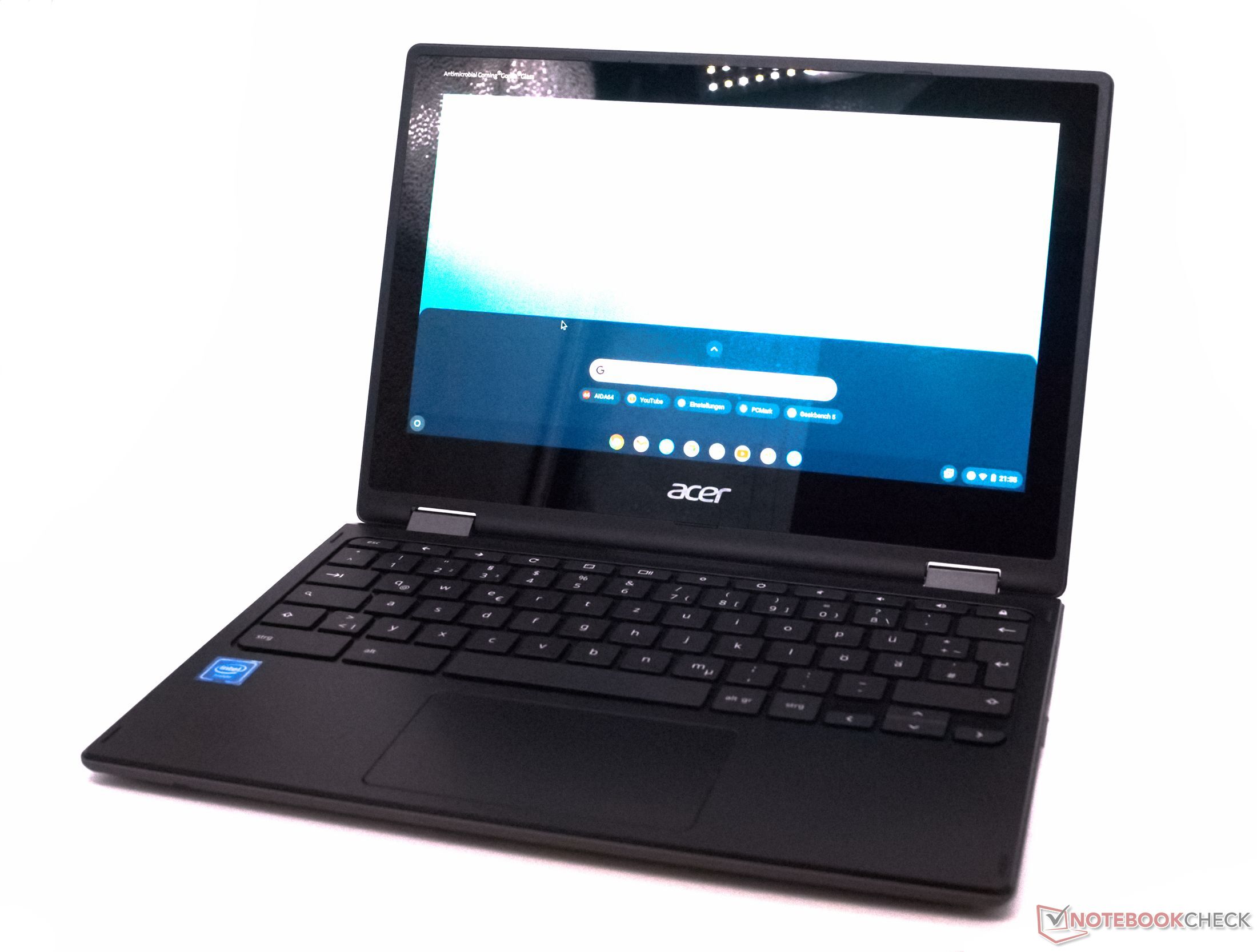

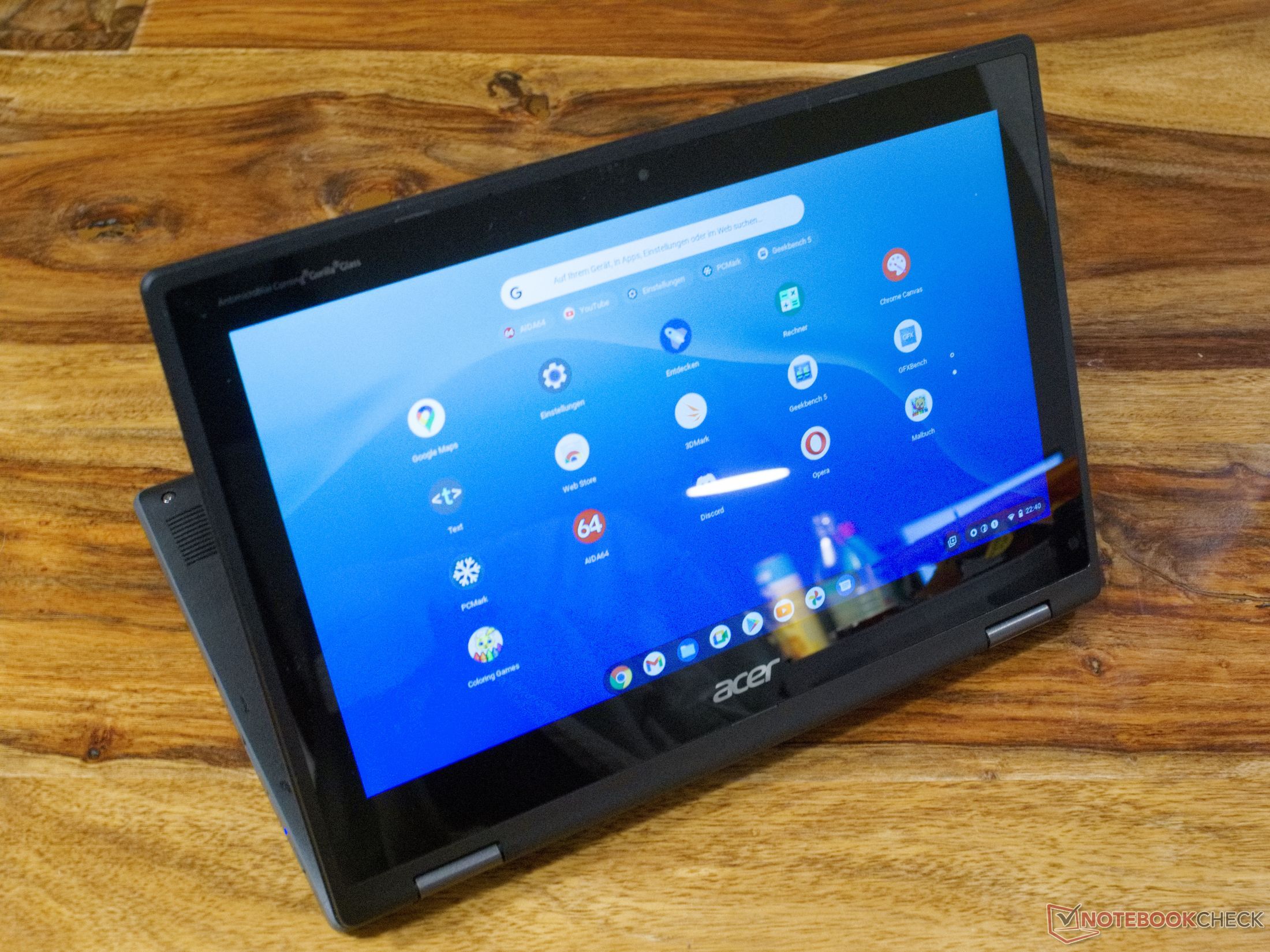

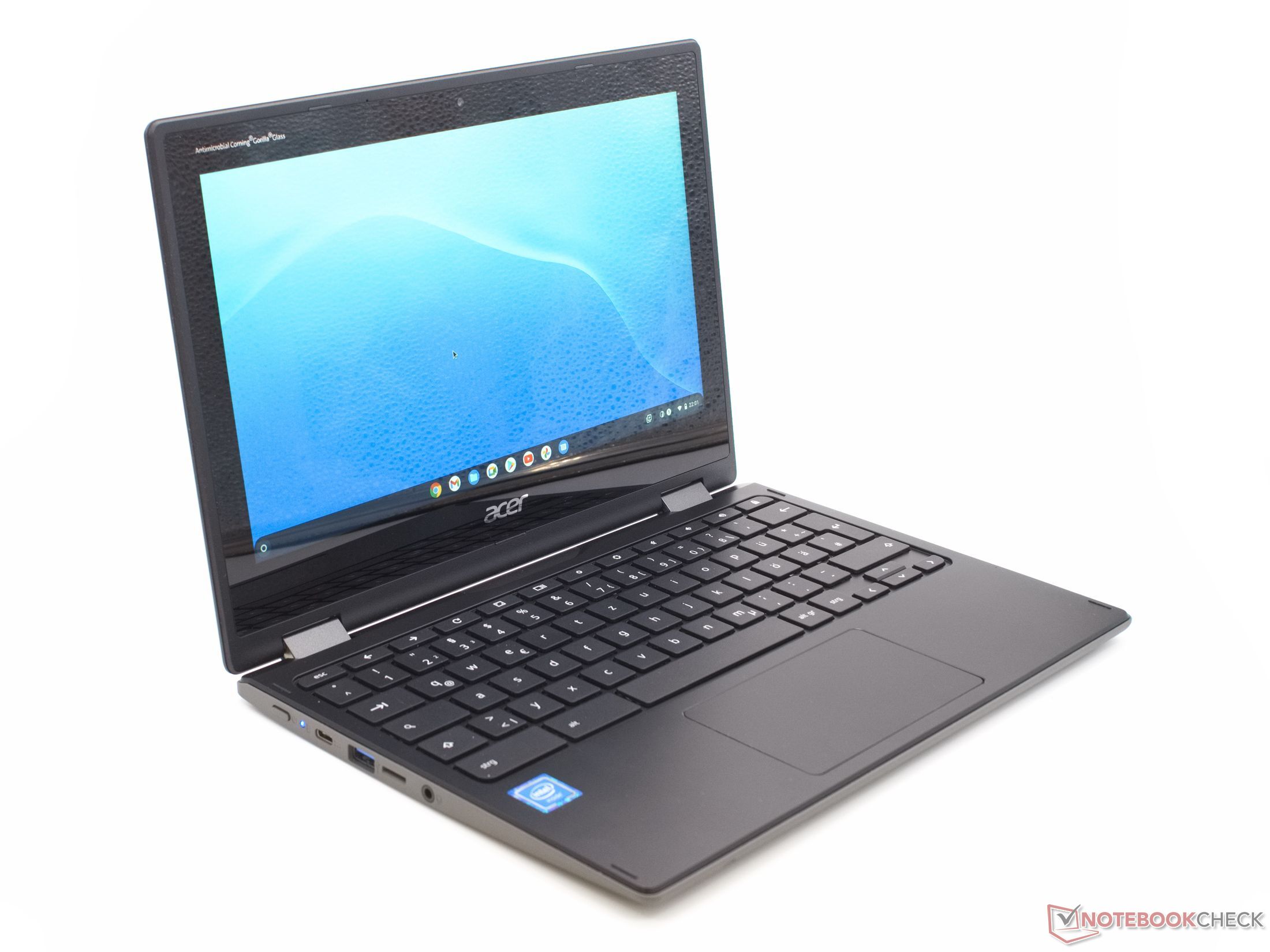

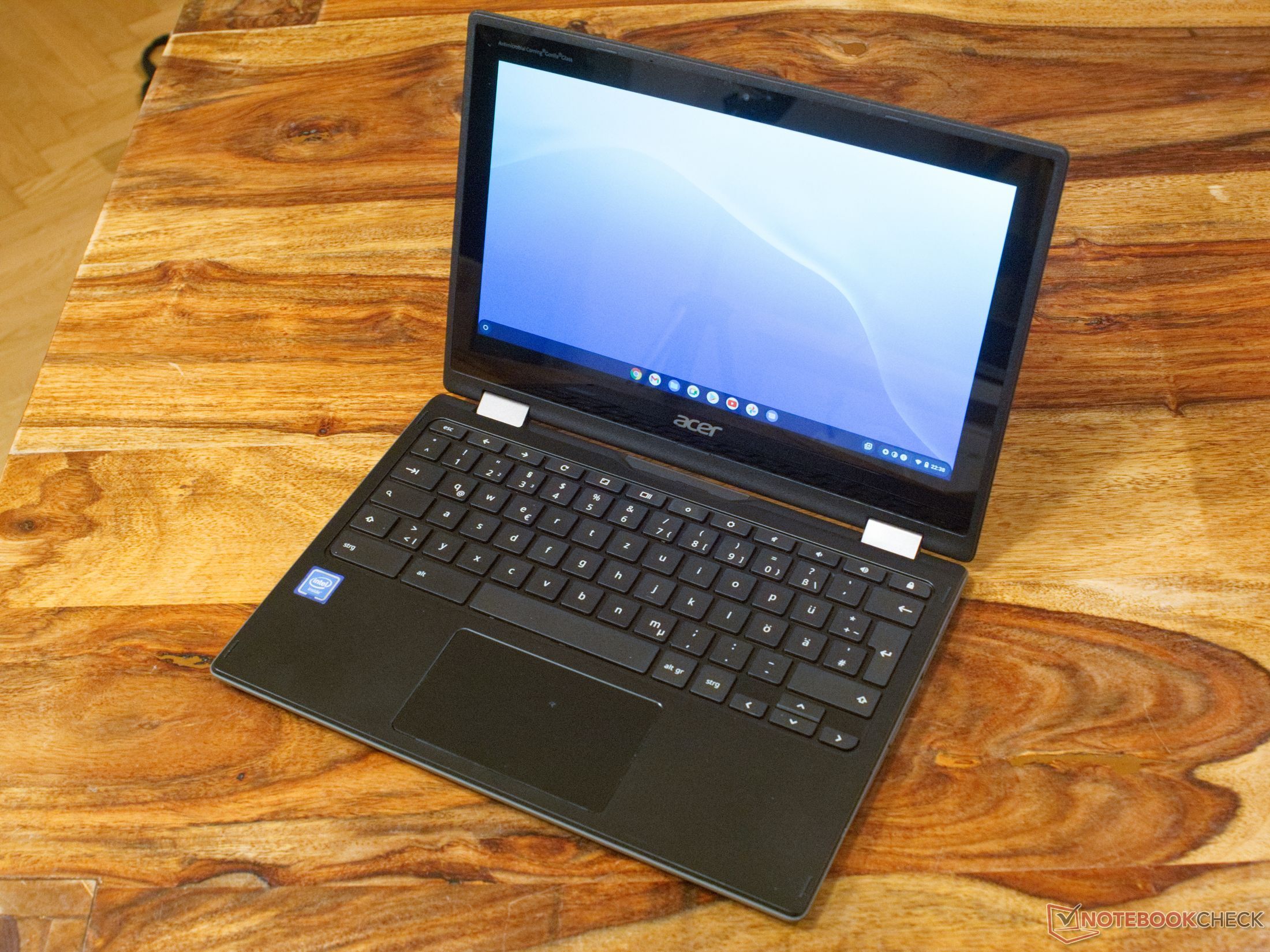

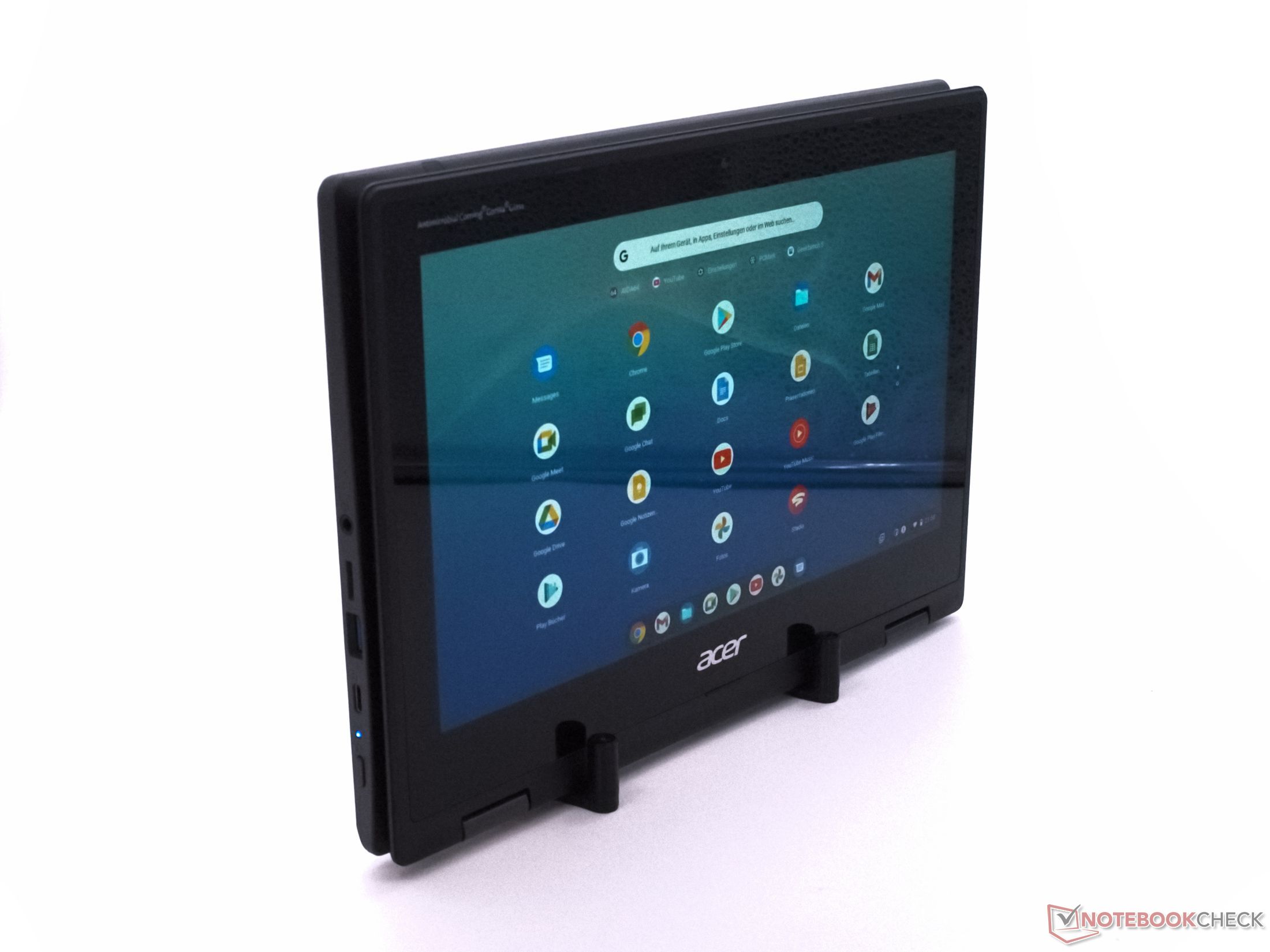

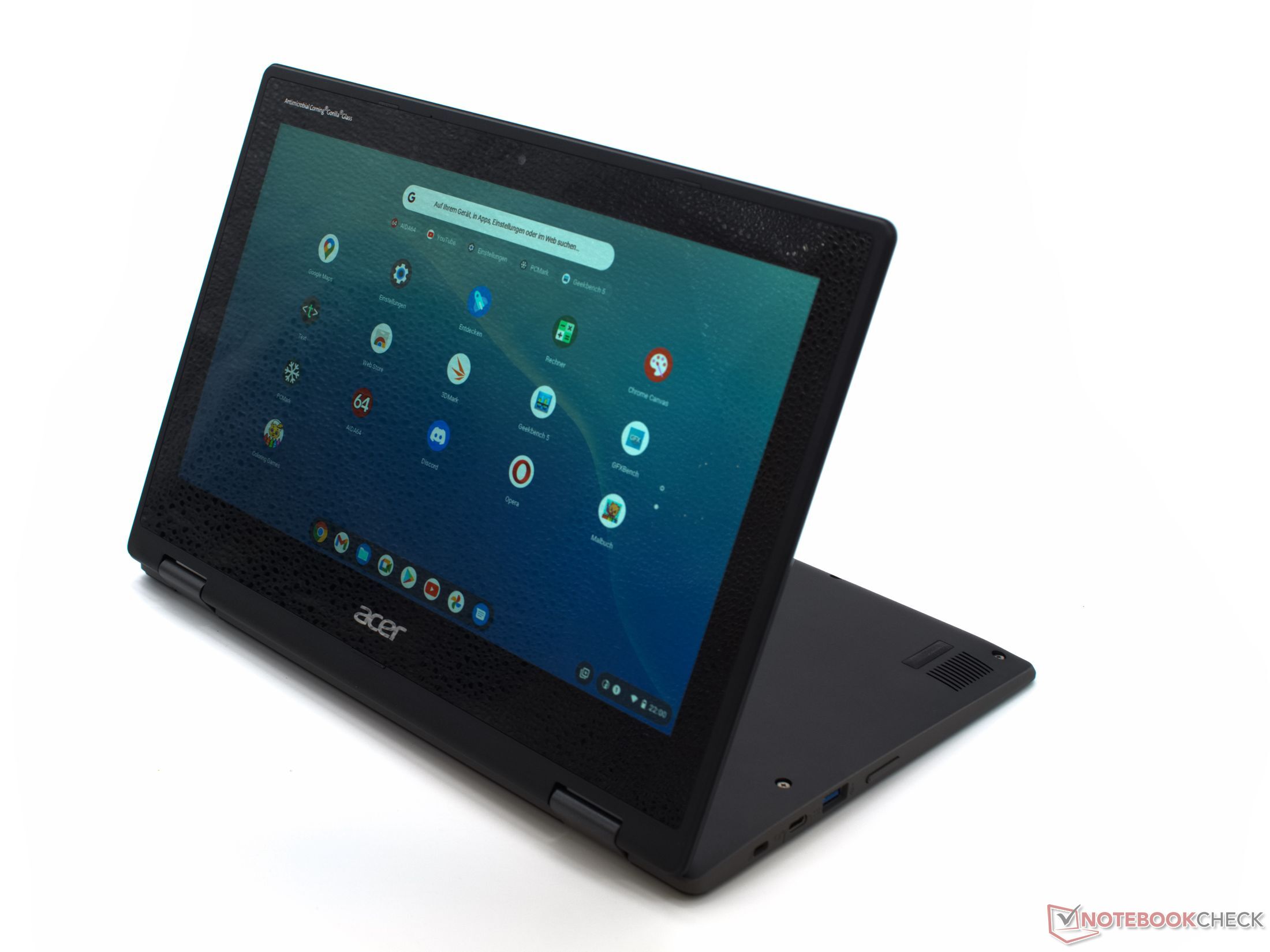

宏碁Chromebook Spin 511是一款相对简单的可折叠机。一个非常宽的显示屏边框和大量的塑料决定了它的外观。然而,这台二合一笔记本电脑看起来并不便宜。良好的做工和高度的稳定性决定了这台面向奥地利学龄儿童的数字终端设备的整体印象。在实践中,这台1.2公斤(约2.65磅)的笔记本电脑应该能够承受住日常学校生活的压力。显示器由抗菌的康宁大猩猩玻璃保护。.这种抗性玻璃应该是用银离子来防止病菌的生长。这当然是一个很好的功能,特别是在繁忙的学校生活中。

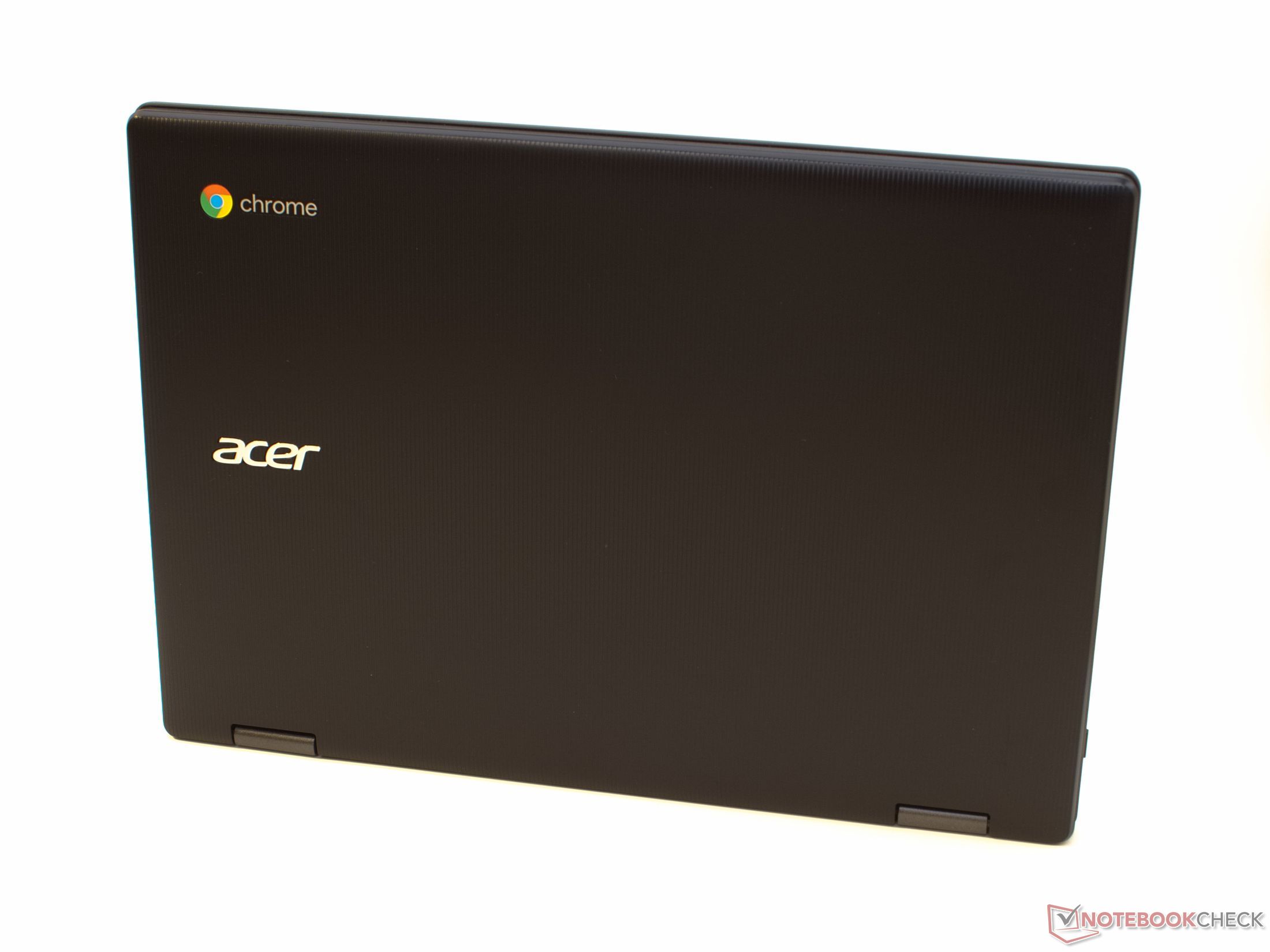

箱盖的细条纹表面,围绕底座的灰色边框,以及喷漆铰链,打破了Chromebook 的黑色塑料为主的表面。箱盖上的镀铬标志也提供了一抹亮色。总而言之,该外壳的外观和质量都很高。

宏碁Chromebook ,在书包里并不重。它的厚度只有2厘米(约0.8英寸),重量为1180克(约2.6磅),可转换的书包与大多数学校的书本处于同一范围。电源在书包中又增加了330克(约11.6盎司)。

Size Comparison

357 mm 240 mm 18.5 mm 2 kg337 mm 226 mm 18.3 mm 1.5 kg301 mm 235 mm 16.8 mm 1.4 kg296 mm 205 mm 20 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

设备 - 只有USB-C适配器才有完整的端口选择

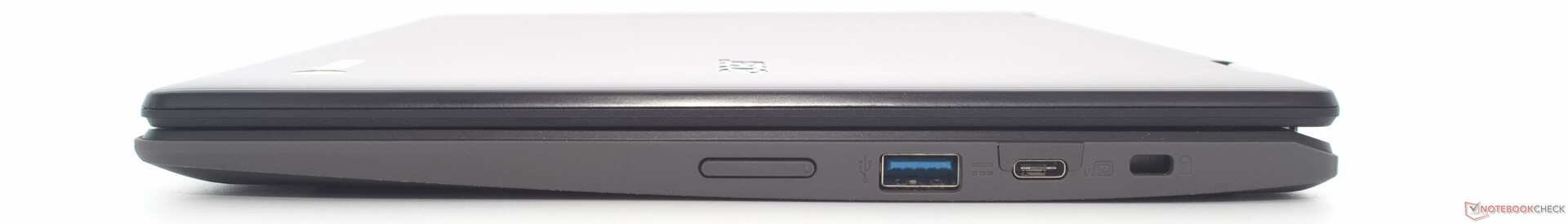

宏碁的Chromebook Spin提供了两个USB 3.2 Type-A和两个Type-C接口以及一个读卡器。这款二合一笔记本电脑不需要更多,因为屏幕也可以通过右侧的USB-C端口与相应的适配器连接。两个USB-C端口都可用于充电。所有的端口都可以在设备的两边方便地使用,而不会互相妨碍。

音量控制,USB 3.2 Type-A,USB 3.2 Type-C与PowerDelivery和Display Port ,Kensington锁插槽
音量控制,USB 3.2 Type-A,USB 3.2 Type-C与PowerDelivery和Display Port ,Kensington锁插槽

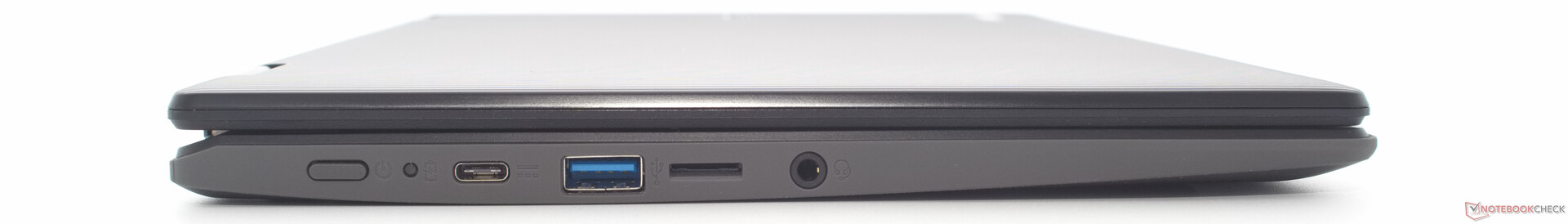

电源按钮,电源LED,带PowerDelivery的USB 3.2 Type-C,USB 3.2 Type-A,微型SD卡读卡器,3.5毫米耳机插孔
电源按钮,电源LED,带PowerDelivery的USB 3.2 Type-C,USB 3.2 Type-A,微型SD卡读卡器,3.5毫米耳机插孔

淘宝网

Acer Spin的microSD读卡器相当慢。不幸的是,读卡器是扩大Chromebook's存储空间的唯一途径。作为回报,microSD卡可以完全插入笔记本电脑并被安全地锁定。几乎很难将插入的microSD卡再次从插槽中取出。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Convertible
  (17.7 - 209, n=35, last 2 years)
78.2 MB/s +137%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
  (AV Pro V60)
72.3 (69.86min - 73.5max) MB/s +119%
Acer Chromebook Spin 713 CP713-2W-560V
  (Toshiba Exceria Pro M501 microSDXC 64GB)
57 MB/s +73%
Acer Chromebook Spin 511 R752T-C26N
  (AV Pro SD microSD 128 GB V60)
33 MB/s
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (22.6 - 263, n=34, last 2 years)
99 MB/s
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
  (AV Pro V60)
86.9 MB/s

沟通

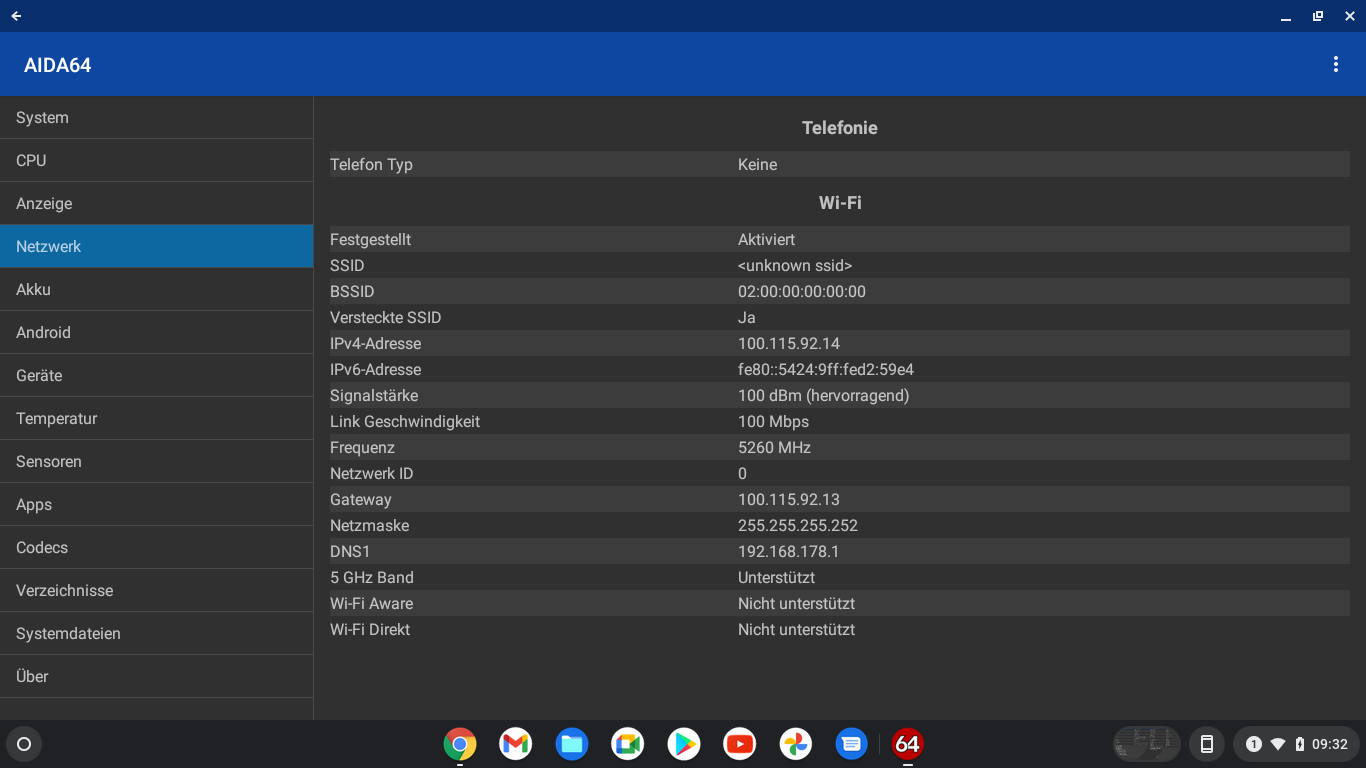

一个英特尔无线AC 9560模块通过Wi-Fi 5和蓝牙5.1将宏碁Chromebook ,连接到其他设备和互联网。因此,这款二合一笔记本电脑并不是最先进的,但网络速度应该足以满足4K流媒体的需要。测试的奥地利学校的Windows笔记本电脑也依赖于这个模块,并且能够实现高达688Mbps的传输速度。.

网络摄像头

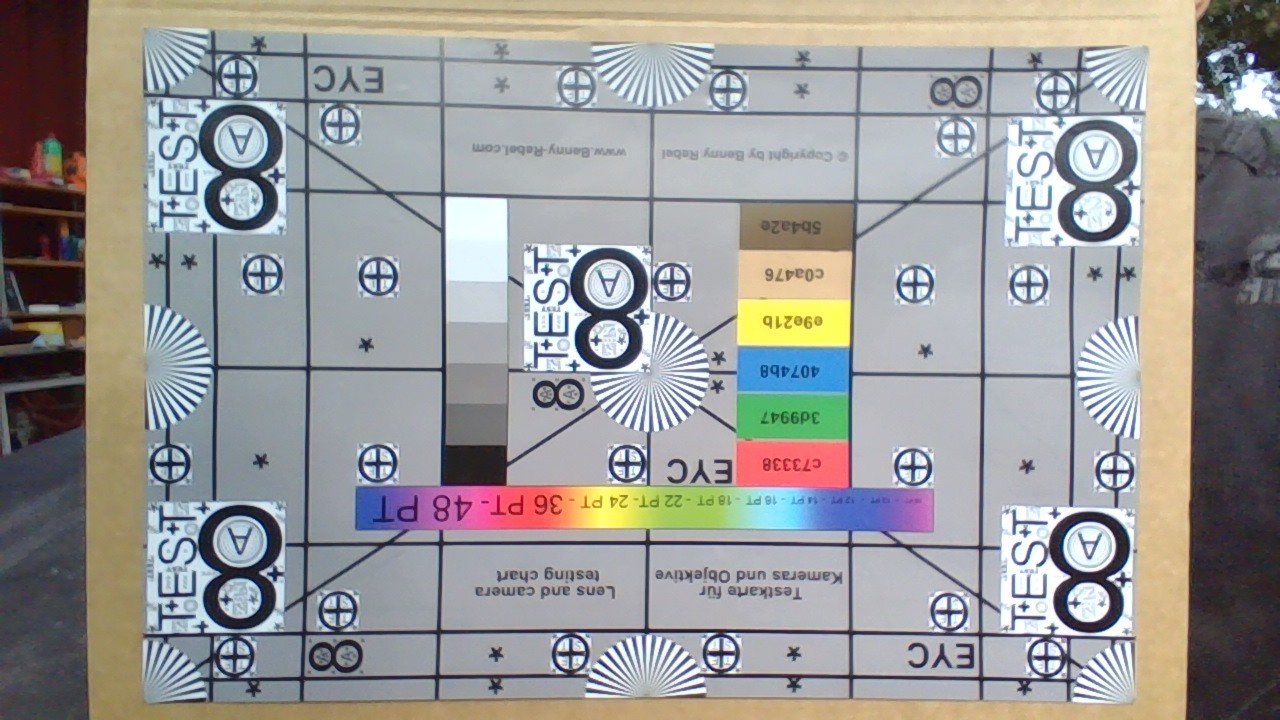

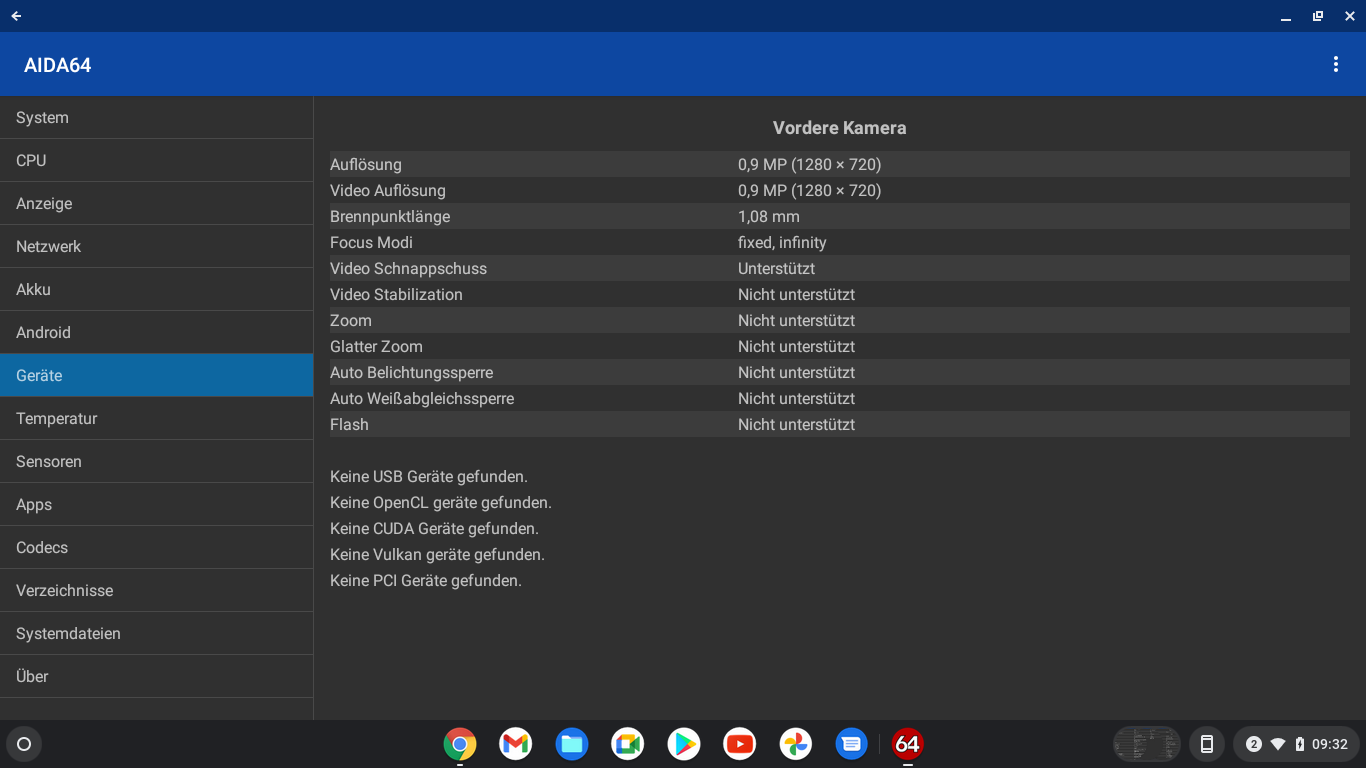

安装在显示屏边框中央的90万像素网络摄像头的图像质量只有在平衡光线下才能接受。在非常有限的区域之外,网络摄像头的图像要么非常嘈杂,要么严重曝光过度,尽管其他摄像头在相同的照明条件下对物体成像良好。

高色彩偏差和低锐度也损害了相机的图像。测试图像显示所有区域的边缘都被冲刷过。这使得它几乎无法拍摄作业。

ColorChecker
32.5 ∆E
30.3 ∆E
29.9 ∆E
34.1 ∆E
34.1 ∆E
28.2 ∆E
32.5 ∆E
31.5 ∆E
25.2 ∆E
31.6 ∆E
24 ∆E
25.8 ∆E
26.3 ∆E
27.2 ∆E
28.3 ∆E
17.8 ∆E
28.7 ∆E
33.8 ∆E
2.3 ∆E
11.8 ∆E
22.8 ∆E
29.5 ∆E
35 ∆E
25.5 ∆E
ColorChecker Acer Chromebook Spin 511 R752T-C26N: 27.04 ∆E min: 2.33 - max: 35.03 ∆E

辅料

在目前的配置中,除了电源和纸质文件外,测试设备没有附带任何附件。奥地利的学校用户不得不不使用Chromebook Spin 511的其他配置中所包含的数字笔。由于学校里的数字设备可能大部分时间都要靠电池供电,购买一个带有USB-C和PowerDelivery的电源可能是值得的。因为即使是非常小的能量也足以让这个经济型二合一笔记本电脑运行。

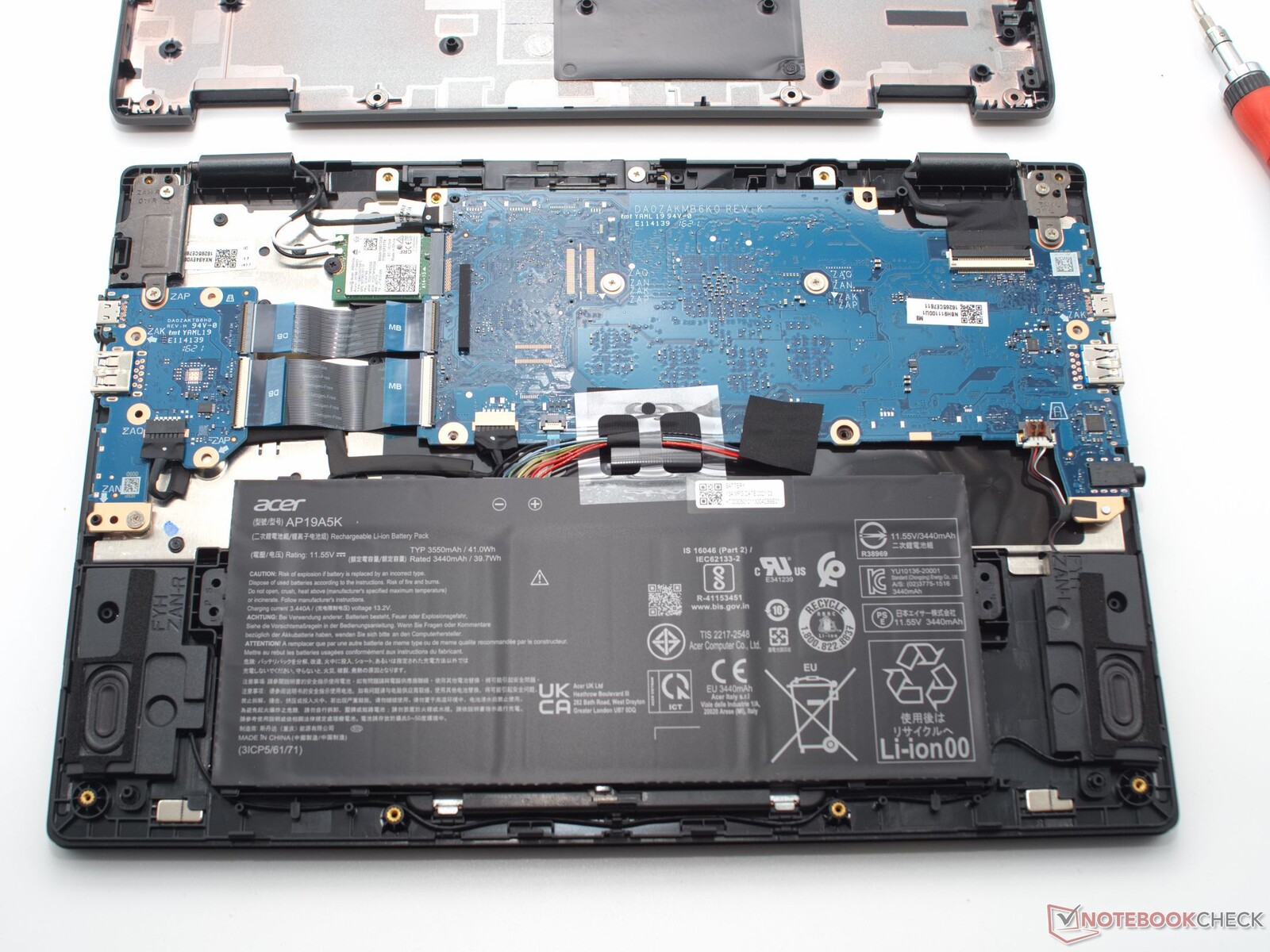

维护

即使Chromebook ,也可以很容易地打开,但里面几乎没有任何组件可以被替换。只有WLAN模块可以被替换。更换电池原则上是可能的,但需要更多的努力,因为它在很多地方都用胶水和胶带固定。

担保

根据数字终端设备的奖励准则,制造商的两年保修期再延长两年,使保修期达到四年。OeAD的信息页面还建议购买电子产品保险,以防丢失和被盗,并定期备份数据。

输入设备 - 键盘声音很大,幸运的是Chromebook ,有一个触摸屏。

键盘

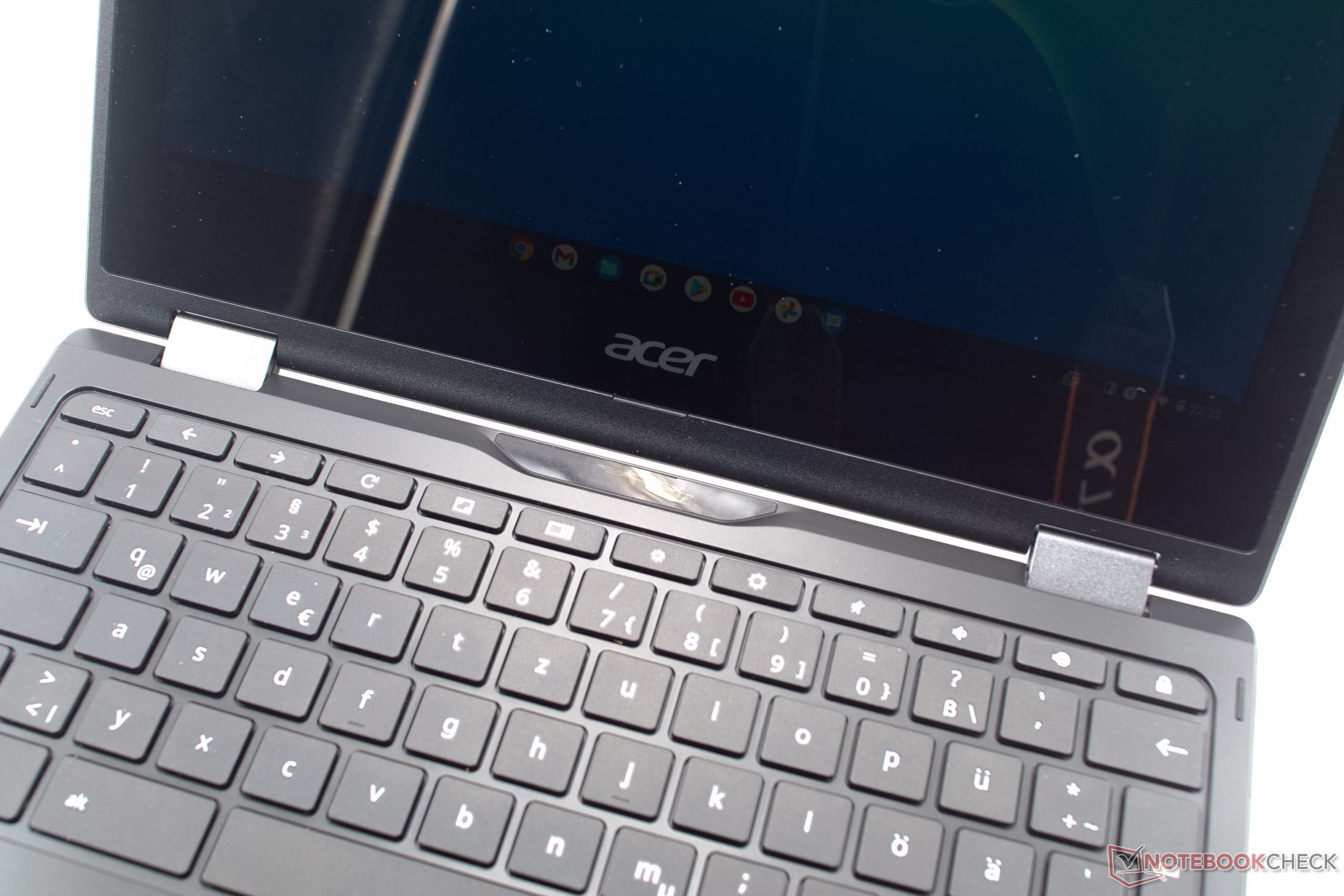

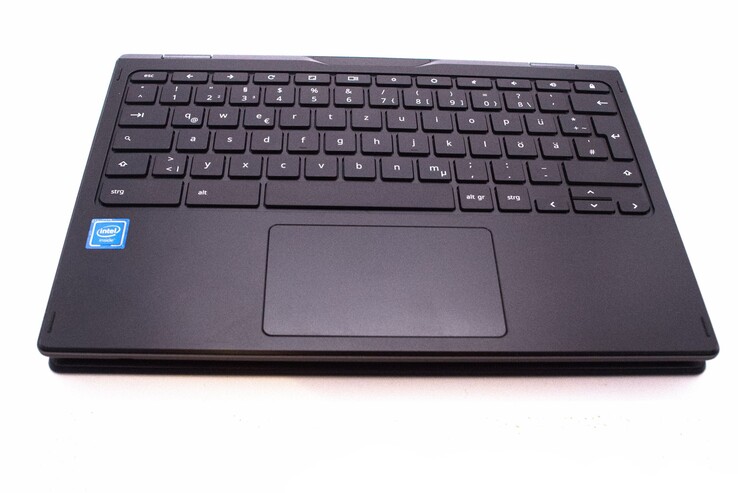

15×15毫米的按键,按键落差为2毫米,有相当强的触觉反馈。因此,宏碁Chromebook 似乎很适合学习打字。只有键盘的噪音可能会诱使你长期使用大型屏幕键盘。然而,屏幕键盘也更适合初学者在不利的照明条件下使用,因为物理键盘没有背光。键盘布局几乎与标准键盘相同,只是大写锁定键被替换为快速搜索键。

触摸板

Chorme OS提供的所有手势都能被ClickPad识别,没有问题。的所有手势都能被ClickPad识别,没有任何问题。

触摸屏

这款学生笔记本电脑的10指多点触屏工作起来令人满意,没有重大的延迟或可察觉的偏差。光滑、抗微生物的康宁大猩猩玻璃接受的指纹相对较少,而且容易清洁。

显示屏 - 宏碁Chromebook ,在这里显然失去了分数。

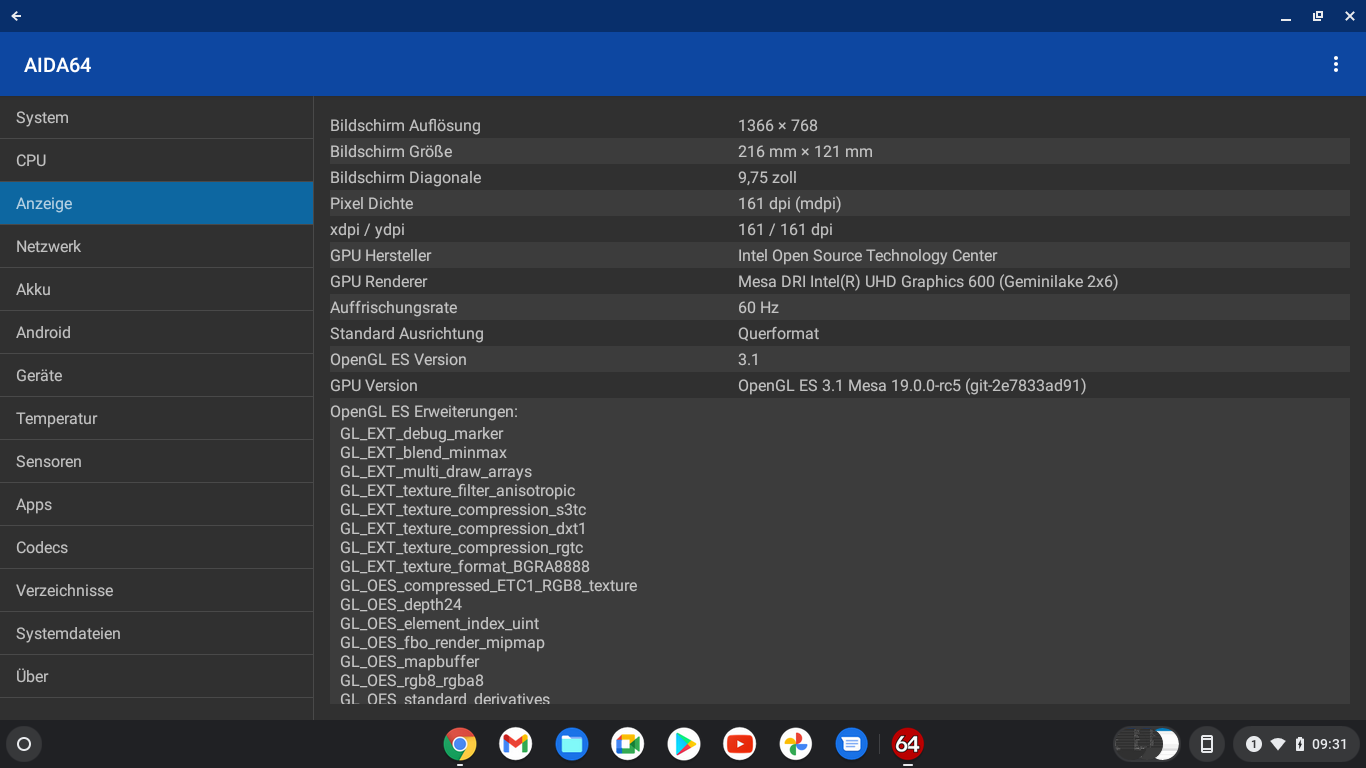

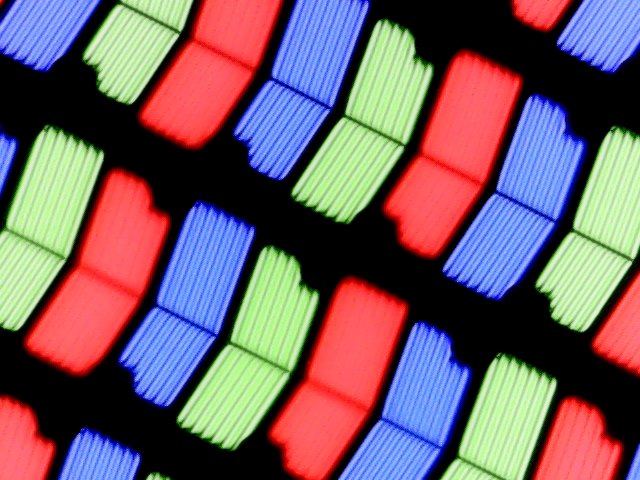

宏碁Chromebook Spin 511的11.6英寸屏幕和1366×768像素的分辨率都无法说服人。然而,这款二合一笔记本电脑提供了2645:1的极高对比度。因此,文字的可读性很好,在播放电影时,屏幕也能令人信服。显示屏的平均亮度只有271cd/m²,乍一看可能有点低,但由于对比度高,它并不特别令人讨厌。

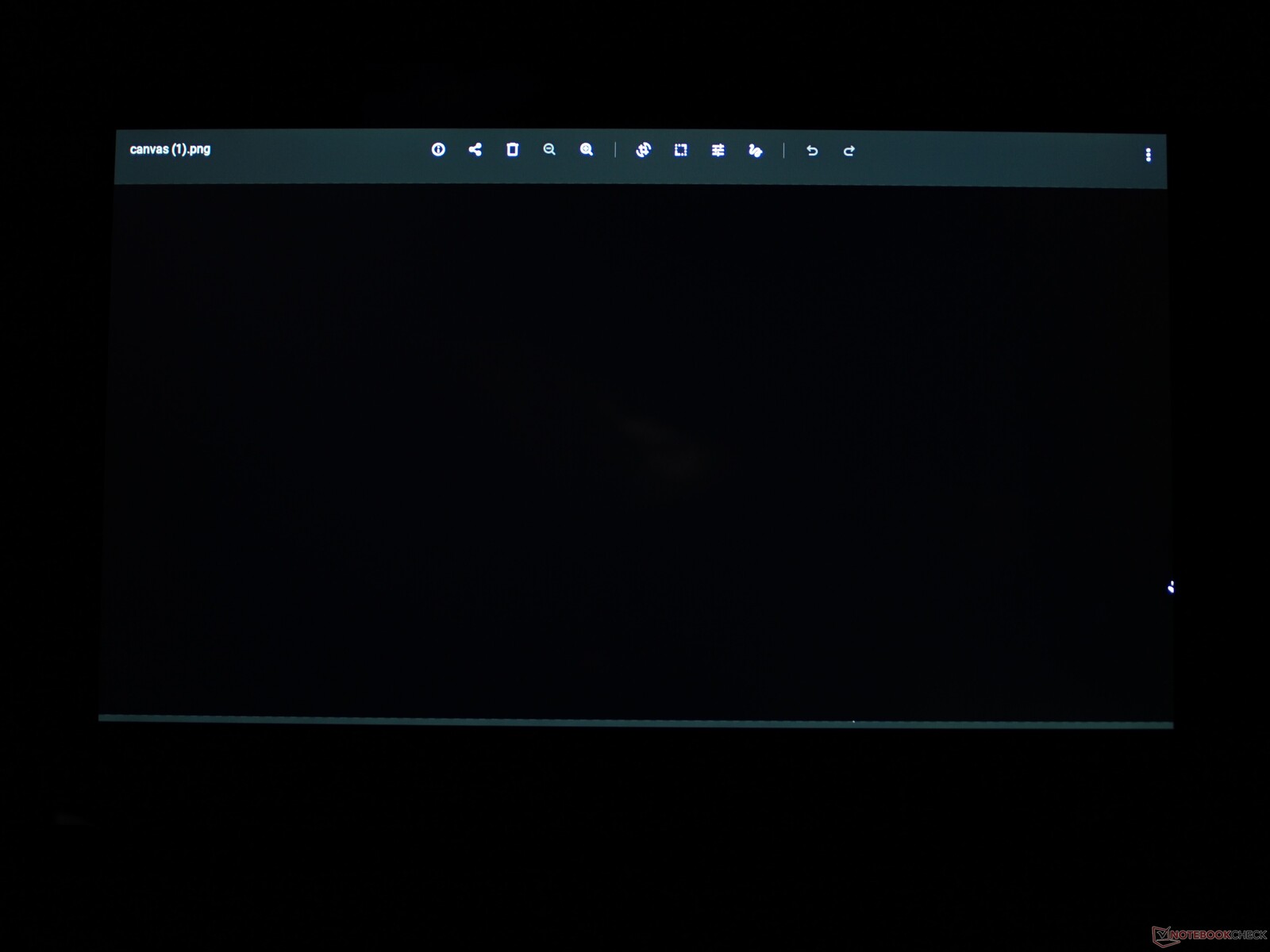

屏幕上既没有光晕,也没有其他恼人的照明缺陷可言。因此,尽管我们不幸地不得不注意到屏幕亮度是通过PWM调节的,但总的来说屏幕还是不错的。闪烁的频率是1000赫兹,因此应该只对少数人造成问题。

291
cd/m²
286
cd/m²
256
cd/m²
280
cd/m²
291
cd/m²
266
cd/m²
261
cd/m²
263
cd/m²
246
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 291 cd/m² (Nits) Average: 271.1 cd/m² Minimum: 14 cd/m²
Brightness Distribution: 85 %
Center on Battery: 291 cd/m²
Contrast: 2645:1 (Black: 0.11 cd/m²)
ΔE Color 8.14 | 0.5-29.43 Ø5
ΔE Greyscale 5.84 | 0.57-98 Ø5.3
Gamma: 2.5
Acer Chromebook Spin 511 R752T-C26N
IPS-Grade, 1366x768, 11.60
Asus Chromebook Flip CX5 CX5500FEA
IPS, 1920x1080, 15.60
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
AU Optronics B140HAN04.E, a-Si IPS LED, 1920x1080, 14.00
Samsung Galaxy Tab S6 Lite
TFT, 2000x1200, 10.40
Apple iPad 10.2 2020
IPS, 2160x1620, 10.20
Display
Display P3 Coverage
37.2
sRGB Coverage
55.5
AdobeRGB 1998 Coverage
38.4
Response Times
-3%
-23%
2686%
4%
Response Time Grey 50% / Grey 80% *
33 ?(15, 18)
35 ?(16, 19)
-6%
45.9 ?(21.2, 24.7)
-39%
45.2 ?(21.2, 24)
-37%
39.2 ?(18.8, 20.4)
-19%
Response Time Black / White *
27 ?(14, 13)
27 ?(15, 12)
-0%
29 ?(15.7, 13.3)
-7%
27.2 ?(14, 13.2)
-1%
20 ?(7.6, 12.4)
26%
PWM Frequency
1000 ?(90)
81970 ?(16)
8097%
Screen
5%
-15%
3%
-12%
Brightness middle
291
282
-3%
386
33%
503
73%
477
64%
Brightness
271
259
-4%
348
28%
477
76%
452
67%
Brightness Distribution
85
84
-1%
83
-2%
91
7%
86
1%
Black Level *
0.11
0.15
-36%
0.29
-164%
0.29
-164%
0.5
-355%
Contrast
2645
1880
-29%
1331
-50%
1734
-34%
954
-64%
Colorchecker dE 2000 *
8.14
5.55
32%
6.3
23%
4.4
46%
2.2
73%
Colorchecker dE 2000 max. *
19.9
7.46
63%
18.3
8%
10.4
48%
5
75%
Greyscale dE 2000 *
5.84
4.97
15%
5.4
8%
7.5
-28%
3.3
43%
Gamma
2.5 88%
2.41 91%
2.55 86%
2.19 100%
2.23 99%
CCT
6761 96%
6473 100%
5894 110%
7700 84%
7019 93%
Colorchecker dE 2000 calibrated *
4.1
Total Average (Program / Settings)
1% / 3%
-19% / -16%
1345% / 735%
-4% / -9%

* ... smaller is better

ΔΕ5.84的平均颜色偏差处于一个范围内,单一颜色的显示不是那么正确。然而,对于主要用于文字处理程序和类似办公程序等应用的笔记本电脑来说,颜色的表现不一定要完美。只有在艺术课上,才能发现屏幕的色彩表现力是令人讨厌的。

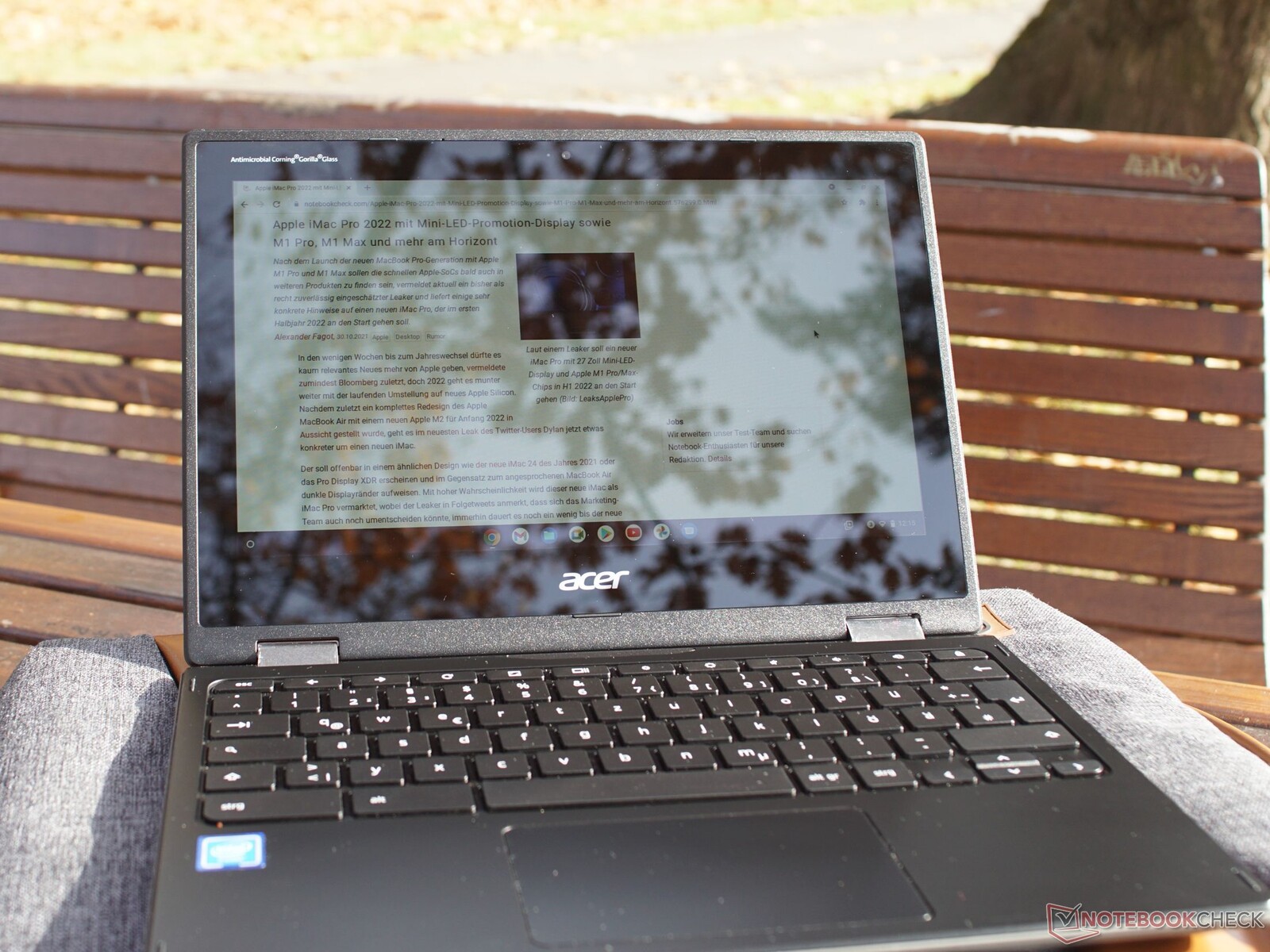

尽管屏幕的低亮度与高反射的显示表面相结合,但在户外使用时,文字还是很清晰的。有时,显示玻璃上的反光会让人感到疲惫。如果对屏幕进行适当的调整,阅读会更容易。

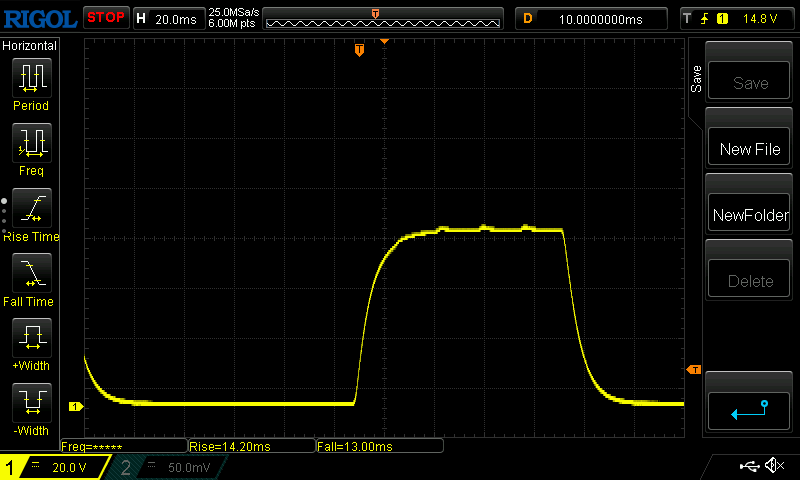

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 13 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 63 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.5 ms).

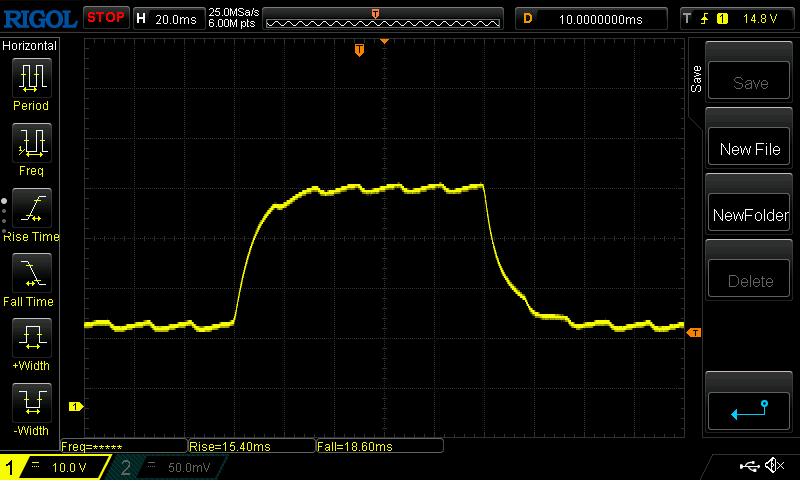

       Response Time 50% Grey to 80% Grey
33 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 38 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.7 ms).

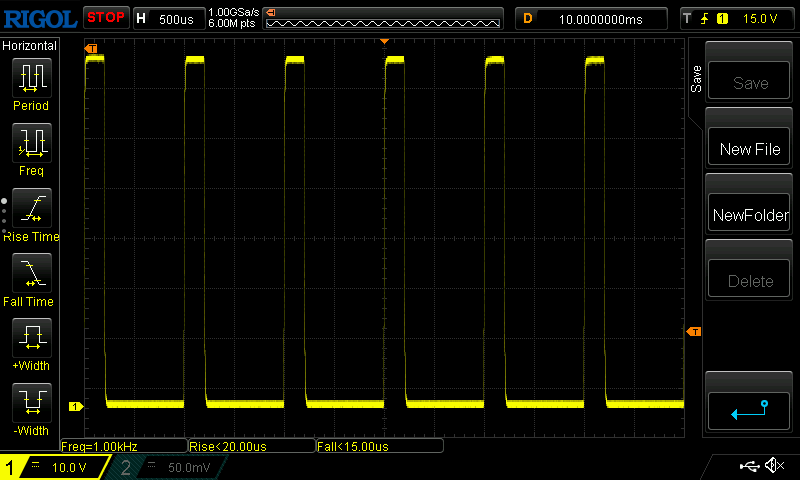

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1000 Hz ≤ 90 % brightness setting

The display backlight flickers at 1000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

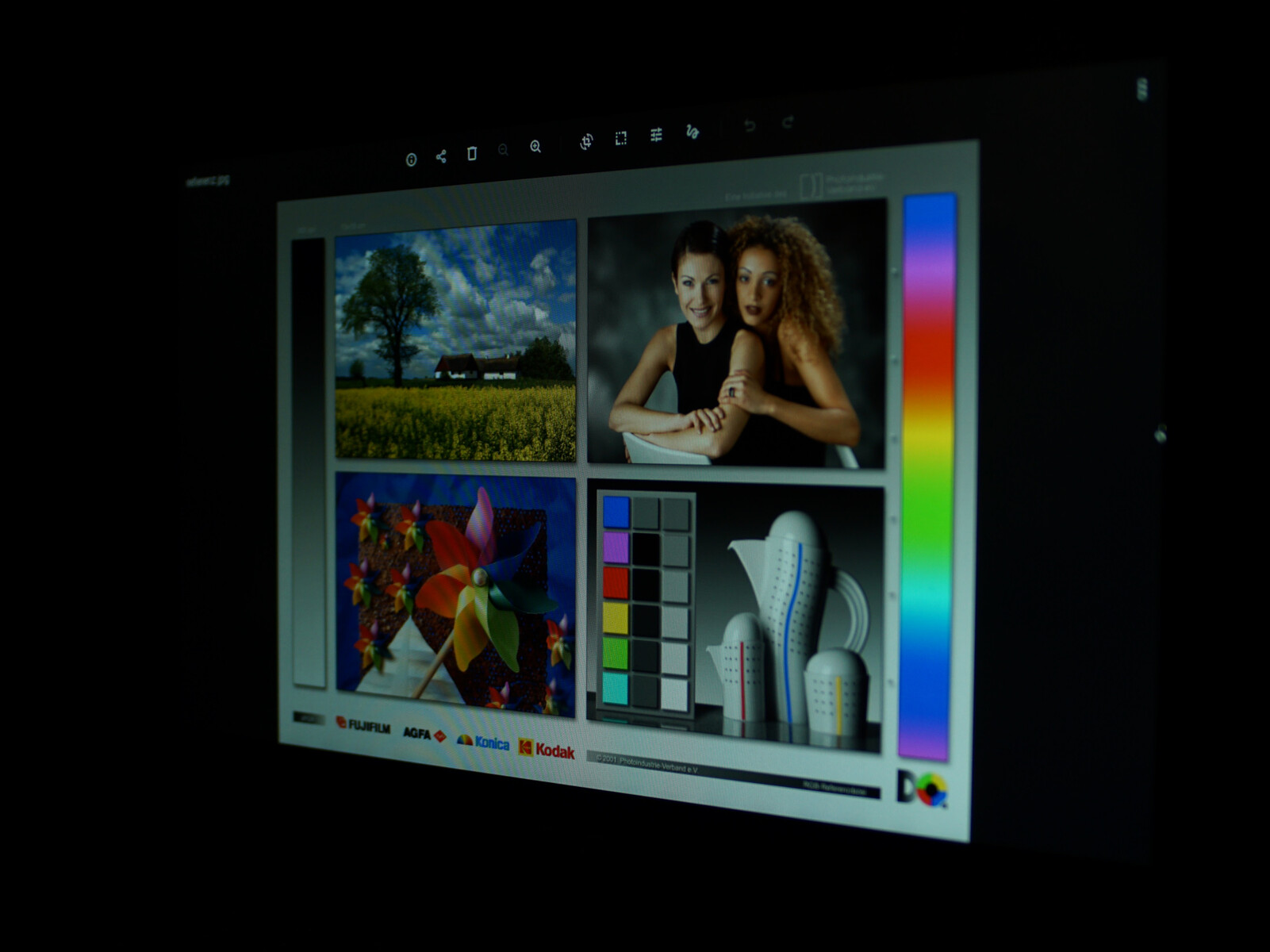

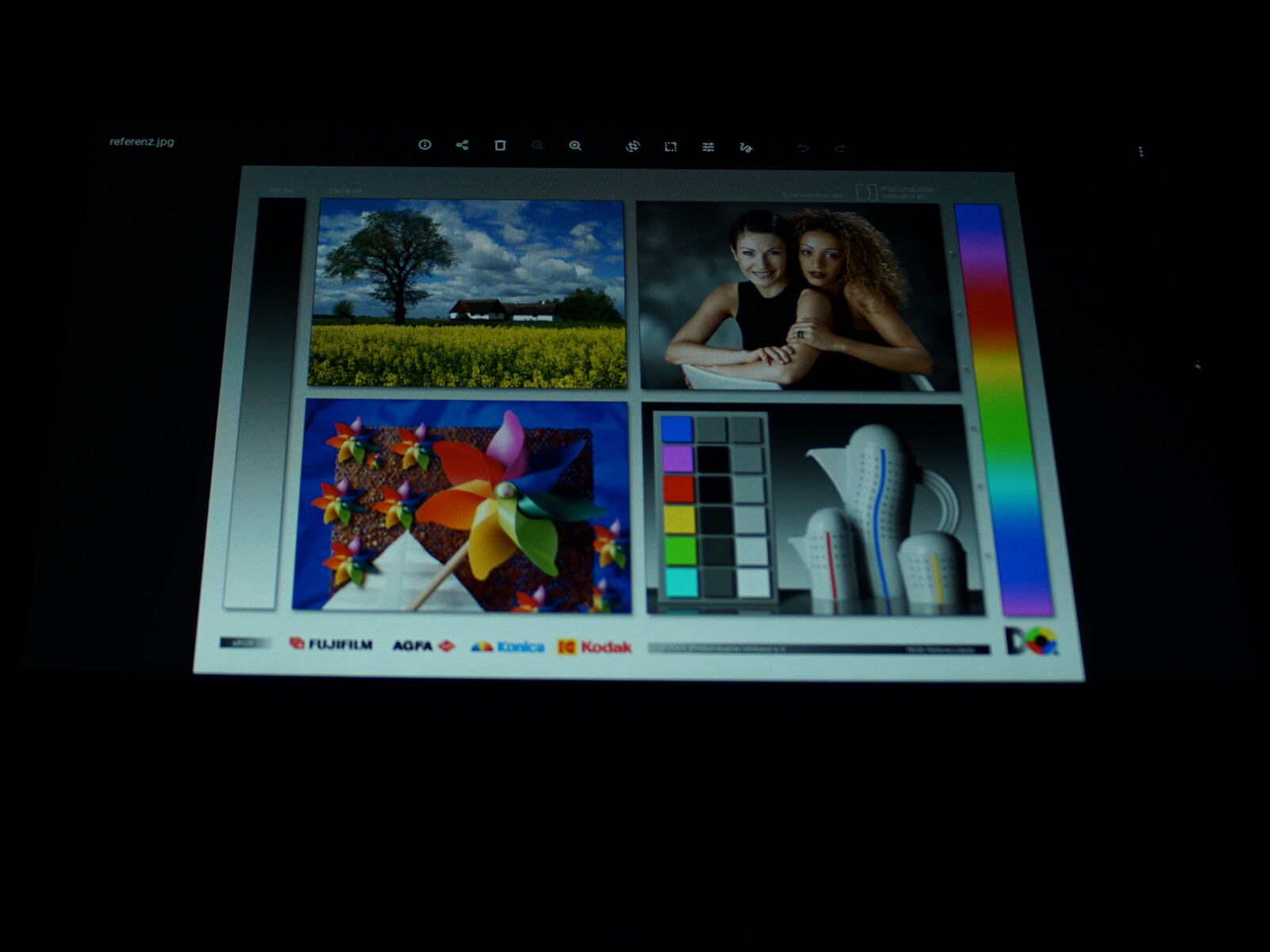

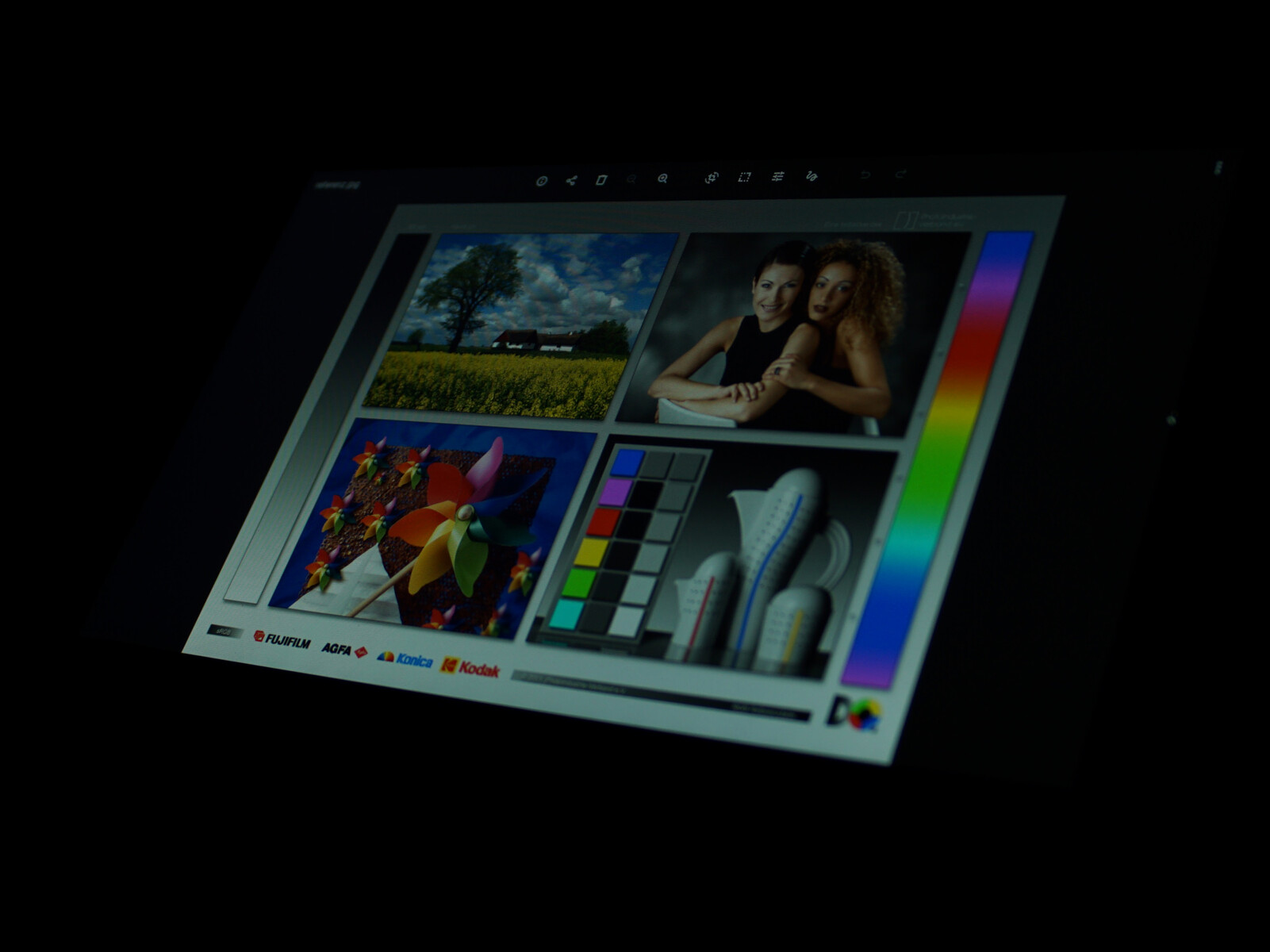

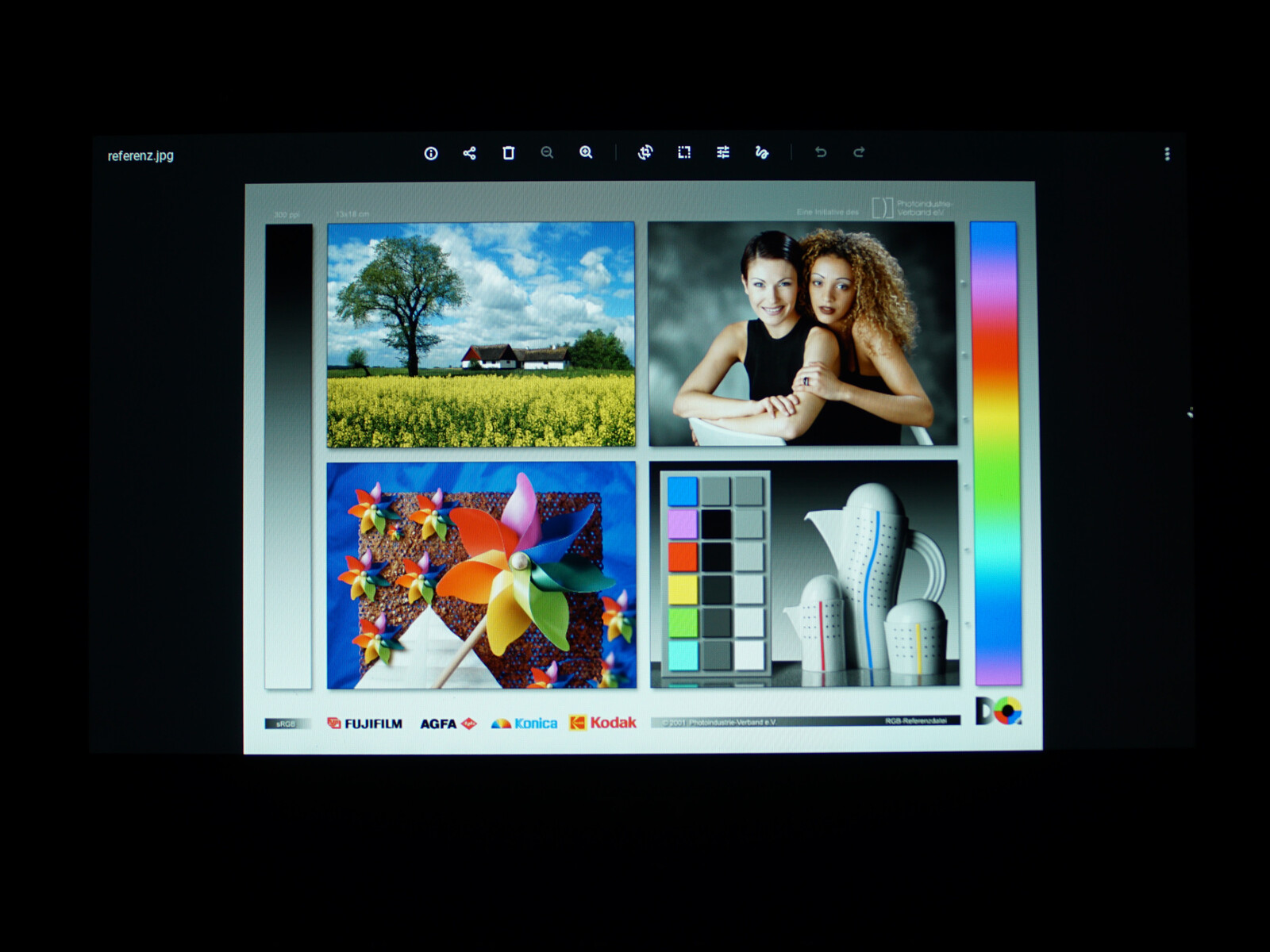

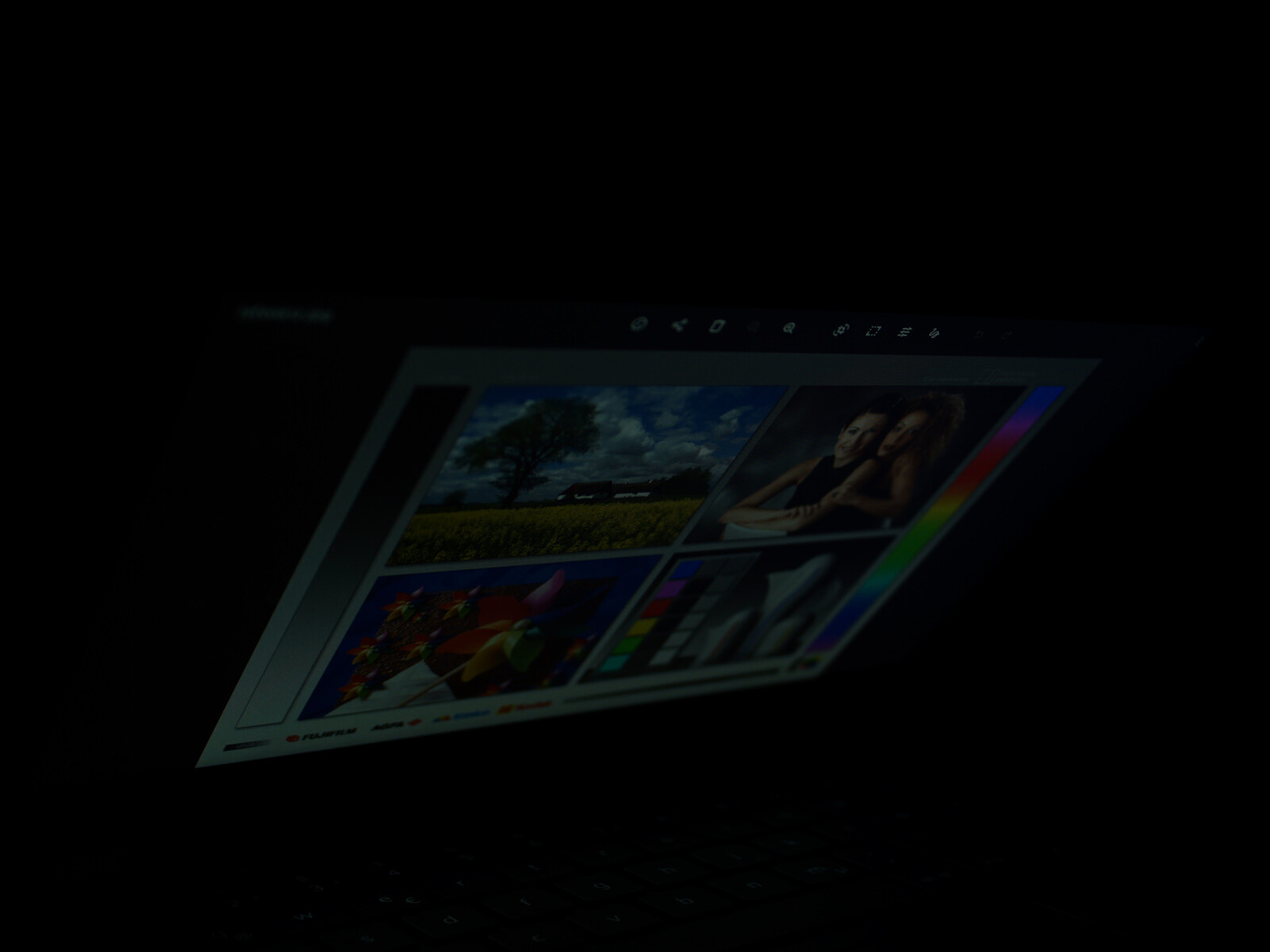

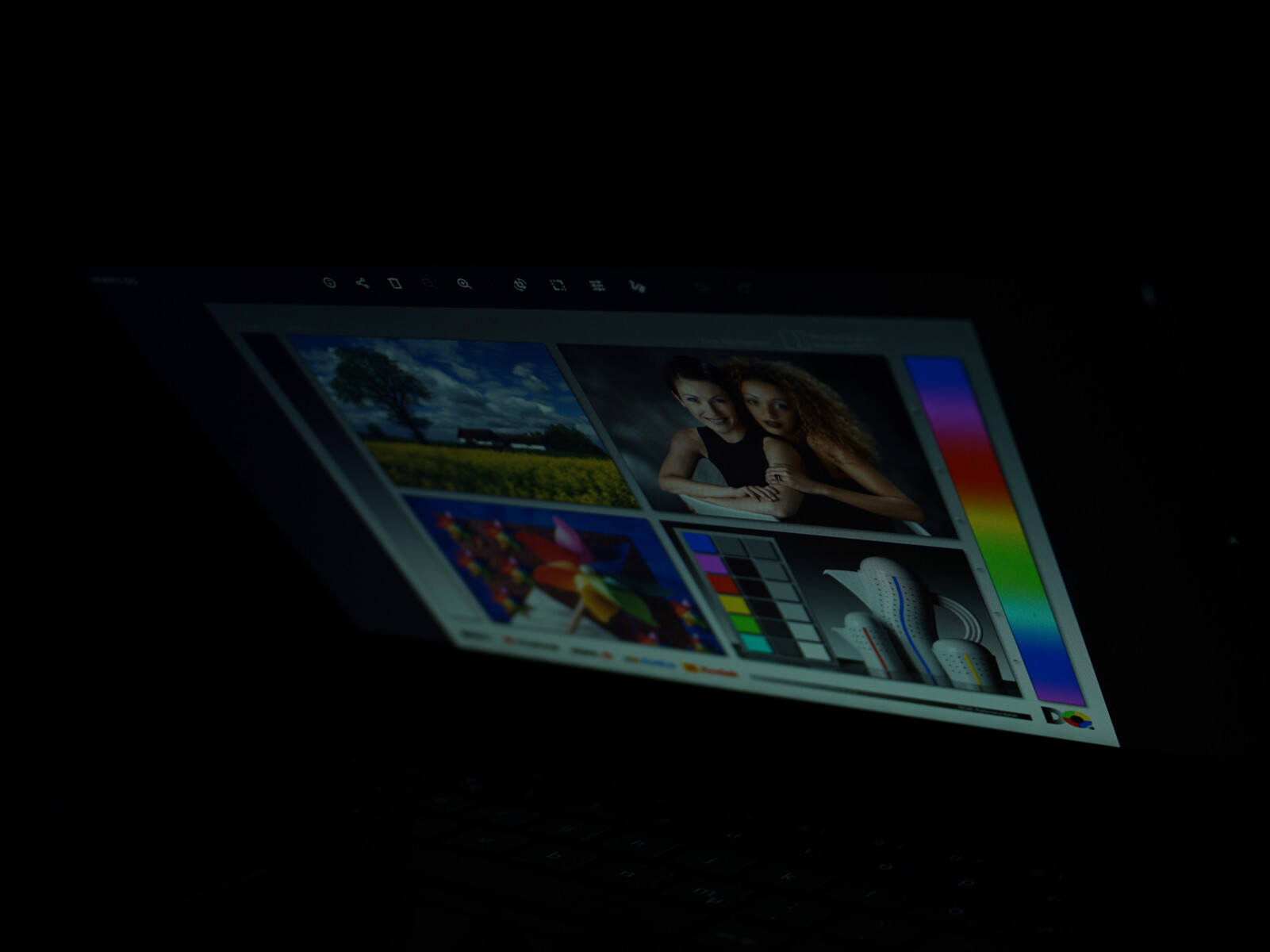

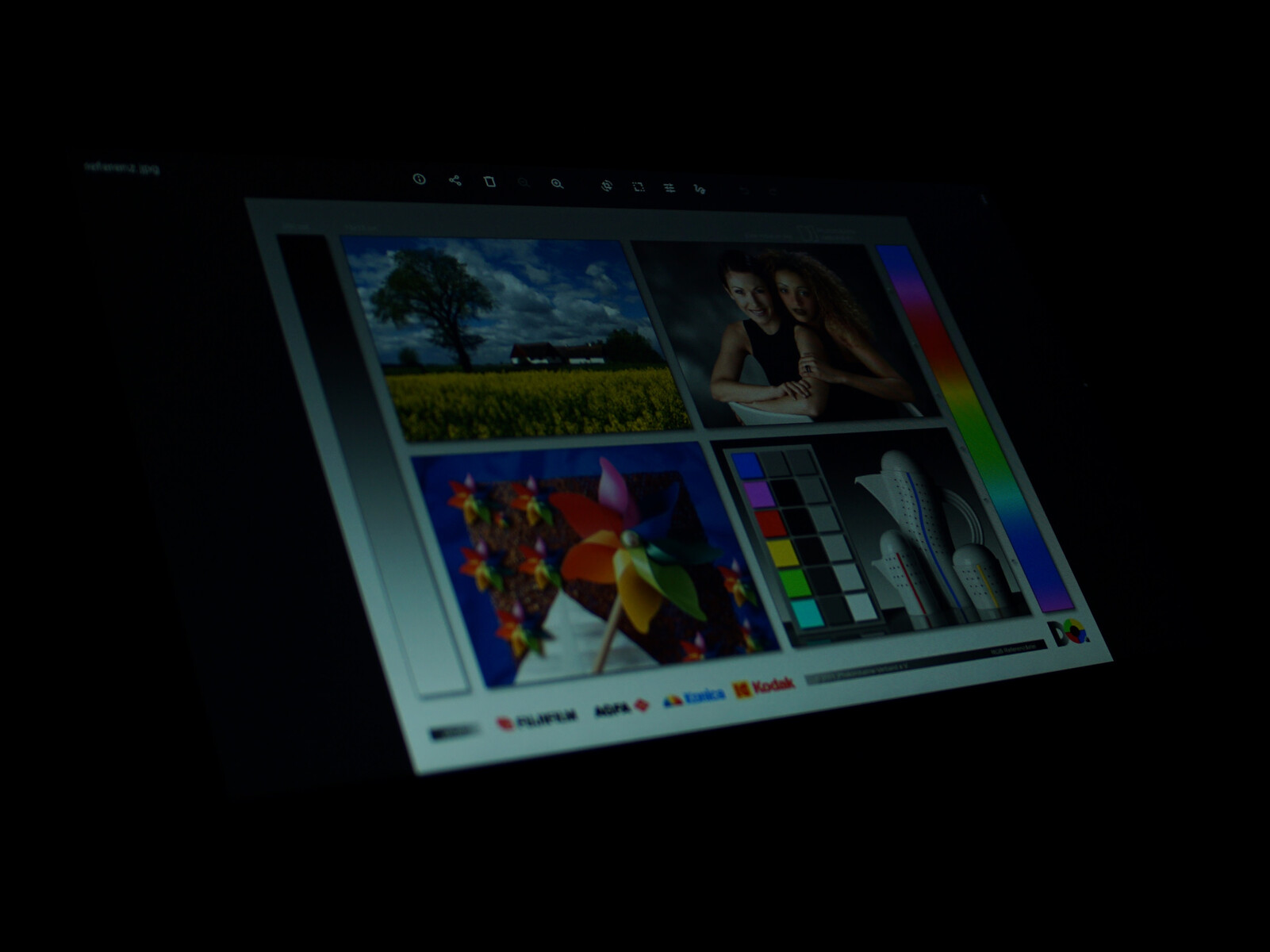

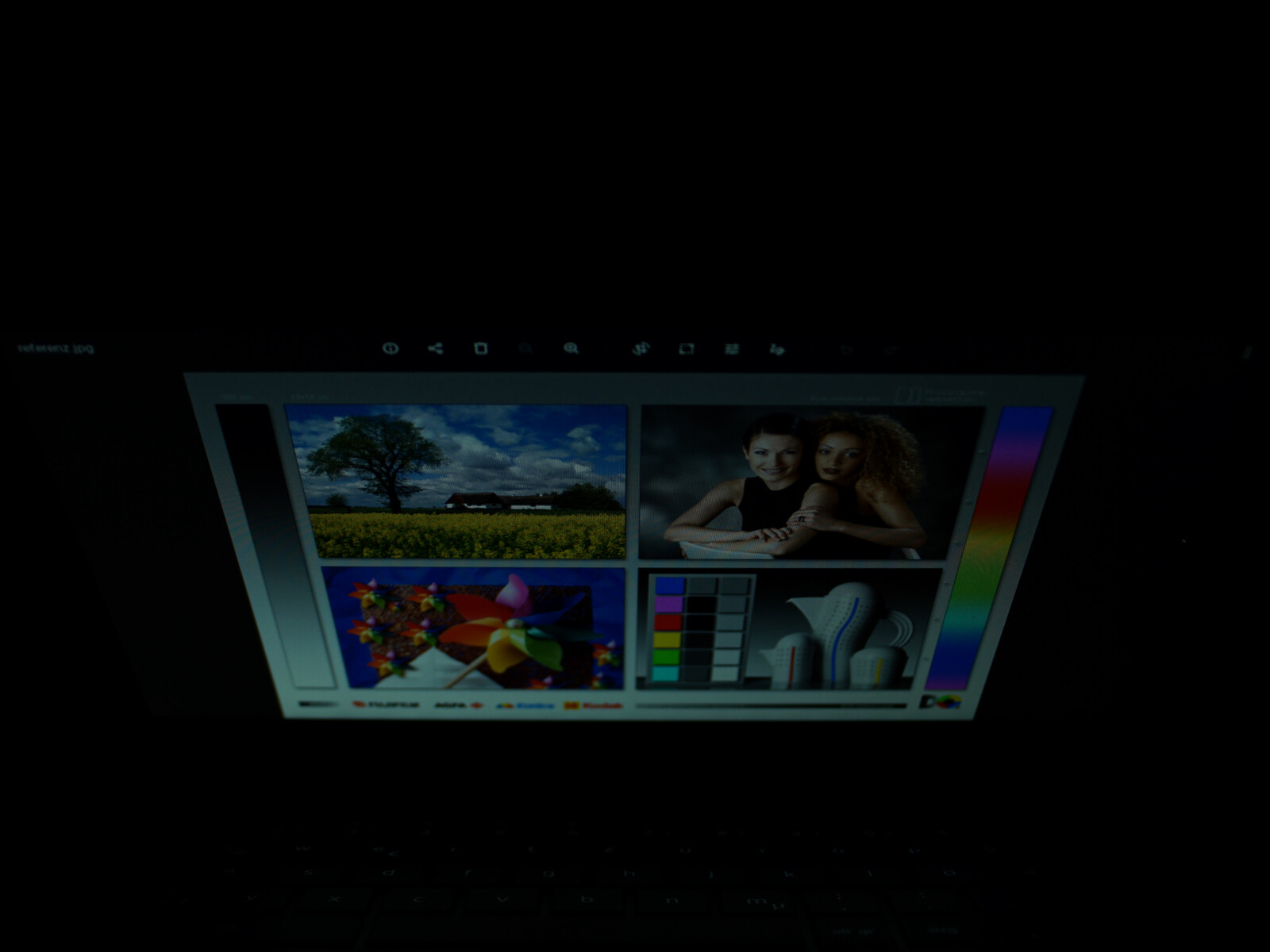

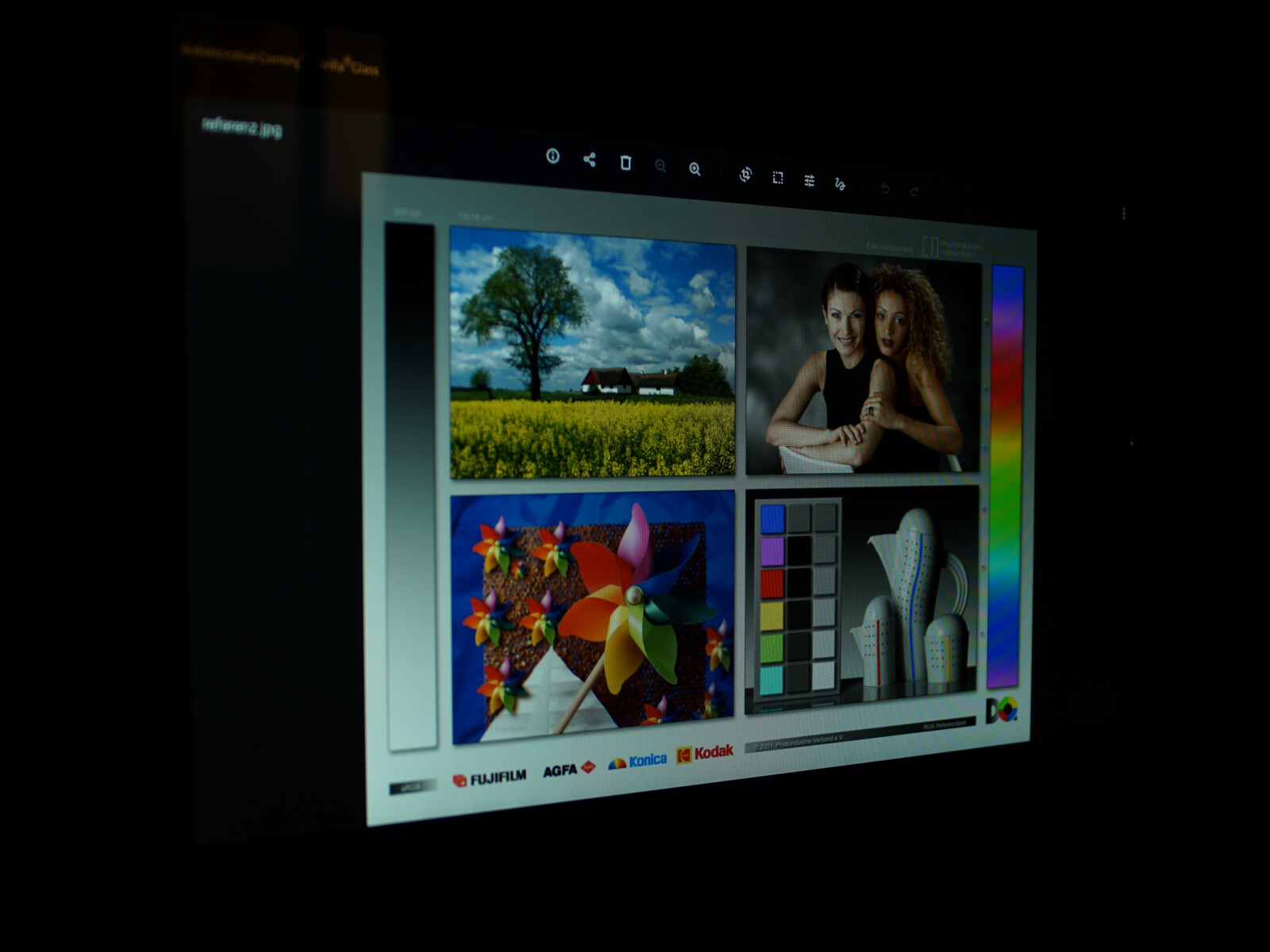

视角分析显示,感知到的屏幕亮度与视角有很大关系,而色彩表现则保持不变。然而,这在课堂上也可能有积极的影响。板凳上的邻居因此不会被不相干的屏幕内容所分心。

性能 - 足以应付学校的日常生活

作为一个操作系统,Chrome OS是非常节俭的,只需要很少的系统性能。通常情况下,4GB的工作内存和速度适中的双核处理器就足以让人顺利工作。宏碁的Chromebook Spin 511使用的是具有四个内核和8GB工作内存的SoC。因此,系统性能足以满足办公应用程序和其他应用程序的需要。即使是Google Play商店的大多数3D应用程序也应该在这台敞篷车上运行。由于这款二合一笔记本电脑的价格仅为337.02欧元(约合378美元),所以硬件选择是合理的。

处理器

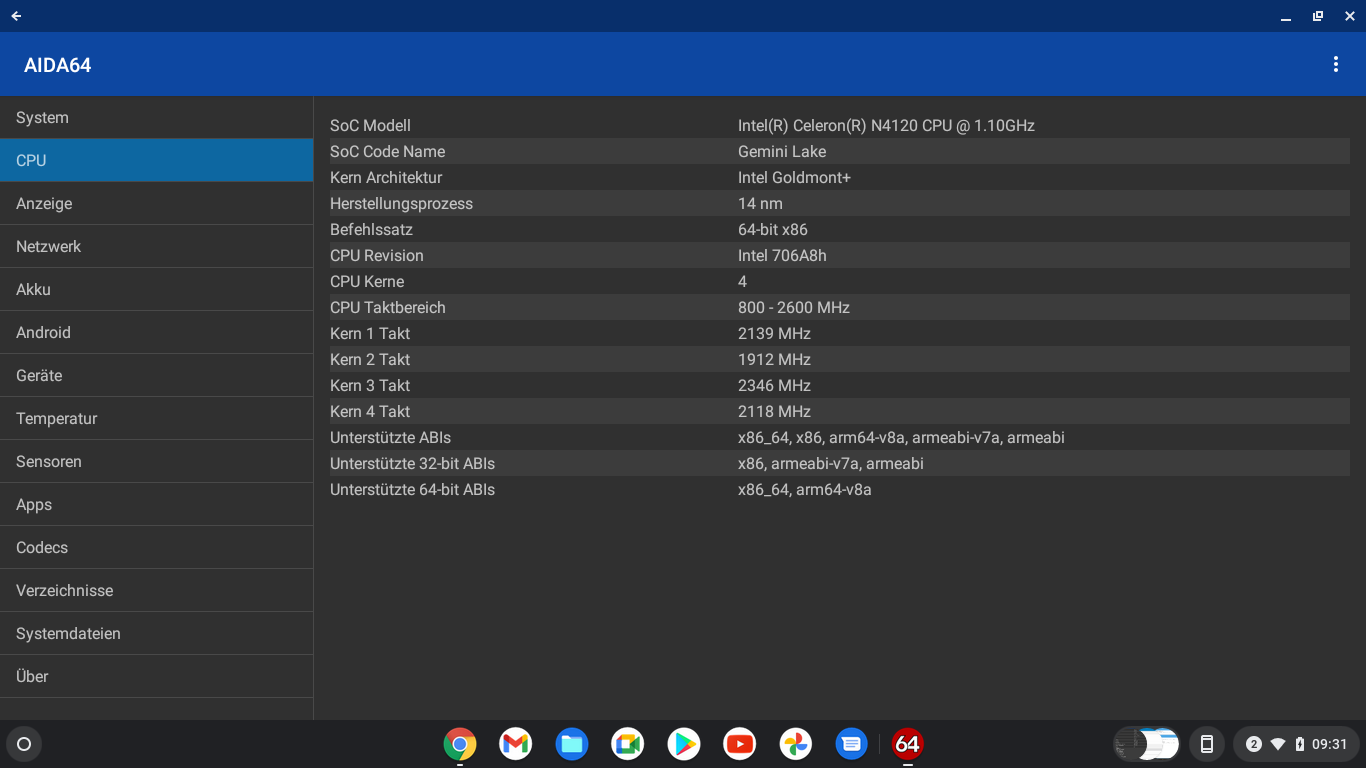

英特尔赛扬N4120是2019年的一款非常实惠的处理器,集成了英特尔UHD Graphics 600。尽管是被动冷却,但在测试中,这款廉价的处理器能够稳定地运行在2.5GHz左右。

因此,该处理器在我们的基准测试中取得了适度的分数。Chromebook ,其计算能力足以应付办公和互联网应用。可能对学校的数字设备没有更多要求。在启动和关闭时间方面,Chromebook通常非常快。从按下电源按钮到宏碁Chromebook Spin的登录屏幕只需要4秒。

在测试中,集成的英特尔UHD Graphics 600并没有被证明是特别强大的。将3D基准测试的结果与中档智能手机进行比较,图形性能明显较低。但同样,这台蛤壳电脑并不是作为游戏设备购买的。

Geekbench 5.5 / Multi-Core
Average of class Convertible
  (663 - 14016, n=67, last 2 years)
8263 Points +429%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
3314 Points +112%
Apple iPad 10.2 2020
Apple A12 Bionic
2772 Points +78%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
Intel Core i3-1115G4
2500 Points +60%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
1561 Points
Average Intel Celeron N4120
  (1505 - 1561, n=3)
1525 Points -2%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
1207 Points -23%
Geekbench 5.5 / Single-Core
Average of class Convertible
  (319 - 1981, n=67, last 2 years)
1618 Points +260%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
Intel Core i3-1115G4
1275 Points +184%
Apple iPad 10.2 2020
Apple A12 Bionic
1116 Points +149%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
949 Points +111%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
449 Points
Average Intel Celeron N4120
  (438 - 449, n=3)
442 Points -2%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
345 Points -23%
PCMark for Android / Work 3.0
Average of class Convertible
  (last 2 years)
11617 Points +30%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
8969 Points
Average Intel Celeron N4120
  ()
8969 Points 0%
PCMark for Android / Storage 2.0
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
28061 Points
Average Intel Celeron N4120
  ()
28061 Points 0%
Average of class Convertible
  (last 2 years)
9895 Points -65%
3DMark / Sling Shot OpenGL ES 3.0 Physics
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
5418 Points +106%
Apple iPad 10.2 2020
Apple A12 Bionic
3040 Points +16%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
2632 Points
Average Intel Celeron N4120
  ()
2632 Points 0%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
2199 Points -16%
HP Chromebook 14 G5
Intel Celeron N3350
1184 Points -55%
3DMark / Sling Shot OpenGL ES 3.0 Graphics
Apple iPad 10.2 2020
Apple A12 Bionic
10023 Points +278%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
5948 Points +125%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
2649 Points
Average Intel Celeron N4120
  ()
2649 Points 0%
HP Chromebook 14 G5
Intel Celeron N3350
2516 Points -5%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
2048 Points -23%
3DMark / Sling Shot OpenGL ES 3.0
Apple iPad 10.2 2020
Apple A12 Bionic
6636 Points +151%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
5821 Points +120%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
2645 Points
Average Intel Celeron N4120
  ()
2645 Points 0%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
2088 Points -21%
HP Chromebook 14 G5
Intel Celeron N3350
2013 Points -24%
GFXBench / Aztec Ruins Normal Tier Onscreen
Average of class Convertible
  (60 - 77.8, n=2, last 2 years)
68.9 fps +283%
Apple iPad 10.2 2020
Apple A12 Bionic
37.01 fps +106%
HP Chromebook x360 14 G1
Intel Core i5-8350U
25 fps +39%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
18 fps
Average Intel Celeron N4120
  ()
18 fps 0%
HP Chromebook 14 G5
Intel Celeron N3350
10 fps -44%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
9.7 fps -46%
GFXBench / Aztec Ruins Normal Tier Offscreen
Average of class Convertible
  (84 - 193.7, n=2, last 2 years)
138.9 fps +1163%
Apple iPad 10.2 2020
Apple A12 Bionic
62.4 fps +467%
HP Chromebook x360 14 G1
Intel Core i5-8350U
26 fps +136%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
11 fps
Average Intel Celeron N4120
  ()
11 fps 0%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
10 fps -9%
HP Chromebook 14 G5
Intel Celeron N3350
9.7 fps -12%
GFXBench / Car Chase Onscreen
Average of class Convertible
  (60 - 66.3, n=2, last 2 years)
63.2 fps +595%
Apple iPad 10.2 2020
Apple A12 Bionic
31.72 fps +249%
HP Chromebook x360 14 G1
Intel Core i5-8350U
25 fps +175%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
9.6 fps +5%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
9.1 fps
Average Intel Celeron N4120
  ()
9.1 fps 0%
HP Chromebook 14 G5
Intel Celeron N3350
8.8 fps -3%
GFXBench / Car Chase Offscreen
Average of class Convertible
  (90 - 155.8, n=2, last 2 years)
122.9 fps +1236%
Apple iPad 10.2 2020
Apple A12 Bionic
51.3 fps +458%
HP Chromebook x360 14 G1
Intel Core i5-8350U
24 fps +161%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
10 fps +9%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
9.2 fps
Average Intel Celeron N4120
  ()
9.2 fps 0%
HP Chromebook 14 G5
Intel Celeron N3350
8.4 fps -9%
WebXPRT 3 / Overall
Average of class Convertible
  (84.2 - 366, n=63, last 2 years)
269 Points +154%
HP Chromebook x360 14 G1
Intel Core i5-8350U
203 Points +92%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
Intel Core i3-1115G4
203 Points +92%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
190 Points +79%
Apple iPad 10.2 2020
Apple A12 Bionic
166 Points +57%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
106 Points
Average Intel Celeron N4120
  (85 - 106, n=4)
90.9 Points -14%
HP Chromebook 14 G5
Intel Celeron N3350
68 Points -36%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
54 Points -49%
Octane V2 / Total Score
Average of class Convertible
  (70338 - 92146, n=14, last 2 years)
80018 Points +332%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
41604 Points +124%
Apple iPad 10.2 2020
Apple A12 Bionic
41443 Points +124%
HP Chromebook x360 14 G1
Intel Core i5-8350U
38722 Points +109%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
18537 Points
Average Intel Celeron N4120
  (16865 - 18537, n=2)
17701 Points -5%
HP Chromebook 14 G5
Intel Celeron N3350
11461 Points -38%
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
9415 Points -49%
Mozilla Kraken 1.1 / Total
Samsung Galaxy Tab S6 Lite
Samsung Exynos 9611
4872 ms * -129%
HP Chromebook 14 G5
Intel Celeron N3350
3201 ms * -51%
Average Intel Celeron N4120
  (2125 - 2415, n=4)
2308 ms * -9%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
2125 ms *
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
1067 ms * +50%
HP Chromebook x360 14 G1
Intel Core i5-8350U
1017 ms * +52%
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
Intel Core i3-1115G4
757 ms * +64%
Average of class Convertible
  (472 - 3989, n=65, last 2 years)
699 ms * +67%
Apple iPad 10.2 2020
Apple A12 Bionic
653 ms * +69%

* ... smaller is better

Chrome OS - 谷歌的操作系统适合学校使用吗?

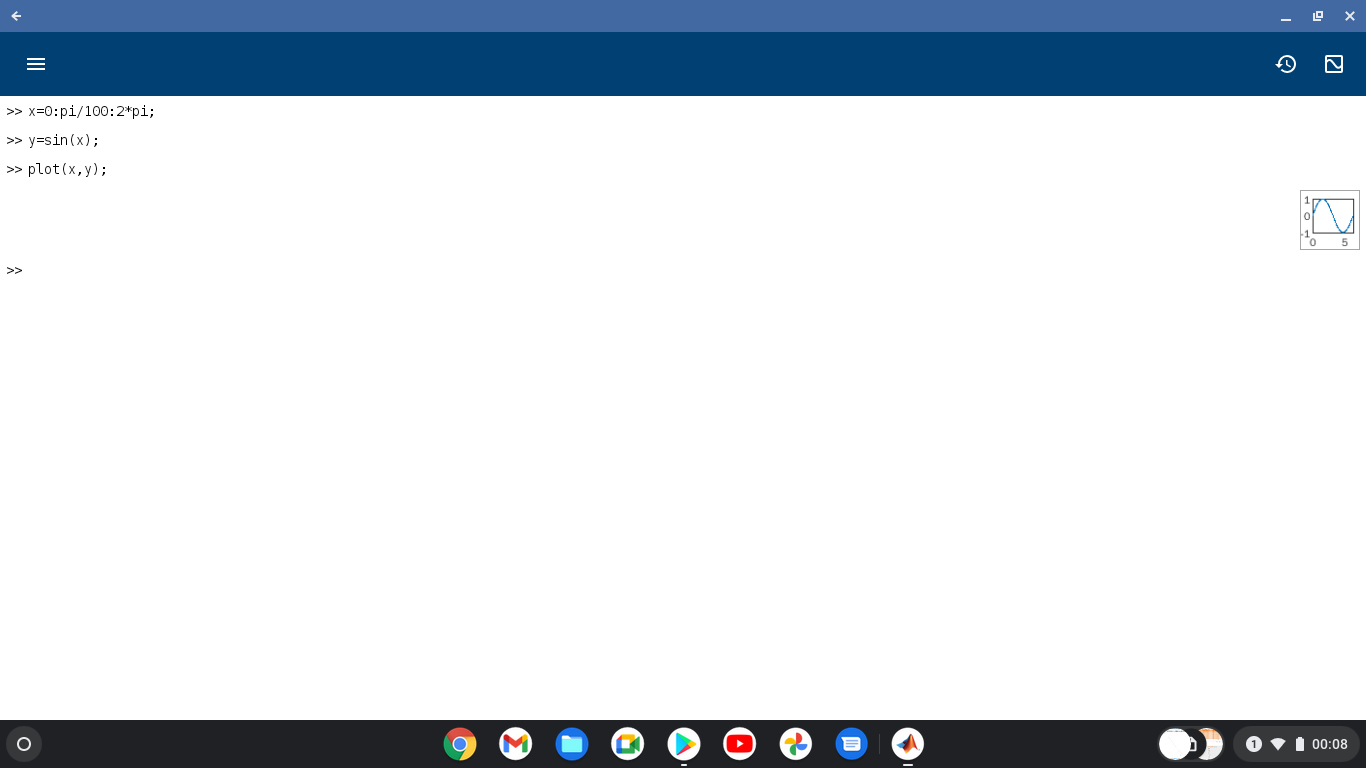

Chrome OS上的Matlab
Chrome OS上的Matlab

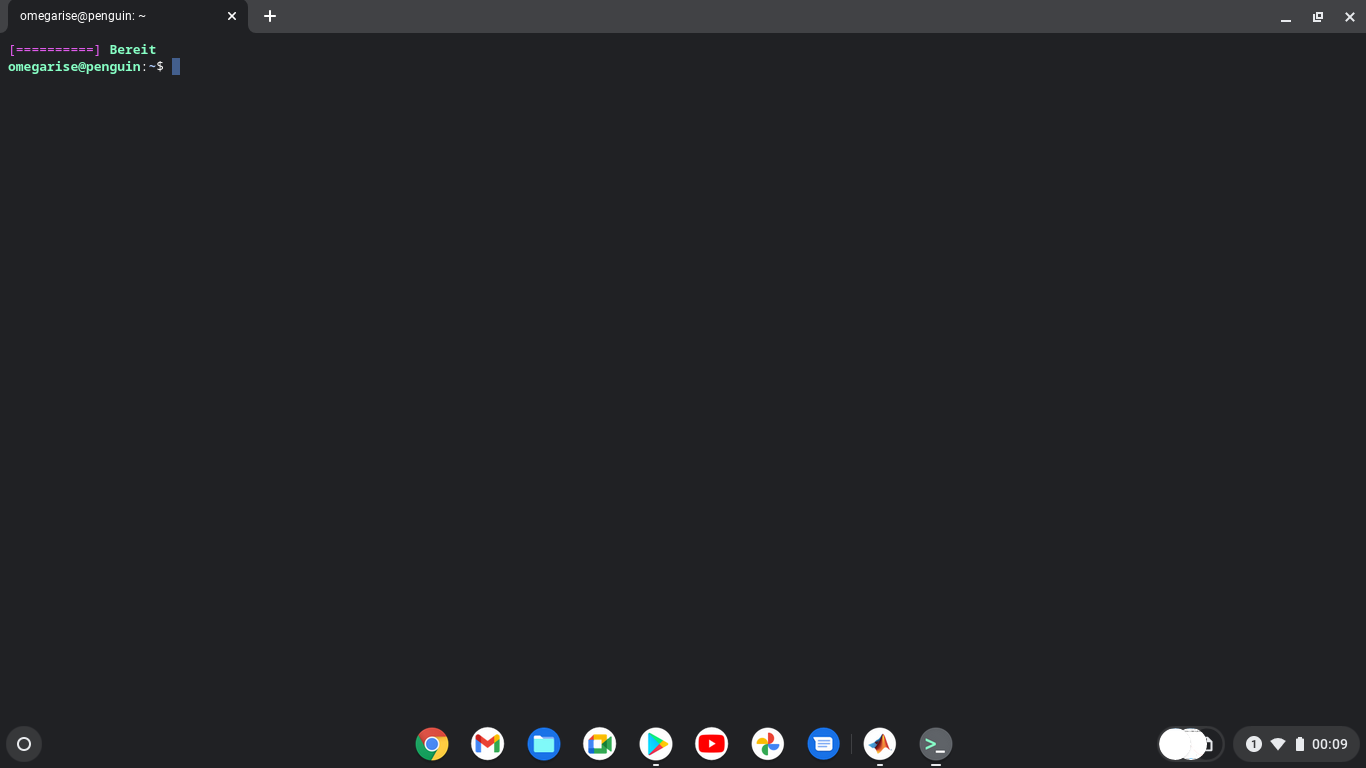

在Chrome OS下的Linux环境
在Chrome OS下的Linux环境

谷歌的笔记本电脑操作系统已经摆脱了兼容性差和在线限制的磨合期烦恼。在学校环境中使用时,它甚至比Windows有一些优势。基本上,Chrome OS的系统安全性更高,因为几乎没有任何计算机病毒会攻击该操作系统。谷歌的操作系统工作起来非常节省资源,所以它也能在相对较弱的硬件上运行,消耗的能源很少。用户界面与Android 和Windows的界面足够相似,可以快速找到自己的方向。Chromebooks也有大量的应用程序可以通过谷歌Playstore获得。强制整合谷歌账户是否要被视为优势或劣势,随着微软目前要求注册用户账户的策略,已经过时了。微软和谷歌都几乎不受限制地收集和使用用户数据。这两家公司的总部都在美国,这在原则上可能会导致《通用数据保护条例》的问题。

在日常使用中,几乎没有任何东西是Windows可以做的,但Chrome OS不能。在Playstore中也可以找到许多与Windows应用程序相对应的软件。可以提到Matlab作为一个例子。在Playstore中也可以找到用于解决数学问题的程序版本,它的功能范围与Windows相同。对于计算机科学课,可以在Chrome OS下启动一个Linux环境,它也可以运行相应的程序,并提供开发自己程序的IDE。

对于学校的IT官员来说,通过Google Workspace for Education来管理ChromeOS设备,就像管理Windows、 和iOS设备一样耗费时间。 Windows、Android 和iOS设备。然而,后三者都可以使用微软Intune进行管理,从而只需一个管理软件就能实现更多的设备。然而,Chrome设备的移动设备管理(MDM)可以比Microsoft Intune更广泛地干预系统。如果由于年轻主人的粗心行为导致系统错误,Chromebook可以比Windows笔记本电脑更快、更容易地重置。由于大多数数据不存储在本地,在Chromebook ,重置和恢复几乎是自动的。重置一台Windows电脑的努力要高得多。

另一个出现的问题是与学校或家中现有设备的硬件兼容性。显微镜相机、交互式白板、打印机、扫描仪等等都是重要的工具。在紧急情况下,应事先咨询硬件制造商。原则上,大多数通过USB连接的相机运行没有问题,因为Chrome OS也有相应的驱动程序。对于网络打印机,这取决于打印机是否支持IPP、IPPS或AppSocket等协议。这同样适用于扫描仪。另一方面,Chromebook与交互式白板(即数字板)的连接,在大多数情况下只能在有限的范围内实现。只有少数制造商为没有Windows的设备提供相应的软件。然而,如果互动白板有视频输入,它可以通过USB-C适配器连接,至少可以作为宏碁Chromebook Spin的屏幕。

排放--教室里的沉默

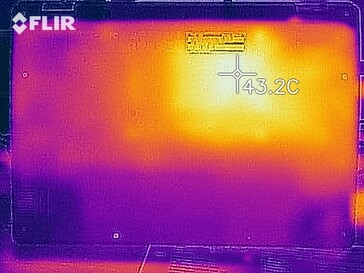

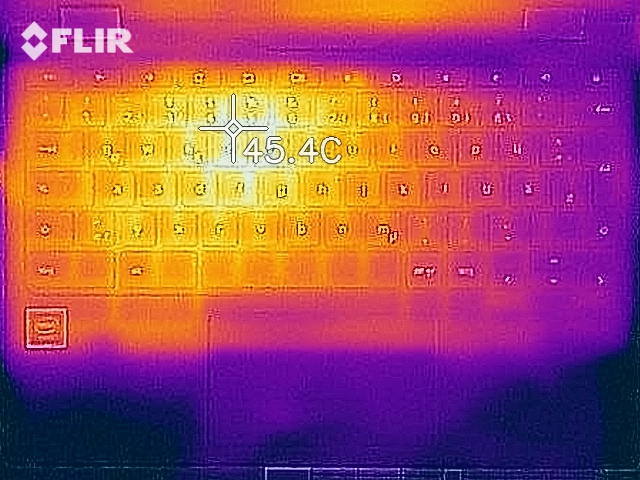

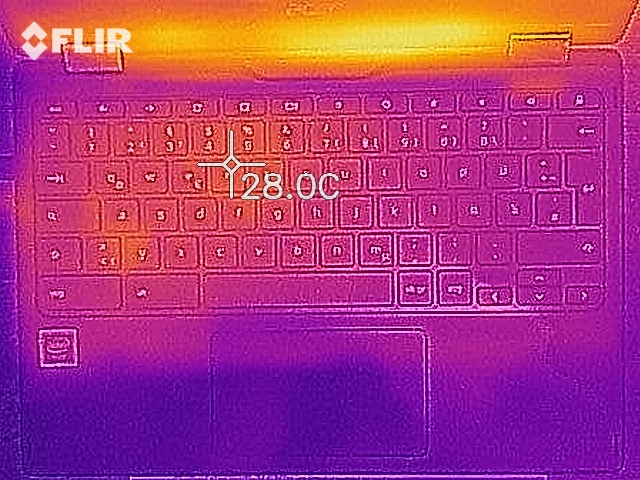

噪声排放和温度

由于纯粹的被动冷却,Chromebook 是完全无声的。然而,计算机核心保持其性能,几乎不加热计算机的外壳。在用PCMark对Android 进行的长期测试中,在数小时内取得了持续的好成绩。表面温度没有达到令人不快的水平。

因此,即使在一小时的高负荷压力测试中,也不会出现令人不快的表面温度。掌托保持凉爽,按键也不会有令人不舒服的温度。

Max. Load
 39.2 °C42.6 °C30.1 °C
 36.8 °C33.5 °C30.1 °C
 25.2 °C26.5 °C23.7 °C
Maximum: 42.6 °C
Average: 32 °C

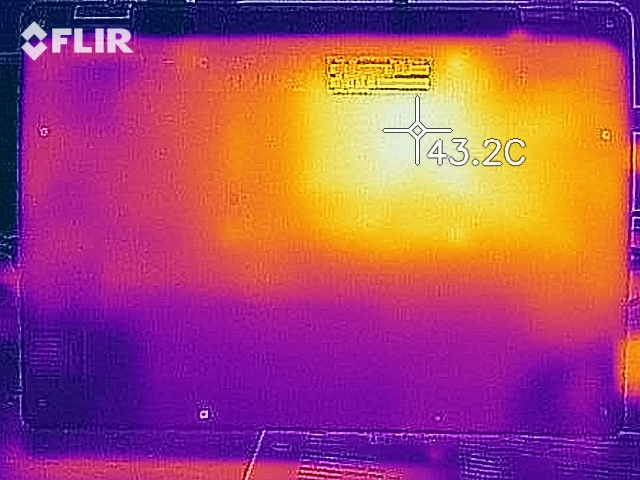

27.7 °C43.2 °C42.8 °C
24.8 °C33.4 °C33 °C
24.9 °C25.4 °C26.3 °C
Maximum: 43.2 °C
Average: 31.3 °C
Power Supply (max.)  28.1 °C | Room Temperature 22.8 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 32 °C / 90 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.6 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.6 °C / 73 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.5 °C / 79.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+1.6 °C / 2.9 F).

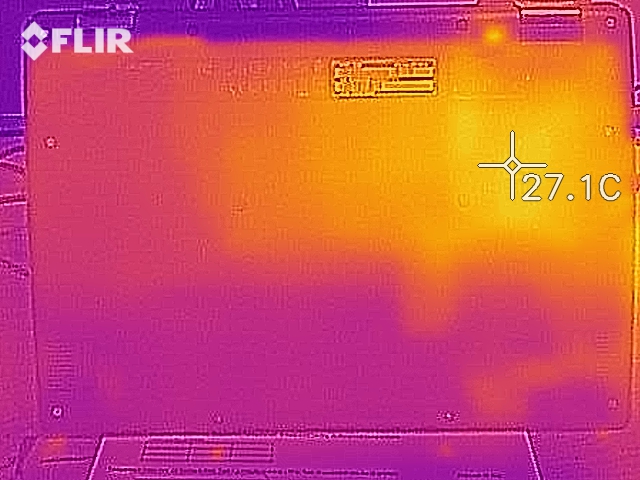

闲置
闲置
闲置
闲置
最后一次
最后一次
最后一次
最后一次

演讲者

在播放音乐或电影时,小型扬声器不大令人信服。低音是缺乏的。只有低音量才会有均匀的频率分布。扬声器对语音的呈现很好。在视频通话中,对方也很好理解。考虑到笔记本电脑的价格范围,声音质量与购买价格相符。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.128.529.12536.432.736.43140.436.940.44033.735.233.75037.43337.46330.22730.28022.421.622.410020.518.720.512521.419.121.416028.416.328.420034.815.734.825046.513.946.53155514.45540060.511.860.550063.411.363.46306511.26580072.710.972.7100077.111.577.1125070.112.170.1160066.211.966.2200070.21370.2250065.613.565.631506413.664400069.513.369.5500072.713.372.7630069.613.669.6800067.113.767.11000073.51473.51250077.413.677.41600068.412.368.4SPL82.825.182.8N540.654median 66.2median 13.5median 66.2Delta9.11.89.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAcer Chromebook Spin 511 R752T-C26NApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Chromebook Spin 511 R752T-C26N audio analysis

(±) | speaker loudness is average but good (77.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 31.8% lower than median
(±) | linearity of bass is average (11.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.4% away from median
(±) | linearity of mids is average (8.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.2% difference to median)
Compared to same class
» 61% of all tested devices in this class were better, 7% similar, 32% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 59% of all tested devices were better, 7% similar, 34% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 96% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理--41Wh的电量足以满足一个工作日的需要

能源消耗

奥地利学龄儿童的Chromebook ,是非常节能的。与 联想Thinkpad,后者将作为Windows笔记本电脑使用。 Chromebook 在所有情况下,除了关机状态外,甚至不需要Windows电脑一半的能量。Chromebook 和Windows笔记本电脑一样完成了它的目的。在可持续性方面,宏碁Spin 511明显优于联想笔记本电脑。

节俭的英特尔处理器在这里显示了良好的能源消耗效率。压力测试中的测量结果显示,短期负载峰值最大为19.5瓦。在正常操作中,该笔记本电脑可能需要不到7瓦。

Power Consumption
Off / Standbydarklight 0.4 / 0.3 Watt
Idledarkmidlight 1.9 / 4.1 / 4.2 Watt
Load midlight 7.8 / 15.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Acer Chromebook Spin 511 R752T-C26N
Celeron N4120, UHD Graphics 600, , IPS-Grade, 1366x768, 11.60
Acer Chromebook Spin 713 CP713-2W-560V
i5-10210U, UHD Graphics 620, SK hynix BC501 HFM128GDJTNG-831, IPS, 2256x1504, 13.50
HP Chromebook 14 G5
Celeron N3350, HD Graphics 500, 32 GB eMMC Flash, IPS, 1920x1080, 14.00
HP Chromebook x360 14 G1
i5-8350U, UHD Graphics 620, 64 GB eMMC Flash, IPS, 1920x1200, 14.00
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
i3-1115G4, UHD Graphics Xe G4 48EUs, Samsung PM991A MZALQ256HBJD, a-Si IPS LED, 1920x1080, 14.00
Samsung Galaxy Tab S6 Lite
Exynos 9611, Mali-G72 MP3, 64 GB UFS 2.0 Flash, TFT, 2000x1200, 10.40
Apple iPad 10.2 2020
A12 Bionic, A12 Bionic GPU, 128 GB NVMe, IPS, 2160x1620, 10.20
Average Intel UHD Graphics 600

Average of class Convertible

Power Consumption
-97%
-61%
-72%
-227%
17%
-22%
-56%
-252%
Idle Minimum *
1.9
2.7
-42%
3.1
-63%
1
47%
6.3
-232%
1.21
36%
2.12
-12%
3.47 ?(1.9 - 7.1, n=27)
-83%
Idle Average *
4.1
5.5
-34%
6.2
-51%
5.7
-39%
9.5
-132%
4.24
-3%
6.43
-57%
5.61 ?(1.9 - 9.6, n=27)
-37%
Idle Maximum *
4.2
6.7
-60%
8.7
-107%
6.1
-45%
10.4
-148%
4.34
-3%
6.69
-59%
Load Average *
7.8
25
-221%
14
-79%
23
-195%
32.7
-319%
6.99
10%
8.17
-5%
13.6 ?(7.8 - 19.1, n=27)
-74%
Load Maximum *
15.7
36
-129%
16.1
-3%
36
-129%
63.3
-303%
8.79
44%
11.84
25%
20.2 ?(9.5 - 27.8, n=27)
-29%

* ... smaller is better

Power consumption in Stress test

012345678910111213141516171819Tooltip

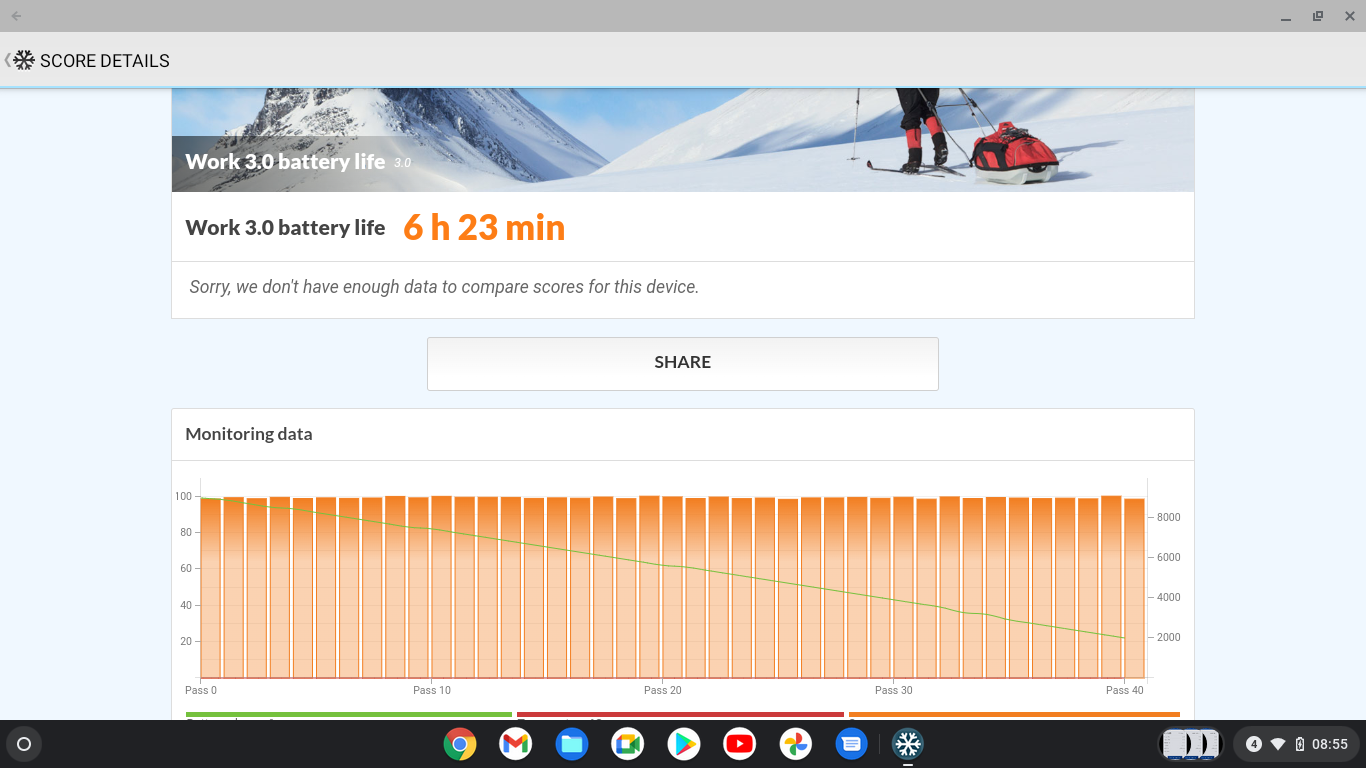

电池寿命

在学校里,还没有在每个座位上都有电源插座的供应。出于安全考虑,延长线也被禁止使用。因此,在正常情况下,电池可能需要长时间为笔记本电脑供电,因为只有在科学室和信息技术室才会有足够的电源插座供应。

在全亮度的Wi-Fi网上冲浪测试中,该电脑至少实现了7个半小时的运行时间。这个测试应该能比较好地反映出日常学校生活中的要求。因此,全新的笔记本电脑至少可以在学校的7到8节课中生存。

很难估计电池寿命在四年的计划使用寿命内会有什么变化。电池寿命通常被定义为电池可以达到的充电周期数,而其性能(瓦特小时)不低于规定值的80%。这里的典型值是800到2200个充电周期。每年大约有185个上课日,人们会认为电池在800次充电循环的情况下应该很容易持续四年以上。然而,为了维持6到7个小时,电池通常必须从100%放电到20%以下。一个充电周期并不意味着从(几乎)空到满的充电,而只是在某些范围内(0%到20%;20%到90%;90%到100%)。因此,每天有可能 "消耗 "多达三个充电周期。在最坏的情况下,电池在大约1.5个学年后就不能再坚持上学了。((800[充电周期]/3[充电周期/天])/185[天/学年]=1.44[学年])。

然而,测试表明,节能的Chromebook ,也可以由USB电源银行供电。因此,学生们可以携带上学期间的 "紧急配给 "能源。一个提供5V和2.4A的电源箱已经足以为宏基Spin充电,至少非常缓慢。有了像INIU Powerbank这样的USB电源,在亚马逊 ,价格约为35欧元(约35美元),加上相应的USB Type-C电缆,由于PowerDelivery,充电速度更快。

因此,数字终端设备将继续给学校董事会带来问题。在学校里安装充电站是有意义的。永久性的电池运行是无法持续的。

Battery Runtime
Idle (without WLAN, min brightness)
9h 22min
WiFi Websurfing
8h 9min
WiFi Websurfing max. Brightness
7h 33min
Load (maximum brightness)
3h 07min
Acer Chromebook Spin 511 R752T-C26N
Celeron N4120, UHD Graphics 600, 41 Wh
Acer Chromebook Spin 713 CP713-2W-560V
i5-10210U, UHD Graphics 620, 50.3 Wh
HP Chromebook 14 G5
Celeron N3350, HD Graphics 500, 47.36 Wh
HP Chromebook x360 14 G1
i5-8350U, UHD Graphics 620, 60.9 Wh
Lenovo ThinkBook 14 G2 ITL 20VDS02G00
i3-1115G4, UHD Graphics Xe G4 48EUs, 58 Wh
Samsung Galaxy Tab S6 Lite
Exynos 9611, Mali-G72 MP3,  Wh
Apple iPad 10.2 2020
A12 Bionic, A12 Bionic GPU, 32.9 Wh
Average of class Convertible

Battery Runtime
27%
35%
51%
-0%
135%
129%
26%
Reader / Idle
562
793
41%
2120
277%
2241
299%
WiFi v1.3
489
619
27%
661
35%
738
51%
454
-7%
792
62%
782
60%
Load
187
121
-35%
309
65%
238
27%
H.264
526
950
934

Pros

+ 良好的键盘
+ 节约能源
+ 持久的电池操作
+ 被动冷却
+ Google Playstore
+ 坚固
+ 廉价

Cons

- 低于平均水平的屏幕
- 糟糕的网络摄像头
- 没有键盘照明
- 内存不足
- 难以维护

结论 - 能做很多事,花费很少

AcerChromebook Spin 511
AcerChromebook Spin 511

宏碁Chromebook Spin可能是一个不错的选择,计划作为学生的数字终端设备使用。这款二合一笔记本电脑将Android 平板电脑和折叠式计算器的优点集于一身。同时,Chromebook ,重量轻,性能均衡,电池也应该经得起学校的日常使用。到目前为止,在所有四种选择中 Chromebook 是最便宜的选择。宏碁的敞篷车看起来一点也不便宜,宏碁Chromebook Spin 511应该可以满足日常学校生活的要求。

可以想象,许多学校为了能够使用熟悉的Windows系统,对选择Chromebook ,而望而却步。然而,在测试中很快就发现,这款设备绝对可以提供与Windows笔记本电脑相同的功能。Chrome操作系统的优点显然超过了不使用Windows的缺点。Chromebook 是一个多功能的设备。即使是学生在以后的职业生活中主要使用Windows工作的说法,在未来几年也可能被证明是错误的。具有适应企业客户的规格的Chromebook已经有几年了。

不一定非要用Windows。在日常使用中,宏碁Chromebook ,可以完成从冲浪、办公应用、流媒体、游戏和学习等所有任务。你只需要习惯于可用的软件就可以了。

在测试的 联想ThinkBook 14 G2 ITL我们在结论中比较了Android 、iOS、Windows设备和Chromebooks的优势。在这次测试之后,学校会喜欢哪种设备的问题仍然存在。这是因为大部分的优势,比如说三星Galaxy Tab S6 Lite在学校使用中提供的大部分优势,宏碁Spin 511也能提供。然而,三星平板电脑在电池寿命方面明显领先,而Chromebook ,其系统性能要高得多。

价格和可用性

宏碁Chromebook Spin 511 R752T-C26N在商店中没有测试的配置。通过Amazon提供的替代配置(DE)提供的替代配置价格约为450欧元(约505美元)。根据OeAD的数据,Chromebook-laptop类别的数字终端设备招标的中标设备以337.02欧元(约378美元)的价格采购。其中,根据25%的规定,家长只需支付84.27欧元(约合95美元)。

Acer Chromebook Spin 511 R752T-C26N - 11/16/2021 v7
Marc Herter

Chassis
76 / 98 → 78%
Keyboard
79%
Pointing Device
94%
Connectivity
47 / 75 → 63%
Weight
73 / 20-75 → 96%
Battery
81%
Display
75%
Games Performance
14 / 78 → 18%
Application Performance
57 / 85 → 68%
Temperature
93%
Noise
100%
Audio
70 / 91 → 77%
Camera
24 / 85 → 28%
Average
68%
80%
Convertible - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 宏碁Chromebook Spin 511 R752T回顾--教室里的二合一笔记本电脑
Marc Herter, 2021-11-26 (Update: 2021-11-26)
