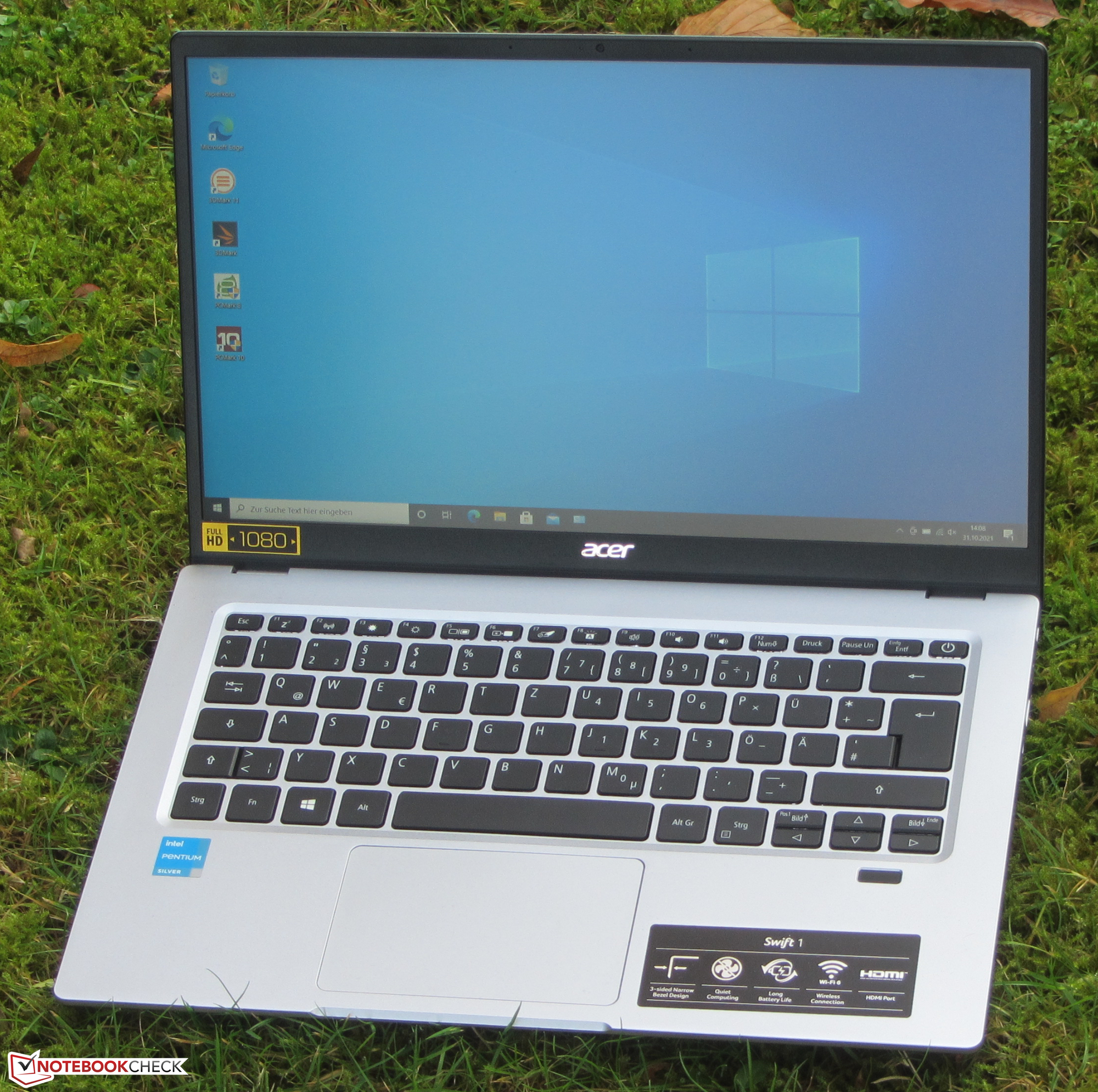

宏碁Swift 1 SF114-34评论。安静、持久的14英寸笔记本电脑
宏碁Swift 1是一款简单的14英寸办公笔记本，价格仅为279欧元（约315美元）。被动冷却的 奔腾银N6000可以处理办公和基于网络的应用，但它绝不是一个强大的CPU。竞争的设备包括：Medion Akoya E14307, the 联想IdeaPad 1 14IGL05，宏碁Chromebook 514，以及 三星Galaxy Book Go.
Acer Swift 1 SF114-34-P6U1 (Swift 1 SF114 Series)
Processor
Intel Pentium Silver N6000 4 x 1.1 - 3.3 GHz, 20 W PL2 / Short Burst, 7 W PL1 / Sustained, Jasper Lake
Graphics adapter
Intel UHD Graphics (Jasper Lake 32 EU), Core: 900 MHz, Single-Channel, 30.0.100.9955

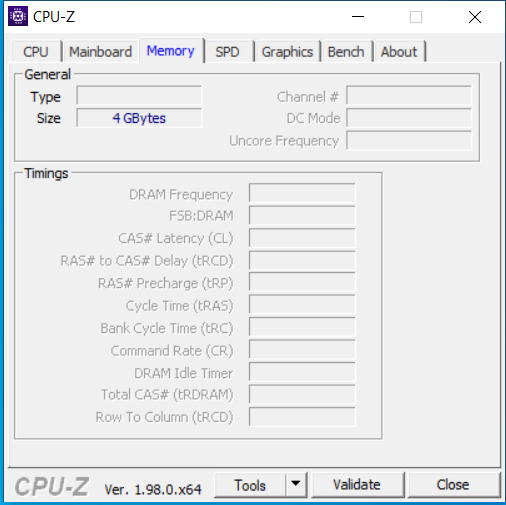

Memory
4 GB
, LPDDR4, Single-Channel-Mode, onboard, no memory slots
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei N140HCA-EAC, IPS, glossy: no, 60 Hz

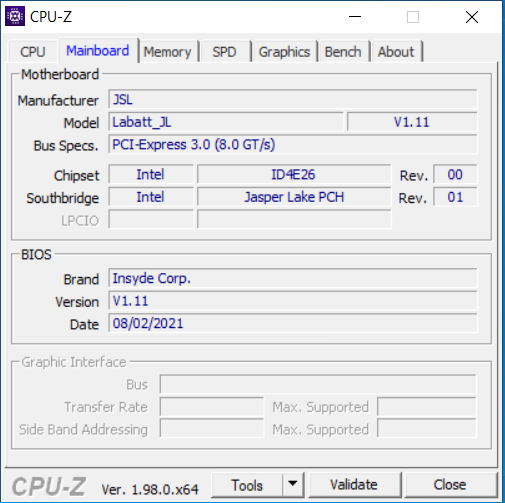

Mainboard
JSL Labatt_JL
Storage
128 GB eMMC Flash, 128 GB
, + M.2-2280-Slot (NVMe), 125 GB free
Weight
1.3 kg, Power Supply: 158 g
Price
349 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Likely Competitors
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 81.5 % v7 (old) | 12 / 2021 | Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU) | 1.3 kg | 14.95 mm | 14.00" | 1920x1080 | |
| 78.4 % v7 (old) | Medion Akoya E14307 3020e, Vega 3 | 1.5 kg | 18 mm | 14.00" | 1920x1080 | ||
| 74.6 % v7 (old) | Lenovo IdeaPad 1-14IGL05 Pentium N5030, UHD Graphics 605 | 1.4 kg | 17.8 mm | 14.00" | 1366x768 | ||
| 79.9 % v7 (old) | 01 / 2021 | Acer Chromebook 514 CB514-1HT-P1BM Pentium N4200, HD Graphics 505 | 1.4 kg | 17 mm | 14.00" | 1920x1080 | |
| 79.3 % v7 (old) | 09 / 2021 | Samsung Galaxy Book Go SD 7c Gen 2, Adreno 618 | 1.4 kg | 15 mm | 14.00" | 1920x1080 |

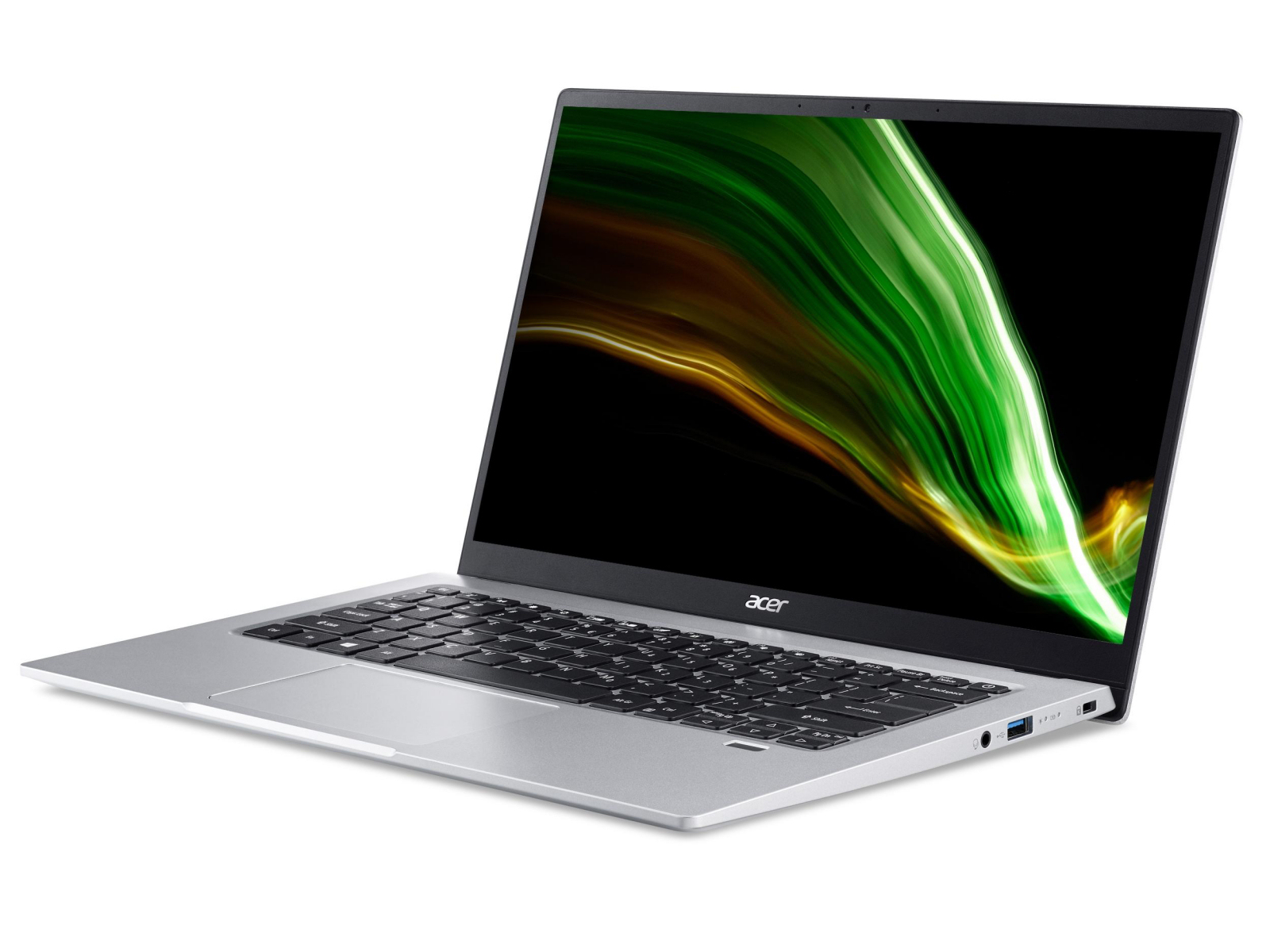

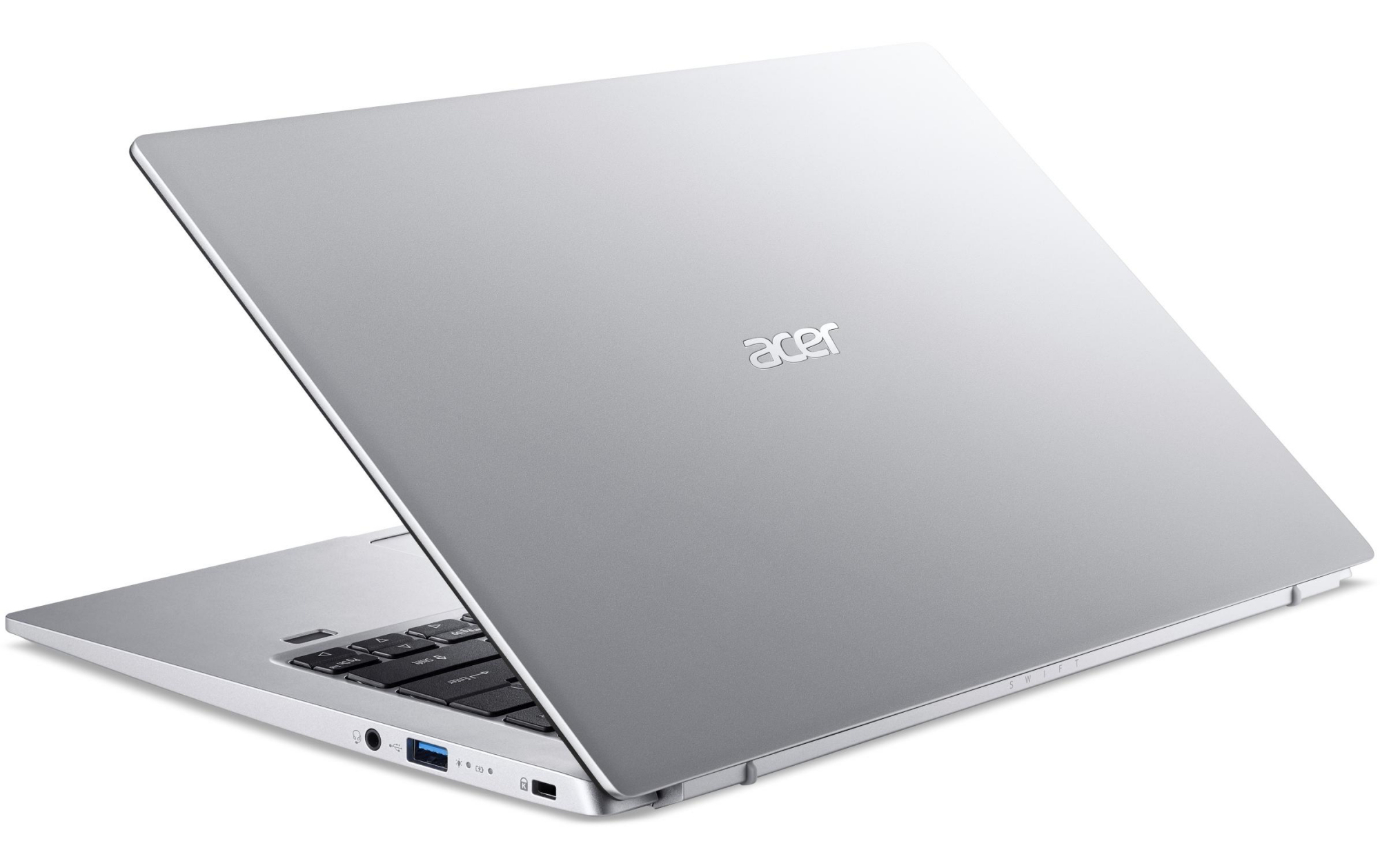

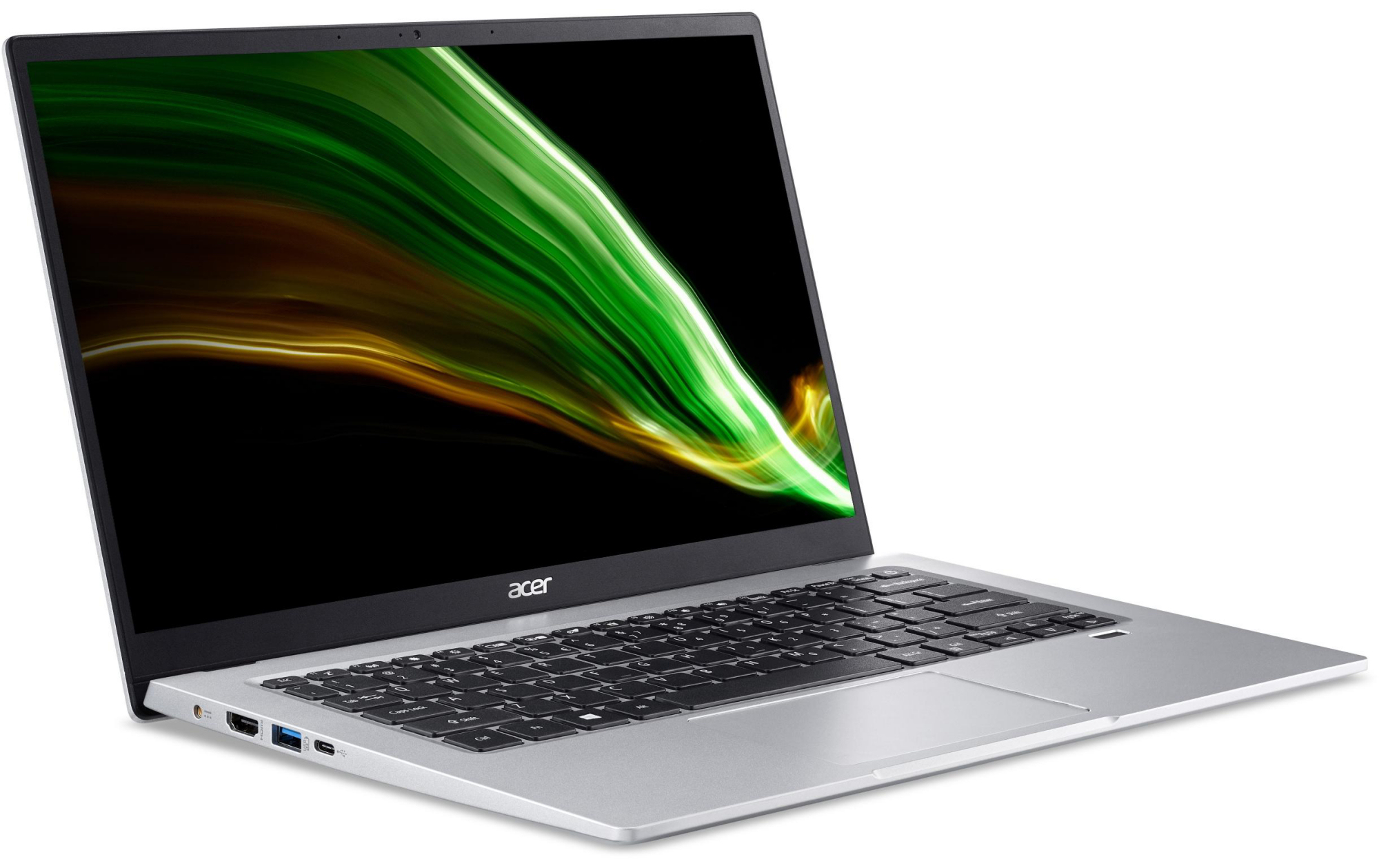

外壳 - Swift 1是由铝制成的

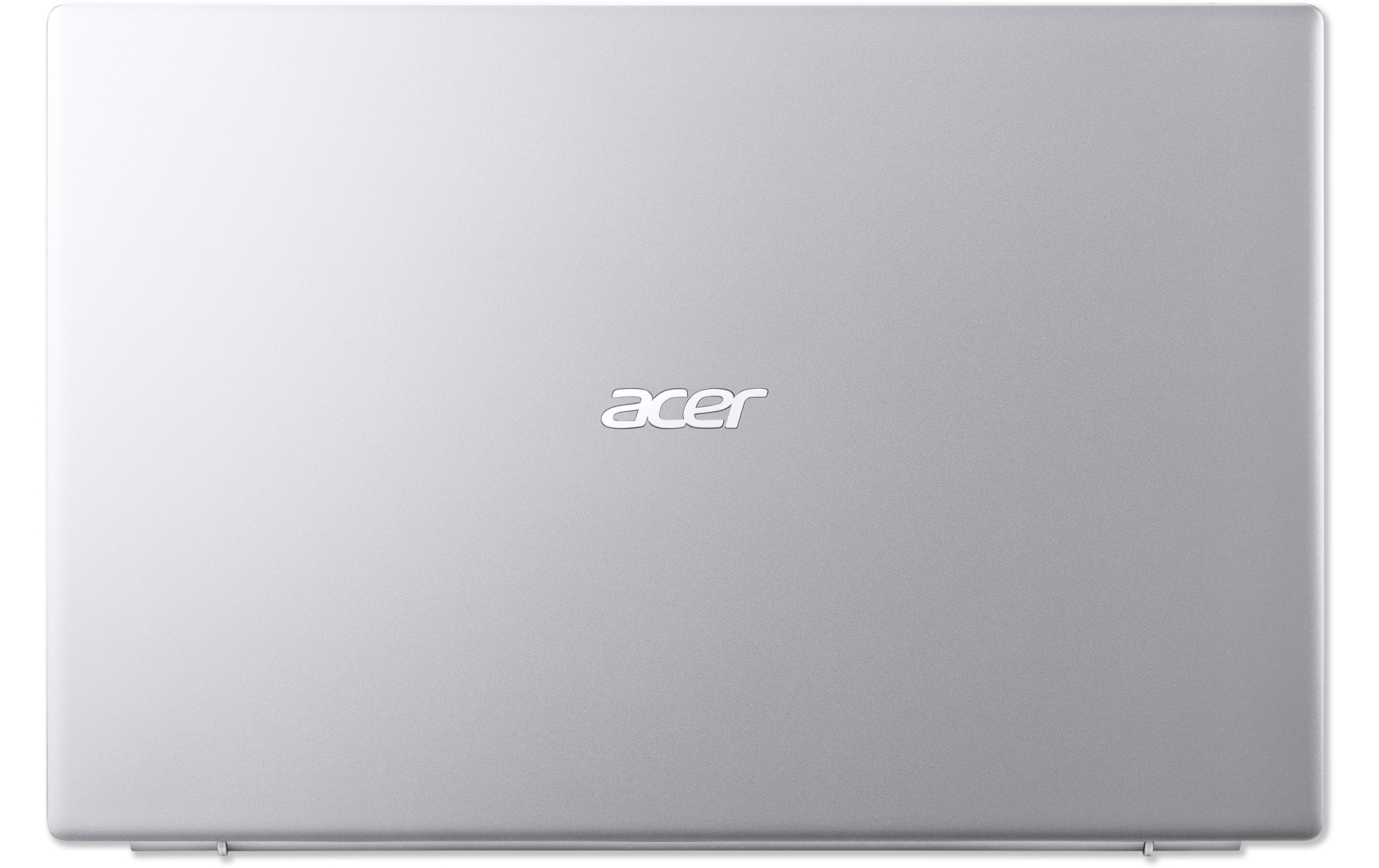

尽管Swift 1是一款入门级的设备，但它是由优质材料制成的。显示屏的盖子和底盘是由金属制成的。该设备有以下颜色方案。银色（我们的型号）、金色和粉色。屏幕边框始终是黑色的。电池是焊接在一起的。为了接触到内部组件，用户必须拆除底板。
外壳做得很好。没有任何缝隙或缝隙或任何其他缺陷。显示屏盖和底盘都表现出适度的弯曲。铰链可以将屏幕固定在位置上，并有120°的开启角度。打开时，显示屏盖略微抬高了设备的顶部部分。显示屏盖可以用一只手打开。
Swift 1是我们比较表中最轻的设备。

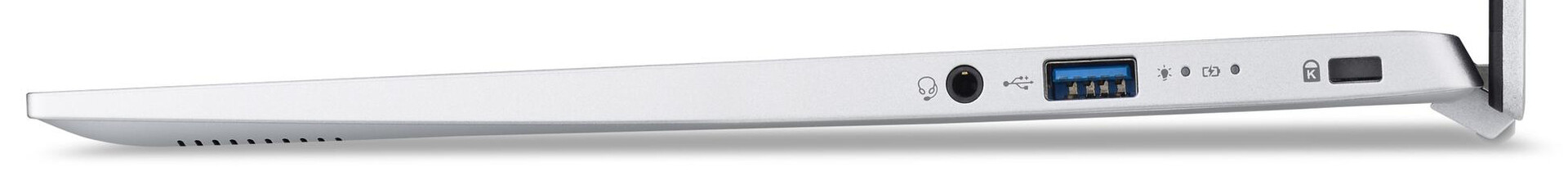

连接性 - SF114-34不支持USB供电服务。

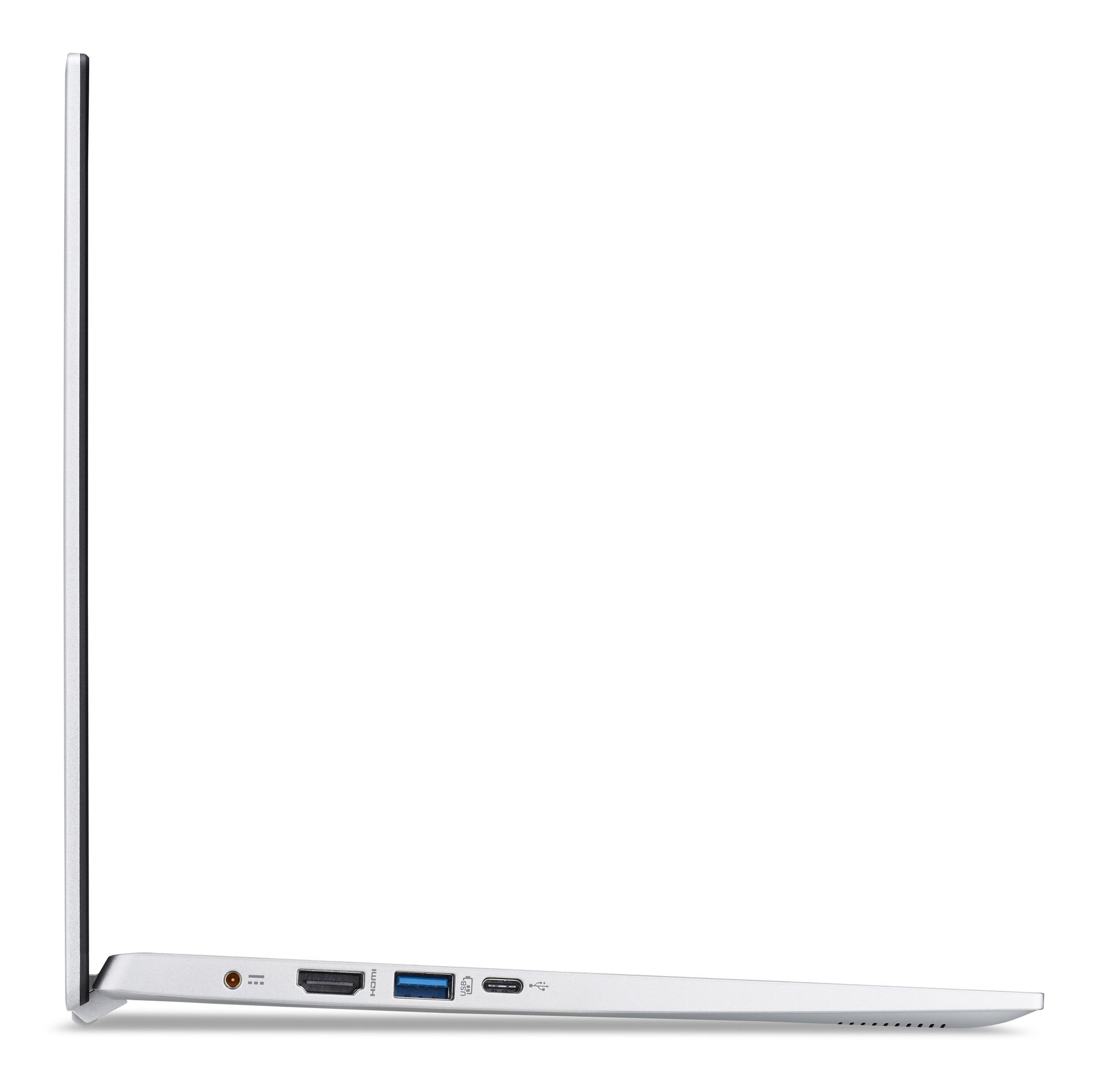

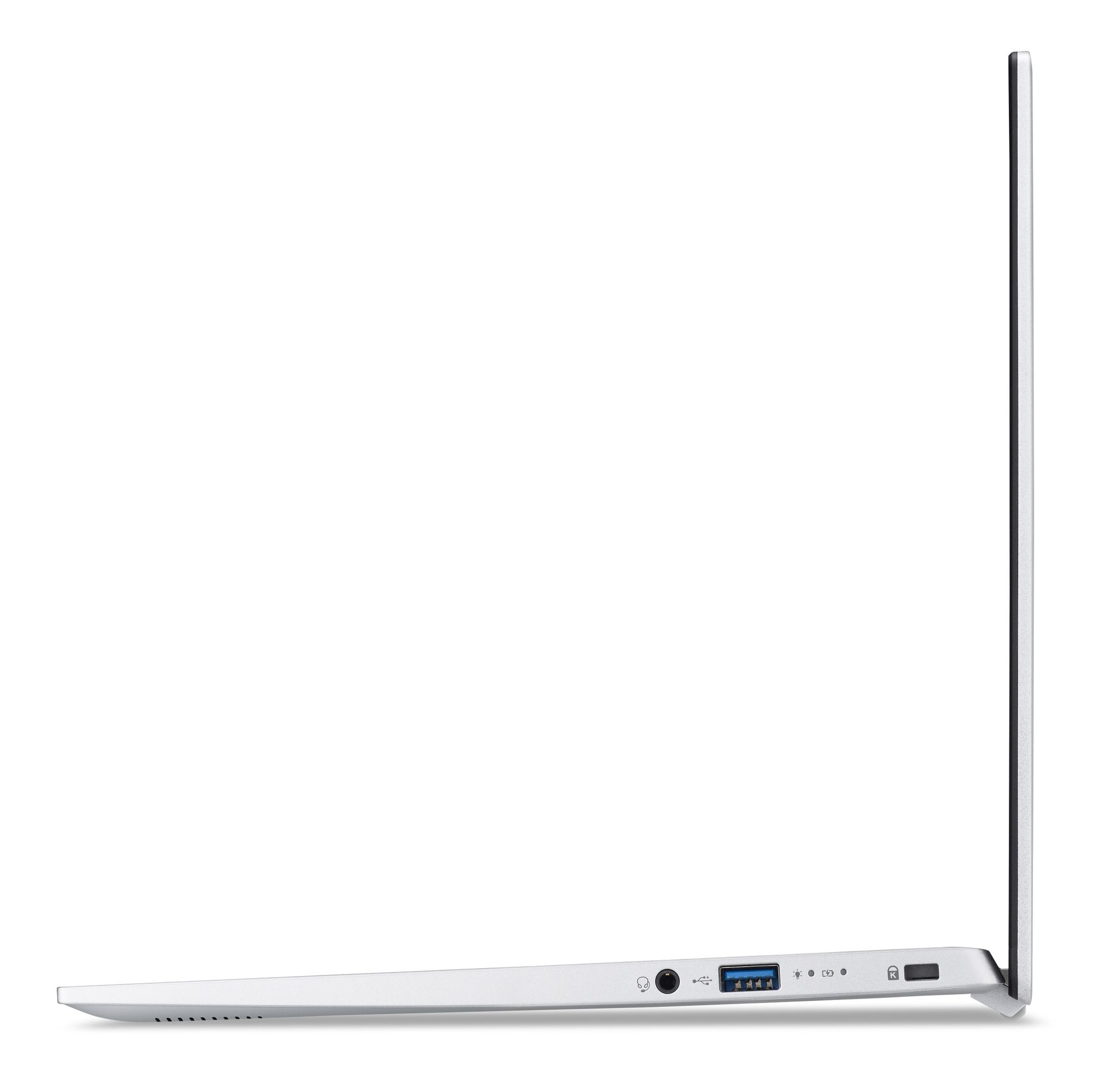

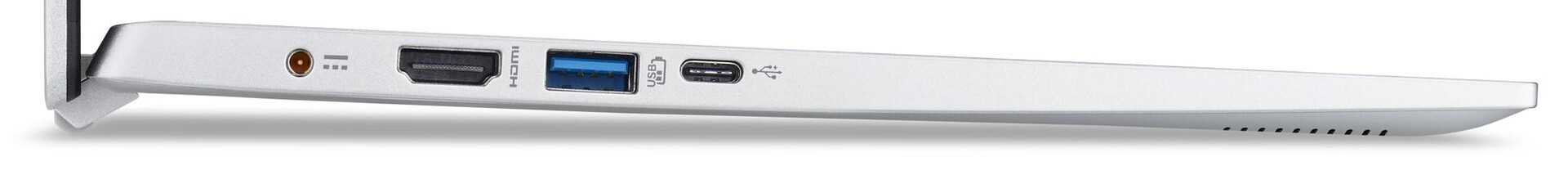

Swift 1的所有三个端口（2个USB-A，1个USB-C）都基于USB 3.2 Gen 1标准。不幸的是，USB-C端口不支持Power Delivery和DisplayPort功能。外部显示器可以通过HDMI端口连接。这款14英寸的笔记本电脑没有配备SD读卡器。这些端口位于机箱的两侧（靠近屏幕）。
沟通
我们在最佳条件下测得的数据传输速度（附近没有其他支持Wi-Fi的设备，笔记本和服务器PC之间的距离很短），对于配备英特尔Wi-Fi 6 AX201模块的设备来说相当差。Swift 1没有以太网端口，这就是为什么用户将不得不使用USB适配器来连接有线网络。
| Networking | |
| iperf3 transmit AX12 | |
| Average Intel Wi-Fi 6 AX201 (49.8 - 1775, n=324) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 | |
| Samsung Galaxy Book Go | |
| iperf3 receive AX12 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average Intel Wi-Fi 6 AX201 (136 - 1743, n=324) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 | |
| Samsung Galaxy Book Go | |
Acer Swift 1 SF114-34-P6U1 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1328 (1239-1378)
Medion Akoya E14307 Intel Dual Band Wireless-AC 3165; iperf3 receive AX12; iperf 3.1.3: Ø301 (291-312)
Lenovo IdeaPad 1-14IGL05 Intel Wireless AC 9462; iperf3 receive AX12; iperf 3.1.3: Ø350 (335-360)
Samsung Galaxy Book Go 802.11 a/b/g/n/ac; iperf3 receive AX12; iperf 3.1.3: Ø100 (95-104)
Acer Swift 1 SF114-34-P6U1 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø961 (697-1082)
Medion Akoya E14307 Intel Dual Band Wireless-AC 3165; iperf3 transmit AX12; iperf 3.1.3: Ø308 (221-381)
Lenovo IdeaPad 1-14IGL05 Intel Wireless AC 9462; iperf3 transmit AX12; iperf 3.1.3: Ø332 (285-362)
Samsung Galaxy Book Go 802.11 a/b/g/n/ac; iperf3 transmit AX12; iperf 3.1.3: Ø93.2 (80-105)
网络摄像机

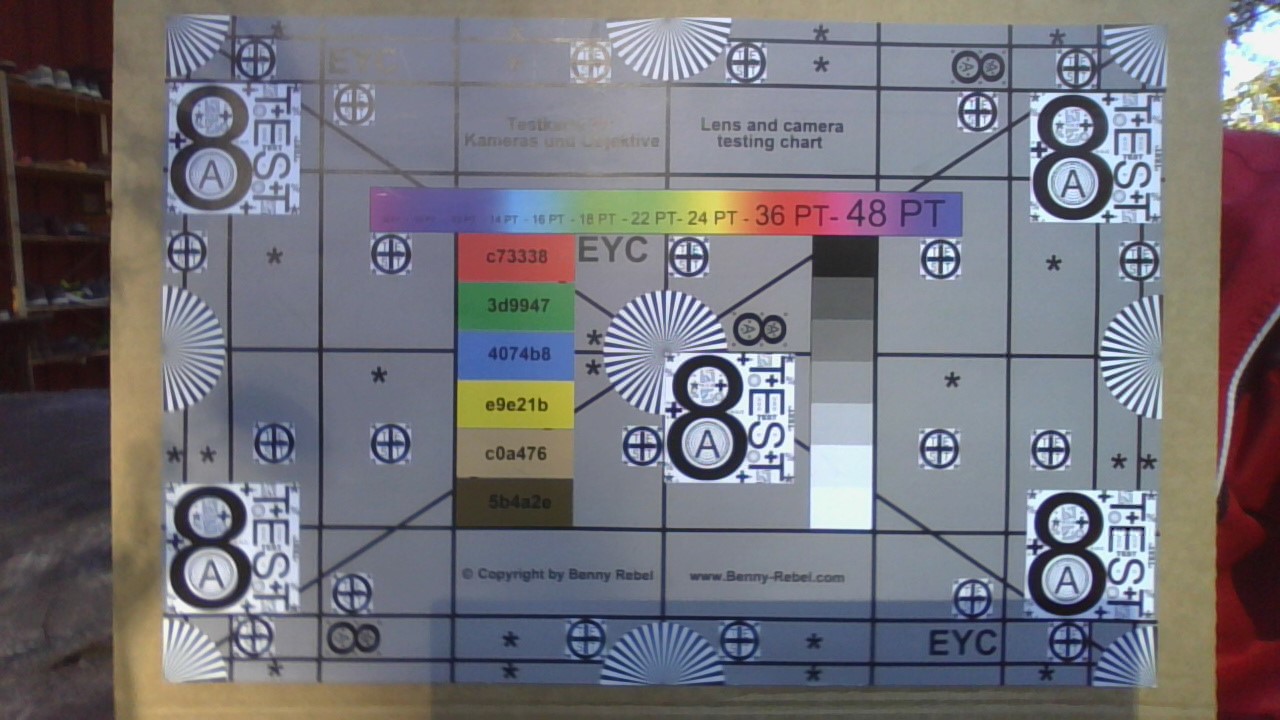

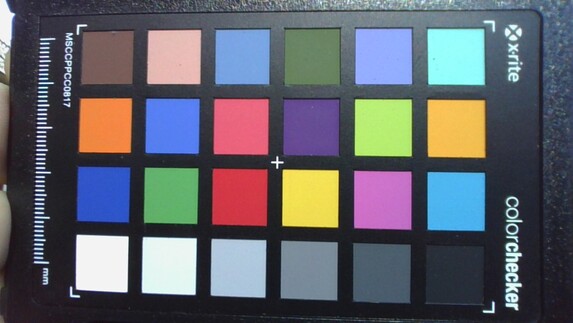

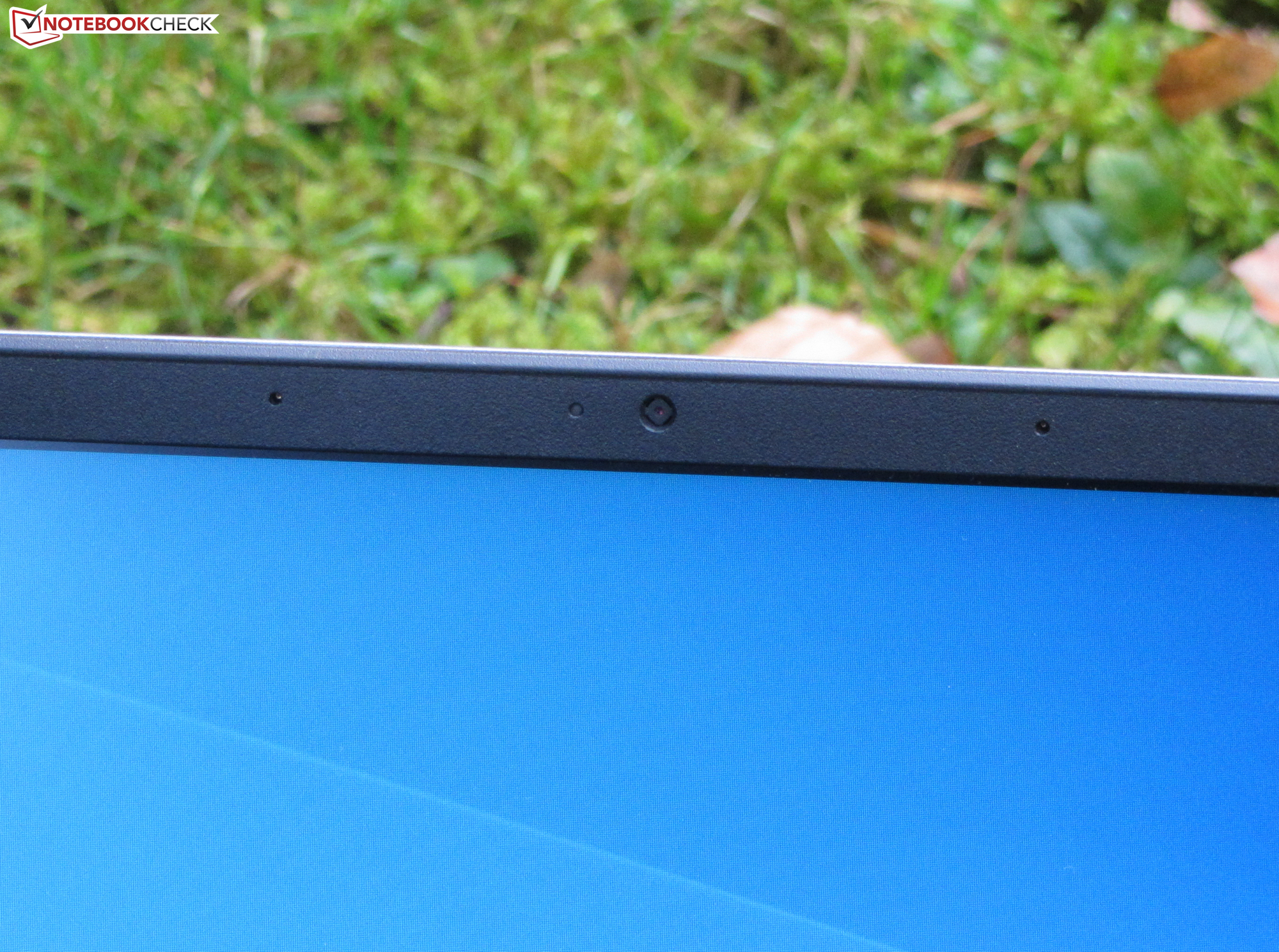

网络摄像头的分辨率为1280x720像素。色彩还原性很差。
7.2 ∆E
12.1 ∆E
15.2 ∆E
9.5 ∆E
17.7 ∆E
17.2 ∆E
7.3 ∆E
16.5 ∆E
9.6 ∆E
8.7 ∆E
12 ∆E
7.8 ∆E
10.3 ∆E
9.8 ∆E
8.3 ∆E
6.4 ∆E
11.1 ∆E
18.6 ∆E
0 ∆E
12.1 ∆E
14.6 ∆E
11.4 ∆E
9.7 ∆E
6.4 ∆E
辅料
盒子里只包括必须的文件（快速启动指南、保修信息）。
维护

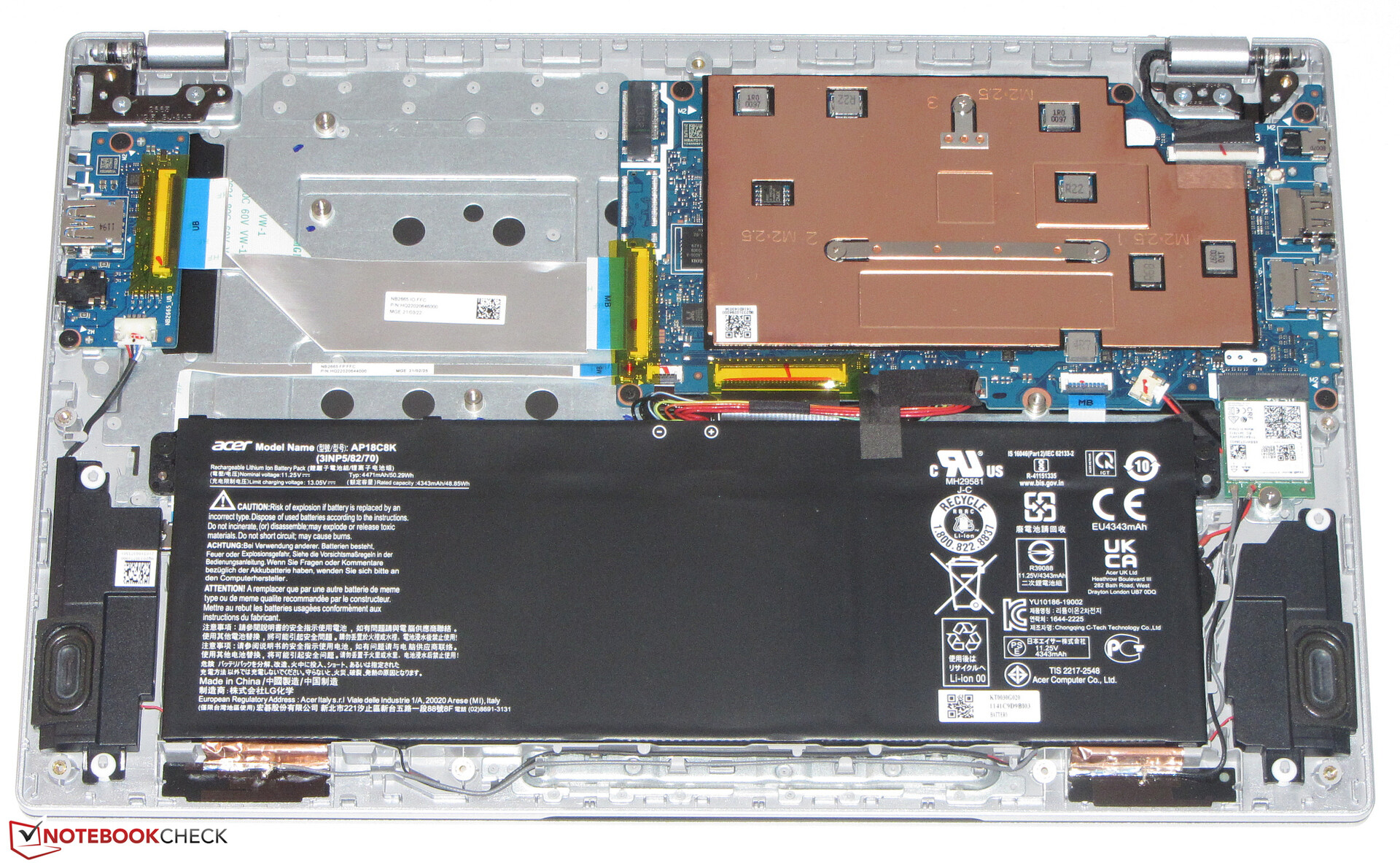

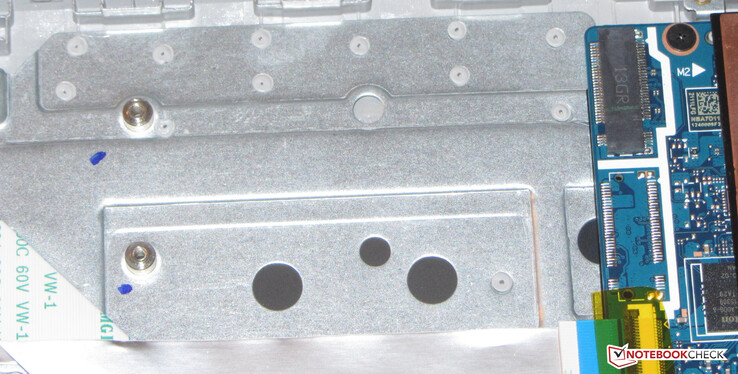

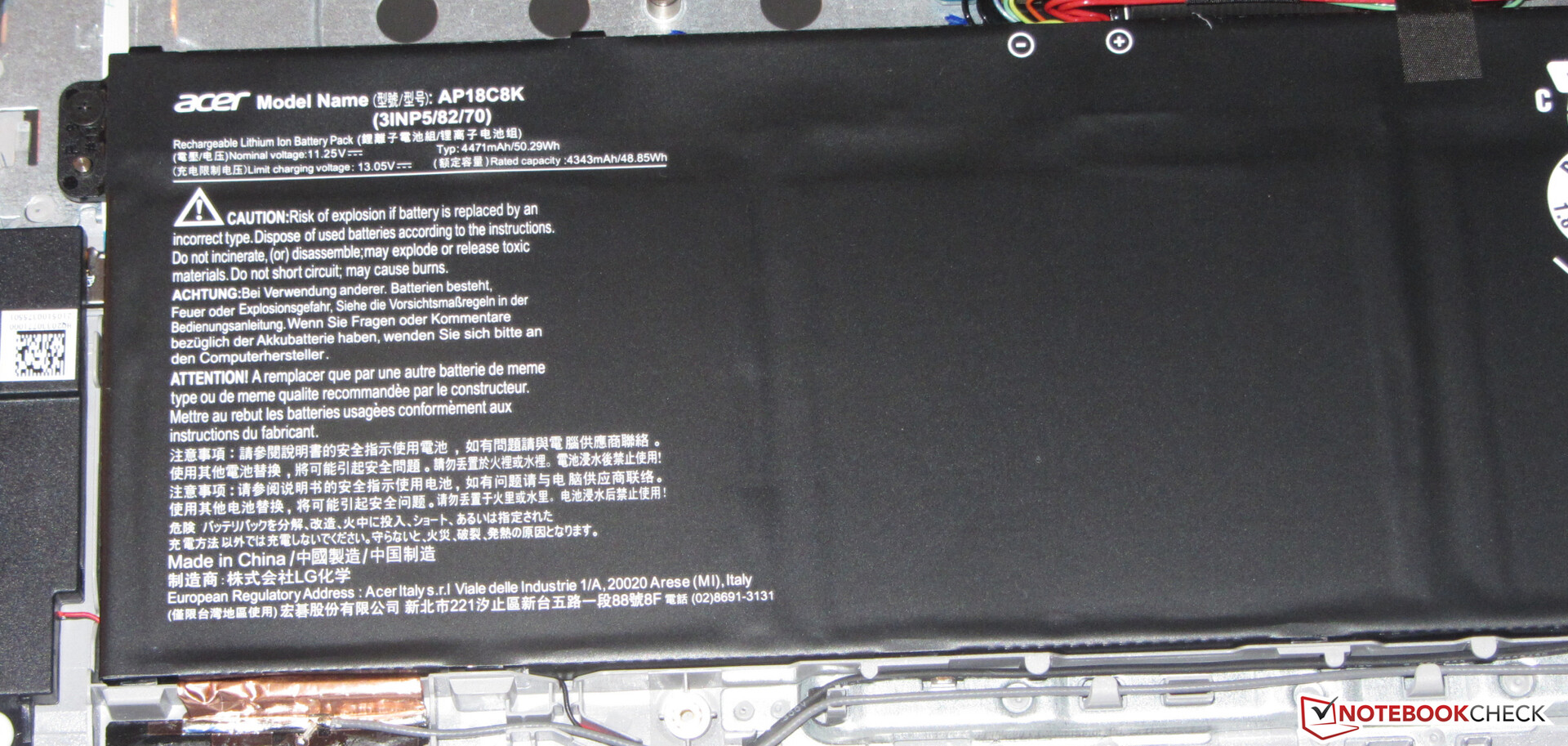

拆除底盖可以接触到内部组件。为此，需要解开底部的所有螺钉。随后，底盖可以在铲子的帮助下被卸下。电池、Wi-Fi模块、M.2插槽（M.2-2280，NVMe）和BIOS电池可以在拆除底板后进入。
担保
宏碁为Swift 1提供了2年的保修期。如果要将保修期延长到3年，购买者将不得不额外支付50欧元（约合57美元）。
操作系统

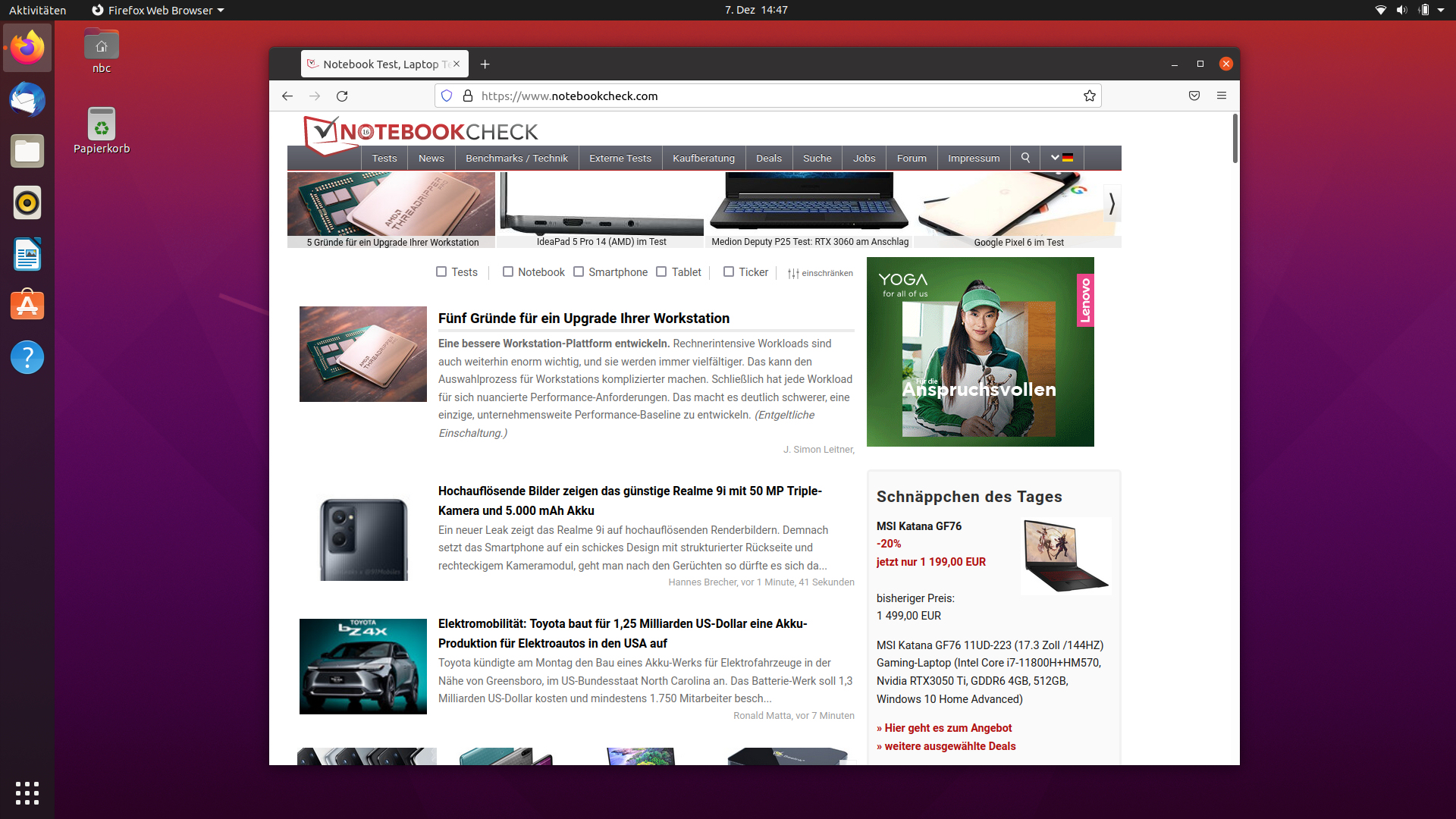

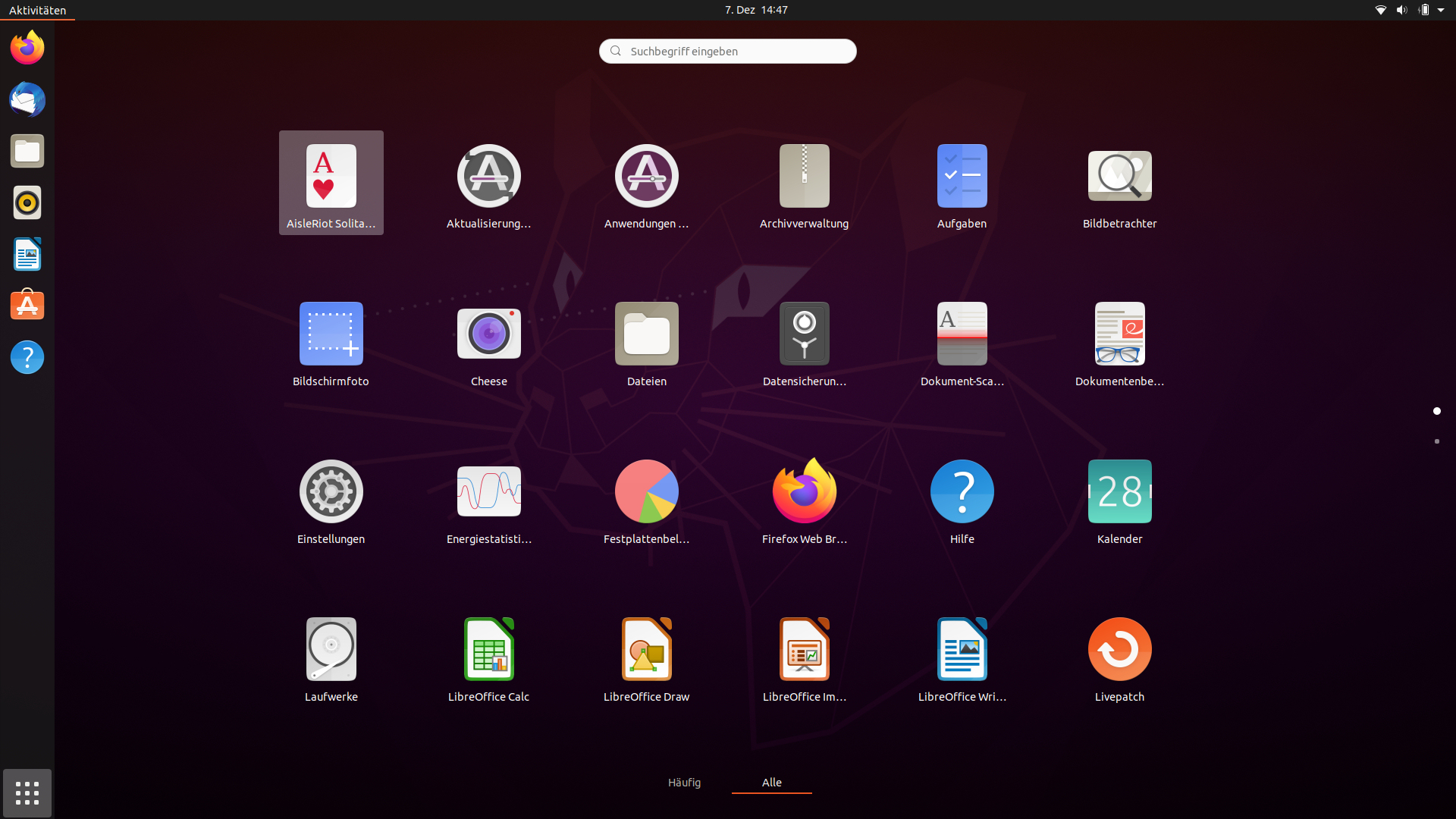

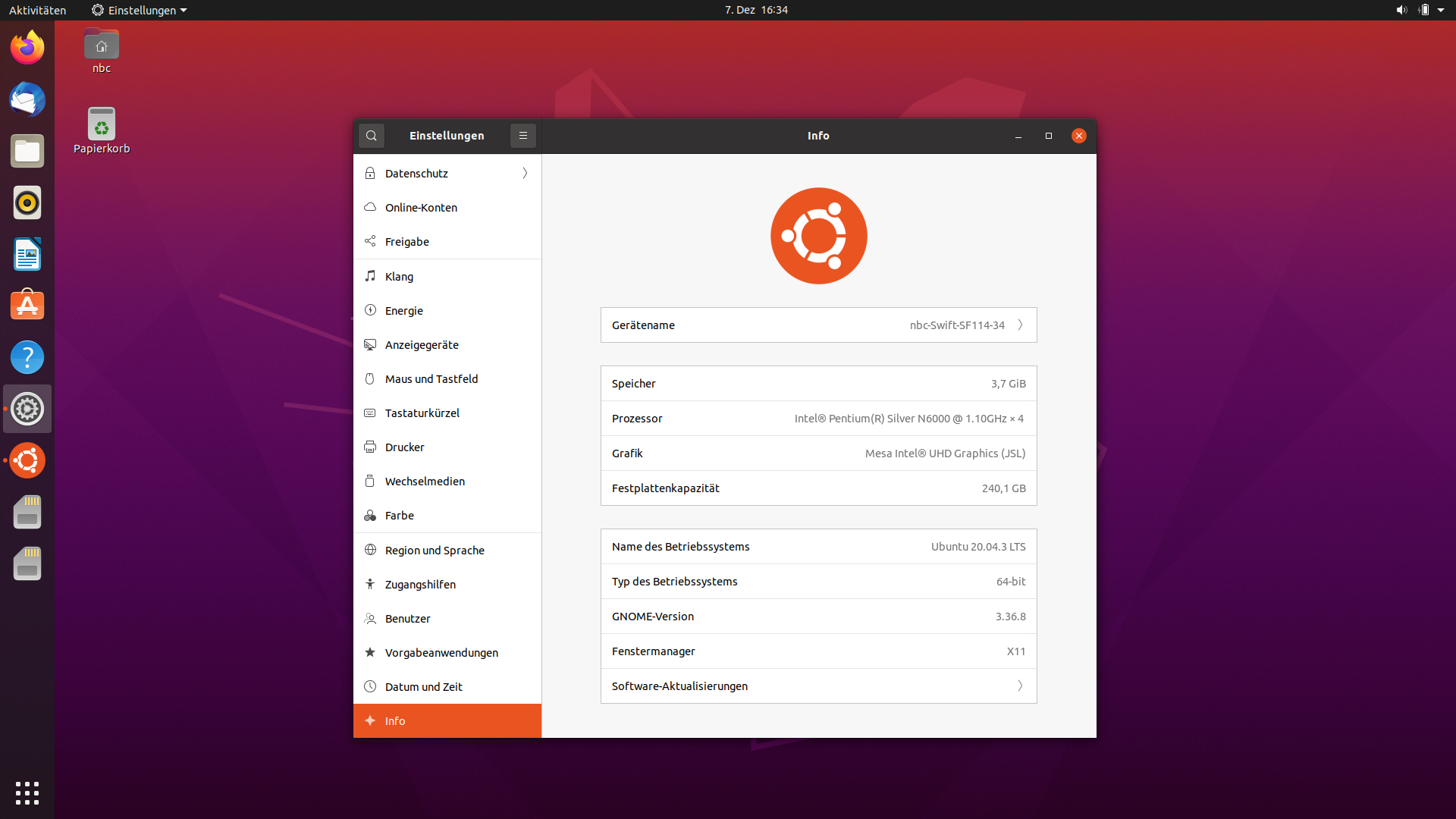

Swift 1不附带Windows操作系统。那些已经拥有Windows许可证的人可以轻松地安装Windows 10。可以使用Linux作为替代。我们能够安装Ubuntu 20.04 LTS，没有任何问题。几乎所有宏碁Swift 1的硬件都能立即被识别，并能像预期那样运作。只有用于启用/禁用飞机模式的功能键不工作。然而，在我们安装了推荐的更新后，一切都正常了。

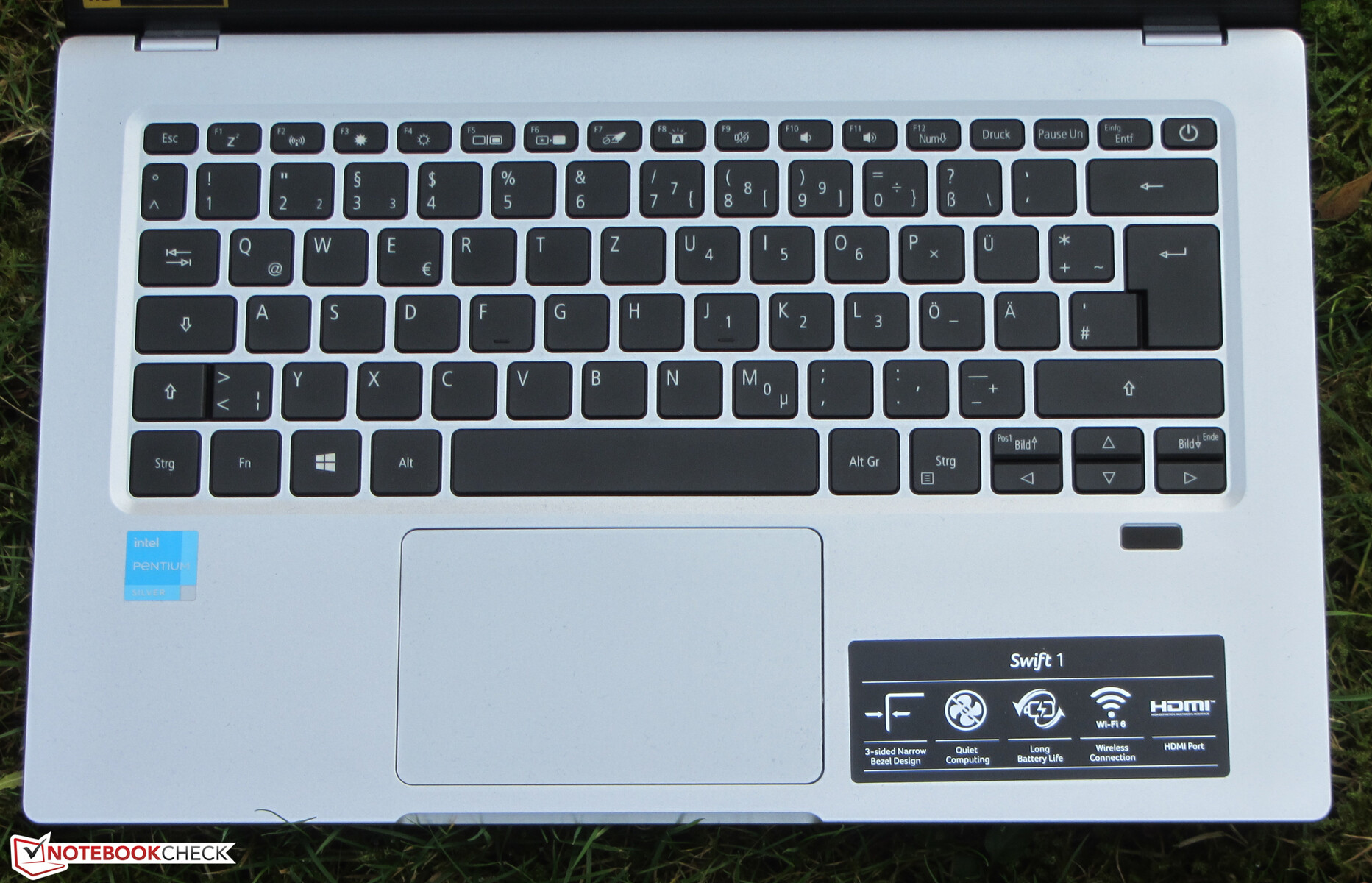

输入设备 - 带有键盘背光的宏碁笔记本电脑
键盘

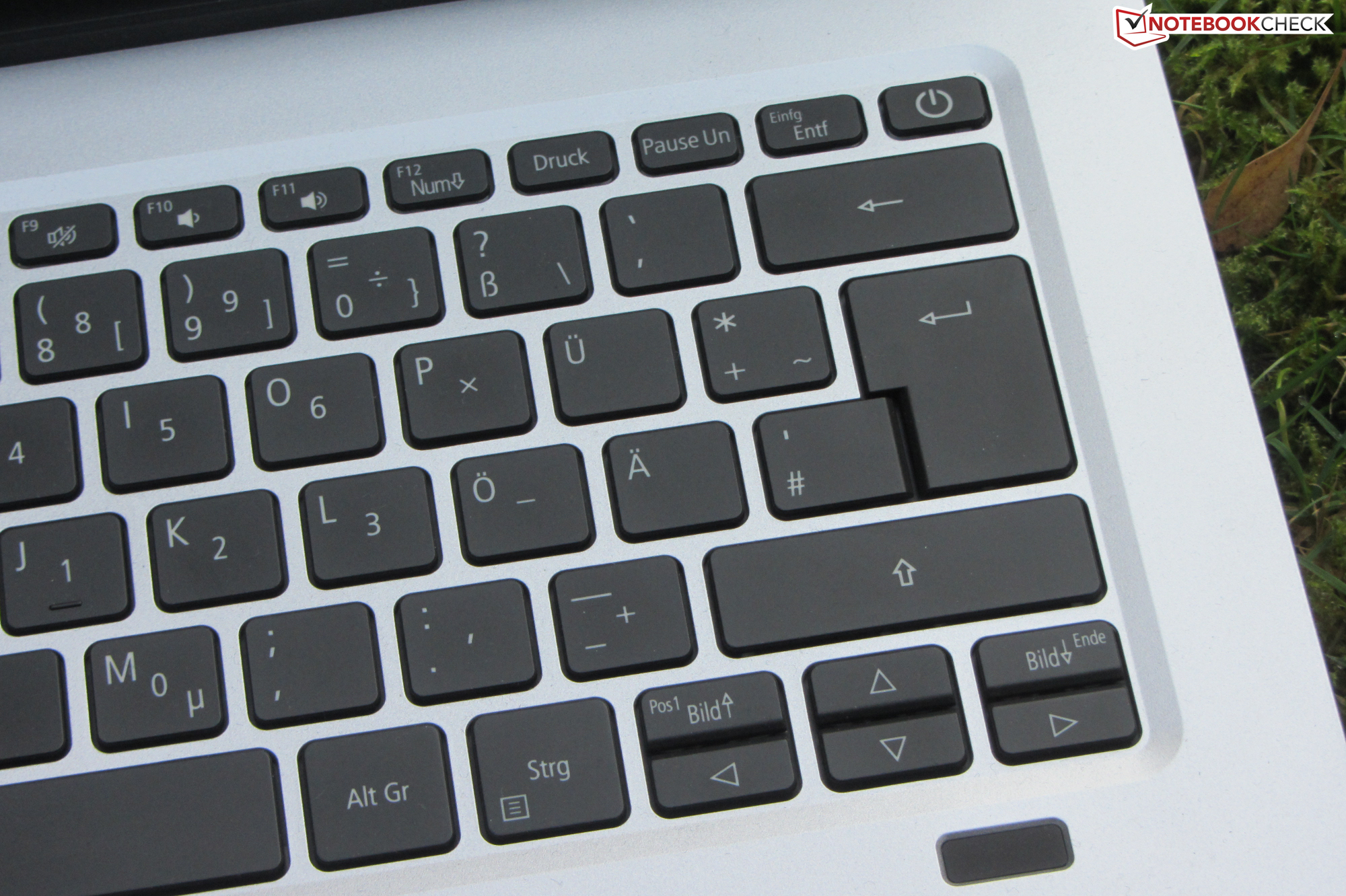

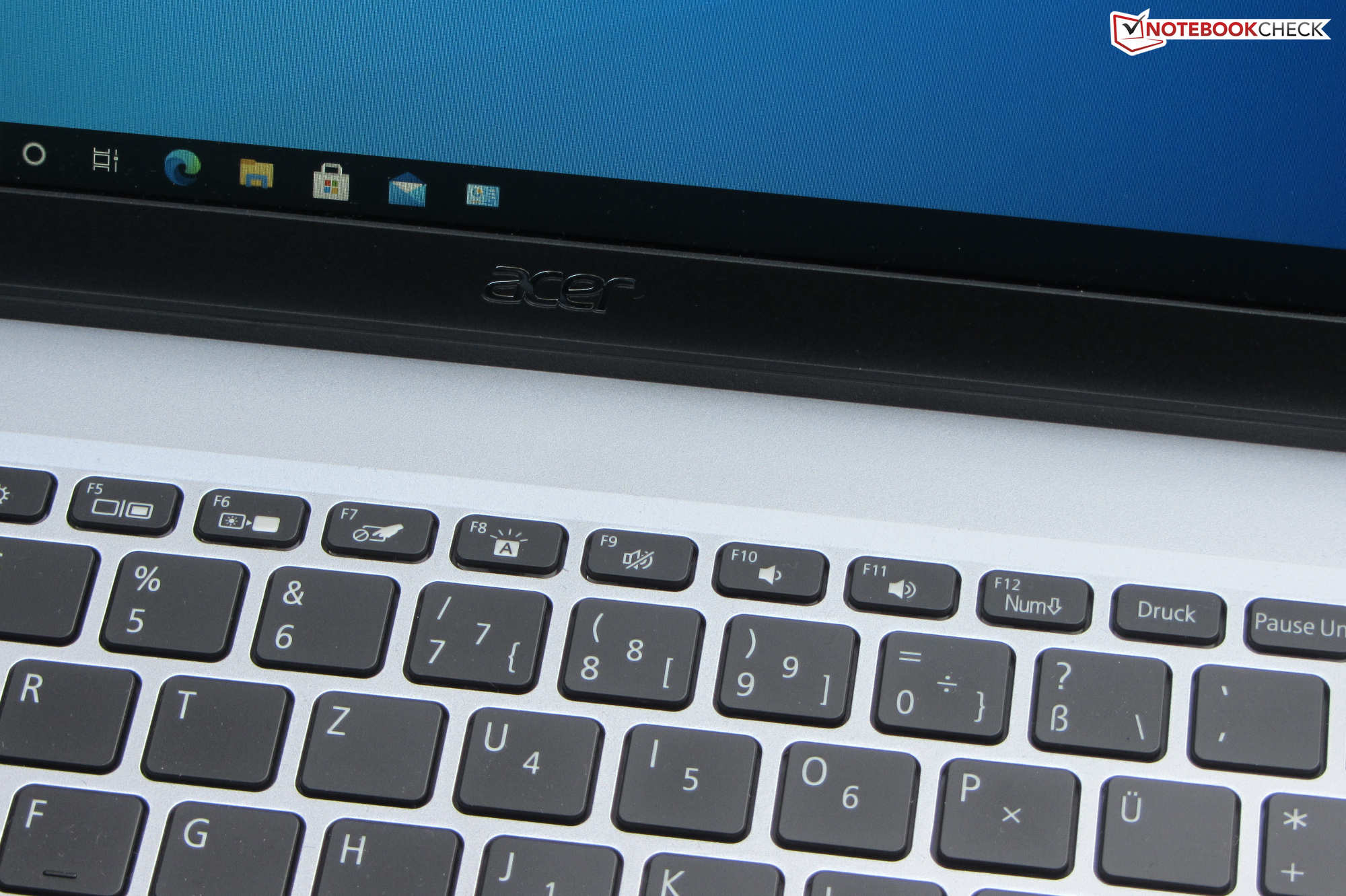

扁平、光滑、带背光的小册子式键盘的按键具有清晰的启动点和短的移动距离。按键需要适度的力量。打字时，键盘的上部会有一些弯曲。单层背光可以通过一个功能键启用/禁用。总而言之，Swift 1有一个体面的键盘。
触摸板
一个多点触摸点击板（10.5x6.5厘米/4.13x2.55英寸）作为鼠标的替代品。它有一个光滑的表面，较短的移动距离和一个清晰的启动点。即使是在角落里，这块垫子也能很好地记录输入。

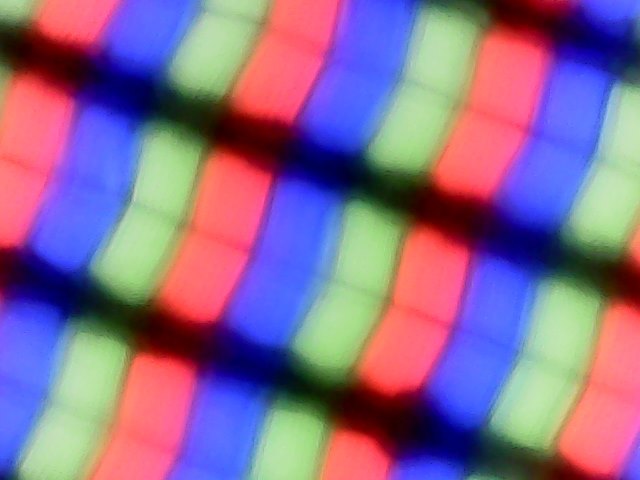

显示器 - IPS面板
亮度（264.8 cd/m²）和对比度（952:1）并不令人印象深刻，但对于这样的设备来说还可以。我们认为300cd/m²的亮度和至少1000:1的对比度是好的。
在10%的亮度及以下，屏幕会以25000赫兹的频率闪烁。这种闪烁是无法察觉的。由于频率如此之高，即使是敏感的人也不应该出现头痛或眼睛疲劳。
| |||||||||||||||||||||||||
Chi Mei N140HCA-EAC tested with X-Rite i1Pro 2
Maximum: 295 cd/m² (Nits) Average: 264.8 cd/m² Minimum: 25 cd/m²Brightness Distribution: 85 %
Center on Battery: 295 cd/m²
Contrast: 952:1 (Black: 0.31 cd/m²)
ΔE Color 5.43 | 0.5-29.43 Ø4.86

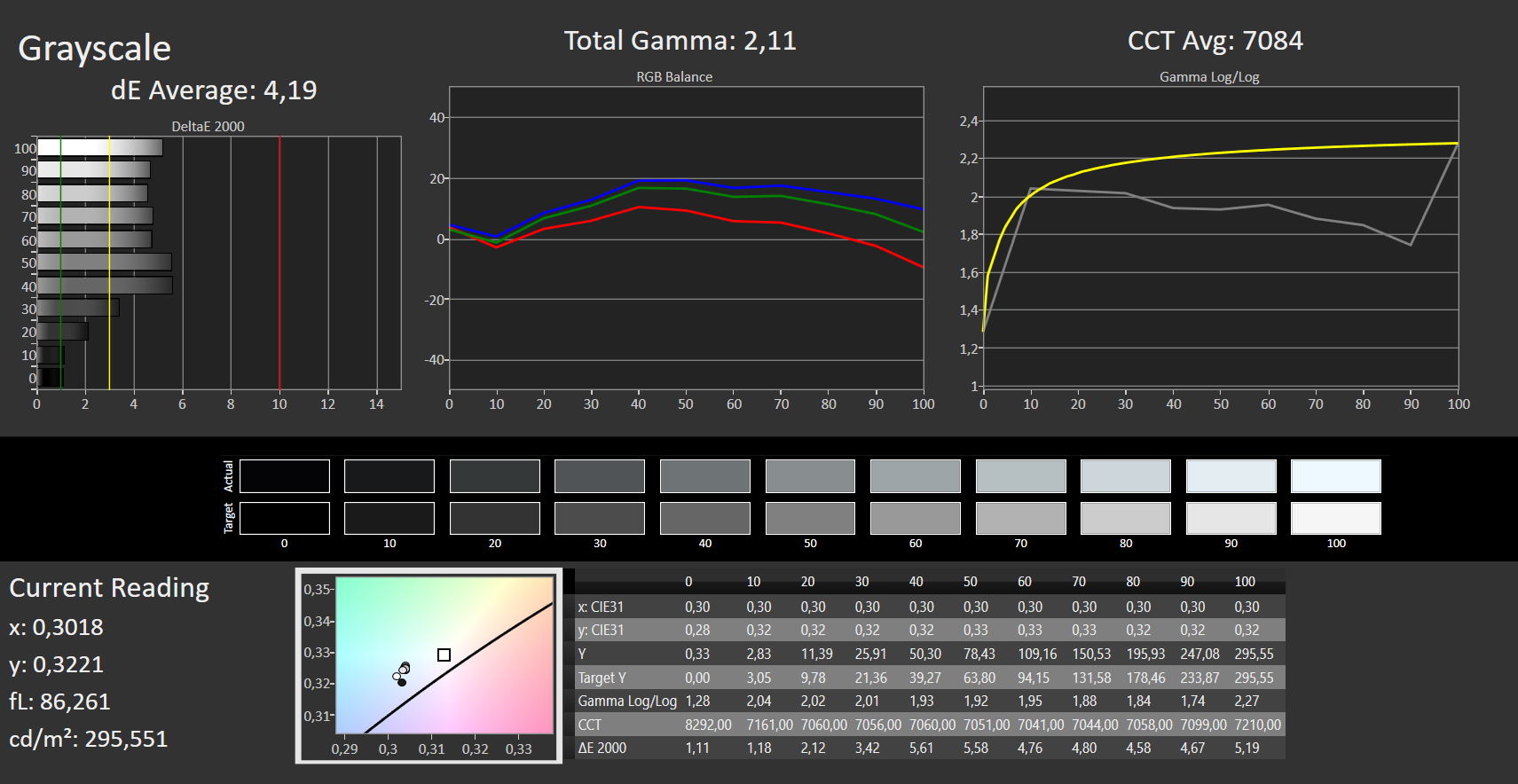

ΔE Greyscale 4.19 | 0.5-98 Ø5.1
42.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.8% sRGB (Argyll 2.2.0 3D)
41.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.11
| Acer Swift 1 SF114-34-P6U1 Chi Mei N140HCA-EAC, IPS, 1920x1080, 14" | Medion Akoya E14307 LG Philips LP140WFA-SPD1, IPS, 1920x1080, 14" | Lenovo IdeaPad 1-14IGL05 N140BGA-EA4, TN LED, 1366x768, 14" | Acer Chromebook 514 CB514-1HT-P1BM IPS, 1920x1080, 14" | Samsung Galaxy Book Go AUO203D, TN, 1920x1080, 14" | |
|---|---|---|---|---|---|
| Display | -10% | 2% | |||
| Display P3 Coverage | 41.4 | 37.3 -10% | 42.07 2% | ||
| sRGB Coverage | 61.8 | 55.8 -10% | 62.9 2% | ||
| AdobeRGB 1998 Coverage | 42.9 | 38.59 -10% | 43.5 1% | ||
| Response Times | -10% | -46% | -44% | -31% | |
| Response Time Grey 50% / Grey 80% * | 29 ? | 33 ? -14% | 50 ? -72% | 44 ? -52% | 40 ? -38% |
| Response Time Black / White * | 20 ? | 21 ? -5% | 14 ? 30% | 27 ? -35% | 11 ? 45% |
| PWM Frequency | 25000 ? | 1000 ? -96% | 200 ? -99% | ||
| Screen | 8% | -53% | -84% | -80% | |
| Brightness middle | 295 | 297 1% | 262 -11% | 204 -31% | 230 -22% |
| Brightness | 265 | 267 1% | 239 -10% | 190 -28% | 201 -24% |
| Brightness Distribution | 85 | 86 1% | 85 0% | 83 -2% | 80 -6% |
| Black Level * | 0.31 | 0.23 26% | 0.18 42% | 0.29 6% | 0.36 -16% |
| Contrast | 952 | 1291 36% | 1456 53% | 703 -26% | 639 -33% |
| Colorchecker dE 2000 * | 5.43 | 5.92 -9% | 10.8 -99% | 14.66 -170% | 12.23 -125% |
| Colorchecker dE 2000 max. * | 9.51 | 8.39 12% | 29.65 -212% | 25.65 -170% | 23.26 -145% |
| Greyscale dE 2000 * | 4.19 | 4.41 -5% | 12.09 -189% | 14.75 -252% | 15.28 -265% |
| Gamma | 2.11 104% | 2.71 81% | 2.12 104% | 1.69 130% | 2.55 86% |
| CCT | 7084 92% | 7244 90% | 13276 49% | 8907 73% | 18403 35% |
| Colorchecker dE 2000 calibrated * | 5.07 | 4.18 | |||
| Color Space (Percent of AdobeRGB 1998) | 35 | 40 | |||
| Color Space (Percent of sRGB) | 56 | 63 | |||
| Total Average (Program / Settings) | -4% /
1% | -32% /
-40% | -64% /
-76% | -56% /
-66% |
* ... smaller is better

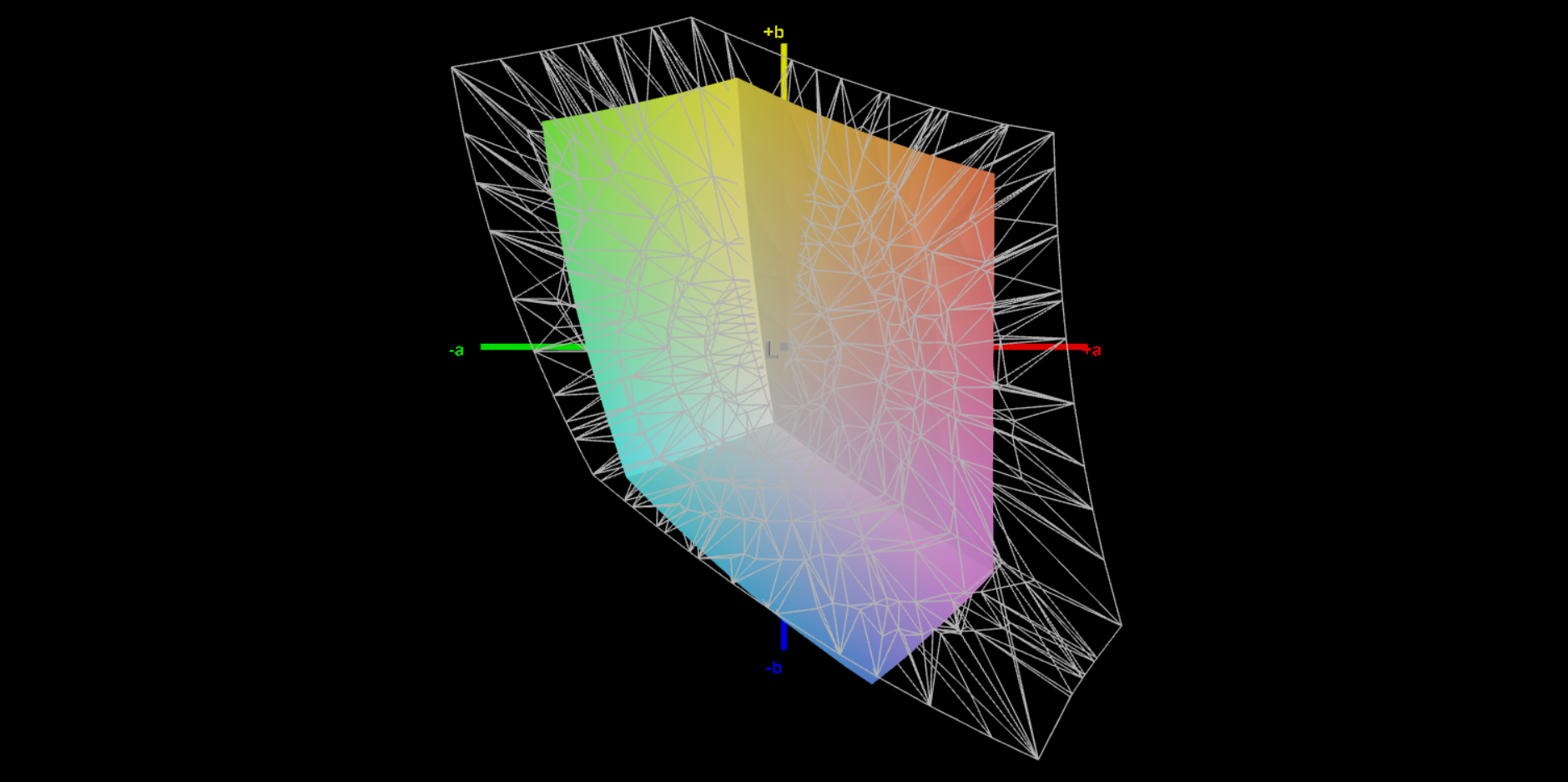

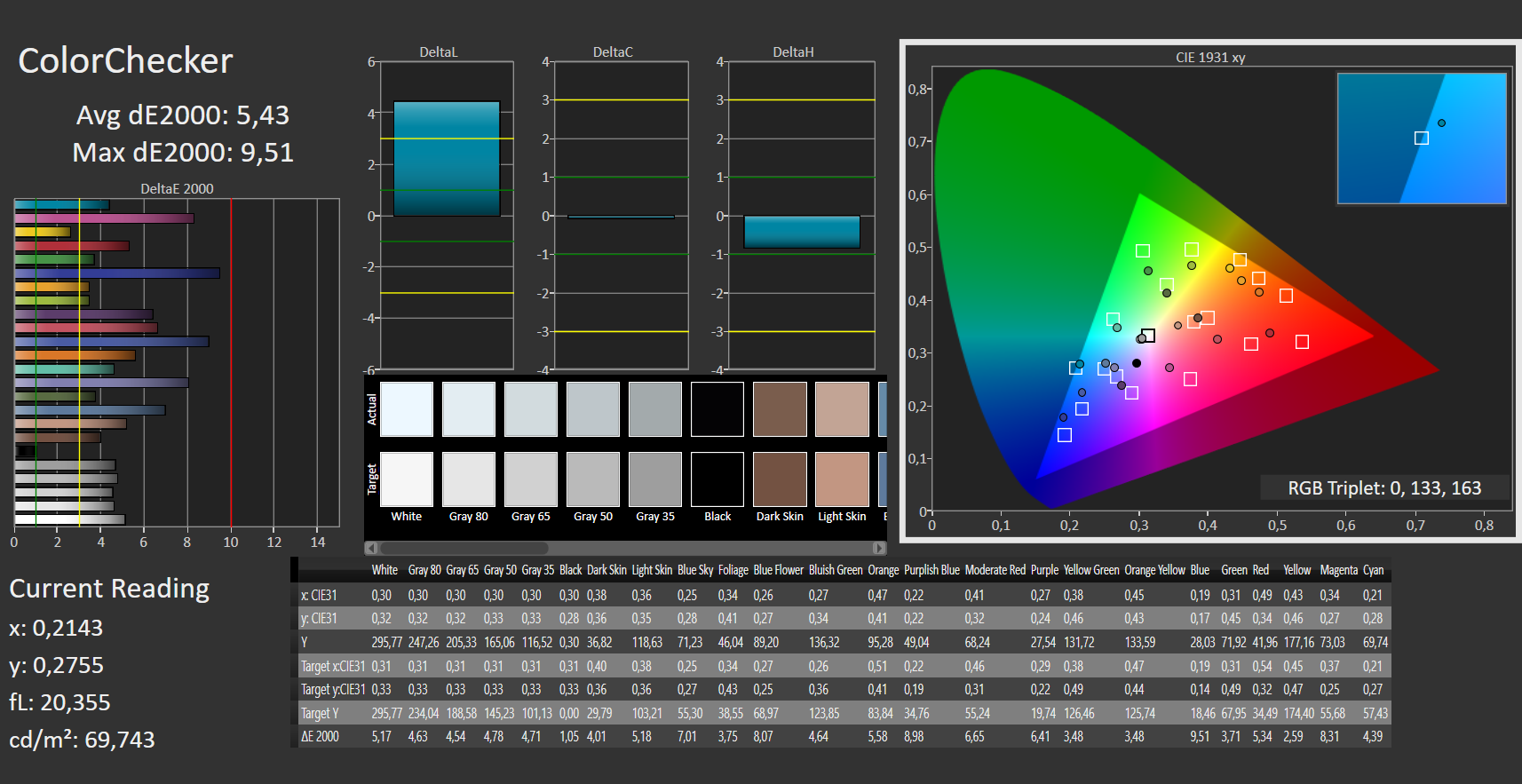

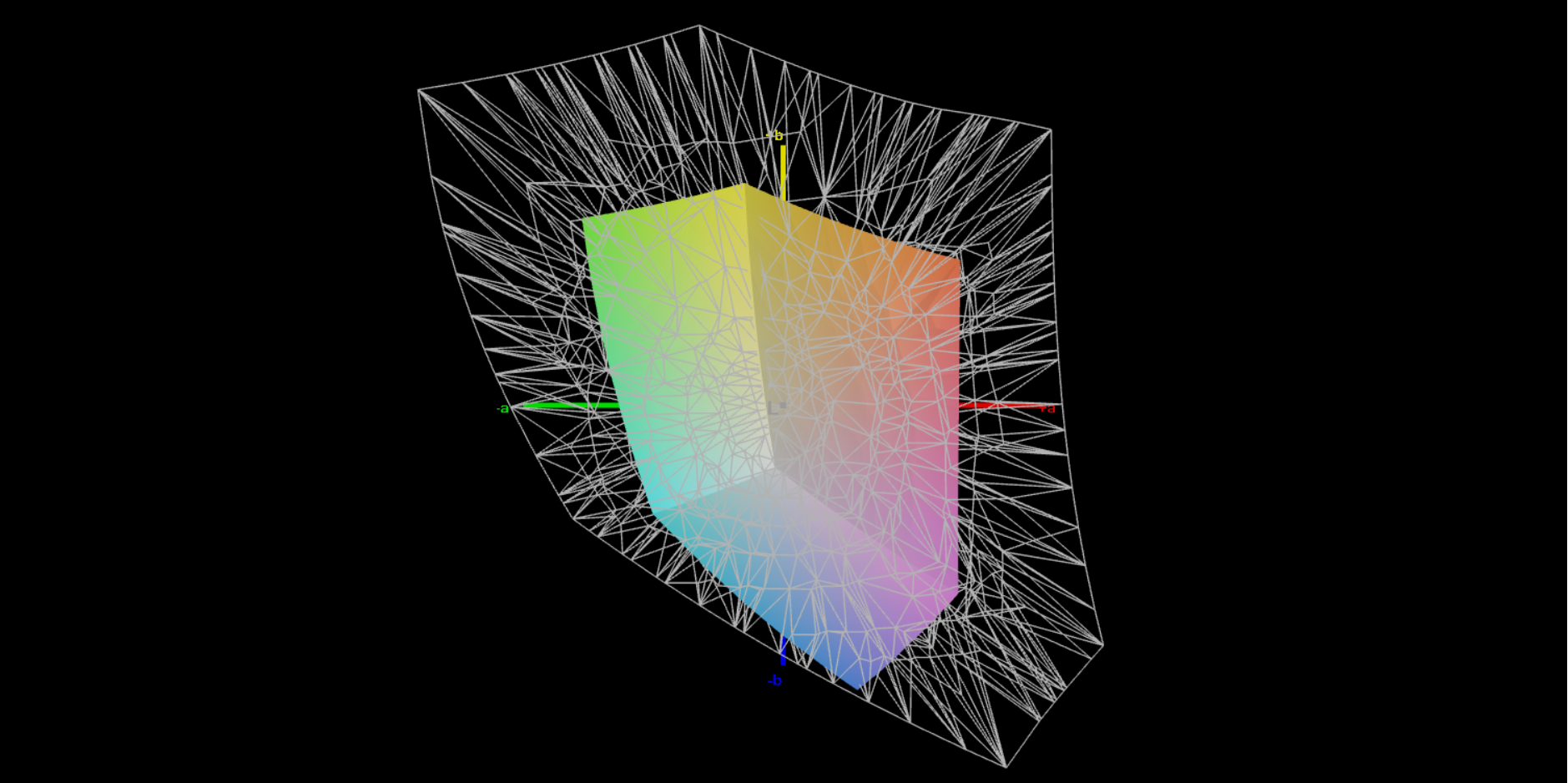

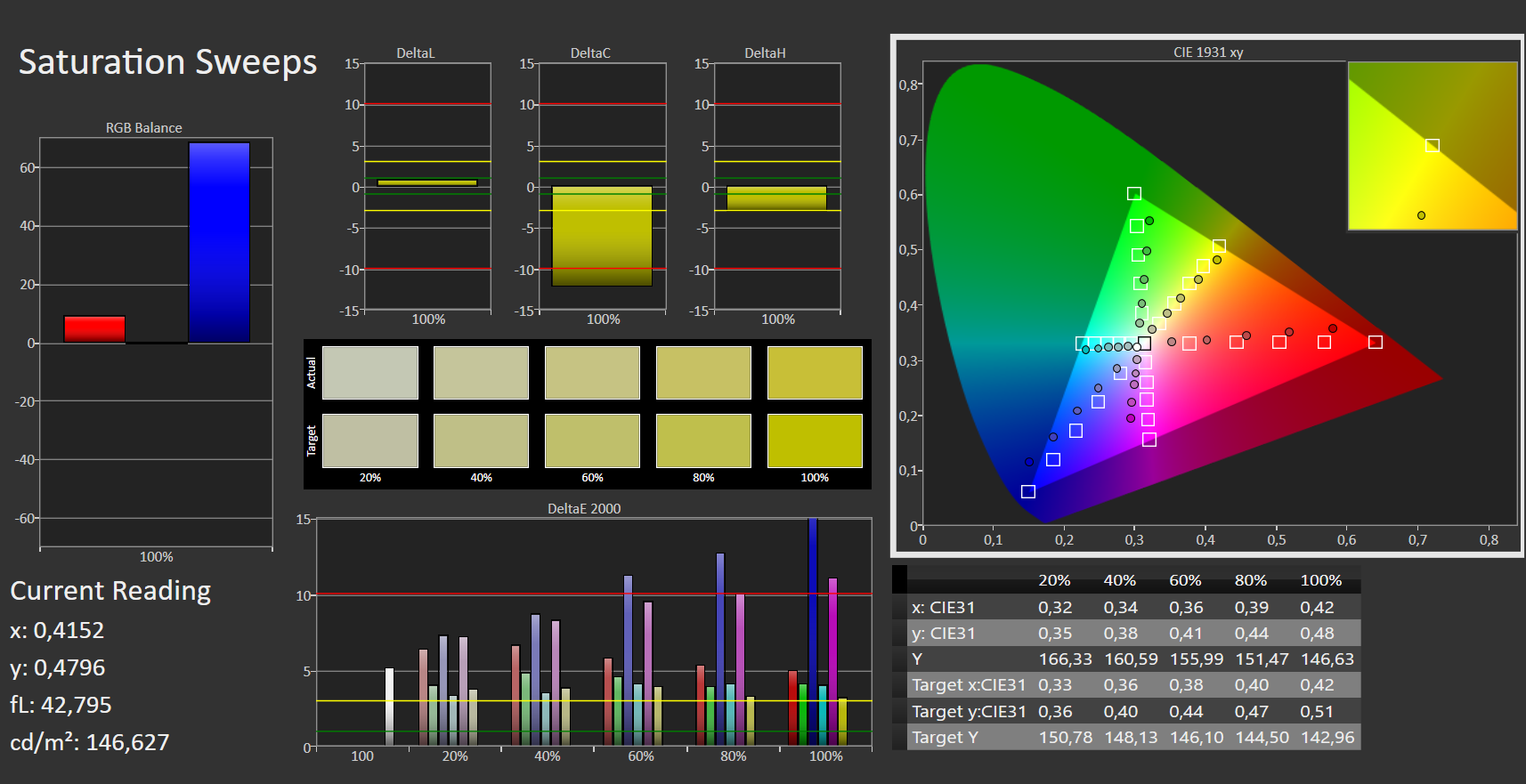

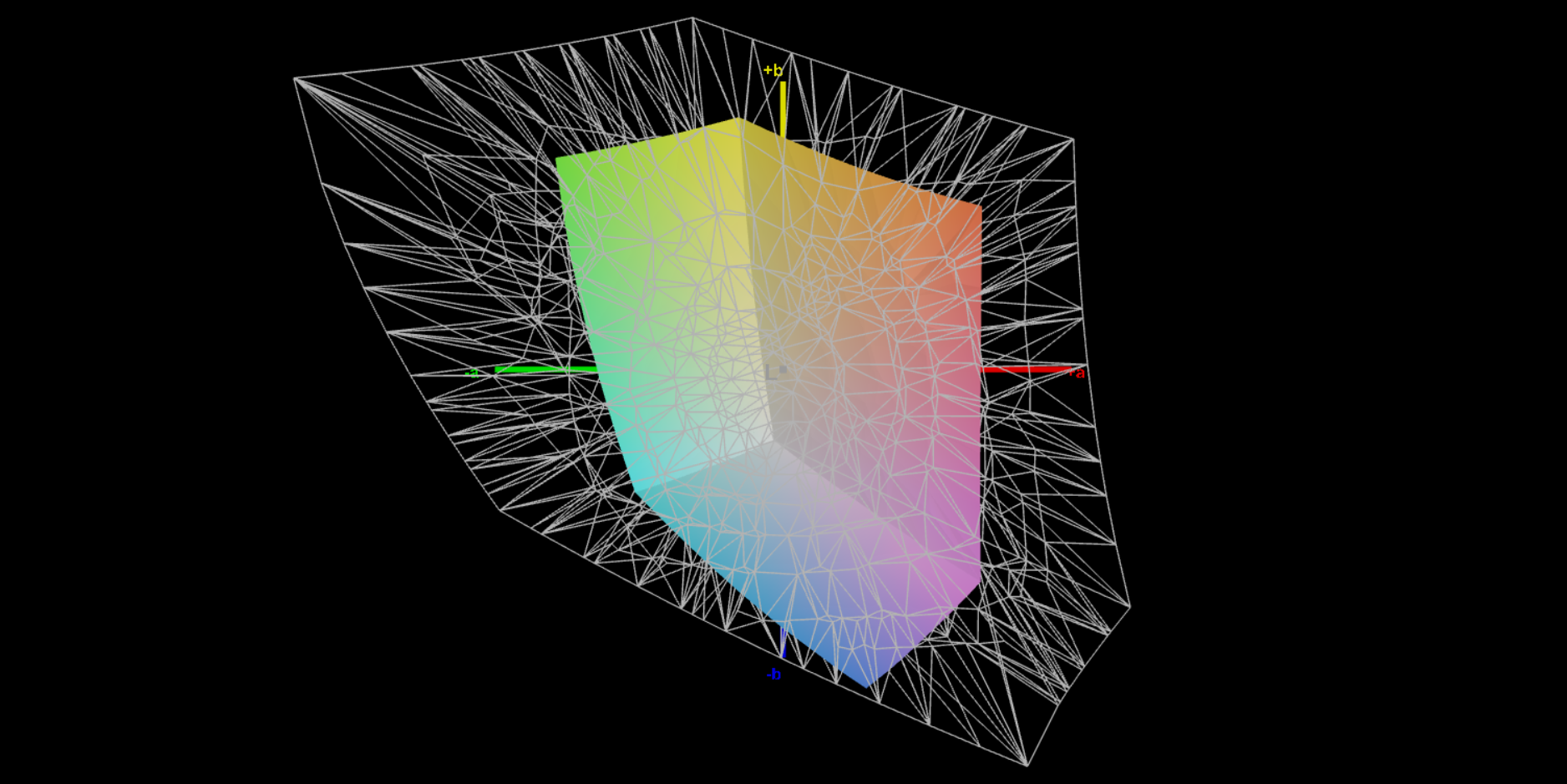

开箱后，色彩准确度达到了可接受的水平。屏幕不存在偏蓝的问题。色彩空间覆盖率相当差（AdobeRGB：43%；sRGB：62%；DCI-P3：41%）。

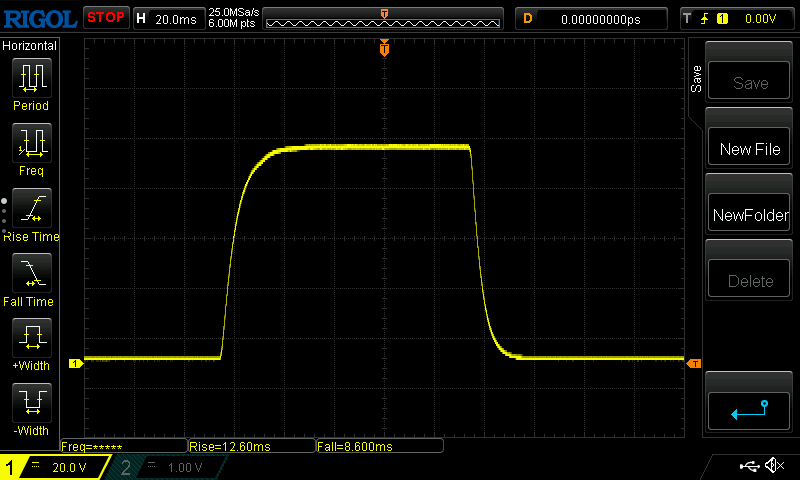

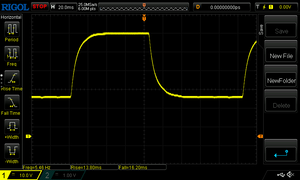

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 20 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise |  |
| ↘ 8 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 41 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.7 ms). | ||

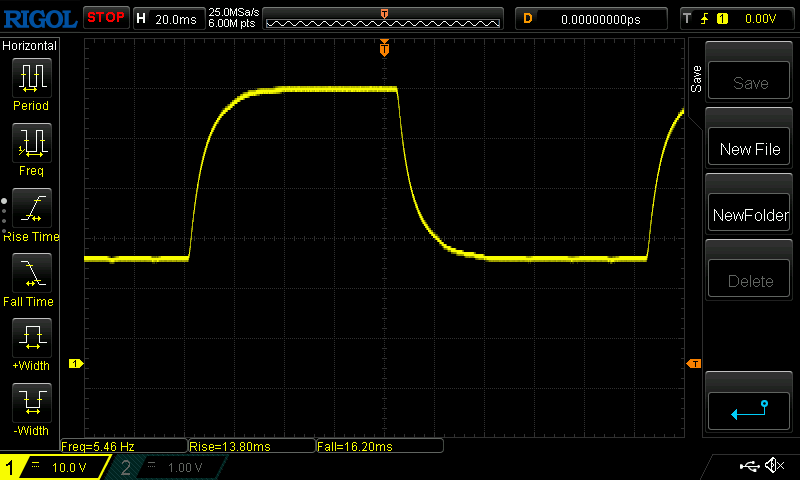

| ↔ Response Time 50% Grey to 80% Grey | ||
| 29 ms ... rise ↗ and fall ↘ combined | ↗ 13 ms rise |  |
| ↘ 16 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.4 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 25000 Hz | ≤ 10 % brightness setting |  |

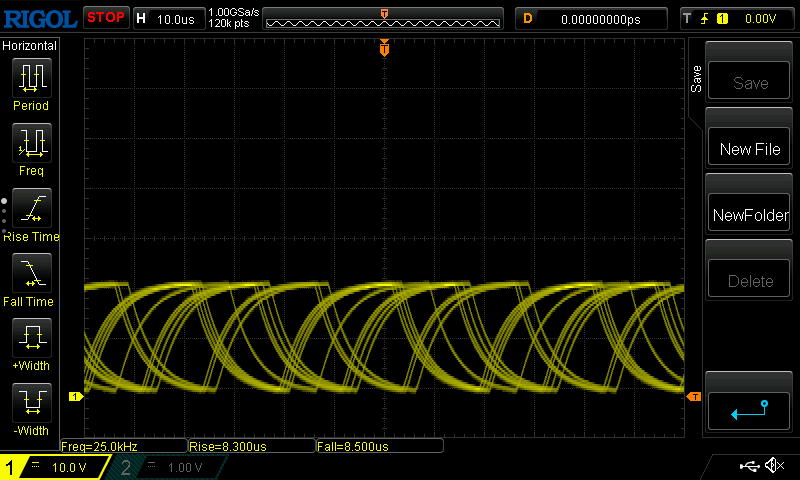

The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 10 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8456 (minimum: 5 - maximum: 343500) Hz was measured. | |||

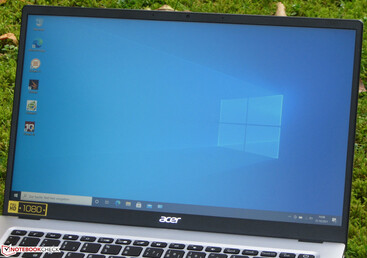

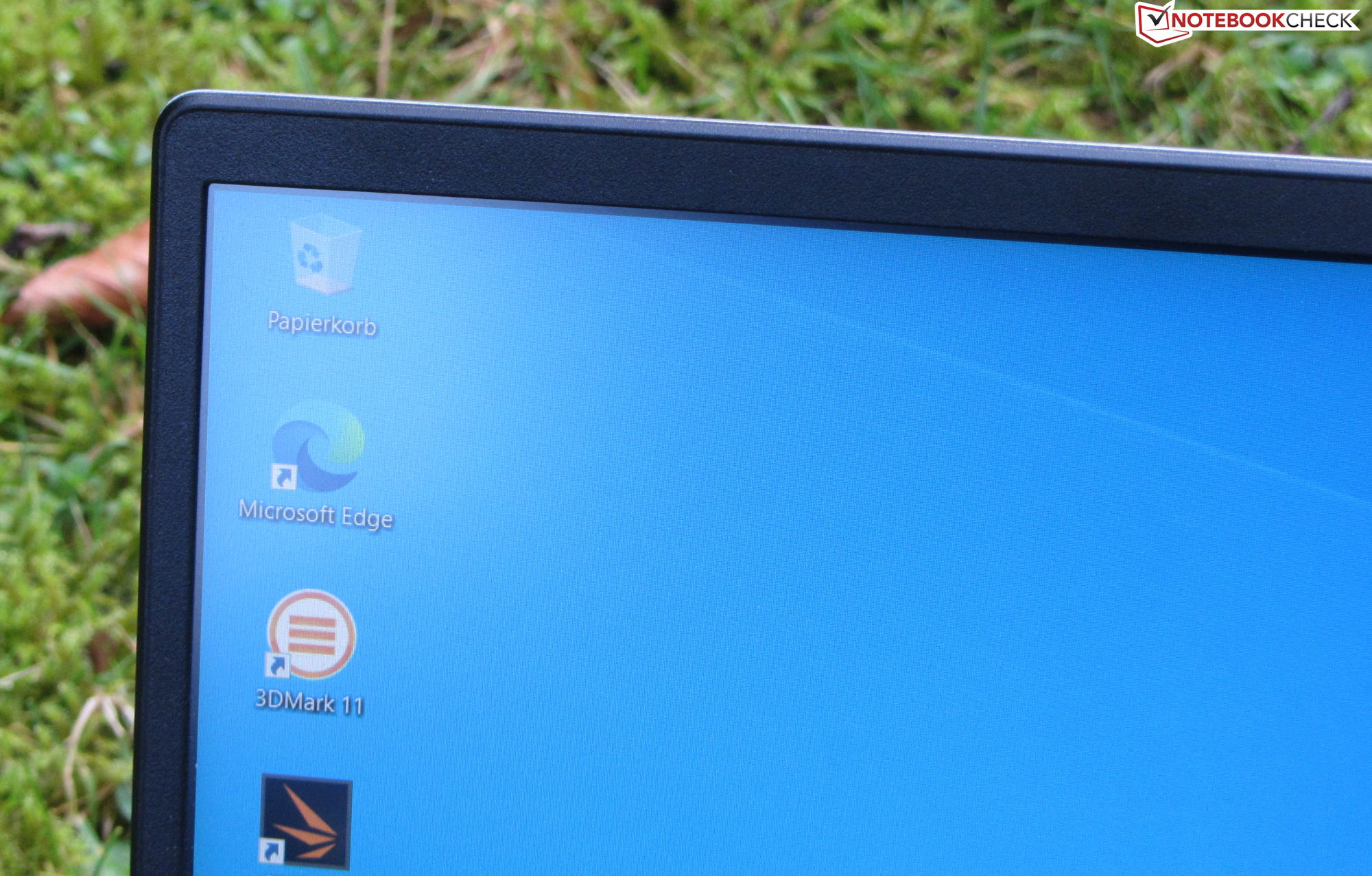

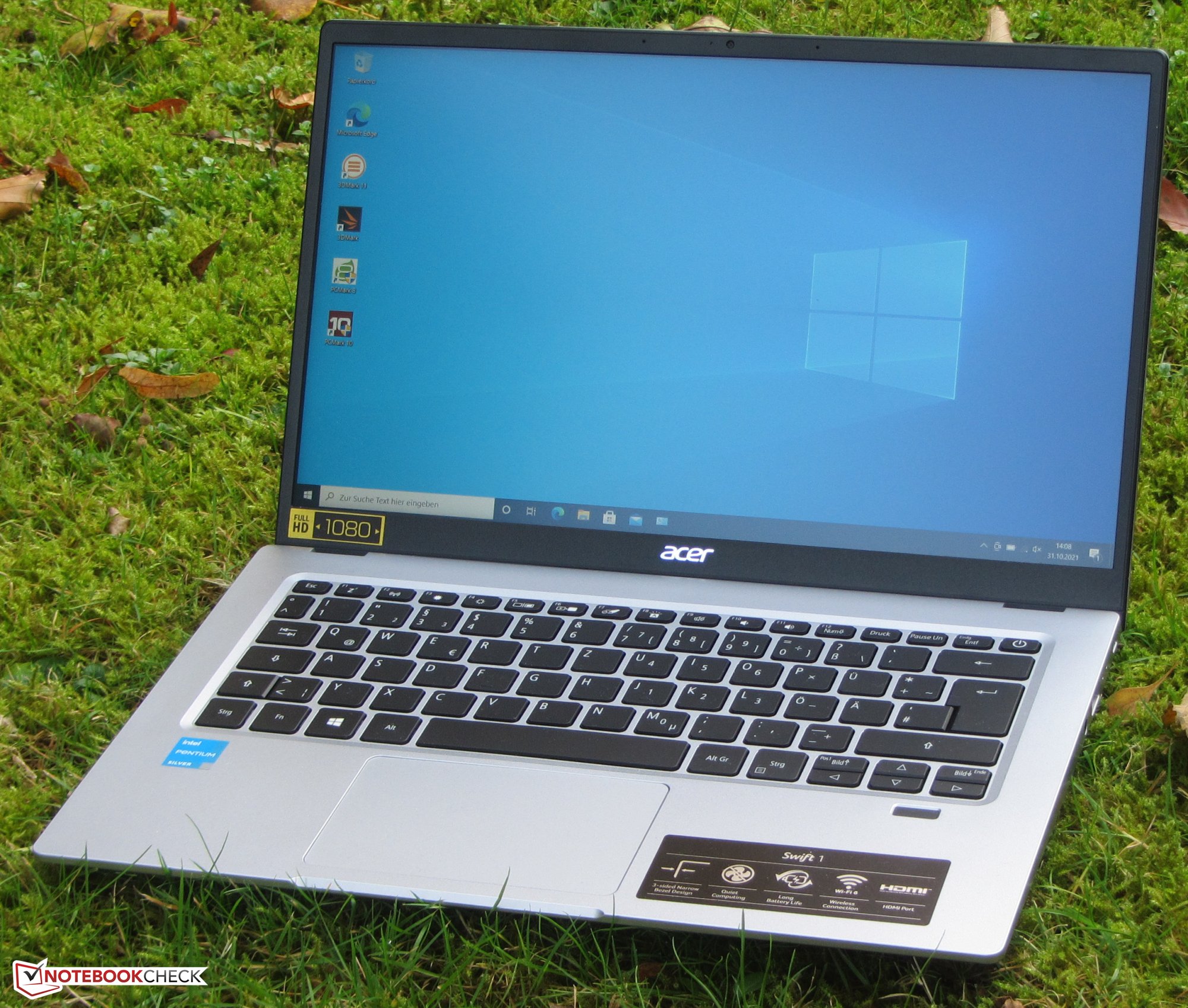

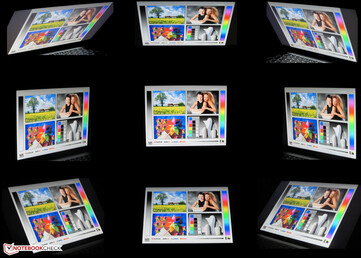

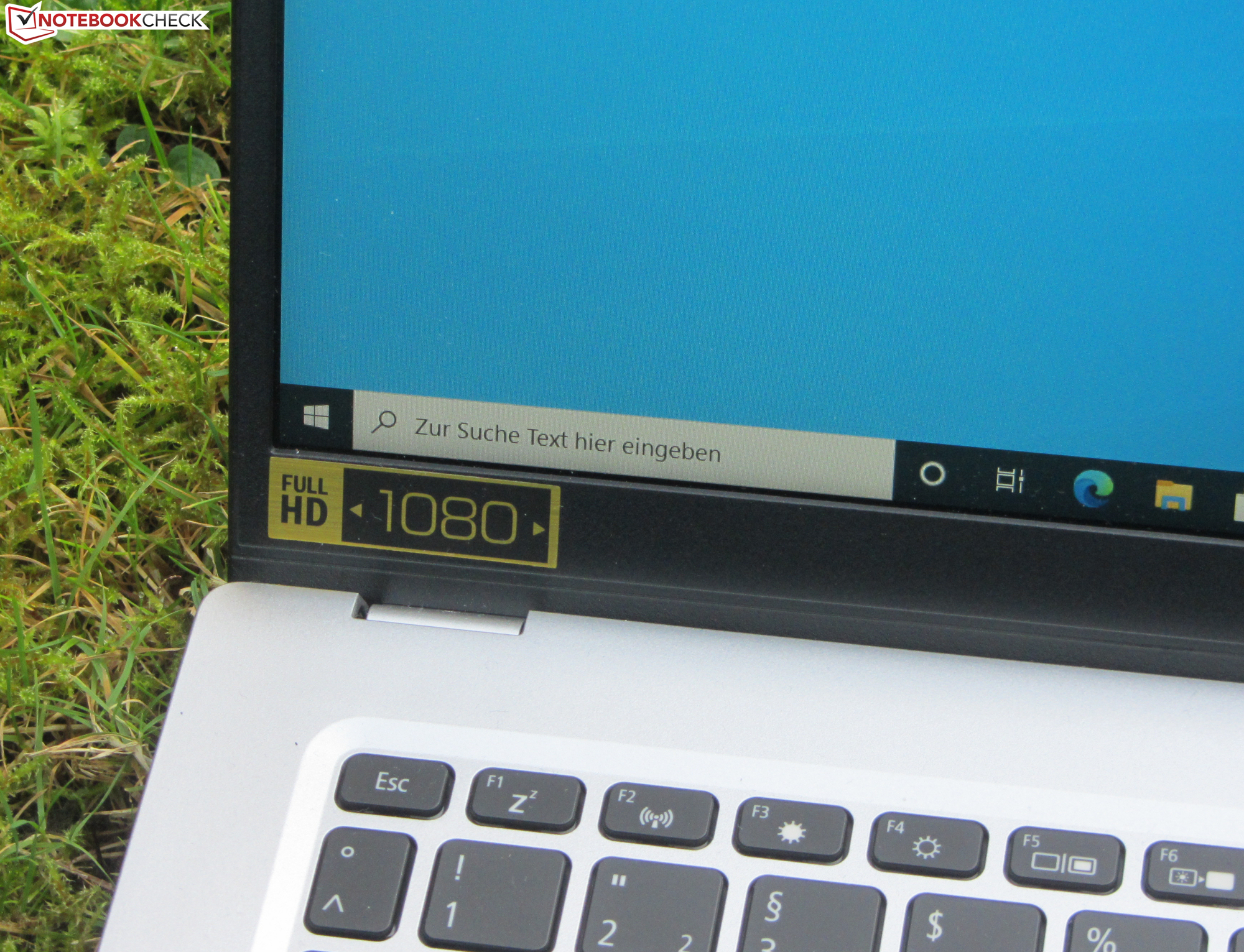

IPS面板提供了非常好的可视角度。在户外，只有在阳光不太强烈的情况下才能阅读屏幕。
性能 - 宏碁笔记本电脑配备了Jasper Lake CPU
宏碁Swift 1 SF114-34是一款14英寸笔记本，可以处理办公和基于网络的应用。

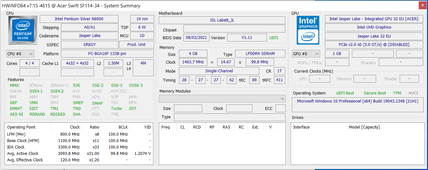

系统设置
制造商没有为Swift 1提供任何自定义配置文件。使用的是标准的Windows配置文件。基准测试是使用 "高性能 "电源计划进行的。CPU有两个功率限制（PL1：7W；PL2：20W）。
注：以下一些基准测试是用宏碁Swift 1（SF114-34-P91A）的相同型号进行的，该型号具有8GB的双通道内存。
处理器

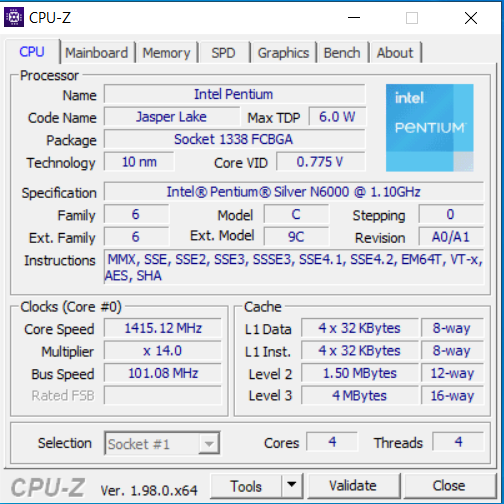

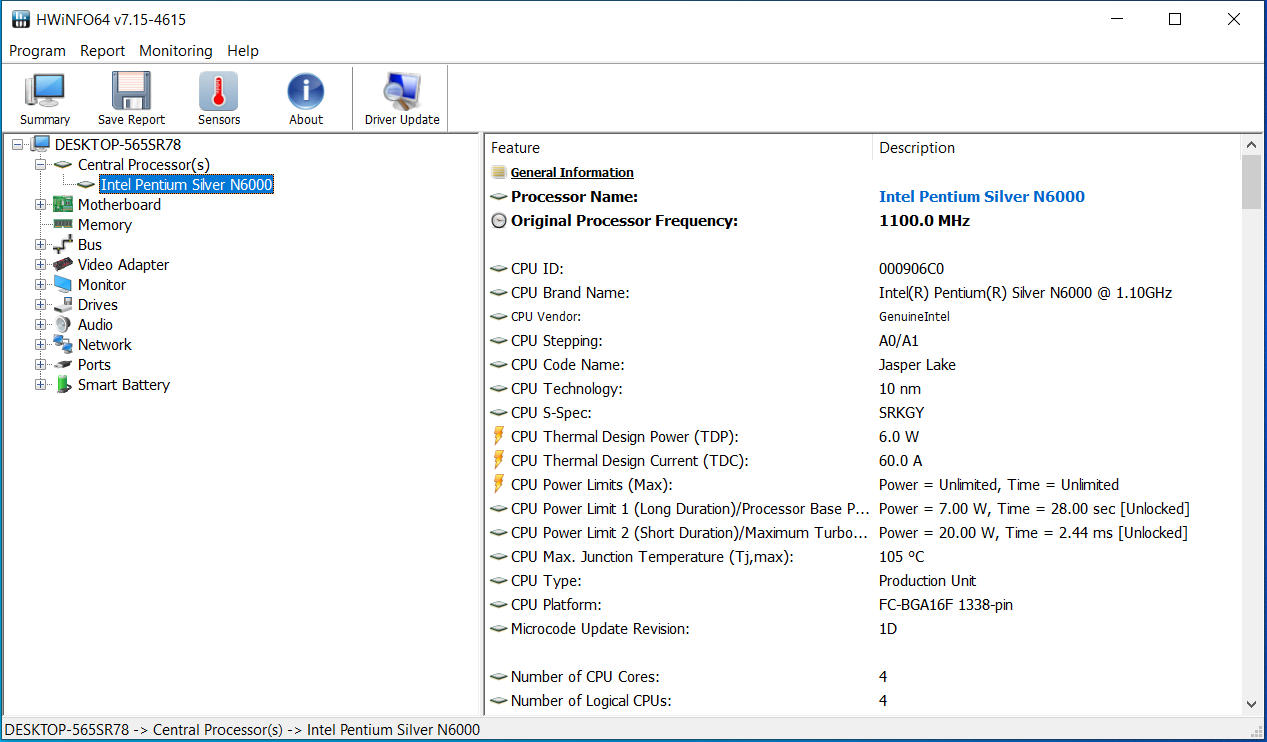

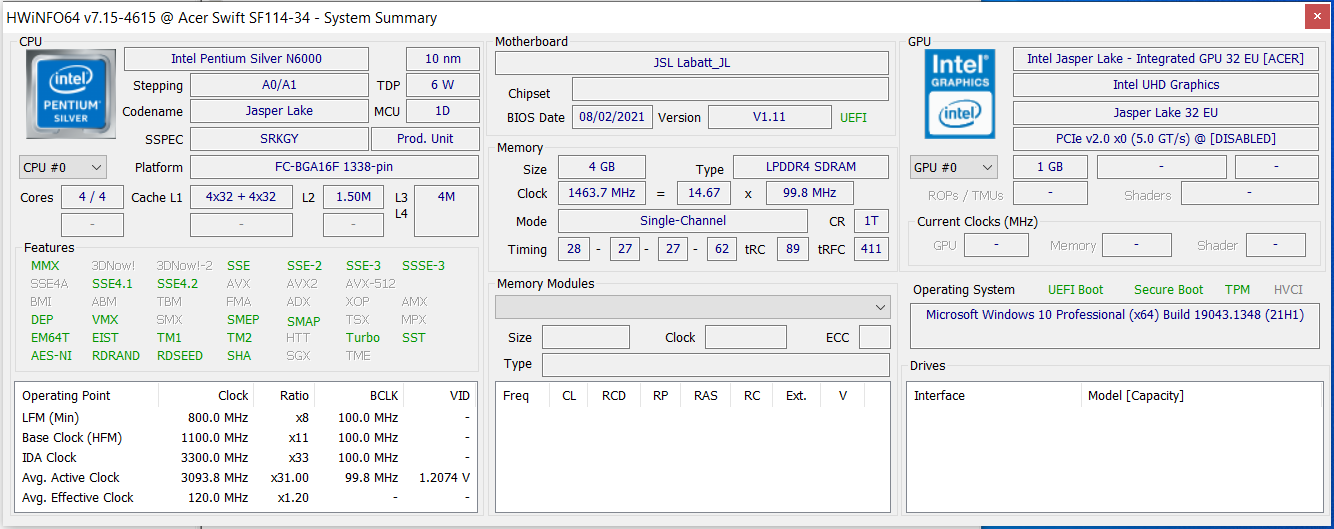

斯威夫特1由四核的 奔腾银N6000(Jasper Lake)。由于该芯片的TDP为6W，因此可以被动冷却。该CPU的基本时钟为1.1GHz，提升时钟为3.3GHz。不支持超线程（每个核心两个线程）。

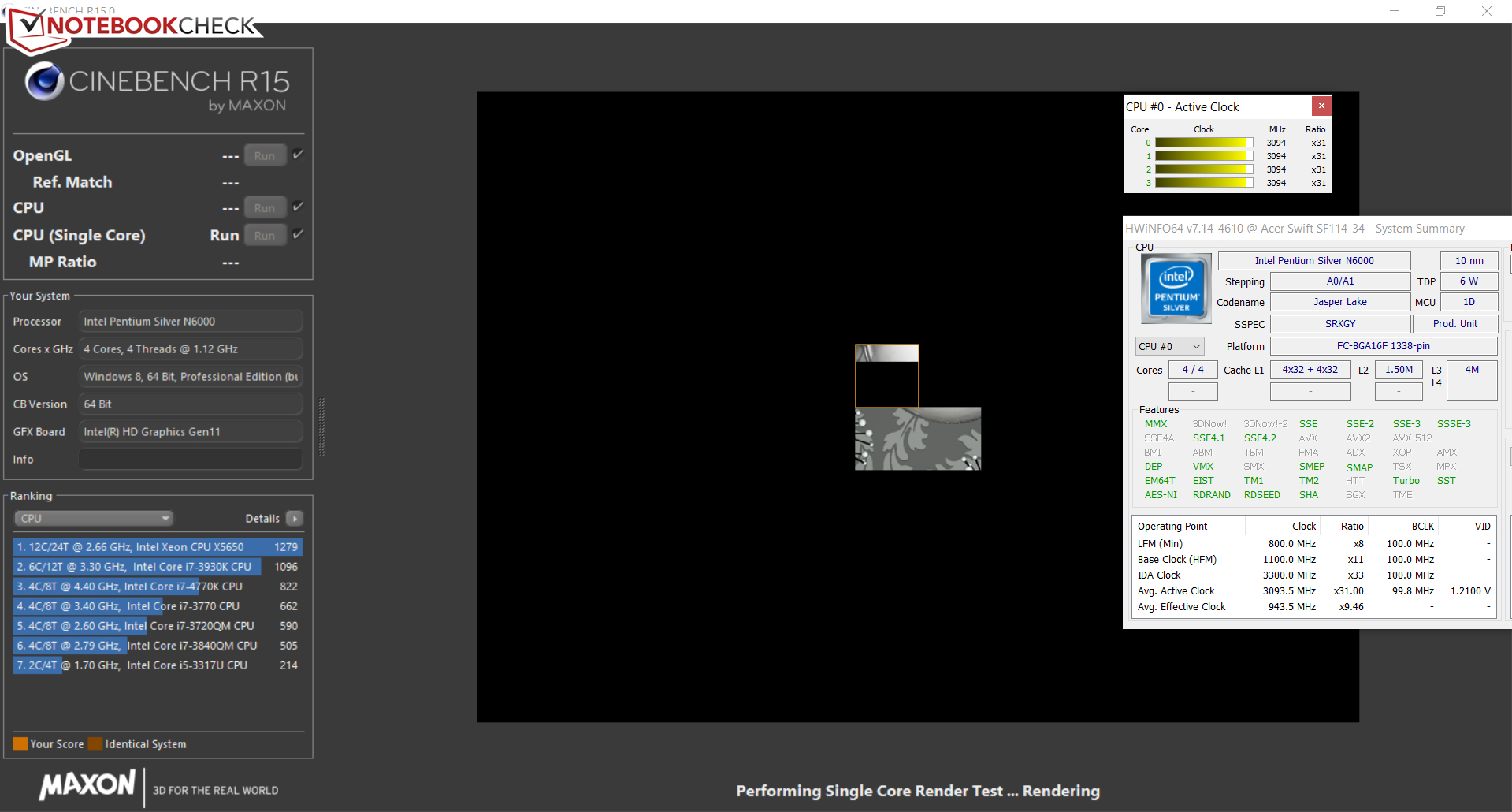

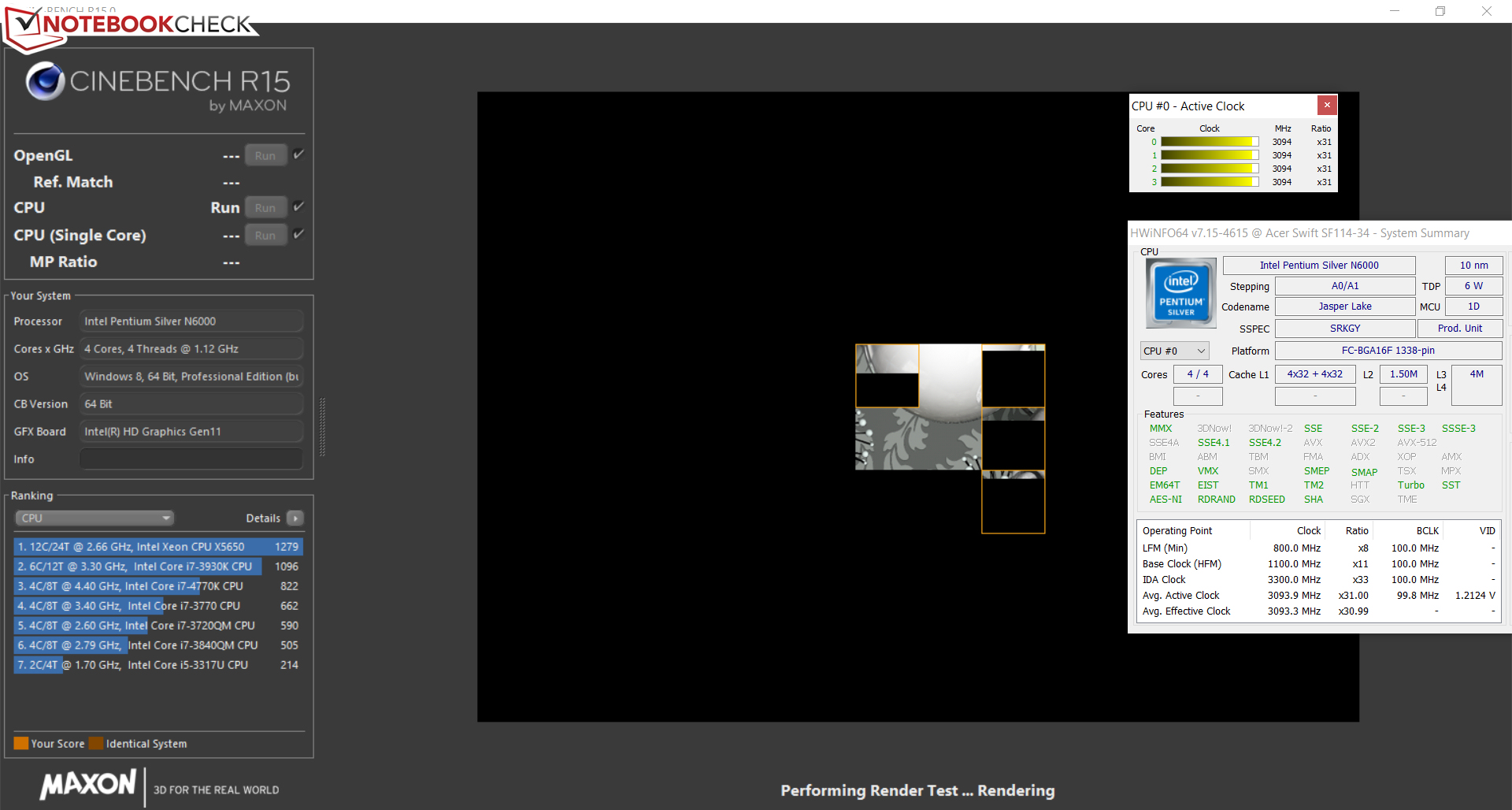

在Cinebench R15中，该处理器最初在多核部分以3.1 GHz运行，在单核部分以3.1至3.3 GHz运行。然而，时钟频率在多核部分迅速下降到2GHz，在单核部分下降到2.6至2.7GHz。笔记本电脑拔掉电源后，性能水平并没有改变。
该CPU提供的性能水平大大高于其前代产品(奔腾银N5000).这在很大程度上是由于新的Jasper Lake架构。尽管如此，其结果还是有些令人失望。最近评论的 华硕Vivobook 13 Slate设法从被动冷却的奔腾银N6000中获得更多性能。这只是双通道内存的部分结果。

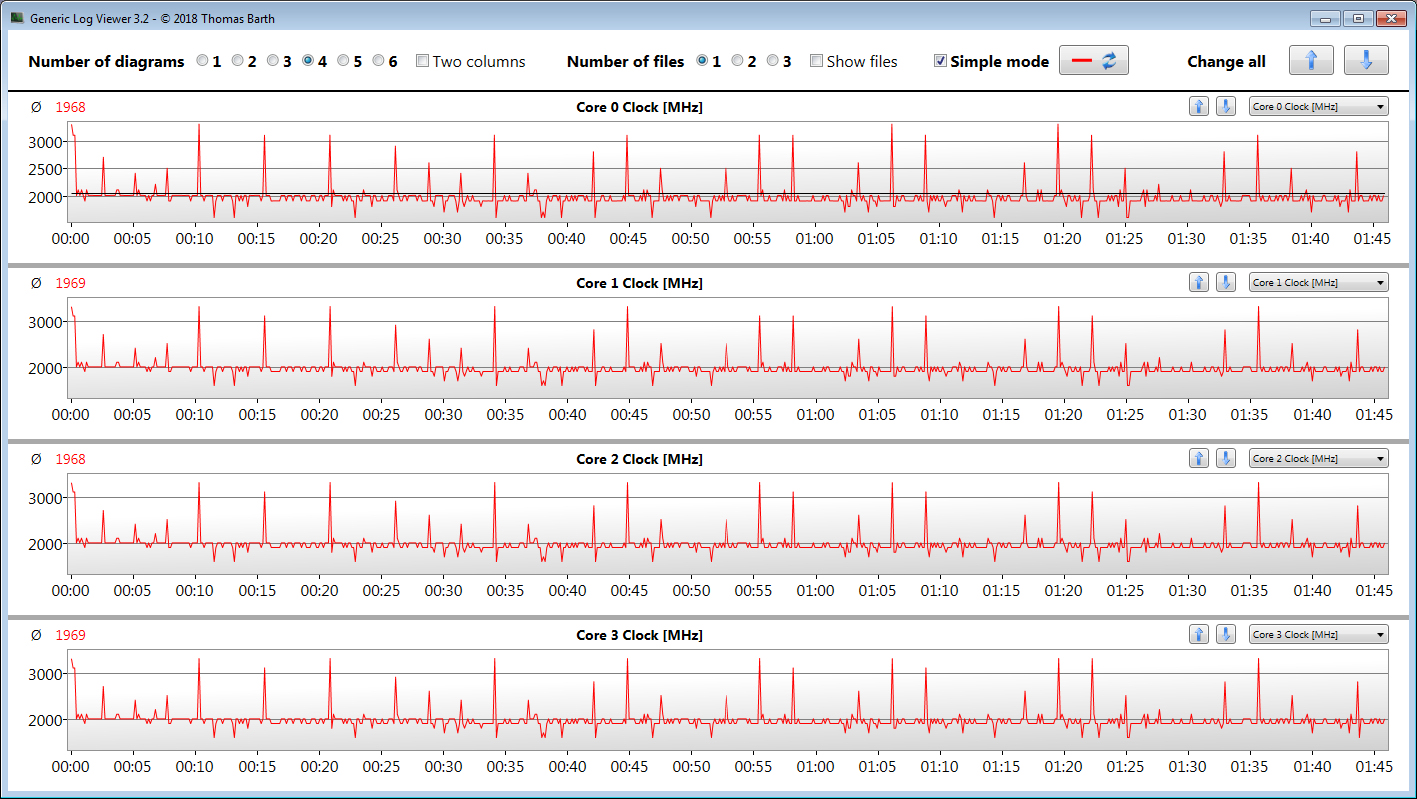

我们通过连续循环运行Cinebench R15多核基准测试30分钟，来检查Turbo提升是否能在较长时间内使用。在第一次基准测试运行后，结果只稍有下降。总而言之，对于一个被动冷却的系统来说，这是一个很好的结果。
Cinebench R15 Multi Dauertest
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000: Ø259 (255.98-280.27)
Acer Swift 1 SF114-34-P91A Intel Pentium Silver N6000; 8 GB RAM, Dual-Channel: Ø288 (278.65-301.14)
Medion Akoya E14307 AMD 3020e: Ø145 (140.63-196.32)
Lenovo IdeaPad 1-14IGL05 Intel Pentium Silver N5030: Ø195.1 (155.55-248.94)
Acer Swift 1 SF114-32-P8GG Intel Pentium Silver N5000: Ø230 (228.26-236.29)
Asus Vivobook 13 Slate Intel Pentium Silver N6000: Ø308 (302.71-322.49)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Average of class Office | |
| Acer Swift 1 SF114-34-P91A | |
| Average Intel Pentium Silver N6000 | |
| Asus Vivobook 13 Slate | |
| Acer Swift 1 SF114-34-P6U1 | |
| Samsung Galaxy Book Go -12! | |
| Acer Swift 1 SF114-32-P8GG -12! | |
| Lenovo IdeaPad 1-14IGL05 -3! | |
| Medion Akoya E14307 | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Office (1577 - 20399, n=87, last 2 years) | |
| Asus Vivobook 13 Slate | |
| Average Intel Pentium Silver N6000 (1610 - 1911, n=4) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Single Core | |
| Average of class Office (618 - 1995, n=87, last 2 years) | |
| Asus Vivobook 13 Slate | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (653 - 679, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Office (590 - 8086, n=85, last 2 years) | |
| Asus Vivobook 13 Slate | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (595 - 730, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 | |
| CPU (Single Core) | |
| Average of class Office (229 - 766, n=85, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Asus Vivobook 13 Slate | |
| Average Intel Pentium Silver N6000 (237 - 268, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Office (246 - 3132, n=89, last 2 years) | |
| Asus Vivobook 13 Slate | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (266 - 322, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Acer Swift 1 SF114-32-P8GG | |
| Medion Akoya E14307 | |
| CPU Single 64Bit | |
| Average of class Office (98 - 294, n=87, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Asus Vivobook 13 Slate | |
| Average Intel Pentium Silver N6000 (109 - 121, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Acer Swift 1 SF114-32-P8GG | |
| Blender - v2.79 BMW27 CPU | |
| Lenovo IdeaPad 1-14IGL05 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Average Intel Pentium Silver N6000 (1738 - 3157, n=5) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Asus Vivobook 13 Slate | |
| Asus Vivobook 13 Slate | |
| Average of class Office (163 - 1956, n=88, last 2 years) | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Office (7532 - 76886, n=89, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Asus Vivobook 13 Slate | |
| Asus Vivobook 13 Slate | |
| Average Intel Pentium Silver N6000 (8096 - 9668, n=5) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 | |
| 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=88, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average Intel Pentium Silver N6000 (2320 - 3387, n=5) | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Asus Vivobook 13 Slate | |
| Asus Vivobook 13 Slate | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Office (1018 - 14192, n=87, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average Intel Pentium Silver N6000 (1784 - 2004, n=5) | |
| Asus Vivobook 13 Slate | |
| Samsung Galaxy Book Go | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Single-Core | |
| Average of class Office (510 - 2096, n=88, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average Intel Pentium Silver N6000 (720 - 736, n=5) | |
| Asus Vivobook 13 Slate | |
| Medion Akoya E14307 | |
| Samsung Galaxy Book Go | |
| Lenovo IdeaPad 1-14IGL05 | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Office (1.72 - 22.4, n=86, last 2 years) | |
| Asus Vivobook 13 Slate | |
| Asus Vivobook 13 Slate | |
| Average Intel Pentium Silver N6000 (1.55 - 1.76, n=5) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| LibreOffice - 20 Documents To PDF | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Asus Vivobook 13 Slate | |
| Asus Vivobook 13 Slate | |
| Average Intel Pentium Silver N6000 (84.5 - 128, n=5) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average of class Office (31.3 - 129.6, n=86, last 2 years) | |
| R Benchmark 2.5 - Overall mean | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Asus Vivobook 13 Slate | |
| Asus Vivobook 13 Slate | |
| Average Intel Pentium Silver N6000 (1.084 - 1.278, n=5) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average of class Office (0.4098 - 1.135, n=85, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Asus Vivobook 13 Slate | |
| Acer Swift 1 SF114-34-P91A | |
| Average Intel Pentium Silver N6000 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 31245, n=87, last 2 years) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Average Intel Pentium Silver N6000 (940 - 1085, n=4) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 125394, n=87, last 2 years) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Average Intel Pentium Silver N6000 (5420 - 6418, n=4) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 5398, n=87, last 2 years) | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Average Intel Pentium Silver N6000 (397 - 467, n=4) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| Medion Akoya E14307 (v6.32.5600) | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=87, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (19506 - 24270, n=4) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Medion Akoya E14307 (v6.32.5600) | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 18321, n=87, last 2 years) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Average Intel Pentium Silver N6000 (934 - 1090, n=4) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 66922, n=87, last 2 years) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 (v6.32.5600) | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Average Intel Pentium Silver N6000 (2811 - 3343, n=4) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| AIDA64 / CPU AES | |
| Average of class Office (7254 - 155900, n=87, last 2 years) | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Average Intel Pentium Silver N6000 (14460 - 16999, n=4) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 (v6.32.5600) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1366, n=87, last 2 years) | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Average Intel Pentium Silver N6000 (140 - 166, n=4) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 (v6.32.5600) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 17834, n=87, last 2 years) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Average Intel Pentium Silver N6000 (523 - 603, n=4) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=87, last 2 years) | |
| Asus Vivobook 13 Slate (v6.50.5800) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (6647 - 10571, n=4) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Lenovo IdeaPad 1-14IGL05 | |
系统性能
该系统运行平稳。然而，奔腾CPU和4GB的内存将不足以满足任何高要求的应用。打开太多的标签或后台应用程序会使系统运行缓慢。PC Mark的结果处于预期水平。
由于单通道内存（LPDDR4X），Swift 1没有充分发挥其CPU的作用。没有办法升级内存，这意味着用户将不得不购买带有8GB双通道内存的型号，以获得最高水平的性能。
| PCMark 8 Home Score Accelerated v2 | 2438 points | |
| PCMark 8 Creative Score Accelerated v2 | 2489 points | |
| PCMark 8 Work Score Accelerated v2 | 2201 points | |
| PCMark 10 Score | 2470 points | |
Help | ||
| PCMark 10 / Score | |
| Average of class Office (2463 - 7578, n=78, last 2 years) | |
| Average Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU) (2467 - 2823, n=3) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-32-P8GG | |
| Lenovo IdeaPad 1-14IGL05 | |
| PCMark 10 / Essentials | |
| Average of class Office (5575 - 20841, n=78, last 2 years) | |
| Average Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU) (5705 - 6729, n=3) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-32-P8GG | |
| Lenovo IdeaPad 1-14IGL05 | |
| PCMark 10 / Productivity | |
| Average of class Office (3041 - 10415, n=78, last 2 years) | |
| Medion Akoya E14307 | |
| Average Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU) (3706 - 3955, n=3) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| Lenovo IdeaPad 1-14IGL05 | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 11108, n=78, last 2 years) | |
| Average Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU) (1912 - 2295, n=3) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Acer Swift 1 SF114-32-P8GG | |
| Medion Akoya E14307 | |
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=88, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (15623 - 26405, n=4) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Lenovo IdeaPad 1-14IGL05 | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=88, last 2 years) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (15719 - 17883, n=4) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=88, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (17170 - 34661, n=4) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
| Medion Akoya E14307 (v6.32.5600) | |
| Lenovo IdeaPad 1-14IGL05 | |
| AIDA64 / Memory Latency | |
| Medion Akoya E14307 (v6.32.5600) | |
| Average of class Office (7.6 - 185.2, n=85, last 2 years) | |
| Lenovo IdeaPad 1-14IGL05 | |
| Acer Swift 1 SF114-34-P91A (v6.50.5800, 8 GB RAM, Dual-Channel) | |
| Average Intel Pentium Silver N6000 (57.8 - 71.4, n=4) | |
| Acer Swift 1 SF114-34-P6U1 (v6.50.5800) | |
* ... smaller is better
DPC延迟

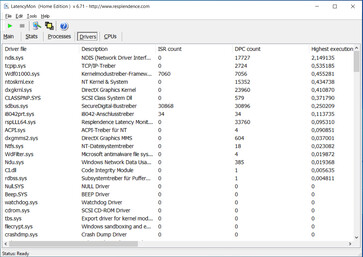

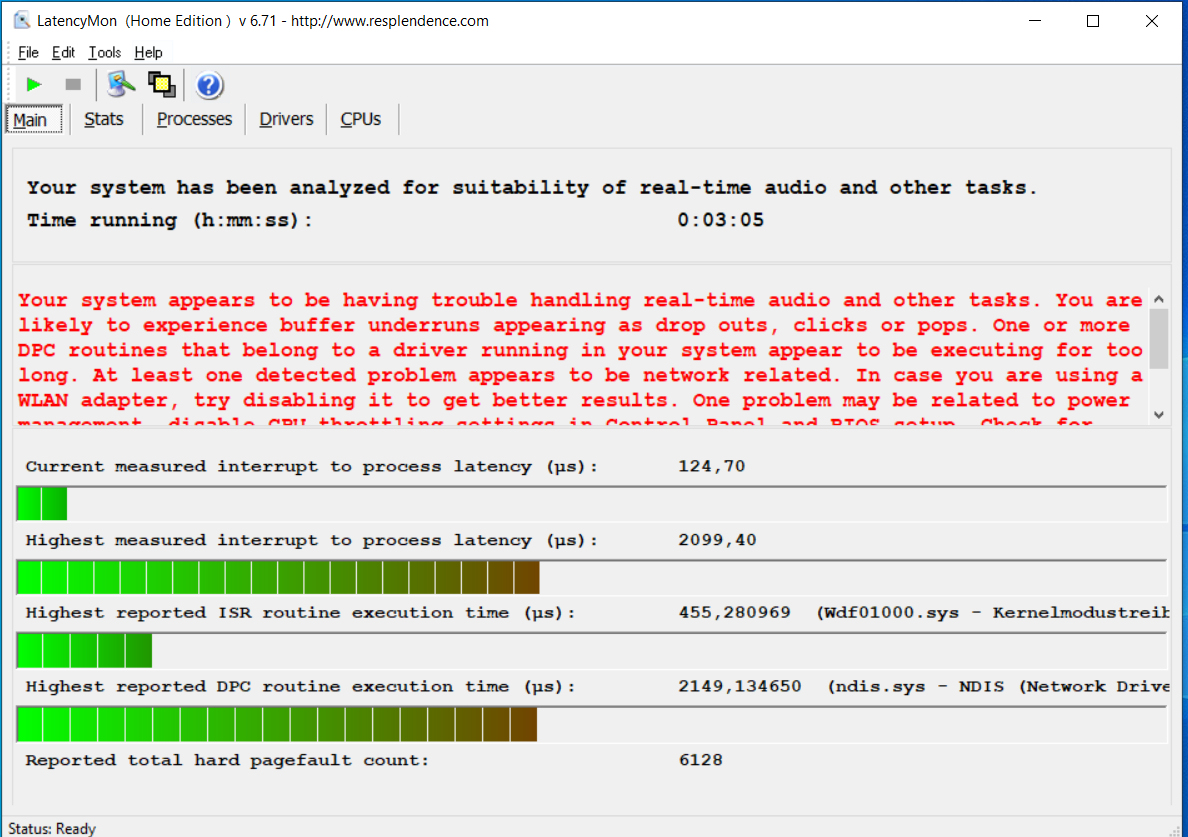

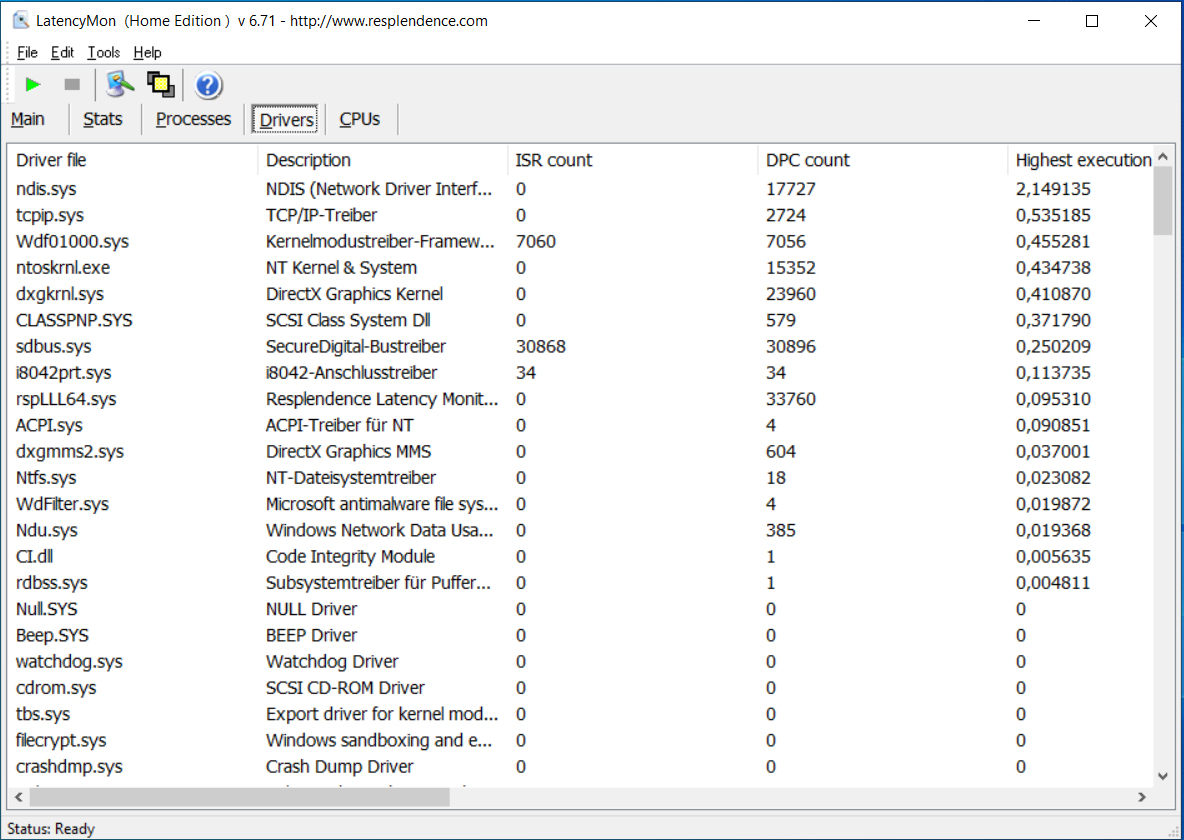

我们的LatencyMon测试显示，Swift 1有延迟峰值的问题。这就是为什么它不适合用于实时音频或视频的工作。这些延迟问题可能在未来的更新中得到解决。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 | |
* ... smaller is better
储存空间
Aver笔记本电脑配备了一个128GB的eMMC模块。它实现了我们期望从这样的存储设备中看到的各种速度。在笔记本电脑内部，有一个NVMe SSD（M.2 2280）的插槽。固态硬盘可以作为系统驱动器使用（我们检查过）。
注意：eMMC模块被分为两个分区（113GB，3GB）。较小的分区包含Windows所有必要的驱动程序。这大大简化了Windows的安装过程。
128 GB eMMC Flash
CDM 5/6 Read Seq Q32T1:
182.7 MB/s
CDM 5/6 Write Seq Q32T1:
49.4 MB/s
CDM 5/6 Read 4K Q32T1:
24.19 MB/s
CDM 5/6 Write 4K Q32T1:
16.29 MB/s
CDM 5 Read Seq:
261.5 MB/s
CDM 5 Write Seq:
54.2 MB/s
CDM 5/6 Read 4K:
17.51 MB/s
CDM 5/6 Write 4K:
12.66 MB/s
| Drive Performance Rating - Percent | |
| Average of class Office | |
| Samsung Galaxy Book Go -8! | |
| Medion Akoya E14307 | |
| Average 128 GB eMMC Flash | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 -8! | |
* ... smaller is better
Continuous read speed: DiskSpd Read Loop, Queue Depth 8
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash: Ø252 (128.77-269.18)
图形卡
UHD Graphics 芯片（Jasper Lake，32EUs）负责图像渲染。它支持DirectX 12，提升时钟为900 MHz。该iGPU可以轻松击败其前身。即使使用单通道内存，它也超过了 UHD Graphics 605在具有双通道RAM的系统中。尽管如此，这个GPU的绝对速度非常慢。
在GPU基准测试中，最近审查的 华硕Vivobook 13 Slate能够击败Swift 1，即使是在双通道内存的配置下。华硕在释放奔腾银N6000的全部潜力方面做得比宏碁更好。
| 3DMark 06 Standard Score | 6074 points | |
| 3DMark 11 Performance | 1448 points | |
| 3DMark Ice Storm Standard Score | 39223 points | |
| 3DMark Cloud Gate Standard Score | 5333 points | |

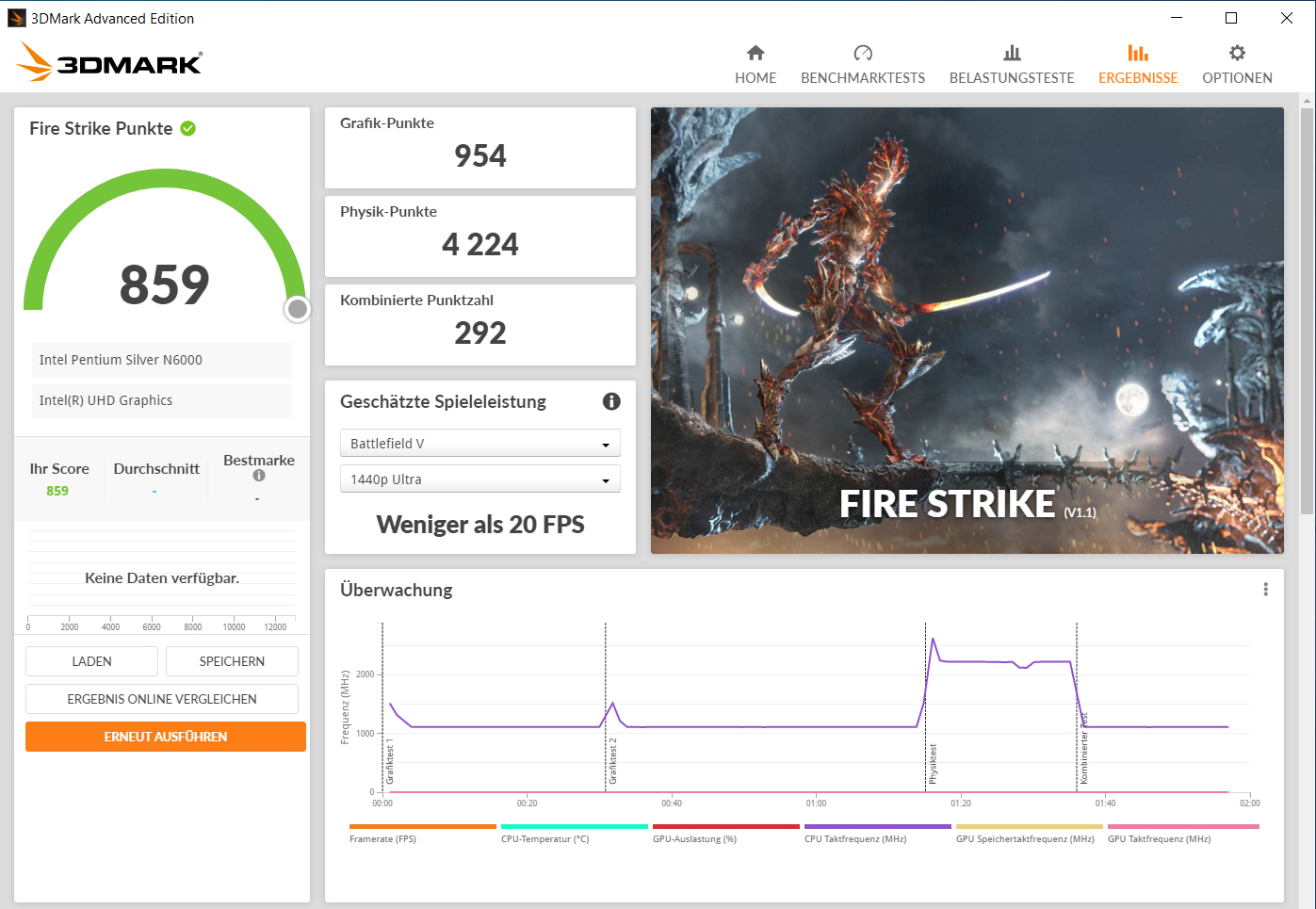

| 3DMark Fire Strike Score | 859 points | |
| 3DMark Time Spy Score | 322 points | |
Help | ||
3DMark Performance Rating | 3DMark 11 | 3DMark | GFXBench | GFXBench (DX / GLBenchmark) 2.7 | GFXBench 3.0 | GFXBench 3.1 | ComputeMark v2.1 | LuxMark v2.0 64Bit | Unigine Heaven 2.1 | Unigine Heaven 3.0 | Unigine Heaven 4.0 | Unigine Valley 1.0
| 3DMark Performance Rating - Percent | |
| Average of class Office -3! | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-34-P91A -7! | |
| Asus Vivobook 13 Slate -24! | |
| Acer Swift 1 SF114-32-P8GG -6! | |
| Medion Akoya E14307 -23! | |
| Acer Chromebook 514 CB514-1HT-P1BM -21! | |
| Lenovo IdeaPad 1-14IGL05 -24! | |
| Samsung Galaxy Book Go -26! | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 16418, n=83, last 2 years) | |
| Asus Vivobook 13 Slate | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (1356 - 1872, n=5) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Acer Swift 1 SF114-32-P8GG | |
| Samsung Galaxy Book Go | |
| GFXBench (DX / GLBenchmark) 2.7 | |
| T-Rex Onscreen | |
| Average of class Office (35 - 453, n=13, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (76 - 89.7, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| 1920x1080 T-Rex Offscreen | |
| Average of class Office (38 - 564, n=13, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (85.6 - 96.8, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| GFXBench 3.0 | |
| on screen Manhattan Onscreen OGL | |
| Average of class Office (23 - 260, n=13, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (42.2 - 51.3, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| 1920x1080 1080p Manhattan Offscreen | |
| Average of class Office (18 - 304, n=13, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (48.7 - 58.7, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| GFXBench 3.1 | |
| on screen Manhattan ES 3.1 Onscreen | |
| Average of class Office (15 - 221, n=13, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (28.9 - 33.9, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| 1920x1080 Manhattan ES 3.1 Offscreen | |
| Average of class Office (8.2 - 237, n=13, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (31.7 - 36.2, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| ComputeMark v2.1 - 1024x600 Normal, Score | |
| Average of class Office (634 - 8754, n=5, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (771 - 1136, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| Average of class Office (536 - 562, n=2, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (136 - 199, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| Sala GPUs-only | |
| Average of class Office (974 - 2026, n=2, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (274 - 410, n=4) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (n=1) | |
| Acer Swift 1 SF114-32-P8GG | |
| Unigine Heaven 3.0 | |
| 1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (n=1) | |
| Acer Swift 1 SF114-32-P8GG | |
| 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (n=1) | |
| Acer Swift 1 SF114-32-P8GG | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Average of class Office (4.4 - 18.9, n=3, last 2 years) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (3.5 - 5.6, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Average of class Office (5.2 - 21.6, n=3, last 2 years) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (3.6 - 5.3, n=2) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Swift 1 SF114-32-P8GG | |
游戏性能
Swift 1不是游戏笔记本。它只能处理用户可以在微软商店找到的休闲游戏。
The Witcher 3 | Dota 2 Reborn | Final Fantasy XV Benchmark | X-Plane 11.11 | GTA V | Strange Brigade
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Office (16 - 177, n=50, last 2 years) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (8.4 - 20.1, n=3) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Dota 2 Reborn - 1280x720 min (0/3) fastest | |
| Average of class Office (36.8 - 171.3, n=89, last 2 years) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (35.2 - 79.8, n=7) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (12.1 - 103.1, n=84, last 2 years) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (5.32 - 14.3, n=6) | |
| Acer Swift 1 SF114-34-P91A (1.3, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (1.3) | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Average of class Office (13.6 - 128.2, n=85, last 2 years) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (14.2 - 23.4, n=7) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Lenovo IdeaPad 1-14IGL05 | |
| Medion Akoya E14307 | |
| GTA V - 1024x768 Lowest Settings possible | |
| Average of class Office (41.4 - 176.4, n=79, last 2 years) | |
| Acer Swift 1 SF114-34-P91A (8 GB RAM, Dual-Channel) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (6.57 - 26.8, n=6) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (37.4 - 245, n=71, last 2 years) | |
| Average Intel UHD Graphics (Jasper Lake 32 EU) (15.6 - 32, n=5) | |
| Acer Swift 1 SF114-34-P91A (1.47.22.14 D3D12, 8 GB RAM, Dual-Channel) | |
| Acer Swift 1 SF114-34-P6U1 (1.47.22.14 D3D12) | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 15.2 | 13.3 | 3.51 | |
| The Witcher 3 (2015) | 11.3 | 9.18 | 4.78 | 2.44 |
| Dota 2 Reborn (2015) | 48.1 | 21.5 | 10.8 | 8.3 |
| Final Fantasy XV Benchmark (2018) | 5.32 | 1.94 | ||
| X-Plane 11.11 (2018) | 16.1 | 10.2 | 9.14 | |
| Far Cry 5 (2018) | 3 | 1 | 1 | 1 |
| Strange Brigade (2018) | 15.6 |
排放物 - 宏碁笔记本电脑是无声的
系统噪音
因为Swift 1没有风扇或硬盘，所以它总是很安静。

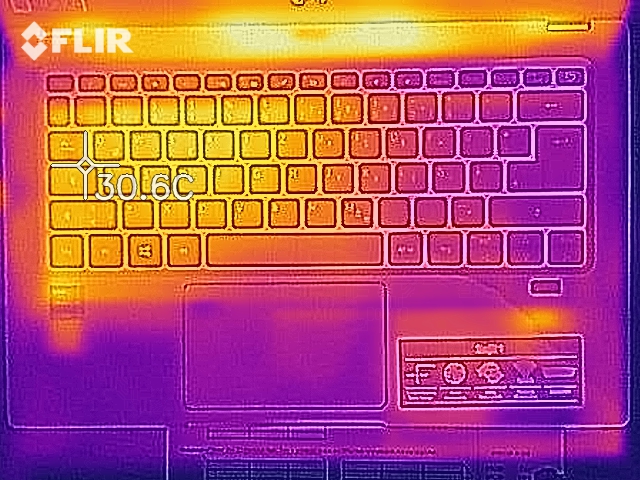

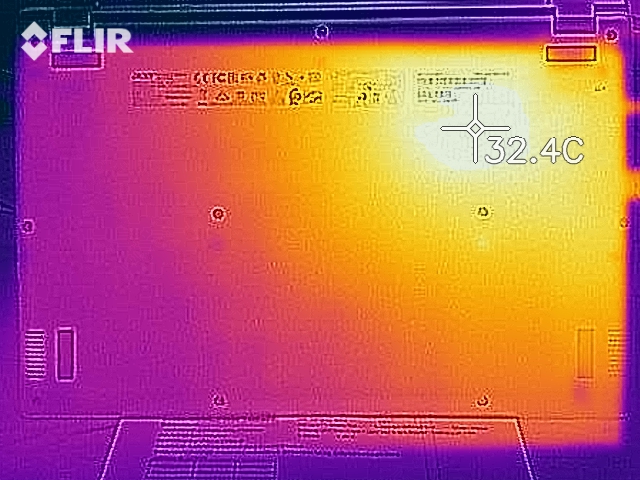

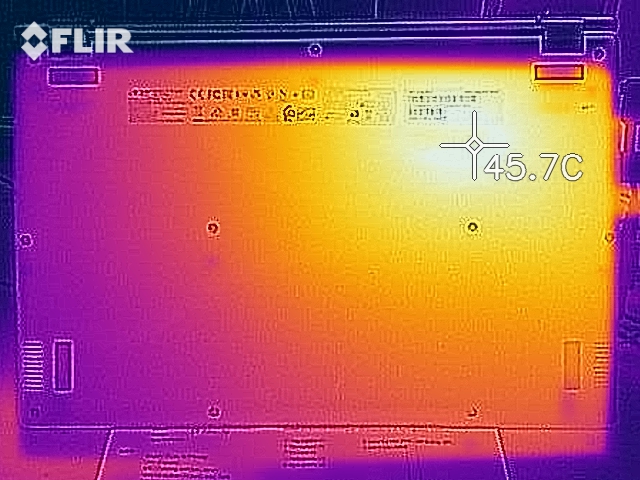

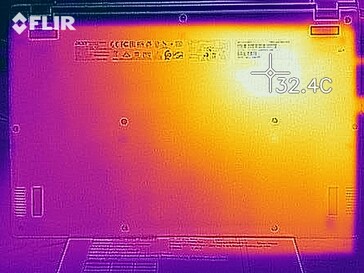

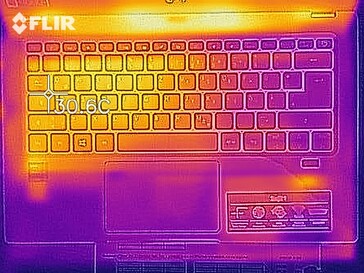

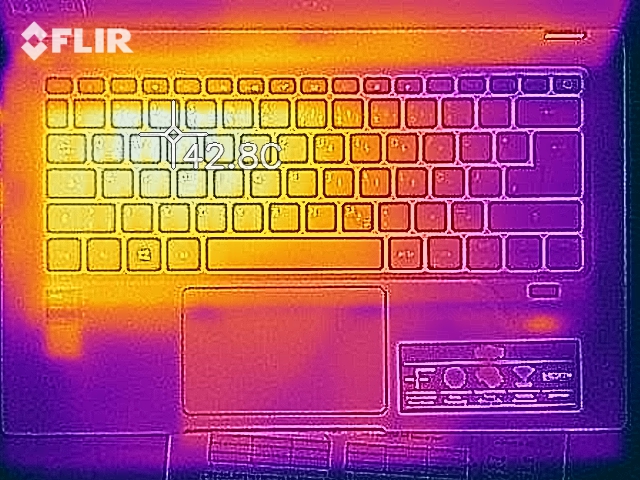

温度
这台14英寸的笔记本电脑并没有变得过分热。不过，机箱的一些区域会变得相当热。CPU的温度总是在可接受的范围内。
(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.9 °C / 102 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.1 °C / 82.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.5 °C / -0.9 F).
(+) The maximum temperature on the upper side is 38.9 °C / 102 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.1 °C / 82.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.5 °C / -0.9 F).
| Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU) | Medion Akoya E14307 AMD 3020e, AMD Radeon RX Vega 3 | Lenovo IdeaPad 1-14IGL05 Intel Pentium Silver N5030, Intel UHD Graphics 605 | Acer Chromebook 514 CB514-1HT-P1BM Intel Pentium N4200, Intel HD Graphics 505 | Samsung Galaxy Book Go Qualcomm Snapdragon 7c Gen 2, Qualcomm Adreno 618 | |
|---|---|---|---|---|---|
| Heat | 12% | -4% | 16% | 8% | |
| Maximum Upper Side * | 38.9 | 36.1 7% | 38.4 1% | 37 5% | 35.4 9% |
| Maximum Bottom * | 43.3 | 37.4 14% | 45.5 -5% | 31.3 28% | 41.6 4% |
| Idle Upper Side * | 28.5 | 25.5 11% | 28.2 1% | 24.6 14% | 25.6 10% |
| Idle Bottom * | 29.6 | 24.9 16% | 33.5 -13% | 24.6 17% | 27.6 7% |
* ... smaller is better

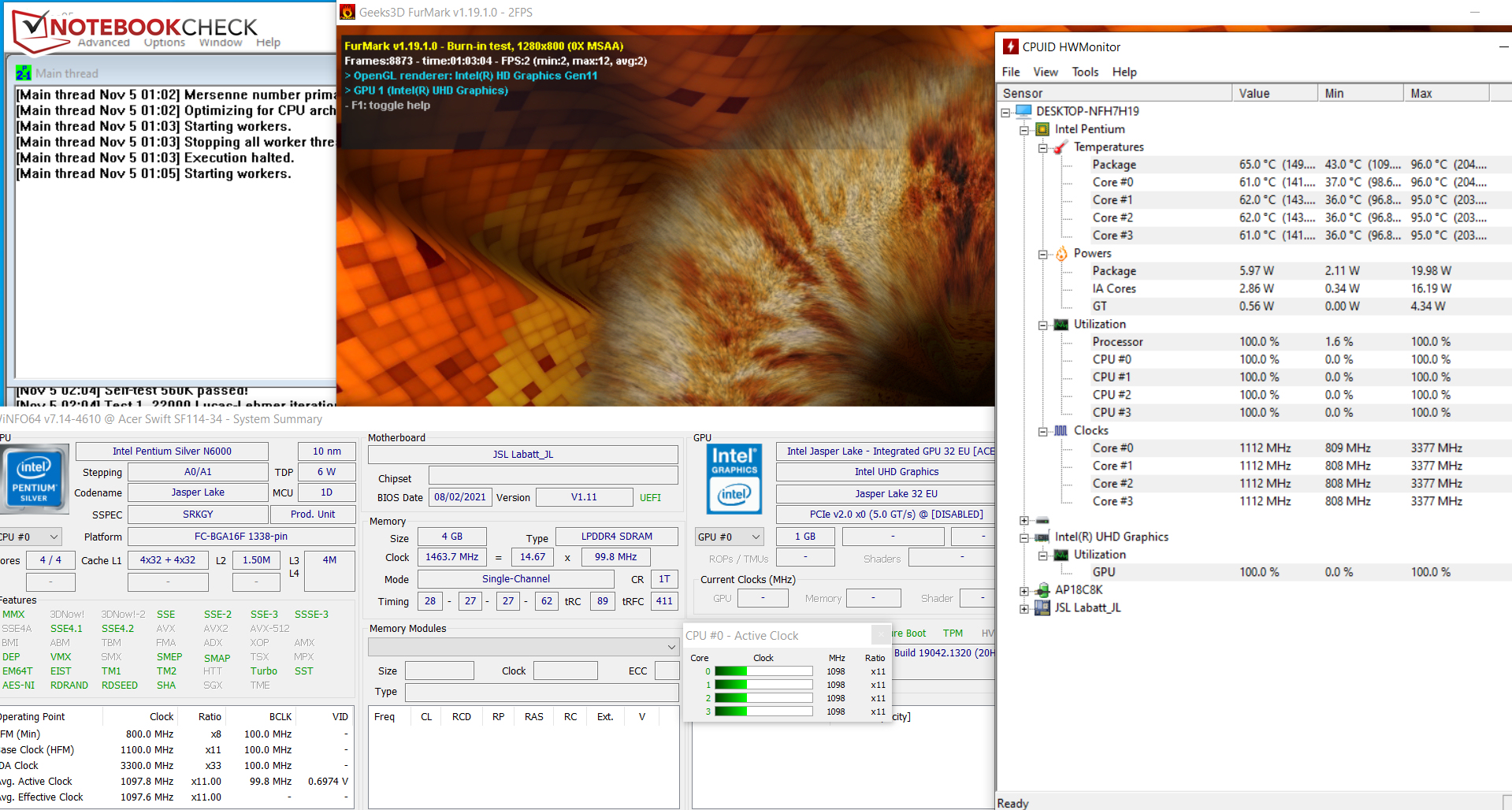

压力测试
在压力测试的开始阶段（Prime95和FurMark连续运行了至少一个小时），CPU以高时钟速率运行。然后，时钟速率下降到1.1GHz。我们的压力测试代表了一种极端情况，这种情况在现实生活中不太可能发生。我们用它来测试负载下的系统稳定性。
发言人
立体声扬声器位于腕部搏斗区下方。它们产生的声音还可以，缺乏低音。为了获得更好的听觉体验，我们建议使用外部扬声器或耳机。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Swift 1 SF114-34-P6U1 audio analysis
(±) | speaker loudness is average but good (73.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30.6% lower than median
(±) | linearity of bass is average (12% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (8.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.8% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 9% similar, 24% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 69% of all tested devices were better, 7% similar, 24% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Samsung Galaxy Book Go audio analysis
(+) | speakers can play relatively loud (82.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.5% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.7% away from median
(+) | mids are linear (5.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.5% higher than median
(±) | linearity of highs is average (9.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.1% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 6% similar, 65% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 36% of all tested devices were better, 8% similar, 56% worse
» The best had a delta of 4%, average was 24%, worst was 134%
能源管理--Swift 1提供出色的电池运行时间
能源消耗
不出所料，这款14英寸的笔记本是相当节能的。在我们的压力测试开始时，我们看到最高的耗电量为32W。随后，耗电量明显下降。大多数时候，功耗保持在15W以下。附带的45W电源适配器应该能够在满负荷的情况下为设备充电。
Power Consumption
| Off / Standby |   0.3 / 0.45 Watt |
| Idle |  2.4 / 4.1 / 4.7 Watt |
| Load |
13.6 / 12.1 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU), 128 GB eMMC Flash, IPS, 1920x1080, 14" | Medion Akoya E14307 3020e, Vega 3, FORESEE S40RF 128G, IPS, 1920x1080, 14" | Lenovo IdeaPad 1-14IGL05 Pentium N5030, UHD Graphics 605, SanDisk DA4064, TN LED, 1366x768, 14" | Acer Chromebook 514 CB514-1HT-P1BM Pentium N4200, HD Graphics 505, 64 GB eMMC Flash, IPS, 1920x1080, 14" | Samsung Galaxy Book Go SD 7c Gen 2, Adreno 618, 128 GB UFS 2.1 Flash, TN, 1920x1080, 14" | Asus Vivobook 13 Slate Pentium N6000, UHD Graphics (Jasper Lake 32 EU), WDC PC SN530 SDBPMPZ-265G, OLED, 1920x1080, 13.3" | Average Intel UHD Graphics (Jasper Lake 32 EU) | Average of class Office | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -46% | 2% | -90% | 13% | -53% | -76% | -179% | |
| Idle Minimum * | 2.4 | 3.7 -54% | 2 17% | 3.6 -50% | 1.9 21% | 4.2 -75% | 4.83 ? -101% | 4.57 ? -90% |
| Idle Average * | 4.1 | 6.2 -51% | 4.3 -5% | 11.3 -176% | 4.2 -2% | 6.1 -49% | 7.13 ? -74% | 7.57 ? -85% |
| Idle Maximum * | 4.7 | 7 -49% | 4.9 -4% | 12.3 -162% | 4.8 -2% | 8.2 -74% | 7.88 ? -68% | 9.01 ? -92% |
| Load Average * | 13.6 | 17 -25% | 12 12% | 15.4 -13% | 8.2 40% | 16.4 -21% | 17.5 ? -29% | 42.4 ? -212% |
| Witcher 3 ultra * | 14.3 | |||||||
| Load Maximum * | 12.1 | 18 -49% | 13.2 -9% | 17.9 -48% | 11.4 6% | 17.7 -46% | 24.9 ? -106% | 62.7 ? -418% |
* ... smaller is better
Power draw (Witcher 3/Stress test)
Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU); Witcher 3 ultra: Ø14.3 (13-20.6)
Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU); 1280x720 Prime95 28.10 and Furmark 1.25: Ø12.9 (11.2-31.8)
Samsung Galaxy Book Go SD 7c Gen 2, Adreno 618; 1280x720 Prime95 28.10 and Furmark 1.25: Ø12 (11.6-13.2)
Asus Vivobook 13 Slate Pentium N6000, UHD Graphics (Jasper Lake 32 EU); 1280x720 Prime95 28.10 and Furmark 1.25: Ø17.7 (16.8-19.8)
Asus Vivobook 13 Slate Pentium N6000, UHD Graphics (Jasper Lake 32 EU); 1280x720 Prime95 28.10 and Furmark 1.25: Ø17 (15.8-19.3)
电池寿命
在我们的Wi-Fi测试中，Swift 1的电池运行时间达到了11小时33分钟，该测试模拟了上网时可能出现的负载。在我们的视频测试中，我们循环播放被称为Big Buck Bunny的短片（H.264，FHD），笔记本电脑持续了16小时21分钟。在这两项测试中，节能功能被关闭，亮度被设置为150cd/m²。此外，在视频测试中，通信模块被禁用。
| Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU), 50.3 Wh | Medion Akoya E14307 3020e, Vega 3, 45 Wh | Lenovo IdeaPad 1-14IGL05 Pentium N5030, UHD Graphics 605, 32 Wh | Acer Chromebook 514 CB514-1HT-P1BM Pentium N4200, HD Graphics 505, Wh | Samsung Galaxy Book Go SD 7c Gen 2, Adreno 618, 41.1 Wh | Average of class Office | |
|---|---|---|---|---|---|---|
| Battery Runtime | -42% | -22% | -13% | 19% | -30% | |
| Reader / Idle | 1771 | 1254 ? -29% | ||||
| H.264 | 981 | 755 ? -23% | ||||
| WiFi v1.3 | 693 | 405 -42% | 543 -22% | 604 -13% | 778 12% | 646 ? -7% |
| Load | 285 | 359 26% | 114.2 ? -60% |
Pros
+ 哑光IPS屏幕
+ 漂亮的金属外壳
+ 用于NVMe SSD的插槽
+ 无声运行
+ 无过热现象
+ 键盘背光灯
+ Wi-Fi 6
+ 出色的电池寿命
+ 两年的保修期
Cons
- 屏幕昏暗
- 性能不高
- 只有4GB的内存
- 单通道内存
- 内存不能升级
- 没有Windows
结论 - 宏碁Swift 1 SF114-34是一个安静的移动伴侣。
Swift 1 SF114-34是一款紧凑的14英寸笔记本电脑，它有很多理想的属性，如静音操作，无过热，电池运行时间长（11至16小时），价格仅为279欧元（约315美元）。
宏碁Swift 1 SF114-34不应该被视为一个伟大的全能型产品。它只是一个简单的办公/网络浏览机器。
这款机器 奔腾银N6000为办公和基于网络的应用以及视频流提供了足够的性能。它比前代产品(奔腾银N5000).
该系统的主要瓶颈是4GB焊接的单通道内存。如果你对Swift 1感兴趣，那么你应该购买带有8GB双通道内存的版本，它能提供更多的性能，也更适合未来的发展。128GB的eMMC内存不是很多，但对大多数用户来说应该是足够的。此外，可以在笔记本电脑上添加一个NVMe SSD（M.2-2280）。
哑光IPS屏幕未能给人留下深刻印象，但对于这个价格范围内的笔记本来说，它是可以的。键盘是可用的，有背光。Swift 1不能通过其USB端口充电。
我们的评测模型没有预装Windows。那些没有Windows许可证的人，如果不想得到它，可以使用Linux作为操作系统。目前，宏碁Swift 1还没有真正的替代品。
价格和可用性
配备英特尔奔腾N6000、4GB内存、128GB内部存储和Windows 10的宏碁Swift 1目前在亚马逊上的售价为393英镑。.
Acer Swift 1 SF114-34-P6U1
- 12/15/2021 v7 (old)
Sascha Mölck
Office - Weighted Average
Price comparison
