联想ThinkPad P14s G2 AMD笔记本电脑评论。拥有哑光4K液晶显示器和Ryzen 5000

首款配备UHD显示屏的AMD ThinkPad。 直到现在,4K UHD显示器在14英寸ThinkPads中的表面是光面的,而ThinkPad T14及其兄弟姐妹的AMD Ryzen型号根本没有提供4K显示器。现在,联想ThinkPad P14s第二代AMD的Ryzen 5000和UHD显示器有哑光表面的启动,这种情况发生了变化。
Benjamin Herzig, 👁 Benjamin Herzig (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
AMD Laptop / Notebook ThinkPad Windows Workstation

到目前为止,联想ThinkPad P系列一直是英特尔处理器的一个堡垒。不过有一个例外。14英寸的联想ThinkPad P14s是联想工作站中的移动入门级机型,从去年开始也有采用AMD Ryzen CPU的版本。虽然去年联想工作站笔记本电脑使用了AMD Ryzen Pro 4000,但随着ThinkPad P14s G2的推出,AMD Ryzen Pro 5000自然也随之而来。

ThinkPad P14s AMD前辈已经提供了出色的CPU性能,但它缺乏一个专用的GPU。这种不寻常的缺乏也涉及到较新的模型,因此,看看它在与更多采用英特尔CPU和Nvidia GPU的传统工作站的比较中表现如何,将是很有趣的。

由于联想没有在机箱上做任何改变,我们请你参考我们对联想ThinkPad T490的评论,以了解有关设计、设备和输入设备的信息。

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Lenovo ThinkPad P14s G2 AMD (ThinkPad P14s Gen2 Series)
Processor
AMD Ryzen 7 PRO 5850U 8 x 1.9 - 4.4 GHz, 26 W PL2 / Short Burst, 24 W PL1 / Sustained, Cezanne U (Zen 3)
Memory
32768 MB
, DDR4-3200, 2x SO-DIMM, dual-channel
Display
14.00 inch 16:9, 3840 x 2160 pixel 315 PPI, MNE001EA1-5, IPS LED, glossy: no
Mainboard
AMD Promontory/Bixby FCH
Storage
SK Hynix PC711 1TB HFS001TDE9X081N, 1024 GB
, M.2 2280, NVMe PCIe 3.0
Soundcard
Realtek ALC3287
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5 mm audio port, Card Reader: microSD, 1 SmartCard, 1 Fingerprint Reader
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), RealTek Semiconductor RTL8852AE (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2
Size
height x width x depth (in mm): 17.9 x 329 x 227
Battery
50 Wh Lithium-Polymer
Camera
Webcam: 720p w/IR & ThinkShutter
Additional features
Speakers: stereo, Keyboard: 6 row chiclet, 1.8 mm key travel, Keyboard Light: yes, 65 W USB-C charger, 36 Months Warranty
Weight
1.494 kg, Power Supply: 364 g
Price
1400 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
85.2 %
09/2021
Lenovo ThinkPad P14s G2 AMD
R7 PRO 5850U, Vega 8 R5000
1.5 kg17.9 mm14.00"3840x2160
83.8 %
Lenovo ThinkPad P14s Gen1-20Y10002GE
R7 PRO 4750U, Vega 7
1.6 kg17.9 mm14.00"1920x1080
85.1 %
06/2021
Lenovo ThinkPad P14s Gen2-20VX000GGE
i7-1185G7, T500 Laptop GPU
1.5 kg18 mm14.00"1920x1080
85.2 %
09/2021
HP ZBook Firefly 14 G8 2C9Q2EA
i7-1165G7, T500 Laptop GPU
1.4 kg17.9 mm14.00"1920x1080

Size Comparison

365.8 mm 248 mm 19.1 mm 1.9 kg361.8 mm 245.7 mm 18.7 mm 1.7 kg329 mm 227 mm 17.9 mm 1.5 kg323 mm 214.6 mm 17.9 mm 1.4 kg
左边:2个USB-C 3.2 Gen 2,对接端口/微型以太网,USB-A 3.2 Gen 1,HDMI 2.0,3.5毫米音频,微型SD。
左边:2个USB-C 3.2 Gen 2,对接端口/微型以太网,USB-A 3.2 Gen 1,HDMI 2.0,3.5毫米音频,微型SD。

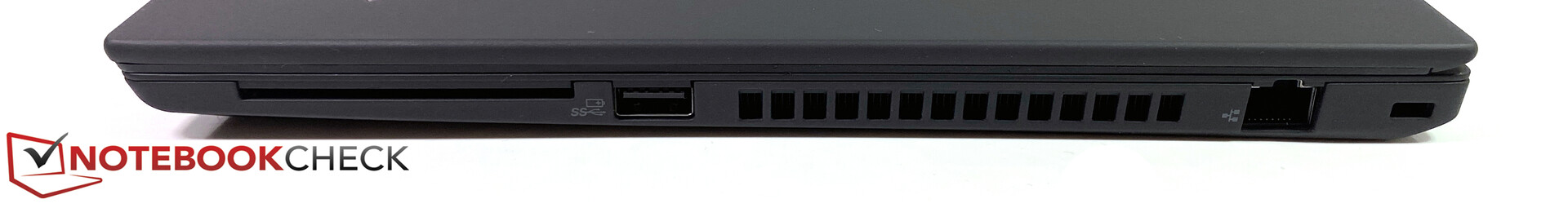

右边:智能卡读卡器、USB-A 3.2 Gen 1、RJ45以太网、Kensington锁
右边:智能卡读卡器、USB-A 3.2 Gen 1、RJ45以太网、Kensington锁
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Workstation
  (26.5 - 220, n=30, last 2 years)
138 MB/s ∼100% +92%
Lenovo ThinkPad P14s Gen1-20Y10002GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
78.5 MB/s ∼57% +9%
Lenovo ThinkPad P14s Gen2-20VX000GGE
  (AV Pro V60)
77.1 MB/s ∼56% +7%
Lenovo ThinkPad P14s G2 AMD
  (AV PRO V60)
72.02 MB/s ∼52%
maximum AS SSD Seq Read Test (1GB)
Average of class Workstation
  (31.6 - 244, n=28, last 2 years)
160 MB/s ∼100% +83%
Lenovo ThinkPad P14s G2 AMD
  (AV PRO V60)
87.45 MB/s ∼55%
Lenovo ThinkPad P14s Gen1-20Y10002GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.7 MB/s ∼54% -2%
Lenovo ThinkPad P14s Gen2-20VX000GGE
  (AV Pro V60)
85.2 MB/s ∼53% -3%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad P14s Gen1-20Y10002GE
Intel Wi-Fi 6 AX200
1403 (1197min - 1478max) MBit/s ∼100% +54%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Wi-Fi 6 AX201
1396 (1168min - 1517max) MBit/s ∼100% +53%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Wi-Fi 6E AX210
1254 (776min - 1488max) MBit/s ∼89% +37%
Average of class Workstation
  (592 - 1642, n=36, last 2 years)
1202 MBit/s ∼86% +32%
Lenovo ThinkPad P14s G2 AMD
RealTek Semiconductor RTL8852AE
914 (464min - 996max) MBit/s ∼65%
Average RealTek Semiconductor RTL8852AE
  (424 - 928, n=13)
761 MBit/s ∼54% -17%
iperf3 Client (receive) TCP 1 m 4M x10
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Wi-Fi 6 AX201
1402 (1306min - 1480max) MBit/s ∼100% +103%
Average of class Workstation
  (628 - 1557, n=36, last 2 years)
1297 MBit/s ∼93% +88%
Lenovo ThinkPad P14s Gen1-20Y10002GE
Intel Wi-Fi 6 AX200
1291 (916min - 1452max) MBit/s ∼92% +87%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Wi-Fi 6E AX210
1205 (994min - 1324max) MBit/s ∼86% +75%
Average RealTek Semiconductor RTL8852AE
  (621 - 855, n=13)
766 MBit/s ∼55% +11%
Lenovo ThinkPad P14s G2 AMD
RealTek Semiconductor RTL8852AE
690 (654min - 739max) MBit/s ∼49%
464514564614664714764814864914964698674720700654673686687671688700702678673667702687739654669679712683673692688715723692693698674720700654673686687671688700702678673667702687739654669679712683673692688715723692693464929955854945954925762996939910942754968916938904925924926918914907918911902934884929910Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø689 (654-739)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø899 (464-996)
ColorChecker
26.3 ∆E
15.6 ∆E
17 ∆E
17.9 ∆E
13.3 ∆E
15.3 ∆E
19.6 ∆E
24.4 ∆E
17.4 ∆E
16 ∆E
7.6 ∆E
9 ∆E
26.1 ∆E
20.1 ∆E
21.4 ∆E
8.7 ∆E
11.3 ∆E
12.9 ∆E
3.8 ∆E
11.8 ∆E
13.7 ∆E
12.1 ∆E
12.1 ∆E
4.7 ∆E
ColorChecker Lenovo ThinkPad P14s G2 AMD: 14.91 ∆E min: 3.76 - max: 26.34 ∆E

ThinkPad笔记本电脑中的哑光UHD显示屏

联想ThinkPad P14s第二代AMD的子像素矩阵
联想ThinkPad P14s第二代AMD的子像素矩阵

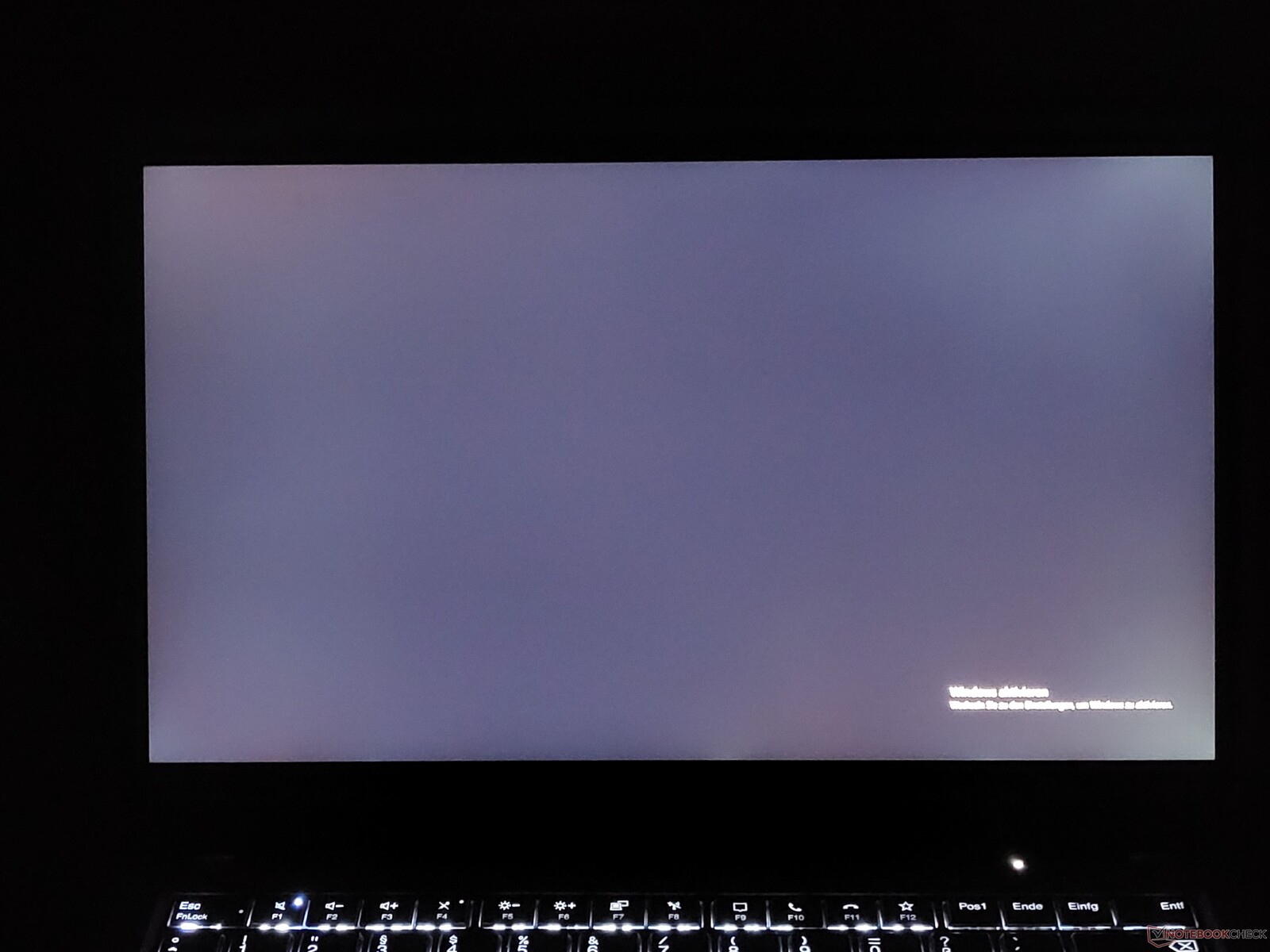

背光出血(这里描述的是放大的)。
背光出血(这里描述的是放大的)。

对于使用与前代机型相同设计的笔记本电脑来说,其他方面的变化必须为购买提供论据。显示器就是这样一个领域。然而,在联想ThinkPad P14s G2 AMD中,大多数LCD选项仍然与上一代产品相同。 联想ThinkPad P14s G1前代机型,而且不幸的是,14英寸液晶显示器的16:9格式也没有改变。

新的变化是,基于AMD的机型首次也提供了4K超高清显示屏(3840 x 2160像素),这在去年还是保留给英特尔ThinkPad的。此外,UHD液晶显示器以前是光面的,但现在是哑光的。虽然我们能够测试新的、无光泽的UHD液晶显示器,以及全高清分辨率(1920 x 1080像素)的低功耗液晶显示器,但本评论的重点是带有4K UHD液晶显示器的型号。

UHD显示屏的亮度应该达到500cd/m²,这确实是最高值的情况。最高值确实是512 cd/m²,但联想笔记本电脑的平均亮度 "只有 "486 cd/m²。这使得它比能够在ThinkPad X1 Carbon Gen 8 中测试的光面UHD LCD略微暗一些。但与此相反,这里没有使用脉冲宽度调制(PWM)进行亮度控制。而与低功耗的FHD LCD相比,另一个突出的优势是UHD屏幕的响应时间明显更好。

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17025 (minimum: 5 - maximum: 2500000) Hz was measured.

495
cd/m²
503
cd/m²
467
cd/m²
501
cd/m²
512
cd/m²
489
cd/m²
463
cd/m²
488
cd/m²
462
cd/m²
Distribution of brightness
MNE001EA1-5
X-Rite i1Pro 2
Maximum: 512 cd/m² Average: 486.7 cd/m² Minimum: 4.55 cd/m²
Brightness Distribution: 90 %
Center on Battery: 512 cd/m²
Contrast: 1463:1 (Black: 0.35 cd/m²)
ΔE Color 3.1 | 0.59-29.43 Ø5.5, calibrated: 0.4
ΔE Greyscale 5.5 | 0.64-98 Ø5.7
Gamma: 2.22
Lenovo ThinkPad P14s G2 AMD
MNE001EA1-5, IPS LED, 3840x2160, 14.00
Lenovo ThinkPad P14s G2 AMD FHD
NE140FHM-N61, IPS LED, 1920x1080, 14.00
Lenovo ThinkPad P14s Gen1-20Y10002GE
N140HCR-GL2, a-Si IPS LED, 1920x1080, 14.00
Lenovo ThinkPad P14s Gen2-20VX000GGE
B140HAN05.7, IPS, 1920x1080, 14.00
HP ZBook Firefly 14 G8 2C9Q2EA
AU Optronics AUO068B, IPS, 1920x1080, 14.00
Lenovo ThinkPad X1 Carbon 2020-20U9003BGE
NV140QUM-N53, , 3840x2160, 14.00
Display
-20%
-17%
-19%
-15%
-6%
Display P3 Coverage
96.8


68.1
-30%
67.26
-31%
65.41
-32%
70.02
-28%
82.45
-15%
sRGB Coverage
99.9


91.1
-9%
98.52
-1%
96.57
-3%
99.47
0%
99.44
0%
AdobeRGB 1998 Coverage
85.8


66.6
-22%
69.37
-19%
66.48
-23%
71.43
-17%
82.73
-4%
Response Times
-55%
20%
-15%
-14%
23%
Response Time Grey 50% / Grey 80% *
52 ?(26, 26)
72 ?(38, 34)
-38%
38.4 ?(20.4, 18)
26%
58.8 ?(28.4, 30.4)
-13%
64.4 ?(30.4, 34)
-24%
47.2 ?(20.4, 26.8)
9%
Response Time Black / White *
28 ?(13, 15)
48 ?(22, 26)
-71%
24 ?(13.2, 10.8)
14%
32.8 ?(16.8, 16)
-17%
29.2 ?(12.4, 16.8)
-4%
17.6 ?(6.8, 10.8)
37%
PWM Frequency
200 ?(99)
Screen
-47%
5%
-24%
-7%
-35%
Brightness middle
512
403
-21%
430
-16%
350
-32%
461
-10%
574
12%
Brightness
487
395
-19%
432
-11%
348
-29%
439
-10%
540
11%
Brightness Distribution
90
91
1%
88
-2%
94
4%
89
-1%
86
-4%
Black Level *
0.35
0.25
29%
0.27
23%
0.14
60%
0.24
31%
0.36
-3%
Contrast
1463
1612
10%
1593
9%
2500
71%
1921
31%
1594
9%
Colorchecker DeltaE2000 *
3.1
4.4
-42%
2.2
29%
4.3
-39%
2.6
16%
4.7
-52%
Colorchecker DeltaE2000 max. *
8.4
8.8
-5%
4.4
48%
6.7
20%
5.8
31%
8.8
-5%
Colorchecker DeltaE2000 calibrated *
0.4
1.9
-375%
0.7
-75%
1.5
-275%
1.1
-175%
1.4
-250%
Greyscale DeltaE2000 *
5.5
5.7
-4%
3.3
40%
5.3
4%
4.4
20%
7.2
-31%
Gamma
2.22 99%
2.18 101%
2.21 100%
2.42 91%
2.29 96%
2.04 108%
CCT
6373 102%
7375 88%
6056 107%
7631 85%
6478 100%
6886 94%
Color Space (Percent of AdobeRGB 1998)
63
61.1
65.2
73.8
Color Space (Percent of sRGB)
98.5
96.4
99.4
99.4
Total Average (Program / Settings)
-41% / -43%
3% / 2%
-19% / -22%
-12% / -10%
-6% / -20%

* ... smaller is better

颜色
颜色
灰度
灰度
饱和度
饱和度
颜色(已校准
颜色(已校准
灰度(已校准)
灰度(已校准)
饱和度(已校准
饱和度(已校准

尽管ThinkPad笔记本电脑在交付状态下应该已经被校准,但我们用X-Rite i1 Pro 2色度计和Calman进行的测量显示出一种红色色调。我们使用X-Rite i1Profiler进行的校准消除了这种色调。创建的色彩配置文件可供您免费下载(见上文 "下载ICC文件 "链接)。校准后,显示效果非常好,内容显示非常清晰,色彩鲜艳,这也是由于对比度值好。

不仅完全覆盖了sRGB色彩空间,而且宽泛的DCI-P3色彩空间也几乎完全覆盖,达到96.8%。这意味着我们绝对可以想象使用联想ThinkPad P14s G2的超高清液晶显示器进行图像处理。

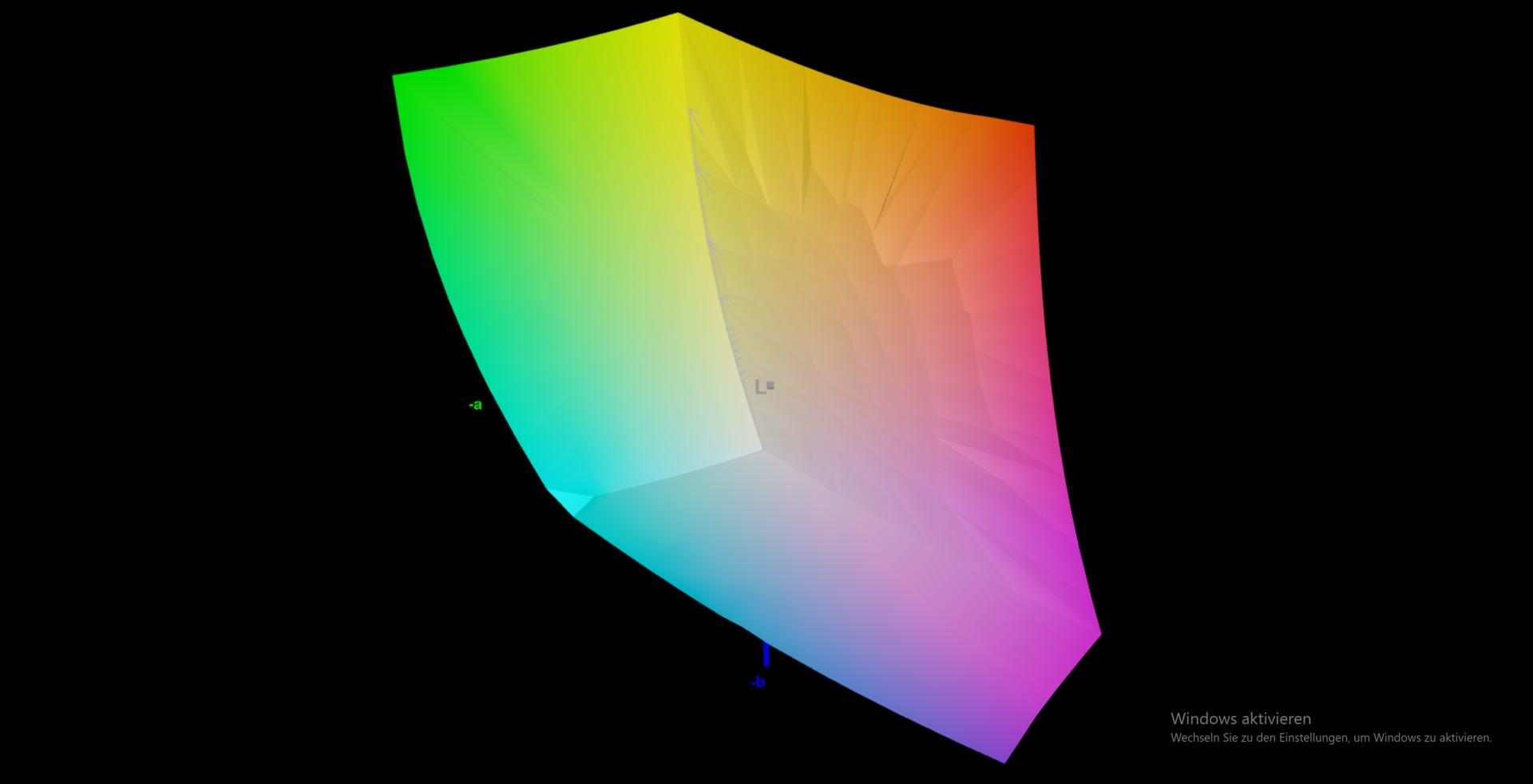

sRGB: 99.9
sRGB: 99.9

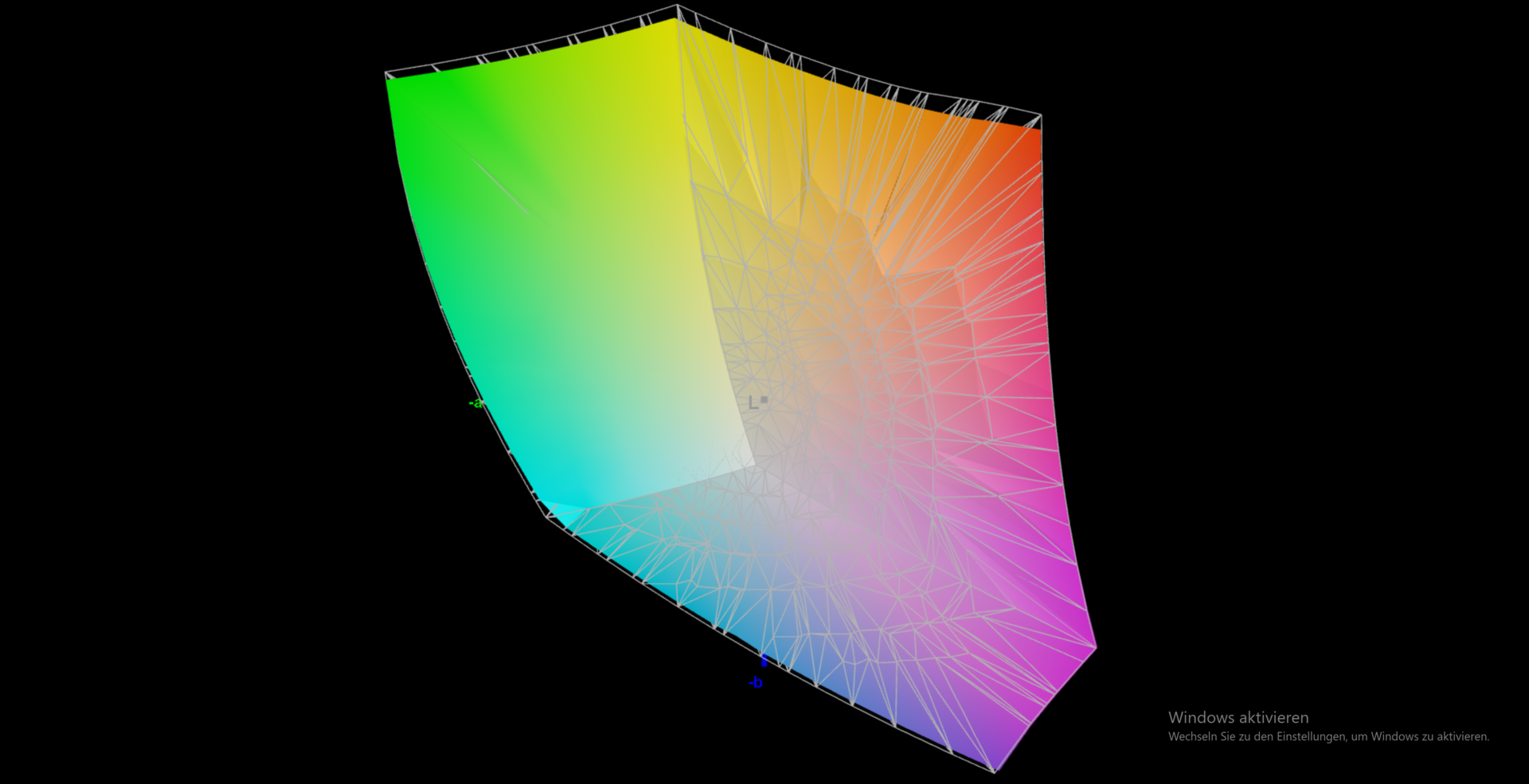

P3: 96.8%
P3: 96.8%
AdobeRGB: 85.8%
AdobeRGB: 85.8%

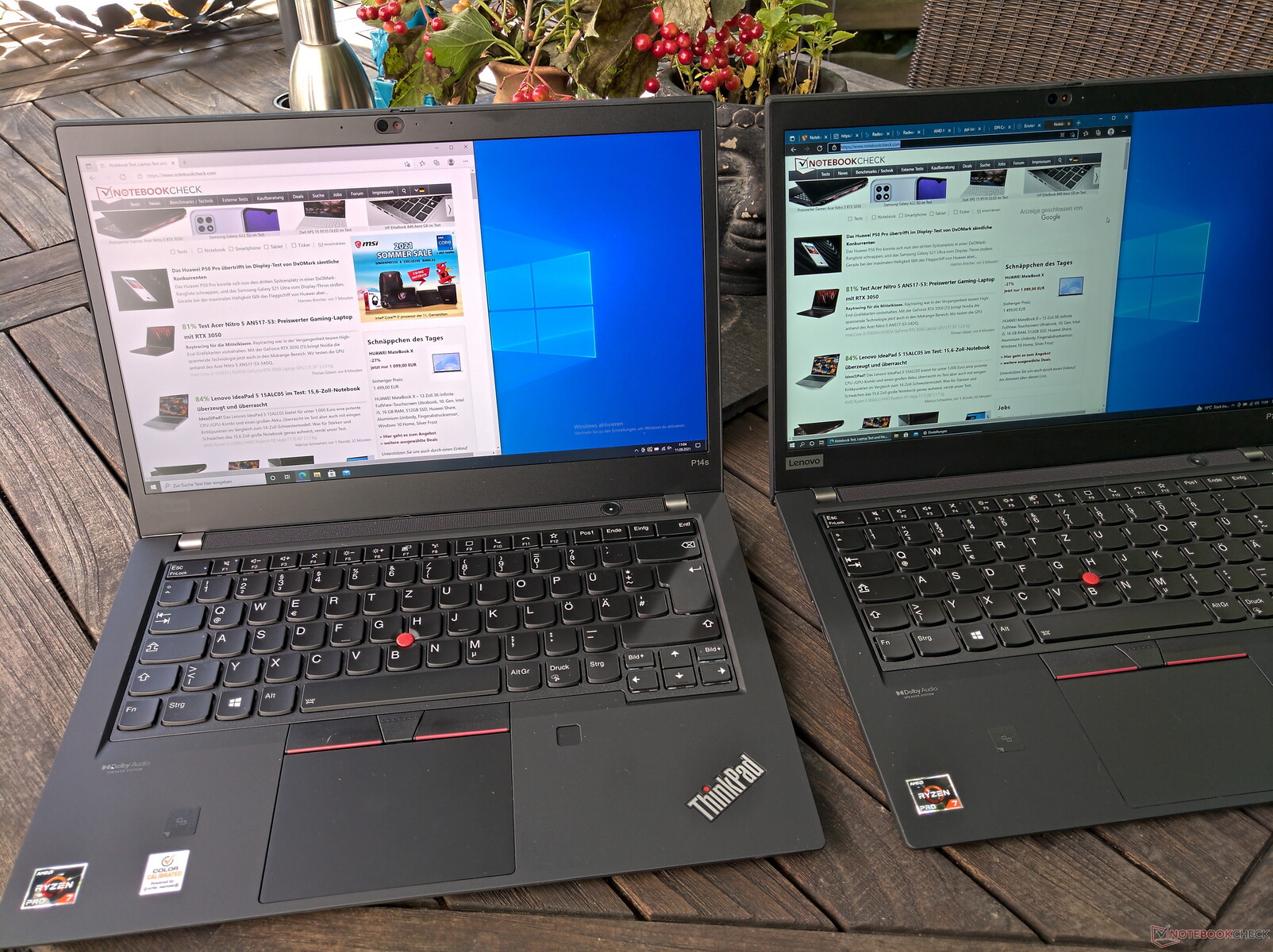

室外(阴凉处,UHD P14s在左,FHD P14s在右)。
室外(阴凉处,UHD P14s在左,FHD P14s在右)。

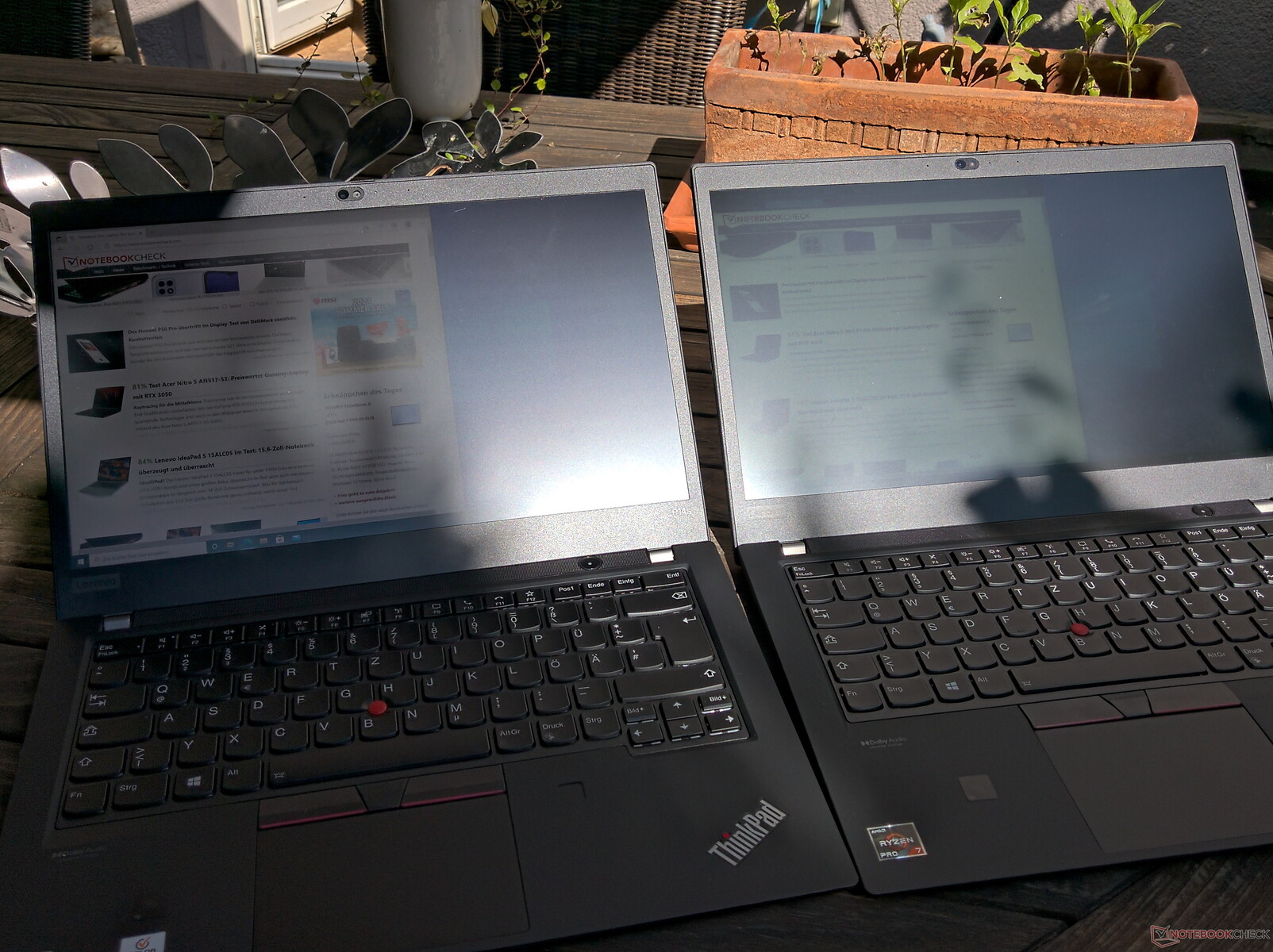

室外(阳光下;UHD P14s在左边,FHD P14s在右边
室外(阳光下;UHD P14s在左边,FHD P14s在右边


哑光表面是在户外使用笔记本电脑的一个巨大改进。你不必担心恼人的反射,而且高亮度使在户外工作时非常舒适。然而,阳光直射仍然造成一些困难。

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

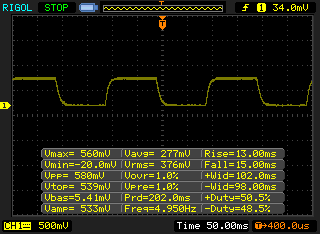

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 13 ms rise
↘ 15 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 61 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.8 ms).

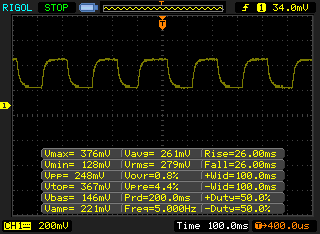

       Response Time 50% Grey to 80% Grey
52 ms ... rise ↗ and fall ↘ combined↗ 26 ms rise
↘ 26 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 85 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (37.7 ms).

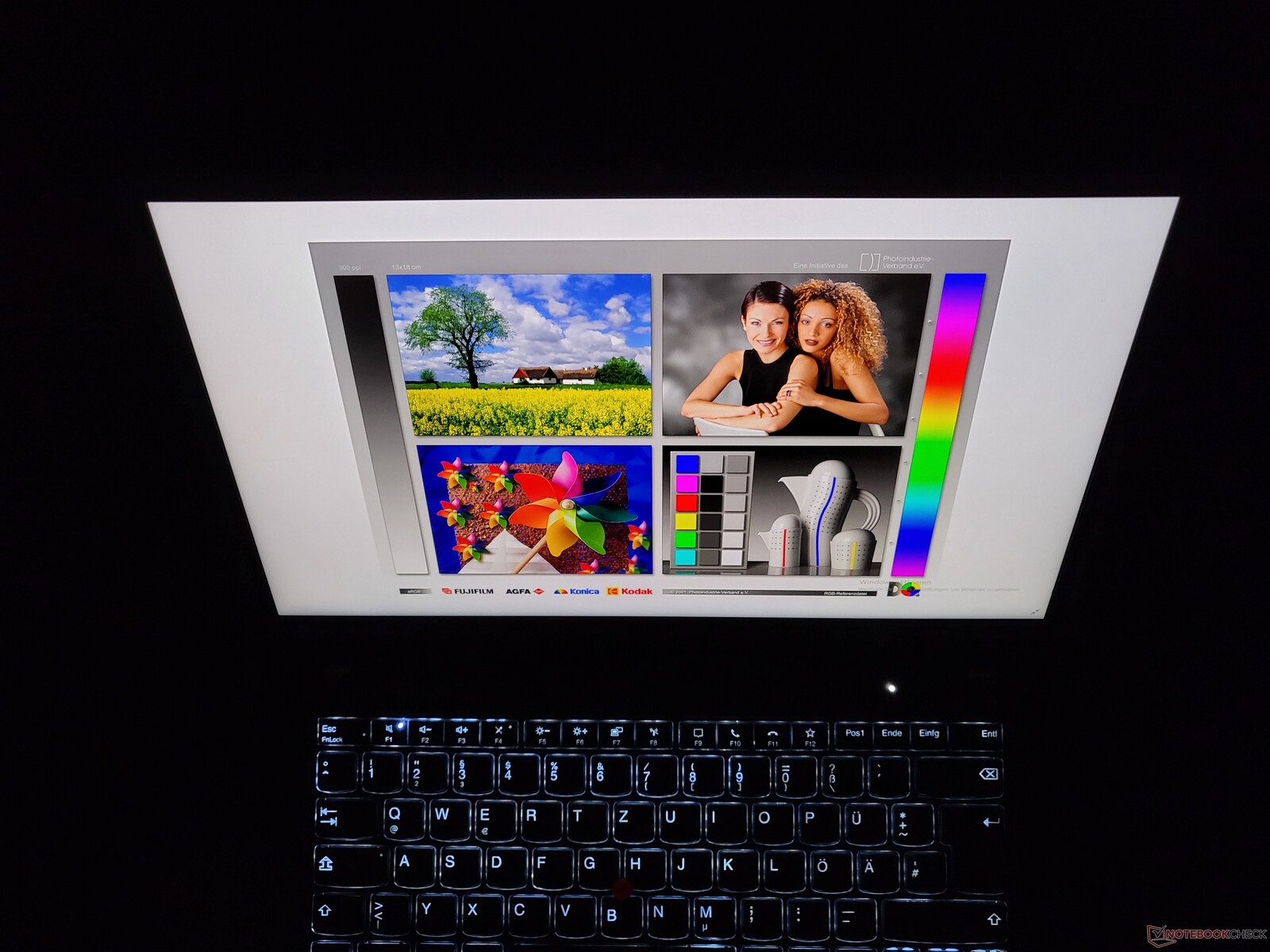

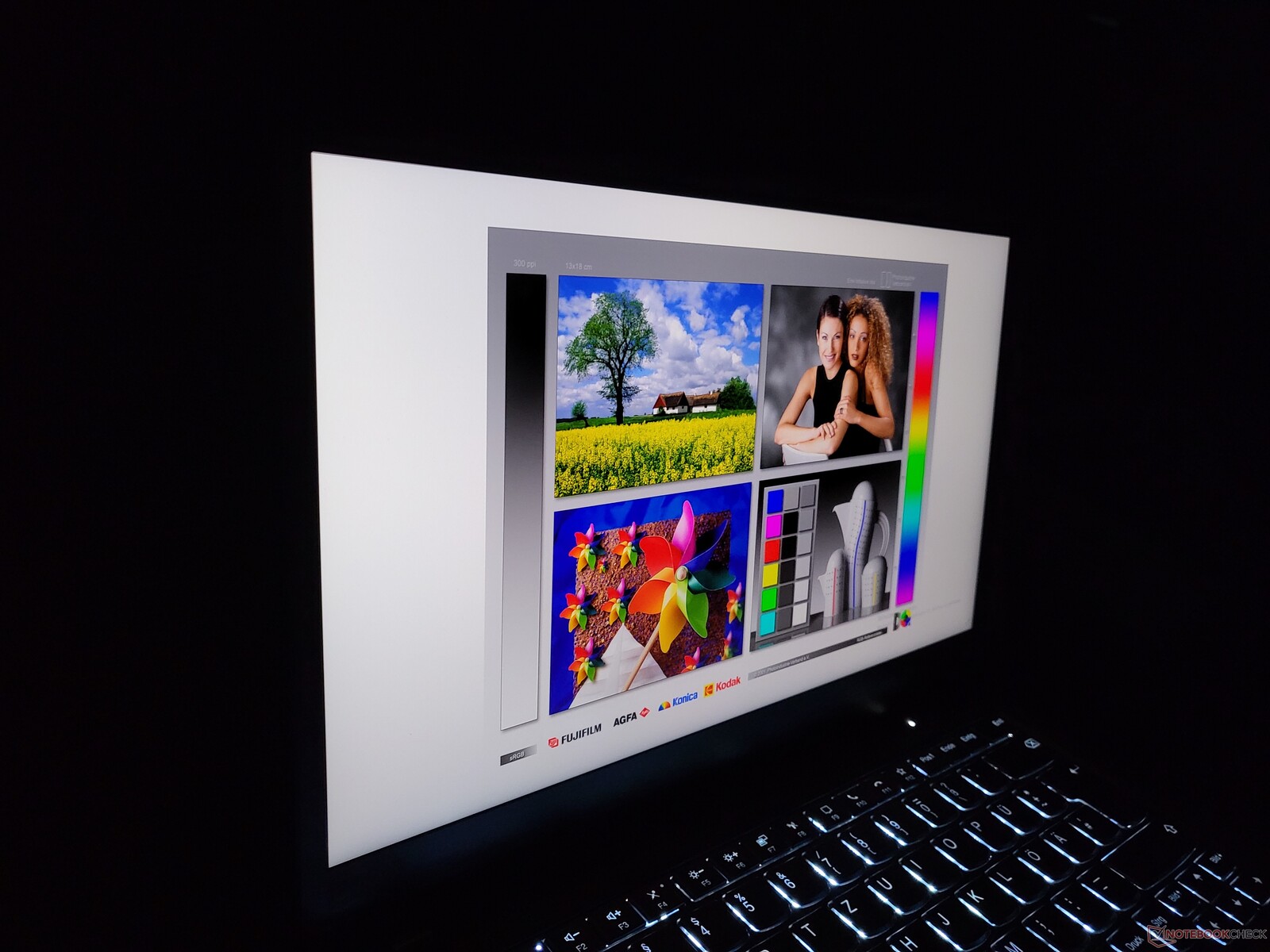

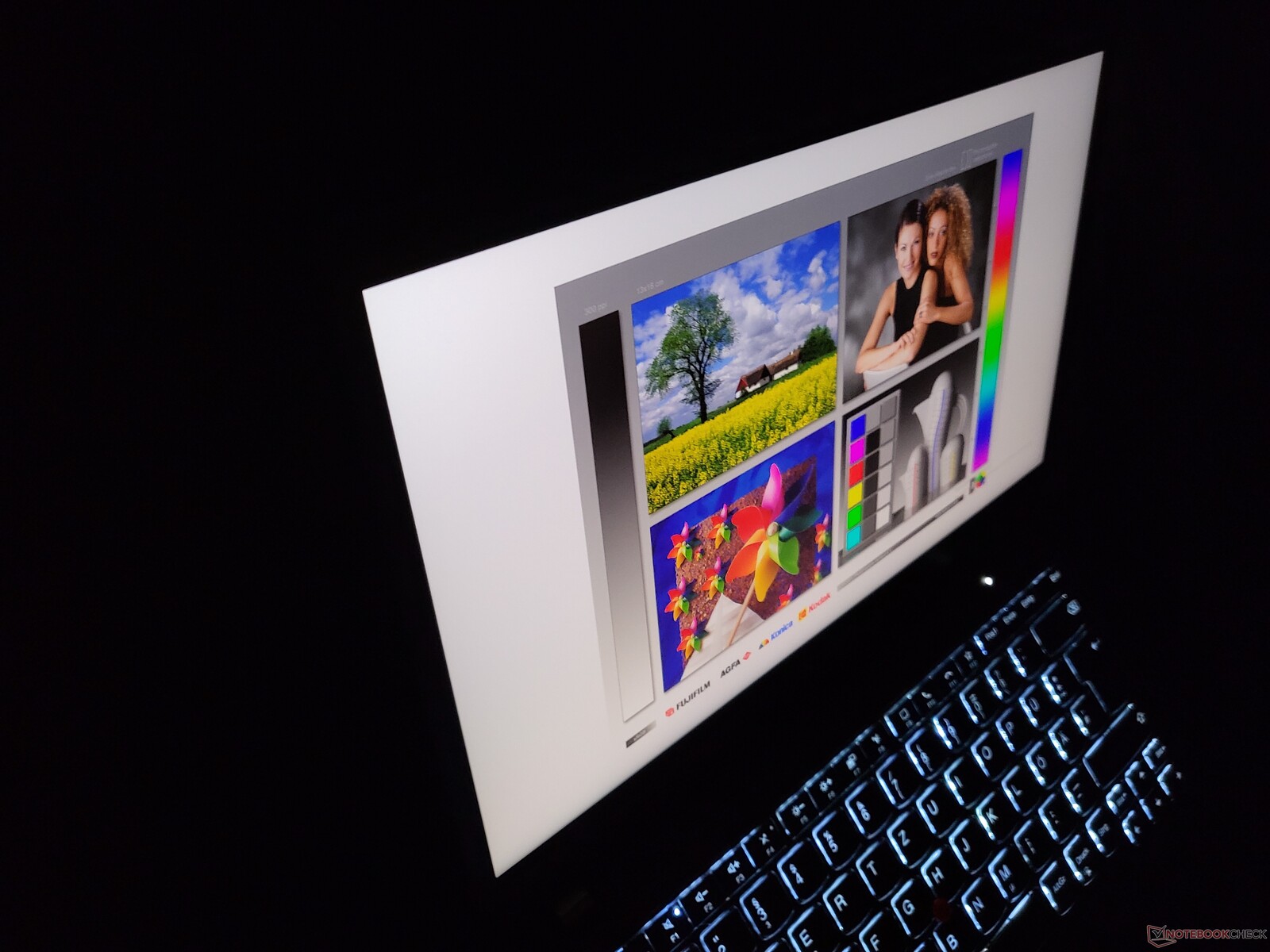

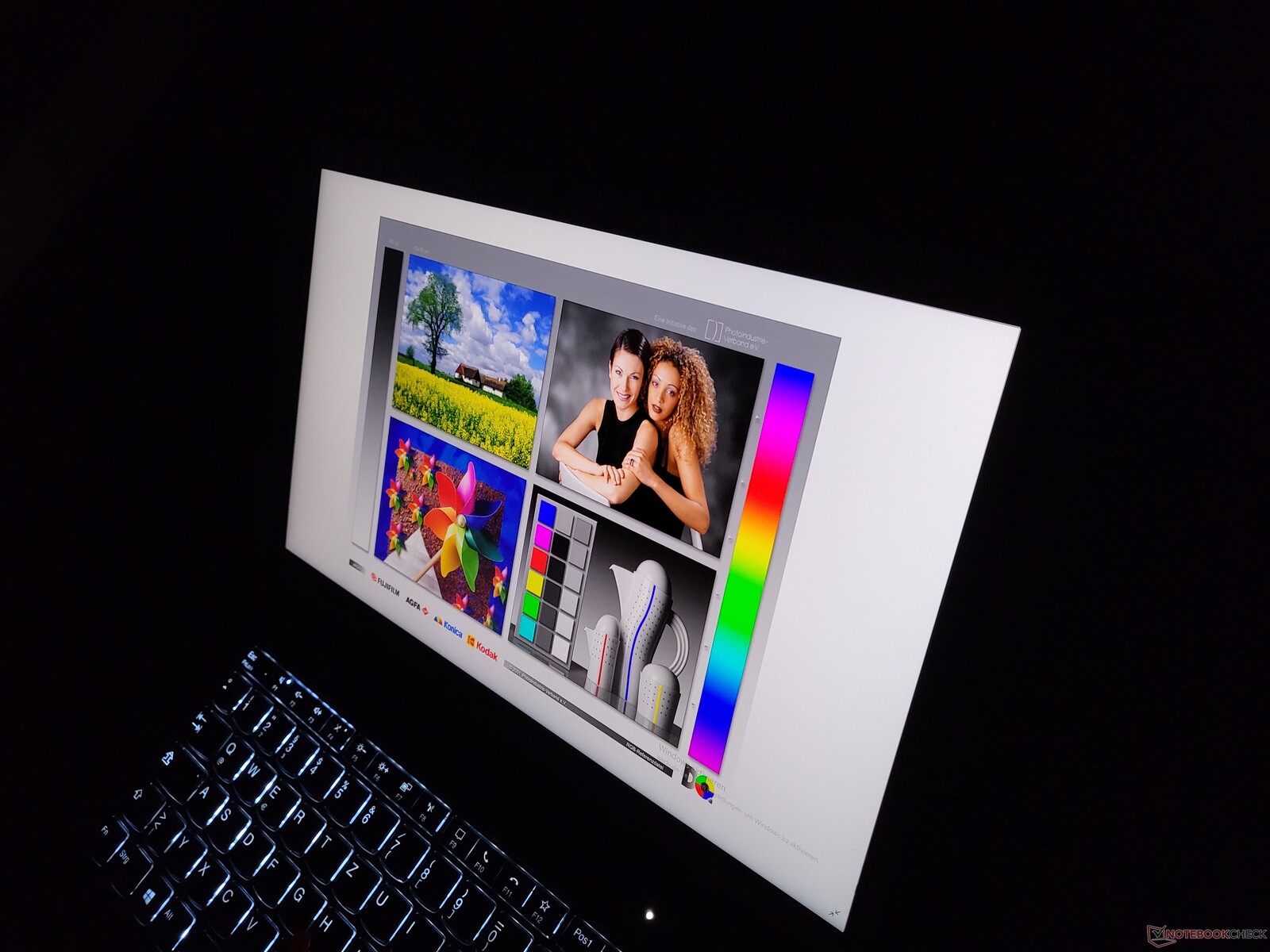

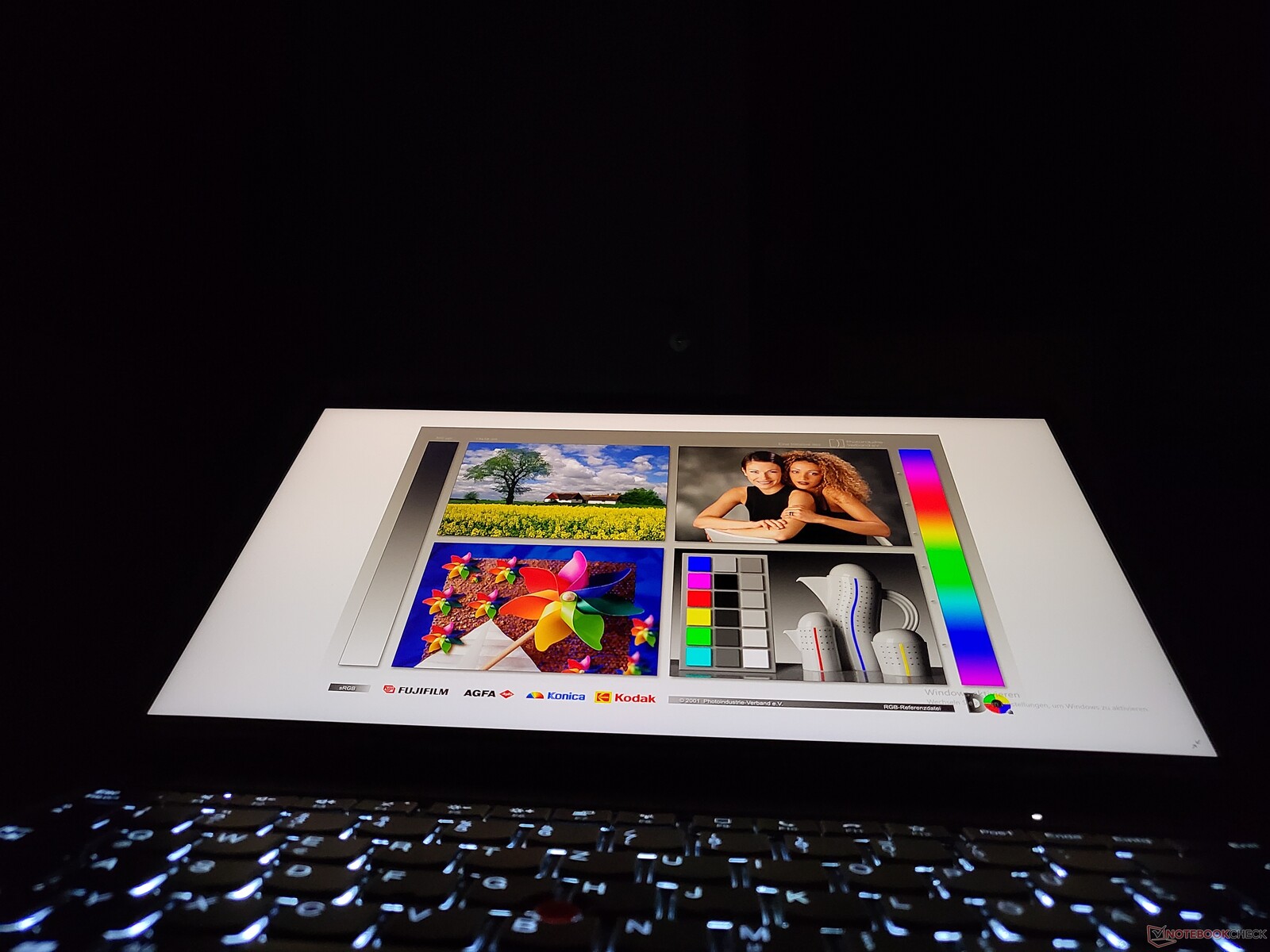

视角的稳定性?由于几乎所有的笔记本电脑都使用了IPS显示屏,这几乎不再是一个问题,联想ThinkPad P14s第二代AMD在这方面也表现得非常出色。

CPU性能。Ryzen 5000提高了联想笔记本电脑的单核性能

在联想ThinkPad P14s G2 AMD中,你可以在AMD的两款Ryzen Pro CPU中进行选择,分别是AMD Ryzen 5 Pro 5650UAMD Ryzen 7 Pro 5850U.与其他工作站相比,P14s AMD没有配备专用GPU。这意味着,集成的AMD图形芯片必须完成这项工作。一块M.2-2280固态硬盘也完成了存储解决方案的工作。在内存方面,最大是48GB的DDR4-3200,其中16GB是焊接在一起的。单个SO-DIMM插槽最多能够接受32GB的模块。

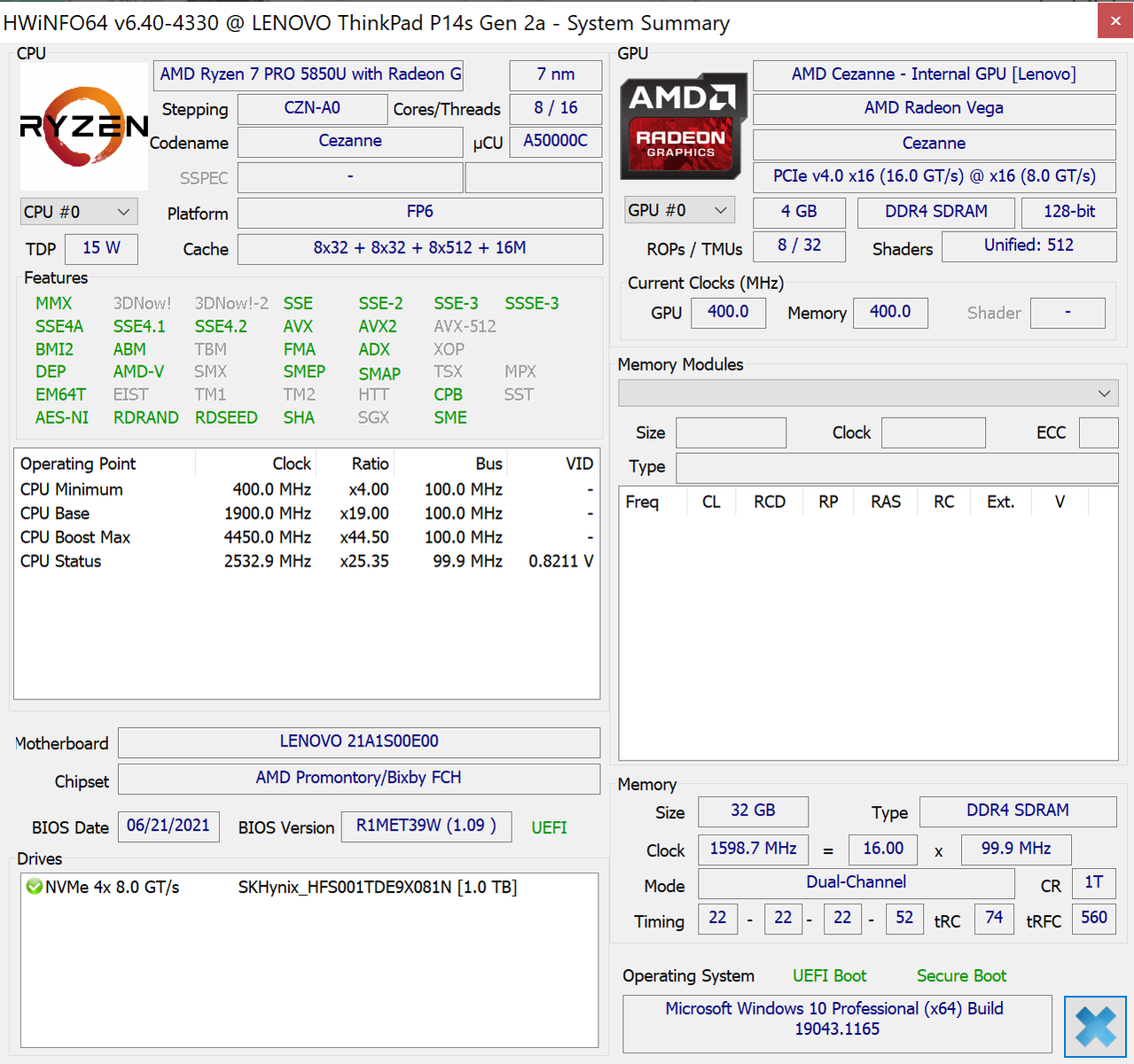

HWiNFO
HWiNFO
GPU-Z
GPU-Z
CPU-Z
CPU-Z
CPU-Z 主板
CPU-Z 主板
CPU-Z内存
CPU-Z内存
CPU-Z SPD
CPU-Z SPD

处理器

实验结果AMD Ryzen 7 Pro 5850U是一个具有八个核心和十六个线程的处理器,基于Zen 3架构和Cezanne U系列。作为U系列的CPU,典型的TDP为15瓦,时钟频率在1.9和4.4GHz之间。你可以将该处理器与当前其他CPU进行比较,在我们的 CPU列表.

由于我们测试的是 ThinkPad P14s G1Ryzen 7 Pro 4750U,它是5850U处理器的直接前身,你可以很容易地看到Ryzen 5000与Ryzen 4000相比的优势。较新的联想ThinkPad P14s第二代AMD在多核基准测试中快10%左右。在单核测试中的优势甚至更大,5850U平均比前代机型快17%。另一个有趣的比较是与 P14s G2英特尔ZBook Firefly 14 G8使用i7-1165G7。英特尔的CPU在几个核心的负载下明显较慢。他们只在单核性能上有一些部分优势。

在电池运行情况下,3DMark 11物理测试中的CPU性能会降低约28%。

Cinebench R15 Multi Constant Load Test

538.7618.7698.7778.7858.7938.71018.71098.71178.71258.71338.71418.71498.71526.951524.511517.681518.951517.451515.611522.241511.831519.531517.911522.071512.631512.121514.461518.491524.911521.031512.631518.831517.051521.721518.831510.921519.581521.431416.531403.91403.561396.891395.971387.971388.741362.631382.841384.041389.661385.911392.761390.771388.261388.891389.371381.121383.81383.561383.941387.251382.61387.881381.74810.73803.94794.22763.84688.93615.4556.48822.05884.98814.53751.51674.74538.67776.88897.28852.77778.92710.13592.68661.36901.88869.24817.23746.76660.01843.29673.66760.23682.54714.5725.73675.6726.24726.31671.68712.09715.41675.93730.03703.07677.45714.15715.18679.38701.56730.85680.57705.01726.97674.85Tooltip
Lenovo ThinkPad P14s G2 AMD AMD Ryzen 7 PRO 5850U: Ø1518 (1510.92-1526.95)
Lenovo ThinkPad P14s Gen1-20Y10002GE AMD Ryzen 7 PRO 4750U: Ø1389 (1362.63-1416.53)
Lenovo ThinkPad P14s Gen2-20VX000GGE Intel Core i7-1185G7: Ø751 (538.67-901.88)
HP ZBook Firefly 14 G8 2C9Q2EA Intel Core i7-1165G7: Ø710 (671.68-843.29)
Cinebench R23: CPU (Single Core) | CPU (Multi Core)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / CPU (Single Core)
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
1493 Points ∼100% +7%
Average AMD Ryzen 7 PRO 5850U
  (1401 - 1405, n=2)
1403 Points ∼94% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
1401 Points ∼94%
Average of class Workstation
  (1162 - 1596, n=19, last 2 years)
1383 Points ∼93% -1%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
1162 Points ∼78% -17%
Cinebench R23 / CPU (Multi Core)
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
9111 Points ∼100%
Average of class Workstation
  (4239 - 12876, n=19, last 2 years)
8859 Points ∼97% -3%
Average AMD Ryzen 7 PRO 5850U
  (8201 - 9111, n=2)
8656 Points ∼95% -5%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
8300 Points ∼91% -9%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
5876 Points ∼64% -36%
Cinebench R20 / CPU (Single Core)
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
581 Points ∼100% +7%
Average AMD Ryzen 7 PRO 5850U
  (543 - 548, n=2)
546 Points ∼94% +1%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
543 Points ∼93%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
529 Points ∼91% -3%
Average of class Workstation
  (436 - 618, n=38, last 2 years)
509 Points ∼88% -6%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
469 Points ∼81% -14%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
3523 Points ∼100%
Average AMD Ryzen 7 PRO 5850U
  (3184 - 3523, n=2)
3354 Points ∼95% -5%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
3203 Points ∼91% -9%
Average of class Workstation
  (1602 - 5180, n=39, last 2 years)
3089 Points ∼88% -12%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
2269 Points ∼64% -36%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
2036 Points ∼58% -42%
Cinebench R15 / CPU Single 64Bit
Average AMD Ryzen 7 PRO 5850U
  (225 - 227, n=2)
226 Points ∼100% 0%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
225 Points ∼100% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
225 Points ∼100%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
213 Points ∼94% -5%
Average of class Workstation
  (178 - 241, n=42, last 2 years)
205 Points ∼91% -9%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
180 Points ∼80% -20%
Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
1527 (1510.92min - 1526.95max) Points ∼100%
Average AMD Ryzen 7 PRO 5850U
  (1398 - 1527, n=2)
1463 Points ∼96% -4%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
1417 (1362.63min - 1416.53max) Points ∼93% -7%
Average of class Workstation
  (675 - 2144, n=43, last 2 years)
1337 Points ∼88% -12%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
902 (538.67min - 901.88max) Points ∼59% -41%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
843 (671.68min - 843.29max) Points ∼55% -45%
Blender 2.79 / BMW27 CPU
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
630 Seconds * ∼100% -90%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
580 Seconds * ∼92% -75%
Average of class Workstation
  (250 - 703, n=35, last 2 years)
400 Seconds * ∼63% -21%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
352 Seconds * ∼56% -6%
Average AMD Ryzen 7 PRO 5850U
  (331 - 364, n=2)
348 Seconds * ∼55% -5%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
331 Seconds * ∼53%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
5507 MIPS ∼100% +4%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
5352 MIPS ∼97% +1%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
5300 MIPS ∼96%
Average of class Workstation
  (4417 - 5773, n=36, last 2 years)
5277 MIPS ∼96% 0%
Average AMD Ryzen 7 PRO 5850U
  (5050 - 5300, n=2)
5175 MIPS ∼94% -2%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
4417 MIPS ∼80% -17%
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
45543 MIPS ∼100%
Average AMD Ryzen 7 PRO 5850U
  (38553 - 45543, n=2)
42048 MIPS ∼92% -8%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
41491 MIPS ∼91% -9%
Average of class Workstation
  (19147 - 50552, n=36, last 2 years)
36718 MIPS ∼81% -19%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
22854 MIPS ∼50% -50%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
21244 MIPS ∼47% -53%
Geekbench 5.3 / 64 Bit Single-Core Score
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
1626 Points ∼100% +12%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
1551 Points ∼95% +7%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
1448 Points ∼89%
Average AMD Ryzen 7 PRO 5850U
  (1354 - 1448, n=2)
1401 Points ∼86% -3%
Average of class Workstation
  (1124 - 1702, n=32, last 2 years)
1368 Points ∼84% -6%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
1124 Points ∼69% -22%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
7039 Points ∼100%
Average of class Workstation
  (3852 - 9451, n=32, last 2 years)
6617 Points ∼94% -6%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
6153 Points ∼87% -13%
Average AMD Ryzen 7 PRO 5850U
  (5137 - 7039, n=2)
6088 Points ∼86% -14%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
5692 Points ∼81% -19%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
4999 Points ∼71% -29%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
11.6 fps ∼100%
Average AMD Ryzen 7 PRO 5850U
  (9.89 - 11.6, n=2)
10.7 fps ∼92% -8%
Average of class Workstation
  (5.24 - 14.6, n=35, last 2 years)
10.2 fps ∼88% -12%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
9.54 fps ∼82% -18%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
7.18 fps ∼62% -38%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
6.7 fps ∼58% -42%
LibreOffice / 20 Documents To PDF
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
62.3 s * ∼100% -27%
Average of class Workstation
  (41.3 - 106, n=35, last 2 years)
53.4 s * ∼86% -9%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
52.8 s * ∼85% -7%
Average AMD Ryzen 7 PRO 5850U
  (49.2 - 51.9, n=2)
50.6 s * ∼81% -3%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
49.2 s * ∼79%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
41.3 s * ∼66% +16%
R Benchmark 2.5 / Overall mean
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
0.621 sec * ∼100% -14%
Average of class Workstation
  (0.541 - 0.695, n=34, last 2 years)
0.591 sec * ∼95% -9%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7
0.567 sec * ∼91% -4%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7
0.55 sec * ∼89% -1%
Average AMD Ryzen 7 PRO 5850U
  (0.543 - 0.557, n=2)
0.55 sec * ∼89% -1%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U
0.543 sec * ∼87%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1527 Points
Cinebench R15 OpenGL 64Bit
88.4 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
225 Points
Help

系统性能

高的CPU性能也反映在一般的系统性能上。在PCMark 10基准测试中,前代产品的速度只有最低限度。在日常操作中,联想ThinkPad P14s第二代AMD的运行非常流畅。

PCMark 10 / Score
Lenovo ThinkPad P14s Gen2-20VX000GGE
T500 Laptop GPU, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
5634 Points ∼100% +3%
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (5491 - 5690, n=2)
5591 Points ∼99% +2%
Average of class Workstation
  (4096 - 6939, n=37, last 2 years)
5543 Points ∼98% +1%
Lenovo ThinkPad P14s G2 AMD
Vega 8 R5000, R7 PRO 5850U, SK Hynix PC711 1TB HFS001TDE9X081N
5491 Points ∼97%
HP ZBook Firefly 14 G8 2C9Q2EA
T500 Laptop GPU, i7-1165G7, Toshiba XG6 KXG60ZNV1T02
5282 Points ∼94% -4%
Lenovo ThinkPad P14s Gen1-20Y10002GE
Vega 7, R7 PRO 4750U, Samsung PM981a MZVLB1T0HBLR
5034 Points ∼89% -8%
PCMark 10 / Essentials
Lenovo ThinkPad P14s Gen2-20VX000GGE
T500 Laptop GPU, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
9609 Points ∼100% +10%
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (8772 - 10221, n=2)
9497 Points ∼99% +8%
Average of class Workstation
  (8059 - 10829, n=37, last 2 years)
9495 Points ∼99% +8%
Lenovo ThinkPad P14s Gen1-20Y10002GE
Vega 7, R7 PRO 4750U, Samsung PM981a MZVLB1T0HBLR
9053 Points ∼94% +3%
Lenovo ThinkPad P14s G2 AMD
Vega 8 R5000, R7 PRO 5850U, SK Hynix PC711 1TB HFS001TDE9X081N
8772 Points ∼91%
HP ZBook Firefly 14 G8 2C9Q2EA
T500 Laptop GPU, i7-1165G7, Toshiba XG6 KXG60ZNV1T02
8765 Points ∼91% 0%
PCMark 10 / Productivity
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (8967 - 9512, n=2)
9240 Points ∼100% +3%
Lenovo ThinkPad P14s Gen2-20VX000GGE
T500 Laptop GPU, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
8982 Points ∼97% 0%
Lenovo ThinkPad P14s G2 AMD
Vega 8 R5000, R7 PRO 5850U, SK Hynix PC711 1TB HFS001TDE9X081N
8967 Points ∼97%
HP ZBook Firefly 14 G8 2C9Q2EA
T500 Laptop GPU, i7-1165G7, Toshiba XG6 KXG60ZNV1T02
8337 Points ∼90% -7%
Average of class Workstation
  (6426 - 9317, n=37, last 2 years)
7925 Points ∼86% -12%
Lenovo ThinkPad P14s Gen1-20Y10002GE
Vega 7, R7 PRO 4750U, Samsung PM981a MZVLB1T0HBLR
7592 Points ∼82% -15%
PCMark 10 / Digital Content Creation
Average of class Workstation
  (3221 - 10441, n=37, last 2 years)
6319 Points ∼100% +11%
Lenovo ThinkPad P14s G2 AMD
Vega 8 R5000, R7 PRO 5850U, SK Hynix PC711 1TB HFS001TDE9X081N
5714 Points ∼90%
Lenovo ThinkPad P14s Gen2-20VX000GGE
T500 Laptop GPU, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
5625 Points ∼89% -2%
HP ZBook Firefly 14 G8 2C9Q2EA
T500 Laptop GPU, i7-1165G7, Toshiba XG6 KXG60ZNV1T02
5476 Points ∼87% -4%
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (5141 - 5714, n=2)
5428 Points ∼86% -5%
Lenovo ThinkPad P14s Gen1-20Y10002GE
Vega 7, R7 PRO 4750U, Samsung PM981a MZVLB1T0HBLR
5038 Points ∼80% -12%
PCMark 10 Score
5491 points
Help

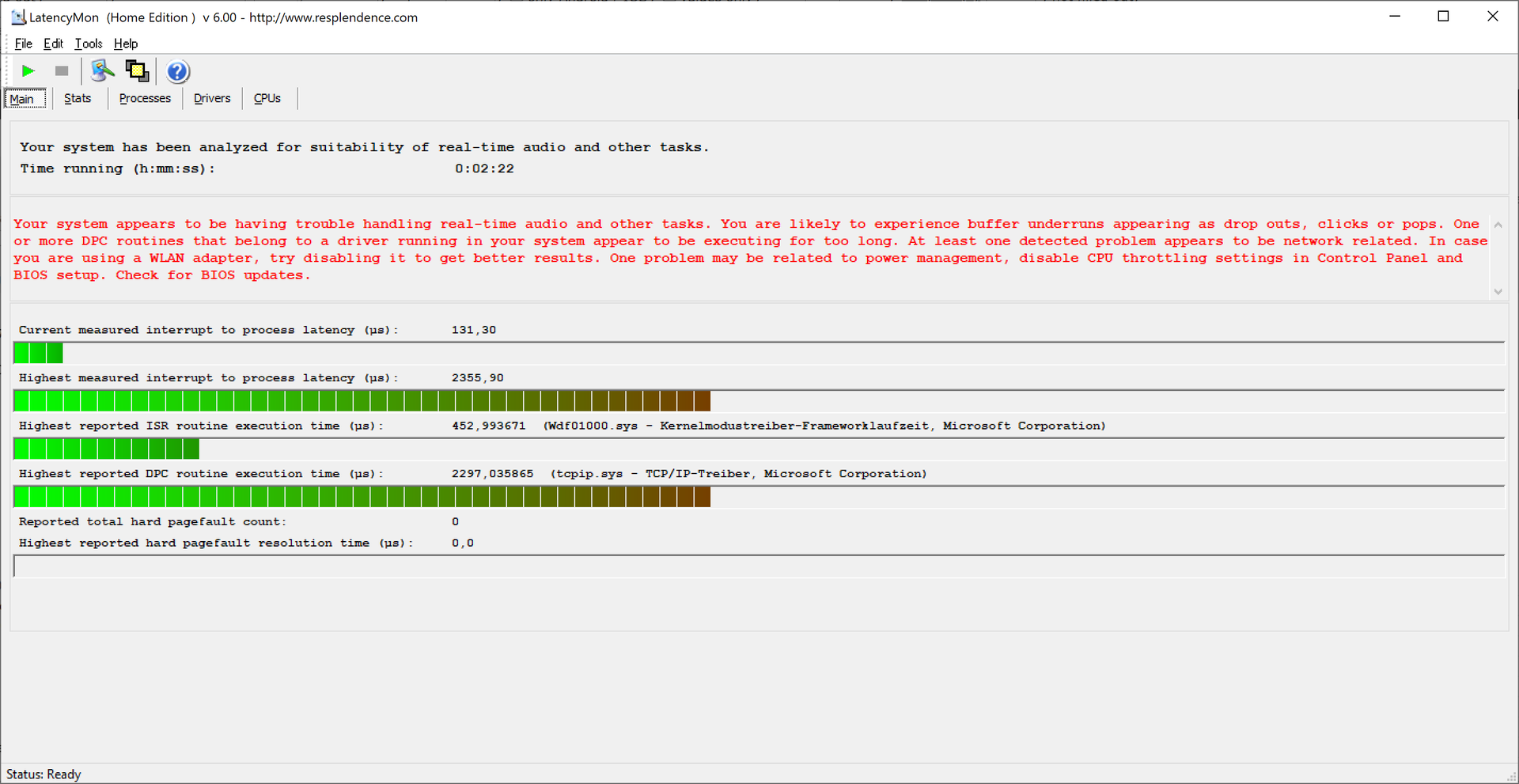

DPC延迟

不幸的是,联想ThinkPad P14s G2在DPC延迟方面有一些问题。显然,网络驱动是造成这种情况的原因。

延迟监测
延迟监测
LatencyMon 驱动程序
LatencyMon 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP ZBook Firefly 14 G8 2C9Q2EA
T500 Laptop GPU, i7-1165G7, Toshiba XG6 KXG60ZNV1T02
3083.7 μs * ∼100% -31%
Lenovo ThinkPad P14s G2 AMD
Vega 8 R5000, R7 PRO 5850U, SK Hynix PC711 1TB HFS001TDE9X081N
2355.9 μs * ∼76%
Lenovo ThinkPad P14s Gen2-20VX000GGE
T500 Laptop GPU, i7-1185G7, Toshiba XG6 KXG6AZNV1T02
1033.7 μs * ∼34% +56%

* ... smaller is better

存储解决方案

这里使用的SK海力士PC711提供了1TB的容量,是一款M.2-2280格式的NVMe PCI-3.0固态硬盘。它运行速度快,并取得了良好的效果,即使PCIe 4.0 SSD能够带来更多的性能。

Lenovo ThinkPad P14s G2 AMD
SK Hynix PC711 1TB HFS001TDE9X081N
Lenovo ThinkPad P14s Gen1-20Y10002GE
Samsung PM981a MZVLB1T0HBLR
Lenovo ThinkPad P14s Gen2-20VX000GGE
Toshiba XG6 KXG6AZNV1T02
HP ZBook Firefly 14 G8 2C9Q2EA
Toshiba XG6 KXG60ZNV1T02
Average SK Hynix PC711 1TB HFS001TDE9X081N

AS SSD
-7%
17%
-12%
0%
Seq Read
2762.42
2579.34
-7%
2632.15
-5%
2674.36
-3%
2762
0%
Seq Write
1712.02
1455.64
-15%
2393.53
40%
1288.55
-25%
1712
0%
4K Read
48.36
50.92
5%
57.05
18%
49.52
2%
48.4
0%
4K Write
126.45
115.67
-9%
198.43
57%
127.98
1%
126
0%
4K-64 Read
979.68
857.5
-12%
1475.56
51%
1112.81
14%
980
0%
4K-64 Write
2179.05
2152.41
-1%
1459.67
-33%
1470.07
-33%
2179
0%
Access Time Read *
0.05
0.053
-6%
0.044
12%
0.072
-44%
0.05
-0%
Access Time Write *
0.029
0.032
-10%
0.021
28%
0.032
-10%
0.029
-0%
Score Read
1304
1166
-11%
1796
38%
1430
10%
1304
0%
Score Write
2477
2414
-3%
1897
-23%
1727
-30%
2477
0%
Score Total
4405
4132
-6%
4608
5%
3827
-13%
4405
0%

* ... smaller is better

SK Hynix PC711 1TB HFS001TDE9X081N
Sequential Read: 2762.42MB/s
Sequential Write: 1712.02MB/s
4K Read: 48.36MB/s
4K Write: 126.45MB/s
4K-64 Read: 979.68MB/s
4K-64 Write: 2179.05MB/s
Access Time Read: 0.05ms
Access Time Write: 0.029ms
Score Read: 1304Points
Score Write: 2477Points
Score Total: 4405Points

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

3030.43210.43390.43570.43030.413573.763575.023576.273576.483577.533577.743577.953578.163578.373578.583578.583578.583578.763578.7935793579.213579.213579.423579.423579.633580.053580.473580.473580.683580.893580.893581.13581.523581.733581.943582.363582.363582.773582.983583.613583.823584.033584.033584.033584.663585.083585.713585.883585.923586.133586.133587.183588.233588.65Tooltip
: Ø3570 (3030.41-3588.65)

图形卡

ǞǞǞ AMD Radeon RX Vega 8作为单一的GPU。GPU-Z称其为 "AMD Radeon Pro Graphics",这表明ThinkPad P14s第二代中使用了特殊的工作站驱动程序。

有了经过认证的驱动程序,使用CAD解决方案的客户,例如,将知道他们的软件可以在ThinkPad笔记本电脑上运行。然而,纯粹的性能和预期的一样弱。作为一个带有集成图形芯片的入门级工作站,没有自己的专用存储,其性能能力还不到工作站平均水平的一半。但至少性能比前代产品略好。另一方面, ThinkPad P14s英特尔ZBook Firefly 14 G8都以其专用GPU (Nvidia T500).

如果你用电池电源运行联想ThinkPad P14s G2 AMD,在3DMark 11 GPU测试中的GPU性能下降了约33%。

3DMark 11 - 1280x720 Performance GPU
Average of class Workstation
  (4110 - 32999, n=40, last 2 years)
17689 Points ∼100% +194%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
8081 Points ∼46% +34%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
7910 Points ∼45% +31%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
6020 Points ∼34%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
5401 Points ∼31% -10%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (4370 - 6020, n=6)
5398 Points ∼31% -10%
3DMark
1920x1080 Fire Strike Graphics
Average of class Workstation
  (3169 - 24354, n=39, last 2 years)
13273 Points ∼100% +225%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
4635 Points ∼35% +14%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
4081 Points ∼31%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
3814 Points ∼29% -7%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
3572 Points ∼27% -12%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (2534 - 4081, n=6)
3342 Points ∼25% -18%
2560x1440 Time Spy Graphics
Average of class Workstation
  (988 - 9956, n=40, last 2 years)
4998 Points ∼100% +289%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
1939 Points ∼39% +51%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
1636 Points ∼33% +27%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
1284 Points ∼26%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
1091 Points ∼22% -15%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (800 - 1284, n=6)
1046 Points ∼21% -19%
SPECviewperf 13
Solidworks (sw-04)
Average of class Workstation
  (57.3 - 204, n=37, last 2 years)
111 fps ∼100% +75%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
83.81 fps ∼76% +32%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
64.86 fps ∼58% +2%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

63.3 fps ∼57% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
63.29 fps ∼57%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
57.3 fps ∼52% -9%
Siemens NX (snx-03)
Average of class Workstation
  (18.9 - 465, n=37, last 2 years)
175 fps ∼100% +164%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
82.7 fps ∼47% +25%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
72.15 fps ∼41% +9%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

66.3 fps ∼38% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
66.29 fps ∼38%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
64.04 fps ∼37% -3%
Showcase (showcase-02)
Average of class Workstation
  (13.7 - 127, n=36, last 2 years)
63.8 fps ∼100% +236%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
19 fps ∼30%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

19 fps ∼30% 0%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
16.01 fps ∼25% -16%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
15.46 fps ∼24% -19%
Medical (medical-02)
Average of class Workstation
  (15.8 - 133, n=37, last 2 years)
61.3 fps ∼100% +230%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
31.08 fps ∼51% +67%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
24.84 fps ∼41% +34%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

18.6 fps ∼30% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
18.58 fps ∼30%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
15.81 fps ∼26% -15%
Maya (maya-05)
Average of class Workstation
  (40.3 - 341, n=37, last 2 years)
145 fps ∼100% +193%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
53.45 fps ∼37% +8%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

49.5 fps ∼34% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
49.48 fps ∼34%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
48.47 fps ∼33% -2%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
44.93 fps ∼31% -9%
Energy (energy-02)
Average of class Workstation
  (0.77 - 57.3, n=37, last 2 years)
24.6 fps ∼100% +204%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
8.82 fps ∼36% +9%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
8.57 fps ∼35% +6%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
8.09 fps ∼33%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

8.09 fps ∼33% 0%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
0.9 fps ∼4% -89%
Creo (creo-02)
Average of class Workstation
  (35.3 - 320, n=37, last 2 years)
146 fps ∼100% +221%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
61.27 fps ∼42% +35%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
55.78 fps ∼38% +23%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

45.5 fps ∼31% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
45.45 fps ∼31%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
41.39 fps ∼28% -9%
Catia (catia-05)
Average of class Workstation
  (47.5 - 339, n=37, last 2 years)
159 fps ∼100% +218%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
92.66 fps ∼58% +86%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
81.93 fps ∼52% +64%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
49.93 fps ∼31%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

49.9 fps ∼31% 0%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
48.71 fps ∼31% -2%
3ds Max (3dsmax-06)
Average of class Workstation
  (25.3 - 232, n=37, last 2 years)
120 fps ∼100% +157%
HP ZBook Firefly 14 G8 2C9Q2EA
NVIDIA T500 Laptop GPU, Intel Core i7-1165G7
52.59 fps ∼44% +12%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

46.8 fps ∼39% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
46.77 fps ∼39%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
45.15 fps ∼38% -3%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
37.73 fps ∼31% -19%
SPECviewperf 2020
1920x1080 Solidworks (solidworks-05)
Average of class Workstation
  (23.2 - 176, n=17, last 2 years)
79.2 fps ∼100% +241%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
37.82 fps ∼48% +63%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
23.36 fps ∼29% +1%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
23.24 fps ∼29%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

23.2 fps ∼29% 0%
1920x1080 Siemens NX (snx-04)
Average of class Workstation
  (19.5 - 285, n=17, last 2 years)
123 fps ∼100% +101%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
66.22 fps ∼54% +8%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
63.58 fps ∼52% +4%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
61.34 fps ∼50%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

61.3 fps ∼50% 0%
1920x1080 Medical (medical-03)
Average of class Workstation
  (7.5 - 56.9, n=17, last 2 years)
22.7 fps ∼100% +184%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
10.73 fps ∼47% +34%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
8 fps ∼35%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

8 fps ∼35% 0%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
7.5 fps ∼33% -6%
1920x1080 Maya (maya-06)
Average of class Workstation
  (46.8 - 258, n=17, last 2 years)
127 fps ∼100% +171%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
59.34 fps ∼47% +27%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
47.95 fps ∼38% +2%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
46.81 fps ∼37%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

46.8 fps ∼37% 0%
1920x1080 Energy (energy-03)
Average of class Workstation
  (0.77 - 55.1, n=17, last 2 years)
19.2 fps ∼100% +170%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
8.62 fps ∼45% +21%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
7.11 fps ∼37%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

7.11 fps ∼37% 0%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
0.89 fps ∼5% -87%
1920x1080 Creo (creo-03)
Average of class Workstation
  (23 - 136, n=17, last 2 years)
64.6 fps ∼100% +136%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
32.72 fps ∼51% +19%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
27.41 fps ∼42%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

27.4 fps ∼42% 0%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
26.67 fps ∼41% -3%
1920x1080 CATIA (catia-06)
Average of class Workstation
  (10.6 - 93.6, n=17, last 2 years)
38.1 fps ∼100% +177%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
16.48 fps ∼43% +20%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

13.8 fps ∼36% 0%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
13.75 fps ∼36%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
10.59 fps ∼28% -23%
1920x1080 3ds Max (3dsmax-07)
Average of class Workstation
  (11.6 - 120, n=17, last 2 years)
45.3 fps ∼100% +159%
Lenovo ThinkPad P14s Gen2-20VX000GGE
NVIDIA T500 Laptop GPU, Intel Core i7-1185G7
19.56 fps ∼43% +12%
Lenovo ThinkPad P14s G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
17.52 fps ∼39%
Average AMD Radeon RX Vega 8 (Ryzen 5000)

17.5 fps ∼39% 0%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
15.71 fps ∼35% -10%
3DMark 11 Performance
6342 points
3DMark Fire Strike Score
3694 points
3DMark Time Spy Score
1462 points
Help

游戏性能

联想ThinkPad P14s G2 AMD几乎不适合游戏。虽然要求不高的游戏,如"Dota 2"很容易玩,但对性能要求较高的新游戏最多只能在最小的细节设置下顺利运行。

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Workstation
  (42.7 - 375, n=34, last 2 years)
220 fps ∼100% +209%
HP ZBook Firefly 14 G8 2C9Q2EA
Intel Core i7-1165G7, NVIDIA T500 Laptop GPU
96.2 fps ∼44% +35%
Lenovo ThinkPad P14s Gen2-20VX000GGE
Intel Core i7-1185G7, NVIDIA T500 Laptop GPU
79.2 fps ∼36% +11%
Lenovo ThinkPad P14s G2 AMD
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
71.3 (59min - 80max) fps ∼32%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
65.9 (55min - 73max) fps ∼30% -8%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (40.5 - 73.4, n=5)
58.2 fps ∼26% -18%
low med. high ultraQHD4K
GTA V (2015) 29.1 13.3 9.13 8.82 fps
The Witcher 3 (2015) 71.3 20.2 11.4 fps
Dota 2 Reborn (2015) 119 100 59 55.6 21 fps
Final Fantasy XV Benchmark (2018) 36.5 17.4 12.3 8.33 4.64 fps
X-Plane 11.11 (2018) 45.9 36.7 31.7 17.6 fps
Strange Brigade (2018) 88.3 33.8 28.6 24.5 16.4 8.6 fps

The Witcher 3 FPS Chart

13141516161515161516151515151515161515151515151515151515151515151515151515151515151415151515151514151615151515151514151515151514161515151514151515151515141515141515151415151515141515141515141515141515141515151515141515151415141515141515151415141514151514151415141515141514151514151415141515141514151415151514151415151415141514151415141514151516141515141515151515141515141515141514151514151515141515141514151514151415141515141514151415151515141514151415141514151514151415141514151415141514141514151415141515141515141515141514141514151415141415141514151414151415141514141514151415141415141514141514151414151414141514141415141514151415141415141415141415141514151415141514141514141514141514141415141415141414151414141514141415141415141514151414151415151414151414141415141414151414141415141414141514141414141514141514141514141514151415141414141414141514141414141414141415141414141414141415141414141514141415141414141514151414141414141415131514141414141414141414141414141514141415141414141414141414141414141414141414141514141414141414141414141414141414141414141413141414141414141414141414141314141414141414141414141314141414141414141414131414141414141414141413141414141414141314141414141414141314141414141414141414141514141314141414141414141414151414141414131414141414141414141414141414141414131414141414141415141414141414131414141414141414141415141414141414141414141414141414141414141414141414141414141415141414141414141415141414141415141414151414141414141414141415141414141414141415141414141414141415141414141415141514151414141415141414151414141414151414141414141514141415151415141414141415141414141514141415141514141415141414141514141415141514141515141415141414151414141514141415141414151414151414141514141514141514151414141514141514141514151515141415141514151415141514151415151415141514151415141514151514141515141514151415141514151415151415151415141514151415141514151415151514151514151514151415141515141513141314141314141413141314141414131413141413141413141314141314131414131414131414131414131413141413141413141414131414141314141414141414131413141314131314131413141314131413141314131413141314141314141314141413141413141314141314131414131414131414141314141314141314141314141414131414141414141314141413141414131414141413141414141413141414141314141414131414141413141414141413141414141414131414141414141414131415141414141413141414141414141414141414141414141314141414141414141414131414141414141414141314141414141414141414131414141414131414141414141414141414141414141415141414141414141414141413141414141414141414141414141414141414141415141414141414141414141414141314151414141414141414141414141514141413151414141414141414141414141414141414141414141414141414151414141514141414141414141414141514141414141414141414151414141414141414141414141415141414141414141414141515141414141414151414141415141514141514141414141415141415141414151415141414141514141414151414141414151414141414151414141414151414141415141414141514141415151414151414141415141415141414151415141415141415141414141514141414141514141514151414151414141514141414151414141415141415141415141414151415141414151414151415141514151415141514151415151415141415141514151415141415141514151415141415141514151414151415141415151515151515151515151515161515141515151515151515151514151515151515151515151415151515151515161415151515161415151515151515151516151615151615161516161516151615161516161616151516161516151615151615161516151516151615161516151615151615161516151516161516161516161516151516151616151616151615151615161516151516151615161515161615161615161515161516151516151615161515161516151615161516151615151615161516151616161515161515161516151516151516151516151516151516141615161515161515161615151516151515161515151615151516151515161515161515151516151516161515151615151516151516151515161516151615151615151515161515151515161515151615151516151515161515151615151615151615161515151615151615161615161515151516151516151515161515161515161515151615151615161516151615161516151516151515161515161516151516151516151515161515161515161515161515161515161515161515161515161516151516151516151615151615161516151516151615151615161515161615161615161516151516151615161515161516151615161515161516151615151615161516151615151615161515161516161516151516151615161516161615161516161515161516151615161516151616151615161616161615151615161516151615161615161516161516161616161516161516161516161615161616151616151616151616151616161517151616161516161516161516161516161516161616151616161516161616161615161616161616161616161516161716161516161516161616151616151616161516161615Tooltip
Lenovo ThinkPad P14s G2 AMD R7 PRO 5850U, Vega 8 R5000: Ø14.6 (13-17)

排放

噪声排放

当联想ThinkPad P14s AMD G2在空闲状态下运行时,无论选择何种性能模式,风扇都保持关闭。因此,它在日常冲浪和办公操作中也会保持安静。负载下的噪音水平会发生变化,但在我们用3DMark 06进行的中位测试中,风扇仍然非常安静地运行。28.19 dB(A)几乎听不到了。在压力测试的几分钟后,噪音水平增加到40.77 dB(A),这是很明显的。然而,主动冷却从来没有变得令人讨厌的噪音。

如果你把耳朵贴在键盘上,你可以听到安静的嘶嘶声,但在与笔记本的正常工作距离内,你将无法再听到这种噪音。

Noise Level

Idle
24.04 / 24.04 / 24.04 dB(A)
Load
28.19 / 40.77 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.04 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.125.129.641.32531.624.128.538.63124.921.424.138.14031.224.228.637.45025.520.720.632.56321.819.920.725.78019.217.818.320.210019.618.317.823.112521.817.220.220.916021.61922.22120016.515.416.820.425018.417.413.321.831520.823.118.63040017.814.919.526.150015.612.612.423.963016.611.59.425.680015.811.69.124.2100016.111.89.625.3125014.510.89.623.5160016.310.59.826.7200016.410.21028.6250017.810.510.531.731501910.611.133.740001611.111.431.7500013.111.211.629.1630012.110.911.725800012.411.612.120.51000012.11111.815.1125001210.911.7141600011.510.611.611.9SPL28.224.223.940.8N10.60.63.3median 16.3median 11.5median 11.7median 24.2Delta2.42.233.130.928.627.124.425.523.635.529.332.733.226.225.527.727.327.221.620.220.723.518.618.327.424.225.520.620.61822.921.320.522.320.218.821.118.316.923.316.113.522.116.712.422.815.611.72312.810.826.211.510.628.511.510.629.610.710.529.910.610.829.11111.427.911.211.327.311.511.827.71212.124.912.212.219.212.412.414.512.412.51312.512.412.612.412.311.811.711.538.924.624.12.80.60.6median 23median 12.4median 12.24.32.52.6hearing rangehide median Fan NoiseLenovo ThinkPad P14s G2 AMDLenovo ThinkPad P14s Gen2-20VX000GGE

温度

压力测试(Prime95 + FurMark)
压力测试(Prime95 + FurMark)

在空闲运行期间,联想ThinkPad P14s第二代AMD几乎保持完全冷却。在Prime95和FurMark的压力测试中,机箱的升温相对均匀。底部的热点达到47.5 ºC(117.5ºF),顶部达到42.8ºC(109ºF)。这没有理由让人担心。不幸的是,掌托也明显升温,这可能导致一些手汗,特别是在夏天。

在压力测试中,CPU在开始时能够全速运行,但过了一会儿就会改变。在长达一小时的测试接近尾声时,联想笔记本电脑中的AMD处理器被限制在11瓦左右,这对于1.4GHz的时钟速度来说仍然足够。就在压力测试之后,ThinkPad达到了明显较低的3DMark 11成绩,只有5057分(-20%),因此CPU和iGPU都受到了节流的影响。

Max. Load
 33 °C42.8 °C37.8 °C
 33.3 °C41.2 °C41.5 °C
 30.7 °C32.2 °C32.6 °C
Maximum: 42.8 °C
Average: 36.1 °C
47.5 °C46.2 °C33.2 °C
29.3 °C46.4 °C39 °C
29.4 °C33.6 °C34.1 °C
Maximum: 47.5 °C
Average: 37.6 °C
Power Supply (max.)  39.6 °C | Room Temperature 23 °C | Fluke 62 Max+
(±) The average temperature for the upper side under maximal load is 36.1 °C / 97 F, compared to the average of 31.7 °C / 89 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 42.8 °C / 109 F, compared to the average of 37.8 °C / 100 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 47.5 °C / 118 F, compared to the average of 41.4 °C / 107 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 31.7 °C / 89 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.6 °C / 90.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-4.8 °C / -8.7 F).

发言人

联想ThinkPad P14s AMD G2的立体声扬声器位于键盘和屏幕之间,将声音投射到用户身上。它们的音量是可以接受的,即使是缺乏低音频率的声音。因此,声音不是音乐的理想选择,但联想笔记本电脑的扬声器足以用于视频会议。

对于其他一切,建议使用可通过蓝牙或工作无误的3.5毫米音频端口连接的外部解决方案。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2028.630.62525.526.83129.3334026.231.65027.329.56320.226.28018.625.310024.226.312520.627.416021.333.920020.245.625018.348.331516.152.840016.754.350015.660.863012.864.780011.565.4100011.563.5125010.764.5160010.665.420001164.4250011.265.3315011.564.940001257.7500012.257.6630012.458.3800012.456.81000012.557.71250012.4571600011.745.1SPL24.675N0.634.3median 12.4median 57.7Delta2.59.437.636.526.8333237.732.135.329.129.424.430.221.531.427.736.424.738.525.949.423.756.624.46120.161.520.664.221.165.521.56718.268.621.171.316.669.714.469.213.869.411.869.711.669.611.969.212.364.1
