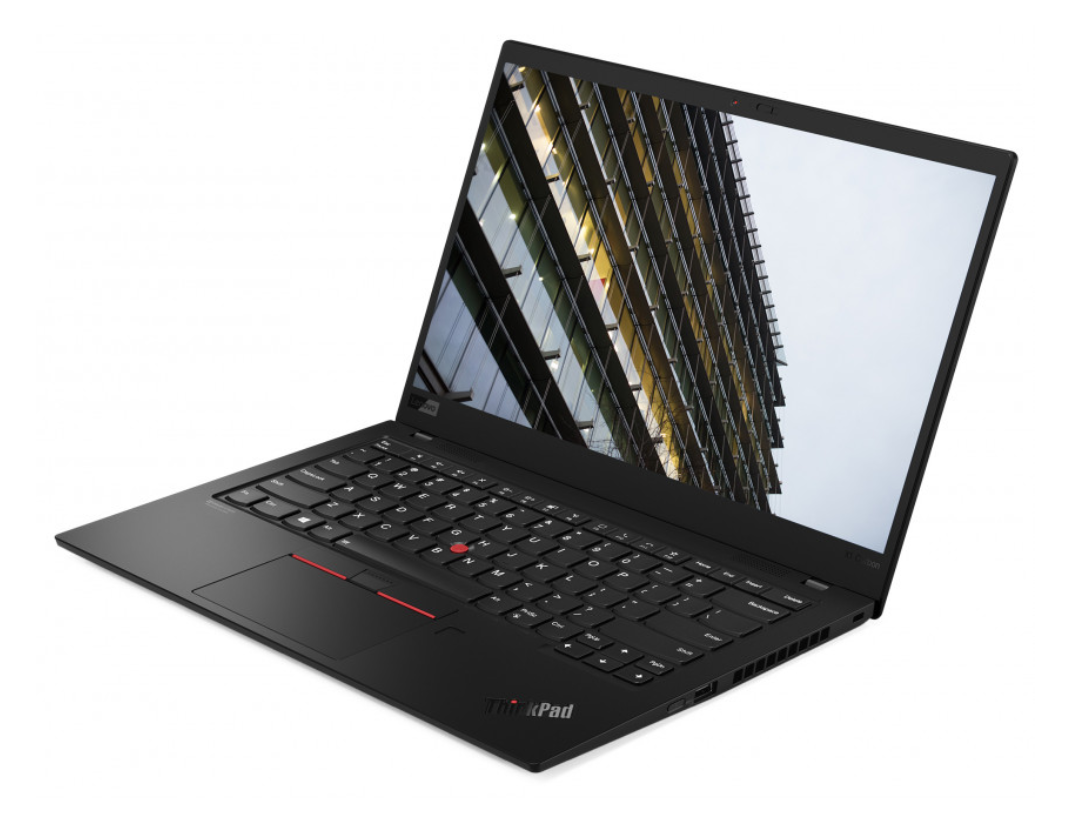

Lenovo ThinkPad X1 Carbon 2020-20U9003BGE

Specifications

Lenovo ThinkPad X1 Carbon 2020-20U9003BGE
Lenovo ThinkPad X1 Carbon 2020-20U9003BGE (ThinkPad X1 Carbon 2020 Series)
Processor
Intel Core i7-10510U 4 x 1.8 - 4.8 GHz, Comet Lake-U
Graphics adapter
Memory
16384 MB
, LPDDR3-2133, Dual-Channel, verlötet
Display
14.00 inch 16:9, 3840 x 2160 pixel 315 PPI, NV140QUM-N53, glossy: yes, 60 Hz
Mainboard
Intel Comet Lake-U PCH-LP Premium
Storage
Samsung SSD PM981a MZVLB512HBJQ, 512 GB
, 434 GB free
Soundcard
Intel Comet Lake PCH-LP - cAVS
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5 mm Stereo, 1 Fingerprint Reader, NFC
Networking
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0, Fibocom L850-GL, LTE
Size
height x width x depth (in mm): 14.9 x 323 x 217
Battery
51 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p HD
Primary Camera: 0.9 MPix
Additional features
Speakers: Dolby Atmos, 2x 2W, 2x 0.8W, Keyboard: Chiclet, Keyboard Light: yes, 65 Watt Netzteil, ThinkPad Ethernet Extension Adapter Gen2, 36 Months Warranty
Weight
1.095 kg, Power Supply: 332 g
Price
2160 Euro



Pricecompare

Average Score: 85.8% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 70%, features: 74%, display: 69% mobility: 74%, workmanship: 88%, ergonomy: 90%, emissions: 93%

Reviews for the Lenovo ThinkPad X1 Carbon 2020-20U9003BGE

85.8% Lenovo ThinkPad X1 Carbon 2020 Business-Laptop Review: 4K display costs battery runtime | Notebookcheck
Lenovo also offers the 2020 ThinkPad X1 Carbon with an optional glossy 4K screen, which is supposed to reach a brightness of 500 nits and also supports HDR contents. but how does the panel affect the battery runtime of the compact business laptop?
Mi Experiencia Con El Portátil Lenovo Thinkpad X1 Carbon 8ª Gen
Source: Tuexperto Spanish ES→zh-CN
Single Review, online available, Long, Date: 11/10/2020

Comment

Intel UHD Graphics 620:

集成显卡(GT2,24 EU),可以在一些Kaby-Lake-Refresh 中央处理器型号(15 W ULV系列)上找到。技术上与之前名为HD Graphics 620的Kaby-Lake的显卡相同。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-10510U:

基于Comet Lake的低功耗四核处理器(在技术上与Whiskey Lake相同,但仍采用14nm ++工艺生产)。拥有超线程(8个线程),CPU频率在1.8和4.9 GHz之间(全核最大为4.3 GHz)。集成内存控制器支持DDR4-2666,通过cTDP,性能可以由OEM调整(可能为10-25瓦,默认为15W)。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.095 kg: 这是10到11寸大尺寸平板电脑,小型亚笔记本,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
