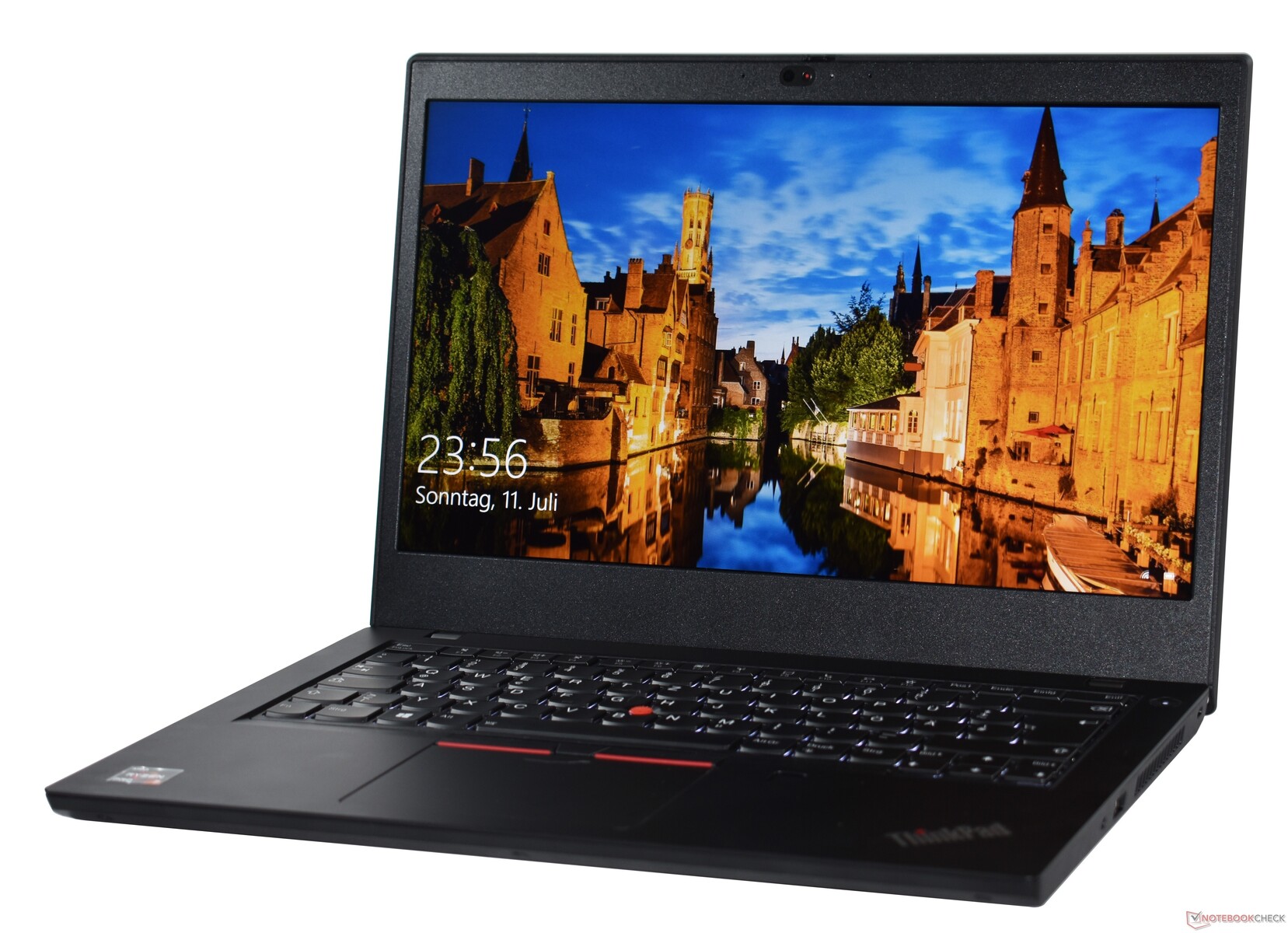

联想ThinkPad L14第二代AMD笔记本电脑评测。可升级性符合AMD Ryzen 5000

具有潜力的预算型笔记本电脑。 联想ThinkPad L系列代表了B2B型号中的入门级;ThinkPad L14 Gen 2是最便宜的ThinkPad笔记本电脑之一,拥有14英寸显示屏。然而,它以其强大的性能和可升级性而令人信服。然而,在电池寿命和多媒体方面必须做出妥协。
AMD Cezanne (Zen 3) Business Laptop / Notebook ThinkPad Windows

在公众印象中,联想的ThinkPad L系列在某种程度上被其他ThinkPad系列掩盖了。这并不是巧合。经济型的ThinkPad L系列主要是为大型企业客户设计的;消费者用户在这里显然只是次要的。因此,第二个预算系列,即ThinkPad E系列,是私人客户的首选。如果想要更高的质量,受欢迎的联想ThinkPad T系列是这种情况下的明显选择。

然而,这并不意味着ThinkPad L系列完全没有兴趣。特别是现在,联想在T系列上部分焊接了内存,而且L系列也可以使用AMD Ryzen CPU,ThinkPad L15和我们现在的评测单元--联想ThinkPad L14 Gen 2 AMD,正在吸引更多的关注。ThinkPad L14 Gen 2也是我们可以评测的首批配备Zen 3 CPU(Cezanne)的2021款ThinkPad之一。

Lenovo ThinkPad L14 G2 AMD (ThinkPad L14 Series)
Processor
AMD Ryzen 7 PRO 5850U 8 x 1.9 - 4.4 GHz, 25 W PL1 / Sustained, Cezanne U (Zen 3)
Memory
16384 MB
, DDR4-3200, 2x SO-DIMM, single-channel
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, B140HAN04.0, IPS LED, glossy: no
Mainboard
AMD Promontory/Bixby FCH
Storage
WDC PC SN730 SDBQNTY-512GB, 512 GB
, M.2 2280, NVMe PCIe 3.0, 436 GB free
Soundcard
AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5 mm audio jack, Card Reader: microSD, 1 SmartCard, 1 Fingerprint Reader
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), RealTek Semiconductor RTL8852AE (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2, Quectel EM120R-GL, LTE, GPS
Size
height x width x depth (in mm): 20.4 x 331 x 235
Battery
45 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p with IR and ThinkShutter
Additional features
Speakers: 2-watt stereo, Keyboard: six-row, full size, 1.5 mm key travel, Keyboard Light: yes, 65-watt USB-C charger, Lenovo Commercial Vantage, 12 Months Warranty
Weight
1.673 kg, Power Supply: 237 g
Price
1,140 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible contenders in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
86.1 %
08/2021
Lenovo ThinkPad L14 G2 AMD
R7 PRO 5850U, Vega 8 R5000
1.7 kg20.4 mm14.00"1920x1080
85 %
Lenovo ThinkPad L14-20U50003GE
R5 4500U, Vega 6
1.7 kg20.4 mm14.00"1920x1080
88.1 %
Lenovo ThinkPad T14 Gen2-20W1S00000
i7-1165G7, GeForce MX450
1.5 kg17.9 mm14.00"1920x1080
86.7 %
08/2021
Lenovo ThinkPad E14 G3-20Y7003SGE
R5 5500U, Vega 7
1.6 kg17.9 mm14.00"1920x1080
82.6 %
02/2021
Dell Latitude 14 5411-WJ40N
i7-10850H, GeForce MX250
1.5 kg21 mm14.00"1920x1080
83.3 %
06/2021
HP ProBook 440 G8-2W1G4EA
i7-1165G7, Iris Xe G7 96EUs
1.4 kg19 mm14.00"1920x1080

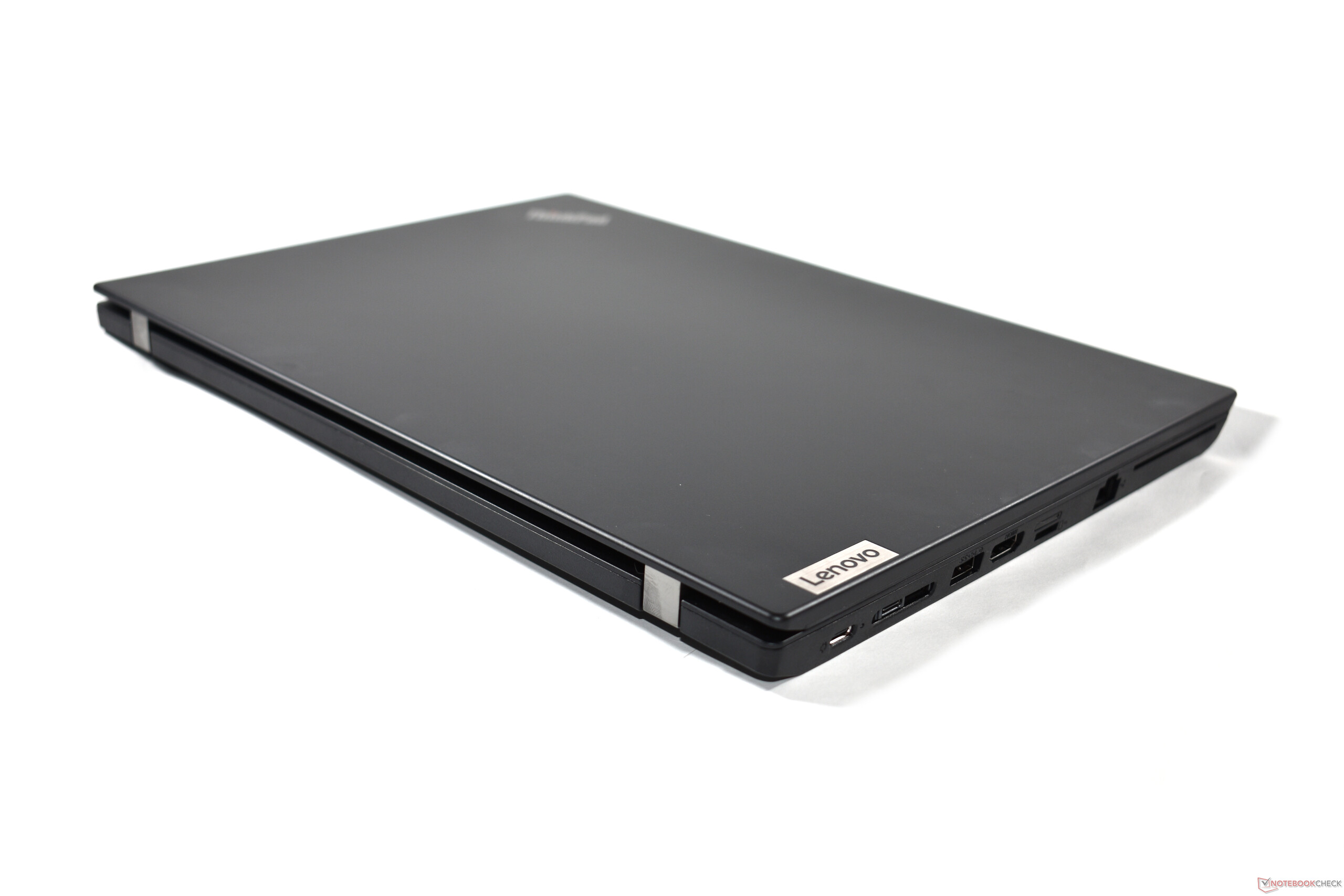

外壳:ThinkPad L14第二代,采用镁合金强化塑料

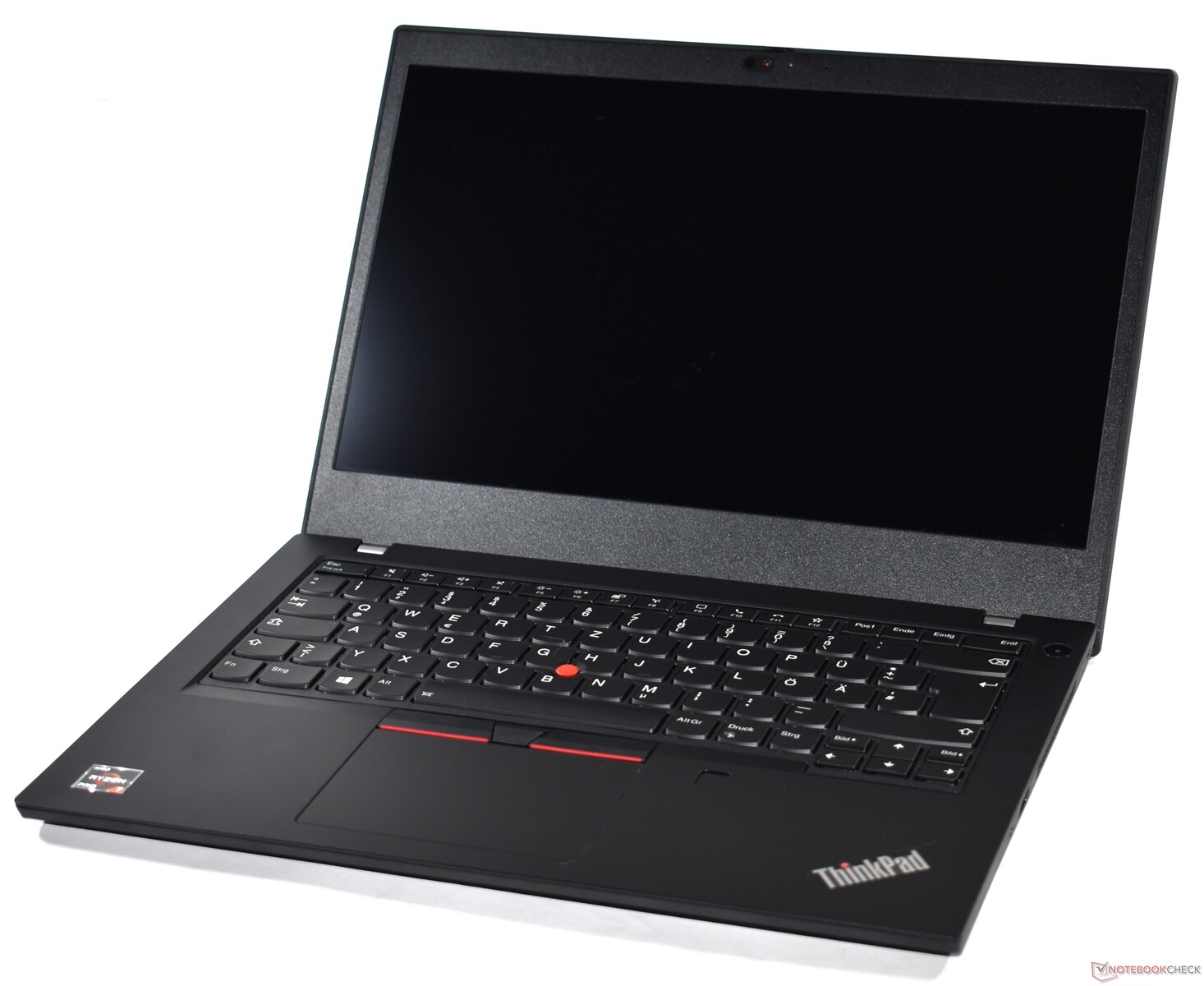

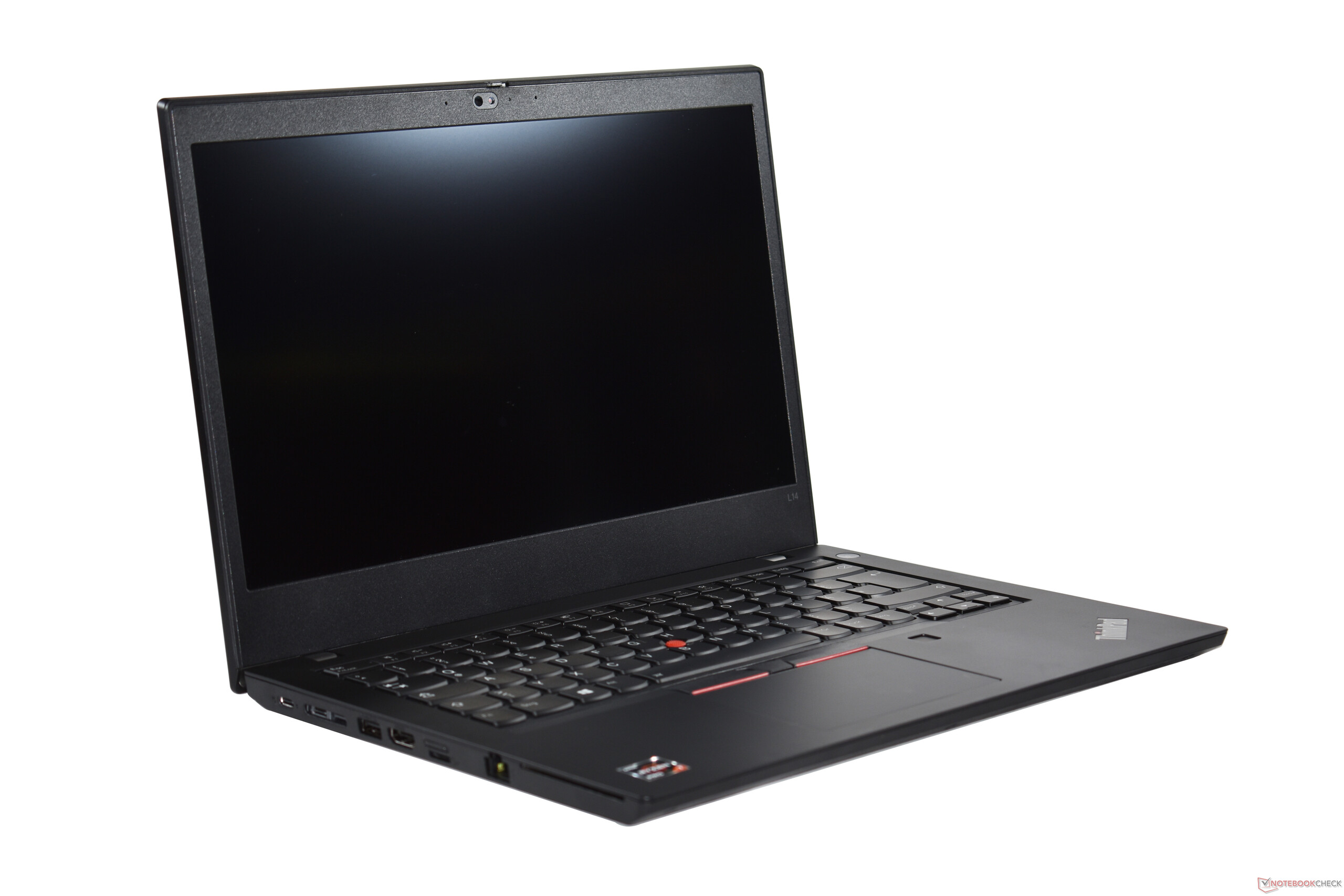

联想ThinkPad L14第二代
联想ThinkPad L14第二代

自2015年ThinkPad L450,配备14英寸显示屏的ThinkPad L系列的外部设计,大体上只做了些许修改。联想ThinkPad L14第二代与L14 2020 ;它是一款传统的ThinkPad,贯穿始终。黑色的盒子上有银色的金属铰链,盖子和掌托上有银色的ThinkPad标志,键盘上有红色的TrackPoint--以及TrackPoint按钮上的红色条纹。

ThinkPad L14第二代在结构和材料方面也是一个经典。L系列的外壳传统上是由简单的PC/ABS塑料制成的,ThinkPad L14 Gen 2也是如此。与老款L型ThinkPad相比,有一些新的东西。盖子和掌托都有涂层。你仍然可以在底面和显示屏边框上找到粗糙的塑料。

从L14 Gen 1开始,ThinkPad的内部已经集成了一个镁质框架。过去,这种加固的外壳一直是T系列的专利。仍然有一个区别。在L14中,只有机箱的后三分之二是用镁加固的;掌托并没有用镁支撑。幸运的是,它无论如何都不能被压住,就像键盘一样。基本单元也很难被扭动--但不幸的是,塑料显示屏盖可以。甚至当你打开它时,也有明显的弯曲。

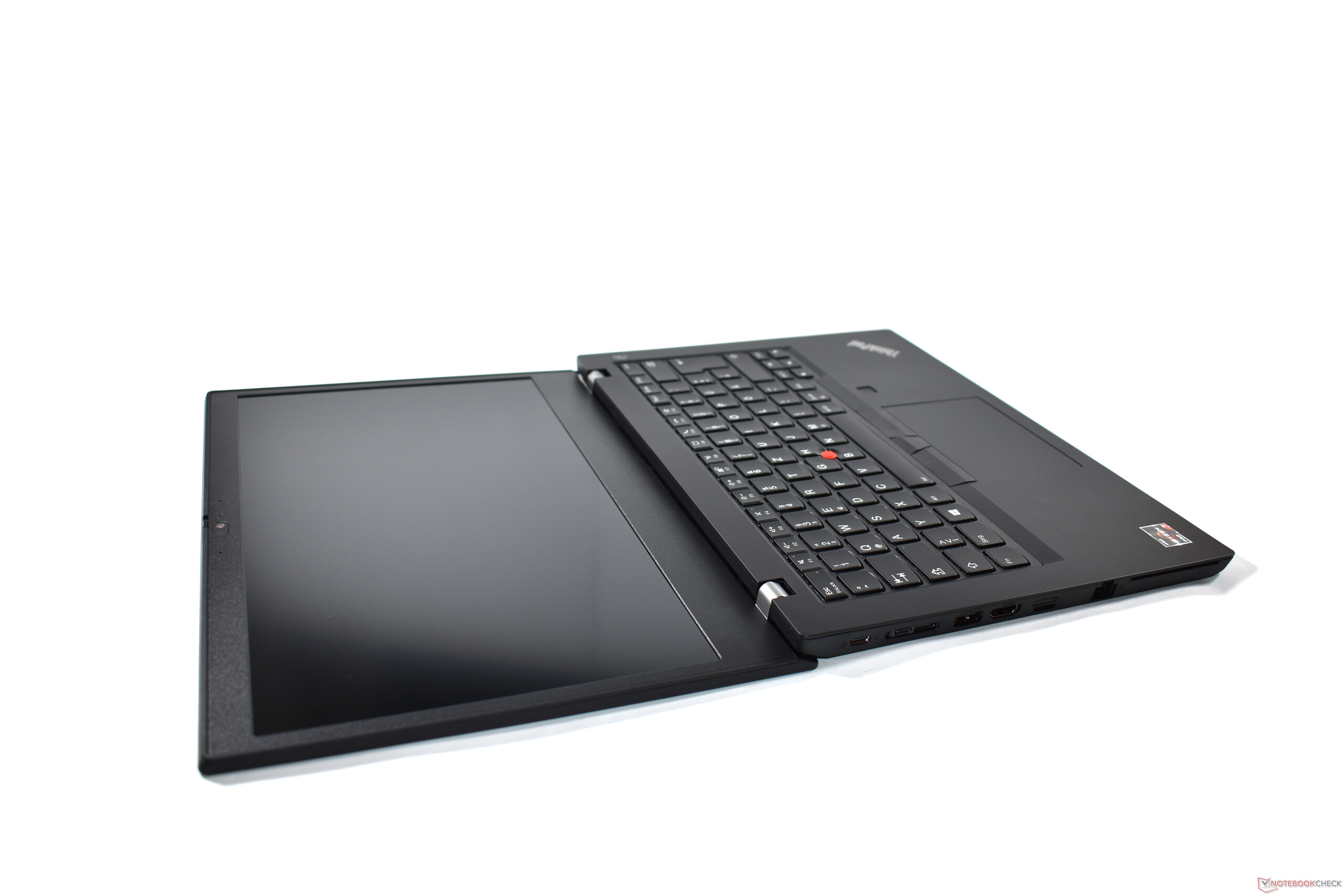

铰链也不是弱点。虽然你不能用一根手指打开显示器,但它可以折回到180度的开放角度。塑料盖子只有在有振动的情况下才会轻微晃动。

对于联想ThinkPad L系列来说,这绝对是一个必须要做的权衡。在目前所有的14英寸ThinkPad中,L14 Gen 2是机箱最厚、最重的型号。此外,它比T系列和E系列ThinkPad的长度和宽度都很小--LCD下面的显示屏边框在L14上是巨大的。与戴尔Latitude 5411惠普ProBook 440 G8 相比,这种差异更加明显。无论如何,最大的移动性并不是ThinkPad L14第二代的重点。

Size comparison

331 mm 235 mm 20.4 mm 1.7 kg329 mm 227 mm 17.9 mm 1.5 kg323 mm 216 mm 21 mm 1.5 kg325 mm 232 mm 17.9 mm 1.6 kg322 mm 214 mm 19 mm 1.4 kg

ThinkPad L14第二代AMD的连接性:广泛的端口和良好的可维护性

L14和L15 Gen 2是首批配备Thunderbolt 4的L系列机型--但不是AMD的变种。我们的ThinkPad L14 Gen 2不得不使用普通的USB-C端口。除此之外,还有广泛的连接,几乎所有今天仍然需要的传统端口都有。我们唯一希望看到的是一个全尺寸的SD卡读卡器。端口的位置值得批评--左边的RJ45端口和右边的3.5毫米输出口被放在相当远的前面。

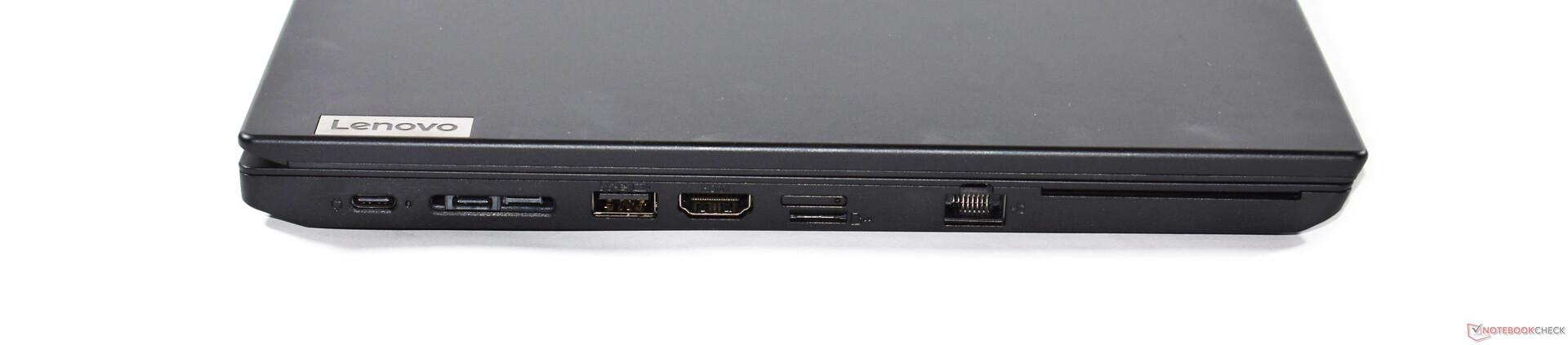

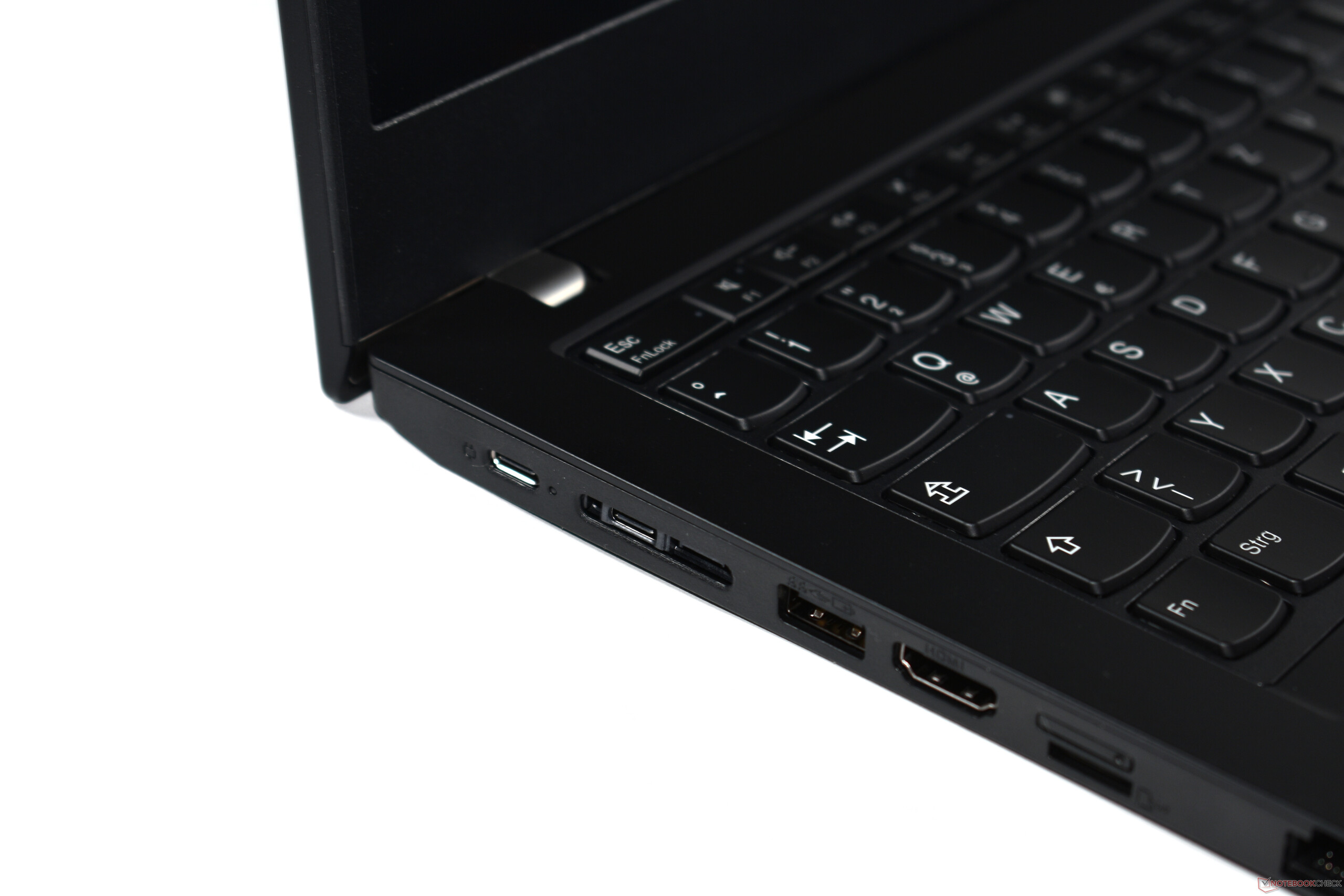

左边:USB-C 3.2 Gen 1,USB-C 3.2 Gen 2,迷你以太网/扩展坞端口,USB-A 3.2 Gen 1,HDMI 2.0,microSD,RJ45以太网,智能卡
左边:USB-C 3.2 Gen 1,USB-C 3.2 Gen 2,迷你以太网/扩展坞端口,USB-A 3.2 Gen 1,HDMI 2.0,microSD,RJ45以太网,智能卡

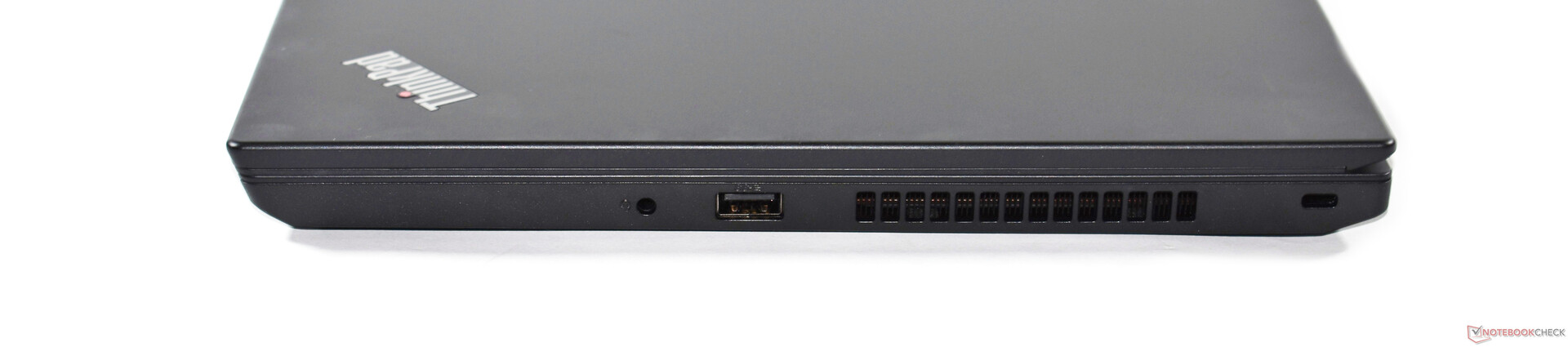

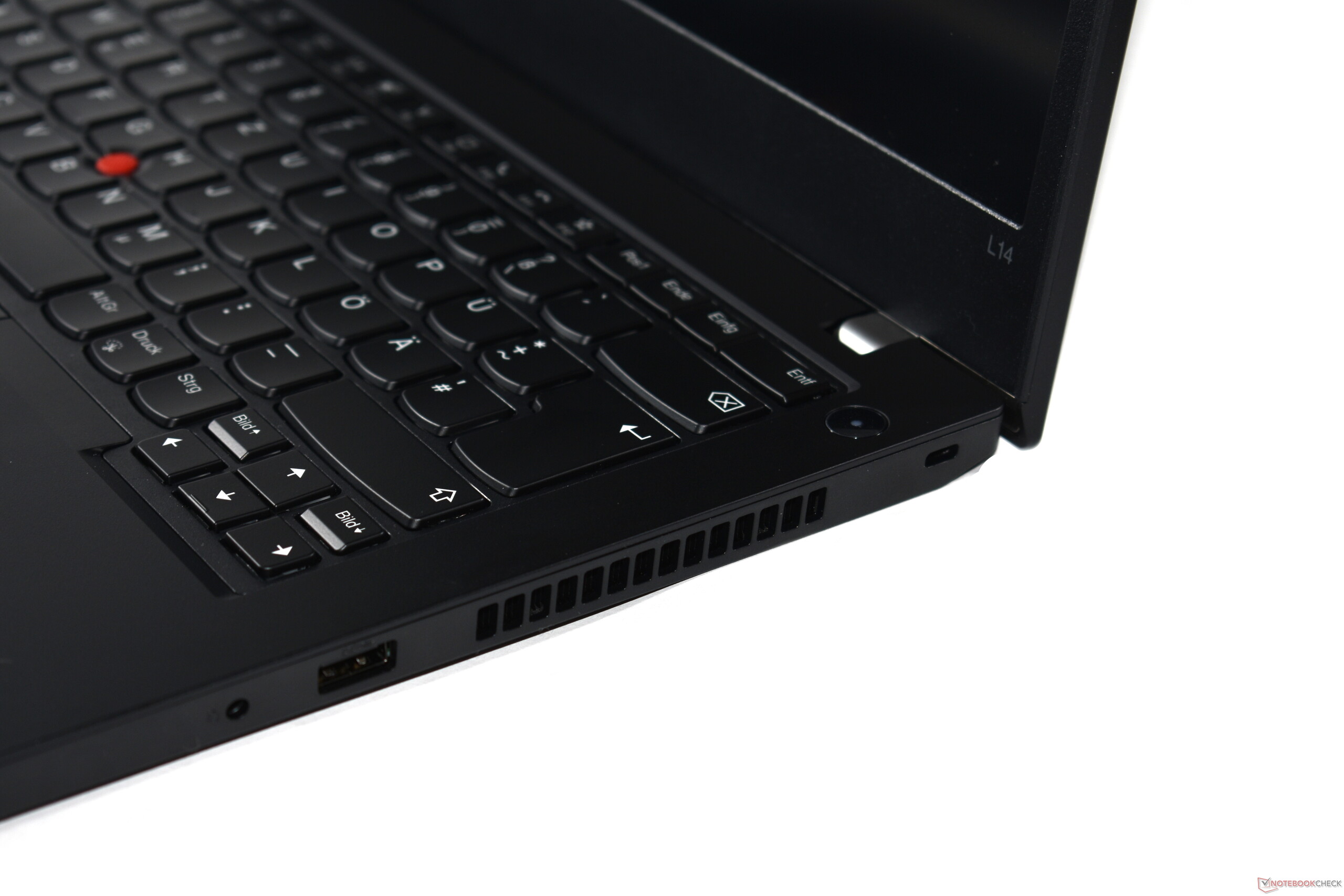

右边:3.5毫米音频插孔,USB-A 3.2 Gen 1,Kensington锁
右边:3.5毫米音频插孔,USB-A 3.2 Gen 1,Kensington锁

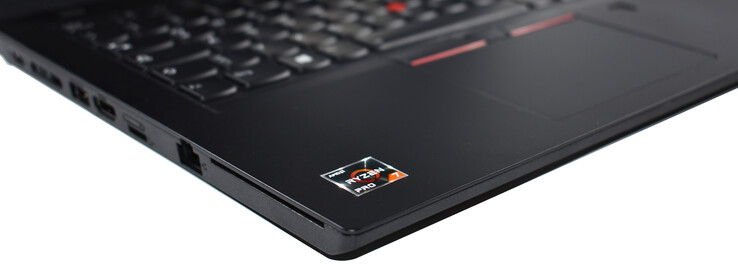

SD卡阅读器

联想放在ThinkPad L14第二代左侧的microSD读卡器在使用AV Pro V60参考卡时取得了平均成绩。戴尔用Latitude 5411展示了如何做得更好,作为该领域唯一的商务笔记本电脑,它的速度比平均水平快。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 14 5411-WJ40N
  (Toshiba Exceria Pro M501 microSDXC 64GB)
166 MB/s ∼100% +116%
HP ProBook 440 G8-2W1G4EA
  (AV PRO microSD 128 GB V60)
92 MB/s ∼55% +19%
Lenovo ThinkPad L14-20U50003GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
77.8 MB/s ∼47% +1%
Lenovo ThinkPad L14 G2 AMD
  (AV Pro V60)
77 MB/s ∼46%
Average of class Office
  (17.7 - 196.8, n=78, last 2 years)
71.9 MB/s ∼43% -7%
Lenovo ThinkPad T14 Gen2-20W1S00000
  (AV Pro V60)
59.2 MB/s ∼36% -23%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 14 5411-WJ40N
  (Toshiba Exceria Pro M501 microSDXC 64GB)
191 MB/s ∼100% +120%
HP ProBook 440 G8-2W1G4EA
  (AV PRO microSD 128 GB V60)
87 MB/s ∼46% 0%
Lenovo ThinkPad L14 G2 AMD
  (AV Pro V60)
87 MB/s ∼46%
Lenovo ThinkPad L14-20U50003GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.6 MB/s ∼45% -2%
Lenovo ThinkPad T14 Gen2-20W1S00000
  (AV Pro V60)
84.2 MB/s ∼44% -3%
Average of class Office
  (17.2 - 201, n=77, last 2 years)
81.5 MB/s ∼43% -6%

沟通

在某些情况下,你可能会忘记ThinkPad L系列是为预算领域准备的。Wi-Fi不是一个例子;我们的测试模型包括一个来自Realtek的Wi-Fi解决方案。与目前的英特尔AX芯片相比,2x2 RTL8852AE卡取得的结果很弱,最大速度为855 MB/s。与旧的AC卡相比,其优势是微不足道的;至少支持蓝牙5.2。

除了Wi-Fi模块,ThinkPad L14第二代还有一个千兆以太网芯片,也来自Realtek。此外,我们的测试设备中还安装了一个来自Quectel的WWAN模块,它支持LTE-A标准。

Networking
iperf3 transmit AX12
Dell Latitude 14 5411-WJ40N
Intel Wi-Fi 6 AX201
1651 (1423min - 1787max) MBit/s ∼100% +114%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Wi-Fi 6E AX210
1284 (937min - 1456max) MBit/s ∼78% +67%
Lenovo ThinkPad L14-20U50003GE
Intel Wi-Fi 6 AX200
1200 (383min - 1438max) MBit/s ∼73% +56%
Average of class Office
  (87 - 1775, n=100, last 2 years)
993 MBit/s ∼60% +29%
Lenovo ThinkPad E14 G3-20Y7003SGE
RealTek Semiconductor RTL8852AE
870 (441min - 906max) MBit/s ∼53% +13%
Average RealTek Semiconductor RTL8852AE
  (424 - 928, n=20)
787 MBit/s ∼48% +2%
Lenovo ThinkPad L14 G2 AMD
RealTek Semiconductor RTL8852AE
770 (601min - 880max) MBit/s ∼47%
HP ProBook 440 G8-2W1G4EA
Intel Wi-Fi 6 AX201
758 (682min - 804max) MBit/s ∼46% -2%
iperf3 receive AX12
Dell Latitude 14 5411-WJ40N
Intel Wi-Fi 6 AX201
1365 (1218min - 1406max) MBit/s ∼100% +60%
Lenovo ThinkPad L14-20U50003GE
Intel Wi-Fi 6 AX200
1327 (1055min - 1389max) MBit/s ∼97% +55%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Wi-Fi 6E AX210
1271 (1038min - 1444max) MBit/s ∼93% +49%
Average of class Office
  (100 - 1716, n=100, last 2 years)
1059 MBit/s ∼78% +24%
Lenovo ThinkPad L14 G2 AMD
RealTek Semiconductor RTL8852AE
855 (793min - 890max) MBit/s ∼63%
Lenovo ThinkPad E14 G3-20Y7003SGE
RealTek Semiconductor RTL8852AE
790 (405min - 842max) MBit/s ∼58% -8%
Average RealTek Semiconductor RTL8852AE
  (621 - 877, n=20)
745 MBit/s ∼55% -13%
HP ProBook 440 G8-2W1G4EA
Intel Wi-Fi 6 AX201
643 (562min - 667max) MBit/s ∼47% -25%
601646691736781826871Tooltip
; iperf3 receive AX12; iperf 3.1.3: Ø854 (793-890)
; iperf3 transmit AX12; iperf 3.1.3: Ø770 (601-880)

网络摄像头

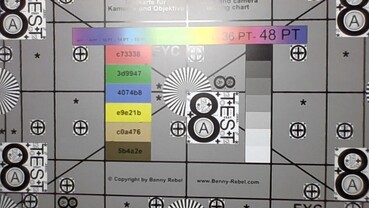

联想ThinkPad笔记本电脑的720p网络摄像头产生的图像模糊,颜色不准确。对于视频通话来说,这已经足够好了。

ColorChecker
7.9 ∆E
14.1 ∆E
15.4 ∆E
13.8 ∆E
18.5 ∆E
16.7 ∆E
16.7 ∆E
17.9 ∆E
18.9 ∆E
11.5 ∆E
15.5 ∆E
21.6 ∆E
10.5 ∆E
21.8 ∆E
21.3 ∆E
15.3 ∆E
25.4 ∆E
26.3 ∆E
2.3 ∆E
11.8 ∆E
22.4 ∆E
27.9 ∆E
27.2 ∆E
13.3 ∆E
ColorChecker Lenovo ThinkPad L14 G2 AMD: 17.24 ∆E min: 2.33 - max: 27.85 ∆E

安全问题

除了对WWAN的支持,安全功能是与同样价格低廉的ThinkPad E系列相比的最大区别之一。联想为L系列提供了你在ThinkPad T14中也能找到的全部待遇:智能卡读卡器、Kensington锁、指纹识别器、红外相机、ThinkShutter相机盖--商务客户在这里可能只会错过一些东西。

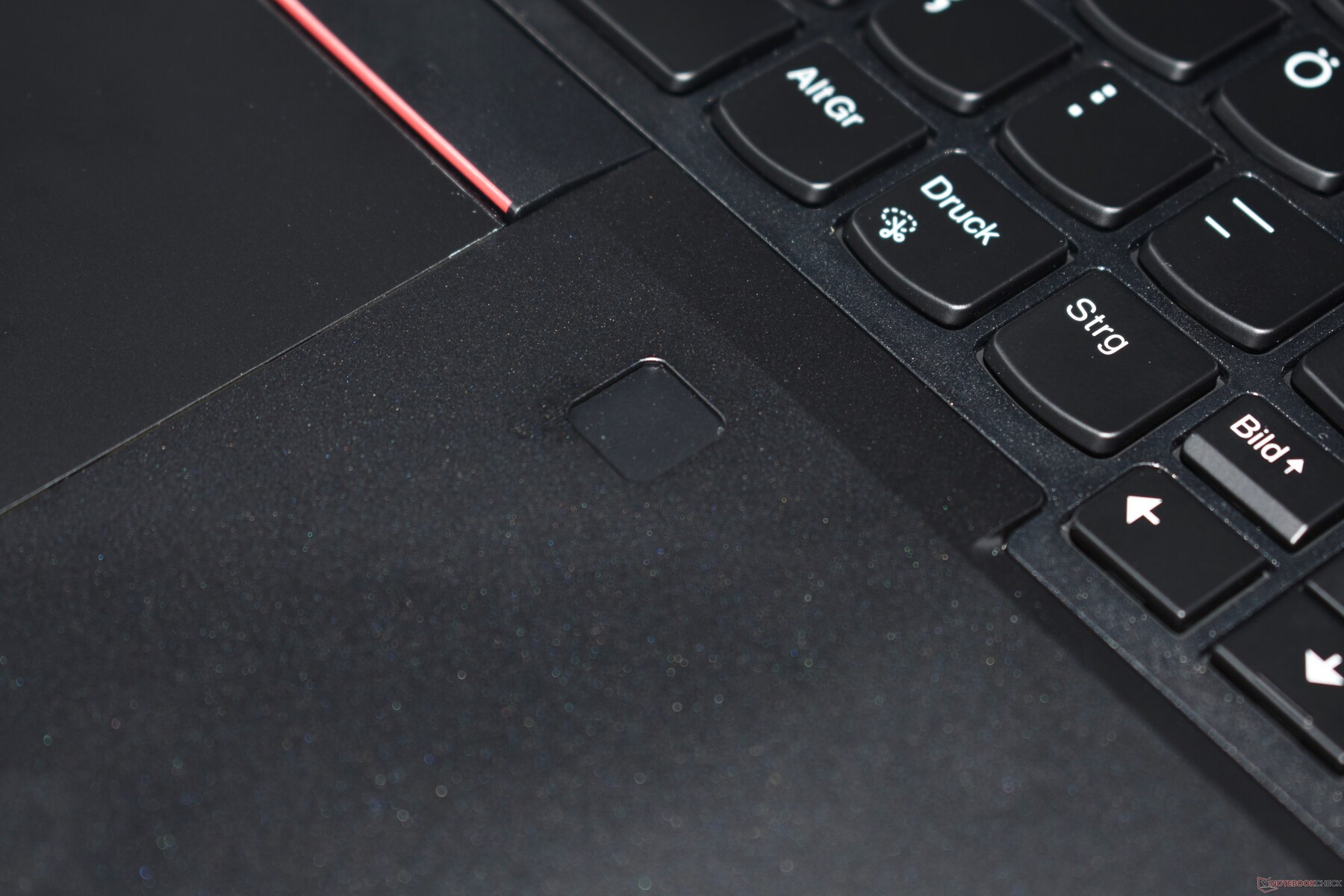

指纹识别器。ThinkPad L14第二代
指纹识别器。ThinkPad L14第二代

辅料

除了带有USB-C插头的65瓦充电器外,联想ThinkPad L14第二代的包装盒中没有其他配件。

维护

ThinkPad L14第二代是目前所有14英寸ThinkPad中拥有最多模块化设计的笔记本电脑。除了处理器之外,所有的重要部件都没有焊接--WWAN、Wi-Fi、M.2-2280固态硬盘和两个SO-DIMM内存插槽,所有的东西都是不连接的,可以升级。为了进入联想ThinkPad的内部,你显然必须先卸下底盖,这需要卸下九颗螺丝;这些螺丝仍然卡在机箱内,所以不会丢失。此外,还有一些塑料夹子,最好用塑料铲子工具一个一个地小心打开。

虽然这并不那么容易,但拆卸键盘却再容易不过了。你必须拧开底部的两颗螺丝,然后就可以拆下内部键盘。这不仅允许在该区域进行维修,而且还可以切换到其他键盘布局(例如QWERTY)。

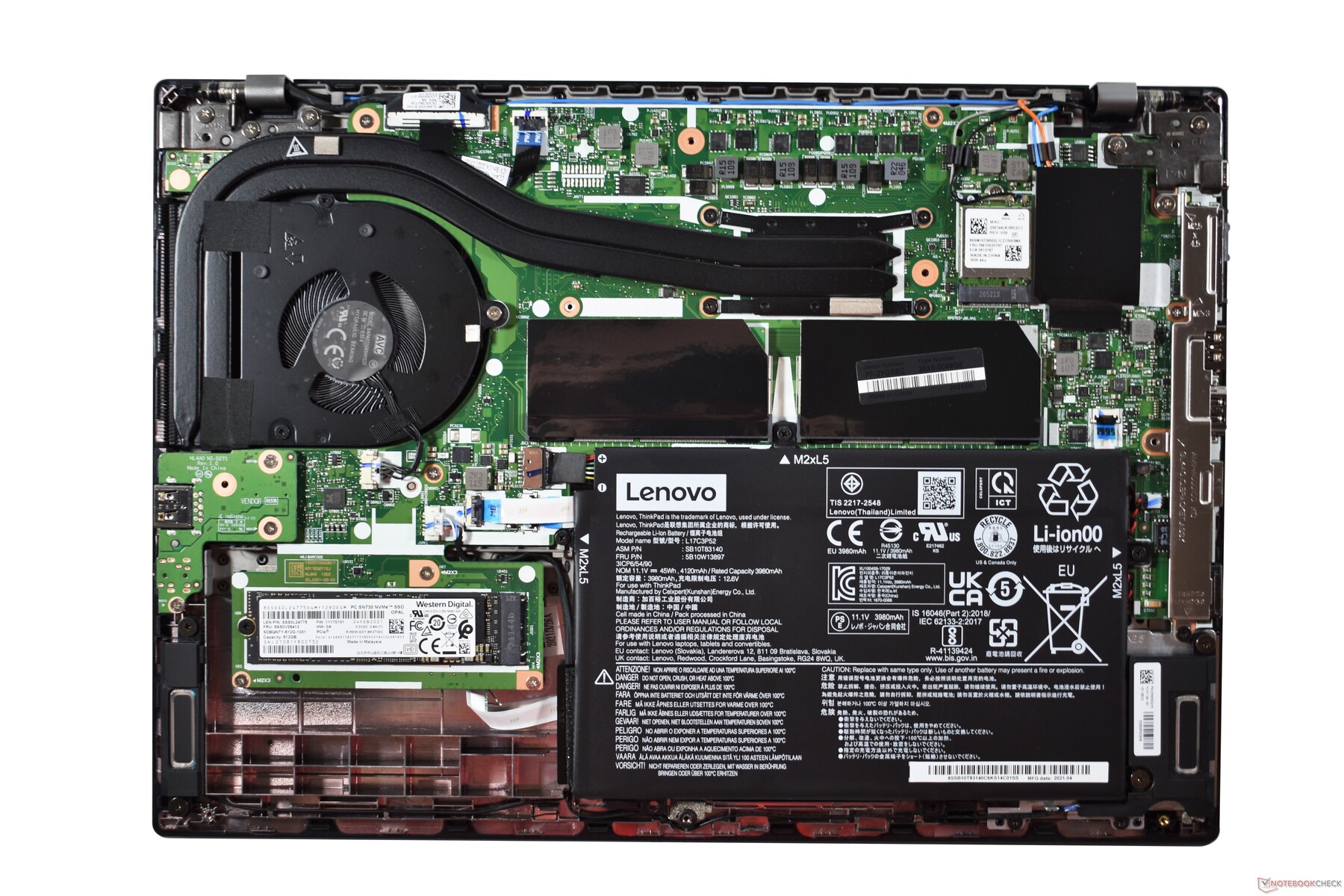

联想ThinkPad L14第二代:拆下底盖
联想ThinkPad L14第二代:拆下底盖
联想ThinkPad L14第二代:拆下键盘
联想ThinkPad L14第二代:拆下键盘

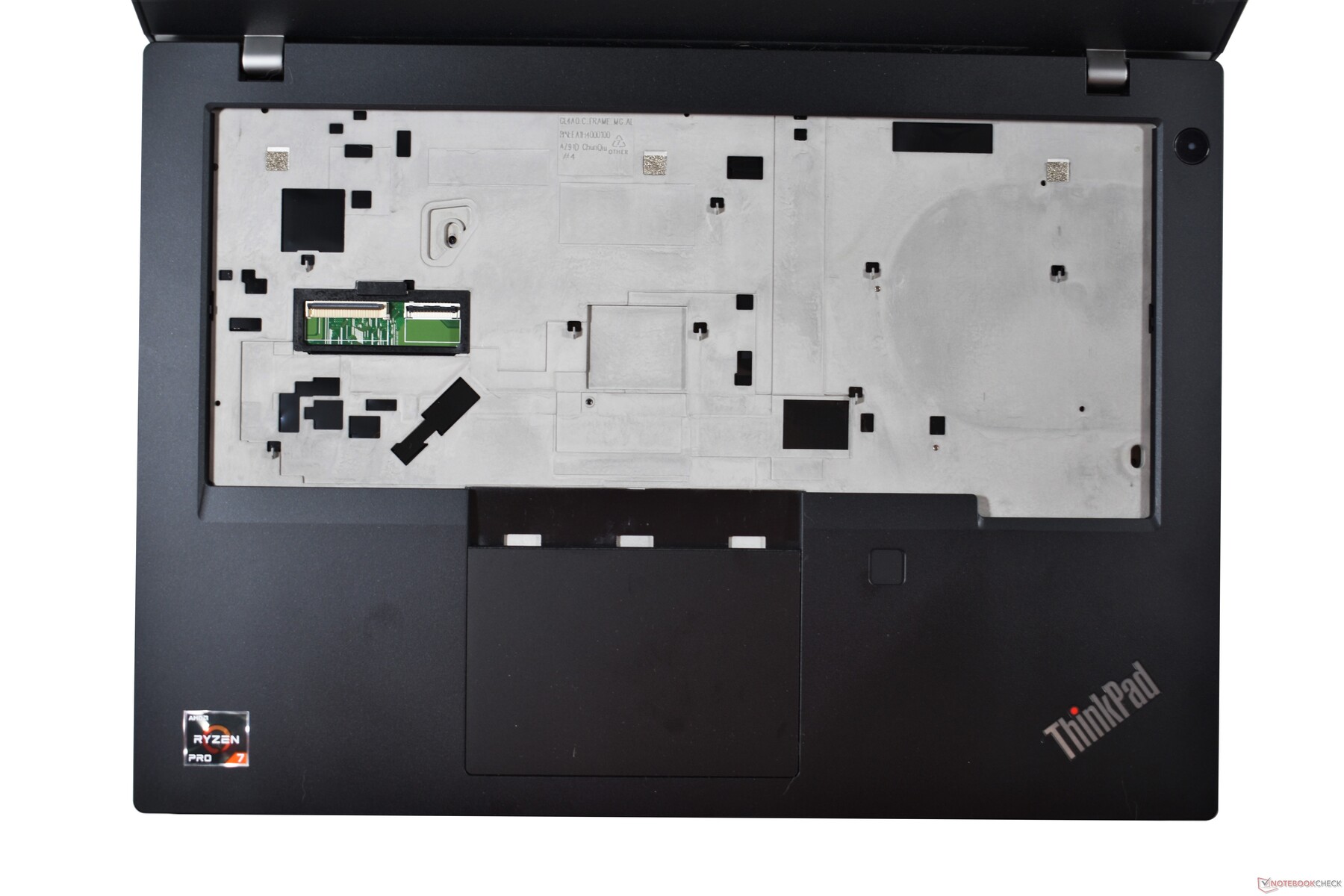

内部键盘
内部键盘

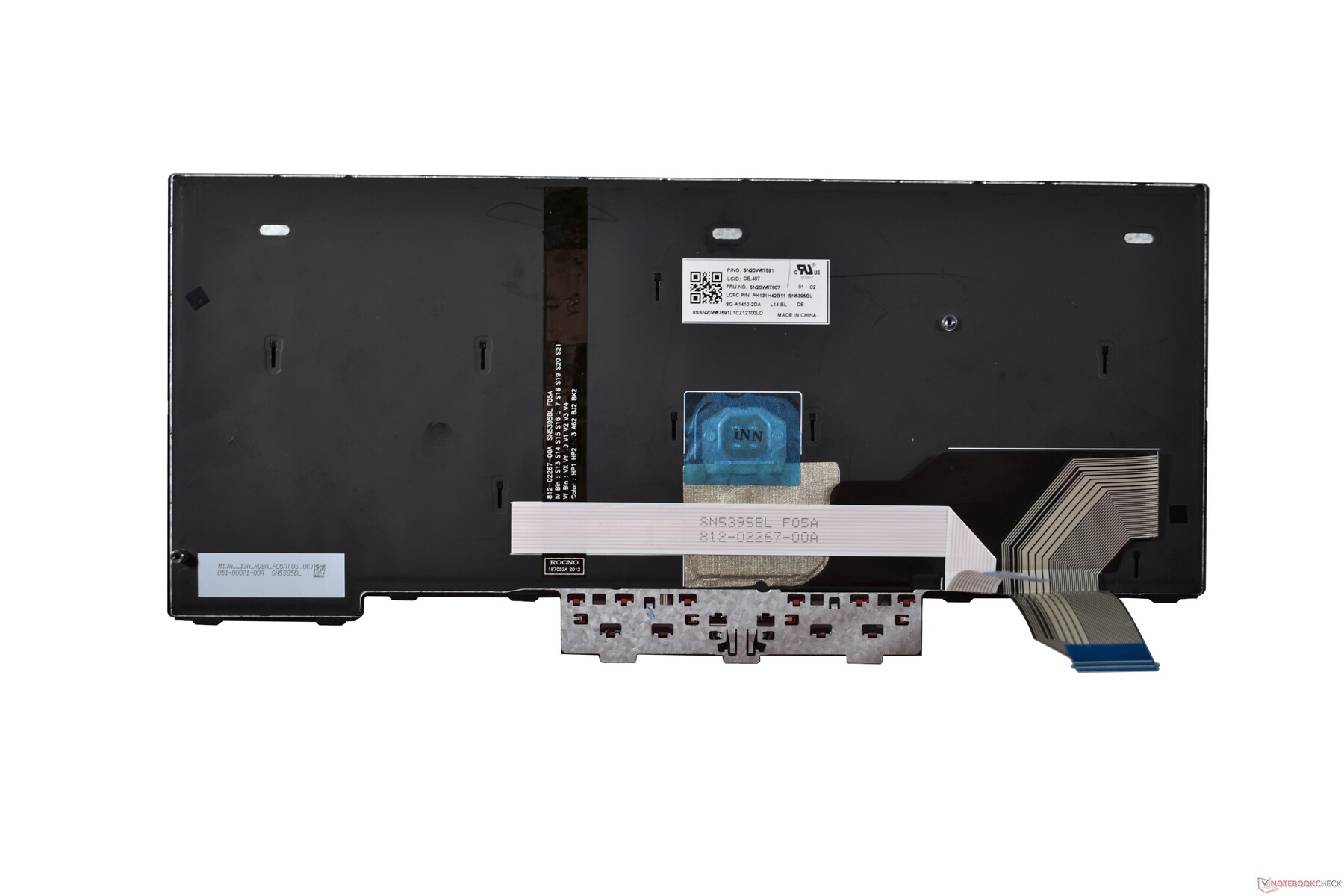

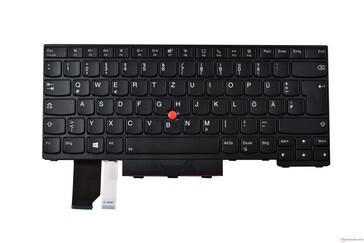

键盘后侧
键盘后侧

担保

节省成本的措施:与ThinkPad T系列不同,ThinkPad L系列在销售时总是默认只提供一年的自带服务保修。延长到三到五年是可能的,还有现场服务和意外保护等附加服务--需要额外收费。

输入设备。联想笔记本电脑的强大键盘

键盘

就在去年,联想修改了ThinkPad L系列,使其拥有1.5毫米的键程。ThinkPad L14第二代的背光键盘具有完整的标准宽度,可以与ThinkPad X1 Carbon第七代X1 Carbon第八代的键盘进行最好的比较--减少了键程,但仍是旧的键高。总的来说,这款键盘符合我们对ThinkPad键盘的高度期望。经常打字的用户会喜欢L14 Gen 2--也是因为键盘不会弯曲。镁合金的加固是绝对明显的。

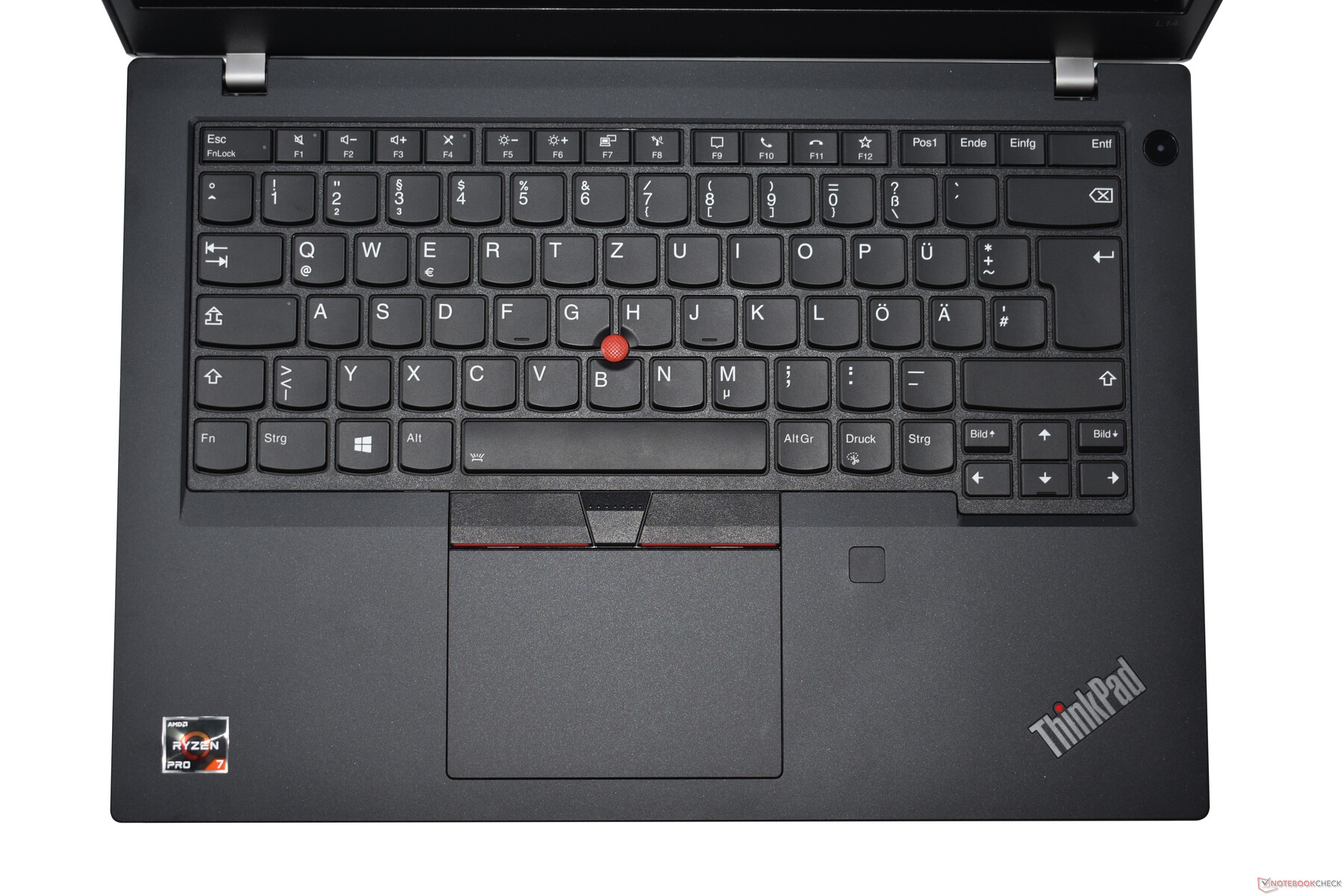

联想ThinkPad L14第二代的键盘区
联想ThinkPad L14第二代的键盘区

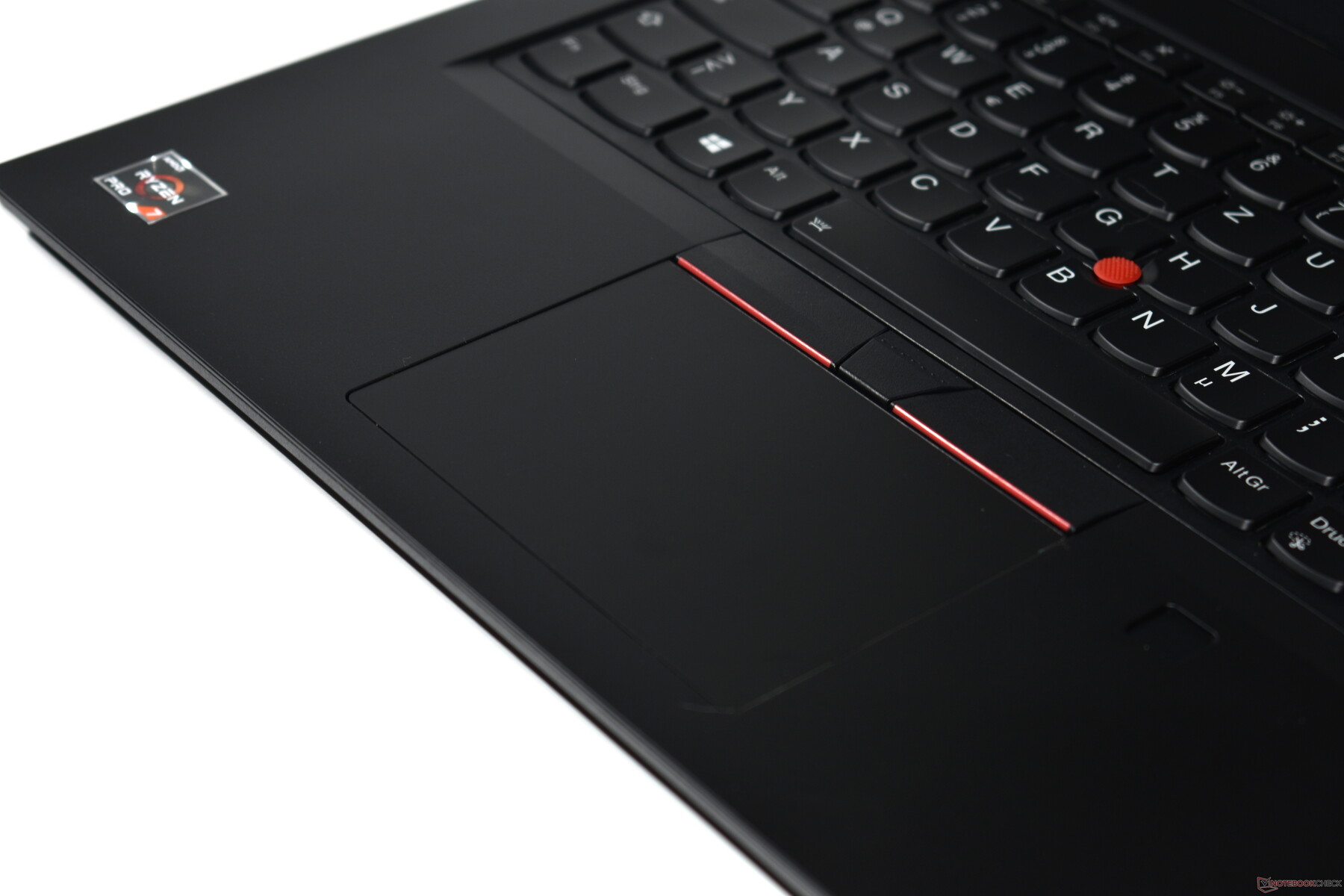

触摸板

触摸板位于键盘下方,而且没有专用按钮。其表面由塑料制成--在这方面,ThinkPad L、T和E系列之间没有区别。触控板的尺寸为10×7厘米(约3.9×2.8英寸),虽然不是很宽裕,但也有足够的尺寸。总的来说,触控板可以作为下部区域的ClickPad使用,它以对鼠标指针的精确控制和高质量、有缓冲的点击机制而令人信服。触摸板也能顺利地实现手势。

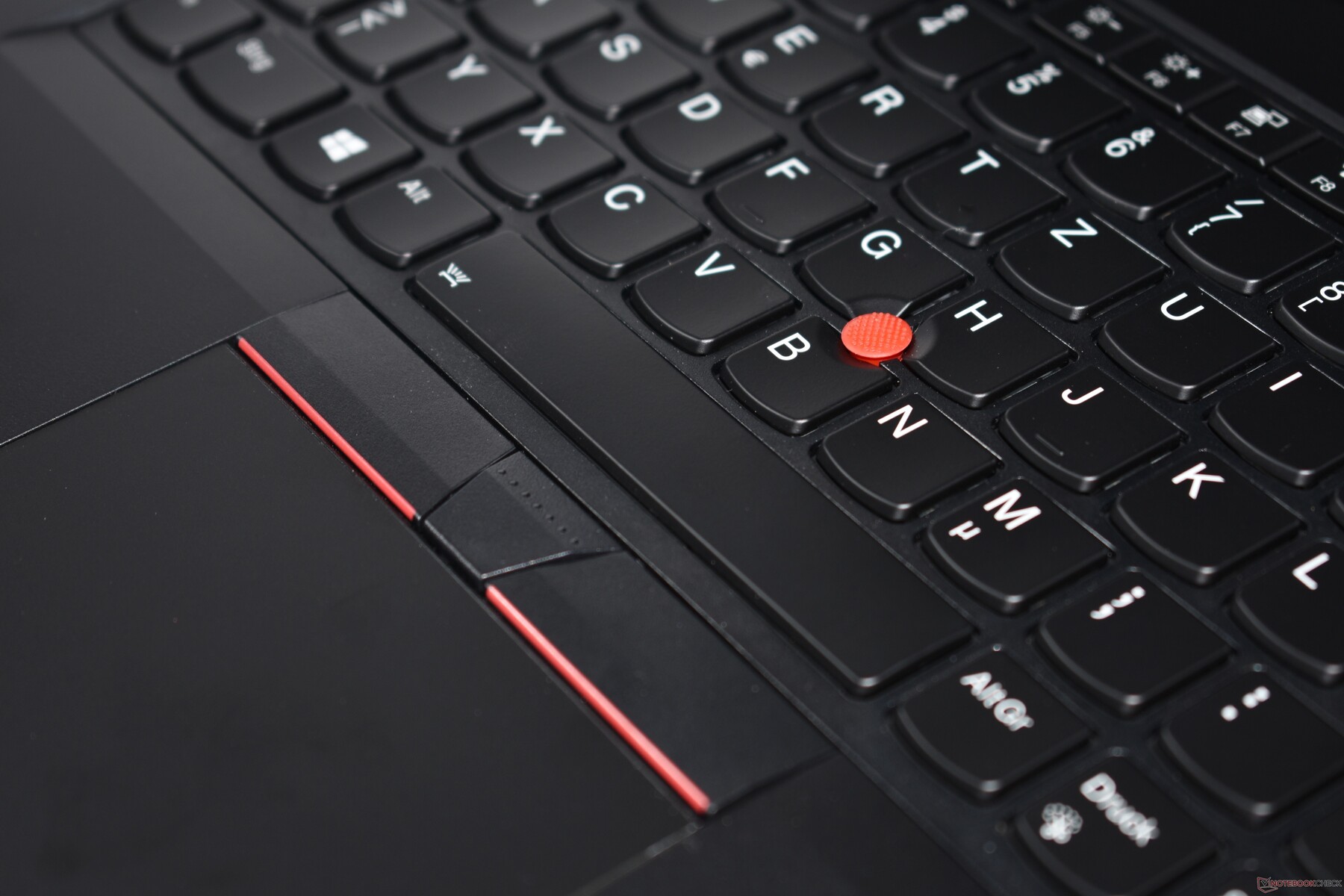

联想将标志性的红色TrackPoint放在G/H/B键之间的显要位置。触摸板和键盘之间的三个按钮也属于它。按下TrackPoint可以精确而快速地移动鼠标光标,而不必将手从键盘上移开。TrackPoint优于触摸板,特别是在拖放动作方面。

联想笔记本电脑的整个显示屏很弱

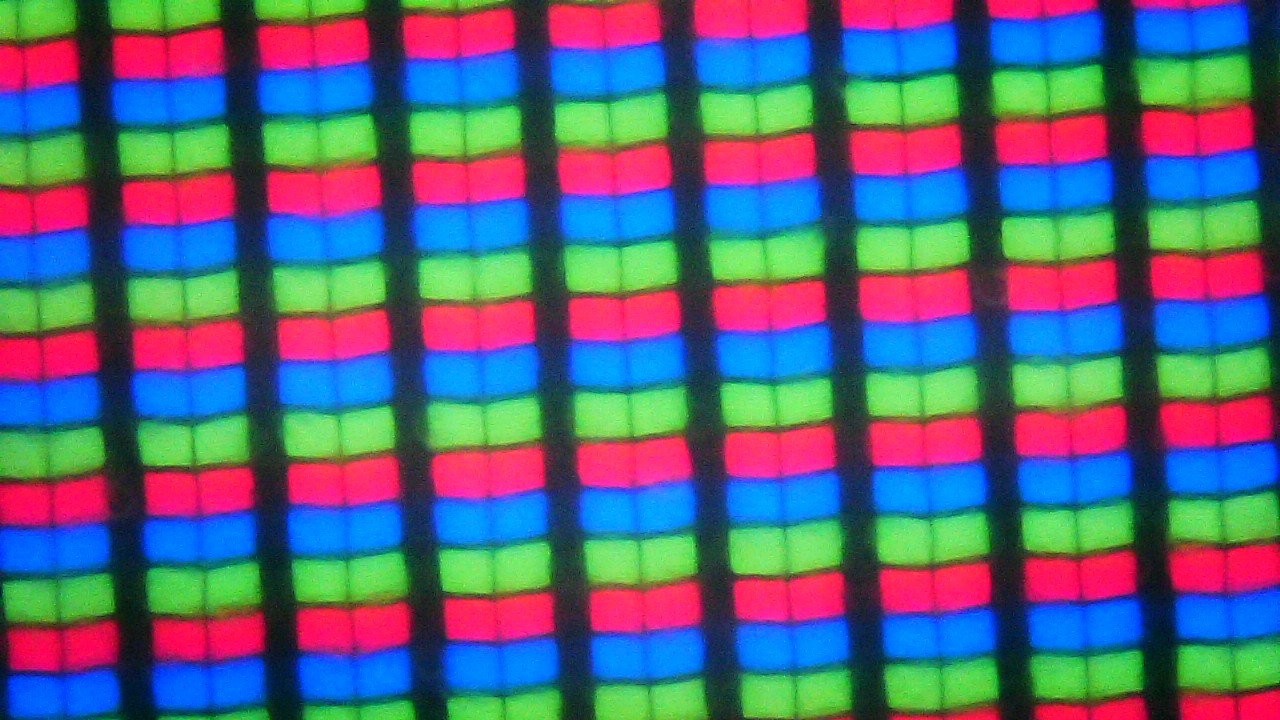

联想ThinkPad L14第二代的子像素矩阵
联想ThinkPad L14第二代的子像素矩阵

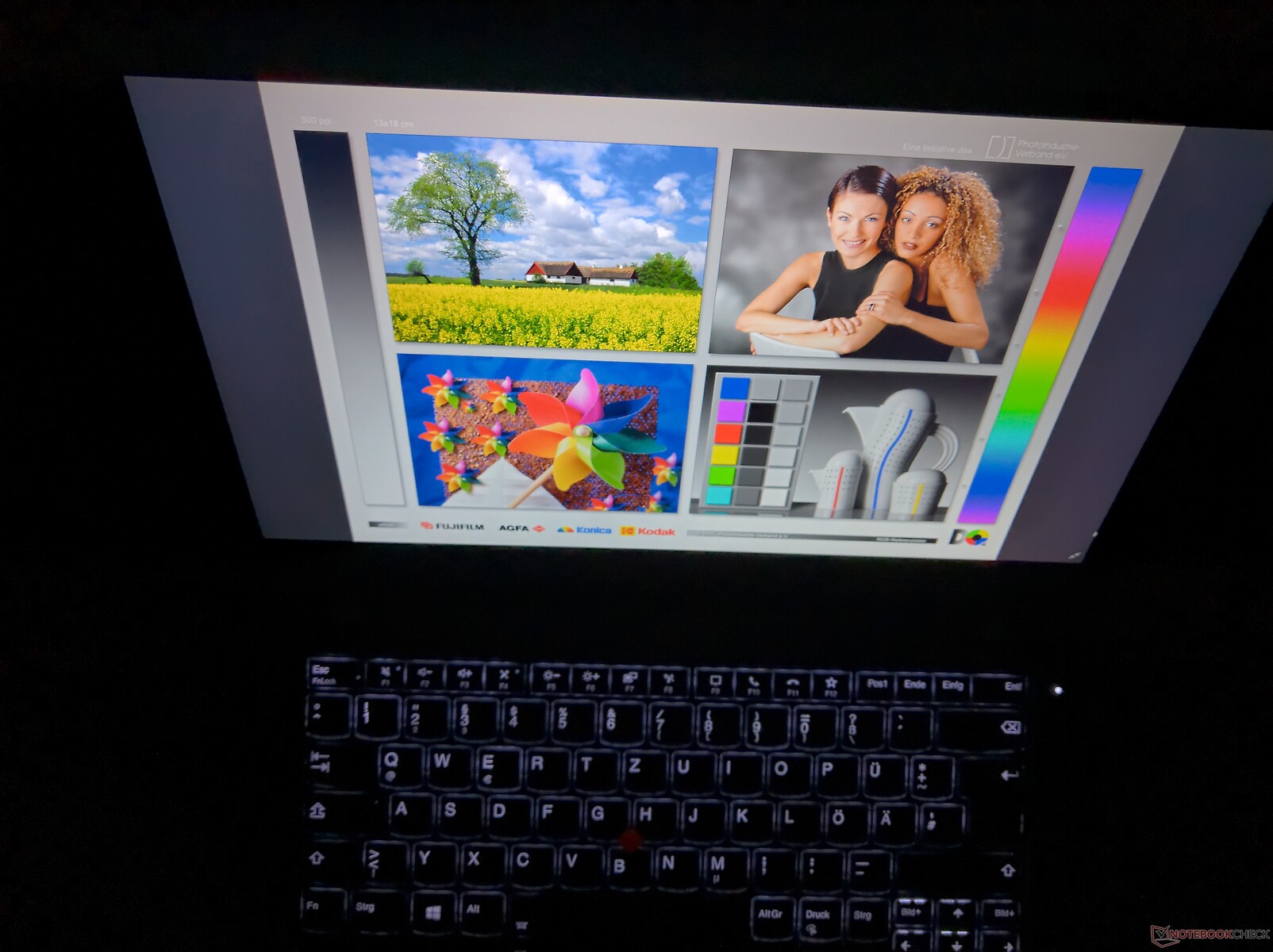

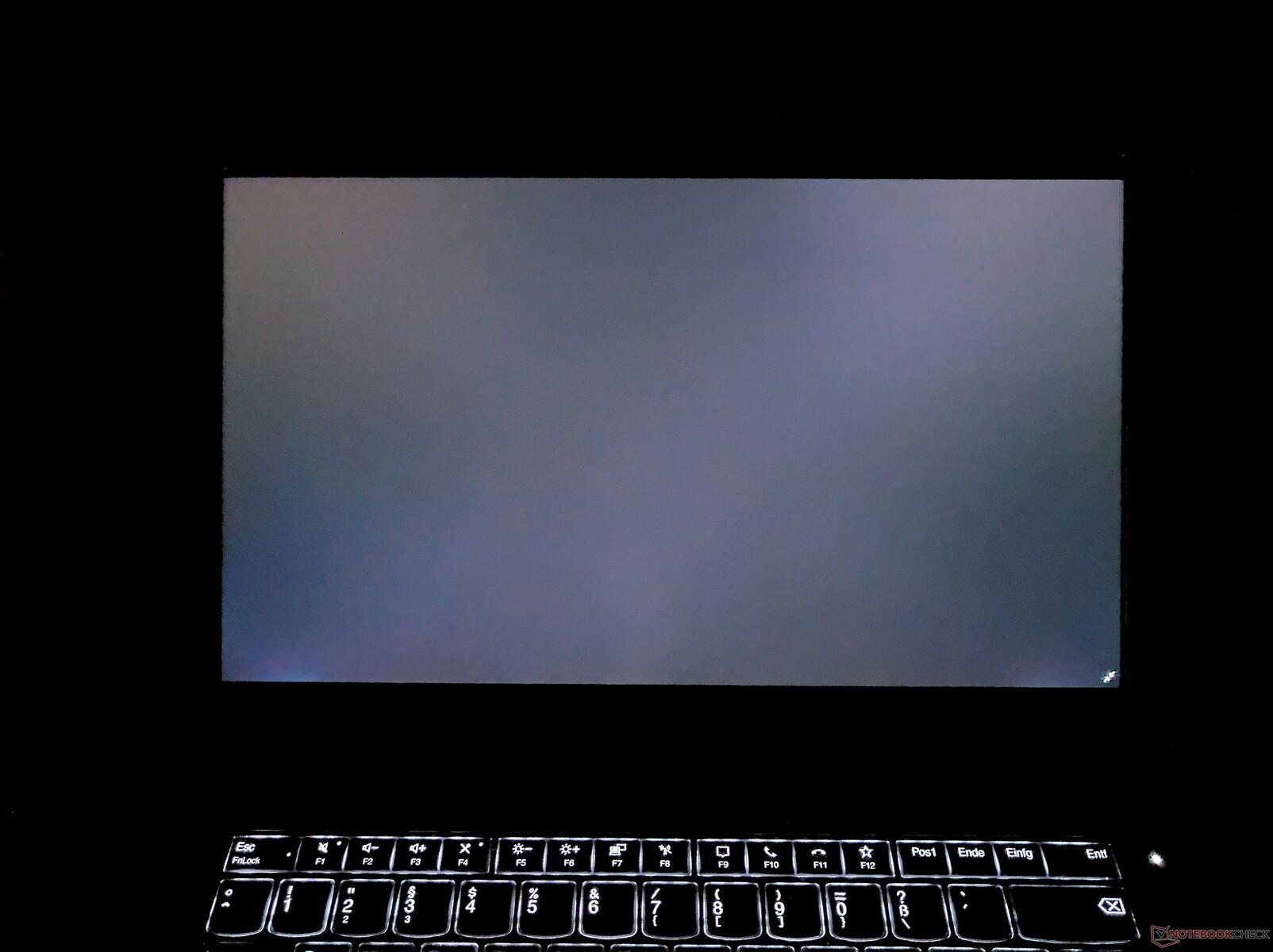

低背光出血(在此以强化的方式表示
低背光出血(在此以强化的方式表示

与针对高端市场的昂贵的ThinkPad X1系列不同,ThinkPad L系列保留了 "旧的"、更窄的16:9格式。联想ThinkPad L14第二代的14英寸显示屏有两种不同的分辨率。所有的显示屏都是哑光的。

  • 1366x768(高清),220 cd/m²,45% NTSC,TN
  • 1920x1080(全高清),250 cd/m²,45 % NTSC,IPS
  • 1920x1080 (Full HD), 300 cd/m², 45% NTSC, IPS, touch
  • 1920x1080 (Full HD), 400 cd/m², 72% NTSC, IPS, 低功耗

安装在这个测试设备中的显示器没有辜负广告中的亮度值,因为我们测量到255 cd/m²的平均最大值。这符合经济型商务笔记本电脑的等级,与高端的T系列相比,显示出明显的差异。如果可能的话,应该选择400cd/m²的低功耗显示屏。

247
cd/m²
257
cd/m²
255
cd/m²
251
cd/m²
278
cd/m²
257
cd/m²
239
cd/m²
261
cd/m²
253
cd/m²
Distribution of brightness
B140HAN04.0
X-Rite i1Pro 2
Maximum: 278 cd/m² (Nits) Average: 255.3 cd/m² Minimum: 4.52 cd/m²
Brightness Distribution: 86 %
Center on Battery: 278 cd/m²
Contrast: 842:1 (Black: 0.33 cd/m²)
ΔE Color 5.9 | 0.59-29.43 Ø5.4, calibrated: 4.5
ΔE Greyscale 4.1 | 0.64-98 Ø5.6
38.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.3% sRGB (Argyll 2.2.0 3D)
37.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.15
Lenovo ThinkPad L14 G2 AMD
B140HAN04.0, IPS LED, 1920x1080, 14.00
Lenovo ThinkPad L14-20U50003GE
N140HCA-EAC, IPS, 1920x1080, 14.00
Lenovo ThinkPad T14 Gen2-20W1S00000
LP140WF9-SPF2, IPS LED, 1920x1080, 14.00
Lenovo ThinkPad E14 G3-20Y7003SGE
NVM140FHM-N4V, IPS, 1920x1080, 14.00
Dell Latitude 14 5411-WJ40N
AU Optronics AUO463D, IPS, 1920x1080, 14.00
HP ProBook 440 G8-2W1G4EA
AU Optronics AUO818B, VA, 1920x1080, 14.00
Display
12%
70%
7%
0%
-1%
Display P3 Coverage
37.5
41.96
12%
64.3
71%
40.3
7%
37.43
0%
37.02
-1%
sRGB Coverage
56.3
63
12%
95.4
69%
59.5
6%
56.2
0%
55.6
-1%
AdobeRGB 1998 Coverage
38.7
43.37
12%
65.5
69%
41.7
8%
38.67
0%
38.25
-1%
Response Times
-16%
-31%
10%
30%
-14%
Response Time Grey 50% / Grey 80% *
36 ?(19, 17)
42 ?(21.6, 20.4)
-17%
57.2 ?(25.2, 32)
-59%
35.2 ?(17.2, 18)
2%
31 ?(9, 22)
14%
43 ?(20, 23)
-19%
Response Time Black / White *
26 ?(15, 11)
29.6 ?(15.6, 14)
-14%
26.4 ?(12.4, 14)
-2%
21.6 ?(12.4, 9.2)
17%
14 ?(4, 10)
46%
28 ?(15, 13)
-8%

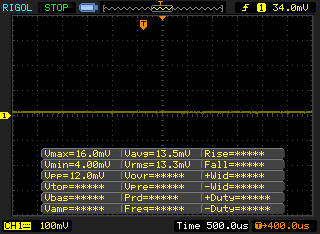

PWM Frequency
Screen
22%
56%
23%
6%
3%
Brightness middle
278
259
-7%
382
37%
341
23%
256
-8%
253
-9%
Brightness
255
244
-4%
367
44%
327
28%
236
-7%
230
-10%
Brightness Distribution
86
92
7%
88
2%
90
5%
86
0%
82
-5%
Black Level *
0.33
0.21
36%
0.14
58%
0.26
21%
0.23
30%
0.29
12%
Contrast
842
1233
46%
2729
224%
1312
56%
1113
32%
872
4%
Colorchecker dE 2000 *
5.9
4.3
27%
4.2
29%
5.1
14%
5.76
2%
5.35
9%
Colorchecker dE 2000 max. *
20.2
17.7
12%
7.9
61%
17.6
13%
20.65
-2%
17.08
15%
Colorchecker dE 2000 calibrated *
4.5
3.8
16%
0.9
80%
4.4
2%
Greyscale dE 2000 *
4.1
1.5
63%
5.4
-32%
2.1
49%
4
2%
3.75
9%
Gamma
2.15 102%
2.04 108%
2.31 95%
2.11 104%
2.52 87%
2.48 89%
CCT
7224 90%
6609 98%
7499 87%
6755 96%
6182 105%
6446 101%
Color Space (Percent of AdobeRGB 1998)
40
60.6
36
35
Color Space (Percent of sRGB)
62.9
95.4
56
55
Total Average (Program / Settings)
6% / 14%
32% / 47%
13% / 18%
12% / 8%
-4% / -0%

* ... smaller is better

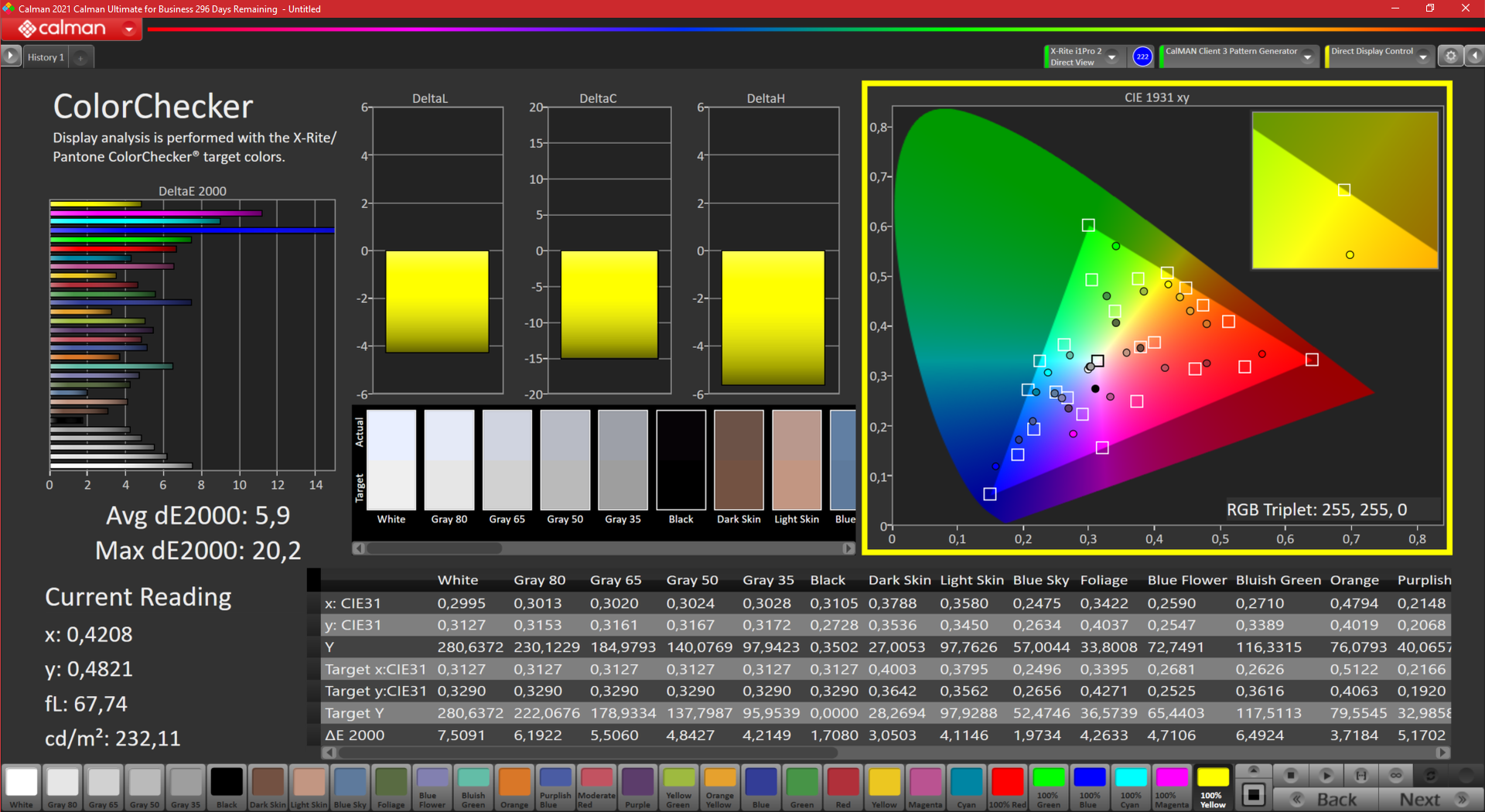

颜色值
颜色值

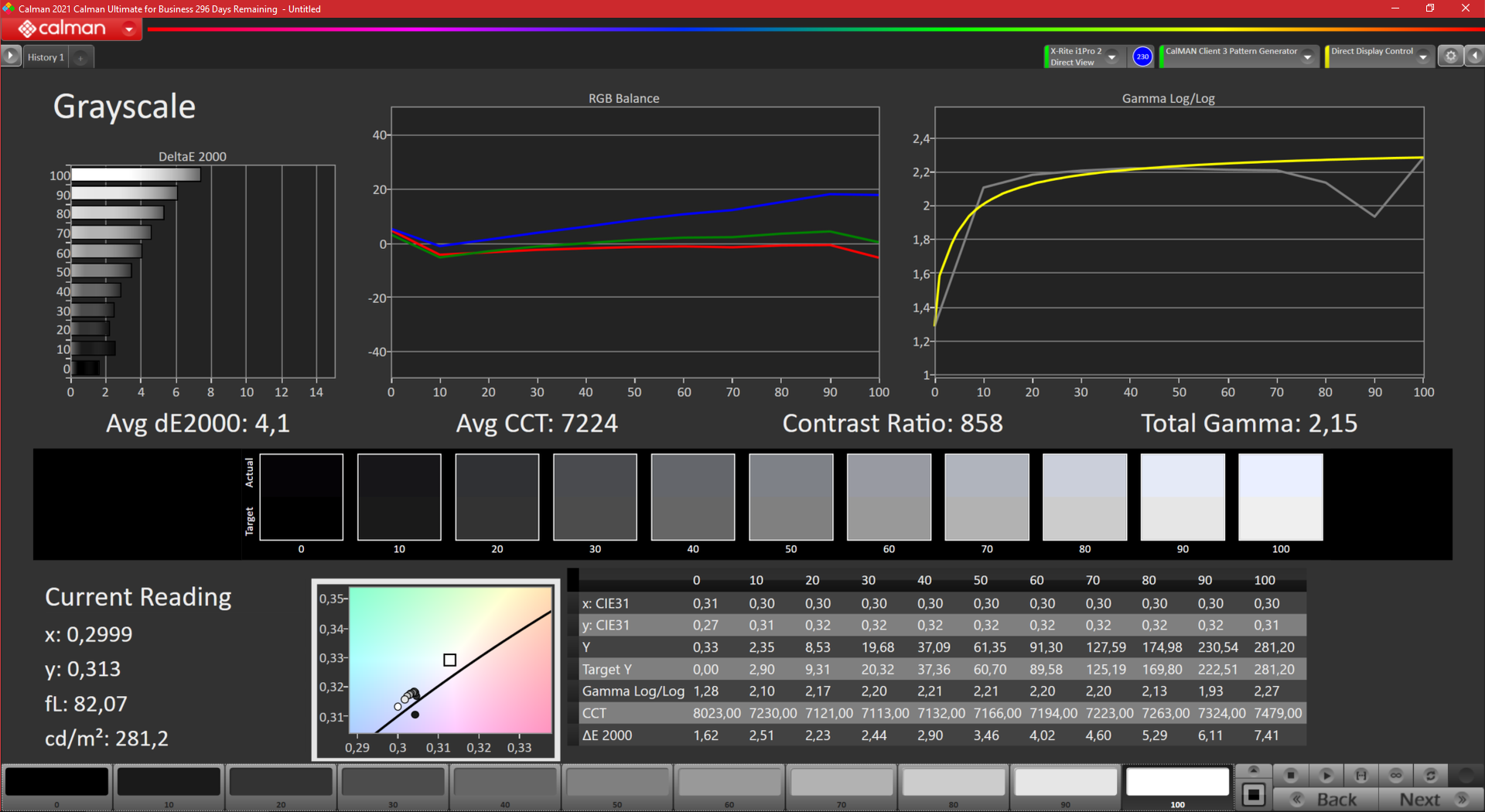

灰度
灰度

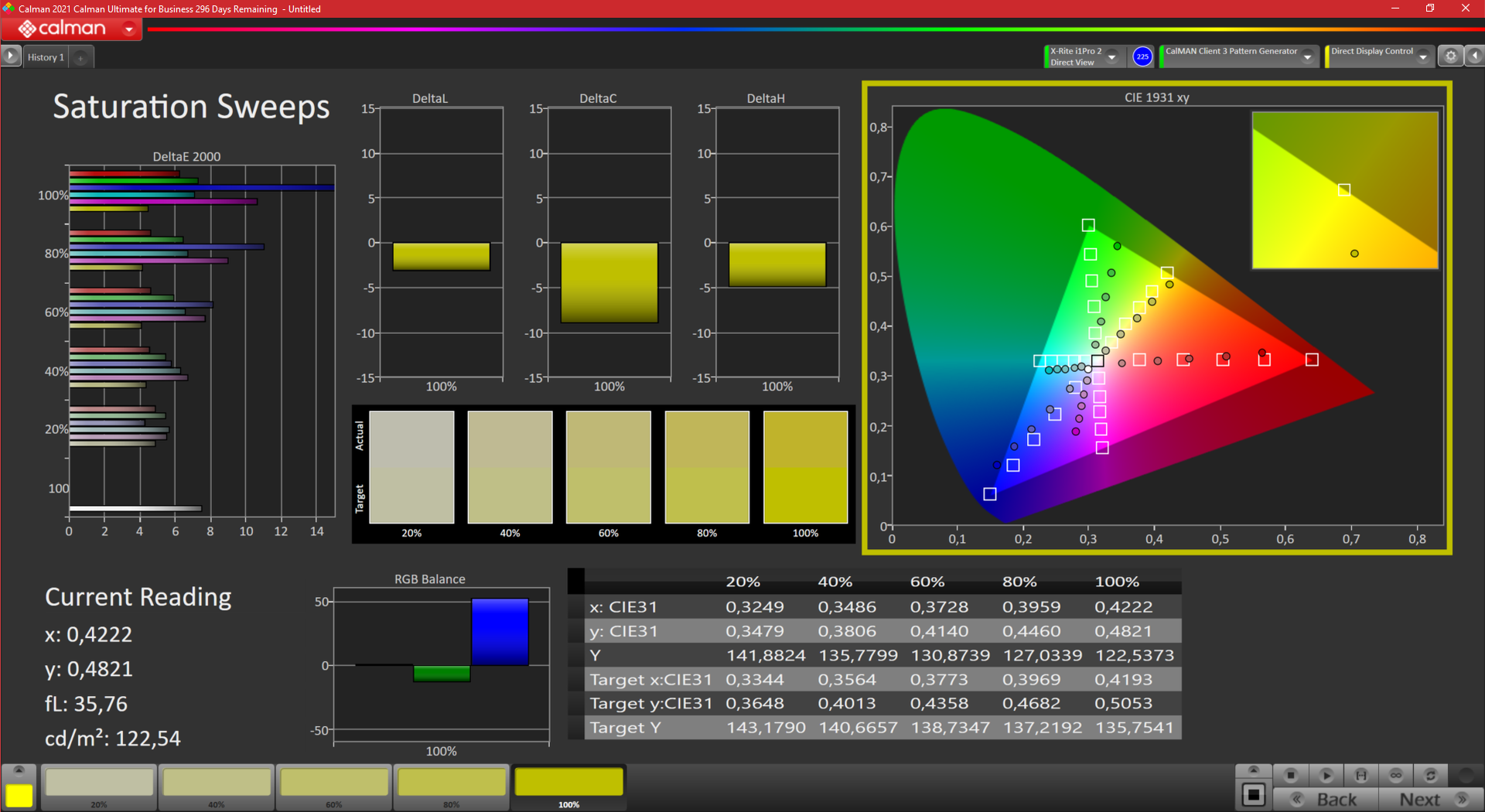

饱和度
饱和度
颜色值(已校准
颜色值(已校准
灰度(已校准)
灰度(已校准)

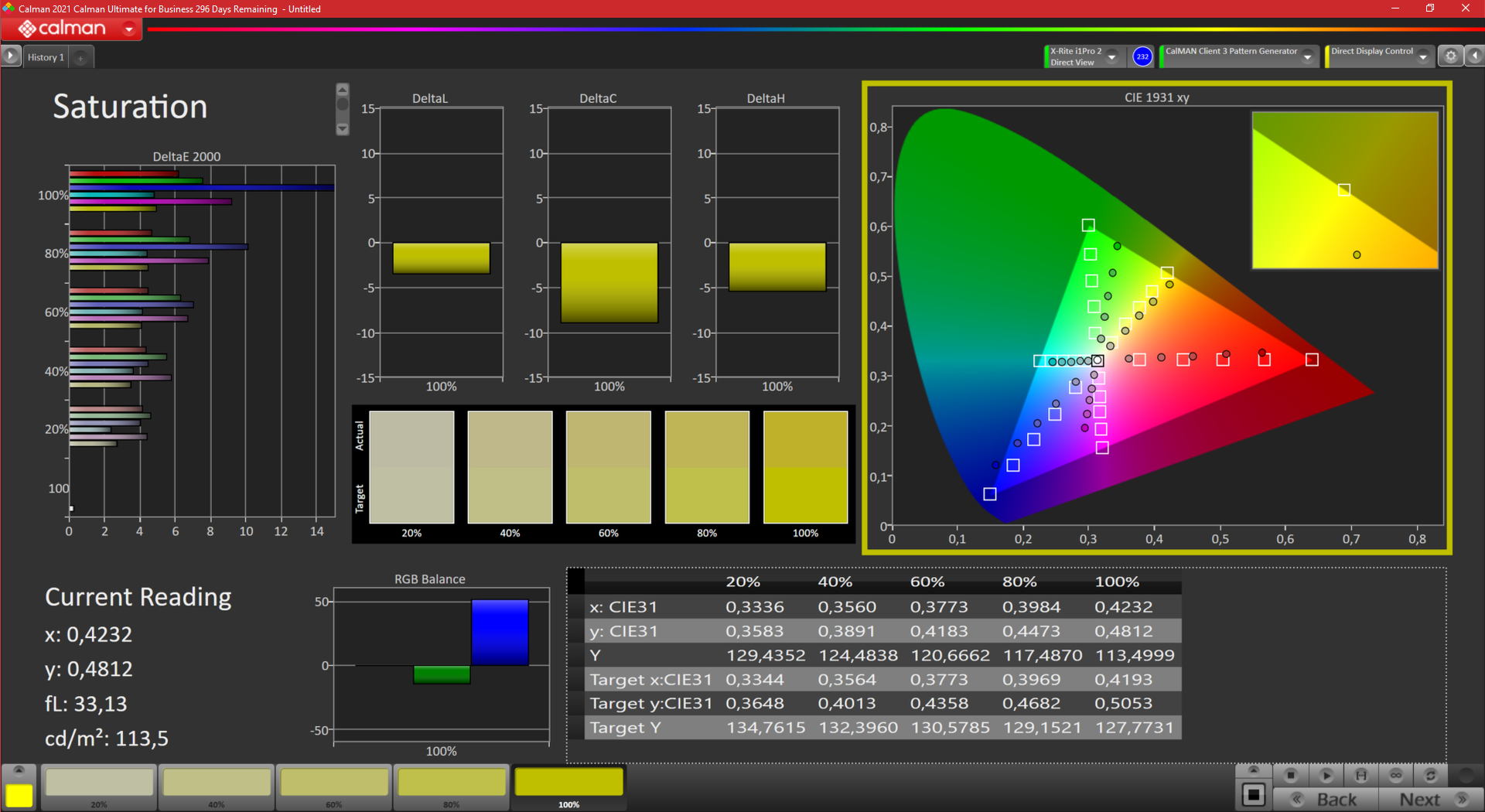

饱和度(已校准
饱和度(已校准

在我们测试过的所有经济型商务笔记本电脑中,L14 Gen 2的显示器的对比度值最低。我们用CalMAN和X-Rite i1 Pro 2测量了显示器,还用CalMAN客户端对其进行了校准。开箱后的颜色有点太冷,我们能够通过校准来改变。然而,即使在校准后,颜色也不是完全准确的,这可能是由于色彩空间覆盖率非常差。在不到60%的sRGB下,你可以忘记用ThinkPad L14 Gen 2的面板进行任何形式的图像编辑。

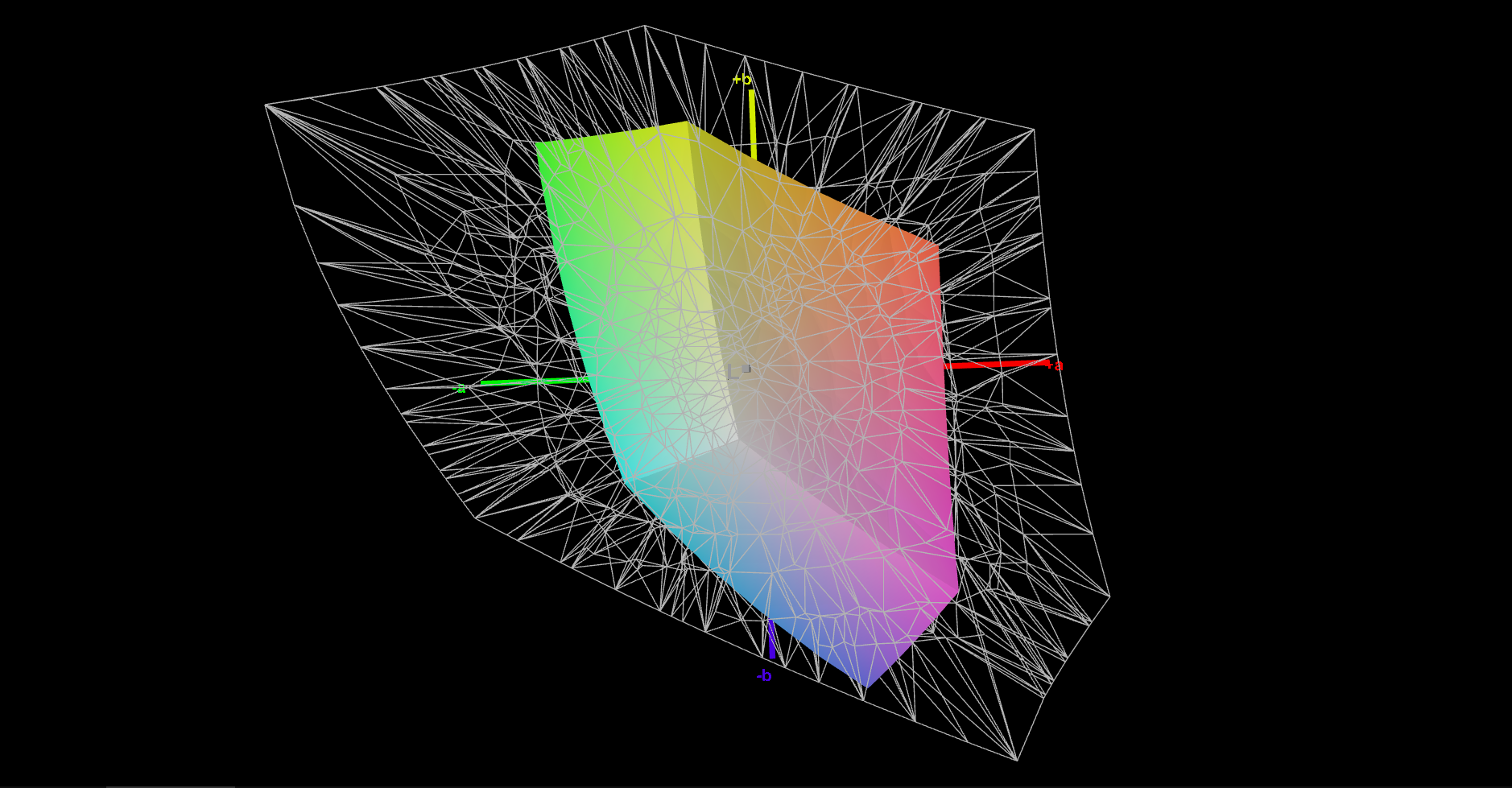

AdobeRGB:38.7%
AdobeRGB:38.7%

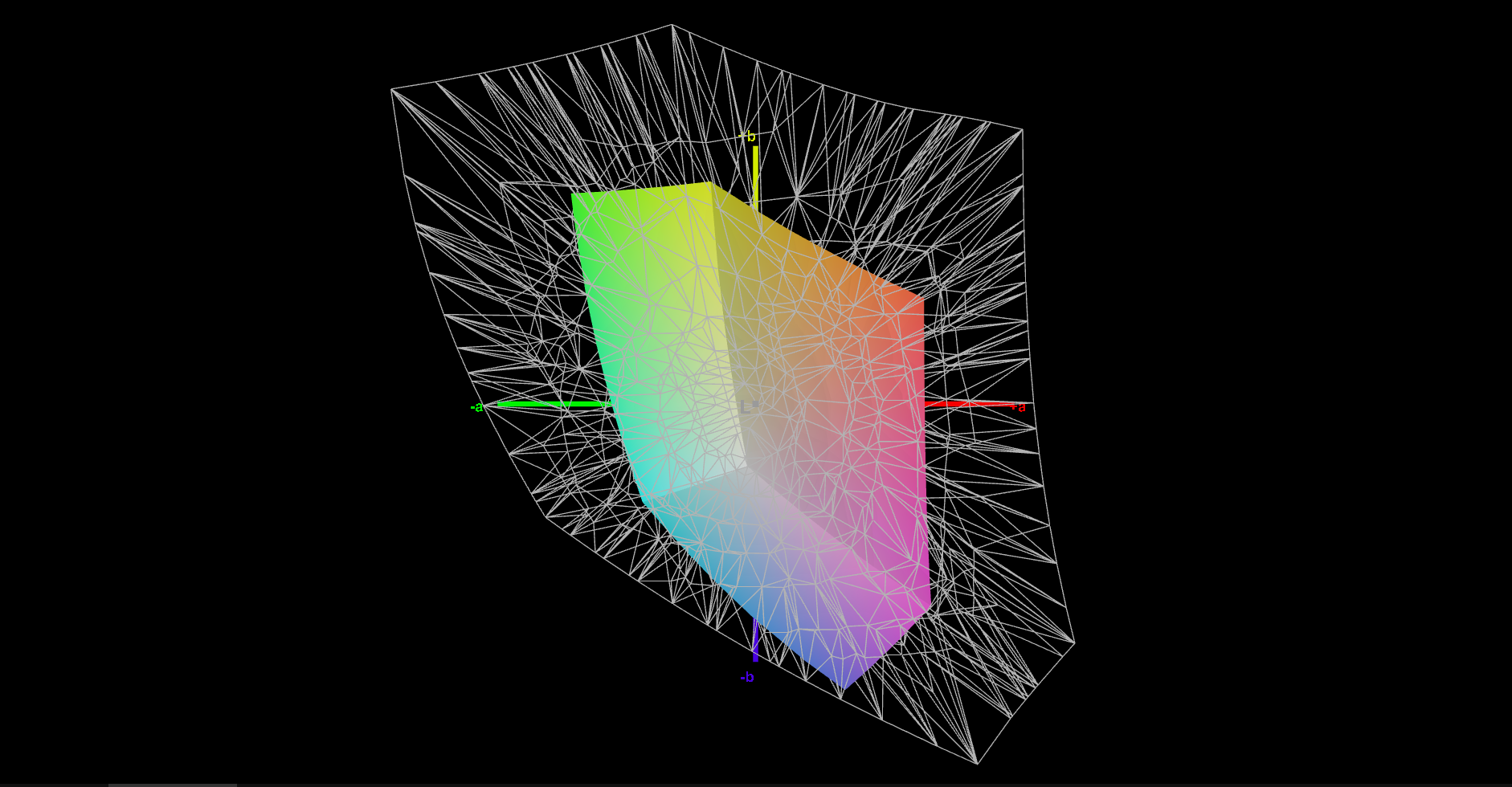

P3: 37.5%
P3: 37.5%

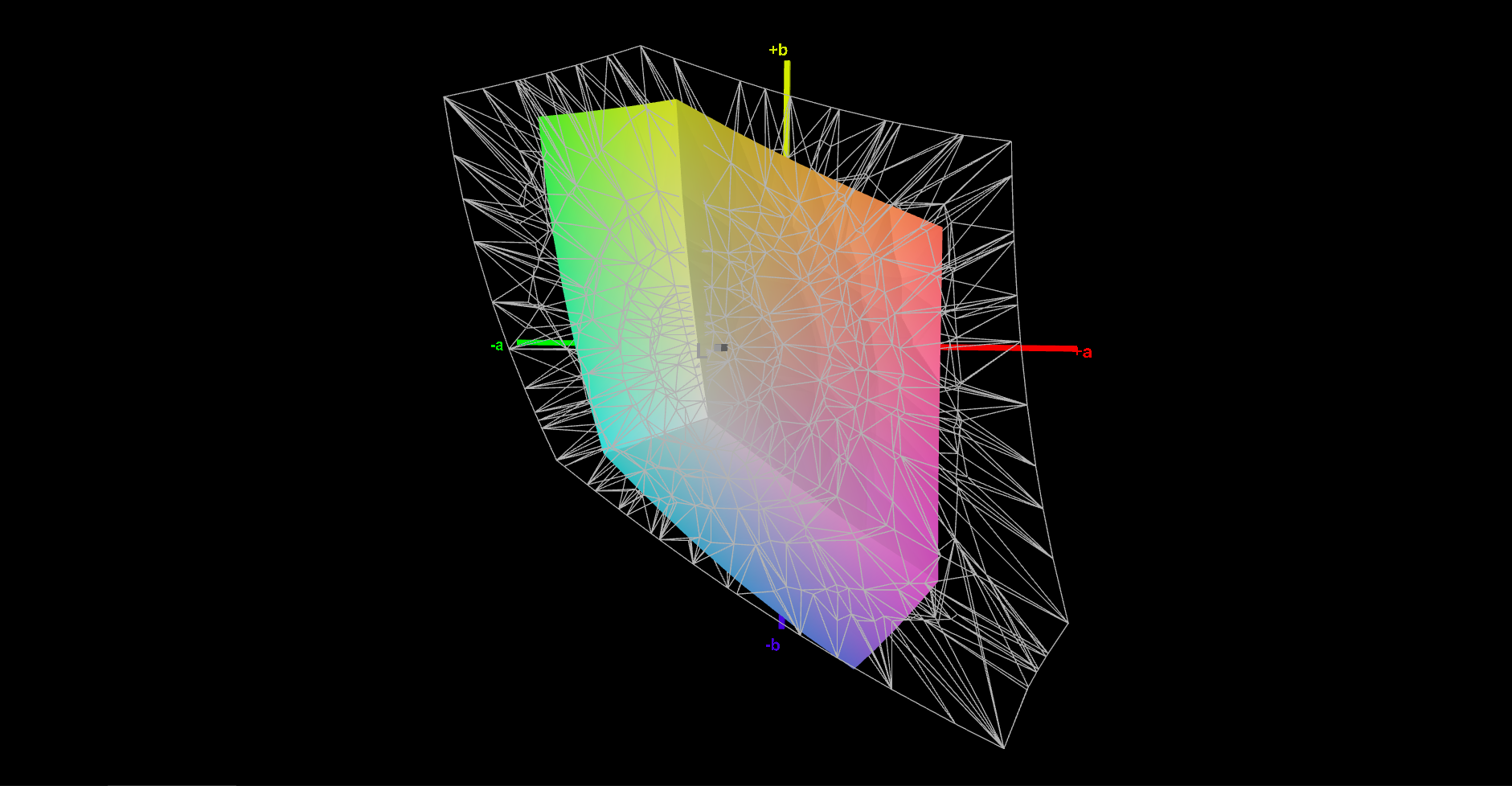

sRGB: 56.3%
sRGB: 56.3%

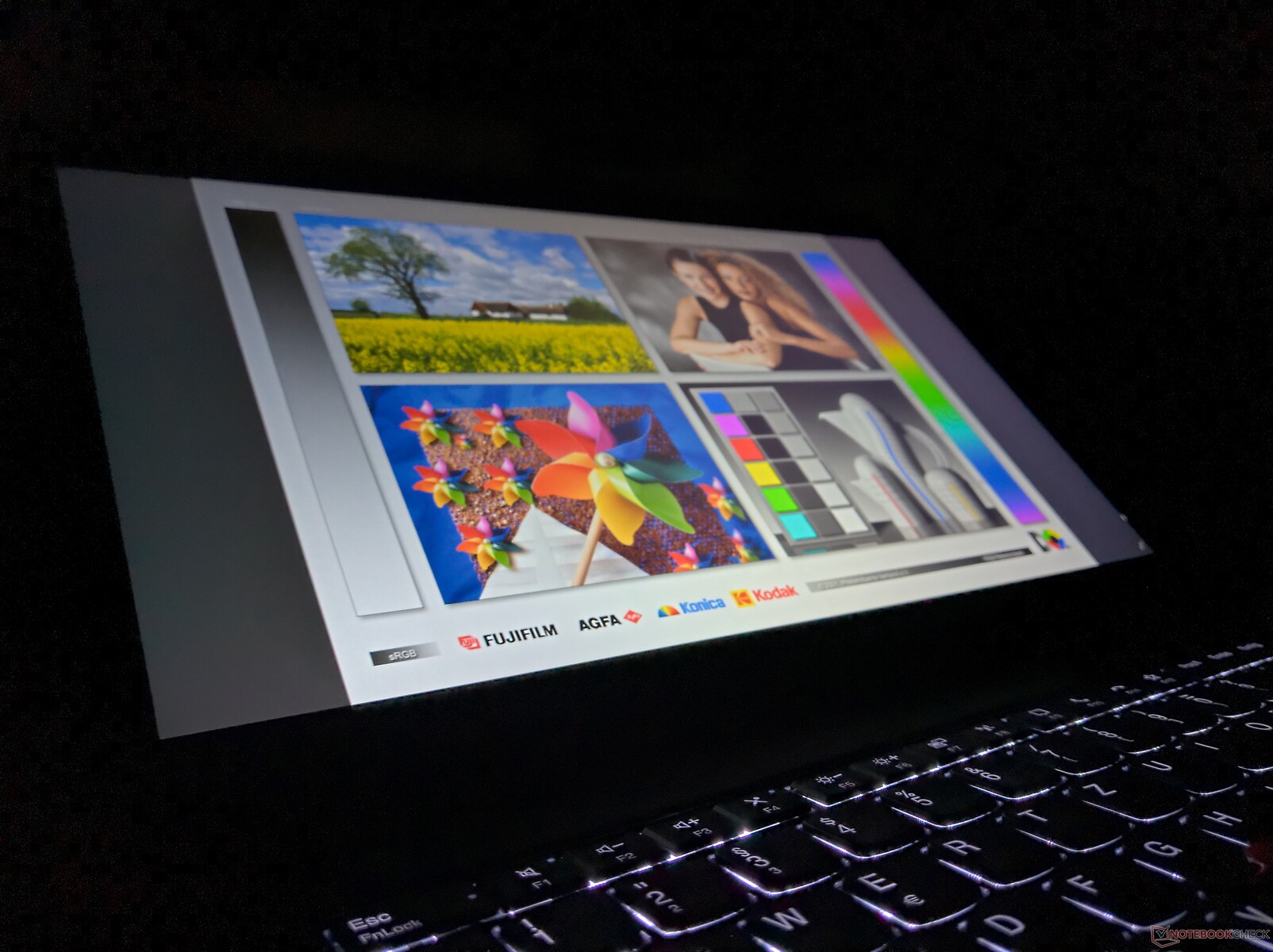

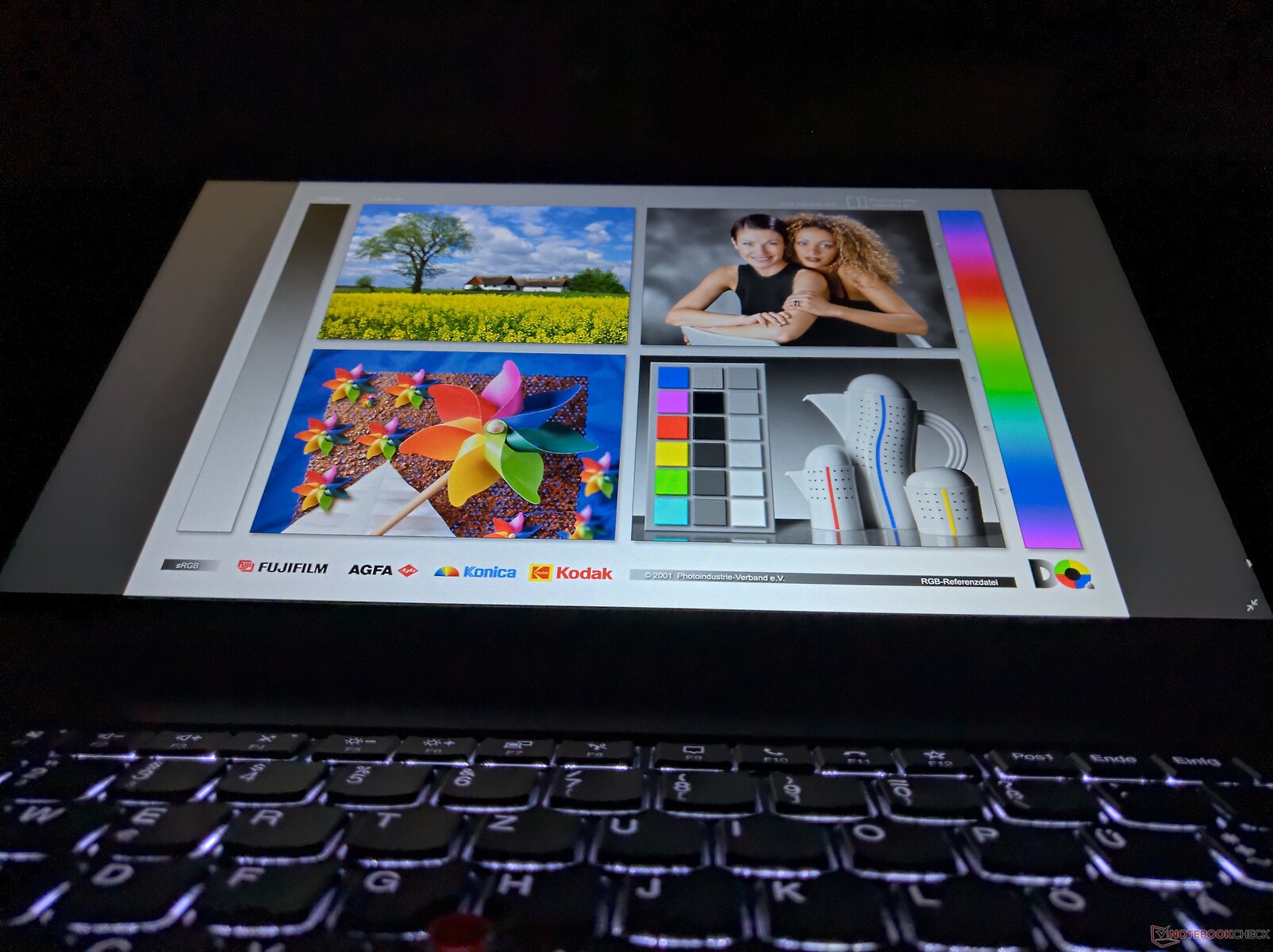

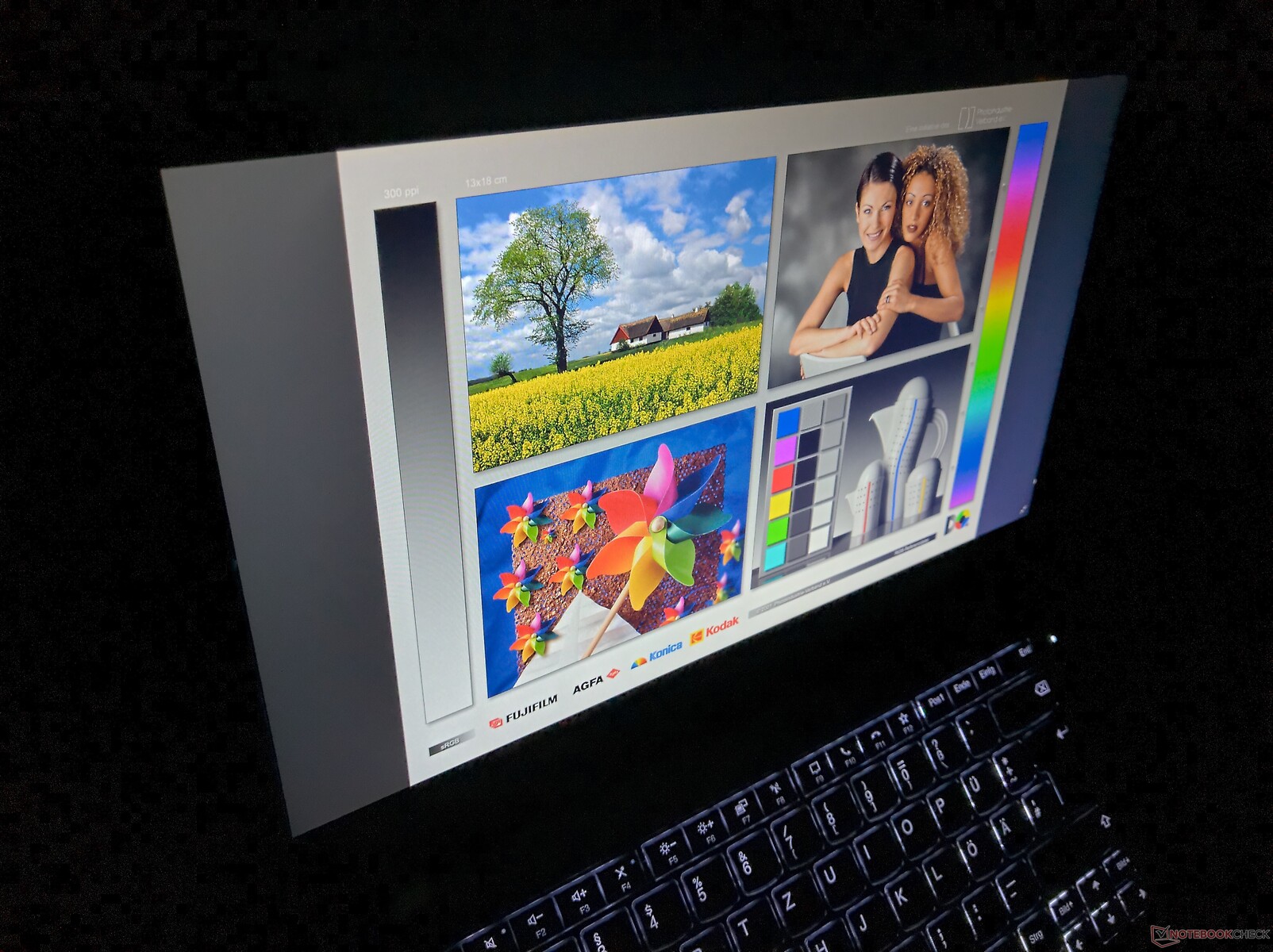

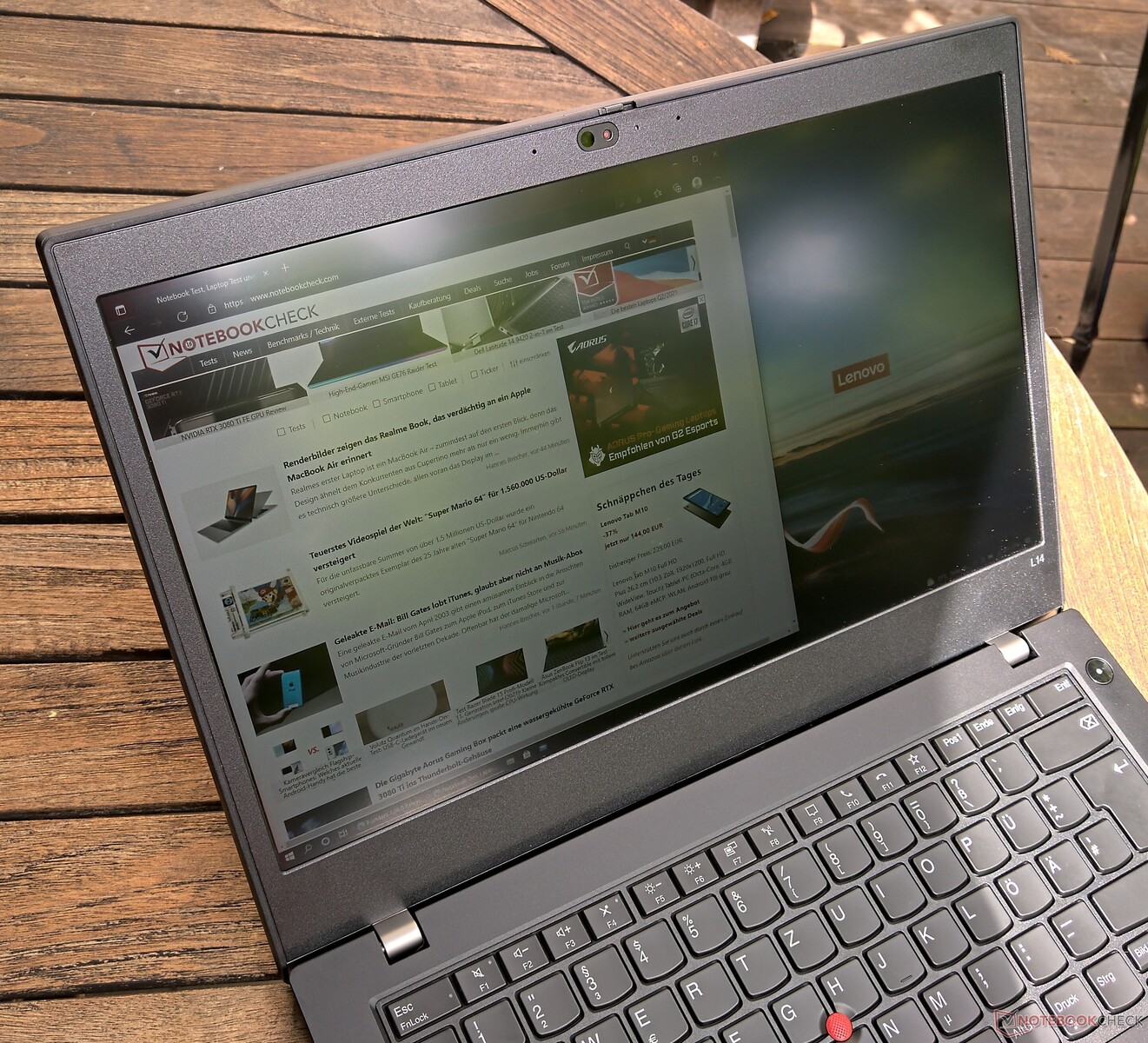

室外(阳光充足的部分阴凉处
室外(阳光充足的部分阴凉处

在户外,ThinkPad L14 2021的显示器得益于哑光表面。尽管如此,亮度并不高,实际上在非常明亮的环境中能够舒适地工作。

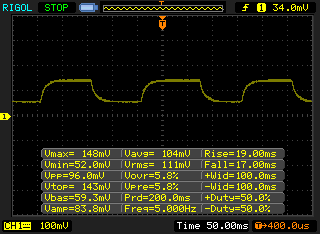

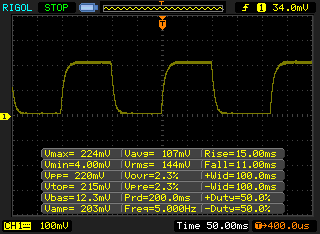

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 11 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 51 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.3 ms).
       Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 17 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.692 (minimum) to 636 (maximum) ms. » 36 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (36.8 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 21792 (minimum: 5 - maximum: 3846000) Hz was measured.

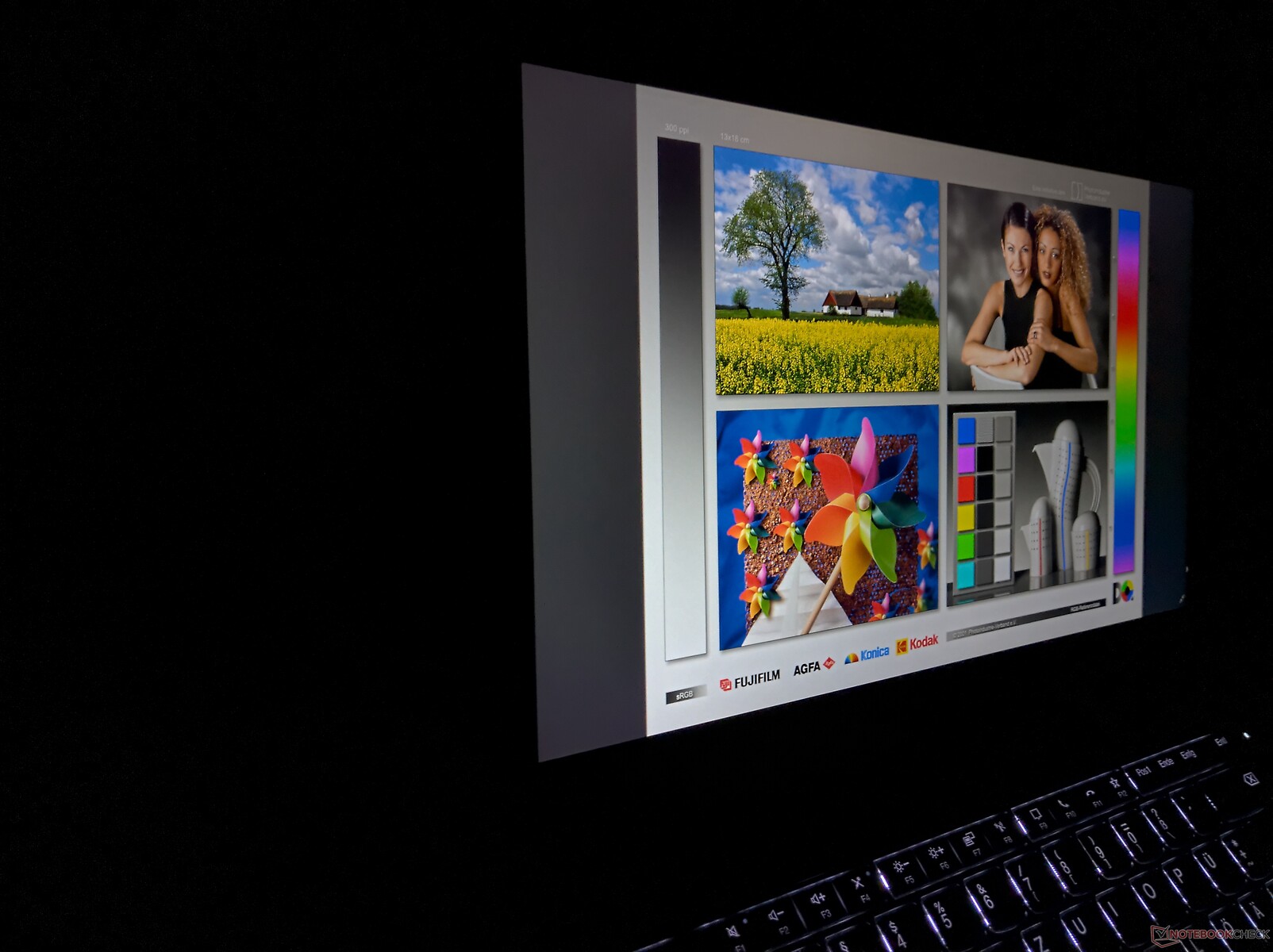

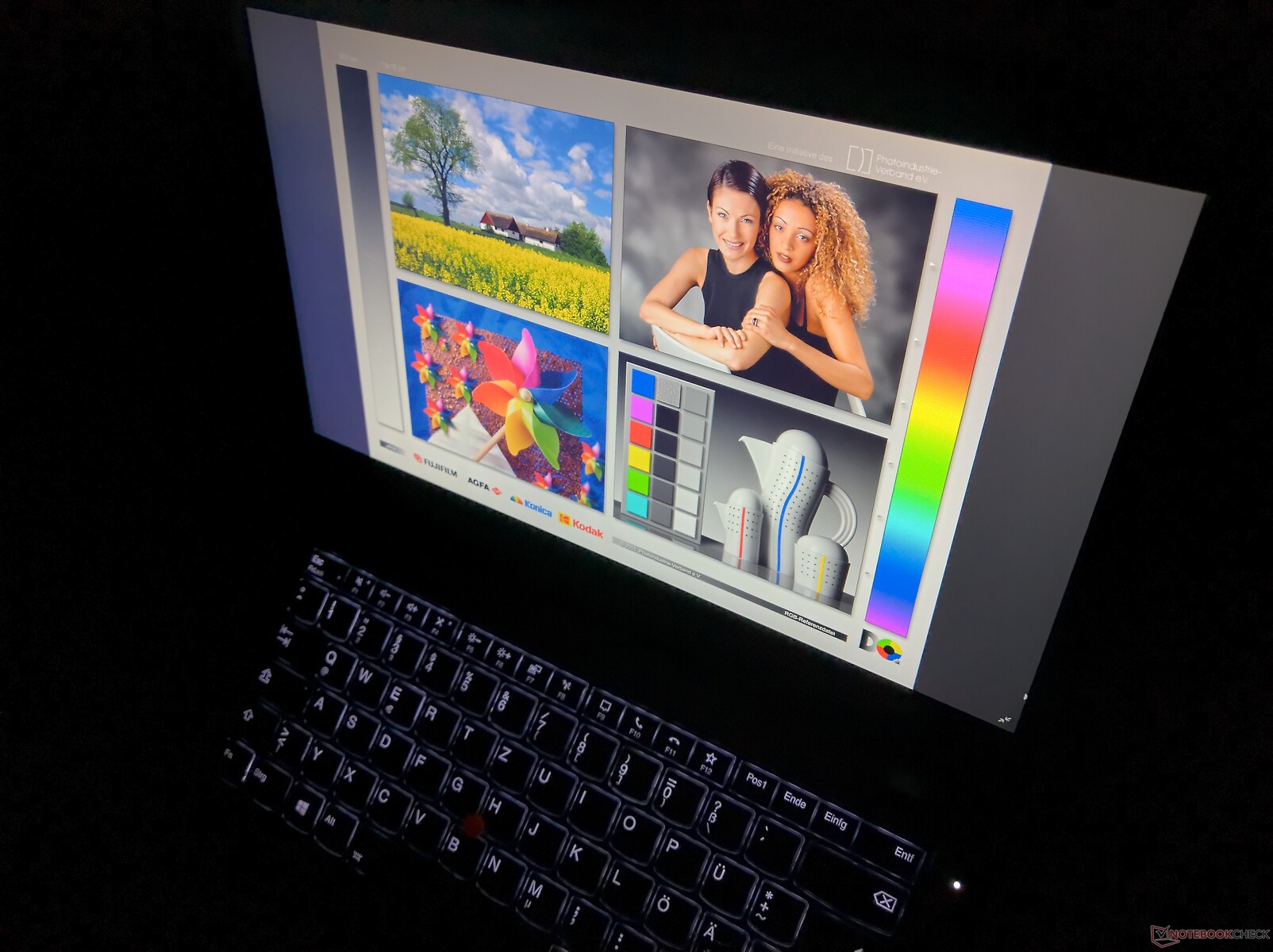

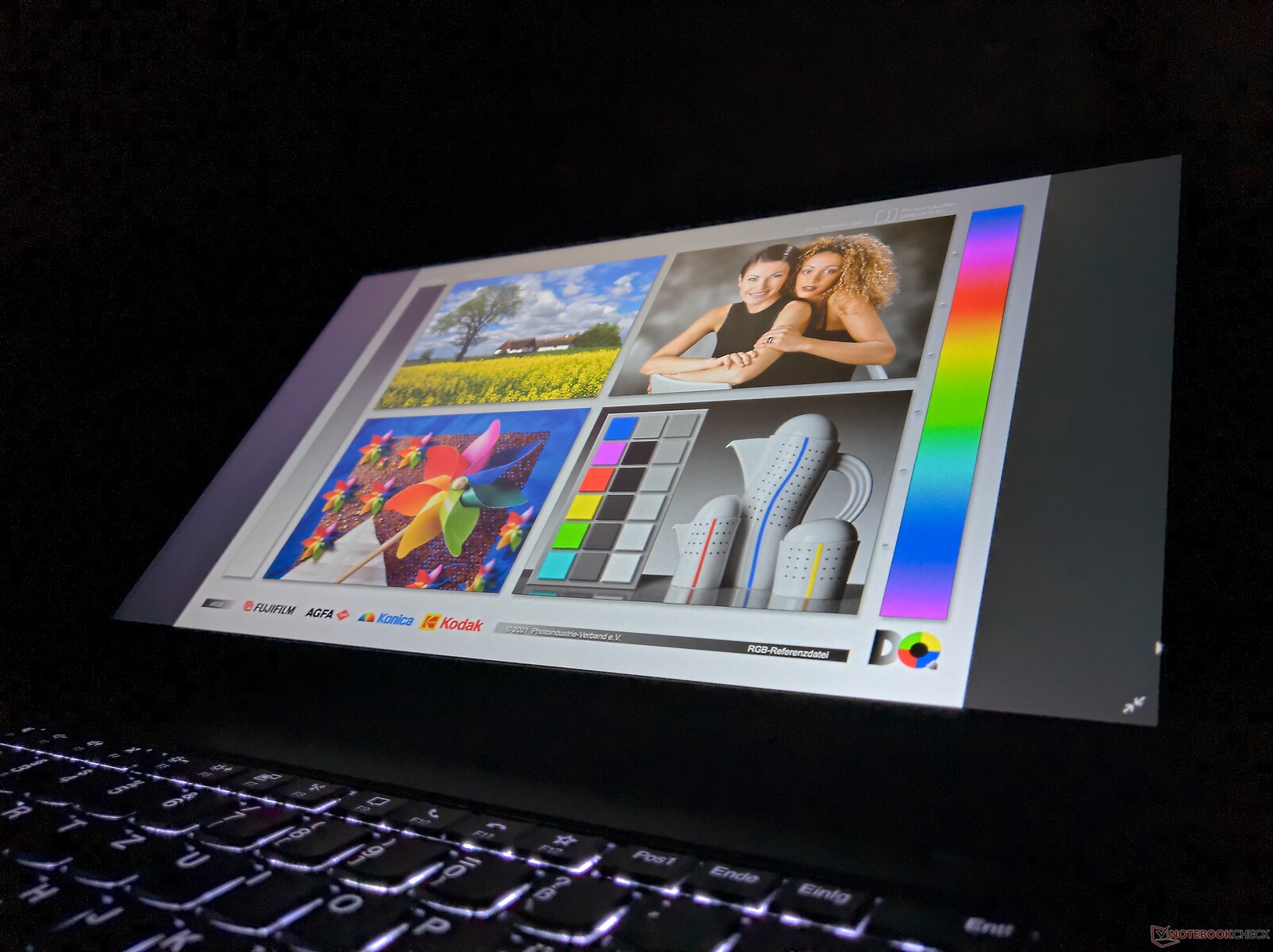

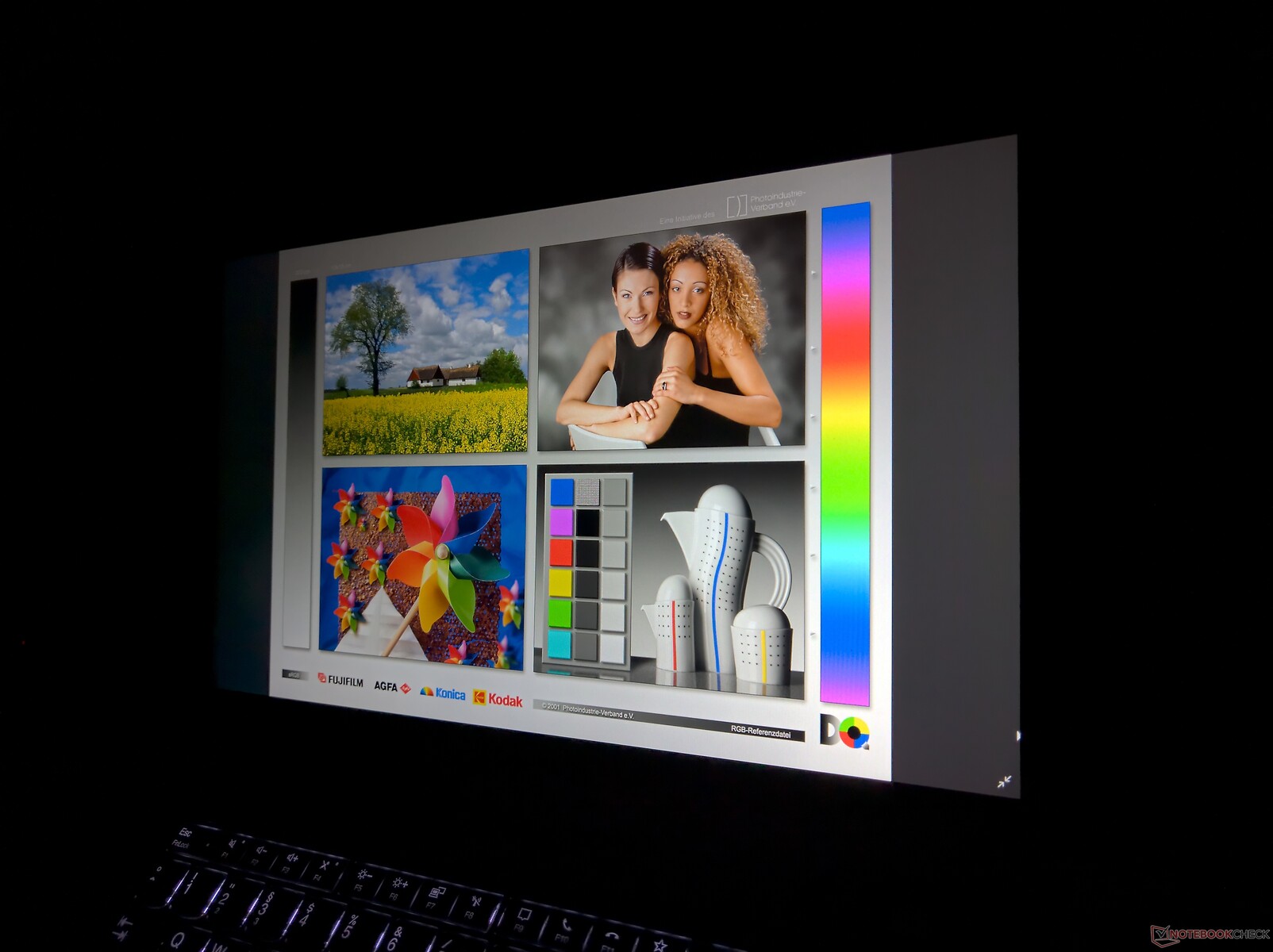

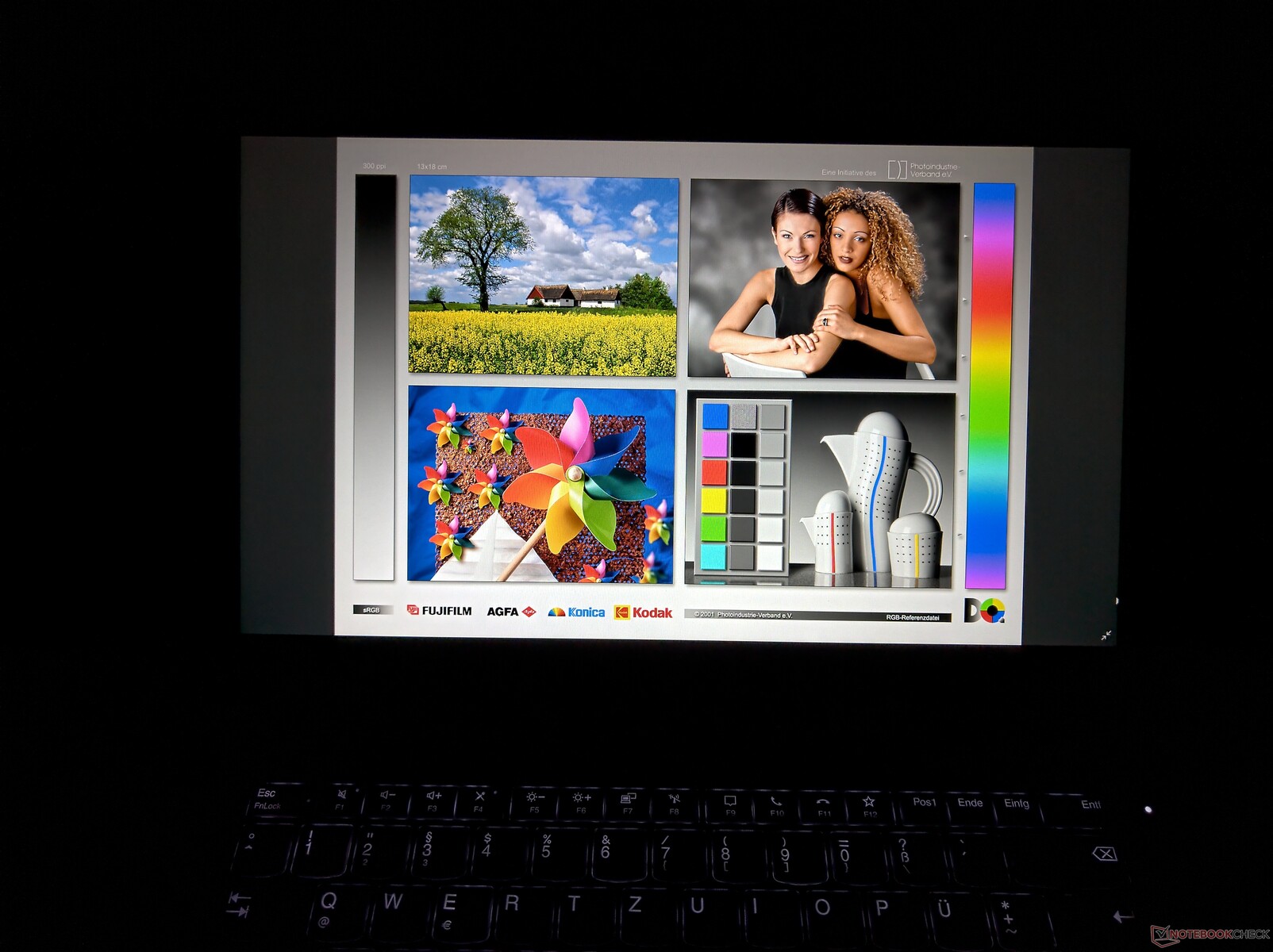

说到联想笔记本电脑的IPS显示屏的视角稳定性,没有什么可抱怨的。

AMD Ryzen 5000 CPU性能占优势

联想的规格表列出了ThinkPad L14第二代AMD笔记本电脑的五种处理器。AMD Ryzen 3 5400UPro 5450URyzen 5 5600UPro 5650U,以及 AMD Ryzen 7 Pro 5850U有了这些,你可以确信,当你购买这款联想笔记本电脑时,你得到的是基于塞尚/Zen 3的处理器。Ryzen 3有四个核心,Ryzen 5有六个,而Ryzen 7有八个CPU核心。Pro "变体的设计是为了与英特尔的vPro竞争,特别为大型企业客户准备的。

集成的AMD解决方案在所有情况下都充当联想ThinkPad L14 Gen 2的GPU。L系列的一大优势。通过两个SO-DIMMs,RAM完全可以升级和替换;最大支持64GB的DDR4-3200。L14第二代AMD总是配备一个NVMe PCIe 3.0固态硬盘,格式为2242或2280。

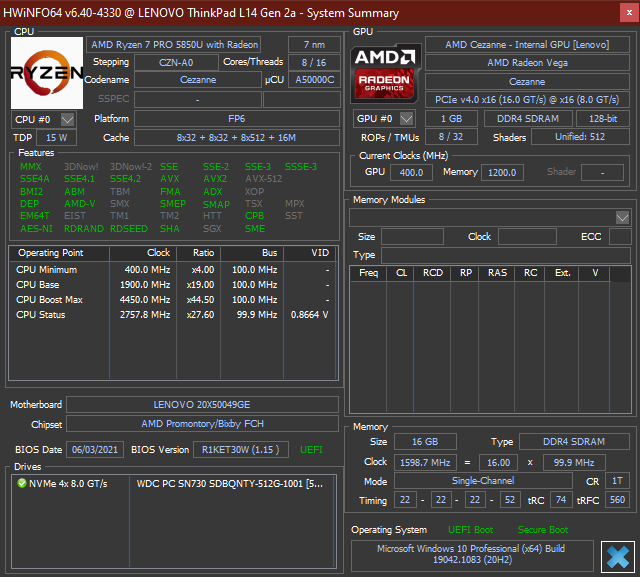

HWiNFO
HWiNFO

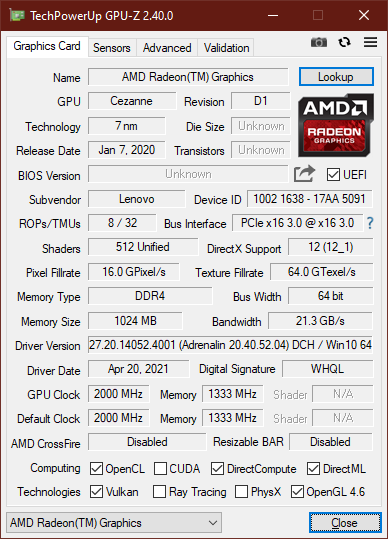

GPU-Z
GPU-Z

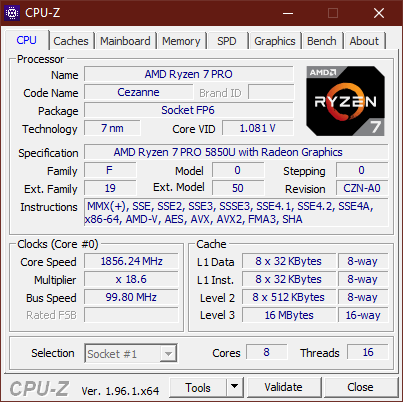

CPU-Z
CPU-Z

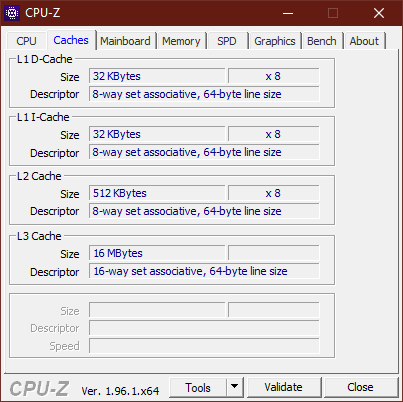

CPU-Z缓存
CPU-Z缓存

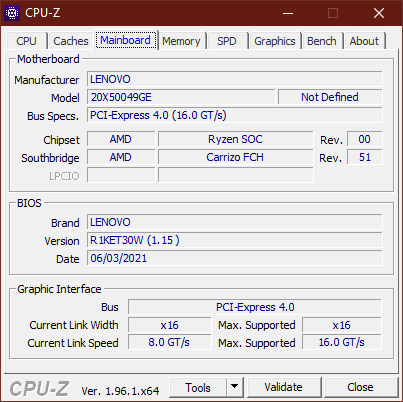

CPU-Z 主板
CPU-Z 主板

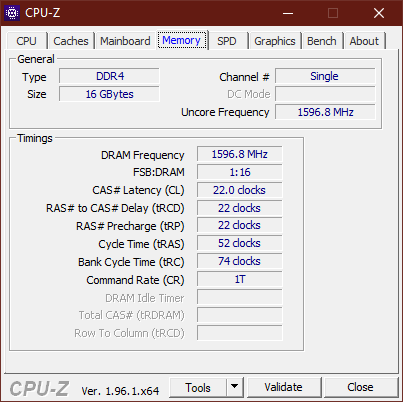

CPU-Z内存
CPU-Z内存

处理器

AMD Ryzen 7 Pro 5850URyzen Pro系列中用于笔记本电脑的最快处理器。Cezanne U芯片基于Zen 3架构,它具有八个内核(16个线程)。这款CPU的典型TDP为15瓦,时钟速率高达4.4GHz。你可以使用我们的CPU基准测试文章 ,将这款处理器与无数其他CPU进行比较。

凭借两根铜质热管,联想为AMD处理器分配的TDP为25瓦。该处理器可以持续保持这一消耗,所有八个核心都达到2.8GHz左右。在多核性能方面,ThinkPad L14第二代很难被击败--与Ryzen 7 Pro 4750U ,其直接前身CPU相比,这一学科的差异很小,但较新的CPU的单核性能反倒大大提升。说到单核。Tiger Lake U系列的最新英特尔CPU只在这一领域有小的优势。

没有发现CPU在电池电量上的性能下降。

Cinebench R15 Multi endurance test

654.9724.9794.9864.9934.91004.91074.91144.91214.91284.91354.9Tooltip
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U: Ø1391 (1385.52-1397.87)
Lenovo ThinkPad L14-20U50003GE AMD Ryzen 5 4500U: Ø865 (852.57-888.2)
Lenovo ThinkPad T14 Gen2-20W1S00000 Intel Core i7-1165G7: Ø859 (837.82-942.73)
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U: Ø1207 (1162.45-1245.1)
Dell Latitude 14 5411-WJ40N Intel Core i7-10850H: Ø1055 (1030.9-1231.53)
HP ProBook 440 G8-2W1G4EA Intel Core i7-1165G7: Ø670 (654.88-714.13)
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00 Intel Core i7-10750H: Ø1183 (1166.86-1256.76)
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U: Ø1311 (1300.6-1345.67)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R23: Single Core | Multi Core
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
580 Points ∼100% +6%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
569 Points ∼98% +4%
Average AMD Ryzen 7 PRO 5850U
  (543 - 558, n=3)
550 Points ∼95% 0%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
548 Points ∼94%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
494 Points ∼85% -10%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
488 Points ∼84% -11%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
468 Points ∼81% -15%
Average of class Office
  (114 - 606, n=116, last 2 years)
464 Points ∼80% -15%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
459 Points ∼79% -16%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
451 Points ∼78% -18%
Cinebench R20 / CPU (Multi Core)
Average AMD Ryzen 7 PRO 5850U
  (3184 - 3523, n=3)
3375 Points ∼100% +6%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
3184 Points ∼94%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
3050 Points ∼90% -4%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
2886 Points ∼86% -9%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
2827 Points ∼84% -11%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
2636 Points ∼78% -17%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
2253 Points ∼67% -29%
Average of class Office
  (323 - 3693, n=116, last 2 years)
1830 Points ∼54% -43%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
1776 Points ∼53% -44%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
1726 Points ∼51% -46%
Cinebench R23 / Single Core
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
1506 Points ∼100% +7%
Average AMD Ryzen 7 PRO 5850U
  (1401 - 1431, n=3)
1412 Points ∼94% 0%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1405 Points ∼93%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
1262 Points ∼84% -10%
Average of class Office
  (208 - 1578, n=73, last 2 years)
1200 Points ∼80% -15%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
1178 Points ∼78% -16%
Cinebench R23 / Multi Core
Average AMD Ryzen 7 PRO 5850U
  (8201 - 9111, n=3)
8676 Points ∼100% +6%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
8201 Points ∼95%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
7469 Points ∼86% -9%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
7458 Points ∼86% -9%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
5302 Points ∼61% -35%
Average of class Office
  (830 - 9653, n=75, last 2 years)
4776 Points ∼55% -42%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
227 Points ∼100%
Average AMD Ryzen 7 PRO 5850U
  (225 - 227, n=3)
226 Points ∼100% 0%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
224 Points ∼99% -1%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
220 Points ∼97% -3%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
205 Points ∼90% -10%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
203 Points ∼89% -11%
Average of class Office
  (80.1 - 230, n=110, last 2 years)
183 Points ∼81% -19%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
181 Points ∼80% -20%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
176 Points ∼78% -22%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
174 Points ∼77% -23%
Cinebench R15 / CPU Multi 64Bit
Average AMD Ryzen 7 PRO 5850U
  (1398 - 1527, n=3)
1464 Points ∼100% +5%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1398 (1385.52min - 1397.87max) Points ∼95%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
1346 (1300.6min - 1345.67max) Points ∼92% -4%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
1257 (1166.86min - 1256.76max) Points ∼86% -10%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
1245 (1162.45min - 1245.1max) Points ∼85% -11%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
1232 (1030.9min - 1231.53max) Points ∼84% -12%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
943 (837.82min - 942.73max) Points ∼64% -33%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
888 (852.57min - 888.2max) Points ∼61% -36%
Average of class Office
  (160.8 - 1614, n=115, last 2 years)
812 Points ∼55% -42%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
714 (654.88min - 714.13max) Points ∼49% -49%
Blender / v2.79 BMW27 CPU
Average of class Office
  (302 - 3895, n=117, last 2 years)
824 Seconds * ∼100% -126%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
696 Seconds * ∼84% -91%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
619 Seconds * ∼75% -70%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
562 Seconds * ∼68% -54%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
425 Seconds * ∼52% -17%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
393 Seconds * ∼48% -8%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
375 Seconds * ∼46% -3%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
367 Seconds * ∼45% -1%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
364 Seconds * ∼44%
Average AMD Ryzen 7 PRO 5850U
  (331 - 364, n=3)
347 Seconds * ∼42% +5%
7-Zip 18.03 / 7z b 4 -mmt1
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
5377 MIPS ∼100% +6%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
5364 MIPS ∼100% +6%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
5341 MIPS ∼99% +6%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
5241 MIPS ∼97% +4%
Average AMD Ryzen 7 PRO 5850U
  (5050 - 5300, n=3)
5194 MIPS ∼97% +3%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
5050 MIPS ∼94%
Average of class Office
  (2059 - 5565, n=118, last 2 years)
4491 MIPS ∼84% -11%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
4467 MIPS ∼83% -12%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
4312 MIPS ∼80% -15%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
4285 MIPS ∼80% -15%
7-Zip 18.03 / 7z b 4
Average AMD Ryzen 7 PRO 5850U
  (38553 - 45543, n=3)
42787 MIPS ∼100% +11%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
39649 MIPS ∼93% +3%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
38553 MIPS ∼90%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
34899 MIPS ∼82% -9%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
34433 MIPS ∼80% -11%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
30988 MIPS ∼72% -20%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
24996 MIPS ∼58% -35%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
21429 MIPS ∼50% -44%
Average of class Office
  (4226 - 44266, n=117, last 2 years)
21429 MIPS ∼50% -44%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
20118 MIPS ∼47% -48%
Geekbench 5.3 / 64 Bit Single-Core Score
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
1514 Points ∼100% +12%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
1482 Points ∼98% +9%
Average AMD Ryzen 7 PRO 5850U
  (1354 - 1448, n=3)
1413 Points ∼93% +4%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1354 Points ∼89%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
1305 Points ∼86% -4%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
1300 Points ∼86% -4%
Average of class Office
  (531 - 1648, n=114, last 2 years)
1219 Points ∼81% -10%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
1149 Points ∼76% -15%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
1109 Points ∼73% -18%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
1085 Points ∼72% -20%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
6444 Points ∼100% +25%
Average AMD Ryzen 7 PRO 5850U
  (5137 - 7039, n=3)
6355 Points ∼99% +24%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
5753 Points ∼89% +12%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
5650 Points ∼88% +10%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
5360 Points ∼83% +4%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
5137 Points ∼80%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
4760 Points ∼74% -7%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
4699 Points ∼73% -9%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
4409 Points ∼68% -14%
Average of class Office
  (1150 - 7672, n=114, last 2 years)
4162 Points ∼65% -19%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 PRO 5850U
  (9.89 - 11.6, n=3)
10.9 fps ∼100% +10%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
9.89 fps ∼91%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
9.55 fps ∼88% -3%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
9.45 fps ∼87% -4%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
8.77 fps ∼80% -11%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
8.37 fps ∼77% -15%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
7.09 fps ∼65% -28%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
6.93 fps ∼64% -30%
Average of class Office
  (0.63 - 11.3, n=116, last 2 years)
5.74 fps ∼53% -42%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
5.49 fps ∼50% -44%
LibreOffice / 20 Documents To PDF
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
62 s * ∼100% -19%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
60.5 s * ∼98% -17%
Average of class Office
  (21.5 - 210, n=116, last 2 years)
60.3 s * ∼97% -16%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
60 s * ∼97% -16%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
56.4 s * ∼91% -9%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
51.9 s * ∼84%
Average AMD Ryzen 7 PRO 5850U
  (49.1 - 51.9, n=3)
50.1 s * ∼81% +3%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
49 s * ∼79% +6%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
47 s * ∼76% +9%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
42 s * ∼68% +19%
R Benchmark 2.5 / Overall mean
Average of class Office
  (0.536 - 2.07, n=117, last 2 years)
0.696 sec * ∼100% -25%
Lenovo ThinkPad L14-20U50003GE
AMD Ryzen 5 4500U
0.648 sec * ∼93% -16%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Ryzen 5 5500U
0.625 sec * ∼90% -12%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
0.616 sec * ∼89% -11%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H
0.608 sec * ∼87% -9%
Lenovo ThinkPad X1 Extreme Gen3-20TLS0UV00
Intel Core i7-10750H
0.597 sec * ∼86% -7%
Lenovo ThinkPad T14 Gen2-20W1S00000
Intel Core i7-1165G7
0.581 sec * ∼83% -4%
HP ProBook 440 G8-2W1G4EA
Intel Core i7-1165G7
0.572 sec * ∼82% -3%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
0.557 sec * ∼80%
Average AMD Ryzen 7 PRO 5850U
  (0.536 - 0.557, n=3)
0.545 sec * ∼78% +2%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit
5817
Cinebench R10 Rendering Multiple CPUs 32Bit
27430
Cinebench R11.5 CPU Single 64Bit
2.67 Points
Cinebench R11.5 CPU Multi 64Bit
16.63 Points
Cinebench R15 CPU Multi 64Bit
1398 Points
Cinebench R15 OpenGL 64Bit
53.4 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
227 Points
Help

系统性能

联想ThinkPad L14第二代在PCMark 10中表现突出,这也与我们在日常使用中的印象一致。这是一款非常强大的联想笔记本电脑。

PCMark 10 / Score
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (5491 - 5933, n=3)
5705 Points ∼100% 0%
Lenovo ThinkPad L14 G2 AMD
Vega 8 R5000, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
5690 Points ∼100%
Lenovo ThinkPad T14 Gen2-20W1S00000
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5525 Points ∼97% -3%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
5097 Points ∼89% -10%
Dell Latitude 14 5411-WJ40N
GeForce MX250, i7-10850H, SK Hynix PC611 512GB
4725 Points ∼83% -17%
HP ProBook 440 G8-2W1G4EA
Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512
4597 Points ∼81% -19%
Average of class Office
  (2133 - 5933, n=101, last 2 years)
4504 Points ∼79% -21%
Lenovo ThinkPad L14-20U50003GE
Vega 6, R5 4500U, WDC PC SN730 SDBQNTY-512GB
4425 Points ∼78% -22%
PCMark 10 / Essentials
Lenovo ThinkPad L14 G2 AMD
Vega 8 R5000, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
10221 Points ∼100%
Lenovo ThinkPad T14 Gen2-20W1S00000
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
9955 Points ∼97% -3%
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (8772 - 10331, n=3)
9775 Points ∼96% -4%
Dell Latitude 14 5411-WJ40N
GeForce MX250, i7-10850H, SK Hynix PC611 512GB
9312 Points ∼91% -9%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
9154 Points ∼90% -10%
HP ProBook 440 G8-2W1G4EA
Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512
8997 Points ∼88% -12%
Average of class Office
  (4922 - 10650, n=101, last 2 years)
8923 Points ∼87% -13%
Lenovo ThinkPad L14-20U50003GE
Vega 6, R5 4500U, WDC PC SN730 SDBQNTY-512GB
8578 Points ∼84% -16%
PCMark 10 / Productivity
Lenovo ThinkPad L14 G2 AMD
Vega 8 R5000, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
9512 Points ∼100%
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (8967 - 9512, n=3)
9239 Points ∼97% -3%
Lenovo ThinkPad T14 Gen2-20W1S00000
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
8682 Points ∼91% -9%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
7819 Points ∼82% -18%
Dell Latitude 14 5411-WJ40N
GeForce MX250, i7-10850H, SK Hynix PC611 512GB
7658 Points ∼81% -19%
Average of class Office
  (3053 - 9512, n=101, last 2 years)
6705 Points ∼70% -30%
Lenovo ThinkPad L14-20U50003GE
Vega 6, R5 4500U, WDC PC SN730 SDBQNTY-512GB
6501 Points ∼68% -32%
HP ProBook 440 G8-2W1G4EA
Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512
6480 Points ∼68% -32%
PCMark 10 / Digital Content Creation
Average AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 5000)
  (5141 - 5938, n=3)
5598 Points ∼100% +9%
Lenovo ThinkPad T14 Gen2-20W1S00000
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5295 Points ∼95% +3%
Lenovo ThinkPad L14 G2 AMD
Vega 8 R5000, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
5141 Points ∼92%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
5023 Points ∼90% -2%
HP ProBook 440 G8-2W1G4EA
Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512
4522 Points ∼81% -12%
Lenovo ThinkPad L14-20U50003GE
Vega 6, R5 4500U, WDC PC SN730 SDBQNTY-512GB
4218 Points ∼75% -18%
Average of class Office
  (1270 - 5938, n=101, last 2 years)
4218 Points ∼75% -18%
Dell Latitude 14 5411-WJ40N
GeForce MX250, i7-10850H, SK Hynix PC611 512GB
4016 Points ∼72% -22%
PCMark 10 Score
5690 points
Help

DPC延迟

ThinkPad L14第二代没有DPC延迟的问题,因此它也可以用于实时音频应用。

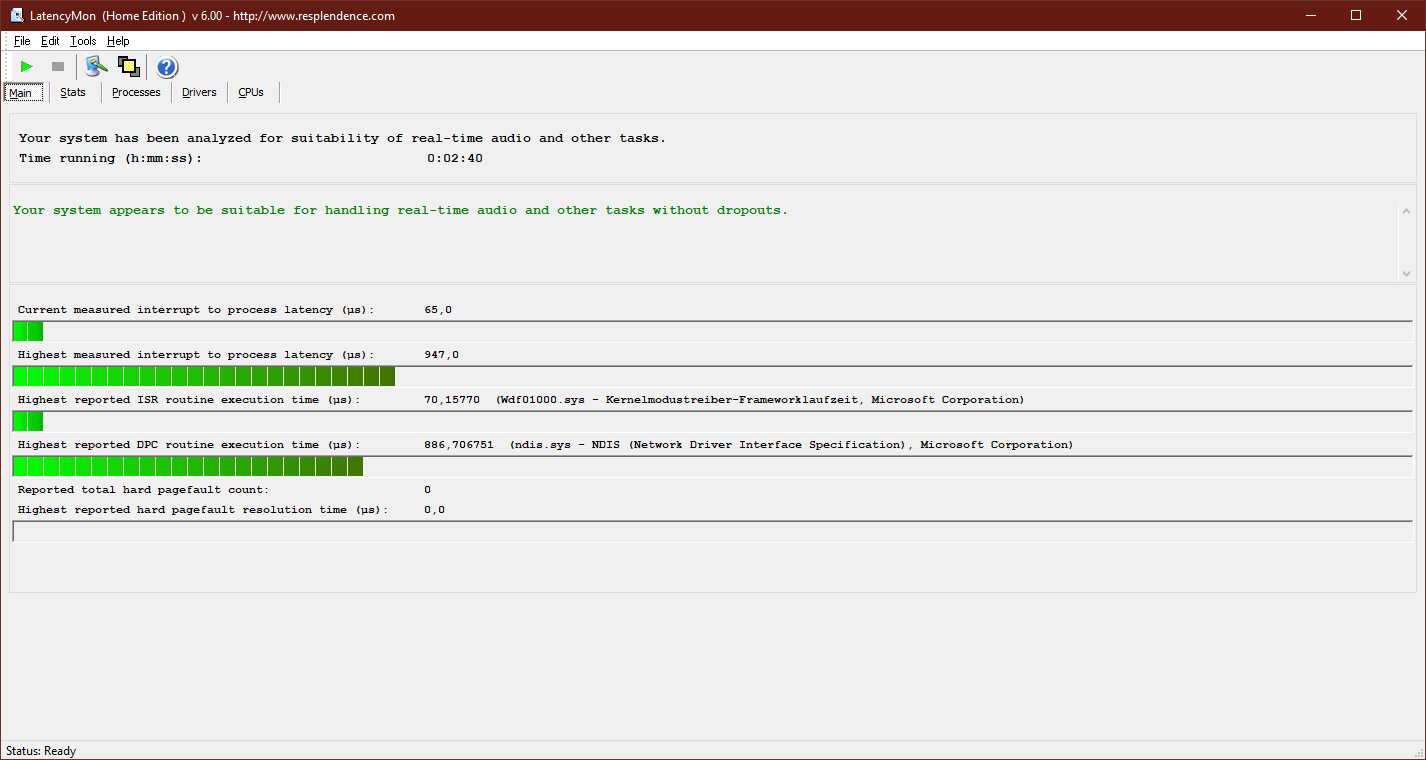

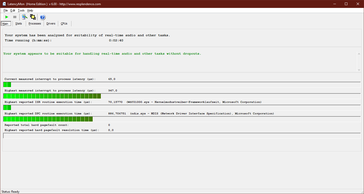

延迟监测
延迟监测

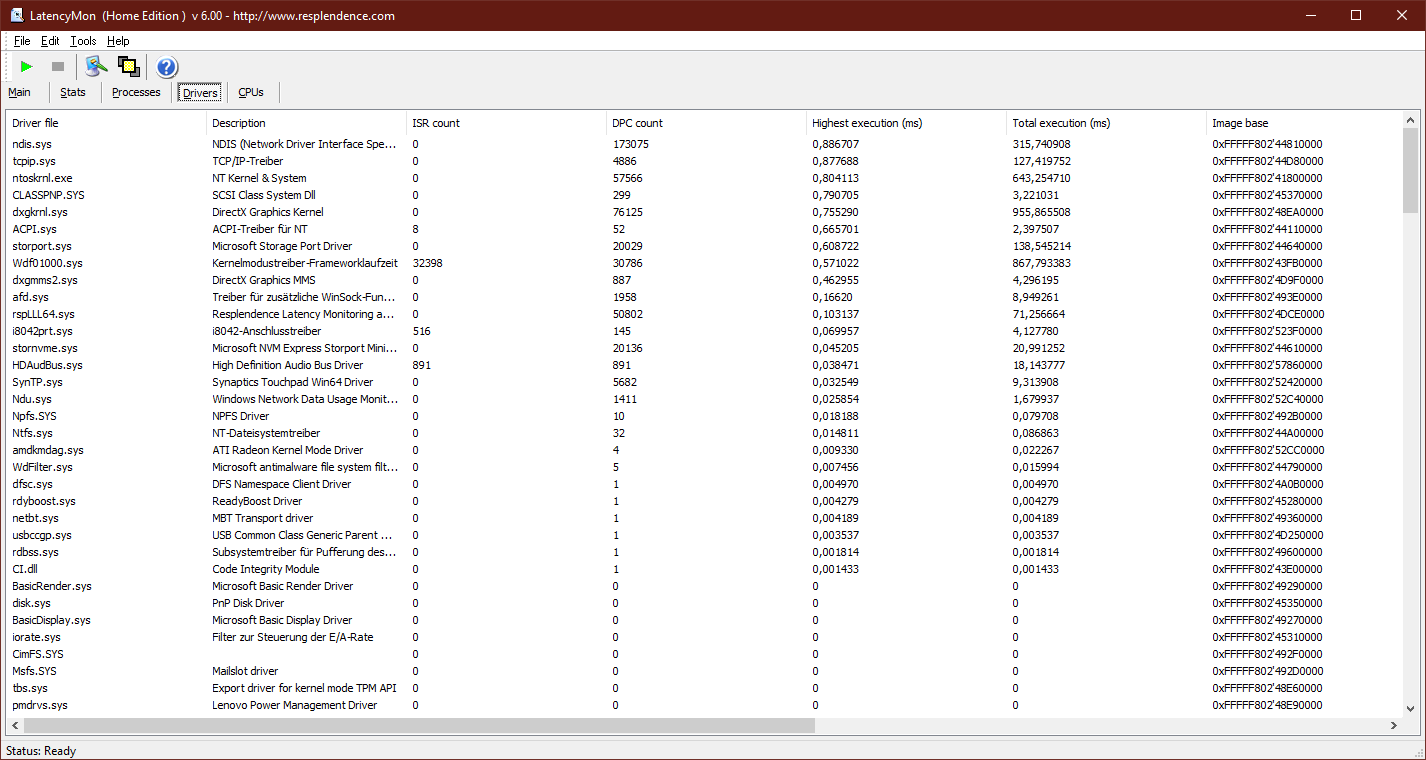

LatencyMon 驱动程序
LatencyMon 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad T14 Gen2-20W1S00000
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
8128 μs * ∼100% -734%
HP ProBook 440 G8-2W1G4EA
Iris Xe G7 96EUs, i7-1165G7, Lite-On CL1-8D512
7865 μs * ∼97% -707%
Lenovo ThinkPad E14 G3-20Y7003SGE
Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N
1229 μs * ∼15% -26%
Lenovo ThinkPad L14 G2 AMD
Vega 8 R5000, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
974 μs * ∼12%

* ... smaller is better

储存

联想ThinkPad L14第二代中的SSD容量为512GB。这块M.2280固态硬盘由西部数据生产。这是一款NVMe PCIe 3.0固态硬盘,性能不错--即使有更快的固态硬盘,比如ThinkPad T14 Gen 2中的三星PM981a 。

Lenovo ThinkPad L14 G2 AMD
WDC PC SN730 SDBQNTY-512GB
Lenovo ThinkPad T14 Gen2-20W1S00000
Samsung PM981a MZVLB1T0HBLR
Lenovo ThinkPad E14 G3-20Y7003SGE
SK Hynix BC711 HFM512GD3HX015N
Dell Latitude 14 5411-WJ40N
SK Hynix PC611 512GB
HP ProBook 440 G8-2W1G4EA
Lite-On CL1-8D512
Lenovo ThinkPad L14-20U50003GE
WDC PC SN730 SDBQNTY-512GB
Average WDC PC SN730 SDBQNTY-512GB

AS SSD
48%
12%
2%
-94%
-2%
-5%
Seq Read
2693
2099
-22%
2596
-4%
2681
0%
1681
-38%
2247
-17%
2506 ?(1939 - 2901, n=6)
-7%
Seq Write
1456
2485
71%
1460
0%
1430
-2%
210.1
-86%
1079
-26%
1655 ?(1079 - 2495, n=6)
14%
4K Read
41.67
67
61%
48.62
17%
49.22
18%
24.86
-40%
42.52
2%
42.2 ?(38.6 - 46.6, n=6)
1%
4K Write
138.4
206.1
49%
113.4
-18%
118
-15%
73.6
-47%
129.1
-7%
127.5 ?(88.8 - 154.9, n=6)
-8%
4K-64 Read
940
2029
116%
1419
51%
1139
21%
291.5
-69%
1316
40%
1061 ?(772 - 1416, n=6)
13%
4K-64 Write
1933
2073
7%
1840
-5%
1488
-23%
135.2
-93%
1332
-31%
1480 ?(990 - 1933, n=6)
-23%
Access Time Read *
0.114
0.039
66%
0.049
57%
0.057
50%
0.078
32%
0.086
25%
0.1012 ?(0.055 - 0.142, n=5)
11%
Access Time Write *
0.027
0.018
33%
0.032
-19%
0.031
-15%
0.152
-463%
0.029
-7%
0.03833 ?(0.027 - 0.07, n=6)
-42%
Score Read
1251
2306
84%
1727
38%
1456
16%
484
-61%
1583
27%
1354 ?(1108 - 1708, n=6)
8%
Score Write
2217
2527
14%
2099
-5%
1749
-21%
230
-90%
1569
-29%
1772 ?(1283 - 2217, n=6)
-20%
Score Total
4052
6039
49%
4658
15%
3895
-4%
895
-78%
3907
-4%
3781 ?(3083 - 4568, n=6)
-7%

* ... smaller is better

WDC PC SN730 SDBQNTY-512GB
Sequential Read: 2693MB/s
Sequential Write: 1456MB/s
4K Read: 41.67MB/s
4K Write: 138.4MB/s
4K-64 Read: 940MB/s
4K-64 Write: 1933MB/s
Access Time Read: 0.114ms
Access Time Write: 0.027ms
Score Read: 1251Points
Score Write: 2217Points
Score Total: 4052Points

Continuous load read: DiskSpd Read Loop, Queue Depth 8

No graph data

图形卡

一个Vega图形芯片被集成到AMD处理器中;在这种情况下,它是AMD Radeon RX Vega 。然而,在这种情况下,AMD的GPU不能使用其全部马力。这是由内存配置造成的。由于只有一个SO-DIMM模块,RAM只能以单通道模式运行。由于iGPU没有自己的内存,它完全依赖于系统内存--单通道模式在这种情况下牺牲了很多性能。在3DMark测试中,RX Vega 8的平均性能高出14%至19%。

幸运的是,你可以通过简单地添加第二个内存模块来大幅提高性能。这也应该能稍微提高游戏性能。然而,即使使用双通道内存,AMD的GPU仍然继续是一个低端的性能。现代游戏最多只能在最低细节设置下进行。

当电源适配器没有连接时,GPU性能不会被扼杀。

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
6341 Points ∼100% +45%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (4370 - 7591, n=16)
6116 Points ∼96% +40%
HP ProBook 440 G8-2W1G4EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5617 Points ∼89% +29%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5118 Points ∼81% +17%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
4641 Points ∼73% +6%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
4370 Points ∼69%
Average of class Office
  (599 - 11538, n=113, last 2 years)
4300 Points ∼68% -2%
Lenovo ThinkPad L14-20U50003GE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U
3401 Points ∼54% -22%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
4336 Points ∼100% +71%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
3824 Points ∼88% +51%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (2534 - 5041, n=16)
3773 Points ∼87% +49%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3325 Points ∼77% +31%
HP ProBook 440 G8-2W1G4EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3229 Points ∼74% +27%
Average of class Office
  (796 - 8114, n=110, last 2 years)
3022 Points ∼70% +19%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
2534 Points ∼58%
Lenovo ThinkPad L14-20U50003GE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U
2285 Points ∼53% -10%
2560x1440 Time Spy Graphics
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
1633 Points ∼100% +104%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (800 - 1557, n=16)
1190 Points ∼73% +49%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
1165 Points ∼71% +46%
HP ProBook 440 G8-2W1G4EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1042 Points ∼64% +30%
Average of class Office
  (286 - 2886, n=97, last 2 years)
1019 Points ∼62% +27%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
1009 Points ∼62% +26%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
800 Points ∼49%
The Witcher 3 - 1366x768 Medium Graphics & Postprocessing
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
55.3 (43min - 64max) fps ∼100% +120%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (25.1 - 55.2, n=8)
44.6 fps ∼81% +78%
Average of class Office
  (9.18 - 76.3, n=72, last 2 years)
38 fps ∼69% +51%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
36 fps ∼65% +43%
HP ProBook 440 G8-2W1G4EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
32.9 fps ∼59% +31%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
25.1 fps ∼45%
Dota 2 Reborn - 1366x768 med (1/3)
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
110 (96.4min) fps ∼100% +65%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
109 (94.7min) fps ∼99% +63%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (66.7 - 122.3, n=18)
93.1 fps ∼85% +40%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
76 (63min) fps ∼69% +14%
Lenovo ThinkPad L14-20U50003GE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U
70.7 (57.4min) fps ∼64% +6%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
66.7 (55.7min) fps ∼61%
Average of class Office
  (14.6 - 130, n=116, last 2 years)
63.3 fps ∼58% -5%
HP ProBook 440 G8-2W1G4EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
51 (39.7min) fps ∼46% -24%
X-Plane 11.11 - 1920x1080 med (fps_test=2)
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
57 fps ∼100% +99%
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
41.4 fps ∼73% +44%
Average AMD Radeon RX Vega 8 (Ryzen 5000)
  (28.7 - 49.6, n=18)
38.8 fps ∼68% +35%
Lenovo ThinkPad E14 G3-20Y7003SGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
33.7 fps ∼59% +17%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), AMD Ryzen 7 PRO 5850U
28.7 fps ∼50%
Lenovo ThinkPad L14-20U50003GE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U
27.8 fps ∼49% -3%
Average of class Office
  (3.96 - 80.7, n=113, last 2 years)
27.4 fps ∼48% -5%
HP ProBook 440 G8-2W1G4EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
17.9 fps ∼31% -38%
3DMark 11 Performance
4386 points
3DMark Fire Strike Score
2278 points
3DMark Time Spy Score
917 points
Help
low med. high ultra
GTA V (2015) 53.6 47.1 14.3 6.64
The Witcher 3 (2015) 40.5 25.1 12.5
Dota 2 Reborn (2015) 97.5 66.7 33.5 31.4
Final Fantasy XV Benchmark (2018) 22.7 12.2 7.74
X-Plane 11.11 (2018) 38.7 28.7 25.8
Strange Brigade (2018) 45.3 17.6 15.3 13.3
F1 2020 (2020) 60.1 27.6 21.9 15.6

排放。Ryzen 5000保持温度和风扇噪音低

噪声排放

风扇在空闲使用时保持沉默。在中等负荷下,我们用3DMark 06进行模拟,风扇几乎听不到,只有26.81dB(A)。只有在用Prime95和FurMark进行的最大负载测试中,风扇才最终转速达到近38 dB(A),这显然是可以听到的。然而,联想ThinkPad L14第二代的风扇需要一段时间才能达到这个音量,因为主动冷却是在数分钟内逐渐增加的。总而言之,ThinkPad笔记本电脑的噪音是非常克制的。

我们没能在L14 Gen 2中检测到线圈的啸叫。

Noise Level

Idle
25.08 / 25.08 / 25.08 dB(A)
Load
26.81 / 37.99 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 25.08 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs F(Hz)02022.622.926.42522.223.226.73119.719.320.64024.121.727.65022.223.424.76318.717.826.38016.314.820.910016.617.321.9125161432.416020.319.621.120014.112.619.125018.618.621.731515.915.821.840016.912.823.650014.912.422.163015.712.423.880014.911.724.6100014.913.225.1125014.710.822.9160013.910.623.820001410.523.8250014.110.925.7315015.911.429400015.31228.250001511.927.563001412.128.8800012.812.125.21000012.412.119.91250012.412.316.81600018.111.718.1SPL26.824.138N0.80.62.9median 14.9median 12.1median 23.8Delta11.12.2hearing rangehide median Fan NoiseLenovo ThinkPad L14 G2 AMD

温度

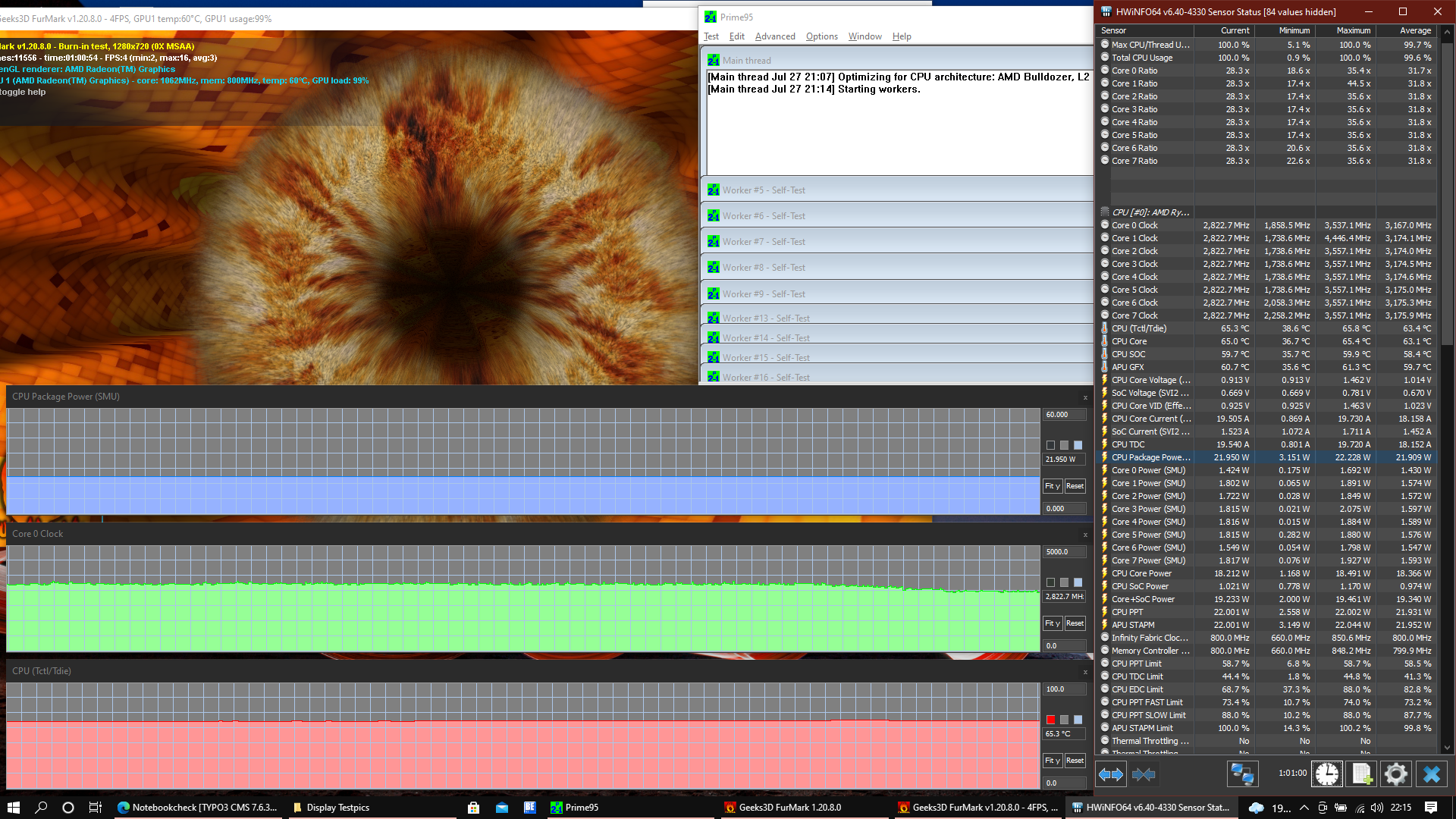

压力测试(Prime95 + FurMark)
压力测试(Prime95 + FurMark)

联想ThinkPad L14第二代外箱的温度在底部中心达到最高45.2 °C(约113 °F)。这很温暖,但并不关键。掌托始终保持凉爽,这意味着在使用联想笔记本电脑工作时不会出现手汗。

在CPU/GPU压力测试中,处理器可以持续消耗22瓦的功率。CPU温度持续在65℃(约149°F),有2.8GHz的CPU时钟速率。节流在ThinkPad L14第二代中是绝对没有问题的。

Max. Load
 34.1 °C42.1 °C37.1 °C
 32.1 °C36.6 °C38.6 °C
 25.5 °C27 °C29 °C
Maximum: 42.1 °C
Average: 33.6 °C
42 °C42.7 °C37 °C
34.6 °C45.2 °C35.8 °C
30.3 °C28 °C26 °C
Maximum: 45.2 °C
Average: 34.6 °C
Power Supply (max.)  38.8 °C | Room Temperature 21.5 °C | Fluke 62 Max+
(±) The average temperature for the upper side under maximal load is 33.6 °C / 92 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42.1 °C / 108 F, compared to the average of 34 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.

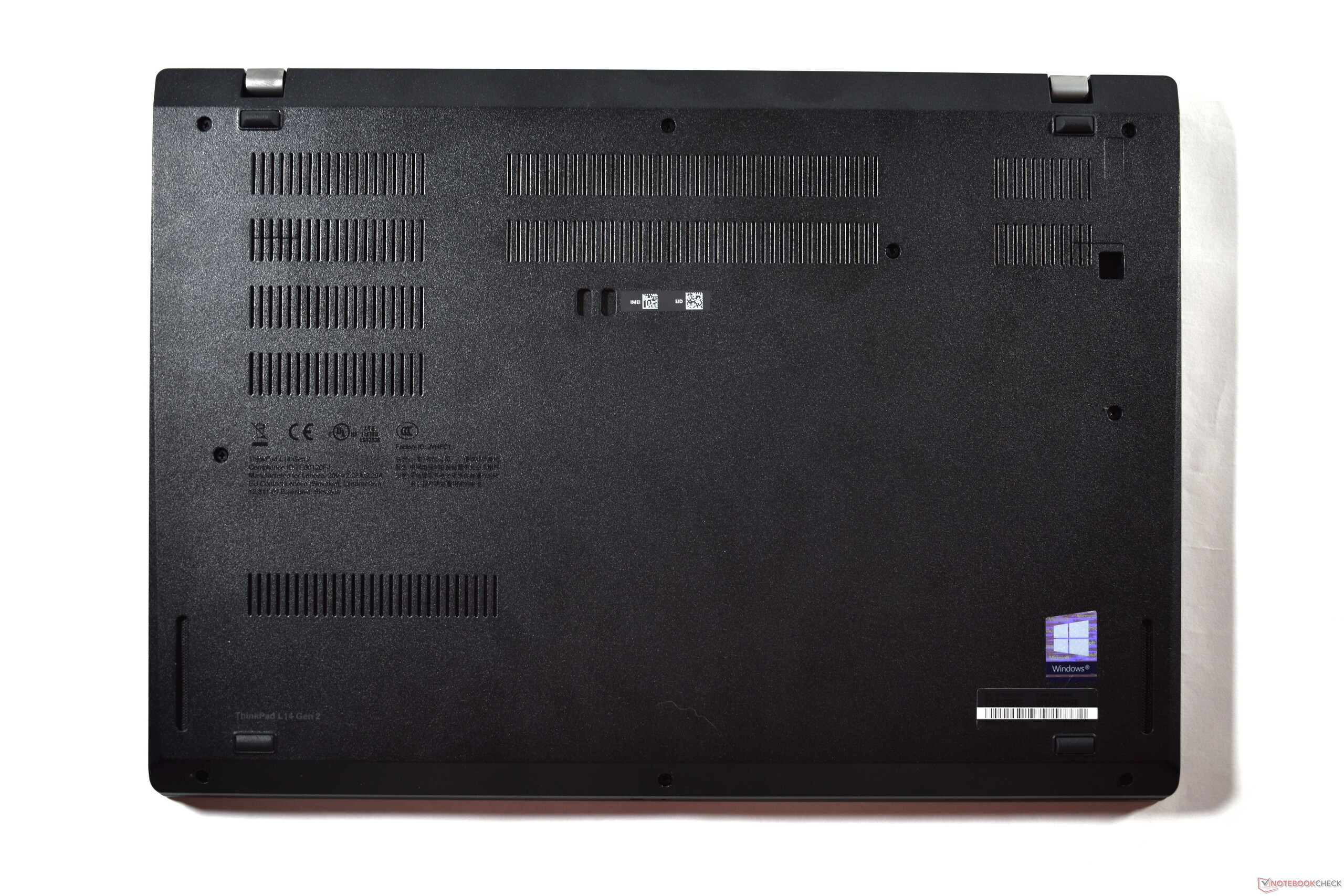

(-) The bottom heats up to a maximum of 45.2 °C / 113 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29 °C / 84.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-1.2 °C / -2.2 F).

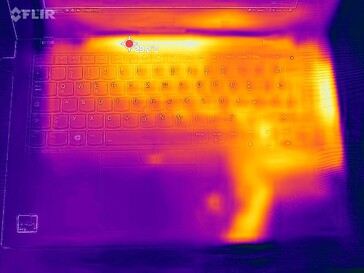

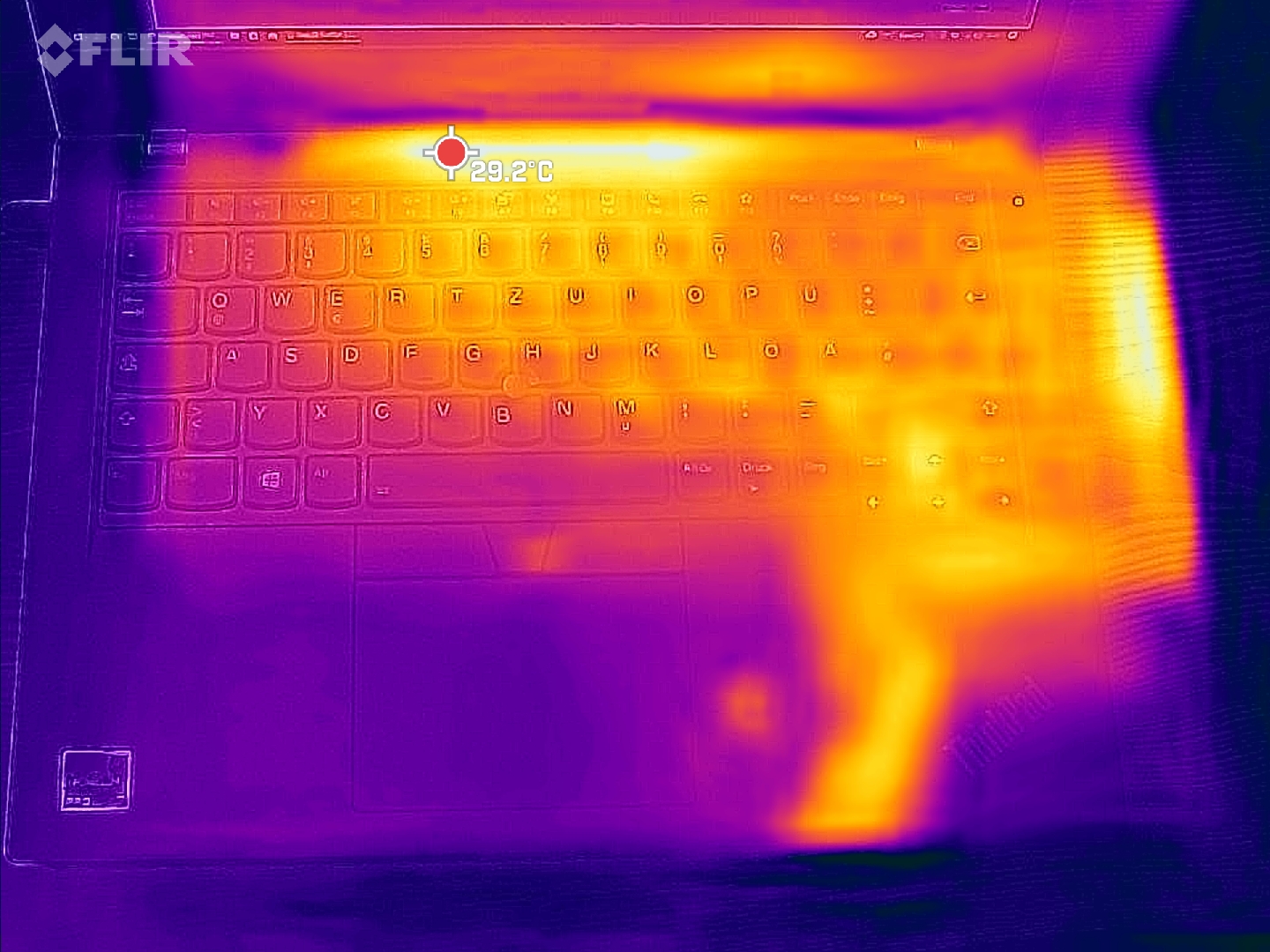

闲置(顶部
闲置(顶部

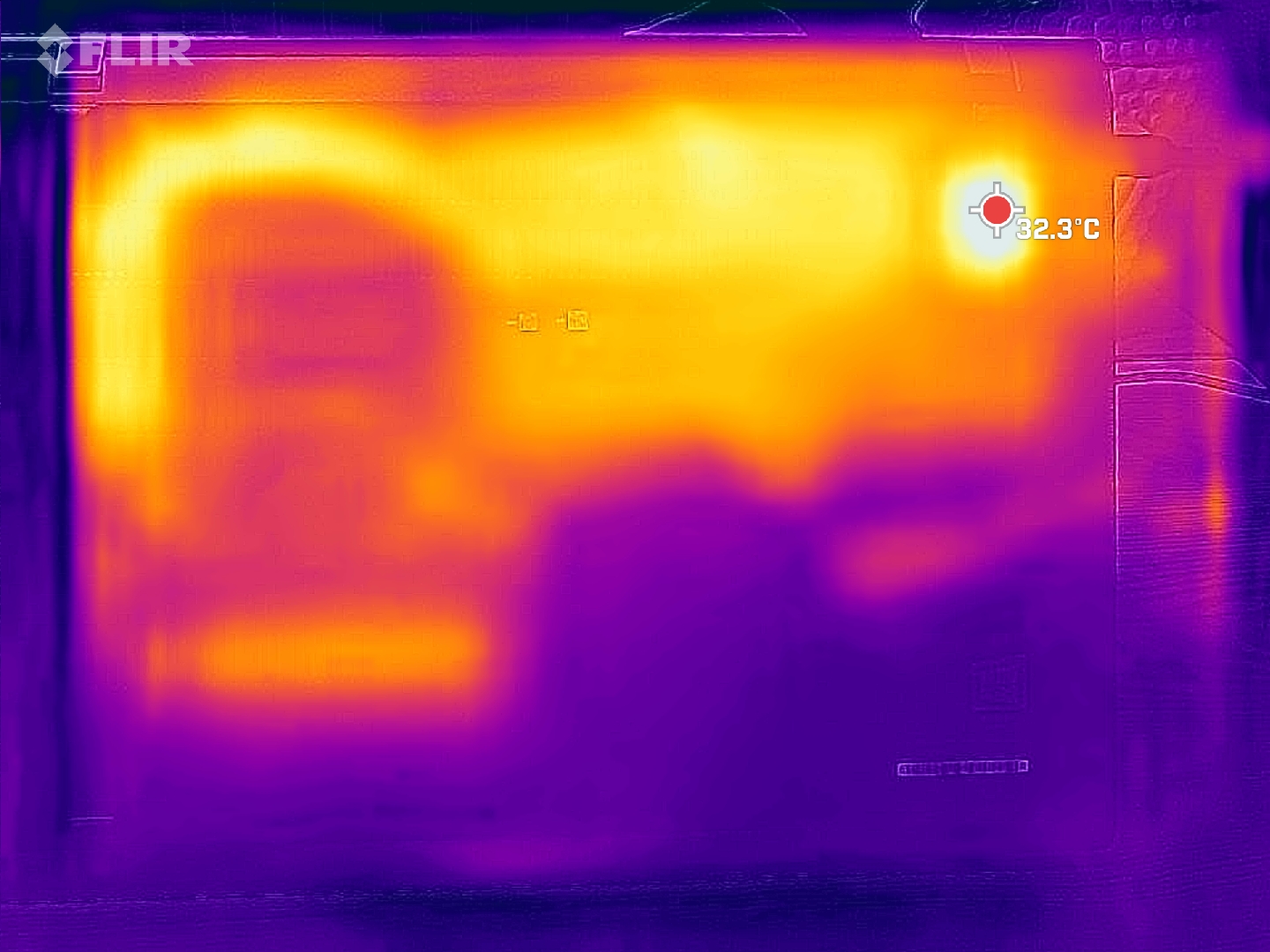

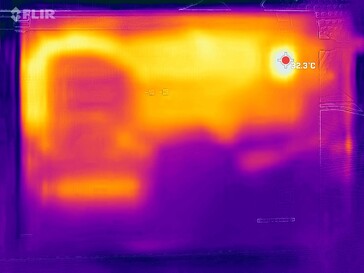

闲置(底部)
闲置(底部)

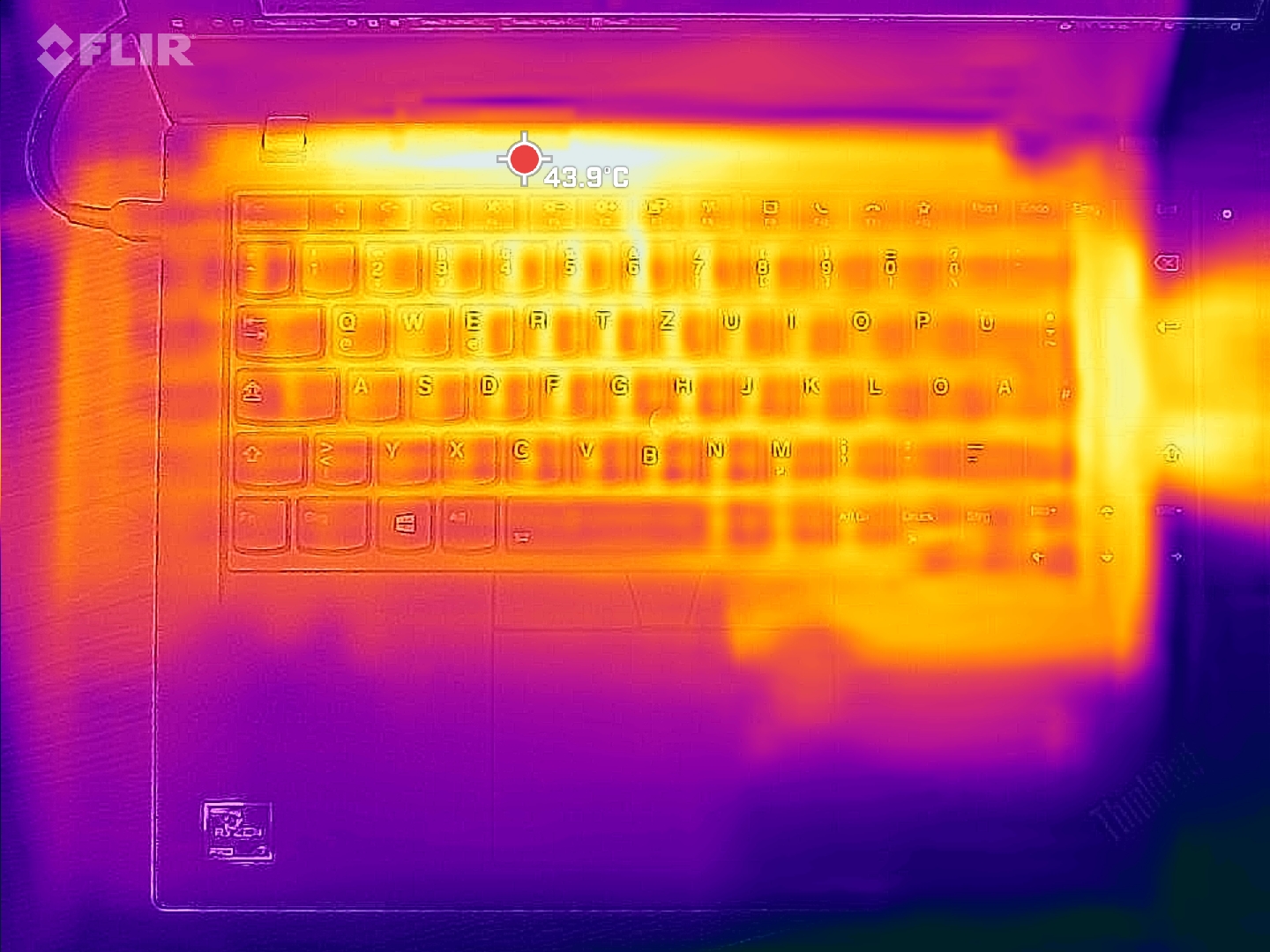

负载(顶部
负载(顶部

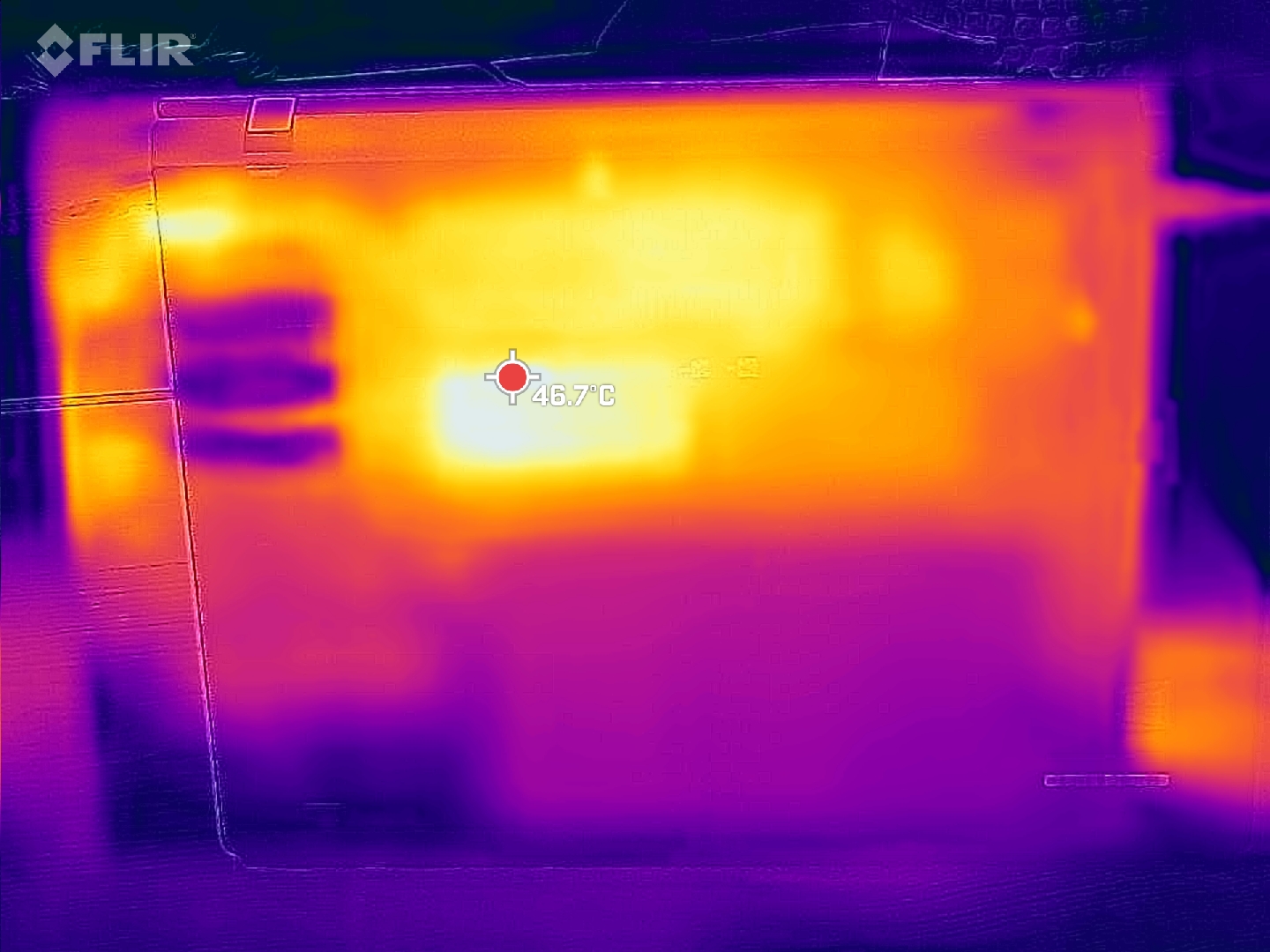

负载(底部
负载(底部

发言人

ThinkPad T14 Gen 2 ,ThinkPad L14 Gen 2的扬声器仍然在底部。立体声扬声器对于听音乐来说相当糟糕;无论是低音还是整体音量都不足,而且高音也不是很均衡。即使是T14的扬声器,也确实不是很好,但仍有优势。

使用功能完善的3.5毫米输出口,可以达到相当好的效果。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2023.226.12521.623.53118.420.34023.726.25022.323.66319.319.88017.517.71001717.41251518.116021.322.120012.331.225018.438.23151744.840015.946.550011.545.363010.646.280010.246.7100011.253.8125010.462.2160010.158.5200010.559.4250010.955.6315011.557.7400011.952.950001253.4630012.156800011.963.4100001263.31250012.457.91600011.753.1SPL23.970.1N0.523.8median 11.9median 53.1Delta29.725.525.524.225.125.119.721.221.222.231.531.52938.938.936.9222219.725.325.318.636.636.624.942.142.124.746.846.819.2575720.260.960.921.166.966.92669.169.120.965.565.521.168.868.824.474.374.325.5727218.1656513.568.768.712.570.270.213.468.768.713.164.864.813.167.367.312.466.766.712.364.564.512.361.561.512.161.961.91262.262.21260.260.211.480.480.43050.150.11.2median 65median 65median 13.54.34.34.6hearing rangehide median Pink NoiseLenovo ThinkPad L14 G2 AMDLenovo ThinkPad T14 Gen2-20W1S00000
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad L14 G2 AMD audio analysis

(-) | not very loud speakers (70.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.5% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.1% lower than median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.5% difference to median)
Compared to same class
» 76% of all tested devices in this class were better, 7% similar, 17% worse
» The best had a delta of 7%, average was 21%, worst was 51%
Compared to all devices tested
» 75% of all tested devices were better, 6% similar, 19% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Lenovo ThinkPad T14 Gen2-20W1S00000 audio analysis

(±) | speaker loudness is average but good (77.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14% lower than median
(±) | linearity of bass is average (13.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.8% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 2% similar, 95% worse
» The best had a delta of 7%, average was 21%, worst was 51%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 3%, average was 20%, worst was 65%

能源管理。电池寿命是联想ThinkPad L14第二代的一个薄弱点

能源消耗

我们发现,特别是在空闲使用时,耗电率有点太高,不符合我们的口味。联想应该通过ThinkPad L14第二代的固件更新在这方面做出改进。

USB-C电源适配器可提供65瓦的功率,这远远超过了42瓦的最大消耗量。

Power Consumption
Off / Standbydarklight 0.53 / 0.88 Watt
Idledarkmidlight 5.44 / 8.06 / 9.4 Watt
Load midlight 36.06 / 42.26 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad L14 G2 AMD
R7 PRO 5850U, Vega 8 R5000, WDC PC SN730 SDBQNTY-512GB, IPS LED, 1920x1080, 14.00
Lenovo ThinkPad L14-20U50003GE
R5 4500U, Vega 6, WDC PC SN730 SDBQNTY-512GB, IPS, 1920x1080, 14.00
Lenovo ThinkPad T14 Gen2-20W1S00000
i7-1165G7, GeForce MX450, Samsung PM981a MZVLB1T0HBLR, IPS LED, 1920x1080, 14.00
Lenovo ThinkPad E14 G3-20Y7003SGE
R5 5500U, Vega 7, SK Hynix BC711 HFM512GD3HX015N, IPS, 1920x1080, 14.00
Dell Latitude 14 5411-WJ40N
i7-10850H, GeForce MX250, SK Hynix PC611 512GB, IPS, 1920x1080, 14.00
HP ProBook 440 G8-2W1G4EA
i7-1165G7, Iris Xe G7 96EUs, Lite-On CL1-8D512, VA, 1920x1080, 14.00
Average AMD Radeon RX Vega 8 (Ryzen 5000)

Average of class Office

Power Consumption
-1%
-28%
-11%
-53%
19%
-17%
-0%
Idle Minimum *
5.44
4.4
19%
3.8
30%
3.5
36%
3.1
43%
4
26%
5.45 ?(3.16 - 12.5, n=14)
-0%
4.2 ?(1.9 - 9.9, n=107, last 2 years)
23%
Idle Average *
8.06
7.7
4%
7.3
9%
7.5
7%
5.4
33%
6.2
23%
8.48 ?(5.5 - 12.8, n=14)
-5%
7.53 ?(3.5 - 17.4, n=107, last 2 years)
7%
Idle Maximum *
9.4
8.9
5%
11.2
-19%
8.7
7%
9
4%
7.5
20%
9.68 ?(6.4 - 14.5, n=14)
-3%
9.24 ?(4.7 - 22.5, n=107, last 2 years)
2%
Load Average *
36.06
31.3
13%
61.2
-70%
43.6
-21%
84
-133%
34.7
4%
47.8 ?(29.4 - 98.9, n=14)
-33%
36.9 ?(8.2 - 85.6, n=105, last 2 years)
-2%
Witcher 3 ultra *
26.1
33
-26%
41.2
-58%
42.2
-62%
Load Maximum *
42.26
50.6
-20%
67.5
-60%
55
-30%
131
-210%
34
20%
60.2 ?(37.2 - 101.8, n=14)
-42%
55.7 ?(8.7 - 131, n=107, last 2 years)
-32%

* ... smaller is better

Energy consumption during The Witcher 3 / stress test

24.7Tooltip
: Ø26.1 (24.7-27.7)

电池寿命

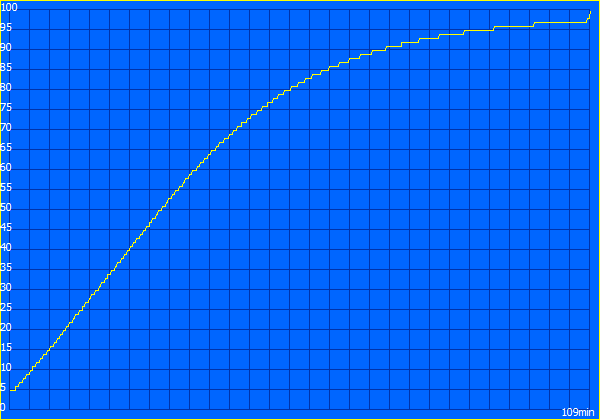

充电时间:109分钟
充电时间:109分钟

仅从容量上就可以看出:电池寿命并不是ThinkPad L14第二代的强项。内部电池的容量为45Wh,是目前14英寸ThinkPad中容量最低的一个。在Wi-Fi测试中,不到8小时的时间是一个略低于平均水平的结果,这是低容量的结果;只有惠普ProBook 440 G8使用同样大小的电池时表现得略差。

Battery Runtime
WiFi Websurfing (Edge 91)
7h 49min
WiFi Websurfing max. Brightness (Edge 91)
7h 14min
Big Buck Bunny H.264 1080p
9h 34min
Load (maximum brightness)
1h 17min
Lenovo ThinkPad L14 G2 AMD
R7 PRO 5850U, Vega 8 R5000, 45 Wh
Lenovo ThinkPad T14 Gen2-20W1S00000
i7-1165G7, GeForce MX450, 50 Wh
Lenovo ThinkPad E14 G3-20Y7003SGE
R5 5500U, Vega 7, 57 Wh
Dell Latitude 14 5411-WJ40N
i7-10850H, GeForce MX250, 68 Wh
HP ProBook 440 G8-2W1G4EA
i7-1165G7, Iris Xe G7 96EUs, 45 Wh
Lenovo ThinkPad L14-20U50003GE
R5 4500U, Vega 6, 45 Wh
Average of class Office

Battery Runtime
21%
27%
9%
85%
26%
30%
H.264
574
839
46%
827
44%
495
-14%
640 ?(292 - 1204, n=34, last 2 years)
11%
WiFi v1.3
469
538
15%
680
45%
510
9%
450
-4%
487
4%
553 ?(241 - 1715, n=105, last 2 years)
18%
Load
77
78
1%
71
-8%
211
174%
145
88%
123.1 ?(54 - 359, n=59, last 2 years)
60%

Pros

+ 高可升级性和可维修性
+ 坚固的外壳
+ 带TrackPoint的键盘
+ 广泛的连接性,包括LTE
+ 非常快的AMD Ryzen 5000 CPU
+ 比其他ThinkPads更便宜

Cons

- 显示屏弱
- 扬声器不佳
- Realtek Wi-Fi
- 重量相对较高
- 低于平均水平的电池寿命
- 只有一年的保修期

结论:L14第二代AMD是一个伟大的工作设备,但液晶显示器不佳

在审查中。联想ThinkPad L14第二代,测试设备由联想提供
在审查中。联想ThinkPad L14第二代,测试设备由联想提供

多年来,ThinkPad L系列有了明显的改进,而联想ThinkPad L14第二代AMD是这种进步的一个典型例子。

然而,这个过程还没有结束。例如,你可以从薄弱的显示屏中看到这一点,它适合办公室工作,但在其他方面未能满足我们的期望。在Wi-Fi模块、扬声器和网络摄像头以及电池容量方面,联想也走了不少弯路。由于电池太小,L14第二代并不像更昂贵的ThinkPad T系列或ThinkPad E14第三代那样适合移动使用。 ThinkPad E14第3代.此外,L14 Gen 2是14英寸商务笔记本电脑中重量最重的。

除了AMD Ryzen 7处理器的卓越性能,稳定的外壳与出色的输入设备,以及全面的连接性(在我们的评测样本中还包括LTE),还有另一个有利的一面。可维护性和可升级性。目前没有任何一款14英寸的ThinkPad可以进行更广泛的升级,其中两个SO-DIMM插槽和可更换的键盘尤其突出。

总体来说不错,CPU性能和可升级性非常强,但在多媒体质量和移动性方面存在不足。联想ThinkPad L14第二代AMD。

如果你选择ThinkPad L系列,你仍然要面对价格较低带来的妥协。然而,我们可以给ThinkPad L14 Gen 2 AMD一个推荐,因为它的优点超过了缺点,至少当它主要用于静止模式时--但要注意的是,如果可能的话,你应该选择具有更好的400 cd/m²低功耗显示屏的型号。这种型号可以成为更实惠的家庭办公笔记本电脑的真正好选择。

一个强有力的内部竞争者是 ThinkPad E14第三代虽然它的模块化程度较低。惠普 惠普ProBook 440或445 G8在这方面也差不了多少。不过,在商务功能方面,后者更适合E14,因为它缺乏LTE等功能。

价格和可用性

在撰写本文时,ThinkPad L14第二代AMD在联想的网站上被正式列为列为 "即将推出"。另外,你也可以等待该设备在Amazon上出售newegg,比如说。

Lenovo ThinkPad L14 G2 AMD - 07/29/2021 v7
Benjamin Herzig

Chassis
82 / 98 → 83%
Keyboard
89%
Pointing Device
86%
Connectivity
73 / 80 → 91%
Weight
67 / 20-75 → 85%
Battery
80%
Display
81%
Games Performance
58 / 78 → 74%
Application Performance
93 / 95 → 98%
Temperature
91%
Noise
98%
Audio
53%
Camera
21 / 85 → 25%
Average
75%
86%
Office - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 联想ThinkPad L14第二代AMD笔记本电脑评测。可升级性符合AMD Ryzen 5000
Benjamin Herzig, 2021-08-14 (Update: 2021-08-14)
