联想ThinkBook 15 G4笔记本电脑评测。一台高效的笔记本电脑，有很多天赋

Name: Lenovo ThinkBook 15 G4 21DL0009GE
Brand: Lenovo

联想的ThinkBook 15 G4仍然适合 介于消费者和商务笔记本电脑之间。这款办公或多媒体笔记本电脑有IdeaPads的轻松设计，但在性能和功能方面提供更多一点。巴塞洛更新的AMD Ryzen 5 5625U也确保了这一点。

Translated, 👁 Benjamin Herzig (translated by DeepL / Ninh Duy), Published 09/08/2022 🇺🇸 🇩🇪 ...

AMD Laptop / Notebook Windows Business

联想推出ThinkBook系列，作为家庭用户的IdeaPads和作为工作工具的ThinkPads之间的桥梁。这些轻薄的笔记本电脑有大量的端口，但利用悠闲的设计，与ThinkPads经常出现的工业外观形成对比。

联想ThinkBook 15 G4还在一个有吸引力的外壳中提供了有吸引力的性能。这一点由2022年初Barcelo更新的AMD Ryzen 5 5625U、16GB内存、快速的三星NVMe固态硬盘和以轻质金属为特征的外壳所保证。该模型系列没有经历任何重大变化。目前的G4在功能和设计方面与ThinkBook 15 G2

非常相似。

至于竞争对手，我们会考虑申克工作15，以及Dynabook Satellite Pro和其他产品来填补这一角色。如果你不介意一个稍小的笔记本电脑，但有几乎相同的功能，那么联想ThinkBook 14 G4也可以作为一种选择。

Test device courtesy of Campuspoint

Download your licensed rating image as PNG / SVG

Lenovo ThinkBook 15 G4 21DL0009GE (ThinkBook 15 Series)

Processor

AMD Ryzen 5 5625U 6 x 2.3 - 4.3 GHz, 45 W PL2 / Short Burst, 25 W PL1 / Sustained, Barcelo-U (Zen 3)

Graphics adapter

AMD Radeon RX Vega 7

Memory

16 GB

, DDR4-4800, 1x SO-DIMM, 8 GB on-board, Dual-Channel

Display

15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, LENOVO LEN156FHD , IPS, glossy: no, 60 Hz

Storage

Samsung PM991a MZALQ512HBLU, 512 GB

Soundcard

AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller

Connections

4 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm Headset Jack, Card Reader: SD-Cardreader, 1 Fingerprint Reader

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1

Size

height x width x depth (in mm): 23 x 352 x 233

Battery

44.52 Wh Lithium-Ion

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: 0.9 MP

Additional features

Speakers: Stereo, Keyboard Light: yes, 12 Months Warranty

Weight

1.757 kg, Power Supply: 186 g

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
84.9 %	09/2022	Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7	1.8 kg	23 mm	15.60"	1920x1080
80 %	07/2022	Dynabook Satellite Pro C50D-B-115 R5 5600U, Vega 7	1.8 kg	19.7 mm	15.60"	1920x1080
78 %	02/2022	Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs	1.9 kg	19.9 mm	15.60"	1920x1080
84.3 %	02/2022	SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs	1.7 kg	19.9 mm	15.60"	1920x1080
85.5 %	08/2021	Lenovo ThinkPad E15 G3-20YG003UGE R7 5700U, Vega 8	1.8 kg	18.9 mm	15.60"	1920x1080
82.1 %		Asus VivoBook S15 D533UA R7 5700U, Vega 8	1.8 kg	16.1 mm	15.60"	1920x1080
84.6 %	09/2022	Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7	1.5 kg	22 mm	14.00"	1920x1080

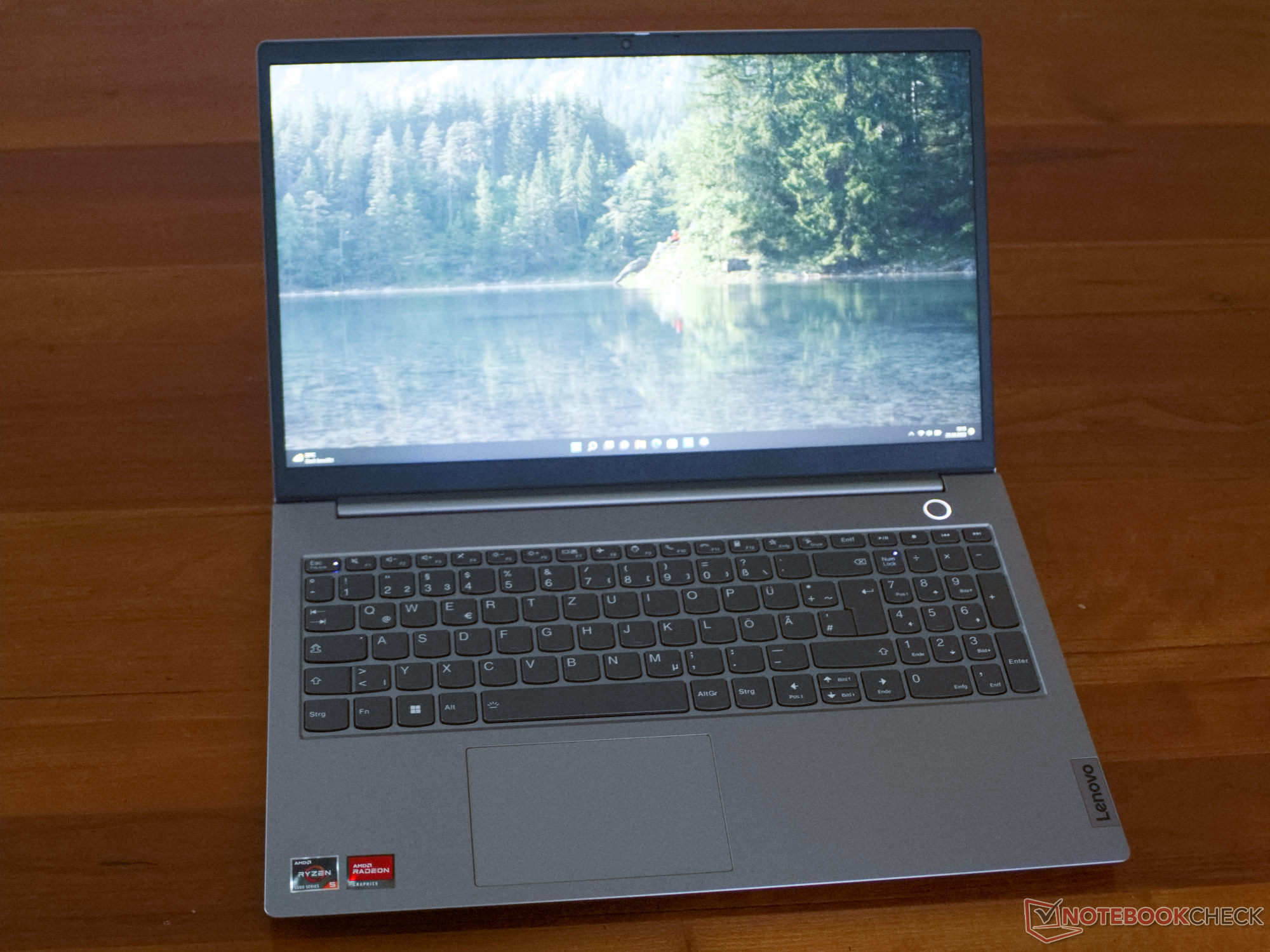

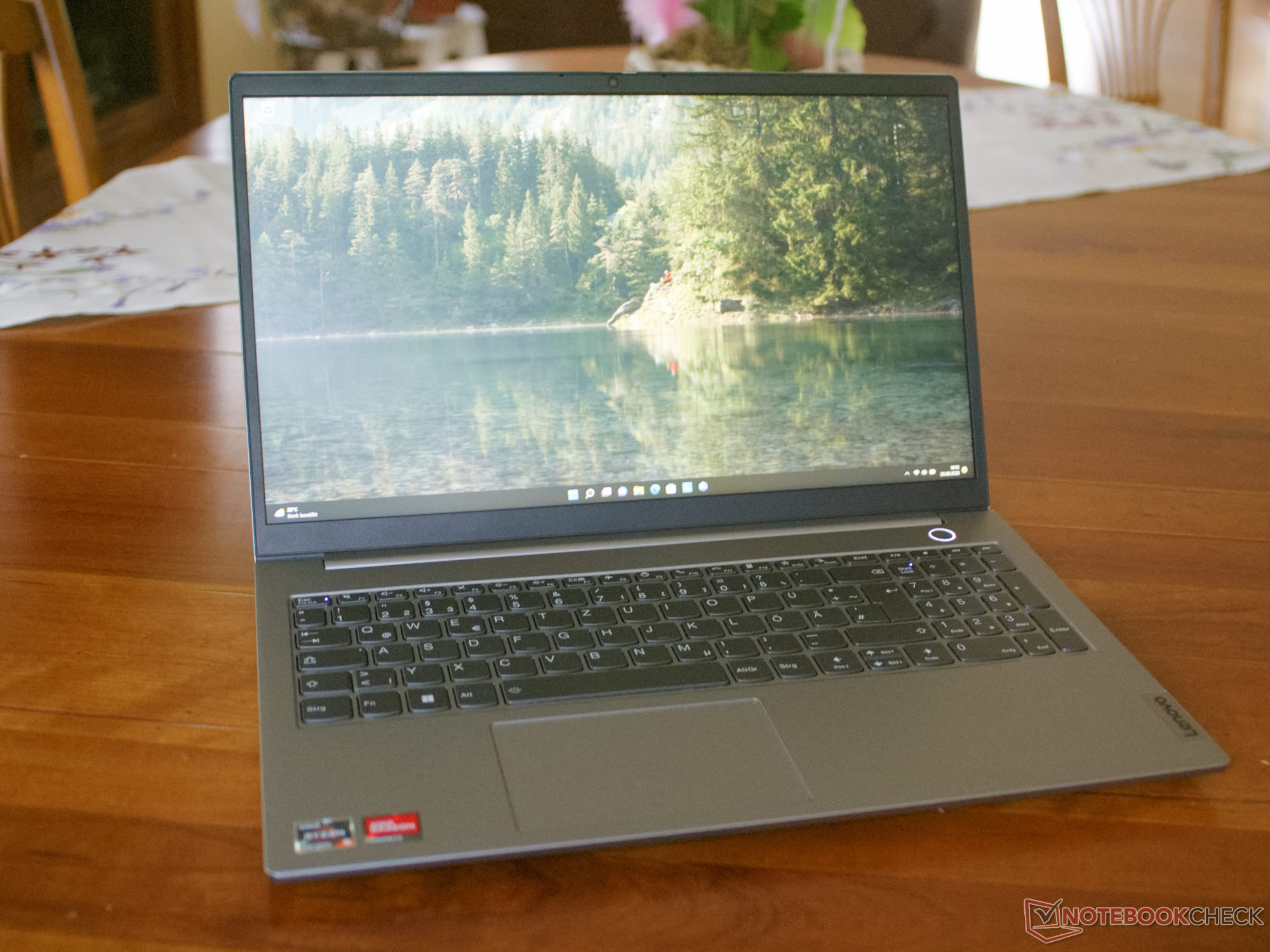

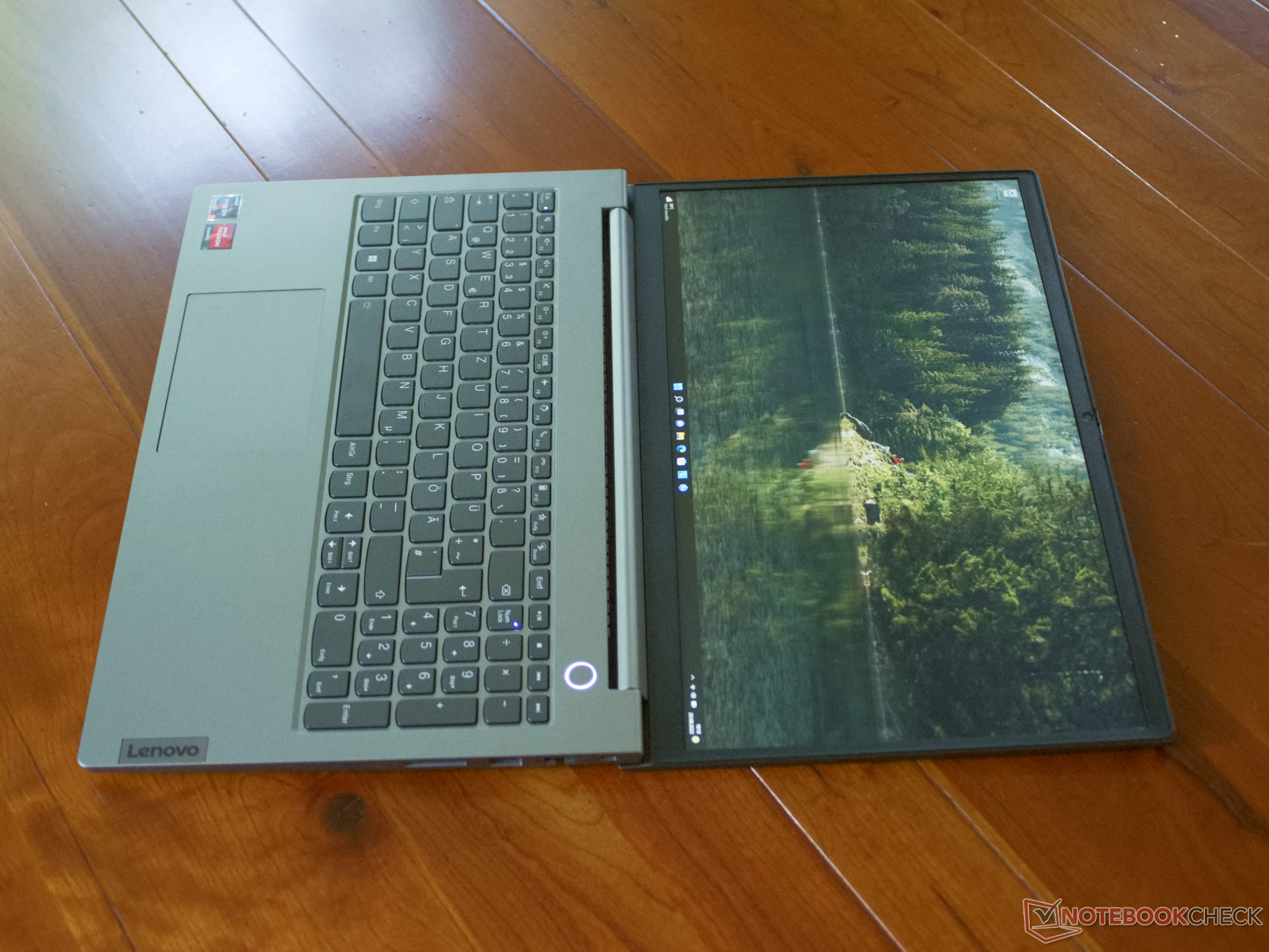

外壳 - 轻便的金属外壳

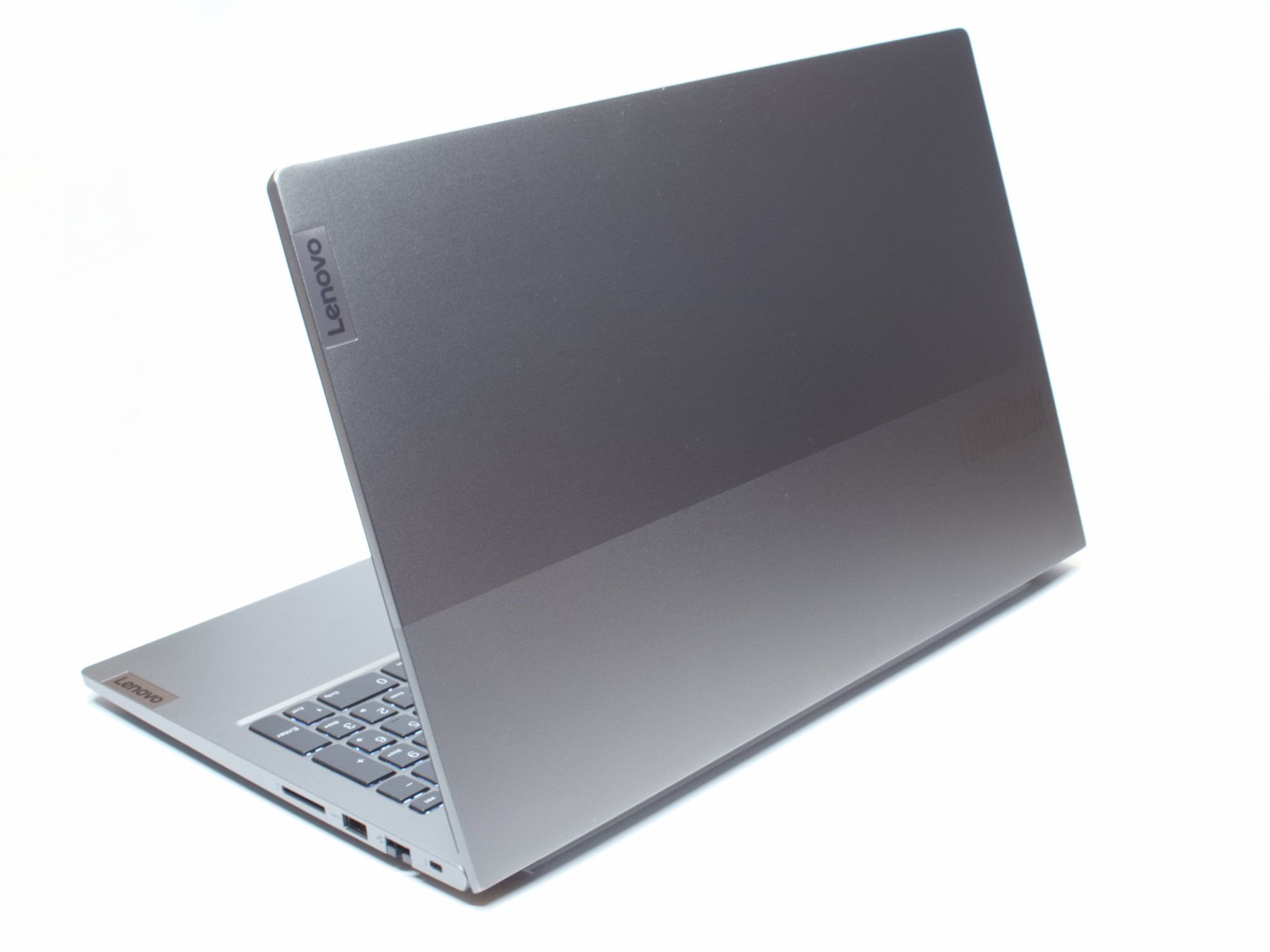

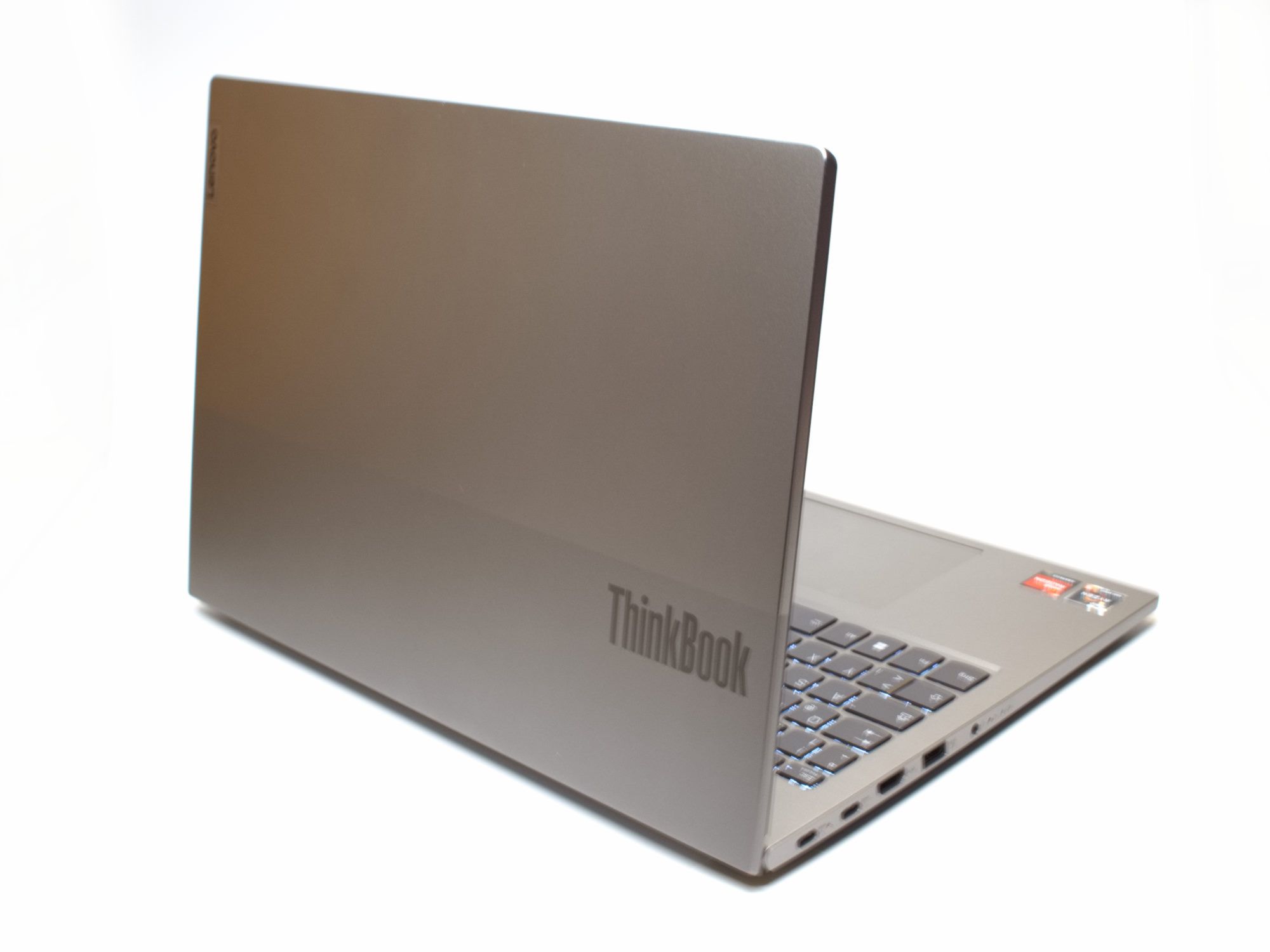

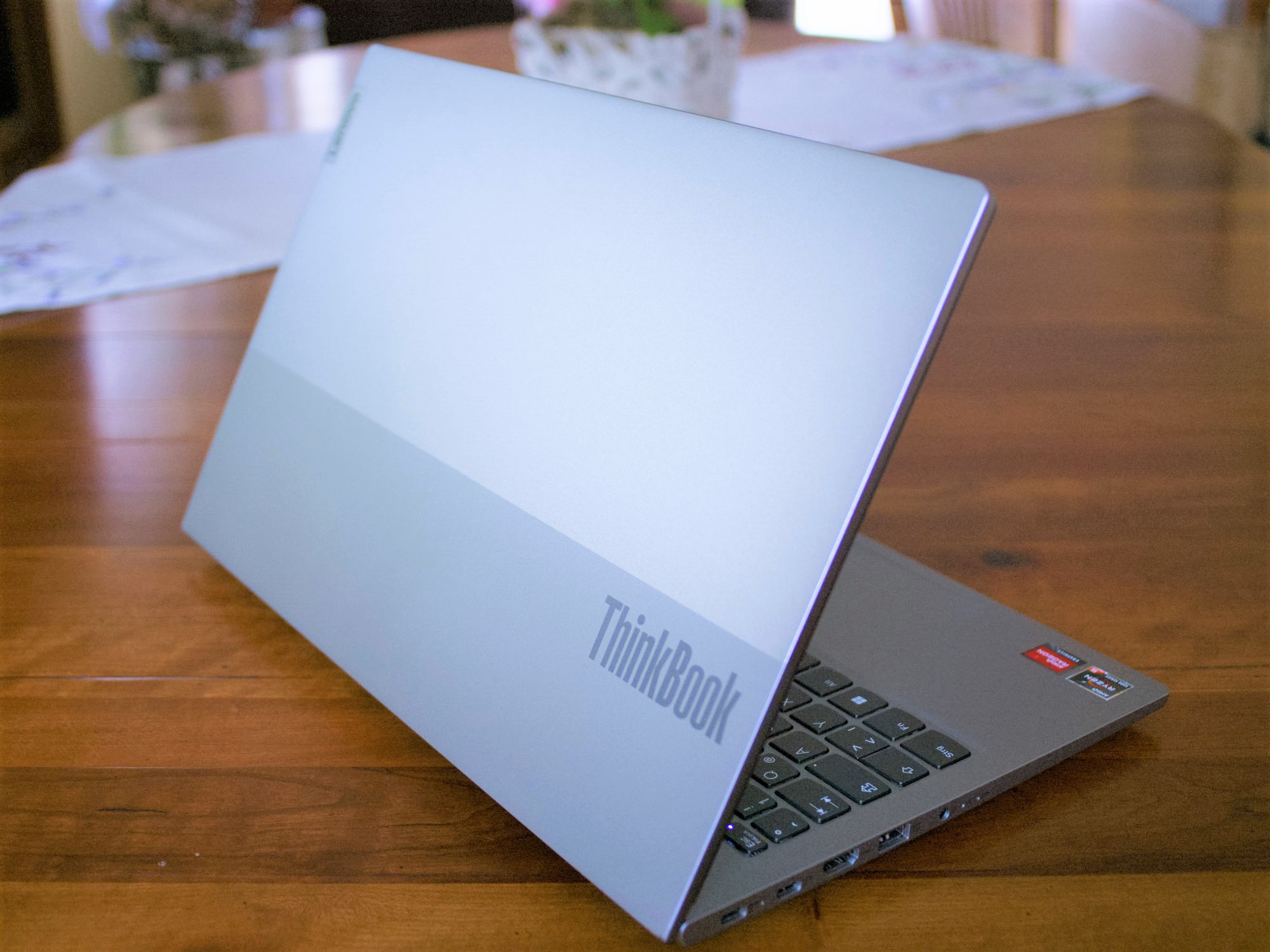

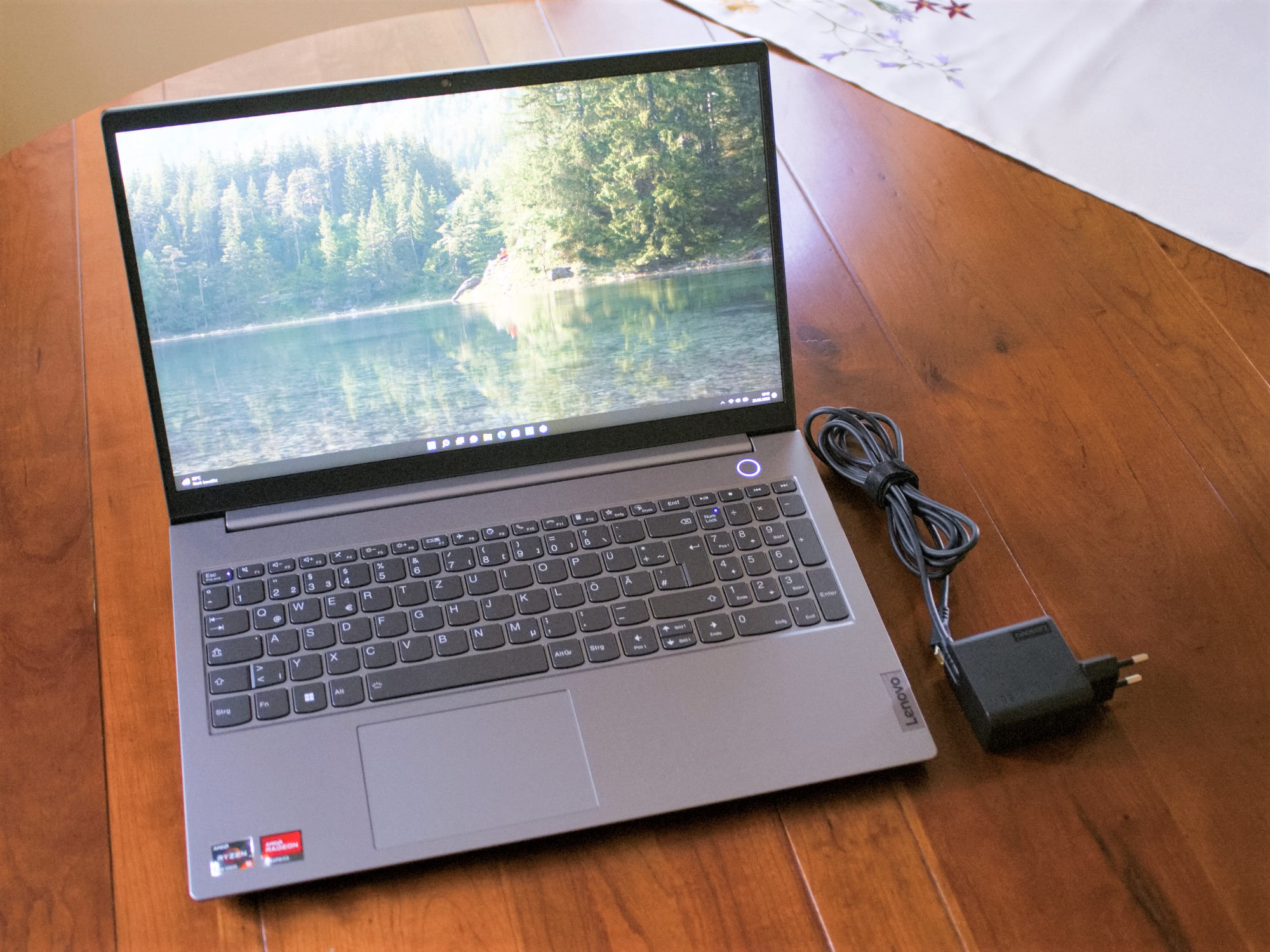

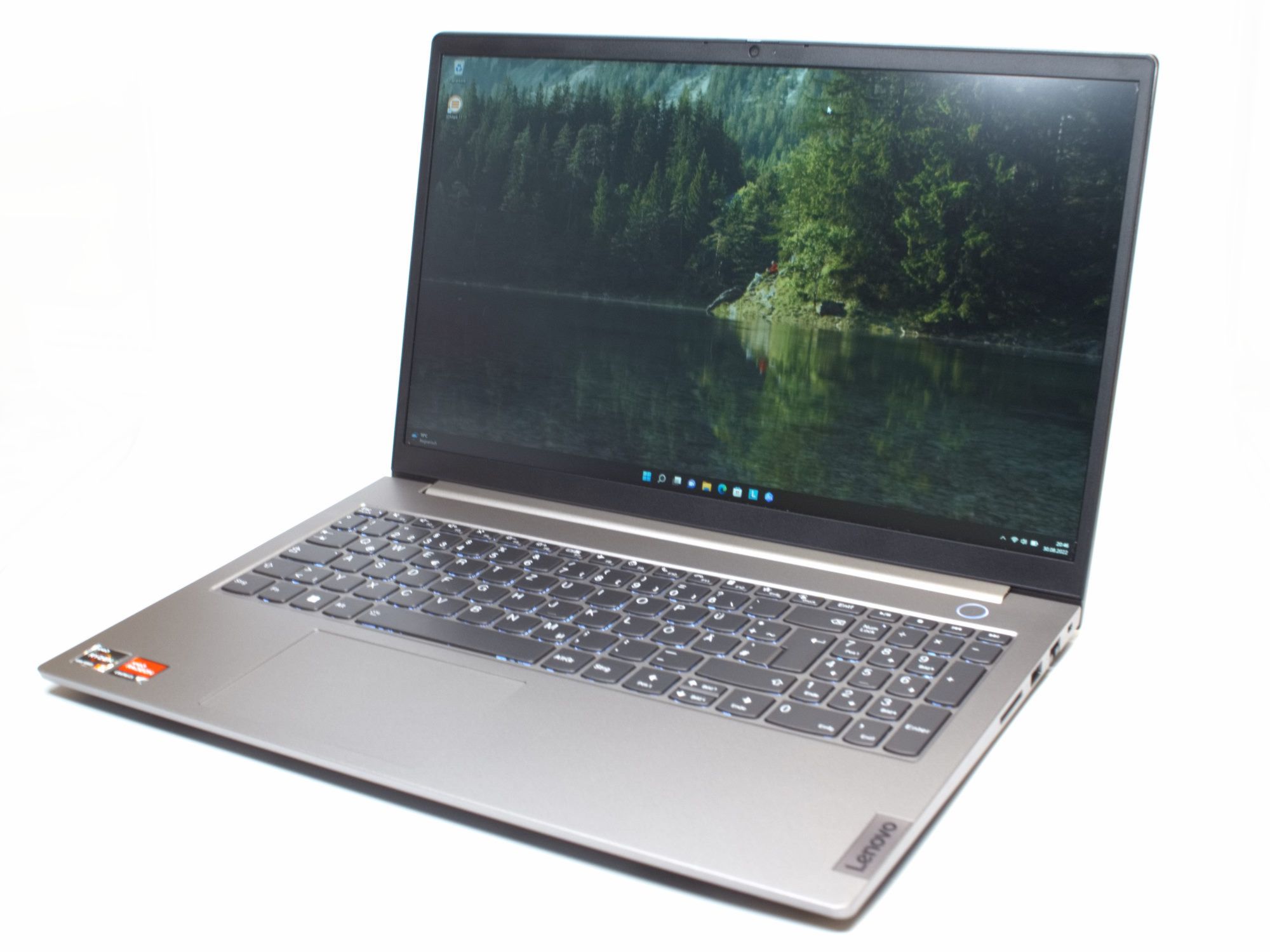

我们测试设备的主色调是金属灰色。铝制显示盖表面结构的轻微变化提供了一种有趣的效果，单色的表面呈现出两种颜色。其周围的瑞士边缘，向外变细，使笔记本电脑在底部显得更加纤细。

ThinkBook 15 G4的整个底座单元由塑料制成。然而，只有顶部被喷漆，以配合显示屏盖。这构成了与 14英寸的变体.

联想展示了一台笔记本电脑可以有多么稳定和高质量。尽管它是15.6英寸的屏幕，但在试图扭转屏幕时，这里没有吱吱作响。这里没有明显的弯曲。

这款笔记本电脑的厚度仅为23毫米，与其他笔记本电脑相比，并不突出。比较中的大多数设备重量为1.8公斤，厚度为22或23毫米。

尺寸比较

Lenovo ThinkPad E15 G3-20YG003UGE Acer Extensa 15 EX215-54-5103 Dynabook Satellite Pro C50D-B-115 SCHENKER Work 15 Tiger Lake-H Asus VivoBook S15 D533UA Lenovo ThinkBook 15 G4 21DL0009GE Lenovo ThinkBook 14 G4 21DK0004GE DIN A4 ❌

特点 - AMD不允许使用雷电技术

当涉及到它的端口范围时，这款办公笔记本电脑具有标准的功能。在左边，它有两个USB Type C端口，都可用于充电和图像输出。然而，这款笔记本电脑并不提供Thunderbolt。只有6000系列的AMD处理器支持通过USB 4的类似技术。

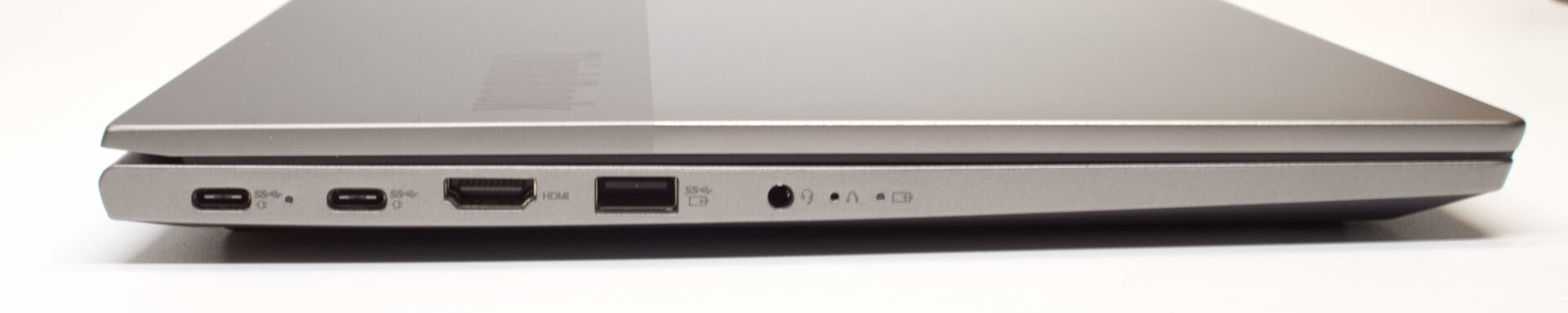

左边：2个USB Type C，带PowerDelivery和DisplayPort；HDMI，USB Type A（3.2 Gen 1）；3.5毫米耳机

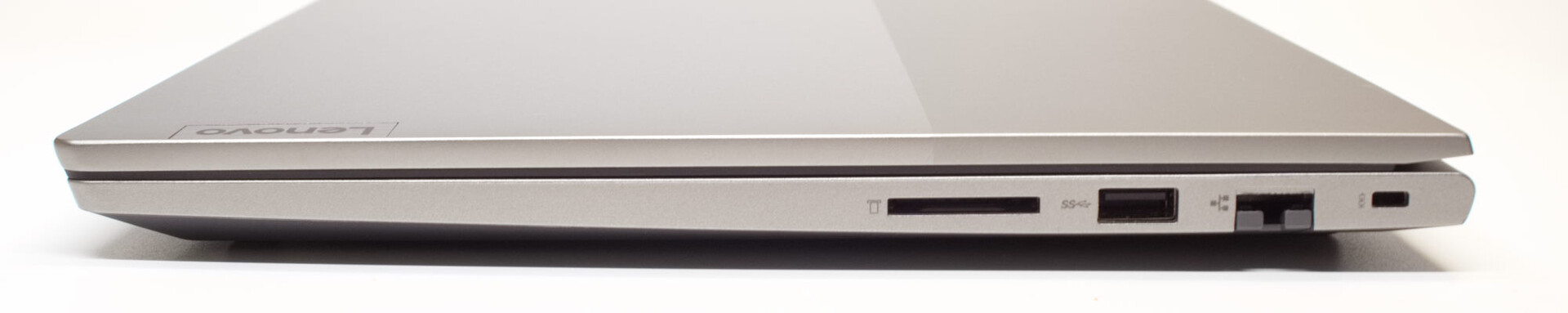

对。SD读卡器；USB Type A（3.2 Gen 1）；RKJ45（LAN）；Kensington锁插槽

SD卡阅读器

由于其AV PRO microSD 128 GB V60参考卡，与竞争对手相比，联想ThinkBook实现了良好的传输速度。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	76.18 MB/s
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	75.91 MB/s 0%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H (Angelbird AV Pro V60)	70.5 MB/s -7%
Average of class Office (8 - 82.7, n=49, last 2 years)	53 MB/s -30%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U (Angelbird AV Pro V60)	35.2 MB/s -54%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U (AV PRO microSD 128 GB V60)	35 MB/s -54%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	90.28 MB/s
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	89.55 MB/s -1%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H (Angelbird AV Pro V60)	72.4 MB/s -20%
Average of class Office (25 - 90.5, n=43, last 2 years)	64.7 MB/s -28%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U (Angelbird AV Pro V60)	37.5 MB/s -58%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U (AV PRO microSD 128 GB V60)	36.9 MB/s -59%

沟通

联想ThinkBook 15 G4还配备了Realtek的Wi-Fi 6功能的Wi-Fi模块，并提供足够的网络速度。然而，当涉及到上传和下载时，这款笔记本电脑仍然略低于1000 Mbit/s的标准。

Networking
iperf3 receive AXE11000
Average of class Office (104.2 - 1752, n=91, last 2 years)	1243 MBit/s +33%
Lenovo ThinkBook 14 G4 21DK0004GE RealTek Semiconductor RTL8852AE	984 (490^min - 996^max) MBit/s +5%
Lenovo ThinkBook 15 G4 21DL0009GE Realtek RTL8852BE	938 (807^min - 988^max) MBit/s
Average Realtek RTL8852BE (455 - 984, n=36)	833 MBit/s -11%
Dynabook Satellite Pro C50D-B-115 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	598 (564^min - 625^max) MBit/s -36%
iperf3 transmit AXE11000
Average of class Office (47.8 - 1793, n=89, last 2 years)	1098 MBit/s +20%
Lenovo ThinkBook 14 G4 21DK0004GE RealTek Semiconductor RTL8852AE	921 (465^min - 957^max) MBit/s +1%
Lenovo ThinkBook 15 G4 21DL0009GE Realtek RTL8852BE	916 (464^min - 956^max) MBit/s
Average Realtek RTL8852BE (536 - 925, n=35)	786 MBit/s -14%
Dynabook Satellite Pro C50D-B-115 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	561 (518^min - 590^max) MBit/s -39%

Lenovo ThinkBook 15 G4 21DL0009GE; iperf3 receive AXE11000; iperf 3.1.3: Ø938 (807-988)

Lenovo ThinkBook 15 G4 21DL0009GE; iperf3 transmit AXE11000; iperf 3.1.3: Ø900 (464-956)

网络摄像头

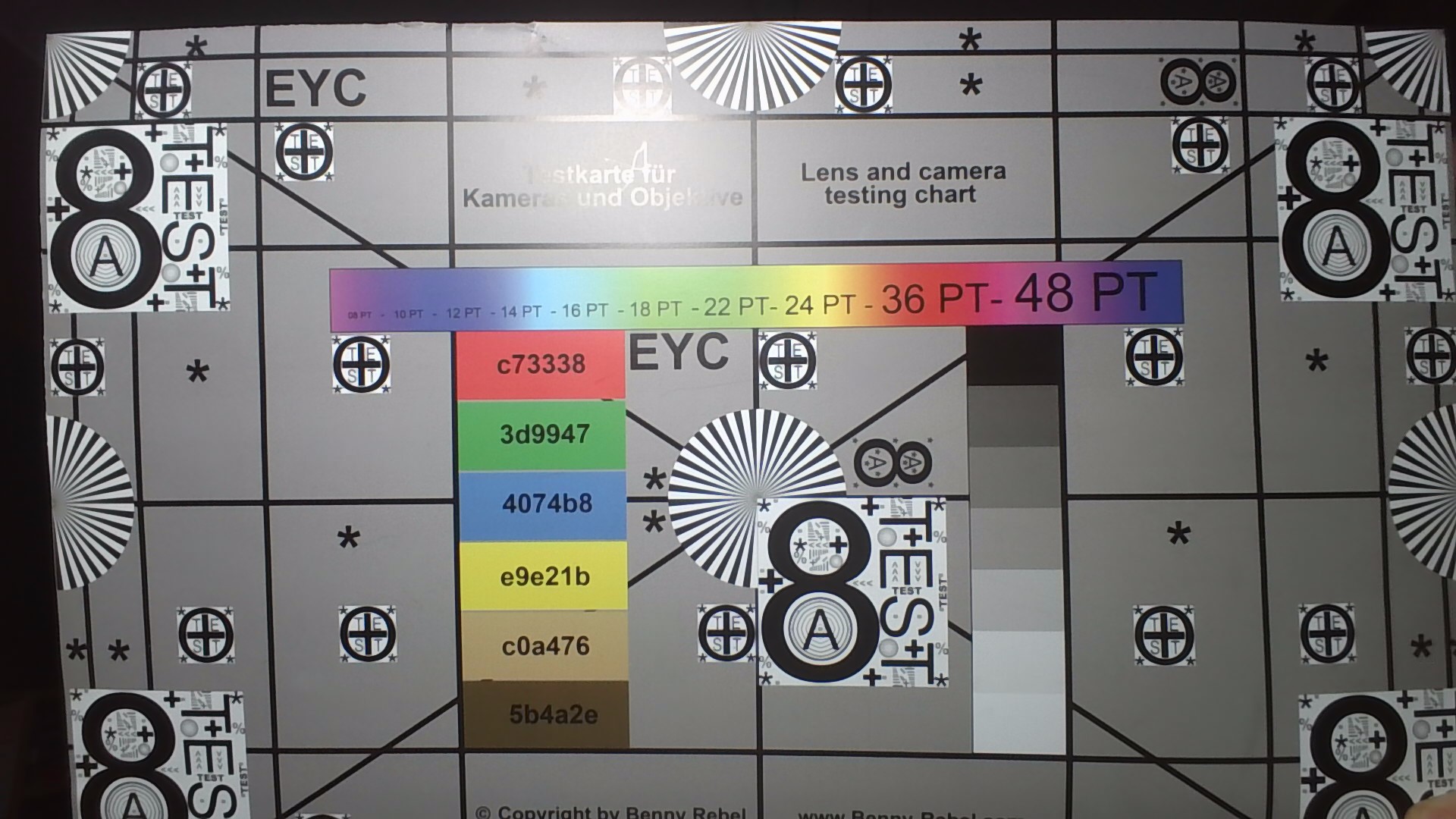

关于联想ThinkBook 15 G4的网络摄像头，全高清分辨率给人留下了积极印象。在有利的光线条件下，该摄像头能够提供具有高对比度的清晰图像。

然而，黑暗会导致图像非常嘈杂。广角镜头还提供了引人注目的鱼眼效果。

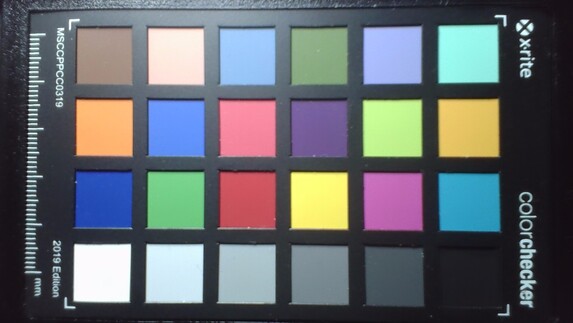

ColorChecker Lenovo ThinkBook 15 G4 21DL0009GE: 14.08 ∆E min: 2.09 - max: 25.63 ∆E

安全问题

AMD Ryzen 5提供安全功能，如TPM 2.0和SecureBoot。笔记本电脑的外壳也有一个Kensington锁槽。还有一个指纹传感器用于登录Windows。尽管有全高清分辨率，但内置网络摄像头不能用于Windows Hello面部识别。

维护

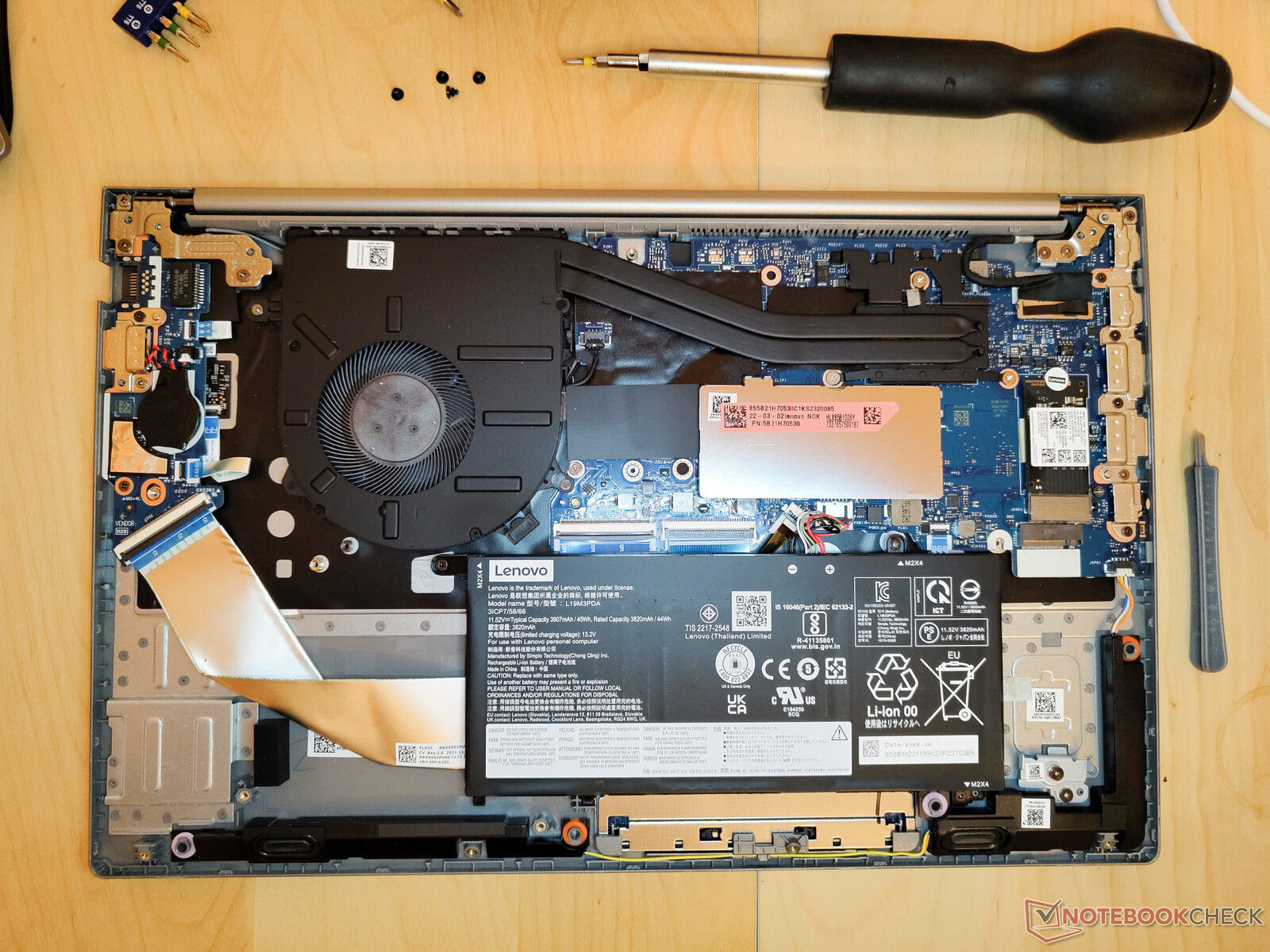

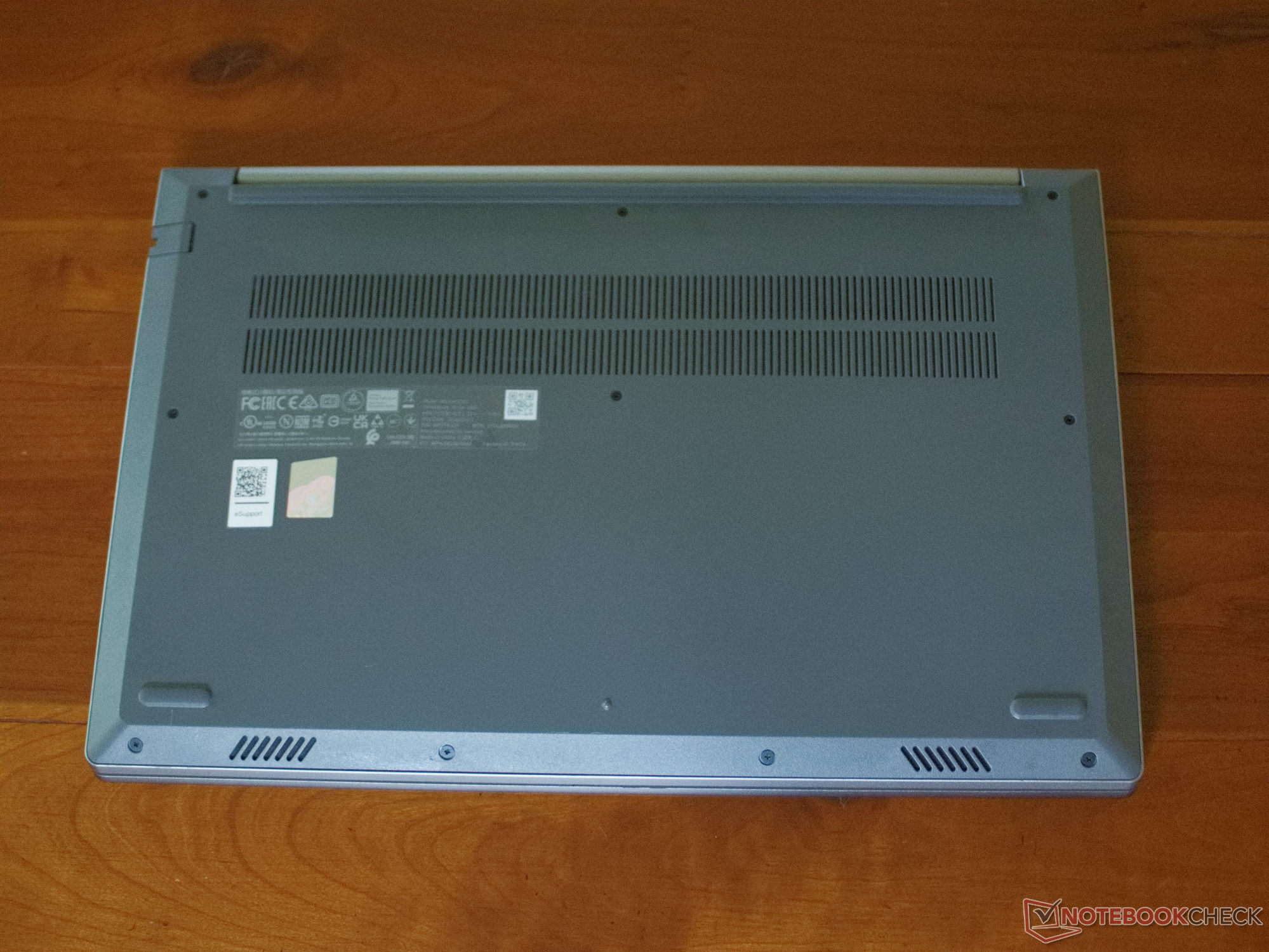

基本单元的盖子很容易取下。在下面，你可以接触到一个空闲的端口，用于安装2280 M.2 SSD。内置的RAM模块也可以被替换。这款笔记本电脑内部的组件几乎与用于ThinkBook 14 G4.

担保

我们的测试设备只提供了12个月的保修。这可以与联想延长。在联想Vantage计划中，有各种购买选项。

输入设备 - 在IdeaPad的水平上

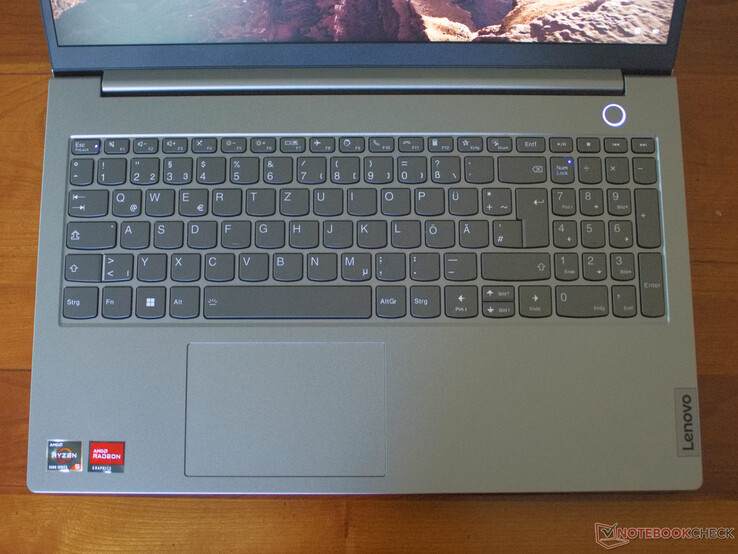

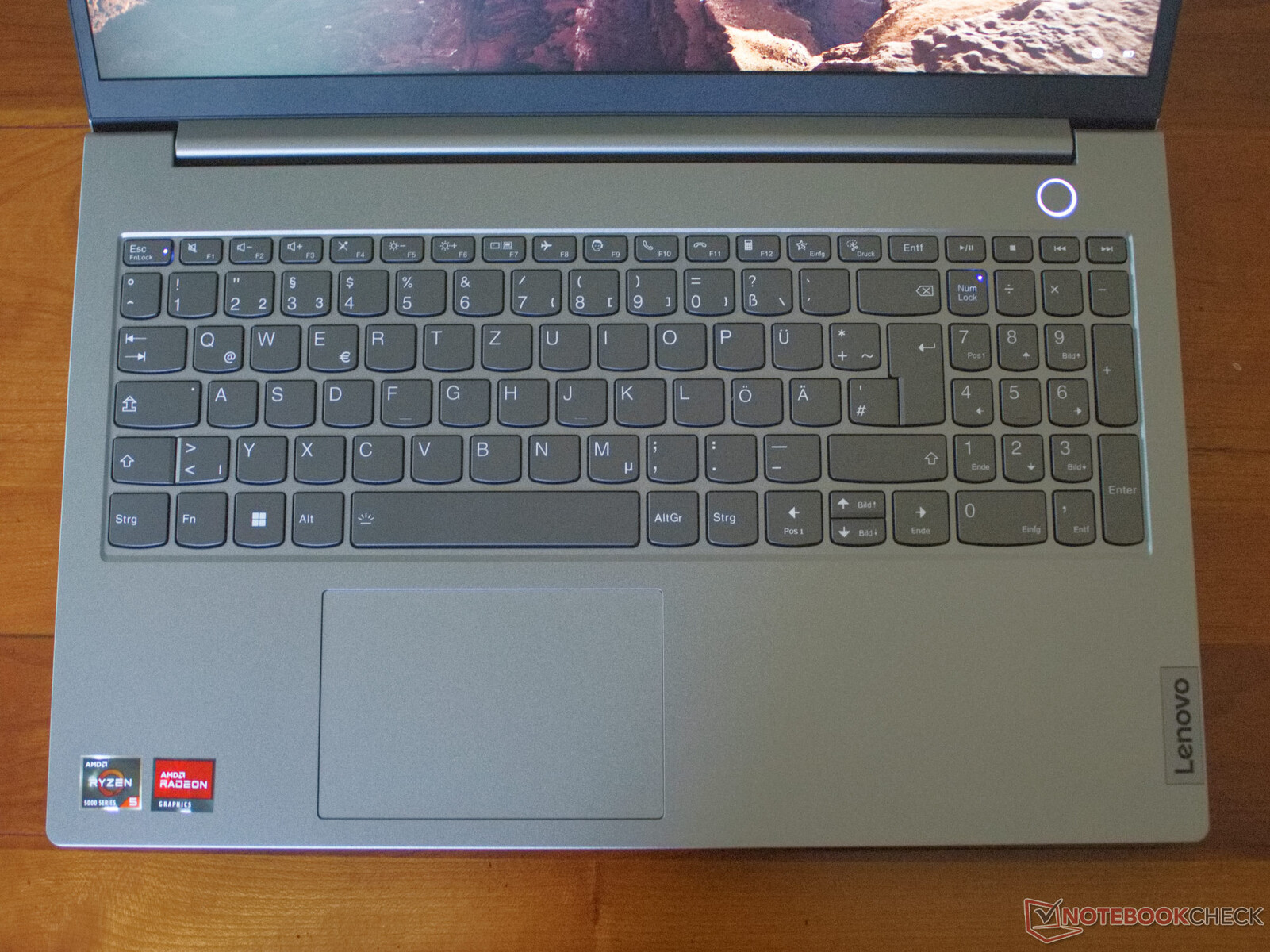

ThinkBook的键盘和点击板显然是基于联想的IdeaPad系列。这意味着，背光键盘的键程和触觉反馈都很小。点击板可以可靠地工作，但是它的表面是由塑料制成的。

作为一款15.6英寸的笔记本电脑，联想正在利用空间来容纳数字键盘。因此，键盘几乎与全ISO QWERTY布局相同。

显示 - 适合办公室使用

凭借其60赫兹的帧率和全高清分辨率（1920 x 1080像素），联想ThinkBook 15 G4的哑光屏幕的平均亮度为300 cd/m²。虽然16:9的屏幕在这里很难说有多出色，但它确实满足了办公笔记本电脑的要求。黑白之间的整齐对比确保你能够在工作中不感到疲劳。

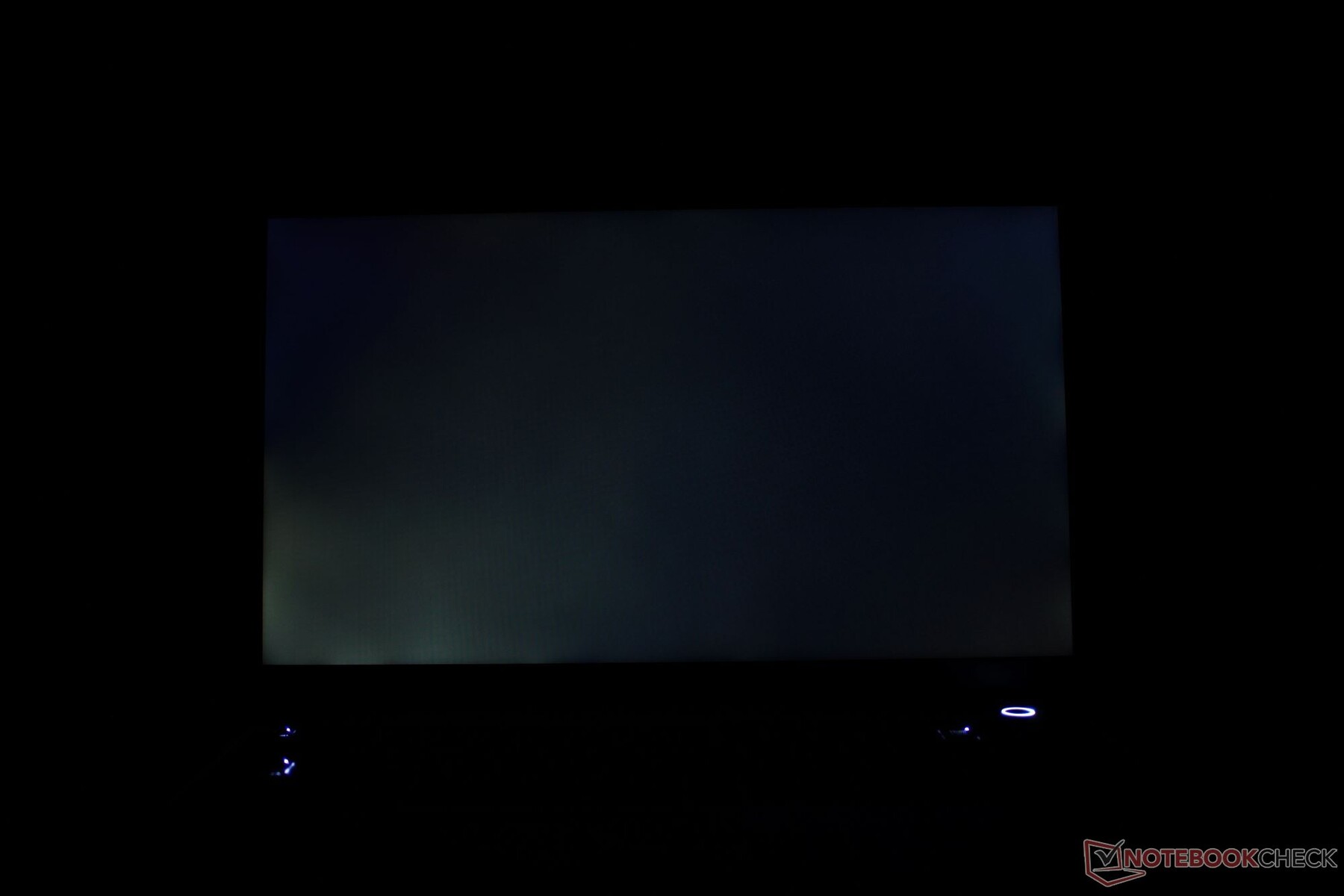

在测试中，我们注意到，我们的测试设备在左下角有一个明显的背光区域。在IPS显示屏上观看电影或照片中的黑暗序列时，这有时会成为一种困扰。


306 cd/m²	311 cd/m²	305 cd/m²
296 cd/m²	313 cd/m²	296 cd/m²
294 cd/m²	305 cd/m²	282 cd/m²

Distribution of brightness

LENOVO LEN156FHD tested with X-Rite i1Pro 2

Maximum: 313 cd/m² (Nits) Average: 300.9 cd/m² Minimum: 3.38 cd/m²
Brightness Distribution: 90 %
Center on Battery: 313 cd/m²
Contrast: 1490:1 (Black: 0.21 cd/m²)
ΔE Color 5.3 | 0.5-29.43 Ø5, calibrated: 4

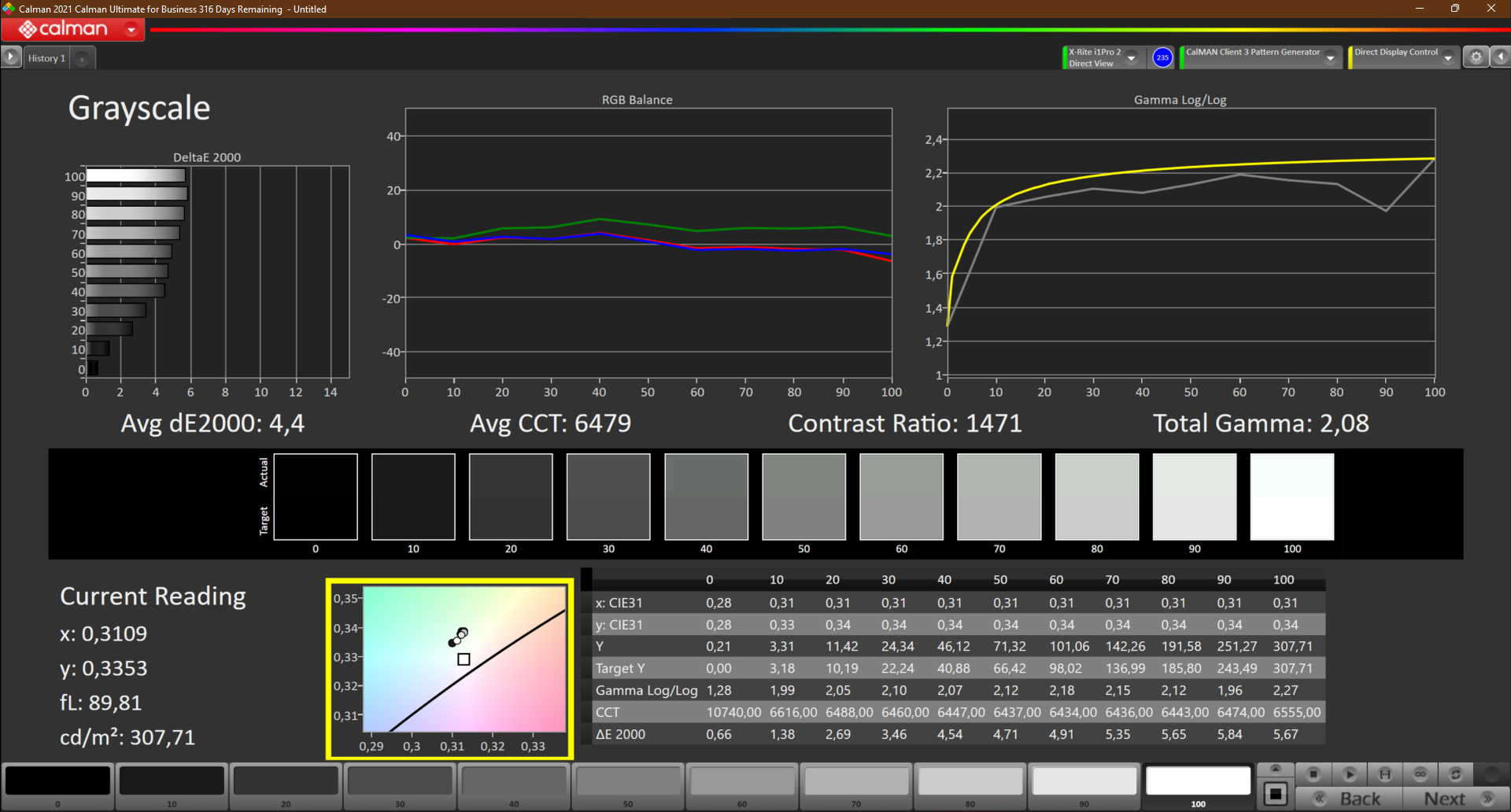

ΔE Greyscale 4.4 | 0.57-98 Ø5.3

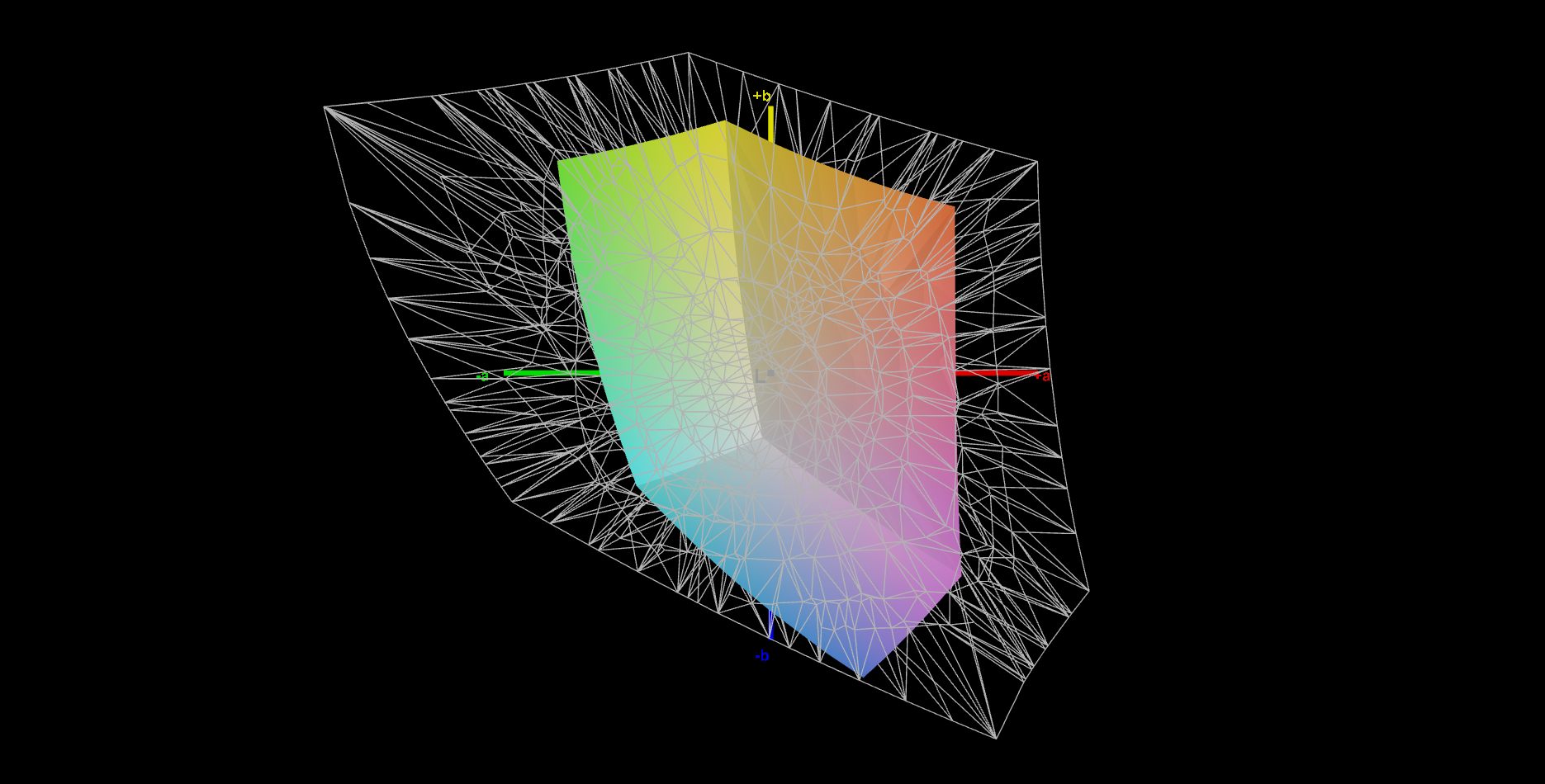

46.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
66.8% sRGB (Argyll 2.2.0 3D)

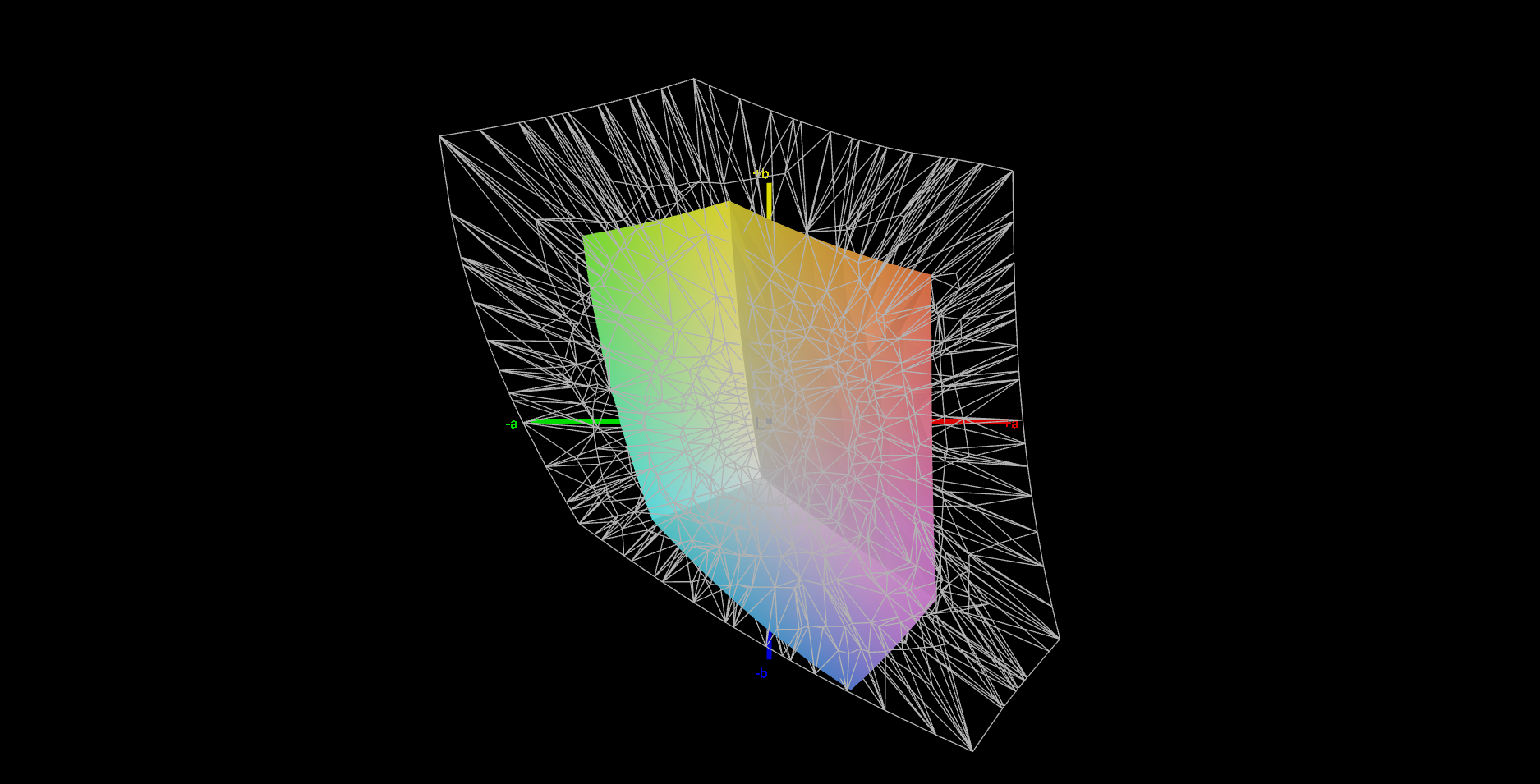

44.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.08

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkBook 15 G4 21DL0009GE LENOVO LEN156FHD , IPS, 1920x1080, 15.60	Dynabook Satellite Pro C50D-B-115 N156HCA-EAB, IPS, 1920x1080, 15.60	Acer Extensa 15 EX215-54-5103 AU Optronics B156HTN06.1, TN LED, 1920x1080, 15.60	SCHENKER Work 15 Tiger Lake-H BOE07D8, IPS, 1920x1080, 15.60	Lenovo ThinkPad E15 G3-20YG003UGE B156HAN02.1, IPS, 1920x1080, 15.60	Asus VivoBook S15 D533UA Chi Mei N156HCA-EAB, IPS, 1920x1080, 15.60	Lenovo ThinkBook 14 G4 21DK0004GE LENOVO LEN140FHD, IPS, 1920x1080, 14.00
Display		-4%	-17%	36%	-10%	-3%	-6%
Display P3 Coverage	44.8	43.1 -4%	37 -17%	64.5 44%	40.3 -10%	43.6 -3%	42.2 -6%
sRGB Coverage	66.8	64.4 -4%	55.7 -17%	86.2 29%	60.2 -10%	65.2 -2%	62.9 -6%
AdobeRGB 1998 Coverage	46.3	44.6 -4%	38.2 -17%	62.9 36%	41.6 -10%	45 -3%	43.6 -6%
Response Times		-36%	-48%	-96%	-58%	18%	-4%
Response Time Grey 50% / Grey 80% *	29 ?(12, 17)	36.8 ?(18.8, 18) -27%	38 ?(18, 20) -31%	58.4 ?(26.8, 31.6) -101%	44 ?(21.2, 22.8) -52%	18 ?(8, 10) 38%	29 ?(14, 15) -0%
Response Time Black / White *	18.5 ?(10, 8.5)	26.8 ?(15.6, 11.2) -45%	21 ?(17, 4) -14%	35.2 ?(18, 17.2) -90%	30.4 ?(16.4, 14) -64%	19 ?(10, 9) -3%	20 ?(11, 9) -8%
PWM Frequency	37037 ?(100)		52 ?(100) -100%
Screen		3%	-63%	1%	6%	-18%	-21%
Brightness middle	313	271 -13%	220 -30%	329 5%	347 11%	289 -8%	306 -2%
Brightness	301	258 -14%	203 -33%	316 5%	329 9%	267 -11%	283 -6%
Brightness Distribution	90	90 0%	82 -9%	92 2%	93 3%	85 -6%	85 -6%
Black Level *	0.21	0.17 19%	0.43 -105%	0.3 -43%	0.25 -19%	0.56 -167%	0.38 -81%
Contrast	1490	1594 7%	512 -66%	1097 -26%	1388 -7%	516 -65%	805 -46%

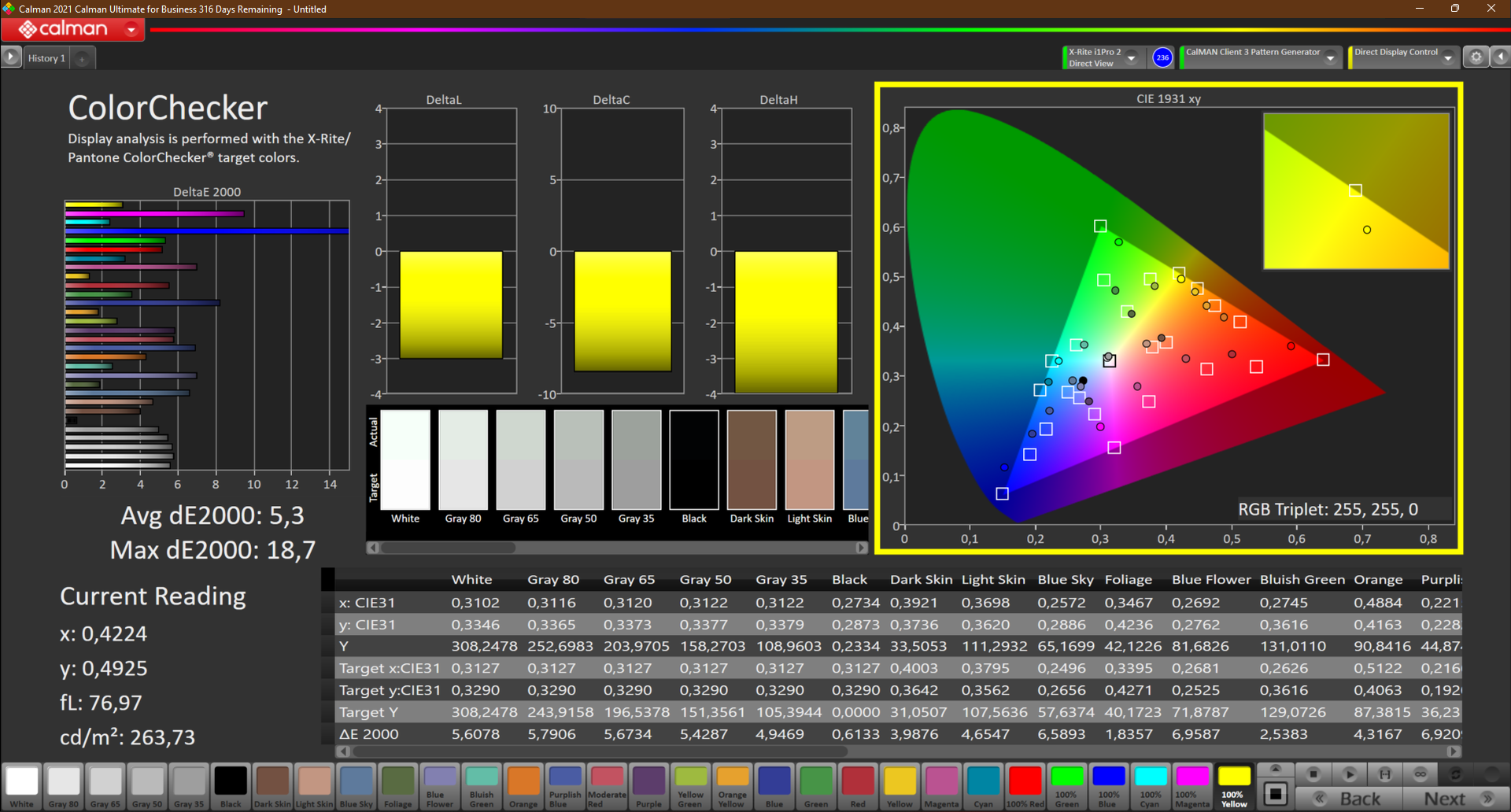

Colorchecker dE 2000 *	5.3	5 6%	10.74 -103%	5.4 -2%	4.7 11%	3.96 25%	6 -13%
Colorchecker dE 2000 max. *	18.7	18 4%	20.92 -12%	10.1 46%	19.4 -4%	6.76 64%	20.5 -10%
Colorchecker dE 2000 calibrated *	4	3.9 2%	4.44 -11%	2.5 37%	4.4 -10%		4.5 -13%
Greyscale dE 2000 *	4.4	3.7 16%	13.29 -202%	5.1 -16%	1.7 61%	3.43 22%	5.1 -16%
Gamma	2.08 ^106%	2.03 ^108%	2.63 ^84%	2.1 ^105%	2.2 ^100%	2.28 ^96%	2.13 ^103%
CCT	6479 ^100%	6824 ^95%	14880 ^44%	7609 ^85%	6475 ^100%	7191 ^90%	6264 ^104%
Color Space (Percent of AdobeRGB 1998)						42
Color Space (Percent of sRGB)						65
Total Average (Program / Settings)		-12% / -4%	-43% / -51%	-20% / -5%	-21% / -7%	-1% / -9%	-10% / -16%

* ... smaller is better

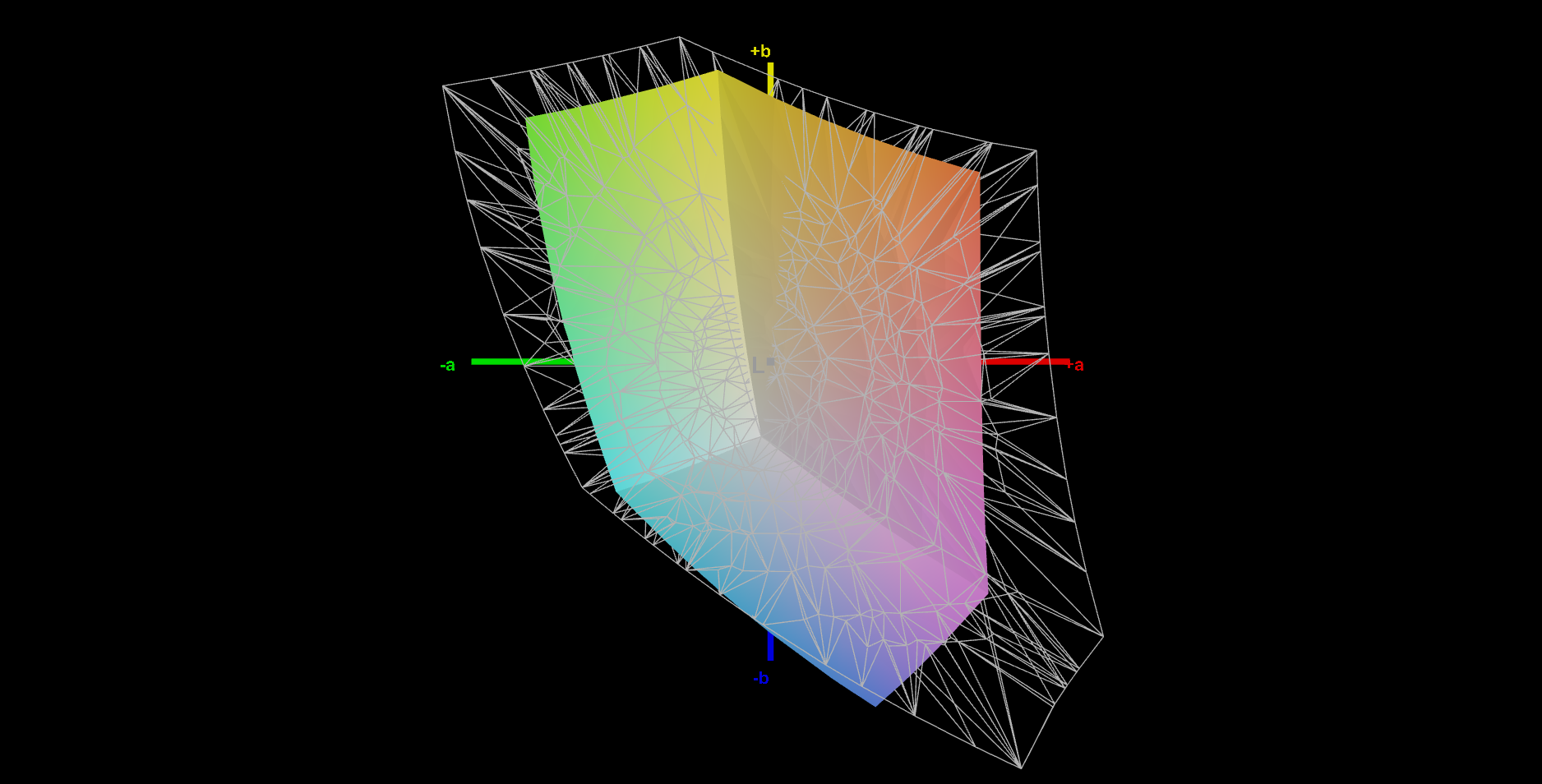

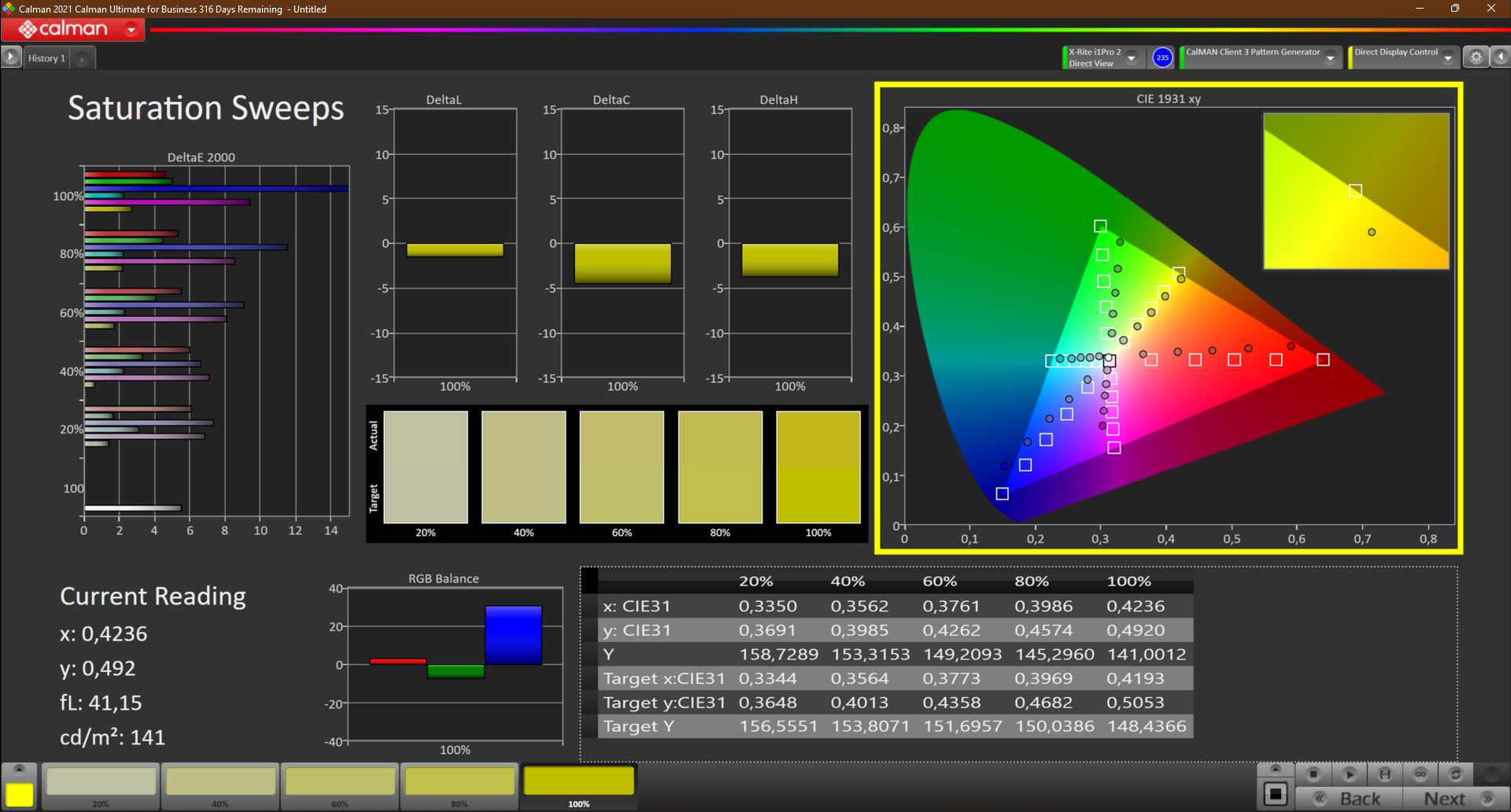

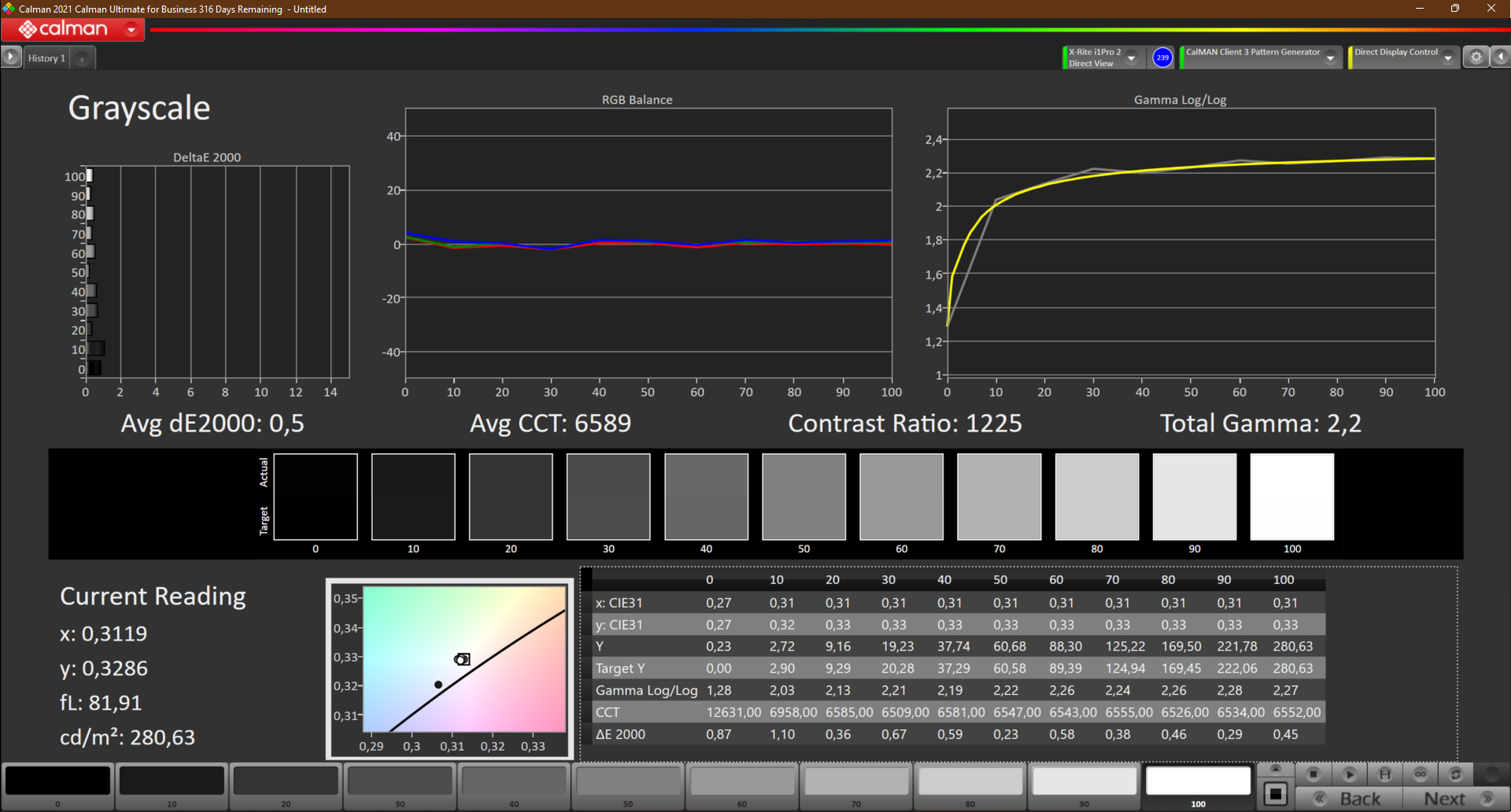

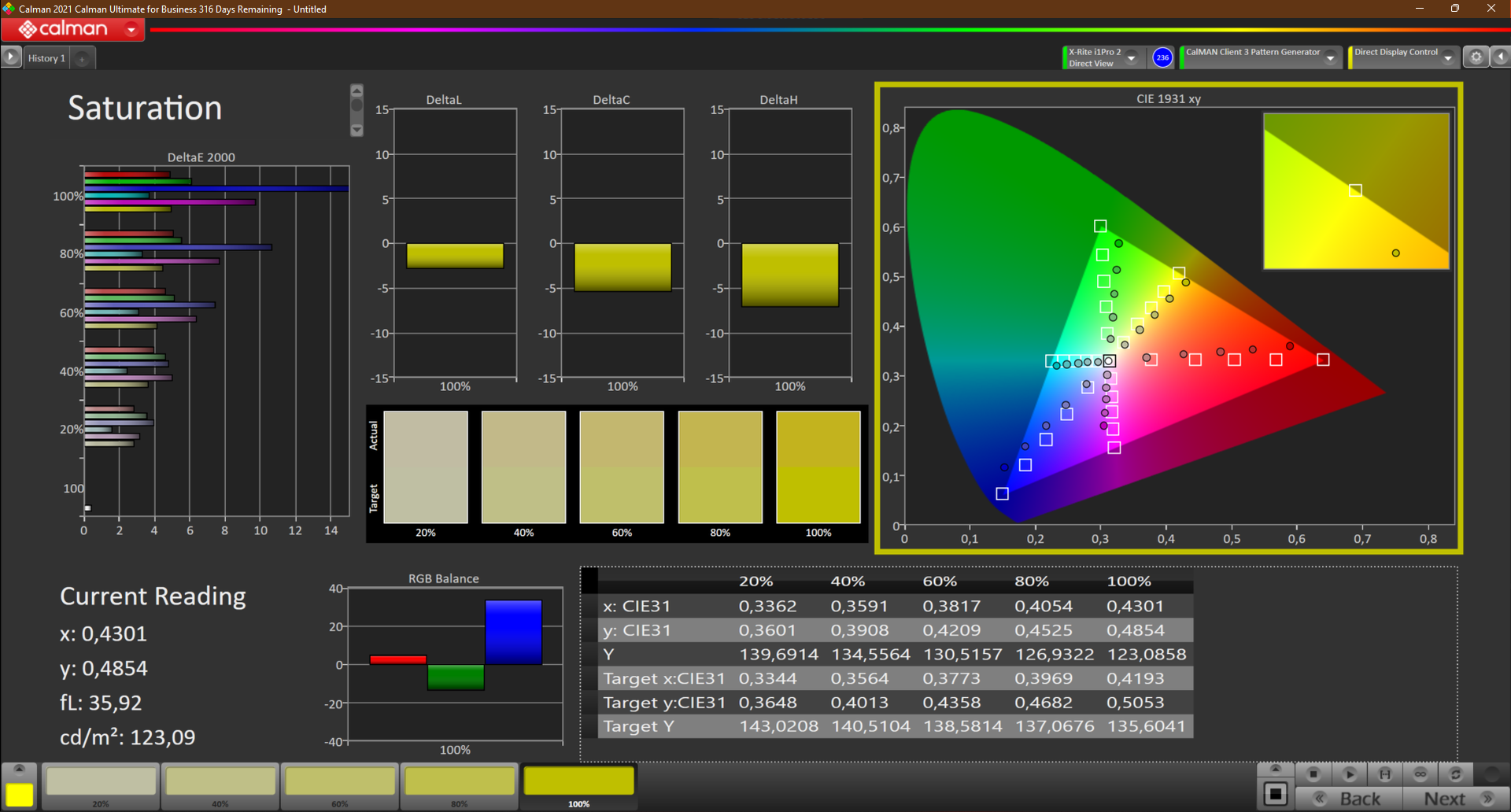

各个色彩空间的覆盖率和图像面板的色彩偏差的数值是典型的办公室笔记本电脑。由于只有66%的色彩空间覆盖率，使用我们信息库中的色彩配置文件校准的屏幕与Delta E 3的目标相差甚远，这并不奇怪。卡尔曼色彩检查器为校准后的屏幕确定了4的Delta E。这意味着即使对那些没有这方面经验的人来说，这个屏幕也有明显的颜色偏差。

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

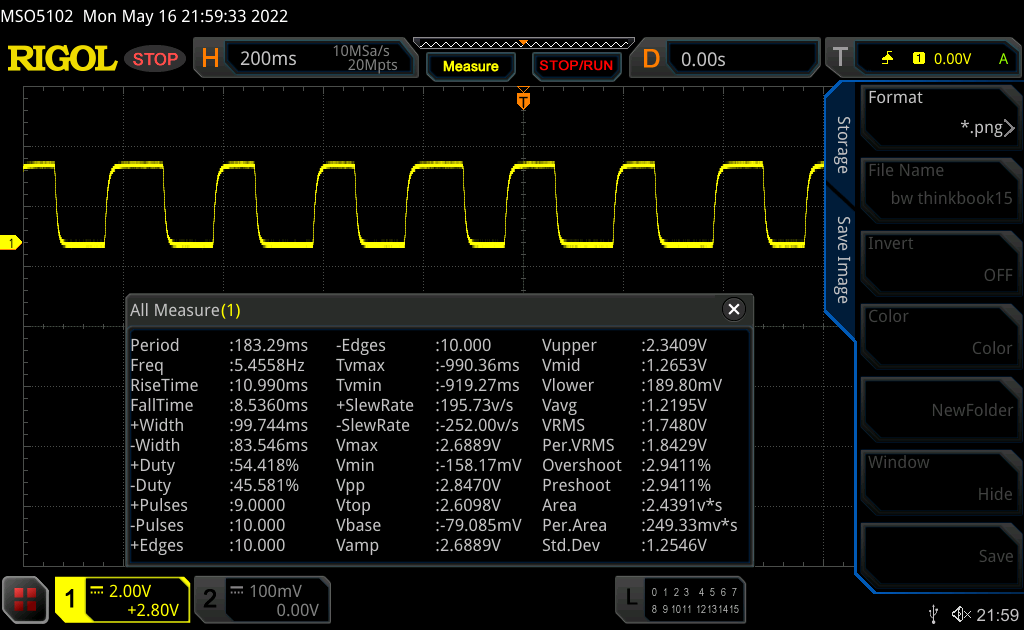

↔ Response Time Black to White
18.5 ms ... rise ↗ and fall ↘ combined	↗ 10 ms rise
18.5 ms ... rise ↗ and fall ↘ combined	↘ 8.5 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms).

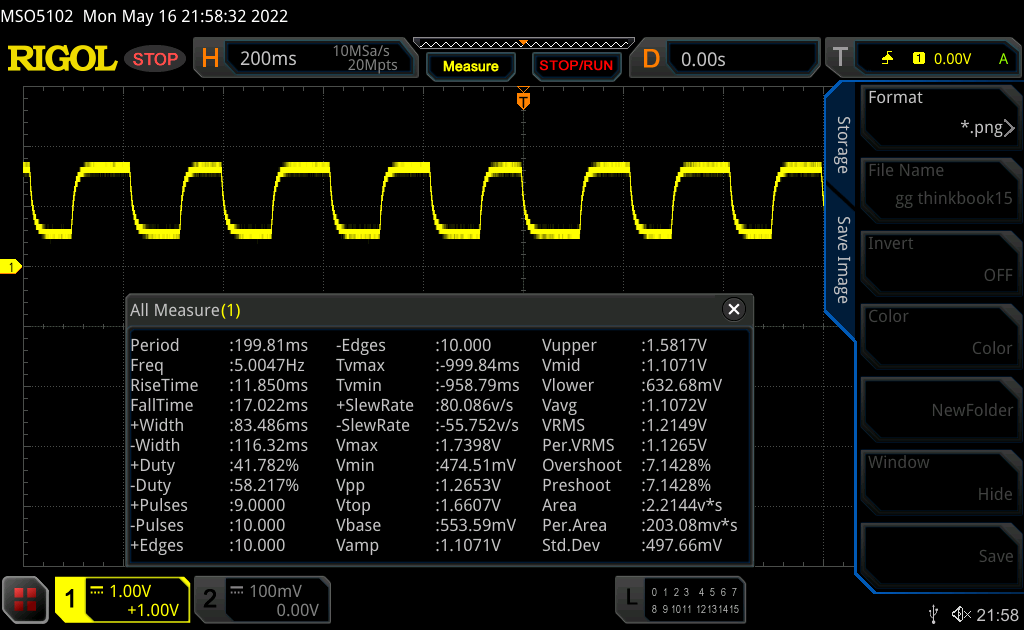

↔ Response Time 50% Grey to 80% Grey
29 ms ... rise ↗ and fall ↘ combined	↗ 12 ms rise
29 ms ... rise ↗ and fall ↘ combined	↘ 17 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 33 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms).

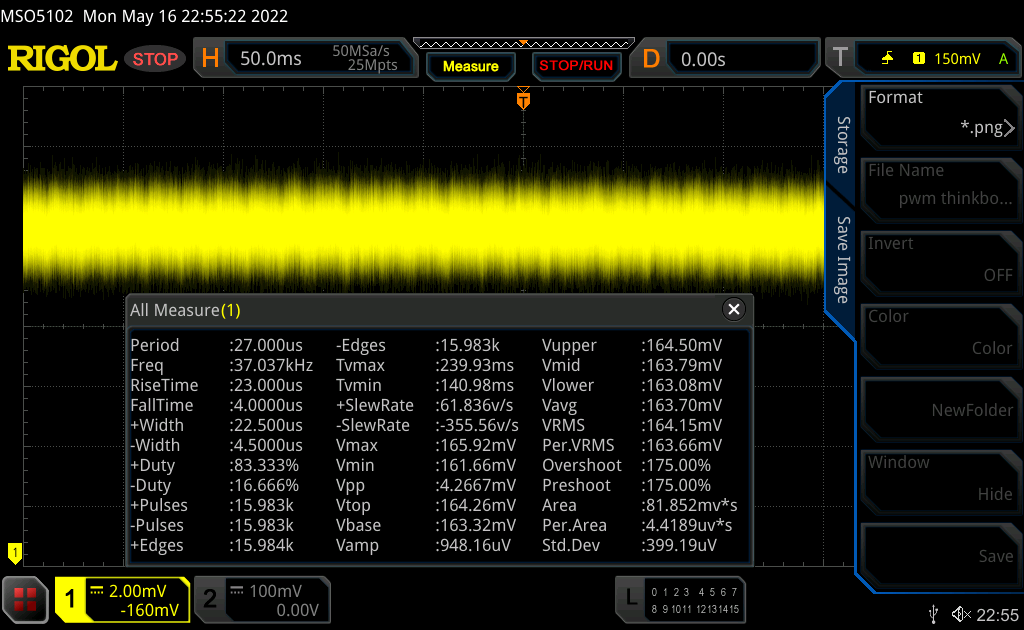

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

37037 Hz

≤ 100 % brightness setting

The display backlight flickers at 37037 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 37037 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured.

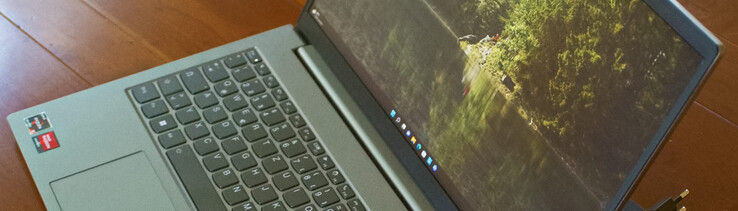

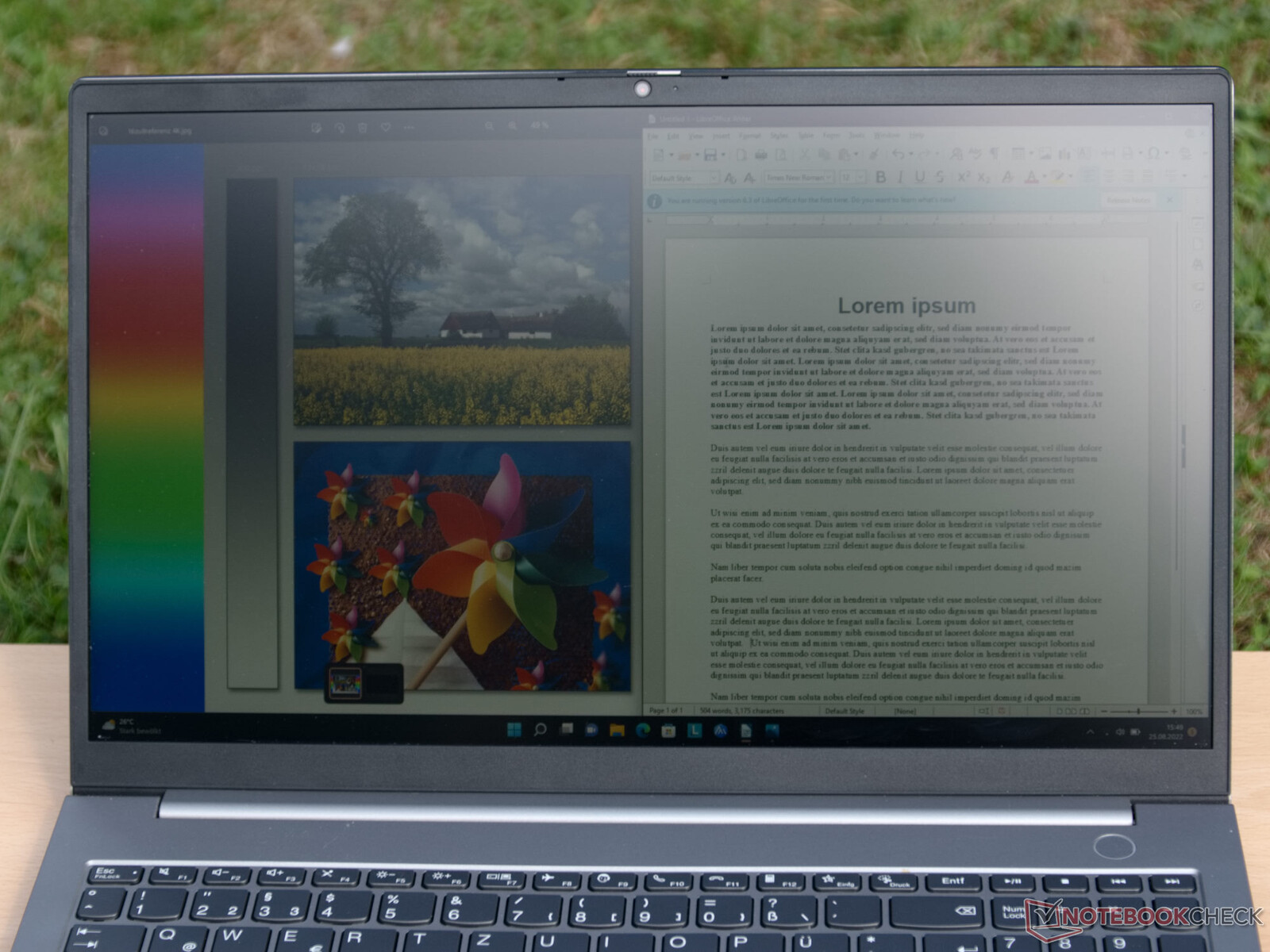

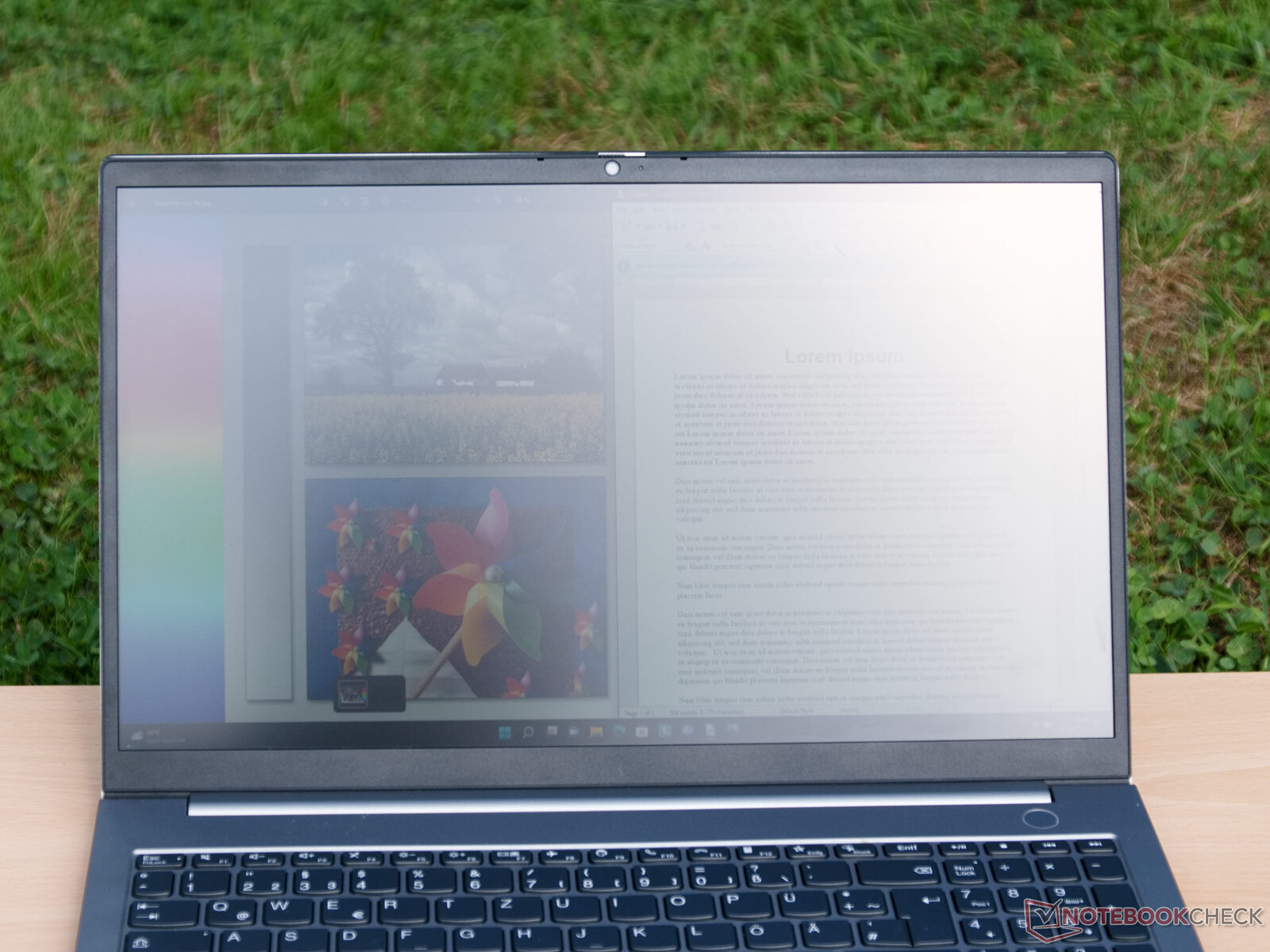

然而，在户外使用时，根据笔记本电脑的位置可能会出现问题。尽管它的显示表面是哑光的，但有时很难将笔记本电脑放在合适的位置，以便能够阅读屏幕。

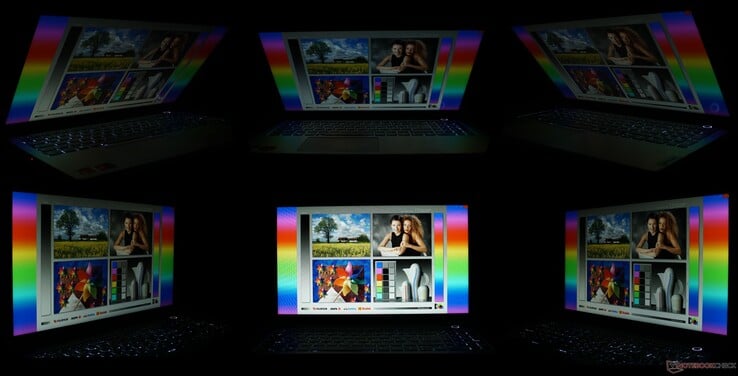

然而，在室内使用时，你可以从各个角度很好地阅读屏幕。从一个陡峭的角度看笔记本电脑，几乎不会导致颜色和感知亮度的任何变化。

性能 - Barcelo在性能上略有提高

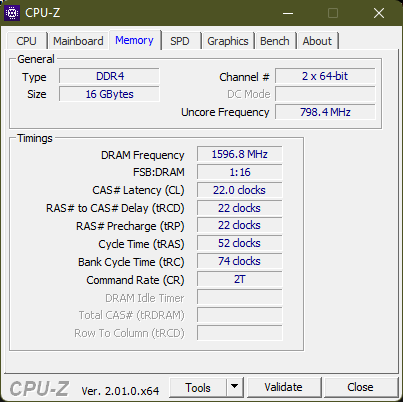

我们的测试设备采用Ryzen 5 5625U，16GB的内存和512GB的存储。AMD处理器的内部图形芯片被用于图形输出。因此，ThinkBook 15 G4适合在办公室和家里使用。然而，在3D应用中，你不应该期望有很高的性能。

测试条件

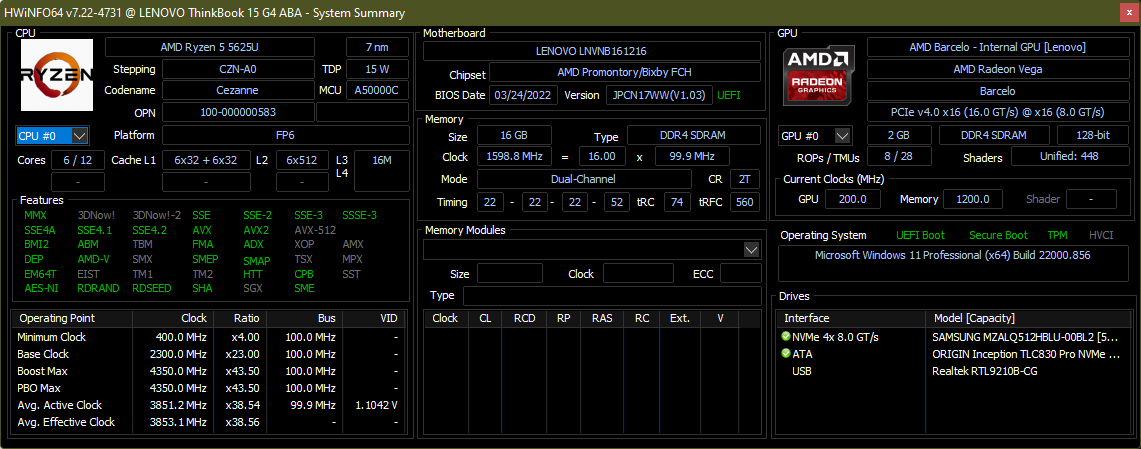

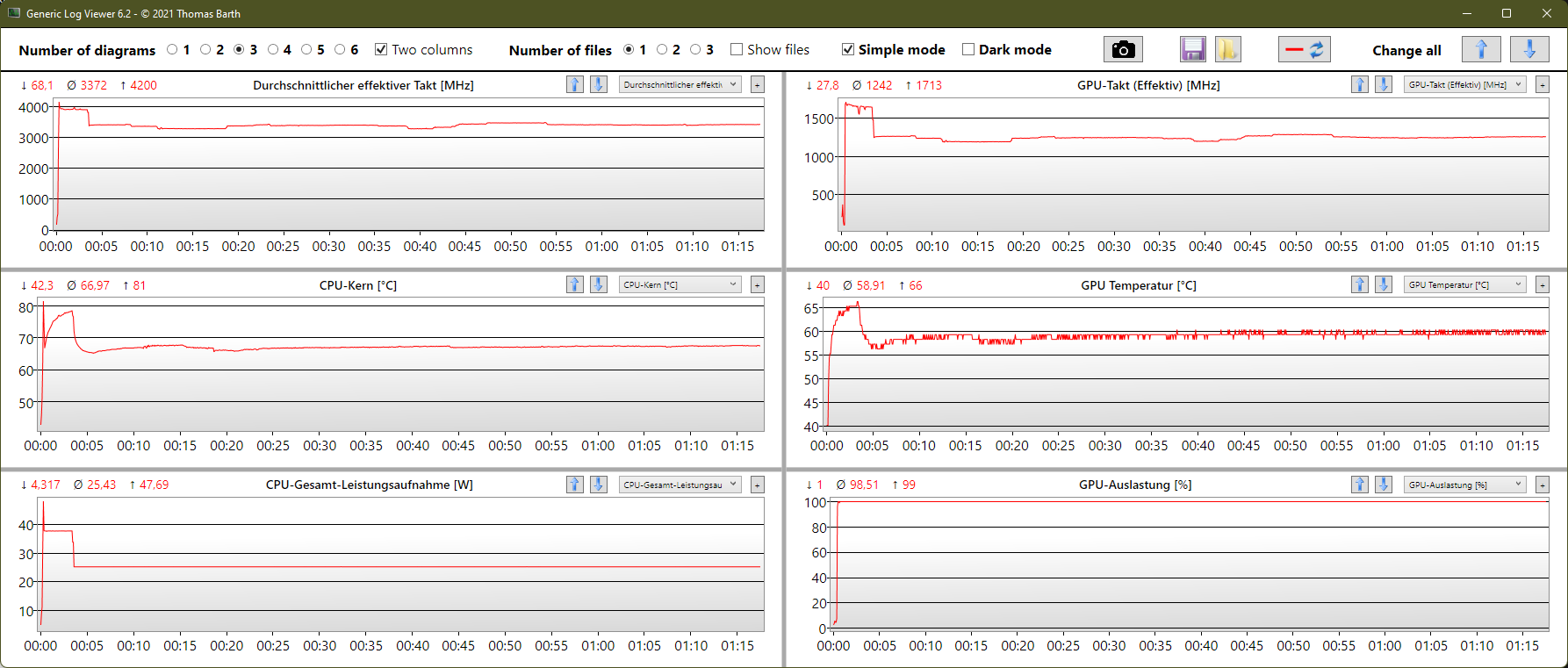

在联想Vantage程序中隐藏着三种不同的性能设置，它们影响着处理器的TDP。最大性能设置允许处理器发挥其全部潜力。我们使用HWiNFO确定了高达45瓦的涡轮增压性能和25瓦的连续性能。虽然平衡模式只提供15瓦的连续性能，但涡轮增压时钟保持不变。省电模式对处理器的性能限制得更明显。然而，它对办公和在线应用来说是足够的。

大多数基准测试是在最大性能模式下进行的。在测量平均体积和能耗时，也使用了平衡性能模式。同样，所有基准测试都是在性能模式下使用各种Cinebench版本进行的。在测试几乎相同的联想ThinkBook 14 G4时，我们在平衡性能模式下运行了大多数基准测试。最大性能模式总是能够取得明显更好的数值。

处理器

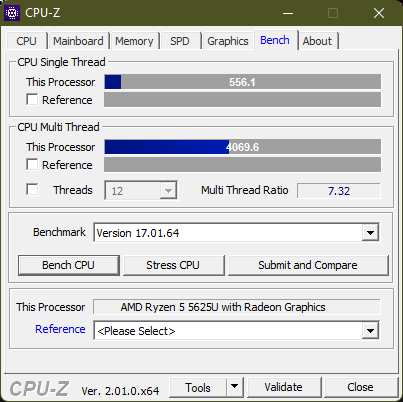

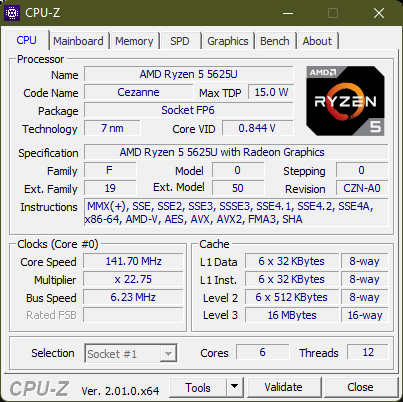

随着2022年初Barcelo的更新，AMD还推出了Ryzen 5 5625U安装在这里。采用Zen 3架构的SoC可以配置为15至25瓦的TDP。因此，联想在其限制范围内使用这个六核CPU。因此，在测试中，该处理器也达到了标明的4.3GHz的涡轮增压时钟，以及2.3GHz的基本时钟。该处理器可以在其涡轮增压时钟下工作相当长的时间，然后再继续以其基本时钟工作。这里的频率不会低于2.3GHz。这导致了在CPU基准测试中的出色表现。

Cinebench R15 Multi Dauertest

Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U: Ø1366 (1305.18-1529.23)

Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U: Ø1061 (1013.4-1290.43)

Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7: Ø837 (828.74-856.81)

SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H; Performance Mode: Ø861 (841.54-932.92)

SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H: Ø664 (645.73-816.34)

SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H; On Battery: Ø487 (449.1-777.88)

Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U: Ø1491 (1475.63-1511.6)

Asus VivoBook S15 D533UA AMD Ryzen 7 5700U: Ø1437 (1387.54-1534.27)

Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U: Ø1317 (1220.85-1478.8)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	82.4 pt
Average AMD Ryzen 5 5625U	77.9 pt
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	76.7 pt
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	76.4 pt
Average of class Office	75.3 pt
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	74.9 pt
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	67.6 pt
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	60.8 pt
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	60.2 pt

Cinebench R23 / Multi Core
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	9100 Points
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	9051 Points -1%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	9033 Points -1%
Average AMD Ryzen 5 5625U (7213 - 9100, n=7)	8263 Points -9%
Average of class Office (1056 - 15743, n=122, last 2 years)	8116 Points -11%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	7677 Points -16%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	6871 Points -24%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	5638 Points -38%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	4404 Points -52%

Cinebench R23 / Single Core
Average of class Office (529 - 1995, n=121, last 2 years)	1462 Points +7%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	1444 Points +5%
Average AMD Ryzen 5 5625U (1345 - 1400, n=7)	1378 Points 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	1372 Points
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	1369 Points 0%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	1362 Points -1%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	1345 Points -2%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	1264 Points -8%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	1255 Points -9%

Cinebench R20 / CPU (Multi Core)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	3549 Points
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	3536 Points 0%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	3490 Points -2%
Average AMD Ryzen 5 5625U (2820 - 3549, n=7)	3206 Points -10%
Average of class Office (356 - 5904, n=120, last 2 years)	3121 Points -12%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	2959 Points -17%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	2345 Points -34%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	2142 Points -40%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	1670 Points -53%

Cinebench R20 / CPU (Single Core)
Average of class Office (181.3 - 764, n=120, last 2 years)	562 Points +3%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	545 Points
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	544 Points 0%
Average AMD Ryzen 5 5625U (533 - 546, n=7)	541 Points -1%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	535 Points -2%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	532 Points -2%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	525 Points -4%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	490 Points -10%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	489 Points -10%

Cinebench R15 / CPU Multi 64Bit
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	1535 Points 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	1529 (1305.18^min - 1529.23^max) Points
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	1512 (1475.63^min - 1511.6^max) Points -1%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	1479 (1220.85^min - 1478.8^max) Points -3%
Average AMD Ryzen 5 5625U (1219 - 1529, n=7)	1417 Points -7%
Average of class Office (160.8 - 2642, n=120, last 2 years)	1405 Points -8%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	1290 (1013.4^min - 1290.43^max) Points -16%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	933 (841.54^min - 932.92^max) Points -39%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	816 (645.73^min - 816.34^max) Points -47%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	778 (449.1^min - 777.88^max) Points -49%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	857 Points -44%

Cinebench R15 / CPU Single 64Bit
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	225 Points
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	223 Points -1%
Average AMD Ryzen 5 5625U (219 - 226, n=7)	223 Points -1%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	220 Points -2%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	218 Points -3%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	215 Points -4%
Average of class Office (82.6 - 284, n=118, last 2 years)	218 Points -3%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	199 Points -12%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	188 Points -16%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	188 Points -16%

Blender / v2.79 BMW27 CPU
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	714 Seconds * -97%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	545 Seconds * -51%
Average of class Office (214 - 2844, n=121, last 2 years)	534 Seconds * -48%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	481 Seconds * -33%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	390 Seconds * -8%
Average AMD Ryzen 5 5625U (347 - 415, n=7)	373 Seconds * -3%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	362 Seconds *
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	323 Seconds * +11%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	317 Seconds * +12%

7-Zip 18.03 / 7z b 4
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	42760 MIPS +7%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	41849 MIPS +5%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	40034 MIPS
Average AMD Ryzen 5 5625U (35573 - 40034, n=7)	37873 MIPS -5%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	37708 MIPS -6%
Average of class Office (4226 - 62349, n=121, last 2 years)	34839 MIPS -13%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	32052 MIPS -20%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	23314 MIPS -42%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	21070 MIPS -47%

7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	5260 MIPS
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	5258 MIPS 0%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	5255 MIPS 0%
Average AMD Ryzen 5 5625U (5070 - 5260, n=7)	5208 MIPS -1%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	5118 MIPS -3%
Average of class Office (2233 - 6687, n=121, last 2 years)	5026 MIPS -4%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	4921 MIPS -6%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	4588 MIPS -13%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	4483 MIPS -15%

Geekbench 5.5 / Multi-Core
Average of class Office (1018 - 11980, n=122, last 2 years)	6683 Points +3%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	6472 Points
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	6254 Points -3%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	6018 Points -7%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	5947 Points -8%
Average AMD Ryzen 5 5625U (4813 - 6472, n=7)	5799 Points -10%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	5562 Points -14%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	4506 Points -30%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	4066 Points -37%

Geekbench 5.5 / Single-Core
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	1548 Points +7%
Average of class Office (510 - 1974, n=122, last 2 years)	1480 Points +2%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	1450 Points
Average AMD Ryzen 5 5625U (1361 - 1450, n=7)	1412 Points -3%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	1383 Points -5%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	1349 Points -7%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	1334 Points -8%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	1191 Points -18%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	1175 Points -19%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	11.7 fps
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	10.6 fps -9%
Average AMD Ryzen 5 5625U (9.28 - 11.7, n=7)	10.3 fps -12%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	10.2 fps -13%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	10.1 fps -14%
Average of class Office (1.55 - 17.4, n=120, last 2 years)	9.27 fps -21%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	7.31 fps -38%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	6.56 fps -44%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	5.37 fps -54%

LibreOffice / 20 Documents To PDF
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	59.3 s * -18%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	57.2 s * -13%
Average of class Office (31.3 - 117.5, n=120, last 2 years)	56.4 s * -12%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	54.6 s * -8%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	51.4 s * -2%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	51.2 s * -2%
Average AMD Ryzen 5 5625U (46.9 - 52, n=7)	50.6 s * -0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	50.4 s *
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	45 s * +11%

R Benchmark 2.5 / Overall mean
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7	0.627 sec * -17%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U	0.602 sec * -13%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U	0.59 sec * -10%
Average of class Office (0.4244 - 1.397, n=119, last 2 years)	0.586 sec * -10%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U	0.585 sec * -10%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H	0.579 sec * -8%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U	0.563 sec * -5%
Average AMD Ryzen 5 5625U (0.534 - 0.572, n=7)	0.554 sec * -4%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U	0.534 sec *

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1529 Points

Cinebench R15 OpenGL 64Bit

79.9 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Single 64Bit

225 Points

Help

... in comparison

Performance Rating
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	89.2 pt
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	88.1 pt
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	87.6 pt
Average AMD Ryzen 5 5625U	77.1 pt
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	71.8 pt
Average of class Office	70.2 pt
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	68.5 pt
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	64.1 pt
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	56.8 pt

AIDA64 / FP32 Ray-Trace
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	11097 KRay/s +4%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	11000 KRay/s +3%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	10645 KRay/s
Average AMD Ryzen 5 5625U (8446 - 10645, n=7)	9500 KRay/s -11%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	8974 KRay/s -16%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	8926 KRay/s -16%
Average of class Office (763 - 24250, n=120, last 2 years)	8374 KRay/s -21%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	7685 KRay/s -28%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	7189 KRay/s -32%

AIDA64 / FPU Julia
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	67729 Points
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	62186 Points -8%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	61463 Points -9%
Average AMD Ryzen 5 5625U (54270 - 67729, n=7)	60473 Points -11%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	56552 Points -17%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	55958 Points -17%
Average of class Office (4027 - 102228, n=120, last 2 years)	44553 Points -34%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	31232 Points -54%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	30383 Points -55%

AIDA64 / CPU SHA3
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	2314 MB/s
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	2134 MB/s -8%
Average AMD Ryzen 5 5625U (1807 - 2314, n=7)	2063 MB/s -11%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	2055 MB/s -11%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	2039 MB/s -12%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	2011 MB/s -13%
Average of class Office (279 - 4442, n=119, last 2 years)	1953 MB/s -16%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	1906 MB/s -18%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	1887 MB/s -18%

AIDA64 / CPU Queen
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	92131 Points +20%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	85979 Points +12%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	77047 Points
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	76747 Points 0%
Average AMD Ryzen 5 5625U (67115 - 77047, n=7)	72375 Points -6%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	68618 Points -11%
Average of class Office (8031 - 113016, n=120, last 2 years)	67103 Points -13%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	52847 Points -31%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	46748 Points -39%

AIDA64 / FPU SinJulia
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	12997 Points +42%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	12948 Points +42%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	9146 Points
Average AMD Ryzen 5 5625U (8128 - 9146, n=7)	8699 Points -5%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	8413 Points -8%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	8241 Points -10%
Average of class Office (404 - 14288, n=120, last 2 years)	6626 Points -28%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	4922 Points -46%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	4443 Points -51%

AIDA64 / FPU Mandel
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	37072 Points
Average AMD Ryzen 5 5625U (29835 - 37072, n=7)	33568 Points -9%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	32615 Points -12%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	32240 Points -13%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	31337 Points -15%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	31225 Points -16%
Average of class Office (2054 - 54365, n=120, last 2 years)	23439 Points -37%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	18751 Points -49%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	18088 Points -51%

AIDA64 / CPU AES
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	91153 MB/s
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	70615 MB/s -23%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	67925 MB/s -25%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	61705 MB/s -32%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	61193 MB/s -33%
Average AMD Ryzen 5 5625U (31782 - 91153, n=7)	57139 MB/s -37%
Average of class Office (5226 - 147611, n=120, last 2 years)	46963 MB/s -48%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	38358 MB/s -58%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	33664 MB/s -63%

AIDA64 / CPU ZLib
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	681 MB/s +15%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	666 MB/s +13%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	592 MB/s
Average AMD Ryzen 5 5625U (481 - 592, n=7)	538 MB/s -9%
Average of class Office (67.6 - 1018, n=120, last 2 years)	535 MB/s -10%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	510 MB/s -14%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	505 MB/s -15%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	389 MB/s -34%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	366 MB/s -38%

AIDA64 / FP64 Ray-Trace
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	6088 KRay/s +8%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	6034 KRay/s +7%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	5653 KRay/s
Average AMD Ryzen 5 5625U (4472 - 5653, n=7)	5038 KRay/s -11%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	4699 KRay/s -17%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	4542 KRay/s -20%
Average of class Office (432 - 12755, n=120, last 2 years)	4459 KRay/s -21%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	3918 KRay/s -31%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	3869 KRay/s -32%

AIDA64 / CPU PhotoWorxx
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	28526 MPixel/s +97%
Average of class Office (4814 - 48177, n=120, last 2 years)	24531 MPixel/s +69%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	16149 MPixel/s +11%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	15734 MPixel/s +8%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	14839 MPixel/s +2%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	14514 MPixel/s
Average AMD Ryzen 5 5625U (7138 - 14839, n=7)	13241 MPixel/s -9%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	9264 MPixel/s -36%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	7147 MPixel/s -51%

系统性能

联想ThinkBook 15 G4在系统性能基准测试中能够超越其竞争对手。看看PCMark 10和Crossmark的个别类别分数，很明显，在需要单核性能的两个部分分数上，英特尔处理器超过了AMD Ryzen。

在实践中，这种差异不太可能是明显的。ThinkBook 15 G4提供了一个反应迅速的用户体验，没有明显的等待时间。

PCMark 10 / Score
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	6025 Points
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (5573 - 6025, n=5)	5772 Points -4%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	5725 Points -5%
SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	5415 Points -10%
Lenovo ThinkPad E15 G3-20YG003UGE Vega 8, R7 5700U, SK Hynix PC711 1TB HFS001TDE9X084N	5404 Points -10%
Asus VivoBook S15 D533UA Vega 8, R7 5700U, WDC PC SN530 SDBPNPZ-1T00	5402 Points -10%
Average of class Office (2325 - 7157, n=105, last 2 years)	5348 Points -11%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	5054 Points -16%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	4703 Points -22%

PCMark 10 / Essentials
SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	10639 Points +1%
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	10555 Points
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (10033 - 10555, n=5)	10242 Points -3%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	10033 Points -5%
Average of class Office (5095 - 20841, n=105, last 2 years)	9832 Points -7%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	9627 Points -9%
Lenovo ThinkPad E15 G3-20YG003UGE Vega 8, R7 5700U, SK Hynix PC711 1TB HFS001TDE9X084N	9337 Points -12%
Asus VivoBook S15 D533UA Vega 8, R7 5700U, WDC PC SN530 SDBPNPZ-1T00	9270 Points -12%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	9074 Points -14%

PCMark 10 / Productivity
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	9462 Points
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (8931 - 9462, n=5)	9188 Points -3%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	9186 Points -3%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	8414 Points -11%
Lenovo ThinkPad E15 G3-20YG003UGE Vega 8, R7 5700U, SK Hynix PC711 1TB HFS001TDE9X084N	8112 Points -14%
Asus VivoBook S15 D533UA Vega 8, R7 5700U, WDC PC SN530 SDBPNPZ-1T00	8111 Points -14%
Average of class Office (3041 - 10198, n=105, last 2 years)	7449 Points -21%
SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	7056 Points -25%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	6305 Points -33%

PCMark 10 / Digital Content Creation
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	5944 Points
Average of class Office (1912 - 9056, n=105, last 2 years)	5810 Points -2%
SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	5740 Points -3%
Asus VivoBook S15 D533UA Vega 8, R7 5700U, WDC PC SN530 SDBPNPZ-1T00	5691 Points -4%
Lenovo ThinkPad E15 G3-20YG003UGE Vega 8, R7 5700U, SK Hynix PC711 1TB HFS001TDE9X084N	5656 Points -5%
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (4920 - 5944, n=5)	5554 Points -7%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	5526 Points -7%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	4935 Points -17%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	4327 Points -27%

CrossMark / Overall
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1325 Points
Average of class Office (348 - 1891, n=106, last 2 years)	1325 Points 0%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1313 Points -1%
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1220 - 1330, n=5)	1300 Points -2%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	1164 Points -12%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1058 Points -20%

CrossMark / Productivity
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1370 Points
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1305 - 1375, n=5)	1351 Points -1%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1346 Points -2%
Average of class Office (393 - 1870, n=106, last 2 years)	1340 Points -2%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	1232 Points -10%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1197 Points -13%

CrossMark / Creativity
Average of class Office (340 - 1982, n=106, last 2 years)	1362 Points +1%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1358 Points +1%
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1347 Points
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1171 - 1358, n=5)	1308 Points -3%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	1176 Points -13%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	895 Points -34%

CrossMark / Responsiveness
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1202 Points +5%
Average of class Office (258 - 2017, n=106, last 2 years)	1195 Points +5%
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1142 Points
Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1103 - 1170, n=5)	1140 Points 0%
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	1103 Points -3%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	951 Points -17%

PCMark 10 Score		6025 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	47502 MB/s +39%
Average of class Office (7158 - 88119, n=121, last 2 years)	42885 MB/s +25%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	34718 MB/s +2%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	34187 MB/s
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	34029 MB/s 0%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	33710 MB/s -1%
Average AMD Ryzen 5 5625U (19943 - 34187, n=7)	31390 MB/s -8%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	19785 MB/s -42%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	17810 MB/s -48%

AIDA64 / Memory Read
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	48807 MB/s +23%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	43584 MB/s +10%
Average of class Office (7325 - 87297, n=121, last 2 years)	43181 MB/s +9%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	42121 MB/s +6%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	39612 MB/s
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	39017 MB/s -2%
Average AMD Ryzen 5 5625U (22532 - 39612, n=7)	36153 MB/s -9%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	22505 MB/s -43%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	21134 MB/s -47%

AIDA64 / Memory Write
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	46929 MB/s +51%
Average of class Office (7579 - 94965, n=121, last 2 years)	46727 MB/s +50%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	39295 MB/s +26%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	37946 MB/s +22%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	31511 MB/s +1%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	31119 MB/s
Average AMD Ryzen 5 5625U (21512 - 33048, n=7)	30399 MB/s -2%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	19884 MB/s -36%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	18924 MB/s -39%

AIDA64 / Memory Latency
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, Vega 8	101 ns * -3%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, Vega 7	98.8 ns * -1%
Average AMD Ryzen 5 5625U (91.7 - 103, n=7)	98.6 ns * -1%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, Vega 7	98.1 ns *
Average of class Office (44.3 - 188.3, n=122, last 2 years)	96.5 ns * +2%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, Vega 8	96.1 ns * +2%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, Vega 7	89.7 ns * +9%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Iris Xe G7 96EUs	83.1 ns * +15%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.8 ns * +30%

* ... smaller is better

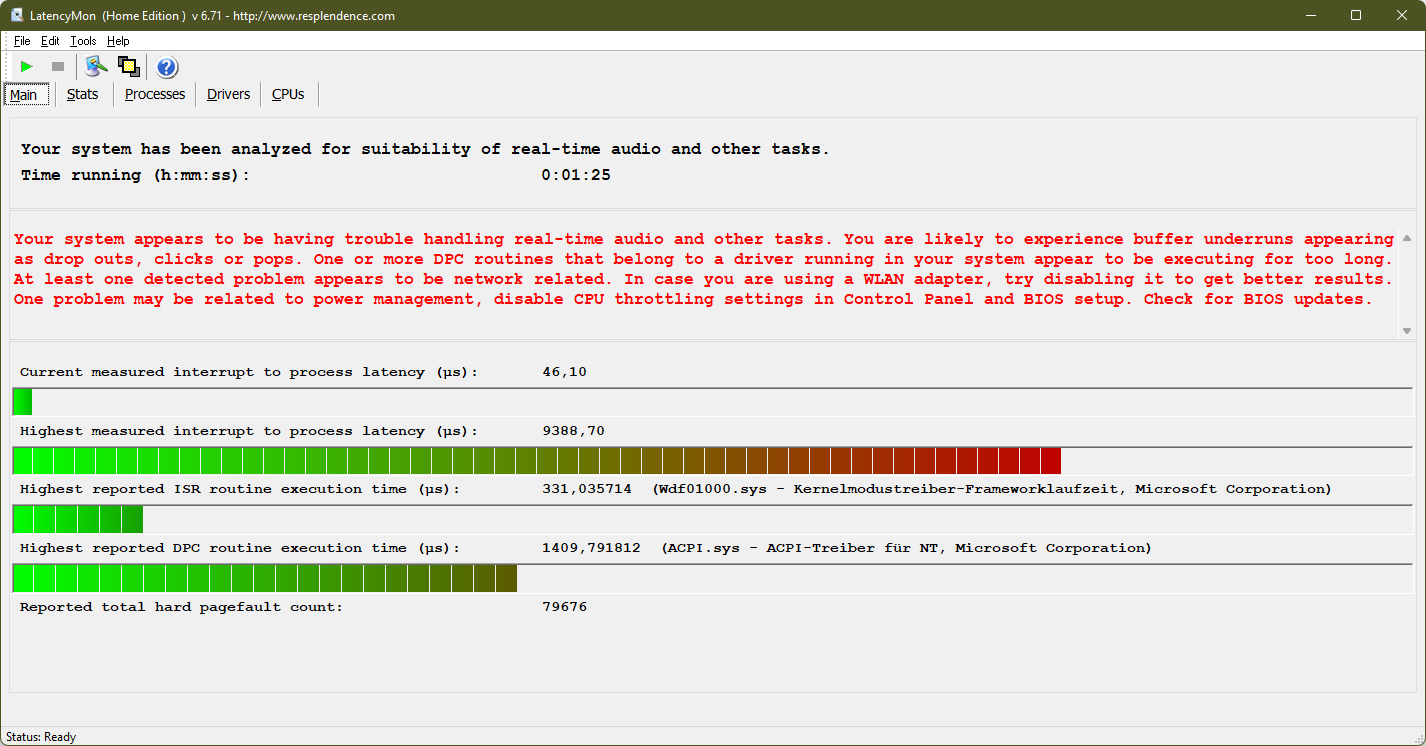

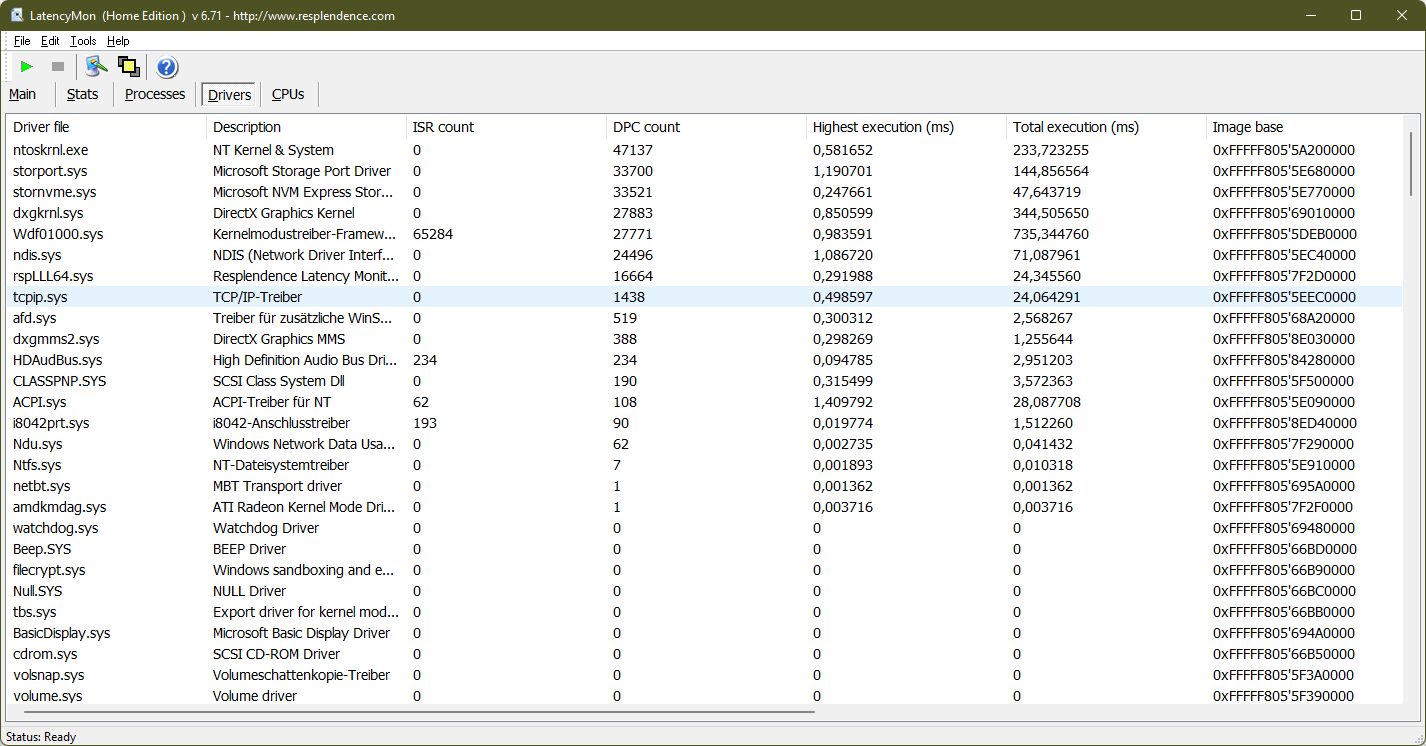

DPC延迟

我们测试设备目前的软件配置带有很高的DPC延迟。然而，这个测试始终只是一个快照，因为驱动程序的更新可以迅速导致测量值的几个变化。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	9388.7 μs *
Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	4166 μs * +56%
Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	3054.4 μs * +67%
Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	1876 μs * +80%
SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	1225 μs * +87%
Lenovo ThinkPad E15 G3-20YG003UGE Vega 8, R7 5700U, SK Hynix PC711 1TB HFS001TDE9X084N	879 μs * +91%
Asus VivoBook S15 D533UA Vega 8, R7 5700U, WDC PC SN530 SDBPNPZ-1T00	587 μs * +94%

* ... smaller is better

存储设备

内置的三星NVMe SSD能够高速传输数据。传输数据时的低延迟也确保了系统的快速。然而，我们在测试中注意到，用电池运行笔记本电脑时的数据传输率比使用外部电源时要弱一些。

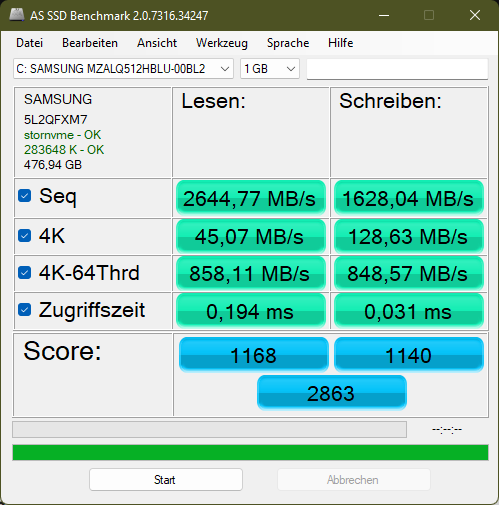

AS SSD

DiskSpd

Samsung PM991a MZALQ512HBLU

Sequential Read: 2644.77MB/s

Sequential Write: 1628.04MB/s

4K Read: 45.07MB/s

4K Write: 128.63MB/s

4K-64 Read: 858.11MB/s

4K-64 Write: 848.57MB/s

Access Time Read: 0.194ms

Access Time Write: 0.031ms

Score Read: 1168Points

Score Write: 1140Points

Score Total: 2863Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	91.8 pt
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	65.2 pt
Average of class Office	56.3 pt
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	53.7 pt
Average Samsung PM991a MZALQ512HBLU	43.3 pt
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	42.8 pt
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	41.2 pt
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	37.9 pt
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	36.4 pt

DiskSpd
seq read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	4278 (4261.41^min - 4277.73^max) MB/s +117%
Average of class Office (482 - 4554, n=107, last 2 years)	2476 MB/s +25%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1989 (1974.92^min - 1988.74^max) MB/s +1%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1975 (1964.4^min - 1975.1^max) MB/s
Average Samsung PM991a MZALQ512HBLU (1824 - 1989, n=4)	1936 MB/s -2%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1821 (1812.78^min - 1820.54^max) MB/s -8%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	1764 (1756.73^min - 1764.09^max) MB/s -11%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	1756 (1749.3^min - 1756.42^max) MB/s -11%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	1624 (1568.04^min - 1623.82^max) MB/s -18%
seq write
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	4360 (4354.74^min - 4360.49^max) MB/s +179%
Average of class Office (333 - 5842, n=107, last 2 years)	2382 MB/s +52%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1939 (1916.53^min - 1939.03^max) MB/s +24%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	1901 (1857.24^min - 1901.04^max) MB/s +22%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1597 (1586.26^min - 1597.14^max) MB/s +2%
Average Samsung PM991a MZALQ512HBLU (1546 - 1604, n=4)	1578 MB/s +1%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1564 (1542.04^min - 1564.28^max) MB/s
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	1213 (1197.8^min - 1213.11^max) MB/s -22%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	943 (937.83^min - 942.67^max) MB/s -40%
seq q8 t1 read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	6579 (6306.77^min - 6578.61^max) MB/s +161%
Average of class Office (535 - 7120, n=107, last 2 years)	4026 MB/s +60%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	3269 (2614.52^min - 3269^max) MB/s +30%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	3119 (2644.13^min - 3118.83^max) MB/s +24%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	2618 (2481.98^min - 2617.87^max) MB/s +4%
Average Samsung PM991a MZALQ512HBLU (2520 - 2665, n=4)	2612 MB/s +4%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	2520 (2372.09^min - 2520.15^max) MB/s
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	2462 (2341.89^min - 2461.64^max) MB/s -2%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	2460 (2212.73^min - 2460.17^max) MB/s -2%
seq q8 t1 write
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	5011 (4986.93^min - 5011.19^max) MB/s +220%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	3250 (3212.84^min - 3249.96^max) MB/s +108%
Average of class Office (276 - 6791, n=107, last 2 years)	3030 MB/s +94%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1967 (1958.53^min - 1966.92^max) MB/s +26%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1591 (1574.75^min - 1591.28^max) MB/s +2%
Average Samsung PM991a MZALQ512HBLU (1564 - 1597, n=4)	1586 MB/s +1%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1564 (1541.26^min - 1564.28^max) MB/s
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	1234 (1228.3^min - 1233.5^max) MB/s -21%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	945 (939.94^min - 945.39^max) MB/s -40%
4k q1 t1 read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	94.3 (93.89^min - 94.29^max) MB/s +96%
Average of class Office (17.7 - 89.9, n=107, last 2 years)	57.7 MB/s +20%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	57.4 (56.11^min - 57.39^max) MB/s +19%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	51.1 (45.49^min - 51.05^max) MB/s +6%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	48.1 (47.24^min - 48.11^max) MB/s
Average Samsung PM991a MZALQ512HBLU (47.3 - 48.3, n=4)	47.8 MB/s -1%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	47.3 (46.7^min - 47.31^max) MB/s -2%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	41.5 (40.25^min - 41.52^max) MB/s -14%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	33 (31.97^min - 33.04^max) MB/s -31%
4k q1 t1 write
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	254 (251.02^min - 253.51^max) MB/s +78%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	243 (240.56^min - 243.21^max) MB/s +70%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	200 (53.88^min - 200.47^max) MB/s +40%
Average of class Office (32 - 429, n=107, last 2 years)	161.5 MB/s +13%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	143 (142.18^min - 142.96^max) MB/s
Average Samsung PM991a MZALQ512HBLU (133 - 144, n=4)	138.8 MB/s -3%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	135.2 (134.36^min - 135.16^max) MB/s -5%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	128 (125.93^min - 127.62^max) MB/s -10%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	113 (111.87^min - 112.96^max) MB/s -21%
4k q32 t16 read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	3078 (2841.35^min - 3078.24^max) MB/s +198%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	2037 (1970.9^min - 2037.39^max) MB/s +97%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1455 (1440.14^min - 1455.31^max) MB/s +41%
Average of class Office (184.2 - 4425, n=107, last 2 years)	1274 MB/s +23%
Average Samsung PM991a MZALQ512HBLU (1032 - 1079, n=4)	1060 MB/s +3%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1056 (968.88^min - 1056.24^max) MB/s +2%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1032 (1029.78^min - 1031.94^max) MB/s
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	718 (675.53^min - 718.14^max) MB/s -30%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	656 (652.43^min - 655.55^max) MB/s -36%
4k q32 t16 write
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	1833 (1774.87^min - 1832.6^max) MB/s +68%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1625 (1621.37^min - 1625.26^max) MB/s +49%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1168 (1147.79^min - 1167.66^max) MB/s +7%
Average Samsung PM991a MZALQ512HBLU (1094 - 1200, n=4)	1162 MB/s +6%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1094 (1076.98^min - 1093.53^max) MB/s
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	1053 (848.79^min - 1053.42^max) MB/s -4%
Average of class Office (192.2 - 3254, n=107, last 2 years)	937 MB/s -14%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	614 (286.41^min - 614.04^max) MB/s -44%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	359 (352.03^min - 358.71^max) MB/s -67%

AS SSD
Score Total
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	6858 Points +140%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	5837 Points +104%
Average of class Office (704 - 9204, n=103, last 2 years)	3986 Points +39%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	3845 Points +34%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	3177 Points +11%
Average Samsung PM991a MZALQ512HBLU (2863 - 3191, n=4)	3072 Points +7%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	2863 Points
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	2527 Points -12%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	1449 Points -49%
Score Read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	2857 Points +145%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	2097 Points +80%
Average of class Office (252 - 3364, n=103, last 2 years)	1442 Points +23%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1307 Points +12%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1292 Points +11%
Average Samsung PM991a MZALQ512HBLU (1168 - 1307, n=4)	1259 Points +8%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1168 Points
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	925 Points -21%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	621 Points -47%
Score Write
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	2725 Points +139%
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	2602 Points +128%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1898 Points +66%
Average of class Office (320 - 4111, n=103, last 2 years)	1850 Points +62%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1244 Points +9%
Average Samsung PM991a MZALQ512HBLU (1140 - 1289, n=4)	1216 Points +7%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	1184 Points +4%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1140 Points
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	567 Points -50%
Seq Read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	5464 MB/s +107%
Average of class Office (508 - 5796, n=103, last 2 years)	3168 MB/s +20%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	2682.84 MB/s +1%
Average Samsung PM991a MZALQ512HBLU (2635 - 2725, n=4)	2672 MB/s +1%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	2644.77 MB/s
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	2432 MB/s -8%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	2220 MB/s -16%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	2082 MB/s -21%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	2035 MB/s -23%
Seq Write
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	4001 MB/s +146%
Average of class Office (304 - 5880, n=103, last 2 years)	2085 MB/s +28%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1844 MB/s +13%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	1691.36 MB/s +4%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	1628.04 MB/s
Average Samsung PM991a MZALQ512HBLU (1364 - 1691, n=4)	1569 MB/s -4%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	1266 MB/s -22%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	919 MB/s -44%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	739 MB/s -55%
4K Read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	86.5 MB/s +92%
Average of class Office (18.7 - 91.1, n=103, last 2 years)	56.3 MB/s +25%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	48.88 MB/s +8%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	45.07 MB/s
Average Samsung PM991a MZALQ512HBLU (43.6 - 45.4, n=4)	44.6 MB/s -1%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	44.33 MB/s -2%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	44.29 MB/s -2%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	39.66 MB/s -12%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	31.5 MB/s -30%
4K Write
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	221 MB/s +72%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	208.9 MB/s +62%
Average of class Office (35.4 - 350, n=103, last 2 years)	158.6 MB/s +23%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	157.5 MB/s +22%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	129.18 MB/s 0%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	128.63 MB/s
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	128.4 MB/s 0%
Average Samsung PM991a MZALQ512HBLU (113.5 - 132.4, n=4)	125.9 MB/s -2%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	98.57 MB/s -23%
4K-64 Read
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	2224 MB/s +159%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	1805 MB/s +110%
Average of class Office (182.3 - 2713, n=103, last 2 years)	1069 MB/s +25%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1039 MB/s +21%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	994.27 MB/s +16%
Average Samsung PM991a MZALQ512HBLU (858 - 994, n=4)	947 MB/s +10%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	858.11 MB/s
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	682 MB/s -21%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	367.2 MB/s -57%
4K-64 Write
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	2470 MB/s +191%
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	1981 MB/s +133%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	1556 MB/s +83%
Average of class Office (132.3 - 3394, n=103, last 2 years)	1482 MB/s +75%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	1011.23 MB/s +19%
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	945.62 MB/s +11%
Average Samsung PM991a MZALQ512HBLU (849 - 1016, n=4)	933 MB/s +10%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	848.57 MB/s
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	266 MB/s -69%
Access Time Read
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	0.194 ms *
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	0.183 ms * +6%
Average Samsung PM991a MZALQ512HBLU (0.086 - 0.194, n=4)	0.1413 ms * +27%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	0.1 ms * +48%
Average of class Office (0.022 - 0.295, n=103, last 2 years)	0.08014 ms * +59%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	0.076 ms * +61%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	0.05 ms * +74%
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	0.048 ms * +75%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	0.044 ms * +77%
Access Time Write
Lenovo ThinkBook 14 G4 21DK0004GE Samsung PM991a MZALQ512HBLU	0.089 ms * -187%
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00	0.065 ms * -110%
Average of class Office (0.017 - 0.619, n=103, last 2 years)	0.06444 ms * -108%
Average Samsung PM991a MZALQ512HBLU (0.029 - 0.101, n=4)	0.0625 ms * -102%
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	0.057 ms * -84%
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G	0.041 ms * -32%
Dynabook Satellite Pro C50D-B-115 Samsung PM991a MZVLQ256HBJD	0.039 ms * -26%
Lenovo ThinkPad E15 G3-20YG003UGE SK Hynix PC711 1TB HFS001TDE9X084N	0.038 ms * -23%
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU	0.031 ms *

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkBook 15 G4 21DL0009GE: Ø2553 (2364.12-2581.67)

图形卡

ThinkBook 14 G4只包含Ryzen 5的集成GPU。该AMD Radeon RX Vega 7为许多3D应用提供足够的性能。良好的视频编码器和相对较高的时钟频率使该芯片能够在一些游戏中生成足够的图像，并能顺利地渲染它们。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
SCHENKER Work 15 Tiger Lake-H ^-2! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11370H	100 pt
Average of class Office	88.9 pt
Lenovo ThinkPad E15 G3-20YG003UGE AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	81.6 pt
Lenovo ThinkBook 15 G4 21DL0009GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	80.9 pt
Asus VivoBook S15 D533UA ^-1! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	75.2 pt
Lenovo ThinkBook 14 G4 21DK0004GE ^-1! AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	73.9 pt
Average AMD Radeon RX Vega 7	73.3 pt
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	51.6 pt
Dynabook Satellite Pro C50D-B-115 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	43.4 pt

3DMark 11 - 1280x720 Performance GPU
Average of class Office (1474 - 13132, n=113, last 2 years)	6062 Points +13%
Asus VivoBook S15 D533UA AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5667 Points +6%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5667 Points +6%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	5347 Points
Lenovo ThinkBook 14 G4 21DK0004GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	5302 Points -1%
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points -5%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3929 Points -27%
Dynabook Satellite Pro C50D-B-115 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3372 Points -37%

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkBook 15 G4 21DL0009GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	27315 Points
Lenovo ThinkPad E15 G3-20YG003UGE AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	25687 Points -6%
Average of class Office (5681 - 58068, n=93, last 2 years)	24010 Points -12%
Average AMD Radeon RX Vega 7 (13713 - 31437, n=43)	23324 Points -15%
Dynabook Satellite Pro C50D-B-115 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	14314 Points -48%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	13628 Points -50%
1920x1080 Fire Strike Graphics
SCHENKER Work 15 Tiger Lake-H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11370H	5137 Points +51%
Average of class Office (712 - 9228, n=114, last 2 years)	4191 Points +23%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3516 Points +3%
Asus VivoBook S15 D533UA AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3430 Points 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	3413 Points
Lenovo ThinkBook 14 G4 21DK0004GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	3380 Points -1%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points -7%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	2134 Points -37%
Dynabook Satellite Pro C50D-B-115 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1772 Points -48%
2560x1440 Time Spy Graphics
SCHENKER Work 15 Tiger Lake-H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11370H	1591 Points +45%
Average of class Office (242 - 3242, n=110, last 2 years)	1372 Points +25%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1118 Points +2%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	1096 Points
Lenovo ThinkBook 14 G4 21DK0004GE AMD Radeon RX Vega 7, AMD Ryzen 5 5625U	1089 Points -1%
Asus VivoBook S15 D533UA AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1040 Points -5%
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points -10%
Acer Extensa 15 EX215-54-5103 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	796 Points -27%
Dynabook Satellite Pro C50D-B-115 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	496 Points -55%

3DMark 11 Performance		5607 points
3DMark Cloud Gate Standard Score		21008 points
3DMark Fire Strike Score		3136 points
3DMark Time Spy Score		1245 points
Help

... in comparison

游戏性能

因此，一些游戏确实可以在Radeon RX Vega 7上顺利运行。锐龙RX Vega 7.然而，对于较新的游戏，你将不得不在没有更高的分辨率或高质量设置的情况下，以达到保持可玩性的帧率。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	105.8 fps
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	91.2 fps -14%
Average of class Office (8.4 - 177, n=104, last 2 years)	74.1 fps -30%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64 fps -40%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	63.4 fps -40%
Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50)	58.1 fps -45%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54 (32.2^min, 32.6^P0.1, 38^P1) fps -49%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	33.6 (4.78^min, 5.88^P0.1, 19.1^P1) fps -68%
1366x768 Medium Graphics & Postprocessing
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	81.3 fps
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	59.2 fps -27%
Average of class Office (7.82 - 106.3, n=96, last 2 years)	46.3 fps -43%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	39.9 fps -51%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.5 (24.8^min, 25.3^P0.1, 26.8^P1) fps -53%
Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37)	34.1 fps -58%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.8 (10.7^min, 11.5^P0.1, 16.3^P1) fps -73%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	26.2 fps
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	25.3 fps -3%
Average of class Office (3.49 - 59.1, n=104, last 2 years)	25.2 fps -4%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	22 fps -16%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20.4 fps -22%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.6 (15^min, 15.3^P0.1, 16.1^P1) fps -25%
Average AMD Radeon RX Vega 7 (8.96 - 26.2, n=49)	18.1 fps -31%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	10.2 (5.29^min, 5.52^P0.1, 7.01^P1) fps -61%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Office (2.66 - 34, n=110, last 2 years)	13.8 fps +10%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (8.64^min, 9.14^P0.1, 10.9^P1) fps +6%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (12^min, 12^P1) fps +6%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	12.6 (9^min, 12^P1) fps 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	12.6 fps
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	12.5 fps -1%
Average AMD Radeon RX Vega 7 (6.5 - 15.8, n=42)	11.9 fps -6%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	6.59 (3.35^min, 3.37^P0.1, 4.51^P1) fps -48%

GTA V
1366x768 Normal/Off AF:4x
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	90.4 (24.3^min, 58.8^P1) fps 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	90.1 (25.7^min, 58.8^P1) fps
Average of class Office (7.47 - 171.4, n=102, last 2 years)	82.7 fps -8%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.9 (23.4^min, 50^P1) fps -10%
Average AMD Radeon RX Vega 7 (38 - 123, n=33)	78.7 fps -13%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	78.3 (12.5^min, 40^P1) fps -13%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	73.2 (25.6^min, 40^P1) fps -19%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.9 (13.7^min, 19.2^P1) fps -65%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Average of class Office (8.21 - 99.1, n=101, last 2 years)	25.9 fps +2%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.4 (4.58^min, 18.2^P1) fps 0%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	25.4 (11.3^min, 17.5^P1) fps 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	25.3 (11.3^min, 17.5^P1) fps
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.8 (4.64^min, 17.2^P1) fps -2%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	24.7 (7.49^min, 18.9^P1) fps -2%
Average AMD Radeon RX Vega 7 (11.3 - 32.2, n=36)	22.7 fps -10%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	8.55 (4.18^min, 5.21^P1) fps -66%

Dota 2 Reborn
1366x768 med (1/3)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	88.5 (81.3^min) fps
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	82.5 (66.2^min) fps -7%
Average AMD Radeon RX Vega 7 (32.7 - 107.8, n=58)	76.7 fps -13%
Average of class Office (10.9 - 146.2, n=123, last 2 years)	76.6 fps -13%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	75.8 (64.7^min) fps -14%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	74.9 (64^min) fps -15%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	70 (54.7^min) fps -21%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	54.8 (46.3^min) fps -38%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	41.9 (34.3^min) fps -53%
1920x1080 high (2/3)
Average of class Office (8.9 - 130.9, n=123, last 2 years)	50.8 fps +1%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	50.1 (46.6^min) fps
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.5 (45.4^min) fps -1%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	49.2 (44.9^min) fps -2%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48.8 (44^min) fps -3%
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	47 (38.5^min) fps -6%
Average AMD Radeon RX Vega 7 (25.1 - 62.1, n=58)	44.8 fps -11%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	26.3 (23.2^min) fps -48%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24 (18.4^min) fps -52%

Final Fantasy XV Benchmark
1920x1080 Standard Quality
Average of class Office (3.02 - 51.7, n=108, last 2 years)	19.6 fps +13%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.3 fps 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	17.3 fps
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.9 fps -2%
Average AMD Radeon RX Vega 7 (8.9 - 20.3, n=40)	15.4 fps -11%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	10 fps -42%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	9.25 fps -47%
1280x720 Lite Quality
Average of class Office (5.42 - 103.1, n=115, last 2 years)	36.4 fps +6%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	34.4 fps
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 fps -3%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps -3%
Average AMD Radeon RX Vega 7 (17.1 - 41.1, n=40)	30.4 fps -12%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.4 fps -47%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	18.3 fps -47%

X-Plane 11.11
1920x1080 med (fps_test=2)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	36.1 fps
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	34 fps -6%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	33.9 fps -6%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.3 fps -8%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 fps -10%
Average of class Office (6.45 - 115.3, n=122, last 2 years)	32.4 fps -10%
Average AMD Radeon RX Vega 7 (19.3 - 40.3, n=56)	30.5 fps -16%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	28.6 fps -21%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21.2 fps -41%
1920x1080 high (fps_test=3)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	31.6 fps
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	30.4 fps -4%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	30.1 fps -5%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 fps -6%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.9 fps -9%
Average of class Office (5.55 - 92.6, n=123, last 2 years)	28.2 fps -11%
Average AMD Radeon RX Vega 7 (17.4 - 35.7, n=56)	27.2 fps -14%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26 fps -18%
Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	19.3 fps -39%

Strange Brigade
1920x1080 high AA:high AF:8
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	29.9 (8.6^min, 16.4^P1) fps +18%
Average of class Office (7.1 - 64.5, n=107, last 2 years)	27.5 fps +8%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	25.4 (19^min, 20.3^P1) fps
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	25.1 (17.2^min, 19.7^P1) fps -1%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 fps -2%
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.6 (18.4^min, 19.2^P1) fps -3%
Average AMD Radeon RX Vega 7 (11.5 - 30.1, n=41)	22.7 fps -11%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	11.8 (5^min, 5^P1) fps -54%
1920x1080 medium AA:medium AF:4
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	36.9 (18.5^min, 22.3^P1) fps +23%
Average of class Office (8.6 - 77.2, n=107, last 2 years)	33.7 fps +12%
Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	30.1 (22.5^min, 26.4^P1) fps 0%
Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	30 fps 0%
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	30 (24.2^min, 26.8^P1) fps
Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (20.3^min, 25.2^P1) fps -3%
Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41)	27.1 fps -10%
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.3 (5^min, 5.45^P1) fps -56%

对于《巫师》的FPS图表，游戏是在超级设置下运行的。因此，这款拥有iGPU的笔记本电脑在这里未能实现高帧率也就不奇怪了。

Witcher 3 FPS-Diagramm

Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7: Ø12.6 (12-14)

	low	med.	high	ultra	QHD	4K
GTA V (2015)	104.5	90.1	25.3	11.6
The Witcher 3 (2015)	105.8	81.3	26.2	12.6
Dota 2 Reborn (2015)	119.4	88.5	50.1	47.1		18.2
Final Fantasy XV Benchmark (2018)	34.4	17.3	12.2		8.66	4.83
X-Plane 11.11 (2018)	46.6	36.1	31.6			31.5
Strange Brigade (2018)	78.4	30	25.4	21.5

排放 - 足够安静的风扇

噪声排放

15英寸的ThinkBook比14英寸的小设备声音略大。较小的14英寸设备。然而，即使是较大的笔记本电脑，在这方面也很难被描述为破坏性的。笔记本电脑的最大音量为43 dB(A)，即使在负载情况下，其音量仍然可以忍受。

Noise Level

Idle		23.21 / 23.21 / 23.21 dB(A)
Load		33 / 43.34 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.21 dB(A)

	Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU	Dynabook Satellite Pro C50D-B-115 Vega 7, R5 5600U, Samsung PM991a MZVLQ256HBJD	Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G	SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW	Lenovo ThinkPad E15 G3-20YG003UGE Vega 8, R7 5700U, SK Hynix PC711 1TB HFS001TDE9X084N	Asus VivoBook S15 D533UA Vega 8, R7 5700U, WDC PC SN530 SDBPNPZ-1T00	Lenovo ThinkBook 14 G4 21DK0004GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU
Noise		-11%	-9%	-11%	-2%	-17%	-3%
off / environment *	23.21	23.9 -3%	25 -8%	24.4 -5%	23.8 -3%	26 -12%	24.41 -5%
Idle Minimum *	23.21	23.7 -2%	25 -8%	24.4 -5%	23.8 -3%	26 -12%	24.41 -5%
Idle Average *	23.21	27 -16%	25 -8%	24.4 -5%	23.8 -3%	26 -12%	24.41 -5%
Idle Maximum *	23.21	28.9 -25%	27 -16%	26.7 -15%	28 -21%	28.8 -24%	24.41 -5%
Load Average *	33	40.8 -24%	32.3 2%	43.8 -33%	32.9 -0%	45 -36%	36.36 -10%
Load Maximum *	43.34	40.8 6%	50 -15%	44.8 -3%	35 19%	45 -4%	38.62 11%
Witcher 3 ultra *		40.8		43.8

* ... smaller is better

温度

在日常使用的要求下，笔记本的表面没有发热到任何明显的程度。即使在游戏和执行各种基准测试时，表面温度也几乎没有任何明显的变化。在夏季环境温度为45℃的情况下，笔记本的表面温度始终保持在可接受的水平。

Max. Load

Idle


32.5 °C	41.1 °C	34.9 °C
39.3 °C	39 °C	30.2 °C
28.3 °C	27.5 °C	25 °C

Maximum: 41.1 °C
Average: 33.1 °C


34 °C	45.6 °C	34.5 °C
31 °C	45.5 °C	35.1 °C
25 °C	26.2 °C	26.6 °C

Maximum: 45.6 °C
Average: 33.7 °C

Power Supply (max.) 45.3 °C | Room Temperature 24.9 °C | Fluke 62 Max+

(±) The average temperature for the upper side under maximal load is 33.1 °C / 92 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41.1 °C / 106 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.3 °C / 82.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.6 °C / -1 F).

	Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7	Dynabook Satellite Pro C50D-B-115 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs	Lenovo ThinkPad E15 G3-20YG003UGE AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Asus VivoBook S15 D533UA AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Lenovo ThinkBook 14 G4 21DK0004GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7
Heat		8%	8%	16%	-2%	6%	6%
Maximum Upper Side *	41.1	42 -2%	42 -2%	39.1 5%	46.4 -13%	46.1 -12%	38.9 5%
Maximum Bottom *	45.6	48.8 -7%	43.3 5%	43.4 5%	60.9 -34%	46.6 -2%	42.8 6%
Idle Upper Side *	31.6	26.2 17%	27.9 12%	24.3 23%	26.5 16%	27.4 13%	33.2 -5%
Idle Bottom *	36.5	28.1 23%	30.4 17%	25.1 31%	27.5 25%	28.2 23%	30.8 16%

* ... smaller is better

压力测试

在Prime95和Furmark的压力测试中，该处理器的性能保持了一个多小时。在测试期间，Ryzen 5 5625U通常保持在2.3 GHz的基本时钟以上。我们没有注意到任何明显的热量积聚。

发言人

对于一台办公笔记本电脑来说，联想笔记本电脑上的扬声器听起来出奇的好。低音和中音可以听得很清楚，即使扬声器的整体音量不是很大。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkBook 15 G4 21DL0009GE audio analysis

(-) | not very loud speakers (64.28 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.6% lower than median
(-) | bass is not linear (15.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.9% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(±) | linearity of highs is average (9.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.2% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 9% similar, 45% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 54% of all tested devices were better, 7% similar, 39% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

电源管理--尽管电池很小，但运行时间为8小时

消耗功率

这款办公用笔记本电脑的耗电量一般来说是经济的。然而，就测量值而言，它很难将自己与其他笔记本电脑区分开来。

在短时间内，ThinkBook可以达到附带的65瓦电源的功率极限。然而，它通常被充分分配。

Power Consumption

Off / Standby	0.29 / 0.64 Watt
Idle	4.6 / 8.6 / 9.6 Watt
Load	40.2 / 65.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7, Samsung PM991a MZALQ512HBLU, IPS, 1920x1080, 15.60	Dynabook Satellite Pro C50D-B-115 R5 5600U, Vega 7, Samsung PM991a MZVLQ256HBJD, IPS, 1920x1080, 15.60	Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs, WDC PC SN530 SDBPNPZ-265G, TN LED, 1920x1080, 15.60	SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW, IPS, 1920x1080, 15.60	Lenovo ThinkPad E15 G3-20YG003UGE R7 5700U, Vega 8, SK Hynix PC711 1TB HFS001TDE9X084N, IPS, 1920x1080, 15.60	Asus VivoBook S15 D533UA R7 5700U, Vega 8, WDC PC SN530 SDBPNPZ-1T00, IPS, 1920x1080, 15.60	Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7, Samsung PM991a MZALQ512HBLU, IPS, 1920x1080, 14.00	Average AMD Radeon RX Vega 7	Average of class Office
Power Consumption		24%	24%	-2%	5%	-8%	9%	9%	7%
Idle Minimum *	4.6	3.6 22%	3.5 24%	4.5 2%	3.4 26%	5 -9%	4.1 11%	4.66 ?(2.6 - 8.4, n=52) -1%	4.3 ?(2.2 - 9.6, n=107, last 2 years) 7%
Idle Average *	8.6	6.8 21%	7.1 17%	8.5 1%	7.6 12%	7.7 10%	8 7%	7.56 ?(4.8 - 10.7, n=52) 12%	7.35 ?(3.8 - 20.6, n=107, last 2 years) 15%
Idle Maximum *	9.6	7.5 22%	8 17%	9.1 5%	9.3 3%	12.2 -27%	8.9 7%	8.95 ?(5.6 - 13.8, n=52) 7%	9.15 ?(5.1 - 23.9, n=107, last 2 years) 5%
Load Average *	40.2	27.4 32%	28 30%	43.5 -8%	44.5 -11%	41 -2%	39.3 2%	38.7 ?(21.6 - 54.9, n=53) 4%	41.1 ?(8.7 - 77.9, n=106, last 2 years) -2%
Witcher 3 ultra *	35.7	30.1 16%	28.6 20%	37.5 -5%	42.7 -20%	43 -20%	38.1 -7%
Load Maximum *	65.8	44 33%	44 33%	69.4 -5%	54.2 18%	65 1%	45.7 31%	51.9 ?(31 - 73.4, n=52) 21%	58.1 ?(11.1 - 101.4, n=107, last 2 years) 12%

* ... smaller is better

Power consumption - The Witcher 3 / Stress test

Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7; Witcher 3 ultra: Ø35.7 (35.1-37.2)

Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; Witcher 3 ultra: Ø38.1 (37.3-48.7)

Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø42.2 (36-65.8)

Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø42.1 (41-45.7)

Power consumption with external monitor

Lenovo ThinkBook 15 G4 21DL0009GE; Prime95 V2810 Stress (external Monitor): Ø32.9 (32.5-33.6)

Lenovo ThinkBook 15 G4 21DL0009GE; Cinebench R15 Multi (external Monitor): Ø29 (28.6-30)

Lenovo ThinkBook 15 G4 21DL0009GE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø33 (31.8-35.3)

Lenovo ThinkBook 15 G4 21DL0009GE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø31.9 (30.9-34.2)

电池寿命

在我们的Wi-Fi网页浏览测试中，这台笔记本电脑在一次电池充电的情况下能够达到8小时。因此，凭借其45瓦时的电量，该电池完全可以满足在办公室工作一天的需要。然而，在最大负荷下，这块小电池将无法持续较长的时间。在最大负荷下使用一个多小时后，联想ThinkBook 15 G4将关闭。

Battery Runtime

WiFi Websurfing		8h 12min
WiFi Websurfing max. Brightness		7h 46min
Load (maximum brightness)		1h 11min

	Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7, 44.52 Wh	Dynabook Satellite Pro C50D-B-115 R5 5600U, Vega 7, 45.6 Wh	Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs, 43 Wh	SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs, 73 Wh	Lenovo ThinkPad E15 G3-20YG003UGE R7 5700U, Vega 8, 57 Wh	Asus VivoBook S15 D533UA R7 5700U, Vega 8, 50 Wh	Lenovo ThinkBook 14 G4 21DK0004GE R5 5625U, Vega 7, 43.01 Wh	Average of class Office
Battery Runtime		9%	-15%	56%	21%	9%	-2%	44%
WiFi v1.3	492	538 9%	418 -15%	614 25%	597 21%	538 9%	511 4%	594 ?(300 - 1137, n=107, last 2 years) 21%
Load	71			132.7 87%			65 -8%	117.7 ?(56 - 218, n=67, last 2 years) 66%
Reader / Idle				1472				1436 ?(527 - 2359, n=21, last 2 years)
H.264				576				705 ?(348 - 1112, n=40, last 2 years)

Pros

+ 高质量的外壳

+ 可扩展的硬件

+ 良好的网络摄像头

+ 适当的性能

+ 快速的固态硬盘

+ SD卡读卡器

+ 数字小键盘

Cons

- 制造商的保修期只有12个月

- 屏幕较弱（色彩空间覆盖率低，背光，在户外使用时出现反光）

- 键盘的键程低

结论--ThinkBook 15 G4很难从众多产品中脱颖而出

联想ThinkBook 15 G4是一款坚实的办公笔记本电脑，无论从正面还是反面看都没有什么出奇之处。正如你所期望的那样，联想的外壳质量很高，其设计令人愉快，但它缺乏任何独特的功能。尽管Ryzen 5的Barcelo更新在这里能够提供合理的性能，但与前代产品相比，性能的提高几乎没有惊天动地。在测试中，我们喜欢良好的网络摄像头，它最终能以高于90万像素的分辨率渲染图片，以及强大的扬声器。

目前的办公笔记本电脑几乎没有将自己与其他产品区分开来。例如，联想ThinkBook 15 G4只提供了一个真正与众不同的功能，即全高清分辨率的网络摄像头。

总的来说，近年来，便宜的办公笔记本电脑的性能能力已经有了相当大的进步。因此，联想ThinkBook 15 G4在任何基准和测试中都无法真正将自己与竞争对手区分开来。选择合适的办公笔记本电脑是一项相当棘手的工作。价格较低的宏碁Extensa和Dynabook Satellite Pro以及价格较高的Schenker Work 15提供相同的性能范围。最多，Schenker笔记本电脑因其RGB键盘而脱颖而出。如果你不介意一个稍小的笔记本电脑，技术上类似的联想ThinkBook 14 G4可以作为一个选择。

价格和可用性

对于小学生、学生、教师和讲师以及志愿者，联想ThinkBook 15 G4在campuspoint.de上有售。售价约为800欧元。对于其他任何人，该设备，售价为975欧元。

Lenovo ThinkBook 15 G4 21DL0009GE - 2022-08-31 08/31/2022 v7
Translated

Chassis

83 / 98 → 84%

Keyboard

84%

Pointing Device

87%

Connectivity

66 / 80 → 83%

Weight

66 / 20-75 → 83%

Battery

81%

Display

83%

Games Performance

66 / 78 → 84%

Application Performance

91 / 95 → 95%

Temperature

91%

Noise

93%

Audio

55%

Camera

40 / 85 → 47%

Average

76%

85%

Office - Weighted Average

Pricecompare

Editor of the original article: Translated - Translator - 8 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 389876 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想ThinkBook 15 G4笔记本电脑评测。一台高效的笔记本电脑，有很多天赋

Translated, 2022-09- 8 (Update: 2022-09- 8)

联想ThinkBook 15 G4笔记本电脑评测。一台高效的笔记本电脑，有很多天赋

潜在的竞争对手比较

外壳 - 轻便的金属外壳

尺寸比较

特点 - AMD不允许使用雷电技术

SD卡阅读器

沟通

网络摄像头

安全问题

维护

担保

输入设备 - 在IdeaPad的水平上

显示 - 适合办公室使用

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能 - Barcelo在性能上略有提高

测试条件

处理器

Cinebench R15 Multi Dauertest

系统性能

DPC延迟

存储设备

Continuous load read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

Witcher 3 FPS-Diagramm

排放 - 足够安静的风扇

噪声排放

温度

压力测试

发言人

Lenovo ThinkBook 15 G4 21DL0009GE audio analysis

Apple MacBook Pro 16 2021 M1 Pro audio analysis

电源管理--尽管电池很小，但运行时间为8小时

消耗功率

Power consumption - The Witcher 3 / Stress test

Power consumption with external monitor

电池寿命

Pros

Cons

结论--ThinkBook 15 G4很难从众多产品中脱颖而出

价格和可用性

More articles related to this device

Pricecompare
