Magyar联想ThinkBook 15 G3 ACL回顾。低排放的办公笔记本，走得更远
通过ThinkBook，联想提供了一款办公笔记本，旨在提供一个介于IdeaPad和ThinkPad之间的选择：为私人和专业用户提供一个可靠的、可负担的笔记本。它的主要竞争对手包括以下设备 华硕ExpertBook B1 B1500CEAE，以及 惠普ProBook 445 G8，以及 Acer Extensa 15 EX215-54.
我们已经测试了这款设备的前辈和继任者，即ThinkBook 15 G2 ITL和 联想ThinkBook 15 G4 ABA.虽然G3机型是基于AMD的塞尚和卢西恩APU，但G2 (Tiger Lake, Renoir)和G4 ( Alder Lake, Barcelo)可以使用英特尔或AMD芯片。
Lenovo ThinkBook 15 G3 ACL 21A400B2GE (ThinkBook 15 Series)
Processor
AMD Ryzen 5 5500U 6 x 2.1 - 4 GHz, 48 W PL2 / Short Burst, 25 W PL1 / Sustained, Lucienne-U (Zen 2)
Graphics adapter
AMD Radeon RX Vega 7, Core: 1800 MHz, Memory: 800 MHz, Single-Channel, 30.0.13044.0
Memory
8 GB

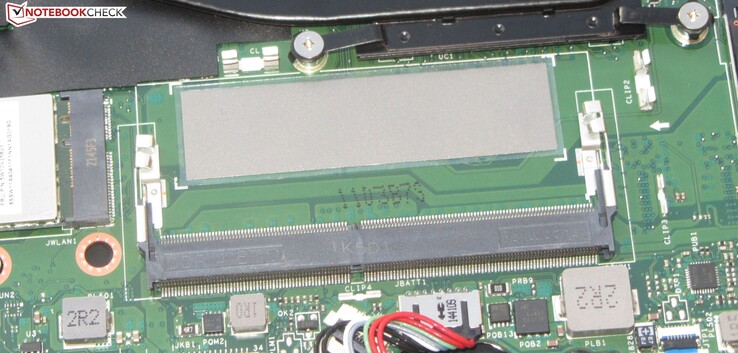

, DDR4-3200, Single-Channel-Mode, one memory slot (not in use), 8 GB onboard
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, Chi Mei N156HCA-EAC, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
Samsung PM991A MZALQ256HBJD, 256 GB
, 193 GB free
Weight
1.7 kg
Price
599 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
|---|---|---|---|---|---|---|---|
| 85.1 % | 12/2022 | Lenovo ThinkBook 15 G3 ACL 21A400B2GE R5 5500U, Vega 7 | 1.7 kg | 18.9 mm | 15.60" | 1920x1080 | |
| 84.9 % | 09/2022 | Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7 | 1.8 kg | 23 mm | 15.60" | 1920x1080 | |
| 85.3 % | 07/2022 | HP ProBook 445 G8-3Z6Q8ES R5 5600U, Vega 7 | 1.4 kg | 19.8 mm | 14.00" | 1920x1080 | |
| 84.8 % | 11/2021 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.7 kg | 19.4 mm | 15.60" | 1920x1080 | |
| 78 % | 02/2022 | Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs | 1.9 kg | 19.9 mm | 15.60" | 1920x1080 |
外壳和连接性--提供USB-C Power Delivery的联想电脑
银灰色的机箱没有显示任何制造缺陷。然而，电脑的底座可以扭曲和翘曲得有点过分：这里明显缺乏刚性。联想依靠金属（盖子的背面）和塑料元素（底座）以及哑光的光滑表面。电池（用螺丝固定，而不是用胶水粘住）和其他内部零件可以通过移除底层外壳来获得。从正面看，内置的网络摄像头（0.9MP，最大1280x720像素）带有一个机械盖。
这台电脑配备了两个USB-A（USB 3.2 Gen 1）和两个USB-C端口（USB 3.2 Gen 2；Power Delivery，通过USB-C的Displayport）。笔记本总共有三个视频输出（2个DP，1个HDMI）。SD存储卡读卡器（参考卡：AV PRO SD 128 GB V60）是一个中等速度的模型。

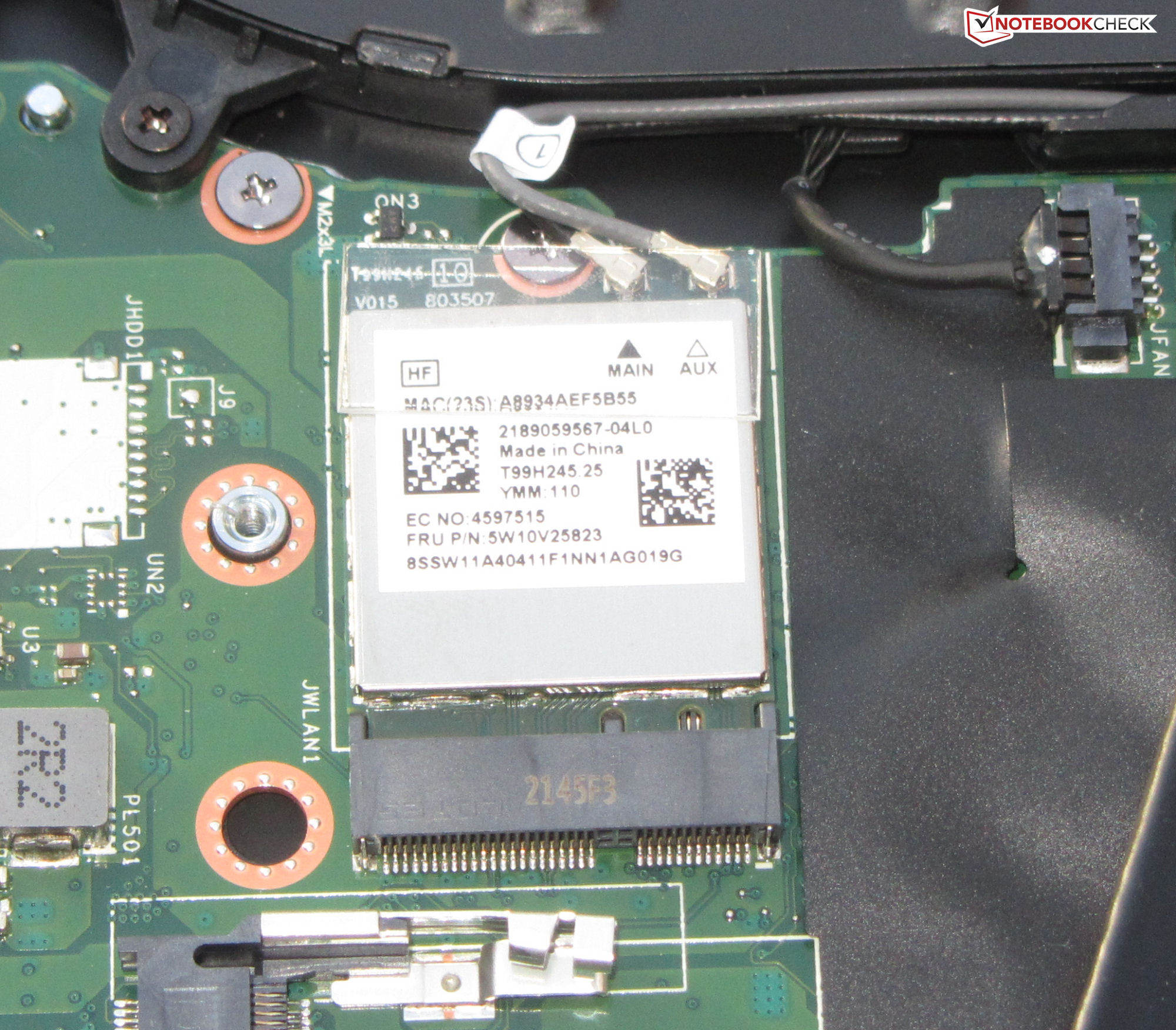

在最佳条件下的WiFi传输率（附近没有其他WiFi设备，笔记本和服务器PC之间的距离很短）很好，但不太符合WiFi芯片的全部功能（联发科MT7921；802.11 ax）。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (AV Pro SD microSD 128 GB V60) | |
| HP ProBook 445 G8-3Z6Q8ES (AV Pro SD microSD 128 GB V60) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (8 - 82.7, n=49, last 2 years) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (AV Pro V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (AV Pro SD microSD 128 GB V60) | |
| HP ProBook 445 G8-3Z6Q8ES (AV Pro SD microSD 128 GB V60) | |
| Average of class Office (25 - 90.5, n=43, last 2 years) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (AV Pro V60) | |
Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1335 (703-1463)
Acer Extensa 15 EX215-54-5103 Intel Wireless AC 9462; iperf3 transmit AX12; iperf 3.1.3: Ø345 (321-353)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE MediaTek MT7921; iperf3 transmit AXE11000; iperf 3.1.3: Ø976 (917-1026)
Lenovo ThinkBook 15 G4 21DL0009GE Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø900 (464-956)
HP ProBook 445 G8-3Z6Q8ES Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AXE11000; iperf 3.1.3: Ø283 (169-353)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE MediaTek MT7921; iperf3 receive AXE11000; iperf 3.1.3: Ø939 (928-945)
Lenovo ThinkBook 15 G4 21DL0009GE Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø938 (807-988)
HP ProBook 445 G8-3Z6Q8ES Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AXE11000; iperf 3.1.3: Ø652 (601-673)
输入设备--ThinkBook G3配备了一个发光键盘

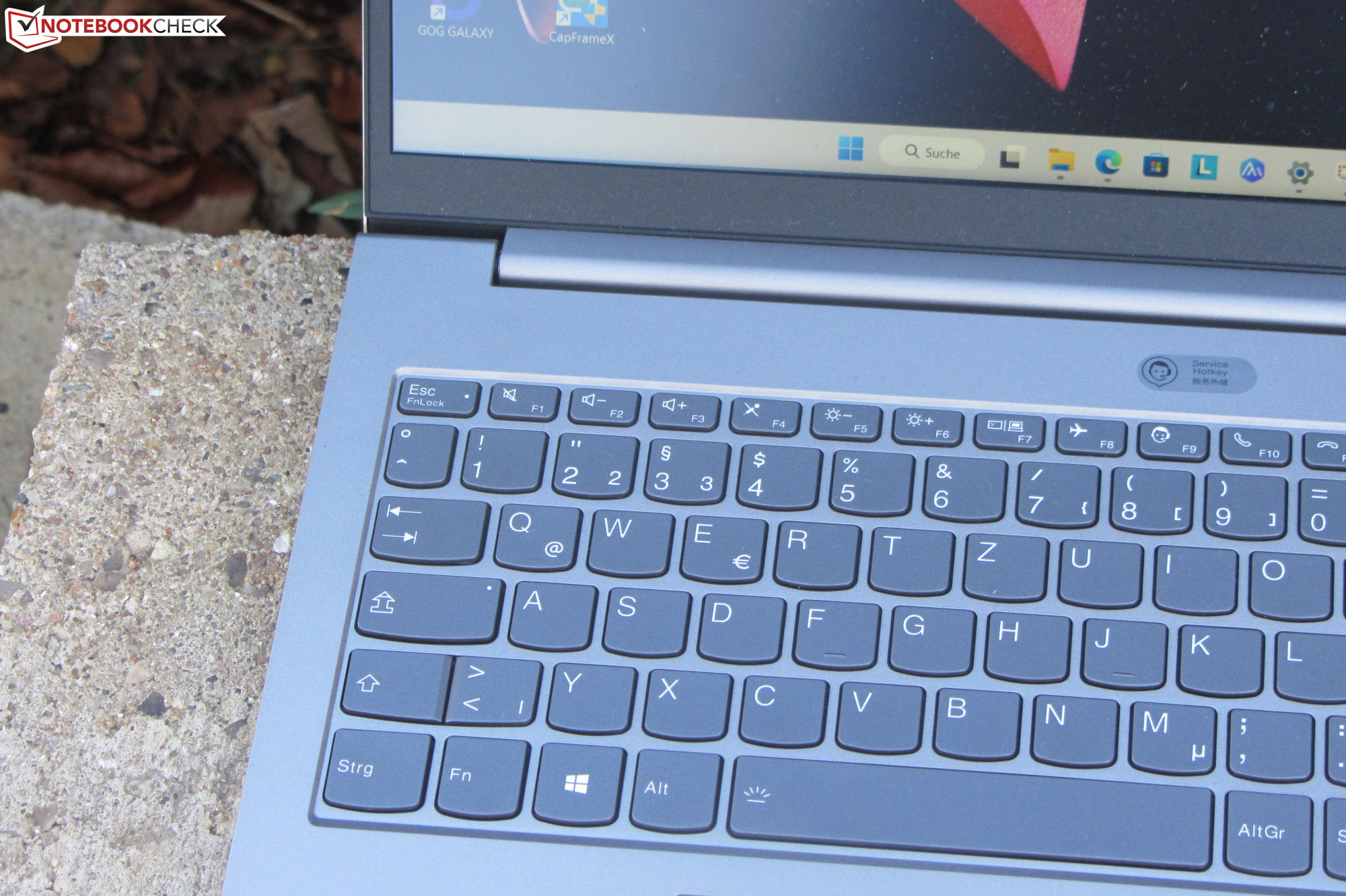

点亮的Chiclet键盘（2个亮度级别）的平坦光滑的按键具有较短的行程以及清晰的压力点，按键的阻力水平令人愉快。键盘在打字的时候会有轻微的弯曲，尽管这并不太具有破坏性。总而言之，联想提供了一个适合日常使用的键盘。
多点触控板（约10.5 x 7厘米）的光滑表面使手指很容易滑动，同时对角落里的输入也有反应。键盘的落点很短，压力点也很清晰。
显示屏--联想笔记本的IPS面板
哑光的15.6英寸屏幕（1920x1080像素）在亮度（271.4 cd/m²）以及对比度（776:1）方面没有达到目标范围（>300 cd/m²和1000:1）。大多数竞争对手在这方面表现得更好--除了 延伸型.从好的方面看，该面板在任何亮度设置下都没有显示任何PWM闪烁。
| |||||||||||||||||||||||||
Chi Mei N156HCA-EAC tested with X-Rite i1Pro 2
Maximum: 291 cd/m² (Nits) Average: 271.4 cd/m² Minimum: 3.2 cd/m²Brightness Distribution: 86 %
Center on Battery: 291 cd/m²
Contrast: 776:1 (Black: 0.375 cd/m²)
ΔE Color 4.17 | 0.5-29.43 Ø5
ΔE Greyscale 3.31 | 0.57-98 Ø5.3
45.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
65.5% sRGB (Argyll 2.2.0 3D)
43.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE Chi Mei N156HCA-EAC, IPS, 1920x1080, 15.60 | Lenovo ThinkBook 15 G4 21DL0009GE LENOVO LEN156FHD , IPS, 1920x1080, 15.60 | HP ProBook 445 G8-3Z6Q8ES AUO559C, IPS LED, 1920x1080, 14.00 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 CEC Panda LM156LF-5L06, IPS, 1920x1080, 15.60 | Acer Extensa 15 EX215-54-5103 AU Optronics B156HTN06.1, TN LED, 1920x1080, 15.60 | |
|---|---|---|---|---|---|
| Display | 2% | -16% | -5% | -16% | |
| Display P3 Coverage | 43.8 | 44.8 2% | 36.9 -16% | 41.6 -5% | 37 -16% |
| sRGB Coverage | 65.5 | 66.8 2% | 55.5 -15% | 62.3 -5% | 55.7 -15% |
| AdobeRGB 1998 Coverage | 45.4 | 46.3 2% | 38.2 -16% | 43 -5% | 38.2 -16% |
| Response Times | 8% | -32% | -51% | -14% | |
| Response Time Grey 50% / Grey 80% * | 30 ? | 29 ? 3% | 39 ? -30% | 44.8 ? -49% | 38 ? -27% |
| Response Time Black / White * | 21 ? | 18.5 ? 12% | 28 ? -33% | 32 ? -52% | 21 ? -0% |
| PWM Frequency | 37037 ? | 52 ? | |||
| Screen | -8% | -11% | -1% | -94% | |
| Brightness middle | 291 | 313 8% | 304 4% | 304 4% | 220 -24% |
| Brightness | 271 | 301 11% | 270 0% | 285 5% | 203 -25% |
| Brightness Distribution | 86 | 90 5% | 83 -3% | 89 3% | 82 -5% |
| Black Level * | 0.375 | 0.21 44% | 0.25 33% | 0.19 49% | 0.43 -15% |
| Contrast | 776 | 1490 92% | 1216 57% | 1600 106% | 512 -34% |
| Colorchecker dE 2000 * | 4.17 | 5.3 -27% | 6.78 -63% | 5.2 -25% | 10.74 -158% |
| Colorchecker dE 2000 max. * | 7.18 | 18.7 -160% | 17.59 -145% | 18.5 -158% | 20.92 -191% |
| Greyscale dE 2000 * | 3.31 | 4.4 -33% | 2.43 27% | 2.9 12% | 13.29 -302% |
| Gamma | 2.23 99% | 2.08 106% | 2.43 91% | 2.14 103% | 2.63 84% |
| CCT | 6457 101% | 6479 100% | 6759 96% | 6639 98% | 14880 44% |
| Colorchecker dE 2000 calibrated * | 4 | 4.69 | 4.5 | 4.44 | |
| Total Average (Program / Settings) | 1% /
-3% | -20% /
-15% | -19% /
-9% | -41% /
-64% |
* ... smaller is better

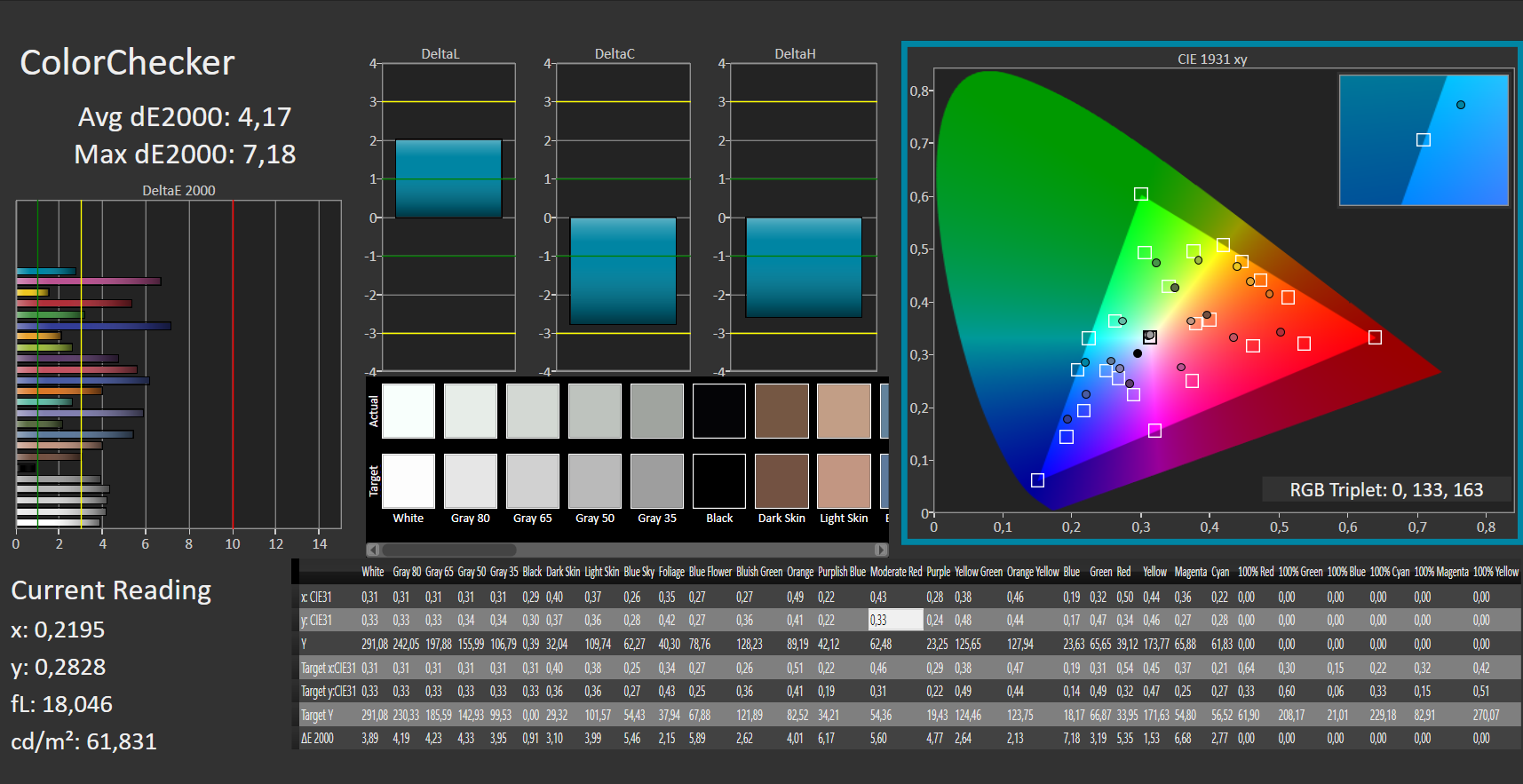

屏幕可以正常显示所交付的颜色：但是，不能完全达到目标色彩精度（DeltaE<3），偏差为4.17。 该显示器不能再现AdobeRGB（45%）、sRGB（66%）和DCI-P3（44%）色彩空间。因此，该面板不适合依赖色彩保真度的应用场景。然而，在这方面，竞争对手的情况也没有好到哪里去。

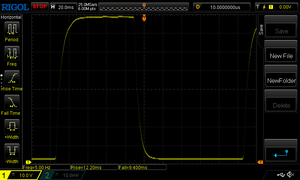

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 21 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise |  |
| ↘ 9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 41 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.5 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 30 ms ... rise ↗ and fall ↘ combined | ↗ 14 ms rise |  |
| ↘ 16 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 34 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured. | |||

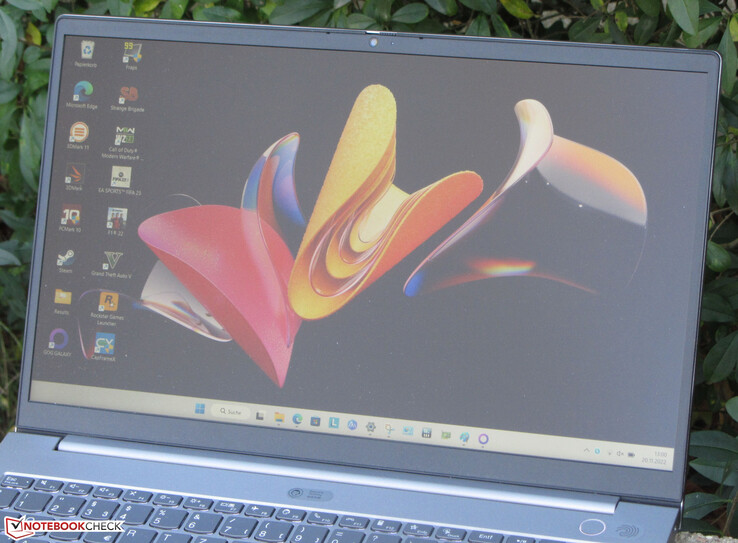

IPS面板具有稳定的可视角度，可以从任何位置阅读。只要太阳不是太亮，在户外阅读屏幕不是问题。
性能--联想依靠Ryzen-APU
联想的办公笔记本针对的是私人和专业用户。只有配备 Ryzen 5 5500U或 Ryzen 7 5700UAPU的机型，在测试时可以使用。相同设置的前代产品(ThinkBook 15 G2) 和后续系列 (ThinkBook 15 G4)提供了更多的选择。G2可使用英特尔Tiger Lake 或AMD Renoir芯片，而G4可使用英特尔Alder Lake或AMD Barcelo硬件。
测试条件
组合键 "Fn "+"Q "可用于在三个制造商特定的能源配置文件（"智能冷却"、"高性能 "和 "电池节约模式"）之间进行切换。测试是在标准的 "智能冷却 "模式下进行的。这些配置文件在多线程CPU性能方面略有不同，而GPU性能始终保持不变。
| 智能冷却 | 高性能 | 省电模式 | |
|---|---|---|---|
| 功率限制1 | 25瓦 | 37,5瓦 | 20瓦 |
| 功率限制2 | 48瓦 | 48瓦 | 48瓦 |
处理器
的CPU部分 Ryzen 5 5500U APU(Lucienne)由六个核心组成，基本时钟为2.1 GHz。通过Turbo可以提升到4.05 GHz。还支持同步多线程（每个核心两个线程）。
Cinebench R15基准测试的多线程测试在短时间内以4GHz的速度处理，尽管时钟速度随后下降到3.4和3.5GHz之间。单线程测试在1.8至4.05GHz下运行。 在电池模式下，CPU工作在2.5至3.5GHz（多线程）或1.4至3.5GHz（单线程）。CB15循环测试证实，持续使用CPU Turbo是可能的。高性能 "配置文件使多线程性能略有提高。
Cinebench R15 Multi endurance test
Lenovo ThinkBook 15 G3 ACL 21A400B2GE AMD Ryzen 5 5500U: Ø1196 (1177.3-1249.15)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE AMD Ryzen 5 5500U; Hoechstleistung: Ø1250 (1178.72-1350.15)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE AMD Ryzen 5 5500U; Akkusparmodus: Ø946 (914.85-1145.25)
Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U: Ø1366 (1305.18-1529.23)
HP ProBook 445 G8-3Z6Q8ES AMD Ryzen 5 5600U: Ø1101 (1037.43-1351.63)
Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Core i5-1135G7: Ø687 (670.58-787.77)
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7: Ø837 (828.74-856.81)
Lenovo ThinkBook 15 Gen2 ITL Intel Core i5-1135G7: Ø868 (859.14-922.21)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office | |
| HP ProBook 445 G8-3Z6Q8ES -1! | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U | |
| Lenovo ThinkBook 15 Gen2 ITL -3! | |
| Acer Extensa 15 EX215-54-5103 -1! | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 -1! | |
| Cinebench R23 | |
| Multi Core | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Average of class Office (1056 - 15743, n=122, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U (6030 - 8565, n=19) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Single Core | |
| Average of class Office (529 - 1995, n=121, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U (1149 - 1183, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Average of class Office (356 - 5904, n=120, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U (2223 - 3316, n=20) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| CPU (Single Core) | |
| Average of class Office (181.3 - 764, n=120, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U (449 - 461, n=19) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (160.8 - 2642, n=120, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U (995 - 1412, n=20) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| CPU Single 64Bit | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average of class Office (82.6 - 284, n=118, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Average AMD Ryzen 5 5500U (170 - 179, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Blender | |
| v2.79 BMW27 CPU | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average of class Office (214 - 2844, n=121, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U (358 - 490, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| v3.3 Classroom CPU | |
| Average of class Office (343 - 3786, n=109, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (3.3.0, Akkusparmodus) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average AMD Ryzen 5 5500U (676 - 878, n=4) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (3.3.0) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (3.3.0, Hoechstleistung) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average of class Office (4226 - 62349, n=121, last 2 years) | |
| Average AMD Ryzen 5 5500U (29585 - 36896, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| 7z b 4 -mmt1 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average of class Office (2233 - 6687, n=121, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Average AMD Ryzen 5 5500U (4174 - 4378, n=19) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Office (1018 - 11980, n=122, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average AMD Ryzen 5 5500U (4063 - 5917, n=20) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Single-Core | |
| Average of class Office (510 - 1974, n=122, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average AMD Ryzen 5 5500U (1070 - 1126, n=20) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average of class Office (1.55 - 17.4, n=120, last 2 years) | |
| Average AMD Ryzen 5 5500U (6.7 - 9.74, n=20) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| LibreOffice - 20 Documents To PDF | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U (60 - 80.7, n=17) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Average of class Office (31.3 - 117.5, n=120, last 2 years) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| R Benchmark 2.5 - Overall mean | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Akkusparmodus) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average AMD Ryzen 5 5500U (0.607 - 0.67, n=19) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average of class Office (0.4244 - 1.397, n=119, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Ryzen 5 5500U | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average of class Office | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (7222 - 10680, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average of class Office (763 - 24250, n=120, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| AIDA64 / FPU Julia | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (41815 - 58107, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average of class Office (4027 - 102228, n=120, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| AIDA64 / CPU SHA3 | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Average of class Office (279 - 4442, n=119, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (1354 - 1907, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average AMD Ryzen 5 5500U (68235 - 74033, n=18) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Average of class Office (8031 - 113016, n=120, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average AMD Ryzen 5 5500U (9007 - 10446, n=18) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Average of class Office (404 - 14288, n=120, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| AIDA64 / FPU Mandel | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (21894 - 30659, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average of class Office (2054 - 54365, n=120, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| AIDA64 / CPU AES | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (31792 - 54455, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average of class Office (5226 - 147611, n=120, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| AIDA64 / CPU ZLib | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (234 - 614, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average of class Office (67.6 - 1018, n=120, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (3943 - 5717, n=18) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
| Average of class Office (432 - 12755, n=120, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 48177, n=120, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (7765 - 22932, n=18) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Hoechstleistung) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Akkusparmodus) | |
系统性能
这个运行平稳的系统可以处理办公和互联网应用，以及低图形设置下的游戏。然而，部分性能被浪费了，因为内存（8GB，DDR4-3200，板载）只在单通道模式下运行。安装另一个RAM模块会有很大的帮助--特别是在图形性能方面。对于DDR4-3200内存来说，可用的RAM的传输率处于正常水平。PCMark的结果很好。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (2325 - 7157, n=105, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4626 - 5301, n=13) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| PCMark 10 / Essentials | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (5095 - 20841, n=105, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (8390 - 9789, n=13) | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| PCMark 10 / Productivity | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (6262 - 7958, n=13) | |
| Average of class Office (3041 - 10198, n=105, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| PCMark 10 / Digital Content Creation | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (1912 - 9056, n=105, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4513 - 5540, n=13) | |
| Acer Extensa 15 EX215-54-5103 | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| CrossMark / Overall | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (348 - 1891, n=106, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer Extensa 15 EX215-54-5103 | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (958 - 1103, n=6) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| CrossMark / Productivity | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (393 - 1870, n=106, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer Extensa 15 EX215-54-5103 | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (1039 - 1153, n=6) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=106, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (895 - 1054, n=6) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| CrossMark / Responsiveness | |
| Acer Extensa 15 EX215-54-5103 | |
| Average of class Office (258 - 2017, n=106, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (918 - 1112, n=6) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
| PCMark 10 Score | 4626 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 88119, n=121, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Average AMD Ryzen 5 5500U (19083 - 40547, n=18) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| AIDA64 / Memory Read | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average of class Office (7325 - 87297, n=121, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Average AMD Ryzen 5 5500U (23005 - 47024, n=18) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 94965, n=121, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average AMD Ryzen 5 5500U (20150 - 42337, n=18) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| AIDA64 / Memory Latency | |
| Average AMD Ryzen 5 5500U (87.3 - 119, n=18) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (v6.50.5800) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100, Dual-Channel) | |
| Average of class Office (44.3 - 188.3, n=122, last 2 years) | |
| HP ProBook 445 G8-3Z6Q8ES (v6.70.6000) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (v6.75.6100) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (v6.33.5700) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
* ... smaller is better

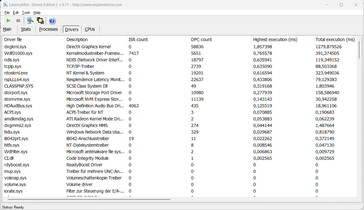

DPC延时
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| HP ProBook 445 G8-3Z6Q8ES | |
* ... smaller is better
存储设备
联想为ThinkBook配备了三星的PCIe 3固态硬盘（M.2 2242；M.2 2280型号也适用），它的存储容量为256GB。传输速率很好，但它不是一个顶级的固态硬盘。在DiskSpd循环的后半段，它的性能有一些下降。该笔记本还可以容纳第二个PCIe固态硬盘。
Samsung PM991A MZALQ256HBJD
CDM 5/6 Read Seq Q32T1:
2447 MB/s
CDM 5/6 Write Seq Q32T1:
1205 MB/s
CDM 5/6 Read 4K Q32T1:
514.8 MB/s
CDM 5/6 Write 4K Q32T1:
382.3 MB/s
CDM 5 Read Seq:
1803 MB/s
CDM 5 Write Seq:
1205 MB/s
CDM 5/6 Read 4K:
39.55 MB/s
CDM 5/6 Write 4K:
88.83 MB/s
* ... smaller is better
Reading endurance test: DiskSpd Read Loop, Queue Depth 8
Lenovo ThinkBook 15 G3 ACL 21A400B2GE Samsung PM991A MZALQ256HBJD: Ø2127 (1897.29-2168.94)
Lenovo ThinkBook 15 G4 21DL0009GE Samsung PM991a MZALQ512HBLU: Ø2553 (2364.12-2581.67)
HP ProBook 445 G8-3Z6Q8ES SSSTC CL1-8D512-HP: Ø2022 (1933.67-2034.66)
Asus ExpertBook B1 B1500CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G: Ø2478 (2303.3-2486.8)
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G: Ø2467 (2193.62-2474.72)
GPU性能

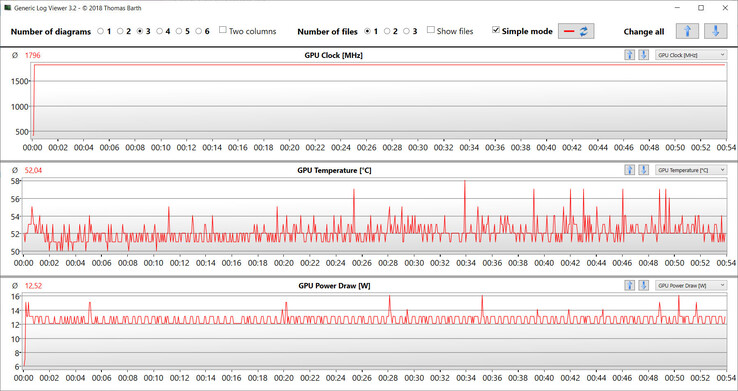

AMD的 Vega 7iGPU允许在全速（1800MHz）下连续运行，这在Witcher 3 测试中可以看到。低于平均水平的基准测试结果是由于RAM以单通道模式运行。 内置硬件可以在低设置下在屏幕上流畅地运行要求不高的游戏。如果采用主动的双通道模式（即安装另一个RAM模块，见对比表），则可以获得更多的性能。
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Average AMD Radeon RX Vega 7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1474 - 13132, n=113, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average AMD Radeon RX Vega 7 (3353 - 6249, n=58) | |
| HP ProBook 445 G8-3Z6Q8ES | |
| Acer Extensa 15 EX215-54-5103 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| 3DMark 11 Performance | 3324 points | |
| 3DMark Cloud Gate Standard Score | 12657 points | |
| 3DMark Fire Strike Score | 1710 points | |
| 3DMark Time Spy Score | 735 points | |
Help | ||
Performance Rating | The Witcher 3 | GTA V | Final Fantasy XV Benchmark | Strange Brigade | Dota 2 Reborn | X-Plane 11.11
| Performance Rating - Percent | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (8.4 - 177, n=104, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| GTA V | |
| 1366x768 Normal/Off AF:4x | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average of class Office (7.47 - 171.4, n=102, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Acer Extensa 15 EX215-54-5103 | |
| 1920x1080 Normal/Off AF:4x | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Average of class Office (5.82 - 168.4, n=77, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Acer Extensa 15 EX215-54-5103 | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (5.42 - 103.1, n=115, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (1.3) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (1.3, Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 (1.3) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (1.3) | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (16.3 - 175.7, n=109, last 2 years) | |
| Lenovo ThinkBook 15 G4 21DL0009GE (1.47.22.14 D3D12) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (1.47.22.14 D3D12, Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 (1.47.22.14 D3D12) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (1.47.22.14 D3D12) | |
| Dota 2 Reborn - 1366x768 med (1/3) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average of class Office (10.9 - 146.2, n=123, last 2 years) | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| Acer Extensa 15 EX215-54-5103 | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Lenovo ThinkBook 15 G4 21DL0009GE | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE (Dual-Channel) | |
| Average of class Office (9.12 - 128.2, n=123, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE | |
| low | med. | high | ultra | |
| GTA V (2015) | 43.6 | 38 | 11.3 | 5.53 |
| The Witcher 3 (2015) | 26.2 | 17.4 | 8.96 | 6.5 |
| Dota 2 Reborn (2015) | 74.3 | 50.5 | 25.8 | 24 |
| Final Fantasy XV Benchmark (2018) | 17.1 | 8.95 | 5.85 | |
| X-Plane 11.11 (2018) | 28.6 | 22.7 | 21.1 | |
| Strange Brigade (2018) | 34.8 | 13.4 | 11.5 | 9.9 |
排放和能源 - 低排放的联想笔记本电脑，具有良好的电池寿命
噪声排放
这台联想笔记本电脑在整个负载范围内不会产生很大的噪音。在日常使用中（办公室、互联网），风扇经常不活动，因此很安静。在中等负荷下，风扇被谨慎地抑制，在全负荷下测得的噪音水平高达45.6 dB（A）。
Noise Level
| Idle |
| 25.5 / 25.5 / 25.5 dB(A) |
| Load |
| 28.5 / 45.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25.5 dB(A) | ||
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE Vega 7, R5 5500U, Samsung PM991A MZALQ256HBJD | Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU | HP ProBook 445 G8-3Z6Q8ES Vega 7, R5 5600U, SSSTC CL1-8D512-HP | Asus ExpertBook B1 B1500CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G | Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G | |
|---|---|---|---|---|---|
| Noise | 4% | 6% | 7% | -4% | |
| off / environment * | 25.5 | 23.21 9% | 25 2% | 23.8 7% | 25 2% |
| Idle Minimum * | 25.5 | 23.21 9% | 25 2% | 23.8 7% | 25 2% |
| Idle Average * | 25.5 | 23.21 9% | 25 2% | 23.8 7% | 25 2% |
| Idle Maximum * | 25.5 | 23.21 9% | 25 2% | 25 2% | 27 -6% |
| Load Average * | 28.5 | 33 -16% | 30.7 -8% | 32.2 -13% | 32.3 -13% |
| Load Maximum * | 45.6 | 43.34 5% | 30.7 33% | 32.2 29% | 50 -10% |
| Witcher 3 ultra * | 32.2 |
* ... smaller is better

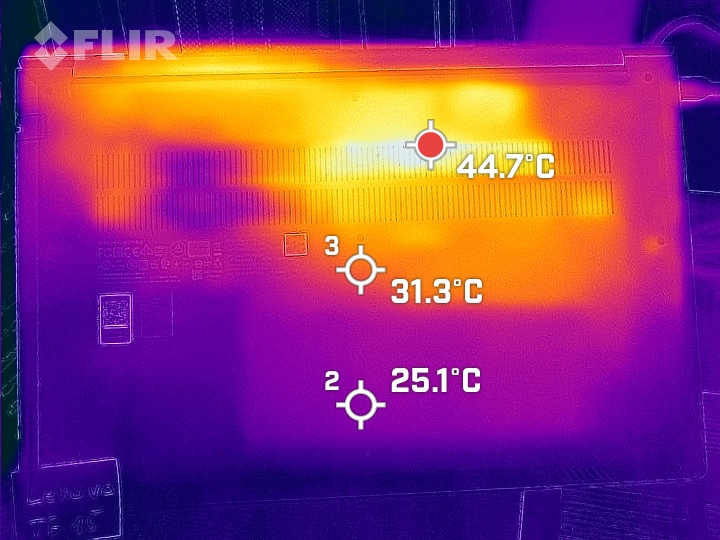

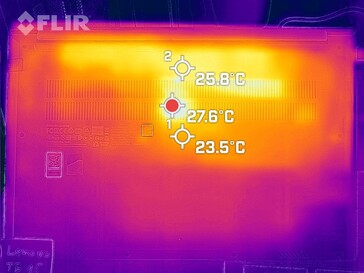

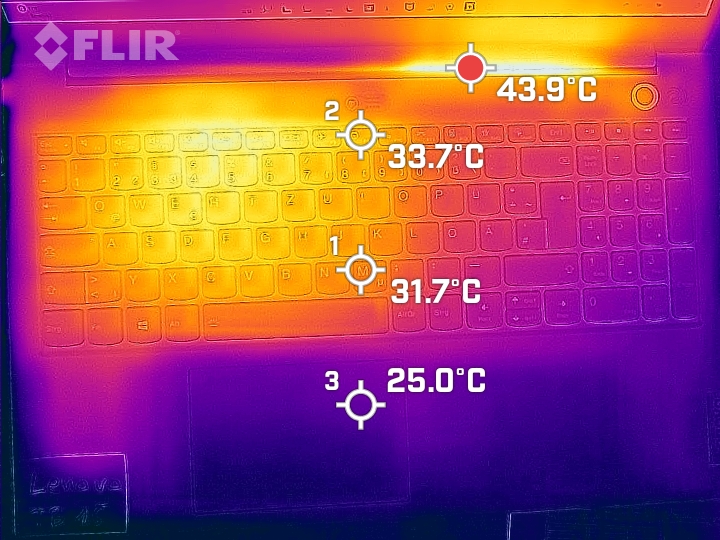

温度
笔记本并不特别热，在压力测试中，有两个测量点的温度超过40摄氏度（104华氏度）。在日常使用中（办公室、互联网），温度处于绿色范围。
压力测试（Prime95和Furmark连续运行）代表了在全负荷下检查系统稳定性的一个极端情况。在测试开始时，CPU（4GHz）和GPU（1800MHz）达到了它们的最大时钟速率。随着测试过程的继续，时钟频率只略微下降到3.8 GHz（CPU）和1,600 MHz（GPU）。
(+) The average temperature for the upper side under maximal load is 31 °C / 88 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42.2 °C / 108 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.8 °C / 120 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.8 °C / 78.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+1.9 °C / 3.5 F).
(±) The maximum temperature on the upper side is 42.2 °C / 108 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.8 °C / 120 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.8 °C / 78.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+1.9 °C / 3.5 F).
| Lenovo ThinkBook 15 G3 ACL 21A400B2GE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | HP ProBook 445 G8-3Z6Q8ES AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | |
|---|---|---|---|---|---|
| Heat | -4% | 7% | 7% | 4% | |
| Maximum Upper Side * | 42.2 | 41.1 3% | 37.9 10% | 41.9 1% | 42 -0% |
| Maximum Bottom * | 48.8 | 45.6 7% | 44.1 10% | 48.6 -0% | 43.3 11% |
| Idle Upper Side * | 27.8 | 31.6 -14% | 27.8 -0% | 25.1 10% | 27.9 -0% |
| Idle Bottom * | 32.3 | 36.5 -13% | 29.8 8% | 26.4 18% | 30.4 6% |
* ... smaller is better
发言人
立体声扬声器产生的声音还不错，但没有低音可言。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE audio analysis
(±) | speaker loudness is average but good (81.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.4% away from median
(+) | mids are linear (5.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.9% higher than median
(±) | linearity of highs is average (8.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.9% difference to median)
Compared to same class
» 42% of all tested devices in this class were better, 11% similar, 47% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 52% of all tested devices were better, 8% similar, 41% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Extensa 15 EX215-54-5103 audio analysis
(±) | speaker loudness is average but good (77.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 34.2% lower than median
(±) | linearity of bass is average (9.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 7.7% lower than median
(±) | linearity of mids is average (8.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (5.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.8% difference to median)
Compared to same class
» 65% of all tested devices in this class were better, 10% similar, 26% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 67% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
该计算机在功耗方面没有显示任何异常。对于安装在这里的硬件来说，这些水平是正常的。压力测试是在恒定功耗下进行的。该电源的额定功率为45瓦。
Power Consumption
| Off / Standby | 0.3 / 0.43 Watt |
| Idle | 4.2 / 8.3 / 10.4 Watt |
| Load |
49 / 49.3 Watt |

| |
Powerconsumption Witcher 3 / stress test
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; Witcher 3 ultra: Ø39.7 (32.2-62.7)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø49.1 (47.3-51.1)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; Idle 150cd/m2: Ø6.99 (5.64-11.4)
Power consumption with an external monitor
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; Prime95 V2810 Stress (external Monitor): Ø42.5 (31.4-43.8)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; Cinebench R15 Multi (external Monitor): Ø45.9 (44-48)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø28.8 (26.9-44.3)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.4 (26.7-35.2)
Lenovo ThinkBook 15 G3 ACL 21A400B2GE; Idle 1min (external Monitor): Ø4.3 (3.17-10.2)
电池寿命
在我们的实际WiFi测试中，这台15.6英寸的电脑可以管理8:06小时的运行时间（包括使用脚本调用网站）--这是一个好的，但不是突出的价值。在竞争对手中，联想的这台电脑只被以下产品打败了 惠普ProBook 445 G8.
Pros
+ 哑光IPS屏幕
+ PCIe 3.0固态硬盘
+ 可容纳第二个PCIe SSD的空间
+ 运行时基本安静
+ 适度的热量排放
+ 可扩展的内存
+ 发光的键盘
+ 良好的电池寿命
+ 电源交付
Cons
- 显示屏的对比度和亮度可以做得更好
- 底座可以做得更结实
- 永久焊接的内存
- 只有一年的保修期
结论 - 一个没有严重缺陷的坚实的办公笔记本
内置的组合是一个 睿禅5 5500UCPU和8GB内存（单通道模式，板载）可以轻松处理办公和互联网应用以及轻度游戏。建议安装第二个内存模块（激活双通道模式），以释放AMD CPU的全部潜力。
联想ThinkBook 15 G3 ACL--配备Windows 11 Pro的全面的办公笔记本。
在发热和噪音方面没有什么可抱怨的，尽管风扇在满负荷情况下可以更安静一些。这款相对较轻的笔记本电脑（约1.7公斤/3.8磅）在连接WiFi的情况下，可以管理约8小时的电池寿命。一个很大的优点是：通过USB-C电源适配器进行充电。
当涉及到屏幕（15.6英寸，FHD，IPS）时，还有改进的余地。亮度、对比度和色彩空间覆盖率都太低了--不过，一些竞争对手的笔记本电脑的屏幕质量也没好多少。基本单元也可以做得更硬，而短的一年保修期也值得批评。
ThinkBook的一个替代品是 惠普ProBook 445 G8例如，它提供了更好的电池寿命，并以其在负载下的低噪音排放而得分。笔记本 延伸15 EX215-24可以被认为是经济型替代产品：它在大多数方面都不如ThinkBook，但它的Core i5-1135G7具有很高的每美元计算性能。这款笔记本已经可以买到，价格约为430欧元（446美元）或400欧元（415美元），带或不带Windows。
既然较新的G4已经上市，为什么还要买ThinkBook 15 G3？难道 "老 "G2还不够吗？
这款 G4机型我们评测的G4机型在使用与G3（6个核心，12个线程）或G2（Core i5-1135G7；4个核心，8个线程）相当的CPU配置时，提供了更多的处理能力。如果你不需要从你的机器中挤出每一滴性能，G3和G2的价格更具吸引力。G3的得分是更多的多线程性能和更好的电池寿命，而G2的优势是更大的单线程性能以及一个雷电3端口。
价格和可用性
ThinkBook 15 G3 ACL可从Heinzsoft购买（603欧元/626美元），其配置已被审查。它可以从亚马逊售价约为728美元，以及从Amazon India价格约为33,990英镑。
Lenovo ThinkBook 15 G3 ACL 21A400B2GE
-
11/27/2022 v7
Sascha Mölck
Office - Weighted Average
Pricecompare
