Teclast Tbook 10s (x5-Z8350, 全高清) 变形本简短评测

Name: Teclast Tbook 10s
Brand: Teclast

双系统变形本。 在Chuwi的Hi10 Pro刚刚评测结束后，我们又开始了对来自Teclast名为Tbook 10s的另外一台低售价双启动平板电脑的测试。请阅读我们的评测了解这两款设备孰强孰弱。

Marcus Herbrich, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 04/01/2017 🇺🇸 🇩🇪 ...

Windows Android Convertible / 2-in-1 Chinese Tech

Test device courtesy of Teclast

Download your licensed rating image as PNG / SVG

Teclast Tbook 10s (Tbook Series)

Processor

Intel Atom x5-Z8350 4 x 1.4 - 1.9 GHz, Cherry Trail

Graphics adapter

Intel HD Graphics (Cherry Trail)

Memory

4 GB

Display

10.10 inch 16:10, 1920 x 1200 pixel 224 PPI, 电容式, LCD, IPS, glossy: yes

Storage

64 GB eMMC Flash, 64 GB

, 15.7 GB free

Connections

1 USB 2.0, 1 HDMI, Audio Connections: 3.5毫米耳机接口, Card Reader: micro-SD, Sensors: 位置感应器

Networking

802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0

Size

height x width x depth (in mm): 8 x 247 x 166

Battery

6000 mAh Lithium-Polymer, Battery runtime (according to manufacturer): 6 h

Operating System

Android 5.1 Lollipop

Camera

Secondary Camera: 2 MPix

Additional features

Speakers: 立体声扬声器, Keyboard: 触控，键盘底座, Keyboard Light: no, 电源适配器， USB数据线, Windows 10, Tecla Android UI, 12 Months Warranty, fanless

Weight

574 g, Power Supply: 63 g

Price

150 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

Networking
iperf3 transmit AX12
Asus ZenPad 3s 10 Z500M PowerVR GX6250, MT8176, 64 GB eMMC Flash	246 MBit/s +528%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	41.6 MBit/s +6%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	39.2 MBit/s
iperf3 receive AX12
Asus ZenPad 3s 10 Z500M PowerVR GX6250, MT8176, 64 GB eMMC Flash	254 MBit/s +563%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	40.6 MBit/s +6%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	38.3 MBit/s
iperf Server (receive) TCP 1 m
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	90.2 MBit/s
iperf Client (transmit) TCP 1 m
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	91.2 MBit/s


252 cd/m²	279 cd/m²	308 cd/m²
262 cd/m²	279 cd/m²	305 cd/m²
252 cd/m²	278 cd/m²	302 cd/m²

Distribution of brightness

LCD tested with X-Rite i1Pro 2

Maximum: 308 cd/m² (Nits) Average: 279.7 cd/m² Minimum: 35.53 cd/m²
Brightness Distribution: 82 %
Center on Battery: 279 cd/m²
Contrast: 962:1 (Black: 0.29 cd/m²)
ΔE Color 6.7 | 0.5-29.43 Ø5
ΔE Greyscale 6.8 | 0.57-98 Ø5.3
Gamma: 2.27

	Teclast Tbook 10s IPS, 1920x1200, 10.10	Chuwi Hi10 Pro IPS, 1920x1200, 10.10	Xiaomi MiPad 2 IPS, 2048x1536, 7.90	Haier Pad 971 IPS, 2048x1536, 9.70	Asus ZenPad 10.0 Z300M-6A039A IPS, 1280x800, 10.10	Asus ZenPad 3s 10 Z500M IPS, 2048x1536, 9.70
Screen		5%	21%	15%	9%	15%
Brightness middle	279	379 36%	425 52%	294 5%	370 33%	489 75%
Brightness	280	356 27%	402 44%	294 5%	351 25%	443 58%
Brightness Distribution	82	87 6%	91 11%	90 10%	89 9%	86 5%
Black Level *	0.29	0.42 -45%	0.4 -38%	0.37 -28%	0.4 -38%	0.43 -48%
Contrast	962	902 -6%	1063 10%	795 -17%	925 -4%	1137 18%
Colorchecker dE 2000 *	6.7	4.8 28%	4.98 26%	3.2 52%	4.6 31%	5.5 18%
Colorchecker dE 2000 max. *	10.8	11.2 -4%	6.61 39%	6.5 40%	9.5 12%	11.6 -7%
Greyscale dE 2000 *	6.8	6.7 1%	5.2 24%	3 56%	6.5 4%	6.7 1%
Gamma	2.27 ^97%	2.23 ^99%	2.65 ^83%	2.3 ^96%	2.17 ^101%	2.06 ^107%
CCT	8466 ^77%	6988 ^93%	7249 ^90%	6882 ^94%	6354 ^102%	7457 ^87%

* ... smaller is better

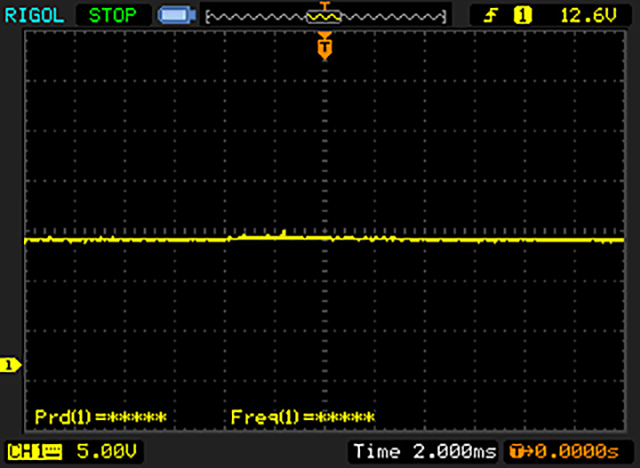

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

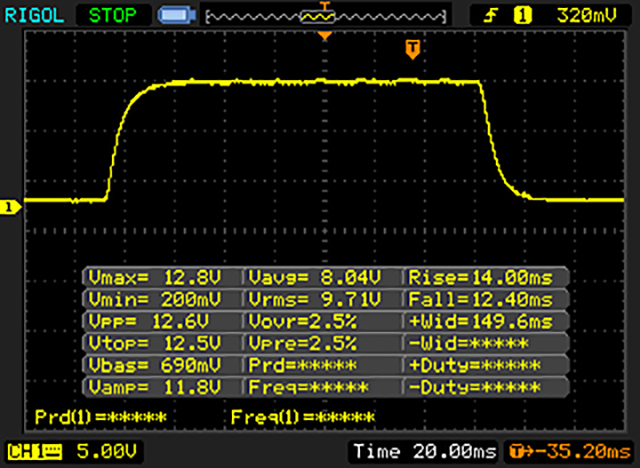

↔ Response Time Black to White
26.4 ms ... rise ↗ and fall ↘ combined	↗ 14 ms rise
26.4 ms ... rise ↗ and fall ↘ combined	↘ 12.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 61 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

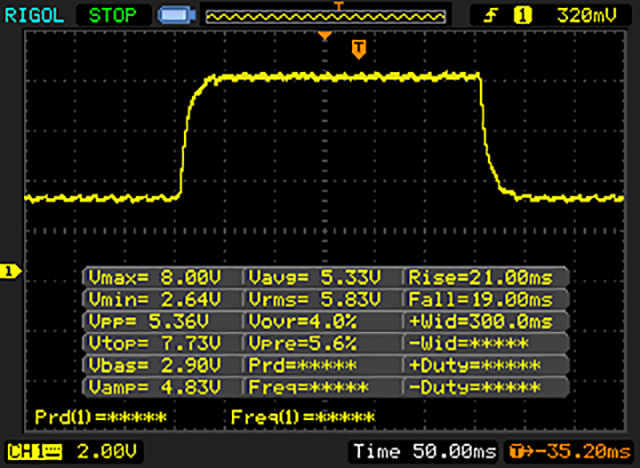

↔ Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined	↗ 21 ms rise
40 ms ... rise ↗ and fall ↘ combined	↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 56 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

Geekbench 4.0
64 Bit Multi-Core Score
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1980 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1971 Points 0%
64 Bit Single-Core Score
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	879 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	867 Points -1%

AndroBench 3-5
Sequential Write 256KB SDCard
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	24.7 MB/s
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	MB/s
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	MB/s
Sequential Read 256KB SDCard
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	37 MB/s
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	MB/s
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	MB/s
Random Write 4KB
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	13.96 MB/s +311%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	7.36 MB/s +116%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	6.79 MB/s +100%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	5.37 MB/s +58%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	3.4 MB/s
Random Read 4KB
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	25.79 MB/s +125%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	24.42 MB/s +113%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	18.7 MB/s +63%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	15.34 MB/s +34%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	11.44 MB/s
Sequential Write 256KB
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	121.2 MB/s +82%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	66.5 MB/s
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	56.4 MB/s -15%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	39.97 MB/s -40%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	14.57 MB/s -78%
Sequential Read 256KB
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	163.5 MB/s +43%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	147.9 MB/s +29%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	136.1 MB/s +19%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	114.7 MB/s
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	56.9 MB/s -50%

AnTuTu v6 - Total Score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	73083 Points +25%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	58565 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	57914 Points -1%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	47100 Points -20%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	36602 Points -38%

Geekbench 3
64 Bit Single-Core Score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	990 Points
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	659 Points
64 Bit Multi-Core Score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	3170 Points
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	1972 Points

3DMark
1280x720 offscreen Ice Storm Unlimited Score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	25460 Points +45%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	17556 Points 0%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	17549 Points
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	10121 Points -42%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	6165 Points -65%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	27537 Points +48%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	18589 Points 0%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	18563 Points
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	9208 Points -50%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	5490 Points -70%
1280x720 offscreen Ice Storm Unlimited Physics
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	20142 Points +33%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	15496 Points +2%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	15195 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	14564 Points -4%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	10816 Points -29%
2560x1440 Sling Shot OpenGL ES 3.0
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1415 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1398 Points -1%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	1353 Points -4%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	610 Points -57%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	245 Points -83%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1537 Points 0%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1530 Points
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	1300 Points -15%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	540 Points -65%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	203 Points -87%
2560x1440 Sling Shot OpenGL ES 3.0 Physics
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	1580 Points +41%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1119 Points
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	1111 Points -1%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1061 Points -5%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	916 Points -18%

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	23 fps 0%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	23 fps
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	16 fps -30%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	13 fps -43%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	12 fps -48%
1920x1080 T-Rex Offscreen
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	32 fps +19%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	27 fps 0%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	27 fps
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	16 fps -41%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	10 fps -63%

GFXBench 3.0
on screen Manhattan Onscreen OGL
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	11 fps 0%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	11 fps
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	7 fps -36%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	6.3 fps -43%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	5.3 fps -52%
1920x1080 1080p Manhattan Offscreen
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	12 fps 0%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	12 fps
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	8.4 fps -30%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	7.1 fps -41%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	3.5 fps -71%

GFXBench 3.1
on screen Manhattan ES 3.1 Onscreen
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	8.5 fps
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	7.3 fps -14%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	6.3 fps -26%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	5 fps -41%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	3.3 fps -61%
1920x1080 Manhattan ES 3.1 Offscreen
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	13 fps +38%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	9.4 fps
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	9.2 fps -2%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	4.9 fps -48%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	2.3 fps -76%

GFXBench
1920x1080 Car Chase Offscreen
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	8.4 fps +33%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	6.4 fps +2%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	6.3 fps
on screen Car Chase Onscreen
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	5.9 fps
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	5.7 fps -3%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	5.6 fps -5%

PCMark for Android - Work performance score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	5279 Points +13%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	4885 Points +5%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	4671 Points
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	4246 Points -9%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	3888 Points -17%

BaseMark OS II
Overall
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	1419 Points +78%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	874 Points +10%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	827 Points +4%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	798 Points
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	749 Points -6%
System
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	2088 Points +55%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	1921 Points +43%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1346 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1333 Points -1%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	1277 Points -5%
Memory
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	1379 Points +339%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	910 Points +190%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	444 Points +41%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	342 Points +9%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	314 Points
Graphics
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	1609 Points +35%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1277 Points +7%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1191 Points
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	685 Points -42%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	339 Points -72%
Web
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	1011 Points +26%
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	952 Points +18%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	805 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	773 Points -4%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	762 Points -5%

Mozilla Kraken 1.1 - Total
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	12840 ms * -154%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	6884 ms * -36%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	5089 ms * -1%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	5047 ms *
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	4420 ms * +12%

JetStream 1.1 - Total Score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	43.04 Points +22%
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	35.72 Points +1%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	35.36 Points
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	33.13 Points -6%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	21.2 Points -40%

Octane V2 - Total Score
Xiaomi MiPad 2 HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash	7994 Points +23%
Teclast Tbook 10s HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	6494 Points
Chuwi Hi10 Pro HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	6365 Points -2%
Haier Pad 971 Mali-T760 MP4, RK3288, 16 GB eMMC Flash	5967 Points -8%
Asus ZenPad 10.0 Z300M-6A039A Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash	3320 Points -49%

* ... smaller is better

Cinebench R15
OpenGL 64Bit (sort by value)
Teclast Tbook 10s	8.43 fps
Chuwi Hi10 Pro	8.8 fps +4%
Chuwi Hi12	9.82 fps +16%
Acer Switch V 10 SW5-017-196Q	11.16 fps +32%
Toshiba Satellite Click 10 LX0W-C-104	10.71 fps +27%
Microsoft Surface Pro 4 Core i7	60.1 fps +613%
CPU Multi 64Bit (sort by value)
Teclast Tbook 10s	101 Points
Chuwi Hi10 Pro	85 Points -16%
Chuwi Hi12	99 Points -2%
Acer Switch V 10 SW5-017-196Q	100 Points -1%
Toshiba Satellite Click 10 LX0W-C-104	94 Points -7%
Microsoft Surface Pro 4 Core i7	342 Points +239%

PCMark 8
Home Score Accelerated v2 (sort by value)
Teclast Tbook 10s	1088 Points
Chuwi Hi12	1039 Points -5%
Acer Switch V 10 SW5-017-196Q	1520 Points +40%
Toshiba Satellite Click 10 LX0W-C-104	1294 Points +19%
Microsoft Surface Pro 4 Core i7	3394 Points +212%
Creative Score Accelerated v2 (sort by value)
Teclast Tbook 10s	914 Points
Toshiba Satellite Click 10 LX0W-C-104	1410 Points +54%
Microsoft Surface Pro 4 Core i7	4431 Points +385%
Work Score Accelerated v2 (sort by value)
Teclast Tbook 10s	1329 Points
Chuwi Hi12	1008 Points -24%
Toshiba Satellite Click 10 LX0W-C-104	1044 Points -21%
Microsoft Surface Pro 4 Core i7	4052 Points +205%

Legend

Teclast Tbook 10s Intel Atom x5-Z8350, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Chuwi Hi10 Pro Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Chuwi Hi12 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), Hynix HCG8E 64 GB

Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), 32 GB eMMC Flash

Microsoft Surface Pro 4 Core i7 Intel Core i7-6650U, Intel Iris Graphics 540, Samsung MZFLV256 NVMe

Max. Load

Idle


35.5 °C	28.8 °C	31.9 °C
34.2 °C	29.1 °C	33.1 °C
30.8 °C	28.5 °C	31.9 °C

Maximum: 35.5 °C
Average: 31.5 °C


31.4 °C	30.8 °C	29.1 °C
31.7 °C	31 °C	29.5 °C
29 °C	29.1 °C	28.8 °C

Maximum: 31.7 °C
Average: 30 °C

Power Supply (max.) 40.5 °C | Room Temperature 21.3 °C | Voltcraft IR-260

(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 35.5 °C / 96 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 31.7 °C / 89 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.4 °C / 83 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.9 °C / 89.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.8 °C / -6.8 F).

Teclast Tbook 10s audio analysis

(±) | speaker loudness is average but good (74.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.4% lower than median
(+) | bass is linear (4.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.2% higher than median
(-) | mids are not linear (15.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 9% higher than median
(±) | linearity of highs is average (14% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (37.4% difference to median)
Compared to same class
» 95% of all tested devices in this class were better, 1% similar, 3% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 93% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Chuwi Hi10 Pro audio analysis

(+) | speakers can play relatively loud (84.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.4% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.8% higher than median
(±) | linearity of mids is average (9.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 10.7% higher than median
(±) | linearity of highs is average (11.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (33.5% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 2% similar, 7% worse
» The best had a delta of 7%, average was 23%, worst was 129%
Compared to all devices tested
» 91% of all tested devices were better, 1% similar, 8% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Xiaomi MiPad 2 audio analysis

(+) | speakers can play relatively loud (95.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.3% lower than median
(+) | bass is linear (5.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5% lower than median
(+) | mids are linear (4.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (1.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.9% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 8% similar, 56% worse
» The best had a delta of 7%, average was 23%, worst was 129%
Compared to all devices tested
» 32% of all tested devices were better, 8% similar, 61% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0.13 / 0.32 Watt
Idle	1.46 / 5 / 5.08 Watt
Load	9.57 / 10.77 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Teclast Tbook 10s 6000 mAh	Chuwi Hi10 Pro 6500 mAh	Xiaomi MiPad 2 6190 mAh	Haier Pad 971 7800 mAh	Asus ZenPad 10.0 Z300M-6A039A 4680 mAh
Power Consumption		-7%	-21%	45%	39%
Idle Minimum *	1.46	1.4 4%	3.33 -128%	1.38 5%	1.22 16%
Idle Average *	5	4.82 4%	5.01 -0%	1.46 71%	3.15 37%
Idle Maximum *	5.08	5.43 -7%	5.19 -2%	1.6 69%	3.39 33%
Load Average *	9.57	11.61 -21%	8.32 13%	5.06 47%	3.95 59%
Load Maximum *	10.77	12.48 -16%	9.33 13%	6.95 35%	5.64 48%

* ... smaller is better

Battery Runtime


WiFi Websurfing		3h 48min

	Teclast Tbook 10s 6000 mAh	Chuwi Hi10 Pro 6500 mAh	Xiaomi MiPad 2 6190 mAh	Haier Pad 971 7800 mAh	Asus ZenPad 10.0 Z300M-6A039A 4680 mAh
Battery Runtime
WiFi v1.3	228	364 60%	421 85%	423 86%	435 91%

Pros

+ 4 GB内存

+ 配件（键盘底座，手写笔）

+ 系统选择：Windows+安卓

+ 锐利的IPS屏幕

+ 低发热量

Cons

- 电池续航较短

- 配件价值较低

- eMMC闪存速度迟缓

- 无线网络模组速度慢

- 安卓5.1

- 性能（Windows）

In review: Teclast Tbook 10s. Review sample courtesy of Teclast

类似于Chuwi Hi10 Pro，Teclast Tbook 10s的时尚机身设计和高品质铝合金机身十分诱人。而安卓或Windows的双操作系统也带来了一些亮点。不过，生产商仅为它预装了过时的安卓5.1。这两台设备都在相机和扬声器方面节省了成本。基本上，这两款平板设备的外观和质感都十分接近。

我们并不是很满意Teclast Tbook 10s的可选配件。由于它搭配的低亮度屏幕，未优化的安卓用户界面和电池续航，我们认为其他一些同类设备相比更加完善。不过，正在寻找一台价格实惠，机身品质优秀，搭配高性能英特尔处理器，但不需要超长续航的用户可以考虑Teclast Tbook 10s。

Teclast Tbook 10s是一台优秀的低价平板电脑，不过它相比竞争机型没有太多的独特之处。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Teclast Tbook 10s - 2017-03-23 03/23/2017 v6^(old)
Marcus Herbrich

Chassis

86 / 98 → 88%

Keyboard

72%

Pointing Device

86%

Connectivity

33 / 80 → 41%

Weight

82 / 35-78 → 100%

Battery

74%

Display

80%

Games Performance

42 / 68 → 61%

Application Performance

36 / 87 → 41%

Temperature

93%

Noise

100%

Audio

51 / 91 → 56%

Camera

32 / 85 → 38%

Average

67%

80%

Convertible - Weighted Average

Pricecompare

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Teclast Tbook 10s (x5-Z8350, 全高清) 变形本简短评测

Marcus Herbrich, 2017-04- 1 (Update: 2017-05-23)
