结论：华硕 Prime RTX 5060 OC华硕 PrimeGeForce RTX 5060 OC - 黑井 GPU，适合有预算意识的游戏玩家
功耗仍然适中，约为 145 瓦，即使在负载情况下，冷却解决方案也能保持令人愉悦的安静。标准 6+2 针电源接口的使用为那些使用老式电源的用户提供了方便。总的来说，华硕 RTX 5060 OC 为全高清游戏提供了一个高效、紧凑的套件，尽管有限的 8 GB VRAM 确实让人担心其长期可行性。其性能与使用相同 GPU 的其他显卡基本相当。那些愿意花更多钱的人应该考虑配备 16GB VRAM 的GeForce RTX 5060 Ti--华硕提供的这种型号售价 435 欧元。
Pros
+ 与 RTX 4060 相比，性能大幅提升
+ 配备三个滚珠轴承风扇的强大冷却装置
+ DLSS 和 MFG
+ 负载时相对安静
+ 广泛使用的 8 针 PCIe 电源连接器
+ 36 个月保修
Cons
- 只有 8GB VRAM
- 面向未来的能力有限
价格和供应情况
在德国，华硕 PrimeGeForce RTX 5060 OC 目前的起价为 350 欧元，各大在线零售商均有销售。不过，配备 16GB VRAM 的华硕 DualGeForce RTX 5060 Ti OC 在亚马逊上的售价为435 欧元，内存容量明显更高，对于追求更面向未来性能的用户来说，或许值得考虑。
$508.85
ASUS PRIME RTX5060 OC, PCIe5, 8GB DDR7, HDMI, 3 DP, 2595MHz Clock, Overclocked, Compact SFF-Ready
华硕 PrimeGeForce RTX 5060 OC 基于全新的 GB205 芯片打造，是目前 Nvidia Blackwell 系列桌面显卡中最经济实惠的入门级产品。尽管该显卡定位为经济型显卡，但它集成了高端型号的多项核心功能，包括最新的 DLSS 版本和多帧生成（MFG）技术。这些创新技术旨在提高帧速率，改善视觉流畅度，但实际性能提升因游戏而异。
与 RTX 5060 Ti标准版 RTX 5060 的着色器单元较少。它标配 8 GB GDDR7 内存，Nvidia 目前没有提供 16 GB 版本。与 RTX 4060和 RTX 3060最明显的改进在于显存带宽大幅提升。不过，有限的显存容量仍然是一个主要缺点--尤其是在对 VRAM 有苛刻要求的现代游戏中，这会限制较高设置下的性能。
对 Nvidia Blackwell 显卡的进一步测试：
- NvidiaGeForce RTX 5090 (创始版)
- 英伟达GeForce RTX 5080 (华硕 TUF GamingGeForce RTX 5080 OC)
- NvidiaGeForce RTX 5070 Ti (KFA2GeForce RTX 5070 Ti 1-Click OC)
- NvidiaGeForce RTX 5070 (KFA2GeForce RTX 5070 1-Click OC)
- NvidiaGeForce RTX 5060 Ti (华硕 TUF GamingGeForce RTX 5060 Ti OC)
- NvidiaGeForce RTX 5060 (ZotacGeForce RTX 5060 AMP)
规格
Asus Prime GeForce RTX 5060 OC
Processor
AMD Ryzen 7 9800X3D 8 x 4.7 - 5.2 GHz, 162 W PL2 / Short Burst, 120 W PL1 / Sustained, Granite Ridge
Graphics adapter
NVIDIA GeForce RTX 5060 - 8 GB VRAM, Core: 2565 MHz, RAM: 1750 MHz, 145 W TDP
Memory
32 GB
, DDR5-6000 CL28
Mainboard
AMD X870E
Storage
Kingston KC3000 2048G SKC3000D2048G, 2048 GB
Weight
756 g
Price
350 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

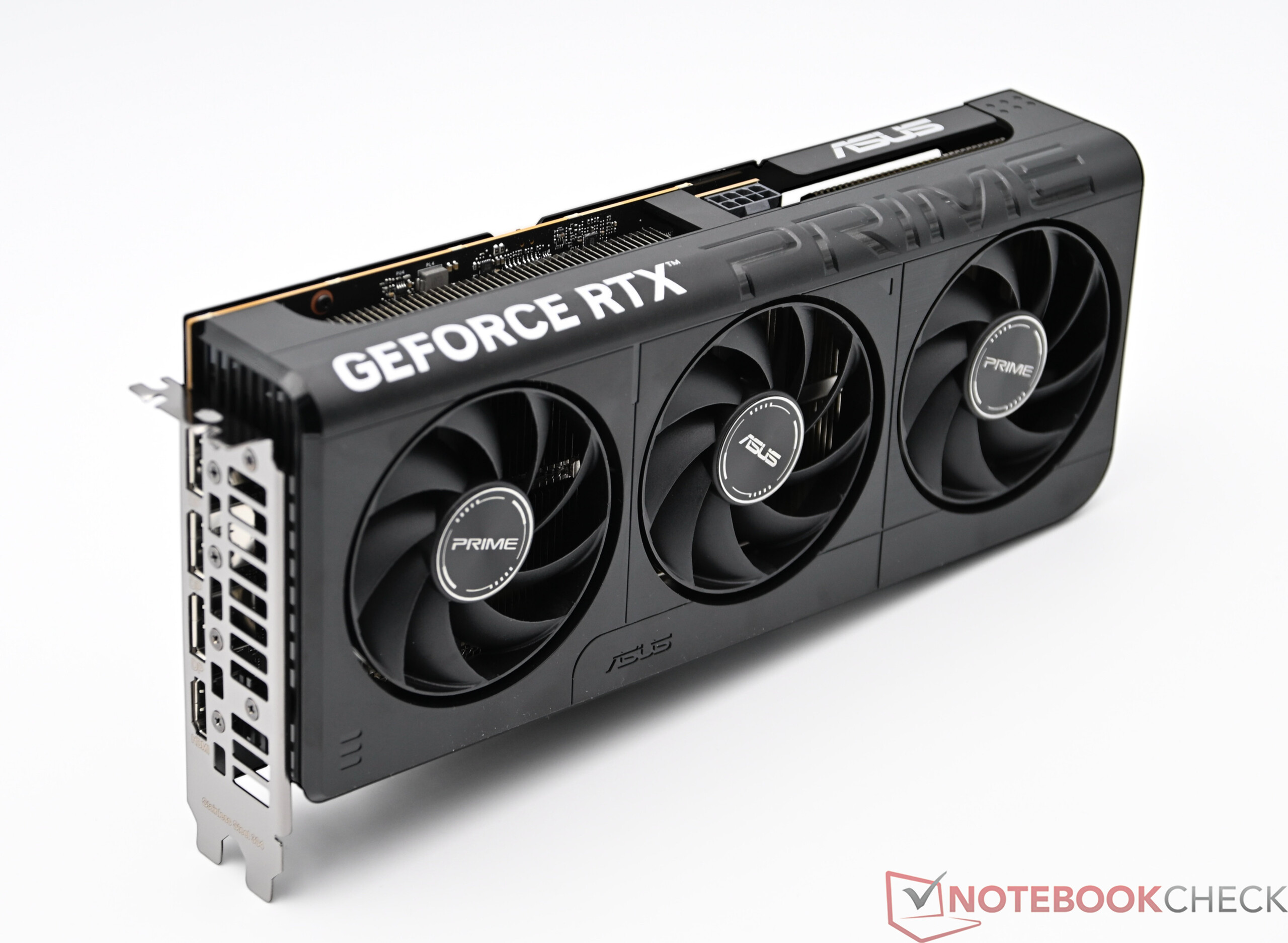

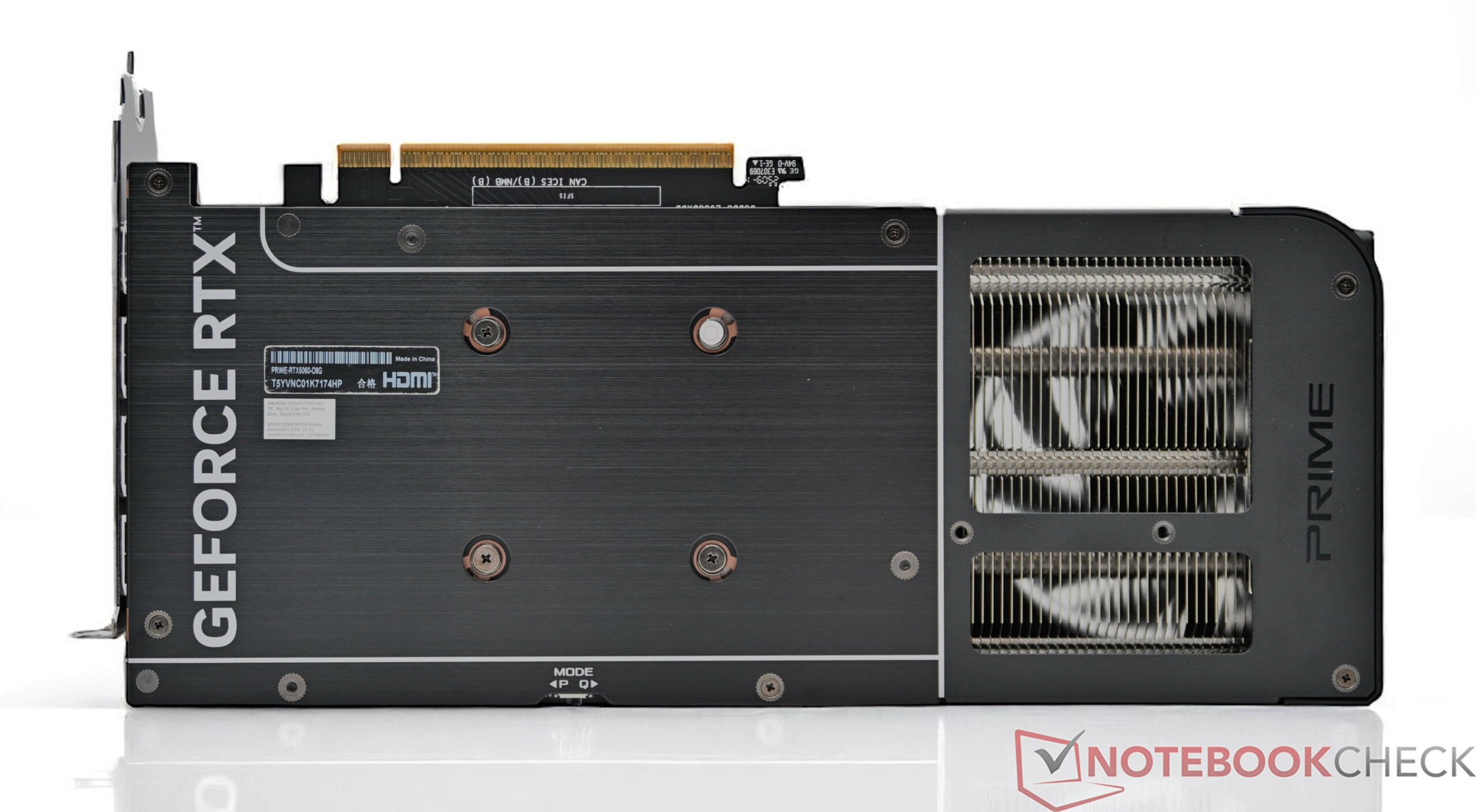

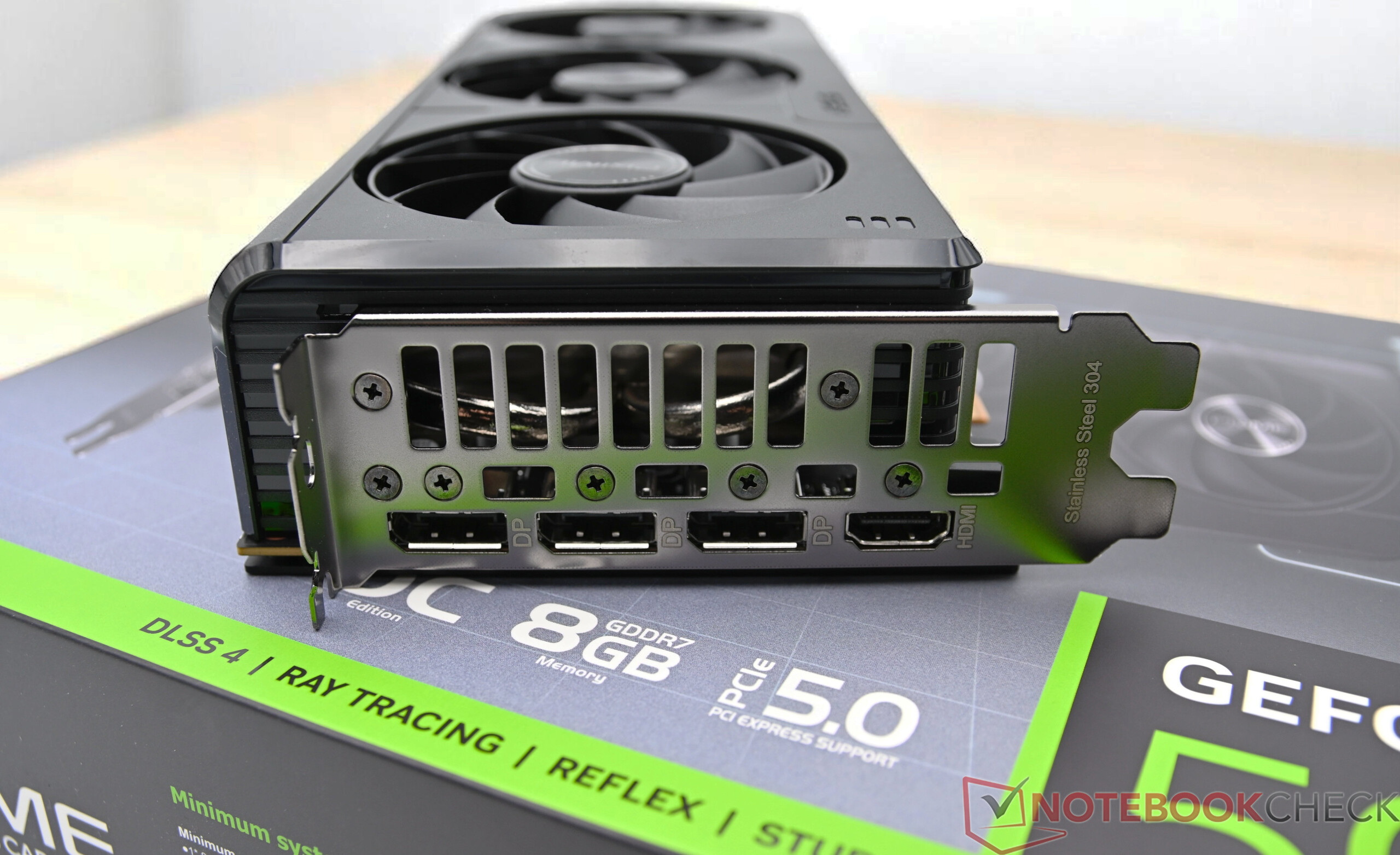

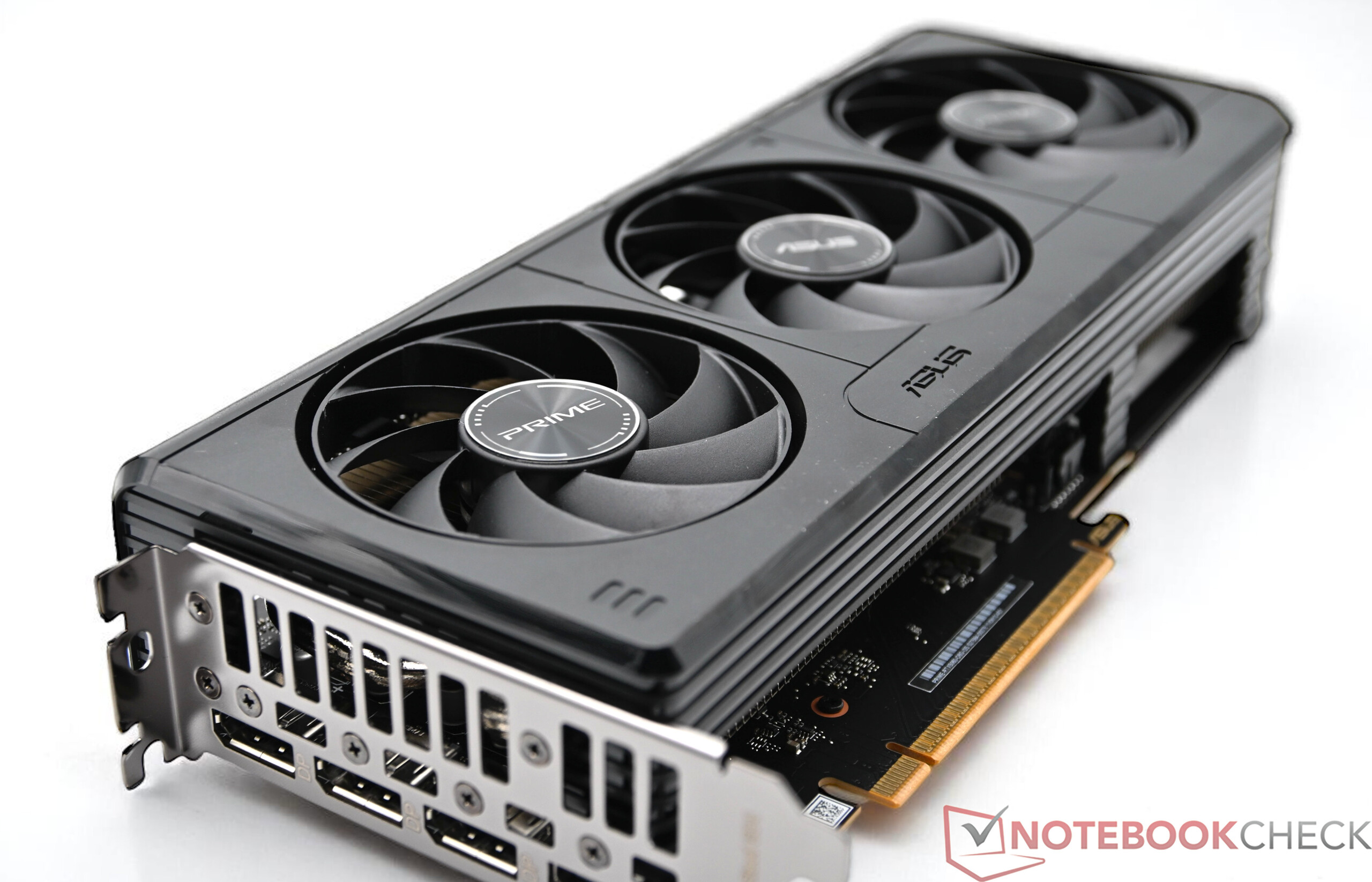

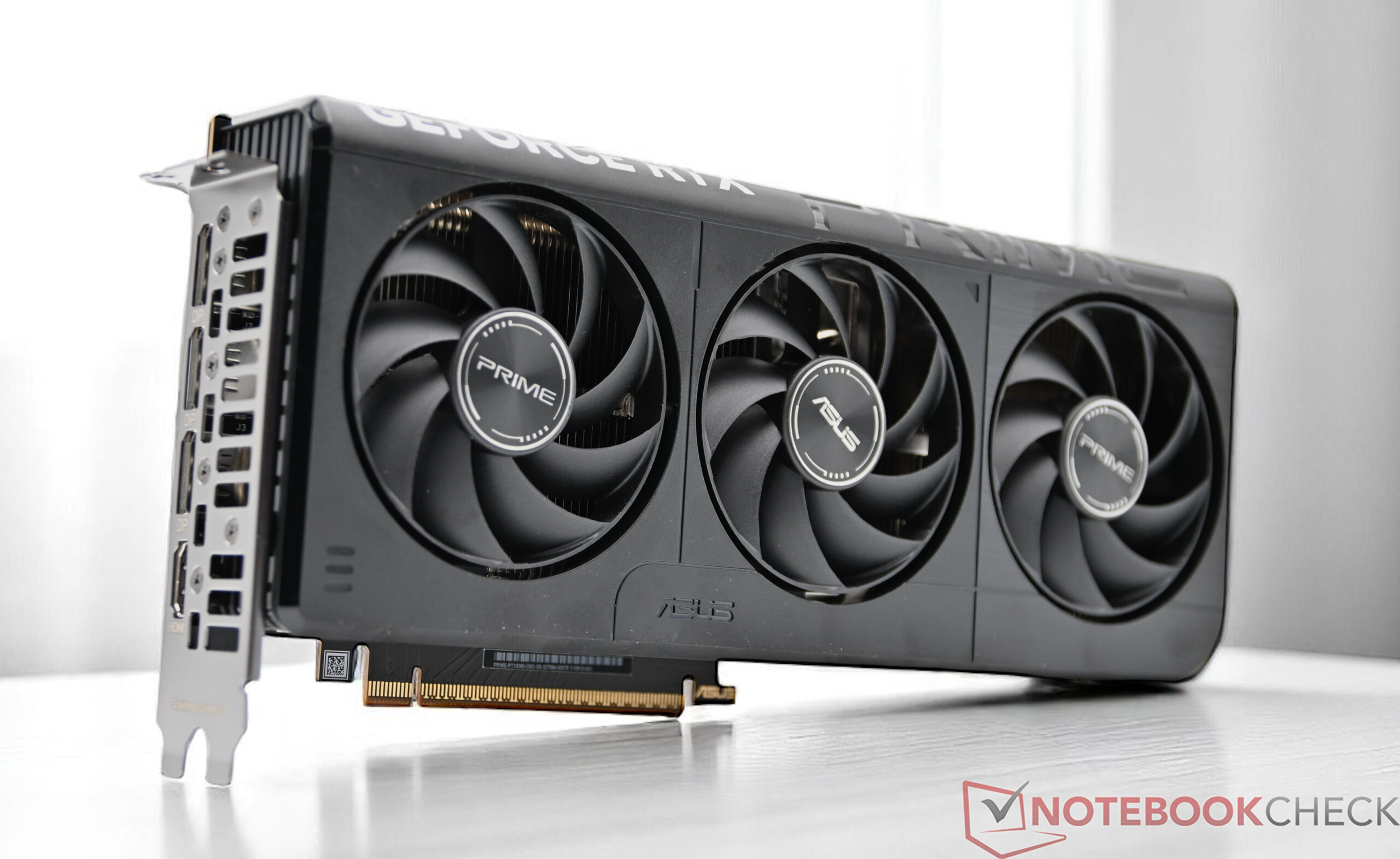

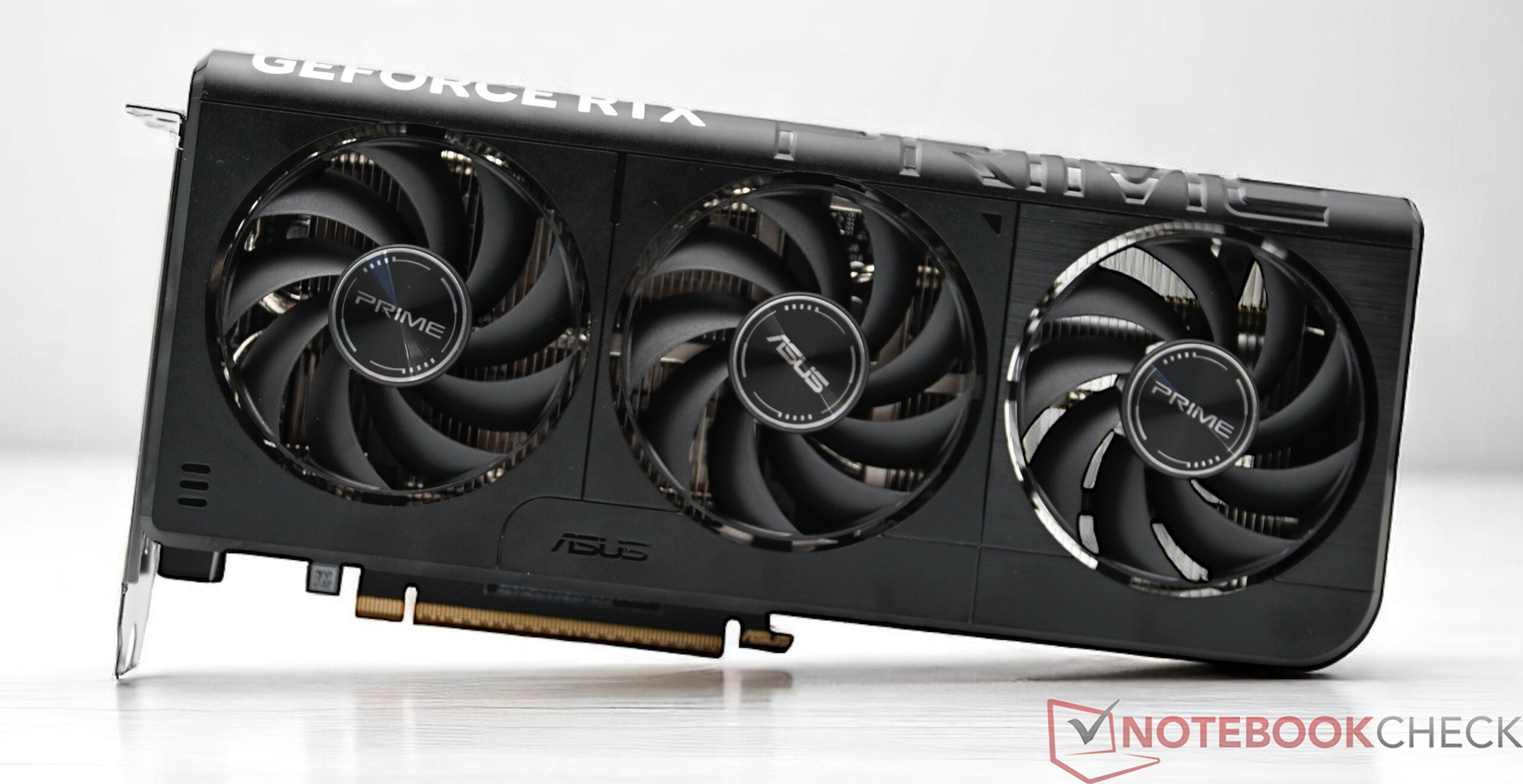

第一印象和制造质量

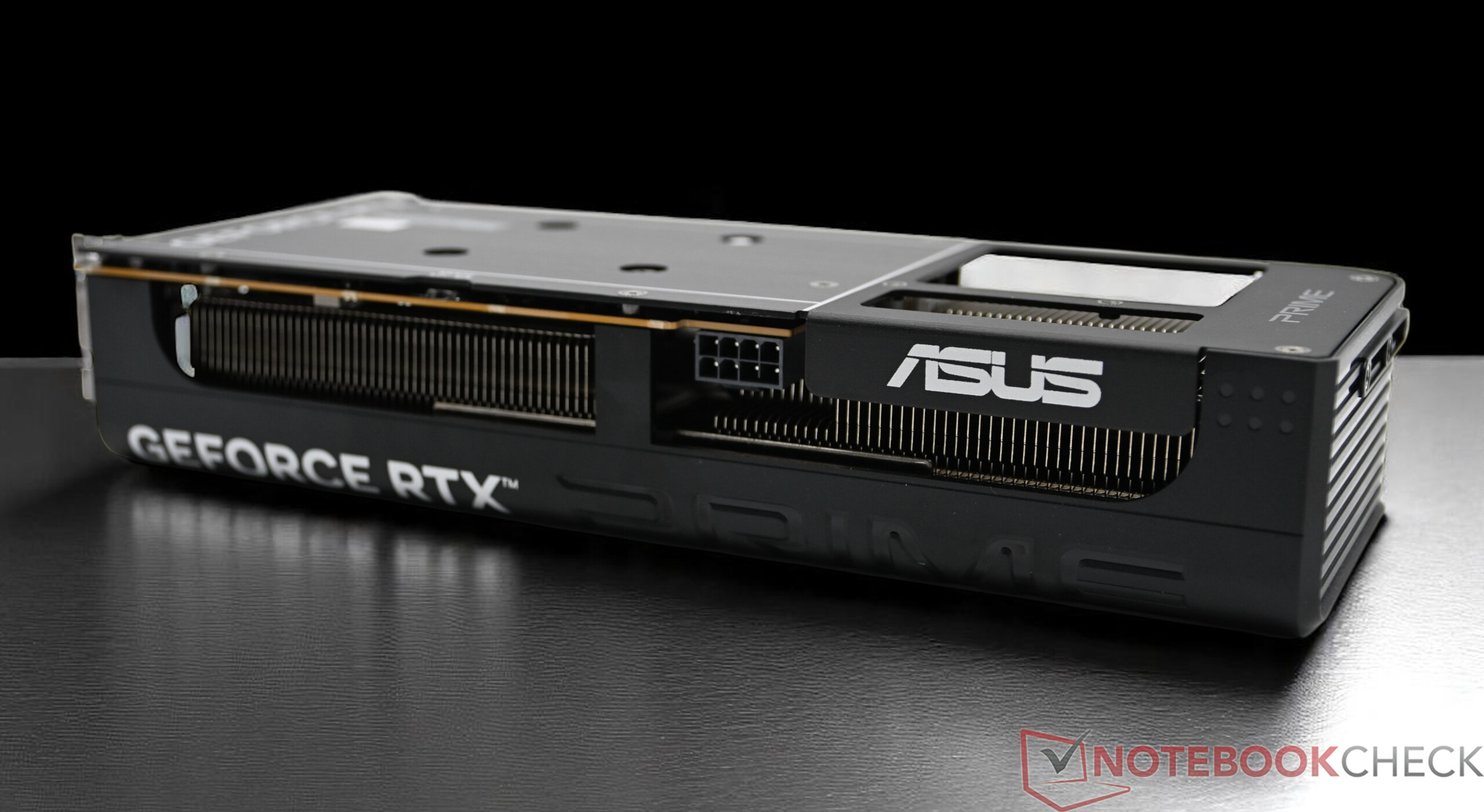

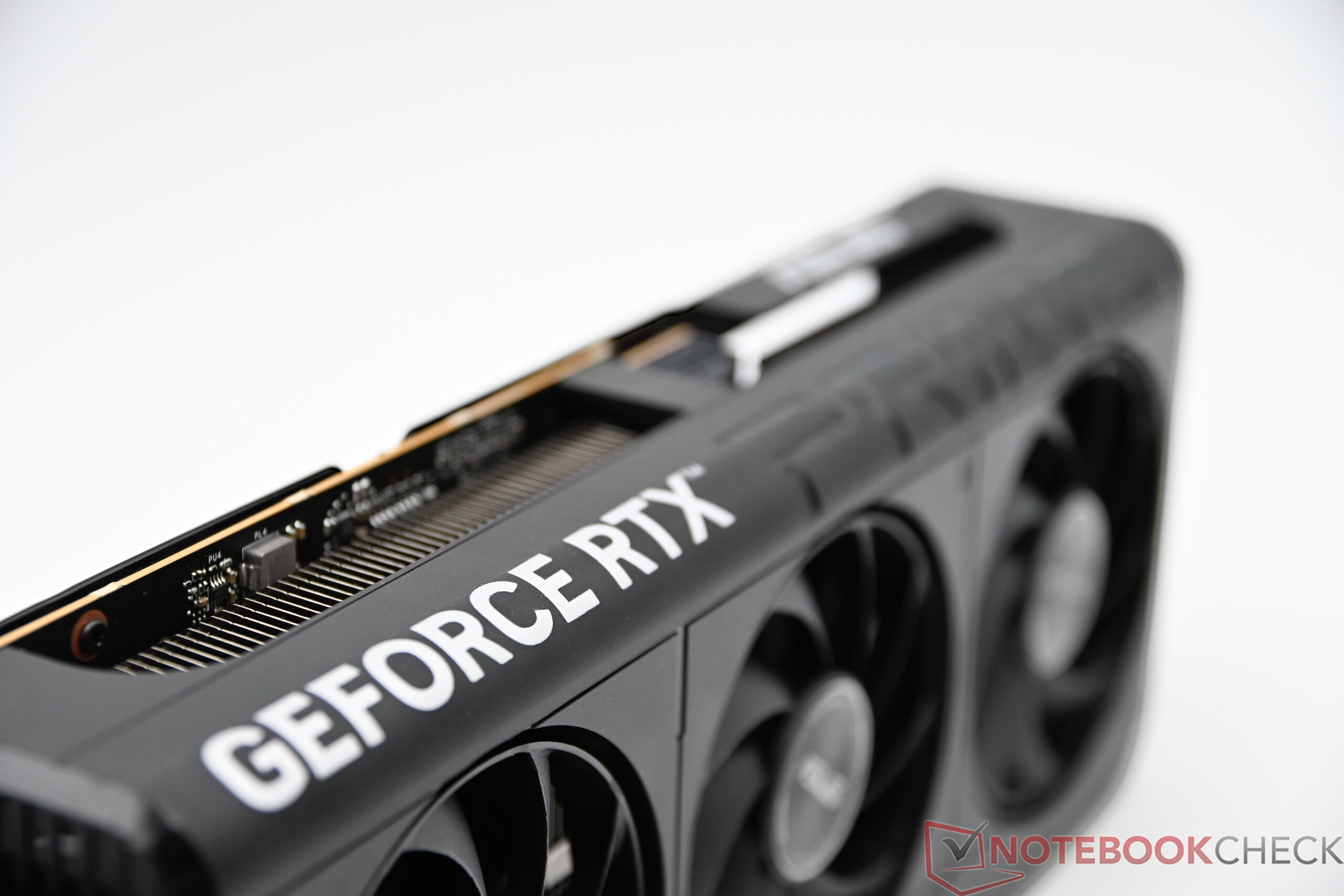

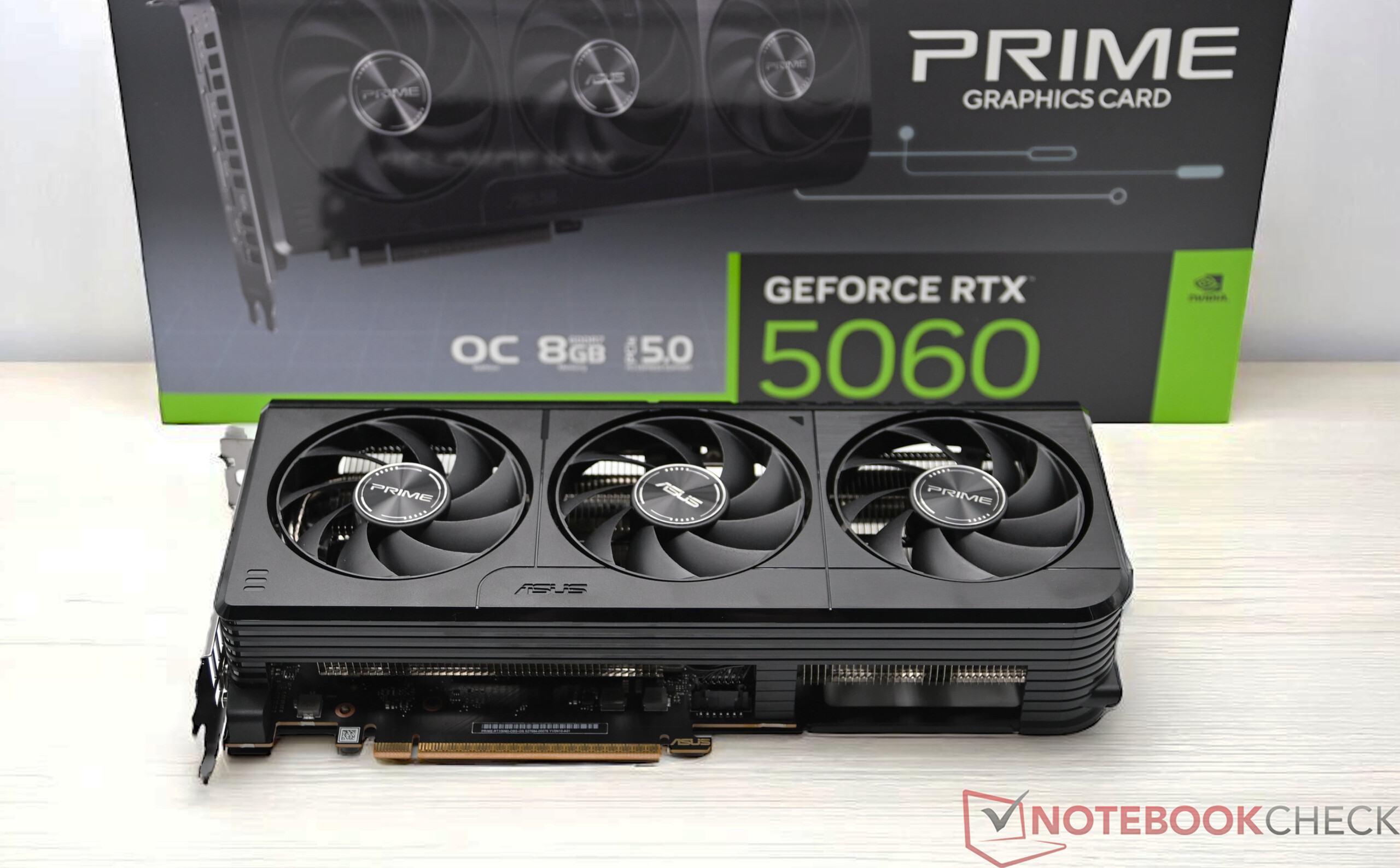

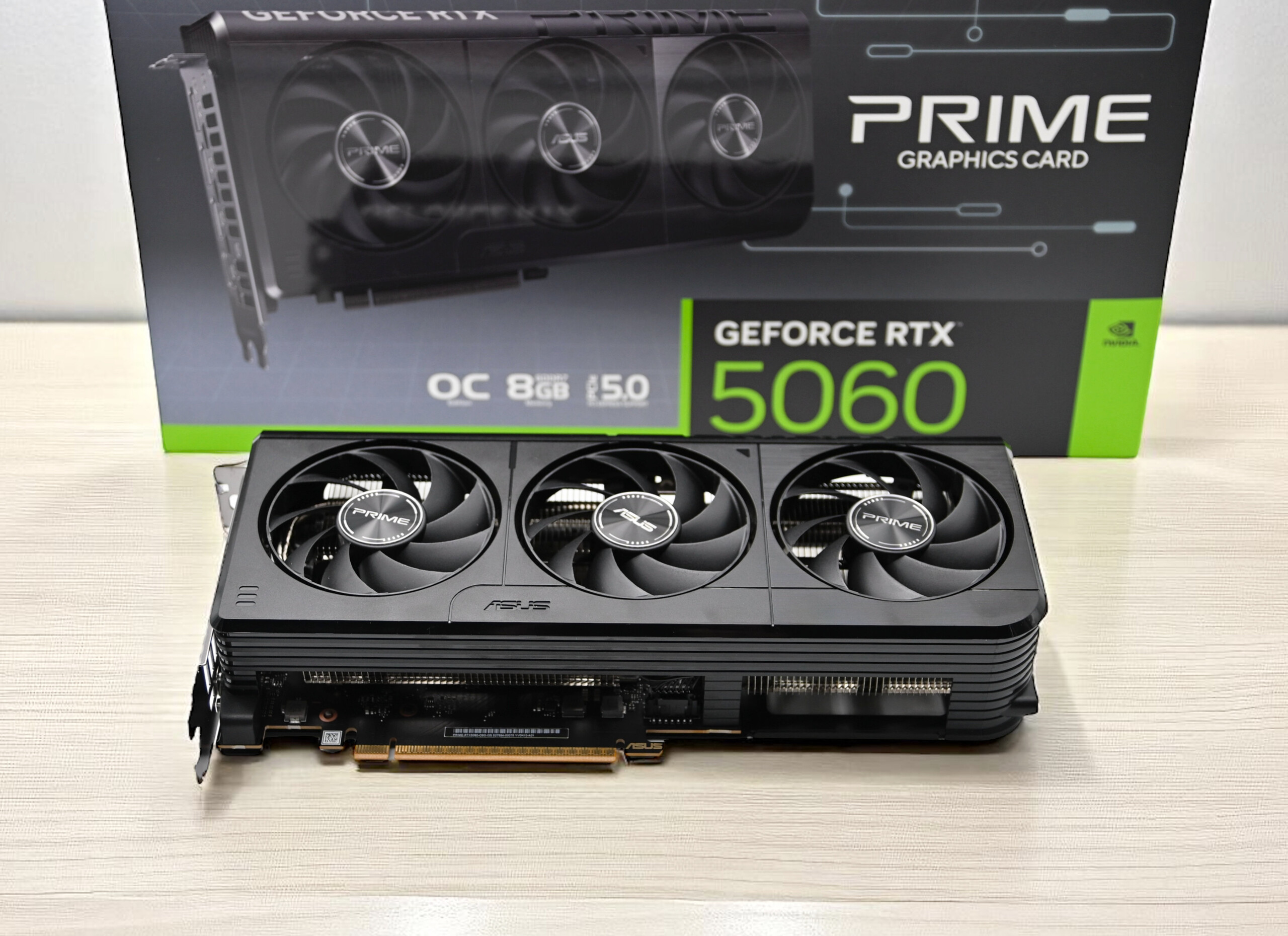

华硕 PrimeGeForce RTX 5060 OC 一看就给人留下了稳重、实用的印象。其低调的设计完全省略了 RGB 灯光，与 Prime 系列的简约风格保持一致。三风扇散热器做工精良，使用双滚珠轴承以提高耐用性。尽管该显卡采用 2.5 插槽规格，但仍然足够小巧，可以安装在较小的机箱中，因此适合 SFF 系统。虽然众泰GeForce RTX 5060 AMP 在用料和做工方面主观感觉略胜一筹，但其整体制造质量还是很坚固的。
时钟速度接近 Nvidia 的参考值，只是升压频率略有降低。华硕还坚持使用默认功耗配置文件，我们的测试设备的总显卡功耗（TGP）为 145 瓦。
技术数据对比
| 功能 | RTX 5090 (FE) | RTX 5080 (FE) | RTX 5070 Ti | RTX 5070 | RTX 5060 Ti | RTX 5060 | RTX 4060 | RTX 3060 |
| 芯片 | GB202 | GB203 | GB203 | GB205 | GB206 | GB205 | AD107 | GA106 |
| FinFET 工艺 | 4 纳米 | 4 纳米 | 4 纳米 | 4 纳米 | 4 纳米 | 4 纳米 | 4 纳米 | 8 纳米 |
| CUDA 内核 | 21,760 | 10,752 | 8,960 | 6,144 | 4,608 | 3,840 | 3,072 | 3,584 |
| 纹理单元 | 680 | 336 | 280 | 192 | 144 | 120 | 96 | 112 |
| 张量核 | 680 第 5 代 | 336 第 5 代 | 280 第 5 代 | 192 第 5 代 | 144 第 5 代 | 120第 5 代 | 96 第 4 代 | 112 第 3 代 |
| RT 内核 | 170 | 84 | 70 | 48 | 36 | 30 | 24 | 28 |
| GPU 基本时钟 | 2,010 MHz | 2,295 MHz | 2,295 MHz | 2,325 MHz | 2,407 MHz | 2,280 MHz | 1,830 MHz | 1,320 MHz |
| GPU 提升时钟 | 2,407 MHz | 2,617 MHz | 2,452 MHz | 2,512 MHz | 2,572 MHz | 2,497MHz | 2,460 MHz | 1,777 MHz |
| 内存总线 | 512 位 | 256 位 | 256 位 | 192 位 | 128 位 | 128位 | 128 位 | 192 位 |
| 内存带宽 | 1,792 GB/s | 960 GB/s | 896 GB/s | 672 GB/s | 448 GB/s | 448GB/s | 272 GB/s | 360 GB/s |
| 显存 | 32 GB GDDR7 | 16 GB GDDR7 | 16 GB GDDR7 | 12 GB GDDR7 | 8 / 16 GB GDDR7 | 8 GB GDDR7 | 8 GB GDDR6 | 12 GB GDDR6 |
| TGP（图形总功率） | 575 W | 360 W | 300 W | 250 W | 180 W | 145W | 115 W | 170 W |
性能
华硕 PrimeGeForce RTX 5060 OC 基于最新的 Blackwell 架构打造，拥有 3,840 个 CUDA 内核，搭配 8 GB GDDR7 显存，通过 448 GB/s 内存接口连接。与基于 Ada Lovelace 的上一代 RTX 4060 相比，RTX 5060 OC 的功耗明显增加，但性能提升明显。不过，令人失望的是，华硕和 Nvidia 继续在 VRAM 容量上有所保留。8 GB 的限制限制了显卡在某些现代游戏和更高图形设置下的潜力。

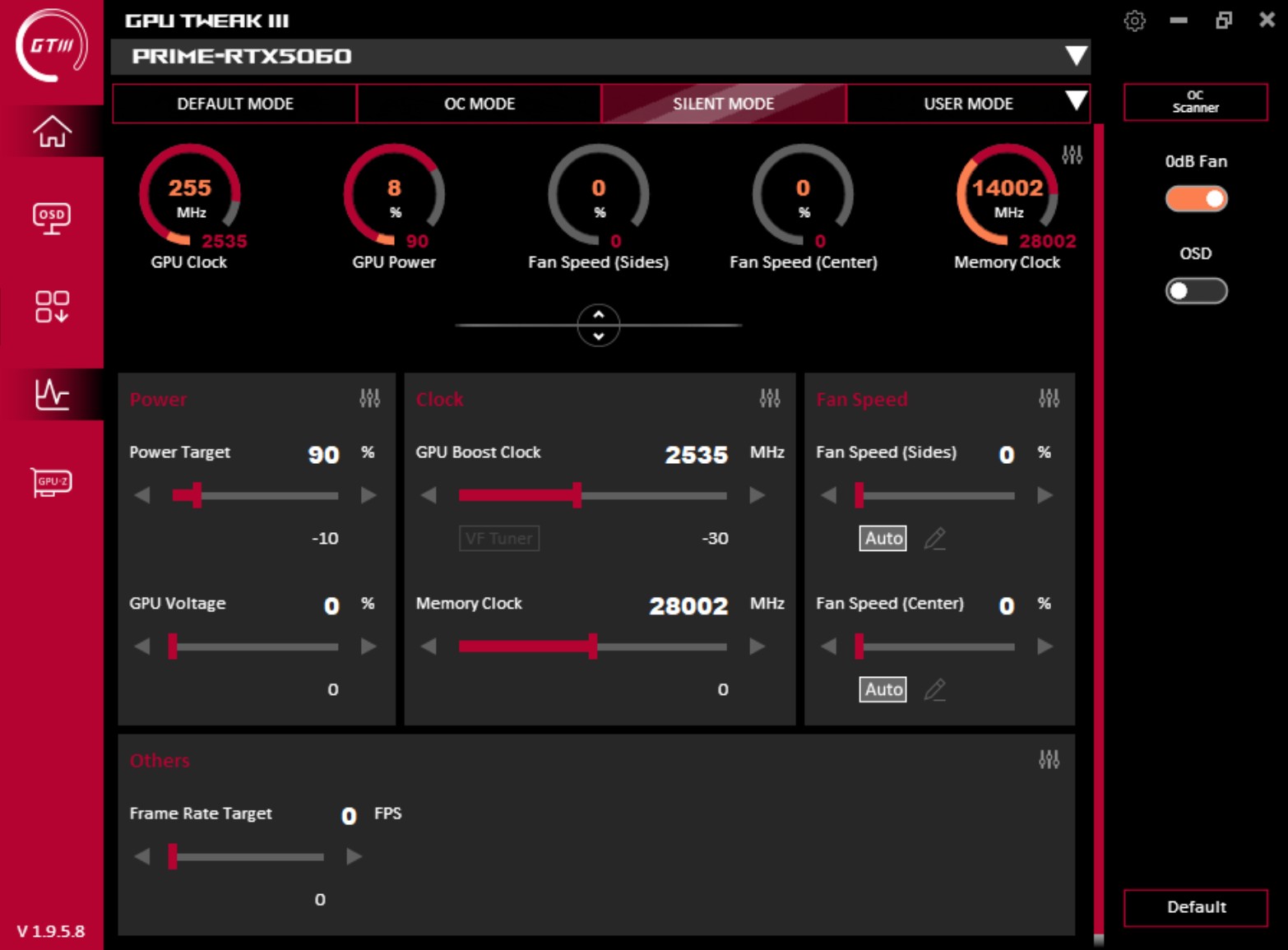

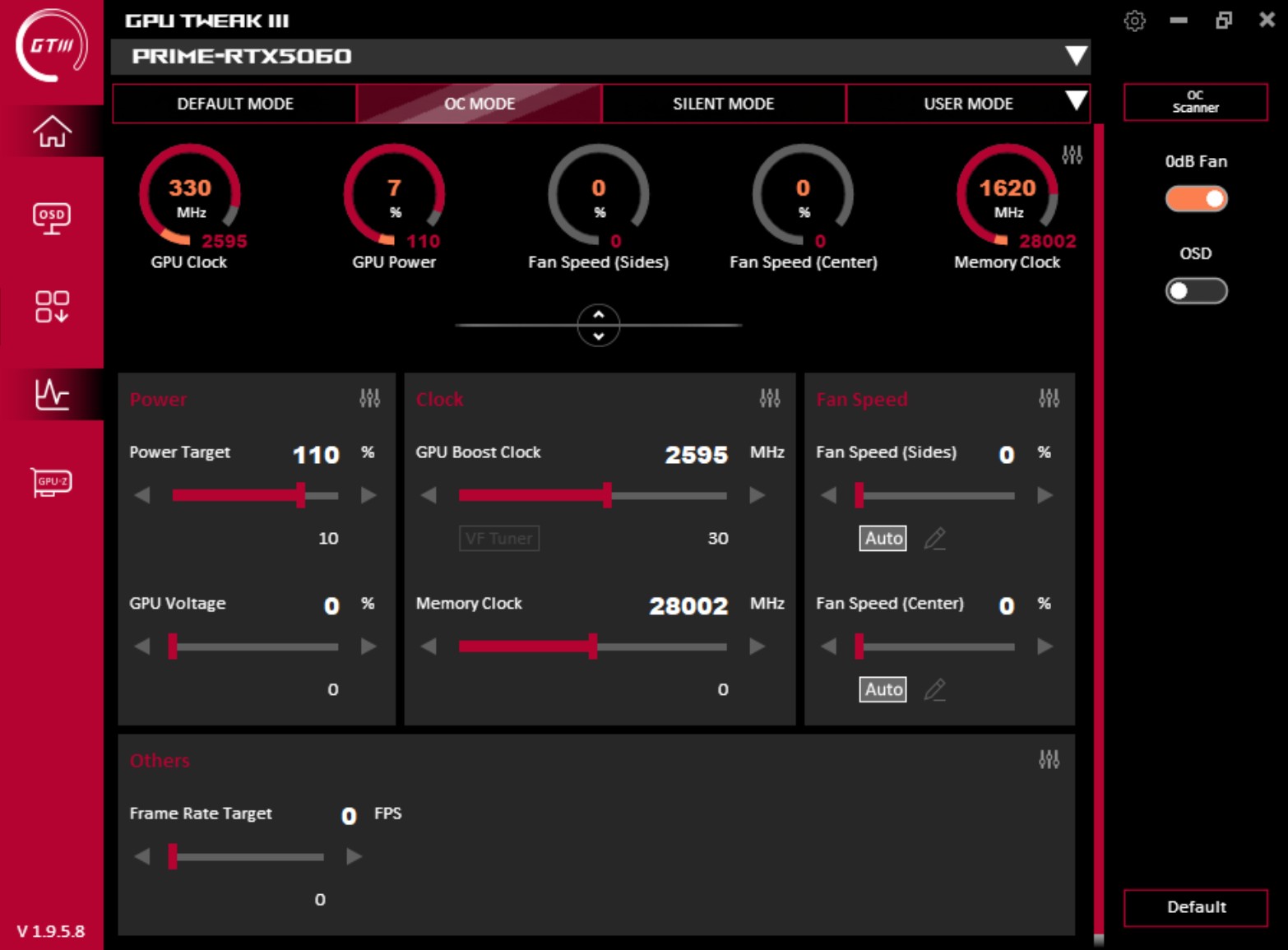

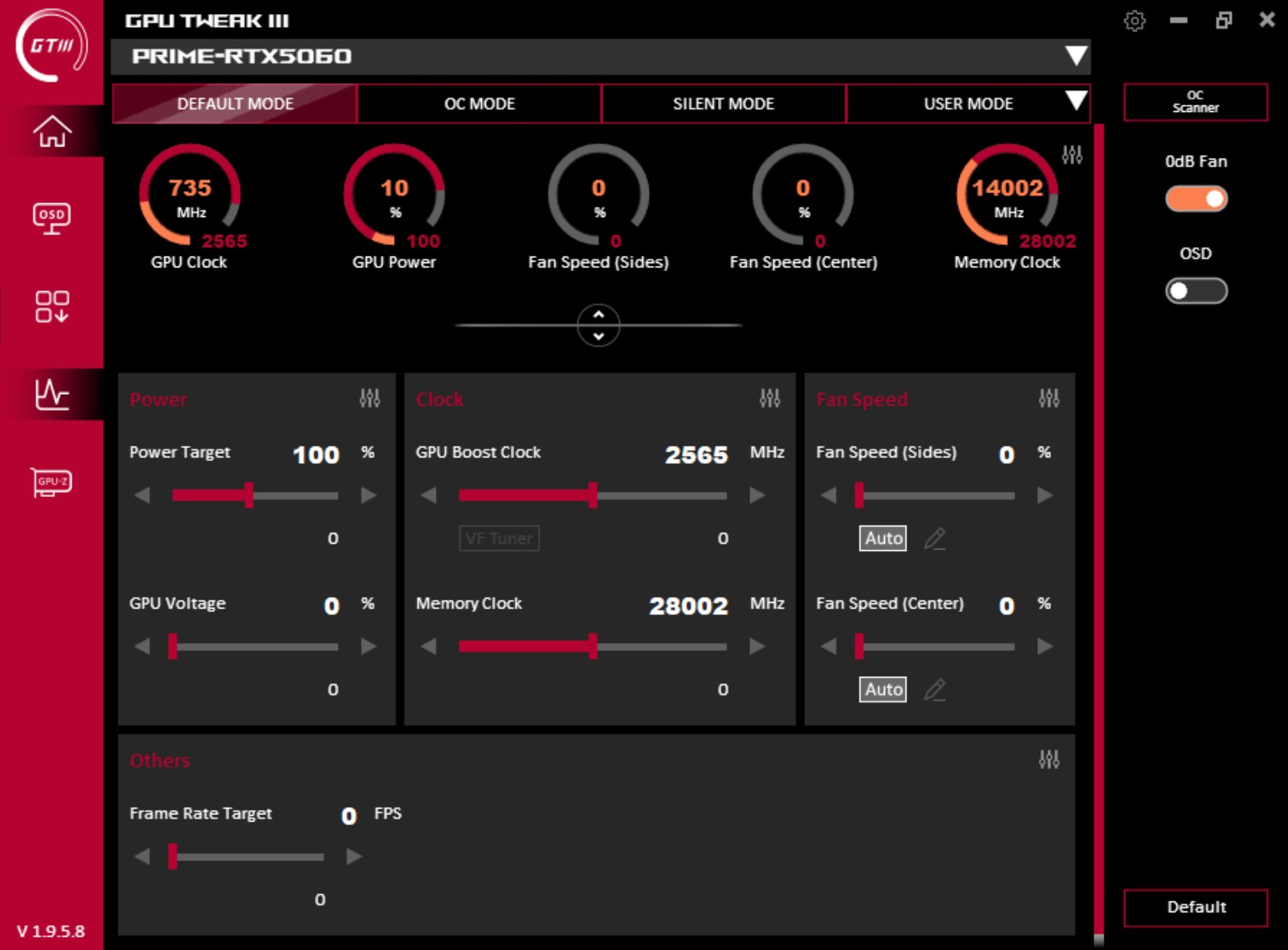

图形处理器调整 III

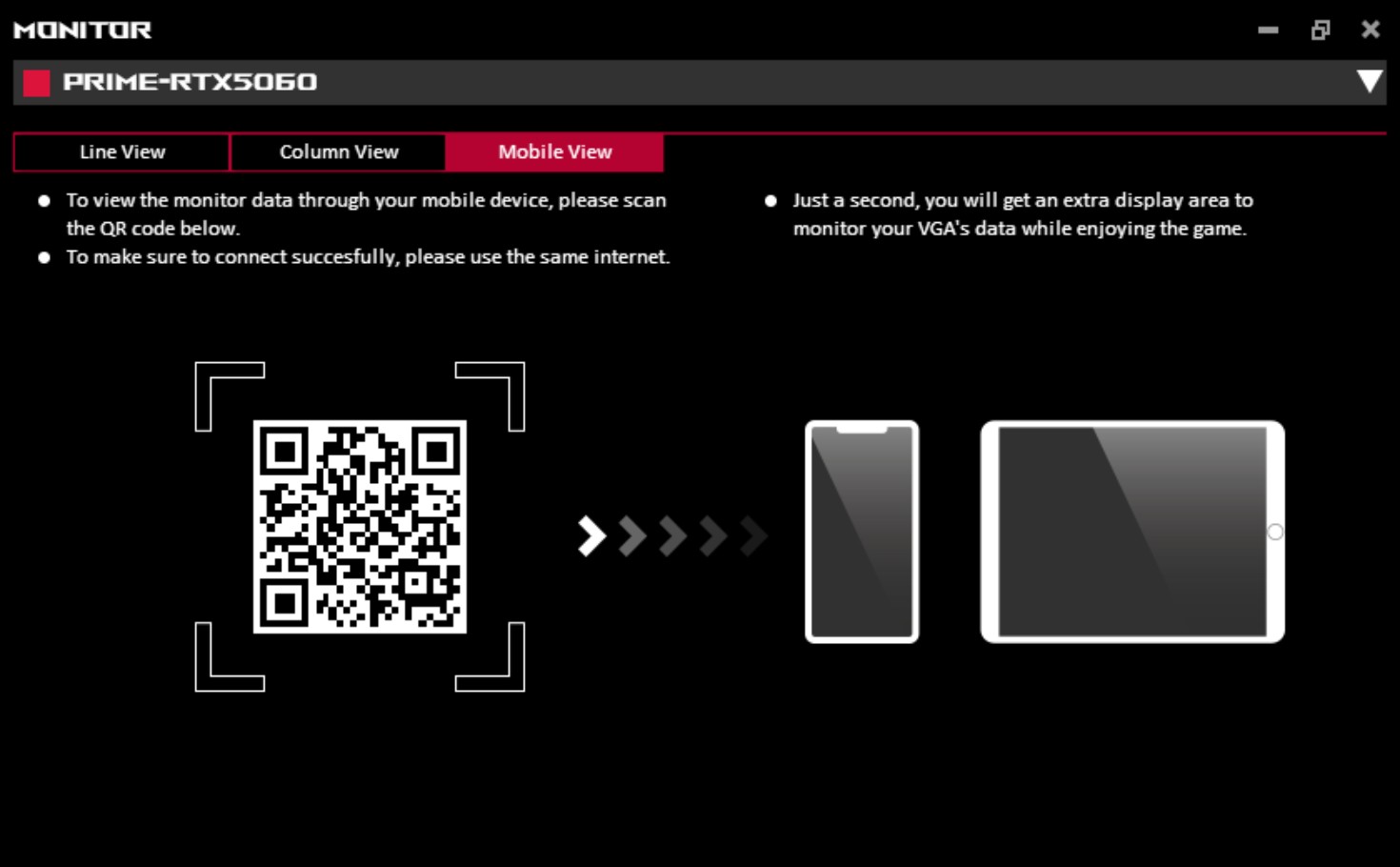

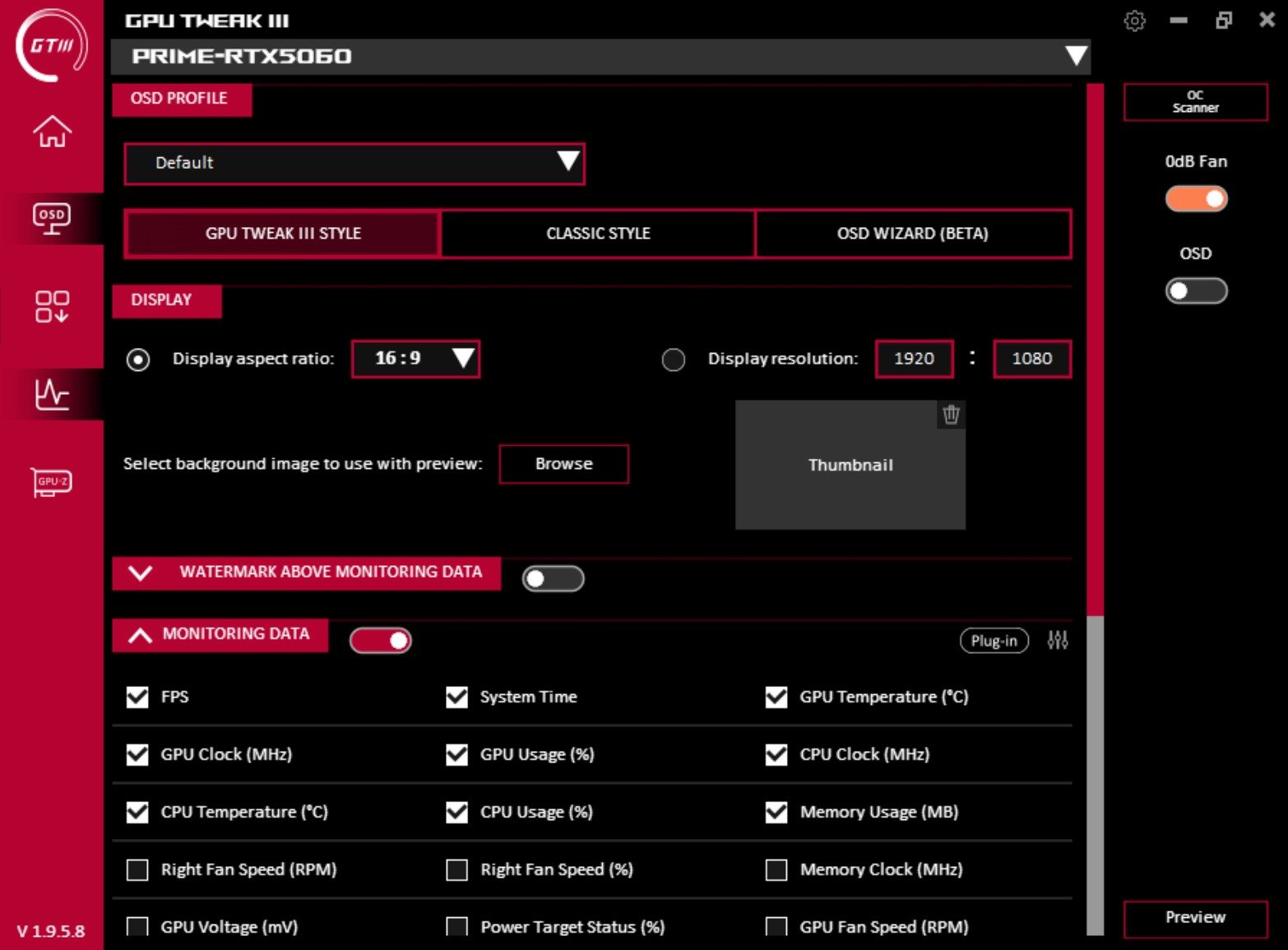

GPU Tweak III 是华硕用于超频和监控显卡的官方软件。它允许用户微调时钟速度、电压、风扇曲线和性能目标。预配置文件可让用户在高性能和更安静的运行之间轻松切换。该软件还包括一个清晰的实时监控界面，可选择将其镜像到智能手机或平板电脑上。
合成基准
华硕 PrimeGeForce RTX 5060 OC 的合成基准测试证实了 ZotacGeForce RTX 5060 AMP 的性能。两款产品的性能几乎相同。与GeForce RTX 5060 Ti 的差距仍然不大，仅略高于 10%，这凸显了 RTX 5060 作为一款可靠的中端 GPU 的潜力。
Performance Rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | Affinity Photo 2 | ComputeMark v2.1 | V-Ray Benchmark Next 4.10
| Performance Rating - Percent | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| AMD Radeon RX 9070 XT | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| V-Ray Benchmark Next 4.10 - GPU | |
| Nvidia GeForce RTX 5090 Founders Edition (v4.10.07 ) | |
| Palit GeForce RTX 4090 GameRock OC (v4.10.07 ) | |
| Asus TUF Gaming GeForce RTX 5080 OC (v4.10.07 ) | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC (v4.10.07 ) | |
| KFA2 GeForce RTX 5070 1-Click OC (v4.10.07 ) | |
| KFA2 GeForce RTX 4070 EX Gamer (v4.10.07 ) | |
| Nvidia GeForce RTX 3090 FE (v4.10.07 ) | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC (v4.10.07 ) | |
| Zotac GeForce RTX 5060 AMP (v4.10.07 ) | |
| Asus Prime GeForce RTX 5060 OC (v4.10.07 ) | |
| ASUS Dual GeForce RTX 4060 EVO OC (v4.10.07 ) | |
| ASUS TUF Gaming GeForce RTX 3060 (v4.10.07 ) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX (v4.10.07 ) | |
| AMD Radeon RX 9070 (v4.10.07 ) | |
| AMD Radeon RX 9070 XT (v4.10.07 ) | |
专业应用
华硕 PrimeGeForce RTX 5060 OC 明显落后于GeForce RTX 5070但与 RTX 5060 Ti.不过，它只能勉强满足偶尔的半专业工作负载。需要更高性能的生产力任务的用户应考虑升级到 RTX 5070.AMD 的 RDNA 4 显卡也为这一性能细分市场提供了具有竞争力的替代产品。
| Asus Prime GeForce RTX 5060 OC R7 9800X3D | ASUS TUF Gaming GeForce RTX 3060 R7 9800X3D | ASUS Dual GeForce RTX 4060 EVO OC R7 9800X3D | Zotac GeForce RTX 5060 AMP R7 9800X3D | Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D | KFA2 GeForce RTX 5070 1-Click OC R7 9800X3D | KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D | Asus TUF Gaming GeForce RTX 5080 OC R7 9800X3D | Nvidia GeForce RTX 5090 Founders Edition R7 9800X3D | KFA2 GeForce RTX 4070 EX Gamer R7 9800X3D | Palit GeForce RTX 4090 GameRock OC R7 9800X3D | AMD Radeon RX 9070 R7 9800X3D | AMD Radeon RX 9070 XT R7 9800X3D | XFX Speedster MERC 310 Radeon RX 7900 XTX R7 9800X3D | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | -21% | -5% | 9% | 23% | 64% | 81% | 134% | 232% | 36% | 166% | 234% | 282% | 291% | |
| 3840x2160 Medical (medical-03) | 15.6 | 9.89 -37% | 12.3 -21% | 15.9 2% | 17.9 15% | 23.2 49% | 29.7 90% | 34.8 123% | 51.2 228% | 20.7 33% | 43.4 178% | 131 740% | 156 900% | 107 586% |
| 3840x2160 Maya (maya-06) | 260 | 171 -34% | 198 -24% | 265 2% | 280 8% | 414 59% | 479 84% | 565 117% | 697 168% | 313 20% | 610 135% | 377 45% | 405 56% | 565 117% |
| 3840x2160 Energy (energy-03) | 29.8 | 37.3 25% | 52.2 75% | 44.2 48% | 54.1 82% | 70.8 138% | 61.9 108% | 115 286% | 196 558% | 57.3 92% | 138 363% | 109 266% | 136 356% | 194 551% |
| 3840x2160 Creo (creo-03) | 98 | 75.5 -23% | 85.2 -13% | 97.7 0% | 101 3% | 117 19% | 124 27% | 130 33% | 136 39% | 111 13% | 133 36% | 195 99% | 205 109% | 223 128% |
| 3840x2160 CATIA (catia-06) | 42.4 | 29.6 -30% | 33.9 -20% | 43.2 2% | 45.1 6% | 62.5 47% | 72.2 70% | 82.5 95% | 109 157% | 49.2 16% | 89.9 112% | 129 204% | 133 214% | 149 251% |
| 3840x2160 3ds Max (3dsmax-07) | 87 | 64.8 -26% | 64 -26% | 88 1% | 110 26% | 148 70% | 182 109% | 217 149% | 297 241% | 123 41% | 235 170% | 128 47% | 134 54% | 187 115% |
Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance Rating | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| AMD Radeon RX 9070 | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / Graphics Score | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / Accelerator Score | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / Viewport Graphics | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / HandBrake | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Zotac GeForce RTX 5060 AMP | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| Asus Prime GeForce RTX 5060 OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| SPECworkstation 4.0 / ONNX Inference | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Asus Prime GeForce RTX 5060 OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| Zotac GeForce RTX 5060 AMP | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
游戏性能
华硕 PrimeGeForce RTX 5060 OC 能够流畅运行当前大多数游戏。不过，在《上古卷轴 4：湮没重制版》等要求特别高的游戏中，通常需要降低细节设置以保持稳定的可玩性帧率。对于 1080p 游戏来说，RTX 5060 OC 仍然是一个可靠的选择，尽管其实际性能与 RTX 5060 Ti的实际性能差距比合成基准所显示的略大。
8 GB 的 VRAM 越来越成为瓶颈。即使在 1080p 分辨率下，RTX 5060 在某些现代游戏中也会表现吃力。DLSS 和 "帧生成 "等功能提高了内存需求，使得更大的 VRAM 容量更受欢迎。虽然 RTX 5060 的内存带宽明显高于 RTX 4060，但 VRAM 容量有限这一根本问题依然存在。当可用显存不足时，用户可能会遇到启动问题、纹理流错误或资产加载不完整等问题，例如《夺宝奇兵》和《太空战警 2》。这种限制并不是 RTX 5060 独有的，它会影响所有受限显存的 GPU。
1080p Ultra-Preset without DLSS without FG
Performance Rating | The Witcher 3 | Hogwarts Legacy | Baldur's Gate 3 | Cyberpunk 2077 2.2 Phantom Liberty | Alan Wake 2 | F1 24 | Black Myth: Wukong | Star Wars Outlaws | Call of Duty Black Ops 6 | Stalker 2 | Indiana Jones and the Great Circle
| Performance Rating - Percent | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Hogwarts Legacy - 1920x1080 Ultra Preset AA:High T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Cyberpunk 2077 2.2 Phantom Liberty - 1920x1080 Ultra Preset (FSR off) | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Alan Wake 2 - 1920x1080 High Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| F1 24 - 1920x1080 Ultra High Preset AA:T AF:16x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Black Myth: Wukong - 1920x1080 cinematic TSR 100 | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Star Wars Outlaws - 1920x1080 cinem. ultra | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Nvidia GeForce RTX 3090 FE | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Call of Duty Black Ops 6 - 1920x1080 Extreme Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Stalker 2 - 1920x1080 Epic Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Indiana Jones and the Great Circle - 1920x1080 Very Ultra Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
1440p Ultra-Preset without DLSS without FG
Performance Rating | The Witcher 3 | Hogwarts Legacy | Baldur's Gate 3 | Cyberpunk 2077 2.2 Phantom Liberty | Alan Wake 2 | F1 24 | Black Myth: Wukong | Star Wars Outlaws | Call of Duty Black Ops 6 | Stalker 2 | Indiana Jones and the Great Circle
| Performance Rating - Percent | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| The Witcher 3 - 2560x1440 Ultra Graphics & Postprocessing (HBAO+) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Hogwarts Legacy - 2560x1440 Ultra Preset AA:High T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Baldur's Gate 3 - 2560x1440 Ultra Preset AA:T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Cyberpunk 2077 2.2 Phantom Liberty - 2560x1440 Ultra Preset (FSR off) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Alan Wake 2 - 2560x1440 High Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| F1 24 - 2560x1440 Ultra High Preset AA:T AF:16x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Black Myth: Wukong - 2560x1440 cinematic TSR 100 | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Star Wars Outlaws - 2560x1440 cinem. ultra | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Call of Duty Black Ops 6 - 2560x1440 Extreme Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Stalker 2 - 2560x1440 Epic Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Asus Prime GeForce RTX 5060 OC | |
| Zotac GeForce RTX 5060 AMP | |
| Indiana Jones and the Great Circle - 2560x1440 Very Ultra Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus Prime GeForce RTX 5060 OC | |
Overview of the tested games with the Asus Prime GeForce RTX 5060 OC
| low | med. | high | ultra | QHD DLSS | QHD | 4K DLSS | 4K | |
|---|---|---|---|---|---|---|---|---|
| GTA V (2015) | 187.7 | 187.8 | 187.8 | 171.2 | 131.2 | 125 | ||
| The Witcher 3 (2015) | 710 | 471 | 280 | 142.4 | 106.4 | 87.8 | ||
| Dota 2 Reborn (2015) | 364.6 | 331.2 | 313.7 | 291.7 | 156.9 | |||
| Final Fantasy XV Benchmark (2018) | 234 | 196.1 | 147 | 106.1 | 60.7 | |||
| X-Plane 11.11 (2018) | 224 | 201 | 177.7 | 126.5 | ||||
| Far Cry 5 (2018) | 382 | 247 | 225 | 212 | 144 | 74 | ||
| Far Cry New Dawn (2019) | 318 | 218 | 204 | 189 | 138 | 75 | ||
| Far Cry 6 (2021) | 315 | 208 | 180.1 | 150.3 | 106.2 | 34.1 | ||
| The Witcher 3 v4.00 (2023) | 305 | 243 | 197 | 163.2 | 111.4 | 60.8 | ||
| Hogwarts Legacy (2023) | 171.8 | 139.1 | 105.4 | 80 | 58.2 | |||
| Baldur's Gate 3 (2023) | 184 | 146.2 | 127.2 | 125.4 | 88.4 | 76.2 | 46.1 | |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 185.9 | 147.2 | 123.3 | 108.4 | 68.2 | 28.4 | ||
| Total War Pharaoh (2023) | 533.2 | 339.2 | 199.1 | 159.2 | 107.8 | 54.8 | ||
| Alan Wake 2 (2023) | 86.5 | 79.9 | 75.2 | 50 | 24.1 | |||
| Avatar Frontiers of Pandora (2023) | 103 | 95 | 81 | 58 | 38 | 31 | 17 | |
| Alone in the Dark (2024) | 307 | 269 | 232 | 148.4 | 84.2 | 72 | 30.5 | |
| F1 24 (2024) | 385 | 329 | 251 | 85.4 | 52.6 | 28 | 20.3 | |
| Black Myth: Wukong (2024) | 111 | 84 | 64 | 36 | 40 | 26 | 6 | |
| Star Wars Outlaws (2024) | 76.8 | 68.6 | 60.7 | 49.2 | 48.6 | 35.2 | 31.1 | 17.5 |
| Call of Duty Black Ops 6 (2024) | 172 | 156 | 113 | 105 | 78 | 77 | 45 | 49 |
| Stalker 2 (2024) | 94.5 | 80.3 | 67 | 53.9 | 6.43 | |||
| Indiana Jones and the Great Circle (2024) | 137 | 91 | 79.9 | 0 | 0 | |||
| Monster Hunter Wilds (2025) | 88.3 | 73.6 | ||||||
| Civilization 7 (2025) | 531 | 334 | 180.9 | 113.7 | 54.6 | |||
| Assassin's Creed Shadows (2025) | 78 | 72 | 61 | 43 | 32 | 35 | 25 | 20 |
| F1 25 (2025) | 334 | 267 | 205 | 23.9 | 25.6 | 12.1 | 9.95 | 4.28 |
排放量
噪音排放
华硕为 PrimeGeForce RTX 5060 OC 配备了紧凑高效的散热系统，具有三个轴流风扇。在空闲模式下，风扇停止功能可确保完全静音运行。在负载情况下，压力测试的噪音水平达到 38 dB(A)，与同类机型相比，这是一个非常出色的结果。在测试装置中没有观察到明显的线圈啸叫。
Noise Level
| Idle |
| 25.9 / 26 / 26 dB(A) |
| Load |
| 34.6 / 38 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.2 dB(A) | ||
| Asus Prime GeForce RTX 5060 OC | Zotac GeForce RTX 5060 AMP | NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | NVIDIA KFA2 GeForce RTX 5070 1-Click OC | NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | Gigabyte Radeon RX 9070 Gaming OC 16G | Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
|---|---|---|---|---|---|---|---|---|
| Noise | -0% | 0% | -9% | -1% | -5% | 3% | -2% | |
| off / environment * | 24.2 | 24.2 -0% | 23.9 1% | 24 1% | 23.7 2% | 24.5 -1% | 23.9 1% | 24 1% |
| Idle Minimum * | 25.9 | 26.1 -1% | 26.3 -2% | 26.2 -1% | 26.8 -3% | 27.9 -8% | 26.6 -3% | 26.7 -3% |
| Idle Average * | 26 | 26.1 -0% | 26.3 -1% | 26.2 -1% | 26.8 -3% | 28 -8% | 26.6 -2% | 26.8 -3% |
| Idle Maximum * | 26 | 26.1 -0% | 26.5 -2% | 26.2 -1% | 26.8 -3% | 28 -8% | 26.6 -2% | 26.9 -3% |
| Load Average * | 34.6 | 31.9 8% | 31.5 9% | 35.7 -3% | 30.2 13% | 30.3 12% | 27.2 21% | 27.2 21% |
| Witcher 3 ultra * | 36 | 37.4 -4% | 34.15 5% | 44 -22% | 37.6 -4% | |||
| Cyberpunk 2077 ultra * | 35.7 | 37.6 -5% | 33.88 5% | 44.4 -24% | 36 -1% | 40.8 -14% | 35.9 -1% | 42.7 -20% |
| Load Maximum * | 38 | 38.2 -1% | 43.1 -13% | 47.3 -24% | 40 -5% | 42.3 -11% | 34.5 9% | 41.8 -10% |
* ... smaller is better
温度

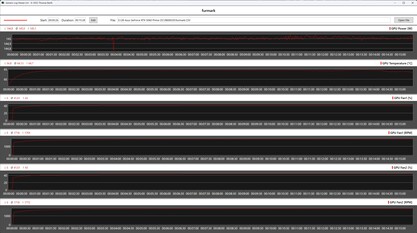

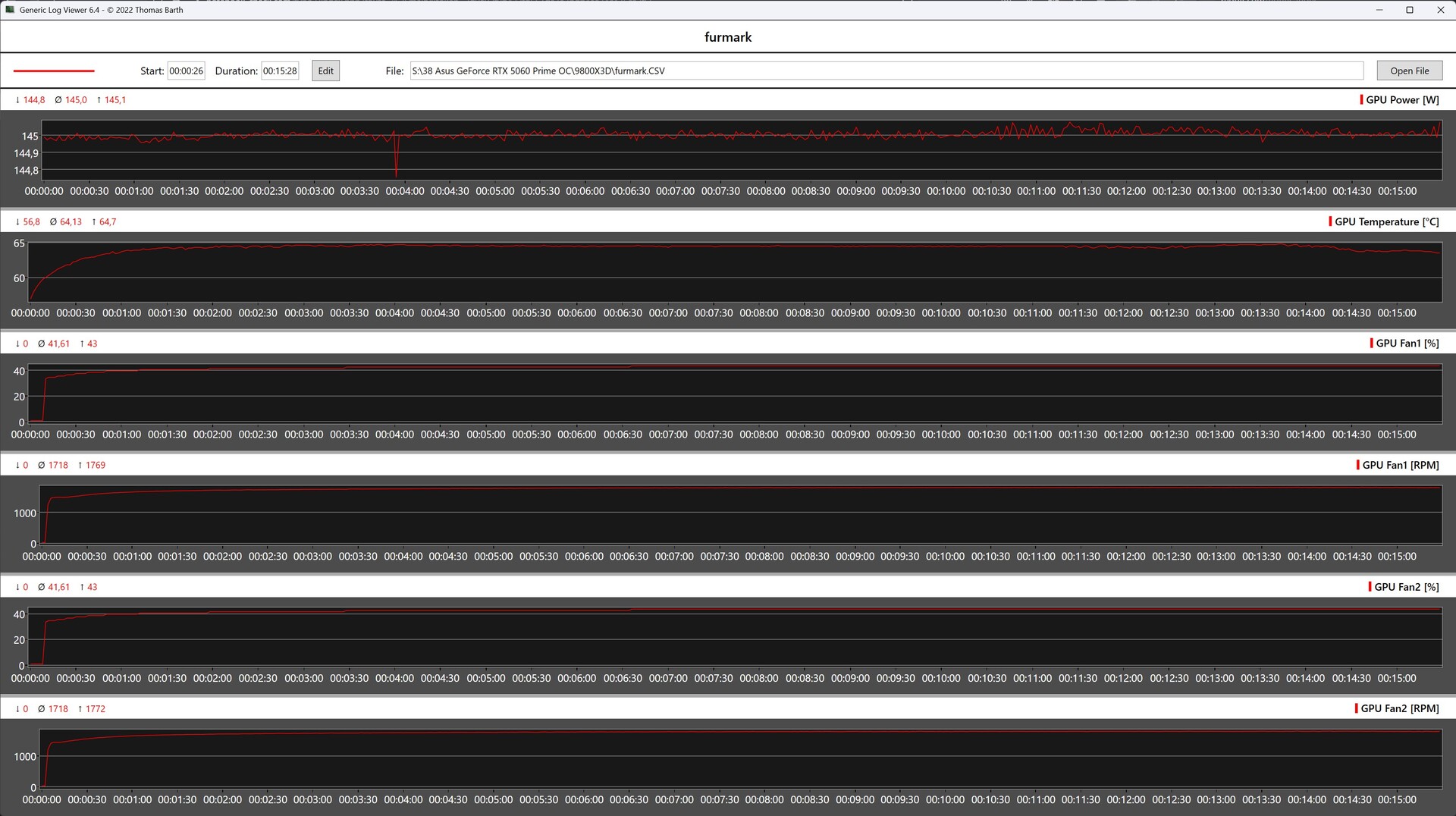

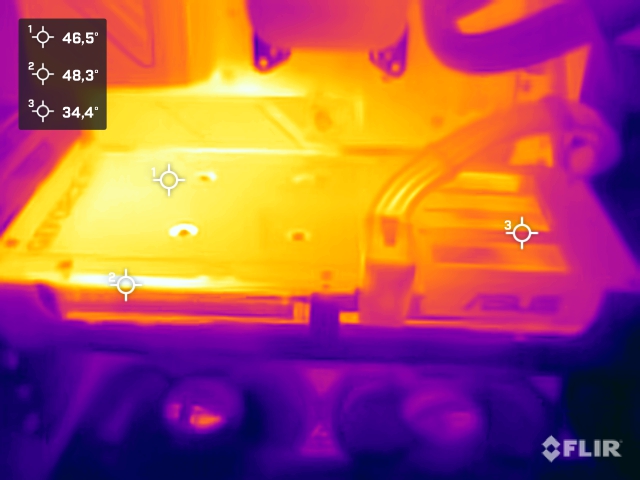

华硕 PrimeGeForce RTX 5060 OC 的散热系统能在满载情况下有效处理 145 瓦的热输出。温度始终保持在安全范围内，测试期间从未达到热极限。虽然手动调节风扇曲线可以略微降低峰值噪音水平，但由于测得的声压值已经很低，因此没有必要这样做。
fps-Diagram - 30 Min. Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)
Asus Prime GeForce RTX 5060 OC R7 9800X3D, GeForce RTX 5060: Ø99.2 (95.3-100.2)
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D, GeForce RTX 5070 Ti: Ø182.9 (173.7-184.8)
NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D, GeForce RTX 5060 Ti: Ø117.5 (113.6-119)
Gigabyte Radeon RX 9070 Gaming OC 16G R7 9800X3D, Radeon RX 9070: Ø166.7 (161-168.2)
NVIDIA KFA2 GeForce RTX 5070 1-Click OC R7 9800X3D, GeForce RTX 5070: Ø157.3 (152.1-158.9)
ASUS Dual GeForce RTX 4060 EVO OC R7 9800X3D, NVIDIA GeForce RTX 4060: Ø74.8 (71.5-75.4)
Zotac GeForce RTX 5060 AMP R7 9800X3D, GeForce RTX 5060: Ø101.9 (98.2-102.7)
能源管理
华硕 PrimeGeForce RTX 5060 OC 的整体效率不错，不过其他一些基于 Blackwell 的型号则取得了明显更好的效果。在直接比较中，华硕凭借略低的总显卡功耗（TGP）击败了 ZotacGeForce RTX 5060 AMP。与 RTX 4060相比，RTX 5060 性能提升明显，但功耗却有所增加--约为 145 瓦，而上一代产品为 115 瓦。
华硕建议使用最低输出功率为 550 瓦的电源，以确保稳定运行。显卡使用标准的 6+2 针电源接口，这对使用老式 PSU 的用户来说特别方便。
Power Consumption: 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | 1920x1080 The Witcher 3 ultra (external Monitor) | Cyberpunk 2077 FHD ultra no FSR (external Monitor) | Witcher 3 ultra Efficiency (external Monitor) | Cyberpunk 2077 ultra Efficiency
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| Asus Prime GeForce RTX 5060 OC, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Asus Prime GeForce RTX 5060 OC, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / Cyberpunk 2077 FHD ultra no FSR (external Monitor) | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Asus Prime GeForce RTX 5060 OC, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| Asus Prime GeForce RTX 5060 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| Power Consumption / Cyberpunk 2077 ultra Efficiency | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| Asus Prime GeForce RTX 5060 OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
* ... smaller is better
Energy consumption with external Monitor
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø258 (254-277)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø369 (364-378)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø487 (483-494)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø421 (418-431)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø283 (280-308)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø364 (360-375)
NVIDIA GeForce RTX 4060, R7 9800X3D NVIDIA GeForce RTX 4060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø211 (205-233)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø267 (264-273)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø257 (253-262)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø385 (383-391)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø451 (445-476)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø394 (387-416)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø264 (261-285)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; 1920x1080 The Witcher 3 ultra (external Monitor): Ø357 (350-369)
NVIDIA GeForce RTX 4060, R7 9800X3D NVIDIA GeForce RTX 4060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø233 (227-247)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø268 (265-288)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø94 (88.4-101.2)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø89.5 (85.9-108.8)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø97.4 (95.7-103.3)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø117.7 (116.5-121.6)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø95 (83.9-101.8)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; Idle 1min (external Monitor): Ø112.8 (110.7-116.4)
NVIDIA GeForce RTX 4060, R7 9800X3D NVIDIA GeForce RTX 4060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø93 (90.8-99.3)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø94.5 (84.9-98.7)
Notebookcheck 总体评分
华硕 PrimeGeForce RTX 5060 OC 是一款高效的中端显卡，非常适合 1080p 的休闲游戏。其制造质量和散热性能令人信服，但在现代游戏中，有限的 8 GB VRAM 越来越成为一个缺点。该显卡支持 DLSS 4 和多帧生成（MFG）等功能，但其实际优势因游戏和设置而异。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
