结论：KFA2GeForce RTX 5070 1-Click OC 是一款功能强大的 WQHD GPU，可提升 AI 性能
KFA2GeForce RTX 5070 1-Click OC 是一款坚固的 1440p GPU，可在现代游戏中提供强劲的性能。它具有出色的游戏性能，支持 DLSS 4 和多帧生成 (MFG)，可确保更流畅的帧速率，尤其是在运行要求苛刻的游戏时。与 AMD Radeon RX 9070 直接比较，RTX 5070 在某些情况下稍慢，但对于不想放弃 Nvidia 技术的用户来说，它仍然是更好的选择。
NvidiaGeForce RTX 5070 具有极高的性价比，尤其是在高达 700 美元的价格范围内，对于不想在图形质量上打折扣的人来说是一个极佳的选择。与配备 16GB 的 NvidiaGeForce RTX 5060 Ti 相比，该显卡的附加费用是合理的，因为这体现在其性能上。GeForce RTX 5070 的 12 GB VRAM 足够用了，但这只是该性能级别的最低要求。就其未来的可行性而言 英伟达GeForce RTX 5070 Ti显然更具潜力。
Pros
+ 结构非常紧凑
+ 风扇停止模式

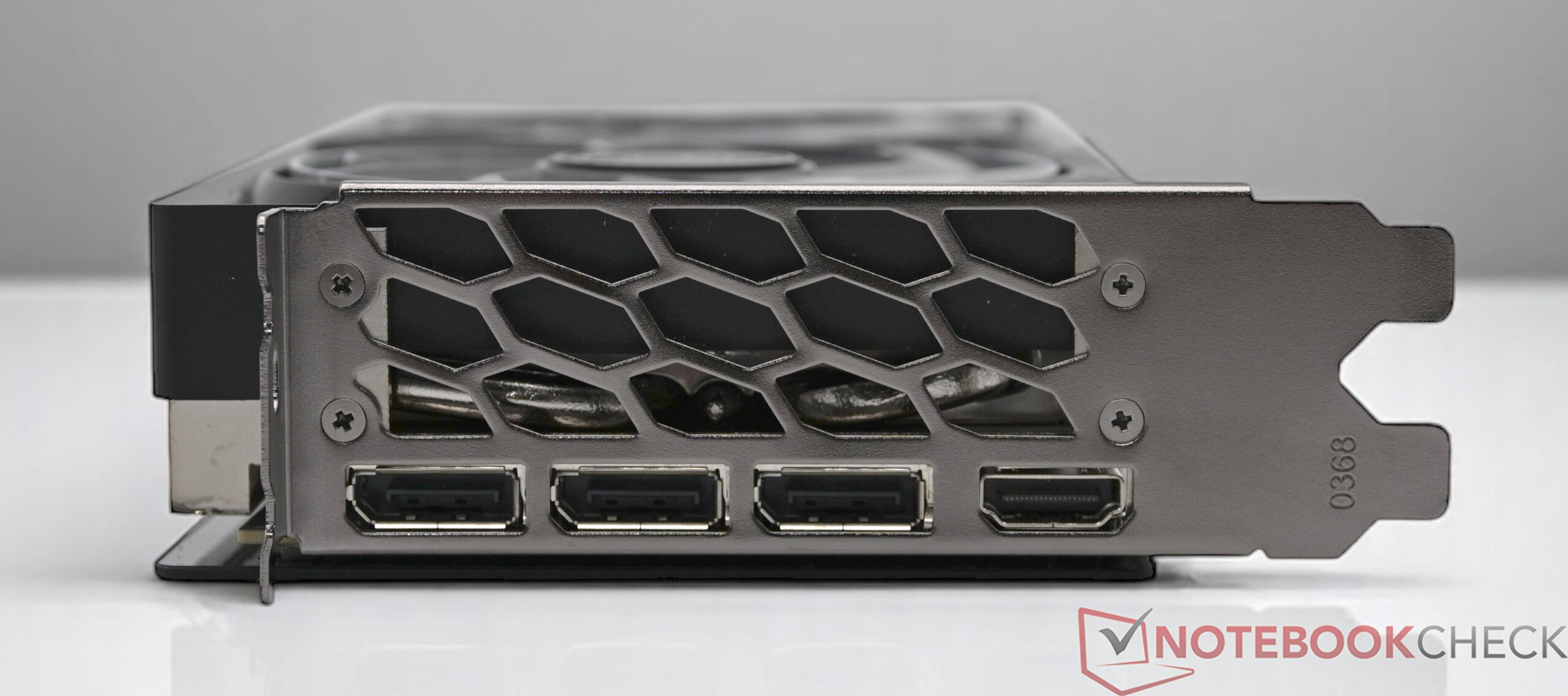

+ 3x DisplayPort 2.1b, 1x HDMI 2.1b
+ 时尚的 RGB 灯光
+ 关闭照明的开关
+ 多帧生成
+ 通过智能手机进行控制和监控
Cons
- 可听到线圈呜呜声
- 负载时可听到
- 1-Click OC 功能仅用于营销
- 电源适配器电缆短（2x 8 针 PCIe 至 12V-2x6）
价格和供应情况
KFA2GeForce RTX 5070 1-Click OC 售价约为 670 美元。
KFA2GeForce RTX 5070 1-Click OC 基于新的 GB205 芯片，是 Nvidia 的 Blackwell 系列中的一款强大的中端 GPU。它采用了许多大型型号的功能，如最新一代的 DLSS 和创新的多帧生成（MFG），但在性能和效率方面进行了调整。与 RTX 5070 Ti 相比，它的主要区别在于着色器单元更少、显存更少以及内存带宽更低。
尽管如此，凭借其 12 GB VRAM，它仍是最新游戏和创意应用程序的理想装备。得益于其 Blackwell 架构，各种游戏都将受益于人工智能支持的性能提升。MFG 技术可以通过 Nvidia 应用程序激活--即使是在没有原生支持的游戏中，据 Nvidia 称也不会造成任何性能损失。
有关 Nvidia Blackwell 显卡的更多评论：
- NvidiaGeForce RTX 5090(创始版）
- 英伟达GeForce RTX 5080(Asus TUF GamingGeForce RTX 5080 OC)
- 英伟达GeForce RTX 5070 Ti(KFA2GeForce RTX 5070 Ti 1-Click OC)
- 英伟达GeForce RTX 5060 Ti(Asus TUF GamingGeForce RTX 5060 Ti OC)

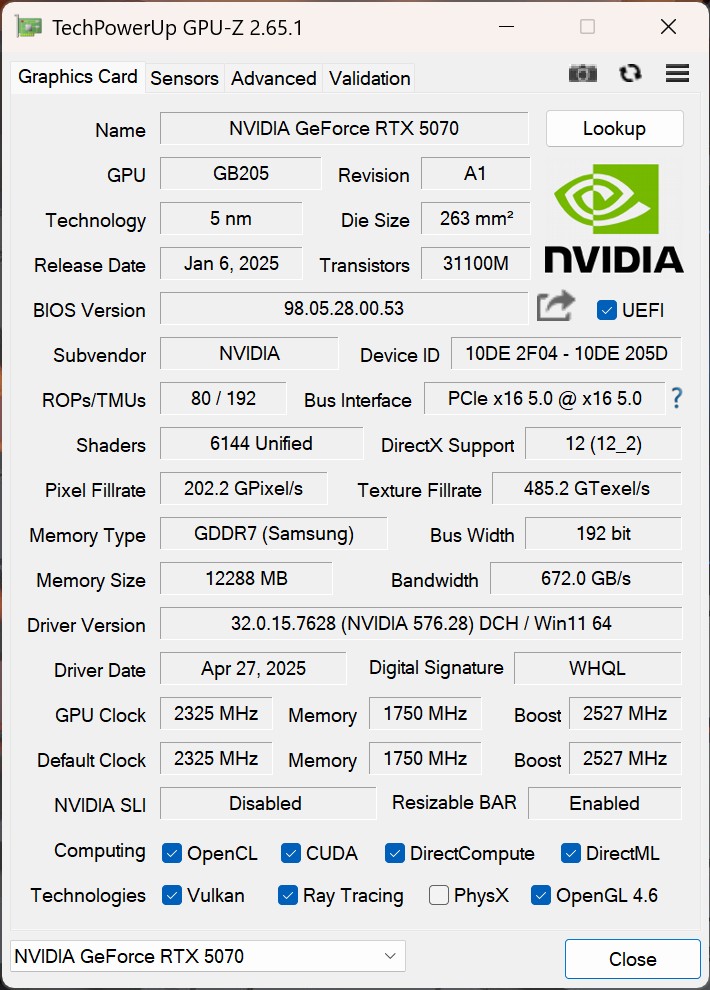

规格
KFA2 GeForce RTX 5070 1-Click OC
Processor
AMD Ryzen 7 9800X3D 8 x 4.7 - 5.2 GHz, 162 W PL2 / Short Burst, 120 W PL1 / Sustained, Granite Ridge
Graphics adapter
NVIDIA GeForce RTX 5070 - 12 GB VRAM, Core: 2527 MHz, RAM: 1750 MHz, 250 W TDP, GDDR7 (Samsung), Nvidia 576.28
Memory
32 GB
, DDR5-6000, CL28
Mainboard
AMD X870E
Weight
830 g
Price
610 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

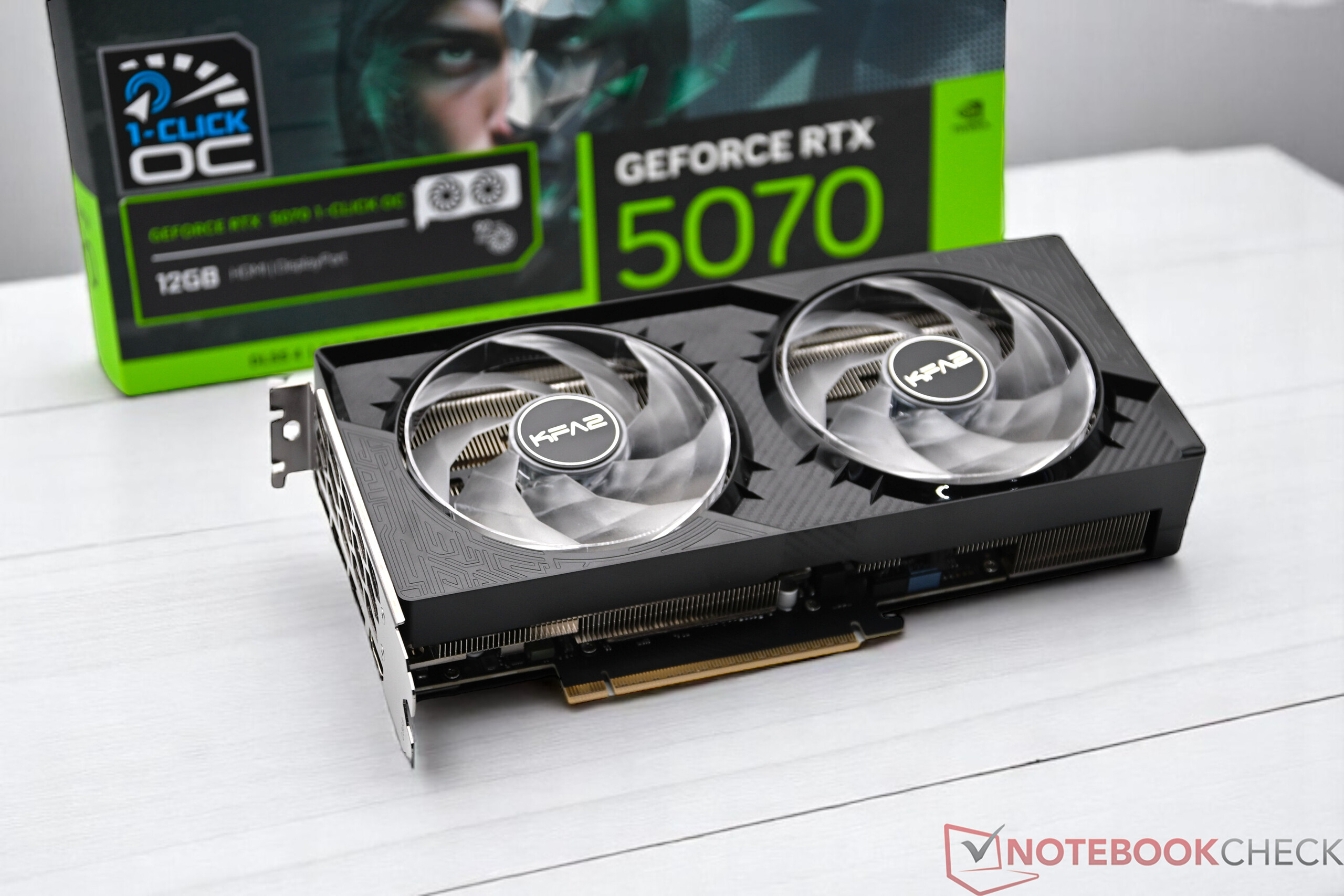

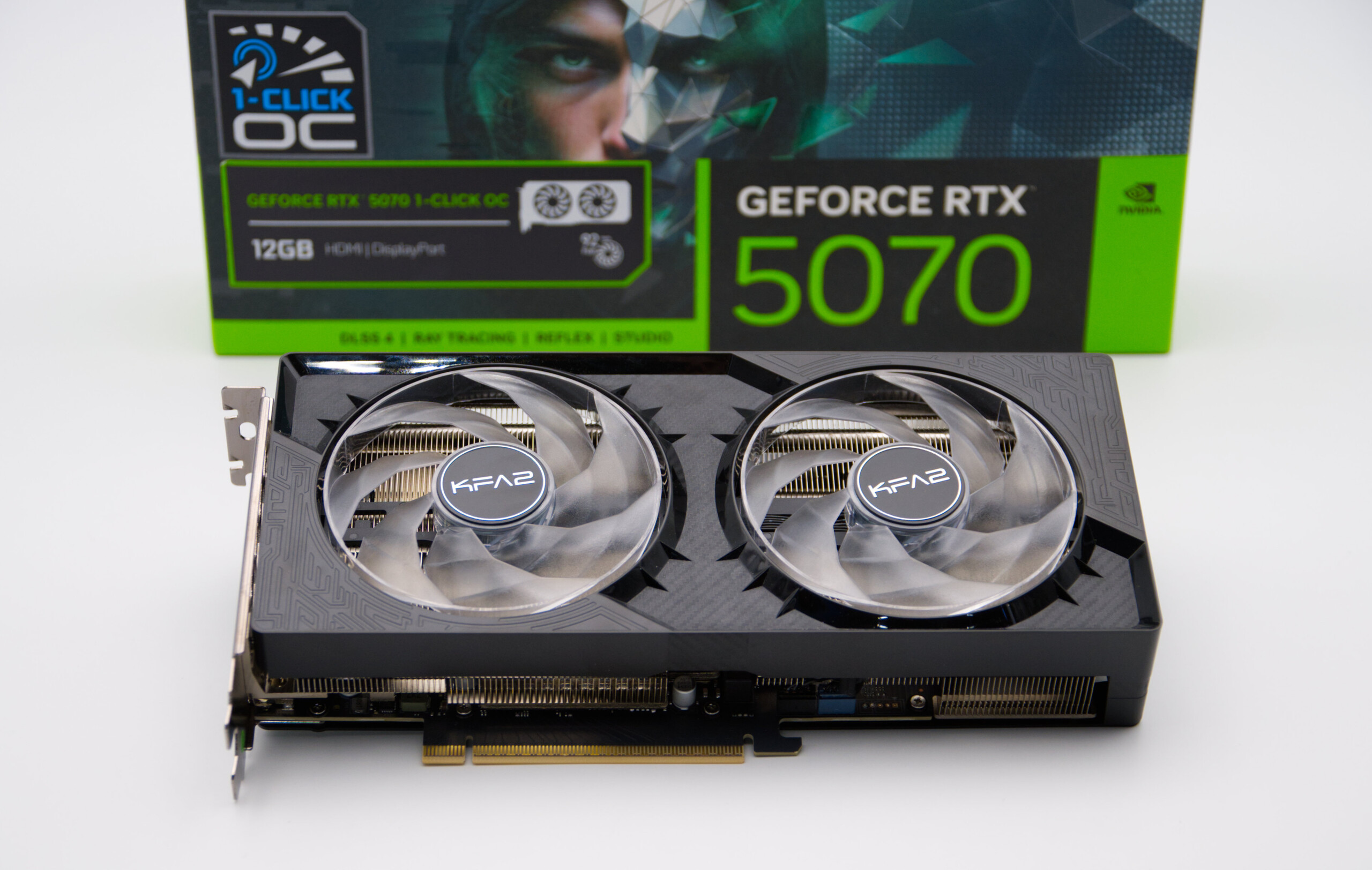

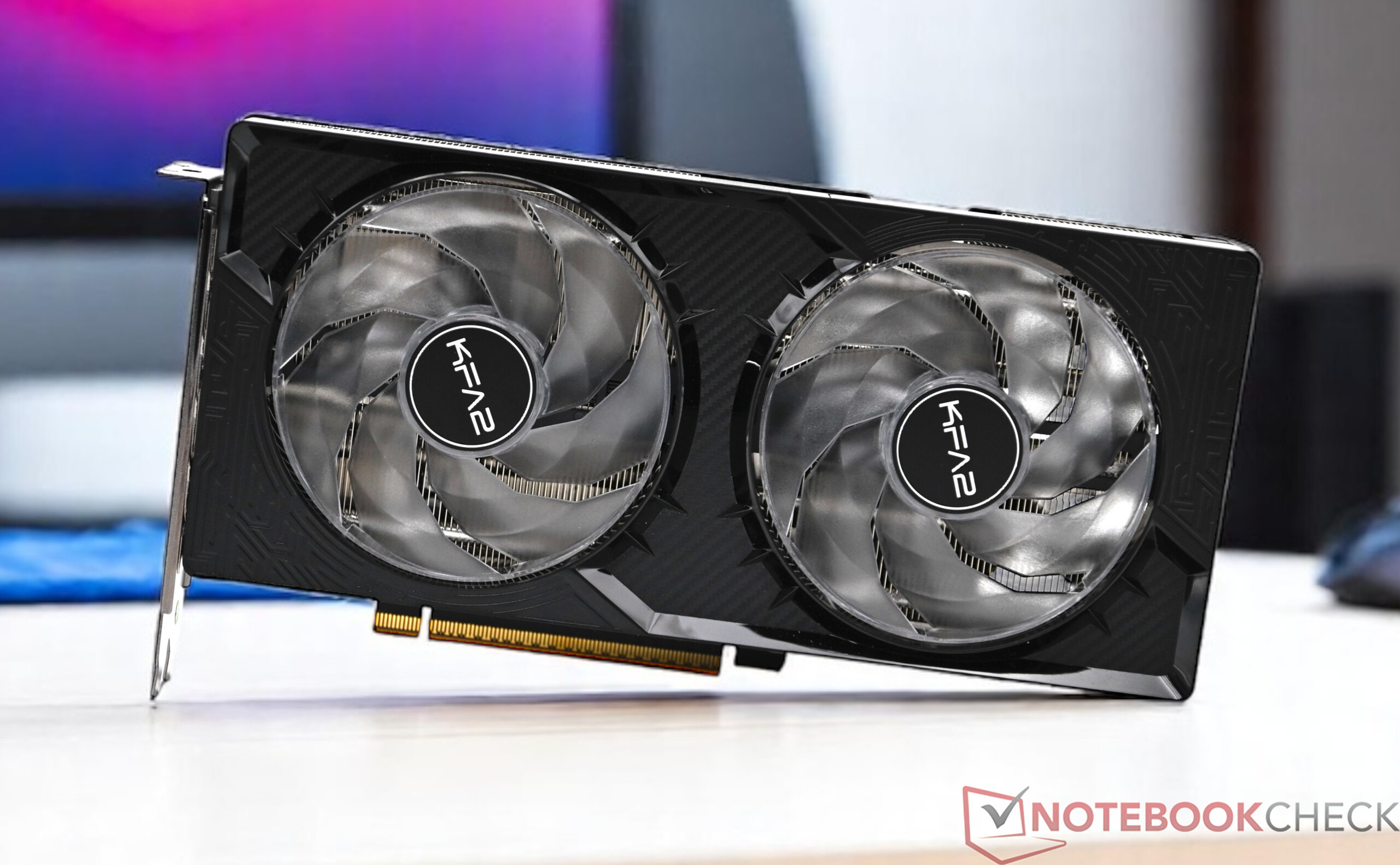

第一印象和建设

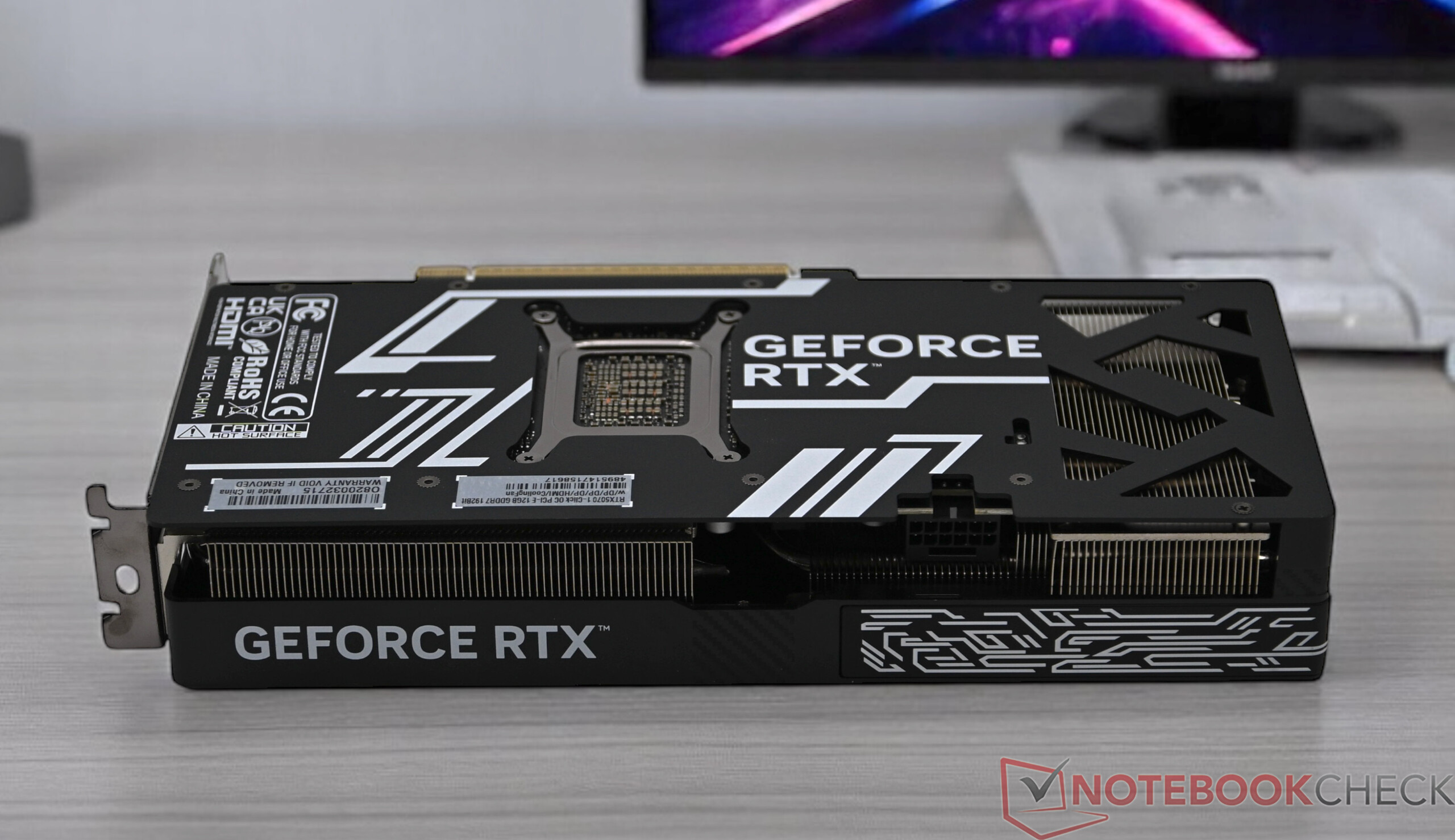

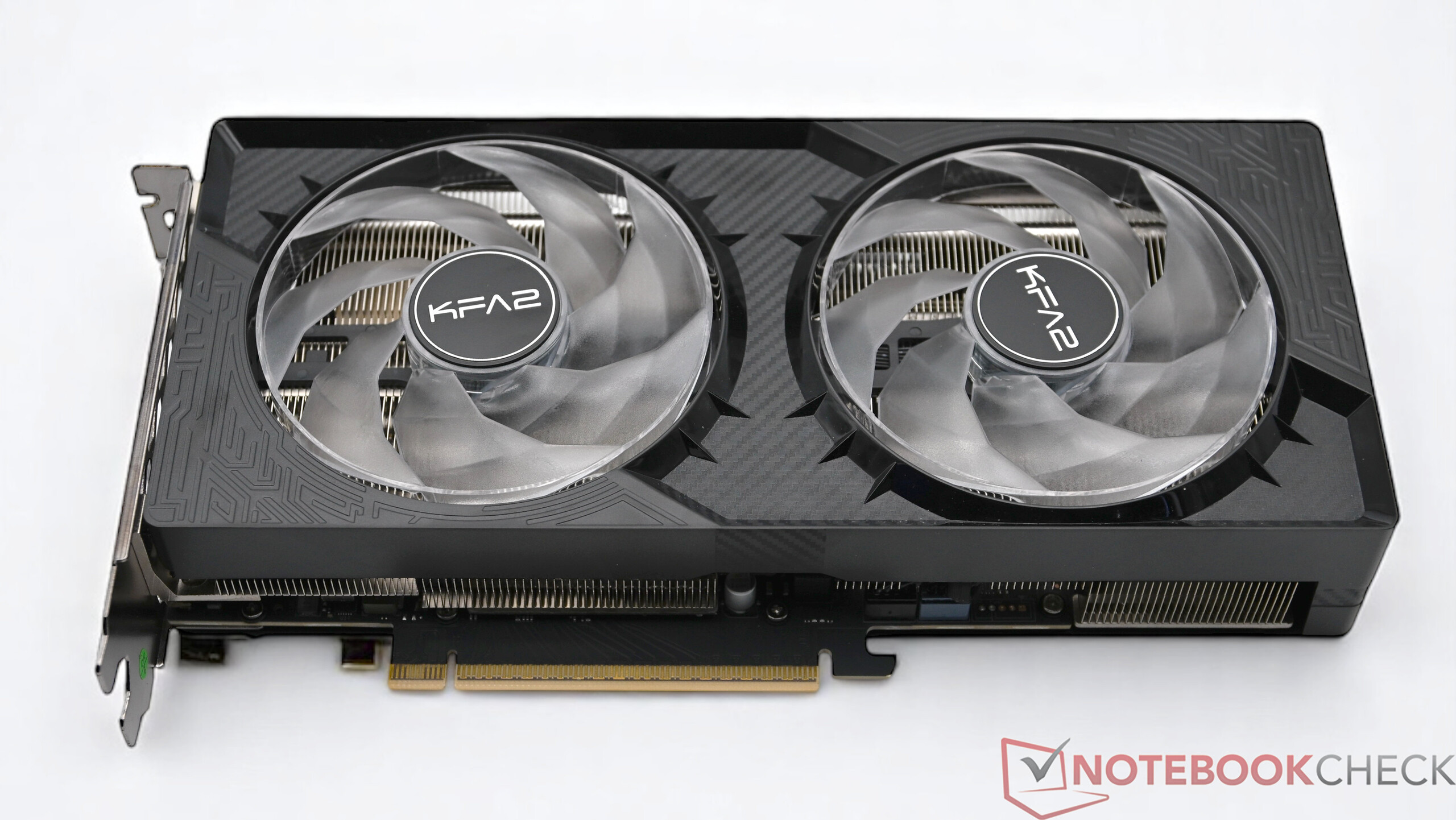

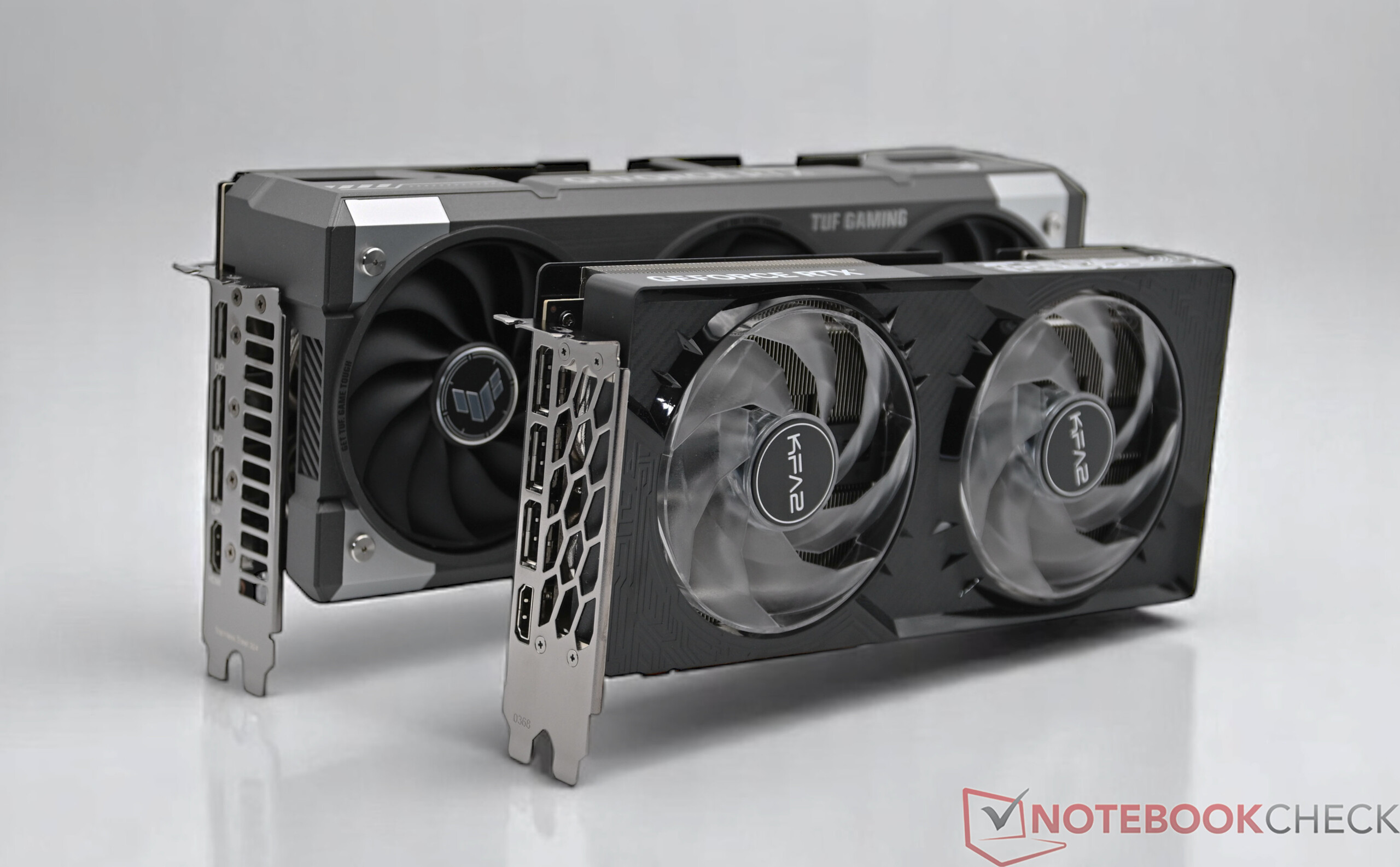

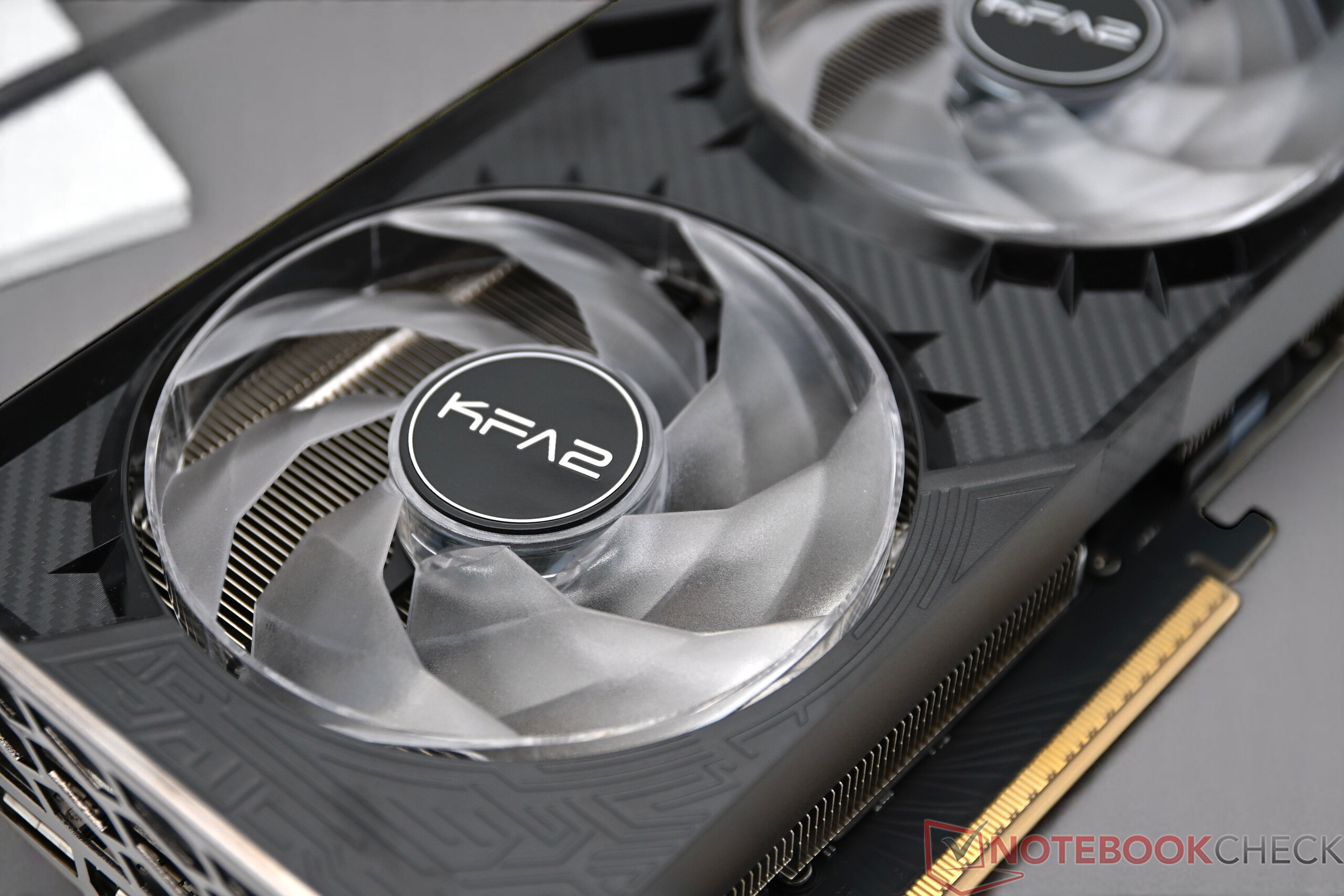

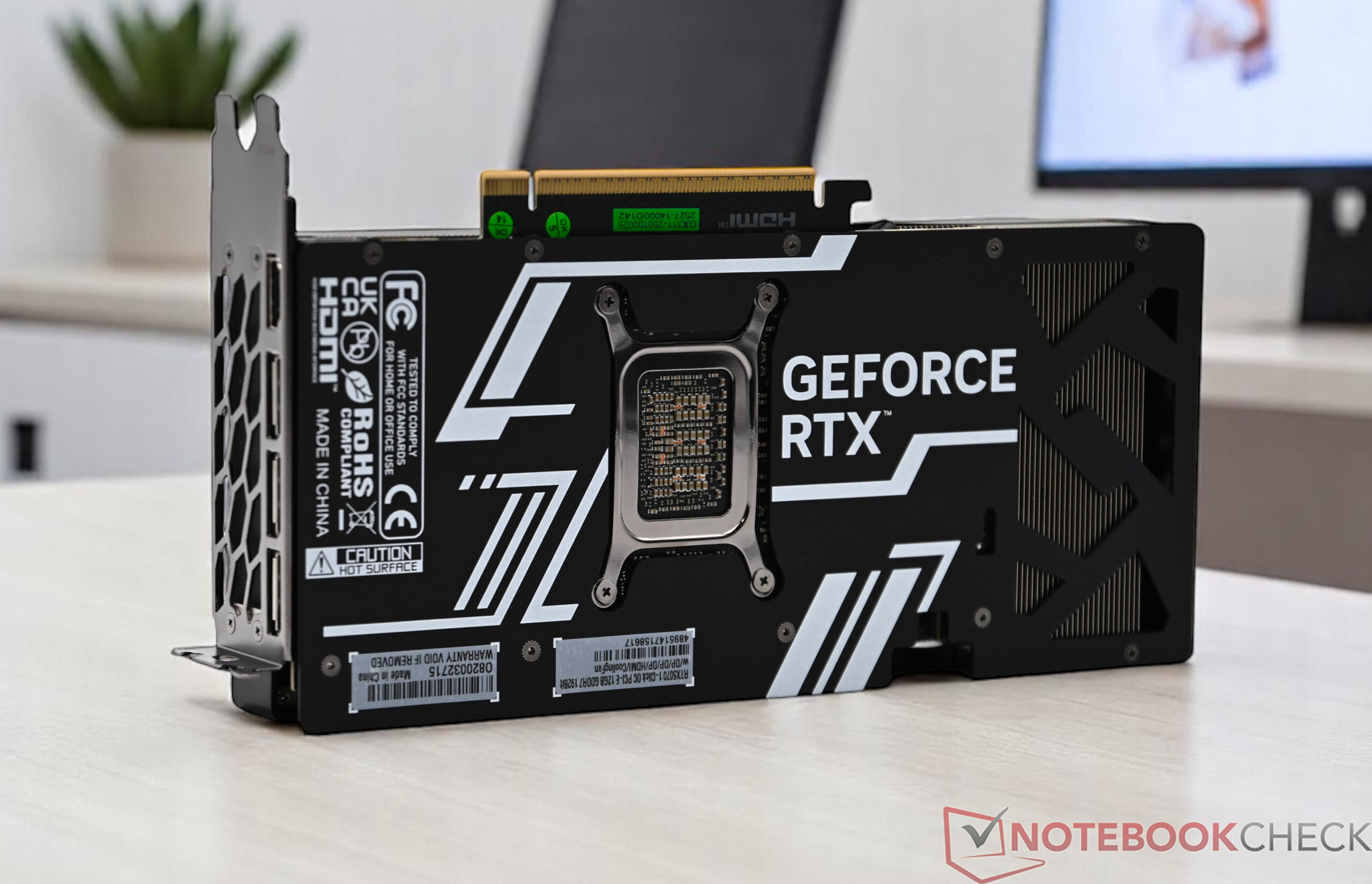

KFA2GeForce RTX 5070 1-Click OC 拥有现代的外观和坚固的结构。制造商在正面采用了塑料材质，而铝制背板则提供了额外的稳定性和更好的散热性。其引人注目的设计与可单独调节的微妙 RGB 灯光相得益彰。此外，显卡上还有一个小开关，可以完全关闭照明。显卡使用两个风扇散热，相对于显卡的功耗而言，风扇的体积相对较小。KFA2GeForce RTX 5070 1-Click OC 的长度约为 25 厘米，是同性能级别中较为紧凑的代表之一。由于采用了超薄的 2 插槽设计，邻近的 PCIe 插槽仍然空闲。因此，对于空间有限的 PC 系统来说，它是一个不错的选择。

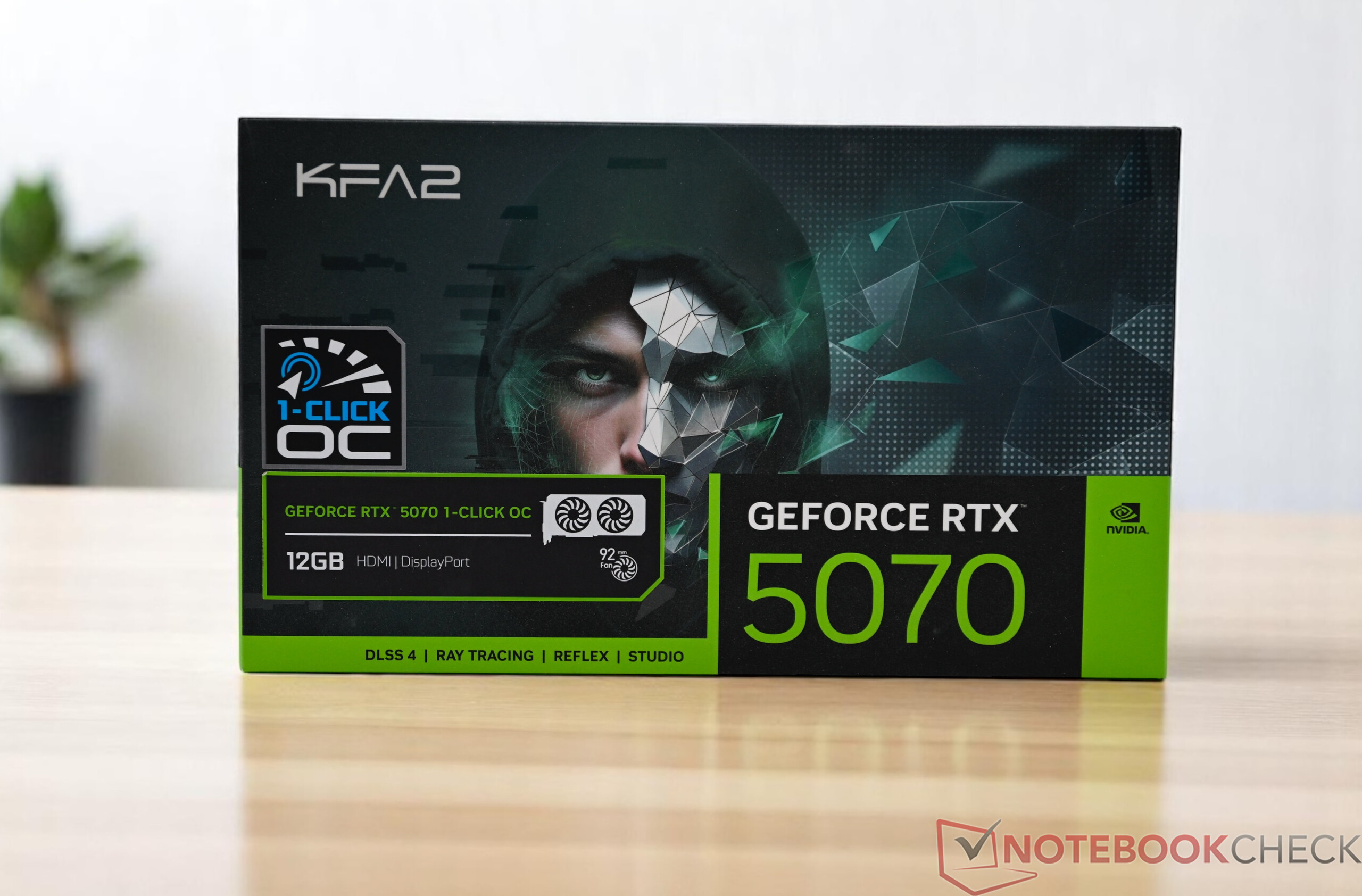

它的供货范围相当有限：除了显卡本身，买家只能获得一个电源适配器（2x8 针 PCIe 转 12V 2x6）。其他配件，如 GPU 支架或 RGB 电缆均不包括在内。
技术数据比较
| 型号 | RTX 5090 (FE) | RTX 5080 (FE) | RTX 5070 Ti | RTX 5070 | RTX 5060 Ti | RTX 4070 | RTX 3070 |
| 芯片 | GB202 | GB203 | GB203 | GB205 | GB206 | AD104 | GA104 |
| FinFET 工艺 | 4 纳米 | 4 纳米 | 4 纳米 | 4 纳米 | 4 纳米 | 4 纳米 | 8 纳米 |
| CUDA 内核 | 21,760 | 10,752 | 8,960 | 6,144 | 4,608 | 5,888 | 5,888 |
| 纹理单元 | 680 | 336 | 280 | 192 | 144 | 184 | 184 |
| 张量内核 | 680 第五代 | 336 第五代 | 280第五代 | 192第五代 | 144 第五代 | 184 第四代 | 184 第三代 |
| RT 内核 | 170 | 84 | 70 | 48 | 36 | 46 | 46 |
| GPU 基本时钟 | 2,010 MHz | 2,295 MHz | 2,295 MHz | 2,325MHz | 2,407 MHz | 1,920 MHz | 1,500 MHz |
| GPU 提升时钟 | 2,407 MHz | 2,617 MHz | 2,452 | 2,512 | 2,572 MHz | 2,475 MHz | 1,725 MHz |
| 内存总线 | 512 位 | 256 位 | 256 位 | 192 位 | 128 位 | 192 位 | 256 位 |
| 内存带宽 | 1,792 GB/s | 960 GB/s | 896 GB/s | 672 GB/s | 448 GB/s | 504.2 GB/s | 448 GB/s |
| 显存 | 32 GB GDDR7 | 16 GB GDDR7 | 16 GB GDDR7 | 12 GB GDDR7 | 8 / 16 GB GDDR7 | 12 GB GDDR6X | 8 GB GDDR6 |
| TGP（图形总功率） | 575 瓦 | 360 瓦 | 300 瓦 | 250瓦 | 180 瓦 | 200 瓦 | 220 瓦 |
性能 - 12GB VRAM 刚刚够用
KFA2GeForce RTX 5070 1-Click OC 采用 Blackwell 代，拥有 DLSS 4 和多帧生成（MFG）等技术创新，可实现更流畅的帧速率和更逼真的视觉效果。它配备了 6,144 个 CUDA 核心和 12 GB GDDR7 内存，带宽为 672 GB/s。与 NvidiaGeForce RTX 4070 相比，只有细微的技术差异。它的 VRAM 仍然是 12 GB，对于其预期用途来说仍然足够。

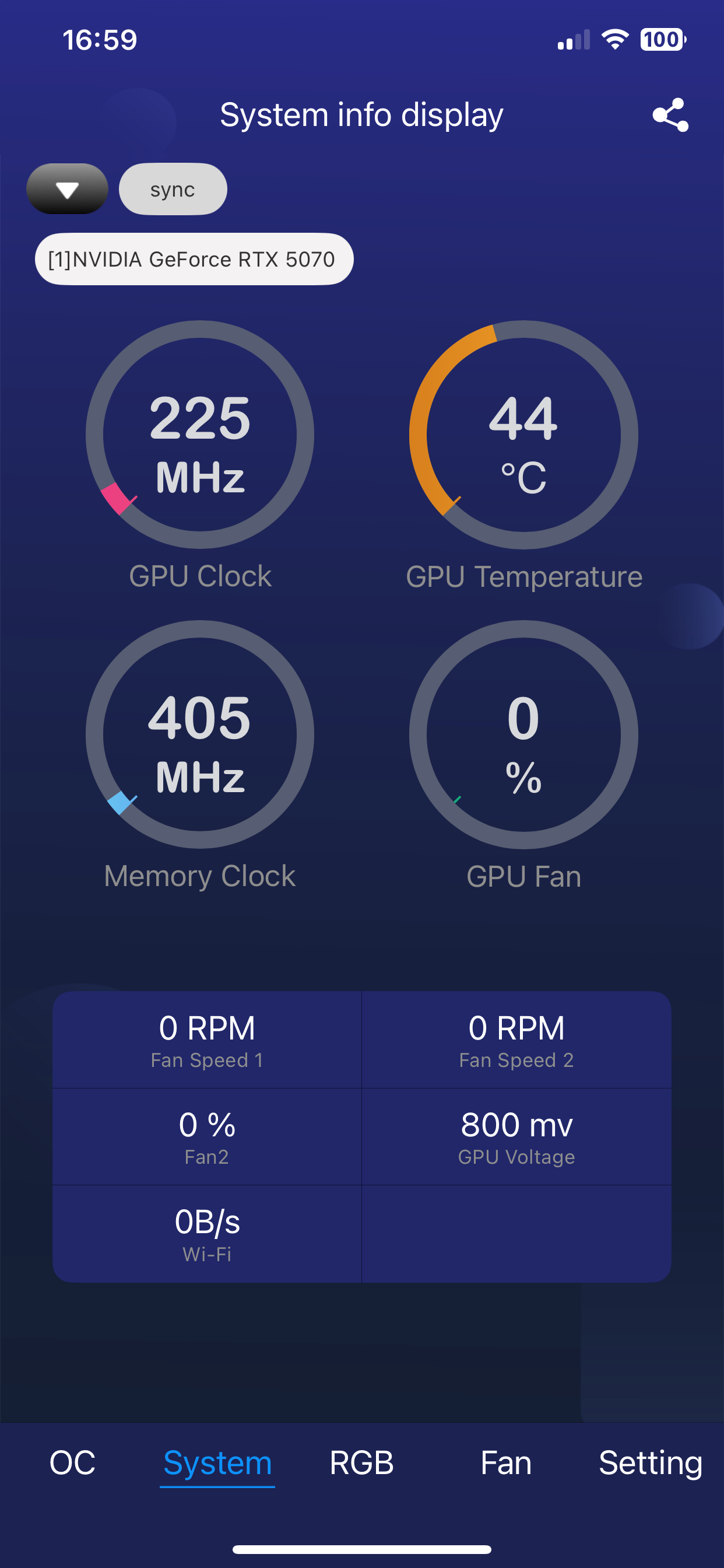

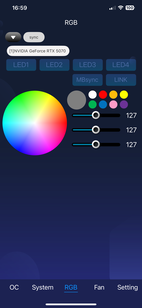

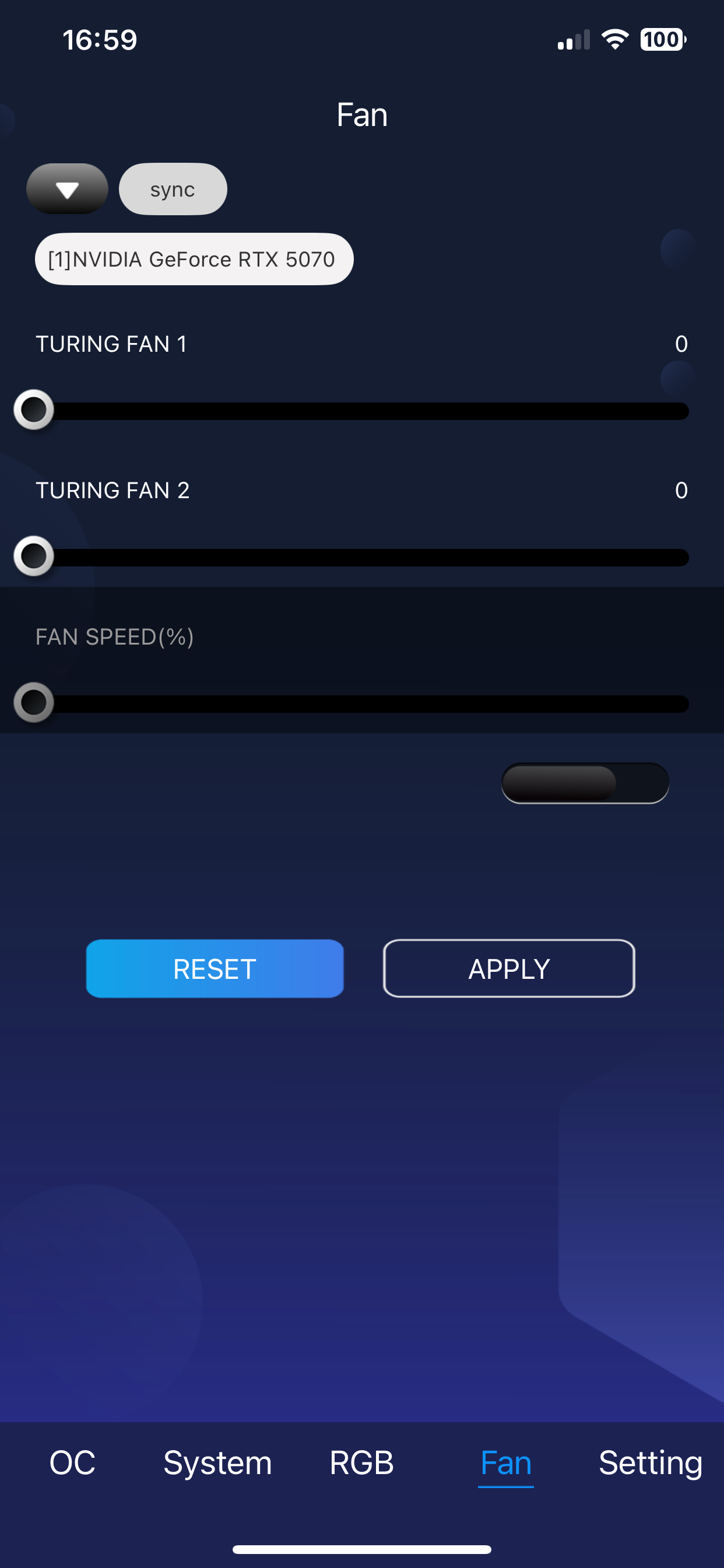

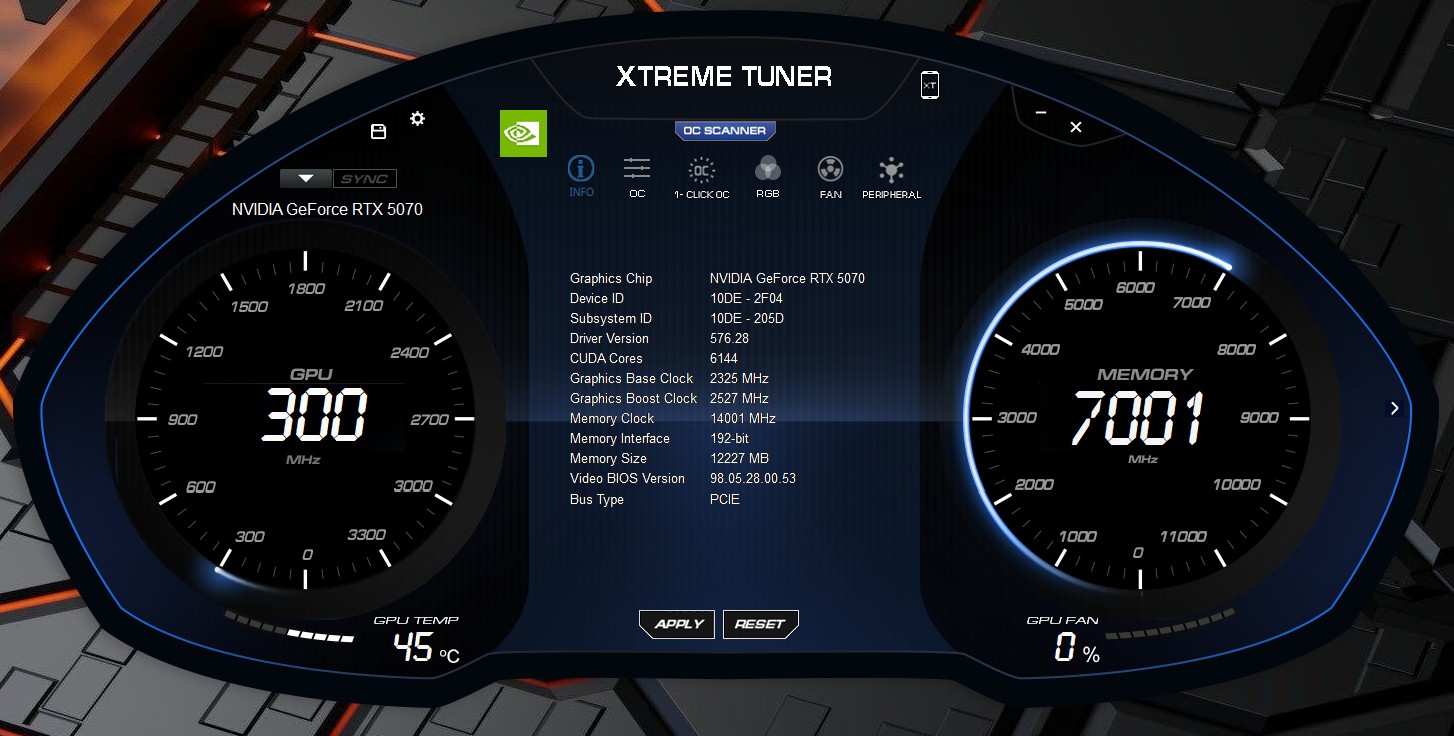

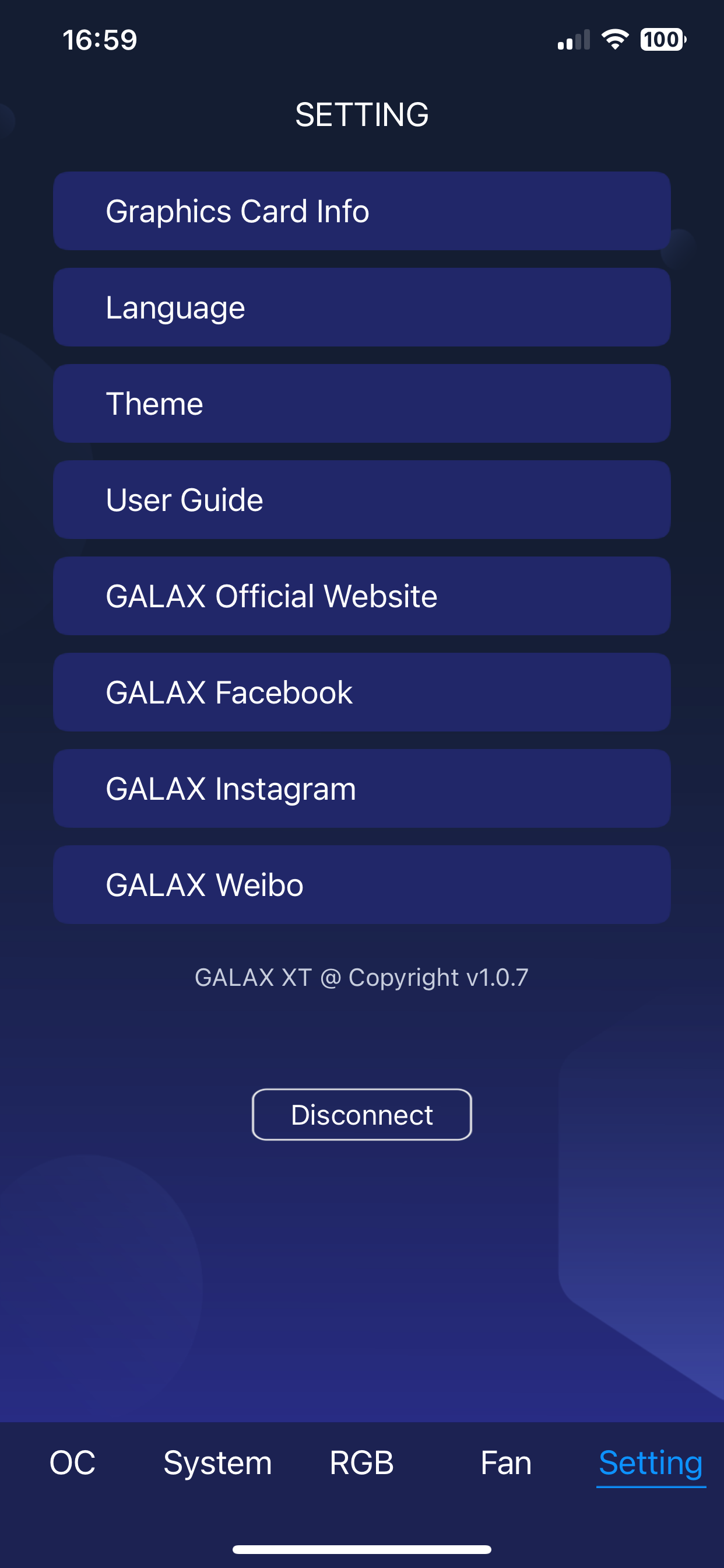

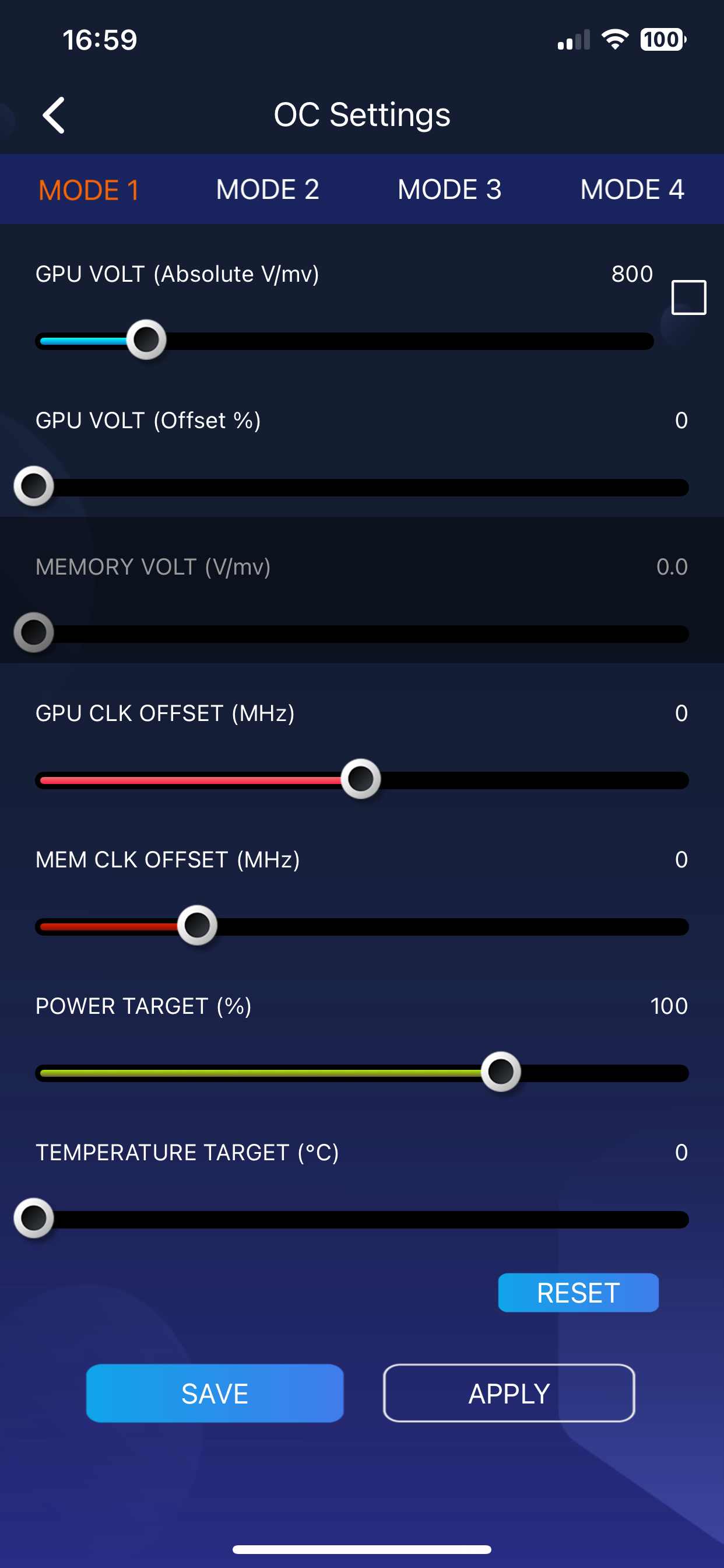

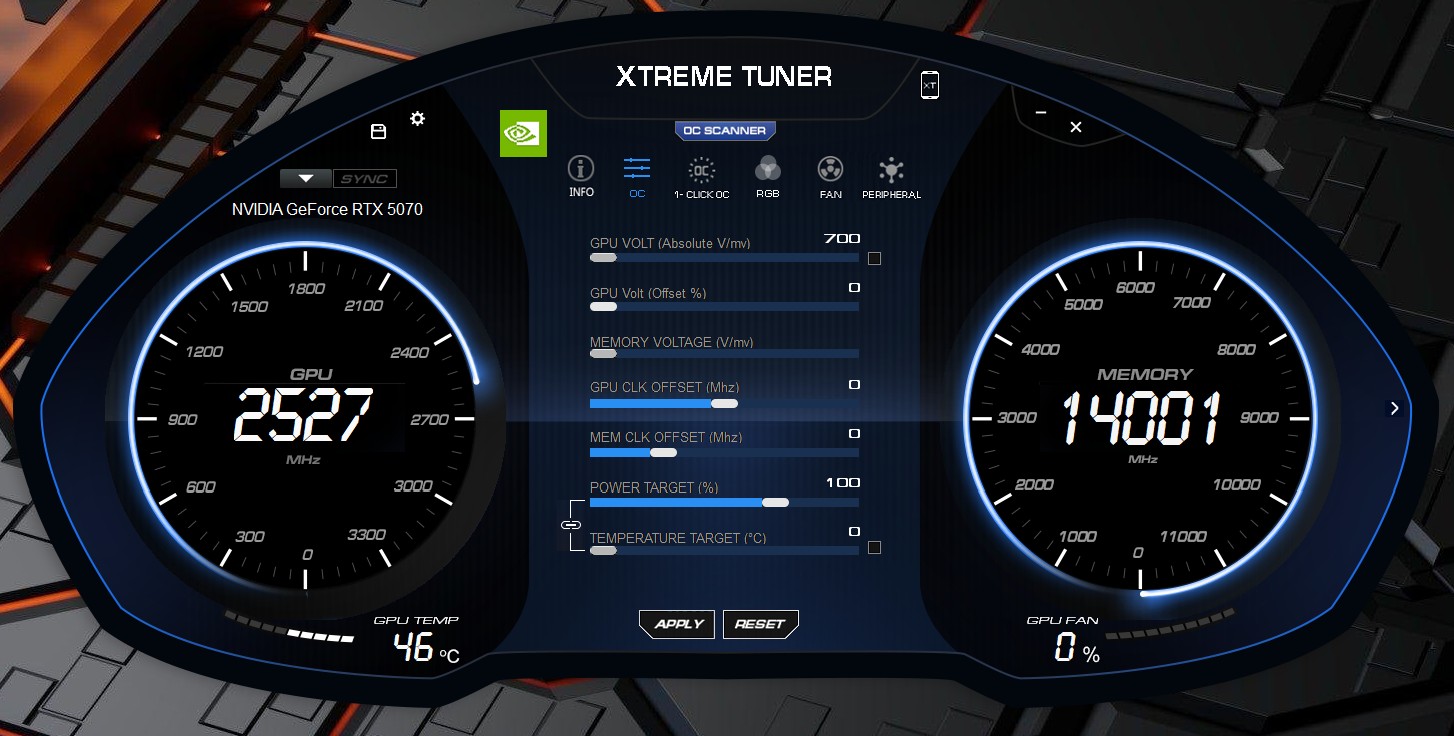

Xtreme Tuner Plus - KFA2 调谐实用程序、移动应用程序和一键 OC

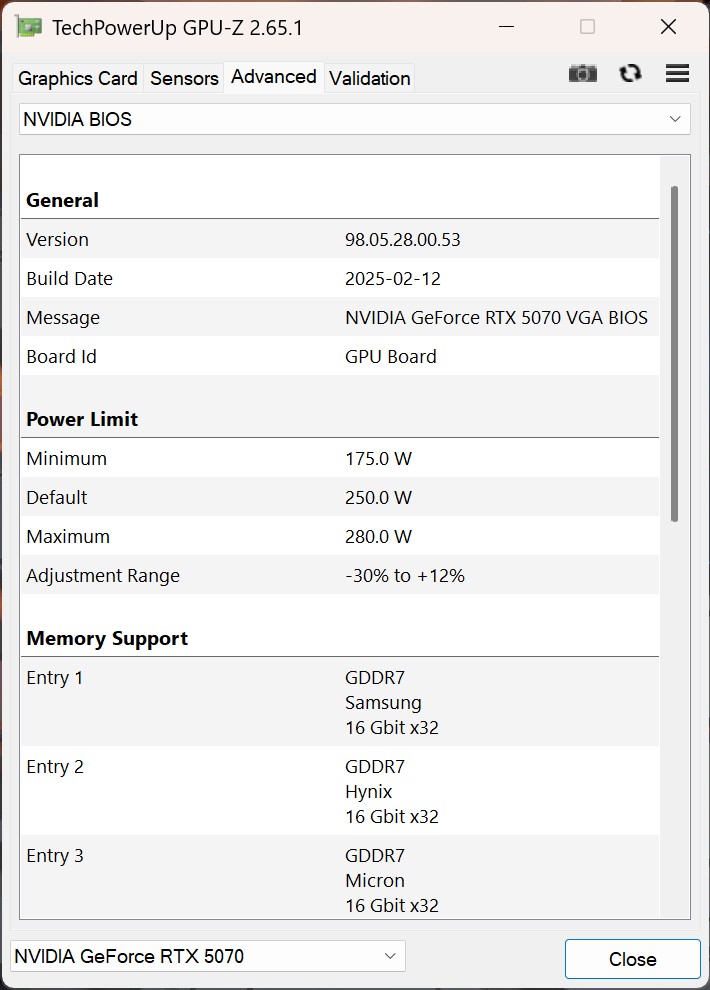

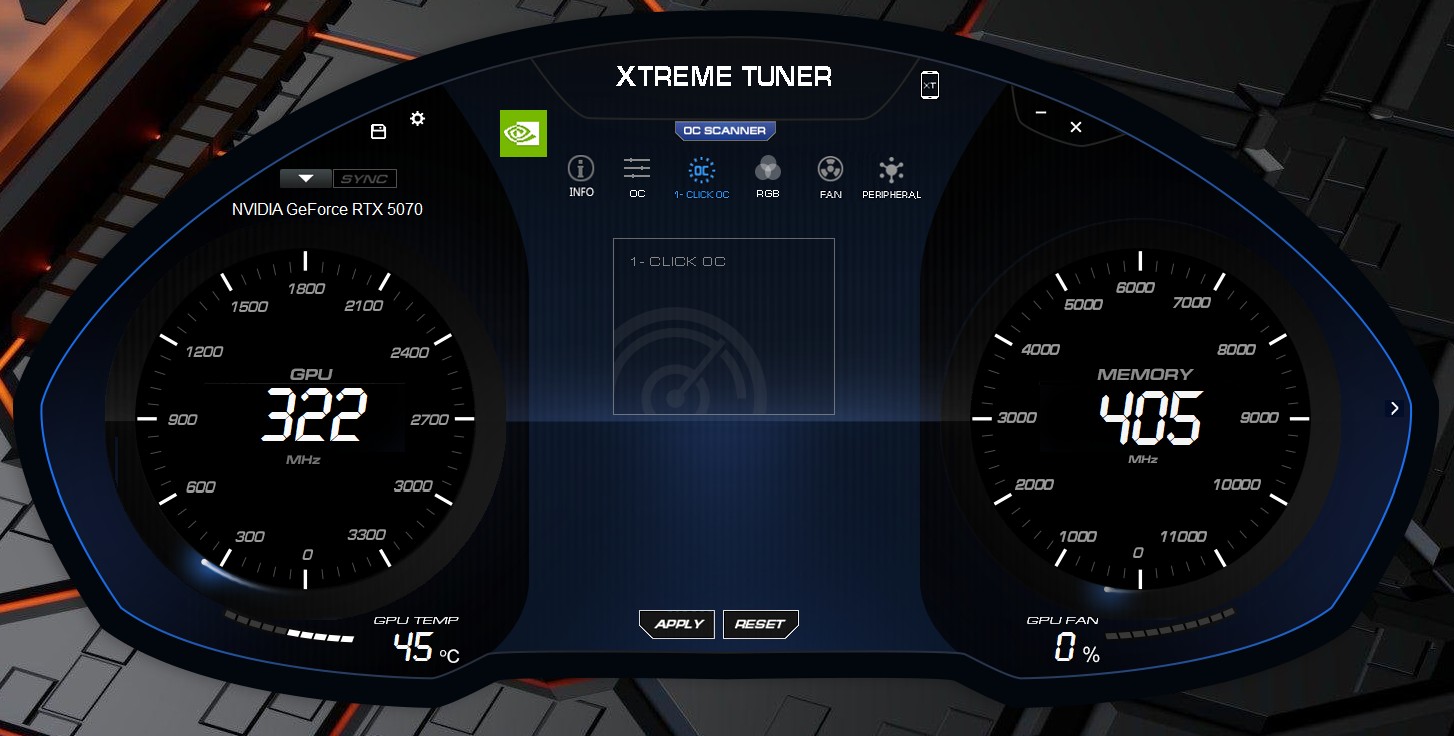

KFA2 的 "Xtreme Tuner "工具为用户提供了大量自定义显卡的选项：时钟频率可以手动调整，功率目标可以增加到 280 瓦，RGB 灯光可以单独控制。智能手机控制尤其实用，可在移动中方便地进行设置，非常适合在操作过程中进行微调。使用二维码即可轻松设置连接，唯一的要求是电脑和智能手机处于同一网络中。1-Click-OC 功能可将时钟频率提高 15 MHz，但对性能的提升微乎其微，更像是一种营销噱头。
测试条件

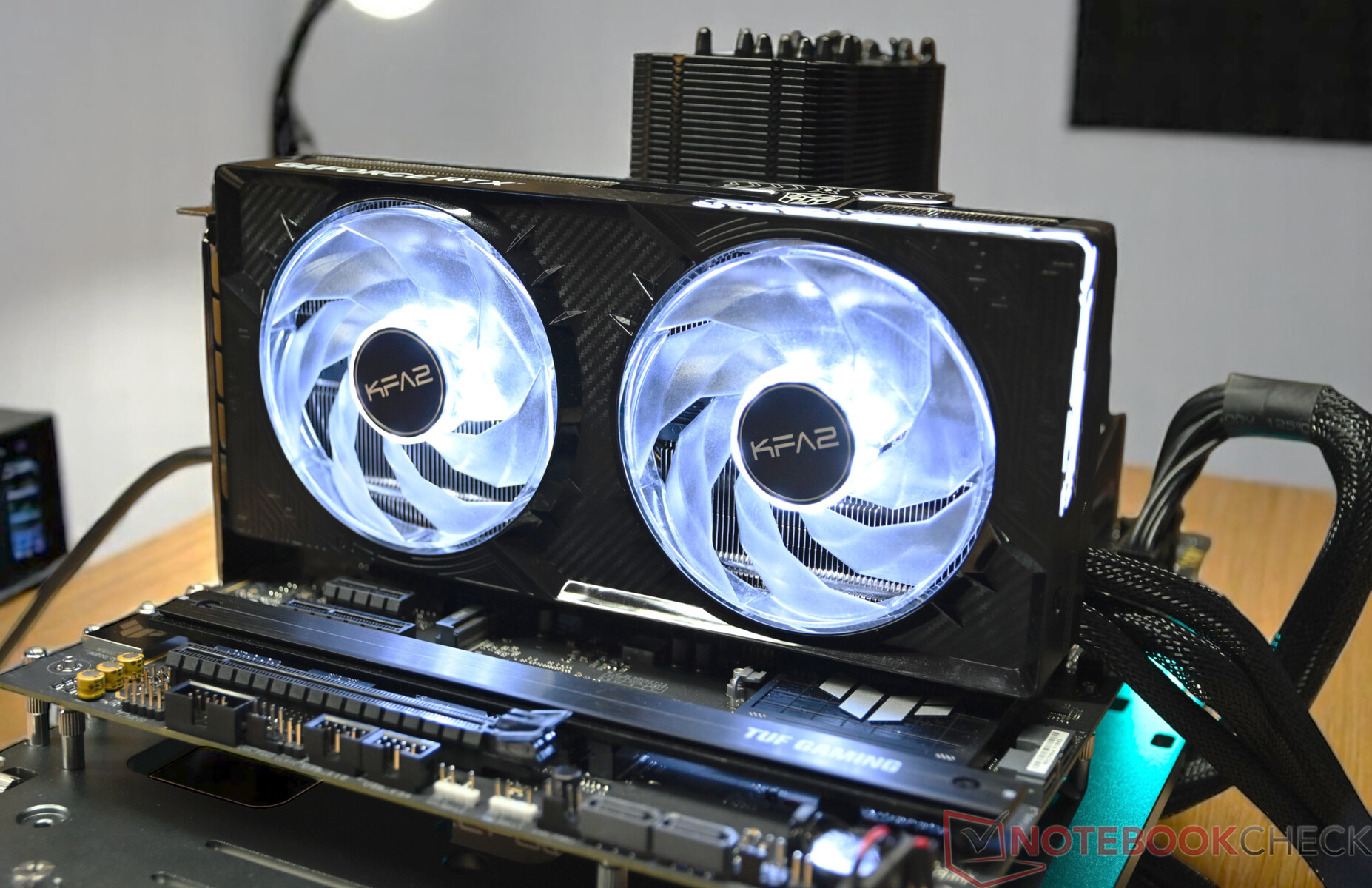

我们使用了 AMD Ryzen 7 9800X3DAsrock X870E Taichi 主板上的 AMD Ryzen 7 9800X3D 进行测试。KFA2GeForce RTX 5070 1-Click OC 在出厂设置下运行，既没有调整最大功耗，也没有调整时钟频率。
合成基准测试 - 与 AMD RX 9000 不相上下
KFA2GeForce RTX 5070 1-Click OC 的合成基准测试证明了该显卡令人尊敬的性能。我们的测试样本在与前代型号的直接比较中胜出，优势约为 25%。与竞争对手相比，特别是在与当前 AMD Radeon RX 9000 型号的对决中，KFA2GeForce RTX 5070 1-Click OC 的平均成绩正好介于红色阵营的两个型号之间。与 KFA2GeForce RTX 5070 Ti相比，您将不得不估计大约 20% 的差距。
Performance Rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | Affinity Photo 2 | ComputeMark v2.1 | V-Ray Benchmark Next 4.10
| Performance Rating - Percent | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Unigine Heaven 4.0 | |
| Extreme Preset DX11 | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Extreme Preset OpenGL | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| AMD Radeon RX 9070 XT | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| V-Ray Benchmark Next 4.10 - GPU | |
| Nvidia GeForce RTX 5090 Founders Edition (v4.10.07 ) | |
| Palit GeForce RTX 4090 GameRock OC (v4.10.07 ) | |
| Asus TUF Gaming GeForce RTX 5080 OC (v4.10.07 ) | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC (v4.10.07 ) | |
| KFA2 GeForce RTX 5070 1-Click OC (v4.10.07 ) | |
| KFA2 GeForce RTX 4070 EX Gamer (v4.10.07 ) | |
| Nvidia GeForce RTX 3090 FE (v4.10.07 ) | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC (v4.10.07 ) | |
| ASUS Dual GeForce RTX 4060 EVO OC (v4.10.07 ) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX (v4.10.07 ) | |
| AMD Radeon RX 9070 (v4.10.07 ) | |
| AMD Radeon RX 9070 XT (v4.10.07 ) | |
| Blender | |
| v3.3 Classroom CUDA | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| v3.3 Classroom OPTIX/RTX | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| v4.3 Barbershop OPTIX | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| MLPerf Client 0.5 - overall generation rate | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Nvidia GeForce RTX 3090 FE | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
* ... smaller is better
专业应用
在性能方面，KFA2GeForce RTX 5070 1-Click OC 明显落后于 RTX 5080，但仍与 5070 Ti 保持着不小的差距，两者之间的差距仅有百分之十几。在 SPECviewperf 2020 中，它取得了不错的成绩，证明了它是一款功能强大的全能显卡，可以在各种场景下应对半专业工作负载。在 SPECworkstation 4.0 测试中，两者的成绩总体上比较接近，AMD 的 GPU 在支持的特定测试中处于领先地位。
| KFA2 GeForce RTX 5070 1-Click OC R7 9800X3D | Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D | KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D | Asus TUF Gaming GeForce RTX 5080 OC R7 9800X3D | Nvidia GeForce RTX 5090 Founders Edition R7 9800X3D | KFA2 GeForce RTX 4070 EX Gamer R7 9800X3D | Palit GeForce RTX 4090 GameRock OC R7 9800X3D | Nvidia GeForce RTX 3090 FE R7 9800X3D | AMD Radeon RX 9070 R7 9800X3D | AMD Radeon RX 9070 XT R7 9800X3D | XFX Speedster MERC 310 Radeon RX 7900 XTX R7 9800X3D | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | -25% | 13% | 40% | 93% | -16% | 58% | -9% | 112% | 140% | 138% | |
| 3840x2160 Medical (medical-03) | 23.2 | 17.9 -23% | 29.7 28% | 34.8 50% | 51.2 121% | 20.7 -11% | 43.4 87% | 21.1 -9% | 131 465% | 156 572% | 107 361% |
| 3840x2160 Maya (maya-06) | 414 | 280 -32% | 479 16% | 565 36% | 697 68% | 313 -24% | 610 47% | 363 -12% | 377 -9% | 405 -2% | 565 36% |
| 3840x2160 Energy (energy-03) | 70.8 | 54.1 -24% | 61.9 -13% | 115 62% | 196 177% | 57.3 -19% | 138 95% | 56.4 -20% | 109 54% | 136 92% | 194 174% |
| 3840x2160 Creo (creo-03) | 117 | 101 -14% | 124 6% | 130 11% | 136 16% | 111 -5% | 133 14% | 114 -3% | 195 67% | 205 75% | 223 91% |
| 3840x2160 CATIA (catia-06) | 62.5 | 45.1 -28% | 72.2 16% | 82.5 32% | 109 74% | 49.2 -21% | 89.9 44% | 59.3 -5% | 129 106% | 133 113% | 149 138% |
| 3840x2160 3ds Max (3dsmax-07) | 148 | 110 -26% | 182 23% | 217 47% | 297 101% | 123 -17% | 235 59% | 139 -6% | 128 -14% | 134 -9% | 187 26% |
| SPECworkstation 4.0 | -11% | 7% | 11% | 25% | -7% | 16% | -9% | 26% | 34% | 40% | |
| Graphics Score | 7.07 | 5.6 -21% | 8.03 14% | 9.16 30% | 11.2 58% | 6.08 -14% | 9.9 40% | 6.19 -12% | 11.8 67% | 12.8 81% | 14.1 99% |
| AI & Machine Learning Score | 1.22 | 1.21 -1% | 1.22 0% | 1.21 -1% | 1.18 -3% | 1.22 0% | 1.2 -2% | 1.2 -2% | 1.16 -5% | 1.19 -2% | 1.22 0% |
| Viewport Graphics | 7.07 | 5.6 -21% | 8.03 14% | 9.16 30% | 11.2 58% | 6.08 -14% | 9.9 40% | 6.19 -12% | 11.8 67% | 12.8 81% | 14.1 99% |
| HandBrake | 1.82 | 1.82 0% | 1.8 -1% | 1.84 1% | 1.85 2% | 1.81 -1% | 1.82 0% | 1.72 -5% | 2.05 13% | 2.06 13% | 1.92 5% |
| ONNX Inference | 4.24 | 3.77 -11% | 4.55 7% | 4.13 -3% | 4.65 10% | 4.04 -5% | 4.23 0% | 3.69 -13% | 3.74 -12% | 4.2 -1% | 4.21 -1% |
| Total Average (Program / Settings) | -18% /
-18% | 10% /
10% | 26% /
27% | 59% /
62% | -12% /
-12% | 37% /
39% | -9% /
-9% | 69% /
73% | 87% /
92% | 89% /
93% |
Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance Rating | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| AMD Radeon RX 9070 | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| SPECworkstation 4.0 / Graphics Score | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| SPECworkstation 4.0 / Accelerator Score | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| SPECworkstation 4.0 / Viewport Graphics | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| SPECworkstation 4.0 / HandBrake | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| Palit GeForce RTX 4090 GameRock OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| SPECworkstation 4.0 / ONNX Inference | |
| Zotac Gaming GeForce RTX 5090 SOLID | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
游戏性能 - 至少 12GB VRAM
KFA2GeForce RTX 5070 1-Click OC 的性能足以流畅运行当前游戏，无需使用 AI 选项。为了澄清这一说法：KFA2GeForce RTX 5070 1-Click OC 主要设计用于 1440p (WQHD) 下的游戏。其性能符合这一目标，12 GB VRAM 在这种情况下仍然是明智的选择。相比之下，我们的测试样本提供了 NvidiaGeForce RTX 3090 的性能，尽管 KFA2GeForce RTX 5070 1-Click OC 无法接近 AMD Radeon RX 9070 的性能。
Performance Rating | The Witcher 3 | Hogwarts Legacy | Baldur's Gate 3 | Cyberpunk 2077 2.2 Phantom Liberty | Alan Wake 2 | F1 24 | Black Myth: Wukong | Star Wars Outlaws | Call of Duty Black Ops 6 | Stalker 2 | Indiana Jones and the Great Circle
| Performance Rating - Percent | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC -1! | |
| The Witcher 3 | |
| 3840x2160 Ultra Graphics & Postprocessing (HBAO+) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Ultra Graphics & Postprocessing (HBAO+) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Hogwarts Legacy | |
| 3840x2160 Ultra Preset AA:High T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Ultra Preset AA:High T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Baldur's Gate 3 | |
| 3840x2160 Ultra Preset AA:T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Ultra Preset AA:T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 3840x2160 Ultra Preset (FSR off) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Ultra Preset (FSR off) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Alan Wake 2 | |
| 3840x2160 High Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| 2560x1440 High Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| F1 24 | |
| 3840x2160 Ultra High Preset AA:T AF:16x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Black Myth: Wukong | |
| 3840x2160 cinematic TSR 100 | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 cinematic TSR 100 | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Star Wars Outlaws | |
| 3840x2160 cinem. ultra | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 cinem. ultra | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Call of Duty Black Ops 6 | |
| 3840x2160 Extreme Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Extreme Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Stalker 2 | |
| 3840x2160 Epic Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Epic Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Indiana Jones and the Great Circle | |
| 3840x2160 Very Ultra Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| 2560x1440 Very Ultra Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
DLSS 4 和多帧生成 (MFG)
在纯光栅性能方面，Blackwell 架构与 KFA2GeForce RTX 5070 1-Click OC 的组合与 Ada Lovelace 相比仅略有进步。不过，DLSS 4 和多帧生成（MFG）带来了显著的帧数提升，尤其是在支持的游戏中。这意味着，即使是要求苛刻的游戏，只要使用了现代的升频技术，也能在 4K 环境下流畅显示。不过，与 KFA2GeForce RTX 5070 Ti 直接比较，非 Ti 型号明显落后。必须将 30% 至 40% 的性能差距考虑在内。与 NvidiaGeForce RTX 5060 Ti 相比，KFA2GeForce RTX 5070 1-Click OC 的性能要高出约 20%，具体取决于相关游戏。
Cyberpunk 2077 2.2 Phantom Liberty | Alan Wake 2 | Star Wars Outlaws | Hogwarts Legacy | Kingdom Come Deliverance 2
| Cyberpunk 2077 2.2 Phantom Liberty | |
| 3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality (no FG) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| 3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality + Frame Generation (M)FG 2x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| 3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality + Frame Generation MFG 4x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Alan Wake 2 | |
| 3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Nvidia GeForce RTX 3090 FE | |
| 3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS + FG 2x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| 3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS + FG 4x | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Star Wars Outlaws | |
| 3840x2160 cinem. ultra, RT ultra, DLSS, FG RR | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| 3840x2160 cinem. ultra, RT ultra, DLSS, FG 4x, RR | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Hogwarts Legacy | |
| 3840x2160 Ultra Preset + Full Ray Tracing + DLSS4 Quality + FG 2x AA:High T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| 3840x2160 Ultra Preset + Full Ray Tracing + DLSS4 Quality + FG 4x AA:High T | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Kingdom Come Deliverance 2 - 3840x2160 Ultra Preset + Quality DLSS | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
Overview of the tested games with the KFA2 GeForce RTX 5070 1-Click OC
| low | med. | high | ultra | QHD DLSS | QHD | 4K DLSS | 4K | |
|---|---|---|---|---|---|---|---|---|
| The Witcher 3 (2015) | 771 | 658 | 436 | 209 | 169.3 | 153.7 | ||
| Dota 2 Reborn (2015) | 360 | 326 | 312 | 289 | 222 | |||
| Final Fantasy XV Benchmark (2018) | 235 | 236 | 206 | 162.4 | 93.4 | |||
| X-Plane 11.11 (2018) | 231 | 212 | 183.9 | 144.6 | ||||
| Far Cry 5 (2018) | 386 | 322 | 306 | 290 | 222 | 116 | ||
| Strange Brigade (2018) | 672 | 562 | 491 | 437 | 318 | 162.7 | ||
| Far Cry New Dawn (2019) | 333 | 286 | 275 | 247 | 210 | 118 | ||
| Anno 1800 (2019) | 288 | 275 | 232 | 146.8 | 117.8 | |||
| Borderlands 3 (2019) | 319 | 286 | 243 | 197.7 | 144.2 | 76.7 | ||
| Far Cry 6 (2021) | 305 | 273 | 247 | 220 | 168.9 | 93.4 | ||
| Forza Horizon 5 (2021) | 465 | 329 | 299 | 188 | 161 | 114 | ||
| Farming Simulator 22 (2021) | 423 | 369 | 330 | 314 | 297 | 185.4 | ||
| God of War (2022) | 291 | 244 | 196.7 | 141.4 | 121.9 | 81 | ||
| Tiny Tina's Wonderlands (2022) | 483 | 385 | 253 | 199.5 | 140.3 | 73.5 | ||
| The Witcher 3 v4.00 (2023) | 418 | 363 | 315 | 261 | 191.5 | 96.9 | ||
| Hogwarts Legacy (2023) | 227 | 197.7 | 157.5 | 120.8 | 89.3 | 63 | 51.5 | |
| Lies of P (2023) | 382 | 340 | 293 | 267 | 180 | 148.3 | 93.7 | |
| Baldur's Gate 3 (2023) | 281 | 222 | 194 | 190.6 | 138.3 | 118.5 | 74.5 | |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 262 | 219 | 187.6 | 170.3 | 128.7 | 111.8 | 72.5 | 49.2 |
| Lords of the Fallen (2023) | 170.3 | 158.2 | 132.6 | 109.3 | 79.2 | 77.6 | 44.8 | |
| Alan Wake 2 (2023) | 127.1 | 120.9 | 112.7 | 77.7 | 57 | 40 | ||
| Avatar Frontiers of Pandora (2023) | 160 | 147 | 127 | 96 | 63 | 56 | 32 | |
| Alone in the Dark (2024) | 367 | 305 | 288 | 226 | 142.4 | 122.6 | 55.8 | |
| F1 24 (2024) | 489 | 478 | 380 | 138.2 | 138.7 | 88.3 | 75.4 | 43.3 |
| The First Descendant (2024) | 300 | 183.9 | 157.8 | 132.8 | 93.9 | 51.7 | 53.1 | |
| Black Myth: Wukong (2024) | 166 | 123 | 96 | 56 | 61 | 42 | 42 | 25 |
| Star Wars Outlaws (2024) | 109.3 | 102.4 | 88 | 72.4 | 72.9 | 54.2 | 46.9 | 32.7 |
| Space Marine 2 (2024) | 151.6 | 142 | 139.7 | 139 | 140.9 | 109.6 | 91.6 | 58.4 |
| Final Fantasy XVI (2024) | 138.1 | 134.7 | 116.5 | 107.1 | 106.8 | 74.4 | 63.5 | 42.2 |
| God of War Ragnarök (2024) | 261 | 221 | 199.4 | 186.7 | 190.9 | 141.1 | 122.2 | 81.5 |
| Until Dawn (2024) | 189 | 170.1 | 122.9 | 92.7 | 86.6 | 66.9 | 54.6 | 37.6 |
| Call of Duty Black Ops 6 (2024) | 220 | 209 | 147 | 139 | 112 | 103 | 67 | 64 |
| Stalker 2 (2024) | 132.9 | 115.3 | 97.4 | 79.7 | 126.5 | 61.3 | 78.6 | 35.7 |
| Indiana Jones and the Great Circle (2024) | 196.9 | 147.2 | 130.8 | 122.2 | 103.6 | 53.8 | ||
| Kingdom Come Deliverance 2 (2025) | 269 | 208 | 167.6 | 116.7 | 106.9 | 85.2 | 65.3 | 48 |
| Monster Hunter Wilds (2025) | 120.4 | 102.1 | 81.9 | 64.1 | ||||
| Civilization 7 (2025) | 555 | 404 | 298 | 188 | 87.7 | |||
| Assassin's Creed Shadows (2025) | 111 | 100 | 87 | 66 | 61 | 53 | 50 | 37 |
| The Elder Scrolls IV Oblivion Remastered (2025) | 205 | 158.1 | 103.7 | 52.2 | 56.1 | 37.7 | 35 | 22.2 |
| Doom: The Dark Ages (2025) | 125.5 | 109.5 | 102.5 | 99.3 | 96.4 | 70.3 | 58.9 | 38.6 |
排放物 - 冷却效果良好，但在负载情况下会发出声音
噪音排放
KFA2 为其GeForce RTX 5070 1-Click OC 配备了由两个轴流风扇组成的相对紧凑的散热系统。在 2D 模式下，风扇停止模式可确保静音运行。在平均负载下，我们测得的声压级为 35.7 dB(A)，而在压力测试中则略高于 47 dB(A)。我们注意到一些轻微的线圈啸叫，但风扇噪音在负载情况下比这更大。与其他型号相比，KFA2GeForce RTX 5070 1-Click OC 的噪音明显可闻。
Noise Level
| Idle |
| 26.2 / 26.2 / 26.2 dB(A) |
| Load |
| 35.7 / 47.3 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24 dB(A) | ||

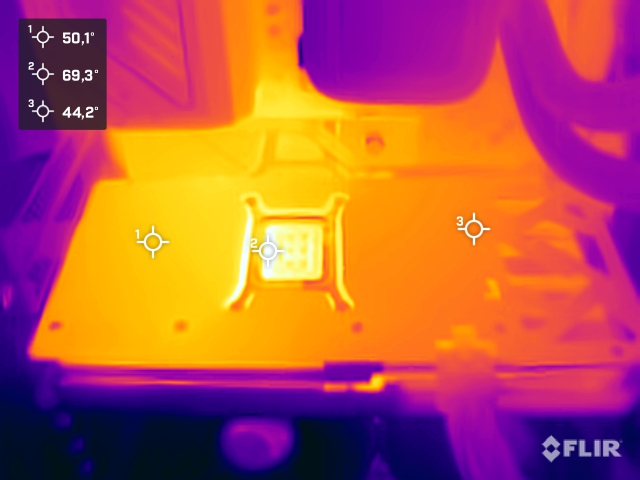

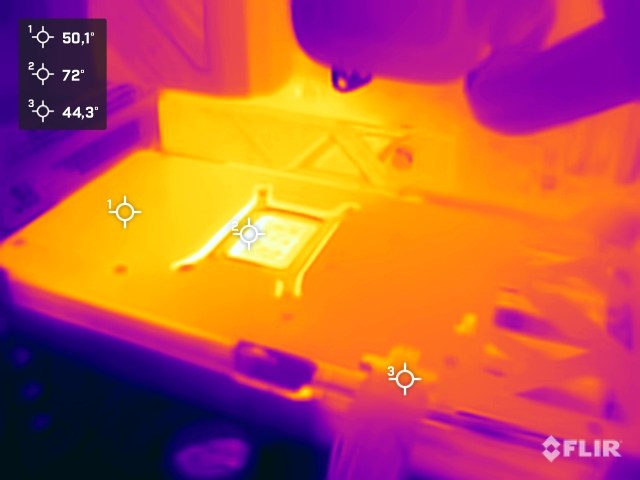

温度

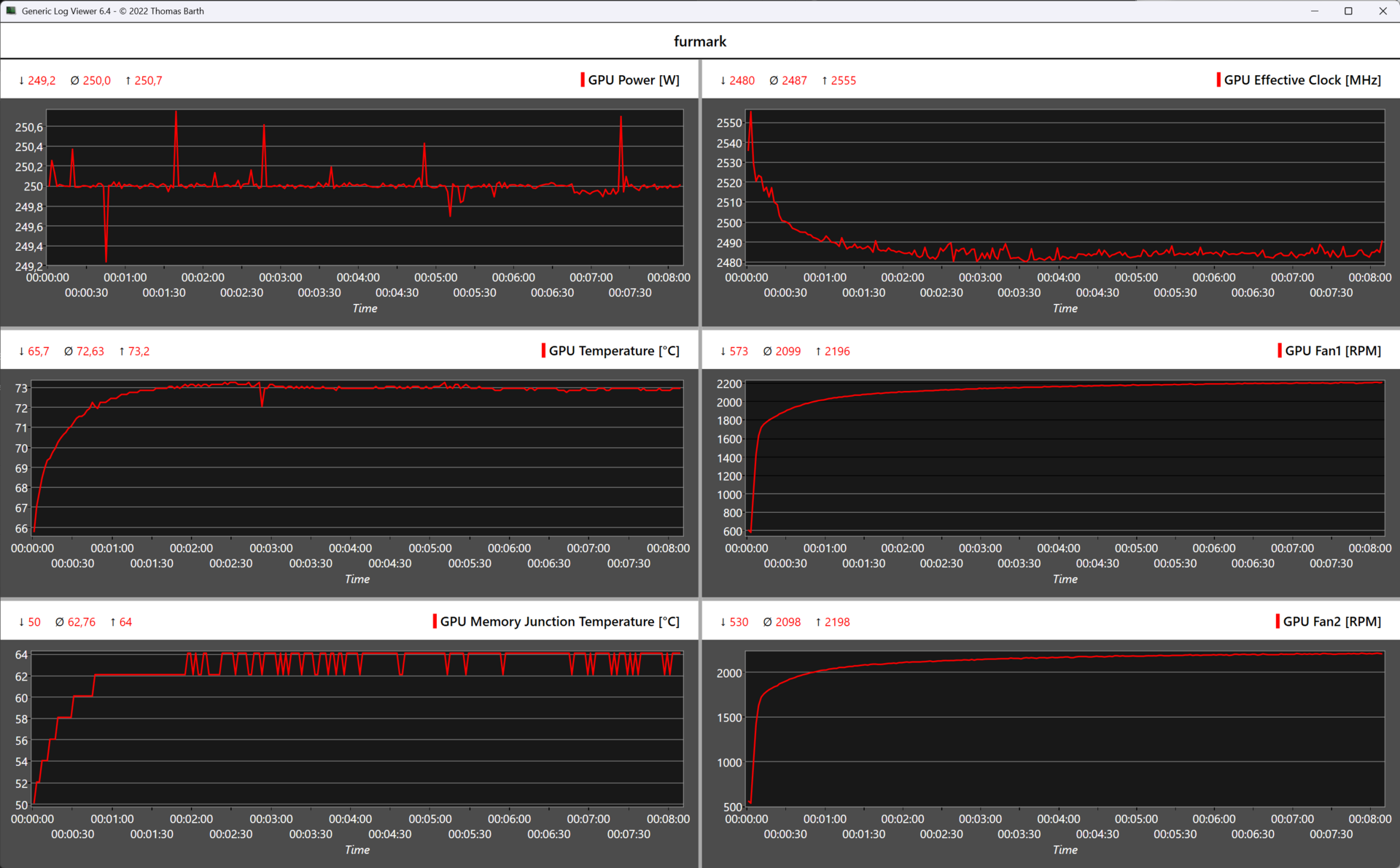

KFA2GeForce RTX 5070 1-Click OC 的散热概念足够强大，可以在满载情况下耗散约 250 瓦的废热，尽管 KFA2 只采用了紧凑的散热解决方案。遗憾的是，这对其负载下的工作噪音造成了影响。不过，温度显示显卡并未达到其散热极限。您可以手动调节风扇速度，只要您愿意接受稍高的温度，这将意味着更安静的运行。
fps diagram - 30 mins Cyberpunk 2077 1,920 x 1,080 Ultra Preset (FSR off)
NVIDIA KFA2 GeForce RTX 5070 1-Click OC R7 9800X3D, GeForce RTX 5070: Ø157.3 (152.1-158.9)
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D, GeForce RTX 5070 Ti: Ø182.9 (173.7-184.8)
NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D, GeForce RTX 5060 Ti: Ø117.5 (113.6-119)
Gigabyte Radeon RX 9070 Gaming OC 16G R7 9800X3D, Radeon RX 9070: Ø166.7 (161-168.2)
能源管理 - 并非总能达到 250 瓦
KFA2GeForce RTX 5070 1-Click OC 的工作效率很高。尽管如此，除了 NvidiaGeForce RTX 5090 之外，Blackwell 系列的其他型号都更加节俭。与 NvidiaGeForce RTX 4070 相比，KFA2GeForce RTX 5070 1-Click OC 的功耗更高，达到 250 瓦（RTX 4070：200 瓦），在性能上占有优势。而在我们的测量中，功耗仅略有增加。
为保证稳定运行，KFA2 建议使用至少 650 瓦的电源装置，最好使用原生 12 V 2x6 连接。或者，您也可以使用随附的适配器（2x8 针 PCIe 转 12 V 2x6）。
Power Consumption: 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | 1920x1080 The Witcher 3 ultra (external Monitor) | Cyberpunk 2077 FHD ultra no FSR (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / Cyberpunk 2077 FHD ultra no FSR (external Monitor) | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
* ... smaller is better
Power consumption with external monitor
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø364 (360-375)
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø725 (721-758)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø369 (364-378)
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø486 (483-495)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø487 (483-494)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø421 (418-431)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø283 (280-308)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; 1920x1080 The Witcher 3 ultra (external Monitor): Ø357 (350-369)
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø631 (586-669)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø385 (383-391)
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø503 (500-511)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø451 (445-476)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø394 (387-416)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø264 (261-285)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; Idle 1min (external Monitor): Ø112.8 (110.7-116.4)
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø118 (114.2-127.8)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø89.5 (85.9-108.8)
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø87.4 (85.3-92.2)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø97.4 (95.7-103.3)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø117.7 (116.5-121.6)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø95 (83.9-101.8)
Notebookcheck 总评分
KFA2GeForce RTX 5070 1-Click OC 可为 WQHD 游戏提供稳定的性能。DLSS 4 和 Frame Generation 可提供额外的帧数提升。它拥有 12 GB VRAM，面向未来，但我们只能在有限的范围内推荐它用于 4K。总之，对于要求苛刻的游戏玩家来说，这是一款强大的全能型产品。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
