评测结论：PNYGeForce RTX 5060 Ti OC——在全高清分辨率下表现强劲，但显存成为瓶颈

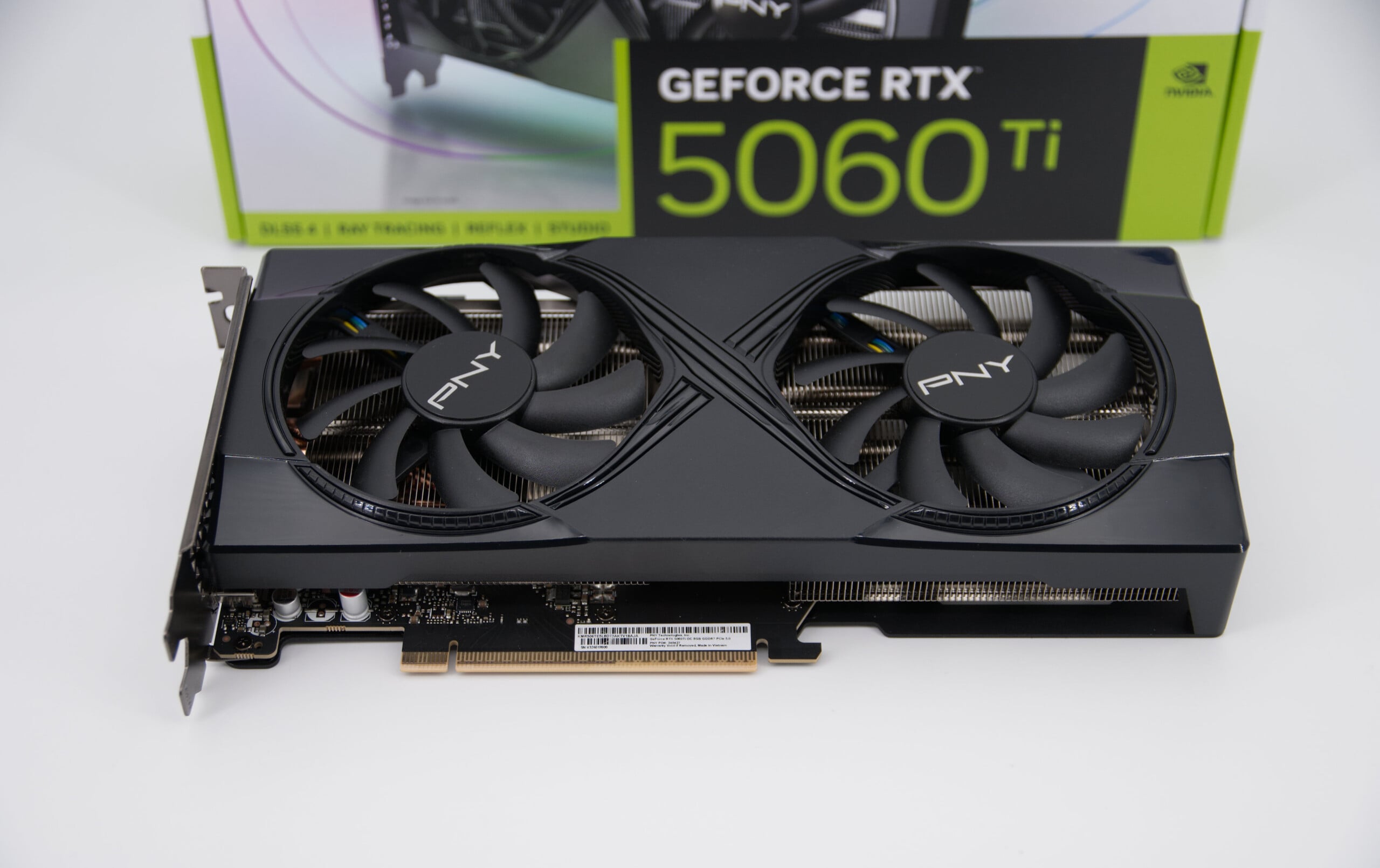

PNYGeForce RTX 5060 Ti OC 是一款基于 Blackwell 架构的紧凑型节能中端显卡。该显卡在全高清分辨率下能提供流畅的游戏体验，有时在 WQHD 分辨率下也能表现出色，尤其是在启用 DLSS 4 和多帧生成等现代技术时。 然而，随着分辨率提升和内存需求增加，该显卡逐渐显现性能瓶颈。若可用显存不足，可能导致帧率骤降、画面卡顿或纹理显示异常。

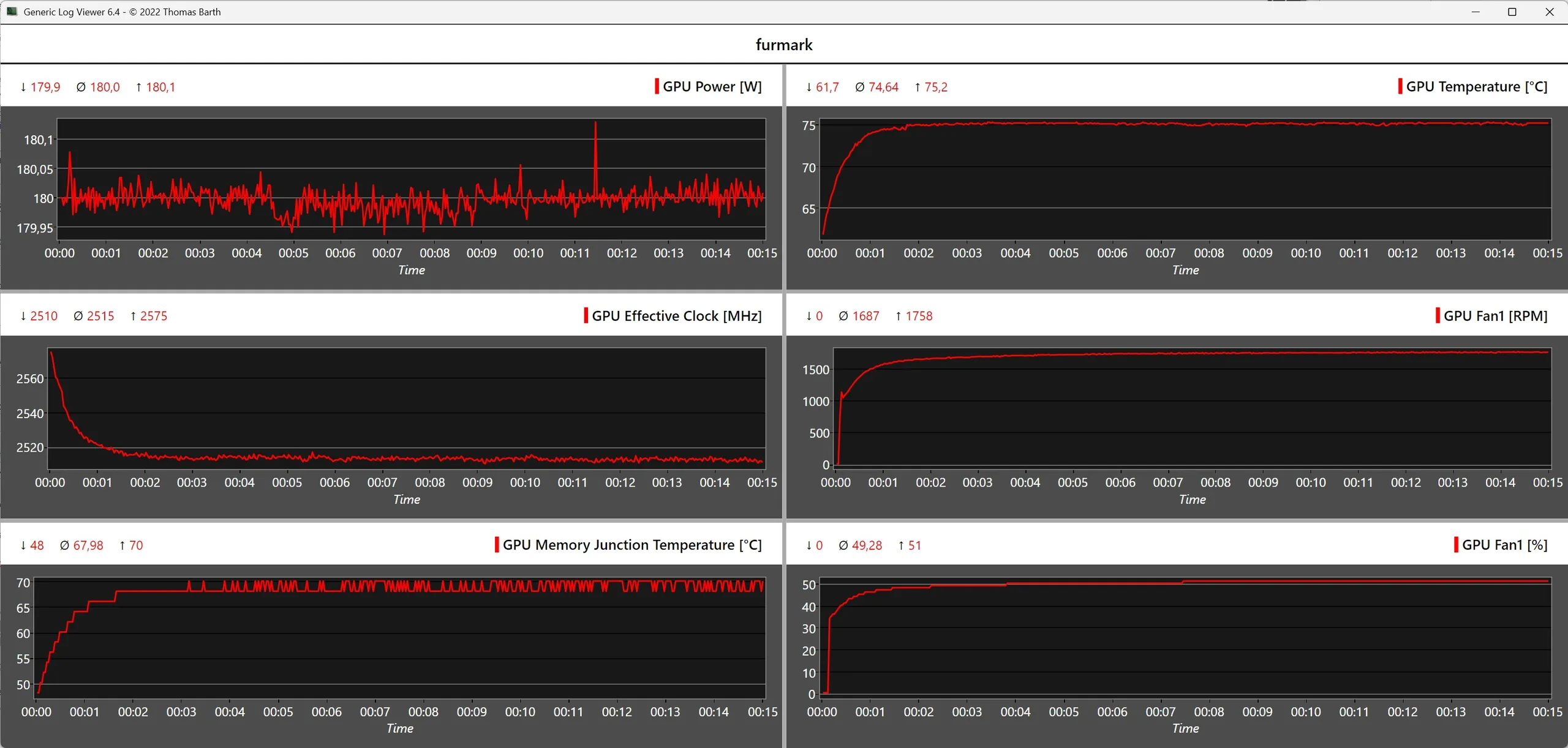

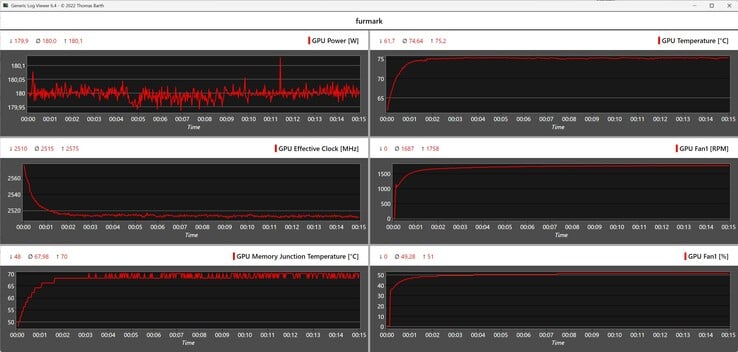

散热系统运行可靠，即使在满载状态下也能将温度维持在安全范围内。同时，噪音控制得当，而半被动风扇控制技术则确保了空闲模式下近乎静音的运行。得益于其紧凑的尺寸，这款显卡也适用于各种不同尺寸的机箱。
与GeForce RTX 5070或RTX 5070 Ti等更强劲的型号相比，PNYGeForce RTX 5060 Ti OC如预期般稍显逊色，但凭借出色的能效表现以及作为Blackwell世代的入门级产品，依然颇具吸引力。 对于主要在全高清分辨率下游戏且重视NVIDIA最新技术的用户而言，这是一款可靠的中端显卡。然而，有限的显存配置令人对其长期适用性产生疑虑，尤其是在即将推出的3A大作和更高分辨率场景下。
Pros
+ 性能足以流畅运行全高清游戏
+ 多帧生成技术
+ 静音模式
+ 紧凑设计
+ 低功耗
+ 熟悉的8针电源接口
+ 36个月保修
Cons

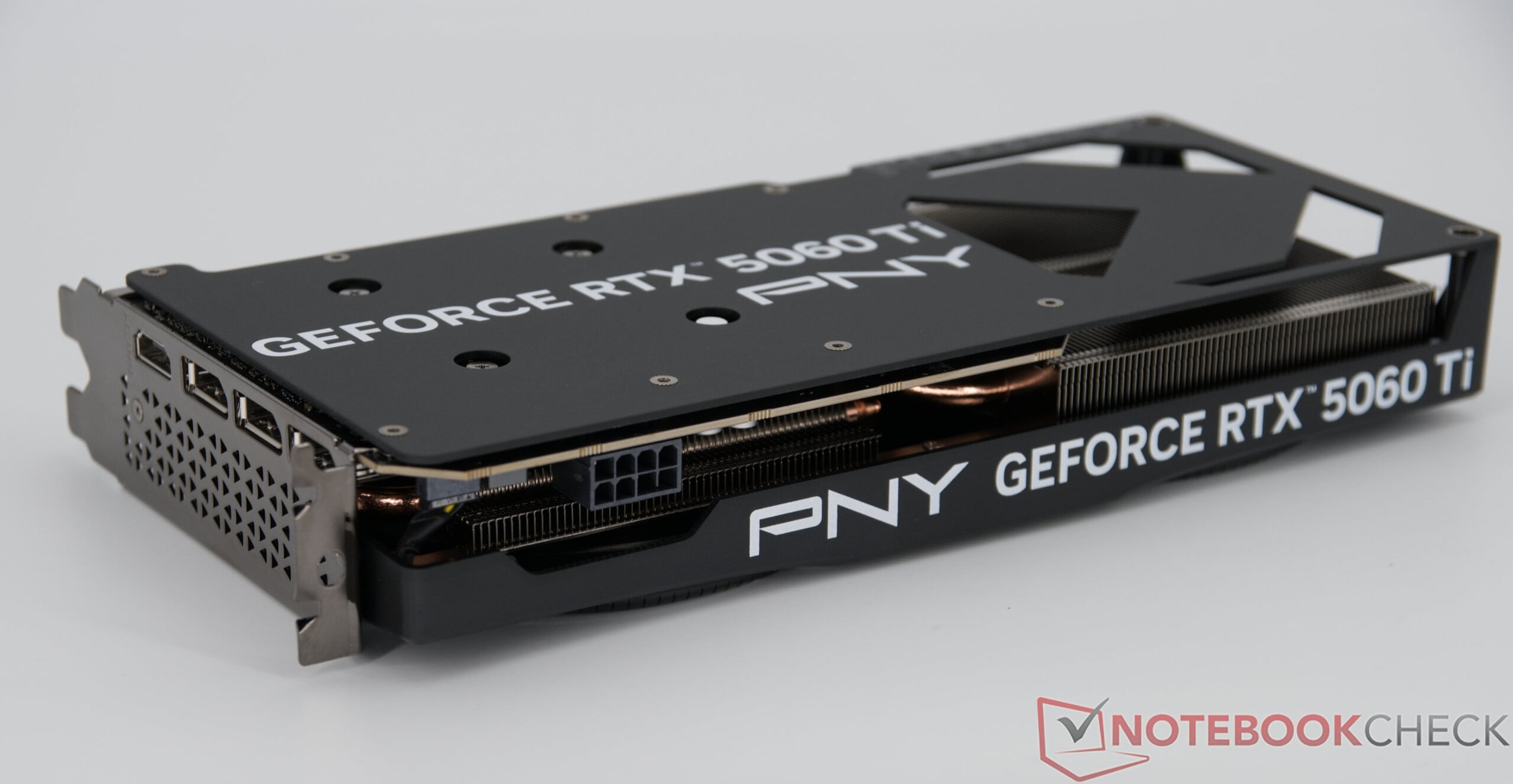

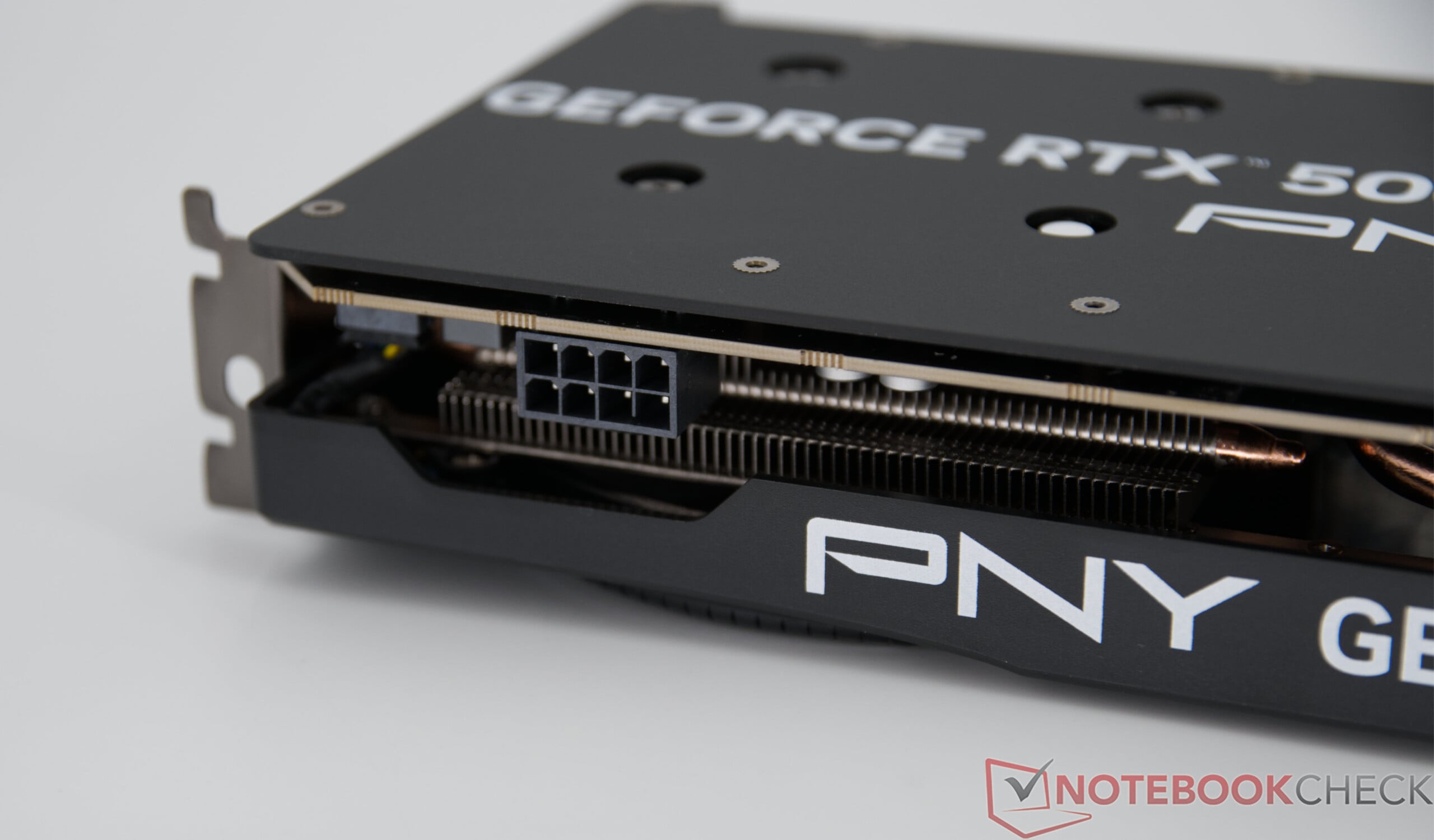

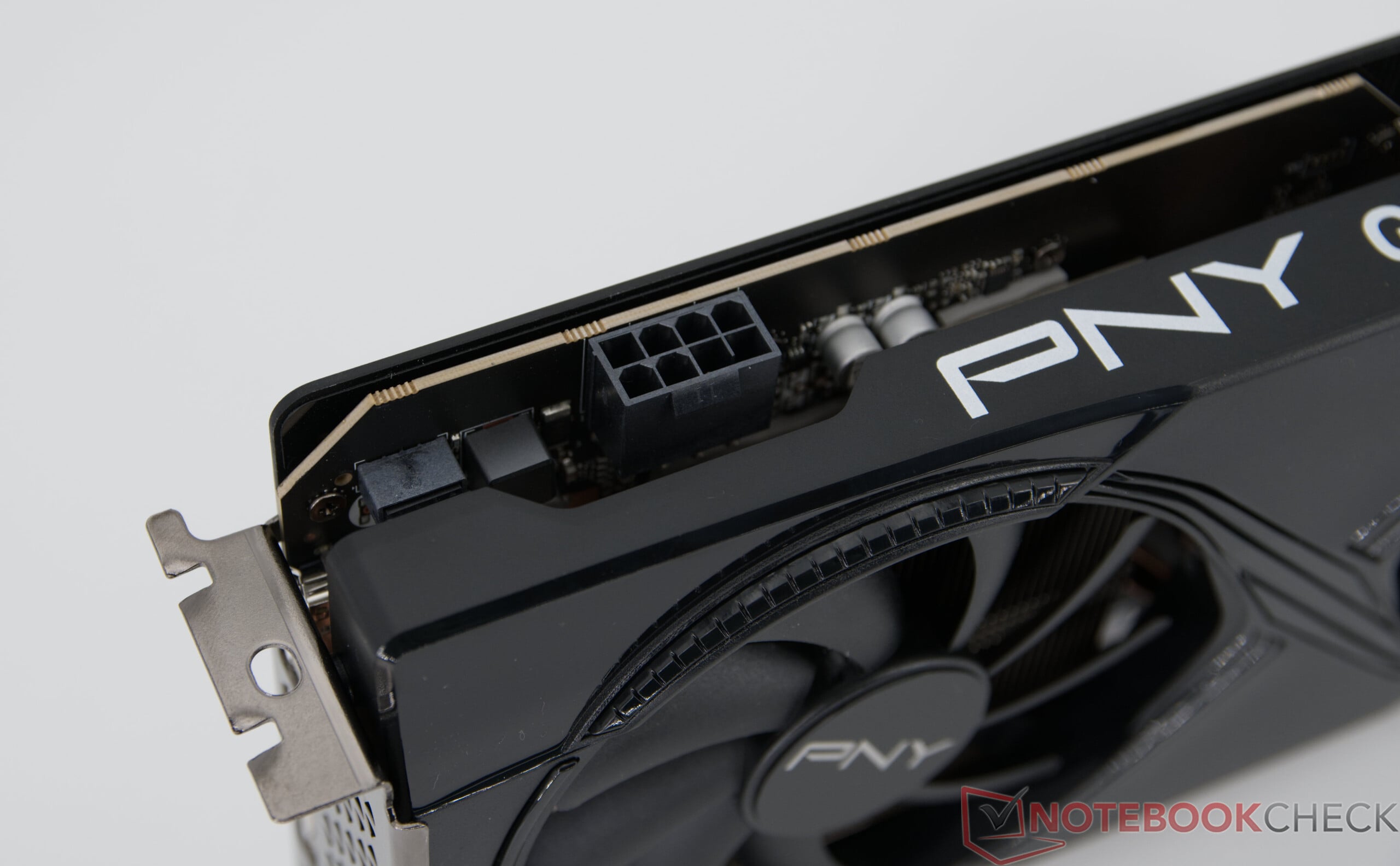

- 电源接口位置特殊
- 8 GB 显存
规格
PNY GeForce RTX 5060 Ti 8G
Processor
AMD Ryzen 7 9800X3D 8c/16t, 8 x 5.2 GHz AMD Zen 5, 162 W PL2 / Short Burst, 120 W PL1 / Sustained, Granite Ridge
Graphics adapter
NVIDIA GeForce RTX 5060 Ti - 8 GB VRAM
Memory
32 GB
, DDR5-6000, CL28
Mainboard
AMD X870E
Storage
Kingston Fury Renegade G5 4TB, 4096 GB
Price
349 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
第一印象与处理

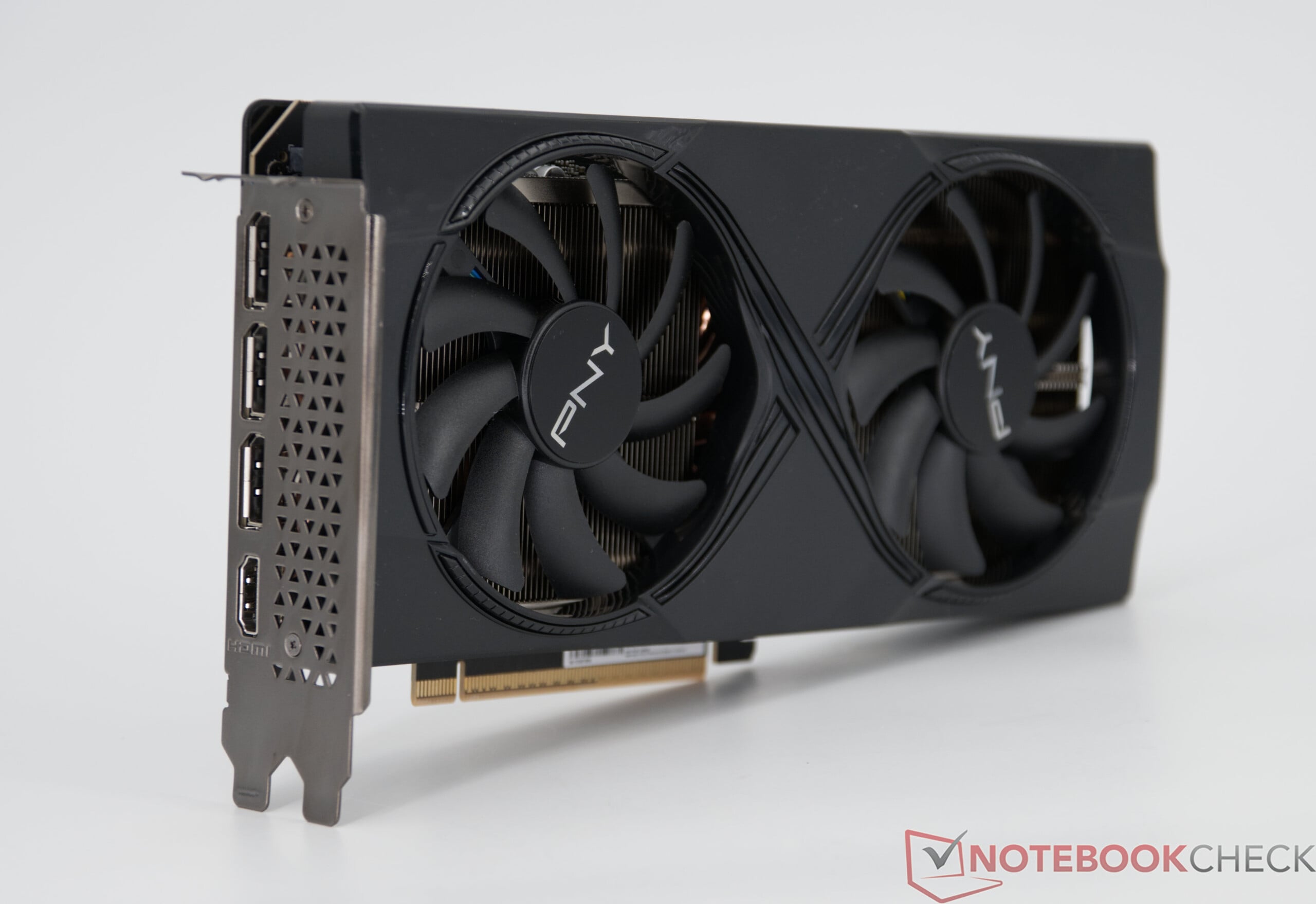

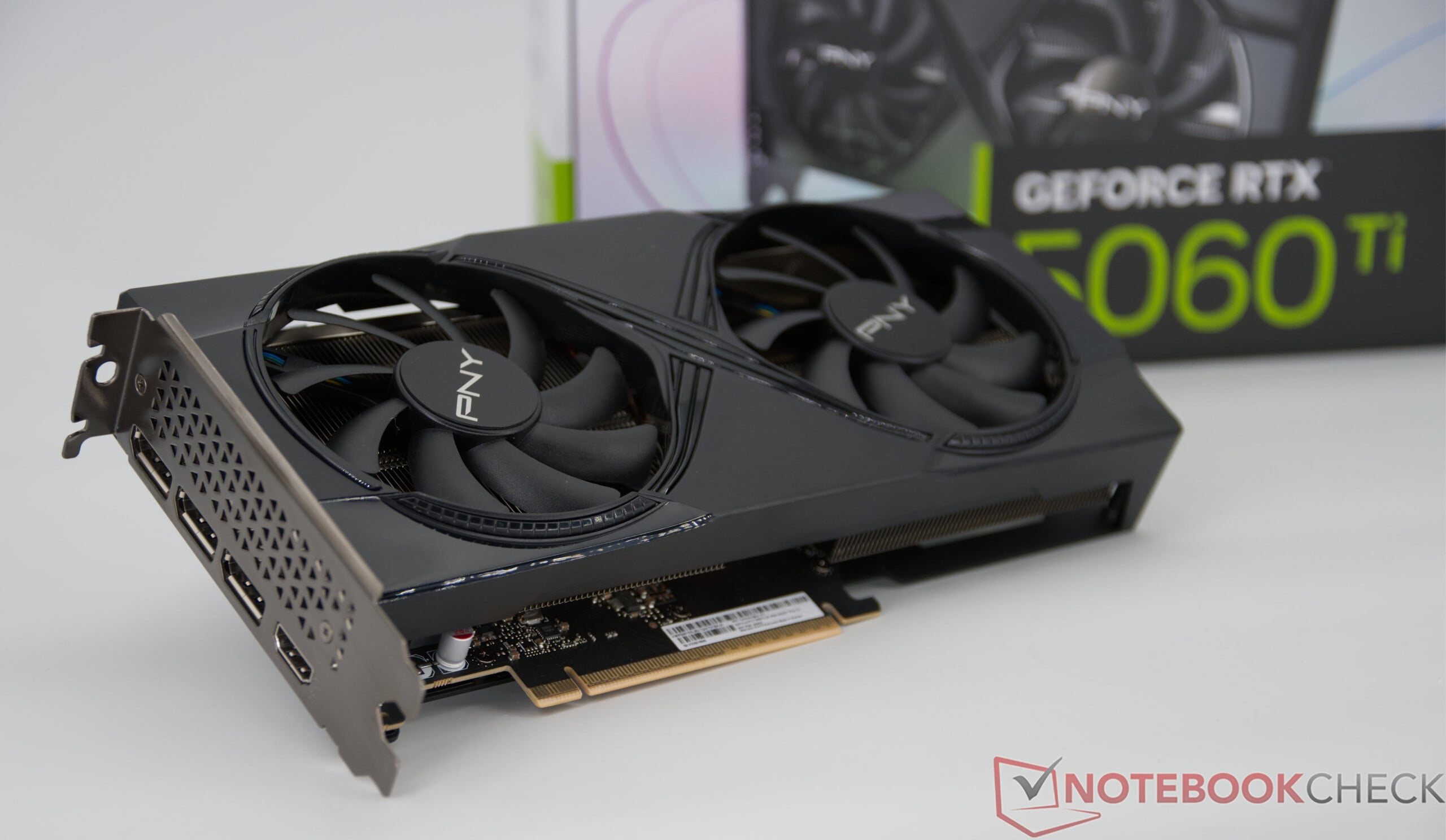

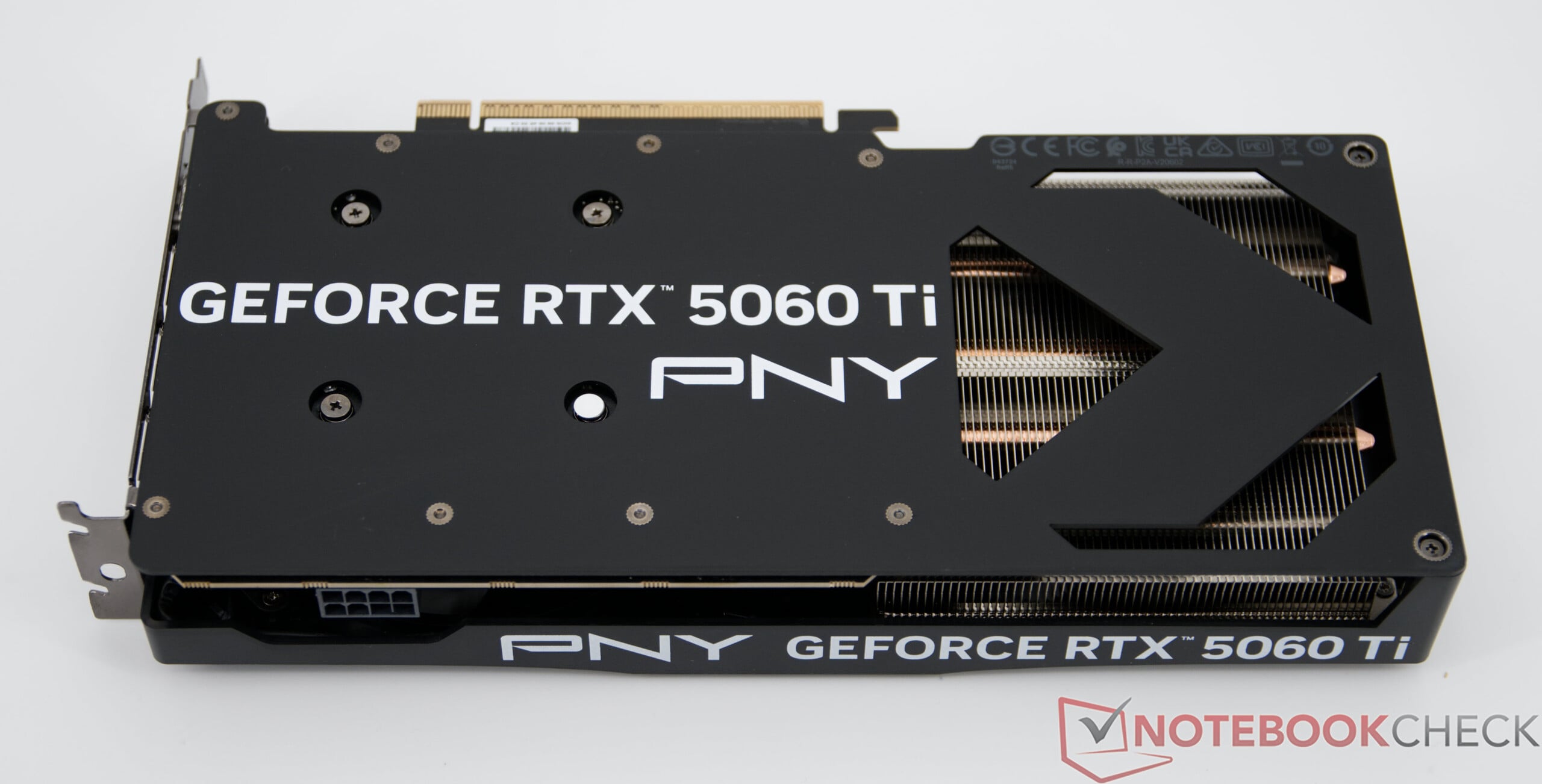

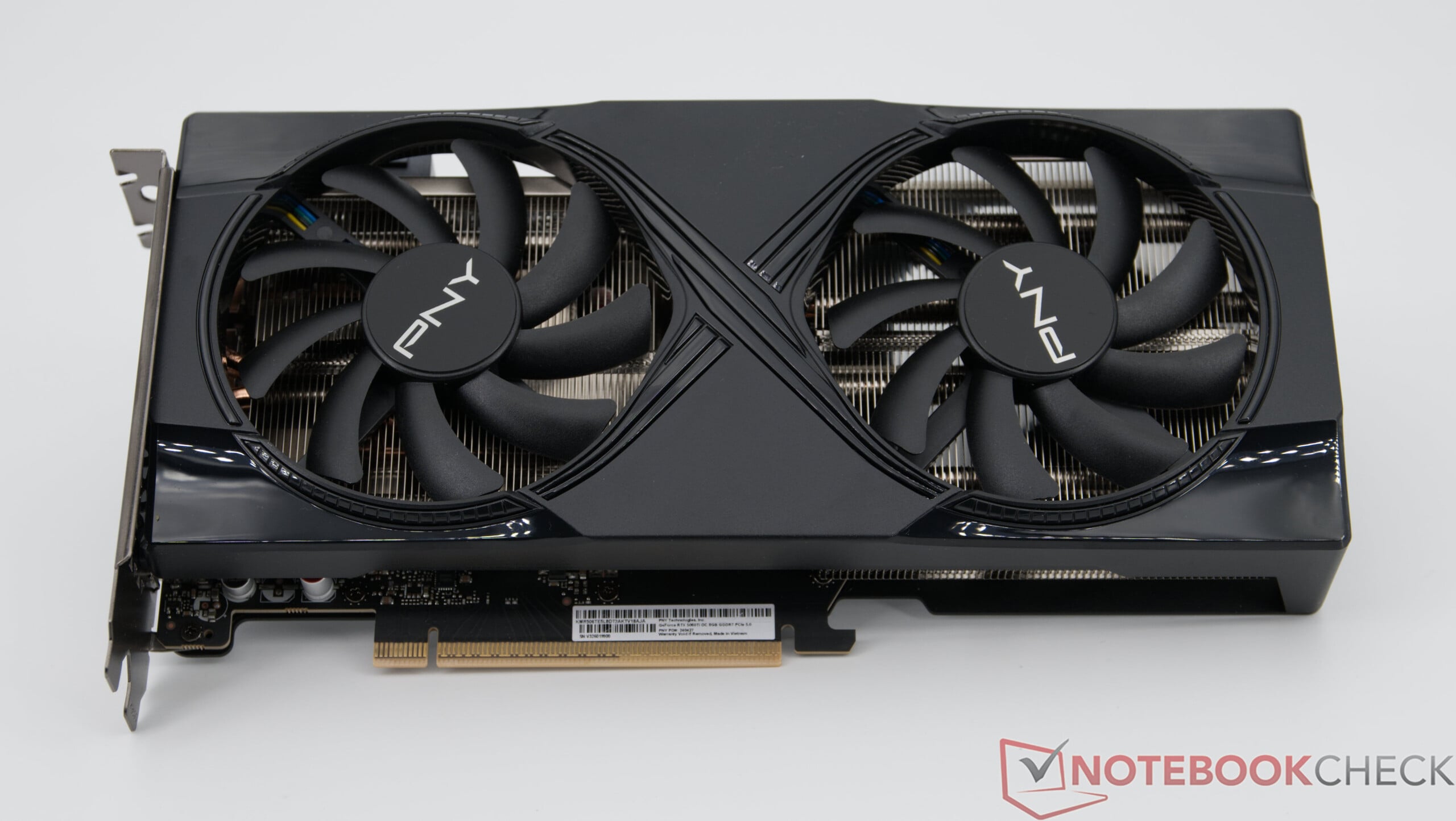

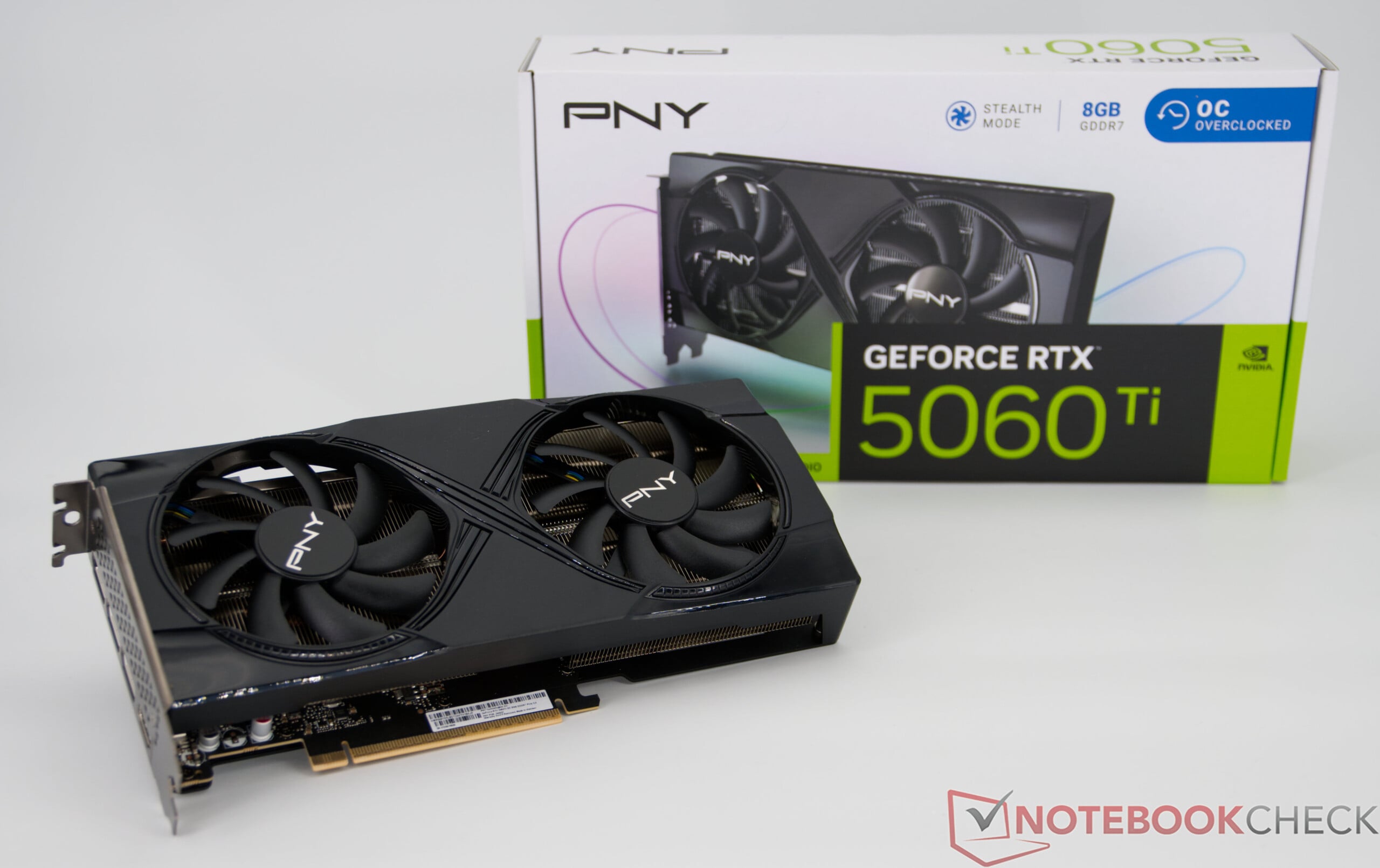

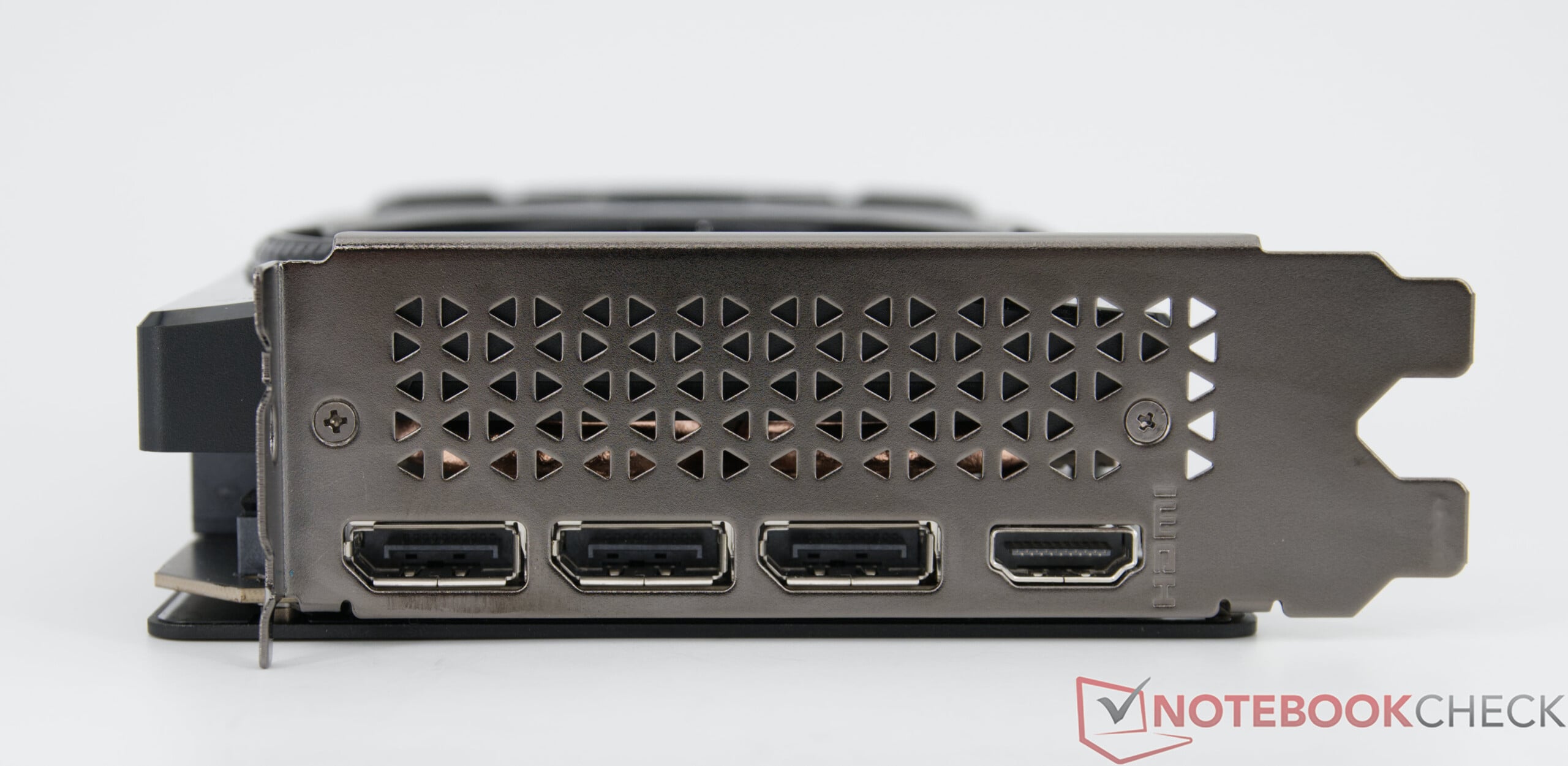

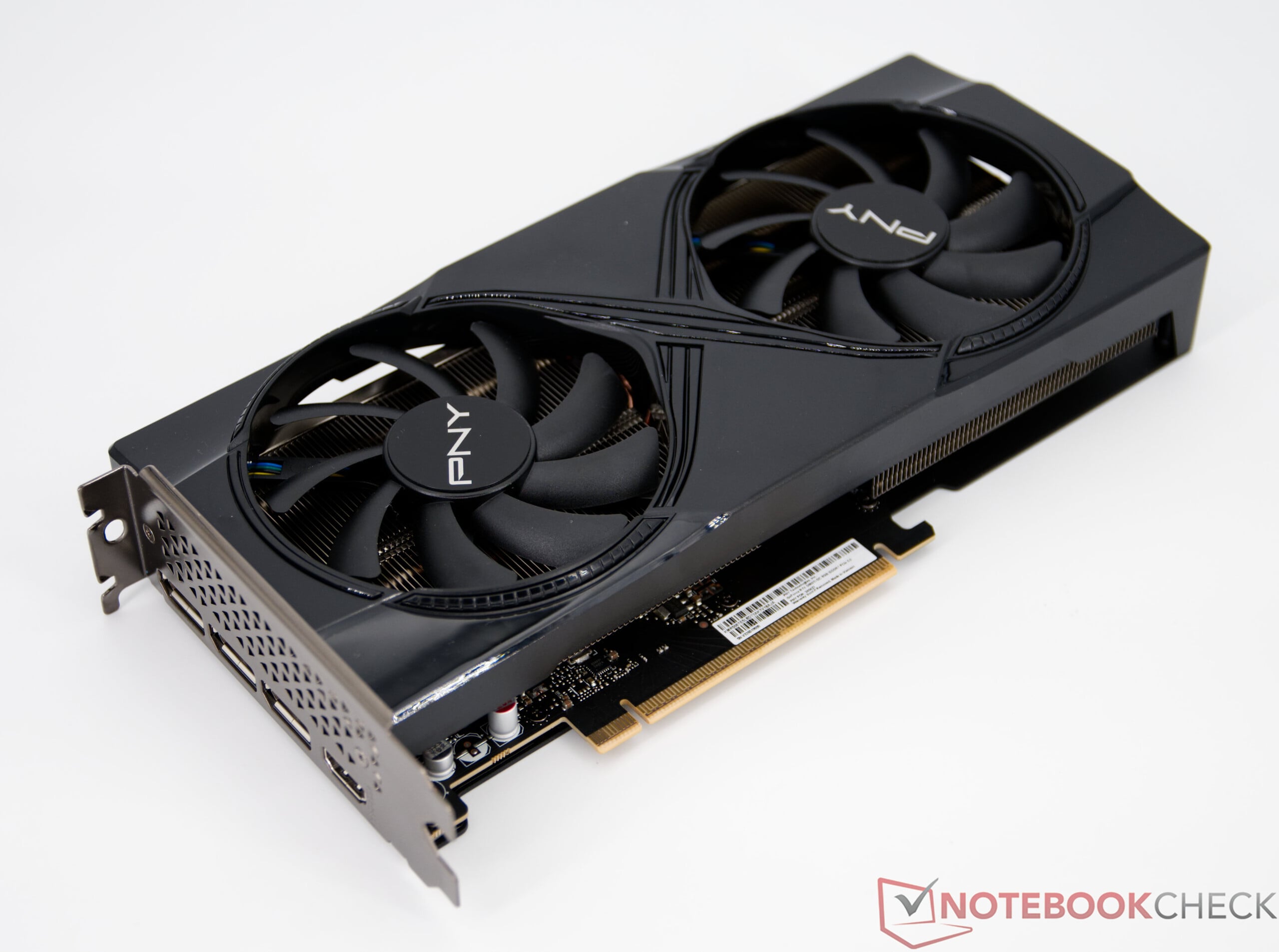

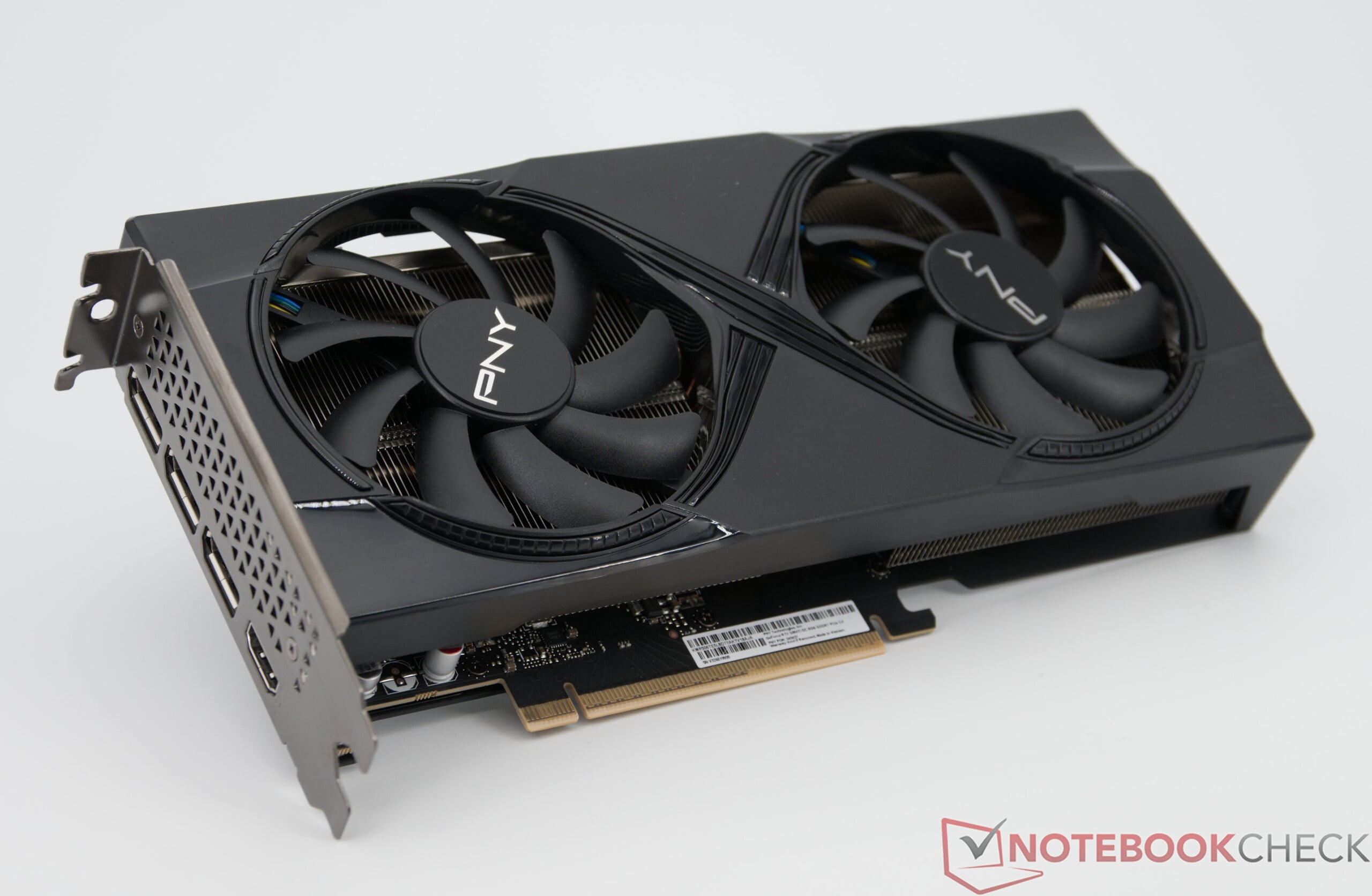

PNYGeForce RTX 5060 Ti OC 给人的第一印象便是品质上乘且设计周到。低调的黑色外观经典耐看，可轻松融入各种电脑配置。这款显卡凭借精湛的工艺、稳定的散热系统以及整体扎实的结构赢得了好评。 得益于相对紧凑的尺寸，它也非常适合空间有限的系统。不过，在布线时需注意板卡正面电源接口的位置。
技术参数对比
| 产品特性 | RTX 5090 (FE) | RTX 5080 (FE) | RTX 5070 Ti | RTX 5060 Ti | RTX 4060 Ti | RTX 3060 Ti |
| 芯片 | GB202 | GB203 | GB203 | GB206 | AD106 | GA104 |
| FinFET工艺 | 4 nm | 4 nm | 4 nm | 4nm | 5 nm | 8 nm |
| CUDA 核心 | 21,760 | 10,752 | 8,960 | 4,608 | 4,352 | 4,864 |
| 纹理单元 | 680 | 336 | 280 | 144 | 136 | 152 |
| 张量核心 | 680 第五代 | 336 第五代 | 280 第五代 | 144 第五代 | 136 第四代 | 152 第三代 |
| 光线追踪核心 | 170 | 84 | 70 | 36 | 34 | 38 |
| GPU 基础频率 | 2.010 MHz | 2.295 MHz | 2.295 MHz | 2.407 MHz | 2.310 MHz | 1.410 MHz |
| GPU Boost 时钟 | 2.407 MHz | 2.617 MHz | 2.452 MHz | 2.692 MHz | 2.535 MHz | 1.665 MHz |
| 内存总线 | 512 位 | 256 位 | 256 位 | 128 位 | 128 位 | 256 位 |
| 内存带宽 | 1,792 GB/s | 960 GB/s | 896 GB/s | 448 GB/s | 228 GB/s | 448 GB/s |
| 显存 | 32 GB GDDR7 | 16 GB GDDR7 | 16 GB GDDR7 | 8/ 16 GB GDDR7 | 8 / 16 GB GDDR6 | 8 GB GDDR6 |
| TGP（总显卡功耗） | 575 W | 360 W | 300 W | 180 W | 160 / 165 W | 200 W |
测试条件
在本次测试中，我们使用了一台搭载 AMD锐龙7 9800X3D ，并搭载ASRock X870E Taichi主板。PNYGeForce RTX 5060 Ti OC显卡采用出厂默认设置运行——既未调整显卡的最大功耗，也未更改其时钟频率。
$329.99
ASRock AMD X870E Taichi Ryzen Socket AM5 X870 Dual Channel DDR5 DIMMs 256 GB 8200 EATX Motherboard M.2 LED WiFi 7
$385.00
AMD RYZEN 7 9800X3D 8-Core, 16-Thread Desktop Processor
合成基准测试
在综合基准测试中，PNYGeForce RTX 5060 Ti OC 位列中高端段，其性能与其他 RTX 5060 Ti 型号相当。与配备 16 GB 显存的版本相比，由于显存容量较低，它在显存密集型应用中表现略逊一筹。 虽然AMD更强大的Radeon RX 9070系列显卡同样属于更高价位和性能级别，但PNY这款显卡无法与其抗衡。其最重要的竞争对手是Radeon RX 9060 XT，后者凭借16GB显存可在特定应用场景下展现优势，因此在该市场细分领域中具有极高的整体竞争力。
Performance rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | Affinity Photo 2 | ComputeMark v2.1
| Performance rating - Percent | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| PNY GeForce RTX 5060 Ti 8G | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Intel Arc B580 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| AMD Radeon RX 9070 XT | |
| Palit GeForce RTX 4090 GameRock OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| PNY GeForce RTX 5060 Ti 8G | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Zotac GeForce RTX 5060 AMP | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Intel Arc B580 | |
| MLPerf Client 0.5 - overall generation rate | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Nvidia GeForce RTX 3090 FE | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| PNY GeForce RTX 5060 Ti 8G | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| V-Ray 5 Benchmark | |
| GPU CUDA | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| PNY GeForce RTX 5060 Ti 8G | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| GPU RTX | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| PNY GeForce RTX 5060 Ti 8G | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| V-Ray Benchmark Next 4.10 - GPU | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| PNY GeForce RTX 5060 Ti 8G | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| AMD Radeon RX 9070 XT | |
* ... smaller is better
专业应用
PNYGeForce RTX 5060 Ti OC 主要面向游戏设计，但也适用于半专业应用和创意工作负载。它在 SPECviewperf 2020 测试中表现不俗，足以胜任许多可视化、CAD 以及内容创作任务。 在注重实际应用的SPECworkstation 4.0基准测试中，该显卡同样表现稳健，尽管其性能自然略逊于RTX 50系列中更强大的型号。根据具体应用场景及软件优化情况，AMD显卡在某些特定领域仍可能具备优势。
| PNY GeForce RTX 5060 Ti 8G R7 9800X3D | Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D | ASUS TUF Gaming GeForce RTX 3060 R7 9800X3D | ASUS Dual GeForce RTX 4060 EVO OC R7 9800X3D | KFA2 GeForce RTX 4070 EX Gamer R7 9800X3D | KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D | Asus TUF Gaming GeForce RTX 5080 OC R7 9800X3D | Nvidia GeForce RTX 5090 Founders Edition R7 9800X3D | Gigabyte Radeon RX 9060 XT Gaming OC 16G R7 9800X3D | AMD Radeon RX 9070 R7 9800X3D | AMD Radeon RX 9070 XT R7 9800X3D | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 11% | -28% | -14% | 22% | 59% | 106% | 197% | 115% | 224% | 271% | |
| 3840x2160 Medical (medical-03) (fps) | 18.1 | 17.9 -1% | 9.89 -45% | 12.3 -32% | 20.7 14% | 29.7 64% | 34.8 92% | 51.2 183% | 88.3 388% | 131 624% | 156 762% |
| 3840x2160 Maya (maya-06) (fps) | 280 | 171 | 198 | 313 | 479 | 565 | 697 | 204 | 377 | 405 | |
| 3840x2160 Energy (energy-03) (fps) | 37.5 | 54.1 44% | 37.3 -1% | 52.2 39% | 57.3 53% | 61.9 65% | 115 207% | 196 423% | 71.6 91% | 109 191% | 136 263% |
| 3840x2160 Creo (creo-03) (fps) | 103 | 101 -2% | 75.5 -27% | 85.2 -17% | 111 8% | 124 20% | 130 26% | 136 32% | 130 26% | 195 89% | 205 99% |
| 3840x2160 CATIA (catia-06) (fps) | 46 | 45.1 -2% | 29.6 -36% | 33.9 -26% | 49.2 7% | 72.2 57% | 82.5 79% | 109 137% | 82.9 80% | 129 180% | 133 189% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 95.4 | 110 15% | 64.8 -32% | 64 -33% | 123 29% | 182 91% | 217 127% | 297 211% | 84.4 -12% | 128 34% | 134 40% |
| SPECworkstation 4.0 | -0% | -23% | -18% | 5% | 21% | 28% | 45% | 24% | 46% | 57% | |
| Graphics Score (Points) | 5.52 | 5.6 1% | 3.25 -41% | 3.93 -29% | 6.08 10% | 8.03 45% | 9.16 66% | 11.2 103% | 8.26 50% | 11.8 114% | 12.8 132% |
| AI & Machine Learning Score (Points) | 1.22 | 1.21 -1% | 1.18 -3% | 1.17 -4% | 1.22 0% | 1.22 0% | 1.21 -1% | 1.18 -3% | 1.37 12% | 1.16 -5% | 1.19 -2% |
| Viewport Graphics (Points) | 5.52 | 5.6 1% | 3.25 -41% | 3.93 -29% | 6.08 10% | 8.03 45% | 9.16 66% | 11.2 103% | 8.26 50% | 11.8 114% | 12.8 132% |
| HandBrake (Points) | 1.81 | 1.82 1% | 1.71 -6% | 1.81 0% | 1.81 0% | 1.8 -1% | 1.84 2% | 1.85 2% | 2.05 13% | 2.05 13% | 2.06 14% |
| ONNX Inference (Points) | 3.91 | 3.77 -4% | 2.89 -26% | 2.88 -26% | 4.04 3% | 4.55 16% | 4.13 6% | 4.65 19% | 3.67 -6% | 3.74 -4% | 4.2 7% |
| Total Average (Program / Settings) | 6% /
5% | -26% /
-26% | -16% /
-16% | 14% /
13% | 40% /
40% | 67% /
67% | 121% /
121% | 70% /
69% | 135% /
135% | 164% /
164% |
Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance rating | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| PNY GeForce RTX 5060 Ti 8G | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / Graphics Score | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| PNY GeForce RTX 5060 Ti 8G | |
| Zotac GeForce RTX 5060 AMP | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / Accelerator Score | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| PNY GeForce RTX 5060 Ti 8G | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Zotac GeForce RTX 5060 AMP | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / Viewport Graphics | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| PNY GeForce RTX 5060 Ti 8G | |
| Zotac GeForce RTX 5060 AMP | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| SPECworkstation 4.0 / HandBrake | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Zotac GeForce RTX 5060 AMP | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| PNY GeForce RTX 5060 Ti 8G | |
| NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| SPECworkstation 4.0 / ONNX Inference | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| PNY GeForce RTX 5060 Ti 8G | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Nvidia GeForce RTX 3090 FE | |
| Zotac GeForce RTX 5060 AMP | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
游戏性能
PNYGeForce RTX 5060 Ti OC 显卡性能充足，足以在全高清（Full HD）及部分 WQHD 分辨率下流畅运行游戏，在当前主流游戏中通常可支持高至最高画质设置。然而，受限于显存容量，该显卡在高分辨率环境下或面对显存需求极高的游戏设置时，会达到性能极限。 若可用显存被完全占用，可能会出现明显的帧率骤降、加载卡顿，甚至在最坏情况下导致游戏崩溃。当显存不足时，还会导致纹理加载异常。
因此，该显卡仅在有限范围内适合UHD或4K游戏。虽然其纯粹的计算能力通常足以应对许多游戏，但在高负载场景下，可用显存的不足将日益凸显。尽管DLSS和帧生成等技术能显著提升性能并增强游戏体验，但它们无法弥补显存不足的问题。 因此，经常在4K分辨率下游戏或使用高分辨率贴图包的用户，应考虑选择显存容量更大的显卡。在此， 华硕TUF GamingGeForce RTX 5060 Ti OC 凭借其16GB显存，始终能提供更出色的性能表现。
Performance rating | The Witcher 3 | Hogwarts Legacy | Baldur's Gate 3 | Cyberpunk 2077 | Alan Wake 2 | F1 24 | Black Myth: Wukong | Star Wars Outlaws | Call of Duty Black Ops 6 | Stalker 2 | Indiana Jones and the Great Circle
| Performance rating - Percent | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| PNY GeForce RTX 5060 Ti 8G | |
| Zotac GeForce RTX 5060 AMP -1! | |
| ASUS Dual GeForce RTX 4060 EVO OC -1! | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| The Witcher 3 | |
| 3840x2160 Ultra Graphics & Postprocessing (HBAO+) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| PNY GeForce RTX 5060 Ti 8G | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| 2560x1440 Ultra Graphics & Postprocessing (HBAO+) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| PNY GeForce RTX 5060 Ti 8G | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| PNY GeForce RTX 5060 Ti 8G | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Stalker 2 - 1920x1080 Epic Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| PNY GeForce RTX 5060 Ti 8G | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Indiana Jones and the Great Circle - 1920x1080 Very Ultra Preset | |
| Nvidia GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| PNY GeForce RTX 5060 Ti 8G | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
测试游戏的概述
| low | med. | high | ultra | QHD DLSS | QHD | 4K DLSS | 4K | |
|---|---|---|---|---|---|---|---|---|
| Forza Horizon 6 (2026) | 256 | 152 | 81 | 38 | 32 | 25 | 17 | 13 |
| 007 First Light (2026) | 102.4 | 98.5 | 87.6 | 83.4 | 69.2 | 45.8 | 3.14 |
排放
噪声排放
在空闲状态下，得益于其“零转速”模式，PNYGeForce RTX 5060 Ti OC 显卡运行非常安静，因为在低温环境下风扇会完全静止。在满载运行时，风扇会平稳地开始工作，并确保显卡得到可靠的散热。 即使在持续满载运行时显卡会发出声响，其整体噪音水平仍保持在可接受范围内。 在开放式测试环境中，还能听到轻微的线圈嗡鸣声，不过这很大程度上取决于具体型号、电源供应器以及负载情况。在负载阶段结束后，风扇会短暂运行后再次停止，这意味着显卡在桌面模式下运行时完全静音。
Noise level
| Idle |
| 27 / 27 / 27.1 dB(A) |
| Load |
| 32.7 / 42.3 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A) | ||
温度
在测试中，PNYGeForce RTX 5060 Ti OC 的散热系统表现令人信服，确保了可靠的散热效果。双风扇散热器配合大型散热器，即使在持续满载的情况下，也能将温度维持在安全范围内。 尽管相比更大的三风扇型号，其设计更为紧凑，但散热效果依然高效，确保了显卡的稳定运行。在整个测试过程中，GPU和显存温度均保持在安全范围内，因此在正常使用时不会出现因温度过高导致的性能受限。
帧率图表 - 《赛博朋克2077》1920×1080分辨率，超高清预设（FSR关闭），30分钟实测
PNY GeForce RTX 5060 Ti 8G R7 9800X3D, GeForce RTX 5060 Ti: Ø119.6 (115.3-120.6) fps
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D, GeForce RTX 5070 Ti: Ø182.9 (173.7-184.8) fps
NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D, GeForce RTX 5060 Ti: Ø117.5 (113.6-119) fps
能源管理
PNYGeForce RTX 5060 Ti OC 凭借其相对较低的功耗给人留下深刻印象，定位为一款高效的中端显卡。在测试中，无论是在空闲模式还是满载状态下，其功耗均处于适中水平，这使得该显卡对于功耗预算有限的系统而言颇具吸引力。 与RTX 50系列中性能更强的型号相比，该显卡在无需牺牲现代游戏功能的前提下，功耗显著降低。
该显卡通过单根 8 针 PCIe 供电接口供电，确保与现有电源的兼容性，并省去了适配器解决方案的麻烦。为确保稳定运行，建议选用具有充足功率储备的电源，600 瓦级别的机型完全能够满足需求。
Power Consumption: 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | 1920x1080 The Witcher 3 ultra (external Monitor) | Cyberpunk 2077 FHD ultra no FSR (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| PNY GeForce RTX 5060 Ti 8G, AMD Ryzen 7 9800X3D | |
| ASUS TUF Gaming GeForce RTX 3060, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| ASUS TUF Gaming GeForce RTX 3060, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / Cyberpunk 2077 FHD ultra no FSR (external Monitor) | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| PNY GeForce RTX 5060 Ti 8G, AMD Ryzen 7 9800X3D | |
| ASUS TUF Gaming GeForce RTX 3060, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
| Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
| PNY GeForce RTX 5060 Ti 8G, AMD Ryzen 7 9800X3D | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
| KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
| AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
| Zotac GeForce RTX 5060 AMP, AMD Ryzen 7 9800X3D | |
| ASUS Dual GeForce RTX 4060 EVO OC, AMD Ryzen 7 9800X3D | |
| Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
| ASUS TUF Gaming GeForce RTX 3060, AMD Ryzen 7 9800X3D | |
Power Consumption: 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | 1920x1080 The Witcher 3 ultra (external Monitor) | Cyberpunk 2077 FHD ultra no FSR (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
* ... smaller is better
使用外接显示器时的能耗
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston Fury Renegade G5 4TB; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø310 (307-323) Watt
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø725 (721-758) Watt
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø475 (472-479) Watt
NVIDIA GeForce RTX 4090, R7 9800X3D GeForce RTX 4090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø581 (571-623) Watt
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø369 (364-378) Watt
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø486 (483-495) Watt
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø421 (418-431) Watt
NVIDIA GeForce RTX 4070, R7 9800X3D GeForce RTX 4070, R7 9800X3D; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø345 (337-357) Watt
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø283 (280-308) Watt
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø631 (586-669) Watt
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø436 (428-442) Watt
NVIDIA GeForce RTX 4090, R7 9800X3D GeForce RTX 4090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø536 (528-552) Watt
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø385 (383-391) Watt
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø503 (500-511) Watt
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø394 (387-416) Watt
NVIDIA GeForce RTX 4070, R7 9800X3D GeForce RTX 4070, R7 9800X3D; 1920x1080 The Witcher 3 ultra (external Monitor): Ø331 (328-338) Watt
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø264 (261-285) Watt
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston Fury Renegade G5 4TB; Idle 1min (external Monitor): Ø103.3 (94.9-112.9) Watt
NVIDIA GeForce RTX 5090, R7 9800X3D GeForce RTX 5090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø118 (114.2-127.8) Watt
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø106.9 (105.3-110.8) Watt
NVIDIA GeForce RTX 4090, R7 9800X3D GeForce RTX 4090, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø124.2 (121.5-131.3) Watt
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø89.5 (85.9-108.8) Watt
AMD Radeon RX 9070 XT, R7 9800X3D Radeon RX 9070 XT, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø87.4 (85.3-92.2) Watt
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø117.7 (116.5-121.6) Watt
NVIDIA GeForce RTX 4070, R7 9800X3D GeForce RTX 4070, R7 9800X3D; Idle 1min (external Monitor): Ø105.5 (103.2-114.3) Watt
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø95 (83.9-101.8) Watt
Notebookcheck 评分
PNYGeForce RTX 5060 Ti OC 是一款紧凑高效的中端显卡，适用于全高清（Full HD）及部分 WQHD 分辨率的游戏。凭借 Blackwell 架构、DLSS 4 以及多帧生成技术，它具备现代化的功能，但由于显存容量有限，在高分辨率下性能会受到限制。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Add as a preferred source on Google
