结论功能强大的中端 GPU，16 GB VRAM
技嘉 Radeon RX 9060 XT Gaming OC 16G 是一款均衡的中端显卡，其 16GB VRAM 的超大容量尤其令人印象深刻。这一配置可确保未来的游戏乐趣，尤其是在 1440p 分辨率下的更高纹理细节。
RDNA4 架构在性能和能效之间实现了良好的平衡，现代的 FSR 4 升频技术也有助于流畅渲染要求苛刻的游戏。
与 RTX 5060 Ti 等 Nvidia 竞争对手相比，RX 9060 XT 具有极具吸引力的性价比。该显卡在连接性方面略有限制，因为它最多只能同时操作三台显示器。
总的来说，技嘉 Radeon RX 9060 XT Gaming OC 16G 对于注重性能、面向未来和高效散热的价格敏感型玩家来说是一个极佳的选择。
Pros
+ RDNA4 架构，采用 4 纳米高效制造工艺
+ 16 GB VRAM
+ 在专业 3D 应用中表现出色
+ 传统的 8 针电源接口
+ 风扇停止模式
+ FSR4
+ 性价比高
Cons
- 光线追踪性能低

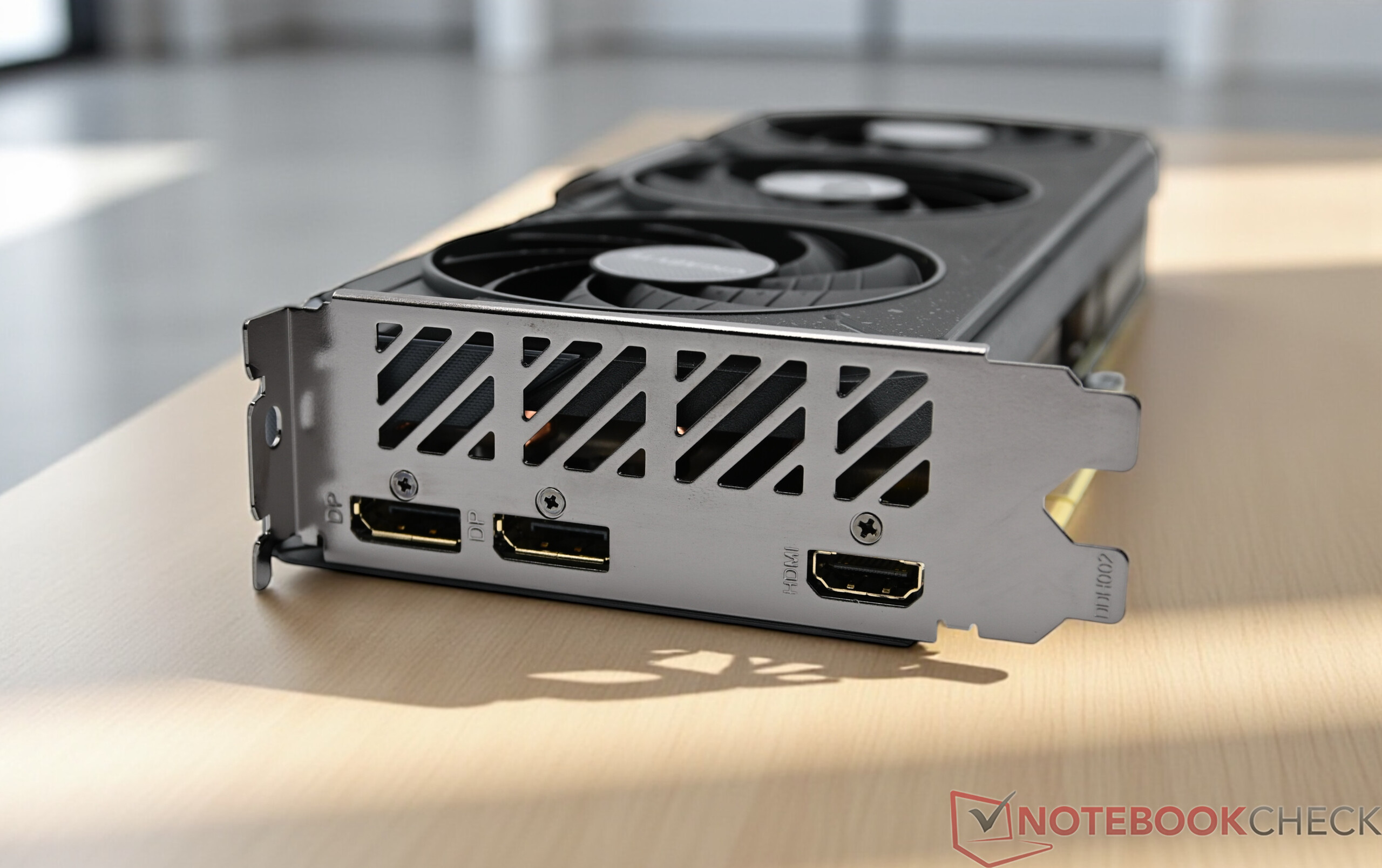

- 只有三个显示器连接
$389.99
GIGABYTE Radeon RX 9060 XT Gaming OC 16G Graphics Card, PCIe 5.0, 16GB GDDR6, GV-R9060XTGAMING OC-16GD Video Card
技嘉是为台式机市场提供 Nvidia 和 AMD 显卡的知名板卡合作伙伴。通过技嘉 Radeon RX 9060 XT Gaming OC 16G，该制造商推出了基于 AMD 当前 RDNA-4 架构的全新 Radeon RX 9060 XT 的工厂超频版。
AMD Radeon RX 9060 XT 还有配备 8 GB VRAM 的版本。鉴于目前 VRAM 容量过低的弊端，应优先购买 16GB 型号。
AMD RDNA4 显卡的进一步测试：
- AMD Radeon RX 9070 XT (技嘉 Radeon RX 9070 XT 游戏 OC 16G)
- AMD Radeon RX 9070 (技嘉 Radeon RX 9070 游戏 OC 16G)
- AMD Radeon RX 9070 (宏碁硝基 Radeon RX 9070 OC)
规格
Gigabyte Radeon RX 9060 XT Gaming OC 16G
Processor
AMD Ryzen 7 9800X3D 8 x 4.7 - 5.2 GHz, 162 W PL2 / Short Burst, 120 W PL1 / Sustained, Granite Ridge
Graphics adapter
AMD Radeon RX 9060 XT 16GB
Mainboard
AMD X870E
Weight
848 g
Price
379 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
技术数据对比
| 规格 | Radeon RX 9070 XT | Radeon RX 9070 | Radeon RX9060XT | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 6950 XT |
| GPU | Navi 48 | Navi 48 | Navi 44 | Navi 31 XTX | Navi 31 XT | Navi 21 XTX |
| 制造工艺 | 4 纳米 | 4纳米 | 4 纳米 | 5/6 纳米 | 5/6 纳米 | 7 纳米 |
| 计算单元 | 64 | 56 | 32 | 96 | 84 | 80 |
| 着色单元 | 4,096 | 3,584 | 2,048 | 6,144 | 5,376 | 5,120 |
| 纹理映射单元 | 256 | 224 | 128 | 384 | 336 | 320 |
| 光线加速器 | 64 | 56 | 32 | 96 | 84 | 80 |
| AI 加速器 | 128 | 112 | 64 | 192 | 168 | - |
| 基本时钟 | 1,660 MHz | 1,330 MHz | 1,700MHz | 2,270 MHz | 2,000 MHz | 1,925 MHz |
| 游戏时钟 | 2,400 MHz | 2,070 MHz | 2,530MHz | 2,300 MHz | 2,000 MHz | 2,116 MHz |
| 提升时钟 | 2,970 MHz | 2,540 MHz | 3,130MHz | 2,500 MHz | 2,400 MHz | 2,324 MHz |
| 无限缓存 | 64 MB（第三代） | 64 MB（第三代） | 32MB（第三代） | 96 MB | 80 MB | 128 MB |
| 内存总线宽度 | 256 位 | 256 位 | 128位 | 384 位 | 320 位 | 256 位 |
| 内存带宽 | 640 GB/s | 640 GB/s | 320 GB/s | 960 GB/s | 800 GB/s | 576 GB/s |
| 内存大小 | 16 GB GDDR6 | 16 GB GDDR6 | 8/ 16 GBGDDR6 | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 |
| TBP | 304 W | 220 W | 150 W / 160W | 355 W | 315 W | 335 W |
制造质量和第一印象

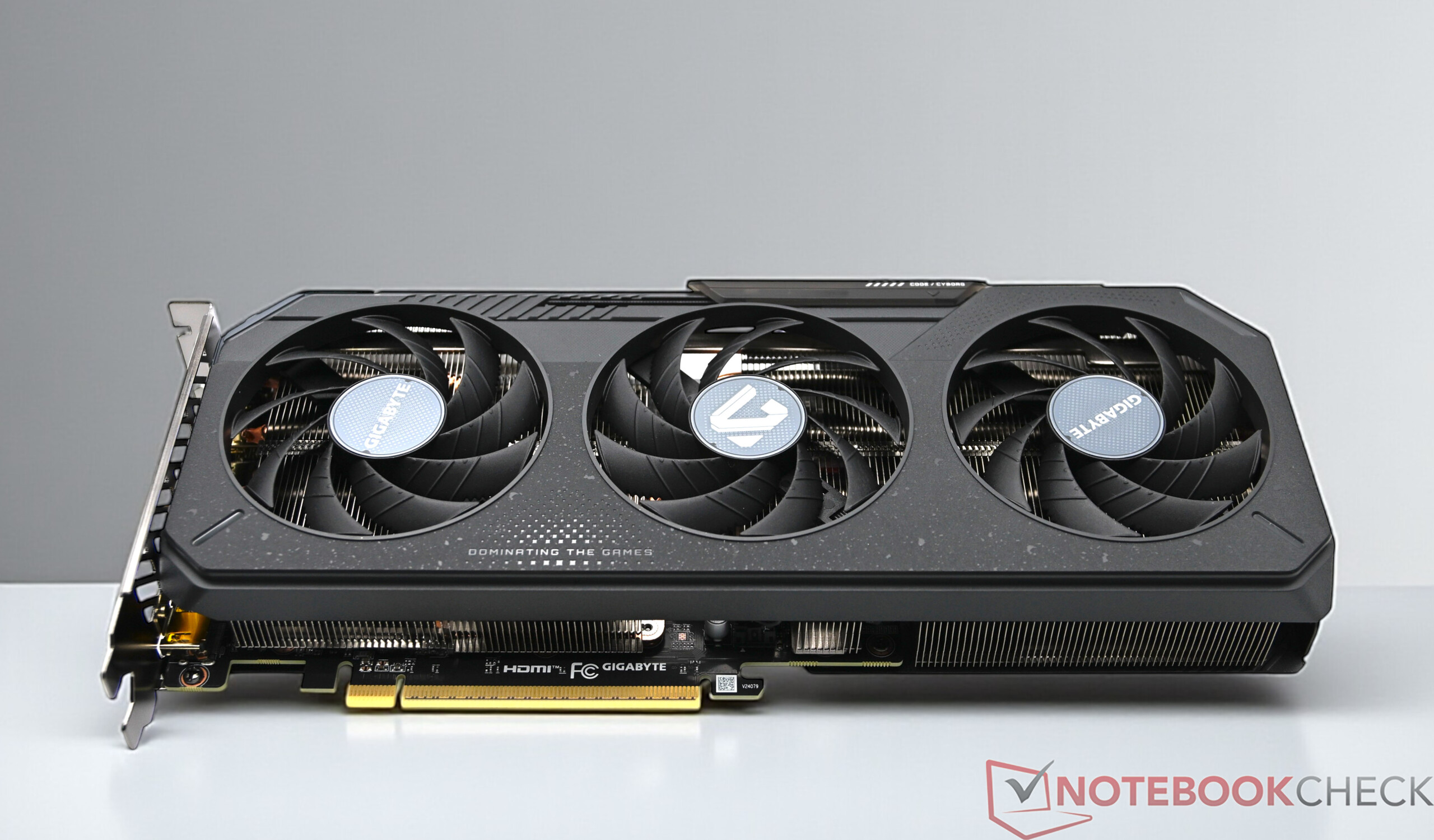

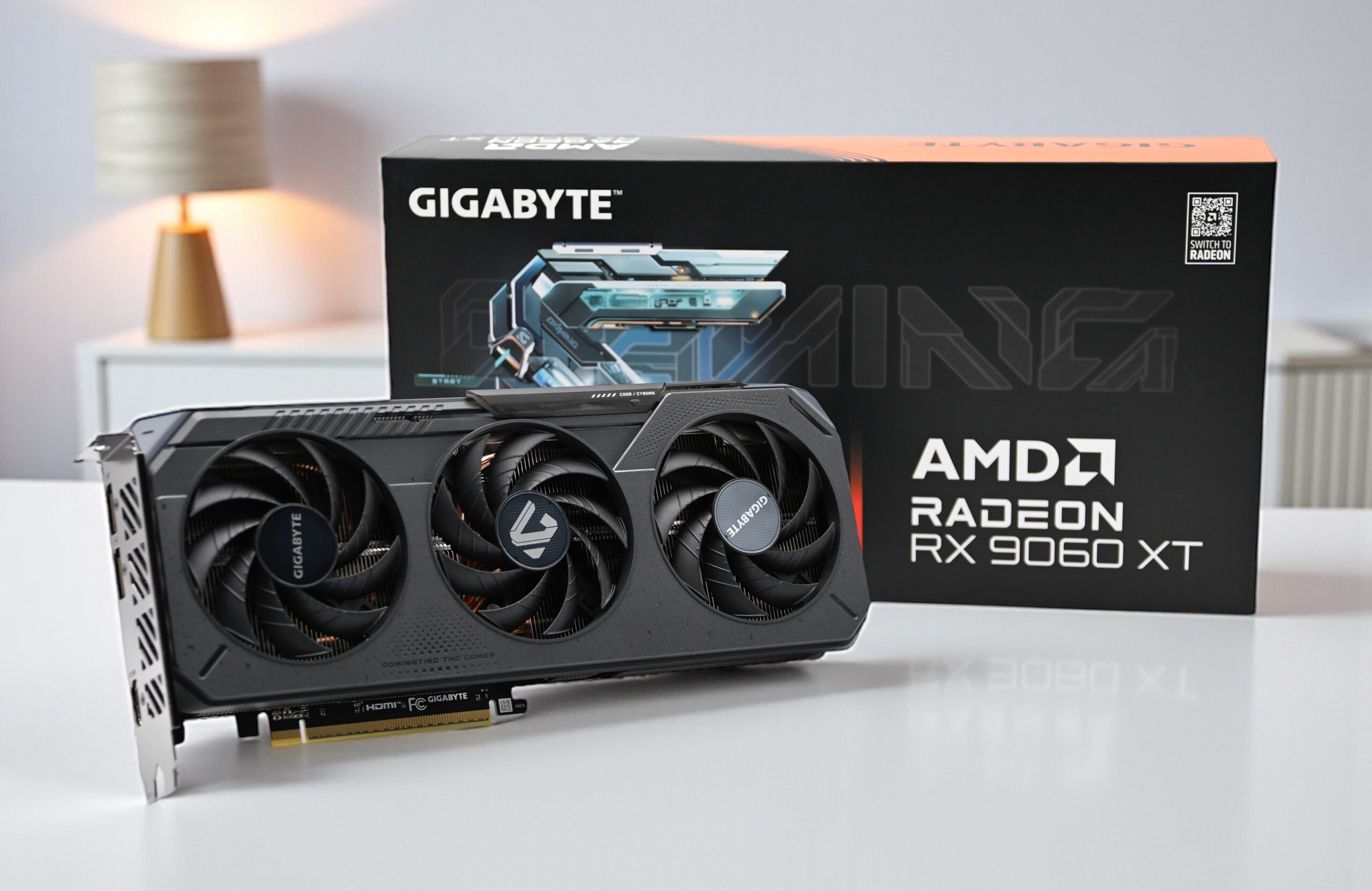

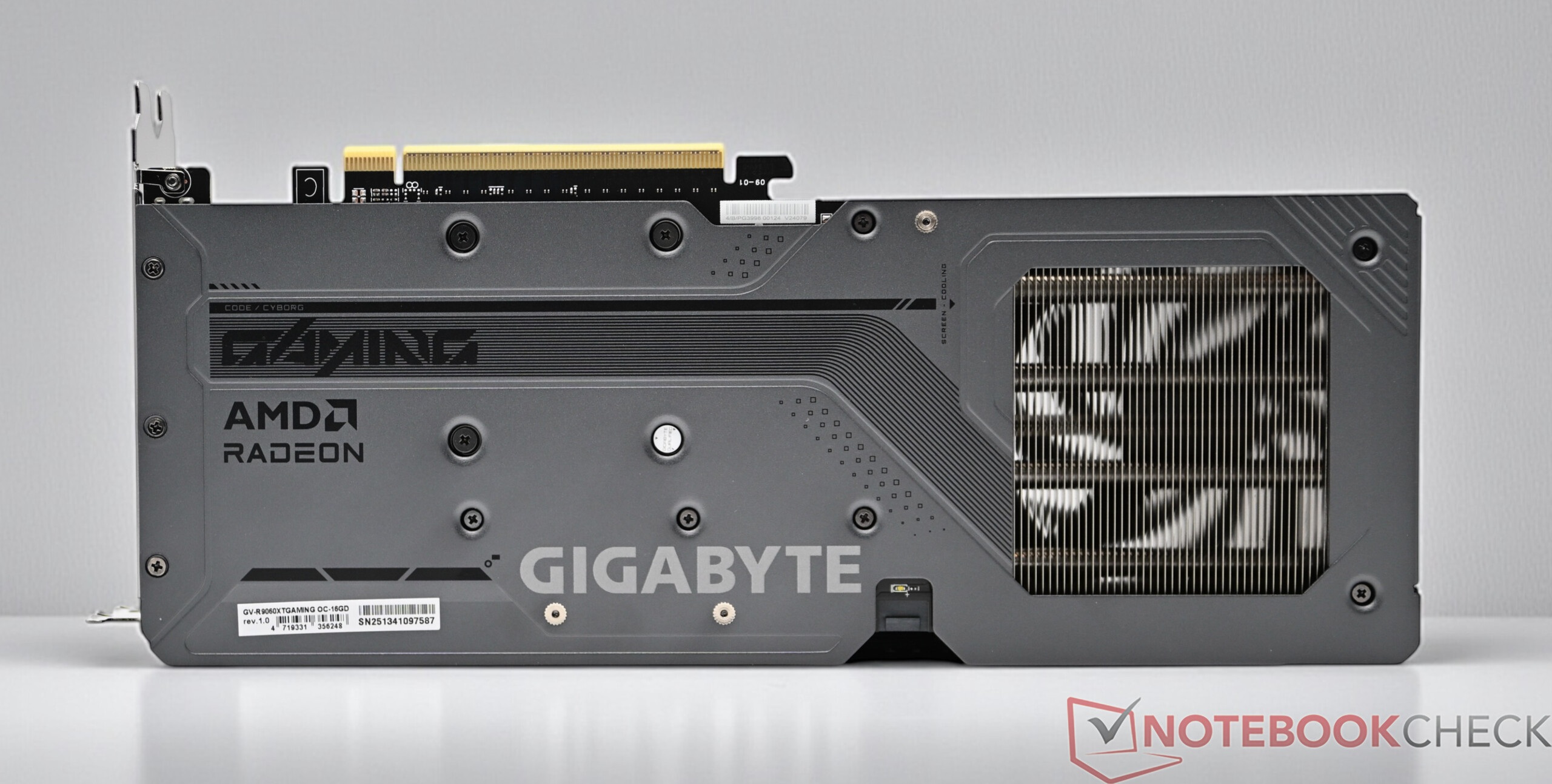

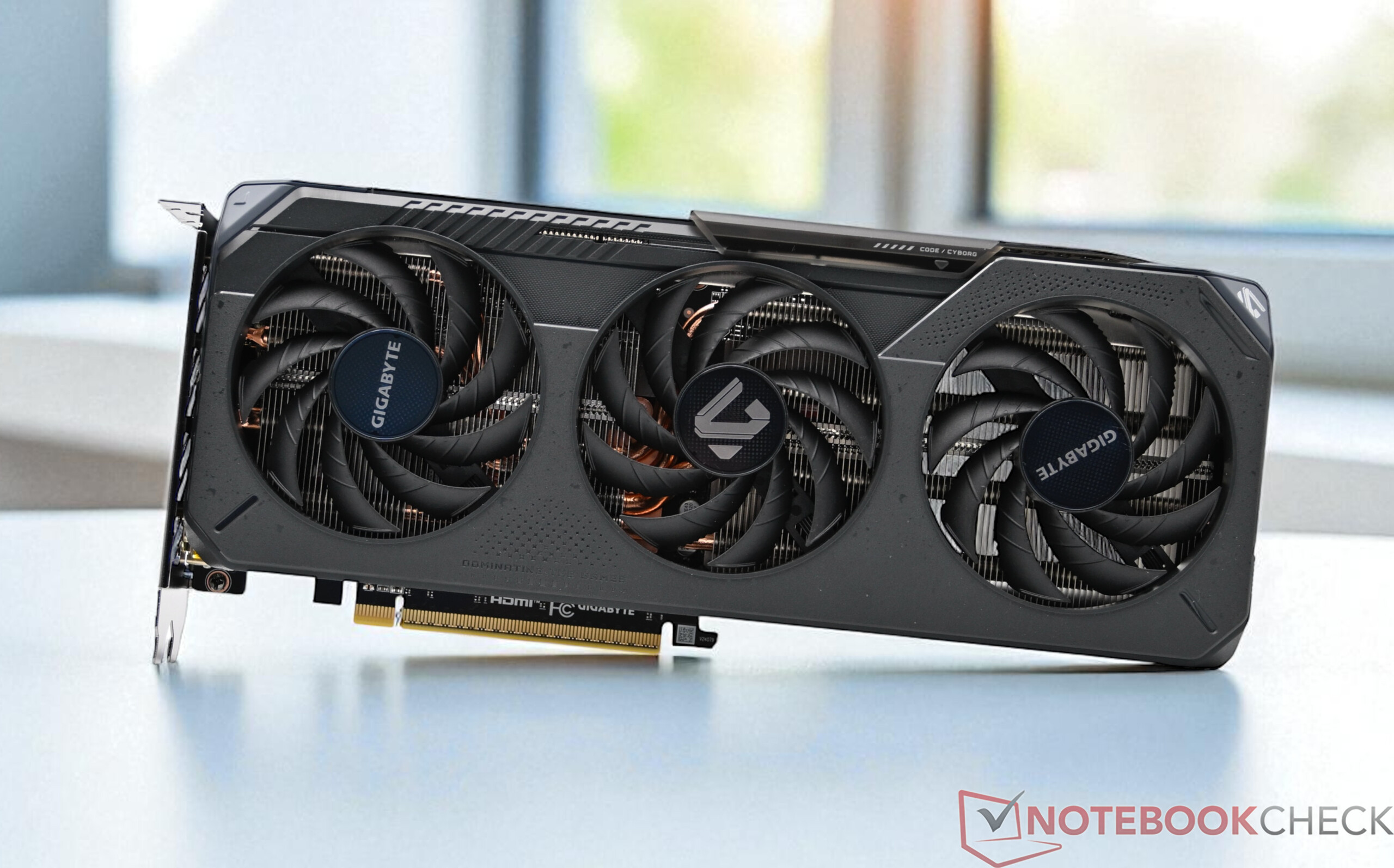

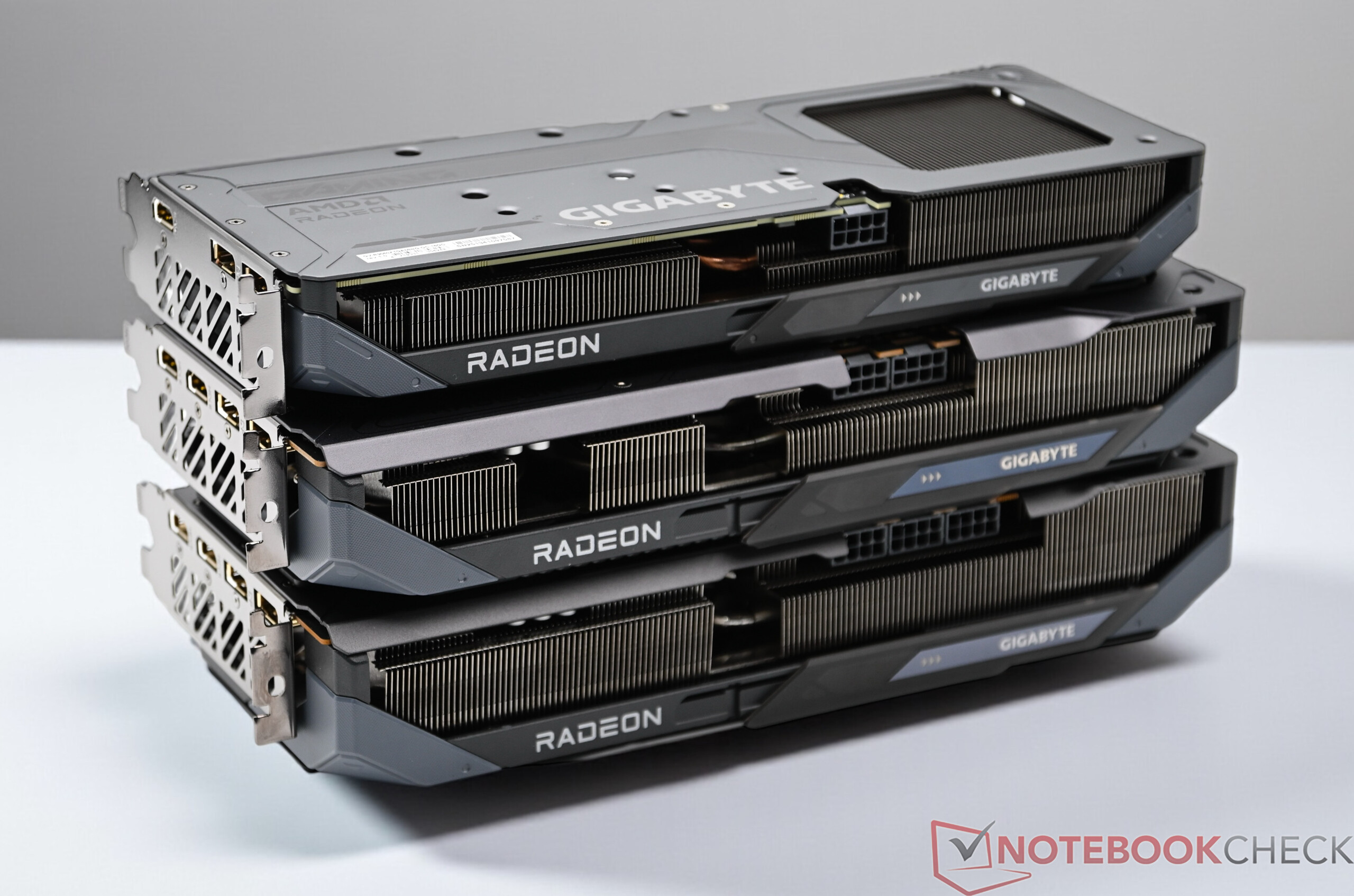

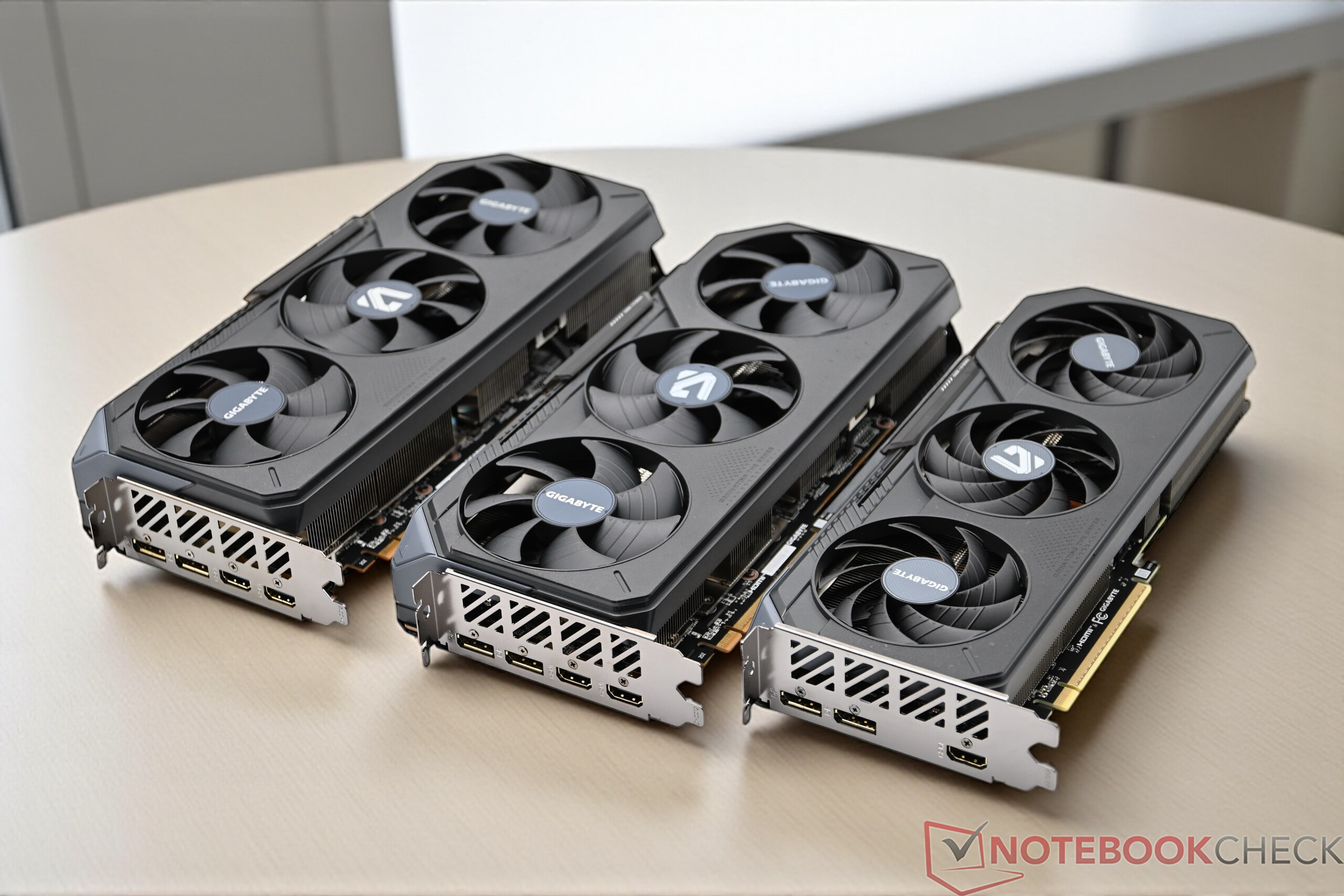

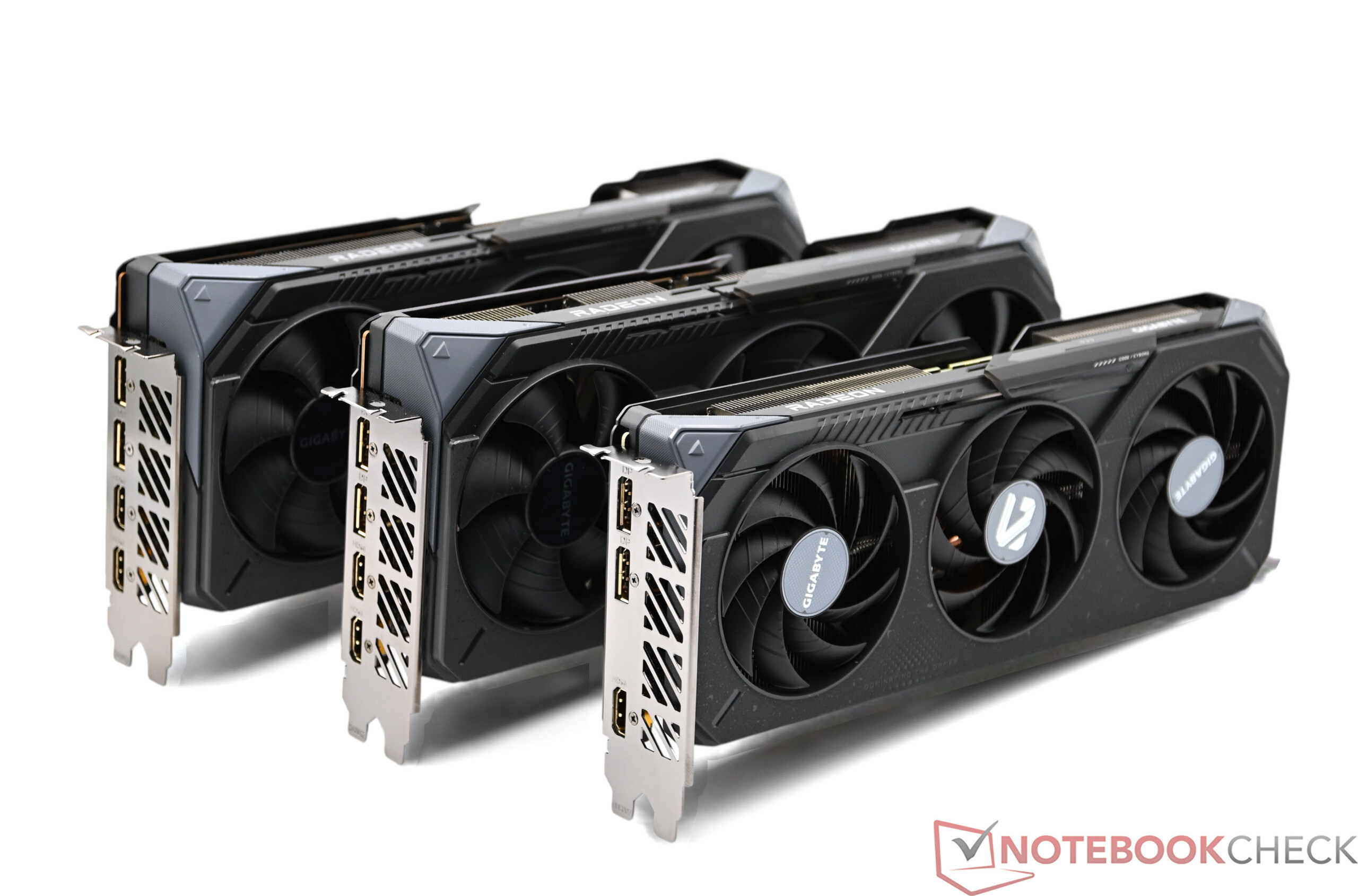

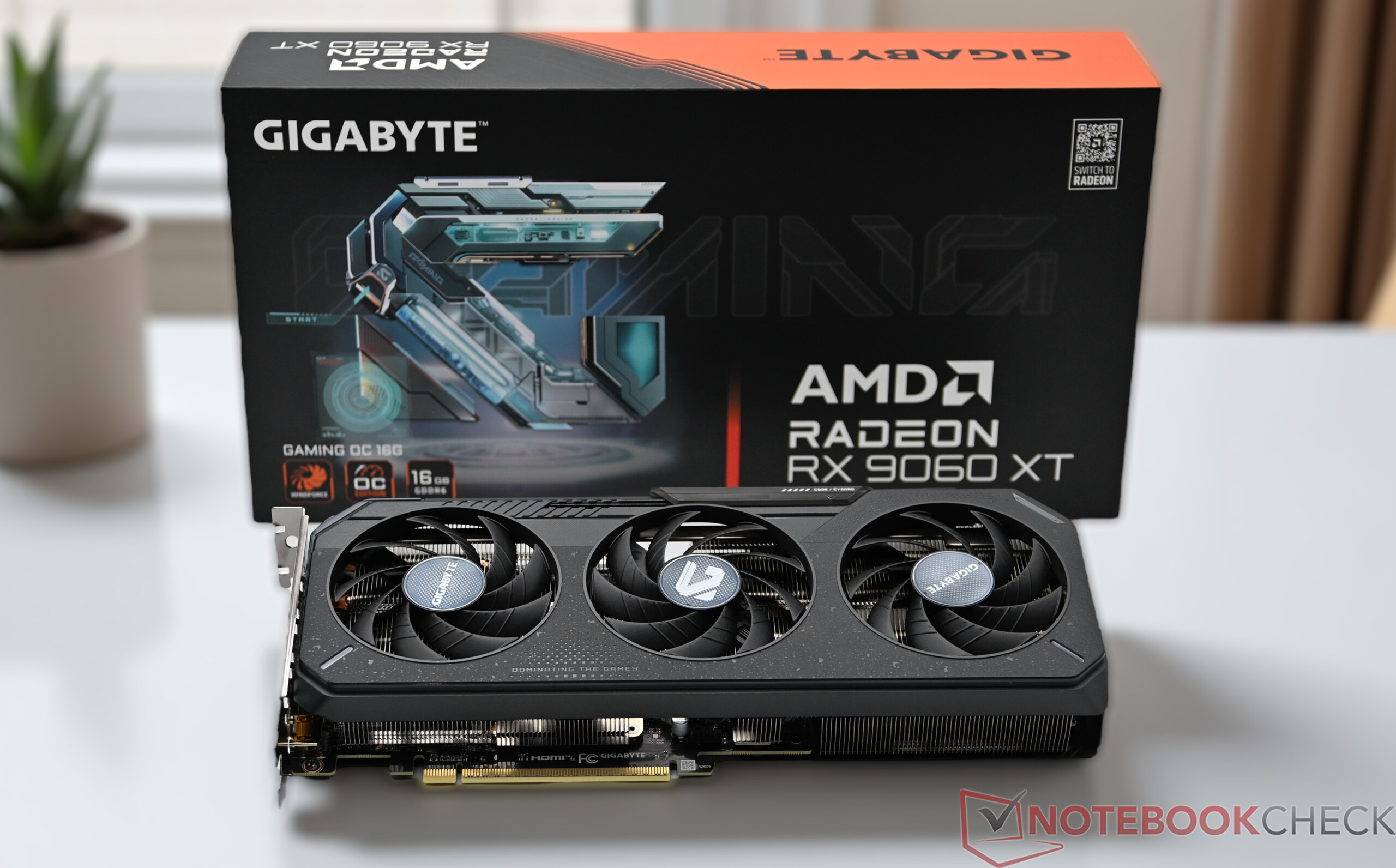

技嘉 Radeon RX 9060 XT Gaming OC 16G 给人留下了高品质的第一印象。它的设计在视觉上与技嘉当前的产品阵容相吻合。从外观上看，它与我们的板载合作伙伴技嘉已经测试过的功能更强大的型号（RX 9070、RX 9070 XT）相似。
不过，技嘉 Radeon RX 9060 XT Gaming OC 16G 与这两款速度更快的型号相比，还是有细微差别的，因为技嘉 Radeon RX 9060 XT Gaming OC 16G 明显更经济。这导致散热装置略小，尽管一个 8 针接口就足以满足电源要求。

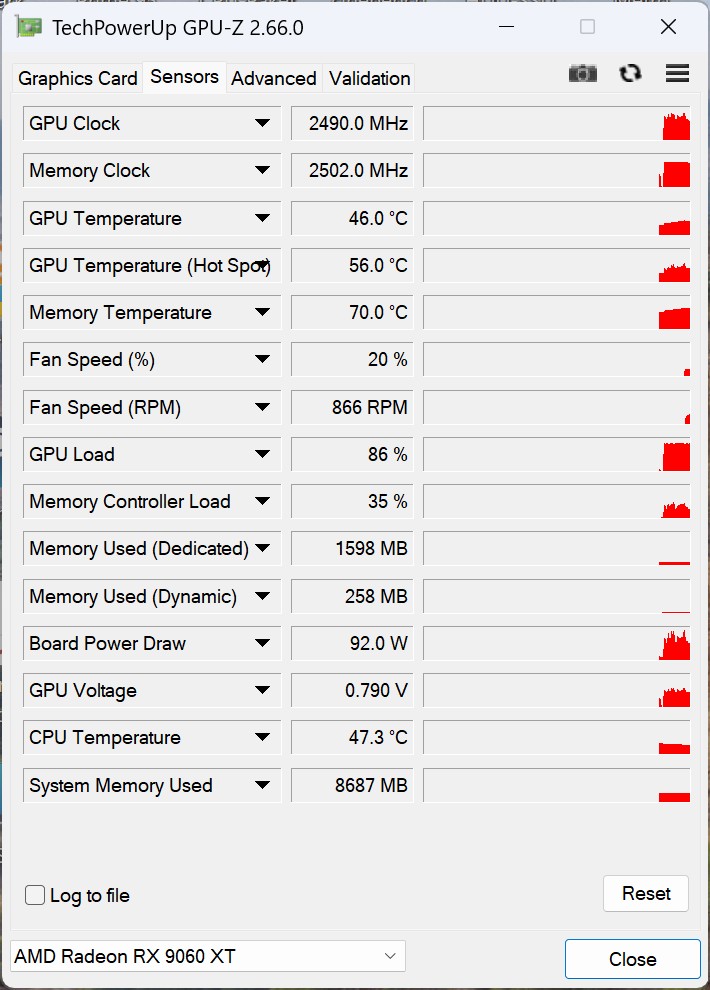

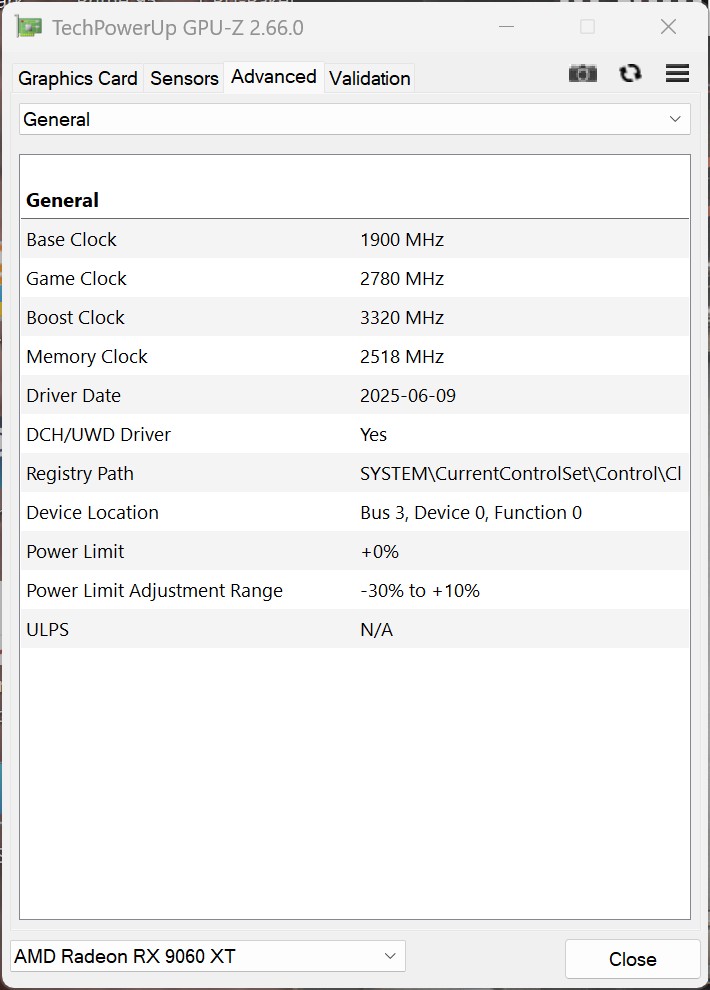

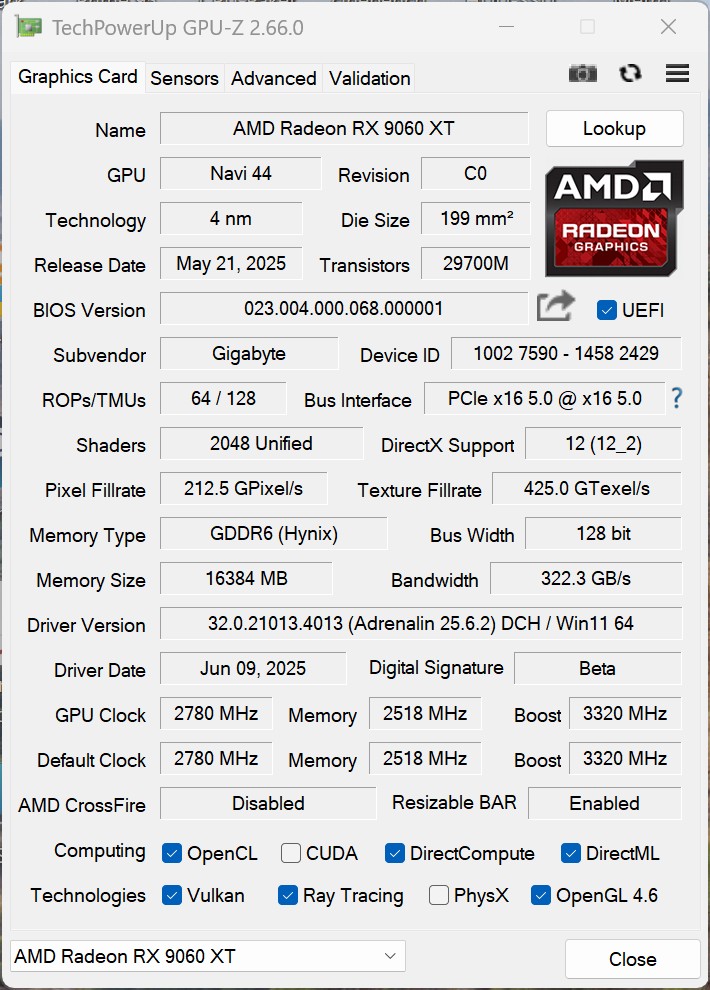

顾名思义，技嘉 Radeon RX 9060 XT Gaming OC 16G 配备了比 AMD 参考型号更高的时钟频率。该显卡可轻松达到 3.3 GHz 以上，与参考型号相比，时钟频率提高了约 200 MHz。
功耗限制也略有提高。在我们的测试中，显卡的功耗为 182 W，这为显卡在负载情况下的稳定运行提供了更大的空间。
合成基准
合成基准测试显示了技嘉 Radeon RX 9060 XT Gaming OC 16G 的性能排名。这些基准测试表明，RX 9060 XT Gaming OC 16G 是一款性能强劲的中端 GPU。
RX 9060 XT Gaming OC 的定位略低于 NvidiaGeForce RTX 5060，但比老款 NvidiaGeForce RTX 4060 平均领先 20%。与 AMD Radeon RX 9070 的差距相对较大。
Performance Rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | Affinity Photo 2 | ComputeMark v2.1 | V-Ray Benchmark Next 4.10 | Photoshop PugetBench | Premiere Pro PugetBench
| Performance Rating - Percent | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Nvidia GeForce RTX 3090 FE | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 6800 | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| AMD Radeon RX 6700 XT | |
| Asus Prime GeForce RTX 5060 OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| 3DMark | |
| 2560x1440 Time Spy Graphics | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| AMD Radeon RX 6800 | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| Asus Prime GeForce RTX 5060 OC | |
| AMD Radeon RX 6700 XT | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Fire Strike Extreme Graphics | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| AMD Radeon RX 6800 | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| Asus Prime GeForce RTX 5060 OC | |
| AMD Radeon RX 6700 XT | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Steel Nomad Score | |
| NVIDIA Zotac GeForce RTX 5090 Solid (Vulkan) | |
| NVIDIA Zotac GeForce RTX 5090 Solid (DX12) | |
| Palit GeForce RTX 4090 GameRock OC (Vulkan) | |
| Palit GeForce RTX 4090 GameRock OC (DX12) | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC (Vulkan) | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC (DX12) | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G (Vulkan) | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G (DX12) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX (Vulkan) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX (DX12) | |
| Zotac GeForce RTX 5070 Ti AMP Extreme (Vulkan) | |
| Zotac GeForce RTX 5070 Ti AMP Extreme (DX12) | |
| Gigabyte Radeon RX 9070 Gaming OC 16G (Vulkan) | |
| Gigabyte Radeon RX 9070 Gaming OC 16G (DX12) | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC (Vulkan) | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC (DX12) | |
| Nvidia GeForce RTX 3090 FE (Vulkan) | |
| Nvidia GeForce RTX 3090 FE (DX12) | |
| MSI Radeon RX 6950 XT Gaming X Trio (Vulkan) | |
| MSI Radeon RX 6950 XT Gaming X Trio (DX12) | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer (Vulkan) | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer (DX12) | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G (Vulkan) | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G (DX12) | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC (Vulkan) | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC (DX12) | |
| MSI GeForce RTX 3070 Ti Suprim X (Vulkan) | |
| MSI GeForce RTX 3070 Ti Suprim X (DX12) | |
| AMD Radeon RX 6800 (Vulkan) | |
| AMD Radeon RX 6800 (DX12) | |
| Asus Prime GeForce RTX 5060 OC (Vulkan) | |
| Asus Prime GeForce RTX 5060 OC (DX12) | |
| AMD Radeon RX 6700 XT (Vulkan) | |
| AMD Radeon RX 6700 XT (DX12) | |
| ASUS Dual GeForce RTX 4060 EVO OC (Vulkan) | |
| ASUS Dual GeForce RTX 4060 EVO OC (DX12) | |
| ASUS TUF Gaming GeForce RTX 3060 (Vulkan) | |
| ASUS TUF Gaming GeForce RTX 3060 (DX12) | |
| 2560x1440 Port Royal Graphics | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| Asus Prime GeForce RTX 5060 OC | |
| AMD Radeon RX 6800 | |
| AMD Radeon RX 6700 XT | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| 2560x1440 Speed Way Score | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| Asus Prime GeForce RTX 5060 OC | |
| AMD Radeon RX 6800 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| AMD Radeon RX 6700 XT | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| AMD Radeon RX 6800 | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| AMD Radeon RX 6700 XT | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| AMD Radeon RX 6800 | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 6700 XT | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Palit GeForce RTX 4090 GameRock OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 6800 | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia GeForce RTX 3090 FE | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| AMD Radeon RX 6700 XT | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| V-Ray Benchmark Next 4.10 - GPU | |
| NVIDIA Zotac GeForce RTX 5090 Solid (v4.10.07 ) | |
| Palit GeForce RTX 4090 GameRock OC (v4.10.07 ) | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC (v4.10.07 ) | |
| Zotac GeForce RTX 5070 Ti AMP Extreme (v4.10.07 ) | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC (v4.10.07 ) | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer (v4.10.07 ) | |
| Nvidia GeForce RTX 3090 FE (v4.10.07 ) | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC (v4.10.07 ) | |
| Asus Prime GeForce RTX 5060 OC (v4.10.07 ) | |
| ASUS Dual GeForce RTX 4060 EVO OC (v4.10.07 ) | |
| MSI GeForce RTX 3070 Ti Suprim X (v4.10.07 ) | |
| ASUS TUF Gaming GeForce RTX 3060 (v4.10.07 ) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX (v4.10.07 ) | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G (v4.10.07 ) | |
| Gigabyte Radeon RX 9070 Gaming OC 16G (v4.10.07 ) | |
| MSI Radeon RX 6950 XT Gaming X Trio (v4.10.07 ) | |
| AMD Radeon RX 6800 (v4.10.07 ) | |
| AMD Radeon RX 6700 XT (v4.10.07 ) | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G (v4.10.07 ) | |
| Photoshop PugetBench - Overall Score 1.01 | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 6800 | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| AMD Radeon RX 6700 XT | |
| Asus Prime GeForce RTX 5060 OC | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| Nvidia GeForce RTX 3090 FE | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Premiere Pro PugetBench - Overall Score 1.1 | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus Prime GeForce RTX 5060 OC | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Nvidia GeForce RTX 3090 FE | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| AMD Radeon RX 6800 | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| ASUS TUF Gaming GeForce RTX 3060 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| AMD Radeon RX 6700 XT | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
专业应用
技嘉 Radeon RX 9060 XT Gaming OC 16G 在专业应用中提供了令人印象深刻的性能，同时也适用于简单的半专业工作负载。与 Nvidia 相比，AMD 在 SPECviewperf 2020 和 SPECworkstation 4.0 中的性能令人印象深刻。
在 SPECviewperf 中，RX 9060 XT Gaming OC 16G 可以轻松与 NvidiaGeForce RTX 5070 竞争，但 Maya 和 3DS Max 等 3D 测试除外，而在 SPECworkstation 的整体测试中，RX 9060 XT Gaming OC 16G 则紧随 RTX 5070 Ti 之后。目前基于 RDNA4 的顶级型号还有很长的路要走，甚至更加强大。
| Gigabyte Radeon RX 9060 XT Gaming OC 16G R7 9800X3D | Gigabyte Radeon RX 9070 Gaming OC 16G R7 9800X3D | Gigabyte Radeon RX 9070 XT Gaming OC 16G R7 9800X3D | XFX Speedster MERC 310 Radeon RX 7900 XTX R7 9800X3D | NVIDIA Zotac GeForce RTX 5090 Solid R7 9800X3D | NVIDIA Asus TUF Gaming GeForce RTX 5080 OC R7 9800X3D | Zotac GeForce RTX 5070 Ti AMP Extreme R7 9800X3D | NVIDIA KFA2 GeForce RTX 5070 1-Click OC R7 9800X3D | NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D | Palit GeForce RTX 4090 GameRock OC R7 9800X3D | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 57% | 74% | 107% | 135% | 56% | 26% | 11% | -18% | 72% | |
| 3840x2160 Medical (medical-03) | 88.3 | 131 48% | 156 77% | 107 21% | 50.7 -43% | 34.8 -61% | 30 -66% | 23.2 -74% | 17.9 -80% | 43.4 -51% |
| 3840x2160 Maya (maya-06) | 204 | 377 85% | 405 99% | 565 177% | 684 235% | 565 177% | 483 137% | 414 103% | 280 37% | 610 199% |
| 3840x2160 Energy (energy-03) | 71.6 | 109 52% | 136 90% | 194 171% | 312 336% | 115 61% | 62.4 -13% | 70.8 -1% | 54.1 -24% | 138 93% |
| 3840x2160 Creo (creo-03) | 130 | 195 50% | 205 58% | 223 72% | 135 4% | 130 0% | 124 -5% | 117 -10% | 101 -22% | 133 2% |
| 3840x2160 CATIA (catia-06) | 82.9 | 129 56% | 133 60% | 149 80% | 110 33% | 82.5 0% | 73.1 -12% | 62.5 -25% | 45.1 -46% | 89.9 8% |
| 3840x2160 3ds Max (3dsmax-07) | 84.4 | 128 52% | 134 59% | 187 122% | 292 246% | 217 157% | 183 117% | 148 75% | 110 30% | 235 178% |
Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance Rating | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| AMD Radeon RX 6700 XT | |
| Asus Prime GeForce RTX 5060 OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| SPECworkstation 4.0 / Graphics Score | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| AMD Radeon RX 6700 XT | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| SPECworkstation 4.0 / Accelerator Score | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Asus Prime GeForce RTX 5060 OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| AMD Radeon RX 6700 XT | |
| SPECworkstation 4.0 / Viewport Graphics | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| AMD Radeon RX 6700 XT | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Asus Prime GeForce RTX 5060 OC | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| SPECworkstation 4.0 / HandBrake | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Asus Prime GeForce RTX 5060 OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| AMD Radeon RX 6700 XT | |
| Nvidia GeForce RTX 3090 FE | |
| MSI GeForce RTX 3070 Ti Suprim X | |
| SPECworkstation 4.0 / ONNX Inference | |
| NVIDIA Zotac GeForce RTX 5090 Solid | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Asus Prime GeForce RTX 5060 OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| Nvidia GeForce RTX 3090 FE | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| AMD Radeon RX 6700 XT | |
| MSI GeForce RTX 3070 Ti Suprim X | |
Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
游戏性能无需升级
首先，让我们看看技嘉 Radeon RX 9060 XT Gaming OC 16G 在未启用 FSR 的情况下的原始图形性能。我们的测试样本提供了令人信服的性能，明显优于之前的合成基准测试。
现在，Radeon RX 9060 XT Gaming OC 16G 与 NvidiaGeForce RTX 5060 Ti 展开对决，后者的性能与 Radeon RX 9060 XT Gaming OC 16G 不相上下。GeForce RTX 5060 的非 Ti 机型与 RX 9060 XT 相差甚远。
在这里需要强调的是，16 GB VRAM 确保了我们在游戏测试中的持续稳定运行。测试中没有出现意外死机、纹理模糊或加载错误的情况。
目前只有 8GB VRAM 的显卡在现代游戏中很快就会达到极限，无法再显示所有细节。在 1080p 分辨率的测试中，某些情况下 VRAM 负载已经远远超过 8GB。
Performance Rating | The Witcher 3 | Hogwarts Legacy | Baldur's Gate 3 | Cyberpunk 2077 2.2 Phantom Liberty | Alan Wake 2 | F1 24 | Black Myth: Wukong | Star Wars Outlaws | Call of Duty Black Ops 6 | Stalker 2 | Indiana Jones and the Great Circle | Kingdom Come Deliverance 2 | Until Dawn | Civilization 7
| Performance Rating - Percent | |
| NVIDIA GeForce RTX 5090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Zotac GeForce RTX 5070 Ti AMP Extreme | |
| Gigabyte Radeon RX 9070 XT Gaming OC 16G | |
| Gigabyte Radeon RX 9070 Gaming OC 16G | |
| NVIDIA KFA2 GeForce RTX 5070 1-Click OC | |
| Nvidia GeForce RTX 3090 FE | |
| NVIDIA KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Asus Prime GeForce RTX 5060 OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| ASUS TUF Gaming GeForce RTX 3060 | |
Performance Rating | The Witcher 3 | Hogwarts Legacy | Baldur's Gate 3 | Cyberpunk 2077 2.2 Phantom Liberty | Alan Wake 2 | F1 24 | Black Myth: Wukong | Star Wars Outlaws | Call of Duty Black Ops 6 | Stalker 2 | Indiana Jones and the Great Circle | Kingdom Come Deliverance 2 | Until Dawn | Civilization 7
FSR 的游戏性能
技嘉 Radeon RX 9060 XT Gaming OC 16G 充分利用了 AMD 最新的 FSR 升频技术。在新的 FSR 4 版本中，AMD 首次使用了 AI 支持--类似于 Nvidia 的 DLSS。
结合 RX 9060 XT，我们更倾向于使用 FSR 4 的质量模式，它在性能和图像清晰度之间实现了良好的平衡。这意味着，即使是对图形要求较高的游戏，在 2K 下也能基本流畅显示。
Performance Rating | The First Descendant | Call of Duty Black Ops 6 | Kingdom Come Deliverance 2 | Monster Hunter Wilds | Star Wars Outlaws | Civilization 7 | F1 24 | Cyberpunk 2077 2.2 Phantom Liberty | Indiana Jones and the Great Circle | Stalker 2 | Black Myth: Wukong | God of War Ragnarök | Until Dawn | Alan Wake 2
| Performance Rating - Percent | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| The First Descendant - 3840x2160 Ultra Preset + Ultra Ray Tracing + FSR Quality | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Call of Duty Black Ops 6 - 3840x2160 Extreme Preset + FSR Quality | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Kingdom Come Deliverance 2 - 3840x2160 Ultra Preset + Quality FSR | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Monster Hunter Wilds - 3840x2160 ultra, RT: high, FSR quality | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Star Wars Outlaws | |
| 3840x2160 cinem. ultra FSR | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 2560x1440 cinem. ultra FSR | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Civilization 7 | |
| 3840x2160 High Preset + FSR Quality | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 2560x1440 High Preset + FSR Quality | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| F1 24 | |
| 3840x2160 Ultra High Preset + Quality FSR AF:16x | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 2560x1440 Ultra High Preset + Quality FSR AF:16x | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Cyberpunk 2077 2.2 Phantom Liberty - 3840x2160 Ray Tracing Ultra Preset (FSR2 on) | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Indiana Jones and the Great Circle - 2560x1440 Very Ultra + FSR Quality | |
| AMD Radeon RX 9070 XT | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Stalker 2 | |
| 3840x2160 Epic Preset + Quality FSR | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 3840x2160 Epic Preset + Quality FSR + FG | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 2560x1440 Epic Preset + Quality FSR + FG | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Black Myth: Wukong - 2560x1440 cinematic FSR 68 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| God of War Ragnarök | |
| 3840x2160 Ultra Preset + Quality FSR | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 2560x1440 Ultra Preset + Quality FSR | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 | |
| AMD Radeon RX 9070 XT | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Until Dawn | |
| 3840x2160 Ultra Preset + Quality FSR + Ray Tracing | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| 2560x1440 Ultra Preset + Quality FSR + Ray Tracing | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Alan Wake 2 - 3840x2160 High Preset + High Ray Tracing + Quality FSR | |
| AMD Radeon RX 9070 XT | |
| AMD Radeon RX 9070 | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
Overview of tested games with the Gigabyte Radeon RX 9060 XT Gaming OC 16G
| low | med. | high | ultra | QHD FSR | QHD | 4K FSR | 4K | |
|---|---|---|---|---|---|---|---|---|
| Kingdom Come Deliverance 2 (2025) | 174.1 | 129.9 | 107.3 | 74.5 | 66.5 | 54.4 | 40.1 | 30.2 |
| Monster Hunter Wilds (2025) | 113.9 | 93.9 | 71.8 | 53.3 | 30.5 | |||
| Civilization 7 (2025) | 556 | 305 | 153 | 158.3 | 97 | 78.8 | 47.7 | |
| Assassin's Creed Shadows (2025) | 92 | 85 | 73 | 51 | 49 | 44 | 37 | 31 |
| The Elder Scrolls IV Oblivion Remastered (2025) | 180.5 | 112.7 | 76.4 | 34.6 | 37.2 | 23.6 | 21.3 | 12.4 |
| Doom: The Dark Ages (2025) | 107.8 | 87 | 78.7 | 76.1 | 78 | 53.7 | 46.6 | 28.2 |
| F1 25 (2025) | 386 | 316 | 236 | 23.6 | 13.4 | 5.74 |
排放量
噪音排放
技嘉 Radeon RX 9060 XT Gaming OC 16G 依靠成熟的三风扇散热设计，该设计已在技嘉其他型号中以类似形式使用。
由于采用了零风扇模式，风扇在 GPU 不受力时会保持静音，而在负载情况下的声压级则略低于 40 dB(A)。主观感觉上，低风扇噪音水平可减少干扰。
Noise Level
| Idle |
| 26.3 / 26.5 / 26.5 dB(A) |
| Load |
| 28.1 / 38.9 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.2 dB(A) | ||
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | Gigabyte Radeon RX 9070 XT Gaming OC 16G | Gigabyte Radeon RX 9070 Gaming OC 16G | NVIDIA Asus TUF Gaming GeForce RTX 5080 OC | NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC | NVIDIA KFA2 GeForce RTX 5070 1-Click OC | NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC | Zotac GeForce RTX 5060 AMP | |
|---|---|---|---|---|---|---|---|---|
| Noise | -3% | 3% | -6% | -0% | -9% | 1% | 0% | |
| off / environment * | 24.2 | 24 1% | 23.9 1% | 24.5 -1% | 23.7 2% | 24 1% | 23.9 1% | 24.2 -0% |
| Idle Minimum * | 26.3 | 26.7 -2% | 26.6 -1% | 27.9 -6% | 26.8 -2% | 26.2 -0% | 26.3 -0% | 26.1 1% |
| Idle Average * | 26.5 | 26.8 -1% | 26.6 -0% | 28 -6% | 26.8 -1% | 26.2 1% | 26.3 1% | 26.1 2% |
| Idle Maximum * | 26.5 | 26.9 -2% | 26.6 -0% | 28 -6% | 26.8 -1% | 26.2 1% | 26.5 -0% | 26.1 2% |
| Load Average * | 28.1 | 27.2 3% | 27.2 3% | 30.3 -8% | 30.2 -7% | 35.7 -27% | 31.5 -12% | 31.9 -14% |
| Witcher 3 ultra * | 39.3 | 37.6 4% | 44 -12% | 34.15 13% | 37.4 5% | |||
| Cyberpunk 2077 ultra * | 38.9 | 42.7 -10% | 35.9 8% | 40.8 -5% | 36 7% | 44.4 -14% | 33.88 13% | 37.6 3% |
| Load Maximum * | 38.9 | 41.8 -7% | 34.5 11% | 42.3 -9% | 40 -3% | 47.3 -22% | 43.1 -11% | 38.2 2% |
* ... smaller is better

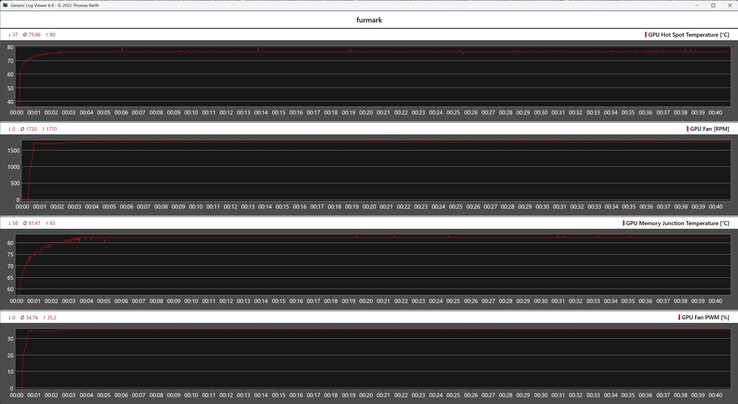

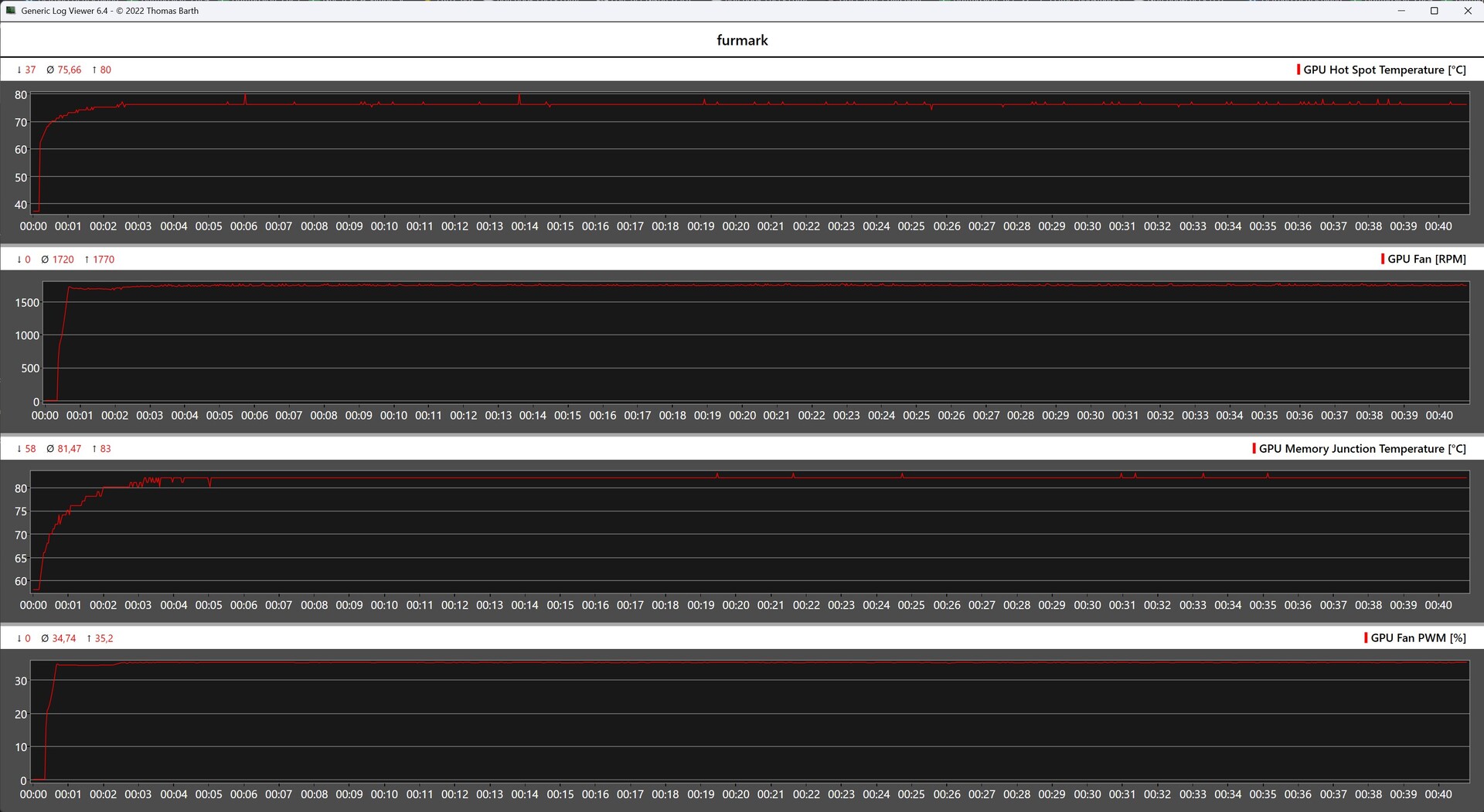

温度
虽然技嘉 Radeon RX 9060 XT Gaming OC 16G 采用的散热设计与 RX 9000 系列中较大的型号类似，但它在负载情况下的效率特别高。
在使用 赛博朋克 2077在 1080p 超高速下进行的 30 分钟压力测试中，性能保持稳定，没有出现热节流或性能下降。
Cyberpunk 2077 1080p Ultra Preset 30 min (FSR off) FPS chart
Gigabyte Radeon RX 9060 XT Gaming OC 16G R7 9800X3D, Radeon RX 9060 XT: Ø108.1 (104.6-109.3)
NVIDIA KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D, GeForce RTX 5070 Ti: Ø182.9 (173.7-184.8)
NVIDIA Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D, GeForce RTX 5060 Ti: Ø117.5 (113.6-119)
Gigabyte Radeon RX 9070 Gaming OC 16G R7 9800X3D, Radeon RX 9070: Ø166.7 (161-168.2)
NVIDIA KFA2 GeForce RTX 5070 1-Click OC R7 9800X3D, GeForce RTX 5070: Ø157.3 (152.1-158.9)
ASUS Dual GeForce RTX 4060 EVO OC R7 9800X3D, NVIDIA GeForce RTX 4060: Ø74.8 (71.5-75.4)
Zotac GeForce RTX 5060 AMP R7 9800X3D, GeForce RTX 5060: Ø101.9 (98.2-102.7)
Gigabyte Radeon RX 9070 XT Gaming OC 16G R7 9800X3D, Radeon RX 9070 XT: Ø185.9 (180.2-187.7)
能源管理
技嘉 Radeon RX 9060 XT Gaming OC 16G 在能效方面表现出色。在负载情况下，测试系统的功耗约为 310 至 335 W，这一数值绝对符合其性能级别。
在我们的测试中，RX 9060 XT Gaming OC 16G 的能效还没有达到 Nvidia 当前 Blackwell 显卡的水平。
Power Consumption: 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | 1920x1080 The Witcher 3 ultra (external Monitor) | Cyberpunk 2077 FHD ultra no FSR (external Monitor) | Witcher 3 ultra Efficiency (external Monitor) | Cyberpunk 2077 ultra Efficiency
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 XT | |
| Nvidia GeForce RTX 3090 FE | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| Zotac GeForce RTX 5060 AMP | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Zotac GeForce RTX 5060 AMP | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Power Consumption / Cyberpunk 2077 FHD ultra no FSR (external Monitor) | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| AMD Radeon RX 9070 XT | |
| Nvidia GeForce RTX 3090 FE | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| AMD Radeon RX 9070 | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| Zotac GeForce RTX 5060 AMP | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| AMD Radeon RX 9070 | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 9070 XT | |
| Zotac GeForce RTX 5060 AMP | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Nvidia GeForce RTX 3090 FE | |
| Power Consumption / Cyberpunk 2077 ultra Efficiency | |
| Asus TUF Gaming GeForce RTX 5080 OC | |
| KFA2 GeForce RTX 5070 Ti 1-Click OC | |
| KFA2 GeForce RTX 5070 1-Click OC | |
| Asus TUF Gaming GeForce RTX 5060 Ti OC | |
| AMD Radeon RX 9070 | |
| AMD Radeon RX 9070 XT | |
| Zotac GeForce RTX 5060 AMP | |
| Gigabyte Radeon RX 9060 XT Gaming OC 16G | |
| XFX Speedster MERC 310 Radeon RX 7900 XTX | |
| ASUS Dual GeForce RTX 4060 EVO OC | |
| Nvidia GeForce RTX 3090 FE | |
Power Consumption: 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | 1920x1080 The Witcher 3 ultra (external Monitor) | Cyberpunk 2077 FHD ultra no FSR (external Monitor) | Witcher 3 ultra Efficiency (external Monitor) | Cyberpunk 2077 ultra Efficiency
* ... smaller is better
Power consumption: External monitor
AMD Radeon RX 9060 XT 16GB, R7 9800X3D Radeon RX 9060 XT, R7 9800X3D; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø306 (304-314)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø369 (364-378)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø487 (483-494)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø421 (418-431)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø283 (280-308)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø364 (360-375)
NVIDIA GeForce RTX 4060, R7 9800X3D NVIDIA GeForce RTX 4060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø211 (205-233)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø267 (264-273)
AMD Radeon RX 9060 XT 16GB, R7 9800X3D Radeon RX 9060 XT, R7 9800X3D; 1920x1080 The Witcher 3 ultra (external Monitor): Ø316 (296-336)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø385 (383-391)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø451 (445-476)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø394 (387-416)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø264 (261-285)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; 1920x1080 The Witcher 3 ultra (external Monitor): Ø357 (350-369)
NVIDIA GeForce RTX 4060, R7 9800X3D NVIDIA GeForce RTX 4060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø233 (227-247)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø268 (265-288)
AMD Radeon RX 9060 XT 16GB, R7 9800X3D Radeon RX 9060 XT, R7 9800X3D; Idle 1min (external Monitor): Ø97.8 (95.8-100.7)
AMD Radeon RX 9070, R7 9800X3D Radeon RX 9070, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø89.5 (85.9-108.8)
NVIDIA GeForce RTX 5080, R7 9800X3D GeForce RTX 5080, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø97.4 (95.7-103.3)
NVIDIA GeForce RTX 5070 Ti, R7 9800X3D GeForce RTX 5070 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø117.7 (116.5-121.6)
NVIDIA GeForce RTX 5060 Ti, R7 9800X3D GeForce RTX 5060 Ti, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø95 (83.9-101.8)
NVIDIA GeForce RTX 5070, R7 9800X3D GeForce RTX 5070, R7 9800X3D; Idle 1min (external Monitor): Ø112.8 (110.7-116.4)
NVIDIA GeForce RTX 4060, R7 9800X3D NVIDIA GeForce RTX 4060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø93 (90.8-99.3)
NVIDIA GeForce RTX 5060, R7 9800X3D GeForce RTX 5060, R7 9800X3D, Kingston KC3000 2048G SKC3000D2048G; Idle 1min (external Monitor): Ø94.5 (84.9-98.7)
Notebookcheck 对 Radeon RX 9060 XT Gaming OC 16G 的总体印象
技嘉 Radeon RX 9060 XT Gaming OC 16G 表现出强劲的性能，可在原始设置下以 1080p 轻松处理当前大多数游戏。得益于 16GB VRAM 和 FSR 4 技术的结合，1440p 的流畅游戏也成为可能。
总体而言，该显卡是一款整体均衡的产品，非常适合注重性能和未来性的价格敏感型玩家。
