450 美元以下的最佳迷你 PC？配备 AMD Ryzen 7 8745HS 的 Chuwi AuBox 评测

Name: Chuwi Aubox, R7 8745HS
Brand: Chuwi

巅峰还是失败？

作为一款高品质的微型电脑，Chuwi Aubox 向竞争对手发起了挑战。它采用 AMD Ryzen 7 8745HS，性能不俗。在我们的详细测试中，我们将研究这款来自远东的经济型迷你电脑的优缺点。
Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy) Published 07/27/2025 🇺🇸 🇩🇪 ...

结论 - 价格低廉的迷你 PC，功能不尽人意

作为一款功能强大、结构紧凑的微型电脑，Chuwi Aubox 在我们的评测中给人留下了深刻印象。高品质的铝制外壳不仅外观吸引人，而且功能强大--得益于 VESA 支架和包括 USB4 和 2.5G LAN 在内的多种连接选择，这款迷你电脑的用途相当广泛。内置 AMD Ryzen 7 8745HS提供了预期的性能。不过，Chuwi 仅使用一个开箱即用的内存模块，这让 3D 性能大打折扣。

Test device courtesy of Chuwi

Download your licensed rating image as PNG / SVG

与传统台式电脑相比，它的能耗更低，这是一个积极的方面。Geekom A8 Max 或 Minisforum EliteMini UM890 Pro 等其他机型表明，它还可以做得更好。总之，Chuwi Aubox 是一款性能强劲、功能完善、价格公道的全面综合产品，是办公、多媒体甚至轻度游戏的理想之选，如果你愿意安装第二个内存模块的话。如果你愿意安装第二个内存模块，它是办公、多媒体甚至轻度游戏的理想之选。不到 400 欧元的价格，在这个价位区间几乎没有真正的竞争对手。内存配置的问题也不容忽视。

Pros

+ 高品质铝制外壳，设计简洁

+ 完美的做工

+ AMD Ryzen 7 8745HS，提供日常可用的性能

+ 双 2.5G LAN

+ USB 4

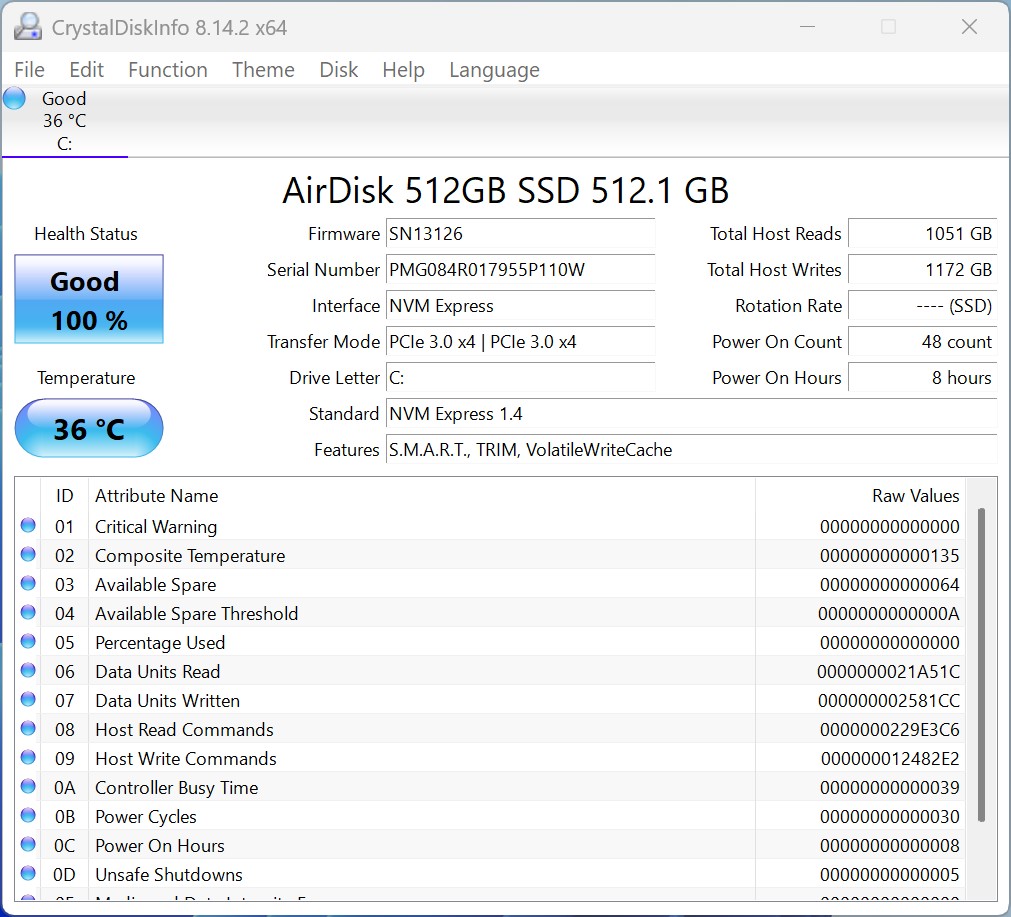

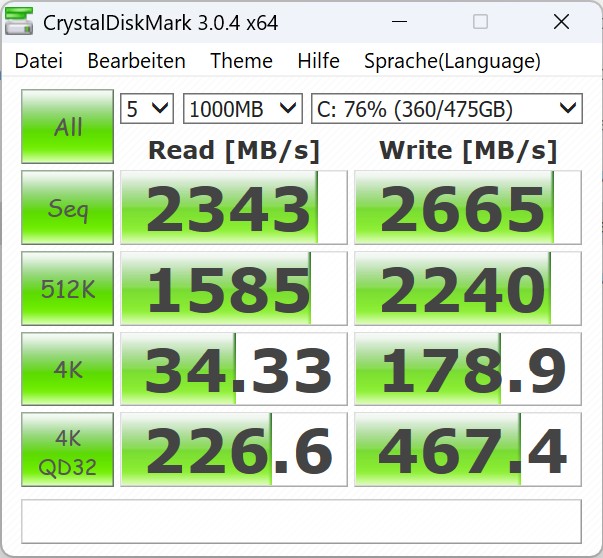

+ 稳定的固态硬盘性能

+ 精密的散热理念

+ 易于打开

Cons

- 有限的 BIOS 选项

- 没有 OCuLink 接口

- 无手动定制风扇控制

- 16GB DDR5 内存

- iGPU 性能低下（因为只安装了一个内存模块）

价格和供应情况

目前可直接从制造商处订购 Chuwi Aubox，价格为388 欧元/440美元，不含运费。

结论 - 价格低廉的迷你 PC，功能不尽人意
规格
外壳和功能 - 光滑的铝质外壳
性能 - 八核心十六线程的 Ryzen 7

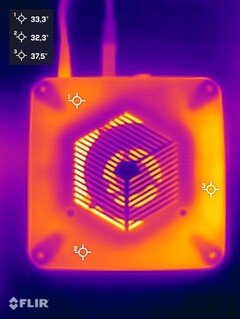

排放 - 经济，但没有效率奇迹
能源管理
笔记本检查评级
潜在替代品比较

Chuwi Aubox 是该制造商最新推出的迷你 PC 之一，基于 AMD Ryzen 7 8745HS，拥有 8 核 16 线程的 Hawk Point HS 系列。与技术上相似的 Ryzen 7 8845HS 和 8945HS 相比，内置芯片仅在时钟速度方面略有不同，而且没有 NPU。这款迷你 PC 的售价约为 400 欧元，特别具有吸引力，在某些情况下比许多其他同性能级别设备便宜得多。

规格

Chuwi Aubox, R7 8745HS

Processor

AMD Ryzen 7 8745HS 8 x 3.8 - 4.9 GHz, 70 W PL2 / Short Burst, 60 W PL1 / Sustained, Hawk Point-HS (Zen 4)

Graphics adapter

AMD Radeon 780M, Adrenalin 25.5.1

Memory

16 GB

, DDR5-5600 MT/s, 1 of 2 installed, Dual-Channel

Mainboard

AMD Promontory/Bixby FCH

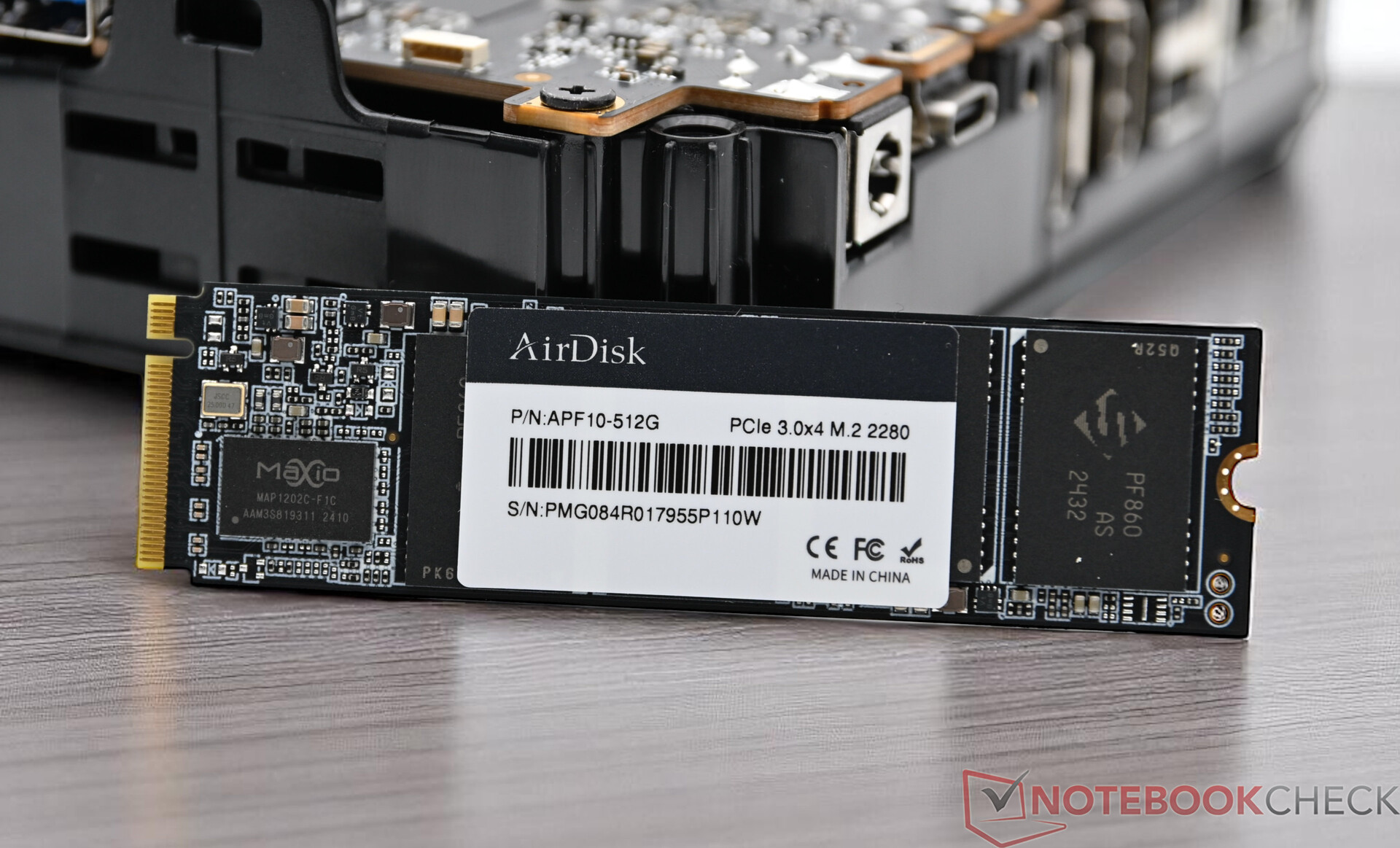

Storage

AirDisk AFF 10-512G, 512 GB

, 400 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

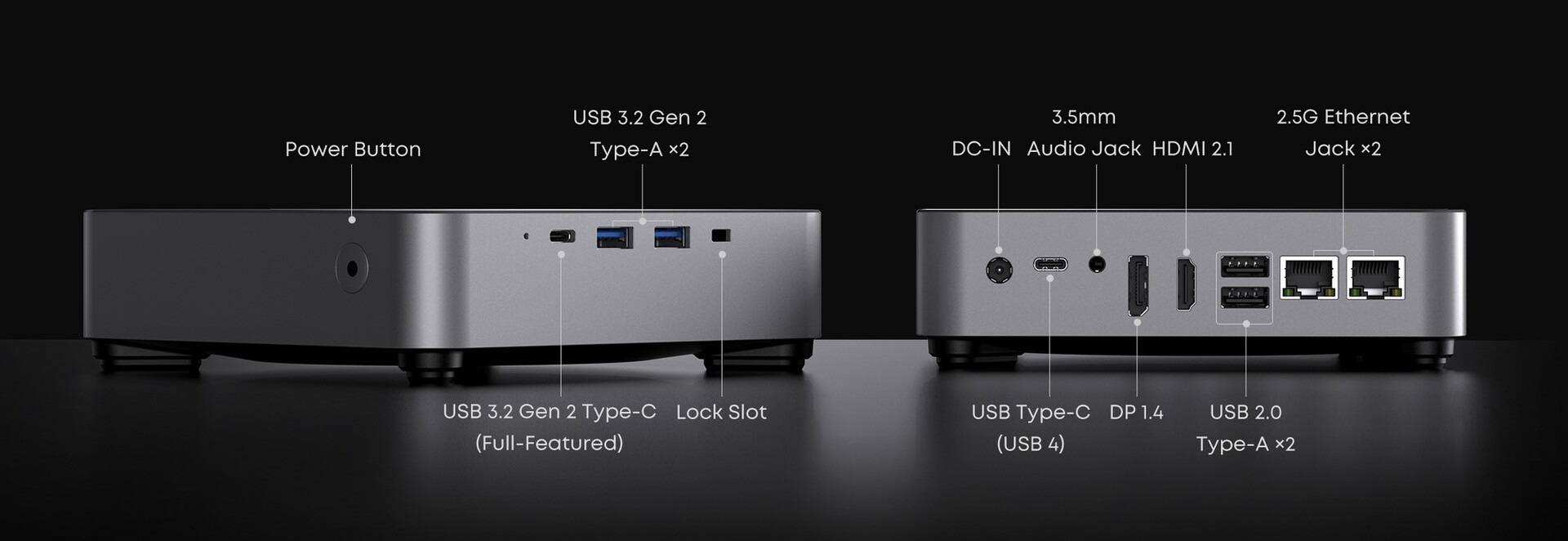

2 USB 2.0, 3 USB 3.2 Gen 2x2 20Gbps, 1 USB 4.0 40 Gbps, 1 HDMI, 3 DisplayPort, 1 Docking Station Port, Audio Connections: 3.5mm Audio Jack, 2nd Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1

Size

height x width x depth (in mm): 45 x 154 x 152

Operating System

Microsoft Windows 11 Pro

Additional features

120 Watt power adapter, VESA-Mount

Weight

743 g, Power Supply: 444 g

Price

386 EUR

Links

Chuwi homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

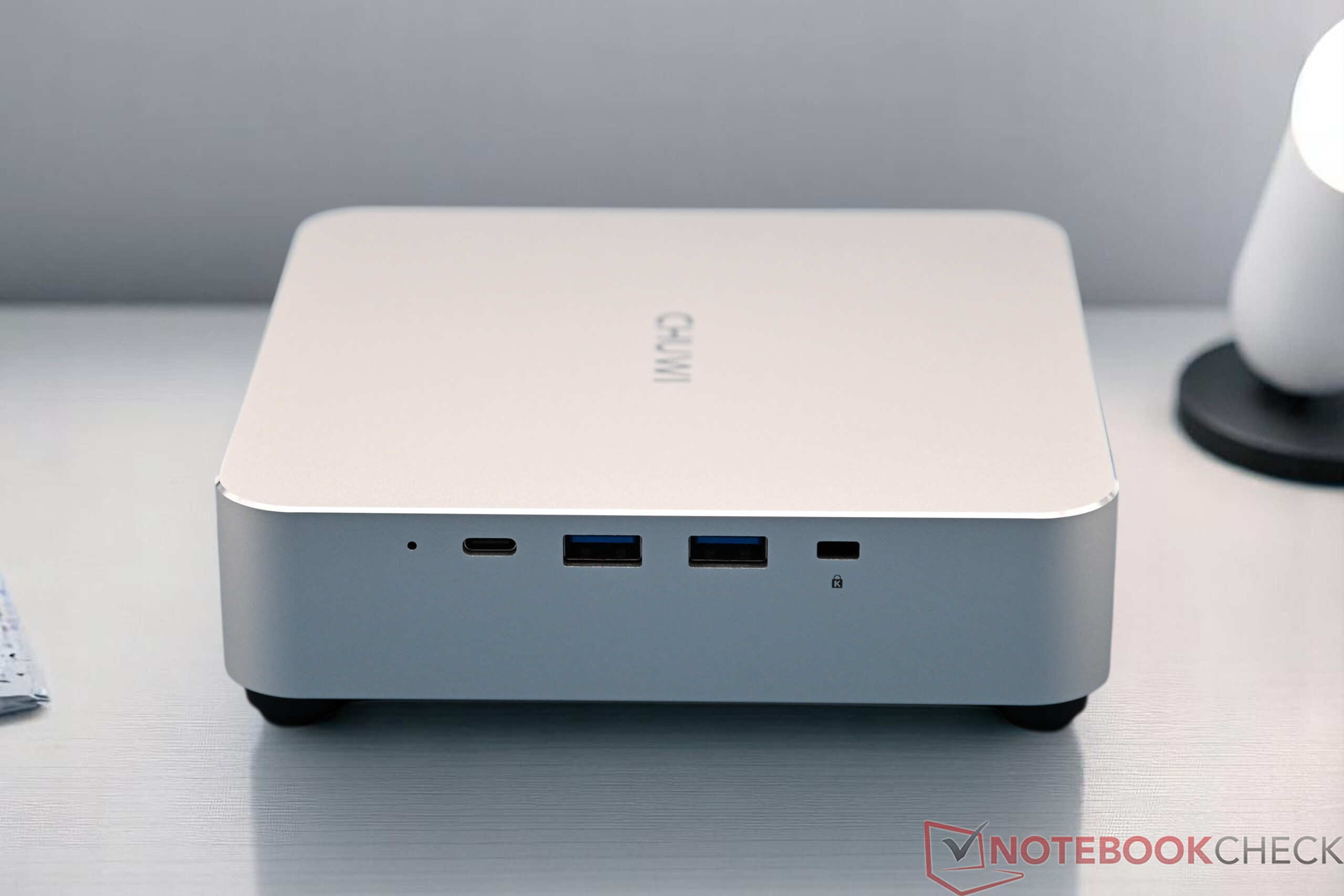

外壳和功能 - 光滑的铝质外壳

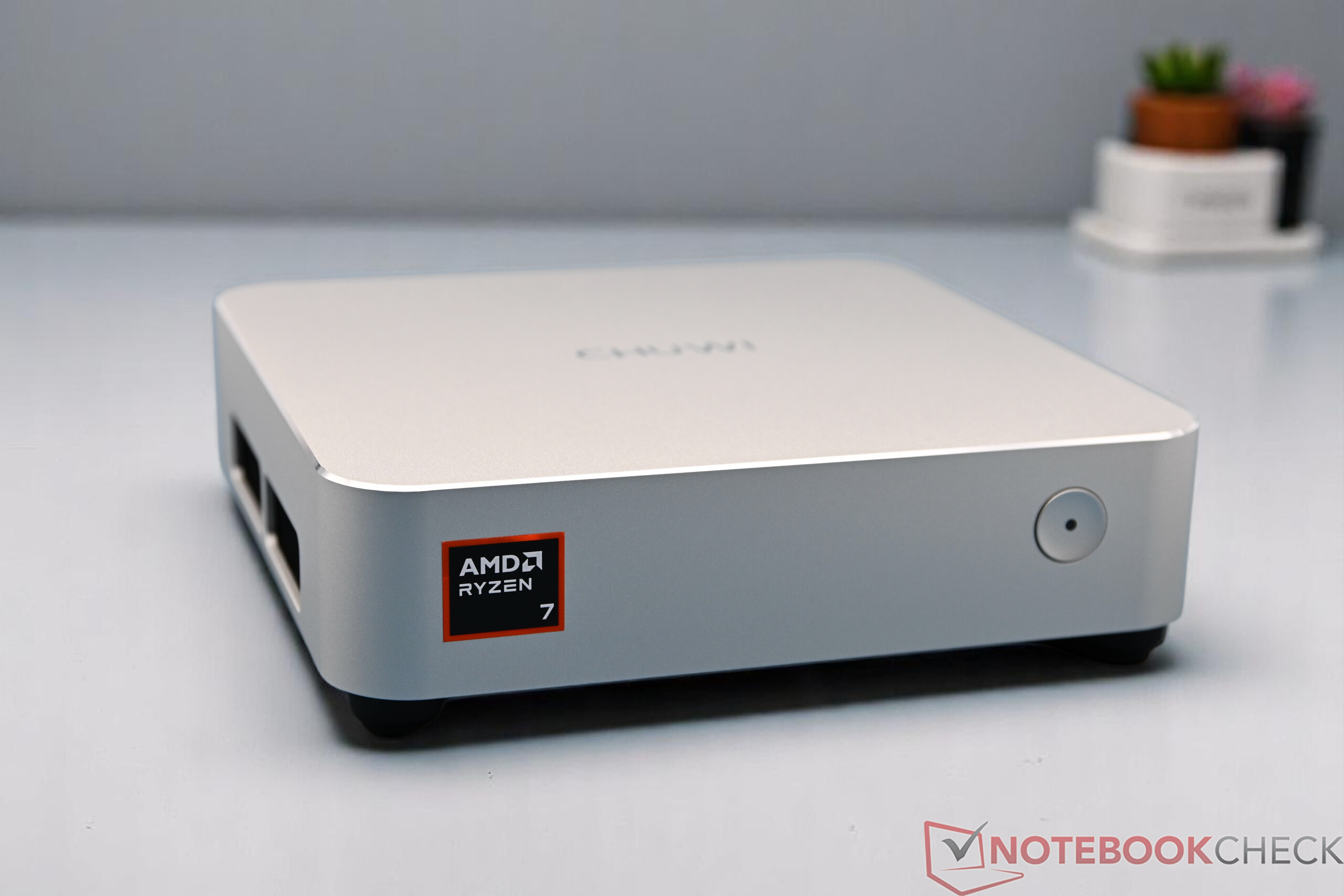

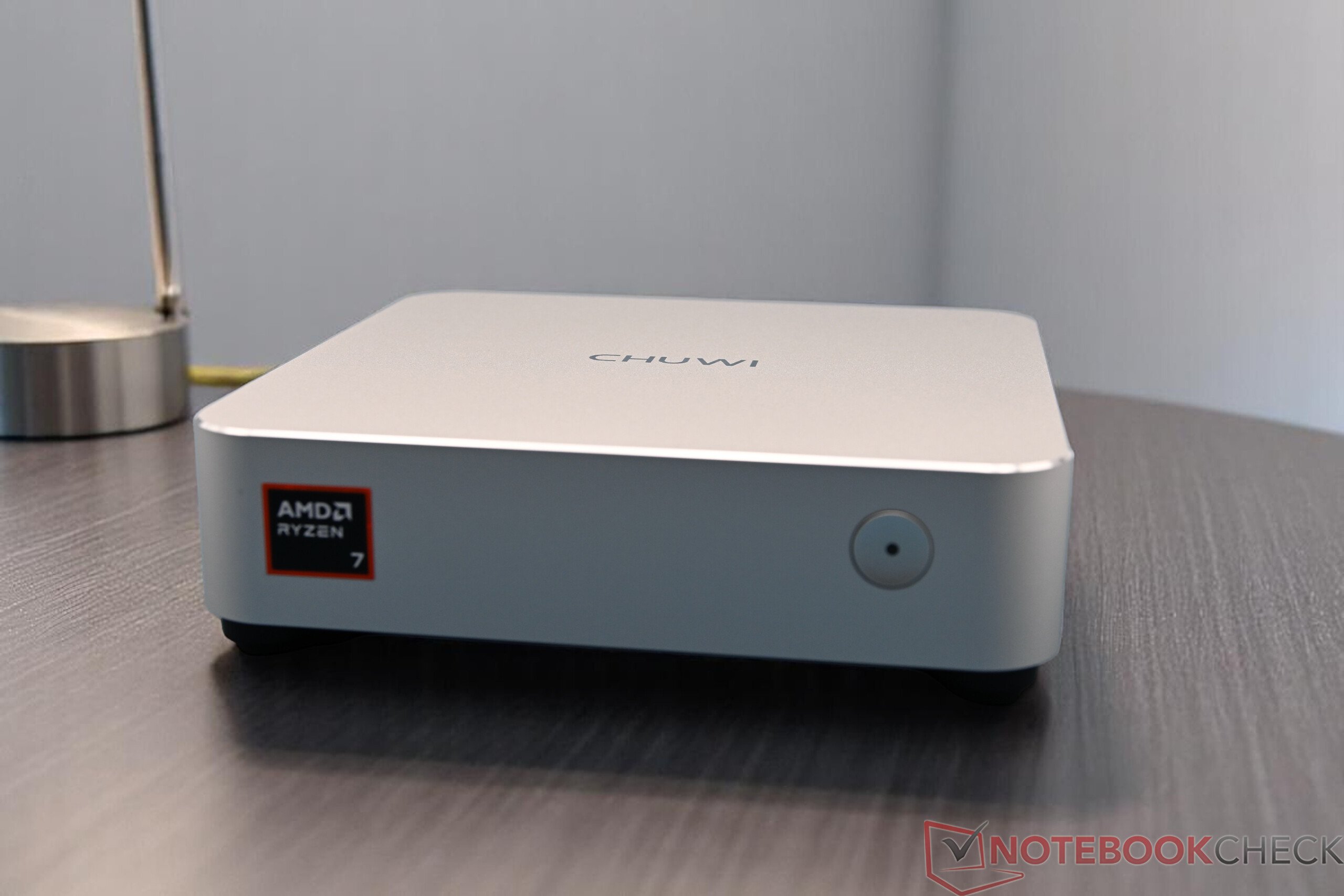

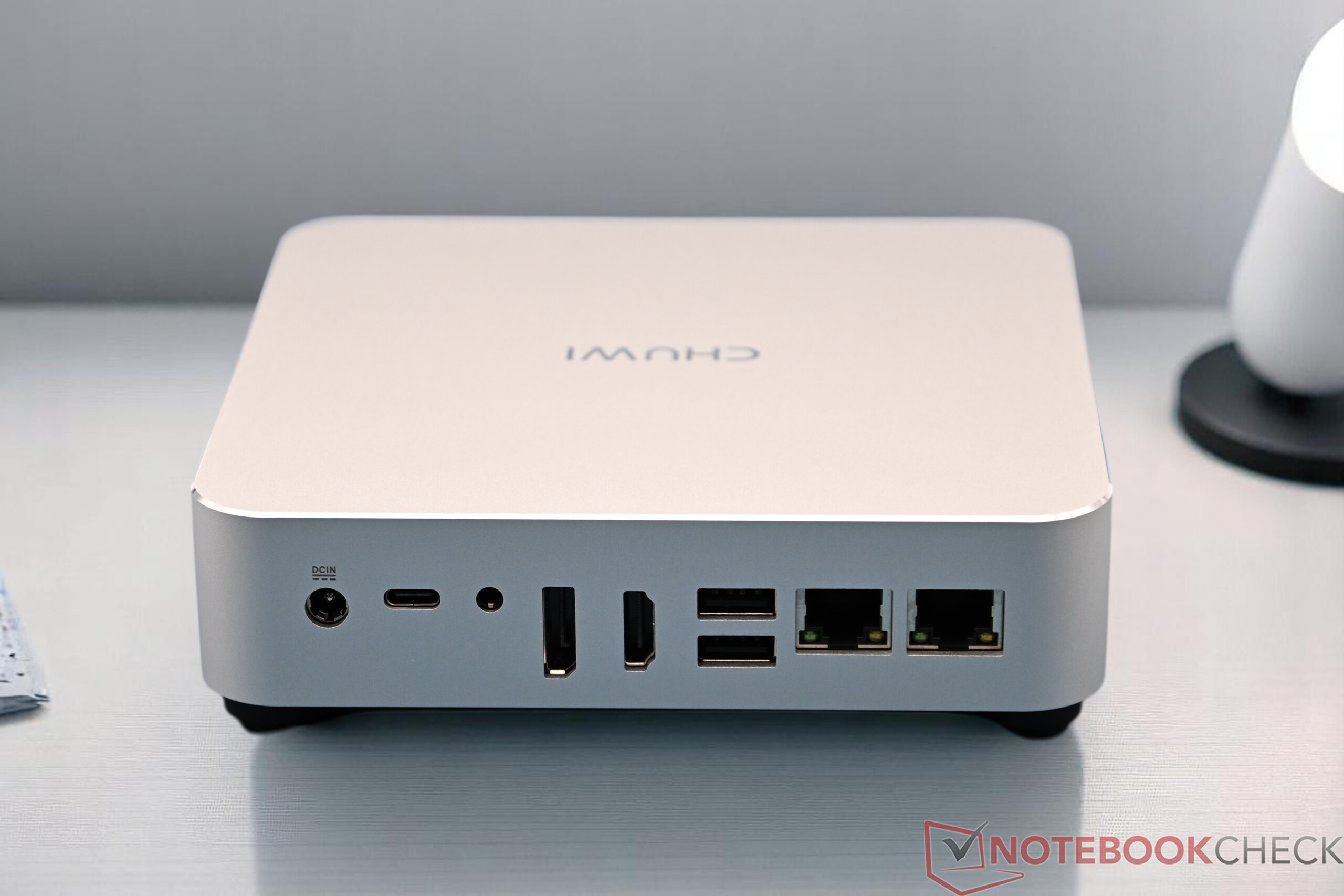

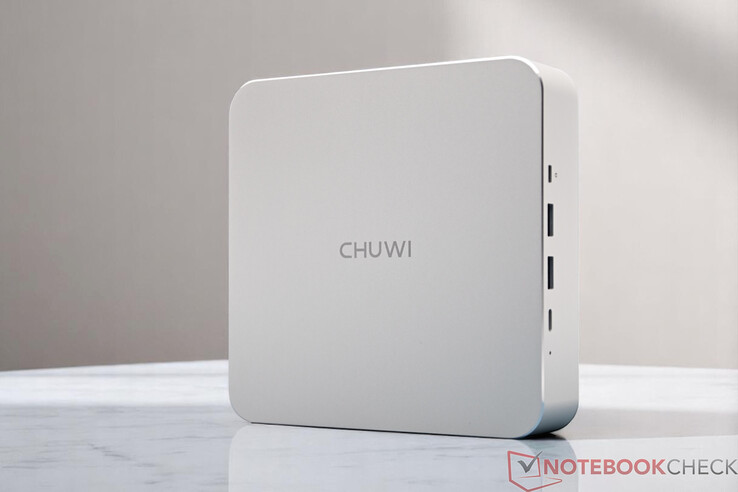

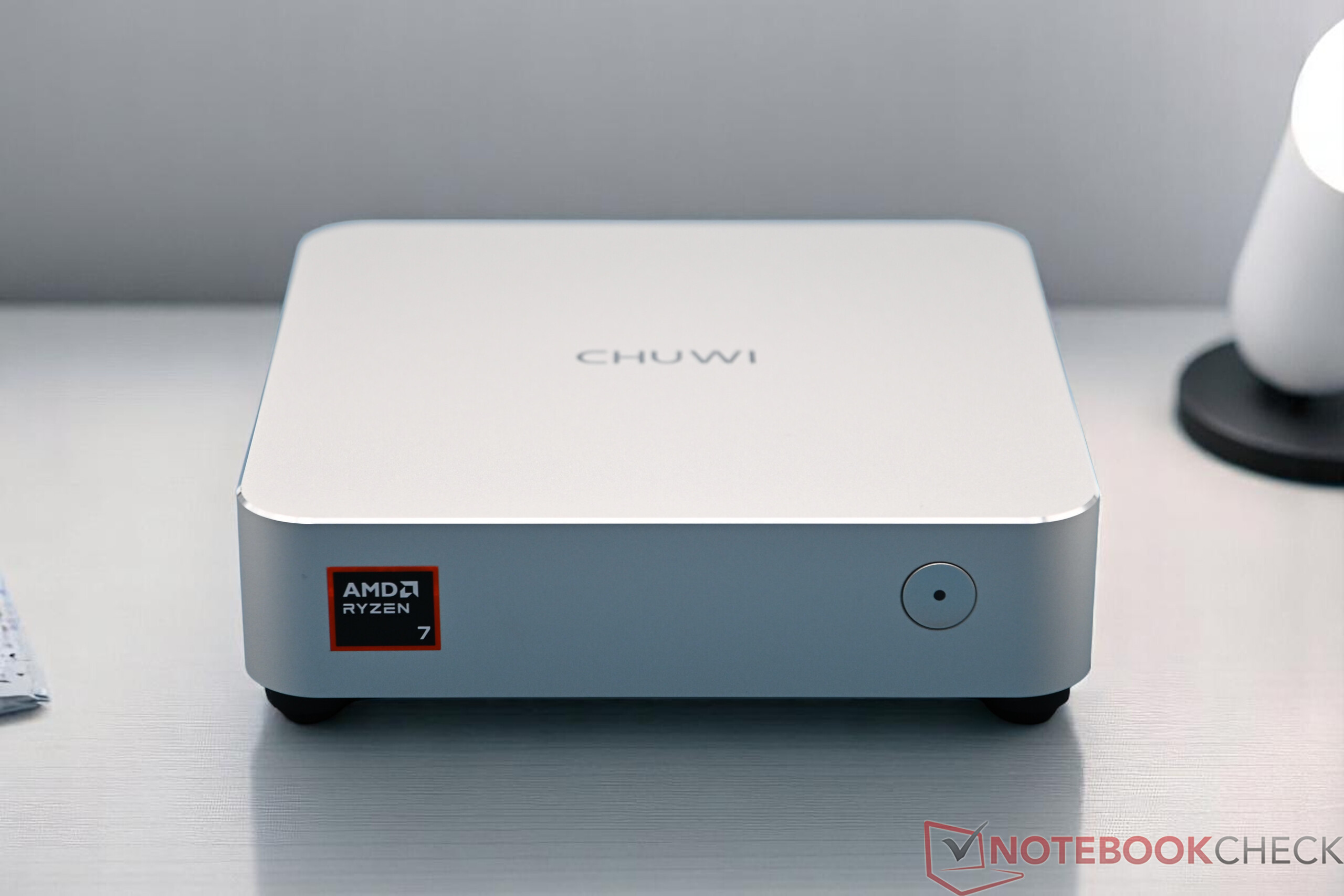

Chuwi Aubox 迷你电脑采用紧凑的铝制外壳（154×152×45 毫米，约重 740 克），由于配备了 VESA 支架，因此还可以直接固定在显示器背面。不过，由于其时尚的外观，这款迷你 PC 绝对属于桌面。高品质的外壳在视觉和触觉上都给人留下了深刻印象，这表明即使是价格低廉的微型电脑也不一定没有时尚的外观。接口分布在侧面和背面，涵盖了最重要的接口，包括 USB 4。Chuwi Aubox 可同时控制四台显示器。两个 2.5G LAN 端口和 WLAN 用于网络通信。在我们的测试中，后者性能稳定，但不支持最新的 Wi-Fi 7 标准。

尺寸比较

Acemagic F3A Chuwi Aubox, R7 8745HS Minisforum UH125 Pro Minisforum EliteMini UM890 Pro Geekom A8 Max, R7 8845HS Geekom Mini IT13 DIN A5 ❌

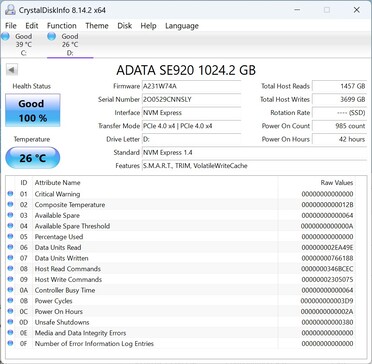

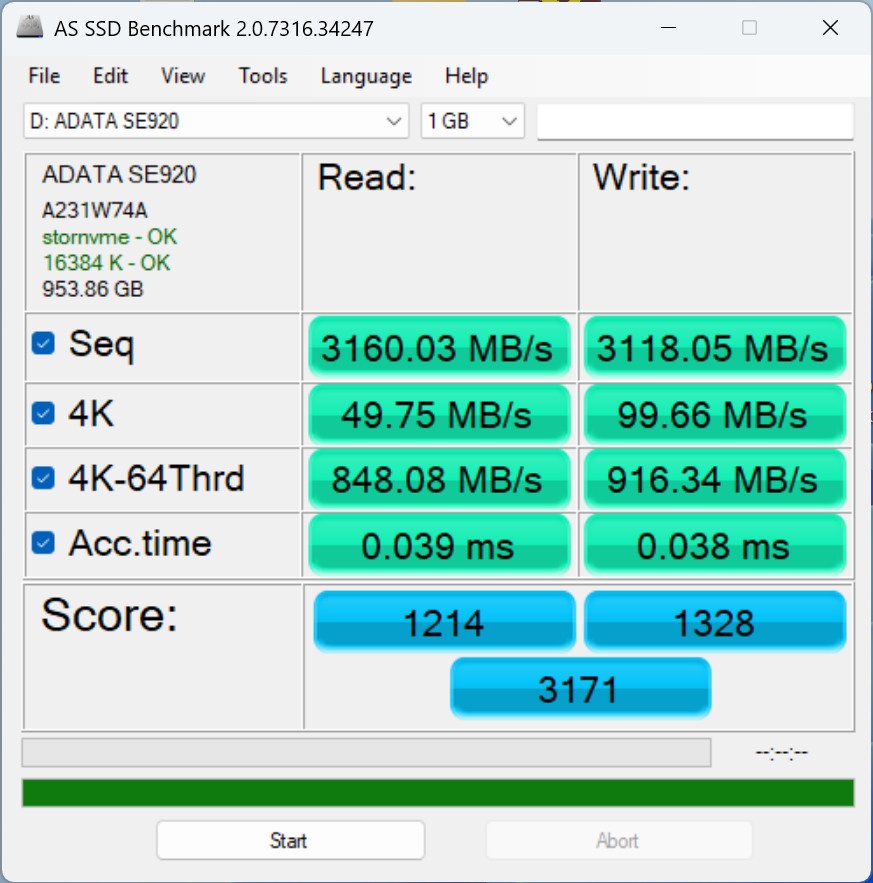

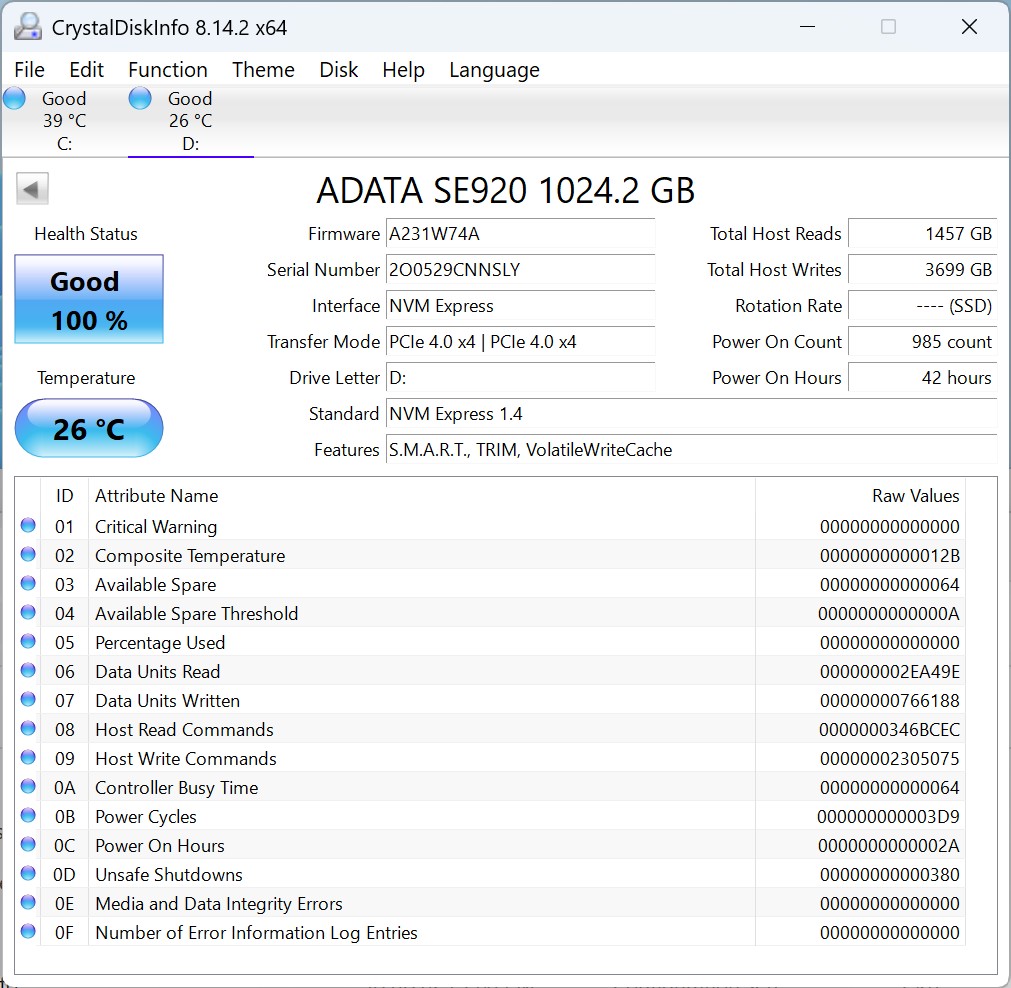

ADATA SE920 USB4 数据传输速率

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Apple Mac Mini M4 Pro M4 Pro 16-Core GPU, M4 Pro (12 cores), Apple SSD AP2048Z	3809 MB/s
Minisforum MS-A1 Radeon 780M, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0	3245.45 MB/s
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	3160.03 MB/s
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	3158.19 MB/s
Average of class Mini PC (906 - 3906, n=21, last 2 years)	2698 MB/s
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	1622.04 MB/s

Networking
iperf3 receive AXE11000
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	977 (954^min - 984^max) MBit/s +1%
Geekom Mini IT13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	972 (960^min - 985^max) MBit/s 0%
Chuwi Aubox, R7 8745HS Realtek RTL8852BE	969 (950^min - 982^max) MBit/s
Average of class Mini PC (267 - 1796, n=103, last 2 years)	953 MBit/s -2%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	936 (907^min - 946^max) MBit/s -3%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	902 (793^min - 943^max) MBit/s -7%
Average Realtek RTL8852BE (455 - 985, n=59)	861 MBit/s -11%
Acemagic F3A Realtek RTL8852BE	859 (809^min - 880^max) MBit/s -11%
iperf3 transmit AXE11000
Minisforum EliteMini UM890 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	964 (499^min - 1002^max) MBit/s +29%
Average of class Mini PC (251 - 1776, n=103, last 2 years)	891 MBit/s +19%
Acemagic F3A Realtek RTL8852BE	797 (736^min - 835^max) MBit/s +7%
Average Realtek RTL8852BE (536 - 926, n=58)	794 MBit/s +6%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	771 (742^min - 814^max) MBit/s +3%
Minisforum UH125 Pro Intel Wi-Fi 6E AX210	758 (727^min - 793^max) MBit/s +1%
Chuwi Aubox, R7 8745HS Realtek RTL8852BE	748 (722^min - 769^max) MBit/s
Geekom Mini IT13 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	736 (553^min - 783^max) MBit/s -2%

Chuwi Aubox, R7 8745HS; iperf3 receive AXE11000; iperf 3.1.3: Ø969 (950-982)

Chuwi Aubox, R7 8745HS; iperf3 transmit AXE11000; iperf 3.1.3: Ø748 (722-769)

配件

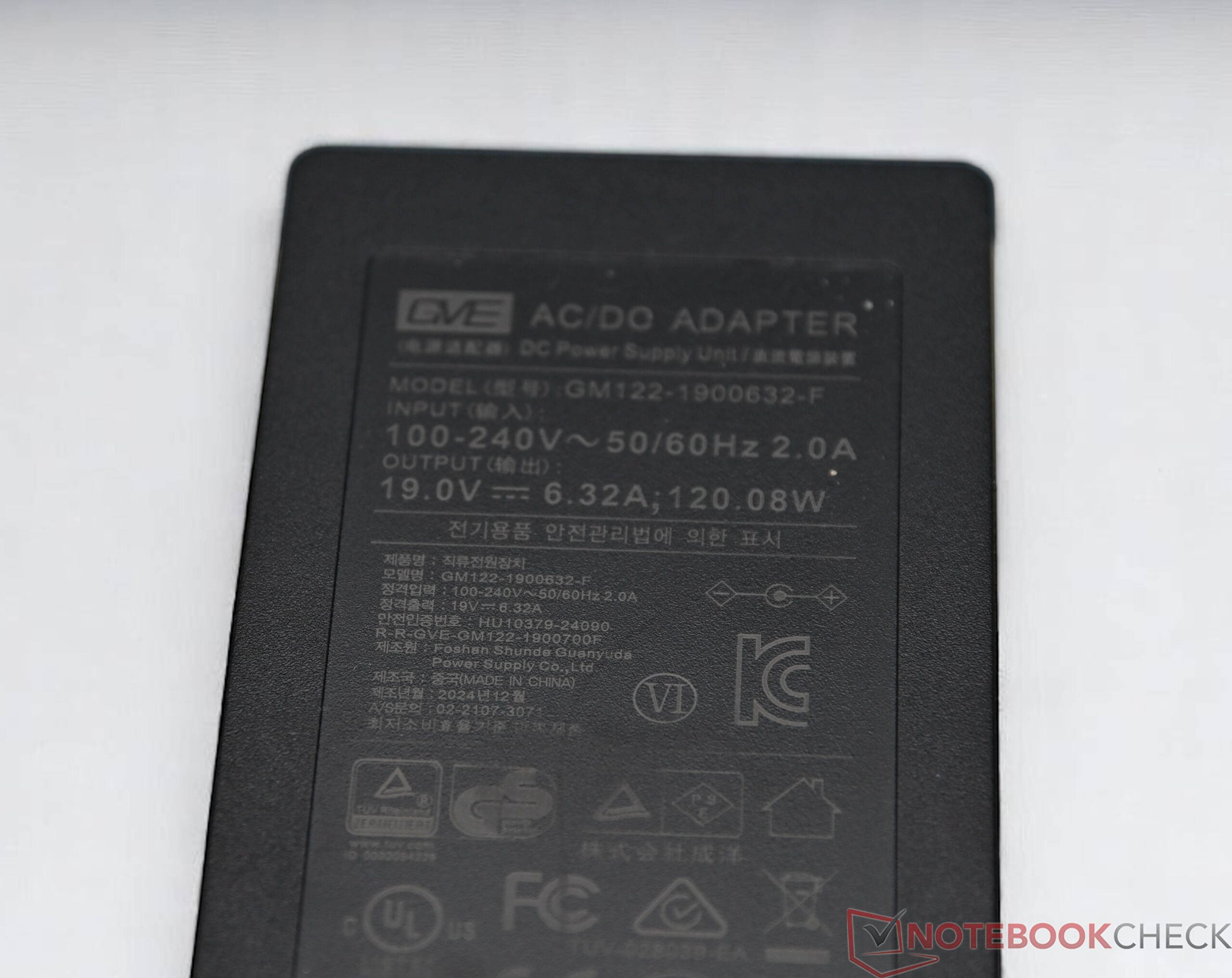

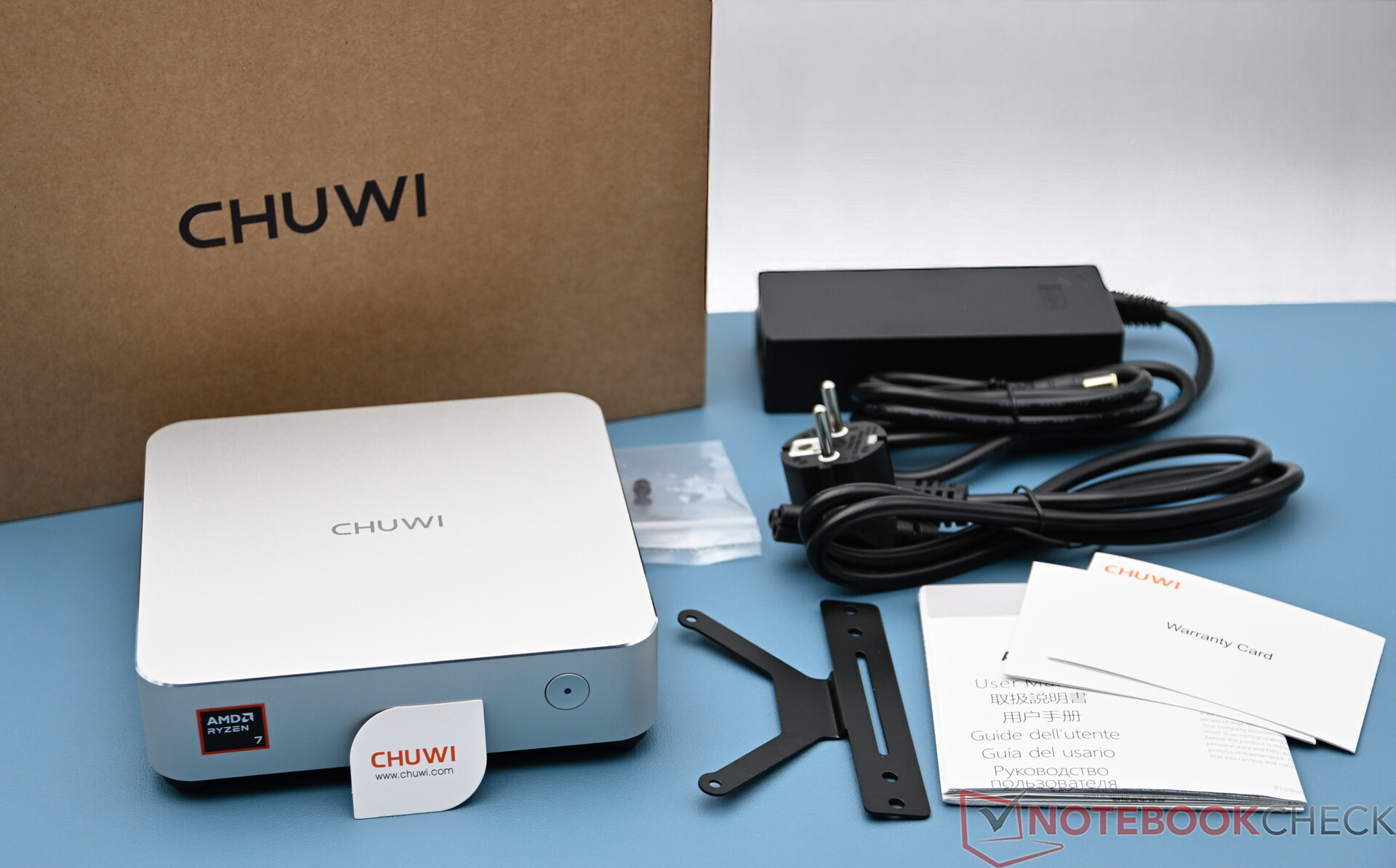

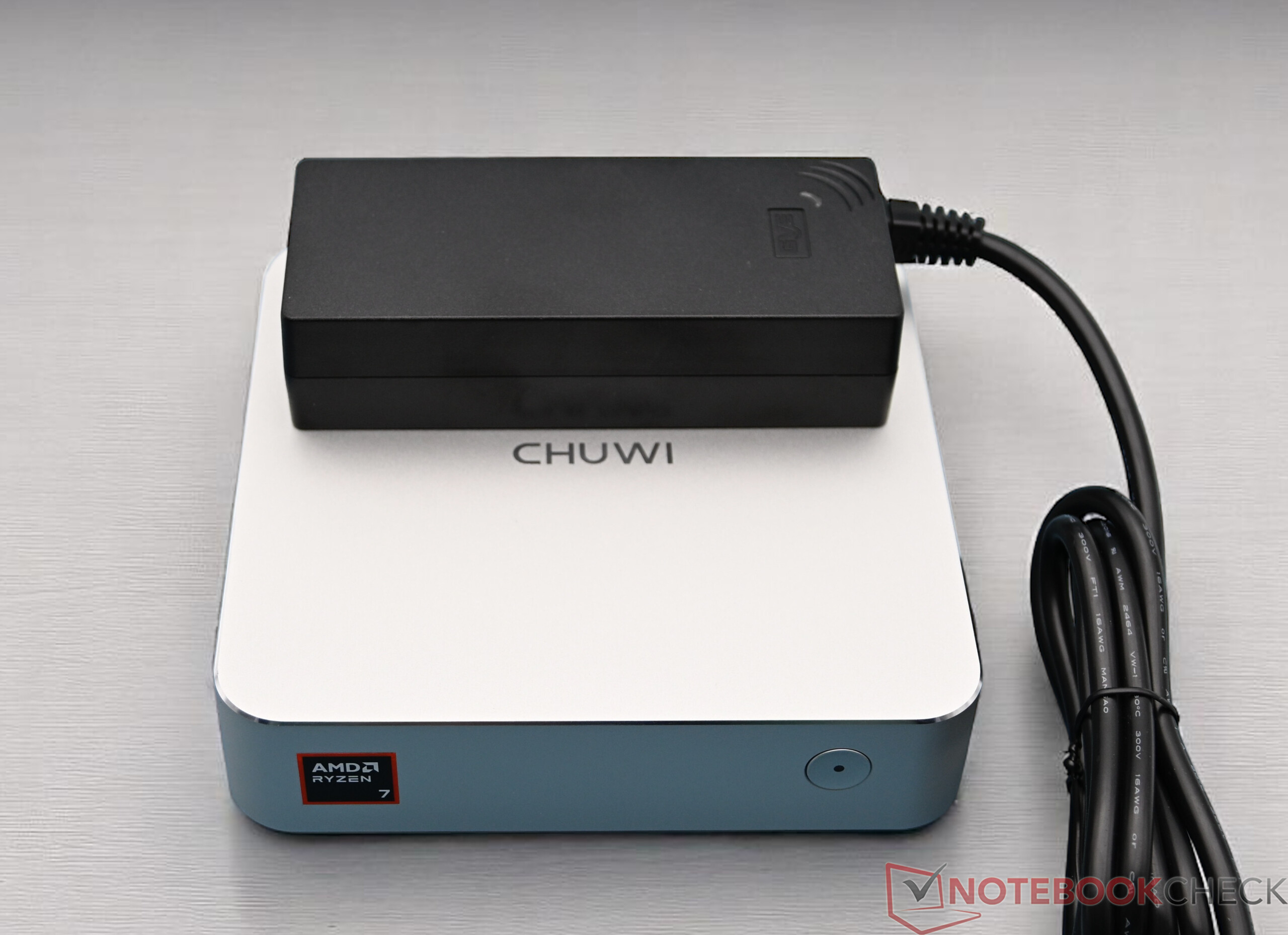

供货范围包括一个相对较大的 120 瓦电源装置、一个带安装材料的 VESA 支架和一本快速入门指南。

维护

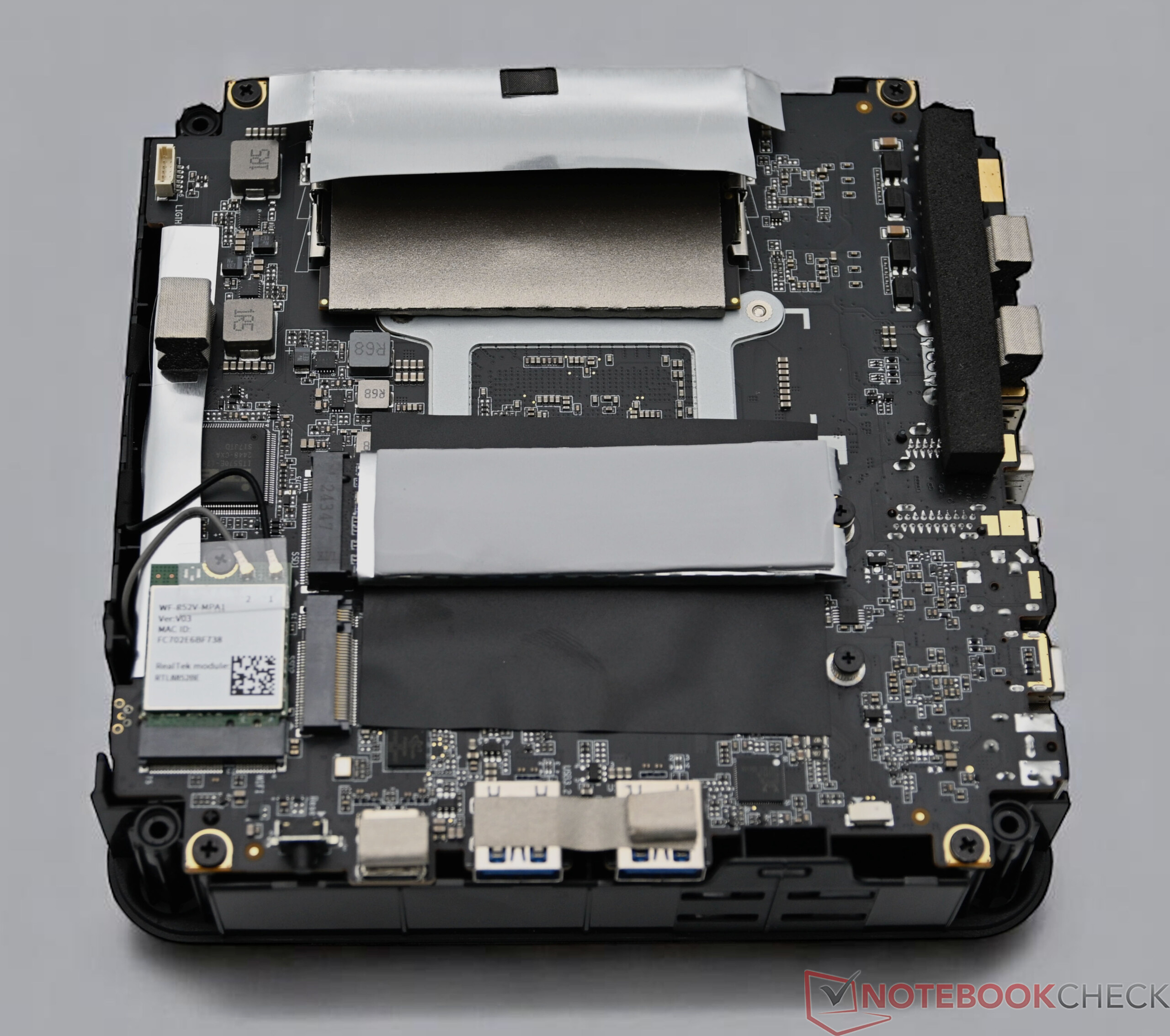

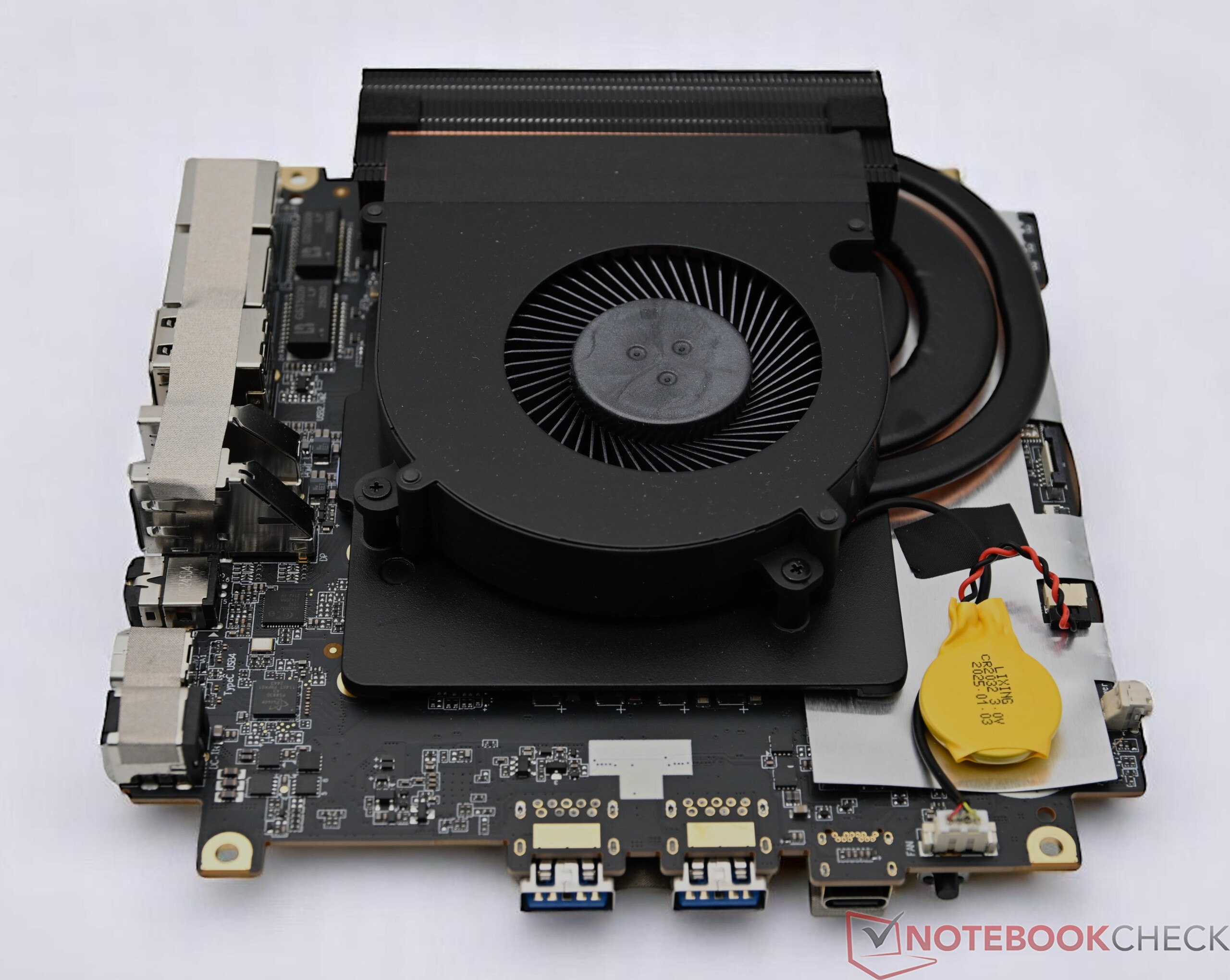

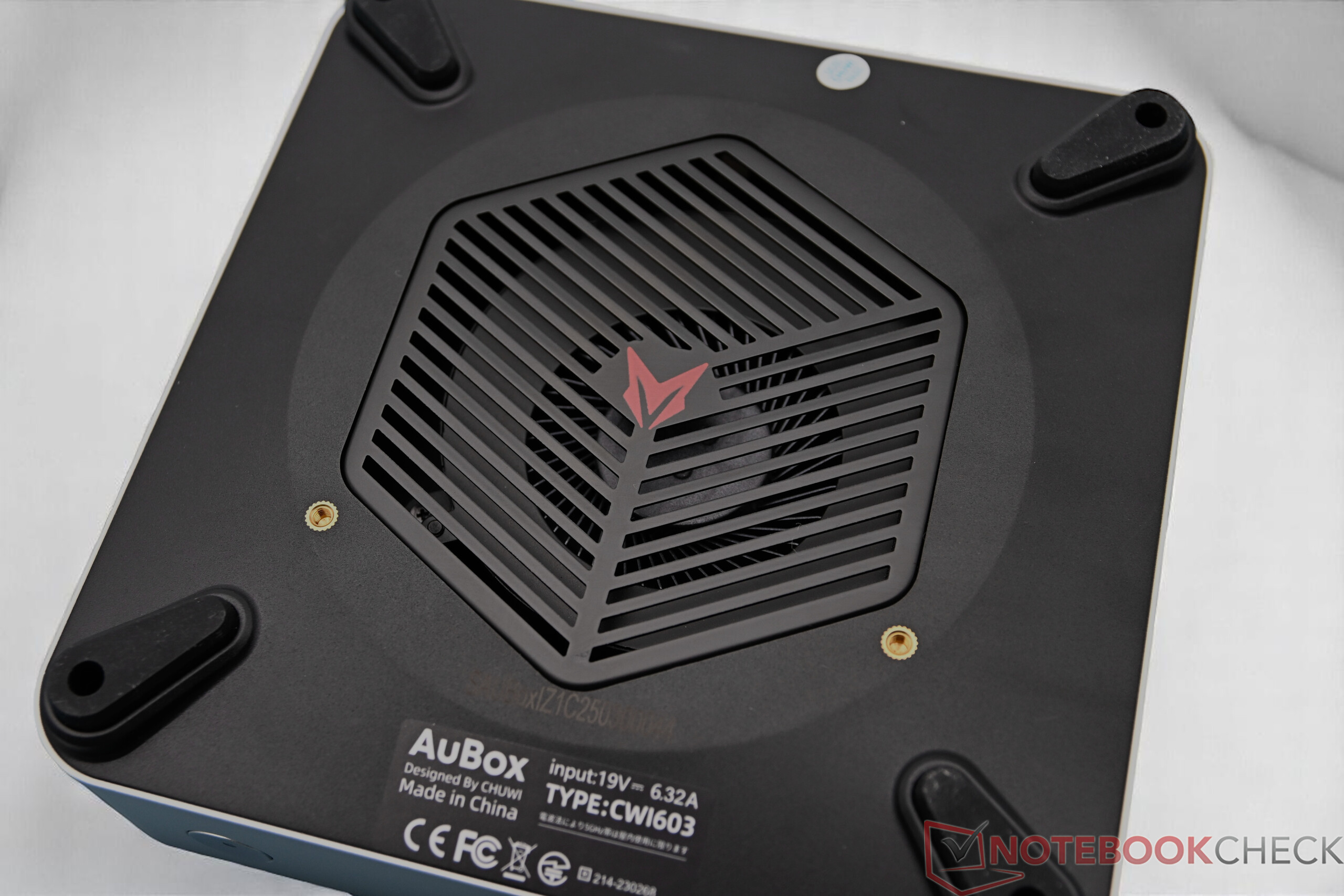

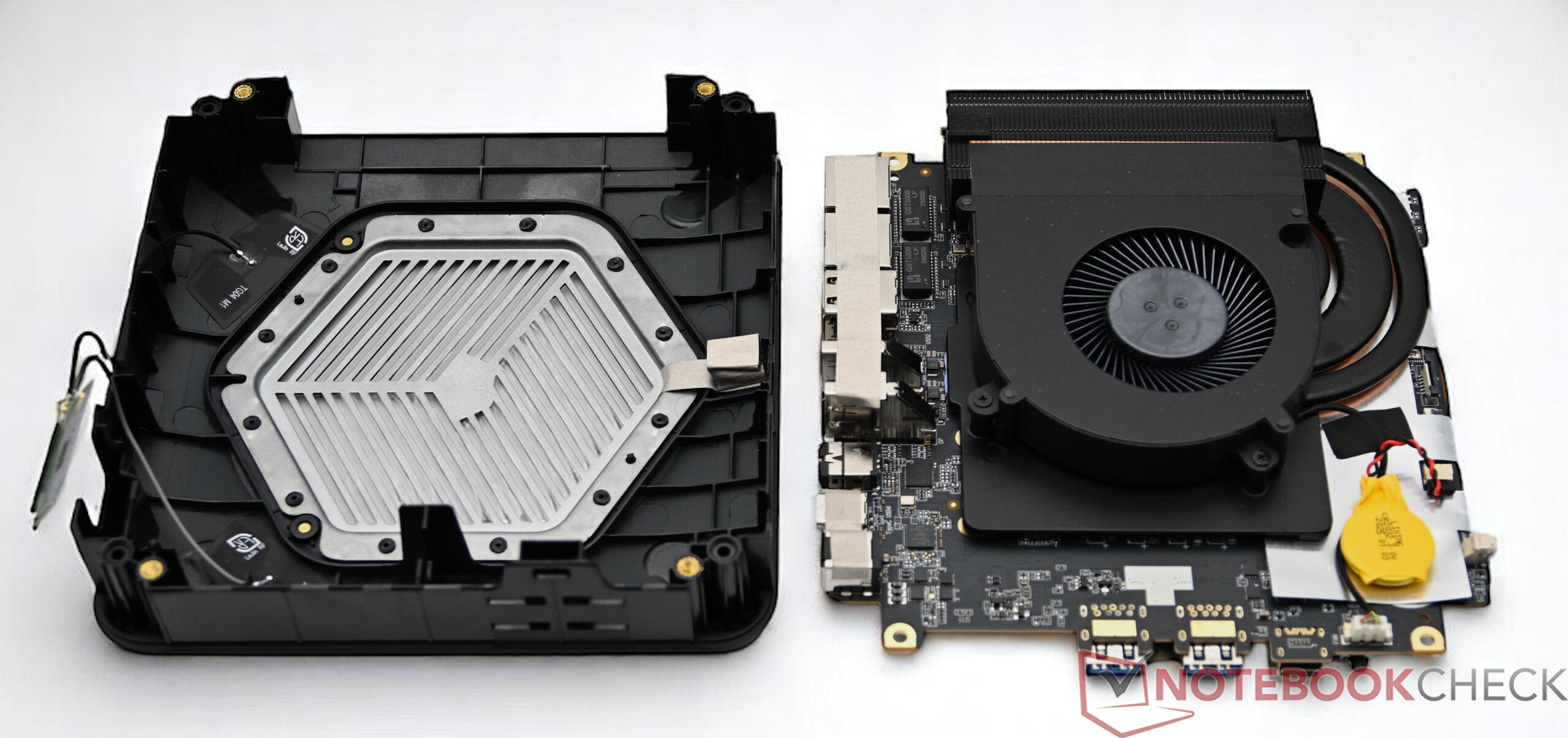

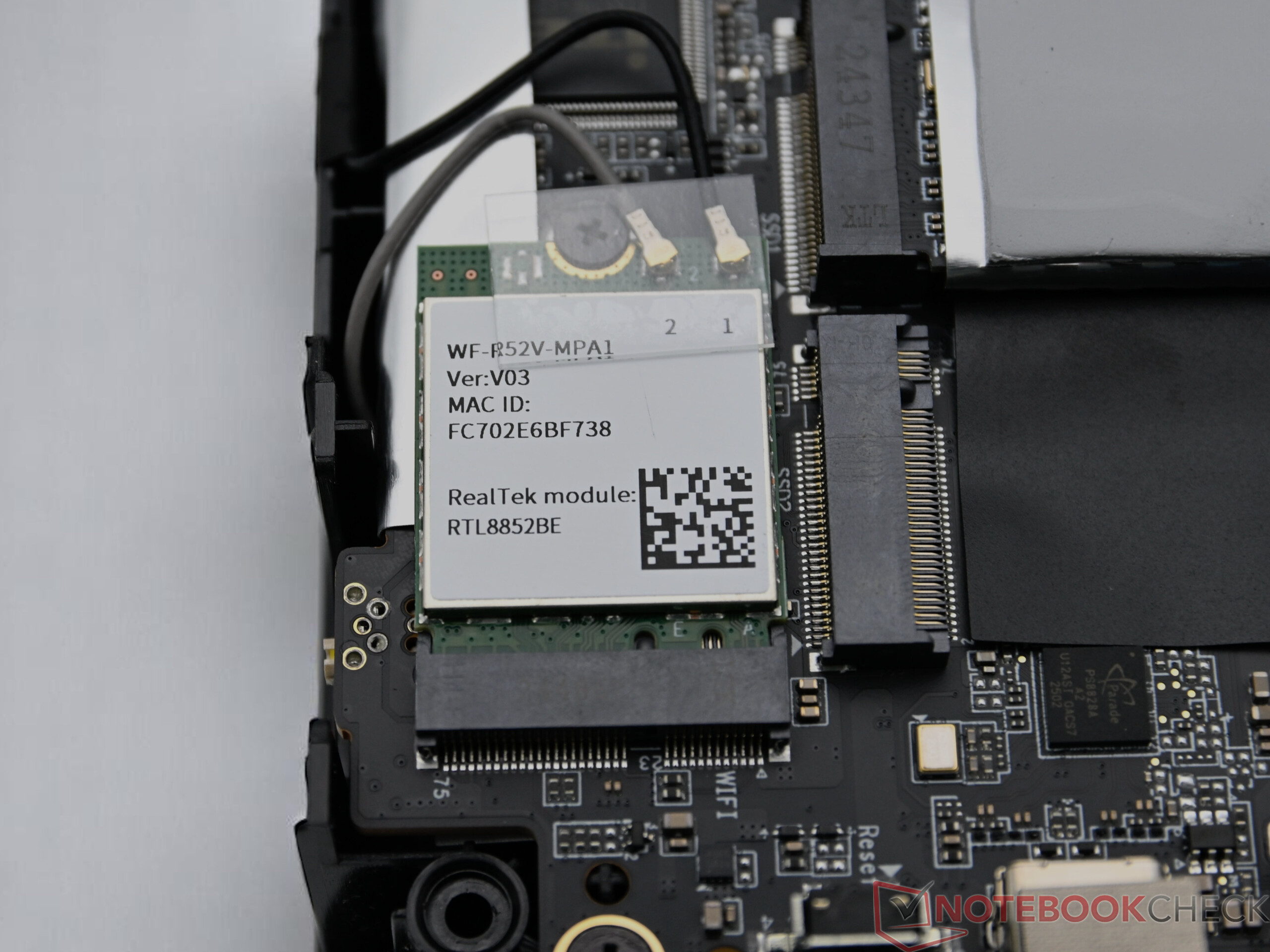

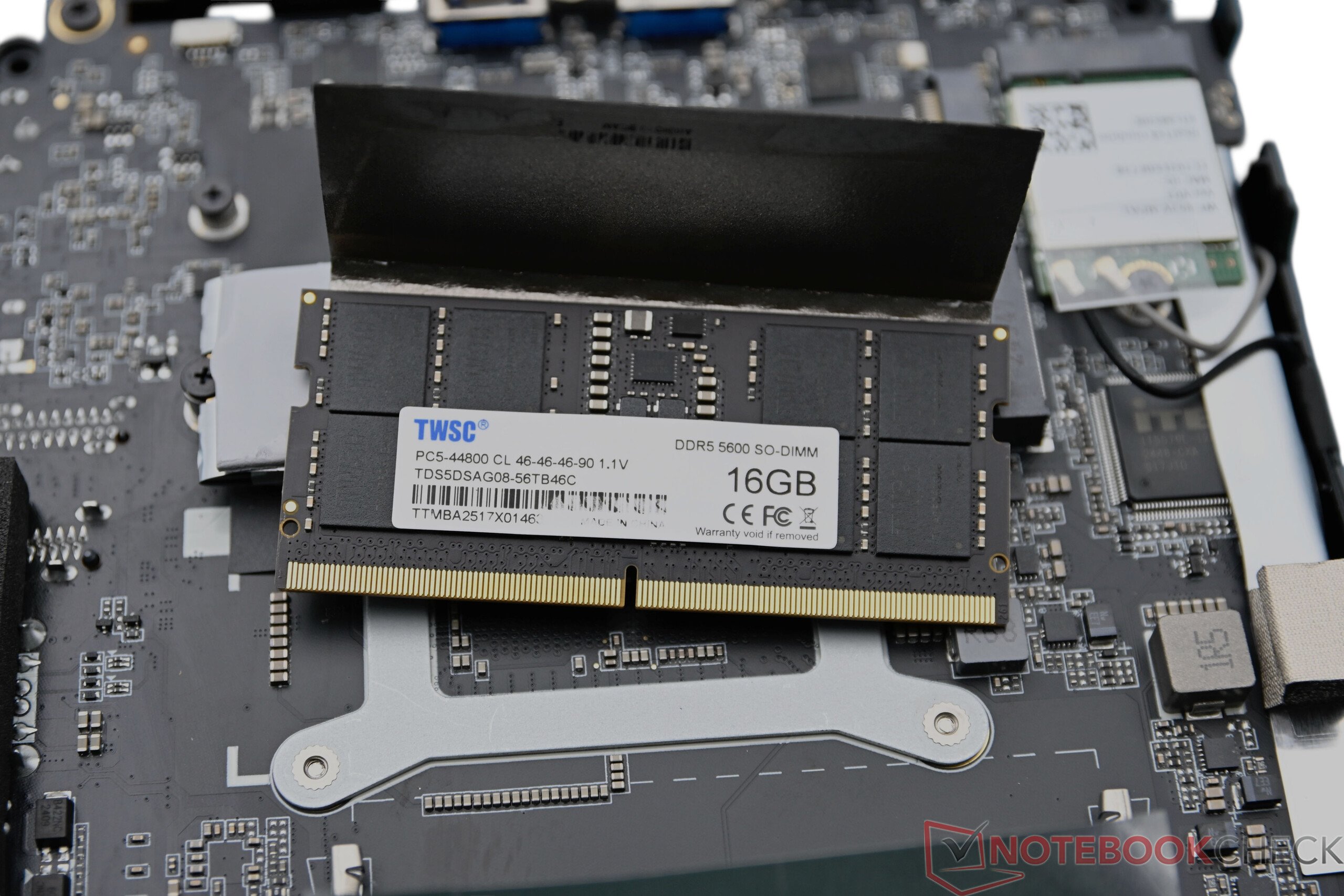

Chuwi Aubox 迷你电脑很容易从下面打开。必须拧下四颗螺丝，幸运的是橡胶脚垫没有遮住螺丝。拧下螺丝后，就可以取下金属盖。内存、固态硬盘和无线局域网模块都很容易接触到。

可持续性

Chuwi Aubox 的包装十分简便，主要由硬纸板制成，内衬泡沫塑料。制造商并没有特别强调环保。随附的配件都用塑料袋包装，这并不理想。

性能 - 八核心十六线程的 Ryzen 7

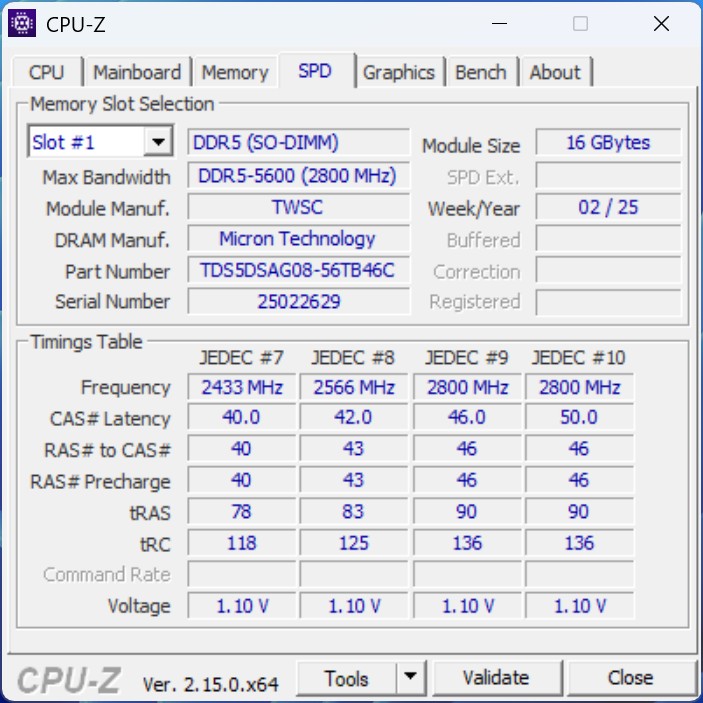

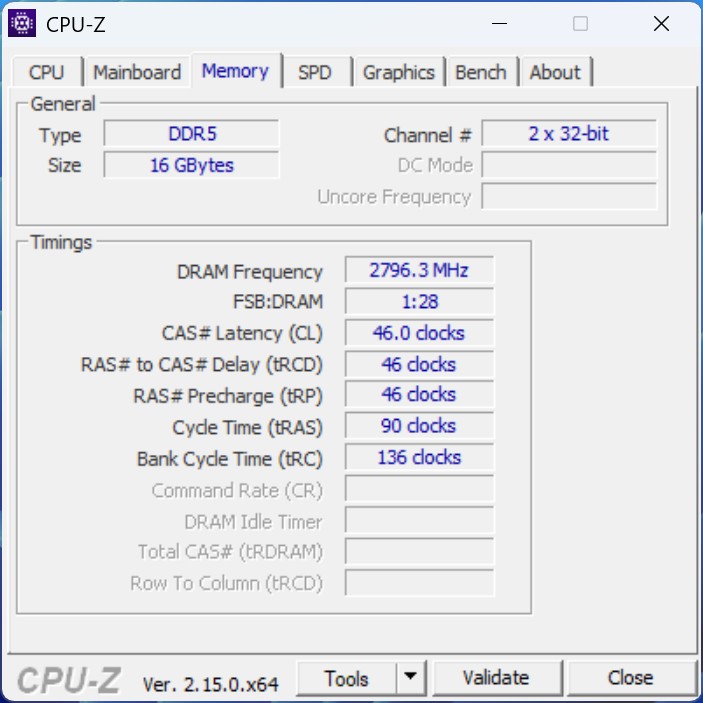

Chuwi Aubox 配备了 AMD Ryzen 7 8745HS，拥有八个原生计算核心。内存为 16GB DDR5 内存模块，就性能而言不一定是最佳解决方案。

测试条件

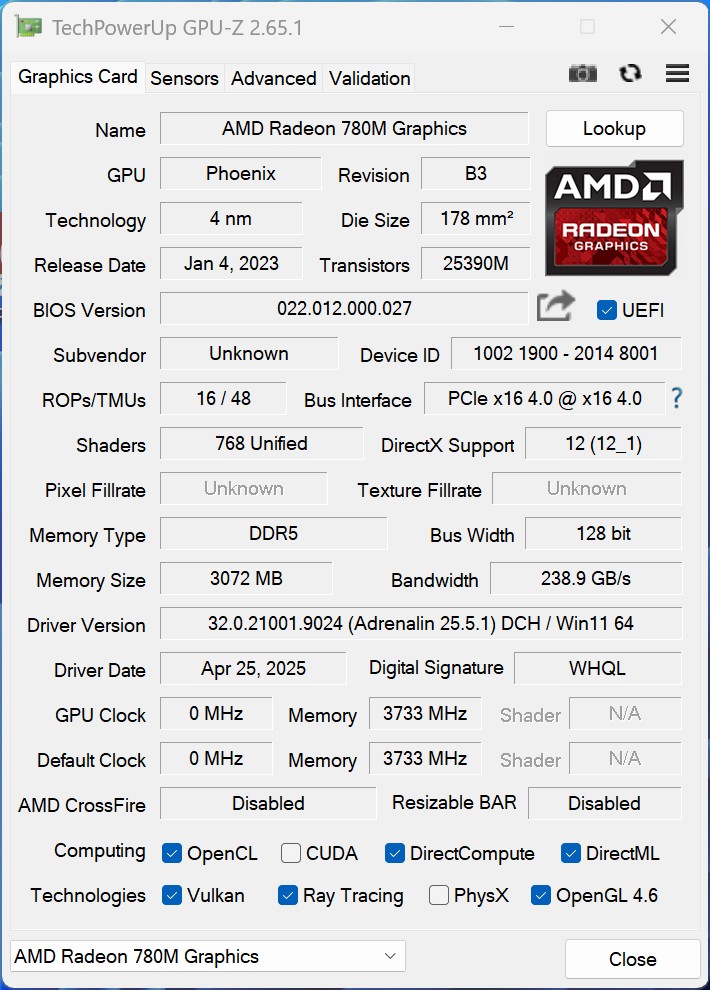

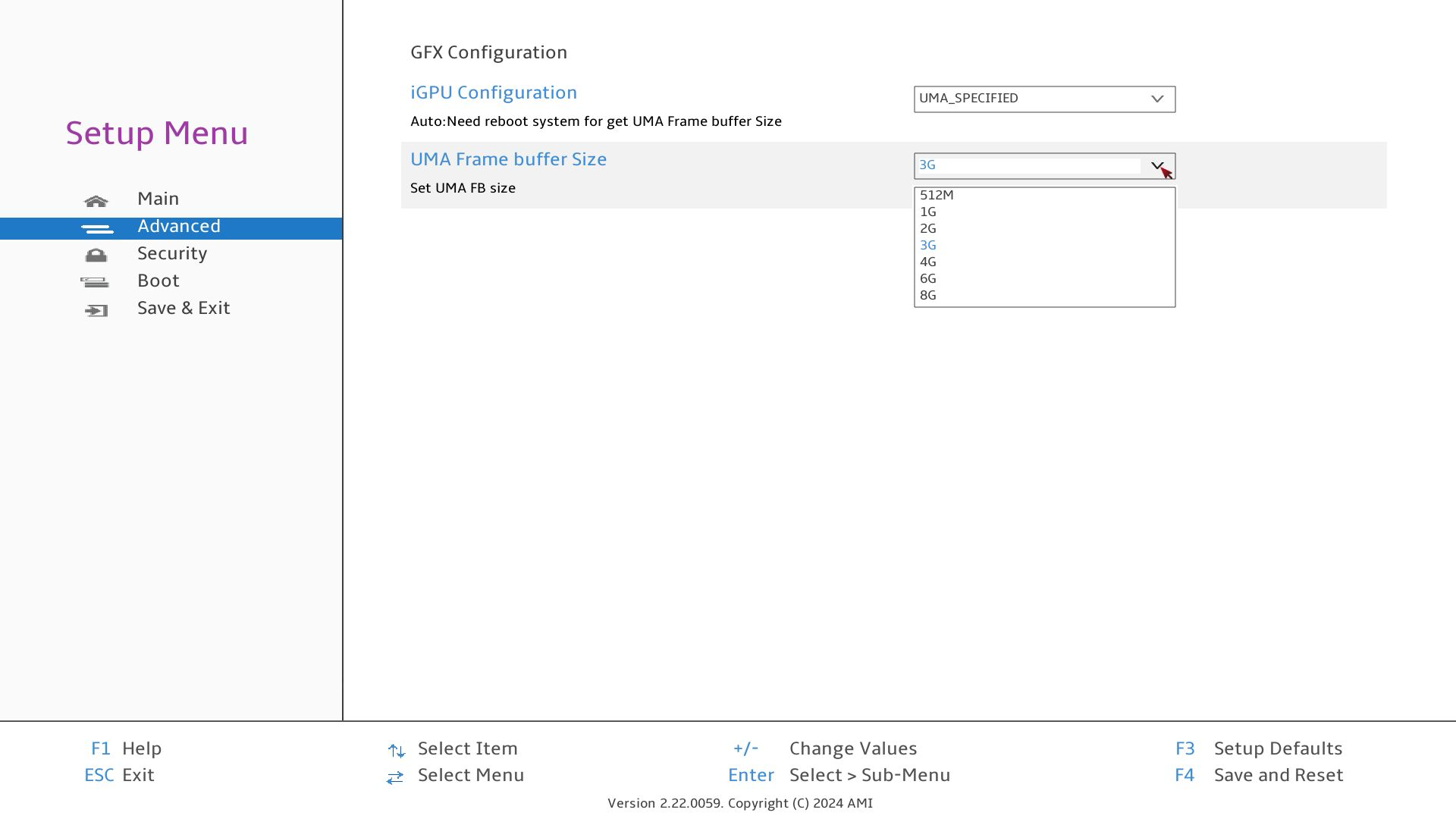

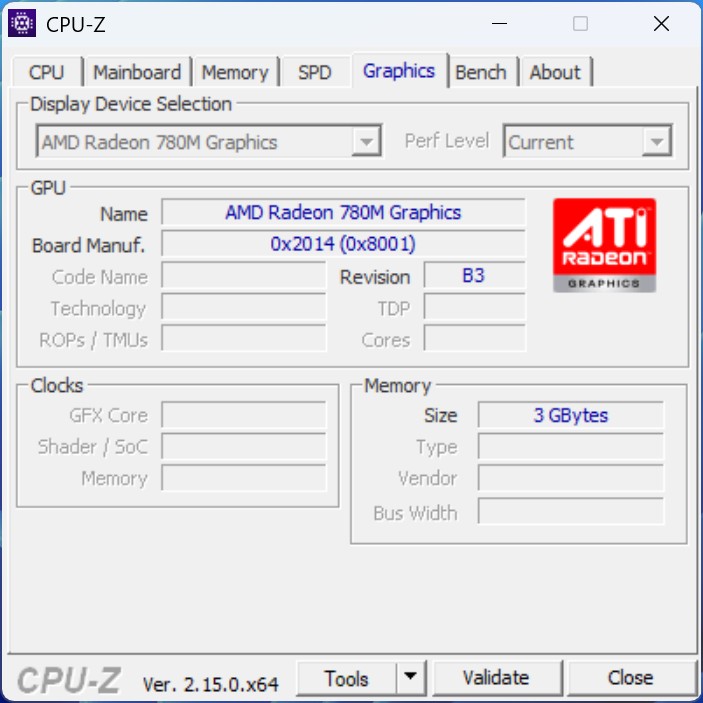

本评测中的所有测试均在交付状态下进行。iGPU 分配了 3 GB 内存。该值仍可在 UEFI 中调整。不过，UEFI 并不提供很多自定义选项。

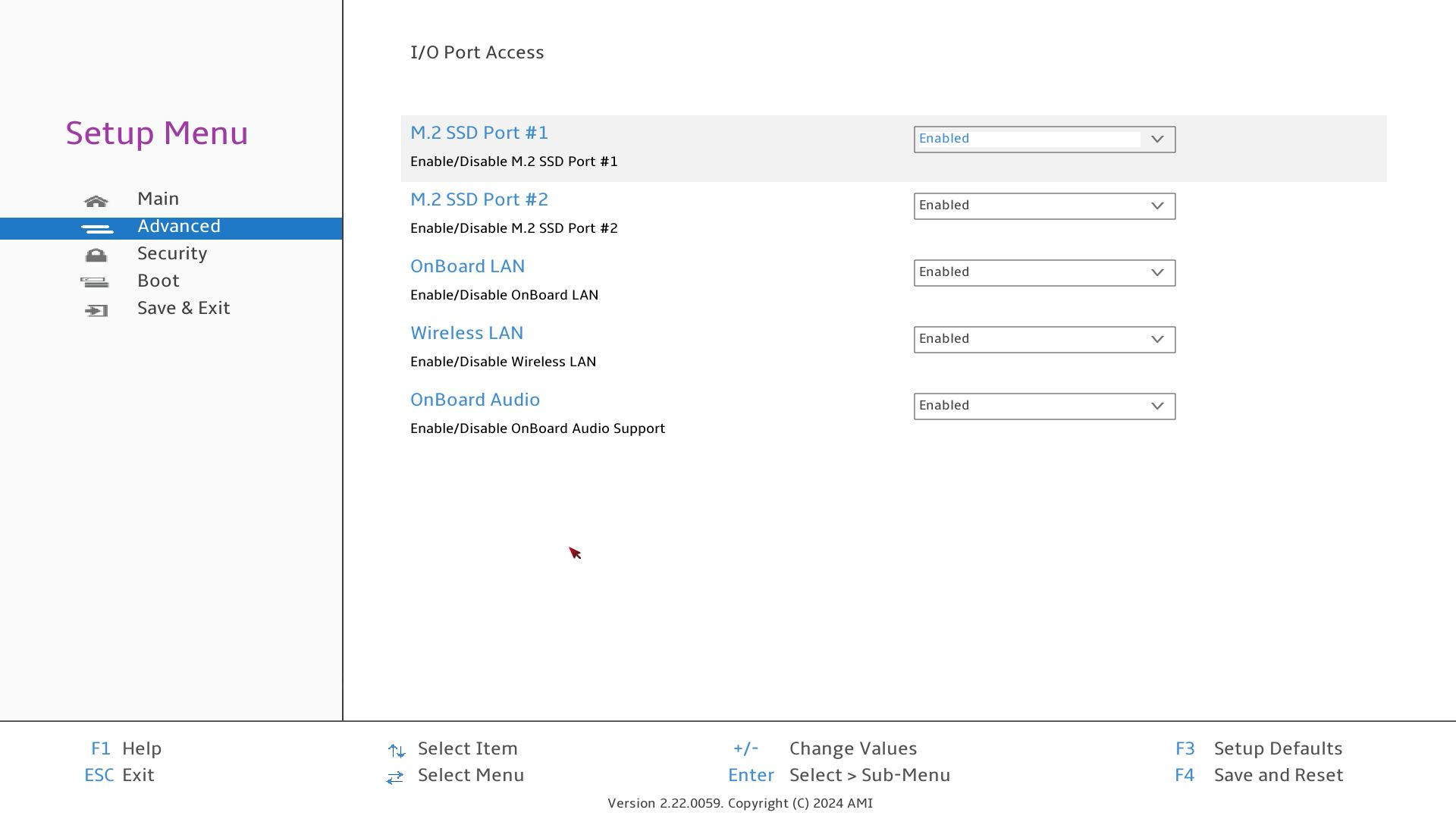

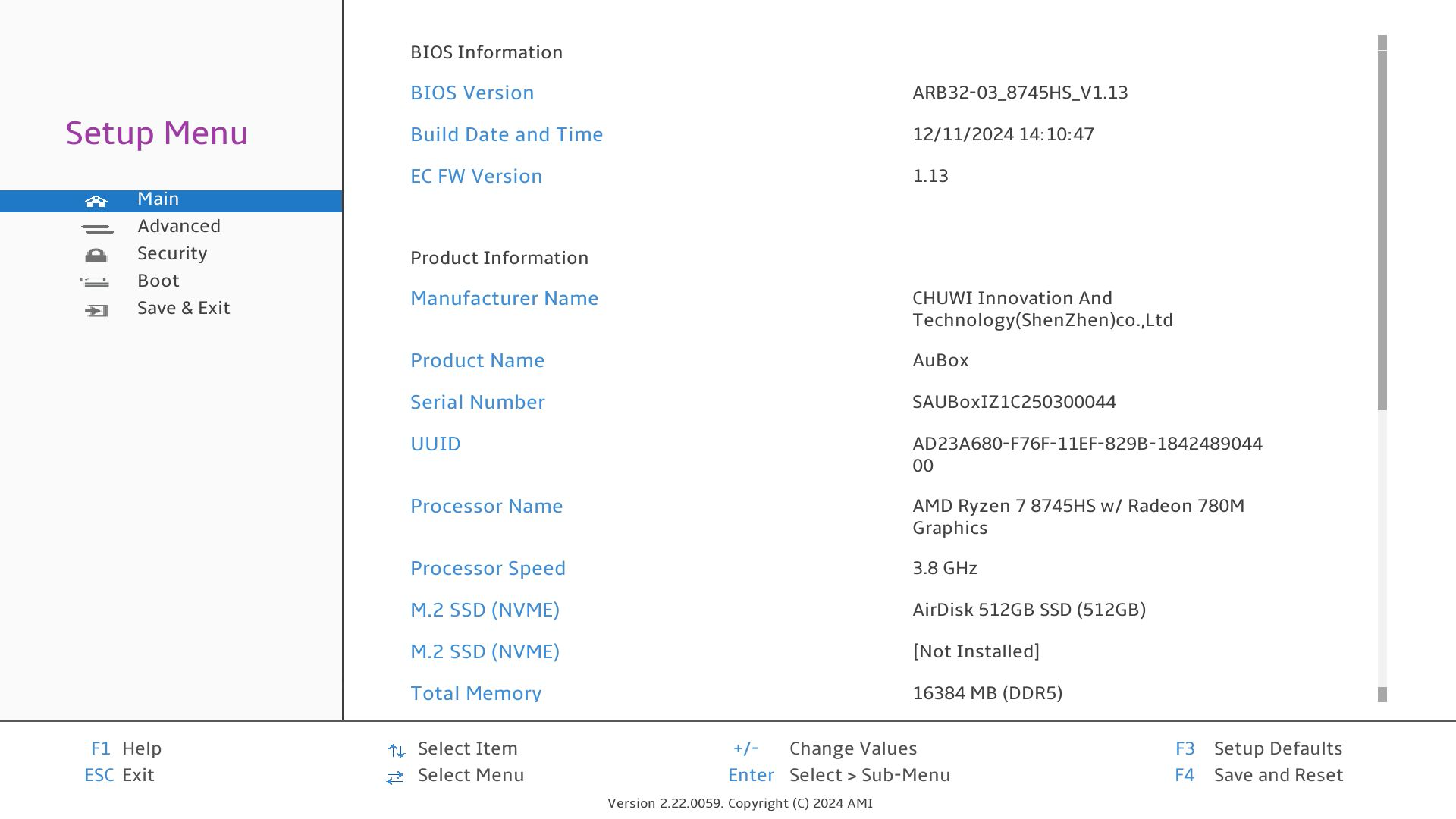

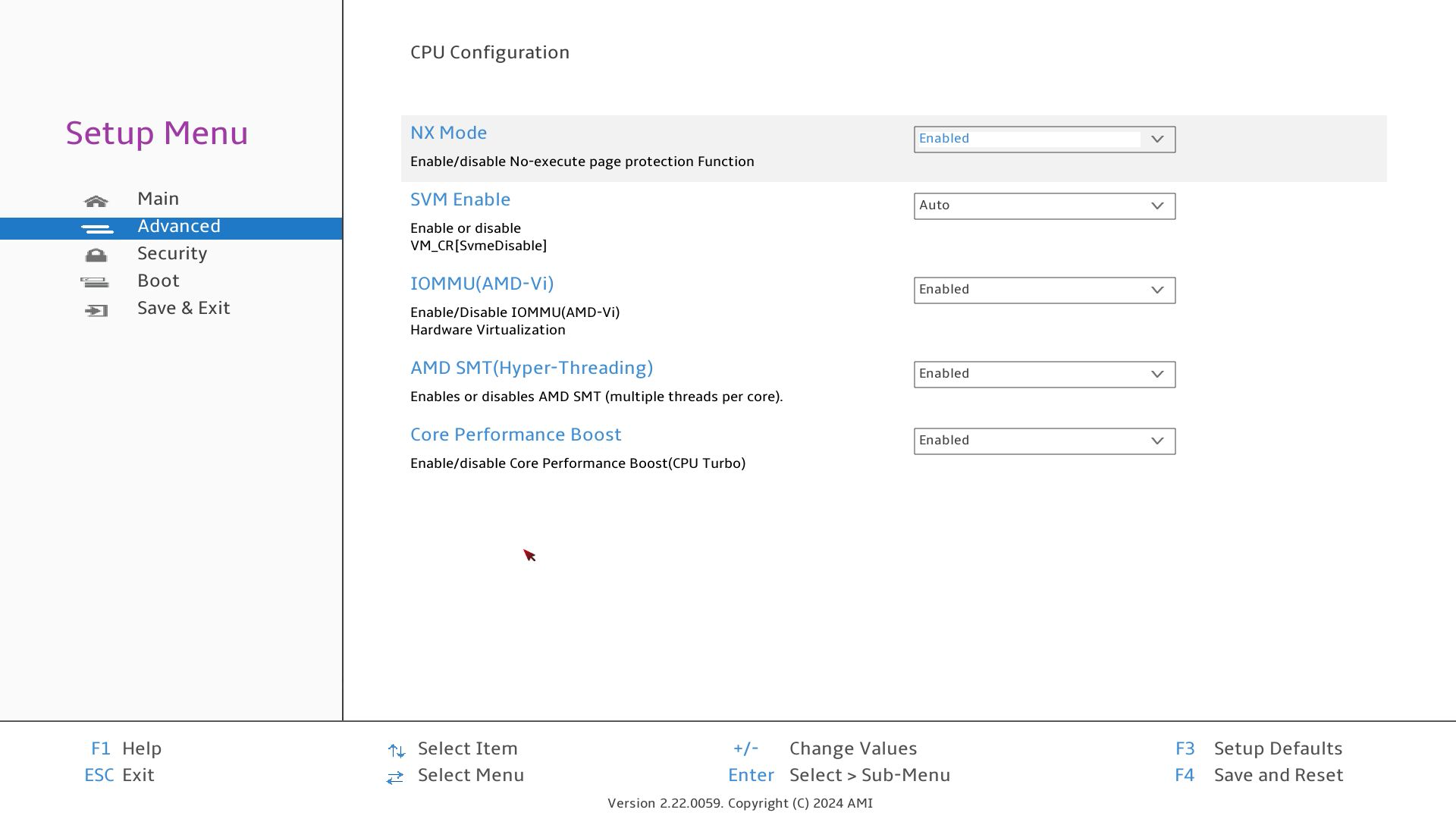

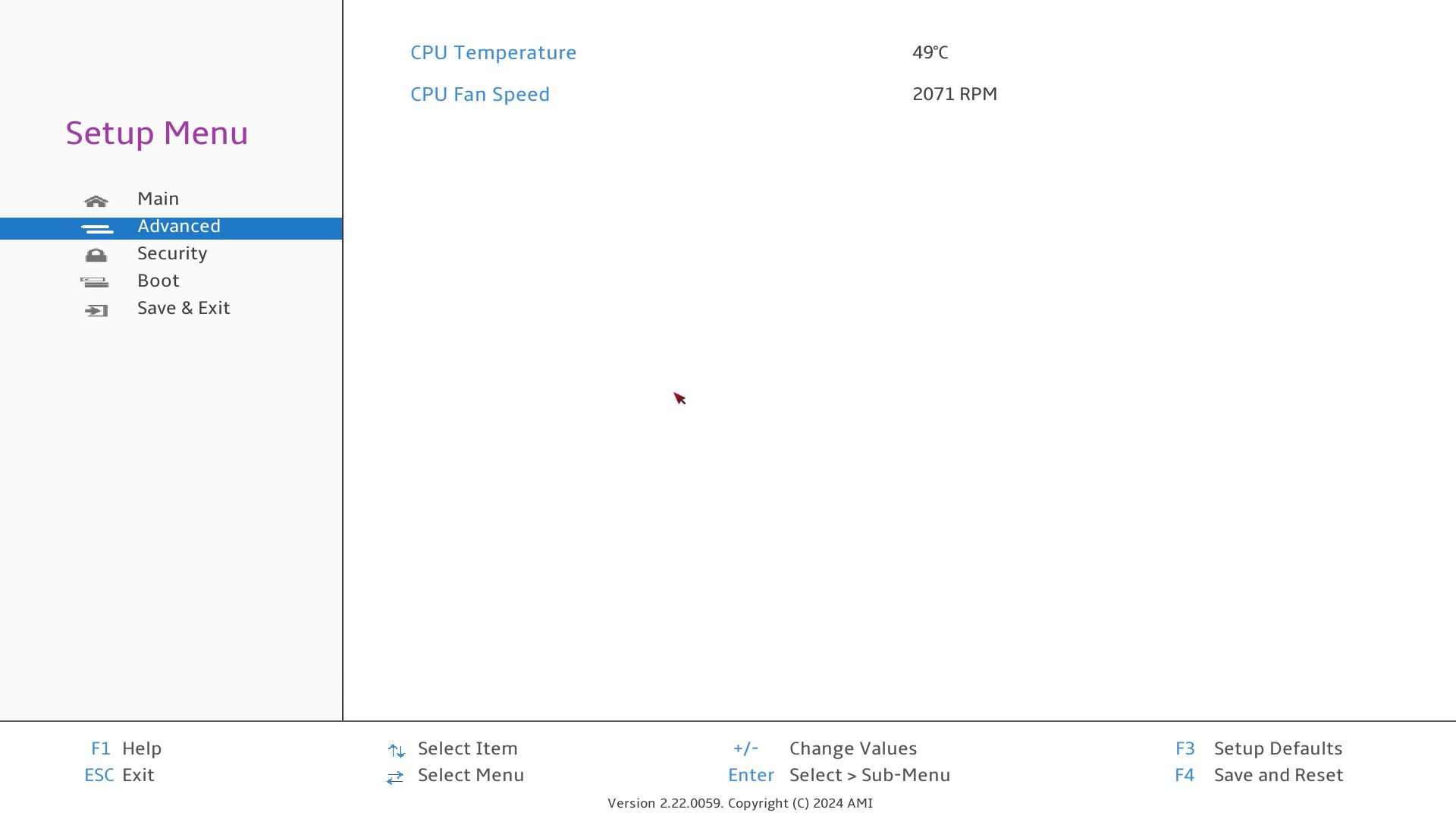

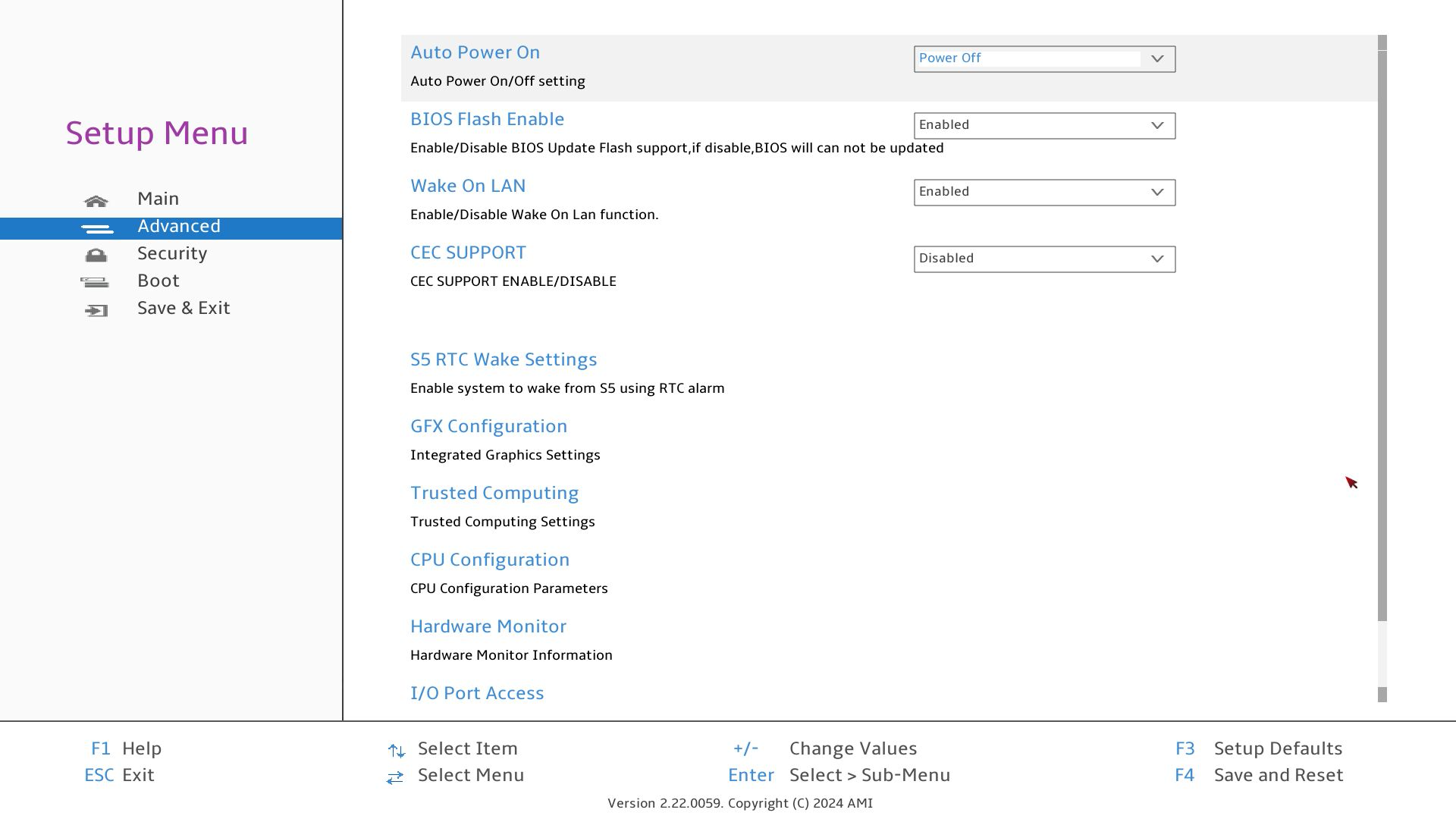

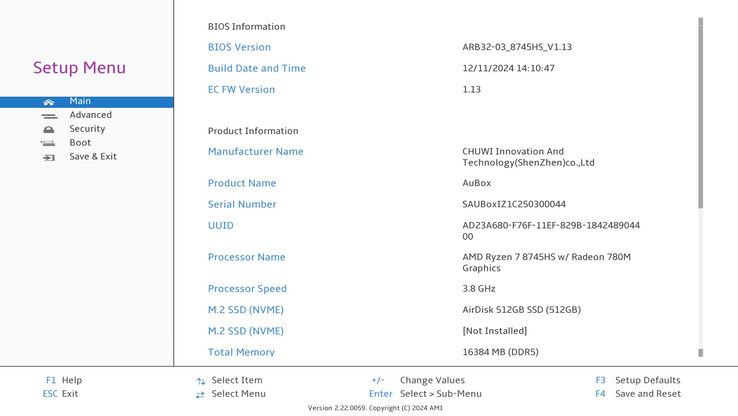

UEFI 选项

处理器

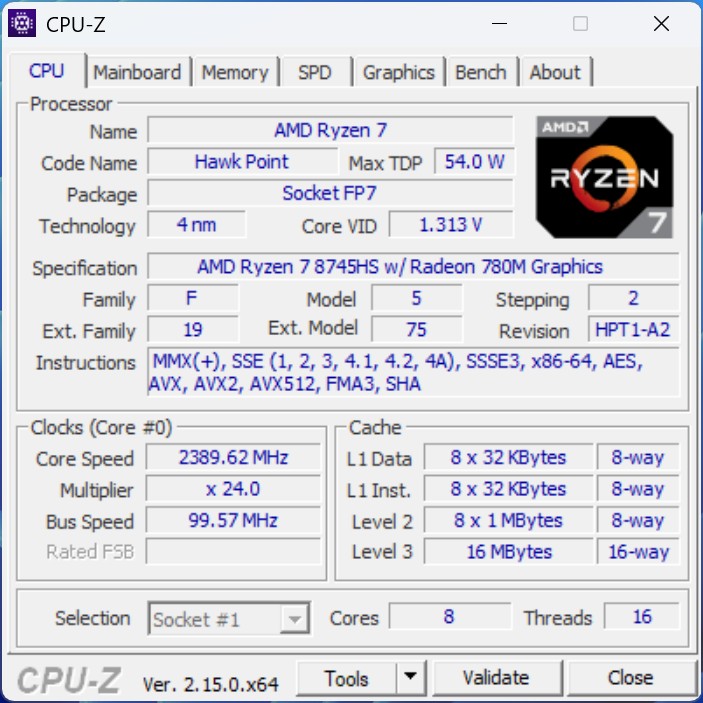

餈 AMD Ryzen 7 8745HS是一款功能强大的 8 核处理器，基于 Zen4 架构。与 AMD Ryzen 7 8845HS 不同的是，8745HS 没有用于加速人工智能工作负载的独立 NPU。不过，如果您使用特殊的 AI 应用程序，则应选择不同的机型。与竞争对手相比，我们的测试样本直接落后于 Geekom A8 Max.作为 AMD Ryzen 7 8745HS 的替代品，Chuwi Aubox 迷你电脑还提供英特尔酷睿 i9-13900HK 或 AMD Ryzen 9 6900HX。

Performance Rating - Percent
Acemagic F3A AMD Ryzen AI 9 HX 370	60.7 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	57.7 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	57.3 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	54.6 pt
Geekom Mini IT13 Intel Core i9-13900HK	51.7 pt
Average AMD Ryzen 9 6900HX	51.5 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H	50.6 pt

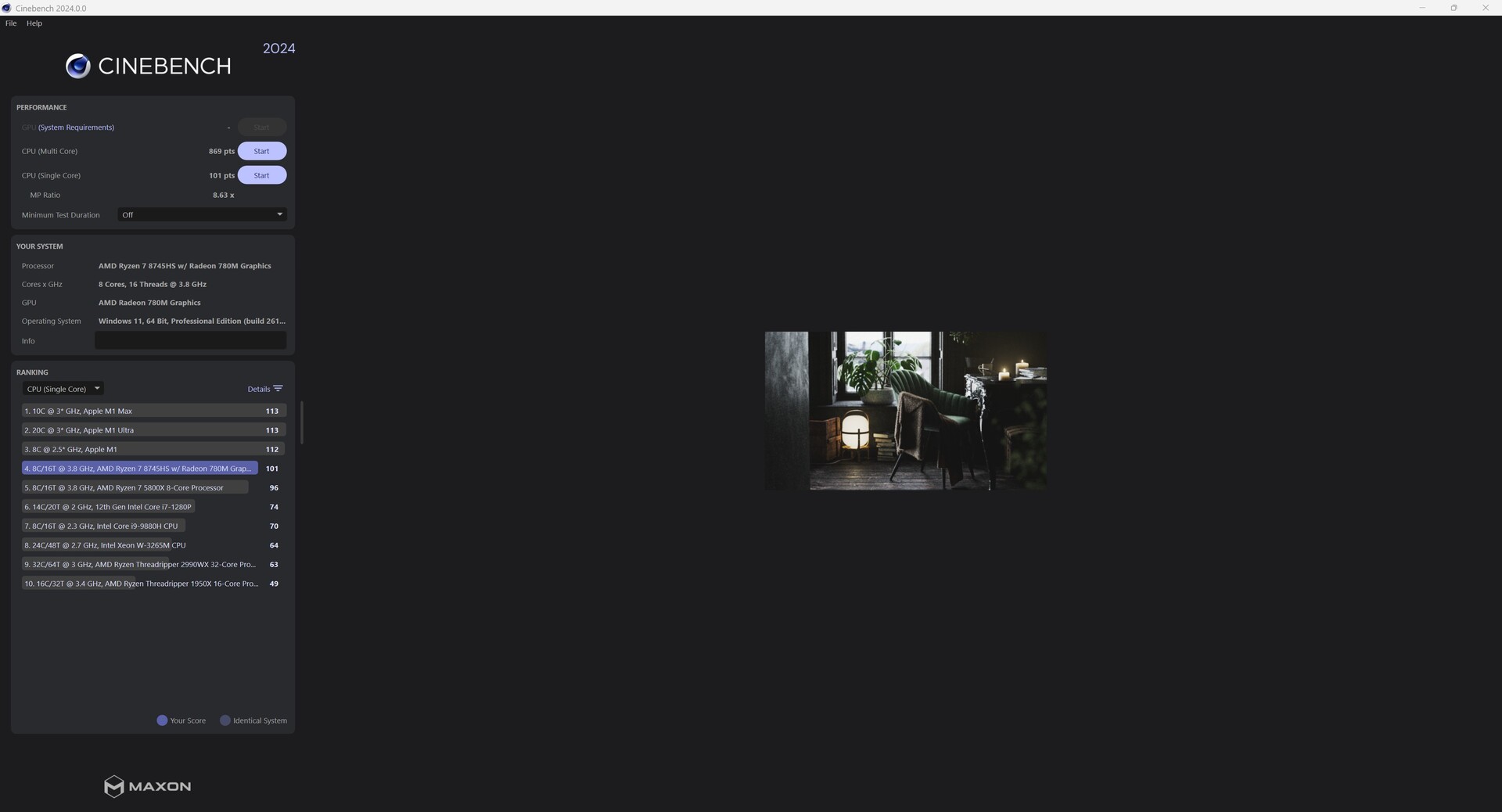

Cinebench 2024
CPU Multi Core
Acemagic F3A AMD Ryzen AI 9 HX 370	1244 Points +43%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	978 Points +13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	943 Points +9%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	869 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	814 Points -6%
Geekom Mini IT13 Intel Core i9-13900HK	716 Points -18%
Average AMD Ryzen 9 6900HX (666 - 724, n=2)	695 Points -20%
CPU Single Core
Acemagic F3A AMD Ryzen AI 9 HX 370	120 Points +19%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	107 Points +6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	106 Points +5%
Geekom Mini IT13 Intel Core i9-13900HK	104 Points +3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	101 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	97 Points -4%
Average AMD Ryzen 9 6900HX (91 - 92, n=2)	91.5 Points -9%

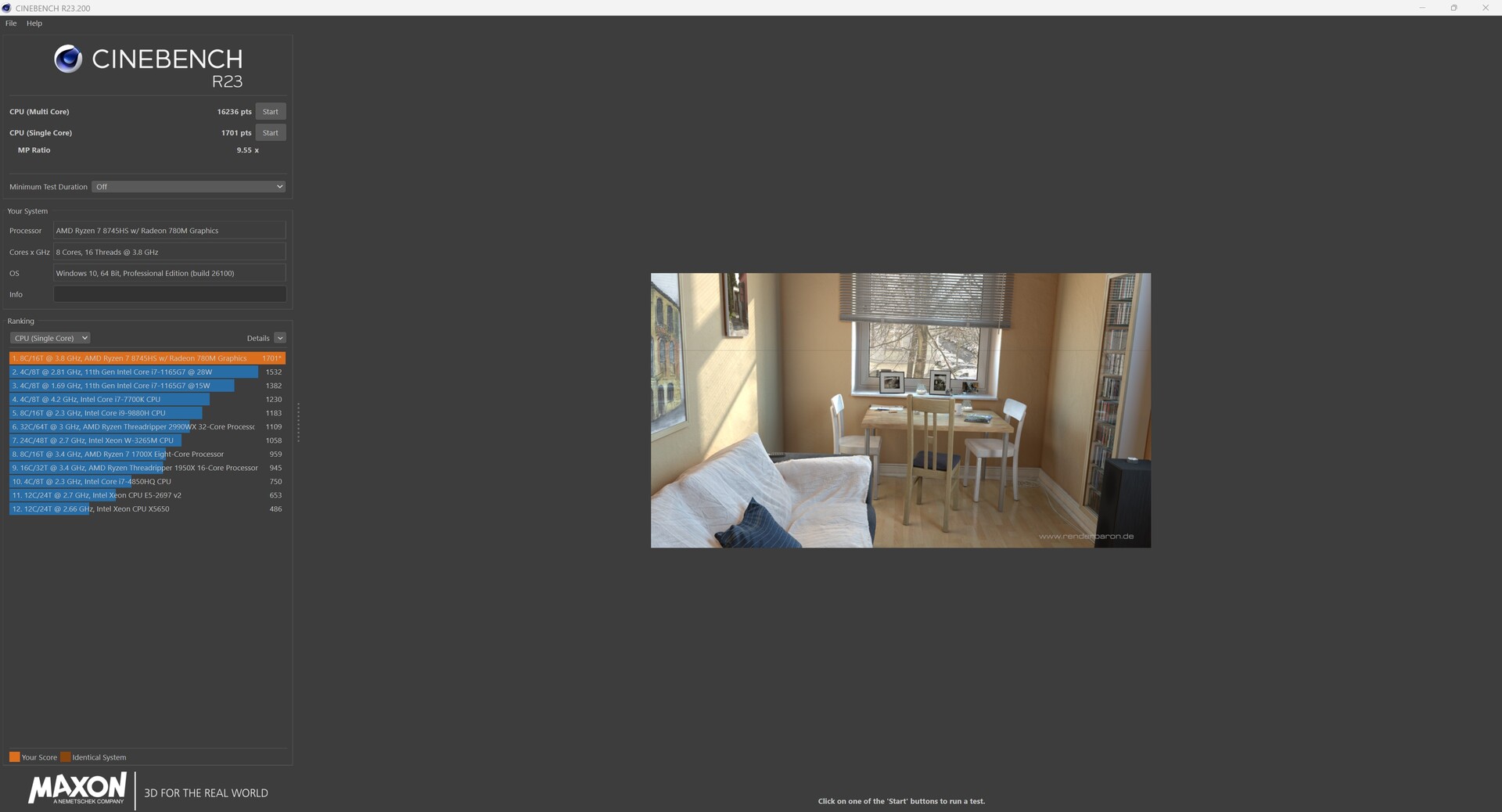

Cinebench R23
Multi Core
Acemagic F3A AMD Ryzen AI 9 HX 370	22461 Points +38%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17131 Points +6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	16350 Points +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	16236 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	14564 Points -10%
Average AMD Ryzen 9 6900HX (9709 - 15100, n=19)	13307 Points -18%
Geekom Mini IT13 Intel Core i9-13900HK	12799 Points -21%
Single Core
Acemagic F3A AMD Ryzen AI 9 HX 370	2035 Points +20%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1815 Points +7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1779 Points +5%
Geekom Mini IT13 Intel Core i9-13900HK	1727 Points +2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1701 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	1640 Points -4%
Average AMD Ryzen 9 6900HX (1516 - 1616, n=19)	1565 Points -8%

Cinebench R20
CPU (Multi Core)
Acemagic F3A AMD Ryzen AI 9 HX 370	8817 Points +39%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6762 Points +6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6428 Points +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6351 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	5618 Points -12%
Average AMD Ryzen 9 6900HX (3742 - 5813, n=19)	5162 Points -19%
Geekom Mini IT13 Intel Core i9-13900HK	4968 Points -22%
CPU (Single Core)
Acemagic F3A AMD Ryzen AI 9 HX 370	801 Points +22%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	704 Points +7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	690 Points +5%
Geekom Mini IT13 Intel Core i9-13900HK	666 Points +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	658 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	629 Points -4%
Average AMD Ryzen 9 6900HX (595 - 631, n=19)	610 Points -7%

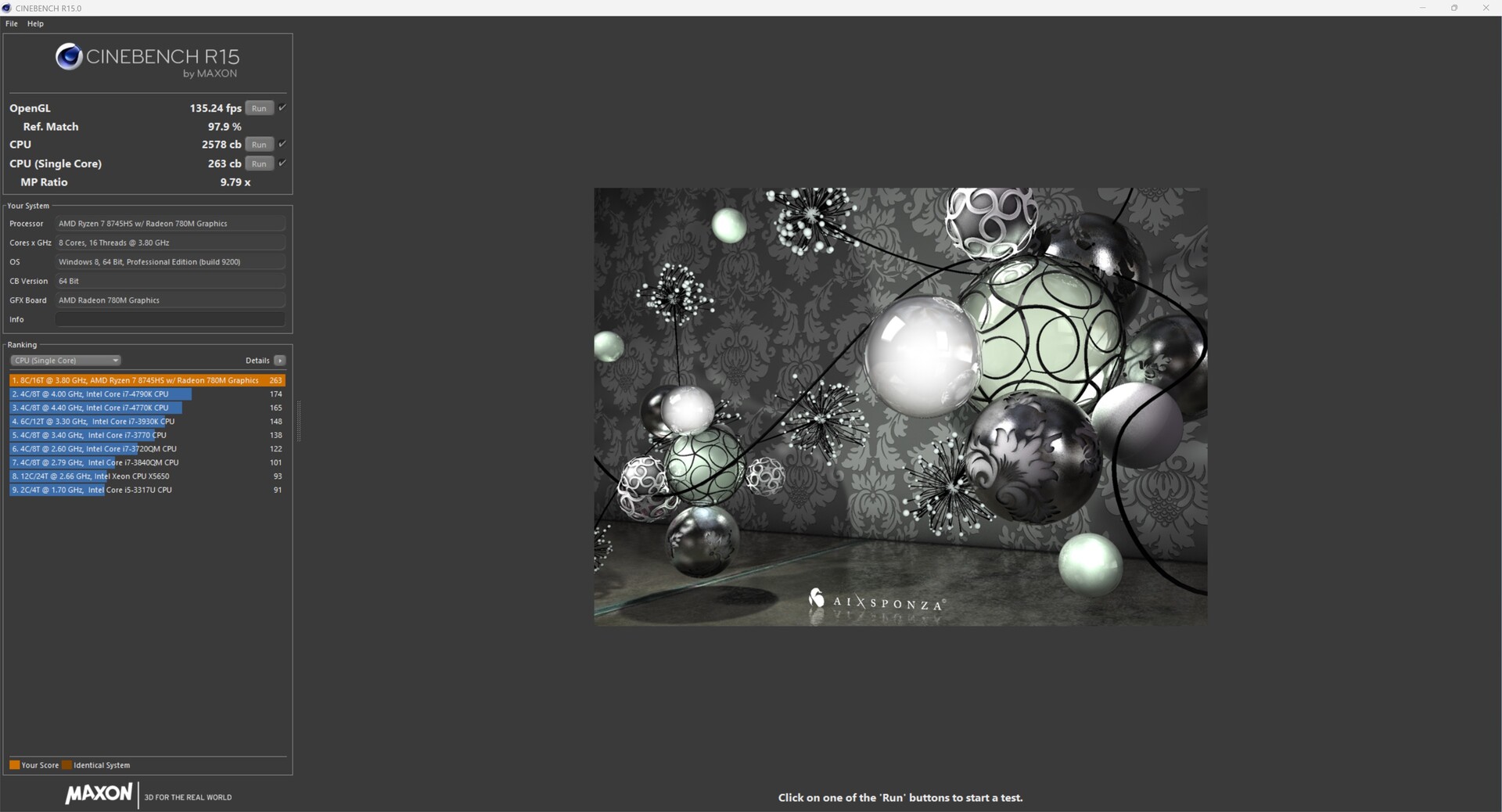

Cinebench R15
CPU Multi 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	3478 Points +35%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2741 Points +6%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2615 Points +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2578 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	2245 Points -13%
Average AMD Ryzen 9 6900HX (1588 - 2411, n=19)	2163 Points -16%
Geekom Mini IT13 Intel Core i9-13900HK	2004 Points -22%
CPU Single 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	315 Points +20%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	284 Points +8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	278 Points +6%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	263 Points
Average AMD Ryzen 9 6900HX (241 - 261, n=19)	250 Points -5%
Geekom Mini IT13 Intel Core i9-13900HK	247 Points -6%
Minisforum UH125 Pro Intel Core Ultra 5 125H	235 Points -11%

Cinebench R11.5
CPU Multi 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	40.69 Points +33%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	31.77 Points +4%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	30.54 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	30.3 Points -1%
Minisforum UH125 Pro Intel Core Ultra 5 125H	27.02 Points -12%
Average AMD Ryzen 9 6900HX (19 - 26.4, n=8)	23.9 Points -22%
Geekom Mini IT13 Intel Core i9-13900HK	23.87 Points -22%
CPU Single 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	3.7 Points +16%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	3.42 Points +8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	3.34 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	3.18 Points
Geekom Mini IT13 Intel Core i9-13900HK	3 Points -6%
Average AMD Ryzen 9 6900HX (2.86 - 3.07, n=8)	2.94 Points -8%
Minisforum UH125 Pro Intel Core Ultra 5 125H	2.86 Points -10%

Cinebench R10
Rendering Single CPUs 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	15927 Points +15%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14593 Points +5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14557 Points +5%
Geekom Mini IT13 Intel Core i9-13900HK	13932 Points 0%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	13867 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	12858 Points -7%
Average AMD Ryzen 9 6900HX (11870 - 12943, n=8)	12332 Points -11%
Rendering Multiple CPUs 64Bit
Acemagic F3A AMD Ryzen AI 9 HX 370	103657 Points +19%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	89478 Points +3%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	87782 Points +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	86842 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	78817 Points -9%
Average AMD Ryzen 9 6900HX (55915 - 77450, n=8)	69650 Points -20%
Geekom Mini IT13 Intel Core i9-13900HK	67051 Points -23%

Blender
v2.79 BMW27 CPU
Geekom Mini IT13 Intel Core i9-13900HK	253 Seconds * -28%
Average AMD Ryzen 9 6900HX (212 - 357, n=21)	239 Seconds * -21%
Minisforum UH125 Pro Intel Core Ultra 5 125H	230 Seconds * -17%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	197 Seconds *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	194 Seconds * +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	189 Seconds * +4%
Acemagic F3A AMD Ryzen AI 9 HX 370	142 Seconds * +28%
v3.3 Classroom CPU
Geekom Mini IT13 Intel Core i9-13900HK	451 Seconds * -46%
Average AMD Ryzen 9 6900HX (360 - 558, n=14)	417 Seconds * -35%
Minisforum UH125 Pro Intel Core Ultra 5 125H	391 Seconds * -27%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	316 Seconds * -3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	308 Seconds *
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	300 Seconds * +3%
Acemagic F3A AMD Ryzen AI 9 HX 370	214 Seconds * +31%
v4.3 Barbershop CPU
Geekom Mini IT13 Intel Core i9-13900HK	2234 Seconds * -44%
Average AMD Ryzen 9 6900HX (n=1)	2093 Seconds * -35%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1963 Seconds * -27%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1566 Seconds * -1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1549 Seconds *
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1472 Seconds * +5%
Acemagic F3A AMD Ryzen AI 9 HX 370	1101 Seconds * +29%

wPrime 2.10
32m
Minisforum UH125 Pro Intel Core Ultra 5 125H	4.48 s * -55%
Average AMD Ryzen 9 6900HX (3.46 - 4.69, n=7)	4 s * -38%
Geekom Mini IT13 Intel Core i9-13900HK	3.851 s * -33%
Acemagic F3A AMD Ryzen AI 9 HX 370	3.743 s * -29%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2.895 s *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.81 s * +3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.672 s * +8%
1024m
Geekom Mini IT13 Intel Core i9-13900HK	414.073 s * -490%
Minisforum UH125 Pro Intel Core Ultra 5 125H	246.982 s * -252%
Average AMD Ryzen 9 6900HX (93.2 - 149.4, n=7)	114.7 s * -63%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	95.473 s * -36%
Acemagic F3A AMD Ryzen AI 9 HX 370	79.441 s * -13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	70.718 s * -1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	70.237 s *

X264 HD Benchmark 4.0
Pass 1
Acemagic F3A AMD Ryzen AI 9 HX 370	306 (295^min - 307^max) fps +15%
Minisforum UH125 Pro Intel Core Ultra 5 125H	304.5 (304^min - 306^max) fps +15%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	297 (292^min - 299^max) fps +12%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	286.5 (284^min - 289^max) fps +8%
Geekom Mini IT13 Intel Core i9-13900HK	285 (283^min - 287^max) fps +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	265.5 (265^min - 269^max) fps
Average AMD Ryzen 9 6900HX (241 - 263, n=7)	254 fps -4%
Pass 2
Acemagic F3A AMD Ryzen AI 9 HX 370	171.45 (170.8^min - 171.9^max) fps +16%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	155 (154.8^min - 155.3^max) fps +5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	149.8 (149.4^min - 151.1^max) fps +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	147.6 (147.1^min - 149.1^max) fps
Minisforum UH125 Pro Intel Core Ultra 5 125H	134 (133.7^min - 134.5^max) fps -9%
Average AMD Ryzen 9 6900HX (93.3 - 127.8, n=7)	115.2 fps -22%
Geekom Mini IT13 Intel Core i9-13900HK	114.75 (114^min - 115.3^max) fps -22%

WinRAR - Result
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7332 KB/s +10%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7275 KB/s +9%
Geekom Mini IT13 Intel Core i9-13900HK	6974 KB/s +5%
Average AMD Ryzen 9 6900HX (6795 - 6980, n=7)	6875 KB/s +3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6655 KB/s
Minisforum UH125 Pro Intel Core Ultra 5 125H	5594 KB/s -16%
Acemagic F3A AMD Ryzen AI 9 HX 370	4090 KB/s -39%

TrueCrypt
AES Mean 100MB
Acemagic F3A AMD Ryzen AI 9 HX 370	15.3 GB/s +39%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14.9 GB/s +35%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	14.6 GB/s +33%
Average AMD Ryzen 9 6900HX (9.3 - 13.5, n=7)	11.8 GB/s +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	11 GB/s
Geekom Mini IT13 Intel Core i9-13900HK	10.8 GB/s -2%
Minisforum UH125 Pro Intel Core Ultra 5 125H	9 GB/s -18%
Twofish Mean 100MB
Acemagic F3A AMD Ryzen AI 9 HX 370	2.5 GB/s +25%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	2.1 GB/s +5%
Geekom Mini IT13 Intel Core i9-13900HK	2.1 GB/s +5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.1 GB/s +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2 GB/s
Average AMD Ryzen 9 6900HX (1.3 - 1.8, n=7)	1.643 GB/s -18%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1.4 GB/s -30%
Serpent Mean 100MB
Acemagic F3A AMD Ryzen AI 9 HX 370	1.6 GB/s +23%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1.3 GB/s 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.3 GB/s 0%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1.3 GB/s
Geekom Mini IT13 Intel Core i9-13900HK	1.1 GB/s -15%
Average AMD Ryzen 9 6900HX (0.857 - 1.2, n=7)	1.094 GB/s -16%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.854 GB/s -34%

Geekbench 5.5
Multi-Core
Acemagic F3A AMD Ryzen AI 9 HX 370	13125 Points +33%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12207 Points +24%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	11820 Points +20%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10788 Points +9%
Geekom Mini IT13 Intel Core i9-13900HK	9973 Points +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9864 Points
Average AMD Ryzen 9 6900HX (8313 - 10490, n=21)	9642 Points -2%
Single-Core
Acemagic F3A AMD Ryzen AI 9 HX 370	2073 Points +11%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1949 Points +5%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1873 Points 0%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1865 Points
Geekom Mini IT13 Intel Core i9-13900HK	1699 Points -9%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1593 Points -15%
Average AMD Ryzen 9 6900HX (1523 - 1652, n=21)	1589 Points -15%

Geekbench 5.0
5.0 Multi-Core
Acemagic F3A AMD Ryzen AI 9 HX 370	12962 Points +32%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	12184 Points +24%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12057 Points +23%
Minisforum UH125 Pro Intel Core Ultra 5 125H	10676 Points +9%
Average AMD Ryzen 9 6900HX (9220 - 10426, n=15)	9880 Points +1%
Geekom Mini IT13 Intel Core i9-13900HK	9859 Points 0%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9815 Points
5.0 Single-Core
Acemagic F3A AMD Ryzen AI 9 HX 370	1942 Points +10%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1869 Points +6%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1841 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1761 Points
Geekom Mini IT13 Intel Core i9-13900HK	1674 Points -5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	1596 Points -9%
Average AMD Ryzen 9 6900HX (1531 - 1603, n=15)	1561 Points -11%

Geekbench 4.4
64 Bit Multi-Core Score
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	49452 Points +22%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	46366 Points +15%
Acemagic F3A AMD Ryzen AI 9 HX 370	42842 Points +6%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	40493 Points
Average AMD Ryzen 9 6900HX (36780 - 39852, n=11)	39028 Points -4%
Minisforum UH125 Pro Intel Core Ultra 5 125H	38648 Points -5%
Geekom Mini IT13 Intel Core i9-13900HK	36281 Points -10%
64 Bit Single-Core Score
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	8092 Points +9%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	7933 Points +7%
Acemagic F3A AMD Ryzen AI 9 HX 370	7790 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	7430 Points
Geekom Mini IT13 Intel Core i9-13900HK	7352 Points -1%
Minisforum UH125 Pro Intel Core Ultra 5 125H	6734 Points -9%
Average AMD Ryzen 9 6900HX (6191 - 6804, n=11)	6642 Points -11%

3DMark 11 - 1280x720 Performance Physics
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	22207 Points +23%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	18750 Points +4%
Acemagic F3A AMD Ryzen AI 9 HX 370	18510 Points +2%
Average AMD Ryzen 9 6900HX (15855 - 21036, n=23)	18161 Points 0%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18094 Points
Minisforum UH125 Pro Intel Core Ultra 5 125H	17138 Points -5%
Geekom Mini IT13 Intel Core i9-13900HK	15902 Points -12%

7-Zip 18.03
7z b 4
Acemagic F3A AMD Ryzen AI 9 HX 370	79910 MIPS +25%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	73742 MIPS +15%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	71161 MIPS +11%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	63912 MIPS
Average AMD Ryzen 9 6900HX (49526 - 65336, n=20)	60091 MIPS -6%
Geekom Mini IT13 Intel Core i9-13900HK	53572 MIPS -16%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0 MIPS -100%
7z b 4 -mmt1
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6648 MIPS +5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6582 MIPS +4%
Acemagic F3A AMD Ryzen AI 9 HX 370	6497 MIPS +3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6334 MIPS
Average AMD Ryzen 9 6900HX (5090 - 6070, n=20)	5799 MIPS -8%
Geekom Mini IT13 Intel Core i9-13900HK	5730 MIPS -10%
Minisforum UH125 Pro Intel Core Ultra 5 125H	4699 MIPS -26%

HWBOT x265 Benchmark v2.2 - 4k Preset
Acemagic F3A AMD Ryzen AI 9 HX 370	27.5 fps +49%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	21.8 fps +18%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	20.7 fps +13%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18.4 fps
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.7 fps -9%
Average AMD Ryzen 9 6900HX (12.6 - 18.7, n=20)	16.7 fps -9%
Geekom Mini IT13 Intel Core i9-13900HK	14.2 fps -23%

R Benchmark 2.5 - Overall mean
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.513 sec * -9%
Average AMD Ryzen 9 6900HX (0.4627 - 0.4974, n=20)	0.483 sec * -2%
Geekom Mini IT13 Intel Core i9-13900HK	0.4799 sec * -2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	0.4716 sec *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	0.4435 sec * +6%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	0.431 sec * +9%
Acemagic F3A AMD Ryzen AI 9 HX 370	0.3927 sec * +17%

LibreOffice - 20 Documents To PDF
Minisforum UH125 Pro Intel Core Ultra 5 125H	70.9 s * -10%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	64.3 s *
Acemagic F3A AMD Ryzen AI 9 HX 370	61.3 s * +5%
Geekom Mini IT13 Intel Core i9-13900HK	55.2 s * +14%
Average AMD Ryzen 9 6900HX (44.8 - 81.7, n=20)	53.1 s * +17%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	50.1 s * +22%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	50.1 s * +22%

WebXPRT 3 - Overall
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	329 Points +13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	301 Points +4%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	290 Points
Average AMD Ryzen 9 6900HX (248 - 304, n=17)	280 Points -3%
Geekom Mini IT13 Intel Core i9-13900HK	268 Points -8%
Minisforum UH125 Pro Intel Core Ultra 5 125H	254 Points -12%
Acemagic F3A AMD Ryzen AI 9 HX 370	252 Points -13%

Mozilla Kraken 1.1 - Total
Minisforum UH125 Pro Intel Core Ultra 5 125H	595 ms * -11%
Average AMD Ryzen 9 6900HX (564 - 607, n=18)	588 ms * -9%
Geekom Mini IT13 Intel Core i9-13900HK	551 ms * -3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	537 ms *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	527 ms * +2%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	519 ms * +3%
Acemagic F3A AMD Ryzen AI 9 HX 370	456 ms * +15%

3DMark
1920x1080 Fire Strike Physics
Acemagic F3A AMD Ryzen AI 9 HX 370	28620 Points +11%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	26934 Points +4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	26420 Points +2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	25815 Points
Average AMD Ryzen 9 6900HX (18389 - 27338, n=23)	24551 Points -5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	21391 Points -17%
Geekom Mini IT13 Intel Core i9-13900HK	21107 Points -18%
2560x1440 Time Spy CPU
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	10990 Points +27%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	10953 Points +27%
Acemagic F3A AMD Ryzen AI 9 HX 370	10873 Points +26%
Average AMD Ryzen 9 6900HX (6621 - 11039, n=23)	9584 Points +11%
Minisforum UH125 Pro Intel Core Ultra 5 125H	9182 Points +6%
Geekom Mini IT13 Intel Core i9-13900HK	9118 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	8644 Points

Super Pi mod 1.5 XS 1M - 1M
Acemagic F3A AMD Ryzen AI 9 HX 370	8.391 s * -15%
Average AMD Ryzen 9 6900HX (7.33 - 8.57, n=6)	7.8 s * -6%
Minisforum UH125 Pro Intel Core Ultra 5 125H	7.744 s * -6%
Geekom Mini IT13 Intel Core i9-13900HK	7.434 s * -1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	7.327 s *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7.103 s * +3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	6.993 s * +5%

Super Pi mod 1.5 XS 2M - 2M
Average AMD Ryzen 9 6900HX (16.4 - 20.7, n=6)	18.8 s * -3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18.261 s *
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	17.746 s * +3%
Acemagic F3A AMD Ryzen AI 9 HX 370	17.647 s * +3%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	17.31 s * +5%
Minisforum UH125 Pro Intel Core Ultra 5 125H	16.967 s * +7%
Geekom Mini IT13 Intel Core i9-13900HK	16.364 s * +10%

Affinity Photo 2 - Combined (Multi CPU)
Acemagic F3A AMD Ryzen AI 9 HX 370	1025 Points +28%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	826 Points +4%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	798 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	787 Points -1%
Minisforum UH125 Pro Intel Core Ultra 5 125H	615 Points -23%
Average AMD Ryzen 9 6900HX (492 - 643, n=10)	542 Points -32%
Geekom Mini IT13 Intel Core i9-13900HK	498 Points -38%

SPECworkstation 4.0 - CPU Score
Acemagic F3A AMD Ryzen AI 9 HX 370	1.21 Points +46%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS	1.07 Points +29%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.02 Points +23%
Minisforum UH125 Pro Intel Core Ultra 5 125H	0.88 Points +6%
Geekom Mini IT13 Intel Core i9-13900HK	0.83 Points 0%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	0.83 Points
Average AMD Ryzen 9 6900HX (n=1)	0.8 Points -4%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

7299

Cinebench R10 Shading 64Bit

17595 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

86842 Points

Cinebench R10 Rendering Single CPUs 64Bit

13867 Points

Cinebench R10 Shading 32Bit

14698

Cinebench R10 Rendering Multiple CPUs 32Bit

46569

Cinebench R11.5 CPU Single 32Bit

2.76 Points

Cinebench R11.5 CPU Multi 32Bit

27.24 Points

Cinebench R11.5 CPU Single 64Bit

3.18 Points

Cinebench R11.5 CPU Multi 64Bit

30.54 Points

Cinebench R15 CPU Single 64Bit

263 Points

Cinebench R15 CPU Multi 64Bit

2578 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

135.24 fps

Cinebench R20 CPU (Single Core)

658 Points

Cinebench R20 CPU (Multi Core)

6351 Points

Cinebench R23 Multi Core

16236 Points

Cinebench R23 Single Core

1701 Points

Cinebench 2024 CPU Single Core

101 Points

Cinebench 2024 CPU Multi Core

869 Points

Help

... in comparison

Performance Rating
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	90.7 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	84.8 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	79.9 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	77.7 pt
Average of class Mini PC	57.7 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	57 pt
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	52.4 pt

AIDA64 / FP32 Ray-Trace
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	35454 KRay/s +29%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	27793 KRay/s +2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	27379 KRay/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	26038 KRay/s -5%
Average of class Mini PC (769 - 76534, n=111, last 2 years)	15623 KRay/s -43%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	13639 KRay/s -50%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	12351 KRay/s -55%

AIDA64 / FPU Julia
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	139919 Points +25%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	118156 Points +6%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	111817 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	107039 Points -4%
Average of class Mini PC (4140 - 214250, n=111, last 2 years)	71987 Points -36%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	70880 Points -37%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	61409 Points -45%

AIDA64 / CPU SHA3
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	5518 MB/s +15%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	4972 MB/s +4%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	4783 MB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	4709 MB/s -2%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	3404 MB/s -29%
Average of class Mini PC (290 - 9399, n=111, last 2 years)	3232 MB/s -32%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	2923 MB/s -39%

AIDA64 / CPU Queen
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	121347 Points +4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	117545 Points 0%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	116988 Points
Average of class Mini PC (8186 - 184747, n=111, last 2 years)	82844 Points -29%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	78098 Points -33%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	75615 Points -35%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	41793 Points -64%

AIDA64 / FPU SinJulia
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	18824 Points +27%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	15581 Points +5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14943 Points +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	14785 Points
Average of class Mini PC (408 - 30299, n=111, last 2 years)	9661 Points -35%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7842 Points -47%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	7427 Points -50%

AIDA64 / FPU Mandel
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	74928 Points +25%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	63135 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	60018 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	57314 Points -5%
Average of class Mini PC (2088 - 113499, n=111, last 2 years)	37333 Points -38%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	35321 Points -41%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	30549 Points -49%

AIDA64 / CPU AES
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	100891 MB/s +20%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91472 MB/s +9%
Average of class Mini PC (3691 - 325960, n=111, last 2 years)	88457 MB/s +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	84231 MB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	82828 MB/s -2%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	72870 MB/s -13%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	65304 MB/s -22%

AIDA64 / CPU ZLib
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	1462 MB/s +37%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	1117 MB/s +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	1068 MB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	1063 MB/s 0%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	994 MB/s -7%
Average of class Mini PC (77.4 - 2346, n=111, last 2 years)	841 MB/s -21%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	797 MB/s -25%

AIDA64 / FP64 Ray-Trace
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	19551 KRay/s +34%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	14859 KRay/s +2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	14561 KRay/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14040 KRay/s -4%
Average of class Mini PC (432 - 41221, n=111, last 2 years)	8364 KRay/s -43%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	7221 KRay/s -50%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	6839 KRay/s -53%

AIDA64 / CPU PhotoWorxx
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	47364 MPixel/s +112%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	45789 MPixel/s +105%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	40354 MPixel/s +81%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	39905 MPixel/s +79%
Average of class Mini PC (5333 - 92934, n=111, last 2 years)	31227 MPixel/s +40%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	28439 MPixel/s +27%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	22324 MPixel/s

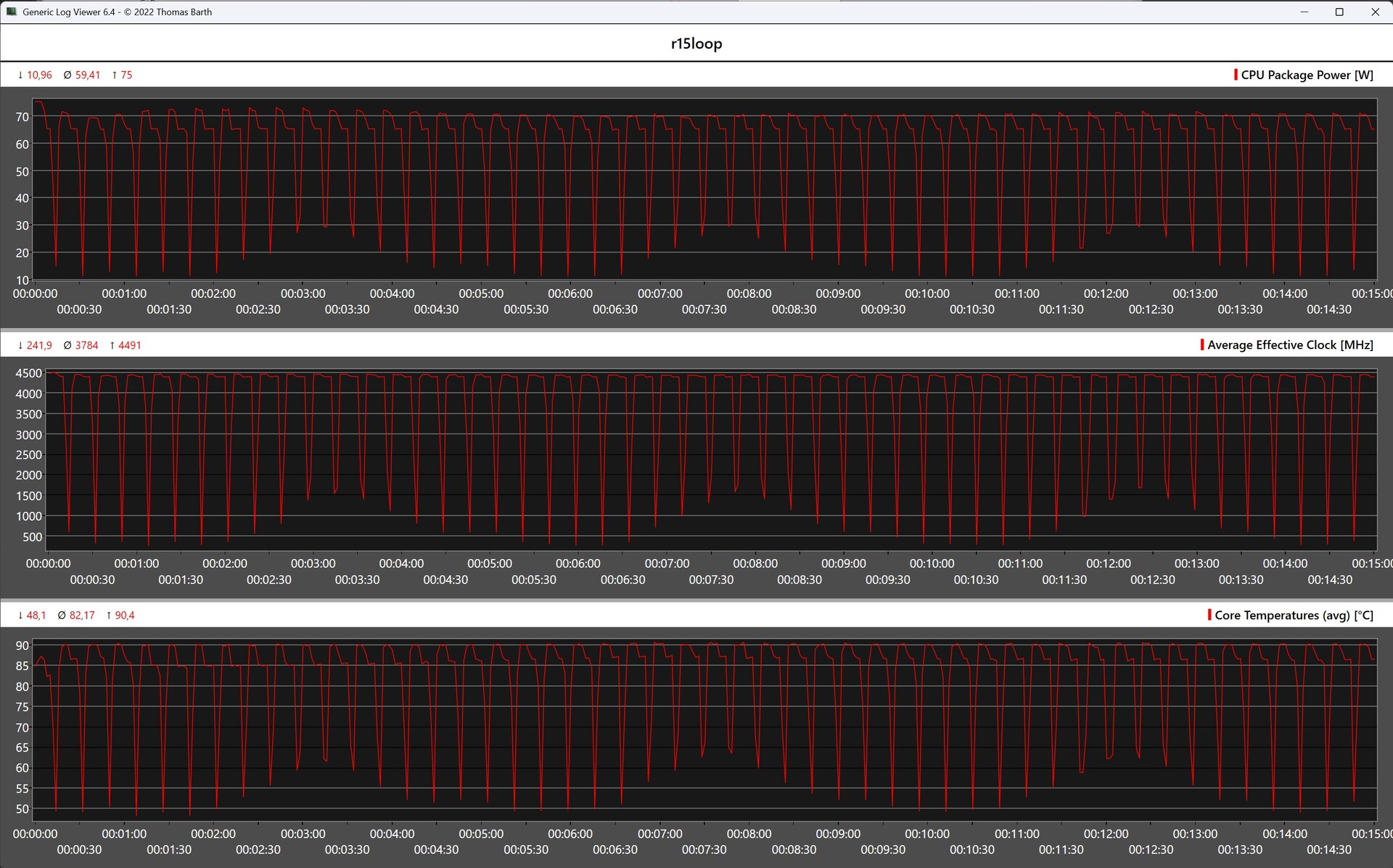

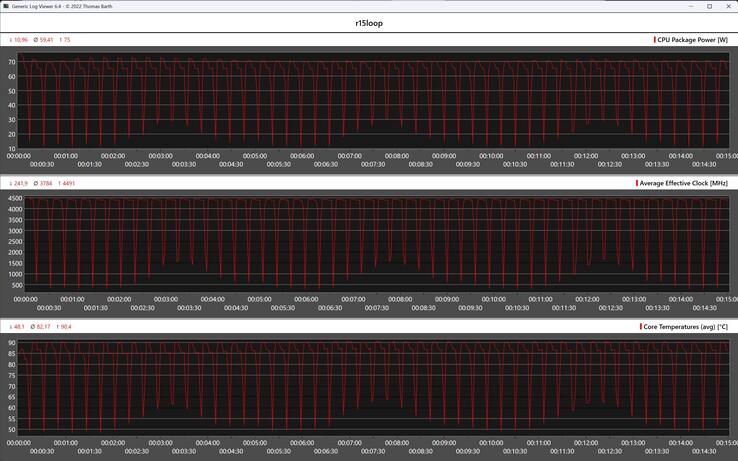

Cinebench R15 多耐久性测试

Cinebench R15 耐用性测试证明，Chuwi 配备了强大的散热系统。AMD Ryzen 7 8745HS 即使在长时间负载的情况下也能提供稳定的性能，而不会出现明显的性能下降。CPU 的最大功耗为 75 瓦，最高温度略高于 90 °C。

Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, AMD Ryzen 7 8745HS: Ø2600 (2571.19-2630.19)

Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, AMD Ryzen 7 8845HS: Ø2547 (2492.52-2619.34)

Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, AMD Ryzen 9 8945HS: Ø2711 (2695.6-2739.73)

Acemagic F3A AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3239 (3154.08-3427.89)

Minisforum UH125 Pro Intel Core Ultra 5 125H, Intel Core Ultra 5 125H: Ø2186 (2040.4-2248.33)

Geekom Mini IT13 Intel Core i9-13900HK, Intel Core i9-13900HK: Ø1900 (1875.47-2011.87)

系统性能

整个系统的主观性能不错，足以胜任基本的家庭办公任务。然而，主内存却成为了瓶颈，不仅 16GB 的容量有些紧张，而且只能在双通道模式下工作。这一点在查看 AIDA64 结果时就会非常明显。这可以通过额外的内存模块来抵消。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	7099 Points +8%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6993 Points +7%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	6577 Points 0%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	6564 Points
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	6194 Points -6%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	5730 Points -13%

PCMark 10 / Essentials
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	10451 Points +6%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10286 Points +4%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	9891 Points
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	9629 Points -3%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	9427 Points -5%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	9277 Points -6%

PCMark 10 / Productivity
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9742 Points +5%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	9518 Points +2%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	9315 Points
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	8497 Points -9%
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	7715 Points -17%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	7426 Points -20%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1849 Points +13%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1816 Points +11%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1788 Points +9%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1638 Points
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1533 Points -6%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1402 Points -14%

CrossMark / Responsiveness
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1964 Points +34%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1662 Points +13%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1496 Points +2%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1465 Points
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1332 Points -9%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1085 Points -26%

CrossMark / Creativity
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	2052 Points +21%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1998 Points +18%
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1737 Points +3%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1707 Points +1%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1694 Points
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1683 Points -1%

CrossMark / Productivity
Geekom Mini IT13, Intel Core i9-13900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024N-A0	1783 Points +9%
Minisforum EliteMini UM890 Pro, AMD Ryzen 9 8945HS AMD Radeon 780M, Kingston OM3PGP41024P-A0	1773 Points +8%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1714 Points +4%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1643 Points
Minisforum UH125 Pro, Intel Core Ultra 5 125H Intel Arc 7-Core iGPU, Kingston OM8PGP41024Q-A0	1463 Points -11%
Acemagic F3A, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1253 Points -24%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	74350 MB/s +112%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	69592 MB/s +99%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	68719 MB/s +96%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	67607 MB/s +93%
Average of class Mini PC (8377 - 154332, n=111, last 2 years)	52122 MB/s +49%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	45935 MB/s +31%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	35054 MB/s

AIDA64 / Memory Read
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	85928 MB/s +181%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	72711 MB/s +137%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	61475 MB/s +101%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60996 MB/s +99%
Average of class Mini PC (8974 - 122850, n=111, last 2 years)	52728 MB/s +72%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	45323 MB/s +48%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	30630 MB/s

AIDA64 / Memory Write
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	87356 MB/s +107%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	86747 MB/s +106%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	85887 MB/s +104%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	71514 MB/s +70%
Average of class Mini PC (8762 - 216693, n=111, last 2 years)	57523 MB/s +36%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	47347 MB/s +12%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	42154 MB/s

AIDA64 / Memory Latency
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	184.8 ns * -97%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	94 ns *
Average of class Mini PC (44.9 - 184.8, n=111, last 2 years)	93.8 ns * -0%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	91.4 ns * +3%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	90.3 ns * +4%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	87.2 ns * +7%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	83.7 ns * +11%

* ... smaller is better

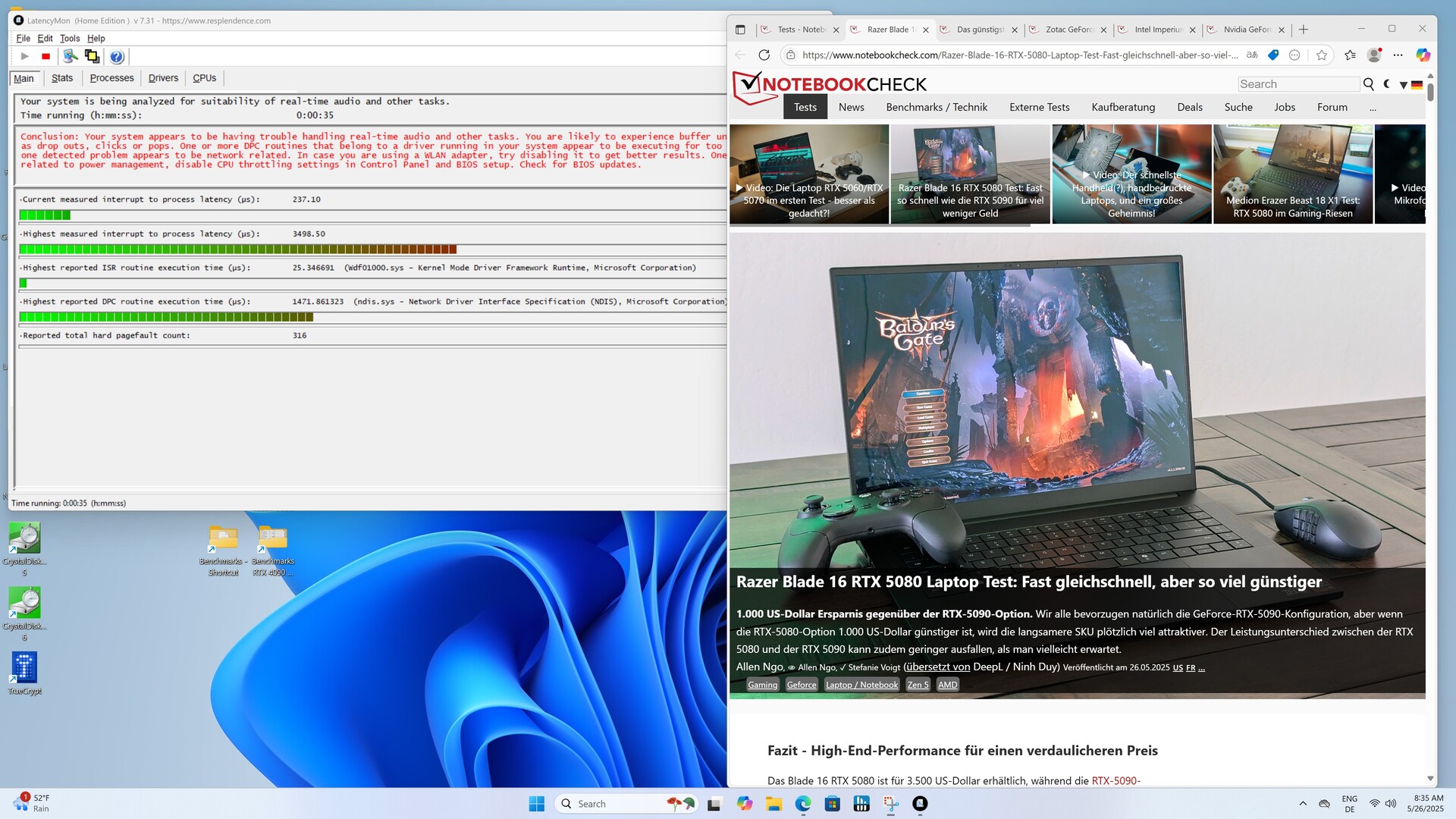

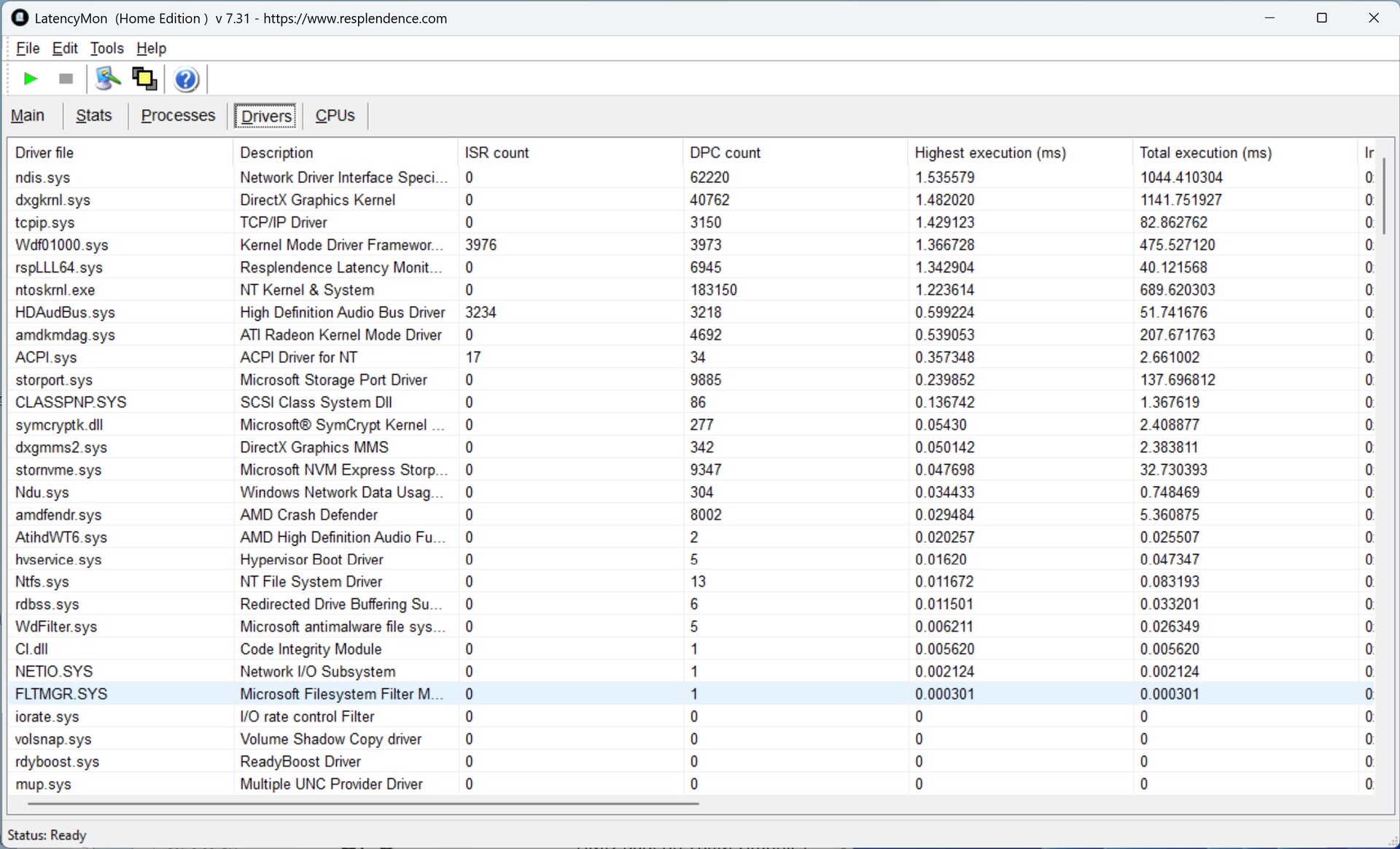

DPC 延迟

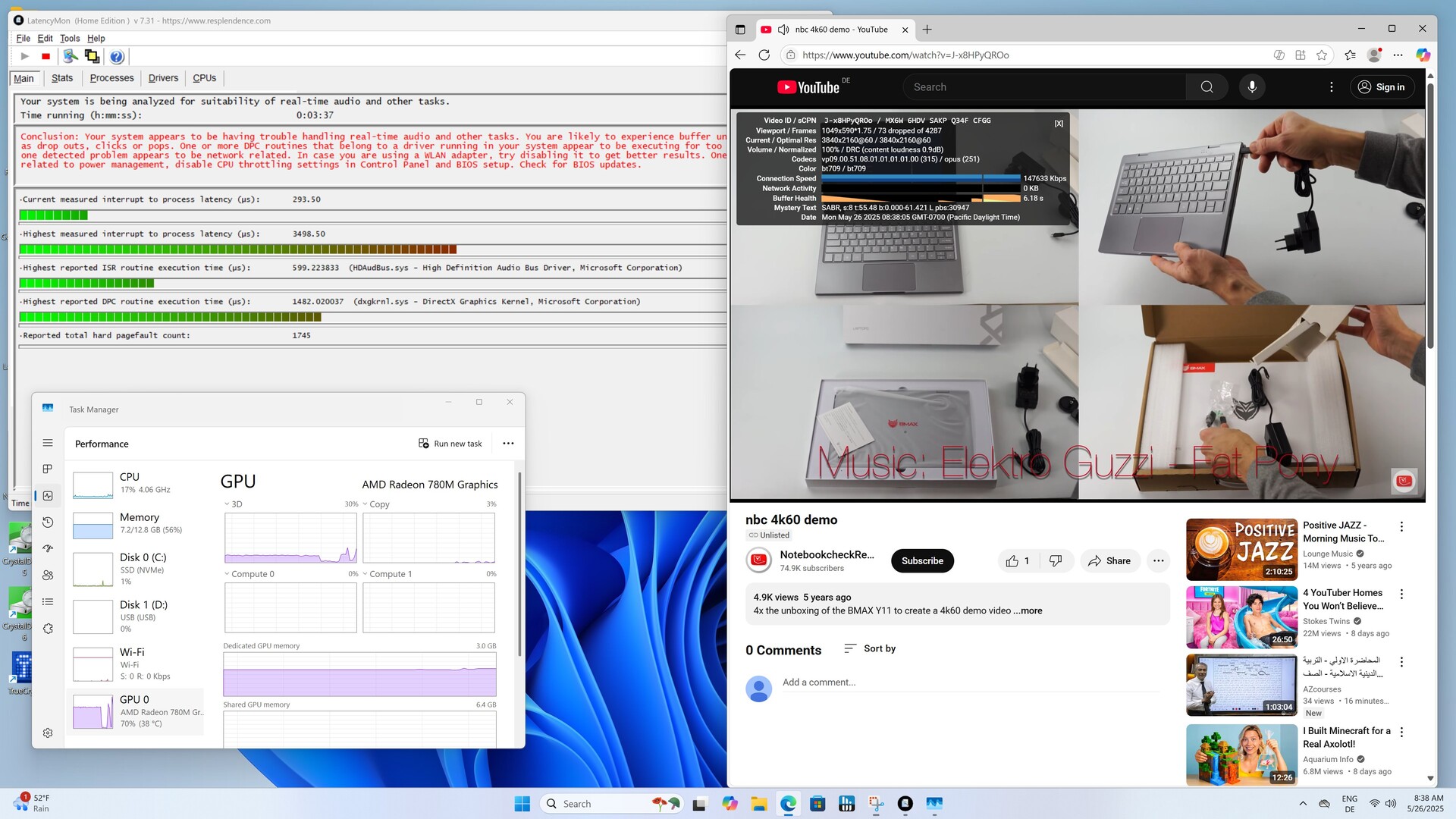

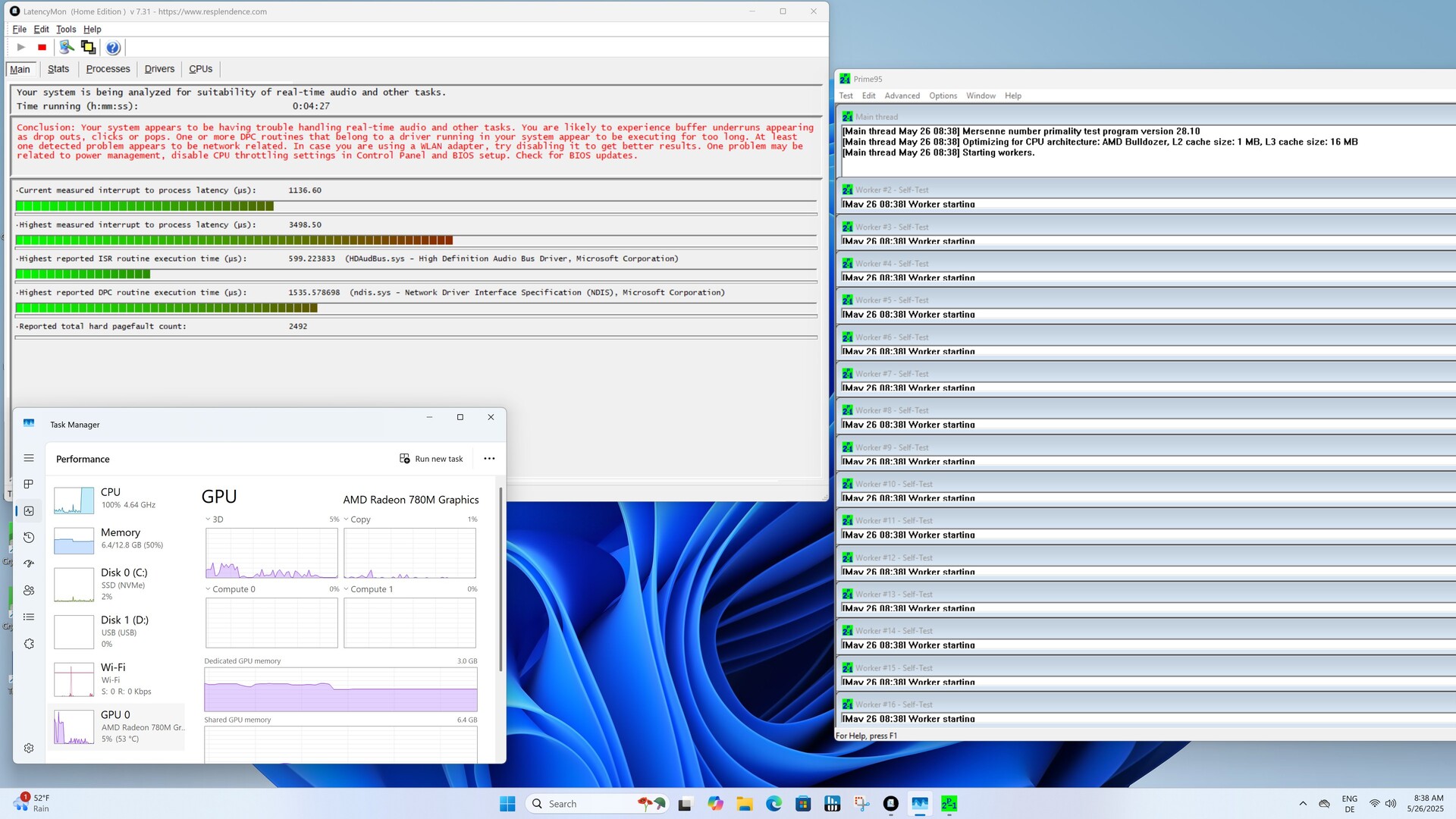

遗憾的是，Chuwi Aubox 无法以良好的 DPC 延迟令人信服。即使上网也会导致延迟值增加，而在播放 4K 测试视频和使用 Prime95 进行压力测试时，延迟值会进一步增加。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1834 μs * -19%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	1535.37 μs *
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	1438 μs * +6%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	1273 μs * +17%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	1227.9 μs * +20%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	509 μs * +67%

* ... smaller is better

存储设备

我们的测试设备使用的是存储容量为 512 GB 的固态硬盘。大容量存储以 PCIe 3.0 的速度运行，我们的测试结果也证明了这一点。不过，Chuwi Aubox 在竞争中并不占优势。这款迷你电脑可配备两个 M.2 2280 固态硬盘。正面：机箱用于大容量存储设备的散热，在实际使用中效果极佳。

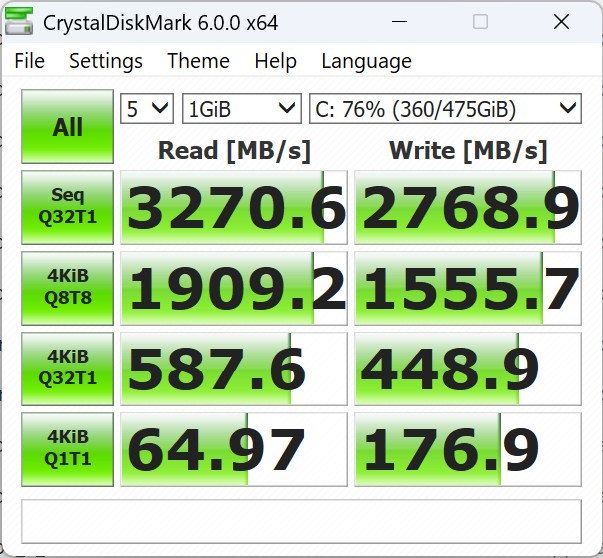

CrystalDiskMark 3.0

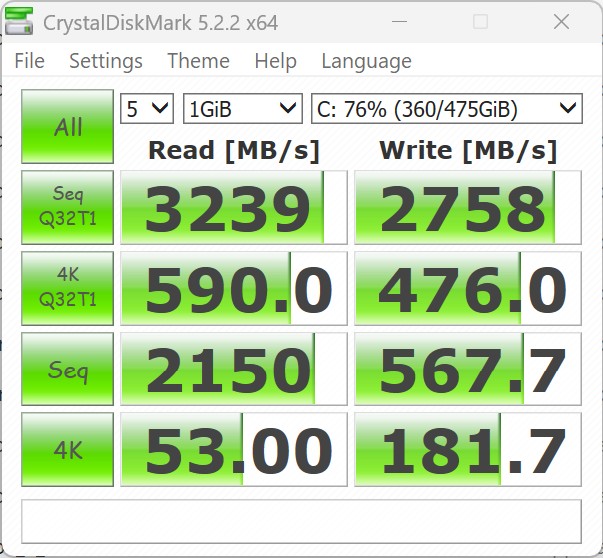

CrystalDiskMark 5.2 / 6

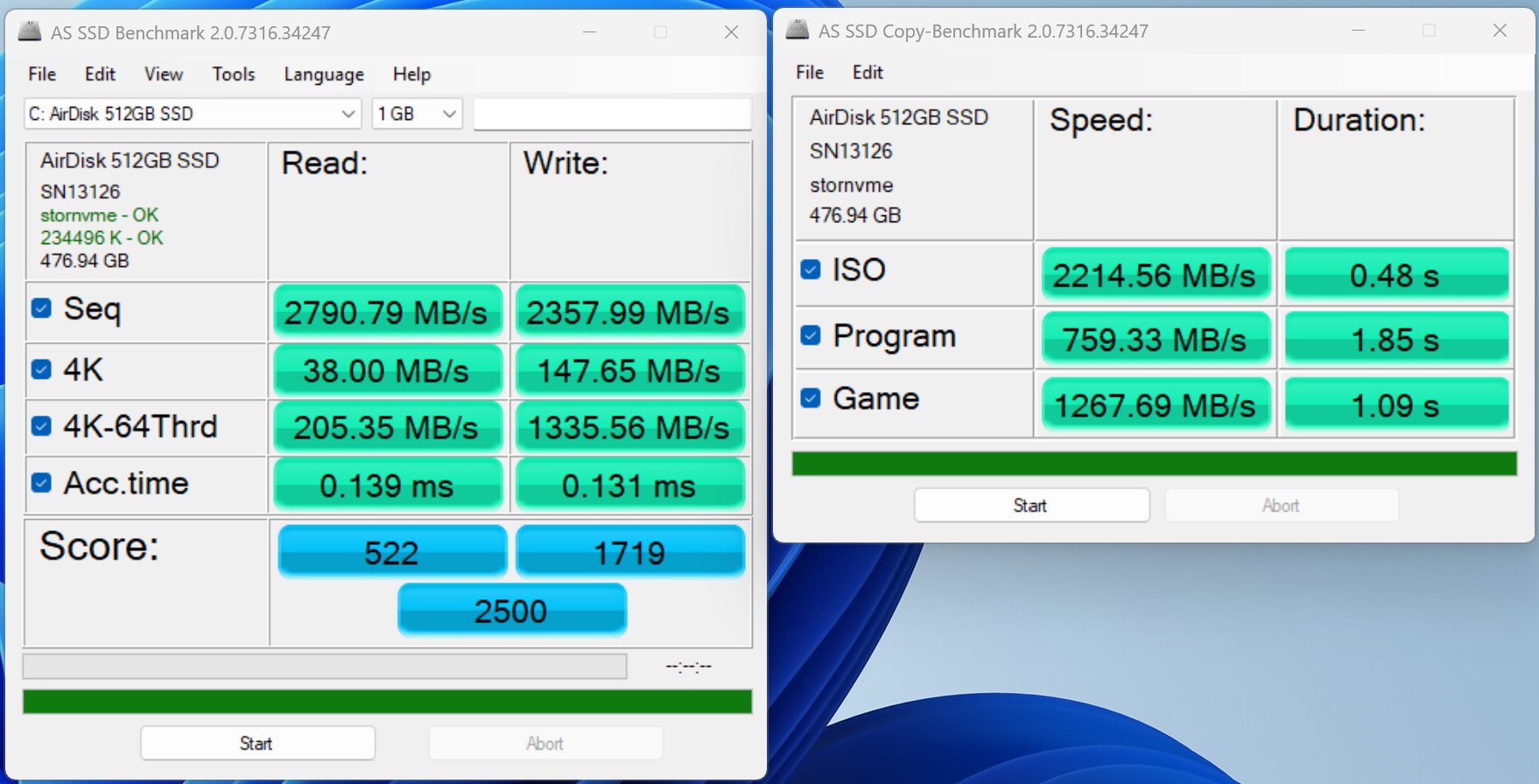

AS SSD

DiskSpd

AirDisk AFF 10-512G

Sequential Read: 2343 MB/s

Sequential Write: 2665 MB/s

512K Read: 1585 MB/s

512K Write: 2240 MB/s

4K Read: 34.33 MB/s

4K Write: 178.9 MB/s

4K QD32 Read: 226.6 MB/s

4K QD32 Write: 467.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	92.8 pt
Geekom Mini IT13 Kingston OM8PGP41024N-A0	70.5 pt
Average of class Mini PC	62.2 pt
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	61.6 pt
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	59.9 pt
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	56.3 pt
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	41.2 pt

DiskSpd
seq read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2801 (2793.48^min - 2800.96^max) MB/s +26%
Average of class Mini PC (413 - 4960, n=111, last 2 years)	2457 MB/s +10%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2368 (2316.29^min - 2367.68^max) MB/s +6%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2351 (2320.68^min - 2350.61^max) MB/s +5%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2230 (2208.5^min - 2230.06^max) MB/s
Geekom Mini IT13 Kingston OM8PGP41024N-A0	1992 (1970.27^min - 1992.29^max) MB/s -11%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1711 (1699.16^min - 1711.28^max) MB/s -23%
seq write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4556 (4547.39^min - 4555.85^max) MB/s +76%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3331 (3244.92^min - 3330.75^max) MB/s +28%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	3111 (3082.06^min - 3110.5^max) MB/s +20%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3044 (2966.57^min - 3044.22^max) MB/s +17%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3017 (2911.9^min - 3016.54^max) MB/s +16%
Average of class Mini PC (339 - 5595, n=111, last 2 years)	2793 MB/s +8%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2593 (2497.12^min - 2592.77^max) MB/s
seq q8 t1 read
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	4802 (4169.19^min - 4801.68^max) MB/s +49%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4590 (4094.26^min - 4590.04^max) MB/s +42%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4087 (3505.93^min - 4087.35^max) MB/s +27%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	4060 (3382.65^min - 4059.52^max) MB/s +26%
Average of class Mini PC (397 - 8430, n=111, last 2 years)	4037 MB/s +25%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	3227 (2874.36^min - 3227.1^max) MB/s
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3179 (2681.09^min - 3179.42^max) MB/s -1%
seq q8 t1 write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4631 (4481.46^min - 4630.69^max) MB/s +67%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3902 (3839.68^min - 3901.75^max) MB/s +41%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3781 (3521.62^min - 3780.75^max) MB/s +37%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3205 (3185.7^min - 3204.75^max) MB/s +16%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	3191 (3136.73^min - 3190.52^max) MB/s +15%
Average of class Mini PC (346 - 6669, n=111, last 2 years)	3146 MB/s +14%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2768 (2664.64^min - 2767.61^max) MB/s
4k q1 t1 read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	71.4 (70.76^min - 71.35^max) MB/s +85%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	60 (58.44^min - 60.02^max) MB/s +56%
Average of class Mini PC (6.85 - 87.3, n=111, last 2 years)	57 MB/s +48%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	54.8 (52.85^min - 54.76^max) MB/s +42%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	51.4 (51.17^min - 51.36^max) MB/s +34%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	41.8 (39.53^min - 41.81^max) MB/s +9%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38.5 (38.48^min - 38.51^max) MB/s
4k q1 t1 write
Geekom Mini IT13 Kingston OM8PGP41024N-A0	397 (389.84^min - 396.88^max) MB/s +119%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	212 (210.85^min - 212.37^max) MB/s +17%
Average of class Mini PC (29.6 - 435, n=111, last 2 years)	200 MB/s +10%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	181.2 (172.56^min - 181.15^max) MB/s
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	167.6 (165.24^min - 167.62^max) MB/s -8%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	136.8 (131.56^min - 136.81^max) MB/s -25%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	121.6 (117.56^min - 121.64^max) MB/s -33%
4k q32 t16 read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2330 (2326.23^min - 2330.42^max) MB/s +635%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1641 (1282.06^min - 1641.45^max) MB/s +418%
Average of class Mini PC (102.3 - 4158, n=111, last 2 years)	1532 MB/s +383%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	787 (747.83^min - 787.27^max) MB/s +148%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	698 (691.89^min - 697.84^max) MB/s +120%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	492 (451.66^min - 492.1^max) MB/s +55%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	317 (315.3^min - 317.14^max) MB/s
4k q32 t16 write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4088 (4061.99^min - 4088.46^max) MB/s +266%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2886 (593.45^min - 2886.36^max) MB/s +158%
Average of class Mini PC (70.3 - 4288, n=111, last 2 years)	1467 MB/s +31%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1118 (836.38^min - 1118.45^max) MB/s
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	788 (756.12^min - 787.91^max) MB/s -30%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	502 (104.07^min - 502.15^max) MB/s -55%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	311 (252.72^min - 310.91^max) MB/s -72%

AS SSD
Score Total
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	7055 Points +182%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4748 Points +90%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	4709 Points +88%
Average of class Mini PC (507 - 10021, n=109, last 2 years)	4538 Points +82%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	4514 Points +81%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3878 Points +55%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2500 Points
Score Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	2178 Points +317%
Average of class Mini PC (172 - 3741, n=109, last 2 years)	1633 Points +213%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1572 Points +201%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	1384 Points +165%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1096 Points +110%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1072 Points +105%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	522 Points
Score Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3735 Points +117%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3177 Points +85%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2625 Points +53%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	2306 Points +34%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	2112 Points +23%
Average of class Mini PC (210 - 4371, n=109, last 2 years)	2098 Points +22%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1719 Points
Seq Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3862 MB/s +38%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	3808 MB/s +36%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3404 MB/s +22%
Average of class Mini PC (483 - 6620, n=109, last 2 years)	3336 MB/s +20%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3200 MB/s +15%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	3054 MB/s +9%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2791 MB/s
Seq Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	4073 MB/s +73%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	3897 MB/s +65%
Average of class Mini PC (326 - 5783, n=109, last 2 years)	2544 MB/s +8%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2500 MB/s +6%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2358 MB/s
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1965 MB/s -17%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1787 MB/s -24%
4K Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	85.3 MB/s +124%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	72 MB/s +89%
Average of class Mini PC (18.2 - 104.3, n=109, last 2 years)	60.3 MB/s +59%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	57.3 MB/s +51%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	48.4 MB/s +27%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	39.5 MB/s +4%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38 MB/s
4K Write
Geekom Mini IT13 Kingston OM8PGP41024N-A0	342 MB/s +132%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	225 MB/s +52%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	205 MB/s +39%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	182.1 MB/s +23%
Average of class Mini PC (40.8 - 366, n=109, last 2 years)	180.1 MB/s +22%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	147.7 MB/s
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	119.7 MB/s -19%
4K-64 Read
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	1706 MB/s +732%
Average of class Mini PC (94.3 - 3220, n=109, last 2 years)	1239 MB/s +504%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1192 MB/s +481%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	1006 MB/s +391%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	704 MB/s +243%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	658 MB/s +221%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	205 MB/s
4K-64 Write
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	3102 MB/s +132%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2776 MB/s +108%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	2033 MB/s +52%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	1945 MB/s +46%
Average of class Mini PC (96.3 - 3731, n=109, last 2 years)	1664 MB/s +25%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	1603 MB/s +20%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1336 MB/s
Access Time Read
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.139 ms *
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.129 ms * +7%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.101 ms * +27%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	0.099 ms * +29%
Average of class Mini PC (0.025 - 0.288, n=109, last 2 years)	0.09193 ms * +34%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.068 ms * +51%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.045 ms * +68%
Access Time Write
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.131 ms *
Average of class Mini PC (0.013 - 0.706, n=109, last 2 years)	0.1038 ms * +21%
Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	0.093 ms * +29%
Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0	0.026 ms * +80%
Minisforum UH125 Pro Kingston OM8PGP41024Q-A0	0.024 ms * +82%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.019 ms * +85%
Geekom Mini IT13 Kingston OM8PGP41024N-A0	0.018 ms * +86%

* ... smaller is better

Sustained read load: DiskSpd Read Loop, Queue Depth 8

Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G; diskspd 2.0.17 f: Ø3108 (2714.13-3123.96)

Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4071 (3634.85-4086.93)

Minisforum EliteMini UM890 Pro Kingston OM3PGP41024P-A0; diskspd 2.0.17 f: Ø4546 (3995.05-4560.99)

Acemagic F3A Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe; diskspd 2.0.17 f: Ø3164 (2746.39-3192.28)

Minisforum UH125 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4790 (4223.81-4803.95)

Geekom Mini IT13 Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4046 (3379.61-4063.86)

图形处理器和游戏性能

AMD Ryzen 7 8745HS 的 iGPU 是 AMD Radeon 780M为 Chuwi Aubox 迷你电脑提供了 3D 计算能力。然而，由于内存配置的原因，iGPU 无法提供预期的性能。在合成测试和游戏基准测试的性能比较中，它只能与配备 96 个 EU 的英特尔 Iris Xe 相抗衡。如果使用第二个模块扩展内存，性能会有所提高，并达到我们使用 Geekom A8 Max达到。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	100 pt
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	90.8 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	89.5 pt
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	76.8 pt
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	52.3 pt
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	51.4 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	15203 Points +84%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	13721 Points +66%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	13437 Points +62%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10303 Points +24%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8285 Points
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	6810 Points -18%

3DMark
2560x1440 Time Spy Graphics
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3269 Points +102%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2934 Points +81%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2904 Points +79%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2796 Points +72%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1622 Points
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1615 Points 0%
1920x1080 Fire Strike Graphics
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9145 Points +89%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	8447 Points +75%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	8344 Points +73%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7047 Points +46%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	5490 Points +14%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	4832 Points

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.9 fps +119%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.4 fps +91%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	33.3 fps +74%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	29.6 fps +55%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	24.1 fps +26%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	19.1 fps
Extreme Preset DX11
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	42.8 fps +111%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	37.4 fps +84%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.8 fps +81%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	31.5 fps +55%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	24.6 fps +21%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	20.3 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	28.4 fps +122%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	25.4 fps +98%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	25.4 fps +98%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	16.9 fps +32%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	14.8 fps +16%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	12.8 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	24.7 fps +129%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	22.1 fps +105%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	21.8 fps +102%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	18.3 fps +69%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	15.3 fps +42%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	10.8 fps

Unigine Superposition
1280x720 720p Low
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13379 Points +97%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	12625 Points +85%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	12567 Points +85%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	10026 Points +47%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	6807 Points
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	6260 Points -8%
1920x1080 1080p High
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4199 Points +98%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3699 Points +75%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3644 Points +72%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3066 Points +45%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	2215 Points +5%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2117 Points
1920x1080 1080p Extreme
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2079 Points +87%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1808 Points +63%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1777 Points +60%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1686 Points +52%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1109 Points
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1062 Points -4%

ComputeMark v2.1
1024x600 Normal, Score
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12026 Points +44%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	10276 Points +23%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	9568 Points +15%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8341 Points
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5613 Points -33%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	3517 Points -58%
1024x600 Normal, Fluid 3DTex
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	486 Points +107%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	479 Points +104%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	477 Points +103%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	471 Points +100%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	296 Points +26%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	235 Points
1024x600 Normal, Fluid 2DTexArr
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	532 Points +119%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	505 Points +108%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	498 Points +105%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	439 Points +81%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	290 Points +19%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	243 Points
1024x600 Normal, Mandel Vector
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3321 Points +40%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2676 Points +13%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points +7%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2364 Points
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1447 Points -39%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	824 Points -65%
1024x600 Normal, Mandel Scalar
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3618 Points +44%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	2800 Points +12%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2598 Points +4%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2504 Points
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	1112 Points -56%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	869 Points -65%
1024x600 Normal, QJuliaRayTrace
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4070 Points +36%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	3816 Points +27%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3476 Points +16%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2995 Points
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2143 Points -28%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1238 Points -59%

LuxMark v2.0 64Bit
Room GPUs-only
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	998 Samples/s +74%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	957 Samples/s +66%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	931 Samples/s +62%
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	710 Samples/s +23%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	638 Samples/s +11%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	575 Samples/s
Sala GPUs-only
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	2517 Samples/s +99%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	1913 Samples/s +51%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1763 Samples/s +39%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1702 Samples/s +34%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1649 Samples/s +30%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1266 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum UH125 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	5244 Points +263%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900HK	3716 Points +157%
Acemagic F3A AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2444 Points +69%
Minisforum EliteMini UM890 Pro AMD Radeon 780M, AMD Ryzen 9 8945HS	1624 Points +12%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1596 Points +11%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1444 Points

Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance Rating
Average NVIDIA GeForce RTX 4050 Laptop GPU	92.9 pt
Acemagic F3A	87.2 pt
Minisforum EliteMini UM890 Pro	78.7 pt
Geekom A8 Max, R7 8845HS	75.9 pt
Chuwi Aubox, R7 8745HS	53 pt

SPECworkstation 4.0 / Graphics Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +138%
Acemagic F3A	2.4 Points +97%
Minisforum EliteMini UM890 Pro	2.13 Points +75%
Geekom A8 Max, R7 8845HS	2.08 Points +70%
Chuwi Aubox, R7 8745HS	1.22 Points

SPECworkstation 4.0 / Accelerator Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +123%
Acemagic F3A	2.37 Points +57%
Minisforum EliteMini UM890 Pro	2.24 Points +48%
Geekom A8 Max, R7 8845HS	2.21 Points +46%
Chuwi Aubox, R7 8745HS	1.51 Points

SPECworkstation 4.0 / Viewport Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +138%
Acemagic F3A	2.4 Points +97%
Minisforum EliteMini UM890 Pro	2.13 Points +75%
Geekom A8 Max, R7 8845HS	2.08 Points +70%
Chuwi Aubox, R7 8745HS	1.22 Points

SPECworkstation 4.0 / HandBrake
Acemagic F3A	1.72 Points +48%
Minisforum EliteMini UM890 Pro	1.46 Points +26%
Geekom A8 Max, R7 8845HS	1.37 Points +18%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points +10%
Chuwi Aubox, R7 8745HS	1.16 Points

SPECworkstation 4.0 / ONNX Inference
Acemagic F3A	1.62 Points +46%
Minisforum EliteMini UM890 Pro	1.54 Points +39%
Geekom A8 Max, R7 8845HS	1.47 Points +32%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points +32%
Chuwi Aubox, R7 8745HS	1.11 Points

	Chuwi Aubox, R7 8745HS, AMD Radeon 780M R7 8745HS	Geekom A8 Max, R7 8845HS, AMD Radeon 780M R7 8845HS	Minisforum EliteMini UM890 Pro, AMD Radeon 780M R9 8945HS	Acemagic F3A, AMD Radeon 890M Ryzen AI 9 HX 370	Minisforum UH125 Pro, Intel Arc 7-Core iGPU Ultra 5 125H	Geekom Mini IT13, Intel Iris Xe Graphics G7 96EUs i9-13900HK	Average of class Mini PC
SPECviewperf 2020		74%	74%	105%	-31%	-43%	80%
3840x2160 Medical (medical-03)	6.86	12.7 85%	13.3 94%	17.1 149%	4.8 -30%	3.46 -50%	11 ?(0.78 - 87.5, n=63, last 2 years) 60%
3840x2160 Energy (energy-03)	15.1	21.2 40%	19.7 30%	28.5 89%	3.38 -78%	3.03 -80%	17.8 ?(0.52 - 139, n=63, last 2 years) 18%
3840x2160 Creo (creo-03)	20.2	34.9 73%	34.9 73%	36.8 82%	15.4 -24%	15.5 -23%	36.2 ?(7.73 - 126, n=63, last 2 years) 79%
3840x2160 CATIA (catia-06)	15.8	25 58%	24.2 53%	26.6 68%	9.7 -39%	7.96 -50%	22.2 ?(4.61 - 89.8, n=62, last 2 years) 41%
3840x2160 3ds Max (3dsmax-07)	10.8	21.4 98%	21.3 97%	25.2 133%	13.2 22%	9.94 -8%	30 ?(5.53 - 213, n=63, last 2 years) 178%
3840x2160 Siemens NX (snx-04)	35.6	66.2 86%	67 88%	71.9 102%	5.54 -84%	5.24 -85%	38.8 ?(2.25 - 224, n=61, last 2 years) 9%
3840x2160 Maya (maya-06)	28.2	50.2 78%	51.2 82%	59.6 111%	32.8 16%	26.5 -6%	77.1 ?(11.8 - 522, n=63, last 2 years) 173%

3DMark 05 Standard		47051 points
3DMark 06 Standard Score		30331 points
3DMark Vantage P Result		26795 points
3DMark 11 Performance		8136 points
3DMark Ice Storm Standard Score		142588 points
3DMark Cloud Gate Standard Score		25804 points
3DMark Fire Strike Score		4493 points
3DMark Fire Strike Extreme Score		2455 points
3DMark Time Spy Score		1847 points
3DMark Steel Nomad Score		275 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	165.6 (4.4^min, 111.1^P1) fps +55%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	163.8 (5.05^min, 111.1^P1) fps +53%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	161 (4.68^min, 100^P1) fps +51%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	132.4 (4.93^min, 90.9^P1) fps +24%
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	107.4 (14.4^min, 62.5^P1) fps 0%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	106.9 (23^min, 62.5^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	74 (7.63^min, 50^P1) fps +116%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	65.4 (10.1^min, 45.5^P1) fps +91%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	64.1 (7.34^min, 43.5^P1) fps +87%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	38.9 (3.15^min, 28.6^P1) fps +14%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	34.2 (3.03^min, 23.3^P1) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	20.5 (5.87^min, 15.6^P1) fps -40%

Dota 2 Reborn
1280x720 min (0/3) fastest
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	155.1 (135.8^min) fps +17%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	149.8 (130.2^min) fps +13%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	135.4 (110^min) fps +2%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	133 (117.9^min) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	96 (70.5^min) fps -28%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	95.5 (63.7^min) fps -28%
1920x1080 high (2/3)
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	100.9 (84.1^min) fps +55%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	91.7 (79.2^min) fps +40%
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	90 (77.6^min) fps +38%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	73.6 (47.5^min) fps +13%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	65.3 (58.5^min) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	65.2 (48^min) fps 0%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	48.9 (40.6^min) fps +90%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	42.9 (36.7^min) fps +67%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	42 (36.1^min) fps +63%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	29.5 (25.4^min) fps +15%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	25.7 (22.2^min) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	16.7 (13.1^min) fps -35%
1920x1080 High Preset (FSR off)
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	28.1 (24.1^min) fps +79%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26.9 (22.2^min) fps +71%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	26.5 (22.1^min) fps +69%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	20.6 (17.9^min) fps +31%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	15.7 (13.2^min) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	11.3 (9.59^min) fps -28%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	68 (40.9^min, 42.3^P0.1, 59.6^P1) fps +93%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	62.3 (42.8^min, 47.8^P0.1, 54.2^P1) fps +77%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	61.2 (47.4^min, 49.5^P0.1, 53.8^P1) fps +74%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	45 (14.9^min, 19.4^P0.1, 29^P1) fps +28%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	35.2 (24.4^min, 26^P0.1, 28.9^P1) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	24 (20.3^min, 20.3^P0.1, 20.8^P1) fps -32%
1920x1080 High Preset AA:T
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	29 (23.4^min, 23.8^P0.1, 25.6^P1) fps +97%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26 (21.5^min, 21.8^P0.1, 23.1^P1) fps +77%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	24.9 (21.7^min, 21.8^P0.1, 22.4^P1) fps +69%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	19.5 (9.2^min, 10.4^P0.1, 12.7^P1) fps +33%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	14.7 (12.5^min, 12.5^P0.1, 12.9^P1) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	11.7 (8.86^min, 8.87^P0.1, 9.38^P1) fps -20%

F1 24
1920x1080 Low Preset AA:T AF:16x
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	87.5 (69^min, 61^P1) fps +92%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	82.8 (64^min, 48^P1) fps +82%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	82 (62^min, 54^P1) fps +80%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	64.3 (55^min, 53^P1) fps +41%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	45.5 (22^min, 30^P1) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	36.1 (30^min, 29^P1) fps -21%
1920x1080 High Preset AA:T AF:16x
Acemagic F3A Radeon 890M, Ryzen AI 9 HX 370, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe	58.5 (45^min, 34^P1) fps +87%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	54.4 (46^min, 42^P1) fps +74%
Minisforum EliteMini UM890 Pro Radeon 780M, R9 8945HS, Kingston OM3PGP41024P-A0	51.7 (41^min, 33^P1) fps +65%
Minisforum UH125 Pro Arc 7-Core, Ultra 5 125H, Kingston OM8PGP41024Q-A0	41.7 (34^min, 34^P1) fps +33%
Chuwi Aubox, R7 8745HS Radeon 780M, R7 8745HS, AirDisk AFF 10-512G	31.3 (21^min, 16^P1) fps
Geekom Mini IT13 Iris Xe G7 96EUs, i9-13900HK, Kingston OM8PGP41024N-A0	23.9 (19^min, 19^P1) fps -24%

30 Min. Cyberpunk 2077 fps chart (1920 x 1080, Ultra preset, FSR off)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M: Ø14.1 (11.5-14.2)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M: Ø23 (20.6-23.4)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M: Ø22.9 (22-23.2)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M: Ø24.7 (23.3-25.5)

Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core: Ø17 (16.3-17.7)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs: Ø9.68 (9.17-9.89)

	low	med.	high	ultra
GTA V (2015)	106.9	99.2	34.2	14.3
The Witcher 3 (2015)	83.1	51.2	26.2	18.5
Dota 2 Reborn (2015)	133	94.2	65.3	58.4
Final Fantasy XV Benchmark (2018)	43.9	22.6	16.5
X-Plane 11.11 (2018)	54.8	41.1	35.2
Baldur's Gate 3 (2023)	23	18.2	14.7	14.3
Cyberpunk 2077 2.2 Phantom Liberty (2023)	25.7	20.4	15.7	14
F1 24 (2024)	45.5	40.2	31.3

通过 USB4 使用 NvidiaGeForce RTX 4090 检查 Chuwi Aubox 性能

虽然 Chuwi Aubox Mini-PC 不支持 OCuLink，但 USB4 为连接外部 GPU（如GeForce RTX 4090）提供了灵活的选择。这使得为游戏或专业应用创建一个紧凑的系统成为可能。不过，与 OCuLink 连接相比，USB4 的图形性能要低得多。

Performance Rating - Percent
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	99.5 pt
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	95.7 pt
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	87.7 pt
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	83.2 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	103919 Points +1154%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	100303 Points +1111%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	80206 Points +868%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	78375 Points +846%
	8285 Points

3DMark
2560x1440 Time Spy Graphics
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33302 Points +1953%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	31852 Points +1864%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	29928 Points +1745%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	29057 Points +1691%
	1622 Points
1920x1080 Fire Strike Graphics
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	75788 Points +1468%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	73143 Points +1414%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	59428 Points +1130%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	57795 Points +1096%
	4832 Points
3840x2160 Fire Strike Ultra Graphics
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	24022 Points +2166%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	23434 Points +2111%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	21221 Points +1902%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	20889 Points +1871%
	1060 Points

Unigine Superposition
1280x720 720p Low
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	37409 Points +450%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	34512 Points +407%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	32677 Points +380%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	27420 Points +303%
	6807 Points
1920x1080 1080p High
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33491 Points +1482%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	32149 Points +1419%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	31209 Points +1374%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	25960 Points +1126%
	2117 Points
1920x1080 1080p Extreme
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	21366 Points +1827%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	21164 Points +1808%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	20038 Points +1707%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	19735 Points +1680%
	1109 Points
3840x2160 4k Optimized
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	30152 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	30138 Points
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	28109 Points
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	25783 Points
7680x4320 8k Optimized
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	12219 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	12056 Points
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	11752 Points
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	11651 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	271.1 fps +2018%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	211 fps +1548%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	204.8 fps +1500%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	178.6 fps +1295%
	12.8 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	286.7 fps +2555%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	227 fps +2002%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	212.5 fps +1868%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	196.2 fps +1717%
	10.8 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	449.2 fps +2252%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	427.2 fps +2137%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	404.7 fps +2019%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	388.2 fps +1932%
	19.1 fps
Extreme Preset DX11
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	454.1 fps +2137%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	413 fps +1934%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	353.4 fps +1641%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	336.4 fps +1557%
	20.3 fps

ComputeMark v2.1
1024x600 Normal, Score
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	90418 Points +984%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	90036 Points +979%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	87165 Points +945%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	86718 Points +940%
	8341 Points
1024x600 Normal, Fluid 3DTex
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	10635 Points +4426%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	10559 Points +4393%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	10348 Points +4303%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	10152 Points +4220%
	235 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	6879 Points +2731%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	6790 Points +2694%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	6782 Points +2691%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	6732 Points +2670%
	243 Points
1024x600 Normal, Mandel Vector
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	16912 Points +615%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	16899 Points +615%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	16306 Points +590%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	16242 Points +587%
	2364 Points
1024x600 Normal, Mandel Scalar
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	22490 Points +798%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	22391 Points +794%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	21557 Points +761%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	21449 Points +757%
	2504 Points
1024x600 Normal, QJuliaRayTrace
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33578 Points +1021%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33320 Points +1013%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	32171 Points +974%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	32142 Points +973%
	2995 Points

SPECworkstation 4.0
Graphics Score
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	9.39 Points +670%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	9.26 Points +659%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	8.2 Points +572%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	8 Points +556%
	1.22 Points
Accelerator Score
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	5.7 Points +277%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	5.55 Points +268%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	4.57 Points +203%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	3.96 Points +162%
	1.51 Points
Viewport Graphics
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	9.39 Points +670%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	9.26 Points +659%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	8.2 Points +572%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	8 Points +556%
	1.22 Points
HandBrake
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	1.8 Points +55%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	1.48 Points +28%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	1.39 Points +20%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	1.22 Points +5%
	1.16 Points
ONNX Inference
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	2.93 Points +164%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	2.76 Points +149%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	2.34 Points +111%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	1.94 Points +75%
	1.11 Points

Performance Rating | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

Performance Rating - Percent
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	99.3 pt
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	92.7 pt
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	71.9 pt
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	65 pt

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168.9 (135.4^min - 199^max) fps +304%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	138.5 (109.3^min - 170.9^max) fps +231%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	125.4 (94.1^min - 164.8^max) fps +200%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	106.8 (83.2^min - 135.6^max) fps +156%
	41.8 (35.1^min - 51.2^max) fps
1920x1080 Medium Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168 (133.8^min - 195.9^max) fps +724%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	143.1 (113^min - 169.5^max) fps +601%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	124.2 (91.5^min - 164.2^max) fps +509%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	103.8 (80.6^min - 134.4^max) fps +409%
	20.4 (17.1^min - 24.6^max) fps
1920x1080 Ultra Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	146.9 (101.6^min - 181.1^max) fps +949%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	125.3 (85.8^min - 157.1^max) fps +795%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	105.7 (68.3^min - 147.3^max) fps +655%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	92.4 (64.3^min - 122.3^max) fps +560%
	14 (11.6^min - 17.8^max) fps

Baldur's Gate 3
1920x1080 Low Preset AA:SM
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	203 (67.8^min, 99.1^P0.1, 144.4^P1 - 371^max) fps +783%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	194.8 (55^min, 89.1^P0.1, 138.7^P1 - 268^max) fps +747%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	187.3 (23^min, 74.9^P0.1, 125.7^P1 - 610^max) fps +714%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	175.6 (52.3^min, 76^P0.1, 118.4^P1 - 328^max) fps +663%
	23 (13.1^min, 13.5^P0.1, 19.5^P1 - 26.1^max) fps
1920x1080 Medium Preset AA:T
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	192.4 (76.6^min, 93.4^P0.1, 133.6^P1 - 299^max) fps +957%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	185.4 (6.25^min, 62.7^P0.1, 115.5^P1 - 864^max) fps +919%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	171.8 (51.3^min, 84.7^P0.1, 127.5^P1 - 285^max) fps +844%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	157.3 (58.6^min, 73.7^P0.1, 113.2^P1 - 303^max) fps +764%
	18.2 (14.8^min, 14.9^P0.1, 15.9^P1 - 20.4^max) fps
1920x1080 Ultra Preset AA:T
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	183.9 (67.1^min, 95.8^P0.1, 126.6^P1 - 269^max) fps +1186%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	172.2 (46.8^min, 84.2^P0.1, 117.9^P1 - 435^max) fps +1104%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	150.2 (61.1^min, 89^P0.1, 121.5^P1 - 198.7^max) fps +950%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	144.9 (66^min, 76.3^P0.1, 106^P1 - 246^max) fps +913%
	14.3 (12.5^min, 12.5^P0.1, 13^P1 - 15.9^max) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	241 (189^min, 148^P1 - 267^max) fps +430%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	236 (187^min, 153^P1 - 258^max) fps +419%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	131.1 (90^min, 49^P1 - 159^max) fps +188%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	122.9 (81^min, 49^P1 - 154^max) fps +170%
	45.5 (22^min, 30^P1 - 55^max) fps
1920x1080 Medium Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	234 (190^min, 143^P1 - 268^max) fps +482%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	226 (196^min, 147^P1 - 259^max) fps +462%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	121.5 (89^min, 46^P1 - 160^max) fps +202%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	119.2 (82^min, 47^P1 - 146^max) fps +197%
	40.2 (, 22^P1max: 49^max) fps
1920x1080 High Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	231 (182^min, 147^P1 - 255^max) fps +638%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	229 (178^min, 148^P1 - 253^max) fps +632%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	123.5 (82^min, 54^P1 - 144^max) fps +295%
Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8745HS	111.9 (68^min, 47^P1 - 133^max) fps +258%
	31.3 (21^min, 16^P1 - 37^max) fps

	Chuwi Aubox, R7 8745HS, AMD Radeon 780M R7 8745HS	Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) , R9 8945HS	Chuwi Aubox (Nvidia GeForce RTX 4090 @USB4) , R7 8745HS	Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) , R7 8845HS	Average of class Mini PC
SPECviewperf 2020		849%	683%	695%	80%
3840x2160 Medical (medical-03)	6.86	43.4 533%	42.1 514%	42 512%	11 ?(0.78 - 87.5, n=63, last 2 years) 60%
3840x2160 Energy (energy-03)	15.1	141 834%	137 807%	138 814%	17.8 ?(0.52 - 139, n=63, last 2 years) 18%
3840x2160 Creo (creo-03)	20.2	120 494%	108 435%	112 454%	36.2 ?(7.73 - 126, n=63, last 2 years) 79%
3840x2160 CATIA (catia-06)	15.8	84.3 434%	80.3 408%	82.2 420%	22.2 ?(4.61 - 89.8, n=62, last 2 years) 41%
3840x2160 3ds Max (3dsmax-07)	10.8	208 1826%	153 1317%	153 1317%	30 ?(5.53 - 213, n=63, last 2 years) 178%
3840x2160 Siemens NX (snx-04)	35.6	39.5 11%	32.4 -9%	33 -7%	38.8 ?(2.25 - 224, n=61, last 2 years) 9%
3840x2160 Maya (maya-06)	28.2	539 1811%	398 1311%	410 1354%	77.1 ?(11.8 - 522, n=63, last 2 years) 173%

	low	med.	high	ultra	QHD	4K
Dota 2 Reborn (2015)	160.8	145.9	141.4	134.3		128.8
Final Fantasy XV Benchmark (2018)	189.7	180.2	143.7		143.3	118.1
X-Plane 11.11 (2018)	75.2	75.1	68.1			62.9
Baldur's Gate 3 (2023)	175.6	157.3	142.4	144.9	130	96.2
Cyberpunk 2077 2.2 Phantom Liberty (2023)	107.3	103.8	97.4	92.4	88.3	59.1
F1 24 (2024)	122.9	119.2	111.9	73.8	72.2	61.2

排放 - 经济，但没有效率奇迹

噪音排放

由于采用了这种设计，虽然金属表面也用于为大容量存储器散热，但外壳的发热量并不高。我们看到侧面通风口区域的温度略高。

Noise Level

Idle		24.3 / 24.3 / 24.3 dB(A)
Load		37.6 / 46.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 23.8 dB(A)

	Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core	Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs
Noise		-0%	3%	0%	-20%	5%
off / environment *	23.8	23.8 -0%	23.7 -0%	23.8 -0%	24.8 -4%	23.8 -0%
Idle Minimum *	24.3	24 1%	27.2 -12%	28.4 -17%	35 -44%	24.1 1%
Idle Average *	24.3	24.1 1%	27.3 -12%	28.5 -17%	35 -44%	24.2 -0%
Idle Maximum *	24.3	24.1 1%	27.3 -12%	28.7 -18%	35 -44%	24.3 -0%
Load Average *	37.6	42.7 -14%	33.6 11%	32.1 15%	42.2 -12%	29.3 22%
Cyberpunk 2077 ultra *	42.4	42.5 -0%	34.4 19%	35.8 16%	40.8 4%	39.5 7%
Load Maximum *	46.3	42.6 8%	34.4 26%	36 22%	43.9 5%	42.6 8%

* ... smaller is better

温度

无论是在空闲模式下还是在负载情况下，Chuwi Aubox 的外壳都能保持凉爽，尽管它也用于为固态硬盘散热。只有在侧面的通风口区域才会出现明显的升温现象。在压力测试中，Ryzen 7 8745HS 的温度短暂达到 78 ℃ 左右，这是一个无害值。APU 的平均功耗为 60 瓦。

Max. Load

Idle

Cyberpunk


35.6 °C	35.1 °C	34.3 °C
38 °C	37.2 °C	35.2 °C
37.7 °C	36.9 °C	35.8 °C

Maximum: 38 °C
Average: 36.2 °C


32 °C	29.5 °C	37.7 °C
31 °C	27.1 °C	39.8 °C
33.4 °C	35.1 °C	38 °C

Maximum: 39.8 °C
Average: 33.7 °C

Power Supply (max.) 45.2 °C | Room Temperature 22.1 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


32.6 °C	32.8 °C	32.5 °C
33 °C	33.1 °C	32.7 °C
33 °C	33 °C	32.7 °C

Maximum: 33.1 °C
Average: 32.8 °C


31.2 °C	30.3 °C	34.3 °C
30.8 °C	30.1 °C	30.7 °C
31.8 °C	32.1 °C	33.5 °C

Maximum: 34.3 °C
Average: 31.6 °C

Power Supply (max.) 31.6 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


35 °C	34.3 °C	33.8 °C
36.9 °C	36.1 °C	34.5 °C
36.5 °C	35.5 °C	34.5 °C

Maximum: 36.9 °C
Average: 35.2 °C


31.2 °C	29.3 °C	35.9 °C
30.7 °C	27.2 °C	37.3 °C
32.7 °C	33.9 °C	37.3 °C

Maximum: 37.3 °C
Average: 32.8 °C

Power Supply (max.) 45.1 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 36.2 °C / 97 F, compared to the average of 32.5 °C / 91 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 38 °C / 100 F, compared to the average of 36 °C / 97 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.8 °C / 104 F, compared to the average of 36.5 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 32.8 °C / 91 F, compared to the device average of 32.5 °C / 91 F.
(±) 3: The average temperature for the upper side is 35.2 °C / 95 F, compared to the average of 32.5 °C / 91 F for the class Mini PC.

能源管理

我们的测试设备在空闲模式下能耗较低。在负载情况下，平均功耗约为 57 瓦，但峰值可能高达 106 瓦。在能效方面，Mini PC 稍微落后，但仍领先于 Geekom Mini IT13。120 瓦的电源装置尺寸适中。

Power Consumption

Off / Standby	1.6 / 1.6 Watt
Idle	4.9 / 7.4 / 9.4 Watt
Load	57.4 / 106.6 Watt


Key: min: , med: , max: Metrahit Energy

	Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M	Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M	Minisforum UH125 Pro Ultra 5 125H, Arc 7-Core	Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs	Average AMD Radeon 780M	Average of class Mini PC
Power Consumption		9%	-35%	-28%	-41%	-1%	-4%	-47%
Idle Minimum *	4.9	3.1 37%	9.8 -100%	8.5 -73%	11.9 -143%	8.3 -69%	6.04 ?(2.7 - 14, n=61) -23%	9.83 ?(2.2 - 45.7, n=112, last 2 years) -101%
Idle Average *	7.4	5.7 23%	10.5 -42%	11 -49%	14.6 -97%	9.7 -31%	8.25 ?(4.4 - 17.6, n=61) -11%	12.1 ?(2.59 - 47.5, n=110, last 2 years) -64%
Idle Maximum *	9.4	8.3 12%	13.6 -45%	12.6 -34%	15.4 -64%	11.8 -26%	10.5 ?(5.2 - 27, n=61) -12%	15.5 ?(2.6 - 49, n=112, last 2 years) -65%
Load Average *	57.4	68.3 -19%	67 -17%	65.3 -14%	48.3 16%	35 39%	57.4 ?(19.7 - 93.2, n=59) -0%	60.4 ?(12.9 - 170.6, n=112, last 2 years) -5%
Cyberpunk 2077 ultra external monitor *	72.6	78.7 -8%	85.9 -18%	68.8 5%	52.7 27%	41.6 43%
Load Maximum *	106.6	97.7 8%	96.2 10%	109.8 -3%	89.8 16%	62.5 41%	76.6 ?(34.9 - 111.8, n=60) 28%	104.6 ?(26.2 - 423, n=112, last 2 years) 2%

* ... smaller is better

Power efficiency

Performance Rating | Power Consumption

Performance Rating - Percent
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	95.9 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	94 pt
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	90.2 pt
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	84.7 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	83.9 pt
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	83.1 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	228 Points per Watt +31%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	223 Points per Watt +28%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	211 Points per Watt +21%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	205 Points per Watt +18%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	181.1 Points per Watt +4%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	174.2 Points per Watt
Cinebench R23 Single Power Efficiency - external Monitor
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	62.3 Points per Watt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60.1 Points per Watt -4%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	57.1 Points per Watt -8%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	56.5 Points per Watt -9%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	55.5 Points per Watt -11%
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	30.8 Points per Watt -51%
Cinebench R15 Multi Efficiency (external Monitor)
Geekom Mini IT13 Intel Core i9-13900HK, Iris Xe G7 96EUs	33.7 Points per Watt +33%
Acemagic F3A AMD Ryzen AI 9 HX 370, Radeon 890M	33.4 Points per Watt +31%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	31.3 Points per Watt +23%
Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS, Radeon 780M	30.9 Points per Watt +22%
Minisforum UH125 Pro Intel Core Ultra 5 125H, Arc 7-Core	28 Points per Watt +10%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	25.4 Points per Watt

Power consumption - external monitor

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; Idle 1min (external Monitor): Ø7.44 (6.79-9.39)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Idle 1min (external Monitor): Ø10.6 (9.97-13.6)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Idle 1min (external Monitor): Ø11 (10.1-12.6)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø9.72 (8.69-11.8)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø89.8 (76.8-104.4)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø91.2 (85.3-96.2)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø98.8 (87.7-109.8)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø57.4 (56.8-58.4)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø72.6 (68.6-79.3)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø85.9 (78.8-89.5)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø68.8 (65.1-74.7)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø41.6 (40.6-47.7)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø57.4 (49-68.5)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; 3DMark06 Return To Proxycon: Ø67 (49.9-80.3)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; 3DMark06 Return To Proxycon: Ø65.3 (54.1-73.8)

Geekom Mini IT13 i9-13900HK, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø35 (32.3-40.8)

Power consumption - external monitor

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø92.5 (75-102)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø77.2 (67.2-97.6)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø91 (88.2-96.2)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Prime95 V2810 Stress (external Monitor): Ø87.1 (81.7-102.1)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø101.4 (92.2-106.6)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø83.6 (69.8-92.8)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø88.8 (83.1-90.8)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cinebench R15 Multi (external Monitor): Ø104 (101.5-105.8)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø27.3 (25.5-55.9)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø29.6 (24.4-48.8)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cinebench R23 Single (external Monitor): Ø32.7 (29.7-46.2)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Single (external Monitor): Ø36 (32.5-68)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø93.2 (89.2-105.5)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø77.4 (74.9-91.2)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; Cinebench R23 Multi (external Monitor): Ø83.6 (80.8-88.7)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; Cinebench R23 Multi (external Monitor): Ø100.7 (95.3-105.9)

Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø55.1 (49.5-72.4)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø74.3 (63.5-92.7)

Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø72.2 (68.5-92)

Acemagic F3A Ryzen AI 9 HX 370, Radeon 890M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø68.4 (64.5-84.2)

笔记本检查评级

在我们的评测中，配备 Ryzen 7 8745HS 的 Chuwi Aubox 凭借其强大的性能、高效的散热和吸引人的设计获得了一致好评。紧凑的铝制外壳具有高品质的外观，并通过 USB4 和 VESA 支架提供了多种应用选择。这款迷你电脑没有什么大的缺点--总而言之，它是一款性价比很高的成功的整体产品。

Back to the verdict

Chuwi Aubox, R7 8745HS - 05/29/2025 v8
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

61 / 81 → 76%

Weight

79%

Games Performance

34 / 80 → 43%

Application Performance

82 / 92 → 89%

Workstation

43%

AI Performance

87%

Temperature

89%

Noise

84%

Average

52%

75%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
25%

Packaging
25%

Power Use
69%

Repairability
10%

Software Updates
22.3%

Total Sustainability Score: 25.2%

潜在替代品比较

Benchmark Comparison Plugin: ERROR, Layout "57" not supported!

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Translator: Ninh Ngoc Duy - Editorial Assistant - 578570 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 450 美元以下的最佳迷你 PC？配备 AMD Ryzen 7 8745HS 的 Chuwi AuBox 评测

Sebastian Bade, 2025-07-27 (Update: 2025-07-27)

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Samsung Galaxy Book4 Edge 16 X1E-84-100 SD X Elite X1E-84-100, Adreno X1-85 4.6 TFLOPS	866
Dell Inspiron 16 7640 2-in-1 Ultra 7 155H, Arc 8-Core	866
HP EliteBook 845 G11 R7 PRO 8840HS, Radeon 780M	869
Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	869
Apple MacBook Air 15 M4 M4 (10 cores), M4 10-Core GPU	874
Zotac ZBOX Magnus EN374070 i7-13700HX, NVIDIA GeForce RTX 4070 Laptop GPU	875
Lenovo Yoga Pro 7 14APH G8 R7 7840HS, Radeon 780M	880
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
R7 5700G, Vega 8	8050
Asus VivoBook S15 K5504 i9-13900H, Iris Xe G7 96EUs	8095
Asus VivoBook 18 M1807HA R7 260, Radeon 780M	8127
Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	8136
Huawei MateBook D 16 2024 i9-13900H, Iris Xe G7 96EUs	8141
Gigabyte P25X v2 4810MQ, GeForce GTX 880M	8234
Huawei MateBook 16s i9 i9-13900H, Iris Xe G7 96EUs	8283
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642

结论 - 价格低廉的迷你 PC，功能不尽人意

Pros

Cons

价格和供应情况

Table of Contents

规格

外壳和功能 - 光滑的铝质外壳

尺寸比较

ADATA SE920 USB4 数据传输速率

配件

维护

可持续性

性能 - 八核心十六线程的 Ryzen 7

测试条件

UEFI 选项

处理器

Cinebench R15 多耐久性测试

系统性能

DPC 延迟

存储设备

Sustained read load: DiskSpd Read Loop, Queue Depth 8

图形处理器和游戏性能

30 Min. Cyberpunk 2077 fps chart (1920 x 1080, Ultra preset, FSR off)

通过 USB4 使用 NvidiaGeForce RTX 4090 检查 Chuwi Aubox 性能

排放 - 经济，但没有效率奇迹

噪音排放

温度

能源管理

Power efficiency

Power consumption - external monitor

Power consumption - external monitor

笔记本检查评级

潜在替代品比较

Transparency
