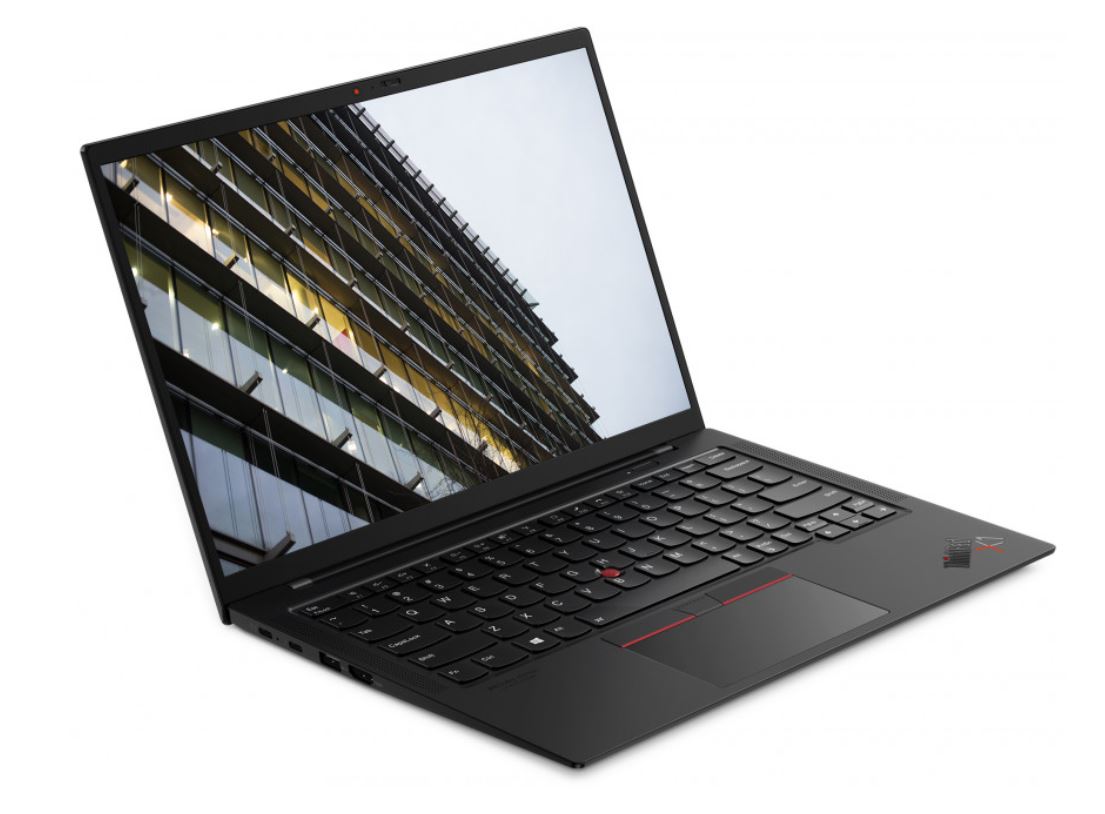

Lenovo ThinkPad X1 Carbon G9-20XXS00100

Specifications

Lenovo ThinkPad X1 Carbon G9-20XXS00100
Lenovo ThinkPad X1 Carbon G9-20XXS00100 (ThinkPad X1 Carbon G9 Series)
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, 36 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake UP3
Memory
32768 MB
, LPDDR4X-4266, on-board, Dual-Channel
Display
14.00 inch 16:10, 1920 x 1200 pixel 162 PPI, B140UAN02.1, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung PM9A1 MZVL21T0HCLR, 1024 GB
, 953 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5mm Audio, 1 Fingerprint Reader
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Size
height x width x depth (in mm): 14.9 x 314.5 x 221.5
Battery
57 Wh Lithium-Polymer
Camera
Webcam: 720p w/IR & ThinkShutter
Primary Camera: 0.9 MPix
Additional features
Speakers: 2x 2 W, 2x 0.8 W, Dolby Atmos, Keyboard: 6 row Chiclet w/1.5mm travel, Keyboard Light: yes, 65 W USB C Charger, 36 Months Warranty
Weight
1.175 kg, Power Supply: 321 g
Price
1679 Euro



Pricecompare

Average Score: 91.18% - very good
Average of 9 scores (from 15 reviews)
price: - %, performance: 79%, features: 67%, display: 88% mobility: 81%, workmanship: 90%, ergonomy: 92%, emissions: 93%

Reviews for the Lenovo ThinkPad X1 Carbon G9-20XXS00100

90.6% Lenovo ThinkPad X1 Carbon Gen 9 Review: Longer battery runtime with the Full-HD panel | Notebookcheck
We have just reviewed the new ThinkPad X1 Carbon Gen 9 with the glossy 4K screen, and now we have a closer look at the default Full-HD panel. What are the advantages and disadvantages of the matte panel?
Lenovo ThinkPad X1 Carbon 9th Gen - disassembly and upgrade options
Source: Laptop Media English
Support, online available, Short, Date: 01/05/2022
Lenovo ThinkPad X1 Carbon Gen 9 (2021) Review
Source: Mobile Tech Review English
The iconic slim and extremely light 14” Lenovo ThinkPad X1 Carbon Gen. 9 Ultrabook gets even better with FHD+ and 4K+ IPS displays with a 16:10 aspect ratio, optional 4G and 5G WWAN and a new hinge design. The laptop is LG Gram light at 2.5 lb / 1.1kg and despite its thinness, it has a healthy port selection including Thunderbolt 4, USB-A and HDMI. It’s clad in black carbon fiber and has passed a variety of MIL STD durability tests, and is available with Intel 11th gen CPUs with Intel Iris Xe graphics and your choice of Windows or Linux.
Single Review, online available, Medium, Date: 12/22/2021
90% Lenovo ThinkPad X1 Carbon review: Gen 9 goes to 16:10
Source: PC World English EN→zh-CN
Nearly ten years old, the Lenovo ThinkPad X1 Carbon Gen 9 has grown taller. Lenovo’s flagship ThinkPad is still the same sleek, sturdy corporate ultrabook you may recall, but the manufacturer has ditched the 16:9 display ratio in favor of a 16:10 display that provides more room from top to bottom. The taller display gives you more room to work and requires you to scroll less through lengthy documents and long web pages. Lenovo also tweaked the display hinge, expanded the touchpad, improved the positioning of the laptop’s speakers, and integrated the fingerprint reader into the power button. Inside, the laptop received the expected Intel update to the chipmaker’s 11th-gen Tiger Lake chips. With its roomier display and other improvements, the ThinkPad X1 Carbon remains a top choice for business execs, even if its webcam is behind the times.
Single Review, online available, Long, Date: 12/21/2021
Rating: Total score: 90%
90% Lenovo ThinkPad X1 Carbon review (9th gen – Core i7, 16:10 display)
Source: Ultrabook Review English EN→zh-CN
I’ll admit, with laptops this small, my expectations drop due to the limited space. But this 2021 ThinkPad X1 Carbon exceeded my expectations. I could easily use this device as a primary computer, especially while on the road. Considering how well it performs, the stellar inputs, all the configuration options, and the battery life, there’s little to complain about.
Single Review, online available, Very Long, Date: 12/20/2021
Rating: Total score: 90%
80% Lenovo Thinkpad X1 Carbon Gen 9 Review: Ninth Time’S The Charm
Source: The Verge English EN→zh-CN
Apart from the dim screen (and the lack of an option brighter than 500 nits, when a number of business models now offer 1,000-nit options), the still-slightly-cramped touchpad, and the squeaky keyboard, I have very few complaints about this X1 Carbon. Its price is quite high, of course, so those nitpicks still do give me some pause. Lenovo’s new additions — particularly the 16:10 screen and the upward-firing speakers — are absolutely welcome, and they make the X1 Carbon Gen 9 unquestionably the best iteration of this device so far. It’s a formula Lenovo has perfected to a tee, combining the ThinkPad line’s world-class engineering with exactly the tweaks it needed to stay excellent in the modern market. While the X1 Carbon isn’t the best value for consumers, any deep-pocketed business shopper should give it a look.
Single Review, online available, Medium, Date: 09/27/2021
Rating: Total score: 80%
100% Lenovo ThinkPad X1 Carbon Gen 9 review
Source: Techradar English EN→zh-CN
The Lenovo ThinkPad X1 Carbon delivers outstanding performance in an incredibly thin, lightweight, and stylish package, showing once again why the X1 Carbon is one of the best Ultrabooks ever made – if you're willing to pay for the best.
Single Review, online available, Long, Date: 08/11/2021
Rating: Total score: 100%
90% Lenovo ThinkPad X1 Carbon Gen 9 (2021)
Source: PC Mag English EN→zh-CN
If the Lenovo ThinkPad X1 Carbon Gen 9 had an OLED screen, we'd be tempted to shut down PCMag.com's laptop-review efforts for a while and say laptop technology had hit an unsurpassable peak. It's that good, a superlative aspirational system for anyone who can afford it. It leaves room for gaming notebooks and content-creation workstations to outperform it, but it virtually defines what a productivity PC or business ultraportable should be. This must be our least surprising Editors' Choice pick ever.
Single Review, online available, Long, Date: 07/31/2021
Rating: Total score: 90%
100% Lenovo ThinkPad X1 Carbon (Gen 9) review: Flirting with perfection
Source: Laptop Mag English EN→zh-CN
For years, the X1 Carbon was so far ahead of its competitors that Lenovo simply released the same system with new internals. But the business laptop landscape has evolved and budding competition is keeping Lenovo on its toes. The X1 Carbon Gen 9 is the company's answer to those capable competitors. It adopts modern trends, including a 16:10 display, and combines them with the latest Intel processors and a larger battery. Those aren't groundbreaking changes, but they arrive on what is already one of the most refined platforms — for business users or regular consumers — on the market. Yes, there are excellent alternatives like the Dell Latitude 9420 2-in-1 and HP EliteBook x360 1040 G7, but the X1 Carbon remains the best overall package due in large part to the updates made in this latest model.
Single Review, online available, Long, Date: 07/31/2021
Rating: Total score: 100%
Lenovo ThinkPad X1 Carbon Gen 9 Review: Ultralight Greatness
Source: Hot Hardware English EN→zh-CN
Lenovo's new 9th generation ThinkPad X1 Carbon is an interesting machine to be sure. On one hand, it offered some of the best numbers we've seen from this new breed of ultralight Tiger Lake 11th Gen Intel Core-powered laptops, with chart-topping benchmark results virtually across the board. It also exhibited well-behaved thermals and acoustics, with what is obviously a well-design cooling solution on-board for sustained performance when plugged into the wall, and with relatively low fan noise.
Single Review, online available, Very Long, Date: 05/27/2021
ThinkPad X1 Carbon 9th Gen SSD install guide
Source: Mash IT English
In this video we show you how easy it is to install your own SSD into the X1 carbon Gen 9, saving a fortune over paying Lenovo for a large capacity SSD.
Support, online available, Short, Date: 05/11/2021
ThinkPad X1 Carbon 9th Gen Review - The laptop I have been waiting for!
Source: Mash IT English
Single Review, online available, Very Long, Date: 04/17/2021
ThinkPad X1 Carbon 9th Gen - Unboxing, First Impressions and Internals
Source: Mash IT English
Hands-On, online available, Medium, Date: 04/13/2021
Oh du hassgeliebtes Knubbel-Book!
Source: Golem German DE→zh-CN
Single Review, online available, Long, Date: 05/03/2021
80% Lenovo ThinkPad X1 Carbon Gen 9 - Volgende evolutie van luxe werkpaard
Source: Computer Totaal Dutch NL→zh-CN
Single Review, online available, Short, Date: 09/22/2021
Rating: Total score: 80%
100% Lenovo Carbon X1 Gen 9 Review
Source: Mega Obzor RU→zh-CN
Single Review, online available, Long, Date: 07/26/2021
Rating: Total score: 100%

Comment

Intel Iris Xe G7 96EUs:

基于96个EU(执行单元/着色器集群)的新Gen.12体系结构的英特尔Tiger Lake G4 SoC内置显卡。 时钟速率因处理器型号而异。 Tiger Lake芯片采用英特尔10纳米以上的现代工艺生产。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-1165G7:

基于Tiger Lake的低功耗四核处理器,适用于轻薄笔记本电脑。四个核心的频率约为2.8-4.7 GHz。由Intel生产的10nm+产品。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.175 kg: 这是10到11寸大尺寸平板电脑,小型亚笔记本,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
