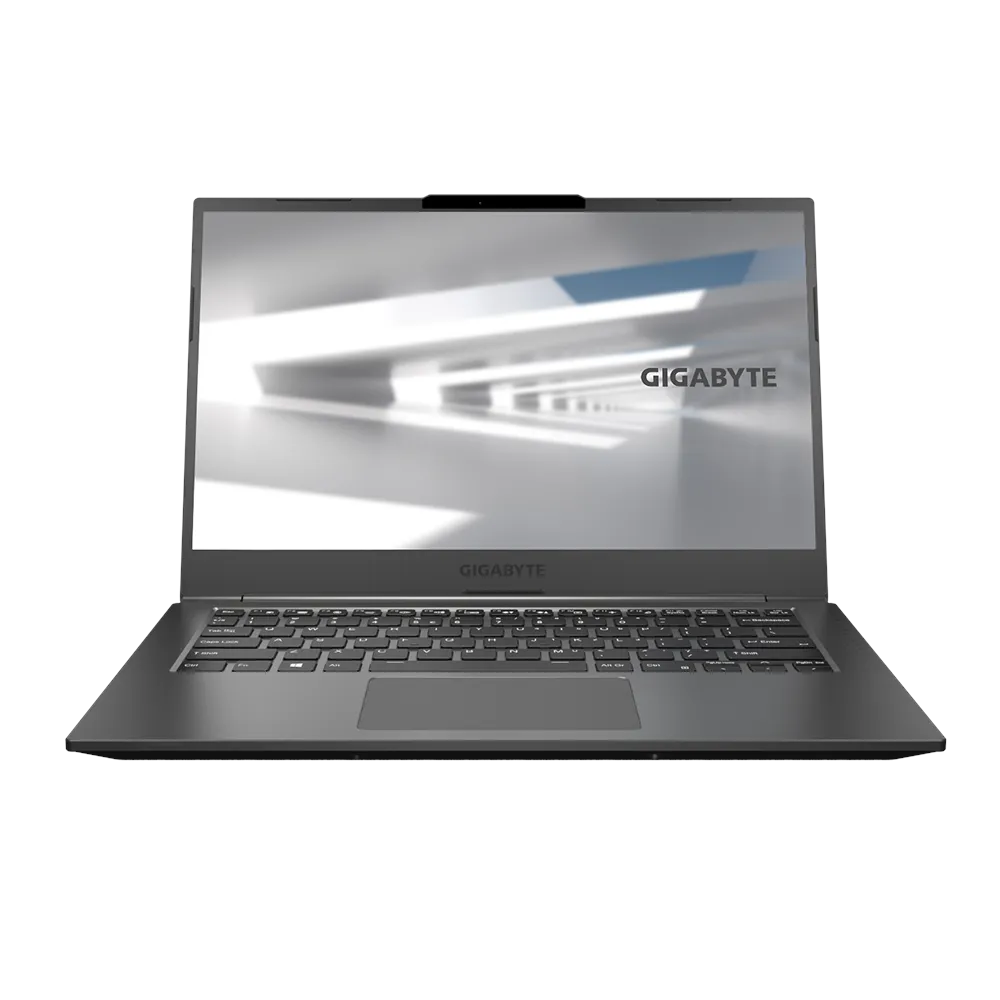

Gigabyte U4 UD

Specifications

Gigabyte U4 UD
Gigabyte U4 UD
Processor
Intel Core i7-1195G7 4 x 2.9 - 5 GHz, 46 W PL2 / Short Burst, 13 W PL1 / Sustained, Tiger Lake UP3
Graphics adapter
Intel Iris Xe Graphics G7 96EUs - 1024 MB, Core: 1200 MHz, Memory: 2000 MHz
Memory
16384 MB
, DDR4-3200 dual-channel
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei N140HCE-EN2, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
512 GB Phison PS5016 ESR512GTLG-E6GBTNB4, 410 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
1 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 USB 3.2 Gen 2x2 20Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 Kensington Lock, Audio Connections: combo, Card Reader: microSD
Networking
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2
Size
height x width x depth (in mm): 17 x 322 x 217
Battery
36.7 Wh, Battery runtime (according to manufacturer): 8 h
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 11 Pro
Camera
Webcam: 1
Primary Camera: 0.9 MPix HD
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, 12 Months Warranty
Weight
958 g, Power Supply: 210 g
Price
899 Euro



Pricecompare

Average Score: 82.2% - good
Average of 2 scores (from 3 reviews)
price: - %, performance: 78%, features: 59%, display: 88% mobility: 69%, workmanship: 86%, ergonomy: 82%, emissions: 88%

Reviews for the Gigabyte U4 UD

84.4% Gigabyte U4 UD 笔记本电脑评测。轻量级,有很大的潜力,但有时会被浪费掉 | Notebookcheck
一个速度高达5GHz的处理器与16GB的内存相结合,保证了良好的性能。阅读我们的评论,了解14英寸紧凑型技嘉U4 UD是否能满足这些期望,以及它在图形性能、电池寿命等方面的表现。
80% Gigabyte U4 UD (Core i7-1195G7) Laptop Review
Source: Kitguru English EN→zh-CN
It is difficult to not be happy with the Gigabyte U4 UD laptop. This highly-affordable 14-inch offering delivers solid performance, strong build quality, and an array of sensible design choices. The Intel Core i7-1195G7 Tiger Lake-U Refresh processor performs reasonably well in lightly-threaded tasks where the high boost frequency can be leveraged. But it is clearly no match for some of the AMD competition when it comes to heavily multi-threaded tasks. I liked Tiger Lake-U for its purpose, and I like Tiger Lake-U Refresh in this laptop. But it is quite clear that the Intel 11th Gen U-series is ready for an upgrade to Intel 12th Gen spec very soon. Four cores with limited frequency is fine in today’s market, but it’s hardly exciting. Gigabyte’s operation of the 28W-capable chip at 20W long duration even in the ‘Performance’ mode certainly leaves considerable performance on the table. But this is realistically a constraint of the cooling and power delivery capacity of this sub-1kg unit. No complaints when it comes to the screen.
Single Review, online available, Very Long, Date: 02/16/2022
Rating: Total score: 80%
Gigabyte U4 UD Intel i7 14″ Laptop Review
Source: eTeknix English EN→zh-CN
The built-in webcam and microphones are decent enough. With more of us working or studying from home, or even just isolating and needing to connect with friends and family, this is a vital addition. I like that they’ve not gone overboard with the design too, it’s a smart enough laptop that you could use it in a meeting and not look like an idiot. Then again, it’s smart enough that you’ll fit in with the “I’m working in a coffee shop” crowd. It’s also not ruinously expensive, which is always nice. Obviously, you pay a premium for the i7, and again for the slim and light design, but when it delivers on what it promises, I think it’s well priced. If you’re looking for a notebook that’s cool, light, compact and surprisingly powerful, the Gigabyte U4 UD is easily one of the best out there right now. Highly recommended. Now, I wonder how long I can keep it before Gigabyte realise I’ve still got it…
Single Review, online available, Very Long, Date: 01/17/2022
Ein federleichtes Subnotebook
Source: HardwareLuxx German DE→zh-CN
Single Review, online available, Long, Date: 03/23/2022

Comment

Intel Iris Xe G7 96EUs:

基于96个EU(执行单元/着色器集群)的新Gen.12体系结构的英特尔Tiger Lake G4 SoC内置显卡。 时钟速率因处理器型号而异。 Tiger Lake芯片采用英特尔10纳米以上的现代工艺生产。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-1195G7:

基于Tiger Lake的低功耗四核处理器,适用于超薄、超轻的笔记本电脑和最高28瓦特的高速UP3 CPU。英特尔采用10nm SuperFin工艺生产。 1.3GHz(设定为12W)至2.9GHz(28W)的基本时钟。 Turbo单核最高可达5GHz。

» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


0.958 kg: 这是10到11寸大尺寸平板电脑,小型亚笔记本,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
