MagyarLenovo ThinkPad T480s-20L8S02E00
Specifications

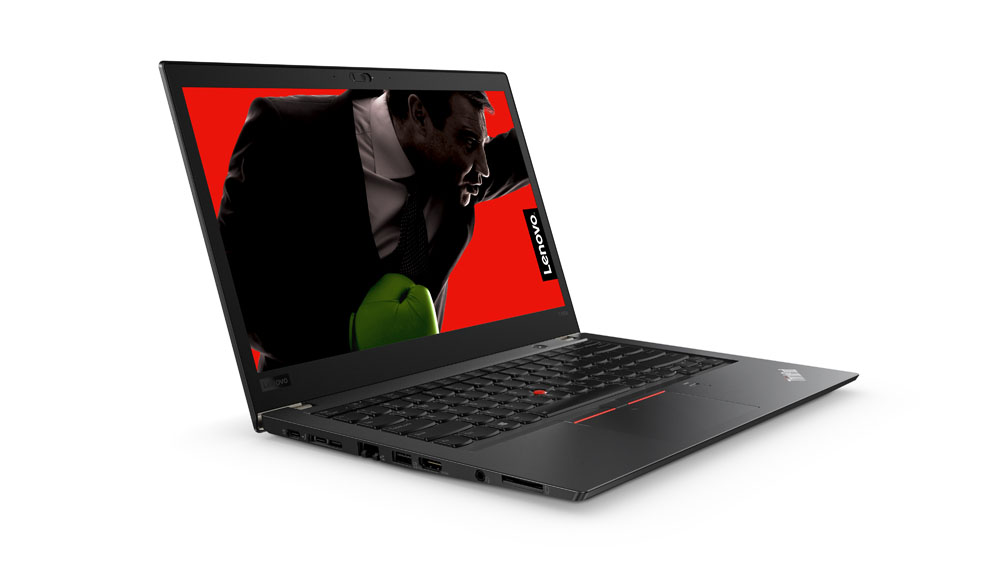

Lenovo ThinkPad T480s-20L8S02E00 (ThinkPad T480s Series)
Processor
Intel Core i7-8550U 4 x 1.8 - 4 GHz, Kaby Lake Refresh
Graphics adapter
NVIDIA GeForce MX150 - 2048 MB VRAM, Core: 1038 MHz, Memory: 1252.5 MHz, GDDR5, 388.16, Optimus
Memory
16 GB
, 8 GB-DDR4-2400 verlötet, 8 GB im SO-DIMM-Slot, max. 24 GB
Display
14.00 inch 16:9, 2560 x 1440 pixel 210 PPI, LP140QH2-SPB1, IPS LED, glossy: no
Mainboard
Intel Kaby Lake-U + iHDCP 2.2 Premium PCH
Storage
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
, 2280 M.2, PCIe 3.0 x4 NVMe
Soundcard
Realtek ALC3287
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Kombo-Audio, Card Reader: 4-in-1-SD-Kartenleser, 1 SmartCard, 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 18.45 x 331 x 226.8
Battery
57 Wh Lithium-Polymer
Camera
Webcam: 720p
Additional features
Speakers: 1 Watt Stereo, Keyboard: 6 Reihen Chiclet, Keyboard Light: yes, 36 Months Warranty
Weight
1.347 kg, Power Supply: 356 g
Price
1500 Euro
Links
Pricecompare
Average Score:
Average of 1 scores (from 2 reviews)
Average of 1 scores (from 2 reviews)
price: - %, performance: 78%, features: 70%, display: 91% mobility: 81%, workmanship: 94%, ergonomy: 92%, emissions: 91%
Reviews for the Lenovo ThinkPad T480s-20L8S02E00
Lenovo ThinkPad T480s (i7-8550U, MX150 Max-Q) Laptop Review | Notebookcheck
Even more versatile thanks to GeForce. We just recently tested the ThinkPad T480s, the latest model in a long series of high-quality 14 inch T series ThinkPads. Now we’re testing the same model – this time with a stronger CPU and the GeForce MX150 Max-Q. Can it confirm the strong results of the lower priced T480s? Find out in the following detailed test update. Update: Stress test with BIOS 1.11
Even more versatile thanks to GeForce. We just recently tested the ThinkPad T480s, the latest model in a long series of high-quality 14 inch T series ThinkPads. Now we’re testing the same model – this time with a stronger CPU and the GeForce MX150 Max-Q. Can it confirm the strong results of the lower priced T480s? Find out in the following detailed test update. Update: Stress test with BIOS 1.11
ThinkPad T480s: a szürke eminenciás
Source: HWSW
HU→zh-CN Archive.org version
Single Review, online available, Short, Date: 05/17/2018
Source: HWSW
HU→zh-CN Archive.org versionSingle Review, online available, Short, Date: 05/17/2018
Recenze: Lenovo ThinkPad T480 - business notebook pro náročné, 2 baterie, s čtyřjádrem a IPS
Source: Notebook.cz
CZ→zh-CN Archive.org version
Single Review, online available, Long, Date: 05/31/2018
Source: Notebook.cz
CZ→zh-CN Archive.org versionSingle Review, online available, Long, Date: 05/31/2018
Comment
NVIDIA GeForce MX150:
基于Pascal GP108的笔记本电脑显卡是桌面GeForce GT 1030移动版。提供384个着色器内核，通常为2 GB GDDR5显存和64位内存总线。采用14nm制造工艺。
» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.
i5-8550U:
基于Kaby-Lake-Refresh的低功耗四核处理器。这四个内核的时钟频率介于1.8和4 GHz之间（Turbo Boost），并支持超线程。集成GPU的时钟频率介于300和1,150 MHz之间。 SoC采用14nm + FinFET工艺制造。
» Further information can be found in our Comparison of Mobile Processsors.
14.00":
大体上，这个屏幕尺寸常见于亚笔记本电脑，超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。
大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面，小屏幕的功耗会较低，而设备也会更轻盈小巧，售价更低。
» To find out how fine a display is, see our DPI List.
1.347 kg: 这是11到13寸的超大尺寸平板电脑，亚笔记本电脑，超极本和变形本的常见重量。
» Further information can be found in our Notebook Purchase Guide.
