华硕Chromebook Flip CM1在审查。沉默的2合1笔记本电脑

负担得起的伴侣。 这款二合一笔记本电脑提供了一个IPS触摸屏,静音操作,良好的电池寿命,以及带有Power Delivery的USB-C。整体包装不会对你的钱包造成太大影响。
Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...
AMD Chromebook Convertible / 2-in-1 Ryzen (Zen) Touchscreen Zen

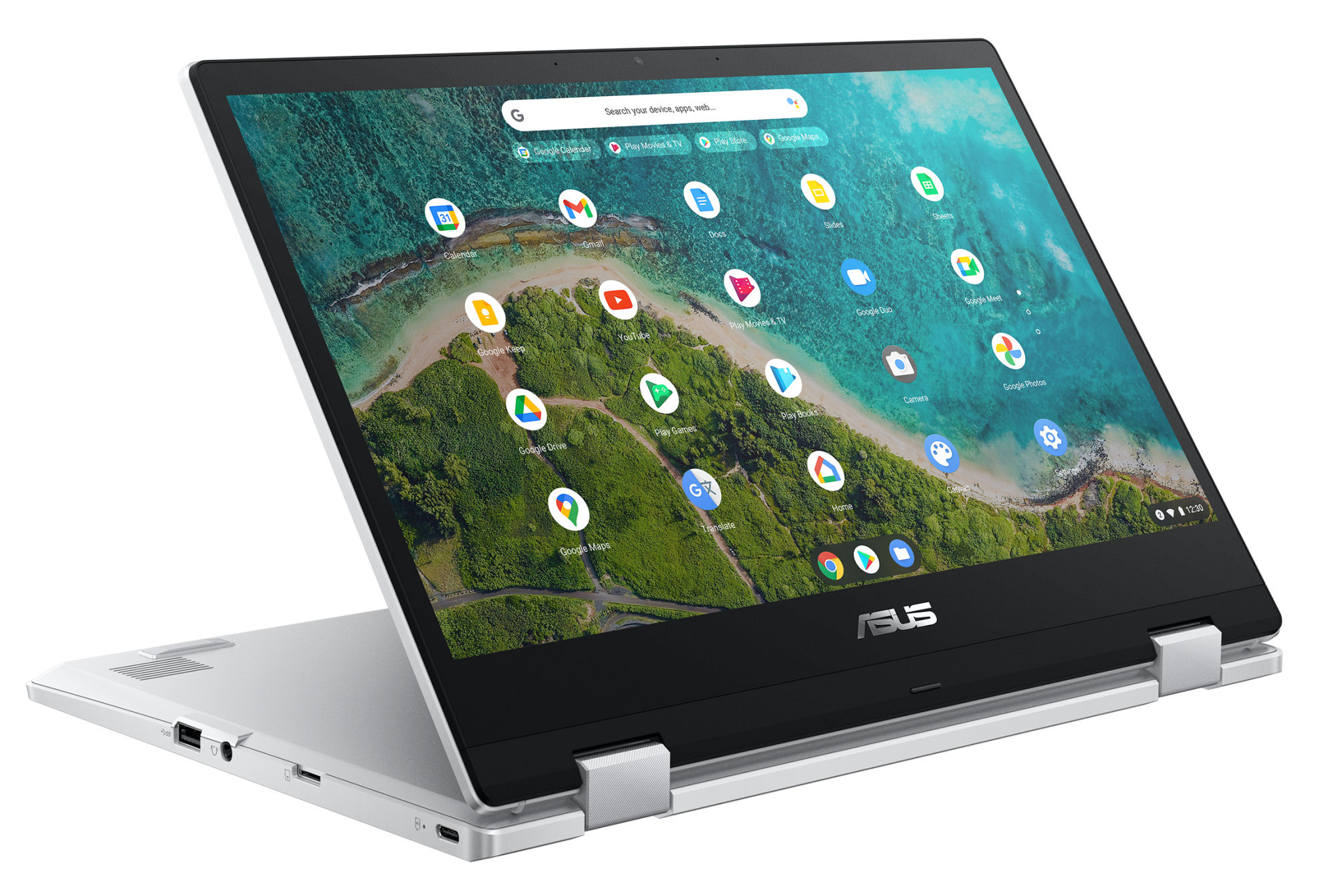

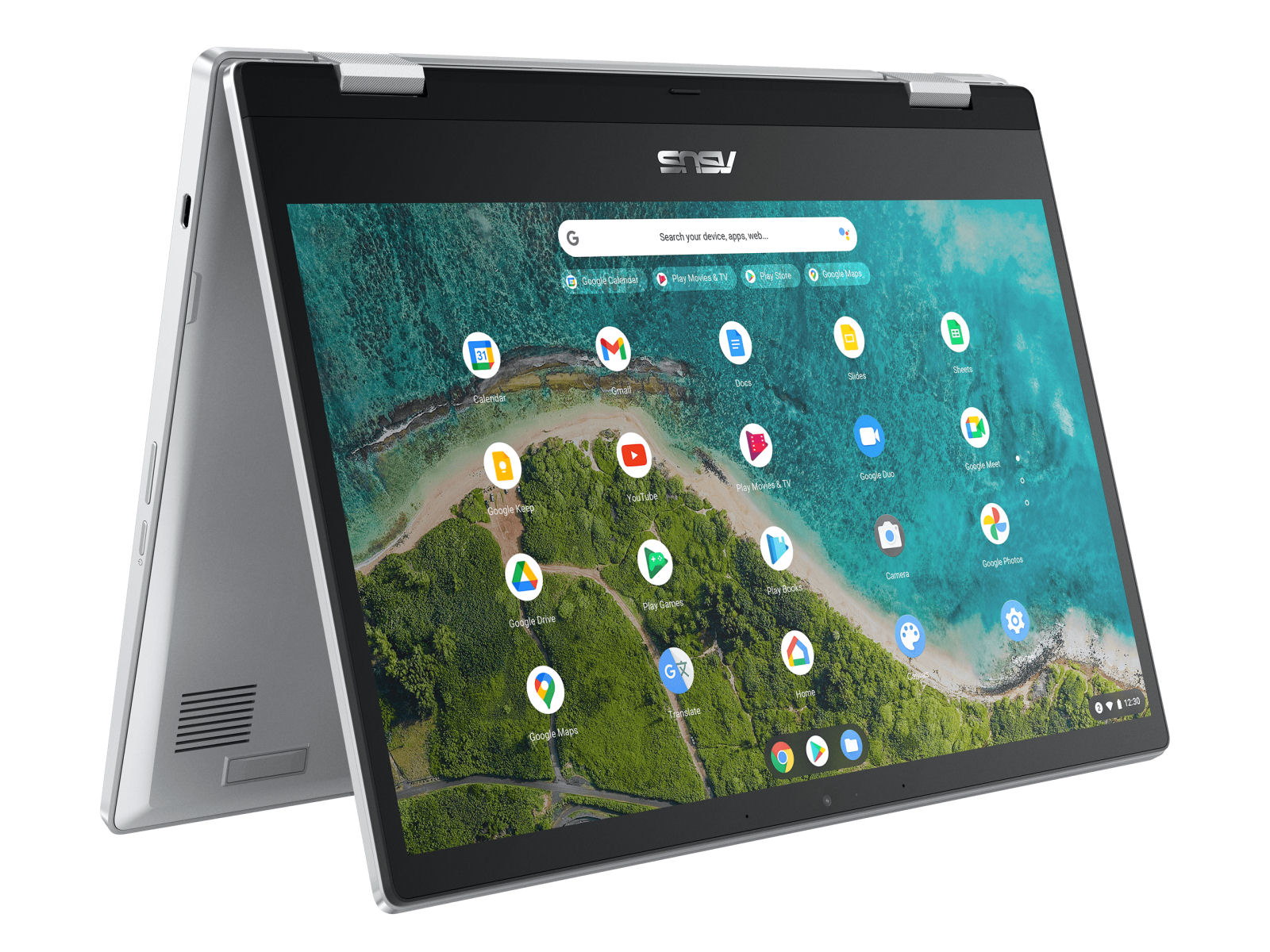

通过Chromebook Flip CM1,华硕在其产品线中拥有了一款基于Chrome OS的简单的二合一笔记本电脑,它由被动冷却的AMD APU驱动。在我们的数据库中,目前没有直接的竞争对手。无论是价格水平、格式,还是设备类别都不一致。竞争对手的扩展组包括联想IdeaPad Duet 5Chromebook,以及Acer Aspire 1 A114-61,以及Acer Spin 3 SP314-21N.

Asus Chromebook Flip CM1 (Chromebook Flip Series)
Processor
AMD 3015Ce 2 x 1.2 - 2.3 GHz, Zen
Graphics adapter
AMD Radeon RX Vega 3, Core: 600 MHz

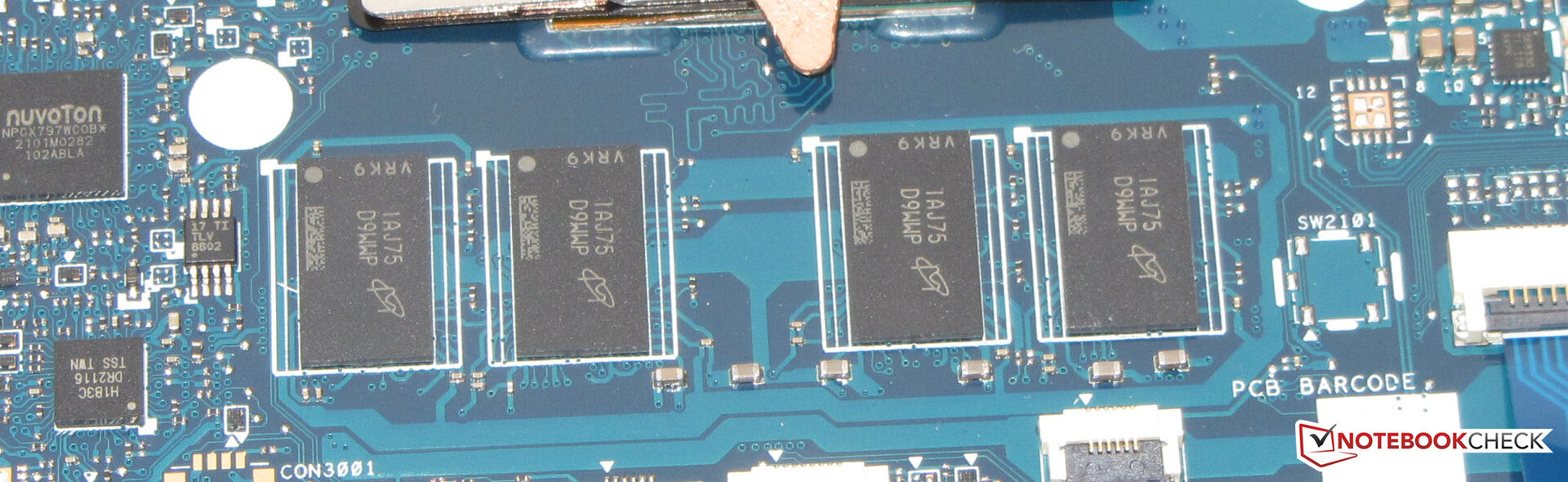

Memory
4096 MB
, DDR4, onboard, no memory slots
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, capacitive, 10 touchpoints, IPS, glossy: yes, 60 Hz
Storage
64 GB eMMC Flash, 64 GB
, 50 GB free
Connections
3 USB 3.0 / 3.1 Gen1, USB-C Power Delivery (PD), 2 DisplayPort, Audio Connections: combined headset port, Card Reader: microSD, Sensors: acceleration, gyroscope
Networking
AzureWave AW-CM421INF (a/b/g/ac = Wi-Fi 5), Bluetooth 5
Size
height x width x depth (in mm): 18.6 x 326.5 x 228.8

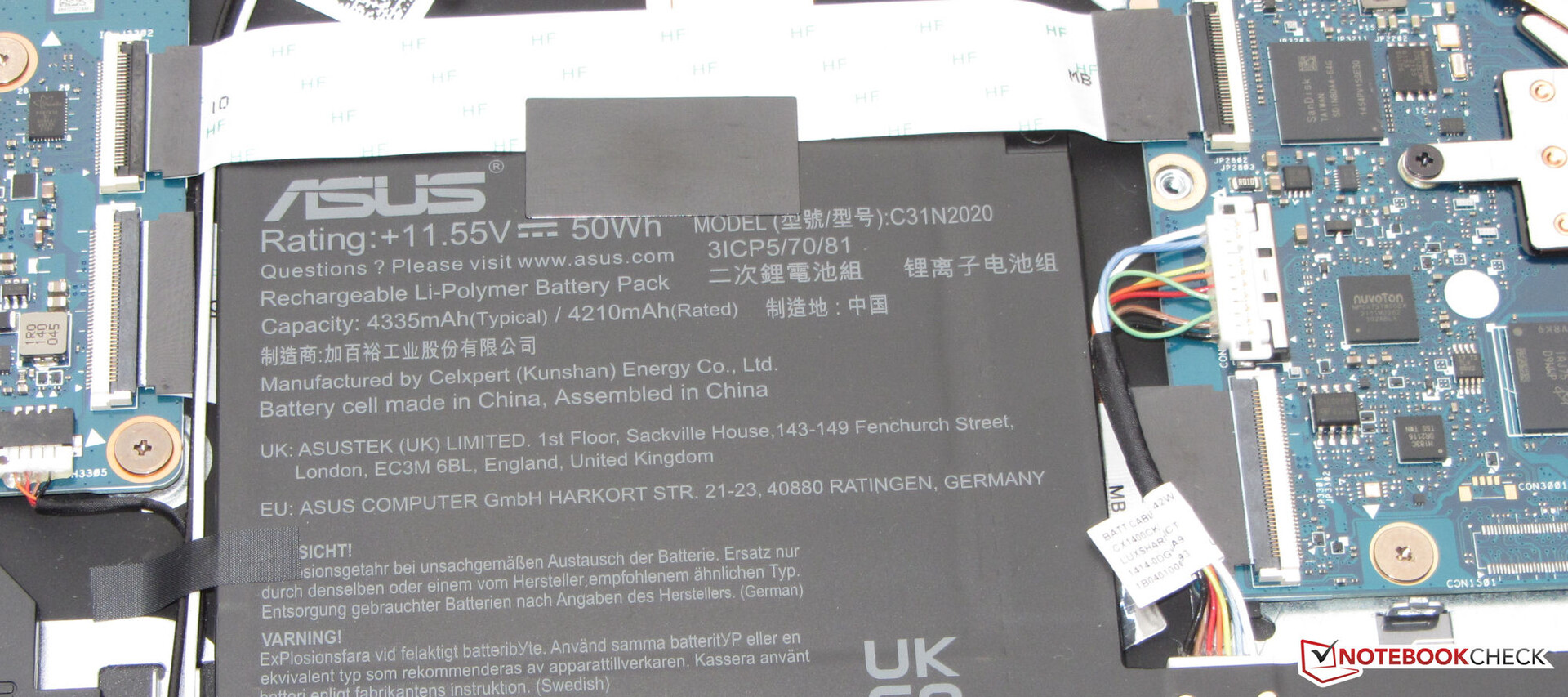

Battery
50 Wh, 4335 mAh Lithium-Polymer
Operating System
Google Chrome OS
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Secondary Camera: 5 MPix
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: no, 24 Months Warranty, fanless
Weight
1.65 kg, Power Supply: 180 g
Price
299 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
79.9 %
04/2022
Asus Chromebook Flip CM1
3015Ce, Vega 3
1.7 kg18.6 mm14.00"1920x1080
79 %
01/2022
Lenovo IdeaPad Duet 5 Chromebook
SD 7c, Adreno 618
715 g7.2 mm13.30"1920x1080
81.2 %
11/2021
Acer Spin 3 SP314-21N-R4GU
R3 3250U, Vega 3
1.5 kg16.9 mm14.00"1920x1080
77.6 %
12/2021
Acer Aspire 1 A114-61-S58J
SD 7c, Adreno 618
1.5 kg18.9 mm14.00"1920x1080

外壳和连接--华硕笔记本电脑支持电力传输

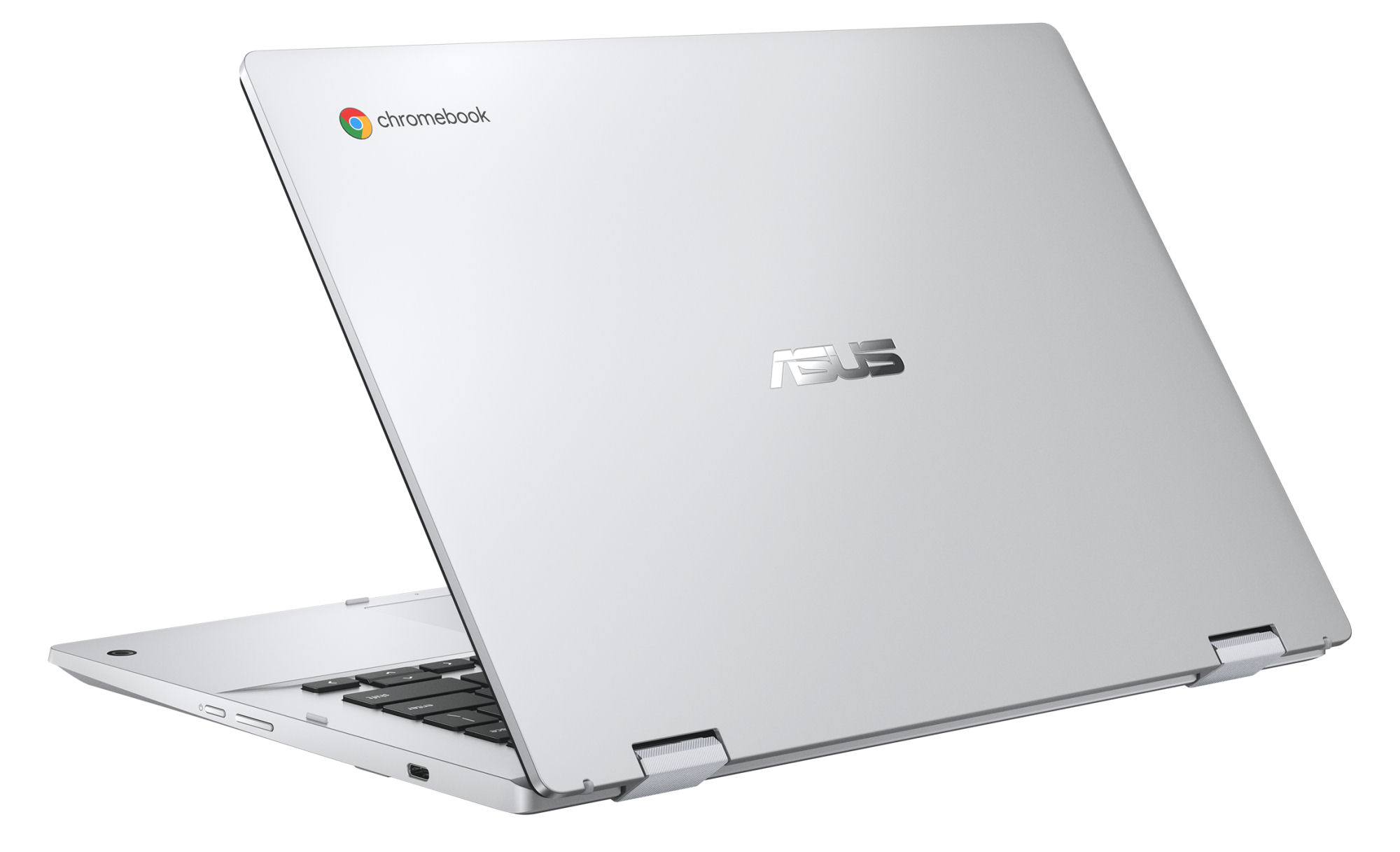

华硕为CM1使用了塑料外壳,有银色(盖子的背面,底座的顶部)和浅灰色(底盖)。缝隙尺寸是正确的,尖锐的边缘并不明显。底部装置和盖子可能有点太容易被扭曲了。电池被牢固地内置在设备中。没有维护舱口。

三个USB端口(1个USB-A,2个USB-C)按照USB 3.2 Gen 1标准工作。USB-C端口支持Power Delivery以及DisplayPort per USB-C。此外,还有一个缓慢的microSD存储卡读卡器(参考卡:AV PRO microSD 128 GB V60),以及一个Wi-Fi 5模块(802.11ac,蓝牙5)。

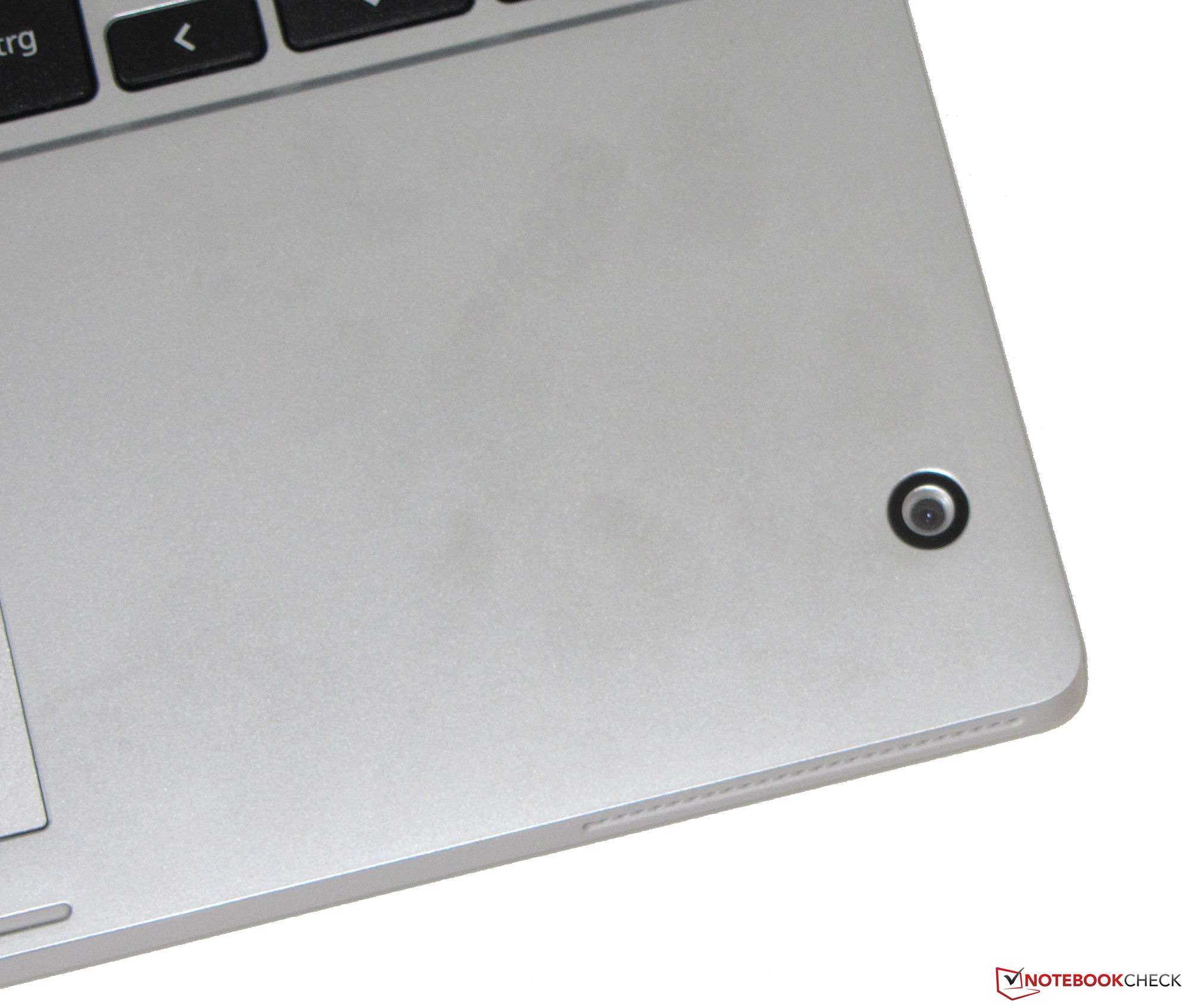

机上有两个摄像头。一个网络摄像头(0.9MP)用于视频通话,一个摄像头(5MP)用于拍照。后者位于掌托的右下角,可以在平板电脑模式下使用。网络摄像头只能提供标准的结果,但500万像素的摄像头可以产生体面的结果。


尺寸比较

328 mm 236 mm 18.9 mm 1.5 kg326.5 mm 228.8 mm 18.6 mm 1.7 kg325 mm 230 mm 16.9 mm 1.5 kg305.9 mm 186.8 mm 7.2 mm 715 g

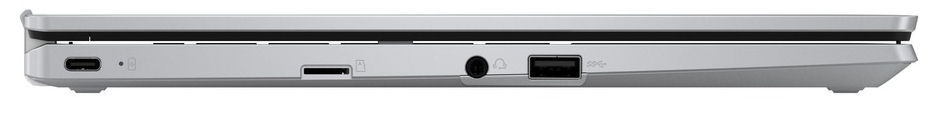

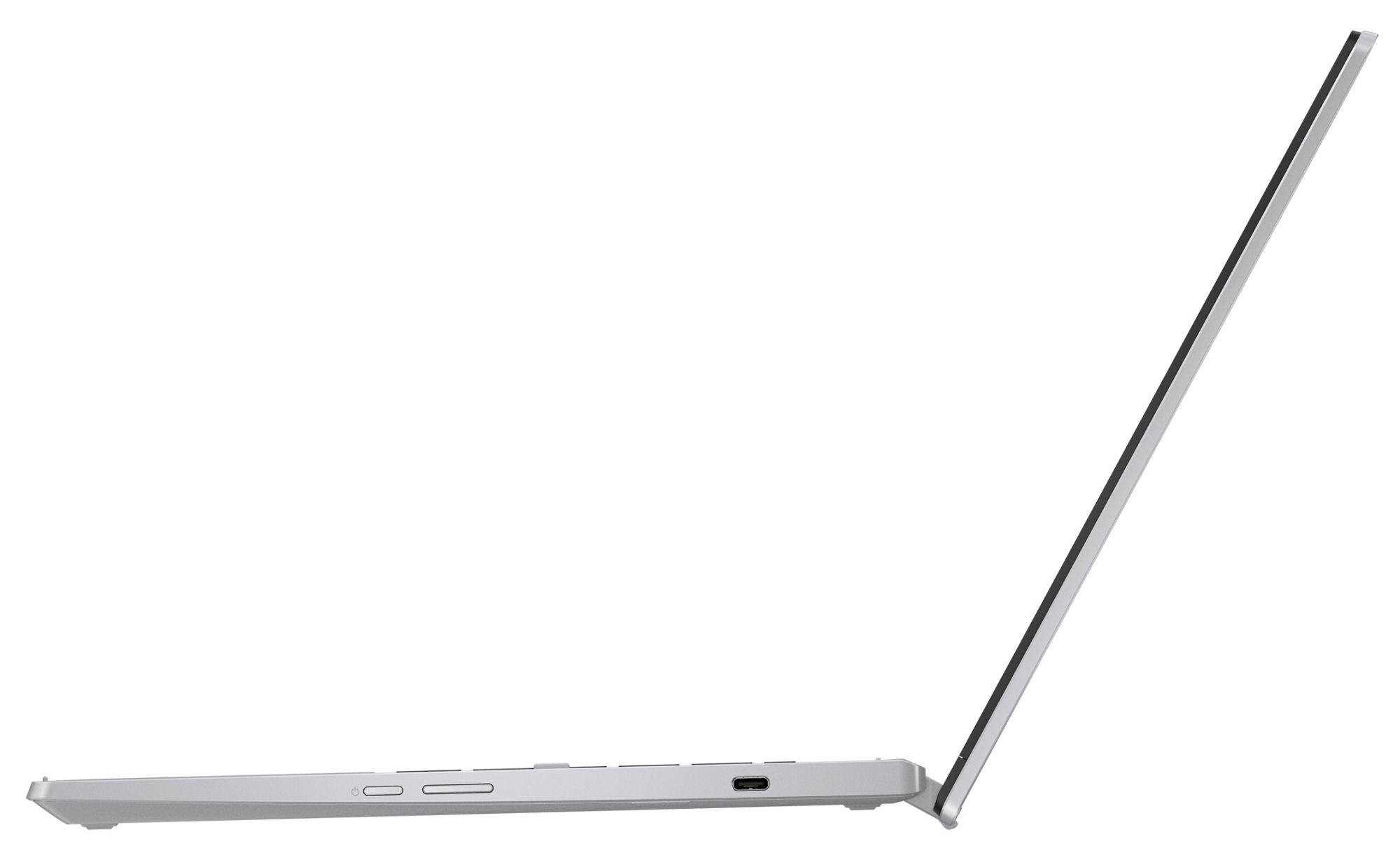

左侧。USB 3.2 Gen 1 (USB-C; Power Delivery, DisplayPort), 存储卡阅读器 (microSD), 组合音频, USB 3.2 Gen 1 (USB-A)
左侧。USB 3.2 Gen 1 (USB-C; Power Delivery, DisplayPort), 存储卡阅读器 (microSD), 组合音频, USB 3.2 Gen 1 (USB-A)

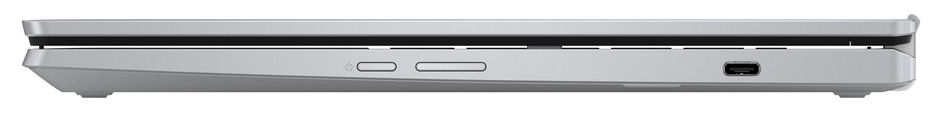

右侧。电源按钮,音量摇杆,USB 3.2 Gen 1 (USB-C; Power Delivery, DisplayPort)
右侧。电源按钮,音量摇杆,USB 3.2 Gen 1 (USB-C; Power Delivery, DisplayPort)
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Convertible
  (10 - 201, n=58, last 2 years)
76.6 MB/s ∼100% +139%
Asus Chromebook Flip CM1
AMD 3015Ce (AV Pro SD microSD 128 GB V60)
32 MB/s ∼42%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U (AV Pro SD microSD 128 GB V60)
25.6 MB/s ∼33% -20%
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (25 - 224, n=51, last 2 years)
94.1 MB/s ∼100%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U (AV Pro SD microSD 128 GB V60)
36.7 MB/s ∼39%

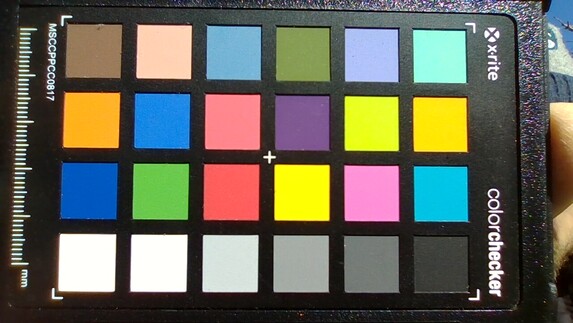

ColorChecker
17.4 ∆E
15.7 ∆E
19.1 ∆E
19.9 ∆E
20 ∆E
15.6 ∆E
17.4 ∆E
20.6 ∆E
16.7 ∆E
11.2 ∆E
18.1 ∆E
20.2 ∆E
11.1 ∆E
16.5 ∆E
21.2 ∆E
13.5 ∆E
19.6 ∆E
19.3 ∆E
3.3 ∆E
12.1 ∆E
17.6 ∆E
17.1 ∆E
14.6 ∆E
4.8 ∆E
ColorChecker Asus Chromebook Flip CM1: 15.94 ∆E min: 3.32 - max: 21.23 ∆E

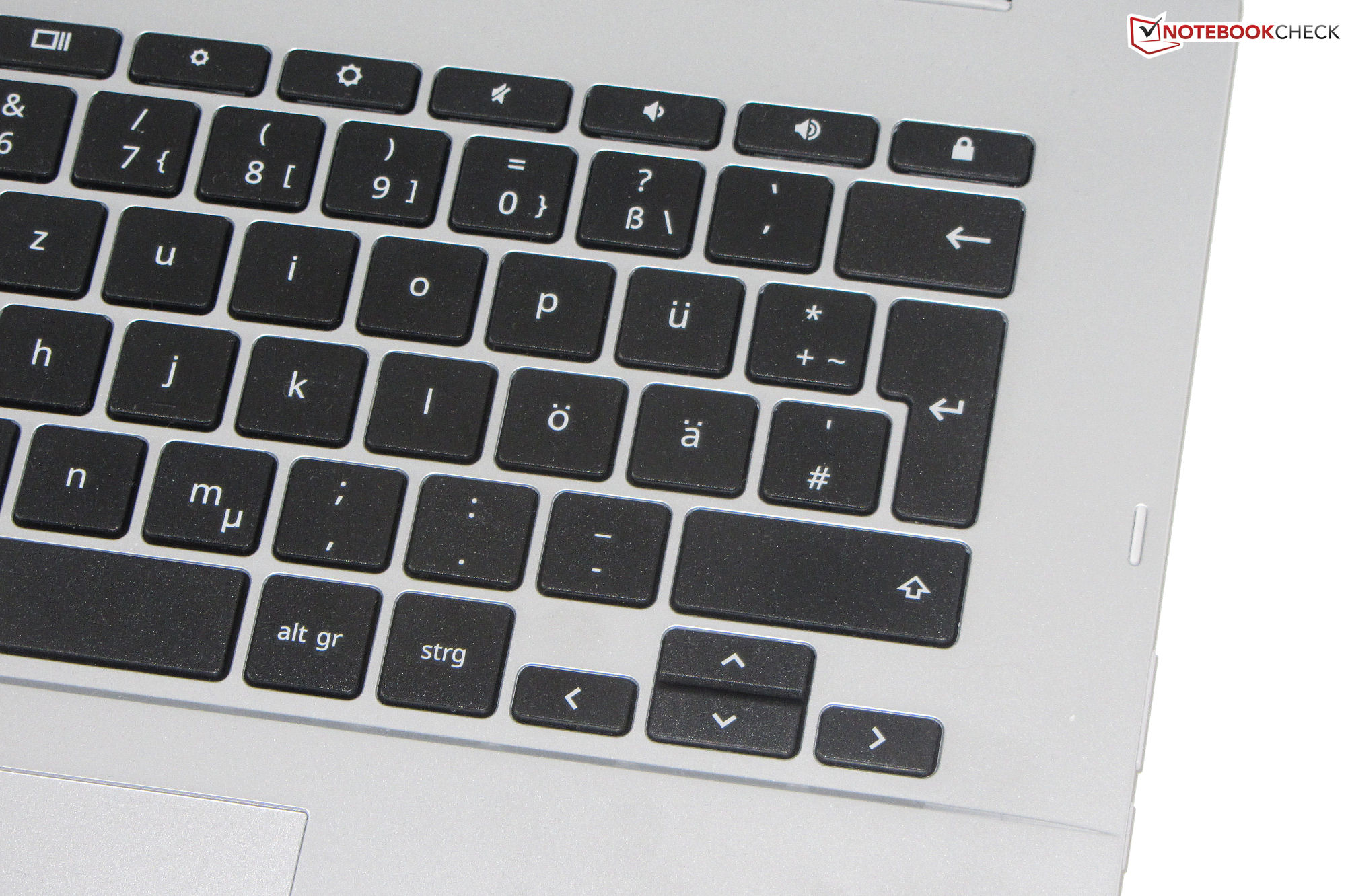

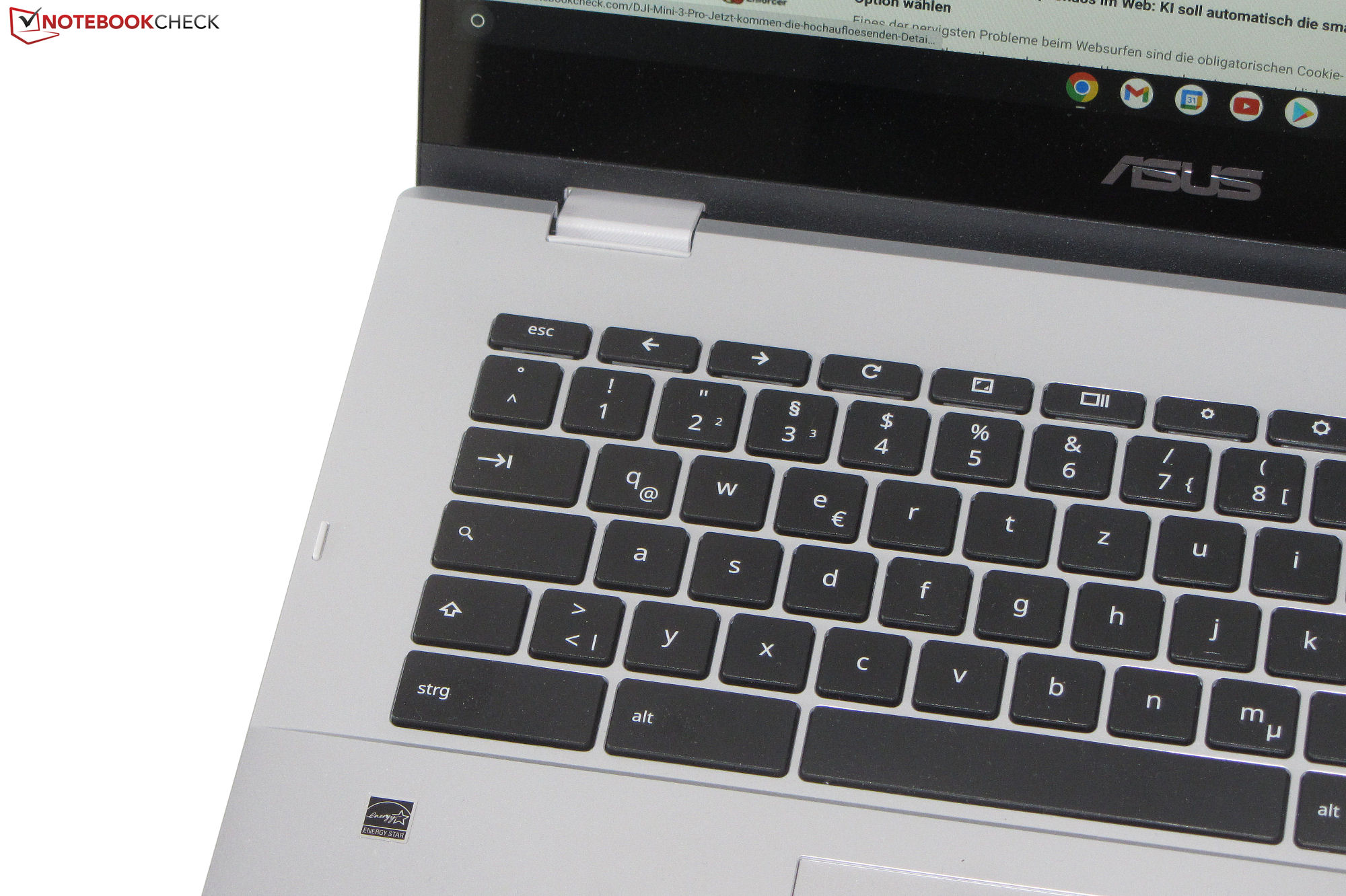

输入设备 - CM1400FX缺乏背光键盘

扁平的、略微粗糙的木制键盘的键程很短,有一个清晰的压力点。键盘在打字时有轻微的晃动。然而,这并不证明是令人讨厌的。总的来说,华硕在这里提供了一个适合日常使用的键盘,遗憾的是,它缺乏一个背光。

一个具有多点触摸功能的ClickPad(10.5 x 6.1厘米)可以替代鼠标。其光滑的表面使手指很容易在上面滑行。垫子的行程很短,压力点很清晰。触摸屏(10个触摸点)没有问题,对输入的反应很快。

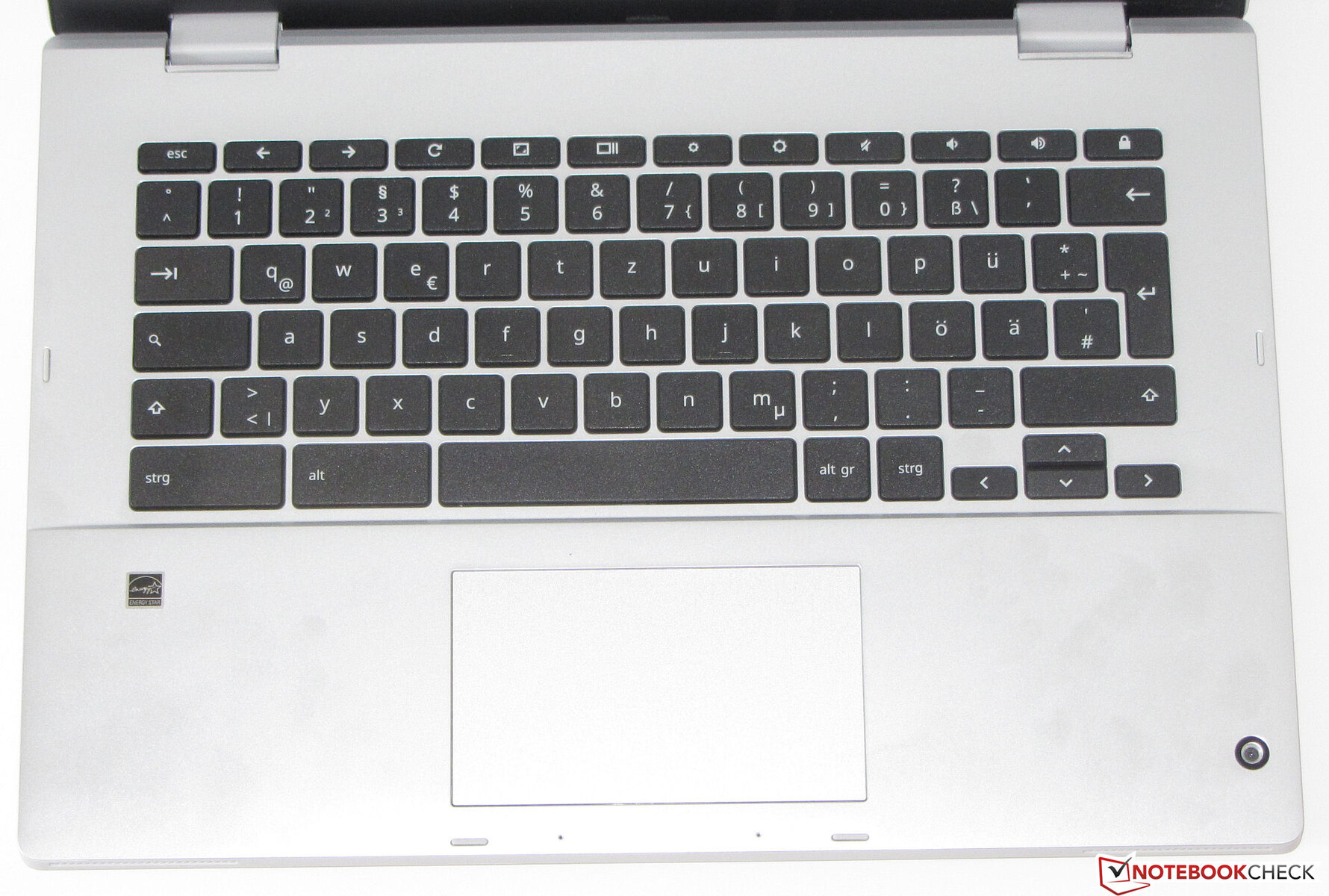

Chromebook 翻转CM1输入设备
Chromebook 翻转CM1输入设备

显示屏 - 低亮度的IPS面板

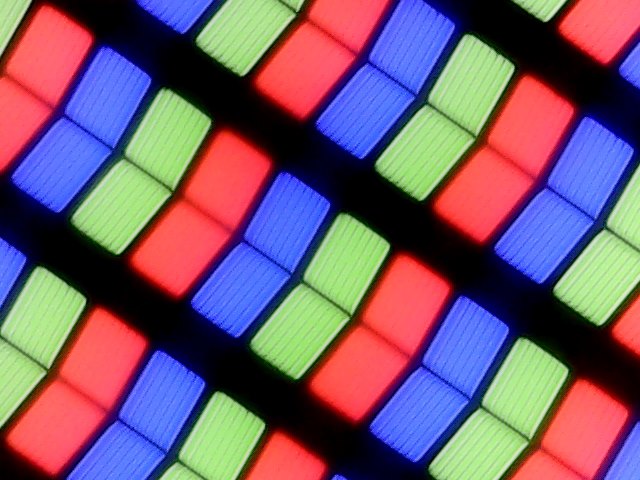

像素网格
像素网格

虽然光泽的14英寸触摸屏(1,920x1,080像素)提供足够的对比度(1,000:1),但亮度(196.3 cd/m²)太低。我们认为超过300cd/m²的数值是好的。

在10%或更低的亮度水平下,屏幕会以200赫兹的频率闪烁。这可能会导致敏感用户的头疼和/或眼睛问题。

200
cd/m²
193
cd/m²
195
cd/m²
212
cd/m²
200
cd/m²
204
cd/m²
205
cd/m²
178
cd/m²
180
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 212 cd/m² (Nits) Average: 196.3 cd/m² Minimum: 1.3 cd/m²
Brightness Distribution: 84 %
Center on Battery: 200 cd/m²
Contrast: 1000:1 (Black: 0.2 cd/m²)
ΔE Color 4.82 | 0.59-29.43 Ø5.4
ΔE Greyscale 1.64 | 0.64-98 Ø5.6
Gamma: 2.43
Asus Chromebook Flip CM1
IPS, 1920x1080, 14.00
Lenovo IdeaPad Duet 5 Chromebook
OLED, 1920x1080, 13.30
Acer Spin 3 SP314-21N-R4GU
AU Optronics B140HAN04.0, IPS, 1920x1080, 14.00
Acer Aspire 1 A114-61-S58J
Chi Mei N140HCA-EAC, IPS, 1920x1080, 14.00
Display
Display P3 Coverage
37.8
42
sRGB Coverage
56.8
63
AdobeRGB 1998 Coverage
39
43.4
Response Times
38%
-12%
4144%
Response Time Grey 50% / Grey 80% *
40 ?(19, 21)
2.3 ?(1.1, 1.2)
94%
48 ?(21, 27)
-20%
33 ?(16, 17)
17%
Response Time Black / White *
27 ?(15, 12)
2.6 ?(1.2, 1.4)
90%
28 ?(14, 14)
-4%
23 ?(13, 10)
15%
PWM Frequency
200 ?(10)
60.2 ?(100)
-70%
25000 ?(10)
12400%
Screen
53%
-6%
-24%
Brightness middle
200
358
79%
231
16%
246
23%
Brightness
196
366
87%
232
18%
220
12%
Brightness Distribution
84
97
15%
90
7%
83
-1%
Black Level *
0.2
0.4
-100%
0.33
-65%
Contrast
1000
578
-42%
745
-25%
Colorchecker dE 2000 *
4.82
1.93
60%
4.01
17%
5.31
-10%
Colorchecker dE 2000 max. *
20.61
4.78
77%
8.23
60%
18.2
12%
Greyscale dE 2000 *
1.64
1.6
2%
2.04
-24%
3.94
-140%
Gamma
2.43 91%
2.22 99%
2.25 98%
2.21 100%
CCT
6475 100%
6238 104%
6751 96%
6356 102%
Total Average (Program / Settings)
46% / 48%
-9% / -7%
2060% / 1113%

* ... smaller is better

显示屏开箱后显示了一个体面的色彩再现,但颜色与目标有一些偏差--不过这并不明显。此外,该显示器没有出现蓝色色调的问题。

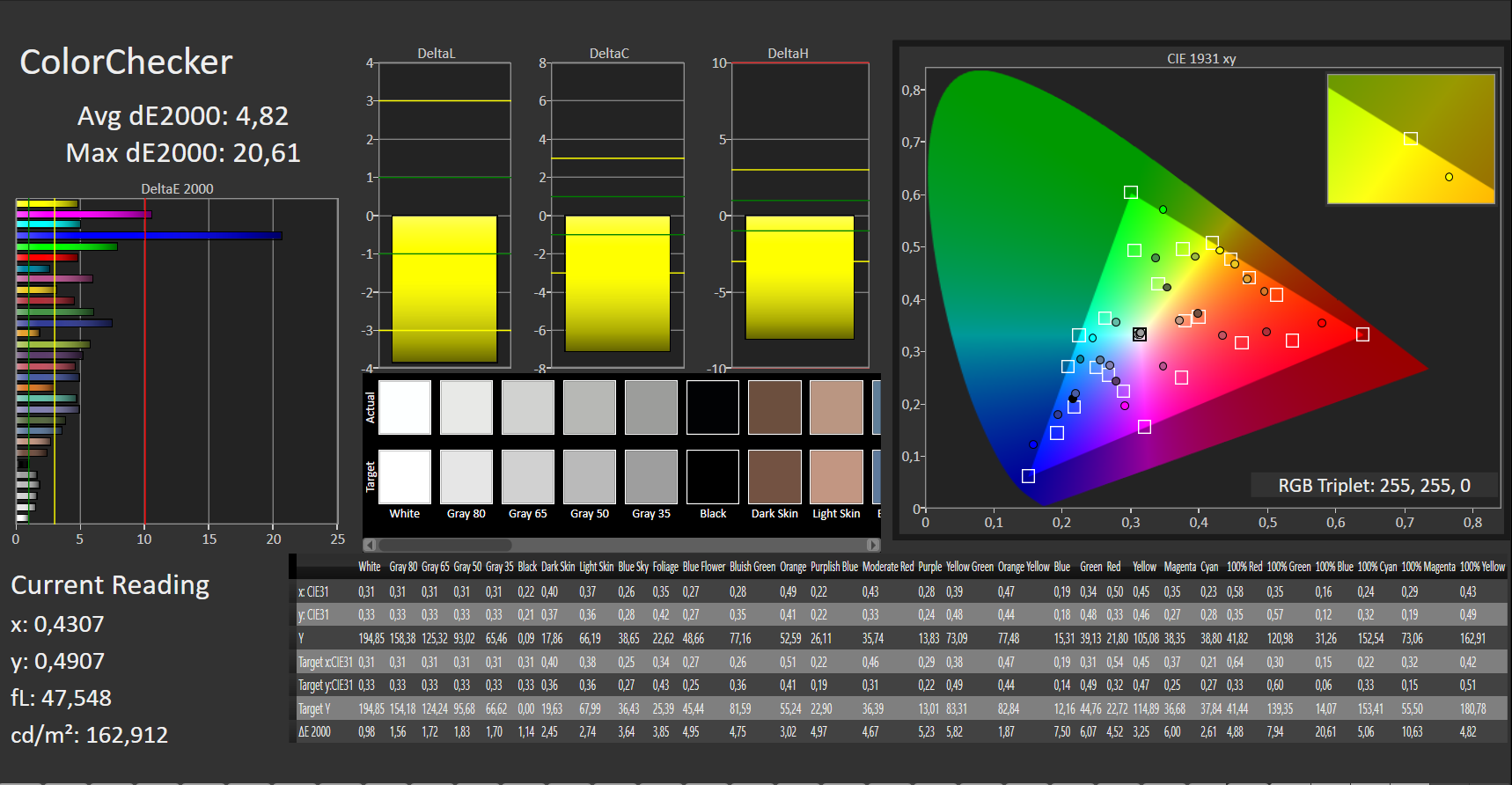

CalMAN - ColorChecker
CalMAN - ColorChecker

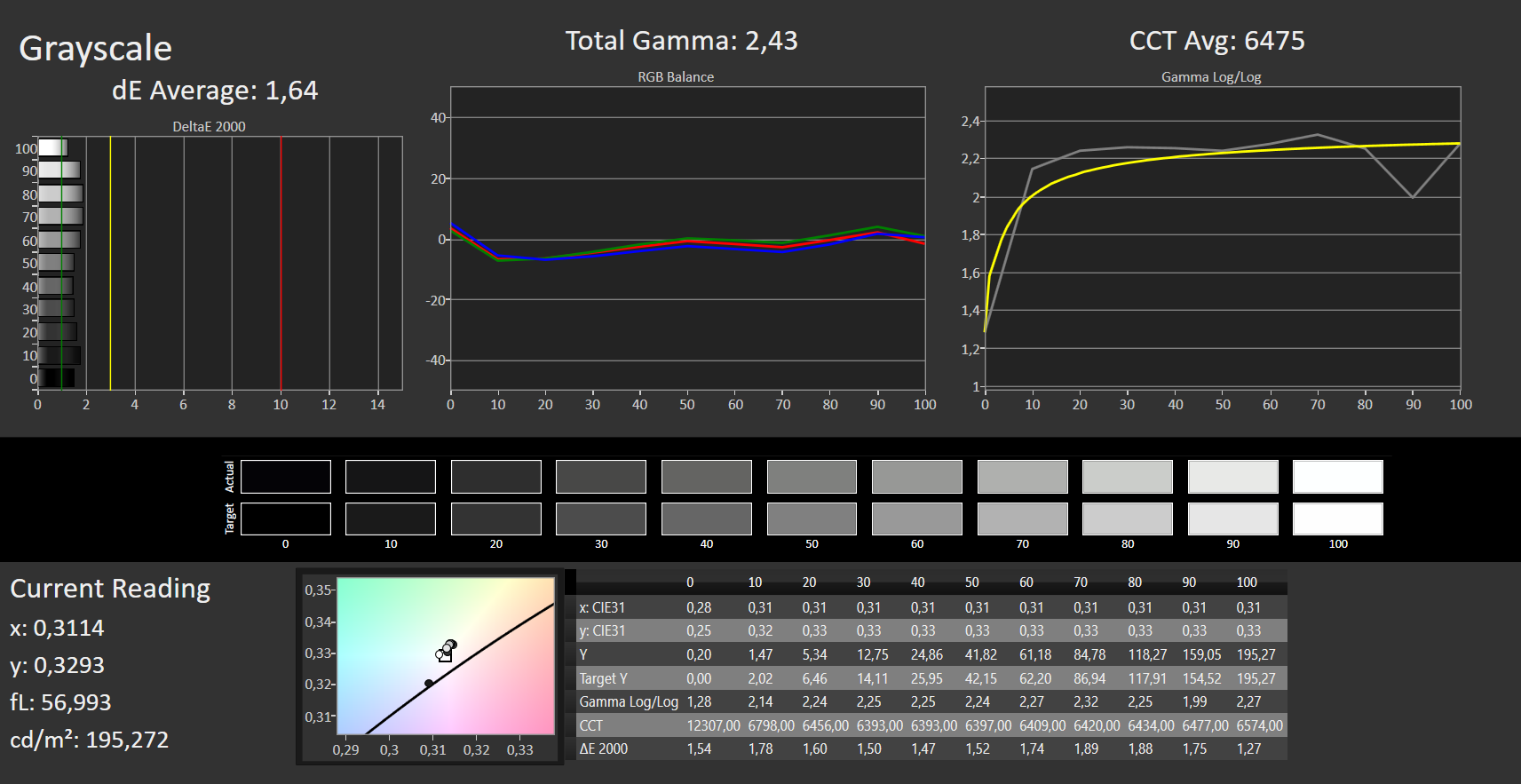

卡尔曼--灰鳞
卡尔曼--灰鳞

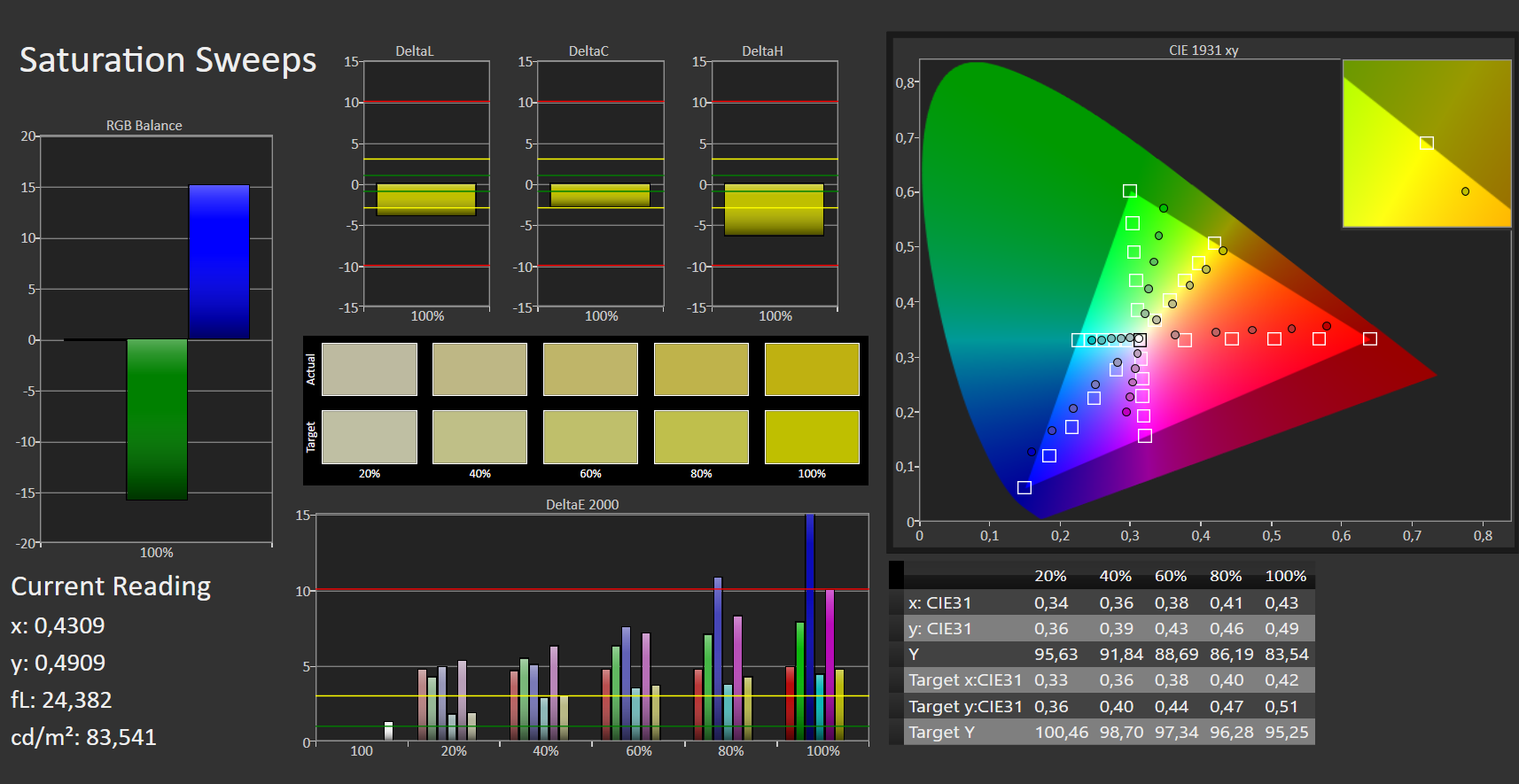

CalMAN - 色彩饱和度
CalMAN - 色彩饱和度

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

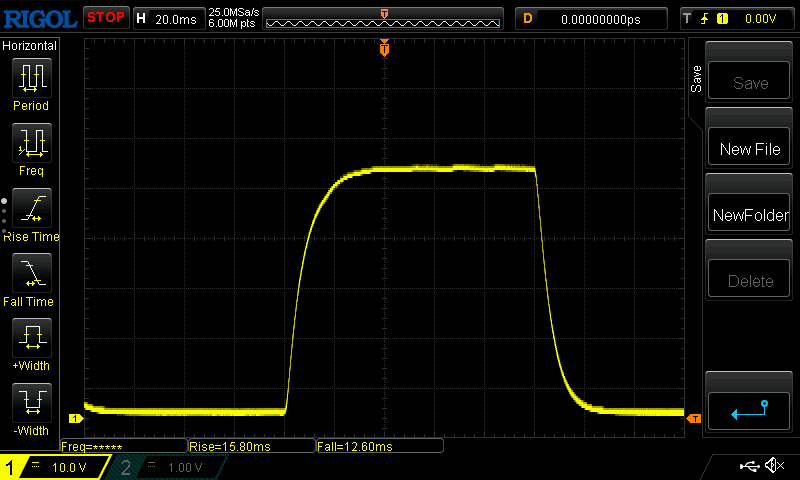

       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (23.4 ms).

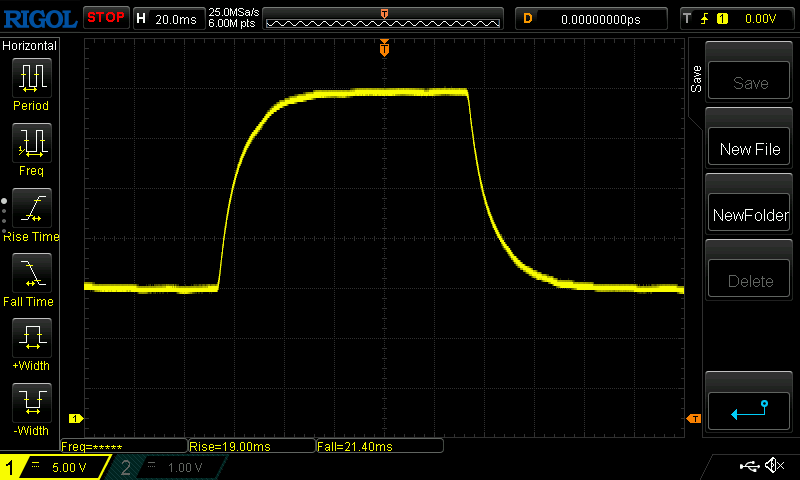

       Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 21 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.692 (minimum) to 636 (maximum) ms. » 49 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37 ms).

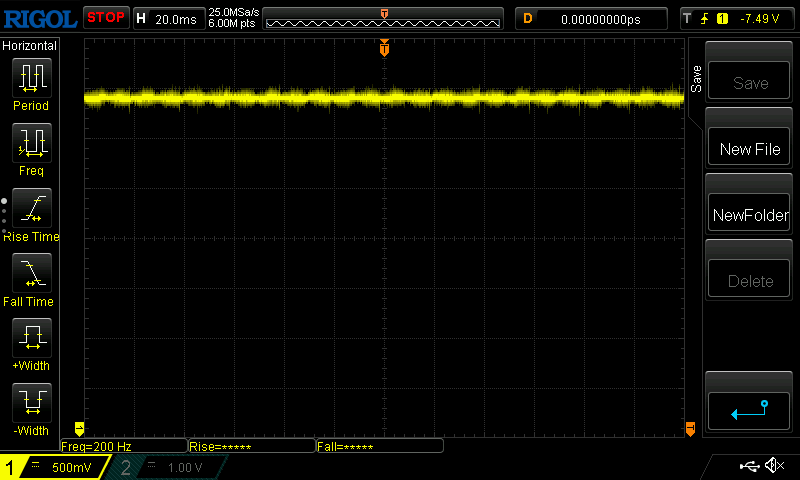

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 200 Hz ≤ 10 % brightness setting

The display backlight flickers at 200 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 10 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 21940 (minimum: 5 - maximum: 3846000) Hz was measured.

视角稳定的IPS面板在任何位置都能看清。然而,在户外,屏幕几乎看不清,或者根本看不清。显示屏的低亮度和光亮的显示表面阻止了这一点。

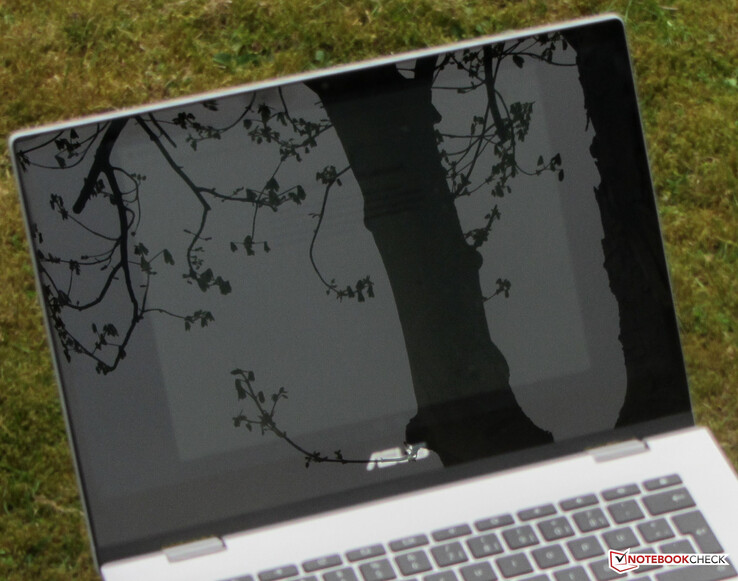

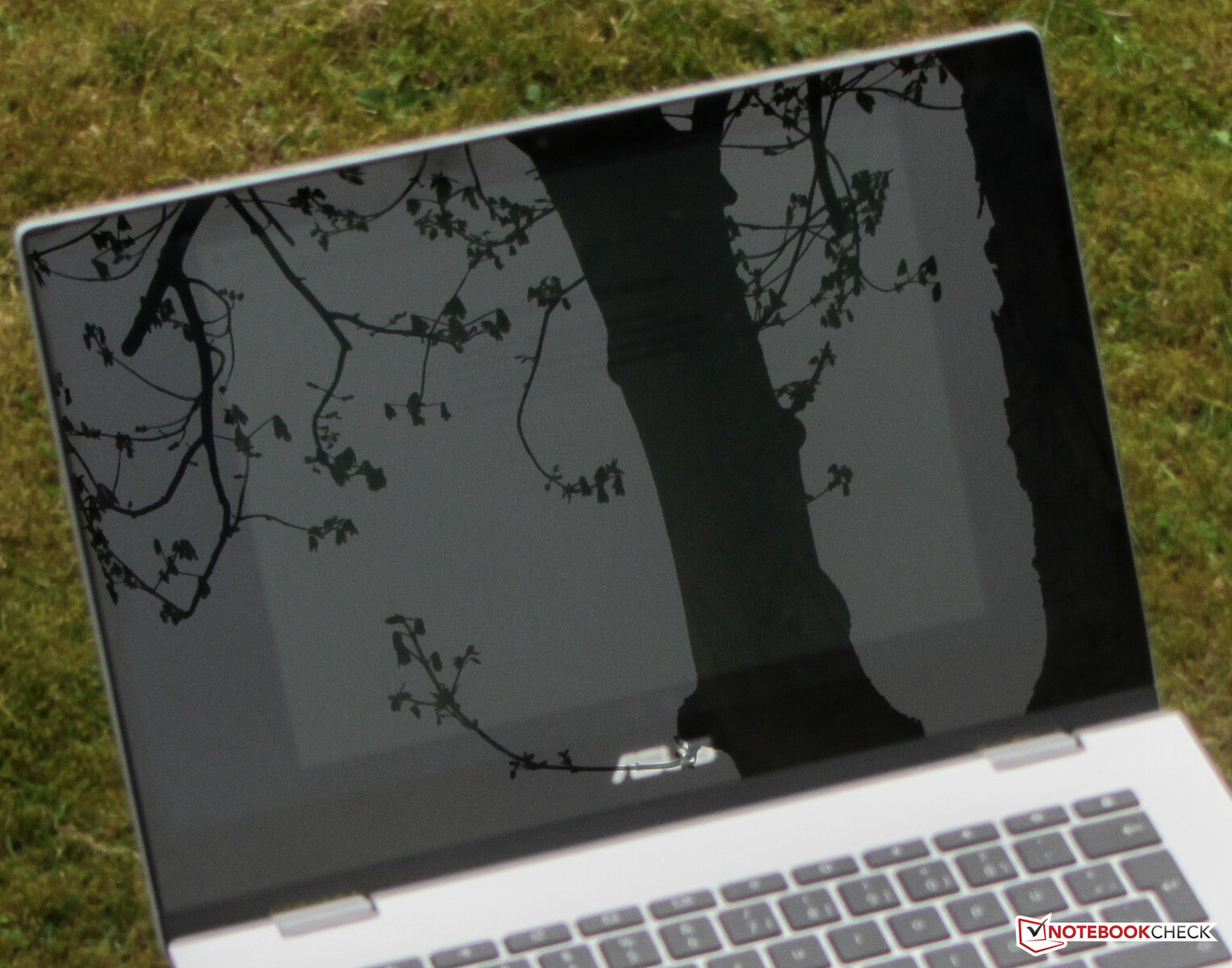

CM1在户外。
CM1在户外。

性能 - 华硕Chromebook ,配备Ryzen APU

通过Chromebook Flip CM1,华硕在其产品系列中拥有一个二合一设备,为简单的办公和互联网任务提供足够的性能。

处理器

的CPU部分AMD 3015Ce安装的APU包括一个双核处理器,以1.2 GHz的基本速度运行。通过涡轮增压可以提高到2.3GHz。支持同步多线程(每个核心两个线程)。6瓦的低TDP使SoC可以被动冷却。

Sunspider - 1.0 Total Score
Acer Aspire 1 A114-61-S58J
Qualcomm Snapdragon 7c
361.2 ms * ∼100% -5%
Asus Chromebook Flip CM1
AMD 3015Ce
344.3 ms * ∼95%
Average AMD 3015Ce

344 ms * ∼95% -0%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U
313.8 ms * ∼87% +9%
Acer Swift 1 SF114-34-P6U1
Intel Pentium Silver N6000
293.2 ms * ∼81% +15%
Average of class Convertible
  (118.3 - 408, n=10, last 2 years)
246 ms * ∼68% +29%
Mozilla Kraken 1.1 - Total Score
Acer Chromebook 15 CB315-3HT-P297
Intel Pentium Silver N5030
1914 ms * ∼100% -35%
Acer Aspire 1 A114-61-S58J
Qualcomm Snapdragon 7c
1800 ms * ∼94% -27%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Snapdragon 7c
1792 ms * ∼94% -27%
Asus Chromebook Flip CM1
AMD 3015Ce
1415 ms * ∼74%
Average AMD 3015Ce

1415 ms * ∼74% -0%
Acer Swift 1 SF114-34-P6U1
Intel Pentium Silver N6000
1404 ms * ∼73% +1%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U
1187 ms * ∼62% +16%
Average of class Convertible
  (539 - 3986, n=98, last 2 years)
946 ms * ∼49% +33%
Octane V2 - Total Score
Average of class Convertible
  (9822 - 83695, n=41, last 2 years)
48521 Points ∼100% +107%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U
35541 Points ∼73% +52%
Acer Swift 1 SF114-34-P6U1
Intel Pentium Silver N6000
25840 Points ∼53% +10%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Snapdragon 7c
25578 Points ∼53% +9%
Asus Chromebook Flip CM1
AMD 3015Ce
23395 Points ∼48%
Average AMD 3015Ce

23395 Points ∼48% 0%
Acer Chromebook 15 CB315-3HT-P297
Intel Pentium Silver N5030
21894 Points ∼45% -6%
Acer Aspire 1 A114-61-S58J
Qualcomm Snapdragon 7c
20009 Points ∼41% -14%
JetStream 1.1 - Total Score
Average of class Convertible
  (51.9 - 357, n=27, last 2 years)
219 Points ∼100% +75%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U
168.7 Points ∼77% +35%
Acer Swift 1 SF114-34-P6U1
Intel Pentium Silver N6000
136.4 Points ∼62% +9%
Asus Chromebook Flip CM1
AMD 3015Ce
124.8 Points ∼57%
Average AMD 3015Ce

124.8 Points ∼57% 0%
Acer Chromebook 15 CB315-3HT-P297
Intel Pentium Silver N5030
110.3 Points ∼50% -12%
Acer Aspire 1 A114-61-S58J
Qualcomm Snapdragon 7c
109.5 Points ∼50% -12%
Jetstream 2 - Total Score
Average of class Convertible
  (34.5 - 239, n=45, last 2 years)
144.1 Points ∼100% +91%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U
100.6 Points ∼70% +34%
Acer Swift 1 SF114-34-P6U1
Intel Pentium Silver N6000
87.9 Points ∼61% +17%
Asus Chromebook Flip CM1
AMD 3015Ce
75.3 Points ∼52%
Average AMD 3015Ce

75.3 Points ∼52% 0%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Snapdragon 7c
68.5 Points ∼48% -9%
Acer Aspire 1 A114-61-S58J
Qualcomm Snapdragon 7c
62.1 Points ∼43% -18%
WebXPRT 3 - ---
Average of class Convertible
  (48.2 - 314, n=97, last 2 years)
211 Points ∼100% +79%
Acer Swift 1 SF114-34-P6U1
Intel Pentium Silver N6000
146 Points ∼69% +24%
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U
145 Points ∼69% +23%
Asus Chromebook Flip CM1
AMD 3015Ce
118 Points ∼56%
Average AMD 3015Ce

118 Points ∼56% 0%
Acer Chromebook 15 CB315-3HT-P297
Intel Pentium Silver N5030
116 Points ∼55% -2%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Snapdragon 7c
89 Points ∼42% -25%
CrXPRT 2
3D Shapes
Asus Chromebook Flip CM1
AMD 3015Ce
7512 Points ∼100%
Average AMD 3015Ce

7512 Points ∼100% 0%
Average of class Convertible
  (5149 - 7512, n=3, last 2 years)
6678 Points ∼89% -11%
DNA Sequence Analysis
Asus Chromebook Flip CM1
AMD 3015Ce
566 Points ∼100%
Average AMD 3015Ce

566 Points ∼100% 0%
Average of class Convertible
  (174 - 757, n=3, last 2 years)
499 Points ∼88% -12%
Stocks Dashboard
Asus Chromebook Flip CM1
AMD 3015Ce
302 Points ∼100%
Average AMD 3015Ce

302 Points ∼100% 0%
Average of class Convertible
  (115 - 305, n=3, last 2 years)
241 Points ∼80% -20%
Offline Notes
Asus Chromebook Flip CM1
AMD 3015Ce
204 Points ∼100%
Average AMD 3015Ce

204 Points ∼100% 0%
Average of class Convertible
  (73 - 204, n=3, last 2 years)
159.3 Points ∼78% -22%
Face Detection
Average of class Convertible
  (1546 - 8968, n=3, last 2 years)
5129 Points ∼100% +5%
Asus Chromebook Flip CM1
AMD 3015Ce
4874 Points ∼95%
Average AMD 3015Ce

4874 Points ∼95% 0%
Photo Effects
Average of class Convertible
  (206 - 1201, n=3, last 2 years)
638 Points ∼100% +26%
Asus Chromebook Flip CM1
AMD 3015Ce
506 Points ∼79%
Average AMD 3015Ce

506 Points ∼79% 0%
Score
Average of class Convertible
  (53 - 181, n=3, last 2 years)
101.7 Points ∼100% +43%
Asus Chromebook Flip CM1
AMD 3015Ce
71 Points ∼70%
Average AMD 3015Ce

71 Points ∼70% 0%

* ... smaller is better

系统性能

操作系统的加载速度很快,程序的打开也很迅速。我们没有遇到任何问题。APU和内存配置(4GB)满足简单办公和互联网应用的要求。

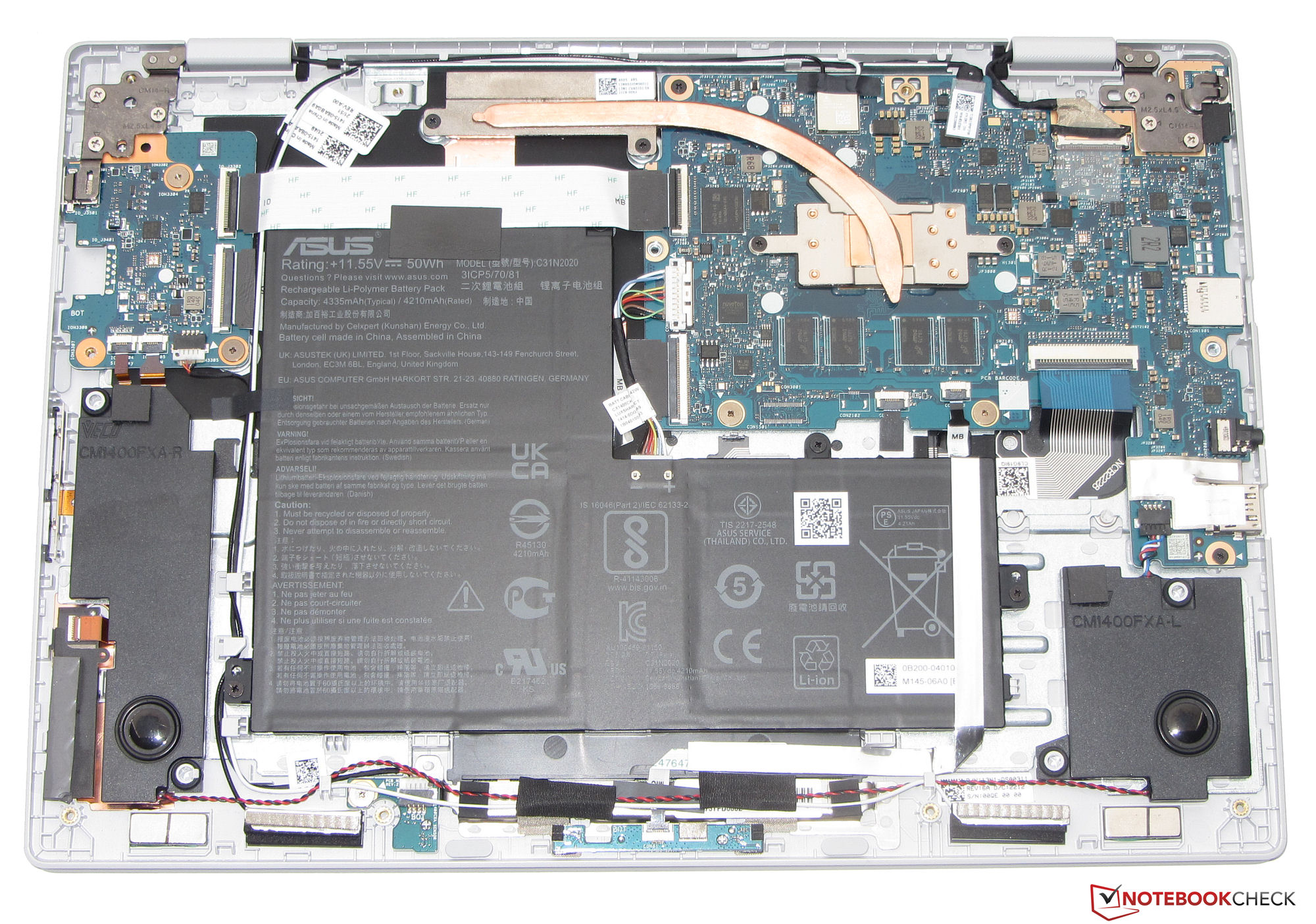

RAM是焊接的。
RAM是焊接的。
PCMark for Android: Work 3.0 | Storage 2.0
PCMark for Android / Work 3.0
Asus Chromebook Flip CM1
Vega 3, 3015Ce, 64 GB eMMC Flash
9775 Points ∼100%
Average AMD 3015Ce, AMD Radeon RX Vega 3

9775 Points ∼100% 0%
Lenovo IdeaPad Duet 5 Chromebook
Adreno 618, SD 7c, 64 GB eMMC Flash
9644 Points ∼99% -1%
Average of class Convertible
  (6315 - 12778, n=6, last 2 years)
9386 Points ∼96% -4%
PCMark for Android / Storage 2.0
Asus Chromebook Flip CM1
Vega 3, 3015Ce, 64 GB eMMC Flash
24872 Points ∼100%
Average AMD 3015Ce, AMD Radeon RX Vega 3

24872 Points ∼100% 0%
Average of class Convertible
  (19557 - 28061, n=5, last 2 years)
22625 Points ∼91% -9%
Lenovo IdeaPad Duet 5 Chromebook
Adreno 618, SD 7c, 64 GB eMMC Flash
19557 Points ∼79% -21%

储存

一个容量为64GB的eMMC模块作为系统驱动器。通过一个microSD卡可以扩展存储空间。

图形卡

内置的Radeon iGPU处于性能的低端。从技术上讲,它对应的是 Vega 3 iGPU但其最大时钟速度为600MHz,明显低于Vega 3(1200MHz)。集成在GPU中的解码器在播放H.264和HEVC/H.265等常见格式的视频时可以卸载处理器。

3DMark Sling Shot Extreme (ES 3.1) Unlimited
2086 points
Help
3DMark / Sling Shot Extreme (ES 3.1) Unlimited Graphics
Average of class Convertible
  (1996 - 5190, n=3, last 2 years)
4014 Points ∼100% +101%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
1996 Points ∼50%
Average AMD Radeon RX Vega 3

1996 Points ∼50% 0%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
1450 Points ∼36% -27%
3DMark / Ice Storm Unlimited Graphics Score
Average of class Convertible
  (21008 - 391093, n=29, last 2 years)
149772 Points ∼100% +257%
Acer Spin 3 SP314-21N-R4GU
AMD Radeon RX Vega 3, AMD Ryzen 3 3250U
86929 Points ∼58% +107%
Average AMD Radeon RX Vega 3
  (41927 - 95999, n=12)
77485 Points ∼52% +85%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
69098 Points ∼46% +65%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
41927 Points ∼28%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
34298 Points ∼23% -18%
GFXBench / Aztec Ruins Normal Tier Onscreen
Average of class Convertible
  (12 - 50.5, n=7, last 2 years)
23.4 fps ∼100% +95%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
22.3 fps ∼95% +86%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Adreno 618, Qualcomm Snapdragon 7c
20 fps ∼85% +67%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
12 fps ∼51%
Average AMD Radeon RX Vega 3

12 fps ∼51% 0%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
11 fps ∼47% -8%
GFXBench / Aztec Ruins Normal Tier Offscreen
Average of class Convertible
  (7.8 - 120.1, n=8, last 2 years)
46.7 fps ∼100% +325%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
24.4 fps ∼52% +122%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Adreno 618, Qualcomm Snapdragon 7c
20 fps ∼43% +82%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
11 fps ∼24%
Average AMD Radeon RX Vega 3

11 fps ∼24% 0%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
9.9 fps ∼21% -10%
GFXBench / Car Chase Onscreen
Average of class Convertible
  (9.1 - 93.4, n=8, last 2 years)
28.5 fps ∼100% +159%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
21.4 fps ∼75% +95%
Average AMD Radeon RX Vega 3
  (11 - 21.3, n=2)
16.2 fps ∼57% +47%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Adreno 618, Qualcomm Snapdragon 7c
16 fps ∼56% +45%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
11 fps ∼39%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
7.7 fps ∼27% -30%
GFXBench / Car Chase Offscreen
Average of class Convertible
  (7.3 - 111.6, n=8, last 2 years)
44 fps ∼100% +340%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
24 fps ∼55% +140%
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Adreno 618, Qualcomm Snapdragon 7c
16 fps ∼36% +60%
Average AMD Radeon RX Vega 3
  (10 - 21.5, n=2)
15.8 fps ∼36% +58%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
10 fps ∼23%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
7.1 fps ∼16% -29%
GFXBench (DX / GLBenchmark) 2.7 / T-Rex Onscreen
Average of class Convertible
  (39 - 157.5, n=3, last 2 years)
101 fps ∼100% +159%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
76 fps ∼75% +95%
Average AMD Radeon RX Vega 3
  (39 - 86, n=2)
62.5 fps ∼62% +60%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
39 fps ∼39%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
24 fps ∼24% -38%
GFXBench (DX / GLBenchmark) 2.7 / T-Rex Offscreen
Average of class Convertible
  (40 - 257, n=3, last 2 years)
184.3 fps ∼100% +361%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
85.6 fps ∼46% +114%
Average AMD Radeon RX Vega 3
  (40 - 89, n=2)
64.5 fps ∼35% +61%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
40 fps ∼22%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
32 fps ∼17% -20%
GFXBench 3.0 / Manhattan Onscreen OGL
Average of class Convertible
  (19 - 86.6, n=4, last 2 years)
46.7 fps ∼100% +146%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
42.2 fps ∼90% +122%
Average AMD Radeon RX Vega 3
  (19 - 25.5, n=2)
22.3 fps ∼48% +17%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
19 fps ∼41%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
14 fps ∼30% -26%
GFXBench 3.0 / 1080p Manhattan Offscreen
Average of class Convertible
  (19 - 170.4, n=4, last 2 years)
93.5 fps ∼100% +368%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
48.7 fps ∼52% +144%
Average AMD Radeon RX Vega 3
  (20 - 26, n=2)
23 fps ∼25% +15%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
20 fps ∼21%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
16 fps ∼17% -20%
GFXBench 3.1 / Manhattan ES 3.1 Onscreen
Average of class Convertible
  (14 - 46.5, n=5, last 2 years)
29.4 fps ∼100% +110%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
28.9 fps ∼98% +106%
Average AMD Radeon RX Vega 3
  (14 - 24.7, n=2)
19.4 fps ∼66% +39%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
14 fps ∼48%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
11 fps ∼37% -21%
GFXBench 3.1 / Manhattan ES 3.1 Offscreen
Average of class Convertible
  (13 - 108.6, n=5, last 2 years)
53.4 fps ∼100% +311%
Acer Swift 1 SF114-34-P6U1
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000
31.7 fps ∼59% +144%
Average AMD Radeon RX Vega 3
  (13 - 25.1, n=2)
19.1 fps ∼36% +47%
Acer Chromebook 15 CB315-3HT-P297
Intel UHD Graphics 605, Intel Pentium Silver N5030
13 fps ∼24% 0%
Asus Chromebook Flip CM1
AMD Radeon RX Vega 3, AMD 3015Ce
13 fps ∼24%

排放和能源--华硕CM1安静地运行

噪声排放

CM1是被动冷却的,而且它没有一个机械驱动装置。因此,该设备无声地运行。

温度

在日常使用中(办公室、互联网),华硕Flip的机箱温度保持在绿色范围内。在负载情况下,某些区域的热量发展会增加(Octane V2和Jetstream基准测试循环运行),但平均而言,这只是适度的。

Max. Load
 37.2 °C37.4 °C29.2 °C
 36.8 °C32 °C27.4 °C
 26.4 °C25.2 °C24.5 °C
Maximum: 37.4 °C
Average: 30.7 °C
29.3 °C47 °C47.2 °C
30 °C35.9 °C38.1 °C
25.9 °C26.8 °C26.9 °C
Maximum: 47.2 °C
Average: 34.1 °C
Power Supply (max.)  46.1 °C | Room Temperature 23.8 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.7 °C / 87 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 37.4 °C / 99 F, compared to the average of 35.3 °C / 96 F, ranging from 21 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 47.2 °C / 117 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.4 °C / 79.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.4 °C / 83.1 F (+2 °C / 3.6 F).

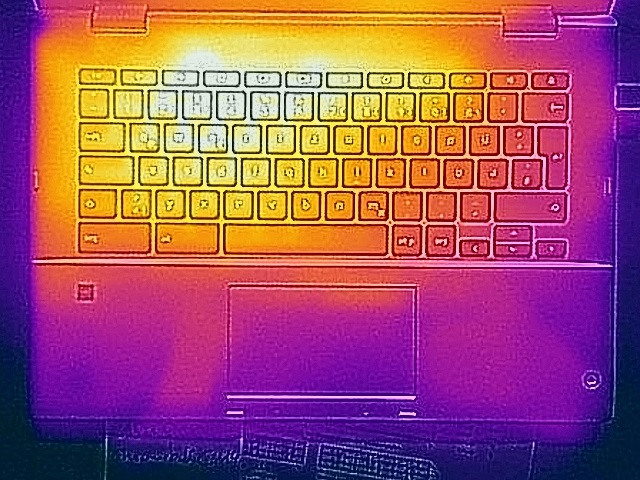

热量发展--顶部(负载)
热量发展--顶部(负载)

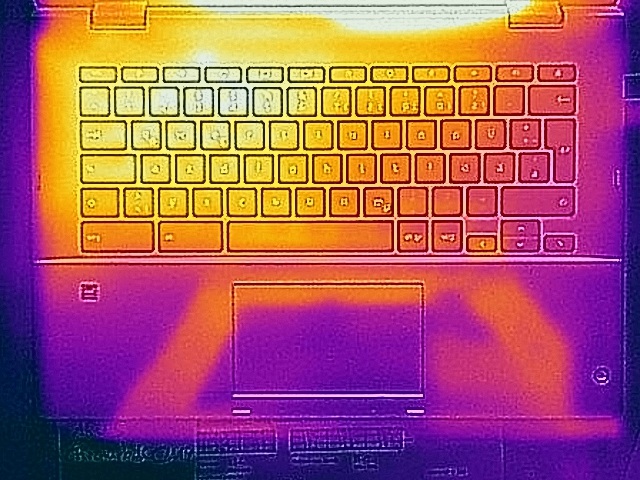

热量发展--顶部(空闲)
热量发展--顶部(空闲)

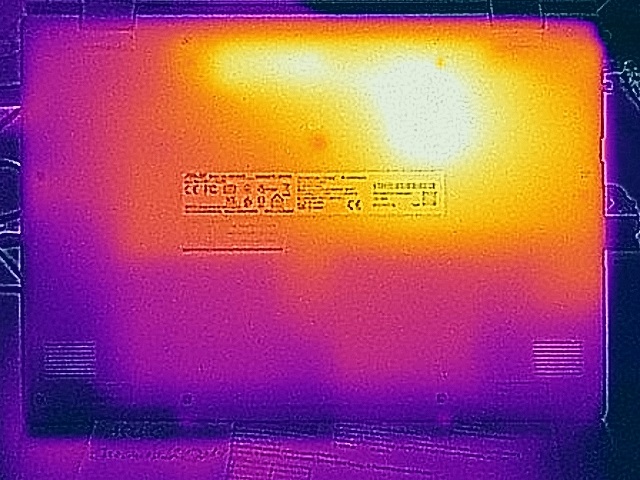

热量的发展 - 底部(负载)
热量的发展 - 底部(负载)

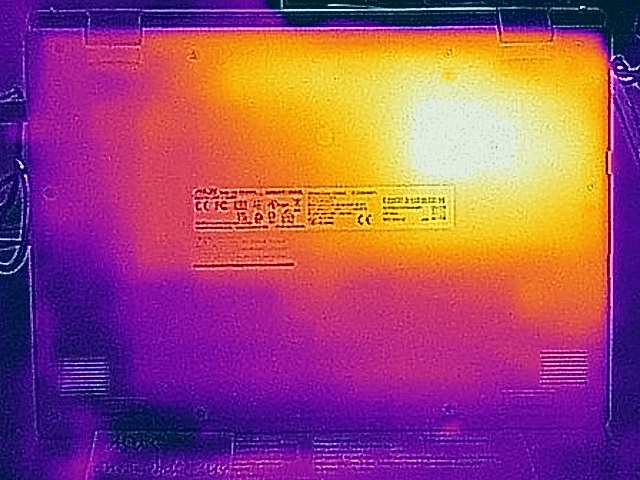

热量发展 - 底部(空闲)。
热量发展 - 底部(空闲)。
Asus Chromebook Flip CM1
AMD 3015Ce, AMD Radeon RX Vega 3
Lenovo IdeaPad Duet 5 Chromebook
Qualcomm Snapdragon 7c, Qualcomm Adreno 618
Acer Spin 3 SP314-21N-R4GU
AMD Ryzen 3 3250U, AMD Radeon RX Vega 3
Acer Aspire 1 A114-61-S58J
Qualcomm Snapdragon 7c, Qualcomm Adreno 618
Heat
17%
8%
12%
Maximum Upper Side *
37.4
34.6
7%
35.3
6%
38.6
-3%
Maximum Bottom *
47.2
41.6
12%
36.2
23%
39.9
15%
Idle Upper Side *
31.7
22.4
29%
32.5
-3%
25.6
19%
Idle Bottom *
31.8
26.2
18%
30.2
5%
26.3
17%

* ... smaller is better

发言人

立体声扬声器产生了一个体面的声音,几乎没有提供任何低音。为了获得更好的声音体验,我们建议使用耳机或外部扬声器。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.731.729.72532.635.932.63133.735.133.74026.231.726.25023.131.723.16324.12724.18024.624.524.610038.718.238.712547.21947.21605316.65320054.51654.525061.315.261.331565.114.965.140065.713.665.750067.411.967.463067.411.867.480074.212.274.2100072.112.472.1125068.612.268.616006312.863200072.813.172.8250070.613.570.6315069.113.969.1400073.114.173.1500071.814.271.8630076.614.476.6800070.414.470.41000072.514.472.5125007314.3731600072.313.572.3SPL83.825.783.8N61.30.761.3median 69.1median 14.1median 69.1Delta6.10.96.1hearing rangehide median Pink NoiseAsus Chromebook Flip CM1
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus Chromebook Flip CM1 audio analysis

(±) | speaker loudness is average but good (75.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.8% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.7% difference to median)
Compared to same class
» 7% of all tested devices in this class were better, 3% similar, 90% worse
» The best had a delta of 5%, average was 20%, worst was 53%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 3%, average was 20%, worst was 65%

能源消耗

华硕敞篷车在能耗方面没有发现任何不正常现象。在压力测试中达到了12.3瓦的最大耗电量。附带的USB-C电源适配器(45瓦)具有足够的容量。

Power Consumption
Off / Standbydarklight 0.3 / 0.5 Watt
Idledarkmidlight 3.9 / 6.3 / 6.8 Watt
Load midlight 12 / 12.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

电池寿命

在我们的实际Wi-Fi测试中,该二合一设备的运行时间达到了8:44小时。一个脚本被用来重现访问网站引起的负载。

该电池的容量为50Wh。
该电池的容量为50Wh。
Battery Runtime
WiFi Websurfing (Chrome 100)
8h 44min
Battery Runtime - WiFi Websurfing
Acer Aspire 1 A114-61-S58J
SD 7c, Adreno 618, 50.3 Wh
1023 min ∼100% +95%
Lenovo IdeaPad Duet 5 Chromebook
SD 7c, Adreno 618, 42 Wh
660 min ∼65% +26%
Average of class Convertible
  (315 - 1141, n=90, last 2 years)
578 min ∼57% +10%
Asus Chromebook Flip CM1
3015Ce, Vega 3, 50 Wh
524 min ∼51%
Acer Spin 3 SP314-21N-R4GU
R3 3250U, Vega 3, 48.9 Wh
425 min ∼42% -19%

Pros

+ IPS触摸屏显示
+ 无声运行
+ 发热适中
+ 良好的电池寿命
+ 通过USB-C显示端口
+ 电源交付
+ ac Wi-Fi
+ 可以使用Android 应用程序

Cons

- 昏暗的显示屏
- 光滑的显示器表面
- 焊接的内存
- 没有固态硬盘
- 没有键盘背光灯
- 存储卡读卡器速度慢
- 不支持手写笔

结论 - 一个有弱点的经济型二合一设备

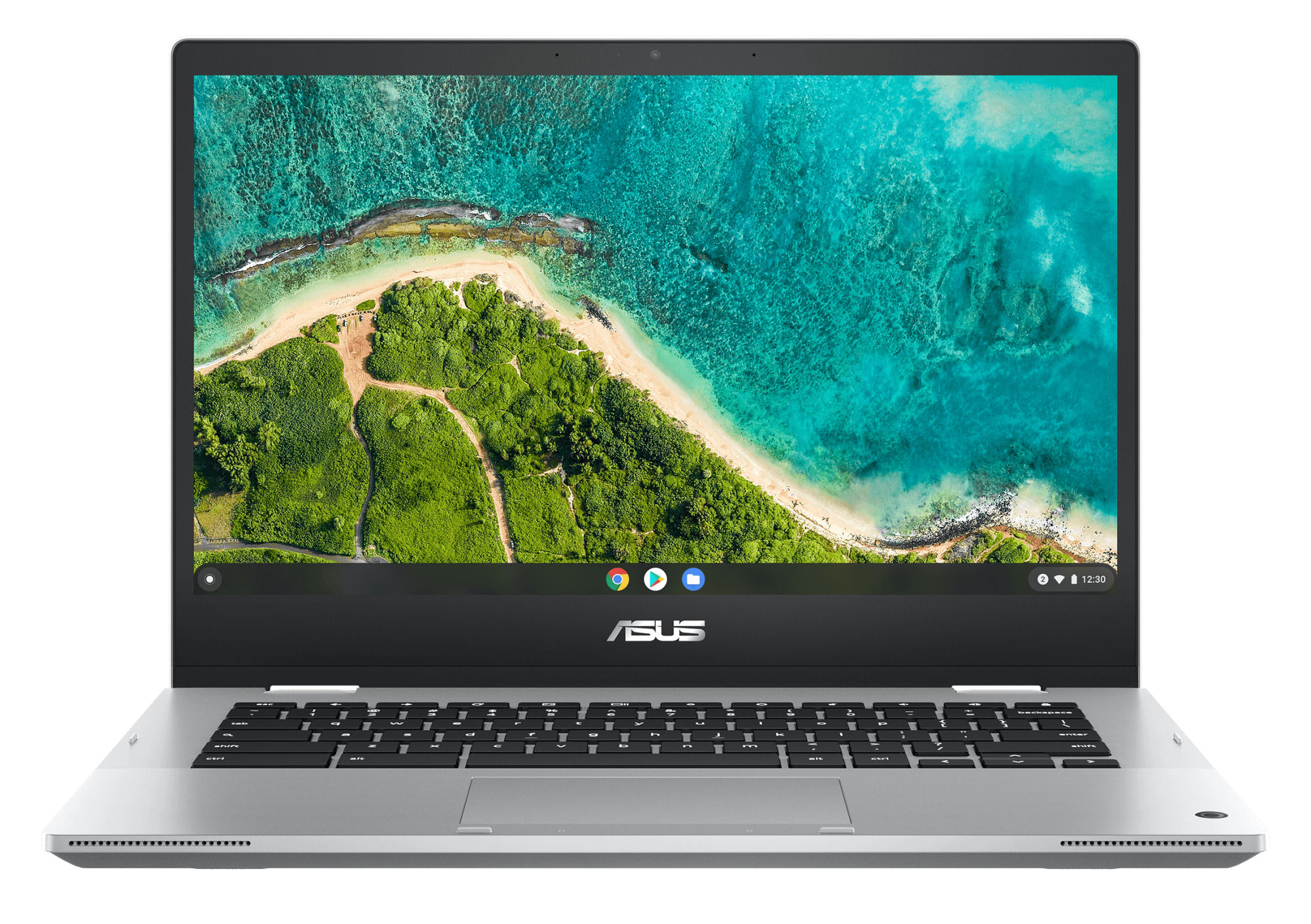

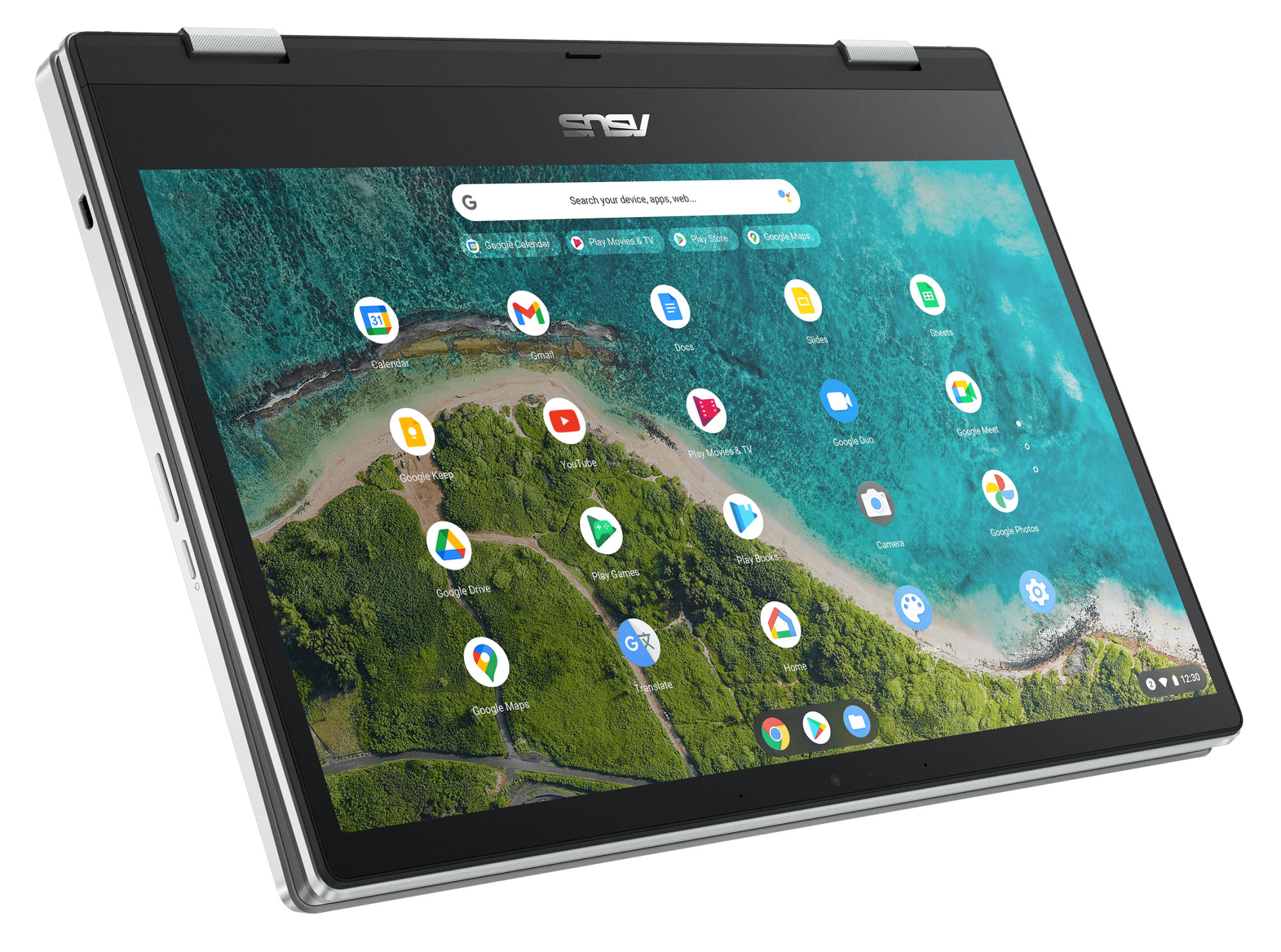

华硕Chromebook Flip CM1(CM1400FX),由德国华硕提供。
华硕Chromebook Flip CM1(CM1400FX),由德国华硕提供。

一个一台AMD 3015CeAPU,4GB内存(板载,不可扩展),以及64GB eMMC模块,足以满足简单的办公和互联网应用需求。不应期望有很高的性能。这款笔记本电脑运行安静,不会过度发热。

华硕通过Chromebook Flip CM1提供了一个基本的二合一笔记本电脑,用于处理简单的任务。

一次电池充电(50Wh)足以使Wi-Fi运行时间达到8:44小时--对于一个Chromebook ,这是一个很好的速率,但不是一个杰出的速率。积极的一面。CM1可以通过两个USB-C端口供电(USB 3.2 Gen 1;Power Delivery,DisplayPort)。

14英寸触摸屏(全高清,IPS)的得分是稳定的视角,体面的色彩再现,以及足够的对比度。然而,亮度太低。此外,它有一个光亮的表面。

我们的数据库目前没有提供真正的1:1替代品。价格、尺寸或设备类别通常不匹配。一个在价格和性能方面至少够用的替代品是Acer Aspire 1 A114-61 - 这是一款14英寸笔记本电脑,不是二合一设备。由于其节俭的Snapdragon处理器,它的电池寿命比CM1好得多。

价格和可用性

在撰写本文时,华硕Chromebook Flip CM1还没有广泛上市。沃尔玛的网上商店有一款上市的 8GB内存,价格约为480美元.你也可以等待它在其他商店上市,如 亚马逊百思买.

Asus Chromebook Flip CM1 - 04/18/2022 v7
Sascha Mölck

Chassis
72 / 98 → 74%
Keyboard
77%
Pointing Device
85%
Connectivity
49 / 75 → 65%
Weight
67 / 20-75 → 86%
Battery
84%
Display
77%
Games Performance
22 / 78 → 28%
Application Performance
62 / 85 → 73%
Temperature
92%
Noise
100%
Audio
72 / 91 → 79%
Camera
42 / 85 → 49%
Average
69%
80%
Convertible - Weighted Average

Pricecompare

Stephanie Chamberlain
Editor of the original article: Stephanie Chamberlain - Translator - 514 articles published on Notebookcheck since 2020
contact me via: LinkedIn
Ninh Duy
Translator: Ninh Duy - Editorial Assistant - 233204 articles published on Notebookcheck since 2008
contact me via: Facebook
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 华硕Chromebook Flip CM1在审查。沉默的2合1笔记本电脑
Sascha Mölck, 2022-04-24 (Update: 2022-04-24)
