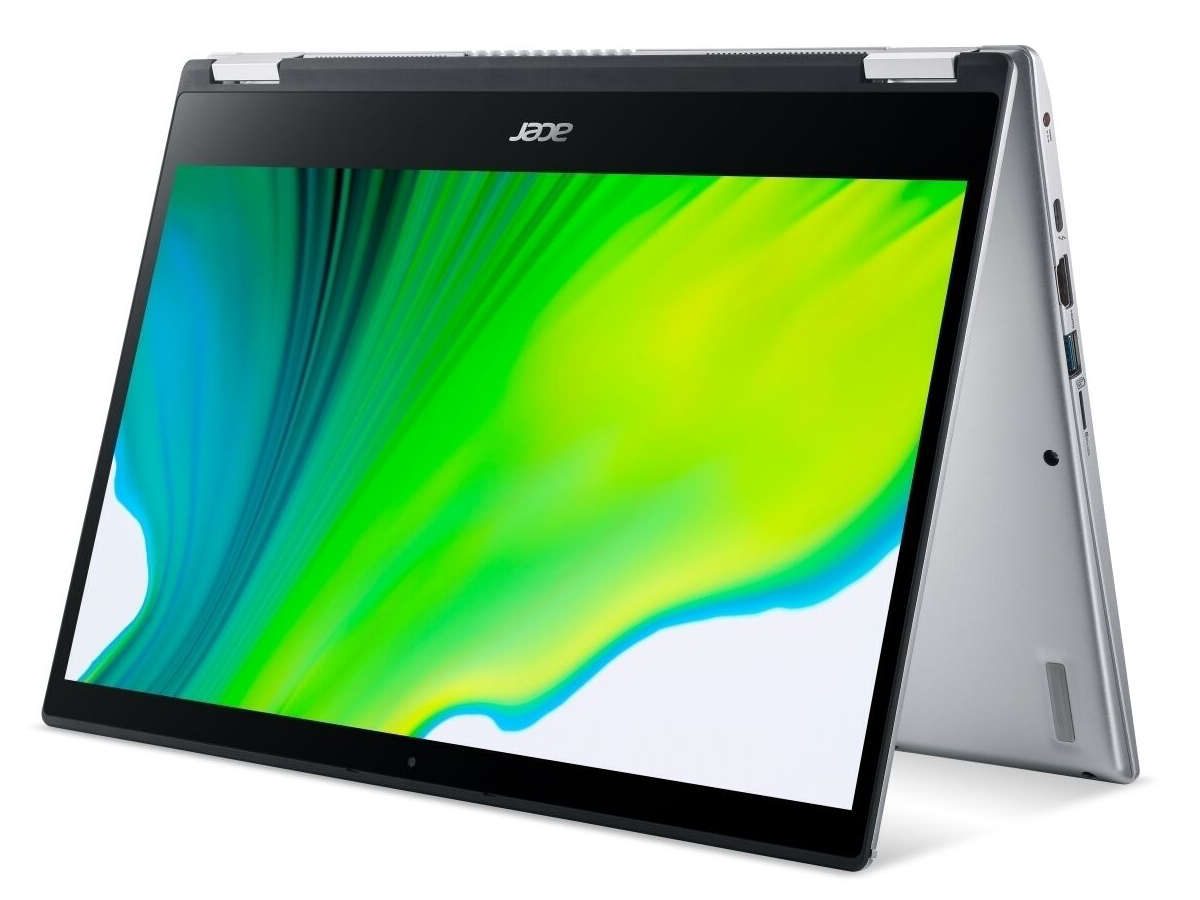

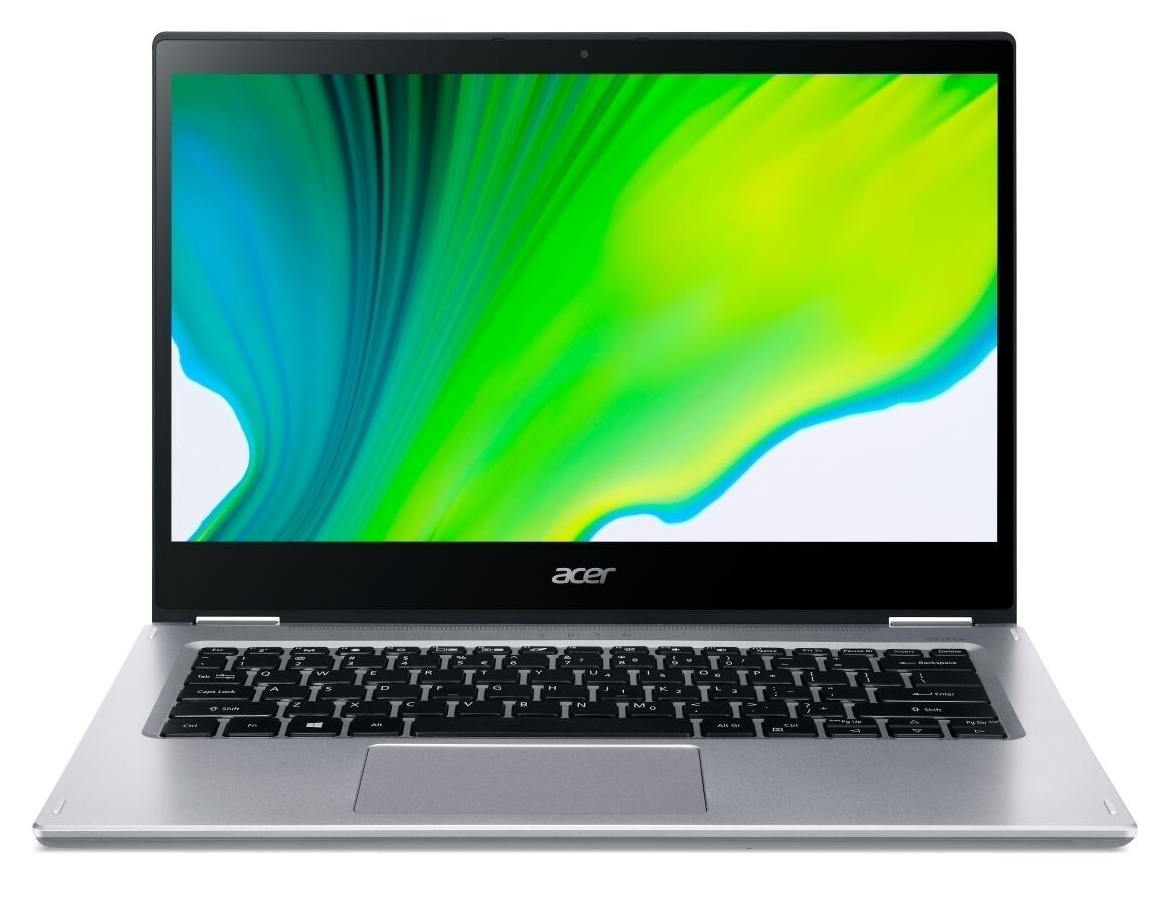

Acer Spin 3 SP314-21N评论。一台安静的二合一笔记本电脑，带笔输入

Name: Acer Spin 3 SP314-21N-R4GU
Brand: Acer

多才多艺。

宏碁的二合一笔记本电脑配备了Ryzen 3 APU、双通道模式的8GB工作内存和NVMe SSD，可用于办公和互联网操作。触摸屏不仅可以用手指操作，还可以用主动输入笔。

Sascha Mölck, 👁 Sebastian Jentsch (translated by DeepL / Ninh Duy), Published 11/10/2021 🇺🇸 🇩🇪 ...

AMD Laptop / Notebook Ryzen (Zen) Touchscreen Windows Zen

宏碁的Spin 3 SP314-21N系列代表了14英寸格式的二合一笔记本电脑，由AMD APU运行。我们的测试装置配备了一个 Ryzen 3-3250UAPU。这款敞篷车对我们来说并不陌生，因为它是基于英特尔的同胞兄弟，其结构完全相同。 Spin 3 SP314-54N.竞争对手包括如下设备惠普Pavilion x360 14和联想Ideapad Flex 5 14ALC05.

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Acer Spin 3 SP314-21N-R4GU (Spin 3 SP314 Series)

Processor

AMD Ryzen 3 3250U 2 x 2.6 - 3.5 GHz, 35 W PL2 / Short Burst, 25 W PL1 / Sustained, Zen

Graphics adapter

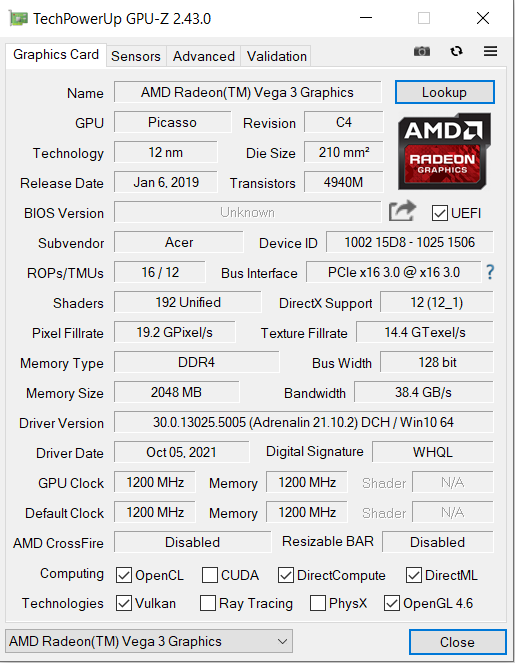

AMD Radeon RX Vega 3 - 2048 MB VRAM, Core: 1200 MHz, RAM: 1200 MHz, dual-channel, 30.0.13025.5005

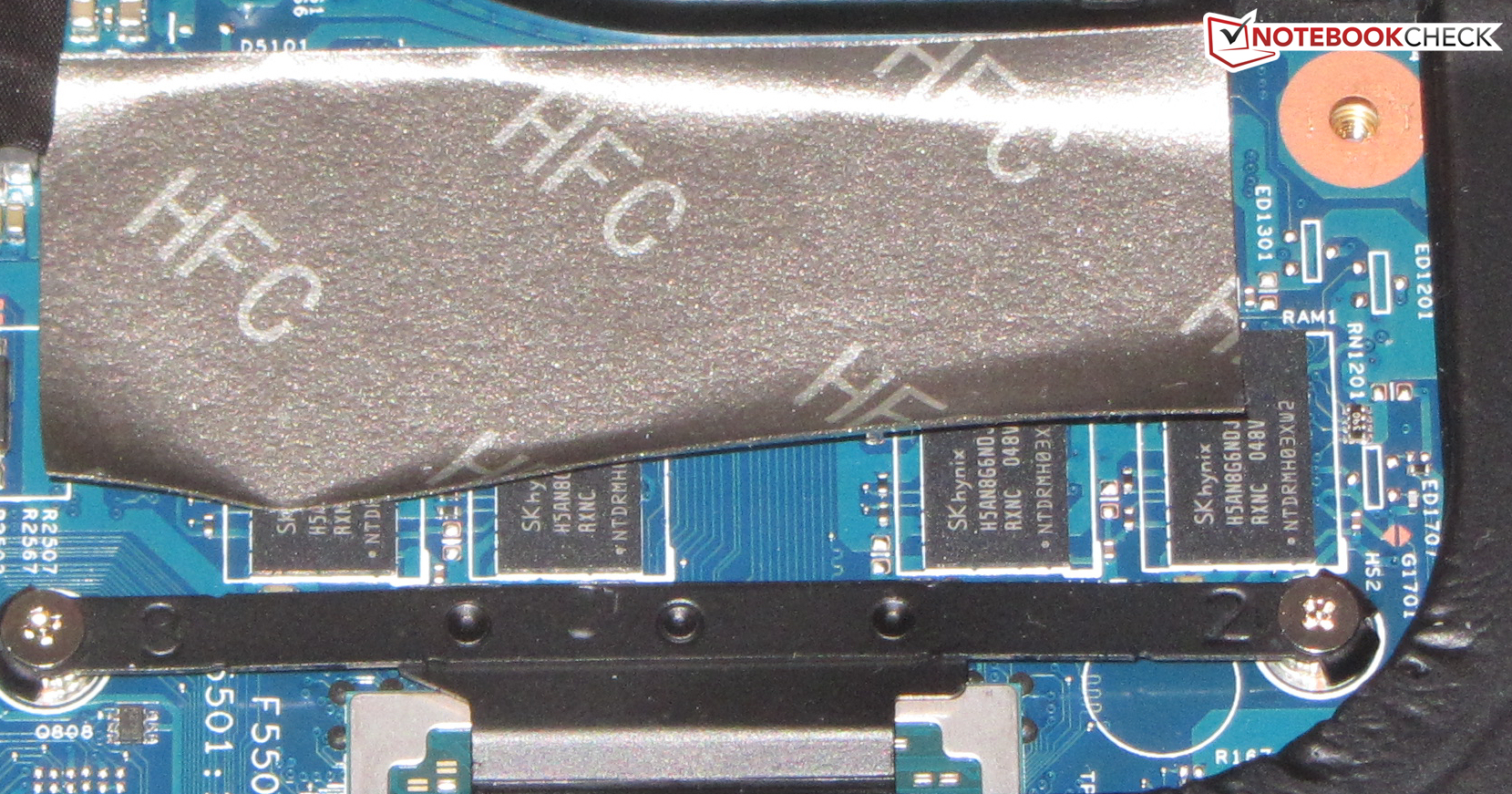

Memory

8 GB

, DDR4-3200, dual-channel mode, onboard, no memory slots

Display

14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, capacitive, 10 touchpoints, native pen support, AU Optronics B140HAN04.0, IPS, glossy: yes, 60 Hz

Mainboard

AMD Promontory/Bixby FCH

Storage

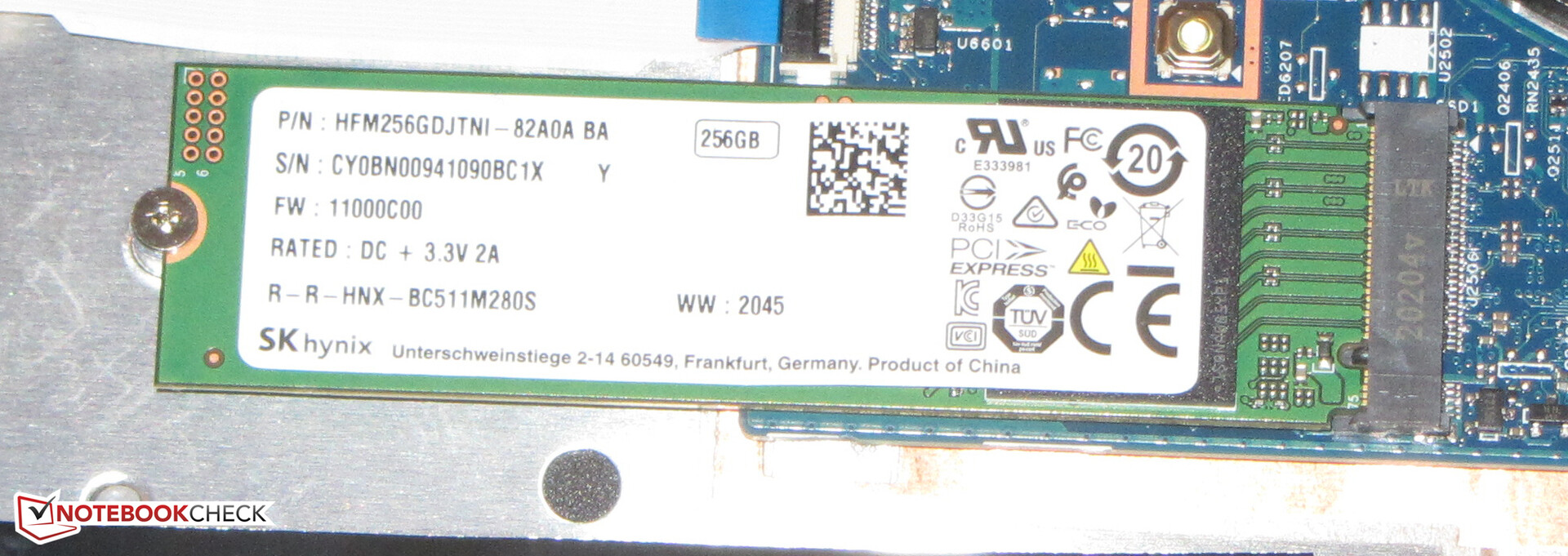

SK hynix BC511 HFM256GDJTNI-82A0, 256 GB

, 199 GB free

Soundcard

Realtek ALC295 @ AMD K17.1 - Audio Processor - High Definition Audio Controller

Connections

2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Audio Connections: combined audio port, Card Reader: microSD, 1 Fingerprint Reader, Sensors: rotation sensor, TPM 2.0

Networking

Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4

Size

height x width x depth (in mm): 16.9 x 325 x 230

Battery

48.9 Wh, 4343 mAh Lithium-Ion, 4 cell

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: HD
Primary Camera: 0.9 MPix

Additional features

Speakers: stereo, Keyboard: chiclet, Keyboard Light: no, MS Office 365 (trial), 24 Months Warranty

Weight

1.5 kg, Power Supply: 323 g

Price

599 Euro

Links

Acer homepage
Acer notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possible Competitors in Comparison

Rating	Date	Model	Weight	Height	Size	Resolution
81.2 % v7 ^(old)	11 / 2021	Acer Spin 3 SP314-21N-R4GU R3 3250U, Vega 3	1.5 kg	16.9 mm	14.00"	1920x1080
81.8 % v7 ^(old)	09 / 2021	HP Pavilion x360 14-dy0157ng i5-1135G7, Iris Xe G7 80EUs	1.5 kg	19.9 mm	14.00"	1920x1080
82.3 % v7 ^(old)	06 / 2021	Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE R5 5500U, Vega 7	1.5 kg	21.4 mm	14.00"	1920x1080

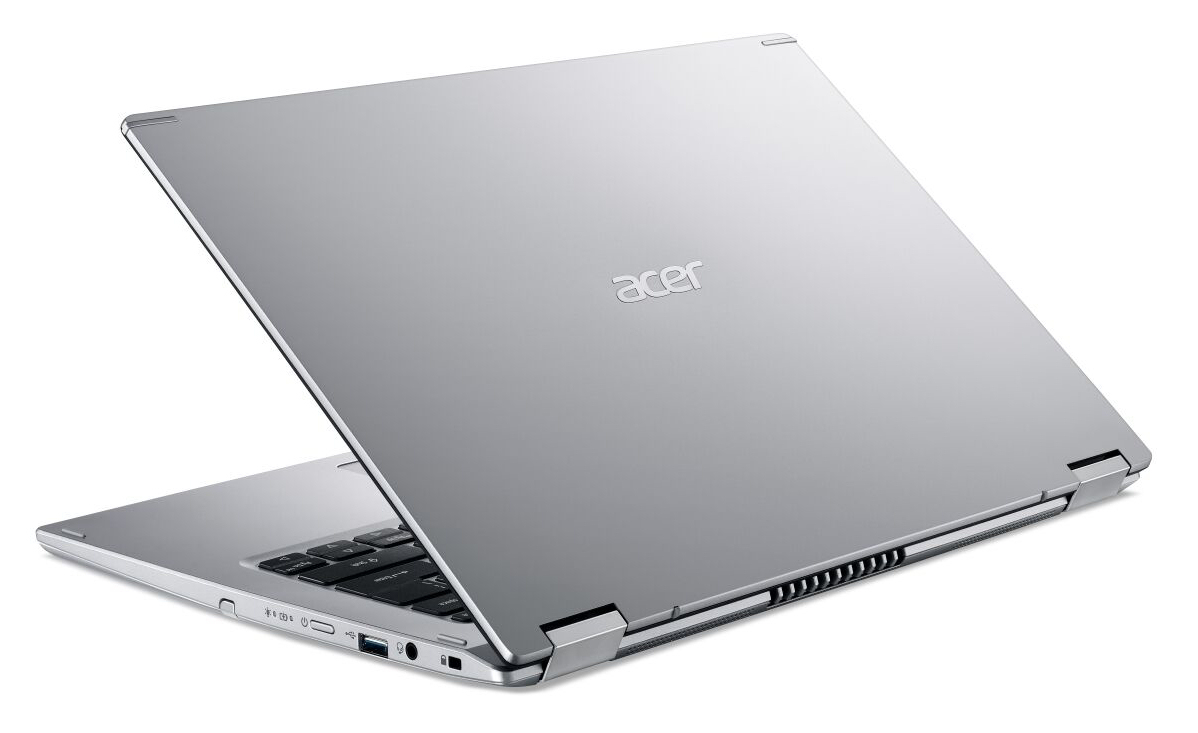

外壳和设备 - Spin 3提供USB 3.2 Gen 2

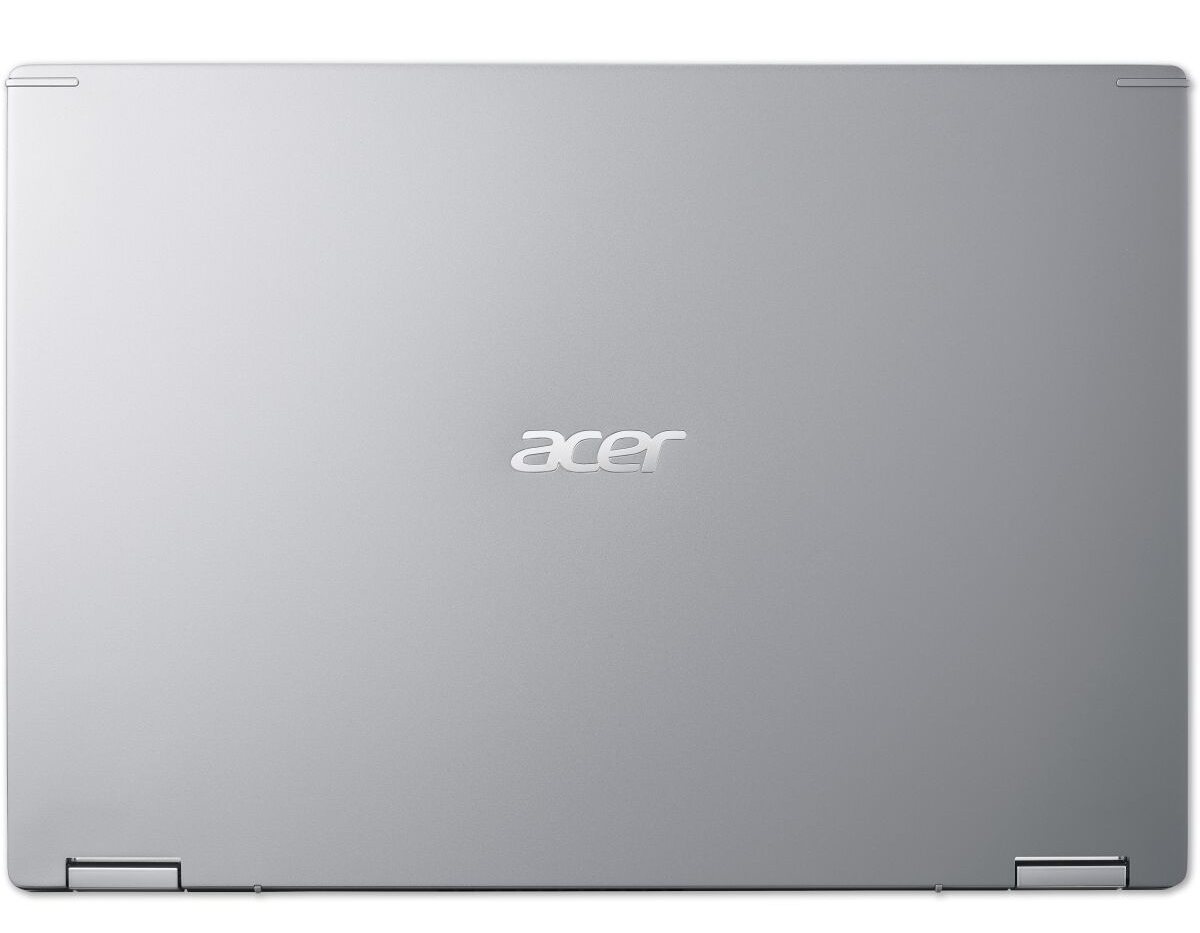

宏碁采用了银灰色的外壳，表面由铝和塑料制成，具有哑光和光滑的特点。敞篷车在做工上没有显示任何缺陷。没有不均匀的缝隙，我们也没有注意到任何材料的突起。底部设备可以翘起的程度也只是勉强可以接受。电池是内置的，拆下机箱底部后可以接触到内部。

二合一设备提供两个USB-A连接（USB 3.2 Gen 1）和一个USB-C连接（USB 3.2 Gen 2），既不支持通过USB-C的DisplayPort，也不支持Power Delivery（=通过USB-C供电），这是令人遗憾的。一个外部显示器可以通过HDMI连接。使用我们的AV PRO microSD 128 GB V60参考存储卡，microSD存储卡读卡器变成了较慢的型号之一。

宏碁提供一些配备主动输入笔的Spin 3机型，如 Spin 3 SP314-54N我们已经测试过了。然后，该笔被安置在机箱右侧的一个插槽中，也可以在那里充电。然而，我们在此测试的设备版本不包括主动式手写笔。由于笔槽被一个盖子封闭，你将无法使用该槽来放置笔或给它充电。

我们在最佳条件下确定的WLAN传输率（附近没有其他WLAN设备，笔记本和服务器PC之间的距离很近）已经不是最新的了。原因很容易找到。所使用的高通QCA6174 WLAN芯片只提供867 Mbit/s的最大传输速率。

S模式的Windows 10 Home作为操作系统。然而，你可以执行，免费升级到Windows 10的普通家庭版。我们进行了这种升级，以便能够运行我们的测试。

Size Comparison

Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Acer Spin 3 SP314-21N-R4GU HP Pavilion x360 14-dy0157ng DIN A4 ❌

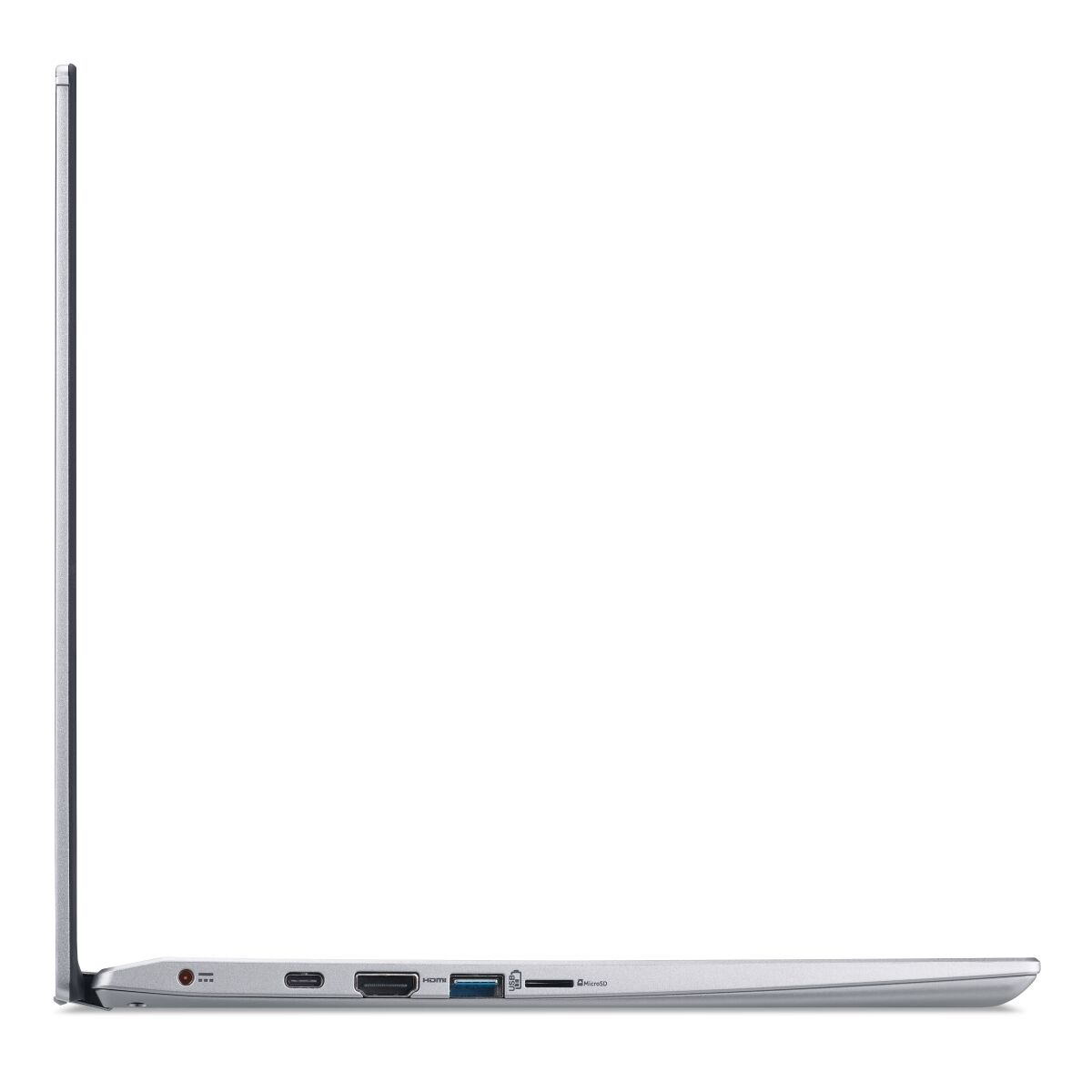

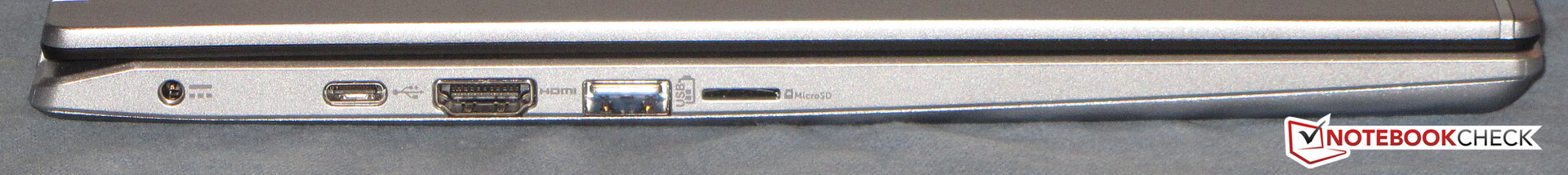

左侧：电源端口，USB 3.2 Gen 2（C型），HDMI，USB 3.2 Gen 1（A型），存储卡阅读器（microSD）。

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE (Toshiba Exceria Pro SDXC 64 GB UHS-II)	78.2 MB/s +205%
Average of class Convertible (22.4 - 209, n=27, last 2 years)	77.6 MB/s +203%
HP Pavilion x360 14-dy0157ng (Toshiba Exceria Pro M501 microSDXC 64GB)	75.3 MB/s +194%
Acer Spin 3 SP314-54N-56S5 (Toshiba Exceria Pro M501 microSDXC 64GB)	28.1 MB/s +10%
Acer Spin 3 SP314-21N-R4GU (AV Pro SD microSD 128 GB V60)	25.6 MB/s
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible (25.2 - 263, n=26, last 2 years)	114 MB/s +211%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE (Toshiba Exceria Pro SDXC 64 GB UHS-II)	87.2 MB/s +138%
HP Pavilion x360 14-dy0157ng (Toshiba Exceria Pro M501 microSDXC 64GB)	85.4 MB/s +133%
Acer Spin 3 SP314-21N-R4GU (AV Pro SD microSD 128 GB V60)	36.7 MB/s
Acer Spin 3 SP314-54N-56S5 (Toshiba Exceria Pro M501 microSDXC 64GB)	32.4 MB/s -12%

Networking
iperf3 transmit AX12
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Intel Wi-Fi 6 AX200	1351 (675^min - 1408^max) MBit/s +119%
Acer Spin 3 SP314-54N-56S5 Intel Wi-Fi 6 AX201	1072 (613^min - 1668^max) MBit/s +74%
Acer Spin 3 SP314-21N-R4GU Atheros/Qualcomm QCA6174	616 (320^min - 696^max) MBit/s
Average Atheros/Qualcomm QCA6174 (247 - 668, n=38)	538 MBit/s -13%
HP Pavilion x360 14-dy0157ng Wireless AC-9461	360 (181^min - 385^max) MBit/s -42%
iperf3 receive AX12
Acer Spin 3 SP314-54N-56S5 Intel Wi-Fi 6 AX201	1149 (780^min - 1282^max) MBit/s +127%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Intel Wi-Fi 6 AX200	1146 (1101^min - 1197^max) MBit/s +126%
Average Atheros/Qualcomm QCA6174 (247 - 657, n=38)	533 MBit/s +5%
Acer Spin 3 SP314-21N-R4GU Atheros/Qualcomm QCA6174	507 (480^min - 529^max) MBit/s
HP Pavilion x360 14-dy0157ng Wireless AC-9461	335 (325^min - 338^max) MBit/s -34%

Acer Spin 3 SP314-21N-R4GU Atheros/Qualcomm QCA6174; iperf3 receive AX12; iperf 3.1.3: Ø506 (480-529)

HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 receive AX12; iperf 3.1.3: Ø335 (325-338)

Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1145 (1101-1197)

Acer Spin 3 SP314-54N-56S5 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1149 (780-1282)

Acer Spin 3 SP314-21N-R4GU Atheros/Qualcomm QCA6174; iperf3 transmit AX12; iperf 3.1.3: Ø607 (320-696)

HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 transmit AX12; iperf 3.1.3: Ø354 (181-385)

Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1328 (675-1408)

Acer Spin 3 SP314-54N-56S5 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1072 (613-1668)

ColorChecker Acer Spin 3 SP314-21N-R4GU: 11.84 ∆E min: 5.14 - max: 23.98 ∆E

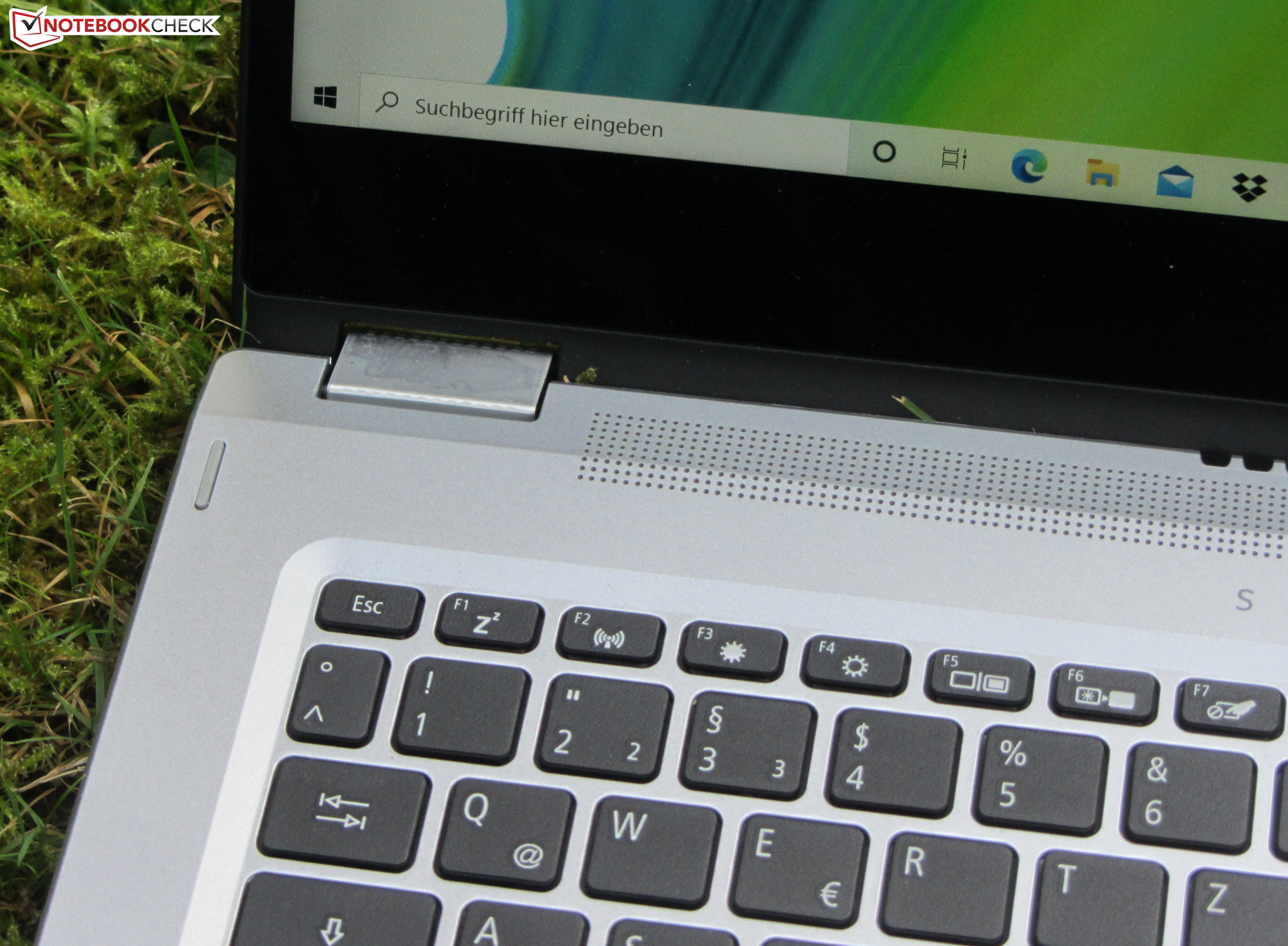

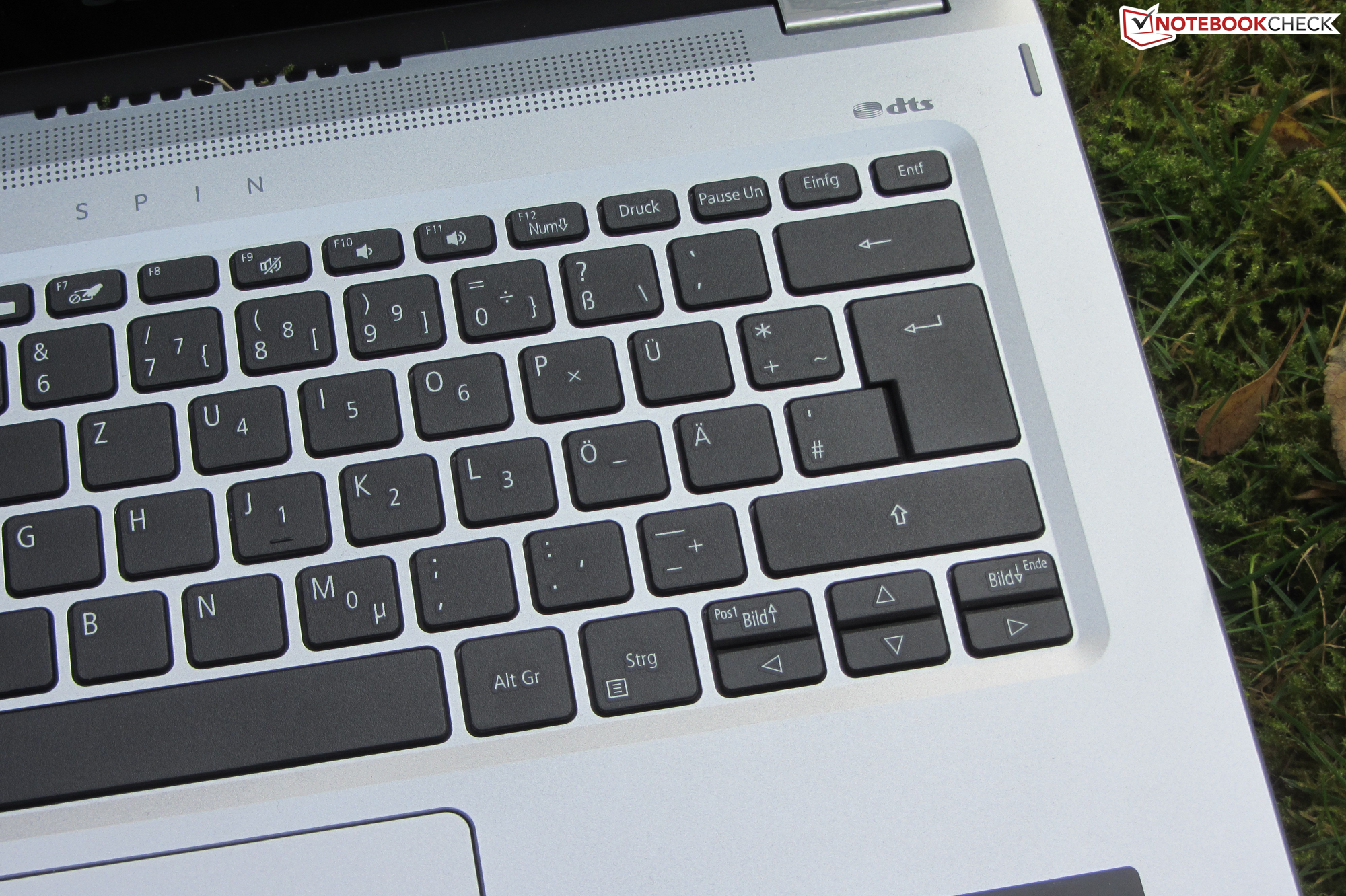

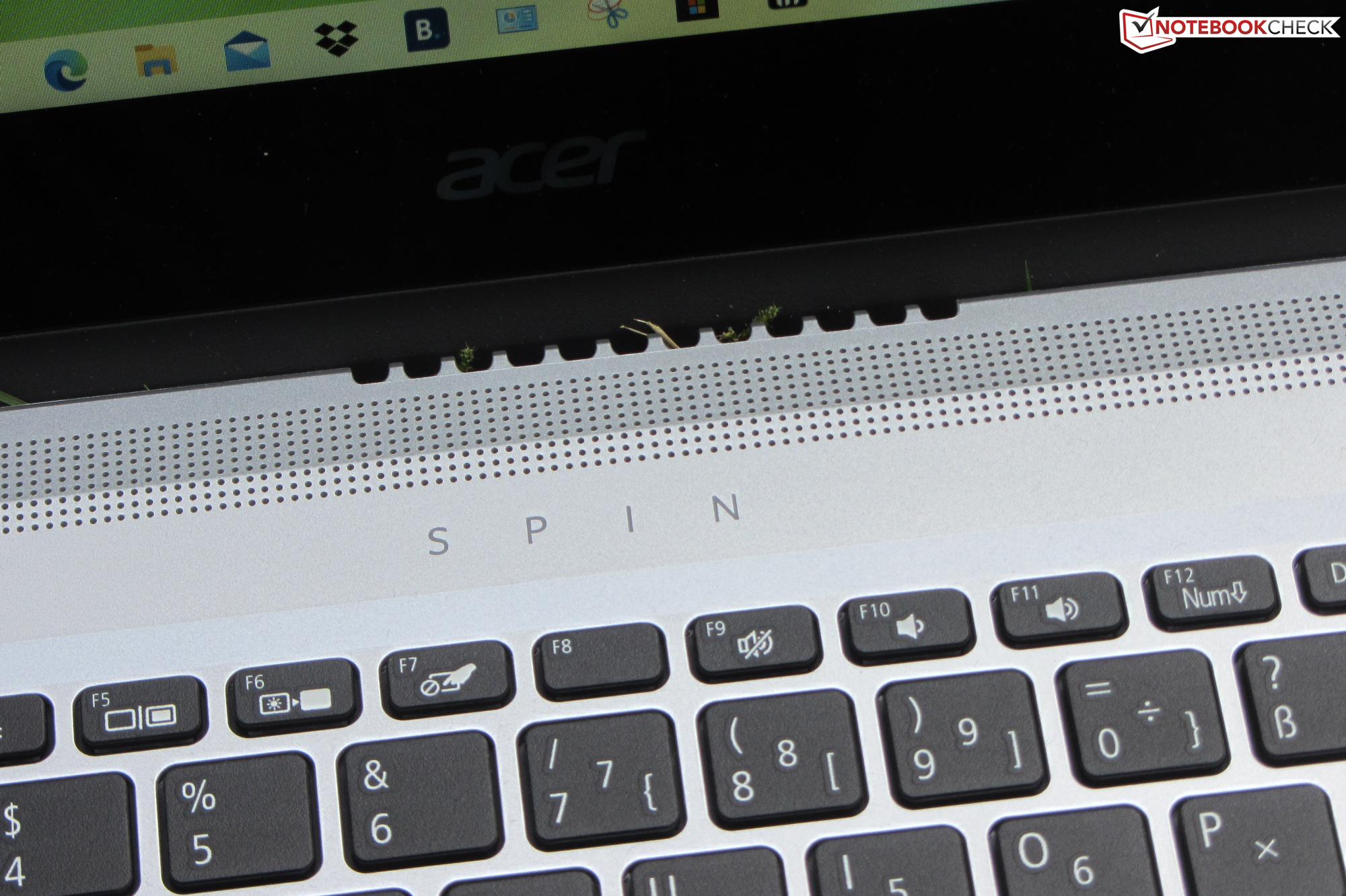

输入设备 - SP314不提供键盘照明。

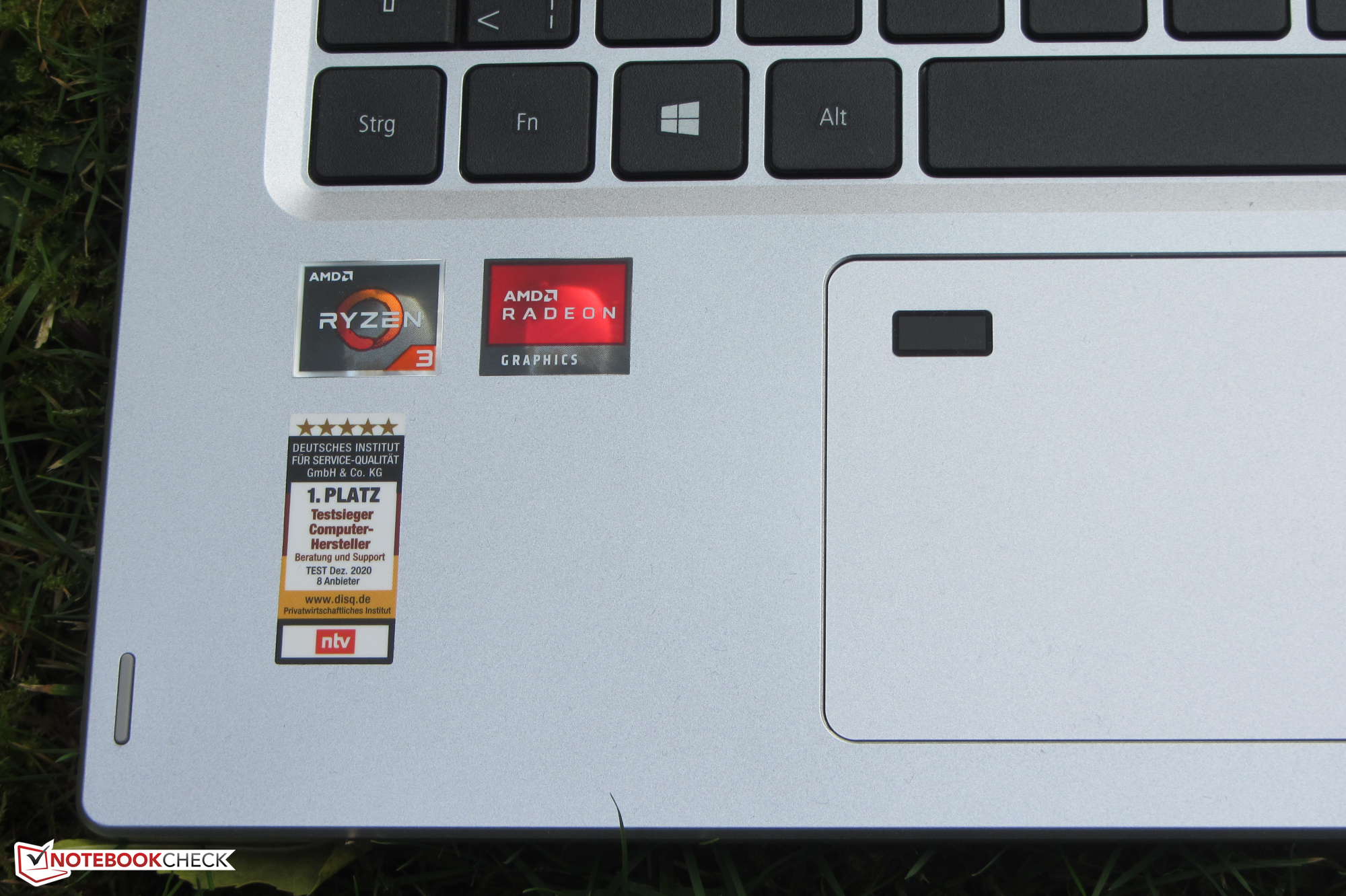

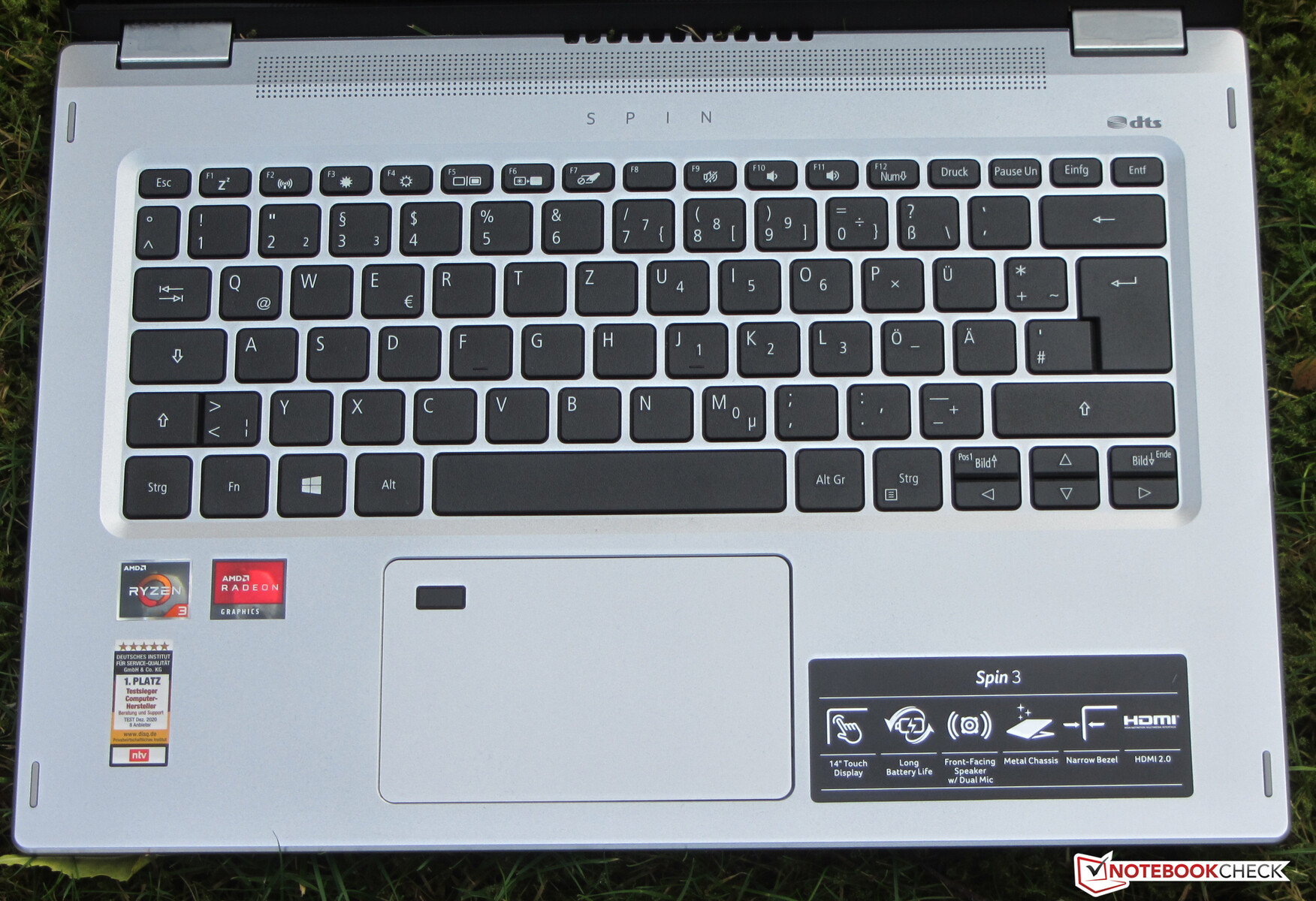

Chiclet键盘是不发光的。它的平键表面略显粗糙，提供了一个短行程和清晰的压力点。键的阻力可以更清晰。键盘在打字时有一些轻微的摆动。总的来说，宏碁在这里提供了一个适合日常工作的键盘。

具有多点触控功能的ClickPad表面光滑，占地面积约为10.5 x 6.5厘米（约4.1 x 2.6英寸），使手指容易滑动。垫子也能对角落里的输入做出反应。它的行程很短，压力点清晰。

触摸屏支持多达10个触摸点，并对输入作出迅速的反应。它既可以用手指操作，也可以用主动输入笔。用我们使用的 "Bamboo Ink "通用输入笔进行的简短测试是成功的。笔和Spin 3之间的蓝牙连接工作得很完美。

显示器 - 板载IPS

分别为232.4cd/m²和578:1，反射式14英寸触摸屏（1920 x 1080像素）的亮度和对比度变成了太低。我们认为高于300 cd/m²和1000:1的数值是好的。我们没有注意到任何PWM的闪烁。


233 cd/m²	229 cd/m²	235 cd/m²
224 cd/m²	231 cd/m²	222 cd/m²
248 cd/m²	231 cd/m²	239 cd/m²

Distribution of brightness

AU Optronics B140HAN04.0 tested with X-Rite i1Pro 2

Maximum: 248 cd/m² (Nits) Average: 232.4 cd/m² Minimum: 19 cd/m²
Brightness Distribution: 90 %
Center on Battery: 242 cd/m²
Contrast: 578:1 (Black: 0.4 cd/m²)
ΔE Color 4.01 | 0.5-29.43 Ø4.86
ΔE Greyscale 2.04 | 0.5-98 Ø5.1
39% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.8% sRGB (Argyll 2.2.0 3D)
37.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.25

Download ICC File (X-Rite i1Pro 2)

	Acer Spin 3 SP314-21N-R4GU AU Optronics B140HAN04.0, IPS, 1920x1080, 14"	HP Pavilion x360 14-dy0157ng Chi Mei N140HCA-E5B, IPS, 1920x1080, 14"	Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE 5D10S39642 LCD MODULE W 81X1, IPS, 1920x1080, 14"	Acer Spin 3 SP314-54N-56S5 BOE081D, IPS, 1920x1080, 14"
Display		13%	9%	3%
Display P3 Coverage	37.8	42.7 13%	41.24 9%	39.25 4%
sRGB Coverage	56.8	63.7 12%	61.4 8%	58.2 2%
AdobeRGB 1998 Coverage	39	44.2 13%	42.67 9%	40.55 4%
Response Times		27%	33%	42%
Response Time Grey 50% / Grey 80% *	48 ?(21, 27)	32 ?(15, 17) 33%	30 ?(14, 16) 37%	29 ?(5, 24) 40%
Response Time Black / White *	28 ?(14, 14)	22 ?(12, 10) 21%	20 ?(11, 9) 29%	16 ?(4, 12) 43%
PWM Frequency				1000 ?(90)
Screen		26%	-8%	29%
Brightness middle	231	269 16%	243 5%	271 17%
Brightness	232	241 4%	221 -5%	272 17%
Brightness Distribution	90	82 -9%	79 -12%	92 2%
Black Level *	0.4	0.11 72%	0.16 60%	0.19 52%
Contrast	578	2445 323%	1519 163%	1426 147%
Colorchecker dE 2000 *	4.01	5.68 -42%	6.03 -50%	4.24 -6%
Colorchecker dE 2000 max. *	8.23	9.61 -17%	9.21 -12%	6.38 22%
Greyscale dE 2000 *	2.04	4.95 -143%	6.4 -214%	2.51 -23%
Gamma	2.25 ^98%	2.17 ^101%	2.41 ^91%	2.25 ^98%
CCT	6751 ^96%	6628 ^98%	6342 ^102%	6812 ^95%
Color Space (Percent of AdobeRGB 1998)		44.2	39	37
Color Space (Percent of sRGB)		63.7	61	58
Total Average (Program / Settings)		22% / 23%	11% / 2%	25% / 25%

* ... smaller is better

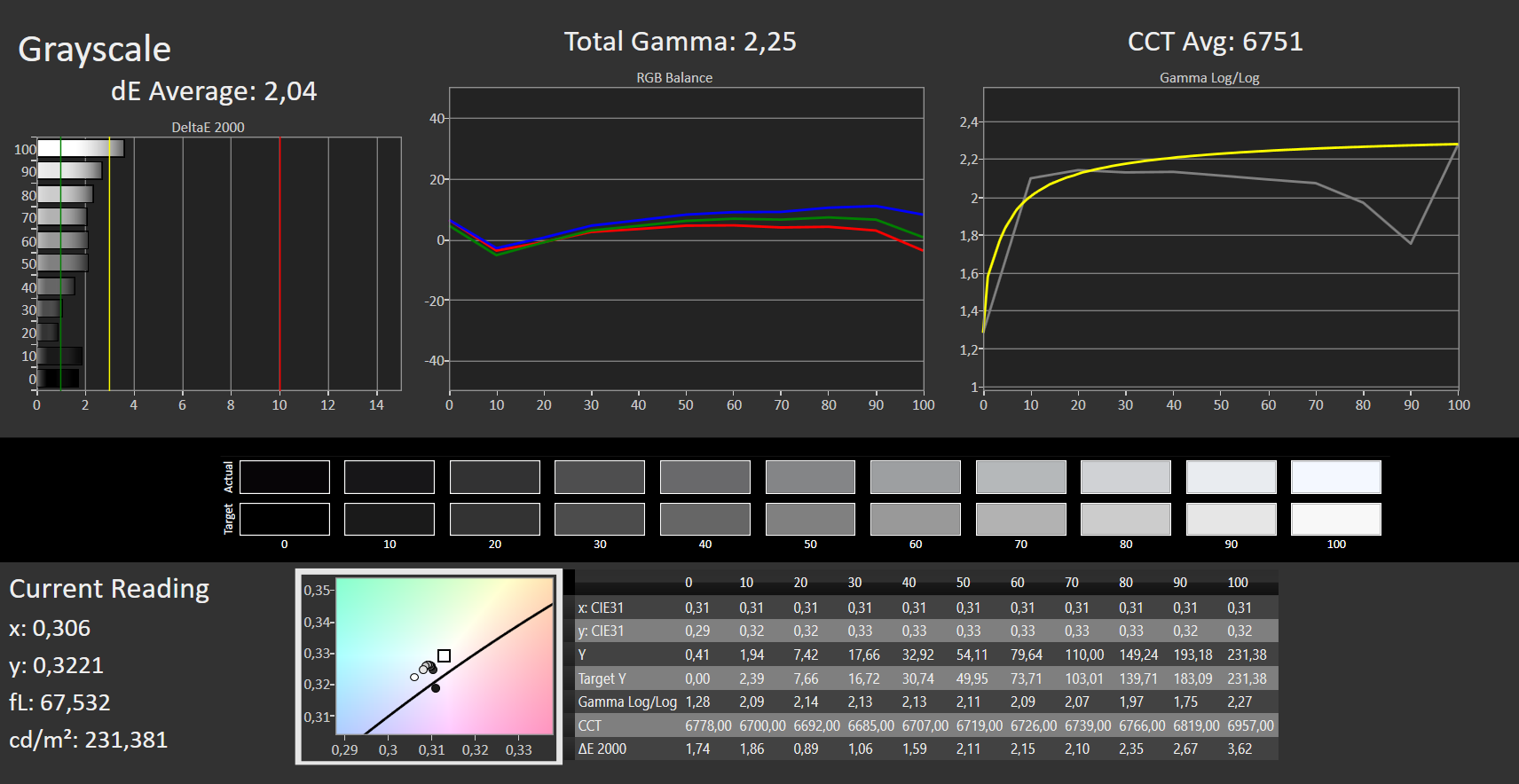

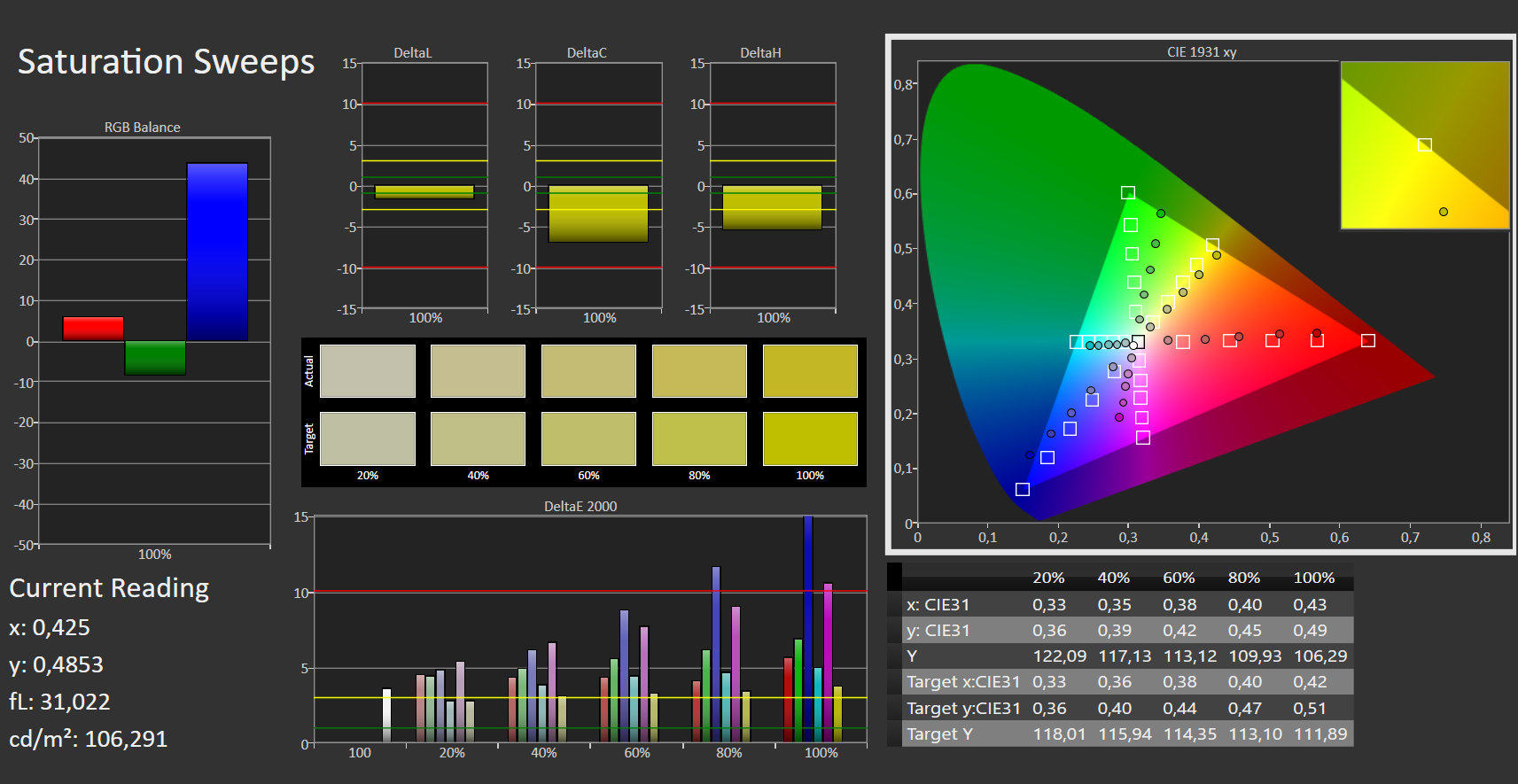

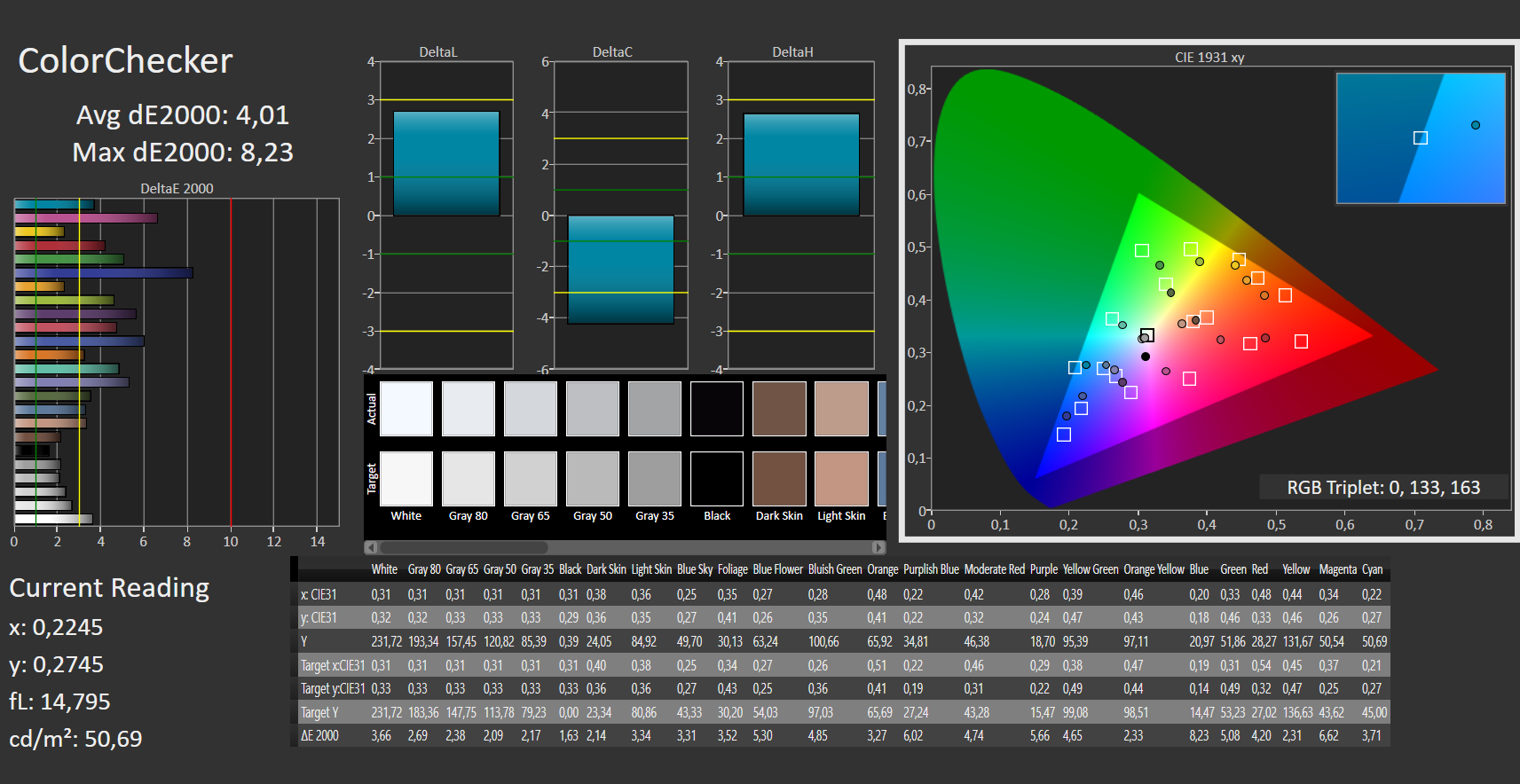

虽然该显示器在交付状态下提供了一个体面的色彩再现，但色彩与目标略有偏差。该显示器不存在蓝色色调问题，但它无法覆盖AdobeRGB（39%）、sRGB（57%）和DCI-P3（38%）色彩空间。

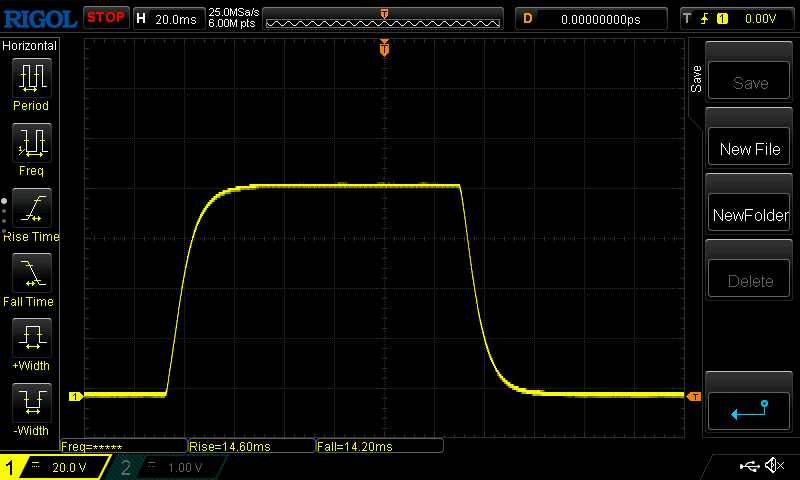

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

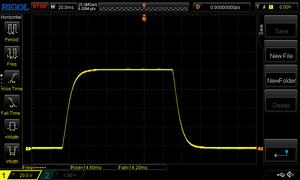

↔ Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined	↗ 14 ms rise
28 ms ... rise ↗ and fall ↘ combined	↘ 14 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 69 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.7 ms).

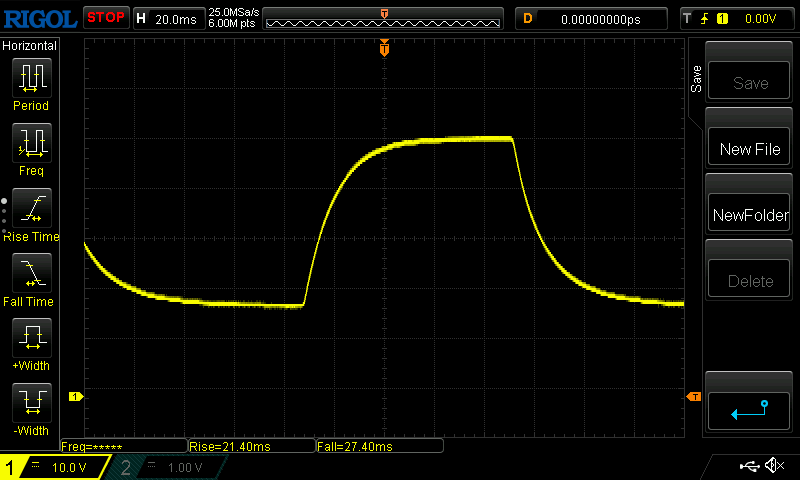

↔ Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined	↗ 21 ms rise
48 ms ... rise ↗ and fall ↘ combined	↘ 27 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 81 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.4 ms).

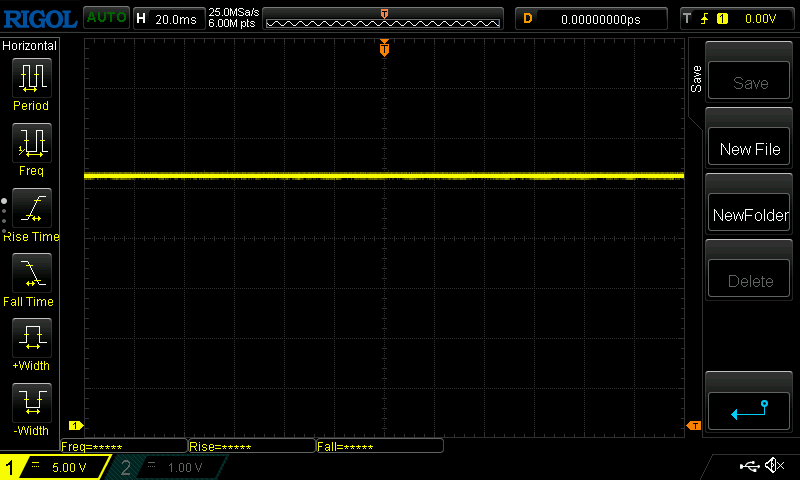

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8471 (minimum: 5 - maximum: 343500) Hz was measured.

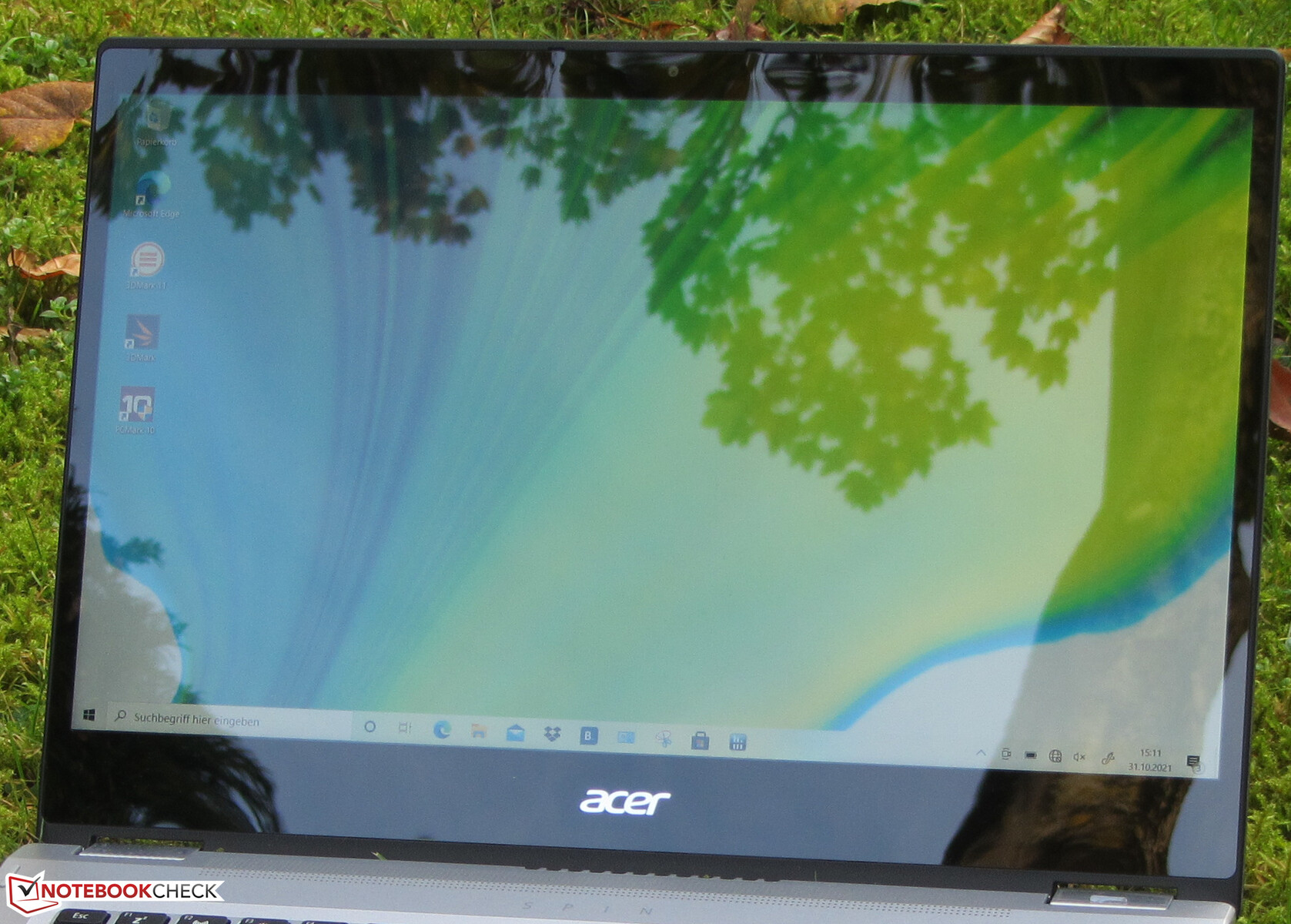

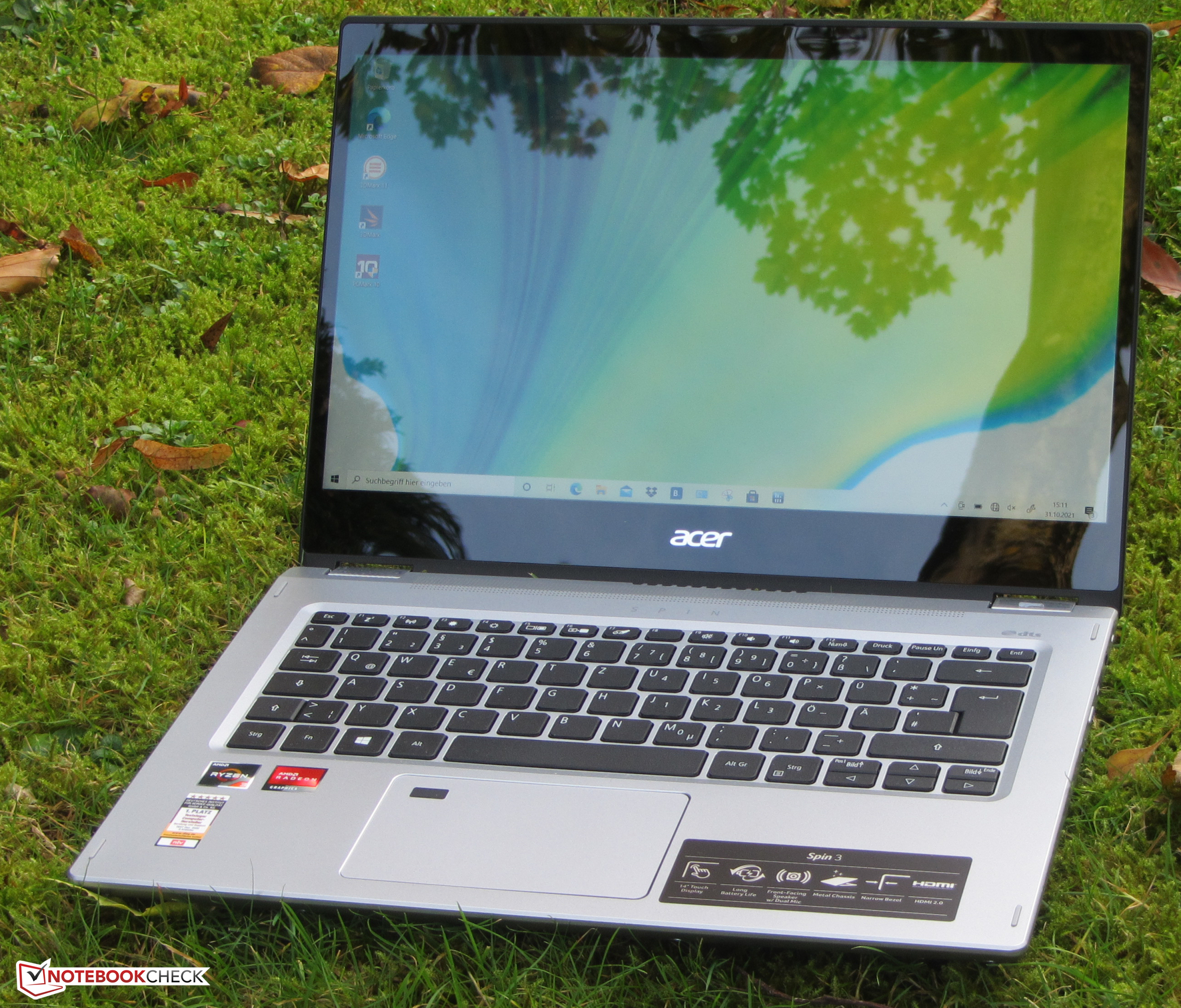

IPS面板提供稳定的视角，可以从任何位置读取。然而，在户外你几乎无法阅读，甚至根本无法解读任何东西，因为低的显示亮度和反射的显示表面阻碍了这一点。

性能 - 宏碁的二合一设备带来了Ryzen 3 APU

通过Spin 3 SP314-21N，宏碁提供了一个二合一设备，为办公和互联网应用带来足够的性能。

测试条件

Spin 3没有提供任何制造商特定的电源配置文件，但使用了Windows标准配置文件。我们在激活 "最高性能 "配置文件的情况下进行测试。APU的功率限制是25瓦（PL1）和35瓦（PL2）。

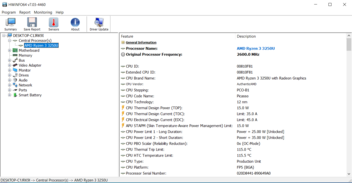

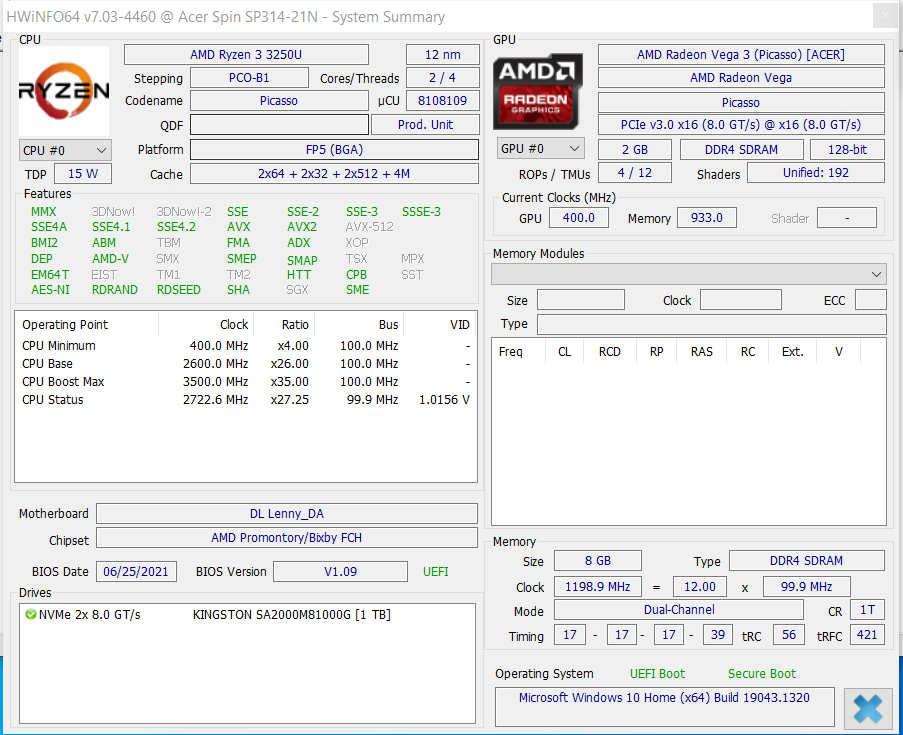

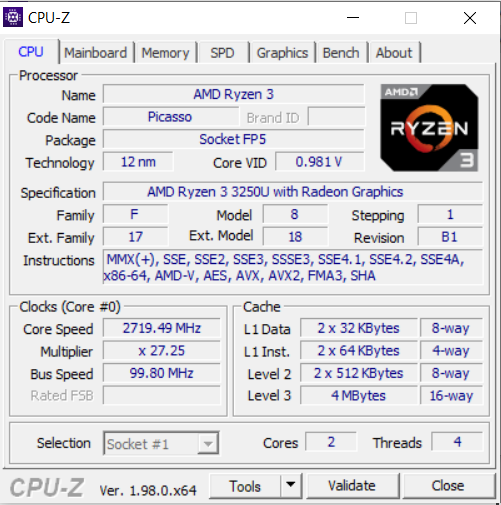

处理器

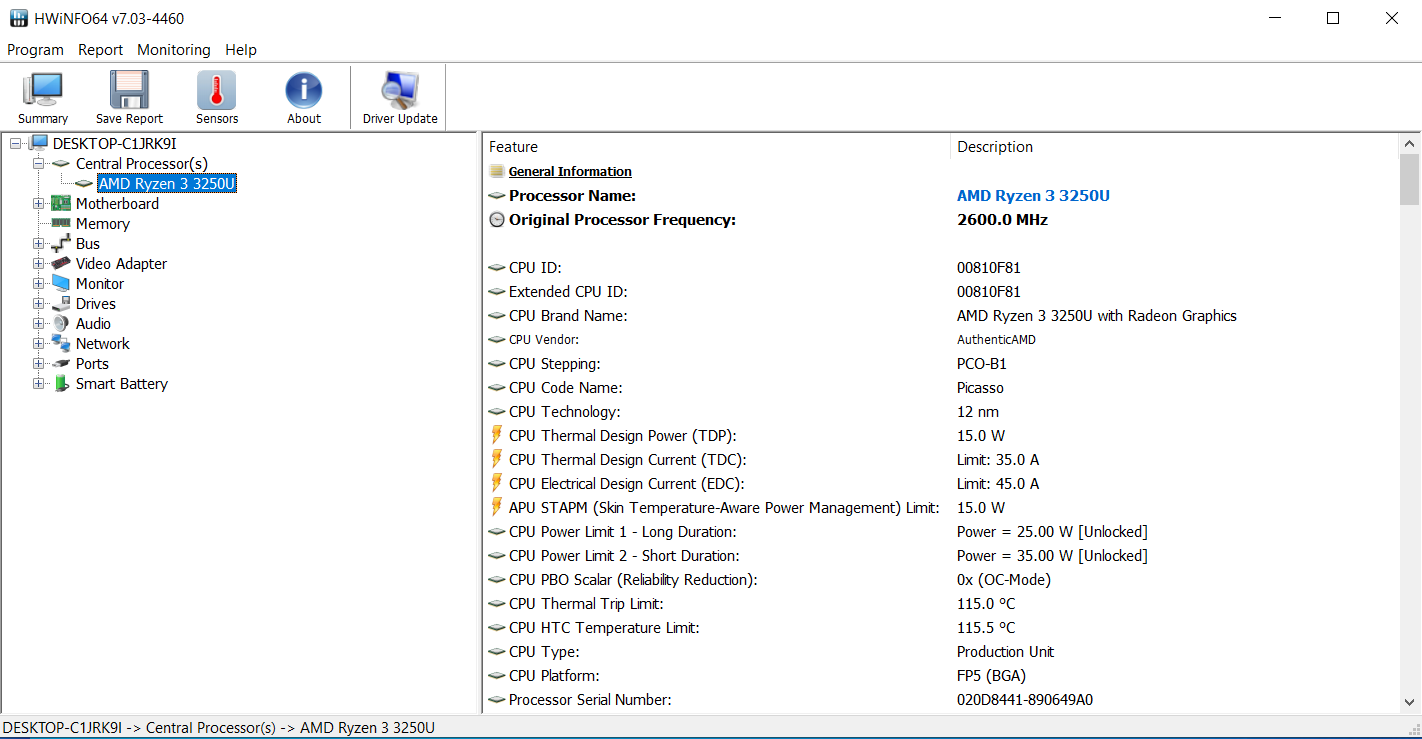

的CPU部分锐龙3-3250UAPU（Picasso）由一个双核处理器组成，运行的基本时钟速度为2.6 GHz。通过Turbo，时钟速度可以提高到3.5GHz。支持同步多线程（每个核心两个线程）。

该处理器在Cinebench R15基准测试中以3.4至3.5GHz的速度运行，在1.6至3.5GHz的速度下进行单线程测试。在电池运行中，CPU以2.6至3.4GHz（多线程）和1.6至2.4GHz（单线程）的速度运行。

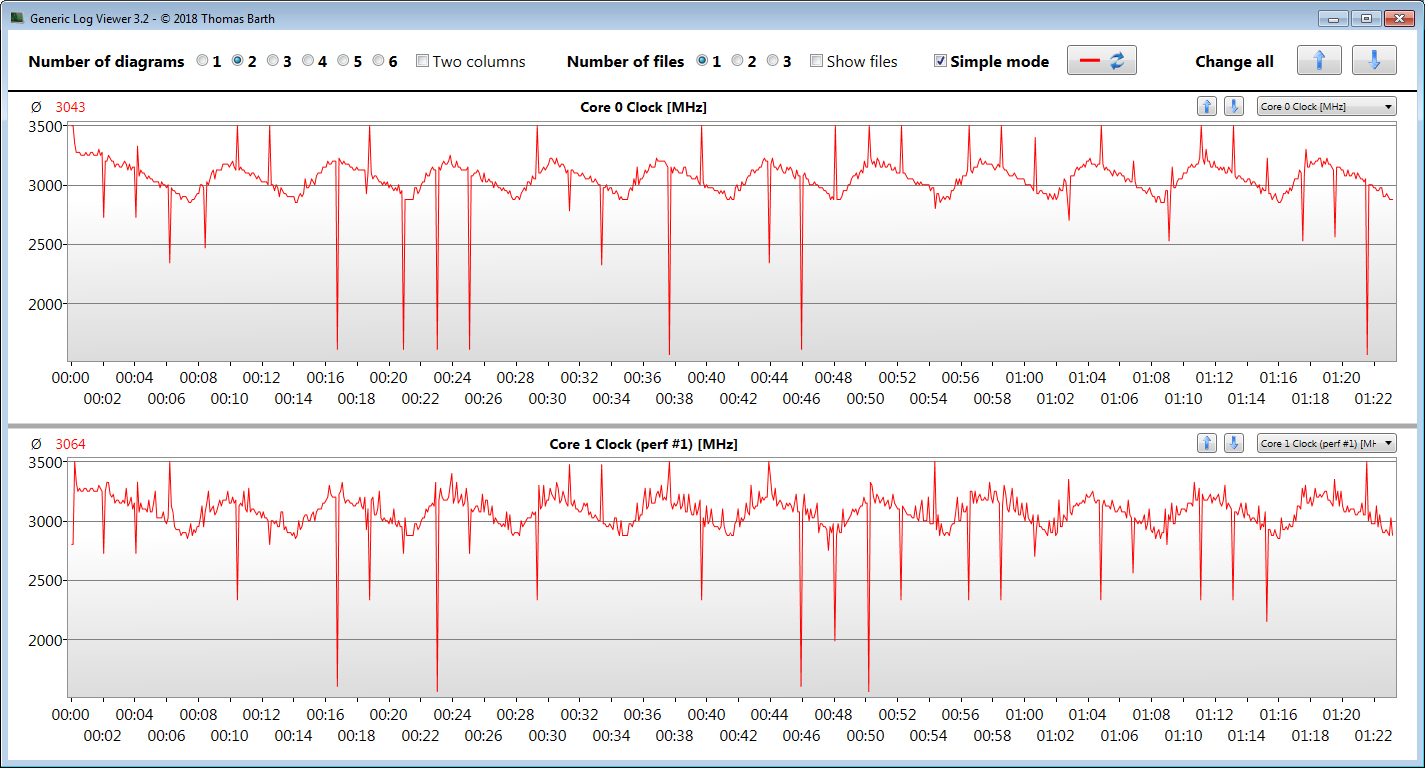

我们通过循环运行Cinebench R15基准的多线程测试至少30分钟来评估CPU Turbo是否也能持续保持。Turbo的运行速度各不相同。

Cinebench R15 Multi Constant Load Test

Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U: Ø331 (314.26-350.74)

HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7: Ø584 (529.91-688.22)

Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U: Ø1356 (1331.42-1387.06)

Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4: Ø568 (547.77-632.01)

Cinebench R10 Shading 32Bit

7719

Cinebench R10 Rendering Multiple CPUs 32Bit

10251

Cinebench R10 Rendering Single 32Bit

4088

Cinebench R11.5 OpenGL 64Bit

38.28 fps

Cinebench R11.5 CPU Multi 64Bit

3.95 Points

Cinebench R11.5 CPU Single 64Bit

1.46 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

36.69 fps

Cinebench R15 CPU Multi 64Bit

351 Points

Cinebench R15 CPU Single 64Bit

126 Points

Cinebench R20 CPU (Single Core)

234 Points

Cinebench R20 CPU (Multi Core)

415 Points

Cinebench R23 Multi Core

1876 Points

Cinebench R23 Single Core

810 Points

Help

... in comparison

CPU Performance Rating - Percent
Average of class Convertible	90.1 pt
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	66.9 pt
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	54.5 pt
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	48.3 pt
Average AMD Ryzen 3 3250U	26.9 pt
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	26.4 pt
HP 255 G7 159P1EA AMD Ryzen 3 3200U	25.4 pt
Lenovo V15-ADA 82C7009SGE ^-2! AMD Athlon Gold 3150U	25.1 pt

Cinebench R23
Multi Core
Average of class Convertible (2949 - 29063, n=64, last 2 years)	11069 Points +490%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	8353 Points +345%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	4029 Points +115%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	3800 Points +103%
Average AMD Ryzen 3 3250U (1876 - 2080, n=3)	1989 Points +6%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	1876 Points
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1786 Points -5%
Single Core
Average of class Convertible (914 - 2163, n=64, last 2 years)	1679 Points +107%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	1359 Points +68%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	1167 Points +44%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	1119 Points +38%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	810 Points
Average AMD Ryzen 3 3250U (768 - 810, n=3)	785 Points -3%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	780 Points -4%

Cinebench R20
CPU (Multi Core)
Average of class Convertible (1124 - 11357, n=63, last 2 years)	4236 Points +921%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	3213 Points +674%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	1399 Points +237%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	979 Points +136%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	795 Points +92%
Average AMD Ryzen 3 3250U (415 - 805, n=3)	668 Points +61%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	453 Points +9%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	415 Points
CPU (Single Core)
Average of class Convertible (348 - 827, n=63, last 2 years)	644 Points +175%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	467 Points +100%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	458 Points +96%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	435 Points +86%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	303 Points +29%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	287 Points +23%
Average AMD Ryzen 3 3250U (234 - 303, n=3)	279 Points +19%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	234 Points

Cinebench R15
CPU Multi 64Bit
Average of class Convertible (478 - 4830, n=66, last 2 years)	1818 Points +418%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	1387 (1331.42^min - 1387.06^max) Points +295%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	688 Points +96%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	632 (547.77^min - 632.01^max) Points +80%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	353 Points +1%
Average AMD Ryzen 3 3250U (351 - 354, n=3)	353 Points +1%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	352 (332.02^min - 352.17^max) Points 0%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	351 Points
CPU Single 64Bit
Average of class Convertible (149.8 - 317, n=63, last 2 years)	247 Points +96%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	197 Points +56%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	177 Points +40%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	170 Points +35%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	129 Points +2%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	126 Points
Average AMD Ryzen 3 3250U (119 - 126, n=3)	122.2 Points -3%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	117 Points -7%

Blender - v2.79 BMW27 CPU
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1485 Seconds * -6%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	1399 Seconds *
Average AMD Ryzen 3 3250U (1319 - 1399, n=3)	1372 Seconds * +2%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	1348 Seconds * +4%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	802 Seconds * +43%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	766 Seconds * +45%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	358 Seconds * +74%
Average of class Convertible (107 - 1051, n=61, last 2 years)	353 Seconds * +75%

7-Zip 18.03
7z b 4
Average of class Convertible (12977 - 121368, n=63, last 2 years)	43651 MIPS +360%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	36829 MIPS +288%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	18948 MIPS +100%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	16883 MIPS +78%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	9496 MIPS
HP 255 G7 159P1EA AMD Ryzen 3 3200U	9179 MIPS -3%
Average AMD Ryzen 3 3250U (8899 - 9496, n=3)	9153 MIPS -4%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	8752 MIPS -8%
7z b 4 -mmt1
Average of class Convertible (3672 - 6540, n=63, last 2 years)	5241 MIPS +52%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	4842 MIPS +40%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	4293 MIPS +24%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	4169 MIPS +21%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	3452 MIPS
HP 255 G7 159P1EA AMD Ryzen 3 3200U	3381 MIPS -2%
Average AMD Ryzen 3 3250U (2931 - 3452, n=3)	3225 MIPS -7%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	3065 MIPS -11%

Geekbench 5.5
Multi-Core
Average of class Convertible (2188 - 22023, n=63, last 2 years)	9213 Points +408%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	5641 Points +211%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	4873 Points +169%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	3986 Points +120%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	1847 Points +2%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	1813 Points
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1645 Points -9%
Average AMD Ryzen 3 3250U (1397 - 1813, n=4)	1634 Points -10%
Single-Core
Average of class Convertible (806 - 2275, n=63, last 2 years)	1723 Points +103%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	1422 Points +68%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	1235 Points +46%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	1115 Points +31%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	848 Points
Average AMD Ryzen 3 3250U (687 - 848, n=4)	796 Points -6%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	770 Points -9%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	751 Points -11%

HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Convertible (3.43 - 36.2, n=63, last 2 years)	12.5 fps +583%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	9.59 fps +424%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	5.04 fps +175%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	4.52 fps +147%
Average AMD Ryzen 3 3250U (1.83 - 2.17, n=3)	2.05 fps +12%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	2.03 fps +11%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	1.95 fps +7%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	1.83 fps

LibreOffice - 20 Documents To PDF
HP 255 G7 159P1EA AMD Ryzen 3 3200U	91.6 s * -4%
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	90.8 s * -3%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	88.5 s *
Average AMD Ryzen 3 3250U (84.3 - 88.5, n=3)	86.1 s * +3%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	69 s * +22%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	58.4 s * +34%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	52.2 s * +41%
Average of class Convertible (42.7 - 84.3, n=62, last 2 years)	51.9 s * +41%

R Benchmark 2.5 - Overall mean
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U	0.872 sec * -8%
HP 255 G7 159P1EA AMD Ryzen 3 3200U	0.849 sec * -6%
Average AMD Ryzen 3 3250U (0.773 - 0.843, n=3)	0.807 sec * -0%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U	0.804 sec *
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4	0.701 sec * +13%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U	0.634 sec * +21%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7	0.619 sec * +23%
Average of class Convertible (0.3985 - 0.84, n=62, last 2 years)	0.507 sec * +37%

* ... smaller is better

Performance Rating
Average of class Convertible	95.5 pt
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	84.7 pt
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	52.9 pt
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	51.2 pt
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	21.2 pt
Average AMD Ryzen 3 3250U	20.8 pt

AIDA64 / FP32 Ray-Trace
Average of class Convertible (2179 - 64158, n=64, last 2 years)	11902 KRay/s +690%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	10421 KRay/s +592%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	5329 KRay/s +254%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	4827 KRay/s +220%
Average AMD Ryzen 3 3250U (1507 - 1660, n=3)	1591 KRay/s +6%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	1507 KRay/s

AIDA64 / FPU Julia
Average of class Convertible (11392 - 183760, n=63, last 2 years)	55873 Points +544%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	43706 Points +404%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	22393 Points +158%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	20628 Points +138%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	8675 Points
Average AMD Ryzen 3 3250U (8357 - 8675, n=3)	8557 Points -1%

AIDA64 / CPU SHA3
Average of class Convertible (797 - 8151, n=63, last 2 years)	2663 MB/s +484%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	1829 MB/s +301%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	1519 MB/s +233%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	1407 MB/s +209%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	456 MB/s
Average AMD Ryzen 3 3250U (427 - 456, n=3)	437 MB/s -4%

AIDA64 / CPU Queen
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	73651 Points +226%
Average of class Convertible (22413 - 145339, n=63, last 2 years)	67945 Points +201%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	44661 Points +98%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	40324 Points +79%
Average AMD Ryzen 3 3250U (22574 - 25740, n=3)	23780 Points +5%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	22574 Points

AIDA64 / FPU SinJulia
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	10384 Points +269%
Average of class Convertible (1120 - 29155, n=63, last 2 years)	7339 Points +161%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	3736 Points +33%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	3710 Points +32%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	2814 Points
Average AMD Ryzen 3 3250U (2732 - 2814, n=3)	2782 Points -1%

AIDA64 / FPU Mandel
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	29983 Points +566%
Average of class Convertible (5749 - 97193, n=63, last 2 years)	28636 Points +536%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	14130 Points +214%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	12304 Points +173%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	4505 Points
Average AMD Ryzen 3 3250U (4342 - 4505, n=3)	4426 Points -2%

AIDA64 / CPU AES
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	54358 MB/s +265%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	53234 MB/s +257%
Average of class Convertible (21774 - 169089, n=63, last 2 years)	52336 MB/s +251%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	52316 MB/s +251%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	14905 MB/s
Average AMD Ryzen 3 3250U (14381 - 14905, n=3)	14586 MB/s -2%

AIDA64 / CPU ZLib
Average of class Convertible (218 - 2001, n=63, last 2 years)	717 MB/s +345%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	602 MB/s +274%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	278 MB/s +73%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	268 MB/s +66%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	161 MB/s
Average AMD Ryzen 3 3250U (153.8 - 161, n=3)	156.9 MB/s -3%

AIDA64 / FP64 Ray-Trace
Average of class Convertible (1169 - 34297, n=63, last 2 years)	6268 KRay/s +625%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	5675 KRay/s +557%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	2901 KRay/s +236%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	2680 KRay/s +210%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	864 KRay/s
Average AMD Ryzen 3 3250U (844 - 864, n=3)	853 KRay/s -1%

AIDA64 / CPU PhotoWorxx
Average of class Convertible (13761 - 81626, n=63, last 2 years)	40806 MPixel/s +225%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	29690 MPixel/s +137%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	24181 MPixel/s +93%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	16519 MPixel/s +32%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	12547 MPixel/s
Average AMD Ryzen 3 3250U (7986 - 12595, n=3)	11043 MPixel/s -12%

系统性能

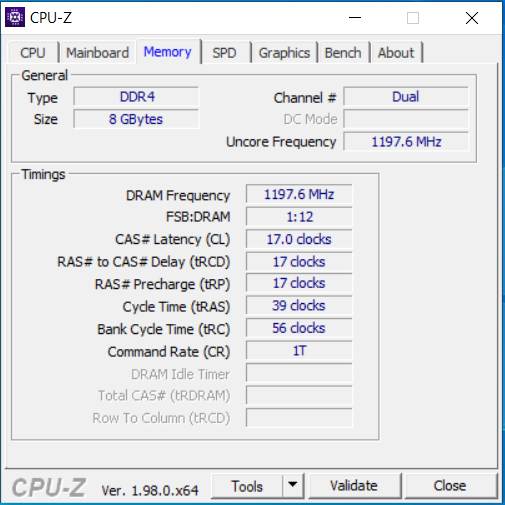

该系统运行平稳而迅速，为办公和互联网应用提供了足够的计算性能。这也表现在PC Mark基准测试的体面结果上。Spin 3的工作内存传输率仍然落后于竞争对手的数值。其原因是Ryzen 3 APU最多支持DDR4-2400存储，而竞争对手和英特尔的兄弟姐妹型号至少使用DDR4-3200存储。

PCMark 8 Home Score Accelerated v2		3057 points
PCMark 8 Creative Score Accelerated v2		2773 points
PCMark 8 Work Score Accelerated v2		4426 points
PCMark 10 Score		3344 points
Help

PCMark 10: Score | Essentials | Productivity | Digital Content Creation

PCMark 10 / Score
Average of class Convertible (3229 - 9125, n=60, last 2 years)	6277 Points +88%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD	5008 Points +50%
HP Pavilion x360 14-dy0157ng Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G	4646 Points +39%
Acer Spin 3 SP314-54N-56S5 Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0	3885 Points +16%
Acer Spin 3 SP314-21N-R4GU Vega 3, R3 3250U, SK hynix BC511 HFM256GDJTNI-82A0	3344 Points
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (3109 - 3344, n=2)	3227 Points -3%

PCMark 10 / Essentials
Average of class Convertible (7233 - 12005, n=60, last 2 years)	10684 Points +53%
HP Pavilion x360 14-dy0157ng Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G	9753 Points +40%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD	9149 Points +31%
Acer Spin 3 SP314-54N-56S5 Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0	8709 Points +25%
Acer Spin 3 SP314-21N-R4GU Vega 3, R3 3250U, SK hynix BC511 HFM256GDJTNI-82A0	6987 Points
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (6547 - 6987, n=2)	6767 Points -3%

PCMark 10 / Productivity
Average of class Convertible (5062 - 10800, n=60, last 2 years)	8322 Points +41%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD	7809 Points +33%
HP Pavilion x360 14-dy0157ng Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G	6371 Points +8%
Acer Spin 3 SP314-21N-R4GU Vega 3, R3 3250U, SK hynix BC511 HFM256GDJTNI-82A0	5886 Points
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (5670 - 5886, n=2)	5778 Points -2%
Acer Spin 3 SP314-54N-56S5 Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0	5302 Points -10%

PCMark 10 / Digital Content Creation
Average of class Convertible (2496 - 16551, n=60, last 2 years)	7727 Points +213%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD	4774 Points +94%
HP Pavilion x360 14-dy0157ng Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G	4382 Points +78%
Acer Spin 3 SP314-54N-56S5 Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0	3448 Points +40%
Acer Spin 3 SP314-21N-R4GU Vega 3, R3 3250U, SK hynix BC511 HFM256GDJTNI-82A0	2467 Points
Average AMD Ryzen 3 3250U, AMD Radeon RX Vega 3 (2198 - 2467, n=2)	2333 Points -5%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Convertible (29473 - 158525, n=63, last 2 years)	73634 MB/s +164%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	40141 MB/s +44%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	38969 MB/s +40%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	34346 MB/s +23%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	27857 MB/s
Average AMD Ryzen 3 3250U (14545 - 28036, n=3)	23479 MB/s -16%

AIDA64 / Memory Read
Average of class Convertible (28905 - 126517, n=63, last 2 years)	64899 MB/s +102%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	48452 MB/s +51%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	46871 MB/s +46%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	42963 MB/s +34%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	32169 MB/s
Average AMD Ryzen 3 3250U (17812 - 32364, n=3)	27448 MB/s -15%

AIDA64 / Memory Write
Average of class Convertible (30110 - 216896, n=63, last 2 years)	74691 MB/s +124%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	48631 MB/s +46%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	46521 MB/s +40%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	33283 MB/s
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	30673 MB/s -8%
Average AMD Ryzen 3 3250U (17439 - 33662, n=3)	28128 MB/s -15%

AIDA64 / Memory Latency
Average of class Convertible (7.7 - 173, n=62, last 2 years)	120.1 ns * -6%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, Vega 3	113 ns *
Average AMD Ryzen 3 3250U (108.8 - 116.6, n=3)	112.8 ns * -0%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, Vega 7	99.7 ns * +12%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	97 ns * +14%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Iris Xe G7 80EUs	73.1 ns * +35%

* ... smaller is better

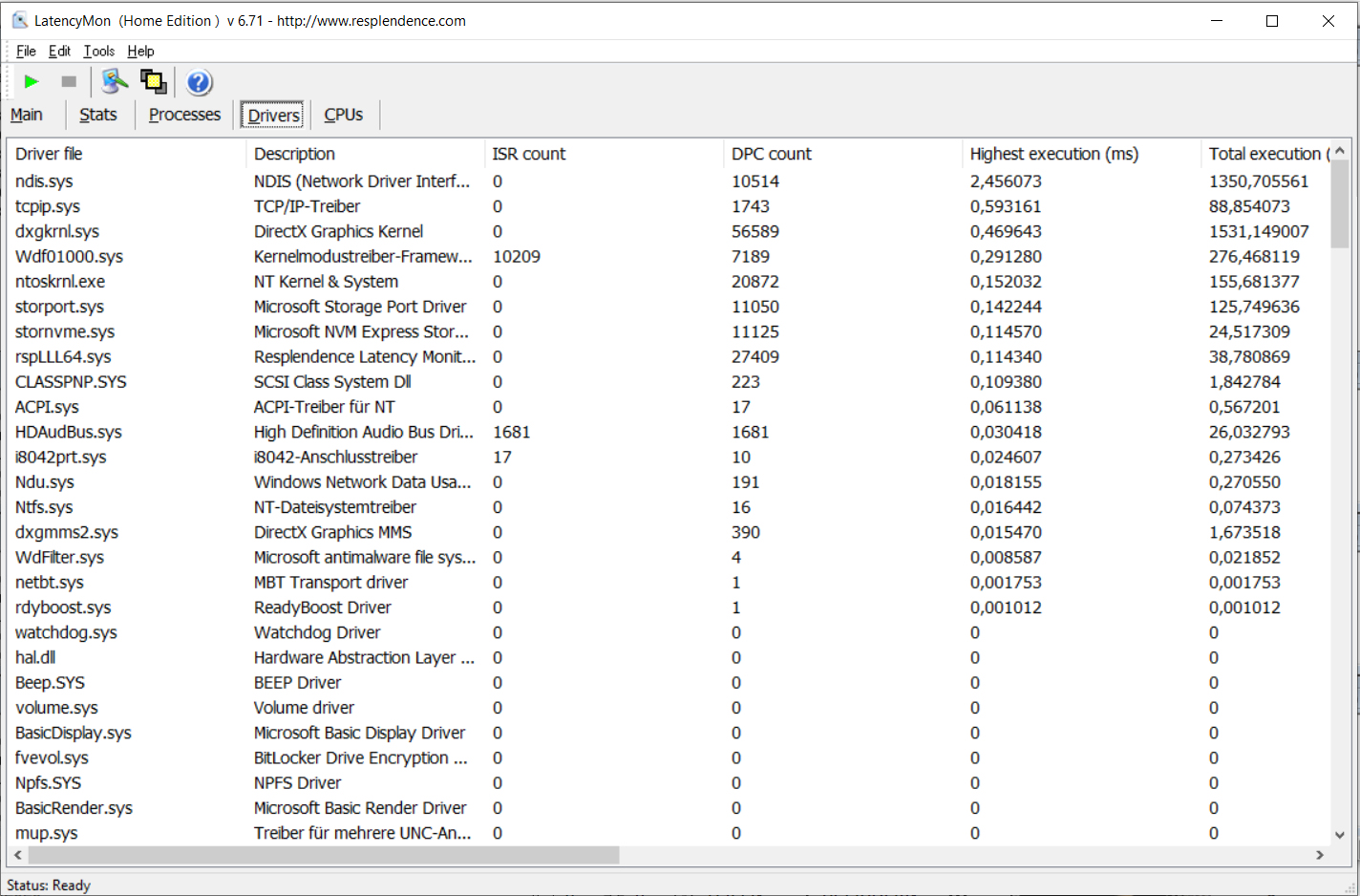

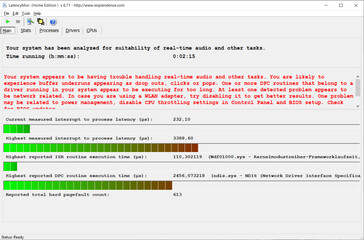

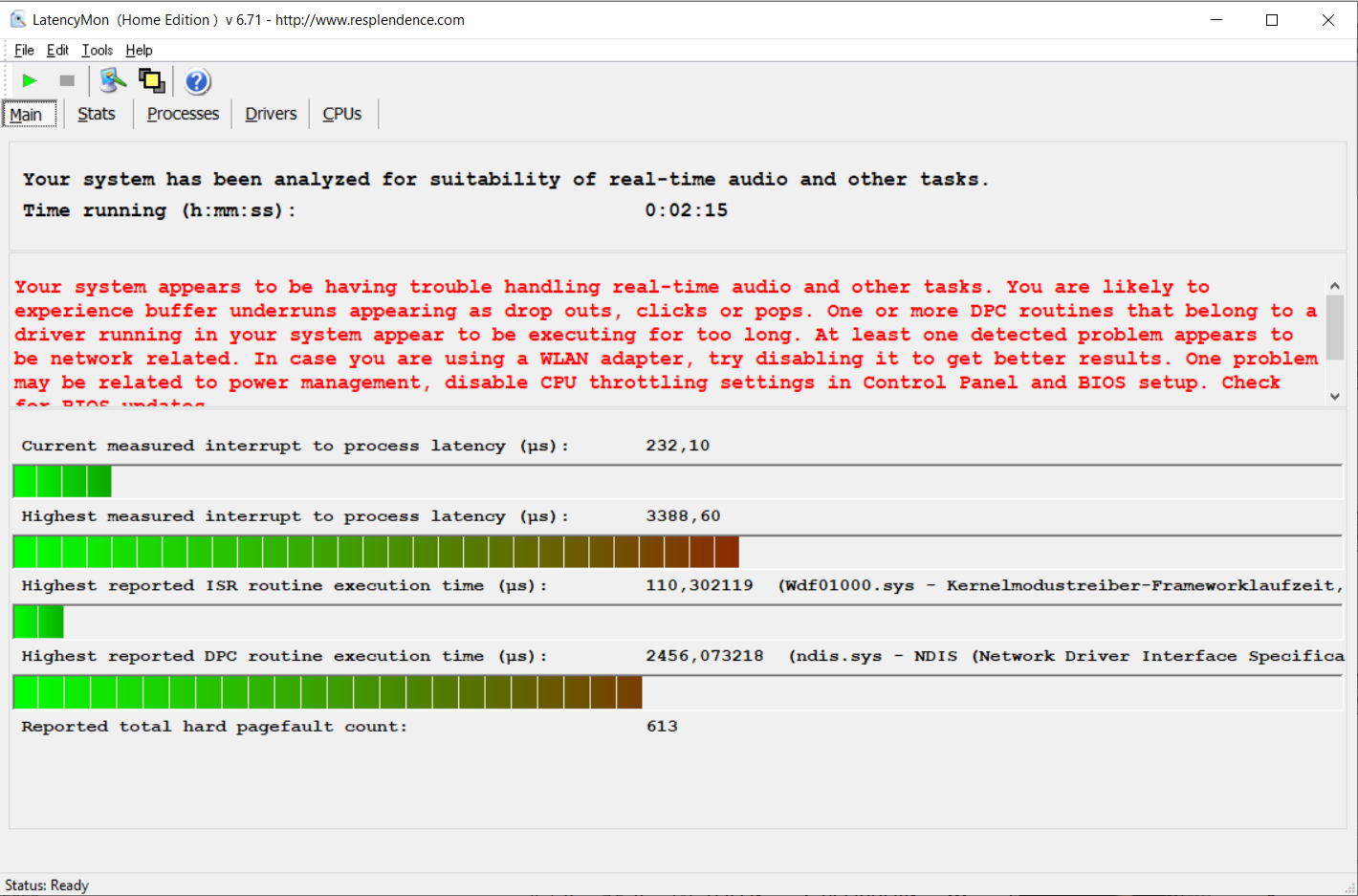

DPC延迟

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acer Spin 3 SP314-21N-R4GU Vega 3, R3 3250U, SK hynix BC511 HFM256GDJTNI-82A0	3389 μs *
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD	2782 μs * +18%
HP Pavilion x360 14-dy0157ng Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G	1004 μs * +70%
Acer Spin 3 SP314-54N-56S5 Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0	861 μs * +75%

* ... smaller is better

存储解决方案

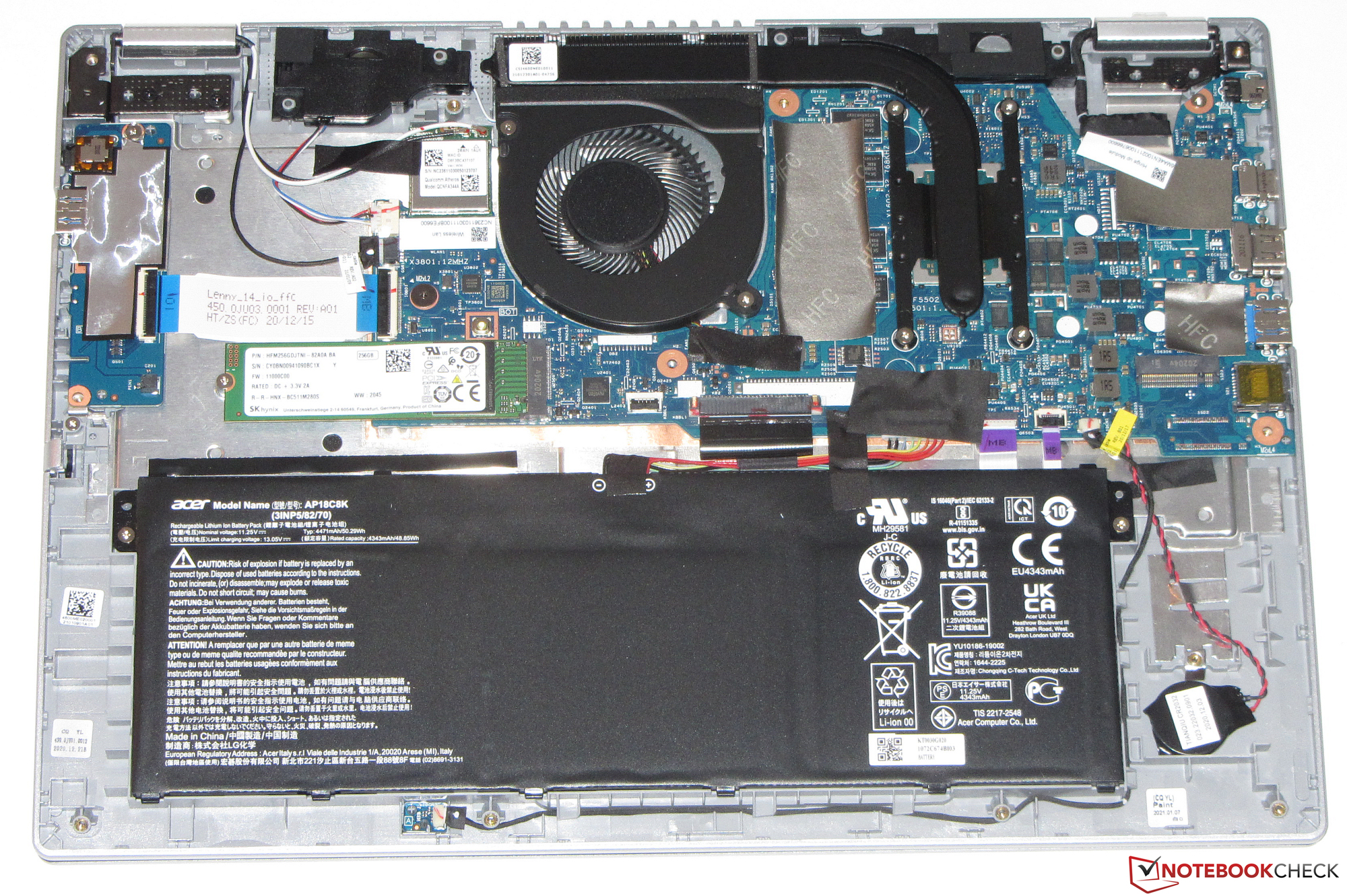

SK Hynix的NVMe SSD（M.2-2280）作为系统驱动器。它提供256GB的存储空间，并提供良好的传输速率。

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

SK hynix BC511 HFM256GDJTNI-82A0

CDM 5/6 Read Seq Q32T1: 1783 MB/s

CDM 5/6 Write Seq Q32T1: 1032 MB/s

CDM 5/6 Read 4K Q32T1: 319.3 MB/s

CDM 5/6 Write 4K Q32T1: 199.7 MB/s

CDM 5 Read Seq: 1065 MB/s

CDM 5 Write Seq: 1001 MB/s

CDM 5/6 Read 4K: 38.78 MB/s

CDM 5/6 Write 4K: 98.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Convertible	86.4 pt
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	66.6 pt
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	56.7 pt
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	49.6 pt
Average SK hynix BC511 HFM256GDJTNI-82A0	46.9 pt
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	46.8 pt

DiskSpd
seq read
Average of class Convertible (1080 - 4714, n=63, last 2 years)	2745 MB/s +145%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	1896 (1874.22^min - 1895.81^max) MB/s +69%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	1714 (1688.65^min - 1713.79^max) MB/s +53%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	1120 (1112.25^min - 1119.81^max) MB/s
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	1119 (1114.09^min - 1118.55^max) MB/s 0%
Average SK hynix BC511 HFM256GDJTNI-82A0 (734 - 1120, n=8)	1025 MB/s -8%
seq write
Average of class Convertible (195.5 - 5301, n=63, last 2 years)	2736 MB/s +173%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	1481 (1382.02^min - 1480.8^max) MB/s +48%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	1131 (1124.07^min - 1131.37^max) MB/s +13%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	1002 (959.9^min - 1001.51^max) MB/s
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	977 (610.06^min - 977.27^max) MB/s -2%
Average SK hynix BC511 HFM256GDJTNI-82A0 (179 - 1022, n=8)	880 MB/s -12%
seq q8 t1 read
Average of class Convertible (2129 - 7152, n=63, last 2 years)	5022 MB/s +181%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	2406 (2140.14^min - 2406.49^max) MB/s +35%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	2241 (1701^min - 2240.94^max) MB/s +26%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	2151 (2022.13^min - 2150.53^max) MB/s +21%
Average SK hynix BC511 HFM256GDJTNI-82A0 (746 - 2241, n=8)	1942 MB/s +9%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	1785 (1582.3^min - 1784.68^max) MB/s
seq q8 t1 write
Average of class Convertible (228 - 5745, n=63, last 2 years)	3785 MB/s +270%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	1470 (1437.6^min - 1469.68^max) MB/s +44%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	1149 (1089.34^min - 1148.6^max) MB/s +12%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	1022 (884.67^min - 1022.31^max) MB/s
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	962 (559.87^min - 962.35^max) MB/s -6%
Average SK hynix BC511 HFM256GDJTNI-82A0 (179 - 1022, n=8)	889 MB/s -13%
4k q1 t1 read
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	60.6 (59.66^min - 60.6^max) MB/s +52%
Average of class Convertible (31.1 - 81.6, n=63, last 2 years)	58.6 MB/s +47%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	48.7 (48.27^min - 48.66^max) MB/s +22%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	47.8 (47.46^min - 47.81^max) MB/s +20%
Average SK hynix BC511 HFM256GDJTNI-82A0 (38.4 - 49.5, n=8)	43.1 MB/s +8%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	40 (39.93^min - 39.95^max) MB/s
4k q1 t1 write
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	208 (204.31^min - 207.5^max) MB/s +98%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	168 (165.63^min - 167.9^max) MB/s +60%
Average of class Convertible (63.6 - 398, n=63, last 2 years)	145.1 MB/s +38%
Average SK hynix BC511 HFM256GDJTNI-82A0 (30 - 178, n=8)	116.6 MB/s +11%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	105 (104.84^min - 105.44^max) MB/s
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	95.1 (94.73^min - 95.13^max) MB/s -9%
4k q32 t16 read
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	1371 (1202.08^min - 1370.81^max) MB/s +90%
Average of class Convertible (308 - 3881, n=63, last 2 years)	1045 MB/s +45%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	720 (719.5^min - 719.85^max) MB/s
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	649 (647.58^min - 649.44^max) MB/s -10%
Average SK hynix BC511 HFM256GDJTNI-82A0 (471 - 720, n=8)	615 MB/s -15%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	605 (604.05^min - 605.36^max) MB/s -16%
4k q32 t16 write
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	1118 (1060.64^min - 1117.53^max) MB/s +71%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	765 (718.87^min - 764.99^max) MB/s +17%
Average of class Convertible (148.5 - 3537, n=63, last 2 years)	688 MB/s +5%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	655 (487.43^min - 655.08^max) MB/s
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	584 (465.37^min - 583.62^max) MB/s -11%
Average SK hynix BC511 HFM256GDJTNI-82A0 (179 - 780, n=8)	517 MB/s -21%

AS SSD
Score Total
Average of class Convertible (1472 - 8028, n=61, last 2 years)	3961 Points +117%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	3221 Points +76%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	2460 Points +35%
Average SK hynix BC511 HFM256GDJTNI-82A0 (1178 - 2464, n=8)	1870 Points +2%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	1825 Points
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	1792 Points -2%
Score Read
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	1512 Points +103%
Average of class Convertible (525 - 3137, n=61, last 2 years)	1325 Points +78%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	847 Points +14%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	845 Points +13%
Average SK hynix BC511 HFM256GDJTNI-82A0 (639 - 1023, n=8)	822 Points +10%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	745 Points
Score Write
Average of class Convertible (244 - 3315, n=61, last 2 years)	2015 Points +180%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	1211 Points +68%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	975 Points +36%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	719 Points
Average SK hynix BC511 HFM256GDJTNI-82A0 (272 - 946, n=8)	665 Points -8%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	557 Points -23%
Seq Read
Average of class Convertible (1913 - 5684, n=61, last 2 years)	3812 MB/s +147%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	2027 MB/s +31%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	2011 MB/s +30%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	1871 MB/s +21%
Average SK hynix BC511 HFM256GDJTNI-82A0 (1546 - 1930, n=8)	1743 MB/s +13%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	1546 MB/s
Seq Write
Average of class Convertible (180 - 5229, n=61, last 2 years)	2415 MB/s +161%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	1080 MB/s +17%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	1057 MB/s +14%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	926 MB/s
Average SK hynix BC511 HFM256GDJTNI-82A0 (355 - 981, n=8)	758 MB/s -18%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	703 MB/s -24%
4K Read
Average of class Convertible (28.1 - 85.3, n=61, last 2 years)	56.7 MB/s +38%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	55.2 MB/s +35%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	52.7 MB/s +28%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	45.97 MB/s +12%
Average SK hynix BC511 HFM256GDJTNI-82A0 (38.2 - 59.5, n=8)	43.5 MB/s +6%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	41.04 MB/s
4K Write
Average of class Convertible (72.1 - 347, n=61, last 2 years)	166.2 MB/s +91%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	133.5 MB/s +53%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	127 MB/s +46%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	119.3 MB/s +37%
Average SK hynix BC511 HFM256GDJTNI-82A0 (87.2 - 172.9, n=8)	114.5 MB/s +31%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	87.2 MB/s
4K-64 Read
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	1257 MB/s +129%
Average of class Convertible (214 - 2508, n=61, last 2 years)	888 MB/s +62%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	614 MB/s +12%
Average SK hynix BC511 HFM256GDJTNI-82A0 (423 - 771, n=8)	604 MB/s +10%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	589 MB/s +7%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	549 MB/s
4K-64 Write
Average of class Convertible (121.3 - 2636, n=61, last 2 years)	1607 MB/s +198%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	976 MB/s +81%
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	736 MB/s +37%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	539 MB/s
Average SK hynix BC511 HFM256GDJTNI-82A0 (141.1 - 713, n=8)	475 MB/s -12%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	367.1 MB/s -32%
Access Time Read
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	0.117 ms * -52%
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	0.084 ms * -9%
Average of class Convertible (0.024 - 0.225, n=61, last 2 years)	0.08236 ms * -7%
Average SK hynix BC511 HFM256GDJTNI-82A0 (0.052 - 0.098, n=7)	0.07886 ms * -2%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	0.077 ms *
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	0.068 ms * +12%
Access Time Write
HP Pavilion x360 14-dy0157ng Toshiba KBG40ZNV512G	0.182 ms * -323%
Average of class Convertible (0.019 - 0.445, n=61, last 2 years)	0.09084 ms * -111%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Micron 2210 MTFDHBA512QFD	0.053 ms * -23%
Average SK hynix BC511 HFM256GDJTNI-82A0 (0.033 - 0.117, n=8)	0.04713 ms * -10%
Acer Spin 3 SP314-21N-R4GU SK hynix BC511 HFM256GDJTNI-82A0	0.043 ms *
Acer Spin 3 SP314-54N-56S5 SK hynix BC511 HFM256GDJTNI-82A0	0.038 ms * +12%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

No graph data

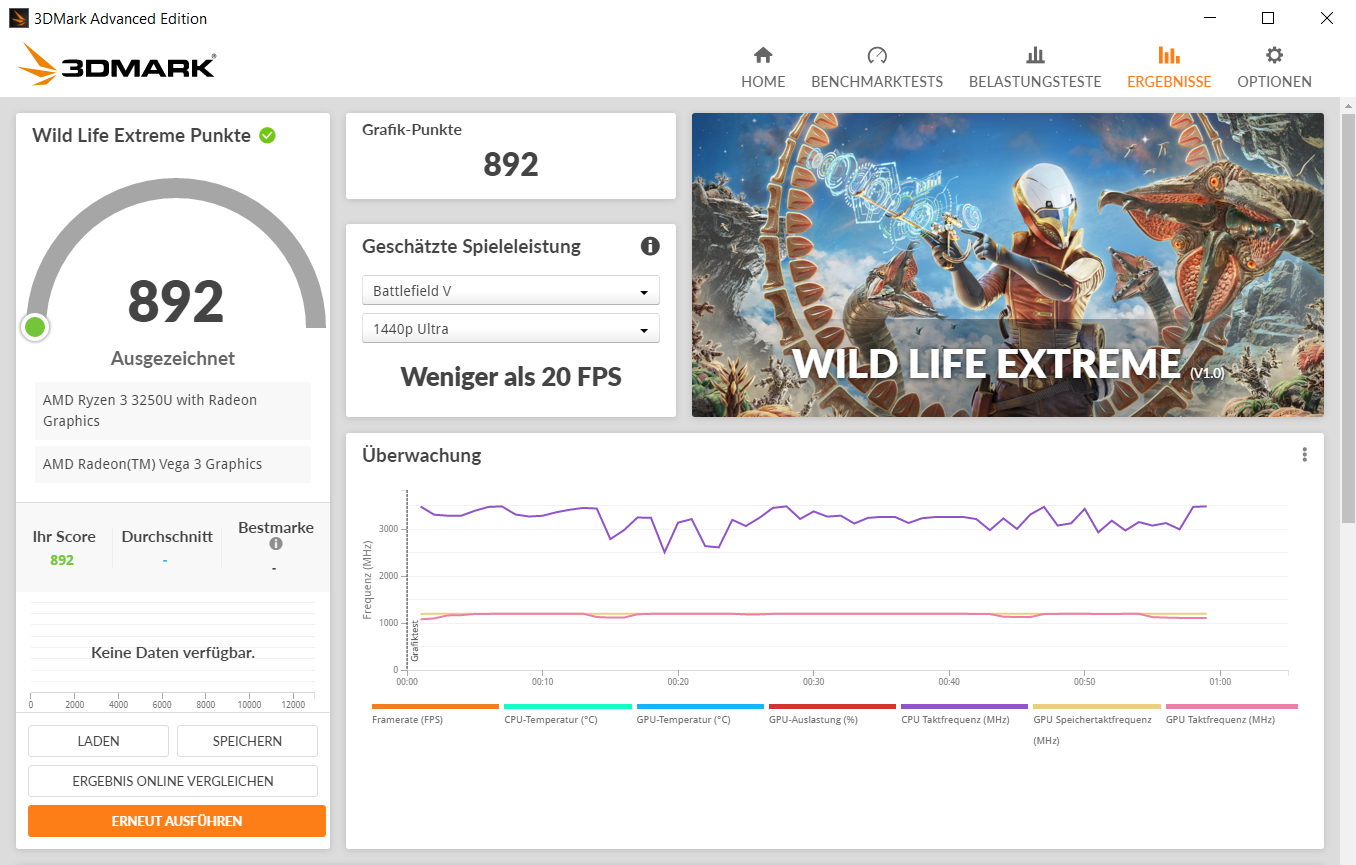

图形卡

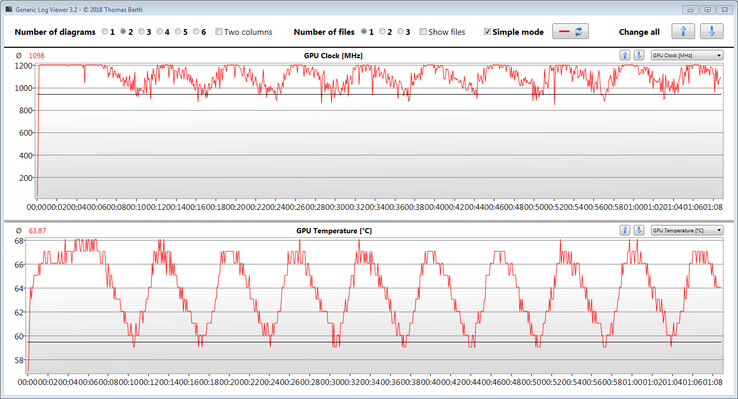

芯片锐龙RX Vega 3GPU支持DirectX 12，运行速度高达1200 MHz。正如我们的TheWitcher 3 测试所显示的那样，该GPU能够在几分钟内保持最高时钟速度。在此之后，时钟速度就会发生变化。3DMark的结果是我们到目前为止为iGPU测量的一些最佳值。

宏碁笔记本电脑能够处理对硬件有非常适度要求或已经有几年历史的游戏。它能够在低分辨率和低质量设置下实现流畅的帧率。

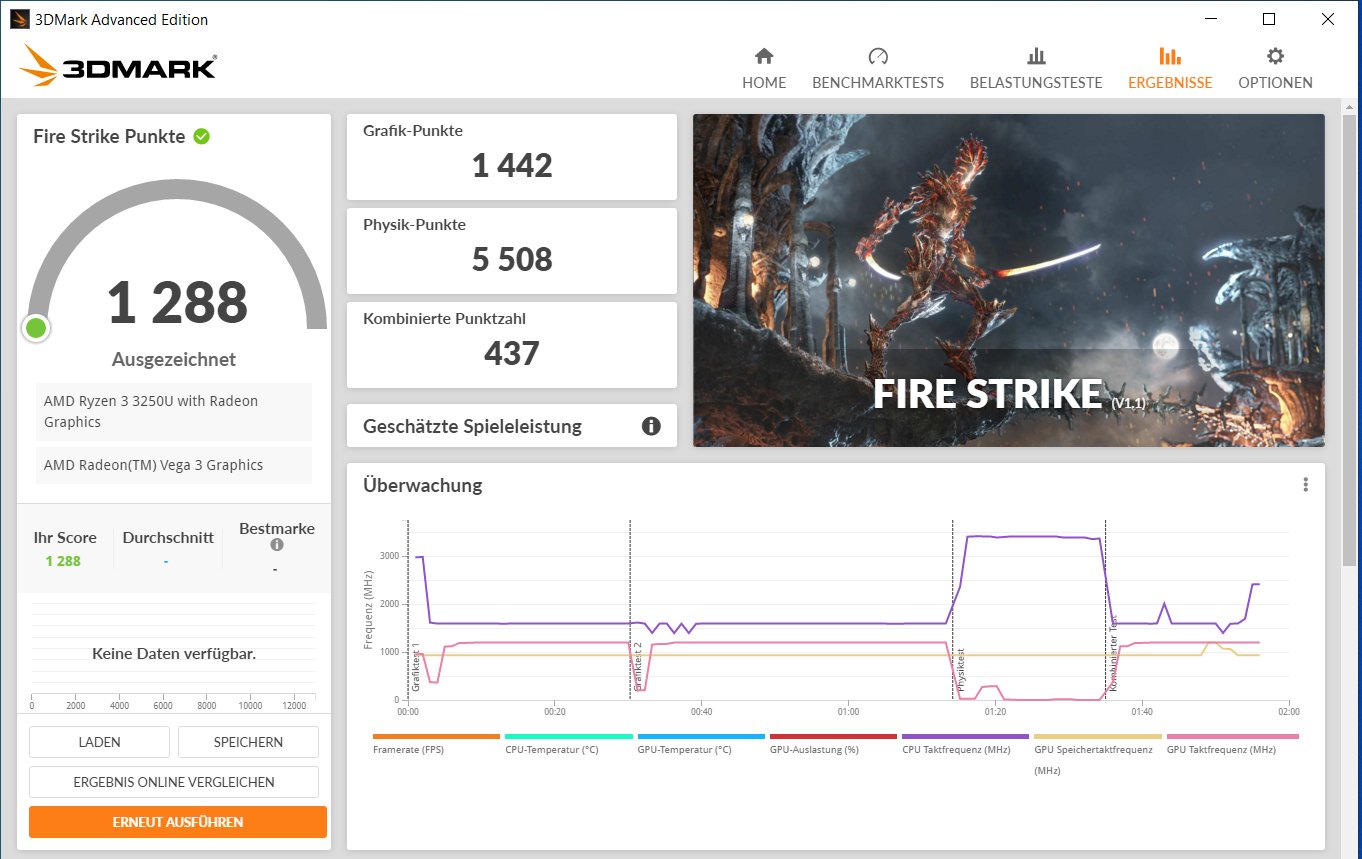

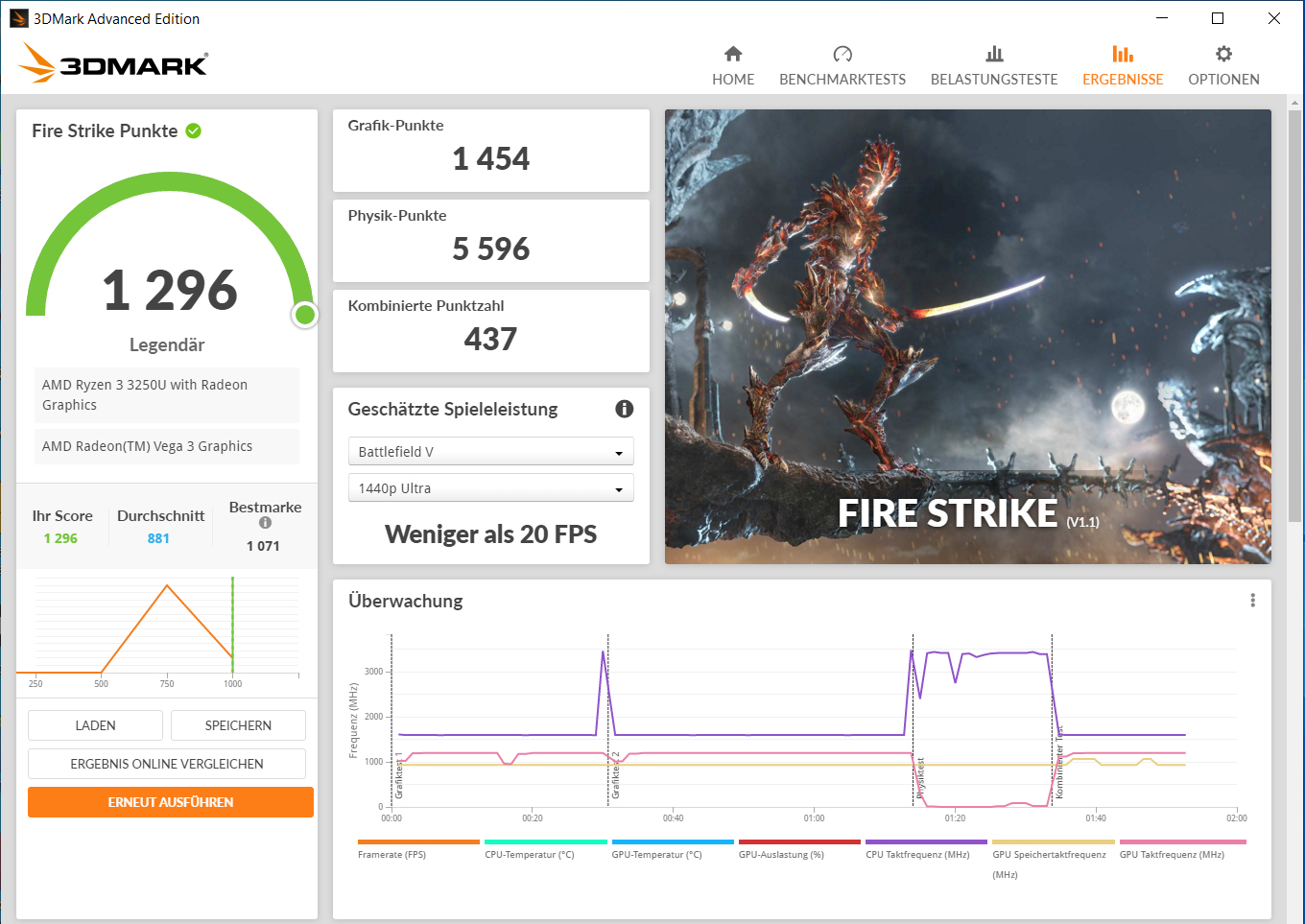

3DMark 06 Standard Score		11493 points
3DMark 11 Performance		2229 points
3DMark Ice Storm Standard Score		58149 points
3DMark Cloud Gate Standard Score		7678 points
3DMark Fire Strike Score		1296 points
3DMark Time Spy Score		504 points
Help

... in comparison

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average of class Convertible	100 pt
HP Pavilion x360 14-dy0157ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	56.7 pt
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE ^-1! AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	48.8 pt
Acer Spin 3 SP314-54N-56S5 ^-1! Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4	34.1 pt
Acer Spin 3 SP314-21N-R4GU AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	21.3 pt
Average AMD Radeon RX Vega 3	17.2 pt

3DMark 11 - 1280x720 Performance GPU
Average of class Convertible (1505 - 40768, n=61, last 2 years)	9923 Points +385%
HP Pavilion x360 14-dy0157ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5808 Points +184%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	5163 Points +152%
Acer Spin 3 SP314-54N-56S5 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4	3334 Points +63%
Acer Spin 3 SP314-21N-R4GU AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	2046 Points
Average AMD Radeon RX Vega 3 (1108 - 2048, n=14)	1674 Points -18%

3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Convertible (7885 - 154219, n=43, last 2 years)	38806 Points +257%
HP Pavilion x360 14-dy0157ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	24558 Points +126%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	20046 Points +85%
Acer Spin 3 SP314-54N-56S5 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4	14903 Points +37%
Acer Spin 3 SP314-21N-R4GU AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	10865 Points
Average AMD Radeon RX Vega 3 (5005 - 12278, n=16)	8533 Points -21%
1920x1080 Fire Strike Graphics
Average of class Convertible (1185 - 29684, n=62, last 2 years)	7285 Points +401%
HP Pavilion x360 14-dy0157ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4143 Points +185%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	3109 Points +114%
Acer Spin 3 SP314-54N-56S5 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4	2207 Points +52%
Acer Spin 3 SP314-21N-R4GU AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	1454 Points
Average AMD Radeon RX Vega 3 (726 - 1522, n=16)	1155 Points -21%
2560x1440 Time Spy Graphics
Average of class Convertible (327 - 11749, n=61, last 2 years)	2674 Points +496%
HP Pavilion x360 14-dy0157ng Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1289 Points +187%
Acer Spin 3 SP314-21N-R4GU AMD Radeon RX Vega 3, AMD Ryzen 3 3250U	449 Points
Average AMD Radeon RX Vega 3 (196 - 450, n=11)	372 Points -17%

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Convertible (22 - 354, n=36, last 2 years)	106.5 fps +407%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	63.1 (3.62^min, 9.3^P0.1, 25.9^P1) fps +200%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	58.1 fps +177%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)	35.65 (28^min) fps +70%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	21 (12.3^min, 12.5^P0.1, 14.3^P1) fps
Average AMD Radeon RX Vega 3 (16.4 - 24.9, n=5)	20.7 fps -1%

Dota 2 Reborn - 1366x768 med (1/3)
Average of class Convertible (38.2 - 192.3, n=64, last 2 years)	82.8 fps +67%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	77.6 (70^min) fps +57%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	49.5 (43.8^min) fps
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46 (28.9^min) fps -7%
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)	43.6 (33.1^min) fps -12%
Average AMD Radeon RX Vega 3 (14.6 - 56.1, n=11)	41.2 fps -17%

X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Convertible (23 - 143.4, n=65, last 2 years)	50.2 fps +135%
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	41.1 fps +92%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	38.7 fps +81%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	21.4 fps
Average AMD Radeon RX Vega 3 (6.95 - 23.5, n=11)	18.6 fps -13%

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Convertible (12.8 - 182.7, n=62, last 2 years)	56.7 fps +288%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.4 fps +101%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	14.6 fps
Average AMD Radeon RX Vega 3 (11.7 - 20.5, n=6)	14.1 fps -3%

GTA V - 1366x768 Normal/Off AF:4x
Average of class Convertible (46.6 - 175.4, n=46, last 2 years)	108.4 fps +111%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	57.6 (21.1^min, 31.3^P1) fps +12%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	51.3 (16.1^min, 30.3^P1) fps
Average AMD Radeon RX Vega 3 (32.4 - 52.2, n=4)	42.7 fps -17%

Strange Brigade - 1280x720 lowest AF:1
Average of class Convertible (27.6 - 453, n=61, last 2 years)	136.5 fps +217%
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	71 (13.3^min, 22.4^P1) fps +65%
Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	43 (22^min, 34.9^P1) fps
Average AMD Radeon RX Vega 3 (24.9 - 44.7, n=5)	36.8 fps -14%

The Witcher 3 FPS Chart

Acer Spin 3 SP314-21N-R4GU R3 3250U, Vega 3: Ø5.19 (3-6)

HP Pavilion x360 14-dy0157ng i5-1135G7, Iris Xe G7 80EUs: Ø10.1 (5-13)

	low	med.	high	ultra
GTA V (2015)	58.4	51.3	13.2	6.69
The Witcher 3 (2015)	21	16	8.24	4.9
Dota 2 Reborn (2015)	67.4	49.5	24.2	21.6
Final Fantasy XV Benchmark (2018)	14.6	6.69	4.7
X-Plane 11.11 (2018)	21.4	12.8	13.1
Strange Brigade (2018)	43	14.9	11.9	10.1
Mass Effect Legendary Edition (2021)	22.2			13.7
Monster Hunter Stories 2 (2021)	38.5	21.7	18.2
F1 2021 (2021)	32.8	15.8	11
New World (2021)	9.36	4.82
Alan Wake Remastered (2021)	21.5	7.64
Far Cry 6 (2021)	17	5
Back 4 Blood (2021)	32.1	10.6
Riders Republic (2021)	16	8

排放和电源管理--宏碁敞篷车保持安静和凉爽

噪声排放

宏碁敞篷车是一个安静的伙伴。在日常操作中（办公、互联网），风扇通常以低速运行，而且经常保持关闭状态。在负载情况下，它只适度提高转速，压力测试期间的最大噪音水平为36 dB（A）。该Pavilion x360 14产生类似的噪音水平。

Noise Level

Idle		25 / 26.7 / 27.5 dB(A)
Load		33.2 / 36 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A)

	Acer Spin 3 SP314-21N-R4GU Vega 3, R3 3250U, SK hynix BC511 HFM256GDJTNI-82A0	HP Pavilion x360 14-dy0157ng Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G	Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE Vega 7, R5 5500U, Micron 2210 MTFDHBA512QFD	Acer Spin 3 SP314-54N-56S5 Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
Noise		-4%	-7%	4%
off / environment *	25	27 -8%	25.6 -2%	24.9 -0%
Idle Minimum *	25	27 -8%	25.6 -2%	24.9 -0%
Idle Average *	26.7	27 -1%	25.6 4%	24.9 7%
Idle Maximum *	27.5	27 2%	25.6 7%	26 5%
Load Average *	33.2	38.3 -15%	43.3 -30%	32.6 2%
Load Maximum *	36	33.2 8%	43.6 -21%	32.8 9%

* ... smaller is better

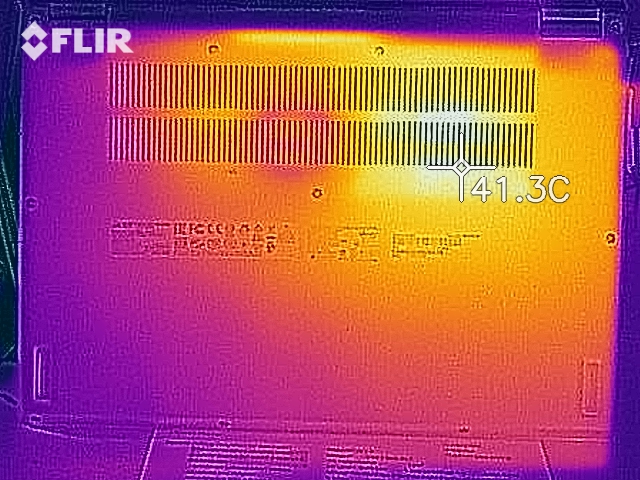

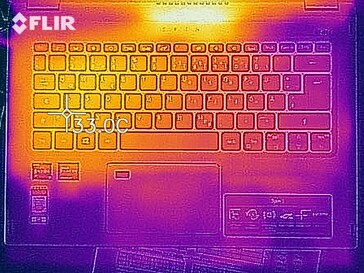

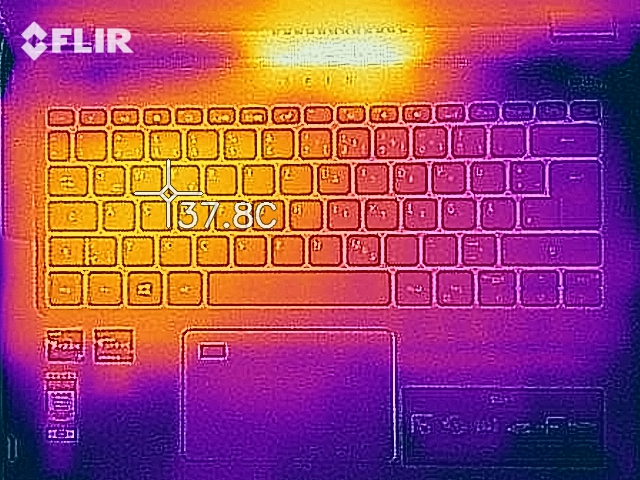

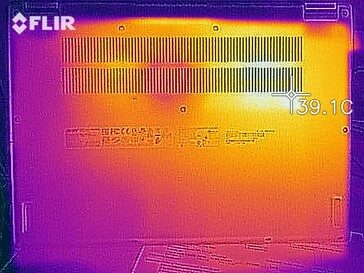

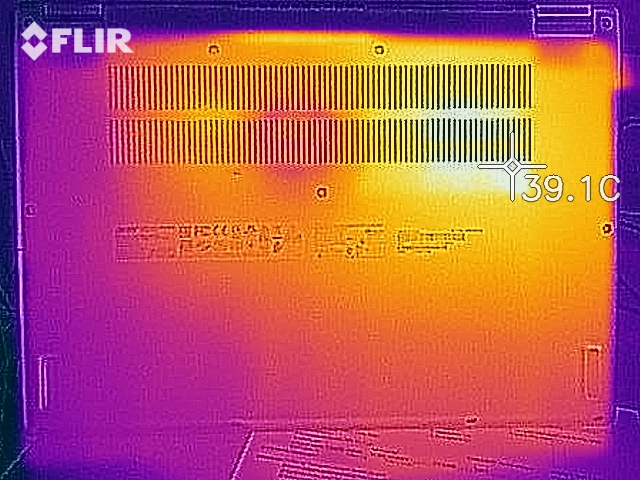

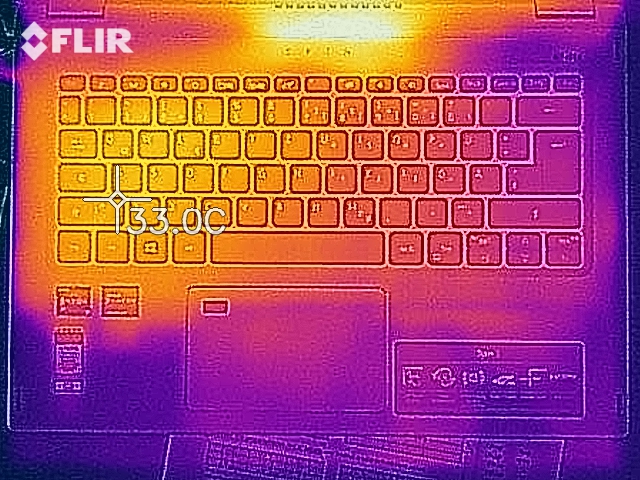

温度

Spin在整个负载范围内只是非常适度地升温。即使在硬件上有较重的负载，机箱也只感觉到手的温度。竞争对手的升温幅度略大。

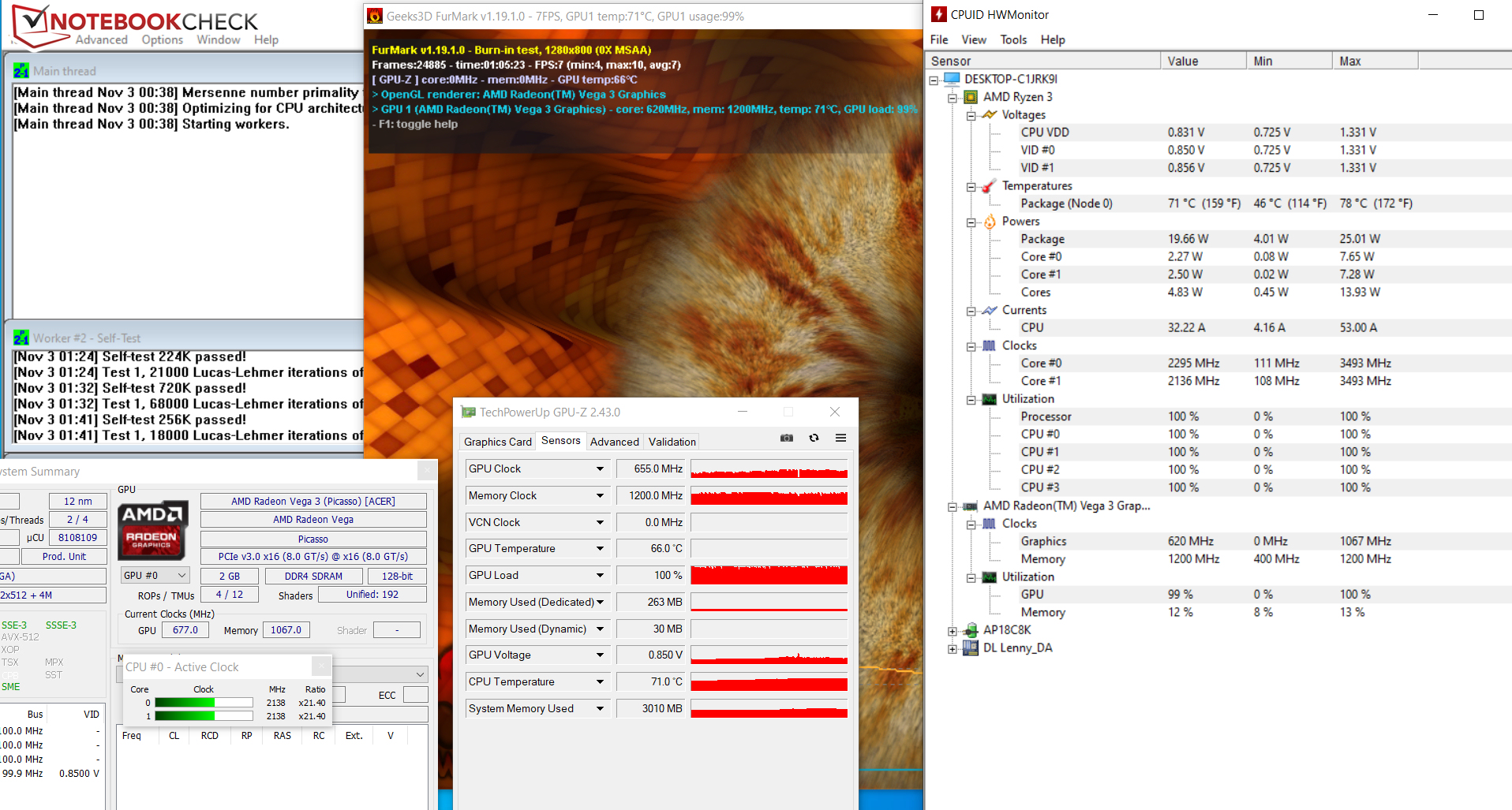

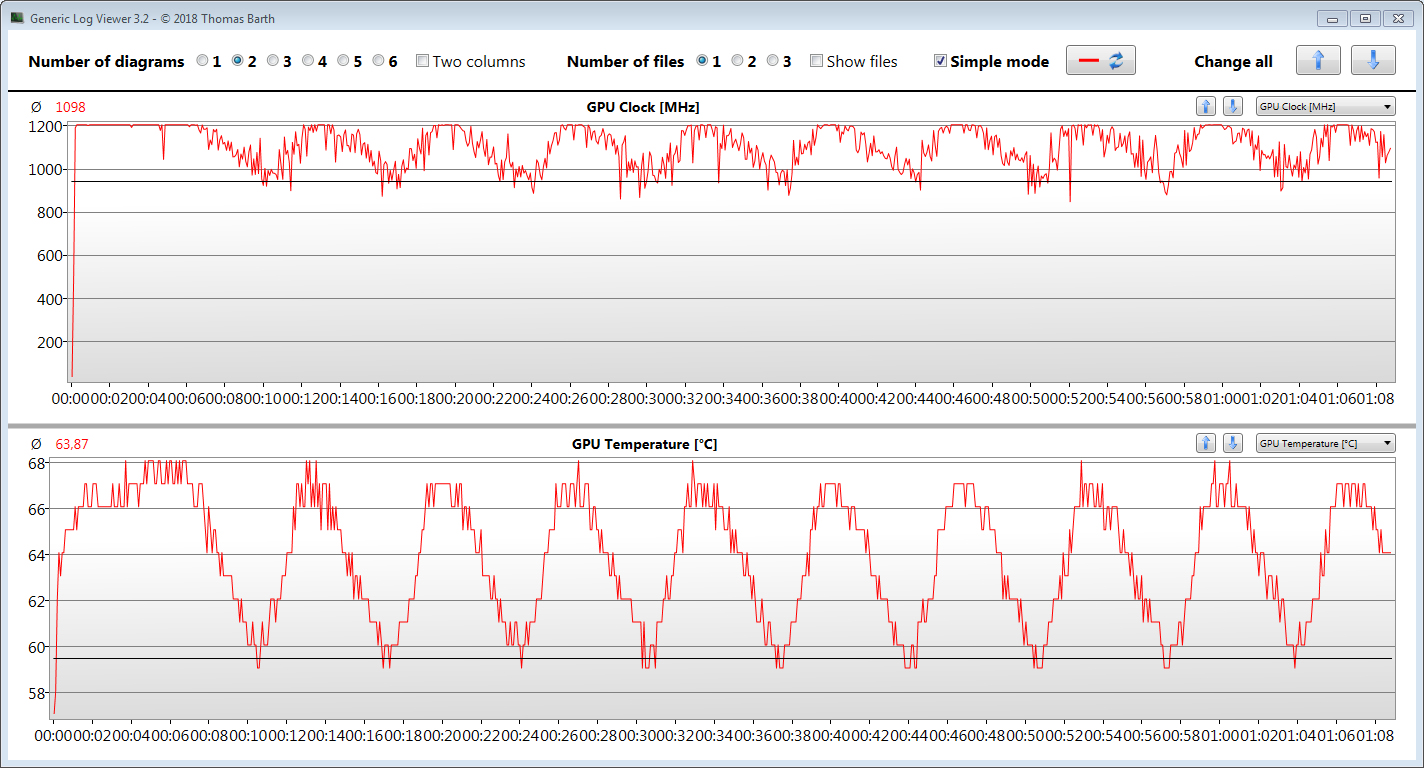

在压力测试的开始阶段（Prime95和Furmark运行至少一个小时），CPU和GPU分别以2.4至2.5GHz和800MHz的速度运行。在测试的其余部分，时钟速度分别下降到2.2GHz和600至700MHz之间。压力测试代表了一种极端的情况，我们用这个测试来评估系统是否在全负荷下也能保持稳定。

Max. Load

Idle


35.3 °C	32.7 °C	26.9 °C
32.7 °C	30.5 °C	27.1 °C
25.4 °C	25.1 °C	23.5 °C

Maximum: 35.3 °C
Average: 28.8 °C


25.7 °C	34.7 °C	36.2 °C
27.1 °C	31.1 °C	32.4 °C
26.1 °C	28.1 °C	28.8 °C

Maximum: 36.2 °C
Average: 30 °C

Power Supply (max.) 38 °C | Room Temperature 22.3 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 28.8 °C / 84 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 35.3 °C / 96 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 36.2 °C / 97 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.4 °C / 81 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.4 °C / 77.7 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (+2.6 °C / 4.7 F).

	Acer Spin 3 SP314-21N-R4GU AMD Ryzen 3 3250U, AMD Radeon RX Vega 3	HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
Heat		-3%	-14%	11%
Maximum Upper Side *	35.3	38.9 -10%	43 -22%	33.9 4%
Maximum Bottom *	36.2	40.3 -11%	46.6 -29%	35.1 3%
Idle Upper Side *	32.5	31.8 2%	30.1 7%	25 23%
Idle Bottom *	30.2	27.4 9%	34 -13%	25.8 15%

* ... smaller is better

发言人

立体声扬声器产生了一个体面的声音，几乎没有任何低音。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Acer Spin 3 SP314-21N-R4GU audio analysis

(±) | speaker loudness is average but good (77.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30.9% lower than median
(±) | linearity of bass is average (12.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3% away from median
(±) | linearity of mids is average (9.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.9% higher than median
(+) | highs are linear (6.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.7% difference to median)
Compared to same class
» 87% of all tested devices in this class were better, 3% similar, 10% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 87% of all tested devices were better, 3% similar, 11% worse
» The best had a delta of 4%, average was 24%, worst was 134%

HP Pavilion x360 14-dy0157ng audio analysis

(±) | speaker loudness is average but good (73.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.2% lower than median
(±) | linearity of bass is average (13.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(+) | mids are linear (3.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(+) | highs are linear (5.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.6% difference to median)
Compared to same class
» 32% of all tested devices in this class were better, 8% similar, 59% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 32% of all tested devices were better, 8% similar, 60% worse
» The best had a delta of 4%, average was 24%, worst was 134%

消耗功率

对于这里使用的硬件来说，功耗范围在正常水平。在压力测试和我们的TheWitcher 3 测试中，功耗略有下降，因为CPU和/或GPU的时钟速度也在下降。额定功率为65瓦，电源的大小是足够的。

Power Consumption

Off / Standby	0.2 / 0.55 Watt
Idle	3.9 / 5.8 / 7 Watt
Load	26 / 36.3 Watt


Key: min: , med: , max: Metrahit Energy

Power Consumption The Witcher 3 / Stress Test

Acer Spin 3 SP314-21N-R4GU R3 3250U, Vega 3; Witcher 3 ultra: Ø25.4 (23.7-28.7)

HP Pavilion x360 14-dy0157ng i5-1135G7, Iris Xe G7 80EUs; Witcher 3 ultra: Ø29.6 (28.6-31.2)

Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE R5 5500U, Vega 7; Witcher 3 ultra: Ø45.4 (44.8-46.6)

Acer Spin 3 SP314-21N-R4GU R3 3250U, Vega 3; 1280x720 Prime95 28.10 and Furmark 1.25: Ø36.3 (34.1-38.2)

电池寿命

在我们现实的WLAN测试中，二合一设备的电池寿命达到了7:05小时。在这个测试中，通过脚本模拟了打开网站时的负载。

Battery Runtime


WiFi Websurfing (Edge 95)		7h 05min

Battery Runtime - WiFi Websurfing
Lenovo IdeaPad Flex 5 14ALC05-82HU006NGE R5 5500U, Vega 7, 52.5 Wh	705 min +66%
Average of class Convertible (305 - 1102, n=65, last 2 years)	626 min +47%
Acer Spin 3 SP314-54N-56S5 i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU), 48 Wh	451.9 min +6%
HP Pavilion x360 14-dy0157ng i5-1135G7, Iris Xe G7 80EUs, 43 Wh	427 min 0%
Acer Spin 3 SP314-21N-R4GU R3 3250U, Vega 3, 48.9 Wh	425 min

Pros

+ IPS触摸屏

+ 运行时基本安静

+ 非常适度的发热

+ USB 3.2 Gen 2

+ 可选的笔输入

Cons

- 黑暗、反光的显示屏，对比度差

- 色彩空间覆盖不佳

- 存储卡阅读器速度慢

- 没有键盘照明

- 没有电源传输

- 平庸的WLAN传输速率

- 工作存储器被焊接在一起

- 没有工作存储器插槽

结论 - 坚实的宏碁Spin 3 SP314-21N可能是学校和大学所需要的。

宏碁Spin 3 SP314-21N-R4GU，测试单位由nbb.com（notebooksbilliger.de）提供。

用一个的Ryzen 3-3250UAPU，8GB双通道模式的板载工作内存，以及256GB的NVMe固态硬盘（M.2-2280），这款敞篷车可用于办公和互联网操作。总的来说，这款笔记本电脑只产生很少的噪音，几乎不发热。伴随而来的是约7小时的WLAN电池寿命。

宏碁的二合一笔记本电脑只提供了一个微薄的设备水平。然而，低噪音和温度的发展以及笔输入的选择仍然使这一设备很有趣。

触摸屏显示器（FHD，IPS）总体上没有说服力，因为亮度、对比度和色彩空间覆盖率都变成了太低，而且还有一个反射面。触摸屏可以用手指或主动输入笔操作。然而，在Spin 3系列的一些其他型号中可以使用的笔并不包括在我们这里测试的Spin 3型号中。

Spin 3的一个替代品可能是惠普Pavilion x360 14.它是我们比较领域中唯一允许扩大或更换工作存储器的设备。目前你可以得到一个奔腾金-7505U型号（PN：39Z42EA），价格约为550欧元（约638美元）。Tiger Lake 奔腾的整体性能高于Ryzen 3 APU。

价格和可用性

宏碁Spin 3 SP314-21N的工作内存和存储空间较少（Ryzen 3 3250U，4GB内存，128GB固态硬盘），在亚马逊的价格为$379.

Acer Spin 3 SP314-21N-R4GU - 11/09/2021 v7 ^(old)
Sascha Mölck

Chassis

78 / 98 → 79%

Keyboard

76%

Pointing Device

87%

Connectivity

51 / 75 → 69%

Weight

69 / 20-75 → 89%

Battery

75%

Display

78%

Games Performance

48 / 78 → 61%

Application Performance

74 / 85 → 88%

Temperature

94%

Noise

93%

Audio

63 / 91 → 69%

Camera

42 / 85 → 49%

Average

71%

81%

Convertible - Weighted Average

Price comparison

Editor of the original article: Mark Riege - Translator - 542 articles published on Notebookcheck since 2018

Translator: Ninh Ngoc Duy - Editorial Assistant - 527922 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Acer Spin 3 SP314-21N评论。一台安静的二合一笔记本电脑，带笔输入

Sascha Mölck, 2021-11-10 (Update: 2021-11-10)

Possible Competitors in Comparison

外壳和设备 - Spin 3提供USB 3.2 Gen 2

Size Comparison

输入设备 - SP314不提供键盘照明。

显示器 - 板载IPS

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

性能 - 宏碁的二合一设备带来了Ryzen 3 APU

测试条件

处理器

Cinebench R15 Multi Constant Load Test

系统性能

DPC延迟

存储解决方案

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

图形卡

The Witcher 3 FPS Chart

排放和电源管理--宏碁敞篷车保持安静和凉爽

噪声排放

温度

发言人

Acer Spin 3 SP314-21N-R4GU audio analysis

HP Pavilion x360 14-dy0157ng audio analysis

消耗功率

Power Consumption The Witcher 3 / Stress Test

电池寿命

Pros

Cons

结论 - 坚实的宏碁Spin 3 SP314-21N可能是学校和大学所需要的。

价格和可用性

More articles related to this device

Price comparison
