Apple iMac 24 M1 2021年的回顾。Apple'M1 SoC在台式机中也有说服力吗?

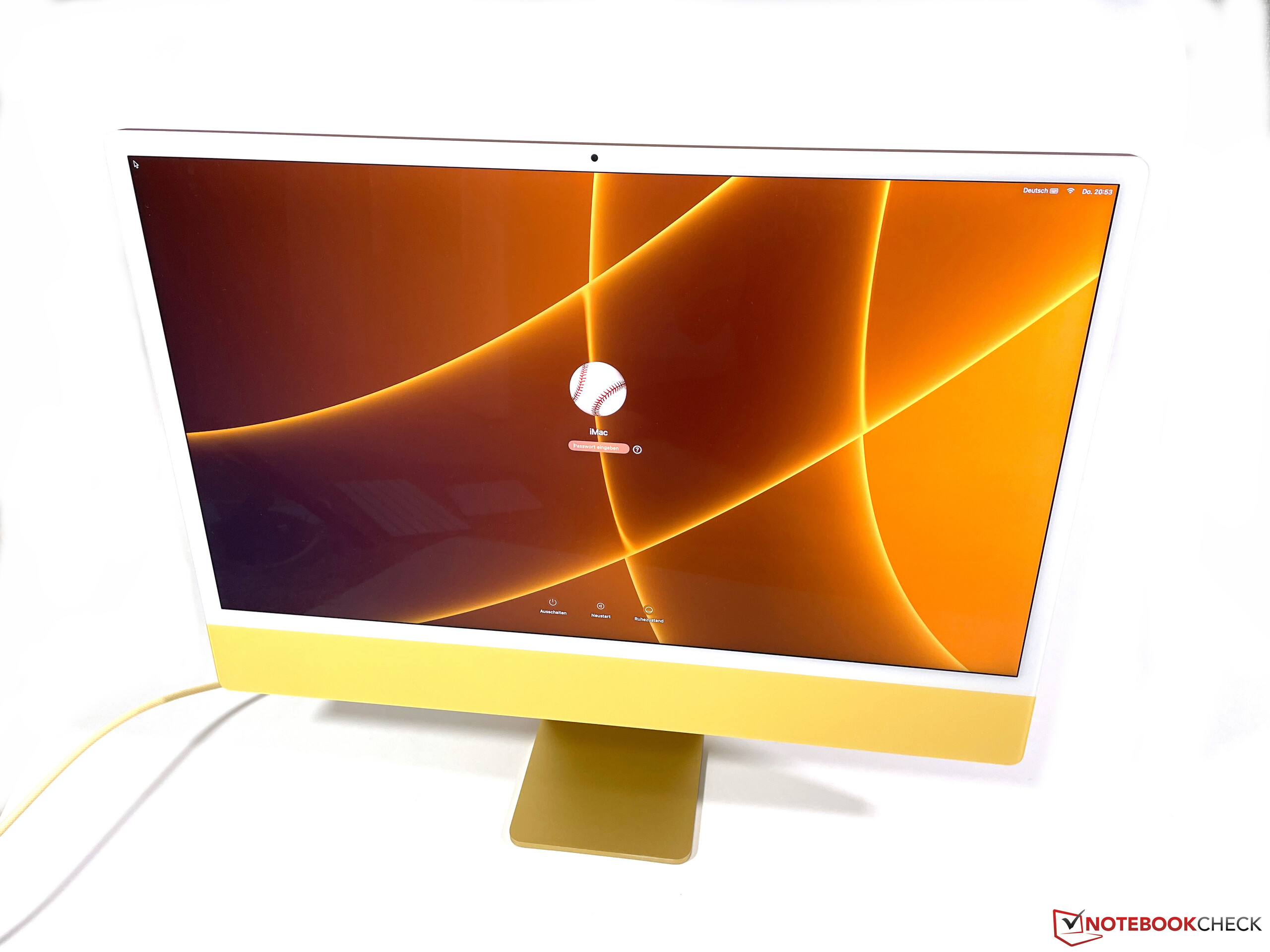

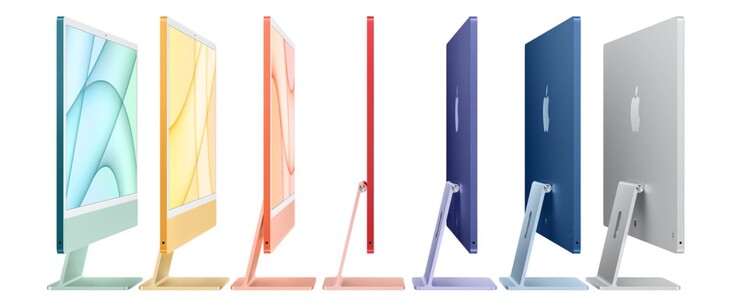

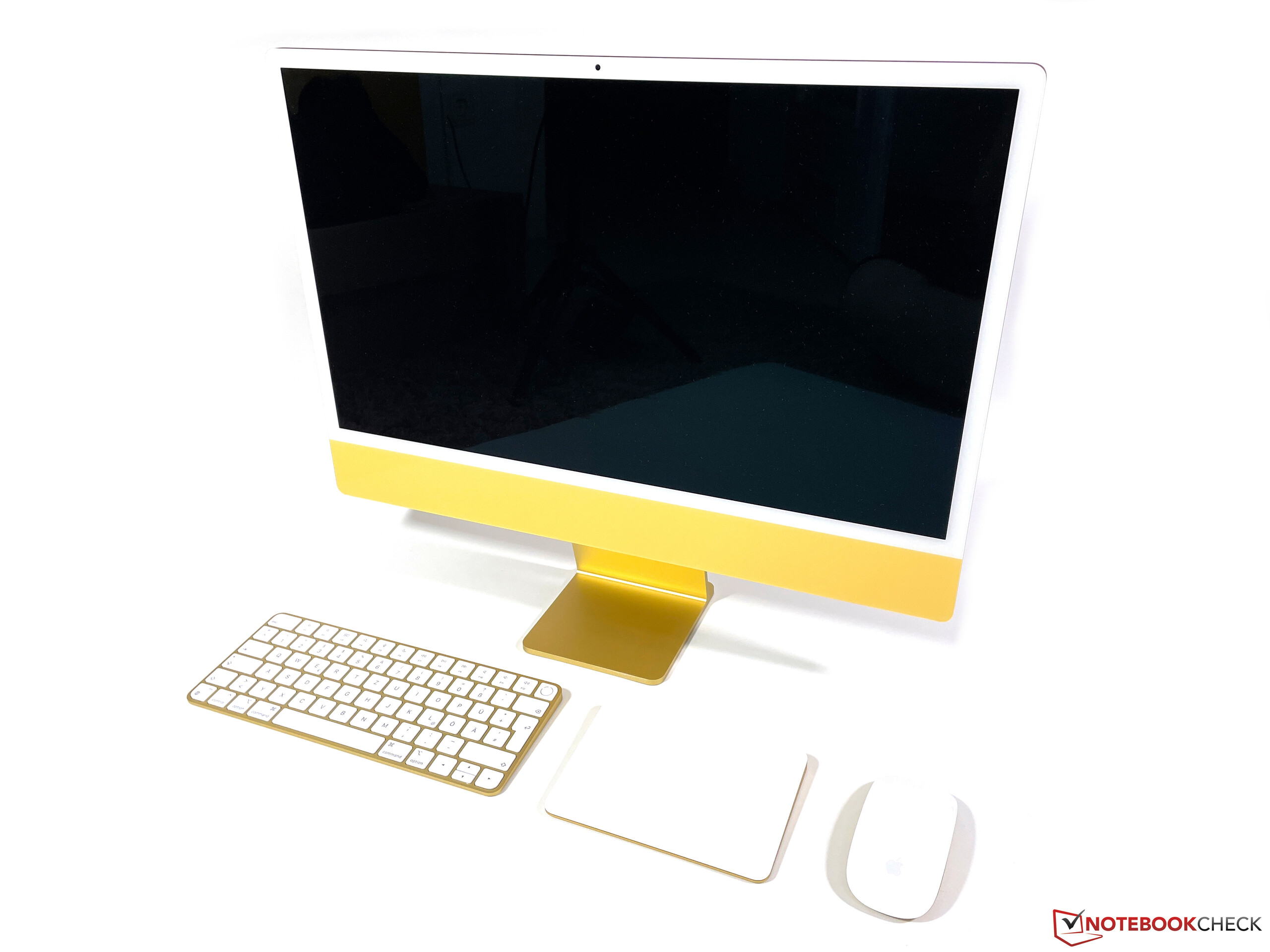

在书桌上,它变得五彩缤纷。 Apple ,现在iMac也使用自己的M1处理器。配备23.5英寸4.5K视网膜显示屏的新机型取代了之前的21.5英寸机型,并有多种不同颜色可供选择。在测试中,这台台式电脑在许多方面都令人信服,只有大声的冷却是一个惊喜。
Andreas Osthoff, 👁 Andreas Osthoff (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
Apple ARM Desktop Thunderbolt
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Apple iMac 24 M1 2021
Processor
Apple M1 8 x 2.1 - 3.2 GHz
Graphics adapter
Apple M1 8-Core GPU
Memory
8192 MB
, LPDDR4X-4266
Display
23.50 inch 16:9, 4480 x 2520 pixel 219 PPI, IPS, glossy: yes, 60 Hz
Storage
Apple SSD AP0512, 512 GB
, 467 GB free
Connections
2 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 DisplayPort, Audio Connections: 3.5 mm, 1 Fingerprint Reader, Brightness Sensor
Networking
Broadcom BCM57762 (10/100/1000/2500/5000MBit/s), 802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Size
height x width x depth (in mm): 461 x 547 x 147
Operating System
Apple macOS 11 Big Sur
Camera
Webcam: 1080p FaceTime HD
Primary Camera: 2 MPix
Additional features
Speakers: 6, Keyboard: Chiclet, Keyboard Light: no, 143W PSU, Magic Mouse, Magic Keyboard, Magic TrackPad, 12 Months Warranty
Weight
4.404 kg
Price
1800 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
85.4 %
10/2021
Apple iMac 24 M1 2021
M1, M1 8-Core GPU
4.4 kg461 mm23.50"4480x2520
86.4 %
Apple iMac 27 Mid 2020
i9-10910, Radeon RX 5700 XT (Desktop)
8.9 kg203 mm27.00"5120x2880
86.8 %
Apple iMac Pro
W-2145, Pro Vega 56
9.8 kg516 mm27.00"5120x2880

外壳、设备和输入装置

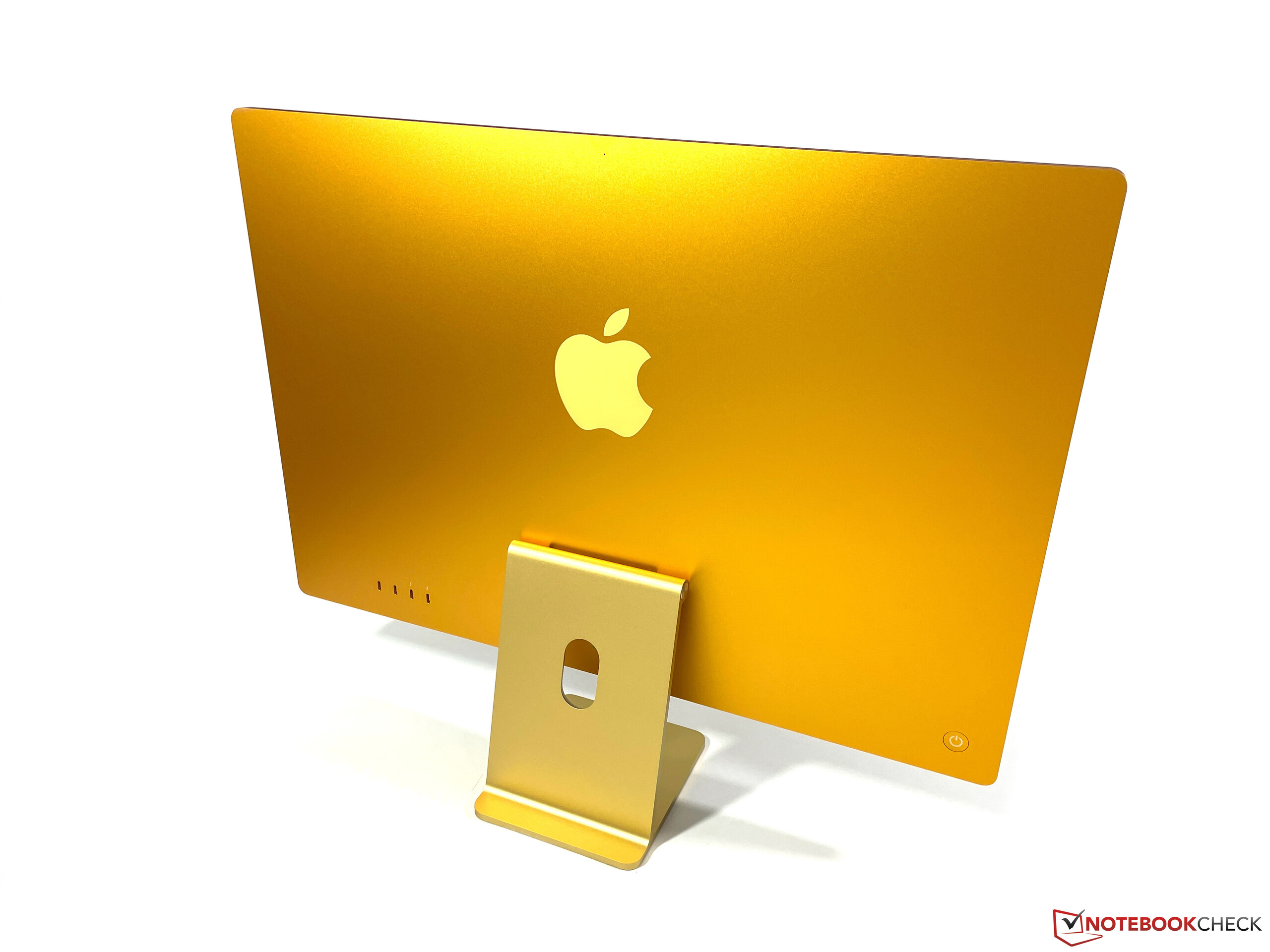

iMac的外壳与它的前任不同 前辈的不同之处.现在外壳的厚度在所有地方都是一样的(以前是很鼓的),但在显示屏下面使用塑料意味着这款一体机看起来不再那么高质量。下边框的宽度看起来也不是特别现代;这里肯定会有更多的东西。然而,制造质量仍然很好,没有理由提出批评。内置的支架不允许调整高度,只有倾斜角度可以稍微调整。iMac也有集成VESA适配器的版本(~50欧元/~58美元的附加费),但没有包含支架,也不能加装。我们的测试设备采用黄色,看起来非常好,尽管每种口味都应该在这里找到合适的颜色。

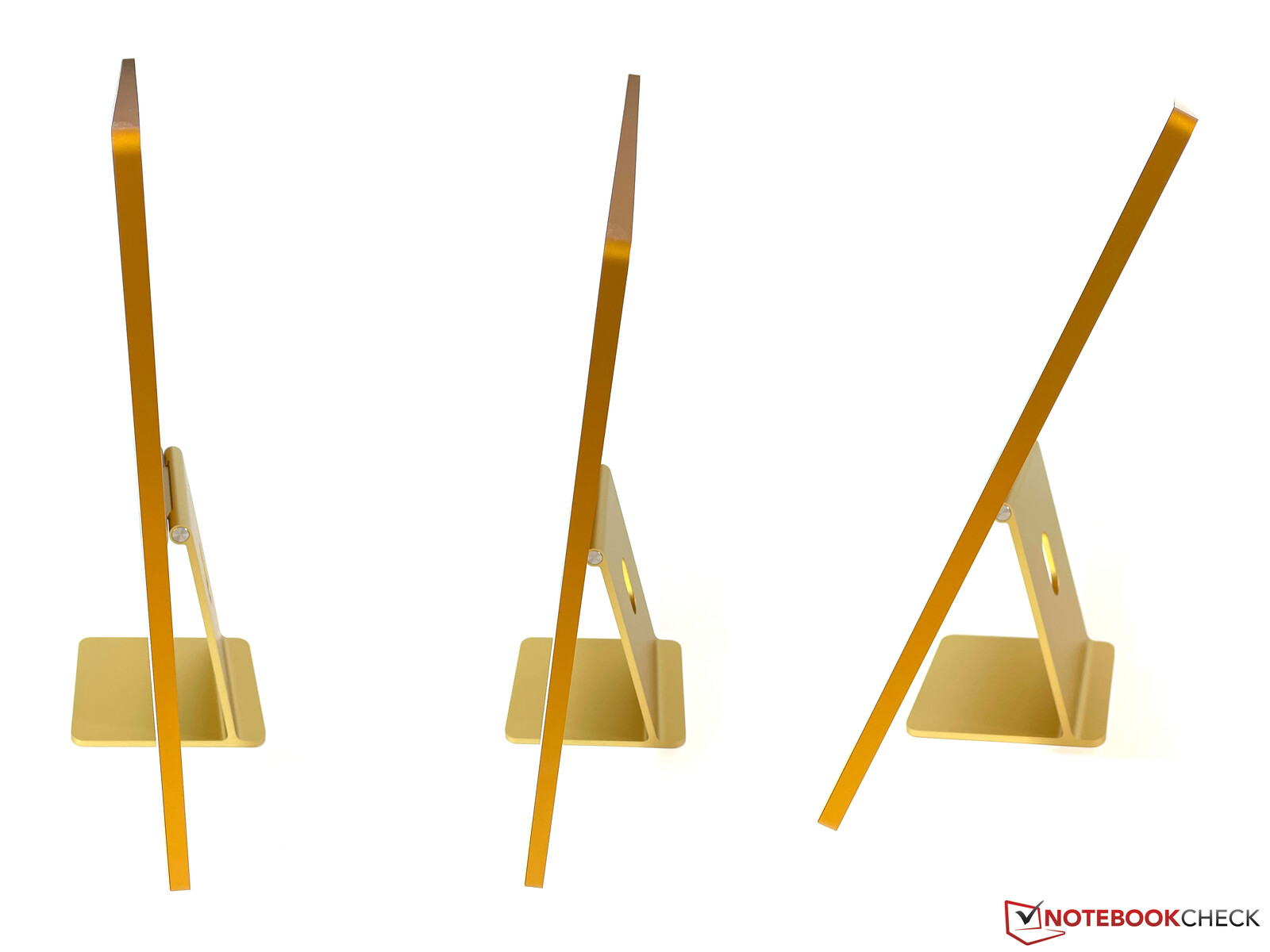

倾角
倾角

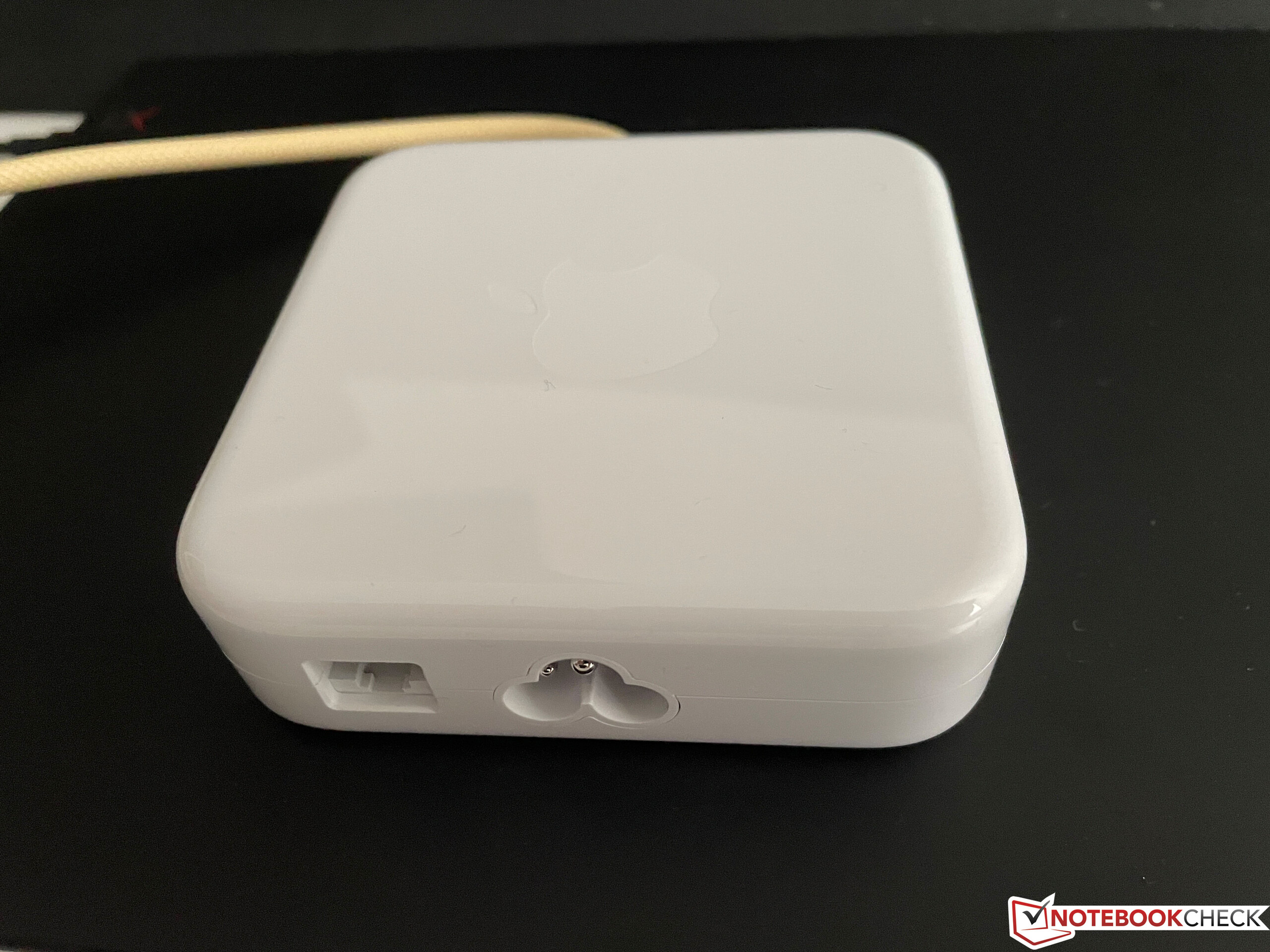

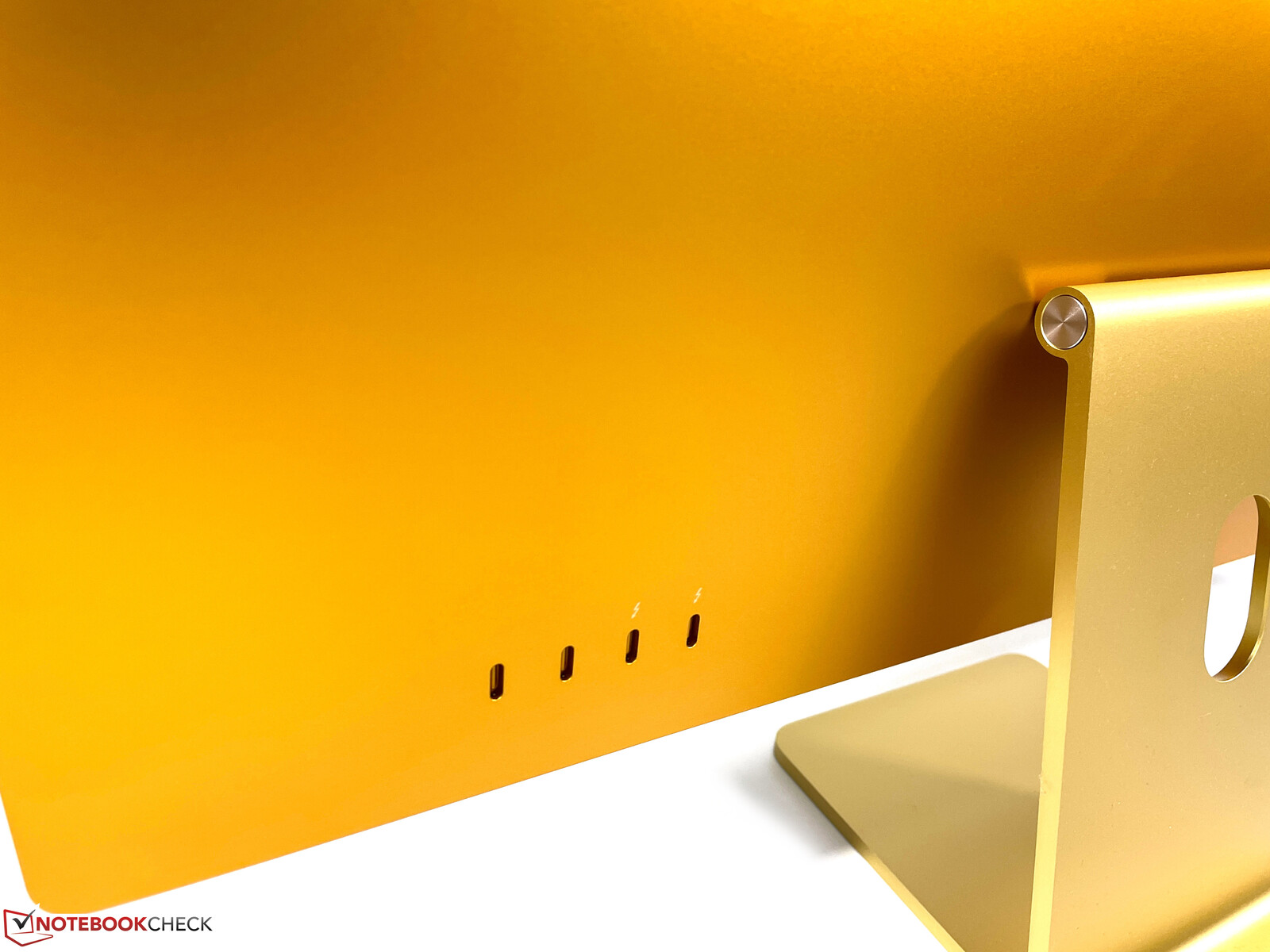

4个USB-C接口(2个TB4,2个USB 3.2 Gen.2),电源装置上有千兆以太网。
4个USB-C接口(2个TB4,2个USB 3.2 Gen.2),电源装置上有千兆以太网。

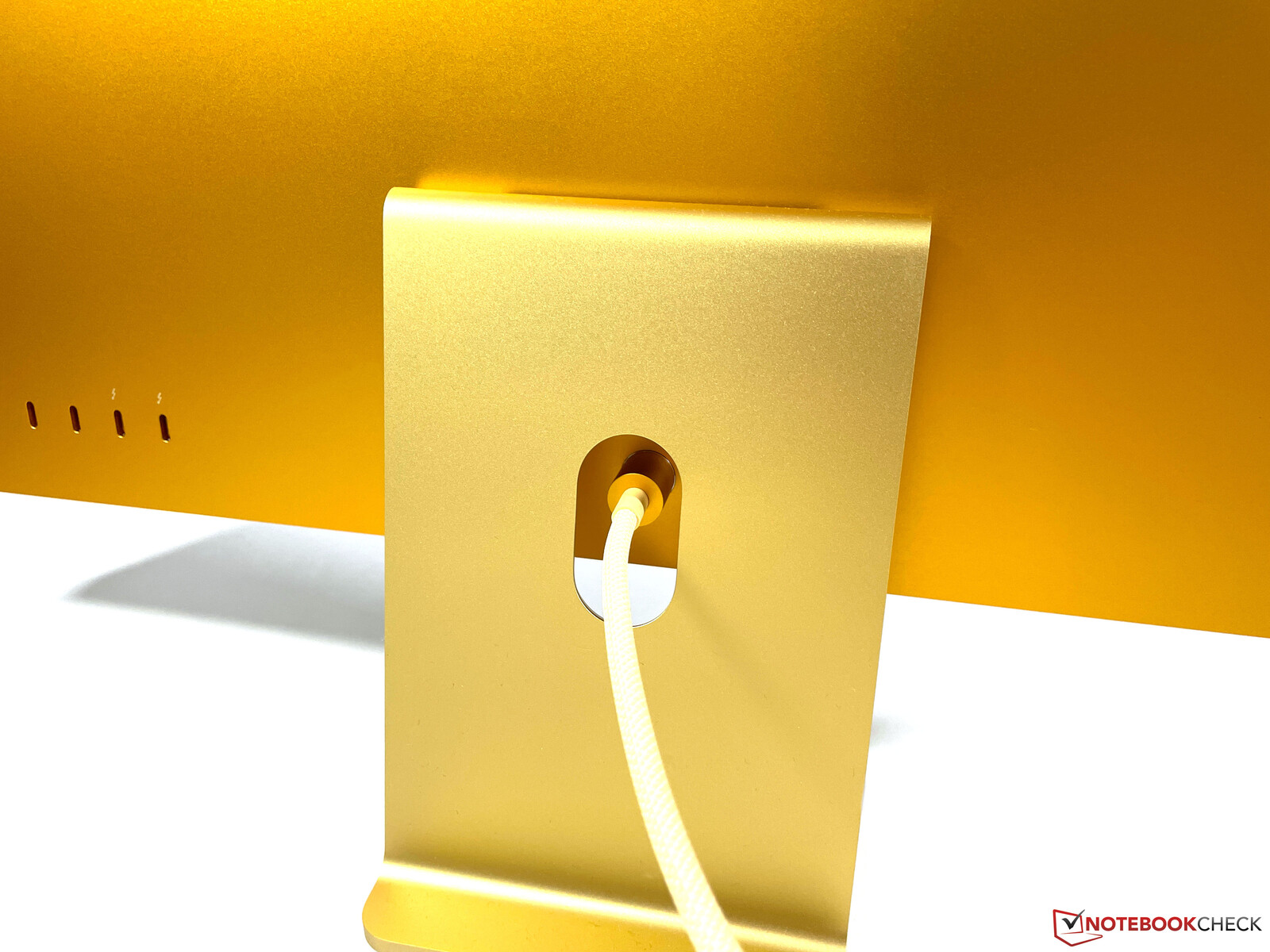

磁性电源插头
磁性电源插头

拥有7个GPU核心的基本型号只在背面提供两个USB-C端口(USB-4/Thunderbolt 3,40GBit/s)。那些选择带有8个GPU核心的配置的用户可以得到两个更多的USB-C端口(3.2 Gen.2),以及作为标准的电源上的千兆以太网插头。Wi-Fi 6和蓝牙5.0也包括在内,尽管WLAN性能(与M1 MacBooks的性能一样)。 M1 MacBooks)有点低(Wi-Fi 6只有80MHz)。然而,在测试中,信号质量非常好。

iMac的这些端口非常灵活,但是当你想快速连接外部硬盘或U盘时,这个位置在实践中不是很实用。我们希望能在侧面看到一个额外的USB接口,类似于左侧边缘的插孔。因此,你很难绕过一个USB集线器。

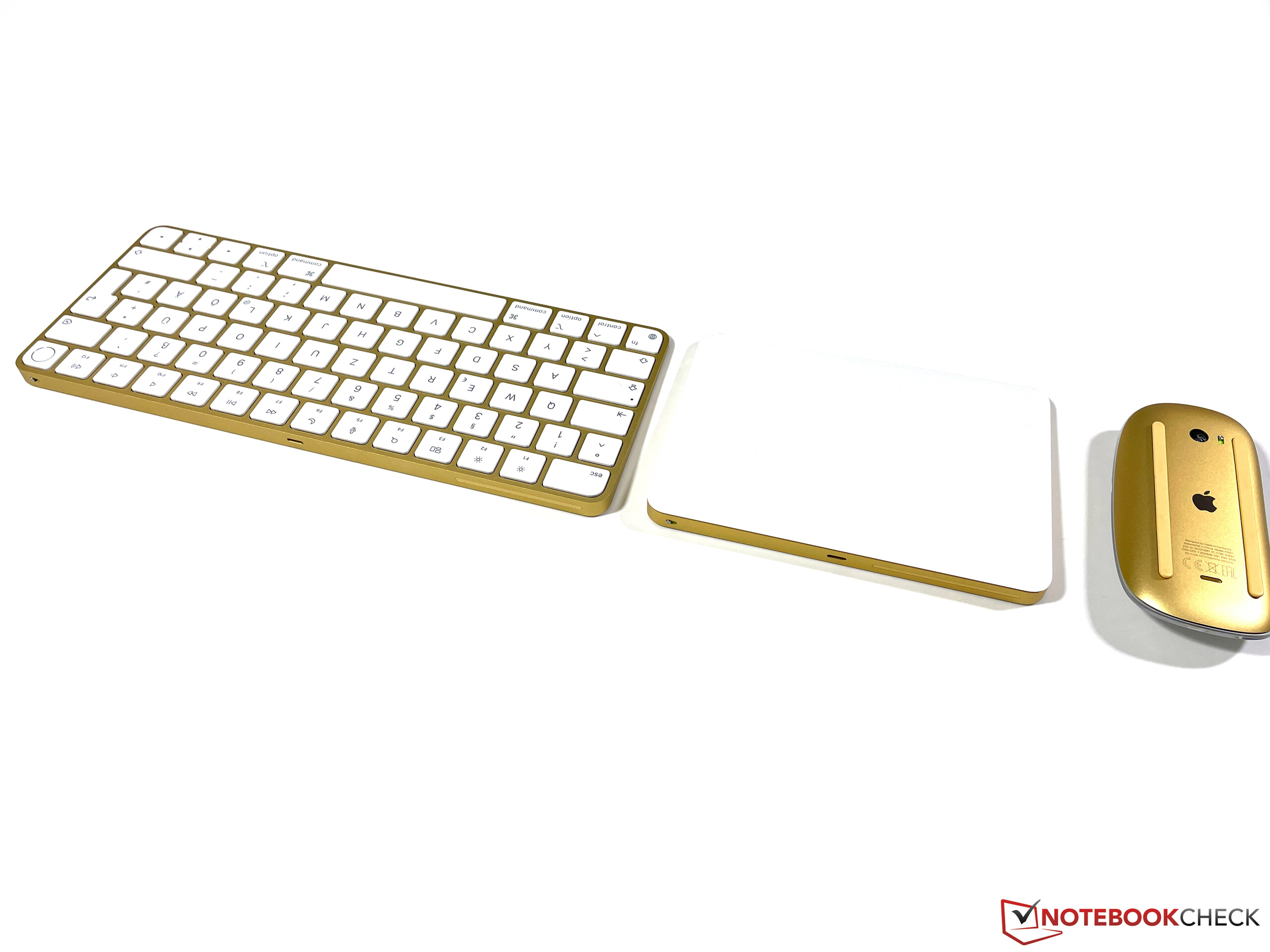

我们已经知道前辈们的输入设备,特别是TrackPad工作得非常好。由于集成了Touch ID,键盘非常实用,但它只为桌面输入提供很少的行程(与MacBooks相当),而且也没有照明。如果你想写很多东西,你肯定会得到更好的替代品,但它们不能提供所有的舒适功能。

Networking
iperf3 Client (transmit) 1 m 4M x10 Netgear AX12
Average 802.11 a/b/g/n/ac/ax
  (405 - 1750, n=102)
787 MBit/s ∼100% +4%
Apple iMac 24 M1 2021
802.11 a/b/g/n/ac/ax
754 (359min - 811max) MBit/s ∼96%
Apple iMac Pro
Broadcom 802.11ac
713 MBit/s ∼91% -5%
Average of class Desktop
  (172 - 1626, n=19, last 2 years)
651 MBit/s ∼83% -14%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
802.11 a/b/g/n/ac/ax
649 (611min - 664max) MBit/s ∼82% -14%
Apple iMac 27 Mid 2020
Broadcom 802.11ac
602 MBit/s ∼76% -20%
Apple MacBook Pro 16 2019 i9 5500M
Broadcom 802.11ac
581 (533min - 616max) MBit/s ∼74% -23%
iperf3 Client (receive) 1 m 4M x10 Netgear AX12
Apple MacBook Pro 16 2019 i9 5500M
Broadcom 802.11ac
817 (806min - 821max) MBit/s ∼100% +15%
Average of class Desktop
  (346 - 1524, n=19, last 2 years)
791 MBit/s ∼97% +11%
Average 802.11 a/b/g/n/ac/ax
  (284 - 1414, n=102)
765 MBit/s ∼94% +7%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
802.11 a/b/g/n/ac/ax
757 (378min - 806max) MBit/s ∼93% +6%
Apple iMac 27 Mid 2020
Broadcom 802.11ac
723 MBit/s ∼88% +1%
Apple iMac Pro
Broadcom 802.11ac
721 MBit/s ∼88% +1%
Apple iMac 24 M1 2021
802.11 a/b/g/n/ac/ax
713 (591min - 739max) MBit/s ∼87%
050100150200250300350400450500550600650700750800Tooltip
; iperf3 Client (receive) 1 m 4M x10 Netgear AX12; iperf 3.1.3: Ø712 (591-739)
; iperf3 Client (transmit) 1 m 4M x10 Netgear AX12; iperf 3.1.3: Ø742 (359-811)
ColorChecker
12.2 ∆E
8 ∆E
10.2 ∆E
14.8 ∆E
8.4 ∆E
7 ∆E
10.7 ∆E
7.3 ∆E
9.4 ∆E
6.6 ∆E
6.8 ∆E
4.5 ∆E
6.6 ∆E
12.4 ∆E
12.6 ∆E
4.9 ∆E
10.4 ∆E
11.1 ∆E
2.3 ∆E
7.6 ∆E
11.4 ∆E
14.4 ∆E
14 ∆E
4.3 ∆E
ColorChecker Apple iMac 24 M1 2021: 9.08 ∆E min: 2.33 - max: 14.79 ∆E

显示器 - 配备4.5K视网膜屏幕的iMac

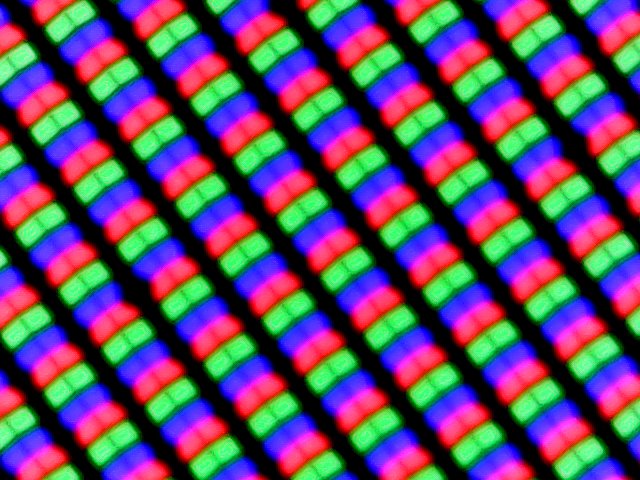

子像素排列
子像素排列

23.5英寸显示屏提供了非常高的分辨率,即4480 x 2,520像素,像素密度为218 PPI。因此,显示的内容非常清晰,与macOS结合使用也没有缩放问题。IPS面板的主观画面印象非常好,像True Tone(根据环境自动调整色温)以及亮度传感器都非常实用,它们也能完美地工作。

Apple 表示亮度为500尼特,但根据我们的分析(CalMAN Professional和X-Rite i1 Pro 2),我们只能在显示器的中心确认这一点。平均亮度约为480cd/m²。与之前的 iMacs,Apple ,能够减少黑值,这就是为什么对比度(>1,400:1)也更好。我们没有注意到PWM的闪烁,对于IPS显示器来说,响应时间相对较好(没有重影)。

427
cd/m²
489
cd/m²
468
cd/m²
481
cd/m²
523
cd/m²
492
cd/m²
475
cd/m²
482
cd/m²
477
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 523 cd/m² (Nits) Average: 479.3 cd/m² Minimum: 3.6 cd/m²
Brightness Distribution: 82 %
Contrast: 1414:1 (Black: 0.37 cd/m²)
ΔE Color 1.1 | 0.59-29.43 Ø5.4, calibrated: 0.4
ΔE Greyscale 1.5 | 0.64-98 Ø5.7
86.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.98% sRGB (Argyll 2.2.0 3D)
97.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16
Apple iMac 24 M1 2021
IPS, 4480x2520, 23.50
Apple iMac 27 Mid 2020
APPAE32, IPS, 5120x2880, 27.00
Apple iMac Pro
APPAE1E, , 5120x2880, 27.00
Display
1%
1%
Display P3 Coverage
97.7
98.73
1%
98.97
1%
sRGB Coverage
99.98
100
0%
99.97
0%
AdobeRGB 1998 Coverage
86.6
89.49
3%
88.83
3%
Response Times
19%
-6%
Response Time Grey 50% / Grey 80% *
29.2 ?(15.6, 13.6)
27.2 ?(12.4, 14.8)
7%
30.4 ?(14, 16.4)
-4%
Response Time Black / White *
17.6 ?(10, 7.6)
12.4 ?(4.8, 7.6)
30%
18.8 ?(11.2, 7.6)
-7%
PWM Frequency
22730 ?(66)
208.3 ?(50)
Screen
-18%
-71%
Brightness middle
523
529
1%
496
-5%
Brightness
479
511
7%
468
-2%
Brightness Distribution
82
88
7%
87
6%
Black Level *
0.37
0.48
-30%
0.54
-46%
Contrast
1414
1102
-22%
919
-35%
Colorchecker dE 2000 *
1.1
1.4
-27%
3
-173%
Colorchecker dE 2000 max. *
2
2.6
-30%
5.8
-190%
Colorchecker dE 2000 calibrated *
0.4
0.9
-125%
Greyscale dE 2000 *
1.5
2.2
-47%
2.5
-67%
Gamma
2.16 102%
2.32 95%
2.22 99%
CCT
6729 97%
6826 95%
6824 95%
Color Space (Percent of AdobeRGB 1998)
80
79.4
Color Space (Percent of sRGB)
100
100
Total Average (Program / Settings)
1% / -8%
-25% / -46%

* ... smaller is better

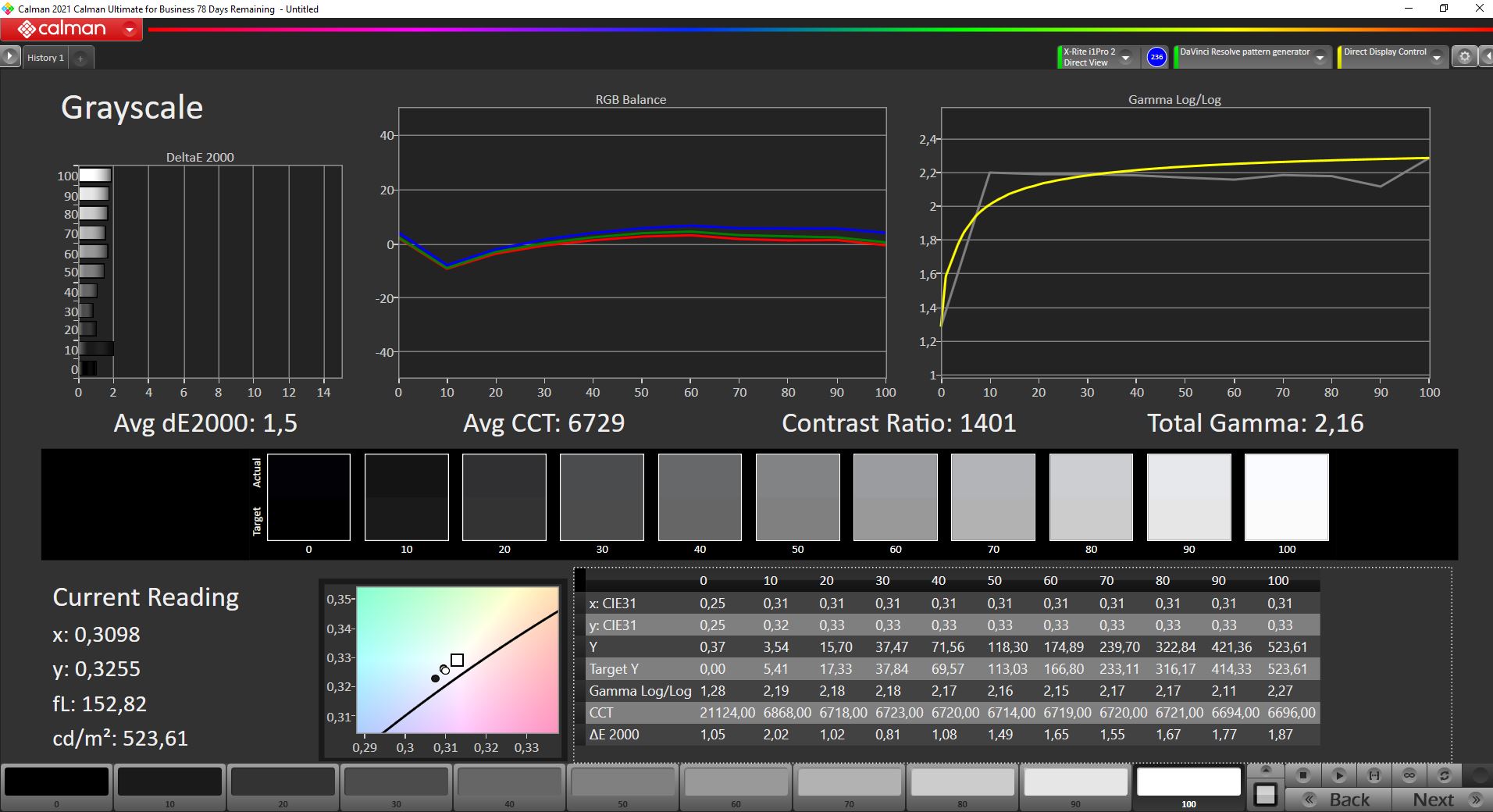

CalMAN灰度(目标色彩空间P3)。
CalMAN灰度(目标色彩空间P3)。

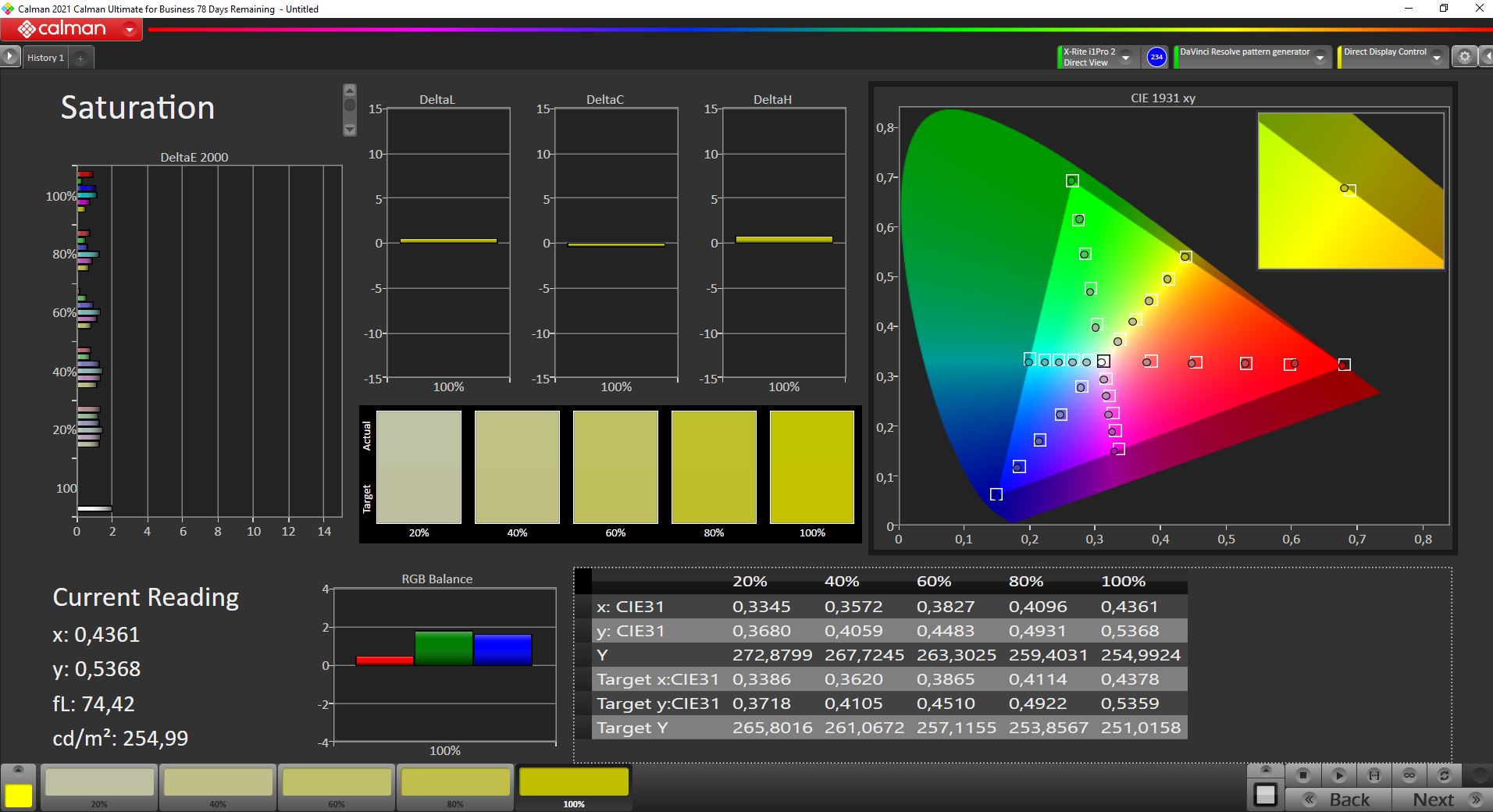

CalMAN 饱和度(目标色彩空间 P3
CalMAN 饱和度(目标色彩空间 P3

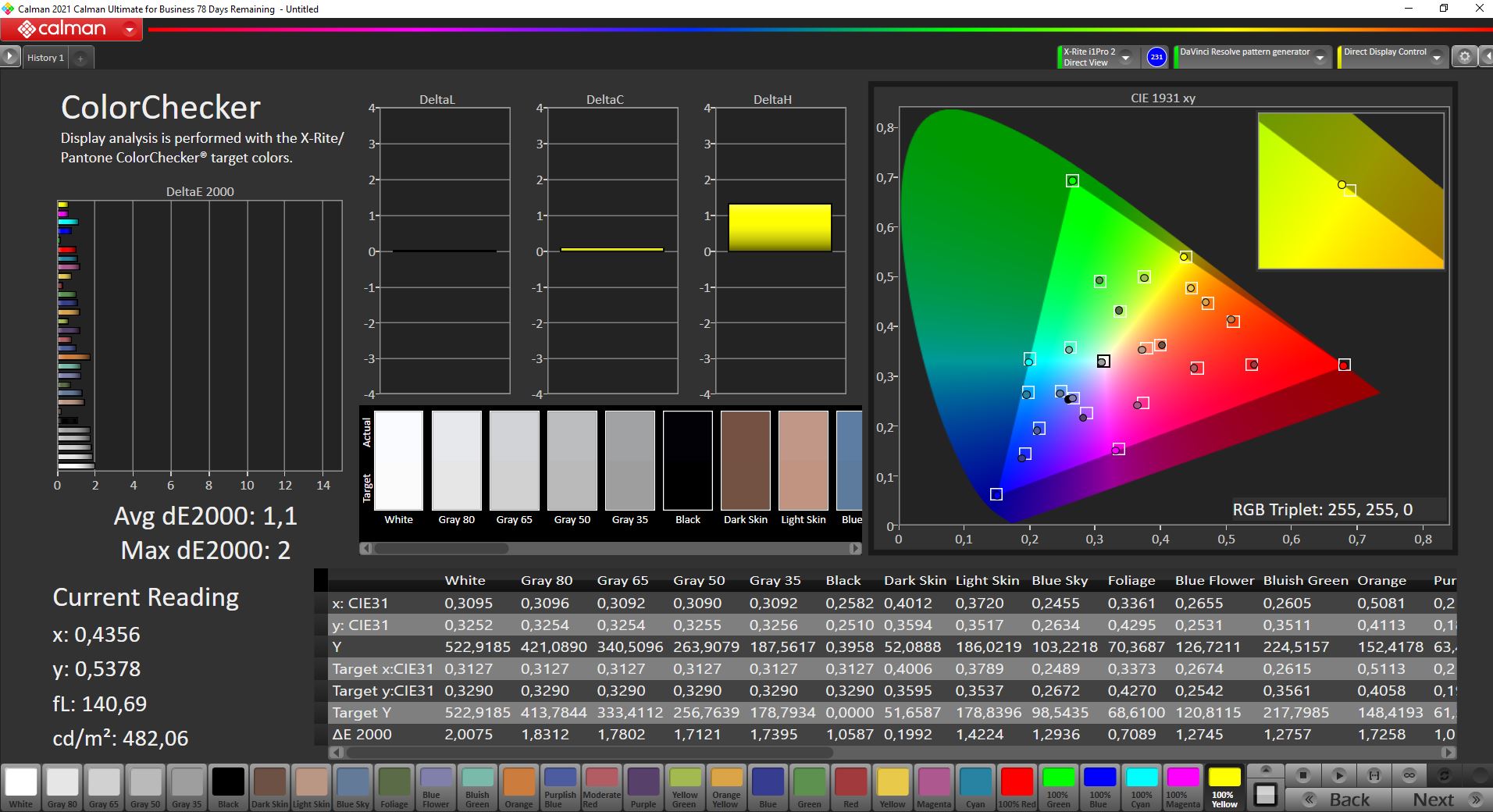

CalMAN ColorChecker(目标色彩空间P3)。
CalMAN ColorChecker(目标色彩空间P3)。
CalMAN 灰度校准(目标色彩空间P3)。
CalMAN 灰度校准(目标色彩空间P3)。

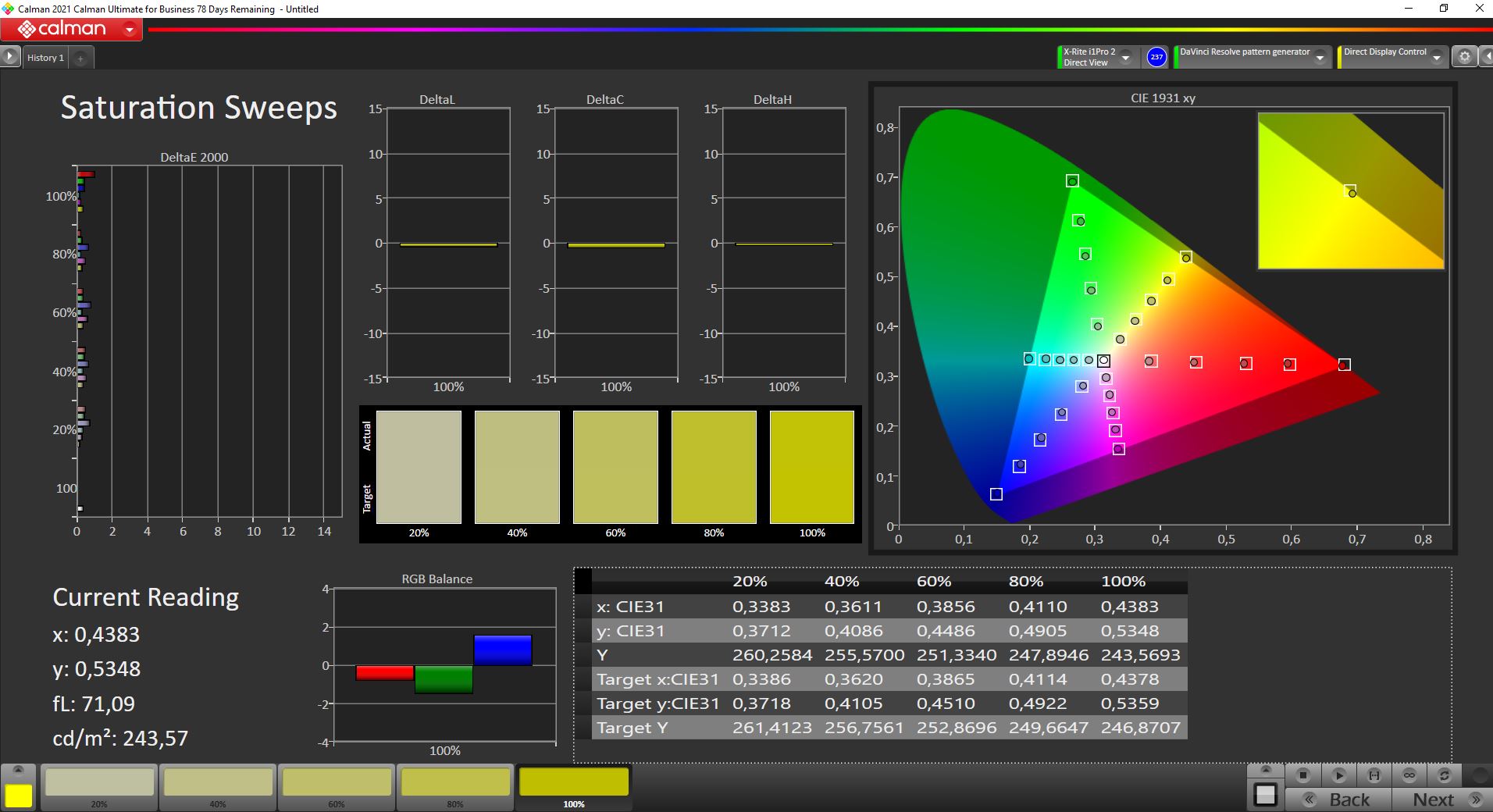

CalMAN 饱和度已校准(目标色彩空间P3)。
CalMAN 饱和度已校准(目标色彩空间P3)。
CalMAN ColorChecker已校准(目标色彩空间P3)。
CalMAN ColorChecker已校准(目标色彩空间P3)。

显示屏几乎完全覆盖了P3色彩空间,而且面板在出厂状态下已经被校准得非常好。灰度中没有偏色,所有的颜色偏差都低于3的重要标志。我们仍然可以通过校准来最小限度地改善显示器,但你只能从测量值中看到这一点。因此,新的iMac 24适合无限制地编辑图片/视频。

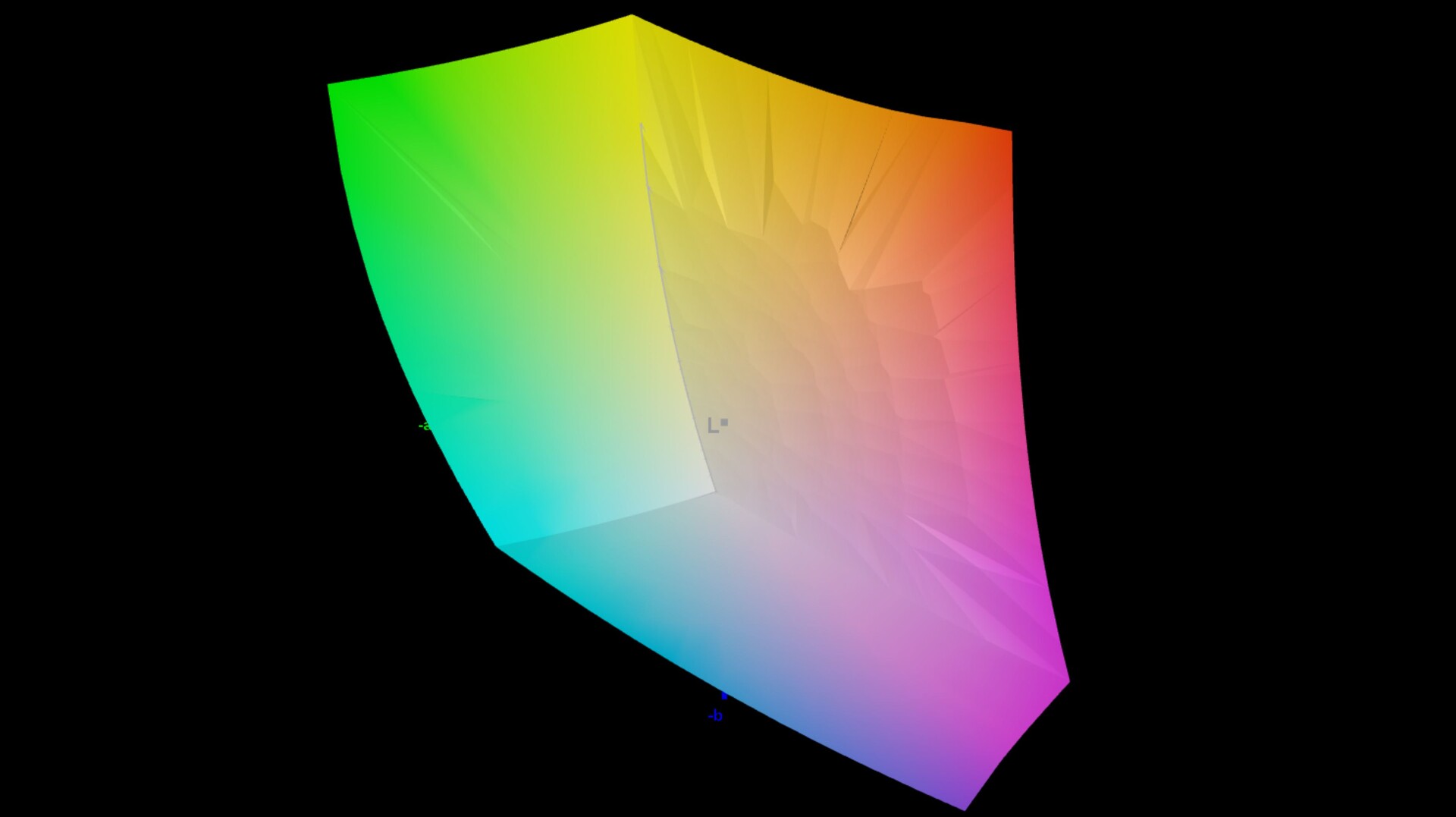

vs. sRGB
vs. sRGB

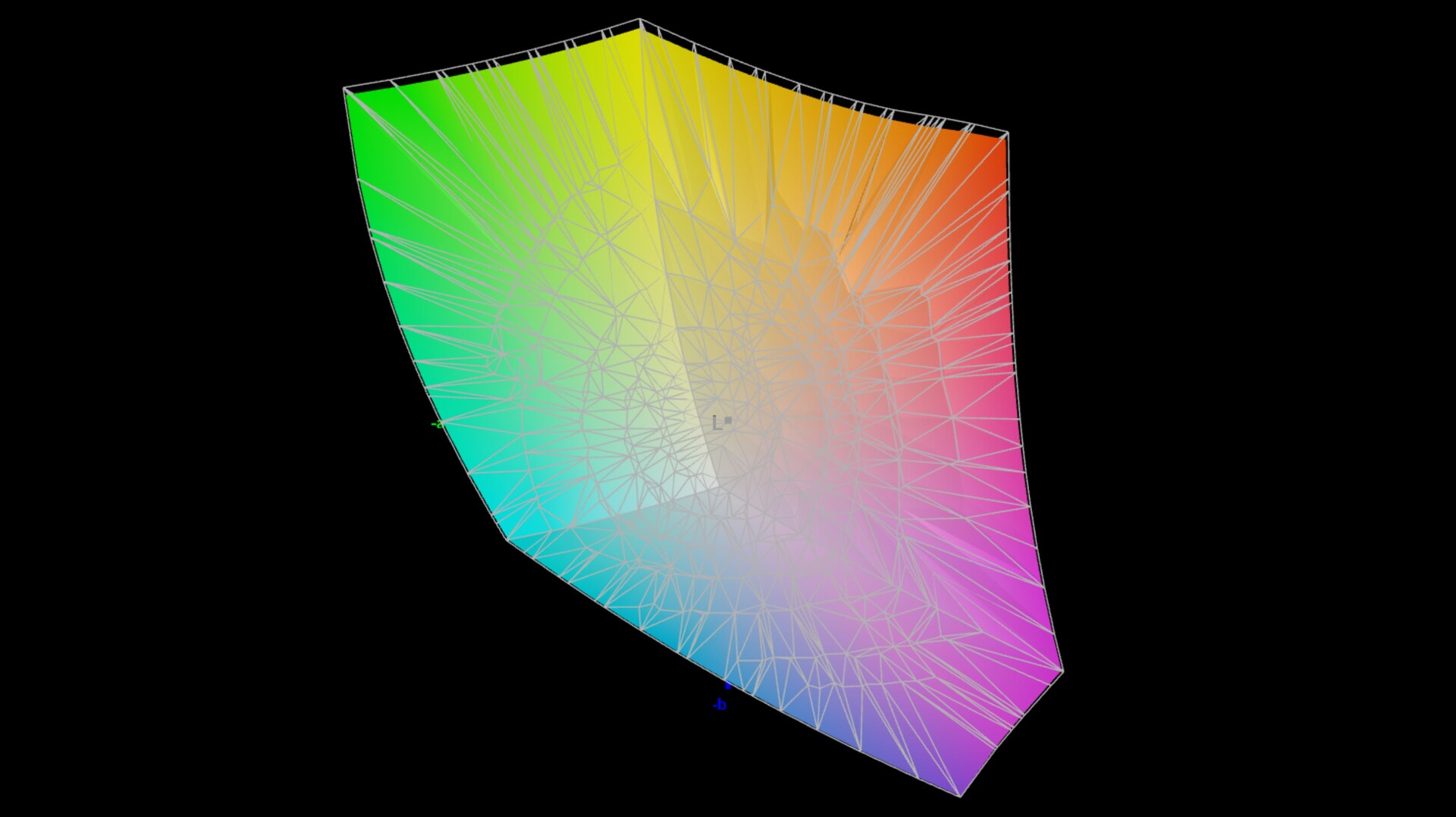

vs. DCI-P3
vs. DCI-P3

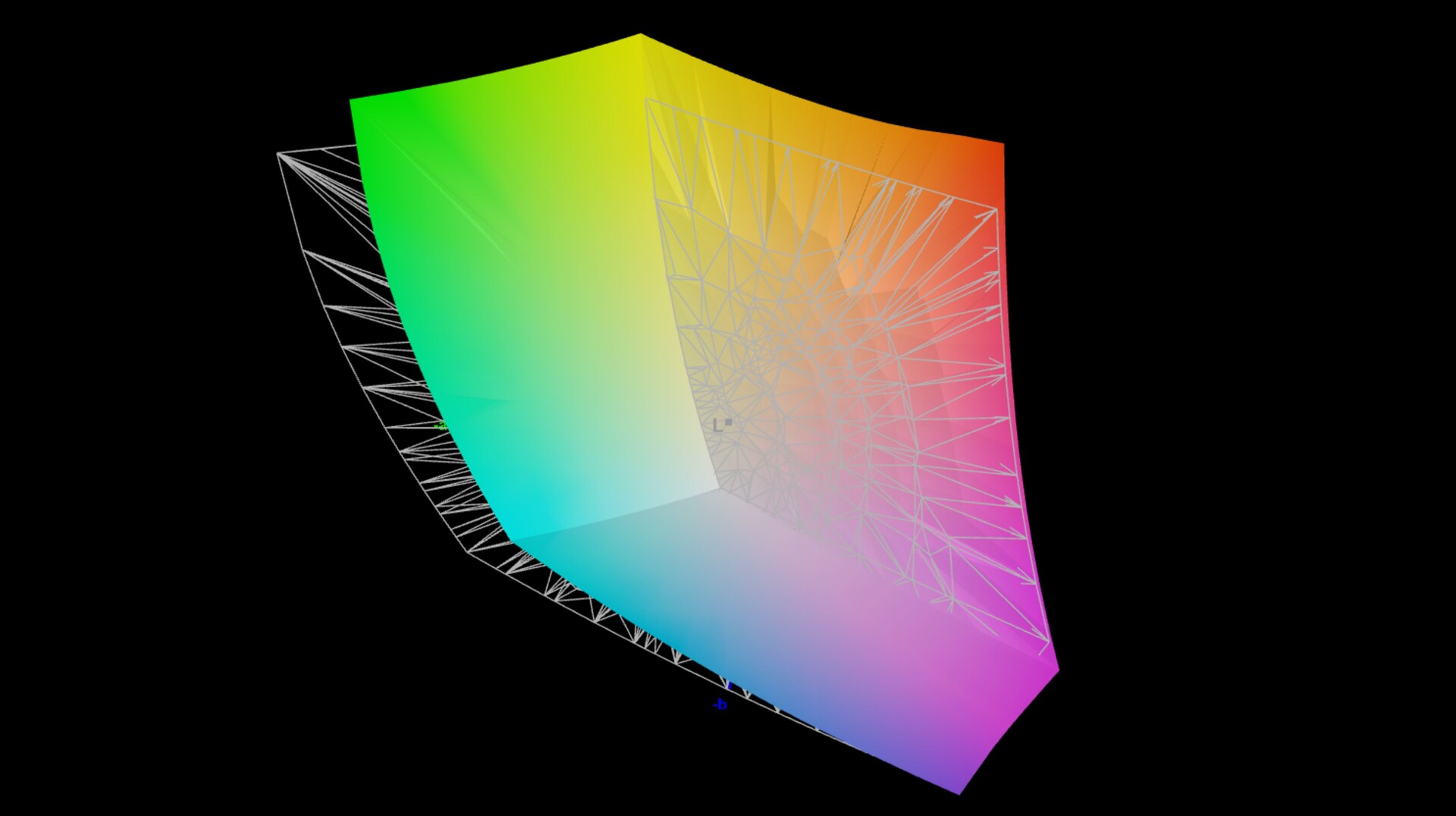

vs. AdobeRGB
vs. AdobeRGB

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

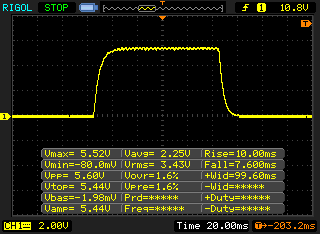

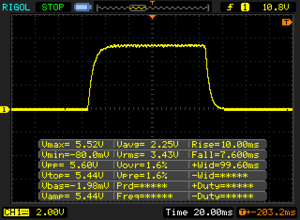

       Response Time Black to White
17.6 ms ... rise ↗ and fall ↘ combined↗ 10 ms rise
↘ 7.6 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 25 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (23.7 ms).

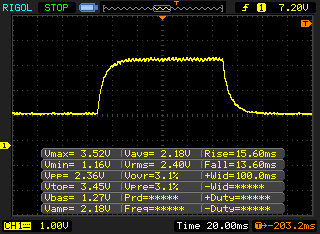

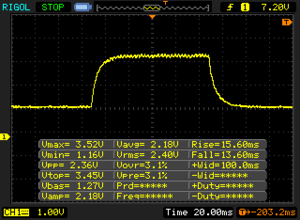

       Response Time 50% Grey to 80% Grey
29.2 ms ... rise ↗ and fall ↘ combined↗ 15.6 ms rise
↘ 13.6 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 24 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (37.5 ms).

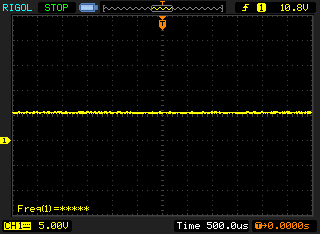

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 20897 (minimum: 5 - maximum: 3846000) Hz was measured.

IPS屏幕的可视角度稳定性非常好。然而,由于光泽的表面,你不应该把iMac 24放在窗户对面,否则你可能会有反射的问题。在全亮度和黑暗的背景下,你也可以看到清晰的光晕。在这方面,以前的iMac要好一些。

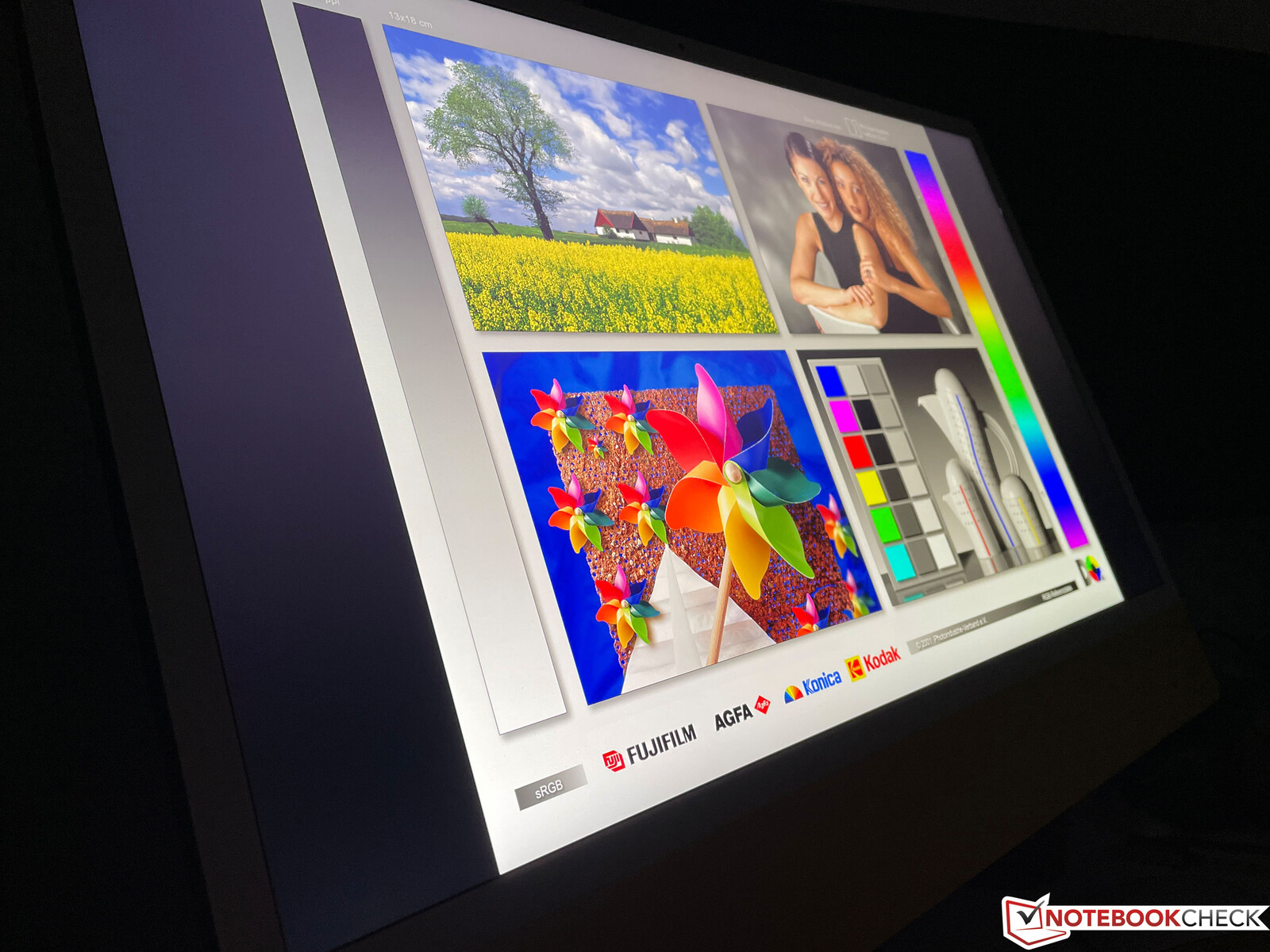

从侧面看视角稳定
从侧面看视角稳定

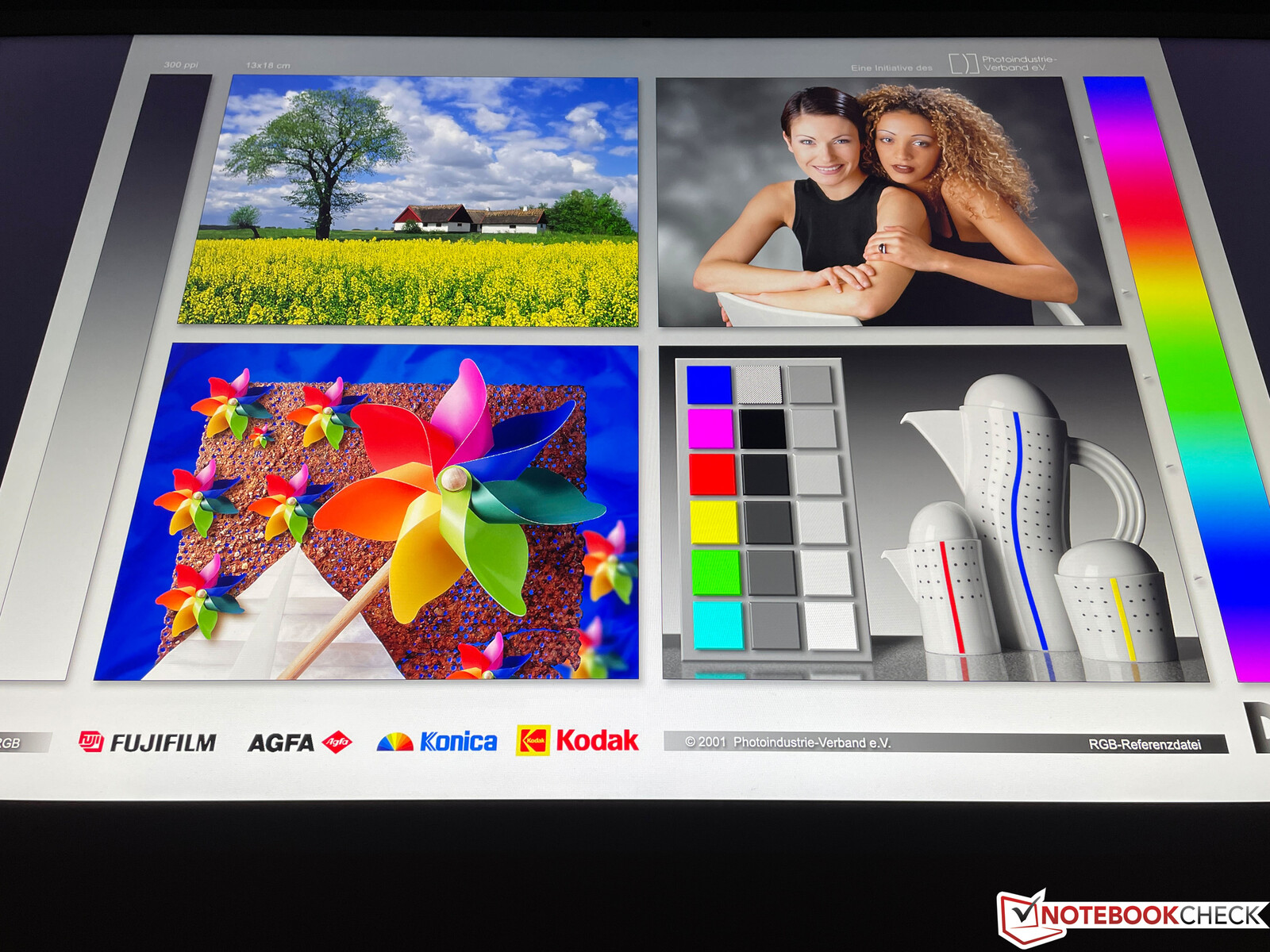

从下往上看,视角稳定
从下往上看,视角稳定

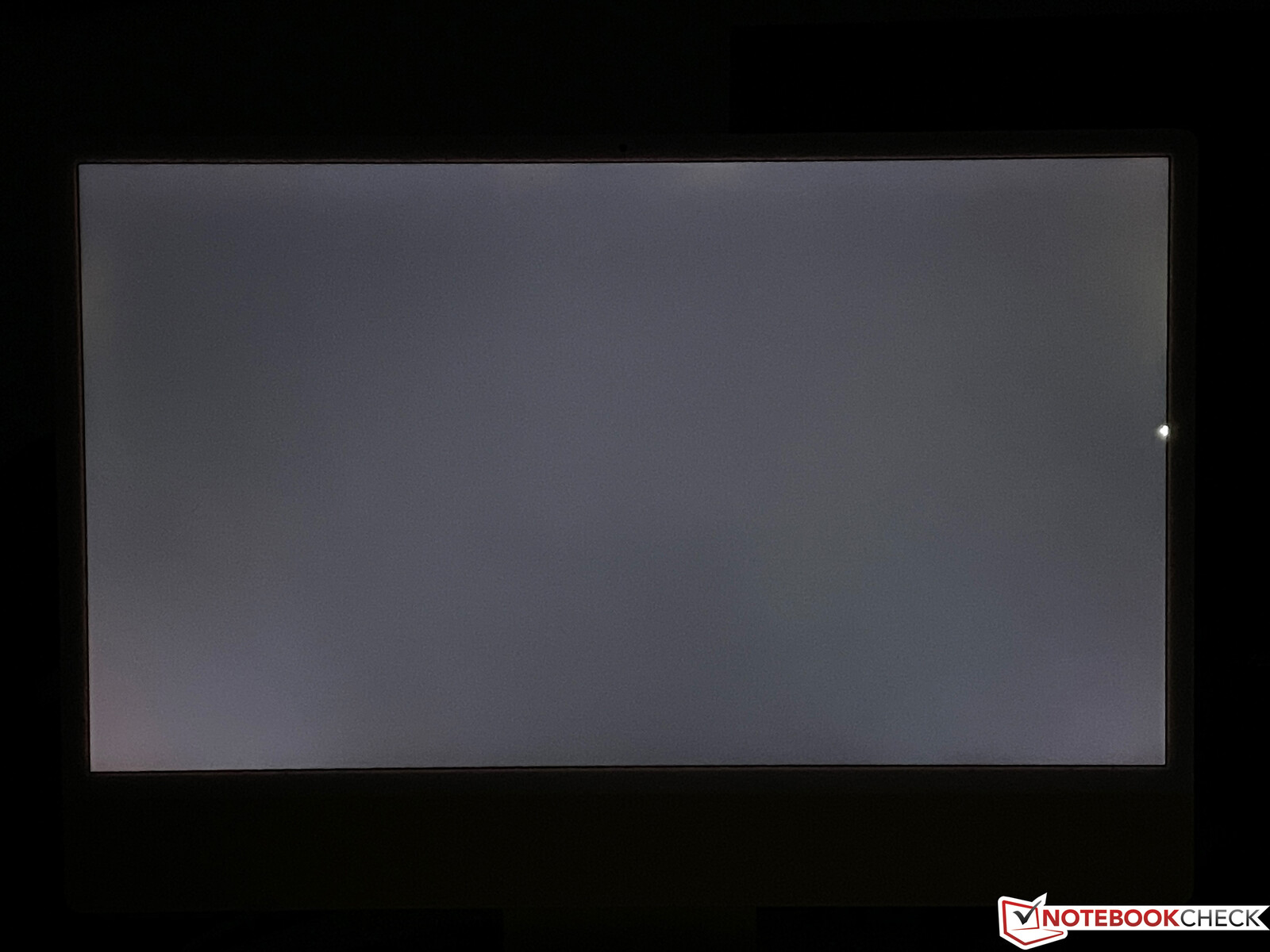

可见的背光灯出血
可见的背光灯出血

性能和排放

Apple M1 SoC我们已经从 MacBook Air, MacBook Pro 13Mac Mini.带8个GPU核心的iMac使用了两个风扇(带7个GPU核心的型号只有一个风扇),这就是性能稳定的原因。其结果与Mac Mini以及MacBook Pro 13持平。在实践中,iMac 24是一个反应极为迅速的系统,但旧的 英特尔型号提供更多的性能,特别是在多核测试中。

该系统只在有限的程度上适用于游戏,因为支持的作品不多。然而,由于ARM的基础,你可以访问Apple'的街机系列,你可以从 苹果手机iPads.我们也非常喜欢6个扬声器,可以轻松取代廉价的外部扬声器。Apple 巧妙地利用了机箱内的空间,内置模块对大多数用户来说完全足够。

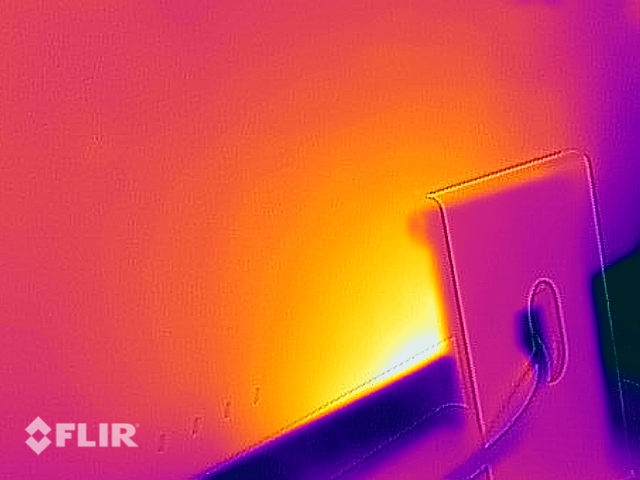

我们对大声的冷却感到惊讶。在日常使用中(浏览、视频),系统几乎都是静音的,甚至纯GPU负载也几乎听不到,但在CPU高负载下,两个风扇很快就达到了40dB(A)以上,无论是在原生还是模拟应用中。我们甚至可以测到最高46 dB(A)。当与 Mac Mini相比,新的iMac 24在相同的性能下几乎听不到声音,而在负载下,新的iMac 24的声音就变得太大。

附带的143瓦电源完全够用,而且仍有足够的储备用于Thunderbolt或USB-C配件,因为即使在全亮度的压力测试中,我们也能测出最大约79瓦的能量。

Cinebench R15 Multi Endurance test

012024036048060072084096010801200132014401560168018001920204021602280Tooltip
Apple iMac 24 M1 2021 Apple M1: Ø1068 (1047.92-1074)
Apple iMac 27 Mid 2020 Intel Core i9-10910: Ø2171 (2137.21-2302.16)
Apple iMac Pro Intel Xeon W-2145; Win10: Ø1694 (1676.31-1706.48)
Apple iMac Pro Intel Xeon W-2145; macOS: Ø1687 (1658.31-1695.42)
Apple Mac Mini Late 2020 Entry (M1, 8GB) Apple M1: Ø1046 (1039.99-1048.33)
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB) Apple M1: Ø1066 (1062.05-1069.6)
Apple MacBook Pro 16 2019 i9 5500M Intel Core i9-9880H; macOS 10.15.1: Ø1407 (1386-1435)
Apple MacBook Pro 16 2019 i9 5500M Intel Core i9-9880H; Win 10: Ø1296 (1268.87-1362.31)
CPU Performance Rating
Apple iMac 27 Mid 2020 -2!
Intel Core i9-10910
96.6 pt ∼97%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
78.5 pt ∼79%
Apple iMac 24 M1 2021
Apple M1
78.3 pt ∼78%
Average Apple M1

77.9 pt ∼78%
Apple iMac Pro -6!
Intel Xeon W-2145
77.7 pt ∼78%
Apple Mac Mini Late 2020 Entry (M1, 8GB) -1!
Apple M1
76 pt ∼76%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
75.8 pt ∼76%
Average of class Desktop

63.4 pt ∼63%
Cinebench R23 / CPU (Multi Core)
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
8758 Points ∼100% +12%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
8747 (8681.12min - 8746.74max) Points ∼100% +12%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
7811 Points ∼89% 0%
Apple iMac 24 M1 2021
Apple M1
7802 Points ∼89%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
7799 Points ∼89% 0%
Average Apple M1
  (7409 - 7830, n=6)
7728 Points ∼88% -1%
Average of class Desktop
  (1183 - 15186, n=21, last 2 years)
6477 Points ∼74% -17%
Cinebench R23 / CPU (Single Core)
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
1520 Points ∼100% +1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
1513 Points ∼100% 0%
Average Apple M1
  (1496 - 1520, n=6)
1512 Points ∼99% 0%
Apple iMac 24 M1 2021
Apple M1
1508 Points ∼99%
Average of class Desktop
  (446 - 1636, n=20, last 2 years)
1203 Points ∼79% -20%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
1140 Points ∼75% -24%
Cinebench R20 / CPU (Multi Core)
Apple iMac 27 Mid 2020
Intel Core i9-10910
5196 Points ∼100% +147%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
3422 Points ∼66% +63%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
3057 Points ∼59% +46%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
2109 Points ∼41% 0%
Apple iMac 24 M1 2021
Apple M1
2101 Points ∼40%
Average of class Desktop
  (304 - 5847, n=31, last 2 years)
2092 Points ∼40% 0%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
2086 Points ∼40% -1%
Average Apple M1
  (1863 - 2109, n=4)
2040 Points ∼39% -3%
Cinebench R20 / CPU (Single Core)
Apple iMac 27 Mid 2020
Intel Core i9-10910
501 Points ∼100% +25%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
453 Points ∼90% +13%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
442 Points ∼88% +10%
Average of class Desktop
  (156 - 632, n=31, last 2 years)
412 Points ∼82% +2%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
406 Points ∼81% +1%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
403 Points ∼80% 0%
Average Apple M1
  (401 - 406, n=4)
403 Points ∼80% 0%
Apple iMac 24 M1 2021
Apple M1
402 Points ∼80%
Cinebench R15 / CPU Multi 64Bit
Apple iMac 27 Mid 2020
Intel Core i9-10910
2302 (2137min - 2302max) Points ∼100% +114%
Apple iMac Pro
Intel Xeon W-2145
1686 Points ∼73% +57%
Apple iMac Pro
Intel Xeon W-2145
1678 Points ∼73% +56%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
1435 (1401min - 1435max) Points ∼62% +34%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
1362 (1268.87min - 1362.31max) Points ∼59% +27%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
1087 Points ∼47% +1%
Apple iMac 24 M1 2021
Apple M1
1074 (1048min - 1074max) Points ∼47%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
1070 (1060min - 1070max) Points ∼46% 0%
Average Apple M1
  (1020 - 1087, n=4)
1063 Points ∼46% -1%
Average of class Desktop
  (204 - 2397, n=33, last 2 years)
897 Points ∼39% -16%
Cinebench R15 / CPU Single 64Bit
Apple iMac 27 Mid 2020
Intel Core i9-10910
215 Points ∼100% +4%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
208 Points ∼97% +1%
Average Apple M1
  (206 - 208, n=3)
207 Points ∼96% 0%
Apple iMac 24 M1 2021
Apple M1
206 Points ∼96%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
184 Points ∼86% -11%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
184 Points ∼86% -11%
Apple iMac Pro
Intel Xeon W-2145
177 Points ∼82% -14%
Average of class Desktop
  (71.1 - 256, n=31, last 2 years)
168 Points ∼78% -18%
Geekbench 5.3 / 64 Bit Multi-Core Score
Apple iMac 27 Mid 2020
Intel Core i9-10910
10244 Points ∼100% +33%
Apple iMac 24 M1 2021
Apple M1
7695 Points ∼75%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
7690 Points ∼75% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
7590 Points ∼74% -1%
Average Apple M1
  (7260 - 7710, n=8)
7559 Points ∼74% -2%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
7109 Points ∼69% -8%
Average of class Desktop
  (1239 - 10709, n=30, last 2 years)
4818 Points ∼47% -37%
Geekbench 5.3 / 64 Bit Single-Core Score
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
1741 Points ∼100% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
1740 Points ∼100% 0%
Apple iMac 24 M1 2021
Apple M1
1737 Points ∼100%
Average Apple M1
  (1710 - 1745, n=8)
1731 Points ∼99% 0%
Apple iMac 27 Mid 2020
Intel Core i9-10910
1381 Points ∼79% -20%
Average of class Desktop
  (388 - 1784, n=30, last 2 years)
1180 Points ∼68% -32%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
1115 Points ∼64% -36%
Jetstream 2: Total Score
WebXPRT 3: ---
Octane V2: Total Score
Mozilla Kraken 1.1: Total Score
Speedometer 2.0: Result
Blackmagic Disk Speed Test: 5GB Read | 5GB Write
Jetstream 2 / Total Score
Apple iMac 27 Mid 2020
Radeon RX 5700 XT (Desktop), i9-10910, Apple SSD AP1024
203.1 Points ∼100% +16%
Average Apple M1, Apple M1 8-Core GPU
  (175 - 183, n=5)
178 Points ∼88% +1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
177.5 Points ∼87% +1%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
177.28 Points ∼87% +1%
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
175.4 Points ∼86%
Average of class Desktop
  (59.9 - 203, n=12, last 2 years)
134 Points ∼66% -24%
WebXPRT 3 /
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
293 Points ∼100% +5%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
281 Points ∼96% 0%
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
280 Points ∼96%
Average Apple M1, Apple M1 8-Core GPU
  (216 - 293, n=5)
258 Points ∼88% -8%
Apple iMac 27 Mid 2020
Radeon RX 5700 XT (Desktop), i9-10910, Apple SSD AP1024
236 Points ∼81% -16%
Average of class Desktop
  (83.2 - 293, n=29, last 2 years)
193 Points ∼66% -31%
Apple MacBook Pro 16 2019 i9 5500M
Radeon Pro 5500M, i9-9880H, Apple SSD AP1024 7171
184 Points ∼63% -34%
Octane V2 / Total Score
Average Apple M1, Apple M1 8-Core GPU
  (62055 - 62946, n=5)
62459 Points ∼100% +1%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
62390 Points ∼100% +1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
62113 Points ∼99% 0%
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
62055 Points ∼99%
Apple iMac 27 Mid 2020
Radeon RX 5700 XT (Desktop), i9-10910, Apple SSD AP1024
55976 Points ∼90% -10%
Average of class Desktop
  (24502 - 62390, n=5, last 2 years)
52614 Points ∼84% -15%
Apple iMac Pro
Pro Vega 56, W-2145
46837 Points ∼75% -25%
Mozilla Kraken 1.1 / Total Score
Average of class Desktop
  (446 - 2457, n=30, last 2 years)
1075 ms * ∼100% -139%
Apple MacBook Pro 16 2019 i9 5500M
Radeon Pro 5500M, i9-9880H, Apple SSD AP1024 7171
905 ms * ∼84% -101%
Apple iMac 27 Mid 2020
Radeon RX 5700 XT (Desktop), i9-10910, Apple SSD AP1024
737 ms * ∼69% -64%
Apple iMac Pro
Pro Vega 56, W-2145
598.1 ms * ∼56% -33%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
515.9 ms * ∼48% -14%
Average Apple M1, Apple M1 8-Core GPU
  (446 - 516, n=5)
477 ms * ∼44% -6%
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
450.6 ms * ∼42%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
446.1 ms * ∼41% +1%
Speedometer 2.0 / Result
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
219 runs/min ∼100% +2%
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
215 runs/min ∼98%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
213 runs/min ∼97% -1%
Average Apple M1, Apple M1 8-Core GPU
  (209 - 219, n=5)
213 runs/min ∼97% -1%
Average of class Desktop
  (71.7 - 219, n=4, last 2 years)
167 runs/min ∼76% -22%
Apple iMac 27 Mid 2020
Radeon RX 5700 XT (Desktop), i9-10910, Apple SSD AP1024
161 runs/min ∼74% -25%
Blackmagic Disk Speed Test / 5GB Read
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2869.8 MB/s ∼100% +2%
Average of class Desktop
  (2820 - 2870, n=2, last 2 years)
2845 MB/s ∼99% +1%
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
2820.4 MB/s ∼98%
Average Apple M1, Apple M1 8-Core GPU
  (2728 - 2870, n=4)
2804 MB/s ∼98% -1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2797.6 MB/s ∼97% -1%
Apple MacBook Pro 16 2019 i9 5500M
Radeon Pro 5500M, i9-9880H, Apple SSD AP1024 7171
2788 MB/s ∼97% -1%
Blackmagic Disk Speed Test / 5GB Write
Apple MacBook Pro 16 2019 i9 5500M
Radeon Pro 5500M, i9-9880H, Apple SSD AP1024 7171
2880 MB/s ∼100% +1%
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
2863.7 MB/s ∼99%
Average Apple M1, Apple M1 8-Core GPU
  (2194 - 2895, n=4)
2542 MB/s ∼88% -11%
Average of class Desktop
  (2214 - 2864, n=2, last 2 years)
2539 MB/s ∼88% -11%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2213.9 MB/s ∼77% -23%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2193.5 MB/s ∼76% -23%

* ... smaller is better

3DMark - Wild Life Unlimited Score
Average of class Desktop
  (2773 - 114111, n=6, last 2 years)
56628 Points ∼100% +213%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
18177 Points ∼32% 0%
Apple iMac 24 M1 2021
Apple M1 8-Core GPU, Apple M1
18117 Points ∼32%
Average Apple M1 8-Core GPU
  (17731 - 18326, n=6)
18064 Points ∼32% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
17731 Points ∼31% -2%
Geekbench 5.3
Metal Score 5.3
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
21951 Points ∼100% 0%
Apple iMac 24 M1 2021
Apple M1 8-Core GPU, Apple M1
21897 Points ∼100%
Average of class Desktop
  (last 2 years)
21897 Points ∼100% 0%
Average Apple M1 8-Core GPU
  (20411 - 21951, n=5)
21307 Points ∼97% -3%
OpenCL Score 5.3
Apple iMac 27 Mid 2020
AMD Radeon RX 5700 XT (Desktop), Intel Core i9-10910
56327 Points ∼100% +192%
Average of class Desktop
  (1433 - 224473, n=30, last 2 years)
45623 Points ∼81% +136%
Apple iMac 24 M1 2021
Apple M1 8-Core GPU, Apple M1
19323 Points ∼34%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
19078 Points ∼34% -1%
Average Apple M1 8-Core GPU
  (18352 - 19323, n=3)
18918 Points ∼34% -2%
GFXBench
2560x1440 Aztec Ruins High Tier Offscreen
Apple iMac 27 Mid 2020
AMD Radeon RX 5700 XT (Desktop), Intel Core i9-10910
188.4 fps ∼100% +131%
Apple MacBook Pro 16 2019 i9 5500M
AMD Radeon Pro 5500M, Intel Core i9-9880H
94.7 fps ∼50% +16%
Average of class Desktop
  (6.5 - 188, n=5, last 2 years)
87.2 fps ∼46% +7%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
81.7 fps ∼43% 0%
Apple iMac 24 M1 2021
Apple M1 8-Core GPU, Apple M1
81.4 fps ∼43%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
78.2 fps ∼42% -4%
Average Apple M1 8-Core GPU
  (63 - 81.7, n=7)
76.2 fps ∼40% -6%
1920x1080 Aztec Ruins Normal Tier Offscreen
Apple iMac 27 Mid 2020
AMD Radeon RX 5700 XT (Desktop), Intel Core i9-10910
493.2 fps ∼100% +128%
Apple MacBook Pro 16 2019 i9 5500M
AMD Radeon Pro 5500M, Intel Core i9-9880H
254 fps ∼52% +18%
Average of class Desktop
  (17.5 - 493, n=5, last 2 years)
229 fps ∼46% +6%
Apple iMac 24 M1 2021
Apple M1 8-Core GPU, Apple M1
216.1 fps ∼44%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
215.4 fps ∼44% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
207 fps ∼42% -4%
Average Apple M1 8-Core GPU
  (177 - 216, n=7)
204 fps ∼41% -6%
low med. high ultra
Total War: Three Kingdoms (2019) 100 33 20 15 fps
Borderlands 3 (2019) 54 33 20 fps
Apple iMac 24 M1 2021
M1 8-Core GPU, M1, Apple SSD AP0512
Apple iMac 27 Mid 2020
Radeon RX 5700 XT (Desktop), i9-10910, Apple SSD AP1024
Apple iMac Pro
Pro Vega 56, W-2145
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
Noise
-21%
-25%
-17%
off / environment *
24.2
29.1
-20%
29.1
-20%
29.2
-21%
Idle Minimum *
24.2
29.7
-23%
29.8
-23%
29.2
-21%
Idle Average *
24.2
29.7
-23%
29.8
-23%
29.2
-21%
Idle Maximum *
24.2
29.7
-23%
29.8
-23%
29.2
-21%
Load Average *
25
35
-40%
39.7
-59%
32.1
-28%
Load Maximum *
46
43.6
5%
47.9
-4%
41.9
9%
Witcher 3 ultra *
35

* ... smaller is better

Noise Level

Idle
24.2 / 24.2 / 24.2 dB(A)
Load
25 / 46 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2042.530.933.828.1342542.63334.42834.13134.731.626.425.429.2403429.726.624.731.65028.828.925.422.127.16323.128.222.620.923.88021.521.72022.524.510022.516.92317.72412523.318.120.517.922.816020.517.120.218.420.320021.71621.117.119.62502315.721.115.219.631526.616.224.716.122.740027.814.925.913.923.650031.114.327.913.827.263033.31432.113.829.880035.712.934.212.331.6100037.61334.911.933.3125037.911.935.211.532.8160035.513.832.11129.6200033.112.33010.827.3250033.211.630.21127.5315032.111.628.711.325.2400034.112.230.611.926.650003512.531.311.927.6630026.912.724.312.120.7800028.312.621.612.116.71000027.412.722.612.318.31250026.312.521.91217.91600019.711.915.611.513.1SPL462543.124.240.5N5.20.64.10.63.3median 28.3median 12.9median 25.9median 12.1median 24Delta5.11.74.61.53.7hearing rangehide median Fan NoiseApple iMac 24 M1 2021
Max. Load
 29.4 °C30.1 °C30.3 °C
 28.4 °C30.3 °C30 °C
 30.3 °C39.1 °C32.4 °C
Maximum: 39.1 °C
Average: 31.1 °C
28.8 °C28.5 °C28.2 °C
28.9 °C30.8 °C28.2 °C
30.8 °C38.1 °C28.7 °C
Maximum: 38.1 °C
Average: 30.1 °C
Power Supply (max.)  38.3 °C | Room Temperature 21.8 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 28.4 °C / 83 F for the devices in the class Desktop.
(+) The maximum temperature on the upper side is 39.1 °C / 102 F, compared to the average of 33.3 °C / 92 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 38.1 °C / 101 F, compared to the average of 33.5 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 28.4 °C / 83 F.

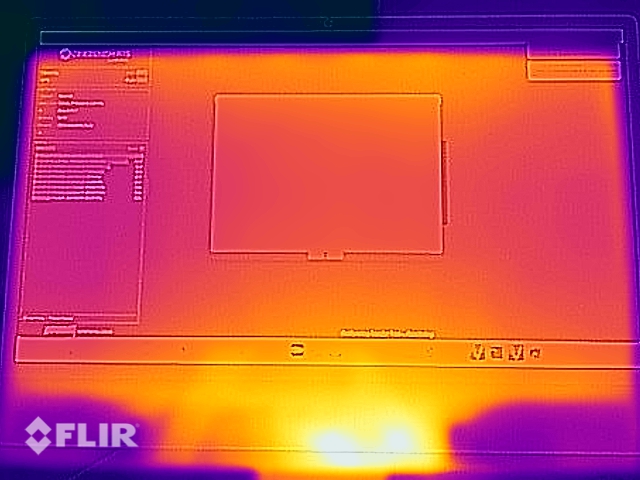

表面温度应力测试(前)。
表面温度应力测试(前)。
表面温度应力测试(背面
表面温度应力测试(背面
表面温度应力测试(背面
表面温度应力测试(背面
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2028.138.2252841.23125.441.94024.743.75022.150.16320.9638022.568.910017.775.712517.976.416018.473.120017.174.225015.271.431516.174.240013.977.950013.878.163013.87280012.377.5100011.975.3125011.574.616001176.9200010.877.525001173.3315011.373.3400011.971.4500011.973.2630012.173.5800012.175.61000012.367.7125001261.51600011.559.4SPL24.286.9N0.682.3median 12.1median 74.2Delta1.52.333.232.124.728.528.832.827.733.825.344.523.560.722.165.523.572.42273.322.375.6227522.675.921.273.720.572.319.272.11975.118.269.617.968.717.171.816.668.316.372.51675.815.669.915.567.515.56415.561.515.561.315.459.815.358.51567.229.182.91.262.1median 17.1median 71.82.53.3hearing rangehide median Pink NoiseApple iMac 24 M1 2021Apple iMac 27 Mid 2020
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Apple iMac 24 M1 2021 audio analysis

(+) | speakers can play relatively loud (86.9 dB)
Bass 100 - 315 Hz
(+) | good bass - only 1.3% away from median
(+) | bass is linear (4.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.9% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 17% similar, 83% worse
» The best had a delta of 5%, average was 16%, worst was 38%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Apple iMac 27 Mid 2020 audio analysis

(+) | speakers can play relatively loud (82.9 dB)
Bass 100 - 315 Hz
(+) | good bass - only 2.6% away from median
(+) | bass is linear (4.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.7% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 7.3% lower than median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (7.8% difference to median)
Compared to same class
» 17% of all tested devices in this class were better, 17% similar, 67% worse
» The best had a delta of 5%, average was 16%, worst was 38%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 99% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Power Consumption
Off / Standbydarklight 0.13 / 0.9 Watt
Idledarkmidlight 9.7 / 42.3 / 42.6 Watt
Load midlight 59.2 / 78.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Apple iMac 24 M1 2021
M1, M1 8-Core GPU, Apple SSD AP0512, IPS, 4480x2520, 23.50
Apple iMac 27 Mid 2020
i9-10910, Radeon RX 5700 XT (Desktop), Apple SSD AP1024, IPS, 5120x2880, 27.00
Apple iMac Pro
W-2145, Pro Vega 56, , , 5120x2880, 27.00
Average Apple M1 8-Core GPU

Average of class Desktop

Power Consumption
-189%
-265%
60%
9%
Idle Minimum *
9.7
27.6
-185%
49.5
-410%
3.68 ?(1.01 - 9.7, n=5)
62%
16.7 ?(2.2 - 107, n=23, last 2 years)
-72%
Idle Average *
42.3
64.7
-53%
86.7
-105%
16.2 ?(6.2 - 42.3, n=4)
62%
22.1 ?(2.6 - 115, n=22, last 2 years)
48%
Idle Maximum *
42.6
65.3
-53%
88.9
-109%
14.1 ?(4.4 - 42.6, n=5)
67%
25.7 ?(3 - 146, n=22, last 2 years)
40%
Load Average *
59.2
162
-174%
150.1
-154%
25.7 ?(8.99 - 59.2, n=5)
57%
44.4 ?(12.5 - 162, n=20, last 2 years)
25%
Witcher 3 ultra *
59.2
247
-317%
Load Maximum *
78.7
354
-350%
508.5
-546%
37.8 ?(9.89 - 78.7, n=5)
52%
75.9 ?(17.8 - 354, n=21, last 2 years)
4%

* ... smaller is better

Energy consumption Unigine Valley / Stress test

051015202530354045505560657075Tooltip
; Witcher 3 ultra: Ø59.2 (56.8-61.6)
; 1280x720 Prime95 28.10 and Furmark 1.25: Ø74.9 (70.2-78.7)

Pros

+ 伟大的显示器
+ 非常好的系统性能
+ 非常好的扬声器
+ USB 4和Wi-Fi 6

Cons

- 大声冷却
- 显示屏下的塑料框架
- 只有80兆赫的Wi-Fi 6
- 没有维护选项

评语--iMac变得太吵了

评测中:Apple iMac 24 M1 2021。测试设备由Apple 德国提供。
评测中:Apple iMac 24 M1 2021。测试设备由Apple 德国提供。

新款iMac 24 M1取代了之前的iMac 21.5,主要适用于使用M1处理器的日常任务。在这里,一体机也可以用静音操作来说服人,但在CPU高负荷工作时(如视频编辑),iMac会变得太吵,特别是与Mac Mini M1相比。较大的 iMac 27仍然在产品系列中,并通过英特尔CPU提供更多的性能,还可以配备更多的内存和专用GPU,因此它仍然是要求高的用户的更好(但也更昂贵)的解决方案。

新的23.5英寸IPS显示屏给人留下了非常好的印象,也适用于色彩准确的图片或视频编辑。用户体验得到了改善,特别是由于True Tone或敏感的亮度传感器等功能。新的扬声器系统也很有说服力,可以轻松取代许多廉价的外部扬声器。

Apple iMac 24 M1是一台适合日常使用的一体式电脑,你会在屏幕和扬声器上获得很多乐趣。然而,iMac在负载下会明显变得太吵,而且也没有维护选项。

除了在CPU高负荷下风扇声音太大之外,同样的缺点仍然存在,我们已经从以前的iMac中知道。背面的端口难以触及,现在根本没有维护选项,而附带的键盘由于键程短和缺乏背光而难以令人信服。此外,在购买之前,你必须决定是要用支架还是VESA支架来使用iMac 24。

价格和可用性

我们的新iMac 24 M1的测试装置在网上商店如Cyberport有售,价格为1,869欧元(~2170美元)可用。最便宜的型号(银色)配备256GB SSD存储和稍慢的7核GPU,也完全可以满足日常使用,起价为 美国亚马逊,价格约为1299美元.

Apple iMac 24 M1 2021 - 10/17/2021 v7
Andreas Osthoff

Chassis
84 / 98 → 86%
Keyboard
81%
Pointing Device
98%
Connectivity
64 / 81 → 80%
Weight
Battery
Display
82%
Games Performance
80%
Application Performance
93%
Temperature
93%
Noise
92%
Audio
97%
Camera
31 / 85 → 36%
Average
69%
85%
Desktop - Weighted Average

Pricecompare

Ninh Duy
Editor of the original article: Ninh Duy - Editorial Assistant - 216967 articles published on Notebookcheck since 2008
contact me via: Facebook
Stefan Hinum
Translator: Stefan Hinum - Founder, CEO, CFO - 18419 articles published on Notebookcheck since 2006
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Apple iMac 24 M1 2021年的回顾。Apple'M1 SoC在台式机中也有说服力吗?
Andreas Osthoff, 2021-10-19 (Update: 2021-10-19)
