Apple Mac Mini Late 2020的回顾。最实惠的M1也让人信服

大型迷你电脑。 已经喜欢自己的外设的用户将在Apple Mac Mini中找到一个相对便宜的、也是强大的配备M1处理器的迷你PC。我们在评论中看了一下配备8GB内存的入门级机型的性能。
Mike Wobker, 👁 Andreas Osthoff (translated by DeepL/Stefan Hinum), 🇺🇸 🇩🇪 ...
Apple iOS Mini PC Thunderbolt
Apple Mac Mini Late 2020 Entry (M1, 8GB)

Apple M1,在我们对MacBook AirMacBook Pro 13 的评论中已经显示了它的优势,现在我们看看Apple Mac Mini。除了配备八核GPU的M1之外,入门级配置还配备了8GB的内存,以及256GB的SSD。

它的价格约为800欧元(约合944美元),是Apple"更实惠的产品之一,这使它领先于带有M1的Apple 笔记本电脑,至少在这方面。

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Apple Mac Mini Late 2020 Entry (M1, 8GB)
Processor
Apple M1 8 x 2.1 - 3.2 GHz
Graphics adapter
Apple M1 8-Core GPU
Memory
8192 MB
, LPDDR4X-4133
Storage
Apple SSD AP0256, 256 GB
, 227 GB free
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 mm combined audio
Networking
10Base-T/100Base-TX/1000Base-T (10/100/1000/2500/5000MBit/s), Apple AirPort Extreme M1 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Size
height x width x depth (in mm): 36 x 197 x 197
Operating System
Apple OS X 11.0 Big Sur
Additional features
Speakers: integrated, mono, 12 Months Warranty
Weight
1.184 kg
Price
800 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible contenders in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
09/2021
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1, M1 8-Core GPU
1.2 kg36 mmx
91 %
12/2020
Apple MacBook Air 2020 M1 Entry
M1, M1 7-Core GPU
1.3 kg16.1 mm13.30"2560x1600
91 %
05/2021
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
M1, M1 8-Core GPU
1.3 kg16.1 mm13.30"2560x1600
91 %
12/2020
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1, M1 8-Core GPU
1.4 kg15.6 mm13.30"2560x1600
Intel NUC11PAQi7
i7-1165G7, Iris Xe G7 96EUs
647 g56 mmx
Beelink GTR35 II-G-16512D00W64PRO-1T
R5 3550H, Vega 8
843 g39 mmx

外壳和连接性 - 带有M1的Mac Mini有两个Thunderbolt端口

Mac Mini采用了我们已经从其前辈那里熟悉的一体式设计,因此其形状和尺寸没有变化。与采用太空灰的英特尔机型相比,M1 Mac Mini再次采用了银色。

在连接性方面,可以发现进一步的差异。M1型号只有两个Thunderbolt 3端口,而不是英特尔型号中原来的四个。

网络连接可以通过无线局域网或使用RJ45端口的电缆来建立。后者支持高达10Gb/s,需要额外收费,而入门级配置提供千兆位LAN(1Gb/s)。

使用我们的Netgear Nighthawk AX12参考路由器,传输数据的速度平均为661 Mb/s,接收数据的速度为706 Mb/s。这与其他M1设备相当。

Apple'的Mac Mini不提供维护选项。只有,当取下黑色底盖时,可以对风扇进行清洁

Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple Mac Mini Late 2020 Entry (M1, 8GB)

Size comparison

197 mm 197 mm 36 mm 1.2 kg168 mm 120 mm 39 mm 843 g117 mm 112 mm 56 mm 647 g

端口配置

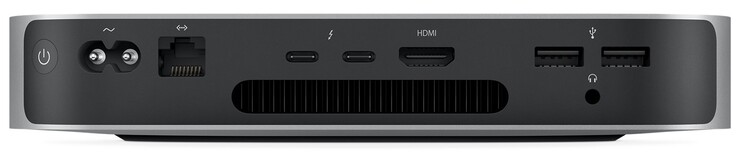

背面。电源,千兆网络,2个雷电3(包括DP),HDMI,2个USB-A 3.1 Gen 2,组合音频插孔
背面。电源,千兆网络,2个雷电3(包括DP),HDMI,2个USB-A 3.1 Gen 2,组合音频插孔
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Beelink GTR35 II-G-16512D00W64PRO-1T
Intel Wi-Fi 6 AX200
1165 (807min - 1317max) MBit/s ∼100% +76%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple AirPort Extreme M1
661 (594min - 726max) MBit/s ∼57%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
802.11 a/b/g/n/ac/ax
649 (611min - 664max) MBit/s ∼56% -2%
Average Apple AirPort Extreme M1
  (552 - 661, n=2)
607 MBit/s ∼52% -8%
Apple MacBook Air 2020 M1 Entry
Apple AirPort Extreme M1
552 (257min - 620max) MBit/s ∼47% -16%
Intel NUC11PAQi7
Intel Wi-Fi 6 AX201
546 (369min - 618max) MBit/s ∼47% -17%
iperf3 Client (receive) TCP 1 m 4M x10
Beelink GTR35 II-G-16512D00W64PRO-1T
Intel Wi-Fi 6 AX200
1317 (1204min - 1380max) MBit/s ∼100% +87%
Intel NUC11PAQi7
Intel Wi-Fi 6 AX201
862 (809min - 916max) MBit/s ∼65% +22%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
802.11 a/b/g/n/ac/ax
757 (378min - 806max) MBit/s ∼57% +7%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple AirPort Extreme M1
706 (505min - 824max) MBit/s ∼54%
Average Apple AirPort Extreme M1
  (672 - 706, n=2)
689 MBit/s ∼52% -2%
Apple MacBook Air 2020 M1 Entry
Apple AirPort Extreme M1
672 (614min - 682max) MBit/s ∼51% -5%
050100150200250300350400450500550600650700750800662824734725553628717675592753701770802687726745762650771745749786755764531673726696505771662824734725553628717675592753701770802687726745762650771745749786755764531673726696505771698622680634671646692726666607669714659682716714642645629722664613636594630705679601622638Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø706 (505-824)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø661 (594-726)

性能 - 可与MacBook Pro媲美

通过M1 ,Apple ,在Mac Mini中也使用了其自主研发的SoC,它也将GPU和RAM与CPU一起集成在一个芯片中。转向底层ARM架构确保了与iOS应用程序的兼容性。然而,尚未被移植的x86应用程序必须被模拟,这可能导致此类程序的性能降低。

处理器

Apple M1是一个拥有八个内核的SoC,这些内核分为四个快速的Firestorm内核,时钟频率高达3.2 GHz,以及四个省电的Icestorm内核,速度高达2.1 GHz。虽然后者在给系统带来低负荷的应用中运行,但所有八个核心也可以同时使用。

在我们的Cinebench R15耐力测试中,Mac Mini中主动冷却的M1达到了Apple MacBook Pro 13 的水平,而且它还能在长时间内稳定地保持。与Intel Core i7-1165G7Intel NUC11PAQi7 相比,这里提供的性能高出约10%。

Cinebench R15 Multi endurance test

05511016522027533038544049555060566071577082588093599010451046.931045.811046.351045.831047.641044.31047.011047.531046.381047.751046.851045.41046.741047.371045.071048.221045.941045.511048.331046.931046.981044.711042.891047.121044.251047.451039.991020.12933.47885.66869.13860.59844.68847.04844.02838.64838.5836.94830.03823.32825.05820.65817.01851.61842.28842.62848.23847.1844.26844.76842.74844.11838.57841.59841.2838.45841.34836.96835.75834.55834.65831.84837.59835.25834.2836.33833.92837.21834.64834.34830.1824.69834.08832.57831.01830.31832.5830.74833.35827.22825.05825.61829.071064.031068.351066.521063.941069.61067.261066.71067.521064.761066.441064.961067.181065.11065.561066.71066.271066.71066.811065.641065.811066.671062.051063.351067.181063.041066.441064.911065.051065.671064.881066.131065.641067.831066.891064.081065.331062.561067.071065.71066.351065.391066.841065.931065.051065.11067.291063.631066.181065.931066.55985.76969.74963.86964.81971.56963.48971.42970.12968.38968.22972.08967.94965.09970.38970.85978.35968.31965.44969.93964.2966.95970.99970.85972.48972.93972.95972.17965.16971.75969.7972.46968.62962.77970.76972.36971.04967.87967.96963.18970.87970.76968.57969.53964.16970.99963.76973.26965.65968.97972.74672.07505.38516.81498.97494.25500.53564.59611.97668.02668.9668.73668.04667.68668.02662.49669.62670.48666.81669.6669.78654.17669.77669.61669.25668.23667.86668.38670.66669.78668.02669.78668.2669.43671.01669.28670.3668.2668.38668.2663.13669.08670.3671.19668.57669.95669.96669.25670.48669.95670.13Tooltip
Apple Mac Mini Late 2020 Entry (M1, 8GB) Apple M1: Ø1046 (1039.99-1048.33)
Apple MacBook Air 2020 M1 Entry Apple M1; Rosetta 2: Ø843 (817.01-1020.12)
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB) Apple M1: Ø1066 (1062.05-1069.6)
Intel NUC11PAQi7 Intel Core i7-1165G7: Ø969 (962.77-985.76)
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H: Ø649 (494.25-672.07)

Mac Mini 2020入门版显示的结果与MacBook Pro 13M1在个别测试中也是类似。与Intel Core i7-1165G7的距离又在10%左右。只有在Geekbench多核测试中,M1的领先优势明显,超过50%。

Cinebench R23 / CPU (Single Core)
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
1520 Points ∼100%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1
1516 Points ∼100% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
1513 Points ∼100% 0%
Average Apple M1
  (1496 - 1520, n=5)
1513 Points ∼100% 0%
Apple MacBook Air 2020 M1 Entry
Apple M1
1496 Points ∼98% -2%
Average of class Desktop
  (446 - 1636, n=11, last 2 years)
1165 Points ∼77% -23%
Cinebench R23 / CPU (Multi Core)
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
7811 Points ∼100% 0%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
7799 Points ∼100%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1
7714 Points ∼99% -1%
Average Apple M1
  (7409 - 7830, n=5)
7713 Points ∼99% -1%
Apple MacBook Air 2020 M1 Entry
Apple M1
7409 (6401.39min - 7409.31max) Points ∼95% -5%
Intel NUC11PAQi7
Intel Core i7-1165G7
6862 Points ∼88% -12%
Average of class Desktop
  (1183 - 15186, n=12, last 2 years)
5523 Points ∼71% -29%
Cinebench R20 / CPU (Single Core)
Intel NUC11PAQi7
Intel Core i7-1165G7
582 Points ∼100% +44%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
406 Points ∼70% +1%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
403 Points ∼69%
Average Apple M1
  (401 - 406, n=3)
403 Points ∼69% 0%
Apple MacBook Air 2020 M1 Entry
Apple M1
401 Points ∼69% 0%
Average of class Desktop
  (156 - 632, n=22, last 2 years)
392 Points ∼67% -3%
Beelink GTR35 II-G-16512D00W64PRO-1T
AMD Ryzen 5 3550H
347 Points ∼60% -14%
Cinebench R20 / CPU (Multi Core)
Intel NUC11PAQi7
Intel Core i7-1165G7
2657 Points ∼100% +27%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
2109 Points ∼79% +1%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
2086 Points ∼79%
Average Apple M1
  (1863 - 2109, n=3)
2019 Points ∼76% -3%
Apple MacBook Air 2020 M1 Entry
Apple M1
1863 Points ∼70% -11%
Average of class Desktop
  (304 - 5847, n=22, last 2 years)
1755 Points ∼66% -16%
Beelink GTR35 II-G-16512D00W64PRO-1T
AMD Ryzen 5 3550H
1583 Points ∼60% -24%
Cinebench R15 / CPU Multi 64Bit
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
1087 Points ∼100%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
1070 (1060min - 1070max) Points ∼98% -2%
Average Apple M1
  (1020 - 1087, n=3)
1059 Points ∼97% -3%
Apple MacBook Air 2020 M1 Entry
Apple M1
1020 (817min - 1020max) Points ∼94% -6%
Intel NUC11PAQi7
Intel Core i7-1165G7
986 (962.77min - 985.76max) Points ∼91% -9%
Average of class Desktop
  (204 - 2397, n=26, last 2 years)
730 Points ∼67% -33%
Beelink GTR35 II-G-16512D00W64PRO-1T
AMD Ryzen 5 3550H
672 (494.25min - 672.07max) Points ∼62% -38%
Blender 2.79 / BMW27 CPU
Average of class Desktop
  (197 - 2845, n=22, last 2 years)
1014 Seconds * ∼100% -146%
Beelink GTR35 II-G-16512D00W64PRO-1T
AMD Ryzen 5 3550H
670 Seconds * ∼66% -63%
Intel NUC11PAQi7
Intel Core i7-1165G7
468 Seconds * ∼46% -14%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
412 Seconds * ∼41%
Average Apple M1
  (382 - 412, n=2)
397 Seconds * ∼39% +4%
Apple MacBook Air 2020 M1 Entry
Apple M1
382 Seconds * ∼38% +7%
Geekbench 5.3 / 64 Bit Single-Core Score
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
1741 Points ∼100%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
1740 Points ∼100% 0%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1
1730 Points ∼99% -1%
Average Apple M1
  (1710 - 1745, n=7)
1730 Points ∼99% -1%
Apple MacBook Air 2020 M1 Entry
Apple M1
1727 Points ∼99% -1%
Intel NUC11PAQi7
Intel Core i7-1165G7
1559 Points ∼90% -10%
Average of class Desktop
  (388 - 1784, n=23, last 2 years)
1104 Points ∼63% -37%
Beelink GTR35 II-G-16512D00W64PRO-1T
AMD Ryzen 5 3550H
903 Points ∼52% -48%
Geekbench 5.3 / 64 Bit Multi-Core Score
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1
7690 Points ∼100%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1
7590 Points ∼99% -1%
Apple MacBook Air 2020 M1 Entry
Apple M1
7578 Points ∼99% -1%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1
7570 Points ∼98% -2%
Average Apple M1
  (7260 - 7710, n=7)
7539 Points ∼98% -2%
Intel NUC11PAQi7
Intel Core i7-1165G7
4975 Points ∼65% -35%
Average of class Desktop
  (1239 - 10709, n=23, last 2 years)
4261 Points ∼55% -45%
Beelink GTR35 II-G-16512D00W64PRO-1T
AMD Ryzen 5 3550H
3203 Points ∼42% -58%

* ... smaller is better

Cinebench R15 OpenGL 64Bit
89.41 fps
Cinebench R15 CPU Multi 64Bit
1087 Points
Help

系统性能和SSD

只有浏览器基准测试可用于评估Apple Mac Mini的系统性能。在这些基准测试中,小型Mac经常可以将自己置于我们测试领域的顶端,证明它的性能非常好。在日常使用中,系统启动很快,而且总是立即作出反应,没有不必要的延迟。

内置的固态硬盘也显示出非常高的写入和读取率,这与我们审查过的其他M1设备的存储结果一致。

JetStream 1.1: Total Score
Jetstream 2: Total Score
Octane V2: Total Score
Mozilla Kraken 1.1: Total Score
WebXPRT 3: ---
Speedometer 2.0: Result
Blackmagic Disk Speed Test: 5GB Read | 5GB Write
JetStream 1.1 / Total Score
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
408.13 Points ∼100%
Average Apple M1, Apple M1 8-Core GPU
  (402 - 408, n=4)
404 Points ∼99% -1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
403.1 Points ∼99% -1%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
401.5 Points ∼98% -2%
Average of class Desktop
  (87.2 - 408, n=7, last 2 years)
254 Points ∼62% -38%
Jetstream 2 / Total Score
Average Apple M1, Apple M1 8-Core GPU
  (177 - 183, n=4)
179 Points ∼100% +1%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
178.7 Points ∼100% +1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
177.5 Points ∼99% 0%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
177.28 Points ∼99%
Average of class Desktop
  (59.9 - 203, n=8, last 2 years)
131 Points ∼73% -26%
Octane V2 / Total Score
Average Apple M1, Apple M1 8-Core GPU
  (62113 - 62946, n=4)
62560 Points ∼100% 0%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
62390 Points ∼100%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
62227 Points ∼99% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
62113 Points ∼99% 0%
Average of class Desktop
  (24502 - 62390, n=5, last 2 years)
46669 Points ∼75% -25%
Mozilla Kraken 1.1 / Total Score
Average of class Desktop
  (446 - 2457, n=21, last 2 years)
1175 ms * ∼100% -163%
Beelink GTR35 II-G-16512D00W64PRO-1T
Vega 8, R5 3550H, Silicon Motion AZW 512G NV428
1046 ms * ∼89% -134%
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
632 ms * ∼54% -42%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
515.9 ms * ∼44% -16%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
489 ms * ∼42% -10%
Average Apple M1, Apple M1 8-Core GPU
  (446 - 516, n=4)
483 ms * ∼41% -8%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
446.1 ms * ∼38%
WebXPRT 3 /
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
293 Points ∼100%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
281 Points ∼96% -4%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
281 Points ∼96% -4%
Average Apple M1, Apple M1 8-Core GPU
  (216 - 293, n=4)
253 Points ∼86% -14%
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
248 Points ∼85% -15%
Average of class Desktop
  (83.2 - 293, n=20, last 2 years)
180 Points ∼61% -39%
Beelink GTR35 II-G-16512D00W64PRO-1T
Vega 8, R5 3550H, Silicon Motion AZW 512G NV428
162 Points ∼55% -45%
Speedometer 2.0 / Result
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
219 runs/min ∼100%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
213 runs/min ∼97% -3%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
213 runs/min ∼97% -3%
Average Apple M1, Apple M1 8-Core GPU
  (209 - 219, n=4)
213 runs/min ∼97% -3%
Average of class Desktop
  (71.7 - 219, n=3, last 2 years)
151 runs/min ∼69% -31%
Blackmagic Disk Speed Test / 5GB Read
Average of class Desktop
  (last 2 years)
2870 MB/s ∼100% 0%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2869.8 MB/s ∼100%
Average Apple M1, Apple M1 8-Core GPU
  (2728 - 2870, n=3)
2798 MB/s ∼97% -3%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2797.6 MB/s ∼97% -3%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
2756 MB/s ∼96% -4%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
M1 8-Core GPU, M1, Apple SSD AP0512
2727.6 MB/s ∼95% -5%
Blackmagic Disk Speed Test / 5GB Write
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
M1 8-Core GPU, M1, Apple SSD AP0512
2895.1 MB/s ∼100% +31%
Average Apple M1, Apple M1 8-Core GPU
  (2194 - 2895, n=3)
2434 MB/s ∼84% +10%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
2431 MB/s ∼84% +10%
Average of class Desktop
  (last 2 years)
2214 MB/s ∼76% 0%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2213.9 MB/s ∼76%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
M1 8-Core GPU, M1, Apple SSD AP0256
2193.5 MB/s ∼76% -1%

* ... smaller is better

图形卡

Apple 在Mac Mini中使用了带有八核GPU的M1,结果性能又与MacBook Pro 13 持平或略高于后者。Geekbench结果还显示,图形性能比Intel Iris Xe Graphics G7 96EUsIntel Core i7-1165G7Intel NUC11PAQi7

这也使得带有M1的Apple Mac Mini适合要求更高的图形应用。

3DMark - Wild Life Unlimited Score
Average of class Desktop
  (2773 - 114111, n=5, last 2 years)
64330 Points ∼100% +254%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
18177 Points ∼28%
Average Apple M1 8-Core GPU
  (17731 - 18326, n=5)
18054 Points ∼28% -1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
17731 Points ∼28% -2%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1 8-Core GPU, Apple M1
17731 Points ∼28% -2%
Apple MacBook Air 2020 M1 Entry
Apple M1 7-Core GPU, Apple M1
16159 Points ∼25% -11%
Geekbench 5.3
Metal Score 5.1
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
22378 Points ∼100%
Average Apple M1 8-Core GPU

22378 Points ∼100% 0%
Average of class Desktop
  (last 2 years)
22378 Points ∼100% 0%
OpenCL Score 5.1
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
19613 Points ∼100%
Average Apple M1 8-Core GPU

19613 Points ∼100% 0%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
13982 Points ∼71% -29%
Average of class Desktop
  (1738 - 71666, n=13, last 2 years)
13477 Points ∼69% -31%
Beelink GTR35 II-G-16512D00W64PRO-1T
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H
10603 Points ∼54% -46%
GFXBench
Aztec Ruins High Tier Onscreen
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
60 fps ∼100%
Average Apple M1 8-Core GPU
  (43.7 - 75, n=5)
57.7 fps ∼96% -4%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1 8-Core GPU, Apple M1
55.5 fps ∼93% -7%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
54.4 fps ∼91% -9%
Average of class Desktop
  (44.1 - 60, n=2, last 2 years)
52.1 fps ∼87% -13%
Apple MacBook Air 2020 M1 Entry
Apple M1 7-Core GPU, Apple M1
51.4 fps ∼86% -14%
2560x1440 Aztec Ruins High Tier Offscreen
Average of class Desktop
  (6.5 - 188, n=4, last 2 years)
88.7 fps ∼100% +9%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
81.7 fps ∼92%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1 8-Core GPU, Apple M1
81.2 fps ∼92% -1%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
78.2 fps ∼88% -4%
Average Apple M1 8-Core GPU
  (63 - 81.7, n=6)
75.4 fps ∼85% -8%
Apple MacBook Air 2020 M1 Entry
Apple M1 7-Core GPU, Apple M1
72.4 fps ∼82% -11%
Aztec Ruins Normal Tier Onscreen
Average Apple M1 8-Core GPU
  (60 - 102, n=5)
69.9 fps ∼100% +16%
Average of class Desktop
  (60.3 - 69, n=2, last 2 years)
64.7 fps ∼93% +7%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
60.3 fps ∼86%
Apple MacBook Air 2020 M1 Entry
Apple M1 7-Core GPU, Apple M1
60.1 fps ∼86% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
60 fps ∼86% 0%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1 8-Core GPU, Apple M1
60 fps ∼86% 0%
1920x1080 Aztec Ruins Normal Tier Offscreen
Average of class Desktop
  (17.5 - 493, n=4, last 2 years)
233 fps ∼100% +8%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1 8-Core GPU, Apple M1
215.4 fps ∼92%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1 8-Core GPU, Apple M1
214.4 fps ∼92% 0%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1 8-Core GPU, Apple M1
207 fps ∼89% -4%
Average Apple M1 8-Core GPU
  (177 - 215, n=6)
202 fps ∼87% -6%
Apple MacBook Air 2020 M1 Entry
Apple M1 7-Core GPU, Apple M1
192 fps ∼82% -11%

游戏性能

如果你不使用高分辨率和最大细节水平,游戏绝对可以在Mac Mini上顺利运行。此外,应首选较早的游戏,因为它们往往运行得更好。另一方面,应避免使用最新的三A级游戏。M1对于Apple"街机 "中的游戏没有问题。

在不同的游戏中可以预期的性能可以在我们的 GPU游戏文章中看到

Borderlands 3 - 1280x720 Very Low Overall Quality (DX11)
Average of class Desktop
  (52.5 - 197, n=4, last 2 years)
148 fps ∼100% +182%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1, Apple M1 8-Core GPU
56.7 fps ∼38% +8%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1, Apple M1 8-Core GPU
52.49 fps ∼35%
Average Apple M1 8-Core GPU
  (30.4 - 56.7, n=3)
46.5 fps ∼31% -11%
Apple MacBook Air 2020 M1 Entry
Apple M1, Apple M1 7-Core GPU
45.2 fps ∼31% -14%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1, Apple M1 8-Core GPU
30.4 fps ∼21% -42%
Total War: Three Kingdoms - 1280x720 Low (incl textures)
Average of class Desktop
  (15.2 - 430, n=5, last 2 years)
257 fps ∼100% +157%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1, Apple M1 8-Core GPU
100.1 fps ∼39%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1, Apple M1 8-Core GPU
100 fps ∼39% 0%
Average Apple M1 8-Core GPU
  (93.4 - 100, n=3)
97.8 fps ∼38% -2%
Apple MacBook Air 2020 M1 Entry
Apple M1, Apple M1 7-Core GPU
95.2 (88min - 102max) fps ∼37% -5%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1, Apple M1 8-Core GPU
93.4 fps ∼36% -7%
Shadow of the Tomb Raider - 1280x720 Lowest Preset
Average of class Desktop
  (7 - 248, n=6, last 2 years)
138 fps ∼100% +116%
Apple MacBook Air Late 2020 (M1, 8 Core GPU, 8 GB RAM)
Apple M1, Apple M1 8-Core GPU
78 fps ∼57% +22%
Average Apple M1 8-Core GPU
  (64 - 78, n=3)
69.3 fps ∼50% +8%
Apple MacBook Pro 13 Late 2020 M1 Entry (8 / 256 GB)
Apple M1, Apple M1 8-Core GPU
66 fps ∼48% +3%
Apple MacBook Air 2020 M1 Entry
Apple M1, Apple M1 7-Core GPU
65 (46min - 129max) fps ∼47% +2%
Apple Mac Mini Late 2020 Entry (M1, 8GB)
Apple M1, Apple M1 8-Core GPU
64 fps ∼46%
low med. high ultra
Shadow of the Tomb Raider (2018) 64 45 43 38 fps
Total War: Three Kingdoms (2019) 100.1 32.2 20.3 15 fps
Borderlands 3 (2019) 52.49 32.5 19.03 fps

Emissions and energy - Frugal and silent

噪声排放

配备M1的Mac Mini配备了一个风扇,但它在任何时候都听不见,即使在负载情况下也是如此。这意味着,Apple"的迷你PC可以无声地运行。

温度

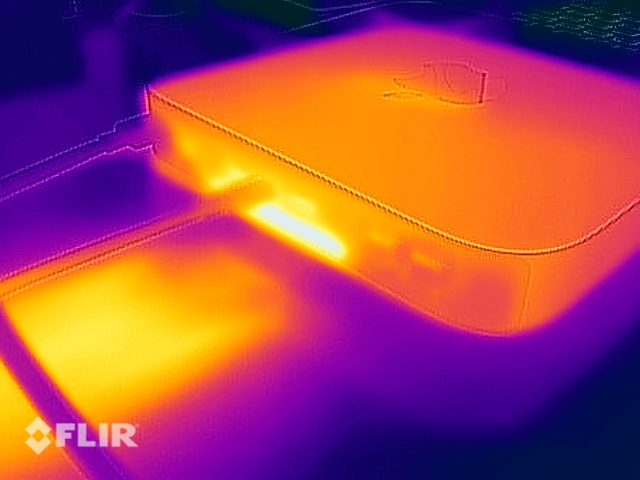

负载下的热力图 - 返回
负载下的热力图 - 返回

根据我们的测量,Mac Mini的表面只发热到一个适度的程度。最高温度为35.7°C(~96°F),Apple'的迷你电脑从不发热,因此,可以随时触摸,没有任何问题。

Max. Load
 33.5 °C34.7 °C34.9 °C
 33.2 °C35.7 °C35.6 °C
 31.5 °C32 °C32.3 °C
Maximum: 35.7 °C
Average: 33.7 °C
30.9 °C29.5 °C30.3 °C
29.9 °C26.8 °C28.9 °C
30.2 °C29.6 °C29.3 °C
Maximum: 30.9 °C
Average: 29.5 °C
Room Temperature 21.3 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 28.4 °C / 83 F for the devices in the class Desktop.
(+) The maximum temperature on the upper side is 35.7 °C / 96 F, compared to the average of 33.3 °C / 92 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 30.9 °C / 88 F, compared to the average of 33.6 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 24.6 °C / 76 F, compared to the device average of 28.4 °C / 83 F.

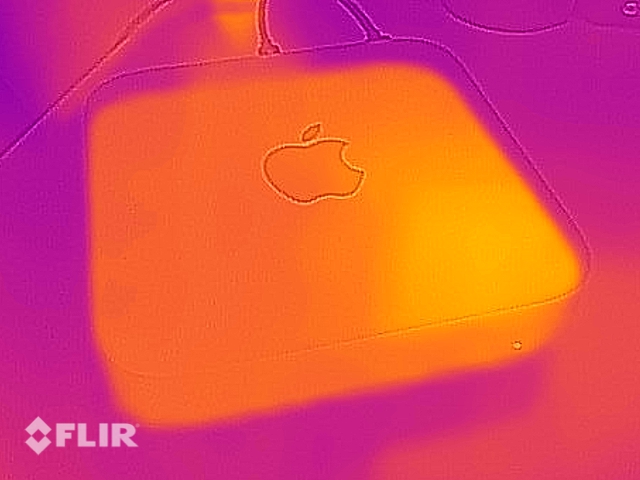

闲置使用中的热图--首页
闲置使用中的热图--首页

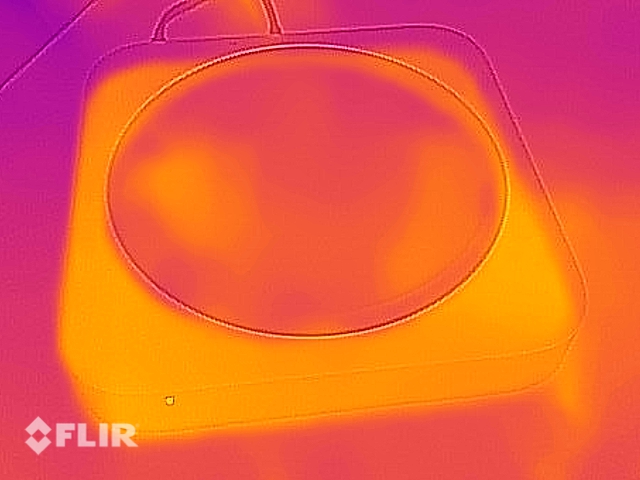

闲置使用的热图 - 底部
闲置使用的热图 - 底部

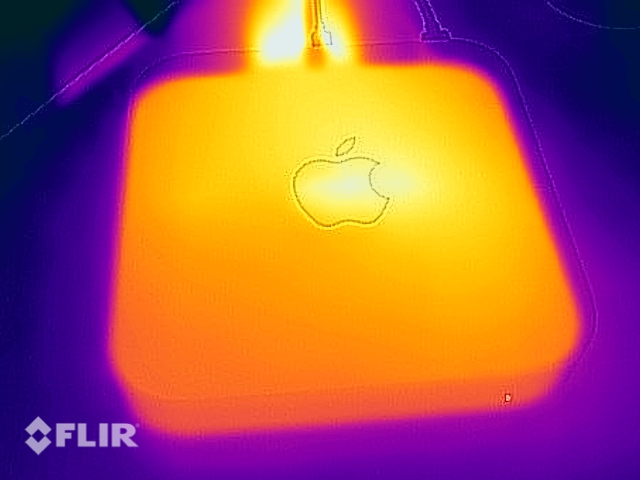

负载下的热力图--顶部
负载下的热力图--顶部

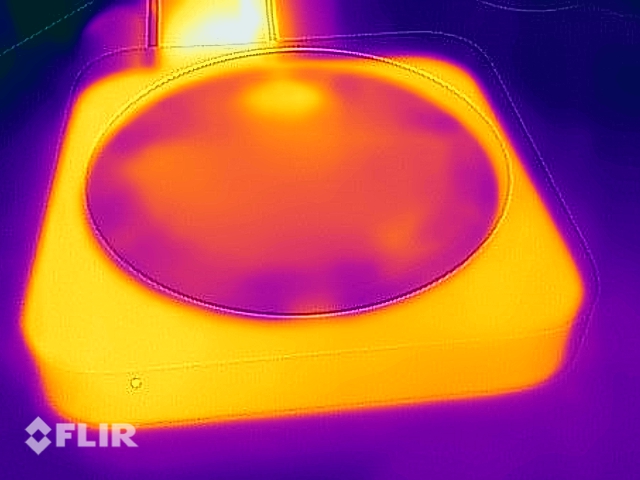

负载下的热图--底部
负载下的热图--底部

演讲者

Apple ,在Mac Mini中安装了一个内部扬声器。它的音量达到中等水平,并提供以高音为主的声谱。总的来说,它更适合于发出系统事件的信号,它不应该被用于再现媒体内容。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031262525.8323127.832.24034.533.35033.534.66330.330.48033.933.410023.928.512525.437.31602444.620022.948.425021.849.831518.75340017.345.350016.643.263015.158.480014.866.7100014.171.8125013.164.6160012.962.5200012.664.9250012.861.7315012.866.8400012.76550001368.6630012.866.6800012.966.91000012.969.11250012.764.41600012.759.8SPL26.478.3N0.941.6median 13.1median 62.5Delta3.28.735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseApple Mac Mini Late 2020 Entry (M1, 8GB)Apple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Apple Mac Mini Late 2020 Entry (M1, 8GB) audio analysis

(±) | speaker loudness is average but good (78.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.9% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 7.3% lower than median
(±) | linearity of mids is average (12.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.1% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 40% similar, 20% worse
» The best had a delta of 8%, average was 18%, worst was 38%
Compared to all devices tested
» 34% of all tested devices were better, 8% similar, 58% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 3%, average was 20%, worst was 65%

能源消耗

我们的测量结果表明,Mac Mini在负载情况下的耗电量可高达40.2瓦特。然而,这是一个绝对的峰值,在日常使用中很少达到,即使在密集的负载下也是如此。负载下的平均耗电量约为20瓦。在我们的空闲情况下,最高达到4.4瓦。

根据Apple ,内部电源可以消耗高达150瓦,这是一个足够高的容量。

Power Consumption
Off / Standbydarklight 0.12 / 0.6 Watt
Idledarkmidlight 4.2 / / 4.4 Watt
Load midlight 19.9 / 40.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Energy consumption during The Witcher 3 / Stress test

051015202530354011.917.418.918.418.419.118.418.118.818.220.81919.619.218.518.418.218.419.418.118.218.118.118.118.318.319.318.118.41818.618.618.118.318.61914.115.319.618.818.41919.119.216.420.319.12018.417.920.81918.320.820.815.819.219.521.316.420.419.421.22024.318.819.920.319.51818.715.914.320.719.82019.620.721.720.121.120.119.619.420.512.517.918.618.720.619.319.319.818.224.919.21919.520.12121.217.818.118.620.821.619.720.324.521.423.720.822.223.522.922.820.523.623.721.921.923.821.222.421.121.323.221.822.215.322.321.722.123.420.520.419.621.620.911.917.418.918.418.419.118.418.118.818.220.81919.619.218.518.418.218.419.418.118.218.118.118.118.318.319.318.118.41818.618.618.118.318.61914.115.319.618.818.41919.119.216.420.319.12018.417.920.81918.320.820.815.819.219.521.316.420.419.421.22024.318.819.920.319.51818.715.914.320.719.82019.620.721.720.121.120.119.619.420.512.517.918.618.720.619.319.319.818.224.919.21919.520.12121.217.818.118.620.821.619.720.324.521.423.720.822.223.522.922.820.523.623.721.921.923.821.222.421.121.323.221.822.215.322.321.722.123.420.520.419.621.620.934.834.834.83534.934.833.23434.332.733.733.733.933.733.632.734.93535.235.335.335.135.135.435.334.934.736.636.336.136.236.235.736.436.236.235.935.635.635.735.635.636.1363636.434.835.735.435.335.135.235.234.434.834.734.634.534.534.835.235.936.236.136.336.135.935.835.636.13635.735.635.635.735.63538.135.635.735.435.735.936.235.334.634.234.434.535.135.13535.234.934.834.733.934.434.633.934.63534.634.934.734.734.63535.13535.235.435.635.234.934.734.634.934.734.834.93534.834.633.534.634.735.433.634.2343433.834.434.534.734.934.935.435.1353534.935.735.635.235.335.935.93636.136.136.136.235.934.834.834.934.934.934.935.435.435.835.4363636.536.13635.835.935.835.735.435.735.93635.835.835.635.935.93635.831.335.635.835.735.835.935.936.336.236.229.240.234.935.435.135.235.435.935.935.235.635.73636.436.536.536.736.737.136.736.335.737.337.237.537.537.637.637.637.637.437.137.337.237.43837.837.636.93736.835.5Tooltip
; Witcher 3 ultra: Ø19.6 (11.9-24.9)
; 1280x720 Prime95 28.10 and Furmark 1.25: Ø35.4 (29.2-40.2)

Pros

+ 非常好的性能
+ 两个Thunderbolt 3端口
+ 坚固的外壳
+ 即使风扇运转也听不到声音

Cons

- 没有维护选项
- Wi-Fi 6只在80MHz下运行,因此相对较慢
- 对X86应用程序的模拟可能不稳定

结论--M1的性能符合入门级价格

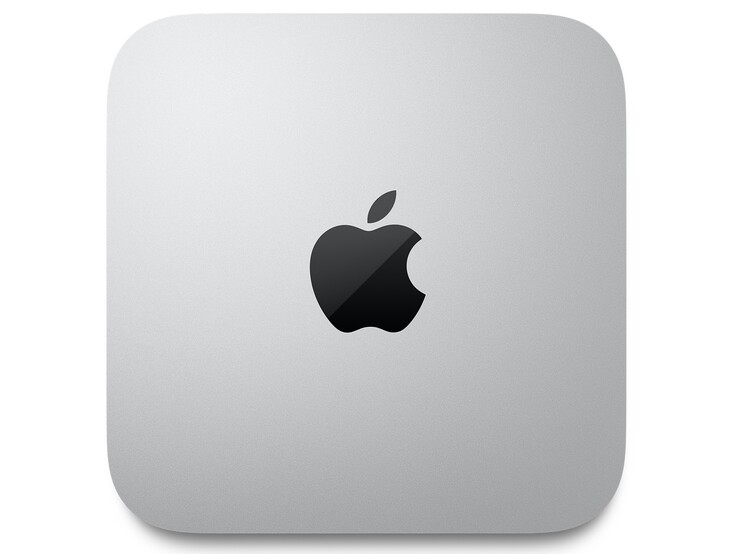

在审查:Apple Mac Mini Late 2020 Entry (M1, 8GB)。测试设备由Apple 德国提供
在审查:Apple Mac Mini Late 2020 Entry (M1, 8GB)。测试设备由Apple 德国提供

如前所述,Mac Mini最适合与自己的或已有的配件一起使用。M1的性能非常好,几乎可以与MacBook Pro ,在此基础上再加上。MacOS和本地可用的应用程序运行流畅,提供了一个非常好的整体性能。

Apple Mac Mini提供了MacBook Pro的性能,而价格仅是MacBook Pro的一半多一点。

对于那些不在ARM上原生运行的应用程序来说,情况就有点不同了。这些程序可能会出现界面不流畅和偶尔崩溃的情况,最终,这里唯一的解决办法是等待原生版本。你必须测试急需的x86应用程序的运行情况,但总的来说,这里的性能也不错。

与其他迷你电脑直接相比,如 英特尔NUC11PAQi7,Apple 带M1的Mac Mini总是被证明是更好的模型。只是它的结构现在比竞争对手的略大。

价格和可用性

在撰写本文时,你可以在以下网站找到我们测试配置中的Apple Mac Mini 亚马逊售价659美元(优惠40美元)。

Pricecompare

Stephanie Chamberlain
Editor of the original article: Stephanie Chamberlain - Translator - 414 articles published on Notebookcheck since 2020
contact me via: LinkedIn
Stefan Hinum
Translator: Stefan Hinum - Founder, CEO, CFO - 18074 articles published on Notebookcheck since 2006
Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Apple Mac Mini Late 2020的回顾。最实惠的M1也让人信服
Mike Wobker, 2021-09-15 (Update: 2021-09-15)
