Acer Aspire E5-772G 笔记本电脑简短评测

Name: Acer Aspire E5-772G-70VP
Brand: Acer

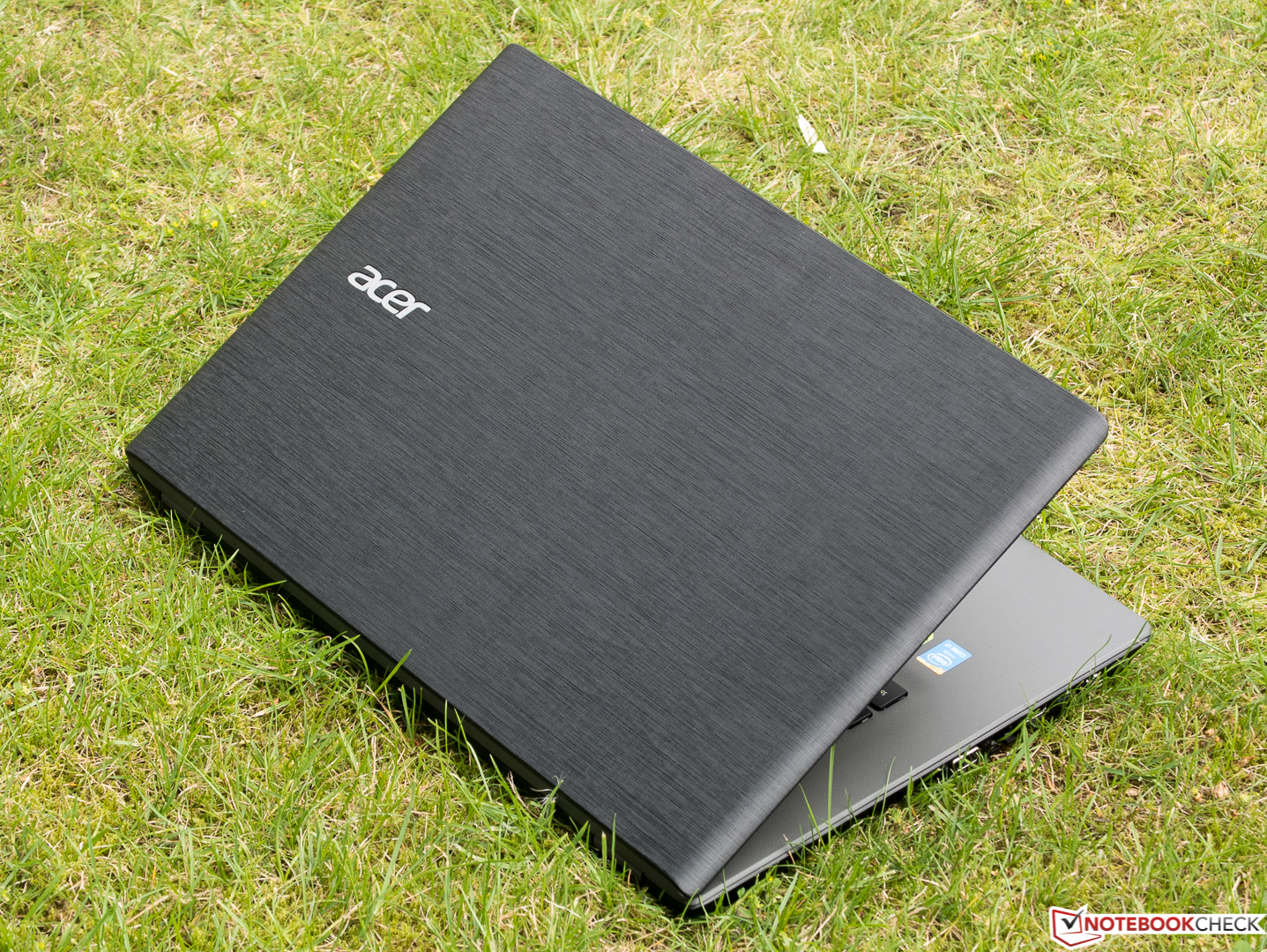

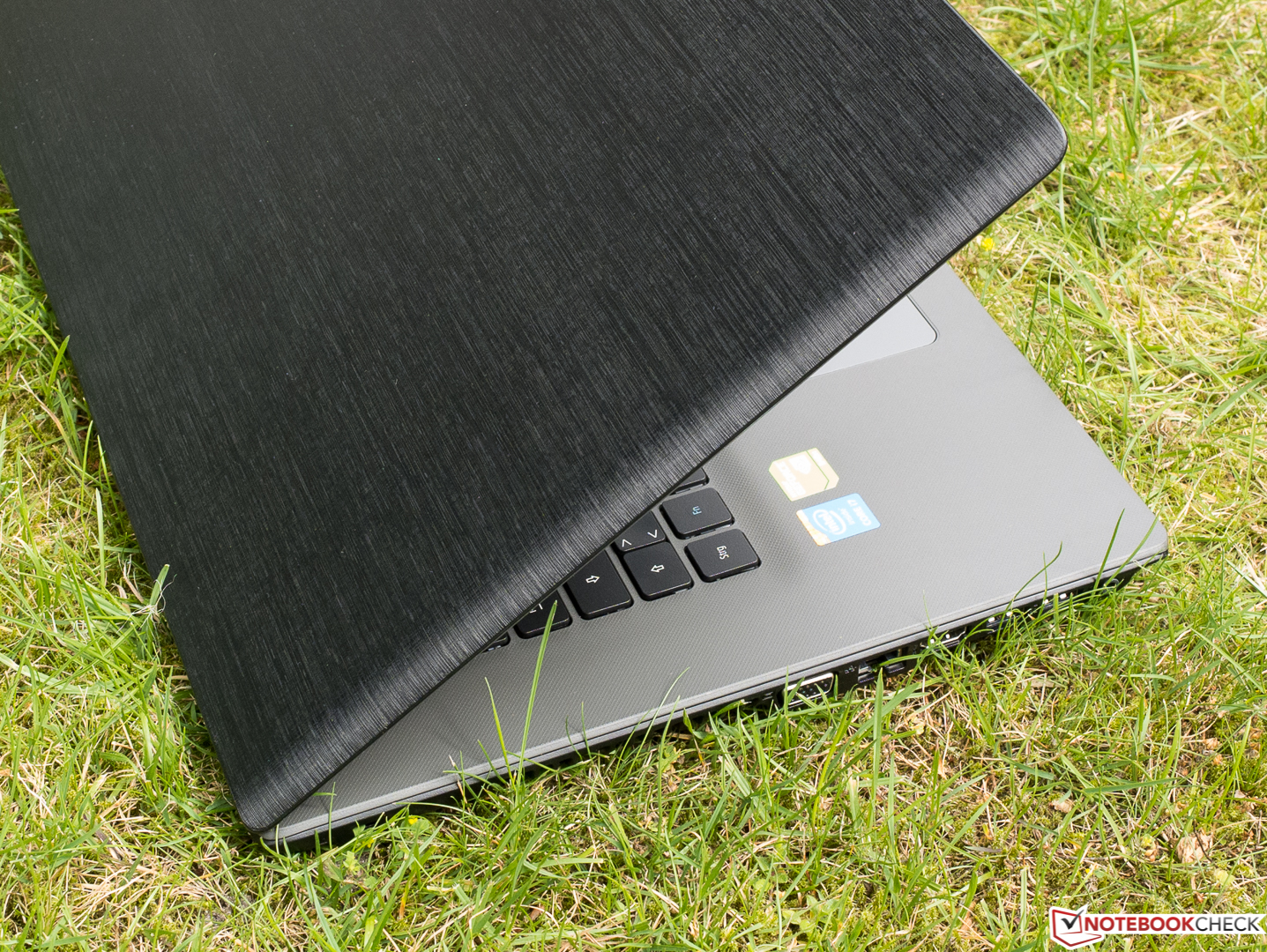

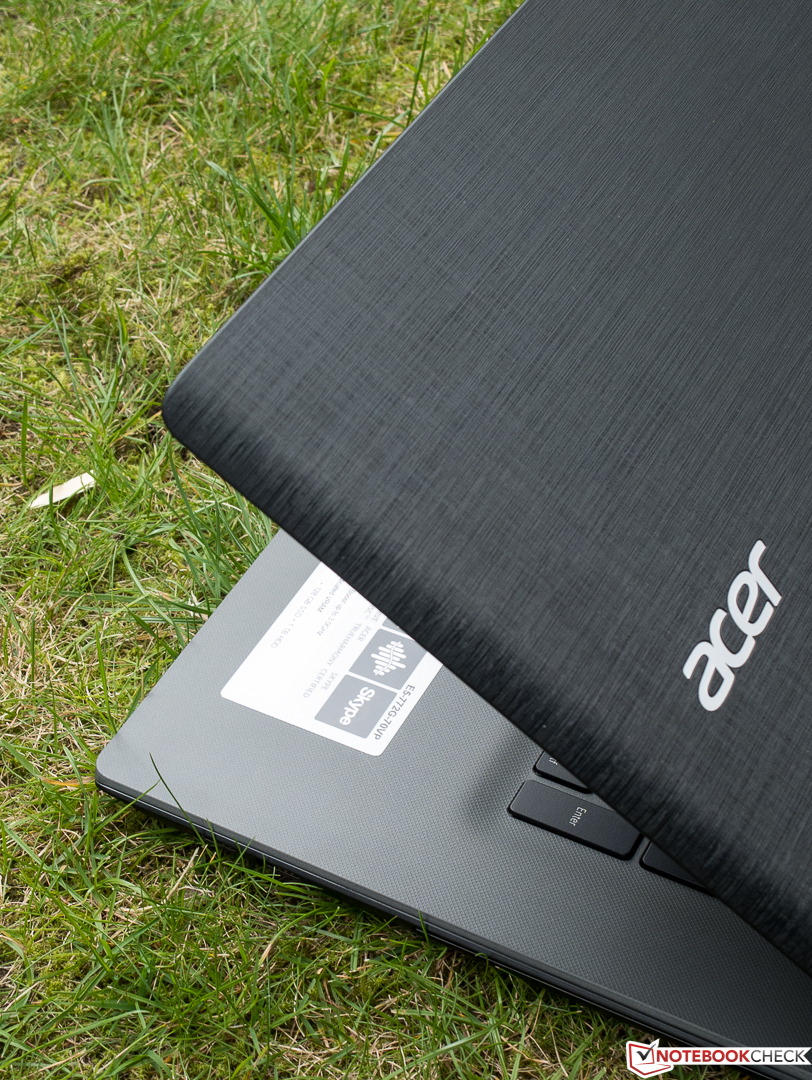

好家伙。 Acer为他们新推出的17寸笔记本电脑搭配了独树一帜的织物纹理表面，游戏级硬件，固态硬盘和不错的输入设备。我们的测试将同时关注它的其他硬件，与这款多媒体笔记本电脑的噪音和发热控制是否与高售价相符，适合替代台式机使用。

Sven Kloevekorn, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 08/16/2015 🇺🇸 🇩🇪 ...

Broadwell Laptop / Notebook Windows

Test device courtesy of Acer Deutschland

Download your licensed rating image as PNG / SVG

Acer Aspire E5-772G-70VP (Aspire E5 Series)

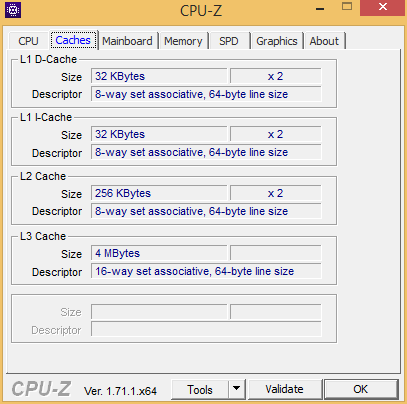

Processor

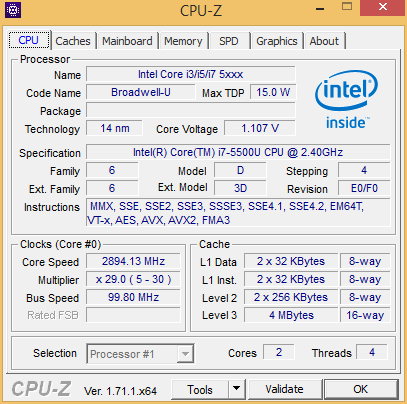

Intel Core i7-5500U 2 x 2.4 - 3 GHz, Broadwell

Graphics adapter

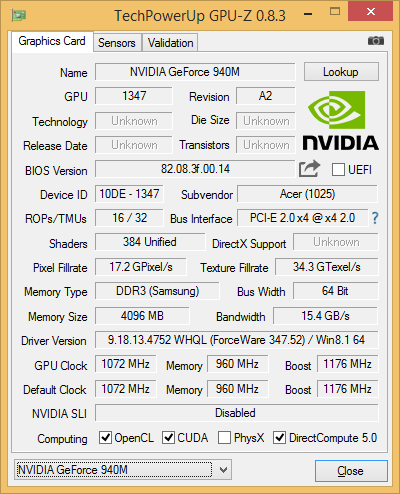

NVIDIA GeForce 940M - 4 GB VRAM, Core: 1176 MHz, Memory: 1920 MHz, DDR3, ForceWare 347.52, Nvidia Optimus

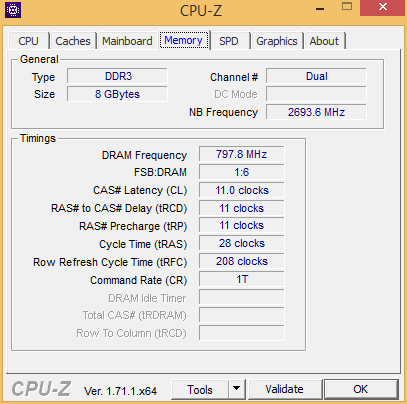

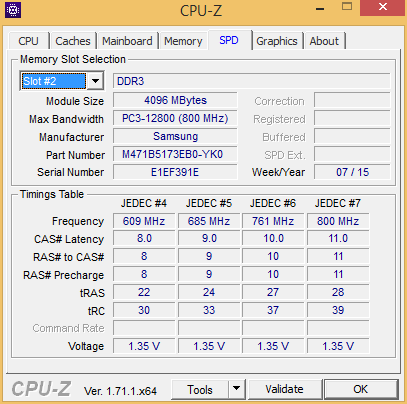

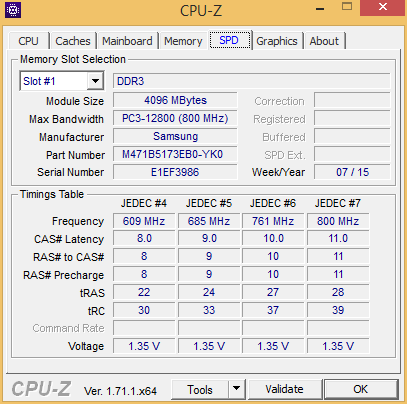

Memory

8 GB

, 双通道，两个内存槽，均已占用

Display

17.30 inch 16:9, 1920 x 1080 pixel, AU Optronics AUO119D, TN LED, glossy: no

Mainboard

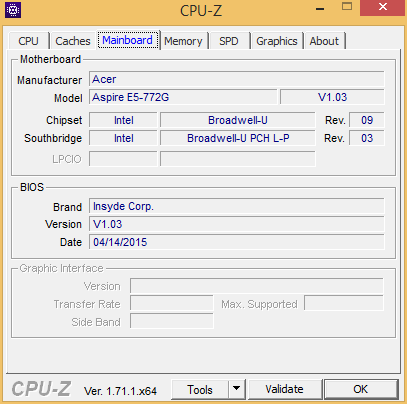

Intel Broadwell-U PCH-LP (Premium)

Storage

Kingston RBU-SNS8100S3128GD, 128 GB

, + 1 x WDC WD10JPVX-22JC3T0 1 TB

Soundcard

Intel Broadwell PCH-LP - High Definition Audio Controller

Connections

2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米整合音频输入输出插口, Card Reader: SD/SDHC/SDXC

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

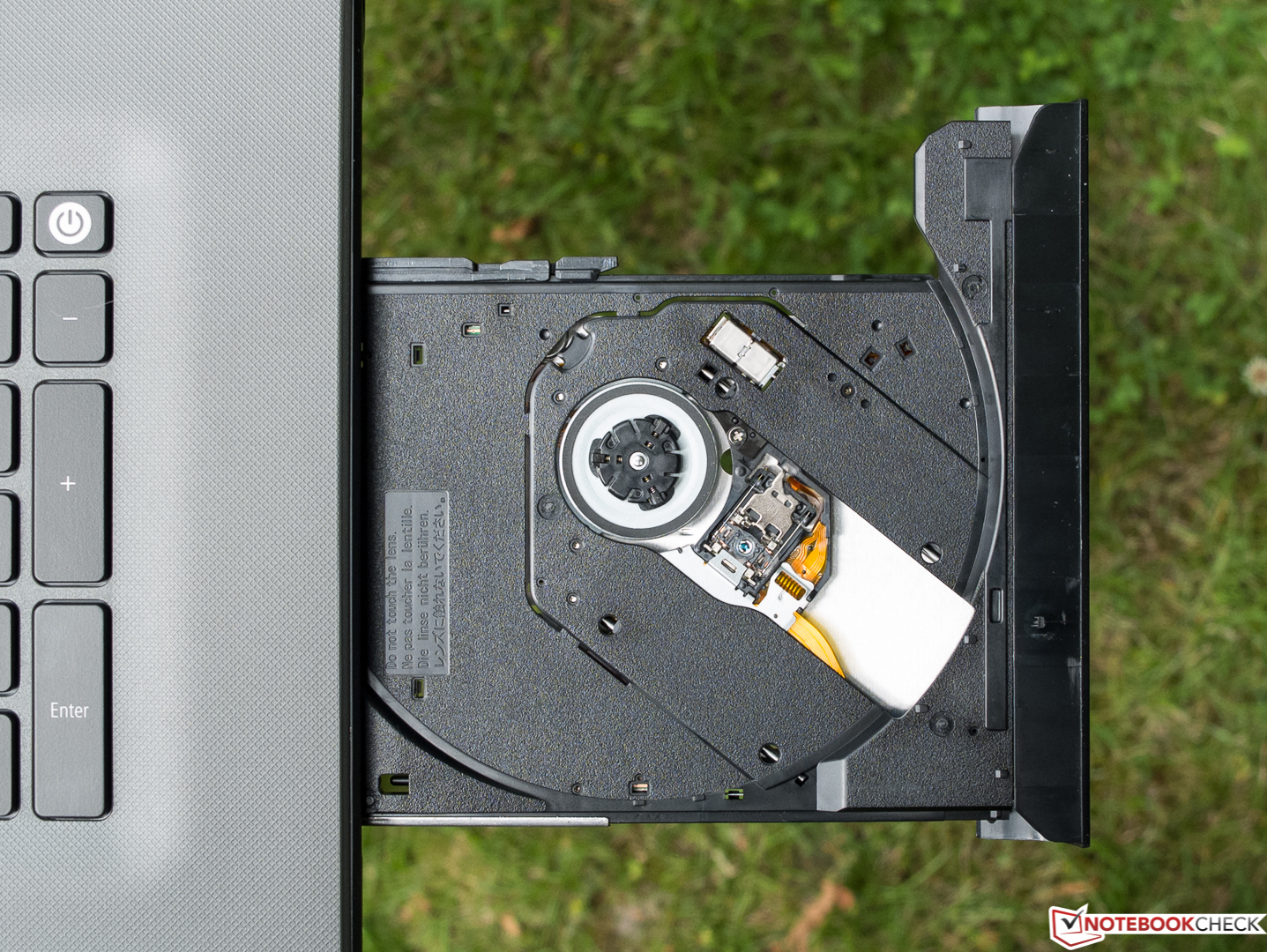

Matshita DVD-RAM UJ8HC

Size

height x width x depth (in mm): 27.5 x 423 x 282

Battery

37 Wh Lithium-Polymer, 2500 mAh, 4 芯

Operating System

Microsoft Windows 8.1 64 Bit

Camera

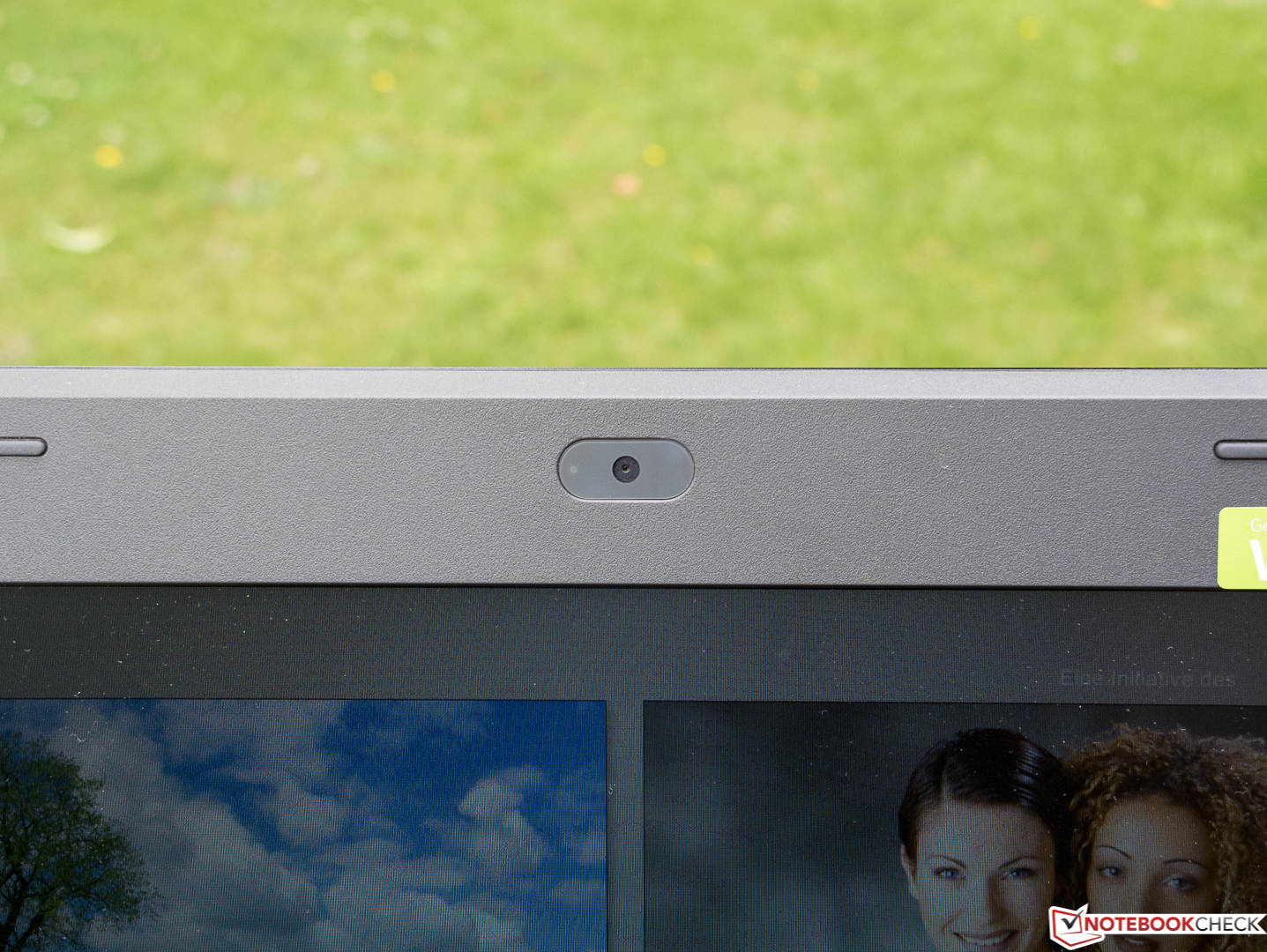

Webcam: 高清，130万像素@30fps

Additional features

Speakers: 立体声，位于底面, Keyboard: 孤岛式, Keyboard Light: yes, 电源适配器，电源线，快速开始说明，质保卡, McAfee Internet Security (试用版), Acer: Portal, Explorer, Power Button, Power Management, Quick Access, Care Center, Recovery Management, abDocs, abFiles, abMedia, abPhoto, Foxit PhantomPDF, MS Office (试用版), 24 Months Warranty

Weight

3 kg

Links

Acer homepage
Acer notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

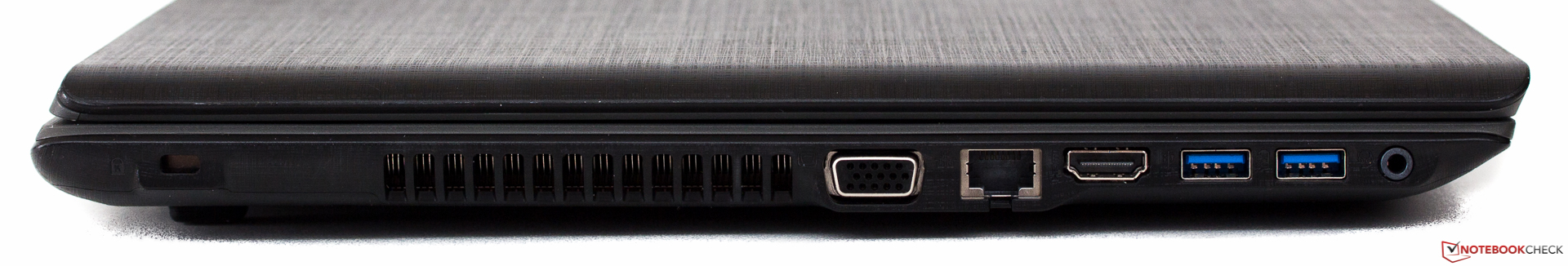

Left: Kensington, vent, VGA, Ethernet, HDMI, 2x USB 3.0, audio in/out


289 cd/m²	309 cd/m²	308 cd/m²
267 cd/m²	243 cd/m²	292 cd/m²
268 cd/m²	309 cd/m²	272 cd/m²

Distribution of brightness

AU Optronics AUO119D tested with X-Rite i1Pro 2

Maximum: 309 cd/m² (Nits) Average: 284.1 cd/m²
Brightness Distribution: 79 %
Center on Battery: 243 cd/m²
Contrast: 540:1 (Black: 0.45 cd/m²)
ΔE Color 12.04 | 0.5-29.43 Ø5
ΔE Greyscale 13.25 | 0.57-98 Ø5.3
92% sRGB (Argyll 1.6.3 3D)
60% AdobeRGB 1998 (Argyll 1.6.3 3D)
67.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
91.9% sRGB (Argyll 2.2.0 3D)
69.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.6

Download ICC File (X-Rite i1Pro 2)

	Acer Aspire E5-772G-70VP	Acer Aspire V17 Nitro VN7-791G-50MV	Asus F751LB-T4030H
Display		-3%	8%
Display P3 Coverage	69.4	70 1%	74.2 7%
sRGB Coverage	91.9	87.5 -5%	99.2 8%
AdobeRGB 1998 Coverage	67.3	64 -5%
Screen		28%	38%
Brightness middle	243	353 45%	353 45%
Brightness	284	333 17%	336 18%
Brightness Distribution	79	90 14%	85 8%
Black Level *	0.45	0.44 2%	0.29 36%
Contrast	540	802 49%	1217 125%
Colorchecker dE 2000 *	12.04	6.12 49%	7.03 42%
Greyscale dE 2000 *	13.25	5.97 55%	6.08 54%
Gamma	2.6 ^85%	2.48 ^89%	2.15 ^102%
CCT	14950 ^43%	7210 ^90%	7457 ^87%
Color Space (Percent of AdobeRGB 1998)	60	57.5 -4%	65 8%
Color Space (Percent of sRGB)	92		99 8%
Total Average (Program / Settings)		13% / 20%	23% / 33%

* ... smaller is better

Cinebench R11.5 | Cinebench R15 | Cinebench R10

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Acer Aspire E5-772G-70VP Intel Core i7-5500U	3.23 Points
Acer Aspire V17 Nitro VN7-791G-50MV Intel Core i5-4210H	3.66 Points +13%
Asus F751LB-T4030H Intel Core i7-5500U	3.2 Points -1%
CPU Single 64Bit (sort by value)
Acer Aspire E5-772G-70VP Intel Core i7-5500U	1.37 Points
Acer Aspire V17 Nitro VN7-791G-50MV Intel Core i5-4210H	1.52 Points +11%
Asus F751LB-T4030H Intel Core i7-5500U	1.39 Points +1%

Cinebench R15
CPU Multi 64Bit (sort by value)
Acer Aspire E5-772G-70VP Intel Core i7-5500U	293 Points
Acer Aspire V17 Nitro VN7-791G-50MV Intel Core i5-4210H	331 Points +13%
Asus F751LB-T4030H Intel Core i7-5500U	295 Points +1%
CPU Single 64Bit (sort by value)
Acer Aspire E5-772G-70VP Intel Core i7-5500U	121 Points
Acer Aspire V17 Nitro VN7-791G-50MV Intel Core i5-4210H	129 Points +7%
Asus F751LB-T4030H Intel Core i7-5500U	120 Points -1%

Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Acer Aspire E5-772G-70VP Intel Core i7-5500U	9942 Points
Acer Aspire V17 Nitro VN7-791G-50MV Intel Core i5-4210H	11114 Points +12%
Asus F751LB-T4030H Intel Core i7-5500U	9620 Points -3%
Rendering Single 32Bit (sort by value)
Acer Aspire E5-772G-70VP Intel Core i7-5500U	4589 Points
Acer Aspire V17 Nitro VN7-791G-50MV Intel Core i5-4210H	4963 Points +8%
Asus F751LB-T4030H Intel Core i7-5500U	4483 Points -2%

Cinebench R10 Rendering Single 32Bit

4589

Cinebench R10 Rendering Multiple CPUs 32Bit

9942

Cinebench R11.5 CPU Single 64Bit

1.37 Points

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R15 CPU Single 64Bit

121 Points

Cinebench R15 CPU Multi 64Bit

293 Points

Help

... in comparison

PCMark 8 | PCMark 7

PCMark 8
Home Score Accelerated v2 (sort by value)
Acer Aspire E5-772G-70VP GeForce 940M, 5500U, Kingston RBU-SNS8100S3128GD	3429 Points
Acer Aspire V17 Nitro VN7-791G-50MV GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX	2858 Points -17%
Asus F751LB-T4030H GeForce 940M, 5500U, Seagate Momentus SpinPoint M8 ST1000LM024	3215 Points -6%
Work Score Accelerated v2 (sort by value)
Acer Aspire E5-772G-70VP GeForce 940M, 5500U, Kingston RBU-SNS8100S3128GD	4444 Points
Acer Aspire V17 Nitro VN7-791G-50MV GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX	3677 Points -17%
Asus F751LB-T4030H GeForce 940M, 5500U, Seagate Momentus SpinPoint M8 ST1000LM024	4079 Points -8%

PCMark 7
Score (sort by value)
Acer Aspire E5-772G-70VP GeForce 940M, 5500U, Kingston RBU-SNS8100S3128GD	5254 Points
Acer Aspire V17 Nitro VN7-791G-50MV GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX	2800 Points -47%
Productivity (sort by value)
Acer Aspire E5-772G-70VP GeForce 940M, 5500U, Kingston RBU-SNS8100S3128GD	4319 Points
Acer Aspire V17 Nitro VN7-791G-50MV GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX	1681 Points -61%
Creativity (sort by value)
Acer Aspire E5-772G-70VP GeForce 940M, 5500U, Kingston RBU-SNS8100S3128GD	9869 Points
Acer Aspire V17 Nitro VN7-791G-50MV GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX	5396 Points -45%

PCMark 7 Score		5254 points
PCMark 8 Home Score Accelerated v2		3429 points
PCMark 8 Work Score Accelerated v2		4444 points
Help

... in comparison

CrystalDiskMark 3.0
Read Seq (sort by value)
Acer Aspire E5-772G-70VP Kingston RBU-SNS8100S3128GD	515 MB/s
Acer Aspire V17 Nitro VN7-791G-50MV Western Digital Scorpio Blue WD5000LPVX	99.3 MB/s -81%
Asus F751LB-T4030H Seagate Momentus SpinPoint M8 ST1000LM024	104.3 MB/s -80%
Read 4k (sort by value)
Acer Aspire E5-772G-70VP Kingston RBU-SNS8100S3128GD	31.24 MB/s
Acer Aspire V17 Nitro VN7-791G-50MV Western Digital Scorpio Blue WD5000LPVX	0.365 MB/s -99%
Asus F751LB-T4030H Seagate Momentus SpinPoint M8 ST1000LM024	0.336 MB/s -99%
Read 4k QD32 (sort by value)
Acer Aspire E5-772G-70VP Kingston RBU-SNS8100S3128GD	178.5 MB/s
Acer Aspire V17 Nitro VN7-791G-50MV Western Digital Scorpio Blue WD5000LPVX	0.784 MB/s -100%
Asus F751LB-T4030H Seagate Momentus SpinPoint M8 ST1000LM024	0.625 MB/s -100%

CrystalDiskMark 3.0

AS SSD

Kingston RBU-SNS8100S3128GD

Sequential Read: 515 MB/s

Sequential Write: 343.2 MB/s

512K Read: 341.1 MB/s

512K Write: 337.2 MB/s

4K Read: 31.24 MB/s

4K Write: 86.6 MB/s

4K QD32 Read: 178.5 MB/s

4K QD32 Write: 242.4 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (sort by value)
Acer Aspire E5-772G-70VP NVIDIA GeForce 940M	2427 Points
Acer Aspire V17 Nitro VN7-791G-50MV NVIDIA GeForce 840M	2511 Points +3%
Asus F751LB-T4030H NVIDIA GeForce 940M	2410 Points -1%

3DMark
1280x720 Cloud Gate Standard Graphics (sort by value)
Acer Aspire E5-772G-70VP NVIDIA GeForce 940M	8854 Points
Acer Aspire V17 Nitro VN7-791G-50MV NVIDIA GeForce 840M	9691 Points +9%
Asus F751LB-T4030H NVIDIA GeForce 940M	8776 Points -1%
1920x1080 Fire Strike Graphics (sort by value)
Acer Aspire E5-772G-70VP NVIDIA GeForce 940M	1633 Points
Acer Aspire V17 Nitro VN7-791G-50MV NVIDIA GeForce 840M	1705 Points +4%
Asus F751LB-T4030H NVIDIA GeForce 940M	1617 Points -1%

3DMark 11 Performance		2501 points
3DMark Cloud Gate Standard Score		6526 points
3DMark Fire Strike Score		1427 points
Help

... in comparison

	low	med.	high	ultra
BioShock Infinite (2013)	87.9	50.2	39.9	13.6
Metro: Last Light (2013)	46.4	36.3	27.9
Dota 2 (2013)	105.9	85.6		35.9
Battlefield 4 (2013)	58.6	40.7	28.5
GRID: Autosport (2014)		57.8	30.1	16.1
Fifa 15 (2014)			73.6	47.1
Middle-earth: Shadow of Mordor (2014)	39.6	25.5	13.3
Civilization: Beyond Earth (2014)	69.1	30.4	20.7	16.2
Call of Duty: Advanced Warfare (2014)	61.6	33.6	17.5
Assassin's Creed Unity (2014)	28.3	17.3

Noise Level

Idle		32 / 32.3 / 32.6 dB(A)
HDD		32.7 dB(A)
DVD		35.1 / dB(A)
Load		41.2 / 41.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


40.3 °C	44.3 °C	28.7 °C
44.1 °C	46.9 °C	29.6 °C
35.1 °C	34.6 °C	32.8 °C

Maximum: 46.9 °C
Average: 37.4 °C


28 °C	35.5 °C	54.7 °C
28.4 °C	34.5 °C	48 °C
31.8 °C	32.7 °C	32.2 °C

Maximum: 54.7 °C
Average: 36.2 °C

Power Supply (max.) 55.3 °C | Room Temperature 24.3 °C | Voltcraft IR-360

(±) The average temperature for the upper side under maximal load is 37.4 °C / 99 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 46.9 °C / 116 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 54.7 °C / 130 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 29.2 °C / 85 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.1 °C / 95.2 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-6.3 °C / -11.4 F).

	Acer Aspire E5-772G-70VP GeForce 940M, 5500U, Kingston RBU-SNS8100S3128GD	Acer Aspire V17 Nitro VN7-791G-50MV GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX	Asus F751LB-T4030H GeForce 940M, 5500U, Seagate Momentus SpinPoint M8 ST1000LM024
Power Consumption		-20%	21%
Idle Minimum *	6	7.9 -32%	3.9 35%
Idle Average *	12.2	13.3 -9%	11.6 5%
Idle Maximum *	14.5	20.3 -40%	12.2 16%
Load Average *	54	54.7 -1%	41.3 24%
Load Maximum *	73.7	85.9 -17%	55.6 25%

* ... smaller is better

Power Consumption

Off / Standby	0.3 / 0.3 Watt
Idle	6 / 12.2 / 14.5 Watt
Load	54 / 73.7 Watt


Key: min: , med: , max: Voltcraft VC 940 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime - WiFi v1.3 (sort by value)
Acer Aspire E5-772G-70VP GeForce 940M, 5500U, Kingston RBU-SNS8100S3128GD	259 min
Acer Aspire V17 Nitro VN7-791G-50MV GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX	208 min
Asus F751LB-T4030H GeForce 940M, 5500U, Seagate Momentus SpinPoint M8 ST1000LM024	234 min

Battery Runtime

Idle (without WLAN, min brightness)		7h 34min
WiFi Websurfing		4h 19min
DVD		3h 19min
Load (maximum brightness)		1h 12min

Pros

+ 坚固的高品质机身

+ 支持无线ac标准

+ TPM模组（未搭配软件）

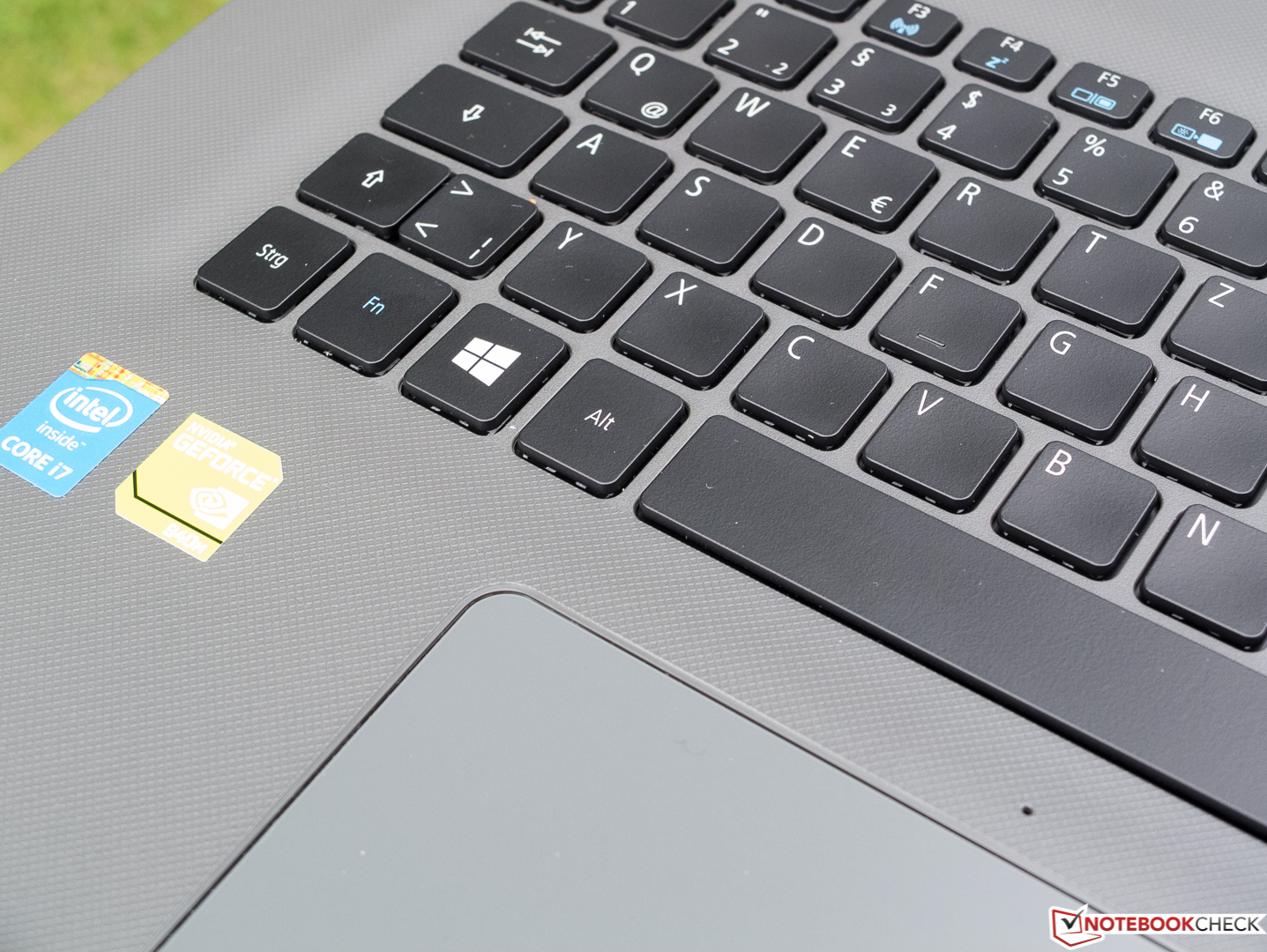

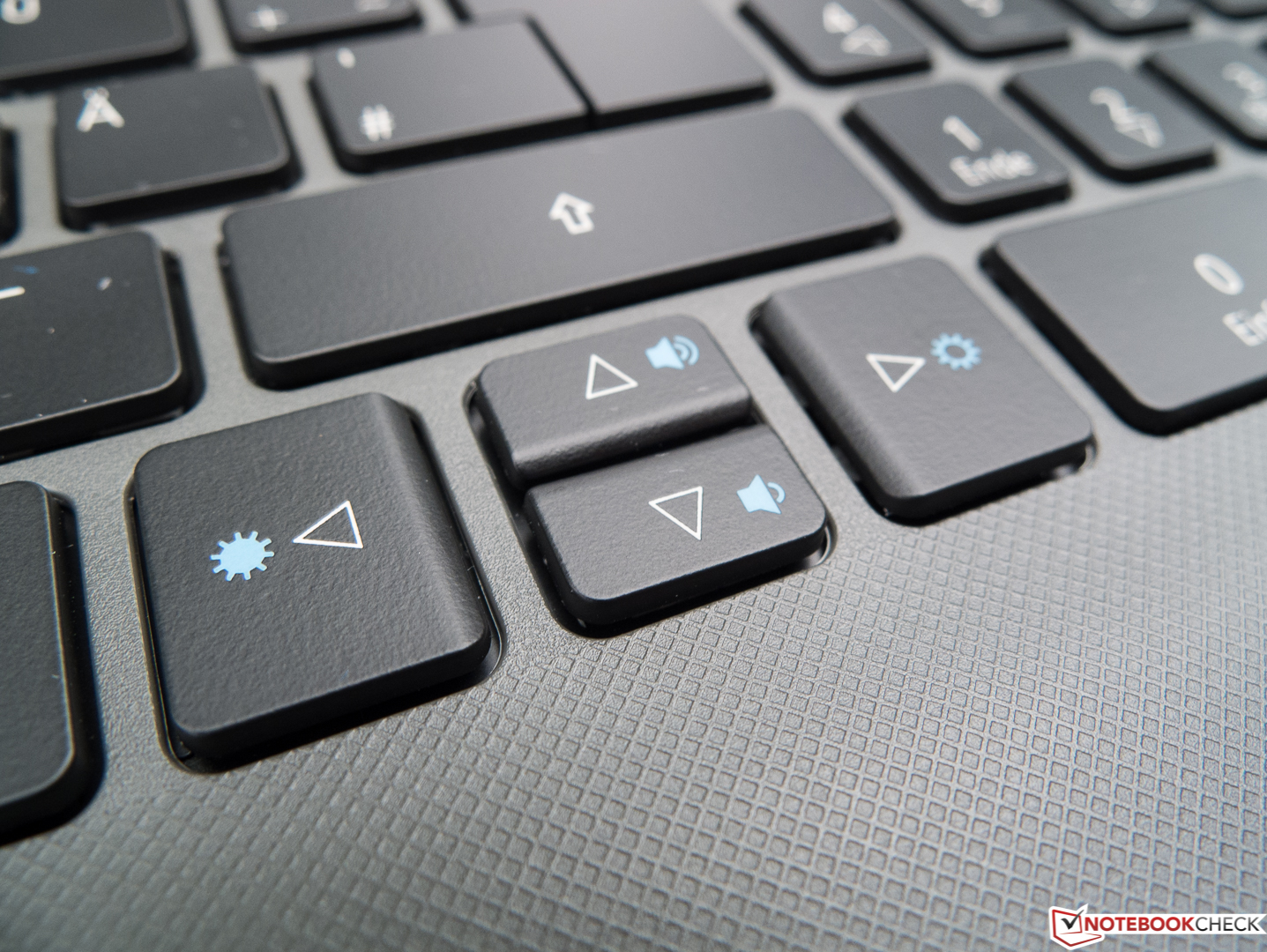

+ 不错的键盘，优秀的触控板

+ 丰富的色彩，相对稳定的可视角度范围

+ 固态硬盘+传统硬盘

+ 优秀的加速利用率

Cons

- 非常容易沾染指纹

- 所有接口都在前端

- 不易于维护，无法接触到电池

- 小尺寸数字键盘

- 出厂状态屏幕偏蓝

- 对于长时间负载来说散热系统较弱

In Review: Acer Aspire E5-772G-70VP. Test model courtesy of Acer Germany.

我们的测试机没能战胜华硕的F751LB-T4030H，不过搭配了更好的键盘、固态硬盘也提供了更加流畅的使用体验。同品牌相比更贵的Aspire V17 Nitro VN7-791G没有采用固态硬盘。不过它有更易用的键盘，非常雅致的纤薄机身，与IPS屏幕带来的更好得分。喜欢运行清凉安静而售价较低的设备的用户可以考虑来自华硕的机型。这三款笔记本电脑的游戏性能水平相当。

Acer的Aspire E5-772G-70VP是一款全面而设计独特的设备。除了不便于维护升级和一些细节上的人体工程学设计失误和不实际的散热系统外，生产商没有犯重大错误。

这台Acer笔记本电脑的售价将会是在这几款设备中做出抉择的关键，可能许多用户会有同样的感觉。现在E5-772G的建议零售价是999欧元（约7055人民币）。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Acer Aspire E5-772G-70VP - 2016-02-25 02/25/2016 v5^(old)
Sven Kloevekorn

Chassis

78 / 98 → 80%

Keyboard

79%

Pointing Device

83%

Connectivity

43 / 81 → 53%

Weight

57 / 20-67 → 79%

Battery

77%

Display

80%

Games Performance

63 / 85 → 74%

Application Performance

82 / 92 → 89%

Temperature

83%

Noise

84 / 95 → 88%

Audio

70%

Average

73%

77%

Multimedia - Weighted Average
