ACEMAGIC Ace AX15 笔记本电脑评测：配备英特尔 N95 处理器的经济型办公笔记本电脑

Name: ACEMagician Ace ‎AX15, N95
Brand: ACEMagician

Alder Lake N 适合日常使用！ ACEMagician 是一家知名的微型 PC 制造商，它现在又推出了 ACEMAGIC Ace AX15 办公笔记本电脑。该设备基于英特尔 N95 Alder Lake N 代处理器。请阅读我们的详尽评测（包括大量测量和基准测试），了解这款经济实惠的笔记本电脑是否值得购买。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 07/31/2023 🇺🇸 🇩🇪 ...

Laptop / Notebook Intel Alder Lake

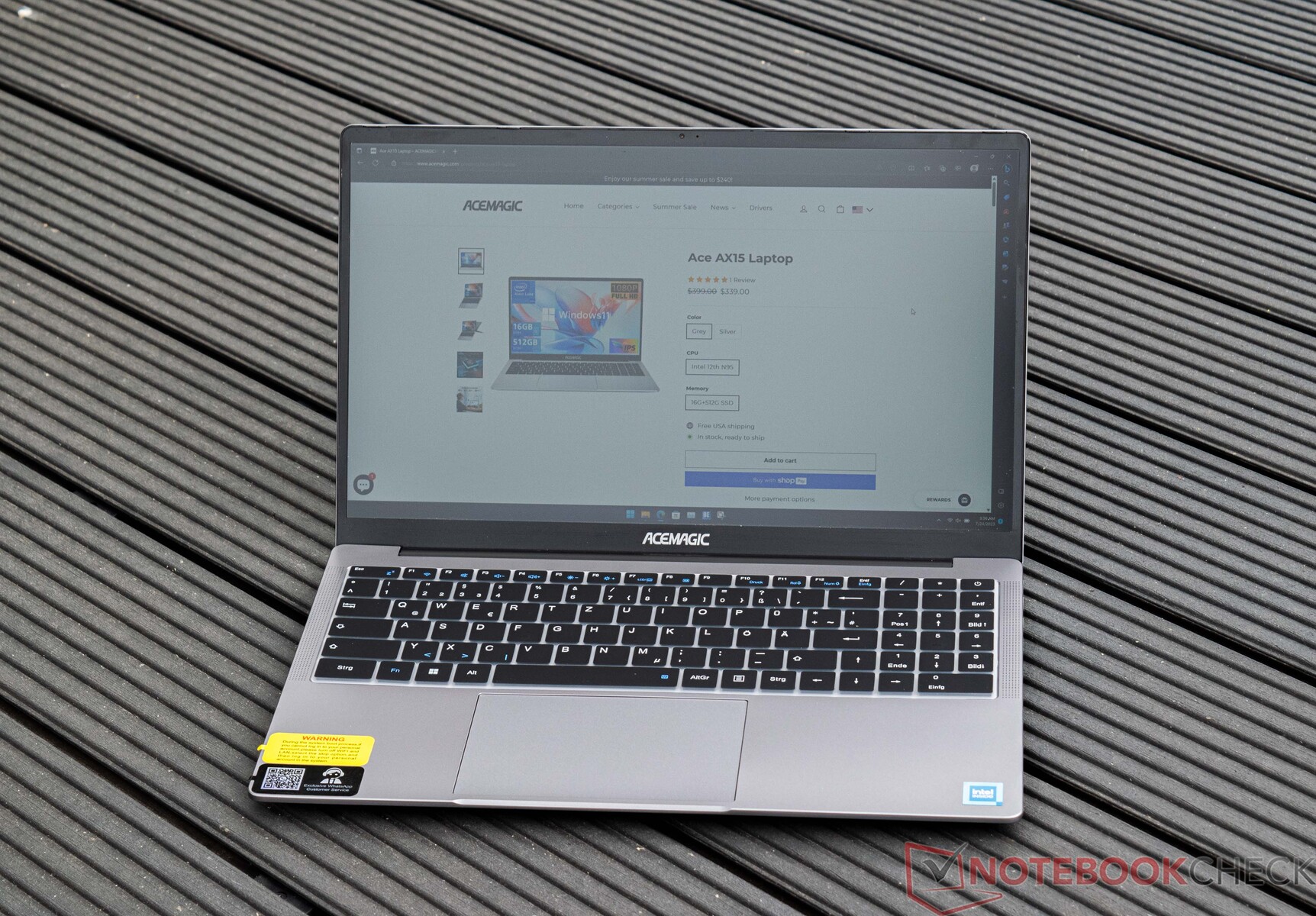

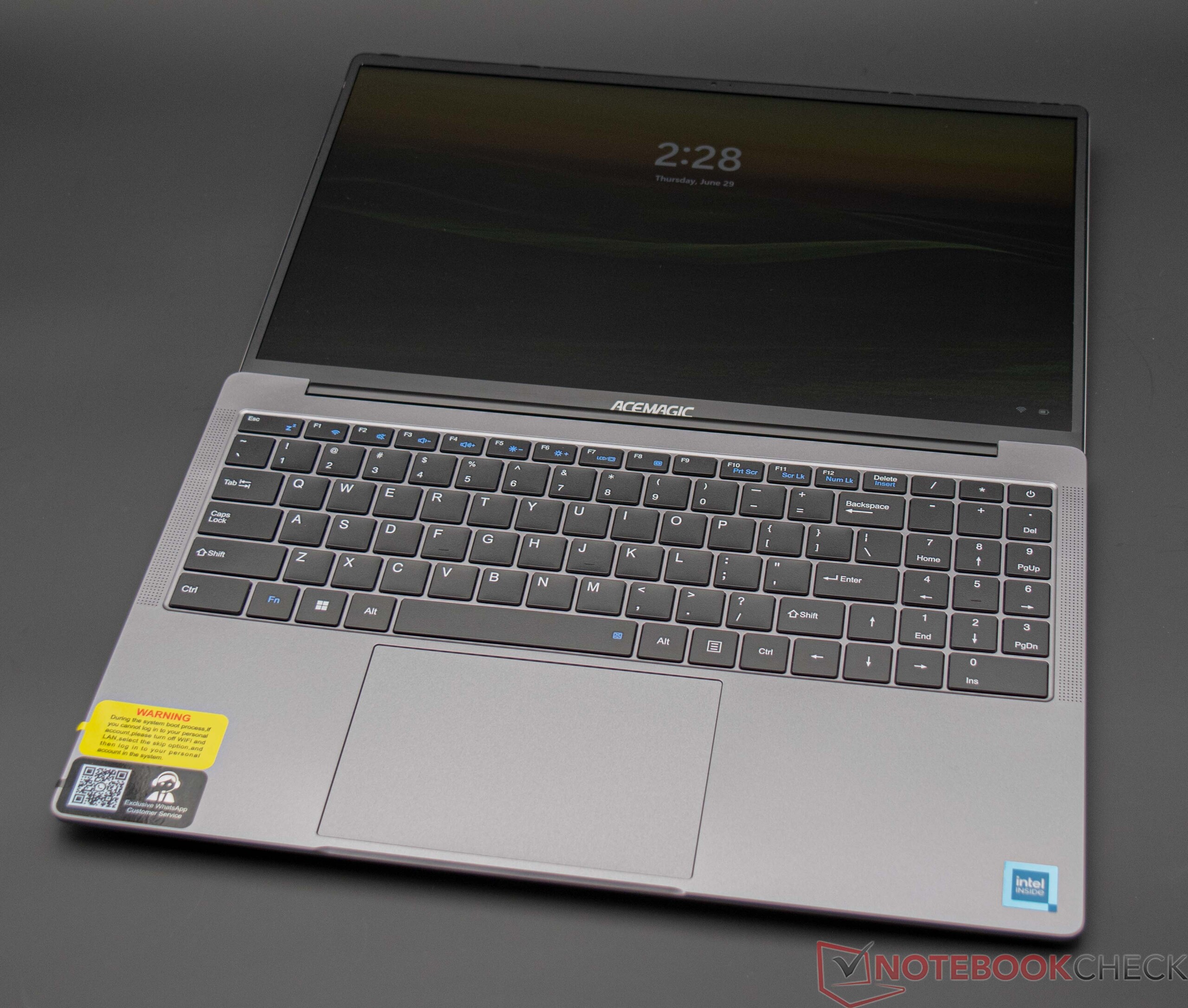

ACEMagician 以前以生产微型电脑而闻名，不过，随着 ACEMAGIC Ace AX15 的推出，我们现在有了一款 15 英寸的产品、英特尔 N95-笔记本电脑。该 SoC 于今年年初在拉斯维加斯的 CES 上亮相，与此同时，它也在一些微型 PC 或其他产品中首次亮相。除其他外，这颗 4 核处理器在以下产品中的表现已经给我们留下了深刻印象NiPoGi GK3 Plus N95.

ACEMAGIC Ace AX15 目前的售价为 339 美元，拥有 16 GB 内存和 512 GB 大容量存储空间，这意味着该设备完全可以胜任简单的办公任务。

在本次评测中，ACEMAGIC Ace AX15 将在竞争中证明自己。此外，我们还将对比 NiPoGi GK3 Plus N95 的 CPU 性能。

Test device courtesy of Ace Aagician

Download your licensed rating image as PNG / SVG

ACEMagician Ace ‎AX15, N95

Processor

Intel Processor N95 4 x - 3.4 GHz, 28 W PL2 / Short Burst, 18 W PL1 / Sustained, Alder Lake-N

Graphics adapter

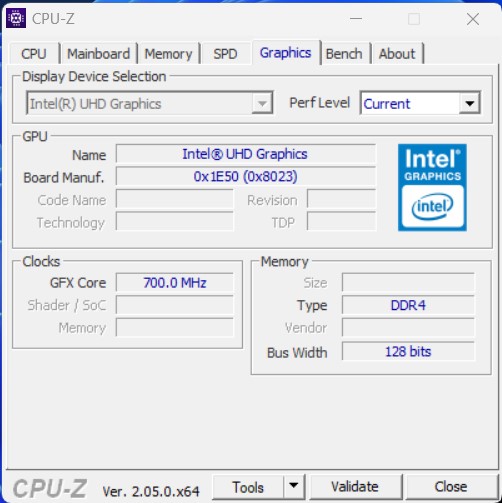

Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Core: 1200 MHz, 31.0.101.3677

Memory

16 GB

, DDR4 2666, 1 von 1 utilized, max. 16 GB

Display

15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, BOE, BOE0B07, IPS, 60 Hz

Mainboard

Intel Alder Lake-N PCH

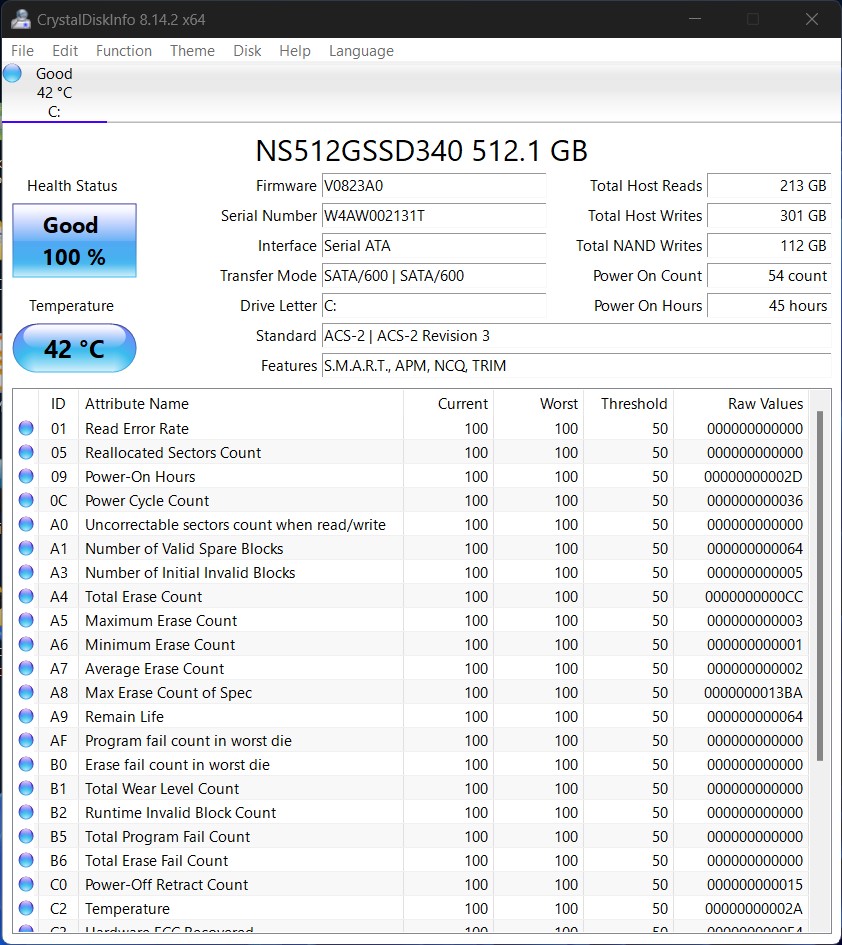

Storage

Netac NS512GSSD340, 512 GB

, M.2 2280 SSD, 435 GB free

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

1 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5mm Klinke, Card Reader: microSD

Networking

Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Size

height x width x depth (in mm): 19 x 337 x 229

Battery

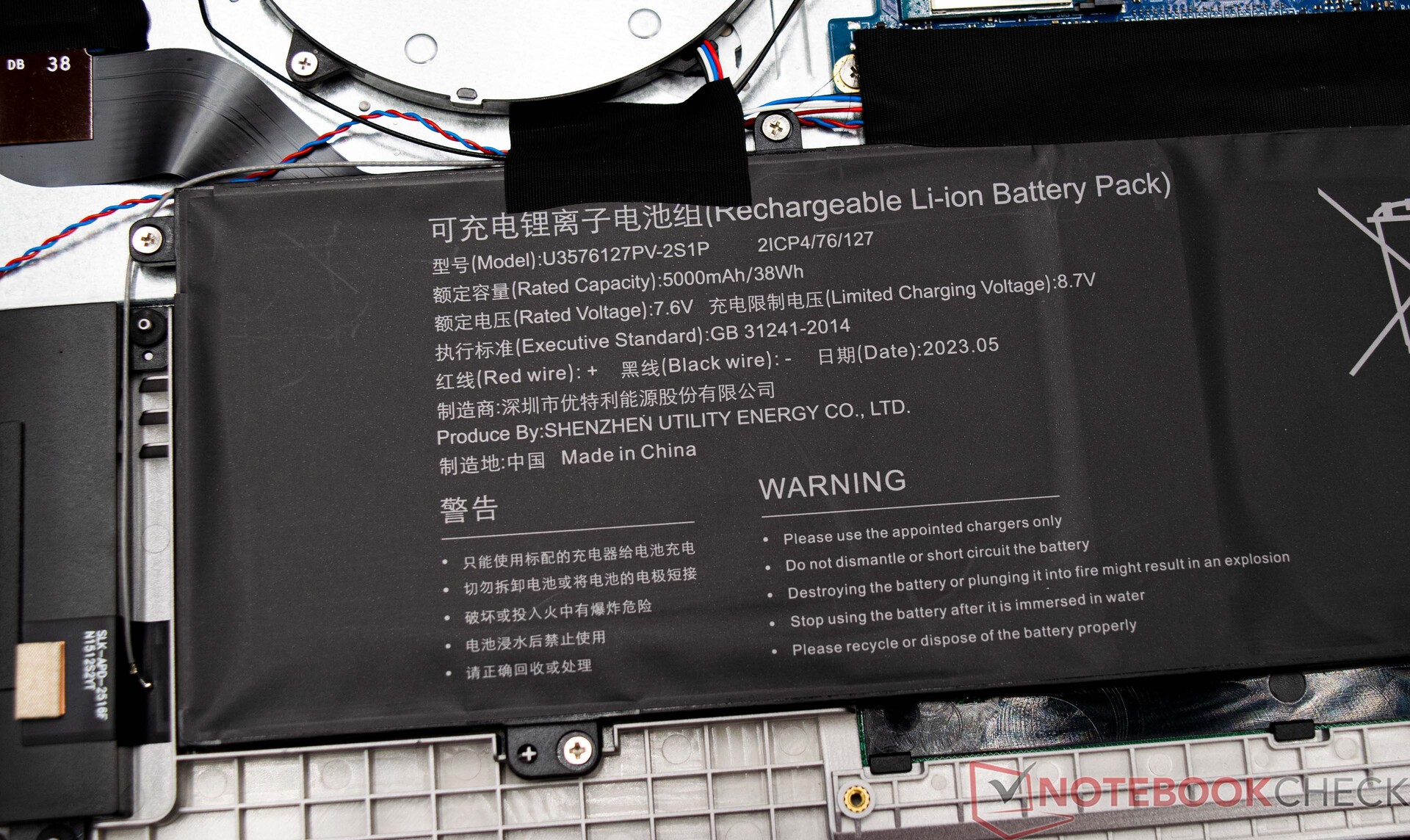

38 Wh, 5000 mAh Lithium-Ion

Operating System

Microsoft Windows 11 Pro

Camera

Webcam: 720p

Additional features

Speakers: stereo, Keyboard: Chiclet, Keyboard Light: no, 40-watt power adapter , 12 Months Warranty

Weight

1.691 kg, Power Supply: 182 g

Price

399 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Size	Resolution
77.9 %	07/2023	ACEMagician Ace ‎AX15, N95 N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	1.7 kg	19 mm	15.60"	1920x1080
81.5 %	12/2021	Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU)	1.3 kg	14.95 mm	14.00"	1920x1080
81.2 %	02/2022	Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	1.8 kg	23.9 mm	15.60"	1920x1080
80 %		Lenovo V17-IIL 82GX008TGE i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	2.2 kg	19.9 mm	17.30"	1920x1080
79.2 %	06/2022	Lenovo IdeaPad 3 14ITL6 82H700CCGE Celeron 6305, UHD Graphics Xe G4 48EUs	1.4 kg	19.9 mm	14.00"	1920x1080
68.2 %	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	47 mm		x

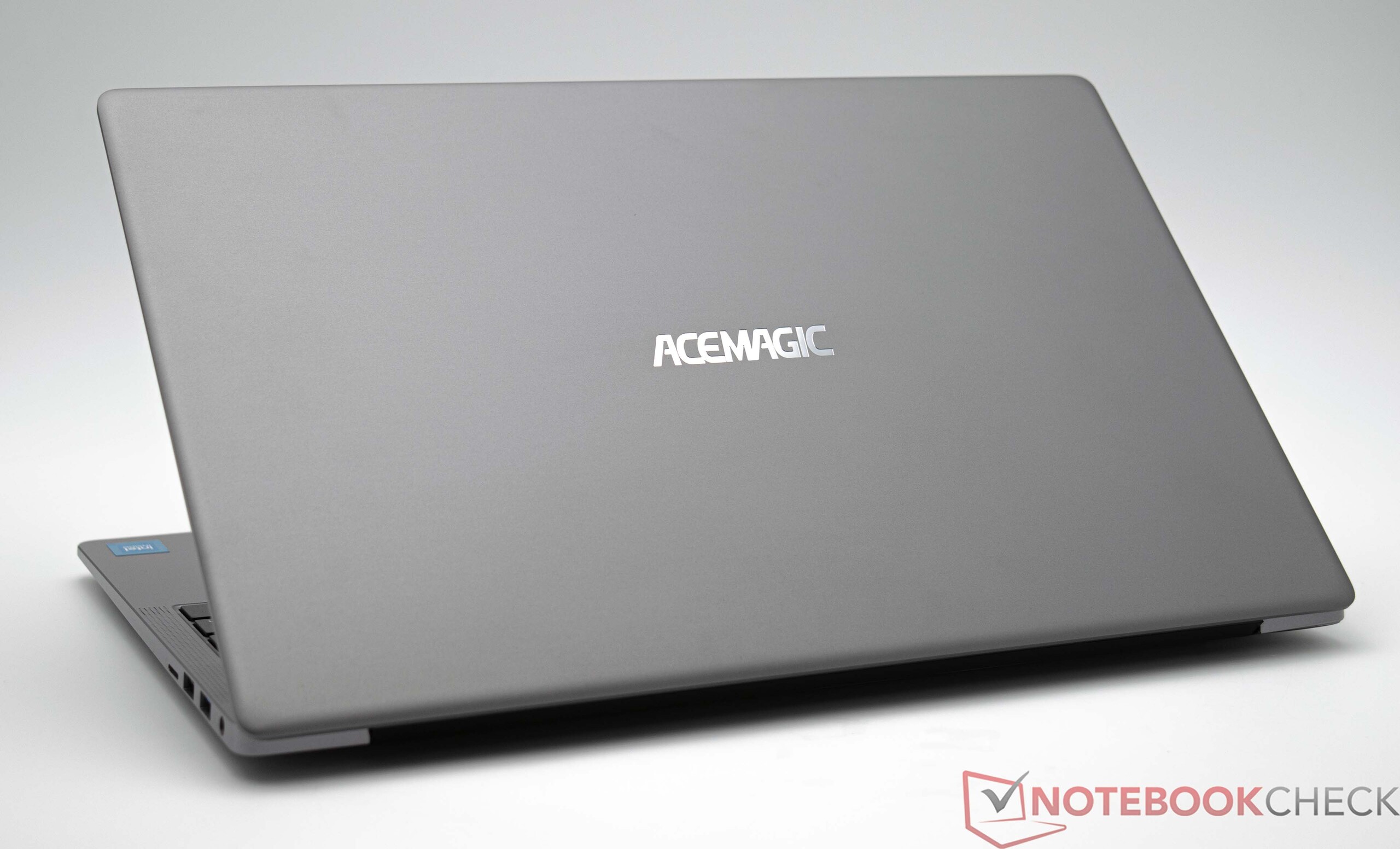

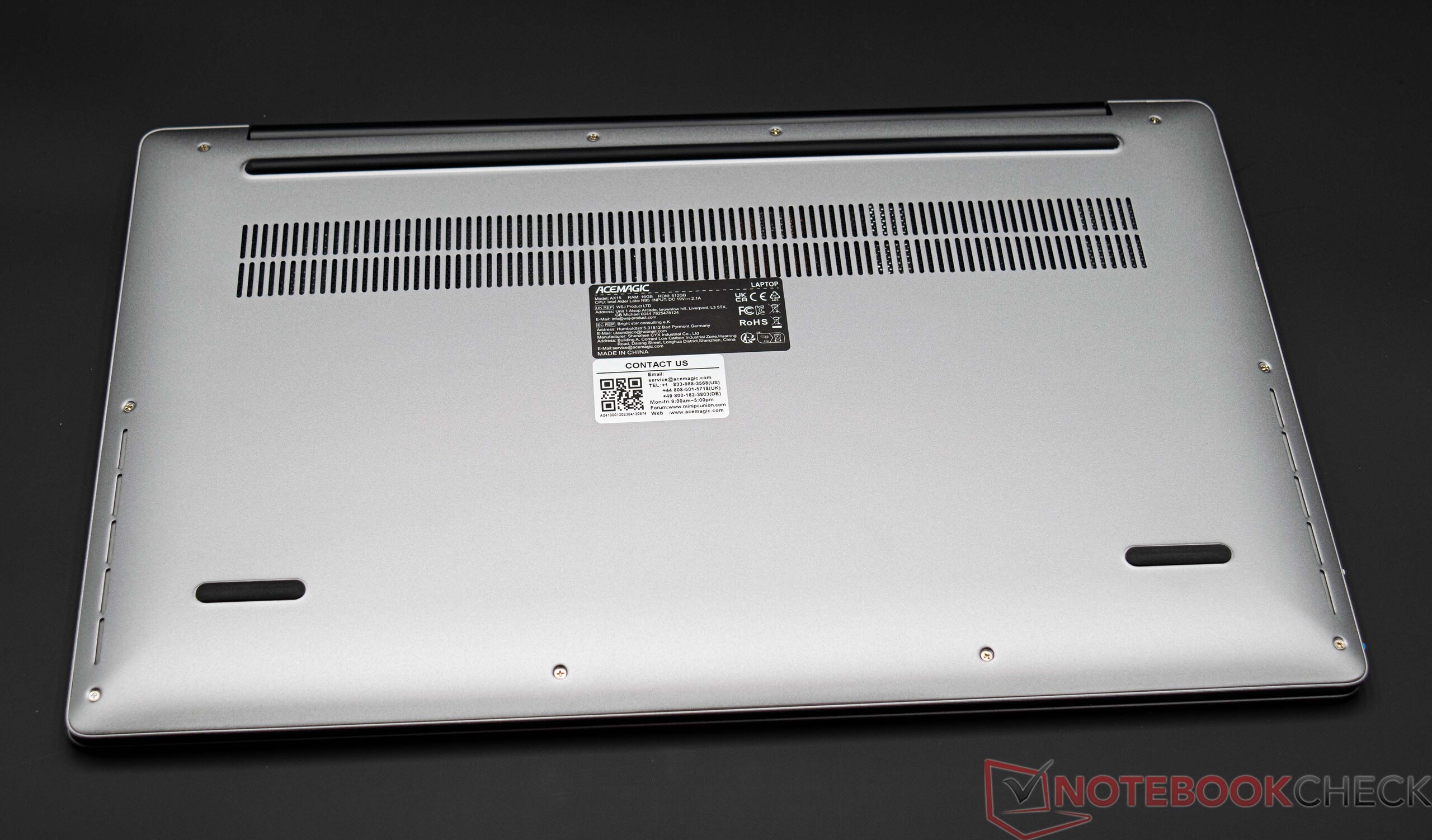

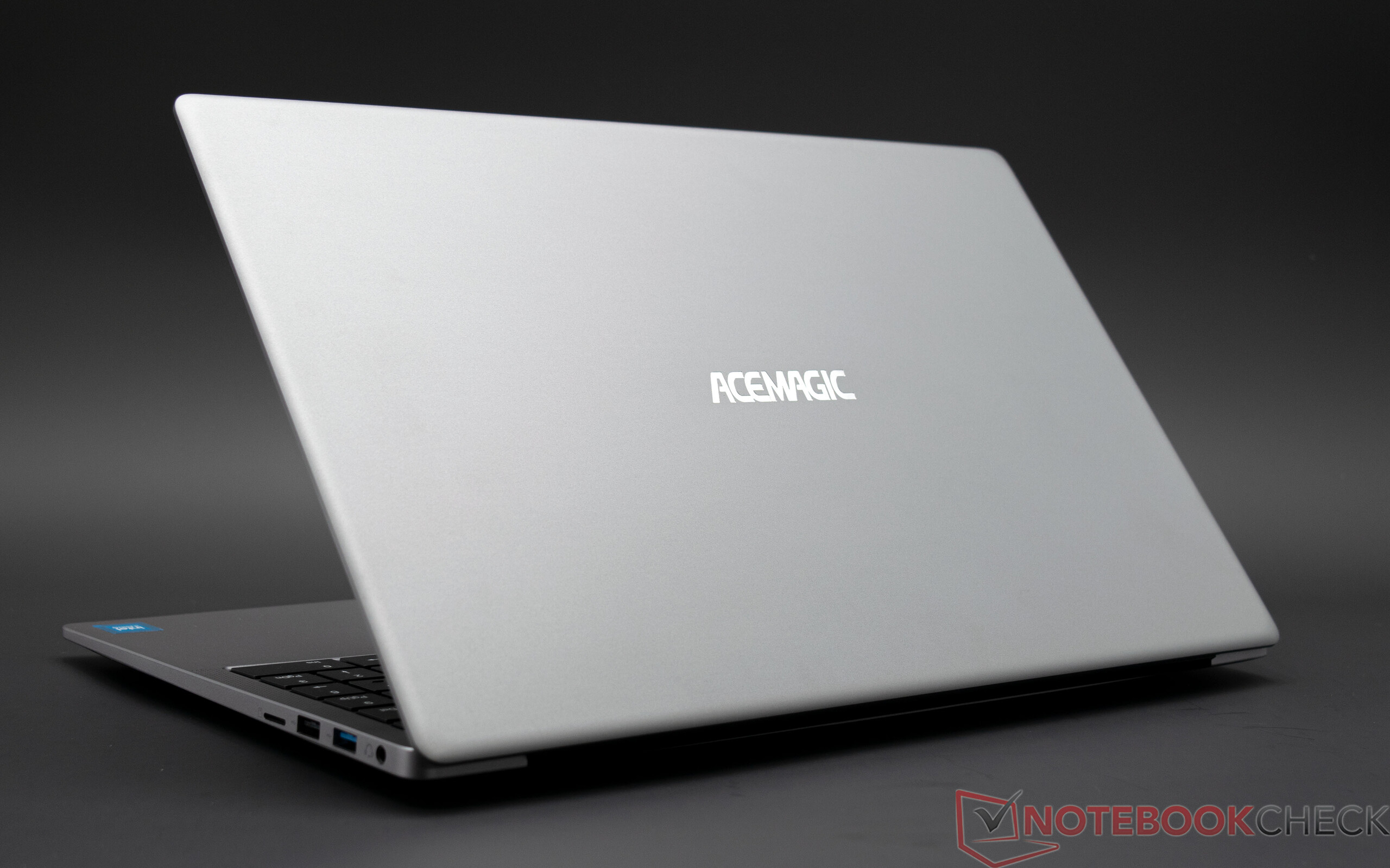

外壳和功能 - 坚固的铝制外壳

ACEMAGIC Ace AX15 是一款 15 英寸笔记本电脑，外壳坚固，做工完美。虽然价格相对低廉，但却采用了高品质的材料。金属表面确保了良好的稳定性，并将局部受压时的机箱弯曲降至最低。不过，虽然我们需要施加很大的能量，但它们并不能完全消除这种情况。同样，显示屏盖也得益于铝制盖板，只有施加较大的力才能实现扭转。

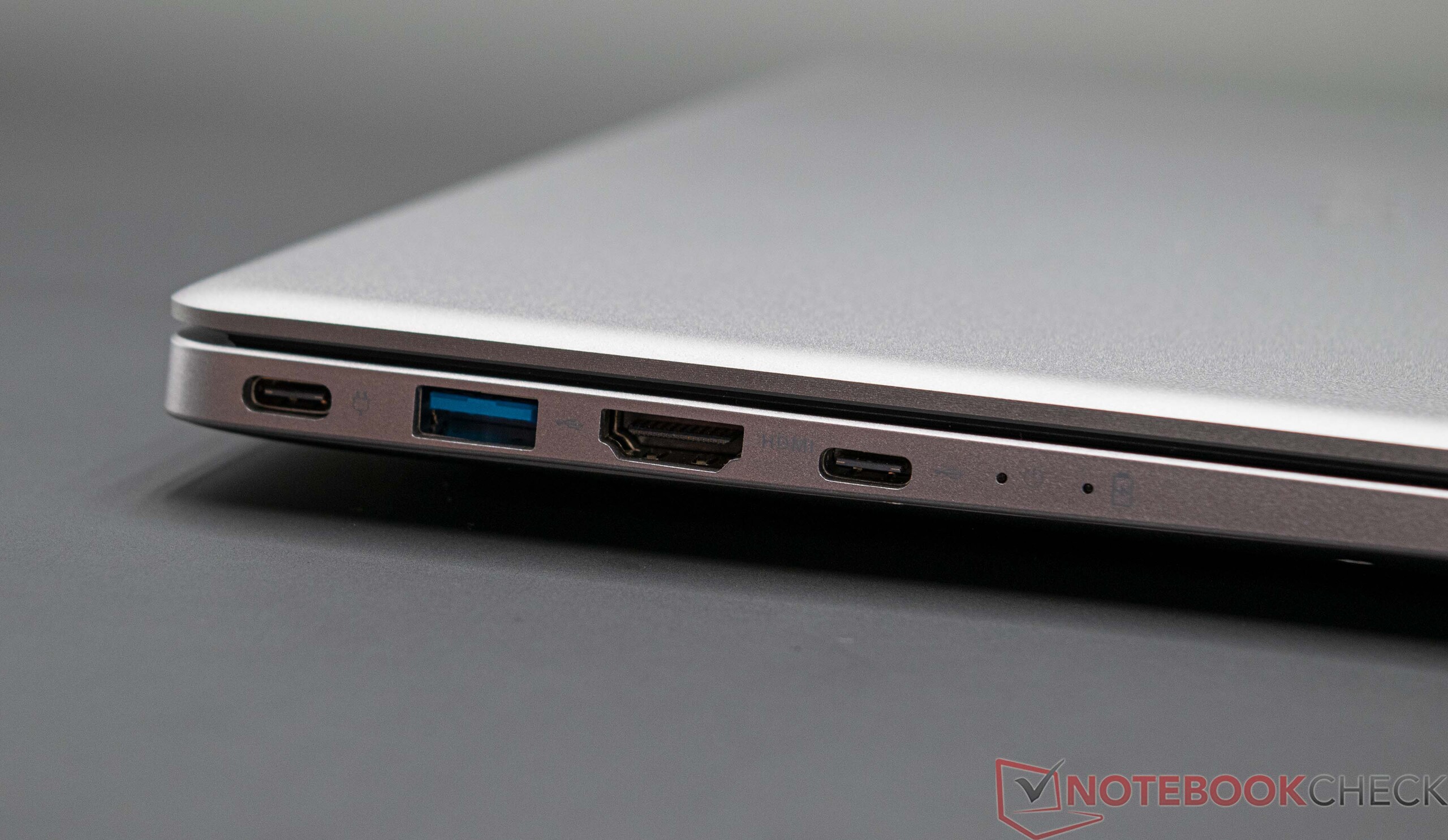

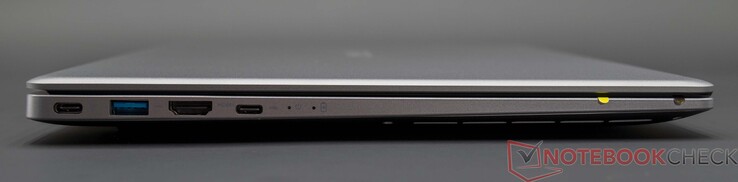

所有外部接口都位于笔记本电脑的侧面。一共有五个 USB 端口，其中一个 USB 端口是为电源适配器预留的。此外，还可通过 HDMI 或 DisplayPort 连接外部显示器。ACEMAGIC Ace AX15 还可容纳 microSD 卡。由于 USB 2.0 的速度，传输速率并不高。

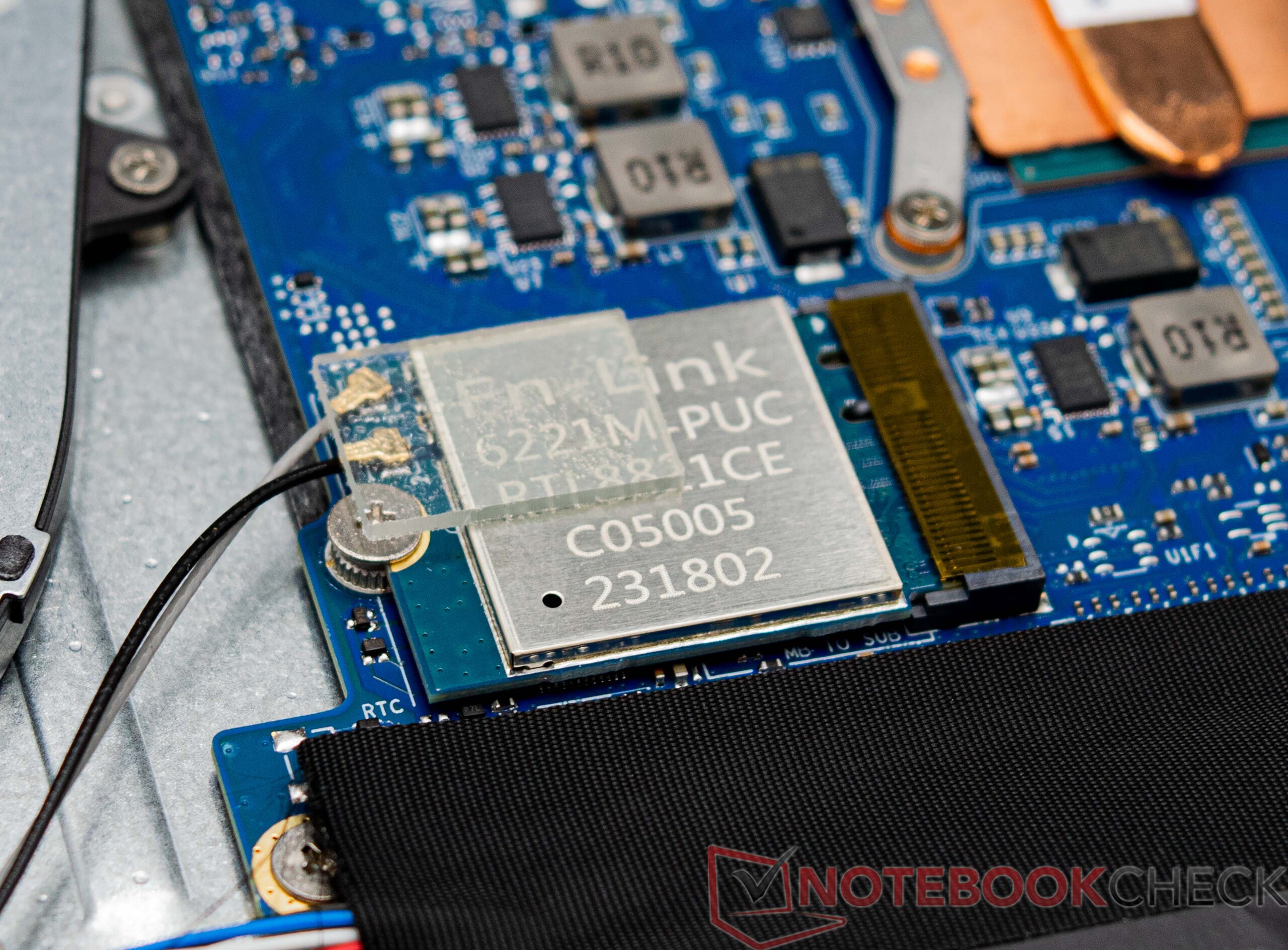

我们对 Wi-Fi 模块已经很熟悉了，因为它与 NiPoGi GK3 Plus N95 中的无线模块相同。当我们用华硕 ROG Rapture GT-AXE11000 进行性能测试时，我们发现其性能与迷你 PC 几乎完全相同。其他竞争对手显然以更好的传输速度脱颖而出。我们的评测结果表明，这款笔记本电脑绝对适合上网冲浪。

尺寸比较

Lenovo V17-IIL 82GX008TGE Fujitsu Lifebook A3510 (FPC04905BP) ACEMagician Ace ‎AX15, N95 Lenovo IdeaPad 3 14ITL6 82H700CCGE Acer Swift 1 SF114-34-P6U1 DIN A4 ❌

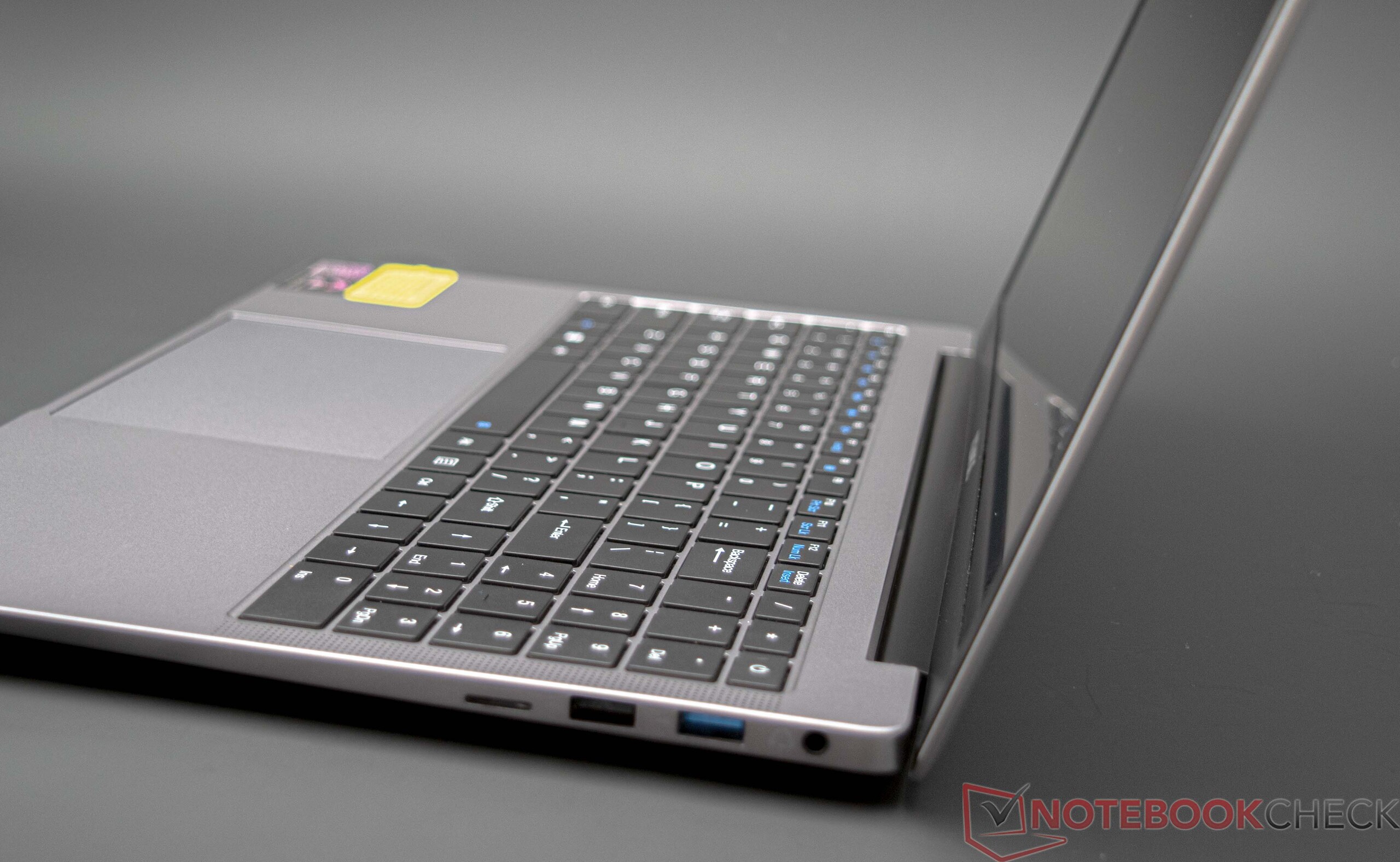

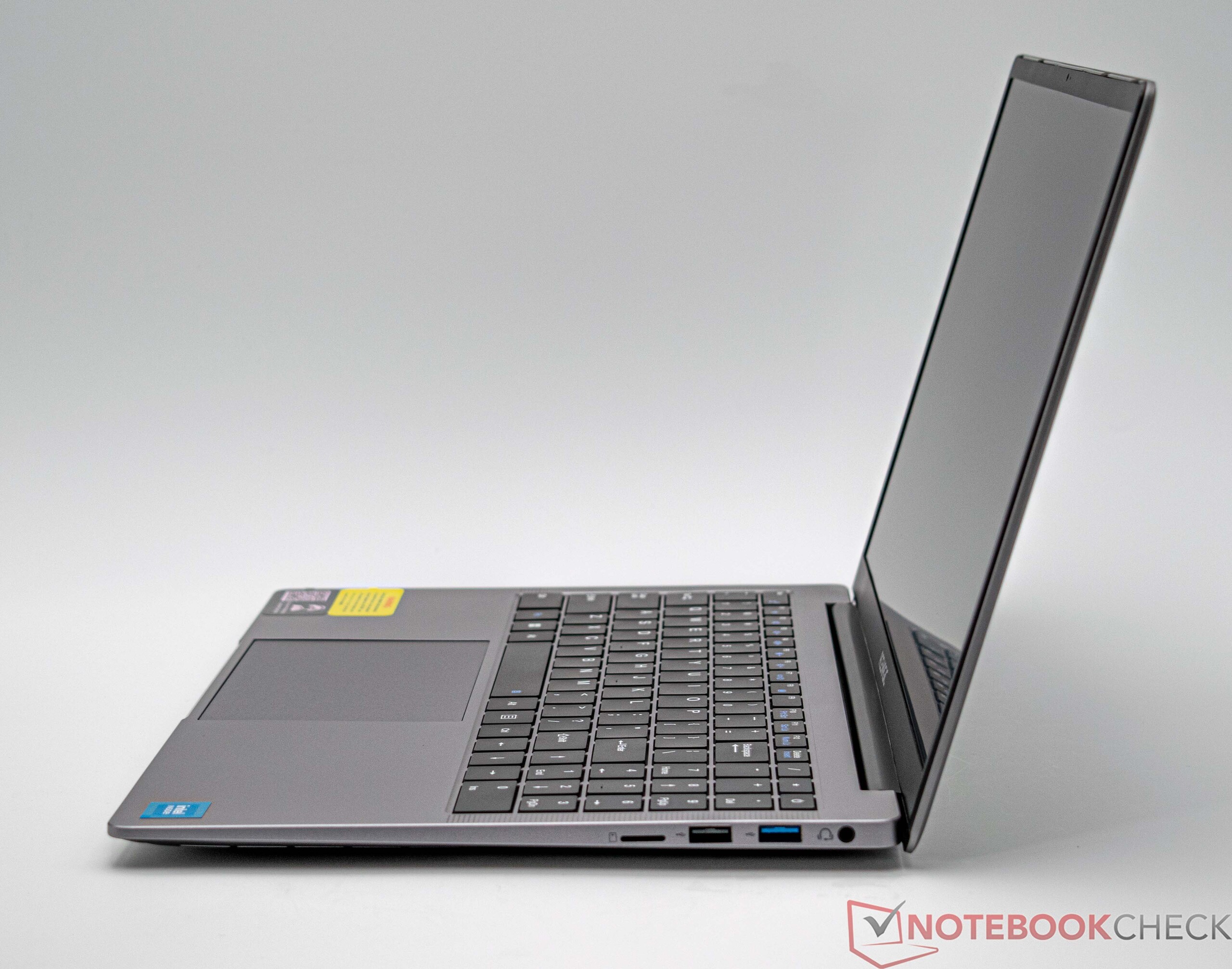

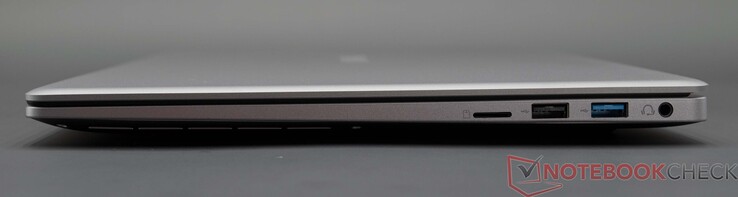

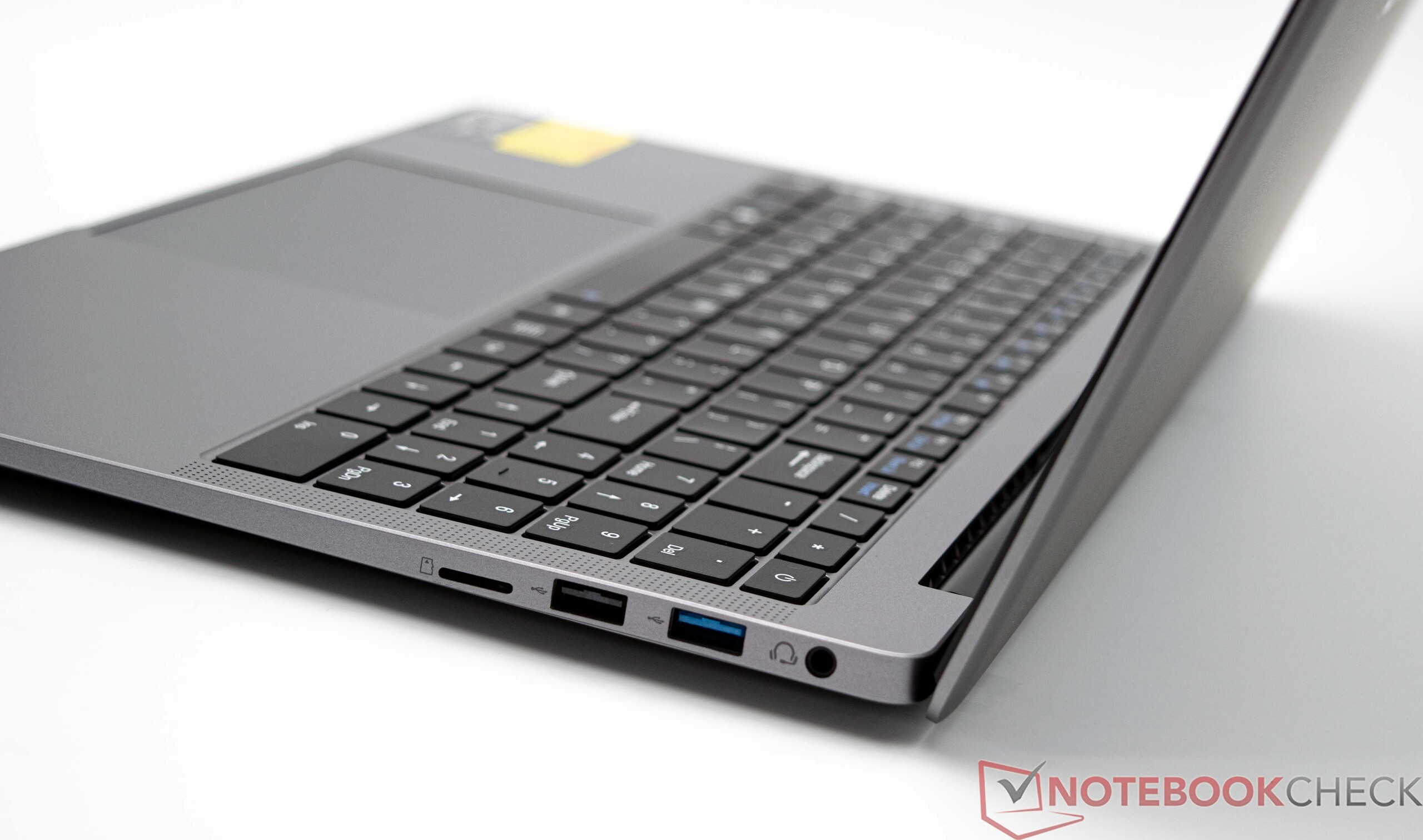

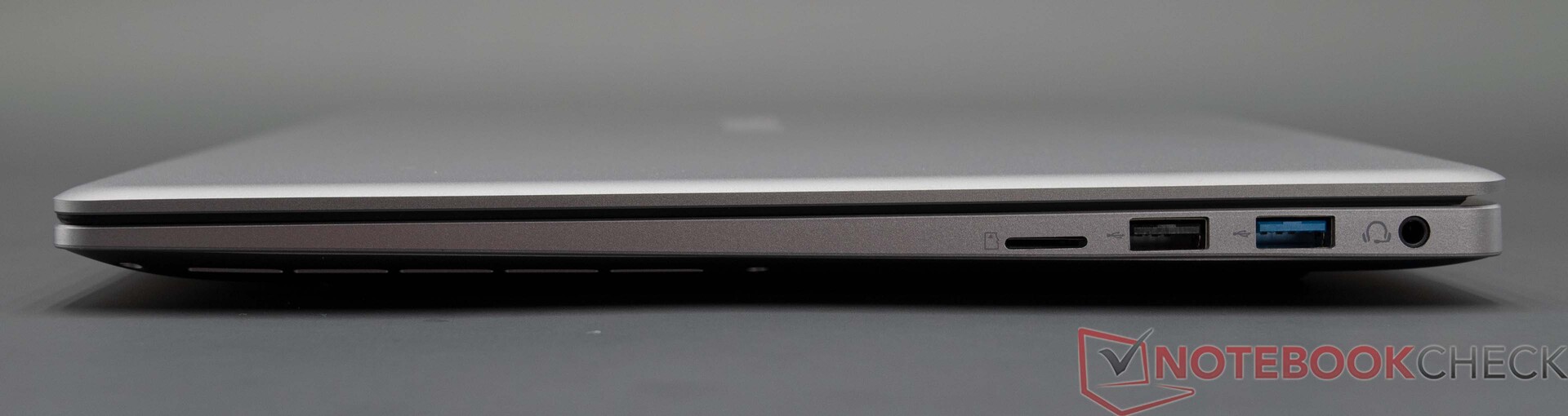

右侧：microSD 读卡器、USB 2.0、USB 3.0、3.5 毫米音频插孔

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (AV Pro SD microSD 128 GB V60)	78.2 MB/s +206%
Average of class Office (8 - 82.7, n=50, last 2 years)	53.4 MB/s +109%
ACEMagician Ace ‎AX15, N95 Intel Processor N95 (AV Pro SD microSD 128 GB V60)	25.59 MB/s
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	20.8 MB/s -19%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305 (AV Pro SD microSD 128 GB V60)	19.5 MB/s -24%
maximum AS SSD Seq Read Test (1GB)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1 (AV Pro SD microSD 128 GB V60)	89.9 MB/s +207%
Average of class Office (25 - 90.5, n=44, last 2 years)	65.1 MB/s +122%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	31.2 MB/s +7%
ACEMagician Ace ‎AX15, N95 Intel Processor N95 (AV Pro SD microSD 128 GB V60)	29.29 MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305 (AV Pro SD microSD 128 GB V60)	27.9 MB/s -5%

Networking
iperf3 transmit AX12
Lenovo V17-IIL 82GX008TGE Intel Wi-Fi 6 AX201	1419 (698^min - 1497^max) MBit/s
Acer Swift 1 SF114-34-P6U1 Intel Wi-Fi 6 AX201	961 (697^min - 1082^max) MBit/s
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560	922 (909^min - 935^max) MBit/s
Average of class Office (819 - 842, n=2, last 2 years)	831 MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (54.8 - 339, n=21)	278 MBit/s
iperf3 receive AX12
Lenovo V17-IIL 82GX008TGE Intel Wi-Fi 6 AX201	1453 (1291^min - 1633^max) MBit/s
Acer Swift 1 SF114-34-P6U1 Intel Wi-Fi 6 AX201	1328 (1239^min - 1378^max) MBit/s
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560	949 (917^min - 950^max) MBit/s
Average of class Office (883 - 972, n=2, last 2 years)	928 MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (86 - 348, n=21)	270 MBit/s
iperf3 transmit AXE11000
Average of class Office (47.8 - 1793, n=90, last 2 years)	1103 MBit/s +304%
ACEMagician Ace ‎AX15, N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	273 (268^min - 280^max) MBit/s
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -1%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 274, n=5)	242 MBit/s -11%
iperf3 receive AXE11000
Average of class Office (104.2 - 1752, n=92, last 2 years)	1248 MBit/s +242%
ACEMagician Ace ‎AX15, N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	365 (360^min - 367^max) MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 365, n=5)	360 MBit/s -1%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s -2%
iperf3 transmit AXE11000 6GHz
Average of class Office (685 - 1961, n=50, last 2 years)	1377 MBit/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE Realtek RTL8822CE	685 (615^min - 739^max) MBit/s
iperf3 receive AXE11000 6GHz
Average of class Office (720 - 1782, n=51, last 2 years)	1496 MBit/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE Realtek RTL8822CE	720 (703^min - 727^max) MBit/s

ACEMagician Ace ‎AX15, N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AXE11000; iperf 3.1.3: Ø273 (268-280)

Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AXE11000; iperf 3.1.3: Ø265 (136-276)

ACEMagician Ace ‎AX15, N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AXE11000; iperf 3.1.3: Ø365 (360-367)

Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AXE11000; iperf 3.1.3: Ø352 (180-362)

ColorChecker ACEMagician Ace ‎AX15, N95: 23.73 ∆E min: 7.73 - max: 37.89 ∆E

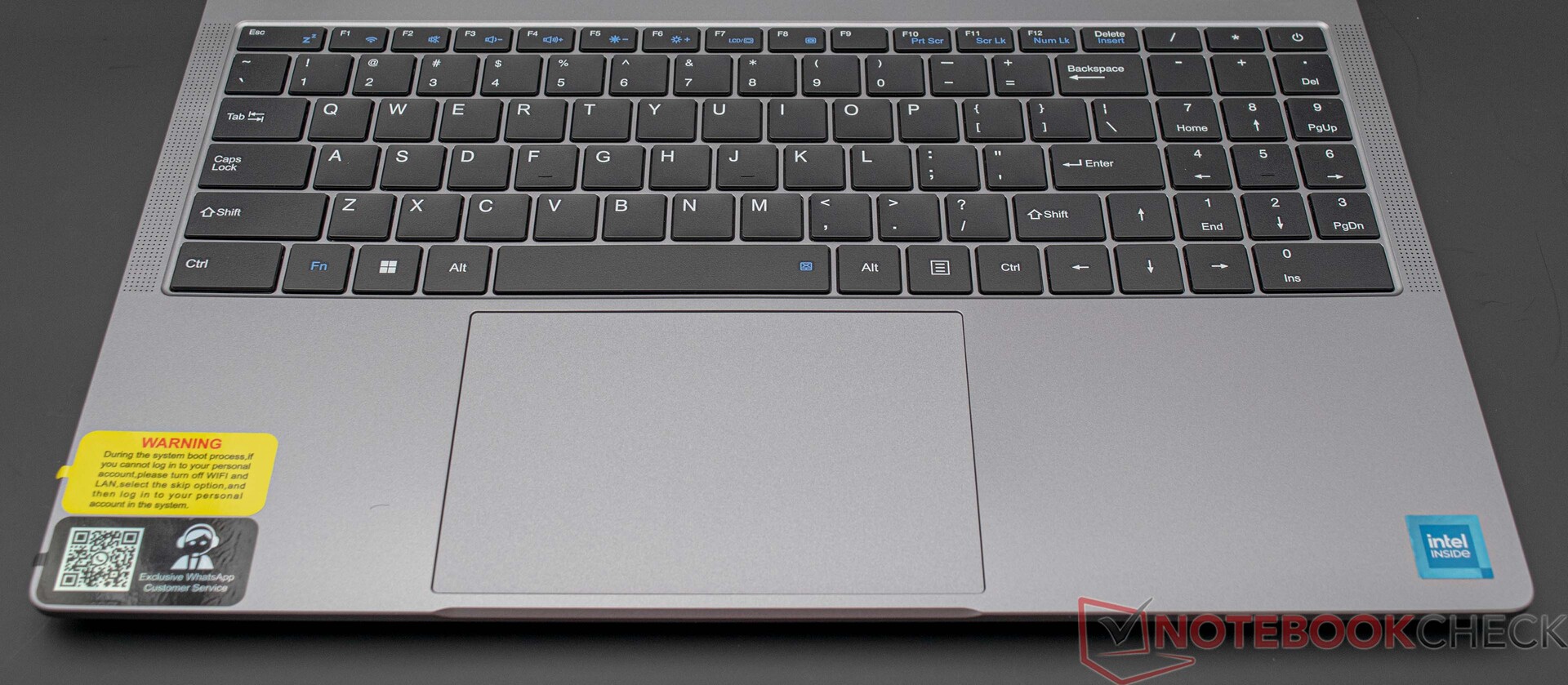

输入设备 - 仅有英文布局

ACEMAGIC Ace AX15 配备了简单的 Chiclet 键盘，但没有背光。按键触感良好，纹理表面提供了不错的握持感。按压点清晰可见，并伴有轻微的敲击声。幸运的是，这种感觉并不明显，有助于避免打字时产生松软的感觉。说到打字噪音，这款输入介质就显得有些拘谨了。值得庆幸的是，制造商没有选择不配备全尺寸数字键盘。该设备还配备了橡胶垫，但使用橡胶垫会对打字体验产生负面影响。

对于非英语母语使用者来说，英文键盘布局可能是一个不利因素。

鼠标的替代品是一个具有多点触控功能的 Clickpad（13 x 8.7 厘米），可以很好地利用键盘下方的空间。整个输入区域反应灵敏，使用鼠标指针快速、精确地导航显示屏。在底部边缘，触控板提供了短程输入，通过咔嗒声为用户提供清晰的反馈。

显示屏 - FHD、IPS，无 PWM

ACEMAGIC Ace AX15 配备了出色的 15.6 英寸全高清面板，但 219 cd/m² 的平均亮度让我们的评测样本不得不承认失败。即使是最高亮度（229 cd/m²），也仅够超越富士通 LifeBook A3510.尽管如此，由于黑阶较低，Ace AX15 的对比度仍达到了 1.145:1，相对较好。同样，我们的评测设备也不得不与轻微的屏幕出血作斗争，这也是我们在评估显示评分时必须考虑的因素。不过，作为回报，无论亮度高低，我们都没有检测到任何 PWM，这可以防止长时间使用时出现疲劳迹象。


221 cd/m²	209 cd/m²	214 cd/m²
222 cd/m²	229 cd/m²	230 cd/m²
213 cd/m²	218 cd/m²	215 cd/m²

Distribution of brightness

BOE, BOE0B07 tested with X-Rite i1Pro 2

Maximum: 230 cd/m² (Nits) Average: 219 cd/m² Minimum: 28 cd/m²
Brightness Distribution: 91 %
Center on Battery: 223 cd/m²
Contrast: 1145:1 (Black: 0.2 cd/m²)
ΔE Color 4.08 | 0.5-29.43 Ø5, calibrated: 4.1
ΔE Greyscale 1.91 | 0.57-98 Ø5.3

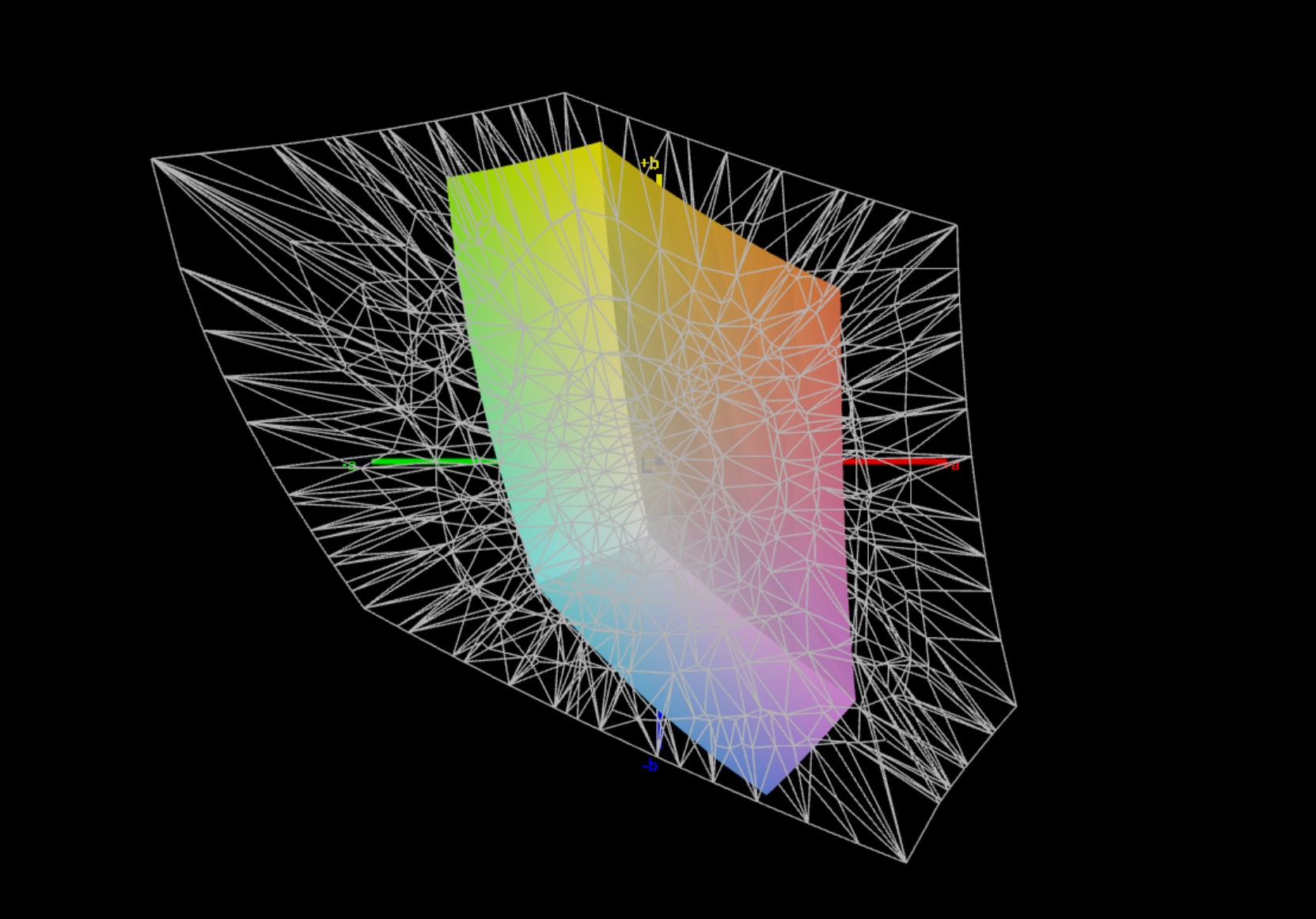

40.9% AdobeRGB 1998 (Argyll 2.2.0 3D)

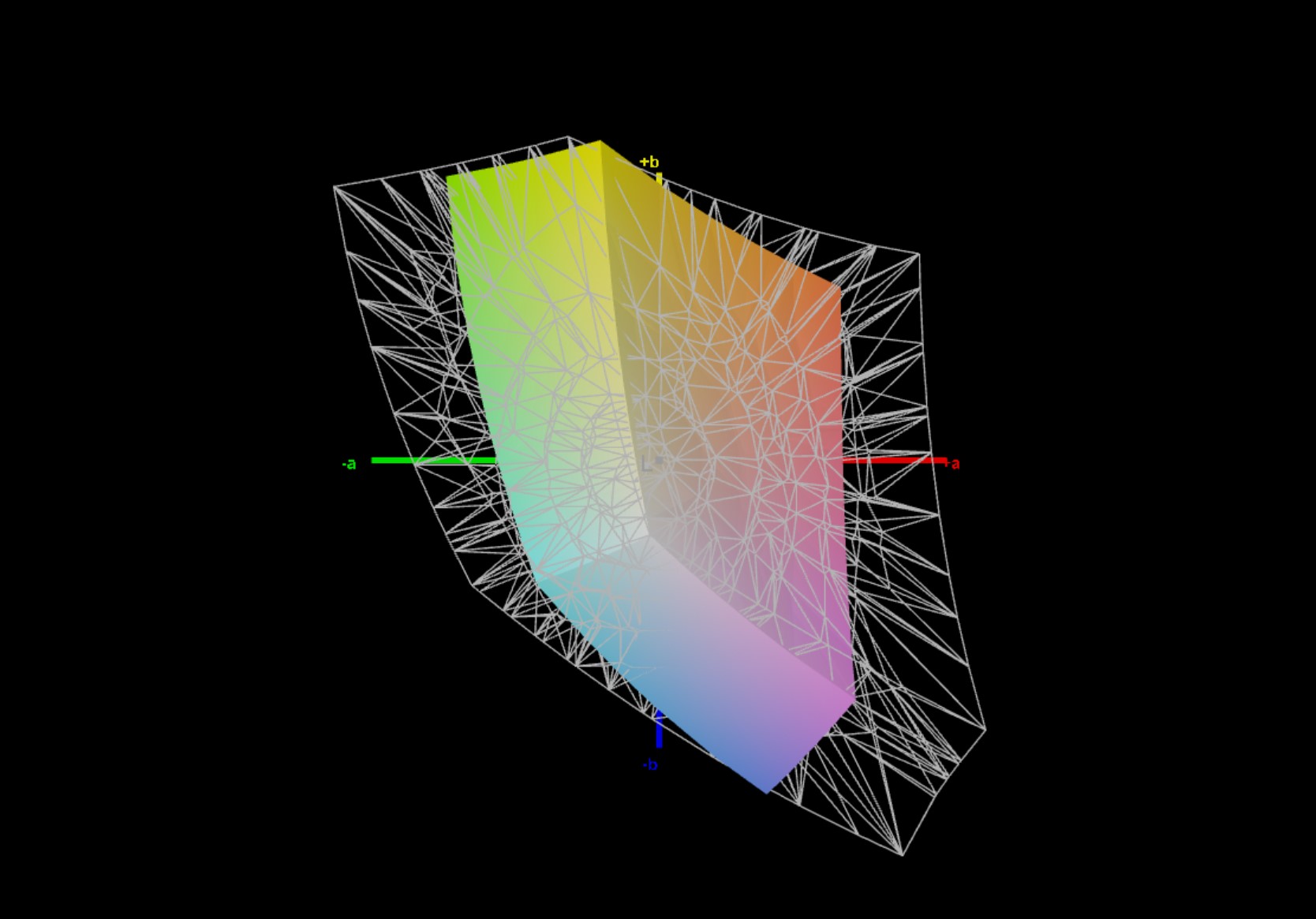

58.6% sRGB (Argyll 2.2.0 3D)

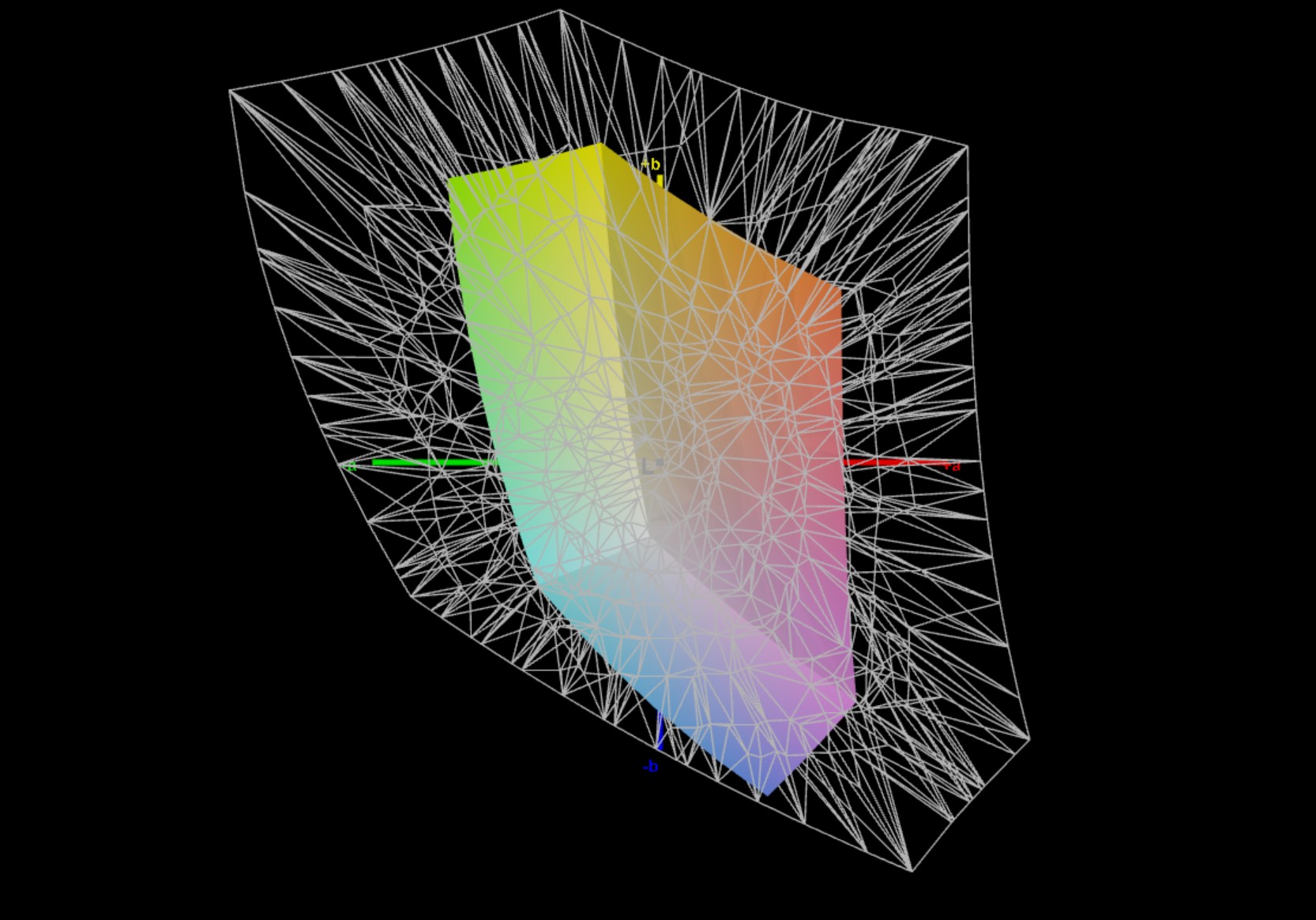

39.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.47

Download ICC File (X-Rite i1Pro 2)

	ACEMagician Ace ‎AX15, N95 BOE, BOE0B07, IPS, 1920x1080, 15.60	Acer Swift 1 SF114-34-P6U1 Chi Mei N140HCA-EAC, IPS, 1920x1080, 14.00	Fujitsu Lifebook A3510 (FPC04905BP) BOE CQ NV156FHM-N48, IPS, 1920x1080, 15.60	Lenovo V17-IIL 82GX008TGE AU Optronics B173HAN04.3, IPS, 1920x1080, 17.30	Lenovo IdeaPad 3 14ITL6 82H700CCGE AU Optronics B140HAN04.E, IPS, 1920x1080, 14.00
Display		5%	1%	70%	-8%
Display P3 Coverage	39.6	41.4 5%	39.9 1%	68.5 73%	36.6 -8%
sRGB Coverage	58.6	61.8 5%	58.9 1%	97.1 66%	54.7 -7%
AdobeRGB 1998 Coverage	40.9	42.9 5%	41.3 1%	70.1 71%	37.8 -8%
Response Times		-3%	-62%	-41%	-49%
Response Time Grey 50% / Grey 80% *	31 ?(16, 15)	29 ?(13, 16) 6%	45 ?(21, 24) -45%	39 ?(19, 20) -26%	44 ?(20, 24) -42%
Response Time Black / White *	18 ?(11, 7)	20 ?(12, 8) -11%	32 ?(17, 15) -78%	28 ?(15, 13) -56%	28 ?(15, 13) -56%
PWM Frequency		25000 ?(10)
Screen		-28%	0%	-6%	-51%
Brightness middle	229	295 29%	218 -5%	330 44%	368 61%
Brightness	219	265 21%	209 -5%	309 41%	332 52%
Brightness Distribution	91	85 -7%	64 -30%	88 -3%	83 -9%
Black Level *	0.2	0.31 -55%	0.11 45%	0.33 -65%	0.47 -135%
Contrast	1145	952 -17%	1982 73%	1000 -13%	783 -32%
Colorchecker dE 2000 *	4.08	5.43 -33%	4.89 -20%	2.82 31%	6.14 -50%
Colorchecker dE 2000 max. *	6.67	9.51 -43%	8.3 -24%	6.27 6%	17.76 -166%
Colorchecker dE 2000 calibrated *	4.1		3.88 5%
Greyscale dE 2000 *	1.91	4.19 -119%	2.57 -35%	3.58 -87%	4.44 -132%
Gamma	2.47 ^89%	2.11 ^104%	2.22 ^99%	2.42 ^91%	2.73 ^81%
CCT	6764 ^96%	7084 ^92%	6272 ^104%	6994 ^93%	5979 ^109%
Color Space (Percent of AdobeRGB 1998)				63
Color Space (Percent of sRGB)				97
Total Average (Program / Settings)		-9% / -16%	-20% / -8%	8% / 6%	-36% / -41%

* ... smaller is better

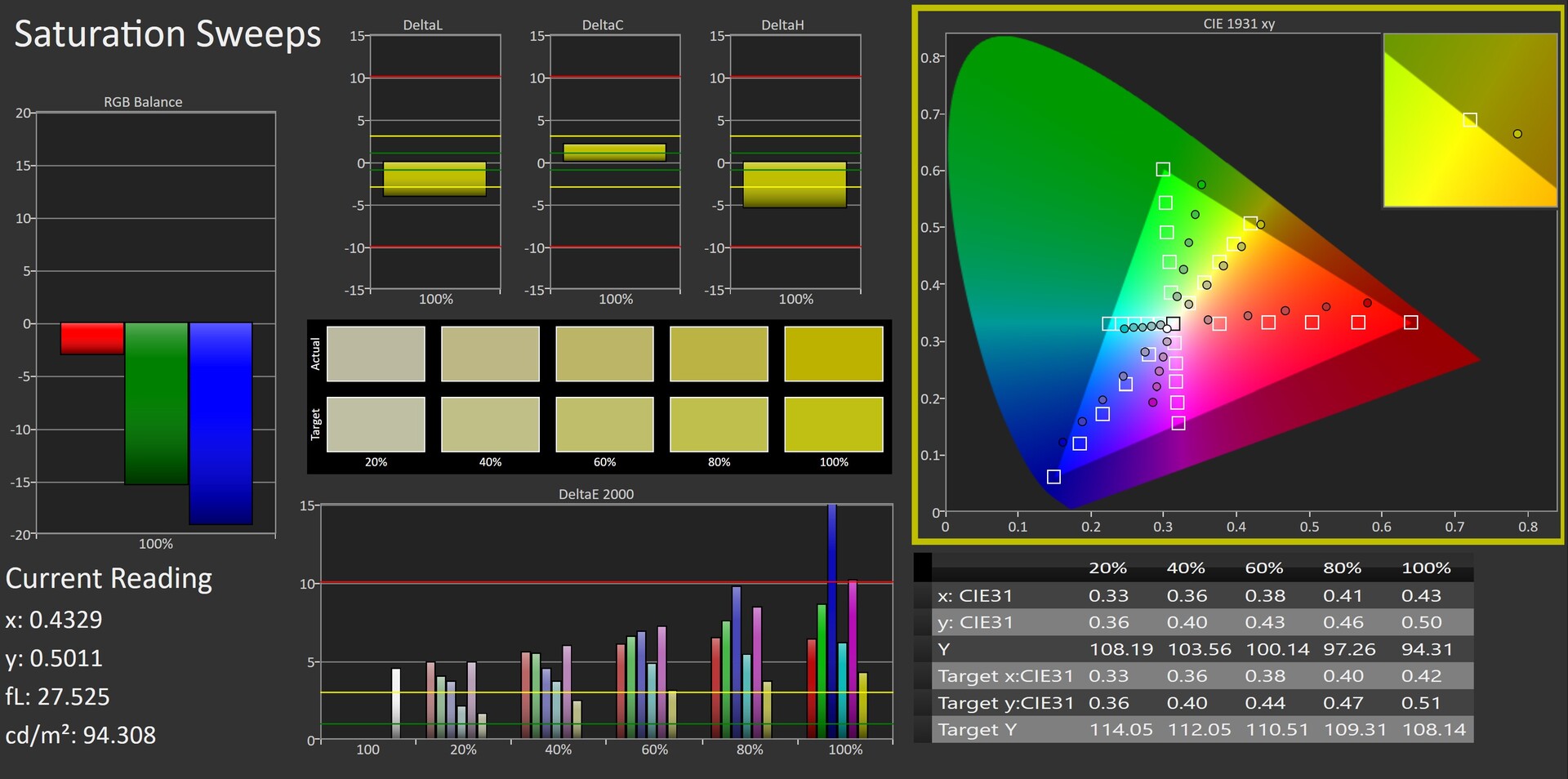

我们的测量结果显示，内置显示屏的色彩准确度较低。不过，在这方面，竞争对手的表现也不尽如人意，只有联想 V17-IIL才得以脱颖而出。

不过，从主观评价来看，该机的显示质量尚可，足以胜任简单的工作。不过，由于色彩准确度较低，DeltaE 2000 值又有点高，因此这款笔记本电脑不适合专业的照片或视频编辑工作。我们进行手动校准后，DeltaE 2000 值的变化很小。

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

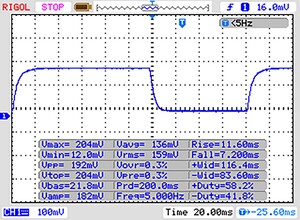

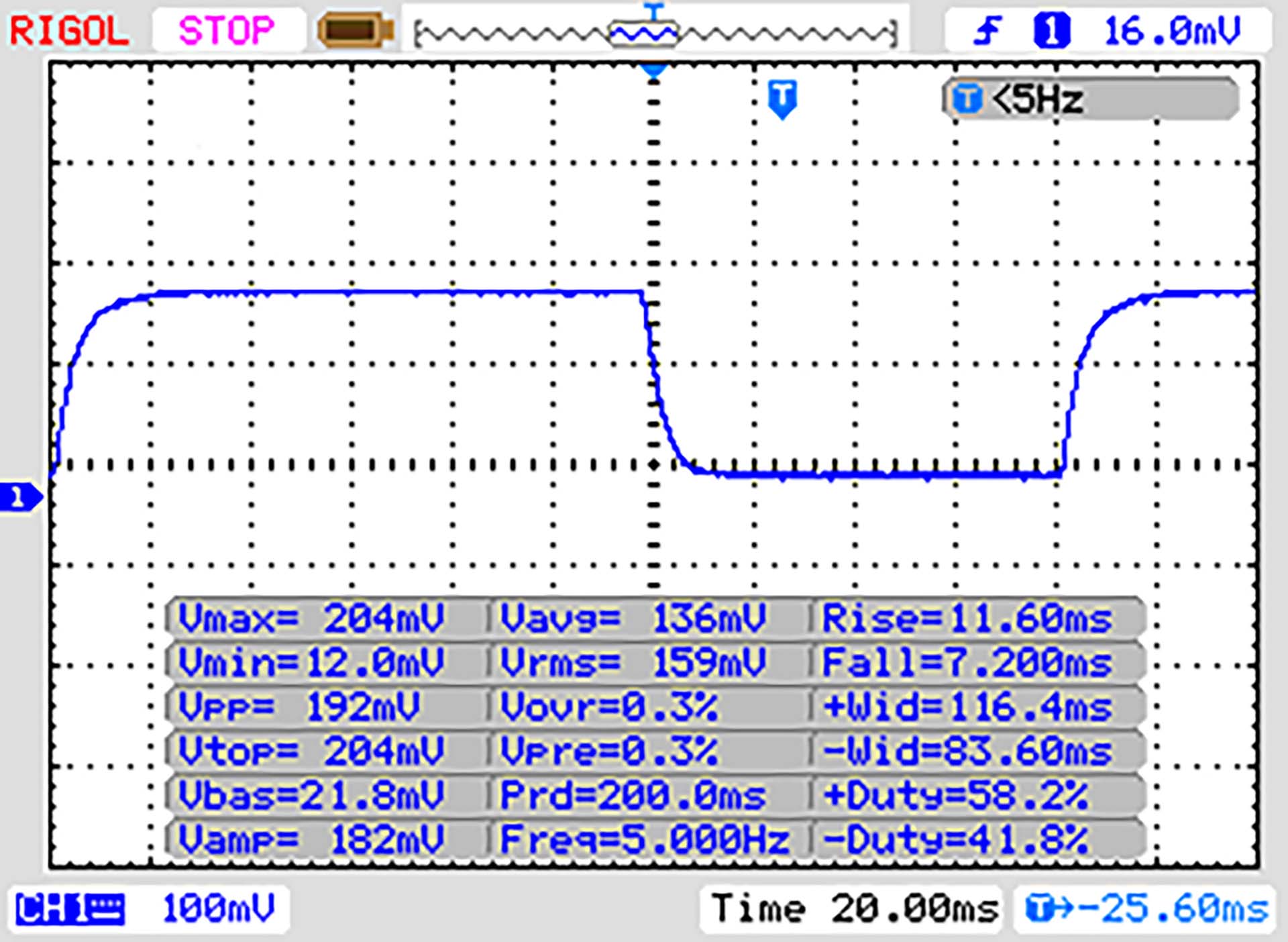

↔ Response Time Black to White
18 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
18 ms ... rise ↗ and fall ↘ combined	↘ 7 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 34 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms).

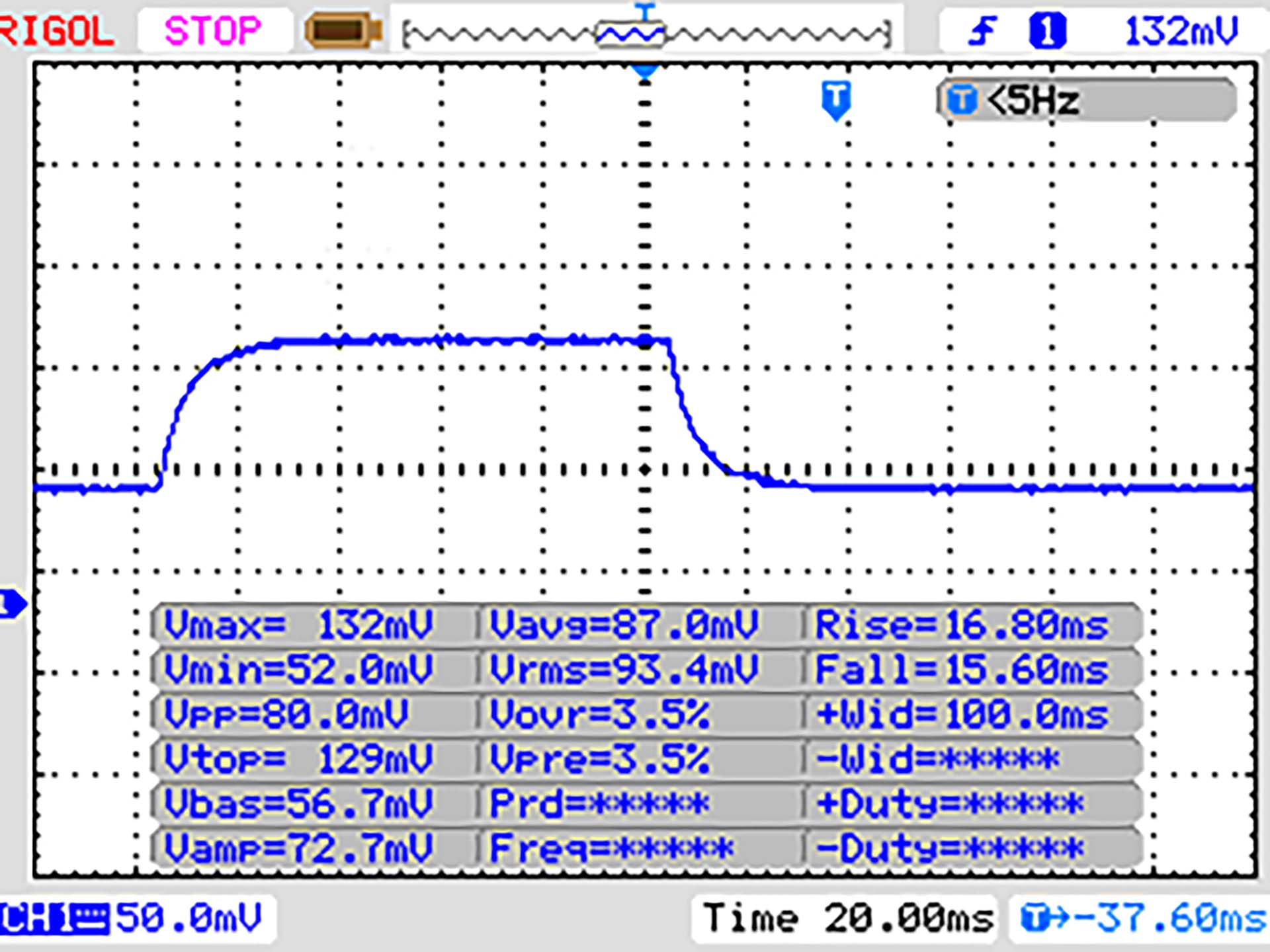

↔ Response Time 50% Grey to 80% Grey
31 ms ... rise ↗ and fall ↘ combined	↗ 16 ms rise
31 ms ... rise ↗ and fall ↘ combined	↘ 15 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.7 ms).

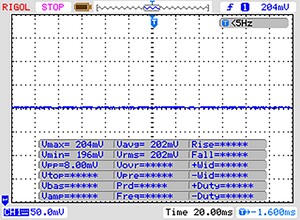

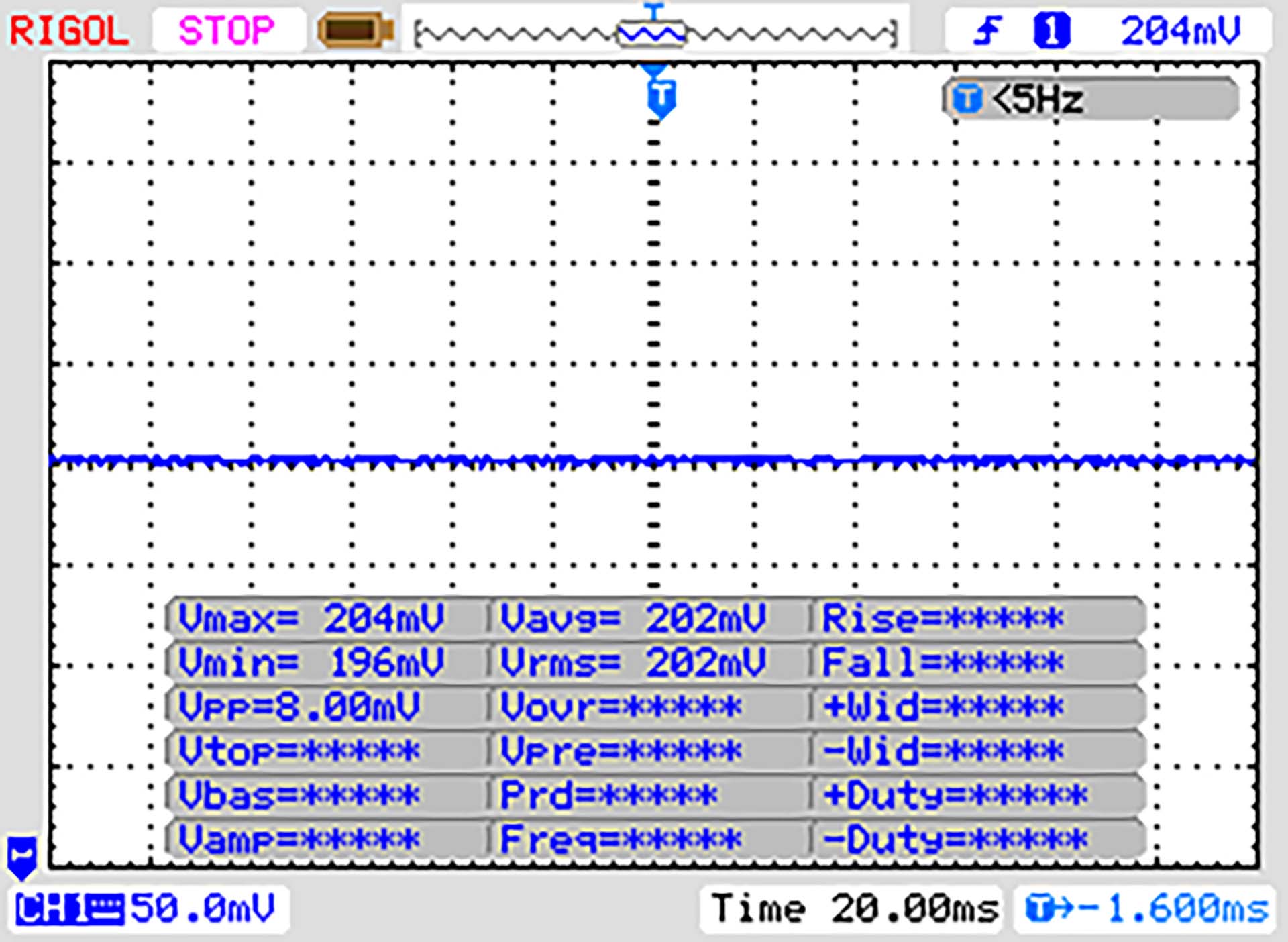

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17853 (minimum: 5 - maximum: 3846000) Hz was measured.

显示屏亮度相对较低，很难在室外使用，但多云的天空会有所帮助。在阳光下，我们建议不要在户外使用该设备。

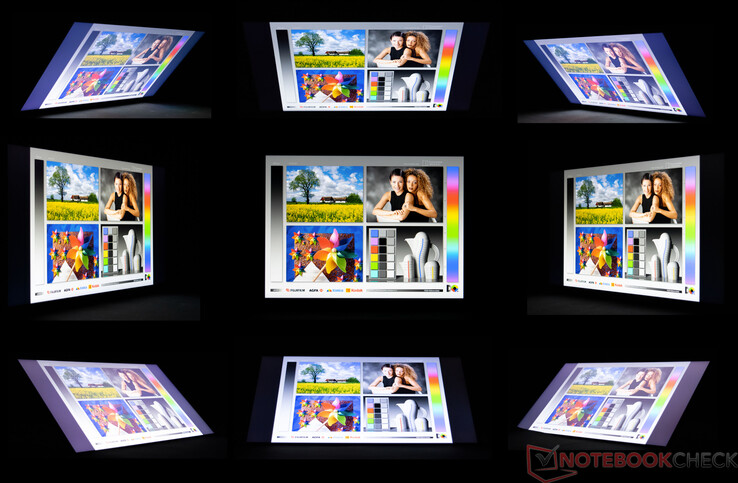

在正常使用中，内置的 IPS 面板表现非常出色。相比之下，低视角和陡峭的视角就很成问题，如下图所示。

性能 - 配备 4 个内核的英特尔 N95

英特尔奔腾 N95英特尔奔腾 N95是一个原生 4 核 SoC，为该设备的预期应用提供了充足的基础。同样，ACEMagic Ace AX15 还配备了 16GB 内存和 512GB 固态硬盘，可以很好地满足用户的需求。

测试条件

我们使用平衡能源配置文件进行了所有性能测试。不提供其他节能方案。

处理器

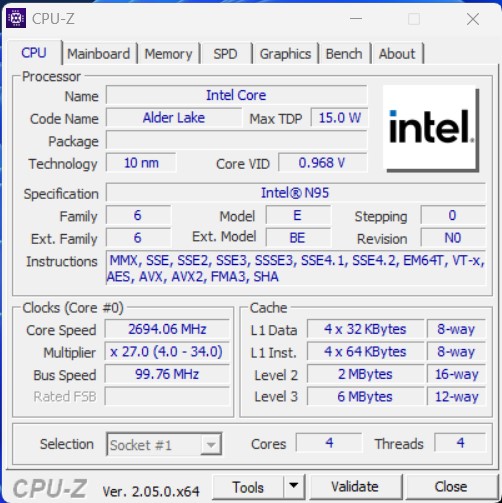

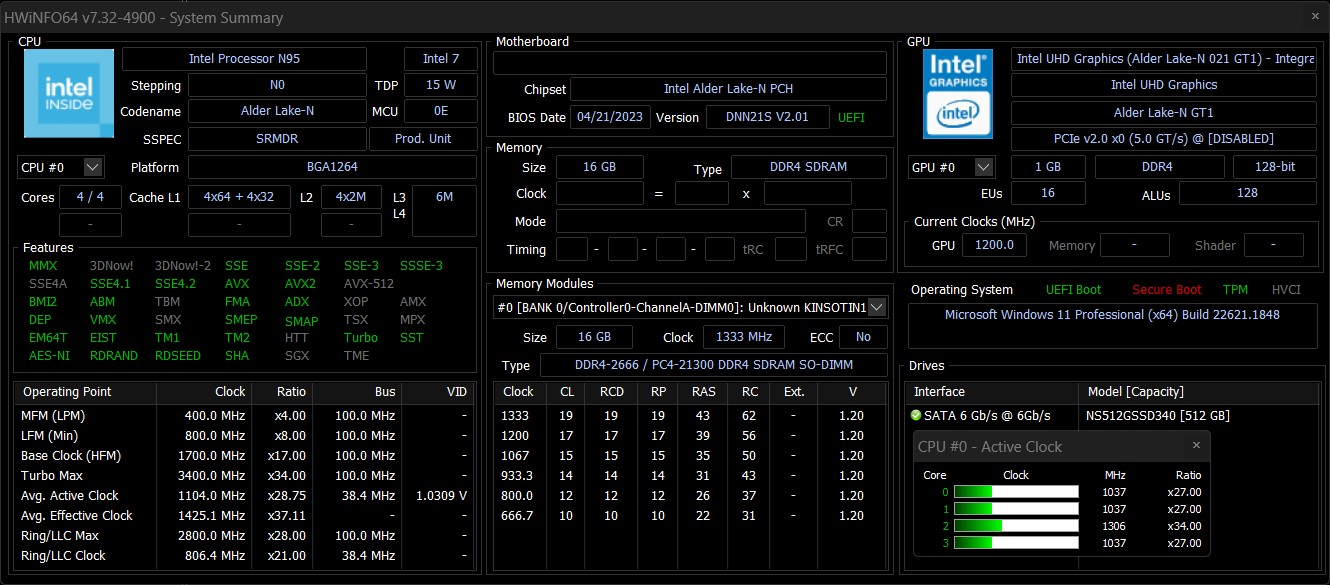

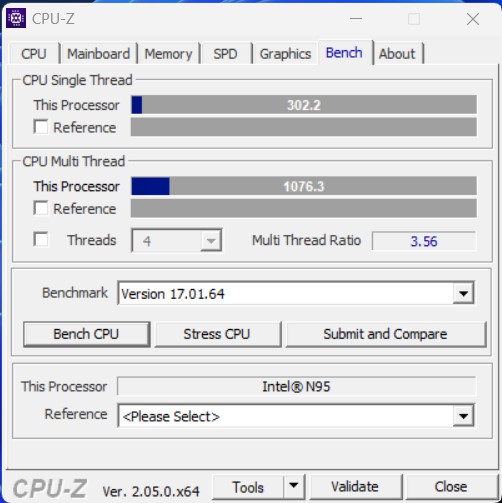

英特尔英特尔 N95英特尔 N95 拥有四个原生计算内核，最高主频可达 3.4 GHz。在我们的测试中，我们发现它的性能比英特尔奔腾银 N6000和英特尔赛扬 6305.不过，英特尔 N95 并没有达到预期效果。在 NiPoGi GK3 Plus N95中，相同的 SoC 提供了更好的性能，这可能是由于采用了更大的散热元件。

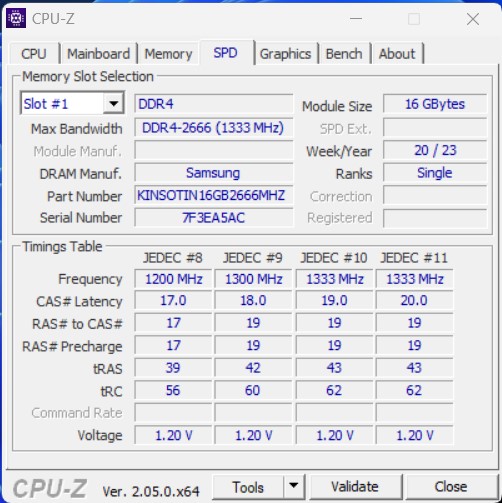

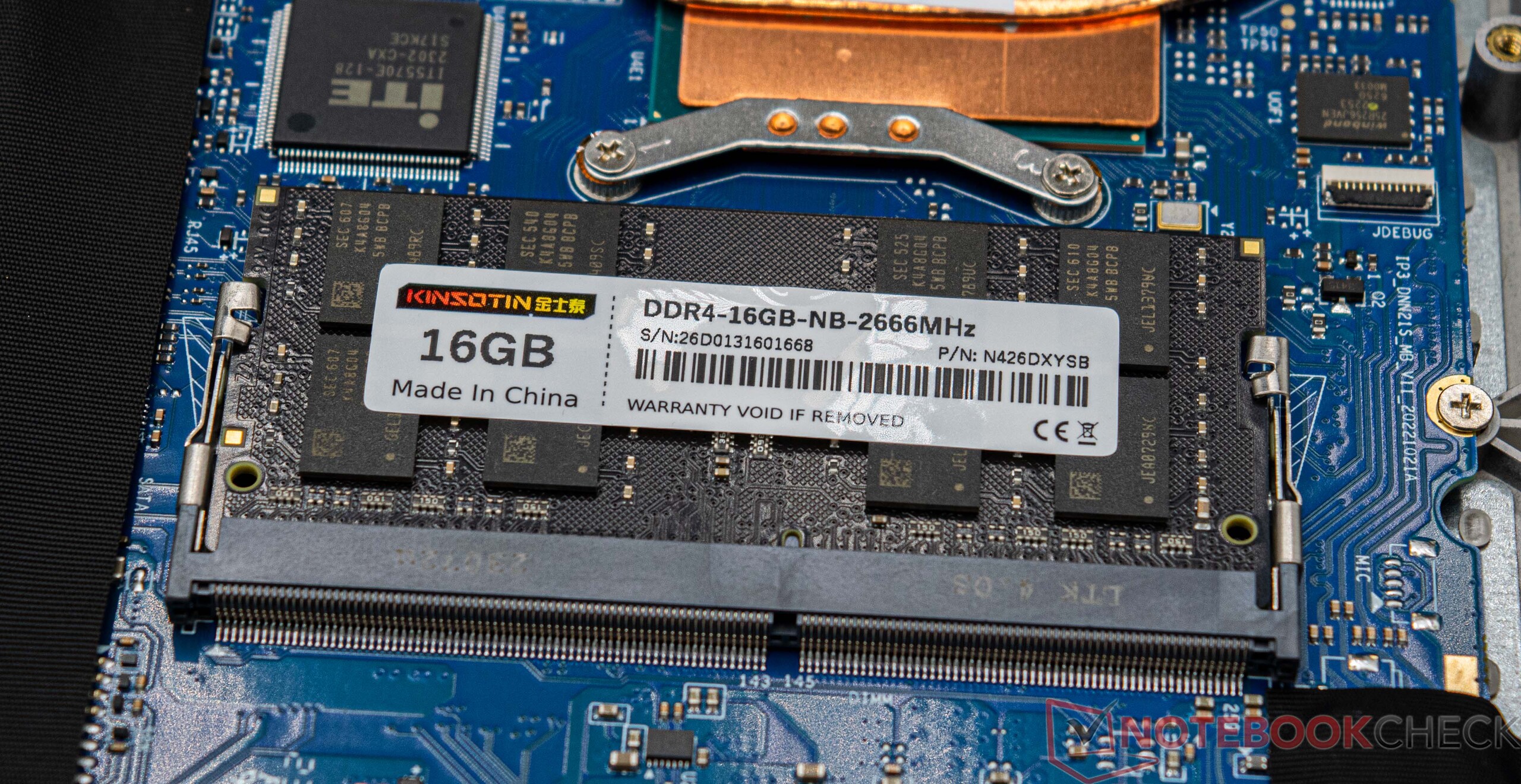

遗憾的是，配备的内存是 SoC 的败笔，因为制造商只安装了一个 16 GB DDR4 2666 MT/s 的 SODIMM 模块。不过，SoC 支持高达 4,800 MT/s 的 DDR5。不过，即使作为 DDR4 选项，3,200 MT/s 也是更好的选择，这样性能会稍好一些。由于只有一个 SODIMM 插槽，ACEMAGIC Ace AX15 无法实现双通道运行。

其他处理器基准测试可在这里.

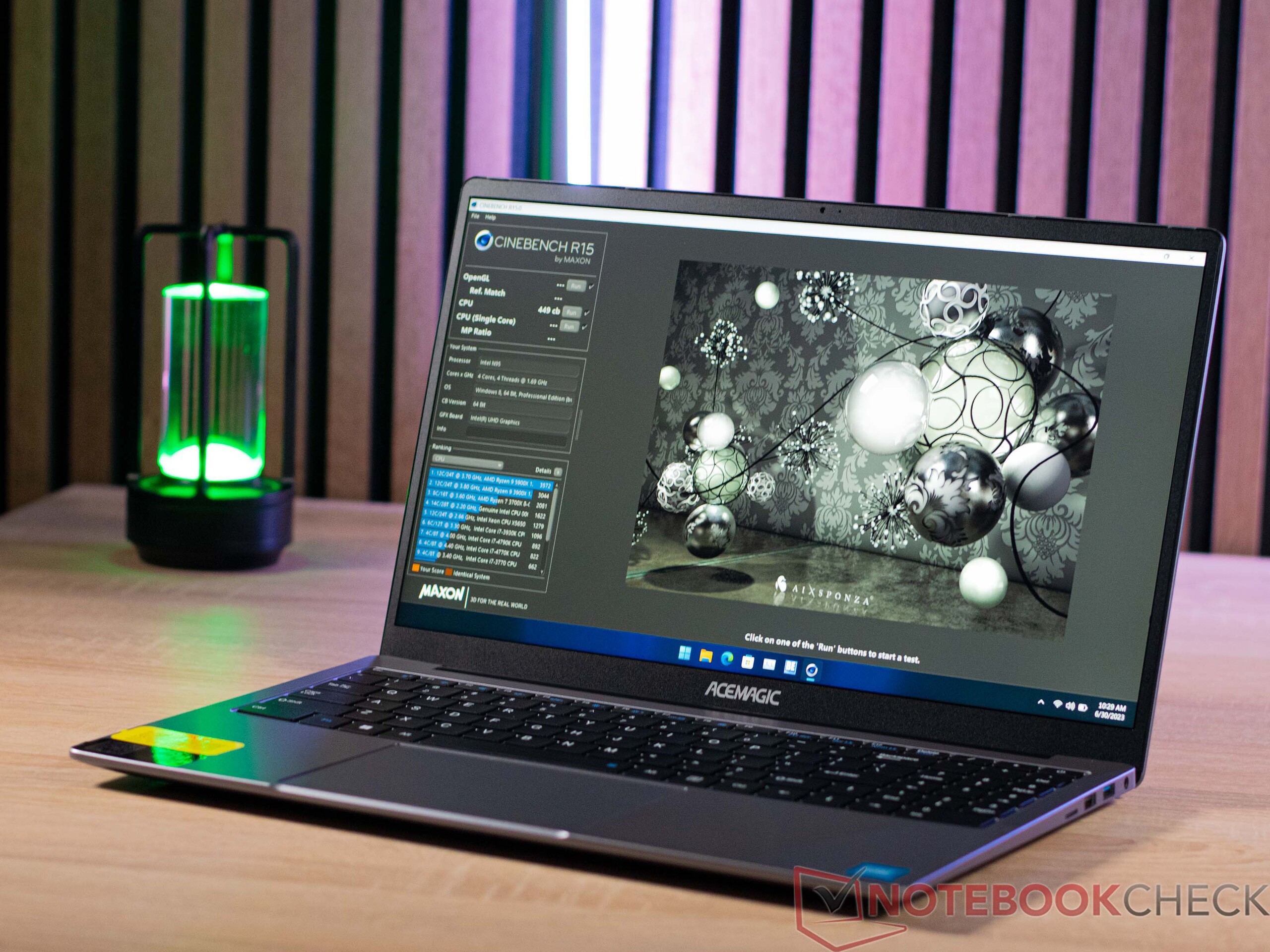

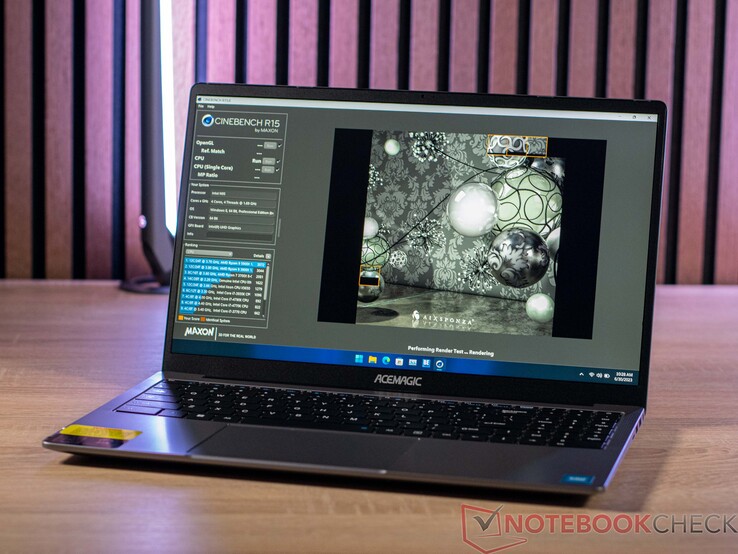

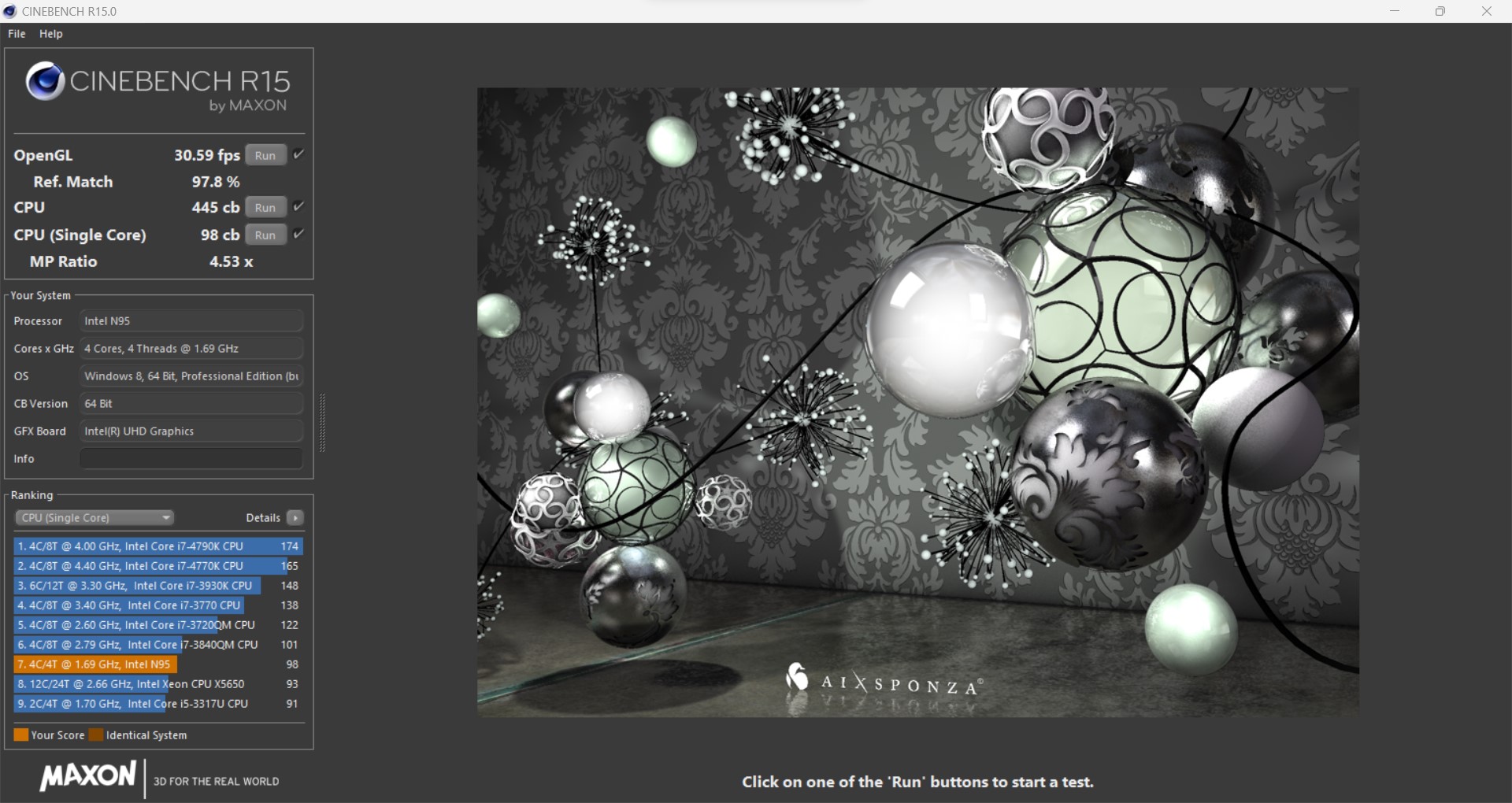

Cinebench R15 Multi Continuous Test

ACEMagician Ace ‎AX15, N95 Intel Processor N95: Ø439 (429.9-442.22)

Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000: Ø259 (255.98-280.27)

Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1: Ø355 (352.4-375.14)

Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1: Ø404 (389.86-406.96)

Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305: Ø156.5 (153.1-161.3)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95: Ø404 (398.46-406.91)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Average of class Office	92.4 pt
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	51.8 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	50.7 pt
Average Intel Processor N95	45.3 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	41.3 pt
ACEMagician Ace ‎AX15, N95 Intel Processor N95	37.6 pt
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	30.3 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	21.8 pt

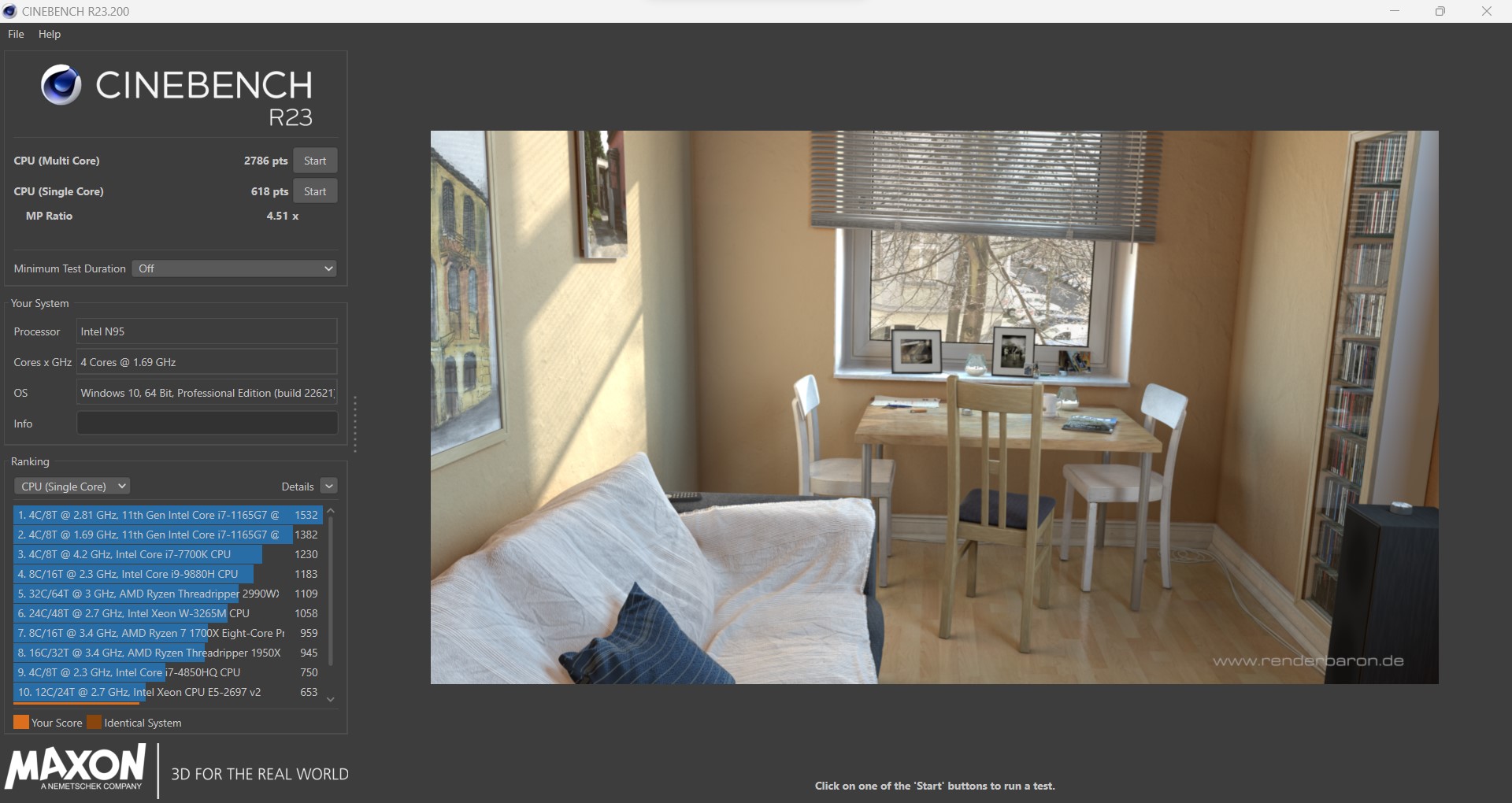

Cinebench R23 / Multi Core
Average of class Office (1056 - 15743, n=123, last 2 years)	8109 Points +191%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	2786 Points
Average Intel Processor N95 (2528 - 2786, n=5)	2711 Points -3%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	2636 Points -5%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	2528 Points -9%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	2209 Points -21%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	1671 Points -40%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1056 Points -62%

Cinebench R23 / Single Core
Average of class Office (529 - 1995, n=122, last 2 years)	1463 Points +137%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	1061 Points +72%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	1053 Points +70%
Average Intel Processor N95 (618 - 935, n=5)	820 Points +33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	700 Points +13%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	666 Points +8%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	618 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	566 Points -8%

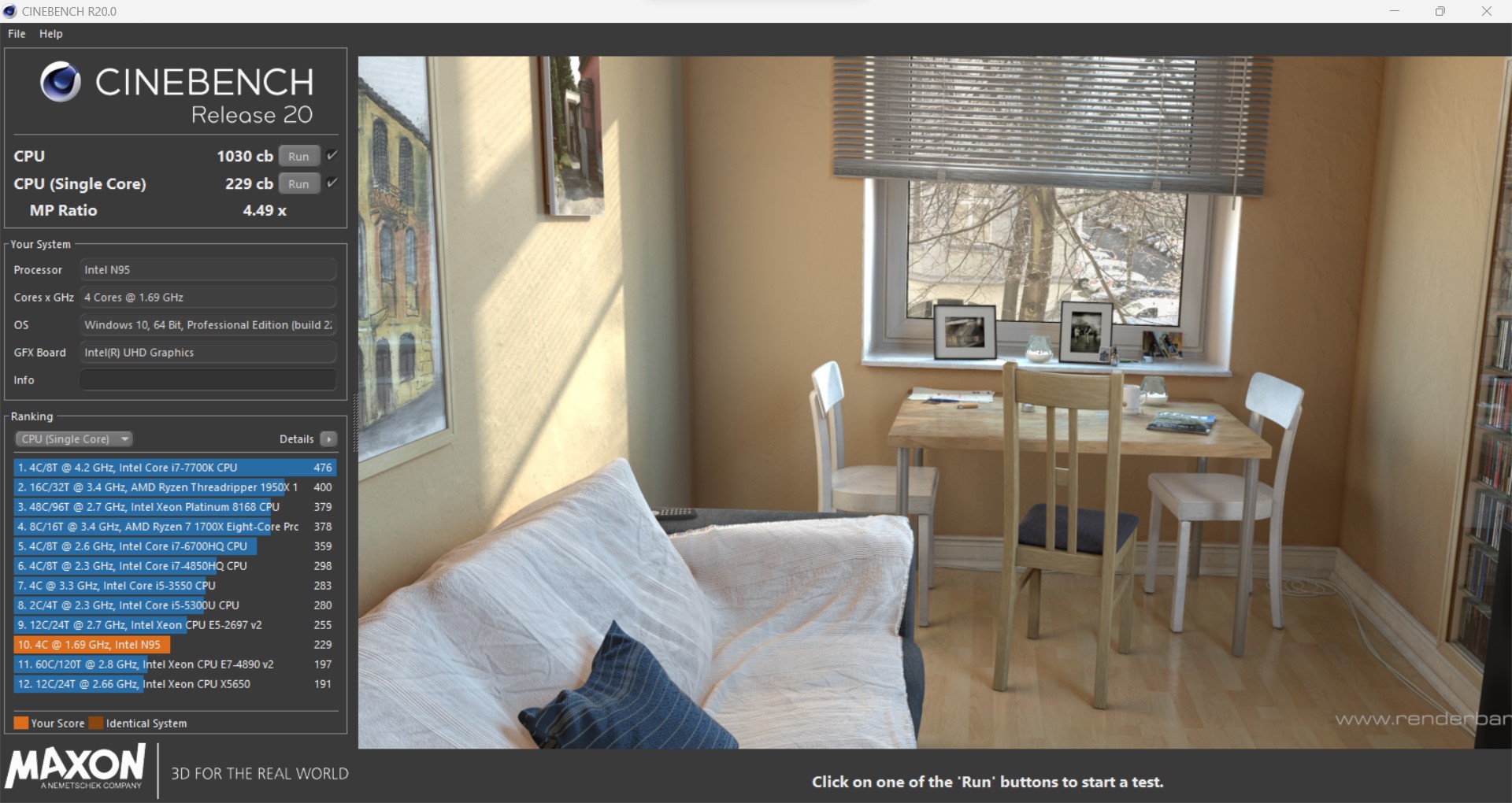

Cinebench R20 / CPU (Multi Core)
Average of class Office (356 - 5904, n=121, last 2 years)	3118 Points +203%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	1030 Points
Average Intel Processor N95 (976 - 1067, n=5)	1030 Points 0%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	1015 Points -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	976 Points -5%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	851 Points -17%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	635 Points -38%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	416 Points -60%

Cinebench R20 / CPU (Single Core)
Average of class Office (181.3 - 764, n=121, last 2 years)	562 Points +145%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	407 Points +78%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	405 Points +77%
Average Intel Processor N95 (229 - 357, n=5)	307 Points +34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	241 Points +5%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	237 Points +3%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	229 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	217 Points -5%

Cinebench R15 / CPU Multi 64Bit
Average of class Office (160.8 - 2642, n=121, last 2 years)	1402 Points +215%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	445 Points
Average Intel Processor N95 (408 - 452, n=5)	437 Points -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	408 Points -8%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	407 Points -9%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	375 Points -16%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	280 Points -37%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	161.3 Points -64%

Cinebench R15 / CPU Single 64Bit
Average of class Office (82.6 - 284, n=119, last 2 years)	218 Points +122%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	160 Points +63%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	148 Points +51%
Average Intel Processor N95 (98 - 155, n=5)	136.2 Points +39%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	123 Points +26%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	109 Points +11%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	98 Points
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	85.3 Points -13%

Blender / v2.79 BMW27 CPU
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	3157 Seconds * -184%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	2824 Seconds * -154%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	1306 Seconds * -18%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	1152 Seconds * -4%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	1129 Seconds * -2%
Average Intel Processor N95 (1103 - 1152, n=5)	1120 Seconds * -1%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	1110 Seconds *
Average of class Office (214 - 2844, n=122, last 2 years)	534 Seconds * +52%

7-Zip 18.03 / 7z b 4
Average of class Office (4226 - 62349, n=122, last 2 years)	34790 MIPS +196%
Average Intel Processor N95 (11654 - 12224, n=5)	12003 MIPS +2%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	11772 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	11654 MIPS -1%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	10896 MIPS -7%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	10893 MIPS -7%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	8577 MIPS -27%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	4226 MIPS -64%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Office (2233 - 6687, n=122, last 2 years)	5028 MIPS +69%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	4022 MIPS +35%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	3989 MIPS +34%
Average Intel Processor N95 (2972 - 3866, n=5)	3521 MIPS +18%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	3337 MIPS +12%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	3121 MIPS +5%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	2972 MIPS
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	2233 MIPS -25%

Geekbench 5.5 / Multi-Core
Average of class Office (1018 - 11980, n=123, last 2 years)	6677 Points +165%
Average Intel Processor N95 (2391 - 2793, n=5)	2577 Points +2%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	2520 Points
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	2417 Points -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	2391 Points -5%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	2332 Points -7%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	1915 Points -24%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1154 Points -54%

Geekbench 5.5 / Single-Core
Average of class Office (510 - 1974, n=123, last 2 years)	1481 Points +95%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	1163 Points +53%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	1141 Points +50%
Average Intel Processor N95 (761 - 1013, n=5)	917 Points +20%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	804 Points +6%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	761 Points
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	733 Points -4%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	632 Points -17%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Office (1.55 - 17.4, n=121, last 2 years)	9.26 fps +191%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	3.53 fps +11%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	3.18 fps
Average Intel Processor N95 (3.03 - 3.29, n=5)	3.18 fps 0%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	3.05 fps -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	3.03 fps -5%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1.69 fps -47%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	1.55 fps -51%

LibreOffice / 20 Documents To PDF
ACEMagician Ace ‎AX15, N95 Intel Processor N95	117.5 s *
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	111.6 s * +5%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	94.2 s * +20%
Average Intel Processor N95 (68.3 - 117.5, n=5)	86 s * +27%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	80.4 s * +32%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	63.6 s * +46%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	60.2 s * +49%
Average of class Office (31.3 - 117.5, n=121, last 2 years)	56.3 s * +52%

R Benchmark 2.5 / Overall mean
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305	1.397 sec * -23%
ACEMagician Ace ‎AX15, N95 Intel Processor N95	1.135 sec *
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000	1.112 sec * +2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95	1.032 sec * +9%
Average Intel Processor N95 (0.83 - 1.135, n=5)	0.934 sec * +18%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1	0.751 sec * +34%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1	0.747 sec * +34%
Average of class Office (0.4244 - 1.397, n=120, last 2 years)	0.586 sec * +48%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

3562

Cinebench R10 Shading 64Bit

5166 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

22075 Points

Cinebench R10 Rendering Single CPUs 64Bit

5904 Points

Cinebench R10 Shading 32Bit

4461

Cinebench R10 Rendering Multiple CPUs 32Bit

13854

Cinebench R11.5 CPU Multi 32Bit

5.38 Points

Cinebench R11.5 OpenGL 32Bit

22.72 fps

Cinebench R11.5 CPU Single 64Bit

1.3 Points

Cinebench R11.5 CPU Multi 64Bit

5.59 Points

Cinebench R11.5 OpenGL 64Bit

23.53 fps

Cinebench R11.5 CPU Single 32Bit

1.2 Points

Cinebench R15 CPU Single 64Bit

98 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

30.59 fps

Cinebench R15 CPU Multi 64Bit

445 Points

Help

... in comparison

Performance Rating
Average of class Office	100 pt
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	44.5 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	40.5 pt
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	20.6 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	20 pt
Average Intel Processor N95	12.3 pt
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	12.1 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11.7 pt

AIDA64 / FP32 Ray-Trace
Average of class Office (763 - 24250, n=121, last 2 years)	8354 KRay/s +995%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	3447 KRay/s +352%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	3169 KRay/s +315%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	1701 KRay/s +123%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	940 KRay/s +23%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	763 KRay/s
Average Intel Processor N95 (744 - 770, n=5)	762 KRay/s 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -2%

AIDA64 / FPU Julia
Average of class Office (4027 - 102228, n=121, last 2 years)	44446 Points +981%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	13760 Points +235%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	13077 Points +218%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	7051 Points +71%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	5420 Points +32%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	4113 Points
Average Intel Processor N95 (3970 - 4144, n=5)	4102 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -3%

AIDA64 / CPU SHA3
Average of class Office (279 - 4442, n=120, last 2 years)	1951 MB/s +580%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	959 MB/s +234%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	956 MB/s +233%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	397 MB/s +38%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	350 MB/s +22%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	287 MB/s
Average Intel Processor N95 (270 - 290, n=5)	285 MB/s -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -6%

AIDA64 / CPU Queen
Average of class Office (8031 - 113016, n=121, last 2 years)	66926 Points +718%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	24005 Points +193%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	23360 Points +185%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	23253 Points +184%
Average Intel Processor N95 (8172 - 8208, n=5)	8186 Points 0%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	8185 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	8031 Points -2%

AIDA64 / FPU SinJulia
Average of class Office (404 - 14288, n=121, last 2 years)	6599 Points +1533%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	1985 Points +391%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	1977 Points +389%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	934 Points +131%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	755 Points +87%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points +1%
Average Intel Processor N95 (404 - 408, n=5)	407 Points +1%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	404 Points

AIDA64 / FPU Mandel
Average of class Office (2054 - 54365, n=121, last 2 years)	23379 Points +1027%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	8492 Points +309%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	7705 Points +271%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	4362 Points +110%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	2811 Points +35%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	2075 Points
Average Intel Processor N95 (1987 - 2092, n=5)	2066 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -4%

AIDA64 / CPU AES
Average of class Office (5226 - 147611, n=121, last 2 years)	46831 MB/s +496%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	29600 MB/s +277%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	29504 MB/s +275%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	14460 MB/s +84%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	13549 MB/s +72%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s +1%
Average Intel Processor N95 (7860 - 7961, n=5)	7935 MB/s +1%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7860 MB/s

AIDA64 / CPU ZLib
Average of class Office (67.6 - 1018, n=121, last 2 years)	535 MB/s +586%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	169 MB/s +117%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	162 MB/s +108%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	140 MB/s +79%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	78 MB/s
Average Intel Processor N95 (74.9 - 78, n=5)	76.9 MB/s -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -4%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	67.8 MB/s -13%

AIDA64 / FP64 Ray-Trace
Average of class Office (432 - 12755, n=121, last 2 years)	4452 KRay/s +931%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	1884 KRay/s +336%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	1562 KRay/s +262%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	941 KRay/s +118%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	523 KRay/s +21%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	432 KRay/s
Average Intel Processor N95 (412 - 433, n=5)	428 KRay/s -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -5%

AIDA64 / CPU PhotoWorxx
Average of class Office (4814 - 48177, n=121, last 2 years)	24560 MPixel/s +410%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	21302 MPixel/s +343%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	14875 MPixel/s +209%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	10018 MPixel/s +108%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	7639 MPixel/s +59%
Average Intel Processor N95 (4408 - 6599, n=5)	5290 MPixel/s +10%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	4814 MPixel/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -8%

系统性能

在与系统性能相关的合成基准测试中，ACEMAGIC Ace AX15 排名靠后。尽管如此，系统性能还是可以接受的。从主观角度看，只要不要求笔记本电脑同时执行过多任务，就可以很好地使用评测设备。

PCMark 10 / Score
Average of class Office (2325 - 7157, n=106, last 2 years)	5344 Points +117%
Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD	3422 Points +39%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	3386 Points +37%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	2983 Points +21%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	2470 Points 0%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	2463 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	2463 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	2325 Points -6%

PCMark 10 / Essentials
Average of class Office (5095 - 20841, n=106, last 2 years)	9826 Points +76%
Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD	7954 Points +43%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	7693 Points +38%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	6650 Points +19%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	5705 Points +2%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	5575 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	5575 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	5095 Points -9%

PCMark 10 / Productivity
Average of class Office (3041 - 10198, n=106, last 2 years)	7440 Points +135%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	5497 Points +74%
Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD	5252 Points +66%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	4524 Points +43%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	3714 Points +17%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	3164 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	3164 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	3053 Points -4%

PCMark 10 / Digital Content Creation
Average of class Office (1912 - 9056, n=106, last 2 years)	5804 Points +152%
Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD	2606 Points +13%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	2492 Points +8%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	2395 Points +4%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	2301 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	2301 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	2194 Points -5%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	1932 Points -16%

CrossMark / Overall
Average of class Office (348 - 1891, n=107, last 2 years)	1325 Points +139%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	876 Points +58%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	666 Points +20%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	555 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	555 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	501 Points -10%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	440 Points -21%

CrossMark / Productivity
Average of class Office (393 - 1870, n=107, last 2 years)	1340 Points +128%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	979 Points +67%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	721 Points +23%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	587 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	587 Points 0%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	557 Points -5%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	513 Points -13%

CrossMark / Creativity
Average of class Office (340 - 1982, n=107, last 2 years)	1362 Points +148%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	774 Points +41%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	616 Points +12%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	550 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	550 Points 0%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	436 Points -21%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	424 Points -23%

CrossMark / Responsiveness
Average of class Office (258 - 2017, n=107, last 2 years)	1194 Points +147%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	907 Points +88%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	661 Points +37%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	599 Points +24%
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	483 Points
Average Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) ()	483 Points 0%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	284 Points -41%

PCMark 10 Score		2463 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Office (7158 - 88119, n=122, last 2 years)	42889 MB/s +499%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	29377 MB/s +310%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	19990 MB/s +179%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	17531 MB/s +145%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	17223 MB/s +141%
Average Intel Processor N95 (6481 - 12715, n=5)	8657 MB/s +21%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7158 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -9%

AIDA64 / Memory Read
Average of class Office (7325 - 87297, n=122, last 2 years)	43205 MB/s +490%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	32784 MB/s +348%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	23614 MB/s +222%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	20971 MB/s +186%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	16738 MB/s +129%
Average Intel Processor N95 (6914 - 11247, n=5)	8729 MB/s +19%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7325 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -6%

AIDA64 / Memory Write
Average of class Office (7579 - 94965, n=122, last 2 years)	46730 MB/s +517%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	37169 MB/s +390%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	23244 MB/s +207%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	21318 MB/s +181%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	20423 MB/s +169%
Average Intel Processor N95 (6862 - 14266, n=5)	9343 MB/s +23%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7579 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -9%

AIDA64 / Memory Latency
ACEMagician Ace ‎AX15, N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	185.2 ns *
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * +21%
Average Intel Processor N95 (119.8 - 185.2, n=5)	140.3 ns * +24%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, UHD Graphics Xe G4 48EUs	113.9 ns * +38%
Average of class Office (44.3 - 188.3, n=123, last 2 years)	96.4 ns * +48%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	72.4 ns * +61%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	69.5 ns * +62%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, UHD Graphics (Jasper Lake 32 EU)	61.4 ns * +67%

* ... smaller is better

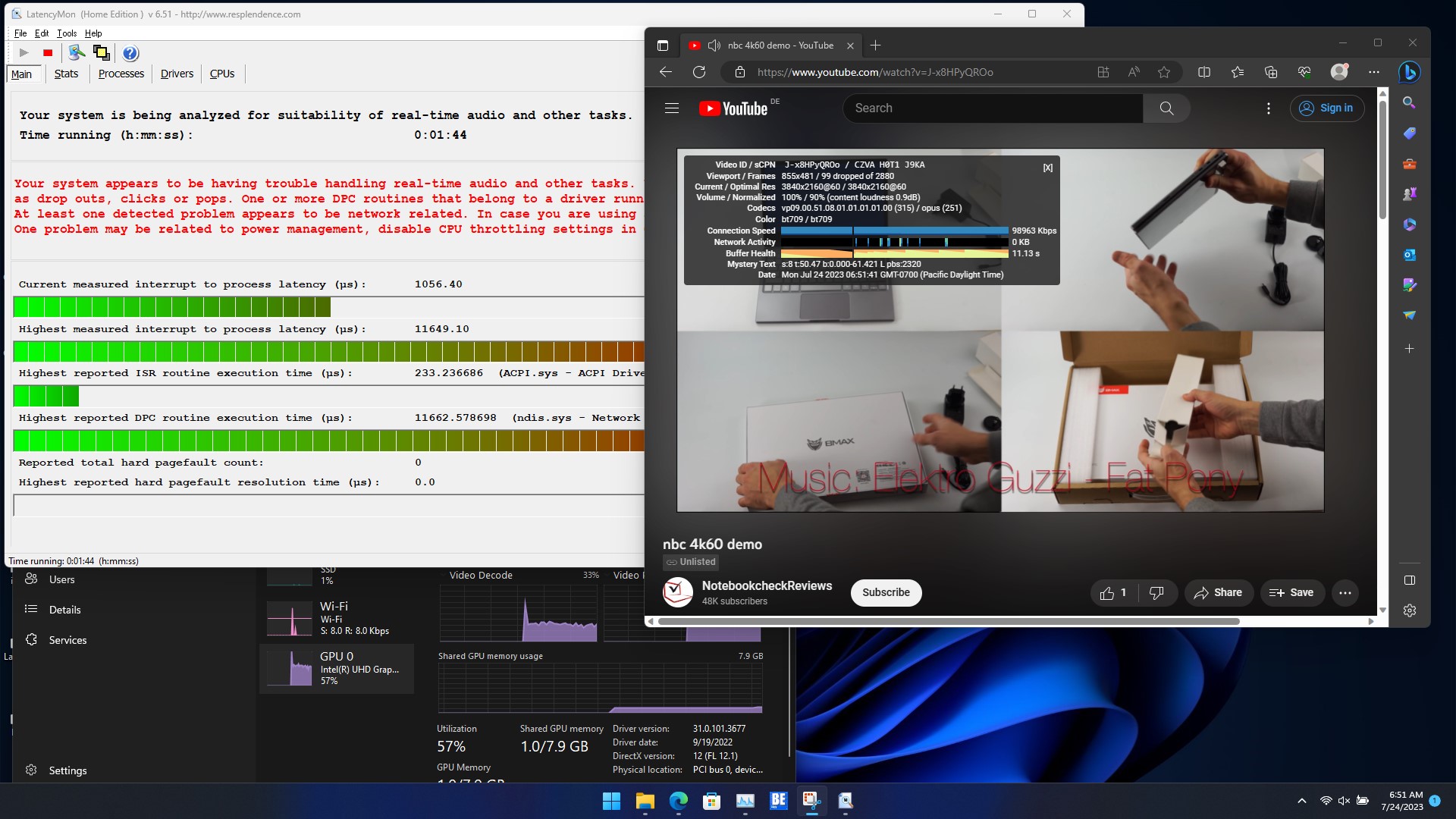

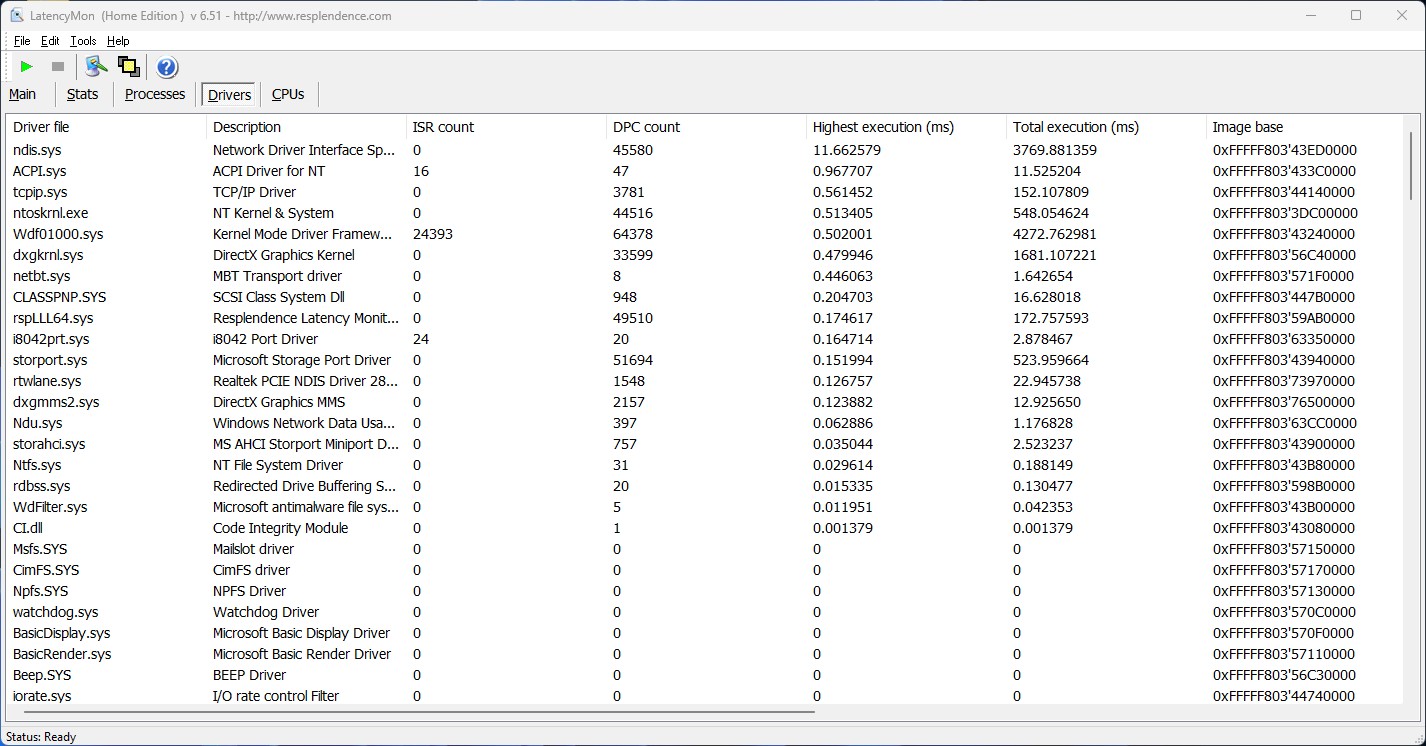

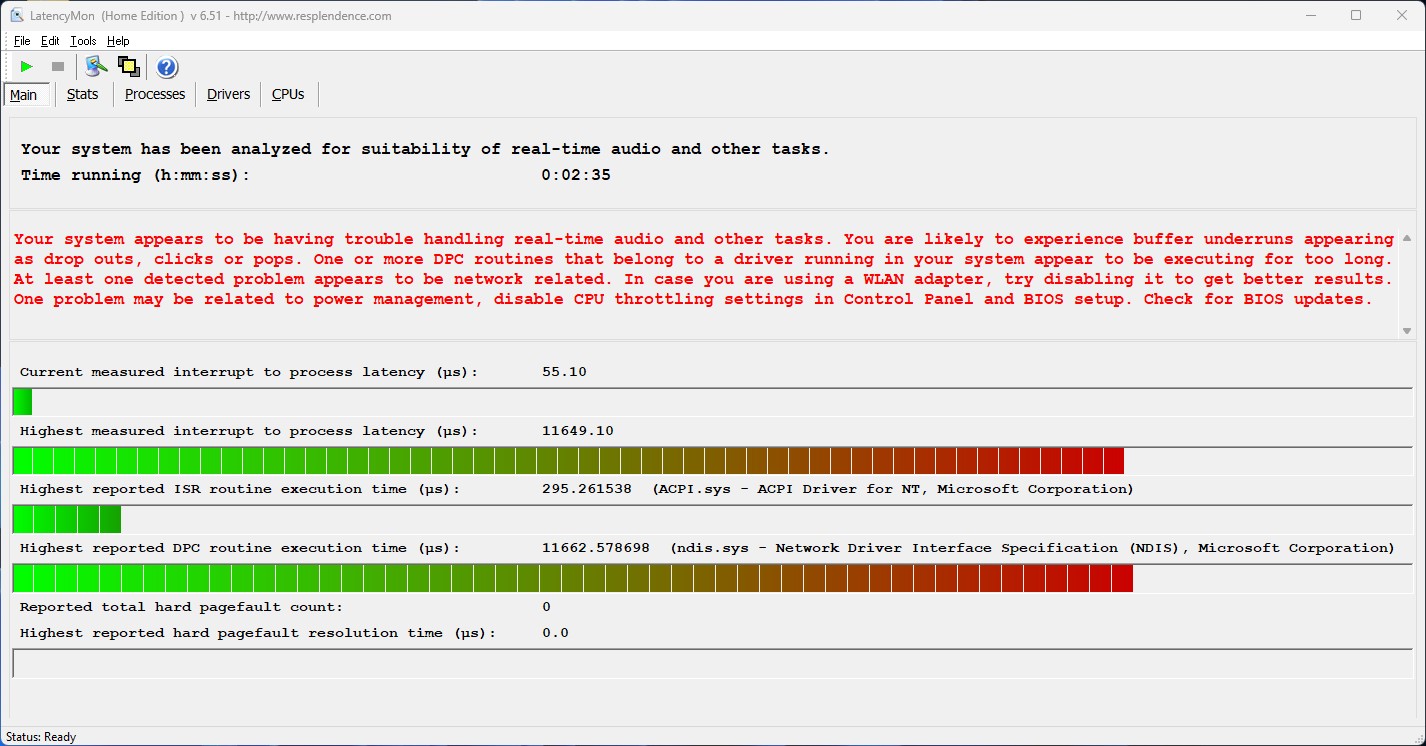

DPC 延迟

ACEMagic Ace AX15 在打开多个 Edge 浏览器标签页时会出现轻微的延迟问题。在播放 4K 测试视频时，这些问题明显增多。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	11662 μs *
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	3463 μs * +70%
Acer Swift 1 SF114-34-P6U1 UHD Graphics (Jasper Lake 32 EU), Pentium N6000, 128 GB eMMC Flash	2099 μs * +82%
Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	1703.4 μs * +85%
Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	1568 μs * +87%
Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD	938 μs * +92%

* ... smaller is better

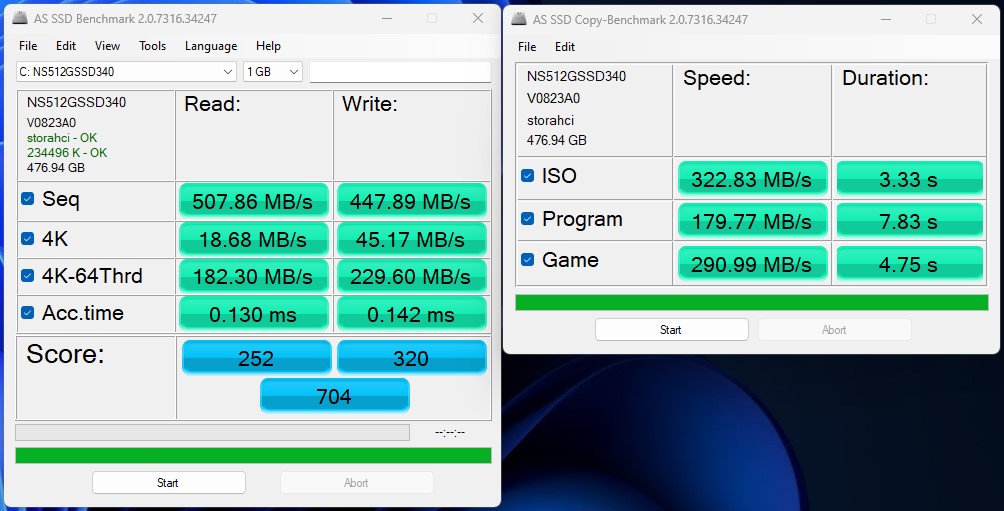

大容量存储器

ACEMAGIC Ace AX15 配备了 Netac 512 GB 固态硬盘。安装的型号提供 SATA 速度，与速度更快的 NVMe SSD 相比逊色不少。同样，在测试中，这也只能确保排名垫底。尽管如此，所配备的大容量存储设备的性能要比宏碁 Swift 1 SF114.ACEMAGIC Ace AX15 不允许安装第二个大容量存储设备。

更多比较和基准可参见我们的比较表。

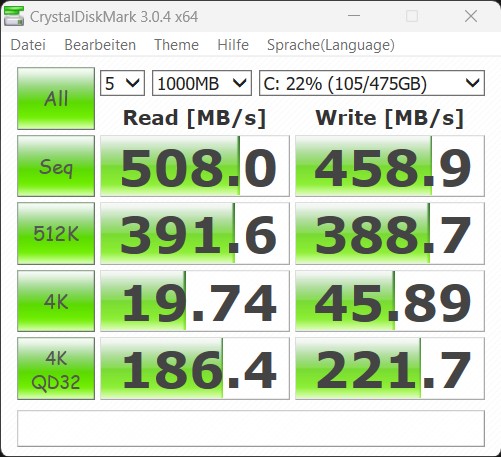

CrystalDiskMark 3.0

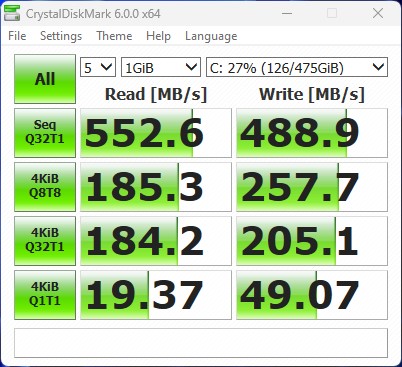

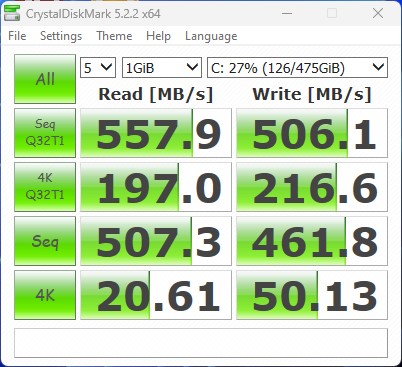

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Netac NS512GSSD340

Sequential Read: 508 MB/s

Sequential Write: 458.9 MB/s

512K Read: 391.6 MB/s

512K Write: 388.7 MB/s

4K Read: 19.74 MB/s

4K Write: 45.89 MB/s

4K QD32 Read: 186.4 MB/s

4K QD32 Write: 221.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Office	97.4 pt
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	61.2 pt
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	60.2 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	47 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	30.9 pt
Average Netac NS512GSSD340	28.1 pt
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	24.3 pt
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	5.9 pt

DiskSpd
seq read
Average of class Office (482 - 4554, n=108, last 2 years)	2471 MB/s +413%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	1561 (1546.02^min - 1561.33^max) MB/s +224%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1321 (1315.85^min - 1321.42^max) MB/s +174%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	1138 (1115.76^min - 1138.12^max) MB/s +136%
Average Netac NS512GSSD340 (482 - 526, n=2)	504 MB/s +5%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	482 (477.52^min - 481.72^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -5%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	249 (225.9^min - 248.59^max) MB/s -48%
seq write
Average of class Office (333 - 5842, n=108, last 2 years)	2375 MB/s +448%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	984 (966.79^min - 983.77^max) MB/s +127%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	862 (826.3^min - 861.88^max) MB/s +99%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s +14%
Average Netac NS512GSSD340 (433 - 464, n=2)	449 MB/s +4%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	433 (426.55^min - 432.67^max) MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	333 (297.38^min - 333.45^max) MB/s -23%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	56.3 (54.74^min - 56.32^max) MB/s -87%
seq q8 t1 read
Average of class Office (535 - 7120, n=108, last 2 years)	4017 MB/s +651%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	2302 (1974.68^min - 2302.25^max) MB/s +330%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1679 (1573.91^min - 1678.98^max) MB/s +214%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	1672 (1506.52^min - 1671.86^max) MB/s +213%
Average Netac NS512GSSD340 (535 - 545, n=2)	540 MB/s +1%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	535 (413.76^min - 534.98^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s -6%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	267 (127.72^min - 266.87^max) MB/s -50%
seq q8 t1 write
Average of class Office (276 - 6791, n=108, last 2 years)	3022 MB/s +528%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	973 (965.11^min - 972.87^max) MB/s +102%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	962 (915.25^min - 961.96^max) MB/s +100%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s +8%
Average Netac NS512GSSD340 (481 - 483, n=2)	482 MB/s 0%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	481 (478.45^min - 480.79^max) MB/s
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	276 (266.45^min - 275.85^max) MB/s -43%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	57 (55.27^min - 56.95^max) MB/s -88%
4k q1 t1 read
Average of class Office (17.7 - 89.9, n=108, last 2 years)	57.7 MB/s +191%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	57.1 (54.91^min - 57.07^max) MB/s +188%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	55.6 (55.28^min - 55.57^max) MB/s +181%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	49.2 (49.02^min - 49.17^max) MB/s +148%
Average Netac NS512GSSD340 (19.8 - 34.4, n=2)	27.1 MB/s +37%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s +31%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	19.8 (19.52^min - 19.79^max) MB/s
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	14.2 (13.54^min - 14.22^max) MB/s -28%
4k q1 t1 write
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	174 (172.25^min - 174.23^max) MB/s +444%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	171 (169.58^min - 170.91^max) MB/s +434%
Average of class Office (32 - 429, n=108, last 2 years)	161.2 MB/s +404%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	135.8 (133.28^min - 135.82^max) MB/s +324%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +200%
Average Netac NS512GSSD340 (32 - 93.3, n=2)	62.7 MB/s +96%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	32 (31.68^min - 31.95^max) MB/s
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	14.3 (13.14^min - 14.31^max) MB/s -55%
4k q32 t16 read
Average of class Office (184.2 - 4425, n=108, last 2 years)	1276 MB/s +593%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	506 (502.89^min - 505.6^max) MB/s +175%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	505 (504.59^min - 505.22^max) MB/s +174%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	485 (476.28^min - 484.57^max) MB/s +163%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s +41%
Average Netac NS512GSSD340 (184.2 - 189.2, n=2)	186.7 MB/s +1%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	184.2 (183.66^min - 184.17^max) MB/s
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	27.4 (26.1^min - 27.39^max) MB/s -85%
4k q32 t16 write
Average of class Office (192.2 - 3254, n=108, last 2 years)	938 MB/s +353%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	792 (767.38^min - 791.93^max) MB/s +283%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	762 (750.15^min - 761.77^max) MB/s +268%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	279 (258.09^min - 279.34^max) MB/s +35%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s +25%
Average Netac NS512GSSD340 (207 - 229, n=2)	218 MB/s +5%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	207 (203.08^min - 207.25^max) MB/s
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	20.5 (18.59^min - 20.54^max) MB/s -90%

AS SSD
Score Total
Average of class Office (704 - 9204, n=104, last 2 years)	3983 Points +466%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	1954 Points +178%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	1915 Points +172%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1363 Points +94%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points +5%
Average Netac NS512GSSD340 (704 - 753, n=2)	729 Points +4%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	704 Points
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	125 Points -82%
Score Read
Average of class Office (252 - 3364, n=104, last 2 years)	1442 Points +472%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	705 Points +180%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	692 Points +175%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	674 Points +167%
Average Netac NS512GSSD340 (252 - 266, n=2)	259 Points +3%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	252 Points
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -8%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	60 Points -76%
Score Write
Average of class Office (320 - 4111, n=104, last 2 years)	1846 Points +477%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	932 Points +191%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	903 Points +182%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	387 Points +21%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points +17%
Average Netac NS512GSSD340 (320 - 345, n=2)	333 Points +4%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	320 Points
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	39 Points -88%
Seq Read
Average of class Office (508 - 5796, n=104, last 2 years)	3162 MB/s +522%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	1976 MB/s +289%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	1734 MB/s +241%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	1448.03 MB/s +185%
Average Netac NS512GSSD340 (508 - 529, n=2)	519 MB/s +2%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	508 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -7%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	272.1 MB/s -46%
Seq Write
Average of class Office (304 - 5880, n=104, last 2 years)	2080 MB/s +364%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	911 MB/s +103%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	587 MB/s +31%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s +8%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	448 MB/s
Average Netac NS512GSSD340 (425 - 448, n=2)	437 MB/s -2%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	304.12 MB/s -32%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	52.2 MB/s -88%
4K Read
Average of class Office (18.7 - 91.1, n=104, last 2 years)	56.3 MB/s +201%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	50.7 MB/s +171%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	49.35 MB/s +164%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	45.21 MB/s +142%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s +47%
Average Netac NS512GSSD340 (18.7 - 30.6, n=2)	24.7 MB/s +32%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	18.7 MB/s
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	12.25 MB/s -34%
4K Write
Average of class Office (35.4 - 350, n=104, last 2 years)	158.7 MB/s +251%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	142.9 MB/s +216%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	134.5 MB/s +198%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	117.85 MB/s +161%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s +89%
Average Netac NS512GSSD340 (45.2 - 89.4, n=2)	67.3 MB/s +49%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	45.2 MB/s
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	13.86 MB/s -69%
4K-64 Read
Average of class Office (182.3 - 2713, n=104, last 2 years)	1069 MB/s +486%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	484.3 MB/s +166%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	467.5 MB/s +156%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	457.8 MB/s +151%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	182.3 MB/s
Average Netac NS512GSSD340 (182.1 - 182.3, n=2)	182.2 MB/s 0%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -13%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	20.78 MB/s -89%
4K-64 Write
Average of class Office (132.3 - 3394, n=104, last 2 years)	1479 MB/s +543%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	706 MB/s +207%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	701 MB/s +205%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s +4%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	238.34 MB/s +4%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	230 MB/s
Average Netac NS512GSSD340 (213 - 230, n=2)	222 MB/s -3%
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	19.95 MB/s -91%
Access Time Read
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	0.286 ms * -120%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	0.13 ms *
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	0.129 ms * +1%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	0.117 ms * +10%
Average Netac NS512GSSD340 (0.063 - 0.13, n=2)	0.0965 ms * +26%
Average of class Office (0.022 - 0.295, n=104, last 2 years)	0.07963 ms * +39%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	0.079 ms * +39%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +42%
Access Time Write
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash	0.433 ms * -205%
ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340	0.142 ms *
Average Netac NS512GSSD340 (0.137 - 0.142, n=2)	0.1395 ms * +2%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * +11%
Average of class Office (0.017 - 0.619, n=104, last 2 years)	0.06404 ms * +55%
Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N	0.033 ms * +77%
Lenovo V17-IIL 82GX008TGE Samsung PM991 MZALQ256HAJD	0.028 ms * +80%
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD	0.028 ms * +80%

* ... smaller is better

Countinuous Performance Read : DiskSpd Read Loop, Queue Depth 8

ACEMagician Ace ‎AX15, N95 Netac NS512GSSD340: Ø520 (411.87-523.03)

Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash: Ø252 (128.77-269.18)

Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD: Ø1496 (1218.03-2034.03)

Lenovo IdeaPad 3 14ITL6 82H700CCGE SK Hynix BC711 HFM128GD3HX015N: Ø1636 (1473.88-1662.2)

Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)

图形卡

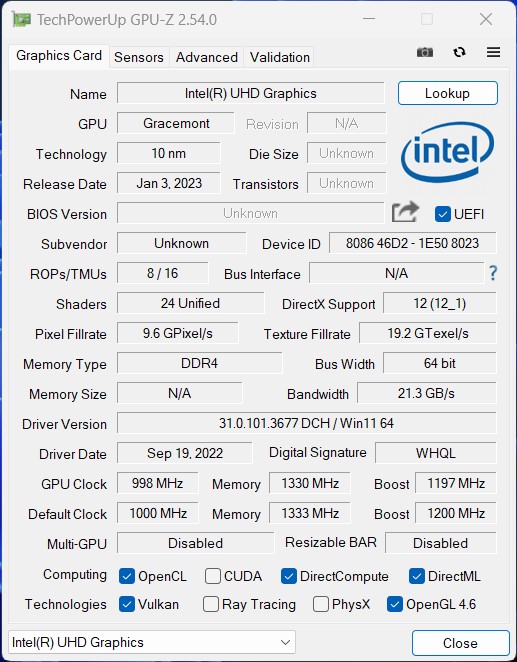

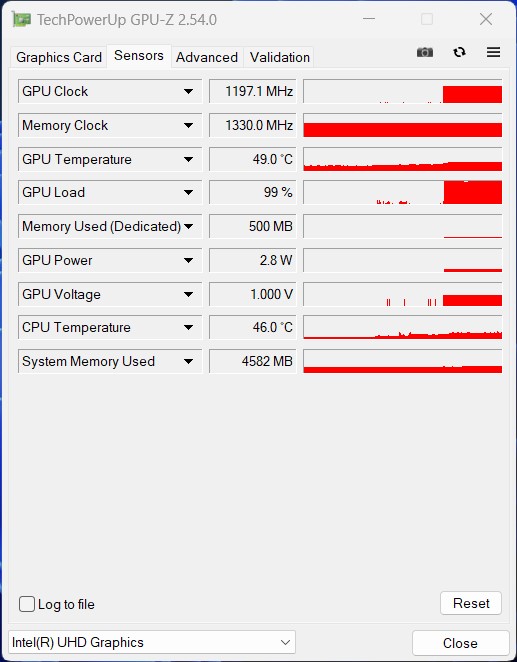

ACEMAGIC Ace AX15 的图形解决方案是配备 16 个 EU 的英特尔UHD Graphics 。采用更快 iGPU 的竞争对手明显优于我们的评测样品。NiPoGi GK3 Plus N95 的速度也一样快，这证明我们不应该指望这种配置能带来额外的 3D 性能。因此，ACEMAGIC Ace AX15 并不适合用于游戏。这款小型办公电脑只能用于处理最基本的浏览器或休闲游戏。

其他英特尔UHD Graphics 基准测试可在这里.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average of class Office	100 pt
Lenovo IdeaPad 3 14ITL6 82H700CCGE ^-1! Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	40.6 pt
Lenovo V17-IIL 82GX008TGE Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	33.6 pt
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	32.5 pt
Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	29.2 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	26.7 pt
ACEMagician Ace ‎AX15, N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Processor N95	26.6 pt
Acer Swift 1 SF114-34-P6U1 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000	23.8 pt

3DMark 11 - 1280x720 Performance GPU
Average of class Office (1474 - 13132, n=114, last 2 years)	6054 Points +311%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	2156 Points +46%
Lenovo V17-IIL 82GX008TGE Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1955 Points +33%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1870 Points +27%
Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H) (1474 - 1679, n=3)	1602 Points +9%
ACEMagician Ace ‎AX15, N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Processor N95	1474 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points 0%
Acer Swift 1 SF114-34-P6U1 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000	1356 Points -8%

3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Office (5681 - 58068, n=93, last 2 years)	24010 Points +201%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	11270 Points +41%
Lenovo V17-IIL 82GX008TGE Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	9889 Points +24%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	9653 Points +21%
Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H) (7779 - 10124, n=3)	8628 Points +8%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points +1%
ACEMagician Ace ‎AX15, N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Processor N95	7982 Points
Acer Swift 1 SF114-34-P6U1 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000	6977 Points -13%
1920x1080 Fire Strike Graphics
Average of class Office (712 - 9228, n=115, last 2 years)	4188 Points +285%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel UHD Graphics Xe G4 48EUs, Intel Celeron 6305	1643 Points +51%
Lenovo V17-IIL 82GX008TGE Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1347 Points +24%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1259 Points +16%
Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H) (1089 - 1368, n=3)	1220 Points +12%
ACEMagician Ace ‎AX15, N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Processor N95	1089 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -1%
Acer Swift 1 SF114-34-P6U1 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000	954 Points -12%
2560x1440 Time Spy Graphics
Average of class Office (242 - 3242, n=111, last 2 years)	1370 Points +338%
Lenovo V17-IIL 82GX008TGE Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	396 Points +27%
Fujitsu Lifebook A3510 (FPC04905BP) Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	395 Points +26%
Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H) (313 - 373, n=3)	345 Points +10%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	317 Points +1%
ACEMagician Ace ‎AX15, N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Processor N95	313 Points
Acer Swift 1 SF114-34-P6U1 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6000	286 Points -9%

3DMark 05 Standard		15740 points
3DMark 06 Standard Score		9852 points
3DMark Vantage P Result		5508 points
3DMark 11 Performance		1684 points
3DMark Ice Storm Standard Score		37623 points
3DMark Cloud Gate Standard Score		6660 points
3DMark Fire Strike Score		1022 points
3DMark Fire Strike Extreme Score		496 points
3DMark Time Spy Score		359 points
Help

... in comparison

Blender - v3.3 Classroom CPU
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2275 Seconds * -5%
ACEMagician Ace ‎AX15, N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Processor N95	2165 Seconds *
Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H) (662 - 2165, n=2)	1414 Seconds * +35%
Average of class Office (343 - 3786, n=110, last 2 years)	910 Seconds * +58%

* ... smaller is better

Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Average of class Office (7.8 - 121.2, n=124, last 2 years)	46.3 fps +171%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	22 (17.9^min) fps +29%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	20.4 (17.4^min) fps +19%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	18.2 (14.9^min) fps +6%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	17.1 (15.7^min) fps
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	17 (15.9^min) fps -1%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU)	8.3 (5.2^min) fps -51%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Average of class Office (5.55 - 92.6, n=124, last 2 years)	28.2 fps +218%
Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs	14.1 fps +59%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	13.6 fps +53%
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	12.1 fps +36%
Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	10.7 fps +20%
Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU)	9.14 fps +3%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	8.88 fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Average of class Office (2.03 - 35.7, n=103, last 2 years)	14.4 fps +244%
ACEMagician Ace ‎AX15, N95 Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	4.18 fps

	low	med.	high	ultra
Dota 2 Reborn (2015)	53.2	37.6	18.5	17.1
Final Fantasy XV Benchmark (2018)	12.1	5.8	4.18
X-Plane 11.11 (2018)	14.7	10.1	8.88

排放与能源 - 经济型小型电池

噪音排放

乍一看，ACEMAGIC Ace AX15 在空载和低负载时的低噪音令人印象深刻。不过，在最大负载情况下，噪音水平偶尔会达到 42 dB(A)。高亢的风扇噪音让录音音量显得有些大。

Noise Level

Idle		25.1 / 25.2 / 25.2 dB(A)
Load		28.5 / 42.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25.1 dB(A)

	ACEMagician Ace ‎AX15, N95 UHD Graphics Xe 16EUs (Tiger Lake-H), N95, Netac NS512GSSD340	Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD	Lenovo V17-IIL 82GX008TGE UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZALQ256HAJD	Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N	Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB
Noise		-5%	-3%	-1%	-19%
off / environment *	25.1	25 -0%	25.5 -2%	25.4 -1%	30.4 -21%
Idle Minimum *	25.1	25 -0%	25.5 -2%	25.4 -1%	31 -24%
Idle Average *	25.2	25 1%	29 -15%	25.4 -1%	31.1 -23%
Idle Maximum *	25.2	25 1%	29 -15%	25.4 -1%	31.8 -26%
Load Average *	28.5	39.2 -38%	30.1 -6%	27.2 5%	33.3 -17%
Load Maximum *	42.2	39 8%	33.4 21%	44.8 -6%	42.5 -1%

* ... smaller is better

温度

由于处理器经济实惠，因此无需安装复杂的冷却系统。这也对机箱温度产生了积极影响，机箱温度一直保持在无害水平。在进行 SoC 压力测试时，我们只测得 75 °C。PL1（功率限制）为 18 瓦，在整个测试过程中都保持稳定。

Max. Load

Idle


34.7 °C	38.2 °C	30.4 °C
34.1 °C	33.8 °C	29 °C
31.8 °C	30.3 °C	29.1 °C

Maximum: 38.2 °C
Average: 32.4 °C


30.6 °C	37.7 °C	36.8 °C
29.3 °C	34.4 °C	34.4 °C
29.2 °C	31.3 °C	31.9 °C

Maximum: 37.7 °C
Average: 32.8 °C

Power Supply (max.) 45.5 °C | Room Temperature 23 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 32.4 °C / 90 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.2 °C / 101 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 37.7 °C / 100 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.8 °C / 87 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.8 °C / 89.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.1 °C / -7.3 F).

	ACEMagician Ace ‎AX15, N95 Intel Processor N95, Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU)	Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	Lenovo V17-IIL 82GX008TGE Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs
Heat		3%	15%	6%	-2%
Maximum Upper Side *	38.2	38.9 -2%	34.4 10%	37.7 1%	38.6 -1%
Maximum Bottom *	37.7	43.3 -15%	30.9 18%	35.1 7%	41 -9%
Idle Upper Side *	33.8	28.5 16%	27.7 18%	29.2 14%	32.6 4%
Idle Bottom *	33.3	29.6 11%	29.2 12%	32.4 3%	33.9 -2%

* ... smaller is better

发言人

ACEMAGIC Ace AX15 配有两个扬声器，位于掌托下方的前部区域。不过，这两个扬声器只能提供良好重现语音所需的基本要素。高音和中音占主导地位，只有一丝低音。为了获得更好的音频体验，我们建议使用外置扬声器或耳机。这两种方式都可以通过 USB 或 3.5 毫米音频插孔实现。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

ACEMagician Ace ‎AX15, N95 audio analysis

(±) | speaker loudness is average but good (80.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.2% lower than median
(±) | linearity of bass is average (9.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.4% higher than median
(±) | linearity of highs is average (9.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.2% difference to median)
Compared to same class
» 73% of all tested devices in this class were better, 7% similar, 20% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 73% of all tested devices were better, 6% similar, 21% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Acer Swift 1 SF114-34-P6U1 audio analysis

(±) | speaker loudness is average but good (73.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30.6% lower than median
(±) | linearity of bass is average (12% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (8.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.8% difference to median)
Compared to same class
» 64% of all tested devices in this class were better, 10% similar, 26% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 67% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 4%, average was 25%, worst was 134%

耗电量

在 ACEMAGIC Ace AX15 的功耗方面，我们没有发现任何异常。在闲置状态下，电源适配器需要提供 8 至 8.7 瓦的功率，但有时会达到略高于 35 瓦的峰值。电源适配器可提供高达 40 瓦的功率，这意味着它永远不会不堪重负。

Power Consumption

Off / Standby	3.8 / 3.3 Watt
Idle	8 / 8.5 / 8.7 Watt
Load	20.2 / 35.3 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	ACEMagician Ace ‎AX15, N95 N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU)	Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	Lenovo V17-IIL 82GX008TGE i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	Lenovo IdeaPad 3 14ITL6 82H700CCGE Celeron 6305, UHD Graphics Xe G4 48EUs	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Average Intel UHD Graphics Xe 16EUs (Tiger Lake-H)	Average of class Office
Power Consumption		53%	-8%	-7%	12%	16%	-36%	-22%
Idle Minimum *	8	2.4 70%	4.2 47%	4.4 45%	3.7 54%	6.1 24%	7.43 ?(5.3 - 9, n=3) 7%	4.3 ?(2.2 - 9.6, n=108, last 2 years) 46%
Idle Average *	8.5	4.1 52%	7.5 12%	10 -18%	7.1 16%	6.9 19%	9.37 ?(8.5 - 10.6, n=3) -10%	7.34 ?(3.8 - 20.6, n=108, last 2 years) 14%
Idle Maximum *	8.7	4.7 46%	8.5 2%	11.7 -34%	8.2 6%	8.9 -2%	12.8 ?(8.7 - 19.9, n=3) -47%	9.13 ?(5.1 - 23.9, n=108, last 2 years) -5%
Load Average *	20.2	13.6 33%	31.2 -54%		26 -29%	20 1%	27.1 ?(20.2 - 30.9, n=3) -34%	41 ?(8.7 - 77.9, n=107, last 2 years) -103%
Load Maximum *	35.3	12.1 66%	52.7 -49%	42 -19%	31.4 11%	21.1 40%	69.8 ?(35.3 - 97.8, n=3) -98%	58 ?(11.1 - 101.4, n=108, last 2 years) -64%
Witcher 3 ultra *		14.3	30.7	26.8	24.3

* ... smaller is better

Power consumption with an external monitor

ACEMagician Ace ‎AX15, N95; Prime95 V2810 Stress (external Monitor): Ø27.4 (24.7-29.2)

ACEMagician Ace ‎AX15, N95; Cinebench R15 Multi (external Monitor): Ø22.7 (21.9-24)

ACEMagician Ace ‎AX15, N95; Cinebench R23 Single (external Monitor): Ø13.2 (12-22.9)

ACEMagician Ace ‎AX15, N95; Cinebench R23 Multi (external Monitor): Ø21.5 (21-22.2)

ACEMagician Ace ‎AX15, N95; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø18.5 (16.9-25.1)

ACEMagician Ace ‎AX15, N95; Idle 1min (external Monitor): Ø8.74 (8.55-10)

电池寿命

ACEMAGIC Ace AX15 的电池容量为 38 Wh，相对较小。在与Lenovo IdeaPad 3 及其相同大小的电池进行比较时，我们的评测设备不得不认输。在 Wi-Fi 测试（借助脚本加载网站）中，我们测得的运行时间为 5 小时 44 分钟。尽管如此，这仍然适合家庭使用。

将电池充电到 100%需要两个多小时。考虑到电池容量较低，这已经是相当长的时间了，但经过大约一半的时间后，电池电量已经达到 75%。

Battery Runtime

Idle (without WLAN, min brightness)		8h 47min
WiFi Websurfing (EDGE: 115.0.1901.183)		5h 44min
WiFi Websurfing max. Brightness (EDGE: 115.0.1901.183)		5h 11min
Big Buck Bunny H.264 1080p		5h 48min
Load (maximum brightness)		2h 00min

	ACEMagician Ace ‎AX15, N95 N95, UHD Graphics Xe 16EUs (Tiger Lake-H), 38 Wh	Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU), 50.3 Wh	Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), 45 Wh	Lenovo V17-IIL 82GX008TGE i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), 42 Wh	Lenovo IdeaPad 3 14ITL6 82H700CCGE Celeron 6305, UHD Graphics Xe G4 48EUs, 38 Wh	Average of class Office
Battery Runtime		164%	13%	7%	25%	86%
Reader / Idle	527	1771 236%				1436 ?(527 - 2359, n=21, last 2 years) 172%
H.264	348	981 182%				705 ?(348 - 1112, n=40, last 2 years) 103%
WiFi v1.3	344	693 101%	390 13%	369 7%	429 25%	592 ?(300 - 1137, n=108, last 2 years) 72%
Load	120	285 138%				117.7 ?(56 - 218, n=67, last 2 years) -2%

Pros

+ 优质选材

+ 完美无瑕的制造质量

+ 现代而经济的 SoC

+ 负载情况下 CPU 性能稳定

+ 多种外部接口选择

+ 低功耗

+ 无 PWM

+ 价格合理

Cons

- 图形性能低

- 内存配置不理想

- Wi-Fi速度慢

- 极高的 DPC 延迟

- 只能容纳一个大容量存储设备

结论--适合家用的可靠办公笔记本电脑

ACEMAGIC Ace AX15 是一款经济实惠的办公笔记本电脑。英特尔 N95 是一款非常先进的 SoC，但只能提供 4 个内核和 4 个线程，这一点值得考虑。基本上，只要对 ACEMAGIC Ace AX15 笔记本电脑的要求不高，就可以很好地工作。

这款笔记本电脑目前的售价为 340 美元，在内存和大容量存储方面并不算贵，是一款值得信赖的笔记本电脑。16 GB 内存是个不错的选择，尽管将其分成两个 SODIMM 模块会是更好的解决方案。双通道实施，除其他外，还能确保更强的动力，而这正是 ACEMAGIC Ace AX15 可以做到的。

ACEMAGIC Ace AX15 配备了英特尔 N95，提供了非常经济实惠、性能尚可的 SoC 和令人惊喜的优质选材。

ACEMAGIC Ace AX15 的制造质量很好，所选用的材料也让我们感到惊讶，这至少说明 ACEMAGIC Ace AX15 并不是一堆塑料。对于这个价位的产品来说，端口的选择是合适的。有许多 USB 接口，甚至还有 USB-C 接口。由于采用的是 SATA 接口，因此对所安装的固态硬盘的要求并不高。不过，在日常生活中，这并不是问题。

对于安装的 Wi-Fi 模块，我们有一些批评意见。如果采用更先进的 Wi-Fi 6-Wi-Fi 模块，效果会更好，因为所配备的模块在测试中并没有给我们留下快速数据传输速度的印象。相比之下，我们认为已安装的英特尔 N95 具有很好的使用潜力。ACEMAGIC Ace AX15 目前的售价约为 340 美元，比富士通 Lifebook AX15 便宜约 100 美元。富士通的 Lifebook A3510便宜约 100 美元。

价格和供应情况

在其网上商店，ACEMAGIC Ace AX15 目前正在打折，即$339 即可购买。.目前，ACEMAGIC Ace AX15 尚未在美国亚马逊上架。

ACEMagician Ace ‎AX15, N95 - 2023-07-25 07/25/2023 v7
Sebastian Bade

Chassis

77 / 98 → 78%

Keyboard

78%

Pointing Device

76%

Connectivity

44 / 80 → 55%

Weight

67 / 20-75 → 85%

Battery

66%

Display

83%

Games Performance

46 / 78 → 59%

Application Performance

70 / 95 → 74%

Temperature

92%

Noise

93%

Audio

71%

Camera

26 / 85 → 30%

Average

68%

78%

Office - Weighted Average

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Pricecompare

Editor of the original article: Andrew Dickson - Translator - 88 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 391930 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > ACEMAGIC Ace AX15 笔记本电脑评测：配备英特尔 N95 处理器的经济型办公笔记本电脑

Sebastian Bade, 2023-07-31 (Update: 2023-07-31)
