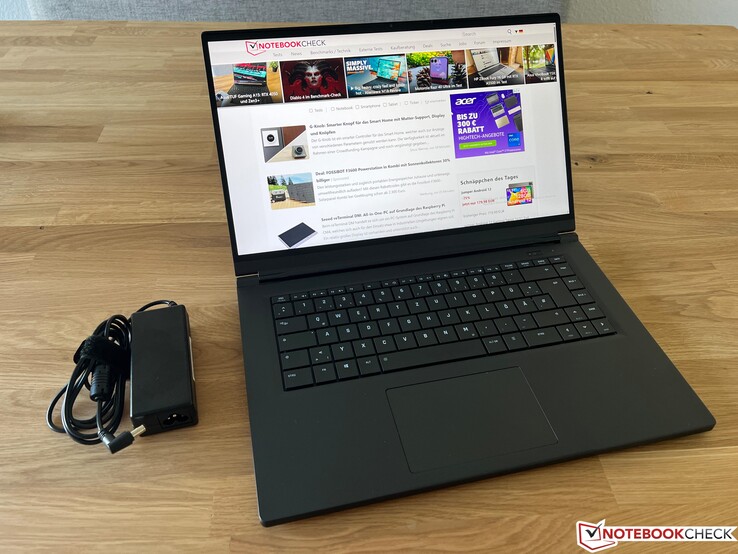

申科威盛15 Pro评测--电池寿命长的AMD办公笔记本电脑
申克公司提供的威盛15 Pro是一款快速的办公笔记本,除了良好的输入设备外,还使用了刷新率为165 Hz的哑光IPS面板。AMD Ryzen处理器负责性能,内存和固态硬盘都可以根据自己的需要进行配置。配置Ryzen 7 5700U、8GB内存和512GB固态硬盘的起价为1149欧元;我们的测试装置配备32GB内存和1TB固态硬盘,不含操作系统,价格为1298欧元。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
87.1 % | 06/2023 | SCHENKER VIA 15 Pro M22 R7 5700U, Vega 8 | 1.4 kg | 16.8 mm | 15.60" | 2560x1440 | |
84.6 % | 02/2023 | Dell Latitude 3520 i5-1135G7, Iris Xe G7 80EUs | 1.8 kg | 18.06 mm | 15.60" | 1920x1080 | |
85 % | 08/2022 | HP ProBook 450 G9 6A180EA i7-1255U, Iris Xe G7 96EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 | |
84.7 % | 07/2022 | Dell Inspiron 15 5515-H8P8F R7 5700U, Vega 8 | 1.6 kg | 18 mm | 15.60" | 1920x1080 | |
84.9 % | 09/2022 | Lenovo ThinkBook 15 G4 21DL0009GE R5 5625U, Vega 7 | 1.8 kg | 23 mm | 15.60" | 1920x1080 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
案例与设备

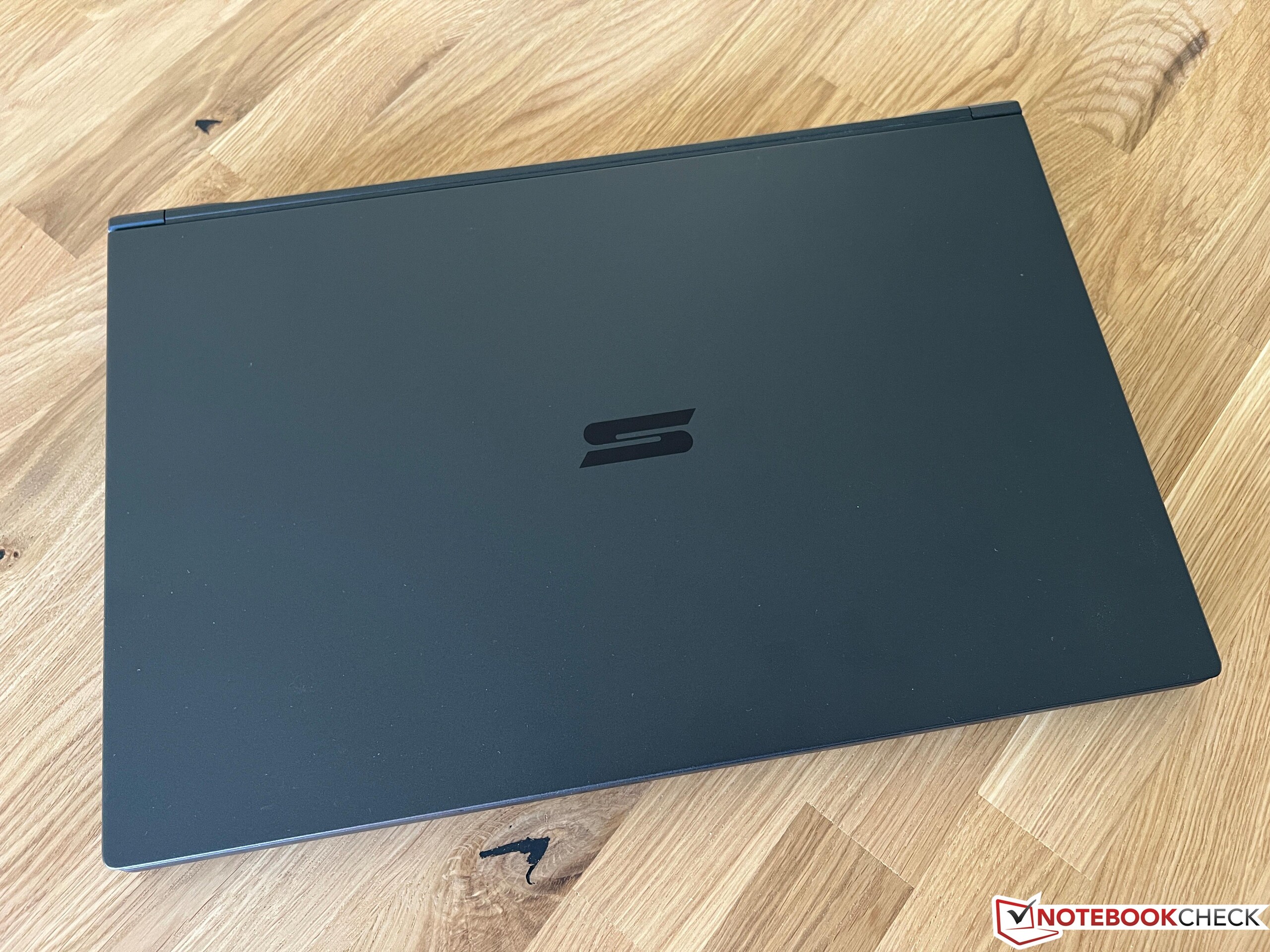

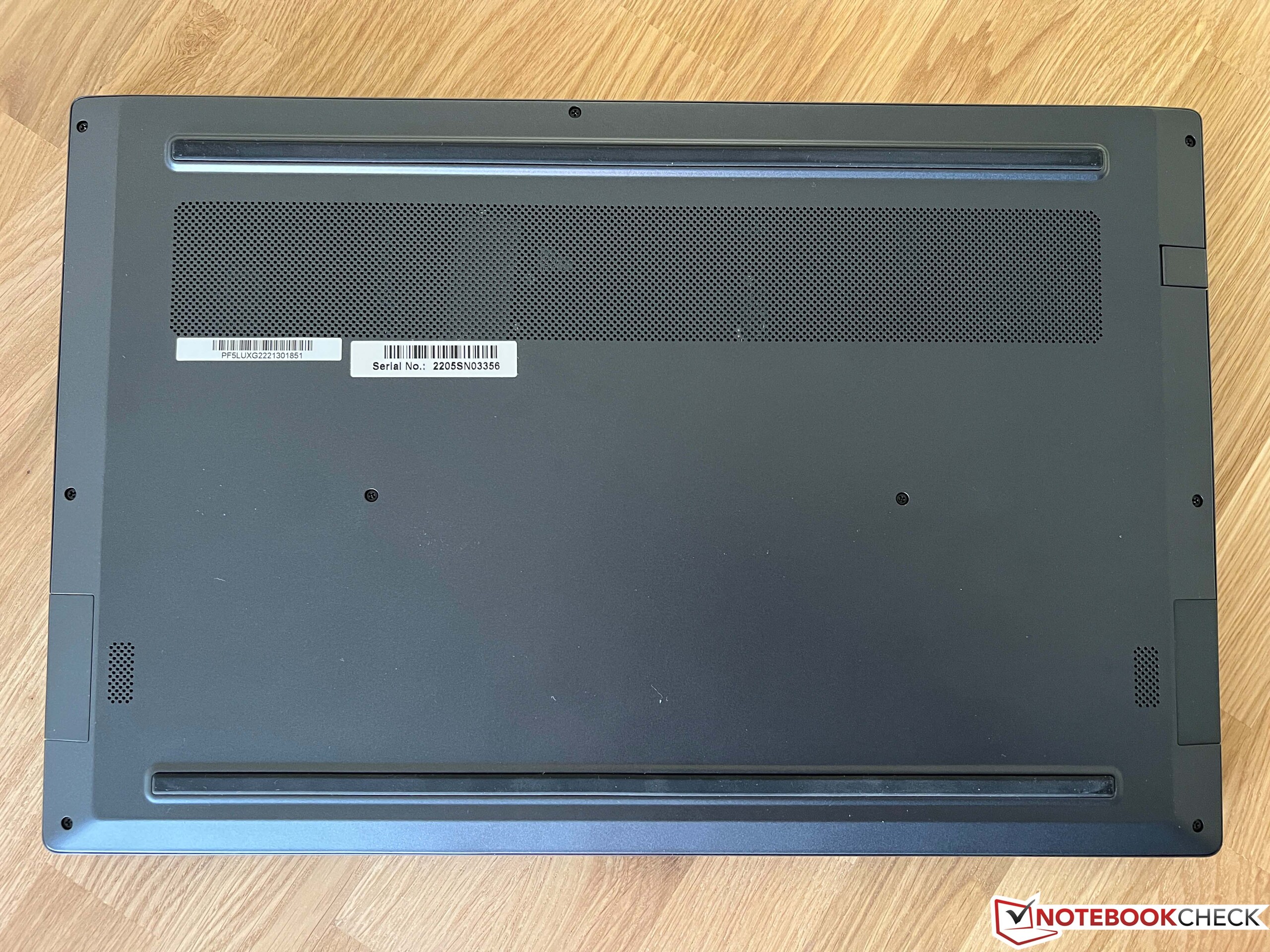

暗箱是由AZ91D镁合金制成的(盖子和基本单元的顶部,其余为铝),这就是为什么15英寸的重量只有1.446公斤,因此明显比其竞争对手轻。基本单元的稳定性非常好,只有盖子更灵活一些(但我们无法引起任何图像错误)。铰链允许的最大开启角度约为145度,但不能防止一定的弹跳。总的来说,设计是非常克制的,威盛专业版可以在办公室使用,没有任何问题。你甚至可以在收取29欧元的附加费用后去除盖子上的标志。指纹在黑暗的表面上不是一个大问题。

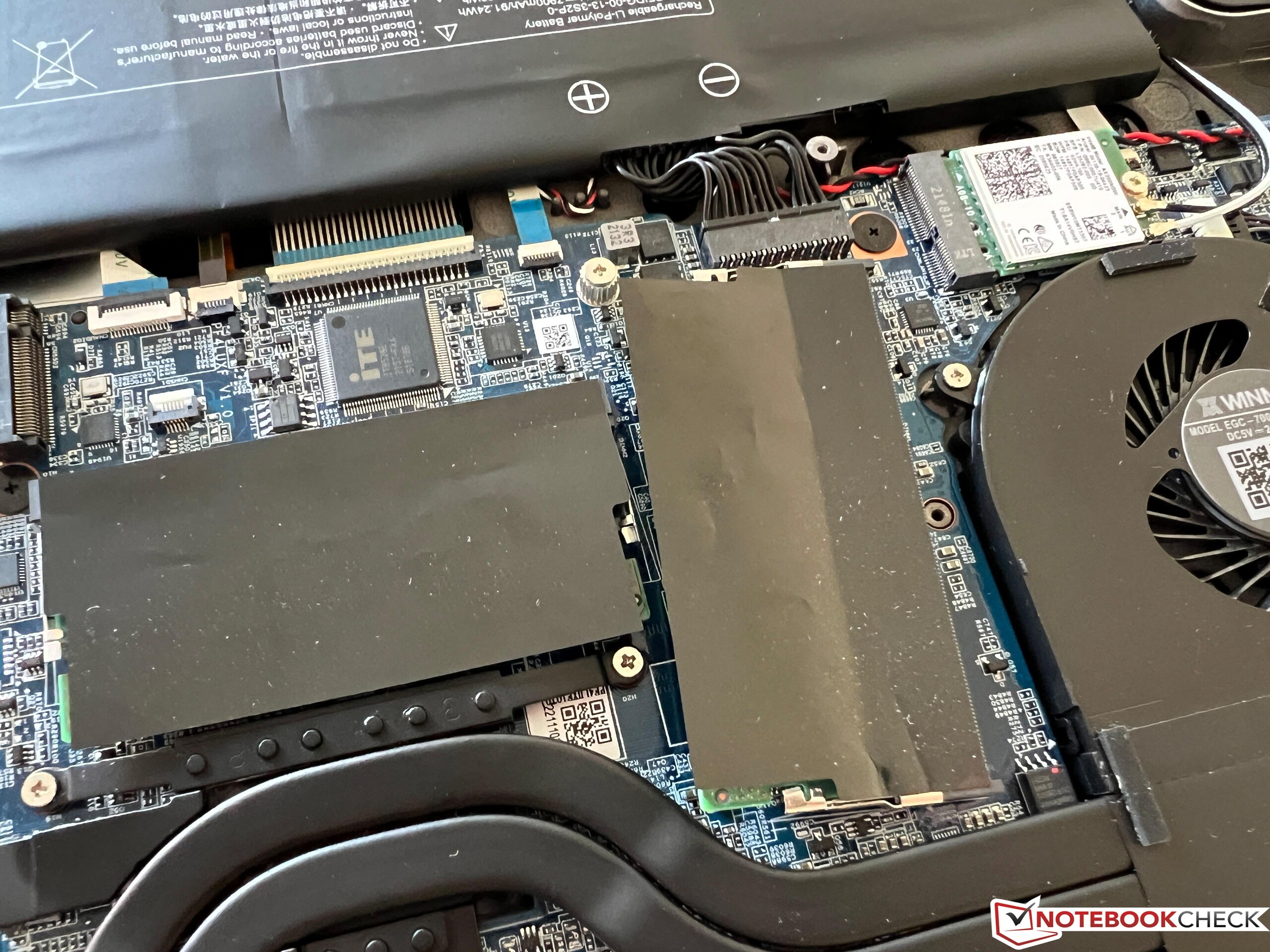

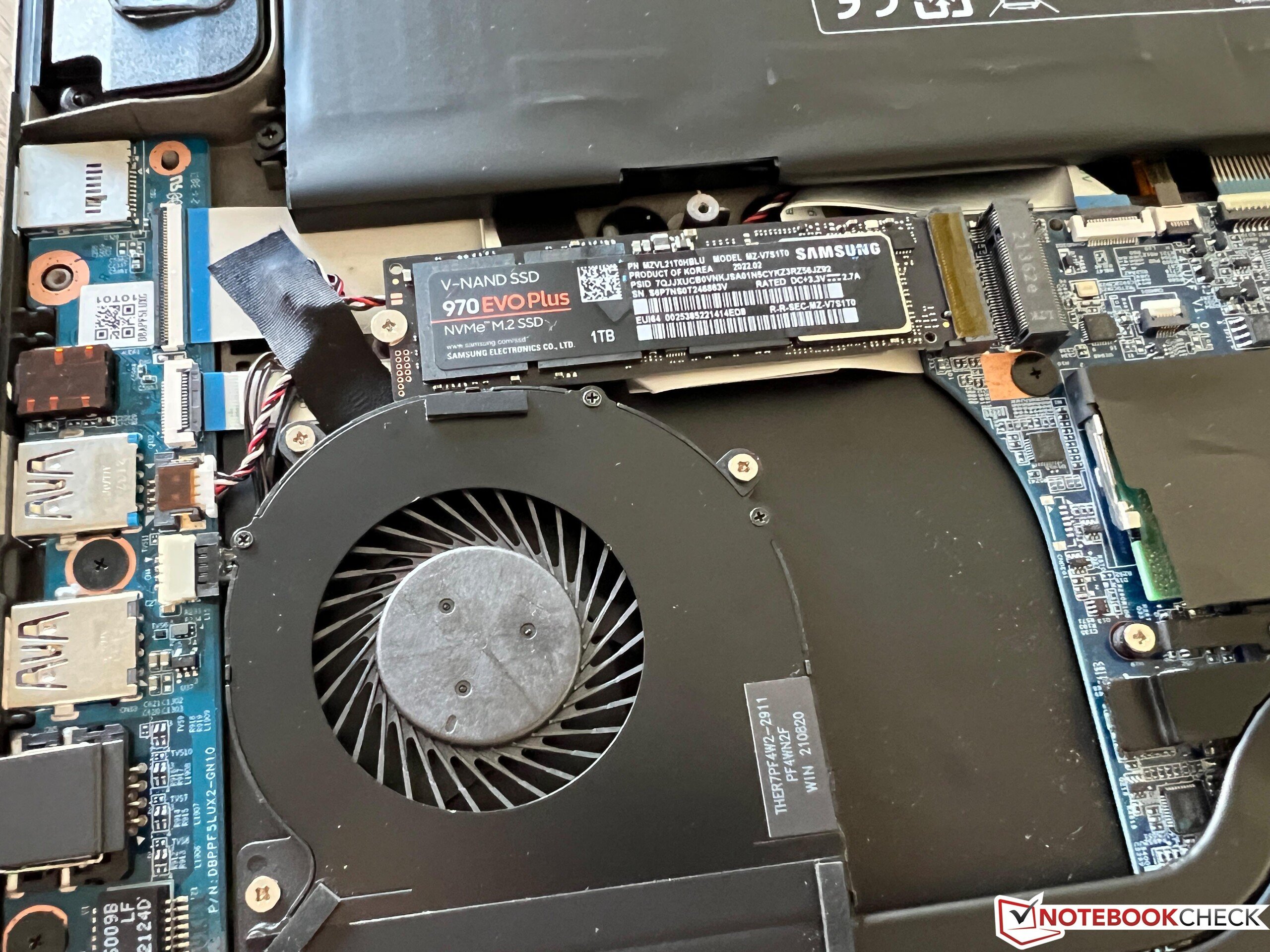

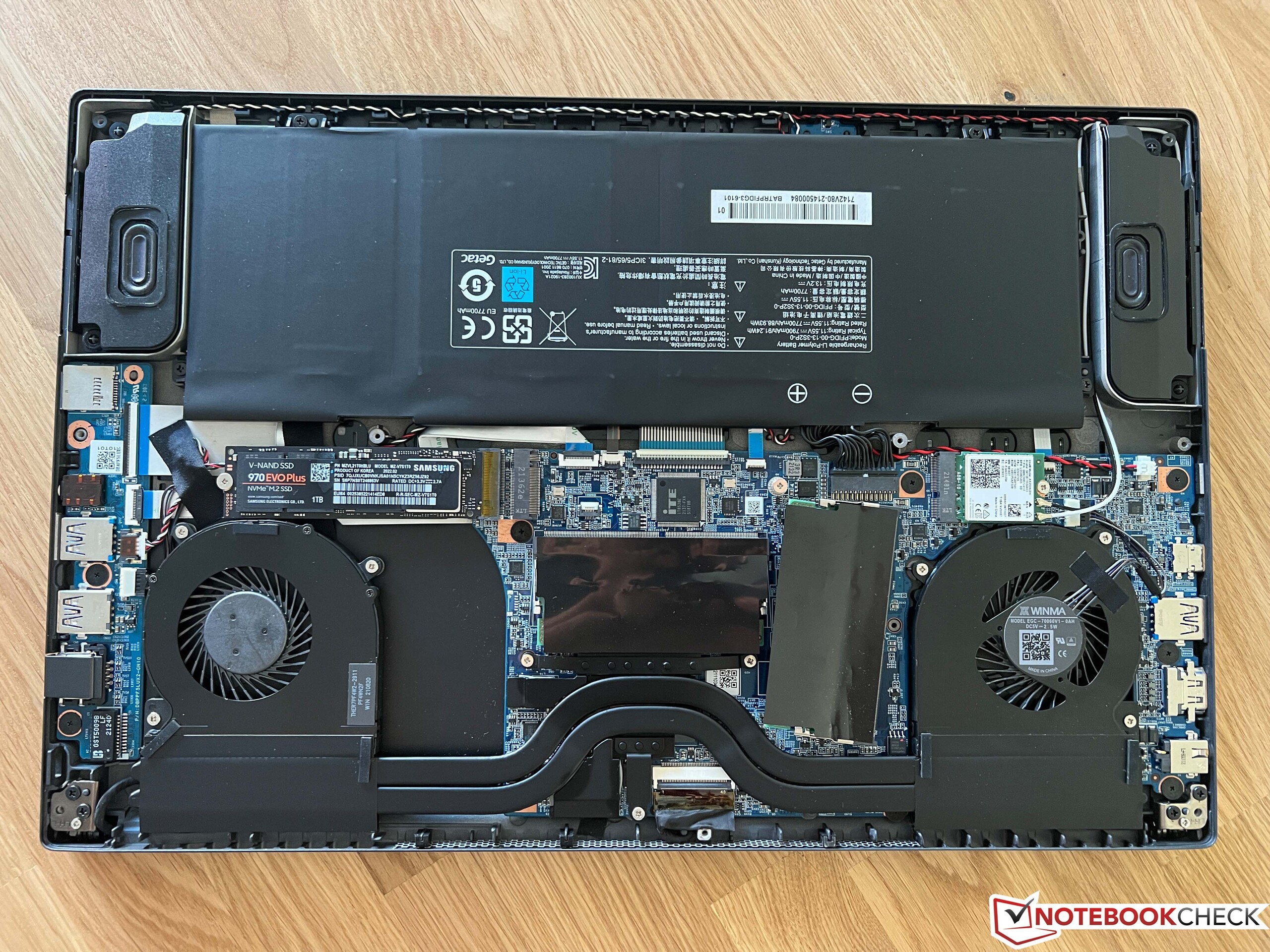

这款测试设备在升级选项上收分,因为有两个插槽分别用于内存模块和M.2-2280 SSD。WLAN模块也可以被替换,但天线配置不支持6GHz网络。尽管如此,英特尔AX200支持WLAN 6和蓝牙5.1。在我们的测试中,传输率很好。左侧还安装了一个microSD读卡器,但它的速度不是特别快,约为30MB/s。720p的网络摄像头也只是最必要的,图片质量不是特别好。

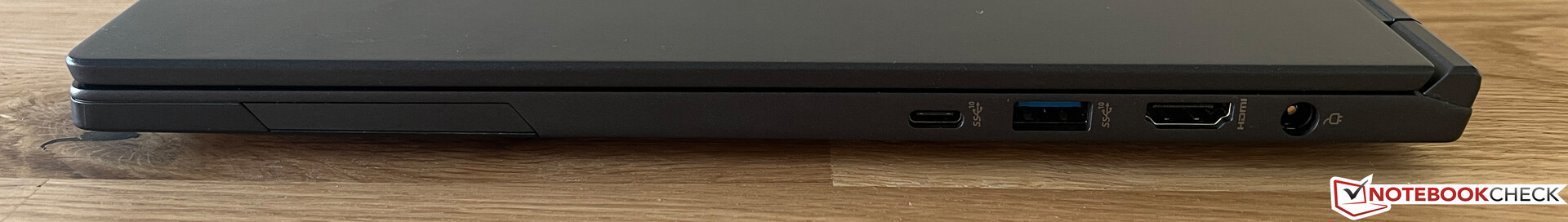

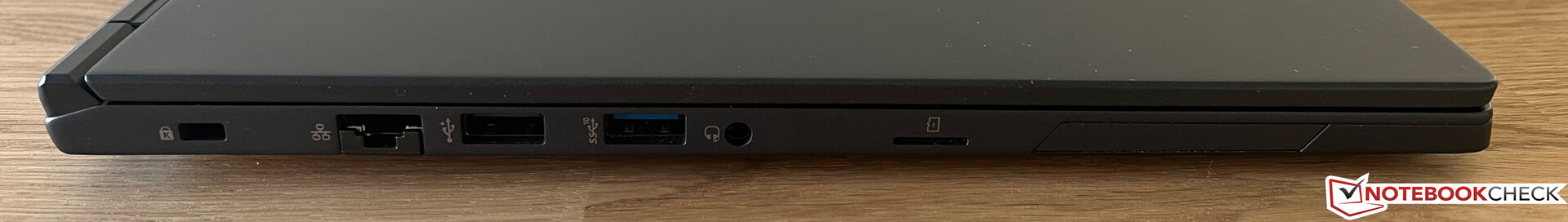

所有重要的端口都有代表,而其中一个USB-A端口仍然对应旧的2.0标准,不再是最新的。然而,除了一个电源端口外,该设备还可以通过USB-C进行充电。一个千兆位以太网端口也可用于有线网络。
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (8 - 82.7, n=50, last 2 years) | |
SCHENKER VIA 15 Pro M22 (Angelbird AV Pro V60) | |
Dell Latitude 3520 (AV Pro SD microSD 128 GB V60) | |
Dell Inspiron 15 5515-H8P8F (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (25 - 90.5, n=44, last 2 years) | |
Dell Inspiron 15 5515-H8P8F (AV Pro SD microSD 128 GB V60) | |
SCHENKER VIA 15 Pro M22 (Angelbird AV Pro V60) | |
Dell Latitude 3520 (AV Pro SD microSD 128 GB V60) |
Networking | |
SCHENKER VIA 15 Pro M22 | |
iperf3 transmit AXE11000 |
|
iperf3 receive AXE11000 |
|
Dell Latitude 3520 | |
iperf3 transmit AXE11000 |
|
iperf3 receive AXE11000 |
|
HP ProBook 450 G9 6A180EA | |
iperf3 transmit AXE11000 6GHz |
|
iperf3 receive AXE11000 6GHz |
|
Dell Inspiron 15 5515-H8P8F | |
iperf3 transmit AXE11000 6GHz |
|
iperf3 receive AXE11000 6GHz |
|
Lenovo ThinkBook 15 G4 21DL0009GE | |
iperf3 transmit AXE11000 |
|
iperf3 receive AXE11000 |
|

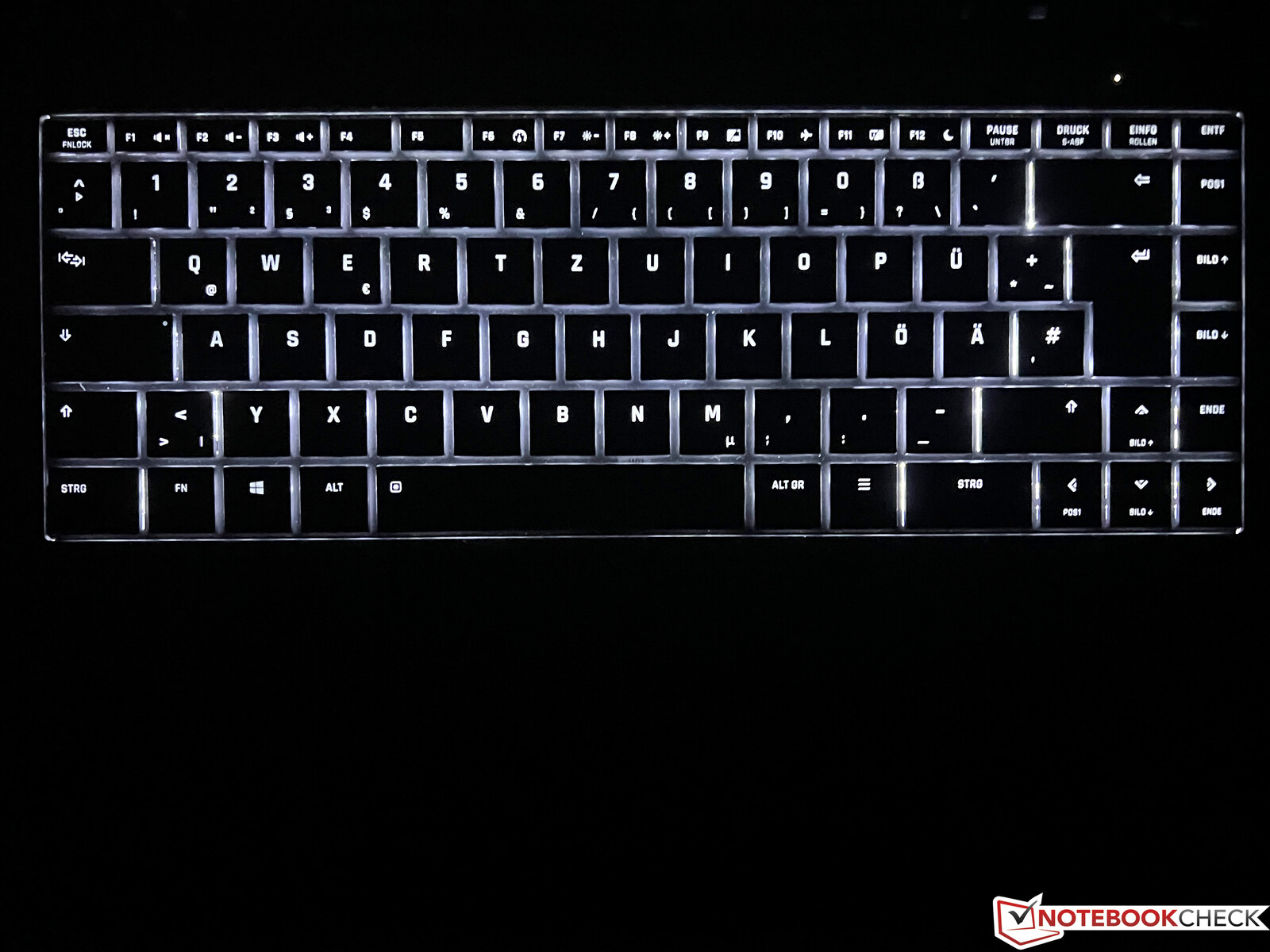

输入设备 - 发光键盘

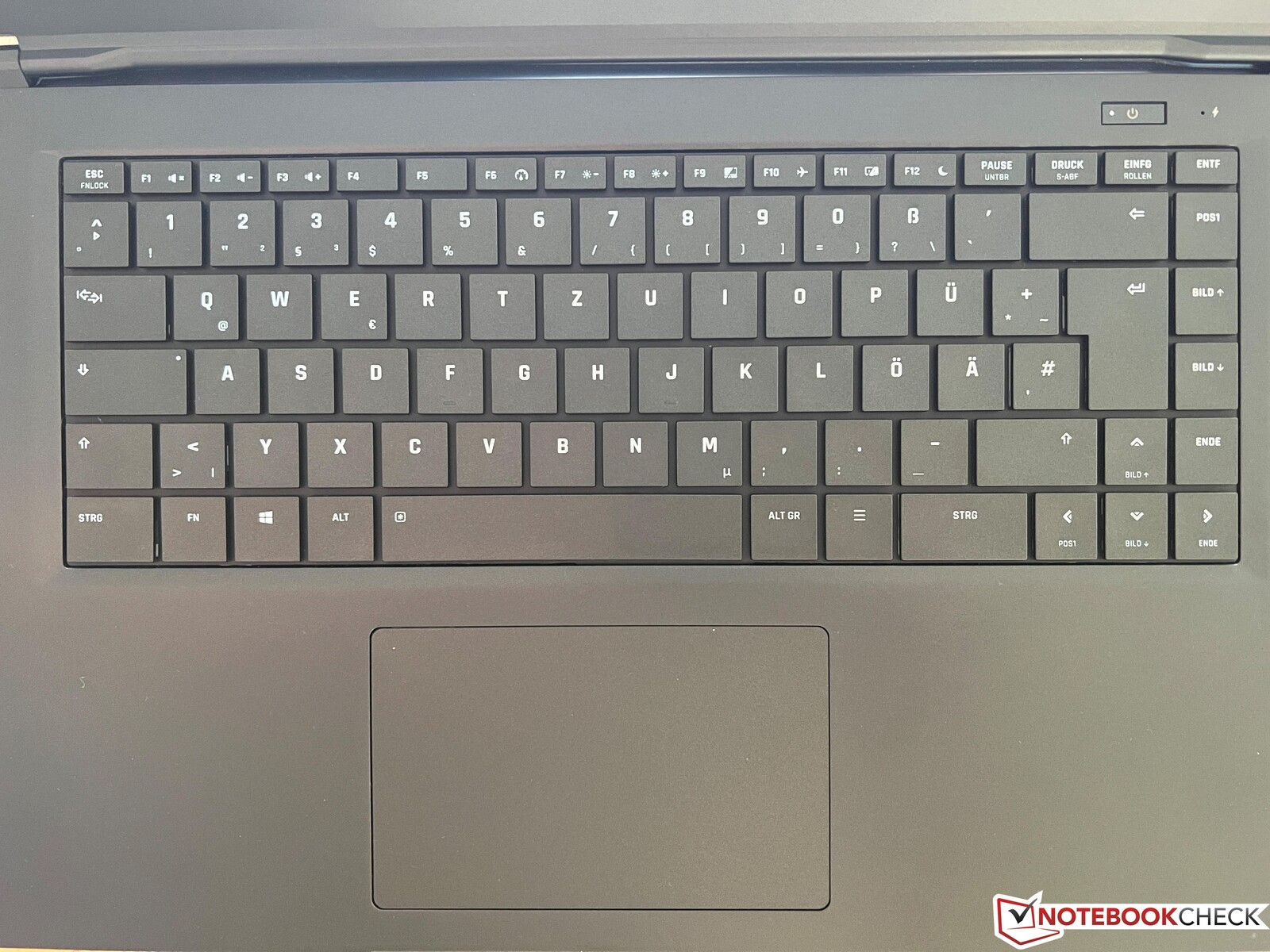

威盛 Pro 15 提供了一个大型的背光键盘,打字感觉非常舒适,这使得它可以轻松地书写长篇文字。然而,你必须适应这种布局,因为右侧有一列额外的特殊按键(例如,上/下一页的专用按键)。但是,你必须要有一个数字键盘。大的ClickPad也能完美地工作,可以在下半部分按下,并伴有响亮的点击声。

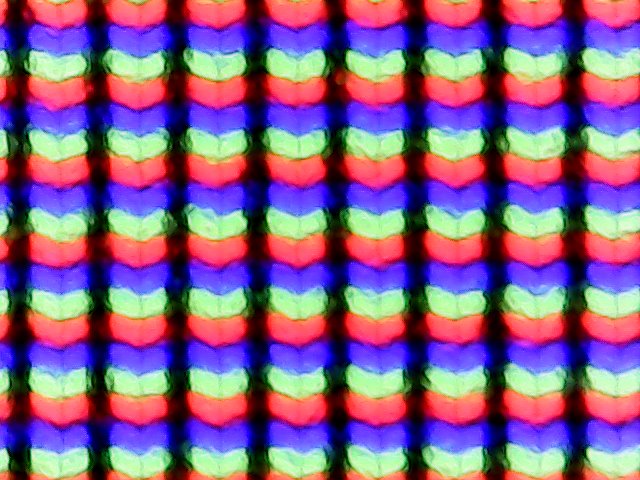

显示屏 - 具有165赫兹的WQHD面板

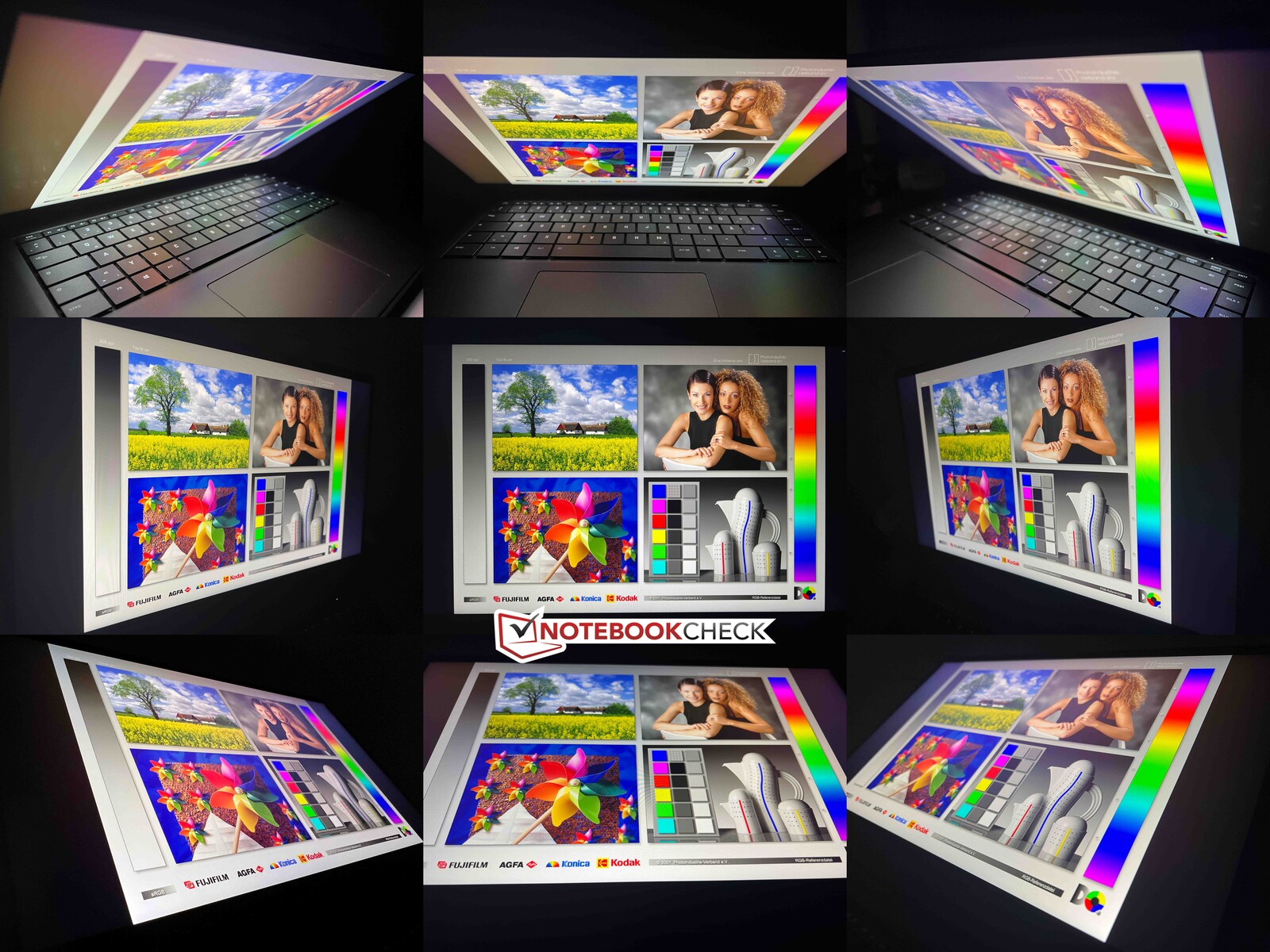

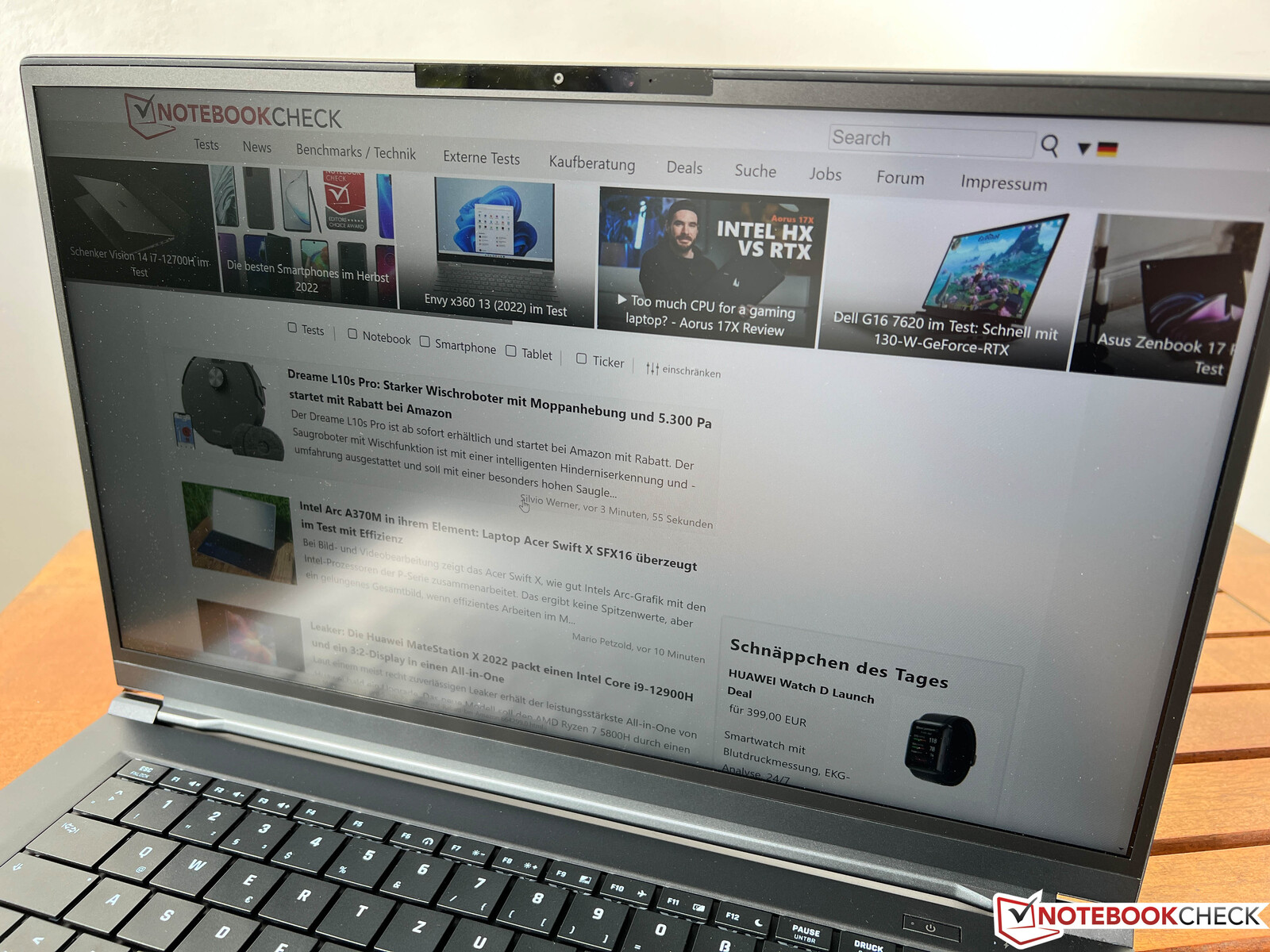

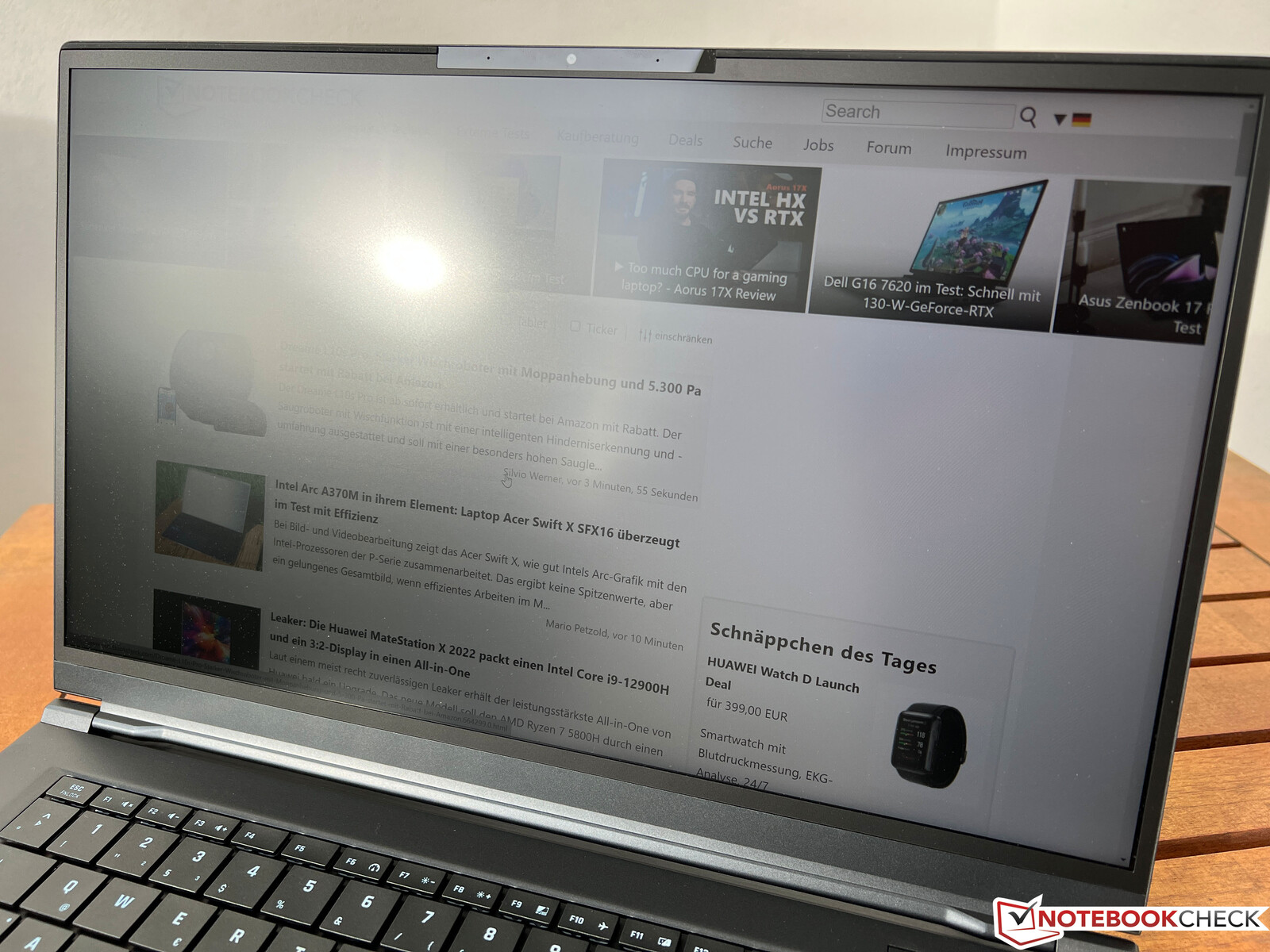

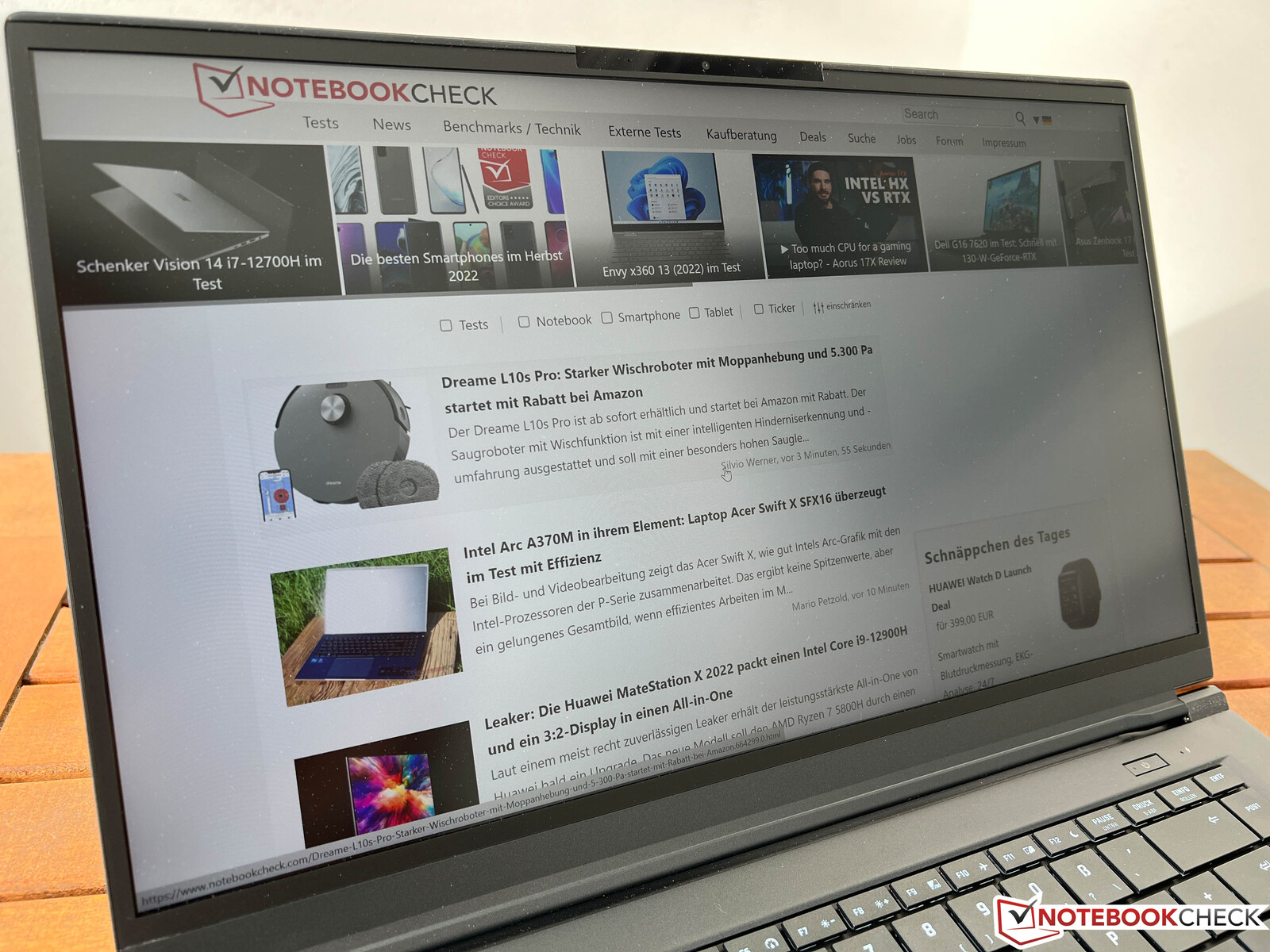

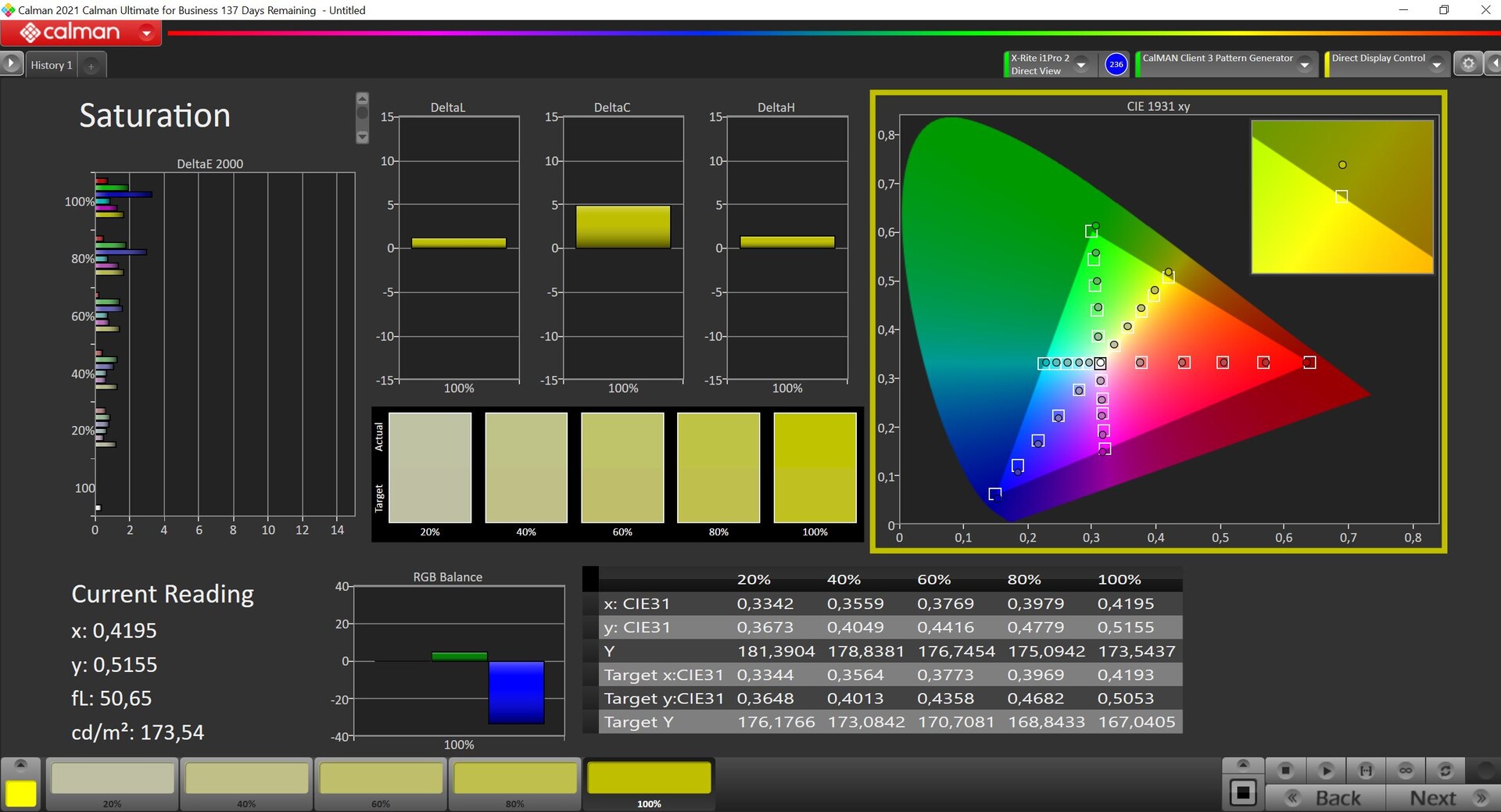

16:9的显示屏提供WQHD分辨率(2560×1440像素)和165Hz的快速刷新率。因此,运动非常顺畅,磨砂面板的主观画面印象也很好,否则,即使是明亮的表面也不会看起来有颗粒感。响应时间是令人愉快的,没有使用PWM,但在高亮度和黑暗背景下有明显的光晕。

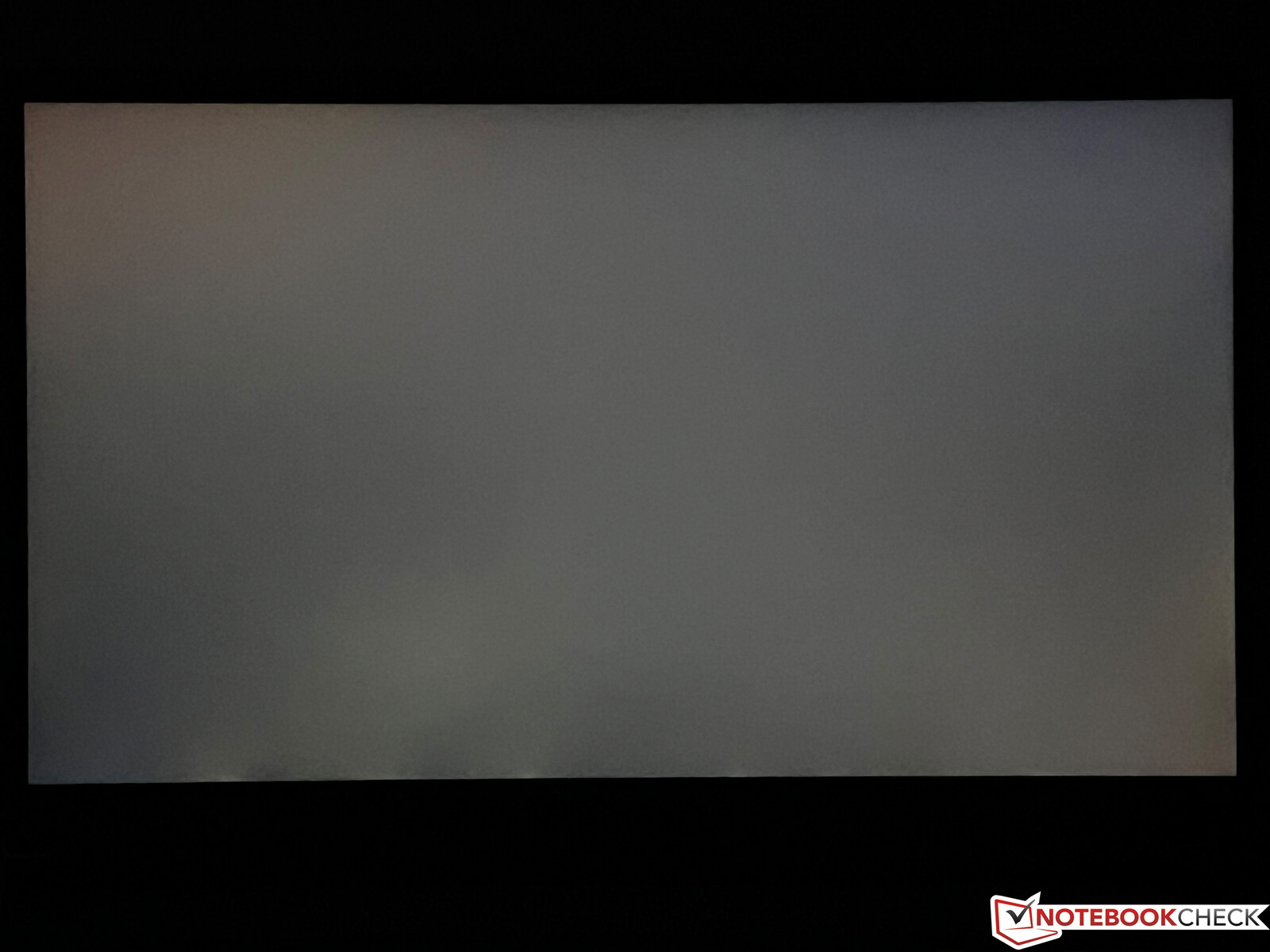

申克公司规定的亮度为300cd/m²,我们的测试设备超过了这个数值,平均为330cd/m²。然而,黑值被提高到0.41,这就是为什么对比度只略低于900:1。在交付状态下,有一个最小的蓝色偏移,但这在日常办公中并不困扰我们。然而,我们可以通过自己的校准来改善显示效果,由于全sRGB覆盖,你甚至可以编辑图片。可视角度还可以,但我们更希望在户外有一个更明亮的面板,尽管是哑光表面。
|
Brightness Distribution: 80 %
Center on Battery: 354 cd/m²
Contrast: 863:1 (Black: 0.41 cd/m²)

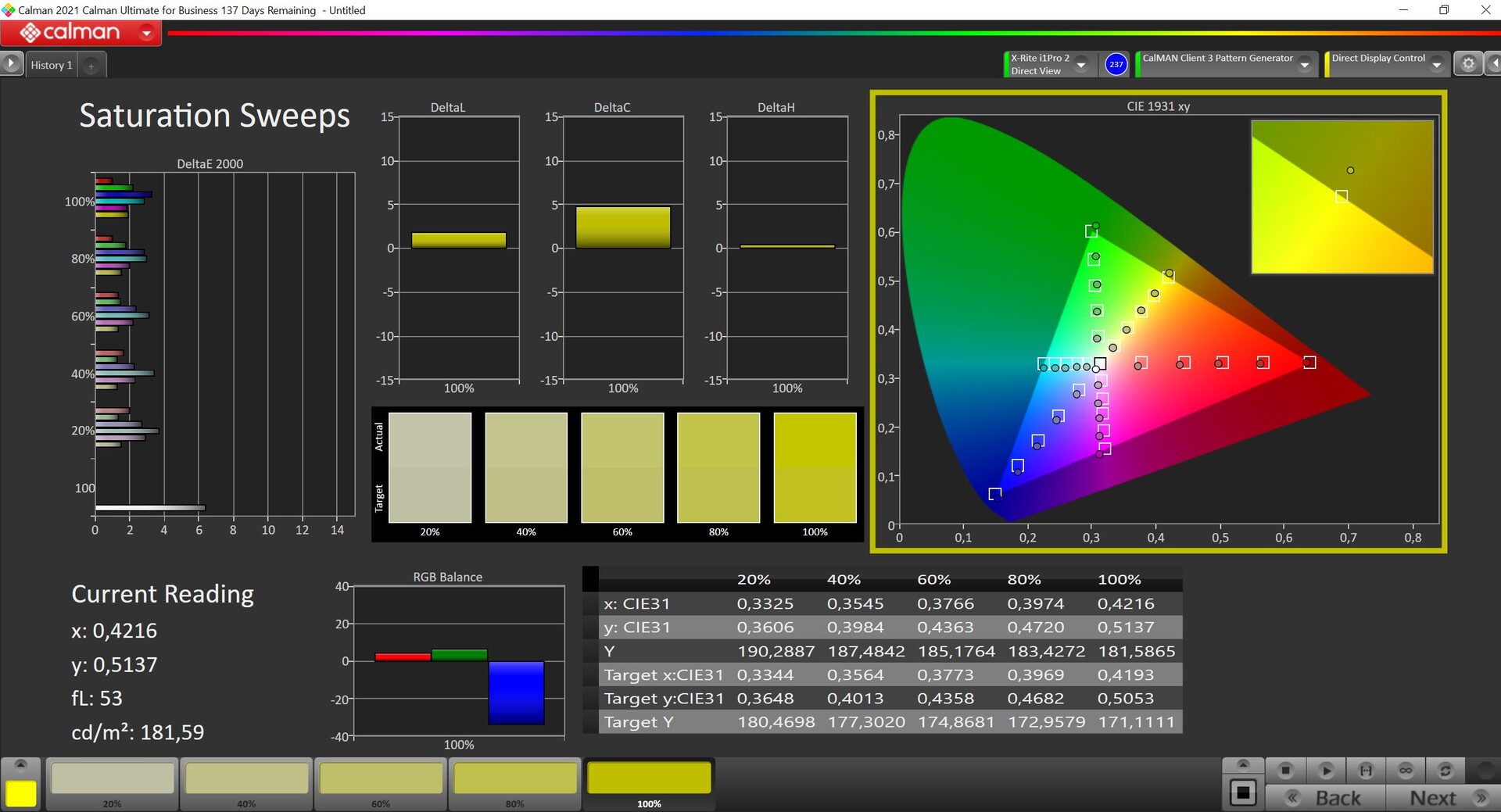

ΔE Color 2.4 | 0.5-29.43 Ø5, calibrated: 1.4
ΔE Greyscale 3.2 | 0.57-98 Ø5.3

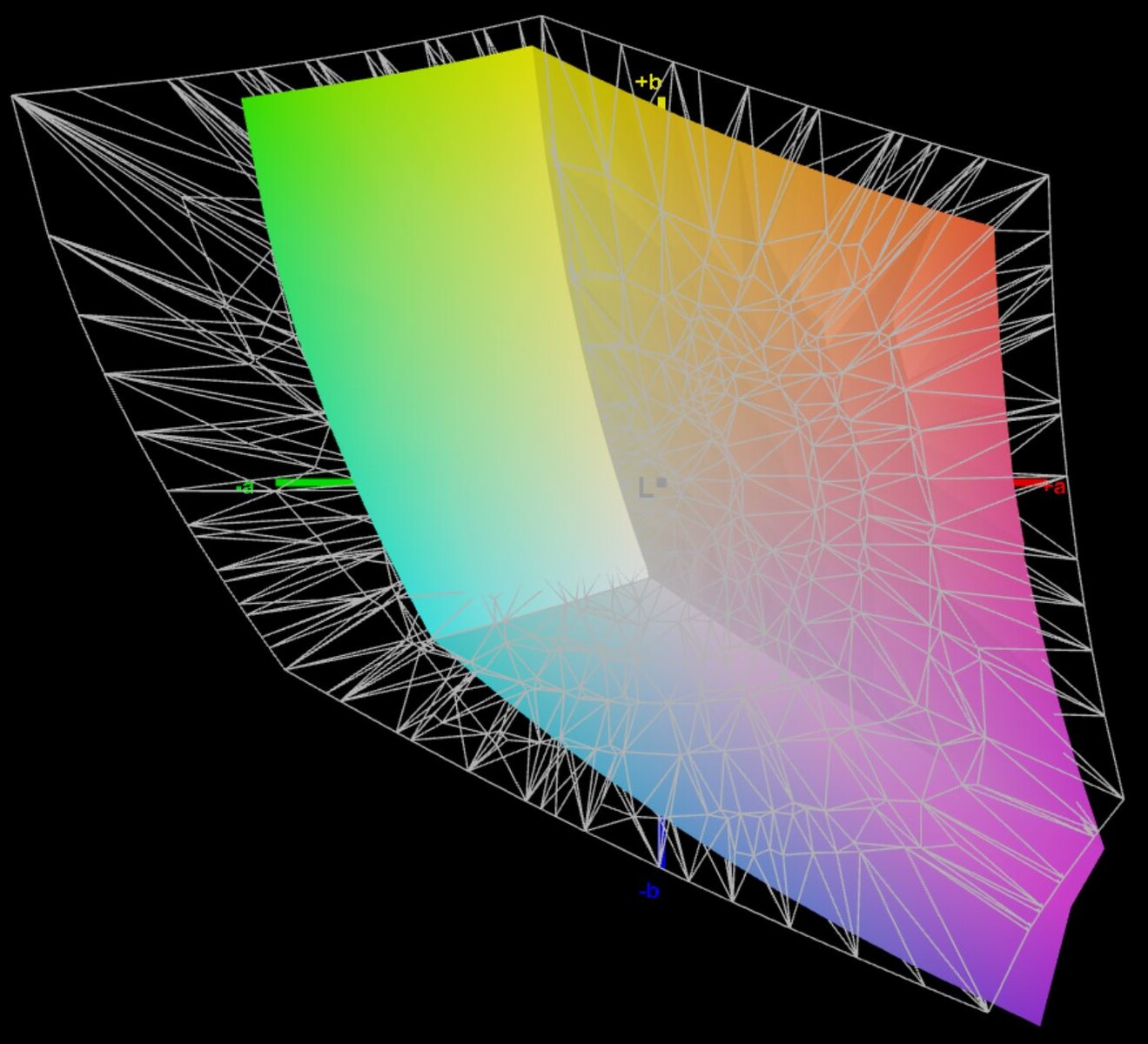

68.5% AdobeRGB 1998 (Argyll 2.2.0 3D)

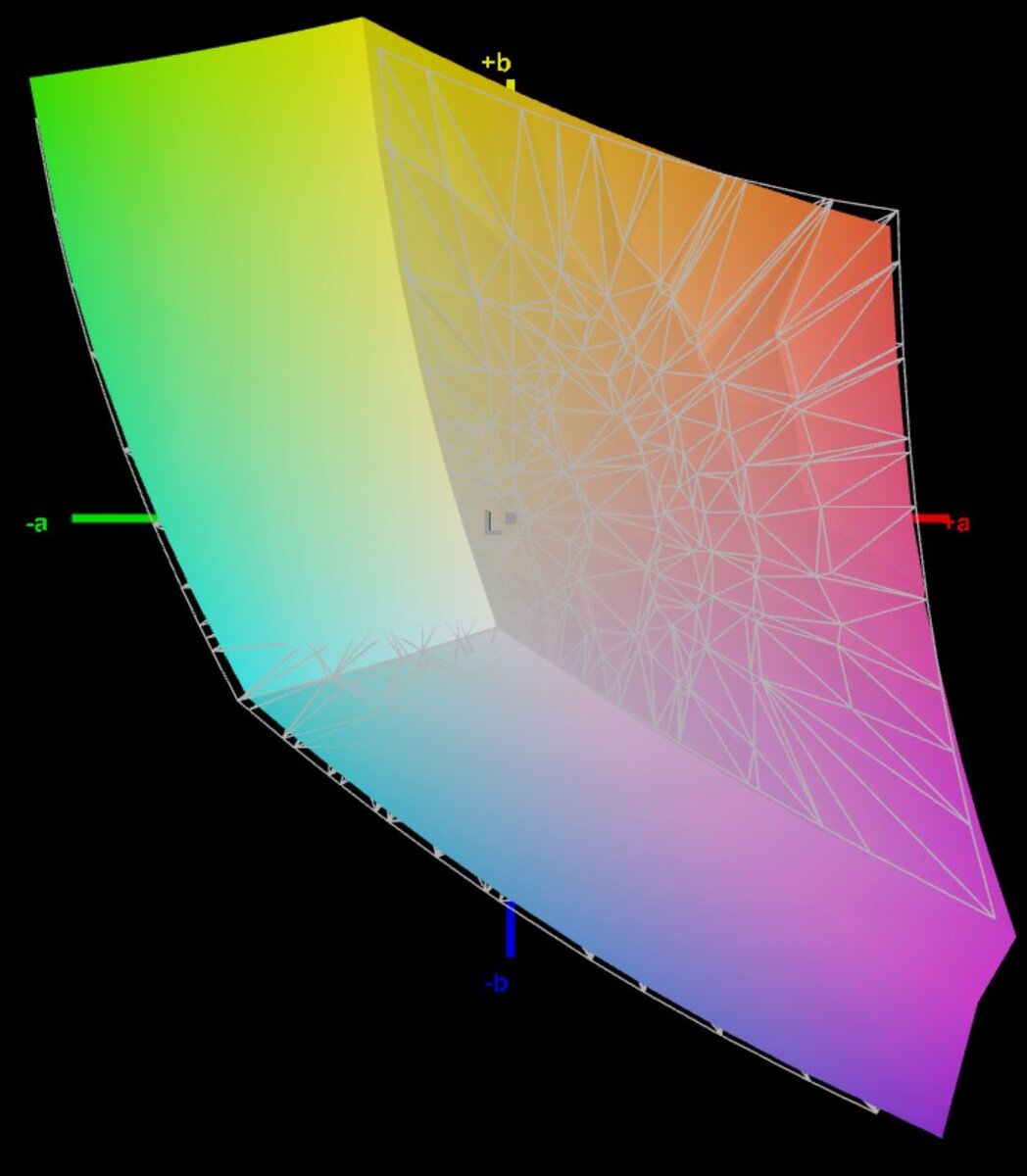

97.1% sRGB (Argyll 2.2.0 3D)

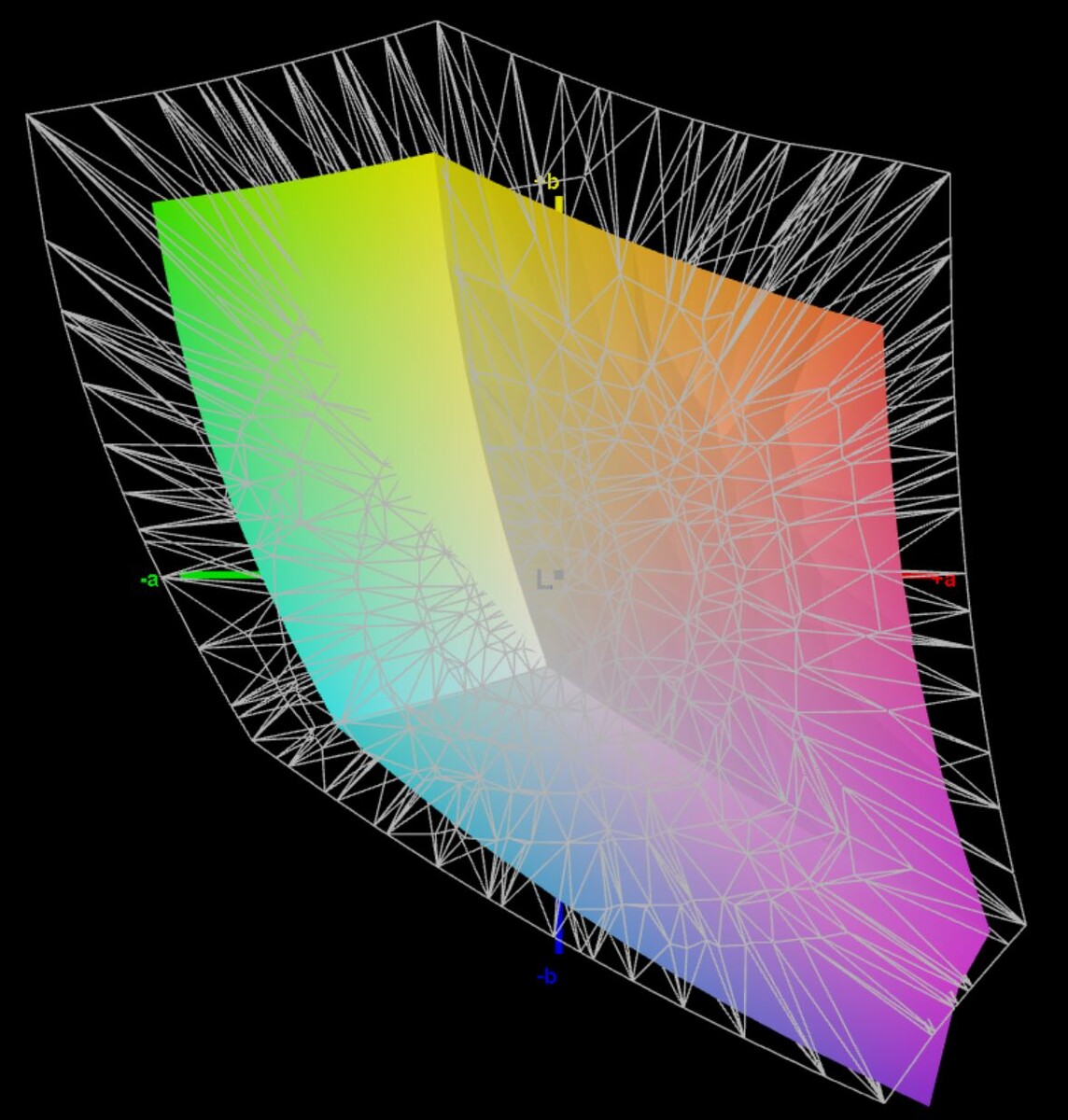

67.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.08
SCHENKER VIA 15 Pro M22 NE156QHM-NY2, IPS, 2560x1440, 15.60 | Dell Latitude 3520 BOE NE156FH, IPS, 1920x1080, 15.60 | HP ProBook 450 G9 6A180EA Chi Mei CMN1512, , 1920x1080, 15.60 | Dell Inspiron 15 5515-H8P8F BOE NV15N4V, IPS, 1920x1080, 15.60 | Lenovo ThinkBook 15 G4 21DL0009GE LENOVO LEN156FHD , IPS, 1920x1080, 15.60 | |
---|---|---|---|---|---|
Display | -40% | -35% | -45% | -32% | |
Display P3 Coverage | 67.5 | 40 -41% | 42.76 -37% | 36.58 -46% | 44.8 -34% |
sRGB Coverage | 97.1 | 60.2 -38% | 63.9 -34% | 54.37 -44% | 66.8 -31% |
AdobeRGB 1998 Coverage | 68.5 | 41.4 -40% | 44.2 -35% | 37.79 -45% | 46.3 -32% |
Response Times | -54% | -104% | -218% | -100% | |
Response Time Grey 50% / Grey 80% * | 13.8 ? | 24 ? -74% | 28 ? -103% | 44 ? -219% | 29 ? -110% |
Response Time Black / White * | 9.8 ? | 13 ? -33% | 20 ? -104% | 31 ? -216% | 18.5 ? -89% |
PWM Frequency | 1250 ? | 37037 ? | |||
Screen | -50% | -52% | -27% | -47% | |
Brightness middle | 354 | 322 -9% | 234 -34% | 251 -29% | 313 -12% |
Brightness | 331 | 294 -11% | 218 -34% | 241 -27% | 301 -9% |
Brightness Distribution | 80 | 87 9% | 85 6% | 87 9% | 90 13% |
Black Level * | 0.41 | 0.445 -9% | 0.17 59% | 0.23 44% | 0.21 49% |
Contrast | 863 | 724 -16% | 1376 59% | 1091 26% | 1490 73% |

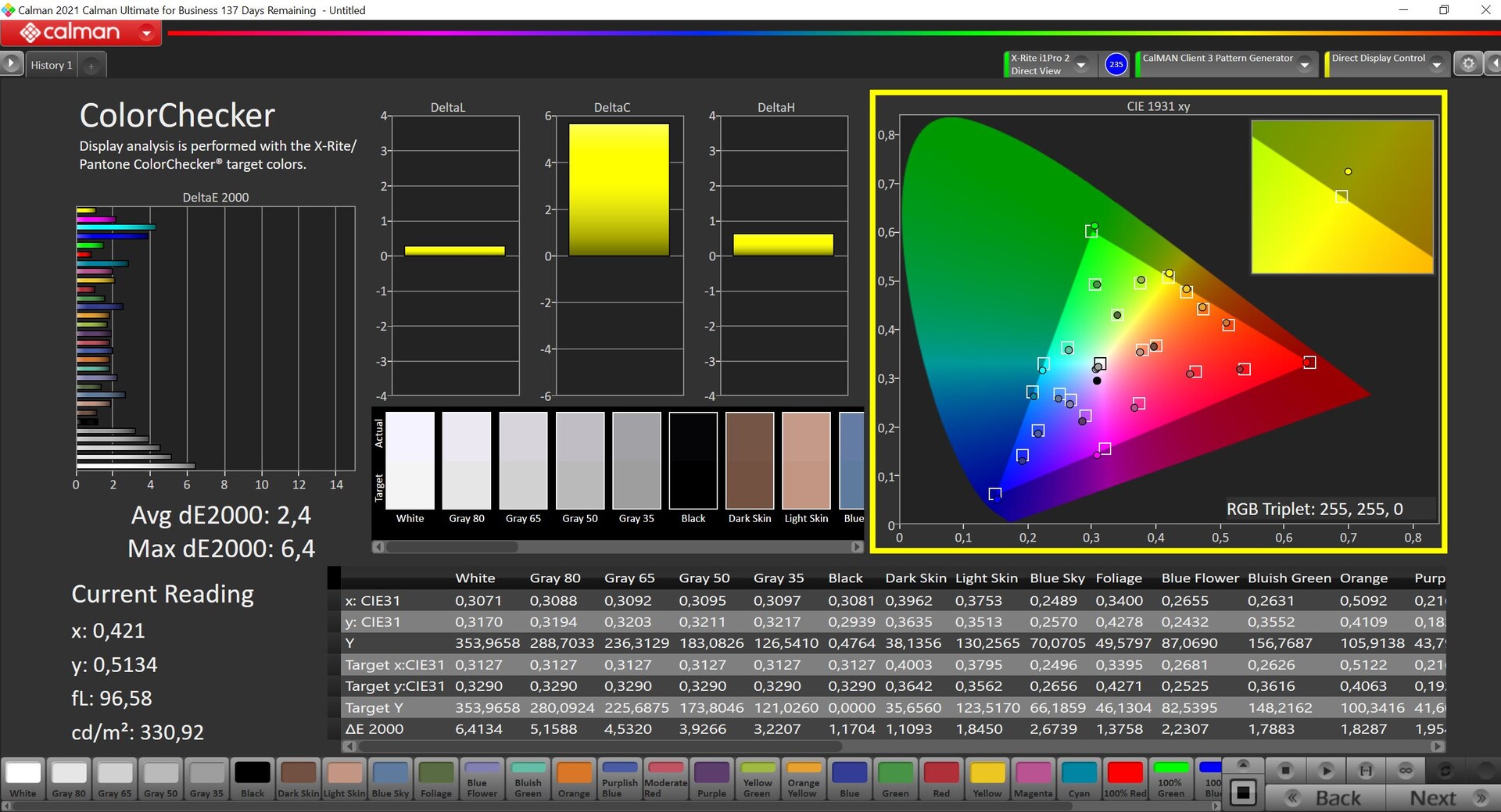

Colorchecker dE 2000 * | 2.4 | 4.54 -89% | 5.04 -110% | 5.14 -114% | 5.3 -121% |
Colorchecker dE 2000 max. * | 6.4 | 17.27 -170% | 18.04 -182% | 18.41 -188% | 18.7 -192% |
Colorchecker dE 2000 calibrated * | 1.4 | 4.43 -216% | 4.13 -195% | 4 -186% | |
Greyscale dE 2000 * | 3.2 | 1.25 61% | 4.43 -38% | 1.08 66% | 4.4 -38% |
Gamma | 2.08 106% | 2.46 89% | 2.41 91% | 2.43 91% | 2.08 106% |
CCT | 6786 96% | 6677 97% | 6350 102% | 6534 99% | 6479 100% |
Color Space (Percent of AdobeRGB 1998) | 37.79 | ||||
Color Space (Percent of sRGB) | 54.37 | ||||
Total Average (Program / Settings) | -48% /
-48% | -64% /
-56% | -97% /
-60% | -60% /
-51% |
* ... smaller is better
Display Response Times

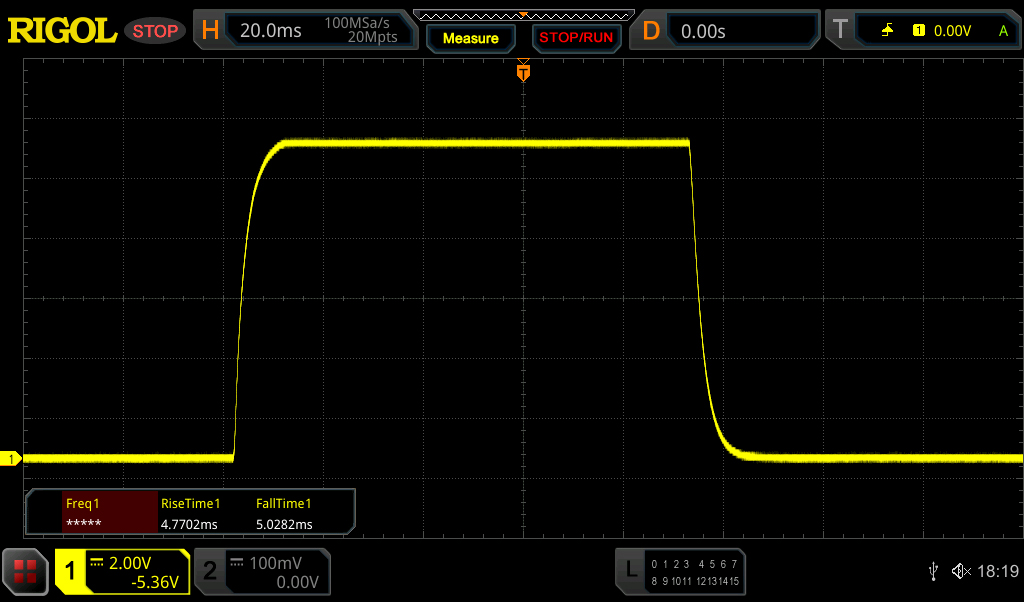

↔ Response Time Black to White | ||
---|---|---|
9.8 ms ... rise ↗ and fall ↘ combined | ↗ 4.8 ms rise | |
↘ 5 ms fall | ||
The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 21 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms). | ||

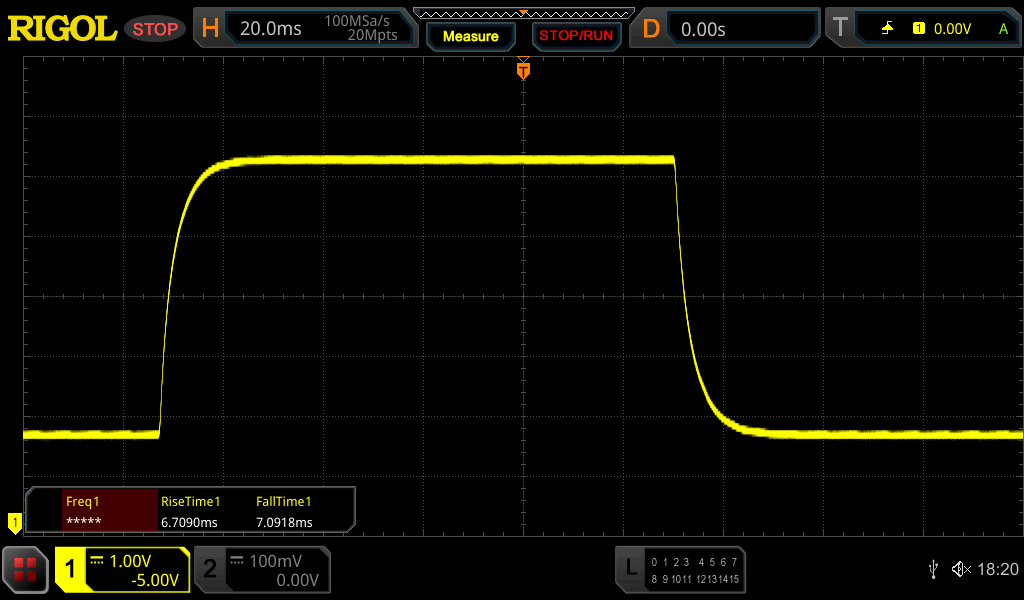

↔ Response Time 50% Grey to 80% Grey | ||
13.8 ms ... rise ↗ and fall ↘ combined | ↗ 6.7 ms rise | |
↘ 7.1 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 22 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms). |

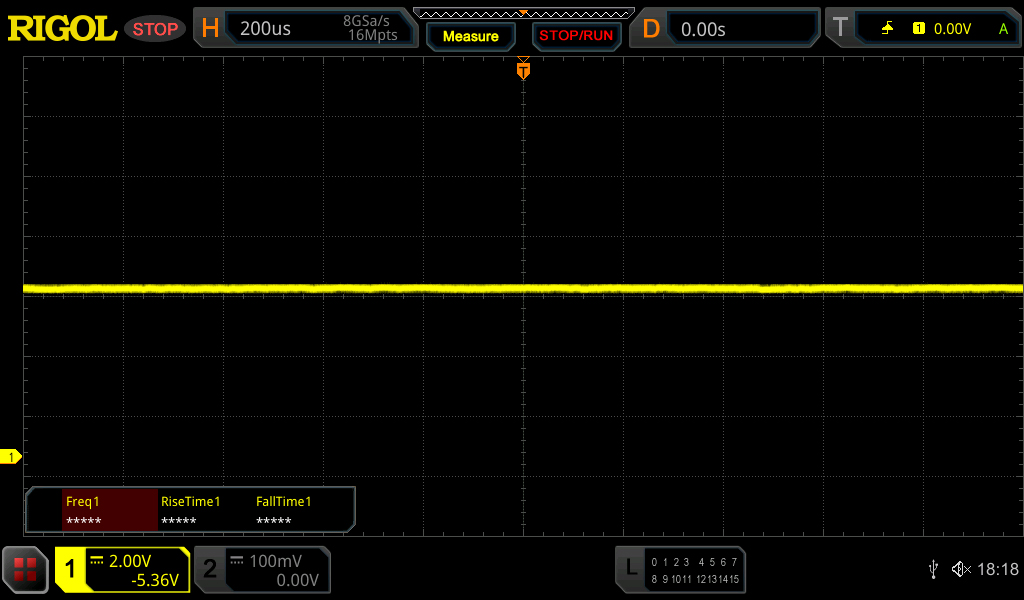

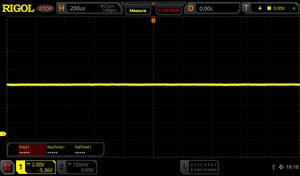

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured. |

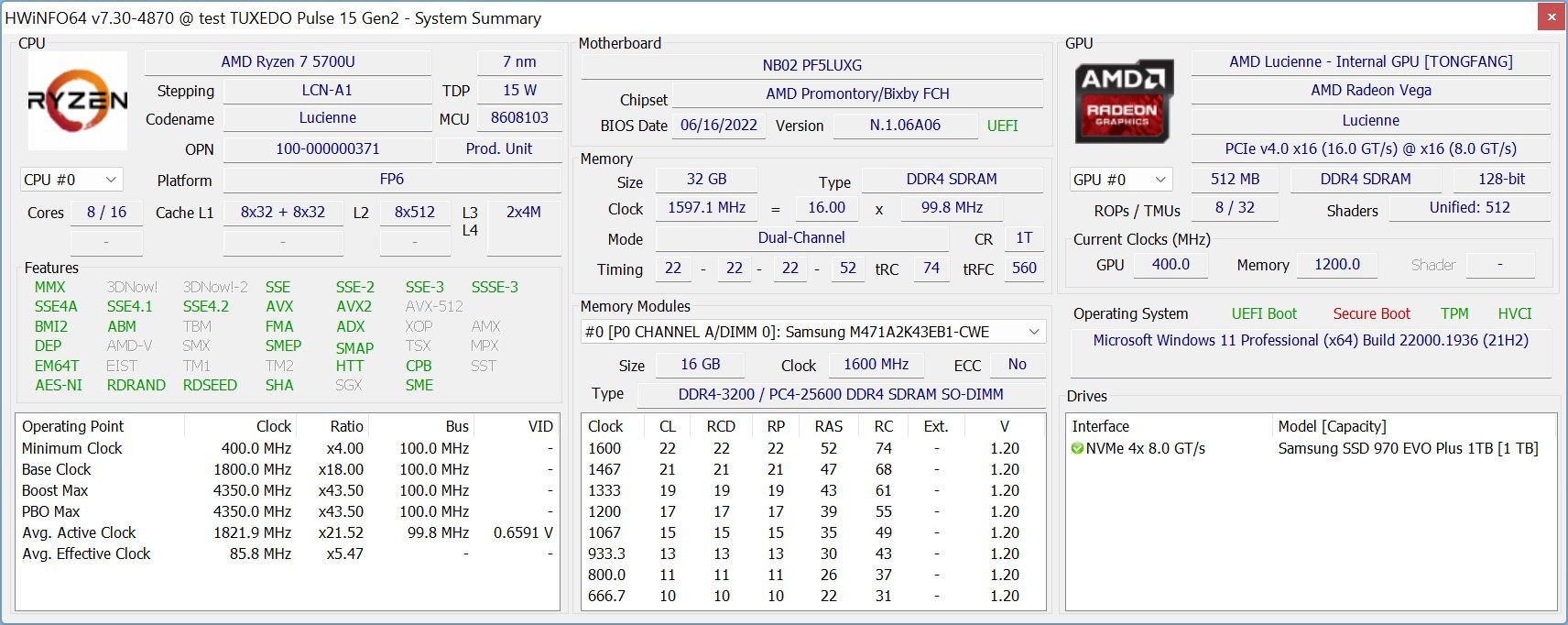

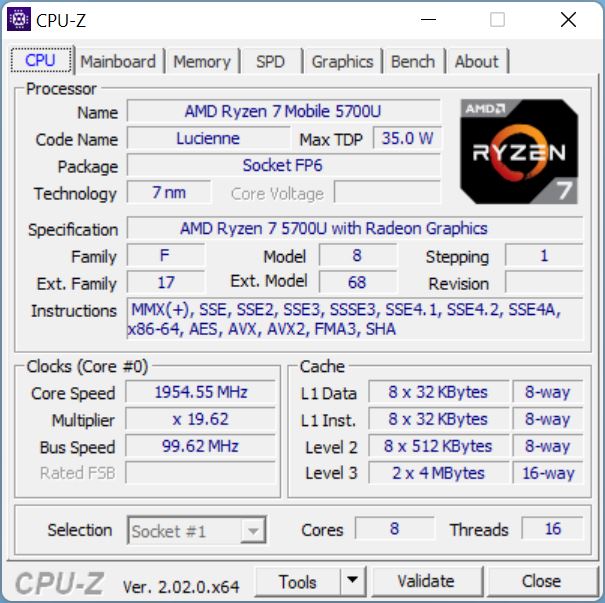

性能 - AMD Ryzen 7 5700U
Schenker依靠的是有点灰尘的 AMD Ryzen 7 5700U有8个Zen 2核心的威盛15 Pro,但它仍然提供体面的性能。在发烧友模式下的功率限制为40/35瓦(或在超静音模式下为25/12瓦),这使其具有非常高的稳定的多核性能。在多核测试中,它甚至击败了目前英特尔猛禽湖U系列芯片,如 酷睿i7-1355U中的 联想ThinkPad X1 Yoga G8.然而,在单核测试中,老Ryzen受到影响。
总的来说,性能完全可以满足日常办公的需要,这也是由于快速的PCI-SSD的缘故。这台笔记本电脑在任何时候都反应灵敏,我们在测试过程中没有发现任何问题。Vega 8 iGPU 的图形性能也完全可以满足日常使用,渲染高分辨率视频也能完美地进行。其性能甚至略好于竞争对手的Iris Xe Graphics G7 。在电池电量方面,整体性能略低,特别是在多核应用中(亏损~25%)。
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U -1! | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office | |
Average AMD Ryzen 7 5700U | |
Dell Inspiron 15 5515-H8P8F | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
Cinebench R23 / Multi Core | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Dell Inspiron 15 5515-H8P8F | |
Average AMD Ryzen 7 5700U (6649 - 10139, n=18) | |
Average of class Office (1056 - 15743, n=123, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
Cinebench R23 / Single Core | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average of class Office (529 - 1995, n=122, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Dell Latitude 3520 | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (1177 - 1268, n=18) | |
Dell Inspiron 15 5515-H8P8F |
Cinebench R20 / CPU (Multi Core) | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U (2309 - 3877, n=19) | |
Dell Inspiron 15 5515-H8P8F | |
Average of class Office (356 - 5904, n=121, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
Cinebench R20 / CPU (Single Core) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average of class Office (181.3 - 764, n=121, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (478 - 495, n=19) |
Cinebench R15 / CPU Multi 64Bit | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Dell Inspiron 15 5515-H8P8F | |
Average AMD Ryzen 7 5700U (1130 - 1691, n=18) | |
Average of class Office (160.8 - 2642, n=121, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
Cinebench R15 / CPU Single 64Bit | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (82.6 - 284, n=119, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (184 - 190, n=17) |
Blender / v2.79 BMW27 CPU | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA | |
Average of class Office (214 - 2844, n=122, last 2 years) | |
Dell Inspiron 15 5515-H8P8F | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U (292 - 427, n=18) | |
SCHENKER VIA 15 Pro M22 |
7-Zip 18.03 / 7z b 4 | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average AMD Ryzen 7 5700U (32529 - 47501, n=18) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (4226 - 62349, n=122, last 2 years) | |
Dell Inspiron 15 5515-H8P8F | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Average of class Office (2233 - 6687, n=122, last 2 years) | |
Dell Latitude 3520 | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (4476 - 4620, n=18) | |
Dell Inspiron 15 5515-H8P8F |
Geekbench 5.5 / Multi-Core | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office (1018 - 11980, n=123, last 2 years) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U (4254 - 7635, n=17) | |
HP ProBook 450 G9 6A180EA | |
Dell Inspiron 15 5515-H8P8F | |
Dell Latitude 3520 |
Geekbench 5.5 / Single-Core | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
HP ProBook 450 G9 6A180EA | |
Average of class Office (510 - 1974, n=123, last 2 years) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Dell Latitude 3520 | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (1105 - 1205, n=17) | |
Dell Inspiron 15 5515-H8P8F |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average AMD Ryzen 7 5700U (6.97 - 12.1, n=18) | |
Average of class Office (1.55 - 17.4, n=121, last 2 years) | |
Dell Inspiron 15 5515-H8P8F | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
LibreOffice / 20 Documents To PDF | |
Dell Inspiron 15 5515-H8P8F | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (52.4 - 68.5, n=18) | |
Average of class Office (31.3 - 117.5, n=121, last 2 years) | |
Dell Latitude 3520 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
R Benchmark 2.5 / Overall mean | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F | |
Average AMD Ryzen 7 5700U (0.567 - 0.641, n=18) | |
Average of class Office (0.4244 - 1.397, n=120, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
HP ProBook 450 G9 6A180EA | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U | |
Dell Inspiron 15 5515-H8P8F | |
Average of class Office | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA |
AIDA64 / FP32 Ray-Trace | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Dell Inspiron 15 5515-H8P8F | |
Average AMD Ryzen 7 5700U (5798 - 12346, n=18) | |
Average of class Office (763 - 24250, n=121, last 2 years) | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA |
AIDA64 / FPU Julia | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U (45926 - 69580, n=18) | |
Dell Inspiron 15 5515-H8P8F | |
Average of class Office (4027 - 102228, n=121, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
AIDA64 / CPU SHA3 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office (279 - 4442, n=120, last 2 years) | |
Dell Inspiron 15 5515-H8P8F | |
Average AMD Ryzen 7 5700U (1103 - 2231, n=18) | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA |
AIDA64 / CPU Queen | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (57016 - 99178, n=18) | |
Dell Inspiron 15 5515-H8P8F | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (8031 - 113016, n=121, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
AIDA64 / FPU SinJulia | |
SCHENKER VIA 15 Pro M22 | |
Dell Inspiron 15 5515-H8P8F | |
Average AMD Ryzen 7 5700U (6837 - 14169, n=18) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (404 - 14288, n=121, last 2 years) | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA |
AIDA64 / FPU Mandel | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (24053 - 36523, n=18) | |
Dell Inspiron 15 5515-H8P8F | |
Average of class Office (2054 - 54365, n=121, last 2 years) | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA |
AIDA64 / CPU AES | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F | |
Average AMD Ryzen 7 5700U (34176 - 64646, n=18) | |
Average of class Office (5226 - 147611, n=121, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
HP ProBook 450 G9 6A180EA |
AIDA64 / CPU ZLib | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (513 - 776, n=18) | |
Dell Inspiron 15 5515-H8P8F | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (67.6 - 1018, n=121, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
AIDA64 / FP64 Ray-Trace | |
SCHENKER VIA 15 Pro M22 | |
Dell Inspiron 15 5515-H8P8F | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U (3247 - 6784, n=18) | |
Average of class Office (432 - 12755, n=121, last 2 years) | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA |
AIDA64 / CPU PhotoWorxx | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office (4814 - 48177, n=121, last 2 years) | |
Average AMD Ryzen 7 5700U (6903 - 25066, n=18) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F |
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (2325 - 7157, n=106, last 2 years) | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4775 - 5518, n=13) | |
SCHENKER VIA 15 Pro M22 | |
Dell Inspiron 15 5515-H8P8F | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
PCMark 10 / Essentials | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (5095 - 20841, n=106, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8347 - 10091, n=13) | |
Dell Latitude 3520 | |
SCHENKER VIA 15 Pro M22 | |
Dell Inspiron 15 5515-H8P8F |
PCMark 10 / Productivity | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7001 - 8457, n=13) | |
Dell Inspiron 15 5515-H8P8F | |
Average of class Office (3041 - 10198, n=106, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
PCMark 10 / Digital Content Creation | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (1912 - 9056, n=106, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4583 - 5964, n=13) | |
Dell Inspiron 15 5515-H8P8F | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA |
CrossMark / Overall | |
HP ProBook 450 G9 6A180EA | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (348 - 1891, n=107, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
Dell Latitude 3520 | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (976 - 1183, n=6) | |
Dell Inspiron 15 5515-H8P8F |
CrossMark / Productivity | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Average of class Office (393 - 1870, n=107, last 2 years) | |
Dell Latitude 3520 | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1048 - 1191, n=6) | |
Dell Inspiron 15 5515-H8P8F |
CrossMark / Creativity | |
HP ProBook 450 G9 6A180EA | |
Average of class Office (340 - 1982, n=107, last 2 years) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (941 - 1197, n=6) | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F |
CrossMark / Responsiveness | |
Average of class Office (258 - 2017, n=107, last 2 years) | |
Dell Latitude 3520 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
SCHENKER VIA 15 Pro M22 | |
HP ProBook 450 G9 6A180EA | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (872 - 1159, n=6) | |
Dell Inspiron 15 5515-H8P8F |
PCMark 10 Score | 5025 points | |
Help |
AIDA64 / Memory Copy | |
Average of class Office (7158 - 88119, n=122, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Ryzen 7 5700U (15867 - 39326, n=18) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F |
AIDA64 / Memory Read | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office (7325 - 87297, n=122, last 2 years) | |
Average AMD Ryzen 7 5700U (17632 - 47190, n=18) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F |
AIDA64 / Memory Write | |
Average of class Office (7579 - 94965, n=122, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (11554 - 47048, n=18) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F |
AIDA64 / Memory Latency | |
SCHENKER VIA 15 Pro M22 | |
Average AMD Ryzen 7 5700U (84.9 - 113, n=18) | |
Dell Inspiron 15 5515-H8P8F | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (44.3 - 188.3, n=123, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
* ... smaller is better
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Dell Inspiron 15 5515-H8P8F | |
SCHENKER VIA 15 Pro M22 | |
Dell Latitude 3520 |
* ... smaller is better
* ... smaller is better
Continuous Read: DiskSpd Read Loop, Queue Depth 8
3DMark 11 Performance | 6709 points | |
3DMark Fire Strike Score | 3718 points | |
3DMark Time Spy Score | 1456 points | |
Help |
Blender / v3.3 Classroom CPU | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 | |
Average of class Office (343 - 3786, n=110, last 2 years) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (463 - 758, n=18) | |
SCHENKER VIA 15 Pro M22 |
* ... smaller is better
Performance Rating - Percent | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA -1! | |
Dell Inspiron 15 5515-H8P8F -3! | |
Dell Latitude 3520 -1! |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office (2.66 - 34, n=111, last 2 years) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Dell Inspiron 15 5515-H8P8F | |
Dell Latitude 3520 |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (3.35 - 47.8, n=91, last 2 years) | |
Dell Latitude 3520 |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Average of class Office (2.03 - 35.7, n=103, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
SCHENKER VIA 15 Pro M22 | |
Average of class Office (6.6 - 56.5, n=97, last 2 years) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
HP ProBook 450 G9 6A180EA |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
SCHENKER VIA 15 Pro M22 | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (7.8 - 121.2, n=124, last 2 years) | |
HP ProBook 450 G9 6A180EA | |
Dell Latitude 3520 | |
Dell Inspiron 15 5515-H8P8F |
X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
Lenovo ThinkBook 15 G4 21DL0009GE | |
Average of class Office (5.55 - 92.6, n=124, last 2 years) | |
SCHENKER VIA 15 Pro M22 | |
Dell Latitude 3520 | |
HP ProBook 450 G9 6A180EA | |
Dell Inspiron 15 5515-H8P8F |
Witcher 3 FPS Chart
low | med. | high | ultra | |
GTA V (2015) | 101 | 92.8 | 28.6 | 12 |
The Witcher 3 (2015) | 68 | 44 | 23 | 14.8 |
Dota 2 Reborn (2015) | 97.3 | 82.7 | 56.5 | 53.5 |
Final Fantasy XV Benchmark (2018) | 38.3 | 19.8 | 13.9 | |
X-Plane 11.11 (2018) | 33.7 | 29.9 | 26.5 | |
Strange Brigade (2018) | 75.7 | 32 | 27 | 24 |
F1 2021 (2021) | 93.1 | 40.6 | 31.7 | 21.5 |
F1 22 (2022) | 37.4 | 32.5 | 24.3 |
排放和能源管理
由于有两个风扇,威盛15 Pro在日常使用中通常非常安静。只有当CPU负载增加时,它的声音才会变大,在极端情况下,你也可以非常清楚地听到风扇的声音,大约为42 dB(A)。如果你想安全一点,不需要CPU的全部性能,建议使用超静音模式,因为即使在压力测试中我们也只能确定最大~28 dB(A),几乎听不到。没有其他电子噪音。
在日常使用中,表面温度仍然很低,即使在压力测试中,我们也能在一小时后在底座的中上部区域测量到最高41℃(底部约43℃)。因此,即使在这种极端情况下也没有任何限制。两个立体声扬声器是一个弱点,因为整体声音相当安静,非常单薄。至少高音部分呈现得很干净,这有利于声音的再现。
使用91瓦时的电池,威盛15 Pro即使在165赫兹下也能达到非常好的运行时间。我们确定在150cd/m²的调整亮度下可以使用11小时,在全亮度下仍然可以使用8小时。
Noise Level
Idle |
| 24 / 24 / 27.5 dB(A) |
Load |
| 33.7 / 42.4 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24 dB(A) |
SCHENKER VIA 15 Pro M22 Vega 8, R7 5700U, Samsung SSD 970 EVO Plus 1TB | Dell Latitude 3520 Iris Xe G7 80EUs, i5-1135G7, Kioxia BG5 KBG50ZNS256G | HP ProBook 450 G9 6A180EA Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N | Dell Inspiron 15 5515-H8P8F Vega 8, R7 5700U, Toshiba KBG40ZNS512G NVMe | Lenovo ThinkBook 15 G4 21DL0009GE Vega 7, R5 5625U, Samsung PM991a MZALQ512HBLU | |
---|---|---|---|---|---|
Noise | -2% | 7% | -1% | 4% | |
off / environment * | 24 | 26 -8% | 25.5 -6% | 25.4 -6% | 23.21 3% |
Idle Minimum * | 24 | 26 -8% | 25.5 -6% | 25.4 -6% | 23.21 3% |
Idle Average * | 24 | 26 -8% | 25.5 -6% | 25.4 -6% | 23.21 3% |
Idle Maximum * | 27.5 | 26 5% | 25.5 7% | 25.4 8% | 23.21 16% |
Load Average * | 33.7 | 31.1 8% | 28 17% | 34 -1% | 33 2% |
Witcher 3 ultra * | 33.7 | ||||
Load Maximum * | 42.4 | 41.5 2% | 27.7 35% | 40 6% | 43.34 -2% |
* ... smaller is better
(±) The maximum temperature on the upper side is 41.2 °C / 106 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

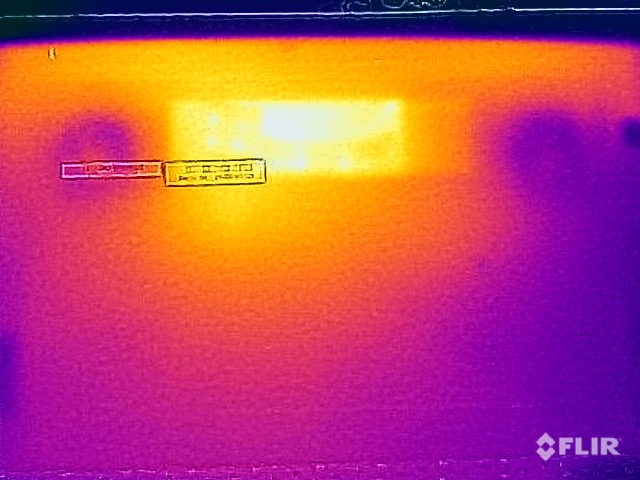

(±) The bottom heats up to a maximum of 43.5 °C / 110 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.7 °C / 89 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.2 °C / 81 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+0.5 °C / 0.9 F).
SCHENKER VIA 15 Pro M22 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Dell Latitude 3520 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | HP ProBook 450 G9 6A180EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | Dell Inspiron 15 5515-H8P8F AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Lenovo ThinkBook 15 G4 21DL0009GE AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | |
---|---|---|---|---|---|
Heat | -4% | -11% | -11% | -12% | |
Maximum Upper Side * | 41.2 | 37.5 9% | 40.5 2% | 39.4 4% | 41.1 -0% |
Maximum Bottom * | 43.5 | 49.7 -14% | 47.6 -9% | 45.4 -4% | 45.6 -5% |
Idle Upper Side * | 28.4 | 29 -2% | 32.6 -15% | 33.2 -17% | 31.6 -11% |
Idle Bottom * | 28.1 | 30.1 -7% | 34.2 -22% | 35.1 -25% | 36.5 -30% |
* ... smaller is better
SCHENKER VIA 15 Pro M22 audio analysis
(±) | speaker loudness is average but good (74.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.2% lower than median
(±) | linearity of bass is average (12% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(±) | linearity of mids is average (10.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.8% difference to median)
Compared to same class
» 58% of all tested devices in this class were better, 9% similar, 33% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 62% of all tested devices were better, 6% similar, 31% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkBook 15 G4 21DL0009GE audio analysis
(-) | not very loud speakers (64.28 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.6% lower than median
(-) | bass is not linear (15.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.9% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(±) | linearity of highs is average (9.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.2% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 9% similar, 45% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 54% of all tested devices were better, 7% similar, 39% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Off / Standby | 0.31 / 0.69 Watt |
Idle | 6.9 / 10.9 / 11.3 Watt |
Load |
54.2 / 69 Watt |
Power consumption Witcher 3 / Stress test
Power consumption external Monitor
Pros
Cons
结论 - 威盛15 Pro以良好的显示效果和轻巧的外壳而令人信服
Schenker的Via 15 Pro是一款有趣的办公笔记本,主要由于高质量的外壳和良好的WQHD面板而在直接竞争中脱颖而出。sRGB色彩空间被完全覆盖,由于高刷新率以及快速响应时间,即使是移动图片也非常流畅。尽管是哑光表面,但即使是明亮的内容也没有颗粒感。
此外,Schenker在升级选项方面采取了不同的方法,因为内存模块和M.2-2280固态硬盘各有两个插槽,绝非理所当然。键盘给人留下了良好的印象,电池寿命也是如此,而且有足够的端口供日常使用,尽管USB 2.0端口已经不是最新的了。
Via 15 Pro是一款有趣的办公机器,外壳轻巧,键盘好,165赫兹的显示屏也不错。电池运行时间和升级选项同样令人信服,但鉴于相当高的入门价格,来自AMD的旧Zen 2处理器令人失望。
超过1100欧元的入门级价格当然是一个障碍,特别是考虑到老式AMD处理器的情况。然而,在此不得不说,特别是多核性能仍然具有竞争力,而且也比竞争对手的性能好。另一个弱点是糟糕的扬声器系统。
价格和可用性
VIA Pro 15可以在Bestware上配置,起价1149欧元。.
SCHENKER VIA 15 Pro M22
-
06/29/2023 v7
Andreas Osthoff
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
