微星 GT72 笔记本电脑简短评测

Name: MSI GT72-2PE16SR231BW
Brand: MSI

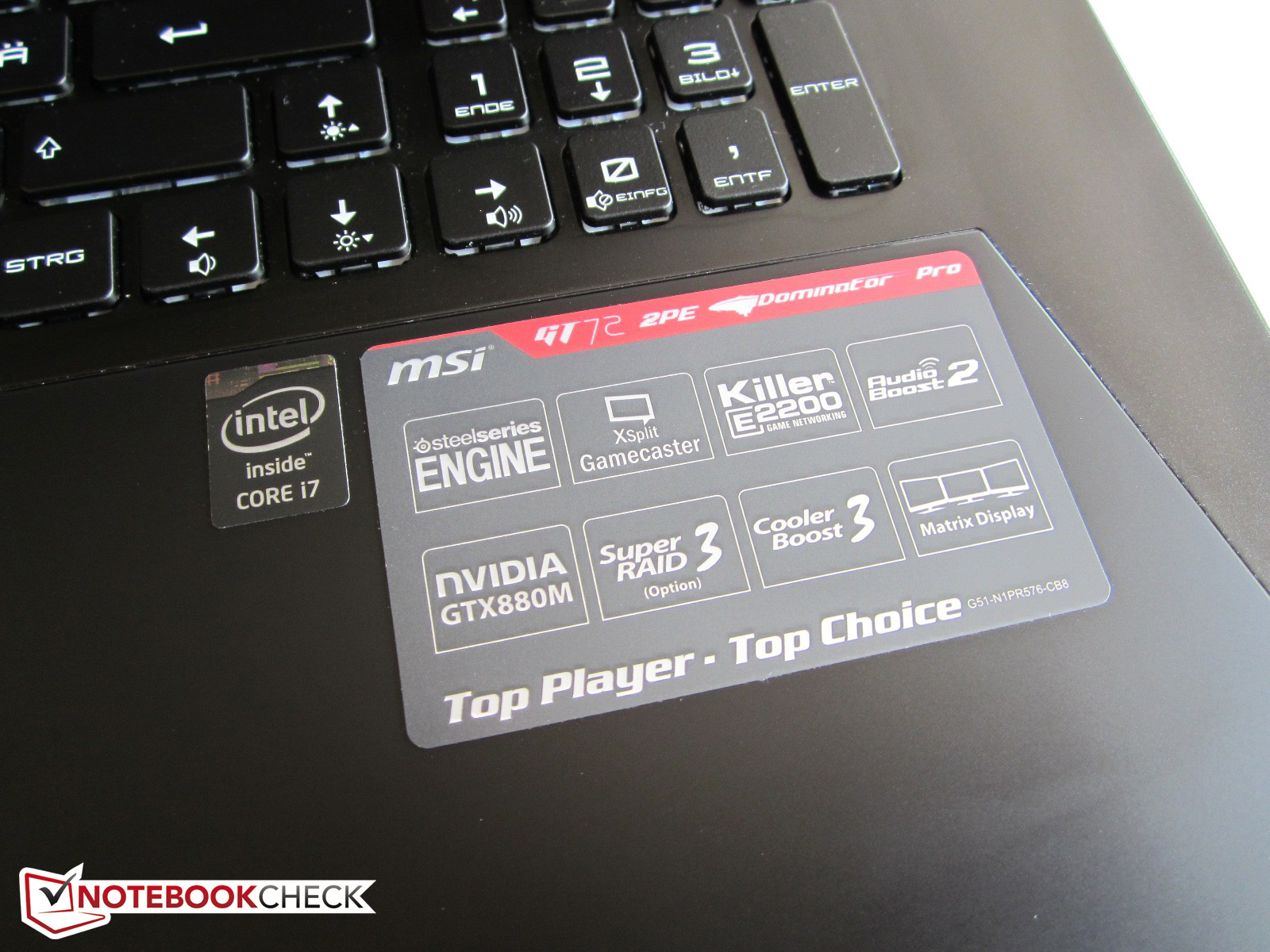

肌肉男。 冷静运行，超级RAID，矩阵屏幕：微星为了形容GT72用了很多形容词。我们将测试这款全新的游戏本是否名实相副。这款高端设备又能否与来自华硕，Alienware和Clevo的产品一争高下呢？

Florian Glaser, ✓ Sabine Kückemanns (translated by Yuchen Wang), Published 09/22/2014 🇺🇸 🇩🇪 ...

Gaming Haswell Laptop / Notebook Windows


315 cd/m²	284 cd/m²	261 cd/m²
278 cd/m²	294 cd/m²	247 cd/m²
288 cd/m²	280 cd/m²	266 cd/m²

Distribution of brightness

CMN N173HGE-E11 (CMN1735) tested with X-Rite i1Pro 2

Maximum: 315 cd/m² (Nits) Average: 279.2 cd/m²
Brightness Distribution: 78 %
Center on Battery: 294 cd/m²
Contrast: 1050:1 (Black: 0.28 cd/m²)
ΔE Color 11.71 | 0.5-29.43 Ø5
ΔE Greyscale 12.06 | 0.57-98 Ø5.3
54% AdobeRGB 1998 (Argyll 1.6.3 3D)
61.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
84.4% sRGB (Argyll 2.2.0 3D)
60.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.67

Download ICC File (X-Rite i1Pro 2)

Cinebench R15
CPU Multi 64Bit (sort by value)
MSI GT72-2PE16SR231BW Core i7-4710HQ	651 Points
Asus G750JZ-T4023H Core i7-4700HQ	637 Points -2%
Alienware 17 (GTX 880M) Core i7-4700MQ	643 Points -1%
Medion Erazer X7831-MD98776 Core i7-4710MQ	643 Points -1%
MSI GT70 2PE-890US Core i7-4800MQ	680 Points +4%
CPU Single 64Bit (sort by value)
MSI GT72-2PE16SR231BW Core i7-4710HQ	136 Points
Asus G750JZ-T4023H Core i7-4700HQ	132 Points -3%
Alienware 17 (GTX 880M) Core i7-4700MQ	133 Points -2%
Medion Erazer X7831-MD98776 Core i7-4710MQ	119 Points -12%
MSI GT70 2PE-890US Core i7-4800MQ	142 Points +4%

Cinebench R11.5
CPU Multi 64Bit (sort by value)
MSI GT72-2PE16SR231BW Core i7-4710HQ	7.09 Points
Asus G750JZ-T4023H Core i7-4700HQ	6.93 Points -2%
Alienware 17 (GTX 880M) Core i7-4700MQ	6.96 Points -2%
Medion Erazer X7831-MD98776 Core i7-4710MQ	7 Points -1%
MSI GT70 2PE-890US Core i7-4800MQ	7.45 Points +5%
CPU Single 64Bit (sort by value)
MSI GT72-2PE16SR231BW Core i7-4710HQ	1.53 Points
Asus G750JZ-T4023H Core i7-4700HQ	1.49 Points -3%
Alienware 17 (GTX 880M) Core i7-4700MQ	1.51 Points -1%
Medion Erazer X7831-MD98776 Core i7-4710MQ	1.54 Points +1%
MSI GT70 2PE-890US Core i7-4800MQ	1.61 Points +5%

Cinebench R11.5 CPU Single 64Bit

1.53 Points

Cinebench R11.5 CPU Multi 64Bit

7.09 Points

Cinebench R11.5 OpenGL 64Bit

62.4 fps

Cinebench R15 CPU Single 64Bit

136 Points

Cinebench R15 CPU Multi 64Bit

651 Points

Cinebench R15 OpenGL 64Bit

108.7 fps

Help

... in comparison

Unigine Heaven 3.0 - 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	82.1 fps
One K73-4N GeForce GTX 870M (332.35)	65 fps -21%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	81.2 fps -1%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	82.8 fps +1%

3DMark - 1920x1080 Fire Strike Graphics (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	6144 Points
One K73-4N GeForce GTX 870M (332.35)	4664 Points -24%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	6095 Points -1%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	5941 Points -3%

3DMark 11 - 1280x720 Performance GPU (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	8812 Points
One K73-4N GeForce GTX 870M (332.35)	7270 Points -17%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	8690 Points -1%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	9840 Points +12%

3DMark Vantage - 1280x1024 P GPU no PhysX (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	29582 Points
One K73-4N GeForce GTX 870M (332.35)	24065 Points -19%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	29698 Points 0%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	29844 Points +1%

3DMark Vantage P Result		28022 points
3DMark 11 Performance		8492 points
3DMark Ice Storm Standard Score		126808 points
3DMark Cloud Gate Standard Score		19052 points
3DMark Fire Strike Score		5480 points
Help

... in comparison

CrystalDiskMark 3.0

AS SSD

3x Kingston RBU-SNS8100S3128GD (RAID 0)

Sequential Read: 1250 MB/s

Sequential Write: 979 MB/s

512K Read: 700 MB/s

512K Write: 871 MB/s

4K Read: 27.51 MB/s

4K Write: 73.2 MB/s

4K QD32 Read: 422.9 MB/s

4K QD32 Write: 547 MB/s

PCMark 7 Score		5846 points
PCMark 8 Home Score Accelerated v2		4408 points
PCMark 8 Creative Score Accelerated v2		4795 points
PCMark 8 Work Score Accelerated v2		4379 points
Help

... in comparison

Call of Duty: Ghosts - 1920x1080 Extra / High / HBAO+ / No dynamic fur AA:4x MS (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	46.8 fps
One K56-4N Radeon R9 M290X (13.151.0.0)	33.2 fps -29%
One K73-4N GeForce GTX 870M (332.35)	37.3 fps -20%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	45.9 fps -2%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	46.3 fps -1%

Battlefield 4 - 1920x1080 Ultra Preset AA:4x MS (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	46.2 fps
One K56-4N Radeon R9 M290X (13.151.0.0)	38.7 fps -16%
One K73-4N GeForce GTX 870M (332.35)	36.2 fps -22%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	45.4 fps -2%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	49.7 fps +8%

Saints Row IV - 1920x1080 Ultra Preset AA:8x MS AF:16x (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	54.3 fps
One K56-4N Radeon R9 M290X (13.151.0.0)	35.2 fps -35%
One K73-4N GeForce GTX 870M (332.35)	43.4 fps -20%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	52.4 fps -3%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	55 fps +1%

Dota 2 - 1920x1080 High / On, Render Quality: 100 % (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	99.8 fps
One K56-4N Radeon R9 M290X (13.151.0.0)	102.6 fps +3%
One K73-4N GeForce GTX 870M (332.35)	99.6 fps 0%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	105.7 fps +6%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	107.4 fps +8%

Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	33.1 fps
One K56-4N Radeon R9 M290X (13.151.0.0)	22.8 fps -31%
One K73-4N GeForce GTX 870M (332.35)	26.7 fps -19%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	33.2 fps 0%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	28.3 fps -15%

Far Cry 3 - 1920x1080 DX11 Ultra Preset (HDAO, Enhanced Alpha To Coverage) AA:4x MS (sort by value)
MSI GT72-2PE16SR231BW GeForce GTX 880M (333.11)	35.7 fps
One K56-4N Radeon R9 M290X (13.151.0.0)	29 fps -19%
One K73-4N GeForce GTX 870M (332.35)	28.4 fps -20%
SCHENKER XMG P704 GeForce GTX 880M (332.35)	35.7 fps 0%
Aorus X7 v2 GeForce GTX 860M SLI (333.11)	38.4 fps +8%

	low	med.	high	ultra
Far Cry 3 (2012)			83.9	35.7
Crysis 3 (2013)			81.2	33.1
Dota 2 (2013)				99.8
Saints Row IV (2013)			66.2	54.3
Battlefield 4 (2013)			112.1	46.2
Call of Duty: Ghosts (2013)			66.4	46.8
Watch Dogs (2014)			40.9	30.9
GRID: Autosport (2014)			113.4	70
Risen 3: Titan Lords (2014)			43.4	54.7
Sims 4 (2014)			81.6	72.7

Noise Level

Idle		33 / 33.3 / 34.4 dB(A)
DVD		37 / dB(A)
Load		40.2 / 49.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


38.6 °C	40 °C	40.5 °C
38.2 °C	39.3 °C	32 °C
29.1 °C	28.7 °C	27 °C

Maximum: 40.5 °C
Average: 34.8 °C


48.1 °C	46.5 °C	47.2 °C
36.3 °C	43.3 °C	29.8 °C
27 °C	25.6 °C	26.9 °C

Maximum: 48.1 °C
Average: 36.7 °C

Power Supply (max.) 53.8 °C | Room Temperature 24 °C | Voltcraft IR-900

(±) The average temperature for the upper side under maximal load is 34.8 °C / 95 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(±) The maximum temperature on the upper side is 40.5 °C / 105 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 48.1 °C / 119 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.1 °C / 84.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-0.2 °C / -0.4 F).

Power Consumption

Off / Standby	0.1 / 0.3 Watt
Idle	26 / 31 / 35.8 Watt
Load	113.1 / 204 Watt


Key: min: , med: , max: Voltcraft VC 940 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Idle (without WLAN, min brightness)		8h 55min
WiFi Surfing		2h 50min
DVD		2h 34min
Load (maximum brightness)		1h 19min

微星的GT72向前迈了一大步。尽管它最后的总分只和GT70差1%，但它的改进意义重大。在连续几年的华丽却显俗气的的外观设计之后，微星似乎终于找到了合适的设计理念。我们当然更加喜欢GT72的外观设计。另外一项优化在于散热系统，新的设备在负载下更加安静。更不用提它更好的做工质量和增加了的接口数量了。

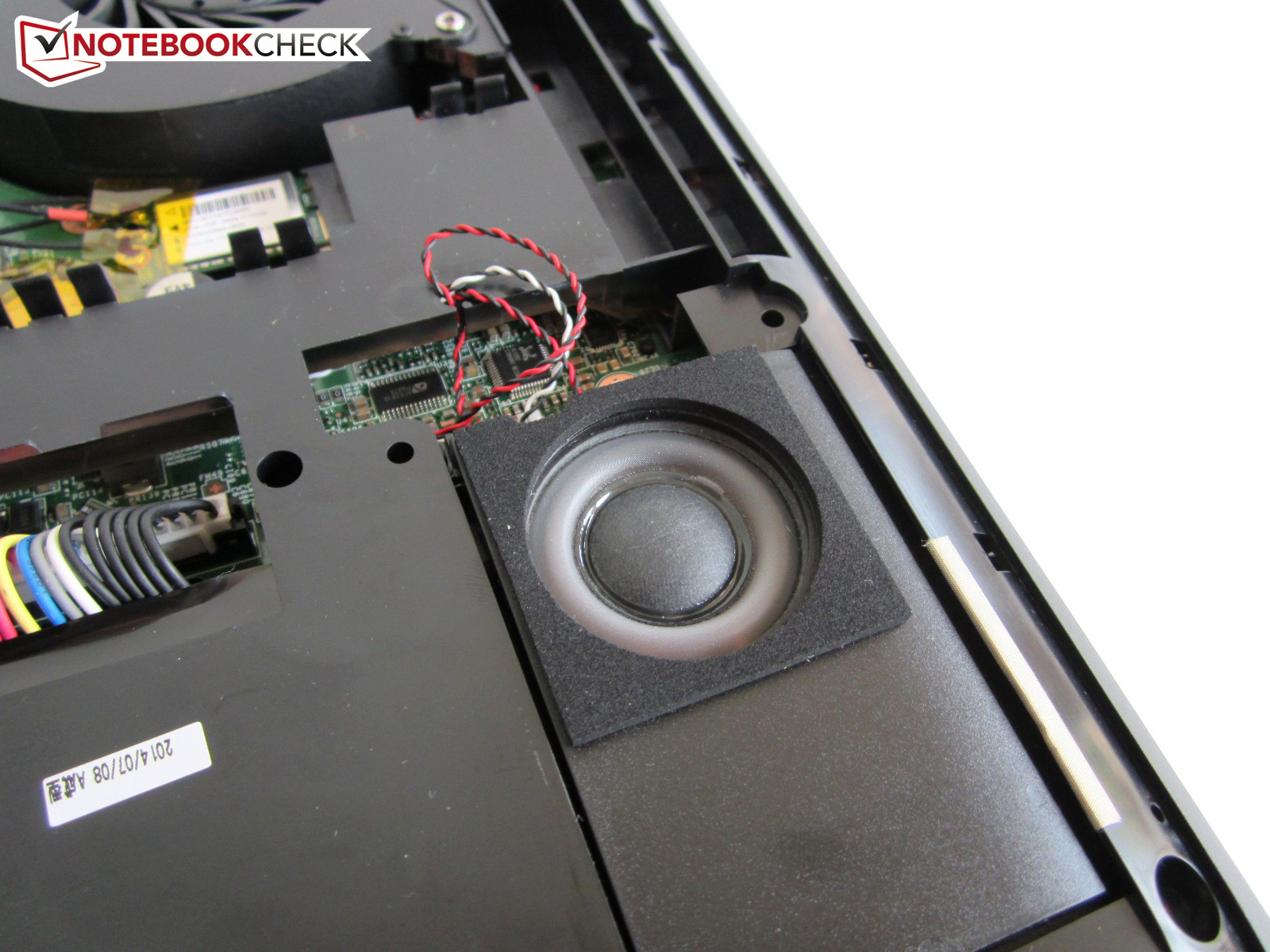

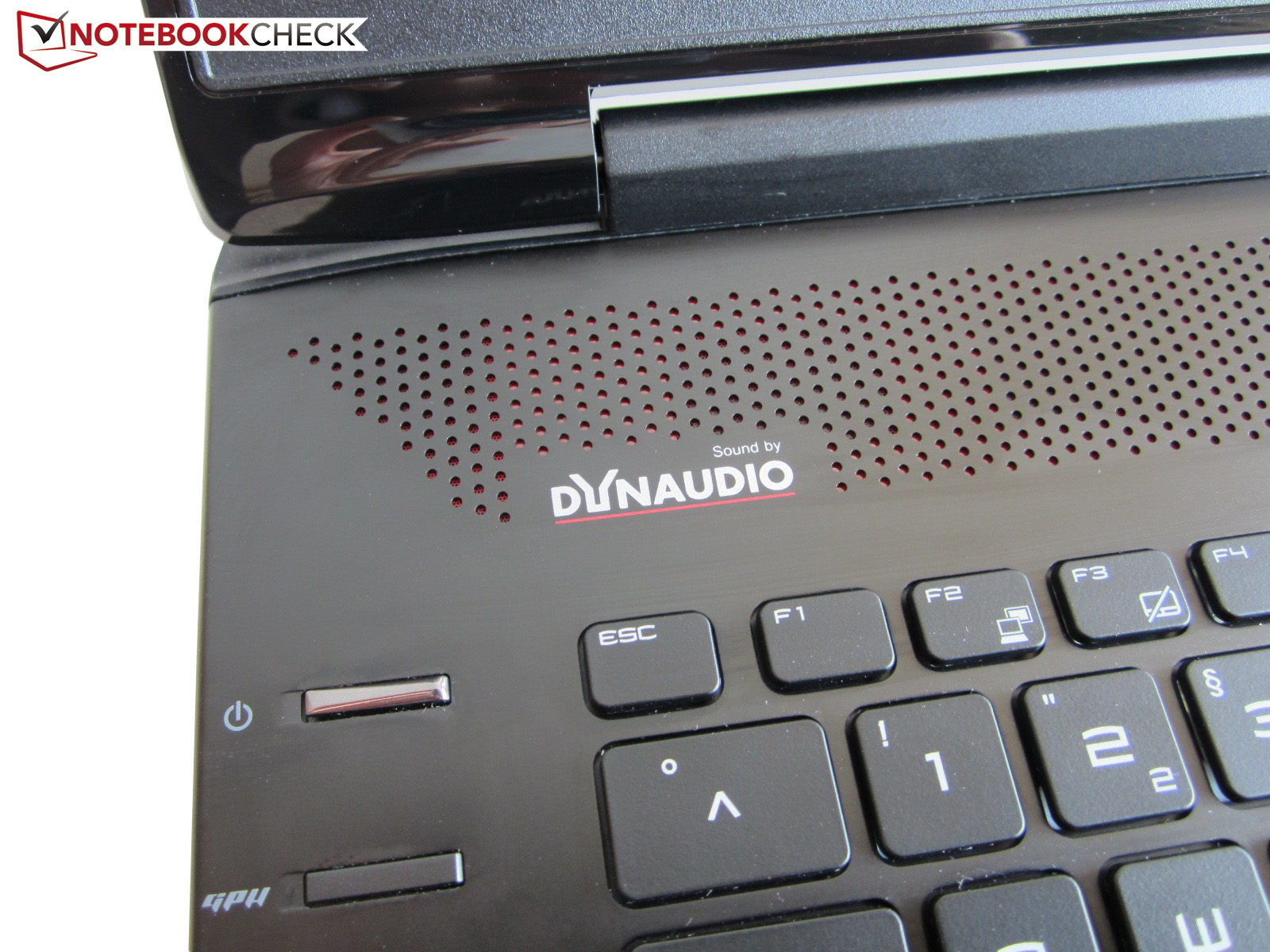

在其他的方面它也没有很大的瑕疵，如输入设备，电池续航和发热量。我们希望提到的是它的优秀音响系统，在其他的笔记本电脑中很难有如此好的音效。GT72在屏幕这方面还有改进的空间。它使用的CMN N173HGE-E11面板的色彩还原不够准确（如果显示有条纹请更新Nvidia显卡驱动！），这应该可以通过特别的色彩设定来避免——类似于华硕G750JZ。另外很烦人的一点是想要切换显卡时需要重启笔记本电脑。

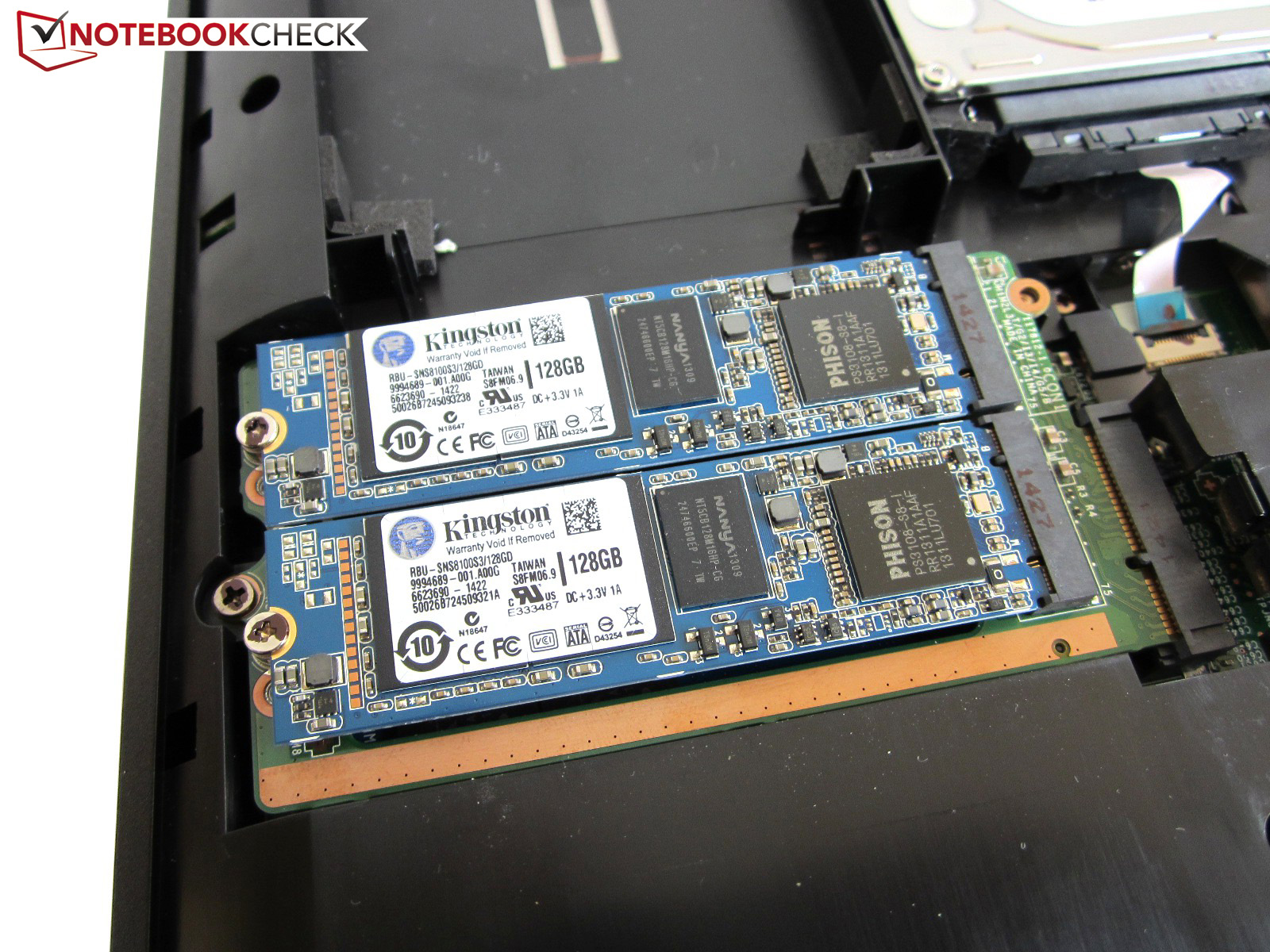

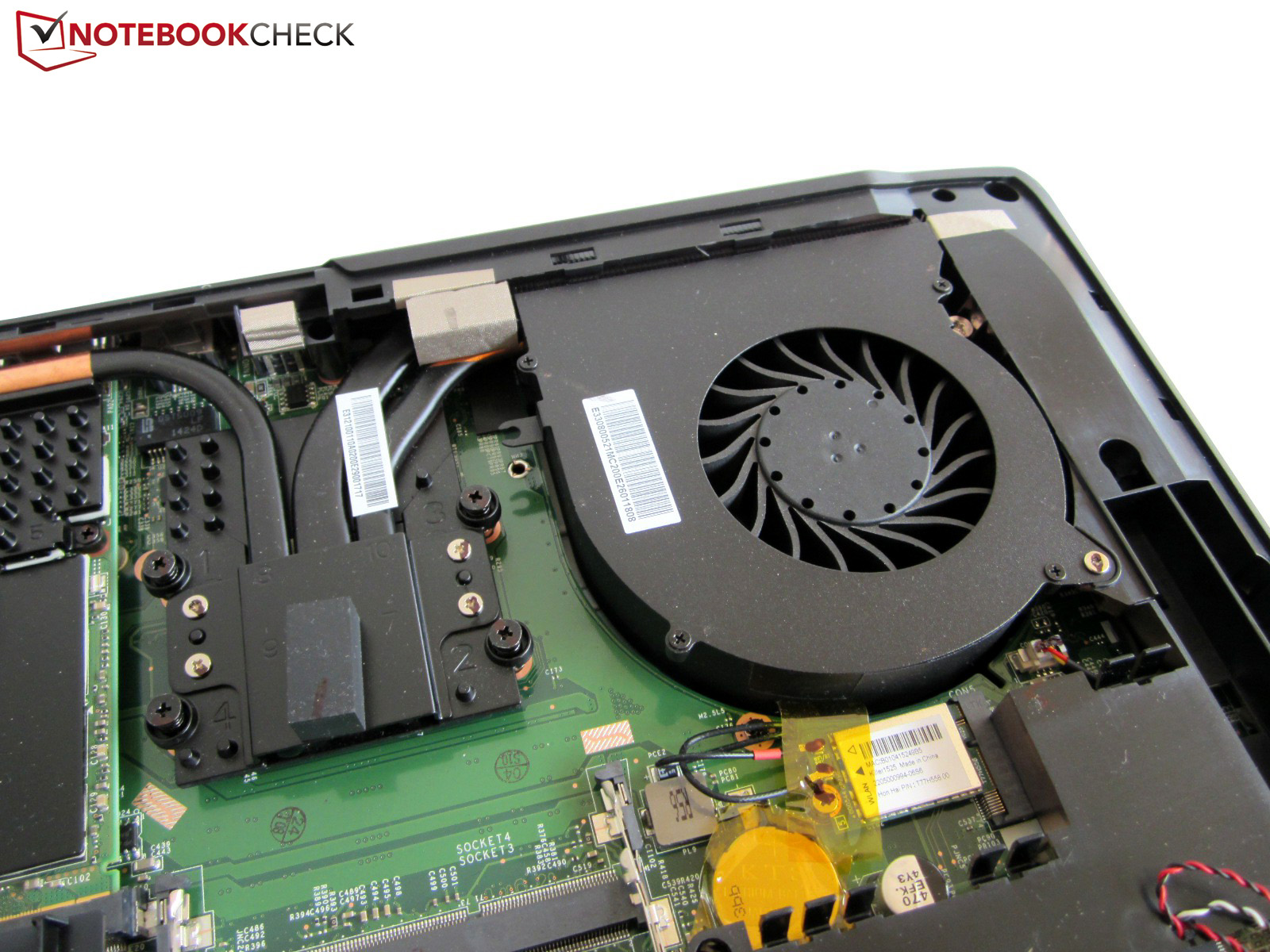

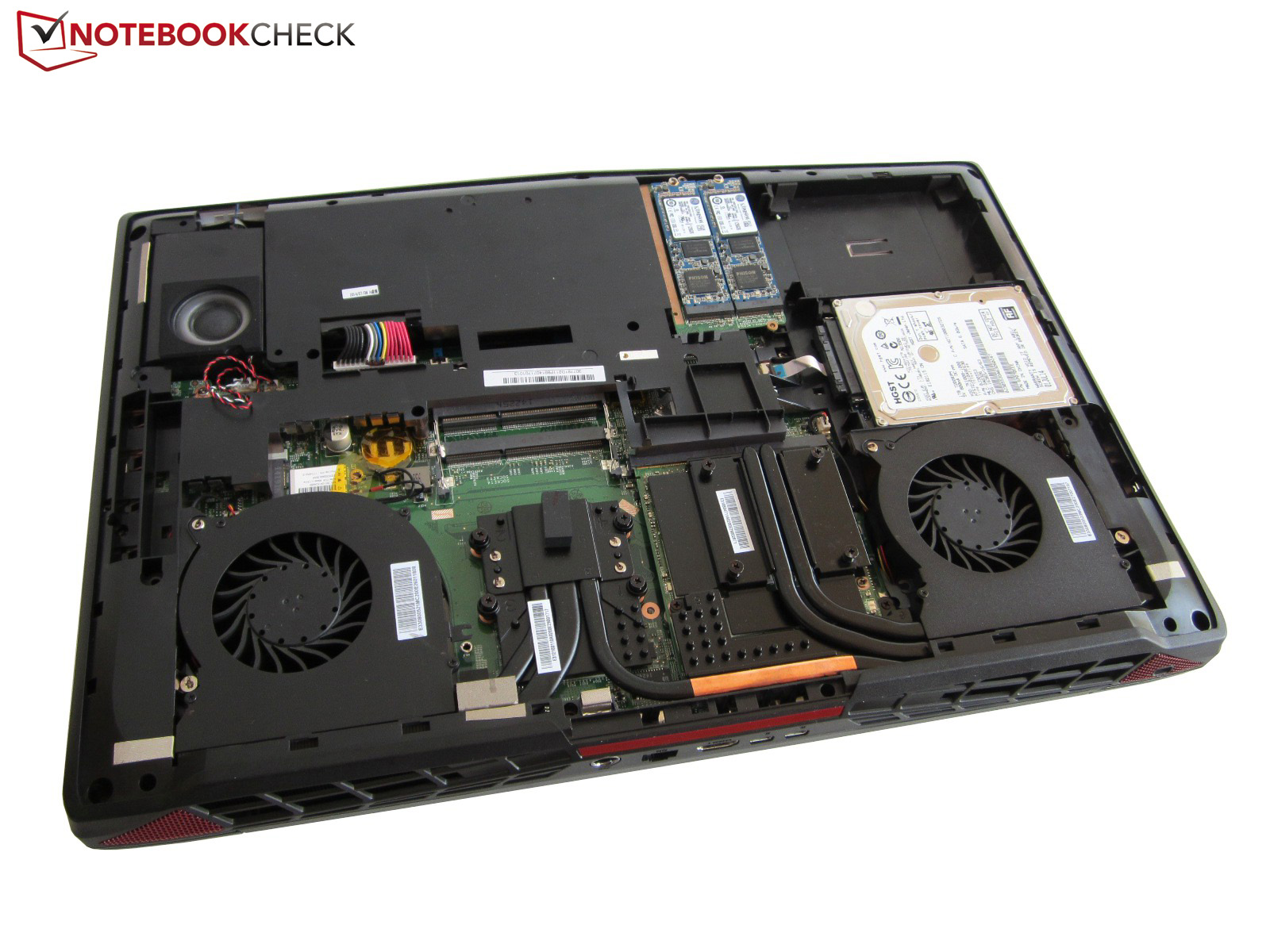

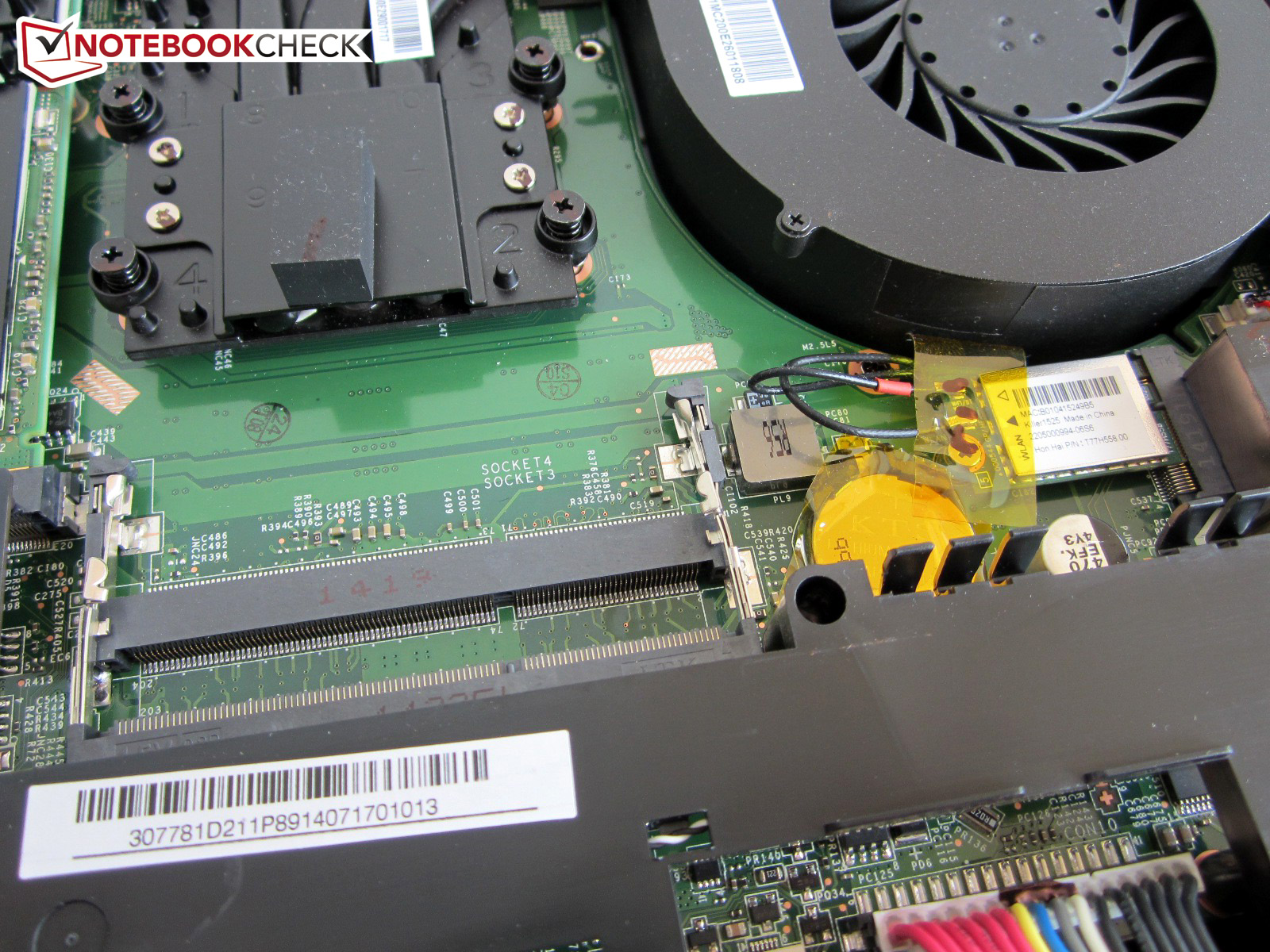

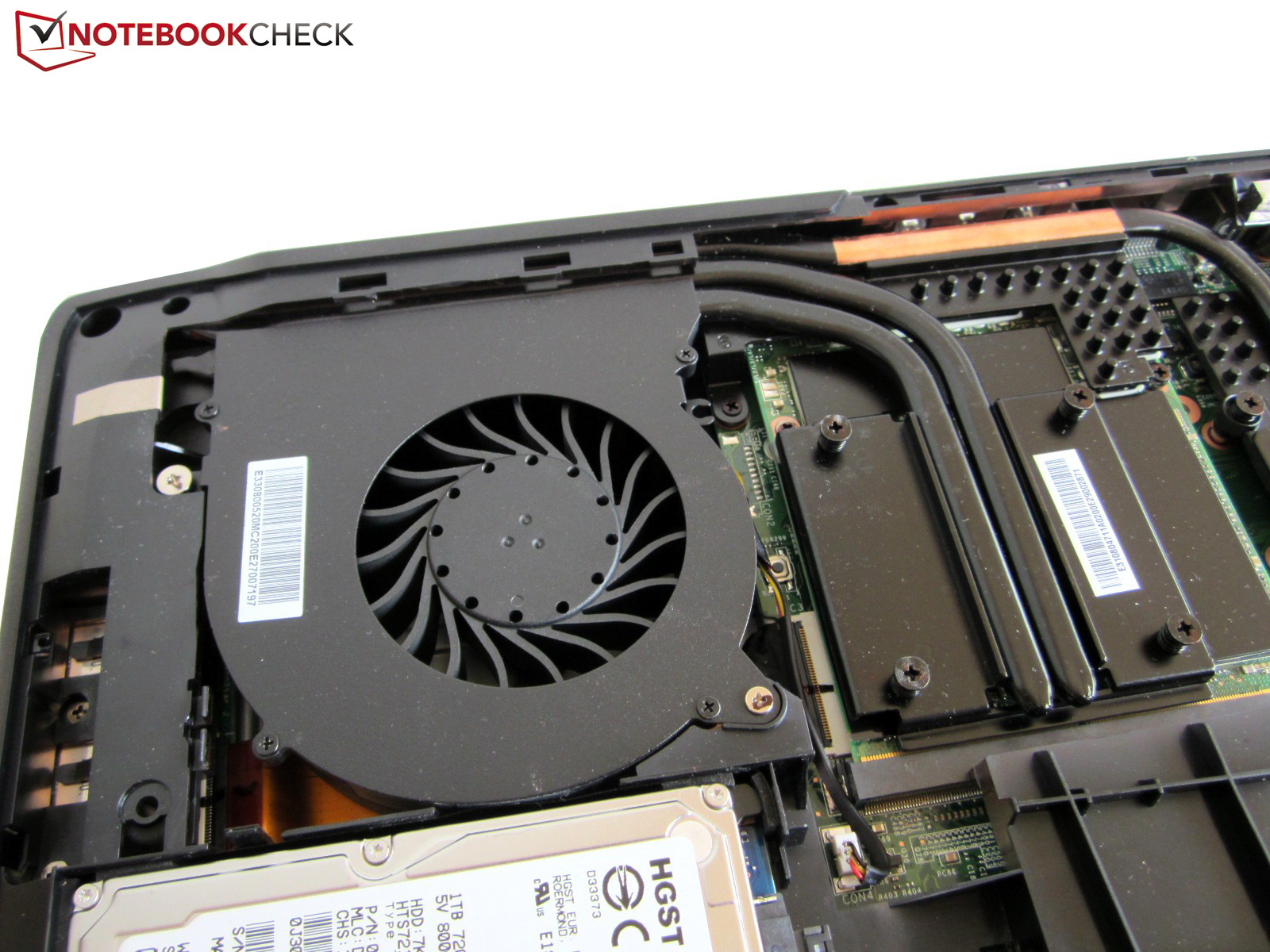

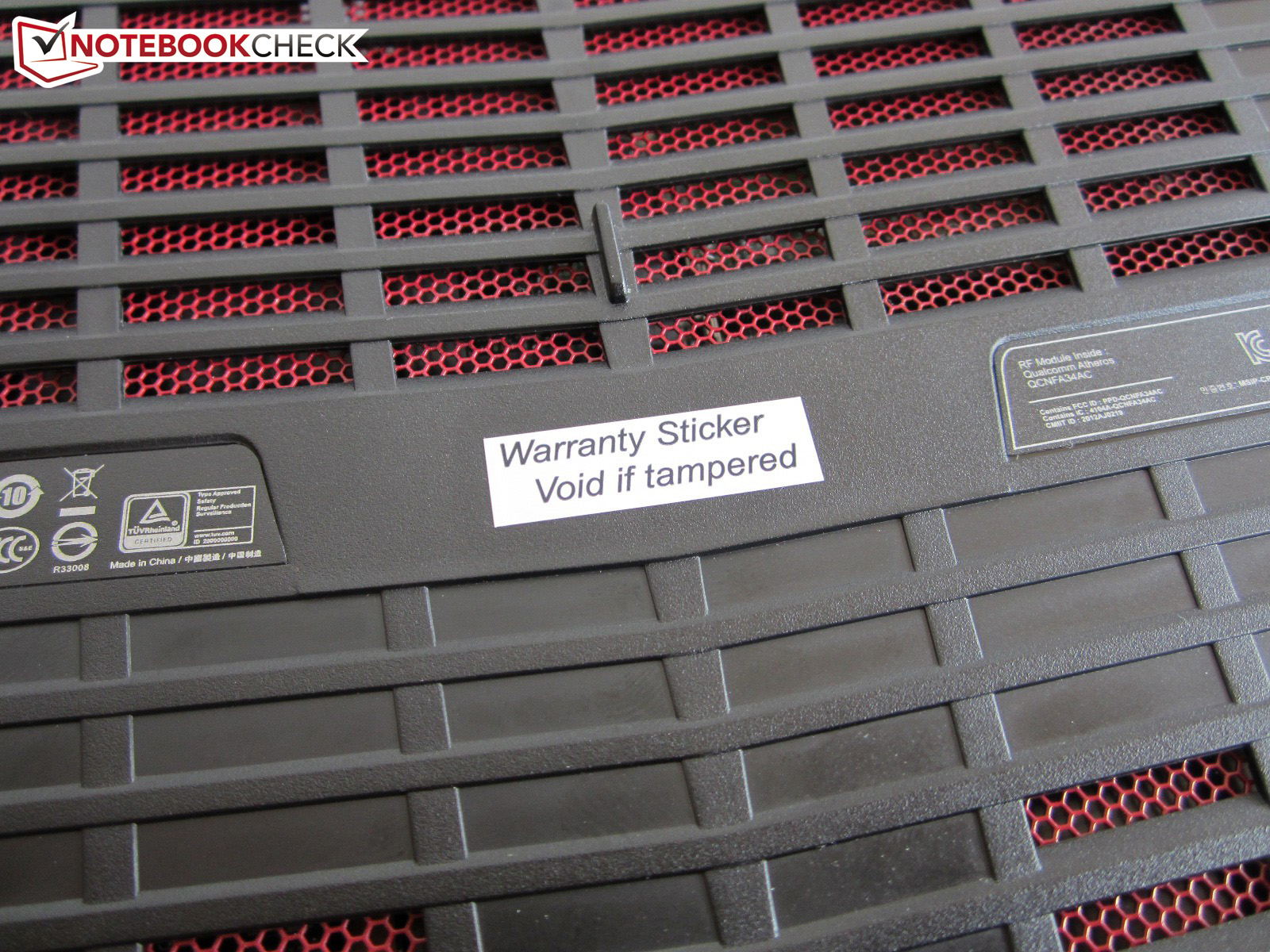

如果电池不出问题的话，它的维护性可以让人很满意。微星让我们可以接触到几乎所有的部件。最大的一个亮点是它准备的多达4个M.2固态硬盘槽。在性能上，它也毫无问题：Nvidia的高端显卡保证了很高的游戏帧率。整体来说，微星设计了一款非常成功地高端笔记本电脑，具备冲上三甲的潜力。选择Alienware 17,，Asus G750JZ还是MSI GT72呢？可能这主要是个外观设计的问题。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1611 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

MSI GT72-2PE16SR231BW (GT72 Series)

Processor

Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz, Haswell

Graphics adapter

NVIDIA GeForce GTX 880M - 8 GB VRAM, Core: 954 MHz, Memory: 2500 MHz, GDDR5, ForceWare 333.11, manueller Switch

Memory

16 GB

, 2x 8 GB Kingston SO-DIMM DDR3-RAM PC3-12800 (1600 MHz), 4个插槽 2个已占用, 最大支持 32 GB

Display

17.30 inch 16:9, 1920 x 1080 pixel, CMN N173HGE-E11 (CMN1735), TN LED, 全高清, glossy: no

Mainboard

Intel HM87 (Lynx Point)

Storage

3x Kingston RBU-SNS8100S3128GD (RAID 0), 384 GB

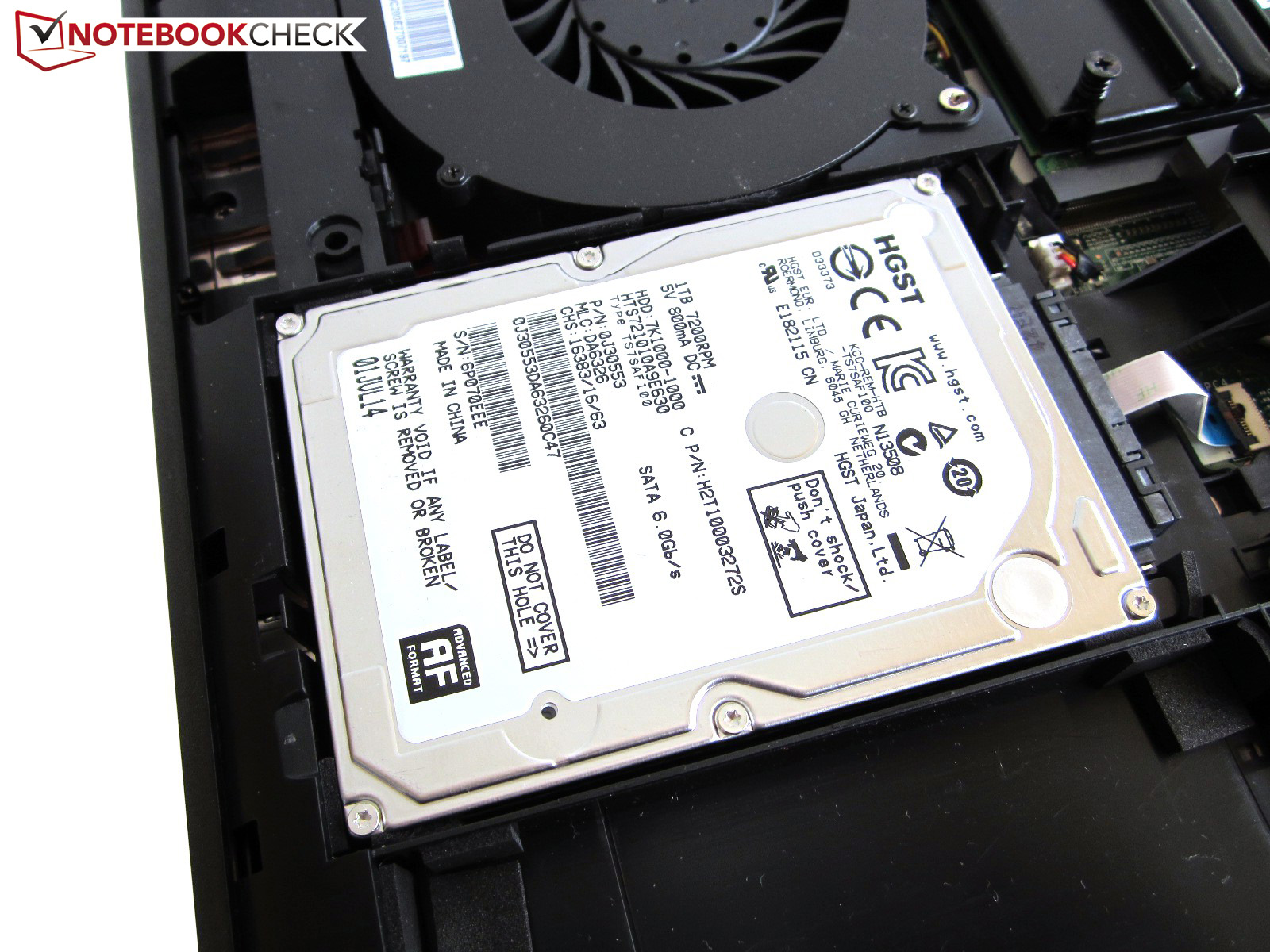

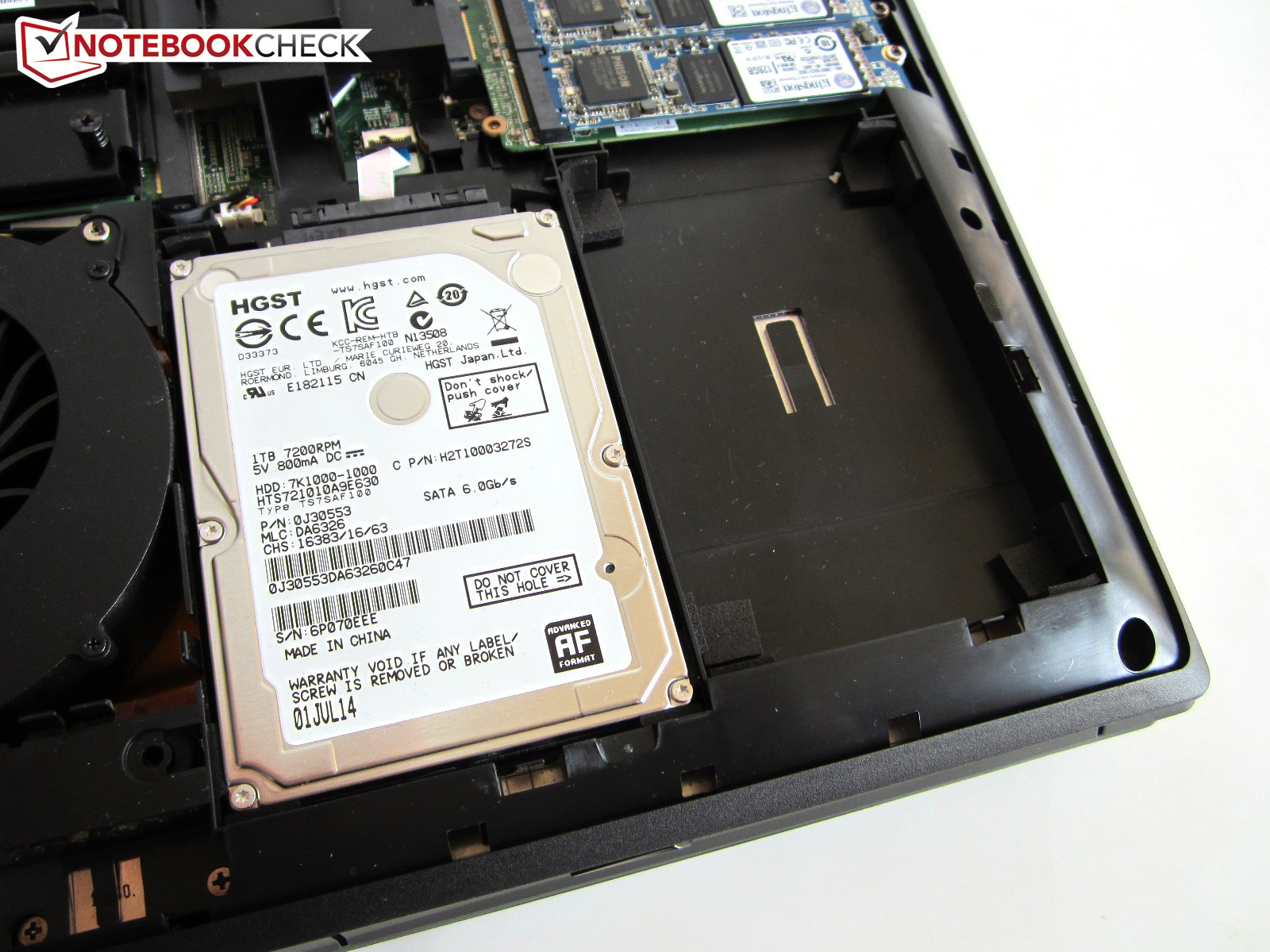

, M.2-固态硬盘 + HGST Travelstar 7K1000 (HTS721010A9E630), 1000 GB HDD, 7200 rpm. 插槽: 4x M.2 & 2x 2.5"

Soundcard

Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller

Connections

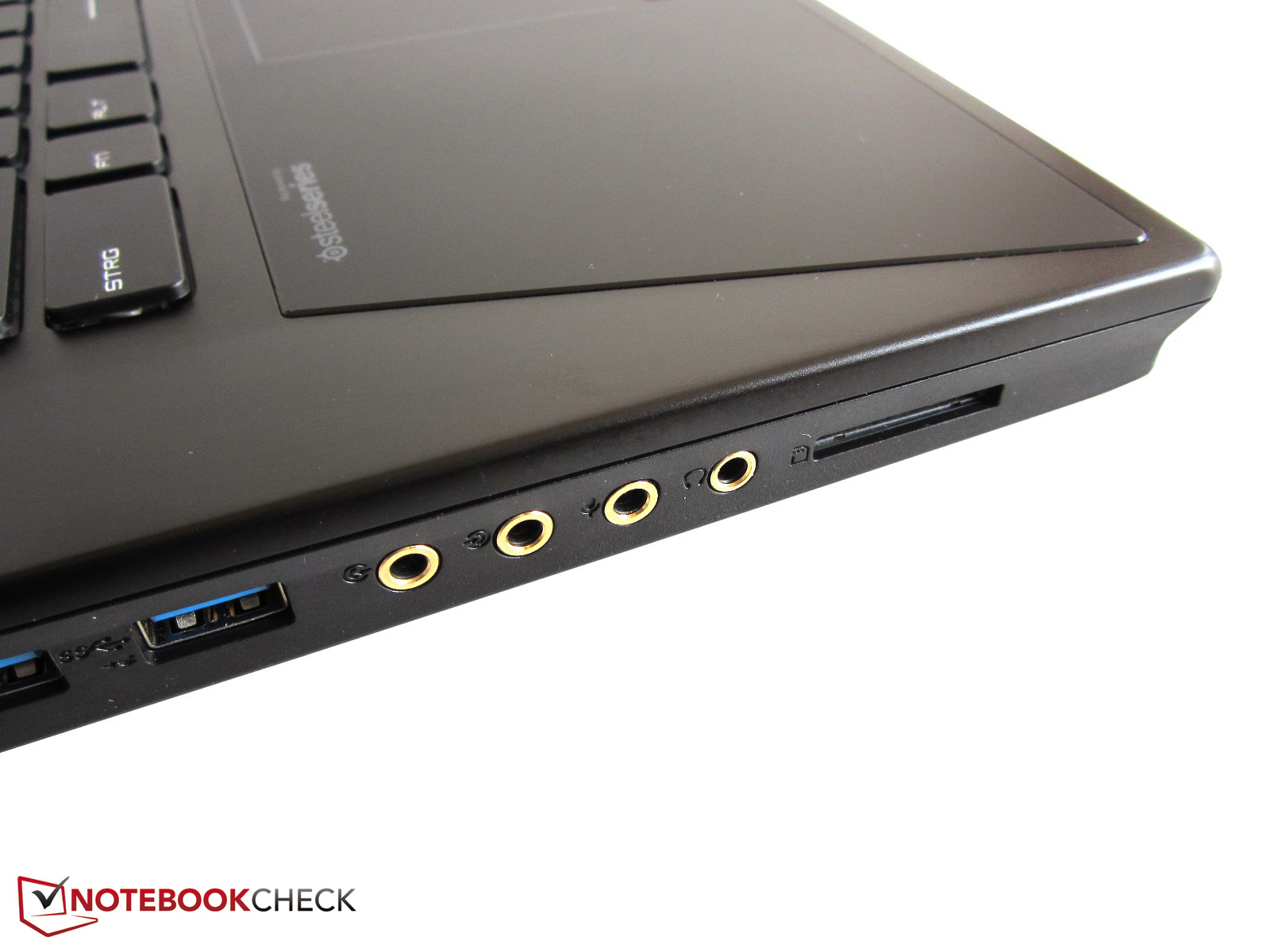

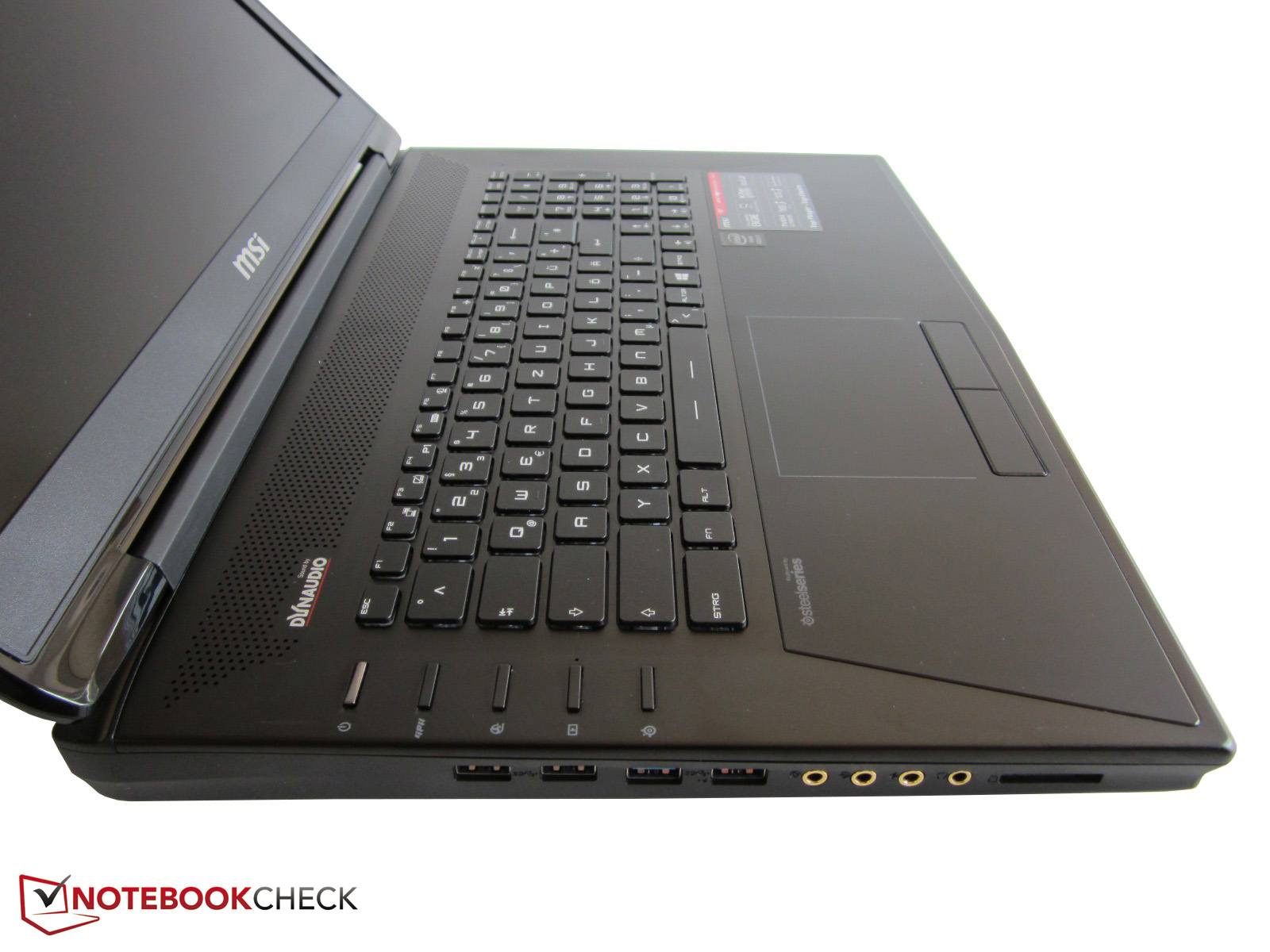

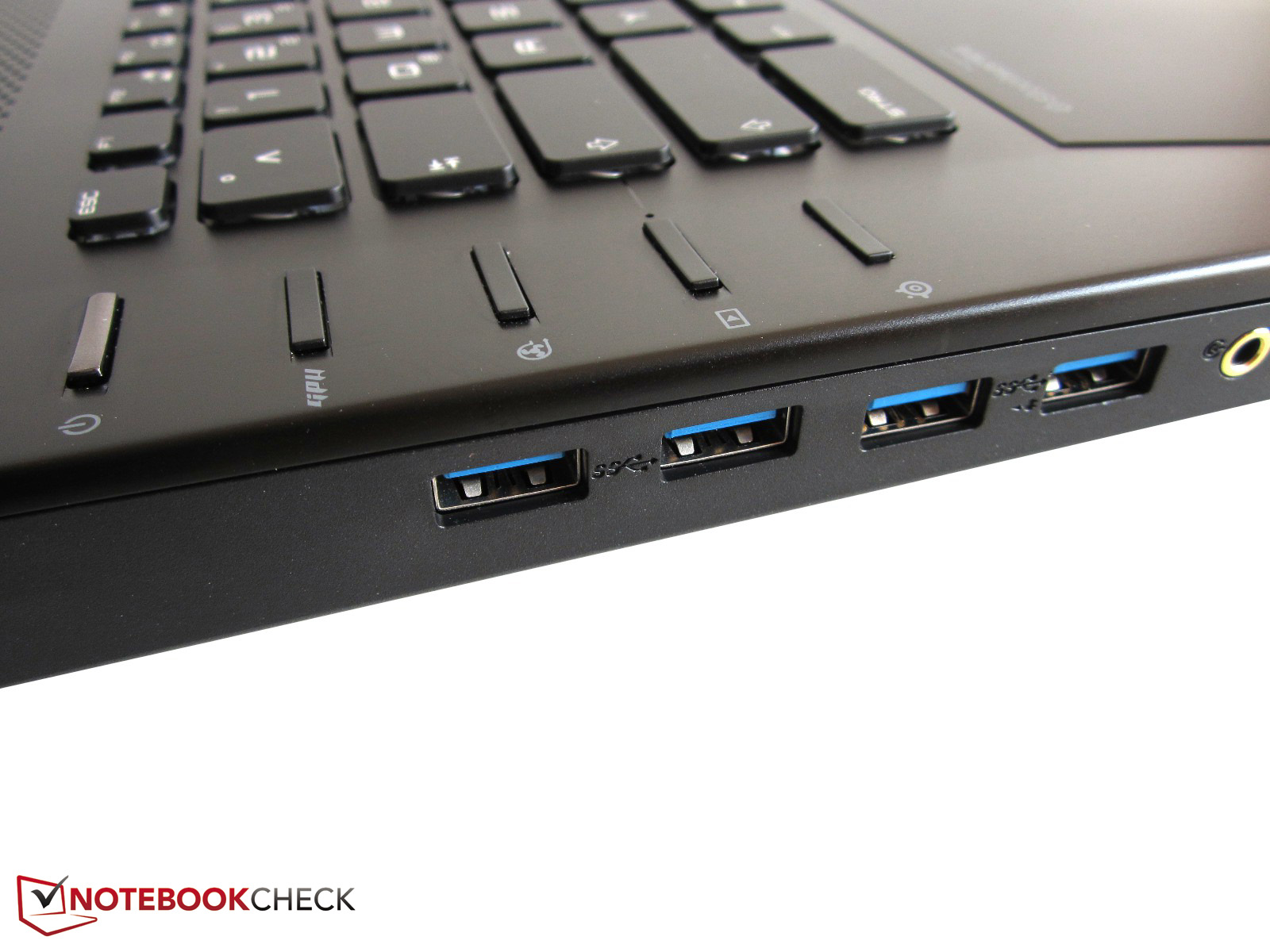

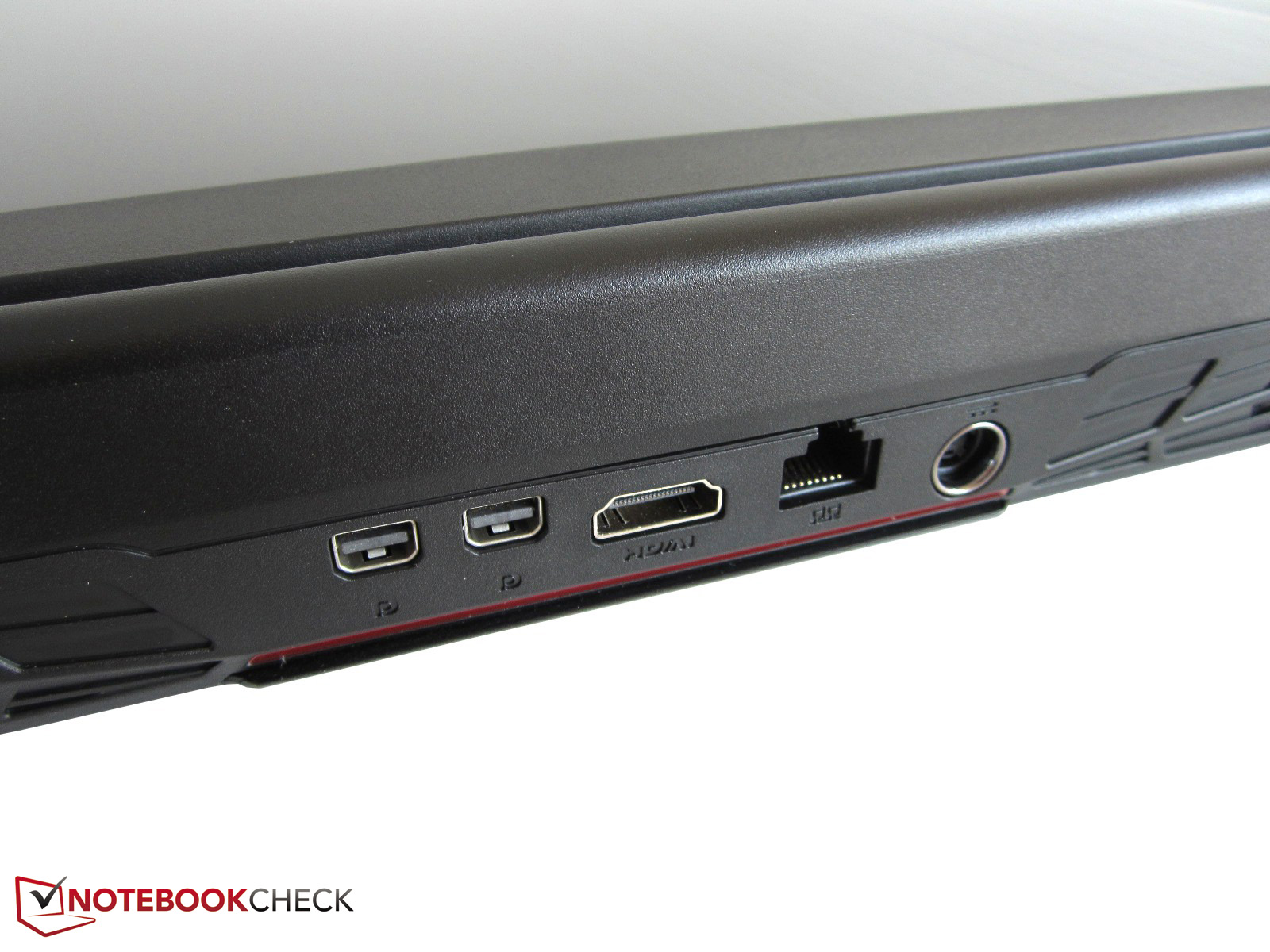

6 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 耳机和数字音频输出, 麦克风, 音频输入, 音频输出 (7.1声道模拟信号), Card Reader: SD,SDHC,SDXC

Networking

Qualcomm Killer e2200 PCI-E Gigabit Ethernet Controller (10/100/1000MBit/s), Killer Wireless-n/a/ac 1525 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

HL-DT-ST BD-RE BU20N

Size

height x width x depth (in mm): 48 x 428 x 294

Battery

87 Wh Lithium-Ion, 7800mAh, 11.1V, 9 芯

Operating System

Microsoft Windows 8.1 64 Bit

Camera

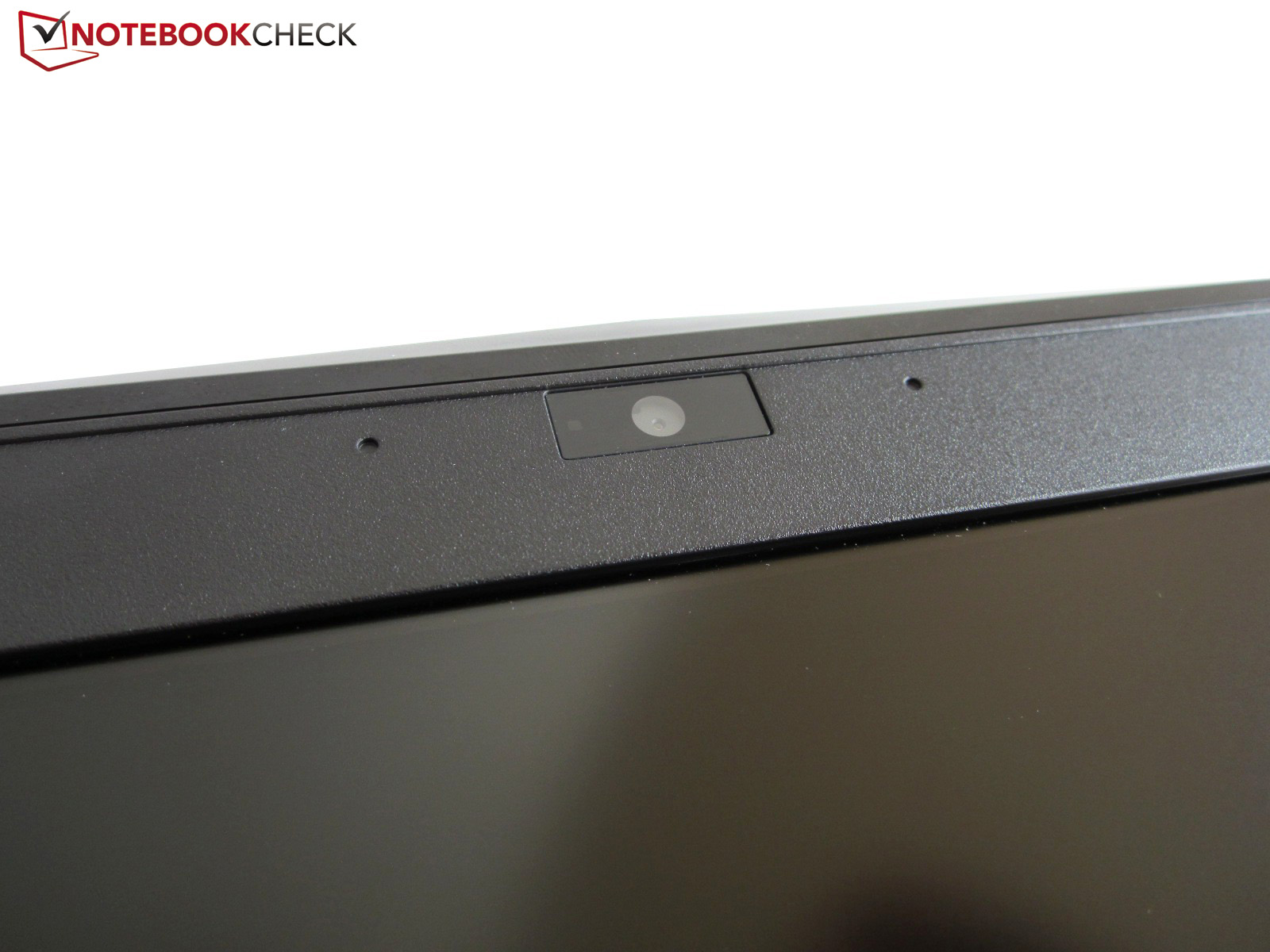

Webcam: 全高清 (30 fps @ 1080p)

Additional features

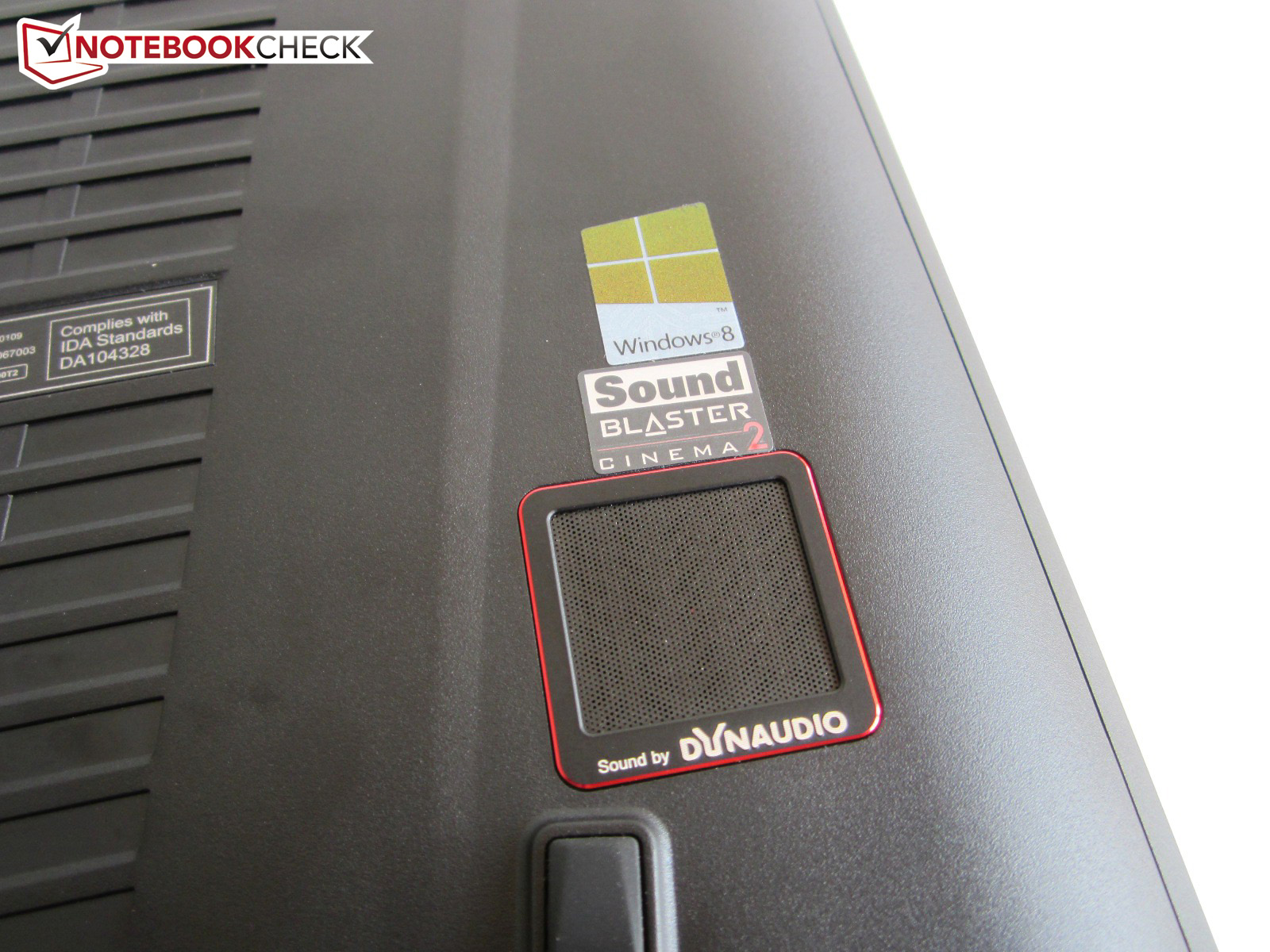

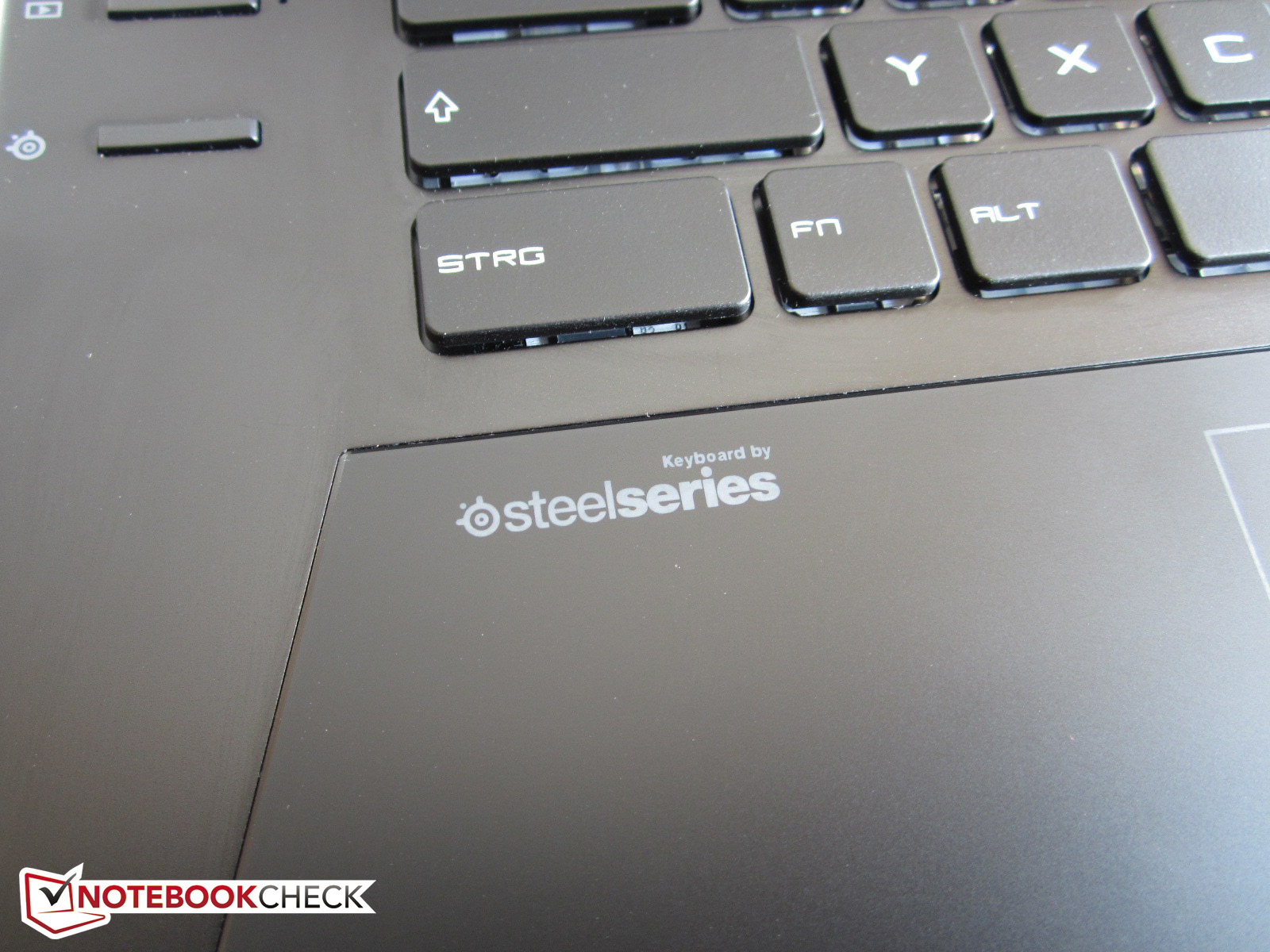

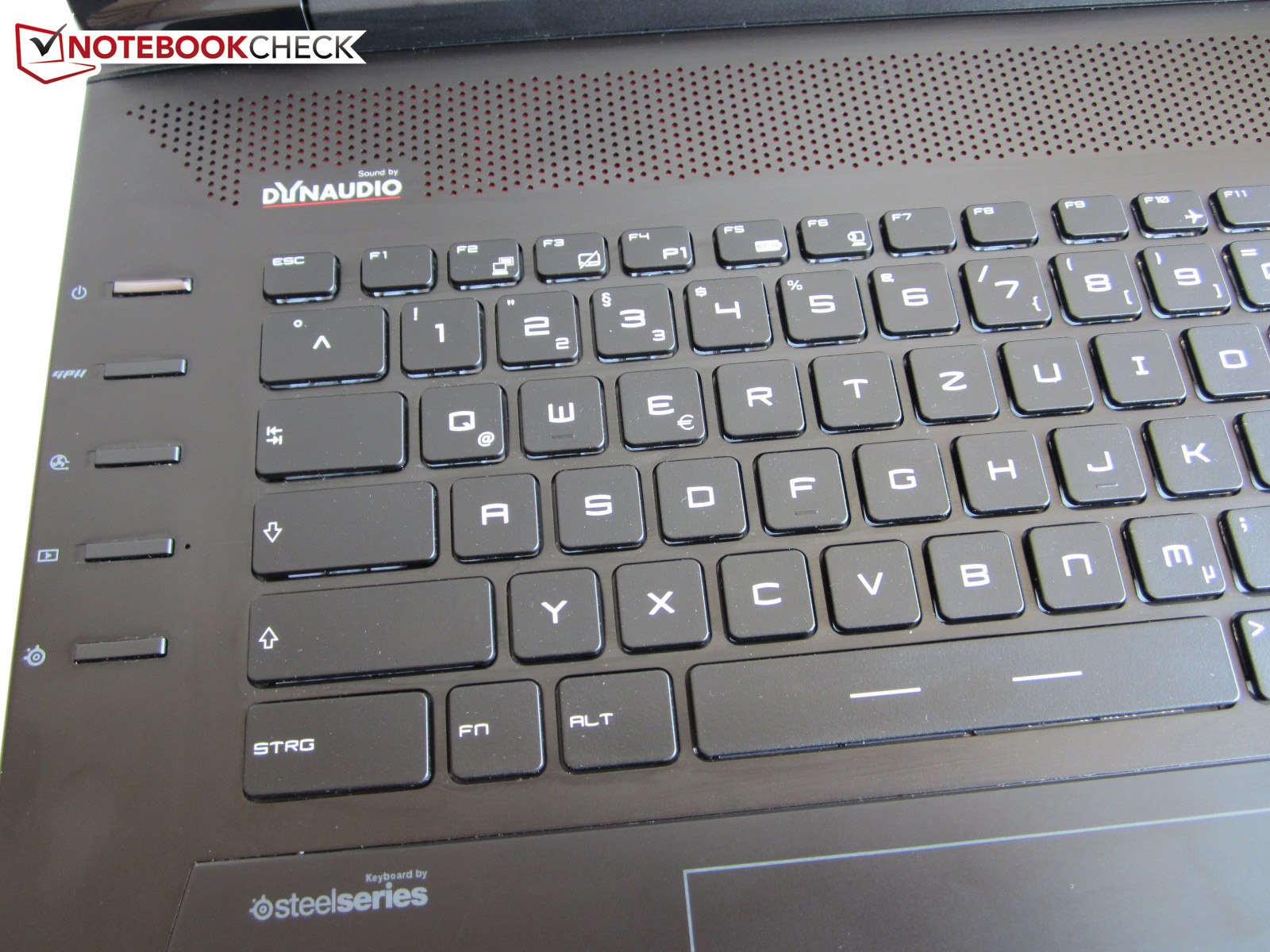

Speakers: 2.1 (Dynaudio, Sound Blaster Cinema 2), Keyboard: SteelSeries设计的孤岛式键盘, Keyboard Light: yes, 电源适配器: 230 W, 质保单, 快速开始说明, 恢复盘, 清洁布, 特别配件: 包, 键盘膜, 鼠标垫, SteelSeries Kinzu v2 鼠标, SteelSeries Siberia v2 耳机，两个挂牌, Software: CyberLink PowerDVD 10, Magix MX Suite, Norton Security 套装, Microsoft Office 365 试用, Windows Essentials 2012, 许多生产商工具软件, 24 Months Warranty

Weight

3.79 kg, Power Supply: 780 g

Price

2700 Euro

Links

MSI homepage
MSI notebook section

Devices with the same GPU

技嘉 P25X v2 笔记本电脑简短评测
GeForce GTX 880M, Core i7 4810MQ, 15.60", 2.81 kg

Devices with Same Screen Size and/or Weight

微星 Vector 16 HX 笔记本电脑评测：泰坦性能而非泰坦价格
NVIDIA GeForce RTX 4080 Laptop GPU, Raptor Lake-HX i9-14900HX, 16.00", 2.657 kg

微星 Titan 18 HX A14VIG 笔记本电脑评测：龙年
NVIDIA GeForce RTX 4090 Laptop GPU, Raptor Lake-HX i9-14900HX, 18.00", 3.632 kg

微星 Stealth 16 Mercedes-AMG Motorsport 笔记本电脑评测：配备 OLED 显示屏的移动赛车
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i9-13900H, 16.00", 1.9 kg

微星 Raider GE68 HX 13VF 笔记本电脑评测：彻底改变设计
NVIDIA GeForce RTX 4060 Laptop GPU, Raptor Lake-HX i9-13950HX, 16.00", 2.701 kg

微星Stealth 16 Studio笔记本电脑回顾：为游戏玩家和创作者提供的极轻、16英寸、Core i7、RTX 4070设备
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i7-13700H, 16.00", 2.017 kg

微星Pulse 17 B13V游戏笔记本评测：拥有安静的翅膀
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i7-13700H, 17.30", 2.7 kg

Pros
+	优秀的可维护性
+	清凉的掌托
+	出色的性能
+	四个M.2固态硬盘的位置
+	高存储容量
+	铝合金屏幕上盖
+	许多接口
+	三区域背光
+	许多配件
+	不错的设计
+	优秀的音效
Cons
-	Nvidia预装驱动显示问题(333.11)
-	手动显卡切换需要重启
-	WLAN信号接收较差
-	TN平板的常见缺点
-	易沾染灰尘
-	机身十分厚重
-	无法更换电池
-	非常高的售价
