联想ThinkPad T16 G2评测:安静的办公笔记本电脑,超长的电池续航时间
这款经典商务车型的最新版本以成熟的平台为基础:无论是外观还是内部结构,与前代产品相比几乎没有任何变化 ThinkPad T16 G1.几乎只有 CPU 进行了更新,从 Alder Lake 到 Raptor Lake。竞争对手是像 宏碁 TravelMate P4,三星 三星Galaxy Book3 Pro 16和 HP EliteBook 865 G9.

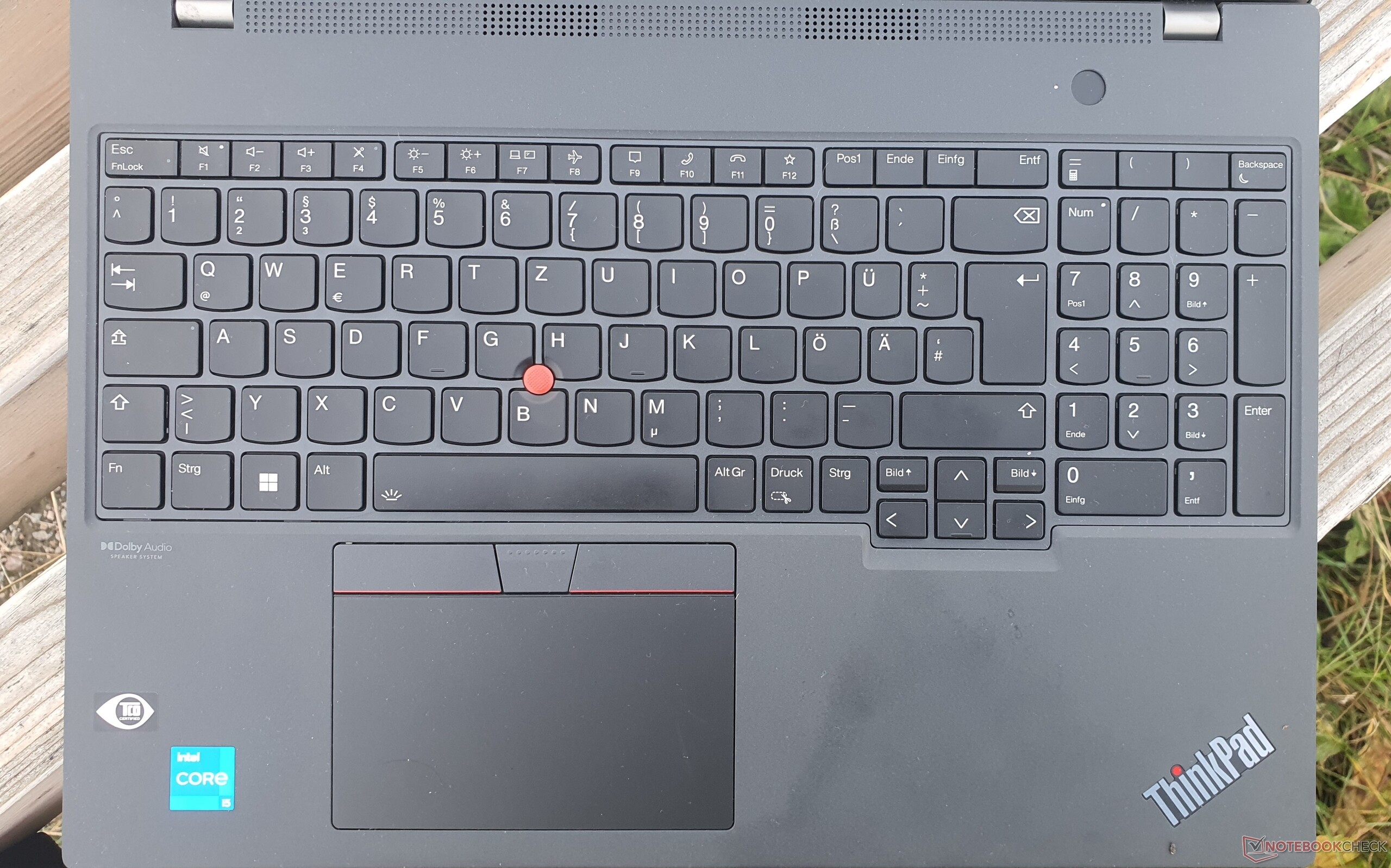

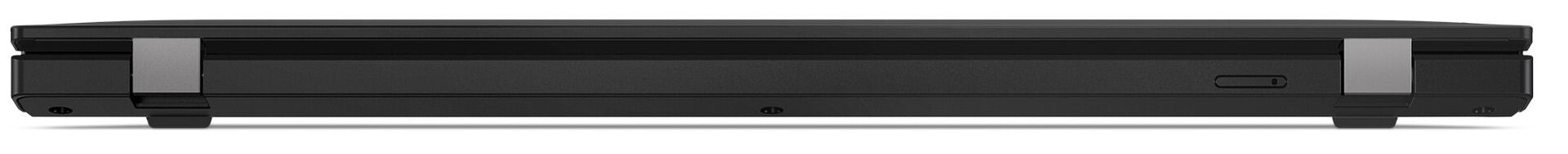

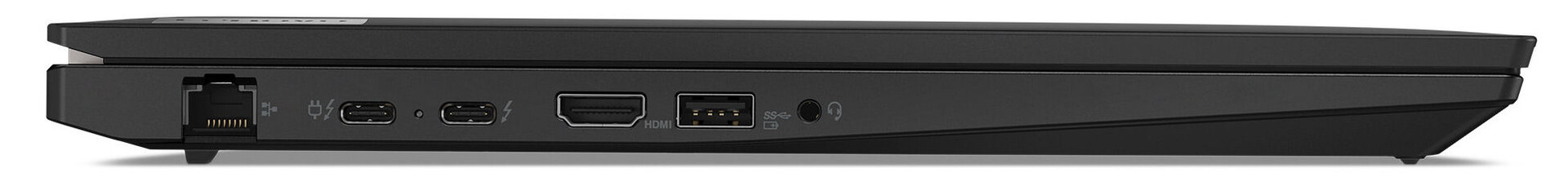

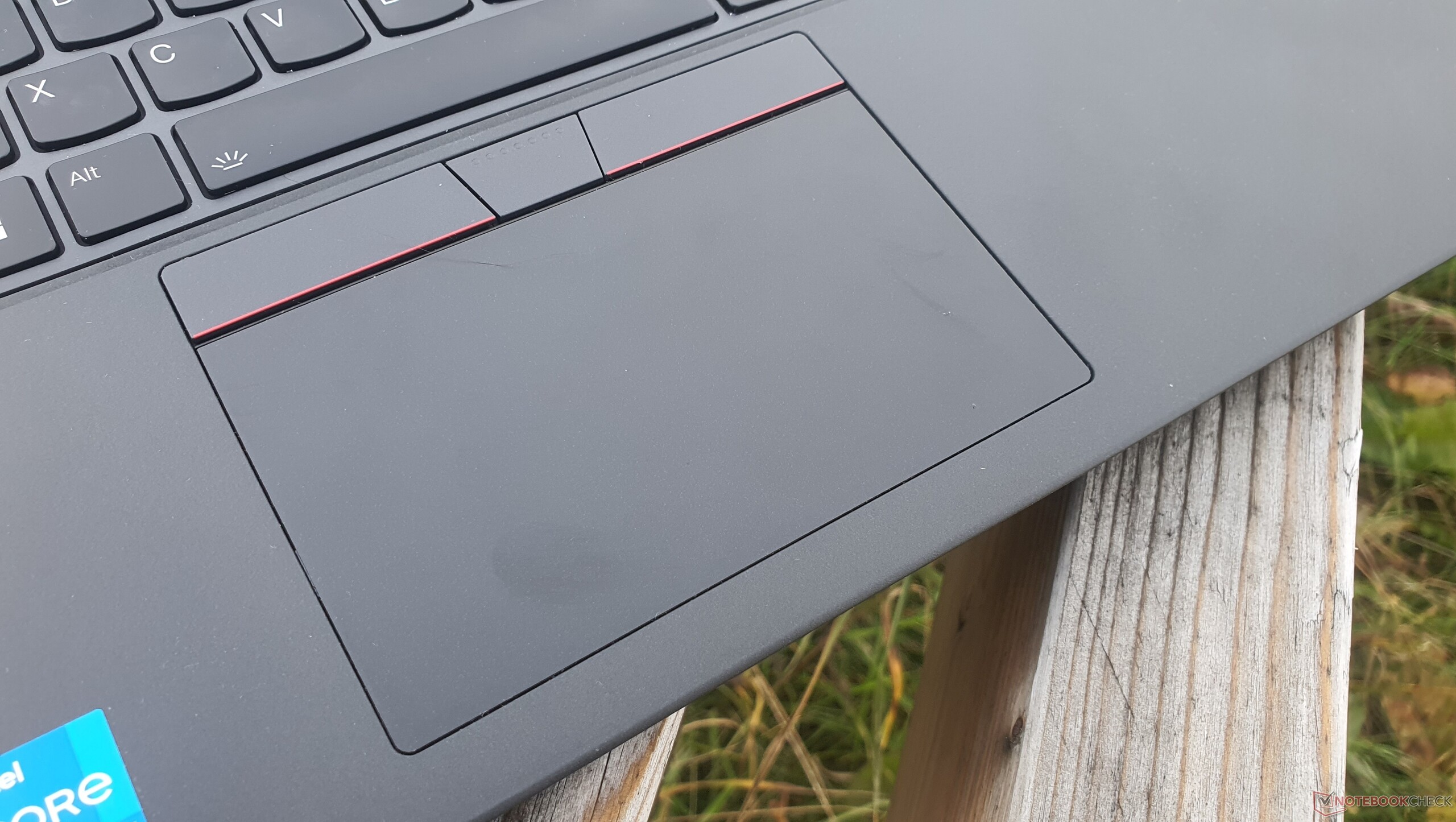

有关机箱、连接和输入设备的信息,请参阅有关ThinkPad T16 G1.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
90 % | 08/2023 | Lenovo ThinkPad T16 G2 21HH003AGE i7-1355U, Iris Xe G7 96EUs | 1.8 kg | 20.5 mm | 16.00" | 1920x1200 | |
86 % | 04/2023 | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs | 1.6 kg | 18.5 mm | 16.00" | 1920x1200 | |
87.2 % | 12/2022 | HP EliteBook 865 G9 R7 PRO 6850U, Radeon 680M | 1.9 kg | 19 mm | 16.00" | 1920x1200 | |
85.6 % | 05/2023 | Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs | 1.6 kg | 12.5 mm | 16.00" | 2880x1800 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
显示屏 - 16:10、低功耗、明亮
联想为 ThinkPad T16 Gen 2 配备了一块 16:10 的哑光低功耗显示屏(16 英寸,1,920 x 1,200)。该面板的优点是没有 PWM,对比度好,屏幕亮度相对较高。
T16 G2 有四种屏幕可供选择。最有趣的似乎是可选的 OLED 屏幕,与其他显示屏相比,它具有更高的分辨率(3,840 x 2,160)、更好的黑色值和更大的色域覆盖范围。
|
Brightness Distribution: 86 %
Center on Battery: 446 cd/m²
Contrast: 1394:1 (Black: 0.32 cd/m²)
ΔE Color 1.5 | 0.5-29.43 Ø5, calibrated: 1
ΔE Greyscale 1.6 | 0.57-98 Ø5.3
69.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.9% sRGB (Argyll 2.2.0 3D)
67% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo ThinkPad T16 G2 21HH003AGE Lenovo MNG007JA1-2, IPS, 1920x1200, 16.00 | Acer TravelMate P4 TMP416-51-55KN BOE BOE0A32, IPS, 1920x1200, 16.00 | HP EliteBook 865 G9 X160NV42, IPS, 1920x1200, 16.00 | Samsung Galaxy Book3 Pro 16 Samsung ATNA60CL03-0, AMOLED, 2880x1800, 16.00 | Lenovo ThinkPad T16 G1 21CH004MGE MNG007DA1-C, IPS-LED, 2560x1600, 16.00 | Lenovo ThinkPad T16 G1 21BWS00200 B160UAN01.K, IPS, 1920x1200, 16.00 | |
---|---|---|---|---|---|---|
Display | -41% | 5% | 31% | -0% | 13% | |
Display P3 Coverage | 67 | 38.9 -42% | 71.4 7% | 99.7 49% | 66.7 0% | 80.1 20% |
sRGB Coverage | 96.9 | 58.1 -40% | 99.3 2% | 100 3% | 95.7 -1% | 100 3% |
AdobeRGB 1998 Coverage | 69.3 | 40.2 -42% | 73.2 6% | 97 40% | 69.1 0% | 80.5 16% |
Response Times | 46% | -15% | 92% | 3% | 16% | |
Response Time Grey 50% / Grey 80% * | 32 ? | 20 ? 37% | 35.5 ? -11% | 2 ? 94% | 32.1 ? -0% | 27 ? 16% |
Response Time Black / White * | 20 ? | 9 ? 55% | 23.5 ? -18% | 2 ? 90% | 18.9 ? 5% | 17 ? 15% |
PWM Frequency | 56.7 | |||||
Screen | -124% | -15% | 177% | -15% | -85% | |
Brightness middle | 446 | 269 -40% | 865 94% | 412 -8% | 417 -7% | 404 -9% |
Brightness | 414 | 265 -36% | 771 86% | 412 0% | 388 -6% | 391 -6% |
Brightness Distribution | 86 | 94 9% | 72 -16% | 98 14% | 81 -6% | 80 -7% |
Black Level * | 0.32 | 0.305 5% | 0.3 6% | 0.015 95% | 0.24 25% | 0.29 9% |
Contrast | 1394 | 882 -37% | 2883 107% | 27467 1870% | 1738 25% | 1393 0% |
Colorchecker dE 2000 * | 1.5 | 4.89 -226% | 2.4 -60% | 2.34 -56% | 1.7 -13% | 3.9 -160% |
Colorchecker dE 2000 max. * | 2.2 | 8.81 -300% | 5.8 -164% | 3.34 -52% | 3.5 -59% | 8.5 -286% |
Colorchecker dE 2000 calibrated * | 1 | 5.12 -412% | 1.5 -50% | 2.95 -195% | 1.4 -40% | 1.7 -70% |
Greyscale dE 2000 * | 1.6 | 2.91 -82% | 3.8 -138% | 2.78 -74% | 2.4 -50% | 5.4 -238% |
Gamma | 2.24 98% | 2.28 96% | 2.36 93% | 2.5 88% | 2.16 102% | 2.21 100% |
CCT | 6482 100% | 6920 94% | 6922 94% | 6879 94% | 6924 94% | 6242 104% |
Total Average (Program / Settings) | -40% /
-82% | -8% /
-11% | 100% /
134% | -4% /
-9% | -19% /
-50% |
* ... smaller is better

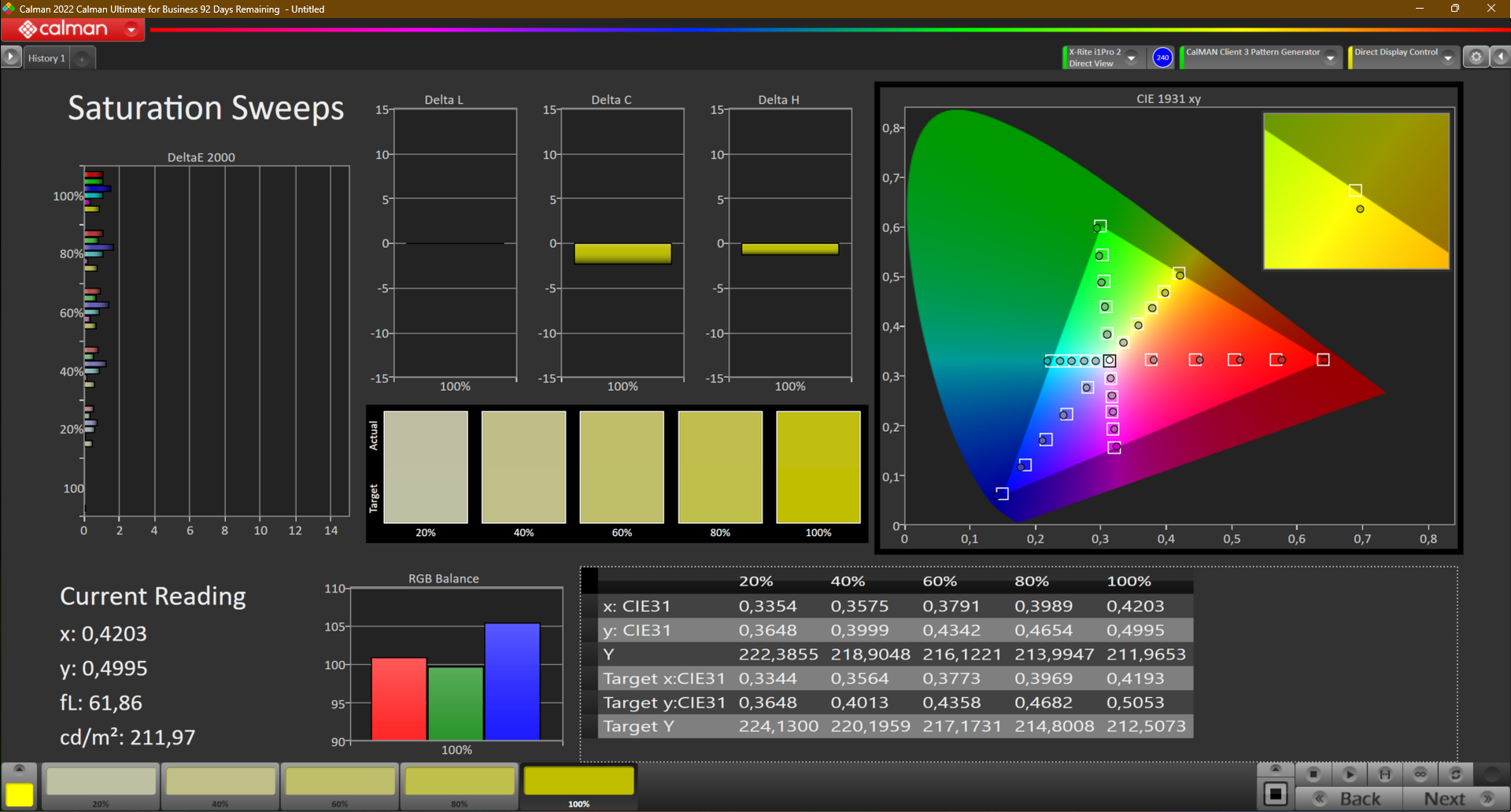

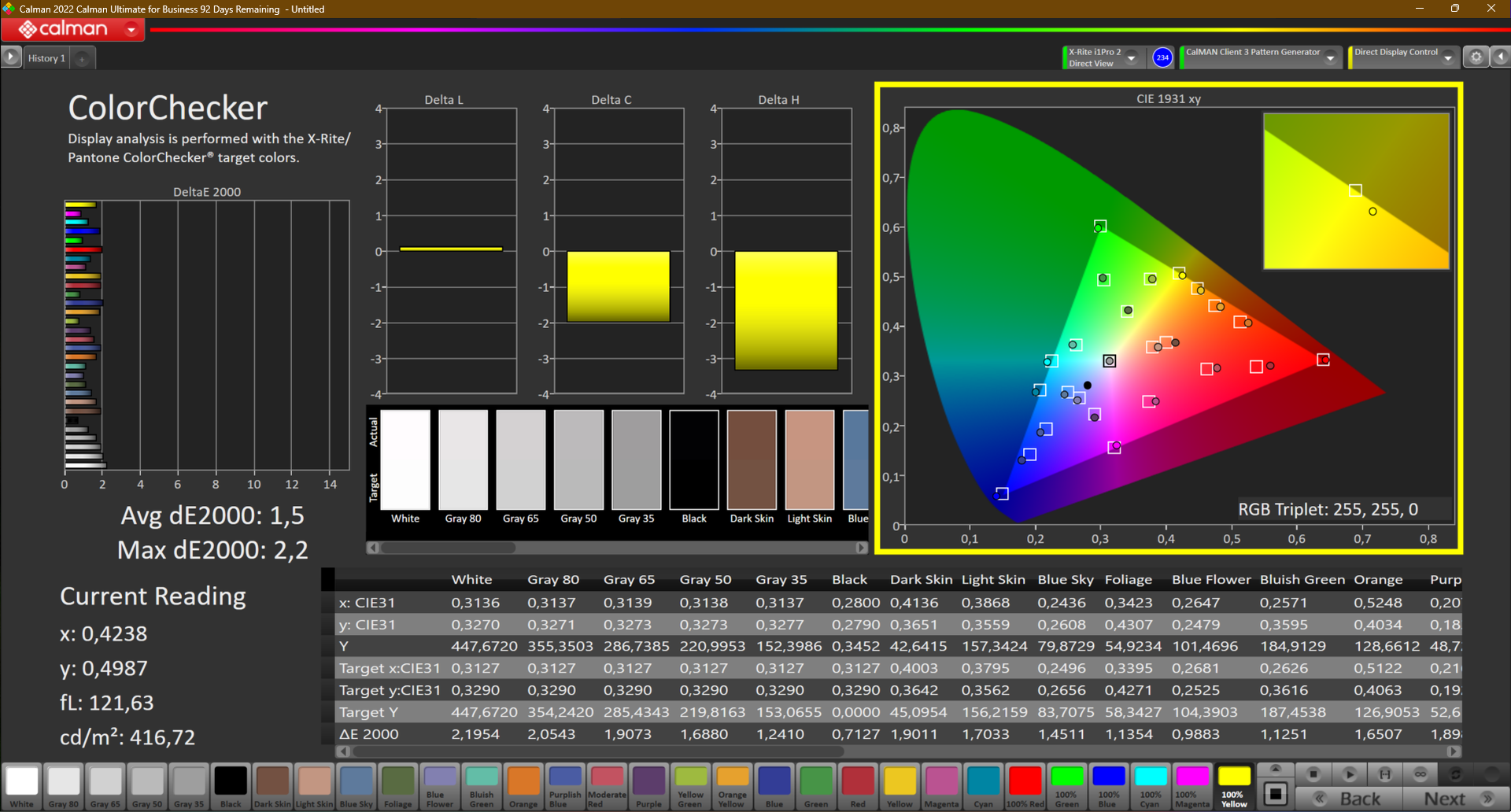

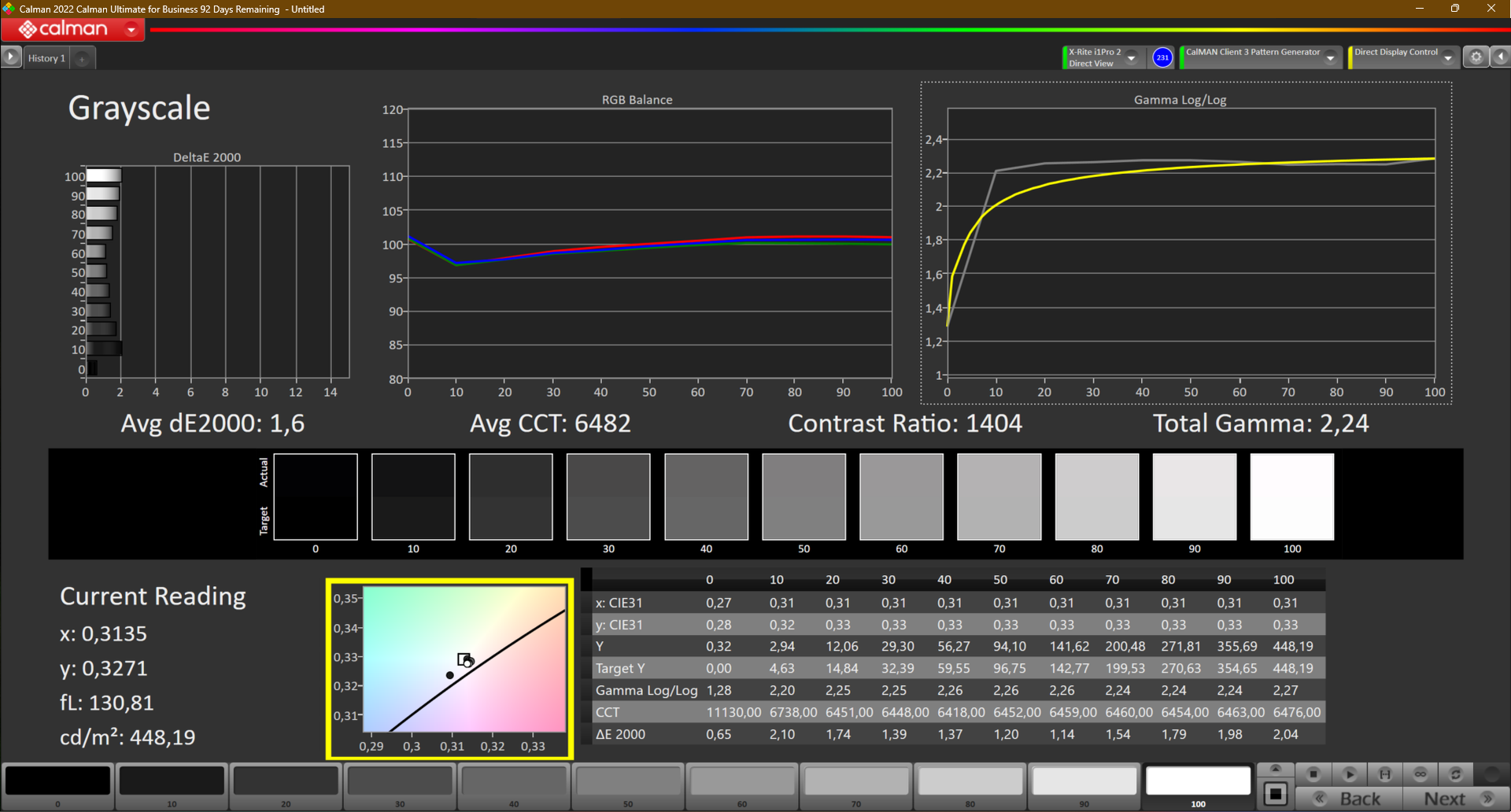

出厂时,屏幕显示出良好的色彩精确度:面板的 deltaE 值仅为 1.5,远低于临界值(deltaE < 3)。校准可将该值降至 1,并创建更均衡的灰度值。面板基本覆盖了 sRGB 色域,但没有覆盖更广的 AdobeRGB 或 DCI P3 色域。大多数竞争对手的情况也是如此。只有 Galaxy Book3 Pro覆盖了 DCI P3 色域。
我们创建的色彩配置文件可免费下载。上面灰色框中有链接。

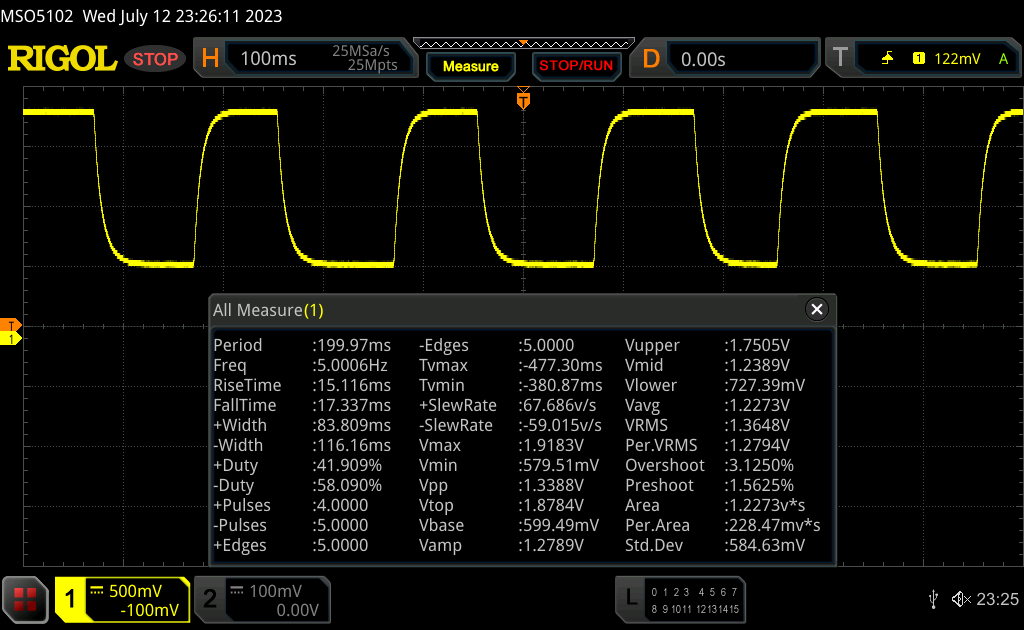

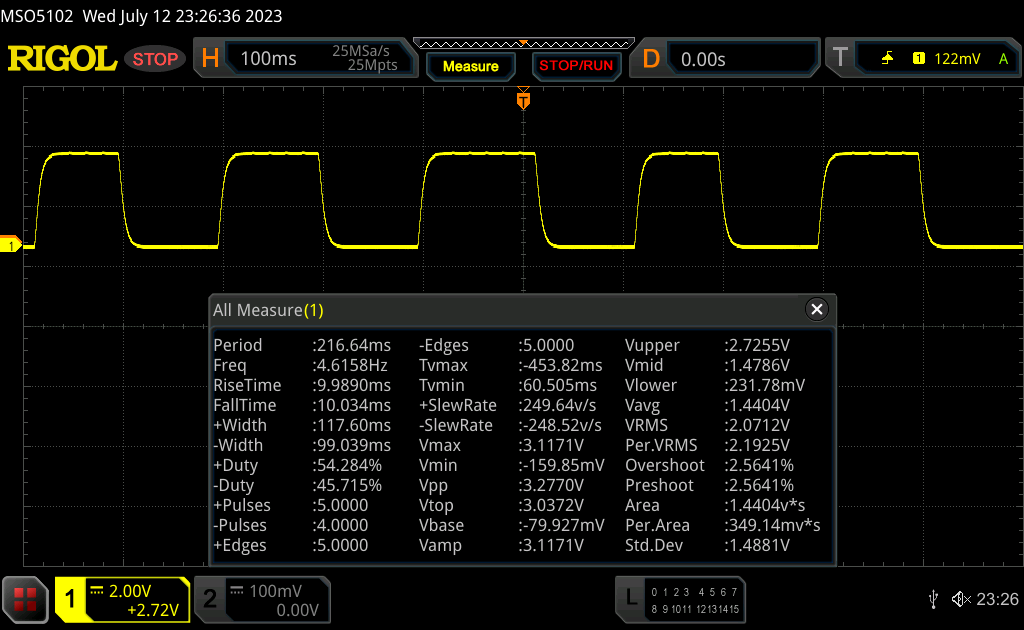

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
20 ms ... rise ↗ and fall ↘ combined | ↗ 10 ms rise | |
↘ 10 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 38 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.5 ms). | ||
↔ Response Time 50% Grey to 80% Grey | ||
32 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise | |
↘ 17 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 37 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.7 ms). |

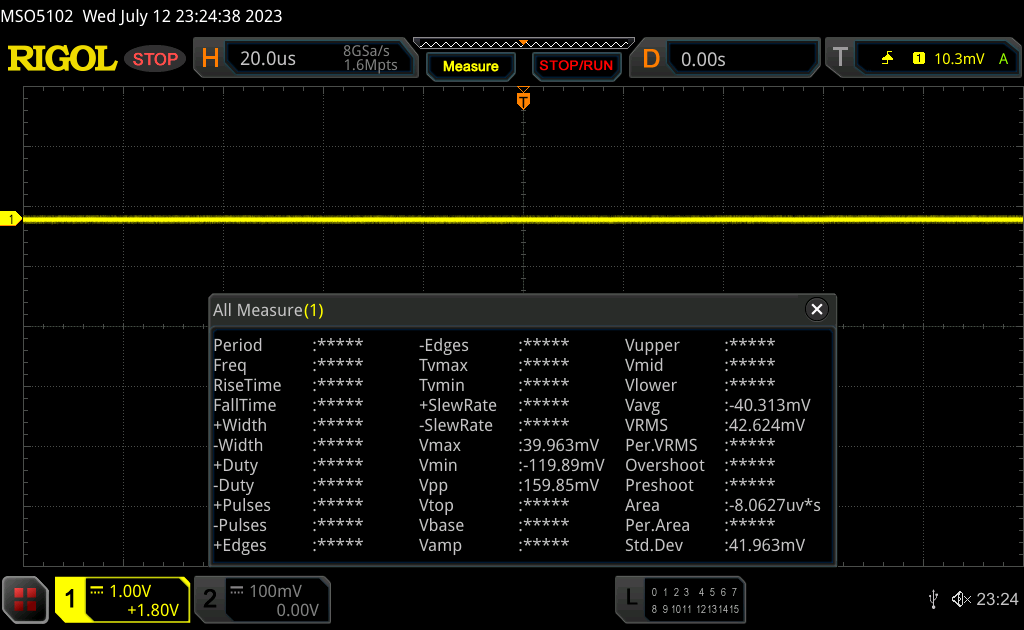

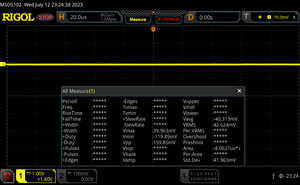

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17844 (minimum: 5 - maximum: 3846000) Hz was measured. |

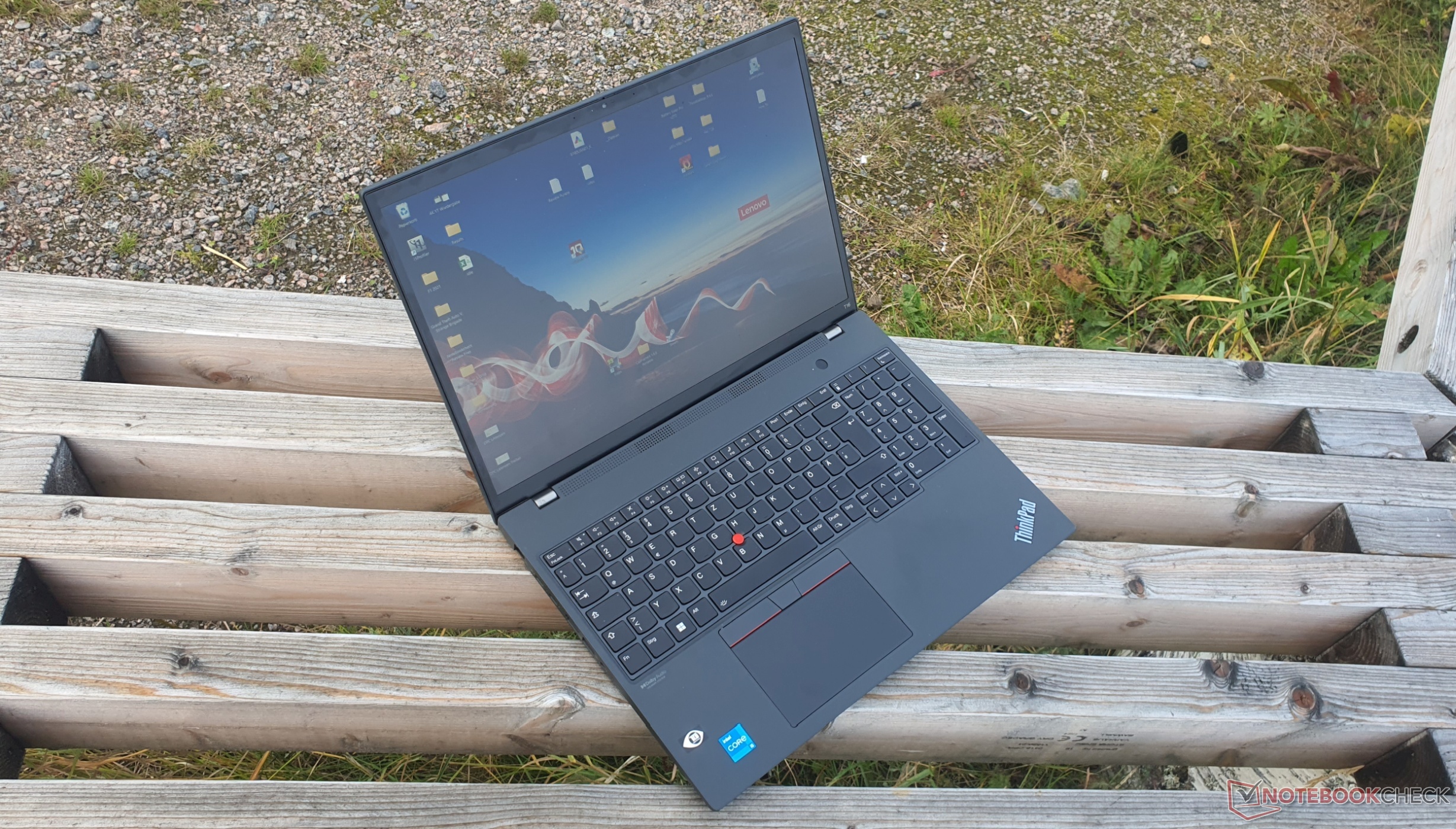

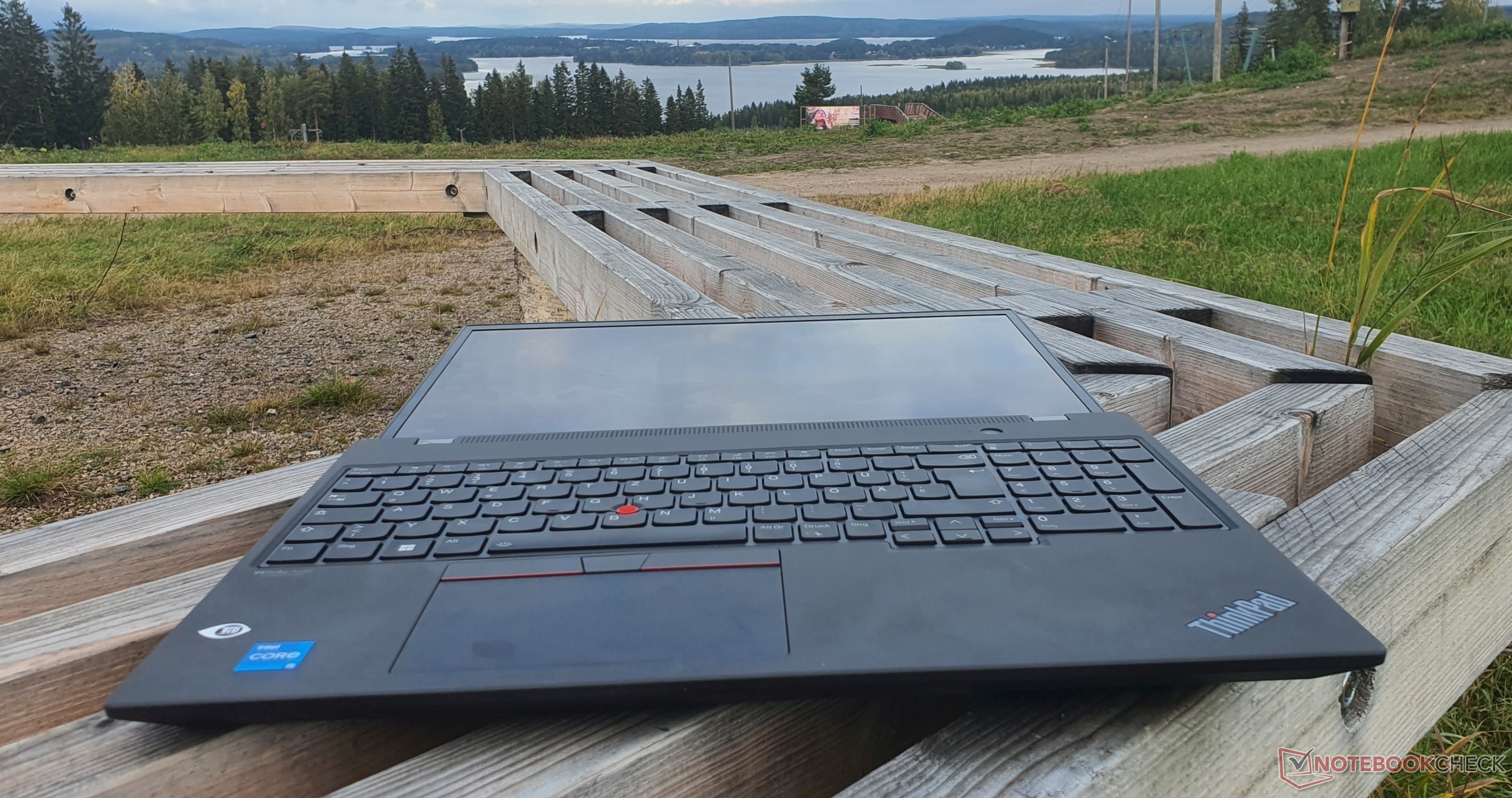

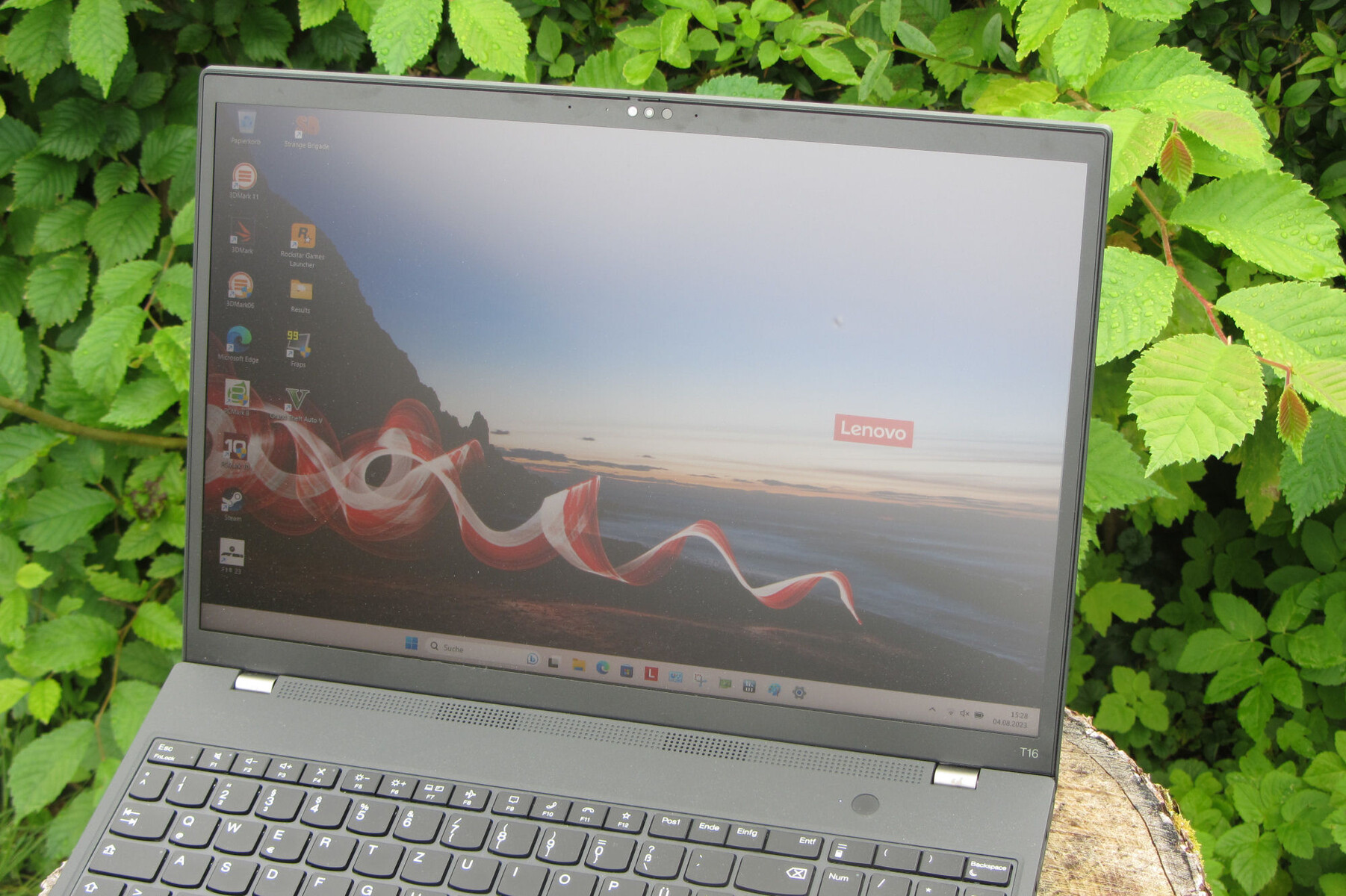

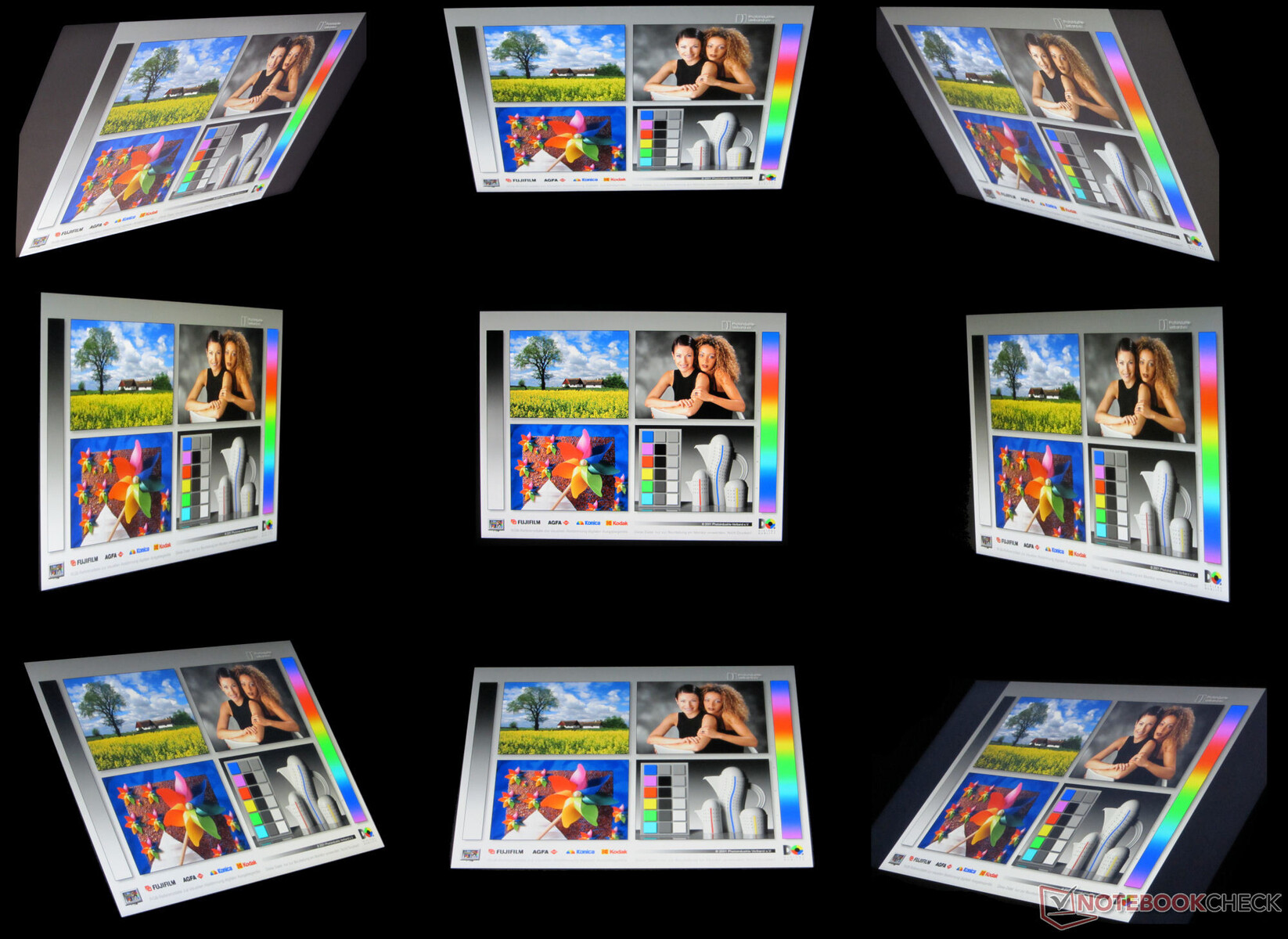

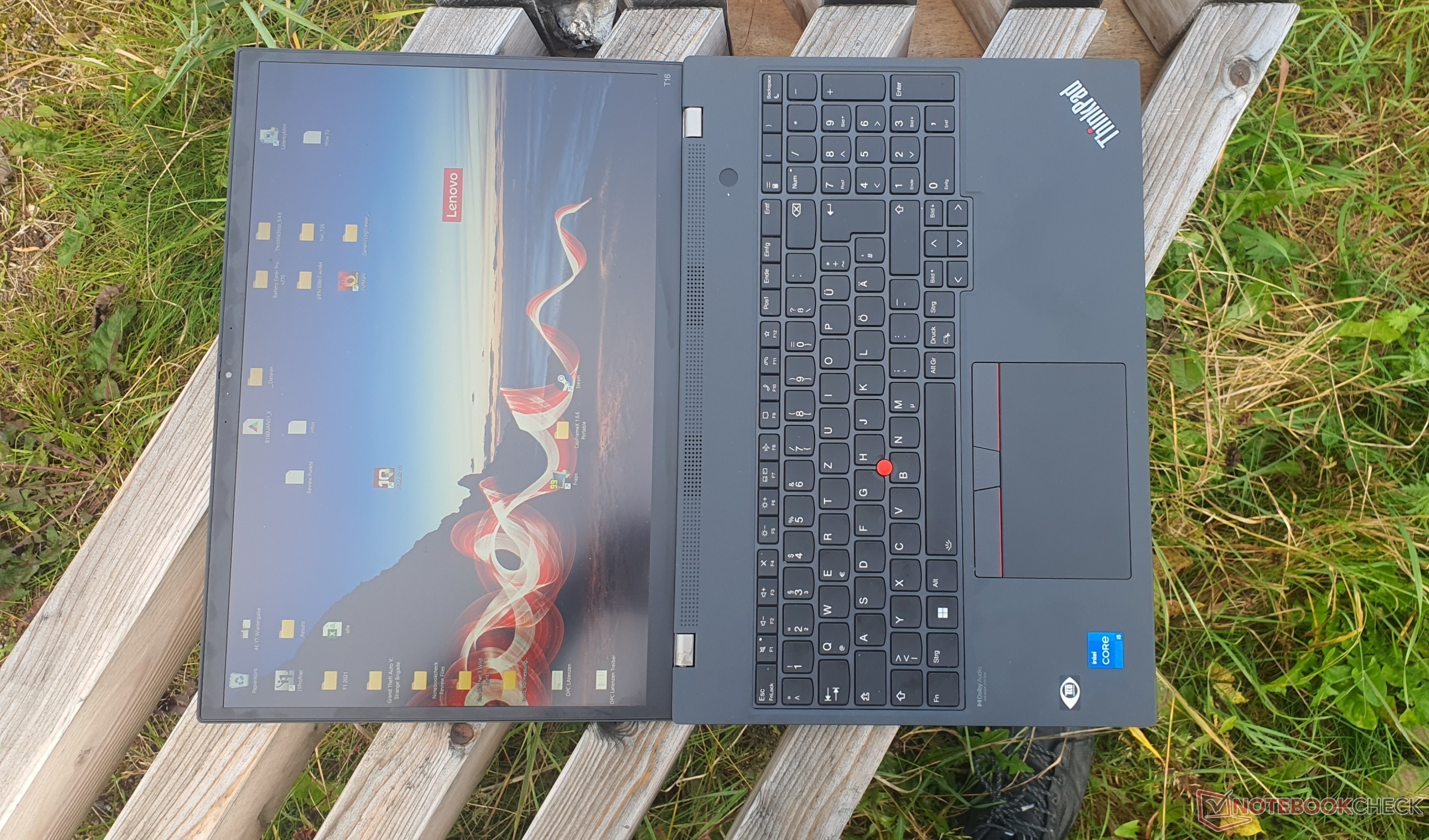

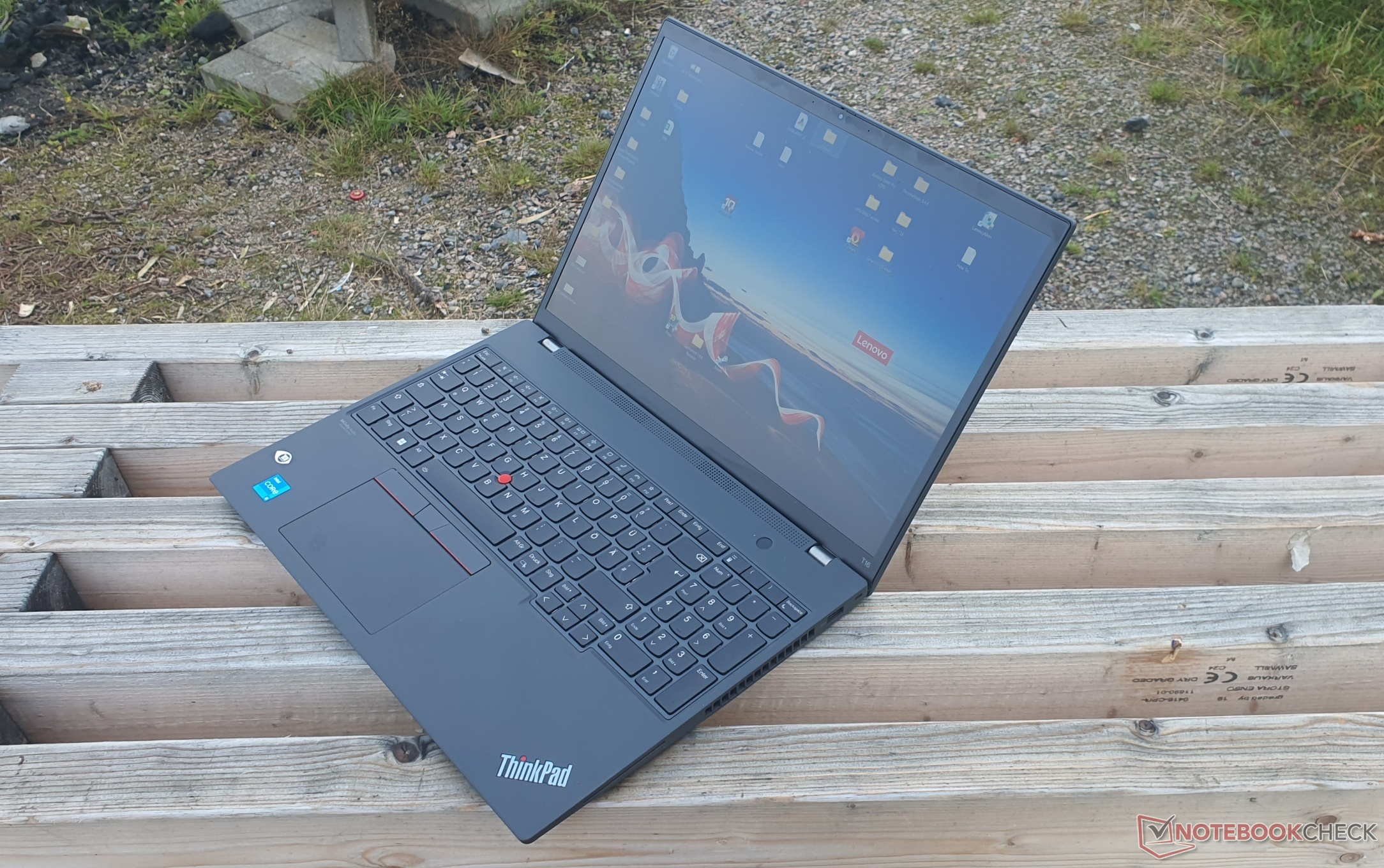

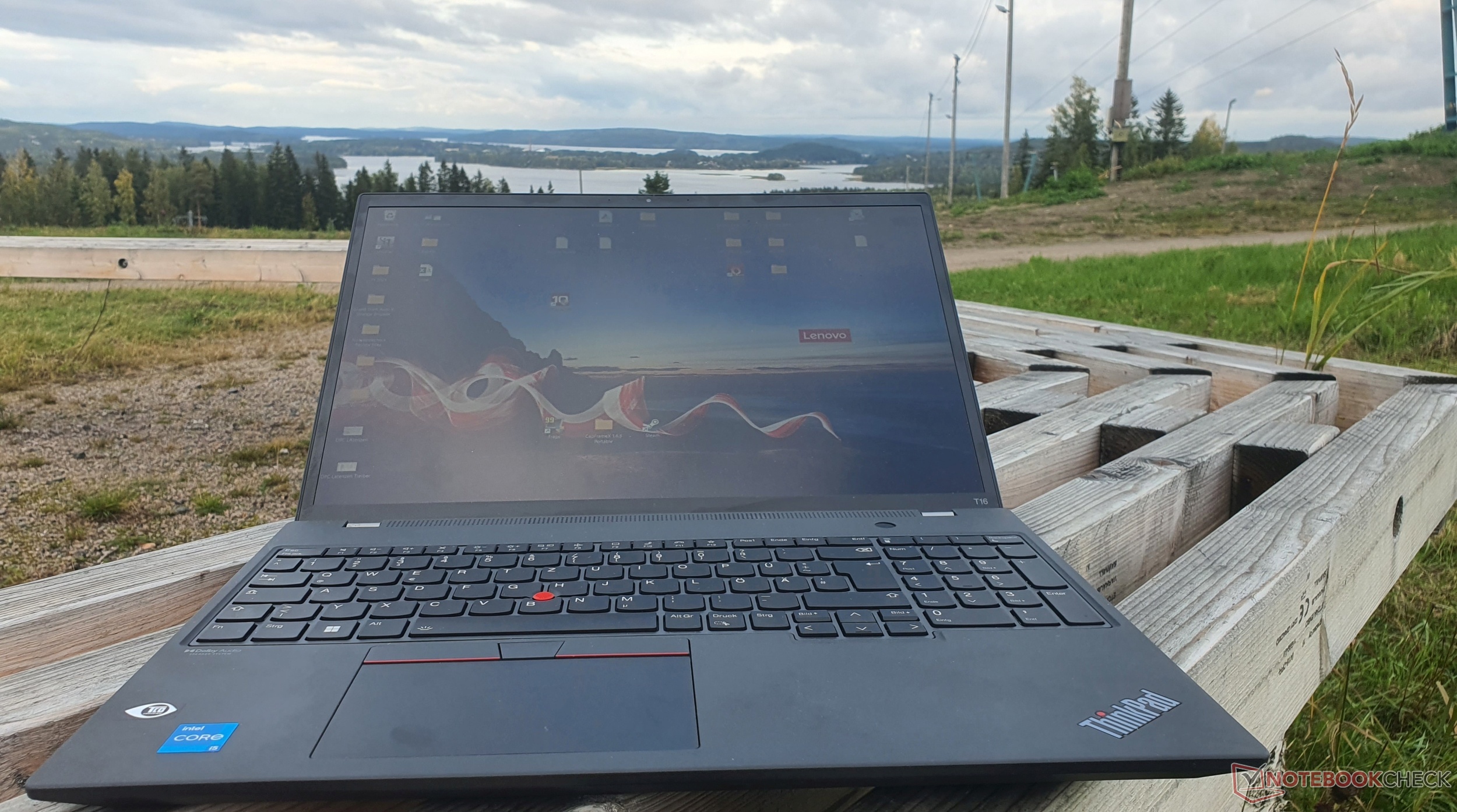

IPS 面板具有稳定的可视角度。如果阳光不直接照射到屏幕上,当然可以在户外使用。
性能 - 联想笔记本电脑采用 Raptor Lake 技术
联想继续推动双轨制,仍然在 ThinkPad T16 G2 中同时提供英特尔(Raptor Lake)和 AMD(Ryzen 7000)CPU--我们评测的是英特尔机型。在德国,英特尔机型的价格在 1,380 欧元到 2,200 欧元之间。本次评测的机型价格约为 1850 欧元,属于中端机型。
测试条件
联想 ThinkPad 使用 Windows 配置文件,而不是自己的能源配置文件。根据所选配置文件的不同,CPU/GPU 性能差异很大。我们使用了 "最佳性能 "配置文件(用于基准测试)和 "平衡 "配置文件(电池寿命)。
最佳性能 | 平衡 | 最佳电池寿命 | |
---|---|---|---|

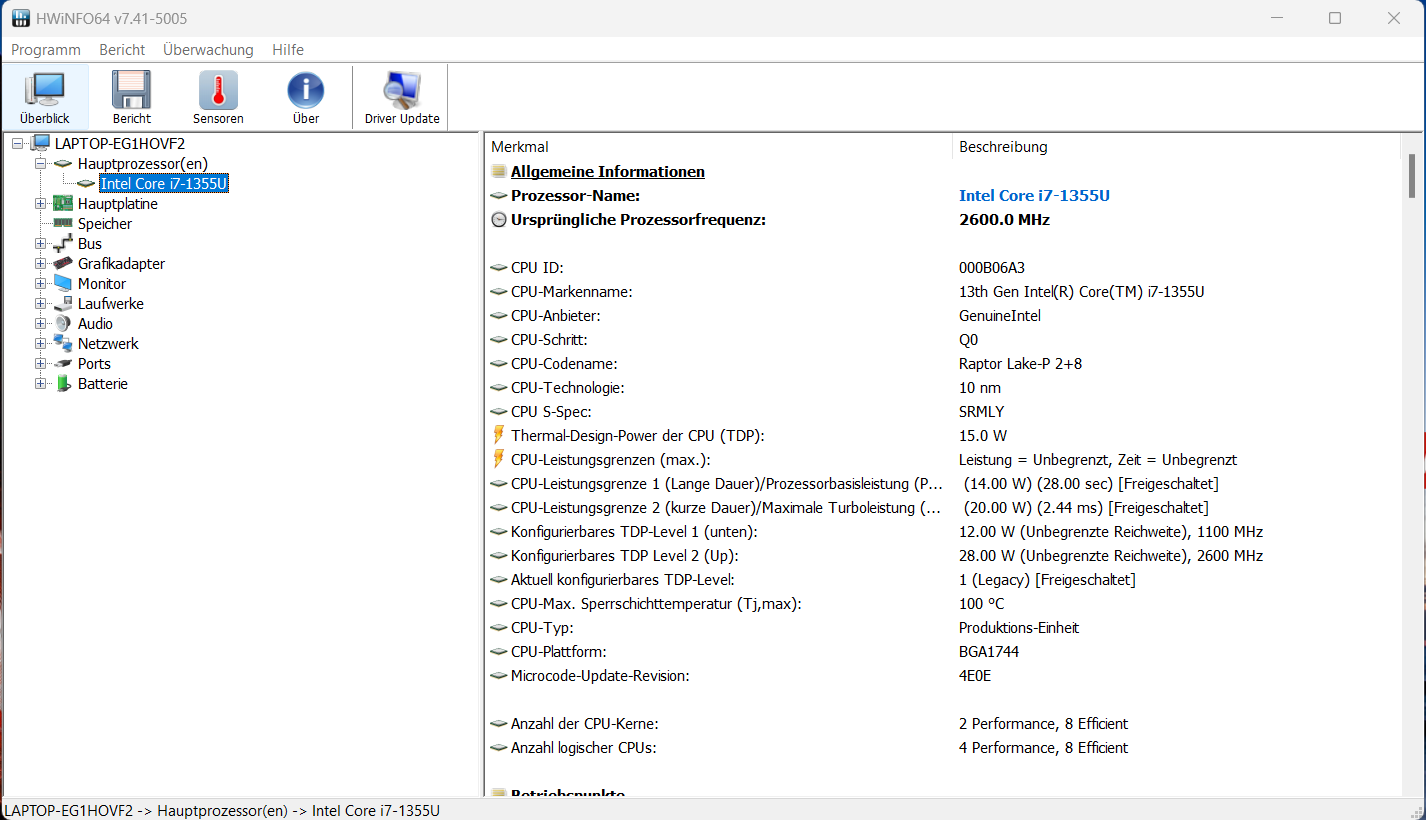

功率限制 1 (HWiNFO) | 45 瓦 | 14 瓦 | 11 瓦 |
功率极限 2 (HWiNFO) | 64 瓦 | 20 瓦 | 11 瓦 |
处理器

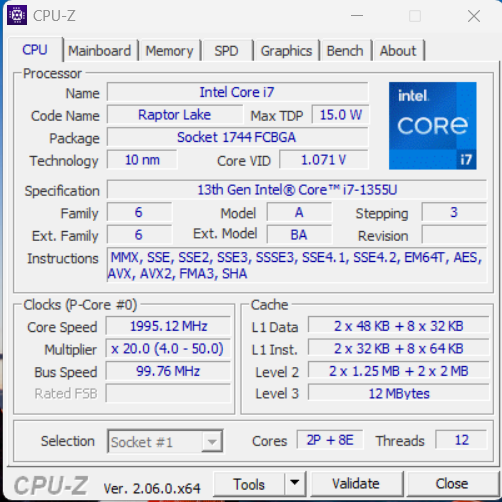

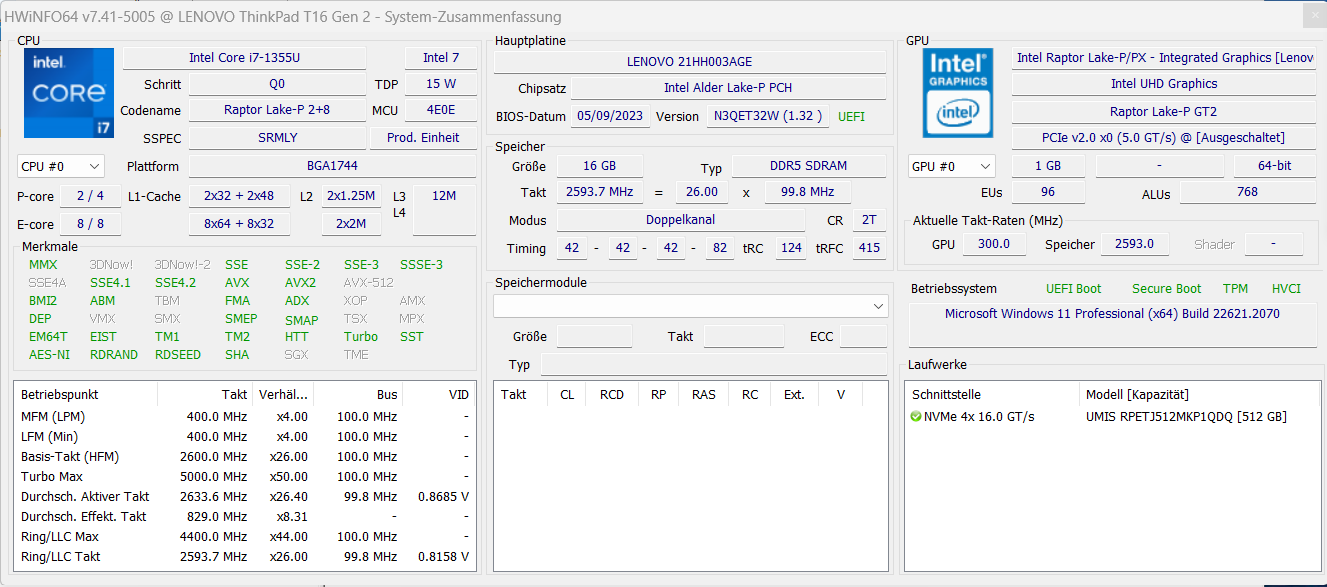

酷睿 i7-1355U酷睿 i7-1355U(Raptor Lake)使用两个性能内核(超线程,1.7 至 5 GHz)和八个效率内核(无超线程,1.2 至 3.7 GHz)。总共有 10 个 CPU 内核和 12 个线程。
三种能源配置文件对可用多核性能影响很大,而对日常使用影响较小的单核性能影响较小。"平衡 "的性能低于平均水平(多核),或正好达到平均水平(单核)。"最佳性能 "可提供高于平均水平的性能。
CPU 在电池或插电状态下的性能基本相同。只有在选择 "最佳性能 "配置文件时,电池寿命才会对性能产生影响,因为功率限制 1 设置为 27 W。
最佳性能 | 平衡 | 最佳电池寿命 | |
---|---|---|---|

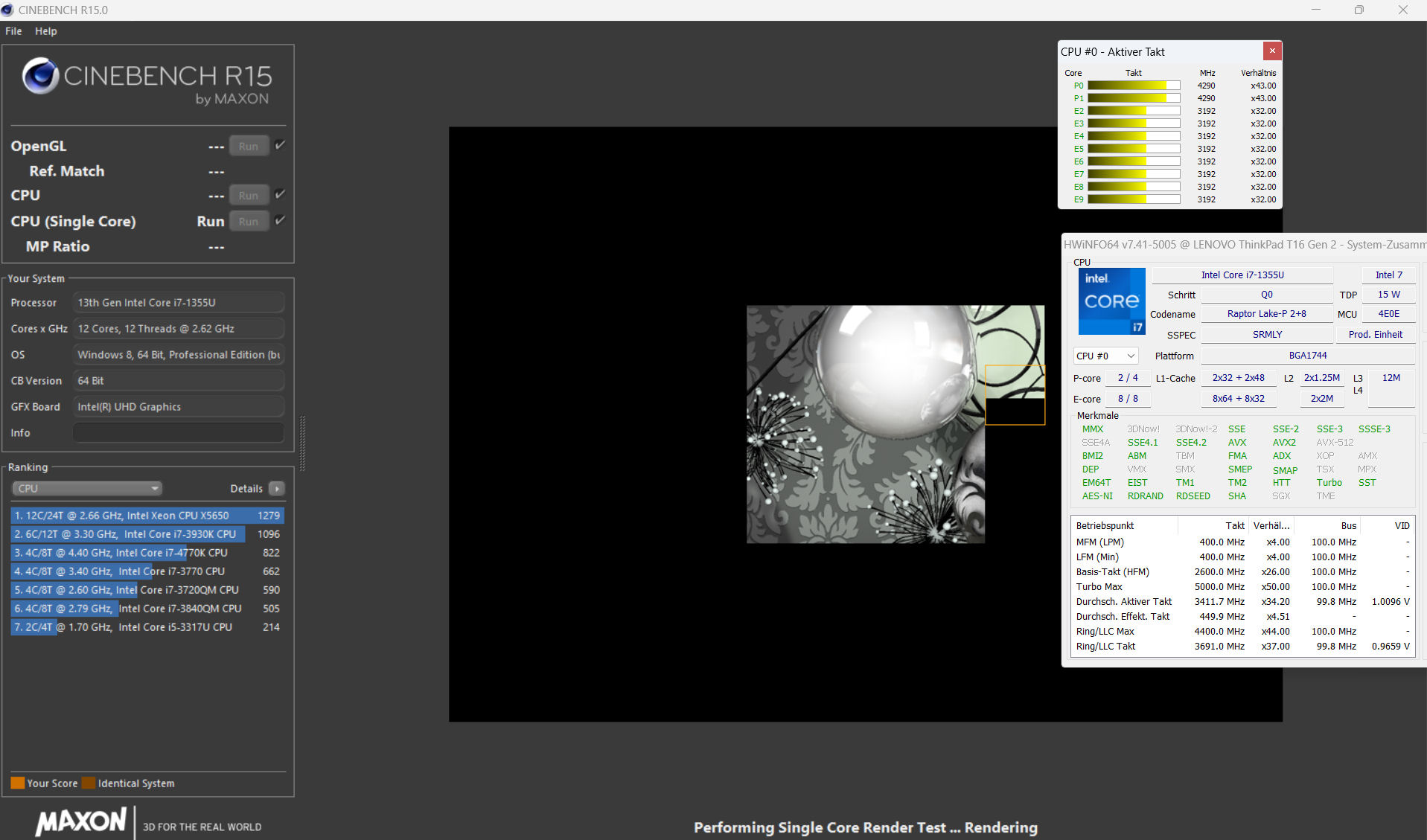

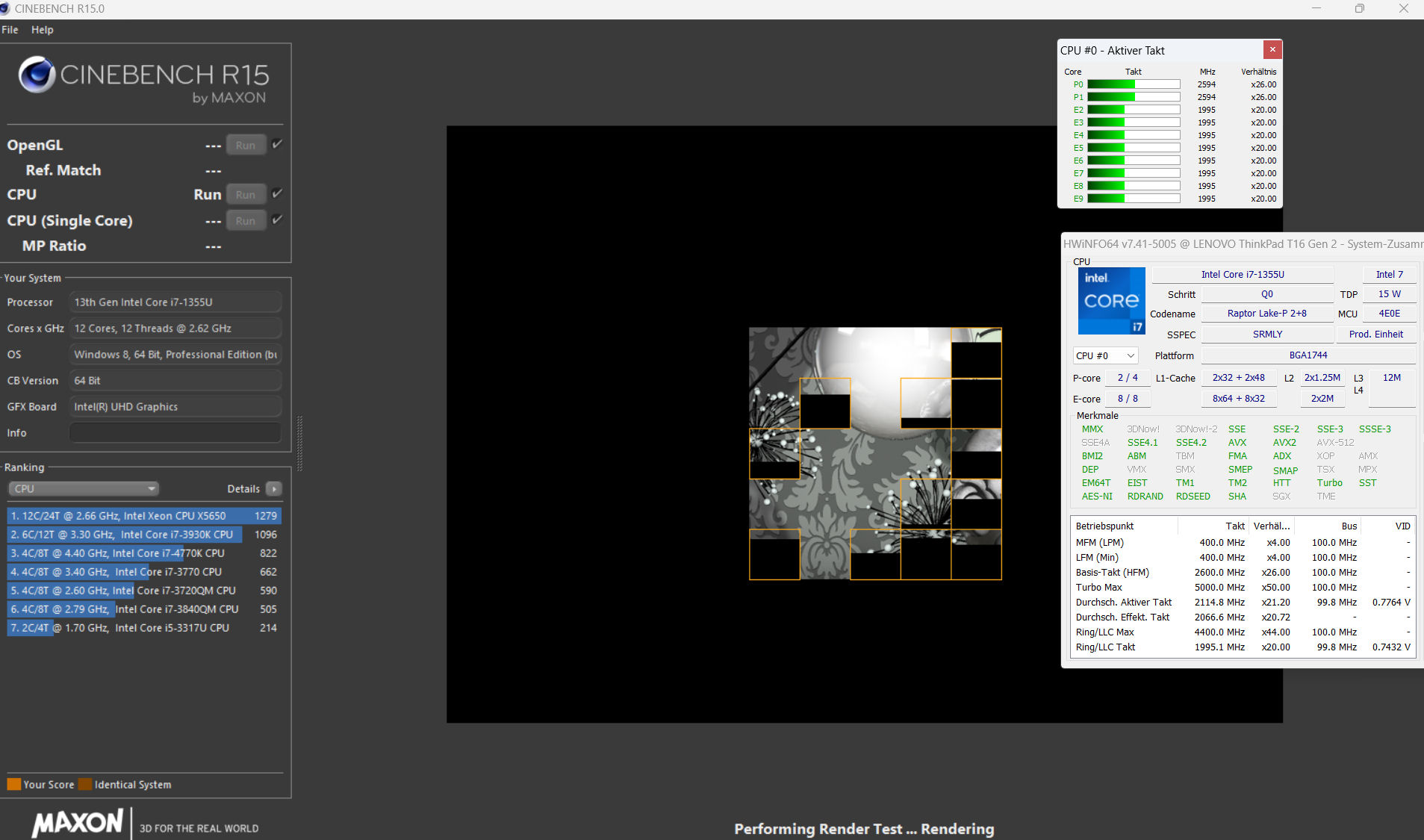

CB 15(多路) | 1.616 分/1.210 分 | 957 分 | 595 分 |
CB 15(单) | 257 分/248 分 | 228 分 | 202 分 |

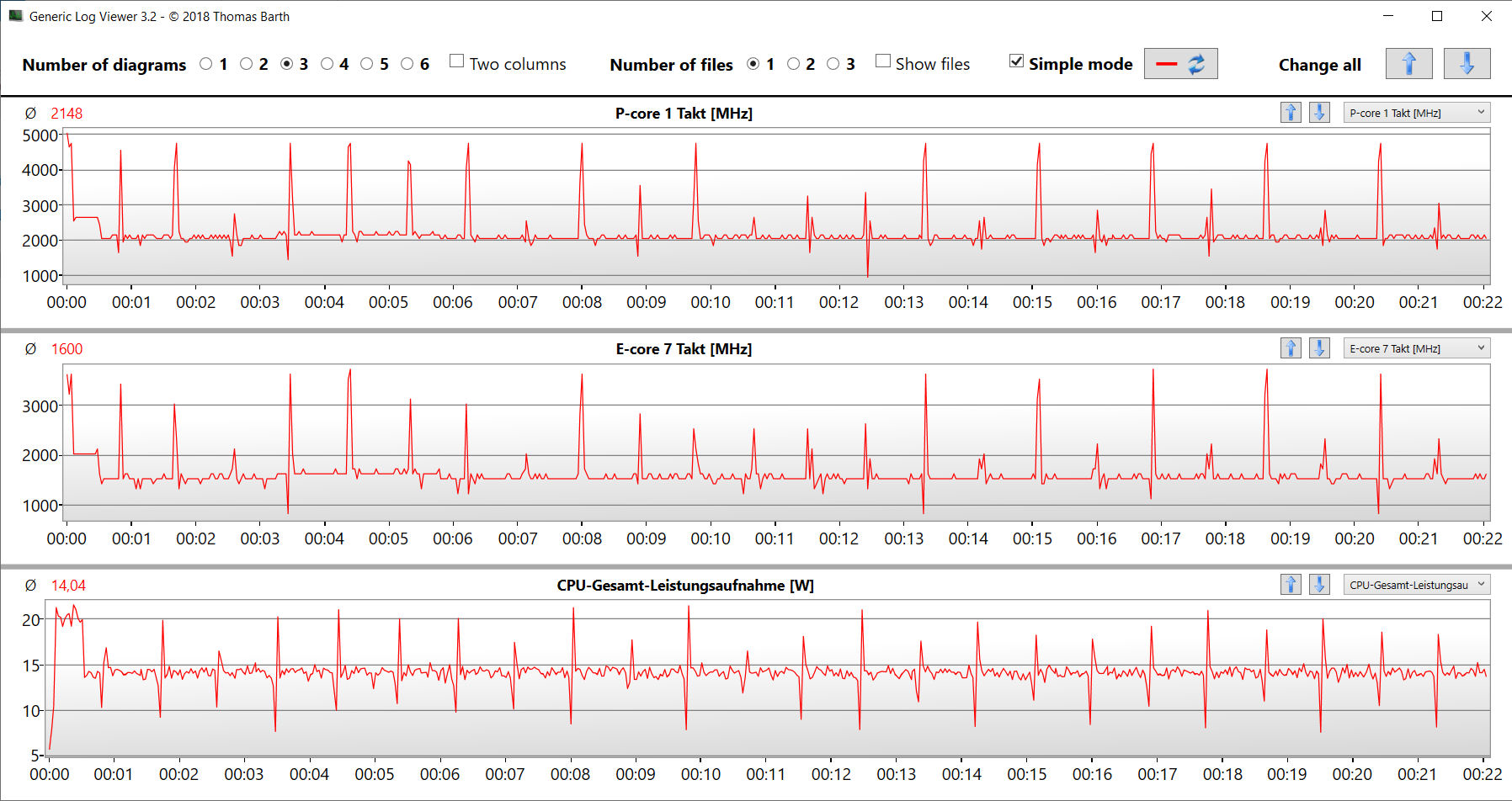

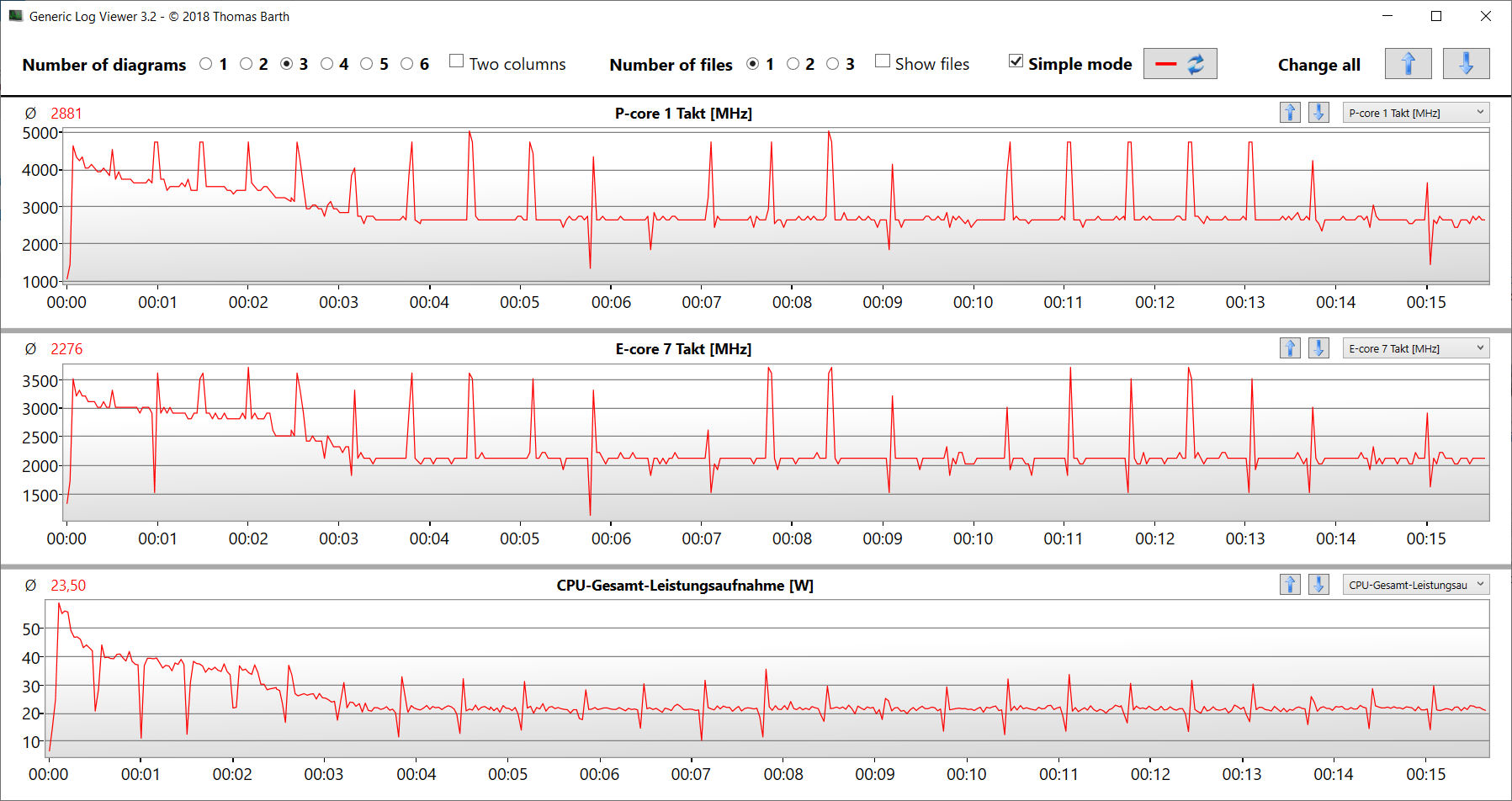

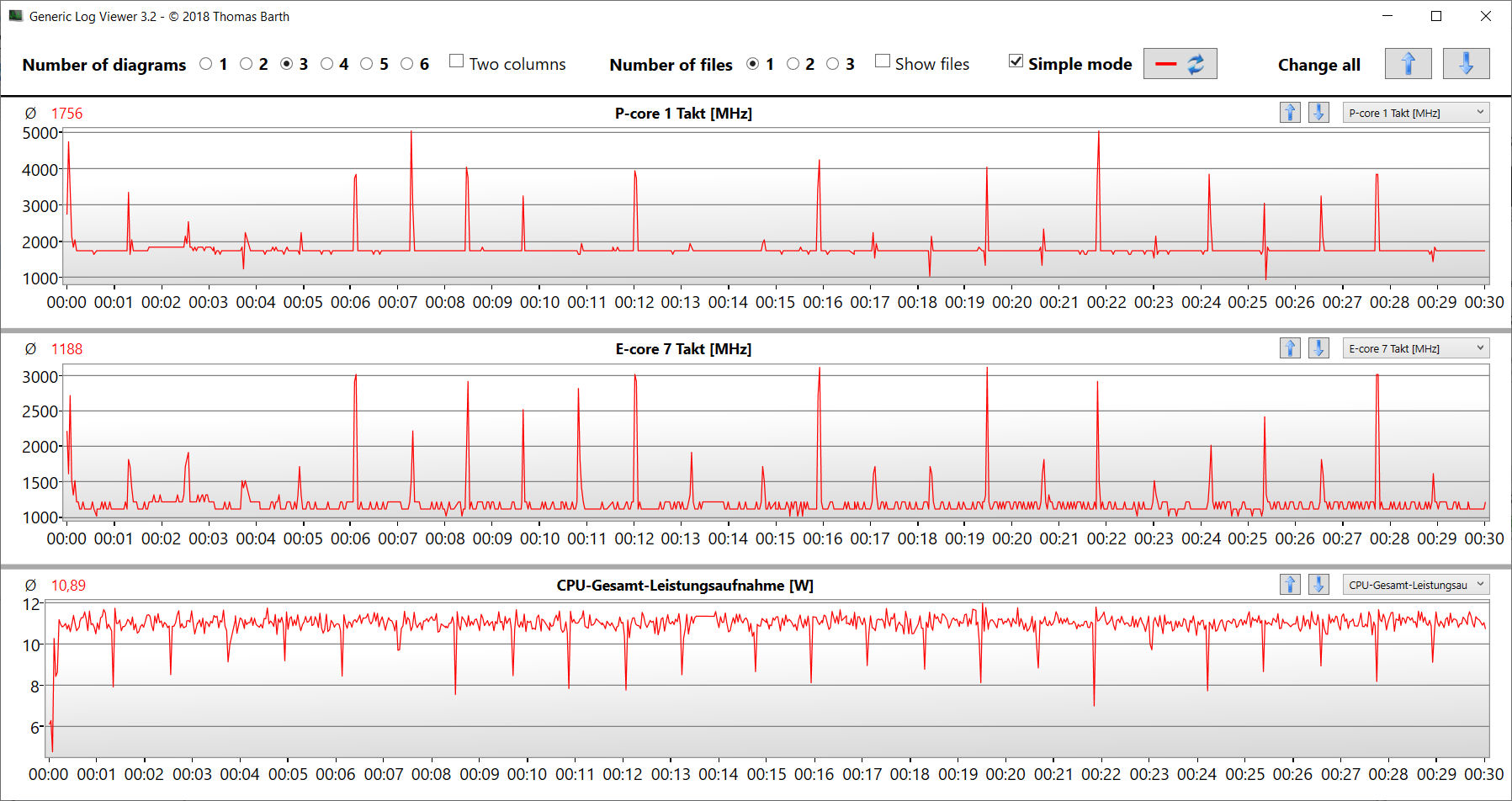

CB15 循环测试表明:持续负载导致功率极限 1 以及时钟频率从第一次迭代到第七次迭代不断下降。之后,性能保持稳定。"平衡 "仅在很短的时间内使用了 CPU 的提升性能,在大部分测试中,CPU 基本上恢复到基本时钟。
Cinebench R15 Multi sustained load loop test
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office | |
Average Intel Core i7-1355U | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Lenovo ThinkPad T16 G2 21HH003AGE |
AIDA64 / FP32 Ray-Trace | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (763 - 24250, n=120, last 2 years) | |
Average Intel Core i7-1355U (5673 - 8424, n=18) | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Lenovo ThinkPad T16 G2 21HH003AGE |
AIDA64 / FPU Julia | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (4027 - 102228, n=120, last 2 years) | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Average Intel Core i7-1355U (29580 - 42706, n=18) |
AIDA64 / CPU SHA3 | |
Samsung Galaxy Book3 Pro 16 | |
HP EliteBook 865 G9 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Average of class Office (279 - 4442, n=119, last 2 years) | |
Average Intel Core i7-1355U (1529 - 2200, n=18) | |
Lenovo ThinkPad T16 G1 21BWS00200 |
AIDA64 / CPU Queen | |
HP EliteBook 865 G9 | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Average of class Office (8031 - 113016, n=120, last 2 years) | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Average Intel Core i7-1355U (21547 - 66907, n=18) |
AIDA64 / FPU SinJulia | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (404 - 14288, n=120, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Average Intel Core i7-1355U (4045 - 5426, n=18) | |
Lenovo ThinkPad T16 G2 21HH003AGE |
AIDA64 / FPU Mandel | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (2054 - 54365, n=120, last 2 years) | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Average Intel Core i7-1355U (14596 - 21627, n=18) | |
Lenovo ThinkPad T16 G2 21HH003AGE |
AIDA64 / CPU AES | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Samsung Galaxy Book3 Pro 16 | |
HP EliteBook 865 G9 | |
Average of class Office (5226 - 147611, n=120, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Average Intel Core i7-1355U (31432 - 75408, n=18) | |
Lenovo ThinkPad T16 G2 21HH003AGE |
AIDA64 / CPU ZLib | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Average Intel Core i7-1355U (454 - 684, n=18) | |
Average of class Office (67.6 - 1018, n=120, last 2 years) |
AIDA64 / FP64 Ray-Trace | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (432 - 12755, n=120, last 2 years) | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Average Intel Core i7-1355U (2991 - 4453, n=18) | |
Lenovo ThinkPad T16 G2 21HH003AGE |
AIDA64 / CPU PhotoWorxx | |
Samsung Galaxy Book3 Pro 16 | |
Average Intel Core i7-1355U (21800 - 46154, n=18) | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (4814 - 48177, n=120, last 2 years) | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21BWS00200 |
系统性能

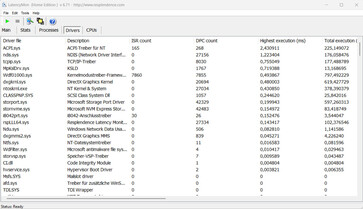

系统工作时没有卡顿现象,性能足以满足办公、网页浏览和老式游戏(低设置)的需求。对于持续负载,笔记本电脑的冷却系统不够强大。此外,联想还浪费了一些性能潜力,因为内存(16GB,DDR5-5200)只能在单通道模式下运行。通过安装内存模块来实现双通道模式,可以提高性能。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
HP EliteBook 865 G9 | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (5455 - 5933, n=15) | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (2325 - 7157, n=105, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21BWS00200 |
PCMark 10 / Essentials | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (10203 - 11822, n=15) | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Samsung Galaxy Book3 Pro 16 | |
Average of class Office (5095 - 20841, n=105, last 2 years) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
HP EliteBook 865 G9 |
PCMark 10 / Productivity | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
HP EliteBook 865 G9 | |
Average of class Office (3041 - 10198, n=105, last 2 years) | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (6763 - 7536, n=15) | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21BWS00200 |
PCMark 10 / Digital Content Creation | |
HP EliteBook 865 G9 | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (5723 - 6712, n=15) | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (1912 - 9056, n=105, last 2 years) | |
Lenovo ThinkPad T16 G1 21BWS00200 |
CrossMark / Overall | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Samsung Galaxy Book3 Pro 16 | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1478 - 1643, n=15) | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
HP EliteBook 865 G9 | |
Average of class Office (348 - 1891, n=106, last 2 years) |
CrossMark / Productivity | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1444 - 1665, n=15) | |
Samsung Galaxy Book3 Pro 16 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
HP EliteBook 865 G9 | |
Average of class Office (393 - 1870, n=106, last 2 years) |
CrossMark / Creativity | |
Samsung Galaxy Book3 Pro 16 | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1563 - 1732, n=15) | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
HP EliteBook 865 G9 | |
Average of class Office (340 - 1982, n=106, last 2 years) |
CrossMark / Responsiveness | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Samsung Galaxy Book3 Pro 16 | |
Average Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs (1217 - 1681, n=15) | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (258 - 2017, n=106, last 2 years) | |
HP EliteBook 865 G9 |
PCMark 8 Home Score Accelerated v2 | 4252 points | |
PCMark 8 Work Score Accelerated v2 | 3183 points | |
PCMark 10 Score | 5658 points | |
Help |
AIDA64 / Memory Copy | |
Samsung Galaxy Book3 Pro 16 | |
Average Intel Core i7-1355U (35017 - 71600, n=18) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (7158 - 88119, n=121, last 2 years) | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21BWS00200 |
AIDA64 / Memory Read | |
Samsung Galaxy Book3 Pro 16 | |
Average Intel Core i7-1355U (38551 - 73377, n=18) | |
Acer TravelMate P4 TMP416-51-55KN | |
Average of class Office (7325 - 87297, n=121, last 2 years) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21BWS00200 |
AIDA64 / Memory Write | |
Samsung Galaxy Book3 Pro 16 | |
Average Intel Core i7-1355U (35910 - 93342, n=18) | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average of class Office (7579 - 94965, n=121, last 2 years) | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
HP EliteBook 865 G9 | |
Lenovo ThinkPad T16 G1 21BWS00200 |
AIDA64 / Memory Latency | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
Average Intel Core i7-1355U (72.2 - 346, n=18) | |
Average of class Office (44.3 - 188.3, n=122, last 2 years) | |
Samsung Galaxy Book3 Pro 16 | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
HP EliteBook 865 G9 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G2 21HH003AGE |
* ... smaller is better

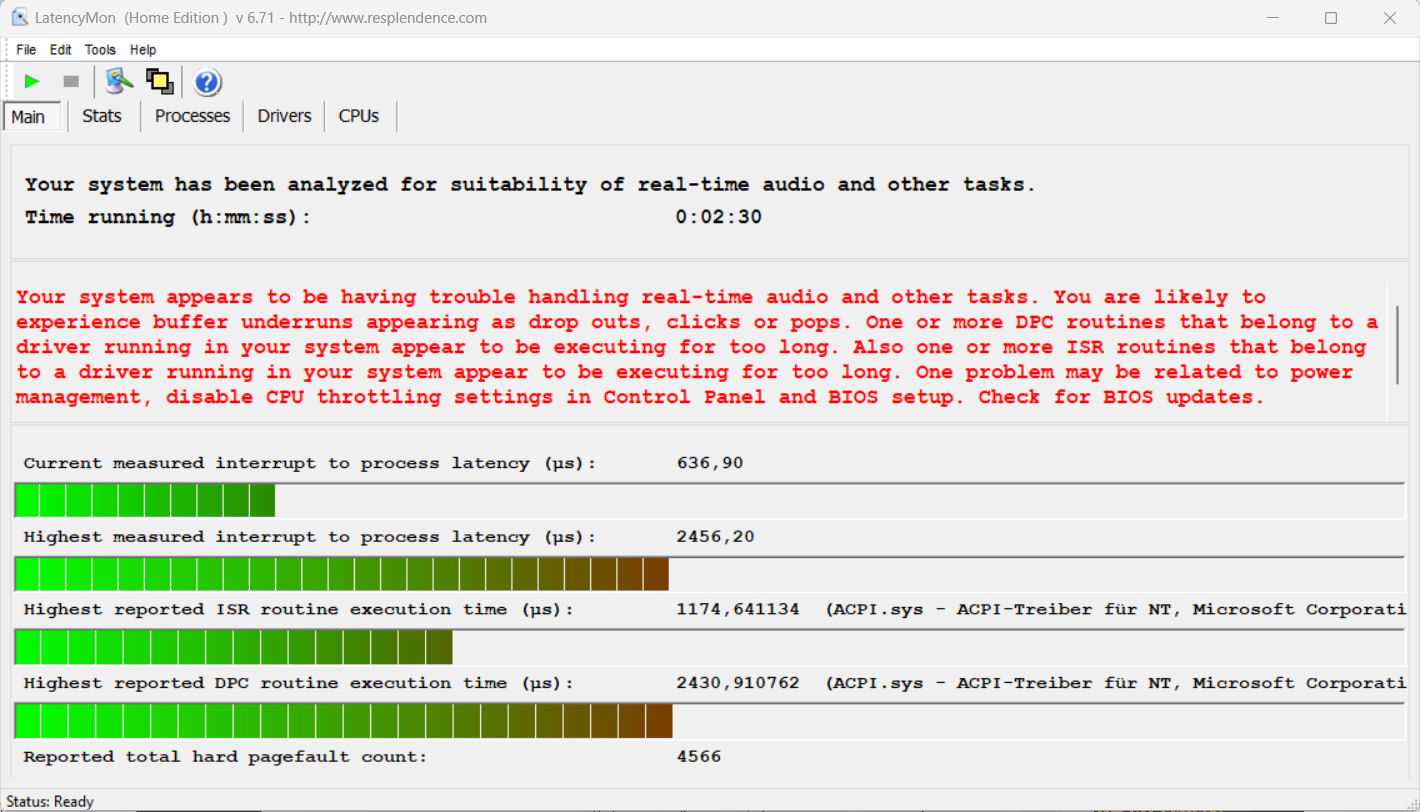

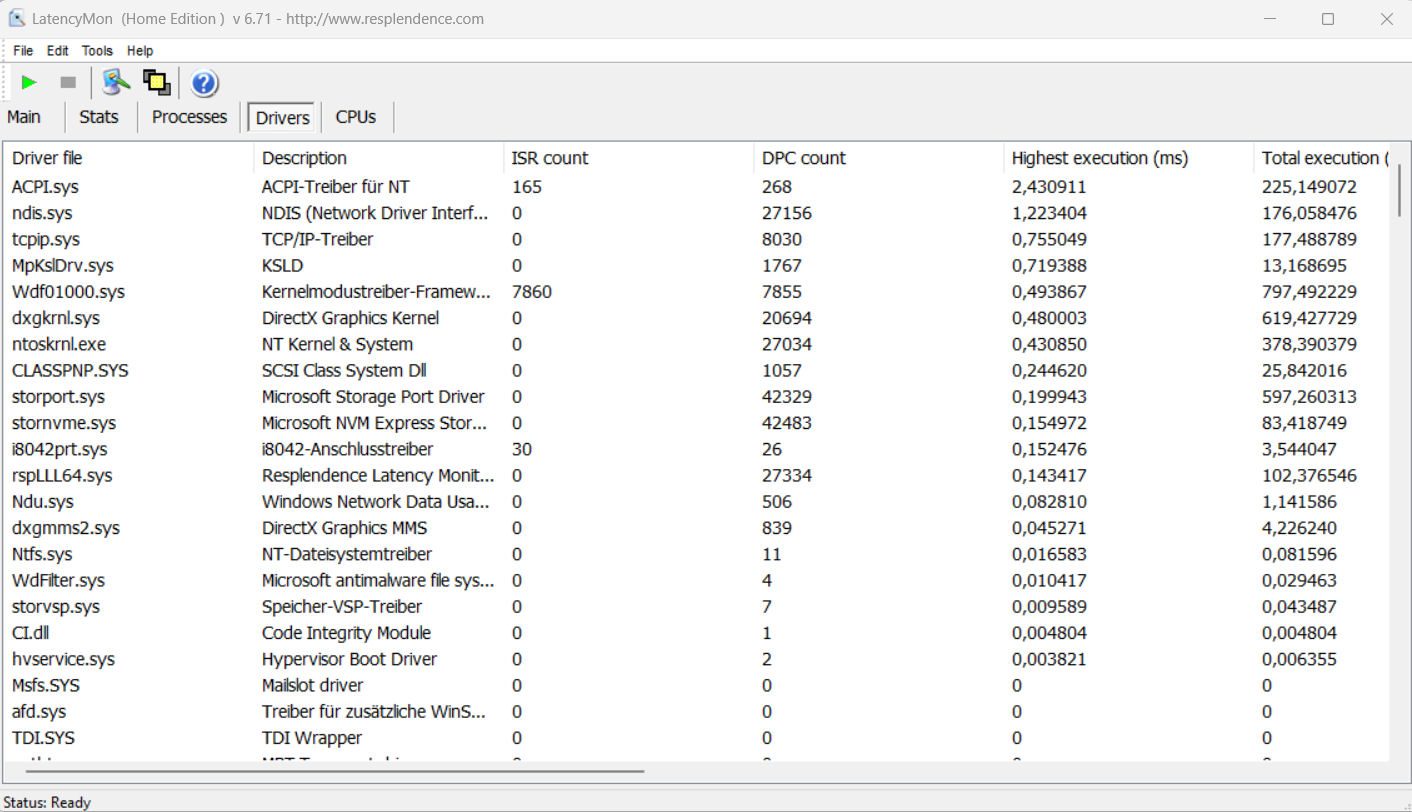

DPC 延迟
标准 LatencyMon 测试(浏览、4K 视频、Prime95 CPU 负载)显示了一些 DPC 延迟问题。系统在处理实时音频时似乎很吃力。未来的软件更新可能会解决这个问题,也可能会使其变得更糟。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Acer TravelMate P4 TMP416-51-55KN | |
Lenovo ThinkPad T16 G2 21HH003AGE | |
Lenovo ThinkPad T16 G1 21BWS00200 | |
Lenovo ThinkPad T16 G1 21CH004MGE | |
HP EliteBook 865 G9 | |
Samsung Galaxy Book3 Pro 16 |
* ... smaller is better
大容量存储器

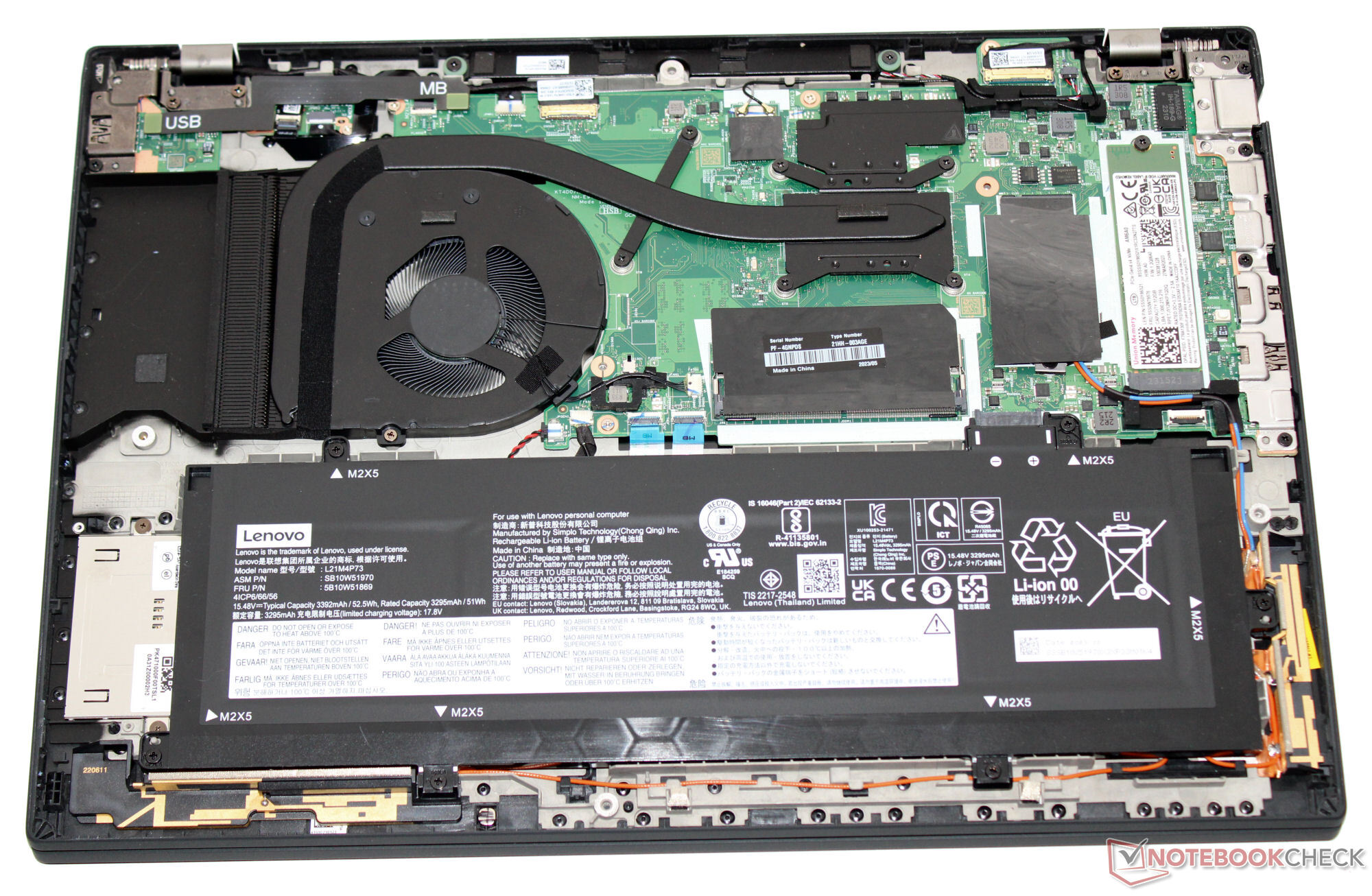

容量为 1 TB 的 Union Memory 固态硬盘(PCIe 4,M.2 2280)用作系统存储。它的速度很快,但不是最快的固态硬盘之一。正面:在持续负载情况下,我们没有发现任何热节流现象。ThinkPad T16 没有提供第二个固态硬盘插槽。
* ... smaller is better
Sustained load read: DiskSpd Read Loop, Queue Depth 8
图形处理器和游戏性能

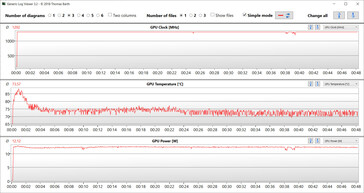

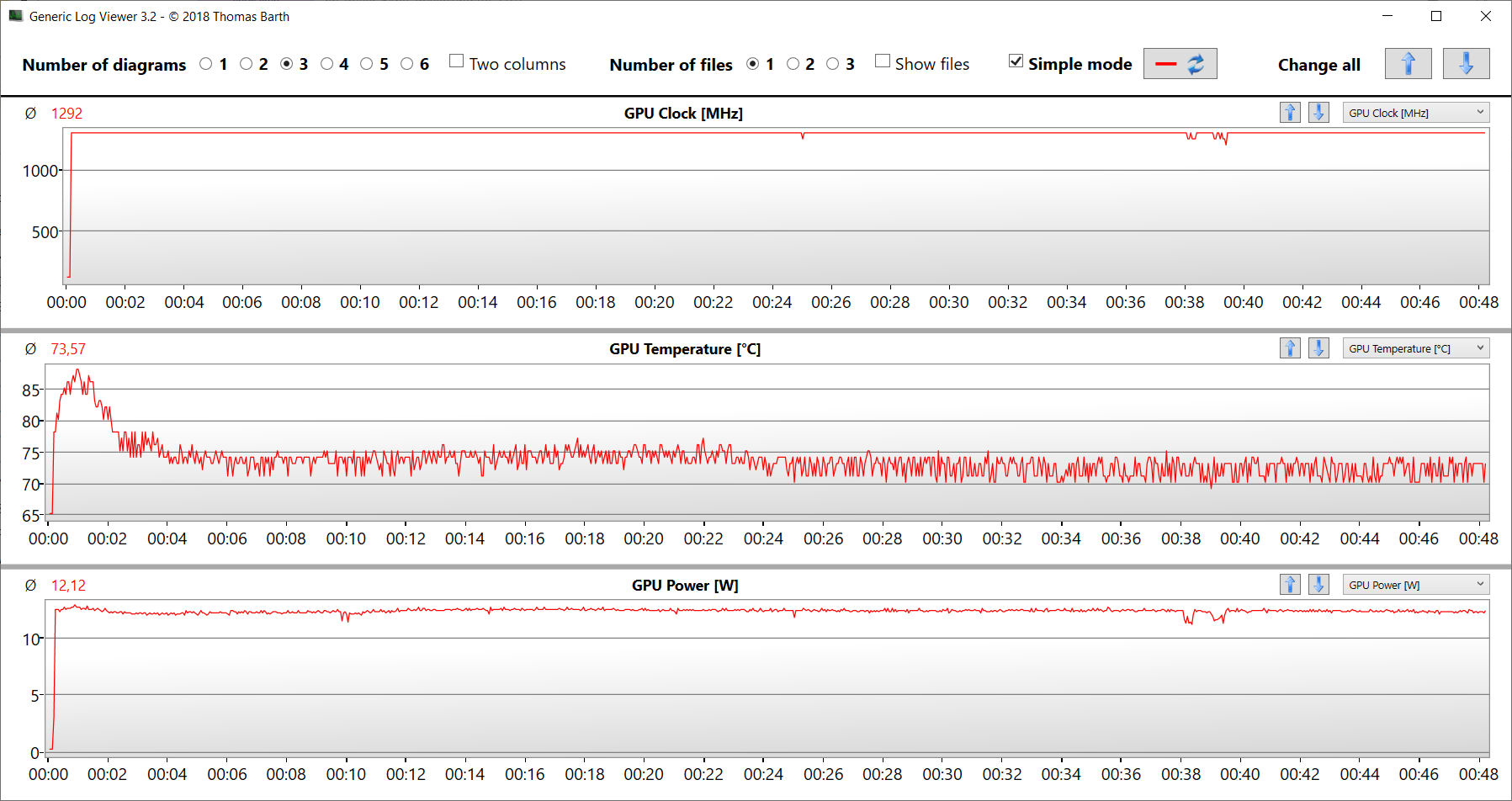

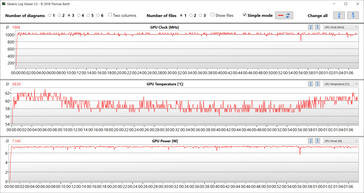

虹膜 Xe G7Iris Xe G7iGPU 提供 96 个执行单元,峰值时钟频率可达 1.3 GHz。在Witcher 3 负载测试("最佳性能")中,该时钟频率可无限期保持。在 "平衡 "配置文件中,GPU 的频率被限制在 1 GHz。GPU 允许以较低的设置玩要求不高的游戏。ThinkPad T16 并非游戏笔记本。

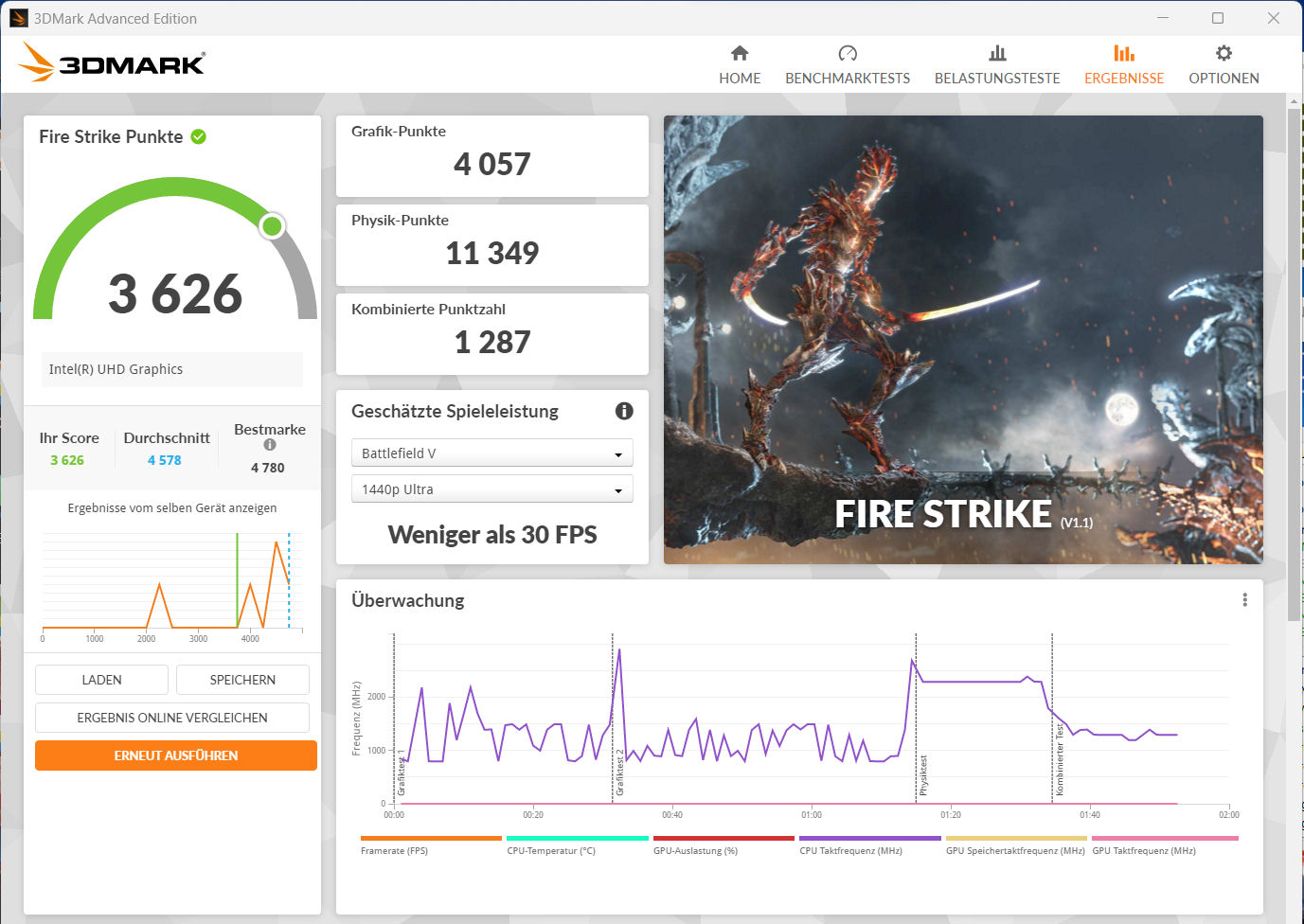

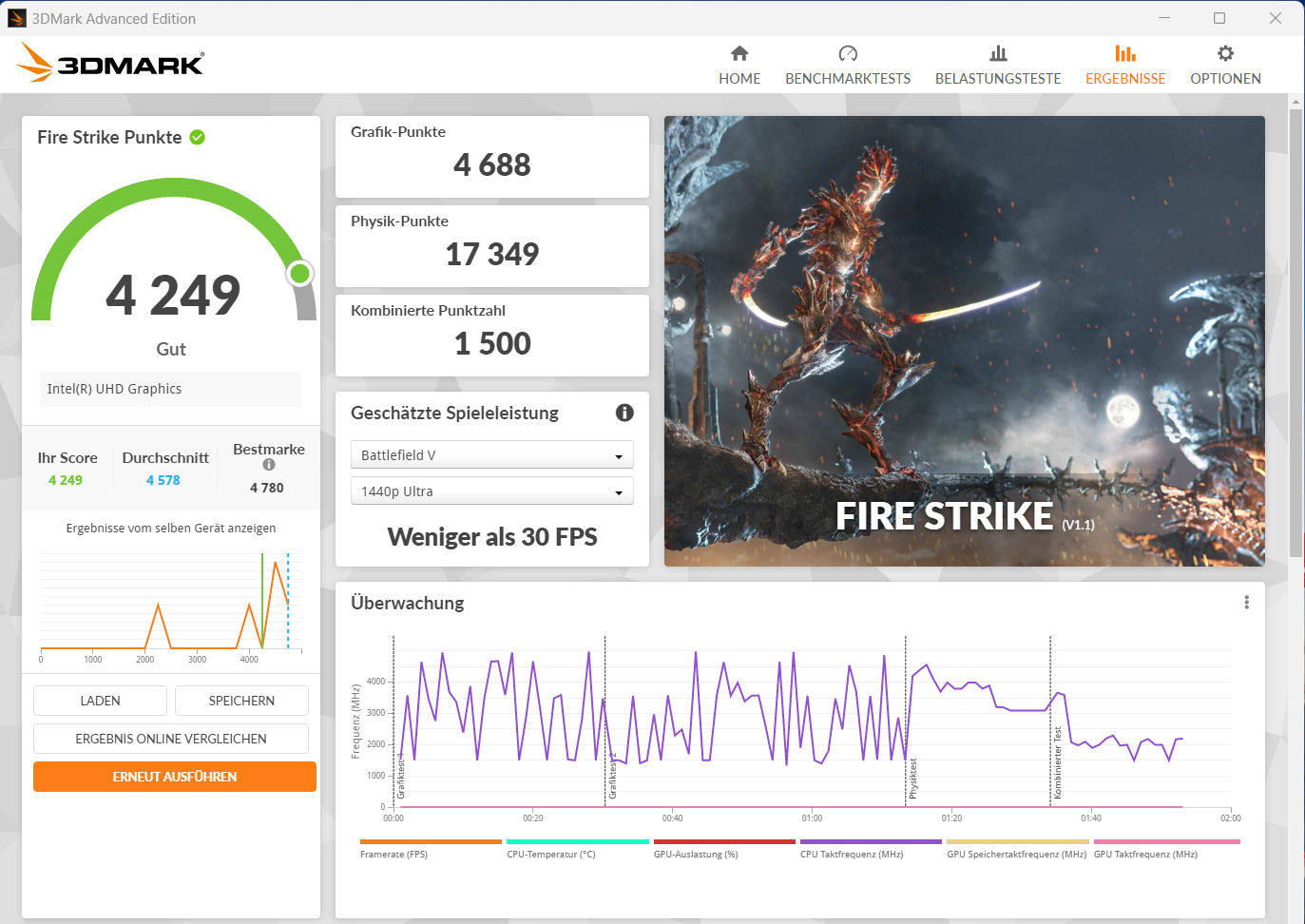

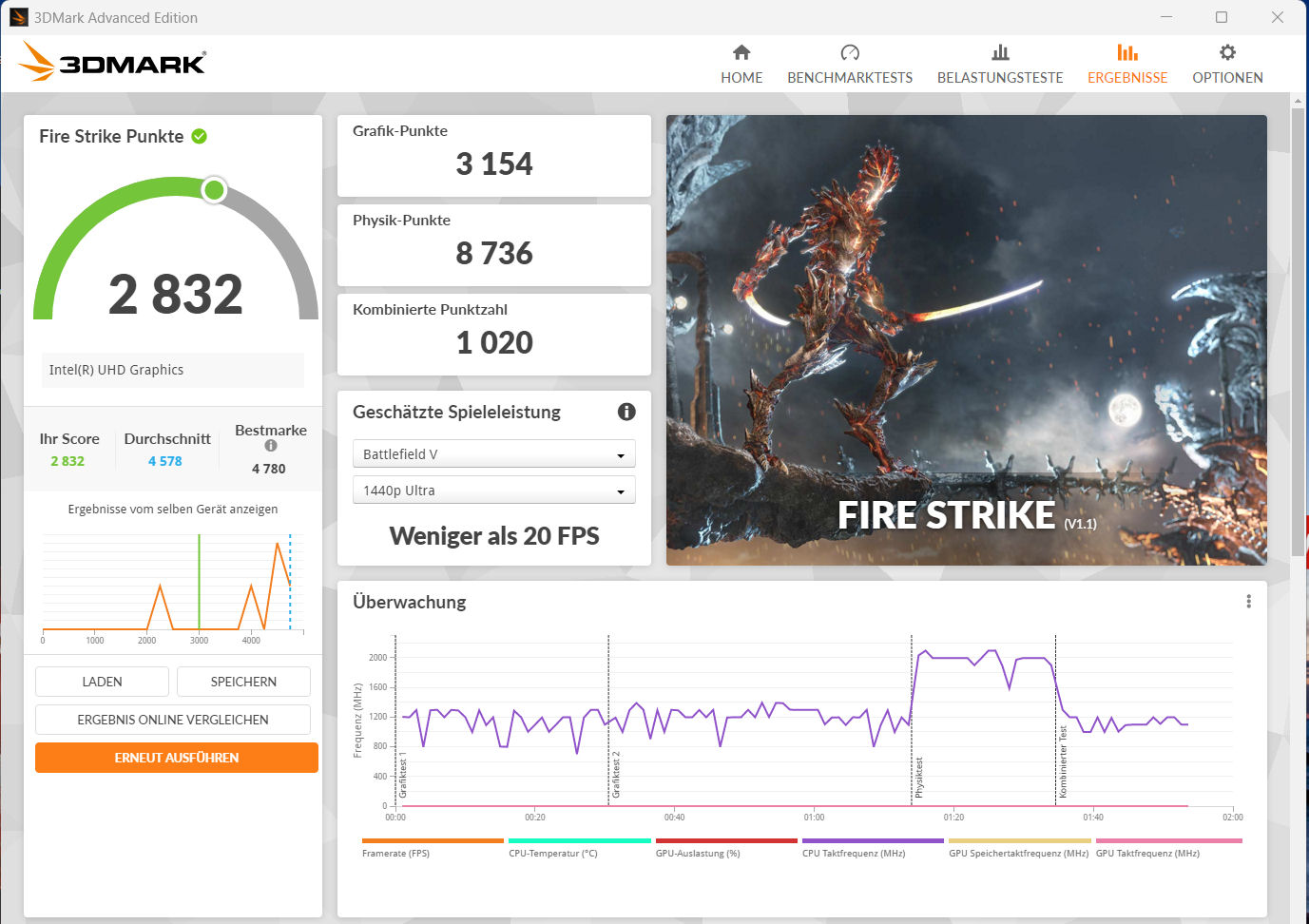

基准测试结果为平均水平("最佳性能")或低于平均水平("平衡")。无论如何,单通道内存限制了 GPU 的性能。因此,可以通过升级系统,增加第二个内存模块来提高性能。

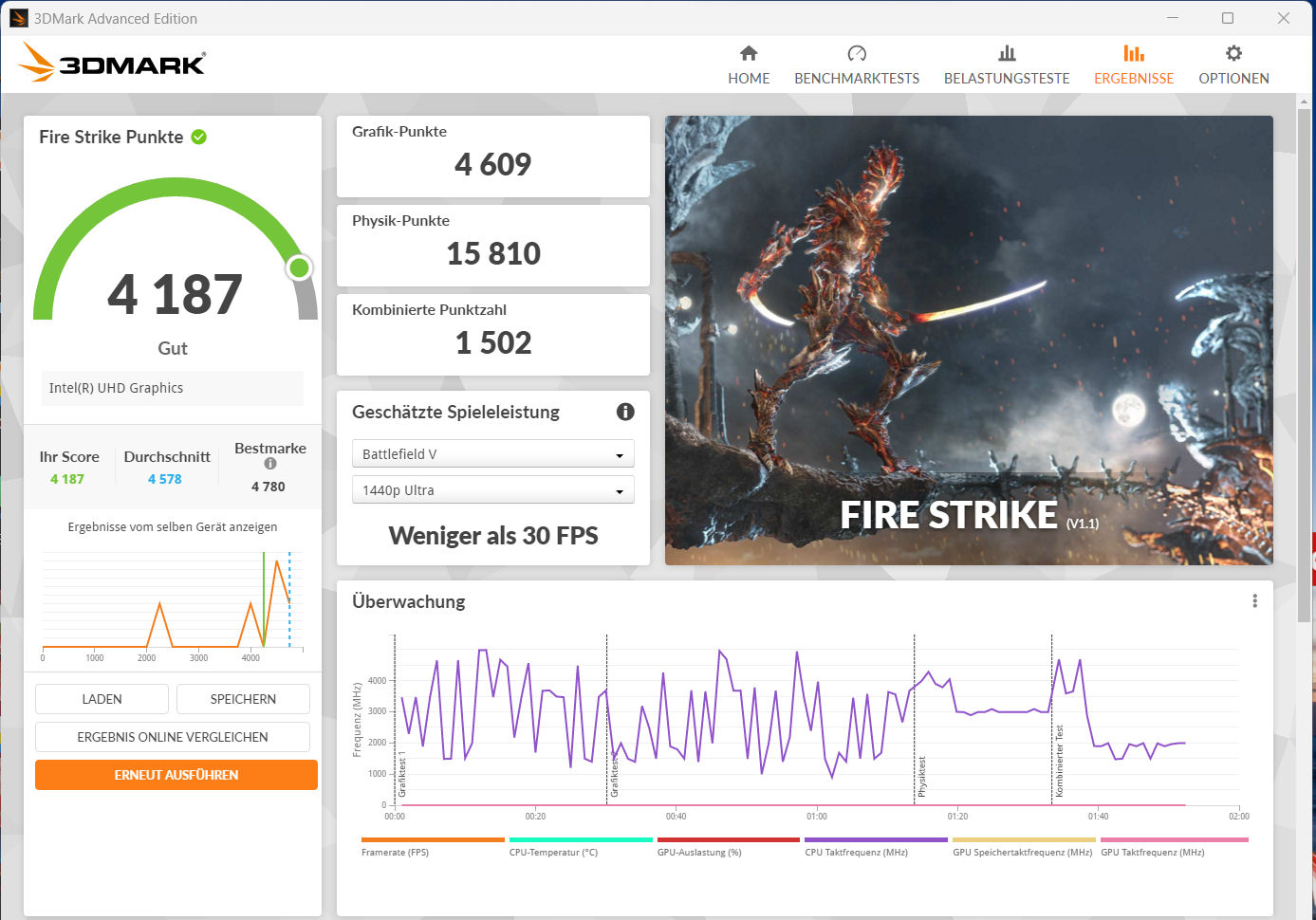

3DMark 06 Standard Score | 26538 points | |
3DMark 11 Performance | 6643 points | |
3DMark Cloud Gate Standard Score | 18921 points | |

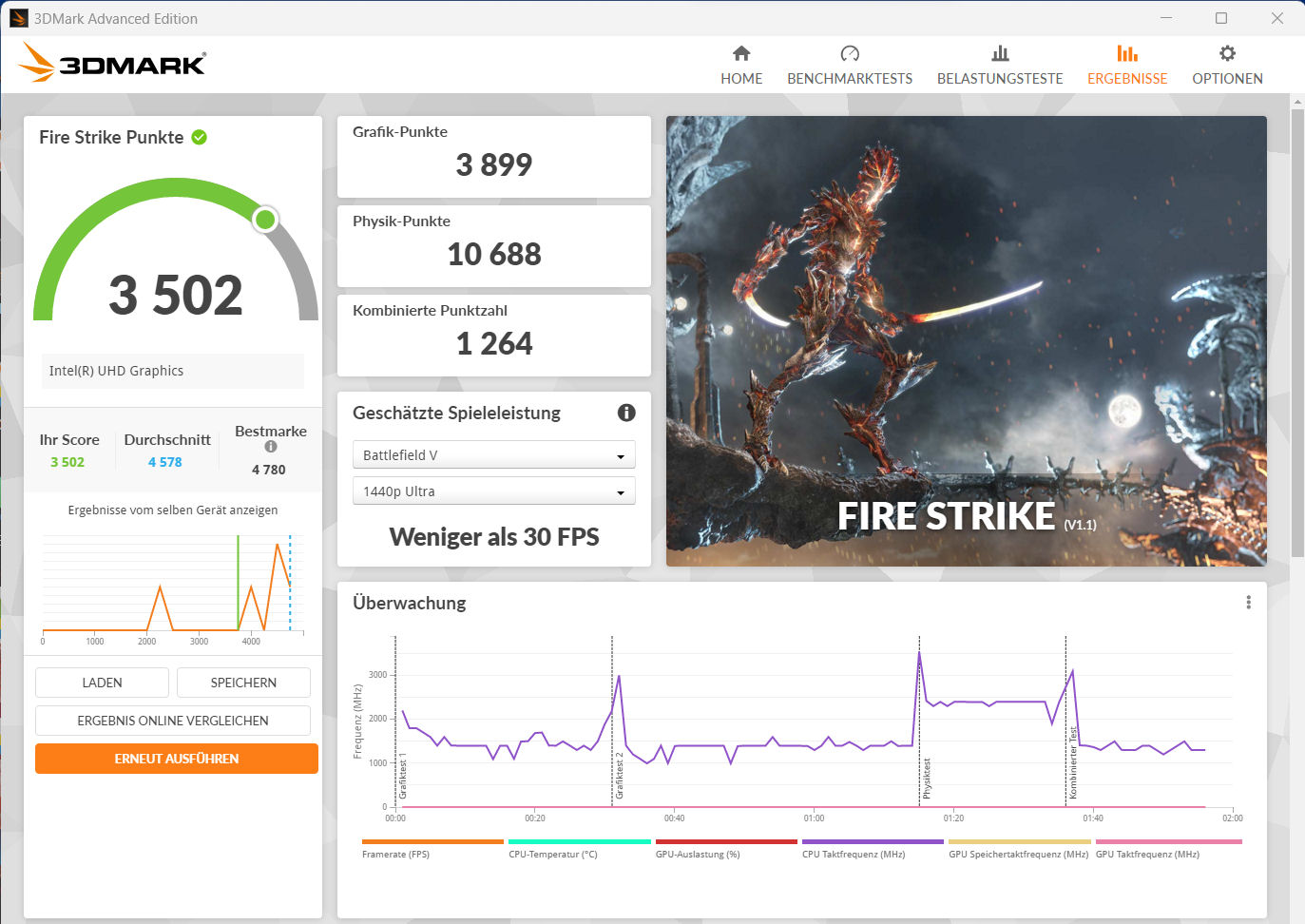

3DMark Fire Strike Score | 4249 points | |
3DMark Time Spy Score | 1648 points | |
Help |

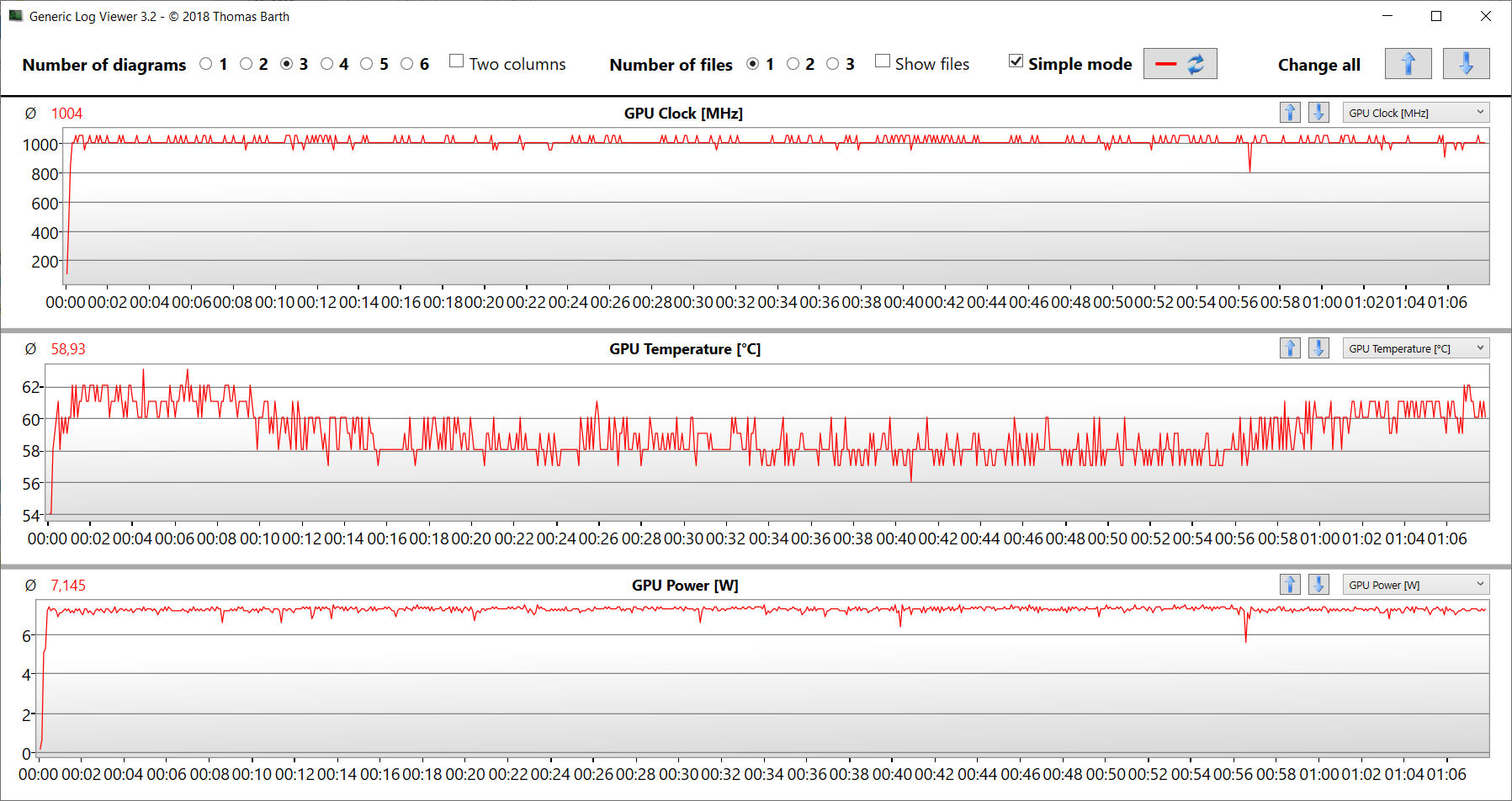

Witcher 3 FPS diagram
low | med. | high | ultra | |
The Witcher 3 (2015) | 84.3 | 50.4 | 26.4 | 13.5 |
Dota 2 Reborn (2015) | 108.8 | 82.7 | 60.3 | 50.3 |
Final Fantasy XV Benchmark (2018) | 38.6 | 20.8 | 15.5 | |
X-Plane 11.11 (2018) | 53.9 | 40.4 | 35.9 | |
Far Cry 5 (2018) | 43 | 25 | 23 | 22 |
Strange Brigade (2018) | 84.3 | 32.9 | 27.2 | 22 |
F1 23 (2023) | 25.6 | 24.4 | 19 |
排放 - ThinkPad T16 排放量低
噪音
联想 ThinkPad T16 与前代产品一样,噪音很小。风扇经常静止不动,如果在工作,则非常安静。即使在安静的环境中,也几乎听不到风扇的声音。"最佳性能 "结合压力测试得出的噪音输出为 38.6 dB(a)。
Noise Level
Idle |
| 24 / 24 / 26.8 dB(A) |
Load |
| 26.8 / 38.6 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24 dB(A) |
Lenovo ThinkPad T16 G2 21HH003AGE Iris Xe G7 96EUs, i7-1355U, Lenovo UMIS AM6A0 RPETJ512MKP1QDQ | Acer TravelMate P4 TMP416-51-55KN Iris Xe G7 80EUs, i5-1240P, Micron 2450 512GB MTFDKBA512TFK | HP EliteBook 865 G9 Radeon 680M, R7 PRO 6850U, Samsung PM991 MZVLQ512HBLU | Samsung Galaxy Book3 Pro 16 Iris Xe G7 80EUs, i5-1340P, WD PC SN740 256GB SDDPNQD-256G | Lenovo ThinkPad T16 G1 21CH004MGE Radeon 660M, R5 PRO 6650U, Micron 2450 512GB MTFDKBA512TFK | Lenovo ThinkPad T16 G1 21BWS00200 Iris Xe G7 80EUs, i5-1240P, Samsung PM9A1 MZVL2512HCJQ | |
---|---|---|---|---|---|---|
Noise | -15% | 8% | -20% | 5% | 8% | |
off / environment * | 24 | 25.4 -6% | 23 4% | 25.2 -5% | 23.1 4% | 23.3 3% |
Idle Minimum * | 24 | 25.4 -6% | 23 4% | 25.2 -5% | 23.1 4% | 23.3 3% |
Idle Average * | 24 | 25.4 -6% | 23 4% | 25.2 -5% | 23.1 4% | 23.3 3% |
Idle Maximum * | 26.8 | 25.4 5% | 23 14% | 29.3 -9% | 23.1 14% | 23.3 13% |
Load Average * | 26.8 | 43.9 -64% | 29.1 -9% | 46.4 -73% | 25.4 5% | 25.1 6% |
Witcher 3 ultra * | 38.9 | 29.1 25% | 35.93 8% | 32.1 17% | ||
Load Maximum * | 38.6 | 43.7 -13% | 32.9 15% | 46.4 -20% | 39.1 -1% | 34 12% |
* ... smaller is better
热量
笔记本电脑温度适中。最高温度热点(43 至 46 摄氏度/109 至 115 华氏度)是在负载测试(压力测试,Witcher 3 )中测得的。在日常使用中,ThinkPad 笔记本电脑保持凉爽。
(±) The maximum temperature on the upper side is 40.5 °C / 105 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.7 °C / 109 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33.3 °C / 92 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.8 °C / 87.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-3.1 °C / -5.5 F).
Lenovo ThinkPad T16 G2 21HH003AGE Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs | HP EliteBook 865 G9 AMD Ryzen 7 PRO 6850U, AMD Radeon 680M | Samsung Galaxy Book3 Pro 16 Intel Core i5-1340P, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkPad T16 G1 21CH004MGE AMD Ryzen 5 PRO 6650U, AMD Radeon 660M | Lenovo ThinkPad T16 G1 21BWS00200 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs | |
---|---|---|---|---|---|---|
Heat | -6% | 6% | -10% | 13% | -12% | |
Maximum Upper Side * | 40.5 | 38.6 5% | 39.4 3% | 41.6 -3% | 34.6 15% | 45 -11% |
Maximum Bottom * | 42.7 | 44.4 -4% | 47.6 -11% | 45 -5% | 41.5 3% | 42.8 -0% |
Idle Upper Side * | 28.2 | 28.9 -2% | 23.6 16% | 31 -10% | 22.6 20% | 33 -17% |
Idle Bottom * | 28 | 34 -21% | 24.1 14% | 33.6 -20% | 24.5 12% | 33.6 -20% |
* ... smaller is better

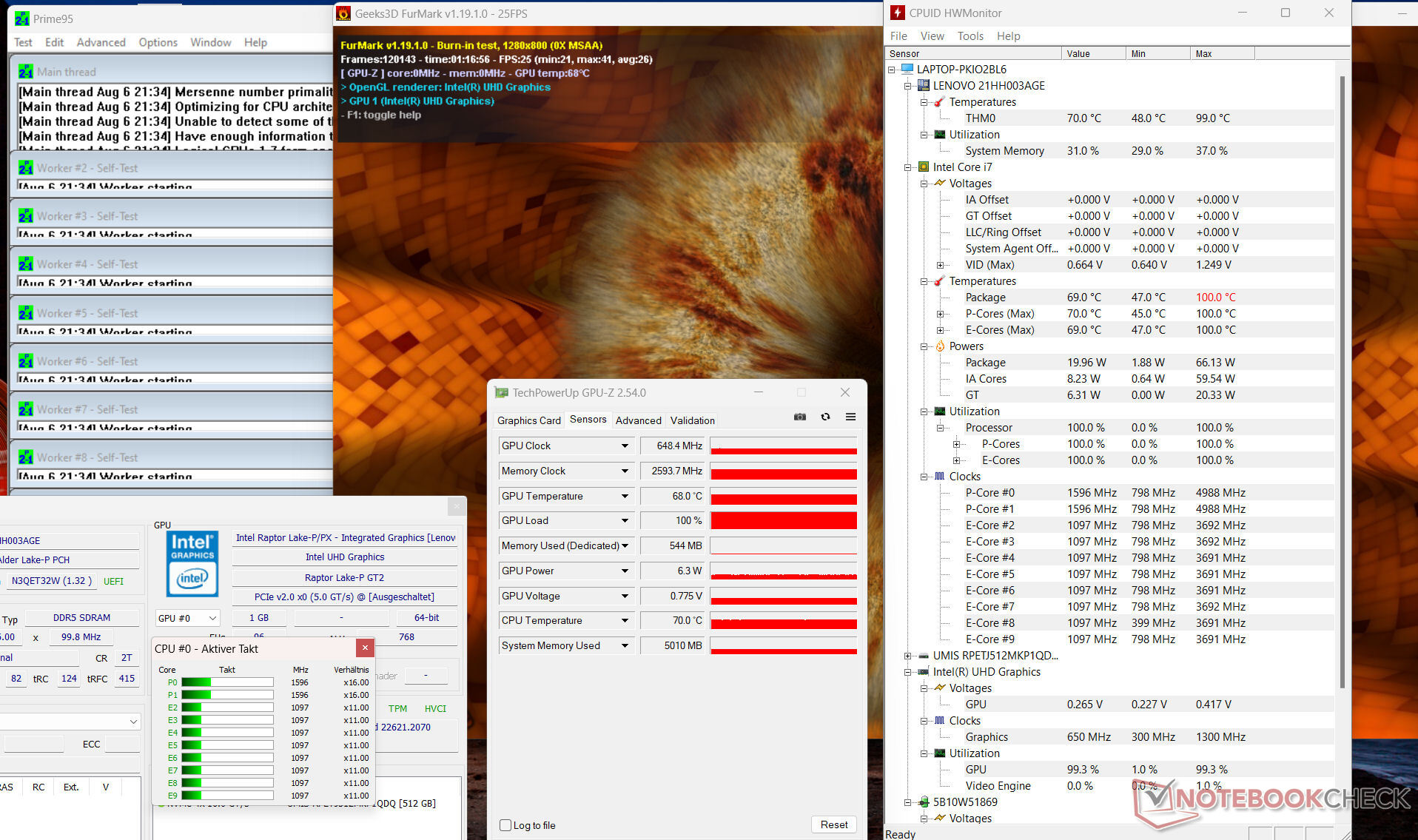

压力测试
压力测试(Prime95 和 FurMark 一小时)是评估负载下系统稳定性的极端情况。中央处理器(P 内核:3.2 GHz;E 内核:2.5 至 2.6 GHz)和图形处理器(1.3 GHz)一开始的时钟频率较高,测试期间时钟频率有所下降。
发言人
立体声扬声器发出的声音还可以接受,但缺少底音。
Lenovo ThinkPad T16 G2 21HH003AGE audio analysis
(±) | speaker loudness is average but good (78.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.3% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.3% away from median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (3.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.6% difference to median)
Compared to same class
» 34% of all tested devices in this class were better, 8% similar, 58% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 44% of all tested devices were better, 7% similar, 49% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP EliteBook 865 G9 audio analysis
(+) | speakers can play relatively loud (82.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.6% lower than median
(±) | linearity of bass is average (10.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.2% away from median
(+) | mids are linear (2.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(+) | highs are linear (4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.8% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 4% similar, 91% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 85% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理 - ThinkPad 电池续航时间长
耗电量
在电源管理方面,我们没有发现任何意想不到的行为。压力测试和Witcher 3 测试表明,在测试过程中功耗不断降低。提供的充电器(65 瓦)足以满足最大功耗的要求。
Off / Standby | 0.3 / 0.6 Watt |
Idle | 3.1 / 6.4 / 6.8 Watt |
Load |
29.3 / 64.6 Watt |
Lenovo ThinkPad T16 G2 21HH003AGE i7-1355U, Iris Xe G7 96EUs, Lenovo UMIS AM6A0 RPETJ512MKP1QDQ, IPS, 1920x1200, 16.00 | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs, Micron 2450 512GB MTFDKBA512TFK, IPS, 1920x1200, 16.00 | HP EliteBook 865 G9 R7 PRO 6850U, Radeon 680M, Samsung PM991 MZVLQ512HBLU, IPS, 1920x1200, 16.00 | Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs, WD PC SN740 256GB SDDPNQD-256G, AMOLED, 2880x1800, 16.00 | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M, Micron 2450 512GB MTFDKBA512TFK, IPS-LED, 2560x1600, 16.00 | Lenovo ThinkPad T16 G1 21BWS00200 i5-1240P, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1200, 16.00 | Average Intel Iris Xe Graphics G7 96EUs | Average of class Office | |
---|---|---|---|---|---|---|---|---|
Power Consumption | -29% | -58% | -16% | -17% | -2% | -44% | -24% | |
Idle Minimum * | 3.1 | 5.2 -68% | 5.3 -71% | 3.9 -26% | 3.2 -3% | 2.9 6% | 5.3 ? -71% | 4.31 ? -39% |
Idle Average * | 6.4 | 7.1 -11% | 12.8 -100% | 4.8 25% | 8.1 -27% | 6 6% | 8.49 ? -33% | 7.34 ? -15% |
Idle Maximum * | 6.8 | 9.6 -41% | 14.1 -107% | 10 -47% | 8.6 -26% | 6.9 -1% | 10.7 ? -57% | 9.13 ? -34% |
Load Average * | 29.3 | 47 -60% | 48.5 -66% | 44 -50% | 45.4 -55% | 27.3 7% | 45 ? -54% | 41.1 ? -40% |
Witcher 3 ultra * | 41.5 | 43.3 -4% | 48.7 -17% | 42.3 -2% | 40 4% | 42.6 -3% | ||
Load Maximum * | 64.6 | 56 13% | 56.6 12% | 63 2% | 59.6 8% | 81.53 -26% | 67 ? -4% | 58.1 ? 10% |
* ... smaller is better
Power consumption Witcher 3 / stress test
Power consumption external monitor
电池寿命
这台 16 英寸笔记本电脑在 WiFi 测试(模拟网页浏览)中耗时 11:30,在视频测试(Big Buck Bunny、H.264、FHD、循环)中耗时 13:44。两项测试均在 "平衡 "模式下进行,特殊节能模式关闭,屏幕亮度为 150 cd/m²。在视频测试中,WiFi 模块处于关闭状态。

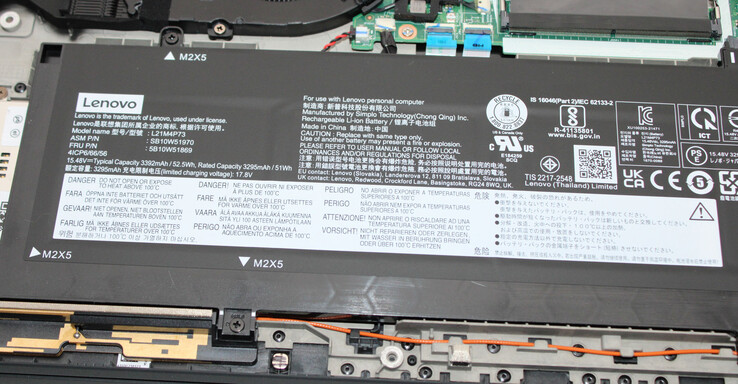

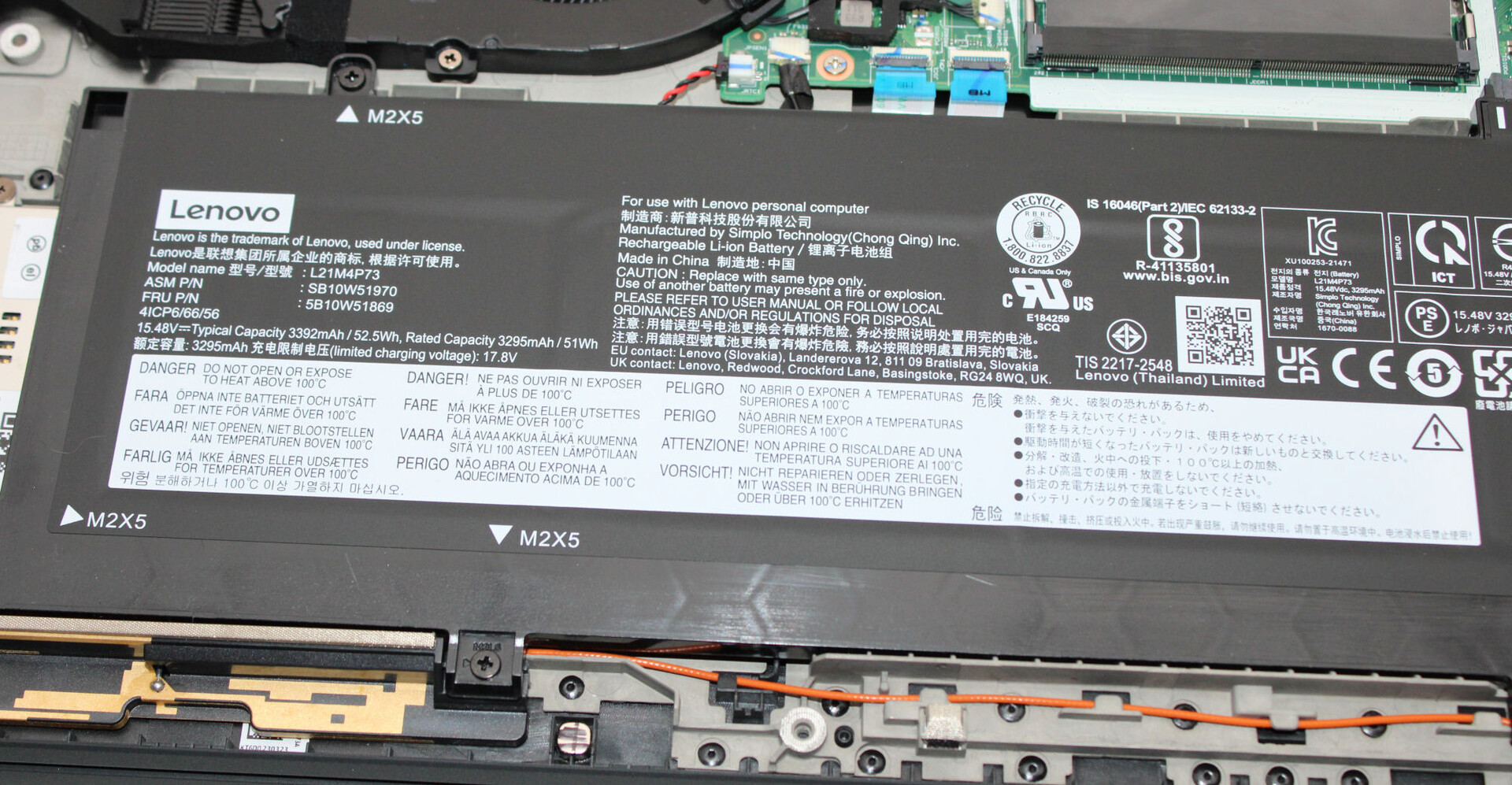

总体而言,尽管联想 ThinkPad T16 G2 的电池容量较低(52.5 Wh 对 86 Wh),但其电池续航时间甚至超过了前代产品。T16 G2 可选配 86 Wh 电池。由于采用了 76 Wh 电池,EliteBook EliteBook 865 G9的电池续航时间更长。
Lenovo ThinkPad T16 G2 21HH003AGE i7-1355U, Iris Xe G7 96EUs, 52.5 Wh | Acer TravelMate P4 TMP416-51-55KN i5-1240P, Iris Xe G7 80EUs, 56 Wh | HP EliteBook 865 G9 R7 PRO 6850U, Radeon 680M, 76 Wh | Samsung Galaxy Book3 Pro 16 i5-1340P, Iris Xe G7 80EUs, 76 Wh | Lenovo ThinkPad T16 G1 21CH004MGE R5 PRO 6650U, Radeon 660M, 52.5 Wh | Lenovo ThinkPad T16 G1 21BWS00200 i5-1240P, Iris Xe G7 80EUs, 86 Wh | Average of class Office | |
---|---|---|---|---|---|---|---|
Battery Runtime | -19% | 11% | 7% | -29% | 11% | -7% | |
Reader / Idle | 1169 | 1821 56% | 1436 ? 23% | ||||
H.264 | 824 | 1112 35% | 861 4% | 652 -21% | 623 -24% | 705 ? -14% | |
WiFi v1.3 | 690 | 562 -19% | 899 30% | 613 -11% | 635 -8% | 846 23% | 592 ? -14% |
Load | 154 | 106 -31% | 119 -23% | 64 -58% | 208 35% | 117.7 ? -24% |
Pros
Cons

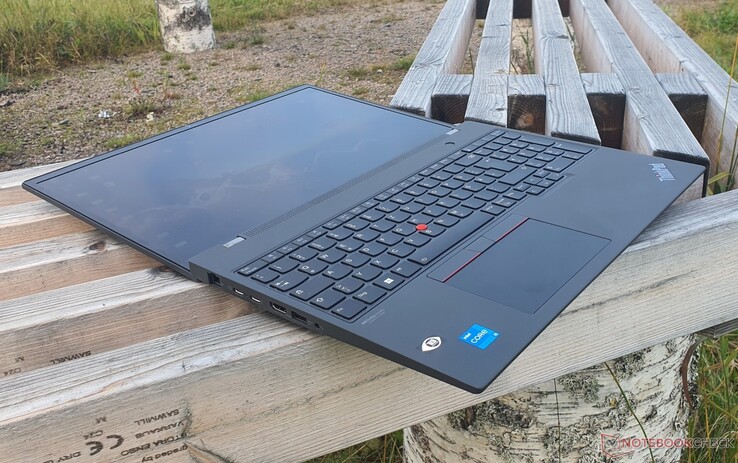

结论 - 高档商务笔记本电脑

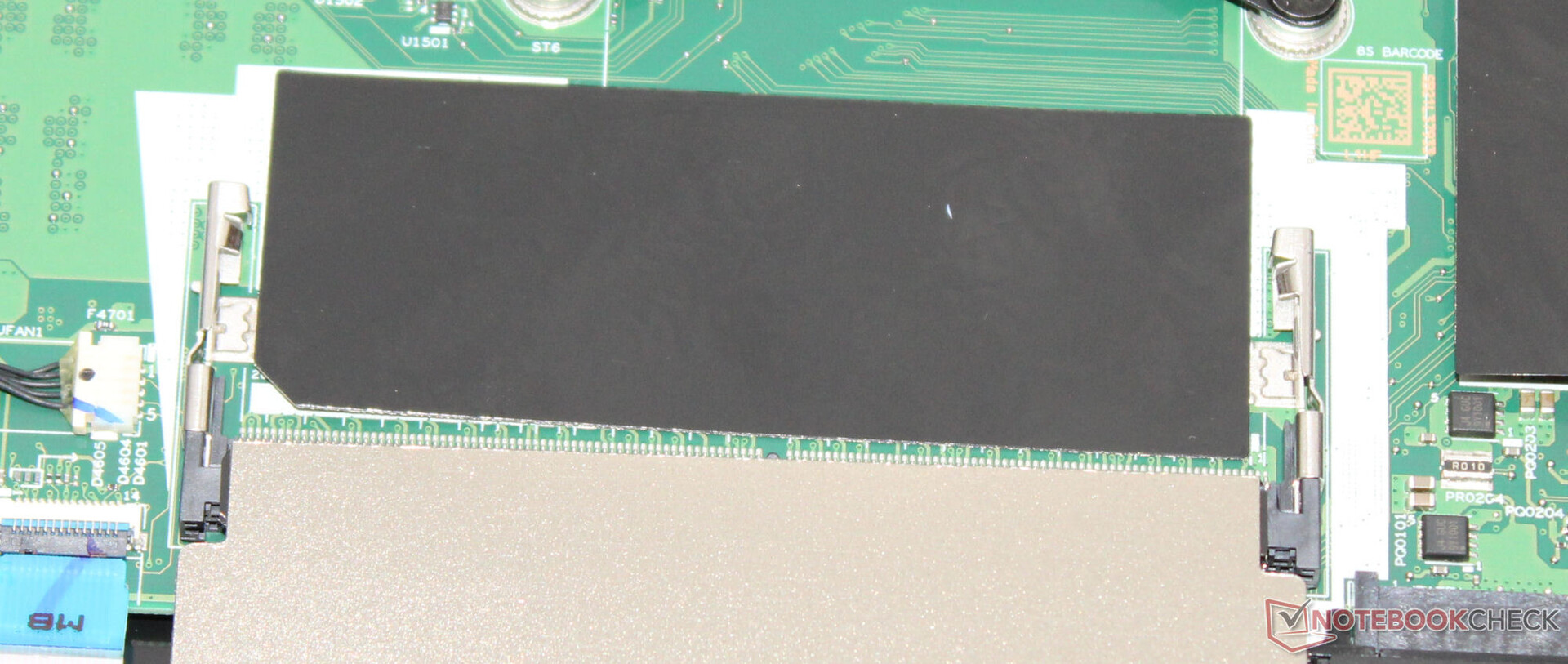

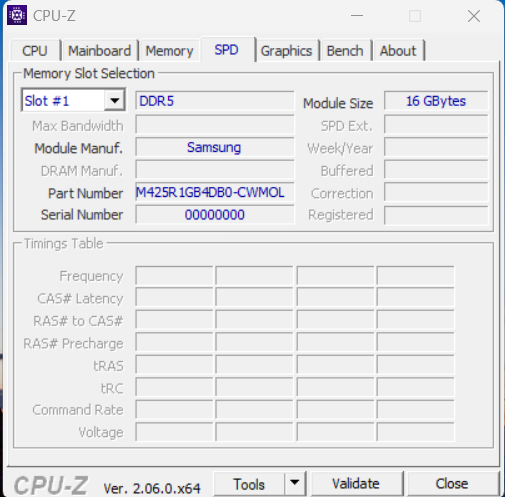

与酷睿 i7-1355U和 16GB 内存(以单通道模式运行)的组合,在处理办公任务和浏览网页时毫无问题。在任何情况下,建议通过安装第二个内存模块来升级内存,以释放笔记本电脑的全部性能。
对于 ThinkPad T16 G2,联想主要是维持现有平台:Alder Lake 换成了 Raptor Lake,其他功能与前代产品相比变化不大。

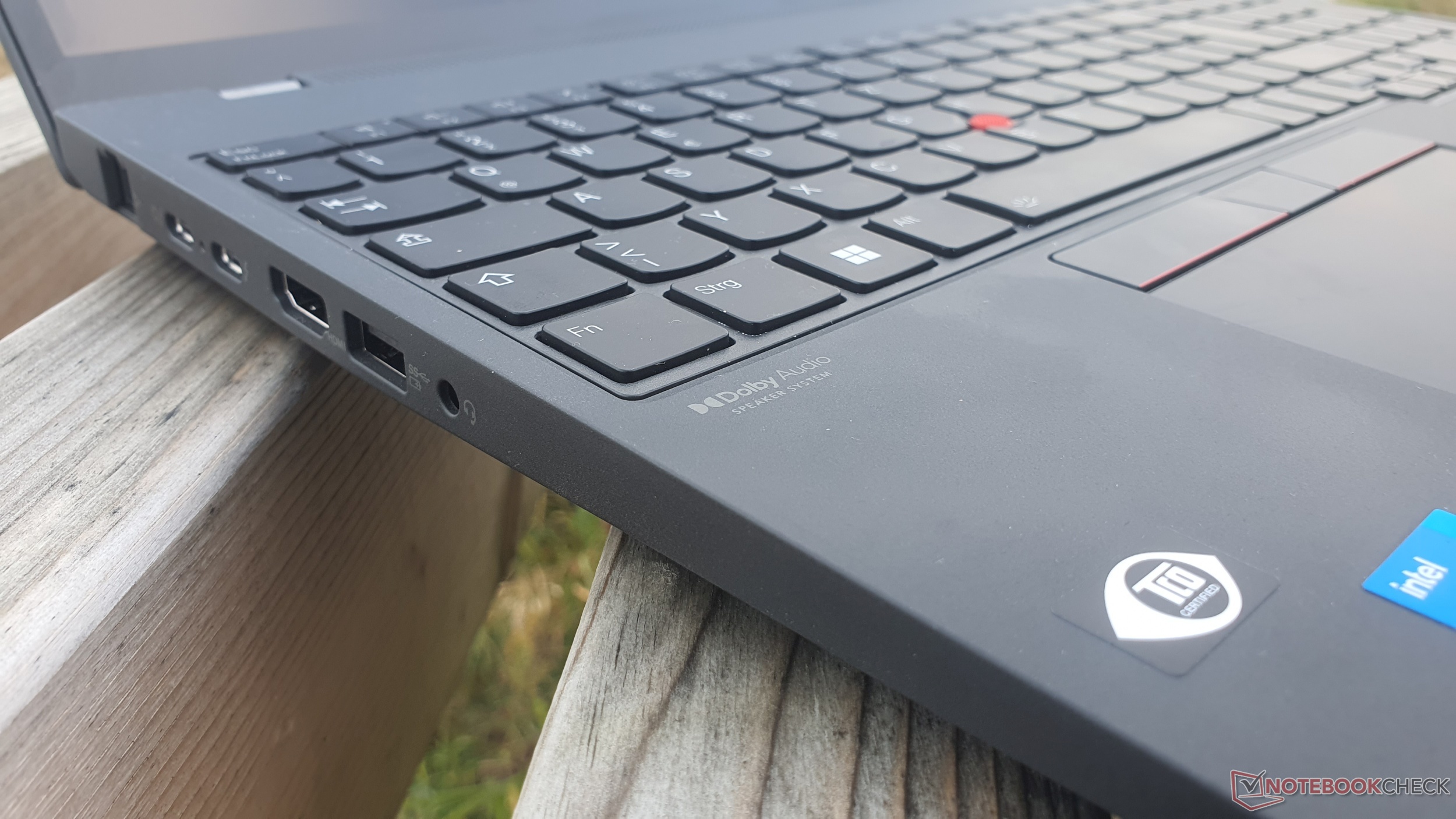

1.7 公斤的相对较轻重量、紧凑的机身和出色的电池续航能力(WiFi:11:34 小时)--毫无疑问,T16 是一款移动性很强的笔记本电脑。优点两个带 Thunderbolt 4 的 USB C 端口既能实现 PD 充电,又能轻松集成到现有的工作设置中。此外,ThinkPad T16 的最新版本在低排放方面也获得了加分。

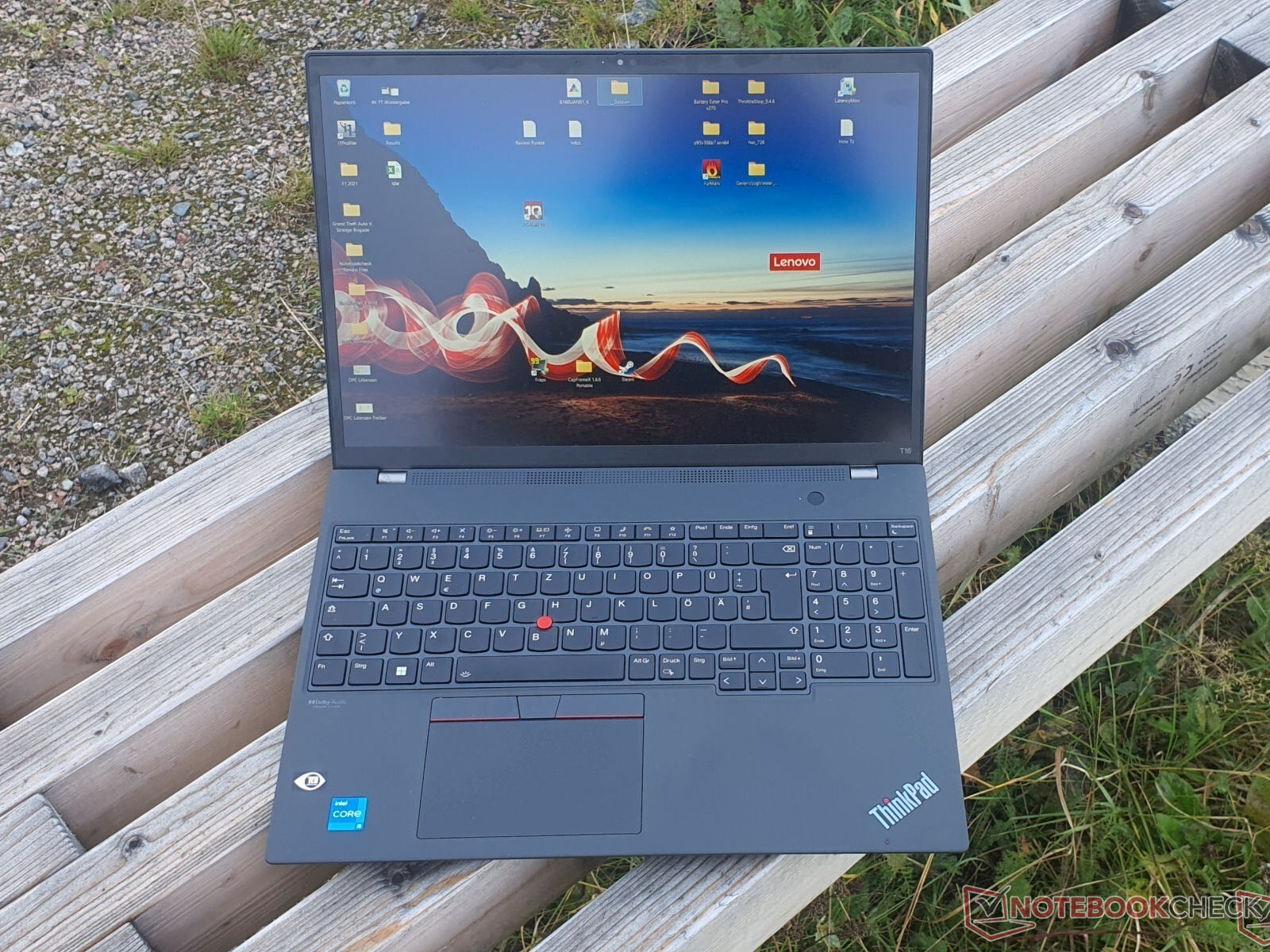

这款 16 英寸大屏幕笔记本电脑(1920 x 1200,IPS,sRGB,低功耗)采用适合工作的 16:10 格式,给人留下了良好的印象。如果用户需要更高的对比度和更好的色域覆盖范围,可以选择配备 OLED(3,840 x 2,400)的 T16 型号。
ThinkPad 的一个可行替代品是惠普 EliteBook 865 G9.它的计算性能更高,屏幕更亮,电池续航时间更长。它还配备了 LTE 调制解调器,价格也不贵。
定价和可用性
联想ThinkPad T16 G2的评论版在Campuspoint.de的售价为1,849欧元或1,669欧元(教育定价)。
Lenovo ThinkPad T16 G2 21HH003AGE
-
08/07/2023 v7
Sascha Mölck
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
