Schenker XMG P507 (Clevo P651RP6-G) 笔记本电脑简短评测

Florian Glaser, Stefanie Voigt (translated by Yuchen Wang), 08/30/2016
Gaming Geforce Laptop / Notebook Skylake Windows

Pascal初登场。 在许多基于全新的GeForce GTX 1070和GTX 1080高端显卡的笔记本电脑已经经过了我们的测试之后,我们终于可以看看同样令人激动的GTX 1060了。16纳米架构的这颗芯片也会同样让人满意吗?Schenker XMG P507将会为我们带来答案。

Schenker XMG P507
Graphics adapter
NVIDIA GeForce GTX 1060 (Laptop) - 6144 MB, Core: 1405 MHz, Memory: 4000 MHz, GDDR5, ForceWare 372.53, Optimus
Memory
16384 MB

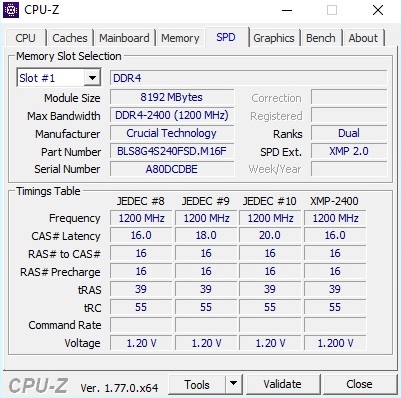

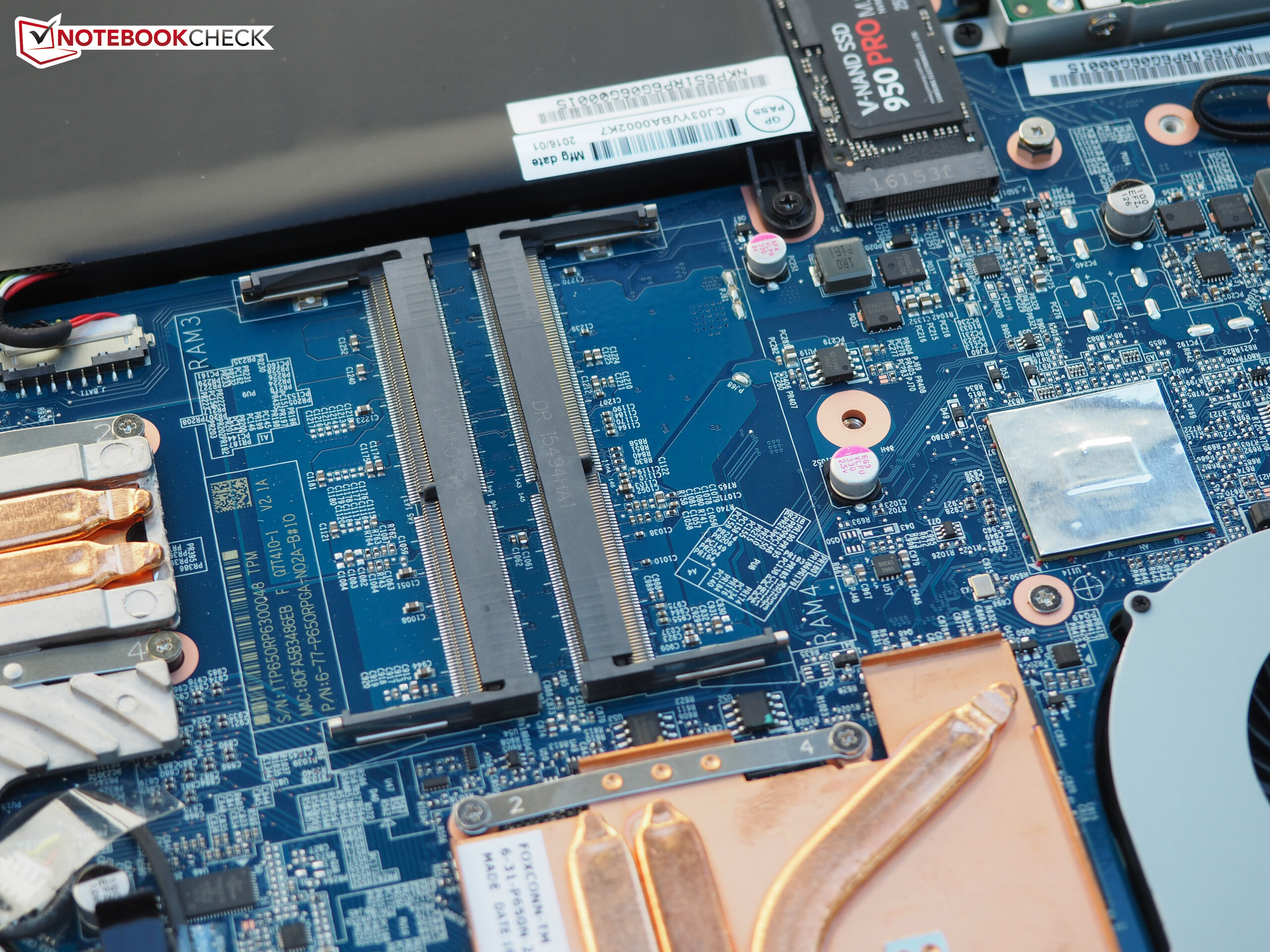

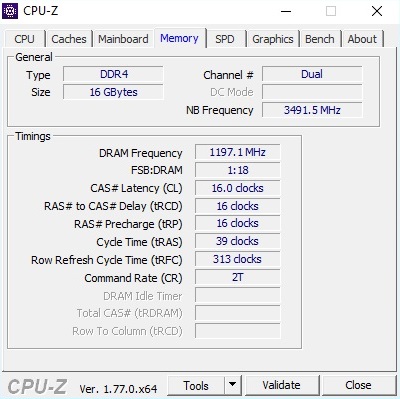

, 2x 8 GB DDR4-2400 SO-DIMM, 双通道, 4个内存槽2个已占用, 最大支持 64 GB
Display
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LP156WF6 (LGD046F), IPS, 60 Hz, 全高清, G-Sync, glossy: no

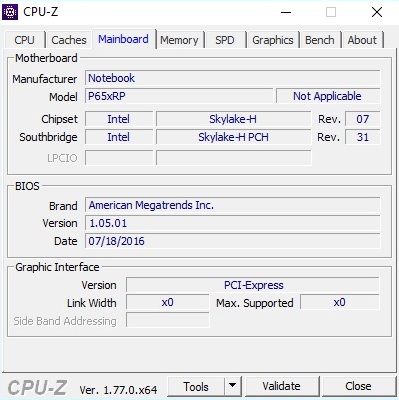

Mainboard
Intel HM170 (Skylake PCH-H)
Storage
Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB

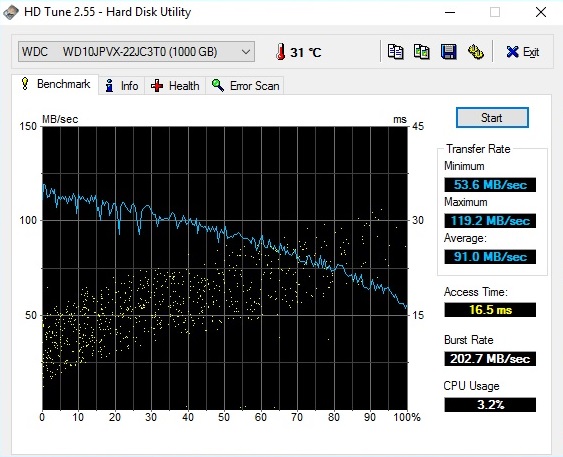

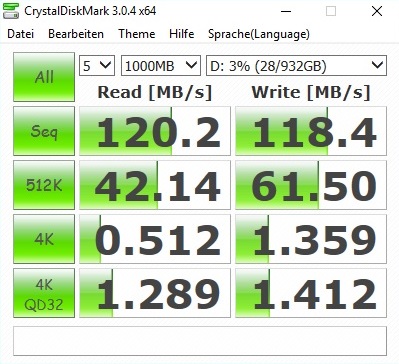

, NVMe 固态硬盘 + Western Digital Blue WD10JPVX-22JC3T0, 1000 GB 传统硬盘 @ 5400 rpm. 硬盘槽: 2x m.2 & 2x 2.5寸
Soundcard
Realtek ALC892 @ Intel Sunrise Point PCH - High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米耳机、麦克风和S/PDIF接口, Card Reader: SD,SDHC,SDXC,Mini SD,MMC,RSMMC, 1 Fingerprint Reader, SIM 卡槽
Networking
Realtek PCIe GBE Family Controller (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
Size
height x width x depth (in mm): 25 x 385 x 271
Battery
60 Wh Lithium-Ion, 4 芯
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 200万像素(全高清)
Additional features

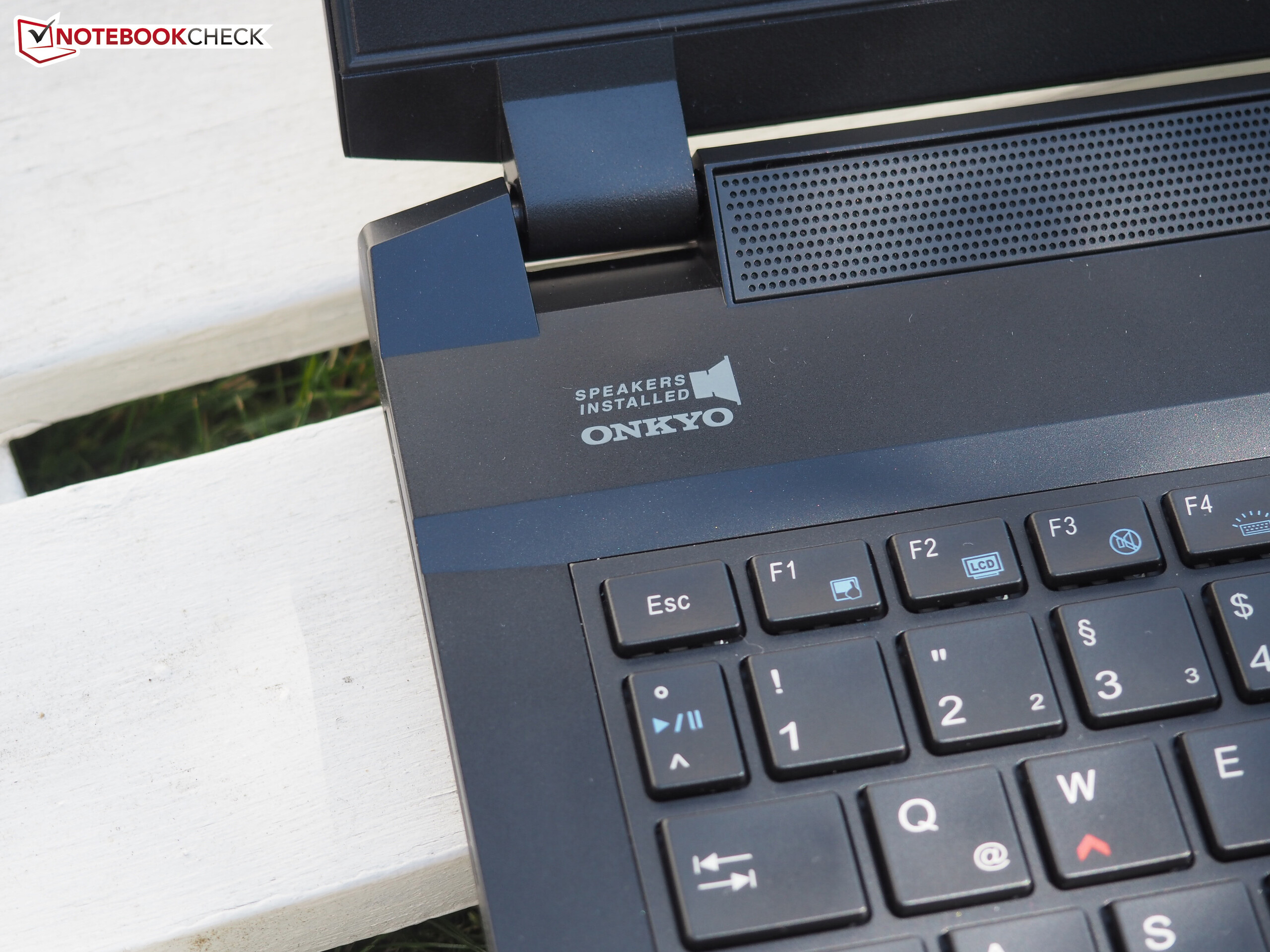

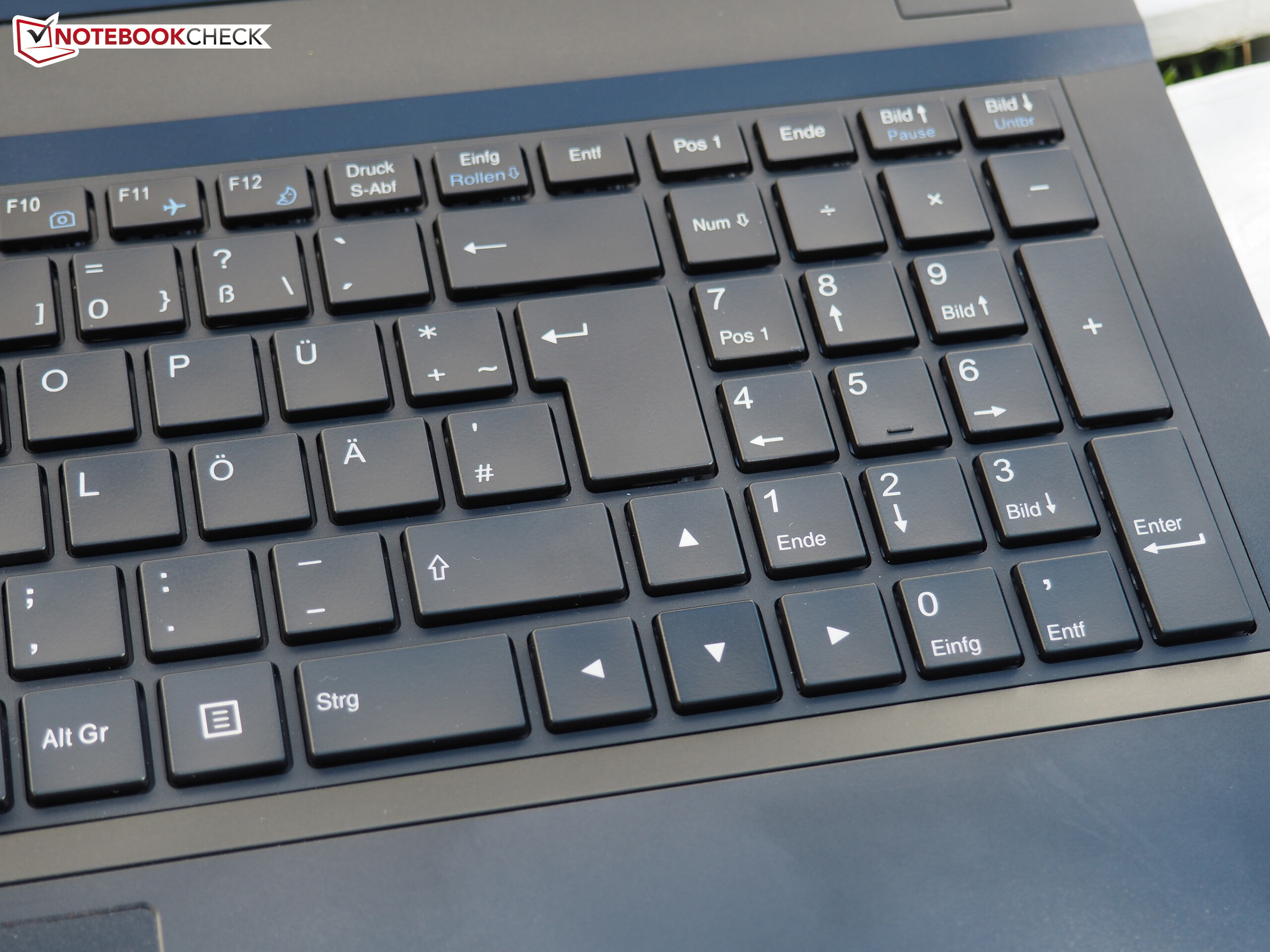

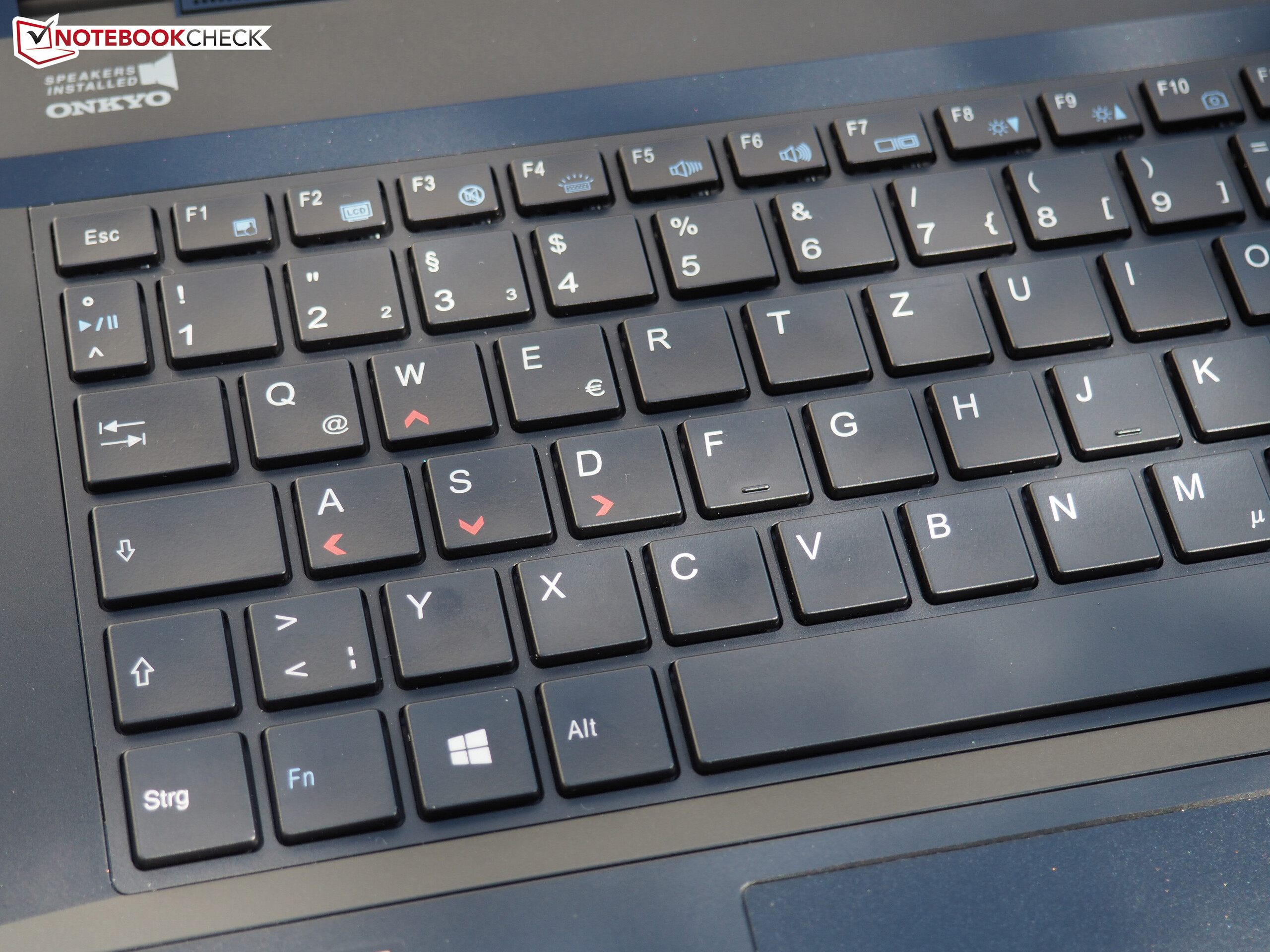

Speakers: 2.0 Onkyo (Sound Blaster X-Fi MB5), Keyboard: 孤岛式, Keyboard Light: yes, 电源适配器:200瓦,配件:恢复盘,USB闪存盘,清洁布,XMG贴纸,硬盘螺丝, 软件: Control Center, 24 Months Warranty
Weight
2.84 kg, Power Supply: 840 g
Price
1935 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

390 mm 266 mm 40 mm 2.9 kg380 mm 269 mm 34 mm 2.6 kg390 mm 266 mm 23.5 mm 2.6 kg385 mm 271 mm 25 mm 2.8 kg385 mm 271 mm 25 mm 2.7 kg

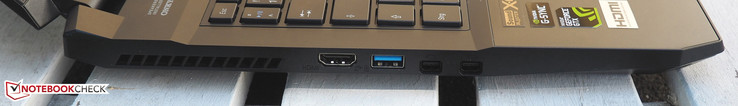

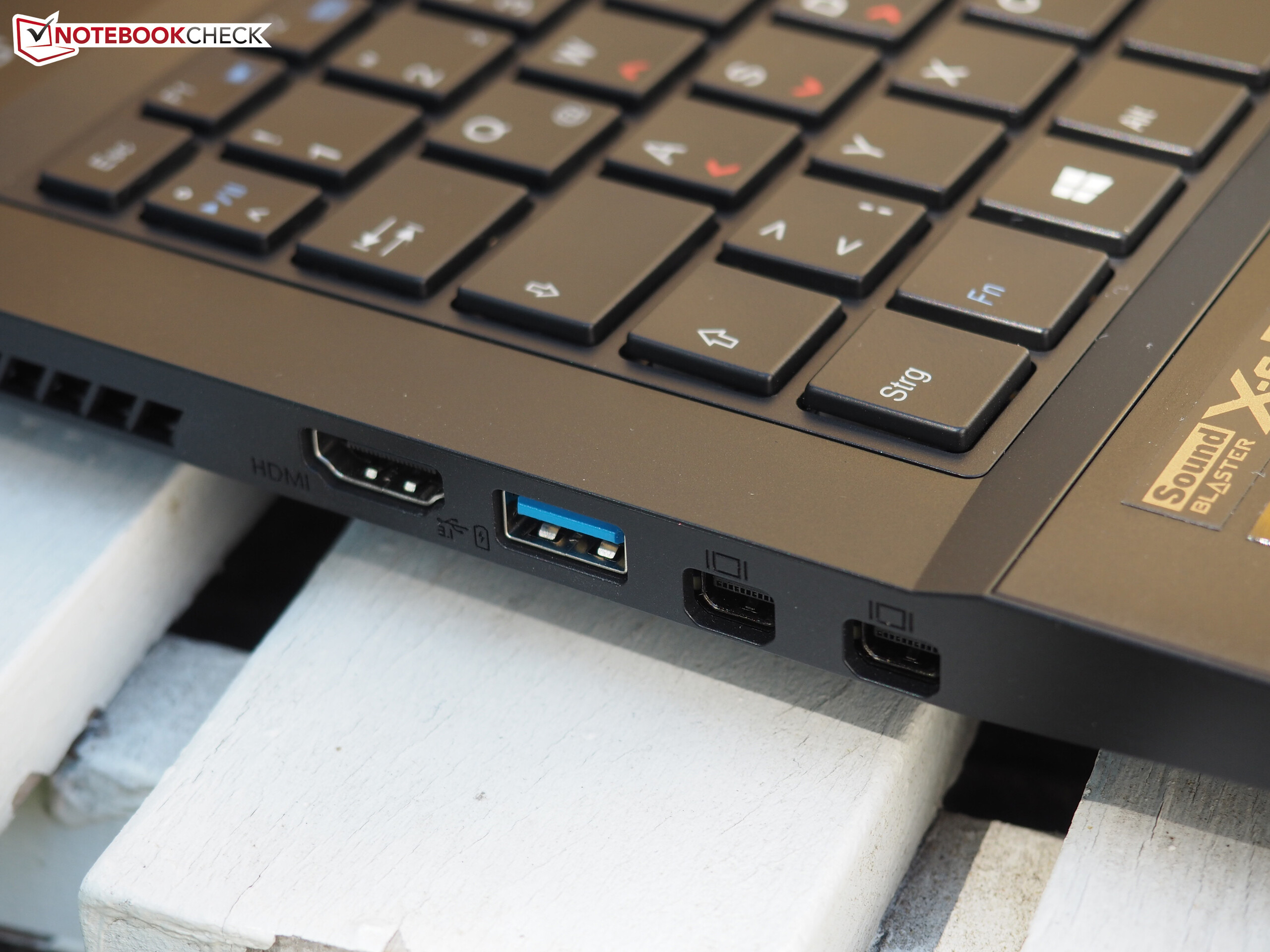

left: HDMI, USB 3.0, 2x mini DisplayPort

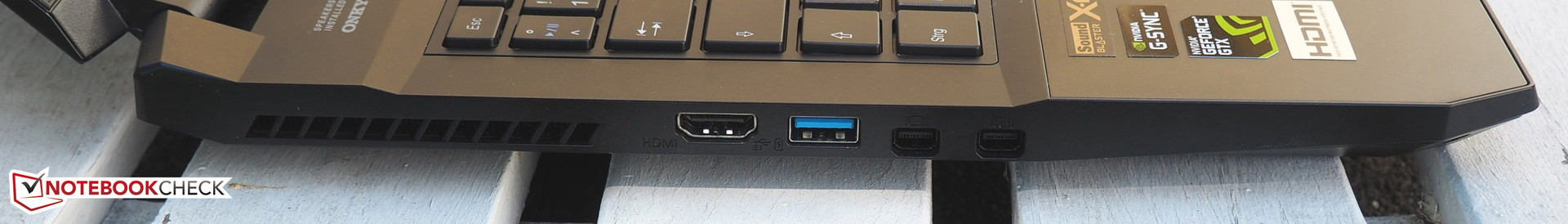

left: HDMI, USB 3.0, 2x mini DisplayPort

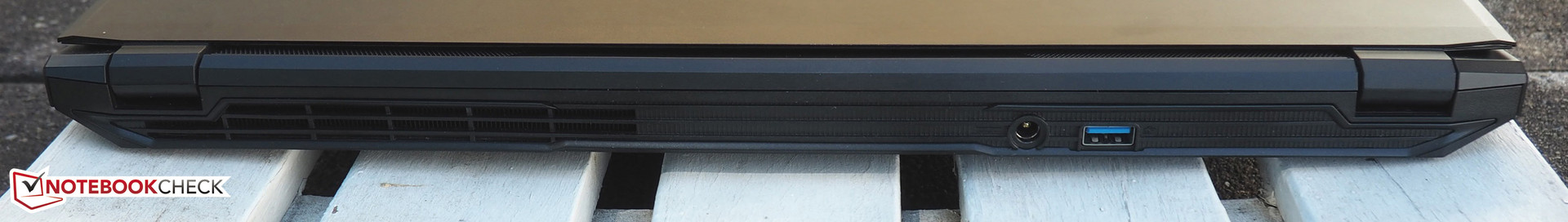

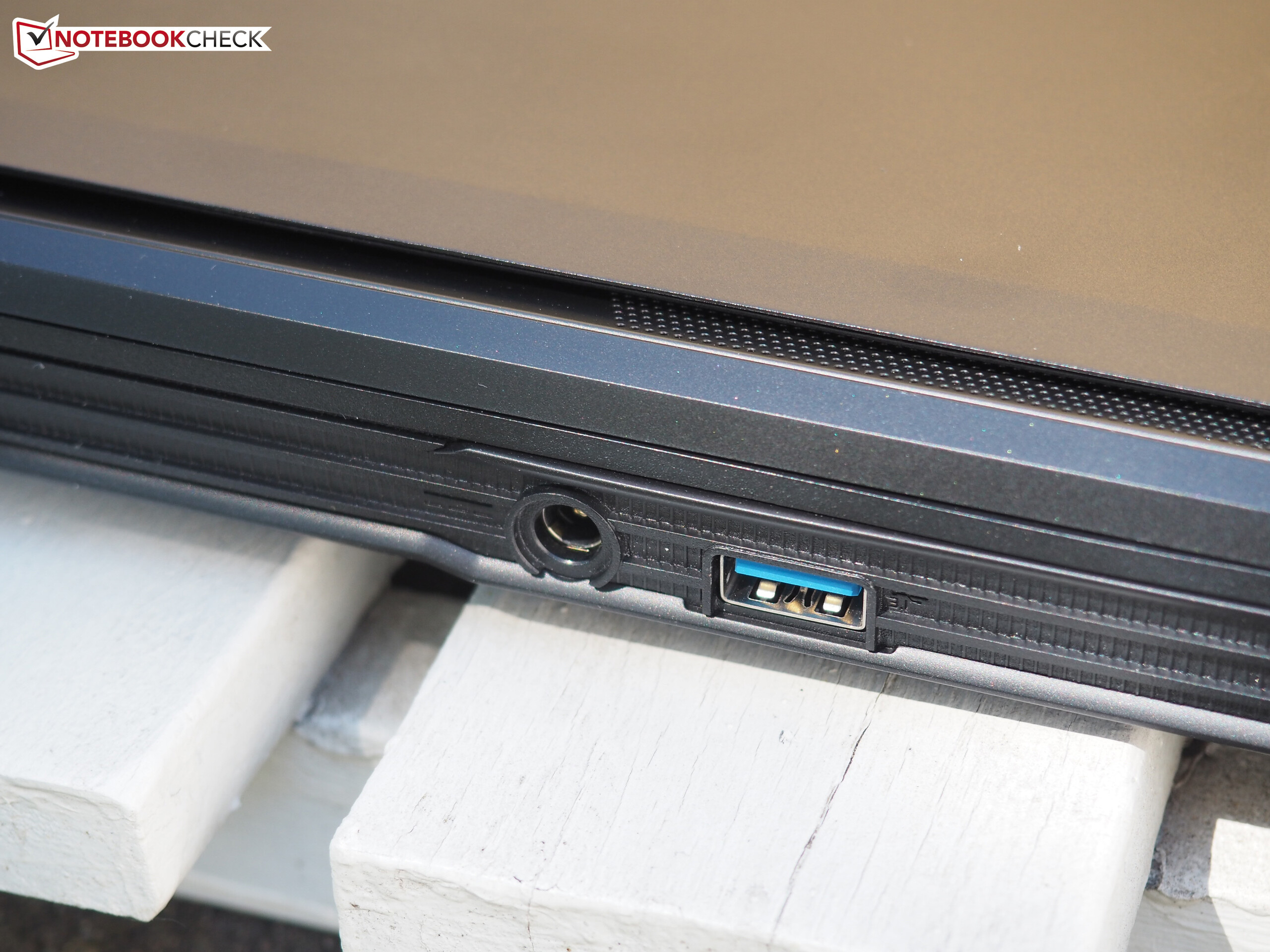

rear: power-in, USB 3.0
rear: power-in, USB 3.0

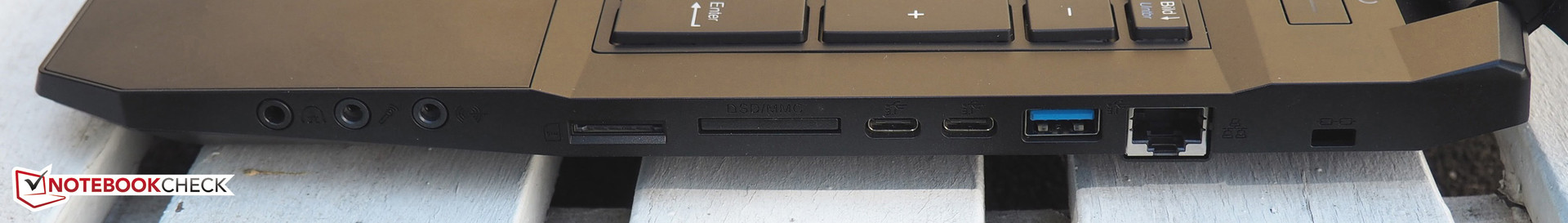

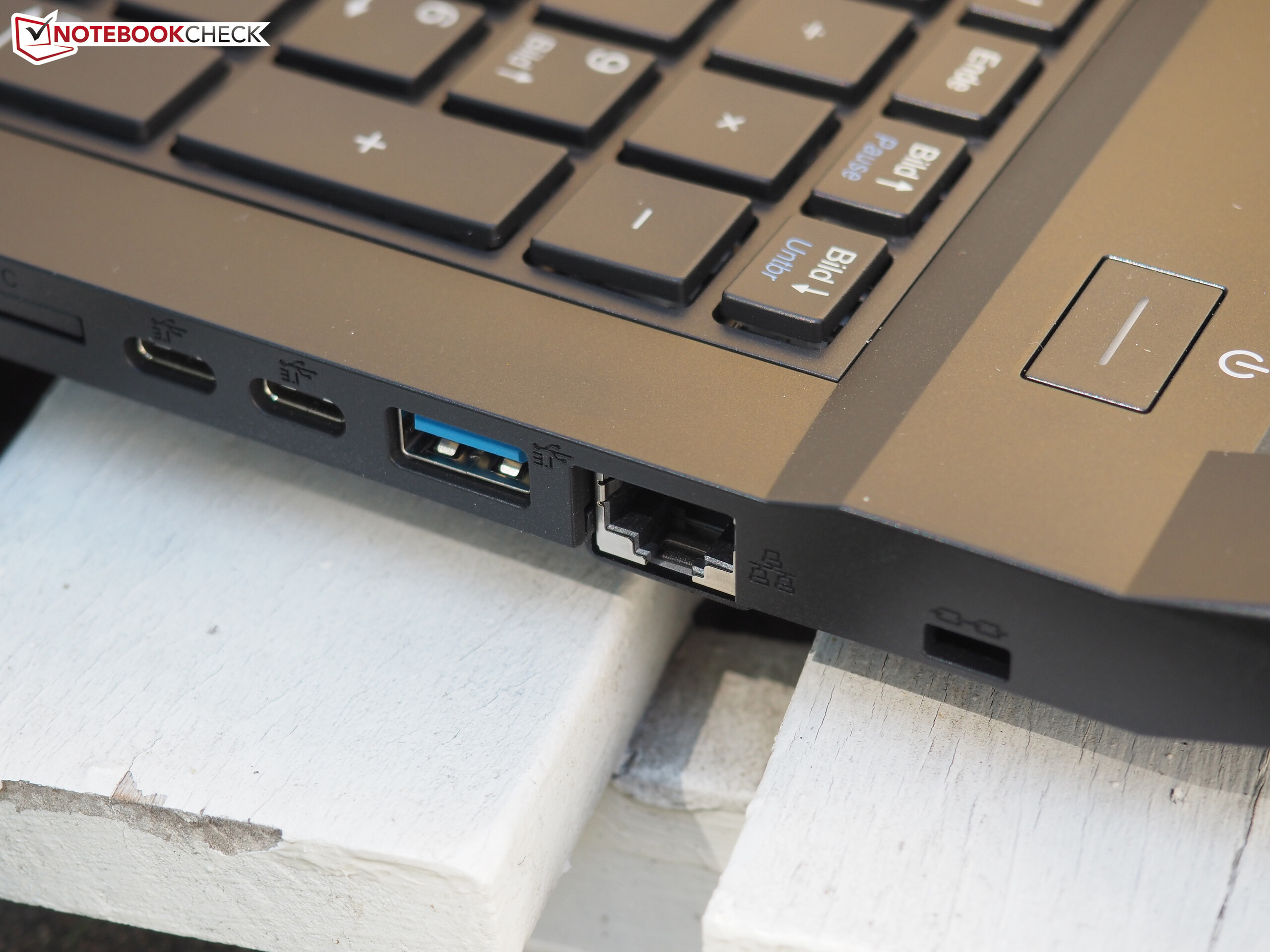

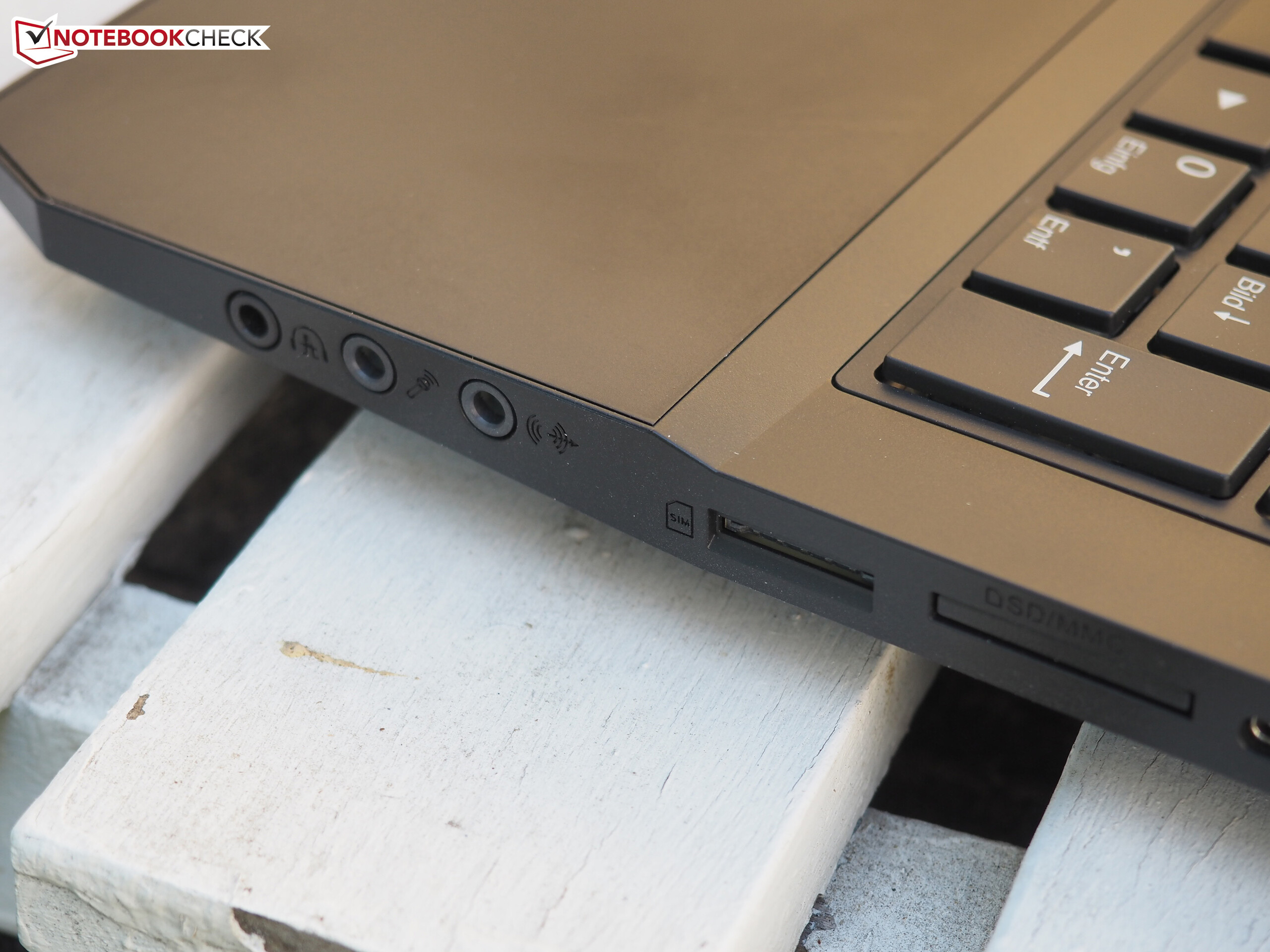

right: 3x audio, SIM, card reader, 2x USB 3.1 Gen2 Typ C, USB 3.0, RJ45-LAN, Kensington
right: 3x audio, SIM, card reader, 2x USB 3.1 Gen2 Typ C, USB 3.0, RJ45-LAN, Kensington
Networking
iperf Server (receive) TCP 1 m
Schenker XMG P507
Intel Dual Band Wireless-AC 8260
642 MBit/s ∼100%
MSI GT62VR-6RE16H21
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
630 MBit/s ∼98% -2%
iperf Client (transmit) TCP 1 m
MSI GT62VR-6RE16H21
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
559 MBit/s ∼100% +23%
Schenker XMG P507
Intel Dual Band Wireless-AC 8260
456 MBit/s ∼82%
271
cd/m²
281
cd/m²
297
cd/m²
281
cd/m²
288
cd/m²
303
cd/m²
293
cd/m²
298
cd/m²
312
cd/m²
Distribution of brightness
LG Philips LP156WF6 (LGD046F)
X-Rite i1Pro 2
Maximum: 312 cd/m² Average: 291.6 cd/m² Minimum: 9 cd/m²
Brightness Distribution: 87 %
Center on Battery: 288 cd/m²
Contrast: 960:1 (Black: 0.3 cd/m²)
ΔE Color 5.1 | 0.6-29.43 Ø6
ΔE Greyscale 4.43 | 0.64-98 Ø6.2
83% sRGB (Argyll 3D) 55% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.46
Schenker XMG P507
LG Philips LP156WF6 (LGD046F)
MSI GT62VR-6RE16H21
LG Philips LP156WF6 (LGD046F)
Asus Strix GL502VY-DS71

Schenker XMG P506 PRO
LG Philips LP156WF6 (LGD046F)
Gigabyte P55K v5
Name: AU Optronics B156HAN01.2, ID: AUO12ED
Response Times
5%
0%
-6%
-15%
Response Time Grey 50% / Grey 80% *
36 (12, 24)
34 (14, 20)
6%
32 (12.4, 19.6)
11%
37 (15, 22)
-3%
37.2 (16, 21.2)
-3%
Response Time Black / White *
23 (5, 18)
22 (5, 17)
4%
25.6 (5.2, 20.4)
-11%
25 (5, 20)
-9%
29.2 (12, 17.2)
-27%
PWM Frequency
Screen
9%
5%
6%
2%
Brightness middle
288
273
-5%
347.2
21%
312
8%
274.9
-5%
Brightness
292
278
-5%
327
12%
293
0%
259
-11%
Brightness Distribution
87
88
1%
88
1%
87
0%
72
-17%
Black Level *
0.3
0.27
10%
0.348
-16%
0.32
-7%
0.367
-22%
Contrast
960
1011
5%
998
4%
975
2%
749
-22%
Colorchecker DeltaE2000 *
5.1
3.67
28%
4.53
11%
4.45
13%
3.39
34%
Colorchecker DeltaE2000 max. *
9.44
8.33
12%
11.01
-17%
8.5
10%
5.76
39%
Greyscale DeltaE2000 *
4.43
2.73
38%
2.84
36%
3.05
31%
4.21
5%
Gamma
2.46 89%
2.49 88%
2.05 107%
2.58 85%
2.18 101%
CCT
6687 97%
7029 92%
6664 98%
6495 100%
6069 107%
Color Space (Percent of AdobeRGB 1998)
55
55
0%
54.7
-1%
55
0%
59.2
8%
Color Space (Percent of sRGB)
83
84
1%
84.1
1%
84
1%
90.9
10%
Total Average (Program / Settings)
7% / 8%
3% / 4%
0% / 4%
-7% / -1%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

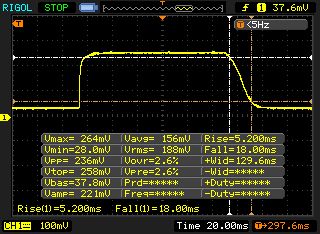

       Response Time Black to White
23 ms ... rise ↗ and fall ↘ combined↗ 5 ms rise
↘ 18 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 30 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24.9 ms).

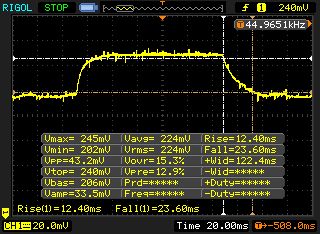

       Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 24 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 30 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (39.7 ms).

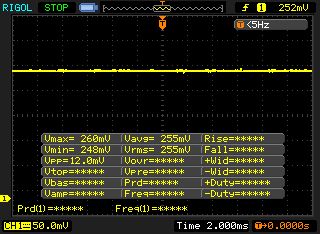

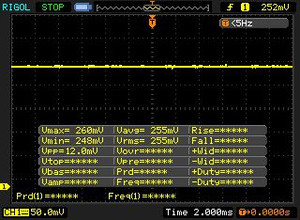

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9370 (minimum: 43 - maximum: 142900) Hz was measured.

Cinebench R10 Shading 32Bit
6814
Cinebench R11.5 CPU Single 64Bit
1.6 Points
Cinebench R11.5 CPU Multi 64Bit
7.45 Points
Cinebench R11.5 OpenGL 64Bit
68.55 fps
Cinebench R15 CPU Single 64Bit
148 Points
Cinebench R15 CPU Multi 64Bit
682 Points
Cinebench R15 OpenGL 64Bit
113.57 fps
Help
Cinebench R15
CPU Single 64Bit
Schenker XMG P507
Intel Core i7-6700HQ
148 Points ∼100%
Schenker XMG P506
Intel Core i7-6700HQ
146 Points ∼99% -1%
Asus Strix GL502VY-DS71
Intel Core i7-6700HQ
145 Points ∼98% -2%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
143 Points ∼97% -3%
Gigabyte P55K v5
Intel Core i7-6700HQ
139 Points ∼94% -6%
CPU Multi 64Bit
Schenker XMG P507
Intel Core i7-6700HQ
682 Points ∼100%
Schenker XMG P506
Intel Core i7-6700HQ
680 Points ∼100% 0%
Gigabyte P55K v5
Intel Core i7-6700HQ
680 Points ∼100% 0%
Asus Strix GL502VY-DS71
Intel Core i7-6700HQ
677 Points ∼99% -1%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
673 Points ∼99% -1%
Cinebench R11.5
CPU Single 64Bit
Schenker XMG P506
Intel Core i7-6700HQ
1.69 Points ∼100% +6%
Asus Strix GL502VY-DS71
Intel Core i7-6700HQ
1.66 Points ∼98% +4%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
1.61 Points ∼95% +1%
Schenker XMG P507
Intel Core i7-6700HQ
1.6 Points ∼95%
Gigabyte P55K v5
Intel Core i7-6700HQ
1.56 Points ∼92% -2%
CPU Multi 64Bit
Schenker XMG P506
Intel Core i7-6700HQ
7.48 Points ∼100% 0%
Gigabyte P55K v5
Intel Core i7-6700HQ
7.48 Points ∼100% 0%
Asus Strix GL502VY-DS71
Intel Core i7-6700HQ
7.47 Points ∼100% 0%
Schenker XMG P507
Intel Core i7-6700HQ
7.45 Points ∼100%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
7.41 Points ∼99% -1%
PCMark 7 Score
6138 points
Help
PCMark 7 - Score
Schenker XMG P506
GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e
6228 Points ∼100% +1%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e
6138 Points ∼99%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ, Toshiba HG6 THNSNJ256G8NY
5926 Points ∼95% -3%

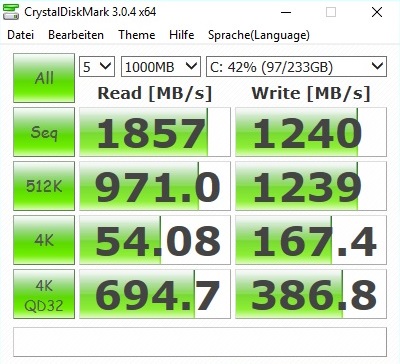

Samsung SM951 MZVPV256HDGL m.2 PCI-e
Sequential Read: 1857 MB/s
Sequential Write: 1240 MB/s
512K Read: 971 MB/s
512K Write: 1239 MB/s
4K Read: 54.08 MB/s
4K Write: 167.4 MB/s
4K QD32 Read: 694.7 MB/s
4K QD32 Write: 386.8 MB/s
Schenker XMG P507
Samsung SM951 MZVPV256HDGL m.2 PCI-e
MSI GT62VR-6RE16H21
Toshiba HG6 THNSNJ256G8NY
Asus Strix GL502VY-DS71
SanDisk SD8SN8U1T001122
Schenker XMG P506
Samsung SM951 MZHPV256HDGL m.2 PCI-e
Gigabyte P55K v5
SanDisk SD8SN8U1T001122

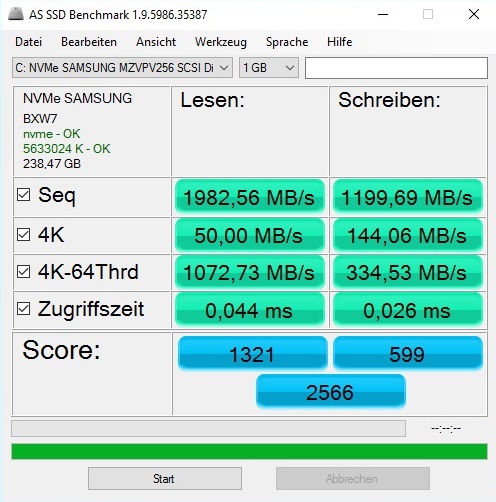

AS SSD
-60%
-67%
-18%
-66%
Score Total
2566
915
-64%
879
-66%
1875
-27%
868
-66%
4K Write
144.06
89.94
-38%
42.43
-71%
93.86
-35%
46.73
-68%
4K Read
50
20.08
-60%
24.36
-51%
39.23
-22%
25.09
-50%
Seq Write
1199.69
455.5
-62%
300.14
-75%
1199.54
0%
360.4
-70%
Seq Read
1982.56
502.04
-75%
506.1
-74%
1869.53
-6%
467.56
-76%
3DMark Vantage P Result
34361 points
3DMark 11 Performance
12349 points
3DMark Ice Storm Standard Score
119721 points
3DMark Cloud Gate Standard Score
22874 points
3DMark Fire Strike Score
9331 points
3DMark Time Spy Score
3588 points
Help
3DMark
2560x1440 Time Spy Graphics
MSI GT62VR-6RE16H21
NVIDIA GeForce GTX 1070 (Laptop)
5247 Points ∼100% +49%
Schenker XMG P507
NVIDIA GeForce GTX 1060 (Laptop)
3529 Points ∼67%
1920x1080 Fire Strike Graphics
MSI GT62VR-6RE16H21
NVIDIA GeForce GTX 1070 (Laptop)
17066 Points ∼100% +55%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop)
12984 Points ∼76% +18%
Schenker XMG P507
NVIDIA GeForce GTX 1060 (Laptop)
11045 Points ∼65%
Asus Strix GL502VY-DS71
NVIDIA GeForce GTX 980M
9608 Points ∼56% -13%
Schenker XMG P506
NVIDIA GeForce GTX 970M
7595 Points ∼45% -31%
Gigabyte P55K v5
NVIDIA GeForce GTX 965M
5323 Points ∼31% -52%
3DMark 11 - 1280x720 Performance GPU
MSI GT62VR-6RE16H21
NVIDIA GeForce GTX 1070 (Laptop)
22195 Points ∼100% +56%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop)
17401 Points ∼78% +22%
Schenker XMG P507
NVIDIA GeForce GTX 1060 (Laptop)
14222 Points ∼64%
Asus Strix GL502VY-DS71
NVIDIA GeForce GTX 980M
12472 Points ∼56% -12%
Schenker XMG P506
NVIDIA GeForce GTX 970M
9967 Points ∼45% -30%
Gigabyte P55K v5
NVIDIA GeForce GTX 965M
7128 Points ∼32% -50%
Unigine Heaven 4.0 - Extreme Preset DX11
MSI GT62VR-6RE16H21
NVIDIA GeForce GTX 1070 (Laptop)
104.3 fps ∼100% +47%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop)
82.7 fps ∼79% +17%
Schenker XMG P507
NVIDIA GeForce GTX 1060 (Laptop)
70.8 fps ∼68%
Mirror's Edge Catalyst
3840x2160 High Preset AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
36.4 fps ∼54% +47%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
31 fps ∼46% +25%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
27.6 fps ∼41% +11%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
24.8 fps ∼37%
Schenker W504
GeForce GTX 980M, 4700MQ
20.6 (min: 17) fps ∼31% -17%
Schenker W504
GeForce GTX 970M, 4700MQ
16.4 (min: 15) fps ∼24% -34%
1920x1080 Ultra Preset AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
92.4 fps ∼63% +38%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
81.9 fps ∼56% +22%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
78.3 fps ∼54% +17%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
67.1 fps ∼46%
Schenker W504
GeForce GTX 980M, 4700MQ
53.8 (min: 48) fps ∼37% -20%
Schenker W504
GeForce GTX 970M, 4700MQ
42.1 (min: 33) fps ∼29% -37%
Overwatch
3840x2160 High (Render Scale 100 %) AA:SM AF:4x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
78.7 fps ∼29% +44%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
69.4 fps ∼26% +27%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
61.1 fps ∼23% +11%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
54.8 fps ∼21%
Schenker W504
GeForce GTX 980M, 4700MQ
47.3 (min: 39) fps ∼18% -14%
Schenker W504
GeForce GTX 970M, 4700MQ
36 (min: 28) fps ∼13% -34%
1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
147 fps ∼49% +43%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
125.9 fps ∼42% +22%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
116 fps ∼39% +13%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
103 fps ∼34%
Schenker W504
GeForce GTX 980M, 4700MQ
75.1 (min: 57) fps ∼25% -27%
Schenker W504
GeForce GTX 970M, 4700MQ
62.6 (min: 53) fps ∼21% -39%
Doom
3840x2160 High Preset AA:FX
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
45.6 fps ∼32% +45%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
41.4 fps ∼29% +31%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
34.2 fps ∼24% +9%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
31.5 fps ∼22%
Schenker W504
GeForce GTX 980M, 4700MQ
22.6 (min: 19) fps ∼16% -28%
Schenker W504
GeForce GTX 970M, 4700MQ
18.1 (min: 15) fps ∼13% -43%
1920x1080 Ultra Preset AA:SM
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
117 fps ∼59% +28%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
116 fps ∼58% +27%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
99.7 fps ∼50% +9%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
91.5 fps ∼46%
Schenker W504
GeForce GTX 980M, 4700MQ
51.2 (min: 38) fps ∼26% -44%
Schenker W504
GeForce GTX 970M, 4700MQ
41.4 (min: 30) fps ∼21% -55%
Need for Speed 2016
3840x2160 High / On AA:FX
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
47.8 fps ∼52% +52%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
40.5 fps ∼44% +29%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
33.9 fps ∼37% +8%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
31.4 fps ∼34%
Schenker W504
GeForce GTX 980M, 4700MQ
26 (min: 20) fps ∼28% -17%
Schenker W504
GeForce GTX 970M, 4700MQ
20.4 (min: 16) fps ∼22% -35%
1920x1080 Ultra / On AA:T
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
77.4 fps ∼74% +19%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.3 fps ∼74% +19%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
69.2 fps ∼67% +6%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
65 fps ∼63%
Schenker W504
GeForce GTX 980M, 4700MQ
51.8 (min: 36) fps ∼50% -20%
Schenker W504
GeForce GTX 970M, 4700MQ
43.4 (min: 33) fps ∼42% -33%
Hitman 2016
3840x2160 High / On AA:FX AF:8x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
33 fps ∼46% +43%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
28.8 fps ∼40% +25%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
25.6 fps ∼36% +11%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
25.4 fps ∼35% +10%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
23 fps ∼32%
Schenker W504
GeForce GTX 980M, 4700MQ
18.4 (min: 15) fps ∼26% -20%
Schenker W504
GeForce GTX 970M, 4700MQ
14.4 (min: 11) fps ∼20% -37%
1920x1080 Ultra / On AA:SM AF:16x
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
61.3 fps ∼58% +24%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
57.3 fps ∼54% +16%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
55.3 fps ∼53% +11%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
54.4 fps ∼52% +10%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
49.6 fps ∼47%
Schenker W504
GeForce GTX 980M, 4700MQ
40.4 (min: 28) fps ∼38% -19%
Schenker W504
GeForce GTX 970M, 4700MQ
31.9 (min: 23) fps ∼30% -36%
The Division
3840x2160 High Preset AF:8x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
37 fps ∼40% +53%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.3 fps ∼36% +38%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
28.2 fps ∼30% +17%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
24.2 fps ∼26%
1920x1080 Ultra Preset AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
75.7 fps ∼46% +50%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
64.6 fps ∼40% +28%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
59.6 fps ∼37% +18%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
50.4 fps ∼31%
Schenker W504
GeForce GTX 980M, 4700MQ
42.1 (min: 23) fps ∼26% -16%
Schenker W504
GeForce GTX 970M, 4700MQ
33 (min: 17) fps ∼20% -35%
Far Cry Primal
3840x2160 High Preset AA:SM
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
36 fps ∼39% +50%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
32 fps ∼35% +33%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
28 fps ∼30% +17%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
24 fps ∼26%
Schenker W504
GeForce GTX 980M, 4700MQ
20 (min: 18) fps ∼22% -17%
Schenker W504
GeForce GTX 970M, 4700MQ
16 (min: 15) fps ∼17% -33%
1920x1080 Ultra Preset AA:SM
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
78 fps ∼64% +39%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
68 fps ∼56% +21%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
67 fps ∼55% +20%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
56 fps ∼46%
Schenker W504
GeForce GTX 980M, 4700MQ
46 (min: 36) fps ∼38% -18%
Schenker W504
GeForce GTX 970M, 4700MQ
36 (min: 28) fps ∼30% -36%
XCOM 2
3840x2160 High Preset AA:FX AF:8x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
23.6 fps ∼40% +45%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
20.1 fps ∼34% +23%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
17.8 fps ∼30% +9%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
16.3 fps ∼27%
1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
38.5 fps ∼45% +32%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.4 fps ∼39% +15%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
30.9 fps ∼36% +6%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
29.1 fps ∼34%
Schenker W504
GeForce GTX 980M, 4700MQ
23 (min: 20) fps ∼27% -21%
Schenker W504
GeForce GTX 970M, 4700MQ
15 (min: 8) fps ∼18% -48%
Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
37.5 fps ∼38% +48%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.7 fps ∼34% +33%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
29.3 fps ∼30% +15%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
27 fps ∼27% +6%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
25.4 fps ∼26%
Schenker W504
GeForce GTX 980M, 4700MQ
20.8 (min: 19) fps ∼21% -18%
Schenker W504
GeForce GTX 970M, 4700MQ
16.8 (min: 15) fps ∼17% -34%
1920x1080 Very High Preset AA:FX AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
84.6 fps ∼42% +43%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.1 fps ∼38% +30%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
66.9 fps ∼33% +13%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
66.5 fps ∼33% +13%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
59.1 fps ∼29%
Schenker W504
GeForce GTX 980M, 4700MQ
47.9 (min: 45) fps ∼24% -19%
Schenker W504
GeForce GTX 970M, 4700MQ
38 (min: 35) fps ∼19% -36%
Just Cause 3
3840x2160 High / On AA:FX AF:8x
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
36.1 fps ∼44% +19%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
30.3 fps ∼37%
Schenker W504
GeForce GTX 980M, 4700MQ
23.6 (min: 20) fps ∼29% -22%
Schenker W504
GeForce GTX 970M, 4700MQ
19.9 (min: 16) fps ∼24% -34%
1920x1080 Very High / On AA:SM AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
96 fps ∼73% +35%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
85.6 fps ∼65% +21%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
71 fps ∼54%
Schenker W504
GeForce GTX 980M, 4700MQ
59.7 (min: 50) fps ∼45% -16%
Schenker W504
GeForce GTX 970M, 4700MQ
50.7 (min: 46) fps ∼38% -29%
Rainbow Six Siege
3840x2160 High Preset AA:T AF:4x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
62.7 fps ∼33% +47%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
47.7 fps ∼25% +12%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
42.7 fps ∼23%
Schenker W504
GeForce GTX 980M, 4700MQ
35.9 (min: 28) fps ∼19% -16%
Schenker W504
GeForce GTX 970M, 4700MQ
27.5 (min: 12) fps ∼15% -36%
1920x1080 Ultra Preset AA:T AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
163 fps ∼50% +42%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
130 fps ∼40% +13%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
115 fps ∼35%
Schenker W504
GeForce GTX 980M, 4700MQ
80.3 (min: 26) fps ∼25% -30%
Schenker W504
GeForce GTX 970M, 4700MQ
63.5 (min: 22) fps ∼19% -45%
Assassin's Creed Syndicate
3840x2160 High Preset AA:FX
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
35.6 fps ∼48% +46%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
28.2 fps ∼38% +16%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
27.8 fps ∼38% +14%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
24.4 fps ∼33%
Schenker W504
GeForce GTX 980M, 4700MQ
20.7 (min: 18) fps ∼28% -15%
Schenker W504
GeForce GTX 970M, 4700MQ
16.2 (min: 14) fps ∼22% -34%
1920x1080 Ultra High Preset AA:4x MSAA + FX
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
45 fps ∼56% +46%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
35.3 fps ∼44% +15%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
32.3 fps ∼40% +5%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
30.8 fps ∼39%
Schenker W504
GeForce GTX 980M, 4700MQ
24.2 (min: 19) fps ∼30% -21%
Schenker W504
GeForce GTX 970M, 4700MQ
18.9 (min: 15) fps ∼24% -39%
Star Wars Battlefront
3840x2160 High Preset AA:FX
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
49.9 fps ∼38% +49%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
39.6 fps ∼30% +19%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
37.9 fps ∼29% +13%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
33.4 fps ∼25%
Schenker W504
GeForce GTX 980M, 4700MQ
27.9 (min: 23) fps ∼21% -16%
Schenker W504
GeForce GTX 970M, 4700MQ
21.9 (min: 18) fps ∼17% -34%
1920x1080 Ultra Preset AA:FX
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
128 fps ∼65% +45%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
102.1 fps ∼52% +15%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
102 fps ∼52% +15%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
88.4 fps ∼45%
Schenker W504
GeForce GTX 980M, 4700MQ
73.1 (min: 61) fps ∼37% -17%
Schenker W504
GeForce GTX 970M, 4700MQ
59 (min: 50) fps ∼30% -33%
Fallout 4
3840x2160 High Preset AA:T AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
41.9 fps ∼42% +45%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
33.7 fps ∼34% +17%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
32.2 fps ∼32% +12%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
28.8 fps ∼29%
Schenker W504
GeForce GTX 980M, 4700MQ
24 (min: 18) fps ∼24% -17%
Schenker W504
GeForce GTX 970M, 4700MQ
18 (min: 9) fps ∼18% -37%
1920x1080 Ultra Preset AA:T AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
95.4 fps ∼57% +49%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
78 fps ∼47% +21%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
77.1 fps ∼46% +20%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
64.2 fps ∼38%
Schenker W504
GeForce GTX 980M, 4700MQ
55 (min: 42) fps ∼33% -14%
Schenker W504
GeForce GTX 970M, 4700MQ
43.4 (min: 33) fps ∼26% -32%
Call of Duty: Black Ops 3
3840x2160 High / On AA:FX
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
42.7 fps ∼41% +61%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
34.2 fps ∼33% +29%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
32.2 fps ∼31% +21%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
26.6 fps ∼25%
Schenker W504
GeForce GTX 980M, 4700MQ
24.8 (min: 10) fps ∼24% -7%
Schenker W504
GeForce GTX 970M, 4700MQ
19.2 (min: 9) fps ∼18% -28%
1920x1080 Extra / On AA:T2x SM
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
103 fps ∼67% +41%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
88.3 fps ∼58% +21%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
85.9 fps ∼56% +17%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
73.2 fps ∼48%
Schenker W504
GeForce GTX 980M, 4700MQ
66.7 (min: 52) fps ∼44% -9%
Schenker W504
GeForce GTX 970M, 4700MQ
53 (min: 43) fps ∼35% -28%
Anno 2205
3840x2160 High Preset AA:4x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
48.9 fps ∼56% +51%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
38.2 fps ∼43% +18%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
34.1 fps ∼39% +5%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
32.4 fps ∼37%
Schenker W504
GeForce GTX 980M, 4700MQ
23.8 (min: 20) fps ∼27% -27%
Schenker W504
GeForce GTX 970M, 4700MQ
18.6 (min: 17) fps ∼21% -43%
1920x1080 Ultra High Preset AA:8x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
44.6 fps ∼59% +56%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
31.9 fps ∼42% +12%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
30.7 fps ∼40% +7%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
28.6 fps ∼38%
Schenker W504
GeForce GTX 980M, 4700MQ
22.7 (min: 19) fps ∼30% -21%
Schenker W504
GeForce GTX 970M, 4700MQ
16.8 (min: 14) fps ∼22% -41%
FIFA 16
3840x2160 High Preset AA:2x MS
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
161 fps ∼59% +45%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
127 fps ∼47% +14%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
124.4 fps ∼46% +12%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
111 fps ∼41%
Schenker W504
GeForce GTX 980M, 4700MQ
88.2 (min: 35) fps ∼33% -21%
Schenker W504
GeForce GTX 970M, 4700MQ
68.4 (min: 23) fps ∼25% -38%
1920x1080 High Preset AA:4x MS
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
298 fps ∼97% +24%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
287.1 fps ∼94% +19%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
241 fps ∼79%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
220 fps ∼72% -9%
Schenker W504
GeForce GTX 980M, 4700MQ
192.2 (min: 101) fps ∼63% -20%
Schenker W504
GeForce GTX 970M, 4700MQ
170.9 (min: 160) fps ∼56% -29%
Mad Max
3840x2160 High Preset AF:6x
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
48.1 fps ∼29% +16%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
46.8 fps ∼28% +13%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
41.3 fps ∼25%
Schenker W504
GeForce GTX 980M, 4700MQ
33 (min: 28) fps ∼20% -20%
Schenker W504
GeForce GTX 970M, 4700MQ
26 (min: 21) fps ∼15% -37%
1920x1080 Very High Preset AF:12x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
166 fps ∼63% +46%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
136.6 fps ∼52% +20%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
132 fps ∼50% +16%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
114 fps ∼44%
Schenker W504
GeForce GTX 980M, 4700MQ
97.9 (min: 75) fps ∼37% -14%
Schenker W504
GeForce GTX 970M, 4700MQ
77.9 (min: 64) fps ∼30% -32%
Batman: Arkham Knight
3840x2160 High / On (Interactive Smoke & Paper Debris Off) AA:SM AF:8x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
40 fps ∼69% +43%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
34 fps ∼59% +21%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
32 fps ∼55% +14%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
28 fps ∼48%
Schenker W504
GeForce GTX 980M, 4700MQ
22 (min: 15) fps ∼38% -21%
Schenker W504
GeForce GTX 970M, 4700MQ
18 (min: 13) fps ∼31% -36%
1920x1080 High / On AA:SM AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
77 fps ∼55% +35%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
67 fps ∼48% +18%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
67 fps ∼48% +18%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
57 fps ∼40%
Schenker W504
GeForce GTX 980M, 4700MQ
44 (min: 28) fps ∼31% -23%
Schenker W504
GeForce GTX 970M, 4700MQ
33 (min: 22) fps ∼23% -42%
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
38.3 fps ∼38% +54%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
30.1 fps ∼30% +21%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
29 fps ∼28% +16%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
24.9 fps ∼24%
Schenker W504
GeForce GTX 980M, 4700MQ
22.8 (min: 19) fps ∼22% -8%
Schenker W504
GeForce GTX 970M, 4700MQ
17.6 (min: 15) fps ∼17% -29%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
58 fps ∼43% +54%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
44.4 fps ∼33% +18%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
44.3 fps ∼33% +18%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
37.7 fps ∼28%
Schenker W504
GeForce GTX 980M, 4700MQ
32.6 (min: 25) fps ∼24% -14%
Schenker W504
GeForce GTX 970M, 4700MQ
25.8 (min: 19) fps ∼19% -32%
Dirt Rally
3840x2160 High Preset
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
87.7 fps ∼54% +11%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
84.2 fps ∼52% +7%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
79 fps ∼48%
Schenker W504
GeForce GTX 980M, 4700MQ
58.6 (min: 45) fps ∼36% -26%
Schenker W504
GeForce GTX 970M, 4700MQ
45.5 (min: 25) fps ∼28% -42%
1920x1080 Ultra Preset AA:4x MS
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
106 fps ∼63% +11%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
97 fps ∼58% +1%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
95.6 fps ∼57%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
84.7 fps ∼50% -11%
Schenker W504
GeForce GTX 980M, 4700MQ
72 (min: 54) fps ∼43% -25%
Schenker W504
GeForce GTX 970M, 4700MQ
56.5 (min: 38) fps ∼34% -41%
Dragon Age: Inquisition - 1920x1080 Ultra Graphics Quality AA:2x MS
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
92.7 fps ∼55% +55%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
66.9 fps ∼39% +12%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
65.4 fps ∼38% +10%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
59.7 fps ∼35%
One K73-5N
GeForce GTX 980M, 4790K
47.2 fps ∼28% -21%
Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
139 fps ∼59% +21%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
134.4 fps ∼57% +17%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
133 fps ∼57% +16%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
115 fps ∼49%
One K73-5N
GeForce GTX 980M, 4790K
94.6 fps ∼40% -18%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
75.7 fps ∼32% -34%
Sims 4 - 1920x1080 Ultra Preset
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
148 fps ∼93% +24%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
119 fps ∼75%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
117.2 fps ∼73% -2%
One K73-5N
GeForce GTX 980M, 4790K
112.4 fps ∼70% -6%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
112 fps ∼70% -6%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
93.8 fps ∼59% -21%
GRID: Autosport - 1920x1080 Ultra Preset AA:4x MS
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
150 fps ∼100% +25%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
128.1 fps ∼85% +7%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
120 fps ∼80%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
86.4 fps ∼58% -28%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
82.3 fps ∼55% -31%
Watch Dogs - 1920x1080 Ultra Overall Quality, Ultra Textures AA:4x MS
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
65.5 fps ∼88% +20%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
59.4 fps ∼80% +9%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
57.7 fps ∼77% +6%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
54.4 fps ∼73%
One K73-5N
GeForce GTX 980M, 4790K
46.8 fps ∼63% -14%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
34.4 fps ∼46% -37%
Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
84.8 fps ∼60% +19%
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
77 fps ∼54% +8%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
71.4 fps ∼50%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
47.9 fps ∼34% -33%
Battlefield 4
3840x2160 High Preset
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
67.2 fps ∼40% +48%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
52.5 fps ∼31% +16%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
45.4 fps ∼27%
Schenker W504
GeForce GTX 980M, 4700MQ
35.2 (min: 30) fps ∼21% -22%
Schenker W504
GeForce GTX 970M, 4700MQ
27.1 (min: 23) fps ∼16% -40%
1920x1080 Ultra Preset AA:4x MS
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
138 fps ∼69% +49%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
99.6 fps ∼50% +7%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
92.9 fps ∼46%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
54.8 fps ∼27% -41%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
103.3 fps ∼60% +40%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
92.3 fps ∼54% +25%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
73.8 fps ∼43%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
53.3 fps ∼31% -28%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
124 fps ∼47% +26%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
121.4 fps ∼46% +24%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
98.1 fps ∼37%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
72.5 fps ∼27% -26%
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
70.2 fps ∼58% +36%
Schenker XMG U716
GeForce GTX 980 (Laptop), 6700
60.7 fps ∼50% +17%
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
51.7 fps ∼42%
Schenker XMG P505
GeForce GTX 970M, 4870HQ
33.4 fps ∼27% -35%
low med. high ultra4K
Crysis 3 (2013) 51.7fps
BioShock Infinite (2013) 98.1fps
Metro: Last Light (2013) 73.8fps
Battlefield 4 (2013) 92.945.4fps
Thief (2014) 71.4fps
Watch Dogs (2014) 70.454.4fps
GRID: Autosport (2014) 141120fps
Sims 4 (2014) 122119fps
Alien: Isolation (2014) 163115fps
Dragon Age: Inquisition (2014) 9059.7fps
Dirt Rally (2015) 12295.679fps
The Witcher 3 (2015) 67.137.724.9fps
Batman: Arkham Knight (2015) 835728fps
Mad Max (2015) 12411441.3fps
FIFA 16 (2015) 241111fps
Anno 2205 (2015) 81.128.632.4fps
Call of Duty: Black Ops 3 (2015) 80.673.226.6fps
Fallout 4 (2015) 80.164.228.8fps
Star Wars Battlefront (2015) 10288.433.4fps
Assassin's Creed Syndicate (2015) 69.930.824.4fps
Rainbow Six Siege (2015) 13611542.7fps
Just Cause 3 (2015) 81.87130.3fps
Rise of the Tomb Raider (2016) 67.759.125.4fps
XCOM 2 (2016) 56.129.116.3fps
Far Cry Primal (2016) 765624fps
The Division (2016) 6450.424.2fps
Hitman 2016 (2016) 52.249.623fps
Need for Speed 2016 (2016) 87.86531.4fps
Doom (2016) 9891.531.5fps
Overwatch (2016) 16910354.8fps
Mirror's Edge Catalyst (2016) 74.167.124.8fps

Noise Level

Idle
31 / 32 / 38 dB(A)
HDD
33 dB(A)
Load
46 / 49 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30 dB(A)
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ
Schenker XMG P506
GeForce GTX 970M, 6700HQ
Gigabyte P55K v5
GeForce GTX 965M, 6700HQ
Noise
4%
2%
2%
3%
off / environment *
30
30
-0%
29.4
2%
29
3%
Idle Minimum *
31
32
-3%
32
-3%
30.8
1%
32
-3%
Idle Average *
32
33
-3%
32.2
-1%
32.8
-3%
33
-3%
Idle Maximum *
38
34
11%
32.2
15%
35.9
6%
33
13%
Load Average *
46
40
13%
45.3
2%
42.2
8%
41
11%
Load Maximum *
49
46
6%
50.1
-2%
51
-4%
50
-2%

* ... smaller is better

Max. Load
 47 °C47.9 °C41.2 °C
 48.5 °C49.3 °C34.8 °C
 29.6 °C29.3 °C28.2 °C
Maximum: 49.3 °C
Average: 39.5 °C
39.4 °C45.5 °C52.7 °C
35.4 °C46.7 °C48.4 °C
33.6 °C38.7 °C40 °C
Maximum: 52.7 °C
Average: 42.3 °C
Power Supply (max.)  42.9 °C | Room Temperature 24 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 39.5 °C / 103 F, compared to the average of 33.2 °C / 92 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 49.3 °C / 121 F, compared to the average of 39.6 °C / 103 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 52.7 °C / 127 F, compared to the average of 42.2 °C / 108 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 33.2 °C / 92 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.6 °C / 85.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-0.8 °C / -1.5 F).
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ
Schenker XMG P506
GeForce GTX 970M, 6700HQ
Gigabyte P55K v5
GeForce GTX 965M, 6700HQ
Heat
7%
-1%
-5%
13%
Maximum Upper Side *
49.3
44
11%
60.4
-23%
49.3
-0%
52.6
-7%
Maximum Bottom *
52.7
53.1
-1%
44
17%
60.4
-15%
50.2
5%
Idle Upper Side *
32.6
28.8
12%
31.2
4%
31.4
4%
22.6
31%
Idle Bottom *
29.5
28.2
4%
29.4
-0%
32.3
-9%
23.4
21%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.230.22529.929.33129.229403328.75029.228.16326.826.88025.928.610024.928.312524.329.616022.437.720022.447.125020.347.831520.750.740019.261.750018.666.363018.965.480018.461.6100018.760.4125017.863.516001862.4200017.862.8250018.164.8315018.164.940001858.4500017.857.763001862.5800018.161.71000018.160.91250018.158.8160001857SPL30.474.7N1.435.4median 18.1median 60.9Delta16.541.64638.439.828.231.130.836.431.234.927.934.928.338.327.134.723.340.323.643.221.15421.156.120.259.219.164.319.46518.366.919.365.718.367.219.966.619.469.51874.217.665.417.567.217.363.517.458.817.353.117.357.817.255.717.258.317.151.130.479.11.442.1median 18.3median 59.21.66.4hearing rangehide median Pink NoiseSchenker XMG P507MSI GT62VR-6RE16H21
Schenker XMG P507 audio analysis

(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.7% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 44% of all tested devices in this class were better, 12% similar, 44% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 22% of all tested devices were better, 7% similar, 71% worse
» The best had a delta of 3%, average was 21%, worst was 53%

MSI GT62VR-6RE16H21 audio analysis

(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.3% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(±) | linearity of highs is average (11% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.4% difference to median)
Compared to same class
» 60% of all tested devices in this class were better, 5% similar, 35% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 32% of all tested devices were better, 7% similar, 61% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Power Consumption
Off / Standbydarklight 0.4 / 1.3 Watt
Idledarkmidlight 11 / 16 / 21 Watt
Load midlight 80 / 174 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Schenker XMG P507
GeForce GTX 1060 (Laptop), 6700HQ
MSI GT62VR-6RE16H21
GeForce GTX 1070 (Laptop), 6700HQ
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ
Schenker XMG P506
GeForce GTX 970M, 6700HQ
Gigabyte P55K v5
GeForce GTX 965M, 6700HQ
Power Consumption
-48%
-39%
6%
15%
Idle Minimum *
11
20
-82%
20.6
-87%
10.5
5%
10.1
8%
Idle Average *
16
26
-63%
22.1
-38%
14.6
9%
13.3
17%
Idle Maximum *
21
32
-52%
22.5
-7%
20.7
1%
15.4
27%
Load Average *
80
100
-25%
130.6
-63%
81.8
-2%
75.8
5%
Load Maximum *
174
202
-16%
177.2
-2%
146.3
16%
144
17%

* ... smaller is better

Battery Runtime
Idle (without WLAN, min brightness)
6h 49min
NBC WiFi Websurfing Battery Test 1.3
4h 34min
Load (maximum brightness)
2h 03min
Schenker XMG P507
60 Wh
MSI GT62VR-6RE16H21
75.24 Wh
Asus Strix GL502VY-DS71
64 Wh
Schenker XMG P506
60 Wh
Gigabyte P55K v5
63 Wh
Battery Runtime
-19%
-34%
-22%
-2%
Reader / Idle
409
300
-27%
273
-33%
314
-23%
502
23%
WiFi v1.3
274
246
-10%
187
-32%
295
8%
Load
123
97
-21%
76
-38%
98
-20%
79
-36%

就和它长长的优点列表一样,XMG P507的强项确实很多。它所栖身的Clevo P651准系统提供了轻便和性能的理想结合。

不像其他专注于性能的游戏本,这台15寸笔记本电脑更注重的是便携性。它2.8千克的重量和2.5厘米的厚度(搭配GTX 1070机型厚度为2.9厘米)结合了高品质机身,精致的输入设备和丰富的接口。

这款设备的最大亮点是英伟达的最新Pascal架构显卡。尽管GeForce GTX 1060只是为全高清分辨率设计的,它的性能却介于GTX 980M和GTX 980之间,让人略感瞠目结舌。新的16纳米制程帮助Pascal架构芯片相比Maxwell架构不需消耗太多功率,因此笔记本电脑也不容易变得太烫或太吵。另外,这台15寸笔记本电脑还支持Optimus和G-Sync。

无论如何,它错失了“优秀”的得分。一些缺点则包括了屏幕漏光,不够稳定的屏幕上盖和较差的音响效果。另外它的电源适配器十分笨重,而机身表面也非常容易沾染指纹。其他值得参考的替代机型有华硕Strix GL502VS和更笨重的微星GT62VR,它们都在我们的评测中时常被提到。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Pros

+ 高能效的Pascal架构
+ 机身主要采用金属材质
+ 掌托可以一直保持清凉
+ 作为游戏本相对轻薄

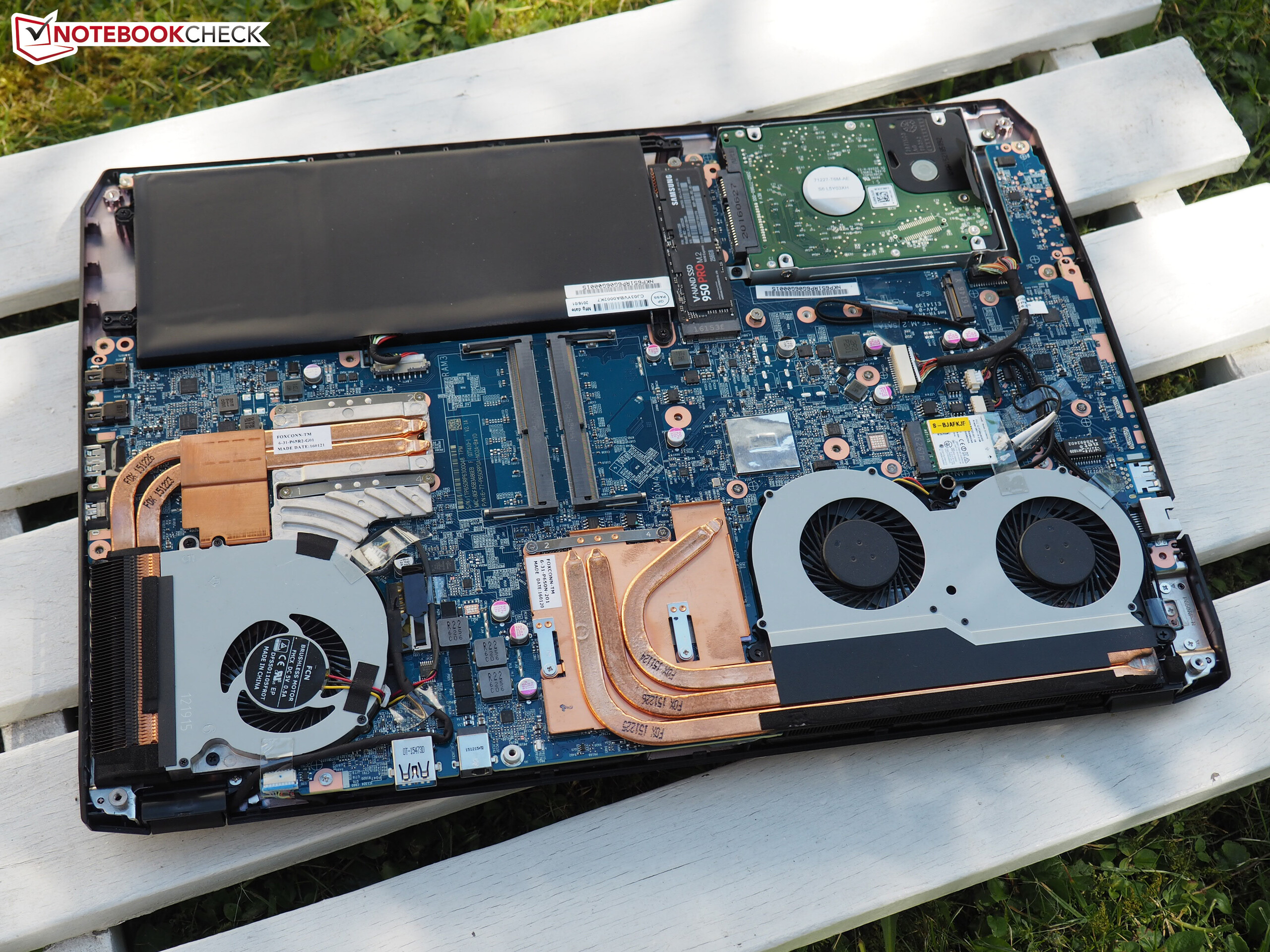

+ 所有的组件都可以维护更新
+ 高对比度IPS屏幕
+ 最多四块硬盘
+ 手动风扇控制
+ 个性化设置
+ 支持G-Sync和Optimus
+ 出色的输入设备
+ 不是很重
+ 许多接口
+ 无预装垃圾软件
+ 优秀的性能
+ NVMe固态硬盘

Cons

- 3D应用中系统噪音高
- 机身表面容易沾染指纹
- 与前代机型一样有漏光现象
- 维护升级操作不够方便
- 一般的音响效果
- 处理器和显卡板载
- 屏幕上盖非常脆弱
- 电源适配器十分笨重
In review: Schenker XMG P507 (Clevo P651RP6-G). Test model provided by Schenker Technologies.
In review: Schenker XMG P507 (Clevo P651RP6-G). Test model provided by Schenker Technologies.

As can be seen from the long list of the positives, the XMG P507 has many strengths. The used Clevo Barebone P651 is a good synthesis of portability and power.

Unlike other gaming notebooks that focus only on performance, the 15-inch laptop is more portable. The 2.8 kg (~6.2 lb) and 2.5 cm (~1in) slim chassis (2.9 cm/~1.14 in @GTX 1070) scores points with high quality materials, sophisticated input devices, and many interfaces.

The upgrade options also deserve respect. While CPU and GPU are soldered, the other components can be replaced. Up to four DDR4 RAM modules and a maximum of four storage devices are not a matter of course in the 15-inch range (especially in slim gaming notebooks). Thanks to individual configuration, the XMG P507 can be adjusted to your needs before purchase.

The actual highlight is Nvidia's brand new Pascal GPU. Even if the GeForce GTX 1060 was only designed for FHD, its performance, which is in between GTX 980M and GTX 980, is quite impressive. The new 16 nm process makes sure that Pascal notebooks do not necessarily require more energy than their Maxwell counterparts and do not need to get louder or hotter unavoidably. In addition, the 15-inch laptop is capable of Optimus AND G-Sync.

Nevertheless, the device missed a  “very good” by a slight margin. Negative aspects include screen bleeding, a wobbly lid, and a slightly poor sound. In addition, the power adapter is very bulky and the case surfaces are a magnet for fingerprints. Worthy alternatives are for example the Asus Strix GL502VS or even the significantly bulkier MSI GT62VR, which has been frequently mentioned throughout the review.

Schenker XMG P507 - 08/24/2016 v5.1(old)
Florian Glaser

Chassis
78 / 98 → 80%
Keyboard
81%
Pointing Device
81%
Connectivity
68 / 81 → 84%
Weight
58 / 10-66 → 86%
Battery
79%
Display
85%
Games Performance
93%
Application Performance
94%
Temperature
82 / 95 → 86%
Noise
67 / 90 → 74%
Audio
70%
Average
78%
84%
Gaming - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Schenker XMG P507 (Clevo P651RP6-G) 笔记本电脑简短评测
Florian Glaser, 2016-08-30 (Update: 2016-09- 3)
