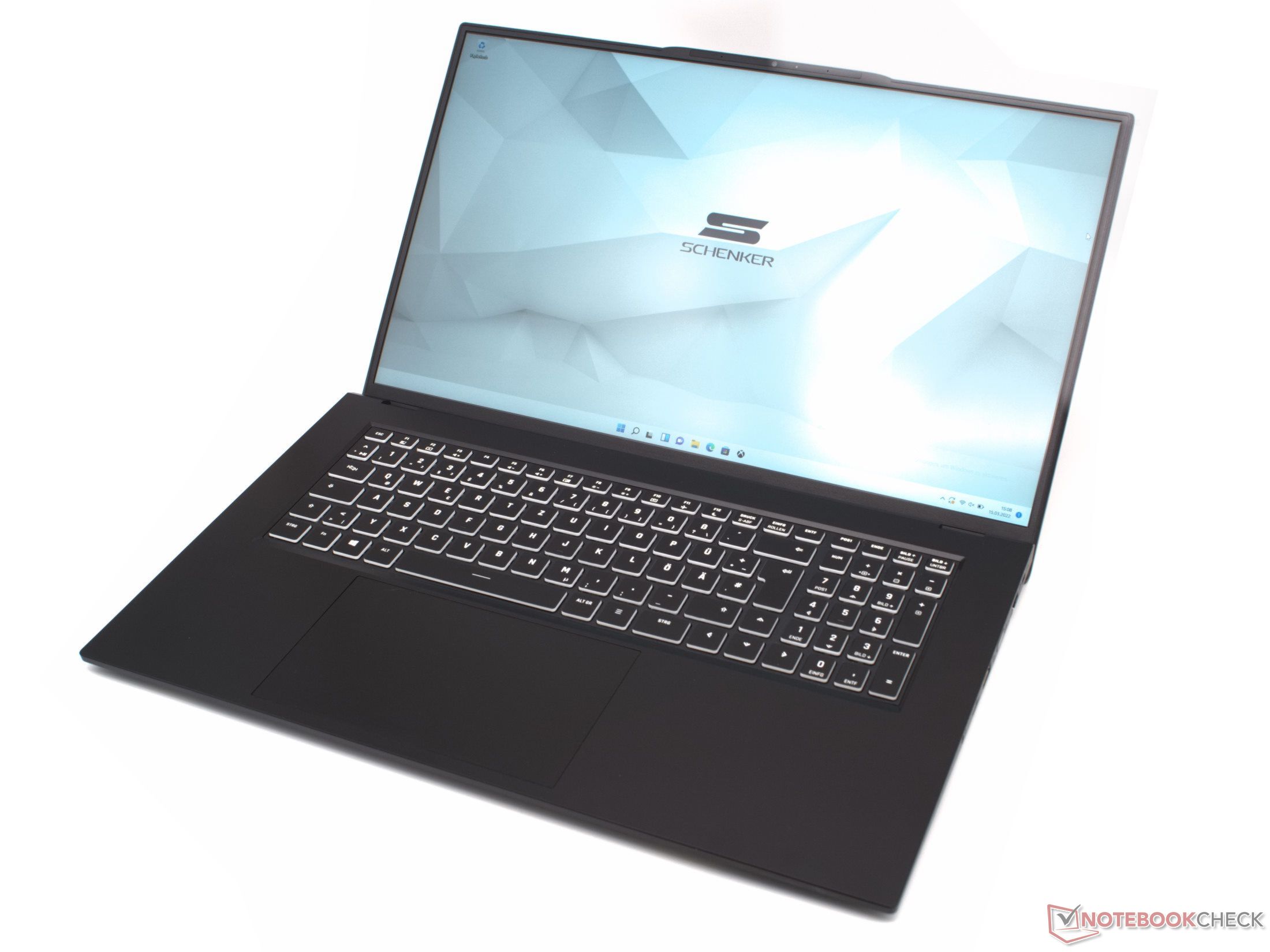

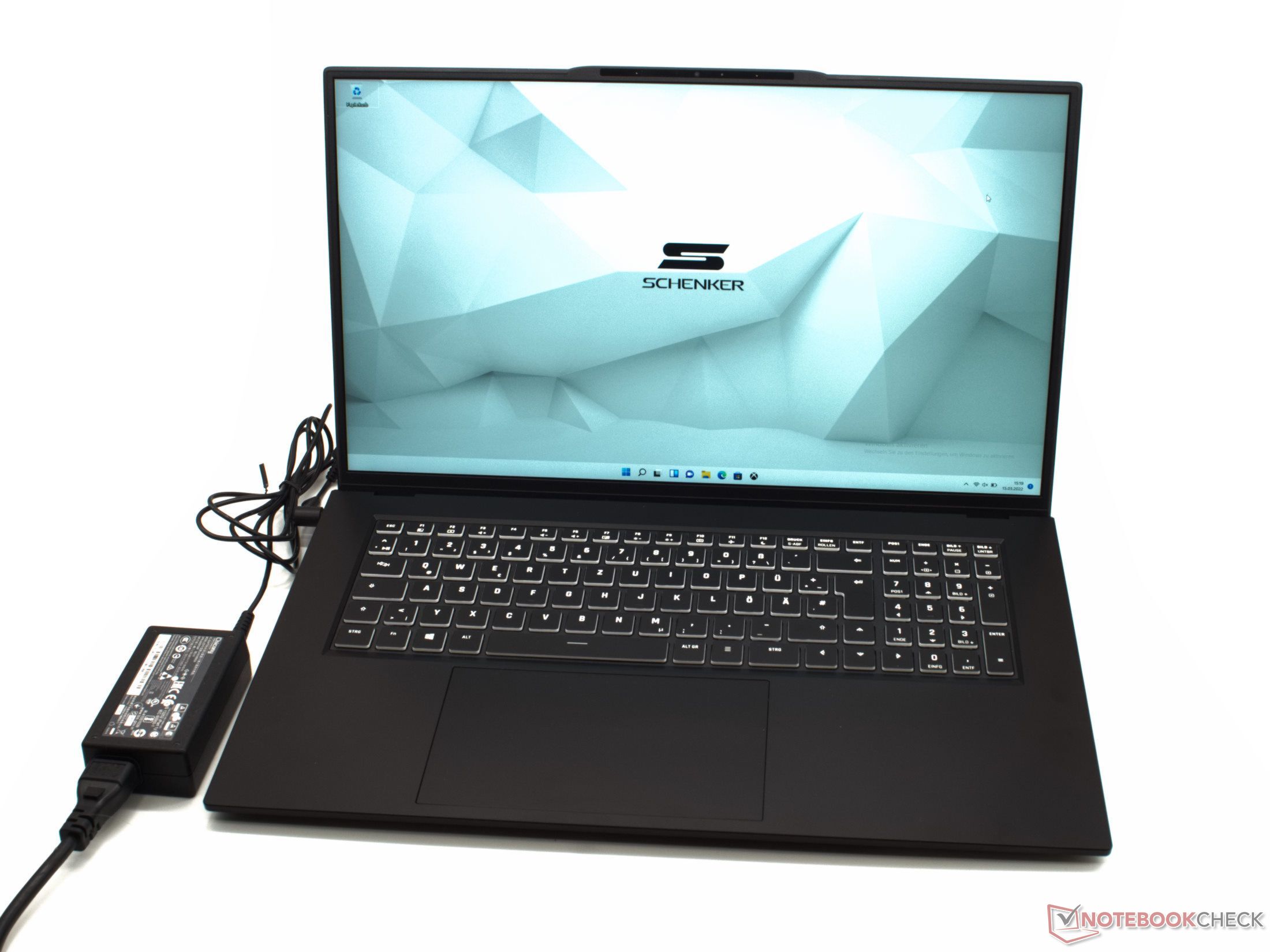

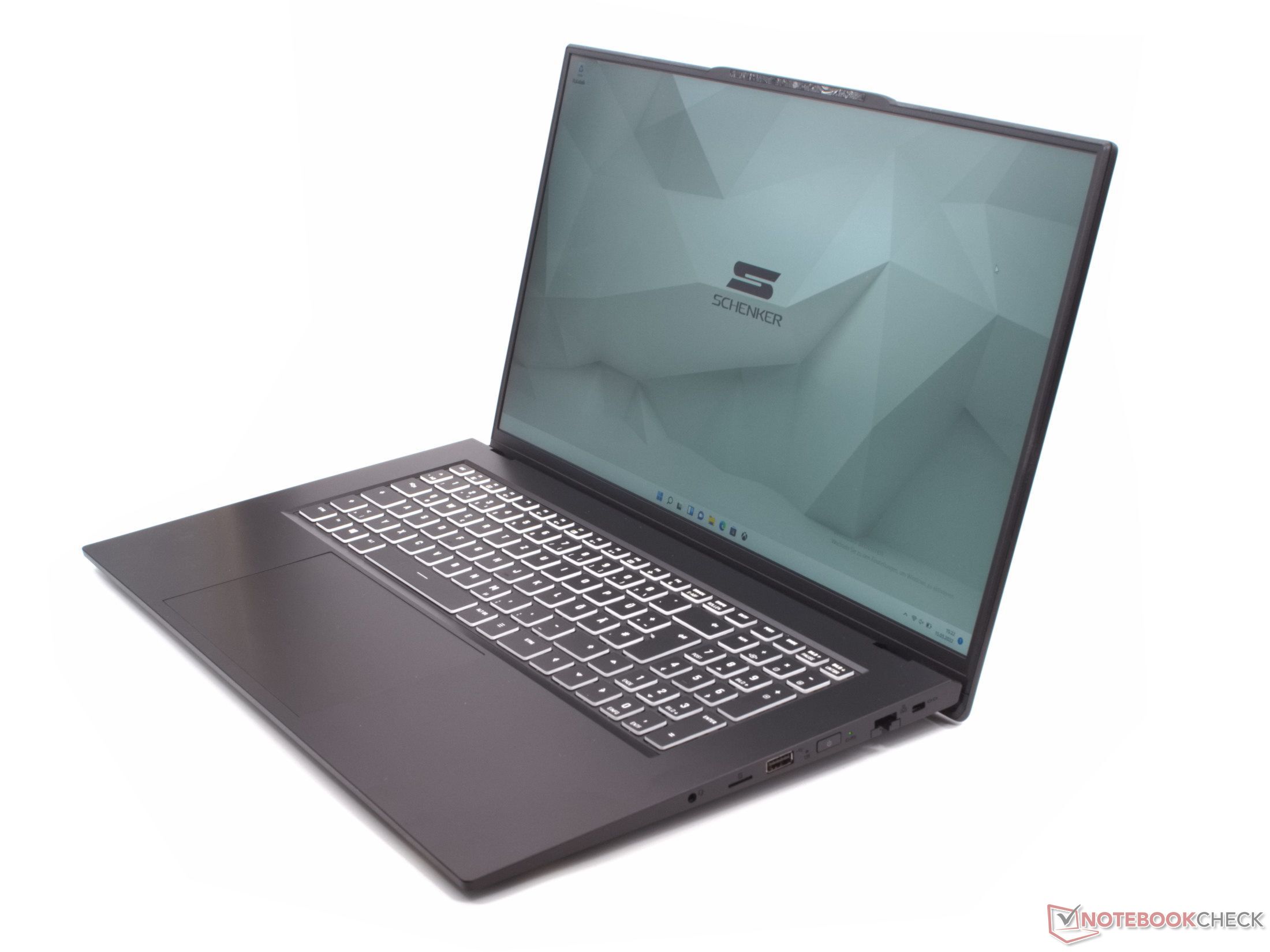

Schenker Work 17笔记本电脑评测。大屏幕和多彩的键盘
具有许多可定制功能的强大硬件可能是申克笔记本电脑的核心理念。这家德国制造商提供的笔记本电脑能够满足各种要求。Work 17是一款办公笔记本电脑，在内存和存储方面有许多选择。还有各种键盘布局可供选择，保修期可设定为两年或三年。
我们的审查样本配备了32GB内存，英特尔酷睿i7-11370H和1TB NVMe SSD。在没有Windows许可证的情况下，这个配置约为1470欧元。目前最实惠的配置约为1,180欧元（约合1,273美元）。
大尺寸的办公笔记本电脑现在很少见，所以LG Gram 17和 Acer Aspire 5是竞争者之一。如果你喜欢更小的东西，那么申克工作15可能是一个替代品。
更新17.04:我们用新的BIOS在性能模式下重新进行了电池测试。所有的细节都可以在关于电池寿命的章节中找到。
SCHENKER Work 17 Tiger Lake-H
Processor
Intel Core i7-11370H 4 x 3.3 - 4.8 GHz, 45 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35
Graphics adapter

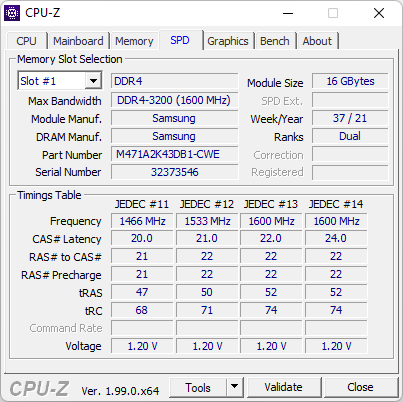

Memory
32 GB
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, LGD0621, IPS, glossy: no, 60 Hz

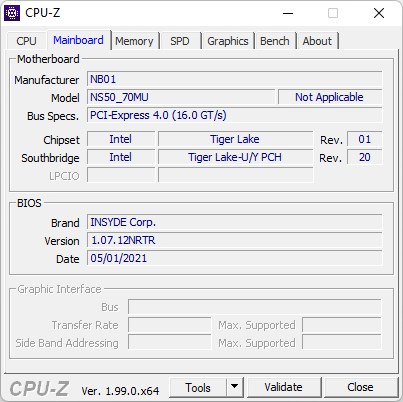

Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW, 1024 GB
, 800 GB free
Weight
2.279 kg, Power Supply: 331 g
Price
1 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 84.3 % v7 (old) | 04 / 2022 | SCHENKER Work 17 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs | 2.3 kg | 19.8 mm | 17.30" | 1920x1080 | |
| 86.7 % v7 (old) | 09 / 2021 | LG Gram 17Z90P-G.AA56G i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 17.8 mm | 17.00" | 2560x1600 | |
| 82.7 % v7 (old) | Acer Aspire 5 A517-52G-79Z5 i7-1165G7, GeForce MX350 | 2.2 kg | 19.9 mm | 17.30" | 1920x1080 | ||
| 76.4 % v7 (old) | Acer Aspire 3 A317-51G-72MD i7-10510U, GeForce MX250 | 2.8 kg | 24.65 mm | 17.30" | 1920x1080 | ||
| 75.9 % v7 (old) | 04 / 2022 | Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8 | 2 kg | 19.89 mm | 15.60" | 1920x1080 | |
| 84.3 % v7 (old) | 02 / 2022 | SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 |
外壳和连接性 - 坚固的铝和许多端口

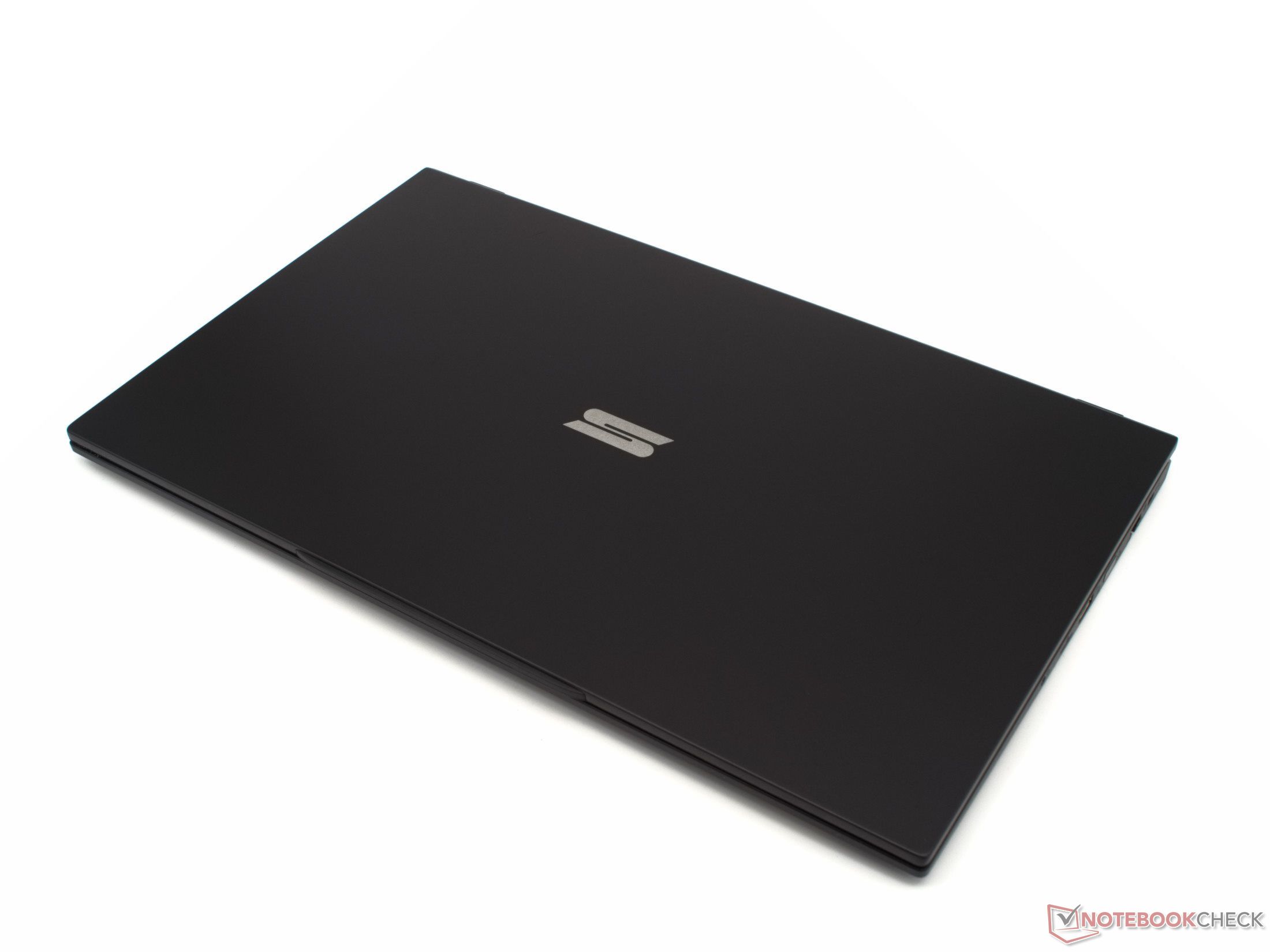

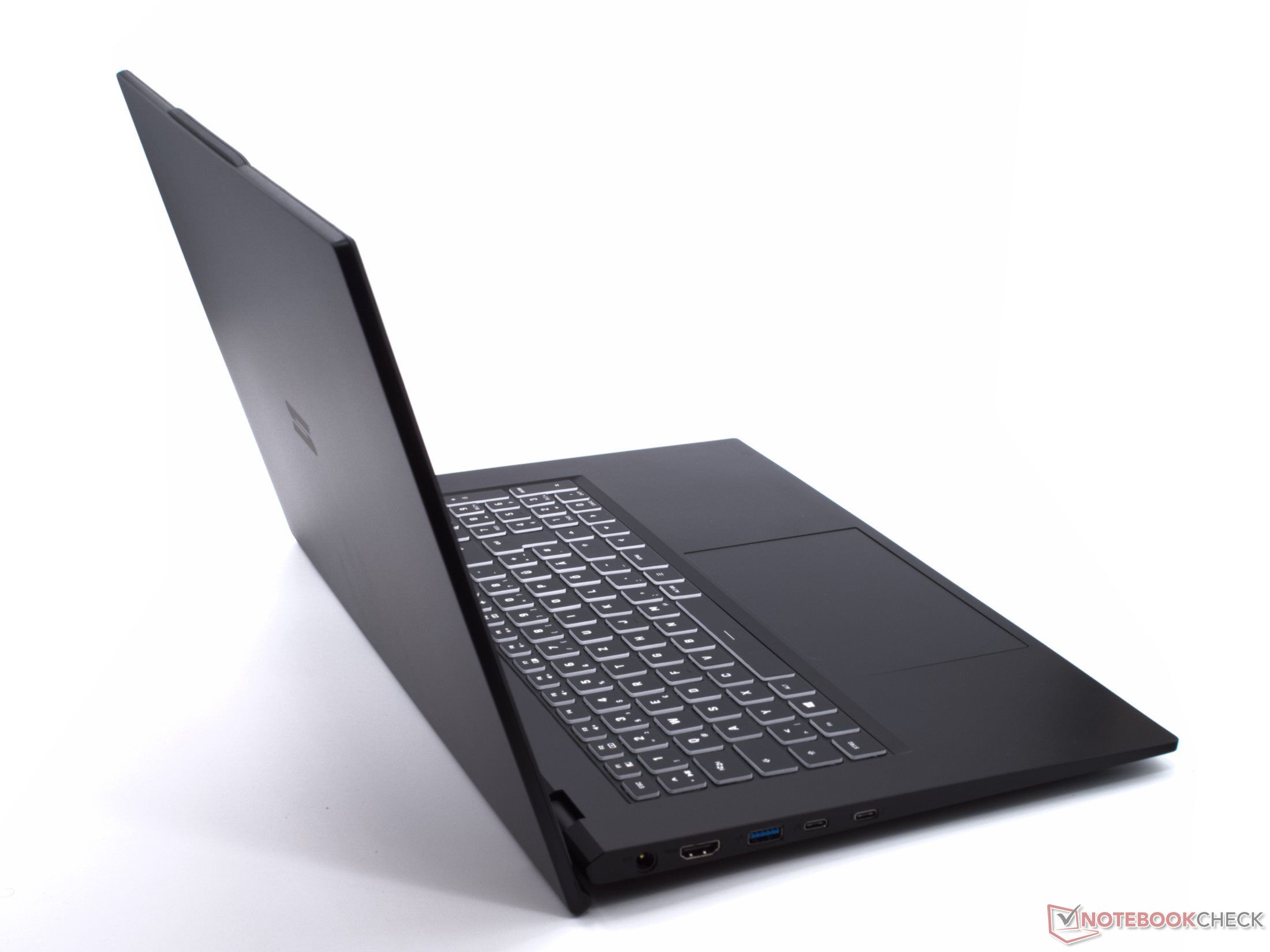

Schenker Work 17的显示屏盖和底盖采用黑色铝材，底座顶部采用黑色塑料，包括键盘和触摸板，视觉上相当隐蔽。然而，看一眼屏幕就会发现它的显示屏边框非常窄。它只有6毫米宽。
除了有点谦虚的外观，这款笔记本电脑拥有高质量的结构，在各方面都非常坚固。尽管它的尺寸很大，但屏幕几乎不可能被扭曲，对于基本单元来说，这一点更是如此。

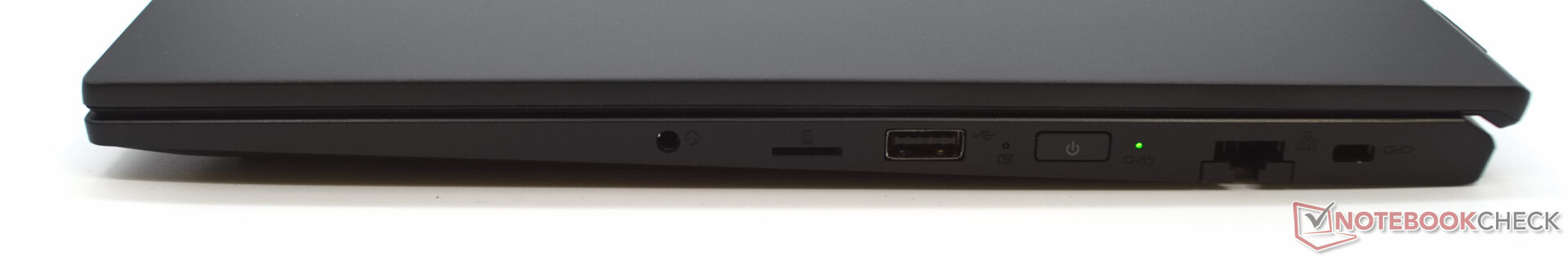

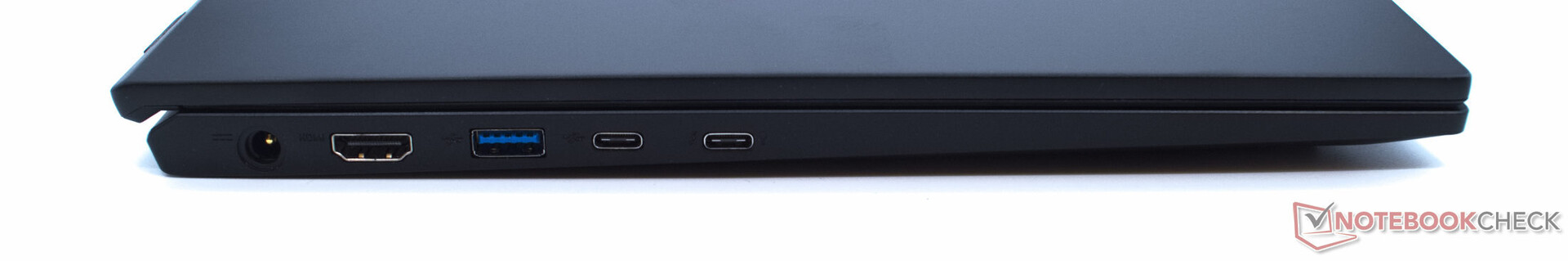

由于有Thunderbolt 4、HDMI、LAN和microSD读卡器，Schenker Work 17在连接性方面几乎完全具备。英特尔Wi-Fi AX 201和microSD读卡器在这里都能高速工作。
网络摄像头是笔记本电脑网络摄像头中典型的低质量产品。除了肯辛顿锁插槽，英特尔酷睿i7-11370H的安全功能也可以使用。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| LG Gram 17Z90P-G.AA56G (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| SCHENKER Work 15 Tiger Lake-H (Angelbird AV Pro V60) | |
| SCHENKER Work 17 Tiger Lake-H (Angelbird AV Pro V60) | |
| Average of class Office (22.4 - 198.5, n=33, last 2 years) | |
| Dell Inspiron 15 3505-PXHPW | |
| maximum AS SSD Seq Read Test (1GB) | |
| LG Gram 17Z90P-G.AA56G (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| Average of class Office (25 - 249, n=28, last 2 years) | |
| SCHENKER Work 17 Tiger Lake-H (Angelbird AV Pro V60) | |
| SCHENKER Work 15 Tiger Lake-H (Angelbird AV Pro V60) | |
| Dell Inspiron 15 3505-PXHPW | |
| Networking | |
| iperf3 transmit AX12 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Wi-Fi 6 AX201 (49.8 - 1775, n=324) | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| iperf3 receive AX12 | |
| LG Gram 17Z90P-G.AA56G | |
| SCHENKER Work 17 Tiger Lake-H | |
| Average Intel Wi-Fi 6 AX201 (136 - 1743, n=324) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 3 A317-51G-72MD | |
SCHENKER Work 17 Tiger Lake-H Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1302 (1202-1353)
LG Gram 17Z90P-G.AA56G Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1327 (1281-1360)
Acer Aspire 5 A517-52G-79Z5 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø825 (551-1155)
Acer Aspire 3 A317-51G-72MD Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 receive AX12; iperf 3.1.3: Ø346 (337-353)
Dell Inspiron 15 3505-PXHPW Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AX12; iperf 3.1.3: Ø347 (337-354)
SCHENKER Work 15 Tiger Lake-H Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1159 (1001-1278)
SCHENKER Work 17 Tiger Lake-H Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1379 (745-1555)
LG Gram 17Z90P-G.AA56G Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1083 (699-1362)
Acer Aspire 5 A517-52G-79Z5 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1415 (1340-1589)
Acer Aspire 3 A317-51G-72MD Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 transmit AX12; iperf 3.1.3: Ø336 (312-349)
Dell Inspiron 15 3505-PXHPW Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø280 (268-327)
SCHENKER Work 15 Tiger Lake-H Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1367 (569-1559)
14.2 ∆E
12.1 ∆E
14.5 ∆E
14 ∆E
12.7 ∆E
11.8 ∆E
8.8 ∆E
16.6 ∆E
12.8 ∆E
8.5 ∆E
6.7 ∆E
5.4 ∆E
12.9 ∆E
5.6 ∆E
9.6 ∆E
5.2 ∆E
7.9 ∆E
9.3 ∆E
3 ∆E
3.3 ∆E
5.5 ∆E
6.7 ∆E
6.3 ∆E
6.7 ∆E

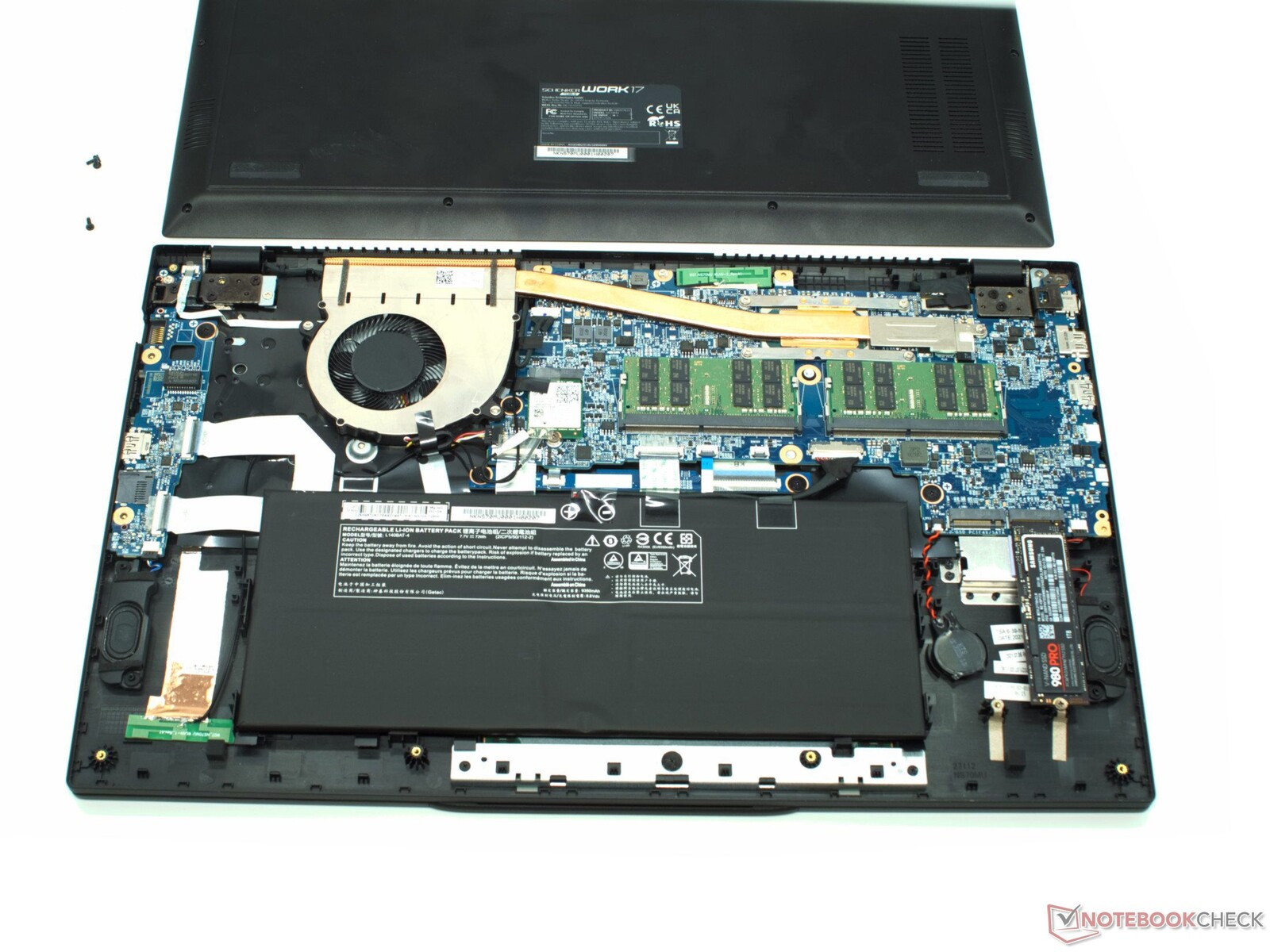

底部的盖子可以通过卸下螺丝轻松掀开。这样就可以看到可升级的内存、一个免费的M.2固态硬盘插槽和一个可更换的WLAN模块。Schenker Work 17的很多东西都是模块化的。这应该使小的维修和维护任务变得容易。
输入设备 - RBG键盘与巨大的ClickPad相遇

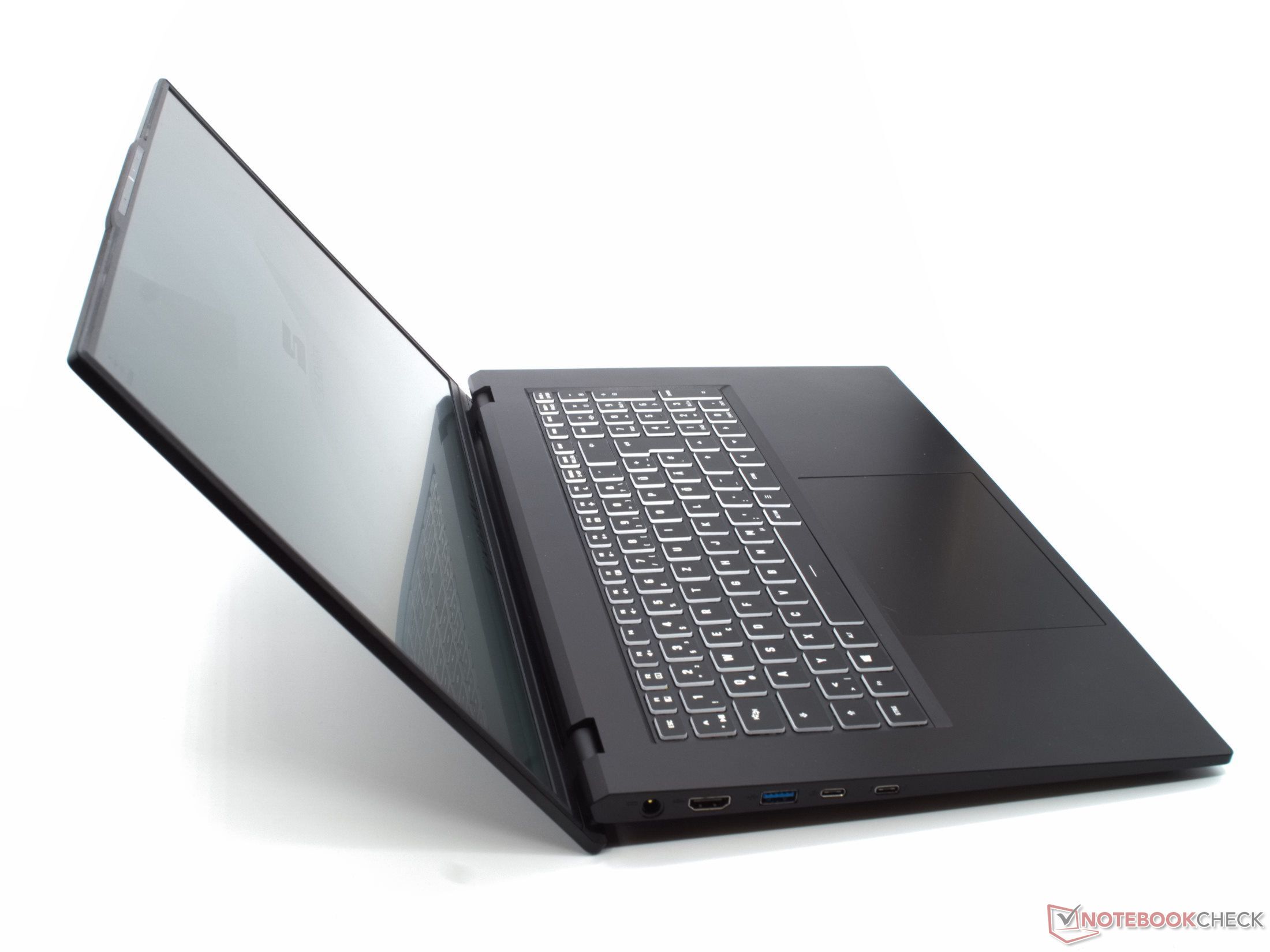

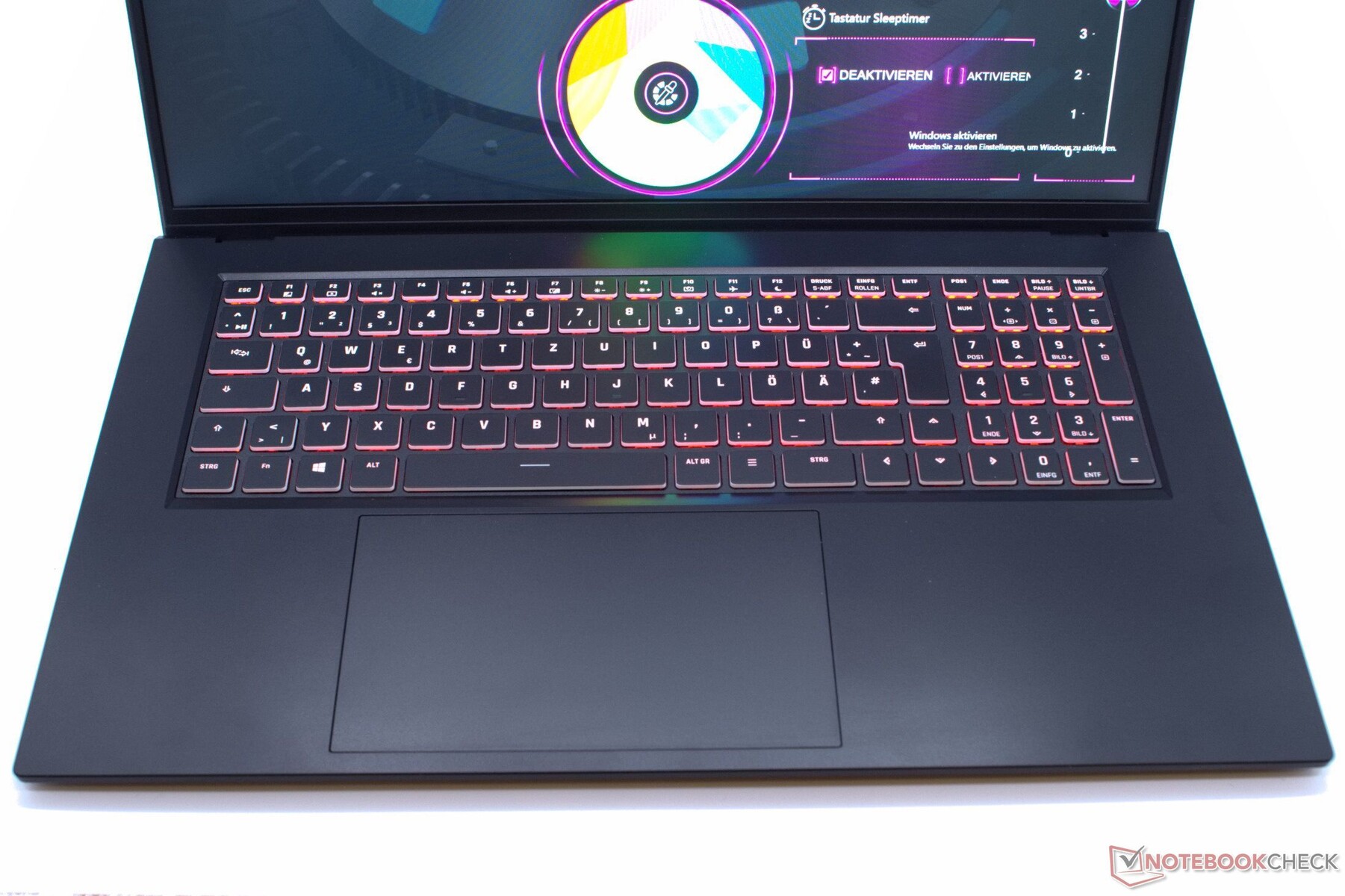

Schenker Work 17的键盘提供了一个强大的触觉反馈。此外，近2毫米的键程确保了键盘的悦目性。触摸板很大，有15厘米×9厘米，其表面均匀而光滑。

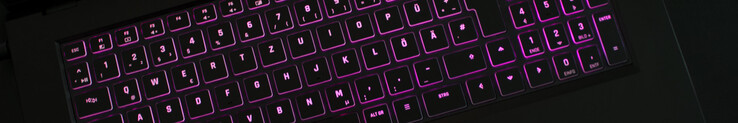

键盘的RGB灯光一开始可能看起来有点不寻常。但事实证明，这种颜色的选择使人在使用时感到舒适，没有眩光，缺乏蓝光，这在晚上特别有用。
展示 - 在户外也有很好的表现
Schenker Work 17的明亮IPS显示屏在色域覆盖率和对比度方面并不完美，但它很好。93.9%的RGB色域覆盖率对于一台办公笔记本电脑来说是绰绰有余的。显示屏的平均亮度为390.3cd/m²，这也是相当高的，尽管这里的亮度分布不是特别均匀，但大部分时间都有良好的可读性。有时，尽管有1,029:1的良好对比度，但所有四个角落的亮点都可以用肉眼看到。
| |||||||||||||||||||||||||
LGD0621 tested with X-Rite i1Pro 2
Maximum: 422 cd/m² (Nits) Average: 390.3 cd/m² Minimum: 25 cd/m²Brightness Distribution: 89 %
Center on Battery: 421 cd/m²
Contrast: 1029:1 (Black: 0.41 cd/m²)
ΔE Color 2.5 | 0.5-29.43 Ø4.84, calibrated: 1.1
ΔE Greyscale 2.9 | 0.09-98 Ø5.1

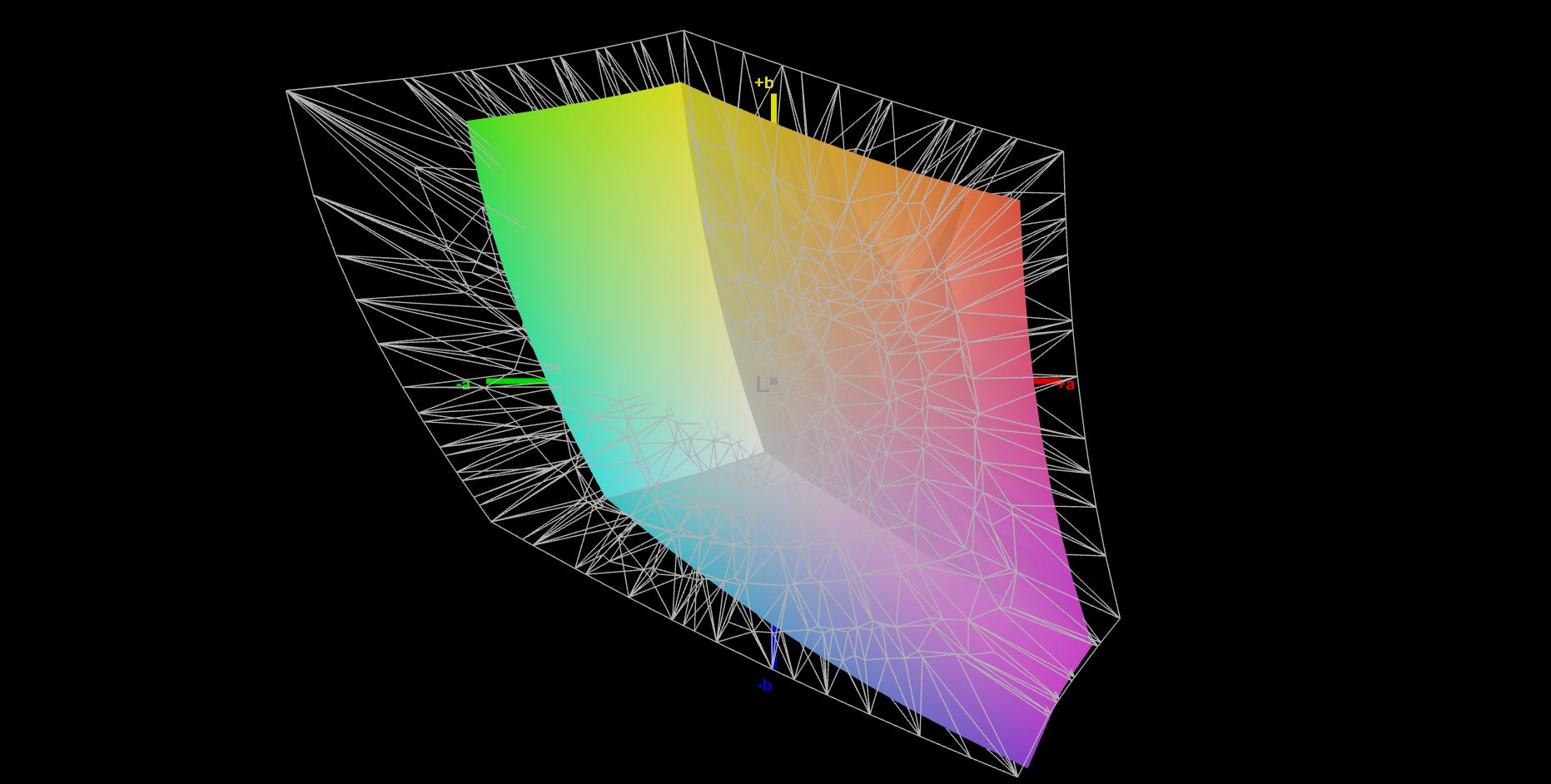

64.4% AdobeRGB 1998 (Argyll 2.2.0 3D)

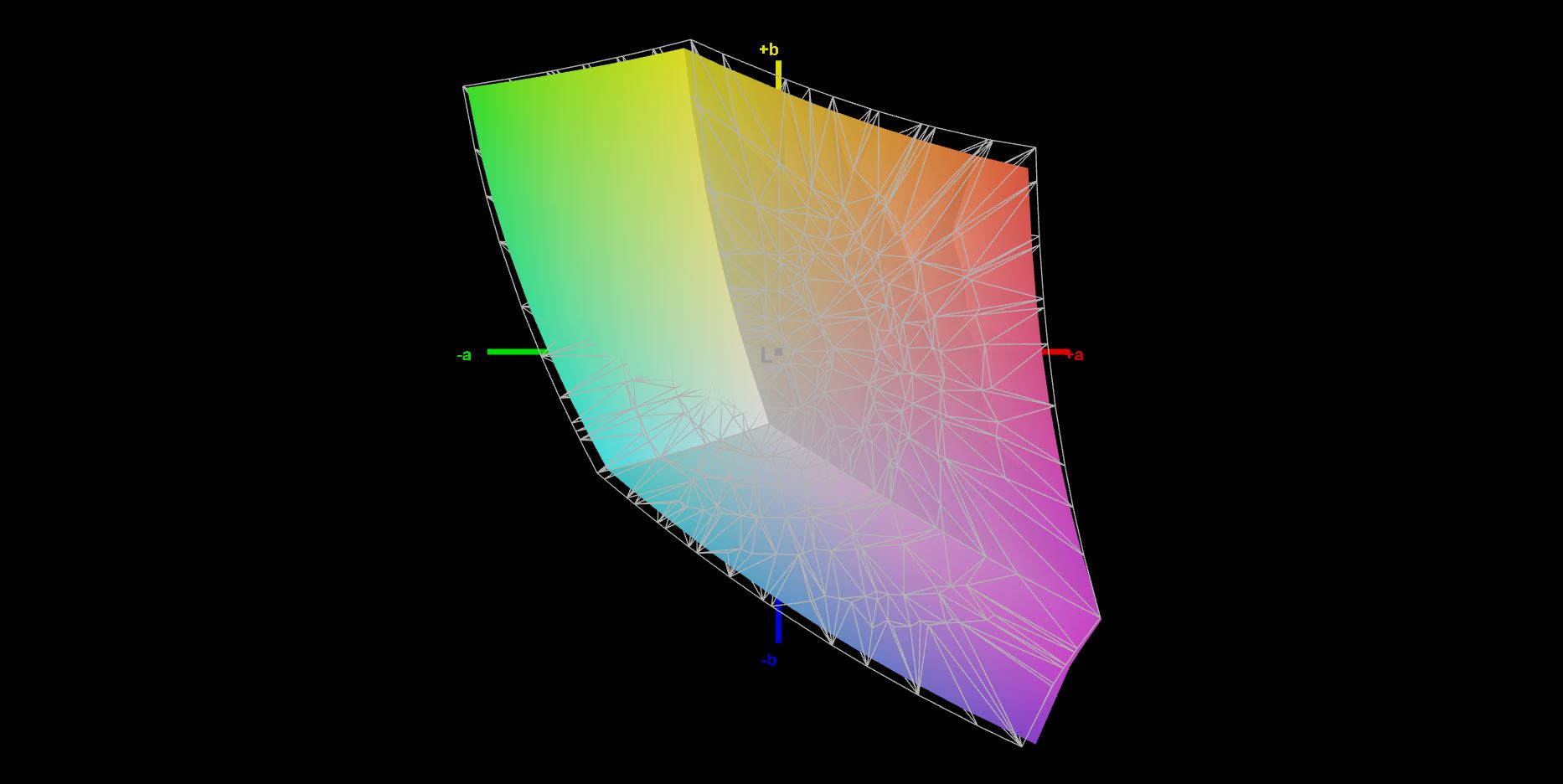

93.9% sRGB (Argyll 2.2.0 3D)

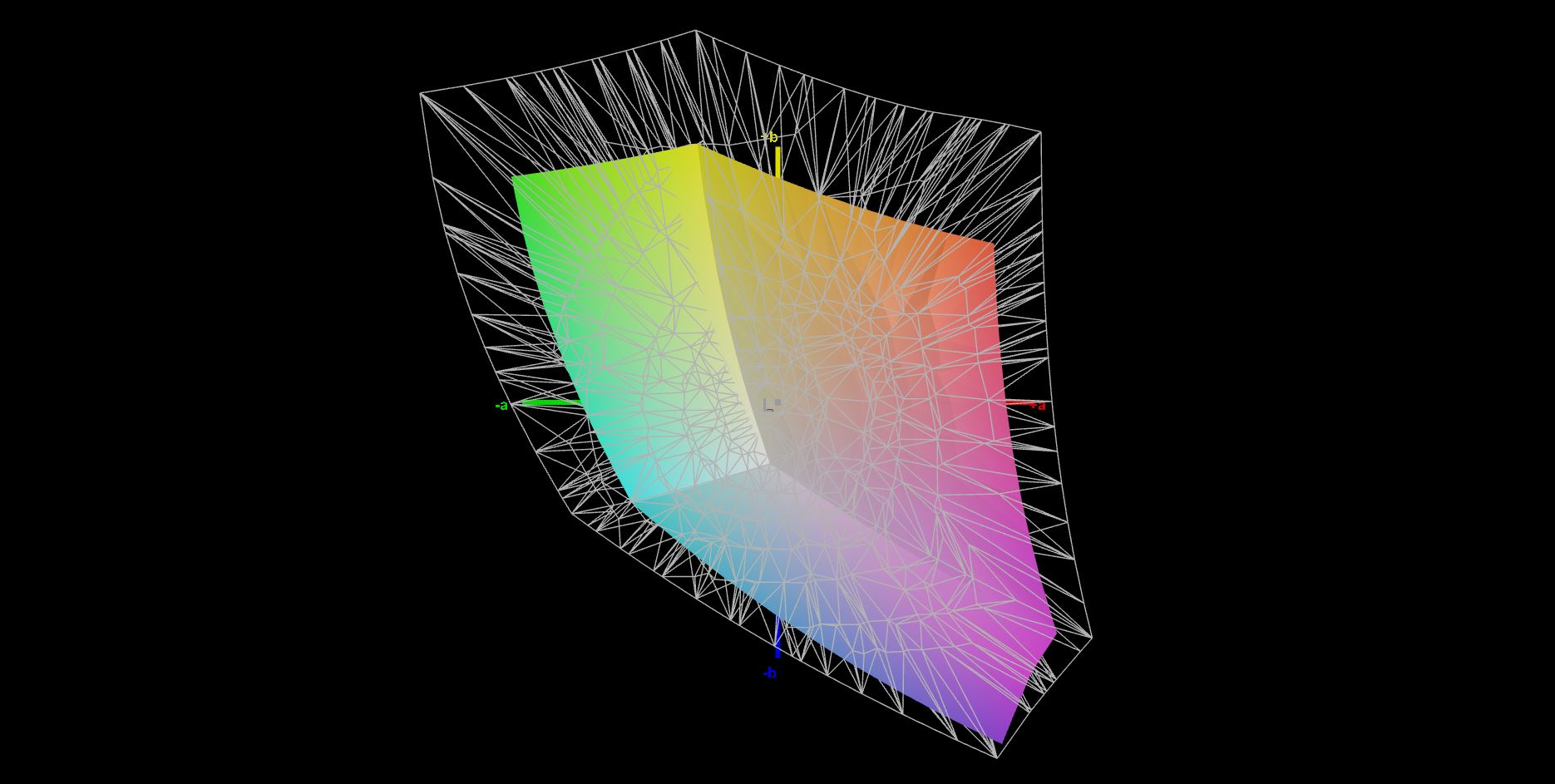

62.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.36
| SCHENKER Work 17 Tiger Lake-H LGD0621, IPS, 1920x1080, 17.3" | LG Gram 17Z90P-G.AA56G IPS, 2560x1600, 17" | Acer Aspire 5 A517-52G-79Z5 BOE084E, IPS, 1920x1080, 17.3" | Acer Aspire 3 A317-51G-72MD BOE CQ NV173FHM-N41, IPS, 1920x1080, 17.3" | Dell Inspiron 15 3505-PXHPW AU Optronics B156HAN, IPS, 1920x1080, 15.6" | SCHENKER Work 15 Tiger Lake-H BOE07D8, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|---|---|
| Display | 28% | -36% | -3% | -36% | -2% | |
| Display P3 Coverage | 62.6 | 93 49% | 39.98 -36% | 63.4 1% | 40.3 -36% | 64.5 3% |
| sRGB Coverage | 93.9 | 98.8 5% | 59.3 -37% | 86.9 -7% | 60.4 -36% | 86.2 -8% |
| AdobeRGB 1998 Coverage | 64.4 | 83.9 30% | 41.3 -36% | 63.2 -2% | 41.7 -35% | 62.9 -2% |
| Response Times | 7% | 69% | 36% | 5% | -36% | |
| Response Time Grey 50% / Grey 80% * | 42.4 ? | 47 ? -11% | 14 ? 67% | 29 ? 32% | 36 ? 15% | 58.4 ? -38% |
| Response Time Black / White * | 26.4 ? | 20 ? 24% | 8 ? 70% | 16 ? 39% | 28 ? -6% | 35.2 ? -33% |
| PWM Frequency | 2500 ? | |||||
| Screen | -14% | -21% | -28% | -54% | -49% | |
| Brightness middle | 422 | 404 -4% | 321 -24% | 261 -38% | 235 -44% | 329 -22% |
| Brightness | 390 | 323 -17% | 282 -28% | 258 -34% | 231 -41% | 316 -19% |
| Brightness Distribution | 89 | 73 -18% | 81 -9% | 81 -9% | 84 -6% | 92 3% |
| Black Level * | 0.41 | 0.425 -4% | 0.36 12% | 0.17 59% | 0.25 39% | 0.3 27% |
| Contrast | 1029 | 951 -8% | 892 -13% | 1535 49% | 940 -9% | 1097 7% |
| Colorchecker dE 2000 * | 2.5 | 3.46 -38% | 4.3 -72% | 4.25 -70% | 4.11 -64% | 5.4 -116% |
| Colorchecker dE 2000 max. * | 4.6 | 5.23 -14% | 7.1 -54% | 7.39 -61% | 6.72 -46% | 10.1 -120% |
| Colorchecker dE 2000 calibrated * | 1.1 | 2.1 -91% | 4.56 -315% | 2.5 -127% | ||
| Greyscale dE 2000 * | 2.9 | 3.12 -8% | 2.26 22% | 4.48 -54% | 2.79 4% | 5.1 -76% |
| Gamma | 2.36 93% | 2.46 89% | 2.36 93% | 2.5 88% | 2.53 87% | 2.1 105% |
| CCT | 6992 93% | 7114 91% | 6650 98% | 7264 89% | 6666 98% | 7609 85% |
| Color Space (Percent of AdobeRGB 1998) | 38 | 56.8 | ||||
| Color Space (Percent of sRGB) | 59 | 86.7 | ||||
| Total Average (Program / Settings) | 7% /
-1% | 4% /
-11% | 2% /
-13% | -28% /
-41% | -29% /
-37% |
* ... smaller is better

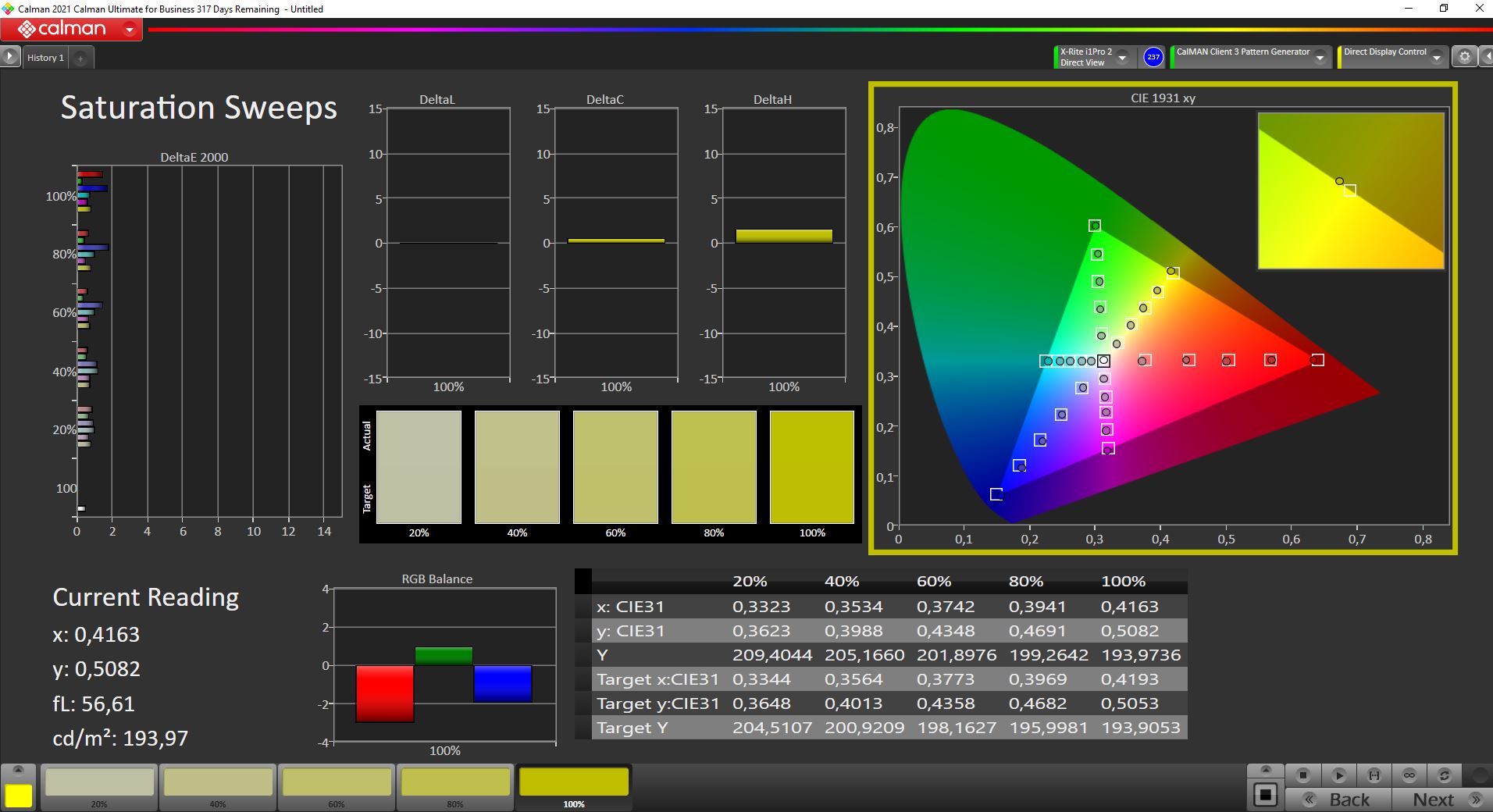

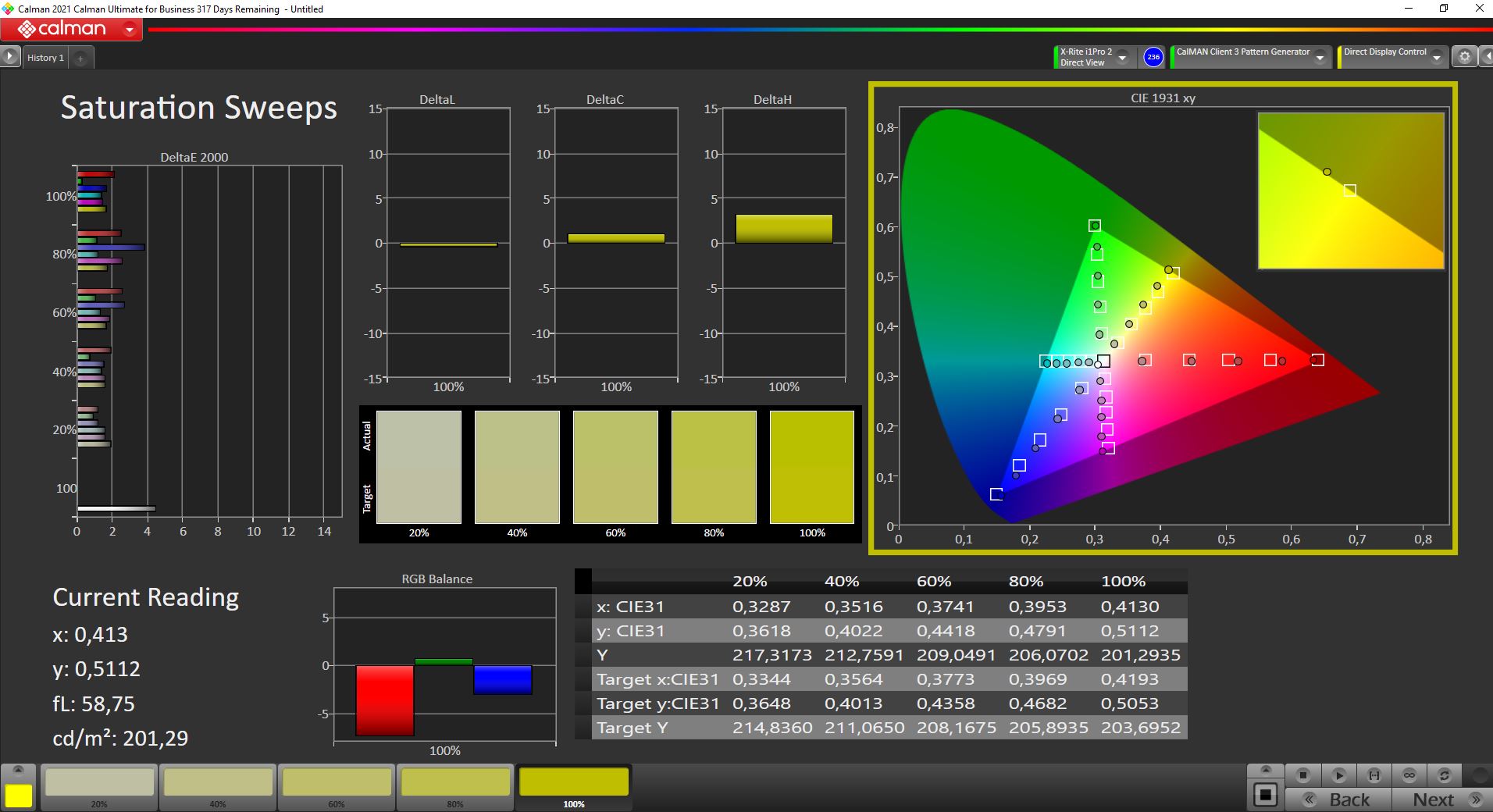

根据CalMan ColorChecker，Schenker Work 17开箱即有相对准确的色彩再现，包括只有2.5的低平均ΔΕ。使用我们创建的ICC配置文件（在信息框中下载），绝对和平均色彩偏差都下降到几乎无法察觉的水平。这里没有任何明显的色彩偏差。毕竟，只有RGB纯色数值的轻微偏移才会导致sRGB色彩空间不能被100%覆盖。

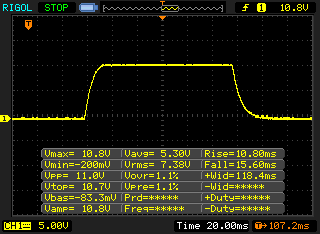

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 26.4 ms ... rise ↗ and fall ↘ combined | ↗ 10.8 ms rise |  |
| ↘ 15.6 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 64 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.5 ms). | ||

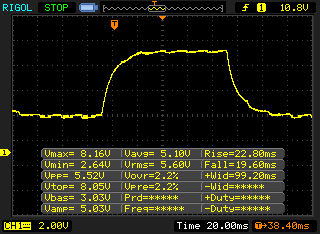

| ↔ Response Time 50% Grey to 80% Grey | ||
| 42.4 ms ... rise ↗ and fall ↘ combined | ↗ 22.8 ms rise |  |
| ↘ 19.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.1 ms). | ||

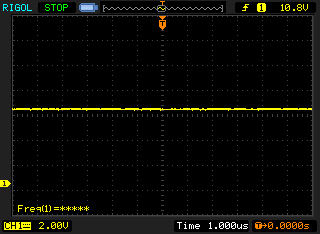

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8360 (minimum: 5 - maximum: 343500) Hz was measured. | |||

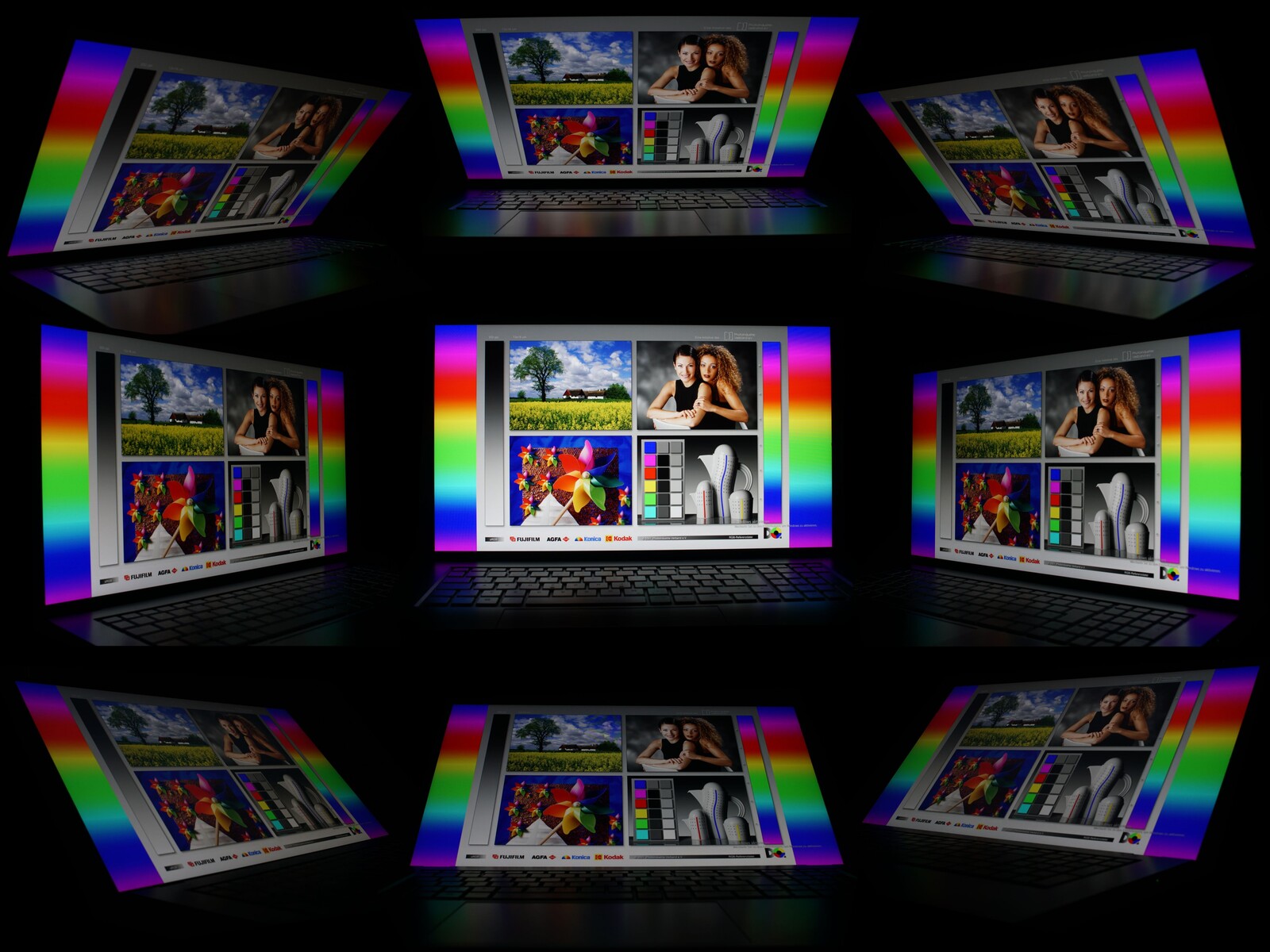

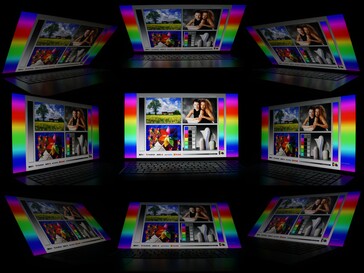

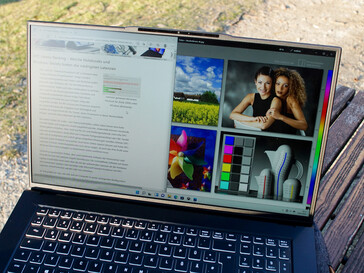

哑光显示屏在户外使用时也显示出另一个优势。只要太阳不直接反射到面板上，明亮的屏幕总是可以被很好地阅读。从所有可能的角度看，除了亮度，几乎没有任何差异。
性能 - 用于办公室工作的强大硬件

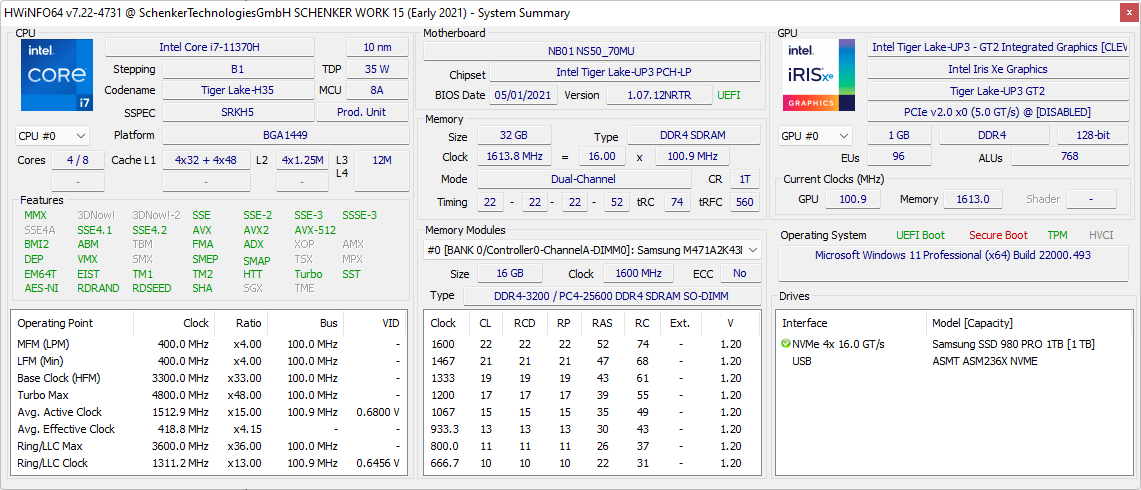

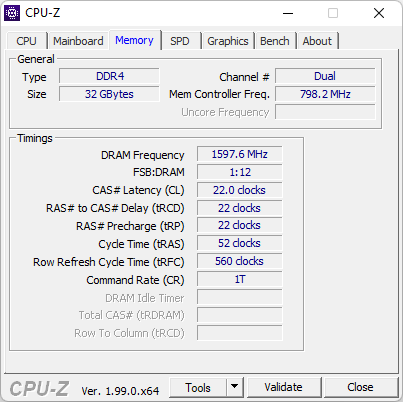

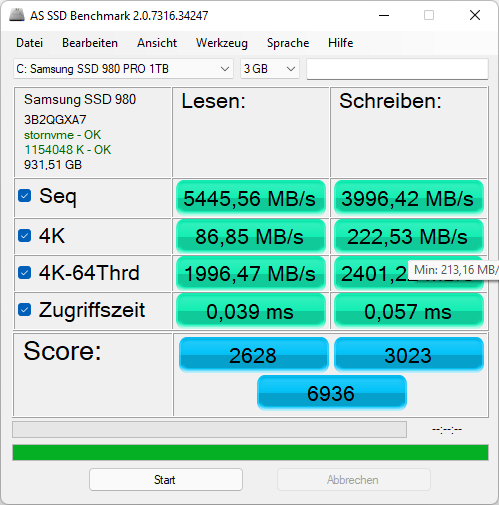

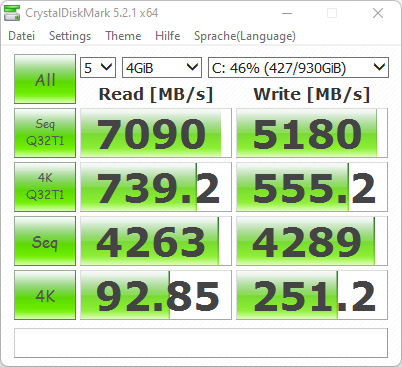

英特尔酷睿i7-11370H，32GB内存，以及快速的三星980 Pro（1TB存储），我们的审查样本几乎代表了申克的最佳配置。这里的其他各种配置允许8至64GB的内存和高达8TB的硬盘存储。
测试条件

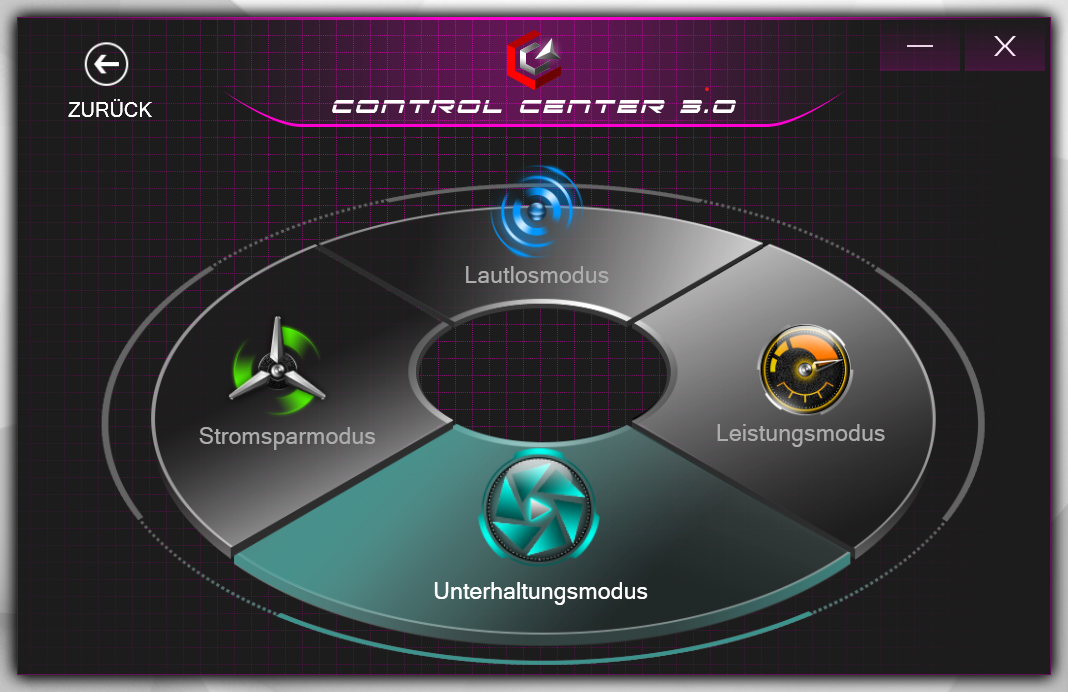

Schenker的控制中心提供了大量的设置来调整性能。基准测试是在娱乐模式下运行的，该模式在风扇音量、能源效率和性能之间提供了一个良好的平衡。因此，英特尔酷睿i7的PL2为42瓦，PL1约为22瓦。根据不同的应用和位置，娱乐模式下的PL1值有时会大幅向上或向下调整。在压力测试中，甚至观察到只有16瓦的数值。

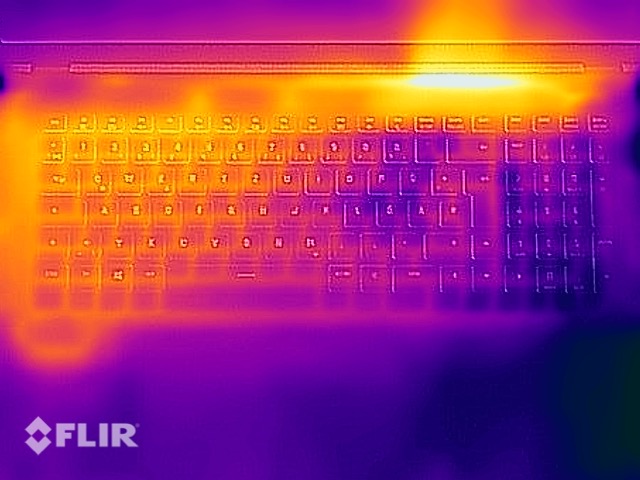

在性能模式下，PL1增加到高达35瓦，但这也急剧增加了核心温度。在大多数处理器不处于长时间负载的基准测试中，性能模式和娱乐模式之间几乎没有任何区别。该处理器的Boost性能在这两种模式下都一样好。
我们已经在评测中比较了性能模式和娱乐模式。 申克工作15.由于这两款笔记本电脑在硬件方面几乎没有什么不同，所以这里的结果应该是非常相似的。
处理器

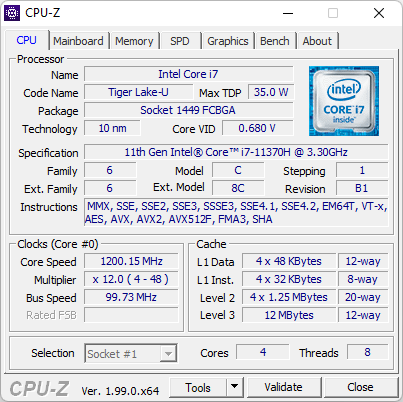

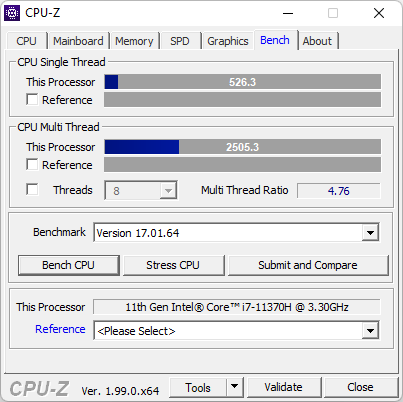

具有高升压性能和良好的温度效率。英特尔酷睿i7-11370H凭借其四个核心，特别适合对性能要求高的超薄笔记本电脑。根据性能模式的不同，该处理器在较长的测试中有时会显示出低于平均水平的计算性能，但在特别是短时负载高峰期和单核运行时，它可以加分。在性能模式下，PL1的功率恒定为35瓦，而在娱乐模式下，它在22瓦和16瓦之间波动。

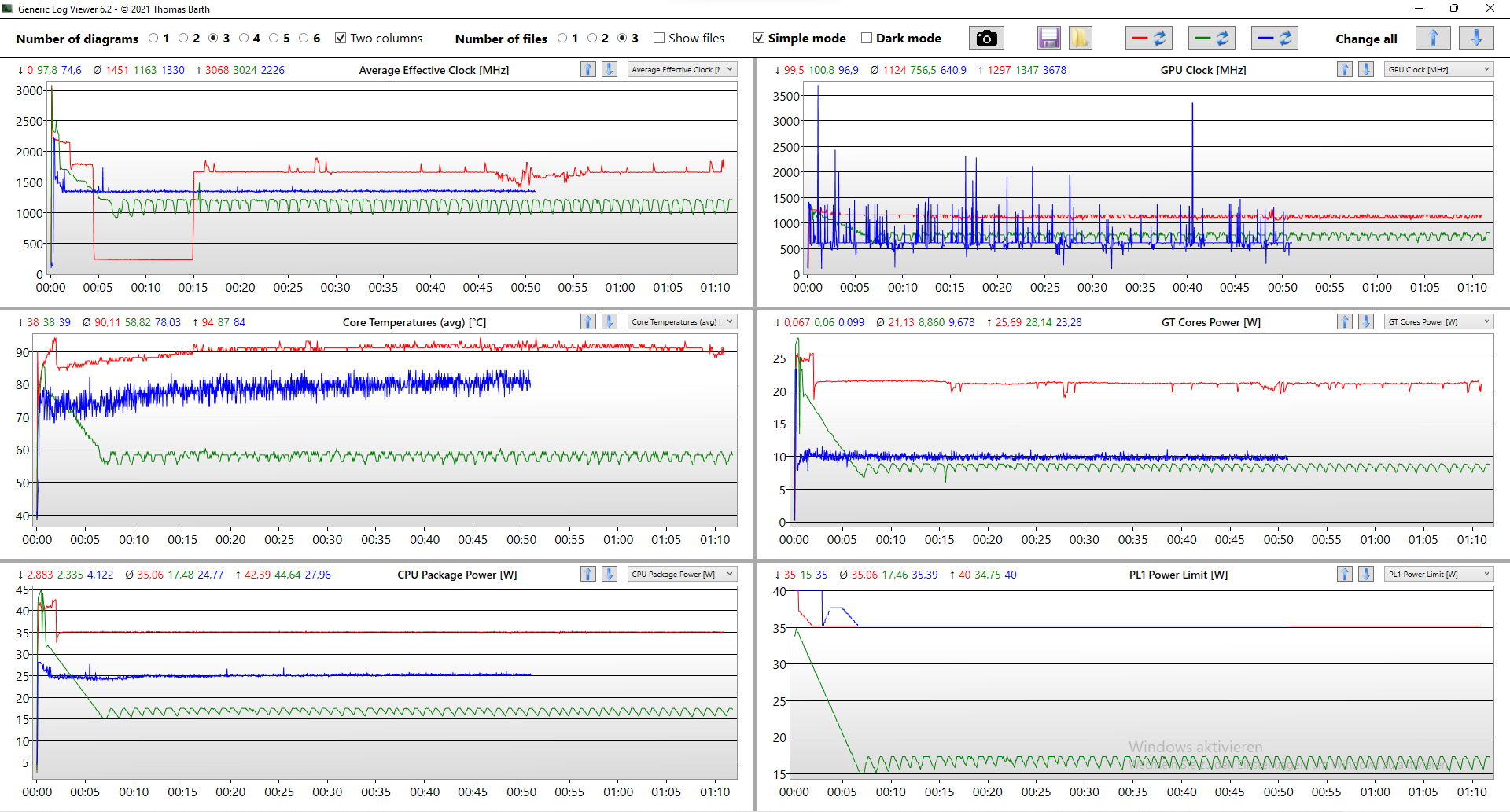

在电池供电时，处理器的性能在一定程度上受到限制。同样，笔记本电脑的性能控制根据节能计划有不同的值。在性能模式下，日志分析显示，PL1被调整为35瓦，而现实中处理器只得到25瓦的供应。
Cinebench R15 Multi endurance test
SCHENKER Work 17 Tiger Lake-H Intel Core i7-11370H; Leistungsmodus: Ø801 (751.74-897.81)
SCHENKER Work 17 Tiger Lake-H Intel Core i7-11370H; Unterhaltungsmodus: Ø589 (579.32-606.32)
LG Gram 17Z90P-G.AA56G Intel Core i5-1135G7: Ø617 (599.62-737.2)
Acer Aspire 5 A517-52G-79Z5 Intel Core i7-1165G7: Ø798 (785.79-831.69)
Acer Aspire 3 A317-51G-72MD Intel Core i7-10510U: Ø498 (487.88-537.21)
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U: Ø469 (445.57-602.6)
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H; Performance Mode: Ø861 (841.54-932.92)
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H: Ø664 (645.73-816.34)
SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H; On Battery: Ø487 (449.1-777.88)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Office | |
| Average Intel Core i7-11370H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD -2! | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R23 / Multi Core | |
| Average of class Office (1577 - 20399, n=83, last 2 years) | |
| Average Intel Core i7-11370H (3696 - 6646, n=12) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R23 / Single Core | |
| Average of class Office (618 - 2098, n=83, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average Intel Core i7-11370H (1081 - 1556, n=11) | |
| SCHENKER Work 15 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| SCHENKER Work 17 Tiger Lake-H | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (590 - 8086, n=81, last 2 years) | |
| Average Intel Core i7-11370H (1438 - 2578, n=11) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 807, n=81, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average Intel Core i7-11370H (475 - 601, n=11) | |
| SCHENKER Work 15 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (246 - 3132, n=85, last 2 years) | |
| Average Intel Core i7-11370H (606 - 1086, n=17) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 3 A317-51G-72MD | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Office (98 - 315, n=83, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average Intel Core i7-11370H (162.9 - 233, n=15) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| Blender / v2.79 BMW27 CPU | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 3 A317-51G-72MD | |
| LG Gram 17Z90P-G.AA56G | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average Intel Core i7-11370H (432 - 762, n=11) | |
| Average of class Office (163 - 1956, n=84, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Office (7532 - 76886, n=85, last 2 years) | |
| Average Intel Core i7-11370H (18961 - 28520, n=11) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average of class Office (2972 - 6497, n=84, last 2 years) | |
| Average Intel Core i7-11370H (5074 - 5550, n=11) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 3 A317-51G-72MD | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 14192, n=83, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H (3828 - 6115, n=10) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| LG Gram 17Z90P-G.AA56G | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| Geekbench 5.5 / Single-Core | |
| Average of class Office (510 - 2121, n=84, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H (1376 - 1607, n=10) | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Office (1.72 - 22.4, n=82, last 2 years) | |
| Average Intel Core i7-11370H (4.98 - 8.82, n=11) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| LibreOffice / 20 Documents To PDF | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 3 A317-51G-72MD | |
| Average of class Office (41.1 - 129.6, n=82, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| LG Gram 17Z90P-G.AA56G | |
| Average Intel Core i7-11370H (23.6 - 56.5, n=11) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| R Benchmark 2.5 / Overall mean | |
| Dell Inspiron 15 3505-PXHPW | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average Intel Core i7-11370H (0.544 - 0.596, n=11) | |
| Average of class Office (0.4098 - 1.135, n=81, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 31245, n=83, last 2 years) | |
| Average Intel Core i7-11370H (5204 - 8413, n=10) | |
| SCHENKER Work 15 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 125394, n=83, last 2 years) | |
| Average Intel Core i7-11370H (23958 - 34020, n=10) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 5398, n=83, last 2 years) | |
| Average Intel Core i7-11370H (1656 - 2297, n=10) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=83, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H (42086 - 52930, n=10) | |
| Acer Aspire 3 A317-51G-72MD | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 18321, n=83, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Dell Inspiron 15 3505-PXHPW | |
| Average Intel Core i7-11370H (3755 - 5027, n=10) | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 66922, n=83, last 2 years) | |
| Average Intel Core i7-11370H (14433 - 20417, n=10) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU AES | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H (44267 - 76866, n=10) | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Average of class Office (7254 - 155900, n=83, last 2 years) | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 3 A317-51G-72MD | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1366, n=83, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H (289 - 422, n=10) | |
| Dell Inspiron 15 3505-PXHPW | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 17834, n=83, last 2 years) | |
| Average Intel Core i7-11370H (2756 - 4551, n=10) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / CPU PhotoWorxx | |
| LG Gram 17Z90P-G.AA56G | |
| Average of class Office (4814 - 55359, n=83, last 2 years) | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H (15892 - 40069, n=10) | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
系统性能
由于高Boost性能、充足和快速的RAM以及快速的三星SSD，Schenker Work 17的系统性能处于非常高的水平。对于一台办公笔记本电脑来说，高于平均水平的PCMark10结果证实了这一点。此外，在日常使用中也找不到批评的地方。然而，Schenker Work 17落后于Schenker Work 15在几乎所有的基准测试中都落后于Schenker Work 15，尽管它具有相同的硬件。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Office (2463 - 7683, n=74, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (5199 - 5459, n=6) | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 / Essentials | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (9996 - 10650, n=6) | |
| Average of class Office (5575 - 20841, n=74, last 2 years) | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 / Productivity | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average of class Office (3041 - 10415, n=74, last 2 years) | |
| Acer Aspire 3 A317-51G-72MD | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (6911 - 7388, n=6) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 11501, n=74, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (5483 - 5838, n=6) | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Overall | |
| Average of class Office (348 - 1923, n=78, last 2 years) | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (n=1) | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Productivity | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (n=1) | |
| Average of class Office (393 - 1870, n=78, last 2 years) | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Creativity | |
| Average of class Office (340 - 2169, n=78, last 2 years) | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (n=1) | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=78, last 2 years) | |
| Average Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs (n=1) | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 Score | 5317 points | |
Help | ||
| AIDA64 / Memory Copy | |
| LG Gram 17Z90P-G.AA56G | |
| Average of class Office (7158 - 108783, n=84, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| Average Intel Core i7-11370H (32035 - 64524, n=10) | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / Memory Read | |
| LG Gram 17Z90P-G.AA56G | |
| Average of class Office (7325 - 127282, n=84, last 2 years) | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Core i7-11370H (37216 - 62417, n=10) | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / Memory Write | |
| LG Gram 17Z90P-G.AA56G | |
| Average of class Office (7579 - 117935, n=84, last 2 years) | |
| Average Intel Core i7-11370H (36920 - 65610, n=10) | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| AIDA64 / Memory Latency | |
| Dell Inspiron 15 3505-PXHPW | |
| Average of class Office (7.6 - 185.2, n=81, last 2 years) | |
| SCHENKER Work 17 Tiger Lake-H | |
| Average Intel Core i7-11370H (73.4 - 103, n=10) | |
| LG Gram 17Z90P-G.AA56G | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer Aspire 3 A317-51G-72MD | |
* ... smaller is better
DPC延迟

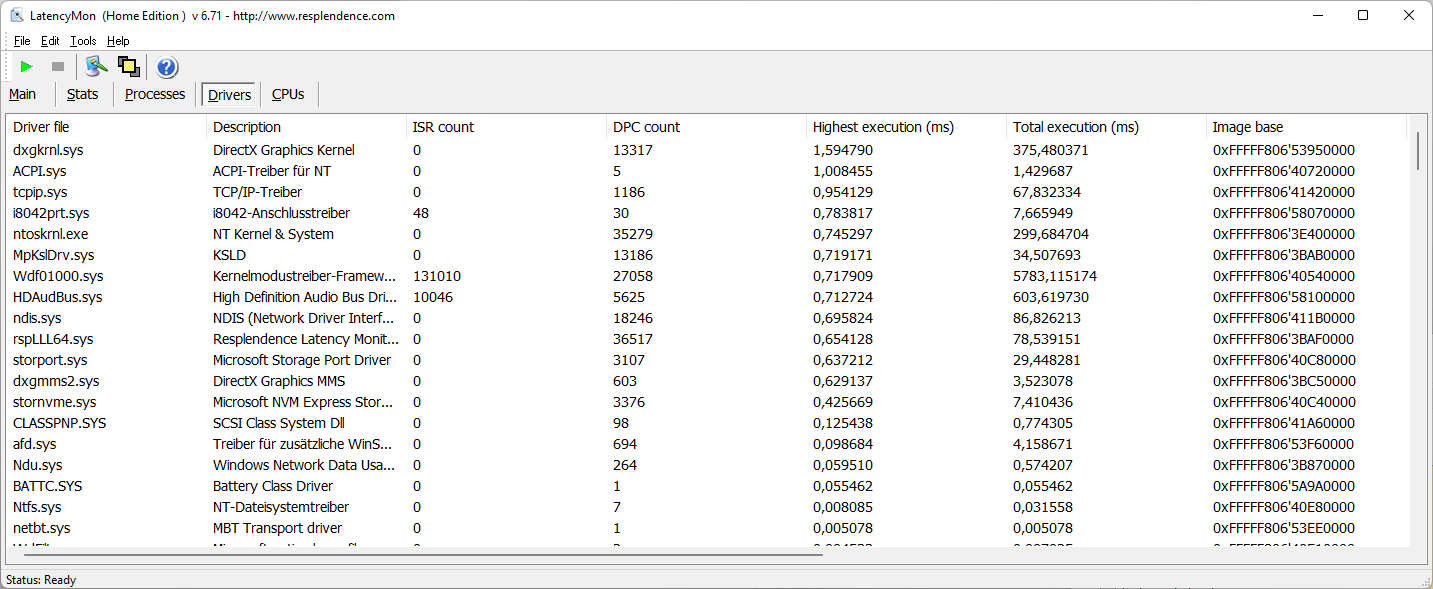

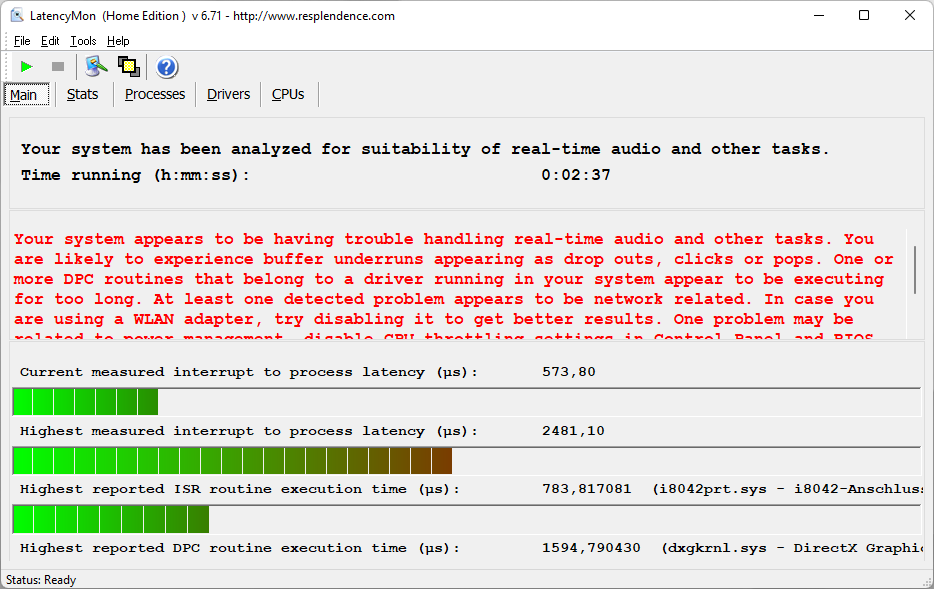

由于DPC延迟高达2.48毫秒，这台办公笔记本电脑不适合实时应用，但驱动更新可以迅速弥补这一缺陷。然而，Schenker Work 17在处理4K YouTube测试视频时没有掉帧。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| SCHENKER Work 17 Tiger Lake-H | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Acer Aspire 3 A317-51G-72MD | |
| SCHENKER Work 15 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
* ... smaller is better

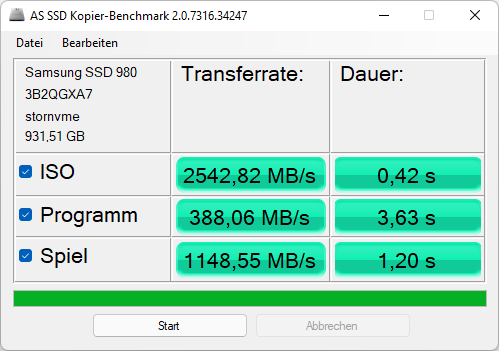

储存
根据我们的 硬盘/SDD基准测试文章，拥有1TB存储空间的三星Pro 980是最快的固态硬盘之一。在Schenker Work 17中，NVMe SSD也以其预期的高速度运行。
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
CDM 5/6 Read Seq Q32T1:
7090 MB/s
CDM 5/6 Write Seq Q32T1:
5180 MB/s
CDM 5/6 Read 4K Q32T1:
739 MB/s
CDM 5/6 Write 4K Q32T1:
555 MB/s
CDM 5 Read Seq:
4263 MB/s
CDM 5 Write Seq:
4289 MB/s
CDM 5/6 Read 4K:
92.8 MB/s
CDM 5/6 Write 4K:
251.2 MB/s
| Drive Performance Rating - Percent | |
| Average Samsung SSD 980 Pro 1TB MZ-V8P1T0BW | |
| SCHENKER Work 15 Tiger Lake-H | |
| SCHENKER Work 17 Tiger Lake-H | |
| Average of class Office | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Acer Aspire 3 A317-51G-72MD -1! | |
| Dell Inspiron 15 3505-PXHPW | |
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
SCHENKER Work 17 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW: Ø6102 (5827.99-6587.36)
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB: Ø2158 (1671.84-2352.47)
SCHENKER Work 15 Tiger Lake-H Samsung SSD 980 Pro 1TB MZ-V8P1T0BW: Ø5804 (5445.88-6741.71)

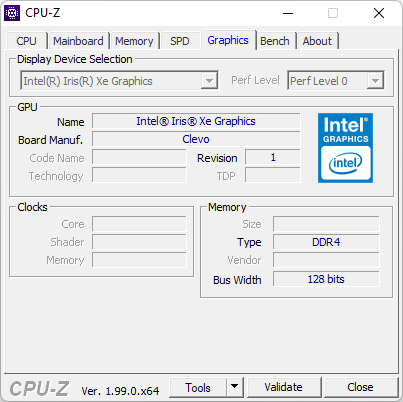

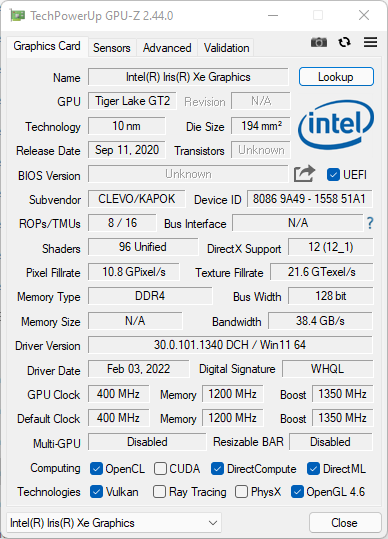

图形卡
芯片英特尔Xe图形G7与96EUs集成在英特尔酷睿i7上的显卡并不是为游戏玩家准备的，但只要你保持低质量设置，它仍然可以将许多游戏流畅地呈现在屏幕上。3DMark的基准测试在这里也显示出令人满意的结果。
主要是因为iGPU有大量的内存可供支配，它能够展示它的真正能力。然而，想提高笔记本图形性能的用户也可以通过雷电4使用外部显卡。
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| SCHENKER Work 15 Tiger Lake-H -2! | |
| SCHENKER Work 17 Tiger Lake-H -1! | |
| Average Intel Iris Xe Graphics G7 96EUs | |
| Acer Aspire 5 A517-52G-79Z5 -1! | |
| LG Gram 17Z90P-G.AA56G -2! | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 16418, n=79, last 2 years) | |
| SCHENKER Work 17 Tiger Lake-H | |
| Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=206) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Average of class Office (7982 - 58068, n=47, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (13162 - 39880, n=184) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Office (736 - 10476, n=81, last 2 years) | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Iris Xe Graphics G7 96EUs (2286 - 6624, n=219) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| 2560x1440 Time Spy Graphics | |
| Average of class Office (313 - 4415, n=78, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Iris Xe Graphics G7 96EUs (707 - 1890, n=216) | |
| SCHENKER Work 17 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Acer Aspire 3 A317-51G-72MD | |
| Dell Inspiron 15 3505-PXHPW | |
| 3DMark 11 Performance | 7137 points | |
| 3DMark Fire Strike Score | 4666 points | |
| 3DMark Time Spy Score | 1596 points | |
Help | ||
The Witcher 3 | GTA V | Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark | Strange Brigade | F1 2021
| The Witcher 3 | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Average of class Office (3.8 - 34, n=44, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=180) | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer Aspire 3 A317-51G-72MD | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| 1366x768 Medium Graphics & Postprocessing | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=185) | |
| Average of class Office (12 - 106.3, n=34, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Acer Aspire 3 A317-51G-72MD | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| Dota 2 Reborn | |
| 1920x1080 high (2/3) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| SCHENKER Work 17 Tiger Lake-H | |
| Average of class Office (14.2 - 130.9, n=84, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (23.2 - 88.1, n=219) | |
| SCHENKER Work 15 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| 1366x768 med (1/3) | |
| SCHENKER Work 17 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average of class Office (27.6 - 146.2, n=84, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=219) | |
| SCHENKER Work 15 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| X-Plane 11.11 | |
| 1920x1080 med (fps_test=2) | |
| Average of class Office (10.1 - 115.3, n=76, last 2 years) | |
| Acer Aspire 5 A517-52G-79Z5 | |
| Average Intel Iris Xe Graphics G7 96EUs (11.6 - 69.5, n=213) | |
| SCHENKER Work 17 Tiger Lake-H | |
| SCHENKER Work 15 Tiger Lake-H | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
| 1920x1080 high (fps_test=3) | |
| SCHENKER Work 17 Tiger Lake-H | |
| Average Intel Iris Xe Graphics G7 96EUs (11.1 - 59.8, n=212) | |
| Average of class Office (8.88 - 92.6, n=76, last 2 years) | |
| SCHENKER Work 15 Tiger Lake-H | |
| Acer Aspire 5 A517-52G-79Z5 | |
| LG Gram 17Z90P-G.AA56G | |
| Dell Inspiron 15 3505-PXHPW | |
The Witcher 3 FPS diagram
SCHENKER Work 17 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs: Ø13 (11-15)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 97.8 | 82.5 | 25.2 | 9.72 |
| The Witcher 3 (2015) | 90.3 | 74.1 | 24 | 13 |
| Dota 2 Reborn (2015) | 114 | 101 | 64 | 55.4 |
| Final Fantasy XV Benchmark (2018) | 40.7 | 20.1 | 14.5 | |
| X-Plane 11.11 (2018) | 29.6 | 35 | 32.2 | |
| Strange Brigade (2018) | 88.4 | 37.7 | 30.4 | 24.8 |
| F1 2021 (2021) | 101 | 48.9 | 38.8 | 27.2 |
排放和能源--控制中心可以进行噪音调整
噪声排放
即使在娱乐模式下，Schenker Work 17在满载的情况下也相对安静，约为44 dB(A)。使用相应的性能模式，你也可以使笔记本电脑完全安静地运行。即使在风扇全速运行时，其噪音特性也是非常可以接受的，因为没有令人不快的高频率可以注意到。
Noise Level
| Idle |
| 24.6 / 24.6 / 27.7 dB(A) |
| Load |
| 43.6 / 43.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.6 dB(A) | ||
| SCHENKER Work 17 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW | LG Gram 17Z90P-G.AA56G Iris Xe G7 80EUs, i5-1135G7, Samsung SSD PM981a MZVLB512HBJQ | Acer Aspire 5 A517-52G-79Z5 GeForce MX350, i7-1165G7, WDC PC SN530 SDBPNPZ-1T00 | Acer Aspire 3 A317-51G-72MD GeForce MX250, i7-10510U, Intel SSD 660p 1TB SSDPEKNW010T8 | Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB | SCHENKER Work 15 Tiger Lake-H Iris Xe G7 96EUs, i7-11370H, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW | |
|---|---|---|---|---|---|---|
| Noise | 11% | -1% | -1% | 8% | 1% | |
| off / environment * | 24.6 | 25 -2% | 24.9 -1% | 26.7 -9% | 25 -2% | 24.4 1% |
| Idle Minimum * | 24.6 | 25 -2% | 24.9 -1% | 26.9 -9% | 25 -2% | 24.4 1% |
| Idle Average * | 24.6 | 25 -2% | 24.9 -1% | 26.9 -9% | 25 -2% | 24.4 1% |
| Idle Maximum * | 27.7 | 26 6% | 27 3% | 26.9 3% | 25 10% | 26.7 4% |
| Load Average * | 43.6 | 27.7 36% | 44.1 -1% | 40.9 6% | 33.6 23% | 43.8 -0% |
| Witcher 3 ultra * | 43.6 | 40.1 8% | 43.8 -0% | |||
| Load Maximum * | 43.6 | 30.5 30% | 44.8 -3% | 43.7 -0% | 34.5 21% | 44.8 -3% |
* ... smaller is better

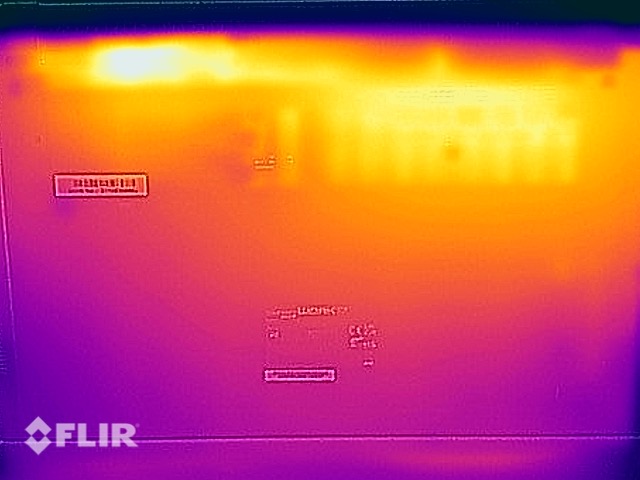

温度
Schenker Work 17在顶部包括键盘和ClickPad区域并不特别热。来自计算硬件的废热在底部的通风口和处理器周围更加明显。尽管如此，这台办公笔记本电脑还是能够轻松应对压力测试，没有任何重大性能下降的报告。
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 36.5 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.1 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.6 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.2 °C / 88 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.4 °C / 81.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+0.2 °C / 0.4 F).
(+) The maximum temperature on the upper side is 36.5 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.1 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.6 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.2 °C / 88 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.4 °C / 81.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+0.2 °C / 0.4 F).
| SCHENKER Work 17 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs | LG Gram 17Z90P-G.AA56G Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Acer Aspire 5 A517-52G-79Z5 Intel Core i7-1165G7, NVIDIA GeForce MX350 | Acer Aspire 3 A317-51G-72MD Intel Core i7-10510U, NVIDIA GeForce MX250 | Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000) | SCHENKER Work 15 Tiger Lake-H Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs | |
|---|---|---|---|---|---|---|
| Heat | -7% | 2% | -14% | -26% | -2% | |
| Maximum Upper Side * | 36.5 | 43.6 -19% | 35 4% | 44.2 -21% | 40.4 -11% | 39.1 -7% |
| Maximum Bottom * | 43.1 | 41.4 4% | 40 7% | 53 -23% | 41.1 5% | 43.4 -1% |
| Idle Upper Side * | 24.4 | 26.4 -8% | 25.6 -5% | 26.4 -8% | 34.6 -42% | 24.3 -0% |
| Idle Bottom * | 25.6 | 27 -5% | 25.3 1% | 26.9 -5% | 40 -56% | 25.1 2% |
* ... smaller is better
发言人
Schenker Work 17的扬声器适合办公室使用，但不适合其他用途。它们为视频通话提供了足够的音质，而对于音乐和电影，它们显然缺乏动态范围。高音和低音的再现都很弱。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
SCHENKER Work 17 Tiger Lake-H audio analysis
(±) | speaker loudness is average but good (79.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.6% lower than median
(±) | linearity of bass is average (7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.2% higher than median
(±) | linearity of mids is average (14.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.6% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 4% similar, 11% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 83% of all tested devices were better, 3% similar, 14% worse
» The best had a delta of 4%, average was 24%, worst was 134%
LG Gram 17Z90P-G.AA56G audio analysis
(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.7% lower than median
(±) | linearity of bass is average (13.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (4.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.5% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 4% similar, 91% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 13% of all tested devices were better, 4% similar, 83% worse
» The best had a delta of 4%, average was 24%, worst was 134%
能源消耗
在空闲使用时，尽管显示屏很大，但Schenker Work 17只需要少量的能量，只有9瓦特。短时间内可以测出71.5瓦的能量需求。如果忽略电源的效率，笔记本电脑的能量消耗短暂地超过了附带的适配器的规格。然而，由于消耗量在压力测试过程中迅速下降，电源适配器仍被认为具有足够的容量。
Power Consumption
| Off / Standby | 0.47 / 0.93 Watt |
| Idle | 4.5 / 9.2 / 10.1 Watt |
| Load |
46.2 / 71.5 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Energy consumption during The Witcher 3 / stress test
SCHENKER Work 17 Tiger Lake-H; Witcher 3 ultra: Ø37.8 (31.6-47.6)
SCHENKER Work 17 Tiger Lake-H; 1280x720 Prime95 28.10 and Furmark 1.25: Ø45.2 (30.9-71.5)
Energy consumption with an external monitor
SCHENKER Work 17 Tiger Lake-H; Prime95 V2810 Stress (external Monitor): Ø36.5 (28.6-46.7)
SCHENKER Work 17 Tiger Lake-H; Cinebench R15 Multi (external Monitor): Ø45.8 (42.8-52.3)
SCHENKER Work 17 Tiger Lake-H; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.2 (36.6-49.8)
SCHENKER Work 17 Tiger Lake-H; 1920x1080 The Witcher 3 ultra (external Monitor): Ø29.6 (27.6-32.1)
电池寿命
这台办公用笔记本电脑的电池寿命总体上是好的，在我们的Wi-Fi测试中，在150cd/m²的情况下，电池寿命略低于10小时。在Wi-Fi测试中，73Wh的电池在全亮度下仍可持续使用约7小时。
在电池电量方面，我们注意到，在最大负荷下的性能模式下，笔记本电脑在大约一个小时后就会关闭。对日志文件的分析表明，这是由于温度过高导致的保护性关机。在与申克公司联系后，目前正在创建一个新的BIOS版本，它将把性能模式下的目标温度从目前的98℃（约208°F）降低到95℃（约203°F）。这应该使这个问题成为过去。这个问题在娱乐模式下并不存在，压力测试中的运行时间略多于2小时。
更新17.04.。Schenker向我们提供了新的BIOS版本1.07.15 RTR2，我们又重复了测试。如前所述，现在性能模式下的最高CPU温度更低了，而且测试一路平稳运行。在这种情况下，注册的运行时间约为1:30小时。因此，我们建议所有用户进行相应的更新。
| SCHENKER Work 17 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs, 73 Wh | LG Gram 17Z90P-G.AA56G i5-1135G7, Iris Xe G7 80EUs, 80 Wh | Acer Aspire 5 A517-52G-79Z5 i7-1165G7, GeForce MX350, 50.2 Wh | Acer Aspire 3 A317-51G-72MD i7-10510U, GeForce MX250, 36.7 Wh | Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8, 42 Wh | SCHENKER Work 15 Tiger Lake-H i7-11370H, Iris Xe G7 96EUs, 73 Wh | Average of class Office | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | 31% | -22% | -47% | -54% | 3% | -2% | |
| Reader / Idle | 1337 | 2014 51% | 827 -38% | 1472 10% | 1304 ? -2% | ||
| WiFi v1.3 | 594 | 763 28% | 441.4 -26% | 314 -47% | 272 -54% | 614 3% | 665 ? 12% |
| Load | 137 | 155 13% | 133 -3% | 132.7 -3% | 113.1 ? -17% | ||
| H.264 | 292 | 576 | 759 ? | ||||
| Witcher 3 ultra | 77 |
Pros
+ 优秀的RGB键盘
+ 坚固的外壳
+ 良好的性能
+ 可自由配置和升级
+ 良好的显示效果
Cons
- 扬声器薄弱
结论--定制性能的广泛选择
Schenker Work 17主要是一个结实的设备，其做工质量很高。它通常可以提供令人信服的计算性能，尽管它落后于 它通常可以提供令人信服的计算性能，尽管它有时会落后于Schenker Work 15的速率有时会落后。但这一事实无法真正解释，因为两个评测单位的硬件应该是几乎相同的。这可能是在现代电子产品的制造公差范围内的因素造成的。
尽管如此，大多数应用程序对英特尔APU并不构成大的挑战。办公室、图像编辑程序、MATLAB模拟和互联网应用都可以由笔记本电脑轻松处理。如果你在质量设置方面做一些限制，甚至3D应用程序和游戏也能顺利运行。
许多配置选项，RGB键盘，以及最后但并非最不重要的，17英寸的格式使Schenker Work 17成为办公笔记本电脑中的一个奇特标本。这款笔记本电脑的做工和性能都给人留下了深刻印象。
虽然高昂的购买价格看起来并不便宜，但这是有道理的，因为其做工和处理能力都非常好。此外，申克公司提供的配置选项仍使其有可能节省一些钱。
价格和可用性
Schenker Work 17有各种配置，，在制造商的网上商店，起价为1179欧元（约合1272美元）。.
SCHENKER Work 17 Tiger Lake-H
- 04/02/2022 v7 (old)
Marc Herter
Office - Weighted Average
Price comparison
