华硕 PU551JH 工作站简短评测

Name: Asus PU551JH
Brand: Asus

嘘。悄无声息地，华硕为他们的产品线添加了一台15寸移动工作站设备。PU551JH已经上市，售价1000欧元，凭借磨砂全高清屏幕和Nvidia Quadro K1100M可能会设定价位的新标准。我们将会详尽测试它是否可以出色地做到这一点。

Tobias Winkler, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 06/02/2015 🇺🇸 🇩🇪 ...

Business Haswell Laptop / Notebook Windows Workstation

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Asus PU551JH (ASUSPRO Series)

Processor

Intel Core i5-4210M 2 x 2.6 - 3.2 GHz, Haswell

Graphics adapter

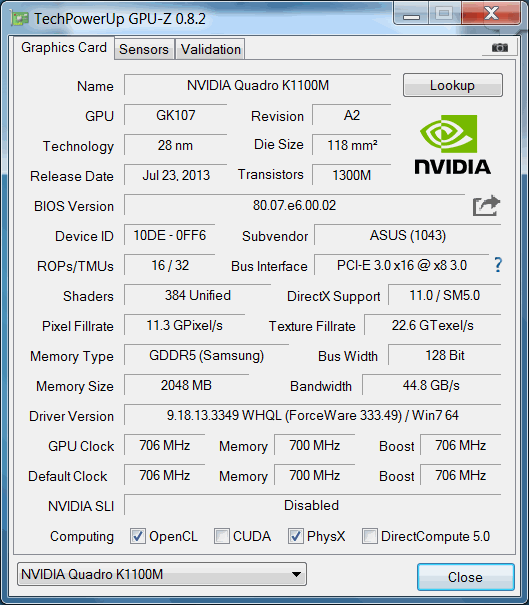

NVIDIA Quadro K1100M - 2048 MB VRAM, Core: 705 MHz, Memory: 700 MHz, GDDR5, 9.18.13.3349, Nvidia Optimus with Intel HD Graphics 4600

Memory

7.9 GB

, 8 GB PC3-12800, 一个空余插槽, 单通道

Display

15.60 inch 16:9, 1920 x 1080 pixel, Samsung 156HL01_102, IPS LED, glossy: no

Storage

Hitachi Travelstar Z7K500 HTS725050A7E630, 500 GB

, 7200 rpm

Soundcard

CX20751/2 @ Intel Lynx Point PCH - High Definition Audio Controller

Connections

4 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米整合音频输入输出插槽, Card Reader: Sd, SDHC, SDXC, UHS-I , 1 Fingerprint Reader

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

MATSHITADVD-RAM

Size

height x width x depth (in mm): 36 x 380 x 256

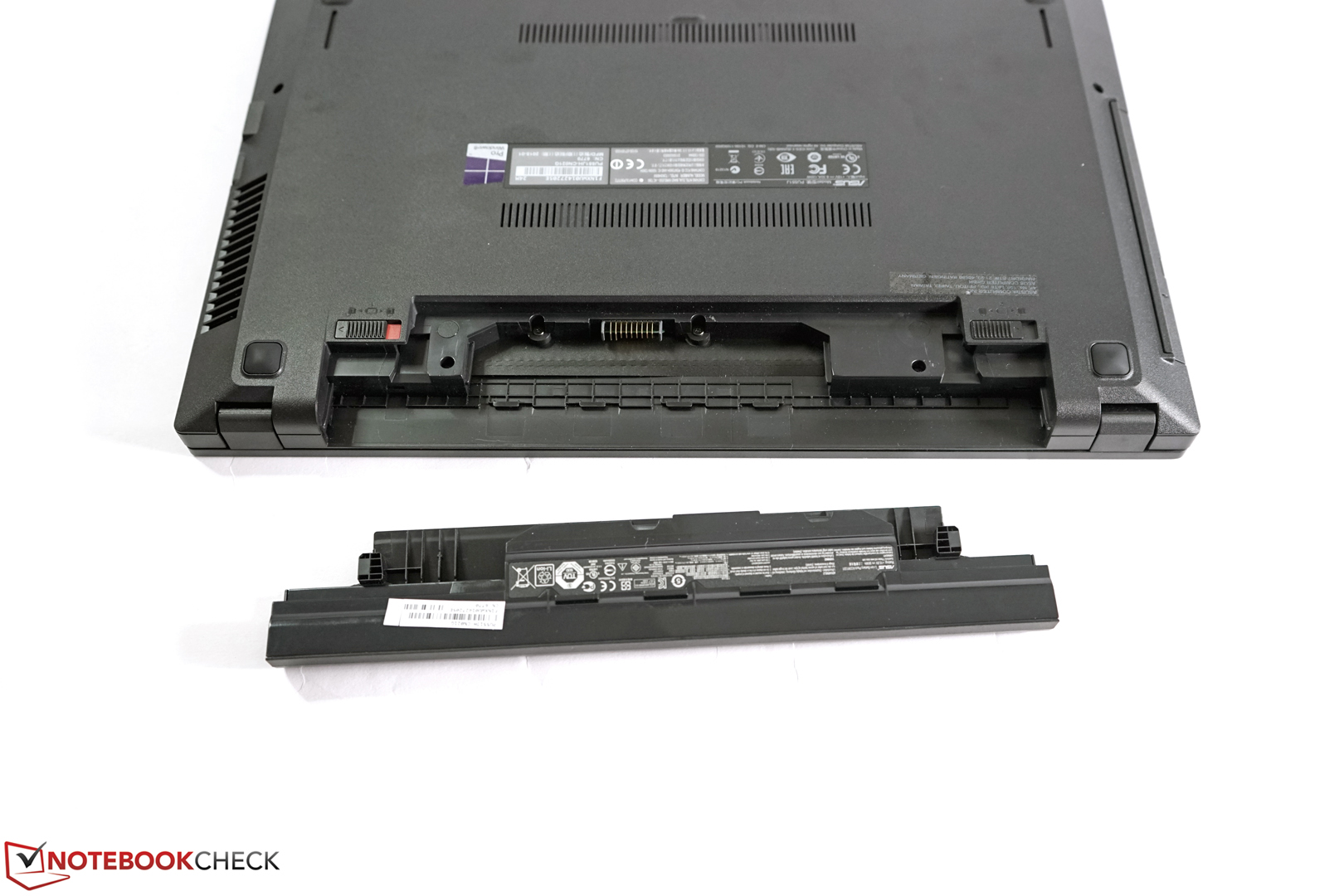

Battery

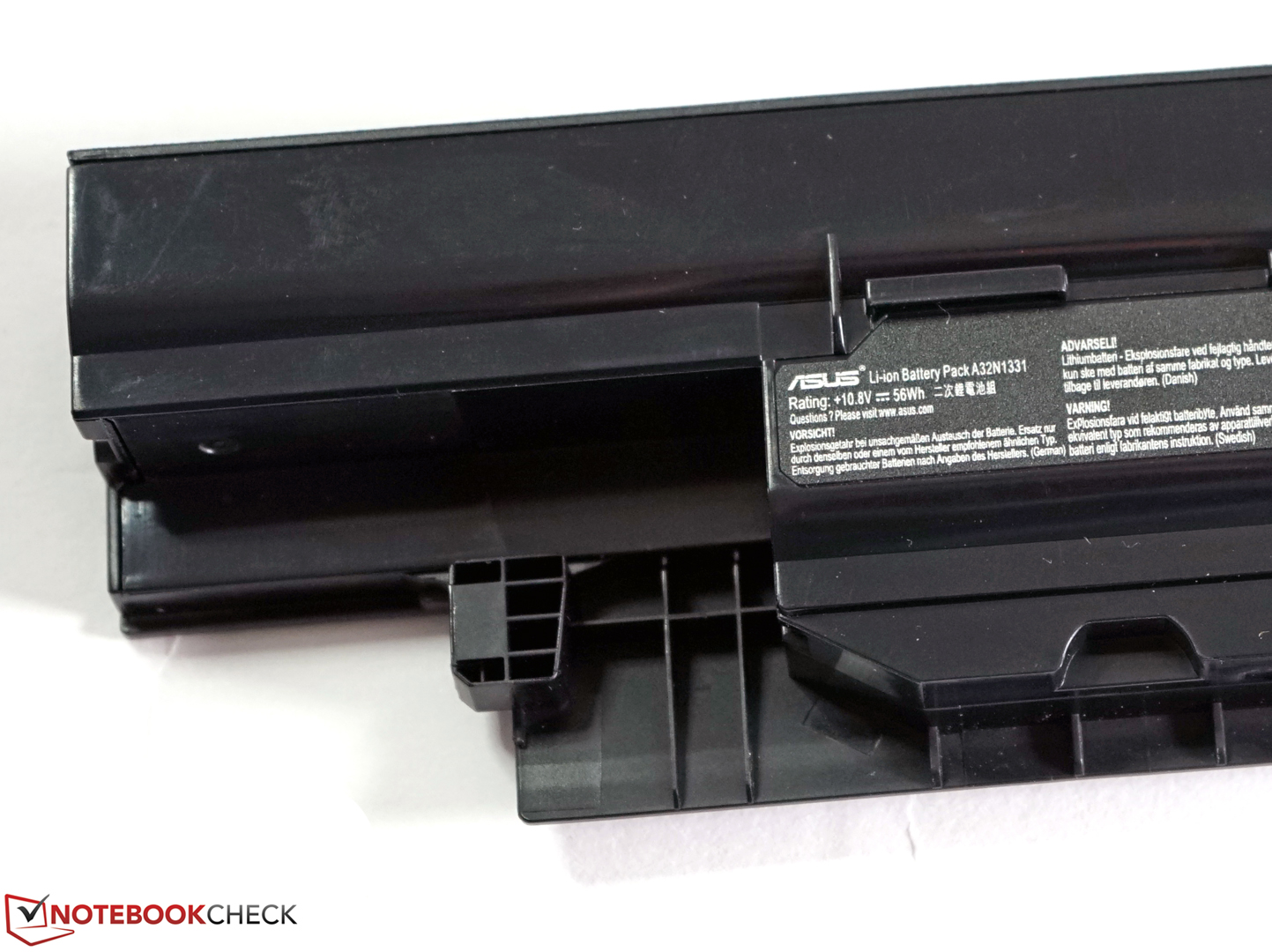

56 Wh Lithium-Ion, 10.8V

Operating System

Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)

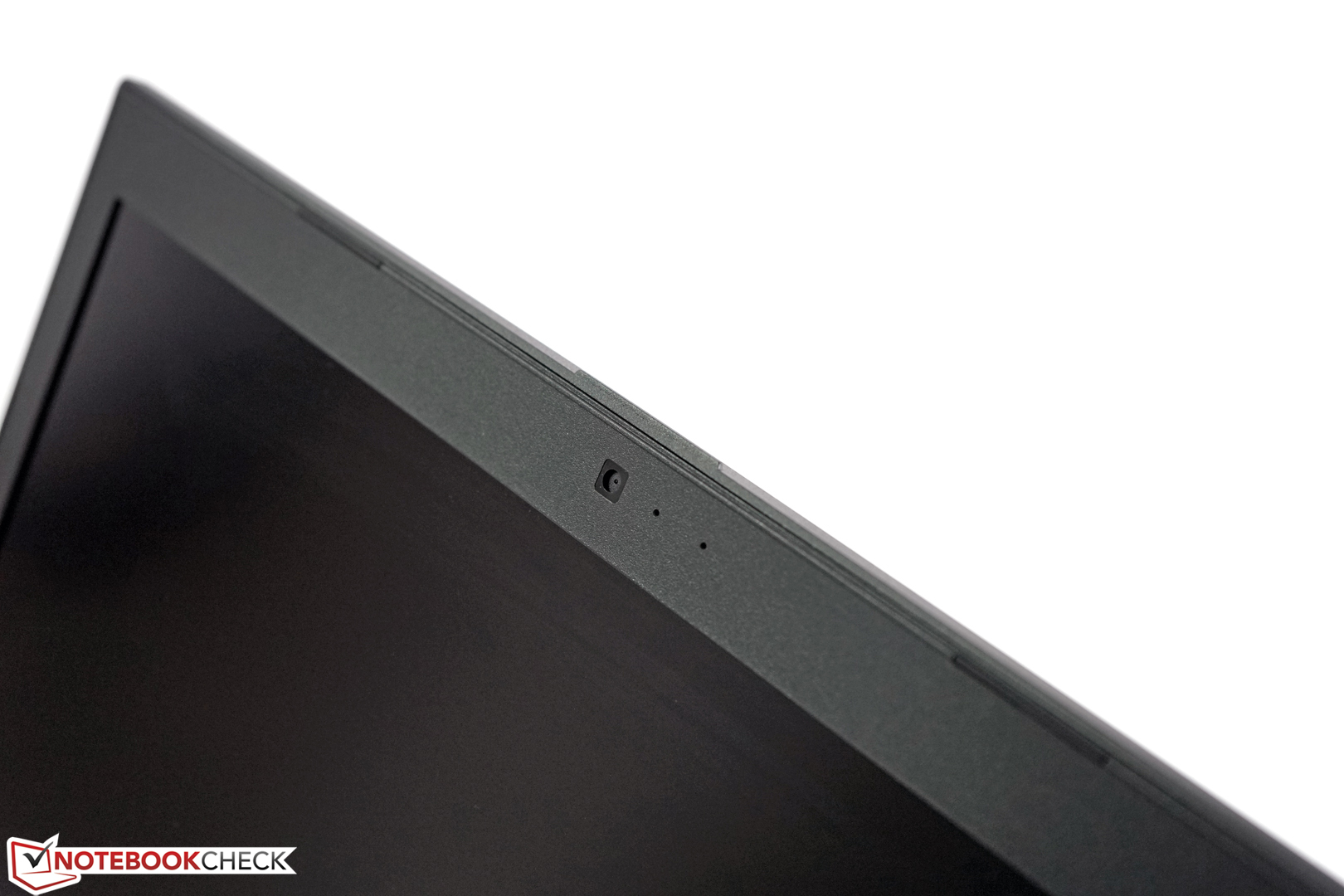

Camera

Webcam: 100万像素

Additional features

Keyboard: 孤岛式, Keyboard Light: no, 24 Months Warranty

Weight

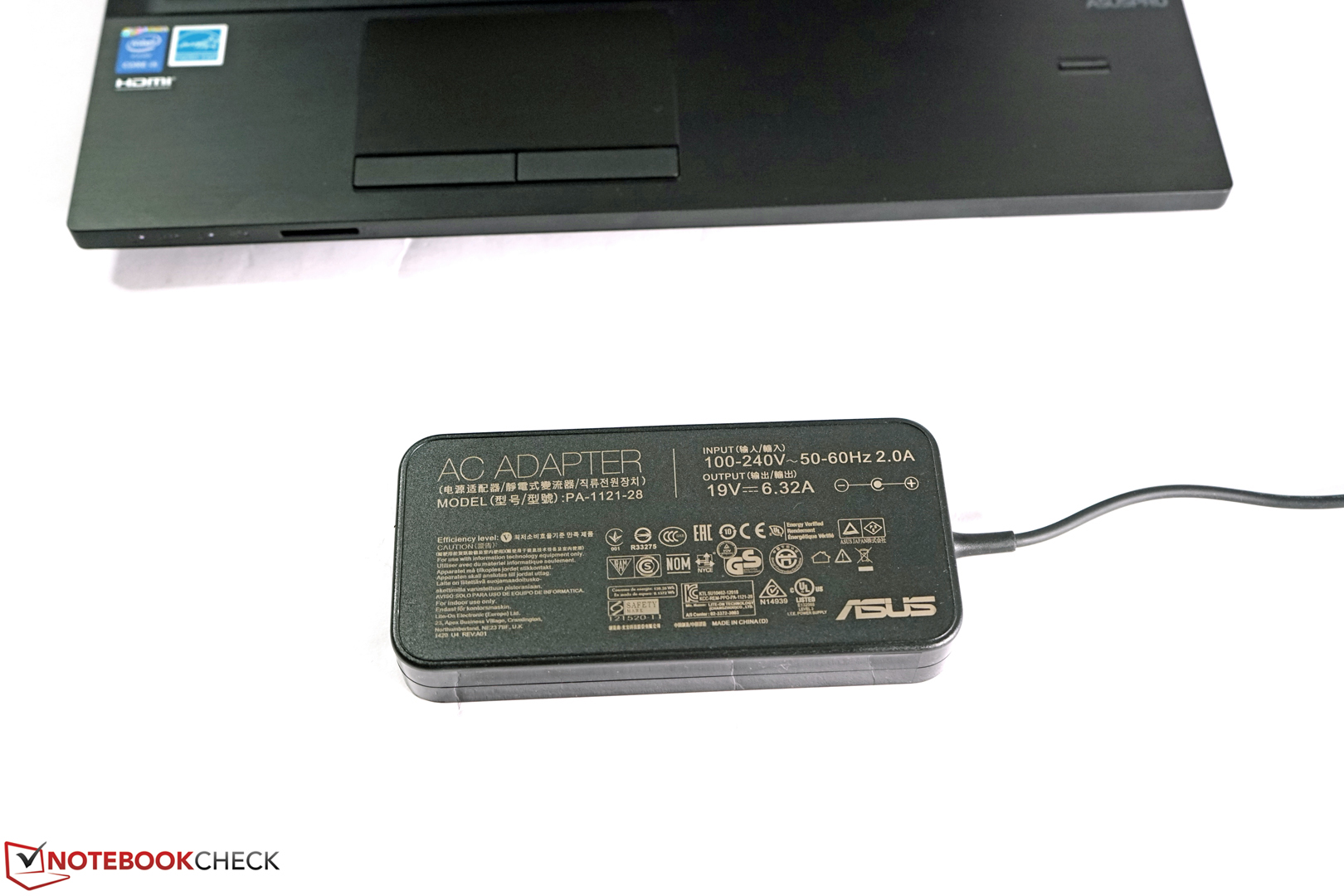

2.51 kg, Power Supply: 570 g

Price

1000 Euro

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

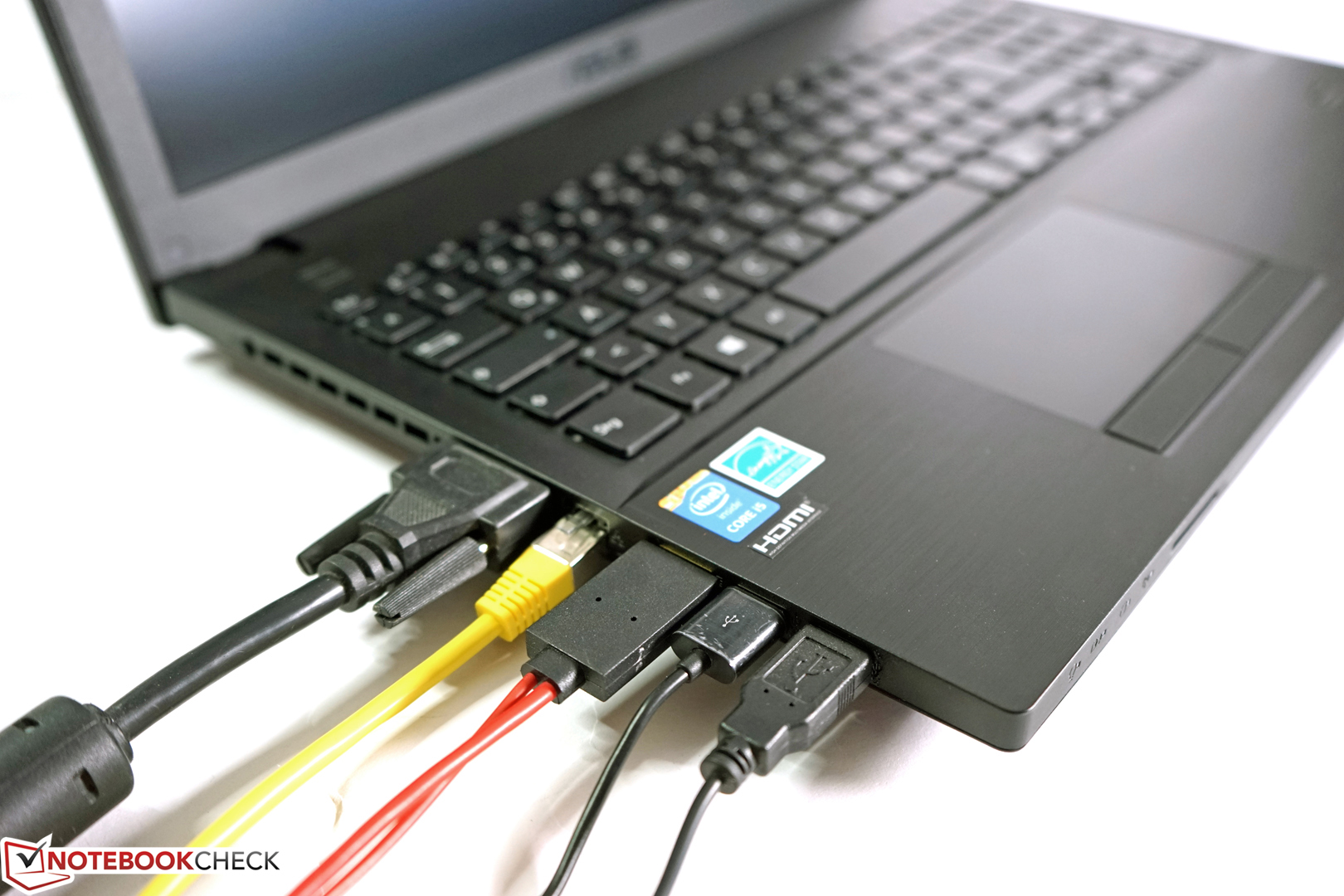

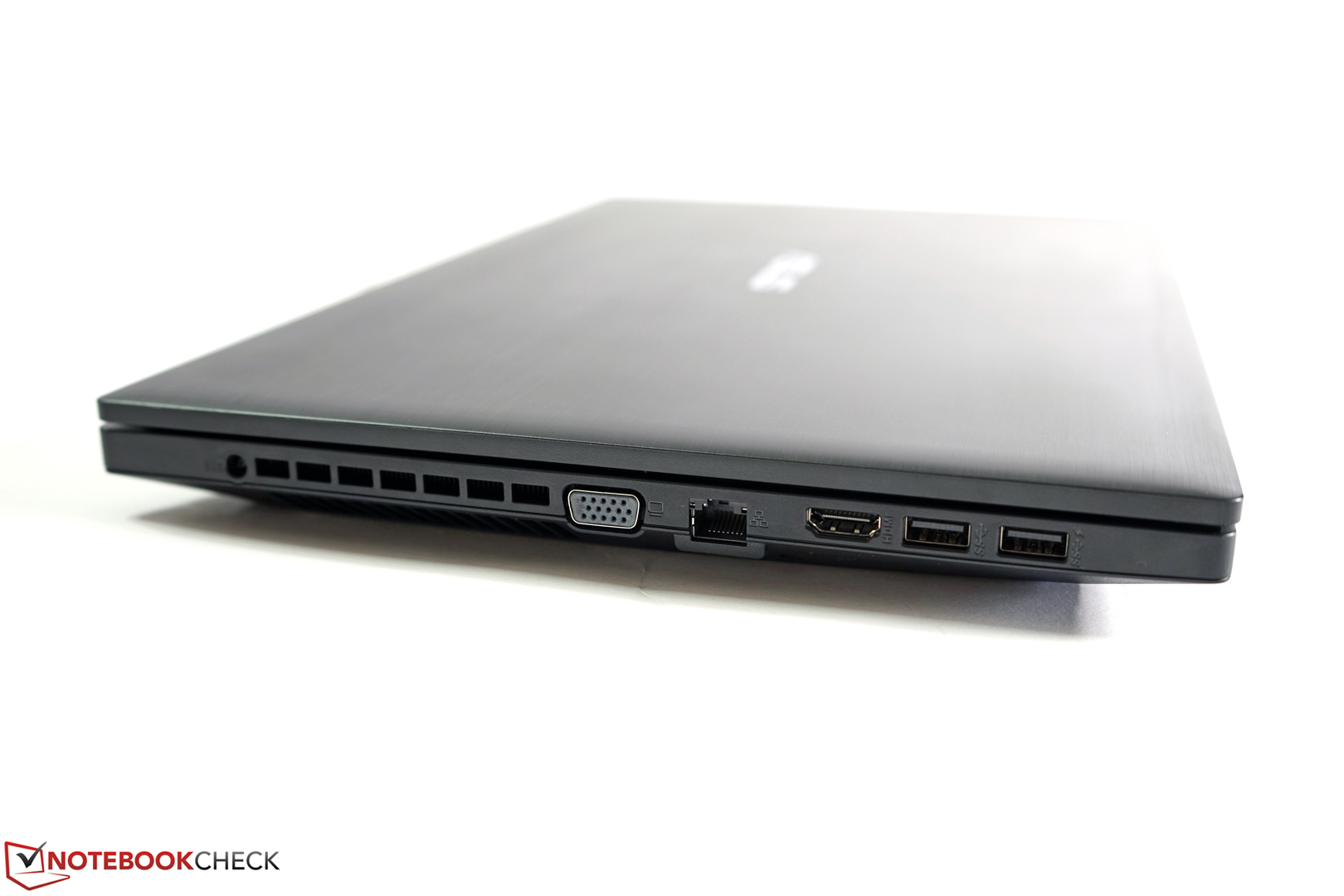

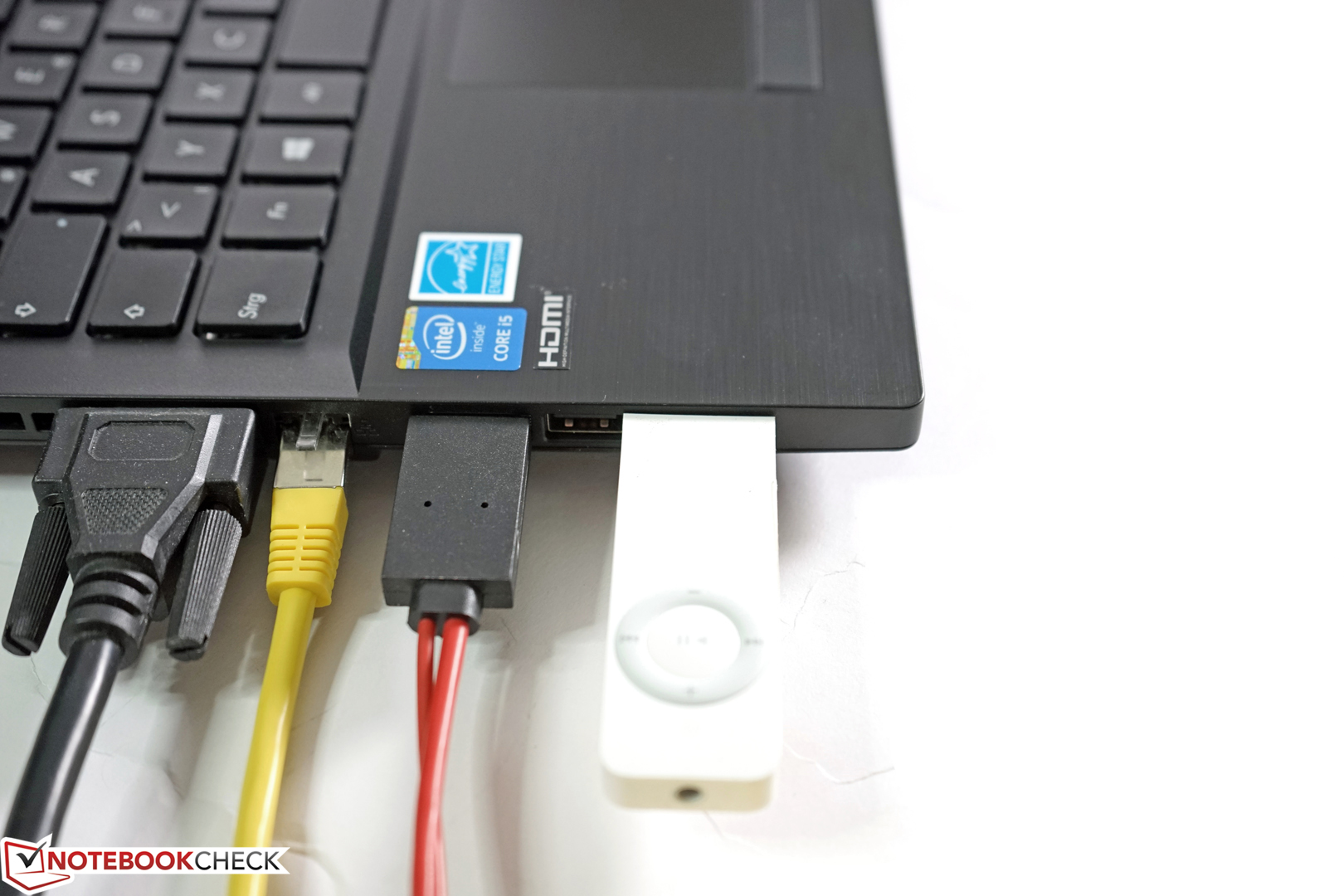

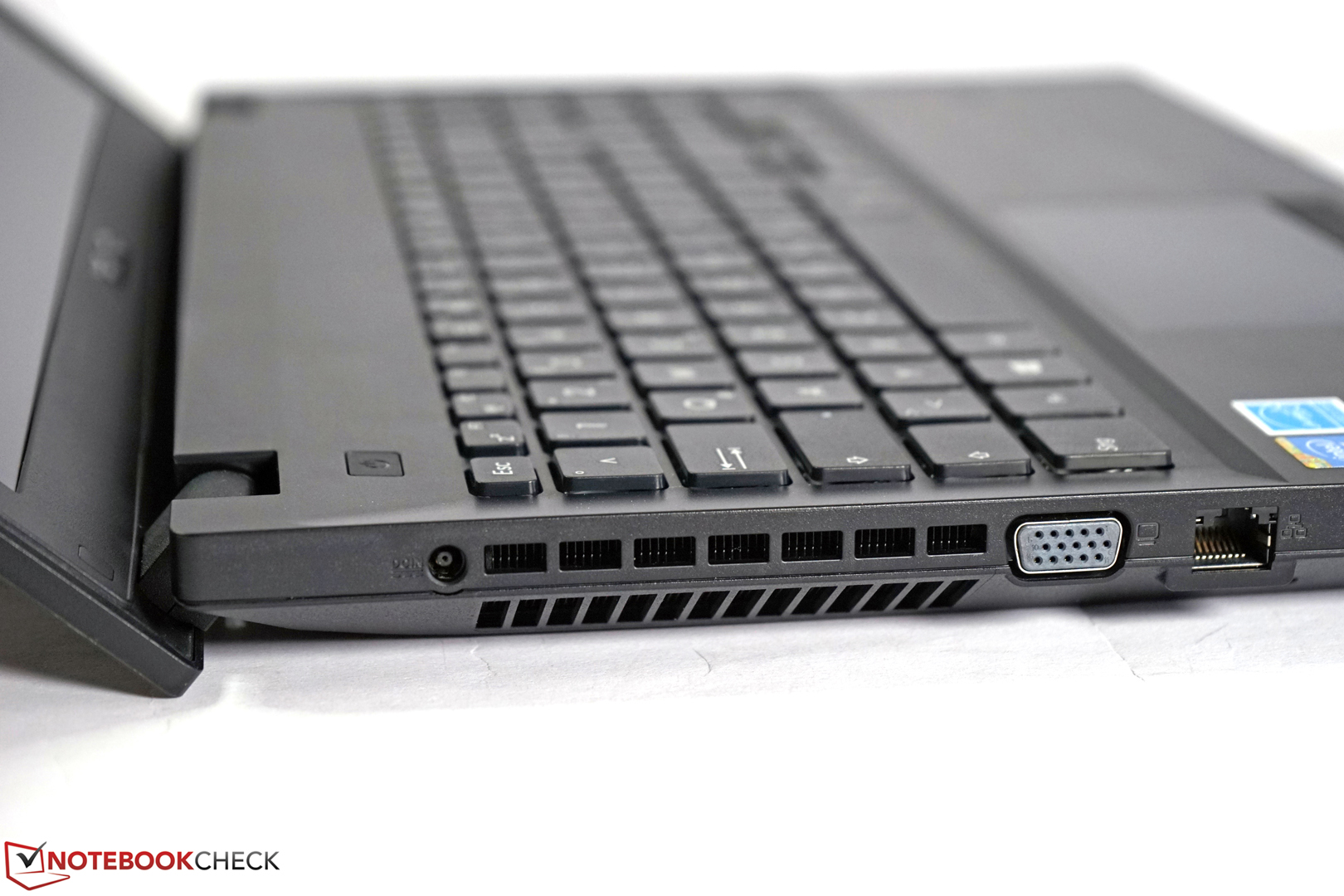

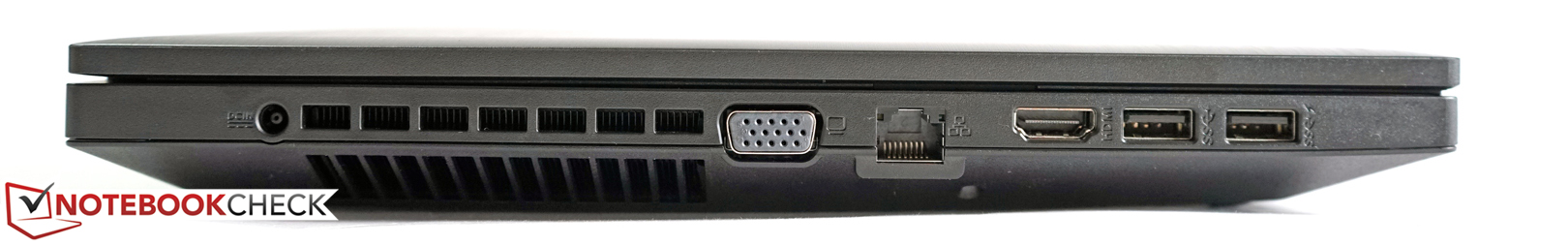

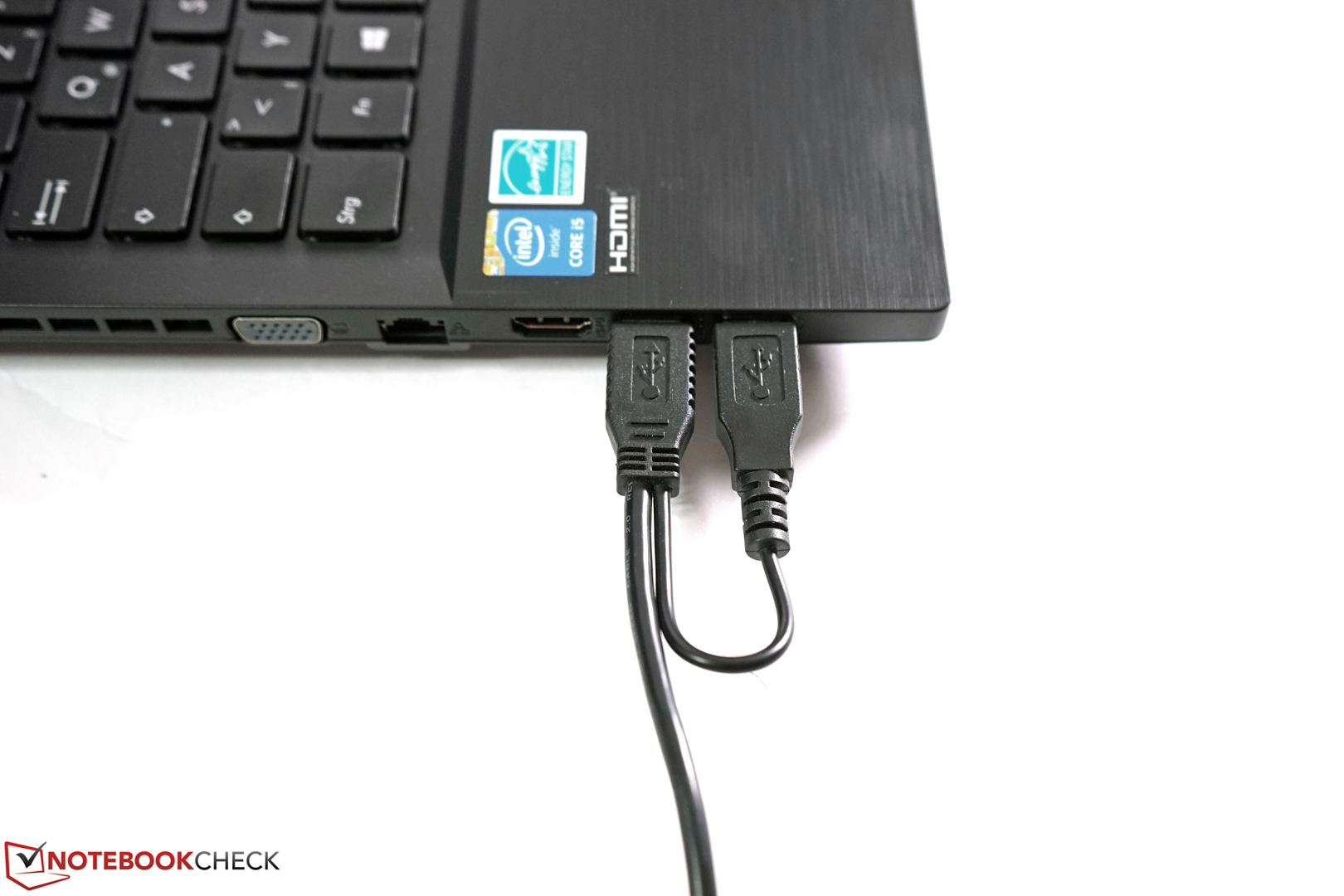

Left: power connection, VGA, LAN, HDMI, 2 x USB 3.0

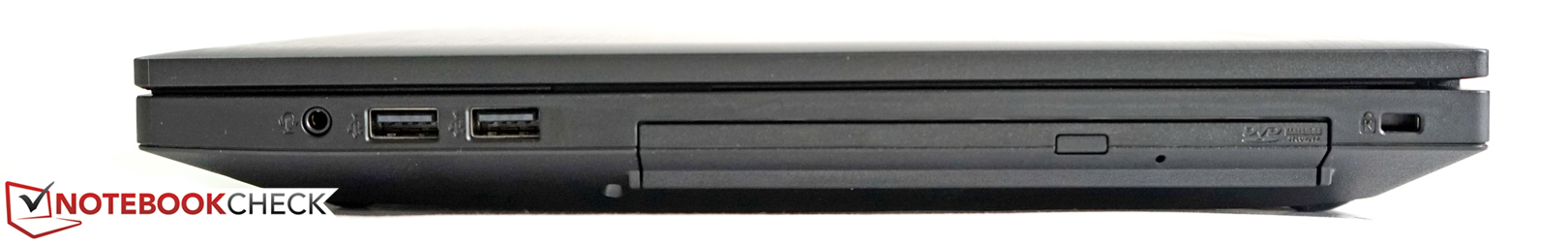

Right: combined audio in/out, 2 x USB 3.0, DVD drive, Kensington lock


319 cd/m²	333 cd/m²	322 cd/m²
318 cd/m²	337 cd/m²	316 cd/m²
313 cd/m²	297 cd/m²	308 cd/m²

Distribution of brightness

Samsung 156HL01_102 tested with X-Rite i1Pro 2

Maximum: 337 cd/m² (Nits) Average: 318.1 cd/m²
Brightness Distribution: 88 %
Center on Battery: 342 cd/m²
Contrast: 864:1 (Black: 0.39 cd/m²)
ΔE Color 4.5 | 0.5-29.43 Ø5
ΔE Greyscale 5.94 | 0.57-98 Ø5.3
96% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.5% sRGB (Argyll 2.2.0 3D)
67.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.32

Download ICC File (X-Rite i1Pro 2)

Cinebench R10
Rendering Multiple CPUs 64Bit (sort by value)
Asus PU551JH	12149 Points
Lenovo ThinkPad W550s 20E2-000PGE	11616 Points -4%
HP ZBook 15 G2	24653 Points +103%
Lenovo ThinkPad T450s-20BWS1UT00	11244 Points -7%
Rendering Single CPUs 64Bit (sort by value)
Asus PU551JH	5582 Points
Lenovo ThinkPad W550s 20E2-000PGE	6100 Points +9%
HP ZBook 15 G2	6511 Points +17%
Lenovo ThinkPad T450s-20BWS1UT00	5424 Points -3%

Legend

Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4710MQ, AMD FirePro M5100, HGST Travelstar 5K1000 HTS541075A9E680

Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M, Samsung SSD PM871 MZ7LN256HCHP

Cinebench R10 Shading 32Bit

5727

Cinebench R10 Rendering Multiple CPUs 32Bit

10082

Cinebench R10 Rendering Single 32Bit

4276

Cinebench R10 Shading 64Bit

5424 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

12149 Points

Cinebench R10 Rendering Single CPUs 64Bit

5582 Points

Cinebench R11.5 CPU Multi 64Bit

3.34 Points

Cinebench R11.5 OpenGL 64Bit

43.75 fps

Cinebench R11.5 CPU Single 64Bit

1.39 Points

Cinebench R15 CPU Multi 64Bit

302 Points

Cinebench R15 CPU Single 64Bit

119 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

50.3 fps

Help

... in comparison

PCMark 7 Score		2905 points
PCMark 8 Home Score Accelerated v2		2343 points
PCMark 8 Creative Score Accelerated v2		2399 points
PCMark 8 Work Score Accelerated v2		3311 points
Help

... in comparison

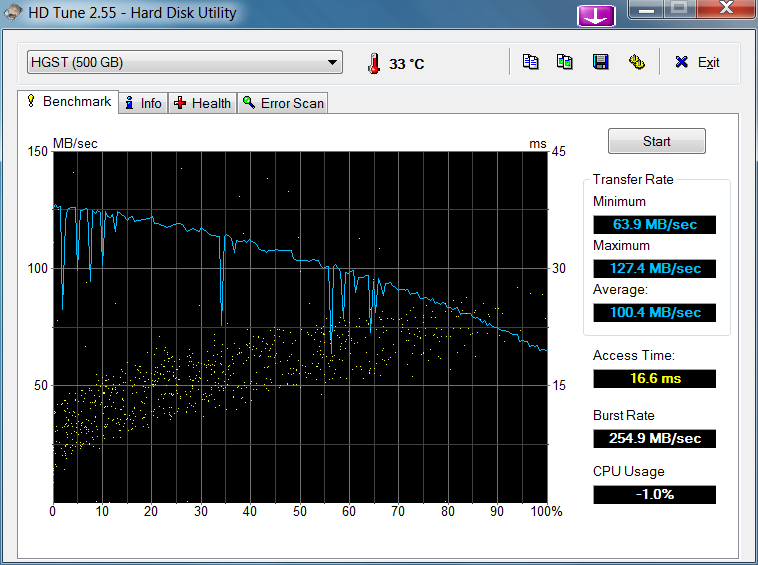

HD Tune

Hitachi Travelstar Z7K500 HTS725050A7E630

Transfer Rate Minimum: 63.9 MB/s

Transfer Rate Maximum: 127.4 MB/s

Transfer Rate Average: 100.4 MB/s

Access Time: 16.6 ms

Burst Rate: 254.9 MB/s

CPU Usage: 1 %

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Asus PU551JH	23.39 fps
Dell Precision M2800	25.04 fps +7%
HP ZBook 17 E9X11AA-ABA	21.28 fps -9%
MSI WS60 2OJ8H11W7P	30.48 fps +30%
1920x1080 Tcvis (sort by value)
Asus PU551JH	27.27 fps
Dell Precision M2800	9.81 fps -64%
HP ZBook 17 E9X11AA-ABA	25.26 fps -7%
MSI WS60 2OJ8H11W7P	35.1 fps +29%
1920x1080 SolidWorks (sort by value)
Asus PU551JH	36.55 fps
Dell Precision M2800	47.75 fps +31%
HP ZBook 17 E9X11AA-ABA	36.1 fps -1%
MSI WS60 2OJ8H11W7P	42.18 fps +15%
1920x1080 Pro/ENGINEER (sort by value)
Asus PU551JH	12.9 fps
Dell Precision M2800	11 fps -15%
HP ZBook 17 E9X11AA-ABA	15.9 fps +23%
MSI WS60 2OJ8H11W7P	15.53 fps +20%
1920x1080 Maya (sort by value)
Asus PU551JH	45.88 fps
Dell Precision M2800	68.4 fps +49%
HP ZBook 17 E9X11AA-ABA	35.14 fps -23%
MSI WS60 2OJ8H11W7P	51.6 fps +12%
1920x1080 Lightwave (sort by value)
Asus PU551JH	45.89 fps
Dell Precision M2800	71.6 fps +56%
HP ZBook 17 E9X11AA-ABA	49.84 fps +9%
MSI WS60 2OJ8H11W7P	47.96 fps +5%
1920x1080 Ensight (sort by value)
Asus PU551JH	17.21 fps
Dell Precision M2800	19.94 fps +16%
HP ZBook 17 E9X11AA-ABA	17.02 fps -1%
MSI WS60 2OJ8H11W7P	23.89 fps +39%
1920x1080 Catia (sort by value)
Asus PU551JH	32.22 fps
Dell Precision M2800	26.24 fps -19%
HP ZBook 17 E9X11AA-ABA	28.32 fps -12%
MSI WS60 2OJ8H11W7P	41.31 fps +28%

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Asus PU551JH	24.72 fps
Dell Precision M2800	37.52 fps +52%
MSI WS60 2OJ8H11W7P	31.6 fps +28%
1900x1060 Siemens NX (snx-02) (sort by value)
Asus PU551JH	15.31 fps
Dell Precision M2800	23.52 fps +54%
MSI WS60 2OJ8H11W7P	21.95 fps +43%
1900x1060 Showcase (showcase-01) (sort by value)
Asus PU551JH	8.66 fps
Dell Precision M2800	12.75 fps +47%
MSI WS60 2OJ8H11W7P	10.61 fps +23%
1900x1060 Medical (medical-01) (sort by value)
Asus PU551JH	4.15 fps
Dell Precision M2800	5.84 fps +41%
MSI WS60 2OJ8H11W7P	5.69 fps +37%
1900x1060 Maya (maya-04) (sort by value)
Asus PU551JH	14 fps
Dell Precision M2800	22.75 fps +63%
MSI WS60 2OJ8H11W7P	17.77 fps +27%
1900x1060 Energy (energy-01) (sort by value)
Asus PU551JH	0.31 fps
Dell Precision M2800	0.35 fps +13%
MSI WS60 2OJ8H11W7P	0.32 fps +3%
1900x1060 Creo (creo-01) (sort by value)
Asus PU551JH	15.59 fps
Dell Precision M2800	18.8 fps +21%
MSI WS60 2OJ8H11W7P	19.88 fps +28%
1900x1060 Catia (catia-04) (sort by value)
Asus PU551JH	15.48 fps
Dell Precision M2800	19.33 fps +25%
MSI WS60 2OJ8H11W7P	21.2 fps +37%

Legend

Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 17 E9X11AA-ABA Intel Core i7-4900MQ, NVIDIA Quadro K610M, Micron RealSSD C400 MTFDDAK128MAM

MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Asus UX501JW-DS71T Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung SSD SM951 512 GB MZHPV512HDGL

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Asus PU551JH	53 Samples/s
Dell Precision M2800	256 Samples/s +383%
MSI WS60 2OJ8H11W7P	73 Samples/s +38%
Wortmann Terra Mobile 1529H	166 Samples/s +213%
Sala GPUs-only (sort by value)
Asus PU551JH	113 Samples/s
Dell Precision M2800	462 Samples/s +309%
MSI WS60 2OJ8H11W7P	154 Samples/s +36%
Wortmann Terra Mobile 1529H	262 Samples/s +132%

Legend

Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Wortmann Terra Mobile 1529H Intel Core i5-4200M, Intel HD Graphics 4600, Samsung SSD 840 EVO 250GB

3DMark 11 - 1280x720 Performance GPU (sort by value)
Asus PU551JH	1798 Points
Asus UX501JW-DS71T	5095 Points +183%
Dell Precision M2800	2315 Points +29%

3DMark
1280x720 Cloud Gate Standard Graphics (sort by value)
Asus PU551JH	9615 Points
Asus UX501JW-DS71T	22468 Points +134%
Dell Precision M2800	12506 Points +30%
1920x1080 Fire Strike Graphics (sort by value)
Asus PU551JH	1347 Points
Asus UX501JW-DS71T	4063 Points +202%
Dell Precision M2800	1766 Points +31%

Legend

Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Asus UX501JW-DS71T Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung SSD SM951 512 GB MZHPV512HDGL

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

3DMark 06 Standard Score		11447 points
3DMark 11 Performance		1925 points
3DMark Ice Storm Standard Score		50820 points
3DMark Cloud Gate Standard Score		6559 points
3DMark Fire Strike Score		1285 points
Help

... in comparison

	low	med.	high	ultra
Tomb Raider (2013)	103	58	40	16
Metro: Last Light (2013)	38	31	18	10
GRID: Autosport (2014)	205	75	36	17

Noise Level

Idle		29.1 / 31.9 / 31.9 dB(A)
HDD		31.9 dB(A)
Load		36.4 / 41.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: PCE-322A (15 cm distance)

Max. Load

Idle


28.5 °C	30.4 °C	24.1 °C
31.4 °C	36.1 °C	26.9 °C
25.7 °C	30.4 °C	25.1 °C

Maximum: 36.1 °C
Average: 28.7 °C


24 °C	26.3 °C	28.5 °C
24.2 °C	28.4 °C	31.1 °C
25.3 °C	25.8 °C	25.1 °C

Maximum: 31.1 °C
Average: 26.5 °C

Power Supply (max.) 57.3 °C | Room Temperature 20 °C | Fennel Firt 550 Pocket

(+) The average temperature for the upper side under maximal load is 28.7 °C / 84 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 36.1 °C / 97 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(+) The bottom heats up to a maximum of 31.1 °C / 88 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.4 °C / 86.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-2.6 °C / -4.7 F).

Power Consumption

Off / Standby	0.1 / 0.3 Watt
Idle	7.4 / 11.7 / 12.6 Watt
Load	54.7 / 78.4 Watt


Key: min: , med: , max: Voltcraft VC 870 Iso kalibriert Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

Idle (without WLAN, min brightness)		7h 25min
WiFi Websurfing		4h 27min
Big Buck Bunny H.264 1080p		4h 31min
Load (maximum brightness)		1h 29min

Pros

+ 机身

+ 键盘

+ 屏幕

+ 电池续航

+ 持续负载下的性能表现

+ CAD性能

+ 电池模式下性能不会减弱

+ 噪音水平

+ 发热量

Cons

- 缺少键盘背光

- 缺少商用接口

- 硬盘性能

- 接口布局

- 官方升级选项

- “仅”24个月质保

- 4K屏幕原生分辨率只可以选择30Hz刷新率

ASUSPRO PU551JH. Test model courtesy of Cyberport.de

尽管在配置上有一些小问题，但ASUSPRO PU551JH是一款十分有魅力的入门级移动工作站产品。它的主要部件为专业应用奠定了坚实的基础。

它在屏幕，键盘和系统性能，特别是CAD性能等方面表现全面，将可以满足很多年轻工程设计师或普通用户的需要。如果你需要具备CAD使用性能的入门级设备的话，ASUSPRO PU551JH是个不错的选择。

总体来说，它的性能甚至可以与一些更高端的设备一较高下。

不过，紧张的成本预算也让它不可避免地有一些配置上的弱点。华硕没有为它配备更快的固态硬盘和背光键盘。另外，用户需要接受设计不够合理的借口布局，以及缺少一些商用接口的问题。可以接受这些缺点的用户将可以得到一款配备强劲硬件的超高性价比优秀入门移动工作站产品。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
