联想IdeaPad Miix 720 (7500U, QHD) 变形本评测

3:2 Surface. QHD+屏幕加上15w的Kaby Lake处理器,联想这款IdeaPad Miix 720可以是说微软Surface Pro系列强有力的竞争者,但是不平衡的风扇设计和低质量的麦克风破坏了这款12寸二合一变形本的形象。
Sebastian Jentsch, Stefanie Voigt (translated by Jiacheng Lan), 🇺🇸 🇩🇪 ...
Windows Touchscreen Tablet Kaby Lake Convertible / 2-in-1
, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Lenovo IdeaPad Miix 720-12IKB - The Surface competitor par excellence?
Lenovo IdeaPad Miix 720-12IKB - The Surface competitor par excellence?

原本德文评测,请点击 here.

可以说,过去几年在二合一PC领域微软Surface Pro一骑绝尘,但竞争者却也不少。HP发布了Spectre x2,随后又发布了续航时间长的Elite x2 1020 G1;或者是打着无风扇口号的Acer Asoire Switch Aloha 12;又或者是兼容性能与便携的产品,如华硕变形者 3 Pro T303UA以及联想Miix 510 Pro等…

现在,联想IdeaPad Miix 720是应对Surface的最新答卷。这款12英寸的设备提供了家用PC所有的功能,具有主动散热系统,同时端口连接性能也没有妥协,联想为之设计了一个带Thunderbolt 3的Type C接口以及一个全尺寸的Type A USB口。

Miix 720首先要提的是和Surface一样采用了3 :2比例的屏幕(分辨率为2880 x 1920),而不是普通的16:9,可以说联想这一点是从其小兄弟Miix 510 Pro中汲取的经验,后者采用16:10 分辨率为1920 x 1200的屏幕,没有Thunderbolt 接口,也没有Windows Hello虹膜识别所需的红外摄像头。

本次进行对比的竞品如下:

Lenovo Ideapad Miix 720-12IKB (Miix Series)
Processor
Intel Core i7-7500U 2 x 2.7 - 3.5 GHz, Kaby Lake
Graphics adapter
Memory
16384 MB
, 双通道,板载
Display
12.00 inch 3:2, 2880 x 1920 pixel 288 PPI, 10 指触摸, native pen support, AUO B120YAN01 / AUO106F, IPS, glossy: yes, detachable screen
Mainboard
Intel Kaby Lake-U Premium PCH
Storage
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), 1024 GB
, 870 GB free
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, Audio Connections: Combo Mic+Line, Brightness Sensor, Sensors: Lage
Networking
Tri-Band Wireless-AC 18260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ad), Bluetooth 4.2
Size
height x width x depth (in mm): 8.9 x 292 x 210
Battery
41 Wh Lithium-Polymer, SMP L15M4PC3, Battery runtime (according to manufacturer): 8 h
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Primary Camera: 1 MPix Webcam 1280x720 + Infrared Windows Hello
Secondary Camera: 5 MPix 自动对焦 2560x1440
Additional features
Speakers: Stereo, Keyboard: 巧克力, Keyboard Light: yes, Lenovo Active Pen 2 mit mount and battery, power supply 45W, 12 Months Warranty, fanless
Weight
1.151 kg, Power Supply: 192 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



机身

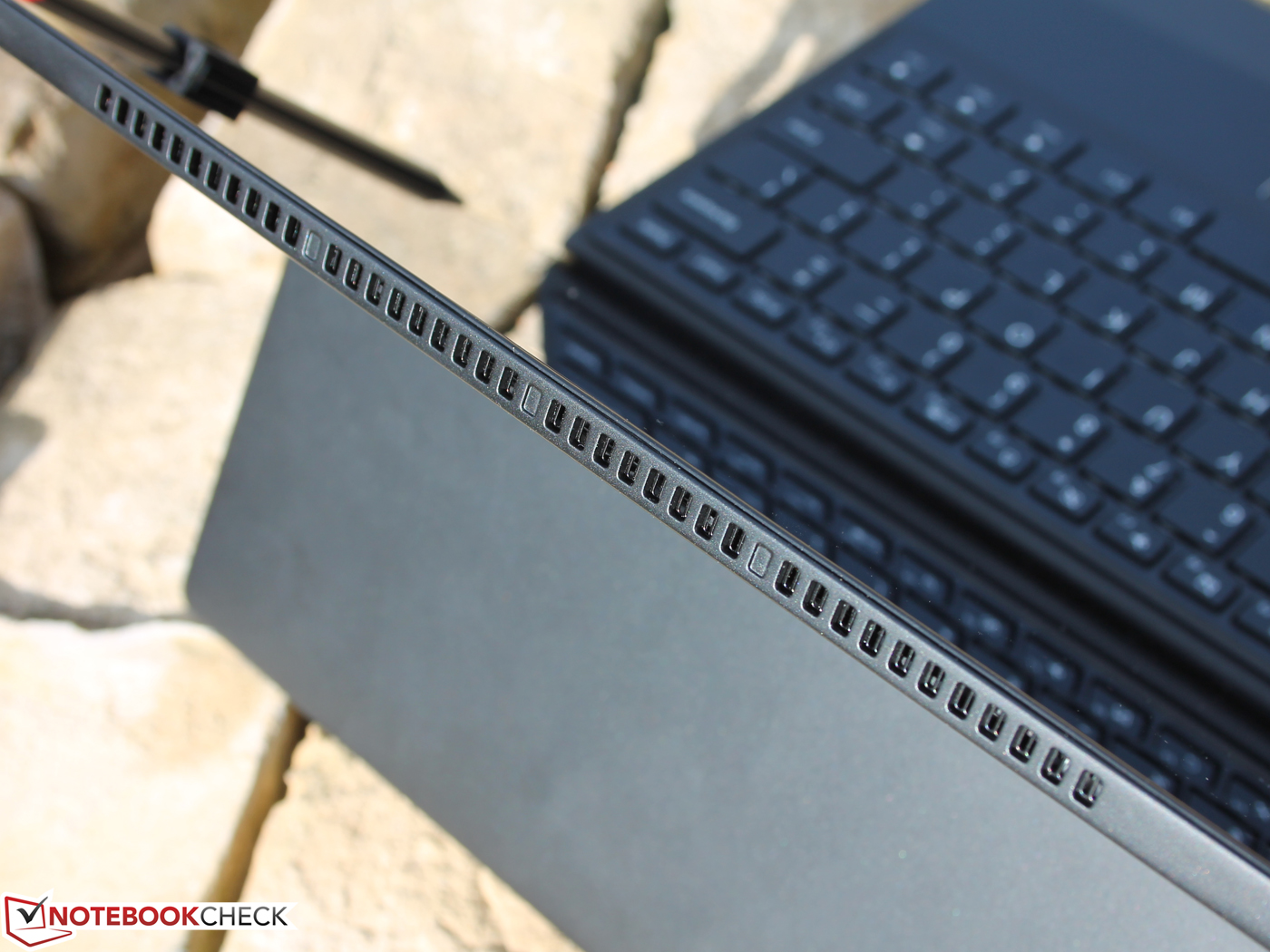

尽管和Miix 510很相似,但Miix 720其实还是有着自己的机身设计,720没有侧面通风口,相机处也没有了胶条设计,全尺寸的USB口也移到了机身左侧。

重量仅为1.15kg的Miix 720比Miix 510的1.24kg要轻一些,在这方面720与竞争对手相比还是有优势的,其中Acer Aspire Switch Alpha 12 SA5-271-56HM最重,为1.3kg。

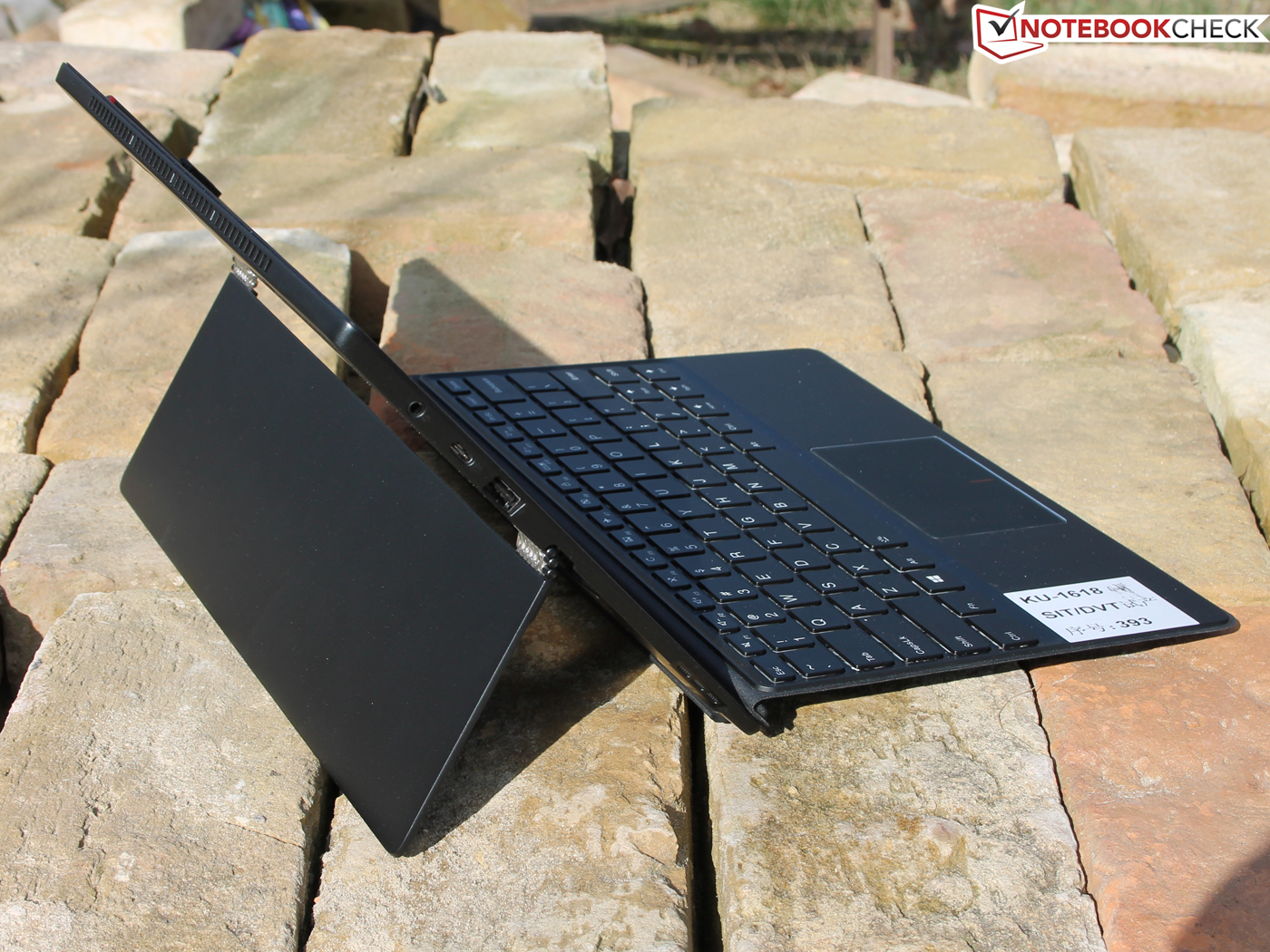

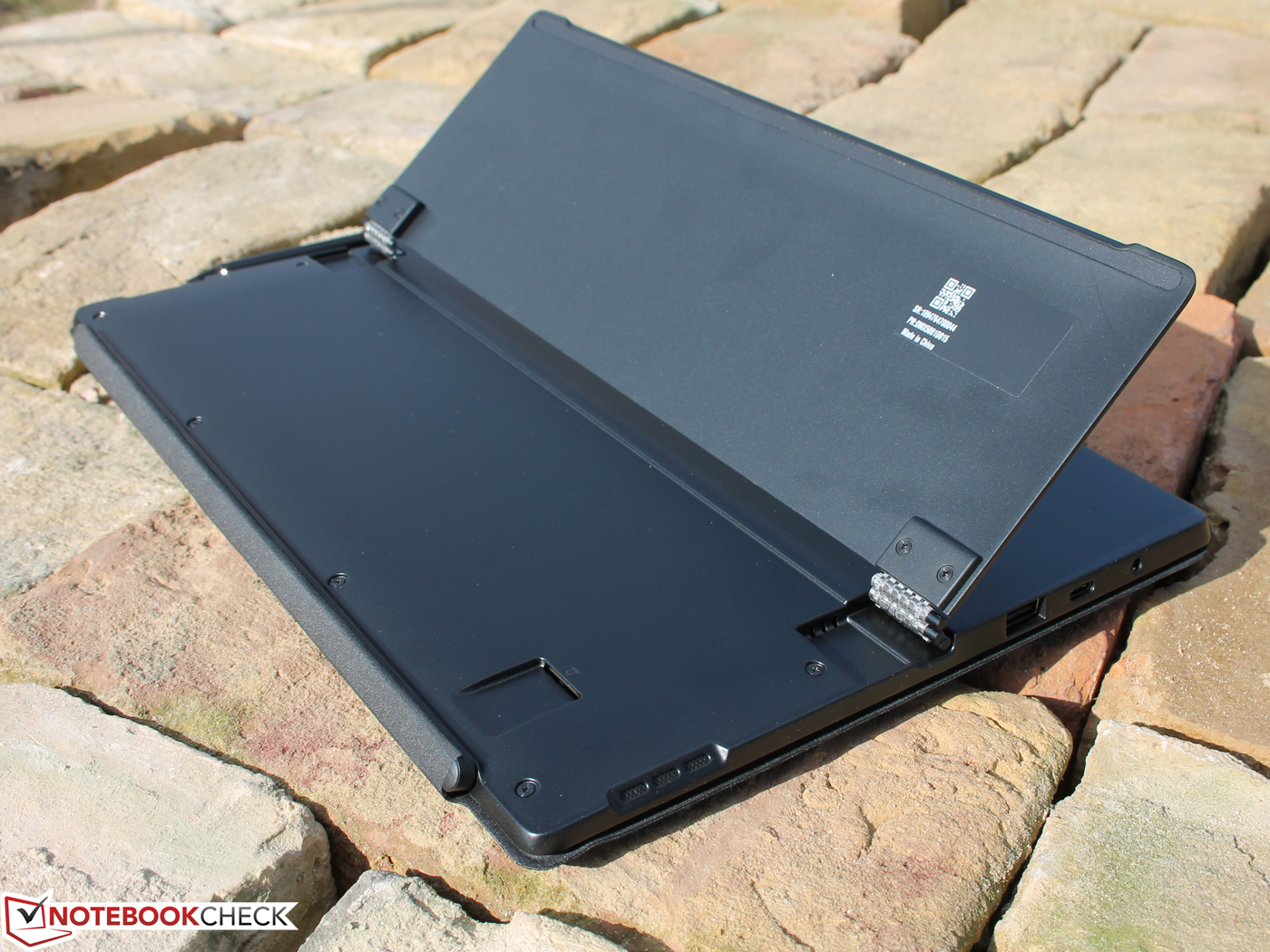

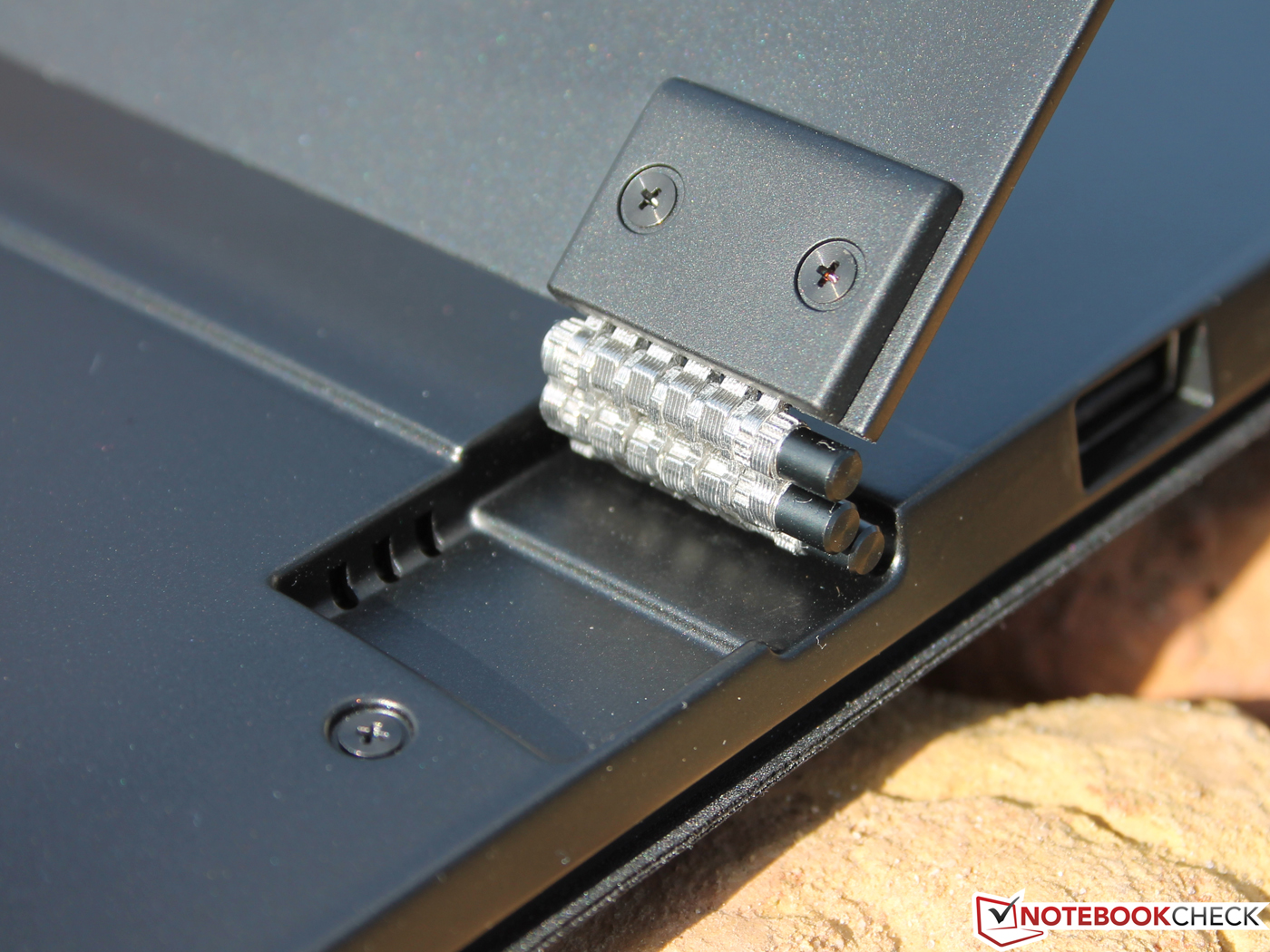

机身采用铝合金,坚固性和稳定性有很好的保障,表链支架也相当耐用。支架与机身紧紧地相连,开合在100 – 165度之间。键盘盖同样由铝合金制成,重量较大,约为404g。这种设计的优点就是材质的质量和重量本身,尽管键盘吸附后折起下空,但打字时的稳定性丝毫不减。

在这轮尺寸对比中,除了Aspire Switch Alpha 12外,所有的二合一设备厚度都在8-9mm之间,Switch Aplha 12机身厚度为11mm,Dell的XPS 12 9250最薄,为8mm。由于屏幕比例为3:2,Miix 720比16:9以及16:10的机器要高一些,只有惠普的Elite x2 1012 G1和华硕的Transformer 3 Pro T03UA比Miix 720更高更宽一些。

尺寸对比

300 mm 205 mm 9.9 mm 1.2 kg300 mm 213.5 mm 8.05 mm 1.2 kg298.8 mm 210.1 mm 8.35 mm 1.1 kg291 mm 201 mm 11 mm 1.3 kg292 mm 210 mm 8.9 mm 1.2 kg292.1 mm 201.4 mm 8.4 mm 1.1 kg291 mm 193 mm 8 mm 1.3 kg

端口

本次评测的Miix 720带有一个Thunderbolt 3 USB C接口,除了支持高分辨率显示外还能传输性能,理论上可以达到USB 3.0的8倍。

毕竟是二合一产品,由于必要接口的确实,你可能需要一个USB-C转HDMI或者DP转换器,还好联想随机提供不需要额外购买。通过外接拓展坞,可以最多外接两个显示器。

机身左侧依次为USB 3.0,Thunderbolt 3 USB C接口,同时也是供电接口,3.5mm耳机孔;机身右侧依次为电源键,音量键以及一个USB 2.0接口。

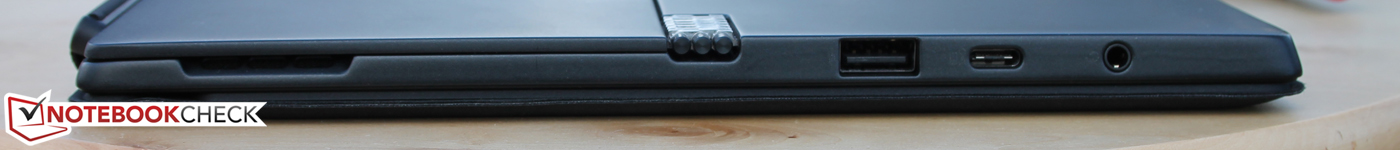

left: USB 3.0, USB Type-C Gen2 with Thunderbolt 3 (and power supply), Headset-microphone combination
left: USB 3.0, USB Type-C Gen2 with Thunderbolt 3 (and power supply), Headset-microphone combination

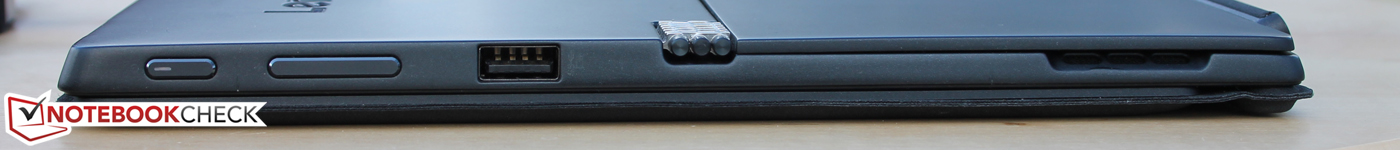

right: Power-on, volume, USB 2.0
right: Power-on, volume, USB 2.0

通信功能

惊喜的是联想竟然给Miix 720配备了三频的英特尔19265 AC网卡,支持60 GHz-WiGig技术(802.11ad协议),带宽为4.7GBPS。在iperf测试中这张网卡得分虽然不是最高但表现也不差,当然,该网卡支持英特尔8265AC的所有特性,包括802.11ac,双频以及蓝牙4.2。

相机

和Miix 510一样,720后置摄像头采用更高像素的5百万镜头,前置摄像头像素降低,成像质量很差,用于Skype网络视频还行,想拍些照片就不合适了。 在平板上拍照不是一个明智之举,但用于临时记录一些画面也未尝不可。后置的5百万镜头在白平衡和对焦方面表现也好很多,尽管解析力不足导致画面模糊在所难免。 我们测试了下红外相机下的Windows Hello 人脸识别,反应迅速准确度高,还挺满意。

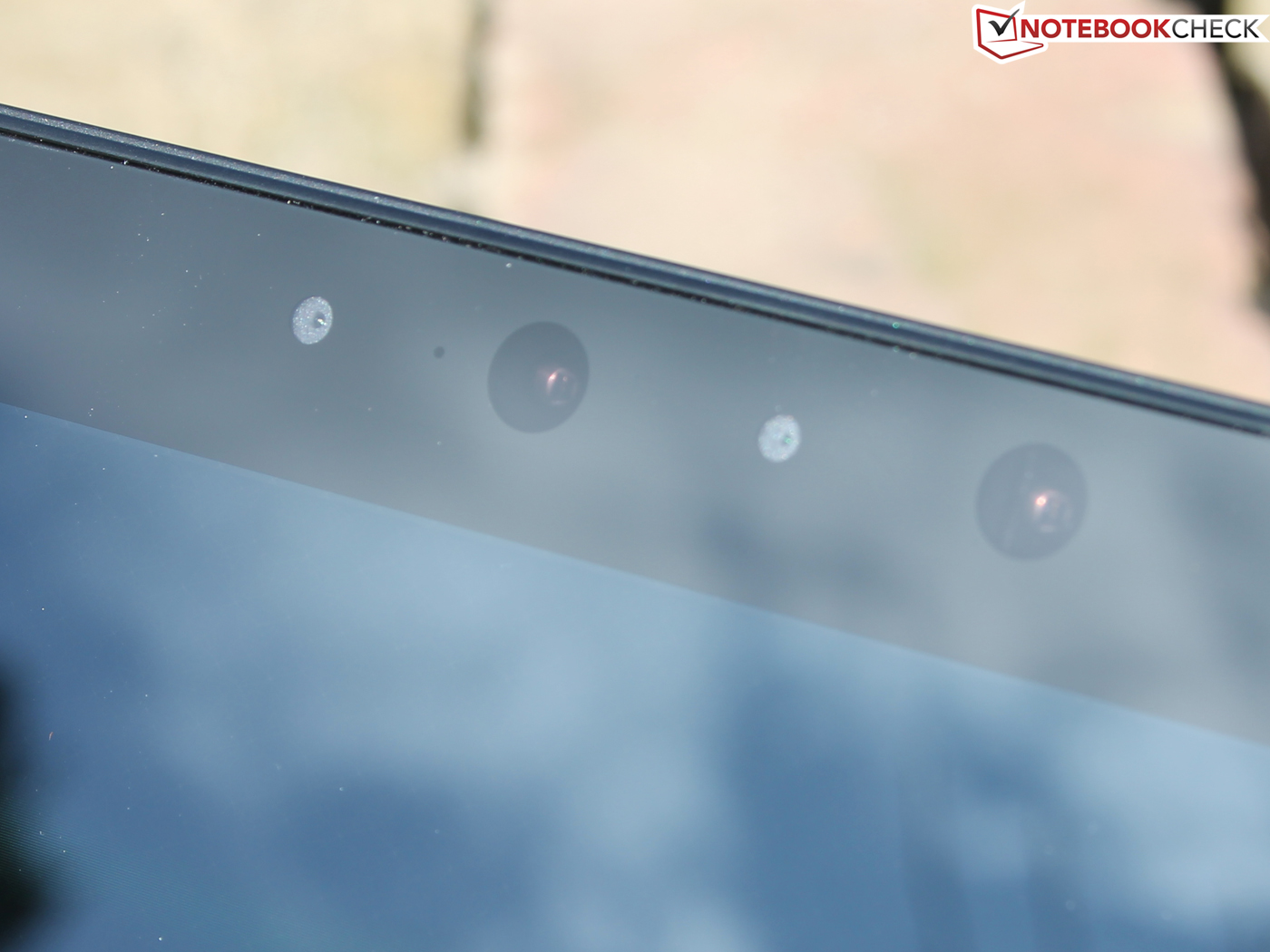

1百万像素前置摄像头和适用于Windows Hello的红外镜头
1百万像素前置摄像头和适用于Windows Hello的红外镜头
Webcam range: 1280x720
Webcam range: 1280x720

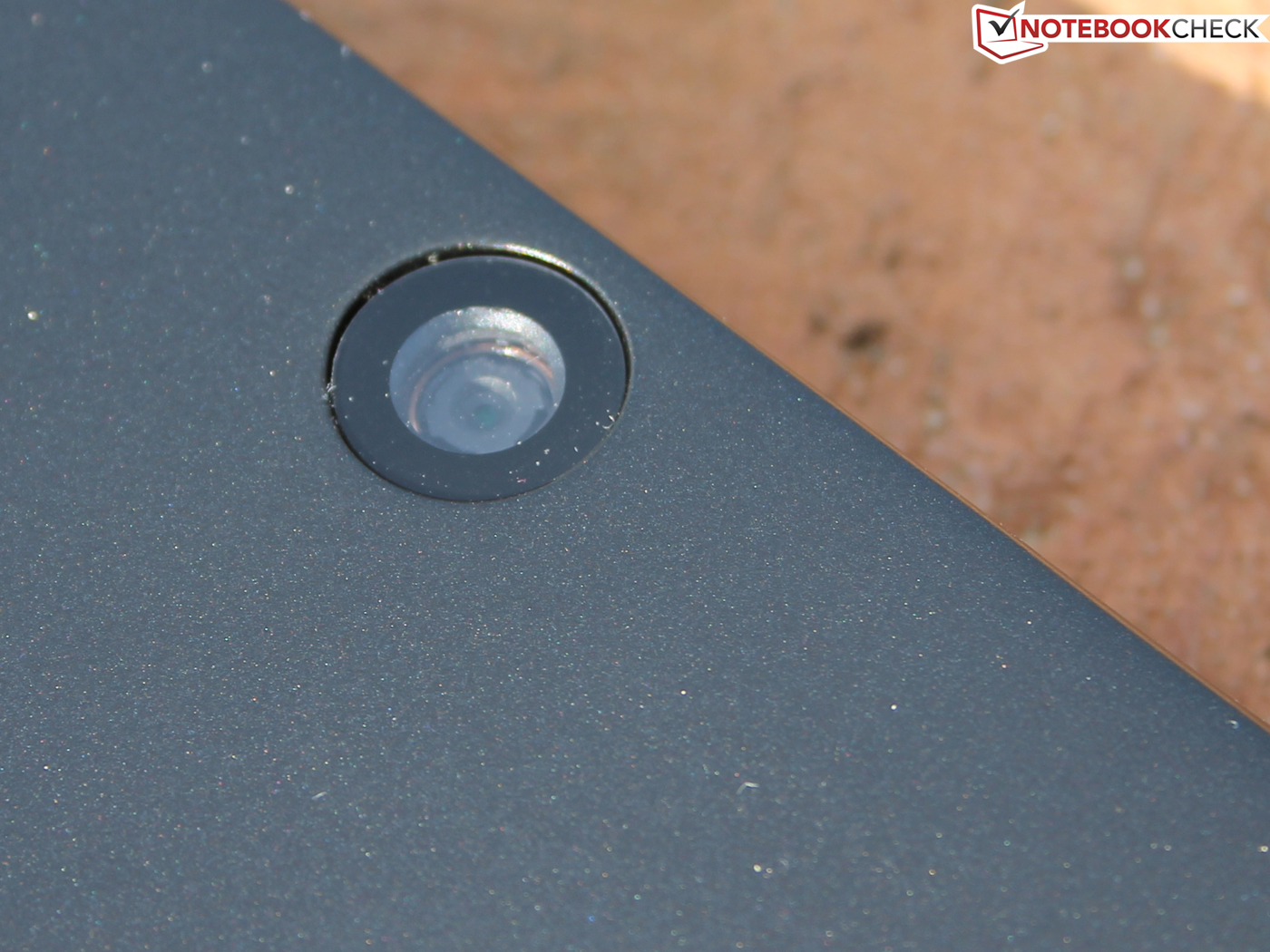

5百万像素后置摄像头
5百万像素后置摄像头
Main camera range: 2560x1440
Main camera range: 2560x1440
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Asus Transformer 3 Pro T303UA-GN050T
Intel Wireless-AC 7265
685 MBit/s ∼100% +3%
Lenovo Ideapad Miix 720-12IKB
Tri-Band Wireless-AC 18260
662 MBit/s ∼97%
Lenovo Miix 510 Pro 80U10006GE
Intel Dual Band Wireless-AC 8260 (jseb)
500 MBit/s ∼73% -24%
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo Miix 510 Pro 80U10006GE
Intel Dual Band Wireless-AC 8260 (jseb)
638 MBit/s ∼100% +24%
Asus Transformer 3 Pro T303UA-GN050T
Intel Wireless-AC 7265
560 MBit/s ∼88% +9%
Lenovo Ideapad Miix 720-12IKB
Tri-Band Wireless-AC 18260
513 MBit/s ∼80%

安全方面

Windows Hello 无疑增加了Miix 720的安全性能,遗憾的是TPM加密芯片和其他硬件惨遭阉割。

随机附件

Miix 720包装附送联想Actice Pen 2,Type C电源适配器以及电池

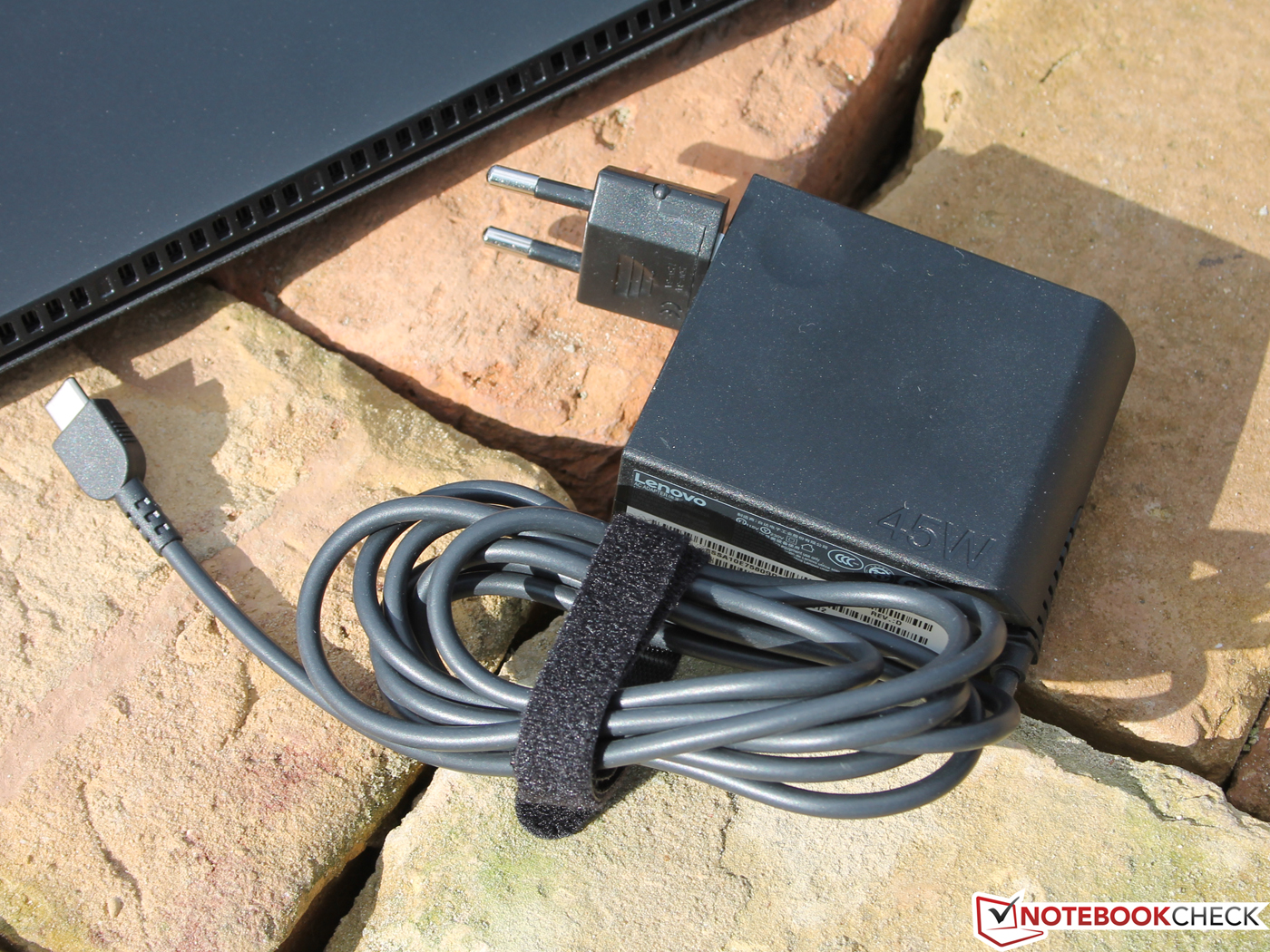

45-watt adaptor
45-watt adaptor

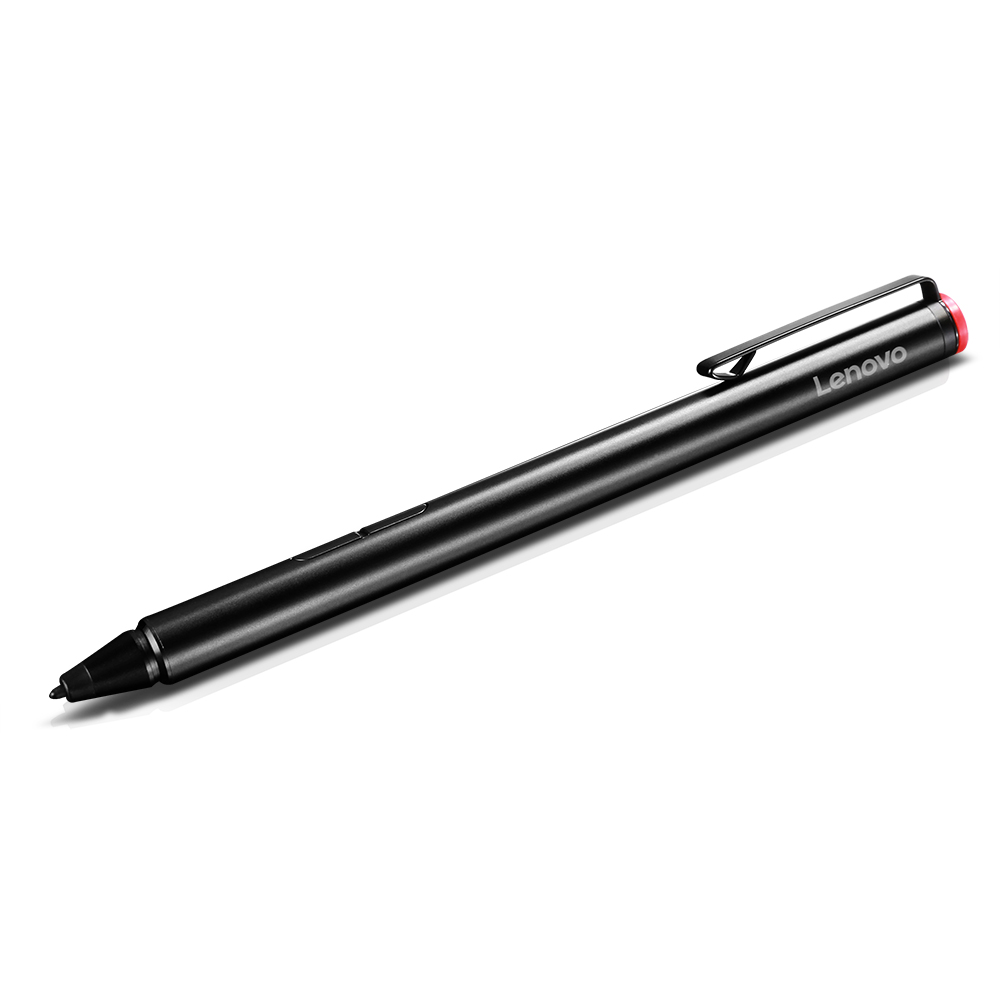

Lenovo Active Pen 2
Lenovo Active Pen 2

可维护性

Miix 720正常手段无法拆机。

Warranty

The standard warranty is short at just one year. This is quite disappointing for such a high price device. On the other hand, business clientele can choose from various warranty extensions and insurance options, depending on how it fits into the lifetime of the device.

输入设备

键盘

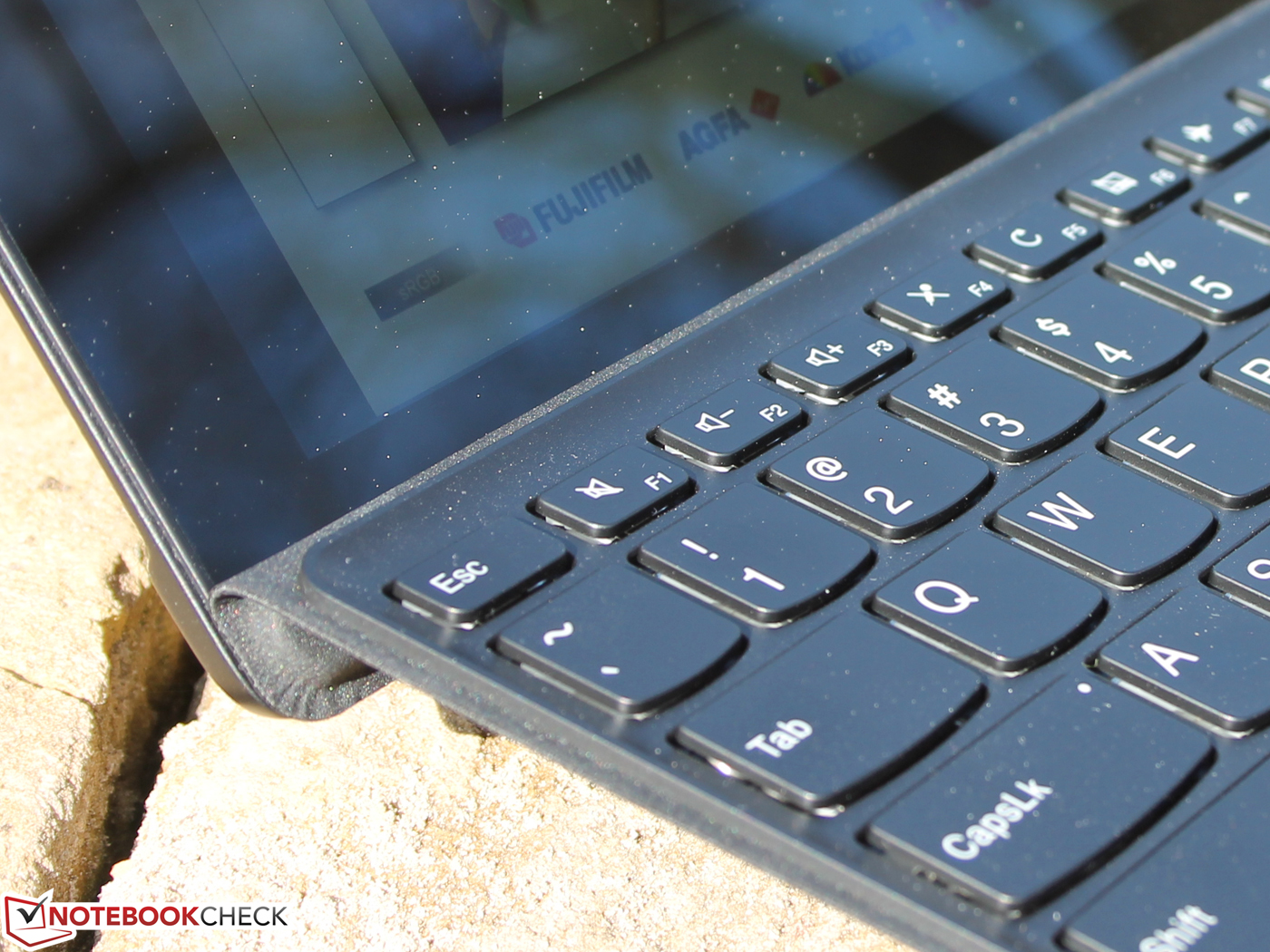

Miix 510的键盘背光令人怀念,作为继承者的720更是完美延承了两段式键盘背光。归功于橡胶弹簧,键盘非常灵敏,按键反馈强,回弹迅速,行云如水间几乎察觉不到按键的下沉。当设备放在桌面上时,我们没有发现键盘的明显缺点。

按键采用平面设计,没有凹槽弧度,打字的准确性可能会受到一些影响,还好按键的大小弥补了这点不足,Shift键,Caps键和空格键为甚。由于是可拆卸键盘,键程较短,但对于我们而言使用上并没有什么太大的问题。

触摸板

对于一款12寸的二合一产品而言,10.6cm的触摸板已经算是很大的水平,点击和响应反馈很佳,触摸板表面很光滑,其精准度也堪称典范。

触控屏

Miix 720的触摸屏也是很灵敏,即使在边缘也能对触控动作迅速做出反应,只是因为处理器等元件皆在屏幕下方,温热情况在所难免。

联想Active Pen

触控笔作为额外的一种交互方式让Miix 720变得更加完整,触摸屏与笔的加入让我们能够直接在屏幕上进行书写。联想这根笔由电池供电,可以放置在机身右侧不造成误触,在USB口设置笔筒的做法也真的可以说是简单而粗暴。

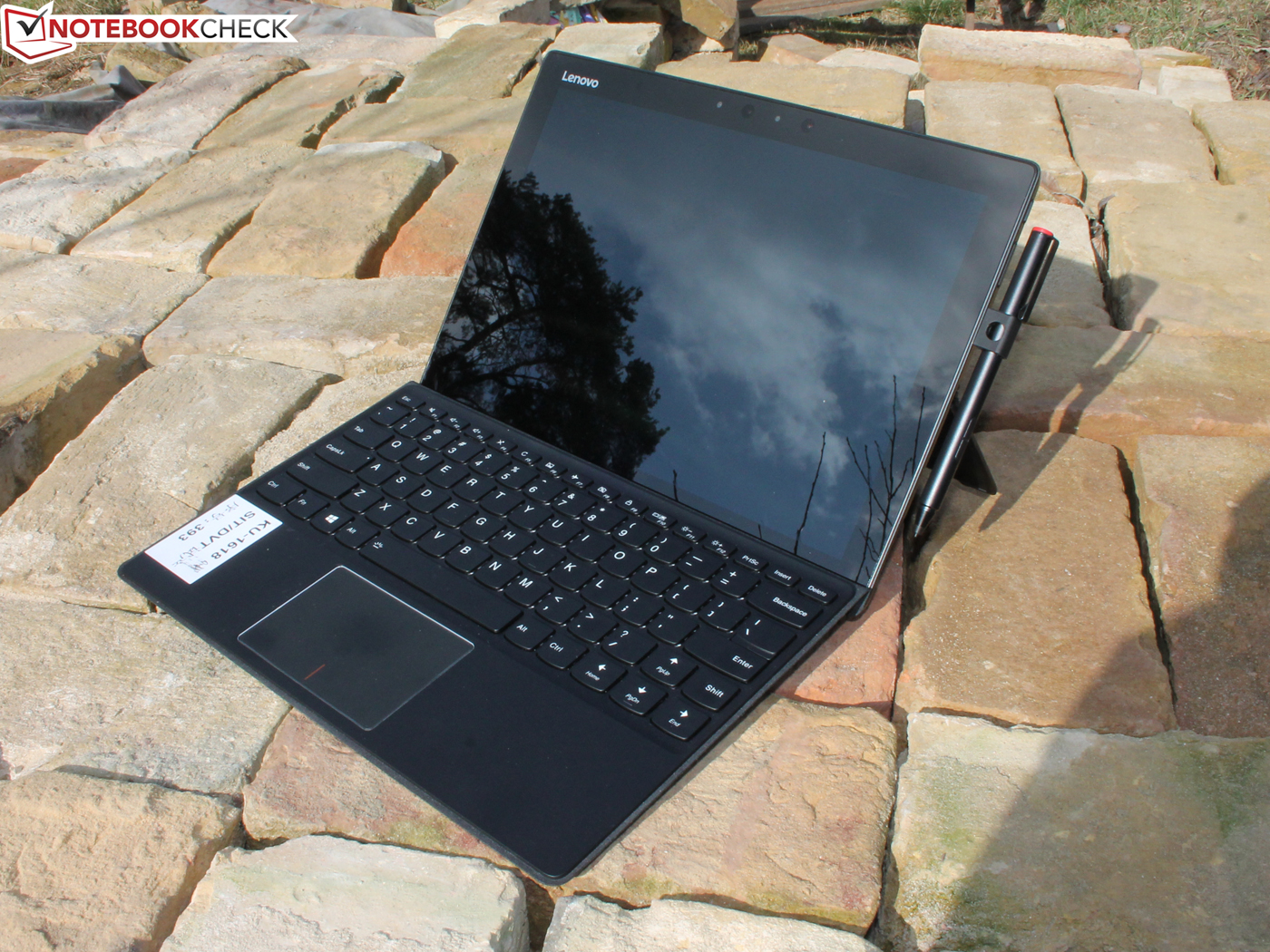

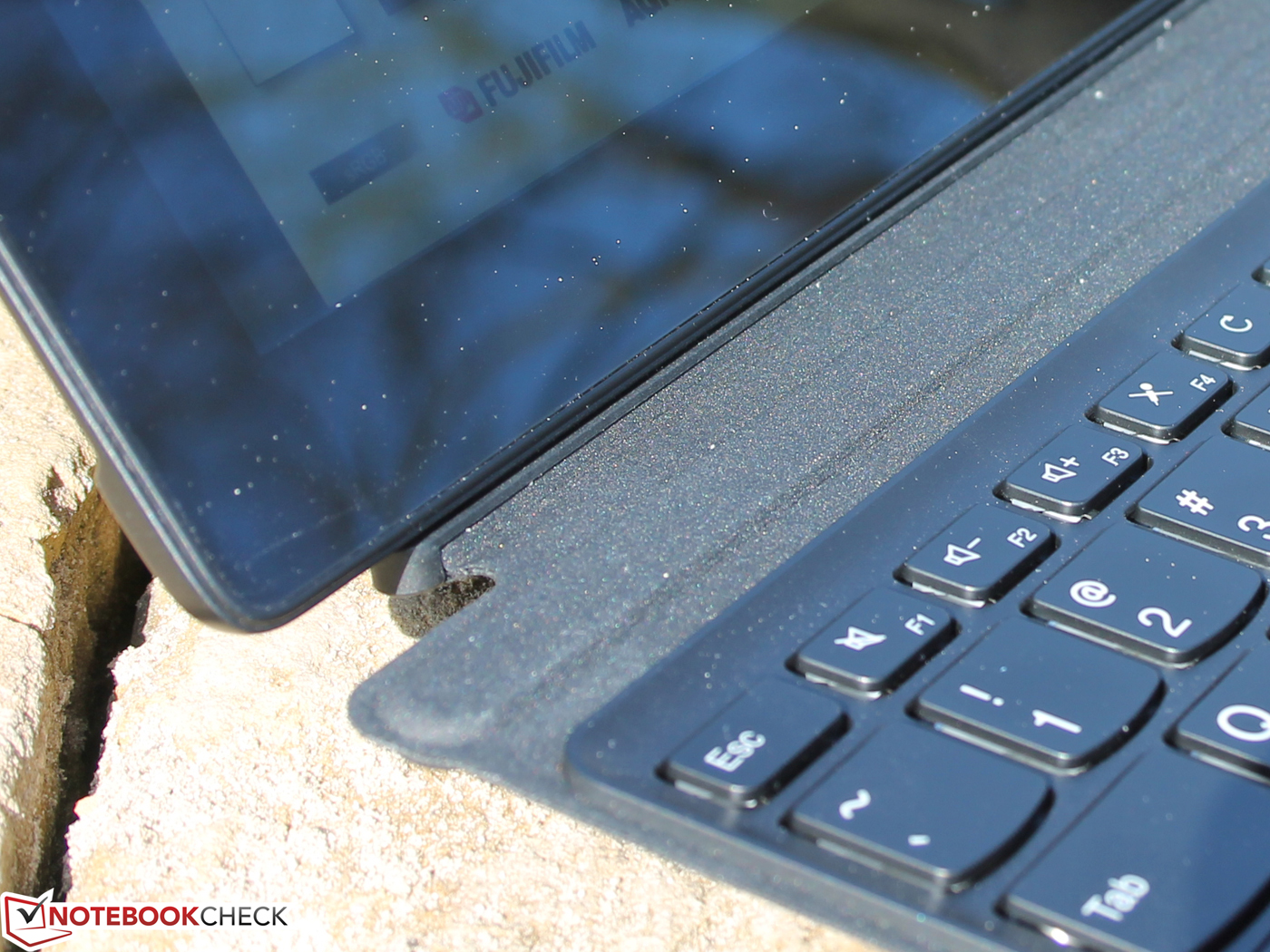

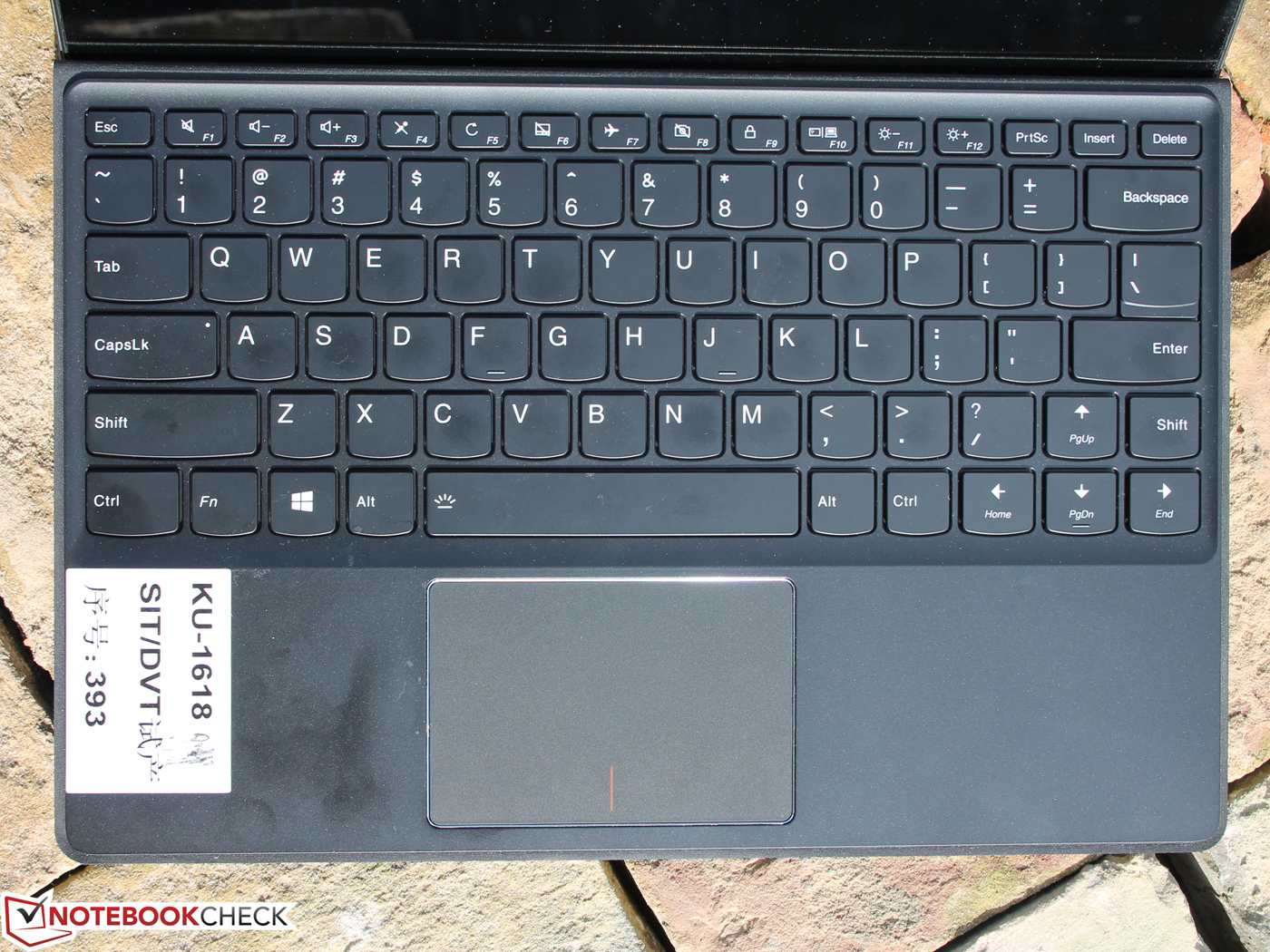

Folio keyboard with good feedback on stable support structure
Folio keyboard with good feedback on stable support structure

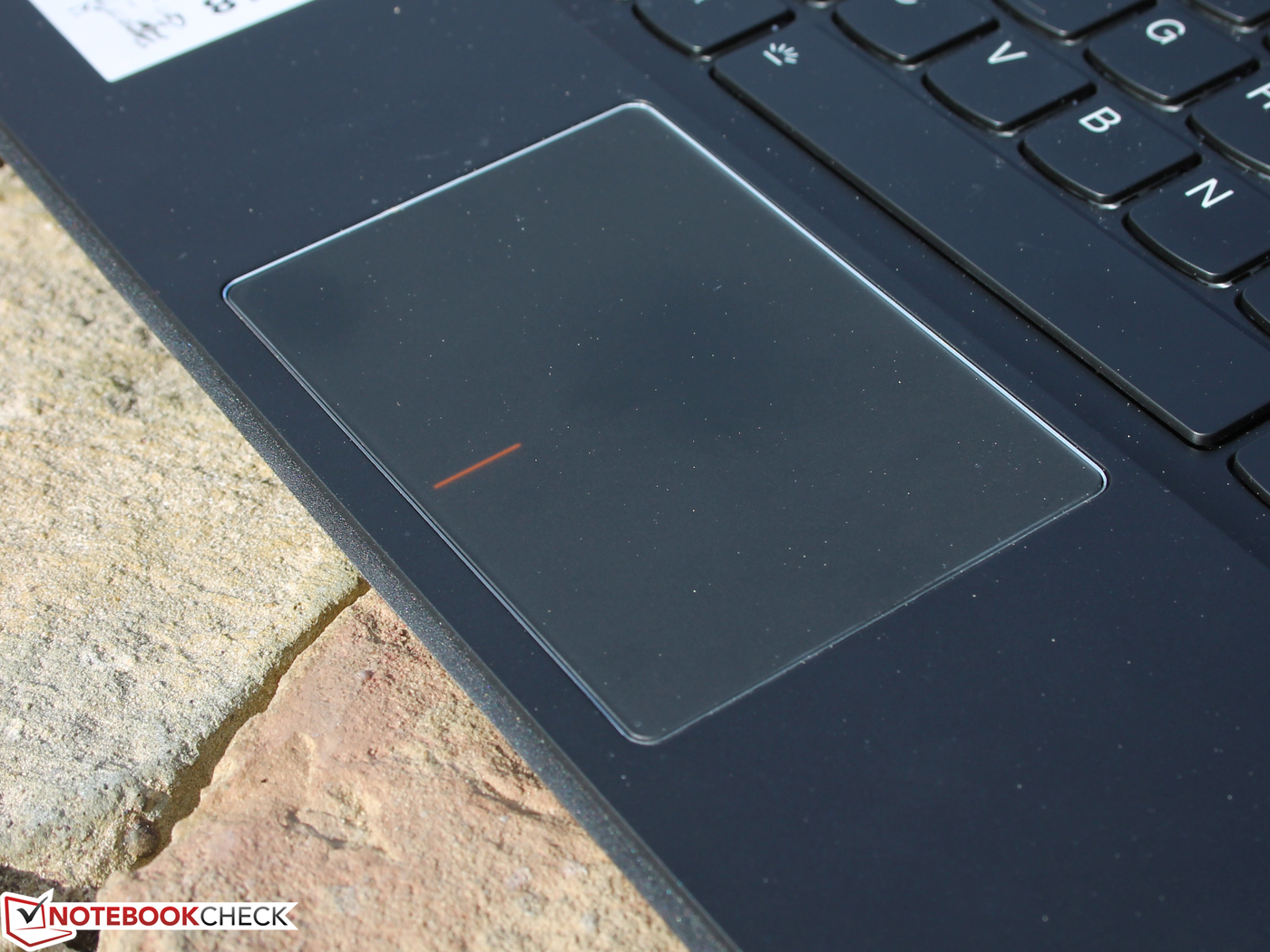

Clickpad with small strokes but well-tuned rubber springs
Clickpad with small strokes but well-tuned rubber springs

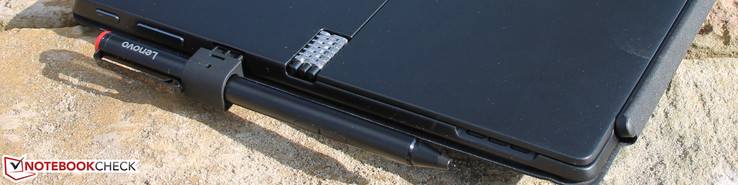

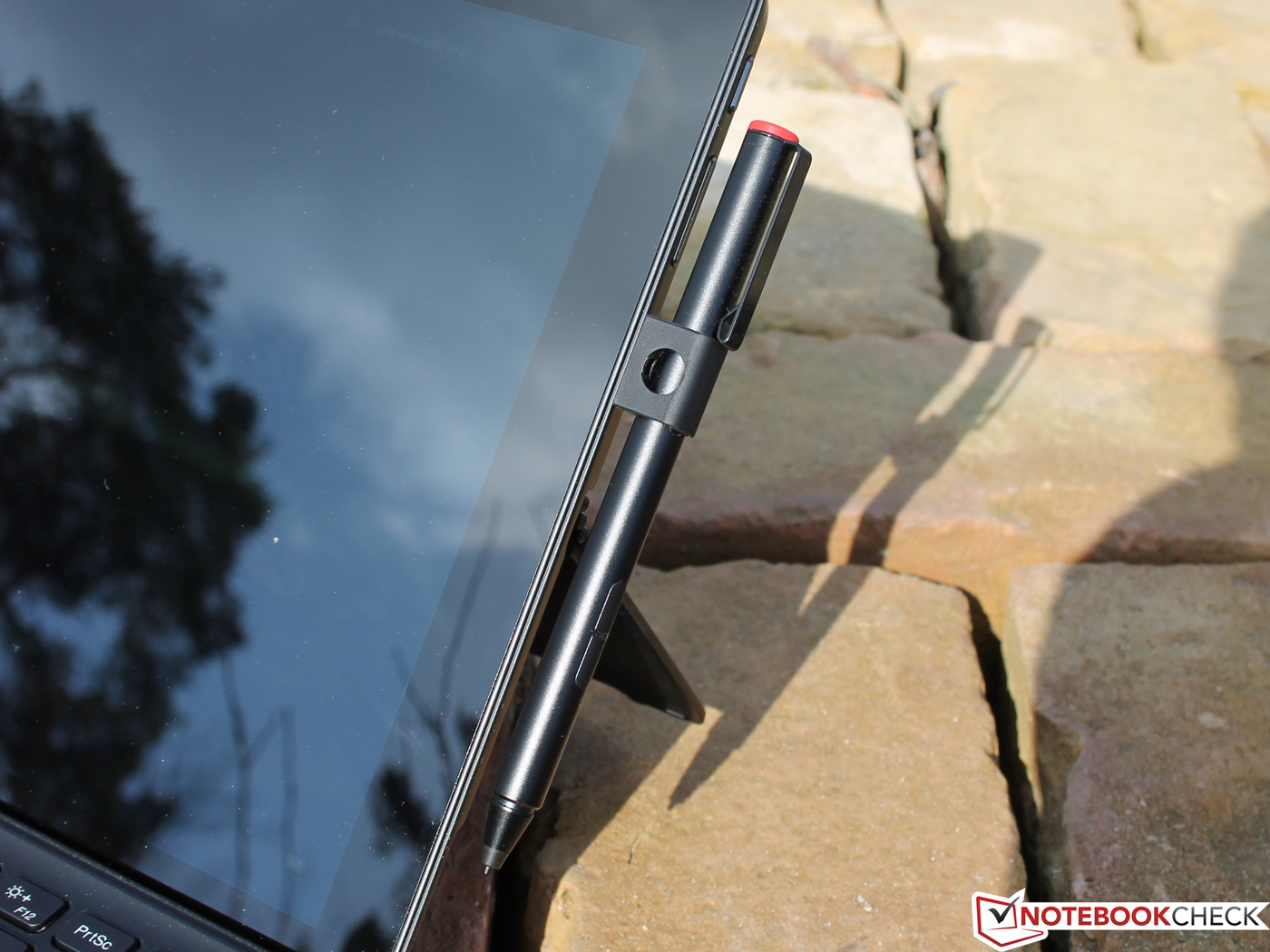

Active Pen 2 in stand (USB-Type-A-Port)
Active Pen 2 in stand (USB-Type-A-Port)

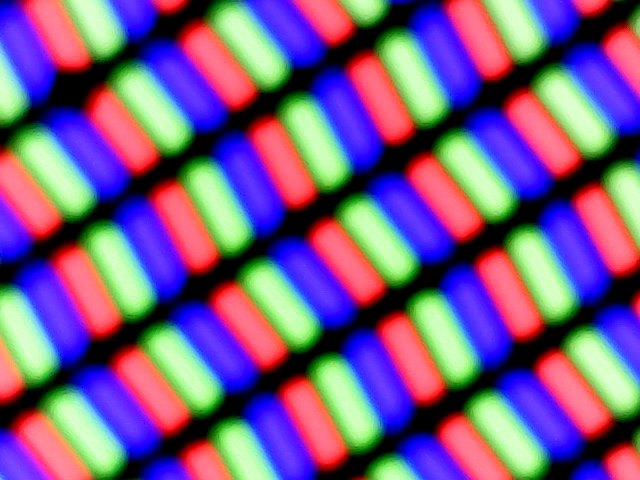

Subpixel AUO B120YAN01 2880x1920
Subpixel AUO B120YAN01 2880x1920

Miix 2屏幕12寸,分辨率为2880 x 1920,屏长宽比为3:2。其他宽屏的竞争者大都采用16:10 或者16:9的比例,比如Dell XPS 12 9250 4K版为3840 x 2160分辨率(16:9),然而,3:2这个屏幕比例最初来源于微软Surface,第四代产品Pro 4分辨率为2736 x 1824。3:2屏幕可以说是4:3方屏与16:9或16:10宽屏的一种妥协,各有千秋。Miix 720这块镜面触摸显示屏提供不错的亮度,背光也很均匀。屏幕对比度为1353:1,中央位置亮度为406 cd/m2。

376
cd/m²
384
cd/m²
409
cd/m²
370
cd/m²
406
cd/m²
403
cd/m²
379
cd/m²
414
cd/m²
419
cd/m²
Distribution of brightness
AUO B120YAN01 / AUO106F
X-Rite i1Pro 2
Maximum: 419 cd/m² Average: 395.6 cd/m² Minimum: 7.5 cd/m²
Brightness Distribution: 88 %
Center on Battery: 414 cd/m²
Contrast: 1353:1 (Black: 0.3 cd/m²)
ΔE Color 5.28 | 0.59-29.43 Ø5.6
ΔE Greyscale 6.71 | 0.64-98 Ø5.8
91% sRGB (Argyll 1.6.3 3D)
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.09% AdobeRGB 1998 (Argyll 2.2.0 3D)
91.04% sRGB (Argyll 2.2.0 3D)
65.23% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.29
Lenovo Ideapad Miix 720-12IKB
AUO B120YAN01 / AUO106F, , 2880x1920, 12.00
Microsoft Surface Pro 4 Core i7
Samsung 123YL01-001 ID: SDC3853, , 2736x1824, 12.30
Asus Transformer 3 Pro T303UA-GN050T
BOE BOE06AC (NV126A1M-N51), , 2880x1920, 12.60
Lenovo Miix 510 Pro 80U10006GE
Unknown, , 1920x1200, 12.20
Acer Aspire Switch Alpha 12 SA5-271-56HM
Panasonic VVX12T041N00, , 2160x1440, 12.00
HP Elite x2 1012 G1
LG Philips, , 1920x1280, 12.10
Dell XPS 12 9250 4K
Sharp SHP143D, , 3840x2160, 12.50
Display
5%
19%
-0%
2%
-19%
29%
Display P3 Coverage
65.23
66.89
3%
81.85
25%
64.48
-1%
65.51
0%
53.81
-18%
83.91
29%
sRGB Coverage
91.04
97.51
7%
98.25
8%
91.99
1%
96.05
6%
73.71
-19%
99.8
10%
AdobeRGB 1998 Coverage
66.09
68.61
4%
82.18
24%
65.49
-1%
66.9
1%
53.76
-19%
98.12
48%
Response Times
-28%
6%
16%
7%
16%
-13%
Response Time Grey 50% / Grey 80% *
45 (22, 23)
48.4 (20.4, 28)
-8%
30 (14, 16)
33%
33 (21, 12)
27%
20 (5, 15, detail 5 schraffiert)
56%
33.2 (15.2, 18)
26%
36 (19, 17)
20%
Response Time Black / White *
24 (14, 10)
35.6 (8, 27.6)
-48%
29 (8, 21)
-21%
23 (10, 13)
4%
34 (15, 19, [email protected]% mit/ohne PSU)
-42%
22.8 (10.4, 12.4)
5%
35 (8, 27)
-46%
PWM Frequency
10420
200 (90)
125 (90)
1000 (100)
1000 (20)
Screen
18%
4%
-21%
-14%
-16%
13%
Brightness middle
406
436.7
8%
316
-22%
327
-19%
345
-15%
322
-21%
437
8%
Brightness
396
433
9%
307
-22%
324
-18%
328
-17%
319
-19%
399
1%
Brightness Distribution
88
87
-1%
91
3%
88
0%
91
3%
97
10%
81
-8%
Black Level *
0.3
0.326
-9%
0.29
3%
0.35
-17%
0.38
-27%
0.42
-40%
0.35
-17%
Contrast
1353
1340
-1%
1090
-19%
934
-31%
908
-33%
767
-43%
1249
-8%
Colorchecker DeltaE2000 *
5.28
1.82
66%
3.91
26%
6.54
-24%
8.4
-59%
6.02
-14%
3.56
33%
Colorchecker DeltaE2000 max. *
9.83
7.9
20%
15.59
-59%
11.9
-21%
10.06
-2%
9.3
5%
Greyscale DeltaE2000 *
6.71
1.44
79%
5.37
20%
9.52
-42%
4.3
36%
6.29
6%
2.67
60%
Gamma
2.29 96%
2.1 105%
2.36 93%
2.35 94%
2.63 84%
2.4 92%
2.17 101%
CCT
6532 100%
6560 99%
7812 83%
8802 74%
7368 88%
7712 84%
6681 97%
Color Space (Percent of AdobeRGB 1998)
59
62.3
6%
72
22%
59
0%
62
5%
47.8
-19%
86
46%
Color Space (Percent of sRGB)
91
97.5
7%
98
8%
92
1%
73.2
-20%
100
10%
Total Average (Program / Settings)
-2% / 9%
10% / 7%
-2% / -12%
-2% / -8%
-6% / -12%
10% / 13%

* ... smaller is better

Delta E偏差略低于平均水平,那些想要保持最佳色彩的人建议使用工具进行校准。我们将Delta E等级从6.7调到1.6,Delta E色卡校准从5.3降到2.5,经过这两轮调准,肉眼基本发觉不出Miix 720这块屏幕的色彩偏差了。

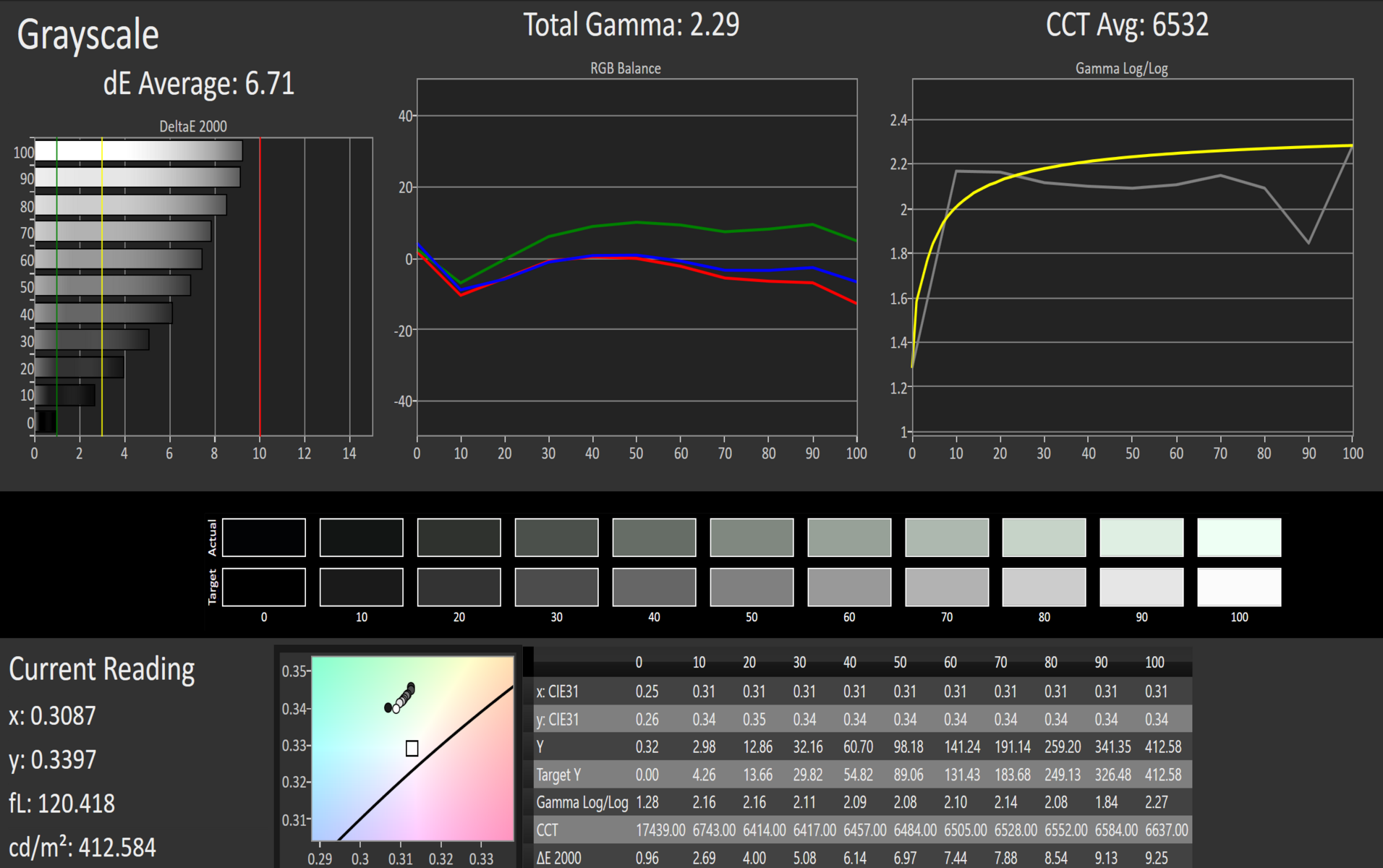

CalMAN gray scale - no blue
CalMAN gray scale - no blue

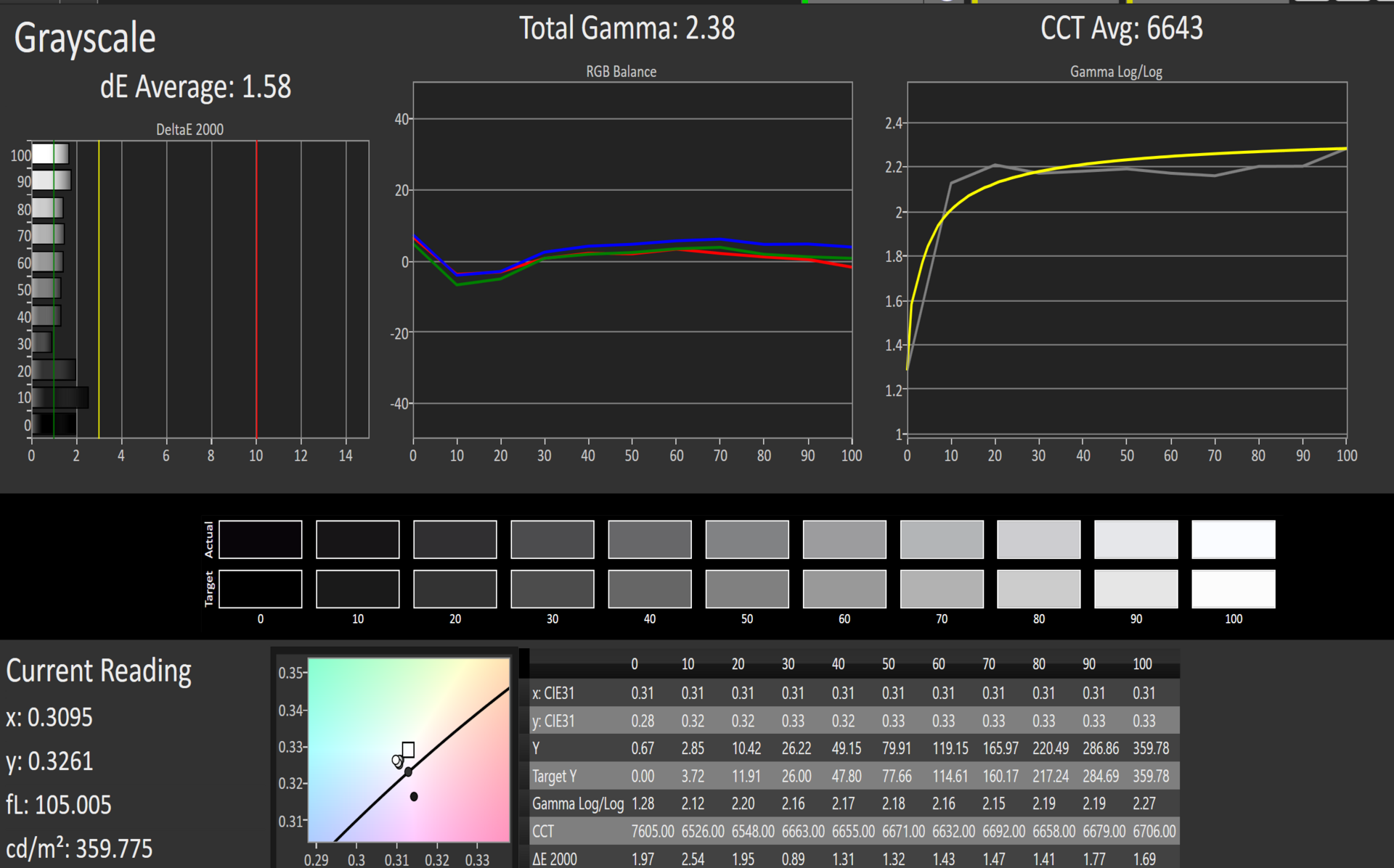

CalMAN Gray scale - calibrated
CalMAN Gray scale - calibrated

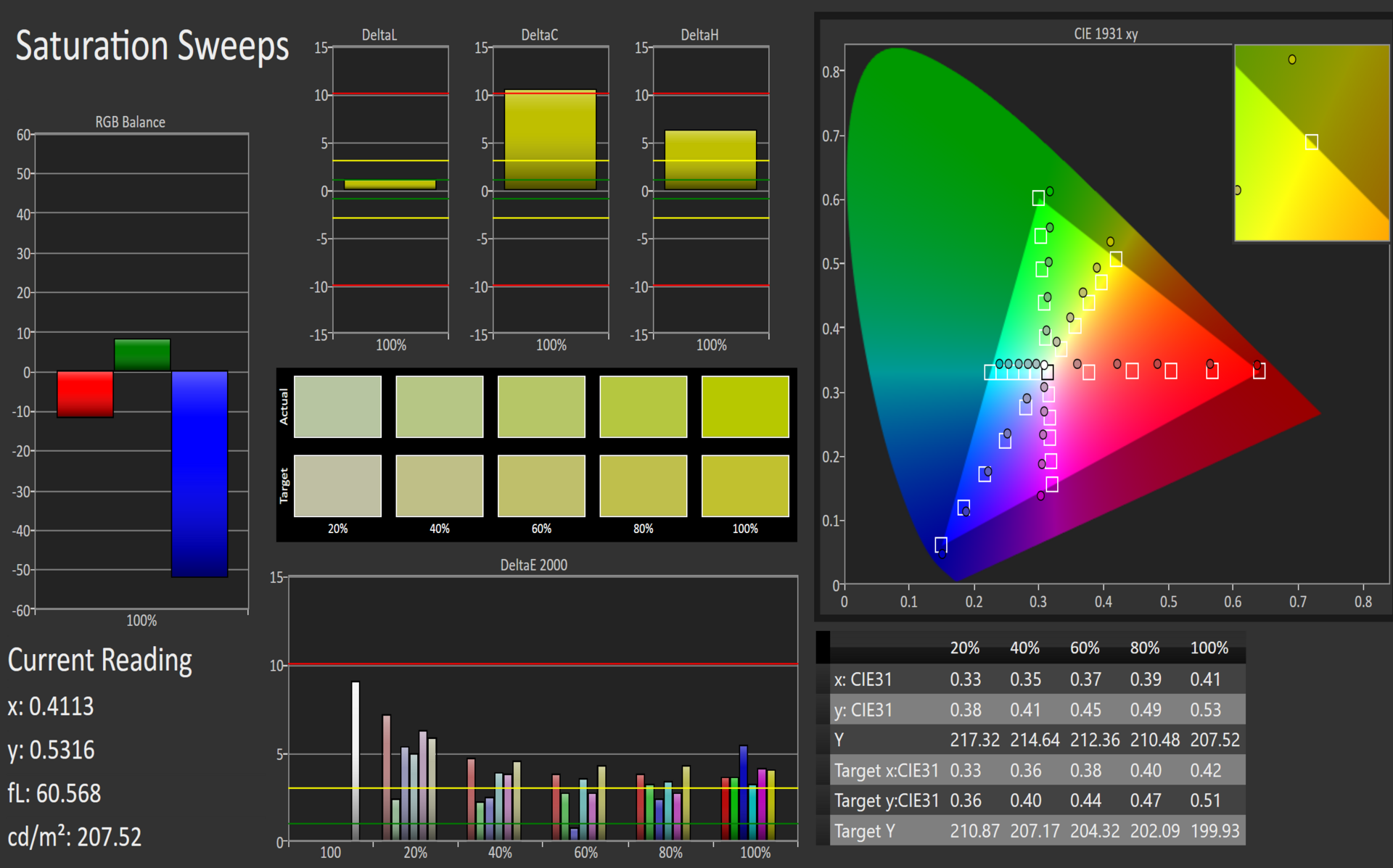

CalMAN saturation
CalMAN saturation

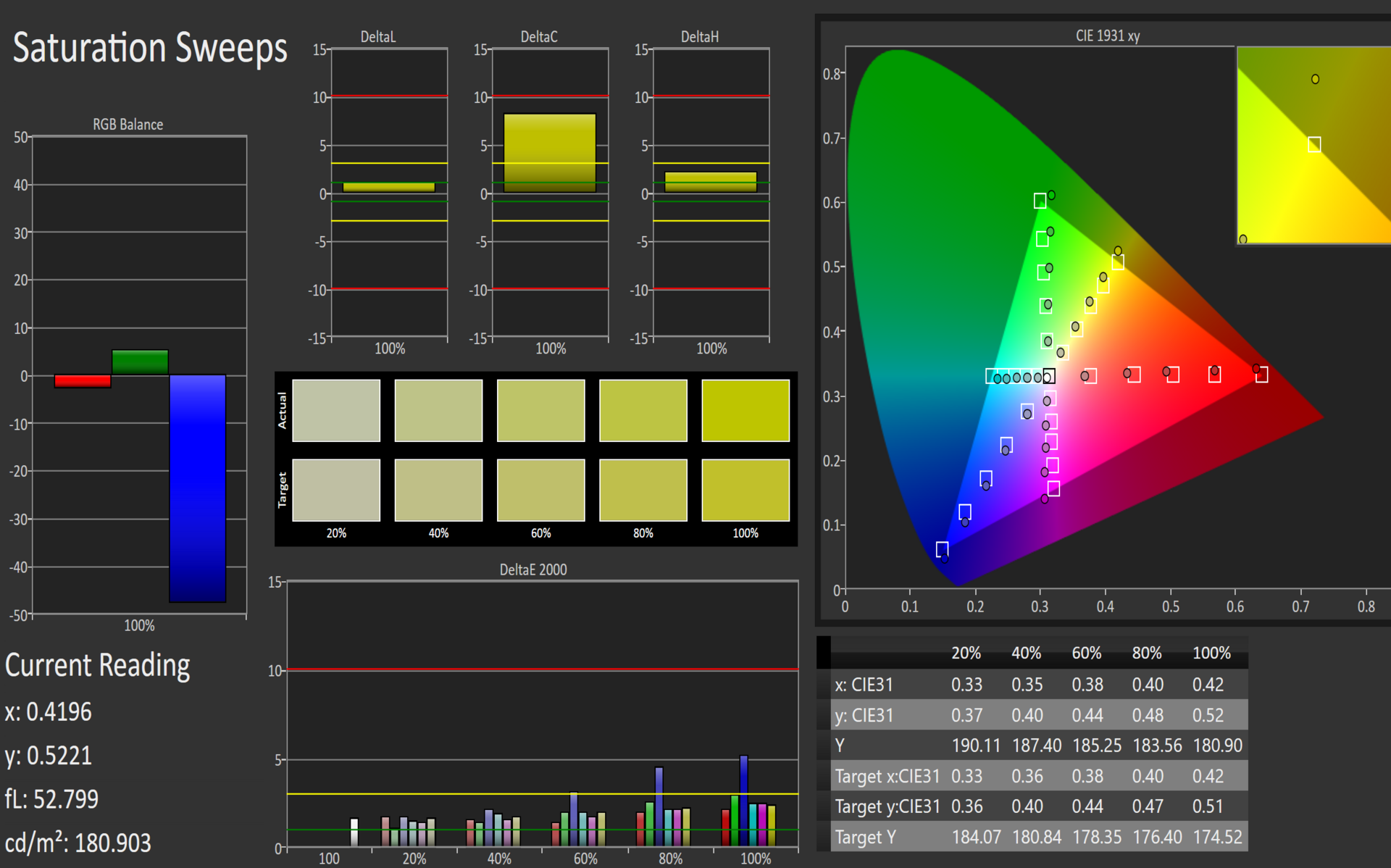

CalMAN saturation - calibrated
CalMAN saturation - calibrated

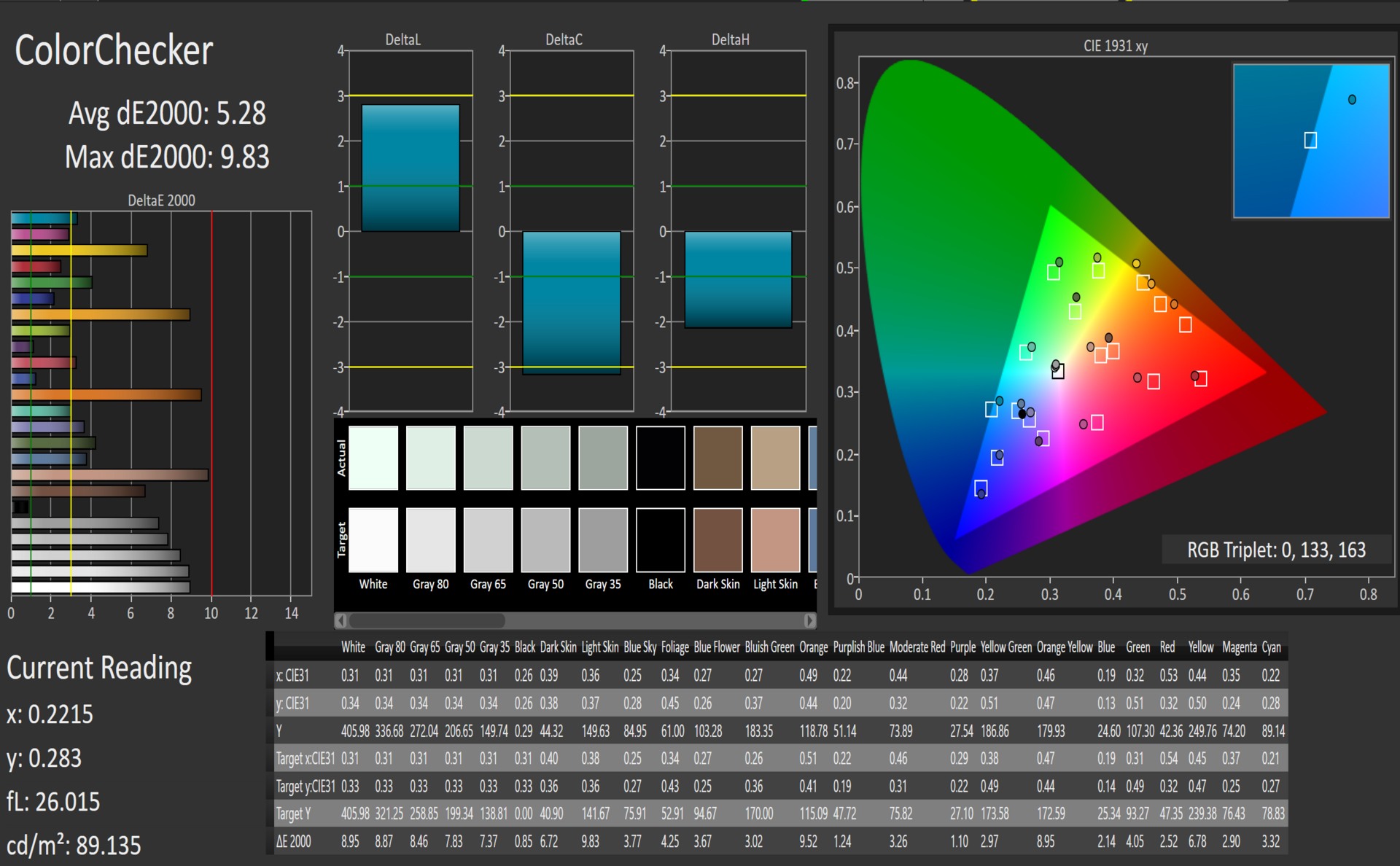

CalMAN ColorChecker
CalMAN ColorChecker
CalMAN ColorChecker - calibrated
CalMAN ColorChecker - calibrated

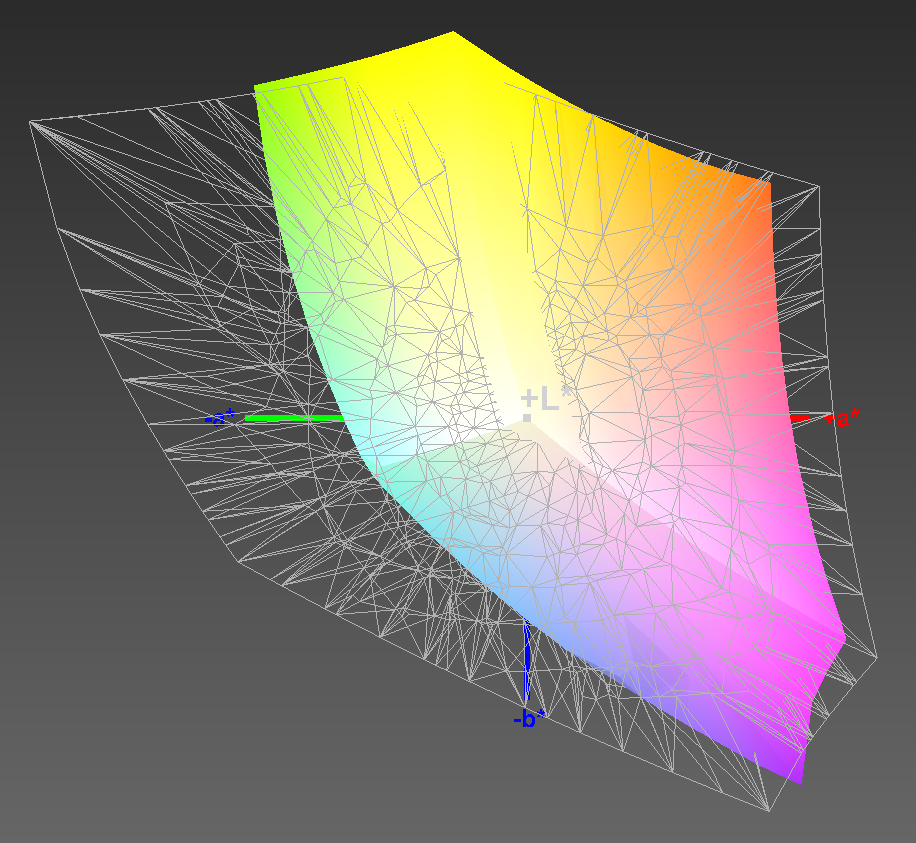

Color space: 59% AdobeRGB
Color space: 59% AdobeRGB

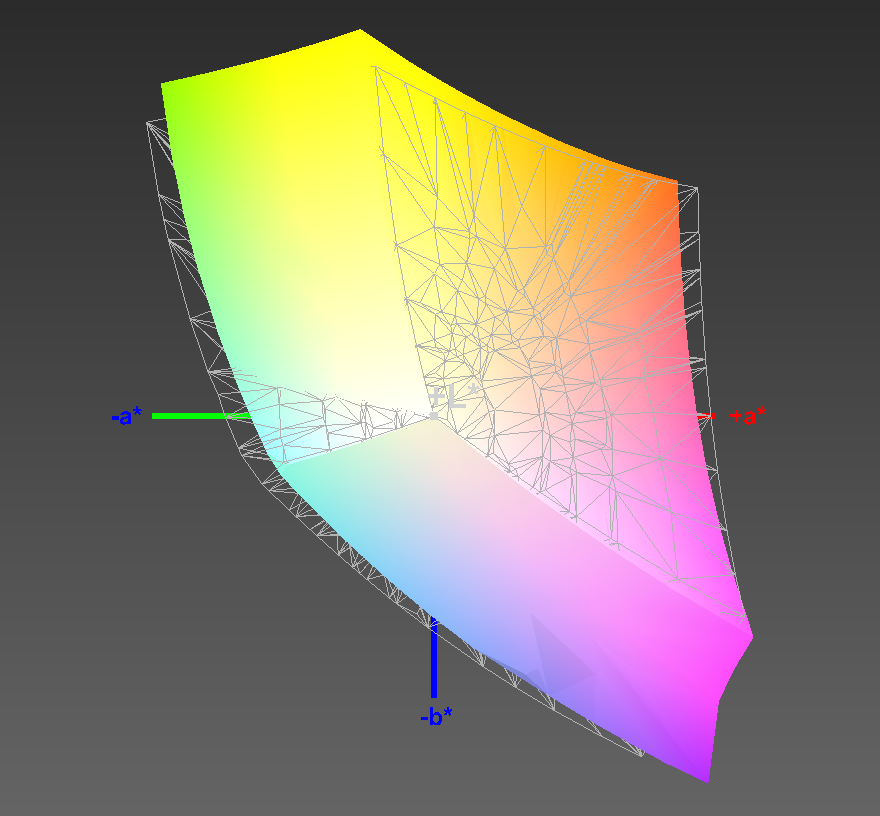

Color space: 91% sRGB
Color space: 91% sRGB

此外,Miix 720的色域范围不是很广,这个结果与校准无关。Miix 720 s RGB色域范围为91%,Adobe RGB色域甚至只有59%,这个数据比Surface Pro 差很多,Transformer 3 Pro T303UA和XPS 12 9250 4K标准色域都达到了100%。

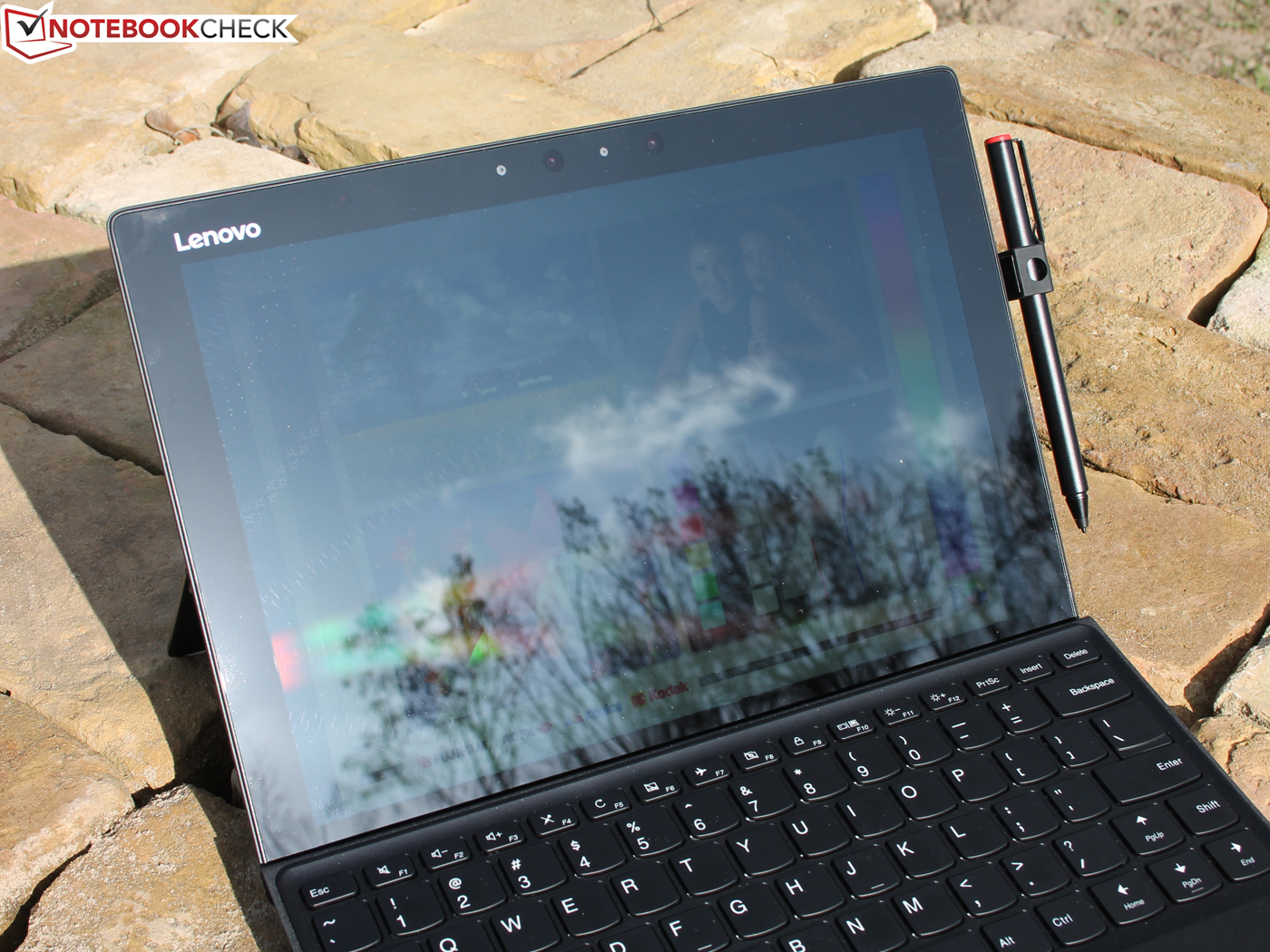

虽然Miix 720的亮度水平不错,但是到了户外就一点都不好玩了。由于是镜面屏,在户外不可避免地反光严重,可以说这是个很错误的政策,东芝的X20w 二合一就很好,采用了雾面屏,防反光,户外使用无问题。

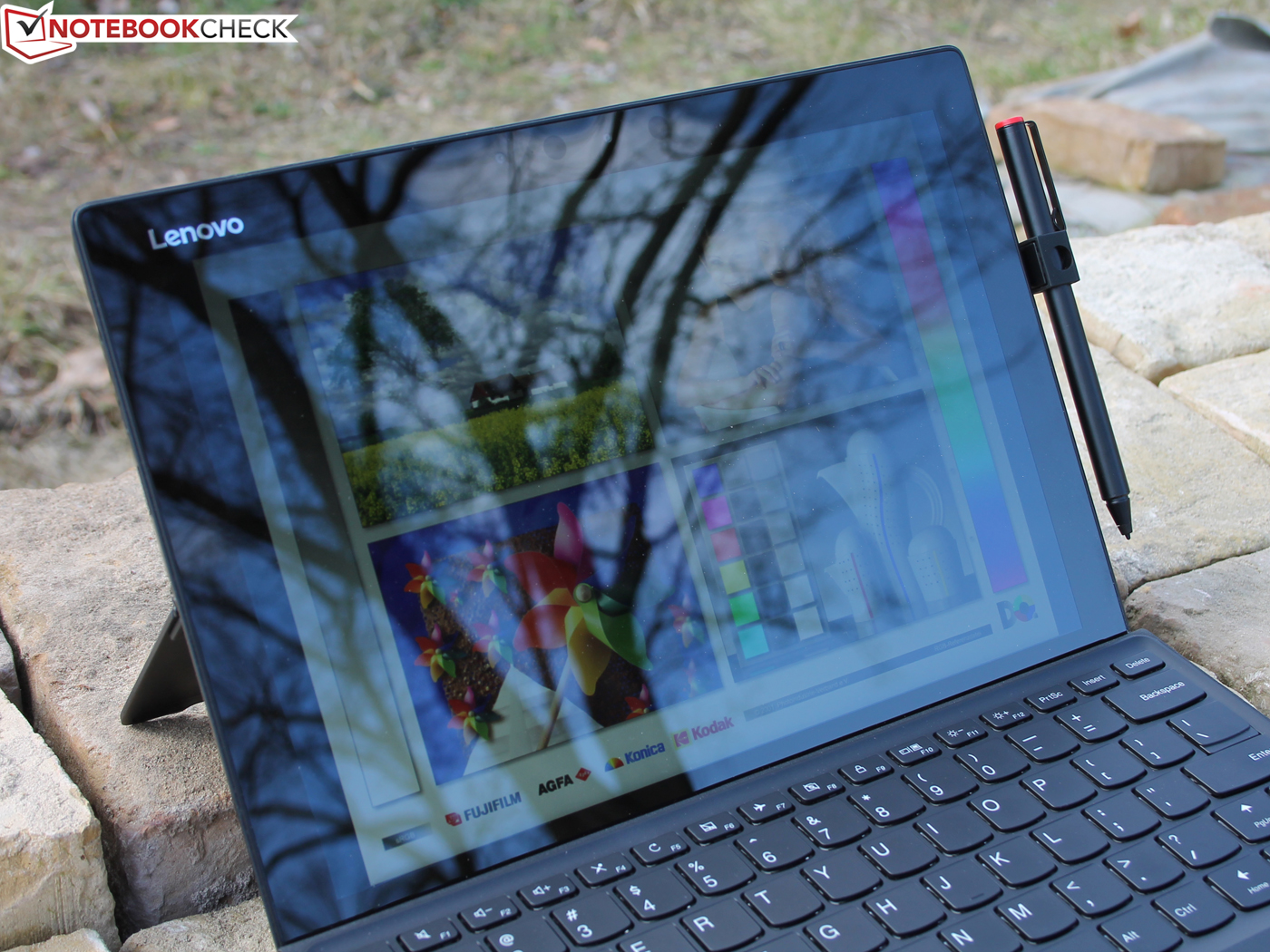

Poor visuals outside: ...
Poor visuals outside: ...
The reflection also hinders the 400 d/m²
The reflection also hinders the 400 d/m²

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

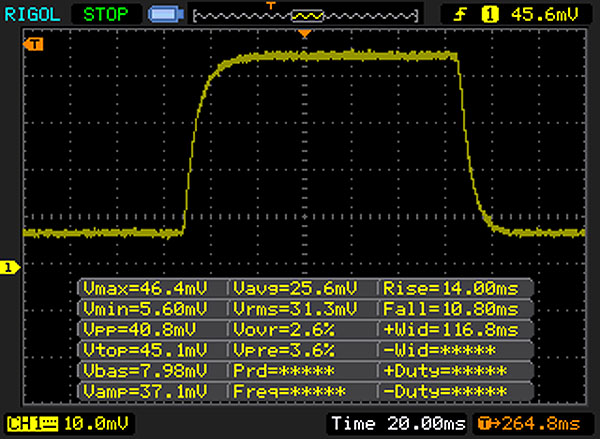

       Response Time Black to White
24 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 37 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24.1 ms).

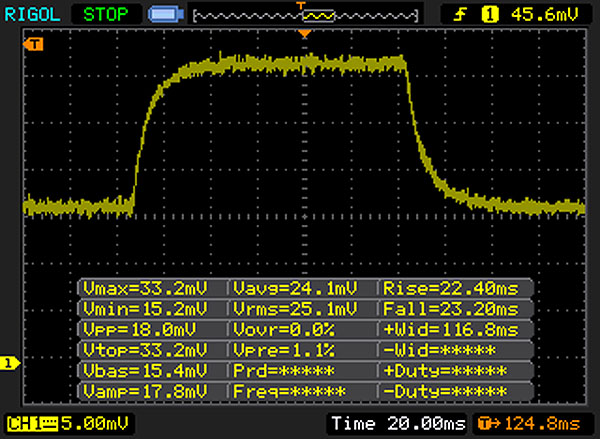

       Response Time 50% Grey to 80% Grey
45 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 68 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (38.2 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9720 (minimum: 5 - maximum: 151500) Hz was measured.

性能表现

联想IdeaPad Miix 720处理器有酷睿i3-7100U, i5-7500U和i7-7500U三种规格可选,SSD也有128、256和1TB三档搭配,运行内存方面则有4、8及16GB三种。综上,Miix 720共有4种配置可供购买,入门级售价约为1075欧元(折合人民币7887元,配置为7100U、4GB+128GB),顶配版则高达1700欧元(折合人民币12472元,7500U, 16GB+1TB)。本次评测的版本为顶配版。

内置1TB固态共有870GB可供使用,型号为三星PM961,支持磁盘阵列,走x4 NVMe通道。如果处理器能满速运行,SSD也能如官方规格一样高性能的话,这台二合一平板笔记本能和传统笔记本一样处理你的工作任务。

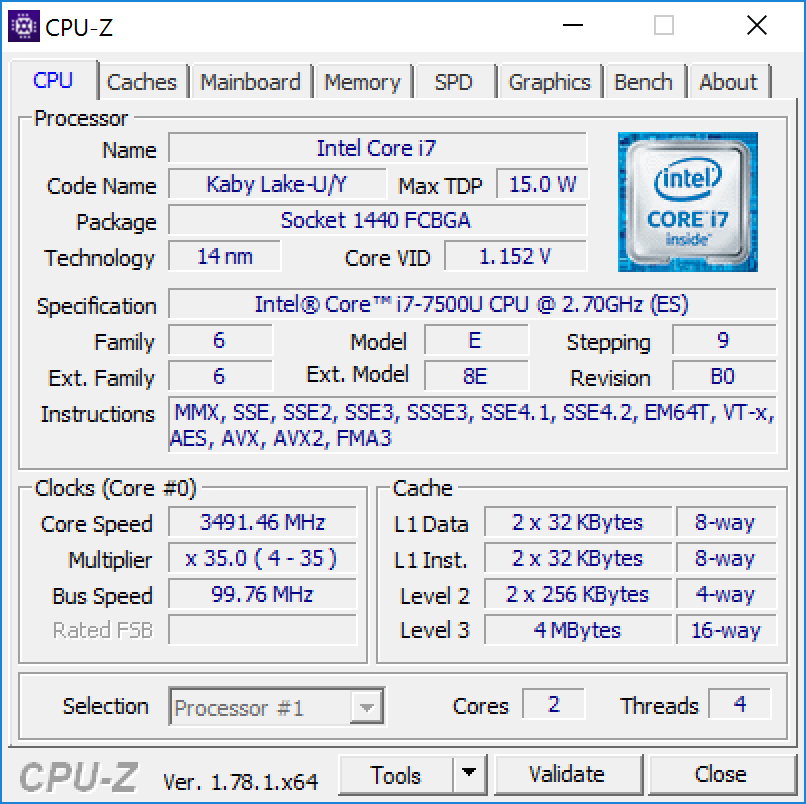

System info: CPU-Z CPU

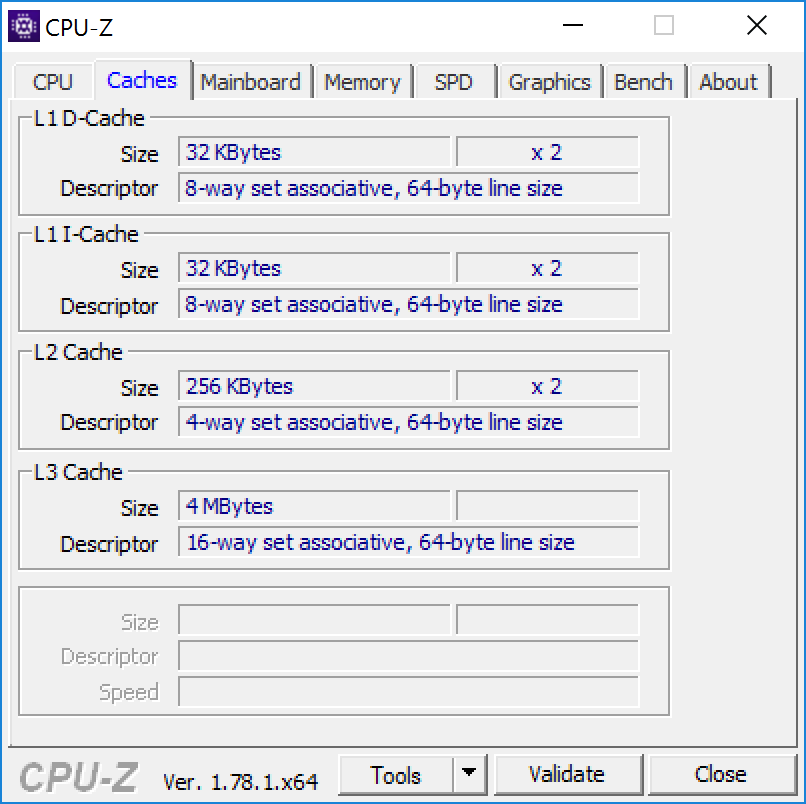

System info: CPU-Z Cache

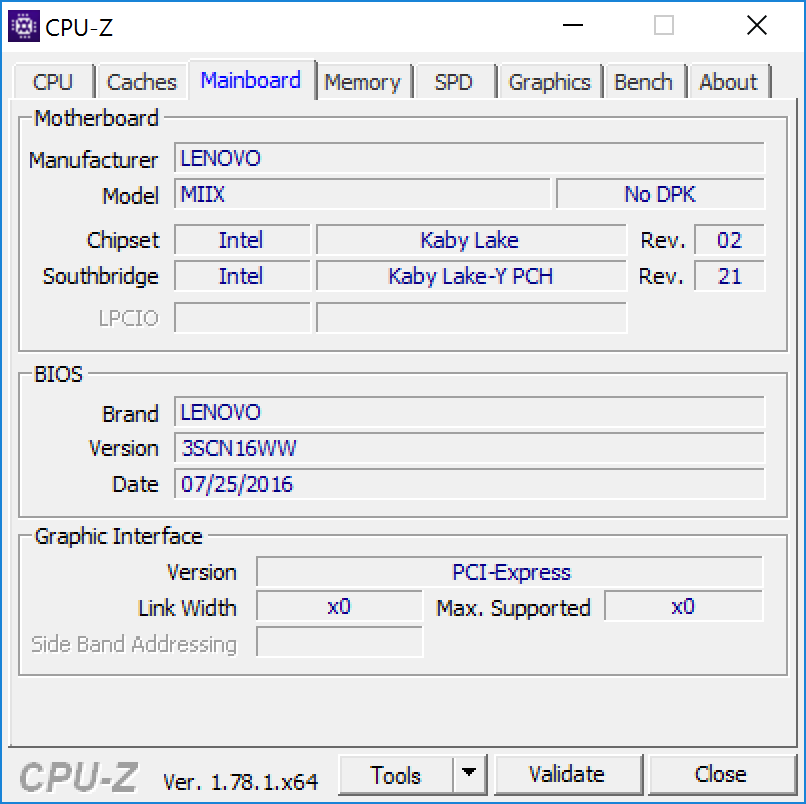

System info: CPU-Z Motherboard

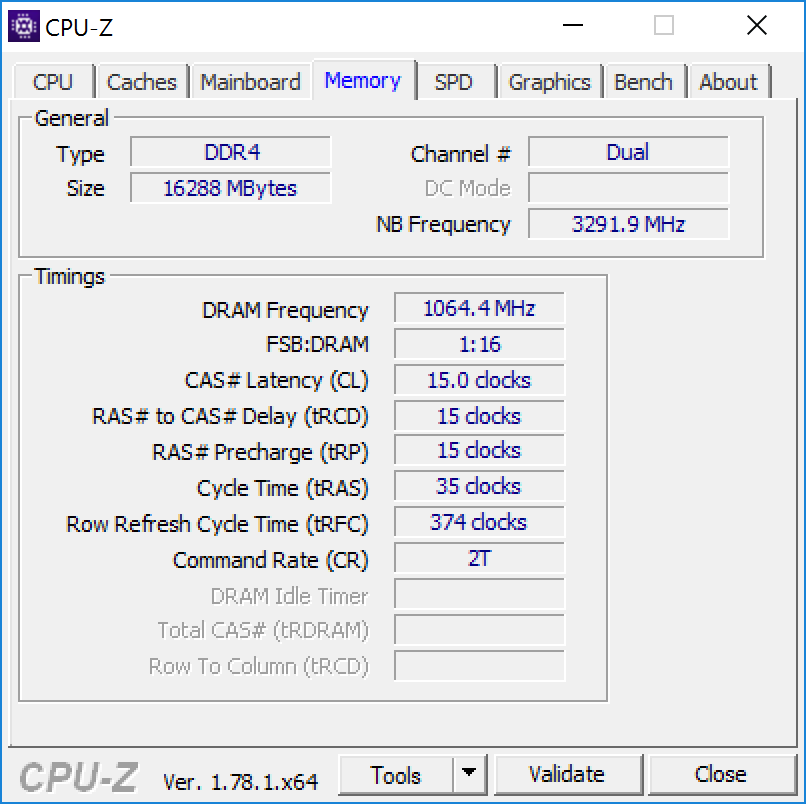

System info: CPU-Z Memory

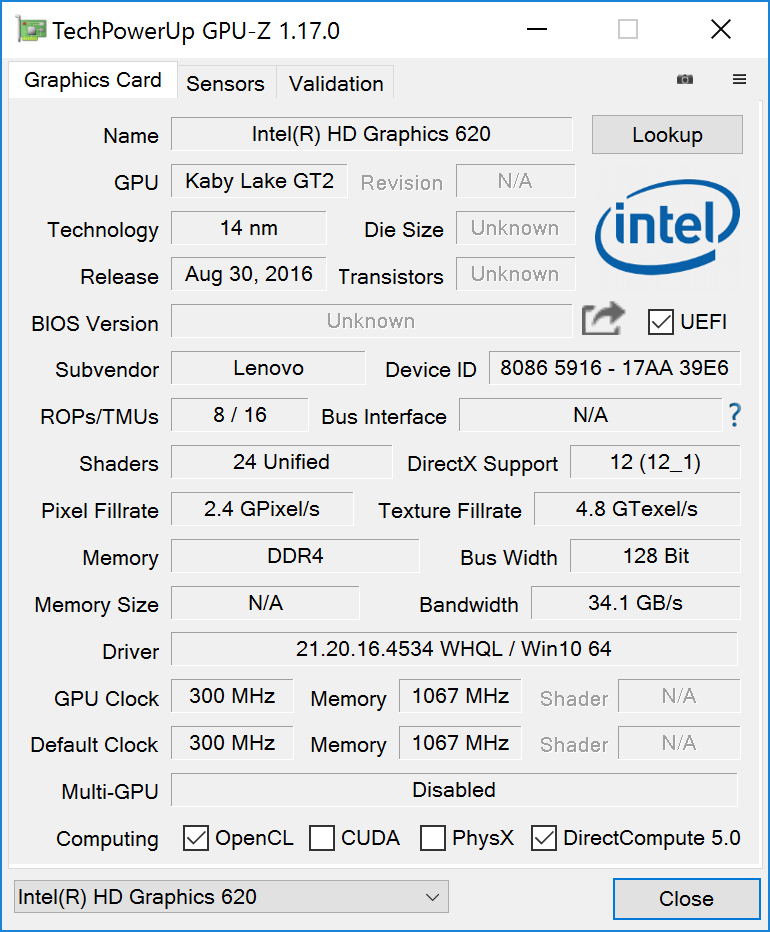

System info: gPU-Z HD 620

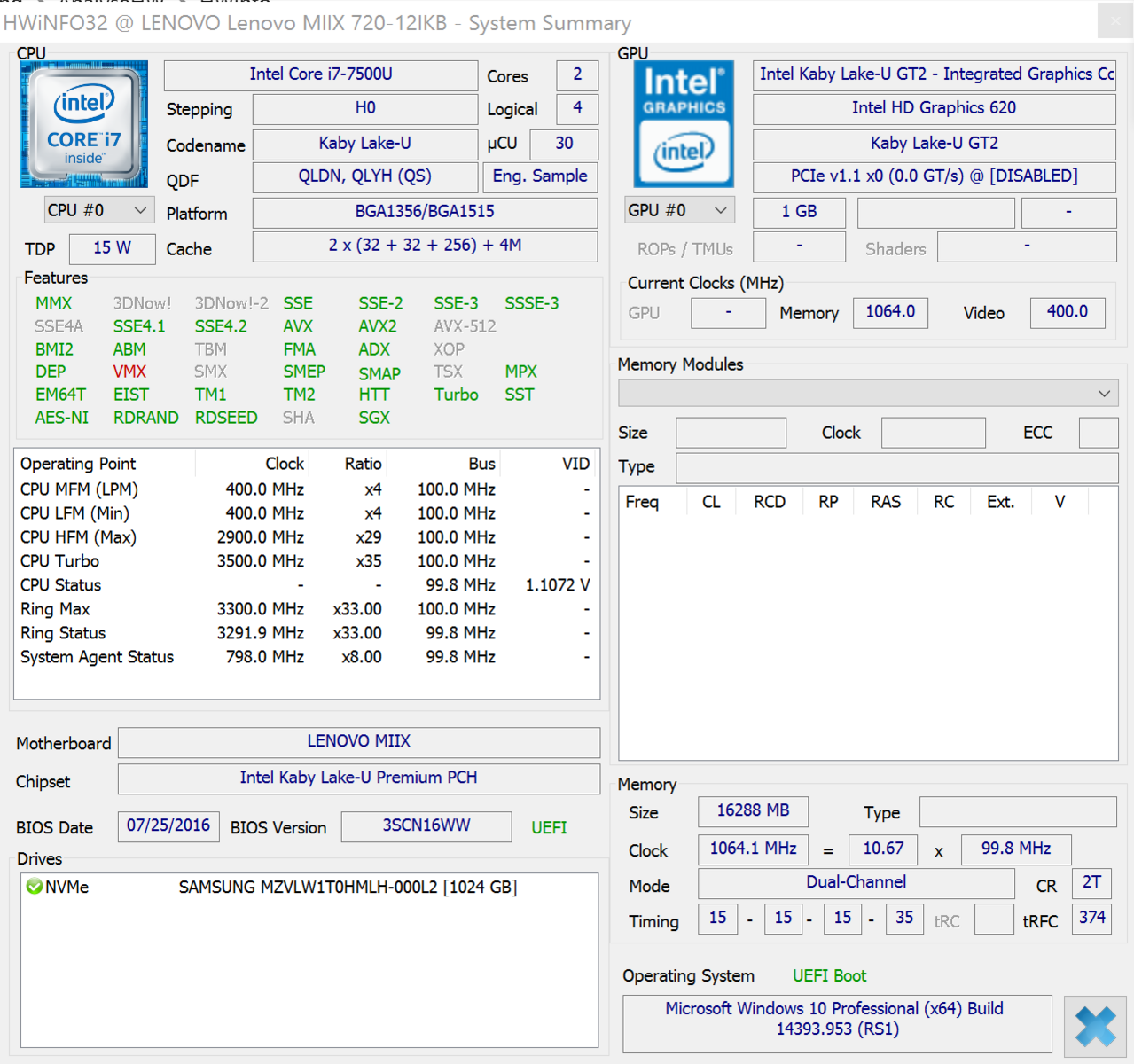

System info: HW info Summary

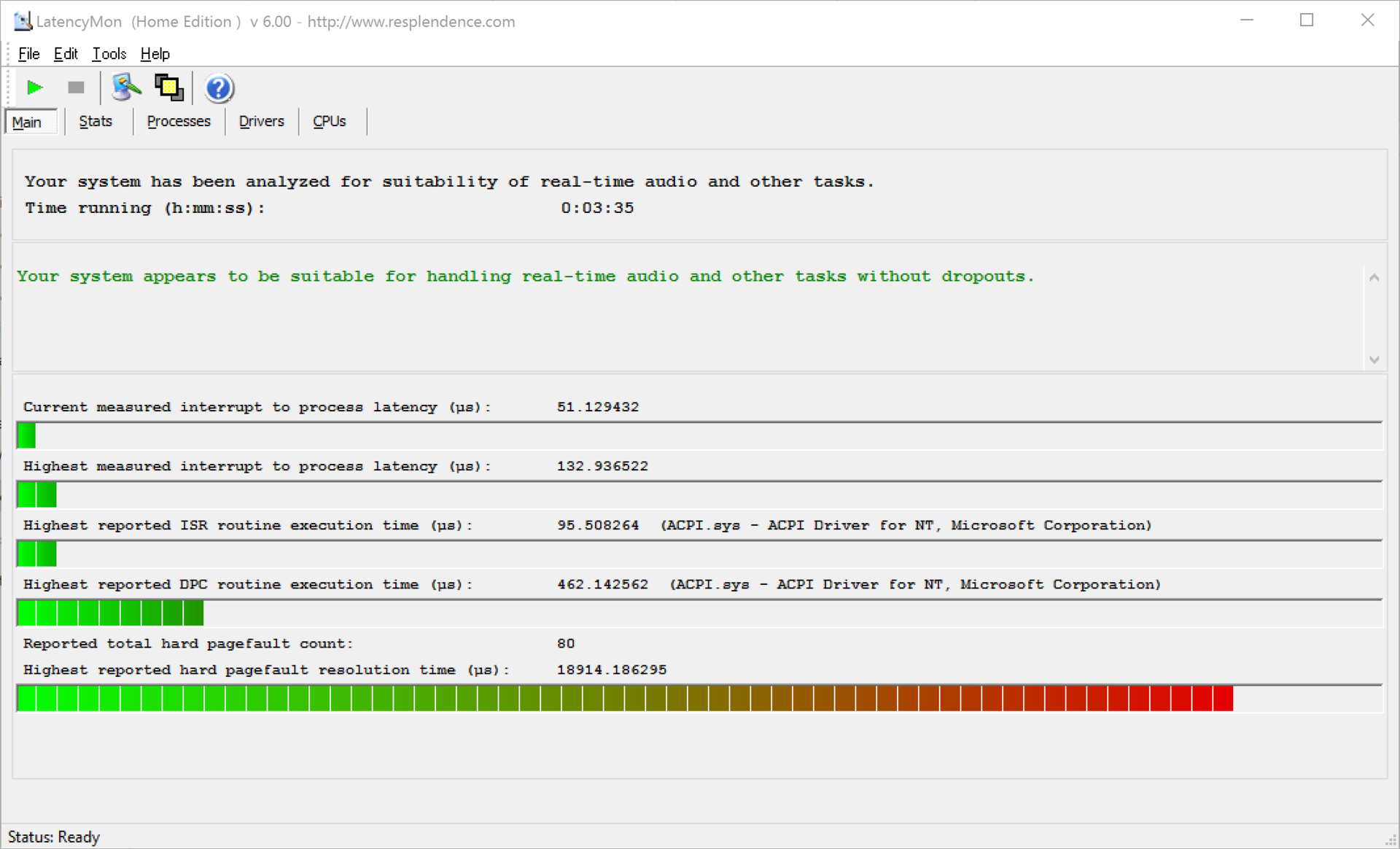

System info: Latencies


处理器

这处理器环节我们还是使用老朋友Prime 95进行压力测试。这颗英特尔酷睿i7-7500U表现正常,时钟频率维持在2.7GHz的水平(最大可酷睿加速到3.5GHz),持续压力测试负载后会进一步降频到2.1-2.2GHz,这时CPU的温度传感器显示温度为68°C。

用Cinebench R15进行跑分测试结果大致相同,在软件运行几秒钟后就会出现降频现象。即,刚开始时CPU以2.3GHz的时针速度运行,随后降频至2.1 GHz,遗憾的是在Miix 720上并没有酷睿加速的选项。Cinebench R15得分如下图,这段时间内功耗降低了10%。

Stress: Prime95 2.1 - 2.2 GHz
Stress: Prime95 2.1 - 2.2 GHz

综上,i7-7500U在Miix 720上能够正常水准发挥,虽然低于2.7GHz的基础主频,R15基准测试也不是压力测试其实。Miix 720上这颗最新的Kaby Lake i7处理器在R15测试中不敌Surface Pro 4的i7-6650U, 但是在多核测试中碾压Acer Aspire Switch Alpha 12的i5-6200U还是没有问题的。

0102030405060708090100110120130140150160170180190200210220230240250260270280Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U
132 Points ∼49% +2%
Lenovo Ideapad Miix 720-12IKB
Intel Core i7-7500U
130 Points ∼48%
Asus Transformer 3 Pro T303UA-GN050T
Intel Core i7-6500U
117 Points ∼43% -10%
Lenovo Miix 510 Pro 80U10006GE
Intel Core i5-6200U
116 Points ∼43% -11%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
114 Points ∼42% -12%
HP Elite x2 1012 G1
Intel Core m5-6Y54
111 Points ∼41% -15%
Dell XPS 12 9250 4K
Intel Core m7-6Y75
104 Points ∼38% -20%
CPU Multi 64Bit
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U
342 Points ∼8% +29%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
289 Points ∼6% +9%
Lenovo Ideapad Miix 720-12IKB
Intel Core i7-7500U
265 Points ∼6%
HP Elite x2 1012 G1
Intel Core m5-6Y54
255 Points ∼6% -4%
Lenovo Miix 510 Pro 80U10006GE
Intel Core i5-6200U
246 Points ∼5% -7%
Asus Transformer 3 Pro T303UA-GN050T
Intel Core i7-6500U
221 Points ∼5% -17%
Dell XPS 12 9250 4K
Intel Core m7-6Y75
196 Points ∼4% -26%
Cinebench R15 CPU Single 64Bit
130 Points
Cinebench R15 CPU Multi 64Bit
265 Points
Cinebench R15 OpenGL 64Bit
37.14 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Help

系统表现

Miix 720的应用程序性能也受到了其微弱计算能力的影响,在PCMark 8 work模式中或因磁盘阵列的原因有些优势,但在Home模式中甚至不敌Acer Aspire Switch Alpha 12。

PCMark各项成绩对比可见下表,不同机型间差距甚微,然而,这里必须对Miix 720进行评判的一点就是,其内建的固态磁盘阵列可以算是前沿技术,但是却被捉急的计算性能拖了后腿,结果就是系统性能测试甚至比老旧的更便宜的平台还要低些,真是不太应该。

PCMark 8
Home Score Accelerated v2
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
3394 Points ∼54% +7%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3281 Points ∼52% +3%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
3264 Points ∼52% +2%
Lenovo Ideapad Miix 720-12IKB
HD Graphics 620, i7-7500U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3186 Points ∼51%
Asus Transformer 3 Pro T303UA-GN050T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
2985 Points ∼48% -6%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2983 Points ∼48% -6%
Dell XPS 12 9250 4K
HD Graphics 515, 6Y75, Samsung PM951 NVMe 512 GB
2277 Points ∼36% -29%
Work Score Accelerated v2
Lenovo Ideapad Miix 720-12IKB
HD Graphics 620, i7-7500U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
4216 Points ∼59%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
4197 Points ∼59% 0%
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
4052 Points ∼57% -4%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3996 Points ∼56% -5%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
3932 Points ∼55% -7%
Asus Transformer 3 Pro T303UA-GN050T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
3830 Points ∼54% -9%
Dell XPS 12 9250 4K
HD Graphics 515, 6Y75, Samsung PM951 NVMe 512 GB
3084 Points ∼43% -27%
PCMark 8 Home Score Accelerated v2
3186 points
PCMark 8 Work Score Accelerated v2
4216 points
Help

存储设备

Miix 720里面这快三星PM961 (M.2 PCIe 3.0 x4 NVMe)加上磁盘阵列功能可以说是存储界的佼佼者,在这轮测试中,竞品们落后大致43-65%。Miix 720在大块数据的读与写方面优势明显,只是,如果你只是将一块硬盘的数据拷贝到另外一块硬盘,或者通过Thunderbolt 3从外置拷贝进内置存储空间,这个优势不会发挥出来。

Lenovo Ideapad Miix 720-12IKB
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
Microsoft Surface Pro 4 Core i7
Samsung MZFLV256 NVMe
Asus Transformer 3 Pro T303UA-GN050T
SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
Lenovo Miix 510 Pro 80U10006GE
Samsung PM951 NVMe MZVLV256
Acer Aspire Switch Alpha 12 SA5-271-56HM
Kingston RBU-SNS8152S3256GG2
HP Elite x2 1012 G1
Liteon L8H-256V2G
Dell XPS 12 9250 4K
Samsung PM951 NVMe 512 GB
CrystalDiskMark 3.0
-51%
-65%
-43%
-65%
-60%
-55%
Read Seq
2408
833.7
-65%
398.9
-83%
1271
-47%
518.1
-78%
500.5
-79%
984.4
-59%
Write Seq
1702
304
-82%
402
-76%
305.4
-82%
199.9
-88%
297.2
-83%
525.3
-69%
Read 512
1301
396.7
-70%
303.1
-77%
650.7
-50%
374.9
-71%
351.7
-73%
428.7
-67%
Write 512
1288
304.3
-76%
320.3
-75%
305.2
-76%
201
-84%
295.7
-77%
176.6
-86%
Read 4k
53.62
40.75
-24%
26.11
-51%
41.07
-23%
29.3
-45%
28.31
-47%
37.31
-30%
Write 4k
162.2
106.3
-34%
57.65
-64%
122.7
-24%
76.83
-53%
90.27
-44%
104
-36%
Read 4k QD32
504.1
393.1
-22%
245.8
-51%
411.2
-18%
272
-46%
285
-43%
254.4
-50%
Write 4k QD32
420.8
292.3
-31%
253.8
-40%
305.1
-27%
197.1
-53%
268.4
-36%
234.1
-44%
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
Sequential Read: 2408 MB/s
Sequential Write: 1702 MB/s
512K Read: 1301 MB/s
512K Write: 1288 MB/s
4K Read: 53.62 MB/s
4K Write: 162.2 MB/s
4K QD32 Read: 504.1 MB/s
4K QD32 Write: 420.8 MB/s

显卡

英特尔HD 620核芯显卡基本沿用了上一代的技术,但是技术参数上却又有所不同。理论上,与频率更高的DDR4相结合,核显更能发挥其性能,但是在Miix 720上却不是这么回事,在Miix 720上HD620的性能得分可以比其他设备的HD520还要差。7代i7版的Miix 720显卡性能不敌6代i5的Acer Aspire Switch Alpha 12,更别说Surface Pro 那块有着最强核显之称的Iris 540,后者有着73%的性能优势。

3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Pro 4 Core i7
Intel Iris Graphics 540, Intel Core i7-6650U
2450 Points ∼4% +73%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel HD Graphics 520, Intel Core i5-6200U
1428 Points ∼2% +1%
Lenovo Ideapad Miix 720-12IKB
Intel HD Graphics 620, Intel Core i7-7500U
1416 Points ∼2%
Lenovo Miix 510 Pro 80U10006GE
Intel HD Graphics 520, Intel Core i5-6200U
1306 Points ∼2% -8%
Asus Transformer 3 Pro T303UA-GN050T
Intel HD Graphics 520, Intel Core i7-6500U
1271 Points ∼2% -10%
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
1200 Points ∼2% -15%
Dell XPS 12 9250 4K
Intel HD Graphics 515, Intel Core m7-6Y75
1008 Points ∼2% -29%
3DMark - 1280x720 Cloud Gate Standard Graphics
Microsoft Surface Pro 4 Core i7
Intel Iris Graphics 540, Intel Core i7-6650U
11650 Points ∼6% +60%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel HD Graphics 520, Intel Core i5-6200U
7307 Points ∼4% +1%
Lenovo Ideapad Miix 720-12IKB
Intel HD Graphics 620, Intel Core i7-7500U
7270 Points ∼4%
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
6308 Points ∼3% -13%
Lenovo Miix 510 Pro 80U10006GE
Intel HD Graphics 520, Intel Core i5-6200U
6271 Points ∼3% -14%
Asus Transformer 3 Pro T303UA-GN050T
Intel HD Graphics 520, Intel Core i7-6500U
6137 Points ∼3% -16%
Dell XPS 12 9250 4K
Intel HD Graphics 515, Intel Core m7-6Y75
4362 Points ∼2% -40%
3DMark 11 Performance
1558 points
3DMark Cloud Gate Standard Score
5620 points
Help

游戏表现

同样为二合一平板PC设备,搭载Iris 540的Surface Pro 4一骑绝尘,华硕的Transformer 3 Pro T303UA表现也不差。尽管采用DDR4以及双通道保障,不知为何Miix 720的这颗HD620的游戏表现就是很差。这里运行两个游戏进行和测试,在生化奇兵:无限中i7版的Surface Pro 4中等画质768P下能达到49.1帧,而Miix 720只能29帧;古墓丽影10低画质1024分辨率下只有16.7帧,华硕Transformer 3 Pro稍好点,为20帧。能只能说,核显真的不适合玩游戏吧。

BioShock Infinite - 1366x768 Medium Preset
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
49.1 fps ∼100% +69%
Lenovo Ideapad Miix 720-12IKB
HD Graphics 620, i7-7500U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
29 fps ∼59%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
28.6 fps ∼58% -1%
Asus Transformer 3 Pro T303UA-GN050T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
26.9 (12.1min - 67.2max) fps ∼55% -7%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
24.9 fps ∼51% -14%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
24.6 fps ∼50% -15%
Dell XPS 12 9250 4K
HD Graphics 515, 6Y75, Samsung PM951 NVMe 512 GB
17.37 (7.16min - 64.81max) fps ∼35% -40%
Thief - 1024x768 Very Low Preset
Lenovo Ideapad Miix 720-12IKB
HD Graphics 620, i7-7500U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
21.7 fps ∼100%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
18.2 fps ∼84% -16%
Rise of the Tomb Raider - 1024x768 Lowest Preset
Asus Transformer 3 Pro T303UA-GN050T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
20 fps ∼100% +20%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
17.4 fps ∼87% +4%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
17 fps ∼85% +2%
Lenovo Ideapad Miix 720-12IKB
HD Graphics 620, i7-7500U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
16.7 fps ∼84%
Dell XPS 12 9250 4K
HD Graphics 515, 6Y75, Samsung PM951 NVMe 512 GB
8.3 (7min - 10max) fps ∼42% -50%
low med. high ultra
BioShock Infinite (2013) 48 29 24.7 7.4 fps
Thief (2014) 21.7 14.1 11.7 5.7 fps
Rise of the Tomb Raider (2016) 16.7 10.2 5.5 fps

排放系统

系统噪音

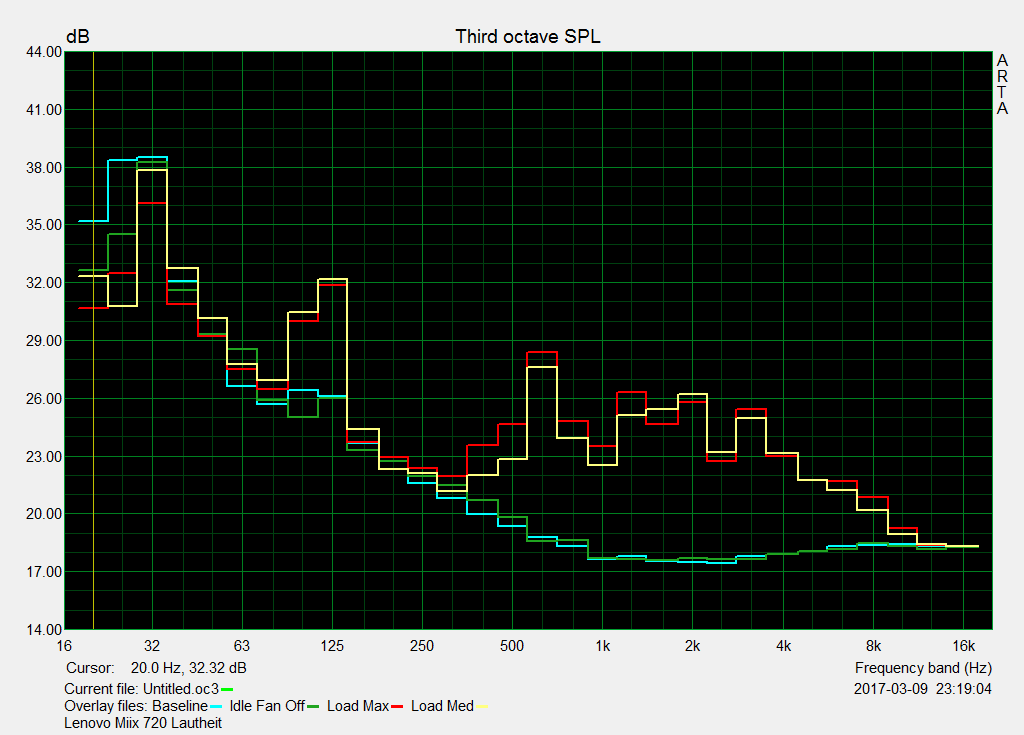

Volume Characteristics
Volume Characteristics
Miix 720 air outlet
Miix 720 air outlet

同样为二合一平板PC设备,搭载Iris 540的Surface Pro 4一骑绝尘,华硕的Transformer 3 Pro T303UA表现也不差。尽管采用DDR4以及双通道保障,不知为何Miix 720的这颗HD620的游戏表现就是很差。这里运行两个游戏进行和测试,在生化奇兵:无限中i7版的Surface Pro 4中等画质768P下能达到49.1帧,而Miix 720只能29帧;古墓丽影10低画质1024分辨率下只有16.7帧,华硕Transformer 3 Pro稍好点,为20帧。能只能说,核显真的不适合玩游戏吧。

在Cinebench测试和压力测试中Miix 720风扇产生的噪音为36分贝,风扇声音很明显,但也很有效地把处理器温度降至68°C。当机器空载时风扇基本不转,其他时候基本上以32分贝水平低速转动。但是,这个数据带有欺骗性,因为当CPU负载仅为30%时风扇也会全速转动,噪音也是断断续续。

Noise Level

Idle
30.4 / 32.4 / 32.4 dB(A)
Load
36 / 36.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.330.732.735.232.32530.732.534.538.430.73137.836.138.338.537.84032.830.931.632.132.85030.229.229.329.330.26327.727.528.626.627.78026.926.525.925.726.910030.4302526.430.412532.231.92626.132.216024.423.723.323.724.420022.322.922.722.722.325022.122.32221.622.131521.22221.520.821.24002223.620.7202250022.824.619.819.422.863027.628.418.518.827.680023.924.818.618.323.9100022.523.517.717.622.5125025.126.317.617.825.1160025.424.717.617.525.4200026.225.817.717.526.2250023.222.717.717.423.2315024.925.417.617.824.9400023.12317.917.923.1500021.721.71818.121.7630021.221.718.218.321.2800020.220.818.418.420.2100001919.318.318.4191250018.418.418.218.318.41600018.318.318.318.318.3SPL3636.330.430.436N2.42.51.41.42.4median 22.8median 23.5median 18.3median 18.3median 22.8Delta1.81.821.91.83838.438.839.33836.238.740.636.736.232.433.431.234.132.432.532.532.831.632.531.332.933.332.831.334.632.932.233.834.630.130.230.930.230.129.129.729.129.329.12727.827.425.92726.327.426.826.426.326.326.625.926.526.324.625.224.724.324.624.825.125.323.724.822.92525.322.422.922.225.625.222.322.221.627.827.521.521.620.525.825.520.920.520.124.724.819.620.119.625.525.619.519.619.227.627.71919.21926.226.118.61918.726.927.318.418.718.725.325.318.418.718.723.223.318.318.718.521.821.618.518.518.62020.218.518.618.619.519.718.518.618.318.918.918.418.318.118.318.518.118.118.218.318.318.118.231.937.137.131.831.91.72.72.71.71.7median 19.6median 25.3median 25.3median 19.5median 19.62.42.62.42.62.4hearing rangehide median Fan NoiseLenovo Ideapad Miix 720-12IKBAsus Transformer 3 Pro T303UA-GN050T

温度

Stress test Prime95+FurMark: 1,3 GHz constant
Stress test Prime95+FurMark: 1,3 GHz constant

在上面噪音测试也提到,Miix 720的风扇噪音其实不小,那么能够压得住热吗?答案是刚好压得住。当机器空载时平均温度为30度,平常使用时温度在36到44°之间,基本上微温水平。下面的热图像显示的温度比表面体感到温度要高一些。

Miix 720在压力测试环节表现比较不尽如意,CPU频率疯狂掉至1.3GHz,显卡时钟频率为798MHz,处理器温度在68度左右。看来,作为一台可触摸的平板,联想在尽量控制Miix 720的机身温度,即使是牺牲性能为代价。

 32.8 °C30.4 °C28.2 °C
 32.1 °C29.4 °C26 °C
 31.4 °C32.4 °C29.4 °C
Maximum: 32.8 °C
Average: 30.2 °C
29 °C32.4 °C35 °C
26.2 °C30.6 °C36.4 °C
26.1 °C28.8 °C29.8 °C
Maximum: 36.4 °C
Average: 30.5 °C
Power Supply (max.)  30.2 °C | Room Temperature 20.3 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 35.9 °C / 97 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.6 °C / 110 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.2 °C / 86 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.5 °C / 99.5 F.
(-) The average temperature of the palmrest area of similar devices was 28.6 °C / 83.5 F (-8.9 °C / -16 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.335.233.32533.538.433.53136.738.536.74031.432.131.45030.829.330.86326.926.626.98028.725.728.710033.726.433.712540.726.140.716045.323.745.320046.722.746.725039.921.639.931548.320.848.340063.82063.850063.519.463.563062.518.862.580063.218.363.2100056.717.656.712505417.854160055.317.555.320004717.547250052.317.452.3315051.917.851.9400054.417.954.4500061.318.161.3630058.718.358.7800052.918.452.91000047.518.447.51250042.418.342.41600033.618.333.6SPL69.830.469.8N261.426median 52.3median 18.3median 52.3Delta5.71.95.739.639.339.63936.73937.734.137.736.931.636.939.132.839.141.233.841.240.630.240.642.929.342.943.425.943.446.526.446.550.426.550.449.224.349.258.123.758.159.522.459.562.222.362.258.221.558.256.120.956.160.719.660.759.519.559.559.71959.764.718.664.76718.46769.118.469.169.718.369.772.718.572.770.418.570.465.618.565.666.518.466.562.418.162.453.518.153.579.231.879.242.51.742.5median 59.7median 19.5median 59.76.62.66.6hearing rangehide median Pink NoiseLenovo Ideapad Miix 720-12IKBAsus Transformer 3 Pro T303UA-GN050T
Lenovo Ideapad Miix 720-12IKB audio analysis

(-) | not very loud speakers (64 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.9% lower than median
(-) | bass is not linear (16.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.3% higher than median
(±) | linearity of mids is average (13.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (12.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.7% difference to median)
Compared to same class
» 61% of all tested devices in this class were better, 6% similar, 33% worse
» The best had a delta of 9%, average was 21%, worst was 53%
Compared to all devices tested
» 57% of all tested devices were better, 8% similar, 35% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Asus Transformer 3 Pro T303UA-GN050T audio analysis

(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.2% lower than median
(±) | linearity of bass is average (8.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.8% away from median
(+) | mids are linear (6.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 9% higher than median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.6% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 5% similar, 67% worse
» The best had a delta of 9%, average was 21%, worst was 53%
Compared to all devices tested
» 24% of all tested devices were better, 6% similar, 70% worse
» The best had a delta of 3%, average was 21%, worst was 65%

能耗管理

功耗

空载时Miix 720功耗大致在3.5-8w的水平,普通使用时这个数值升至30w,所以官配的45w电源适配器搓搓有余。而最大负载(Strestestest95 + FurMark)的功耗则视情况而定,毕竟有温度墙功耗墙这些东西在发挥着作用,这种情况在二合一产品中普遍存在,唯一例外的是Acer的Aspire Switch Alpha 12和搭载Core M的惠普Elite x2 1012 G1。

Power Consumption
Off / Standbydarklight 0.5 / 0.85 Watt
Idledarkmidlight 3.5 / 7.2 / 7.9 Watt
Load midlight 29.6 / 30.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo Ideapad Miix 720-12IKB
i7-7500U, HD Graphics 620, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), IPS, 2880x1920, 12.00
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520, Samsung MZFLV128 NVMe, IPS, 2736x1824, 12.30
Asus Transformer 3 Pro T303UA-GN050T
6500U, HD Graphics 520, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND), IPS, 2880x1920, 12.60
Lenovo Miix 510 Pro 80U10006GE
6200U, HD Graphics 520, Samsung PM951 NVMe MZVLV256, IPS, 1920x1200, 12.20
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, Kingston RBU-SNS8152S3256GG2, IPS, 2160x1440, 12.00
HP Elite x2 1012 G1
6Y54, HD Graphics 515, Liteon L8H-256V2G, IPS, 1920x1280, 12.10
Dell XPS 12 9250 4K
6Y75, HD Graphics 515, Samsung PM951 NVMe 512 GB, IPS, 3840x2160, 12.50
Power Consumption
-3%
-37%
-24%
-31%
3%
-21%
Idle Minimum *
3.5
4.4
-26%
6.7
-91%
4.2
-20%
7.3
-109%
3.7
-6%
5.4
-54%
Idle Average *
7.2
9
-25%
10.3
-43%
11.5
-60%
10
-39%
6.8
6%
10.2
-42%
Idle Maximum *
7.9
10.7
-35%
13.5
-71%
11.7
-48%
10.15
-28%
7.6
4%
12.5
-58%
Load Average *
29.6
19.6
34%
26
12%
31
-5%
25.2
15%
22.5
24%
21.4
28%
Load Maximum *
30.8
19.9
35%
28.8
6%
27.4
11%
29.3
5%
34.5
-12%
24.4
21%

* ... smaller is better

电池续航

无线上网测试中Miix 720坚持了5小时45分,最低亮度空载下这个时长可达到12小时。Miix 720的电池续航无法满足一整天的工作需求,但其他竞品也不见得可以。惠普的Elite x2 1012 G1能够达到这个要求,但是其搭载的是超低功耗的Core M处理器,微软的Surface Pro 4 i7版本的续航时间也不过5小时其实,不过core m的低配版续航可以达到9个小时。

Battery Runtime
Idle (without WLAN, min brightness)
11h 53min
NBC WiFi Websurfing Battery Test 1.3
5h 45min
Load (maximum brightness)
1h 51min
Lenovo Ideapad Miix 720-12IKB
i7-7500U, HD Graphics 620, 41 Wh
Microsoft Surface Pro 4 Core i7
6650U, Iris Graphics 540, 38 Wh
Asus Transformer 3 Pro T303UA-GN050T
6500U, HD Graphics 520, 39 Wh
Lenovo Miix 510 Pro 80U10006GE
6200U, HD Graphics 520, 50 Wh
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, 37 Wh
HP Elite x2 1012 G1
6Y54, HD Graphics 515, 37 Wh
Dell XPS 12 9250 4K
6Y75, HD Graphics 515, 28 Wh
Battery Runtime
-17%
-28%
-3%
-5%
16%
-31%
Reader / Idle
713
654
-8%
426
-40%
696
-2%
640
-10%
732
3%
370
-48%
WiFi v1.3
345
293
-15%
223
-35%
322
-7%
321
-7%
443
28%
243
-30%
Load
111
79
-29%
102
-8%
111
0%
112
1%
130
17%
93
-16%
H.264
206
468
432



联想拿出了IdeaPad Miix 720来对抗Surface Pro 4,亮出了自己的3:2比例超高分辨率屏幕。Miix 720屏幕分辨率为2880 x 1920 ,比Surface Pro 4的2736 x 1824要稍高一些,只是色域空间太低,联想是不是有点吝啬了呢,毕竟离完美屏幕只有一步之遥。

那么联想Miix 720的优势在哪呢。两个全尺寸的USB 3.0接口加上一个Thunderbolt 3 USB C口,再搭配时髦的Windows Hello红外人脸识别,对于一款平板PC设备而言可以说是丧心病狂了,技术参数方面最先的Kaby Lake处理器和RAID磁盘阵列也可以说是Miix 720的竞争优势。

不幸的是,Miix 720无法发挥第7代酷睿i7的性能水平,在日常使用中大概有10%的性能损失。其处理器的单核性能与Surface Pro 4的6代i7相当,而多核性能则与第6代的i5差不多同一水平线,至少R15 多核基准得分略低于Acer Aspire Switch Aplha 12(i5)。

而价格方面,Acer Switch Alpha 12 i5版售价为750欧元,微软Surface Pro 4键盘套装(i5-6300U)为1200欧元,所以这里有个问题:当Miix 720的实际性能低于预期时还值得买吗?

当然,Miix 720一点都不便宜,本次评测的配置为i7-7500U, 16GB内存以及1TB的固态硬盘,售价1700欧元。普通用户其实可以购买256GB版或者128GB版搭配酷睿i3或者i5-7200U就差不多了,定价约为1070欧元。

总之,12寸大小的机身足以享受Thunderbolt 3带来的拓展优势,此外电池续航、屏幕、红外人脸识别以及可拆卸带背光键盘都是Miix 720的优点。现在就等降价了,如果i3版价格跌至900欧元的话,是个不错的购机选择。

Pros

+ 极好的3:2屏幕
+ 高速WiFi
+ 全USB口和Thunderbolt 3接口
+ 键盘反馈不错
+ 高速固态硬盘

Cons

- 风扇噪音大,即使轻度使用
- 10%的CPU性能损失
- 内置麦克风有缺陷

Lenovo Ideapad Miix 720-12IKB - 03/21/2017 v6(old)
Sebastian Jentsch

Chassis
86 / 98 → 88%
Keyboard
90%
Pointing Device
87%
Connectivity
49 / 80 → 61%
Weight
73 / 35-78 → 89%
Battery
86%
Display
85%
Games Performance
56 / 68 → 82%
Application Performance
81 / 87 → 93%
Temperature
88%
Noise
85%
Audio
31 / 91 → 35%
Camera
63 / 85 → 74%
Average
74%
85%
Convertible - Weighted Average

Pricecompare

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 联想IdeaPad Miix 720 (7500U, QHD) 变形本评测
Sebastian Jentsch, 2017-04- 9 (Update: 2017-04-11)
